Article

Mono-, Bis-, and Tris-Chelate Zn(II) Complexes with Imidazo[1,5-a]pyridine: Luminescence and Structural Dependence

Department of Chemistry, University of Turin, Via Pietro Giuria 7, 10125 Torino, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(9), 3703; https://doi.org/10.3390/molecules28093703
Submission received: 11 April 2023 / Revised: 21 April 2023 / Accepted: 22 April 2023 / Published: 25 April 2023
(This article belongs to the Special Issue Synthesis and Applications of Transition Metal Complexes)

Abstract

:
New mono-, bis-, and tris-chelate Zn(II) complexes have been synthesized starting from different Zn(II) salts and employing a fluorescent 1,3-substituted-imidazo[1,5-a]pyridine as a chelating ligand. The products have been characterized by single-crystal X-ray diffraction; mass spectrometry; and vibrational spectroscopy. The optical properties have been investigated to compare the performances of mono-, bis-, and tris-chelate forms. The collected data (in the solid state and in solution) elucidate an important modification of the ligand conformation upon metal coordination; which is responsible for a notable increase in the optical performance. An intense modification of the emission quantum yield along the series in the solid state is observed comparing mono-, bis-, and tris-chelate adducts; independently from the anionic ligand introduced by ionic exchange.

1. Introduction

The design of luminescent metal complexes for materials science is of fundamental importance in expanding the technological applications of inorganic complexes. In particular, the demand for optically efficient materials prompts researchers to develop new fluorescent organic molecules/ligands and corresponding luminescent complexes suitable for imaging, lightening, and energy-conversion applications [1,2,3,4,5,6,7,8,9]. Their design is driven by the necessity to optimize the optical performance controlling the chemical structure, the chemical stability, and the excited states of the synthesized molecular scaffolds. In this regard, the applications of luminescent complexes of earth-abundant metals such as iron, copper, and zinc are relatively sparse in comparison to the most studied precious transition metals (such as Pt, Ir, Ru, or Re) [10,11,12,13,14,15,16].
In the literature, the investigation of luminescent Zn(II) complexes is well-documented in developing luminescent materials for organic light-emitting diodes (OLEDs) and light-emitting electrochemical cells (LECs) [17,18,19,20,21].
Here, we describe the synthesis and characterization of a series of Zn(II) complexes, based on the combination of a chelating 1,3-substituted-imidazo[1,5-a]pyridine (namely 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine L, Scheme 1) with three anions (Cl, NO3, SCN), acting as ligands or counterions. Our results demonstrate how finely balanced the factors influencing mono-, bis-, or tris-chelation can be and should aid the future rational development of stable and low-cost emitters.
Imidazo[1,5-a]pyridine derivatives are well known in the literature due to their intense emission, optical tunability, and ligand capability [22,23,24,25,26,27]. In general, imidazo[1,5-a]pyridines have been employed for different applications such as cancer therapy [28,29], confocal microscopy [30,31], down-shifting conversion [32,33], and as molecular sensors [34,35,36,37,38,39,40,41]. When an appropriate substituent (such as OH) is introduced in position three, the modified imidazo[1,5-a]pyridine nucleus can be used as an N^O chelating ligand. Indeed, the literature reports several examples of emissive complexes obtained with Zn, Ag, Ni, Co, Pd, and Cu and N^O chelating and emissive 3-substituted imidazo[1,5-a]pyridines [11,42,43,44]. In this context, the imidazo[1,5-a]pyridine skeleton with a pendant OH-phenyl in position three could be considered equivalent to the well-known 8-hydroxyquinoline in the preparation of widely employed luminescent complexes such as tris-(8-hydroxyquinoline)aluminium, a well-known component of organic light-emitting diodes (OLEDs) [45]. However, if properly modified, this interesting class of heterocyclic compounds could be as versatile as the important families of bipyridine or phenanthroline ligands. As a matter of fact, the insertion of a pendant pyridine (in position one on the imidazo[1,5-a]pyridine nucleus) guarantees an N^N bidentate ligand motif, a molecular skeleton suitable for complexation reactions with different transition metal ions [8,46,47,48,49,50,51].
In the present work, 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine (L) is employed as a ligand to obtain differently structured Zn(II) complexes, leading towards optical modification and quantum-yield increases for promising optical and technological applications. In particular, employing this well-known fluorescent molecule, we obtained four new Zn(II) complexes; two mono-chelate, one bis-chelate, and one tris-chelate derivative. Different ancillary anionic ligands have been evaluated (Cl, NO3, SCN) starting from the corresponding Zn(II) salts or by means of ion exchange. Finally, the optical properties have been investigated in order to evaluate the luminescence and the structural dependence, elucidating the importance of ligands’ and counterions’ stoichiometry for the optical performance.

2. Results and Discussion

2.1. Synthesis

The ligand L was prepared as previously reported, by a direct one-pot cyclization synthetic approach, condensing di(2-pyridyl)ketone with benzaldehyde in acetic acid and ammonium acetate [46,47,48,49]. The purity was assessed by TLC, 1H, and 13C NMR spectroscopy (see Supplementary Materials).
The mono-chelate [Zn(L)Cl2] complex was synthesized by the reaction of ZnCl2 with a stoichiometric amount of L in methanol. Successively, [Zn(L)(NO3)2] was obtained by ionic exchange, adding AgNO3 to a methanolic solution of [Zn(L)Cl2]. Afterwards, [Zn(L)3][Zn(SCN)4] was obtained by precipitation, adding KSCN to a solution of [Zn(L)(NO3)2] (see Scheme 1). The bis-chelate [Zn(L)2(NO3)](NO3) complex was prepared by reacting Zn(NO3)2 with a stoichiometric amount of L in methanol. Successively, the tris-chelate [Zn(L)3][Zn(SCN)4] was obtained by precipitation, adding KSCN to a solution of [Zn(L)2(NO3)](NO3) (see Scheme 1).
All the complexes are yellow crystalline powders and were characterized by mass spectrometry; IR, Raman, and UV-Vis absorption and emission spectroscopies; and single-crystal X-ray diffraction (SC-XRD). Due to the extremely low solubility of these complexes in the common deuterated solvents, it was not possible to perform NMR characterization.
It is worth noting that while the direct reaction of ZnCl2 with L gives the corresponding mono-chelate [Zn(L)Cl2] complex, the direct reaction of Zn(NO3)2 with L gives the corresponding bis-chelate [Zn(L)2(NO3)](NO3) complex. Thus, we designed a synthetic strategy to obtain the mono-chelate complex with nitrate anions, not obtainable from Zn(NO3)2 by direct reaction. The adopted synthetic approach employs AgNO3 to eliminate chloride anions as an AgCl precipitate.
[Zn(L)3][Zn(SCN)4] was obtained by addition of KSCN to either a solution of mono-chelate [Zn(L)(NO3)2] or a solution of bis-chelate [Zn(L)2(NO3)](NO3) precursors (see Scheme 1).

2.2. Optical Characterization

The optical data obtained for the free ligand L and for the mono-, bis-, and tris-chelate Zn(II) complexes in dichloromethane solution are collected in Table 1, while the absorption and emission spectra are presented in Figure 1.
The free ligand L shows its main absorption features in the UV region, in the wavelength range between 280 nm and 380 nm. The main peak is centred at 224 nm, with a shoulder falling at 377 nm and almost no absorption beyond 400 nm.
The corresponding mono-chelate complexes (as well as the bis- and tris-chelate analogues) show three main absorptions: the first at about 310–330 nm, the second in the 350–360 nm range, and the third centred at 370–380 nm with a shoulder at 394–398 nm. All the complexes show a small blue shift when compared to the corresponding free ligand and an intense increase in the low-energy band at about 380 nm.
Imidazo[1,5-a]pyridine derivatives are well known in the literature as intense emitters [52,53,54,55,56]. Indeed, 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine (L) displays an intense fluorescence emission centred at 463 nm (in dichloromethane solution), with a quantum yield of 19% and a remarkable Stokes shift of 79 nm [22,57,58,59,60,61,62].
The emission spectra of all of the obtained complexes in dichloromethane solution show similar profiles and a comparable blue shift (about 20–25 nm) when compared to the corresponding free ligand (see Table 1 and Figure 1). In contrast to what has been reported in the literature for other N^N bidentate ligands, this peculiar observation has been previously reported by us for similar systems [63]. The observed blue shift is not related to the tested ancillary anionic ligand, nor to the tetrahedral or octahedral geometry of the mono-, bis-, and tris-chelate structures. In general, all the collected emissions show a defined and intense structured band centred at about 440 nm (surrounded by two shoulders at 415–420 and 460–465 nm) and more evident than for the free ligand (see Figure 1). This is clear evidence of the well-known intra-ligand π–π∗ character of the electronic transitions responsible for the fluorescence, as expected for a chelating imidazo[1,5-a]pyridine coordinated to a closed-shell Zn(II) ion [64,65]. This peculiarity has been previously reported by us for similar mono-chelate Zn(II) complexes as the result of the increased rigidity and the conformational modifications of the ligand (from transoid to cisoid) upon metal coordination [66].
In general, a marked increase in quantum yield can be observed passing from the free ligand to each of the complexes. Comparing mono-, bis-, and tris-chelate complexes in dichloromethane solutions, no appreciable difference was observed in the case of the two nitrate derivatives [(Zn(L)(NO3)2] and [Zn(L)2(NO3)](NO3); contrariwise, a notable difference in the quantum yield resulted for the thiocyanate [Zn(L)3][Zn(SCN)4], which showed a lower value (23%). The emission centred at λ = 400–460 nm can be ascribed to an LC (π–π*) electronic transition, in agreement with the vibrational profile and with the assignment reported in the literature for Cu, Ir, and Re analogues [46,47,48,49,51]. In conclusion, negligible differences can be observed in the emission profiles in solution of mono-, bis-, and tris-chelate complexes, even with the different tested anionic ancillary ligands, although the thiocyanate derivative shows a decrease in the optical performance.
The emission spectra of the complexes collected in the solid state (see Table 2 and Figure 2) show notably different profiles and optical performances when compared to the data collected in solution. In general, all the spectra show an emission band around 450–550 nm, with the loss of the vibrational profile. These emissions are red-shifted by about 20–40 nm when compared to the free ligand and by about 40–60 nm with respect to the emissions in solution. Additionally, in this case, an increase in quantum yield can be observed passing from the free ligand (5%) to the mono-chelated complexes (6% and 7% for [Zn(L)Cl2] and [Zn(L)(NO3)2], respectively). However, the quantum yields dramatically change along the series passing from mono- to bis- and tris-chelate forms (7%, 2%, and <1% respectively), highlighting a decreasing trend as a function of the stoichiometry. Even in the solid state, similar to the behaviour seen in solution, it can be noted that the role of the tested anionic ancillary ligands is almost irrelevant for the optical properties.

2.3. Structural Characterization

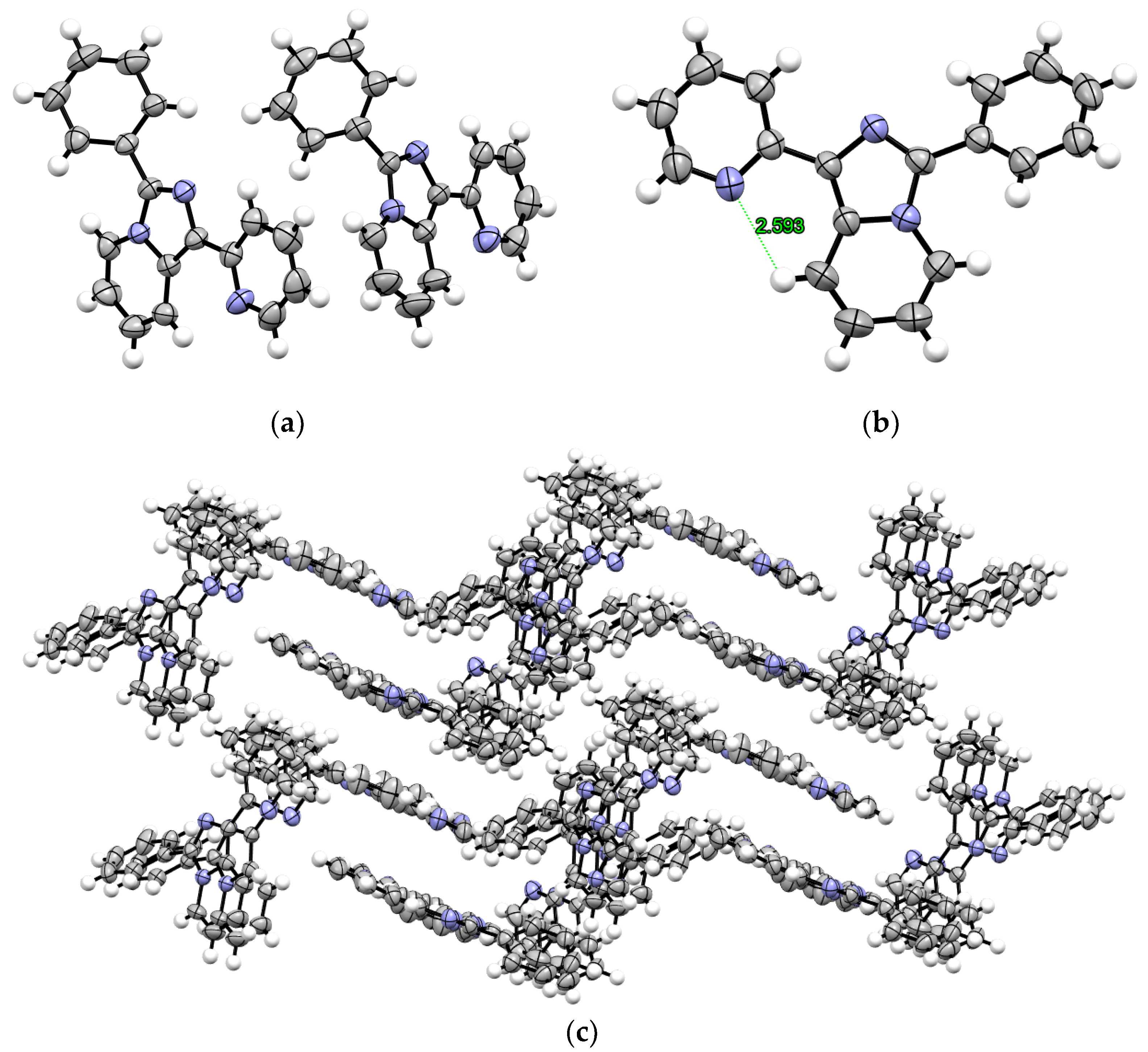

The employed ligand L crystallizes from CH2Cl2 in the P-1 space group and its asymmetric unit is formed by two molecules (Figure 3a). This peculiarity (Z > 2) is common for the imidazopyridine family [66]. As can be noticed from the crystal structure, the N atom of the pyridine ring is in a transoid conformation compared to the N atom of the imidazopyridine, and an intramolecular C–H···N bond between the N atom of the pyridine and the proximal H atom of the imidazopyridine can be observed (d(C–H···N) = 2.593(7) Å), Figure 3b). The crystal packing shows the classical herringbone pattern, dominated by slipped π···π stacking and C–H···π contacts (Figure 3c).
The crystal structure of complex [Zn(L)Cl2] has already been reported and it will not be further discussed [63].

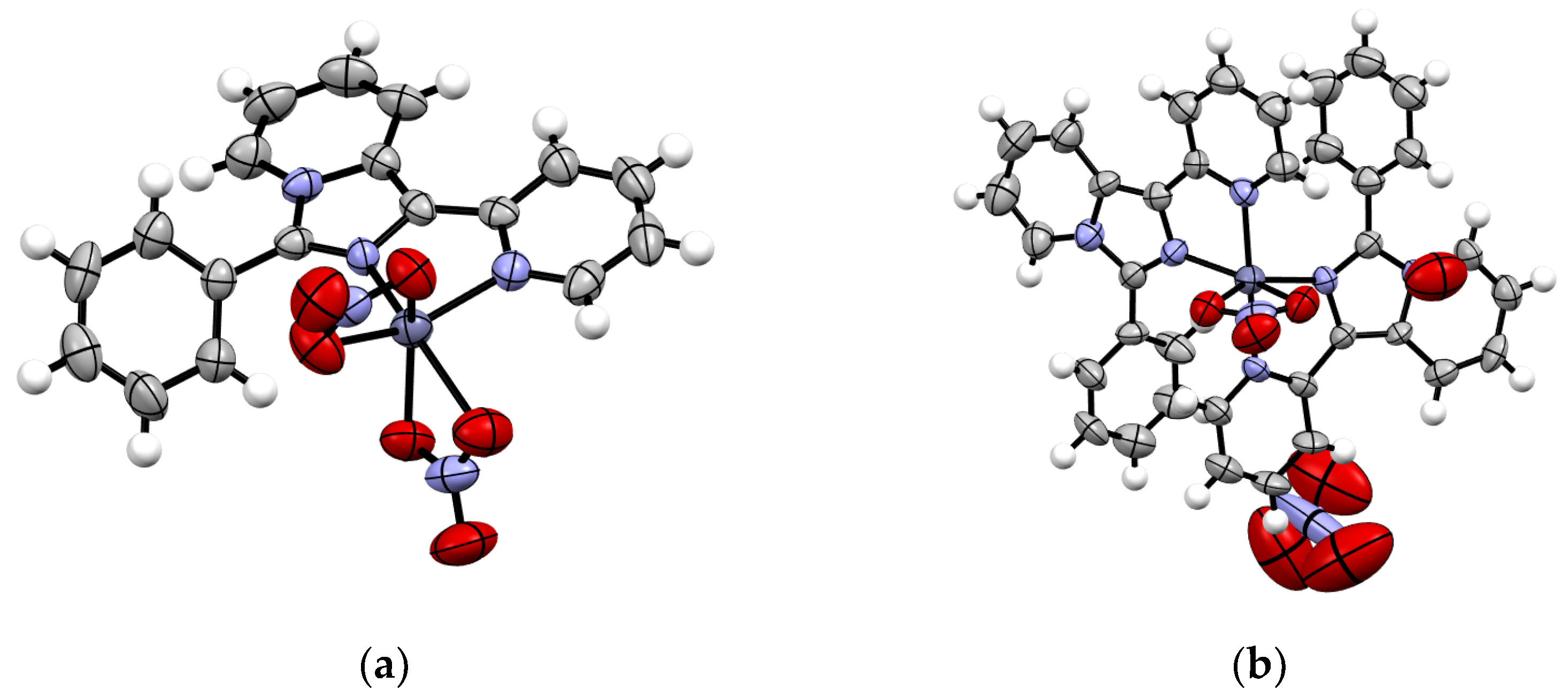

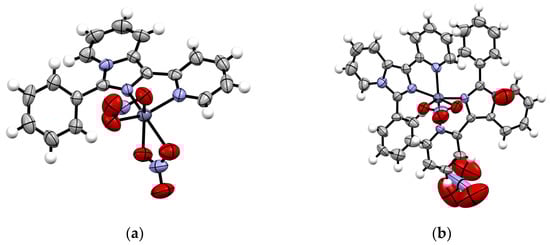

Complex [Zn(L)(NO3)2] crystallizes from methanol in the monoclinic P21/n space group. The Zn(II) centre coordinates by the chelation of two nitrate ions and one L molecule, forming a tetrahedron (Figure 4). The two nitrate ligands are involved in weak C–H···O contacts with the phenyl, pyridyl, and pyridine rings of the imidazopyridine moieties of proximal molecules.
The complex obtained by direct reaction between L and Zn(NO3)2 in ethanol crystallizes as: {[Zn(L)2(NO3)](NO3)}·H2O with the triclinic centrosymmetric P-1 space group (in Figure 4). The asymmetric unit of {[Zn(L)2(NO3)](NO3)}·H2O consists of one molecule of the complex, where the metal centre is chelated by two L molecules and one nitrate, while the second nitrate anion and a water molecule are also included in the crystal packing. The water of crystallization interacts with both coordinated and uncoordinated NO3 anions as a donor through strong hydrogen bonds (O–H···O) and with the aromatic moieties as an acceptor through weaker hydrogen bonds (C–H···O). This weak hydrogen interaction (C–H···O) is also observed between the uncoordinated (and disordered) nitrate and the pyridine ring of the ligand.

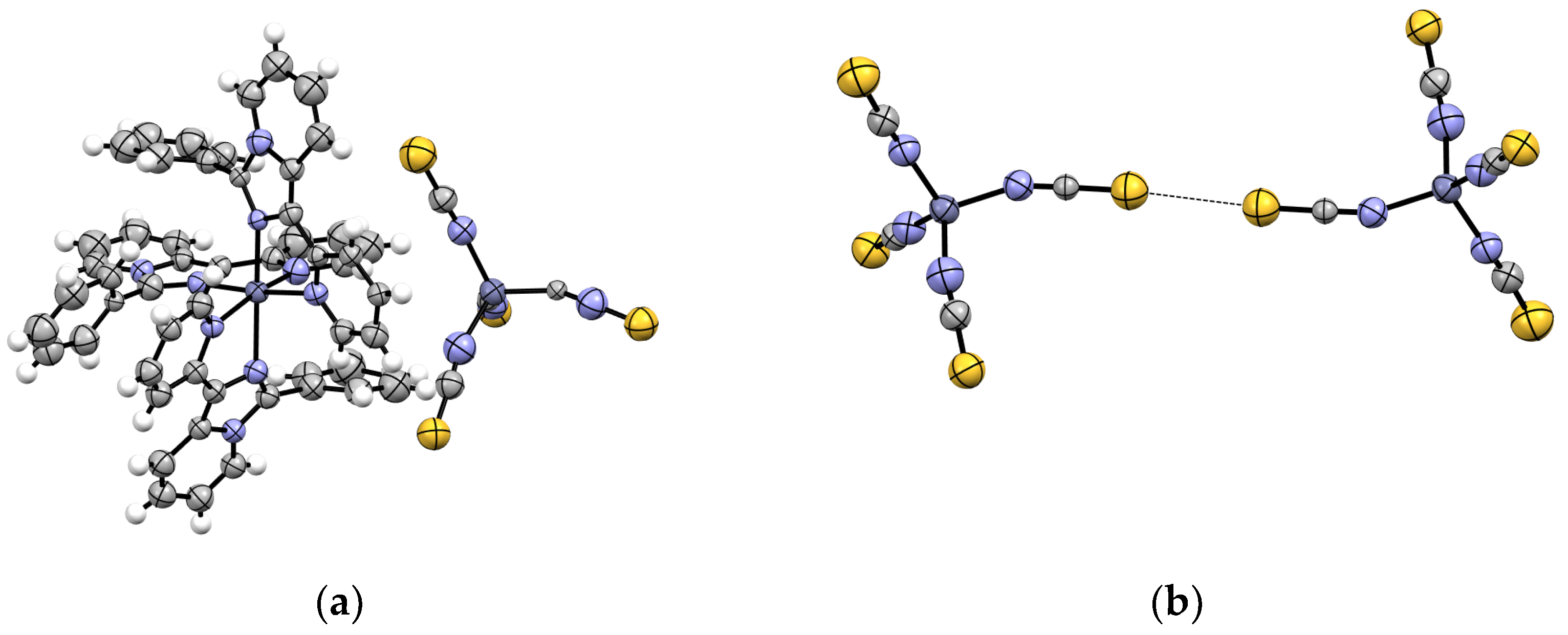

The complex [Zn(L)3][Zn(SCN)4], obtained by reaction between KSCN and mono/bis-chelate complexes, crystallizes in the triclinic P-1 space group and presents in its asymmetric unit two different ionic fragments: [Zn(L)3]2+ and [Zn(SCN)4]2−. In the cationic fragment, the Zn(II) ion presents a distorted octahedral environment and, to the best of our knowledge, this is the first example of a tris-chelate complex with imidazo[1,5-a]pyridine ligands. Within the molecule, there is an intramolecular interaction between the phenyl and pyridyl rings of different Ls, and we can suppose that this internal π···π stacking interaction probably contributes to stabilizing the bulky coordination sphere of the Zn(II). The anionic fragment presents a tetrahedral coordination, with all the thiocyanate groups bonded through the N atom and linear (Figure 5a). The crystal packing is dominated by Coulomb forces, but geometry and distance suggest the presence of a chalcogen bond between two thiocyanate groups of proximal anionic fragments (Figure 5b).

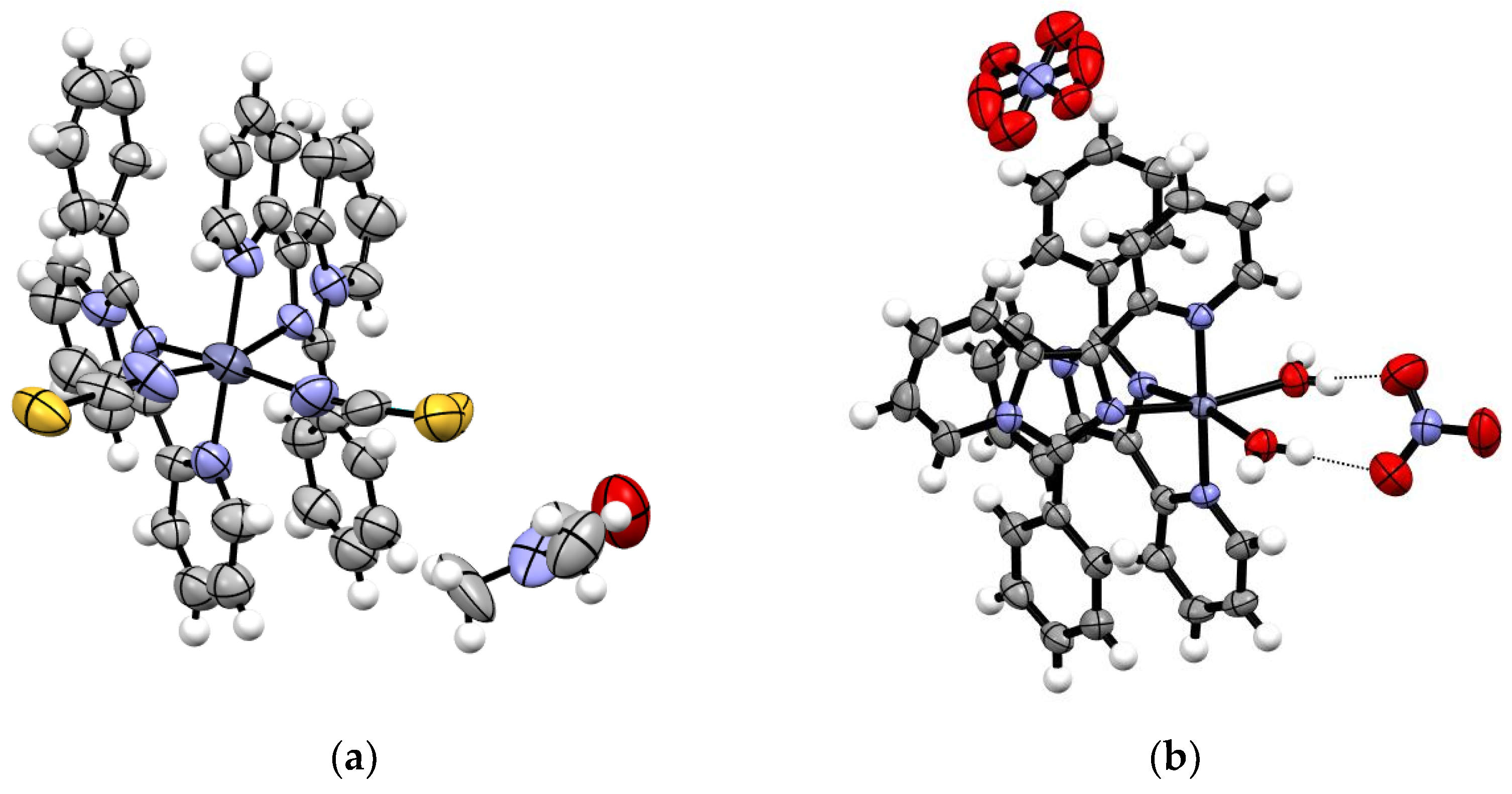

In addition to the complexes designed for this work, two other products were obtained by crystallization attempts performed in different solvents. The complex [Zn(L)2(SCN)2]·DMF was isolated after redissolution of [Zn(L)3][Zn(SCN)4] in DMF. It crystallizes in the triclinic P-1 space group, and the asymmetric unit contains one molecule of the complex and one molecule of solvent (Figure 6). The Zn(II) metal centre coordinates two L molecules and two SCN anions by the N atom in a distorted octahedral geometry. One thiocyanate presents positional disorder. The S atom of the SCN interacts with a hydrogen atom of the imidazopyridine moiety of another complex molecule.
Similarly, the complex [Zn(L)2(H2O)2](NO3)2 was isolated after redissolution of [Zn(L)2(NO3)](NO3) in methanol. It crystallizes in the monoclinic centrosymmetric C2/c space group and presents in its asymmetric unit one molecule of complex with the Zn(II) ion coordinated by two chelating ligands and two water molecules, forming a regular octahedron (Figure 6); two nitrate anions are present in the structure as counterions. The water molecules interact with a short hydrogen-bond distance with the O atoms of both nitrate anions. Moreover, the aromatic rings of imidazopyridine, pyridine, and phenyl interact via π···π stacking with the aromatic rings of the surrounding molecules.

2.4. Vibrational Characterization

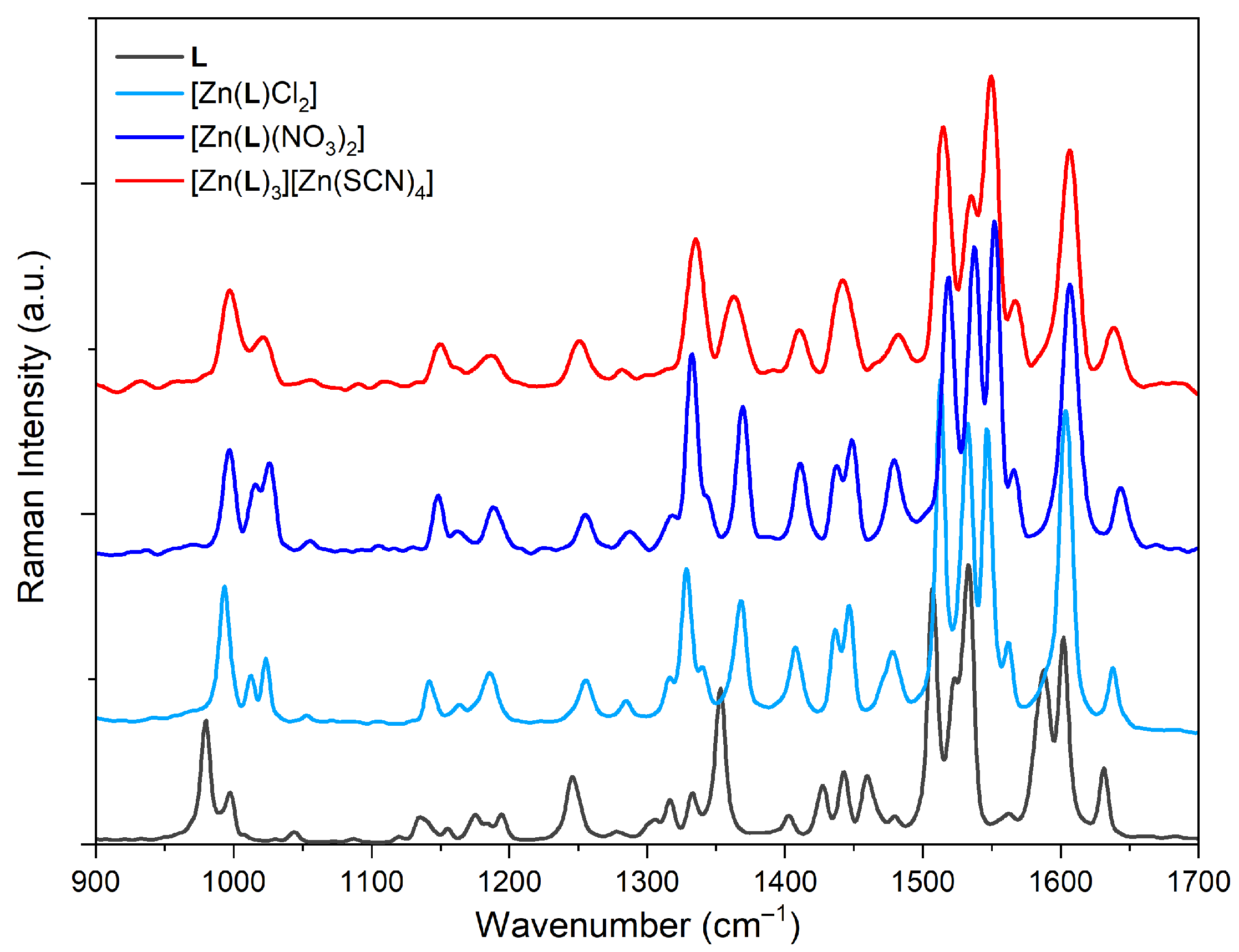

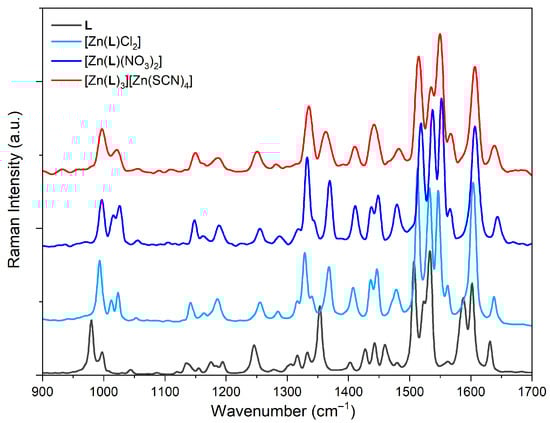

IR and Raman spectra of all the synthesized complexes have been collected (Table S1, Supplementary Materials). The Raman spectrum of L is simple and is used herein for comparison with the spectra of the metal complexes. In Figure 7, we compare the Raman spectra of the different products obtained by the reaction between ZnCl2 and L, and the successive ion exchanges. The most intense Raman signals of L are ring-stretching modes (in the 1450–1600 cm−1 spectral region), which are usually slightly shifted to higher wavenumbers by the rigidity imposed by the metal coordination. The pattern of the mono- and tris-chelate complexes is very similar, suggesting that the vibrational modes are not affected by the number of coordinated ligands. This aspect is confirmed by the calculated spectra obtained from a semiempirical tight-binding (TB) method [67,68]. The literature assignment of the L signals, based on the DFT method [66], indicates that the signals around 1600 cm−1 are mainly attributable to the stretching modes of a specific ring, and the same results are obtained using the TB method. It is interesting to note that the signals related to the phenyl ring maintain the same position in the spectra of the complexes, not being involved in coordination bonds. On the other hand, the stretching and breathing modes of the pendant pyridine shift to higher energies upon coordination (about 20 cm−1 for breathing modes at 1000 cm−1, due to the formation of a chelating ring) [69].
In the IR spectra of [Zn(L)Cl2], [Zn(L)(NO3)2] and [Zn(L)3][Zn(SCN)4], other intense signals are observable in the 800–700 cm−1 spectral range. These can be assigned to breathing modes, especially of the imidazopyridine unit, which shift at higher wavenumbers in the complexes (Figure S8, Supplementary Materials). Ion exchange is confirmed by the presence of peculiar signals in the IR spectra. In particular, for [Zn(L)(NO3)2], it is possible to recognize the intense signals characteristic of chelating nitrate groups [70]: at 1495 cm−1, the ν1 mode of the N=O bond; at 1281 and 1265 cm−1, the ν5 asymmetric modes of the chelating N–O bond. The signal attributable to the related ν2 symmetric mode at 1028 cm−1 is Raman active. These signals are not present in the spectrum of [Zn(L)3][Zn(SCN)4], in which the most intense signals are attributable to the stretching mode of the C≡N bond, at a higher energy with respect to KSCN. Four signals were calculated by the semiempirical TB method and were observed in the IR spectrum (2009, 2088, 2077, 2068 cm−1), while in the Raman spectrum, two weak signals were detected (in Figure S9 in the Supplementary Materials). This could be related to the crystal packing: the unit cell of [Zn(L)3][Zn(SCN)4] contains two molecules of an anionic complex, related by an inversion centre (the only symmetry element of the lattice); thus, the mutual exclusion rules could be valid.
In the far-IR, below 300 cm−1, it is possible to observe the vibrational modes involving the Zn atom. In particular, the signals of Zn–N are expected at about 200 cm−1. Indeed, two weak signals can be observed for mono-chelate complexes (Figure S10, Supplementary Materials), due to the tetrahedral geometry. In the spectrum of the tris-chelate complex, these signals became broader and more intense. It was also possible to observe the signals of the ancillary anionic ligands. Two intense bands at 331 and 318 cm−1 were present in the spectrum of [Zn(L)Cl)2], attributable to Zn–Cl stretching [63], while one broad band with maxima at 280 and 265 cm−1 attributable to Zn–O modes [71] was observable when chloride ions are exchanged with nitrate. For [Zn(L)3][Zn(SCN)4], a strong and triply degenerate signal due to the stretching mode of Zn–NCS with Td symmetry was observed, as expected [72].
As discussed above, no peculiar difference can be observed in the vibrational spectra of mono-, bis-, and tris-chelate complexes, so the identification of the product obtained by the reaction between Zn(NO3)2 and L was performed using the intense signals of nitrate in the IR spectrum (Figure S11, Supplementary Materials). The assignment was difficult due to superimposition with L signals: for free nitrate groups, intense asymmetric ν1 modes are reported below 1400 cm−1 [70]. In the spectrum of [Zn(L)2(NO3)]NO3, a broad and complex band was observed in the 1500–1250 cm−1 region, due to the presence of chelating and non-coordinated nitrate groups.

2.5. Mass Spectrometry

The complexes bearing one L ligand are neutral, and hence the corresponding mass spectra do not feature the molecular ions. In addition, these complexes do not display free basic sites where cations usually present in the ESI environment (such as Na+, K+, or NH4+) may bind and impart a positive charge. However, the signals of the metal–ligand complexes are present in the ESI spectra of each product, while the other peaks are attributed to reactions taking place in the gas-phase environment of the ESI source.

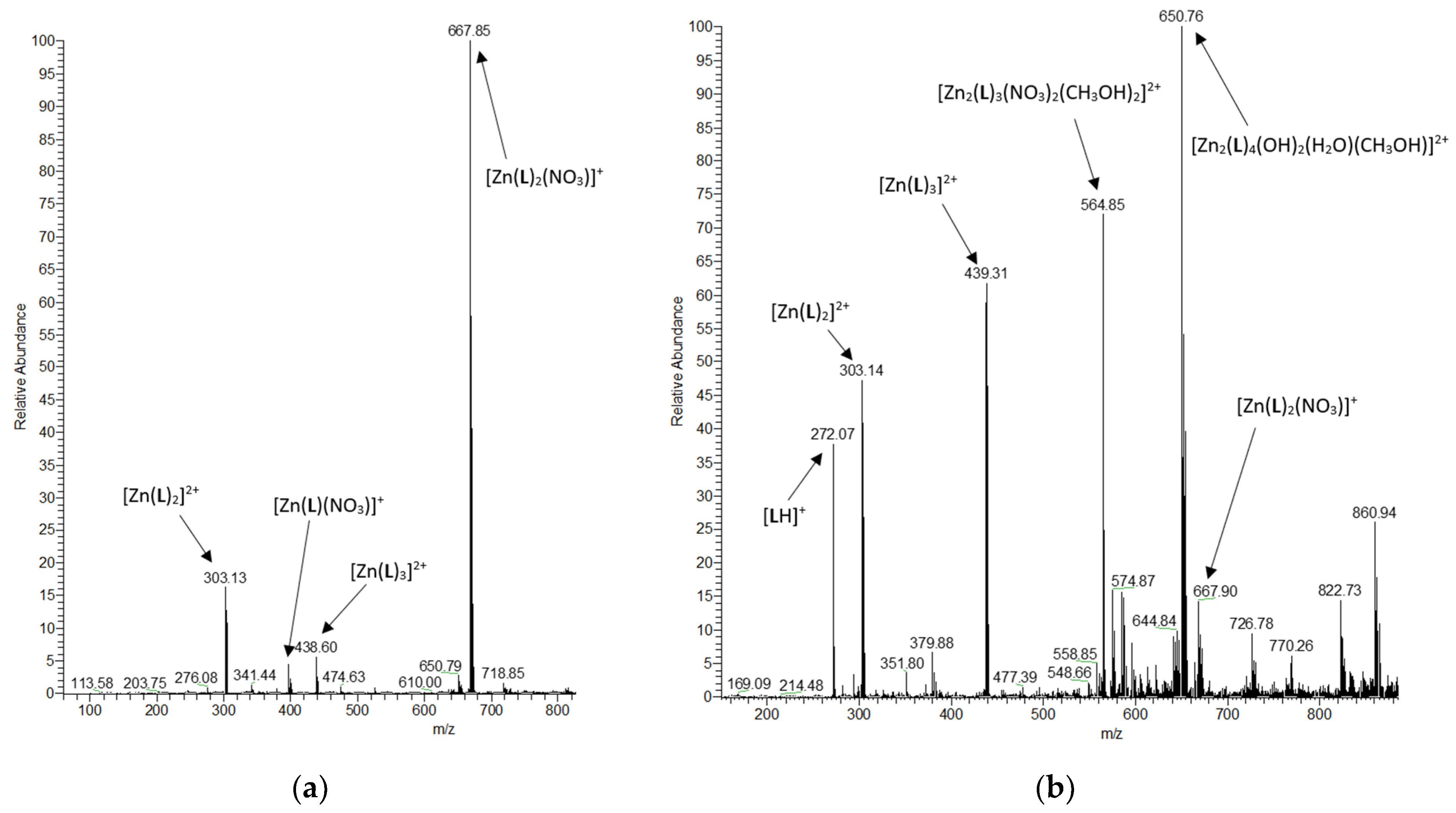

In Figure 8, the positive ionization mass spectra of the complexes [Zn(L)(NO3)2] and [Zn(L)2(NO3)](NO3) are reported. In the case of [Zn(L)(NO3)2] (Figure 8a), the loss of a nitrate ligand yields the [Zn(L)(NO3)]+ cation, whose signal is detectable at m/z = 397. The [Zn(L)(NO3)]+ fragment may undergo gas-phase ligand addition, binding to a second L molecule and thus yielding [Zn(L)2(NO3)]+ (m/z = 668). This adduct represents the base peak in the spectrum; MS/MS experiments performed on the analogous [Zn(L)2(Cl)]+ ion detected in the [Zn(L)(Cl)2] system show that it easily loses an L ligand, thus suggesting that it is a typical gas-phase product and not an ion already existing in solution (see Supplementary Materials, Figure S3). Hence, the other signals in the spectrum may be attributed to nitrate/L ligand exchange starting from [Zn(L)(NO3)]+ and yielding [Zn(L)2]2+ (m/z = 303, Figure 8a); this latter ion may in turn react to add a third L molecule, thus forming [Zn(L)3]2+ (m/z = 439, Figure 8a). The attribution of the doubly charged [Zn(L)2]2+ and [Zn(L)3]2+ cations was confirmed by high-resolution experiments. On the other hand, the ionic complex [Zn(L)2(NO3)]+ is clearly detectable at m/z = 668 (Figure 8b). Moreover, processes taking place in the gas phase may lead to free ligand protonation (LH+, m/z = 272) and to the [Zn(L)2]2+ (m/z = 303) and [Zn(L)3]2+ (m/z = 439) ions. The [Zn(L)2]2+ ion likely arises from L loss from the parent ion, and subsequent nitrate/L ligand exchange. The latter may be formed by L addition to the first ion or by nitrate/L ligand exchange from the parent [Zn(L)2(NO3)]+ ion. Condensation reactions also involving solvent molecules, which typically occur in the gas phase under ESI conditions, lead to the bulky ions [Zn2(L)3(CH3OH)2(NO3)2]2+ (m/z = 564) and [Zn2(L)4(OH)2(H2O)(CH3OH)]2+ (m/z = 650).
The mass spectra of the tris-chelate thiocyanate complex [Zn(L)3][Zn(SCN)4] (see Supplementary Materials, Figure S6) clearly feature the tris-chelate cationic form [Zn(L)3]2+ (m/z = 439) and the ion fragment [Zn(L)2]2+ (m/z = 303). Conceivable ligand exchange occurring in the gas phase between the cationic and anionic counterparts of the sample likely yields the mono-chelate ion [Zn(L)(SCN)]+ (m/z = 393). Moreover, the protonated free ligand is observed (LH+, m/z = 272).
The mass spectrum of the complex [Zn(L)Cl2] has been previously reported [63]. The molecular ion is absent; the main peaks are attributable to [Zn(L)2]2+ (m/z = 303), [Zn(L)3]2+ (m/z = 439), and [Zn(L)2Cl]+ (m/z = 641), which originate in ligand addition processes from [Zn(L)Cl]+ (m/z = 370) after the loss of the chloride (see Supplementary Materials, Figures S2 and S3).
The experimental mass distributions for all the observed ions fit well with the calculated isotopic mass distribution, thus representing additional proof for the assignment.

3. Materials and Methods

3.1. Experimental Techniques

All solvents and raw materials were used as received from commercial suppliers (Sigma-Aldrich, Saint Louis, MO, USA and Alfa Aesar, Ward Hill, MA, USA) without further purification. TLC was performed on a Fluka silica gel TLC-PET foils GF 254, particle size 25 nm, medium pore diameter 60 Å. Column chromatography was performed on a Sigma-Aldrich silica gel 60 (70–230 mesh ASTM).
Mass spectra were recorded on a Thermo-Finnigan Advantage Max Ion Trap Spectrometer equipped with an electrospray ion source (ESI) in positive and negative ion acquiring mode.
UV-Vis absorption spectra were recorded on a Cary60 spectrometer. Photoemission spectra were acquired with a HORIBA Jobin Yvon IBH Fluorolog-TCSPC spectrofluorometer. The spectral response was corrected for the spectral sensitivity of the photomultiplier.
FT-Raman spectra were obtained with a Bruker Vertex 70 spectrometer, equipped with the RAMII accessory, by excitation with a 1064 nm laser, with a resolution of 4 cm−1. FTIR spectra acquired in attenuated total reflectance (ATR) and far-infrared spectroscopy (FIR) spectra were recorded in the 4000–0 cm−1 range using a Bruker Vertex 70 spectrophotometer, equipped with a Harrick MVP2 ATR cell and DTGS detectors (either with Si or KBr beamsplitters). The adopted resolution was equal to 4 cm−1 in all cases.
The single-crystal data were collected with a Gemini R Ultra diffractometer with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) or Cu-Kα radiation (λ = 1.5406 Å, used in the case of smaller crystals) by the ω-scan method. The cell parameters were retrieved with the CrysAlis Pro software, and the same program was used to perform data reduction with correction for the Lorentz effect and polarizing effect. Scaling and absorption corrections were applied through the CrysAlis Pro multiscan technique. All structures were solved with direct methods by using SHELXS-14 [73] and refined with the full-matrix least-squares techniques on F2 with SHELXL-14. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were placed in geometrical positions and refined using the riding model. Visualization of crystal structures was performed using Mercury. The crystallographic data for L, [Zn(L)(NO3)2], [Zn(L)2(NO3)](NO3), [Zn(L)3][Zn(SCN)4], [Zn(L)2(SCN)2]·DMF and [Zn(L)2(H2O)2](NO3)2 are deposited within the Cambridge Crystallographic Data Centre as supplementary publications under the CCDC numbers 2254231 and 2254151–2254155. This information can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cifcode CCDC (accessed on 10 April 2023). Details of structural refinement and crystallographic tables are reported in the Supplementary Materials.
Correspondence between the bulk and SC-XRD structures, as well as sample purity, was checked by comparison of the experimental and calculated powder XRD (PXRD) patterns (see Figures S18–S20 in the Supplementary Materials). Powder data were collected using an X’Pert powder diffractometer operating in a Bragg–Brentano geometry, equipped with a graphite crystal monochromator and using Cu–Kα radiation.

3.2. Syntheses

The samples of 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine (L) were prepared as previously reported: [46,48,49,74] di(2-pyridyl)ketone (800 mg, 4.37 mmol, 1 eq), benzaldehyde (6.55 mmol, 1.5 eq), and ammonium acetate (1704 mg, 21.85 mmol, 5 eq) in glacial acetic acid (25 mL). Reaction time: 5 h at 118 °C. The acetic acid was removed by evaporation under reduced pressure. The obtained solid was dissolved in a saturated aqueous solution of Na2CO3 and the mixture extracted with CH2Cl2. The organic layer was separated and dried and the solvent evaporated under vacuum. The obtained crude product was purified via column chromatography on a silica gel (CH2Cl2-CH3OH 98:2) and the product isolated as a yellowish solid. Crystals suitable for SC-XRD were obtained from slow evaporation of the CH2Cl2 solution.

General Procedure for Zn(II) Complexes

[Zn(L)Cl2] was synthesized, as previously reported, [63] by reaction of a methanolic suspension (15 mL) of ZnCl2 (55 mg, 0.400 mmol, 1 eq) and L (108.5 mg, 0.400 mmol, 1 eq), at room temperature for 2.5 h. The suspension was then filtered, washed with diethyl ether, and dried under vacuum, yielding a yellow powder (yield: 138 mg, 85%, (see Scheme 2)).
[Zn(L)(NO3)2] was obtained by ionic exchange using AgNO3 (136 mg, 0.800 mmol, 2 eq), starting from [Zn(L)Cl2] (163 mg, 0.400 mmol, 1 eq) in methanol (15 mL); the reaction mixture was stirred for 15 min at room temperature. Upon reaction completion, the solution was separated from AgCl precipitate by centrifugation and then dried; the resulting yellow solid was washed three times with ice-cold water (yield: 52 mg, 28%). Crystals suitable for SC-XRD were obtained from slow evaporation of the methanol solution.
[Zn(L)3][Zn(SCN)4] was obtained employing [Zn(L)(NO3)2] as a substrate for further substitution: to a methanolic solution (10 mL) of [Zn(L)(NO3)2] (100 mg, 0.217 mmol, 1 eq), an aqueous solution (5 mL) of KSCN (42 mg, 0.434 mmol, 2 eq) was carefully added to form a precipitate; the suspension was stirred for 30 min at room temperature, filtered, and washed with ice-cold water (yield: 78 mg, 92%). Crystals suitable for SC-XRD were obtained from slow evaporation of the ethanolic solution.

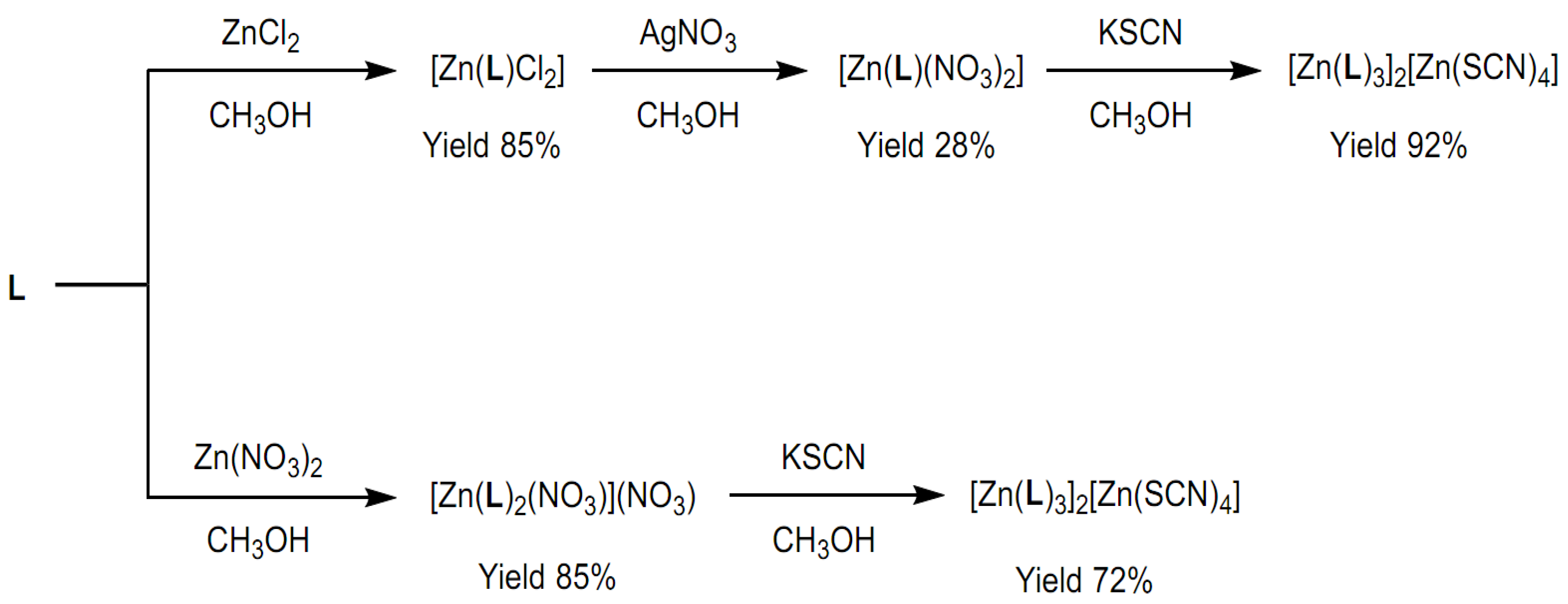

Scheme 2. Designed synthetic strategies to obtain the mono-, bis-, and tris-chelated Zn(II) complexes by ion exchange.
Scheme 2. Designed synthetic strategies to obtain the mono-, bis-, and tris-chelated Zn(II) complexes by ion exchange.
Molecules 28 03703 sch002
[Zn(L)2(NO3)](NO3) was obtained by direct reaction between L and Zn(NO3)2, producing the bis-chelated complex independently from the stoichiometry of the reagents used. The optimal yield was obtained with a 1:2 stoichiometry: 55 mg (0.185 mmol, 1 eq) of Zn(NO3)2 and 100 mg (0.370 mmol, 2 eq) of ligand, by stirring a methanol solution (15 mL) at room temperature for 24 h. The product was recrystallized in methanol (yield: 115 mg, 85%). Crystals suitable for SC-XRD were obtained by slow evaporation of the ethanolic solution.
[Zn(L)3][Zn(SCN)4] was synthesized by reaction of [Zn(L)2(NO3)](NO3) (135 mg, 0.185 mmol, 1 eq, 15 mL methanol solution) with KSCN (36 mg, 0.370 mmol, 2 eq, 15 mL water solution); a precipitate immediately formed and the mixture was stirred for 1 h at room temperature. The product was filtered and washed three times with ice-cold water (yield: 150 mg, 73%).
Single crystals of [Zn(L)2(SCN)2]·DMF and [Zn(L)2(H2O)2](NO3)2 were obtained respectively by slow evaporation of a DMF solution of [Zn(L)3][Zn(SCN)4] and of a methanol solution of [Zn(L)2(NO3)](NO3).

4. Conclusions

A series of new fluorescent mono-, bis-, and tris-chelated Zn(II) complexes have been synthesized and characterized structurally and electronically. The complexes were obtained employing a luminescent imidazo[1,5-a]pyridine chelating ligand, two different Zn(II) salts, and successive anionic exchange.
The structures of the achieved compounds have been determined by single-crystal X-ray diffraction, and the complexes have been completely characterized by optical and vibrational spectroscopies and electrospray ionization mass spectrometry. For the first time, a systematic comparison of mono-, bis-, and tris-chelated imidazopyridine complexes has been studied, showing intriguing differences in the chemical structures and optical behaviours suitable for technological applications.
The optical properties of the obtained products demonstrate little modification along the series and no tunability after ion exchange or when comparing mono-, bis-, and tris-chelated forms in solution. As previously reported, an intense increase in the quantum yield is appreciable after the complexation reaction of an imidazo[1,5-a]pyridine-based ligand with Zn(II), due to an important modification of the ligand conformation. Furthermore, an intense modification of the quantum yield along the series in the solid-state has been observed when comparing mono-, bis-, and tris-chelated adducts. The studied products show a decrease in the quantum yield along the series (from about 6% for the mono-chelated complexes to 2% for the bis-chelated one, and an intense decrease for the tris-chelated form (0.5%)). All the obtained products show an appreciable large Stokes shift as previously reported for similar imidazo[1,5-a]pyridines complexes due to the charge-transfer character centred on the employed fluorescent ligand.
In general, the obtained Zn(II) 1,3-substituted-imidazo[1,5-a]pyridines complexes show absorption maxima below 415 nm, with a suitable transparency in the visible range, and a powerful emission in the blue region (410–450 nm in solution and 450–550 in the solid state).
On the basis of these promising properties, further studies are in progress to test these products as low-cost emitting materials for useful technological applications such as down-shifting or down-conversion.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28093703/s1, Synthesis L, Figure S1: 1H NMR spectrum of L in DMSO-d6; Figure S2: Positive ionisation ESI-MS full mass spectrum of [Zn(L)Cl2]; Figure S3: Positive ionisation ESI-MS/MS mass spectrum of [Zn(L)2Cl]+; Figure S4: Positive ionisation ESI-MS/MS mass spectrum of [Zn(L)2(NO3)]+; Figure S5: Positive ionisation ESI-MS/MS mass spectrum of [Zn(L)3]2+; Figure S6: Positive ionisation ESI-MS mass spectrum of [Zn(L)3][Zn(SCN)4; Table S1. Raman and IR signals of L and Zn(II) mono- and tris-chelated complexes; Figure S7: Molecular structure and numbering of L for vibrational assignment; Figure S8: FTIR-ATR spectra of L and corresponding mono-chelated and tri-chelated complexes; Figure S9: FTIR-ATR and Raman spectra of [Zn(L)3][Zn(SCN)4]; Figure S10: FTIR-ATR spectra in the Far-IR region of L and corresponding mono-chelated and tri-chelated complexes; Figure S11: FTIR-ATR spectra of L and corresponding mono-chelated and bis-chelated complexes obtained using nitrate as ancillary ligand; Figure S12: Asymmetric unit of L; Table S2: Crystal data and structure refinement for L; Table S3: Bond lengths for L; Table S4: Bond angles for L; Figure S13: Asymmetric unit of [Zn(L)(NO3)2]; Table S5: Crystal data and structure refinement for [Zn(L)(NO3)2]; Table S6: Bond lengths for [Zn(L)(NO3)2]; Table S7: Bond angles for [Zn(L)(NO3)2]; Figure S14: Asymmetric unit of [Zn(L)2(NO3)](NO3)·H2O; Table S8: Crystal data and structure refinement for [Zn(L)2(NO3)](NO3)·H2O; Table S9: Bond lengths for [Zn(L)2(NO3)](NO3)·H2O; Table S10: Bond angles for [Zn(L)2(NO3)](NO3)·H2O; Figure S15: Asymmetric unit of [Zn(L)2(H2O)2](NO3)2; Table S11: Crystal data and structure refinement for [Zn(L)2(H2O)2](NO3)2; Table S12: Bond lengths for [Zn(L)2(H2O)2](NO3)2; Table S13: Bond angles for [Zn(L)2(H2O)2](NO3)2; Figure S16: Asymmetric unit of [Zn(L)3][Zn(SCN)4]; Table S14: Crystal data and structure refinement for [Zn(L)3][Zn(SCN)4]; Table S15: Bond lengths for [Zn(L)3][Zn(SCN)4]; Table S16: Bond angles for [Zn(L)3][Zn(SCN)4]; Figure S17: Asymmetric unit of [Zn(L)2(SCN)2]·DMF; Table S17: Crystal data and structure refinement for [Zn(L)2(SCN)2]·DMF; Table S18: Bond lengths for [Zn(L)2(SCN)2]·DMF; Table S19: Bond angles for [Zn(L)2(SCN)2]·DMF; Figure S18: Experimental and calculated PXRD pattern of [Zn(L)(NO3)2]; Figure S19: Experimental pattern of direct reaction between Zn(NO3)2 and L, and calculated PXRD patterns of [Zn(L)2(NO3)](NO3)∙H2O and [Zn(L)(NO3)2]; Figure S20: Experimental and calculated PXRD pattern of [Zn(L)3][Zn(SCN)4].

Author Contributions

Conceptualisation, G.V. and C.G.; formal analysis, V.C., E.P. and A.G.; writing—original draft preparation, G.V.; writing—review and editing, C.G.; visualization, E.P.; supervision, R.R. and E.D.; funding acquisition, E.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available within the article and the Supplementary Materials.

Acknowledgments

The authors acknowledge support from Project CH4.0 under the MUR program “Dipartimenti di Eccellenza 2023–2027” (CUP: D13C22003520001).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lozada, I.B.; Braun, J.D.; Williams, J.A.G.; Herbert, D.E. Yellow-Emitting, Pseudo-Octahedral Zinc Complexes of Benzannulated N^N^O Pincer-Type Ligands. Inorg. Chem. 2022, 61, 17568–17578. [Google Scholar] [CrossRef] [PubMed]
  2. Tao, P.; Lü, X.; Zhou, G.; Wong, W.-Y. Asymmetric Tris-Heteroleptic Cyclometalated Phosphorescent Iridium(III) Complexes: An Emerging Class of Metallophosphors. Acc. Mater. Res. 2022, 3, 830–842. [Google Scholar] [CrossRef]
  3. Tao, P.; Liu, S.-J.; Wong, W.-Y. Phosphorescent Manganese(II) Complexes and Their Emerging Applications. Adv. Opt. Mater. 2020, 8, 2000985. [Google Scholar] [CrossRef]
  4. Ma, D.-L.; Wu, C.; Li, G.; Yung, T.-L.; Leung, C.-H. Transition Metal Complexes as Imaging or Therapeutic Agents for Neurodegenerative Diseases. J. Mater. Chem. B 2020, 8, 4715–4725. [Google Scholar] [CrossRef] [PubMed]
  5. Bizzarri, C.; Spuling, E.; Knoll, D.M.; Volz, D.; Bräse, S. Sustainable Metal Complexes for Organic Light-Emitting Diodes (OLEDs). Coord. Chem. Rev. 2018, 373, 49–82. [Google Scholar] [CrossRef]
  6. Kagatikar, S.; Sunil, D. Schiff Bases and Their Complexes in Organic Light Emitting Diode Application. J. Electron. Mater. 2021, 50, 6708–6723. [Google Scholar] [CrossRef]
  7. Mahoro, G.U.; Fernandez-Cestau, J.; Renaud, J.; Coto, P.B.; Costa, R.D.; Gaillard, S. Recent Advances in Solid-State Lighting Devices Using Transition Metal Complexes Exhibiting Thermally Activated Delayed Fluorescent Emission Mechanism. Adv. Opt. Mater. 2020, 8, 2000260. [Google Scholar] [CrossRef]
  8. Volpi, G.; Garino, C.; Nervi, C. Exploring Synthetic Pathways to Cationic Heteroleptic Cyclometalated Iridium Complexes Derived from Dipyridylketone. Dalton Trans. 2012, 41, 7098–7108. [Google Scholar] [CrossRef]
  9. Housecroft, C.E.; Constable, E.C. Solar Energy Conversion Using First Row D-Block Metal Coordination Compound Sensitizers and Redox Mediators. Chem. Sci. 2022, 13, 1225–1262. [Google Scholar] [CrossRef] [PubMed]
  10. Liu, Y.; Yiu, S.-C.; Ho, C.-L.; Wong, W.-Y. Recent Advances in Copper Complexes for Electrical/Light Energy Conversion. Coord. Chem. Rev. 2018, 375, 514–557. [Google Scholar] [CrossRef]
  11. Durini, S.; Ardizzoia, G.A.; Therrien, B.; Brenna, S. Tuning the Fluorescence Emission in Mononuclear Heteroleptic Trigonal Silver(i) Complexes. New J. Chem. 2017, 41, 3006–3014. [Google Scholar] [CrossRef]
  12. Fresta, E.; Volpi, G.; Milanesio, M.; Garino, C.; Barolo, C.; Costa, R.D. Novel Ligand and Device Designs for Stable Light-Emitting Electrochemical Cells Based on Heteroleptic Copper(I) Complexes. Inorg. Chem. 2018, 57, 10469–10479. [Google Scholar] [CrossRef] [PubMed]
  13. Fresta, E.; Volpi, G.; Garino, C.; Barolo, C.; Costa, R.D. Contextualizing Yellow Light-Emitting Electrochemical Cells Based on a Blue-Emitting Imidazo-Pyridine Emitter. Polyhedron 2018, 140, 129–137. [Google Scholar] [CrossRef]
  14. Ferraro, V.; Castro, J.; Agostinis, L.; Bortoluzzi, M. Dual-Emitting Mn(II) and Zn(II) Halide Complexes with 9,10-Dihydro-9-Oxa-10-Phosphaphenanthrene-10-Oxide as Ligand. Inorganica Chim. Acta 2023, 545, 121285. [Google Scholar] [CrossRef]
  15. Castro, J.; Ferraro, V.; Bortoluzzi, M. Visible-Emitting Cu(i) Complexes with N-Functionalized Benzotriazole-Based Ligands. New J. Chem. 2022, 46, 18938–18951. [Google Scholar] [CrossRef]
  16. Ferraro, V.; Baggio, F.; Castro, J.; Bortoluzzi, M. Green Phosphorescent Zn(II) Halide Complexes with N,N,N′,N′-Tetramethyl-P-Indol-1-Ylphosphonic Diamide as Ligand. Eur. J. Inorg. Chem. 2022, 2022, e202200119. [Google Scholar] [CrossRef]
  17. Cheng, G.; So, G.K.-M.; To, W.-P.; Chen, Y.; Kwok, C.-C.; Ma, C.; Guan, X.; Chang, X.; Kwok, W.-M.; Che, C.-M. Luminescent Zinc(II) and Copper(I) Complexes for High-Performance Solution-Processed Monochromic and White Organic Light-Emitting Devices. Chem. Sci. 2015, 6, 4623–4635. [Google Scholar] [CrossRef]
  18. Sakai, Y.; Sagara, Y.; Nomura, H.; Nakamura, N.; Suzuki, Y.; Miyazaki, H.; Adachi, C. Zinc Complexes Exhibiting Highly Efficient Thermally Activated Delayed Fluorescence and Their Application to Organic Light-Emitting Diodes. Chem. Commun. 2015, 51, 3181–3184. [Google Scholar] [CrossRef]
  19. Janghouri, M. White-Light-Emitting Devices Based on Nile Red and π Electron Rich [Zn4core] Complex. Opt. Quantum Electron. 2017, 49, 410. [Google Scholar] [CrossRef]
  20. López-de-Luzuriaga, J.M.; Monge, M.; Olmos, M.E. Luminescent Aryl–Group Eleven Metal Complexes. Dalton Trans. 2017, 46, 2046–2067. [Google Scholar] [CrossRef]
  21. Priola, E.; Volpi, G.; Rabezzana, R.; Borfecchia, E.; Garino, C.; Benzi, P.; Martini, A.; Operti, L.; Diana, E. Bridging Solution and Solid-State Chemistry of Dicyanoaurate: The Case Study of Zn–Au Nucleation Units. Inorg. Chem. 2020, 59, 203–213. [Google Scholar] [CrossRef] [PubMed]
  22. Yamaguchi, E.; Shibahara, F.; Murai, T. 1-Alkynyl- and 1-Alkenyl-3-Arylimidazo[1,5-a]Pyridines: Synthesis, Photophysical Properties, and Observation of a Linear Correlation between the Fluorescent Wavelength and Hammett Substituent Constants. J. Org. Chem. 2011, 76, 6146–6158. [Google Scholar] [CrossRef] [PubMed]
  23. Volpi, G.; Rabezzana, R. Imidazo[1,5-a]Pyridine Derivatives: Useful, Luminescent and Versatile Scaffolds for Different Applications. New J. Chem. 2021, 45, 5737–5743. [Google Scholar] [CrossRef]
  24. Mohbiya, D.R.; Sekar, N. Tuning ‘Stokes Shift’ and ICT Character by Varying the Donor Group in Imidazo[1,5-a]Pyridines: A Combined Optical, DFT, TD-DFT and NLO Approach. ChemistrySelect 2018, 3, 1635–1644. [Google Scholar] [CrossRef]
  25. Volpi, G. Luminescent Imidazo[1,5-a]Pyridine Scaffold: Synthetic Heterocyclization Strategies-Overview and Promising Applications. Asian J. Org. Chem. 2022, 11, e202200171. [Google Scholar] [CrossRef]
  26. Volpi, G.; Garino, C.; Priola, E.; Magistris, C.; Chierotti, M.R.; Barolo, C. Halogenated Imidazo[1,5-a]Pyridines: Chemical Structure and Optical Properties of a Promising Luminescent Scaffold. Dye. Pigment. 2019, 171, 107713. [Google Scholar] [CrossRef]
  27. Volpi, G.; Garino, C.; Fresta, E.; Casamassa, E.; Giordano, M.; Barolo, C.; Viscardi, G. Strategies to Increase the Quantum Yield: Luminescent Methoxylated Imidazo[1,5-a]Pyridines. Dye. Pigment. 2021, 192, 109455. [Google Scholar] [CrossRef]
  28. Ingersoll, M.A.; Lyons, A.S.; Muniyan, S.; D’Cunha, N.; Robinson, T.; Hoelting, K.; Dwyer, J.G.; Bu, X.R.; Batra, S.K.; Lin, M.-F. Novel Imidazopyridine Derivatives Possess Anti-Tumor Effect on Human Castration-Resistant Prostate Cancer Cells. PLoS ONE 2015, 10, e0131811. [Google Scholar] [CrossRef] [PubMed]
  29. Yagishita, F.; Tanigawa, J.; Nii, C.; Tabata, A.; Nagamune, H.; Takanari, H.; Imada, Y.; Kawamura, Y. Fluorescent Imidazo[1,5- a]Pyridinium Salt for a Potential Cancer Therapy Agent. ACS Med. Chem. Lett. 2019, 10, 1110–1114. [Google Scholar] [CrossRef]
  30. Volpi, G.; Lace, B.; Garino, C.; Priola, E.; Artuso, E.; Cerreia Vioglio, P.; Barolo, C.; Fin, A.; Genre, A.; Prandi, C. New Substituted Imidazo[1,5-a]Pyridine and Imidazo[5,1-a]Isoquinoline Derivatives and Their Application in Fluorescence Cell Imaging. Dye. Pigment. 2018, 157, 298–304. [Google Scholar] [CrossRef]
  31. Wang, L.; Han, X.; Qu, G.; Su, L.; Zhao, B.; Miao, J. A PH Probe Inhibits Senescence in Mesenchymal Stem Cells. Stem Cell Res. Ther. 2018, 9, 343. [Google Scholar] [CrossRef]
  32. Volpi, G.; Galliano, S.; Buscaino, R.; Viscardi, G.; Barolo, C. Fluorescent Trifluoromethylated Imidazo[1,5-a]Pyridines and Their Application in Luminescent down-Shifting Conversion. J. Lumin. 2022, 242, 118529. [Google Scholar] [CrossRef]
  33. Volpi, G.; Magnano, G.; Benesperi, I.; Saccone, D.; Priola, E.; Gianotti, V.; Milanesio, M.; Conterosito, E.; Barolo, C.; Viscardi, G. One Pot Synthesis of Low Cost Emitters with Large Stokes’ Shift. Dye. Pigment. 2017, 137, 152–164. [Google Scholar] [CrossRef]
  34. Yuan, Q.; Chen, L.-L.; Zhu, X.-H.; Yuan, Z.-H.; Duan, Y.-T.; Yang, Y.-S.; Wang, B.-Z.; Wang, X.-M.; Zhu, H.-L. An Imidazo[1,5- a]Pyridine-Derivated Fluorescence Sensor for Rapid and Selective Detection of Sulfite. Talanta 2020, 217, 121087. [Google Scholar] [CrossRef] [PubMed]
  35. Hutt, J.T.; Jo, J.; Olasz, A.; Chen, C.-H.; Lee, D.; Aron, Z.D. Fluorescence Switching of Imidazo[1,5-a]Pyridinium Ions: PH-Sensors with Dual Emission Pathways. Org. Lett. 2012, 14, 3162–3165. [Google Scholar] [CrossRef] [PubMed]
  36. Ge, Y.; Ji, R.; Shen, S.; Cao, X.; Li, F. A Ratiometric Fluorescent Probe for Sensing Cu2+ Based on New Imidazo[1,5-a]Pyridine Fluorescent Dye. Sens. Actuators B Chem. 2017, 245, 875–881. [Google Scholar] [CrossRef]
  37. Hu, J.; Li, Y.; Wu, Y.; Liu, W.; Wang, Y.; Li, Y. Syntheses and Optical Properties of BODIPY Derivatives Based on Imidazo[1,5-a]Pyridine. Chem. Lett. 2015, 44, 645–647. [Google Scholar] [CrossRef]
  38. Chen, F.; Liu, A.; Ji, R.; Xu, Z.; Dong, J.; Ge, Y. A FRET-Based Probe for Detection of the Endogenous SO2 in Cells. Dye. Pigment. 2019, 165, 212–216. [Google Scholar] [CrossRef]
  39. Shen, S.-L.; Huang, X.-Q.; Zhang, Y.-Y.; Zhu, Y.; Hou, C.; Ge, Y.-Q.; Cao, X.-Q. Ratiometric Fluorescent Probe for the Detection of HOCl in Lysosomes Based on FRET Strategy. Sens. Actuators B Chem. 2018, 263, 252–257. [Google Scholar] [CrossRef]
  40. Song, G.-J.; Ma, H.-L.; Luo, J.; Cao, X.-Q.; Zhao, B.-X. A New Ratiometric Fluorescent Probe for Sensing HOC1 Based on TBET in Real Time. Dye. Pigment. 2018, 148, 206–211. [Google Scholar] [CrossRef]
  41. Strianese, M.; Brenna, S.; Ardizzoia, G.A.; Guarnieri, D.; Lamberti, M.; D’Auria, I.; Pellecchia, C. Imidazo-Pyridine-Based Zinc(II) Complexes as Fluorescent Hydrogen Sulfide Probes. Dalton Trans. 2021, 50, 17075–17085. [Google Scholar] [CrossRef] [PubMed]
  42. Murai, T.; Nagaya, E.; Shibahara, F.; Maruyama, T.; Nakazawa, H. Rhodium(I) and Iridium(I) Imidazo[1,5-a]Pyridine-1-Ylalkylalkoxy Complexes: Synthesis, Characterization and Application as Catalysts for Hydrosilylation of Alkynes. J. Organomet. Chem. 2015, 794, 76–80. [Google Scholar] [CrossRef]
  43. Wu, J.-J.; Cao, M.-L.; Ye, B.-H. Spontaneous Chiral Resolution of Mer-[CoII(N,N,O-L3)2] Enantiomers Mediated by π–π Interactions. Chem. Commun. 2010, 46, 3687–3689. [Google Scholar] [CrossRef] [PubMed]
  44. Ardizzoia, G.A.; Ghiotti, D.; Therrien, B.; Brenna, S. Homoleptic Complexes of Divalent Metals Bearing N,O-Bidentate Imidazo[1,5-a]Pyridine Ligands: Synthesis, X-Ray Characterization and Catalytic Activity in the Heck Reaction. Inorganica Chim. Acta 2018, 471, 384–390. [Google Scholar] [CrossRef]
  45. Dumur, F. Zinc Complexes in OLEDs: An Overview. Synth. Met. 2014, 195, 241–251. [Google Scholar] [CrossRef]
  46. Garino, C.; Ruiu, T.; Salassa, L.; Albertino, A.; Volpi, G.; Nervi, C.; Gobetto, R.; Hardcastle, K.I. Spectroscopic and Computational Study on New Blue Emitting ReL(CO)3Cl Complexes Containing Pyridylimidazo[1,5-a]Pyridine Ligands. Eur. J. Inorg. Chem. 2008, 2008, 3587–3591. [Google Scholar] [CrossRef]
  47. Blanco-Rodríguez, A.M.; Kvapilova, H.; Sykora, J.; Towrie, M.; Nervi, C.; Volpi, G.; Zalis, S.; Vlcek, A. Photophysics of Singlet and Triplet Intraligand Excited States in [ReCl(CO)3(1-(2-Pyridyl)-Imidazo[1,5-a]Pyridine)] Complexes. J. Am. Chem. Soc. 2014, 136, 5963–5973. [Google Scholar] [CrossRef]
  48. Volpi, G.; Garino, C.; Salassa, L.; Fiedler, J.; Hardcastle, K.I.; Gobetto, R.; Nervi, C. Cationic Heteroleptic Cyclometalated Iridium Complexes with 1-Pyridylimidazo[1,5-a]Pyridine Ligands: Exploitation of an Efficient Intersystem Crossing. Chem. A Eur. J. 2009, 15, 6415–6427. [Google Scholar] [CrossRef]
  49. Salassa, L.; Garino, C.; Albertino, A.; Volpi, G.; Nervi, C.; Gobetto, R.; Hardcastle, K.I. Computational and Spectroscopic Studies of New Rhenium(I) Complexes Containing Pyridylimidazo[1,5-a]Pyridine Ligands: Charge Transfer and Dual Emission by Fine-Tuning of Excited States. Organometallics 2008, 27, 1427–1435. [Google Scholar] [CrossRef]
  50. Giordano, M.; Volpi, G.; Bonomo, M.; Mariani, P.; Garino, C.; Viscardi, G. Methoxy-Substituted Copper Complexes as Possible Redox Mediators in Dye-Sensitized Solar Cells. New J. Chem. 2021, 45, 15303–15311. [Google Scholar] [CrossRef]
  51. Weber, M.D.; Garino, C.; Volpi, G.; Casamassa, E.; Milanesio, M.; Barolo, C.; Costa, R.D. Origin of a Counterintuitive Yellow Light-Emitting Electrochemical Cell Based on a Blue-Emitting Heteroleptic Copper(i) Complex. Dalton Trans. 2016, 45, 8984–8993. [Google Scholar] [CrossRef]
  52. Volpi, G.; Garino, C.; Conterosito, E.; Barolo, C.; Gobetto, R.; Viscardi, G. Facile Synthesis of Novel Blue Light and Large Stoke Shift Emitting Tetradentate Polyazines Based on Imidazo[1,5-a]Pyridine. Dye. Pigment. 2016, 128, 96–100. [Google Scholar] [CrossRef]
  53. Volpi, G.; Garino, C.; Priola, E.; Diana, E.; Gobetto, R.; Buscaino, R.; Viscardi, G.; Barolo, C. Facile Synthesis of Novel Blue Light and Large Stoke Shift Emitting Tetradentate Polyazines Based on Imidazo[1,5-a]Pyridine–Part 2. Dye. Pigment. 2017, 143, 284–290. [Google Scholar] [CrossRef]
  54. Ge, Y.-Q.; Wang, T.; Duan, G.Y.; Dong, L.H.; Cao, X.Q.; Wang, J.W. Synthesis, Characterization, Optical Properties and Theoretical Studies of Novel Substituted Imidazo[1,5-a]Pyridinyl 1,3,4-Oxadiazole Derivatives. J. Fluoresc. 2012, 22, 1531–1538. [Google Scholar] [CrossRef]
  55. Zhang, X.; Song, G.-J.; Cao, X.-J.; Liu, J.-T.; Chen, M.-Y.; Cao, X.-Q.; Zhao, B.-X. A New Fluorescent PH Probe for Acidic Conditions. RSC Adv. 2015, 5, 89827–89832. [Google Scholar] [CrossRef]
  56. Renno, G.; Cardano, F.; Volpi, G.; Barolo, C.; Viscardi, G.; Fin, A. Imidazo[1,5-a]Pyridine-Based Fluorescent Probes: A Photophysical Investigation in Liposome Models. Molecules 2022, 27, 3856. [Google Scholar] [CrossRef] [PubMed]
  57. Shibahara, F.; Sugiura, R.; Yamaguchi, E.; Kitagawa, A.; Murai, T. Synthesis of Fluorescent 1,3-Diarylated Imidazo[1,5-a]Pyridines: Oxidative Condensation-Cyclization of Aryl-2-Pyridylmethylamines and Aldehydes with Elemental Sulfur as an Oxidant. J. Org. Chem. 2009, 74, 3566–3568. [Google Scholar] [CrossRef] [PubMed]
  58. Colombo, G.; Attilio Ardizzoia, G.; Brenna, S. Imidazo[1,5-a]Pyridine-Based Derivatives as Highly Fluorescent Dyes. Inorganica Chim. Acta 2022, 535, 120849. [Google Scholar] [CrossRef]
  59. Marchesi, A.; Brenna, S.; Ardizzoia, G.A. Synthesis and Emissive Properties of a Series of Tetrahydro (Imidazo[1,5-a]Pyrid-3-Yl)Phenols: A New Class of Large Stokes Shift Organic Dyes. Dye. Pigment. 2019, 161, 457–463. [Google Scholar] [CrossRef]
  60. Volpi, G.; Magistris, C.; Garino, C. FLUO-SPICES: Natural Aldehydes Extraction and One-Pot Reaction to Prepare and Characterize New Interesting Fluorophores. Educ. Chem. Eng. 2018, 24, 1–6. [Google Scholar] [CrossRef]
  61. Volpi, G.; Magistris, C.; Garino, C. Natural Aldehyde Extraction and Direct Preparation of New Blue Light-Emitting Imidazo[1,5-a]Pyridine Fluorophores. Nat. Prod. Res. 2018, 32, 2304–2311. [Google Scholar] [CrossRef] [PubMed]
  62. Cavinato, L.M.; Volpi, G.; Fresta, E.; Garino, C.; Fin, A.; Barolo, C. Microwave-Assisted Synthesis, Optical and Theoretical Characterization of Novel 2-(Imidazo[1,5-a]Pyridine-1-Yl)Pyridinium Salts. Chemistry 2021, 3, 714–727. [Google Scholar] [CrossRef]
  63. Volpi, G.; Priola, E.; Garino, C.; Daolio, A.; Rabezzana, R.; Benzi, P.; Giordana, A.; Diana, E.; Gobetto, R. Blue Fluorescent Zinc(II) Complexes Based on Tunable Imidazo[1,5-a]Pyridines. Inorganica Chim. Acta 2020, 509, 119662. [Google Scholar] [CrossRef]
  64. Ardizzoia, G.A.; Colombo, G.; Therrien, B.; Brenna, S. Tuning the Fluorescence Emission and HOMO-LUMO Band Gap in Homoleptic Zinc(II) Complexes with N,O-Bidentate (Imidazo[1,5-a]Pyrid-3-Yl)Phenols. Eur. J. Inorg. Chem. 2019, 2019, 1825–1831. [Google Scholar] [CrossRef]
  65. Ardizzoia, G.A.; Brenna, S.; Durini, S.; Therrien, B. Synthesis and Characterization of Luminescent Zinc(II) Complexes with a N,N-Bidentate 1-Pyridylimidazo[1,5-a]Pyridine Ligand. Polyhedron 2015, 90, 214–220. [Google Scholar] [CrossRef]
  66. Priola, E.; Conterosito, E.; Giordana, A.; Volpi, G.; Garino, C.; Andreo, L.; Diana, E.; Barolo, C.; Milanesio, M. Polymorphism and Solid State Peculiarities in Imidazo[1,5-a]Pyridine Core Deriving Compounds: An Analysis of Energetic and Structural Driving Forces. J. Mol. Struct. 2022, 1253, 132175. [Google Scholar] [CrossRef]
  67. Bannwarth, C.; Caldeweyher, E.; Ehlert, S.; Hansen, A.; Pracht, P.; Seibert, J.; Spicher, S.; Grimme, S. Extended tight-binding Quantum Chemistry Methods. WIREs Comput. Mol. Sci. 2021, 11, e1493. [Google Scholar] [CrossRef]
  68. Grimme, S.; Bannwarth, C.; Shushkov, P. A Robust and Accurate Tight-Binding Quantum Chemical Method for Structures, Vibrational Frequencies, and Noncovalent Interactions of Large Molecular Systems Parametrized for All Spd-Block Elements (Z = 1–86). J. Chem. Theory Comput. 2017, 13, 1989–2009. [Google Scholar] [CrossRef]
  69. Ozel, A.; Kecel Gunduz, S.; Akyuz, S. Vibrational Analysis and Quantum Chemical Calculations of 2,2′-Bipyridine Zinc(II) Halide Complexes. J. Mol. Struct. 2007, 834, 548–554. [Google Scholar] [CrossRef]
  70. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds, Part B: Applications in Coordination, Organometallic, and Bioinorganic Chemistry; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
  71. Ferraro, J.R. Low-Frequency Vibrations of Inorganic and Coordination Compounds; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
  72. Forster, D.; Goodgame, D.M.L. Infrared Spectra (400-200 Cm−1) of Some Thiocyanate and Isothiocyanate Complexes. Inorg. Chem. 1965, 4, 715–718. [Google Scholar] [CrossRef]
  73. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  74. Wang, J.; Mason, R.; VanDerveer, D.; Feng, K.; Bu, X.R. Convenient Preparation of a Novel Class of Imidazo[1,5-a]Pyridines: Decisive Role by Ammonium Acetate in Chemoselectivity. J. Org. Chem. 2003, 68, 5415–5418. [Google Scholar] [CrossRef] [PubMed]

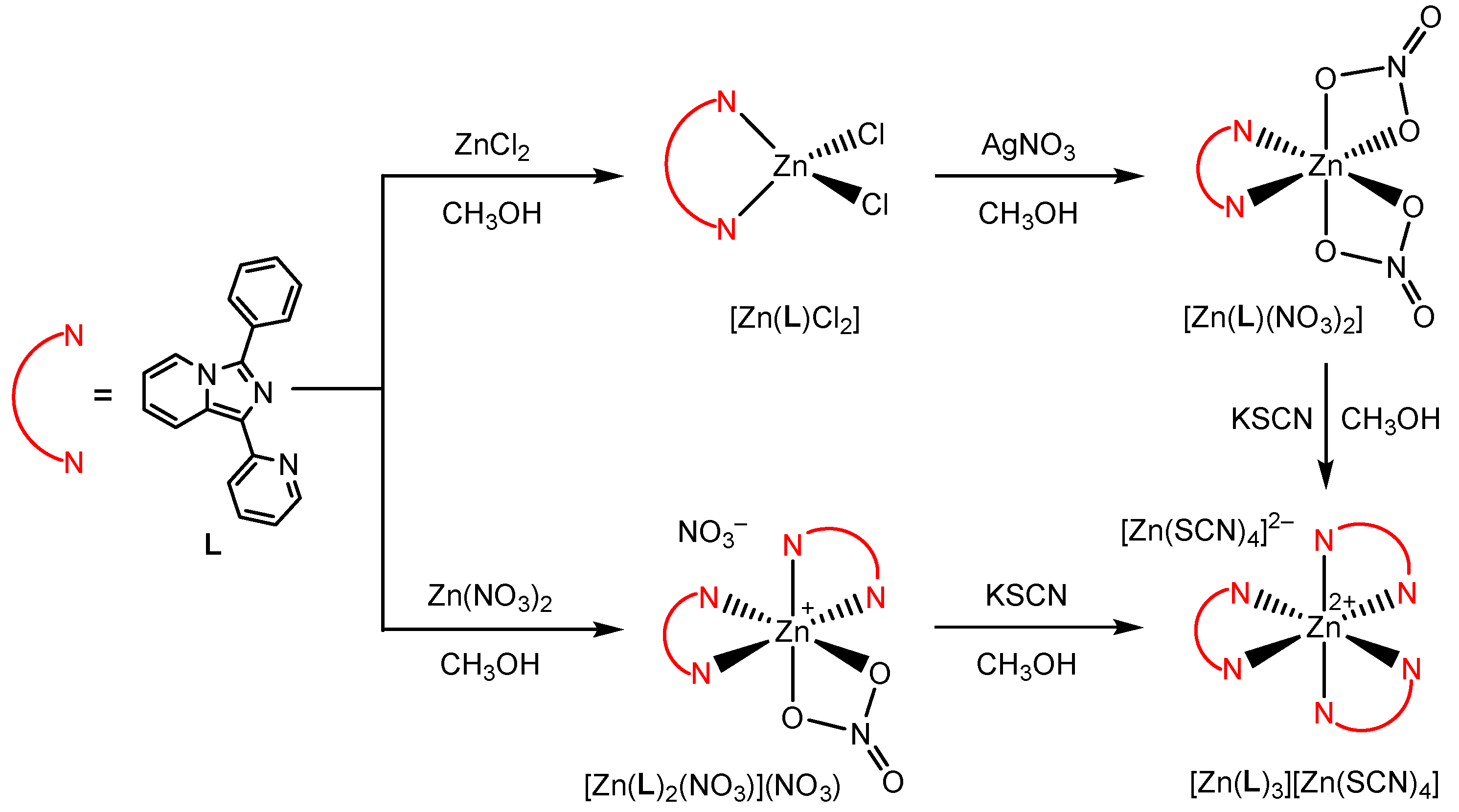

Scheme 1. Structures of 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine (L) and the corresponding mono-, bis-, and tris-chelate Zn(II) complexes.
Scheme 1. Structures of 3-phenyl-1-(pyridin-2-yl)imidazo[1,5-a]pyridine (L) and the corresponding mono-, bis-, and tris-chelate Zn(II) complexes.
Molecules 28 03703 sch001

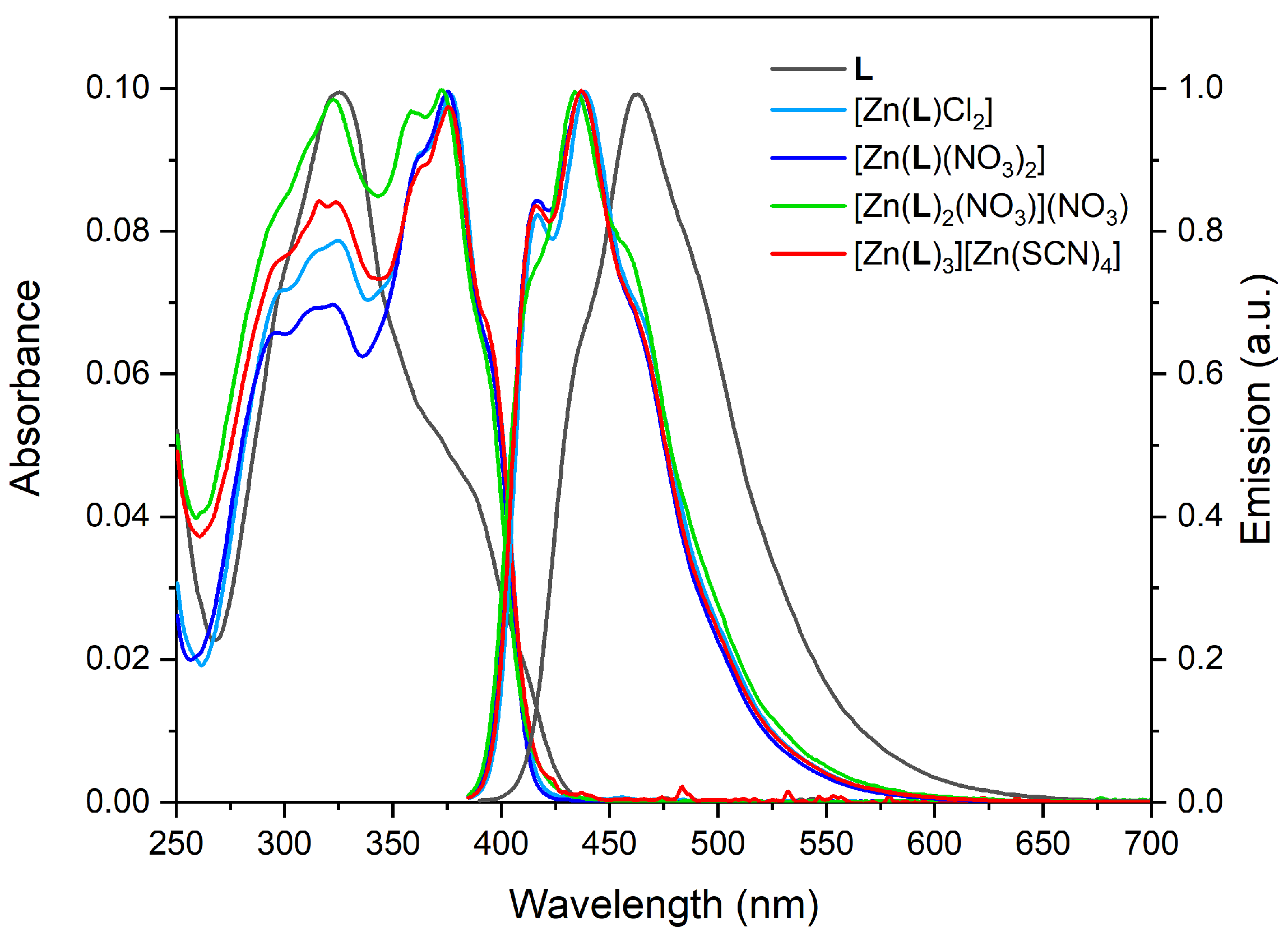

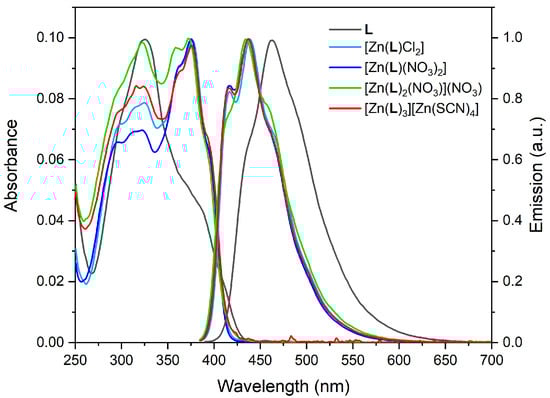

Figure 1. Absorption and normalized emission spectra of L and of the corresponding mono-, bis-, and tris-chelate Zn(II) complexes.
Figure 1. Absorption and normalized emission spectra of L and of the corresponding mono-, bis-, and tris-chelate Zn(II) complexes.
Molecules 28 03703 g001

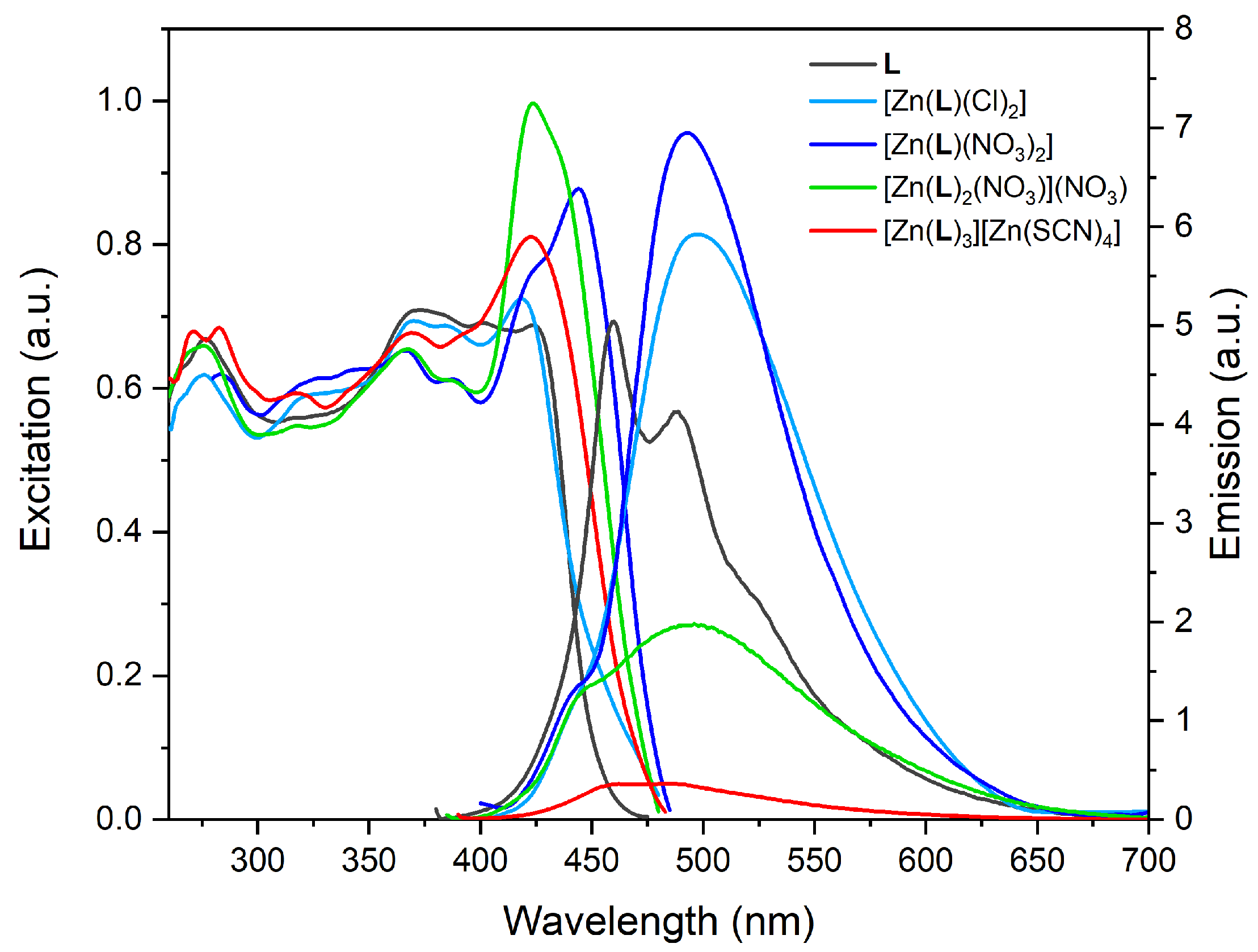

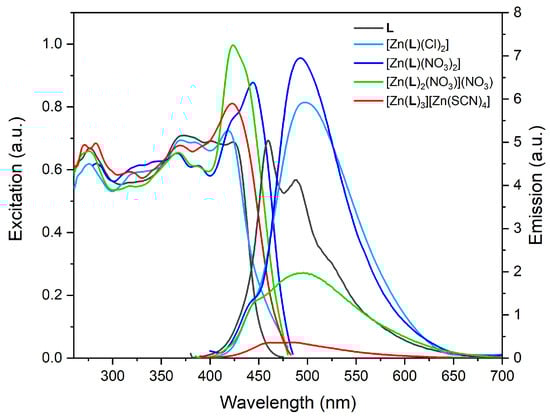

Figure 2. Excitation and emission spectra of L and corresponding mono-, bis-, and tris-chelate Zn(II) complexes at the solid state.
Figure 2. Excitation and emission spectra of L and corresponding mono-, bis-, and tris-chelate Zn(II) complexes at the solid state.
Molecules 28 03703 g002
Figure 3. (a) Asymmetric unit of L; (b) intramolecular C–H···N interaction in transoid conformation; (c) herringbone motif in crystal packing. Grey: carbon; white: hydrogen; violet: nitrogen–ORTEP plot 50%.
Figure 3. (a) Asymmetric unit of L; (b) intramolecular C–H···N interaction in transoid conformation; (c) herringbone motif in crystal packing. Grey: carbon; white: hydrogen; violet: nitrogen–ORTEP plot 50%.
Molecules 28 03703 g003
Figure 4. Asymmetric unit of the mono-chelate and bis-chelate complexes: (a) [Zn(L)(NO3)2] and (b) [Zn(L)2(NO3)](NO3). Grey: carbon; white: hydrogen; violet: nitrogen; red: oxygen; violet: zinc–ORTEP plot 50%.
Figure 4. Asymmetric unit of the mono-chelate and bis-chelate complexes: (a) [Zn(L)(NO3)2] and (b) [Zn(L)2(NO3)](NO3). Grey: carbon; white: hydrogen; violet: nitrogen; red: oxygen; violet: zinc–ORTEP plot 50%.
Molecules 28 03703 g004
Figure 5. Asymmetric unit (a) and anion···anion interaction (b) in the crystal structure of complex [Zn(L)3][Zn(SCN)4]. Grey: carbon; white: hydrogen; violet: nitrogen; violet: zinc; yellow: sulphur–ORTEP plot 50%.
Figure 5. Asymmetric unit (a) and anion···anion interaction (b) in the crystal structure of complex [Zn(L)3][Zn(SCN)4]. Grey: carbon; white: hydrogen; violet: nitrogen; violet: zinc; yellow: sulphur–ORTEP plot 50%.
Molecules 28 03703 g005
Figure 6. Crystal structure of [Zn(L)2(SCN)2]·DMF (a) and [Zn(L)2(H2O)2](NO3)2 (b). Grey: carbon; white: hydrogen; violet: nitrogen; red: oxygen; violet: zinc; yellow: sulphur-ORTEP plot 50%.
Figure 6. Crystal structure of [Zn(L)2(SCN)2]·DMF (a) and [Zn(L)2(H2O)2](NO3)2 (b). Grey: carbon; white: hydrogen; violet: nitrogen; red: oxygen; violet: zinc; yellow: sulphur-ORTEP plot 50%.
Molecules 28 03703 g006
Figure 7. FT-Raman spectra of L and of the corresponding mono-chelate [Zn(L)(X)2] (X = Cl, NO3) and tris-chelate complexes.
Figure 7. FT-Raman spectra of L and of the corresponding mono-chelate [Zn(L)(X)2] (X = Cl, NO3) and tris-chelate complexes.
Molecules 28 03703 g007
Figure 8. Positive ionization mass spectra of [Zn(L)(NO3)2] (a) and [Zn(L)2(NO3)](NO3) (b).
Figure 8. Positive ionization mass spectra of [Zn(L)(NO3)2] (a) and [Zn(L)2(NO3)](NO3) (b).
Molecules 28 03703 g008
Table 1. Absorption and emission data for L and for the mono-, bis-, and tris-chelate Zn(II) complexes in dichloromethane solutions (sh = shoulder).
Table 1. Absorption and emission data for L and for the mono-, bis-, and tris-chelate Zn(II) complexes in dichloromethane solutions (sh = shoulder).
CompoundAbsorption
(nm)
Excitation
(nm)
Emission
(nm)
Stokes Shift
(nm)
Quantum Yield (%)
L377 sh3774637919
324
[Zn(L)Cl2]395 sh376462 sh6432
376440
362416 sh
[Zn(L)(NO3)2]394 sh375462 sh
439
418 sh
6436
375
363
318
294 sh
[Zn(L)2(NO3)](NO3)398 sh373460 sh
435
415 sh
6235
373
361
322
[Zn(L)3][Zn(SCN)4]395 sh374460 sh
438
6425
374
359
323
296 sh
Table 2. Absorption and emission data for L and for the mono-, bis-, and tris-chelate Zn(II) complexes (solid state).
Table 2. Absorption and emission data for L and for the mono-, bis-, and tris-chelate Zn(II) complexes (solid state).
CompoundExcitation
(nm)
Emission
(nm)
Stokes Shift
(nm)
Quantum Yield (%)
L425520 sh835
491
460
[Zn(L)Cl2]4184981426
[Zn(L)(NO3)2]4444931257
[Zn(L)2(NO3)](NO3)4254951052
[Zn(L)3][Zn(SCN)4]42347591<1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cerrato, V.; Volpi, G.; Priola, E.; Giordana, A.; Garino, C.; Rabezzana, R.; Diana, E. Mono-, Bis-, and Tris-Chelate Zn(II) Complexes with Imidazo[1,5-a]pyridine: Luminescence and Structural Dependence. Molecules 2023, 28, 3703. https://doi.org/10.3390/molecules28093703

AMA Style

Cerrato V, Volpi G, Priola E, Giordana A, Garino C, Rabezzana R, Diana E. Mono-, Bis-, and Tris-Chelate Zn(II) Complexes with Imidazo[1,5-a]pyridine: Luminescence and Structural Dependence. Molecules. 2023; 28(9):3703. https://doi.org/10.3390/molecules28093703

Chicago/Turabian Style

Cerrato, Valerio, Giorgio Volpi, Emanuele Priola, Alessia Giordana, Claudio Garino, Roberto Rabezzana, and Eliano Diana. 2023. "Mono-, Bis-, and Tris-Chelate Zn(II) Complexes with Imidazo[1,5-a]pyridine: Luminescence and Structural Dependence" Molecules 28, no. 9: 3703. https://doi.org/10.3390/molecules28093703

Article Metrics

Back to TopTop
