Constructing Molybdenum Phosphide@Cobalt Phosphide Heterostructure Nanoarrays on Nickel Foam as a Bifunctional Electrocatalyst for Enhanced Overall Water Splitting

Shunde Innovation School, University of Science and Technology Beijing, Foshan 528399, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(9), 3647; https://doi.org/10.3390/molecules28093647
Submission received: 29 March 2023 / Revised: 17 April 2023 / Accepted: 20 April 2023 / Published: 22 April 2023

Abstract

:
The construction of multi-level heterostructure materials is an effective way to further the catalytic activity of catalysts. Here, we assembled self-supporting MoS2@Co precursor nanoarrays on the support of nickel foam by coupling the hydrothermal method and electrostatic adsorption method, followed by a low-temperature phosphating strategy to obtain Mo4P3@CoP/NF electrode materials. The construction of the Mo4P3@CoP heterojunction can lead to electron transfer from the Mo4P3 phase to the CoP phase at the phase interface region, thereby optimizing the charge structure of the active sites. Not only that, the introduction of Mo4P3 will make water molecules preferentially adsorb on its surface, which will help to reduce the water molecule decomposition energy barrier of the Mo4P3@CoP heterojunction. Subsequently, H* overflowed to the surface of CoP to generate H2 molecules, which finally showed a lower water molecule decomposition energy barrier and better intermediate adsorption energy. Based on this, the material shows excellent HER/OER dual-functional catalytic performance under alkaline conditions. It only needs 72 mV and 238 mV to reach 10 mA/cm2 for HER and OER, respectively. Meanwhile, in a two-electrode system, only 1.54 V is needed to reach 10 mA/cm2, which is even better than the commercial RuO2/NF||Pt/C/NF electrode pair. In addition, the unique self-supporting structure design ensures unimpeded electron transmission between the loaded nanoarray and the conductive substrate. The loose porous surface design is not only conducive to the full exposure of more catalytic sites on the surface but also facilitates the smooth escape of gas after production so as to improve the utilization rate of active sites. This work has important guiding significance for the design and development of high-performance bifunctional electrolytic water catalysts.

1. Introduction

Energy shortage and environmental pollution are problems facing mankind today. The development of clean energy and the exploration of green synthesis methods are the means to solve these problems. Due to its high calorific value of combustion and cleaning product (H2O), hydrogen is the ideal clean energy in the future. Water electrolysis is an effective method for hydrogen production [1,2]. Hydrogen production from electrolysis water is the decomposition reaction of water under a certain voltage, which consists of OER and HER two half reactions. Due to the slow reaction kinetics, there is usually an overpotential (the required potential is higher than the water decomposition potential of 1.23 V) [3,4]. This limits the development of electrocatalytic water decomposition to a great extent.
Catalysts can effectively reduce overpotential, but most of the catalysts with excellent performance are noble metals, such as RuO2, Pt, etc., and the characteristics of high price and scarce reserves hinder their large-scale application. Therefore, the research and development of efficient and cheap non-noble metals-based catalysts have become a current research hotspot [5,6,7,8]. Among them, transition metal compounds, such as phosphides [9], oxides [10,11], and sulfides [12], have attracted wide attention due to their low cost, high oxidation and reduction activity, and abundant reserves. Cobalt-based phosphides showed highly efficient and stable HER properties [13,14]. However, phosphides show the poor catalytic performance of OER [15]. Despite recent progress, few cobalt-based phosphides can efficiently perform HER, OER, and overall water splitting at the same electrolyte.
The construction of heterojunction has been proven to be a common and effective method to improve electrocatalytic activity [16,17]. By forming a heterogeneous structure, the electron configuration of the heterogeneous interface can be effectively adjusted in order to enhance the charge transfer ability, overcome the high catalytic reaction barrier, reduce the HER and OER energy barrier, and improve the intrinsic activity [18,19]. Sun et al. synthesized the flower-like Co@CoP2 heterostructures grown on copper foam under optimal conditions by adjusting the concentration of phytic acid. The transfer of electrons from CoP2 to the Co side of the metal can be observed through theoretical model calculations, causing charge accumulation, and the relatively enriched electron state can promote the rapid reaction kinetics of HER and OER [20]. Therefore, the heterogeneous structure can effectively regulate the interfacial charge, enhance the electron transfer and reduce the charge transfer impedance.
The maximum utilization of a heterogeneous interface can provide full play to the overall performance of the catalyst. Hence, by virtue of the characteristics of small particle size and large specific surface area, small-sized nanoparticles have more active sites, so they can adsorb reactant molecules more effectively and promote the catalytic reaction [21,22]. Lee et al. developed a binderless spinel oxide nanoparticle-coated nickel foam as an efficient electrocatalyst for water oxidation. The optimized CoFe2O4 nanoparticles have more active catalytic sites, better charge transfer, stronger ion diffusion, and suitable reaction kinetics [23].
We prepared Ni foam-supported Mo4P3@CoP heterojunction nanowire arrays (Mo4P3@CoP/NF) by combining hydrothermal, electrostatic adsorption, and phosphating methods. Compared with nanoparticles, nickel foam loading can save the step of preparing electrode ink and shorten the catalyst preparation cycle; the three-dimensional array structure can expose more sites in contact with the electrolyte and increase the reaction site; Mo4P3@CoP heterojunction can optimize the electronic structure, accelerate the transfer of electrons from Mo4P3 to CoP, and promote the improvement of catalytic performance. As a bifunctional catalyst, Mo4P3@CoP/NF exhibits an overpotential of 283 mV for OER and 72 mV for HER at a current density of 10 mA/cm2 under alkaline conditions. The material has excellent application prospects as a catalyst for the electrolysis of water.

2. Results and Discussion

2.1. Characterization

Figure 1a shows the synthesis route of bimetallic phosphide heterostructures with nickel foam as self-supporting CoP nanowires loaded with Mo4P3 nanoparticles (NPs). The detailed preparation process can be found in the experimental part. The crystal structure, morphology, and elemental distribution of the sample are demonstrated by X-ray diffraction (XRD), field emission scanning electron microscopy (SEM), and transmission electron microscopy (TEM). Firstly, Co precursor nanowires were grown on foamed nickel by the hydrothermal method, and its chemical composition could be fitted in the XRD pattern of Co(CO3)0.5(OH)0.11·H2O (Figure S1). Figure S2 shows a uniformly covered nanowire morphology with particle sizes in the range of 50~200 nm. The SEM image shows it is in sharp contrast with the smooth nickel foam in Figure S3. At the same time, the protruding and relatively large 1D nanowire structure can expose a larger specific surface area, which can not only fully contact with the electrolyte and improve the reaction efficiency but also provide more attachment sites for the subsequent MoS2 NPs, thereby increasing the number of interfaces and enhancing the efficiency of the reaction. As shown in Figure 1b, the MoS2 NPs were uniformly and densely distributed on the surface of the Co precursor nanowires after soaking for a long time. Finally, the heterogeneous bimetallic phosphide heterostructure Mo4P3@CoP/NF was obtained by further phosphating treatment. In Figure 1c, the morphology of the sample before and after phosphating is compared, the nickel foam and the nanowire structure loaded with NPs are not damaged, and the overall morphology remains unchanged. However, through high-rate SEM, it can be observed that there are some rough and granular feelings on the surface, which may be caused by phosphating (Figure 1c inset). It shows that the self-supporting structural design has suitable stability and can maintain satisfactory contact between the substrate and the support, thereby improving the electron transport and mass transfer capabilities during the catalytic reaction, as well as enhancing the tolerance and long-term stability of the catalyst. The TEM image of Figure 1d shows that the Mo4P3 NPs are uniformly grown on the surface of the CoP nanowires, their sizes are mainly distributed between 5 and 10 nm, and the small-sized NPs have more abundant surface-active sites, thus promoting the reaction process. Figure 1e shows the interplanar spacing of 0.24 nm and 0.22 nm of nanowire CoP and NPs-loaded Mo4P3, which belongs to the (111) plane of CoP and the (116) plane of Mo4P3, respectively. It is consistent with the crystal plane analysis of selected electron diffraction (Figure S4). In addition, the STEM analysis of Figure 1f shows that the Co element is mainly distributed in the middle part of the nanowires, while Mo is distributed near the surface edge of the nanowires, which is consistent with the actual structural composition analysis.
In order to further investigate the electron modulation effect at the interface between Mo4P3 NPs and CoP nanowires, X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS) were used to characterize Mo4P3@CoP-NF samples and to study the binding energies of the material components and valence electrons, respectively. The XRD pattern of the Mo4P3@CoP/NF sample is shown in Figure 2a, where the peaks at 31.6° and 56.8° correspond to the (011) and (211) planes of CoP (JCPDS No. 29-0497), respectively. The peaks at 44.8°, 52.2°, and 76.7° correspond to the nickel elemental of the base nickel foam. Similar to the XRD test results of MoS2@Co precursor/NF during the synthesis process (Figure S5), only a very small amount of Mo4P3 NPs (1.66%) is needed to build a uniform and appropriate interface structure on the surface of CoP nanowires (Figure 2b). In addition, the size of NPs (about 10 nm) is extremely small, and it is difficult to clearly observe the diffraction peaks of Mo4P3 NPs in the XRD mode of Mo4P3@CoP/NF. The XRD test results are consistent with expectations, but they are not enough to intuitively reflect the interaction between CoP nanowires and Mo4P3 NPs [24,25]. Therefore, we used the XPS test to find the interaction between them. The test results show that there are obvious Co 2p peaks and P 2p peaks in the full XPS spectrum (Figure 2c). Compared with single-phase CoP nanowires, Mo4P3@CoP has slight fluctuations in the range of Mo 3d. In order to analyze the transfer direction of electrons at the interface, after performing multiple linear regression fitting on the high-resolution fine spectrum, the binding energy changes of each element were further compared and analyzed with or without Mo4P3 NPs loading. Although the amount of Mo4P3 NPs in Mo4P3@CoP is small, compared with single-phase CoP nanowires, the signal of Mo in Mo4P3@CoP is still obvious in the high-resolution fine spectrum of Mo 3d because the Mo4P3 NPs are loaded in on the surface of nanowires, and X-rays can effectively excite valence electrons in Mo4P3 NPs. A set of spin-orbit splitting peaks at 234.20 and 231.20 eV shown in Figure 2d belong to Mo 3d3/2 and Mo 3d5/2 peaks on the NPs. Figure 2e shows that in the Co 2p spectrum, the signals of a set of spin-orbit splitting peaks at 779.20/795.06 eV originate from Co 2p3/2 and Co 2p1/2 in Co-P [26,27]. A group of peaks at 780.7 and 796.58 eV are the signals of Co 2p3/2 and Co 2p1/2 of the Co-O bond caused by surface oxidation of the material, and a group of satellite peaks at 784.45 and 800.95 eV [28,29]. Compared with the Co 2p high-resolution fine spectrum of single-phase CoP nanowires without Mo4P3 NPs, the binding energy of the corresponding peaks of Mo4P3@CoP has a shift of −0.2 eV. Coincidentally, a similar shift also appears in the high-resolution fine spectrum of P 2p. As shown in Figure 2f, the signals of a set of spin-orbit splitting peaks at 129.60 and 130.60 eV originate from P 2p3/2 and P 2p1/2 in metal phosphides, and the broad peak signal at 134.35 eV belongs to phosphate caused by air oxidation species [30]. Compared with single-phase CoP nanowires, the corresponding peaks in Mo4P3@CoP move −0.2 eV, respectively. Electron transfer phenomena in Co 2p and P 2p may be due to the modulation of electronic structure in the interfacial region caused by the interaction between CoP and Mo4P3 lattice, which may be conducive to the enhancement of catalytic performance.

2.2. HER Performance

In order to verify that the modulation of the electronic structure in the interfacial region caused by the interaction of CoP and Mo4P3 lattice is beneficial to the enhancement of catalytic performance, we conducted electrochemical tests on Mo4P3@CoP/NF and control samples with graphite rod as the counter electrode and Hg/HgO electrode as the reference electrode in the alkaline environment of 1 M KOH solution. We tested the catalytic activity enhancement of these samples in the potential range of −0.9~−1.8 V vs. Hg/HgO. As shown in Figure 3a, to achieve a current density of 10 mA/cm2, the Mo4P3@CoP/NF electrode requires only 72 mV, significantly lower than CoP/NF (95 mV), NF (410 mV), and only higher than the commercial Pt/C/NF electrode (45 mV). Next, we calculated the Tafel slope. The smaller the value of the Tafel slope, the smaller the overpotential that can be used to achieve a certain current density. This means that the charge transfer kinetics are faster. The Tafel slope can be measured by three different methods, mainly including (1) direct measurement by electrochemical workstation, (2) conversion by linear sweep voltammetry (LSV) curve, and (3) fitting by EIS data. In this work, the Tafel slope value is obtained by formula conversion of LSV curve data. The Tafel slope of the Mo4P3@CoP/NF electrode was found to be 89.3 mV/dec, only slightly higher than the Pt/C/CF electrode (52.5 mV/dec) (Figure 3b). However, it is much smaller than single-phase CoP/CF (111.2 mV/dec). We compared the activities of different catalysts by comparing the Tafel slope and overpotential at constant current density (Figure 3c). The electrodes were compared with catalysts reported in other studies, showing higher activity than most electrodes reported in previous studies; specific data can be found in Figure 3d. In addition, electrochemical impedance spectroscopy (EIS) is an evaluation index for analyzing the kinetics of electrocatalysts and electrolytes and the internal electron transfer laws of electrode materials. Typically, the diameter of the semicircle represents the charge transfer resistance (Rct). The smaller the value of Rct, it indicates that the catalyst has faster electron transport speed, better electrical conductivity, and thus has more prominent electrocatalytic performance. So we performed the EIS test. The frequency range of the EIS test is 0.1~100 kHz, and the voltage is −0.1 V vs. RHE. As shown in Figure 3e, the Mo4P3@CoP/NF electrode exhibits the most efficient electron transfer ability in HER electrochemical catalysis, and its charge transfer resistance (Rct) is significantly smaller than that of other electrodes [31,32]. CV tests shown in Figure S6 were performed using a scan rate of 10~60 mV/s. Through CV, we calculated the Cdl value of the electrode in Figure 3f. The Cdl value of the Mo4P3@CoP/NF electrode was 32.8 mF/cm2, which was significantly higher than CoP/NF (18.6 mF/cm2). At the same time, the Mo4P3@CoP/NF electrode also possessed the largest electrochemically active surface area (ECSA) value among these prepared electrodes, with an ECSA of 820 cm2 for Mo4P3@CoP/NF and 465 cm2 for CoP/NF (Figure 3g). To further determine the influence of the construction of composite structures on the specific surface area of materials, we performed the Brunauer–Emmett–Teller (BET) characterization of Mo4P3/CoP/NF and single-phased CoP/NF. As exhibited in Figure S7, the calculated specific surface area of Mo4P3/CoP/NF is 269.86 m2/g, which is much bigger than single-phased CoP/NF (224.89 m2/g). The larger surface area is conducive to exposing abundant superficial active sites in the reaction process and ensuring significantly promoted electrocatalytic performance. These results indicate that the preparation of the heterointerface has a great influence on enhancing the intrinsic electron transport rate, central site reactivity, and the number of surface-active sites in the electrode [33]. In addition, stability tests were performed at −0.07 and −0131 V vs. RHE potentials, and the results showed (Figure 3h) that the activity retention of the HER catalyst was still high in 1 M KOH solution, reaching 99.3%, and 97.8%, respectively. Moreover, the LSV curve after the I-t test has no obvious activity decrease compared with that before the test, which indicates that it has excellent catalytic durability in an alkaline system (Figure S8). To assess the stability of the material, various characterization techniques, including XRD, SEM, and TEM, were employed to analyze possible changes in the complex electrolysis process in chemical composition and structure. In Figure S9, the XRD results show that after HER treatment, the main components of the electrode are relatively stable without significant changes, showing suitable compositional stability. Furthermore, the SEM and TEM images shown in Figure S10 illustrated that the nanostructures are still intact, indicating excellent morphological stability. In addition, we carried out the XPS test on the sample after HER, and the results showed that the valence states of the elements in the sample before and after HER did not change significantly (Figure S11). In addition, we also checked the metal leaking amount of composite Mo4P3/CoP/NF and the single-phased CoP/NF during stability tests. We further performed ICP−OES tests of the two samples, and the detailed results are shown in Tables S1 and S2. Moreover, we plotted the dissociation content at different times, as displayed in Figure S12. Specifically, the Co dissociation rate of Mo4P3/CoP/NF is 8.1 ng/h, which is significantly decreased compared to single-phased CoP/NF (14.8 ng/h). Meanwhile, the Mo dissociation rate of Mo4P3/CoP/NF is as low as 5.2 ng/h. These results indicate that the strong interaction of Mo4P3 and CoP is beneficial to stabilize the superficial active metal sites for lower dissociation rate and enhanced catalytic stability.

2.3. Mechanism Study

In order to explore the HER catalytic mechanism of Mo4P3@CoP materials, according to previous work, we obtained that the work function of CoP materials is 8.1 eV, which is significantly higher than 5.48 eV of Mo4P3 (Figure 4a) [34,35]. This enables electron transfer between the CoP nanowires and the Mo4P3 NPs, and the electrons are transferred from Mo4P3 to CoP until equilibrium is reached. Finally, due to the low electrostatic potential of Mo4P3, electron loss occurs in Mo4P3 while electron gain occurs in CoP. The hydrogen evolution reaction (HER) process undergoes two different reaction mechanisms in alkaline media, as shown in Figure 4b [36]:
H2O + e + * → H* + OH, Volmer step
H* + H* → H2, Tafel step
H* + H2O + e → H2 + OH, Heyrovsky step
As mentioned above, in the alkaline electrolyte environment, it is divided into two steps: the Volmer step and the Tafel step or the Heyrovsky step [37,38]. In alkaline environments, due to the existence of a large number of hydroxide ions, it is difficult to directly adsorb H ions, so water is often required to dissociate first in order to produce abundant H ions. Therefore, small-size Mo4P3 nanoparticles can contact electrolytes to a large extent so as to fully carry out hydrolytic dissociation reactions to produce a large number of H ions, which contributes to subsequent adsorption and desorption processes. In addition, the vertically grown nanowires can not only further increase the contact area of Mo4P3 nanoparticles with the electrolyte but also contribute to the hydrogen gas precipitation and then solve the problem of gas blockage hindering the catalytic reaction, thus promoting the efficient kinetic reaction [39].
In view of the above studies, we found that the Mo4P3@CoP heterostructure nanoarray material exhibited significantly enhanced HER electrocatalytic activity. For the HER process in alkaline media, the water molecule decomposition process and the H* adsorption process together restrict the overall energy consumption of the reaction. For CoP single-phase catalysts, it has been proven to be a material with excellent H* adsorption energy [40]. After introducing the Mo4P3 phase to construct the Mo4P3@CoP heterointerface, the HER activity is significantly improved. Therefore, we believe that after the introduction of the Mo4P3 phase, the water molecules are more likely to dissociate into H* and OH*; that is, the water molecule decomposition energy barrier will be significantly reduced. So, we believe that for the Mo4P3@CoP heterojunction, during the alkaline HER process, water molecules will preferentially adsorb on the Mo4P3 surface and easily decompose into H* and OH* [41], and then the generated H* will be transferred to the CoP surface sites through the overflow process, it is, because of its better H* adsorption energy, and then the H* combines with each other to generate H2 molecules that dissociate from the CoP surface (Figure 4c) [42]. In summary, the synergistic effect of Mo4P3 and CoP ensures that the catalyst exhibits significantly improved HER catalytic performance.

2.4. OER Performance

In addition to testing the catalytic activity of HER, we also evaluated the performance of OER. Similarly, the polarization curve current density (J) versus applied potential (V vs. RHE) was obtained by LSV. In Figure 5a, the LSV curves of the catalyst Mo4P3@CoP/NF in 1.0 M KOH solution, where only an overpotential (ƞ) of 238 mV is needed to achieve a current density of 10 mA/cm2. At the same time, the performance tests of the comparative samples CoP/NF and RuO2/NF were also performed. At the current density of 10 mA/cm2, the overpotentials were 283 mV and 285 mV, respectively. On the other hand, the catalytic contribution of bare nickel foam (NF) to OER is very low, which indicates that the existence of Mo4P3@CoP electrocatalyst on the electrode surface can effectively enhance the catalytic activity of OER. The specific OER process is relatively complicated and has not yet been definitively determined. The widely accepted reaction mechanism is the adsorbate evolution mechanism (AEM) [43,44]. The concrete reaction process is as follows:
OH + * → HO* + e
HO* → O* + e + H+
O* + OH → HOO* + e
HOO* → * + O2 + H+ + e
The presence of electrocatalysts on the anode electrodes can greatly reduce the overpotential of the OER and facilitate the charge transfer between electrodes and electrolytes [45]. The Tafel slope is an important parameter to evaluate the intrinsic activity of a catalyst in a specific catalytic reaction. Further selecting the linear part from the LSV curve, we draw the Tafel plot between the potential (V) and the logarithm of the current density (mA/cm2), where the minimum Tafel slope value indicates more efficient charge transfer and higher catalytic activity. As shown in Figure 5b, the Tafel slope of Mo4P3@CoP/NF (60.8 mV/dec) is lower than that of CoP/NF (70.6 mV/dec) and RuO2/NF (98.7 mV/dec) electrodes. It is further shown that the Mo4P3@CoP/NF catalyst can enhance the adsorption of intermediates and effectively reduce the overpotential of the corresponding catalytic half-reaction, accelerating the OER process. Thus, the activities of different catalysts can be compared by comparing the Tafel slope and overpotential at constant current density (Figure 5c). Electrochemical impedance spectroscopy (EIS) plays a vital role in the study of catalyst performance and can represent the charge transfer ability of different catalysts. According to the equivalent circuit established according to the Nyquist mode (Figure 5d), Mo4P3@CoP/NF has suitable conductivity, and CoP/NF electron transfer resistance (Rct) increases, indicating a higher charge transfer barrier and lower performance. The CV curves of Mo4P3@CoP/NF and CoP/NF at different scan rates (10~60 mV/s) in the non-Faradaic region are shown in Figure S13. The underlying formula Δj/2 = (janodic − jcathodic)/2 yields a curve versus scan rate in Figure 5e. The Cdl values of Mo4P3@CoP/NF and CoP/NF are 32.7 mF/cm2 and 17.9 mF/cm2, respectively. The ECSA value was further calculated (Figure 5f), and it was concluded that Mo4P3@CoP/NF had the largest active surface area value (817 cm2) compared to CoP/NF (448 cm2). Mo4P3@CoP/NF has a larger active surface area and more exposed active sites, and thus, the samples obtain higher OER catalytic activity. As shown in Figure 5g, the excellent stability of the sample Mo4P3@CoP/NF was further verified by chronopotentiometry, and the activity retention rate could reach 98.5% and 96.7% after continuous operation at different voltages of 1.46 V and 1.51 V for 50 h, respectively. Then in a three-electrode system, we investigated the OER catalytic performance of Mo4P3@CoP/NF after electrical stability tests by LSV. As shown in Figure 5h, the LSV curve after the stability test has no significant deviation compared with that before the test, indicating that Mo4P3@CoP/NF has high catalytic performance before and after the stability test and has a certain potential for industrial application. To further understand the composition and morphology as well as valence changes of the samples after the long-term stability test, XRD, SEM, and XPS characterization were carried out. In Figure S14, it can be observed that some changes occurred on the sample surface before and after the OER test. As shown in Figure S15, it can be seen in the XRD patterns that the diffraction peaks of each phase of CoP are preserved. However, through the XPS test of samples after OER, it was found that the proportion of the Co−O bond increased, and the binding energy of the Co element increased. We guessed that the CoP on the surface of the sample transformed into an amorphous CoOOH during the OER process (Figure S16) [46]. In conclusion, the catalyst Mo4P3@CoP/NF has outstanding long-term stability and catalytic activity.

2.5. Overall Water-Splitting Performance

Mo4P3@CoP/NF exhibits excellent catalytic performance when used as a catalyst for HER and OER. To research the catalytic performance of Mo4P3 NPs heterostructure for overall water splitting, a double-layer catalyst using Mo4P3@CoP/NF as both anode and cathode was designed. Electrode electrolyzer and evaluated in an alkaline environment (Figure 6a). To compare their overall water-splitting capabilities, CoP/NF||CoP/NF and noble metal Pt/C/NF||RuO2/NF electrolyzers with the same mass loading were also assembled and tested under the same conditions. As shown in Figure 6b, Mo4P3@CoP/NF||Mo4P3@CoP/NF exhibits remarkably suitable catalytic performance. The control samples of CoP/NF||CoP/NF and Pt/C/NF||RuO2/NF require voltages of 1.58 V and 1.56 V to achieve a current density of 10 mA/cm2, while Mo4P3@CoP/NF||Mo4P3@ CoP/NF only needs 1.54 V to reach the same effect (Figure 6c). What is more, compared with other recently reported catalysts, it can be found that it has excellent catalytic performance for overall water splitting, indicating that it has great potential to develop into a high-performance catalyst (Figure 6d). The overall water-splitting voltage of the catalyst is certainly one of the indicators for evaluating the performance, but due to some environmental restrictions in practical applications, we must consider the hydrogen generation efficiency of the catalyst. As shown in Figure 6e, the faradaic efficiencies of hydrogen and oxygen of Mo4P3@CoP/NF are about 98% and 97%, respectively, in the overall water splitting, indicating that the catalyst can save much energy loss in industrial applications and ensure energy conservation. In addition to having satisfactory catalytic performance and high catalytic efficiency, the stability of material samples is also a factor that must be considered. The I-t curve test of the sample is shown in Figure 6f. It still has a stable current density after 50 h at high voltages of 1.543 V and 1.763 V, and the LSV curve before and after the test basically does not change (Figure 6g). This is a closer illustration that it has excellent catalytic durability and mechanical stability, which is mainly due to the structural stability of the self-supporting design, which ensures a tight connection between the active materials and the electrode.
The reason why Mo4P3@CoP/NF||Mo4P3@CoP/NF has such excellent electrochemical activity in the application of overall water splitting is mainly a result of the following two aspects: firstly, the heterostructure design between Mo4P3 and CoP has a high degree of crystallinity. Therefore, the interface has a strong electronic interaction, which can effectively adjust the electron distribution between the two phases. It can not only accelerate the electron transfer in the catalytic reaction but also optimize the water dissociation energy [47,48,49]. Moreover, due to the interfacial effect, more abundant active sites will be generated to enhance the catalytic activity. Secondly, the in situ growth on NF strengthens the tight connection between the active materials and the electrodes, improves the structural stability and tolerance of the nanoarray, and enables the active material to play its role to the greatest extent. Moreover, NF can provide a larger surface area to grow active species, thus exposing more active sites. The self-supporting structure design can avoid the use of binders, thus improving the conductivity of the electrode, accelerating the charge transfer between active materials, and promoting the rapid progress of the reaction [50,51,52]. Therefore, Mo4P3@CoP/NF, with the self-supporting structure design and interface engineering optimization, has broad application prospects in energy conversion and optimization.

3. Materials and Methods

3.1. Synthesis of Co(CO3)0.5(OH)0.11·H2O Nanowires on Nickel Foam

Co(CO3)0.5(OH)0.11·H2O nanowires were prepared by the hydrothermal method in the wet chemical method. Firstly, the cut foam was pretreated with diluted hydrochloric acid, deionized water, and ethanol in sequence and then ultrasonicated for 20 min, respectively. Next, we prepared 35 mL of the deionized aqueous solution containing 0.582 g Co(NO3)2·6H2O, 0.222 g NH4F, and 0.721 g CO(NH2)2 and transferred it to a 50 mL Telfon−lined autoclave. Then, we immersed the pretreated nickel foam in it and put it in an oven at 120 °C for 6 h. After the reaction was completed and cooled to room temperature, it was taken out and rinsed with deionized water and ethanol, respectively. Finally, it was vacuum dried and stored for subsequent reactions.

3.2. Preparation of MoS2 NPs Dispersion

The MoS2 NPs solution was also prepared by a simple hydrothermal method. We took 0.125 g NaMoO4·2H2O and put it into 12.5 mL ultrapure water and performed magnetic stirring and ultrasonic treatment to dissolve it completely. Then, we slowly added 0.1 mol/L dilute hydrochloric acid solution to adjust the pH value to 6.5. We weighed 0.215 g of glutathione (GSH) and dissolved it into 25 mL of ultrapure water, mixed it with the above homogeneous solution, sonicated, and stirred it for 10 min, then transferred it to a 50 mL Telfon-lined autoclave. We put the reaction kettle into a preheated oven at 200 °C. After reacting for 24 h, we removed the large particles generated during the reaction by centrifugation and stored the obtained yellow supernatant in a dark environment at 4 °C.

3.3. Preparation of MoS2@Co Precursor/NF

MoS2@Co precursor/NF was prepared by immersion adsorption at room temperature. The nickel foam with Co precursor growth was placed in a certain amount of MoS2 NPs solution and soaked for 10 min, and then it was taken out and rinsed with deionized water and ethanol. It was dried overnight in a vacuum oven.

3.4. Preparation of Mo4P3@CoP/NF

Synthesis of metal phosphides was prepared by one-step phosphating in a tube furnace. We weighed 0.5 g NaH2PO2·H2O and placed the previously synthesized MoS2@Co precursor/NF in two porcelain boats, respectively, with the two placed side by side and the former located upstream. After flowing an Ar gas for 30 min, it was heated to 300 °C at a heating rate of 2 °C/min and kept in the Ar gas environment for 2 h. Upon cooling to room temperature, the obtained Mo4P3@CoP/NF sample was taken out. CoP/NF can also be obtained through a similar reaction process; just replace MoS2@Co precursor/NF with Co precursor/NF.

3.5. Preparation of Pt/C and RuO2 Electrodes

A total of 20 mg of Pt/C (20%) was uniformly dispersed in a solution of deionized water, ethanol, and isopropanol at a ratio of 1:1:1 and ultrasonicated for 40 min. Afterward, 200 μL of Pt/C dispersion was applied to the nickel foam (1 × 1 cm2) and dried at 60 °C. The above operation was repeated twice to obtain Pt/C with an average mass loading of ~3.8 mg/cm2. We replaced Pt/C with RuO2 and used the same method to obtain RuO2/NF electrode with the same mass loading.

3.6. Material Characterization

The morphology, particle size, and element distribution of the samples were tested and analyzed by field emission scanning electron microscope (SUPAR 55) and transmission electron microscope (JOEL JEM-2200FS), respectively. The crystal structure characteristic information of the material was obtained by X-ray diffraction (Rigaku Dmax 2200). The electronic structure states of the elements of the samples were collected by X-ray photoelectron spectroscopy (PHI 5000 Versaprobe III) using Al Kα as the X-ray source.

3.7. Electrochemical Test

The electrochemical performance of the samples was tested using an electrochemical workstation model CHI760E. The active material was used as the working electrode, the saturated Hg/HgO electrode was used as the reference electrode, and the graphite rod was used as the counter electrode. A typical three-electrode system was used to test the HER and OER catalytic performance of the sample in an alkaline-saturated electrolyte. The electrocatalytic performance and active surface area of the material were tested and evaluated by linear sweep voltammetry and cyclic sweep voltammetry, respectively. Among them, the scan rate of linear sweep voltammetry was 1 mV/S, HER was in the range of 0~−0.9 V vs. RHE, OER was in the range of 0.9~1.8 V vs. RHE; the scan rate of cyclic sweep voltammetry was 10, 20, 30, 40, 50, and 60 mV/s, HER in the range of −0.12~−0.22 V vs. RHE, OER in the range of 1.0~−1.1 vs. RHE, and cyclic sweep voltammetry. It can also be used to measure electrochemical double-layer capacitance. I-t curves were tested to evaluate the long-term stability of the catalysts. Electrochemical impedance spectroscopy (EIS) was tested at −0.05 V, and RHE was tested at a frequency of 0.1–100 KHz. The HER and OER potentials in an alkaline environment were calculated by the following equations.
ERHE = EHg/HgO + 0.098 + 0.0591 × pH
The overall water-splitting test adopts a two-electrode system, and the synthesized Mo4P3@CoP/NF is used for the cathode and the anode, respectively. The LSV curves were determined in the alkaline electrolytes with a voltage range of 1.0 V to 2.0 V, and the stability test was performed at a constant voltage.

4. Conclusions

In summary, we successfully fabricated Mo4P3-supported CoP heterojunction nanoarray structures, taking nickel foam as a conductive substrate and using it as a bifunctional catalyst for water electrolysis to produce hydrogen. Experimental results show that the electrode only needs 72 and 238 mV to achieve 10 mA/cm2 for HER and OER in an alkaline solution, respectively. In a two-electrode system, only 1.54 V is needed to reach 10 mA/cm2 with high catalytic stability. It can be seen that the introduction of Mo4P3 can significantly improve the electrocatalytic activity of the materials. Among them, the construction of the Mo4P3@CoP heterointerface can induce electronic rearrangement in the interface region: adjust the electronic structure optimization in the interface area and make the interface site have better intermediate adsorption energy. In addition, in an alkaline medium, the decomposition of water molecules will seriously restrict the reaction process. It indicates that the introduction of Mo4P3 can make water molecules preferentially adsorb on the surface and easily decompose to release H*, thus reducing the energy barrier of water molecule decomposition. Therefore, the construction of the Mo4P3@CoP heterojunction can significantly optimize the adsorption energy of reactive active sites to intermediates and reduce the energy barrier of water molecule decomposition. The unique self-supporting nanoarray structure avoids the use of organic binders and ensures charge transfer between the catalytic material and the conductive collector. The above structure also facilitates adequate contact between the electrolytes and the catalytic sites, improving the catalytic efficiency. This study has important reference significance for the performance improvement of transition metal electrocatalysts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28093647/s1. Figures S1–S16 and Tables S1–S5. References [53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84] are cited in the supplementary materials.

Author Contributions

Conceptualization, Y.H. and H.C.; methodology, Y.H.; software, B.Z.; validation, Y.H., H.C. and B.Z.; formal analysis, Y.H.; investigation, H.C.; resources, B.Z.; data curation, B.Z.; writing—original draft preparation, Y.H.; writing—review and editing, Y.H.; visualization, H.C.; supervision, Y.H.; project administration, Y.H.; funding acquisition, Y.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by Foshan Talents Special Foundation (BKBS202003) and Structural Analysis and Characterization of Semiconductor Materials from Jiangxi Hongdaqiu Technology Co., Ltd. (2022-021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Samir De, B.; Singh, A.; Ji Dixit, R.; Khare, N.; Elias, A.; Basu, S. Hydrogen generation in additively manufactured membraneless microfluidic electrolysis cell: Performance evaluation and accelerated stress testing. Chem. Eng. J. 2023, 452, 139433. [Google Scholar] [CrossRef]
  2. Yan, D.; Mebrahtu, C.; Wang, S.; Palkovits, R. Innovative electrochemical strategies for hydrogen production: From electricity input to electricity output. Angew. Chem. Int. Ed. Engl. 2023, 135, e202214333. [Google Scholar] [CrossRef]
  3. Wang, T.; Cao, X.; Jiao, L. Progress in hydrogen production coupled with electrochemical oxidation of small molecules. Angew. Chem. Int. Ed. Engl. 2022, 61, e202213328. [Google Scholar] [CrossRef]
  4. Zhou, B.; Gao, R.; Zou, J.J.; Yang, H. Surface design strategy of catalysts for water electrolysis. Small 2022, 18, 2202336. [Google Scholar] [CrossRef] [PubMed]
  5. Li, Q.; Zhang, Q.; Xu, W.; Zhao, R.; Jiang, M.; Gao, Y.; Zhong, W.; Chen, K.; Chen, Y.; Li, X.; et al. Sowing single atom seeds: A versatile strategy for hyper-low noble metal loading to boost hydrogen evolution reaction. Adv. Energy Mater. 2023, 13, 2203955. [Google Scholar] [CrossRef]
  6. Pan, S.; Li, H.; Liu, D.; Huang, R.; Pan, X.; Ren, D.; Li, J.; Shakouri, M.; Zhang, Q.; Wang, M.; et al. Efficient and stable noble-metal-free catalyst for acidic water oxidation. Nat. Commun. 2022, 13, 2294. [Google Scholar] [CrossRef]
  7. Tajuddin, A.A.H.; Wakisaka, M.; Ohto, T.; Yu, Y.; Fukushima, H.; Tanimoto, H.; Li, X.; Misu, Y.; Jeong, S.; Fujita, J.I.; et al. Corrosion-resistant and high-entropic non-noble-metal electrodes for oxygen evolution in acidic media. Adv. Mater. 2023, 35, 2207466. [Google Scholar] [CrossRef]
  8. Khan, U.; Nairan, A.; Gao, J.K.; Zhang, Q.C. Current progress in 2D metal-organic frameworks for electrocatalysis. Small Struct. 2022, 2200109. [Google Scholar] [CrossRef]
  9. Deng, Y.W.; Cao, Y.F.; Xia, Y.; Xi, X.Y.; Wang, Y.; Jiang, W.F.; Yang, D.; Dong, A.G.; Li, T.T. Self-templated synthesis of CoFeP@C cage-in-cage superlattices for enhanced electrocatalytic water splitting. Adv. Energy Mater. 2022, 12, 2202394. [Google Scholar] [CrossRef]
  10. Lin, C.; Li, J.-L.; Li, X.; Yang, S.; Luo, W.; Zhang, Y.; Kim, S.H.; Kim, D.H.; Shinde, S.S.; Li, Y.F. In-situ reconstructed Ru atom array on α-MnO2 with enhanced performance for acidic water oxidation. Nat. Catal. 2021, 4, 1012–1023. [Google Scholar] [CrossRef]
  11. Ahmed, K.; Wang, Y.Y.; Bai, Y.; Sekar, K.; Li, W. A carbon nanowire-promoted Cu2O/TiO2 nanocomposite for enhanced photoelectrochemical performance. New J. Chem. 2022, 46, 15495–15503. [Google Scholar] [CrossRef]
  12. Bahuguna, G.; Cohen, A.; Harpak, N.; Filanovsky, B.; Patolsky, F. Single-step solid-state scalable transformation of Ni-based substrates to high-oxidation state nickel sulfide nanoplate arrays as exceptional bifunctional electrocatalyst for overall water splitting. Small Methods 2022, 6, 2200181. [Google Scholar] [CrossRef] [PubMed]
  13. Cai, H.R.; Xiong, L.F.; Wang, B.; Zhu, D.L.; Hao, H.J.; Zhang, X.J.; Li, J.; Yang, S.C. Boosting the hydrogen evolution reaction of N-C@CoP through an N atom induced p-d orbital coupling. Chem. Eng. J. 2022, 446, 137132. [Google Scholar] [CrossRef]
  14. Zhou, P.Y.; Li, R.S.; Lv, J.J.; Huang, X.B.; Lu, Y.F.; Wang, G. Synthesis of CoP nanoarrays by morphological engineering for efficient electrochemical hydrogen production. Electrochim. Acta 2022, 426, 140768. [Google Scholar] [CrossRef]
  15. Xu, D.; Kang, Z.; Zhao, H.; Ji, Y.; Yao, W.; Ye, D.; Zhang, J. Coupling heterostructured CoP-NiCoP nanopin arrays with MXene (Ti3C2Tx) as an efficient bifunctional electrocatalyst for overall water splitting. J. Colloid Interface Sci. 2023, 639, 223–232. [Google Scholar] [CrossRef]
  16. Li, J.W.; Hu, Y.Z.; Huang, X.; Zhu, Y.; Wang, D.L. Bimetallic phosphide heterostructure coupled with ultrathin carbon layer boosting overall alkaline water and seawater splitting. Small 2023, 2206533. [Google Scholar] [CrossRef]
  17. Nallal, M.; Park, K.H.; Park, S.; Kim, J.; Shenoy, S.; Chuaicham, C.; Sasaki, K.; Sekar, K. Cu2O/reduced graphene oxide nanocomposites for electrocatalytic overall water splitting. ACS Appl. Nano Mater. 2022, 5, 17271–17280. [Google Scholar] [CrossRef]
  18. Zhang, L.L.; Lei, Y.T.; Xu, W.J.; Wang, D.; Zhao, Y.F.; Chen, W.X.; Xiang, X.; Pang, X.C.; Zhang, B.; Shang, H.S. Highly active and durable nitrogen-doped CoP/CeO2 nanowire heterostructures for overall water splitting. Chem. Eng. J. 2023, 460, 141119. [Google Scholar] [CrossRef]
  19. Chen, X.H.; Cheng, Y.M.; Wen, Y.Z.; Wang, Y.Y.; Yan, X.; Wei, J.; He, S.S.; Zhou, J. CoP/Fe-Co9S8 for highly efficient overall water splitting with surface reconstruction and self-termination. Adv. Sci. 2022, 9, 2204742. [Google Scholar] [CrossRef]
  20. Sun, Y.K.; Liu, T.; Li, Z.J.; Meng, A.L.; Li, G.C.; Wang, L.; Li, S.X. Morphology and interfacial charge regulation strategies constructing 3D flower-like Co@CoP2 heterostructure electrocatalyst for efficient overall water splitting. Chem. Eng. J. 2022, 433, 133684. [Google Scholar] [CrossRef]
  21. Shen, J.; Li, Q.; Cai, Z.Y.; Sun, X.L.; Liu, J.Q. Metal-organic framework-based self-supporting nanoparticle arrays for catalytic water splitting. ACS Appl. Nano Mater. 2023, 6, 1965–1974. [Google Scholar] [CrossRef]
  22. Honnappa, B.; Mohan, S.; Shanmugam, M.; Augustin, A.; Sagayaraj, P.J.J.; Chuaicham, C.; Rajendran, S.; Hoang, T.K.A.; Sasaki, K.; Sekar, K. Transition metal quantum dots for the electrocatalytic hydrogen evolution reaction: Recent progresses and challenges. Energy Adv. 2022, 1, 738–760. [Google Scholar] [CrossRef]
  23. Lee, G.H.Y.; Jeong, M.; Kim, H.R.; Kwon, M.; Baek, S.; Oh, S.; Lee, M.H.Y.; Lee, D.J.; Joo, J.H. Controlled electrophoretic deposition strategy of binder-free CoFe2O4 nanoparticles as an enhanced electrocatalyst for the oxygen evolution reaction. ACS Appl. Mater. Interfaces 2022, 14, 48598–48608. [Google Scholar] [CrossRef]
  24. Guo, X.; Liu, X.; Wang, M.; Yan, J.; Chen, Y.; Liu, S. Unveiling the origin of Co3O4 quantum dots for photocatalytic overall water splitting. Small 2023, 2206695. [Google Scholar] [CrossRef]
  25. Liu, F.; Gao, Y.; Chi, X.; Zhu, Z.; Wang, X.; Guan, R. A PtS QDs/ZnIn2S4 heterojunction catalyst for efficient photocatalytic hydrogen production and reduction of p-nitrophenol. J. Environ. Chem. Eng. 2022, 10, 108840. [Google Scholar] [CrossRef]
  26. Jiang, J.; Xu, G.; Li, Y.; Wang, C.; Zhang, L. Interfacial engineering of metal–organic framework derived hierarchical CoP–Ni5P4 nanosheet arrays for overall water splitting. J. Mater. Chem. A 2023, 11, 1801–1809. [Google Scholar] [CrossRef]
  27. Mu, Y.; Zhang, Y.; Feng, Z.; Dong, X.; Jing, X.; Pei, X.; Zhao, Y.; Kou, Z.; Meng, C. Bifunctional electrocatalyst junction engineering: CoP nanoparticles in-situ anchored on Co3(Si2O5)2(OH)2 nanosheets for highly efficient water splitting. Chem. Eng. J. 2023, 460, 141709. [Google Scholar] [CrossRef]
  28. Ding, X.; Yu, J.; Huang, W.; Chen, D.; Lin, W.; Xie, Z. Modulation of the interfacial charge density on Fe2P–CoP by coupling CeO2 for accelerating alkaline electrocatalytic hydrogen evolution reaction and overall water splitting. Chem. Eng. J. 2023, 451, 138550. [Google Scholar] [CrossRef]
  29. Huang, H.; Cho, A.; Kim, S.; Jun, H.; Lee, A.; Han, J.W.; Lee, J. Structural design of amorphous CoMoPx with abundant active sites and synergistic catalysis effect for effective water splitting. Adv. Funct. Mater. 2020, 30, 2203889. [Google Scholar] [CrossRef]
  30. Zhang, B.; Shan, J.; Wang, W.; Tsiakaras, P.; Li, Y. Oxygen vacancy and core-shell heterojunction engineering of anemone-like CoP@CoOOH bifunctional electrocatalyst for efficient overall water splitting. Small 2022, 18, 2106012. [Google Scholar] [CrossRef]
  31. Cai, Z.; Shen, J.; Zhang, M.; Cui, L.; Liu, W.; Liu, J. CuxO nanorod arrays shelled with CoNi layered double hydroxide nanosheets for enhanced oxygen evolution reaction under alkaline conditions. J. Colloid Interface Sci. 2023, 630, 57–65. [Google Scholar] [CrossRef] [PubMed]
  32. Masoumi, Z.; Tayebi, M.; Kolaei, M.; Lee, B.-K. Improvement of surface light absorption of ZnO photoanode using a double heterojunction with α–Fe2O3/g–C3N4 composite to enhance photoelectrochemical water splitting. Appl. Surf. Sci. 2023, 608, 154915. [Google Scholar] [CrossRef]
  33. Zhai, T.; Niu, H.; Yan, Y.; Yang, S.; Lu, C.; Zhou, W. Rational hetero-interface design of Fe3N@Ni2Co-LDHs as high efficient electrocatalyst for oxygen evolution reaction. J. Alloy. Compd. 2021, 853, 157353. [Google Scholar] [CrossRef]
  34. Meng, T.; Qin, J.; Xu, D.; Cao, M. Atomic heterointerface-induced local charge distribution and enhanced water adsorption behavior in a cobalt phosphide electrocatalyst for self-powered highly efficient overall water splitting. ACS Appl. Mater. Interfaces 2019, 11, 9023–9032. [Google Scholar] [CrossRef]
  35. Yue, Q.; Wan, Y.; Sun, Z.; Wu, X.; Yuan, Y.; Du, P. MoP is a novel, noble-metal-free cocatalyst for enhanced photocatalytic hydrogen production from water under visible light. J. Mater. Chem. A 2015, 3, 16941–16947. [Google Scholar] [CrossRef]
  36. Xu, S.; Zhao, H.; Li, T.; Liang, J.; Lu, S.; Chen, G.; Gao, S.; Asiri, A.M.; Wu, Q.; Sun, X. Iron-based phosphides as electrocatalysts for the hydrogen evolution reaction: Recent advances and future prospects. J. Mater. Chem. A 2020, 8, 19729–19745. [Google Scholar] [CrossRef]
  37. Huang, C.-L.; Lin, Y.-G.; Chiang, C.-L.; Peng, C.-K.; Senthil Raja, D.; Hsieh, C.-T.; Chen, Y.-A.; Chang, S.-Q.; Yeh, Y.-X.; Lu, S.-Y. Atomic scale synergistic interactions lead to breakthrough catalysts for electrocatalytic water splitting. Appl. Catal. B Environ. 2023, 320, 122016. [Google Scholar] [CrossRef]
  38. Zheng, Y.; Shang, P.; Pei, F.; Ma, G.; Ye, Z.; Peng, X.; Li, D. Achieving an efficient hydrogen evolution reaction with a bicontinuous nanoporous PtNiMg alloy of ultralow noble-metal content at an ultrawide range of current densities. Chem. Eng. J. 2022, 433, 134571. [Google Scholar] [CrossRef]
  39. Pan, Y.D.; Abazari, R.; Wu, Y.H.; Gao, J.K.; Zhang, Q.C. Advances in metal-organic frameworks and their derivatives for diverse electrocatalytic applications. Electrochem. Commun. 2021, 126, 107024. [Google Scholar] [CrossRef]
  40. Li, J.; Tan, Y.; Zhang, M.; Gou, W.; Zhang, S.; Ma, Y.; Hu, J.; Qu, Y. Boosting electrocatalytic activity of Ru for acidic hydrogen evolution through hydrogen spillover strategy. ACS Energy Lett. 2022, 7, 1330–1337. [Google Scholar] [CrossRef]
  41. Song, L.; Zhang, X.; Zhu, S.; Xu, Y.; Wang, Y. Hydrogen spillover effect enhanced by carbon quantum dots activated MoS2. Carbon 2022, 199, 63–69. [Google Scholar] [CrossRef]
  42. Zhou, Y.-N.; Liu, X.; Yu, C.-J.; Dong, B.; Han, G.-Q.; Liu, H.-J.; Lv, R.-Q.; Liu, B.; Chai, Y.-M. Boosting hydrogen evolution through hydrogen spillover promoted by Co-based support effect. J. Mater. Chem. A 2023, 11, 6945. [Google Scholar] [CrossRef]
  43. Adamu, H.; Abba, S.I.; Anyin, P.B.; Sani, Y.; Yamani, Z.H.; Qamar, M. Tuning OER electrocatalysts toward LOM pathway through the lens of multi-descriptor feature selection by artificial intelligence-based approach. ACS Mater. Lett. 2022, 5, 299–320. [Google Scholar] [CrossRef]
  44. Avci, O.N.; Sementa, L.; Fortunelli, A. Mechanisms of the Oxygen Evolution reaction on NiFe2O4 and CoFe2O4 inverse-spinel oxides. ACS Catal. 2022, 12, 9058–9073. [Google Scholar] [CrossRef]
  45. Li, Y.W.; Lu, M.T.; Wu, Y.H.; Ji, Q.H.; Xu, H.; Gao, J.K.; Qian, G.D.; Zhang, Q.C. Morphology regulation of metal-organic framework-derived nanostructures for efficient oxygen evolution electrocatalysis. J. Mater. Chem. A 2020, 8, 18215–18219. [Google Scholar] [CrossRef]
  46. Chen, M.P.; Liu, D.; Feng, J.X.; Zhou, P.F.; Qiao, L.L.; Feng, W.L.; Chen, Y.Y.; Ng, K.W.; Wang, S.P.; Ip, W.F.; et al. In-situ generation of Ni-CoOOH through deep reconstruction for durable alkaline water electrolysis. Chem. Eng. J. 2022, 443, 136432. [Google Scholar] [CrossRef]
  47. Wang, H.; Cui, M.; Fu, G.; Zhang, J.; Ding, X.; Azaceta, I.; Bugnet, M.; Kepaptsoglou, D.M.; Lazarov, V.K.; de la Peña O’Shea, V.A.; et al. Vertically aligned Ni/NiO nanocomposites with abundant oxygen deficient hetero-interfaces for enhanced overall water splitting. Sci. China Chem. 2022, 65, 1885–1894. [Google Scholar] [CrossRef]
  48. Yang, C.; Wu, Z.; Zhao, Z.; Gao, Y.; Ma, T.; He, C.; Wu, C.; Liu, X.; Luo, X.; Li, S.; et al. Electronic structure-dependent water-dissociation pathways of ruthenium-based catalysts in alkaline H2 -evolution. Small 2023, 19, 2206949. [Google Scholar] [CrossRef]
  49. Zhang, Y.; Guo, P.; Guo, S.; Xin, X.; Wang, Y.; Huang, W.; Wang, M.; Yang, B.; Jorge Sobrido, A.; Ghasemi, J.B.; et al. Gradient heating epitaxial growth gives well lattice-matched Mo2C-Mo2N heterointerfaces that boost both electrocatalytic hydrogen evolution and water vapor splitting. Angew. Chem. Int. Ed. Engl. 2022, 61, e202209703. [Google Scholar]
  50. Singh, T.I.; Maibam, A.; Cha, D.C.; Yoo, S.; Babarao, R.; Lee, S.U.; Lee, S. High-alkaline water-splitting activity of mesoporous 3D heterostructures: An amorphous-shell@crystalline-core nano-assembly of Co-Ni-phosphate ultrathin-nanosheets and V- doped cobalt-nitride nanowires. Adv. Sci. 2022, 9, 2201311. [Google Scholar] [CrossRef]
  51. Wang, C.; Jiu, H.; Zhang, L.; Song, W.; Zhang, Y.; Wei, H.; Xu, Q.; Che, S.; Guo, Z.; Qin, Y. Bifunctional CuCo2O4/CoOOH as a synergistic catalyst supported on nickel foam for alkaline overall water splitting. J. Alloys Compd. 2022, 929, 167367. [Google Scholar] [CrossRef]
  52. Yang, S.; Zhu, J.-Y.; Chen, X.-N.; Huang, M.-J.; Cai, S.-H.; Han, J.-Y.; Li, J.-S. Self-supported bimetallic phosphides with artificial heterointerfaces for enhanced electrochemical water splitting. Appl. Catal. B Environ. 2022, 304, 120914. [Google Scholar] [CrossRef]
  53. Bai, X.; Wang, L.; Nan, B.; Tang, T.; Niu, X.; Guan, J. Atomic manganese coordinated to nitrogen and sulfur for oxygen evolution. Nano Res. 2022, 15, 6019–6025. [Google Scholar] [CrossRef]
  54. Ghosh, S.; Mondal, A.; Tudu, G.; Ghosh, S.; Koppisetti, H.V.S.R.M.; Inta, H.R.; Saha, D.; Mahalingam, V. Efficient Electrochemical Reconstruction of a Cobalt- and Silver-Based Precatalytic Oxalate Framework for Boosting the Alkaline Water Oxidation Performance. ACS Sustain. Chem. Eng. 2022, 10, 7265–7276. [Google Scholar] [CrossRef]
  55. Hu, R.; Zhao, M.; Miao, H.; Liu, F.; Zou, J.; Zhang, C.; Wang, Q.; Tian, Z.; Zhang, Q.; Yuan, J. Rapidly reconstructing the active surface of cobalt-based perovskites for alkaline seawater splitting. Nanoscale 2022, 14, 10118–10124. [Google Scholar] [CrossRef] [PubMed]
  56. Liu, Y.; Zhang, S.; Jiao, C.; Chen, H.; Wang, G.; Wu, W.; Zhuo, Z.; Mao, J. Axial Phosphate Coordination in Co Single Atoms Boosts Electrochemical Oxygen Evolution. Adv. Sci. 2023, 10, 2206107. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, M.; An, L.; Yin, J.; Jin, J.; Yang, R.; Huang, B.; Hu, Y.; Zhao, Y.-Q.; Xi, P. Electronic engineering of amorphous Fe–Co–S sites in hetero-nanoframes for oxygen evolution and flexible Al–air batteries. J. Mater. Chem. A 2022, 10, 19757–19768. [Google Scholar] [CrossRef]
  58. Lv, J.Q.; Chen, X.; Chang, Y.; Li, Y.G.; Zang, H.Y. N, F Codoped FeOOH Nanosheets with Intercalated Carbonate Anions Rich in Oxygen Defects for Enhanced Alkaline Electrocatalytic Water Splitting. ACS Appl. Mater. Interfaces 2022, 14, 52877–52885. [Google Scholar] [CrossRef]
  59. Mei, Y.; Feng, Y.; Zhang, C.; Zhang, Y.; Qi, Q.; Hu, J. High-Entropy Alloy with Mo-Coordination as Efficient Electrocatalyst for Oxygen Evolution Reaction. ACS Catal. 2022, 12, 10808–10817. [Google Scholar] [CrossRef]
  60. Selvasundarasekar, S.S.; Bijoy, T.K.; Kumaravel, S.; Karmakar, A.; Madhu, R.; Bera, K.; Nagappan, S.; Dhandapani, H.N.; Mersal, G.A.M.; Ibrahim, M.M.; et al. Effective Formation of a Mn-ZIF-67 Nanofibrous Network via Electrospinning: An Active Electrocatalyst for OER in Alkaline Medium. ACS Appl. Mater. Interfaces 2022, 14, 46581–46594. [Google Scholar] [CrossRef]
  61. Yang, H.; Zhou, Z.; Yu, H.; Wen, H.; Yang, R.; Peng, S.; Sun, M.; Yu, L. Alkali treatment of layered double hydroxide nanosheets as highly efficient bifunctional electrocatalysts for overall water splitting. J. Colloid Interface Sci. 2023, 636, 11–20. [Google Scholar] [CrossRef] [PubMed]
  62. Qu, J.; Li, Y.; Li, F.; Li, T.; Wang, X.; Yin, Y.; Ma, L.; Schmidt, O.G.; Zhu, F. Direct Thermal Enhancement of Hydrogen Evolution Reaction of On-Chip Monolayer MoS2. ACS Nano 2022, 16, 2921–2927. [Google Scholar] [CrossRef] [PubMed]
  63. Xiao, F.; Li, L.; Cui, W.; Zhang, Y.; Zhan, C.; Xiao, W. Aligned porous nickel electrodes fabricated via ice templating with submicron particles for hydrogen evolution in alkaline water electrolysis. J. Power Sources 2023, 556, 232441. [Google Scholar] [CrossRef]
  64. Wang, M.; Chen, Y.; Li, T. Controllable preparation of nickel phosphide using iron and cobalt as electrocatalyst for hydrogen evolution reaction in alkaline media. Mater. Today Chem. 2022, 24, 100914. [Google Scholar] [CrossRef]
  65. Rafei, M.; Wu, X.; Piñeiro Garcia, A.; Miranda la Hera, V.; Wågberg, T.; Gracia-Espino, E. Non-Stoichiometric NiFeMo Solid Solutions; Tuning the Hydrogen Adsorption Energy via Molybdenum Incorporation. Adv. Mater. Interfaces 2022, 9, 2201214. [Google Scholar] [CrossRef]
  66. Yan, Y.; Ma, Q.; Cui, F.; Zhang, J.; Cui, T. Carbon onions coated Ni/NiO nanoparticles as catalysts for alkaline hydrogen evolution reaction. Electrochim. Acta 2022, 430, 141090. [Google Scholar] [CrossRef]
  67. Tian, Z.Y.; Han, X.Q.; Du, J.; Li, Z.B.; Ma, Y.Y.; Han, Z.G. Bio-Inspired FeMo2S4 Microspheres as Bifunctional Electrocatalysts for Boosting Hydrogen Oxidation/Evolution Reactions in Alkaline Solution. ACS Appl. Mater. Interfaces 2023, 15, 11853–11865. [Google Scholar] [CrossRef]
  68. Liu, W.; Tan, W.; He, H.; Peng, Y.; Chen, Y.; Yang, Y. One–step electrodeposition of Ni–Ce–Pr–Ho/NF as an efficient electrocatalyst for hydrogen evolution reaction in alkaline medium. Energy 2022, 250, 123831. [Google Scholar] [CrossRef]
  69. Zou, H.-H.; Li, W.-Q.; Song, C.-H.; Cao, L.-M.; Zhang, X.-F.; Zhu, X.-Y.; Du, Z.-Y.; Zhang, J.; Zhong, S.-L.; He, C.-T. Disclosing the active integration structure and robustness of a pseudo-tri-component electrocatalyst toward alkaline hydrogen evolution. J. Energy Chem. 2022, 72, 210–216. [Google Scholar] [CrossRef]
  70. Wang, Y.; Yun, S.; Shi, J.; Zhang, Y.; Dang, J.; Dang, C.; Liu, Z.; Deng, Y.; Yang, T. Defect engineering tuning electron structure of biphasic tungsten-based chalcogenide heterostructure improves its catalytic activity for hydrogen evolution and triiodide reduction. J. Colloid Interface Sci. 2022, 625, 800–816. [Google Scholar] [CrossRef]
  71. Chen, X.; Song, J.; Xing, Y.; Qin, Y.; Lin, J.; Qu, X.; Sun, B.; Du, S.; Shi, D.; Chen, C.; et al. Nickel-decorated RuO2 nanocrystals with rich oxygen vacancies for high-efficiency overall water splitting. J. Colloid Interface Sci. 2023, 630, 940–950. [Google Scholar] [CrossRef]
  72. Cui, Z.; Liang, X.; Wang, P.; Zhou, P.; Zhang, Q.; Wang, Z.; Zheng, Z.; Liu, Y.; Dai, Y.; Huang, B. In situ integration of Fe3N@Co4N@CoFe alloy nanoparticles as efficient and stable electrocatalyst for overall water splitting. Electrochim. Acta 2021, 395, 139218. [Google Scholar] [CrossRef]
  73. Guo, D.; Wan, Z.; Fang, G.; Zhu, M.; Xi, B. A Tandem Interfaced (Ni3S2-MoS2)@TiO2 Composite Fabricated by Atomic Layer Deposition as Efficient HER Electrocatalyst. Small 2022, 18, 2201896. [Google Scholar] [CrossRef]
  74. He, W.; Wang, L.; Zhang, H.; Gao, S.; Yu, W.; Yin, D.; Dong, X. SnO2@MoS2 heterostructures grown on nickel foam as highly efficient bifunctional electrocatalyst for overall water splitting in alkaline media. J. Alloy. Compd. 2023, 938, 168678. [Google Scholar] [CrossRef]
  75. Jiang, E.; Li, J.; Li, X.; Ali, A.; Wang, G.; Ma, S.; Shen, P.K.; Zhu, J. Mo4P3-Mo2C quantum dot heterostructures uniformly hosted on a heteroatom-doped 3D porous carbon sheet network as an efficient bifunctional electrocatalyst for overall water splitting. Chem. Eng. J. 2022, 431, 133719. [Google Scholar] [CrossRef]
  76. Li, L.; Chao, K.; Liu, X.; Zhou, S. Construction of La decorated CoMo4P3 composite and its highly efficient electrocatalytic activity for overall water splitting in alkaline media. J. Alloy. Compd. 2023, 941, 168952. [Google Scholar] [CrossRef]
  77. Li, W.; Chen, M.; Lu, Y.; Qi, P.; Liu, G.; Zhao, Y.; Wu, H.; Tang, Y. One-pot electrodeposition synthesis of NiFe-phosphate/phosphide hybrid nanosheet arrays for efficient water splitting. Appl. Surf. Sci. 2022, 598, 153717. [Google Scholar] [CrossRef]
  78. Li, X.; Duan, F.; Lu, X.; Gang, Y.; Zheng, W.; Lin, Y.; Chen, L.; Dan, Y.; Cheng, X. Surface engineering of flower-like Co-N-C on carbon paper for improved overall water splitting. J. Alloy. Compd. 2023, 935, 168128. [Google Scholar] [CrossRef]
  79. Liu, D.; Song, Z.; Cheng, S.; Wang, Y.; Saad, A.; Deng, S.; Shen, J.; Huang, X.; Cai, X.; Tsiakaras, P. Mesoporous IrNiTa metal glass ribbon as a superior self-standing bifunctional catalyst for water electrolysis. Chem. Eng. J. 2022, 431, 134210. [Google Scholar] [CrossRef]
  80. Ma, H.; Chen, Z.; Wang, Z.; Singh, C.V.; Jiang, Q. Interface Engineering of Co/CoMoN/NF Heterostructures for High-Performance Electrochemical Overall Water Splitting. Adv. Sci. 2022, 9, 2105313. [Google Scholar] [CrossRef] [PubMed]
  81. Shekhawat, A.; Samanta, R.; Barman, S. MOF-Derived Porous Fe3O4/RuO2-C Composite for Efficient Alkaline Overall Water Splitting. ACS Appl. Energy Mater. 2022, 5, 6059–6069. [Google Scholar] [CrossRef]
  82. Tan, Q.; Xiao, R.; Yao, X.; Xiong, T.; Li, J.; Hu, Y.-W.; Huang, Y.; Balogun, M.S. Non-oxygen anion-regulated in situ cobalt based heterojunctions for active alkaline hydrogen evolution catalysis. Chem. Eng. J. 2022, 433, 133514. [Google Scholar] [CrossRef]
  83. Wang, Z.; Chen, H.; Bao, J.; Song, Y.; She, X.; Lv, G.; Deng, J.; Li, H.; Xu, H. Amorphized core–shell NiFeMo electrode for efficient bifunctional water splitting. Appl. Surf. Sci. 2023, 607, 154803. [Google Scholar] [CrossRef]
  84. Zahra, S.A.; Hakim, M.W.; Mansoor, M.A.; Rizwan, S. Two-dimensional double transition metal carbides as superior bifunctional electrocatalysts for overall water splitting. Electrochim. Acta 2022, 434, 141257. [Google Scholar] [CrossRef]

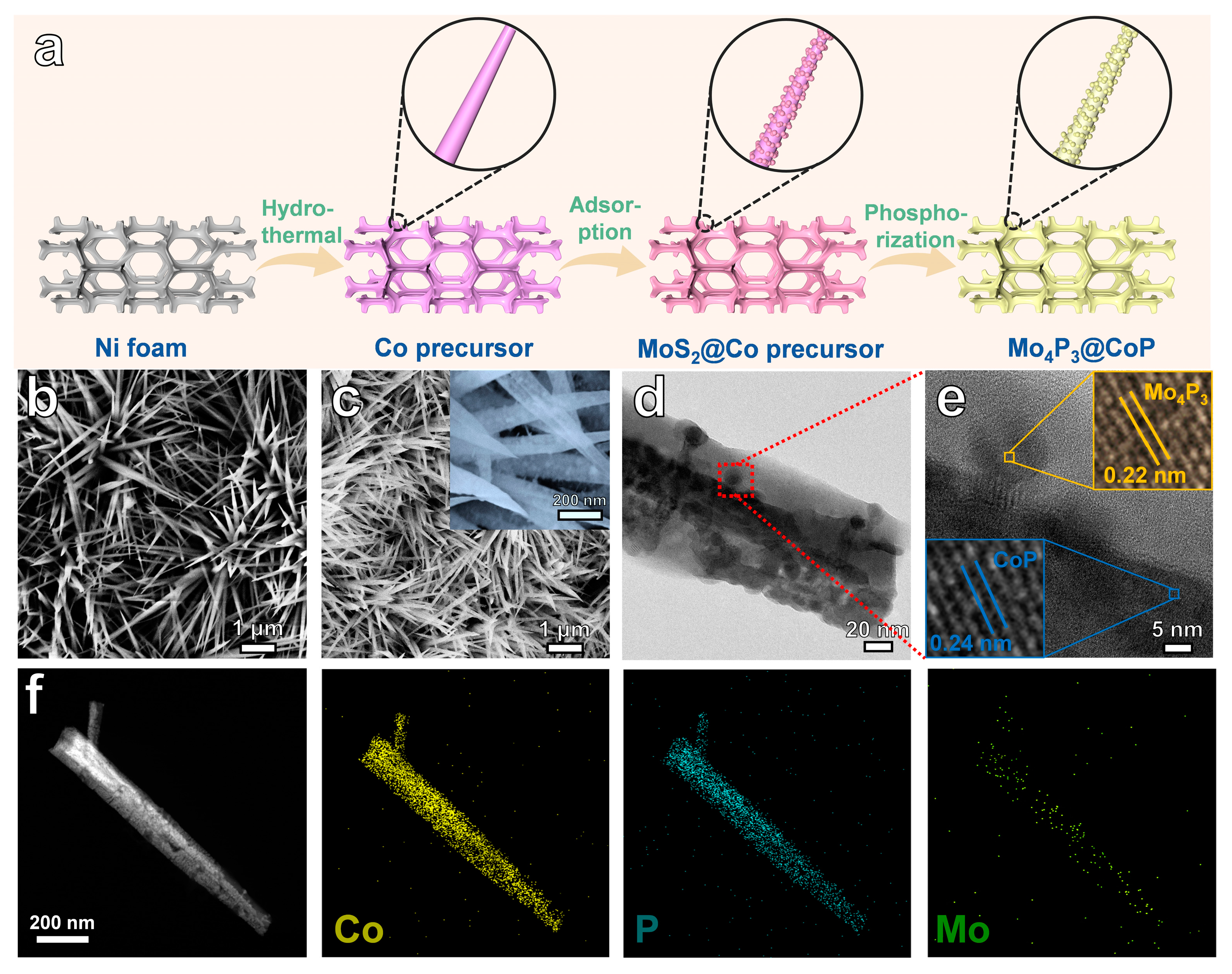

Figure 1. (a) Schematic illustration of the preparation of Mo4P3@CoP nanoarrays on Ni foam (NF). Scanning electron microscopy (SEM) images of the (b) MoS2@Co precursor/NF, (c) Mo4P3@CoP/NF. (d) Transmission electron microscopy (TEM) image of Mo4P3@CoP nanowire. (e) HRTEM image of Mo4P3@CoP nanowire from the region (d) in the panel. (f) High-angle annular dark field scanning TEM (HAADF-STEM) image of single Mo4P3@CoP and the corresponding EDS mapping for elements of Co, P, and Mo.
Figure 1. (a) Schematic illustration of the preparation of Mo4P3@CoP nanoarrays on Ni foam (NF). Scanning electron microscopy (SEM) images of the (b) MoS2@Co precursor/NF, (c) Mo4P3@CoP/NF. (d) Transmission electron microscopy (TEM) image of Mo4P3@CoP nanowire. (e) HRTEM image of Mo4P3@CoP nanowire from the region (d) in the panel. (f) High-angle annular dark field scanning TEM (HAADF-STEM) image of single Mo4P3@CoP and the corresponding EDS mapping for elements of Co, P, and Mo.
Molecules 28 03647 g001

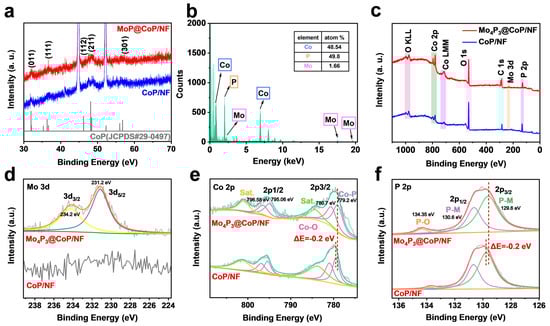

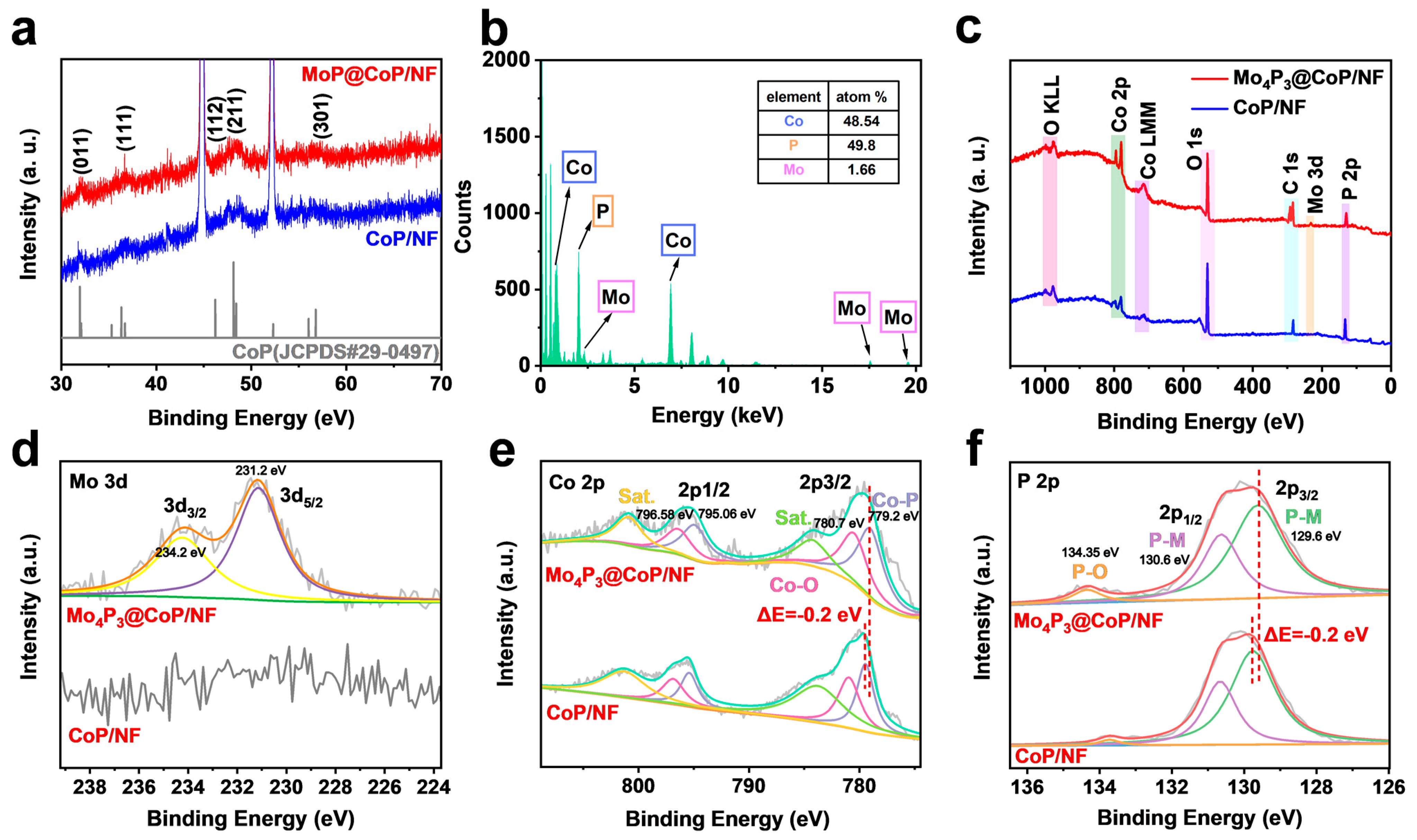

Figure 2. (a) XRD patterns, (b) full XPS spectra of Mo4P3@CoP/NF and CoP/NF. High−resolution (c) Mo 2p, (d) Co 2p, and (e) P 2p XPS spectra of Mo4P3@CoP/NF and CoP/NF. (f) Mo4P3 and CoP work function step diagrams.
Figure 2. (a) XRD patterns, (b) full XPS spectra of Mo4P3@CoP/NF and CoP/NF. High−resolution (c) Mo 2p, (d) Co 2p, and (e) P 2p XPS spectra of Mo4P3@CoP/NF and CoP/NF. (f) Mo4P3 and CoP work function step diagrams.
Molecules 28 03647 g002

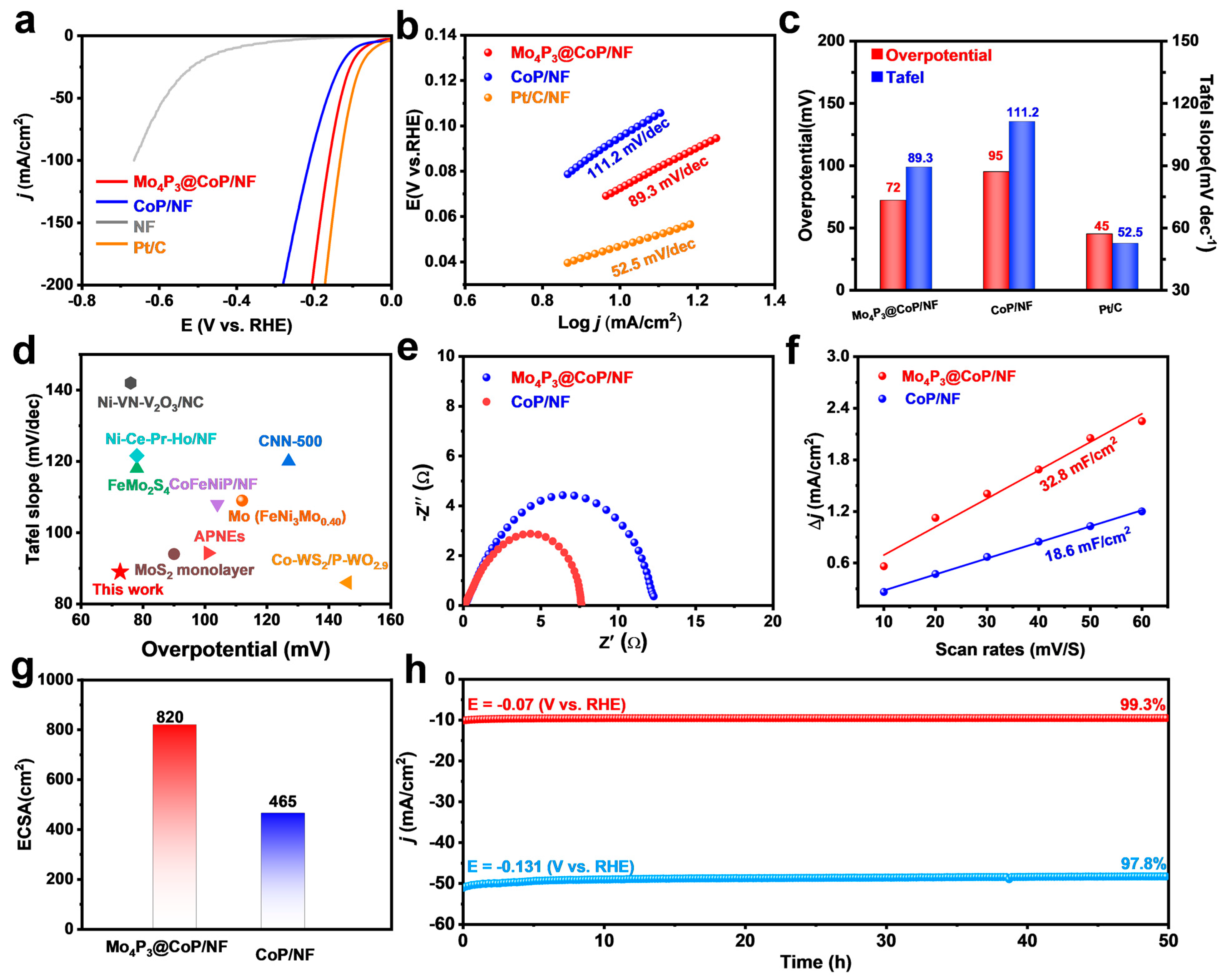

Figure 3. (a) Polarization curves of Mo4P3@CoP/NF, CoP/NF, NF, and Pt/C. (b) Tafel curves of Mo4P3@CoP/NF, CoP/NF and Pt/C. (c) Comparison chart of overpotential and Tafel slope. (d) HER performance comparison of the Mo4P3@CoP/NF with different catalysts published recently. (e) Electrochemical impedance of Mo4P3@CoP/NF, CoP/NF. (f) ECSA values of Cdl. (g) Mo4P3@CoP/NF and CoP/NF. (h) I−t curves at −0.07 V vs. RHE and −0.0131 V vs. RHE, respectively.
Figure 3. (a) Polarization curves of Mo4P3@CoP/NF, CoP/NF, NF, and Pt/C. (b) Tafel curves of Mo4P3@CoP/NF, CoP/NF and Pt/C. (c) Comparison chart of overpotential and Tafel slope. (d) HER performance comparison of the Mo4P3@CoP/NF with different catalysts published recently. (e) Electrochemical impedance of Mo4P3@CoP/NF, CoP/NF. (f) ECSA values of Cdl. (g) Mo4P3@CoP/NF and CoP/NF. (h) I−t curves at −0.07 V vs. RHE and −0.0131 V vs. RHE, respectively.
Molecules 28 03647 g003

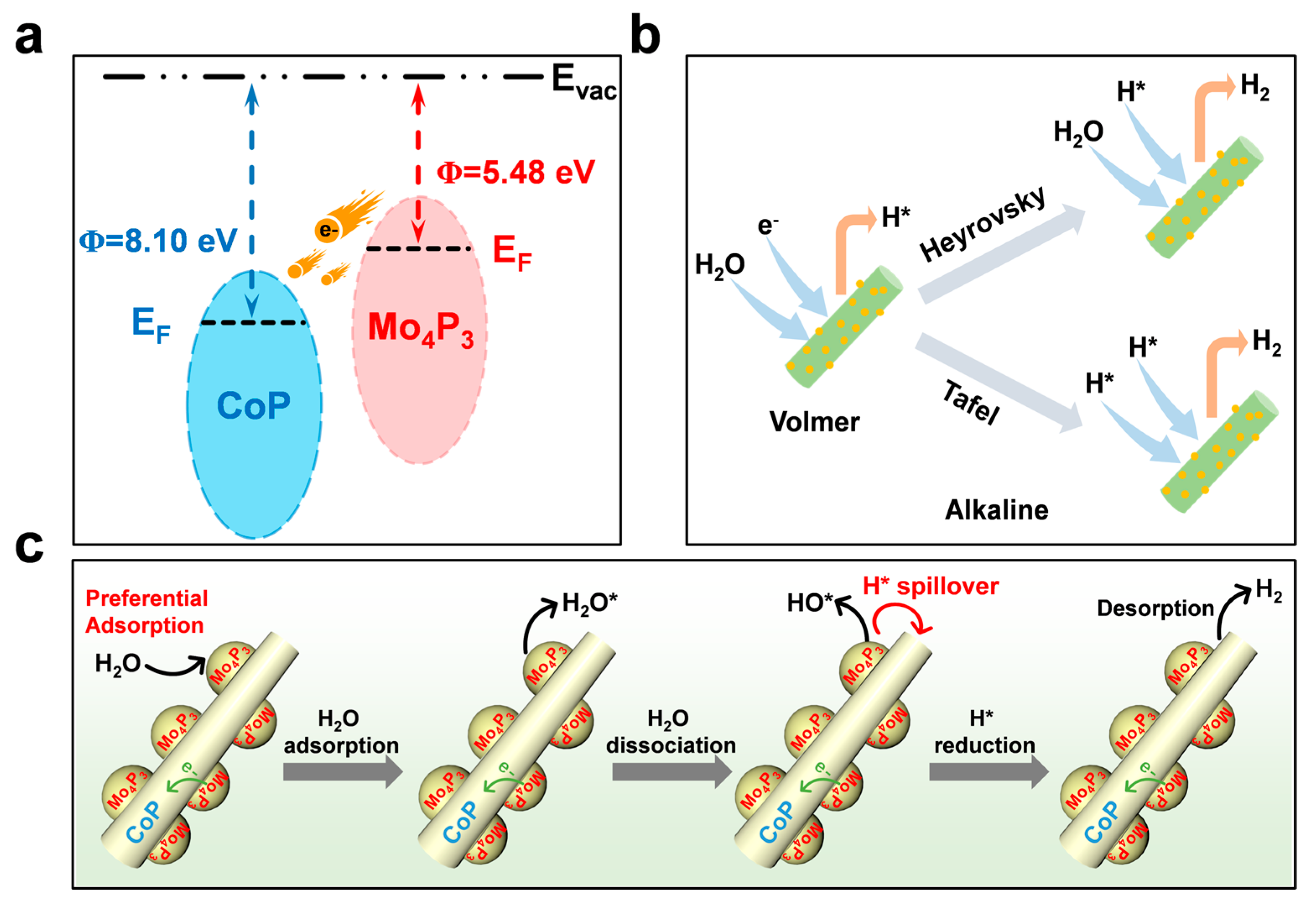

Figure 4. (a) Mo4P3 and CoP work function step diagrams. (b) Schematic diagram of HER steps for alkaline conditions. (c) HER reaction process of Mo4P3@CoP/NF under alkaline conditions.
Figure 4. (a) Mo4P3 and CoP work function step diagrams. (b) Schematic diagram of HER steps for alkaline conditions. (c) HER reaction process of Mo4P3@CoP/NF under alkaline conditions.
Molecules 28 03647 g004

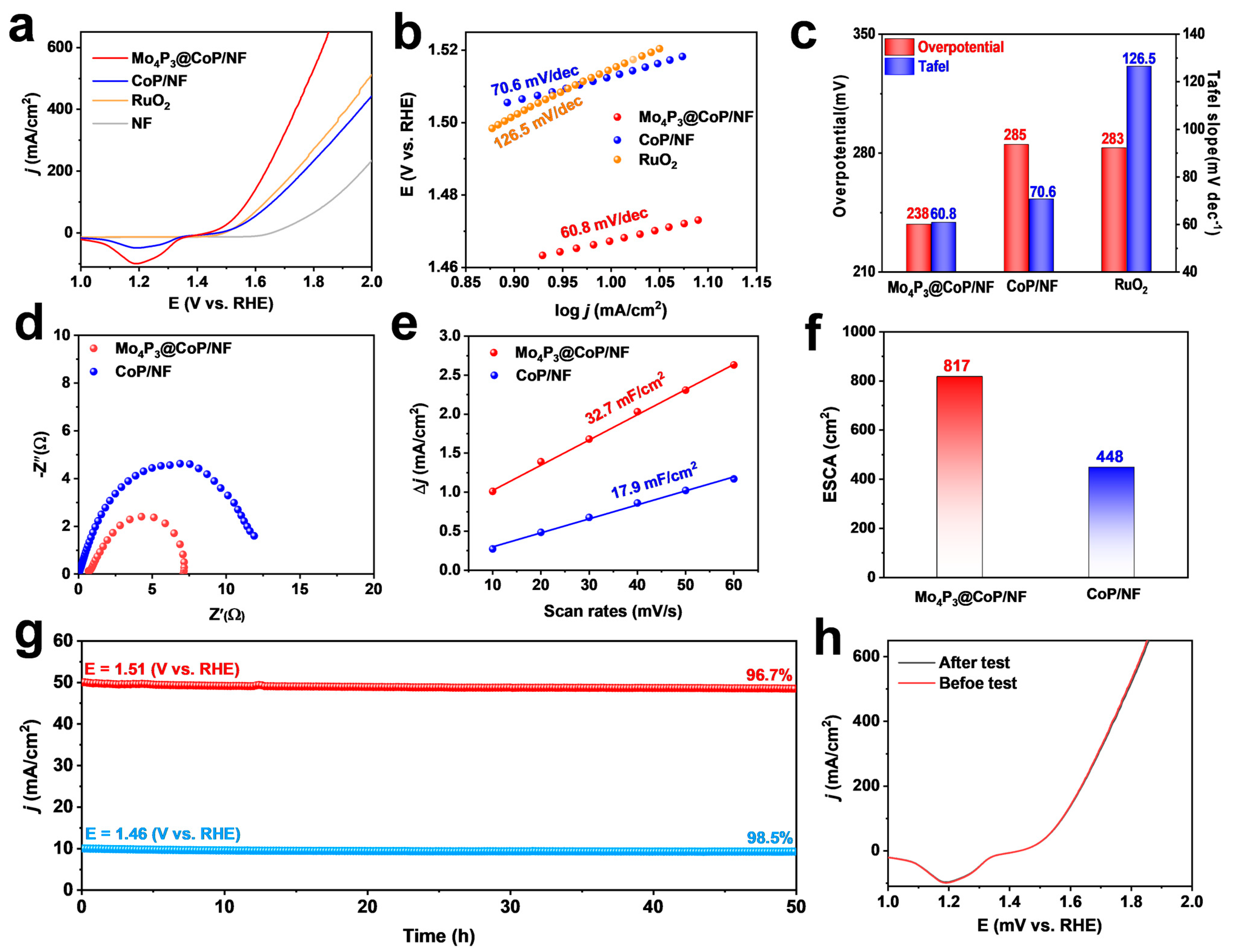

Figure 5. (a) Polarization curves of Mo4P3@CoP/NF, CoP/NF, NF, and RuO2. (b) Tafel curves of Mo4P3@CoP/NF, CoP/NF, and RuO2. (c) Comparison chart of overpotential and Tafel. (d) Electrochemical impedance spectra of Mo4P3@CoP/NF, CoP/NF. (e) Double-layer capacitor (Cdl). (f) ECSA values of Mo4P3@CoP/NF and CoP/NF. (g) I−t plots at 1.51 V vs. RHE and 1.46 V vs. RHE. (h) LSV plots before and after the I-t test.
Figure 5. (a) Polarization curves of Mo4P3@CoP/NF, CoP/NF, NF, and RuO2. (b) Tafel curves of Mo4P3@CoP/NF, CoP/NF, and RuO2. (c) Comparison chart of overpotential and Tafel. (d) Electrochemical impedance spectra of Mo4P3@CoP/NF, CoP/NF. (e) Double-layer capacitor (Cdl). (f) ECSA values of Mo4P3@CoP/NF and CoP/NF. (g) I−t plots at 1.51 V vs. RHE and 1.46 V vs. RHE. (h) LSV plots before and after the I-t test.
Molecules 28 03647 g005

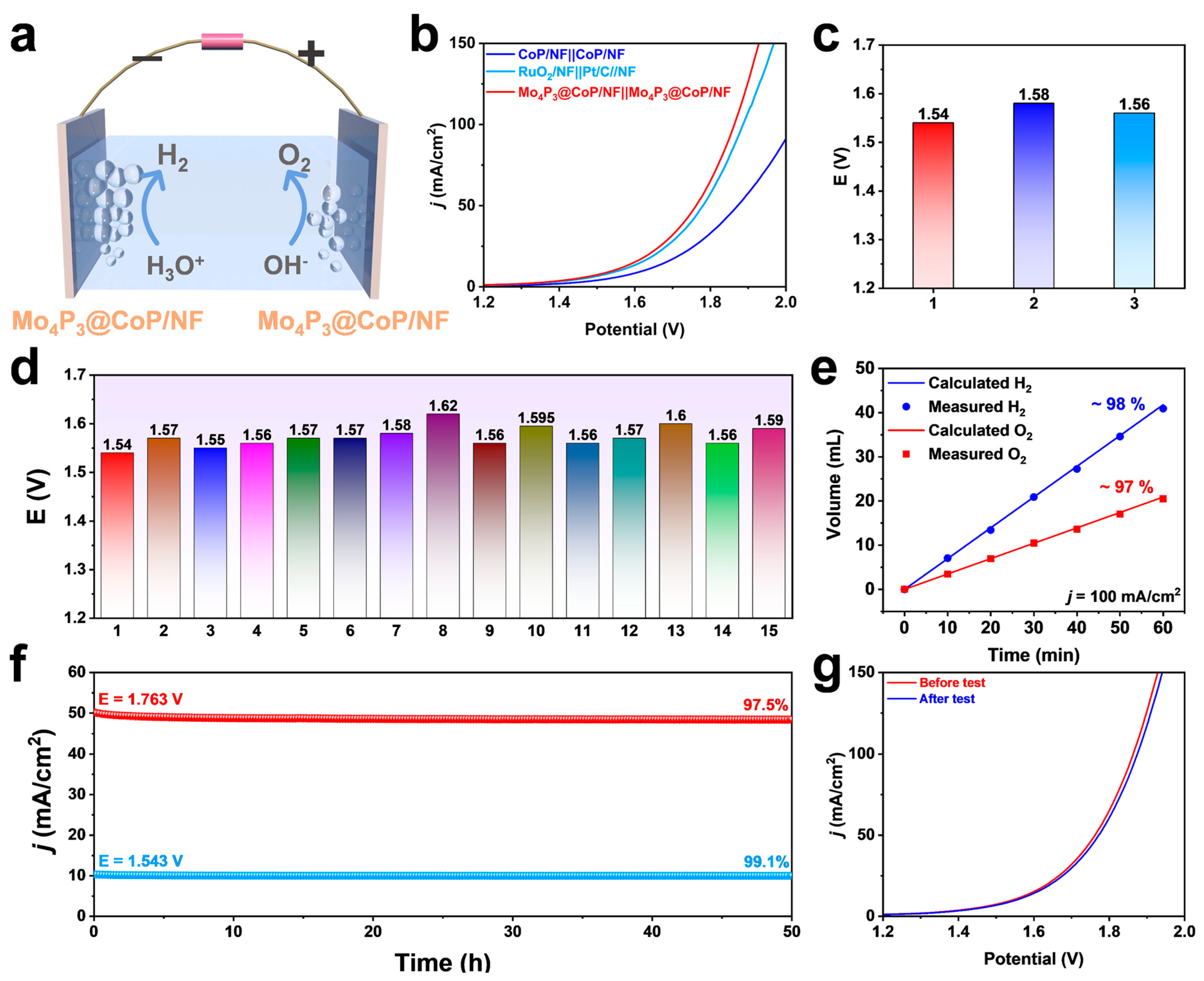

Figure 6. (a) Schematic diagram of the electrolyzer for overall water splitting. (b) In 1.0 M KOH solution, Mo4P3@CoP/NF||Mo4P3@CoP/NF, CoP/NF||CoP/NF, and RuO2/NF||RuO2/NF are fully hydrolyzed polarization curves and (c) voltage at 10 mA/cm2. (d) Performance comparison of Mo4P3 @CoP/NF with recently reported catalysts. (e) Double-layer capacitor (Cdl). (f) At constant voltages of 1.543 V and 1.763 V, the I−t curve of Mo4P3@CoP/NF. (g) LSV images of Mo4P3@CoP/NF before and after the stability test.
Figure 6. (a) Schematic diagram of the electrolyzer for overall water splitting. (b) In 1.0 M KOH solution, Mo4P3@CoP/NF||Mo4P3@CoP/NF, CoP/NF||CoP/NF, and RuO2/NF||RuO2/NF are fully hydrolyzed polarization curves and (c) voltage at 10 mA/cm2. (d) Performance comparison of Mo4P3 @CoP/NF with recently reported catalysts. (e) Double-layer capacitor (Cdl). (f) At constant voltages of 1.543 V and 1.763 V, the I−t curve of Mo4P3@CoP/NF. (g) LSV images of Mo4P3@CoP/NF before and after the stability test.
Molecules 28 03647 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Huang, Y.; Chen, H.; Zhang, B. Constructing Molybdenum Phosphide@Cobalt Phosphide Heterostructure Nanoarrays on Nickel Foam as a Bifunctional Electrocatalyst for Enhanced Overall Water Splitting. Molecules 2023, 28, 3647. https://doi.org/10.3390/molecules28093647

AMA Style

Huang Y, Chen H, Zhang B. Constructing Molybdenum Phosphide@Cobalt Phosphide Heterostructure Nanoarrays on Nickel Foam as a Bifunctional Electrocatalyst for Enhanced Overall Water Splitting. Molecules. 2023; 28(9):3647. https://doi.org/10.3390/molecules28093647

Chicago/Turabian Style

Huang, Yingchun, Hongming Chen, and Busheng Zhang. 2023. "Constructing Molybdenum Phosphide@Cobalt Phosphide Heterostructure Nanoarrays on Nickel Foam as a Bifunctional Electrocatalyst for Enhanced Overall Water Splitting" Molecules 28, no. 9: 3647. https://doi.org/10.3390/molecules28093647

APA Style

Huang, Y., Chen, H., & Zhang, B. (2023). Constructing Molybdenum Phosphide@Cobalt Phosphide Heterostructure Nanoarrays on Nickel Foam as a Bifunctional Electrocatalyst for Enhanced Overall Water Splitting. Molecules, 28(9), 3647. https://doi.org/10.3390/molecules28093647

Article Metrics

Back to TopTop
