Chiral Binaphthalene Building Blocks for Self-Assembled Nanoscale CPL Emitters

1
Univ. Bordeaux, CNRS, Bordeaux INP, ISM UMR 5255, F-33400 Talence, France
2
Department of Chemistry, National Taiwan University, Taipei 10617, Taiwan
3
Research Center for Applied Sciences, Academia Sinica, Taipei 11529, Taiwan
4
Department of Physics, National Taiwan Normal University, Taipei 11677, Taiwan
5
Institute of Atomic and Molecular Science, Academia Sinica, Taipei 10617, Taiwan
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(8), 3382; https://doi.org/10.3390/molecules28083382
Submission received: 21 March 2023 / Revised: 3 April 2023 / Accepted: 6 April 2023 / Published: 11 April 2023

Abstract

:
The introduction of biuret hydrogen-bonding sites onto chiral binaphthalene-based chromophores was investigated as a route to sub-micron-sized, vesicle-like aggregates endowed with chiroptical properties. The synthesis was conducted from the corresponding chiral 4,4′-dibromo-1,1′-bis(2-naphthol) via Suzuki–Miyaura coupling to afford luminescent chromophores whose emission spectrum could be tuned from blue to yellow-green through extension of the conjugation. For all compounds, the spontaneous formation of hollow spheres with a diameter of ca. 200–800 nm was evidenced by scanning electron microscopy, along with strong asymmetry in the circularly polarized absorption spectra. For some compounds, the emission also displayed circular polarization with values of glum = ca. 10–3 which could be increased upon aggregation.

Graphical Abstract

1. Introduction

Hydrogen-bonding (H-B) interactions are widely used in natural and artificial systems to construct small, well-defined molecular assemblies in which the number and directionality of the complementary H-B donor and acceptor motifs are satisfied [1,2]. When this is not the case, either involuntarily or by design, pendant H-B units can lead to the formation of extended or infinite structures such as tubules, fibers, or sheets whose size usually extends beyond the micron scale [3,4,5]. Understandably, the self-assembly of well-defined H-B architectures whose size goes beyond that of a few molecules but remains well below the micron scale is more difficult as it requires a delicate balance between intermolecular forces pushing for the structure’s growth and those that confine it.
While investigating the self-assembly of rigid, π-conjugated chromophores appended with bis-urea (biuret) H-B units, we discovered that they spontaneously self-assemble into hollow spheres in organic solvents [6]. The spheres are characterized by a diameter comprised between 200 nm and 1 µm, and a thin wall of ca. 15–30 nm. Diffraction studies in solution revealed that the spheres are present in solution even in the absence of traces of water, and that they display Brownian motion rather than a propensity to aggregate [7]. The spontaneous self-assembly of well-defined spheres from small molecules is unusual and generally limited to phospholipids and polymersome classes of compounds. Instead, the bis-biuret motif is a surprisingly robust structural encoder for the programmed formation of vesicle-like hollow spheres that can accommodate a variety of photoactive cores, including porphyrins [8] and azobenzenes [9]. Furthermore, the nanoscale dimensions of the aggregates are particularly well adapted to the design of OLED materials in which each colored pixel is defined by a single aggregate, thereby opening the way to ultra-high-resolution displays in which color bleeding was minimized [10].
Progress beyond the control of the spatial distribution of the emissive material in OLEDs rests on the incorporation of additional functionalities such as error correction [11,12], improving the efficiency through thermally activated delayed fluorescence (TADF) [13,14], or the control of chirality for the emission of circularly polarized light (CPL) [15]. Interestingly, the biuret H-B motif smoothly accommodates TADF-active chromophores and a substantial improvement of the external quantum efficiency of the electroluminescent device can be obtained [16]. However, the incorporation of chiral elements has, to date, not been tested. The growing interest in CPL materials [17,18] for applications in 3-D displays [19], information processing [20,21], and anti-counterfeit inks [22] prompted us to explore whether the formation of hollow spheres from bis-biuret-appended chiral luminophores is possible. To this end, we selected the 1,1′-bisbinaphthyl chiral auxiliary to introduce axial chirality in rigid π-conjugated chromophores. Starting from asymmetric binaphthalene fluorophores with axial chirality, biuret motifs are introduced to induce the formation of self-assembled microstructures which may in turn affect the chiroptical properties of the chromophores.
The chemical structures of six target molecules are shown in Figure 1. To investigate systematically the effect of the open and bridged forms of the central bis-naphthalene chromophore on the chiroptical properties, we designed BNPB, 7BBNPB, and 8BBNPB for comparison. In addition, for BNBTPB and 7BBNBTPB, the π-conjugation was extended by introducing benzothiadiazole moieties with the aim to tune the emission color from deep-blue to green-yellow. Previously, Pieters et al. investigated binaphthalene-based green CPL-TADF emitters using the chiral perturbation strategy and showed that they possess high photoluminescence quantum yields of 74% in toluene solution and moderate glum of 1.3 × 10–3 in CPL [23]. Therefore, we modified the chemical structure to obtain BNCNCzPB with the aim to demonstrate combined CPL and TADF characteristics in self-assembled vesicles.

2. Results

2.1. Synthesis

The preparation of the chiral binaphthol (BNOH) was reported previously. Briefly, bromination of 1-naphthylamine gave intermediate 2 in high yield (Scheme S1). Next, the aryl amine 2 was converted to the diazonium salt 3 through a Sandmeyer reaction. Reduction of compound 3 by sodium hydride to remove nitrogen afforded monomer 4 [24]. The latter led to the preparation of racemic mixtures of BNOH using copper-catalyzed oxidative coupling. To obtain enantiopure compounds, (1S)-(+)-10-camphorsulfonyl chloride was used as a chiral resolving agent, and the diastereomeric pairs were separated using silica chromatography. After hydrolysis using sodium hydroxide, the chiral intermediates (R)-BNOH and (S)-BNOH were obtained [25].
The preparation of the chiral bis-biuret chromophores is presented in Scheme 1. Compound BNOH was converted to BNOMe using MeI, followed by Pd-catalyzed Suzuki–Miyaura coupling with PBBiuret to afford target molecule BNPB. For the bridged forms [26,27], the bisdiol was linked via an SN2 reaction using methylene or ethylene groups to lock the axial chiral conformation, followed by palladium-mediated Suzuki–Miyaura coupling with PBBiuret [28] to produce 7BBNPB and 8BBNPB. For the two yellow emitters, BNOMe or 7BBNBr2 were treated with bis(pinacolato)diboron in a palladium-catalyzed reaction to give the corresponding boronic ester derivatives. These were then reacted with BTBiuret through Suzuki–Miyaura coupling to obtain BNBTPB and 7BBNBTPB.
For BNCNCzPB, the key intermediate BNOH underwent two SNAr reactions with tetrafluoroterephthalonitrile and carbazole in a one-pot procedure to afford BNCNCzBr2 [23]. Then, the target compound BNCNCzPB was obtained by Pd-mediated Suzuki–Miyaura coupling with BNCNCzBr2 and PBBiuret (Scheme 2).

2.2. Characterization of Nanostructures

To characterize the nanostructures formed by the BN series of molecules, the morphologies of the self-assembled aggregates were observed by SEM in low-vacuum mode with no conductive overcoat. The sample chamber pressure was maintained at 0.45 Torr water using a differential pumping system. The images of the structures deposited from different solvents onto SiO2 substrates are shown in Figure 2. For all six molecules, uniform and well-defined nanospheres in the size of 200–500 nm in acetone or methanol solutions were observed. However, when drop-cast from a THF environment, the compounds exhibit greater morphological variety and may organize into different nanostructures, such as vesicles (BNPB, 7BBNPB, BNBTPB, and BNCNCzPB), films (7BBNBTPB), or clusters (8BBNPB).

2.3. Photophysical Properties

As shown in Figure 3 and summarized in Table 1, all the binaphthalene-based compounds possess a strong π-π* absorption band around 340 nm. Compared to the unlocked chromophore BNPB, the 7BBNPB derivative in which the BiNAP unit is locked shows a bathochromic shift of the emission wavelength attributed to the greater planarity enforced by the methylene bridge along with through-bond conjugation [26,29,30,31]. Indeed, compound 8BBNPB, possessing a longer and more flexible eight-member ring, has similar excited state behavior as BNPB.
As expected, the presence of an electron-accepting moiety (benzothiadiazole) extends the conjugation length of fluorophore. Thus, BNBTPB and 7BBNBTPB have an absorption band near 400 nm and emission wavelengths near 530–550 nm vs. BNPB and 7BBNPB which instead emit in the deep-blue.
All of the compounds are strongly emissive. Compared to the open-form BNPB (FF = 0.81), the closed forms 7BBNPB (FF = 0.72) and 8BBNPB (FF = 0.66) have a more rigid structure, resulting in a decrease in the photoluminescence quantum yield. This is somewhat unexpected, as rigid molecules generally exhibit higher PLQYs compared to flexible molecules. In this case, we attribute this to the loss of planarization in the excited state due to the presence of the covalent linker. Similarly, the introduction of benzothiadiazole results (FF = 0.28 and FF = 0.42 for BNBTPB and 7BBNBTPB, respectively) in a diminished photoluminescence efficiency [32,33].
Table 1. Summary of the photophysical properties of the BN and BB series of chromophores 1.
Table 1. Summary of the photophysical properties of the BN and BB series of chromophores 1.
Compoundλabs
(nm)
ε (104 M−1cm−1)λem
(THF, nm)
ΦTHF 2 (%)
BNPB307, 3465.2, 4.140281
7BBNPB3463.743272
8BBNPB3355.339666
BNBTPB303, 344, 4037.1, 3.3, 3.654928
7BBNBTPB318, 4046.3, 4.153842
BNCNCzPB314, 328, 4035.8, 5.1, 0.5652521 (28) 3
1 Measured in THF solution (10–5 M). 2 Fluorescence quantum yields in aerated THF solutions (10−5 M, λex = 350 nm). Values in parentheses correspond to degassed solutions. 3 Measured using quinine sulfate in 0.105 M HClO4 solution as a secondary standard [34].
Compound BNCNCzPB exhibits an intense π-π* absorption band in the ultraviolet region, accompanied by a weaker intramolecular charge-transfer band around 400 nm (Figure 3f). The photoluminescence efficiency of this green-yellow emitter is only slightly increased from 21% to 28% in THF solutions after degassing, suggesting no or modest contribution from the triplet manifold through intersystem crossing (ISC). To verify the TADF character in BNCNCzPB, we employed variable-temperature photoluminescence spectra to observe the thermally activated ISC of the triplet excitons. Upon lowering the temperature, a decrease in the emission intensity is expected as the thermally activated ISC from the T1 to the S1 state is slowed. However, for BNCNCzPB, the PL intensity in degassed THF solution is enhanced upon decreasing the temperature (Figure 4a). Therefore, the TADF character is absent in this compound. In agreement with this, the time-resolved photoluminescence of BNCNCzPB in degassed THF or toluene solutions at room temperature only evidences a short-lived contribution with a lifetime of ca. 20 ns (Figure 4b,c). Furthermore, we dissolved BNCNCzPB in degassed 2-methyltetrahydrofuran solution (5 μM) to compare the emission at 77 K and 300 K. In contrast to the broad and structureless emission band observed at 300 K, the spectra at 77 K shows a hypsochromic shift from 525 to 475 nm along with vibronic fine structure (Figure 4d). This suggests that the intramolecular charge transfer state collapses to a localized emitting state as the temperature is lowered. No evidence of phosphorescence emission from the triplet state was observed (Figure 4e).
The situation is different for BNPB; upon lowering the temperature to 77 K, the broad PL emission centered at 387 nm is replaced by a structured emission at 540 nm (Figure 4f). The latter is assigned to phosphorescence emission from the triplet state. Thus, the introduction of phenyl-biuret motifs at 4- and 4′- of the binaphthalene chromophore results in a significant decrease in the energy of the triplet state. It is therefore likely that BNCNCzPB, with the same skeleton as BNPB, possesses a significantly lower triplet energy compared to the parent TADF chromophore BNCNCz which will be incapable of undergoing thermally activated ISC to populate the emissive S1 state.

2.4. Chiroptical Properties

To investigate the chiroptical properties of the BN series of compounds, we used CD and CPL spectra to analyze the relationship between the chirality in the ground and excited states and the electronic transitions to and from the excited state (Figure 5). The relatively large Stokes shift (Table 1) for both the BN and BB series suggests that the chromophores undergo relatively significant planarization during the relaxation of the Frank–Condon excited state. For all of the compounds, a near-perfect mirror–image relationship in the ECD spectra is observed for the enantiomers in terms of shape and peak maxima [35,36,37]. Nonetheless, we note that the absolute intensity is not identical for the BB series, which may be due to small differences in the formation of the aggregates upon dissolution of the material. The R-BNPB compound exhibits negative Cotton effects in the long-wavelength region, while other blue emitters (R-7BBNPB and R-8BBNPB) and green-yellow emitters R-BNBTPB, R-7BBNBTPB, and R-BNCNCzPB exhibit positive Cotton effects in the long-wavelength region. As the number of methylene units bridging the two naphthyl groups increases, the ECD intensity first increases and then decreases. This can be rationalized by considering the restricted torsional motion of the C–C bond joining the two naphthyl groups which is expected to be smallest for the single methylene spacer and larger in the absence or presence of the longer tethers [29,38,39,40].
In comparison to the open form (R-BNPB), the cisoid conformation in the bridged R-7BBNPB leads to 3-fold enhancement of the |gabs| value from 6.0 × 10–4 to 1.7 × 10–3. However, when the number of bridging carbon atoms is increased from one to two, the |gabs| is reduced to 8.8 × 10−4 owing to a more flexible structure. As for the green-yellow emitters (R-BNBTPB, R-7BBNBTPB, and R-BNCNCzPB), they all have similar CD intensities with |gabs| values of ca. 10–4.
The observation of circular dichroism signals for all the chiral chromophores indicates that the chiral environment of the chromophore is coupled to the electronic transitions from the ground to the excited state. This in turn suggests that the luminescence of the excited state may also present chiroptical effects. The efficiency of the chiral induction can be quantified by the asymmetry factor (glum) according to Equation (1) [41].
g lum = 2 I L     I R I L + I R
were IL and IR are the intensities of the left and right CPL, respectively.
The CPL spectra of the compounds were measured in different solvents and concentrations to find the optimal conditions for CPL emission in solution, possibly enhanced by the self-assembly of H-B nanostructures. As shown in Figure 6, BNPB shows distinct CPL in THF solutions with a mirror–image relationship for the two enantiomers. Upon diluting the concentration from 10−4 to 10–5 M, a stronger ellipticity and fluorescence intensity resulted in higher glum = 3.8 × 10–4 at 398 nm. A similar result was obtained in diluted THF/toluene solutions (1/9, v/v), albeit with a lower emission intensity.
In the case of BNBTPB and 7BBNBTPB, no significant CPL was detected from either enantiomer regardless of the solvent (THF or toluene solution) or concentration (see Figures S1 and S2). The situation is similar for BNCNCzPB, for which the CPL spectra is very weak. In contrast, an unusually large asymmetry factor was observed for R-7BBNPB which could not be reproduced for the S enantiomer. Examination of the linear dichroism signal did not reveal strong contributions from linear polarization which may induce artefacts in the determination of the glum value. On the other hand, aggregation has been shown to strongly amplify the asymmetry factor of small molecules. To verify whether self-assembly of the aggregates contributes to the observed enhancement of the glum value, DMSO was added to break up the intermolecular hydrogen-bonding network and induce the dissolution of the vesicles. This was indeed found to lead to the disappearance of the CPL signal, in agreement with the enhancement of the asymmetry due to aggregation (Figure 7).

3. Discussion

The emissive systems composed of axially chiral binaphthalenes appended with H-B biuret motifs were found to spontaneously form nanospheres whose size ranged from ca. 250 to 500 nm diameter depending on the environment (concentration, solvent composition). It is interesting to note that, for each compound, the average dimensions of the spherical aggregates are not significantly dependent on the solvent system. This suggests that the formation of the aggregates is mostly determined by the molecular structure rather than solvent–solute interactions as is the case for other amphiphilic systems. The boundary conditions are met when the solubility is insufficient (precipitation) or too high (formation of amorphous films). The aggregates show tunable emission from deep-blue to yellow through the introduction of benzothiadiazole groups onto the π-conjugated backbone. As expected, all the chromophores exhibit intense Cotton effects with mirror–image relationship between the enantiomers in the ECD spectra, indicating chiroptical activity in the ground state. For BNCNCzPB, a possible CPL-TADF emitter, the steady-state and time-resolved PL spectra at variable temperature show that the TADF character is absent. Examination of the phosphorescence spectra of the parent BNPB chromophore reveals that the energy level of the triplet state is located at ca. 2.30 eV, which is much too far below the energy of the singlet state (3.24 eV) to expect efficient ISC. Thus, the π-conjugation in the BNCNCzPB fluorophore likely leads to an increase in ΔEST that turns off the ISC channel needed to harvest triplet excitons. This behavior is in agreement with an extension of the conjugation of the chromophore due to the presence of the phenyl-biuret moieties, which leads to a decrease in the energy of the excited singlet and triplet states with respect to that of the ground state. In the case of BNCNCzPB, the electron-withdrawing nature of the biuret further lowers the energy of the triplet state by reducing its CT character, thus explaining the increased ΔEST.
From the preliminary results collected for R-BNPB, R-7BBNPB, and R-8BBNPB, it is possible to observe moderate CPL intensity and inversion of signal in toluene solutions (5 × 10–5 M) compared to THF (Figure 7). In Equation (2), it can be seen that the magnitude and angle between the electric transition dipole moment (μ) and the magnetic transition dipole moment (m) significantly influence the glum value [41], and we may surmise that the modest value of glum results from a large value of |µ| in agreement with the high FF of these compounds.
g lum = 4 × m μ   cos θ μ ,   m
Remarkably, for R-BNPB in the open form, the glum value is increased from 104 in THF to ca. 10–2 in toluene solution as a result of aggregation. Unfortunately, this could not be reproducibly confirmed for the S-form enantiomer. Considering that the dissymmetry factor appears to be highly dependent on the aggregation conditions, we may expect that small differences in samples may explain this behavior. Further investigation of the photophysical and chiroptical properties of BNPB and 7BBNPB in solution and in the solid state is needed to understand which parameters govern chiral amplification through aggregate formation in these assemblies. For the group of deep-blue emitters, the gabs value of the bridged R-7BBNPB (1.7 × 10–3) in the restrained cisoid conformation is 3-fold higher than the one of the unrestrained form R-BNPB (6.0 × 10–4). From preliminary CPL results, the structural enforcement of the cisoid conformation in R-7BBNPB induces a positive effect on the amplification of the asymmetry factor through aggregation which disappears upon addition of DMSO to break up the aggregates.

4. Materials and Methods

All the starting materials and solvents were purchased from commercial sources and used without further purification unless stated otherwise. 1H and 13C NMR spectra of compounds were collected on a Varian 400 Unity plus (400 MHz) spectrometer in deuterated solvents as internal reference at room temperature. Mass spectra were recorded using a Bruker micrOTOF-QII mass spectrometer and Bruker Daltonics autoflex speed with electrospray ionization (ESI) and matrix-assisted laser desorption/ionization (MALDI) as ionization method. The mass spectrum was recorded with JEOL JMS-700 with electron ionization (EI). UV-visible absorption spectra were recorded on a spectrophotometer (HITACHI U2800A) or Perkin-Elmer 750 spectrophotometer. Emission spectra were measured with a fluorescence spectrophotometer (HITACHI F9500) or a Horiba Fluoromax 4 instrument. Photoluminescence quantum yields (PLQYs) for solution and thin-film samples were determined with a calibrated integrating sphere system (HAMAMATSU C9920). The circular dichroism (CD) spectra were measured on a JASCO J-810 circular dichroism spectrometer with ‘Standard’ sensitivity. The scan speed was set as 200 nm/min with a 0.1 nm resolution and a response time of 2.0 s. The circularly polarized photoluminescence (CP-PL) spectra were measured on a JASCO CPL-300 spectrophotometer with ‘Standard’ sensitivity at 100 nm/min scan speed and a response time of 4.0 s employing the “slit” mode.

4.1. Preparation of Nanospheres

Solutions of compounds were prepared by adding the appropriate volume of THF (dried over Na/ benzophenone and distilled prior to use), acetone (ACS reagent, 99.5+%, for analysis), or methanol (ACS reagent, 99.5+%, for analysis) to a glass vial containing a solid sample of the compound to produce a 0.1 mM solution. Dissolution was achieved by gentle shaking of the vial for 30 min. The solutions were drop-casted onto the substrates using a syringe to deposit approximately 50 μL of solution, and the solvent was allowed to evaporate in air.

4.2. Techniques for Characterization

Scanning Electron Microscopy. Samples were prepared by drop-casting a THF or acetone or methanol solution of self-assembled compounds (0.1 mM) onto a flat SiO2/Si substrate as described above. The samples were imaged using a FEI Nova NanoSEM 200 in low-vacuum mode with no conductive overcoat. The chamber pressure was maintained at 0.45 Torr water using a differential pumping system. An immersion lens was employed, and the secondary electrons were amplified by gas vapor and collected by an electrode mounted on the pole piece.
Variable-Temperature PL spectra and Time-Correlated Single Photon Counting. Decay parameters were extracted from reconvolution of the time-resolved emission decay profiles collected using a home-built TC-SPC instrument equipped with a Picoquant 310 nm or 350 nm pulsed excitation source and a Hamamatsu R6427 photomultiplier and Timeharp 260 collection electronics. A monochromator or 420 long-pass filter was used to isolate the emission from the sample. Variable-temperature spectra and lifetimes were obtained using an Oxford DN optistat connected to an ITC controller (precision = ±0.1 K).

5. Conclusions

The incorporation of H-B biuret elements to chiral, rigid chromophores is found to be an efficient promoter for the formation of small, sub-micrometer vesicle-like aggregates. These are formed in various organic solvents such as toluene, acetone, or THF. Nonetheless, extension of the π-conjugation of the chromophore through the introduction of the phenylbiuret units can have unforeseen consequences, such as increasing the ∆EST splitting in TADF chromophores. In all cases, the chiral component of the binaphthalene core was found to impart chiroptical properties to the chromophores, particularly in the ECD spectra of the ground state. In contrast, the CPL activity is moderate or absent, presumably due to a planarization of the chromophore in the excited state. When this is impeded by a short, rigid linker, an increase in the emission asymmetry factor is observed. Interestingly, we find that, for the R enantiomer, amplification of the asymmetry factor is observed upon aggregation. The fact that this is not observed for the S enantiomer suggests that there are subtle differences in the sample composition or aggregate formation that need to be uncovered to fully understand how self-assembly affects supramolecular chiral induction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28083382/s1, Details of synthesis, additional CPL spectra.

Author Contributions

Conceptualization, Y.-C.C., D.M.B. and K.-T.W.; methodology, Y.-Y.H. and J.-J.S.; validation, Y.-Y.H.; investigation, Y.-Y.H.; resources, D.M.B., J.-J.S. and K.-T.W.; data curation, J.-J.S.; writing—original draft preparation, review and editing, all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the ANR (grant ANR-17-CE24-0033), MOST (107-2923-M-002-001-MY3), and the IDEX University of Bordeaux (international scholarship to Y.Y.H.). We are grateful to the CESAMO for structural analyses through support of the Region Nouvelle-Aquitaine.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Experimental data (electronic and emission spectra, NMR data) are available from the authors upon reasonable request.

Acknowledgments

We thank the support from Mass Core Facility at National Taiwan University and Reiko Oda for help with the CPL measurements. This manuscript is dedicated to Vaidhyanathan Ramamurthy, whose pioneering work in the field of supramolecular photochemistry inspired a generation of scientists.

Conflicts of Interest

The authors declare no conflict of interest and that the funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Sample Availability

Samples of the compounds used in this study are available from the authors upon reasonable request and if in stock.

References

  1. Lehn, J.-M. Perspectives in Chemistry-Steps towards Complex Matter. Angew. Chem. Int. Ed. 2013, 52, 2836–2850. [Google Scholar] [CrossRef]
  2. Lehn, J.-M. Toward self-organization and complex matter. Science 2002, 295, 2400–2403. [Google Scholar] [CrossRef] [Green Version]
  3. Wong, K.-T.; Bassani, D.M. Energy transfer in supramolecular materials for new applications in photonics and electronics. NPG Asia Mater. 2014, 6, e116. [Google Scholar] [CrossRef] [Green Version]
  4. Aida, T.; Meijer, E.W.; Stupp, S.I. Functional Supramolecular Polymers. Science 2012, 335, 813–817. [Google Scholar] [CrossRef] [Green Version]
  5. Brunsveld, L.; Folmer, B.J.B.; Meijer, E.W.; Sijbesma, R.P. Supramolecular Polymers. Chem. Rev. 2001, 101, 4071–4097. [Google Scholar] [CrossRef] [PubMed]
  6. Tseng, K.-P.; Fang, F.-C.; Shyue, J.-J.; Wong, K.-T.; Raffy, G.; Del Guerzo, A.; Bassani, D.M. Spontaneous Generation of Highly Emissive RGB Organic Nanospheres. Angew. Chem. Int. Ed. 2011, 50, 7032. [Google Scholar] [CrossRef] [PubMed]
  7. Velu, S.K.P.; Yan, M.; Tseng, K.-P.; Wong, K.-T.; Bassani, D.M.; Terech, P. Spontaneous Formation of Artificial Vesicles in Organic Media through Hydrogen-Bonding Interactions. Macromolecules 2013, 46, 1591–1598. [Google Scholar] [CrossRef]
  8. Kuo, M.-C.; Chen, H.-F.; Shyue, J.-J.; Bassani, D.M.; Wong, K.-T. In situ reversible conversion of porphyrin aggregate morphology. Chem. Commun. 2012, 48, 8051–8053. [Google Scholar] [CrossRef] [PubMed]
  9. Tseng, K.-P.; Tsai, Y.-T.; Wu, C.-C.; Shyue, J.-J.; Bassani, D.M.; Wong, K.-T. Light- and solvent-driven morphological transformations of self-assembled hydrogen-bonded nanostructures. Chem. Commun. 2013, 49, 11536–11538. [Google Scholar] [CrossRef]
  10. Tsai, Y.-T.; Tseng, K.-P.; Chen, Y.-F.; Wu, C.-C.; Fan, G.-L.; Wong, K.-T.; Wantz, G.; Hirsch, L.; Raffy, G.; Del Guerzo, A.; et al. Electroluminescence from Spontaneously Generated Single-Vesicle Aggregates Using Solution-Processed Small Organic Molecules. ACS Nano 2016, 10, 998–1006. [Google Scholar] [CrossRef]
  11. Tsai, Y.-T.; Raffy, G.; Liu, H.-F.; Peng, B.-J.; Tseng, K.-P.; Hirsch, L.; Del Guerzo, A.; Bassani, D.M.; Wong, K.-T. Incorporation of narcissistic self-sorting supramolecular interactions for the spontaneous fabrication of multiple-color solid-state materials for OLED applications. Mater. Chem. Front. 2020, 4, 845–850. [Google Scholar] [CrossRef]
  12. Tsai, Y.-T.; Liu, H.-F.; Peng, B.-J.; Tseng, K.-P.; Kuo, M.-C.; Wong, K.-T.; Wantz, G.; Hirsch, L.; Raffy, G.; Del Guerzo, A.; et al. Frequency-Selective Photobleaching as a Route to Chromatic Control in Supramolecular OLED Devices. ACS Appl. Mater. Interfaces 2017, 9, 36045–36052. [Google Scholar] [CrossRef]
  13. Xu, Y.; Xu, P.; Hu, D.; Ma, Y. Recent progress in hot exciton materials for organic light-emitting diodes. Chem. Soc. Rev. 2021, 50, 1030–1069. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, Q.; Tsang, D.; Kuwabara, H.; Hatae, Y.; Li, B.; Takahashi, T.; Lee, S.Y.; Yasuda, T.; Adachi, C. Nearly 100% Internal Quantum Efficiency in Undoped Electroluminescent Devices Employing Pure Organic Emitters. Adv. Mater. 2015, 27, 2096–2100. [Google Scholar] [CrossRef]
  15. Cao, Z.; Hao, A.; Xing, P. Photoresponsive chiral vesicles as a light harvesting matrix with tunable chiroptical properties. Nanoscale 2021, 13, 700–707. [Google Scholar] [CrossRef]
  16. Hsieh, Y.-Y.; Sanchez, R.S.; Raffy, G.; Shyue, J.-J.; Hirsch, L.; Del Guerzo, A.; Wong, K.-T.; Bassani, D.M. Supramolecular gating of TADF process in self-assembled nano-spheres for high-resolution OLED applications. Chem. Commun. 2022, 58, 1163–1166. [Google Scholar] [CrossRef] [PubMed]
  17. Takaishi, K.; Maeda, C.; Ema, T. Circularly polarized luminescence in molecular recognition systems: Recent achievements. Chirality 2023, 35, 92–103. [Google Scholar] [CrossRef] [PubMed]
  18. Eliseeva, S.V.; Bunzli, J.-C.G. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef]
  19. Zhan, X.; Xu, F.F.; Zhou, Z.; Yan, Y.; Yao, J.; Zhao, Y.S. 3D laser displays based on circularly polarized lasing from cholesteric liquid crystal arrays. Adv. Mater. 2021, 33, 2104418. [Google Scholar] [CrossRef] [PubMed]
  20. Shuvaev, S.; Fox, M.A.; Parker, D. Monitoring of the ADP/ATP ratio by induced circularly polarised europium luminescence. Angew. Chem. 2018, 130, 7610–7614. [Google Scholar] [CrossRef] [Green Version]
  21. Sherson, J.F.; Krauter, H.; Olsson, R.K.; Julsgaard, B.; Hammerer, K.; Cirac, I.; Polzik, E.S. Quantum teleportation between light and matter. Nature 2006, 443, 557–560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Patil, Y.; Demangeat, C.; Favereau, L. Recent advances in room temperature phosphorescence of chiral organic materials. Chirality 2023. early view. [Google Scholar] [CrossRef]
  23. Feuillastre, S.; Pauton, M.; Gao, L.; Desmarchelier, A.; Riives, A.J.; Prim, D.; Tondelier, D.; Geffroy, B.; Muller, G.; Clavier, G. Design and synthesis of new circularly polarized thermally activated delayed fluorescence emitters. J. Am. Chem. Soc. 2016, 138, 3990–3993. [Google Scholar] [CrossRef] [Green Version]
  24. MacLean, M.W.A.; Wood, T.K.; Wu, G.; Lemieux, R.P.; Crudden, C.M. Chiral Periodic Mesoporous Organosilicas: Probing Chiral Induction in the Solid State. Chem. Mater. 2014, 26, 5852–5859. [Google Scholar] [CrossRef]
  25. Ng, M.-K.; Chow, H.-F.; Chan, T.-L.; Mak, T.C. Synthesis and chiroptical properties of axially chiral, binaphthol-based oligomers. Tetrahedron Lett. 1996, 37, 2979–2982. [Google Scholar] [CrossRef]
  26. Takaishi, K.; Hinoide, S.; Matsumoto, T.; Ema, T. Axially chiral peri-xanthenoxanthenes as a circularly polarized luminophore. J. Am. Chem. Soc. 2019, 141, 11852–11857. [Google Scholar] [CrossRef]
  27. Li, Y.; Xue, C.; Wang, M.; Urbas, A.; Li, Q. Photodynamic chiral molecular switches with thermal stability: From reflection wavelength tuning to handedness inversion of self-organized helical superstructures. Angew. Chem. Int. Ed. 2013, 52, 13703–13707. [Google Scholar] [CrossRef]
  28. Fang, F.-C.; Chu, C.-C.; Huang, C.-H.; Raffy, G.; Del Guerzo, A.; Wong, K.-T.; Bassani, D.M. Versatile one-step introduction of multiple hydrogen-bonding sites onto extended π-conjugated systems. Chem. Commun. 2008, 6369–6371. [Google Scholar] [CrossRef]
  29. Takaishi, K.; Kawamoto, M.; Tsubaki, K. Multibridged chiral naphthalene oligomers with continuous extreme-cisoid conformation. Org. Lett. 2010, 12, 1832–1835. [Google Scholar] [CrossRef]
  30. Suzuki, S.; Fujii, T.; Baba, H. Interpretation of electronic spectra by configuration analysis: Absorption spectra of monosubstituted naphthalenes. J. Mol. Spectrosc. 1973, 47, 243–251. [Google Scholar] [CrossRef]
  31. Takaishi, K.; Yamamoto, T.; Hinoide, S.; Ema, T. Helical Oligonaphthodioxepins Showing Intense Circularly Polarized Luminescence (CPL) in Solution and in the Solid State. Chem. Eur. J. 2017, 23, 9249–9252. [Google Scholar] [CrossRef] [PubMed]
  32. Uejima, M.; Sato, T.; Yokoyama, D.; Tanaka, K.; Park, J.-W. Quantum yield in blue-emitting anthracene derivatives: Vibronic coupling density and transition dipole moment density. Phys. Chem. Chem. Phys. 2014, 16, 14244–14256. [Google Scholar] [CrossRef] [PubMed]
  33. Im, Y.; Kim, M.; Cho, Y.J.; Seo, J.-A.; Yook, K.S.; Lee, J.Y. Molecular design strategy of organic thermally activated delayed fluorescence emitters. Chem. Mater. 2017, 29, 1946–1963. [Google Scholar] [CrossRef]
  34. Nawara, K.; Waluk, J. Goodbye to quinine in sulfuric acid solutions as a fluorescence quantum yield standard. Anal. Chem. 2019, 91, 5389–5394. [Google Scholar] [CrossRef]
  35. Kimoto, T.; Tajima, N.; Fujiki, M.; Imai, Y. Control of Circularly Polarized Luminescence by Using Open-and Closed-Type Binaphthyl Derivatives with the Same Axial Chirality. Chem.–Asian J. 2012, 7, 2836–2841. [Google Scholar] [CrossRef] [PubMed]
  36. Berova, N.; Nakanishi, K.; Woody, R.W. Circular Dichroism: Principles and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2000. [Google Scholar]
  37. Harada, N.; Nakanishi, K. Exciton chirality method and its application to configurational and conformational studies of natural products. Acc. Chem. Res. 1972, 5, 257–263. [Google Scholar] [CrossRef]
  38. Rosini, C.; Superchi, S.; Peerlings, H.; Meijer, E. Enantiopure dendrimers derived from the 1,1′-binaphthyl moiety: A correlation between chiroptical properties and conformation of the 1,1′-binaphthyl template. Eur. J. Org. Chem. 2000, 2000, 61–71. [Google Scholar] [CrossRef]
  39. Van Es, J.; Biemans, H.; Meijer, E. Synthesis and characterization of optically active cyclic 6,6′-dinitro-1,1′-binaphthyl-2,2′-diethers. Tetrahedron-Asymmetry 1997, 8, 1825–1831. [Google Scholar] [CrossRef]
  40. Deuβen, H.; Shibaev, P.; Vinokur, R.; Bjørnholm, T.; Schaumburg, K.; Bechgaard, K.; Shibaev, V. New 6,6′-disubstituted-binaphthol derivatives as chiral dopants: Synthesis and temperature dependence of molecular conformations. Liq. Cryst. 1996, 21, 327–340. [Google Scholar] [CrossRef]
  41. Arrico, L.; Di Bari, L.; Zinna, F. Quantifying the Overall Efficiency of Circularly Polarized Emitters. Chem. Eur. J. 2021, 27, 2920–2934. [Google Scholar] [CrossRef]

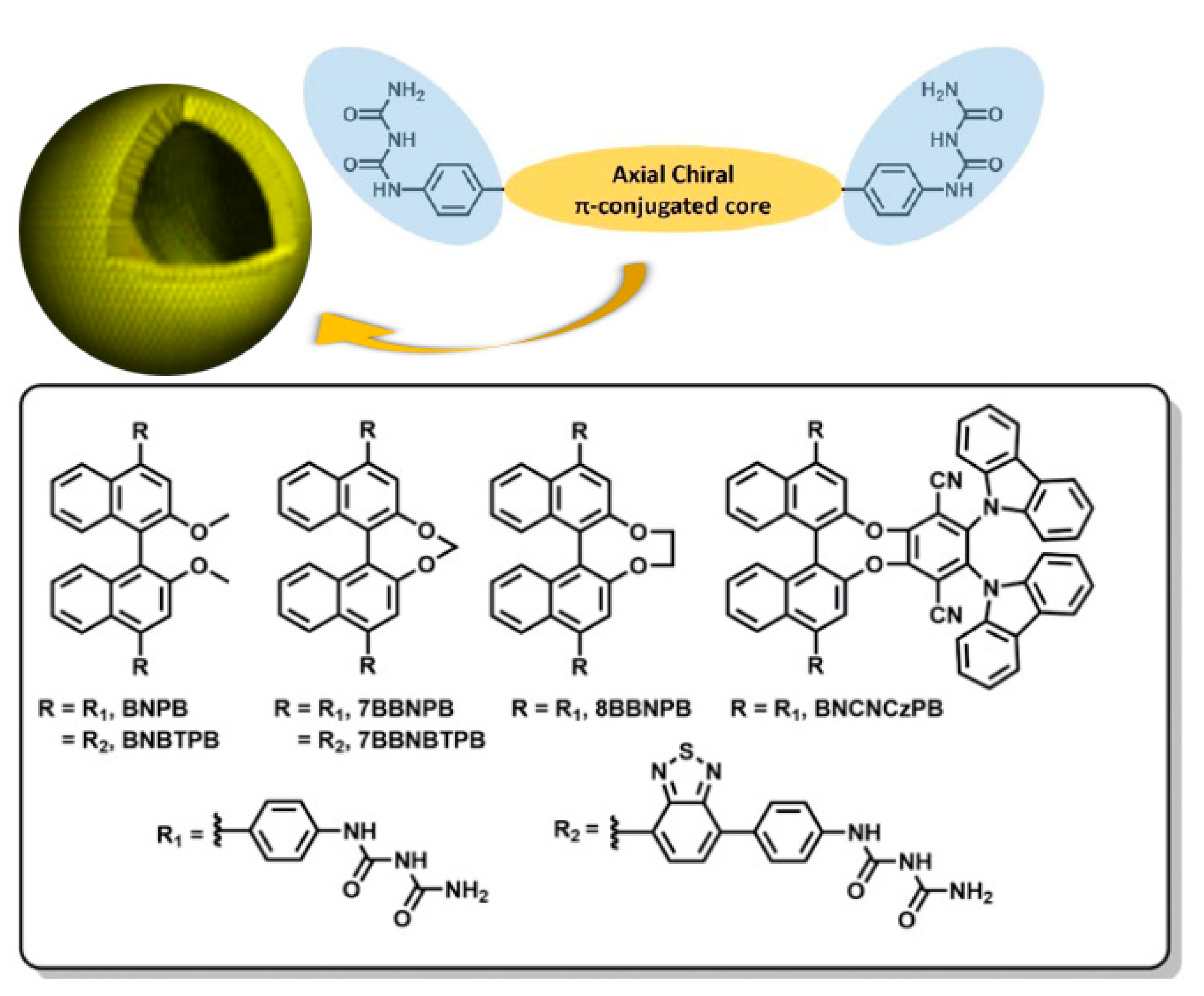

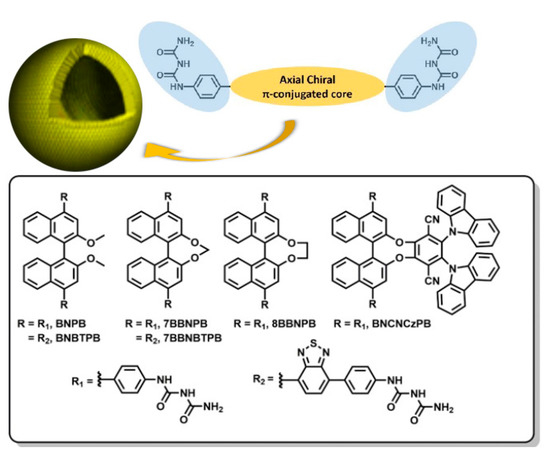

Figure 1. Structural design paradigm for the programmed spontaneous self-assembly of vesicle-like hollow spheres encoded through the introduction of phenyl-biuret motifs onto rigid π-conjugated platforms (top) and chemical structures of the compounds incorporating a chiral chromophore investigated herein (bottom).
Figure 1. Structural design paradigm for the programmed spontaneous self-assembly of vesicle-like hollow spheres encoded through the introduction of phenyl-biuret motifs onto rigid π-conjugated platforms (top) and chemical structures of the compounds incorporating a chiral chromophore investigated herein (bottom).
Molecules 28 03382 g001

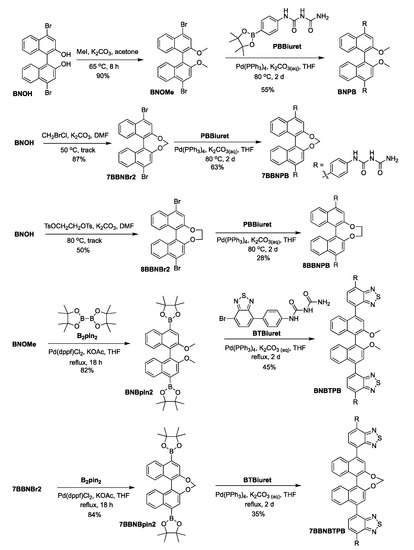

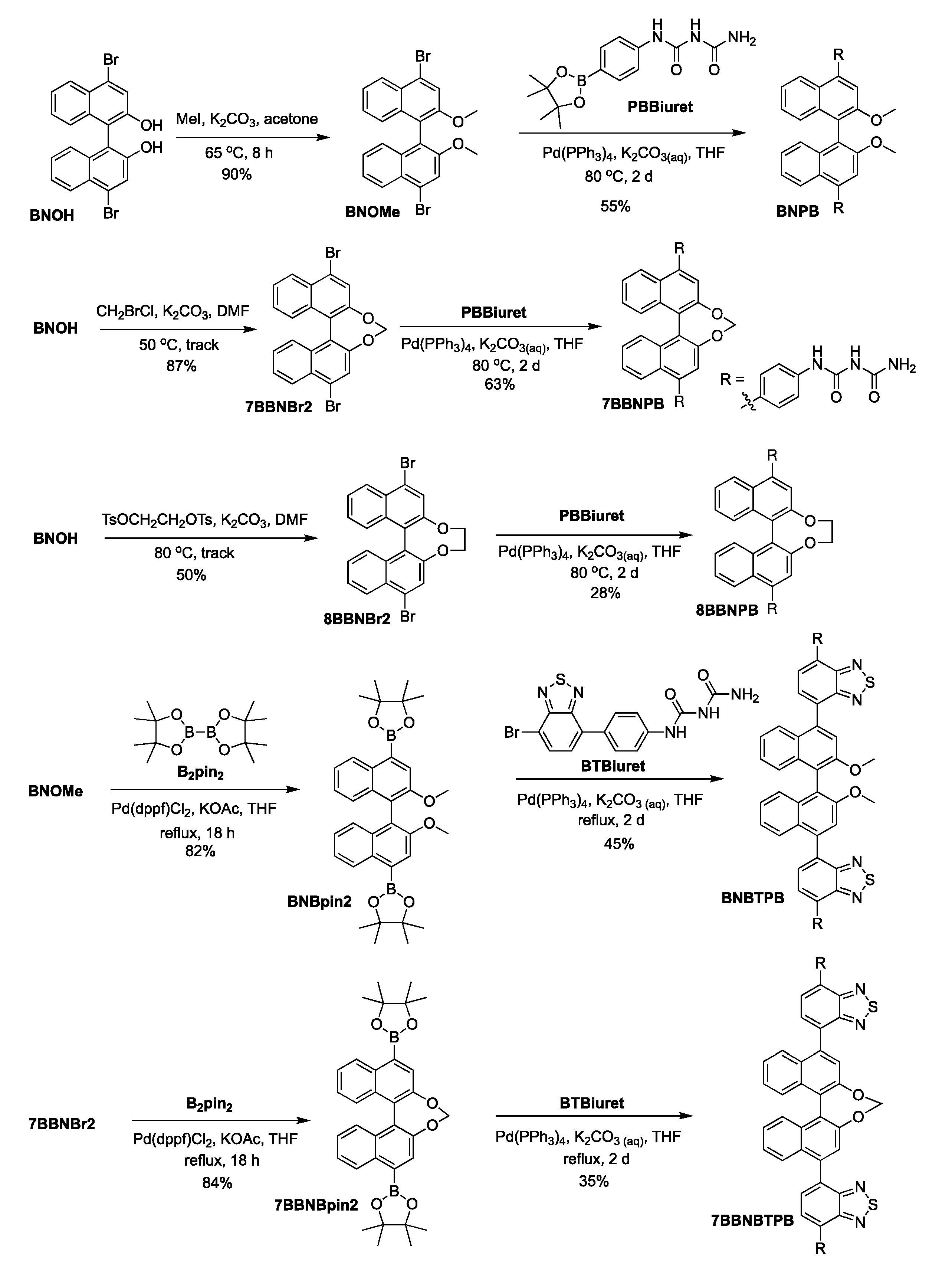

Scheme 1. Synthetic methodology for the preparation of chiral bis-biuret chromophores.
Scheme 1. Synthetic methodology for the preparation of chiral bis-biuret chromophores.
Molecules 28 03382 sch001

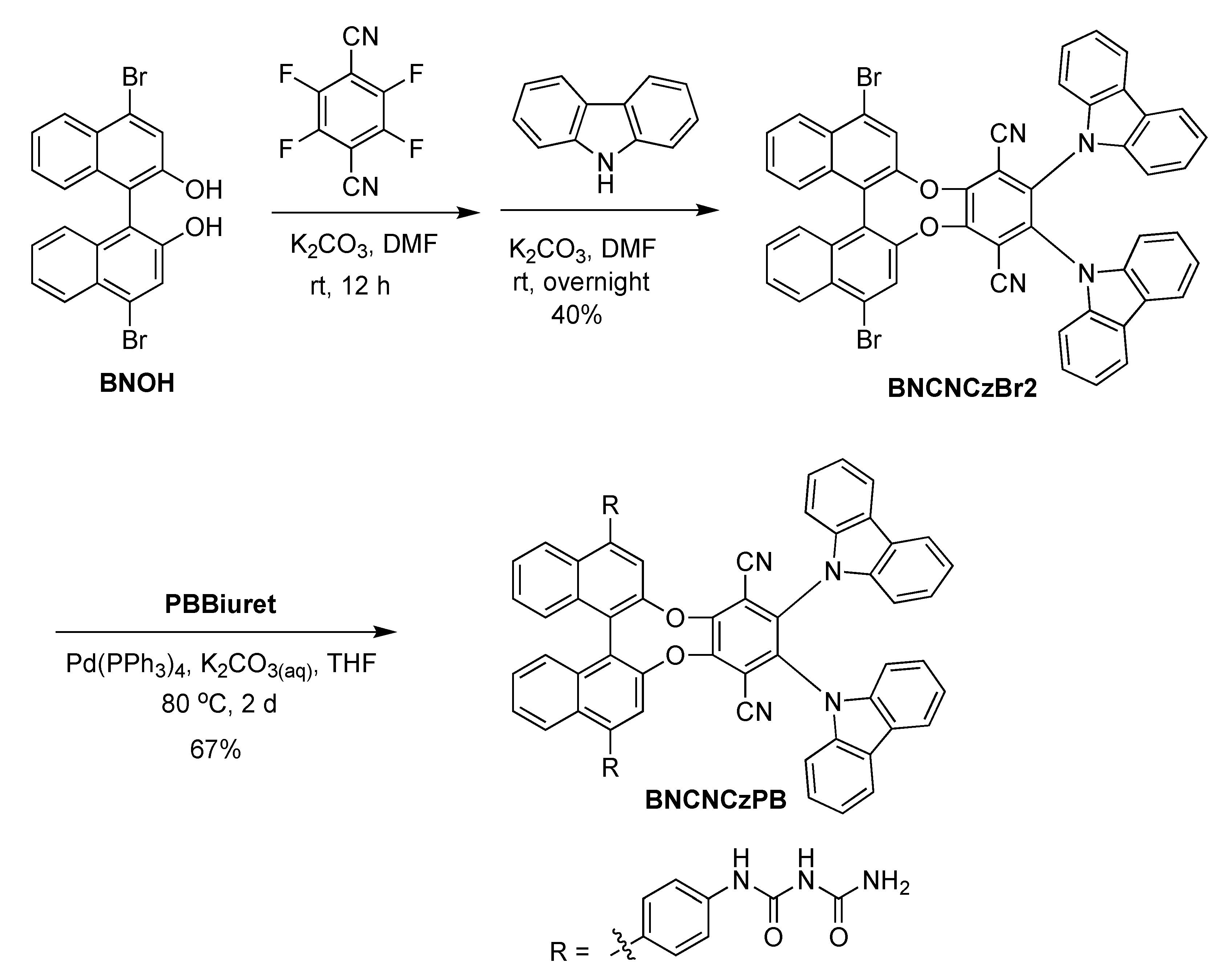

Scheme 2. Synthetic methodology for the preparation of BNCNCzPB integrating two biuret units and a CPL-TADF chromophore.
Scheme 2. Synthetic methodology for the preparation of BNCNCzPB integrating two biuret units and a CPL-TADF chromophore.
Molecules 28 03382 sch002

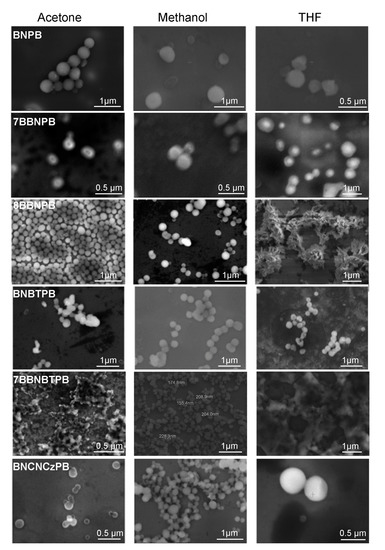

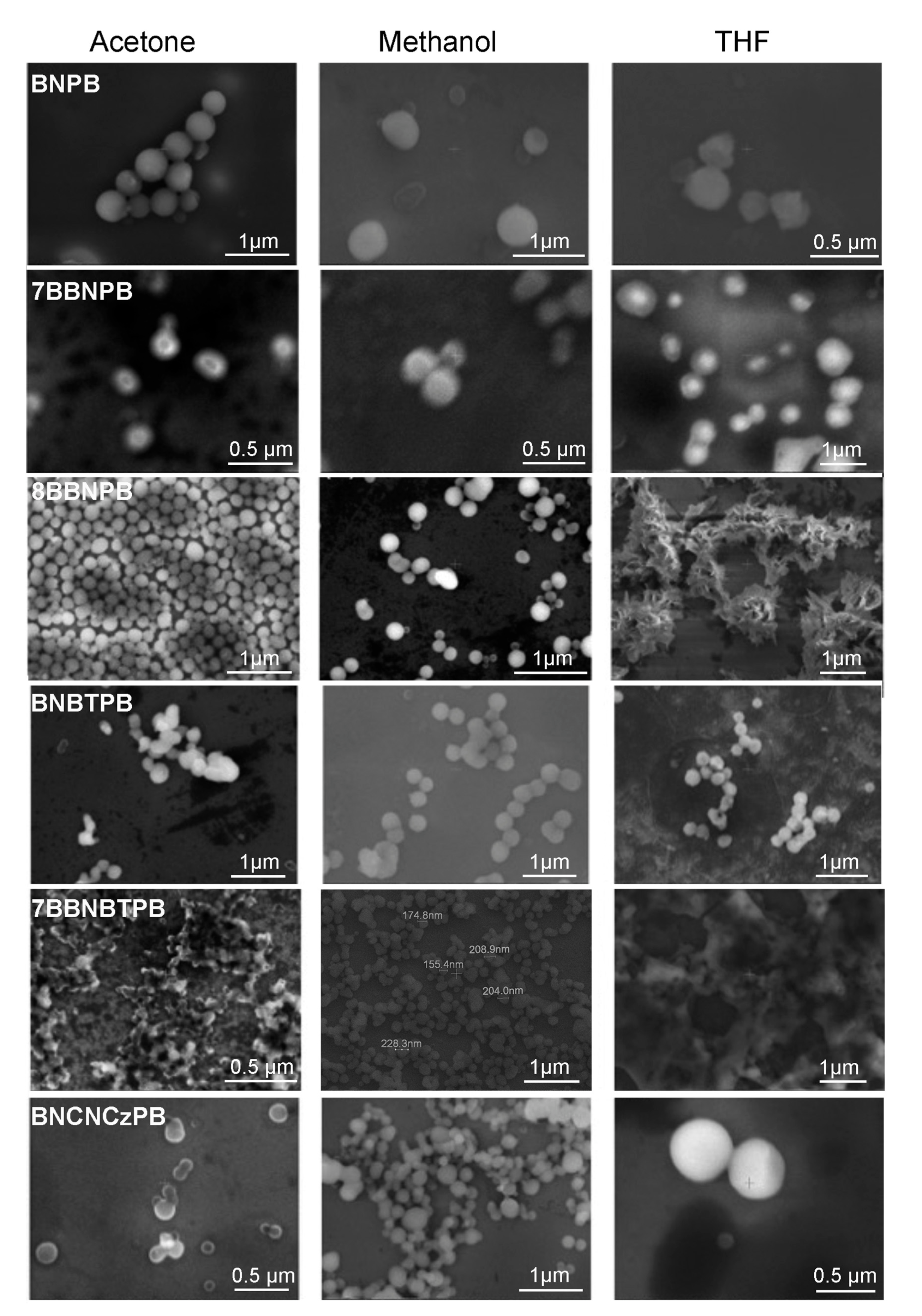

Figure 2. Scanning electron microscopy images of the aggregates observed upon deposition of dilute solutions (0.1 mM) of the BB and BN series of compounds onto glass substrates. The images were obtained in low-vacuum mode with a sample chamber pressure maintained at 0.45 Torr water using a differential pumping system.
Figure 2. Scanning electron microscopy images of the aggregates observed upon deposition of dilute solutions (0.1 mM) of the BB and BN series of compounds onto glass substrates. The images were obtained in low-vacuum mode with a sample chamber pressure maintained at 0.45 Torr water using a differential pumping system.
Molecules 28 03382 g002

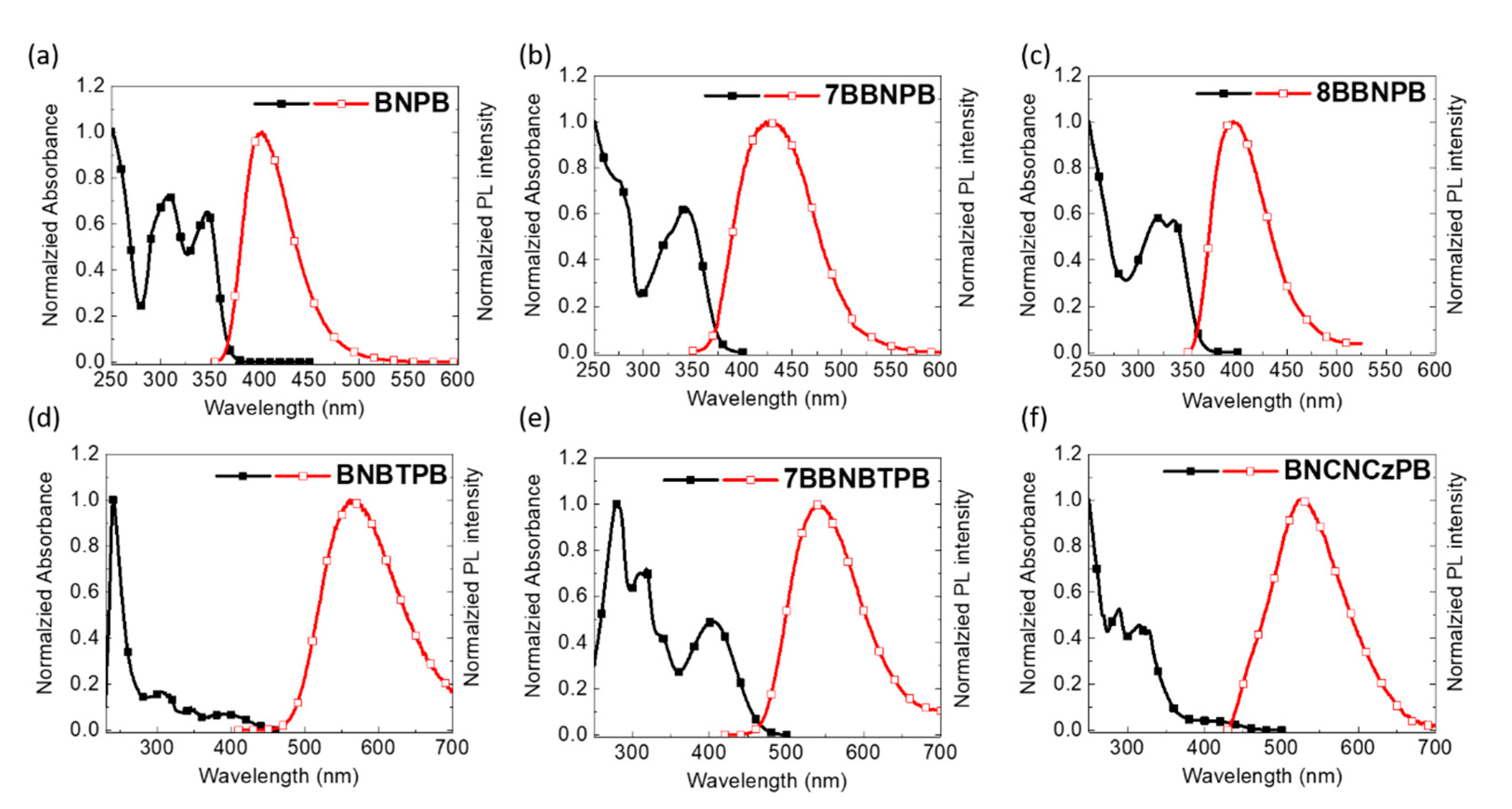

Figure 3. Electronic absorption and emission spectra of (a) BNPB, (b) 7BBNPB, (c) 8BBNPB, (d) BNBTPB, (e) 7BBNBTPB, and (f) BNCNCzPB in THF solutions (10–5 M, λex = 350 nm).
Figure 3. Electronic absorption and emission spectra of (a) BNPB, (b) 7BBNPB, (c) 8BBNPB, (d) BNBTPB, (e) 7BBNBTPB, and (f) BNCNCzPB in THF solutions (10–5 M, λex = 350 nm).
Molecules 28 03382 g003

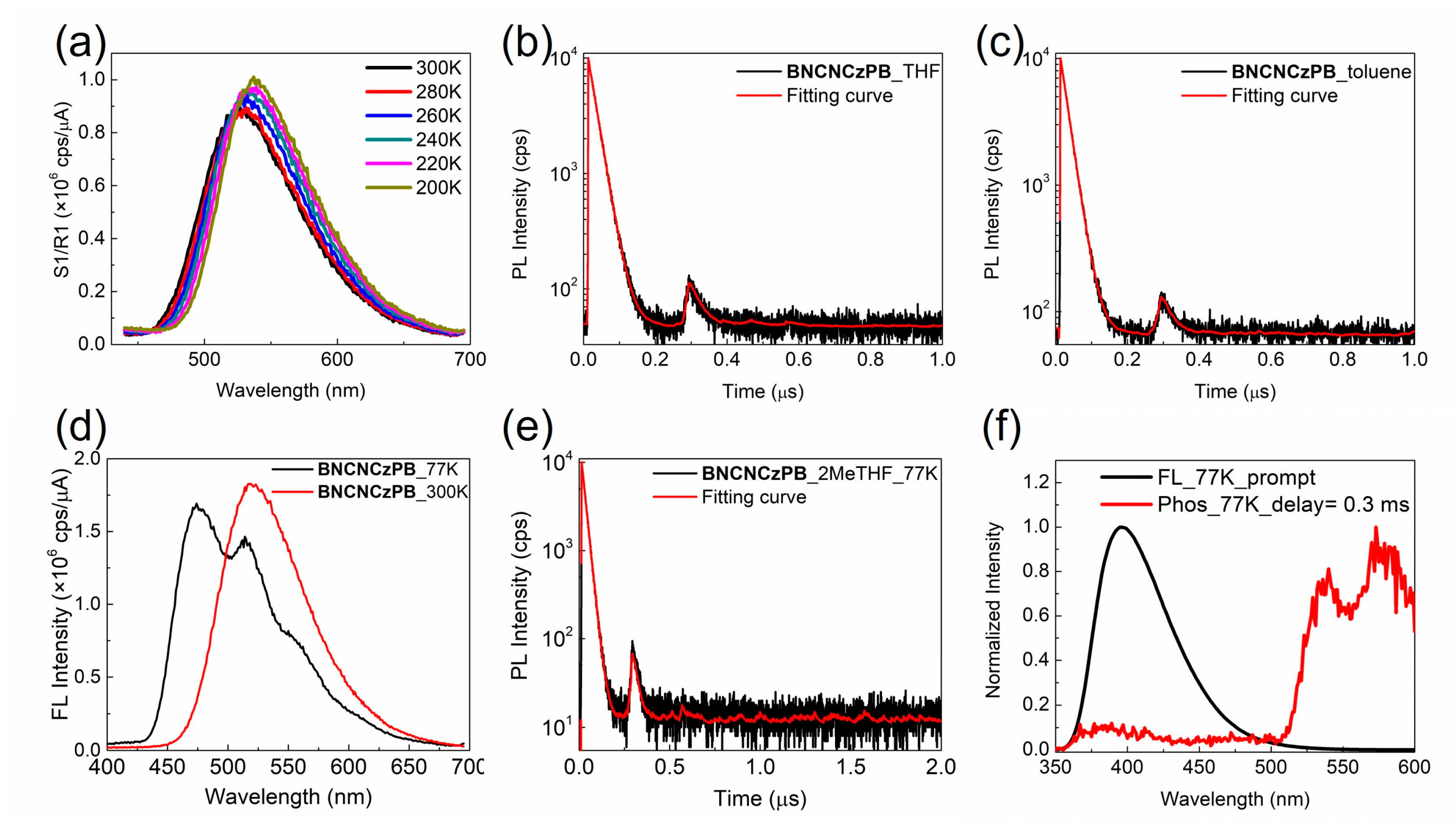

Figure 4. (a) Variable temperature emission spectra of BNCNCzPB in THF solution (10–5 M, λex = 350 nm). Time-resolved decay of the emission from BNCNCzPB in degassed (b) THF or (c) toluene solution at 300 K (λex = 370 nm, λem = 550 nm). (d) Emission spectra (λex = 350 nm) and (e) time-resolved decay of the emission from BNCNCzPB in degassed 2-methyltetrahydrofuran solution (5 μM) at 77 K and 300 K (λex = 370 nm, λem =550 nm). (f) Prompt (FL) and delayed (Phos) emission spectra of BNPB in frozen toluene solution (10–5 M, λex =320 nm) at 77 K. The phosphorescence spectrum at 77 K is acquired after a 0.3 ms delay.
Figure 4. (a) Variable temperature emission spectra of BNCNCzPB in THF solution (10–5 M, λex = 350 nm). Time-resolved decay of the emission from BNCNCzPB in degassed (b) THF or (c) toluene solution at 300 K (λex = 370 nm, λem = 550 nm). (d) Emission spectra (λex = 350 nm) and (e) time-resolved decay of the emission from BNCNCzPB in degassed 2-methyltetrahydrofuran solution (5 μM) at 77 K and 300 K (λex = 370 nm, λem =550 nm). (f) Prompt (FL) and delayed (Phos) emission spectra of BNPB in frozen toluene solution (10–5 M, λex =320 nm) at 77 K. The phosphorescence spectrum at 77 K is acquired after a 0.3 ms delay.
Molecules 28 03382 g004

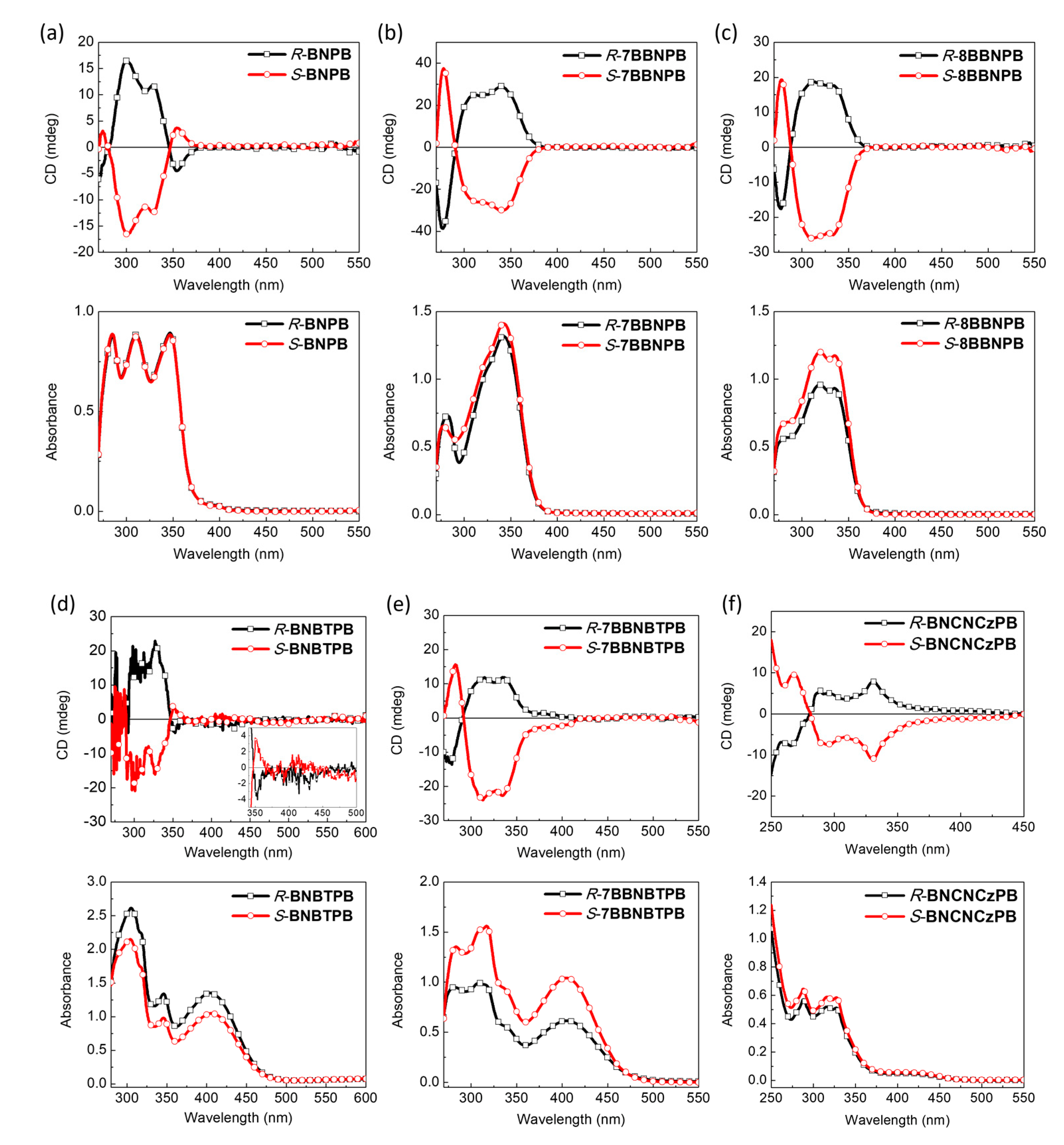

Figure 5. Electronic CD (top) and absorption (bottom) spectra of (a) R/S-BNPB, (b) R/S-7BBNPB, (c) R/S-8BBNPB, (d) R/S-BNBTPB, (e) R/S-7BBNBTPB, and (f) R/S-BNCNCzPB (THF, 10–5 M). The inset in (d) is the magnified ECD spectra of R/S-BNBTPB between 350–500 nm.
Figure 5. Electronic CD (top) and absorption (bottom) spectra of (a) R/S-BNPB, (b) R/S-7BBNPB, (c) R/S-8BBNPB, (d) R/S-BNBTPB, (e) R/S-7BBNBTPB, and (f) R/S-BNCNCzPB (THF, 10–5 M). The inset in (d) is the magnified ECD spectra of R/S-BNBTPB between 350–500 nm.
Molecules 28 03382 g005

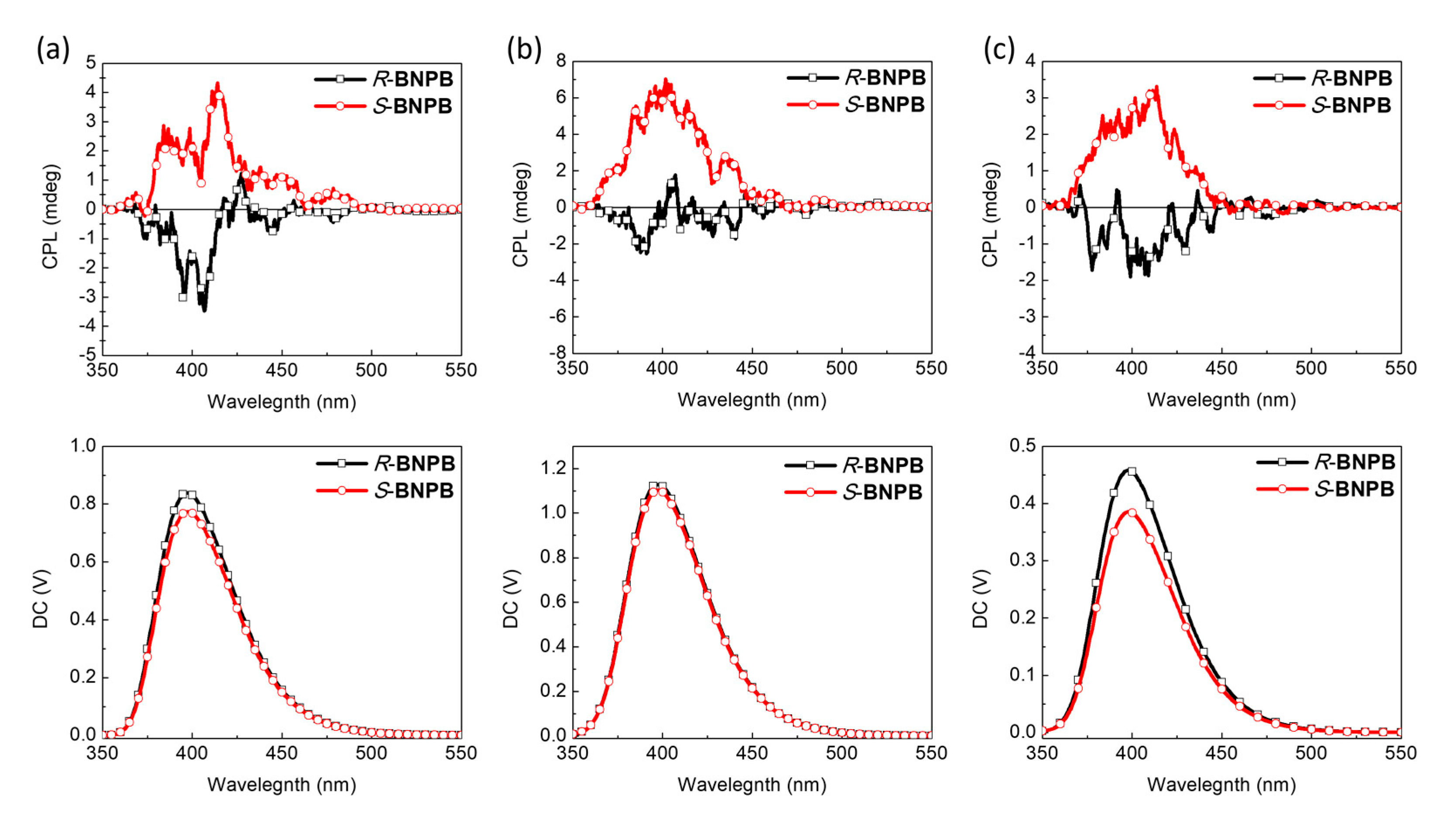

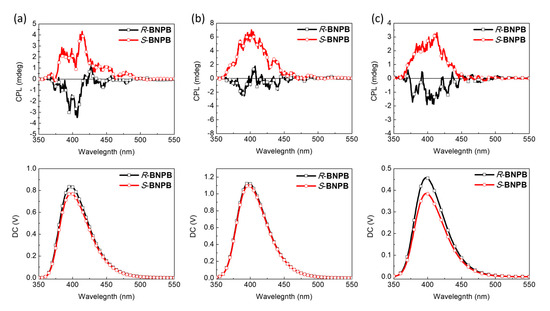

Figure 6. CPL spectra (λex = 300 nm) of R- and S-BNPB in THF (a) 10–4 M (b) 10–5 M solutions and (c) toluene solutions (10–5 M).
Figure 6. CPL spectra (λex = 300 nm) of R- and S-BNPB in THF (a) 10–4 M (b) 10–5 M solutions and (c) toluene solutions (10–5 M).
Molecules 28 03382 g006

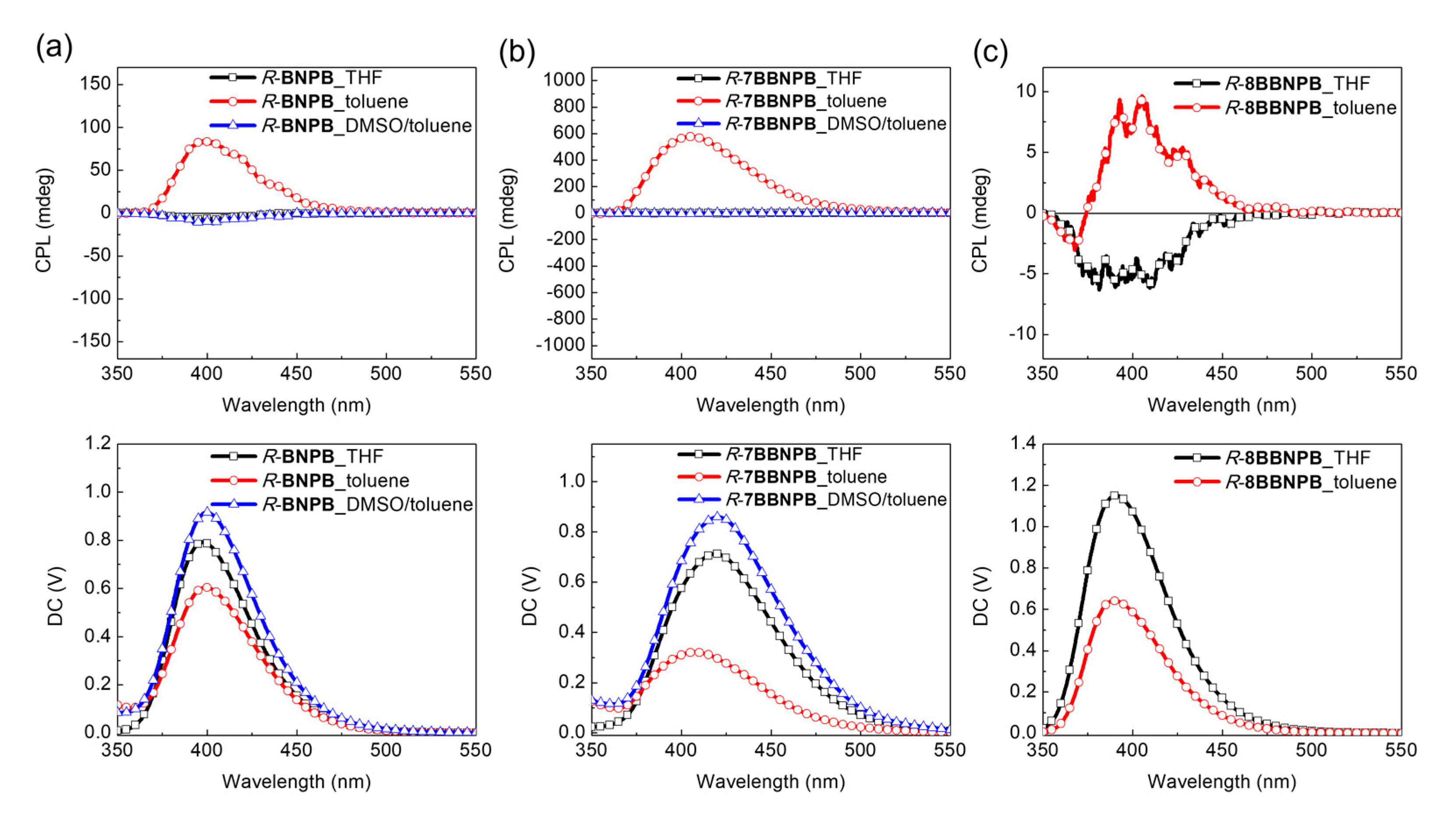

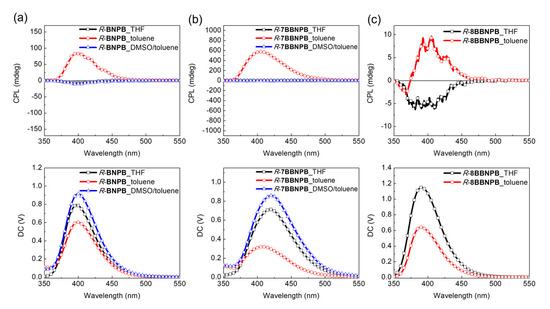

Figure 7. CPL spectra of (a) R-BNPB, (b) R-7BBNPB, and (c) R-8BBNPB in THF, toluene, or toluene/DMSO solutions. λex = 300 nm.
Figure 7. CPL spectra of (a) R-BNPB, (b) R-7BBNPB, and (c) R-8BBNPB in THF, toluene, or toluene/DMSO solutions. λex = 300 nm.
Molecules 28 03382 g007
