Article

One-Step Synthesis of a Non-Precious-Metal Tris (Fe/N/F)-Doped Carbon Catalyst for Oxygen Reduction Reactions

by
Huitian Yang
,
Hao Wu
,
Lei Yao
,
Siyan Liu
,
Lu Yang
,
Jieling Lu
,
Hongliang Peng
*,
Xiangcheng Lin
,
Ping Cai
,
Huanzhi Zhang
,
Fen Xu
,
Kexiang Zhang
and
Lixian Sun
*
Guangxi Key Laboratory of Information Material, Guangxi Collaborative Innovation Center of Structure and Property for New Energy and Materials, School of Material Science and Engineering, Guilin University of Electronic Technology, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(5), 2392; https://doi.org/10.3390/molecules28052392
Submission received: 27 January 2023 / Revised: 27 February 2023 / Accepted: 3 March 2023 / Published: 5 March 2023
(This article belongs to the Special Issue Energy-Relevant Advanced Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Advancements in inexpensive, efficient, and durable oxygen reduction catalysts is important for maintaining the sustainable development of fuel cells. Although doping carbon materials with transition metals or heteroatomic doping is inexpensive and enhances the electrocatalytic performance of the catalyst, because the charge distribution on its surface is adjusted, the development of a simple method for the synthesis of doped carbon materials remains challenging. Here, a non-precious-metal tris (Fe/N/F)-doped particulate porous carbon material (21P2-Fe1-850) was synthesized by employing a one-step process, using 2-methylimidazole, polytetrafluoroethylene, and FeCl3 as raw materials. The synthesized catalyst exhibited a good oxygen reduction reaction performance with a half-wave potential of 0.85 V in an alkaline medium (compared with 0.84 V of commercial Pt/C). Moreover, it had better stability and methanol resistance than Pt/C. This was mainly attributed to the effect of the tris (Fe/N/F)-doped carbon material on the morphology and chemical composition of the catalyst, thereby enhancing the catalyst’s oxygen reduction reaction properties. This work provides a versatile method for the gentle and rapid synthesis of highly electronegative heteroatoms and transition metal co-doped carbon materials.

1. Introduction

With the increasing environmental awareness, the development of new energy storage and conversion technologies that can effectively reduce climate pollution is currently gaining attention [1,2,3,4,5]. Fuel cells are environmentally-friendly energy devices that can directly convert the energy released from a chemical reaction into electrical energy [6]. These have the advantages of high energy conversion efficiency, ease of use, and being environmentally friendly. Hence, these are considered to be one of the most promising clean energy conversion technologies [7,8,9]. A crucial reaction in fuel cells and metal–air cells is the oxygen reduction reaction (ORR) [10]. Currently, precious metals are used as catalysts for the ORR, owing to the low stability and durability of non-precious-metal catalysts [11,12]. Pt is considered the most suitable catalyst for the ORR [13,14]. However, platinum is expensive and scarce. In addition, Pt-based catalysts can be deactivated or poisoned during electrocatalytic processes [15,16,17,18,19]. Consequently, numerous studies on platinum-free ORR catalysts have stalled. Thus, high-performance, inexpensive, multi-element-doping platinum-free catalysts or novel low-platinum catalysts should be explored [20,21].
Studies have shown that the catalyst performance can be adjusted with (1) specific heteroatoms having an electronegativity higher than that of carbon but with a similar atomic radius, which facilitates the doping into the lattice of carbon materials [22], and (2) transition metals with empty 3d orbitals [23]. The heteroatom and transition metal co-doped carbon materials can effectively adjust the charge distribution on the surface of carbon materials, thus achieving the adjustment in the catalyst performance [24]. Among the elements used in the heteroatom-doped carbon catalysts, nitrogen (N), oxygen (O), and fluorine (F) are considered to be excellent doping elements in carbon materials because of their high electronegativity and an atomic radius similar to that of carbon [25]. Catalysts with nitrogen-doped carbon-based structures (NC structures) have been extensively studied, mainly because they outperform commercial Pt/C catalysts in alkaline environments [26]. Oxygen atoms are usually present in heat-treated carbon materials, whereas N and F must be doped into carbon materials using special doping methods. Inorganic fluorine salts (such as NaF and NH4F) are commonly used for the F doping of carbon materials, although they pose severe environmental concerns [27]. Fluoride doping is gentle and efficient for doping organic matters, such as polytetrafluoroethylene (PTFE) and polyvinylidene fluoride [28].
Iron (Fe) and cobalt (Co) atoms with 3d vacant orbitals are believed to be excellent transition metal promoters for NC structure formation [29,30,31,32,33]. In particular, iron has a high annual yield and is inexpensive [34]; therefore, Fe-Nx/C structured catalysts are of considerable importance for the ORR.
However, obtaining N, F, and Fe co-doped carbon catalysts with excellent electrochemical properties using a simple synthetic method remains challenging.
In this study, we used a one-step method with simple raw materials to synthesize tris (Fe/N/F)-doped particulate porous carbon material (21P2-Fe1-850). The prepared catalyst exhibited an ORR catalytic performance comparable to that of commercial Pt/C catalysts and better stability and methanol resistance, thus demonstrating its potential applications in ORRs.

2. Results and Discussion

As shown in Scheme 1, 2P-Fe-X was synthesized using ferric chloride as the iron source, 2-methylimidazole as the nitrogen and carbon source, and PTFE as the fluorine and carbon source. The raw materials were ground for 0.5 h until they were uniformly ground. A high-temperature solid-phase pyrolysis was then carried out for 1 h (under a N2 atmosphere) at 850 °C to obtain a carbon nanomaterial with an F, N, and Fe triple doping. The possible mechanism of synthesis is that, at high temperatures, 2-methylimidazole and PTFE are pyrolyzed to some small molecules, which are then recombined in the presence of iron as a catalyst to form new doped carbon materials. A similar synthesis was performed without the addition of FeCl3, with different ratios of 2-methylimidazole and PTFE, and at different temperatures for the F and N co-doped carbon materials.
Several studies have reported that the best ORR performance can be obtained at a pyrolysis temperature between 800 and 1000 °C [35,36,37,38]. Here, the pyrolysis temperature was fixed at 900 °C, and the effect of the precursor ratio (2-methylimidazole to PTFE) on the ORR performance was investigated. When this ratio was 1:2, the half-wave potential (E1/2) of 21P2 was 0.80 V (Figure 1a). E1/2 decreased with a further increase in the PTFE content. When the ratio of 2-methylimidazole to PTFE was 1:1–1:3, the E1/2 of the prepared sample was 0.75–0.80 V. This analysis confirmed that the ratio of the reactants is one of the key factors affecting the activity of the catalyst ORR and that the optimal ratio of 2-methylimidazole to PTFE is 1:2. Note that the limit diffusion currents of catalysts 21P1 and 21P1.5 are larger than those of other catalysts, which may be related to the structure of the samples [39].
After the optimal ratio of the precursors, 2-methylimidazole and PTFE, was determined, we further studied the effect of different temperatures on the electrocatalytic performance. Different heat-treatment processes affect the degree of graphitization, morphology, and active site composition of the carbon material [15]. The effects of the pyrolysis temperature on the catalysts are shown in Figure 1b. At a 2-methylimidazole-to-PTFE ratio of 1:2 and at a heat-treatment temperature of 700–950 °C, the value of E1/2 was 0.69–0.83 V, corresponding to an E1/2 variation of approximately 140 mV. These results indicated that the heat treatment temperature is a very important factor affecting the activity of the ORR catalyst. 21P2-850 showed the highest ORR activity at a pyrolysis temperature of 850 °C, and its E1/2 was approximately 0.83 V. This is different from most studies, which have reported that optimal ORR activity of catalysts is at 900 °C. This indicates that the optimal heat-treatment temperature for different precursor mixtures is not the same because it is related to the temperature conditions between the precursors during the solid-phase synthesis of the catalyst at high temperatures.
The metal-free ORR catalyst showed good stability and was not affected by the Fenton effect [40]. Transition-metal-based ORR catalysts typically produce H2O2. In the presence of an acidic electrolyte, the dissolved transition metal ions (especially Fe2+) and H2O2 have strong oxidation properties (Fenton reaction), which can quickly destroy the proton exchange membrane, resulting in very poor stability of the fuel cell. However, under basic conditions, the Fenton reaction does not occur. Therefore, further doping with transition metals is an effective method for the preparation of highly efficient ORR catalysts that can be used under alkaline conditions [41]. The different metal contents in the catalyst had a significant effect on the ORR activity. The results (Figure 1c) revealed that 21P2-Fe0.25-850, 21P2-Fe0. 5-850, 21P2-Fe1-850, 21P2-Fe2-850, and 21P2-Fe3-850 exhibited distinctive oxygen reduction peaks. In particular, the 21P2-Fe1-850 catalyst had the largest ORR peak for current potential, indicating that its structure exposed more ORR active sites and facilitated the diffusion of oxygen.
When different volumes of FeCl3 (0.07 M) in the range of 0.25–3.0 mL were added to the precursor, E1/2 of the obtained catalyst varied between 0.81 and 0.85 V under the optimal precursor ratio and heat treatment temperature. We observed that the ORR activity of the catalysts was sensitive to the iron content; a low iron content leads to an insufficient number of active sites. If the iron content is extremely high, the iron that does not form the active site blocks the reaction channels of the catalyst or forms other catalytic sites with low ORR activity. The E1/2 of the catalyst 21P2-Fe1-850 was approximately 0.85 V when 1.0 mL of an FeCl3 solution (0.07 M) was added to the precursor mixture; this is higher than the E1/2 of Pt/C catalysts (0.84 V).
Figure 1e,g shows the current density plots of 21P2-850 and 21P2-Fe1-850, respectively, and the Cdl values of the samples can be obtained based on the current density; the Cdl values of samples 21P2-850 and 21P2-Fe1-850 were 12.3 and 13.6 mF cm−2, respectively (Figure 1f,h). The electrochemical surface area (ECSA) values can be obtained according to the equation:
ECSA = Cdl/Cs
The ECSA values of 21P2-850 and 21P2-Fe1-850 were 10.3 and 7.8 cm2, respectively.
According to the previous study, at 0.8V, the current densities of samples 21P2-850 and 21P2-Fe1-850 are 3.3 mA cm−2 and 4.1 mA cm−2, respectively. The latter is 1.2 times the former. In order to compare the intrinsic activity of 21P2-850 and 21P2-Fe1-850, we normalized the electrical density of the sample to ECSA at a potential of 0.8V. After normalization, the current density of 21P2-850 and 21P2-Fe1-850 is 0.32 mA cm−2 and 0.53 mA cm−2, respectively, and the latter is 1.65 times of the former, thus indicating that 21P2-Fe1-850 possesses more active sites than 21P2-850.
In summary, three factors affect the activity of ORR catalysts synthesized with heteroatomic and transition metal doping: (1) the proportion of heteroatomic precursors that may affect the proportion of doping atoms and the morphology of the synthesized catalyst; (2) the heat-treatment temperature that affects the ORR activity of the catalyst and plays a role in determining the structure and type of the active site of the catalyst; and (3) the transition metal co-doping and its content that can be related to the change of the catalyst active site, which can form more efficient ORR active sites with the metal.
The reaction mechanism, stability, and resistance to poisoning of ORR catalysts are the key factors reflecting the catalyst performance. To examine the kinetics of the ORR reaction of 21P2-Fe1-850 catalyst, we used the polarization curves at different rotational speeds in KOH (0.1 M), which helped in elucidating the electron transfer paths. Figure 2a shows the relationship between the rotational speed and the limiting diffusion current density, where the diffusion ultimate current density (Jd) increased with an increase in the rotational speed. This may be due to the fact that the increase in the electrode rotational speed is accompanied by a shortening of the diffusion distance of the reacting material, which facilitates the mass migration of the catalyst. Based on the Koutecky–Levich (K–L) equation, we obtained an electron transfer very close to 4.0 and with an average electron transfer number of 3.8 (Figure 2b). This indicates that 21P2-Fe1-850 was dominated by a four-electron pathway.
The stability and anti-poisoning ability of ORR catalysts are crucial problems in commercial Pt/C catalysts. We performed durability and methanol tolerance tests, as shown in Figure 2c. After the 30,000 s test, the current retention of the 21P2-Fe1-850 catalyst remained 92.4%, which was better than that of Pt/C (ca. 87.8%). After the addition of methanol (Figure 2d), the 21P2-Fe1-850 catalyst had better methanol tolerance, and the 21P2-Fe1-850 catalyst activity decreased by only 8%, whereas that of Pt/C decreased by 43%, thus showing good resistance to methanol. These results indicated that the stability and immunity to methanol poisoning of 21P2-Fe1-850 were evident and comparable to those of commercial Pt/C catalysts.
Figure 3a,b and Figure 3c,d present the scanning electron microscopy (SEM) images of 21P2-850 and 21P2-Fe1-850, respectively, revealing the smooth surface of 21P2-850. The catalyst’s smooth surface is usually not conducive to its catalytic activity, because it is not conducive to the full exposure of the catalytic site, resulting in low catalytic efficiency. The 21P2-Fe1-850 sample had smaller particles on the surface, making the entire sample appear fluffier. This shows that the doping of transition metal iron can change the surface structure and morphology of heteroatom-doped carbon materials.
The transmission electron microscopy (TEM) images of 21P2-Fe1-850 (Figure 3e–g revealed particle accumulation, and some small dispersed particles were observed (red ellipse markers). The scanning transmission electron microscopy (STEM) image (Figure 3h) revealed the presence of numerous pores, which were mainly formed by the accumulation of small particles. The high ORR activity of the catalyst 21P2-Fe1-850, after co-doping N, F, and Fe, can be attributed to the fact that nanoparticles can fully expose the active site of the catalyst on their surface. The elemental mapping showed that we successfully introduced C, N, O, F, and Fe elements. After successful doping with Fe, F, and N, the ORR activity and stability of the catalyst may be improved by increasing the density of the active sites and fully exposing them [42].
The N2 adsorption–desorption curve of 21P2-Fe1-850 and 21P2-Fe1-850 (Figure 4a,c) reveals that it is type IV with an H3 hysteris loop, thus indicating the existence of mesopores in this material. The accumulation of irregular granular or sheet materials in this kind of material forms some meso-and macropores, and 21P2-Fe1-850 has a larger number of pores than 21P2-850. In addition, we can observe that the tail of N2–desorption curves of the sample 21P2-Fe1-850 rapidly increases, which can be attributed to the accumulation of macroporous nanoparticles in the sample. This is consistent with the results of the TEM analysis (Figure 3).
21P2-Fe1-850 has a specific surface area of 1315 m2 g−1, which is larger than that of 21P2-850 (182 m2 g−1). This indicates that iron doping increases the specific surface area of carbon materials, thereby enhancing the materials’ exposure as electrochemical active sites. Figure 4d shows the pore size distribution curves of 21P2-Fe1-850, which are consistent with the N2 adsorption–desorption isotherm results. We can also observe that the 21P2-Fe1-850 is dominated by mesoporous pores, with the number of mesoporous pores reaching a maximum value at a pore size of 24 nm.
Figure 4e and Figure 4f show that the sizes of 21P2-850 and 21P2-Fe1-850 are concentrated at 100–600 and 200–300 nm, respectively, thus indicating that the doping of metal Fe is conducive to the reduction of the catalyst particle size. This is consistent with the SEM and X-ray diffraction (XRD) results.
Figure 5a shows the XRD spectra of 21P2-Fex-850 with different iron contents. Two broad diffraction peaks can be seen at approximately 26° and 43°, corresponding to the C (002) and C (100) crystal planes of the carbon peak, respectively. The diffraction peaks appear at around 26° and 45° when an iron solution (3 mL) is added; these are presumed to be Fe3C and Fe3O4 through comparison with the powder diffraction file card. The rest of the samples do not have distinctive diffraction peaks of the metallic phase, indicating that the content of the phase is extremely low and the crystal particles are considerably small and evenly distributed [43].
Figure 5b shows the XRD comparison of catalysts XC-72R, 21P1-850, and 21P2-Fe1-850, where the (002) and (100) crystal planes of the carbon peaks can be clearly observed. Compared with XC-72R (with a half-peak width of 2.6), the half-peak widths of 21P1-850 and 21P2-Fe1-850 are 3.4 and 3.5, respectively, indicating that the crystal particles of 21P2-Fe1-850 are smaller and more uniformly distributed.
The Raman spectra (Figure 6) revealed that the ratio of integrated intensity in the D-band to that in the G-band (ID/IG) of 21P2-850 was 3.7 and 3.9 in 21P2-Fe1-850. This shows that the proportion of sp3 carbon in carbon material 21P2-Fe1-850 is higher than that in carbon material 21P2-Fe1-850. This indicates that sample 21P2-Fe1-850 has more defects in the graphite phase structure than sample 21P2-Fe1-850, resulting in a larger specific surface area and a fluffier structure. This is consistent with the previous SEM and Brunauer–Emmett–Teller (BET) results. This also indicates that iron doping is not conducive to the graphitization of carbon materials, resulting in a large number of suspended bonds in sample 21P2-Fe1-850 and enhancing the catalytic activity of the ORR catalysts. In addition, our sample, 21P2-Fe1-850, is difficult to graphitize at high temperatures, which may have potential applications in electrochemical energy storage materials.
Figure 7a shows the measured spectrum of the X-ray photoelectron spectroscopy (XPS) composition analysis of catalyst 21P2-Fe1-850; the five elements, C, N, O, F, and Fe are shown. The content of each element was 88.41 at.%, 8.19 at.%, 2.29 at.%, 0.78 at.%, and 0.32 at.%, respectively. Figure 7b shows that the C1s peak consists of three peaks: C-C (284.8 eV), C-N (285.2 eV), and C-O (285.9 eV) [44], indicating the bonding of the doped heteroatoms with the carbon; this affected the distribution of charges on the surface of the carbon material. Figure 7c shows the N1s peak, which can be divided into four peaks at 398.4, 399.6, 401.1, and 402.3 eV. These can be classified as pyridine-N, pyrrole-N, graphite-N, and oxide-N, respectively [45], where pyridine-N, pyrrole-N, and graphite-N contribute to the “four-electron” transport [46]. The high content (92.1%) of these three Ns in 21P2-Fe1-850 contributes to the ORR activity. As shown in Figure 7d, the spectrum of O1s consists of two peaks, the O-C peak at 533 eV and the O-Fe peak at 531.3 eV [29]. This indicates the formation of iron oxide in the sample, which is consistent with the previous XRD results. As shown in Figure 7e, the F1s spectrum consists of two peaks at 683.4 eV and 689.8 eV. This spectrum is noisy because the XPS signal response of F was relatively weak, and the content of F in the sample was relatively low. However, the presence of these signals indicated that F was successfully doped into the sample. This is consistent with the previous energy-dispersive X-ray spectroscopy (EDS) elemental mapping analysis. As shown in Figure 7f, the spectrum of Fe2p consists of five peaks centered at 709.9/722.4 eV and 714.0/724.1 eV, with Fe2+, as well as 2p3/2 and 2p1/2 states of Fe3+, and a satellite peak at 732 eV [47]. This indicates that the transition metal iron existed mainly in the form of Fe(II) and Fe(III) in the sample.

3. Materials and Methods

3.1. Materials

The main raw materials used were 2-methylimidazole, PTFE, and anhydrous ferric chloride. 2-methylimidazole was purchased from Shanghai Maclean Biochemical Technology Co., Ltd. (Shanghai, China). PTFE was purchased from DuPont (Wilmington, DE, USA). Anhydrous ferric chloride was purchased from Sinopharm Group Chemical Reagent Co., Ltd. (Shanghai, China).

3.2. Synthesis of 21P2-Fe1-850 Electrocatalyst

First, anhydrous FeCl3 (0.58 g) was dissolved in an aqueous ethanol solution (50 mL). Next, 2-methylimidazole (3.33 g) and polytetrafluoroethylene (6.66 g) were mixed with an aqueous ethanol solution (1 mL), and the mixture was ground thoroughly in an agate mortar. The mixture was then pyrolyzed at 850 °C under a nitrogen atmosphere for 1 h. The obtained tris (Fe/N/F)-doped carbon material was named 21P2-Fe1-850. Moreover, samples with different contents of FeCl3, different ratios of 2-methylimidazole and PTFE, and different pyrolysis temperatures were prepared by applying the same process (Table 1).

3.3. Physical Characteristization

XRD (D8 Advance, Bruker, Bremen, Germany) was performed using a Cu Kα light source. The composition and surface of the samples were characterized using XPS (ESCALAB 250Xi, Thermo Fisher, Waltham, MA, USA) with an Al Kα excitation source. The morphologies of the prepared samples were observed using SEM (JSM-7610Fplus, JEOL, Tokyo, Japan). TEM, high-resolution TEM, and EDS were performed using a transmission electron microscope (Talos F200X, FEI, SD, USA). Raman characterization was performed using a Raman spectrometer (Raman, Lab RAM HR Evolution, Horiba JY, Palaiseau, France) under a laser excitation of 532 nm. Nitrogen adsorption–desorption analysis was performed using a gas adsorption analyzer (BET, Autosorb iQ2, Quantachrome, Boynton Beach, FL, USA). Particle size distribution was performed using a laser particle sizer (Zetasizer Nano ZS90, Malvern, UK).

3.4. Electrochemical Measurements

Electrochemical tests were performed at 25 °C on a multichannel electrochemical workstation (Ivium, Eindhoven, The Netherlands), with the counter and reference electrodes being platinum wire and Hg/HgO (0.1 M KOH), respectively. A rotating disc electrode was used as the working electrode. The samples were processed as follows: the catalyst (5 mg) was added to a Nafion/ethanol solution (1 mL, 0.25 wt.%), and the mixture was sonicated for 40 min. The ink was then dispersed on a glassy carbon electrode and dried. Catalyst loading was employed as follows: the carbon material was 510 μg cm−2 and Pt/C was 48.9 μg Pt cm−2. Reversible hydrogen electrode (RHE) correction was performed as follows:
E(RHE) = E(Hg/HgO) + 0.899 V (0.1 M KOH).
The average number of electron transfers for the ORR was calculated using the K–L equation [47]:
1 J = 1 J k + 1 J d = 1 J k + B − 1 ω − 1
B = 0.62 · n · F · ( D 0 ) 2 3 · V − 1 6 · C 0
where J is the measured current density, Jk is the kinetic current, and Jd is diffusion. The constant, B, is the slope we determined, ω is the angular velocity on the rotating disk electrode, and F is the Faraday constant (96,485 mol−1). In 0.1 M KOH, D0 (oxygen dispersion coefficient) = 1.9 × 10−5 cm2 s−1, V (kinetic viscosity of the electrolyte solution) = 1.01 × 10−2 cm2 s−1, and C0 (volume concentration of oxygen) = 1.26 × 10−3 mol−1 [15].

4. Conclusions

We reported the one-step synthesis of tris (Fe/N/F)-doped carbon materials for their application as ORR electrocatalysts. The synthesized catalyst exhibited better activity, stability, and resistance to methanol poisoning than the commercial Pt/C catalysts in alkaline media. EDS elemental mapping and XPS spectra confirmed the successful incorporation of F, N and Fe into the samples. The excellent ORR performance of our catalyst can be attributed to: (1) the highly electronegative F and N that changed the surface structure of carbon materials; (2) the morphology of 21P2-Fe1-850 and its high content of active nitrogen (92.1%); (3) the co-doping of iron that further decreased the size of catalyst particles and increased the specific surface area of the catalyst (from 182 m2 g−1 of 21P2 -850 to 1315 m2 g−1 of 21P2-Fe1-850); and (4) the 3d orbital of iron. With the co-doping of iron, the charge of the active site can be adjusted to enhance the catalytic efficiency of the catalyst. This is consistent with our design idea. This study presents a general method for the mild preparation of F and other heteroatomic transition-metal-doped carbon materials and provides insights into the research and development of the ORR.

Author Contributions

Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing—original draft, H.Y.; Data curation, Investigation, H.W.; Data curation, Formal analysis, L.Y. (Lei Yao); Methodology, Visualization, S.L.; Data curation, Investigation, L.Y. (Lu Yang); Data curation, Investigation, J.L.; Conceptualization, Formal analysis, Funding acquisition, Validation, Writing—review & editing, H.P.; Formal analysis, Validation, X.L.; Methodology, Writing—review & editing, P.C.; Methodology, Supervision, H.Z.; Resources, Project administration, F.X.; Visualization, Supervision, Writing—review & editing, K.Z.; Validation, Project administration, Funding acquisition, Resources, Supervision, L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No. 52061010, 21864009, U20A20237, 51971068, 52063010, 51871065, 52271205), Science and Technology Development Project of Guilin (20210102-4, 20210216-1), the Scientific Research and Technology Development Program of Guangxi (AA19182014, AD17195073, AA17202030-1, AB21220027), Guangxi Bagui Scholar Foundation, Guilin Lijiang Scholar Foundation, Guangxi Collaborative Innovation Centre of Structure and Property for New Energy and Materials, Guangxi Advanced Functional Materials Foundation and Application Talents Small Highlands, Chinesisch-Deutsche Kooperationsgruppe (GZ1528), and Innovation Project of Guilin University of Electronic Technology Graduate Education (2021YCXS150, 2023YCXS152).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data generated or analyzed during the study are included in the article.

Acknowledgments

We thank the New Energy Laboratory of Guilin University of Electronic Science and Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, N.; Zhou, T.P.; Chen, M.L.; Feng, H.; Yuan, R.L.; Zhong, C.A.; Yan, W.S.; Tian, Y.C.; Wu, X.J.; Chu, W.S.; et al. High-purity pyrrole-type FeN4 sites as a superior oxygen reduction electrocatalyst. Energy Environ. Sci. 2020, 13, 111–118. [Google Scholar] [CrossRef]
  2. Zheng, X.J.; Cao, X.C.; Sun, Z.H.; Zeng, K.; Yan, J.; Strasser, P.; Chen, X.; Sun, S.H.; Yang, R.Z. Indiscrete metal/metal-N-C synergic active sites for efficient and durable oxygen electrocatalysis toward advanced Zn-air batteries. Appl. Catal. B-Environ. 2020, 272, 118967. [Google Scholar] [CrossRef]
  3. Wu, G.; Li, X.; Zhang, Z.; Dong, P.; Xu, M.L.; Peng, H.L.; Zeng, X.Y.; Zhang, Y.J.; Liao, S.J. Design of ultralong-life Li-CO2 batteries with IrO2 nanoparticles highly dispersed on nitrogen-doped carbon nanotubes. J. Mater. Chem. A 2020, 8, 3763–3770. [Google Scholar] [CrossRef]
  4. Rao, P.; Deng, Y.J.; Fan, W.J.; Luo, J.M.; Deng, P.L.; Li, J.; Shen, Y.J.; Tian, X.L. Movable type printing method to synthesize high-entropy single-atom catalysts. Nat. Commun. 2022, 13, 5071. [Google Scholar] [CrossRef] [PubMed]
  5. You, C.H.; Gao, X.H.; Wang, Q.Q.; Li, X.B.; Tan, S.Y.; Xu, P.Y.; Cai, D.Q.; Weng, Y.L.; Wang, C.T.; Tian, X.L.; et al. Rechargeable Zinc\-Air Battery with Ultrahigh Power Density Based on Uniform N, Co Codoped Carbon Nanospheres. ACS Appl. Mater. Interfaces 2019, 11, 44153–44160. [Google Scholar] [CrossRef] [PubMed]
  6. Seselj, N.; Engelbrekt, C.; Zhang, J.D. Graphene-supported platinum catalysts for fuel cells. Sci. Bull. 2015, 60, 864–876. [Google Scholar] [CrossRef] [Green Version]
  7. Yang, L.J.; Shui, J.L.; Du, L.; Shao, Y.Y.; Liu, J.; Dai, L.M.; Hu, Z. Carbon-Based Metal-Free ORR Electrocatalysts for Fuel Cells: Past, Present, and Future. Adv. Mater. 2019, 31, 1804799. [Google Scholar] [CrossRef]
  8. Zhou, M.M.; Wang, Q.; Huang, X.B.; Huang, Y.M.; Chen, Y. A nitrogen-doped mesoporous carbon nanomaterial derived from Co(HNCN)(2) toward oxygen reduction reaction. Catal. Commun. 2019, 125, 66–69. [Google Scholar] [CrossRef]
  9. Debe, M.K. Electrocatalyst approaches and challenges for automotive fuel cells. Nature 2012, 486, 43–51. [Google Scholar] [CrossRef]
  10. Lu, X.Y.; Ge, L.P.; Yang, P.X.; Levin, O.; Kondratiev, V.; Qu, Z.S.; Liu, L.L.; Zhang, J.Q.; An, M.Z. N-doped carbon nanosheets with ultra-high specific surface area for boosting oxygen reduction reaction in Zn-air batteries. Appl. Surf. Sci. 2021, 562, 150114. [Google Scholar] [CrossRef]
  11. An, L.; Chi, B.; Deng, Y.J.; Chen, C.; Deng, X.H.; Zeng, R.J.; Zheng, Y.Y.; Dang, D.; Yang, X.; Tian, X.L. Engineering g-C3N4 composited Fe-UIO-66 to in situ generate robust single-atom Fe sites for high-performance PEMFC and Zn-air battery. J. Mater. Chem. A 2022, 11, 118–129. [Google Scholar] [CrossRef]
  12. Mondal, A.; Chouke, P.B.; Sonkusre, V.; Lambat, T.; Abdala, A.A.; Mondal, S.; Chaudhary, R.G. Ni-doped ZnO nanocrystalline material for electrocatalytic oxygen reduction reaction. In Proceedings of the 11th National Conference on Solid State Chemistry and Allied Areas (NCSCA), Nagpur, India, 20–21 December 2019; Elsevier: Nagpur, India, 2020; pp. 715–719. [Google Scholar]
  13. Watanabe, M.; Tryk, D.A.; Wakisaka, M.; Yano, H.; Uchida, H. Overview of recent developments in oxygen reduction electrocatalysis. Electrochim. Acta 2012, 84, 187–201. [Google Scholar] [CrossRef]
  14. Calle-Vallejo, F.; Koper, M.T.M.; Bandarenka, A.S. Tailoring the catalytic activity of electrodes with monolayer amounts of foreign metals. Chem. Soc. Rev. 2013, 42, 5210–5230. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, S.Y.; Yang, H.T.; Yao, L.; Peng, H.L.; Huang, P.R.; Lin, X.C.; Liu, L.H.; Zhang, H.Z.; Cai, P.; Wen, X.; et al. Design of Fe and Cu bimetallic integration on N and F co-doped porous carbon material for oxygen reduction reaction. Int. J. Hydrogen Energy 2022, 47, 7751–7760. [Google Scholar] [CrossRef]
  16. Tran, T.N.; Lee, H.Y.; Park, J.D.; Kang, T.H.; Lee, B.J.; Yu, J.S. Synergistic CoN-Decorated Pt Catalyst on Two-Dimensional Porous Co-N-Doped Carbon Nanosheet for Enhanced Oxygen Reduction Activity and Durability. ACS Appl. Energ. Mater. 2020, 3, 6310–6322. [Google Scholar] [CrossRef]
  17. Kakati, N.; Maiti, J.; Lee, S.H.; Jee, S.H.; Viswanathan, B.; Yoon, Y.S. Anode Catalysts for Direct Methanol Fuel Cells in Acidic Media: Do We Have Any Alternative for Pt or Pt-Ru? Chem. Rev. 2014, 114, 12397–12429. [Google Scholar] [CrossRef]
  18. Xu, Y.; Zhang, B. Recent advances in porous Pt-based nanostructures: Synthesis and electrochemical applications. Chem. Soc. Rev. 2014, 43, 2439–2450. [Google Scholar] [CrossRef]
  19. Wu, Q.M.; Deng, D.K.; He, Y.L.; Zhou, Z.C.; Sang, S.B.; Zhou, Z.H. Fe/N-doped mesoporous carbons derived from soybeans: A highly efficient and low-cost non-precious metal catalyst for ORR. J. Cent. South Univ. 2020, 27, 344–355. [Google Scholar] [CrossRef]
  20. Chang, Y.; Chen, J.X.; Jia, J.C.; Hu, X.; Yang, H.J.; Jia, M.L.; Wen, Z.H. The fluorine-doped and defects engineered carbon nanosheets as advanced electrocatalysts for oxygen electroreduction. Appl. Catal. B-Environ. 2021, 284, 119721. [Google Scholar] [CrossRef]
  21. Tian, X.L.; Zhao, X.; Su, Y.Q.; Wang, L.J.; Wang, H.M.; Dang, D.; Chi, B.; Liu, H.F.; Hensen, E.J.M.; Lou, X.W.; et al. Engineering bunched Pt-Ni alloy nanocages for efficient oxygen reduction in practical fuel cells. Science 2019, 366, 850–856. [Google Scholar] [CrossRef]
  22. Yan, Q.; Sun, R.M.; Wang, L.P.; Feng, J.J.; Zhang, L.; Wang, A.J. Cobalt nanoparticles/nitrogen, sulfur-codoped ultrathin carbon nanotubes derived from metal organic frameworks as high-efficiency electrocatalyst for robust rechargeable zinc-air battery. J. Colloid Interface Sci. 2021, 603, 559–571. [Google Scholar] [CrossRef]
  23. Deng, Z.; Yi, Q.; Zhang, Y.; Nie, H.; Li, G.; Yu, L.; Zhou, X. Carbon Paper-Supported NiCo/C–N Catalysts Synthesized by Directly Pyrolyzing NiCo-Doped Polyaniline for Oxygen Reduction Reaction. Nano 2018, 13, 52–62. [Google Scholar] [CrossRef]
  24. Yang, X.H.; Feng, Z.; Guo, Z.Y. Theoretical Investigation on the Hydrogen Evolution, Oxygen Evolution, and Oxygen Reduction Reactions Performances of Two-Dimensional Metal-Organic Frameworks Fe-3(C2X)(12) (X = NH, O, S). Molecules 2022, 27, 1528. [Google Scholar] [CrossRef] [PubMed]
  25. Cherif, M.; Dodelet, J.P.; Zhang, G.X.; Glibin, V.P.; Sun, S.H.; Vidal, F. Non-PGM Electrocatalysts for PEM Fuel Cells: A DFT Study on the Effects of Fluorination of FeNx-Doped and N-Doped Carbon Catalysts. Molecules 2021, 26, 7370. [Google Scholar] [CrossRef]
  26. Le, M.Y.; Hu, B.J.; Wu, M.Y.; Guo, H.Z.; Wang, L. Construction of Co,N-Coordinated Carbon Dots for Efficient Oxygen Reduction Reaction. Molecules 2022, 27, 5021. [Google Scholar] [CrossRef] [PubMed]
  27. Akula, S.; Peera, S.G.; Sahu, A.K. Uncovering N, S, F Tri-Doped Heteroatoms on Porous Carbon as a Metal-Free Oxygen Reduction Reaction Catalyst for Polymer Electrolyte Fuel Cells. J. Electrochem. Soc. 2019, 166, F897–F905. [Google Scholar] [CrossRef]
  28. Gong, T.L.; Qi, R.Y.; Liu, X.D.; Li, H.; Zhang, Y.M. N, F-Codoped Microporous Carbon Nanofibers as Efficient Metal-Free Electrocatalysts for ORR. Nano-Micro Lett. 2019, 11, 11. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, Q.S.; Guo, C.Z.; Sun, L.T.; Zhou, R.; Liu, Y.; Sun, W.; Xiang, S.J.; Li, Y.R.; Si, Y.J.; Luo, Z.L. High active-site availability on Fe-N-C oxygen reduction electrocatalysts derived from iron(II) complexes of phenanthroline with a K2C2O4 promoter. J. Alloys Compd. 2019, 809, 151822. [Google Scholar] [CrossRef]
  30. Sun, M.; Wu, X.B.; Liu, C.B.; Xie, Z.Y.; Deng, X.T.; Zhang, W.; Huang, Q.Z.; Huang, B. The in situ grown of activated Fe-N-C nanofibers derived from polypyrrole on carbon paper and its electro-catalytic activity for oxygen reduction reaction. J. Solid State Electrochem. 2018, 22, 1217–1226. [Google Scholar] [CrossRef]
  31. Guo, C.Z.; Liao, W.L.; Chen, C.G. Design of a non-precious metal electrocatalyst for alkaline electrolyte oxygen reduction by using soybean biomass as the nitrogen source of electrocatalytically active center structures. J. Power Sources 2014, 269, 841–847. [Google Scholar] [CrossRef]
  32. Li, J.; Chen, S.G.; Li, W.; Wu, R.; Ibraheem, S.; Li, J.; Ding, W.; Li, L.; Wei, Z.D. A eutectic salt-assisted semi-closed pyrolysis route to fabricate high-density active-site hierarchically porous Fe/N/C catalysts for the oxygen reduction reaction. J. Mater. Chem. A 2018, 6, 15504–15509. [Google Scholar] [CrossRef]
  33. Guo, C.Z.; Liao, W.L.; Li, Z.B.; Chen, C.G. Exploration of the catalytically active site structures of animal biomass-modified on cheap carbon nanospheres for oxygen reduction reaction with high activity, stability and methanol-tolerant performance in alkaline medium. Carbon 2015, 85, 279–288. [Google Scholar] [CrossRef]
  34. Artyushkova, K.; Serov, A.; Rojas-Carbonell, S.; Atanassov, P. Chemistry of Multitudinous Active Sites for Oxygen Reduction Reaction in Transition Metal-Nitrogen-Carbon Electrocatalysts. J. Phys. Chem. C 2015, 119, 25917–25928. [Google Scholar] [CrossRef]
  35. Peng, H.L.; Duan, D.C.; Tan, X.Y.; Hu, F.; Ma, J.J.; Zhang, K.X.; Xu, F.; Li, B.; Sun, L.X. A One-Pot Method to Synthesize a Co-Based Graphene-Like Structure Doped Carbon Material for the Oxygen Reduction Reaction. ChemElectroChem 2020, 7, 131–138. [Google Scholar] [CrossRef] [Green Version]
  36. Peng, H.L.; Mo, Z.Y.; Liao, S.J.; Liang, H.G.; Yang, L.J.; Luo, F.; Song, H.Y.; Zhong, Y.L.; Zhang, B.Q. High Performance Fe-and N-Doped Carbon Catalyst with Graphene Structure for Oxygen Reduction. Sci Rep 2013, 3, 1765. [Google Scholar] [CrossRef] [Green Version]
  37. Huang, X.X.; Wang, Y.Z.; Li, W.; Hou, Y.L. Noble metal-free catalysts for oxygen reduction reaction. Sci. China-Chem. 2017, 60, 1494–1507. [Google Scholar] [CrossRef]
  38. Li, C.; Zhao, D.H.; Long, H.L.; Li, M. Recent advances in carbonized non-noble metal-organic frameworks for electrochemical catalyst of oxygen reduction reaction. Rare Met. 2021, 40, 2657–2689. [Google Scholar] [CrossRef]
  39. Peng, H.L.; Liu, F.F.; Qiao, X.C.; Xiong, Z.; Li, X.H.; Shu, T.; Liao, S.J. Nitrogen and Fluorine co-doped carbon catalyst with high oxygen reduction performance, prepared by pyrolyzing a mixture of melamine and PTFE. Electrochim. Acta 2015, 182, 963–970. [Google Scholar] [CrossRef]
  40. Li, J.J.; Zhang, Y.M.; Zhang, X.H.; Huang, J.Z.; Han, J.C.; Zhang, Z.H.; Han, X.J.; Xu, P.; Song, B. S, N Dual-Doped Graphene-like Carbon Nanosheets as Efficient Oxygen Reduction Reaction Electrocatalysts. ACS Appl. Mater. Interfaces 2017, 9, 398–405. [Google Scholar] [CrossRef] [PubMed]
  41. Yang, Y.J.; Yang, P.X.; Wang, N.Y.; Chen, S.Y.; Cheng, Y.; Liu, M.X.; Jiang, C.J. Cobalt nanoparticles with narrow size distribution anchored to flower-like carbon microspheres for enhanced oxygen reduction catalysis. Ionics 2022, 28, 831–838. [Google Scholar] [CrossRef]
  42. Diao, Y.X.; Liu, H.M.; Yao, Z.X.; Liu, Y.S.; Hu, G.X.; Zhang, Q.F.; Li, Z. Tri-(Fe/F/N)-doped porous carbons as electrocatalysts for the oxygen reduction reaction in both alkaline and acidic media. Nanoscale 2020, 12, 18826–18833. [Google Scholar] [CrossRef]
  43. Duan, D.C.; Su, W.; Tan, X.Y.; Hu, F.; Wang, Y.Y.; Huang, W.Y.; Peng, H.L.; Xu, F.; Zou, Y.J.; Sun, L.X. Porous Carbon Electrode Derived from Waste Wine Industry for Supercapacitors. Int. J. Electrochem. Sci. 2019, 14, 10198–10212. [Google Scholar] [CrossRef]
  44. Hu, Y.Z.; Zhang, J.J.; Shen, T.; Li, Z.R.; Chen, K.; Lu, Y.; Zhang, J.; Wang, D.L. Efficient Electrochemical Production of H2O2 on Hollow N-Doped Carbon Nanospheres with Abundant Micropores. ACS Appl. Mater. Interfaces 2021, 13, 29551–29557. [Google Scholar] [CrossRef]
  45. Liu, J.T.; Wei, L.L.; Chu, C.S.; Shen, J.Q. Tofu gel-derived nitrogen and trace iron co-doped porous carbon as highly efficient air-cathode electrocatalyst for microbial fuel cells. J. Power Sources 2022, 527, 230960. [Google Scholar] [CrossRef]
  46. Zhou, Y.F.; Yan, L.; Hou, J.H. Nanosheets with High-Performance Electrochemical Oxygen Reduction Reaction Revived from Green Walnut Peel. Molecules 2022, 27, 328. [Google Scholar] [CrossRef]
  47. Liu, X.; Liu, H.; Chen, C.; Zou, L.L.; Li, Y.; Zhang, Q.; Yang, B.; Zou, Z.Q.; Yang, H. Fe2N nanoparticles boosting FeNx moieties for highly efficient oxygen reduction reaction in Fe-N-C porous catalyst. Nano Res. 2019, 12, 1651–1657. [Google Scholar] [CrossRef]
Molecules 28 02392 sch001 550

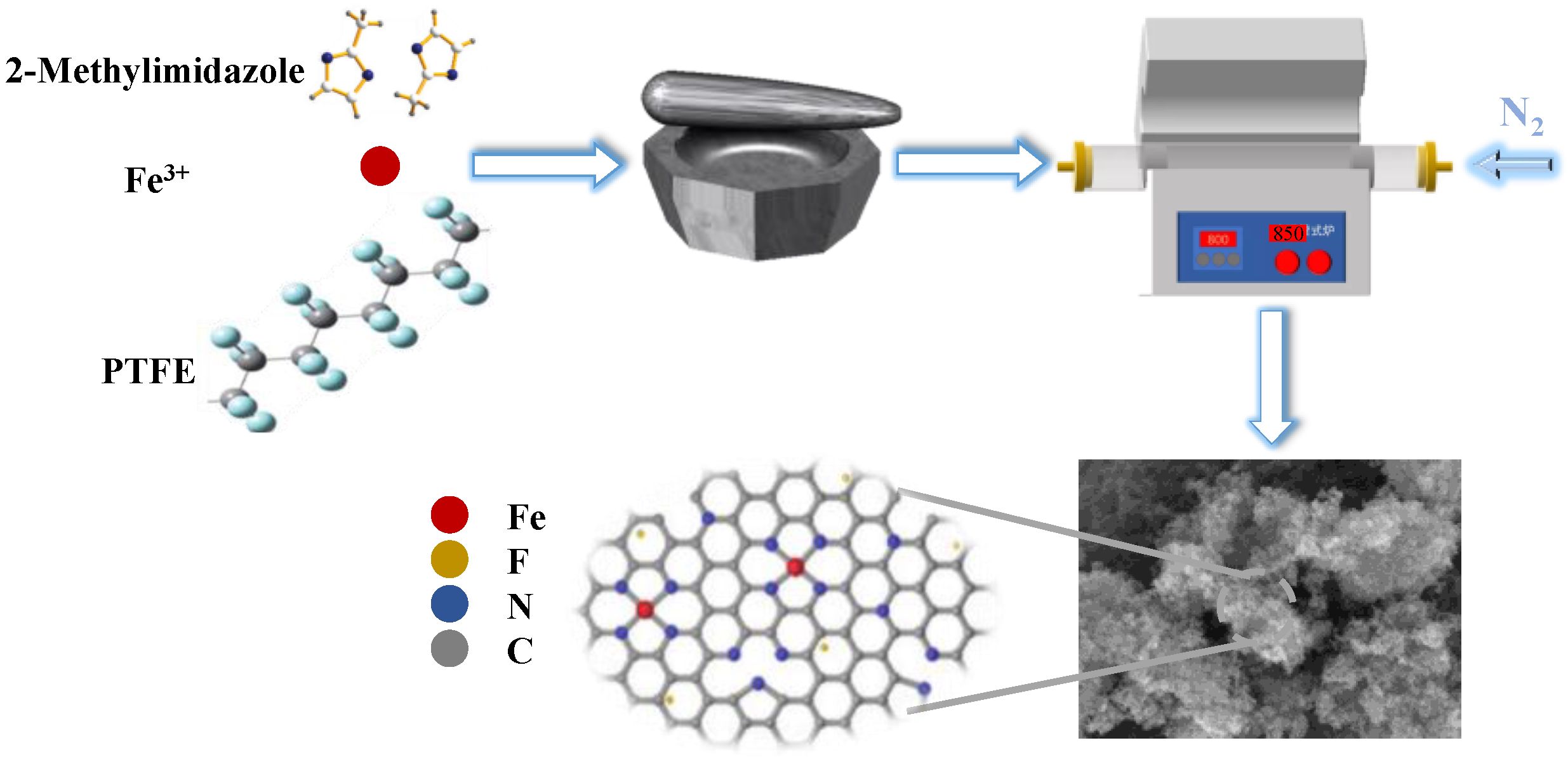

Scheme 1. Schematic representation of the preparation process of the 2P-Fe-X catalyst.
Scheme 1. Schematic representation of the preparation process of the 2P-Fe-X catalyst.
Molecules 28 02392 sch001

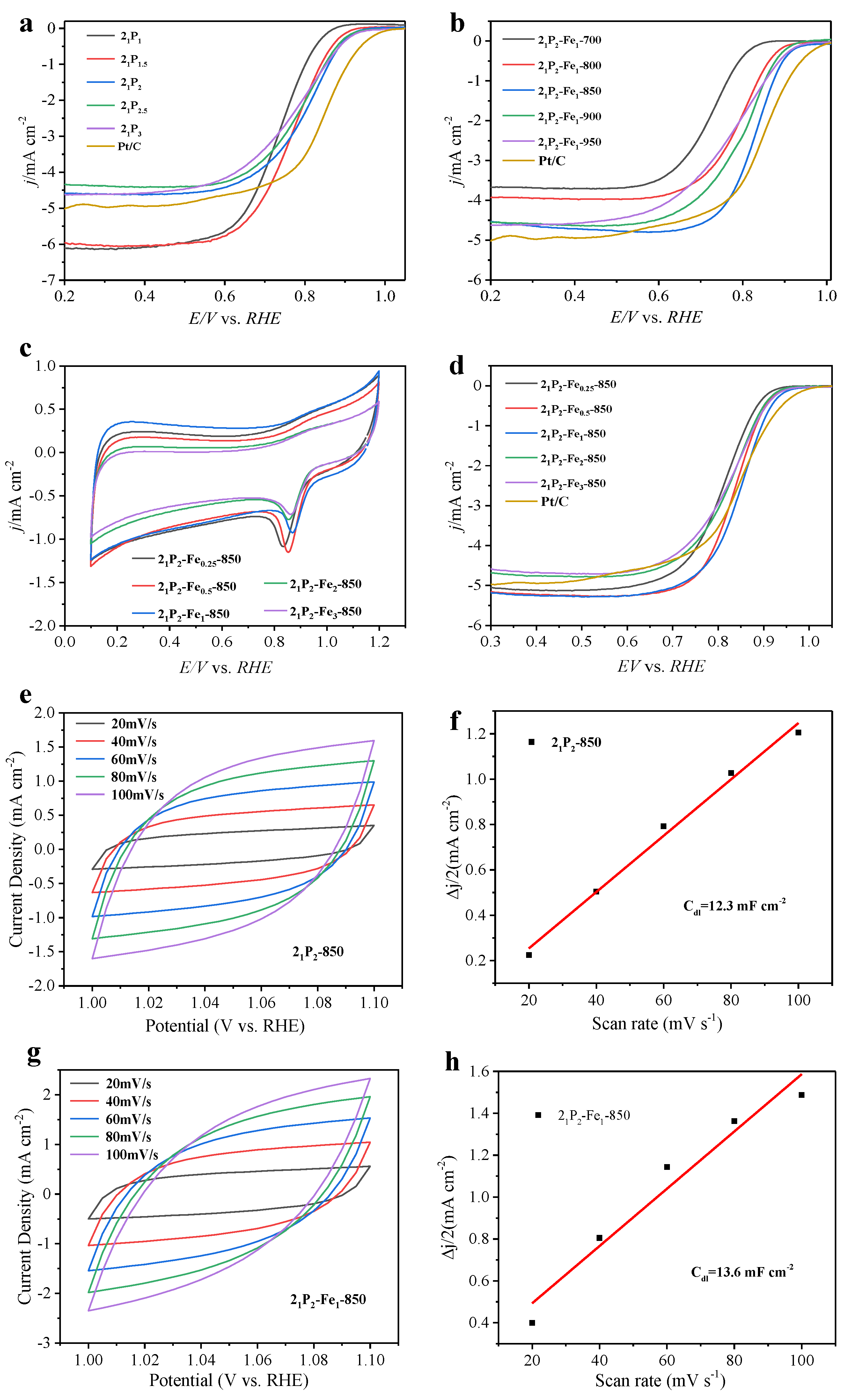

Molecules 28 02392 g001 550

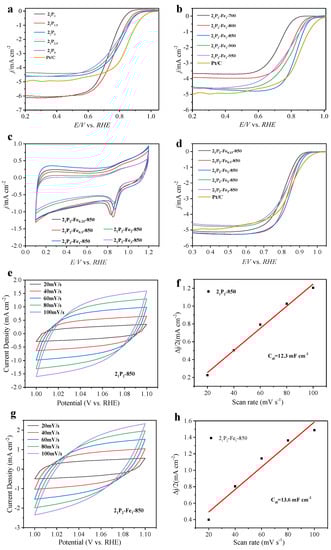

Figure 1. Cyclic voltammetry and linear sweep voltammetry curves of the catalysts and Pt/C (a) with different 2-methylimidazole and PTFE ratios; (b) with different pyrolysis temperatures; (c,d) with different metal contents; CV curves at different scan rates (e,g) and corresponding capacitive Δj at the potential of 1.05 V (vs. RHE) plots to estimate the electrochemical double-layer capacitances (Cdl) for (f) 21P2-850, (h) 21P2-Fe1-850.
Figure 1. Cyclic voltammetry and linear sweep voltammetry curves of the catalysts and Pt/C (a) with different 2-methylimidazole and PTFE ratios; (b) with different pyrolysis temperatures; (c,d) with different metal contents; CV curves at different scan rates (e,g) and corresponding capacitive Δj at the potential of 1.05 V (vs. RHE) plots to estimate the electrochemical double-layer capacitances (Cdl) for (f) 21P2-850, (h) 21P2-Fe1-850.
Molecules 28 02392 g001

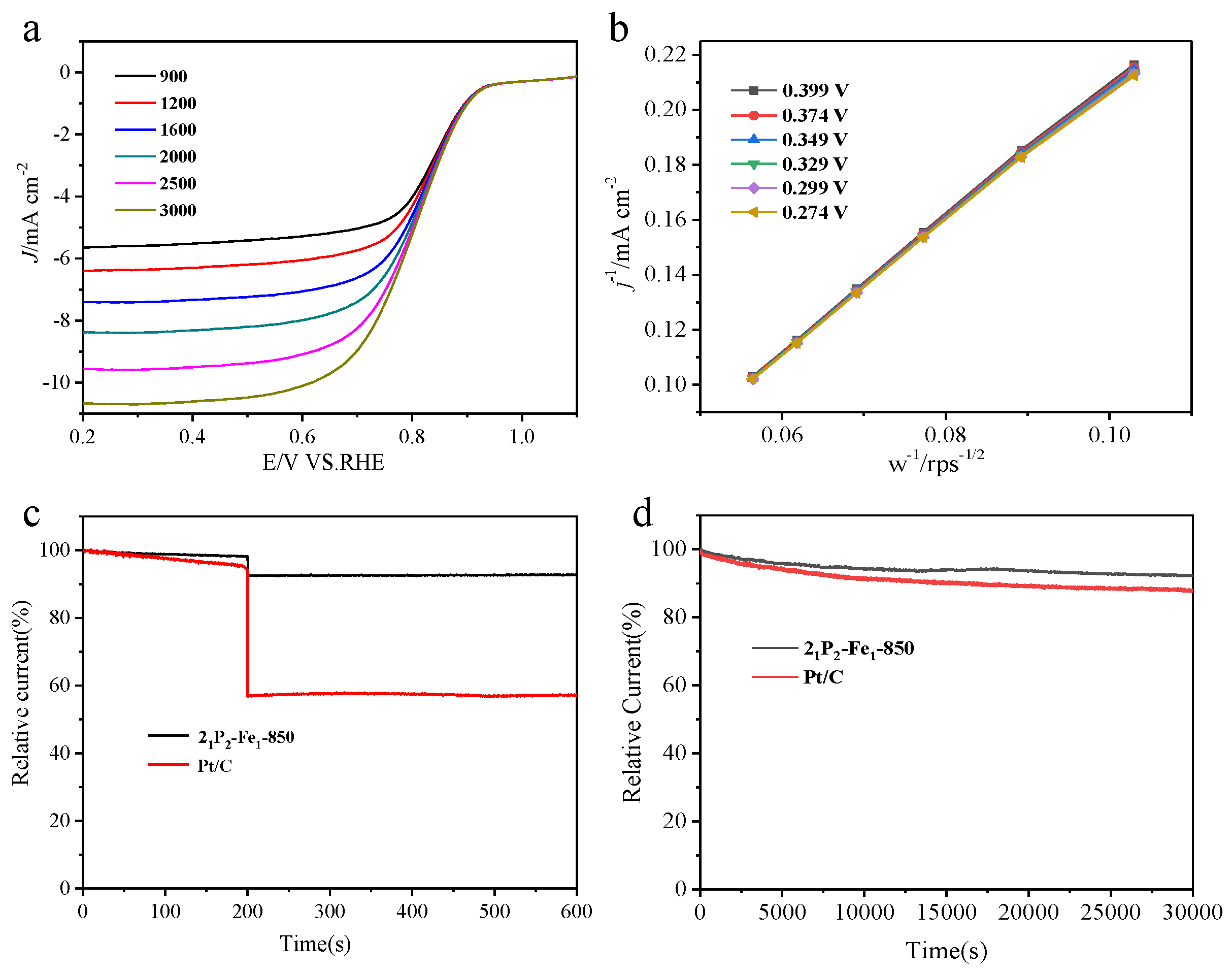

Molecules 28 02392 g002 550
Figure 2. (a) Polarization curves of 21P2-Fe1-850 at different rotational speeds; (b) K–L plots of 21P2-Fe1-850; (c,d) 30,000 s durability curves of 21P2-Fe1-850 and Pt/C and methanol tolerance curves.
Figure 2. (a) Polarization curves of 21P2-Fe1-850 at different rotational speeds; (b) K–L plots of 21P2-Fe1-850; (c,d) 30,000 s durability curves of 21P2-Fe1-850 and Pt/C and methanol tolerance curves.
Molecules 28 02392 g002
Molecules 28 02392 g003 550

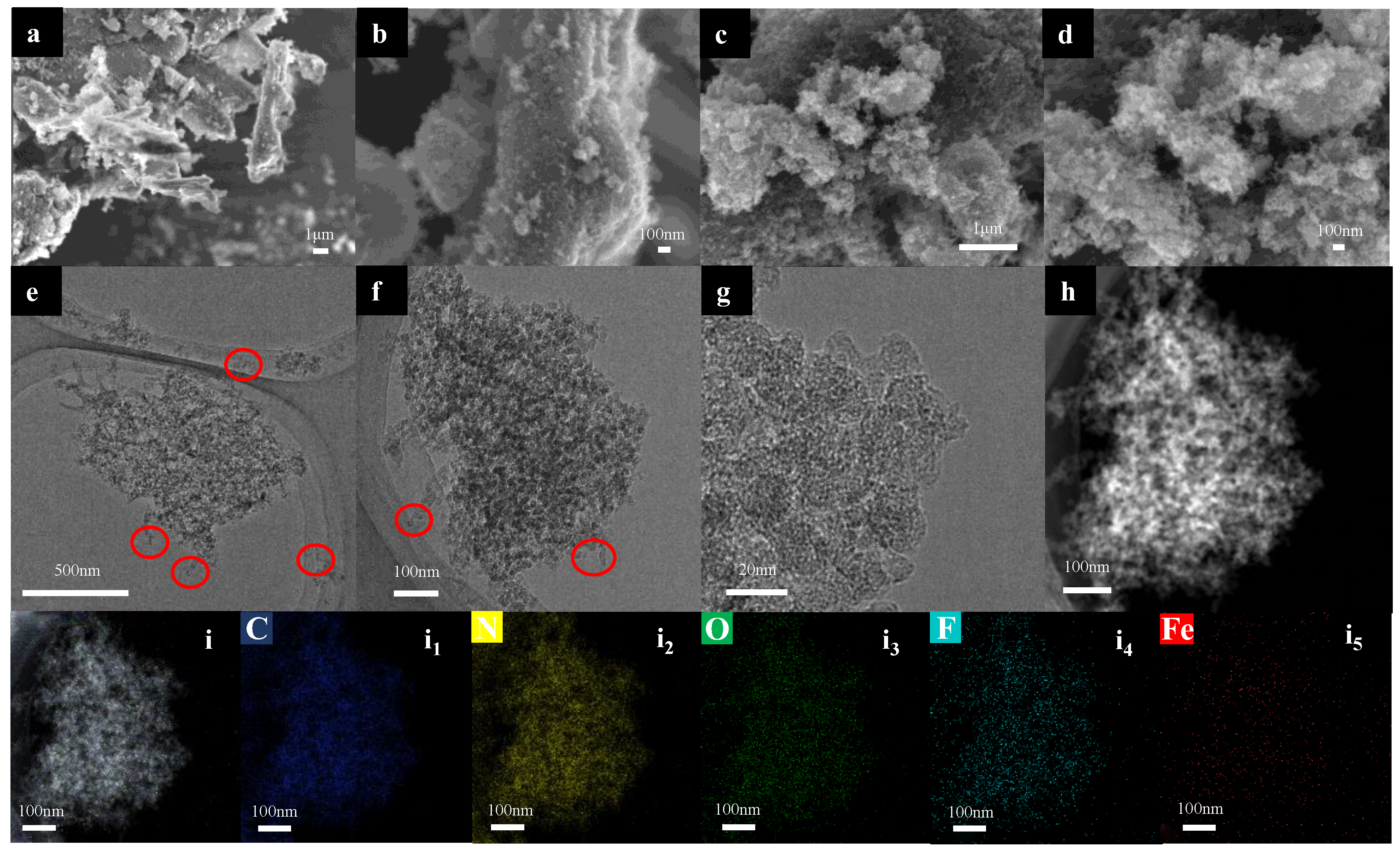

Figure 3. (a,b) SEM image of 21P2-850. (c,d), SEM image of 21P2-Fe1-850. (e–g) TEM images, (i) STEM images, and (i), (i1–i5) EDS elemental mapping of C, N, O, F, and Fe. Scale bars: (a,c) 1 μm, (e) 500 nm, (g) 20 nm, (b,d,f,h,i,i1–i5) 100 nm.
Figure 3. (a,b) SEM image of 21P2-850. (c,d), SEM image of 21P2-Fe1-850. (e–g) TEM images, (i) STEM images, and (i), (i1–i5) EDS elemental mapping of C, N, O, F, and Fe. Scale bars: (a,c) 1 μm, (e) 500 nm, (g) 20 nm, (b,d,f,h,i,i1–i5) 100 nm.
Molecules 28 02392 g003

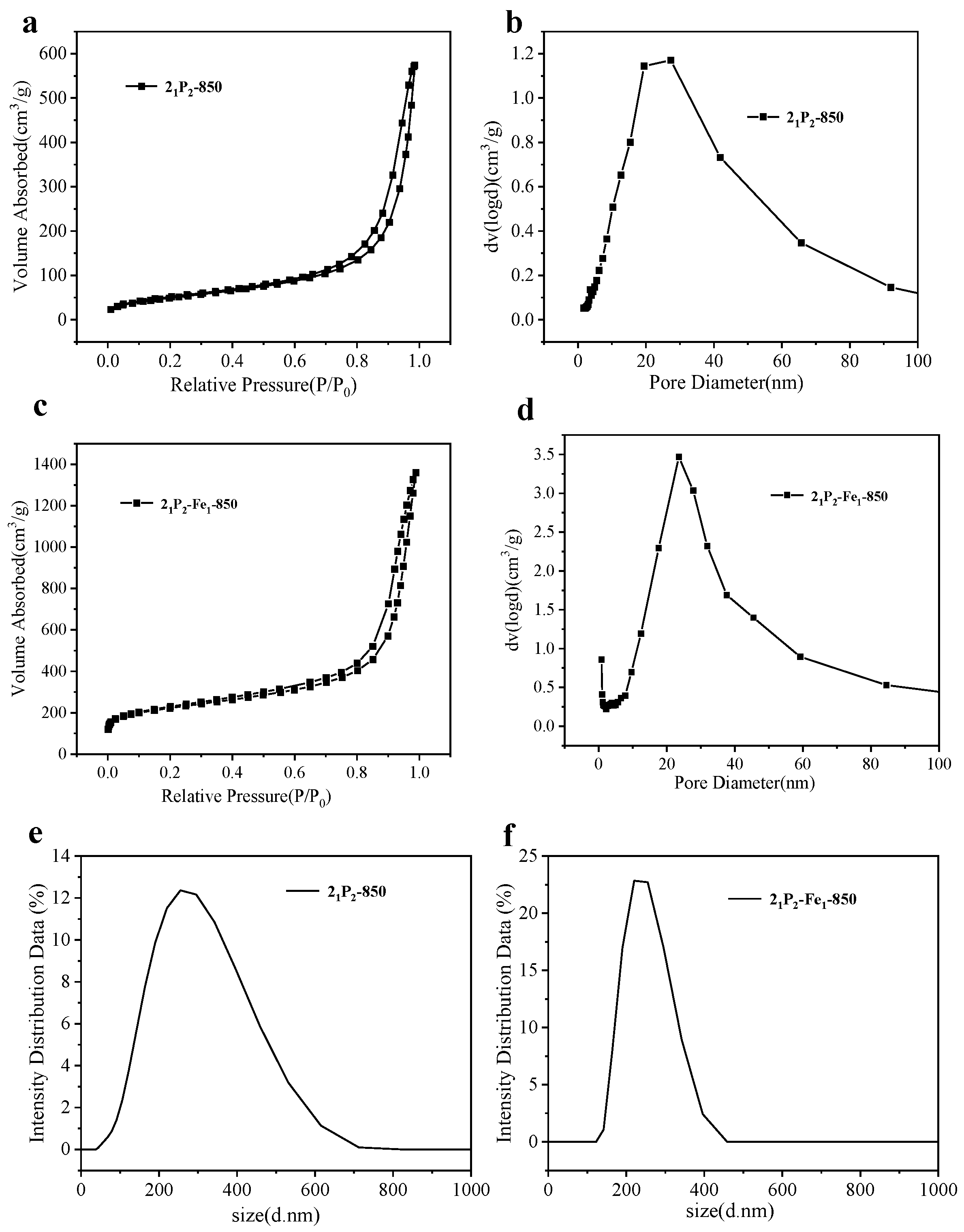

Molecules 28 02392 g004 550
Figure 4. (a) N2 adsorption–desorption curves for 21P2-Fe1-850 and (b) pore size distribution curves. (c) N2 adsorption–desorption curves for 21P2-850 and (d) pore size distribution curves. (e,f) Size and size distribution of 21P2-850 and 21P2-Fe1-850.
Figure 4. (a) N2 adsorption–desorption curves for 21P2-Fe1-850 and (b) pore size distribution curves. (c) N2 adsorption–desorption curves for 21P2-850 and (d) pore size distribution curves. (e,f) Size and size distribution of 21P2-850 and 21P2-Fe1-850.
Molecules 28 02392 g004

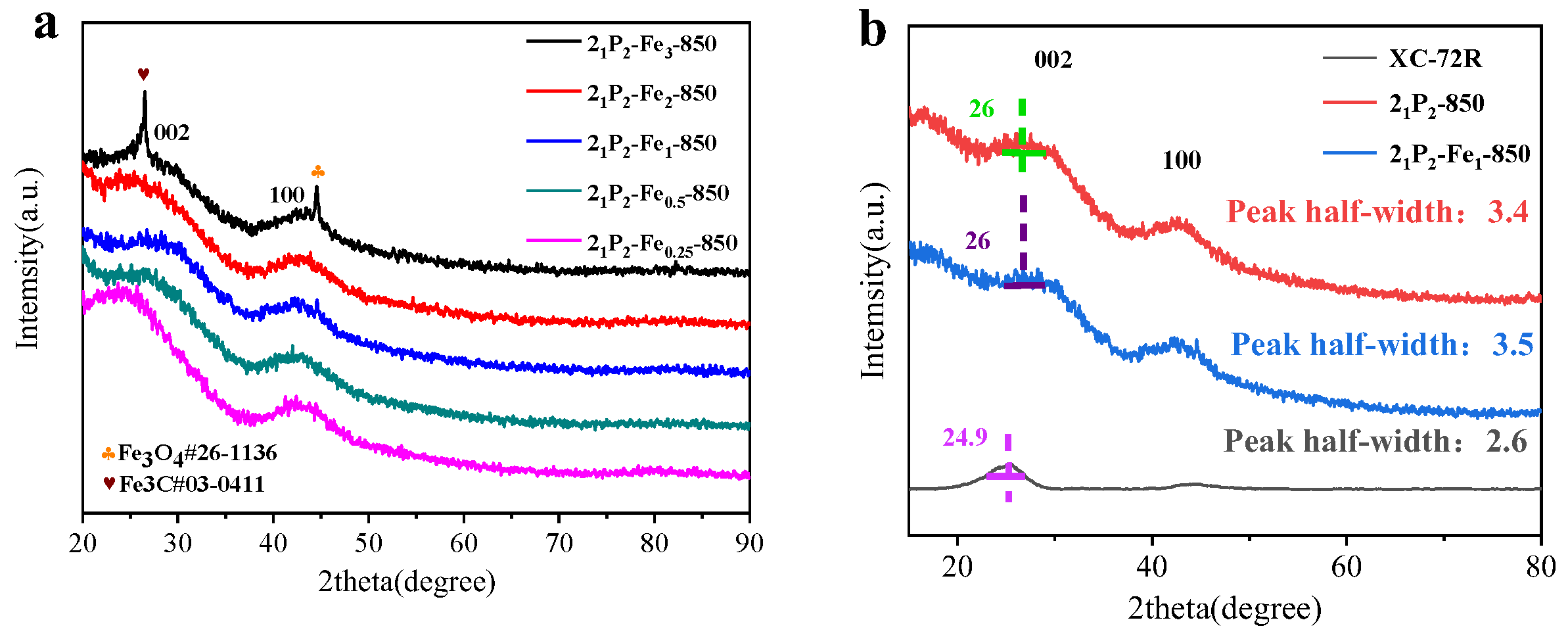

Molecules 28 02392 g005 550

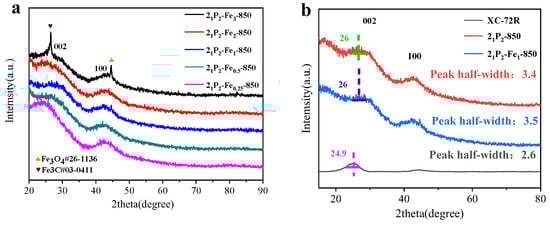

Figure 5. (a) XRD pattern of 21P2-Fex-850 series catalyst and (b) comparative XRD plots of catalysts XC-72R, 21P2-850, and 21P2-Fe1-850.
Figure 5. (a) XRD pattern of 21P2-Fex-850 series catalyst and (b) comparative XRD plots of catalysts XC-72R, 21P2-850, and 21P2-Fe1-850.
Molecules 28 02392 g005

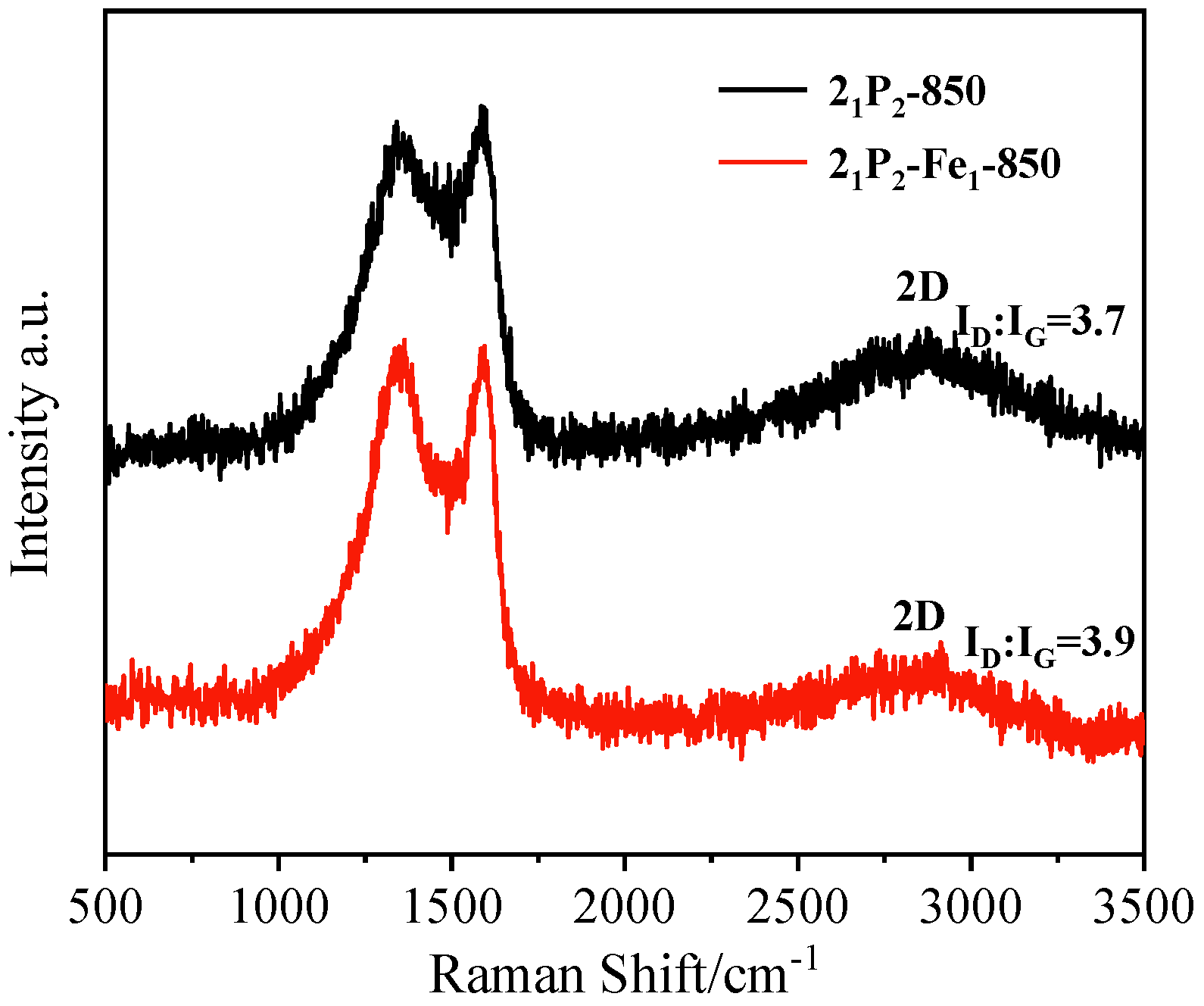

Molecules 28 02392 g006 550

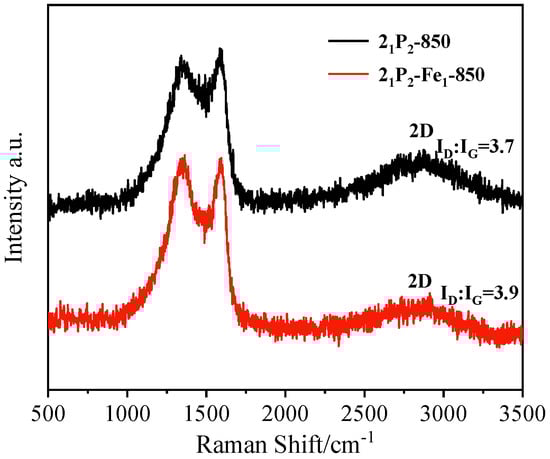

Figure 6. Raman spectra of sample 21P2-850 with 21P2-Fe1-850.
Figure 6. Raman spectra of sample 21P2-850 with 21P2-Fe1-850.
Molecules 28 02392 g006

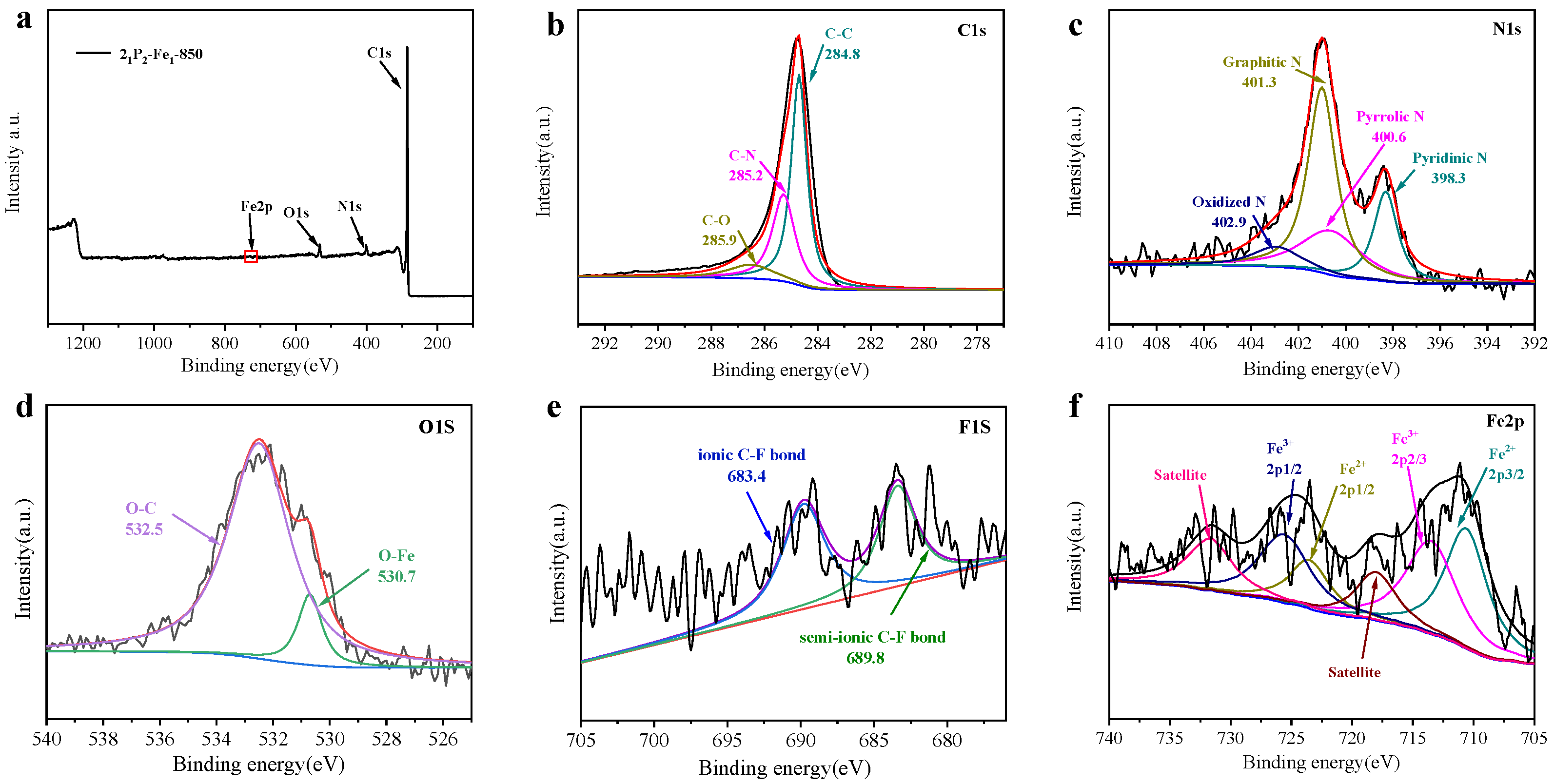

Molecules 28 02392 g007 550
Figure 7. XPS measurement spectra of 21P2-Fe1-850: (a) total XPS measurement spectrum; (b) C1s, (c) N1s, (d) O1s, (e) F1s, and (f) Fe2p high-resolution spectra.
Figure 7. XPS measurement spectra of 21P2-Fe1-850: (a) total XPS measurement spectrum; (b) C1s, (c) N1s, (d) O1s, (e) F1s, and (f) Fe2p high-resolution spectra.
Molecules 28 02392 g007
Table
Table 1. Preparation details of the samples prepared in this work.
Table 1. Preparation details of the samples prepared in this work.
Sample2-Methylimidazole
(%)		PTFE
(%)		FeCl3
(%)		Heat Treatment
(°C)/(h)
21P150500900/1
21P1.540600900/1
21P233.3366.670900/1
21P2.528.5771.430900/1
21P325750900/1
21P2-70033.3366.670700/1
21P2-80033.3366.670800/1
21P2-85033.3366.670850/1
21P2-90033.3366.670900/1
21P2-95033.3366.670950/1
21P2-Fe0.25-85033.3266.630.05850/1
21P2-Fe0.5-85033.366.60.10850/1
21P2-Fe1-85033.2766.540.19850/1
21P2-Fe2-85033.2166.410.38850/1
21P2-Fe3-85033.1466.290.57850/1
