Enhancing Third-Order Nonlinear Optical Property by Regulating Interaction between Zr₄(embonate)₆ Cage and N, N-Chelated Transition-Metal Cation

Abstract

Herein, the combination of anionic Zr₄L₆ (L = embonate) cages and N, N-chelated transition-metal cations leads to a series of new cage-based architectures, including ion pair structures (PTC-355 and PTC-356), dimer (PTC-357), and 3D frameworks (PTC-358 and PTC-359). Structural analyses show that PTC-358 exhibits a 2-fold interpenetrating framework with a 3,4-connected topology, and PTC-359 shows a 2-fold interpenetrating framework with a 4-connected dia network. Both PTC-358 and PTC-359 can be stable in air and other common solvents at room temperature. The investigations of third-order nonlinear optical (NLO) properties indicate that these materials show different degrees of optical limiting effects. It is surprising that increasing coordination interactions between anion and cation moieties can effectively enhance their third-order NLO properties, which can be attributed to the formation of coordination bonds that facilitate charge transfer. In addition, the phase purity, UV-vis spectra, and photocurrent properties of these materials were also studied. This work provides new ideas for the construction of third-order NLO materials.

1. Introduction

In recent years, third-order NLO materials have already had widespread applications in many fields [1,2,3,4,5,6,7,8], such as optical switching, optical limiting, optical communications, optical data processing, and mode-locked laser system, etc. To date, multifarious elaborately designed organic/inorganic and hybrid materials have been synthesized for third-order NLO [9,10,11,12,13,14,15], including semiconductor quantum dots, black phosphorus, carbon nanodots, polymers or conjugated organic molecules (such as porphyrins and phthalocyanines), metal-clusters or metal-oxo clusters and metal-organic frameworks, and so on. It is acknowledged that ionic pair compounds are potentially excellent NLO materials because of their intrinsic attributes, such as high positive/negative charge, ordered self-assembly structures and stability [16,17,18,19,20], and the process of electron/charge transfer between anion and cation groups is usually considered as the significant factor for favorable NLO response [21,22,23,24]. With the enhancement of the covalent or coordinative interactions between anion and cation groups, the third-order NLO properties also increase, which may be because the covalent or coordinative interactions are beneficial to the electron/charge transfer between anion and cation groups [25,26].

Very recently, our group has been devoted to research work based on an anionic metal-organic cage (Ti₄L₆ or Zr₄L₆, L = embonate) [27]. It is an interesting dispersed molecular cage with a tetrahedral symmetry environment, and it can be soluble and stable in water and some common solvents. In the study, we found that it is an excellent building block for stepwise assembly due to its abundant interaction sites (uncoordinated carboxyl oxygen atoms and naphthyls), facilitating the incorporation of metal coordination bonding, π-π stacking, and other noncovalent interactions altogether. By using such ultra-stable cage as a reactive precursor to assembly with metal ions and highly conjugated organic ligands or groups [28,29,30], a few advanced cage-based materials with various dimensional structures were obtained by two-step reaction, including 3D frameworks with hydrocarbons sorption capacities, simple cage compounds with identification and separation functions, and a series of co-crystals with notable third-order NLO performances.

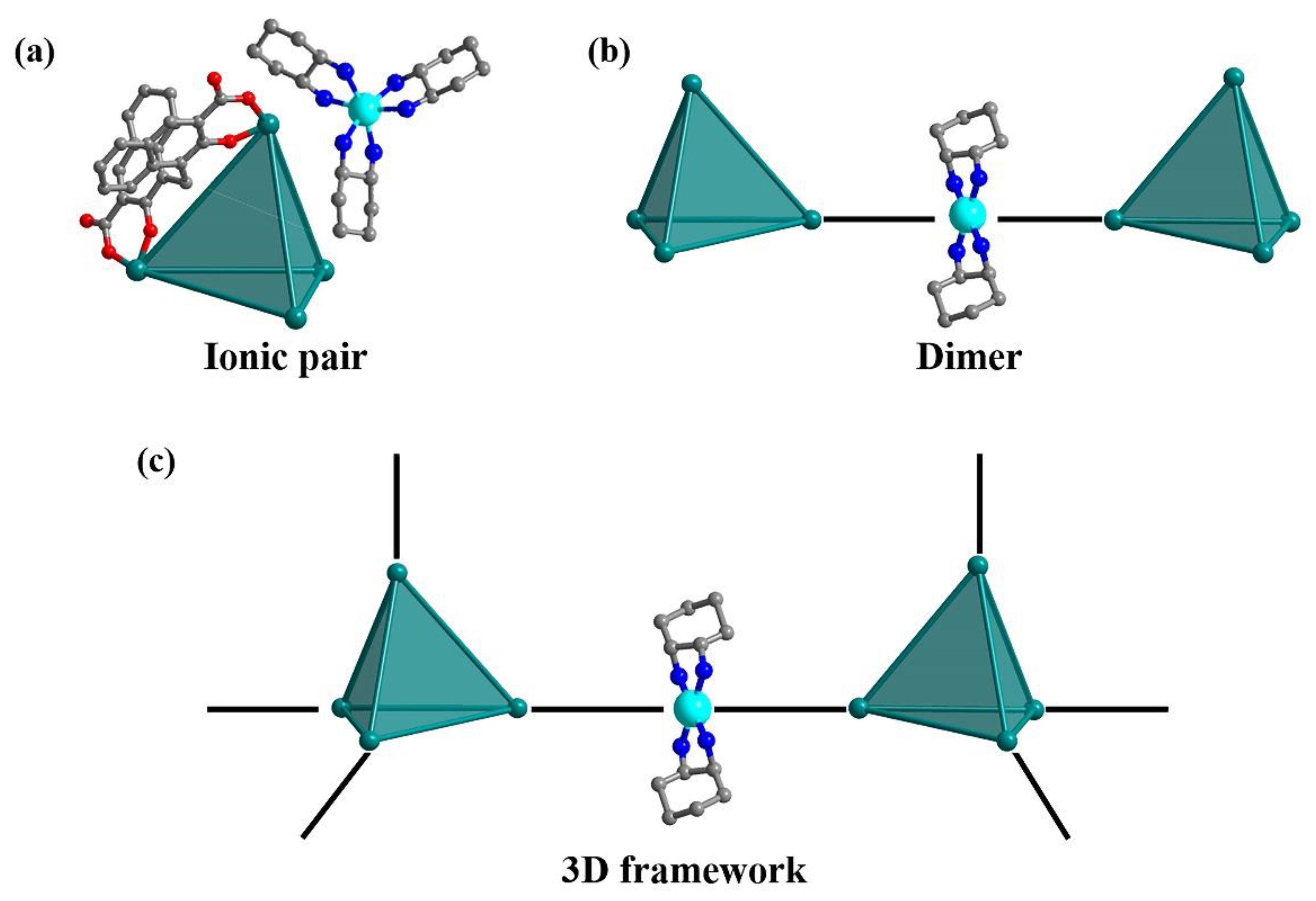

In this work, we investigate the assembly behavior of anionic Zr₄L₆ cage and N, N-chelated transition-metal cations (Scheme 1), and we explore the effect of charge transfer between them on third-order NLO performances. More specifically, through changing the type and molar ratio of the salt and solvent, the reaction of Cu⁺ or Zn²⁺ ions, 1,2-diaminocyclohexane, and Zr₄L₆ cages produced a series of novel Zr₄L₆-based architectures, including ion pair structures (PTC-355 and PTC-356), dimer (PTC-357), and 3D frameworks (PTC-358 and PTC-359). X-ray single crystal structural analyses show that PTC-358 exhibits a 2-fold interpenetrating framework with 3,4- connected topology, and PTC-359 shows a 2-fold interpenetrating framework with a 4-connected dia network. Both PTC-358 and PTC-359 can be stable in air and other common solvents at room temperature. In addition, the phase purity, UV-vis spectra, and photocurrent properties of these materials were also studied. For these cage-assembled compounds PTC-355–PTC-359, their emission peaks can be observed at 460, 472, 490, 510, and 501 nm, respectively. Furthermore, by means of a film-making method, we tested the third-order NLO properties of these materials. We found that the efficiency of the charge transfer was greatly enhanced with the increasing coordinative interaction between the anion cage and cation group, leading to the enhancement of NLO response.

2. Results and Discussion

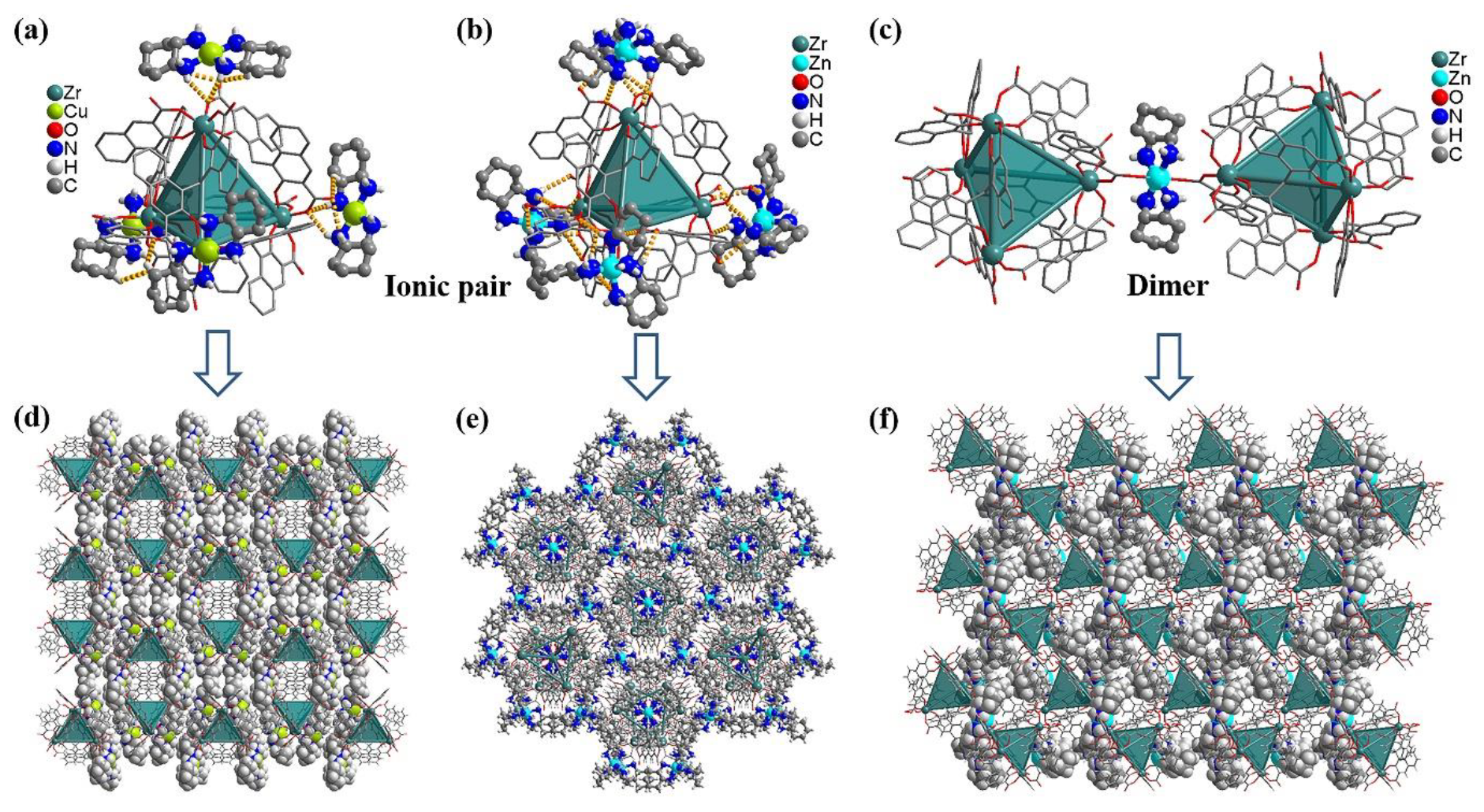

The simple method previously reported was used to synthesize large amounts of PTC-101(Zr) as the source of the Zr₄L₆ cages [21], which is also described in detail in the experimental section. In the beginning, CuBr and (+/−)-trans-1,2-diaminocyclohexane (trans-DCH) were added to the DMF/H₂O solution of PTC-101(Zr), which was kept at room temperature for 3 days, yielding blue block crystals of PTC-355. Single-crystal structural analysis reveals that PTC-355 crystallizes in a monoclinic system with space group C2/c, and the asymmetric unit contains half of anionic Zr₄L₆ cage, two [Cu(trans-DCH)₂]²⁺ cations, and some solvent molecules, as shown in Figure S1 in the Supporting Information. In PTC-355, the Cu(II) center is chelated by two trans-DCH ligands (Figure 1a) and shows [CuN4] planar quadrilateral coordination geometry, giving rise to a [Cu(trans-DCH)₂]²⁺ ion. The Cu-N bond distances vary from 1.96 to 2.03 Å. The calixarene-like oxygen vertices of each Zr₄L₆ cage match very well with four [Cu(trans-DCH)₂]²⁺ units. Through weak C/N−H⋯O (2.9–3.4 Å) and C−H···π (3.6–4.0 Å) interactions, the Zr₄L₆ cages and the [Cu(trans-DCH)₂]²⁺ cations stack alternately into a 3D dense supramolecular structure (Figure 1d and Figure S2). By replacing the above copper salt (CuBr) with zinc salt (Zn(NO₃)₂·7H₂O) and changing the solvent type (we used 1,4-dioxane/H₂O/MeCN as solvent), as well as raising the reactive temperature (80 °C), we successfully synthesized yellow block crystals of PTC-356. Single crystal structural analysis shows that PTC-356 crystallizes in a trigonal system with space group R3c. In the asymmetric unit of PTC-356, there are one-third of the Zr₄L₆ cage and one and one-third of [Zn(trans-DCH)₃]²⁺ cations (Figure S3). Unlike PTC-355, in the structure of PTC-356, the Zn(II) center in the [Zn(trans-DCH)₃]²⁺ unit is chelated by three trans-DCH ligands (Figure 1b) and exhibits [ZnN6] octahedral coordination geometry. The Zn−N bond distances vary from 2.18 to 2.21 Å. Because of its highly symmetrical crystal system, PTC-356 has an attractive honeycomb-like packing superstructure (Figure 1e). There is no typical hydrogen bond, and the binding interaction may be due to weak van der Waals force between zirconium cages and cation units. However, when trans-DCH and Zn(NO₃)₂·7H₂O were replaced with cis-1,2-diaminocyclohexane (cis-DCH) and Zn(CH₃COO)₂·2H₂O, respectively, compound PTC-357 was obtained. Structural analysis displays that PTC-357 crystallizes in a triclinic system with space group P-1, and the asymmetric unit includes one Zr₄L₆ cage, half of [Zn(cis-DCH)₂]²⁺ and two [Zn(cis-DCH)₃]²⁺ cations, and one (Me₂NH₂)⁺ cation. In the structure of PTC-357, an interesting dimer can be observed (Figure 1c), in which two Zr₄L₆ cages are connected by one [Zn(cis-DCH)₂]²⁺ unit. Herein the Zn(II) center is six-coordinated by four N atoms from two cis-DCH and two carboxyl O atoms from two tetrahedrons (the Zn–O bond distance is 2.44 Å) to build a distorted tetrahedral coordination geometry. The Zn−O bond distances vary from 2.00 to 2.24 Å. These dimers and surrounding [Zn(cis-DCH)₃]²⁺ cations are further packed into a 3D dense architecture (Figure 1f and Figure S5).

Encouraged by the above results, more synthetic experiments were explored. By replacing Zn(CH₃COO)₂·2H₂O with ZnSO₄·7H₂O and reducing the amount of cis-DCH in the above synthetic procedure of PTC-357, PTC-358 was prepared. Compound PTC-358 has a highly symmetric cubic chiral space group I23, and its asymmetric unit possesses five out of six Zr₄L₆ cages and one [Zn(cis-DCH)₂]²⁺ cation (Figure S6). Interestingly, such in situ generated [Zn(cis-DCH)₂]²⁺ unit further connects two adjacent Zr₄L₆ cages through coordination bonds (one Zn–O bond distance is 2.197 Å and another is the weak force of 2.827 Å), and the Zr₄L₆ cages are coordinated by three or four [Zn(cis-DCH)₂]²⁺ units (Figure 2a), giving rise to a 3D framework possessing large cavities (Figure 2b). The large intraframework spaces are occupied by another identical but independent framework, giving a 2-fold interpenetrating structure (Figure 2c). Considering the bridging [Zn(cis-DCH)₂]²⁺ units, the Zr₄L₆ cages act as three- or four-connected nodes, so the network topology of PTC-358 can be described as a (3,4)-connected net. However, by reducing the amount of Zn(CH₃COO)₂·2H₂O and cis-DCH in the above synthetic procedure of PTC-357, we obtain compound PTC-359. Structural analysis shows that PTC-359 crystallizes in a monoclinic system with space group P2₁/n and the asymmetric unit involves two Zr₄L₆ cages, four [Zn(cis-DCH)₂]₂⁺ cations, and one (Me₂NH₂)⁺ cation. PTC-359 exhibits a 4-connected dia-type network of Zr₄L₆ tetrahedra linked together by [Zn(cis-DCH)₂]²⁺ units (Figure 2d,e). In PTC-359, a larger diamondoid cage is constructed by ten Zr₄L₆ cages and twelve [Zn(cis-DCH)₂]²⁺ units (Figure 2f). Similarly, because the potential space is large enough to fill two independent frameworks, forming a 2-fold interpenetrated structure. This is a very interesting phenomenon in the field of supramolecular self-assembly, which also shows that the reaction conditions have a significant effect on the assembly behavior of titanium cage and zinc units.

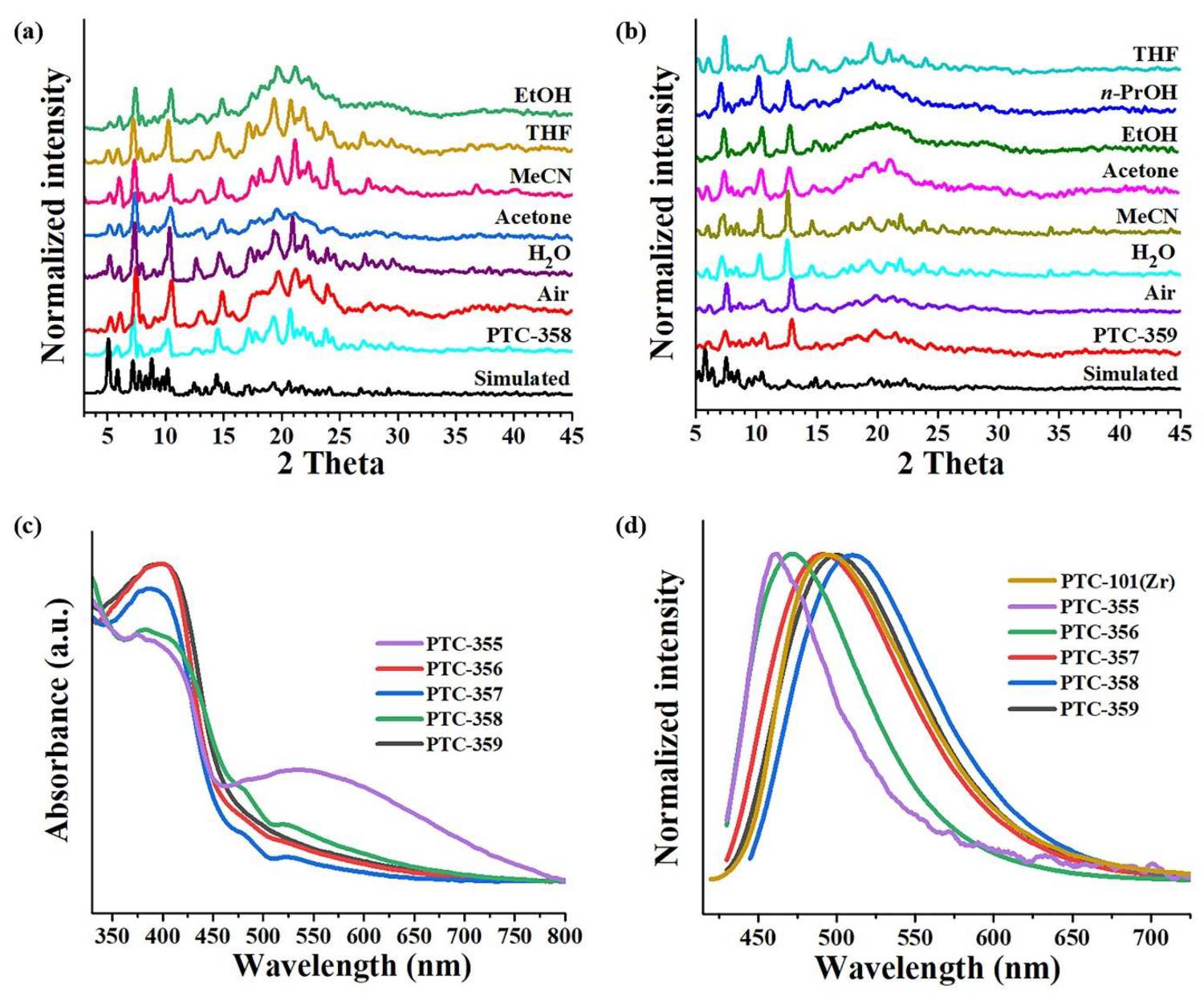

The powder X-Ray Diffraction (XRD) of PTC-355–PTC-359 confirmed the phase purities of these samples (Figure 3a,b and Figures S13–S15) because their XRD patterns are very similar to those simulated from their single crystal data. The above results show that the self-assembly of Zr₄L₆ cages with N, N-chelated zinc units into PTC-356–PTC-359 under certain conditions is quite stable and directed. Thermal gravimetric analyses (TGA) curves of these materials were measured, as shown in Figures S8–12 in the Supporting Information. The TGA curve of PTC-355 shows a distinct weightless platform before 250 °C. For other compounds, the solvents were gradually lost with increasing temperature, followed by the decomposition of their structures. The residues after decomposition may be ZrO₂ and CuO or ZnO. In addition, the stabilities of PTC-358 and PTC-359 were also studied. At room temperature, some crystals of PTC-358 and PTC-359 were exposed to air for 12 h or immersed in different solvents for 1 day, respectively, and then their XRD patterns were examined. As shown in Figure 3a,b, the main peaks of their XRD patterns are maintained, although very individual peaks widen or disappear. Obviously, both of them can be stable in air, H₂O, and other common solvents, such as acetonitrile (MeCN), ethanol (EtOH), tetrahydrofuran (THF) and acetone, etc. In contrast, PTC-355 and PTC-356 have poor air and solvent stabilities. Herein the coordination and interpenetrating frameworks have good stabilities compared to the supramolecular packing frameworks. Diffuse reflectance spectroscopy was used to study the UV/Vis absorption of these compounds. According to the Kubelka–Munk function, they exhibit relatively low bandgaps (Figure 3c). To understand the structure–function relationship, the electronic properties and frontier orbitals of PTC-359 were calculated based on the density function theory (DFT). From Figure S26, the highest occupied molecular orbital (HOMO) is mainly provided by the embonate (L) ligand and Zr atom, and the lowest unoccupied molecular orbital (LUMO) is mainly provided by another L and [Zn(cis-DCH)₂]²⁺ unit. The electron transfers between HOMO and LUMO are mainly ligand-to-ligand charge transition (LLCT) and a small part of metal-to-ligand charge transition (MLCT). Under the electrostatic interaction of anion Zr₄L₆ cage and [Zn(cis-DCH)₂]²⁺ cationic unit, it is beneficial for the charge transfer from L in Zr₄L₆ cage to L combined with [Zn(cis-DCH)₂]²⁺ unit, which may lead to good NLO performance.

We also studied the solid-state excitation and emission spectra of compounds PTC-355–PTC-359 at room temperature. Since the π-conjugated L (embonate) ligand possesses a strong absorbing chromophore, the Zr₄L₆ cages themselves have good photoluminescent properties. As shown in Figure S16, upon excitation at 363 nm, the L ligand displays an emission band at 420–700 nm (Figure S17), which may belong to the π→π* transition. When excited at 430 nm, PTC-101(Zr) shows a similar emission peak near 495 nm (Figure 3d). For these cage-assembled compounds PTC-355–PTC-359, their emission peaks can be observed at 460, 472, 490, 510, and 501 nm, respectively. Their excitation spectra are shown in Figures S19–23. Remarkably, PTC-355 and PTC-356 exhibit significant blue shifts (ca. 20–40 nm) in comparison with PTC-101(Zr), and PTC-358 displays a blue shift of 15 nm. In this case, the ligand-based luminescence is in a dominating place, and the blue-shifted or red-shifted phenomenon may be attributed to the metal–ligand/cage coordinative interactions [31,32].

Considering ionic pairs are potentially excellent nonlinear optical materials due to their intrinsic attributes, such as high positive/negative charge and ordered self-assembled structures, we decided to study the third-order NLO property of PTC-355–PTC-359. In order to ensure the stability of its structure and expand its practical optical applications, these crystal materials were evenly dispersed into PDMS (polydimethylsiloxane), and then flexible and transparent composite films were obtained and named PDMS-PTC-355, PDMS-PTC-356, PDMS-PTC-357, PDMS-PTC-358, and PDMS-PTC-359 (Figure S24). The third-order NLO properties of these composite films were studied with a nanosecond laser using a typical open-hole Z-scanning system at 532 nm. We fixed the laser energy at 80 μJ, and the composite film thickness was controlled at 800 μm. The test results show that their transmittances are 0.80, 0.78, 0.49, 0.78, and 0.87, respectively (Table S1). The experimental results show that all composite films exhibit typical reverse saturation absorption (RSA) response, and from PDMS-PTC-355 to PDMS-PTC-359, they exhibit successively enhanced optical limiting response (Figure 4a). At Z = 0, the minimum normalized transmission (Tmin) of PDMS-PTC-355, PDMS-PTC-356, PDMS-PTC-357, PDMS-PTC-358, and PDMS-PTC-359 membranes are 0.82, 0.79, 0.70, 0.64 and 0.62, respectively (Figure 4a). To demonstrate the stability and homogeneity of these prepared films, we performed seven rounds of testing on the same PDMS-PTC-359 film, but different test points were selected (Figure 4b). The results show that the Tmin of these different points are nearly identical. Figure 4d shows the change between the normalized transmittance of the samples and the laser input flux. It can be seen that the normalized transmittance decreases significantly with increasing laser energy, indicating that these samples have a significant nonlinear light limit effect.

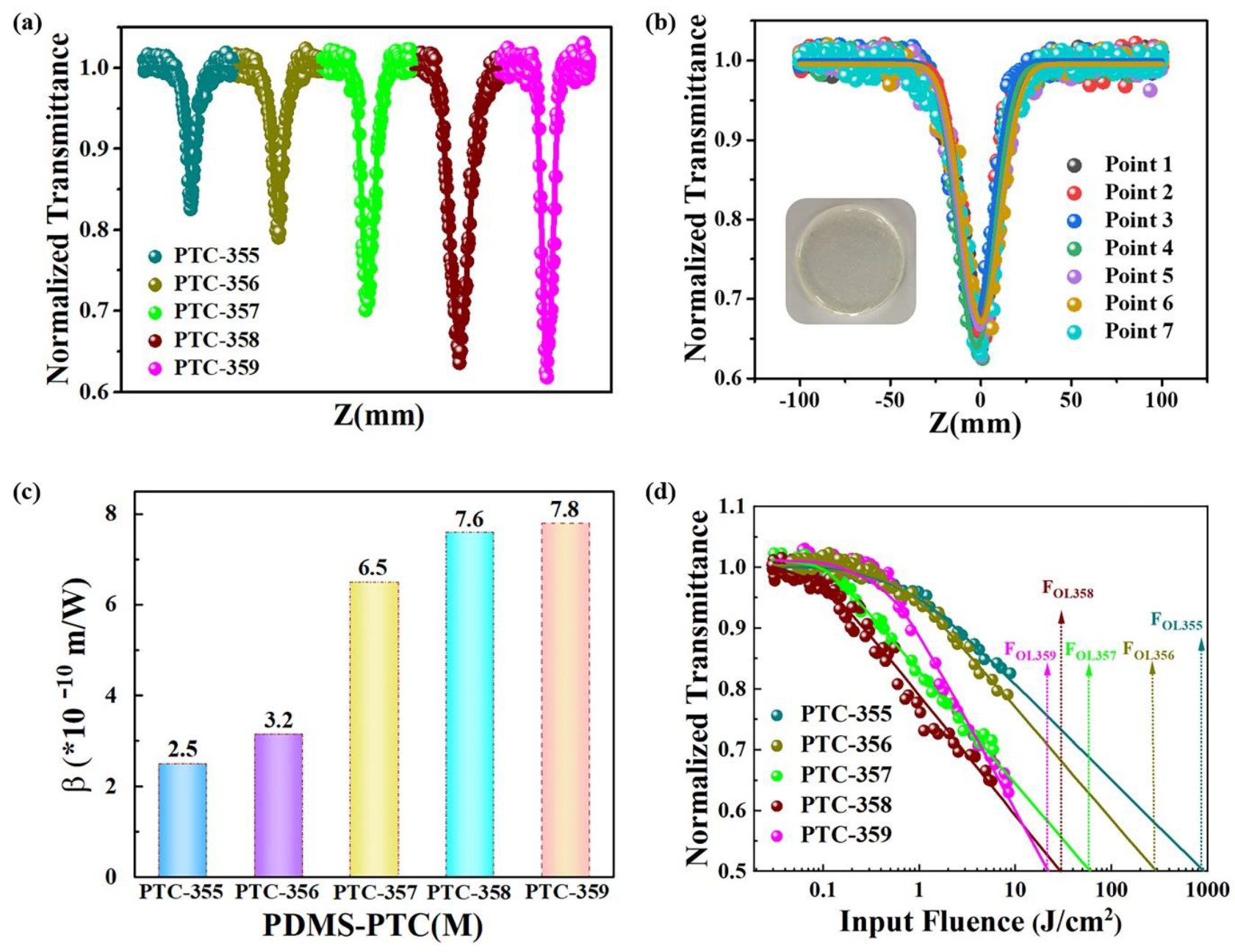

In order to quantitatively evaluate the NLO performance of the sample, the nonlinear absorption coefficient of the sample was obtained from the open-hole Z-scan test results of the fitting test(β). Calculations of PDMS-PTC-355, PDMS-PTC-356, PDMS-PTC-357, PDMS-PTC-358, and PDMS-PTC-359 composite films β Values are 2.5 × 10⁻¹⁰, 3.2 × 10⁻¹⁰, 6.5 × 10⁻¹⁰, 7.6 × 10⁻¹⁰ and 7.8 × 10⁻¹⁰ m/W (Figure 4c), respectively, which are obtained by comparison β. The values increase in turn. From Figure 4d, the OL values of the sample (Fol, the input flux whose transmittance is half of the linear transmittance) are 903.00 J/cm²(F_OL355), 295.00 J/cm²(F_OL356), 60.87 J/cm²(F_OL357), 28.53 J/cm²(F_OL358), 22.49 J/cm²(F_OL359), respectively. Its OL value decreases in turn. Comparing the β Values and OL values show that PDMS-PTC-359 has the highest β Value and the lowest OL value, indicating that its NLO performance is the highest. PDMS-PTC-355 has the lowest β Value and the highest OL value, indicating that it has the lowest NLO performance. For better comparison, we also tested the third-order NLO properties of the starting material PDMS-PTC-101 (Zr) by the same method of film preparation. The result shows that it has no obvious optical limiting effect (Figure S25). Obviously, the self-assembly of anionic Zr₄L₆ cages with N, N-chelated transition-metal cations results in the activation and amplification of the NLO response. As described above, the increase in coordination bonds facilitates charge transfer between anion and cation groups, thus improving the third-order NLO performance. Herein, these assembled materials range from ion pair structure and dimer to 3,4-connected, 4-connected 3D frameworks; they have increasing coordinative interactions in turn, which may cause enhanced optical limiting effects.

3. Experimental Procedure

3.1. Materials and Methods

Materials and instrumentation. All reagents were purchased commercially and used without further purification. PTC-101(Zr), as the starting material of Zr₄L₆ cages, was massively synthesized by the method reported in our previous work [21]. Thermal gravimetric analyses (TGA) curves of these materials were carried out on a NETSCHZ STA-449C thermoanalyzer with a heating rate of 10 °C/min under a nitrogen atmosphere. Powder X-ray diffraction (XRD) patterns were recorded on a Rigaku Dmax/2500 X-ray diffractometer operating at 40 kV and 100 mA, using Cu-Kα or Ga-Kα radiation (λ = 1.54056 or 1.3405Å). The patterns were scanned over an angular range of 5–45° (2 theta) with a step length of 0.05° (2theta). The UV diffuse reflection data were recorded at room temperature using a powder sample with BaSO₄ as a standard (100% reflectance) on a PerkinElmer Lamda-950 UV spectrophotometer. Fluorescence spectra were measured with a HORIBA Jobin-Yvon FluoroMax-4 spectrometer.

X-ray Crystallography. A high-quality single crystal was selected for the determination of single crystal structure. Crystallographic data of PTC-355–PTC-359 were collected on a Supernova single crystal diffractometer equipped with graphite-monochromatic Cu-Kα or Ga-Kα radiation (λ = 1.54056 or 1.3405 Å) at 100 K. Absorption correction was applied using SADABS.² Structure was solved by direct method and refined by full-matrix least-squares on F using SHELXTL. In these structures, some cations/anions and free guest molecules were highly disordered and could not be located. The diffused electron densities resulting from these residual cations/anions and guest molecules were removed from the data set using the SQUEEZE routine of PLATON and refined further using the data generated. Crystal data and details of data collection and refinement of PTC-355–PTC-359 were summarized in

Table 1. Crystallographic Data and Structure Refinement Details for PTC-355–PTC-357.

Compounds	PTC-355	PTC-356	PTC-357
CCDC	2220530	2220531	2220532
Formula	C198H218Cu4N20O44Zr4	C224H258N31O36Zn4Zr4	C180H172N16O41Zn2.5Zr4
Formula weight	4200.95	4587.00	3743.63
Crystal system	monoclinic	trigonal	triclinic
Space group	C2/c	R3c	P-1
a (Å)	32.6048(5)	31.35400(10)	20.6382(4)
b (Å)	34.5994(5)	31.35400(10)	21.9542(4)
c (Å)	21.5330(2)	43.4738(2)	27.0262(6)
α (°)	90	90	77.715(2)
β (°)	96.0060(10)	90	83.131(2)
γ (°)	90	120	83.171(2)
V (Å3)	24,158.2(6)	37,012.1(3)	11,823.9(4)
Z	4	6	2
Dcalcd (g cm−3)	1.155	1.235	1.052
µ (Cu/Ka) (mm−1)	3.131	1.538	1.444
F (000)	8696.0	14,322.0	3854.0
Temperature (K)	100.15	100.00(10)	99.9(3)
Theta min, max (deg)	4.44, 97.712	4.528, 120.478	3.766, 109.766
Tot., uniq. Data	61,194, 17,465	69,417, 17,688	109,873, 41,094
Observed data [(I > 2σ(I)]	11,829	17,133	24,959
Rint	0.0481	0.0221	0.0793
Data/restraints/parameters	17,465/368/1224	17,688/1/901	41,094/183/2199
R1, wR2 [I > 2σ(I)]	0.0939, 0.2518	0.0268, 0.0717	0.1278, 0.3346
R1, wR2 (all data)	0.1317, 0.2770	0.0279, 0.0723	0.1823, 0.3735
Goodness-of-fit on F2	1.033	1.044	1.042

and

Table 2. Crystallographic Data and Structure Refinement Details for PTC-358 and PTC-359.

Compounds	PTC-358	PTC-359
CCDC	2220533	2220534
Formula	C277.5H204N12O63Zn3Zr7	C338H283N23O73Zn4Zr8
Formula weight	5549.22	6826.10
Crystal system	cubic	monoclinic
Space group	I23	P21/n
a (Å)	42.5650(2)	29.0696(2)
b (Å)	42.5650(2)	42.3894(5)
c (Å)	42.5650(2)	37.7943(4)
α (°)	90	90
β (°)	90	92.5600(10)
γ (°)	90	90
V (Å3)	77,118.4(11)	46,525.3(8)
Z	8	4
Dcalcd (g cm−3)	0.956	0.975
µ (Cu/Ka) (mm−1)	1.431	1.395
F (000)	22,616.0	13,984.0
Temperature (K)	293(2)	99.9(3)
Theta min, max (deg)	4.42, 120.964	3.734, 120.576
Tot., uniq. Data	54,605, 24,502	103,020, 59,956
Observed data [(I > 2σ(I)]	18,321	371,508
Rint	0.0198	0.0807
Data/restraints/parameters	24,502/205/1067	103,020/458/4023
R1, wR2 [I > 2σ(I)]	0.0574, 0.1743	0.1031, 0.2647
R1, wR2 (all data)	0.0723, 0.1864	0.1503, 0.2907
Goodness-of-fit on F2	1.077	1.019

. CCDC 2220530-2220534 contains the supplementary crystallographic data for this paper. These data are provided free of charge by The Cambridge Crystallographic Data Centre.

3.2. Synthesis of PTC-355-PTC-359

The simple method previously reported was used to synthesize large amounts of PTC-101(Zr) as the source of the Zr₄L₆ cages [21]. The specific synthesis method is as follows: Zr(OnPr)₄ (160 μL, 0.5 mmol), H₄L (155 mg, 0.4 mmol), and 2 drops of ethylenediamine (en) were added to 6 mL of n-propanol/DMF (2:1, v/v) and mixed at room temperature (in order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound). The above mixture was heated at 100 °C for 3 days. After cooling to room temperature, yellow polyhedral crystals of PTC-101(Zr) (Molecular formula: (Me₂NH₂)₈[(Zr₄L₆)]·Guests) were obtained and then washed in the mother liquor. The final product was dried in the air and kept in the bottle. The yield of the final product was ~75% based on H₄L.

Synthesis of [(Zr₄L₆)(Cu(trans-DCH)₂)₄]·Guests (PTC-355). PTC-101(Zr) (0.02 mmol, 80 mg), CuBr (0.12 mmol, 18 mg), and 8 drops of (+/−)-trans-1,2-diaminocyclohexane (trans-DCH) were dissolved to 6 mL of DMF/H₂O (1:4, v/v) solvents and mixed at room temperature (In order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound.). The above mixture was kept for 3 days at room temperature. Blue block crystals of PTC-355 were produced and then washed and stored in the mother liquor. The yield of the final product was ~40% based on PTC-101(Zr).

Synthesis of [(Zr₄L₆)(Zn(trans-DCH)₃)₄]·Guests (PTC-356). PTC-101(Zr) (0.02 mmol, 80 mg), Zn(NO₃)₂·7H₂O (0.18 mmol, 40 mg), and 2 drops of trans-DCH were dissolved in 6 mL of 1,4-dioxane/H₂O/MeCN (2:2:2, v/v/v) solvents and mixed at room temperature (In order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound.). The above mixture was heated at 80 °C for 3 days. After cooling to room temperature, yellow block crystals of PTC-356 were produced and then washed and stored in the mother liquor. The yield of the final product was ~55% based on PTC-101(Zr).

Synthesis of (Me₂NH₂)[(Zr₄L₆)(Zn_1/2(cis-DCH))(Zn(cis-DCH)₃)₂]·Guests (PTC-357). PTC-101(Zr) (0.02 mmol, 80 mg), Zn(CH₃COO)₂·2H₂O (0.28 mmol, 60 mg), and 8 drops of cis-1,2-diaminocyclohexane (cis-DCH) were dissolved to 6 mL of DMF/H₂O/MeCN (1:2:3, v/v/v) solvents and mixed at room temperature (In order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound.). The above mixture was heated at 60 °C for 3 days. After cooling to room temperature, yellow block crystals of PTC-357 were produced and then washed and stored in the mother liquor. The yield of the final product was ~45% based on PTC-101(Zr).

Synthesis of [(Me₂NH₂)_8/3[(Zr₄L₆)_5/6(Zn(cis-DCH)₂)]·Guests (PTC-358). PTC-101(Zr) (0.02 mmol, 80 mg), ZnSO4·7H₂O (0.09 mmol, 26 mg), and 2 drops of cis-DCH were dissolved to 6 mL of DMF/H₂O/MeCN (1:2:3, v/v/v) solvents and mixed at room temperature (In order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound.). The above mixture was heated at 60 °C for 3 days. After cooling to room temperature, yellow block crystals of PTC-358 were produced and then washed and stored in the mother liquor. The yield of the final product was ~32% based on PTC-101(Zr).

Synthesis of [(Me₂NH₂)₈[(Zr₄L₆)₂(Zn(cis-DCH)₂)₄]·Guests (PTC-359). PTC-101(Zr) (0.02 mmol, 80 mg), Zn(CH₃COO)₂·2H₂O (0.09 mmol, 20 mg), and 5 drops of cis-DCH were dissolved in 6 mL of DMF/H₂O/MeCN (1:2:3, v/v/v) solvents and mixed at room temperature (In order to improve the solubility of the reactive raw material, the mixture was treated with ultrasound.). The above mixture was heated at 60 °C for 3 days. After cooling to room temperature, yellow block crystals of PTC-359 were produced and then washed and stored in the mother liquor. The yield of the final product was ~ 50% based on PTC-101(Zr).

3.3. Manufacture Fabrication

Manufacture of PTCs dispersed PDMS films. PTCs refer to complex PTC-355–PTC-359. The crystals of PTC-355–PTC-359 need to be dried in the air before sampling, respectively. First, 6 mg of the sample was mixed with 2 g PDMS (polydimethylsiloxane), and the sample was evenly dispersed by magnetic stirring for several hours. The second step is to add 1/10 mass of specific curing agent and continue to stir evenly for about 10 min. The third step is to take 1 g of the mixture and put it into a specific membrane. Under the action of gravity, the mixture is paved in the mold and then placed at room temperature for 0.5 h to eliminate bubbles. Finally, put the membrane utensil into a 60 °C oven for 5 h to obtain films for testing.

Z-scan measurements. The third-order NLO properties of the above sample were evaluated by using the Z-scan technique. The excitation light source was an Nd:YAG laser with a repetition rate of 5 Hz. The laser pulse (period, 5 ns; wavelength, 532 nm) was split into two beams with a mirror. The pulse energies at the front and back of the samples were monitored using energy detectors 1 and 2. All of the measurements were conducted at room temperature. The sample was mounted on a computer-controlled translation stage that shifted each sample along the z-axis.

Calculation of the nonlinear optical parameters. The relationship of the sample transmission and input fluence can be plotted from the open-aperture Z-scan curve. From the input laser pulse energy E_in and beam radius ω(z), the light fluence F_in(z) at any position can be obtained.

F_in(z) is defined as:

$$F_{in}\left(z\right)=\frac{4E_{in}\sqrt{\ln 2}}{{\pi }^{\frac{3}{2}} \omega \left(z\right){}^2}$$

where ω(z) is defined as:

$$\omega \left(z\right)=\frac{{\omega }_0}{{\left[1+{\left(\frac{z}{z_0}\right)}^2\right]}^{\frac{1}{2}}}$$

where ω₀ and z₀ are the light beam radius and the Rayleigh range, respectively, and z₀ is defined as:

$$z_0=\frac{k{\omega }_0^2}{2}$$

where k is defined as:

$$k=\frac{2\mathsf{\pi }}{\mathsf{\lambda }}$$

(1)

4. Conclusions

In summary, we have shown that the combination of anionic Zr₄L₆ cages and N, N-chelated transition-metal cations can be used to prepare a series of interesting cage-based architectures, including ion pair structures (PTC-355 and PTC-356), dimer (PTC-357), and 3D frameworks (PTC-358 and PTC-359). Their single crystal structures have been well characterized and analyzed. Structural analyses show that PTC-358 exhibits a 2-fold interpenetrating framework with a 3,4-connected topology, and PTC-359 shows a 2-fold interpenetrating framework with a 4-connected dia network. In addition, powder XRD confirms that both PTC-358 and PTC-359 can be stable in air and other common solvents at room temperature. Furthermore, through a film-making method, we demonstrate that these materials, with increasing coordinative interactions in turn, have enhanced optical limiting effects, which is due to the high-efficiency charge transfer between anion and cation moieties. This work not only demonstrates an extraordinary cage-based assembly but also provides a series of promising materials for NLO applications.
