Ultrarapid Microwave-Assisted Synthesis of Fluorescent Silver Coordination Polymer Nanoparticles and Its Application in Detecting Alkaline Phosphatase Activity

by
Kanglin Pei
1,
Di Li
2,
Wenjing Qi
1,* and
Di Wu
1
1
Chongqing Key Laboratory of Green Synthesis and Applications, College of Chemistry, Chongqing Normal University, Chongqing 401331, China
2
Department of Pharmacy, the Second Affiliated Hospital of Chongqing Medical University, Chongqing 401331, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(4), 1892; https://doi.org/10.3390/molecules28041892
Submission received: 9 January 2023 / Revised: 7 February 2023 / Accepted: 15 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Fluorescent Probes: From Structure Design to Property Tuning and Versatile Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
Fluorescent silver coordination polymer nanoparticles (Ag-TPA CPNs) were synthesized using a combination of terephthalic acid (TPA) and silver nitrate via an ultrarapid microwave-assisted strategy within 15 min. The Ag-TPA CPNs displayed a high fluorescent quantum yield (QY = 20.19%) and large Stokes shift (~200 nm), with two emission peaks at 490 nm and 520 nm under an excitation wavelength of 320 nm. A fluorescent “turn-off” method using fluorescent Ag-TPA CPNs was applied to detect the alkaline phosphatase (ALP) activity on the basis of the ALP-catalyzed hydrolysis of ascorbic acid 2-phosphate (AA2P) to ascorbic acid (AA), and the AA product triggered the reduction of Ag+ ions into silver nanoparticles. The fluorescent lifetime of Ag-TPA CPNs decreased from 3.93 ms to 3.80 ms after the addition of ALP, which suggests that this fluorescent “turn-off” detection of ALP activity is a dynamic quenching process. The fluorescent intensity had a linear relationship with the concentration of ALP in the range of 0.2–12 mU/mL (r = 0.991) and with a limit of detection (LOD) of 0.07 mU/mL. It showed high selectivity in ALP detection towards metal ions and amino acids, as well as other enzymes such as horseradish peroxidase, glucose oxidase, tyrosinase, trypsin, lysozyme, and superoxides. When it was applied for the fluorescent “turn-off” detection of ALP activity in serum samples, mean recovery levels ranging from 99.5% to 101.2% were obtained, with relative standard deviations (RSDs) lower than 4% accuracy. Therefore, it is an efficient and accurate tool for analyzing ALP levels in biosamples.

1. Introduction

Alkaline phosphatase (ALP) as a zinc-containing dimeric enzyme has the specific ability to remove phosphate groups from a variety of phosphorylated substrates, such as nucleic acids, proteins, and other phosphate-group-containing molecules (such as ascorbic acid 2-phosphate, AA2P) [1,2,3]. ALP is widely distributed in various tissues of living organisms. In biological systems, the ALP activity is closely associated with the health status of living organisms. ALP contained in serum is an important biomarker for several diseases, including liver dysfunction, leukemia, breast and prostatic cancers, diabetes, and bone and kidney diseases [4,5]. Therefore, it is of great significance for biomedical diagnoses to construct a simple, sensitive, and accurate biosensor to monitor ALP activity. Many approaches have been established for the measurement of ALP activity, including surface-enhanced Raman scattering [6], colorimetry [7,8,9], electrochemistry [10,11], chromatography [12], chemiluminescence [13], electrochemiluminescence [14], and fluorescence [5,15,16] strategies. Among these methods, fluorescent methods with high sensitivity, fast response times, and real-time detection capability have attracted particular interest [5,17,18]. Most fluorescent assays for ALP activity are based on the ability of ALP to remove phosphate groups from a variety of substrates containing phosphate groups and to cause fluorescent “turn-on” or “turn-off” changes [19]. Moreover, the reported fluorescent probes include small molecules [8], organic nanoparticles [4], infinite coordination polymers [5], gold nanoclusters [20], and metal–organic frameworks [21]. Sometimes these methods are limited by the complex synthesis of fluorescent probes or enzyme substrates, relatively poor photostability, toxicity of heavy metal elements, or small Stokes shifts. Therefore, it is of great significance to explore the use of fluorescent probes for the determination of ALP activity with simple and rapid synthesis processes, high quantum yields, and large Stokes shifts.
Coordination polymers are hybrid materials composed of metal ions and molecular bridging ligands [22]. They can be designed to synthesize a variety of materials with different sizes, structural characteristics, and physicochemical properties via the self-assembly of different metal ions and bridging ligands. Over the past decades, coordination polymers have been applied in various fields such as separation [23], chemical and biochemical sensing [24,25], drug delivery [26], cellular imaging [27], and heterogeneous catalysis [28]. Among these applications, coordination polymers have been widely utilized as fluorescent probes. There are two types of common metal ions that are used as metal nodes, namely lanthanide ions and transition metal ions [29]. For example, various lanthanide coordination polymers self-assembled from organic ligands and lanthanide ions have been designed to detect ALP activity. Xiao and his co-workers developed bimetallic lanthanide coordination polymer nanoparticles (Tb-GMP-Eu CPNs) for the sensing of ALP activity [30]. However, lanthanide ions are becoming increasingly valuable as rare earth metals, limiting their further application. Compared with lanthanide ions, transition metal ions are relatively cheap and easy to obtain. Thus, silver coordination polymers as transition metal elements have attracted the attention of researchers [31,32,33]. Most synthesis processes for silver coordination polymers are time-consuming, complex, or exhibit low quantum yields, which limits their application in biological analyses. Therefore, exploring facile and rapid methods to prepare silver coordination polymers with high fluorescent quantum yields or large Stokes shifts is extremely urgent for the development of the coordination polymers.
Generally, microwave-assisted synthesis, with the significant advantages of its super-rapid and higher yields, has exceeded traditional synthetic approaches. In particular, the synthesis of silver coordination polymers with high quantum yields and large Stokes shifts within several minutes using microwave irradiation is rarely reported. Inspired by these factors, terephthalic acid (TPA) has been employed as a bridging ligand and silver ions as metal nodes to construct fluorescent coordination polymer nanoparticles using a fast self-assembly strategy under microwave irradiation within 15 min. The as-prepared Ag-TPA CPNs display a high fluorescent quantum yield (QY = 20.19%) and large Stokes shift (∼200 nm) with two emission peaks at 490 nm and 520 nm under excitation wavelengths of 320 nm. The Ag-TPA CPNs are designed to detect ALP activity because silver ions can be reduced to silver nanoparticles. Owing to the enzymatic hydrolysis of AA2P into the reducing reagent AA in the presence of ALP, a novel fluorescent “turn-off” strategy for ALP activity assays using Ag-TPA CPNs is developed in this work (Scheme 1).

2. Results and Discussion

2.1. Synthesis and Characterization of Ag-TPA CPNs

In Figure 1, the TEM images show that the shapes of Ag-TPA CPNs are irregular and the diameter range is 15–20 nm, as calculated from the 20 particle sizes in the TEM images using the “Nano Measurer 1.2” software. After adding ALP and its substrate AA2P, many silver nanoparticles with larger diameters of nearly 70–100 nm were formed owing to the reducing property of AA. In Figure 2A, the EDS elemental analysis shows that the atomic weight percentages of Ag, C, and O in the synthetic fluorescent Ag-TPA CPNs were 53.79%, 28.21%, and 18.01%, respectively. As shown in Figure 2B, the elemental mapping of C (a), O (b), and Ag (c) confirms the uniform distribution of the mentioned elements on Ag-TPA CPNs. All of these results clearly illustrate that the Ag-TPA CPNs were prepared successfully. As shown in Figure 3, the Ag-TPA CPN solution exhibited green fluorescent emissions under a 302 nm UV lamp. More importantly, it had two emission peaks at 490 nm and 520 nm under maximal excitation at 320 nm, with a large Stokes shift (~200 nm), which is preferable for the application of Ag-TPA CPNs in fluorescent bioanalyses. Moreover, the synthesized fluorescent Ag-TPA CPNs show high photostability. The Ag-TPA CPN solution can be made stable within two months by monitoring the fluorescent intensity, which is decreased to within 10% within two months. The Ag-TPA CPN powder that is put in the desiccators can be utilized for at least six months. The Ag-TPA CPNs exhibited a high fluorescent quantum yield (QY) of 20.19%, which was the absolute QY measured using an FLS 1000 photoluminescence spectrometer with an excitation wavelength of 320 nm.

2.2. The Feasibility of Fluorescent “Turn-Off” Detection of ALP Activity Using Ag-TPA CPNs

As shown in Figure 4, single ALP or AA2P components had little effect on the fluorescent intensity of the Ag-TPA CPNs. However, after adding AA or ALP to its substrate AA2P, the fluorescent intensity of Ag-TPA CPNs was significantly quenched. The fluorescent intensity of the Ag-TPA CPNs was quenched by 69.8% (fluorescent quenching efficiency) by AA2P with ALP and 84.4% by AA. The fluorescent quenching efficiency was calculated by (I0 − I)/I0, in which I0 represents the fluorescent intensity at 490 nm for Ag-TPA CPNs and I represents the fluorescent intensity at 490 nm for Ag-TPA CPNs after the addition of AA or ALP with the AA2P mixture. In addition, the solution showed a color change from colorless to dark-yellow and the fluorescent intensity was significantly decreased under the 302 nm UV lamp. According to previous studies, this color change is due to the localized surface plasmon resonance (LSPR) absorption of silver nanoparticles, which is reduced from silver ions by the product AA [34]. This fluorescent quenching signal of Ag-TPA CPNs is caused by the generation of AA, which is formed by the ALP-catalyzed hydrolysis of ascorbic acid 2-phosphate (AA2P) to ascorbic acid (AA), and the AA product triggers the reduction of Ag+ ions into silver nanoparticles. Therefore, this demonstrates the feasibility of the proposed fluorescent “turn-off” strategy for ALP activity detection.

2.3. The Possible Mechanism of Fluorescent “Turn-Off” Detection of ALP Activity

To further investigate the possible mechanism of the fluorescent “turn-off” determination of ALP activity using Ag-TPA CPNs, the UV–Vis absorption spectra and fluorescent lifetimes of different solutions were researched. As shown in Figure 5, the solutions of Ag-TPA, Ag-TPA-AA2P, Ag-TPA-ALP, AA, and AA2P-ALP had no distinct absorption peaks. However, after AA or AA2P-ALP was added to the Ag-TPA CPNs, within nearly 30 min at room temperature (25 °C), the corresponding solution showed an obvious UV absorption peak at 425 nm. ALP can trigger the catalyzed hydrolysis of AA2P into two products, AA and PO43−, under alkaline conditions. AA is well-known as a reducing agent and is widely utilized in the synthesis of metal and metal oxide nanoparticles [35]. Therefore, silver ions in fluorescent Ag-TPA CPNs undergo a reducing process in the presence of AA or AA2P-ALP. Silver ions can be reduced to silver nanoparticles by AA, and the absorbance peak at 425 nm is ascribed to the LSPR absorption peak of silver nanoparticles [34,36,37]. This suggests that this fluorescent “turn-off” mechanism is related to the AA-triggered reduction of Ag+ ions into silver nanoparticles. We also measured the fluorescence of Ag-TPA CPNs in the presence of other metal ions such as Al3+, Ca2+, Zn2+, Cu2+, Fe2+, Pb2+, Mg2+, Ce3+, Co2+, and Eu3+, which could not make the fluorescence of the Ag-TPA CPNs “turn-off” (Figure S1). However, other reducing agents such as cysteine and glutathione could make the fluorescence of Ag-TPA CPNs “turn-off”, which helps to confirm the reduction mechanism of Ag+ ions into silver nanoparticles. However, low concentrations of cysteine and glutathione (5 μM or 10 μM) cannot make the fluorescence of Ag-TPA CPNs “turn-off” (Figure S1). Therefore, in diagnosing some diseases that have high concentrations of ALP but low concentrations of cysteine and glutathione, the presence of cysteine and glutathione may have little effect in detecting ALP. More importantly, since the detection target was ALP and the substrate of the enzyme ALP was AA2P, the proposed method was utilized in the fluorescent “turn-off” detection of ALP activity. During ALP detection, the concentration of AA2P (substrate) should be relatively high. When it is very low (5 μM or 10 μM), it cannot bring about effective fluorescent “turn-off” results.
The fluorescent “turn-off” mechanism was also further explored based on the fluorescent lifetimes of Ag-TPA CPNs in the absence and presence of ALP. As shown in Figure 6, the fluorescent lifetime of the Ag-TPA CPNs decreased from 3.93 ms to 3.80 ms after the addition of ALP. This suggests that this fluorescent “turn-off” detection of ALP activity is a dynamic quenching process instead of a static quenching process.

2.4. Optimization of the Experimental Conditions

Since the fluorescent intensity of Ag-TPA CPNs is affected by the time and temperature of the microwave reaction, the time and temperature of the microwave reaction were first optimized. As shown in Figure 7A, the fluorescent intensity of Ag-TPA CPNs increased with the increases in temperature from 25 °C to 80 °C, reaching the maximum value at 80 °C and then decreasing after 80 °C. Under high temperatures, Ag-TPA CPNs can become dark and may form silver oxide or hydroxide. In order to obtain the highest fluorescent intensity, 80 °C was chosen as the optimized microwave reaction temperature to synthesize fluorescent Ag-TPA CPNs.
As shown in Figure 7B, the fluorescent intensity of the Ag-TPA CPNs increased from 2 min to 15 min. Longer times can make Ag-TPA CPN solutions become dark and form silver oxide or hydroxide. Thus, 15 min was chosen as the optimized time to synthesize fluorescent Ag-TPA CPNs in order to obtain the maximum fluorescent intensity.
The effect of the pH on the fluorescent intensity of Ag-TPA CPNs was optimized using a HEPES buffer solution in the pH range of 5.0 to 10.5. As shown in Figure 7C, the fluorescent intensity of the Ag-TPA CPNs increased from pH 5.0 to 7.0 and then decreased significantly from 7.5 to 10.5. Under relatively high alkaline conditions, Ag-TPA CPNs may form silver oxide or hydroxide and show decreased fluorescent intensity. Thus, in order to obtain the maximum fluorescent intensity, 20 mM of HEPES buffer at pH 7.0 was chosen for the optimized conditions for the following fluorescent detection process.
In order to ensure the best fluorescent quenching efficiency of the Ag-TPA CPNs for ALP activity detection, the concentration of the AA2P and the incubation time and temperature of the ALP with AA2P were also investigated. As shown in Figure 7D, the fluorescent intensity of the Ag-TPA CPNs decreased gradually with the increasing concentrations of AA2P. Since the content of AA2P was low, the product of AA was also low at the same concentration of ALP. When the concentration of AA2P was higher than 0.25 mM, ALP reaches its maximum catalytic activity and no more AA was involved. Thus, the maximum quenching effect of the fluorescent intensity was obtained at 0.25 mM AA2P.
Similarly, the effect of the incubation temperature (25 °C, 37 °C, or 50 °C) of ALP with AA2P on the fluorescent quenching efficiency of the Ag-TPA CPNs was investigated (Figure 7E). High incubation temperatures may inactivate the enzyme activity of ALP. In order to achieve the maximum fluorescent quenching effect, 37 °C was chosen as the optimized incubation temperature for the following fluorescent detection process.
As shown in Figure 7F, the fluorescent intensity of the Ag-TPA CPNs was kept stable within 60 min. The fluorescent intensity of the Ag-TPA CPNs increased in the presence of ALP owing to fast ALP-catalyzed hydrolysis of AA2P to AA. Long reactions times favor the formation of more AA. When ALP hydrolyzes AA2P thoroughly and reaches the maximum catalytic activity, longer times do not lead to more AA and fluorescent quenching. Thus, to reach stability and the highest fluorescent quenching effect, 50 min was chosen as the optimized incubation time for the following fluorescent detection process.

2.5. The Performance of Fluorescent “Turn-Off” Detection of ALP Activity

Under the optimized conditions mentioned above, different concentrations of ALP were investigated for the fluorescent “turn-off” detection of ALP activity, as shown in Figure 8. Due to the gradual hydrolysis of AA2P and the increasing content of the AA product, the fluorescent intensity levels at 490 nm and 520 nm decreased gradually with the increasing concentrations of ALP from 0.2 to 12 mU/mL, reaching a plateau after 12 mU/mL (Figure 8A). The linear fitting equation was I490 nm = 6.35–0.40 cALP (mU/mL), with a correlation coefficient (r) of 0.991 (Figure 8B). The limit of detection (LOD) for ALP was calculated to be 0.07 mU/mL using the formula of LOD = 3σ/k, where σ is the standard deviation of the blank solutions and k is the absolute value of the slope between the fluorescent intensity and the concentration of ALP. Moreover, compared with other reported methods (Table 1), this method using fluorescent Ag-TPA CPNs for ALP activity detection exhibits high sensitivity, a low LOD of 0.07 mU/mL, and a broad linear range of 0.2 to 12 mU/mL.

2.6. The Selectivity of the Fluorescent “Turn-Off” Detection of ALP Activity

As shown in Figure 9, only ALP causes a significant fluorescent quenching effect on the fluorescent intensity. Other metal ions (such as Al3+, Ca2+, Zn2+, Cu2+, Fe2+, Pb2+, and Mg2+), amino acids (such as glutamic acid, proline, alanine, and glycine), or enzymes (such as horseradish peroxidase (HRP), glucose oxidase (GOx), tyrosinase (Tyr), trypsin (Try), lysozyme (Lys), and superoxide (SOD)) show no obvious fluorescent changes. This indicates that this fluorescent “turn-off” method has good selectivity in ALP activity detection towards other metal ions, amino acids, or enzymes, which is beneficial for the fluorescent determination of ALP in biological samples.

2.7. Fluorescent “Turn-Off” Detection of ALP Activity in Serum Samples

In order to assess the feasibility of the proposed method for ALP detection in real serum samples, 10-fold-diluted commercial goat serum samples were utilized to monitor the ALP level, because human serum is difficult to obtain owing to the requirements of ethics and human privacy. Using the proposed method, no ALP was detected in the commercial goat serum sample. These commercial goat serum samples contained similar micromolar levels of cysteine, glutathione, and AA as real normal goat serum. However, they had a negligible fluorescent quenching effect in ALP detection. More importantly, commercial goat serum is 10-fold diluted, which means the concentration of the coexisting cysteine, glutathione, and AA are much lower. Therefore, as shown in Table 2, three diluted goat serum samples containing 1 mU/mL, 5 mU/mL, and 10 mU/mL of ALP were examined in the recovery experiments. The mean recovery levels ranged from 99.5% to 101.2%, with relative standard deviations (RSDs) lower than 4%. Even for the diluted goat serum samples with 10 μM cysteine, glutathione, and AA coexisting, recovery levels ranging from 97.5% to 100.7% were obtained. The satisfactory recovery levels and low RSD values indicate high accuracy of the proposed fluorescent “turn-off” method for the detection of ALP activity. This illustrates that this method is promising in the practical field of ALP analysis.

3. Conclusions

In summary, fluorescent Ag-TPA CPNs with a high quantum yield (20.19%) and large Stokes shift (~200 nm) were synthesized using a combination of TPA and silver nitrate using a microwave-assisted strategy within 15 min. This microwave-assisted synthesis method is rapid, economical, and highly efficient, providing a novel method for the synthesis of fluorescent Ag-TPA CPNs with excellent optical properties. Furthermore, the synthesized fluorescent Ag-TPA CPNs were applied in the fluorescent “turn-off” detection of ALP activity on the basis of the ALP-catalyzed hydrolysis of ascorbic acid 2-phosphate (AA2P) to ascorbic acid (AA), and the AA product triggered the reduction of Ag+ ions into silver nanoparticles. This fluorescent quenching detection method for ALP activity is a dynamic quenching process. It had high sensitivity for ALP activity detection, with a linear range of 0.2 to 12 mU/mL, a low LOD of 0.07 mU/mL, and high selectivity towards other metal ions, amino acids, and enzymes. Therefore, fluorescent Ag-TPA CPNs have great potential for application in ALP activity detection in biological systems.

4. Materials and Methods

4.1. Materials and Reagents

The silver nitrate (AgNO3) was purchased from Sinopharm Chemical Reagent Co. (Shanghai, China). The terephthalic acid (TPA) was obtained from Adamas-beta Reagent Co., Ltd. (Shanghai, China). The 2-phospho-L-ascorbic acid trisodium salt (AA2P), alkaline phosphatase (ALP), ascorbic acid (AA), 4-hydroxyethyl piperazine ethyl sulfonic acid (HEPES), tyrosinase (Tyr), horseradish peroxidase (HRP), glutamic acid (Glu), proline (Pro), alanine (Ala), and glycine (Gly) were purchased from Aladdin (Shanghai, China). The glucose oxidase (GOx), lysozyme (Lys), and trypsin (Try) were obtained from Shanghai Yuanye Bio-Technology Co., Ltd. (Shanghai, China). The superoxide dismutase (SOD) was obtained from Xiya Chemical Technology Co., Ltd. (Linyi, China). The N, N-dimethylformamide (DMF) was purchased from Kelon Chemical Reagent Factory (Chengdu, China). HEPES buffer solutions were used throughout all the experiments. All chemicals used in this work were of analytical grade and directly used without further purification.

4.2. Instrumentation

The fluorescent Ag-TPA CPNs were prepared using a MARS 6 CLASSIC microwave digestion workstation (Initiator 8 EXP, 2455 MHz frequency, 800 W) (American Analyx Corp., Boston, MA, USA). All fluorescent measurements were performed using a F98 fluorescence spectrometer (Lengguang Technology Ltd., Shanghai, China). An FLS 1000 photoluminescence spectrometer (Edinburgh Instruments Ltd., Edinburgh, England) was used to obtain the fluorescent lifetime of the fluorescent Ag-TPA CPNs. The UV–Vis absorption spectra were captured on a UV2550 spectrophotometer (Shimadzu Corporation, Kyushu, Japan). The transmission electron microscopy (TEM) images were obtained using a JEM-1200EX transmission electron microscope (JEOL Corp., Tokyo, Japan). An energy-dispersive spectrometry (EDS) analysis was performed using a Regulus 8010 scanning electron microscope (Hitachi Corp., Tokyo, Japan). A Youke pH S-3C digital pH meter (Shanghai Youke Instrument Co., Ltd, Shanghai, China) was used to measure the pH values of the aqueous solutions.

4.3. Synthesis of Fluorescent Ag-TPA CPNs

The fluorescent Ag-TPA CPNs were synthesized using a microwave-assisted process. Briefly, aqueous solutions of 5 mL of 0.05 M AgNO3 and 5 mL of 0.05 M terephthalic acid (TPA), which was dissolved using N, N-dimethylformamide (DMF), were added into a 50 mL centrifuge tube. The whole solution was mixed for 1 min at room temperature using a vortex mixer. Then, the mixture was placed together in a 30 mL microwave tube, heated by a microwave (800 W) under autogenous pressure at 80 °C for 15 min, and then cooled down naturally to room temperature. The white suspension was centrifuged at 8000 rpm and washed with ethanol and ultrapure water three times to remove redundant ligands and metal ions. Finally, the product was collected and redispersed into 10 mL of water. In the following ALP detection process, 50 μL Ag-TPA CPN solutions were used in each measurement.

4.4. Fluorescent “Turn-Off” Detection of ALP Activity Using Ag-TPA CPNs

For the measurement of ALP activity, 50 μL of 5 mM AA2P firstly reacted with different concentrations of ALP in 50 μL of 20 mM HEPES buffer (pH 9.0) at 37 °C for 50 min. Then, 300 μL of 20 mM HEPES buffer (pH 7.0) and 50 μL of Ag-TPA CPN solution were added. An appropriate amount of water was added to keep the final volume of the whole solutions at 1 mL. After thorough vortex mixing and reaction at 25 °C for 30 min, the fluorescent intensities were recorded on a fluorescent spectrophotometer with an excitation wavelength at 320 nm. The slit widths for excitation and emission were 10 nm and 10 nm, respectively. The photomultiplier tube voltage (PMT) was kept at 800 V.

4.5. Fluorescent “Turn-Off” Detection of ALP Activity in Real Goat Serum Samples

The standard additive method was used to detect ALP activity in goat serum samples. Since no ALP was detected in the goat serum samples, 1 mU/mL, 5 mU/mL, and 10 U/mL samples of ALP were respectively spiked into the goat serum samples. The other fluorescent detection processes were similar to the ALP activity detection method mentioned above.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28041892/s1, Figure S1: Fluorescent intensity of Ag-TPA CPNs in the presence of AA (100, 10 and 5 μM) and other species (Al3+, Ca2+, Zn2+, Cu2+, Fe2+, Pb2+, Mg2+, Ce3+, Co2+, Eu3+, Cys, GSH, 100 μM). Cys: cysteine; GSH: glutathione. Ag-TPA CPNs solution: 50 μL; λex: 320 nm; λem: 490 nm. All the error bars represent the standard deviation of three measurements.

Author Contributions

K.P.: Writing—original draft, conceptualization, investigation, data analysis and curation, validation, methodology, software. D.L.: Formal analysis, data curation, validation. D.W.: Data curation, validation, writing—review and editing. W.Q.: Supervision, writing—review and editing, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Scientific and Technological Research Program of Chongqing Education Committee (No. KJQN201900521), the Program for Top-Notch Young Innovative Talents of Chongqing Normal University (No. 02030307-00042), and the Innovation and Entrepreneurship Team for Inorganic Optoelectronic Functional Materials of Chongqing Yingcai (No. cstc2021ycjh-bgzxm0131).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, S.J.; Li, C.Y.; Li, Y.F.; Fei, J.; Wu, P.; Yang, B.; Ou-Yang, J.; Nie, S.X. Facile and sensitive near-infrared fluorescence probe for the detection of endogenous alkaline phosphatase activity in vivo. Anal. Chem. 2017, 89, 6854–6860. [Google Scholar] [CrossRef] [PubMed]
  2. Du, S.Z.; Sun, Z.; Qing, M.; Wang, L.; Tang, Q.; Zhou, J.; Luo, H.Q.; Li, N.B. Infinite coordination polymer nanoparticles used for fluorescence turn-on sensing of ascorbic acid. ACS Appl. Nano Mater. 2021, 4, 6872–6880. [Google Scholar] [CrossRef]
  3. Fan, Y.; Lv, M.; Xue, Y.; Li, J.; Wang, E. In situ fluorogenic reaction generated via ascorbic acid for the construction of universal sensing platform. Anal. Chem. 2021, 93, 6873–6880. [Google Scholar] [CrossRef] [PubMed]
  4. Zeng, H.-H.; Liu, F.; Peng, Z.-Q.; Yu, K.; Rong, L.-Q.; Wang, Y.; Wu, P.; Liang, R.-P.; Qiu, J.-D. Lanthanide phosphate nanoparticle-based one-step optical discrimination of alkaline phosphatase activity. ACS Appl. Nano Mater. 2020, 3, 2336–2345. [Google Scholar] [CrossRef]
  5. Deng, J.; Yu, P.; Wang, Y.; Mao, L. Real-time ratiometric fluorescent assay for alkaline phosphatase activity with stimulus responsive infinite coordination polymer nanoparticles. Anal. Chem. 2015, 87, 3080–3086. [Google Scholar] [CrossRef]
  6. Ruan, C.; Wang, W.; Gu, B. Detection of alkaline phosphatase using surface-enhanced raman spectroscopy. Anal. Chem. 2006, 78, 3379–3384. [Google Scholar] [CrossRef]
  7. Sun, J.; Zhao, J.; Bao, X.; Wang, Q.; Yang, X. Alkaline phosphatase assay based on the chromogenic interaction of diethanolamine with 4-aminophenol. Anal. Chem. 2018, 90, 6339–6345. [Google Scholar] [CrossRef]
  8. Song, Z.; Kwok, R.T.; Zhao, E.; He, Z.; Hong, Y.; Lam, J.W.; Liu, B.; Tang, B.Z. A ratiometric fluorescent probe based on ESIPT and AIE processes for alkaline phosphatase activity assay and visualization in living cells. ACS Appl. Mater. Interfaces. 2014, 6, 17245–17254. [Google Scholar] [CrossRef]
  9. Kim, C.-Y.; Shaban, S.M.; Cho, S.-Y.; Kim, D.-H. Detection of periodontal disease marker with geometrical transformation of Ag nanoplates. Anal. Chem. 2023, 95, 2356–2365. [Google Scholar] [CrossRef]
  10. Goggins, S.; Naz, C.; Marsh, B.J.; Frost, C.G. Ratiometric electrochemical detection of alkaline phosphatase. Chem. Commun. 2015, 51, 561–564. [Google Scholar] [CrossRef] [Green Version]
  11. Suginta, W.; Khunkaewla, P.; Schulte, A. Electrochemical biosensor applications of polysaccharides chitin and chitosan. Chem. Rev. 2013, 113, 5458–5479. [Google Scholar] [CrossRef] [PubMed]
  12. Hasegawa, T.; Sugita, M.; Takatani, K.; Matsuura, H.; Umemura, T.; Haraguchi, H. Assay of alkaline phosphatase in salmon egg cell cytoplasm with fluorescence detection of enzymatic activity and zinc detection by ICP-MS in relation to metallomics research. Bull. Chem. Soc. Jpn. 2006, 79, 1211–1214. [Google Scholar] [CrossRef]
  13. Liu, X.; Fan, N.; Wu, L.; Wu, C.; Zhou, Y.; Li, P.; Tang, B. Lighting up alkaline phosphatase in drug-induced liver injury using a new chemiluminescence resonance energy transfer nanoprobe. Chem. Commun. 2018, 54, 12479–12482. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, X.Y.; Wu, M.X.; Ding, S.N. Anodic electrochemiluminescence from CsPbBr3 perovskite quantum dots for an alkaline phosphatase assay. Chem. Commun. 2020, 56, 8099–8102. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, C.; Zhao, J.; Lu, Y.; Sun, J.; Yang, X. Fluorescence immunoassay based on the phosphate-triggered fluorescence turn-on detection of alkaline phosphatase. Anal. Chem. 2018, 90, 3505–3511. [Google Scholar] [CrossRef] [PubMed]
  16. Peng, C.; Xue, Y.; Zhu, X.; Fan, Y.; Li, J.; Wang, E. Midas touch: Engineering activity of metal-organic frameworks via coordination for biosensing. Anal. Chem. 2022, 94, 1465–1473. [Google Scholar] [CrossRef]
  17. Li, D.; Lv, P.; Han, X.W.; Jia, Z.; Zheng, M.; Feng, H.T. A highly efficient fluorescent sensor based on AIEgen for detection of nitrophenolic explosives. Molecules 2022, 28, 181. [Google Scholar] [CrossRef]
  18. Ji, Y.; Li, G.; Wang, J.; Piao, C.; Zhou, X. Recent progress in identifying bacteria with fluorescent probes. Molecules 2022, 27, 6440. [Google Scholar] [CrossRef]
  19. Chen, Y.; Li, W.; Wang, Y.; Yang, X.; Chen, J.; Jiang, Y.; Yu, C.; Lin, Q. Cysteine-directed fluorescent gold nanoclusters for the sensing of pyrophosphate and alkaline phosphatase. J. Mater. Chem. C 2014, 2, 4080–4085. [Google Scholar] [CrossRef]
  20. Ni, P.; Chen, C.; Jiang, Y.; Zhang, C.; Wang, B.; Cao, B.; Li, C.; Lu, Y. Gold nanoclusters-based dual-channel assay for colorimetric and turn-on fluorescent sensing of alkaline phosphatase. Sens. Actuators B Chem. 2019, 301, 127080–127086. [Google Scholar] [CrossRef]
  21. Yu, K.; Wei, T.; Li, Z.; Li, J.; Wang, Z.; Dai, Z. Construction of molecular sensing and logic systems based on site-occupying effect-modulated MOF-DNA interaction. J. Am. Chem. Soc. 2020, 142, 21267–21271. [Google Scholar] [CrossRef] [PubMed]
  22. Gao, N.; Zhang, Y.; Huang, P.; Xiang, Z.; Wu, F.Y.; Mao, L. Perturbing tandem energy transfer in luminescent heterobinuclear lanthanide coordination polymer nanoparticles enables real-time monitoring of release of the anthrax biomarker from bacterial spores. Anal. Chem. 2018, 90, 7004–7011. [Google Scholar] [CrossRef]
  23. Jiang, H.L.; Xu, Q. Porous metal-organic frameworks as platforms for functional applications. Chem. Commun. 2011, 47, 3351–3370. [Google Scholar] [CrossRef] [PubMed]
  24. Hu, Z.; Deibert, B.J.; Li, J. Luminescent metal-organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Liu, B.; Huang, Y.; Zhu, X.; Hao, Y.; Ding, Y.; Wei, W.; Wang, Q.; Qu, P.; Xu, M. Smart lanthanide coordination polymer fluorescence probe for mercury(II) determination. Anal. Chim. Acta. 2016, 912, 139–145. [Google Scholar] [CrossRef] [PubMed]
  26. Li, Y.; Zou, Q.; Yuan, C.; Li, S.; Xing, R.; Yan, X. Amino acid coordination driven self-assembly for enhancing both the biological stability and tumor accumulation of curcumin. Angew. Chem. Int. Ed. 2018, 57, 17084–17088. [Google Scholar] [CrossRef] [PubMed]
  27. Suárez-García, S.; Solórzano, R.; Novio, F.; Alibés, R.; Busqué, F.; Ruiz-Molina, D. Coordination polymers nanoparticles for bioimaging. Coord. Chem. Rev. 2021, 432, 213716–213740. [Google Scholar] [CrossRef]
  28. Liang, H.; Lin, F.; Zhang, Z.; Liu, B.; Jiang, S.; Yuan, Q.; Liu, J. Multicopper laccase mimicking nanozymes with nucleotides as ligands. ACS Appl. Mater. Interfaces 2017, 9, 1352–1360. [Google Scholar] [CrossRef]
  29. Li, G.; Tong, C. Dual-functional lanthanide metal organic frameworks for visual and ultrasensitive ratiometric fluorescent detection of phosphate based on aggregation-induced energy transfer. Anal. Chim. Acta. 2020, 1133, 11–19. [Google Scholar] [CrossRef]
  30. Wang, F.; Hu, X.; Hu, J.; Peng, Q.; Zheng, B.; Du, J.; Xiao, D. Fluorescence assay for alkaline phosphatase activity based on energy transfer from terbium to europium in lanthanide coordination polymer nanoparticles. J. Mater. Chem. B 2018, 6, 6008–6015. [Google Scholar] [CrossRef]
  31. Fernandes, T.A.; Costa, I.F.M.; Jorge, P.; Sousa, A.C.; Andre, V.; Cerca, N.; Kirillov, A.M. Silver(I) coordination polymers immobilized into biopolymer films for antimicrobial applications. ACS Appl. Mater. Interfaces 2021, 13, 12836–12844. [Google Scholar] [CrossRef] [PubMed]
  32. Shibata, S.; Tsuge, K.; Sasaki, Y.; Ishizaka, S.; Kitamura, N. Directional energy transfer in mixed-metallic copper(I)-silver(I) coordination polymers with strong luminescence. Inorg. Chem. 2015, 54, 9733–9739. [Google Scholar] [CrossRef] [PubMed]
  33. Li, J.X.; Qin, Z.B.; Li, Y.H.; Cui, G.H. Sonochemical synthesis and properties of two new nanostructured silver(I) coordination polymers. Ultrason. Sonochem. 2018, 48, 127–135. [Google Scholar] [CrossRef] [PubMed]
  34. Tokura, Y.; Moriyama, Y.; Hiruta, Y.; Shiratori, S. Paper-based assay for ascorbic acid based on the formation of Ag nanoparticles in layer-by-layer multilayers. ACS Appl. Nano Mater. 2018, 2, 241–249. [Google Scholar] [CrossRef]
  35. Peng, J.; Ling, J.; Zhang, X.-Q.; Zhang, L.-Y.; Cao, Q.-E.; Ding, Z.-T. A rapid, sensitive and selective colorimetric method for detection of ascorbic acid. Sens. Actuators B Chem. 2015, 221, 708–716. [Google Scholar] [CrossRef]
  36. Huang, X.; Zacharia, N.S. Facile assembly enhanced spontaneous fluorescent response of Ag+ ion containing polyelectrolyte multilayer films. ACS Macro Lett. 2014, 3, 1092–1095. [Google Scholar] [CrossRef]
  37. Steinigeweg, D.; Schlucker, S. Monodispersity and size control in the synthesis of 20–100 nm quasi-spherical silver nanoparticles by citrate and ascorbic acid reduction in glycerol-water mixtures. Chem. Commun. 2012, 48, 8682–8684. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, H.; Wang, F.; Wu, T.; Liu, Y. Highly active electrochemiluminescence of ruthenium complex co-assembled chalcogenide nanoclusters and the application for label-free detection of alkaline phosphatase. Anal. Chem. 2021, 93, 15794–15801. [Google Scholar] [CrossRef]
  39. Xiao, T.; Sun, J.; Zhao, J.; Wang, S.; Liu, G.; Yang, X. FRET effect between fluorescent polydopamine nanoparticles and MnO2 nanosheets and its application for sensitive sensing of alkaline phosphatase. ACS Appl. Mater. Interfaces 2018, 10, 6560–6569. [Google Scholar] [CrossRef]
  40. Wang, M.; Zhou, X.; Cheng, L.; Wang, M.; Su, X. Lysozyme-functionalized 5-methyl-2-thiouracil gold/silver nanoclusters for luminescence assay of alkaline phosphatase. ACS Appl. Nano Mater. 2021, 4, 9265–9273. [Google Scholar] [CrossRef]
  41. Luo, Y.; Li, J.; Li, Y.; Yang, B.; Zhou, T.; Deng, J. Lanthanide-free infinite coordination polymer nanoparticles for real-time monitoring of alkaline phosphatase and its application for digital algal bloom detection. ACS Appl. Nano Mater. 2021, 4, 11134–11144. [Google Scholar] [CrossRef]
  42. Lu, H.; Xu, S. CDs-MnO2-TPPS ternary system for ratiometric fluorescence detection of ascorbic acid and alkaline phosphatase. ACS Omega 2021, 6, 16565–16572. [Google Scholar] [CrossRef] [PubMed]
  43. Ni, P.; Liu, S.; Jiang, Y.; Chen, C.; Wang, B.; Zhang, C.; Chen, J.; Lu, Y. In situ formation of 2,3-diaminophenazine for evaluation of alkaline phosphatase activity via the inner filter effect. ACS Appl. Bio Mater. 2020, 3, 6394–6399. [Google Scholar] [CrossRef] [PubMed]
  44. Yang, J.; Zheng, L.; Wang, Y.; Li, W.; Zhang, J.; Gu, J.; Fu, Y. Guanine-rich DNA-based peroxidase mimetics for colorimetric assays of alkaline phosphatase. Biosens. Bioelectron. 2016, 77, 549–556. [Google Scholar] [CrossRef] [PubMed]
  45. Qu, F.; Pei, H.; Kong, R.; Zhu, S.; Xia, L. Novel turn-on fluorescent detection of alkaline phosphatase based on green synthesized carbon dots and MnO2 nanosheets. Talanta 2017, 165, 136–142. [Google Scholar] [CrossRef]
  46. Zhang, L.; Hou, T.; Li, H.; Li, F. A highly sensitive homogeneous electrochemical assay for alkaline phosphatase activity based on single molecular beacon-initiated T7 exonuclease-mediated signal amplification. Analyst 2015, 140, 4030–4036. [Google Scholar] [CrossRef]
  47. Huang, H.; Bai, J.; Li, J.; Lei, L.; Zhang, W.; Yan, S.; Li, Y. Fluorometric and colorimetric analysis of alkaline phosphatase activity based on a nucleotide coordinated copper ion mimicking polyphenol oxidase. J. Mater. Chem. B. 2019, 7, 6508–6514. [Google Scholar] [CrossRef]
  48. Zhu, X.; Xu, H.; Zhan, Y.; Li, W.; Dong, Y.; Yu, L.; Chi, Y.; Ye, H. A simple enzyme-catalyzed reaction induced “switch” type fluorescence biosensor based on carbon nitride nanosheets for the assay of alkaline phosphatase activity. Analyst 2020, 145, 6277–6282. [Google Scholar] [CrossRef]
Molecules 28 01892 sch001 550

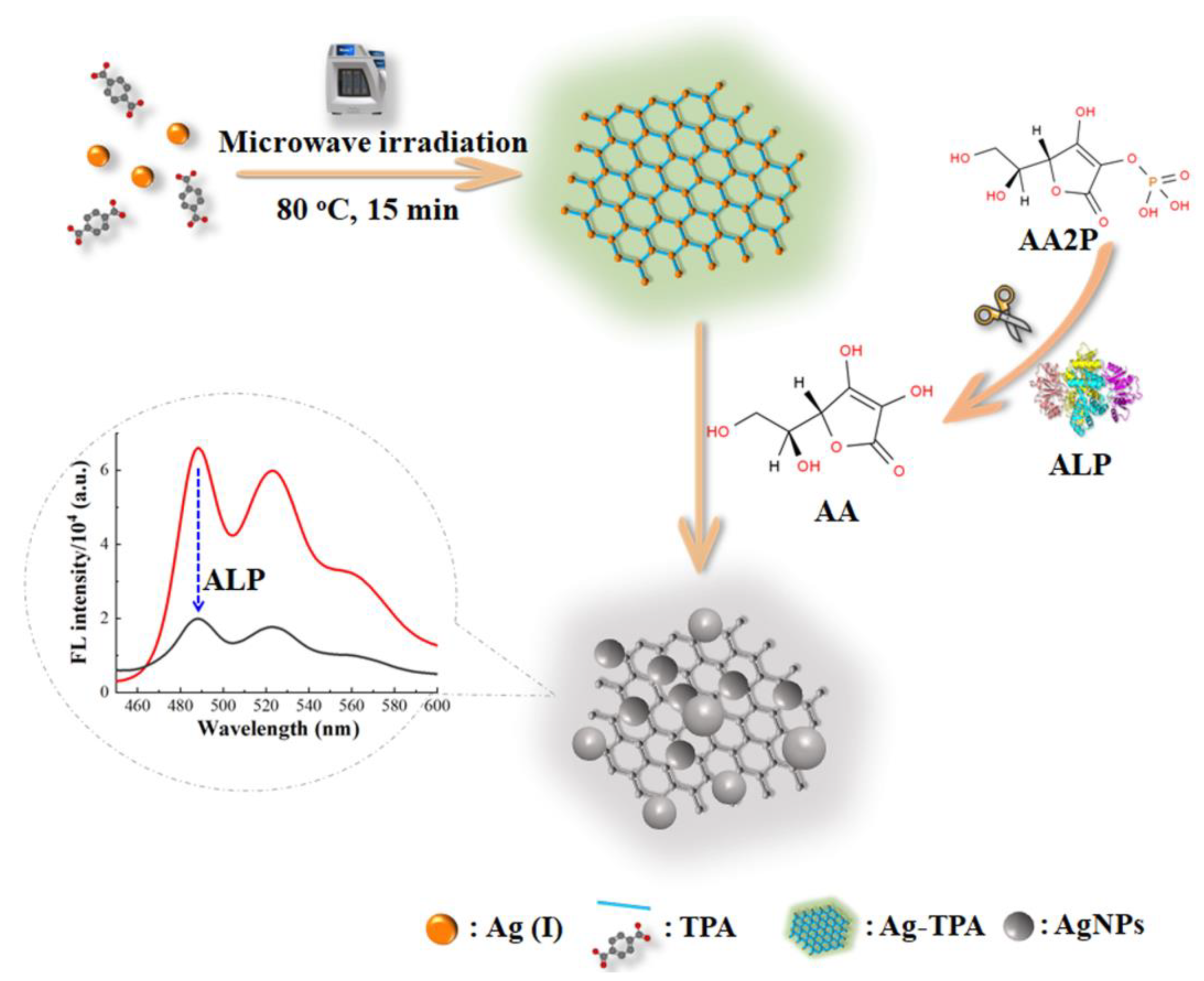

Scheme 1. Schematic representation of ultrarapid microwave-assisted synthesis of fluorescent Ag-TPA CPNs and their application for the fluorescent “turn-off” sensing of ALP activity.
Scheme 1. Schematic representation of ultrarapid microwave-assisted synthesis of fluorescent Ag-TPA CPNs and their application for the fluorescent “turn-off” sensing of ALP activity.
Molecules 28 01892 sch001
Molecules 28 01892 g001 550
Figure 1. TEM images of Ag-TPA CPNs in the absence (A,C) and presence (B,D) of ALP.
Figure 1. TEM images of Ag-TPA CPNs in the absence (A,C) and presence (B,D) of ALP.
Molecules 28 01892 g001
Molecules 28 01892 g002 550

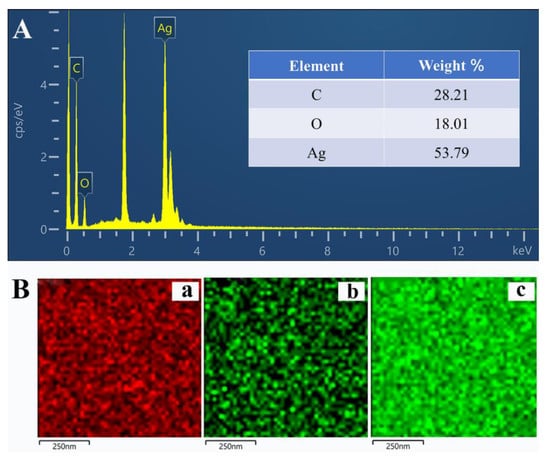

Figure 2. The EDS elemental analysis (A) of Ag-TPA CPNs. Inset: The element contents of C, O and Ag, and the corresponding elemental maps (B) of C (a), O (b), and Ag (c).
Figure 2. The EDS elemental analysis (A) of Ag-TPA CPNs. Inset: The element contents of C, O and Ag, and the corresponding elemental maps (B) of C (a), O (b), and Ag (c).
Molecules 28 01892 g002
Molecules 28 01892 g003 550

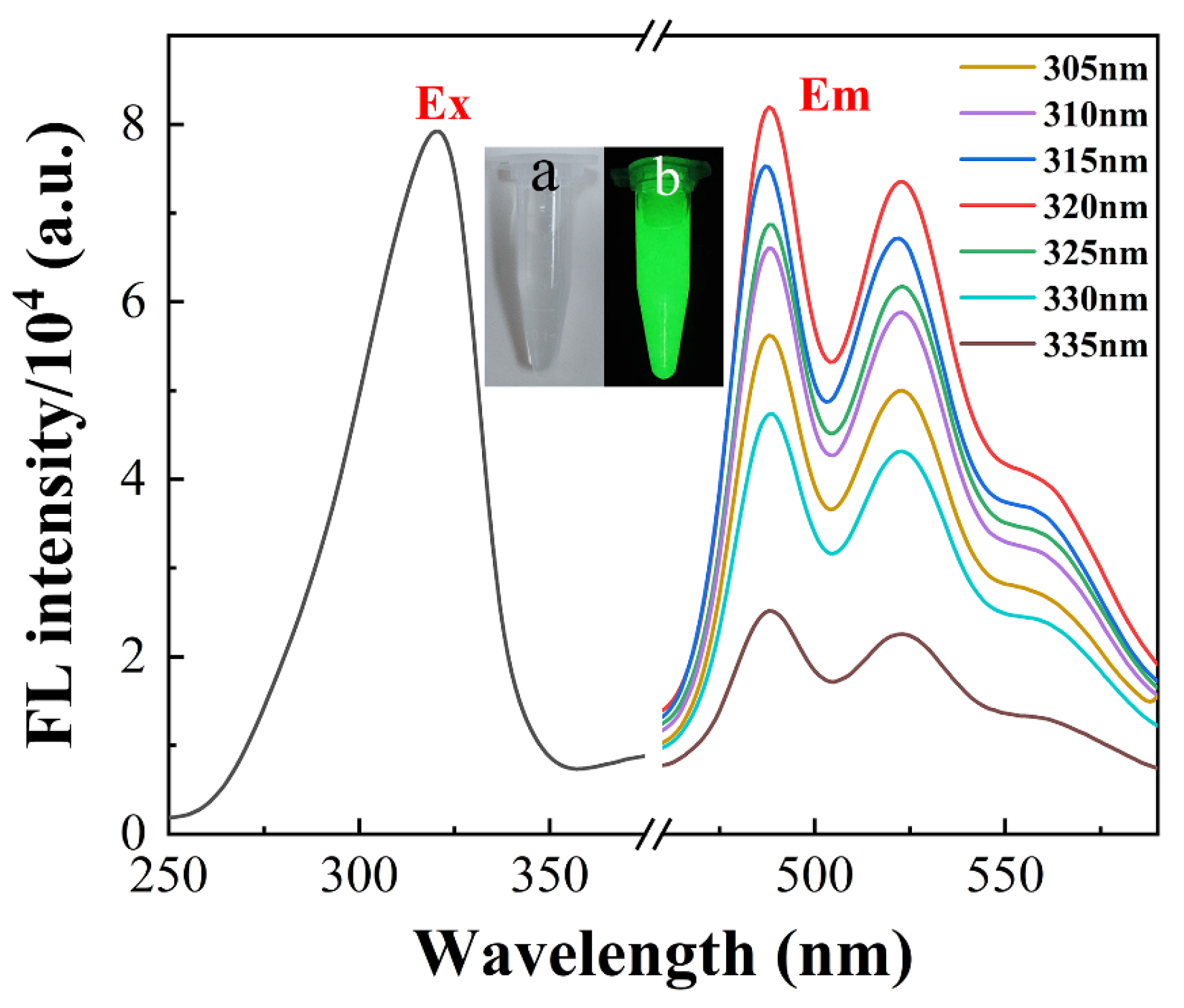

Figure 3. Fluorescent excitation (left) and emission (right) spectra of Ag-TPA CPNs. The inset picture shows the photos of the fluorescent Ag-TPA CPN solution under visible light (a) and a 302 nm UV lamp (b). Ag-TPA CPN solution: 50 μL.
Figure 3. Fluorescent excitation (left) and emission (right) spectra of Ag-TPA CPNs. The inset picture shows the photos of the fluorescent Ag-TPA CPN solution under visible light (a) and a 302 nm UV lamp (b). Ag-TPA CPN solution: 50 μL.
Molecules 28 01892 g003
Molecules 28 01892 g004 550

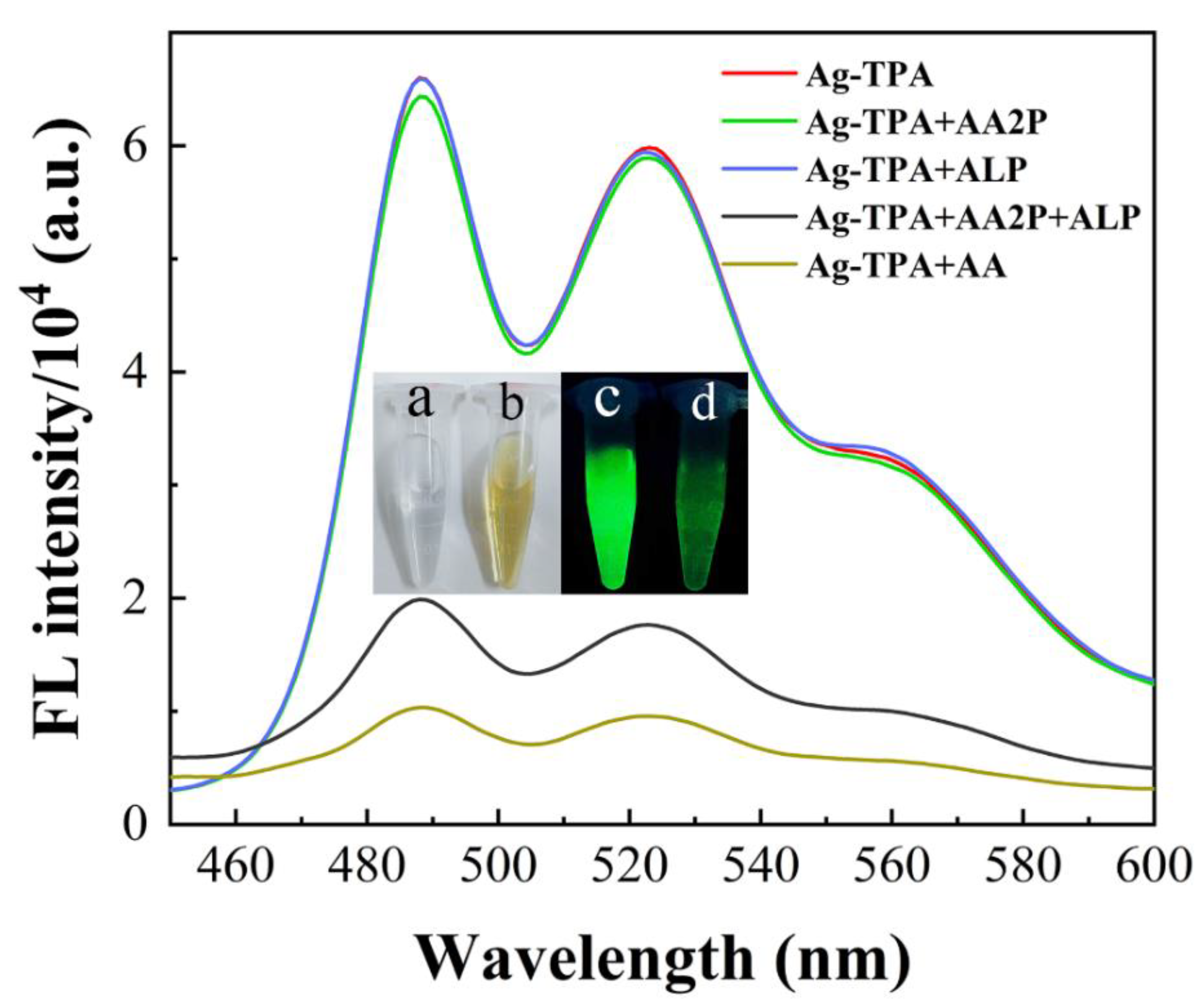

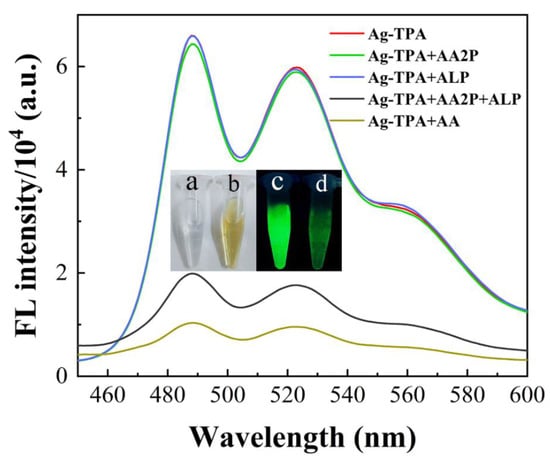

Figure 4. Fluorescent spectra of the Ag-TPA CPN solution (red line) in the presence of AA2P (green line), ALP (blue line), and AA (brown line), and the coexistence of ALP and AA2P (black line), respectively. Inset: Photos of fluorescent Ag-TPA CPNs in the absence (a,c) and presence (b,d) of ALP under daylight (left) and a 302 nm UV lamp (right): c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; c(AA): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm.
Figure 4. Fluorescent spectra of the Ag-TPA CPN solution (red line) in the presence of AA2P (green line), ALP (blue line), and AA (brown line), and the coexistence of ALP and AA2P (black line), respectively. Inset: Photos of fluorescent Ag-TPA CPNs in the absence (a,c) and presence (b,d) of ALP under daylight (left) and a 302 nm UV lamp (right): c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; c(AA): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm.
Molecules 28 01892 g004
Molecules 28 01892 g005 550

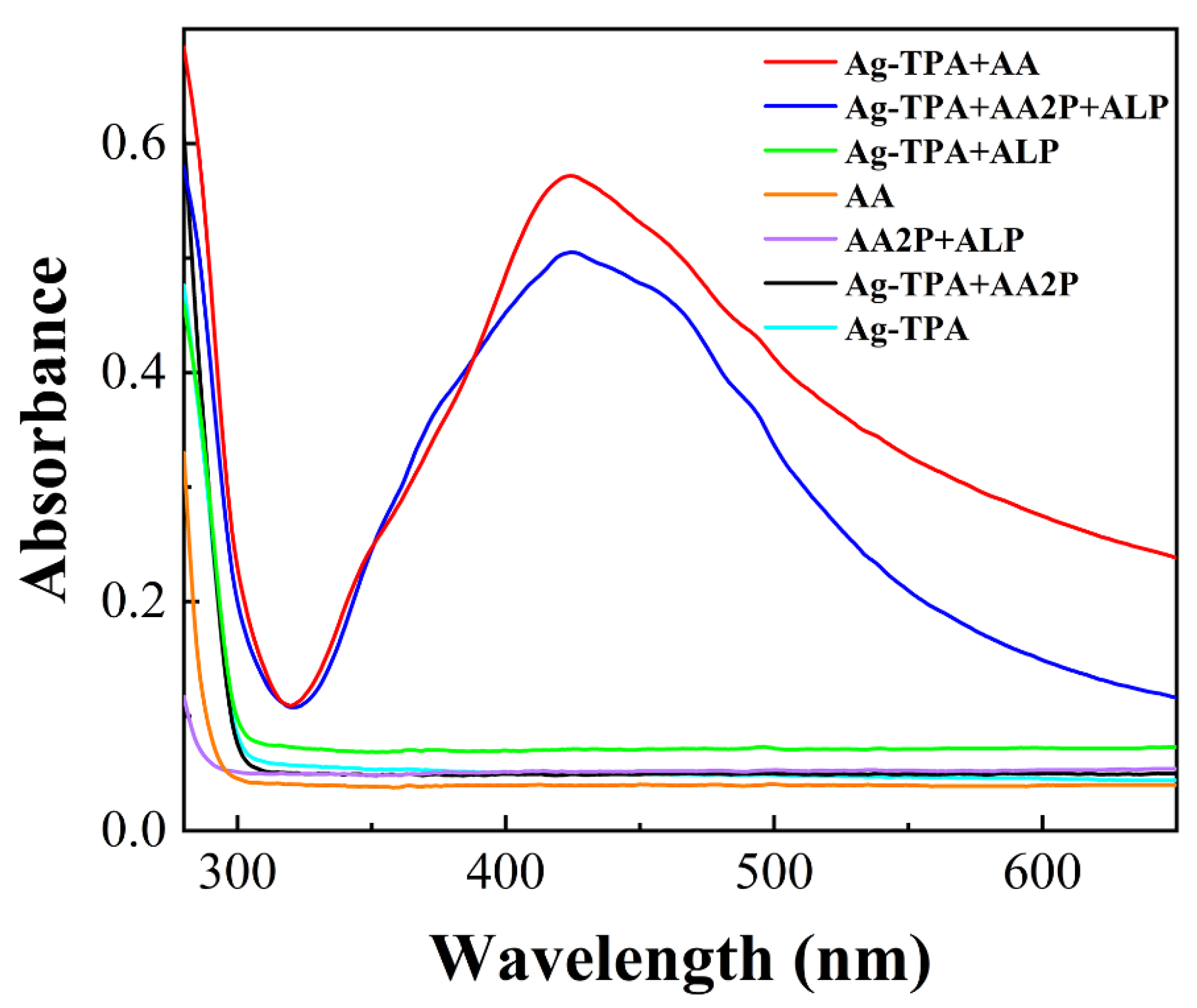

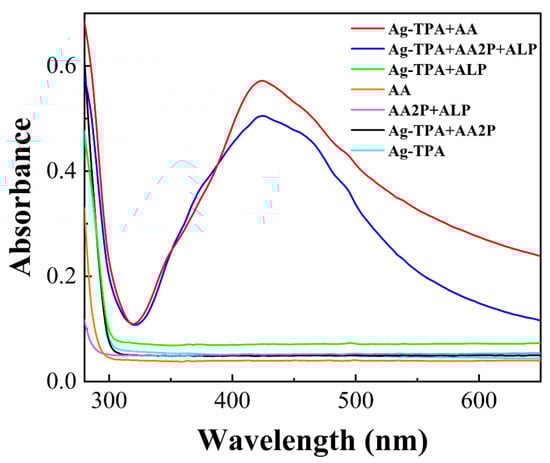

Figure 5. UV–Vis absorption spectra of Ag-TPA + AA (red line), Ag-TPA + AA2P + ALP (blue line), Ag-TPA + ALP (green line), AA (orange line), AA2P + ALP (purple line), Ag-TPA + AA2P (black line), and Ag-TPA (cyan line). Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; c(AA): 0.20 mM; Ag-TPA CPN solution: 50 μL.
Figure 5. UV–Vis absorption spectra of Ag-TPA + AA (red line), Ag-TPA + AA2P + ALP (blue line), Ag-TPA + ALP (green line), AA (orange line), AA2P + ALP (purple line), Ag-TPA + AA2P (black line), and Ag-TPA (cyan line). Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; c(AA): 0.20 mM; Ag-TPA CPN solution: 50 μL.
Molecules 28 01892 g005
Molecules 28 01892 g006 550

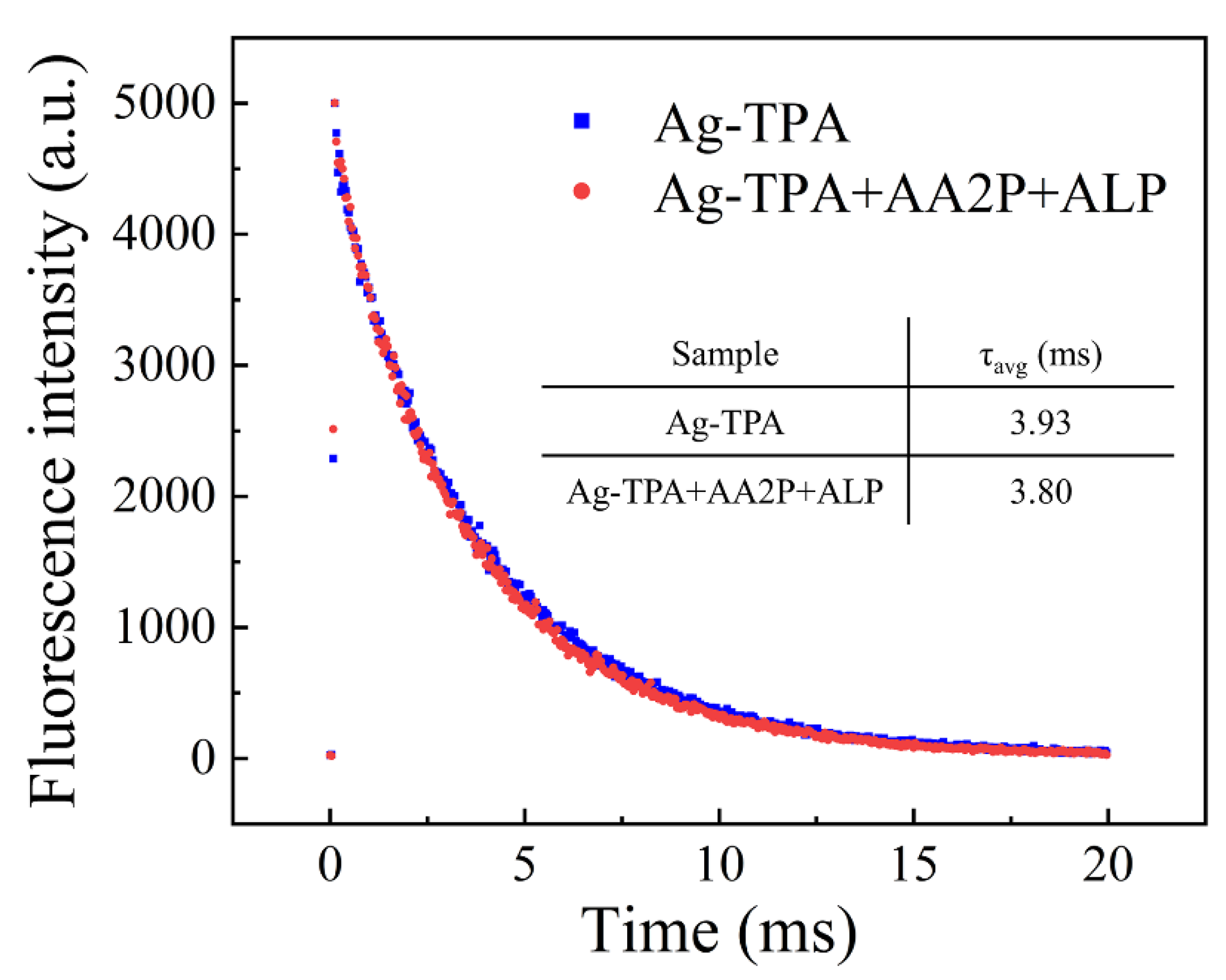

Figure 6. Fluorescent lifetimes of Ag-TPA CPNs in the absence and presence of ALP. Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm.
Figure 6. Fluorescent lifetimes of Ag-TPA CPNs in the absence and presence of ALP. Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm.
Molecules 28 01892 g006
Molecules 28 01892 g007 550

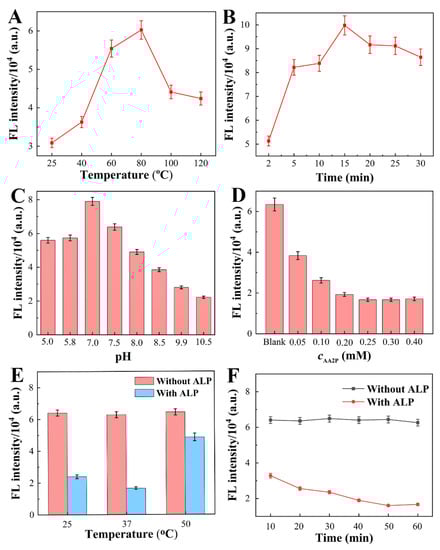

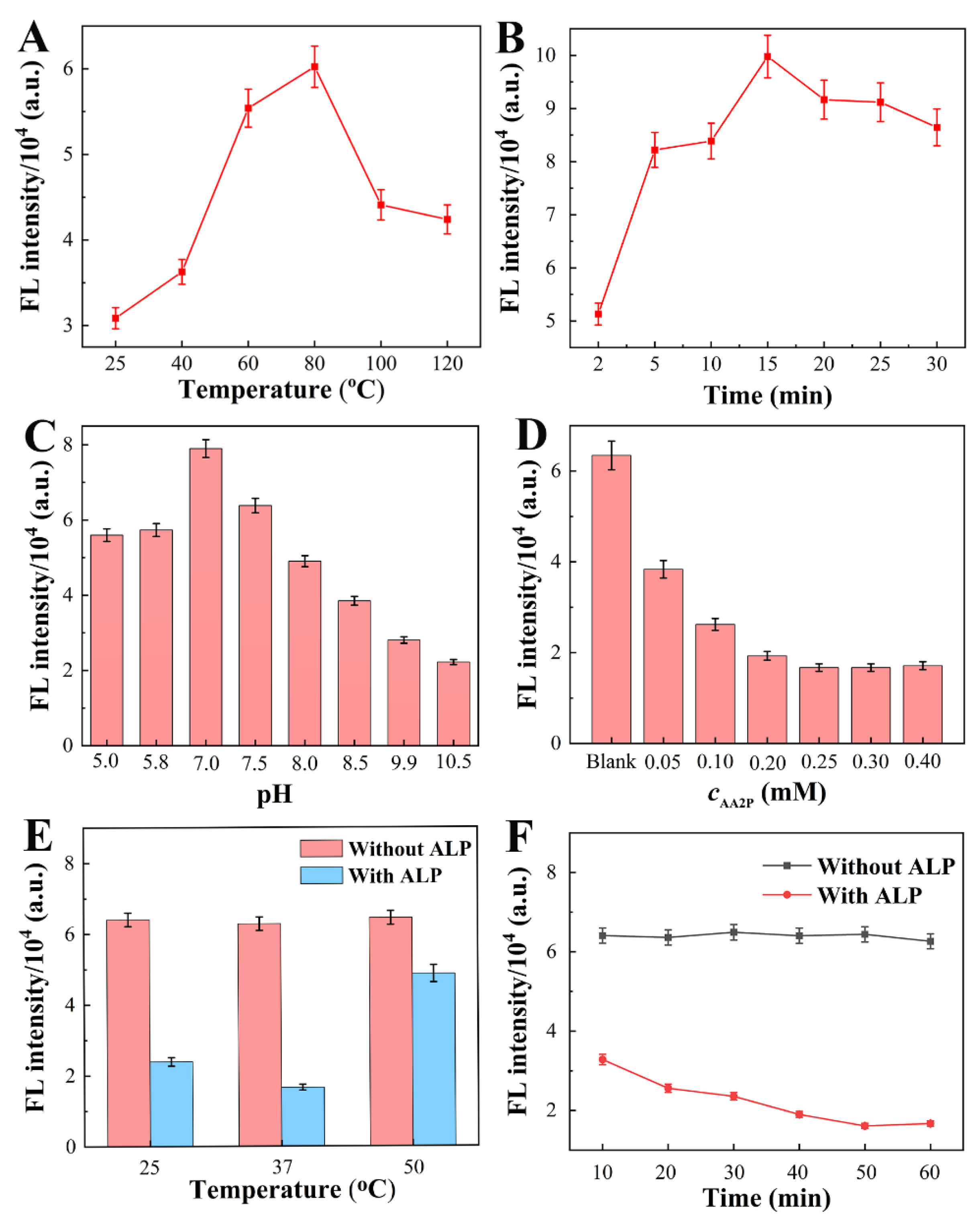

Figure 7. The effects of different microwave irradiation temperatures (25 °C, 40 °C, 60 °C, 80 °C, 100 °C, 120 °C) (A), times (2–30 min) (B), and pH levels (5.0–10.5) (C) on the fluorescent intensity of Ag-TPA CPNs. The effects of different concentrations of AA2P (0.05–0.40 mM) (D), reaction temperatures (25 °C, 37 °C, 50 °C) (E), and times (10–60 min) (F) on the fluorescent detection of ALP. Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm; All error bars represent the standard deviation of three measurements.
Figure 7. The effects of different microwave irradiation temperatures (25 °C, 40 °C, 60 °C, 80 °C, 100 °C, 120 °C) (A), times (2–30 min) (B), and pH levels (5.0–10.5) (C) on the fluorescent intensity of Ag-TPA CPNs. The effects of different concentrations of AA2P (0.05–0.40 mM) (D), reaction temperatures (25 °C, 37 °C, 50 °C) (E), and times (10–60 min) (F) on the fluorescent detection of ALP. Note: c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm; All error bars represent the standard deviation of three measurements.
Molecules 28 01892 g007
Molecules 28 01892 g008 550

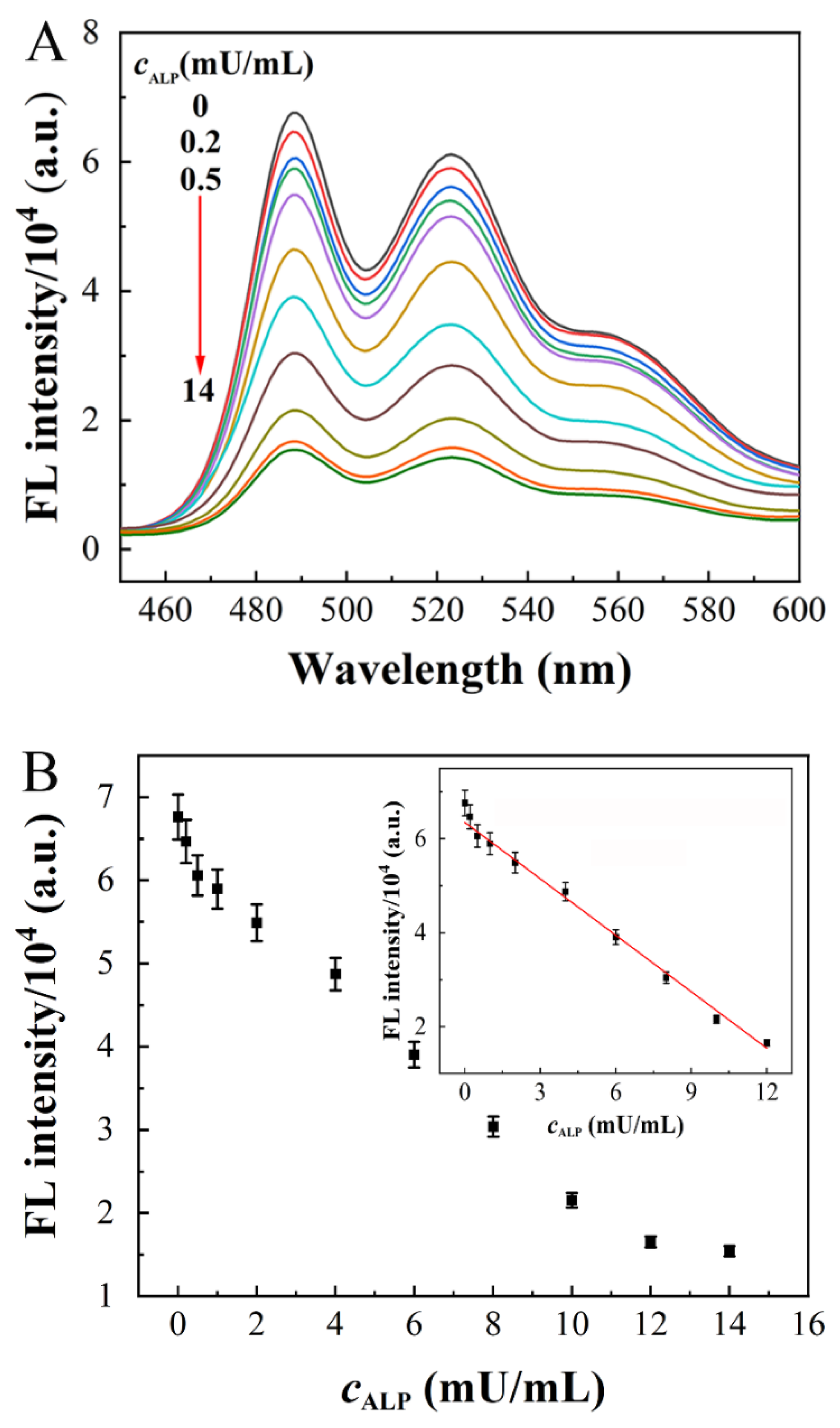

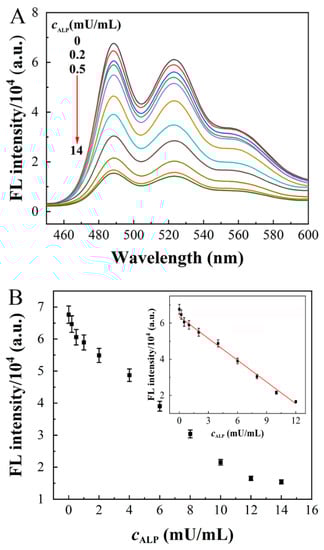

Figure 8. Fluorescent spectra (A) and linear correlation (B) of Ag-TPA CPNs in the presence of various concentrations of ALP. Note: c(ALP, mU/mL): 0, 0.2, 0.5, 1, 2, 4, 6, 8, 10, 12, 14; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm. All error bars represent the standard deviation of three measurements.
Figure 8. Fluorescent spectra (A) and linear correlation (B) of Ag-TPA CPNs in the presence of various concentrations of ALP. Note: c(ALP, mU/mL): 0, 0.2, 0.5, 1, 2, 4, 6, 8, 10, 12, 14; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm. All error bars represent the standard deviation of three measurements.
Molecules 28 01892 g008
Molecules 28 01892 g009 550

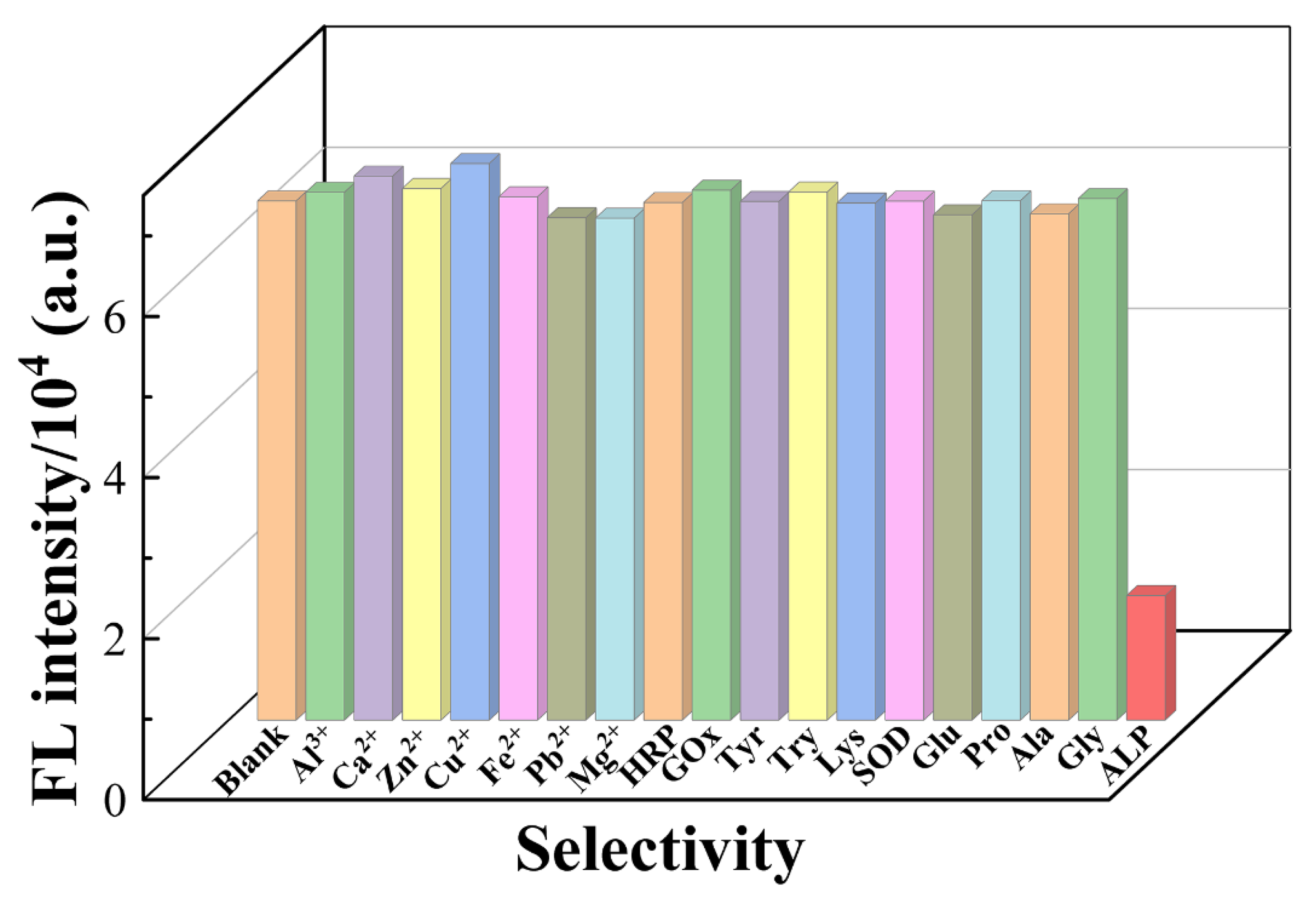

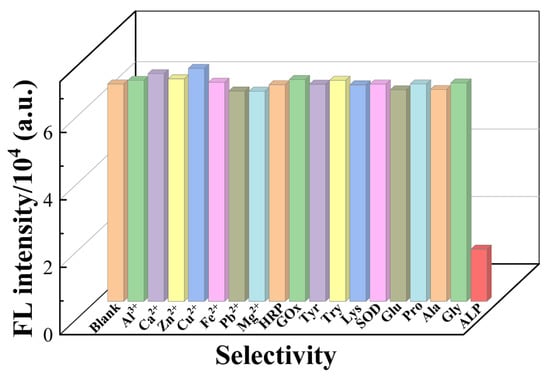

Figure 9. The selectivity in the fluorescent “turn-off” detection of ALP activity using Ag-TPA CPNs. The concentrations of the various enzymes (HRP, GOx, Tyr, Try, Lys, and SOD) equal 1000 mU/mL. The concentrations of the amino acids (Glu, Pro, Ala, Gly) equal 100 μM. The concentrations of the different metal ions (Al3+, Ca2+, Zn2+, Cu2+, Fe2+, Pb2+, Mg2+) equal 100 μM. ALP: alkaline phosphatase; HRP: horseradish peroxidase; GOx: glucose oxidase; Tyr: tyrosinase; Try: trypsin; Lys: lysozyme; SOD: superoxide dismutase; Glu: glutamic acid; Pro: proline; Ala: alanine; Gly: glycine; c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm. All error bars represent the standard deviation of three measurements.
Figure 9. The selectivity in the fluorescent “turn-off” detection of ALP activity using Ag-TPA CPNs. The concentrations of the various enzymes (HRP, GOx, Tyr, Try, Lys, and SOD) equal 1000 mU/mL. The concentrations of the amino acids (Glu, Pro, Ala, Gly) equal 100 μM. The concentrations of the different metal ions (Al3+, Ca2+, Zn2+, Cu2+, Fe2+, Pb2+, Mg2+) equal 100 μM. ALP: alkaline phosphatase; HRP: horseradish peroxidase; GOx: glucose oxidase; Tyr: tyrosinase; Try: trypsin; Lys: lysozyme; SOD: superoxide dismutase; Glu: glutamic acid; Pro: proline; Ala: alanine; Gly: glycine; c(ALP): 10 mU/mL; c(AA2P): 0.25 mM; Ag-TPA CPN solution: 50 μL; λex: 320 nm; λem: 490 nm. All error bars represent the standard deviation of three measurements.
Molecules 28 01892 g009
Table
Table 1. A comparison of the different methods used for the detection of ALP activity.
Table 1. A comparison of the different methods used for the detection of ALP activity.
MethodDetection Signal ChangeLinear Range
(mU/mL)		LOD
(mU/mL)		Refs
FluorescenceOff→on10–20003[1]
FluorescenceOn→off0.25–2500.18[4]
ElectrochemiluminescenceOn→off0.5–100.35[38]
FluorescenceOff→on1–800.34[39]
FluorescenceOff→on→off0.5–100.193[40]
FluorescenceOff→on10–1003.2[41]
FluorescenceOff→on0.1–1000.04[42]
FluorescenceOn→off0.1–80.05[43]
ColorimetricOff→on20–2000.84[44]
FluorescenceOn→off→on1–1000.4[45]
ElectrochemistryOff→on0.1–100.1[46]
FluorescenceOff→on1–300.45[47]
FluorescenceOff→on0.5–200.05[48]
FluorescenceOn→off0.2–120.07This work
Table
Table 2. The recovery levels of ALP activity detection in serum samples.
Table 2. The recovery levels of ALP activity detection in serum samples.
SamplesAdded ALP
(mU/mL)		Found ALP
(mU/mL, n = 3)		Recoveries
(%, n = 3)
111.01, 1.03, 0.98100.7 ± 2.5
254.78, 5.13, 5.0299.5 ± 3.6
3109.88, 10.05, 10.43101.2 ± 2.8
4 a109.66, 9.82, 10.2399.0 ± 2.9
5 b109.69, 9.85, 9.7097.5 ± 0.9
6 c109.65, 10.42, 10.15100.7 ± 3.9
a Represents a serum sample with 10 μM of cysteine coexisting; b represents a serum sample with 10 μM of glutathione coexisting; c represents a serum sample with 10 μM of cysteine, glutathione, and AA coexisting.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pei, K.; Li, D.; Qi, W.; Wu, D. Ultrarapid Microwave-Assisted Synthesis of Fluorescent Silver Coordination Polymer Nanoparticles and Its Application in Detecting Alkaline Phosphatase Activity. Molecules 2023, 28, 1892. https://doi.org/10.3390/molecules28041892

AMA Style

Pei K, Li D, Qi W, Wu D. Ultrarapid Microwave-Assisted Synthesis of Fluorescent Silver Coordination Polymer Nanoparticles and Its Application in Detecting Alkaline Phosphatase Activity. Molecules. 2023; 28(4):1892. https://doi.org/10.3390/molecules28041892

Chicago/Turabian Style

Pei, Kanglin, Di Li, Wenjing Qi, and Di Wu. 2023. "Ultrarapid Microwave-Assisted Synthesis of Fluorescent Silver Coordination Polymer Nanoparticles and Its Application in Detecting Alkaline Phosphatase Activity" Molecules 28, no. 4: 1892. https://doi.org/10.3390/molecules28041892

APA Style

Pei, K., Li, D., Qi, W., & Wu, D. (2023). Ultrarapid Microwave-Assisted Synthesis of Fluorescent Silver Coordination Polymer Nanoparticles and Its Application in Detecting Alkaline Phosphatase Activity. Molecules, 28(4), 1892. https://doi.org/10.3390/molecules28041892

Article Metrics

Back to TopTop
