Article

NO2 Sensing Capability of Pt–Au–SnO2 Composite Nanoceramics at Room Temperature

by
Jiannan Song
1,
Zhongtang Xu
2,
Menghan Wu
1,
Xilai Lu
1,
Zhiqiao Yan
3,
Feng Chen
3 and
Wanping Chen
1,*
1
Key Laboratory of Artificial Micro- and Nano-Structures of Ministry of Education, School of Physics and Technology, Wuhan University, Wuhan 430072, China
2
Key Laboratory of Applied Superconductivity, Institute of Electrical Engineering, Chinese Academy of Sciences, Beijing 100190, China
3
Guangdong Provincial Key Laboratory of Metal Toughening Technology and Application, Institute of New Materials, Guangdong Academy of Sciences, Guangzhou 510650, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(4), 1759; https://doi.org/10.3390/molecules28041759
Submission received: 1 December 2022 / Revised: 9 February 2023 / Accepted: 10 February 2023 / Published: 13 February 2023
(This article belongs to the Special Issue Synthesis and Application of Nanoparticles and Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
Composite ceramics of metal oxides and noble metals have received much attention for sensing reducing gases at room temperature. Presently, composite ceramics of SnO2 and noble metals have been prepared and investigated for sensing oxidizing NO2 at room temperature. While dramatic increases in resistance were observed for both 1 wt% Pt–SnO2 and 5 wt% Au–SnO2 composite nanoceramics after being exposed to NO2 at room temperature, the largest increase in resistance was observed for 1 wt% Pt–5 wt% –Au–SnO2 composite nanoceramics among the three composites. The response to 0.5 ppm NO2-–20% O2–N2 was as high as 875 at room temperature, with a response time of 2566 s and a recovery time of 450 s in the air of 50% relative humidity (RH). Further investigation revealed that water molecules in the air are essential for recovering the resistance of Pt–Au–SnO2 composite nanoceramics. A room temperature NO2-sensing mechanism has been established, in which NO2 molecules are catalyzed by Pt–Au to be chemisorbed on SnO2 at room temperature, and desorbed from SnO2 by the attraction of water molecules in the air. These results suggest that composite ceramics of metal oxides and noble metals should be promising for room temperature sensing, not only reducing gases, but also oxidizing gases.

1. Introduction

Due to more and more fuel combustion in places such as thermal power plants and automobiles, NO2 in the air has been increasing quickly in recent years [1,2]. NO2 is not only directly harmful to human health, but also results in soil contamination through the formation of acid rain [3,4,5,6]. With the advantages of good sensitivity and selectivity, electrochemical gas sensors have been most widely used for NO2 detection [7,8]. However, their relatively short service life [8], susceptibility to environmental interference, and poor stability, have caused much inconvenience for NO2 detection. Other NO2 gas sensors, with good stability, long service life, and low price, are highly expected.
There have been extensive investigations devoted to developing NO2 gas sensors based on metal oxides [9,10,11,12,13,14], and many of them have been focused on developing room-temperature metal oxide NO2 gas sensors. Room temperature operation is not only important for low power consumption, but also for miniaturization. Several research groups have made some impressive progresses by adopting nanostructured metal oxides. For example, Zhang et al. have prepared SnO2–ZnO with a layered nanostructure, which showed responses to ppb level NO2 at 150 °C [15]. Bang et al. have synthesized SnS-nanoparticle-functionalized SnO2 nanowires, which could detect 2 ppm NO2 at 100 °C [16]. Han et al. have synthesized brick-like In2O3 nanomaterials, which exhibited a 402 response to 500 ppm NO2 at 50 °C [17]. Liu et al. have synthesized hollow SnO2–SnS2 nanostructures, which achieved room-temperature NO2 detection by visible light irradiation [18]. Pham et al. have fabricated MoS2 single-layer films, which could detect NO2 at room temperature with red-light irradiation [19]. Although the introduction of light irradiation has brought the operating temperature down to room temperature, it will cause some inconvenience in itself. It has to be pointed out that these low-dimensional-nanostructured materials that have been investigated are of poor mechanical strength and are relatively complicated in composition and structure, which will be unfavorable for practical applications. Many more explorations are highly desirable to develop relatively simple and robust room-temperature NO2 sensors based on metal oxides.
As a matter of fact, to develop room-temperature gas sensors based on metal oxides with a relatively high mechanical strength, two different strategies have already emerged. In the first strategy, a porous nanosolid (PNS) is prepared from metal oxide nanoparticles through a solvothermal hot press (SHP) [20]. PNS is considered an intermediate state between nanoparticles and nanoceramics [21,22], and with both high reactivity of nanoparticles and strength of nanoceramics: some impressive room temperature metal-oxide gas sensors have been fabricated from PNSs [23,24]. In the second strategy, the catalytic effect of noble metals (e.g., Pt and Pd) is utilized to achieve room-temperature gas sensing. Highly remarkable room-temperature gas sensing capabilities have been observed in many composite ceramics of noble metals and metal-oxide semiconductors (e.g., TiO2, WO3, Nb2O5, SnO2 and ZnO), which were prepared through traditional pressing and sintering [25,26,27,28,29,30]. It is worthy to note that for composites of Pt with micron-sized WO3 and SnO2 agglomerate powder [26,27], surprisingly strong room-temperature responses to hydrogen and an extraordinarily high moisture resistance have been observed, which is especially important for practical room-temperature gas sensing applications. Obviously, this strategy is highly appealing for developing room-temperature metal-oxide gas sensors, with promising practical application potentials. However, it has to be pointed out that bulk ceramics prepared through this strategy can only sense reducing gases of H2 and CO at room temperature at present, in which noble metals, such as Pt and Pd, promote H2 and CO to react with the oxygen chemisorbed on the metal oxides, and even be chemisorbed on the metal oxides at room temperature [31,32,33,34,35]. There have been no reports on preparing bulk materials capable of sensing oxidizing gases, including NO2, at room temperature through this strategy up to date.
In a previous investigation, the resistance of Pt–SnO2 nanoparticles was found to increase dramatically with increasing Pt content, which clearly indicates that Pt can promote the chemisorption of oxygen molecules on SnO2 at room temperature [36]. In another investigation, Pd was also found to be able to promote oxygen chemisorption on SnO2 in Pd–SnO2 nanoparticles at room temperature through XPS analyses [29]. It is well known that O2 is a typically oxidizing gas. These facts suggest that noble metals, such as Pt and Pd, may also be able to promote some oxidizing gases to be chemisorbed on some metal oxides at room temperature, and in turn, their composites, with these metal oxides, should be able to show responses to the oxidizing gases at room temperature. Thus, this indicates that bulk composites capable of sensing oxidizing gases at room temperature should be possibly obtained through the second strategy. Presently, we have adopted this strategy to prepare Pt–SnO2 composite nanoceramics through pressing and sintering, which were indeed found to show strong responses to NO2 at room temperature. More interestingly, the room-temperature NO2 sensing characteristics were further dramatically improved through the introduction of Au to the composites, and a rather remarkable room-temperature NO2 sensing capability has been observed for Pt–Au–SnO2 composite nanoceramics. Some further studies have been conducted, which show that water molecules in the air play a vital role for those samples to recover their resistance in the air after being exposed to NO2. It is proposed that NO2 molecules are catalyzed by Pt–Au to be chemisorbed on SnO2 at room temperature, and are removed from SnO2 by the attraction of water molecules in the air. These results clearly demonstrate that metal-oxide bulk materials capable of sensing oxidizing gases at room temperature can be prepared through pressing and sintering. However, more investigation regarding this is highly desirable.

2. Results and Discussion

2.1. Phase and Morphological Investigations

Figure 1 shows the X-ray diffraction (XRD) patterns obtained for three kinds of nanoceramics, of which the nominal compositions/sintering temperatures are 1 wt% Pt–SnO2/950 °C, 5 wt% Au–SnO2/950 °C and 1 wt% Pt–5 wt% Au–SnO2/950 °C, respectively. As shown in Figure 1a, for 1 wt% Pt–SnO2, three diffraction peaks can be clearly identified as (111), (200) and (220) planes of cubic Pt, according to JCPDS 04-0802. All other diffraction peaks can be identified as planes of rutile SnO2, according to CPDS 78-1063. Obviously, this sample was a composite of the cubic Pt and rutile SnO2. Figure 1b illustrates the XRD diffraction pattern of 5 wt% Au–SnO2. Similarly, all the diffraction peaks can be identified as planes of rutile SnO2 and cubic Au (JCPDS 65-2870) respectively, indicating a composite of Au and SnO2. Figure 1c presents the XRD pattern of 1 wt% Pt–5 wt% Au–SnO2. Beside the peaks from the rutile SnO2, some peaks from both the cubic Au and Pt can be observed, which indicates that Pt and Au existed as separate phases in this sample. Therefore, this sample of 1 wt% Pt–5 wt% Au–SnO2 was a composite of the cubic Pt, cubic Au, and rutile SnO2. As a matter of fact, both Pt and Au are highly stable noble metals, and it is reasonable that they can form composites with SnO2 through high-temperature sintering.
As pointed out in some previous papers, the SnO2 nanoparticles used in this study exhibit a very unique sintering behavior, and pellets prepared from them showed no sintering shrinkage, even after being sintered at 1200 °C [29]. Accordingly, all the samples prepared in this study showed no noticeable sintering shrinkage either. Figure 2a shows an SEM micrograph obtained for a fractured surface of a sample of 1 wt% Pt–5 wt% Au–SnO2 nanoceramics sintered at 950 °C for 2 h in the air. Firstly, some nanopores can be clearly observed in the micrograph, which should be helpful for gas sensing. It can be observed that most grains are about 70 nm in diameter, while a few much larger grains, around 300 nm in diameter, can also be observed. According to the EDS analysis shown in Figure 2b, those smaller grains should be SnO2 nanograins, and they must have experienced no obvious grain growth in the sintering, as they were quite similar to SnO2 nanoparticles in size. The much larger grains were Pt and Au grains, respectively. The Au powder and Pt powder were marked as <500 nm and <1 μm, respectively. Thus, these large grains must have come from their starting materials. According to two very recent papers, large Pt grains are important for room-temperature CO-sensitive and H2-sensitive Pt–SnO2 composite nanoceramics to achieve a high, long-term stability [37,38]. As a matter of fact, these two commercial Au and Pt powders, with relatively large particles, had been intentionally chosen as starting materials in this study.

2.2. Room-Temperature NO2-Sensing Measurement

Pt–SnO2 composite nanoceramics have been found to show strong responses to the reducing gases of H2 and CO at room temperature, which is characterized by a dramatic decrease in their resistance upon being exposed to the gases [29,36]. According to our knowledge, however, there have been no reports on the room-temperature responses of the Pt–SnO2 composite nanoceramics to any oxidizing gases up to date. It is, thus, very surprising to see that the Pt–SnO2 composite nanoceramics prepared in this study exhibited an extraordinarily strong response to 10 ppm NO2–20% O2–N2 at room temperature, as shown in Figure 3. For the sensing of oxidizing gases, the response S is usually defined as S = Rg/Ra, where Rg and Ra represent the resistance of the sensor in the target gas and in the air, respectively, and response (recovery) time is defined as the time taken by the sensor to reach 90% of the total resistance change after the introduction (discontinuation) of the gas for testing [15]. According to this definition, this sample of 1 wt% Pt–SnO2 had a room-temperature response of 923 with a response time of 614 s and a recovery time of 1350 s to 10 ppm NO2–20% O2–N2. Such a room temperature response to NO2 is highly outstanding when compared with those of the newly reported metal oxides in the literature.
For reference, other kinds of composites had also been prepared and investigated for room-temperature NO2 sensing. A very interesting result was observed for a sample of 5 wt% Au–SnO2, sintered at 950 °C for 2 h in the air, as shown in Figure 3. Firstly, it can be seen that this sample had a very low resistance in the air, which indicates that Au is much less effective than Pt in promoting the chemisorption of O2 molecules on SnO2 at room temperature. Secondly, this sample also showed a strong response to 10 ppm NO2–20% O2–N2 at room temperature, with a response of 132, a response time of 1279 s and a recovery of 672 s. It seems that Au has a stronger catalytic effect on NO2 molecules than O2 molecules, with regards to their chemisorption on SnO2 at room temperature.
For the sample of 1 wt% Pt–SnO2, the response was very attractive, but its resistance to NO2 was too high to ensure a stable measurement. The signal was a little unstable at the top of the curve. When regarding the sample of 5 wt% Au–SnO2, it had a much smaller resistance in NO2, but its response to NO2 was also much weaker than that of the former sample. Clearly, these two samples had some rather complementary advantages and disadvantages. Therefore, we had prepared composites of 1 wt% Pt–5 wt% Au–SnO2, and the result was very surprising. As shown in Figure 3, impressive room-temperature NO2-sensing properties are observed for a sample of 1 wt% Pt–5 wt% Au–SnO2. First, this sample had a much lower resistance in the air than the sample of 1 wt% Pt–SnO2, which indicates that the room temperature chemisorption of O2 molecules on SnO2 in the presence of both Pt and Au is much different from that in the presence of Pt alone. Secondly, this sample showed an extraordinarily strong response to NO2 at room temperature, with a response of 6031, a response time of 591 s, and a recovery time of 430 s to 10 ppm NO2–20% O2–N2. Due to its rather small resistance in the air, the signal was quite stable in NO2, even with such a strong response. It is worthy to note that this sample had the strongest response to NO2 at room temperature among the three samples, which is actually very difficult to understand.
The sample of 1 wt% Pt–5 wt% Au–SnO2 had been exposed to NO2 in a series of concentrations at room temperature and the results are shown in Figure 4. Its room-temperature response to 0.5 ppm NO2–20% O2–N2 was 875, with a response time of 2566 s, and a recovery time of 450 s. With increasing NO2 concentration, both the response and the response speed increased steadily. To 8 ppm NO2–20% O2–N2, the response was increased to 4300 with a much smaller response time of 924 s and a recovery time of 440 s. It is interesting to compare this sample with some representative NO2-sensitive nanomaterials newly reported in the literature, as shown in Table 1. It can be clearly seen that our sample had a much higher room-temperature response to a low concentration NO2 than all these low-dimensional nanomaterials, and as a bulk material, our sample should also have a much higher mechanical strength. Obviously, these results indicate that the composite nanoceramics of 1 wt% Pt–5 wt% Au–SnO2 prepared in this study should be highly attractive for room-temperature NO2 sensing.

2.3. Mechanism Study on Room-Temperature NO2 Sensing Characteristics

As an oxidizing gas, NO2 increases the resistance of n-type semiconductors through its chemisorption, which is the same as what oxygen does. It is meaningful to identify the influence of NO2 from that of oxygen in NO2 sensing. For this purpose, we had exposed a sample of 1 wt% Pt–5 wt% Au–SnO2 to a series of specifically designated atmospheres at room temperature, as shown in Figure 5. When the atmosphere was first changed from air to 20% O2–N2, the resistance slowly increased with time, which actually indicates a drying effect of the flowing gas of 20% O2–N2 in the sample. Those oxygen molecules chemisorbed on SnO2 must be very stable, so there was no turning point when the atmosphere was changed from 20% O2–N2 to N2. Upon being exposed to 10 ppm NO2–N2, a steep increase was observed when the atmosphere was changed from N2 to 10 ppm NO2–N2. The resistance was finally increased by more than three orders of magnitude, which demonstrates a strong chemisorption of NO2 on SnO2. When the surrounding atmosphere was changed from 10 ppm NO2–N2 to N2, the resistance only decreased very slowly with time, which further confirms a strong chemisorption of NO2 on SnO2. No turning point appeared when the atmosphere was changed from N2 to 20% O2–N2. It is worth mentioning that when the atmosphere was changed from 20% O2–N2 to N2 and from N2 to 20% O2–N2, respectively, only the oxygen content was changed. The absence of the turning point for oxygen content change in the resistance versus the time curve indicates a stable oxygen chemisorption on SnO2. Considering that both NO2 and O2 are strongly chemisorbed on SnO2 at room temperature, it was highly surprising to see that the resistance was sharply decreased when the surrounding atmosphere was changed from 20% O2–N2 to the air of 50% RH, as shown in Figure 5. Given the difference between these two atmospheres, water molecules in the air had obviously played the vital role in this resistance decrease.
The chemisorption of NO2 on SnO2 at room temperature in 10 ppm NO2–N2 can be expressed as [43]:
N O 2 ( gas ) + e ′ → N O 2 ( adsorbed ) −
in which Pt–Au must have acted as the catalyst for the reaction, as shown in Figure 6a. As an oxidizing gas, NO2 molecules accept electrons from SnO2 when they are chemisorbed on SnO2. This explains the steep increase in resistance when the sample is exposed to 10 ppm NO2–N2. When the surrounding atmosphere is changed from 10 ppm NO2–N2 to N2, the chemisorption of NO2 is so stable that most NO2 molecules will not leave SnO2 in the surrounding N2, as shown in Figure 6b. In this way, only a slight decrease in resistance can be observed. When the surrounding atmosphere is changed from N2 to 20% O2–N2, no more O2 molecules can be chemisorbed on SnO2, as those O2 molecules chemisorbed on SnO2 earlier have remained there, as shown in Figure 6c. Thus, no resistance change can be observed for this atmosphere change. H2O and NO2 molecules are able to form NO2–H2O clusters through the hydrogen bonds between them [44]. When the ambient atmosphere is changed from 20% O2–N2 to the air of 50% relative humidity, NO2 molecules are desorbed from SnO2 by the attraction of H2O molecules, as shown in Figure 6d. This desorption of NO2 can be expressed as:
N O 2 ( adsorbed ) − + H 2 O → H 2 O − N O 2 + e ′
The electrons captured by the NO2 molecules are returned to SnO2, so the resistance is greatly decreased when air with H2O molecules is introduced. This forms a sharp contrast with the resistance recovery in the air for n-type metal oxides after being exposed to reducing gases at room temperature, in which oxygen molecules in the air are chemisorbed on the metal oxides and the resistance is increased.

3. Materials and Methods

3.1. Material Preparation

SnO2 nanoparticles (70 nm, 99.99%), a commercial Au powder (<500 nm, 99.9%), and a commercial Pt powder (<1 μm, 99.9%) from Aladdin, Shanghai, China, were used as the starting materials. According to designated ratios, these particles were mixed in deionized water and magnetically stirred. For every suspension, magnetic stirring was performed for 10 h to ensure homogeneous mixing, and then the suspension was dried in an oven at 120 °C for 2 h. After grinding, the dried powders were homogenized with deionized water as a binder, and pressed using a hydraulic press at 3 MPa to form pellets with a diameter of 10 mm and a thickness of 1 mm. The pellets were sintered at 850–1050 °C for 2 h in air. For gas-sensing measurement, a pair of rectangular gold electrodes was formed on a major surface of a sample, through direct-current (DC) magnetron sputtering.

3.2. NO2-Sensing Measurement

A commercial gas-sensing measurement system (GRMS-215, Partulab Com., Wuhan, China), which has been described in detail in previous papers [31,45], was used for the tests, mainly composed of a 350 mL quartz-sealed chamber and a computer for recording data. The sealed chamber contained four inlet tubes and one exhaust tube. Four inlet tubes were connected to N2 (99.999%, Zhongxinruiyuan Gas, Wuhan, China), O2 (99.999%, Zhongxinruiyuan Gas, Wuhan, China), 15 ppm NO2–N2 (97.0%, Foshan Kodi Gas, Foshan, China), and the air, to realize designated internal atmospheres. A flow controller was used to control the gas inflow in every pipe and ensure a stable gas flow. During the response stage, NO2, N2, and O2 entered the chamber at specific rates through three tubes, and the total rate was maintained at 300 mL/min. During the recovery stage, ambient air was pumped into the chamber at a rate of 10 L/min. During most measurements, the room temperature was kept at 25 °C and the RH in the air remained around 50%.

3.3. Material Characterization

Crystal structures of the prepared samples were investigated by powder X-ray diffraction (BRUKER AXS D8 ADVANCE, Bruker Daltonics, Bremen, Germany), using Cu Kα radiation. Morphologies and microstructures of the nanoceramics were characterized by scanning electron microscopy (SEM; SIRION, FEI, Eindhoven, the Netherlands). The distribution of elements was studied by energy-dispersive spectroscopy (EDS, ZEISS Corporation, Jena, Germany), using the OXFORD Aztec 250 instrument (Oxford Instruments, Oxford, UK).

4. Conclusions

Composite nanoceramics have been prepared through the pressing and sintering of Pt, Au, and SnO2 nanoparticles. For samples of 1 wt% Pt–SnO2, the resistance was greatly increased after being exposed to NO2 in synthetic air at room temperature. For samples of 5 wt% Au–SnO2, the resistance was unusually small in the air, and was dramatically increased by NO2 in synthetic air at room temperature. Samples of 1 wt% Pt–5 wt% Au–SnO2 had the strongest response to NO2 at room temperature, with a response of 875 to 0.5 ppm NO2–20% O2–N2, a response time of 2566 s, and a recovery time of 450 s in the air of 50% RH. Such a room-temperature NO2-sensing capability is highly remarkable among those reported in the literature. According to the mechanism study results, it is proposed that NO2 molecules are chemisorbed on SnO2 under the catalytic effect of Pt–Au at room temperature, and water molecules in the air have a tendency to desorb NO2 molecules from SnO2 through attraction. More studies on composite ceramics of metal oxides and noble metals for sensing oxidizing gases at room temperature are highly desirable.

Author Contributions

W.C. conceived and designed the study. J.S., M.W. and X.L. performed the experiments. J.S. performed the Testing. Z.X., Z.Y. and F.C. participated in part of the testing. J.S. and W.C. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program of China under the grant No. 2020YFB2008800, and the National Natural Science Foundation of China under the grant No. U2067207.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available on request due to restrictions privacy.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not available.

References

  1. Anenberg, S.C.; Miller, J.; Minjares, R.; Du, L.; Henze, D.K.; Lacey, F.; Malley, C.S.; Emberson, L.; Franco, V.; Klimont, Z.; et al. Impacts and mitigation of excess diesel-related NOx emissions in 11 major vehicle markets. Nature 2017, 545, 467–471. [Google Scholar] [CrossRef] [PubMed]
  2. Pinault, L.; Crouse, D.; Jerrett, M.; Brauer, M.; Tjepkema, M. Spatial associations between socioeconomic groups and NO2 air pollution exposure within three large Canadian cities. Environ. Res. 2016, 147, 373–382. [Google Scholar] [CrossRef] [PubMed]
  3. Yan, W.; Yun, Y.; Ku, T.; Li, G.; Sang, N. NO2 inhalation promotes Alzheimer’s disease-like progression: Cyclooxygenase-2-derived prostaglandin E2 modulation and monoacylglycerol lipase inhibition-targeted medication. Sci. Rep. 2016, 6, 22429. [Google Scholar] [CrossRef] [PubMed]
  4. Raptis, D.; Livas, C.; Stavroglou, G.; Giappa, R.M.; Tylianakis, E.; Stergiannakos, T.; Froudakis, G.E. Surface Modification Strategy for Enhanced NO2 Capture in Metal–Organic Frameworks. Molecules 2022, 27, 3448. [Google Scholar] [CrossRef] [PubMed]
  5. Lerdau, M.T.; Munger, J.W.; Jacob, D.J. The NO2 flux conundrum. Science 2000, 289, 2291–2293. [Google Scholar] [CrossRef]
  6. Pan, Y.; Dong, L.; Yin, X.; Wu, H. Compact and highly sensitive NO2 photoacoustic sensor for environmental monitoring. Molecules 2020, 25, 1201. [Google Scholar] [CrossRef]
  7. Williams, D.E. Electrochemical sensors for environmental gas analysis. Curr. Opin. Electrochem. 2020, 22, 145–153. [Google Scholar] [CrossRef]
  8. Khan, M.A.H.; Rao, M.V.; Li, Q. Recent advances in electrochemical sensors for detecting toxic gases: NO2, SO2 and H2S. Sensors 2019, 19, 905. [Google Scholar] [CrossRef]
  9. Ri, J.; Li, X.; Shao, C.; Liu, Y.; Han, C.; Li, X.; Liu, Y. Sn-doping induced oxygen vacancies on the surface of the In2O3 nanofibers and their promoting effect on sensitive NO2 detection at low temperature. Sens. Actuators B 2020, 317, 128194. [Google Scholar] [CrossRef]
  10. Chethana, D.; Thanuja, T.; Mahesh, H.; Kiruba, M.; Jose, A.; Barshilia, H.; Manjanna, J. Synthesis, structural, magnetic and NO2 gas sensing property of CuO nanoparticles. Ceram. Int. 2021, 47, 10381–10387. [Google Scholar] [CrossRef]
  11. Nasriddinov, A.; Tokarev, S.; Platonov, V.; Botezzatu, A.; Fedorova, O.; Rumyantseva, M.; Fedorov, Y. Heterobimetallic Ru (II)/M (M = Ag+, Cu2+, Pb2+) Complexes as Photosensitizers for Room-Temperature Gas Sensing. Molecules 2022, 27, 5058. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, D.; Ren, X.; Li, Y.; Tang, Z.; Zhang, Z. Nanowires-assembled WO3 nanomesh for fast detection of ppb-level NO2 at low temperature. J. Adv. Ceram. 2020, 9, 17–26. [Google Scholar] [CrossRef]
  13. Guo, J.; Li, W.; Zhao, X.; Hu, H.; Wang, M.; Luo, Y.; Xie, D.; Zhang, Y.; Zhu, H. Highly Sensitive, Selective, Flexible and Scalable Room-Temperature NO2 Gas Sensor Based on Hollow SnO2/ZnO Nanofibers. Molecules 2021, 26, 6475. [Google Scholar] [CrossRef] [PubMed]
  14. Pandit, N.A.; Ahmad, T. Tin Oxide Based Hybrid Nanostructures for Efficient Gas Sensing. Molecules 2022, 27, 7038. [Google Scholar] [CrossRef]
  15. Zhang, Z.; Xu, M.; Liu, L.; Ruan, X.; Yan, J.; Zhao, W.; Yun, J.; Wang, Y.; Qin, S.; Zhang, T. Novel SnO2@ ZnO hierarchical nanostructures for highly sensitive and selective NO2 gas sensing. Sens. Actuators B 2018, 257, 714–727. [Google Scholar] [CrossRef]
  16. Bang, J.H.; Lee, N.; Mirzaei, A.; Choi, M.S.; Choi, H.S.; Park, H.; Jeon, H.; Kim, S.S.; Kim, H.W. SnS-functionalized SnO2 nanowires for low-temperature detection of NO2 gas. Mater. Charact. 2021, 175, 110986. [Google Scholar] [CrossRef]
  17. Han, D.; Zhai, L.; Gu, F.; Wang, Z. Highly sensitive NO2 gas sensor of ppb-level detection based on In2O3 nanobricks at low temperature. Sens. Actuators B 2018, 262, 655–663. [Google Scholar] [CrossRef]
  18. Liu, D.; Tang, Z.; Zhang, Z. Visible light assisted room-temperature NO2 gas sensor based on hollow SnO2@ SnS2 nanostructures. Sens. Actuators B 2020, 324, 128754. [Google Scholar] [CrossRef]
  19. Pham, T.; Li, G.; Bekyarova, E.; Itkis, M.E.; Mulchandani, A. MoS2-based optoelectronic gas sensor with sub-parts-per-billion limit of NO2 gas detection. ACS Nano 2019, 13, 3196–3205. [Google Scholar] [CrossRef]
  20. Xu, H.; Liu, X.; Li, M.; Chen, Z.; Cui, D.; Jiang, M.; Meng, X.; Yu, L.; Wang, C. Preparation and characterization of TiO2 bulk porous nanosolids. Mater. Lett. 2005, 59, 1962–1966. [Google Scholar] [CrossRef]
  21. Yu, Q.; Wang, K.; Luan, C.; Geng, Y.; Lian, G.; Cui, D. A dual-functional highly responsive gas sensor fabricated from SnO2 porous nanosolid. Sens. Actuators B 2011, 159, 271–276. [Google Scholar] [CrossRef]
  22. Luan, C.; Wang, K.; Yu, Q.; Lian, G.; Zhang, L.; Wang, Q.; Cui, D. Improving the gas-sensing performance of SnO2 porous nanosolid sensors by surface modification. Sens. Actuators B 2013, 176, 475–481. [Google Scholar] [CrossRef]
  23. Henshaw, G.S.; Ridley, R.; Williams, D.E. Room-temperature response of platinised tin dioxide gas-sensitive resistors. J. Chem. Soc. Faraday Trans. 1996, 92, 3411–3417. [Google Scholar] [CrossRef]
  24. Wang, K.; Zhao, T.; Lian, G.; Yu, Q.; Luan, C.; Wang, Q.; Cui, D. Room temperature CO sensor fabricated from Pt-loaded SnO2 porous nanosolid. Sens. Actuators B 2013, 184, 33–39. [Google Scholar] [CrossRef]
  25. Xiong, Y.; Chen, W.; Li, Y.; Cui, P.; Guo, S.; Chen, W.; Tang, Z.; Yan, Z.; Zhang, Z. Contrasting room-temperature hydrogen sensing capabilities of Pt-SnO2 and Pt-TiO2 composite nanoceramics. Nano Res. 2016, 9, 3528–3535. [Google Scholar] [CrossRef]
  26. Huang, Y.; Li, P.; Xu, L.; Yu, Y.; Chen, W. Ultrahigh humidity tolerance of room-temperature hydrogen sensitive Pt–WO3 porous composite ceramics with ultra-large WO3 grains. Appl. Phys. A 2021, 127, 952. [Google Scholar] [CrossRef]
  27. Li, P.; Xiong, Z.; Zhu, S.; Wang, M.; Hu, Y.; Gu, H.; Wng, Y.; Chen, W. Singular room-temperature hydrogen sensing characteristics with ultrafast recovery of Pt-Nb2O5 porous composite ceramics. Int. J. Hydrogen Energy 2017, 42, 30186–30192. [Google Scholar] [CrossRef]
  28. Wang, M.; Sun, B.; Jiang, Z.; Liu, Y.; Wang, X.; Tang, Z.; Wang, Y.; Chen, W. Preparation and extraordinary room-temperature co sensing capabilities of Pd–SnO2 composite nanoceramics. J. Nanosci. Nanotechnol. 2018, 18, 4176–4181. [Google Scholar] [CrossRef]
  29. Zhu, S.; Liu, Y.; Wu, G.; Fei, L.; Zhang, S.; Hu, Y.; Yan, Z.; Wang, Y.; Gu, H.; Chen, W. Mechanism study on extraordinary room-temperature CO sensing capabilities of Pd-SnO2 composite nanoceramics. Sens. Actuators B 2019, 285, 49–55. [Google Scholar] [CrossRef]
  30. Liu, M.; Li, P.; Huang, Y.; Cheng, L.; Hu, Y.; Tang, Z.; Chen, W. Room-temperature hydrogen-sensing capabilities of Pt-SnO2 and Pt-ZnO composite nanoceramics occur via two different mechanisms. Nanomaterials 2021, 11, 504. [Google Scholar] [CrossRef]
  31. Gui, F.; Huang, Y.; Wu, M.; Lu, X.; Hu, Y.; Chen, W. Aging Behavior and Heat Treatment for Room-Temperature CO-Sensitive Pd-SnO2 Composite Nanoceramics. Materials 2022, 15, 1367. [Google Scholar] [CrossRef] [PubMed]
  32. Hassan, K.; Chung, G.-S. Catalytically activated quantum-size Pt/Pd bimetallic core–shell nanoparticles decorated on ZnO nanorod clusters for accelerated hydrogen gas detection. Sens. Actuators B 2017, 239, 824–833. [Google Scholar] [CrossRef]
  33. Mousavi, H.; Mortazavi, Y.; Khodadadi, A.A.; Saberi, M.H.; Alirezaei, S. Enormous enhancement of Pt/SnO2 sensors response and selectivity by their reduction, to CO in automotive exhaust gas pollutants including CO, NOx and C3H8. Appl. Surf. Sci. 2021, 546, 149120. [Google Scholar] [CrossRef]
  34. Xu, D.; Li, W.; Duan, H.; Ge, Q.; Xu, H. Reaction performance and characterization of Co/Al2O3 Fischer–Tropsch catalysts promoted with Pt, Pd and Ru. Catal. Lett. 2005, 102, 229–235. [Google Scholar] [CrossRef]
  35. Dhall, S.; Kumar, M.; Bhatnagar, M.; Mehta, B.R. Dual gas sensing properties of graphene-Pd/SnO2 composites for H2 and ethanol: Role of nanoparticles-graphene interface. Int. J. Hydrogen Energy 2018, 43, 17921–17927. [Google Scholar] [CrossRef]
  36. Liu, M.; Wang, C.; Li, P.; Cheng, L.; Hu, Y.; Xiong, Y.; Guo, S.; Gu, H.; Chen, W. Transforming Pt-SnO2 Nanoparticles into Pt-SnO2 Composite Nanoceramics for Room-Temperature Hydrogen-Sensing Applications. Materials 2021, 14, 2123. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, M.; Gui, F.; Lu, X.; Yan, Z.; Chen, F.; Jiang, Y.; Luo, X.; Chen, W. Achieving a high long-term stability for room temperature CO-sensitive Pt-SnO2 composite nanoceramics through two strategies. Mater. Sci. Eng. B 2022, 286, 116070. [Google Scholar] [CrossRef]
  38. Huang, Y.; Chen, F.; Meng, L.; Hu, Y.; Chen, W. Aging and activation of room temperature hydrogen sensitive Pt–SnO2 composite nanoceramics. J. Mater. Sci. 2022, 57, 15267–15275. [Google Scholar] [CrossRef]
  39. Du, W.; Wu, N.; Wang, Z.; Liu, J.; Xu, D.; Liu, W. High response and selectivity of platinum modified tin oxide porous spheres for nitrogen dioxide gas sensing at low temperature. Sens. Actuators B 2018, 257, 427–435. [Google Scholar] [CrossRef]
  40. Bang, J.H.; Mirzaei, A.; Han, S.; Lee, H.Y.; Shin, K.Y.; Kim, S.S.; Kim, H.W. Realization of low-temperature and selective NO2 sensing of SnO2 nanowires via synergistic effects of Pt decoration and Bi2O3 branching. Ceram. Int. 2021, 47, 5099–5111. [Google Scholar] [CrossRef]
  41. Wang, Z.; Zhang, T.; Han, T.; Fei, T.; Liu, S.; Lu, G. Oxygen vacancy engineering for enhanced sensing performances: A case of SnO2 nanoparticles-reduced graphene oxide hybrids for ultrasensitive ppb-level room-temperature NO2 sensing. Sens. Actuators B 2018, 266, 812–822. [Google Scholar] [CrossRef]
  42. Pyeons, J.J.; Baek, I.-H.; Song, Y.G.; Kim, G.S.; Cho, A.-J.; Lee, G.-Y.; Han, J.H.; Chung, T.-M.; Hwang, C.S.; Kang, C.-Y.; et al. Highly sensitive flexible NO2 sensor composed of vertically aligned 2D SnS2 operating at room temperature. J. Mater. Chem. C 2020, 8, 11874–11881. [Google Scholar] [CrossRef]
  43. Geng, X.; Lu, P.; Zhang, C.; Lahem, D.; Olivier, M.-G.; Debliquy, M. Room-temperature NO2 gas sensors based on rGO@ZnO1-x composites: Experiments and molecular dynamics simulation. Sens. Actuators B 2019, 282, 690–702. [Google Scholar] [CrossRef]
  44. Howell, J.M.; Sapse, A.M.; Singman, E.; Snyder, G. Ab initio SCF calculations of NO2−(H2O)n and NO3−(H2O)n clusters. J. Phys. Chem. C 1982, 86, 2345–2349. [Google Scholar] [CrossRef]
  45. Lu, X.; Wu, M.; Huang, Y.; Song, J.; Liu, Y.; Yan, Z.; Chen, F.; Zhao, J.; Chen, W. Influences of Impurity Gases in Air on Room-Temperature Hydrogen-Sensitive Pt–SnO2 Composite Nanoceramics: A Case Study of H2S. Chemosensors 2023, 11, 31. [Google Scholar] [CrossRef]
Molecules 28 01759 g001 550

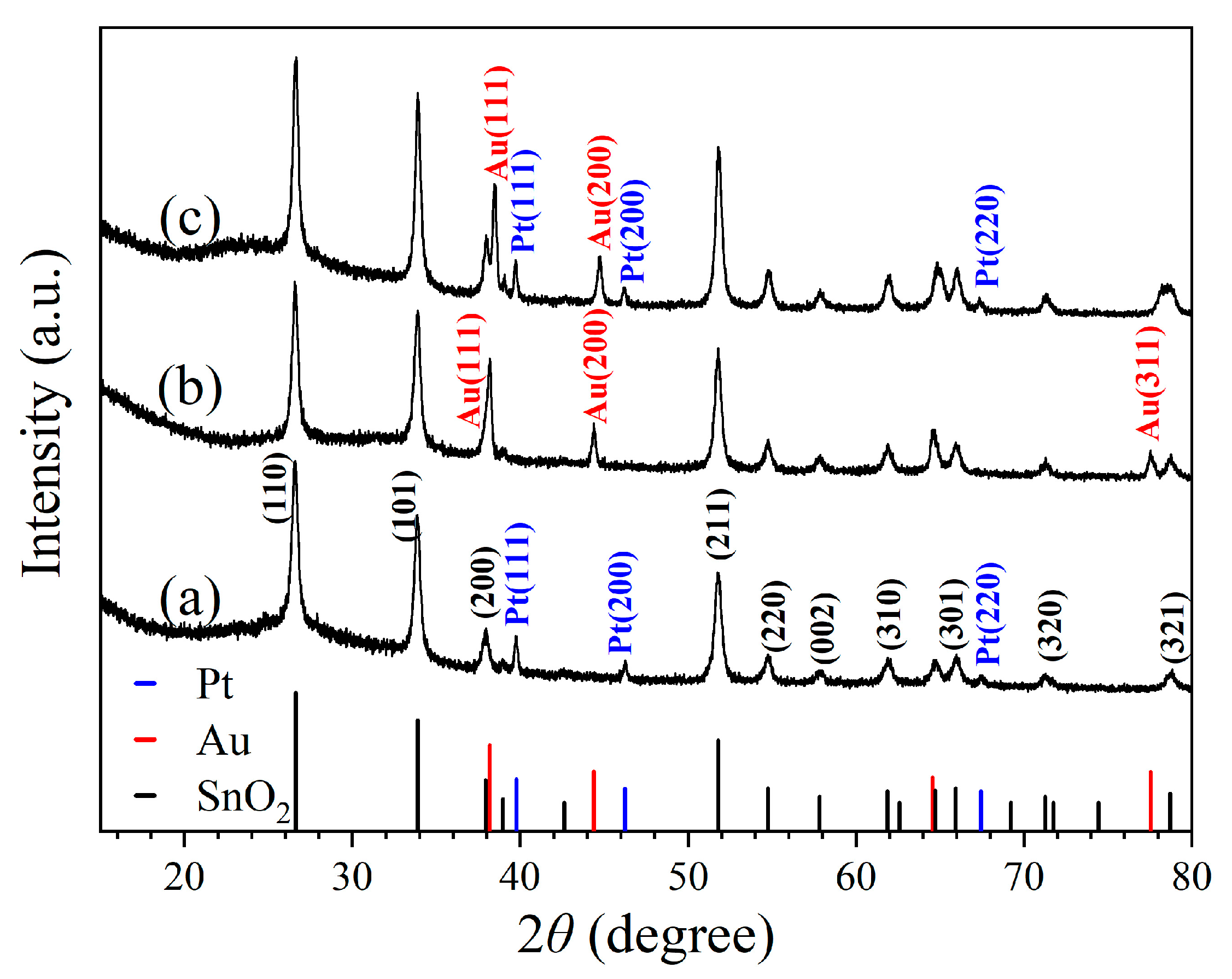

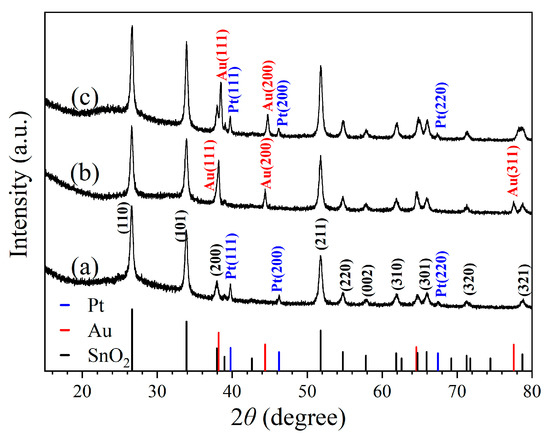

Figure 1. X-ray diffraction patterns taken for samples of (a) 1 wt% Pt–SnO2, (b) 5 wt% Au–SnO2, and (c) 1 wt% Pt–5 wt% Au–SnO2, after being sintered at 950 °C for 2 h in the air.
Figure 1. X-ray diffraction patterns taken for samples of (a) 1 wt% Pt–SnO2, (b) 5 wt% Au–SnO2, and (c) 1 wt% Pt–5 wt% Au–SnO2, after being sintered at 950 °C for 2 h in the air.
Molecules 28 01759 g001
Molecules 28 01759 g002 550

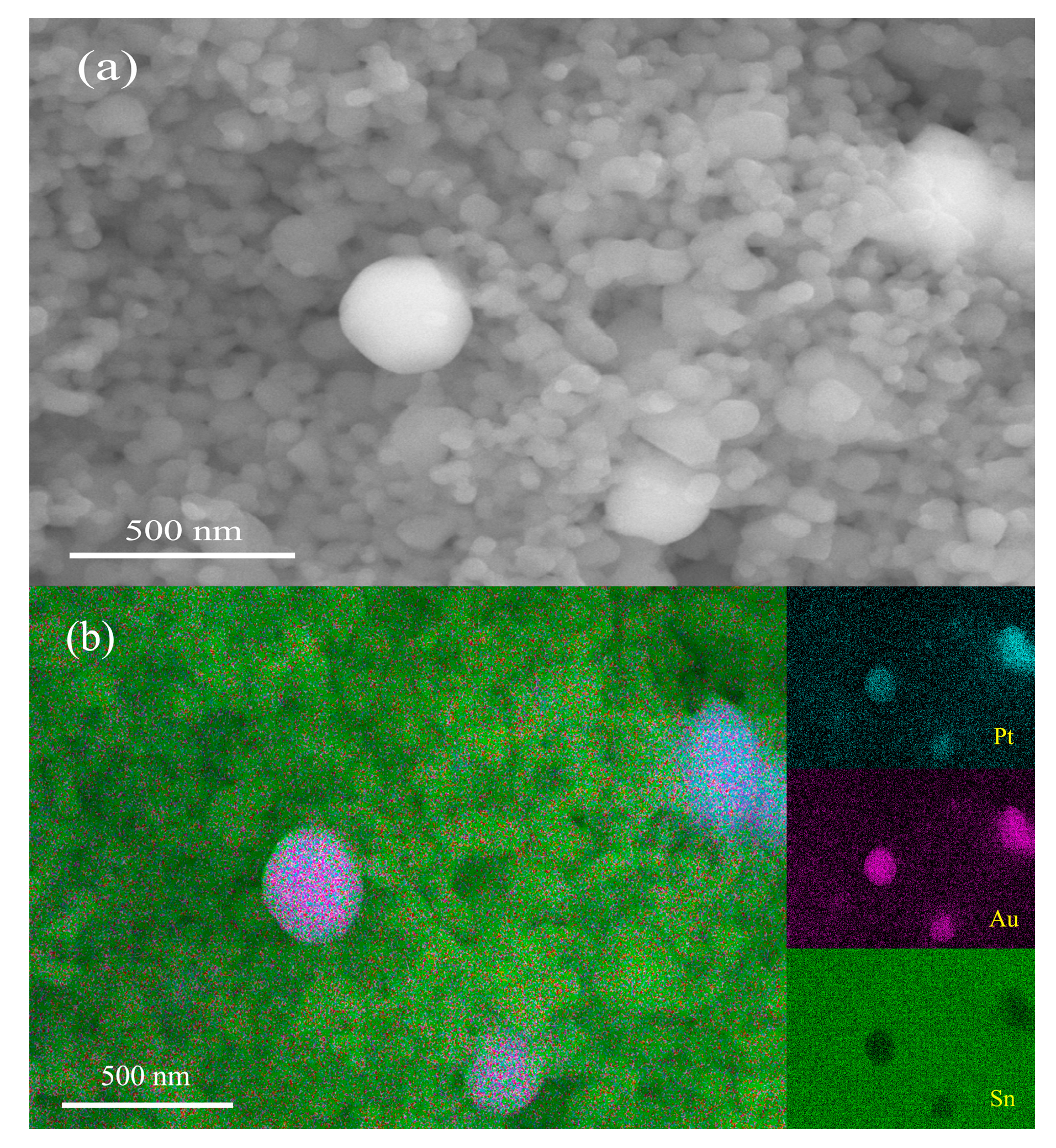

Figure 2. (a) SEM micrograph and (b) EDS analysis taken for a fractured surface of a sample of 1 wt% Pt–5 wt% Au–SnO2, after being sintered at 950 °C for 2 h in the air.
Figure 2. (a) SEM micrograph and (b) EDS analysis taken for a fractured surface of a sample of 1 wt% Pt–5 wt% Au–SnO2, after being sintered at 950 °C for 2 h in the air.
Molecules 28 01759 g002
Molecules 28 01759 g003 550

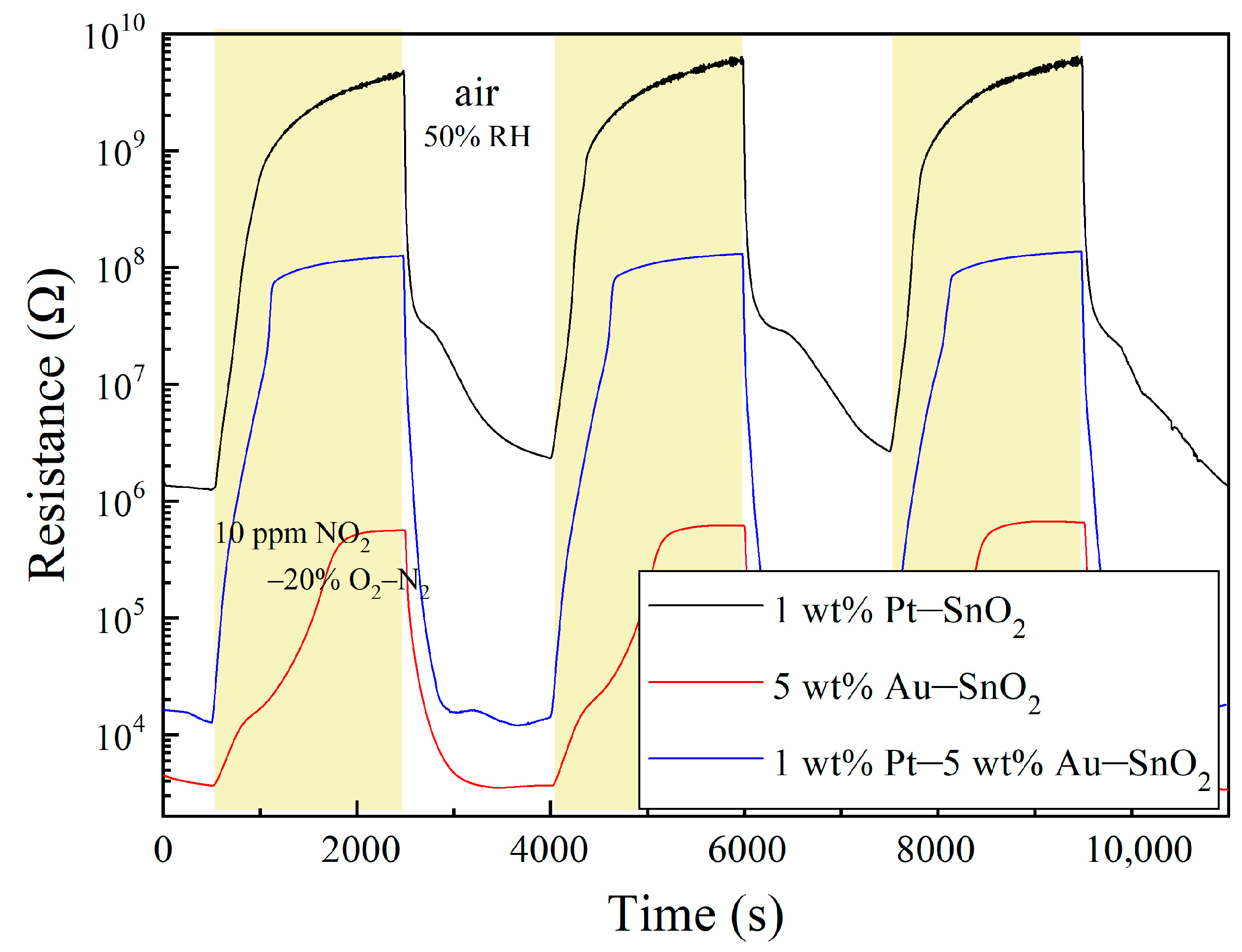

Figure 3. Room-temperature response to 10 ppm NO2 in 20% O2–N2 and recovery in the air of 50% RH for three samples with compositions of 1 wt% Pt–SnO2, 5 wt% Au–SnO2 and 1 wt% Pt–5 wt% Au–SnO2, respectively.
Figure 3. Room-temperature response to 10 ppm NO2 in 20% O2–N2 and recovery in the air of 50% RH for three samples with compositions of 1 wt% Pt–SnO2, 5 wt% Au–SnO2 and 1 wt% Pt–5 wt% Au–SnO2, respectively.
Molecules 28 01759 g003
Molecules 28 01759 g004 550

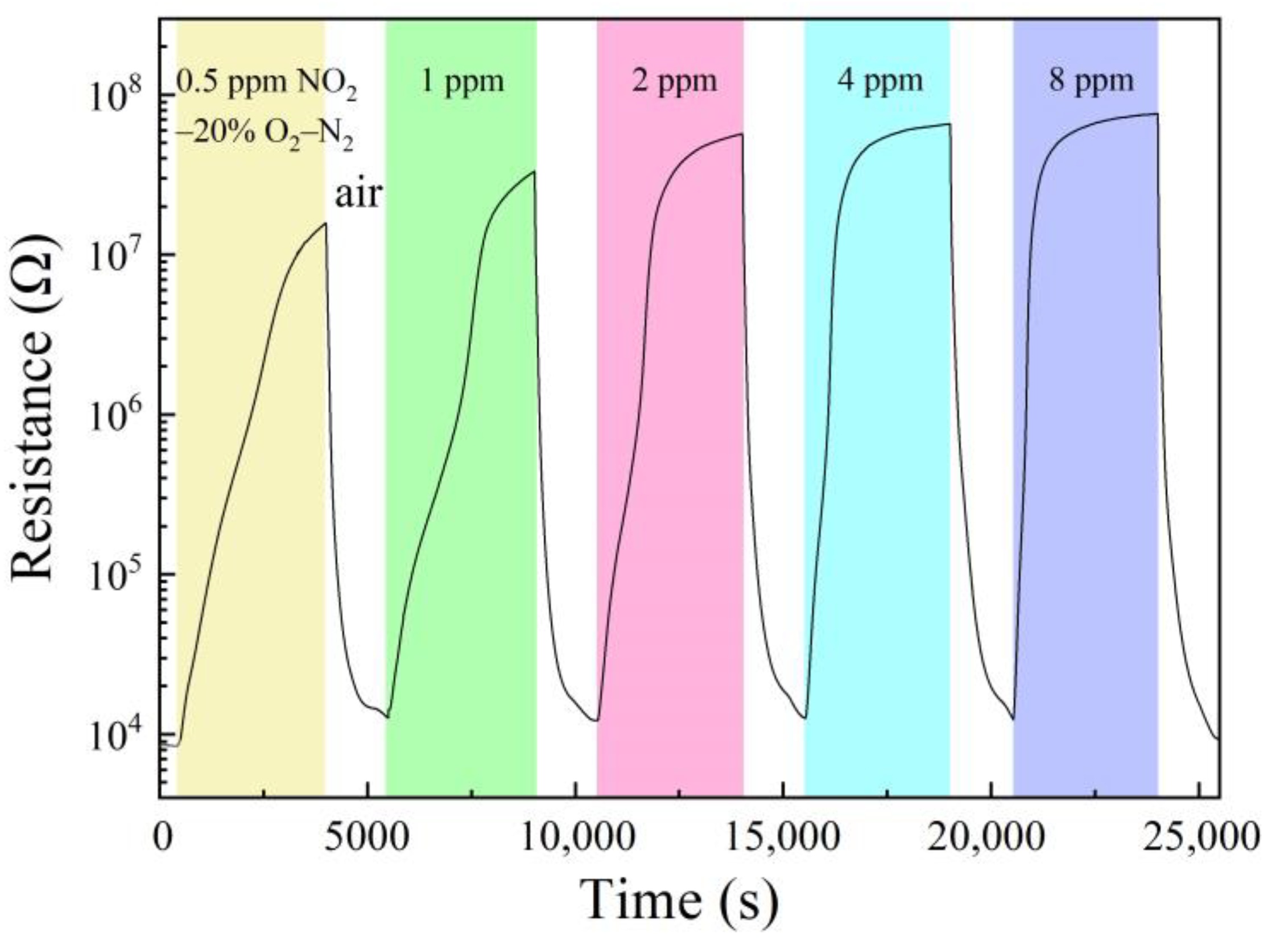

Figure 4. Resistance response to a series of concentrations of NO2 in 20% O2–N2 at room temperature and recovery in the air of 50% RH, for a sample of 1 wt% Pt–5 wt%Au–SnO2 sintered at 950 °C for 2 h the in air.
Figure 4. Resistance response to a series of concentrations of NO2 in 20% O2–N2 at room temperature and recovery in the air of 50% RH, for a sample of 1 wt% Pt–5 wt%Au–SnO2 sintered at 950 °C for 2 h the in air.
Molecules 28 01759 g004
Molecules 28 01759 g005 550

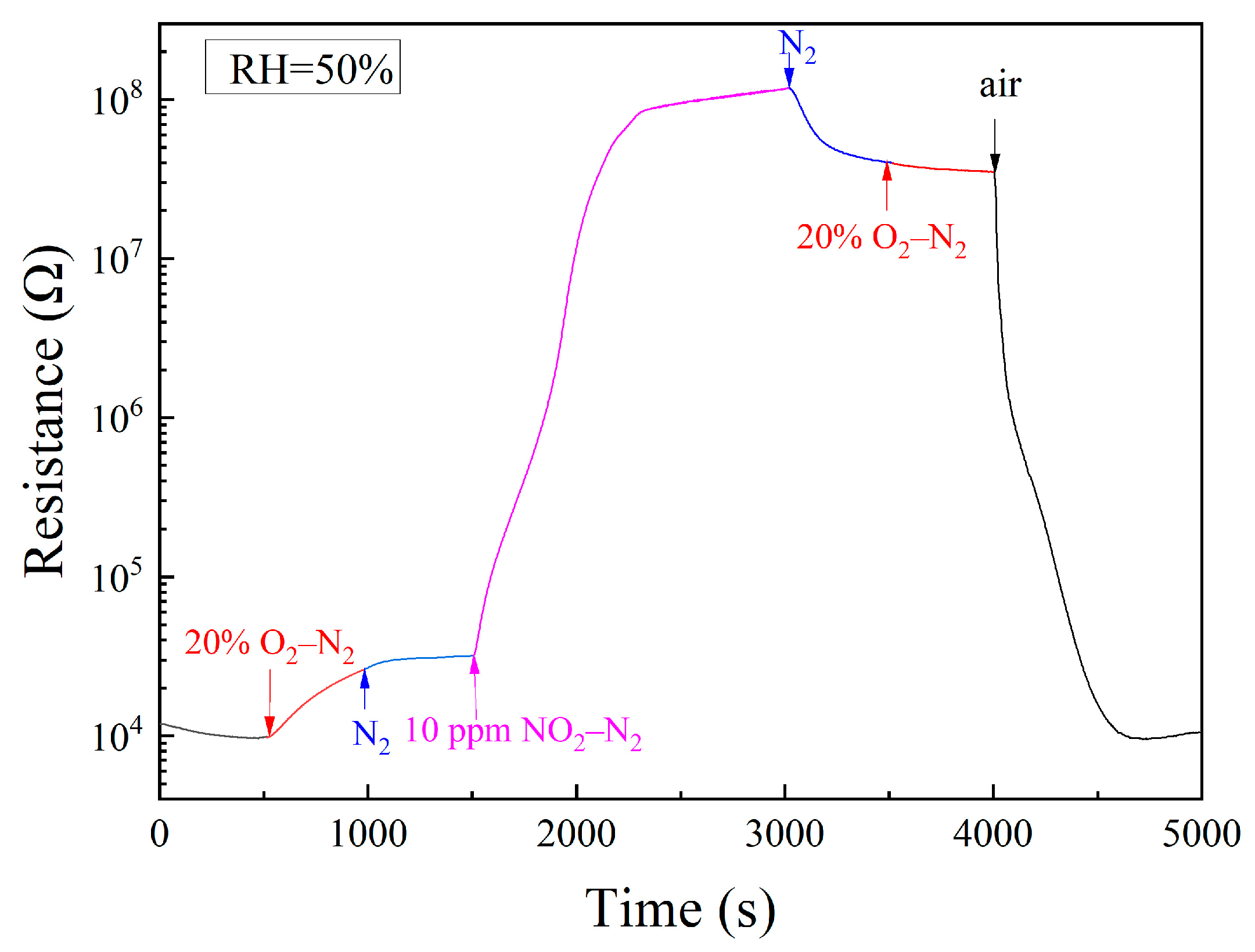

Figure 5. Room-temperature resistance responses to a sequence of atmospheres: air, 20% O2–N2, N2, 10 ppm NO2–N2, N2, 20% O2–N2, and air for a sample of 1 wt% Pt–5 wt% Au–SnO2 sintered at 950 °C.
Figure 5. Room-temperature resistance responses to a sequence of atmospheres: air, 20% O2–N2, N2, 10 ppm NO2–N2, N2, 20% O2–N2, and air for a sample of 1 wt% Pt–5 wt% Au–SnO2 sintered at 950 °C.
Molecules 28 01759 g005
Molecules 28 01759 g006 550

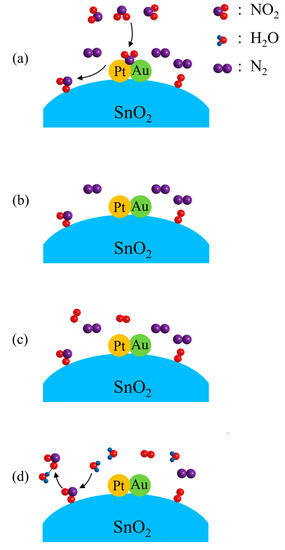

Figure 6. Schematic illustrations for Pt–Au–SnO2 composite nanoceramics at room temperature in: (a) 10 ppm NO2–N2, where NO2 molecules are chemisorbed on SnO2 catalyzed by Pt–Au; (b) N2, where NO2 molecules are stably chemisorbed on SnO2; (c) 20% O2–N2, where no more O2 molecules are chemisorbed on SnO2, as those O2 molecules chemisorbed earlier have remained there; (d) air of 50% RH, where NO2 molecules are desorbed from SnO2 by the attraction of water molecules in the air.
Figure 6. Schematic illustrations for Pt–Au–SnO2 composite nanoceramics at room temperature in: (a) 10 ppm NO2–N2, where NO2 molecules are chemisorbed on SnO2 catalyzed by Pt–Au; (b) N2, where NO2 molecules are stably chemisorbed on SnO2; (c) 20% O2–N2, where no more O2 molecules are chemisorbed on SnO2, as those O2 molecules chemisorbed earlier have remained there; (d) air of 50% RH, where NO2 molecules are desorbed from SnO2 by the attraction of water molecules in the air.
Molecules 28 01759 g006
Table
Table 1. Performances of representative low-temperature NO2-sensing materials.
Table 1. Performances of representative low-temperature NO2-sensing materials.
Sensing MaterialsResponse/NO2 ConcentrationMeasuring Temperature Ref.
Sn-doped In2O3 nanofibers44.6/1 ppm90 °C[9]
Pt–SnO2 porous spheres2/0.5 ppm80 °C[39]
Pt–Bi2O3–SnO2 nanowires27.7/1 ppm50 °C[40]
SnO2 NP–RGO hybrids3.8/1 ppm25 °C[41]
2D SnS2301/1 ppm25 °C[42]
Pt–Au–SnO2 nanoceramics875/0.5 ppm25 °CThis work
