Article

The Quest for Green Solvents for the Sustainable Production of Nanosheets of Two-Dimensional (2D) Materials, a Key Issue in the Roadmap for the Ecology Transition in the Flatland

by
Jessica Occhiuzzi
1,
Grazia Giuseppina Politano
2,
Gianluca D’Olimpio
1,* and
Antonio Politano
1,*
1
Department of Physical and Chemical Sciences, University of L’Aquila, Via Vetoio, 67100 L’Aquila, Italy
2
Department of Information Engineering, Infrastructures and Sustainable Energy (DIIES), University “Mediterranea” of Reggio Calabria, Loc. Feo di Vito, 89122 Reggio Calabria, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1484; https://doi.org/10.3390/molecules28031484
Submission received: 31 December 2022 / Revised: 19 January 2023 / Accepted: 25 January 2023 / Published: 3 February 2023
(This article belongs to the Special Issue Materials Chemistry in Italy)
Browse Figures
Versions Notes

Abstract

:
The recent advent of two-dimensional (2D) materials has had a ground-breaking impact on science and technology. To exploit in technology their unique thickness-dependent physicochemical properties, the large-scale production of 2D materials is mandatory, but it represents an open challenge still due to various pitfalls and severe limitations including the toxicity of state-of-the-art solvents. Thus, liquid-phase exfoliation based on green and bioderived solvents represents an ideal methodology for massive production. This is particularly crucial for introducing 2D materials in technological applications such as the production of drinking water and agri-food industrial processes. Here, we assessed the production of 2D nanosheets (specifically, graphene, WS2, MoS2) with liquid-phase exfoliation assisted by eco-friendly solvents, with a comparative evaluation of green solvents in terms of the yield and, moreover, the aspect ratio, defectivity, and crystalline quality of the produced nanosheets. In particular, we focus on the most promising green solvents in terms of the yield and the crystalline quality of the produced nanosheets: Polarclean, Iris, and Cyrene, which were compared with acetone/water mixtures, isopropyl alcohol (IPA), triethanolamine (TEA), aqueous solutions of urea, and an ethanol/water mixture as well as two toxic solvents largely used for the production of 2D nanosheets: N-methyl-2-pyrrolidone (NMP) and N, N-dimethylformamide (DMF). Remarkably, the density of defects was particularly low in the liquid-phase exfoliation with Polarclean, as indicated by the Raman spectrum of graphene, with the I(D)/I(G) ratio below 0.1. Furthermore, Polarclean and Iris also enable ink-jet printing with functional inks of 2D materials based on green solvents due to their low dynamic viscosity at room temperature.

1. Introduction

2D materials represent a promising platform for technology [1,2,3,4,5,6,7] because of their unique physicochemical properties associated with the atomic thickness [8,9,10,11,12,13,14,15,16,17,18,19,20]. This implies enormous versatility in various fields, ranging from electrochemical energy storage devices, sensing, photonics, optoelectronics, and energy storage/production [21,22,23,24,25]. However, the industrial exploitation of 2D materials implies the need to achieve the sustainable large-scale production of 2D materials with high crystalline quality and unaltered electronic properties [26,27]. As of mid-2022, the global graphene and graphene oxide installed capacity undoubtedly exceeds 12,000 tonnes per year, but utilisation is low as the orders lag significantly behind.
Taking China’s graphene industry as a case-study example, with the production volume of 2000 tonnes per year of graphene powders and 3.5 million m2 per year of graphene films [28], its capability for economically scalable production is absolutely satisfactory. The quality of the graphene products, nevertheless, differs tremendously in practice, as it is extremely dependent on the graphene sources, manufacturing techniques, and fabrication condition monitoring.
Evident inconsistencies persist in the flake size and number of layers of commercially available graphene samples, along with considerable differences in the defect density and impurity content. These wide variations in quality have resulted in exaggerated reports on the applications of graphene and complaints about unrepeatable performance.
While mechanical exfoliation suffers from non-scalable processes with scarce reproducibility [29], chemical vapour deposition necessitates specific substrates allowing for epitaxial growth [30,31,32,33,34,35,36], with consequent complications related to the etching of 2D layers from the substrate [37], resulting in flakes with degraded crystalline quality with high amounts of defects and metallic impurities [38] and/or polymer residuals from the transfer process, altering the physicochemical properties of transferred flakes of 2D materials [39]. The removal of the substrate is also a challenging issue for the preparation of graphene by Si sublimation from the SiC substrate [40].
While the bottom–up synthesis is evidently inadequate for massive production, the top–down approach, implying exfoliation from parental bulk crystals, is in principle more suitable for scale up [41,42,43]. However, one should consider that mechanical exfoliation fails in reproducibility and scalability. On the other hand, liquid-phase exfoliation (LPE) [44,45] represents a viable technique able to overcome such difficulties. Definitely, LPE is suitable for scaling up by ensuring the massive production of highly crystalline 2D materials [46]. However, the quest of the most suitable solvent for the process remains an open issue to date. Currently, the most commonly used solvents for LPE are N-methyl-2-pyrrolidone (NMP) and N, N-dimethylformamide (DMF), due to the strong compatibility of their values of surface tension and of the Hansen solubility parameters (HSP) with surface energy and HSP for graphite and other 2D materials (Table 1). Unfortunately, NMP and DMF have recently been listed as extremely hazardous substances for toxicity issues, with subsequent restrictions on their use in both Europe and the United States of America [46,47,48]. Accordingly, the scientific community is engaged in a quest for environmentally friendly solvents that are capable of replacing NMP and DMF for the LPE of 2D materials, with appropriate effectiveness.

2. Materials and Methods

Materials: WS2 (CAS number 12138-09-9), MoS2 (CAS number 1317-33-5), and graphite (CAS number 7782-42-5) were purchased from Sigma-Aldrich. Absolute ethanol and N-methyl-2-pyrrolidone (NMP) were purchased from commercial chemical suppliers.
Methyl-5-(dimethylamino)-2-methyl-5-oxopentanoate (Rhodiasolv Polarclean) and dimethyl 2-methylglutarate (Rhodiasolv Iris) were provided by Rhodiasolv, Solvay Novecare, Paris.
Exfoliation: The preparation of the methodology for the exfoliation of the layered materials was performed by considering 0.05 g of the powders (WS2, MoS2, and graphite) dispersed in 40 mL of the solvents under investigation (NMP, Rhodiasolv Polarclean, Rhodiasolv Iris).
The solution was sonicated for 4 h in a sonicator bath (Labsonic LBD2 working at 40 kHz) with a thermostat built into it to prevent excessive temperature rise (set not to exceed 25 °C). Next, it is necessary to completely remove the solvent used from the solution. This mechanism is accomplished by numerous centrifugations.
The sequence of centrifugations started with an initial centrifugation at 5000 rpm for 20 min, at the end of which the supernatant was discarded and replaced with the same amount of ethanol. The second step saw further centrifugations aimed at removing the residue of the solvent used, with a final centrifugation at 1000 rpm.
This last centrifugation was performed to try to separate the thinner flakes from the thicker part of the material that had not been exfoliated. At the end of this process, the supernatant from the last step was taken for later characterisation.

3. Results and Discussion

Among the ideal characteristics that the solvent must have, it is important to consider their values of polarity, surface tension, viscosity, and toxicity [49]. In particular, a suitable solvent for LPE should minimize the energy input required to overcome the van der Waals forces for effective sheet separation [50]. This corresponds to the minimisation of the enthalpy of mixing per unit of volume (ΔH/V). In turn, it is related to the Helmholtz energy of solvent (Fsolv), the thickness of the flakes (Tlayered), the free Helmholtz energy of layered materials (Flayered), and the volume fraction (φ) through [51,52]:
Δ H V ~   2 T l a y e r e d F s o l v − F l a y e r e d 2 ϕ
with
F l a y e r e d = ( σ s − TS Sur )
where σ s is the surface energy and SSur is the surface entropy.
Therefore, matching the surface tensions of the solvent (Table 2) and layered materials (Table 1) is crucial to achieve an efficient LPE. However, another critical issue is related to the dispersibility of the flakes and solvent, which depends on the specific molecular interactions between the solvent and the solute. The evaluation of the dispersibility of both nanosheets and the solvent can be carried out based on the assessment of HSP (Table 2), which describes the interaction between the solvent and the solute. Precisely, HSP considers the dispersion forces (δd), polarity interactions (δp), and hydrogen bonds (δh), respectively. If the HSP of solvents has comparable values with the solute, the energy cost for their dispersion is minimised.
Table
Table 1. Surface energy and Hansen solubility parameters for graphite, MoS2, and WS2.
Table 1. Surface energy and Hansen solubility parameters for graphite, MoS2, and WS2.
Surface Energy
Esur [mNm−1]		Hansen Solubility Parameters
δd [MPa1/2]δp [MPa1/2]δH [MPa1/2]
Graphite [47]≈62≈18≈9.3≈7.7
MoS2 [53]≈7017–196–124.5–8.5
WS2 [53]≈7516–185–142–19
Volatile organic compounds (VOCs such as isopropyl alcohol and ethanol), although they appear as good alternatives to NMP and DMF, unfortunately, they suffer from insufficient exfoliation yields, which are inevitably halved [54] due to the need to transfer nanosheets from a suspension into NMP [55]. Moreover, their flash temperature is often around 12–13 °C, which could result in being hazardous for industry.
With regard to the possibility of using surfactants in aqueous media [56], most of them are insulating and their residuals [57] are thus detrimental in many applications requiring thermal and electrical conductivity.
Electrochemical exfoliation (both anodic and cathodic) in aqueous electrolytes has emerged as a novel platform for the production of 2D materials [58]. However, for bulk semiconductors or insulators, electrochemical exfoliation is ineffective in breaking the interlayer van der Waals forces without including a conducting additive [59]. Furthermore, reaching the monolayer regime through the electrochemical exfoliation of bulk materials remains a severe hurdle [60]. Another problem is related to the unconventional operational electrochemical conditions, which imply the occurrence of oxygen and hydrogen evolution stimulated by electrochemical polarisation [61]. Finally, electrochemical exfoliation in aqueous electrolytes typically afford flakes of 2D materials with a high number of defects [58,62].
Recently, TEA [63] and urea aqueous solutions [64] have been proposed as green alternative media for the LPE of graphene and other layered materials. Regarding TEA, though it shows good results in terms of the flakes’ microstructure and dispersion stability, issues related to the yield of the process, and mainly to the chemical modification of flakes induced by possible functionalisation [65,66] during the process are still open. In addition, the very high dynamic viscosity (605.9 cP at T = 25 °C [67]) precludes the use of such dispersions for the inkjet printing of 2D material-based inks, for which the viscosity range is recommended to be 1–10 cP [68]. On the other hand, aqueous dispersions of urea have shown encouraging results for graphite exfoliation, obtaining high quality flakes. Nevertheless, the low yield of the process (2.4%), evidently related to the significant difference in the surface energy (Table 2), makes urea inappropriate for scalability.
Among the various attempts in the literature, the most effective green solvents for the LPE of 2D materials appear to be: (i) dihydrolevoglucosenone (Cyrene, CAS: 53716-82-8) [69]; (ii) methyl-5-(dimethylamino)-2-methyl-5-oxopentanoate (Rhodiasolv Polarclean, CAS:1174627-68-9) [70]; and (iii) dimethyl 2-methylglutarate (Rhodiasolv Iris, CAS: 33514-22-6) [71] (Figure 1).
Cyrene (C6H8O3) has been considered in recent studies [69] to be the most viable substituent to NMP as an organic solvent. It does not exhibit the amide functionality associated with the reproductive toxicity of many of the common dipolar aprotic solvents. This solvent limits the production of corrosive or polluting by-products at the end of its cycle due to the lack of chlorine. In addition, unlike other petrochemical dipolar aprotic solvents, which, on decomposition, tend to release NOx, Cyrene has a flash point of 108 °C, it is stable, and after biodegradation, it releases only carbon dioxide and water. However, it should be mentioned that Cyrene has an acute toxicity (LD50 > 2000 mg/kg) and aquatic toxicity (EC50 > 100 mg/L), which makes its use for drinking water production impossible. Moreover, its use in inkjet printing is also impossible because of the high dynamic viscosity (14.5 cP at T = 20 °C).
Polarclean (C9H17NO3) could represent a more effective candidate for the massive production of 2D materials by LPE, based on results in [70]. It does not show toxicity up to 1000 mg/ (kg day), it is biodegradable, and non-mutagenic, thus being safer than oxygenated solvents such as VOCs. The water solubility of Polarclean is more than 490 g/L under room temperature conditions (25 °C) and it has a melting point at an ambient pressure of 160 °C. Currently, Polarclean is mostly used for the solubilisation of agrochemicals as well as for crop protection and animal nutrition [72]. Recently, the use of Polarclean has been extended to the production of polymeric membranes for ultrafiltration and water desalination for the production of drinking water [73], the synthesis of bio-based aliphatic polyurethanes [74], the dimerisation of abietic acid [75], and for copper-catalysed azide–alkyne cycloaddition [76].
Polarclean is absolutely compatible for use in drinking water production or for the agrifood industry. Moreover, its dynamic viscosity of 9.78 cP (at T = 23 °C) makes it suitable for ink-jet printing, contrary to Cyrene.
Another promising eco-friendly solvent could be Iris (C8H14O4), considering the very recent findings [71]. Iris has an excellent safety profile: it is nontoxic, biodegradable, non-carcinogenic, and non-irritating. This solvent has the lowest of the toxicity levels investigated; in fact, its dosage can be as high as 2000 mg/(kg day) without any detectable toxicity. The enormous potential of this solvent also lies in its flash point being as low as 90.8 °C, which reduces the flammability risks, and moreover, facilitates the removal of the solvent by evaporation. Its solubility in water is greater than 25 g/L at a temperature of 23 °C. With a dynamic viscosity value as low as 2.85 cP at 20 °C, it suitable for use in inkjet printing, like for Polarclean.
Table 3 reports the density, the boiling point, and the dynamic viscosity at room temperature of the various solvents used for LPE.
To assess the quality of the nanosheets of the 2D materials produced by LPE with a specific solvent, it is straightforward to evaluate the lateral size (checked by electron microscopies such as scanning electron microscopy (SEM) and transmission electron microscopy, TEM) and thickness (checked by atomic force microscopy, AFM) of the nanosheets of the same set of layered materials: graphite, MoS2, and WS2. Figure 2 shows the microscopical images and statistical analysis to assess the lateral size of flakes produced with LPE assisted by Polarclean and Iris. Remarkably, NMP-assisted LPE resulted in the formation of flakes with sharp edges and defined angles (similarly to the case of Polarclean), with an average lateral size of around 3–4 nm, which emerged from the analysis of the distribution (Figure 2f). However, the thickness analysis by AFM measurements revealed the incomplete exfoliation. Definitely, when comparing the collected microscopical images, it was evident that the flakes exfoliated with Polarclean (in the case of WS2) and Iris (in the case of MoS2) were thinner (see the AFM experiments in [70,71]) than those obtained with NMP with the same experimental procedure.
Remarkably, the use of these innovative green solvents did not alter the electronic properties of the 2D materials, as inferred from the UV–VIS absorption spectra in Figure 3 (exhibiting excitons for both MoS2 and WS2, being 2D semiconductors [70,71]). Repeating the UV–VIS spectra in a timescale of months also enabled us to secure the stability of the produced functional inks.

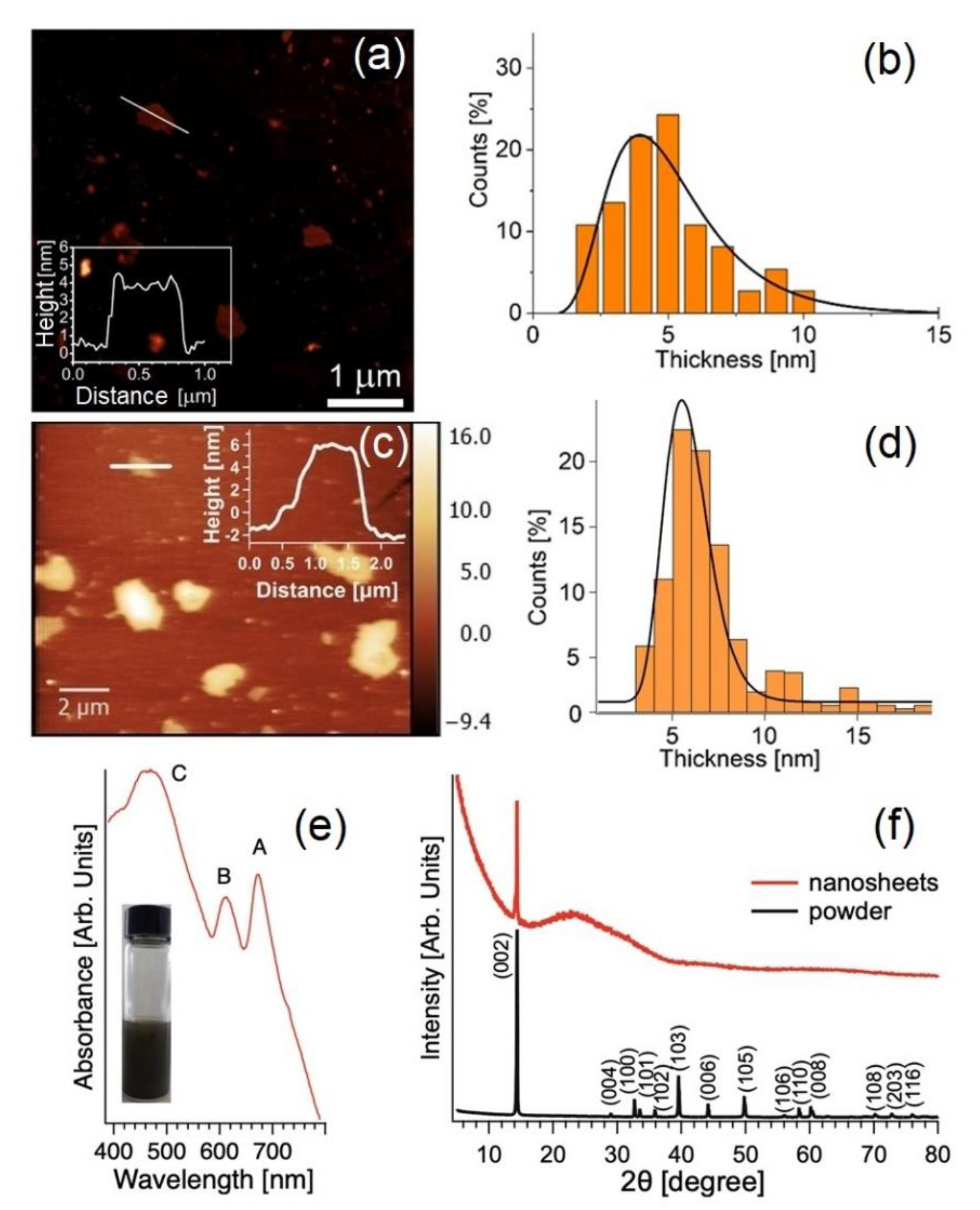

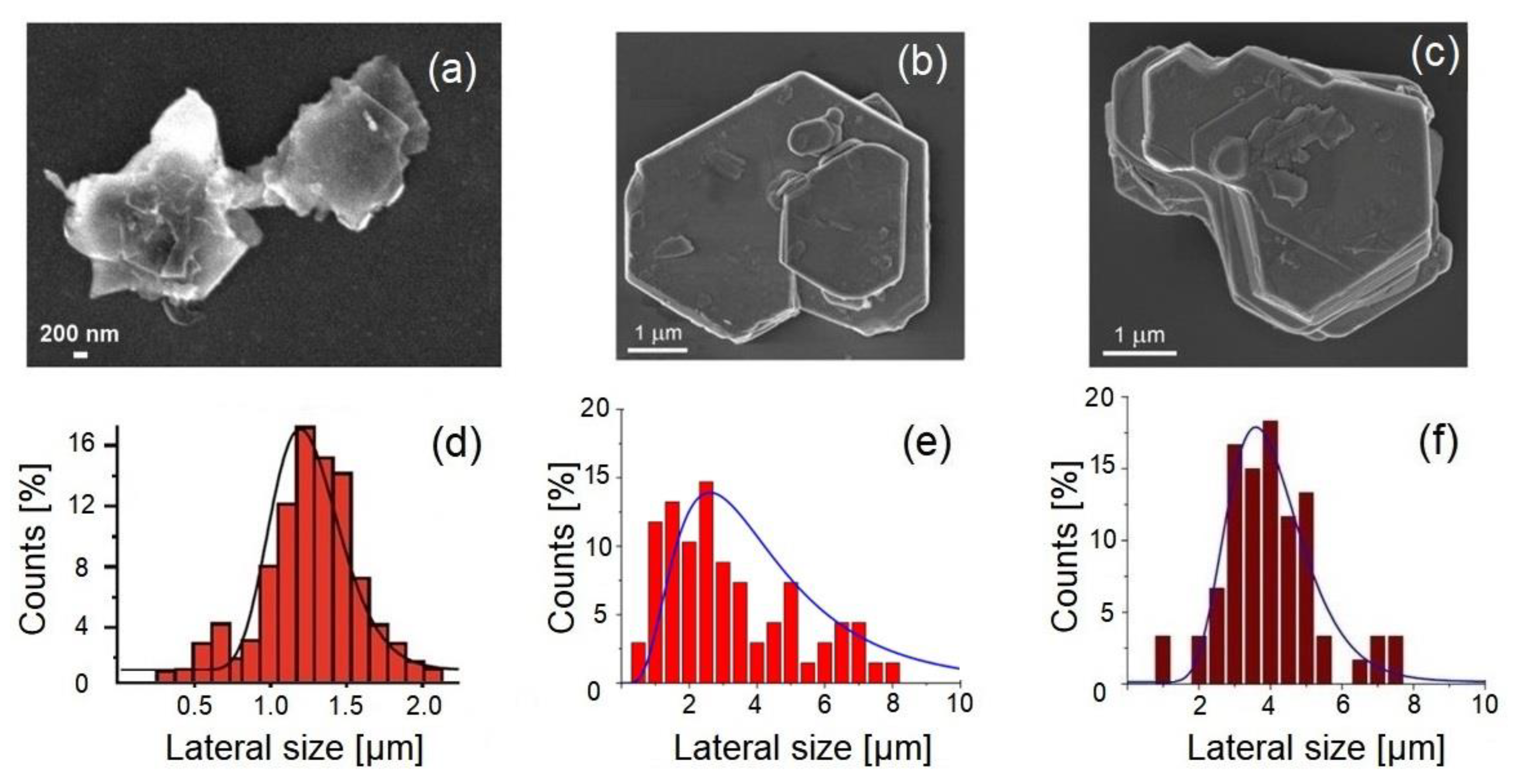

Figure 3a–d reports the representative AFM measurement and statistical thickness distribution for the case study example of WS2 produced by LPE with Polarclean and Iris. In both cases, the average thickness was around 5 nm, thus confirming the efficient exfoliation in atomically thin layers.
X-ray diffraction (XRD) is the most reliable technique to check the integrity of the atomic structure after the breakage of van der Waals bonds. Figure 3f reports the crystal structure of MoS2 nanosheets obtained by Iris-assisted LPE with respect to the bulk MoS2.
The appearance of the (002) peak at 14.4° in the XRD pattern of exfoliated MoS2 nanosheets secured their good crystallinity, congruent with the hexagonal structure of the bulk crystal, with peaks matching ICDD ref no. 04-003-3374.
The performances of Polarclean as an exfoliation medium for 2D materials was directly compared with the case of the most diffuse state-of-the-art solvent (i.e., NMP). Therefore, we also performed LPE under the same operating conditions for NMP (see Methods for the experimental procedures). While the lateral size was comparable, the statistical analysis on thickness revealed a bimodal distribution for 2D materials produced by NMP-assisted LPE, which peaked around 4 and 30 nm, corresponding to thin and thick flakes, respectively. Remarkably, ~85% of flakes exfoliated by Polarclean had a thickness <5 nm. One can deduce the prevalence of ultrathin flakes (1–3 layers) in Polarclean-assisted LPE. In contrast, the use of NMP in the same processing conditions produced flakes with an ~76% of thickness >5 nm, thus evidencing a largely incomplete exfoliation of the bulk crystal in NMP-assisted LPE.

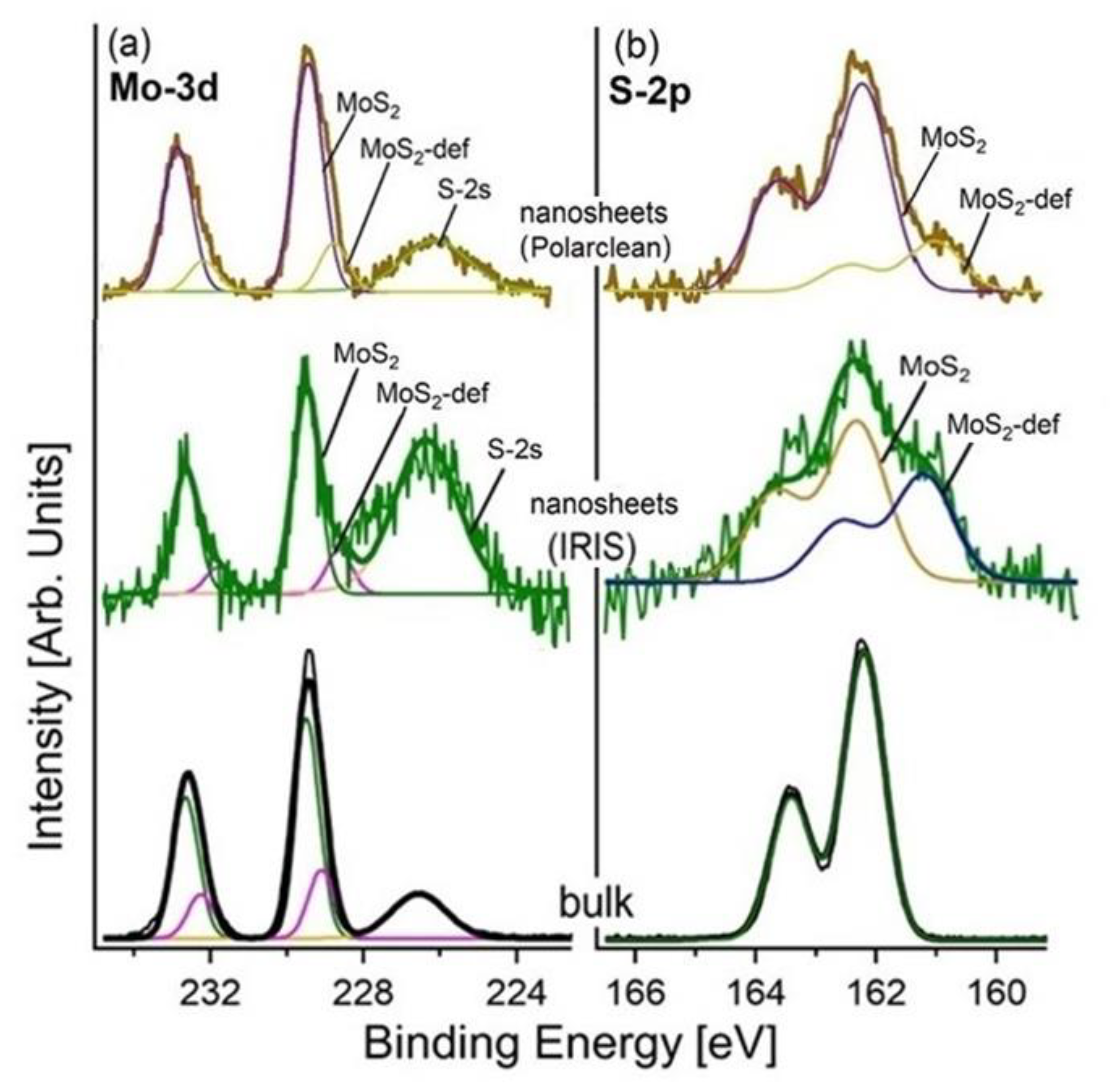

More insights on the quality of the nanosheets produced by LPE with Polarclean and Iris were provided by X-ray photoelectron spectroscopy (XPS), as illustrated in Figure 3 for the case-study example of MoS2. The core-level spectra of the bulk and exfoliated MoS2 are shown in Figure 4. The Mo-3d core levels are split into J = 5/2 and 3/2 components shifted by 3.1 eV. Specifically, the Mo-3d core levels had two different contributions from pristine (fully coordinated atoms) and defective MoS2 (with sulphur vacancies), with a binding energy (BE) of 229.8 and 229.2 eV for the J = 5/2 component, respectively. Moreover, a minority component located at lower BE was associated with the presence of the defects due to a redistribution of the charge. Explicitly, the charge localised on the more electronegative sulphur atom, once it is desorbed, is redistributed on the first neighbouring atoms to increase the Coulomb screening effect [77,78]. Particularly, one could note in the Mo-3d spectra the lack of MoO3-derived spectral components, which should be present at a BE of 232.4 eV for the J = 5/2 component [79]. Therefore, one can infer that both Polarclean and Iris do not act as oxidation agents for MoS2 nanosheets, and congruently, Polarclean/Iris-assisted LPE process do not favour the oxidation of MoS2 flakes. Concerning the S-2p core levels, they were split in J = 1/2 and 3/2 components shifted by 1.2 eV. Two well-distinct contributions associated with pristine and defective MoS2 were observed at a BE of 162.5 and 161.5 eV for the J = 3/2 component, respectively, as in previous reports [80,81,82]. No trace of the sulphur-oxide phases was found, in contrast to the case of WS2, for which spectral contributions from both SO4 and SO3 exist.
A direct comparison between the XPS spectra of the Iris and Polarclean LPE-MoS2 only showed a higher presence of defects in the case of the MoS2 exfoliated with Iris.
Concerning the exfoliation of graphene flakes with Polarclean, amazingly, the distribution of the lateral size reached an average value as high as 10 µm, absolutely one of the largest reported to date for the LPE of nanosheets starting from bulk graphite [12,19]. The related Raman spectrum (Figure 5) exhibited D and G bands at 1331 and 1581 cm−1, respectively. One should consider that whereas the G peak resulted from the E2g optical phonon of graphene [83], the D band is produced by breathing modes of six-atom rings and necessitates a defect for its activation [84]. Consequently, the I(D)/I(G) ratio is a generally accepted probe of structural defects in the graphene layer [85]. Outstandingly, in the case of the Polarclean-assisted LPE of graphene, the I(D)/I(G) was 0.07 ± 0.01. Therefore, one can guess a density of defects of only (8 ± 2) × 109 cm−2, congruently with the exceptional crystalline order of exfoliated graphene flakes (without indication of defects) in the HR-TEM images in [70]. For the cases of other solvents, the density of defects for graphene exfoliated by LPE was (6 ± 2) × 1010, (5 ± 2) × 1010, (1.0 ± 0.3) × 1011, (9 ± 3) × 1010, (4 ± 1) × 1010, (2.6 ± 0.7) × 1011, (6 ± 2) × 1010, (7 ± 2) × 1010 defects × cm−2 with NMP [69,86], Cyrene [69], IPA [87], DMF [88], acetone/water [89], ethanol/water [90], TEA [63], and aqueous solution of urea [64], respectively. Evidently, graphene flakes exfoliated with Polarclean displayed a density of defects lower by about one order of magnitude compared to LPE assisted by other solvents.
The inspection of the intensity of the D′ band could offer further clues on the density of defects. Comparable to the D band, the D′ mode is a double resonance due to the transverse optical (TO) phonons at K or K′, activated by defects, with the difference that it involves an intravalley rather than intervalley process [85]. Notably, the intensity of the D′ band at 1615 cm−1 was suppressed for the case of the Polarclean-assisted LPE of graphene, in contrast with the case of other solution processing methods (Figure 5).

4. Conclusions

Here, we assessed the choice of solvents for LPE for the production of atomically thin layers of van der Waals crystals. The most competitive solvents, both in terms of environmental sustainability and operability, were examined and compared with those that are more widely used, but unfortunately resulted in being harmful to human health. The most promising eco-friendly solvents in terms of the yield and crystalline quality of the produced nanosheets are Polarclean, Iris, and Cyrene. Among these solvents, one can note that the density of defects is exceptionally low in Polarclean-assisted LPE, as inferred by the Raman spectroscopy in graphene, with the I(D)/I(G) ratio of only 0.07. Moreover, Polarclean and Iris also enable ink-jet printing with functional inks of 2D materials based on green solvents.
The superior performances in LPE, together with the absence of any toxicity issue and its biodegradability, make green solvents such as Polarclean and Iris ideal candidates for the sustainable large-scale production of 2D materials. Naturally, they can also replace solvents commonly employed for other processing methods beyond sonication such as shear mixing [91] or wet-jet mill [92], particularly promising for industrial scale up. The efficiency of the green LPE process is crucial in order to combine intrinsic benefits for environmental health and safety with the optimisation of the performance. Undeniably, the introduction of a green solvent for LPE will also expand the growing market of 2D materials towards fields nearly unexplored (e.g., recovery of minerals from seawater, concentration of fruit juices, production of drinking water, etc.) to date, as a result of the toxicity of the state-of-the-art solvents for LPE, with subsequent superb impact on the commercial potential of their technological applications.

Author Contributions

The project was conceived by G.D. and A.P. and implemented by J.O. and G.G.P. supported in the preparation of the draft, whose original version was prepared by J.O., under the supervision of G.D. and A.P. All authors contributed to editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by PON Ricerca & Innovazione through granting a PhD fellowship to J.O, CUP:E19J21012940001.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

AP is grateful to Solvay for providing the Rhodiasolv Iris and Polarclean solvents.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gurunlu, B.; Tasdelen-Yucedag, C.; Bayramoglu, M. One Pot Synthesis of Graphene through Microwave Assisted Liquid Exfoliation of Graphite in Different Solvents. Molecules 2022, 27, 5027. [Google Scholar] [CrossRef]
  2. Sun, X.; Chen, Y.; Liu, K.; Ding, Y.; Zeng, M.; Fu, L. Atomic Scale Materials for Emerging Robust Catalysis. Small Methods 2018, 2, 1800181. [Google Scholar] [CrossRef]
  3. Mounet, N.; Gibertini, M.; Schwaller, P.; Campi, D.; Merkys, A.; Marrazzo, A.; Sohier, T.; Castelli, I.E.; Cepellotti, A.; Pizzi, G. Two-dimensional materials from high-throughput computational exfoliation of experimentally known compounds. Nat. Nanotechnol. 2018, 13, 246. [Google Scholar] [CrossRef]
  4. Kuraganti, V.; Siva, P.; Bar-Ziv, R.; Bar Sadan, M. Incorporating Nb into MoSe2 Nanoflowers for Overall Electrocatalytic Water Splitting. Isr. J. Chem. 2022, 62, e202100055. [Google Scholar] [CrossRef]
  5. Kadam, S.R.; Bar-Ziv, R.; Bar-Sadan, M. A cobalt-doped WS2/WO3 nanocomposite electrocatalyst for the hydrogen evolution reaction in acidic and alkaline media. New J. Chem. 2022, 46, 20102–20107. [Google Scholar] [CrossRef]
  6. Maiti, P.S.; Ghosh, S.; Leitus, G.; Houben, L.; Bar Sadan, M. Oriented Attachment of 2D Nanosheets: The Case of Few-Layer Bi2Se3. Chem. Mater. 2021, 33, 7558–7565. [Google Scholar] [CrossRef]
  7. Kadam, S.R.; Ghosh, S.; Bar-Ziv, R.; Bar-Sadan, M. Structural Transformation of SnS2 to SnS by Mo Doping Produces Electro/Photocatalyst for Hydrogen Production. Chem. Eur. J. 2020, 26, 6679–6685. [Google Scholar] [CrossRef]
  8. Balakrishnan, P.; Sanij, F.D.; Chang, Z.; Leung, P.K.; Su, H.; Xing, L.; Xu, Q. Nano-Graphene Layer from Facile, Scalable and Eco-Friendly Liquid Phase Exfoliation Strategy as Effective Barrier Layer for High-Performance and Durable Direct Liquid Alcohol Fuel Cells. Molecules 2022, 27, 3044. [Google Scholar] [CrossRef]
  9. Cupolillo, A.; Ligato, N.; Caputi, L.S. Plasmon dispersion in quasi-freestanding graphene on Ni(111). Appl. Phys. Lett. 2013, 102, 111609. [Google Scholar] [CrossRef]
  10. Xu, S.; Niu, M.; Zhao, G.; Ming, S.; Li, X.; Zhu, Q.; Ding, L.-X.; Kim, M.; Alothman, A.A.; Mushab, M.S.S.; et al. Size control and electronic manipulation of Ru catalyst over B, N co-doped carbon network for high-performance hydrogen evolution reaction. Nano Res. 2022. [Google Scholar] [CrossRef]
  11. Cupolillo, A.; Ligato, N.; Caputi, L.S. Two-dimensional character of the interface-π plasmon in epitaxial graphene on Ni(111). Carbon 2012, 50, 2588–2591. [Google Scholar] [CrossRef]
  12. Al Taleb, A.; Anemone, G.; Miranda, R.; Farías, D. Characterization of interlayer forces in 2D heterostructures using neutral atom scattering. 2D Mater. 2018, 5, 045002. [Google Scholar] [CrossRef]
  13. Jin, X.; Wang, X.; Liu, Y.; Kim, M.; Cao, M.; Xie, H.; Liu, S.; Wang, X.; Huang, W.; Nanjundan, A.K.; et al. Nitrogen and Sulfur Co-Doped Hierarchically Porous Carbon Nanotubes for Fast Potassium Ion Storage. Small 2022, 18, 2203545. [Google Scholar] [CrossRef]
  14. Maccariello, D.; Campi, D.; Al Taleb, A.; Benedek, G.; Farías, D.; Bernasconi, M.; Miranda, R. Low-energy excitations of graphene on Ru(0001). Carbon 2015, 93, 1–10. [Google Scholar] [CrossRef]
  15. Borca, B.; Castenmiller, C.; Tsvetanova, M.; Sotthewes, K.; Rudenko, A.N.; Zandvliet, H.J.W. Image potential states of germanene. 2D Mater. 2020, 7, 035021. [Google Scholar] [CrossRef]
  16. Socol, M.; Trupina, L.; Galca, A.-C.; Chirila, C.; Stan, G.E.; Vlaicu, A.-M.; Stanciu, A.E.; Boni, A.G.; Botea, M.; Stanculescu, A.; et al. Electro-active properties of nanostructured films of cytosine and guanine nucleobases. Nanotechnology 2021, 32, 415702. [Google Scholar]
  17. Borca, B.; Michnowicz, T.; Pétuya, R.; Pristl, M.; Schendel, V.; Pentegov, I.; Kraft, U.; Klauk, H.; Wahl, P.; Gutzler, R.; et al. Electric-Field-Driven Direct Desulfurization. ACS Nano 2017, 11, 4703–4709. [Google Scholar] [CrossRef]
  18. Ghosh, B.; Kumar, P.; Thakur, A.; Chauhan, Y.S.; Bhowmick, S.; Agarwal, A. Anisotropic plasmons, excitons, and electron energy loss spectroscopy of phosphorene. Phys. Rev. B 2017, 96, 035422. [Google Scholar] [CrossRef]
  19. Ghosh, B.; Singh, B.; Prasad, R.; Agarwal, A. Electric-field tunable Dirac semimetal state in phosphorene thin films. Phys. Rev. B 2016, 94, 205426. [Google Scholar] [CrossRef]
  20. Al Taleb, A.; Farías, D. Phonon dynamics of graphene on metals. J. Phys. Cond. Matt. 2016, 28, 103005. [Google Scholar]
  21. Tang, H.; Chen, C.J.; Huang, Z.; Bright, J.; Meng, G.; Liu, R.S.; Wu, N. Plasmonic hot electrons for sensing, photodetection, and solar energy applications: A perspective. J. Chem. Phys. 2020, 152, 220901. [Google Scholar] [CrossRef]
  22. Pu, J.; Tan, Y.; Wang, T.; Zhu, X.; Fan, S. Ultrathin Two-Dimensional Fe-Co Bimetallic Oxide Nanosheets for Separator Modification of Lithium-Sulfur Batteries. Molecules 2022, 27, 7762. [Google Scholar] [CrossRef]
  23. Boroujerdi, R.; Paul, R. Graphene-Based Electrochemical Sensors for Psychoactive Drugs. Nanomaterials 2022, 12, 2250. [Google Scholar] [CrossRef]
  24. Iravani, S.; Varma, R.S. MXene-Based Photocatalysts in Degradation of Organic and Pharmaceutical Pollutants. Molecules 2022, 27, 6939. [Google Scholar] [CrossRef]
  25. Paone, E.; Miceli, M.; Malara, A.; Ye, G.; Mousa, E.; Bontempi, E.; Frontera, P.; Mauriello, F. Direct Reuse of Spent Lithium-Ion Batteries as an Efficient Heterogeneous Catalyst for the Reductive Upgrading of Biomass-Derived Furfural. ACS Sustain. Chem. Eng. 2022, 10, 2275–2281. [Google Scholar] [CrossRef]
  26. Robinson, J.T.; Schmucker, S.W.; Diaconescu, C.B.; Long, J.P.; Culbertson, J.C.; Ohta, T.; Friedman, A.L.; Beechem, T.E. Electronic hybridization of large-area stacked graphene films. ACS Nano 2013, 7, 637–644. [Google Scholar] [CrossRef]
  27. Wan, X.; Huang, Y.; Chen, Y. Focusing on energy and optoelectronic applications: A journey for graphene and graphene oxide at large scale. Acc. Chem. Res. 2012, 45, 598–607. [Google Scholar] [CrossRef]
  28. Lin, L.; Peng, H.; Liu, Z. Synthesis challenges for graphene industry. Nat. Mater. 2019, 18, 520–524. [Google Scholar] [CrossRef]
  29. Yi, M.; Shen, Z. A review on mechanical exfoliation for the scalable production of graphene. J. Mater. Chem. A 2015, 3, 11700–11715. [Google Scholar] [CrossRef]
  30. Cabrero-Vilatela, A.; Weatherup, R.S.; Braeuninger-Weimer, P.; Caneva, S.; Hofmann, S. Towards a general growth model for graphene CVD on transition metal catalysts. Nanoscale 2016, 8, 2149–2158. [Google Scholar] [CrossRef]
  31. Al Taleb, A.; Yu, H.K.; Anemone, G.; Farías, D.; Wodtke, A.M. Helium diffraction and acoustic phonons of graphene grown on copper foil. Carbon 2015, 95, 731–737. [Google Scholar] [CrossRef]
  32. Anemone, G.; Climent-Pascual, E.; Yu, H.; Al Taleb, A.; Jimenez-Villacorta, F.; Prieto, C.; Wodtke, A.M.; de Andres, A.; Farias, D. Quality of Graphene on Sapphire: Long-range Order from Helium Diffraction versus Lattice Defects from Raman Spectroscopy. RSC Adv. 2016, 6, 21235–21245. [Google Scholar] [CrossRef] [Green Version]
  33. Cupolillo, A.; Ligato, N.; Osman, S.M.; Caputi, L.S. Carbon K-edge electron-energy-loss near-edge structure in the reflection mode on graphene/Ni(111). Appl. Phys. Lett. 2016, 109, 161603. [Google Scholar] [CrossRef]
  34. Ligato, N.; Caputi, L.S.; Cupolillo, A. Oxygen intercalation at the graphene/Ni(111) interface: Evidences of non-metal islands underneath graphene layer. Carbon 2016, 100, 258–264. [Google Scholar] [CrossRef]
  35. Cupolillo, A.; Ligato, N.; Caputi, L. Low energy two-dimensional plasmon in epitaxial graphene on Ni (111). Surf. Sci. 2013, 608, 88–91. [Google Scholar] [CrossRef]
  36. Ligato, N.; Cupolillo, A.; Caputi, L.S. Study of the intercalation of graphene on Ni(111) with Cs atoms: Towards the quasi-free graphene. Thin Solid Films 2013, 543, 59–62. [Google Scholar] [CrossRef]
  37. Zhang, X.; Wu, Z.; Zheng, H.; Ren, Q.; Zou, Z.; Mei, L.; Zhang, Z.; Xia, Y.; Lin, C.-T.; Zhao, P. High-quality graphene transfer via directional etching of metal substrates. Nanoscale 2019, 11, 16001–16006. [Google Scholar] [CrossRef]
  38. Borin Barin, G.; Song, Y.; de Fátima Gimenez, I.; Souza Filho, A.G.; Barreto, L.S.; Kong, J. Optimized graphene transfer: Influence of polymethylmethacrylate (PMMA) layer concentration and baking time on graphene final performance. Carbon 2015, 84, 82–90. [Google Scholar] [CrossRef]
  39. Ambrosi, A.; Pumera, M. The CVD graphene transfer procedure introduces metallic impurities which alter the graphene electrochemical properties. Nanoscale 2014, 6, 472–476. [Google Scholar] [CrossRef]
  40. Mishra, N.; Boeckl, J.; Motta, N.; Iacopi, F. Graphene growth on silicon carbide: A review. Phys. Status Solidi A 2016, 213, 2277–2289. [Google Scholar] [CrossRef]
  41. Wang, J.; Li, N.; Xu, Y.; Pang, H. Two-Dimensional MOF and COF Nanosheets: Synthesis and Applications in Electrochemistry. Chemistry 2020, 26, 6402–6422. [Google Scholar] [CrossRef]
  42. Luong, D.X.; Bets, K.V.; Algozeeb, W.A.; Stanford, M.G.; Kittrell, C.; Chen, W.; Salvatierra, R.V.; Ren, M.; McHugh, E.A.; Advincula, P.A.; et al. Gram-scale bottom-up flash graphene synthesis. Nature 2020, 577, 647–651. [Google Scholar] [CrossRef]
  43. Le, T.H.; Oh, Y.; Kim, H.; Yoon, H. Exfoliation of 2D Materials for Energy and Environmental Applications. Chemistry 2020, 26, 6360–6401. [Google Scholar] [CrossRef]
  44. Martin-Perez, L.; Burzuri, E. Optimized Liquid-Phase Exfoliation of Magnetic van der Waals Heterostructures: Towards the Single Layer and Deterministic Fabrication of Devices. Molecules 2021, 26, 7371. [Google Scholar] [CrossRef]
  45. Backes, C.; Campi, D.; Szydlowska, B.M.; Synnatschke, K.; Ojala, E.; Rashvand, F.; Harvey, A.; Griffin, A.; Sofer, Z.; Marzari, N. Equipartition of Energy Defines the Size–Thickness Relationship in Liquid-Exfoliated Nanosheets. ACS Nano 2019, 13, 7050–7061. [Google Scholar] [CrossRef]
  46. Xu, Y.; Cao, H.; Xue, Y.; Li, B.; Cai, W. Liquid-Phase Exfoliation of Graphene: An Overview on Exfoliation Media, Techniques, and Challenges. Nanomaterials 2018, 8, 942. [Google Scholar] [CrossRef]
  47. Hernandez, Y.; Nicolosi, V.; Lotya, M.; Blighe, F.M.; Sun, Z.; De, S.; McGovern, I.T.; Holland, B.; Byrne, M.; Gun’Ko, Y.K.; et al. High-yield production of graphene by liquid-phase exfoliation of graphite. Nat. Nanotechnol. 2008, 3, 563–568. [Google Scholar] [CrossRef]
  48. Sitarek, K.; Stetkiewicz, J. Assessment of reproductive toxicity and gonadotoxic potential of N-methyl-2-pyrrolidone in male rats. Int. J. Occup. Med. Environ. Health 2008, 21, 73–80. [Google Scholar] [CrossRef]
  49. Shen, J.; He, Y.; Wu, J.; Gao, C.; Keyshar, K.; Zhang, X.; Yang, Y.; Ye, M.; Vajtai, R.; Lou, J.; et al. Liquid Phase Exfoliation of Two-Dimensional Materials by Directly Probing and Matching Surface Tension Components. Nano Lett. 2015, 15, 5449–5454. [Google Scholar] [CrossRef]
  50. Hernandez, Y.; Lotya, M.; Rickard, D.; Bergin, S.D.; Coleman, J.N. Measurement of multicomponent solubility parameters for graphene facilitates solvent discovery. Langmuir 2010, 26, 3208–3213. [Google Scholar] [CrossRef]
  51. Ghanbari, H.; Shafikhani, M.A.; Daryalaal, M. Graphene nanosheets production using liquid-phase exfoliation of pre-milled graphite in dimethylformamide and structural defects evaluation. Ceram. Int. 2019, 45, 20051–20057. [Google Scholar] [CrossRef]
  52. Kai, L.N.; Barbara, M.M.; Ling, Q.; Colin, J.; Jesus, B.; Maria-Magdalena, T.; Iakovos, T.; Dmitry, G.E.; Kyriakos, P.; Jiawei, M.; et al. Direct Evidence of the Exfoliation Efficiency and Graphene Dispersibility of Green Solvents toward Sustainable Graphene Production. ACS Sustainable Chemistry & Engineering 2023, 11, 58–66. [Google Scholar]
  53. Coleman, J.N.; Lotya, M.; O’Neill, A.; Bergin, S.D.; King, P.J.; Khan, U.; Young, K.; Gaucher, A.; De, S.; Smith, R.J.; et al. Two-dimensional nanosheets produced by liquid exfoliation of layered materials. Science 2011, 331, 568–571. [Google Scholar] [CrossRef] [Green Version]
  54. O’Neill, A.; Khan, U.; Nirmalraj, P.N.; Boland, J.; Coleman, J.N. Graphene dispersion and exfoliation in low boiling point solvents. J. Phys. Chem. C 2011, 115, 5422–5428. [Google Scholar] [CrossRef]
  55. Zhang, X.; Coleman, A.C.; Katsonis, N.; Browne, W.R.; Van Wees, B.J.; Feringa, B.L. Dispersion of graphene in ethanol using a simple solvent exchange method. Chem. Commun. 2010, 46, 7539–7541. [Google Scholar] [CrossRef]
  56. Sethurajaperumal, A.; Varrla, E. High-Quality and Efficient Liquid-Phase Exfoliation of Few-Layered Graphene by Natural Surfactant. ACS Sustain. Chem. Eng. 2022, 10, 14746–14760. [Google Scholar] [CrossRef]
  57. Bonanni, A.; Pumera, M. Surfactants used for dispersion of graphenes exhibit strong influence on electrochemical impedance spectroscopic response. Electrochem. Commun. 2012, 16, 19–21. [Google Scholar] [CrossRef]
  58. Yang, Y.; Hou, H.; Zou, G.; Shi, W.; Shuai, H.; Li, J.; Ji, X. Electrochemical exfoliation of graphene-like two-dimensional nanomaterials. Nanoscale 2019, 11, 16–33. [Google Scholar] [CrossRef]
  59. Li, F.; Xue, M.; Zhang, X.; Chen, L.; Knowles, G.P.; MacFarlane, D.R.; Zhang, J. Advanced composite 2D energy materials by simultaneous anodic and cathodic exfoliation. Adv. Energy Mater. 2018, 8, 1702794. [Google Scholar] [CrossRef]
  60. Zeng, Z.; Yin, Z.; Huang, X.; Li, H.; He, Q.; Lu, G.; Boey, F.; Zhang, H. Single-Layer Semiconducting Nanosheets: High-yield preparation and device fabrication. Angew. Chem. 2011, 50, 11093–11097. [Google Scholar] [CrossRef]
  61. Fang, Y.; Li, X.; Li, J.; Yao, C.; Hoh, H.Y.; Hai, X.; Lu, J.; Su, C. Janus electrochemical exfoliation of two-dimensional materials. J. Mater. Chem. A 2019, 7, 25691–25711. [Google Scholar] [CrossRef]
  62. Xia, Z.Y.; Pezzini, S.; Treossi, E.; Giambastiani, G.; Corticelli, F.; Morandi, V.; Zanelli, A.; Bellani, V.; Palermo, V. The exfoliation of graphene in liquids by electrochemical, chemical, and sonication-assisted techniques: A nanoscale study. Adv. Funct. Mater. 2013, 23, 4684–4693. [Google Scholar] [CrossRef]
  63. Chen, H.; Liu, B.; Yang, Q.; Wang, S.; Liu, W.; Zheng, X.; Liu, Z.; Liu, L.; Xiong, C. Facile one-step exfoliation of large-size 2D materials via simply shearing in triethanolamine. Mater. Lett. 2017, 199, 124–127. [Google Scholar] [CrossRef]
  64. He, P.; Zhou, C.; Tian, S.; Sun, J.; Yang, S.; Ding, G.; Xie, X.; Jiang, M. Urea-assisted aqueous exfoliation of graphite for obtaining high-quality graphene. Chem. Commun. 2015, 51, 4651–4654. [Google Scholar] [CrossRef] [PubMed]
  65. Ryu, M.Y.; Jang, H.K.; Lee, K.J.; Piao, M.; Ko, S.P.; Shin, M.; Huh, J.; Kim, G.T. Triethanolamine doped multilayer MoS2 field effect transistors. Phys. Chem. Chem. Phys. 2017, 19, 13133–13139. [Google Scholar] [CrossRef]
  66. Song, B.; Sizemore, C.; Li, L.; Huang, X.; Lin, Z.; Moon, K.S.; Wong, C.P. Triethanolamine functionalized graphene-based composites for high performance supercapacitors. J. Mater. Chem. A 2015, 3, 21789–21796. [Google Scholar] [CrossRef]
  67. Blanco, A.; García-Abuín, A.; Gómez-Díaz, D.; Navaza, J.M.; Villaverde, Ó.L. Density, Speed of Sound, Viscosity, Surface Tension, and Excess Volume of N-Ethyl-2-pyrrolidone + Ethanolamine (or Diethanolamine or Triethanolamine) from T = (293.15 to 323.15) K. J. Chem. Eng. Data 2013, 58, 653–659. [Google Scholar] [CrossRef]
  68. Torrisi, F.; Carey, T. Graphene, related two-dimensional crystals and hybrid systems for printed and wearable electronics. Nano Today 2018, 23, 73–96. [Google Scholar] [CrossRef]
  69. Salavagione, H.J.; Sherwood, J.; Budarin, V.; Ellis, G.; Clark, J.; Shuttleworth, P. Identification of high performance solvents for the sustainable processing of graphene. Green Chem. 2017, 19, 2550–2560. [Google Scholar] [CrossRef]
  70. Paolucci, V.; D’Olimpio, G.; Lozzi, L.; Mio, A.M.; Ottaviano, L.; Nardone, M.; Nicotra, G.; Le-Cornec, P.; Cantalini, C.; Politano, A. Sustainable Liquid-Phase Exfoliation of Layered Materials with Nontoxic Polarclean Solvent. ACS Sustain. Chem. Eng. 2020, 8, 18830–18840. [Google Scholar] [CrossRef]
  71. D’Olimpio, G.; Occhiuzzi, J.; Lozzi, L.; Ottaviano, L.; Politano, A. Dimethyl 2-Methylglutarate (Iris): A Green Platform for Efficient Liquid-Phase Exfoliation of 2D Materials. Adv. Sustain. Syst. 2022, 6, 2200277. [Google Scholar] [CrossRef]
  72. Vidal, T.; Bramati, V.; Murthy, K.; Abribat, B. A New Environmentally Friendly Solvent of Low Toxicity for Crop Protection Formulations. J. ASTM Int. 2011, 8, 1–8. [Google Scholar] [CrossRef]
  73. Dong, X.; Al-Jumaily, A.; Escobar, I.C. Investigation of the use of a bio-derived solvent for non-solvent-induced phase separation (NIPS) fabrication of polysulfone membranes. Membranes 2018, 8, 23. [Google Scholar] [CrossRef] [Green Version]
  74. Lebarbé, T.; More, A.S.; Sane, P.S.; Grau, E.; Alfos, C.; Cramail, H. Bio-Based Aliphatic Polyurethanes Through ADMET Polymerization in Bulk and Green Solvent. Macromol. Rapid Commun. 2014, 35, 479–483. [Google Scholar] [CrossRef]
  75. Llevot, A.; Grau, E.; Carlotti, S.; Grelier, S.; Cramail, H. Dimerization of abietic acid for the design of renewable polymers by ADMET. Eur. Polym. J. 2015, 67, 409–417. [Google Scholar] [CrossRef]
  76. Luciani, L.; Goff, E.; Lanari, D.; Santoro, S.; Vaccaro, L. Waste-minimised copper-catalysed azide–alkyne cycloaddition in Polarclean as a reusable and safe reaction medium. Green Chem. 2018, 20, 183–187. [Google Scholar] [CrossRef]
  77. Mcintyre, N.S.; Spevack, P.A.; Beamson, G.; Briggs, D. Effects of Argon Ion-Bombardment on Basal-Plane and Polycrystalline MoS2. Surf. Sci. 1990, 237, L390–L397. [Google Scholar] [CrossRef]
  78. Baker, M.A.; Gilmore, R.; Lenardi, C.; Gissler, W. XPS investigation of preferential sputtering of S from MoS2 and determination of MoSx stoichiometry from Mo and S peak positions. Appl. Surf. Sci. 1999, 150, 255–262. [Google Scholar] [CrossRef]
  79. Alov, N.V. XPS study of MoO3 and WO3 oxide surface modification by low-energy Ar+ ion bombardment. Phys. Status Solidi C 2015, 12, 263–266. [Google Scholar] [CrossRef]
  80. Di Paola, A.; Palmisano, L.; Venezia, A.; Augugliaro, V. Coupled semiconductor systems for photocatalysis. Preparation and characterization of polycrystalline mixed WO3/WS2 powders. J. Phys. Chem. B 1999, 103, 8236–8244. [Google Scholar] [CrossRef]
  81. Wong, K.; Lu, X.; Cotter, J.; Eadie, D.; Wong, P.; Mitchell, K. Surface and friction characterization of MoS2 and WS2 third body thin films under simulated wheel/rail rolling–sliding contact. Wear 2008, 264, 526–534. [Google Scholar] [CrossRef]
  82. Shpak, A.; Korduban, A.; Kulikov, L.; Kryshchuk, T.; Konig, N.; Kandyba, V. XPS studies of the surface of nanocrystalline tungsten disulfide. J. Electron Spectrosc. Relat. Phenom. 2010, 181, 234–238. [Google Scholar] [CrossRef]
  83. Malard, L.M.; Pimenta, M.A.; Dresselhaus, G.; Dresselhaus, M.S. Raman spectroscopy in graphene. Phys. Rep. 2009, 473, 51–87. [Google Scholar] [CrossRef]
  84. Ferreira, E.M.; Moutinho, M.V.; Stavale, F.; Lucchese, M.M.; Capaz, R.B.; Achete, C.A.; Jorio, A. Evolution of the Raman spectra from single-, few-, and many-layer graphene with increasing disorder. Phys. Rev. B 2010, 82, 125429. [Google Scholar] [CrossRef]
  85. Cançado, L.G.; Jorio, A.; Ferreira, E.H.M.; Stavale, F.; Achete, C.A.; Capaz, R.B.; Moutinho, M.V.O.; Lombardo, A.; Kulmala, T.S.; Ferrari, A.C. Quantifying Defects in Graphene via Raman Spectroscopy at Different Excitation Energies. Nano Lett. 2011, 11, 3190–3196. [Google Scholar] [CrossRef]
  86. Khan, U.; Porwal, H.; O’Neill, A.; Nawaz, K.; May, P.; Coleman, J.N. Solvent-exfoliated graphene at extremely high concentration. Langmuir 2011, 27, 9077–9082. [Google Scholar] [CrossRef]
  87. Çelik, Y.; Flahaut, E.; Suvacı, E. A comparative study on few-layer graphene production by exfoliation of different starting materials in a low boiling point solvent. FlatChem 2017, 1, 74–88. [Google Scholar] [CrossRef]
  88. Zhang, R.; Zhang, B.; Sun, S. Preparation of high-quality graphene with a large-size by sonication-free liquid-phase exfoliation of graphite with a new mechanism. RSC Adv. 2015, 5, 44783–44791. [Google Scholar] [CrossRef]
  89. Yi, M.; Shen, Z.; Zhang, X.; Ma, S. Achieving concentrated graphene dispersions in water/acetone mixtures by the strategy of tailoring Hansen solubility parameters. J. Phys. D Appl. Phys. 2012, 46, 025301. [Google Scholar] [CrossRef]
  90. Capasso, A.; Castillo, A.D.R.; Sun, H.; Ansaldo, A.; Pellegrini, V.; Bonaccorso, F. Ink-jet printing of graphene for flexible electronics: An environmentally-friendly approach. Solid State Commun. 2015, 224, 53–63. [Google Scholar] [CrossRef]
  91. Biccai, S.; Barwich, S.; Boland, D.; Harvey, A.; Hanlon, D.; McEvoy, N.; Coleman, J.N. Exfoliation of 2D materials by high shear mixing. 2D Mater. 2018, 6, 015008. [Google Scholar] [CrossRef]
  92. Tominaga, Y.; Sato, K.; Shimamoto, D.; Imai, Y.; Hotta, Y. Wet-jet milling-assisted exfoliation of h-BN particles with lamination structure. Ceram. Int. 2015, 41, 10512–10519. [Google Scholar] [CrossRef]
Molecules 28 01484 g001 550

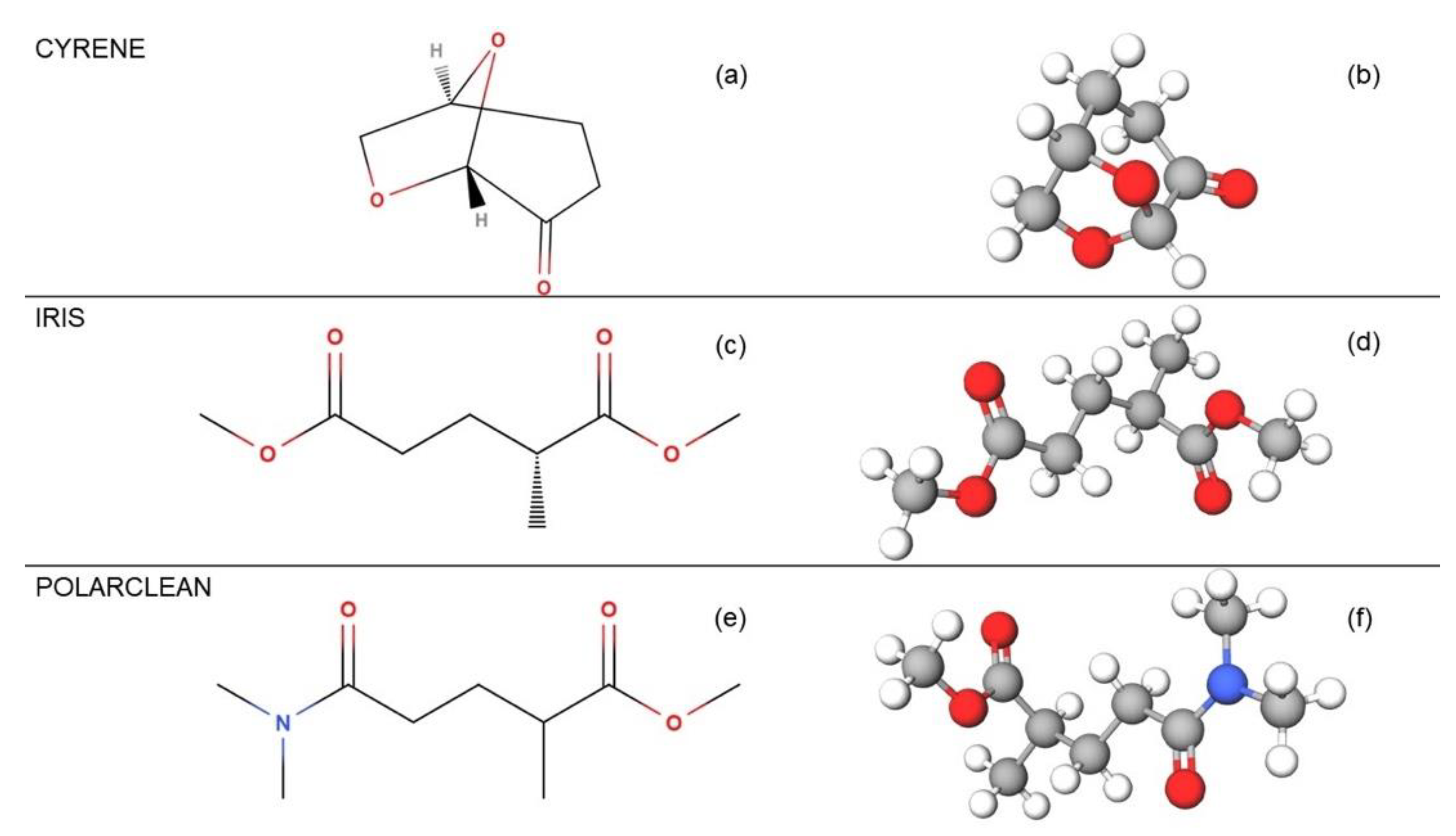

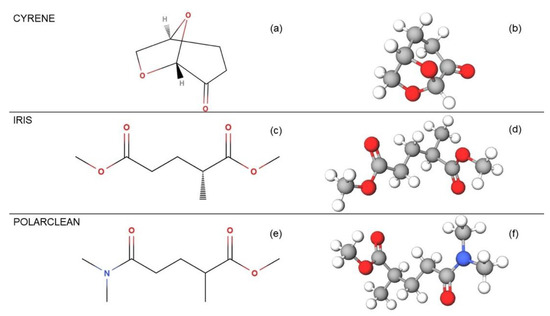

Figure 1. Comparison of the molecular structures of the solvents used: Cyrene, Iris, and Polarclean, whose atomic structures are shown in (a,c,e) plain and (b,d,f) ball-and-stick layouts, respectively.
Figure 1. Comparison of the molecular structures of the solvents used: Cyrene, Iris, and Polarclean, whose atomic structures are shown in (a,c,e) plain and (b,d,f) ball-and-stick layouts, respectively.
Molecules 28 01484 g001
Molecules 28 01484 g002 550
Figure 2. Comparison of the representative high-resolution SEM images and statistical analysis determined from the images. Exfoliated nanolayers with the LPE of WS2, assisted by (a) Iris, (b) Polarclean (taken from [70] with permission), (c) NMP. Lateral scale size distribution analysis of WS2 with (d) Iris, (e) Polarclean (taken from [70] with permission), (f) NMP.
Figure 2. Comparison of the representative high-resolution SEM images and statistical analysis determined from the images. Exfoliated nanolayers with the LPE of WS2, assisted by (a) Iris, (b) Polarclean (taken from [70] with permission), (c) NMP. Lateral scale size distribution analysis of WS2 with (d) Iris, (e) Polarclean (taken from [70] with permission), (f) NMP.
Molecules 28 01484 g002
Molecules 28 01484 g003 550
Figure 3. Representative AFM image of MoS2 flakes in (a) Polarclean (taken from [70] with permission) and (c) Iris. The height profile along the white solid line is reported in the inset. Analysis of the thickness distribution (b,d) was determined from the AFM measurements. (e) UV–VIS spectrum of the MoS2 nanosheets produced by Iris-assisted LPE. (f) XRD pattern of the (black curve) powdered MoS2 bulk crystals and (red curve) exfoliated nanosheets of MoS2.
Figure 3. Representative AFM image of MoS2 flakes in (a) Polarclean (taken from [70] with permission) and (c) Iris. The height profile along the white solid line is reported in the inset. Analysis of the thickness distribution (b,d) was determined from the AFM measurements. (e) UV–VIS spectrum of the MoS2 nanosheets produced by Iris-assisted LPE. (f) XRD pattern of the (black curve) powdered MoS2 bulk crystals and (red curve) exfoliated nanosheets of MoS2.
Molecules 28 01484 g003
Molecules 28 01484 g004 550
Figure 4. (a) The Mo-3d and (b) S-2p core levels of the bulk MoS2 and MoS2 nanosheets produced by LPE with Polarclean (taken from [70] with permission) and Iris. The component at a BE of 226.7 eV in the Mo-3d core level (in panel a) was related to the overlap of the S-2s core level. The photon energy was 1486.6 eV (Al Kα), and the spectra were normalised to the maximum.
Figure 4. (a) The Mo-3d and (b) S-2p core levels of the bulk MoS2 and MoS2 nanosheets produced by LPE with Polarclean (taken from [70] with permission) and Iris. The component at a BE of 226.7 eV in the Mo-3d core level (in panel a) was related to the overlap of the S-2s core level. The photon energy was 1486.6 eV (Al Kα), and the spectra were normalised to the maximum.
Molecules 28 01484 g004
Molecules 28 01484 g005 550

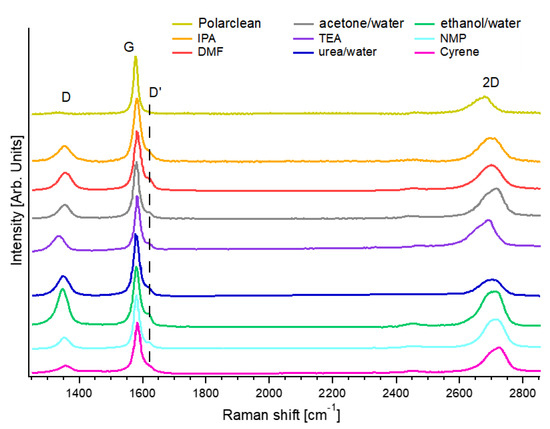

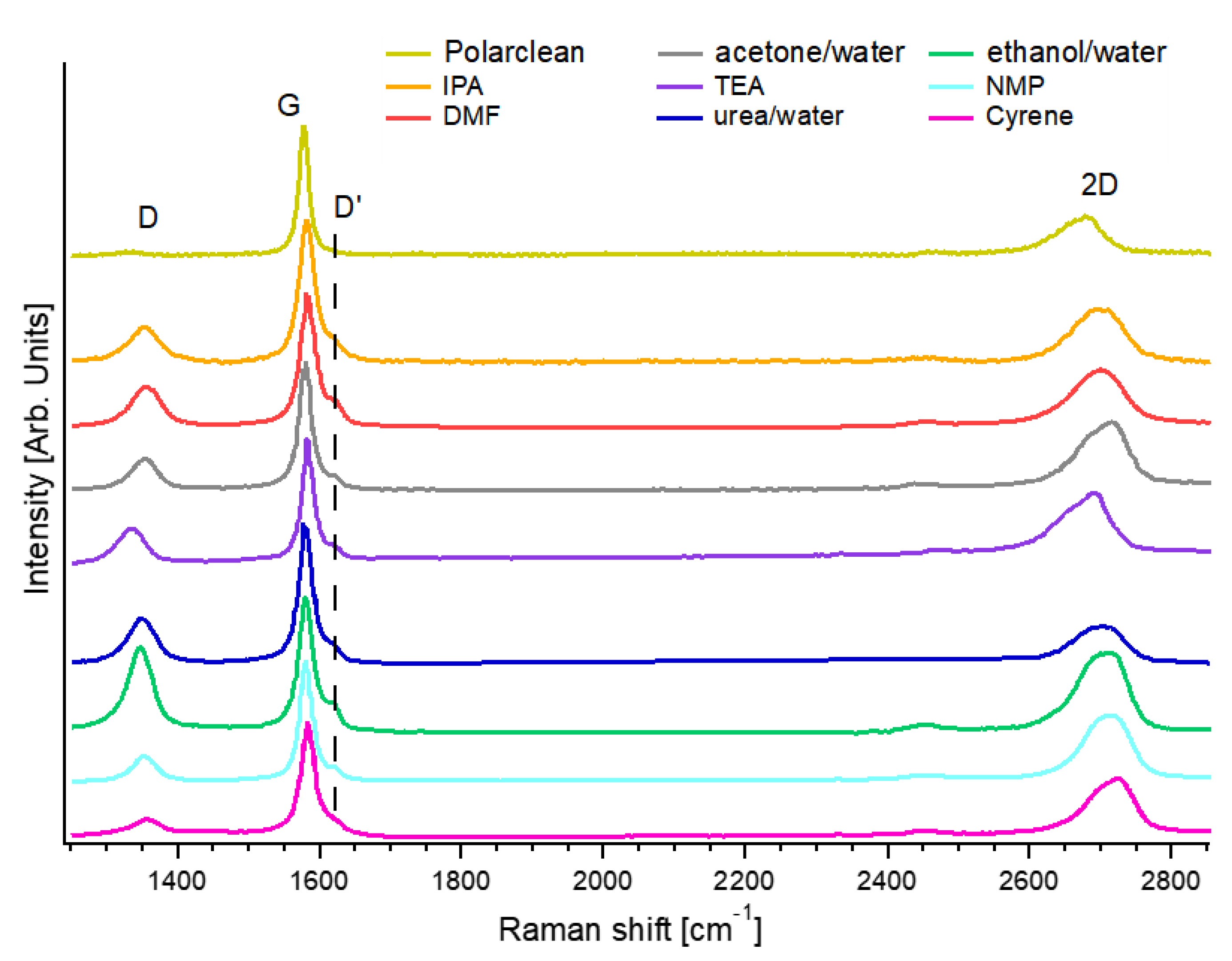

Figure 5. Comparison of the Raman spectrum for graphene exfoliated in the liquid phase with NMP [69], Cyrene [69], IPA [87], DMF [88], acetone/water [89], ethanol/water [90], TEA [63], and aqueous solution of urea [64], and Polarclean [70]. Data were taken from the above-mentioned references.
Figure 5. Comparison of the Raman spectrum for graphene exfoliated in the liquid phase with NMP [69], Cyrene [69], IPA [87], DMF [88], acetone/water [89], ethanol/water [90], TEA [63], and aqueous solution of urea [64], and Polarclean [70]. Data were taken from the above-mentioned references.
Molecules 28 01484 g005
Table
Table 2. Surface tension and the Hansen solubility parameters for NMP, DMF, IPA, Cyrene, Polarclean, and Iris.
Table 2. Surface tension and the Hansen solubility parameters for NMP, DMF, IPA, Cyrene, Polarclean, and Iris.
Surface Tension
σs [mNm−1]		Hansen Solubility Parameters
δd [MPa1/2]δp [MPa1/2]δH [MPa1/2]
NMP40.118.012.37.2
DMF37.117.413.711.3
IPA21.715.86.116.4
Acetone58.115.510.47.0
Ethanol46.115.88.819.4
Urea 30% in H2O74.017.016.738.0
TEA45.917.37.621.0
Cyrene72.518.710.56.9
Polarclean38.015.810.79.2
Iris33.016.68.75.0
Table
Table 3. Density, boiling point, and dynamic viscosity at 25 °C for NMP, DMF, IPA, acetone, ethanol, aqueous urea solutions, Cyrene, Polarclean, and Iris.
Table 3. Density, boiling point, and dynamic viscosity at 25 °C for NMP, DMF, IPA, acetone, ethanol, aqueous urea solutions, Cyrene, Polarclean, and Iris.
SolventDensity
[g/cm3]		Boiling Point
[°C]		Dynamic
Viscosity
at 20 °C [cP]
NMP1.032021.66
DMF0.941530.92
IPA0.78822.01
Acetone0.78560.32
Ethanol0.79781.09
Urea 30% in H2O1.321351.40
TEA1.13335404
Cyrene1.2522614.5
Polarclean1.042809.78
Iris1.052222.85
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Occhiuzzi, J.; Politano, G.G.; D’Olimpio, G.; Politano, A. The Quest for Green Solvents for the Sustainable Production of Nanosheets of Two-Dimensional (2D) Materials, a Key Issue in the Roadmap for the Ecology Transition in the Flatland. Molecules 2023, 28, 1484. https://doi.org/10.3390/molecules28031484

AMA Style

Occhiuzzi J, Politano GG, D’Olimpio G, Politano A. The Quest for Green Solvents for the Sustainable Production of Nanosheets of Two-Dimensional (2D) Materials, a Key Issue in the Roadmap for the Ecology Transition in the Flatland. Molecules. 2023; 28(3):1484. https://doi.org/10.3390/molecules28031484

Chicago/Turabian Style

Occhiuzzi, Jessica, Grazia Giuseppina Politano, Gianluca D’Olimpio, and Antonio Politano. 2023. "The Quest for Green Solvents for the Sustainable Production of Nanosheets of Two-Dimensional (2D) Materials, a Key Issue in the Roadmap for the Ecology Transition in the Flatland" Molecules 28, no. 3: 1484. https://doi.org/10.3390/molecules28031484

APA Style

Occhiuzzi, J., Politano, G. G., D’Olimpio, G., & Politano, A. (2023). The Quest for Green Solvents for the Sustainable Production of Nanosheets of Two-Dimensional (2D) Materials, a Key Issue in the Roadmap for the Ecology Transition in the Flatland. Molecules, 28(3), 1484. https://doi.org/10.3390/molecules28031484

Article Metrics

Back to TopTop
