A Combination of In Silico ADMET Prediction, In Vivo Toxicity Evaluation, and Potential Mechanism Exploration of Brucine and Brucine N-oxide—A Comparative Study

by
Yan Gao
1,
Lin Guo
1,
Ying Han
2,
Jingpu Zhang
2,
Zhong Dai
1,* and
Shuangcheng Ma
1,*
1
National Institutes for Food and Drug Control, Beijing 100050, China
2
Department of Pharmacology, Institute of Medicinal Biotechnology, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100050, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1341; https://doi.org/10.3390/molecules28031341
Submission received: 30 November 2022 / Revised: 15 January 2023 / Accepted: 18 January 2023 / Published: 31 January 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
Brucine (BRU) and brucine N-oxide (BNO) are prominent, bioactive, and toxic alkaloids in crude and processed Semen Strychni. Studies have demonstrated that BRU and BNO possess comprehensive pharmacological activities, such as anti-inflammatory and analgesic. In this context, a comparative study of BRU and BNO was performed by combination analysis of in silico ADMET prediction, in vivo toxicity evaluation, and potential action mechanism exploration. ADMET prediction showed that BRU and BNO might induce liver injury, and BRU may have a stronger hepatoxic effect. The prediction was experimentally verified using the zebrafish model. The BRU-induced hepatotoxicity of zebrafish larvae had a dose-response relationship. The mechanism of BRU-induced hepatotoxicity might relate to phosphorylation, kinase activity, and signal transduction. By comparison, signal transduction and gap junctions might involve BNO-induced hepatotoxicity. Our results provided a better understanding of BRU- and BNO-induced hepatotoxicity. We also built a foundation to elucidate the material base of the hepatotoxicity of traditional Chinese medicine Semen Strychni.

1. Introduction

Brucine (BRU) and brucine N-oxide (BNO) are bioactive and toxic constituents isolated from Semen Strychni. It is traditional Chinese medicine and has been mainly used to treat several diseases such as rheumatoid arthritis, cancer pain, and myasthenia due to its analgesic and anti-inflammatory activities [1,2,3,4,5,6]. BRU, the second most abundant alkaloid in Semen Strychni, is white crystalline powder soluble in menthol. The study demonstrated that BRU was highly distributed in blood-supply tissues after intravenous administration of crude alkaloid fractions of possessed Semen Strychni to rats. The highest content of BRU was found in kidney, followed by small intestine, spleen, liver, lung, stomach, heart, and plasma [7]. Besides anti-inflammatory and analgesic activities, BRU was reported to inhibit various tumor cells, including liver, skin, mammary, lung, gastric, and colorectal cancer lines, based on diverse physiological mechanisms [8,9,10,11,12,13,14,15]. New drug delivery systems of BRU have been a hot area of research in recent years. The release rate and time of BRU in vitro are controlled to play a long-term and effective medicinal effect and have an excellent clinical application prospect [16]. However, high toxicity has limited its clinical application. BRU is concerned with neurotoxicity, hepatotoxicity, nephrotoxicity, cytotoxicity, and cardiac toxicity [17,18,19,20]. A recent study showed that brucine hepatotoxicity was dosing time-dependent in mice caused by circadian Cyp3a11 metabolism [17]. Researchers are committed to reducing its toxicity and improving its therapeutic index. Therefore, further investigating the toxic effect and mechanism of brucine is significant.
BNO can be partly transformed from brucine during the processing of Semen strychni, which is considered a potential mechanism for processing detoxification [21]. The transformation also happens in vivo and in vitro [7,21,22,23,24]. A study on the contrast found that BNO can convert to BRU in vitro [25]. BNO, one of the major alkaloids in processed Semen Strychni, was reported to have equally potent pharmacological and less toxic side effects than BRU [26]. Several studies [1,26,27] showed BNO possessed anti-inflammatory, analgesic, and antiplatelet aggregation activities. In addition, it could help to control excessive alcohol behavior. BNO increased the safety margin, as LD50 of BNO is nearly 1/15 of BRU by intraperitoneal administration in rats [28]. Moreover, BNO exhibited no activity on hERG channels, while BRU inhibited it and induced cardiac toxicity [17]. However, there are few reports on the toxicity of BNO.
Drug toxicity research is essential to ensure medication safety. As for the main ingredients of natural medicines, a toxicity study provides evidence to elucidate the mechanism of toxicity and discover potentially unknown adverse reactions. Up-to-date data show that hepatotoxicity is one of the major causes for failure in drug development, drug withdrawal, and limiting drug clinical application [29,30,31]. Over the past few years, the zebrafish model has been increasingly employed in pre-clinical hepatotoxicity research in vitro. Numerous studies [32,33] have been published on the changes in liver size or liver degeneration in treated zebrafish larvae and this suggests that the drug is hepatotoxic. Compared to wild-type zebrafish, a transgenic line of zebrafish that expressed enhanced red fluorescent protein (dsRed) provided more precise and intuitive results because the liver was fluorescent. With the development of computer technology and chemoinformatics, various cost-effective and time-saving computational tools are applicated to predict ADMET (absorption, distribution, metabolism, elimination, and toxicity) properties in a high-throughput manner, based on the structure-activity/structure-property relationship [34,35,36].
The present study aimed to test the hypothesis of the hepatoxicity of BNO as compared to its parent drug BRU. For this purpose, ADMET predictor in silico was used to obtain unreported druggability information, complement the reported experimental results, and predict their potential toxicity. A transgenic zebrafish line with liver-specific dsRed expression in the liver was used to validate the predictions and evaluate BRU-and BNO-induced liver injury. Furthermore, our study preliminarily explored the mechanism of BRU and BNO using network pharmacology.

2. Results and Discussions

2.1. Calculation of ADMET-Related Properties

With the web server ADMETlab, physicochemical properties, medicinal chemistry, and ADMET properties of BRU and BNO were calculated (Table 1). Comments on the value of each indicator were shown in the Supplementary Materials. There is a correlation between the first two programs that several physicochemical properties are critical components of medicinal chemistry. TPSA is a valuable parameter for predicting drug mobility, which is significantly related to the small intestinal absorption of the drug in the human body, the permeability of Caco-2 monolayer, and the penetration of the blood-brain barrier. The TPSA value of BNO is slightly higher than that of BRU, as both are optimal. LogS value represents the water solubility index of small molecule compounds, while logP value reflects the distribution of substances in the two phases of oil and water. LogD (PH 7.4) value is usually used to express the apparent partition coefficient of a drug in the intestinal environment. All of the logS, logP, and logD values of BNO and BRU are in the optimal range. Based on the specific values, it can be inferred that the water solubility of BNO is stronger than BRU’s. QED value is used to assess drug-likeness by comprehensively analyzing critical physical and chemical properties compared with approved drugs, which is a crucial consideration when selecting compounds early in drug discovery. The SAscore value represents the ease of synthesis of compounds. Both the QED and SAscore values of BRU are ideal. In contrast, BNO is not.
As for predicted results of ADMET properties, most notably, BRU- and BNO-induced human hepatotoxicity (H-HT) may exist, as category 1 represents H-HT positive(+) and category 0 represents H-HT negative(-). As BRU is predicted to be a substrate of P450 CYP1A2, CYP3A4, CYP2C19, and CYP2D6, it may have stronger hepatotoxicity than BNO. A previous study [19] has shown that mouse Cyp3a11, an orthologous gene of human CYP3A4, which was believed to perform similar functions as CYP3A4, was a significant contributor to brucine metabolism. Based on the results of absorption, BRU and BNO are probably easily absorbed orally. BRU and BNO may be P-glycoprotein substrates and can be actively effluxed via p-glycoprotein. According to another study, it was compatible with the result that a highly effective P-gp modulator candidate should possess at least one tertiary basic nitrogen atom [37]. BRU may have good Caco-2 Permeability. BRU was predicted to be a P-gp inhibitor, widely considered a powerful and effective method to reverse multidrug resistance (MDR) in cancer. BRU was probably easier to cross the blood–brain barrier.
This study used computer simulation for the ADMET prediction of BRU and BNO, which was short time-consuming, feasible, effective, and practical. However, the prediction value could only be analyzed by comparing with the reference range, which required more validation studies. Further experimental research should be carried out at the cellular and animal level.

2.2. In Vitro Embryotoxicity Test for the Prediction of Acute Zebrafish Toxicity to BRU and BNO

Wild-type zebrafish embryos were exposed to different concentrations of BRU and BNO, and embryonic death was observed under the microscope. The results were shown in Figure 1 that the LC50 of BRU is 0.25 mM, and the LC50 of BNO is 6.33 mM.

2.3. BRU- and BNO-Induced Hepatoxicity in Zebrafish

2.3.1. Effects of BRU and BNO on the Liver Phenotype of Wild-Type Zebrafish

As shown in Figure 2, BNO had no significant toxic effects at low concentrations (0.01 mM) compared to the control group and exhibited concentration-dependent liver blackening and slightly increased liver area at 0.05 mM–0.1 mM. However, the difference was not significant. The hepatotoxicity of brucine was observed in the zebrafish model in this study, which is consistent with the previous research findings [19] that brucine has hepatotoxicity in the mouse model. The BRU-induced hepatotoxicity of zebrafish larvae had a dose-response relationship. That is, with the increase of the administration concentration, the liver darkened gradually and the liver area gradually increased. The positive control acetaminophen did not affect the size of the zebrafish larval liver within the administration range. However, the liver also gradually turned black with the increase of the administration concentration, indicating liver toxicity.

2.3.2. Effects of BRU and BNO on Liver Development in Transgenic Zebrafish

Compared to the non-administered control group (Figure 3), the high concentration of BRU and BNO in the administration group (0.1 mM) could induce significant changes in liver morphological changes in transgenic zebrafish larvae. The enlarged fluorescence area and/or the enhanced fluorescence intensity of the liver indicated that the expression of the liver-type fatty acid-binding protein-related gene fabp10a was enhanced, and the liver area was enlarged. However, the positive control drug acetaminophen did not significantly affect the liver of zebrafish larvae within the dose range.

2.4. Potential Action Mechanism Exploration of BRU and BNO

The functional and signaling pathway enrichment analysis of BRU- and BNO-related gene clusters were performed by GO and KEGG, respectively.

2.4.1. Functional Enrichment Analysis

In order to clarify the biological actions, a functional enrichment analysis was performed, and the enrichment results were displayed in order of significance, as shown in Figure 4 and Figure 5. The abscissa in the figure represents the number of genes enriched in the entry, and the ordinate represents the entry name. The redder color indicates greater significant biological action. It reflects that one compound may regulate multiple complex biological processes to exert multiple pharmacological effects.
As for BRU, the top 10 remarkable significant biological processes were chosen according to the corrected FDR from small to large, involving protein phosphorylation, phosphorylation, signal transduction, peptidyl-serine phosphorylation, protein autophosphorylation, peptidyl-tyrosine phosphorylation, intracellular signal transduction, peptidyl-threonine phosphorylation, and other processes.
Protein phosphorylation is a fundamental process of cellular biological effects, and many diseases are characterized by an imbalance in the activities of both protein kinases and phosphatases. Protein phosphorylation also plays a vital role in the regulation of cell proliferation. Kinases are also the primary regulators of cancer. Members of the receptor tyrosine kinase family are involved in the occurrence and regulation of many cancers. Studies showed that BRU might exert an antitumor effect via several mechanisms.
As for BNO, the top 10 biological processes were signal transduction, response to xenobiotic stimulus, phospholipase C-activating G-protein coupled receptor signaling pathway, sensory perception of pain, regulation of synaptic vesicle exocytosis, Positive regulation of ERK1 and ERK2 cascade ERK1, G-protein coupled receptor signaling pathway, and others.
G protein-coupled receptors (GPCRs) are the largest class of membrane proteins in the human genome, which are the targets for most drugs [38]. Both opioid receptors and 5-HT (except for 5-HT3) receptors are GPCRs. Serotonin (5-HT) is a monoamine and widely distributes in the nervous system as a neurotransmitter. 5-HT receptors’ agonists and antagonists have been reported to have therapeutic action in neuropathic pain [39]. Besides being closely related to therapeutic pain relief, opioid receptors are involved in various pleiotropic functions, including but not limited to cell proliferation, epileptic seizures, and immune function [40]. Functions related to GPCRs, especially opioid receptors and 5-HT receptors, may be the mechanism of the analgesic effect of BNO.

2.4.2. Pathway Enrichment Analysis

The enrichment results are displayed in order of significance, as shown in Figure 6 and Figure 7. The abscissa in the figure represents the number of genes enriched in the pathway, and the ordinate represents the pathway name. The redder color indicates greater significant pathways.
A total of 135 pathways (p < 0.05) were obtained for BRU, mainly involving PD-L1 expression and PD-1 checkpoint pathway in cancer, prostate cancer, neuroactive ligand-receptor interaction, progesterone-mediated oocyte maturation, T cell receptor signaling pathway, Yersinia infection, Fc epsilon RI signaling pathway, calcium signaling pathway, endocrine resistance, phospholipase D signaling pathway, and other biological processes.
A total of 22 pathways (p < 0.05) were obtained from BNO, mainly involving neuroactive ligand-receptor interaction, calcium signaling pathway, endocrine resistance, estrogen signaling pathway, bladder cancer, pathways in cancer, relaxin signaling pathway, gap junction, proteoglycans in cancer, cocaine addiction, and other biological processes.

2.4.3. “Component-Target-Pathway” Network of BRU and BNO

The “component-target-pathway” network of BRU is composed of 72 nodes (61 compound target nodes, 10 pathway nodes and 1 compound nodes) and 155 edges, as shown in Figure 8. The network of BNO contains 40 nodes (29 compound target nodes, 10 pathway nodes and 1 compound nodes) and 78 edges, as shown in Figure 9. The core target genes of BRU mainly included MAPK1, AKT1, EGFR, RAF1, MAPK3, etc. The core target genes of BNO mainly included MMP9, EGFR, ESR1, MDM2, MMP2, etc.
According to the physiological processes that have been reported to be associated with drug-induced liver injury (DILI), further analysis of functional and pathway enrichment results associated with BRU- and BNO-induced hepatotoxicity was performed.
Protein kinases, which catalyze the phosphorylation of proteins, contribute to antagonizing or promoting liver injury [41]. Researchers have found that APAP increased the expression of the phosphorylation of NFκB p65 (Ser536) and JNK (Thr183/Tyr185). At the same time, endoplasmic reticulum stress-induced upregulation of STARD1 could promote APAP-induced acute liver failure via SH3BP5 and phosphorylation of JNK1 and JNK2 [42,43]. Troglitazone-induced hepatotoxicity is related to the activation of JAK/STAT pathway [44]. As overwhelming oxidative stress plays a critical role in DILI, signal transduction pathways activated/inhibited during oxidative stress proved to be one of the critical factors in DILI [45,46]. Many signal transduction pathways have been found involved in developing APAP hepatotoxicity, such as JNK, Mtor, and NFκB [47]. Among the top 10 functions and pathways related to BRU, biological actions involved in BRU-induced hepatotoxicity may include phosphorylation, kinase activity, and signal transduction.
Same as BRU, signal transduction may be involved in BNO-induced hepatotoxicity. In terms of the pathway, gap junctions should be concerned. Recent studies found that dysfunction of gap junctions is also involved in various liver pathological processes, such as acute liver injury [48,49].

3. Materials and Methods

3.1. Prediction of ADMET In Silico

A freely accessible web-based ADMET predictor platform ADMETlab 2.0 (https://admetmesh.scbdd.com/, accessed on 12 May 2022) was applicated on the ADMET prediction of BRU and BNO. It is one of the most comprehensive platforms. It provides a computational model supporting the calculation of 88 ADMET-related endpoints, including 17 physicochemical properties, 13 medicinal chemical properties, 23 ADME properties, 27 toxicity endpoints, and 8 toxic groups [50].

3.2. Toxicity Evaluation on Zebrafish

3.2.1. Test Compounds and Solution Preparation

Acetaminophen (APAP) was used as positive control chemical. Brucine (110706–201306, 91.7%) and acetaminophen (100018–202111, 99.9%) were national reference substances obtained from the National Institutes for Food and Drug Control (Beijing, China). BNO was prepared in our lab. The structure of BNO was confirmed by NMR and MS. The purity of BNO (>95%) was normalized by HPLC. The structures of brucine and brucine N-oxide were shown in the Supplementary Materials. Stock solutions and dilutions of all compounds were prepared before use in freshly prepared zebrafish feeding solution and stored at −20 °C. Dosing solutions of BRU and BNO yielded concentrations of 0.05, 0.1, 0.2, 0.5, 1, 4, and 8 mM in the zebrafish embryotoxicity test. As for the zebrafish hepatotoxicity test, the dosing solutions of BRU and BNO were 0.01, 0.025, 0.05, and 0.1 mM, while APAP dosing concentrations were 1, 8, and 16 mM, respectively.

3.2.2. Zebrafish Embryo Toxicity Test (ZET)

Wild-type zebrafish (Danio rerio, TU strain) were used to perform a zebrafish embryo toxicity test. Zebrafish maintenance and embryo collection for the test according to the guideline of OECD was described in the Supplementary Materials. Embryos (20 embryos/dish) at 6 h post-fertilization (6 hpf) stage were immersed in 2 mL of each dosing solution in a 20 mm dish and allowed to develop under standard conditions until 96 hpf. The control groups were treated with embryo water. During this period, the embryonic state was observed by an Olympus SZX16 stereomicroscope (Tokyo, Japan) and recorded every day. A series of concentrations (0.05, 0.1, 0.2, 0.5, 1, 4, 8 mM) were applied to find a narrower concentration range. The BRU-induced mortality was between 0% and 100%, as the BNO was 0%–80%, considering it is hard-obtained. The experiment was repeated at least three times. Mortality is expressed as mean and standard deviation (Mean ± SD).

3.2.3. Zebrafish Hepatotoxicity Test (ZHT)

ZHT was initiated at 72 hpf and terminated at 120 hpf. A transgenic zebrafish line with liver-specific dsRed expression was used to assess the potential hepatotoxicity of the two chemicals. Wild-type and transgenic line of zebrafish larvae at 72 hpf (20 larvae in each group) were exposed to BRU and BNO at 0.01, 0.025, 0.05, and 0.1 mM for a 2-day treatment period, respectively. Transgenic zebrafish larvae (72 hpf) in the positive control group of APAP were dosed at 1, 8, and 16 mM for 2 days. Larvae at 120 hpf (at least 10 larvae in each group) were taken to record the liver morphology under a fluorescence microscope. The liver size of zebrafish larva was quantified using Image J software. The experiment was repeated three times.
The liver toxicity of BRU and BNO was determined by measuring the liver size changes, which was calculated as follows: Liver size (%) = liver area (drug)/liver area (control) × 100%.

3.3. Network Pharmacology-Based Exploration of Potential Action Mechanism

3.3.1. Identification of Putative Targets of BRU and BNO

100 potential targets associated with BRU and 40 potential targets related to BNO were screened from the SwissTargetPrediction database (http://www.swisstargetprediction.ch/, accessed on 7 July 2022), with the species set as “mouse”. The Gene Symbols were retrieved from the UniProt database (https://www.uniprot.org/, accessed on 8 July 2022) corresponding to the target name.

3.3.2. GO and KEGG Pathway Enrichment Analysis

GO (gene ontology) is a comprehensive database describing gene function for systematically analyzing gene function at the molecular and cellular levels. It can be divided into three parts: Molecular function (MF), biological process (BP), and cellular component (CC). KEGG (kyoto encyclopedia of genes and genomes) is a public database resource for high-level functions and biological systems (such as cells, organisms and ecosystems), integrating genomic, chemical and system functional information. The categories of KEGG are represented by signaling pathways. GO enrichment analysis and KEGG pathway analysis were performed using Database Visualization and Integrated Discovery system (DAVID) (https://david.ncifcrf.gov/home.jsp, accessed on 15 July 2022).

3.3.3. Construction of “Component-Target-Pathway” Network

Cytoscape 3.7.2 software was used to construct a “component-target-pathway” network to obtain the relevant pathways and targets of BRU and BNO, respectively.

3.4. Statistical Analysis

The experimental results were described as mean ± SD. The concentration-effect curves of compounds were drawn using GraphPad Prism 8.0. SPSS software was used for statistical data and statistical significance was determined based on one-way ANOVA analysis. The LSD method was used to compare the two groups.

4. Conclusions

The results provided by the ADMET predictor indicated that both BRU and BNO might induce liver injury. Moreover, the probability of inducing hepatotoxicity of BRU is greater than that of BNO. The hepatotoxicity of BRU and BNO in wild-type and transgenic zebrafish showed a dose-dependent relationship. The BRU-induced hepatotoxicity in zebrafish is greater than that of BNO. Through network pharmacology analysis, it was found that potential mechanisms of BRU-induced hepatotoxicity might relate to phosphorylation, kinase activity, and signal transduction. While signal transduction and gap junctions might be involved in BNO-induced liver injury.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28031341/s1, Figure S1. Structure of brucine; Figure S2. Structure of brucine N-oxide; Table S1. Comments on the value of physicochemical, medicinal chemical, and ADMET properties.

Author Contributions

Conceptualization, Z.D., S.M. and Y.G.; methodology, Y.G.; software, Y.H.; validation, L.G.; investigation, Y.G.; resources, J.Z.; writing—original draft preparation, Y.G.; writing—review and editing, Z.D.; supervision, J.Z.; project administration, Y.G.; funding acquisition, Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Youth Development Research Foundation of NIFDC (No. 2020A1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

G.Y. extends her appreciation to the Youth Development Research Foundation of NIFDC for funding her work through Research Grant number 2020A1.

Conflicts of Interest

The authors have declared no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Wei, S.; Li, Y.L.; Gong, Q.; Liang, H.; Liu, Q.; Bernardi, R.E.; Zhang, H.T.; Chen, F.; Lawrence, A.J.; Liang, J.H. Brucine N-Oxide Reduces Ethanol Intake and Preference in Alcohol-Preferring Male Fawn-Hooded Rats. Alcohol Clin. Exp. Res. 2020, 44, 1321–1328. [Google Scholar] [CrossRef] [PubMed]
  2. Duan, X.; Wen, J.; Zhang, M.; Wang, C.; Xiang, Y.; Wang, L.; Yu, C.; Deng, G.; Yan, M.; Zhang, B.; et al. Pharmacotherapy, Glycyrrhiza uralensis Fisch. and its active components mitigate Semen Strychni-induced neurotoxicity through regulating high mobility group box 1 (HMGB1) translocation. Biomed. Pharmacother. 2022, 149, 112884. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, Y.; Wang, R.; Qi, X.; Li, W.; Guan, Q.; Wang, R.; Li, X.; Li, Y.; Yang, Z.; Feng, Y.F. Novel transethosomes for the delivery of brucine and strychnine: Formulation optimization, characterization and in vitro evaluation in hepatoma cells. J. Drug Deliv. Sci. Technol. 2021, 64, 102425. [Google Scholar] [CrossRef]
  4. Qin, J.M.; Yin, P.H.; Li, Q.; Sa, Z.Q.; Sheng, X.; Yang, L.; Huang, T.; Zhang, M.; Gao, K.P.; Chen, Q.H. Anti-tumor effects of brucine immuno-nanoparticles on hepatocellular carcinoma. Int. J. Nanomed. 2012, 7, 369. [Google Scholar] [CrossRef] [Green Version]
  5. Chen, Z.P.; Xiao, L.; Liu, D.; Feng, M.S.; Xiao, Y.Y.; Chen, J.; Li, W.; Li, W.D.; Cai, B.C. Synthesis of a novel polymer cholesterol-poly (ethylene glycol) 2000-glycyrrhetinic acid (chol-PEG-GA) and its application in brucine liposome. J. Appl. Polym. Sci. 2012, 124, 4554–4563. [Google Scholar] [CrossRef]
  6. Haroun, M.; Elsewedy, H.S.; Shehata, T.M.; Tratrat, C.; Al Dhubiab, B.E.; Venugopala, K.N.; Almostafa, M.M.; Kochkar, H.; Elnahas, H.M. Significant of injectable brucine PEGylated niosomes in treatment of MDA cancer cells. J. Drug Deliv. Sci. Technol. 2022, 71, 103322. [Google Scholar] [CrossRef]
  7. Chen, J.; Hou, T.; Fang, Y.; Chen, Z.-P.; Liu, X.; Cai, H.; Lu, T.-L.; Yan, G.-J.; Cai, B.-C. HPLC determination of strychnine and brucine in rat tissues and the distribution study of processed semen strychni. Yakugaku Zasshi. 2011, 131, 721–729. [Google Scholar] [CrossRef] [Green Version]
  8. Saraswati, S.; Alhaider, A.A.; Agrawal, S. Anticarcinogenic effect of brucine in diethylnitrosamine initiated and phenobarbital-promoted hepatocarcinogenesis in rats. Chem. Biol. Interact. 2013, 206, 214–221. [Google Scholar] [CrossRef]
  9. Fan, G.; Liang, X.; He, Y.; Ren, H.; Zhao, J.; Liang, T.; Wei, J.; Wang, T.; Zhang, F. Brucine sensitizes HepG2 human liver cancer cells to 5-fluorouracil via Fas/FasL apoptotic pathway. Int. J. Pharmacol. 2017, 13, 323–331. [Google Scholar] [CrossRef] [Green Version]
  10. Deng, X.K.; Yin, W.; Li, W.D.; Yin, F.Z.; Lu, X.Y.; Zhang, X.C.; Hua, Z.C.; Cai, B.C. The anti-tumor effects of alkaloids from the seeds of Strychnos nux-vomica on HepG2 cells and its possible mechanism. J. Ethnopharmacol. 2006, 106, 179–186. [Google Scholar] [CrossRef]
  11. Wang, J.; He, Z.; Zhao, J.; Xiao, W.; Xiong, L.; Chen, W. Anticarcinogenic effect of brucine on DMBA-induced skin cancer via regulation of PI3K/AKT signaling pathway. Pharmacogn. Mag. 2022, 18, 29. [Google Scholar]
  12. Saminathan, U.; Pugalendhi, P.; Subramaniyan, S.; Jayaganesh, R. Biochemical studies evaluating the chemopreventive potential of brucine in chemically induced mammary carcinogenesis of rats. Toxicol. Mech. Methods. 2019, 29, 8–17. [Google Scholar] [CrossRef]
  13. Zhang, L.; Yu, W.Y. Pharmacological Effects, Pharmacokinetics, and Strategies to Reduce Brucine Toxicity. Rev. Bras. Farmacogn. 2021, 32, 39–49. [Google Scholar] [CrossRef]
  14. Yu, G.; Qian, L.; Yu, J.; Tang, M.; Wang, C.; Zhou, Y.; Geng, X.; Zhu, C.; Yang, Y.; Pan, Y. Brucine alleviates neuropathic pain in mice via reducing the current of the sodium channel. J. Ethnopharmacol. 2019, 233, 56–63. [Google Scholar] [CrossRef]
  15. Shu, G.; Mi, X.; Cai, J.; Zhang, X.; Yin, W.; Yang, X.; Li, Y.; Chen, L.; Deng, X. Brucine, an alkaloid from seeds of Strychnos nux-vomica Linn., represses hepatocellular carcinoma cell migration and metastasis: The role of hypoxia inducible factor 1 pathway. Toxicol. Lett. 2013, 222, 91–101. [Google Scholar] [CrossRef]
  16. Chen, J.; Yan, G.J.; Hu, R.R.; Gu, Q.W.; Chen, M.L.; Gu, W.; Chen, Z.P.; Cai, B.C. Improved pharmacokinetics and reduced toxicity of brucine after encapsulation into stealth liposomes: Role of phosphatidylcholine. Int. J. Nanomed. 2012, 7, 3567. [Google Scholar] [CrossRef] [Green Version]
  17. Yuan, C.H.; Luo, Z.Y.; Zhou, Y.; Lei, S.; Xu, C.X.; Peng, C.; Li, S.J.; Li, X.W.; Zhu, X.H.; Gao, T.M. Removal of hERG potassium channel affinity through introduction of an oxygen atom: Molecular insights from structure-activity relationships of strychnine and its analogs. Toxicol. Appl. Pharmacol. 2018, 360, 109–119. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, F.; Wang, X.L.; Han, X.; Tan, X.X.; Kang, W.J. Cytotoxicity and DNA interaction of brucine and strychnine—Two alkaloids of semen strychni. Int. J. Biol. Macromol. 2015, 77, 92–98. [Google Scholar] [CrossRef] [PubMed]
  19. Zhou, Z.Y.; Lin, Y.K.; Gao, L.; Yang, Z.M.; Wang, S.; Wu, B.J. Cyp3a11 metabolism-based chronotoxicity of brucine in mice. Toxicol. Lett. 2019, 313, 188–195. [Google Scholar] [CrossRef]
  20. Gu, L.Q.; Wang, X.F.; Liu, Z.Z.; Ju, P.; Zhang, L.H.; Zhang, Y.; Ma, B.; Bi, K.; Chen, X.J.F.; Toxicology, C. A study of Semen Strychni-induced renal injury and herb–herb interaction of Radix Glycyrrhizae extract and/or Rhizoma Ligustici extract on the comparative toxicokinetics of strychnine and brucine in rats. Food Chem. Toxicol. 2014, 68, 226–233. [Google Scholar] [CrossRef] [PubMed]
  21. Cai, B.C.; Hattori, M.; Namba, T.J.C.; Bulletin, P. Prosessing of Nux Vomica. II.: Changes in Alkaloid Composition of the Seeds of Strychnos nux-vomica on Traditional Drug-Processing. Chem. Pharm. Bull. 1990, 38, 1295–1298. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, X.G.; Lai, Y.Q.; Cai, Z.W. Simultaneous analysis of strychnine and brucine and their major metabolites by liquid chromatography–electrospray ion trap mass spectrometry. J. Anal. Toxicol. 2012, 36, 171–176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Behpour, M.; Ghoreishi, S.M.; Khayatkashani, M.; Motaghedifard, M. A New Method for the Simultaneous Analysis of Strychnine and Brucine in Strychnos nux-vomica Unprocessed and Processed Seeds Using a Carbon-paste Electrode Modified with Multi-walled Carbon Nanotubes. Phytochem. Anal. 2012, 23, 95–102. [Google Scholar] [CrossRef] [PubMed]
  24. Lin, A.H.; Su, X.C.; She, D.; Qiu, K.C.; He, Q.M.; Liu, Y.M. LC–MS/MS determination and comparative pharmacokinetics of strychnine, brucine and their metabolites in rat plasma after intragastric administration of each monomer and the total alkaloids from Semen Strychni. J. Chromatogr. B 2016, 1008, 65–73. [Google Scholar] [CrossRef]
  25. El-Mekkawy, S.; Meselhy, M.R.; Kawata, Y.; Kadota, S.; Hattori, M.; Namba, T. Metabolism of strychnine N-oxide and brucine N-oxide by human intestinal bacteria. Planta Med. 1993, 59, 347–350. [Google Scholar] [CrossRef] [PubMed]
  26. Yin, W.; Wang, T.S.; Yin, F.Z.; Cai, B.C. Analgesic and anti-inflammatory properties of brucine and brucine N-oxide extracted from seeds of Strychnos nux-vomica. J. Ethnopharmacol. 2003, 88, 205–214. [Google Scholar] [CrossRef] [PubMed]
  27. Jianyin, Z.; Huimin, B.; Chen, M. Study on the effect of brucine and brucine N-oxide on platelet aggregation and blood clot formation. Jiangsu J. Chin. Trad. Med. 1998, 19, 41–42. [Google Scholar]
  28. Ma, C.; He, Y.M.; Cai, B.C.; Chen, L. Strychnine and brucine compared with strychnine N-oxide and brucine N-oxide in toxicity. J. Nanjing Univ. Trad. Chin. Med. 1994, 10, 37–39. [Google Scholar]
  29. Jaeschke, H.; Gores, G.J.; Cederbaum, A.I.; Hinson, J.A.; Pessayre, D.; Lemasters, J.J. Mechanisms of hepatotoxicity. Toxicol. Sci. 2002, 65, 166–176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Parvez, M.K.; Rishi, V. Herb-drug interactions and hepatotoxicity. Curr. Drug Metab. 2019, 20, 275–282. [Google Scholar] [CrossRef]
  31. Navarro, V.J.; Senior, J.R. Drug-related hepatotoxicity. N. Engl. J. Med. 2006, 354, 731–739. [Google Scholar] [CrossRef] [Green Version]
  32. Cui, Y.J.; Li, Y.; Li, X.; Fan, L.J.; He, X.R.; Fu, Y.H.; Dong, Z.J. A Simple UPLC/MS-MS Method for Simultaneous Determination of Lenvatinib and Telmisartan in Rat Plasma, and Its Application to Pharmacokinetic Drug-Drug Interaction Study. Molecules 2022, 27, 1291. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, Q.Q.; Yan, C.; Gong, Z.Y. Interaction of hepatic stellate cells with neutrophils and macrophages in the liver following oncogenic kras activation in transgenic zebrafish. Sci. Rep. 2018, 8, 8495. [Google Scholar] [CrossRef] [PubMed]
  34. Jia, C.Y.; Li, J.Y.; Hao, G.F.; Yang, G.F. A drug-likeness toolbox facilitates ADMET study in drug discovery. Drug Discov. Today 2020, 25, 248–258. [Google Scholar] [CrossRef] [PubMed]
  35. Göller, A.H.; Kuhnke, L.; Montanari, F.; Bonin, A.; Schneckener, S.; Ter Laak, A.; Wichard, J.; Lobell, M.; Hillisch, A. Bayer’s in silico ADMET platform: A journey of machine learning over the past two decades. Drug Discov. Today 2020, 25, 1702–1709. [Google Scholar] [CrossRef]
  36. Zhang, R.Z.; Zhu, X.; Bai, H.; Ning, K. Network pharmacology databases for traditional Chinese medicine: Review and assessment. Front. Pharmacol. 2019, 10, 123. [Google Scholar] [CrossRef] [Green Version]
  37. Wang, R.B.; Kuo, C.L.; Lien, L.L.; Lien, E.J. Structure–activity relationship: Analyses of p-glycoprotein substrates and inhibitors. J. Clin. Pharm. Ther. 2003, 28, 203–228. [Google Scholar] [CrossRef]
  38. Alexander, S.P.; Christopoulos, A.; Davenport, A.P.; Kelly, E.; Mathie, A.; Peters, J.A.; Veale, E.L.; Armstrong, J.F.; Faccenda, E.; Harding, S.D.; et al. The Concise Guide to PHARMACOLOGY 2019/20: G protein-coupled receptors. Br. J. Pharmacol. 2019, 176, S21–S141. [Google Scholar] [CrossRef] [Green Version]
  39. Liu, Q.Q.; Yao, X.X.; Gao, S.H.; Li, R.; Li, B.J.; Yang, W.; Cui, R.J. Role of 5-HT receptors in neuropathic pain: Potential therapeutic implications. Pharmacol. Res. 2020, 159, 104949. [Google Scholar] [CrossRef]
  40. Feng, Y.; He, X.Z.; Yang, Y.L.; Chao, D.M.; Lazarus, L.H.; Xia, Y. Current research on opioid receptor function. Curr. Drug Targets 2012, 13, 230–246. [Google Scholar] [CrossRef] [Green Version]
  41. Pan, X.Q.; Zhou, J.; Chen, Y.; Xie, X.F.; Rao, C.L.; Liang, J.; Zhang, Y.; Peng, C. Classification, hepatotoxic mechanisms, and targets of the risk ingredients in traditional Chinese medicine-induced liver injury. Toxicol. Lett. 2020, 323, 48–56. [Google Scholar] [CrossRef] [PubMed]
  42. Torres, S.; Baulies, A.; Insausti-Urkia, N.; Alarcón-Vila, C.; Fucho, R.; Solsona-Vilarrasa, E.; Núñez, S.; Robles, D.; Ribas, V.; Wakefield, L.; et al. Endoplasmic reticulum stress-induced upregulation of STARD1 promotes acetaminophen-induced acute liver failure. Gastroenterology 2019, 157, 552–568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Shen, X.Y.; Ishaq, S.M.; Wang, Q.E.; Yuan, J.T.; Gao, J.L.; Lu, Z.B. DDAH1 Protects against Acetaminophen-Induced Liver Hepatoxicity in Mice. Antioxidants 2022, 11, 880. [Google Scholar] [CrossRef]
  44. Jia, R.; Oda, S.; Tsuneyama, K.; Urano, Y.; Yokoi, T. Establishment of a mouse model of troglitazone-induced liver injury and analysis of its hepatotoxic mechanism. J. Appl. Toxicol. 2019, 39, 1541–1556. [Google Scholar] [CrossRef] [PubMed]
  45. Han, D.; Shinohara, M.; Ybanez, M.D.; Saberi, B.; Kaplowitz, N. Signal transduction pathways involved in drug-induced liver injury. Advers. Drug React. 2010, 196, 267–310. [Google Scholar]
  46. Iorga, A.; Dara, L.; Kaplowitz, N. Drug-induced liver injury: Cascade of events leading to cell death, apoptosis or necrosis. Int. J. Mol. Sci. 2017, 18, 1018. [Google Scholar] [CrossRef] [Green Version]
  47. Chowdhury, A.; Nabila, J.; Temitope, I.A.; Wang, S. Current etiological comprehension and therapeutic targets of acetaminophen-induced hepatotoxicity. Pharmacol. Res. 2020, 161, 105102. [Google Scholar] [CrossRef]
  48. Hernández-Guerra, M.; Hadjihambi, A.; Jalan, R. Gap junctions in liver disease: Implications for pathogenesis and therapy. J. Hepatol. 2019, 70, 759–772. [Google Scholar] [CrossRef] [Green Version]
  49. Saito, C.; Shinzawa, K.; Tsujimoto, Y. Synchronized necrotic death of attached hepatocytes mediated via gap junctions. Sci. Rep. 2014, 4, 5169. [Google Scholar] [CrossRef] [Green Version]
  50. Ferreira, L.L.; Andricopulo, A.D. ADMET modeling approaches in drug discovery. Drug Discov. Today 2019, 24, 1157–1165. [Google Scholar] [CrossRef]
Molecules 28 01341 g001 550

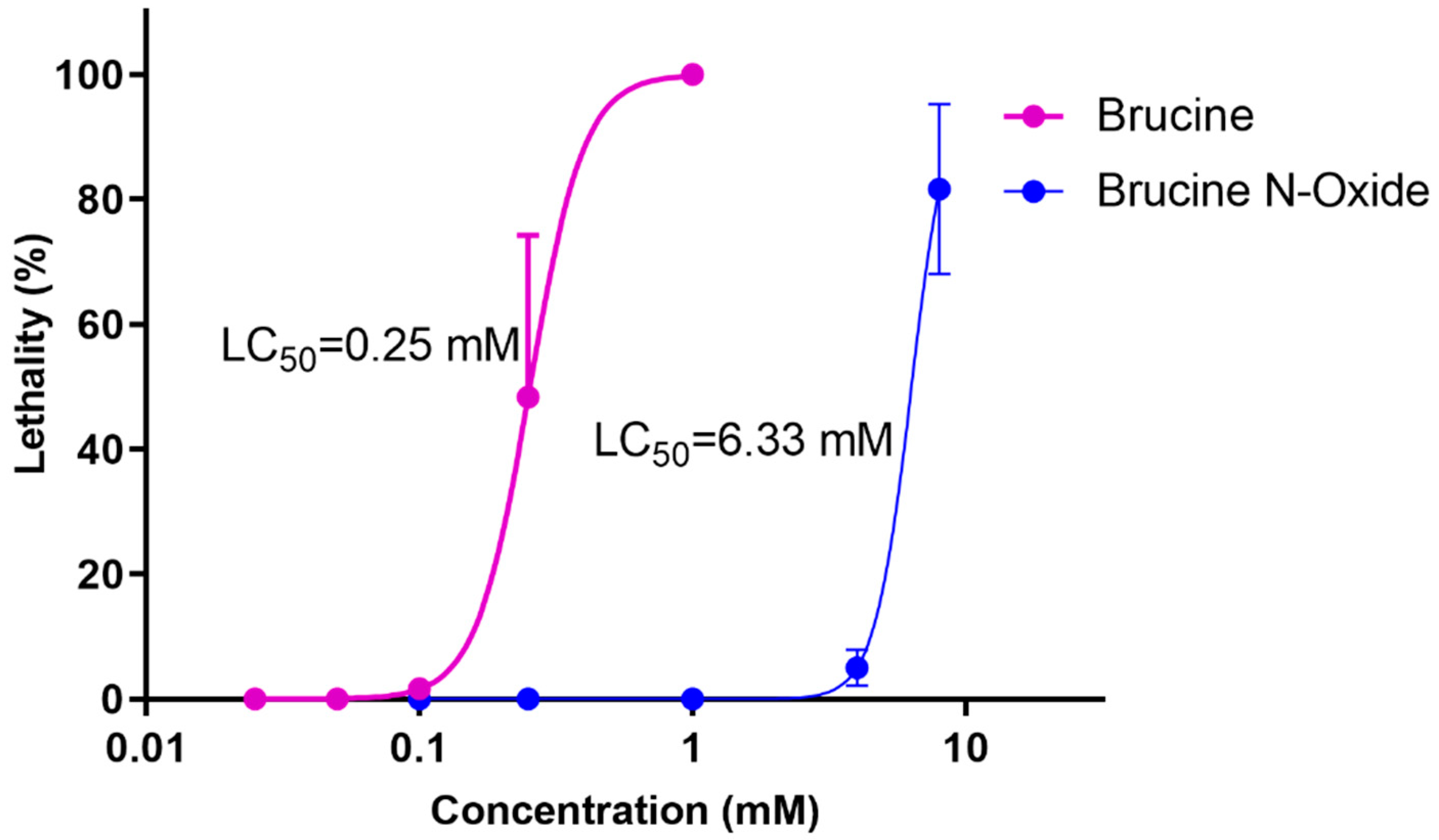

Figure 1. Dose-response curves of BRU- and BNO-induced acute toxicity in zebrafish.
Figure 1. Dose-response curves of BRU- and BNO-induced acute toxicity in zebrafish.
Molecules 28 01341 g001
Molecules 28 01341 g002 550
Figure 2. Effects of BRU and BNO on the liver phenotype of wild-type zebrafish. (A) Abnormal phenotypes caused by BRU, BNO and APAP on wild-type zebrafish, (B) Comparison of toxicity of BRU, BNO and APAP in wild-type zebrafish. Values represent the mean ± SEM (n = 20), * p < 0.05.
Figure 2. Effects of BRU and BNO on the liver phenotype of wild-type zebrafish. (A) Abnormal phenotypes caused by BRU, BNO and APAP on wild-type zebrafish, (B) Comparison of toxicity of BRU, BNO and APAP in wild-type zebrafish. Values represent the mean ± SEM (n = 20), * p < 0.05.
Molecules 28 01341 g002
Molecules 28 01341 g003 550
Figure 3. Effects of BRU and BNO on liver development in transgenic zebrafish. (A) Abnormal phenotypes caused by BRU, BNO and APAP on transgenic zebrafish, (B) Comparison of toxicity of BRU, BNO and APAP in transgenic zebrafish. Values represent the mean ± SEM (n = 20), * p < 0.05, ** p < 0.01.
Figure 3. Effects of BRU and BNO on liver development in transgenic zebrafish. (A) Abnormal phenotypes caused by BRU, BNO and APAP on transgenic zebrafish, (B) Comparison of toxicity of BRU, BNO and APAP in transgenic zebrafish. Values represent the mean ± SEM (n = 20), * p < 0.05, ** p < 0.01.
Molecules 28 01341 g003
Molecules 28 01341 g004 550

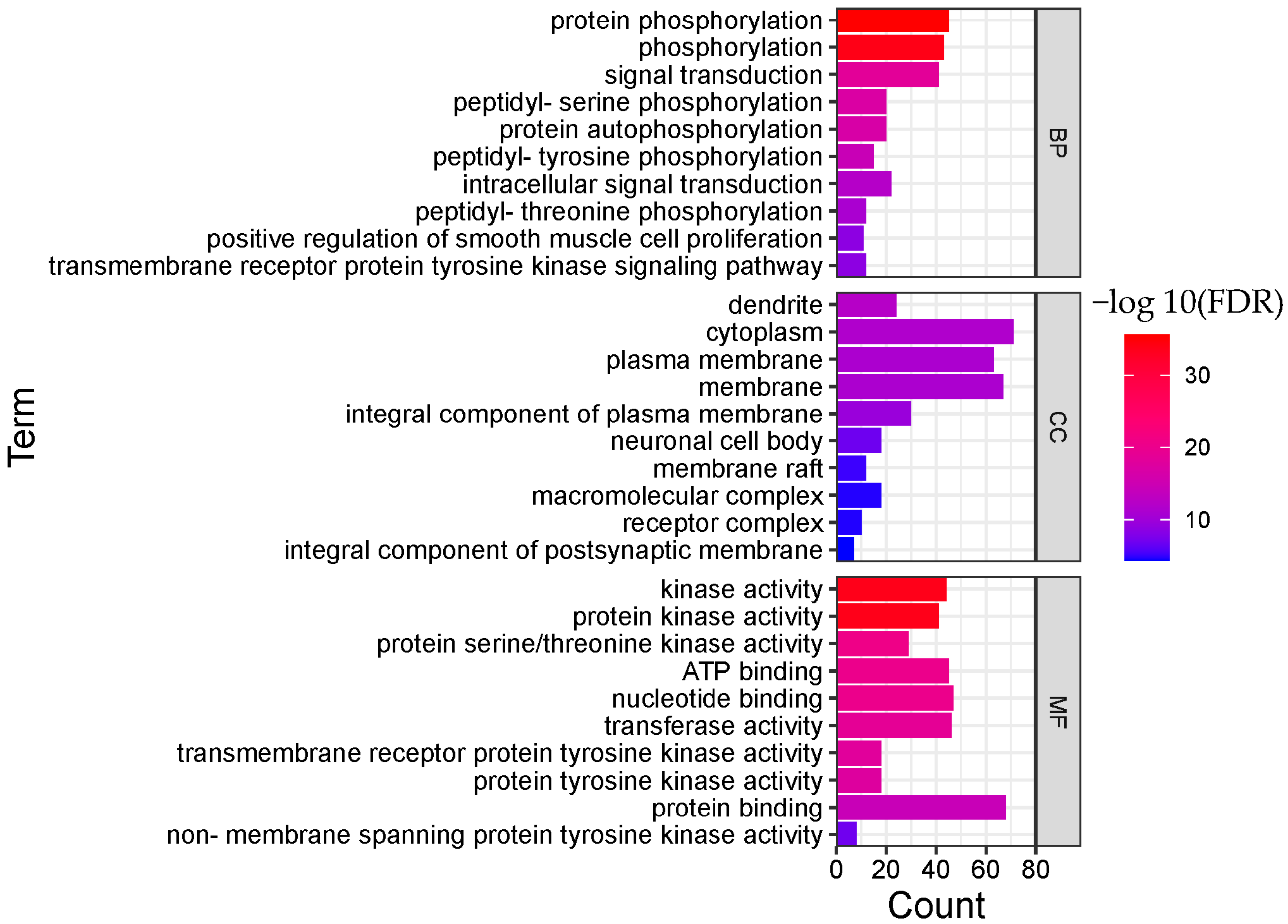

Figure 4. Functional enrichment analysis result of BRU (TOP 10; BP, biological process; CC, cellular component; MF, molecular function).
Figure 4. Functional enrichment analysis result of BRU (TOP 10; BP, biological process; CC, cellular component; MF, molecular function).
Molecules 28 01341 g004
Molecules 28 01341 g005 550

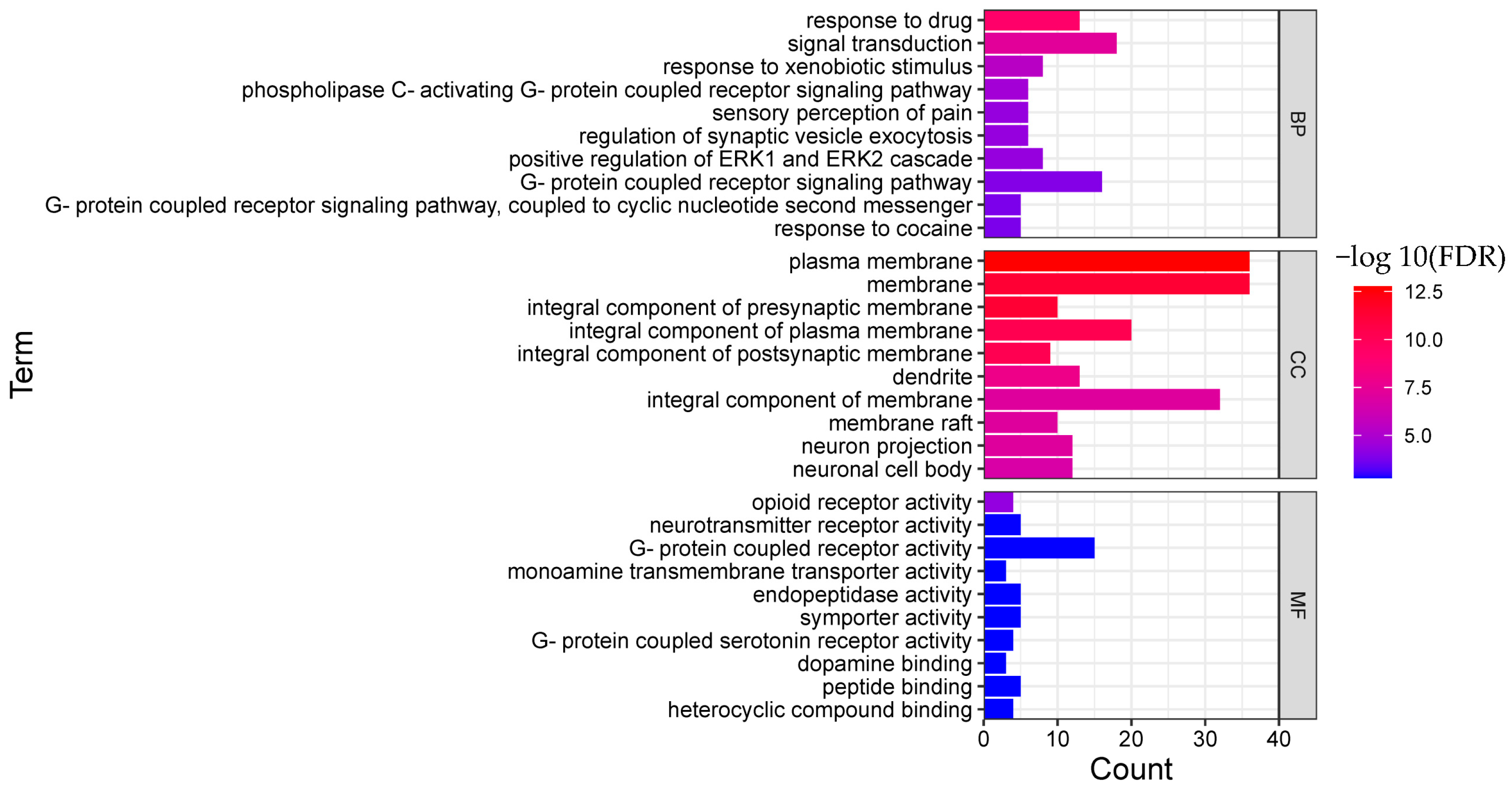

Figure 5. Functional enrichment analysis result of BNO (TOP 10; BP, biological process; CC, cellular component; MF, molecular function).
Figure 5. Functional enrichment analysis result of BNO (TOP 10; BP, biological process; CC, cellular component; MF, molecular function).
Molecules 28 01341 g005
Molecules 28 01341 g006 550

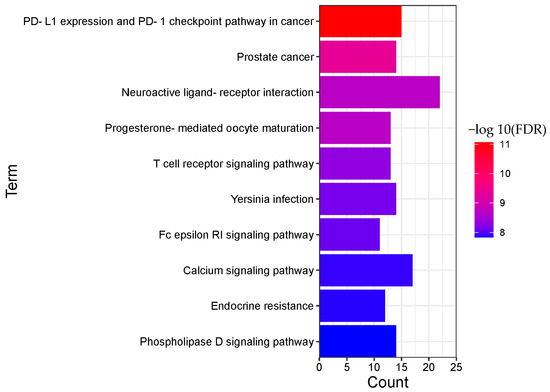

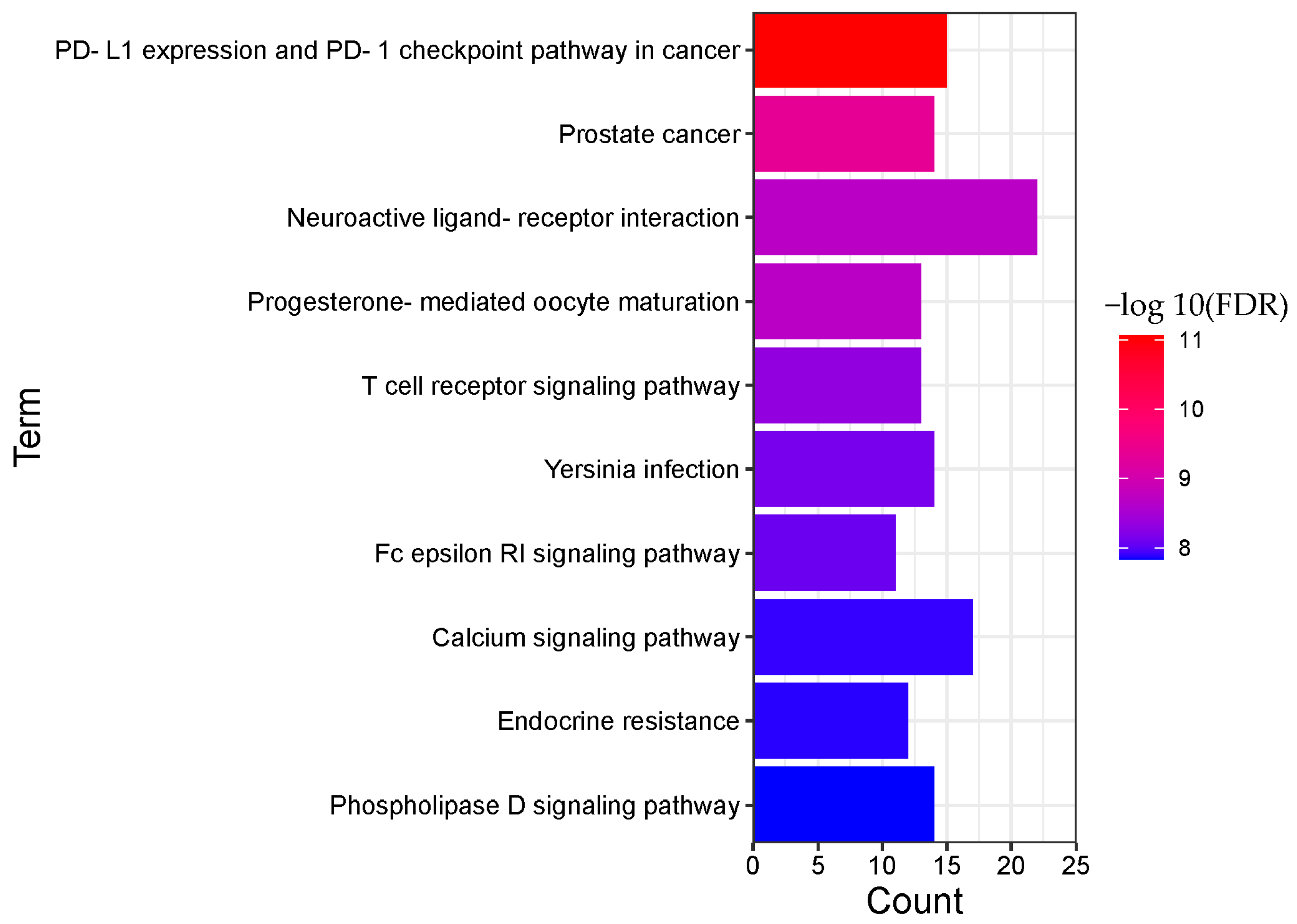

Figure 6. Pathway enrichment analysis result of BRU (TOP 10).
Figure 6. Pathway enrichment analysis result of BRU (TOP 10).
Molecules 28 01341 g006
Molecules 28 01341 g007 550

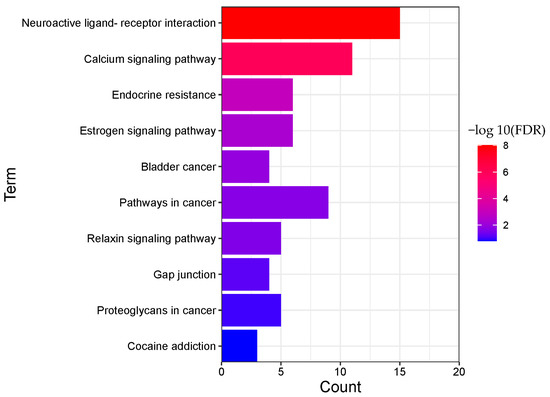

Figure 7. Pathway enrichment analysis result of BNO (TOP 10).
Figure 7. Pathway enrichment analysis result of BNO (TOP 10).
Molecules 28 01341 g007
Molecules 28 01341 g008 550

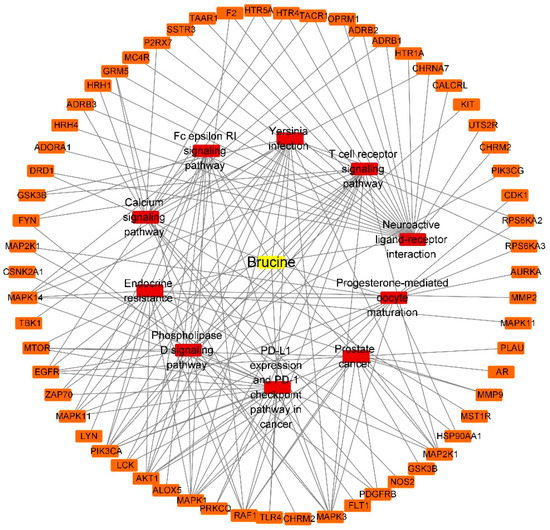

Figure 8. “Component-target-pathway” network of BRU (Yellow: compounds; red: pathways; orange: genes).
Figure 8. “Component-target-pathway” network of BRU (Yellow: compounds; red: pathways; orange: genes).
Molecules 28 01341 g008
Molecules 28 01341 g009 550

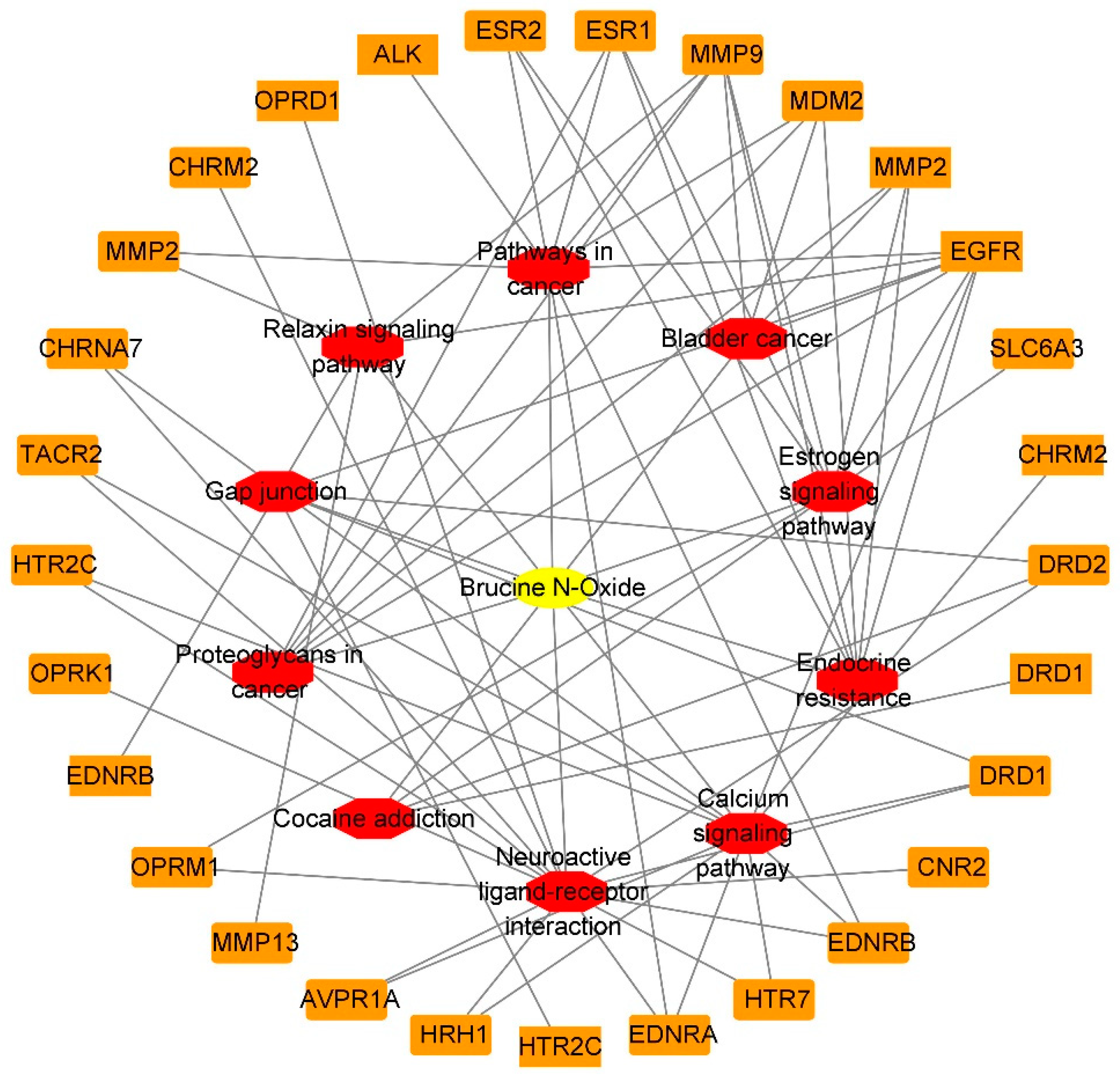

Figure 9. “Component-target-pathway” network of BNO (Yellow: compounds; red: pathways; orange: genes).
Figure 9. “Component-target-pathway” network of BNO (Yellow: compounds; red: pathways; orange: genes).
Molecules 28 01341 g009
Table
Table 1. Predicted values of physicochemical, medicinal chemical, and ADMET properties of BRU and BNO.
Table 1. Predicted values of physicochemical, medicinal chemical, and ADMET properties of BRU and BNO.
PropertyPredicted Values
Physicochemical PropertyBrucineBrucine N-Oxide
TPSA51.2471.06
LogS (Solubility)−3.126 log mol/L−1.702 log mol/L
LogD7.4 (Distribution Coefficient D)2.0830.392
LogP (Distribution Coefficient P)1.5851.443
Medicinal Chemistry
QED0.7190.424
SAscore5.7396.162
Absorption
Papp (Caco-2 Permeability)−4.609−5.312
Pgp-inhibitor0.960.001
Pgp-substrate0.6110.998
HIA (Human Intestinal Absorption)0.0110.908
Distribution
PPB (Plasma Protein Binding)48.53%22.48%
VD (Volume Distribution)1.483 L/kg1.518 L/kg
BBB (Blood–Brain Barrier)0.9520.314
Metabolism
P450 CYP1A2 inhibitor0.0240.011
P450 CYP1A2 Substrate0.7640.683
P450 CYP3A4 inhibitor0.2210.029
P450 CYP3A4 substrate0.8870.920
P450 CYP2C9 inhibitor0.0260.008
P450 CYP2C9 substrate0.1910.147
P450 CYP2C19 inhibitor0.0260.018
P450 CYP2C19 substrate0.9140.827
P450 CYP2D6 inhibitor0.0230.002
P450 CYP2D6 substrate0.5320.274
Elimination
T 1/2 (Half Life Time)0.699 h0.928 h
CL (Clearance Rate)10.81 mL/min/kg11.487 mL/min/kg
Toxicity
hERG (hERG Blockers)0.0340.022
H-HT (Human Hepatotoxicity)0.3340.368
AMES (Ames Mutagenicity)0.0130.009
SkinSen (Skin sensitization)0.1570.217
DILI (Drug Induced Liver Injury)0.1870.075
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gao, Y.; Guo, L.; Han, Y.; Zhang, J.; Dai, Z.; Ma, S. A Combination of In Silico ADMET Prediction, In Vivo Toxicity Evaluation, and Potential Mechanism Exploration of Brucine and Brucine N-oxide—A Comparative Study. Molecules 2023, 28, 1341. https://doi.org/10.3390/molecules28031341

AMA Style

Gao Y, Guo L, Han Y, Zhang J, Dai Z, Ma S. A Combination of In Silico ADMET Prediction, In Vivo Toxicity Evaluation, and Potential Mechanism Exploration of Brucine and Brucine N-oxide—A Comparative Study. Molecules. 2023; 28(3):1341. https://doi.org/10.3390/molecules28031341

Chicago/Turabian Style

Gao, Yan, Lin Guo, Ying Han, Jingpu Zhang, Zhong Dai, and Shuangcheng Ma. 2023. "A Combination of In Silico ADMET Prediction, In Vivo Toxicity Evaluation, and Potential Mechanism Exploration of Brucine and Brucine N-oxide—A Comparative Study" Molecules 28, no. 3: 1341. https://doi.org/10.3390/molecules28031341

APA Style

Gao, Y., Guo, L., Han, Y., Zhang, J., Dai, Z., & Ma, S. (2023). A Combination of In Silico ADMET Prediction, In Vivo Toxicity Evaluation, and Potential Mechanism Exploration of Brucine and Brucine N-oxide—A Comparative Study. Molecules, 28(3), 1341. https://doi.org/10.3390/molecules28031341

Article Metrics

Back to TopTop
