Benzophenones in the Environment: Occurrence, Fate and Sample Preparation in the Analysis

by
Andromachi A. Gavrila
,
Ioannis S. Dasteridis
,
Alkiviadis A. Tzimas
,
Theodoros G. Chatzimitakos
* and
Constantine D. Stalikas
*
Laboratory of Analytical Chemistry, Department of Chemistry, University of Ioannina, 45110 Ioannina, Greece
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1229; https://doi.org/10.3390/molecules28031229
Submission received: 29 December 2022 / Revised: 16 January 2023 / Accepted: 20 January 2023 / Published: 27 January 2023
(This article belongs to the Special Issue Contaminants of Emerging Concern: Analysis and Fate in the Aquatic Environment)
Versions Notes

Abstract

:
The ubiquitous presence of emerging contaminants in the environment is an issue of great concern. Notably, for some of them, no established regulation exists. Benzophenones are listed as emerging contaminants, which have been identified in the environment as well as in human fluids, such as urine, placenta, and breast milk. Their accumulation and stability in the environment, combined with the revealed adverse effects on ecosystems including endocrine, reproductive, and other disorders, have triggered significant interest for research. Benzophenones should be extracted from environmental samples and determined for environmental-monitoring purposes to assess their presence and possible dangers. Numerous sample preparation methods for benzophenones in environmental matrices and industrial effluents have been proposed and their detection in more complex matrices, such as fish and sludges, has also been reported. These methods range from classical to more state-of-the-art methods, such as solid-phase extraction, dispersive SPE, LLE, SBSE, etc., and the analysis is mostly completed with liquid chromatography, using several detection modes. This review critically outlines sample preparation methods that have been proposed to date, for the extraction of benzophenones from simple and complex environmental matrices and for cleaning up sample extracts to eliminate potential interfering components that coexist therein. Moreover, it provides a brief overview of their occurrence, fate, and toxicity.

1. Introduction

The abundance of contaminants has already taken its toll on the environment and will continue to impact it and the ecosystems [1]. Given the severity of this issue, studies and reports are plentiful regarding their timely detection and measures for the prevention or remediation of contaminated environment [2,3]. Contaminants of emerging concern are not only understudied but also, there is no current legislation or regulation for some of them to restrict their usage [4]. Pharmaceuticals, laundry detergents, food additives, natural and synthetic hormones, pesticides, plasticizers, flame retardants, etc. [2,4], such as parabens [5], bisphenol A, 1,4-dioxane, as well as additives, and ingredients of personal care products, such as benzophenones (BPs), and many more are listed as waterborne pollutants of emerging concern [6]. They can be detected in urban, industrial, hospital, or agricultural wastewaters, entering the water cycle since they are discharged into the environmental compartments [7,8]. They are, mainly, produced by the use of commercial products or other activities and reflect the habits of modern society [6]. Even though their concentration levels in the environment are not high, their frequent occurrence and adverse impact on the environment make them important pollutants for research [9,10]. Over 700 contaminants of emerging concern, categorized into 20 classes, their metabolites, as well as their transformation products have been detected in the European marine environment [3].
The BPs constitute a group of compounds belonging to waterborne pollutants of emerging concern, with the chemical formula (C6H5)2CO or Ph2CO. They consist of two phenyl groups linked to a carbonyl group [5]. So, they are considered aromatic ketones capable of photoabsorbing in a wide range. There are various BPs, depending on the molecular substitution on the benzene rings (Table 1), which exhibit slight differences in their properties [11]. Due to their lipophilic character, they tend to accumulate in the environment, including organisms [9,11]. They also demonstrate high stability; for example, in surface waters, the half-life of oxybenzone is reported to be ~2.4 years [12,13]. BPs have been widely used because of their ultraviolet (UV)-absorbing properties, finding application as UV filters in sunscreens, cosmetics, and personal care products. Furthermore, they can be used as UV stabilizers in industrial products, such as food packaging [14,15], and additives in textiles, plastics, paints, and more [16]. They can enter the aquatic environment, mainly via direct pollution from human activities, such as swimming, especially during the summer season, and via release from wastewater treatment plants, owing to their inefficient removal [17,18]. Even though they pose a threat to the environment, there is no established regulation so far [4,5].
The reliable detection of target analytes in complex matrices depends strongly on the quality of sample preparation and separation-quantification. It goes without saying that the performance of an analytical instrumental method can be exploited fully depending on the achieved success of the applied sample preparation method [19]. In the context of sample preparation, the extraction of target BPs from a sample and the elimination of interfering components from a sample extract, the so-called cleanup, are necessary. These two steps can be either separately executed or integrated in a single sample pretreatment step. This review is meant to provide an outline of the literature with recent analytical methods for BPs putting a premium on the development and establishment of sample preparation modes and on the examination of procedural detailed to demonstrate acceptable performance.

2. Occurrence, Fate, and Toxicity of BPs in the Environment

In order to effectively prevent and deal with the spreading of pollutants and to be made aware of the severity of the contamination, it is important to have good knowledge of their occurrence in the environment, their fate, behavior, toxicity, and bioavailability [20]. Their occurrence in the environment depends on the way that they enter and the frequency of use. In the case of BPs, their existence is mainly due to use in consumer products and inefficient treatment of wastewater in treatment plants [3,6,13]. Their transport to the environment depends strongly, as in the case of all chemical stressors in environmental media, on their physicochemical characteristics [13]. As previously mentioned, BPs are lipophilic molecules with a wide range of octanol/water partition coefficients (LogPow) [21] and a wide range of organic carbon partition coefficients (Koc), exhibiting medium to high solubility in water [13,22]. Structurally and in terms of their ability to accumulate, they are comparable to persistent organic pollutants [2]. There are twelve main derivatives of BPs, of which BP-1, BP-3, BP-4, BP-8, and 4-hydroxy benzophenone have been verified, in many cases [9,14,18,23]. Much research has been conducted in the aqueous environment, indicating that BPs can be detected at concentrations varying from ng/L to μg/L, hinging on the location, season, and human activity [8,23].
Among various BPs, much emphasis has been placed on BP-3, since it has been detected most frequently, due to its common use as a UV filter in several products for decades [24]. In 2012, it was characterized as a “high production volume chemical” [13] and recently, its use has been prohibited in Hawaii and Key West [25]. The presence of BP-3 has been reported in river water (2031 ng/L), lake water (0.2 μg/L), seawater (34.3 μg/L), groundwater (0.034 μg/L), swimming pool water (4.5 μg/L), tap water (0.45 μg/L) and wastewater influent (10.4 μg/L) [26,27,28]. Additionally, BP-3 has been detected in sediments, in Banyuls bay (49.4 ng/g) [29], Colombia (5.38 ng/g) [30], in marine sediments in California (1600 ng/g), etc. [1]. Cadena-Aizaga et al. investigated seawater from Gran Canaria Island in Spain, as well as in influent and effluent water from wastewater treatment plants (WWTPs), highlighting the presence of BP-3 [31], while in Brazil, BP-3 and BP-4 have been reported in drinking water [32]. BPs have also been found in Huangpu river in China, at concentrations up to 127 ng/L, and in farms and WWTPs, at concentrations reaching 400 ng/L. BP-3 and BP were the most frequently detected among the various BPs and their presence along with that of BP-1 and 4-OH-BP have been increasing in recent years [10]. The BP-4 has been found in river water in Switzerland [33] while it has also been detected in Spain reaching concentrations of 849 ng/L and 4858 ng/L, in rivers and wastewater, respectively [34,35,36]. BP-8 is a less-studied BP and has been prohibited as a cosmetic ingredient in Europe and Japan. Despite this, it is encountered in the environment, as related studies have shown. For example, it was found in China and Spain at concentrations of 84 ng/L and 55 ng/L, respectively [8]. In a river, in the United Kingdom close to a WWTPs, BP-4, BP-3, BP-2, and BP-1 were detected at concentrations of 0.3 mg/L, 44 µg/L, 26 µg/L, and 17 µg/L, respectively [37].
The BPs exhibit good photostability, as mentioned above [13,38]. Therefore, they are scarcely degraded upon exposure to light. For instance, the irradiation of water containing BP-3 for four weeks led to a degradation of 4% [39]. The BP-1, which is a biodegradation product of BP-3, can be photodegraded more easily, in contrast to the latter, which remains unchanged [30]. In the case of BP-8, rapid degradation in the presence of chlorine, such as in swimming pool conditions was noticed and two by-products were formed in high yield, continuing to pose a threat to the environment. On the other hand, only 50% degradation was noticed after exposure to artificial solar radiation, for 14 h [2].
As BPs are commonly used as UV filters in sunscreens, they can be absorbed into the human skin or they can be released during bathing or swimming, ending up in water [8,22]. Data concerning the American population showed that 98% of urine samples contained a detectable amount of BP-3 and its metabolites [40]. Correspondingly, research on children in Denmark revealed detectable amounts of BP-3 in the urine samples of all participants [41,42]. Its presence, also, has been confirmed in plasma [43], human brain [44], and breast milk [45,46,47], while BP-1 and BP-4 were identified in human placenta [28,48,49], and BP-4 and BP-3 in fish lipids [33] and mussels [50].
Evaluation of their toxicological impact is crucial and toxicity studies contribute to the environmental risk assessment [31]. The observed adverse effects of BPs involve disruptions in the normal functions of the endocrine system of organisms [39,51], effects on reproduction [39,52], developmental toxicity, and neurotoxicity [10,18,53]. Furthermore, the International Agency for Research on Cancer mentioned that BP is considered capable of causing human cancer as evidenced by the carcinogenicity in animals [14]. Additionally, BPs exhibit adverse effects on phytoplankton, affecting the whole trophic chain and, ultimately, the higher-trophic-level organisms [24]. A decrease in the growth of green algae Tetraselmis sp. was noticed and an inhibitory concentration (IC50) of 143 µg/L was measured after 7 days of exposure to BP-3 [54]. Chlamydomonas reinhardtii [55], Photobacterium phosphoreum, Daphnia magna [56], cyanobacteria, Microcystis aeruginosa, Chlorella sp., Arthrospira sp. [57] and the green alga Chlamydomonas reinhardtii, are also species that are affected by the presence of BP-3, at concentrations close to those found in the environment [24], while the IC50 values range between 100 µg/L and 20 mg/L [24,36,54,55,58,59]. Moreover, Rioboo et al. evaluated the cytotoxicity of BP-3, and BP-4 in microalga Chlamydomonas reinhardtii, concluding that BP-3 is more harmful to the aquatic environment. Among the reported observations are the diminished cell proliferation, due possibly to the decrease in protein F-actin, photosynthesis process alteration, decreased photosynthetic yield at concentrations of BP-4 corresponding to two toxic units, inhibition of multixenobiotic resistance mechanisms (extrusion pumps), oxidative stress, and DNA fragmentation [60].
The assessment of acute toxicity of BP-3 on Chlorella vulgaris, Daphnia magna, and zebrafish was examined revealing a high level of toxicity on the above species. The LC50 values for Daphnia magna and Chlorella vulgaris were 1.09 mg/L and 2.98 mg/L, respectively, and 3.89 mg/L for zebrafish. Daphnia magna appears to be the most sensitive of the organisms followed by Chlorella vulgaris and zebrafish [9]. In another study, vitellogenin 1 gene expression of zebrafish eleuthero-embryos exposed to BP-3 was affected, especially at the high concentration of 1000 μg/L, indicating estrogenic activity [61]. Male Japanese medaka and rainbow trout were affected in a similar way [62]. Eleuthero-embryos and adult male zebrafish were affected also by the presence of BP-4. The estrogenic activity and disruptions in the thyroid development of embryos, and hormonal effects on male adults were low [35]. Likewise, zebrafish exposed to concentrations of BP-3 in the range of 2.40 μg/L to 3.12 μg/L, in the early developmental stages, might present reduced hatching and deformities [10]. Decreased heartbeat of zebrafish larvae was also observed due to exposure to sediment spiked with BP-3 [1]. Furthermore, Tao et al. explored the influence of 10 μg/L of BP-3, which represents an environmentally relevant concentration in embryos of zebrafish, demonstrating a neurotoxicity effect during their development [28], while chronic exposure (¬ 5 months) of zebrafish at the same concentration of BP-3 revealed neurobehavioral effects [53]. Moreover, oxidative DNA damage and apoptosis in Chinese rare minnows due to BP, BP-1, and BP-4 exposure were reported by Yan et al. [23]. In this case, the effect of BP-1 was more intense. There are also indications that BPs exhibit in vitro estrogenic activity in the human breast cancer cell line MCF-7 [63], and exposure to BP-1 may be related to endometriosis [64].

3. Sample Preparation for Benzophenone Detection

It is easily understood that BPs constitute a class of compounds with a profound environmental impact. Therefore, their monitoring in the environment is of high importance. To this end, sensitive, rapid, and robust methods are needed, so as to obtain accurate results and introduce legislation for taking measures to avoid further environmental loading, safeguarding human health. In the following, specific features of extraction and cleanup modes and methods used in the analysis of the BPs are discussed more thoroughly.

3.1. Solid-Phase Extraction

Solid-phase extraction (SPE) is one of the most exploited sample preparation methods for extracting and simultaneously preconcentrating and cleaning up samples from common interfering substances of the matrix. The SPE-based procedures have been developed as the basis for the development of new analytical methods. Archana et al. developed a procedure for the detection of common pharmaceuticals, personal care products, and BPs in river water [65]. For the extraction, a portion of the sample was passed through a C18 SPE cartridge (Agela Cleanert™ ODS C18, 500 mg/5 mL) and eluted, successively, with methanol and acetone/methanol 1:1. After evaporation, the sample was injected and analyzed with a high-performance liquid chromatography (HPLC) system, coupled to a diode array detector (DAD). Recoveries were found to be between 80% and 86%. This method has the edge of short time of analysis (15 min) and the good reproducibility (relative standard deviation (RSD) of intra-day and inter-day replicate analyses was 1.69% and 2.04%, respectively). However, the linear range was rather short (2–10 mg/L) compared with other methods [65]. In another work, Chiriac et al. compared two types of SPE cartridges, in order to determine the optimum for the detection of six BPs and to develop an analytical method [66]. The authors used Strata C18 cartridges, achieving recoveries between 81.9 and 96.4%, and Strata-X cartridges (pore size of 30μm, polymeric reverse phase), attaining somewhat lower recoveries (74.0–82.6%) [66]. The developed method achieved enrichment factors (EF) of 200 and 100 for surface water and wastewater, respectively. Despite the overall good characteristics, the method was time-consuming, given that 100-200 mL of sample was passed with a flow rate of 5 mL/min (20–40 min extraction time), plus 30 min of solvent evaporation was required [66]. Kharbouche et al. proposed the use of mesoporous silica-based materials MCM-41 and MCM-41-CN(a cyanopropyl derivatized MCM-41) as SPE sorbents, for the extraction of four BPs [67]. They optimized the parameters of the method and found that the optimum pH for MCM-41 was 6.0 and for MCM-41-CN was 3.5. Salinity proved to negatively affect the extraction of 4,4’-dihydroxybenzophenone (DHBP) and BP-1 since their recoveries were found to be below 55% from river water containing 0.12% salt. With regard to the sorbent amount, it was found that even 150 mg of MCM- 41 was not adequate to recover the polar DHBP (<30% recovery). On the contrary, 50 mg of the MCM-41-CN sorbent exhibited far better performance for all BPs. Using the MCM-41-CN as a sorbent, from 100 mL of sample spiked with 0.1 ng/mL of each BP, 74.8–106.4% recoveries were achieved along with an EF of 100. Quantification with the standard addition method revealed a matrix effect (ME) of 3.1–14.8% for the examined BPs. The intra-day precisions of the method were between 6.0 and 15.5 (spiked with 0.1 ng/L BPs) and from 8.2 to 10.8 (spiked with 0.5 ng/L). This hints towards a rather irreproducible method [67]. Likewise, Sun et al. proposed an extraction method using molecularly imprinted polymers as SPE sorbents, for the analysis of tap water and river water [68]. As template they used BP-2, as functional monomer 4-vinylpridine, as a cross-linking monomer ethylene dimethacrylate, and as initiator they used 2,2-azobisisobutyronitrile. The sorbent material was first compared with the non-imprinted analogue and the results proved worse. Elution of the BPs from the sorbent was carried out using methanol/trifluoroacetic acid while after evaporation, the compounds were dissolved in a methanol/water mixture and injected into an HPLC-DAD system. It is noteworthy that the method was not found to be impacted by the sample pH (within the range of 3.0–9.0), thus avoiding a relevant step commonly used in many extraction procedures [68].
In another study, Narloch and Wejnerowska compared the classical SPE procedure with a microextraction with packed sorbent (MEPS) procedure [16]. The SPE method was found to have the edge over MEPS in terms of sensitivity and EF. Nonetheless, the MEPS method was much easier, faster (only 10 min was needed) and the material could be reused up to 100 times, thus lowering the total cost significantly. Moreover, MEPS used a small volume of sample, which can be an advantage when the sample is sparse, or a small volume of elution solvent is needed, thus making the method greener and reducing the overall cost. However, the drawback of low EF cannot be overcome by increasing the sample volume. The SPE method achieved an intra-day precision of 7.7% to 11.8% and inter-day precision of 8.0% to 13.4%. Likewise, the MEPS method achieved an intra-day precision of 6.6% to 15.6% and inter-day precision of 6.6% to 18.8%. Therefore, both methods exhibited mediocre repeatability and reproducibility [16].
In another study, an automated procedure of on-line SPE and LC-MS was proposed for the detection of eight BPs [69]. Different sorbents for the SPE were examined: Oasis HLB (an N-vinylpyrrolidone and divinylbenzene macroporous co-polymer), HySphere Resin GP (polydivinyl-benzene), Hysphere end capped octadecyl C18, and cross-linked styrene/divinylbenzene (PS/DVB), with PS/DVB being the best in terms of LODs, peak shapes, and recoveries. Moreover, negligible ME was recorded for groundwater and river water. Out of the five groundwater samples four contained BP3, BP1, DHBP, BP4, and BP3, while BP1 and BP4 were also detected in the river water samples. One of the main advantages of this separation and analysis method is that it offers automation, requires only a filtration step, and spiking with internal standards. The turnaround time of the on-line SPE method was 20 min. Recoveries of 88–114% for groundwater and 82–111% for river water were achieved. The developed on-line SPE method also had the advantage of an extraction time equaling analysis time, therefore making it possible for automation of the process and analyzing samples sequentially [69].
When the matrices to be analyzed are more complex, another cleanup step needs to be introduced to eliminate potential interferences. In their work, Wang and Kannan extracted BPs from wastewater and sludge from WWTPs and determined them [70]. Firstly, aliquots of water samples were separated from the suspended particulate matter, and then they were loaded on SPE cartridges, eluted with methanol and concentrated to a final volume using a nitrogen stream. For the sludge sample, an additional step of solid–liquid extraction was needed before applying SPE. Briefly, after freeze-drying of samples, the analytes were extracted with methanol/water (5:3) and after centrifugation and concentration, they were acidified with 0.2% formic acid prior to undergoing the above SPE procedure. The suspended particulate matter followed the same procedure as in sludge samples. The two extractions were enough to sufficiently extract the BPs from the sludge sample. The absolute recoveries of BPs were found in the ranges of 84–105%, 99–108%, and 81–122% for sludge, suspended particulate matter, and wastewater, respectively. It is noteworthy that this is the only work reporting the analysis of suspended particulate matter from the samples, at particularly low LOQs (0.25–0.50 ng/g) [70]. In relation to more complex matrices, Han et al. used animal and vegetation seafood as substrate for BPs detection using pressurized liquid extraction, a fast and green method for extraction, followed by a cleanup step with a mixed-mode cationic exchange SPE step for the removal of co-extracted compounds [71]. A mixed-mode cationic exchange was chosen over lipophilic balance and C-18 SPE, as recoveries for all BPs were superior. Additionally, after a comparison of the pressurized liquid extraction with Soxhlet and ultrasound-assisted methods, the recoveries were proved to be better with the pressurized liquid extraction (90.6–107.8%) compared with 83.5–88.7% and 81.4–85.2% for the other two methods, respectively [71]. Another SPE method using Oasis cartridges packed with 100 mg HLB sorbent was proposed by Luki et al. to preconcentrate and detect four BPs [72]. The working parameters were optimized by an experimental design which revealed that the elution solvent and percentage of methanol and pH were the influencing factors. In their work, Cadena-Aizaga et al. used an SPE method to extract eight organic UV filters, including BP-3, from seawater and wastewater samples [31]. The pH was adjusted to acidic values with formic acid and C18 cartridges were used, in the absence of salt. The best eluent and pH were MeOH:ACN (1:1, v/v), pH = 3 for seawater and MeOH, and pH = 7 for the wastewater, thus achieving preconcentration factors of 140 and 50, respectively. Table 2 summarizes the features of relevant sample pretreatment methods based on SPE.

3.2. Dispersive (Magnetic) Solid-Phase Extraction

Another commonly used method of extraction is the dispersive solid-phase extraction (DSPE). The materials used were specifically synthesized with high surface becoming more available to sorb the target analytes and were dispersed in the sample, providing ease of separation by centrifugation. In this context, Qiu and Ding synthesized zeolitic imidazolate framework-8 (ZIF-8) to extract BPs from surface, river, and seawater samples [73]. The ZIF-8 was prepared simply by grinding zinc oxide and 2-methylimidazole and then, mixing it with a small amount of deionized water. After optimization of the DSPE procedure, the synthesized material was added to the water samples, ultrasonicated, and centrifuged. To remove the BPs from the ZIF-8, methanol was used. The recoveries of BPs from real samples spiked with the BPs were found between 81.2 and 94.1% [73]. In another work, Wang et al. synthesized nanocomposite microspheres from polyaniline and core–shell silica mesoporous (CSMS) to extract BPs from environmental water samples [74]. They first synthesized the CSMS microspheres, which were then used to create the CSMS@polyaniline nanocomposite microspheres. River, swimming pool, and snow water samples and domestic sewage were filtered before the extraction by DSPE. The pH of the samples was optimized at the value 7.0 with NaOH and HCl, and then, the pretreated with acetonitrile and water microspheres were added. The analytes were eluted using methanol, evaporated, and redissolved in methanol. Finally, analysis was carried out on a sheathless capillary electrophoresis (CE)-MS/MS apparatus. One of the interesting findings showed that extraction efficiency lowered as the salt concentration increased. Although polyaniline can be used to extract BPs, the modified CSMS@polyaniline multiplied the recoveries of BPs by 2.0 to 3.8 times. The EF values were found to be between 470 and 660, and recoveries in the range of 84.2–101.0% [74].
The sorbent used for a DPSE procedure can be a magnetic material, which simplifies its isolation from the solution just with the use of an external magnet. This procedure is also known as magnetic DSPE (mDSPE). Making use of this procedure, Piovesana et al. proposed a magnetic graphitized carbon black adsorbent, stable in water, to be used in an mDSPE [75]. To address the common problem of background contamination in trace detection of UV filters in the environment, solvent blanks were analyzed for every batch. Furthermore, procedural blanks and two spiked samples of the highest and lowest concentration of the calibration plot were analyzed. The authors claimed that the method was fast but the analysis time took more than 60 min, while no method optimization was carried out. So, a better overview of the parameters that affect the method is lacking [75]. Similarly, Li, et al. modified commercially available Fe3O4 magnetic nanoparticles to extract BPs from soil samples [76]. Each sample was finely ground, and mixed with methanol and after centrifugation, the solvent was retracted and evaporated. After the addition of methanol, a small aliquot of the sample was diluted with H2O. For the extraction, 5.0 mg of the synthesized MOF-1210(Zr/Cu)-Fe3O4 was added to 20 mL of the sample containing the BPs and after pH adjustment to 6.0, NaCl solution (1%) was added. After extraction and elution with 2% formic acid–acetonitrile (v/v), analysis was carried out on an HPLC-UV system. The method achieved recoveries between 87.6 and 113.8%, and EF was found to be in the range of 91–122 [76]. In their study, Medina et al. synthesized magnetic graphene oxide composite (Fe3O4@SiO2@(3-aminopropyl)triethoxysilane@GO) and used it for mDPSE. During the optimization of the method, it was found that salinity could aid the extraction by salting out the compounds or hinder it by increasing the viscosity of the solution. Thus, 4% NaCl w/v was the optimum salt concentration. An acidic pH value was selected as optimal, as the surface of graphene oxide and BPs are neutral, thus promoting the hydrophobic interactions between them. On the other hand, extremely alkaline pH would damage the sorbent. Moreover, high sample volumes (i.e., 100 mL), 20 mg of sorbent, and combined vortexing and ultrasound agitation (5 min each) were found suitable to increase the extraction. The low extraction time (¬ 15–20 min) is a great alternative to the tedious SPE procedures. The material could be reused up to four times without the loss of sensitivity [77]. The downside of this method in comparison to the others mentioned is the high LOD (2500–8200 ng/L).
Our group synthesized a magnetic Fe-Cu bimetallic nanomaterial to remove different hazardous organic micropollutants, including BP-2 and BP-6 from effluent from a WWTP [78]. The nanomaterial was made by mixing (NH4)2Fe(SO4)2·6H2O and CuSO4·5H2O with a NaBH4 solution. The final product was removed from the solution washed with DDW and ethanol and dried. The samples from the WWTP were filtered, and then, the nanomaterial was added. After stirring, the latter was removed with the use of a magnet and the supernatant was analyzed to evaluate the removal efficiency. To elute the absorbed compounds from the nanomaterial, acetone containing 5% v/v formic acid was used and the eluent was also analyzed with HPLC. Different tests showed that the preferred extraction pH is slightly acidic but a change to a slightly alkaline environment caused insignificant variation on efficiency. As far as the salt concentration is concerned, the highest removal efficiency of 81% was found when 10% w/v Na2SO4 was present [78]. Table 3 summarizes the features of relevant sample pretreatment methods based on DSPE.

3.3. Liquid–Liquid Extraction

Despite being a classical extraction technique, liquid–liquid extraction (LLE) procedures are still being developed for the extraction of BPs from various samples. Zhang et al. proposed the use of an LLE extraction, coupled with an SPE cleanup step and HPLC-MS/MS [79]. Using 6 mL of methanol: ethyl acetate (15:85 v/v), recoveries greater than 80% from sediments and >70% from sludge, for all BPs tested (except BP-3), could be achieved. Neither solvent volume nor methanol enhanced the recovery of BP-3 (<44%). It was speculated that either incomplete extraction from the matrix or transformation during the cleanup step was the main reason [79]. Only BP-3 was detected in the six Songhua River sediment samples (mean concentration: 0.38 ng/g of dry weight) and all BPs were detected in Saginaw and Detroit Rivers. Sludge from Northeastern China contained BP-3, BP-1, and 4-OH-BP.
Wang et al. proposed a dispersive liquid–liquid microextraction (DLLME) procedure, using a hydrophobic deep eutectic solvent (DES) that was formed in situ, when a hydrogen bond donor and acceptor were present [80]. BPs were extracted in the droplets of the DES, which could easily be collected after solidification/floating at 22 °C. This method is one of the most facile, fast, and green, as it consumes little to no organic solvent. Intra-day and inter-day precision values were 2.0–6.1% and 3.9–7.7%, respectively, making it one of the methods with the best repeatability and reproducibility. The extraction efficiency was not affected by any changes in the pH of the sample within the pH range of 2–10, avoiding the need for pH adjustment. Moreover, salinity was not found to affect the extraction procedure, thus, making it possible for application to samples with high salinity [80].
Another DES-based method was implemented by Wang et al. for an ultrasound-assisted DLLME [81]. The inter-day and intra-day RSD values were less than 5.9%, rendering it one of the most repeatable and reproducible methodologies, with EF values between 67 and 76. The optimum amount of DES used was 30 mg since greater partitioning of the BPs in the DES was recorded. By assisting the extraction procedure with ultrasounds, the high viscosity of the DES was not a problem, resulting in a 5 min extraction procedure. Concerning salt, it was found that the addition of 1% NaCl not only aided the extraction but also promoted phase separation. Increased salt concentrations (above 3%) resulted in increased viscosity of the solution, inhibiting the extraction by decreasing the diffusion rate and partitioning of BPs. By analyzing spiked river water samples, it was found that the ME was negligible in the proposed method. The DES employed in this study was able to replace the costly and more difficultly synthesized imidazolium-based ionic liquid, commonly used in such procedures [81]. In a similar work, Çabuk and Kavaracı used an LLME method to extract BP-1, 4-OH-BP, and BP-3 from tap water, stream water, and seawater [82]. They used di-(2-ethylhexyl)phosphoric acid (DEHPA), which can change its hydrophilicity depending on the pH of the solution. By adding a small amount of DEHPA to standard solutions or samples, microdroplets were formed under certain conditions that entrapped the BPs. Adding a small amount of Fe3O4 ¬NPs made it possible to extract the BPs, which were eluted with acetonitrile. The EF values were 18–25 and the extraction recoveries were between 69 and 93% [82]. Another optimized DLLME method that uses an ionic liquid, in situ-formed, based on didecyldimethylammonium chloride (DDAC) was proposed by Ziemblińska-Bernart, et al. They concluded that the optimal ratio of DDAC to NaClO4 was 1:2. Samples taken from a depth of 15–30 cm from lakes and recreational beaches were free of the examined BPs [83]. The in situ formation coupled with the magnetic retrieval makes this method appealing but as mentioned above, DLLME methods using IL can be substituted for using DES. This method needed only 5 min to be completed and, at the same time, achieved the lowest LLE reported LODs.
Finally, using solidified droplets as the extracting phase, Zhang et al. used α−terpineol, a naturally occurring monoterpene enol, to extract 4 BPs from water samples. The EFs were between 29 and 47 and the recoveries ranged from 80.2% to 108.4%, with RSDs (intra- and inter-assay) less than 8.5%. [84]. The employment of α−terpineol provided a simple and rapid alternative for the determination of benzophenone compounds in aqueous samples. Table 4 summarizes the features of relevant sample pretreatment methods based on LLE.

3.4. Other Methods

Other methods have also been developed to extract and analyze BPs. Xu et al. synthesized a Zn-Tb heterometallic coordination polymer in order to detect BP [85]. The coordination {[Tb2Zn(L)4(H2O)8]·8H2O}n polymer showed four emission peaks at 491, 546, 585, and 622 nm when excited at 270 nm. A quenching effect appeared when BP was present while other interfering substances showed little or no effect on the intensity of the fluorescence. The higher the concentration of the BP used, the higher the quenching effect observed. It is worth mentioning that the coordination polymer could be recovered and reused for up to six cycles just by washing it with water [85]. Although the method does not exhibit as good LODs as other methods (329 ng/L), it shows that the fluorometric detection of BPs is also possible.
An extraction and simultaneous cleanup step assisted by ultrasound was proposed by Sánchez-Brunete et al. [86]. In this procedure, a glass column containing two circular 2 cm diameter filter papers was packed with anhydrous sodium sulphate and C18. Then, an amount of sieved sediment or soil sample was placed inside the column. The whole system was placed inside a sonication water bath supported by a tube rack. Through the formed packed column, a mixture of ethyl acetate:methanol (90:10, v/v) was passed, while sonicating, in order to extract the BPs and isolate them from the matrix. Although ethyl acetate eluted most of the BPs, the most polar ones such as BP-8 and BP-6 were better eluted by a 90:10, v/v ethyl acetate:methanol mixture. Matrix effects of up to 27% were nullified by the use of internal standard. The authors investigated the effect of moisture and found that it had no effect on the recoveries. Similarly, a residence time of 72 h between spiking and analysis had no effect on the recoveries. Furthermore, the RSD values of 3.4% to 7.5% for the intra-day precision indicated good repeatability [86]. Finally, as this method utilizes a GC-MS system for analysis, the low thermal stability and volatility of the BPs necessitate a derivatization step, thus complicating the procedure [86]. In another study, Camino–Sánchez et al., proposed an ultrasound-assisted extraction of five BPs from soils and wastewater-treatment-plant compost, with methanol as a solvent for extraction [87]. The focus of the study was the leaching of BPs in soil and compost-amended soil. The studied plots of soil were tested for 12 consecutive days and at different depths, at 10 cm intervals, reaching 60 cm. All BPs except BP-3 did not reach 60 cm, indicating good behavior, as its disposal cannot contaminate the aquifers. In compost-amended soils, leaching was almost the same as in the non-amended ones. The method’s intra-day precision was poor, up to 17.2% for soil samples and up to 20.7% for compost samples. The inter-day precision values were also high, up to 11.4% for soil and up to 13.3% for compost. This method did not use any further extraction procedure to free the sample from interferences or preconcentrate it. Matrix-matched curves were used to overcome the matrix effects.
Modified stir bars can also be used for BP absorption. Merib et al. created a cork-powder-coated polypropylene fiber material for stir bars, which was used for bar adsorptive microextraction (BAmΕ) of BP from aqueous samples [88]. The authors reported the optimal extraction time for BP to be 90 min. They opted for a 120 min extraction time as a middle ground for BP, triclocarban, and paraben extraction. For the purpose of this review, the 90 min extraction time for BP is further discussed. In this framework, not only the extraction step is time-consuming but also the 30 min desorption time adds up to the already time-consuming procedure. In a positive light, the BAmE procedure needs low extracting solvent when compared to traditional SPE, eliminating the need for laborious evaporation under a nitrogen stream. It is noteworthy that as the bar operated well below its saturation point, the authors found that by decreasing the bar length to half and by increasing the desorption volume by 2.5 times, they could improve the LOD by 2.5 times [88]. Similarly, Almeida et al. compared polymers and activated carbon coating for the BAmΕ of BPs [89]. P2 (a modified pyrrolidone polymer with a surface area of 800 m2/g, pore size of 85 Å, and 33 μm particle size) and AC4 (an activated carbon with a surface area of 1400 m2/g) polymers were compared with each other as being the two best representatives. The P2 polymer was chosen over AC4 for sampling since both the extraction (4 h as opposed to 16 h) and back extraction (15 min as opposed to 30 min) were faster. Furthermore, it provided better recoveries. The P2-coated bars were stable at pH 2–14, but the range 2–5.5 was chosen in which BPs are neutral [89]. In their work, Liu et al. proposed another stir-bar sorptive extraction (SBSE) method in soil [90]. Soil samples needed to be separated from other materials, dried to constant weight, and then pulverized and sieved, before being extracted with methanol with sonication, followed by centrifugation. This procedure was repeated twice, and the extracts were added and evaporated with a rotary evaporator and redissolved in methanol. This procedure takes about 90 min to be completed. Taking into consideration the 2-h step of SBSE and the requirement for analyte desorption, the overall procedure takes almost 4 h, thus making it an unequivocally lengthy method. The sample volume was adjusted to 15 mL, as it provided a great balance between EF values, sample consumption, and extraction time. The authors investigated the addition of acetonitrile in the sample and found that it promoted BP dispersion and avoided adsorption on the container, while it increased their solubility (optimal 0.2% v/v). They also found that 2% NaCl benefited the process and they achieved EF of 49–102 [90].
In the study of Celeiro et al., three coated sol–gel fabric phases, i.e., nonpolar, medium-polar, and polar, were fabricated and compared [91]. The highest extraction of BPs was achieved with the non-polar poly-dimethylsiloxane coating. A major drawback of poly-dimethylsiloxane coating in regular SPE is that it is highly viscous, hindering the analyte migration and increasing the sorption time. The sol–gel coating resulted in a thin film that was finely integrated into a silica fabric phase. The substrate aided the extraction by bringing the analytes close to the sorbent to interact with various interactions. With the proposed sorbent material, only 20 min are needed for the extraction. On top of that, high reproducibility of the synthesis and analysis were recorded. Although this study detected UV filters in real samples, BP-3 was not one of them [91].
Huang et al. in their novel work, developed a Quick, Easy, Cheap, Effective, Rugged, and Safe (QuEChERS) method to extract ten different BPs from fish samples and compared the developed method with an SPE one [14]. For the QuECheRS method, the use of ACN with 1% acetic acid, anhydrous MgSO4, NaCl, Sepra C18-e (50 μm, 65 Å), and Superclean primary secondary amine was proposed after optimization. At first, they tested the use of DSPE-enhanced matrix removal for the fish samples with lipid content higher than 5% but it seemed to decrease the recovery of the BPs. They also tested an SPE extraction method with PRiME HLB and SPE-C18 cartridges, but the extraction results were lower than those with QuECheRS method, with recoveries between 55% and 154%. The repeatability and reproducibility of the method were remarkably low, with RSDs reaching 26.6% and 29.3%, respectively, for the detection of the BPs [14]. This method showed that the detection and extraction of BPs are possible even with complex matrices, such as fish but further optimization is needed to increase its repeatability and reproducibility. Table 5 tabulates the most important features of the above sample pretreatment methods.

4. Conclusions and Outlook

A remarkable increase in the number of publications employing novel pretreatment techniques for the determination of BPs, in several matrixes, has been observed in recent years. These methods are quickly replacing conventional treatment processes developed over the last few years (such as mechanical shaking, stirring, Soxhlet, etc.), and hence, new ones have been adopted for solid, semi-solid, and water samples. A wide range of environmentally friendly solvents have been employed (including ionic liquids, deep eutectic solvents, etc.) and an even wider range of materials have been examined including polymers, carbon-based nanomaterials, etc. The combination of the above with well-established sample preparation procedures (such as, SPE, DLLME, etc.) and chromatographic techniques have contributed to the progress of this research field. For future studies, the large-scale synthesis of the examined sorbent materials should also be examined for routine analysis.
Given the widespread use of BPs, it is expected that their concentrations in the environment will be increasing in the coming years. Depending on the characteristics of the target samples, such as the nature and availability of the sample matrix, routine monitoring test methods should consider the requirements for analytical sensitivity, accuracy, and capability for sample throughput, robustness. In this context, the SPE is a straightforward and fast sample preparation method for BPs with applications to various sample matrices. It holds the largest share of the sample pretreatment methods for BPs and it is considered to be the best choice in establishing an analytical method. However, applications to analytically challenging samples that struggle to remove the sample matrix can make the well-established the QuEChERS a core component of sample preparation.
Studies about the fate and adverse impact on human health and aquatic life are rather limited. For risk assessment, challenges revolve around the extrapolation of their effects observed in individual organisms or species in the laboratory to field studies, where multiple stressors occur. While it is informative to know the effect of a single chemical parameter, its contribution in a mixture of a multitude of chemicals will be significantly influenced in the presence of them. Therefore, the monitoring of pure samples of BPs may have to be accompanied by a determined, possible, or suspected mixture of chemicals to paint the real-life scenario. In this framework, effect-based monitoring should be carried out for the assessment of water quality status and determination of the efficiency of water treatment as well as for the quantification of contaminants in aquatic environments. Despite the relatively slow progress in the field, it is expected that this topic will rapidly develop, given the harmful impact of BPs on the environment and the need for improved analytical tools.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lucas, J.; Logeux, V.; Rodrigues, A.M.S.; Stien, D.; Lebaron, P. Exposure to four chemical UV filters through contaminated sediment: Impact on survival, hatching success, cardiac frequency, and aerobic metabolic scope in embryo-larval stage of zebrafish. Environ. Sci. Pollut. Res. 2021, 28, 29412–29420. [Google Scholar] [CrossRef] [PubMed]
  2. Santos, A.J.M.; Esteves da Silva, J.C.G. Environmental fate and behaviour of benzophenone-8 in aqueous solution. Environ. Technol. Innov. 2019, 13, 48–61. [Google Scholar] [CrossRef]
  3. Geissen, V.; Mol, H.; Klumpp, E.; Umlauf, G.; Nadal, M.; van der Ploeg, M.; van de Zee, S.E.A.T.M.; Ritsema, C.J. Emerging pollutants in the environment: A challenge for water resource management. Int. Soil Water Conserv. Res. 2015, 3, 57–65. [Google Scholar] [CrossRef]
  4. Tang, Y.; Yin, M.; Yang, W.; Li, H.; Zhong, Y.; Mo, L.; Liang, Y.; Ma, X.; Sun, X. Emerging pollutants in water environment: Occurrence, monitoring, fate, and risk assessment. Water Environ. Res. 2019, 91, 984–991. [Google Scholar] [CrossRef] [Green Version]
  5. Ricardo, I.A.; Paniagua, C.E.S.; Alberto, E.A.; Starling, M.C.V.M.; Agüera, A.; Trovó, A.G. A critical review of trends in advanced oxidation processes for the removal of benzophenone-3, fipronil, and propylparaben from aqueous matrices: Pathways and toxicity changes. J. Water Process Eng. 2022, 49, 102973. [Google Scholar] [CrossRef]
  6. La Farré, M.; Pérez, S.; Kantiani, L.; Barceló, D. Fate and toxicity of emerging pollutants, their metabolites and transformation products in the aquatic environment. TrAC-Trends Anal. Chem. 2008, 27, 991–1007. [Google Scholar] [CrossRef]
  7. Guo, Q.; Wei, D.; Zhao, H.; Du, Y. Predicted no-effect concentrations determination and ecological risk assessment for benzophenone-type UV filters in aquatic environment. Environ. Pollut. 2020, 256, 113460. [Google Scholar] [CrossRef]
  8. Ramos, S.; Homem, V.; Alves, A.; Santos, L. A review of organic UV-filters in wastewater treatment plants. Environ. Int. 2016, 86, 24–44. [Google Scholar] [CrossRef]
  9. Du, Y.; Wang, W.Q.; Pei, Z.T.; Ahmad, F.; Xu, R.R.; Zhang, Y.M.; Sun, L.W. Acute toxicity and ecological risk assessment of benzophenone-3 (BP-3) and benzophenone-4 (BP-4) in ultraviolet (UV)-filters. Int. J. Environ. Res. Public Health 2017, 14, 1414. [Google Scholar] [CrossRef] [Green Version]
  10. Wang, S.; Huo, Z.; Gu, J.; Xu, G. Benzophenones and synthetic progestin in wastewater and sediment from farms, WWTPs and receiving surface water: Distribution, sources, and ecological risks. RSC Adv. 2021, 11, 31766–31775. [Google Scholar] [CrossRef]
  11. Heurung, A.R.; Raju, S.I.; Warshaw, E.M. Benzophenones. Dermatitis 2014, 25, 3–10. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, Y.; Shah, P.; Wu, F.; Liu, P.; You, J.; Goss, G. Potentiation of lethal and sub-lethal effects of benzophenone and oxybenzone by UV light in zebrafish embryos. Aquat. Toxicol. 2021, 235, 105835. [Google Scholar] [CrossRef] [PubMed]
  13. Mao, F.; He, Y.; Gin, K.Y.H. Occurrence and fate of benzophenone-type UV filters in aquatic environments: A review. Environ. Sci. Water Res. Technol. 2019, 5, 209–223. [Google Scholar] [CrossRef]
  14. Huang, Y.F.; Chang, J.P.; Chen, H.C.; Huang, Y.M. Simultaneous trace analysis of 10 benzophenone-type ultraviolet filters in fish through liquid chromatography–tandem mass spectrometry. Environ. Pollut. 2021, 286, 117306. [Google Scholar] [CrossRef] [PubMed]
  15. Sun, X.; Jiao, X.Y.; Li, J.; Xu, L. A miniaturized sorbent phase-based extraction device in the form of syringe filter holder using molecularly imprinted polymer as sorbent and its application to extract benzophenones. J. Chromatogr. A 2018, 1543, 1–13. [Google Scholar] [CrossRef]
  16. Wejnerowska, G.; Narloch, I. Determination of benzophenones in water and cosmetics samples: A comparison of solid-phase extraction and microextraction by packed sorbent methods. Molecules 2021, 26, 6896. [Google Scholar] [CrossRef]
  17. Ge, J.; Huang, D.; Han, Z.; Wang, X.; Wang, X.; Wang, Z. Photochemical behavior of benzophenone sunscreens induced by nitrate in aquatic environments. Water Res. 2019, 153, 178–186. [Google Scholar] [CrossRef]
  18. Meng, Q.; Yeung, K.; Kwok, M.L.; Chung, C.T.; Hu, X.L.; Chan, K.M. Toxic effects and transcriptome analyses of zebrafish (Danio rerio) larvae exposed to benzophenones. Environ. Pollut. 2020, 265, 114857. [Google Scholar] [CrossRef]
  19. Stalikas, C.D.; Fiamegos, Y.C. Microextraction combined with derivatization. TrAC Trends Anal. Chem. 2008, 27, 533–542. [Google Scholar] [CrossRef]
  20. Aryal, N.; Wood, J.; Rijal, I.; Deng, D.; Jha, M.K.; Ofori-Boadu, A. Fate of environmental pollutants: A review. Water Environ. Res. 2020, 92, 1587–1594. [Google Scholar] [CrossRef]
  21. Ramos, S.; Homem, V.; Alves, A.; Santos, L. Advances in analytical methods and occurrence of organic UV-filters in the environment—A review. Sci. Total Environ. 2015, 526, 278–311. [Google Scholar] [CrossRef] [Green Version]
  22. Giokas, D.L.; Salvador, A.; Chisvert, A. UV filters: From sunscreens to human body and the environment. TrAC-Trends Anal. Chem. 2007, 26, 360–374. [Google Scholar] [CrossRef]
  23. Yan, S.; Wang, J.; Zheng, Z.; Ji, F.; Yan, L.; Yang, L.; Zha, J. Environmentally relevant concentrations of benzophenones triggered DNA damage and apoptosis in male Chinese rare minnows (Gobiocypris rarus). Environ. Int. 2022, 164, 107260. [Google Scholar] [CrossRef] [PubMed]
  24. Mao, F.; He, Y.; Kushmaro, A.; Gin, K.Y.H. Effects of benzophenone-3 on the green alga Chlamydomonas reinhardtii and the cyanobacterium Microcystis aeruginosa. Aquat. Toxicol. 2017, 193, 1–8. [Google Scholar] [CrossRef] [PubMed]
  25. Suh, S.; Pham, C.; Smith, J.; Mesinkovska, N.A. The banned sunscreen ingredients and their impact on human health: A systematic review. Int. J. Dermatol. 2020, 59, 1033–1042. [Google Scholar] [CrossRef] [PubMed]
  26. Díaz-Cruz, M.S.; Molins-Delgado, D.; Serra-Roig, M.P.; Kalogianni, E.; Skoulikidis, N.T.; Barceló, D. Personal care products reconnaissance in EVROTAS river (Greece): Water-sediment partition and bioaccumulation in fish. Sci. Total Environ. 2019, 651, 3079–3089. [Google Scholar] [CrossRef] [PubMed]
  27. Loraine, G.A.; Pettigrove, M.E. Seasonal variations in concentrations of pharmaceuticals and personal care products in drinking water and reclaimed wastewater in Southern California. Environ. Sci. Technol. 2006, 40, 687–695. [Google Scholar] [CrossRef]
  28. Tao, J.; Bai, C.; Chen, Y.; Zhou, H.; Liu, Y.; Shi, Q.; Pan, W.; Dong, H.; Li, L.; Xu, H.; et al. Environmental relevant concentrations of benzophenone-3 induced developmental neurotoxicity in zebrafish. Sci. Total Environ. 2020, 721, 137686. [Google Scholar] [CrossRef]
  29. Fagervold, S.K.; Rodrigues, A.S.; Rohée, C.; Roe, R.; Bourrain, M.; Stien, D.; Lebaron, P. Occurrence and Environmental Distribution of 5 UV Filters During the Summer Season in Different Water Bodies. Water Air Soil Pollut. 2019, 230, 172. [Google Scholar] [CrossRef]
  30. Barón, E.; Gago-Ferrero, P.; Gorga, M.; Rudolph, I.; Mendoza, G.; Zapata, A.M.; Díaz-Cruz, S.; Barra, R.; Ocampo-Duque, W.; Páez, M.; et al. Occurrence of hydrophobic organic pollutants (BFRs and UV-filters) in sediments from South America. Chemosphere 2013, 92, 309–316. [Google Scholar] [CrossRef]
  31. Cadena-Aizaga, M.I.; Montesdeoca-Esponda, S.; Sosa-Ferrera, Z.; Santana-Rodríguez, J.J. Occurrence and environmental hazard of organic UV filters in seawater and wastewater from Gran Canaria Island (Canary Islands, Spain). Environ. Pollut. 2022, 300, 118843. [Google Scholar] [CrossRef] [PubMed]
  32. da Silva, C.P.; Emídio, E.S.; de Marchi, M.R.R. The occurrence of UV filters in natural and drinking water in São Paulo State (Brazil). Environ. Sci. Pollut. Res. 2015, 22, 19706–19715. [Google Scholar] [CrossRef] [PubMed]
  33. Fent, K.; Zenker, A.; Rapp, M. Widespread occurrence of estrogenic UV-filters in aquatic ecosystems in Switzerland. Environ. Pollut. 2010, 158, 1817–1824. [Google Scholar] [CrossRef] [PubMed]
  34. Rodil, R.; Quintana, J.B.; López-Manía, P.; Muniategui-Lorenzo, S.; Prada-Rodríguez, D. Multiclass determination of sunscreen chemicals in water samples by liquid chromatography-tandem mass spectrometry. Anal. Chem. 2008, 80, 1307–1315. [Google Scholar] [CrossRef] [PubMed]
  35. Zucchi, S.; Blüthgen, N.; Ieronimo, A.; Fent, K. The UV-absorber benzophenone-4 alters transcripts of genes involved in hormonal pathways in zebrafish (Danio rerio) eleuthero-embryos and adult males. Toxicol. Appl. Pharmacol. 2011, 250, 137–146. [Google Scholar] [CrossRef]
  36. Rodil, R.; Quintana, J.B.; López-Mahía, P.; Muniategui-Lorenzo, S.; Prada-Rodríguez, D. Multi-residue analytical method for the determination of emerging pollutants in water by solid-phase extraction and liquid chromatography-tandem mass spectrometry. J. Chromatogr. A 2009, 1216, 2958–2969. [Google Scholar] [CrossRef]
  37. Kasprzyk-Hordern, B.; Dinsdale, R.M.; Guwy, A.J. The removal of pharmaceuticals, personal care products, endocrine disruptors and illicit drugs during wastewater treatment and its impact on the quality of receiving waters. Water Res. 2009, 43, 363–380. [Google Scholar] [CrossRef]
  38. Santos, A.J.M.; Miranda, M.S.; Esteves da Silva, J.C.G. The degradation products of UV filters in aqueous and chlorinated aqueous solutions. Water Res. 2012, 46, 3167–3176. [Google Scholar] [CrossRef]
  39. Kim, S.; Choi, K. Occurrences, toxicities, and ecological risks of benzophenone-3, a common component of organic sunscreen products: A mini-review. Environ. Int. 2014, 70, 143–157. [Google Scholar] [CrossRef]
  40. Calafat, A.M.; Wong, L.Y.; Ye, X.; Reidy, J.A.; Needham, L.L. Concentrations of the sunscreen agent benzophenone-3 in residents of the United States: National Health and Nutrition Examination Survey 2003-2004. Environ. Health Perspect. 2008, 116, 893–897. [Google Scholar] [CrossRef] [Green Version]
  41. Frederiksen, H.; Jensen, T.K.; Jørgensen, N.; Kyhl, H.B.; Husby, S.; Skakkebæk, N.E.; Main, K.M.; Juul, A.; Andersson, A.M. Human urinary excretion of non-persistent environmental chemicals: An overview of Danish data collected between 2006 and 2012. Reproduction 2014, 147, 555–565. [Google Scholar] [CrossRef]
  42. Wnuk, A.; Rzemieniec, J.; Lasoń, W.; Krzeptowski, W.; Kajta, M. Apoptosis Induced by the UV Filter Benzophenone-3 in Mouse Neuronal Cells Is Mediated via Attenuation of Erα/Pparγ and Stimulation of Erβ/Gpr30 Signaling. Mol. Neurobiol. 2018, 55, 2362–2383. [Google Scholar] [CrossRef] [Green Version]
  43. Janjua, N.R.; Kongshoj, B.; Andersson, A.M.; Wulf, H.C. Sunscreens in human plasma and urine after repeated whole-body topical application. J. Eur. Acad. Dermatol. Venereol. 2008, 22, 456–461. [Google Scholar] [CrossRef]
  44. Van Der Meer, T.P.; Artacho-Cordón, F.; Swaab, D.F.; Struik, D.; Makris, K.C.; Wolffenbuttel, B.H.R.; Frederiksen, H.; Van Vliet-Ostaptchouk, J.V. Distribution of non-persistent endocrine disruptors in two different regions of the human brain. Int. J. Environ. Res. Public Health 2017, 14, 1059. [Google Scholar] [CrossRef] [Green Version]
  45. Molins-Delgado, D.; del Mar Olmo-Campos, M.; Valeta-Juan, G.; Pleguezuelos-Hernández, V.; Barceló, D.; Díaz-Cruz, M.S. Determination of UV filters in human breast milk using turbulent flow chromatography and babies’ daily intake estimation. Environ. Res. 2018, 161, 532–539. [Google Scholar] [CrossRef]
  46. Schlumpf, M.; Kypke, K.; Wittassek, M.; Angerer, J.; Mascher, H.; Mascher, D.; Vökt, C.; Birchler, M.; Lichtensteiger, W. Exposure patterns of UV filters, fragrances, parabens, phthalates, organochlor pesticides, PBDEs, and PCBs in human milk: Correlation of UV filters with use of cosmetics. Chemosphere 2010, 81, 1171–1183. [Google Scholar] [CrossRef]
  47. Rodríguez-Gómez, R.; Zafra-Gómez, A.; Dorival-García, N.; Ballesteros, O.; Navalón, A. Determination of benzophenone-UV filters in human milk samples using ultrasound-assisted extraction and clean-up with dispersive sorbents followed by UHPLC-MS/MS analysis. Talanta 2015, 134, 657–664. [Google Scholar] [CrossRef] [PubMed]
  48. Valle-Sistac, J.; Molins-Delgado, D.; Díaz, M.; Ibáñez, L.; Barceló, D.; Silvia Díaz-Cruz, M. Determination of parabens and benzophenone-type UV filters in human placenta: First description of the existence of benzyl paraben and benzophenone-4. Environ. Int. 2016, 88, 243–249. [Google Scholar] [CrossRef]
  49. Vela-Soria, F.; Jiménez-Díaz, I.; Rodríguez-Gómez, R.; Zafra-Gómez, A.; Ballesteros, O.; Navalón, A.; Vílchez, J.L.; Fernández, M.F.; Olea, N. Determination of benzophenones in human placental tissue samples by liquid chromatography-tandem mass spectrometry. Talanta 2011, 85, 1848–1855. [Google Scholar] [CrossRef]
  50. Castro, G.; Fourie, A.J.; Marlin, D.; Venkatraman, V.; González, S.V.; Asimakopoulos, A.G. Occurrence of bisphenols and benzophenone UV filters in wild brown mussels (Perna perna) from Algoa Bay in South Africa. Sci. Total Environ. 2022, 813, 152571. [Google Scholar] [CrossRef]
  51. Chen, T.H.; Wu, Y.T.; Ding, W.H. UV-filter benzophenone-3 inhibits agonistic behavior in male Siamese fighting fish (Betta splendens). Ecotoxicology 2016, 25, 302–309. [Google Scholar] [CrossRef] [PubMed]
  52. Weisbrod, C.J.; Kunz, P.Y.; Zenker, A.K.; Fent, K. Effects of the UV filter benzophenone-2 on reproduction in fish. Toxicol. Appl. Pharmacol. 2007, 225, 255–266. [Google Scholar] [CrossRef] [PubMed]
  53. Bai, C.; Dong, H.; Tao, J.; Chen, Y.; Xu, H.; Lin, J.; Huang, C.; Dong, Q. Lifetime exposure to benzophenone-3 at an environmentally relevant concentration leads to female–biased social behavior and cognition deficits in zebrafish. Sci. Total Environ. 2023, 857, 159733. [Google Scholar] [CrossRef] [PubMed]
  54. Thorel, E.; Clergeaud, F.; Jaugeon, L.; Rodrigues, A.M.S.; Lucas, J.; Stien, D.; Lebaron, P. Effect of 10 UV filters on the brine shrimp Artemia salina and themarinemicroalga Tetraselmis sp. Toxics 2020, 8, 29. [Google Scholar] [CrossRef] [Green Version]
  55. Esperanza, M.; Seoane, M.; Rioboo, C.; Herrero, C.; Cid, Á. Differential toxicity of the UV-filters BP-3 and BP-4 in Chlamydomonas reinhardtii: A flow cytometric approach. Sci. Total Environ. 2019, 669, 412–420. [Google Scholar] [CrossRef]
  56. Liu, H.; Sun, P.; Liu, H.; Yang, S.; Wang, L.; Wang, Z. Acute toxicity of benzophenone-type UV filters for Photobacterium phosphoreum and Daphnia magna: QSAR analysis, interspecies relationship and integrated assessment. Chemosphere 2015, 135, 182–188. [Google Scholar] [CrossRef]
  57. Zhong, X.; Downs, C.A.; Che, X.; Zhang, Z.; Li, Y.; Liu, B.; Li, Q.; Li, Y.; Gao, H. The toxicological effects of oxybenzone, an active ingredient in suncream personal care products, on prokaryotic alga Arthrospira sp. and eukaryotic alga Chlorella sp. Aquat. Toxicol. 2019, 216, 105295. [Google Scholar] [CrossRef]
  58. Lee, S.H.; Xiong, J.Q.; Ru, S.; Patil, S.M.; Kurade, M.B.; Govindwar, S.P.; Oh, S.E.; Jeon, B.H. Toxicity of benzophenone-3 and its biodegradation in a freshwater microalga Scenedesmus obliquus. J. Hazard. Mater. 2020, 389, 122149. [Google Scholar] [CrossRef]
  59. Pablos, M.V.; García-Hortigüela, P.; Fernández, C. Acute and chronic toxicity of emerging contaminants, alone or in combination, in Chlorella vulgaris and Daphnia magna. Environ. Sci. Pollut. Res. 2015, 22, 5417–5424. [Google Scholar] [CrossRef]
  60. Anido-Varela, L.; Seoane, M.; Esperanza, M.; Cid, Á.; Rioboo, C. Cytotoxicity of BP-3 and BP-4: Blockage of extrusion pumps, oxidative damage and programmed cell death on Chlamydomonas reinhardtii. Aquat. Toxicol. 2022, 251, 106285. [Google Scholar] [CrossRef]
  61. Rodríguez-Fuentes, G.; Sandoval-Gío, J.J.; Arroyo-Silva, A.; Noreña-Barroso, E.; Escalante-Herrera, K.S.; Olvera-Espinosa, F. Evaluation of the estrogenic and oxidative stress effects of the UV filter 3-benzophenone in zebrafish (Danio rerio) eleuthero-embryos. Ecotoxicol. Environ. Saf. 2015, 115, 14–18. [Google Scholar] [CrossRef]
  62. Coronado, M.; De Haro, H.; Deng, X.; Rempel, M.A.; Lavado, R.; Schlenk, D. Estrogenic activity and reproductive effects of the UV-filter oxybenzone (2-hydroxy-4-methoxyphenyl-methanone) in fish. Aquat. Toxicol. 2008, 90, 182–187. [Google Scholar] [CrossRef] [PubMed]
  63. Suzuki, T.; Kitamura, S.; Khota, R.; Sugihara, K.; Fujimoto, N.; Ohta, S. Estrogenic and antiandrogenic activities of 17 benzophenone derivatives used as UV stabilizers and sunscreens. Toxicol. Appl. Pharmacol. 2005, 203, 9–17. [Google Scholar] [CrossRef]
  64. Kunisue, T.; Chen, Z.; Buck Louis, G.M.; Sundaram, R.; Hediger, M.L.; Sun, L.; Kannan, K. Urinary concentrations of benzophenone-type UV filters in U.S. women and their association with endometriosis. Environ. Sci. Technol. 2012, 46, 4624–4632. [Google Scholar] [CrossRef] [Green Version]
  65. Archana, G.; Dhodapkar, R.; Kumar, A. Offline solid-phase extraction for preconcentration of pharmaceuticals and personal care products in environmental water and their simultaneous determination using the reversed phase high-performance liquid chromatography method. Environ. Monit. Assess. 2016, 188, 512. [Google Scholar] [CrossRef] [PubMed]
  66. Chiriac, F.L.; Paun, I.; Pirvu, F.; Pascu, L.F.; Niculescu, M.; Galaon, T. Liquid chromatography tandem mass spectrometry method for ultra-trace analysis of organic UV filters in environmental water samples. Rev. Chim. 2020, 71, 92–99. [Google Scholar] [CrossRef]
  67. Kharbouche, L.; Gil García, M.D.; Lozano, A.; Hamaizi, H.; Martínez Galera, M. Determination of personal care products in water using UHPLC–MS after solid phase extraction with mesoporous silica-based MCM-41 functionalized with cyanopropyl groups. J. Sep. Sci. 2020, 43, 2142–2153. [Google Scholar] [CrossRef]
  68. Sun, H.; Li, Y.; Huang, C.; Peng, J.; Yang, J.; Sun, X.; Zang, S.; Chen, J.; Zhang, X. Solid-phase extraction based on a molecularly imprinted polymer for the selective determination of four benzophenones in tap and river water. J. Sep. Sci. 2015, 38, 3412–3420. [Google Scholar] [CrossRef]
  69. Gago-Ferrero, P.; Mastroianni, N.; Díaz-Cruz, M.S.; Barceló, D. Fully automated determination of nine ultraviolet filters and transformation products in natural waters and wastewaters by on-line solid phase extraction-liquid chromatography-tandem mass spectrometry. J. Chromatogr. A 2013, 1294, 106–116. [Google Scholar] [CrossRef]
  70. Wang, W.; Kannan, K. Mass loading and emission of benzophenone-3 (BP-3) and its derivatives in wastewater treatment plants in New York State, USA. Sci. Total Environ. 2017, 579, 1316–1322. [Google Scholar] [CrossRef]
  71. Han, C.; Xia, B.; Chen, X.; Shen, J.; Miao, Q.; Shen, Y. Determination of four paraben-type preservatives and three benzophenone-type ultraviolet light filters in seafoods by LC-QqLIT-MS/MS. Food Chem. 2016, 194, 1199–1207. [Google Scholar] [CrossRef] [PubMed]
  72. Lukić, J.; Radulović, J.; Lučić, M.; Đurkić, T.; Onjia, A. Chemometric Optimization of Solid-Phase Extraction Followed by Liquid Chromatography-Tandem Mass Spectrometry and Probabilistic Risk Assessment of Ultraviolet Filters in an Urban Recreational Lake. Front. Environ. Sci. 2022, 10, 916916. [Google Scholar] [CrossRef]
  73. Qiu, Y.Y.; Ding, W.H. Mechanochemically synthesized zeolitic imidazolate framework-8 as sorbent for dispersive solid-phase extraction of benzophenone-type ultraviolet filters in aqueous samples. J. Chromatogr. A 2022, 1681, 463443. [Google Scholar] [CrossRef] [PubMed]
  74. Wang, A.; Hu, L.; Liu, J.; Tian, M.; Yang, L. Polyaniline-coated core-shell silica microspheres-based dispersive-solid phase extraction for detection of benzophenone-type UV filters in environmental water samples. Environ. Adv. 2021, 3, 100037. [Google Scholar] [CrossRef]
  75. Piovesana, S.; Capriotti, A.L.; Cavaliere, C.; La Barbera, G.; Samperi, R.; Zenezini Chiozzi, R.; Laganà, A. A new carbon-based magnetic material for the dispersive solid-phase extraction of UV filters from water samples before liquid chromatography–tandem mass spectrometry analysis. Anal. Bioanal. Chem. 2017, 409, 4181–4194. [Google Scholar] [CrossRef] [PubMed]
  76. Li, W.; Wang, R.; Chen, Z. Metal-organic framework-1210(zirconium/cuprum) modified magnetic nanoparticles for solid phase extraction of benzophenones in soil samples. J. Chromatogr. A 2019, 1607, 460403. [Google Scholar] [CrossRef]
  77. Medina, A.; Casado-Carmona, F.A.; López-Lorente, Á.I.; Cárdenas, S. Magnetic Graphene Oxide Composite for the Microextraction and Determination of Benzophenones in Water Samples. Nanomaterials 2020, 10, 168. [Google Scholar] [CrossRef] [Green Version]
  78. Vasilas, A.; Chatzimitakos, T.; Sygellou, L.; Stalikas, C. Performance study of a magnetic iron–copper bimetallic material for the removal of an environmental “cocktail” of diverse hazardous organic micropollutants from aqueous samples. Nanotechnol. Environ. Eng. 2021, 6, 66. [Google Scholar] [CrossRef]
  79. Zhang, Z.; Ren, N.; Li, Y.F.; Kunisue, T.; Gao, D.; Kannan, K. Determination of benzotriazole and benzophenone UV filters in sediment and sewage sludge. Environ. Sci. Technol. 2011, 45, 3909–3916. [Google Scholar] [CrossRef]
  80. Wang, H.; Xu, Q.; Jiao, J.; Wu, H. A solidified floating organic drop-dispersive liquid-liquid microextraction based onin situformed fatty acid-based deep eutectic solvents for the extraction of benzophenone-UV filters from water samples. New J. Chem. 2021, 45, 14082–14090. [Google Scholar] [CrossRef]
  81. Wang, H.; Hu, L.; Liu, X.; Yin, S.; Lu, R.; Zhang, S.; Zhou, W.; Gao, H. Deep eutectic solvent-based ultrasound-assisted dispersive liquid-liquid microextraction coupled with high-performance liquid chromatography for the determination of ultraviolet filters in water samples. J. Chromatogr. A 2017, 1516, 1–8. [Google Scholar] [CrossRef] [PubMed]
  82. Çabuk, H.; Kavaracı, O. Magnetic retrieval of a switchable hydrophilicity solvent: Fast homogeneous liquid–liquid microextraction for the determination of benzophenone-type UV filters in environmental waters. Int. J. Environ. Anal. Chem. 2022, 102, 2569–2585. [Google Scholar] [CrossRef]
  83. Ziemblińska-Bernart, J.; Nowak, I.; Rykowska, I. Fast dispersive liquid–liquid microextraction based on magnetic retrieval of in situ formed an ionic liquid for the preconcentration and determination of benzophenone-type UV filters from environmental water samples. J. Iran. Chem. Soc. 2019, 16, 661–671. [Google Scholar] [CrossRef] [Green Version]
  84. Zhang, X.; Zhang, L.; Zheng, D.; Xia, Z.; Peng, M.; Sun, D.; Hu, X. A Natural Monoterpene Enol for Dispersive Liquid—Liquid Microextraction Based on Solidification of Floating Organic Droplets for Determination of Benzophenone Compounds in Water Samples. Separations 2023, 10, 1. [Google Scholar] [CrossRef]
  85. Xu, Q.; Chen, Z.; Min, H.; Song, F.; Wang, Y.X.; Shi, W.; Cheng, P. Water Stable Heterometallic Zn-Tb Coordination Polymer for Rapid Detection of the Ultraviolet Filter Benzophenone. Inorg. Chem. 2020, 59, 6729–6735. [Google Scholar] [CrossRef] [PubMed]
  86. Sánchez-Brunete, C.; Miguel, E.; Albero, B.; Tadeo, J.L. Analysis of salicylate and benzophenone-type UV filters in soils and sediments by simultaneous extraction cleanup and gas chromatography-mass spectrometry. J. Chromatogr. A 2011, 1218, 4291–4298. [Google Scholar] [CrossRef]
  87. Camino-Sánchez, F.J.; Zafra-Gómez, A.; Dorival-García, N.; Juárez-Jiménez, B.; Vílchez, J.L. Determination of selected parabens, benzophenones, triclosan and triclocarban in agricultural soils after and before treatment with compost from sewage sludge: A lixiviation study. Talanta 2016, 150, 415–424. [Google Scholar] [CrossRef] [PubMed]
  88. Dias, A.N.; da Silva, A.C.; Simão, V.; Merib, J.; Carasek, E. A novel approach to bar adsorptive microextraction: Cork as extractor phase for determination of benzophenone, triclocarban and parabens in aqueous samples. Anal. Chim. Acta 2015, 888, 59–66. [Google Scholar] [CrossRef]
  89. Almeida, C.; Stepkowska, A.; Alegre, A.; Nogueira, J.M.F. Determination of trace levels of benzophenone-type ultra-violet filters in real matrices by bar adsorptive micro-extraction using selective sorbent phases. J. Chromatogr. A 2013, 1311, 1–10. [Google Scholar] [CrossRef]
  90. Liu, Z.; Zhou, W.; Hong, Y.; Hu, W.; Li, Z.; Chen, Z. Covalent organic framework-V modified porous polypropylene hollow fiber with detachable dumbbell-shaped structure for stir bar sorptive extraction of benzophenones. J. Chromatogr. A 2022, 1664, 462798. [Google Scholar] [CrossRef]
  91. Celeiro, M.; Acerbi, R.; Kabir, A.; Furton, K.G.; Llompart, M. Development of an analytical methodology based on fabric phase sorptive extraction followed by gas chromatography-tandem mass spectrometry to determine UV filters in environmental and recreational waters. Anal. Chim. Acta X 2020, 4, 100038. [Google Scholar] [CrossRef] [PubMed]
Table

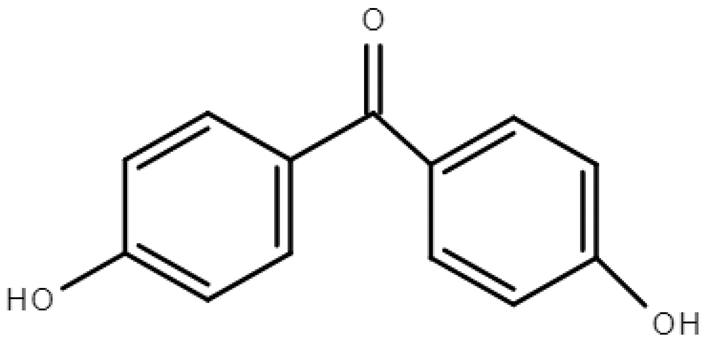

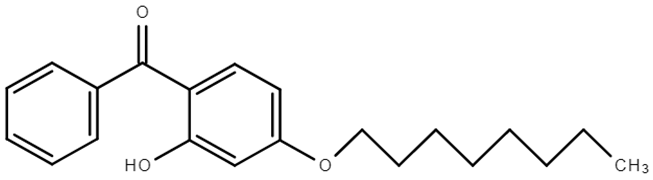

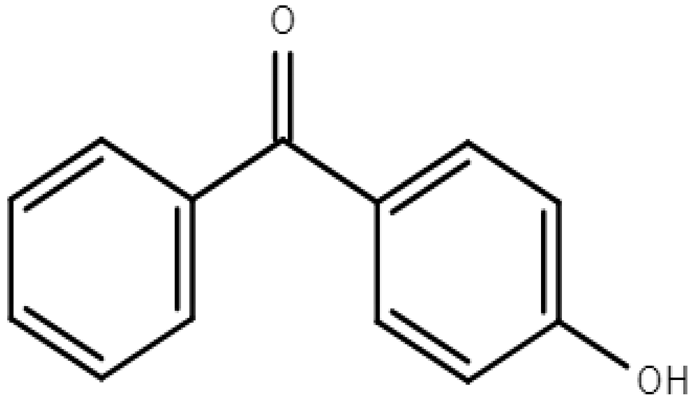

Table 1. Molecular formulas, structures, and octanol/water partition coefficients of BPs (https://pubchem.ncbi.nlm.nih.gov/ accessed on 24 November 2022).
Table 1. Molecular formulas, structures, and octanol/water partition coefficients of BPs (https://pubchem.ncbi.nlm.nih.gov/ accessed on 24 November 2022).
BPsMolecular FormulaStructureLogPowCAS Number

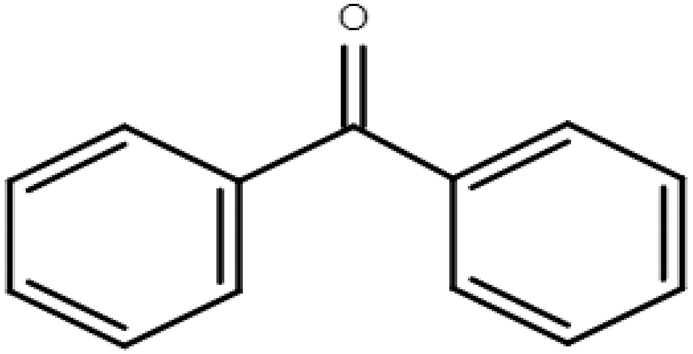

BenzophenoneC13H10OMolecules 28 01229 i0013.18119-61-9

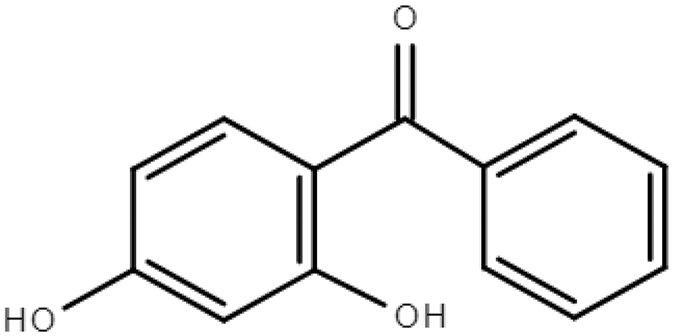

2,4-dihydroxybenzophenone or Benzophenone-1(BP-1)C13H10O3Molecules 28 01229 i0022.96131-56-6

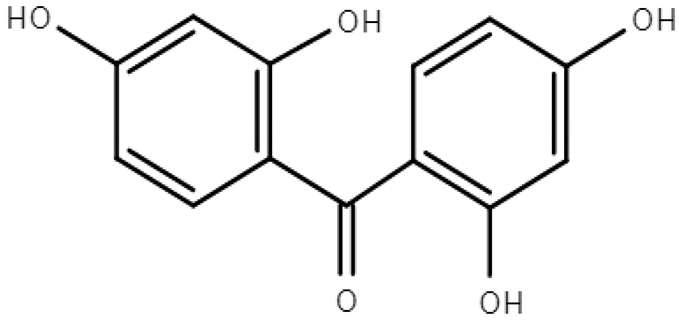

2,2’,4,4’-tetrahydroxybenzophenone or
Benzophenone-2 (BP-2)		C13H10O5Molecules 28 01229 i0032.78131-55-5

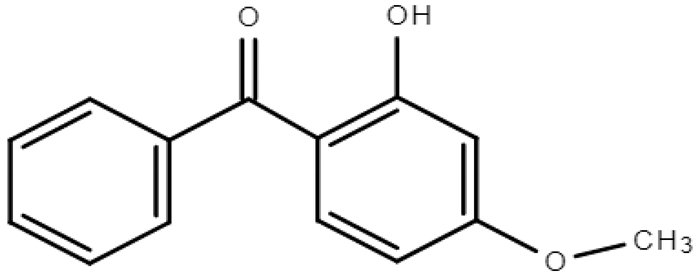

2 -hydroxy-4-methoxybenzophenone or Oxybenzone or benzophenone-3 (BP-3)C14H12O3Molecules 28 01229 i0043.79131-57-7

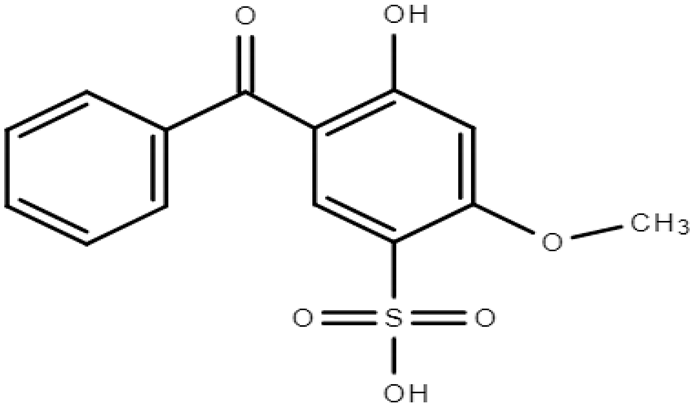

2-hydroxy-4-methoxybenzophenone-5-sulfonic acid or sulisobenzone or Benzophenone-4 (BP-4)C14H12O6SMolecules 28 01229 i0050.374065-45-6

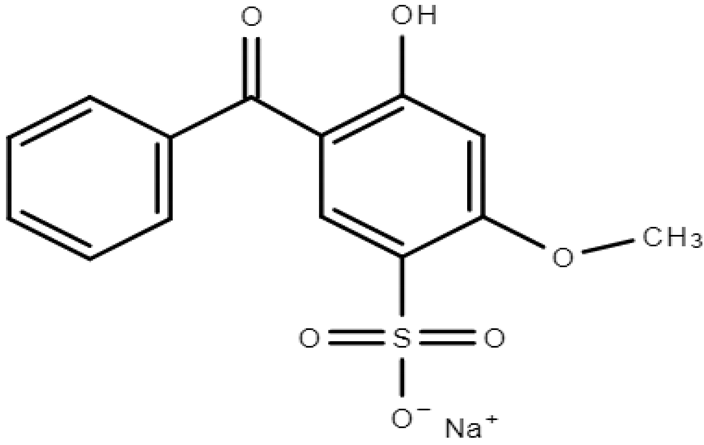

2-hydroxy-4-methoxybenzophenone-5-sodium sulfonate or Benzophenone-5 (BP-5)C14H11NaO6SMolecules 28 01229 i006-6628-37-1

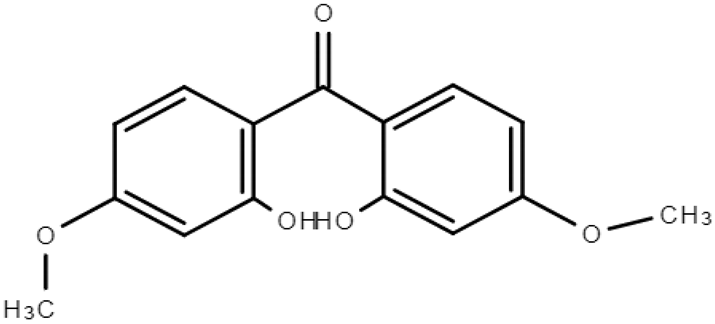

2,2’-dihydroxy-4,4’-dimethoxybenzophenone or
Benzophenone-6 (BP-6)		C15H14O5Molecules 28 01229 i0073.90131-54-4

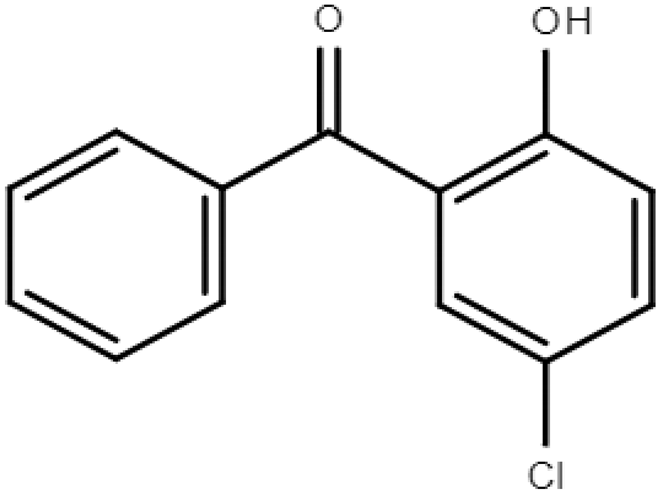

5-chloro-2-hydroxybenzophenone or Benzophenone-7 (BP-7)C13H9ClO2Molecules 28 01229 i0084.0985-19-8
2,2’-dihydroxy-4-methoxybenzophenone or dioxybenzone or Benzophenone-8 (BP-8)C14H12O4Molecules 28 01229 i0093.82131-53-3
2,2’-dihydroxy-4,4’-dimethoxy benzophenone-5,5’-disodium sulfonate or Benzophenone-9 (BP-9)C15H12Na2O11S2Molecules 28 01229 i010-76656-36-5
2-hydroxy-4-methoxy-4’-methylbenzophenone or Benzophenone-10 (BP-10)C15H14O3Molecules 28 01229 i0114.071641-17-4
2-hydroxy-4-octoxybenzophenone or benzophenone-12 (BP-12)C21H26O3Molecules 28 01229 i0126.961843-05-6
4-hydroxybenzophenoneC13H10O2Molecules 28 01229 i0133.071137-42-4
4,4’-dihydroxy-benzophenoneC13H10O3Molecules 28 01229 i0142.19611-99-4
Table
Table 2. Sample preparation methods based on SPE procedures for BP detection.
Table 2. Sample preparation methods based on SPE procedures for BP detection.
MethodSampleSorbentAnalytical TechniqueBPsTime for Treatment)LOD (ng/L)Recoveries % (RSD%)Reference
SPE and MEPSGroundwater, riverSPE(C-18)
MEPS (syringe packed with C-18)		GC-MSBP-1, BP-3, BP-8-34–6796–107[16]
101800–3200
SPERiverMCM-41/ MCM-41-CNUHPLC–MSBP-1, DHBP, 4-OH-BP~20 (3 days for synthesis) 74.8–106.4[67]
On-line SPERiver
Groundwater, effluent		cross-linked styrene/divinylbenzene polymerLC-MS/MSBP-3, BP-1, 4-OH-BP, DHBP, BP-8, BP-2BP-4200.3–470–114[69]
SPESurface water wastewaterC18LC-MS/MS2-OH-BP, 4-OH-BP, BP-2, BP-1, DHBP, BP-8700.59–1.46
1.17–2.93		79-98[66]
50
SPE
Solid–liquid extraction		SludgemethanolHPLC-MS/MSBP-3, 4-OH – BP, BP-1, BP-2, BP-8~ 210-84–105[70]
suspended particulate matter>21099–108
SPEwastewater~14581–122
SPERiver waterC18RS-HPLC-DADBP~120 148080–86[65]
Pressurized liquid extraction and SPE SeafoodC18LC-QqLIT-MS/MSBP-1, BP-2, BP-3--80.6–107.8[71]
SPERiver water
Tap water		Molecularly imprinted polymerHPLC-DADBP-2, BP-1, BP-8, BP-6~50 h (for synthesis)
~40 mins (for extraction)		250–72086.9–103.3[68]
SPELake waterOasis HLB 6 mL Vac Cartridges (100 mg sorbent)LC-MS/MSBP-1
BP-3
BP-4
4-OH-BP		2800.04–4.462–82[72]
SPESeawaterC18UHPLC MS/MSBP-3-11.3–36.443.3–100[31]
Wastewater24.6–555.626.0–98.5
LC-QqLIT-MS/MS: liquid chromatography–quadrupole linear ion trap–tandem mass spectrometry.
Table
Table 3. Sample preparation methods based on DSPE and mDSPE procedures for BP detection.
Table 3. Sample preparation methods based on DSPE and mDSPE procedures for BP detection.
MethodSampleSorbentAnalytical TechniqueBPsTime for Treatment (min)LOD (ng/L)Recoveries %Reference
Magnetic DSPELake waterMagnetic (Fe3O4)-graphitized carbon black (mGCB)UHPLC-(QqQ) MS-MSDHBP, BP4, BP-2, 4OH-BP, BP-1, BP-8, BP-3~120 (2 days for synthesis)1–585–114[75]
Magnetic DμSPESwimming pool water(Fe3O4@SiO2@APTES@GO)HPLC–(QqQ)MS/MS4-OH-BP, BP-8, BP-3, BP-6, BP-1~15 (4 days synthesis)2500–820086–105[77]
DSPESurface water
River water
Seawater		ZIF-8
+
methanol		UHPLC-QTOF-MSBP -3, BP-8, 2-OH-BP, 3-OH- BP, 4-OH-BP~12 (~75 for synthesis)0.1–781.2–94.1[73]
MSPESoilMOF-1210 (Zr/Cu)-Fe3O4
+
2% formic acid-acetonitrile		HPLC UVBP-1, BP-3, BP-6~62 (>4 days for synthesis)10–2087.6–113.8[76]
DSPE
Fixed Bed		Effluent from WWTPAcetone—5%, formic acid, Fe-Cu nanoHPLC-DADBP-2, BP-6~ 20 (~24 h for synthesis)-84–92[78]
DPSERiver, swimming pool
snow water
domestic sewage		CSMS@ polyaniline
+
Methanol		CE-MS/MSBP-1, BP-2, BP-3, BP-6, BP-8, DHBP~30 (>4 days for synthesis)0.6–20084.2–101.0[74]
Table
Table 4. Sample preparation methods based on LLE procedures for BP detection.
Table 4. Sample preparation methods based on LLE procedures for BP detection.
MethodSampleSorbentAnalytical TechniqueBPsTime for Treatment (min)LOD (ng/L)Recoveries % Reference
DLLMEWater samplesHydrophobic DES HPLC-DADBP-1, BP-2, BP-3, BP-6~10–15600–150073.1 to 99.8[80]
DES-ultrasound-assisted DLLMERiver waterDESHPLC-UVBP-1, BP, BP-3~10–15150–30090.2–103.5[81]
LLE and SPESedimentMethanol (LLE)
oasis HLB (SPE)		LC-MS/MSBP-3, BP-1, BP-8, BP-2, 4-OH-BP~20041–6170–116[79]
Sewage sludge0.41–0.6738.3
DLLMELake water
Seawater		Magnetic in situ-formed ILUHPLC-DADBP-1, BP-2, BP-3512.3–20.068.0–92.5[83]
LLETap water
Stream water
Seawater		DEHPA
+
Fe3O4		HPLC-UVBP-1, 4-OH-BP, BP-3~7700–800 80–103[82]
DLLMETap water
River water
Domestic wastewater
Factory wastewater		α−terpineolHPLC-DAD4OH-BP
BP-1
BP
BP-4		~20120–53075–108.4[84]
Table
Table 5. Sample pretreatment methods not falling into the pretreatment modes of Table 2, Table 3 and Table 4 for BP detection.
Table 5. Sample pretreatment methods not falling into the pretreatment modes of Table 2, Table 3 and Table 4 for BP detection.
MethodSampleSorbentAnalytical techniqueBPsTime for Treatment (min)LOD (ng/L)Recoveries %Reference
BAmΕAqueous samples15 mm—cork-powder-coated polypropylene hollow fibers HPLC-DADBP120 (15 h for synthesis)500100%[88]
7.5 mm (half bar)—cork-powder-coated polypropylene hollow fibers200123%
SBSESoilCOF-V polypropylene hollow fibersHPLC-UVBP-1, BP-3, BP-6, Ph-BP210–240 (100 h for synthesis)20–3073.9–111.7[90]
BAmΕSeawater
wastewater		P2-polymer-coated stir barHPLC–DADBP, BP-3, BP-1, 4-OH-BP~260300–50076.6–103.5[89]
FPSELake water
River water
Seawater		Sol–gel-coated sorbentFPSE-GC/MSBP-3204.594[91]
QuEChERSFish samples (<5% lipids)MgSO4
PSA
+
Methanol		UHPLC–MS/MSBP, BP-1, BP-2 BP-3, BP-8, 4-OHBP~1000.001–0.12270–166 [14]
Fish samples (>5% lipids)74–182
Zn-Tb CP-CPFluorescenceBP~30 (~96 h for
synthesis)		- [85]
Solid–liquid extraction and SPESoilethyl acetate–methanol (90%–10%), C18 + anhydrous sodium sulphateGC-MSBP-1, BP-3, BP-6, BP-8, 4-OH-BP~1050.07–0.10Soil
89.8–104.4		[86]
Sediment0.14–0.28Sediment
88.4–105.3
Ultrasound-assisted Solid–liquid extractionSoils
Wastewater treatment plant compost		methanolUHPLC-MSBP-1, BP-2, BP-3, BP-6, BP-8~600.05–0.4083–107[87]
0.06–0.30
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gavrila, A.A.; Dasteridis, I.S.; Tzimas, A.A.; Chatzimitakos, T.G.; Stalikas, C.D. Benzophenones in the Environment: Occurrence, Fate and Sample Preparation in the Analysis. Molecules 2023, 28, 1229. https://doi.org/10.3390/molecules28031229

AMA Style

Gavrila AA, Dasteridis IS, Tzimas AA, Chatzimitakos TG, Stalikas CD. Benzophenones in the Environment: Occurrence, Fate and Sample Preparation in the Analysis. Molecules. 2023; 28(3):1229. https://doi.org/10.3390/molecules28031229

Chicago/Turabian Style

Gavrila, Andromachi A., Ioannis S. Dasteridis, Alkiviadis A. Tzimas, Theodoros G. Chatzimitakos, and Constantine D. Stalikas. 2023. "Benzophenones in the Environment: Occurrence, Fate and Sample Preparation in the Analysis" Molecules 28, no. 3: 1229. https://doi.org/10.3390/molecules28031229

Article Metrics

Back to TopTop
