Review

Epimerisation in Peptide Synthesis

by
Suleman Duengo
1,2,
Muhamad Imam Muhajir
1,
Ace Tatang Hidayat
1,3,
Weny J. A. Musa
2 and
Rani Maharani
1,3,4,*
1
Department of Chemistry, Faculty of Mathematics and Natural Sciences, Universitas Padjadjaran, Sumedang 45363, West Java, Indonesia
2
Department of Chemistry, Faculty of Mathematics and Natural Sciences, Universitas Negeri Gorontalo, Gorontalo 96128, North Sulawesi, Indonesia
3
Central Laboratory, Universitas Padjadjaran, Sumedang 45363, West Java, Indonesia
4
Research Collaboration Centre for Theranostic Radiopharmaceutical, National Research and Innovation Agency (BRIN), Sumedang 45363, West Java, Indonesia
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(24), 8017; https://doi.org/10.3390/molecules28248017
Submission received: 31 August 2023 / Revised: 11 October 2023 / Accepted: 23 October 2023 / Published: 8 December 2023
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Epimerisation is basically a chemical conversion that includes the transformation of an epimer into another epimer or its chiral partner. Epimerisation of amino acid is a side reaction that sometimes happens during peptide synthesis. It became the most avoided reaction because the process affects the overall conformation of the molecule, eventually even altering the bioactivity of the peptide. Epimerised products have a high similarity of physical characteristics, thus making it difficult for them to be purified. In regards to amino acids, epimerisation is very important in keeping the chirality of the assembled amino acids unchanged during the peptide synthesis and obtaining the desirable product without any problematic purification. In this review, we report several factors that induce epimerisation during peptide synthesis, including how to characterise and affect the bioactivities. To avoid undesirable epimerisation, we also describe several methods of suppressing the process.

Graphical Abstract

1. Introduction

Epimerisation is a process of epimer formation in which stereoisomers have different configurations at only one of the stereogenic centres [1]. Epimerisation is basically a chemical conversion that includes the transformation of an epimer into another epimer or its chiral partner [2]. Doxorubicin and epirubicin are one pair of epimers (Figure 1). The fundamental difference between epirubicin and doxorubicin can be observed in the epimerisation of the 4′-C atoms, in which the 4′-OH group of doxorubicin is attached to the carbon with an axial configuration, while the 4′-OH group of epirubicin is attached to the carbon with the equatorial configuration. This difference, where there is a small change at only one carbon configuration without any changes in the molecular weight and molecular formula, totally affects their biological properties [2].

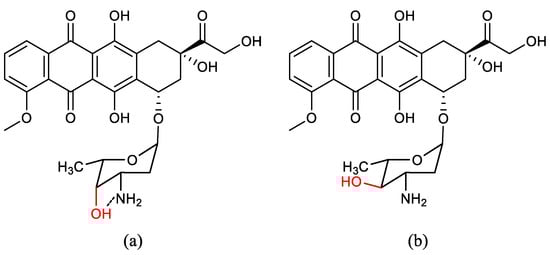

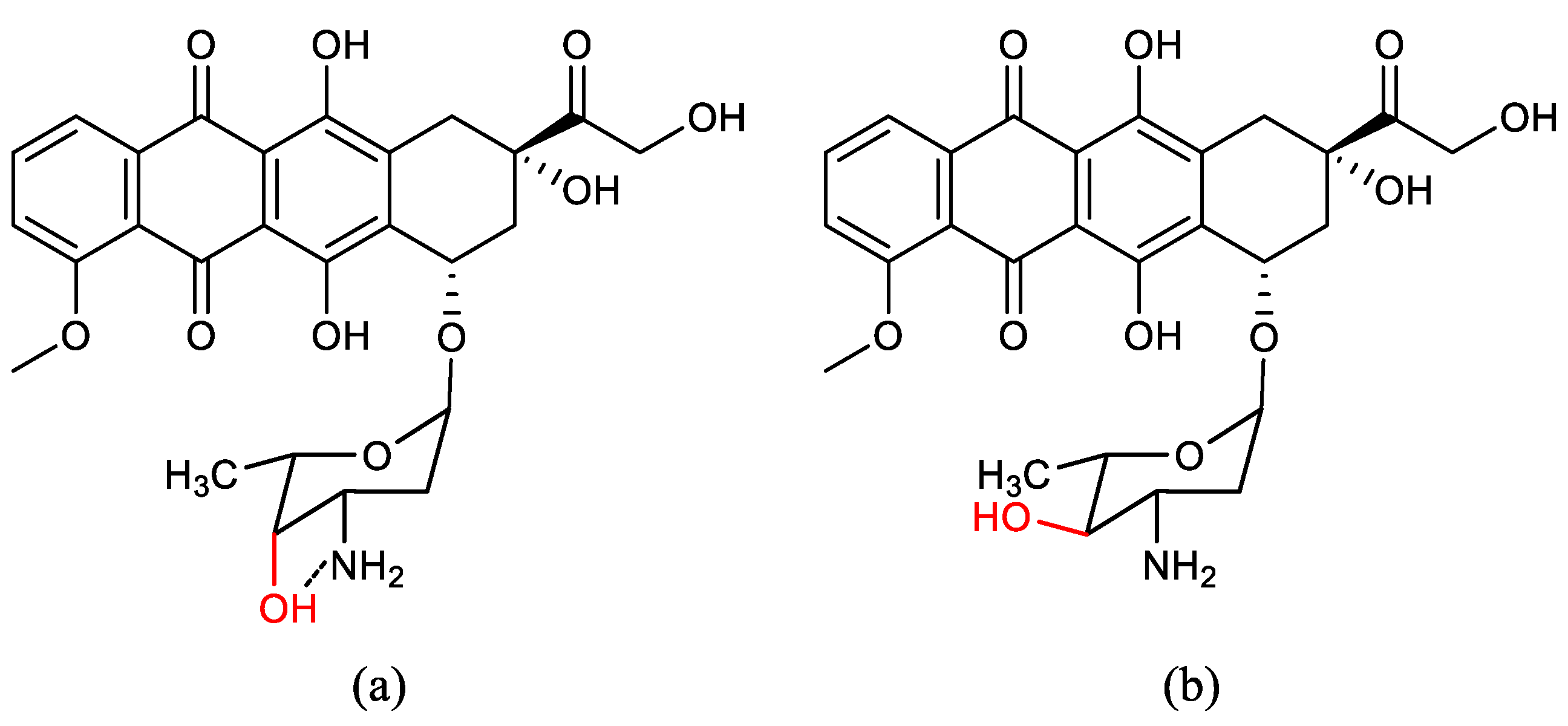

Other findings also revealed that the epimer pairs can show different bioactivities. [3] reported that the presence of D-amino acid in the structure increases structural or conformational flexibility compared to the L-isomer. Incorporation of D-amino acid can enhance biological activity by stabilising certain molecular conformations [3]. For example, cyclopentapeptide, an astin-C analogue containing a D-amino acid residue, exhibits better immunosuppressant activity than its isomer. Li et al. (2018) also said that, in the case of omega-agatoxin IVB and IVC, the peptide with D-serine at position 46 was four times more potent than the L-serine isomer in its inhibitory action on P-type Ca channels in Purkinje cells [4]. These are several findings showing how the epimerisation process could be an important issue in medicinal chemistry.

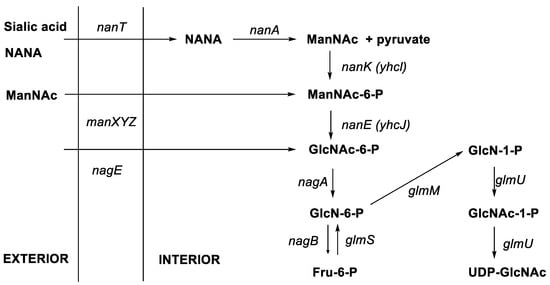

Generally, epimerisation is a slow and spontaneous reaction. Mostly, the process can be catalysed by enzymes [5]. Post-translational epimerisation of selective amino acids in peptide chains is a difficult challenge, requiring suitable enzymes [6]. For example, the conversion of N-acetylglucosamine to N-acetylmannosamine is an epimerisation reaction that occurs in the presence of a renin-binding protein that acts as a catalyst (Figure 2) [7]. Further, the radical enzyme of S-adenosyl-L-methionine (AdoMet) epimerase is able to catalyse the conversion of L-amino acids to D-amino acids in the synthesis of ribosomal peptides (Figure 3) [8].
In peptide synthesis, amino acid epimerisation is one of the most avoided reactions, as it is known that the biological activity of peptides is very dependent on their conformation with dimensional atomic alignment [9]. Additionally, epimerisation of one amino acid in the peptide sequence could affect the overall conformation of the molecule, eventually affecting the bioactivity of the peptide. Epimerised products have a high similarity of physical characteristics [10]. The epimerisation product further increases the difficulty of purification [11].

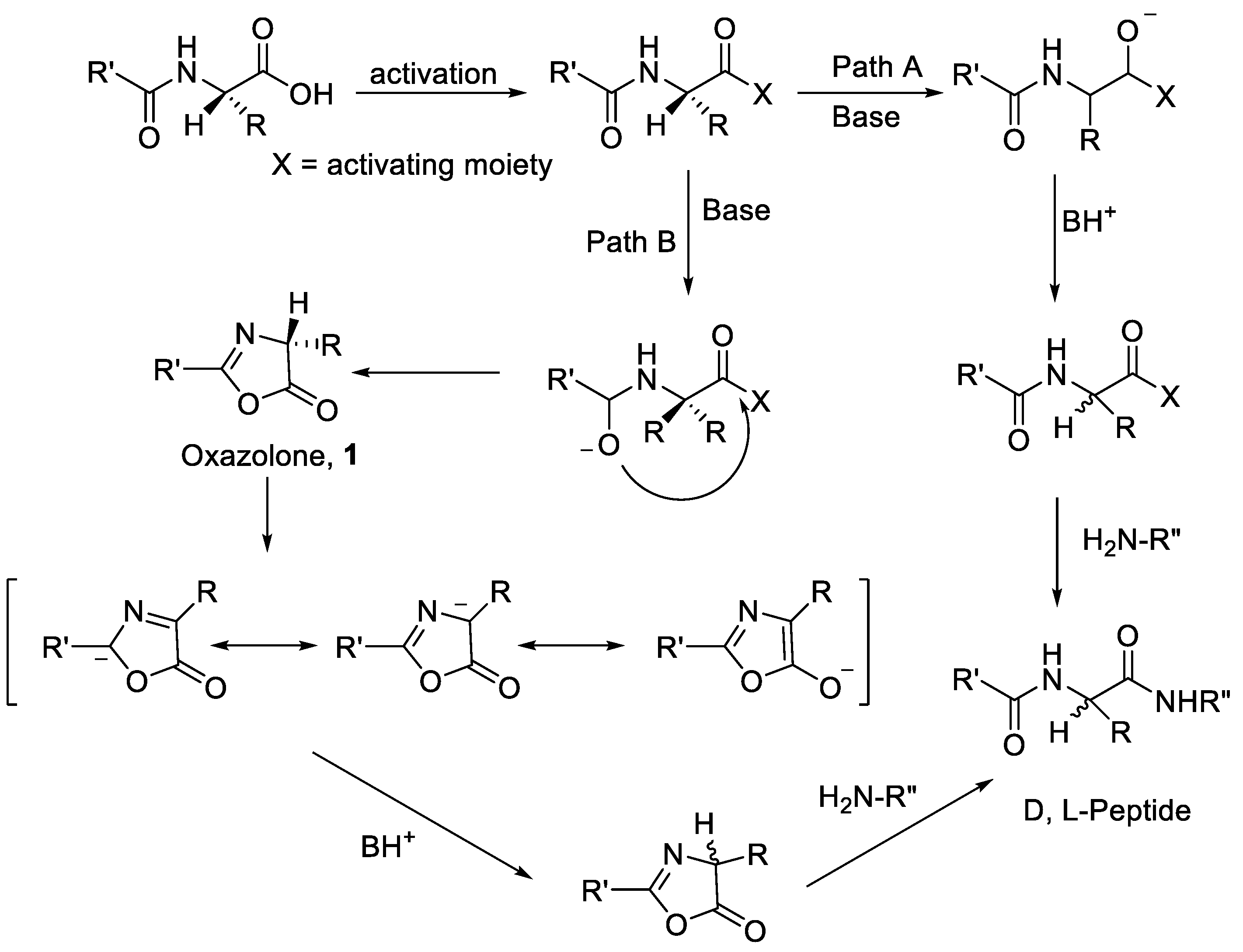

Generally, there are two general mechanisms of epimerisation in peptide synthesis. The first mechanism is observed through the formation of oxazol-5(4H)-one, which occurs through a strong activation of the carboxylate group backbone on the protected amino acid and might induce the formation of oxazol-5(4H)-one intermediate. The Nα attack from the same amino acid or peptide could lead to the epimerisation product (Figure 4). The path B mechanism was regarded as the most predominant source of amino acid racemisation during peptide synthesis [12].

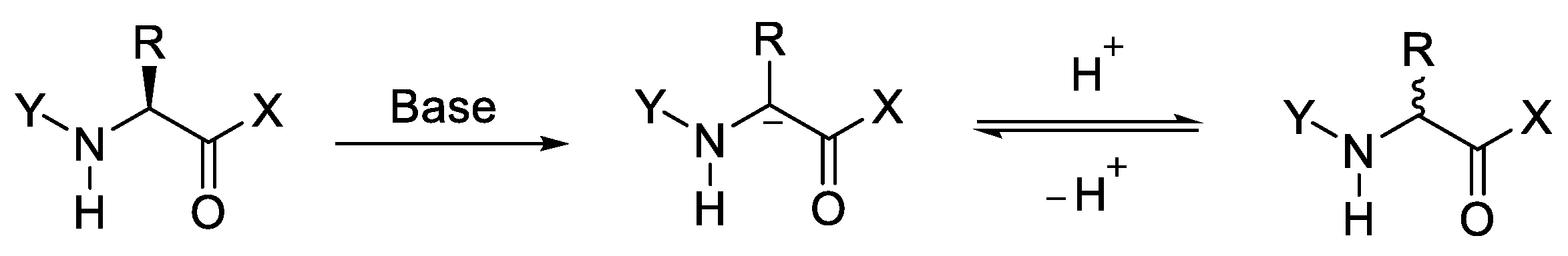

The second mechanism is epimerisation via direct Hα abstraction by bases in amino acid. This epimerisation process is possible in peptide synthesis, especially with amino acid residues with high acidic Hα. The alpha proton of amino acid is abstracted by a base, producing anionic amino acid during the activation or deprotection process in a base-mediated condition (Figure 4 path A). The re-protonation of the generated anionic amino acid by proton sources leads to the amino acid racemisation [14].
Based on the introduction above, epimerisation in peptide synthesis can be an issue in drug discovery as it can lead to products that have totally different biological activities. In peptide synthesis, epimerisation has become a significant synthetic problem that needs to be recognised and overcome by peptide chemists. In this review, we describe several factors that induce epimerisation during peptide synthesis, in addition to several strategies designed to suppress epimerisation.

2. Epimerisation-Inducing Factors

2.1. Activation of Carboxylic Groups to Active Esters

In the structure of a peptide, amino acids are linked via amide bonds between the carboxyl group of one amino acid and the α-amino group of another. Emil Fischer, who first proposed this structure, called this amide bond a peptide bond [15]. The peptide bond formed between the two amino acids can usually be observed in a condensation reaction between the carboxyl group of an amino acid and the amino group of another amino acid by releasing a water molecule. However, a carboxylic group on an amino acid is less reactive, so in the process of peptide bond formation, an activating reagent is mostly required. In this case, a coupling reagent is used, which functions to activate the carboxylic group on the amino acid to become an active ester so that it can be attacked by other amino groups [16]. In the mechanism, the carboxylic group on the peptide is activated using a coupling reagent and forms an activated product. Unfortunately, this activation step, along with the next coupling reaction, has an issue, which is the potential loss of chiral integrity upon the carboxyl residue undergoing activation [13,17]. Several activated intermediates react directly with other amino acids to form a peptide bond, while several intermediates form an oxazol-5(4H)-one derivative, leading to epimerised or racemised products. This process allows the formation of two products, which are a target peptide together with the epimerised or racemised products [18].

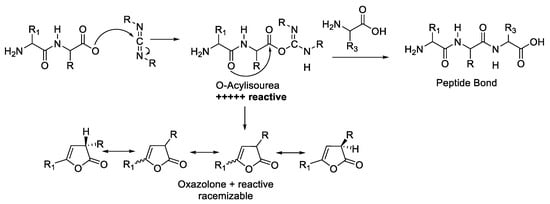

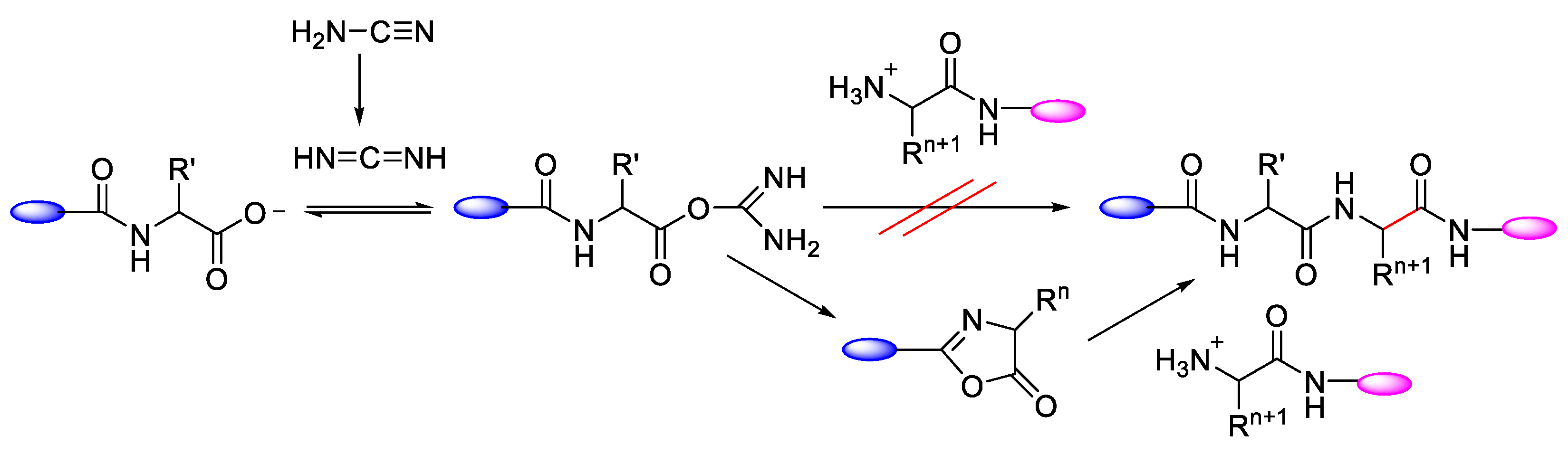

As described in the introduction, there are two major pathways for the loss of configuration where both pathways are basic catalysed, which are (a) direct enolisation (path A) and (b) 5-(4H)-oxazolone formation (path B). Both pathways could induce the epimerisation or racemisation, as described in Figure 4 [19].

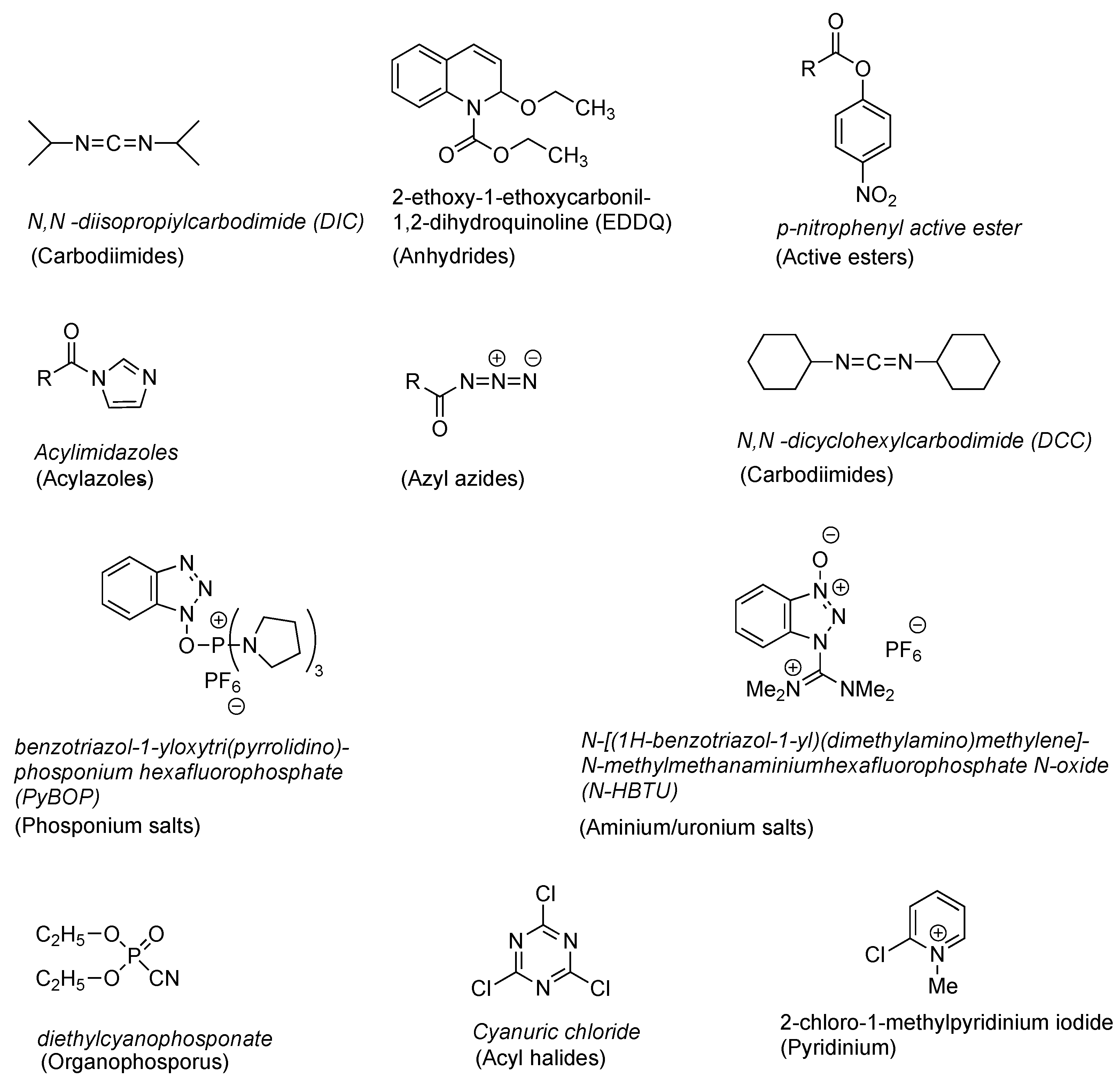

Various types of coupling reagents in the activation process reportedly could lead to the racemisation and epimerisation process. Several types of coupling reagents have been discovered in the solid-phase synthesis of peptides, such as carbodiimides, anhydrides, active esters, acylazoles, acyl azides, acyl halides, phosphonium salts, uronium salts, organophosphorus, triazine, and pyridinium (Figure 5) [17].
One carbodiimide-based coupling reagent is DCC (N,N′-dicyclohexylcarbodiimide) (Figure 5). Activation of the carboxylic group using DCC produces ortho-acylurea, which is very reactive. The reactive intermediate could potentially form an oxazolone, potentially triggering the racemisation (Figure 6) [20].

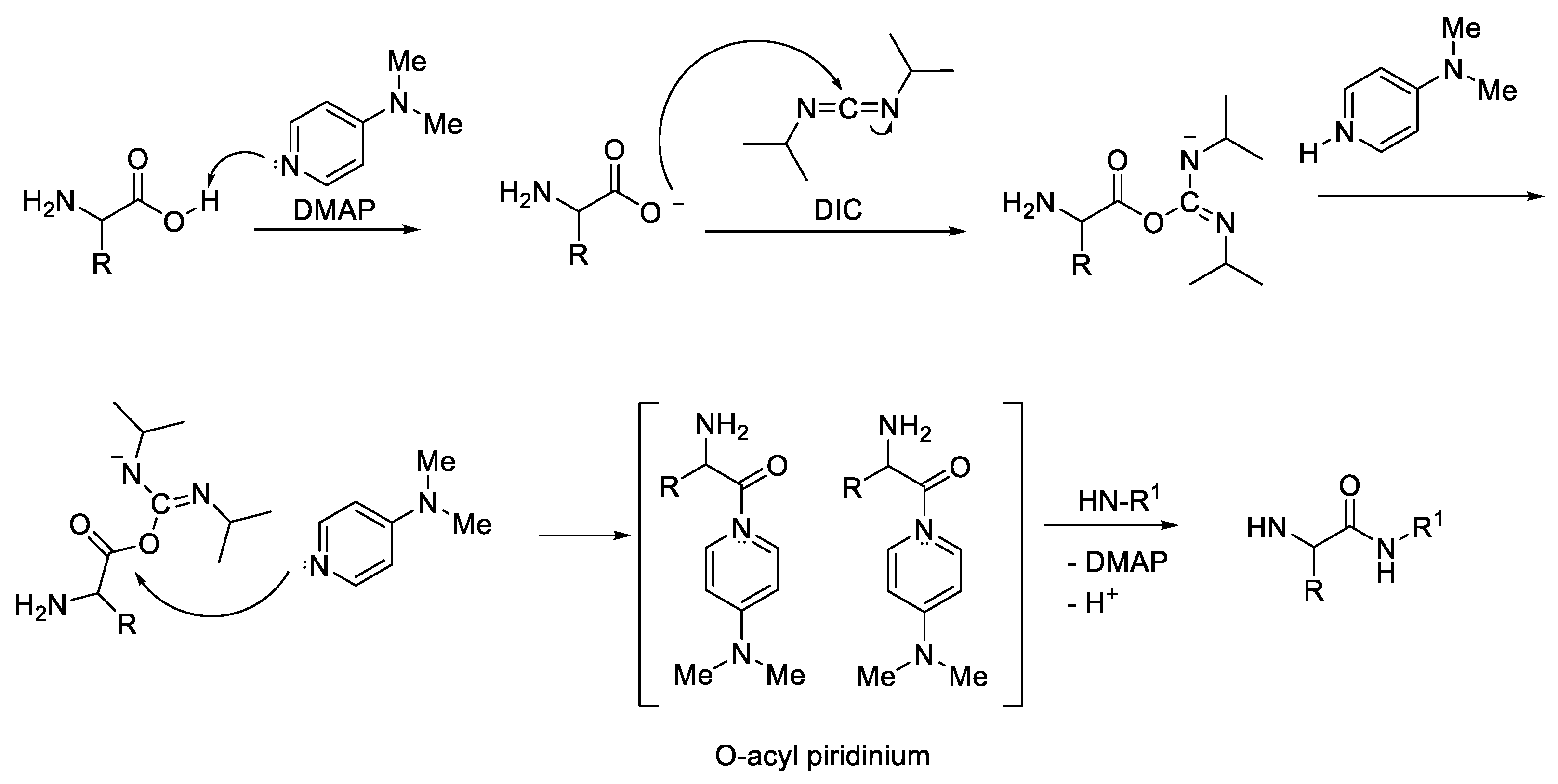

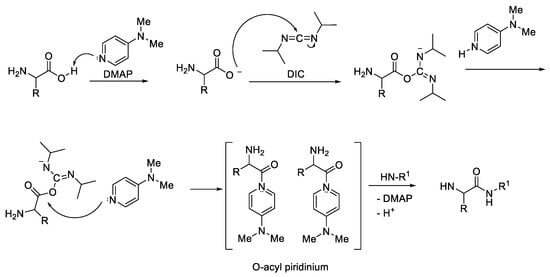

DMAP (4-dimethylaminopyridine) is mostly added to the reaction to form acyl pyridinium (Figure 7), which can suppress the racemisation product [19].

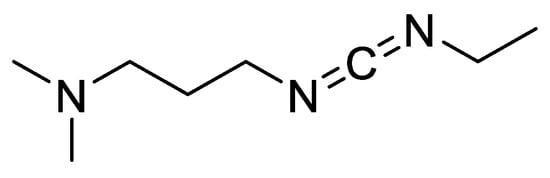

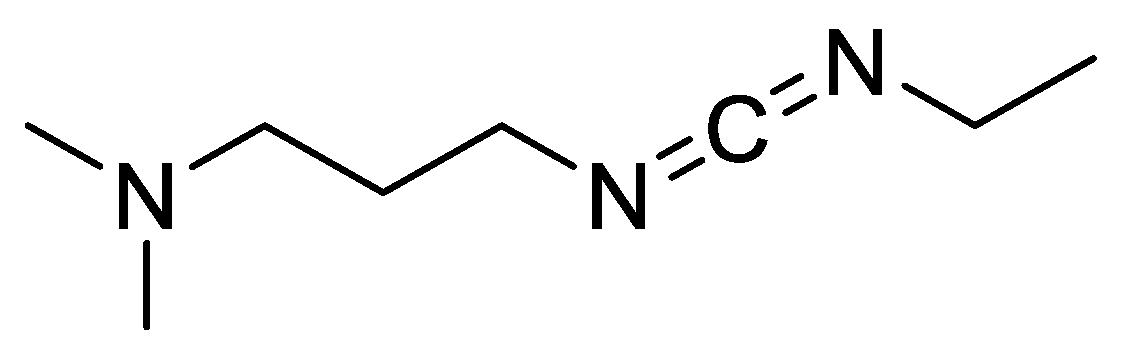

Dunetz (2016) reported that EDC [1-ethyl-3-[3-(dimethylaminopropy1) carbodiimide] (Figure 8) tends to cause epimerisation more than DCC (Figure 9) [21]. A good performance of both EDC and DCC was shown when these carbodiimides were mixed with HOBt, which has been proven to suppress epimerisation (Table 1).
The results in Table 1 indicate that, in terms of preservation of stereochemistry, there is at most a marginal difference between EDC and DCC in the induction of epimerisation. EDC was found to more likely lead to racemisation (25%) than DCC.
Another study also reports that the EDC coupling reagent induced more epimerisation than the DIC coupling reagent (Table 2) [22]. Comparisons between EDC, EDC-HCI, and DIC during condensation often showed cleaner reactions in the latter two cases [23]. The results may be related to the presence of an unhindered basic amino function in EDC structures. A negative effect of a base on loss of configuration would be particularly important for slow coupling processes. Thus, in the solid-phase peptide synthesis of GIy-Phe-Pro-NH2, the following epimerisation percentages were observed: EDC/HOAt (29.8%); EDC-HC1/HOAt (24.1%); DIC/HOAt (4.2%) (Tabel 2) [22].
Spatola et al. synthesised cyclo(D-Trp-D-Asp-Pro-D-Val-Leu), also known as BQ-123, a recently characterised cyclic pentapeptide endothelin antagonist, in 1996 (Table 3). This target used a limited mixture of cyclic pentapeptides. The racemisation was examined throughout the synthesis of the four analogues of cyclo[Xxx-D-Leu-Val-D-Pro-Asp], where Xxx = Ala, Phe, Tyr, and Trp [24]. To do this, the stereochemistry of hydrolysed amino acids was routinely examined using Marfey’s reagent, Na-(2,4-dinitro-S-fluorophenyl)-L-alaninamide. Racemisation was hypothesised to most likely occur during the transition of the linear precursor into the cyclic product and during the activation of the linear peptide’s C-terminus utilising a BOP active ester (Figure 10) [25].

2.2. Amino Acids

Racemisation can also be induced by the structure of the amino acids. It occurs due to the presence of a stereochemical centre in the amino acid structure [26].

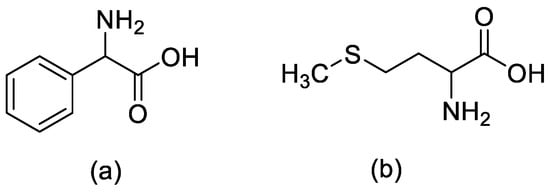

Among the amino acids that have the potential to cause racemisation are phenylglycine [27] and methionine [3] (Figure 11). The anion produced upon H-alpha abstraction on phenylglycine amino acid can be stabilised by the aryl side chain group and increases the possibility of epimerisation. Thus, all the amino acids with electron-withdrawing group side chains can undergo epimerisation [28].

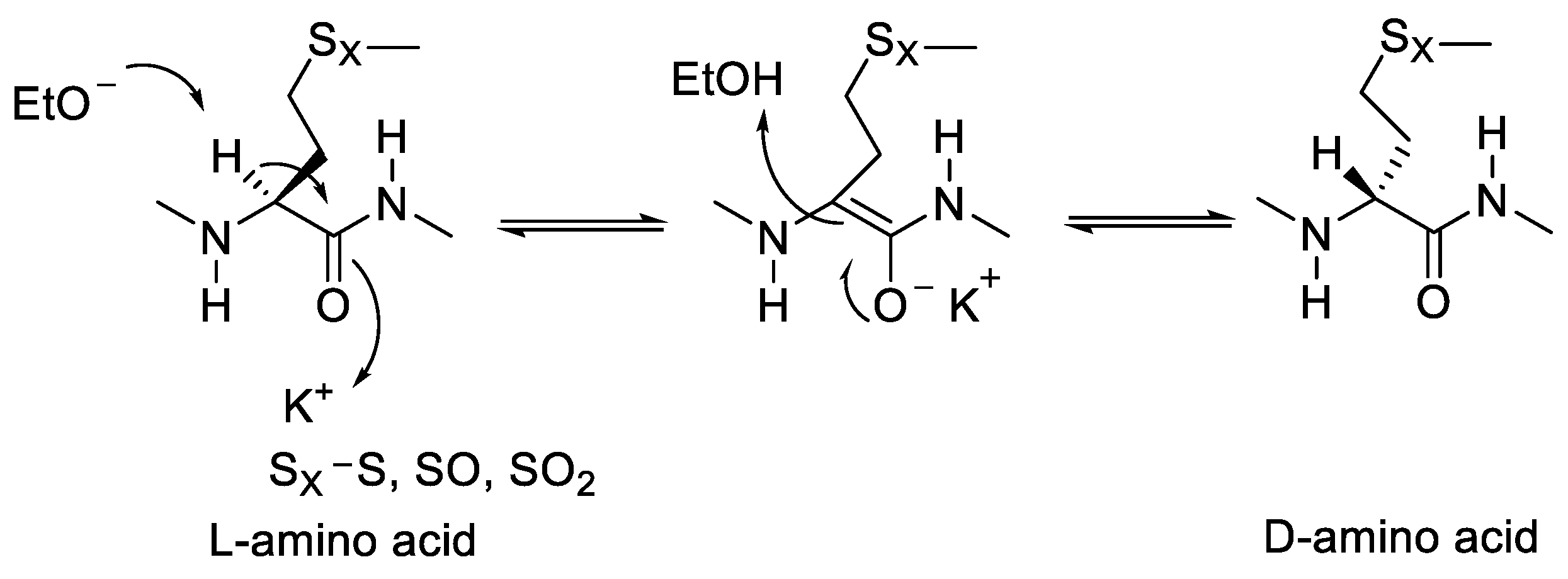

Cyclisation of peptides featuring several sequential N-methyl-methionines was reported to involve a risk of epimerisation. The proton alpha of methionine residue makes it easy to direct abstraction under basic conditions during the activation step. This condition can lead to a direct epimerisation mechanism, as shown in Figure 12. Further, Jadhav et al. (2021) found that amino acid residues such as Leu, Ile, Phe, and Val have similar acidity to that of Met, so the methionine epimerisation (Figure 12) was not considered to be kinetically more preferable than the other amino acid residues in cyclic peptides. Epimerisation being caused by other residues such as Leu, Ile, Phe, and Val is also possible.

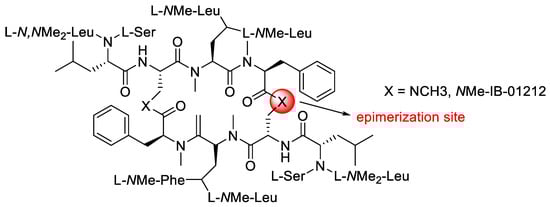

The linear octapeptide [Boc-L-Dap(Me&1)-NMe-Leu-NMe-Phe&2] (Figure 13) was treated under various cyclisation conditions to find a cyclisation condition with minimal C-epimerisation (Table 4). Cyclisation failed to occur at neutral conditions (entry 4), and gave the result when it was carried out at pH 8. The octapeptide precursor was consequently dissolved in DMF and cyclised with PyBOP and HOAt while maintaining pH 8 with the addition of DIEA. Despite the rigidity imposed by a number of N-methyl amino acids, the cyclisation was entirely successful in 3 h. The best result was obtained using DIEA as the base and DMF as the solvent, where the cyclisation resulted in the highest yield and the lowest percentage of epimerisation at the C-terminus (entry 3) [29].
A different case was reported by Nabika et al. (2015) in the synthesis of coibamide A (Figure 14), which has eight N-methylamino acids and two ester bonds. Coibamide A (1) is a cyclic depsipeptide that was originally isolated from a Panamanian marine cyanobacterium. This compound has been reported to exhibit potent antiproliferative activity against a number of human cell lines, where it operates according to a unique mechanism of action [30].

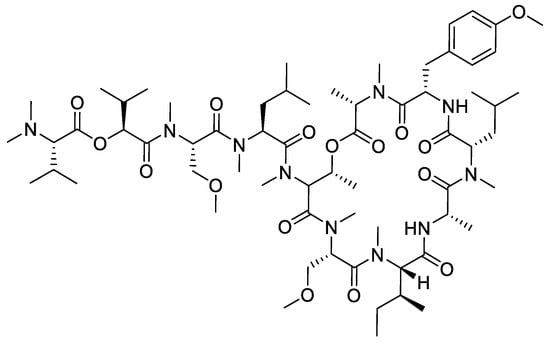

Synthesis of coibamide A was carried out in the solid phase using a series of different coupling reagents, including the use of DIC/HOAt, HATU, and BTC systems to optimise the coupling conditions, particularly for any coupling involving the N-methylamino acid.
Using a HATU/DIPEA system, Tyr(Me)1 and Ala residues were successfully linked to N-methylamino acids. By comparison, MeLeu and MeIle were successfully linked onto unmethylated amino acids when the typical Fmoc-based Solid Phase Peptide Synthesis (SPPS) procedure (DIC/HOBt) was applied. The partial epimerisation of the product (diastereomer excess = 72:28) was found during the coupling of MeSer(Me) onto the N-methylamino group of MeIle7 in the presence of HATU/DIPEA. This finding was attributed to the slow reaction of the two coupling partners under the basic conditions. By using DIC/HOAt in a non-basic condition, epimerisation was not observed even though the coupling reaction was not completed. On the other hand, coupling of Fmoc-Ser(Me)-OH was successfully completed using the same DIC/HOAt reagents.

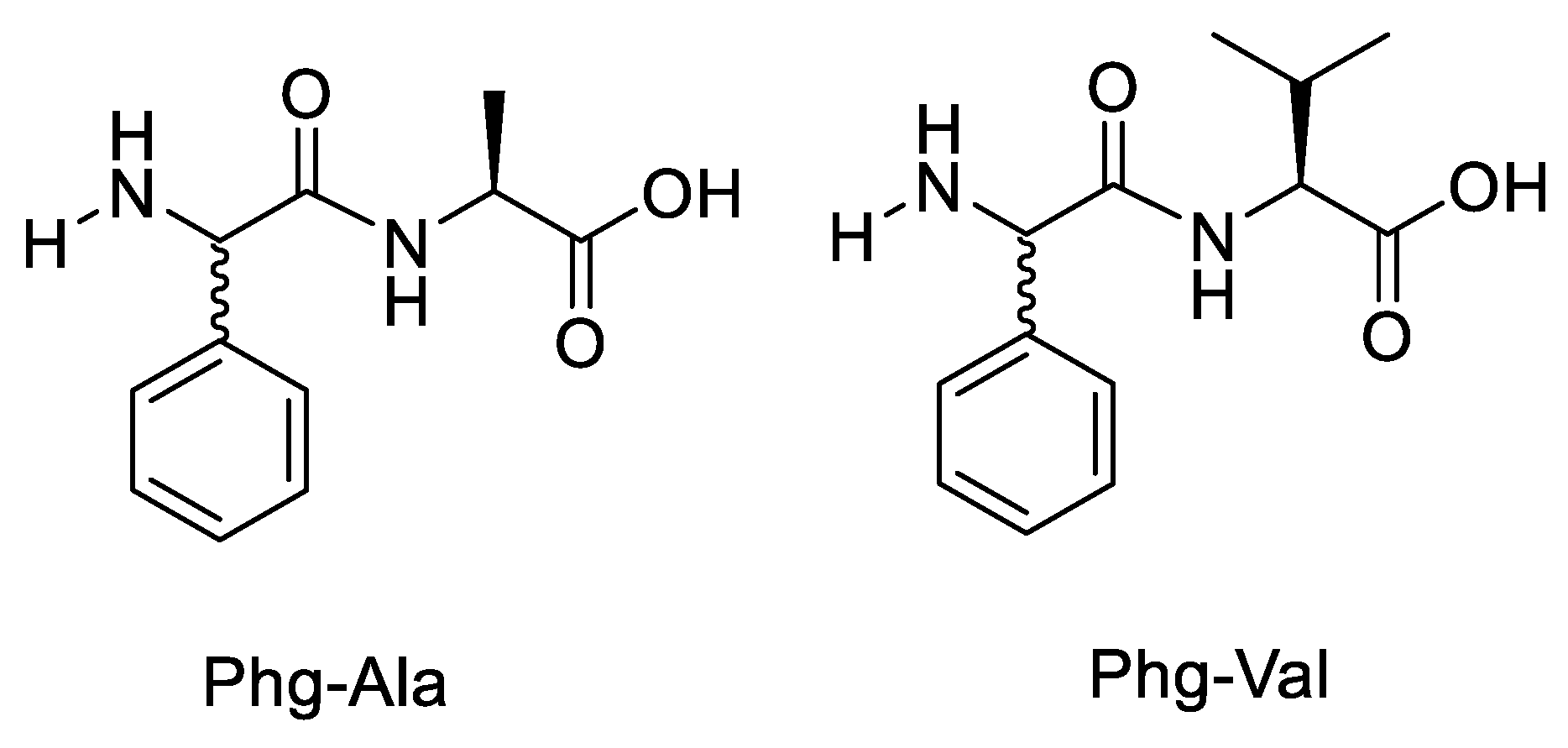

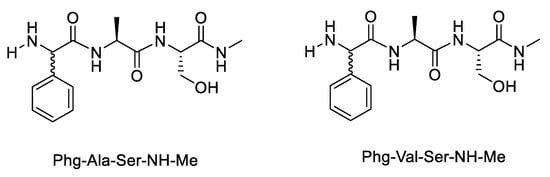

Liang et al. (2017) observed a racemisation of phenylglycine in Fmoc-based solid-phase peptide synthesis [31]. Phenylglycine-containing peptide has been known to have potential pharmaceutical applications and, in regards to chemical biology, there are important building blocks within various antimicrobial peptides, such as streptogramins (virginiamycin S, streptogramin B, pristinamycin I, or dityromycin) or glycopeptides (vancomycin) [32]. Besides having a potential biological activation, obtaining the correct epimer of Phg-containing peptide is challenging because of the increased acidity of the proton at the α-carbon, which facilitates the loss of configuration during synthesis.

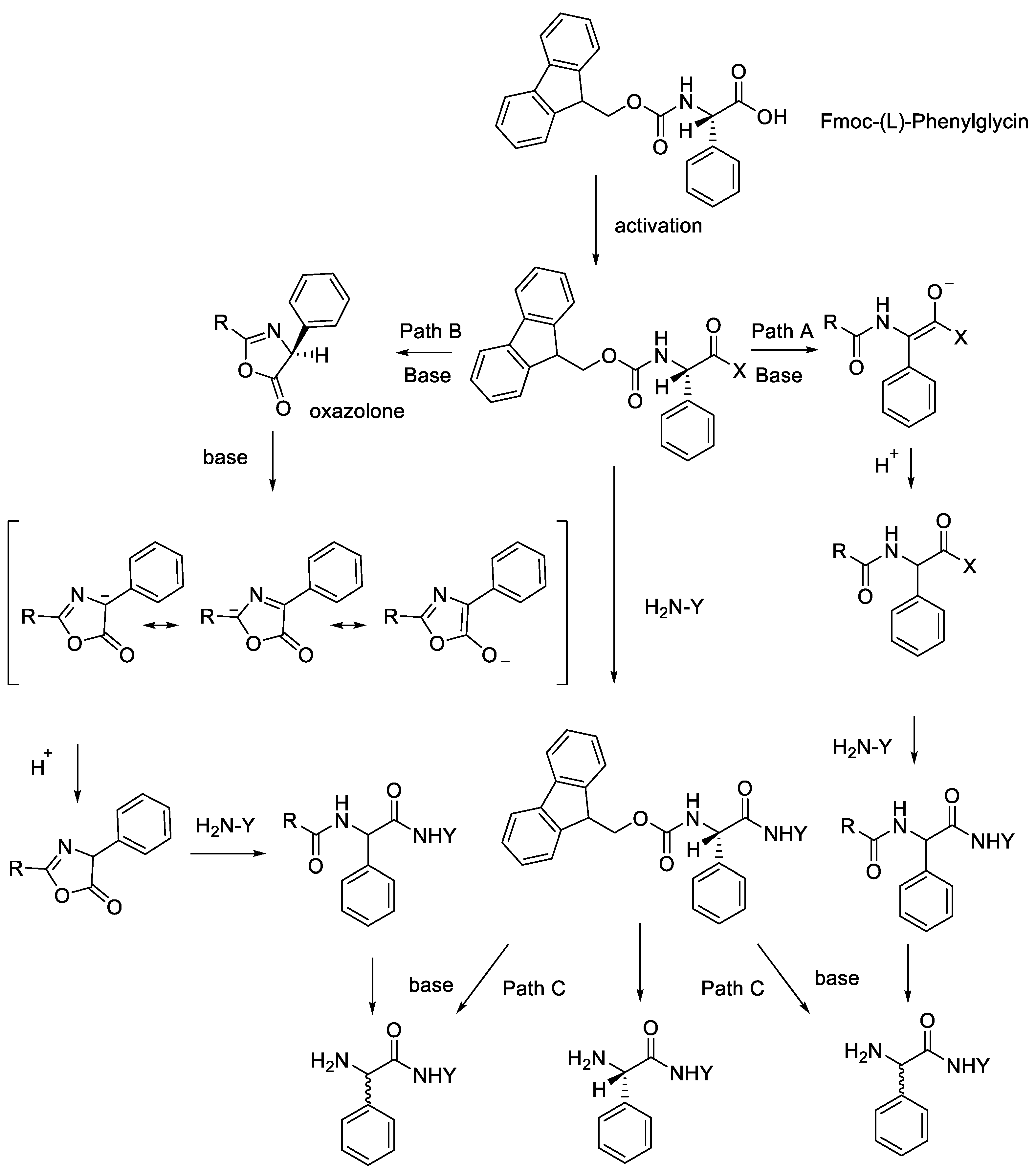

Figure 15 illustrates this proposal. Due to the acidity of the a-carbon, it is suggested that the racemisation of Phg during SPPS proceed via enolisation under basic circumstances that are encountered during coupling (pathways A and B) or Fmoc deprotection (pathway C) phases. The kind and position of the phenyl ring substituents determine the intensity of the mesomeric action and the consequent stability of the anion intermediate at the −carbon, which likely explains the sequence of sensitivity to racemisation in Phg amino acid.

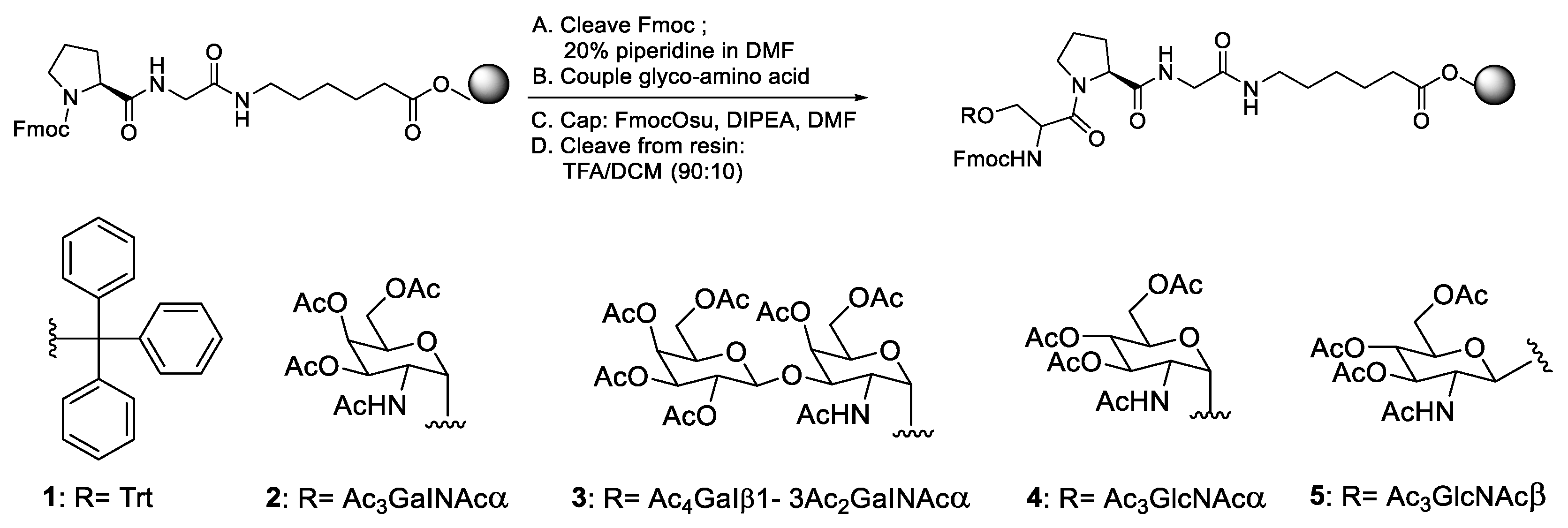

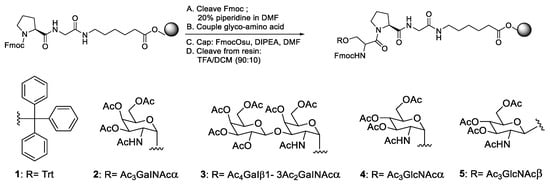

Other research involves the synthesis of glycopeptides (Figure 16), which are used extensively in basic research [33], and an investigation of various clinical applications, such as antimicrobe [34], anticancer [35], vaccine [36], and antigen [37] uses. Zhang et al. (2012) synthesised and optimised the four Fmoc-Ser amino acids that are commonly found in O-linked glycans [38]. Fmoc-Ser-Trt was also optimised because it had previously been found to have a higher rate of racemisation than most other natural amino acids [39]. The attachment Fmoc-Ser-Glycan was carried out using several coupling agents and was evaluated in a racemisation formation.
From Table 5, it can be seen that the condition of 3.3 equivalent of amino acid and HATU/HOAT 3.65/3.70 equivalent with the presence of 7.2 equivalent basic DIPEA in DMF showed a significant difference in epimerisation between several Fmoc-Ser(R)-OH amino acid examples, whereas Fmoc-Ser(Ac3GaINAca) (0.8%) and Fmoc-Ser(Ac3GlcNAcb)-OH (2.0%) showed a minor value epimerisation yield. Fmoc-Ser(Ac4GaIb1-3Ac2GaINAca)-OH (65.6%) and Fmoc-Ser(Ac3GlcNAca)-OH (72.5%) showed more epimerisation products than the other side chain in the same coupling condition. On the other hand, Fmoc-Ser(Trt)-OH also showed a high epimerisation yield in the condition of 4.4 equivalent of amino acid and HATU/HOAT 4.0 equivalent with the presence of 8.8 equivalent basic NMM in DMF solvent. From these results, it can be concluded that glycol-amino acids show increased epimerisation, especially in Fmoc-Ser(R)-OH amino acid. The best coupling condition can suppress the epimerisation yield.

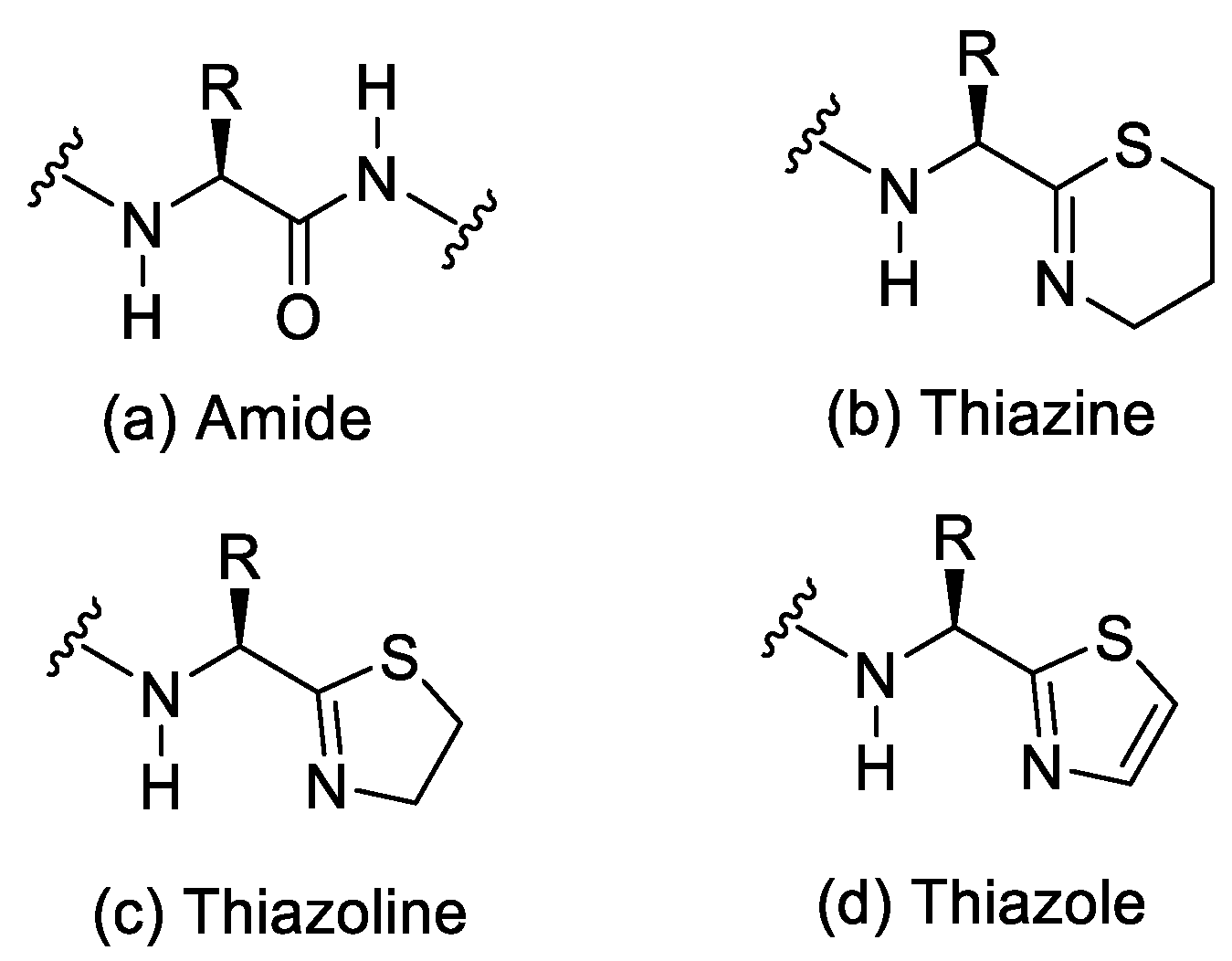

Another study reported that synthesis of 5,6-dihydro-4H-1,3-thiazine containing peptide mimics also results in epimerisation during amide bond formation [40]. The 5-membered heterocycles, 1,3-thiazolines and 1,3-thiazoles, are the most prevalently studied thioimidate isosteres for the peptide bond [41].
Tumminakatti et al. (2014) reported racemisation in a study of the synthesis of mono- and oligopeptidomimics with Thi modification at the C-terminus, derived from corresponding N-(3-hydroxypropyl) thioamide derivatives (Figure 17) [42].

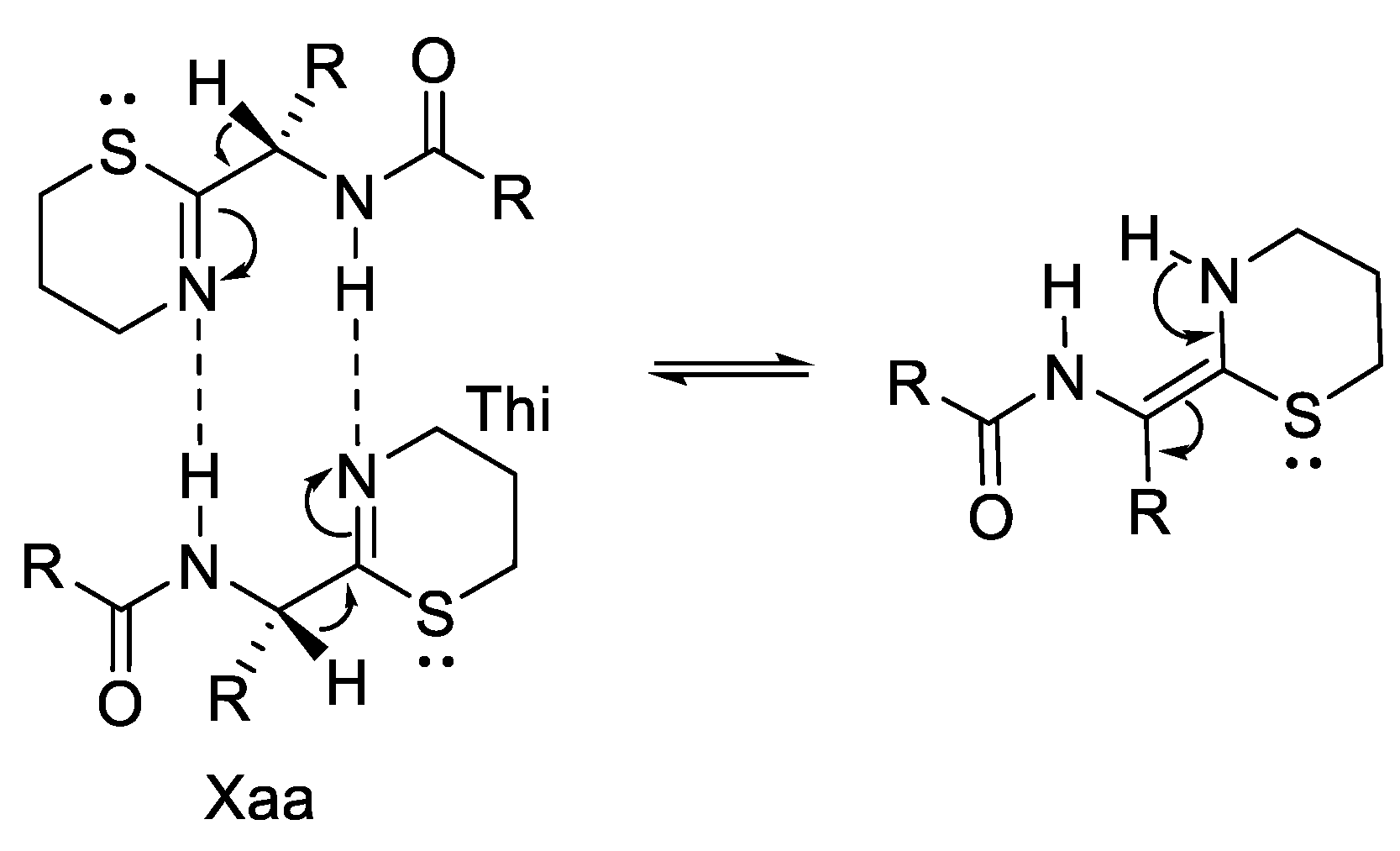

From Table 6, we can see that racemisation occurred in the Phe-Thi-containing peptide, which is shown in two sets of resonances with comparable intensities of ~1:1 in 1H and 13C NMR. The epimerisation product is not observed in the corresponding Pro*-Thi containing 2a (Table 7), which shows only a single set of resonances. The racemisation mechanism in non-Pro*-Thi containing analogues can be seen in Figure 18.

2.3. Bases

2.3.1. Bases Used in Amino Acid Activation

In peptide synthesis, a tertiary base is usually used. Structurally, the base has a fairly high steric hindrance and, as a result, the nucleophilicity of the base decreases so that the attack of alpha hydrogen can be suppressed [43]. On the other hand, the addition of a base that has little steric hindrance opens up opportunities for an alpha hydrogen attack, which can cause racemisation. The mechanism of racemisation caused by bases can be seen in Figure 19.

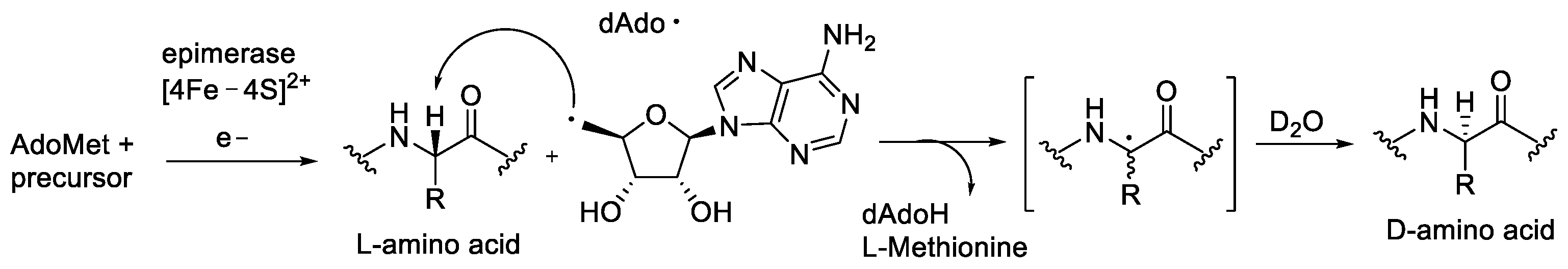

Epimerisation of a peptide molecule in nature can be catalysed using racemase and epimerase enzymes [3]. This enzyme requires one or two steps to abstract the α-H proton from an amino acid in a protein or peptide through a deprotonation/reprotonation mechanism. Research conducted by Jadhav et al. (2021) mentioned that potassium ethoxide can be used for proton abstraction from one side. Meanwhile, protonation by the solvent occurs through the other side to produce D-amino acid [5].
Another experiment was conducted where a milder base 2,4,6-collidine (entry 2) was used. A low conversion was observed, whereas a high degree of epimerisation was detected. The combination of DIEA as base and DMF as solvent gave the highest conversion and the lowest epimerisation percentage (13%, entry 3).
In other study, Steinauer et al. (1989) reported the effect of the base in the rate of racemisation associated with the use of benzotriazol-1-yl tris(dimethy1amino)phosphonium hexafluorophosphate (BOP) [44].

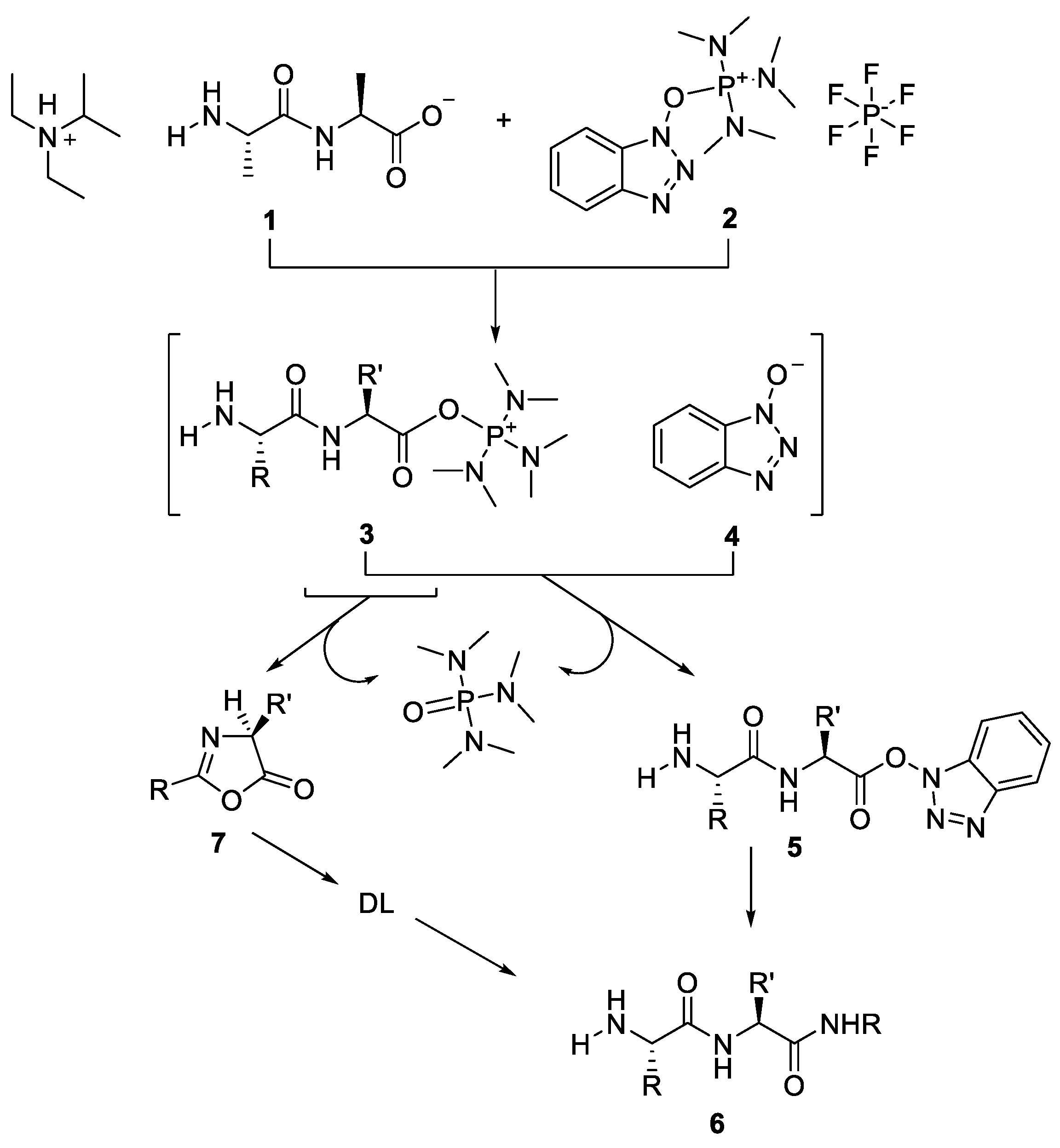

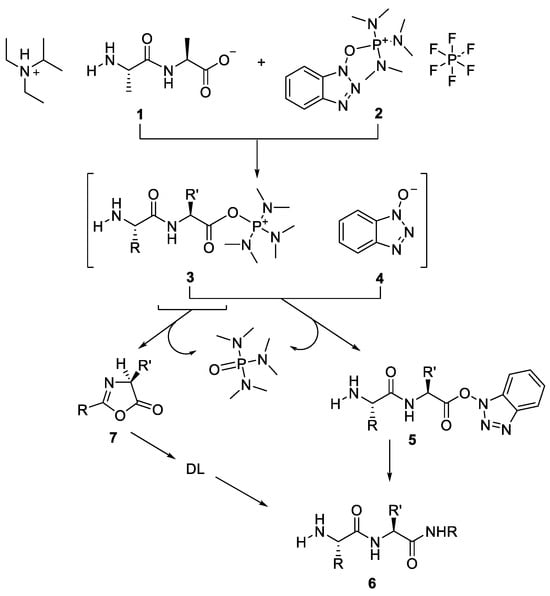

Figure 20 demonstrated that the formation of anion 1 by the addition of a tertiary amine is the first step in the activation of amino acids utilising a BOP coupling reagent. Following that, the reaction between the carboxylate anion 1 and the reagent 2’s phosphorus atom resulted in the formation of the acylphosphonium cation 3 and its counterion, the benzotriazolyl anion 4. After that, the anion 4 attacked the carbonyl of 3 to create the benzotriazolyl ester 5, which underwent aminolysis to create the peptide 6. Racemisation most likely occurs just before anion 4 attacks, at which point the acylphosphonium cation 3 undergoes cyclisation to form the chirally Unstable 2,4-disubstituted-5(4H)-oxazolone 7. The kind and quantity of the tertiary amines employed in the BOP-mediated couplings of the model peptides Z-GlyXxx-OH with H-Val-OEt were investigated by the author. By using high-performance liquid chromatography to identify the epimeric products of the reactions, the extents of racemisation were discovered (16). Table 8 shows the reaction results in dichloromethane.
From Table 8, it can be concluded that the racemisation occurred in all the reactions examined. DIPEA led to the least racemisation, meaning that the amount of racemisation varied inversely with the extent of hindrance about the nitrogen atom of the base. The stereomutation increased dramatically in the presence of a third equivalent of a base. Much less racemisation occurred when a deficiency of base had been added, but the yields were low.

2.3.2. Bases Used in Fmoc Deprotection

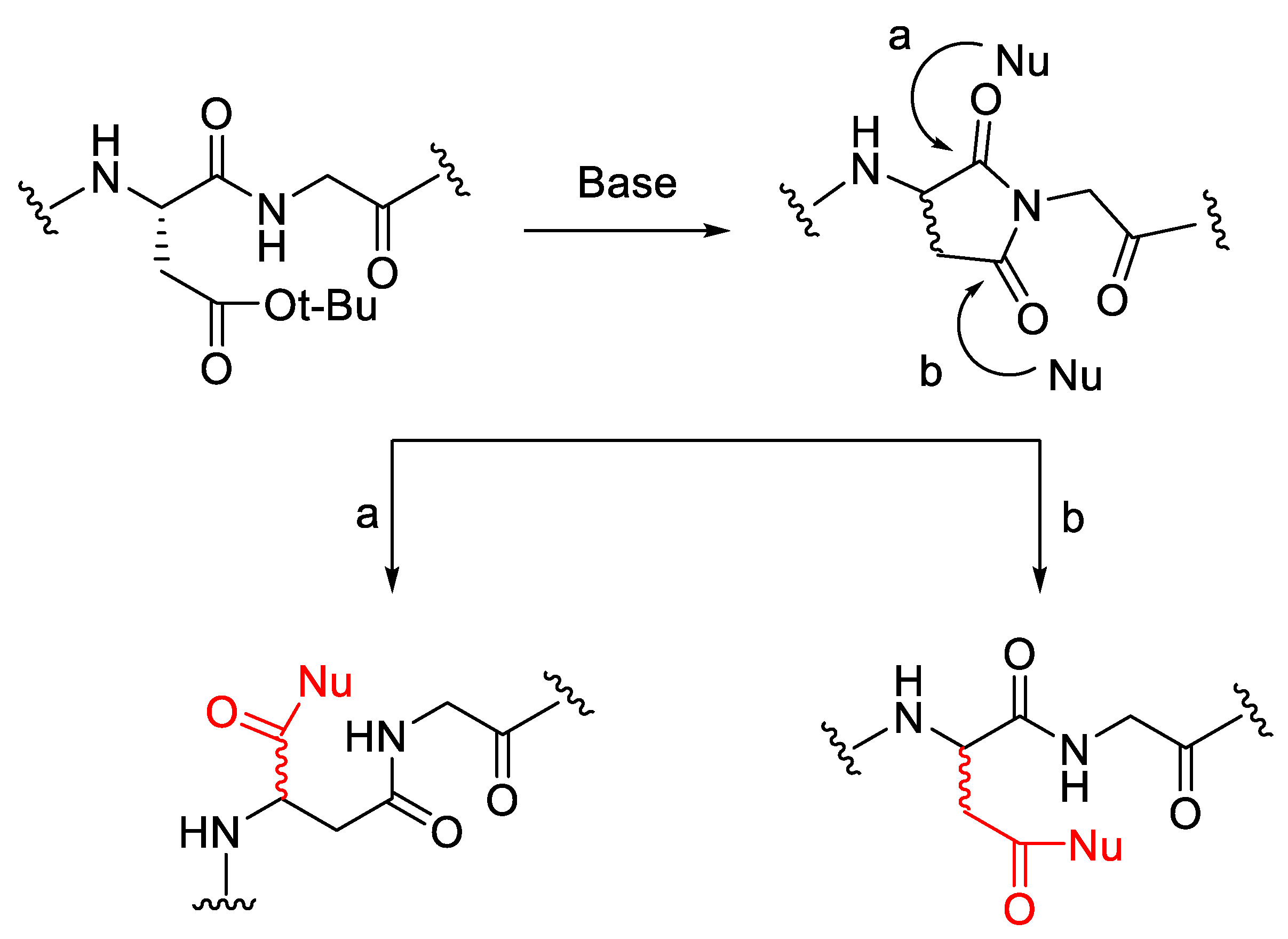

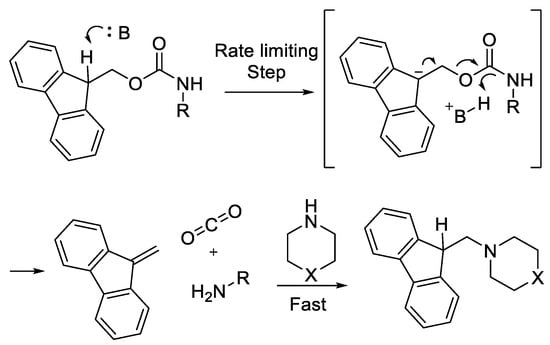

Apart from being used in amino acid activation, bases are also used in Fmoc deprotection [46]. Fmoc-deprotection in SPPS is undertaken by an unhindered nucleophilic base, such as piperidine in polar solvents, while DMF proceeds through a two-step mechanism. The first step is the removal of the Fmoc group, followed by quenching of the resultant by-product dibenzofulvene (DBF). The detachment of Fmoc is through a E1CB mechanism with the abstraction of protons from the bulky 9-fluorenylmethyl by the bulky base, which is the rate-determining step (Figure 21). The excess of DBF by-product is a highly reactive electrophile [47].
Several studies investigated the contribution of Fmoc deprotection step to the racemisation of amino acid during the SPPS method. Ralhan et al. (2015) reported the effect of deprotection solutions on levels of epimerisation in resin that bound model tripeptide GCF (Table 9) [48].
As shown in Table 10, there are no significant effects from the addition of DBU and the epimerisation rate of Fmoc deprotection. The different approaches have been reported to analyse the problem of aspartimide formation in Fmoc/tBu-based SPPS, such as using a sterically hindered side chain protection, including OMpe and OEpe. The most common side reaction in Fmoc-SPPS, which is induced by the base, is the formation of aspartimide, which occurs due to the attack of the amide nitrogen on the carbonyl part of the protected aspartic acid side chain to form aminosucinate [49]. The imide ring can be opened by nucleophile attacks, such as from piperidine, piperazine, or residual water, and form α-aspartyl and β-aspartyl peptides 2 [14] (Figure 22).
Ralhan et al. (2015) further synthesised VKDGYI, a hexapeptide originally derived from toxin II of the scorpion Androctonusaustralis hector, which has an aspartatic acid residue, to test the compatibility of deprotection solution. We observed 1% formic acid (FA), as the acid was chosen as an additive, and the deprotection solution of 5% piperazine, 1% DBU, and 1% FA was modified to effectively mitigate the formation of aspartimide [48].
Table 10 shows that the use of piperidine as a deprotection cocktail results in a high degree of aspartimide formation. The addition of FA lowered aspartimide formation and led to higher recovery of target peptide compared to no FA solutions. The mixture of 5% piperazine + 1% DBU + 1% FA caused lower aspartimide formation than 20% piperidine + 1% FA. From these data, we can conclude that FA-modified piperazine/DBU solution can suppress the yield of aspartimide side reactions for most SPPS applications.

2.4. Steric Factor and Ring Orientation

Jadhav et al. (2021) reported that the peptide with an eight-membered ring was more susceptible to epimerisation compared to the nine-membered peptide. This phenomenon was caused by steric factors, which potentially affect the abstraction of alpha protons (Table 11). The result provided in Table 12 shows that a cyclisation with higher steric factor (ring 8) causes higher epimerisation than the lower steric factor (ring 9) [5].
In another work, pyridoxal was used as a catalyst in the epimerisation of N-terminal peptide residues by Danger et al. (2010) to evaluate the effect of steric hindrance of the C-terminal residue in dipeptides [49]. Since amino acids with aryl side chains epimerise more quickly, phenylglycine (Phg) residues near the N-terminus of peptides were particularly chosen (Figure 23) [50]. Phg’s side chain was chosen to enable the experimental study and was designed to function similarly to the side chains of other amino acids. To evaluate the impact of sterical hindrance on epimerisation, the dipeptides with phenylglycine as an N-terminal residue and Ala or Val as a C-terminal residue were compared.
Since the Diastereoselective Excesses (deL) are enhanced in the presence of Val residue, as shown by the value obtained with Val dipeptide for which deL = −42% compared to the one obtained for Ala dipeptide for which deL = −13% (Table 12), this stabilisation seems to be increased by the hindrance of the neighbouring residue. The rate of development of deL for Phg-Val is approximately two times slower than that for Phg-Ala at the same time, with the kinetic constants for epimerisation (krDL and krLL) being equal to 6.5 × 10−6 s−1 and 12.4 × 10−6 s−1, respectively.

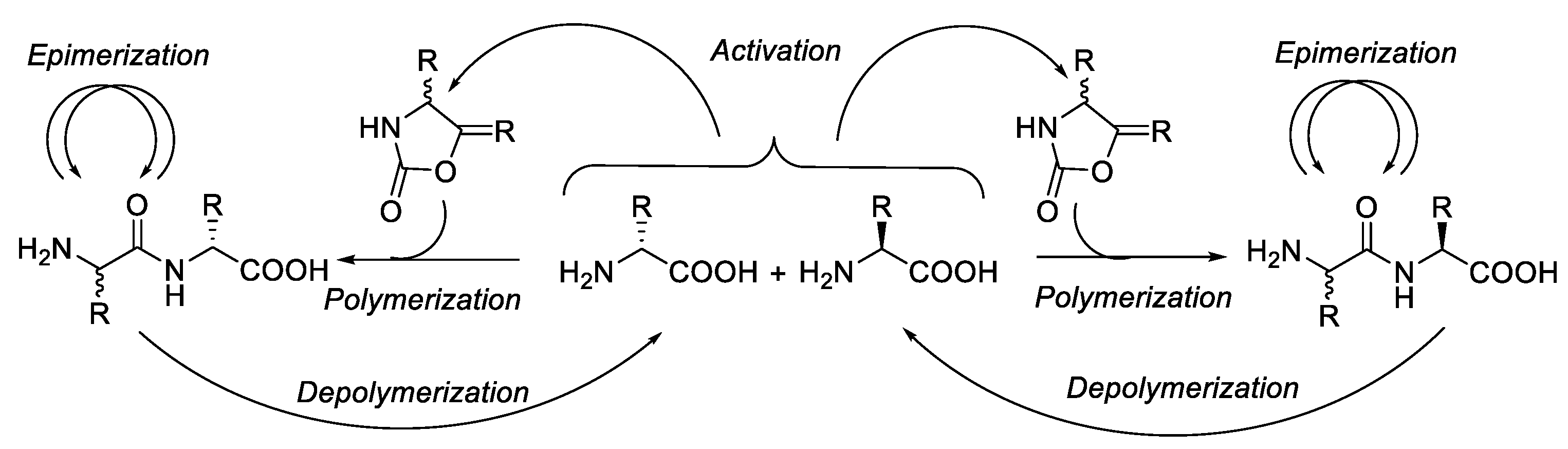

Danger et al. also observed the effect of the length of the peptide chain. To detect a possible effect of the length of peptide chains, a third residue was added at their C-terminal position. Thus, L- or D-Phg-L-Xaa-L-Ser-NH-Me tripeptides (Figure 24) were chosen.
The thermodynamic equilibrium deL for peptides containing Ala changes from −13% for dipeptides to −1% for tripeptides (Table 12). In the addition of a Val residue, this relative stabilisation of homochiral structures was considerably more important because deL increases from −42% for dipeptides to −16% for tripeptides. As a result, the stability gap between epimers was reduced by the inclusion of a third residue, and this effect was more pronounced when residues were sterically inhibited. The high diastereoisomeric excess, however, is not supported by either of the results obtained with these Phg-containing model peptides, which suggests that short peptides are unlikely to experience symmetry breaking unless a different mechanism is found.

2.5. Solvent

Since we know that all racemisation processes proceed via a charged intermediate, during the epimerisation process the solvent also plays a major role in stabilising the resonance of the carbanion intermediate produced by the base, allowing the base to abstract protons. From this phenomenon we can see that the choice of organic solvent for peptide synthesis has a significant impact on the outcome of amino acid racemisation. However, the use of solvents in peptide synthesis, especially in solid-phase peptide synthesis, was limited by the swelling value of the resin used [51].

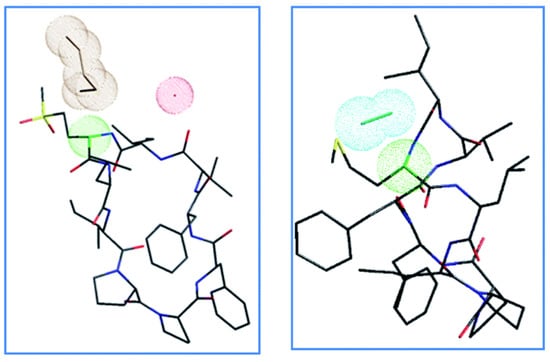

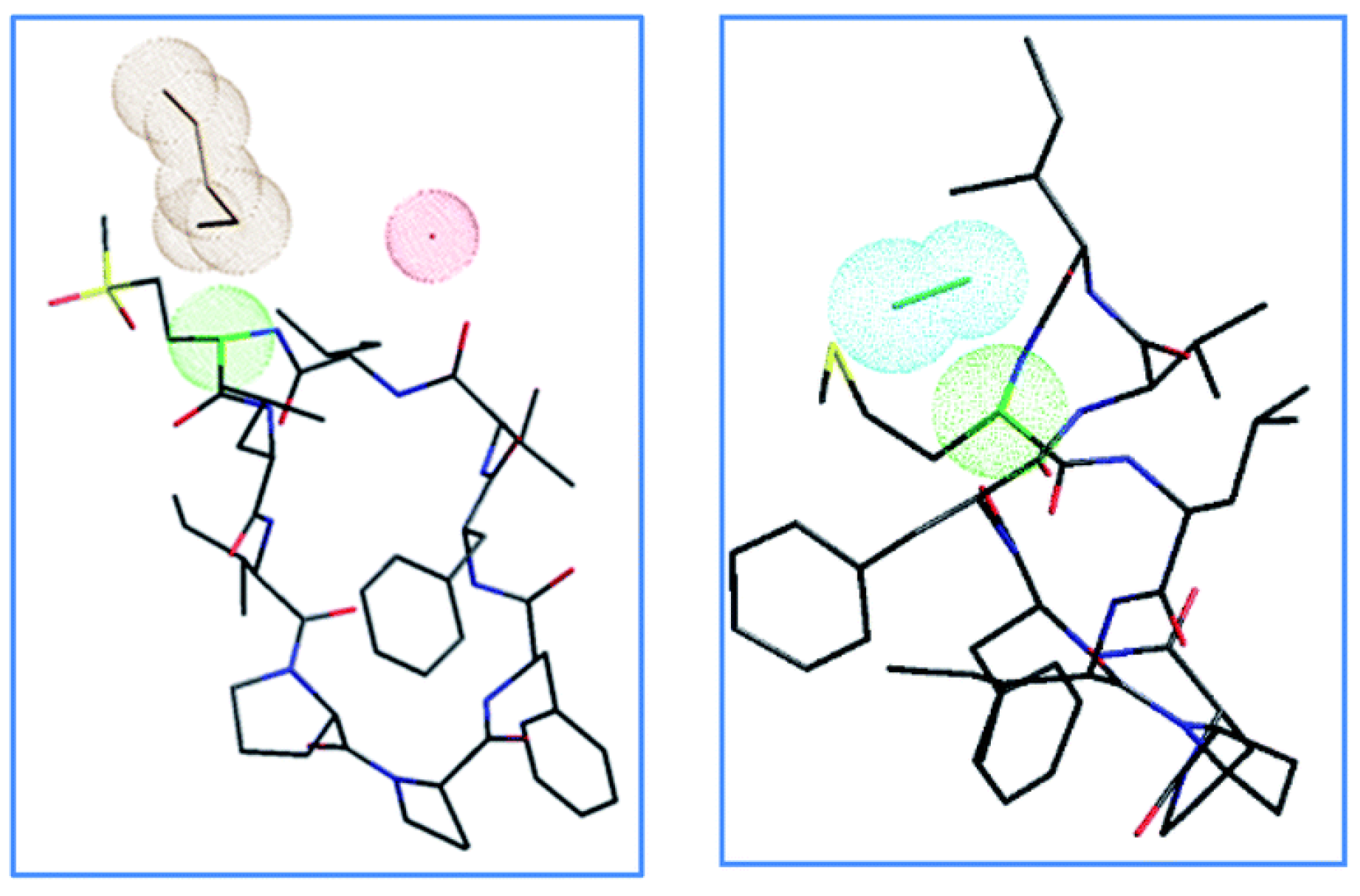

For example, in the crystal structure of orbitide compounds in Figure 25, the solvent can play a significant role in the resonance stability of the carbanion intermediate formed by the base, permitting base access for proton abstraction. There have also been reports of an oxazolone mechanism supporting the influence of the sidechain in Met epimerisation. The presence of a solvent in the Met and its oxidised products structure may help to stabilise isomerisation intermediates [52].

2.6. Temperature

Danger et al. (2010) observed that epimerisation can occur at a temperature of 100 °C and in neutral pH. The activation of amino acid via N-carbamoylamino acids (CAAs) can lead to forming N-carboxyanhydrides (NCAs). The hydrolysis of NCA compounds at 100 °C between two chemical cycles that potentially induce dynamically controlled states such as that of D- or L-amino acids can prevail as a result of the reproduction of chirality through dipeptide epimerisation (Figure 26) [52].

2.7. Epimerisation in a Peptide Cyclisation

Cyclic peptides are small molecules that contain 5–30 amino acids that have many bioactivities [53]. For example, tyrocidine [54] and gramicidin [55] are two cyclopeptides used as antibiotics, and cyclosporine is used as an immunosuppressant drug. Cyclopeptides are more stable than linear peptides and resistant to protease degradation, and the cyclopeptide Gαi [NaC-(MITWYEFVAGTK)] in particular has shown good proteolytic instability compared to the parent linear molecule [56].
However, the information of chemical synthesis for selective epimerisation of cyclic peptides has rarely been reported. One of the studies explaining epimerisation in cyclisation was conducted by Sikandar et al. [57]. After 1 underwent regioselective thionation at one of its six amide-bonds, epimerisation took place during the cyclisation process. The thioamide 2 was subsequently S-benzylated to produce the thioimidate 3, which underwent a unique intramolecular cyclisation that was supported by mercury to produce the peptide-bridged 5-aminooxazole 5 (Figure 27). Oberhauser et al. (1999) also discovered that the L-Leu epimer (4) rather than the D-Leu epimer (6) was formed preferentially as a result of the two-step process using the achiral oxazole intermediate. When the chirality at Leu was destroyed by aromatisation, an unusually formed peptide-bridged 5-aminooxazole resulted [58].

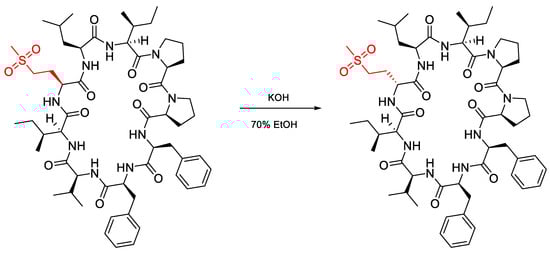

Jadhav et al. (2021) studied methionine epimerisation in cyclic peptides and found that cyclic peptides containing methionine either singularly or in oxidation form can undergo epimerisation. Methionine-containing cyclic peptide was oxidised using KOH in 70% EtOH, resulting in an epimerisation product from the cyclopeptide (Figure 28).
Based on Table 13, it can be seen that a compound containing unoxidised methionine has a smaller percentage of epimerisation (5.14%). Meanwhile, a compound that was oxidised with alkaline had a higher percentage of epimerisation (29.43%). However, a compound that is oxidised with alkaline in SO2 form results in a smaller percentage of epimerisation (20.48%).

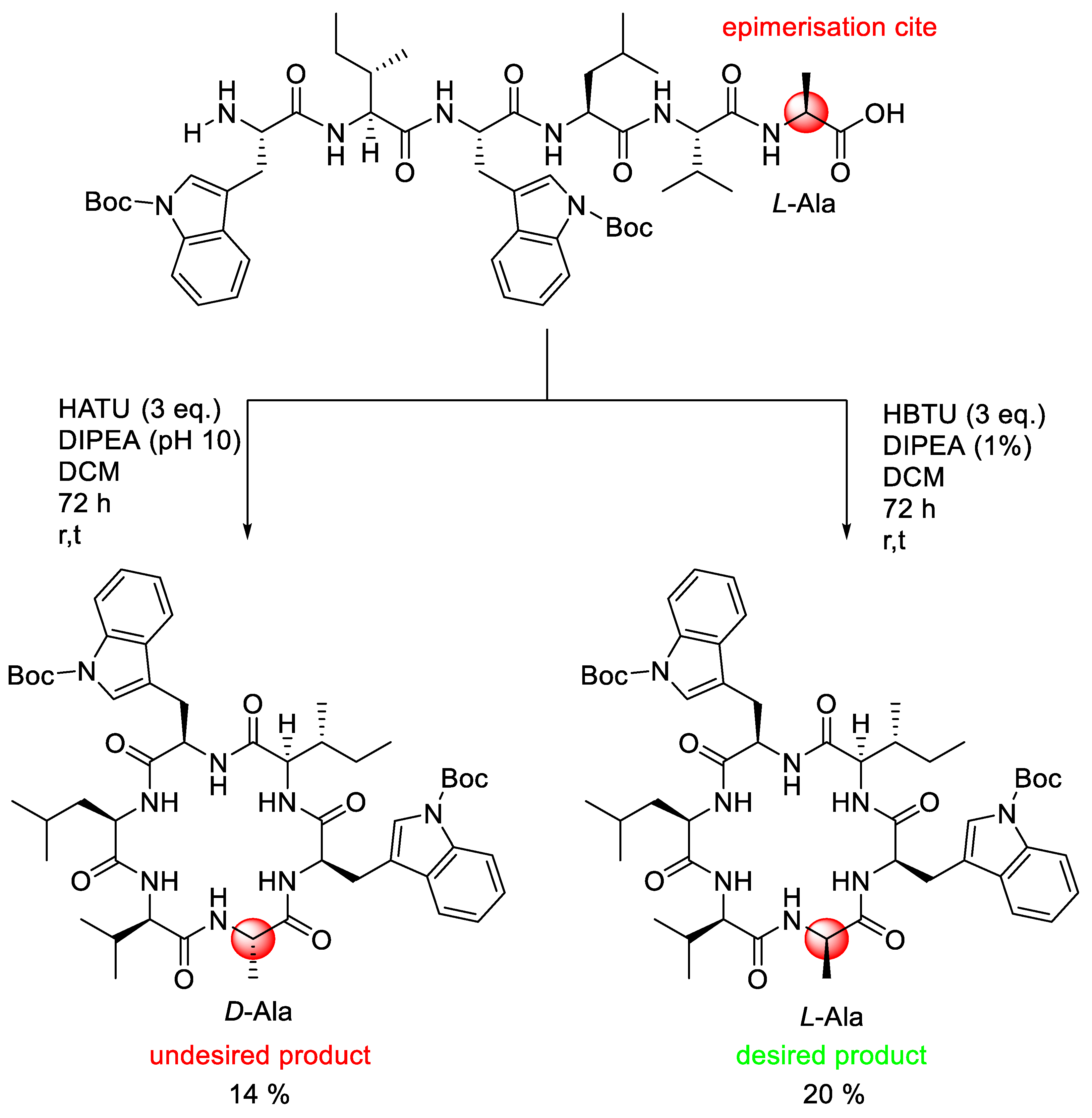

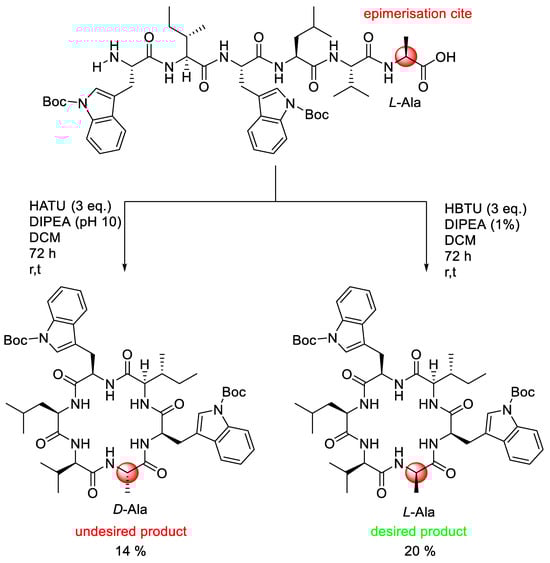

Another study of epimerisation in cyclopeptide synthesis was conducted by Muhajir et al. (2021) and involved the synthesis of nocardiotide A using a combination of solid and solution phase methods [59]. Nocardiotide A is a cyclohexapeptide which has been isolated from Nocardiopsis sp. bacteria in the marine sponge Callyspongia sp., and has the potential activity to affect several cancer cells, specifically against MM.1S multiple myeloma, Human HeLa cervix carcinoma, and Murine CT26 colon carcinoma cells with IC50 of 8, 11, and 12 µM/mL, respectively. The synthesis of the linear precursor of nocardiotide A was undertaken easily using the solid-phase method, with HBTU/HOBt acting as a coupling agent in the presence of basic DIPEA. The synthetic issue occurred during the macrocyclisation process in the solution phase.
From Figure 29, it can be seen that the cyclisation was undertaken using a head-to-tail strategy where alanine residue was chosen as the C-terminal and tryptophan as the N-terminal. In this case, cyclisation of linear peptide using HATU coupling reagent underwent racemisation on the alanine residue. The racemisation was shown in the difference in the 13C- and 1H-NMR chemical shift between the synthesis and the isolation product. Fortunately, the racemisation product was not observed when the coupling agent changed into the HBTU coupling agent. The yield of the cyclisation product is also increased in the presence of 14% HATU and 20% HBTU coupling agent.

3. Suppressing Epimerisation

3.1. Coupling Agent Selection

Amide bond formation is a key process in the synthesis of peptides. The many studies conducted have shown that it is important to provide the selection of coupling agents. The activation of carboxylic acid into active ester is a potential step to forming oxazolone and leading to an epimerisation product (Figure 4). Generally, carbodiimide-based reagents combine strong acylation potency and smooth reaction conditions, and they are commonly used in the presence of additives. Several studies reported the effectiveness of the coupling agent and its addition in several amino acid activations [60].

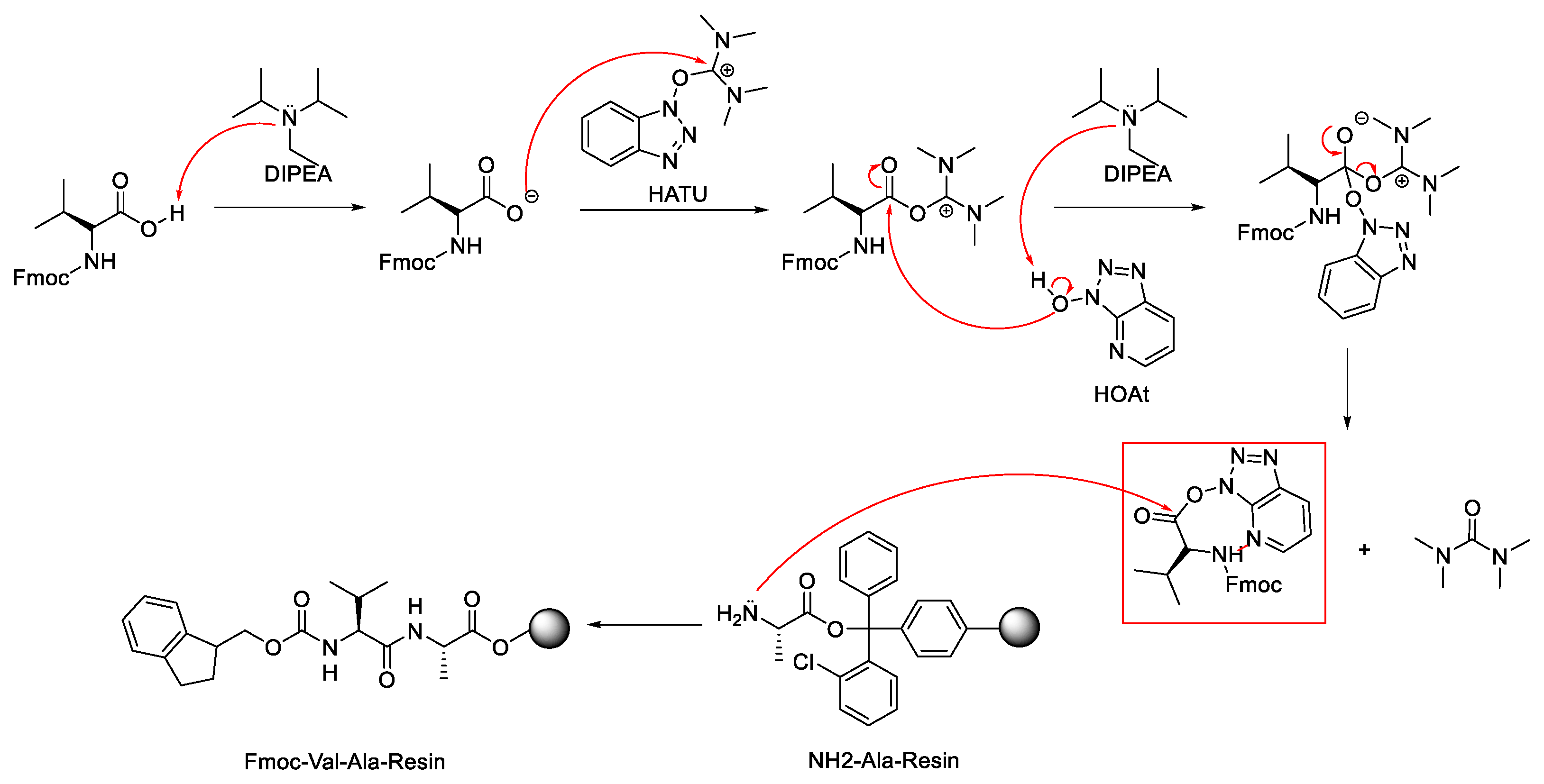

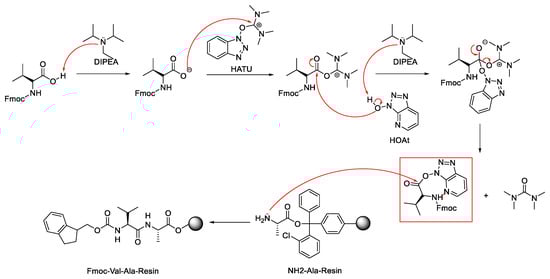

Figure 30 shows the mechanism of the coupling reaction using a combination of uranium-based reagent (HATU) and its additive, HOAt [59]. Initially, the amino acid deprotonated by DIPEA reacts with HATU, producing activated acyluronium species and an oxy-7-azabenzotriazole (OAt-) anion. The OAt- anion immediately reacts with the activated acid to produce a reactive ester, which then undergoes aminolysis. In this reaction, a by-product of insoluble urea is produced.
The nitrogen atom in oxy-7-azabenzotriazole (OAt-) ester induces hydrogen binding with the N proton, covering the formation of oxazolone from the Fmoc protecting group and suppressing the epimerisation product. Within this phenomenon, the HATU/HOAt coupling agent was widely used in amide formation in solid- and solution-phase peptide synthesis.

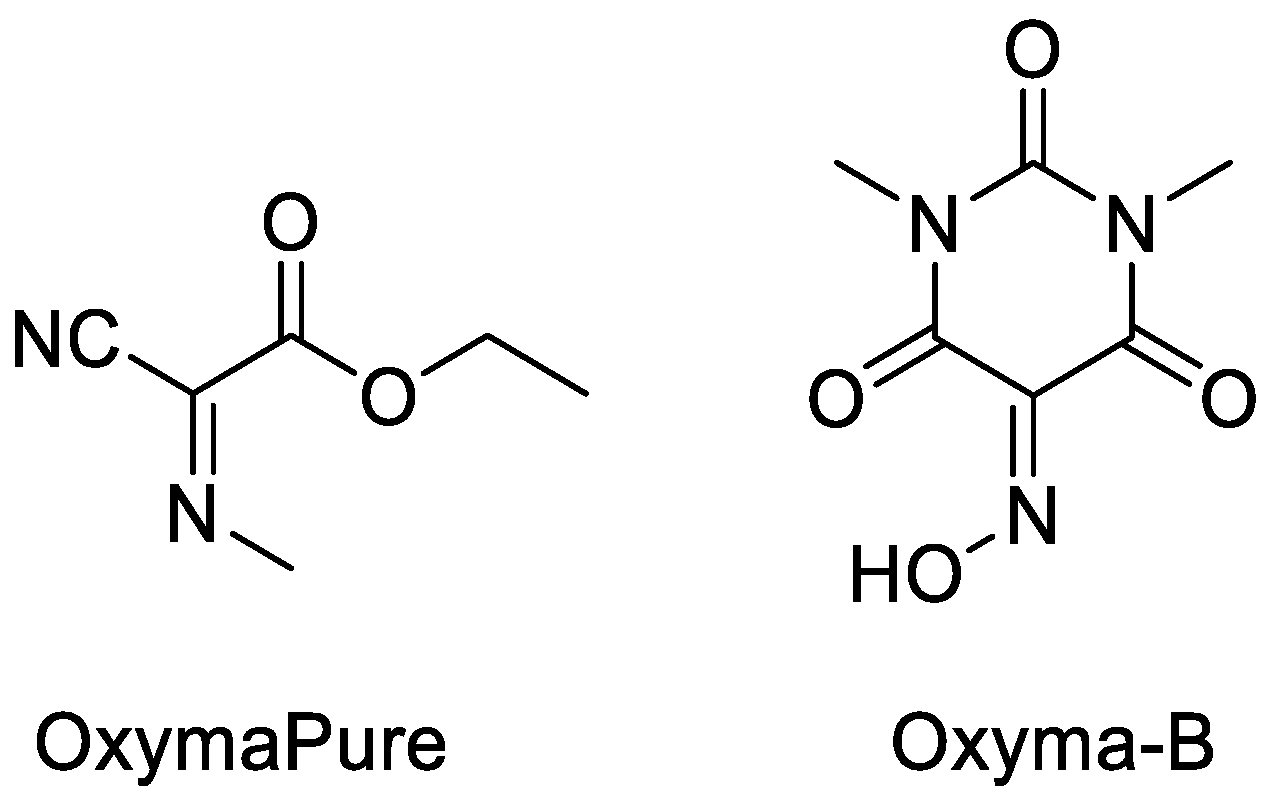

Jadav et al. (2014) reported a new oxime additive, 5-(hydroxyimino)-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione (Oxyma-B) (Figure 31), which was more effective in the control of optical purity during the synthesis in the carbodiimide acylation process. The coupling condition was tested in several amino acids that have a high potency of epimerisation products, such as histidine, cysteine, and serine in tripeptide H-Gly-AA-Phe-NH2 form [5].
As can be seen from the evaluation result in Table 14, Oxyma-B 14 stands out as one of the additives for peptide synthesis that has the greatest potential. When used as a racemisation suppressor, it demonstrated superior performance than OxymaPure 7 and outperformed HOAt 2 in both stepwise and segment coupling in solid- and solution-phase peptide synthesis.

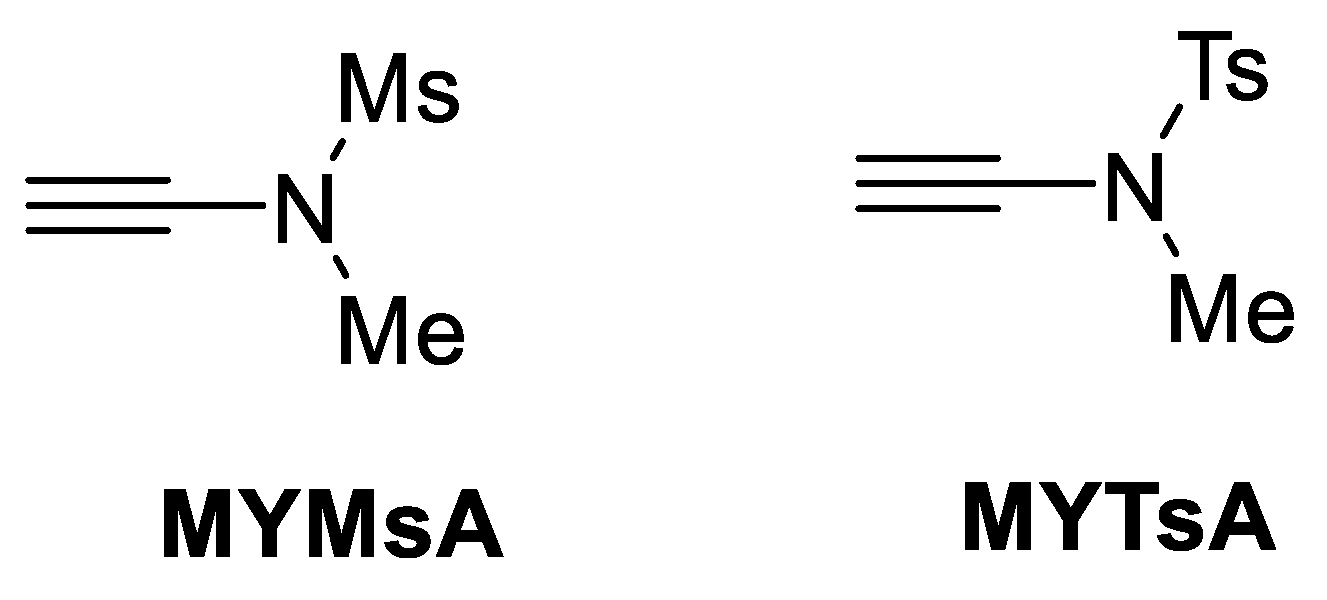

Ynamides were created in another investigation as novel coupling reagents under incredibly benign reaction conditions [61]. Ynamides feature an electron-withdrawing group (EWG) on the nitrogen atom, which makes them a stable substance that is simple to synthesise and manage. The danger of base-induced racemisation can be suppressed by ynamides because they are less basic or nearly neutral (Figure 32) [62].

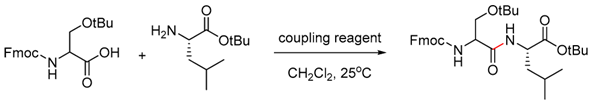

Several coupling agents were tested to compare the epimerisation/racemisation product in amide bond formation. Table 15 shows the coupling of H-L-Leu-OtBu and Fmoc-Ser(tBu)-OH, which has high potential epimerisation, and this epimerisation was analysed using HPLC analysis. The significant epimerisation product occurred with conventional coupling reagents such as HBTU, HATU, PYBOp, and DCC. The DEPBT coupling reagent produced a low epimerisation product but also reduced the reaction efficiency. The ynamide coupling reagent of both MYMsA and MYMTsA yielded good efficiency and low epimerisation product in amide bond formations. From this result, it can be assumed that ynamides could be a practical coupling reagent for amide and peptide synthesis in both academia and industry settings.

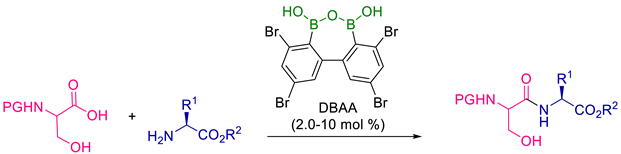

The dehydrative peptide bond forms of carboxylic-amino acids with a free hydroxy group in the -position were reported by Koshizuka et al. (2020) in another study [63]. Low catalyst loading during this hydroxy-directed reaction allowed for the direct synthesis of dipeptides derived from serine or threonine with great chemo selectivity, low epimerisation, and high functional group tolerance [64,65].
To explore the effectiveness of DBAA-catalysed dehydrative peptide bond formation in the suppression of the epimerisation, DBAA was tested to catalyse several amino acid couplings with a different protecting group and amino acid side chain. As serine N-protecting groups, Cbz, Boc, and Fmoc could be employed. All of the reactions in Table 16 involving the amino acids H-Ala-OtBu, H-Leu-OMe, H-Ile-OMe, and H-Val-OMe that had an alkyl side chain at the α-position were successful within 24 h, and dipeptides (entry 1–6) were produced in high to excellent yields (74 > 99%). Additionally, unprotected H-Tyr-OMe produced substantial yields of the dipeptide Boc-Ser-TyrOMe. Thus, it appears that a phenolic hydroxy group that is not protected does not prevent the current catalysis from occurring. H-Asp(tBu)-OtBu, a derivative of aspartic acid, yielded dipeptide in 97% of the cases. The similar outcome was demonstrated for dipeptides (entry 15–23) provided by H-Trp-OMe, H-Lys(Boc)-OMe (3p), H-Arg(Pbf)-OMe, and H-His(Trt)-OMe in respectable yields (64–99%). It is noteworthy that stereochemical integrity was almost always preserved (dr 96/4 > 99/1). This finding indicates that DBAA is a potent catalyst for the hydroxy-directed amidation of a wide variety of β-hydroxy-α-amino acids with α-amino esters, resulting in dipeptides with high yields and a low level of epimerisation.

3.2. Side Chain Protection Group

One of the most potential racemisation-centric amino acids is histidine, as it contains a basic imidazole moiety with two nitrogen atoms. However, the basicity of the imidazole moiety causes difficulties in peptide synthesis [66]. Specifically, the His residue exhibits a high propensity toward epimerisation, especially when its carboxylic moiety is activated in acid halides or acid anhydrides (Figure 33).

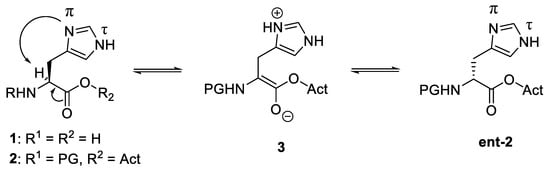

Figure 33 shows that N(π) atom’s attempted abstraction of H from C to produce enolate 3, which provides L-His derivative 2 and its enantiomer ent-2 at the same rate, initiates the epimerisation. It was originally tried to diminish the basicity of the N(τ) atom indirectly by protecting the more nucleophilic, and hence more readily and selectively protectable, N(π) atom with bulky and/or electron-withdrawing groups such as triphenylmethyl (Trt). However, given the existence of the free N(τ) atom, which is thought to work directly as a base [67], this N(π) protection only significantly inhibited the racemisation.

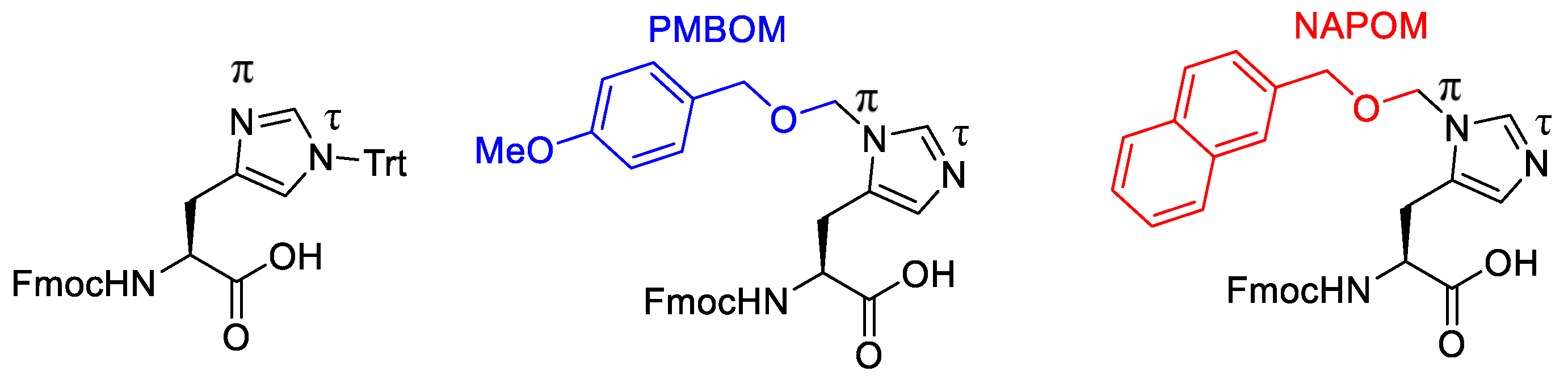

Torikai et al. (2020) reported the development of the histidine side chain protecting group, especially on the N(τ) atoms, such as p-methoxybenzyloxymethyl (PMBOM) and 2-naphthylmethoxymethyl (NAPOM) (Figure 34). PMBOM actually has a good effect on suppressing the epimerisation of histidine. However, the generation of PMBOM had issues due to the requirement for low-temperature reactions and chromatographic purification during the synthesis of PMBOMCl. Later, the (NAPOM) protection group served as an alternative and is also orthogonal to PMB(OM), which is more easily generated than PMBOM [68].
Another study reported a strategy to suppress the epimerisation potential of Cys amino acid caused by basic treatment in side chain protecting groups. When the initial Cys was attached to the resin, the epimerisation from L-Cys to D-Cys was optimised to neatly afford Fmoc-Cys(PG)-O-resin (PG: any protective group). During peptide elongation, these adverse events reduced the quality of the peptide. Because it frequently co-elutes with the desired target peptide, the undesirable C-terminal D-Cys-containing peptide in particular is frequently undetected by HPLC [69].

3.3. Coupling Strategy

3.3.1. Pseudoproline

Using a C-terminal pseudoproline protecting group and Trt-type resin, Tsuda et al. (2020) showed practically how to suppress the side reactions (Figure 35. Under standard/heated basic conditions, a comparison of the side reaction rates of the C-terminal Cys(Trt)-O-Trt(2-Cl)-resin and the C-terminal pseudoproline-O-Trt(2-Cl)-resin showed that the latter is significantly better at suppressing the side reactions. Additionally, epimerisation-free segment condensation processes using the protected peptide segment with the C-terminal pseudoproline structure produced by this technique were successful [70].

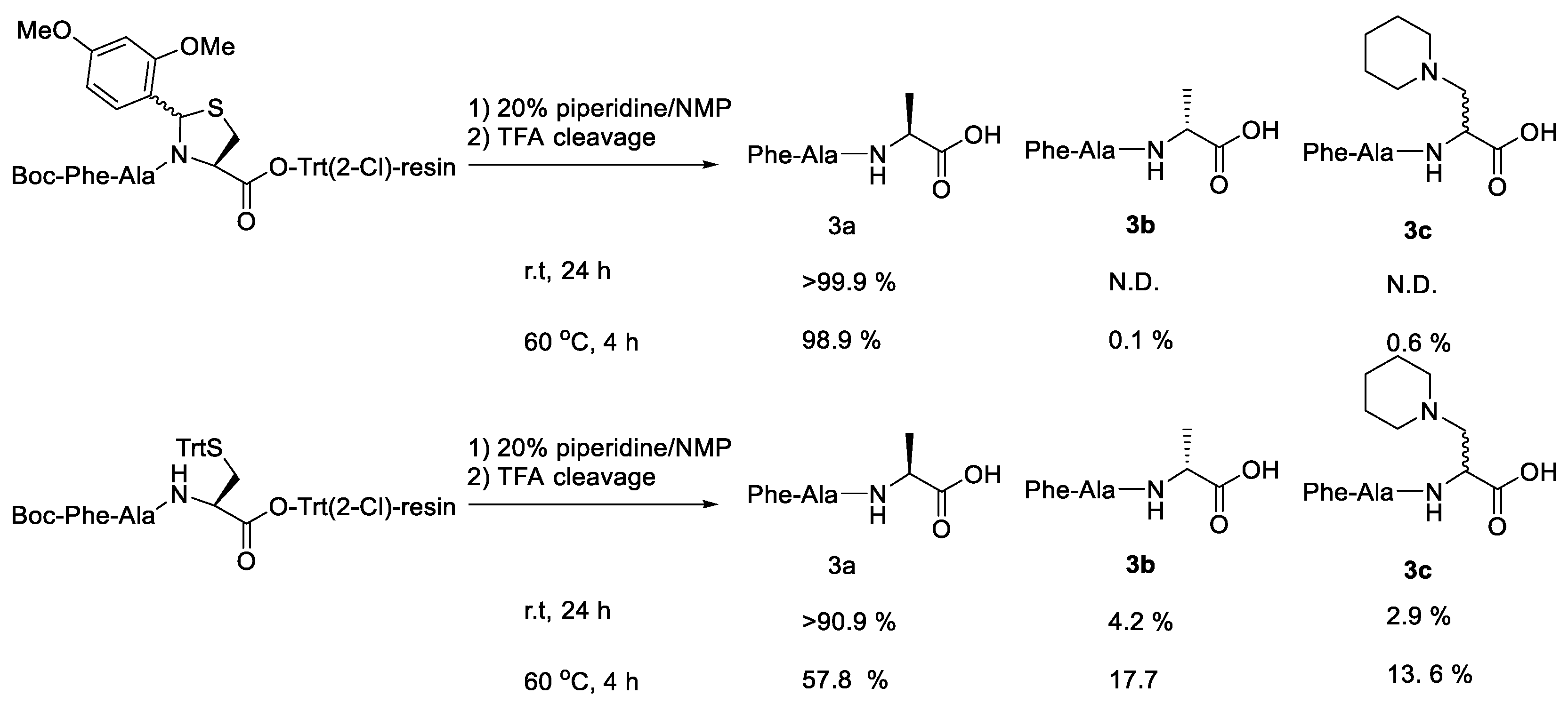

By creating Boc-PheAla-Cys(Dmp,Hpro)-O-Trt(2-Cl)-resin (1) and Boc-Phe-AlaCys(Trt)-O-Trt(2-Cl)-resin (2), the epimerisation rate of the C-terminal Cys of the protected peptide acid on the resin was compared. Without any issues, the Cys-pseudoproline dipeptide was added to the Cl-Trt(2-Cl)-resin in the presence of DIEA, and subsequently Boc-PheOH was added to the resin. The Fmoc protecting group was then deprotected utilising fundamental conditions (20% piperidine in NMP) over the course of 24 h at room temperature (Figure 35). Following TFA-mediated deprotection, HPLC was used to track the impurity formation. Therefore, when Cys(ΨDmp, Hpro) was used, there was no identifiable side product resulting in the crude. However, when Cys(Trt) was used, D-Cys-containing peptide (3b, 4.2%) and D/L-piperidinoalanine-containing peptides (3c, 2.0 and 2.9%, respectively) were found. The epimerisation product of cysteine amino acid can be suppressed by the selection of the pseudoproline-type protecting group, according to these findings.

3.3.2. Copper(II)-Mediated Chan–Lam-Type Coupling

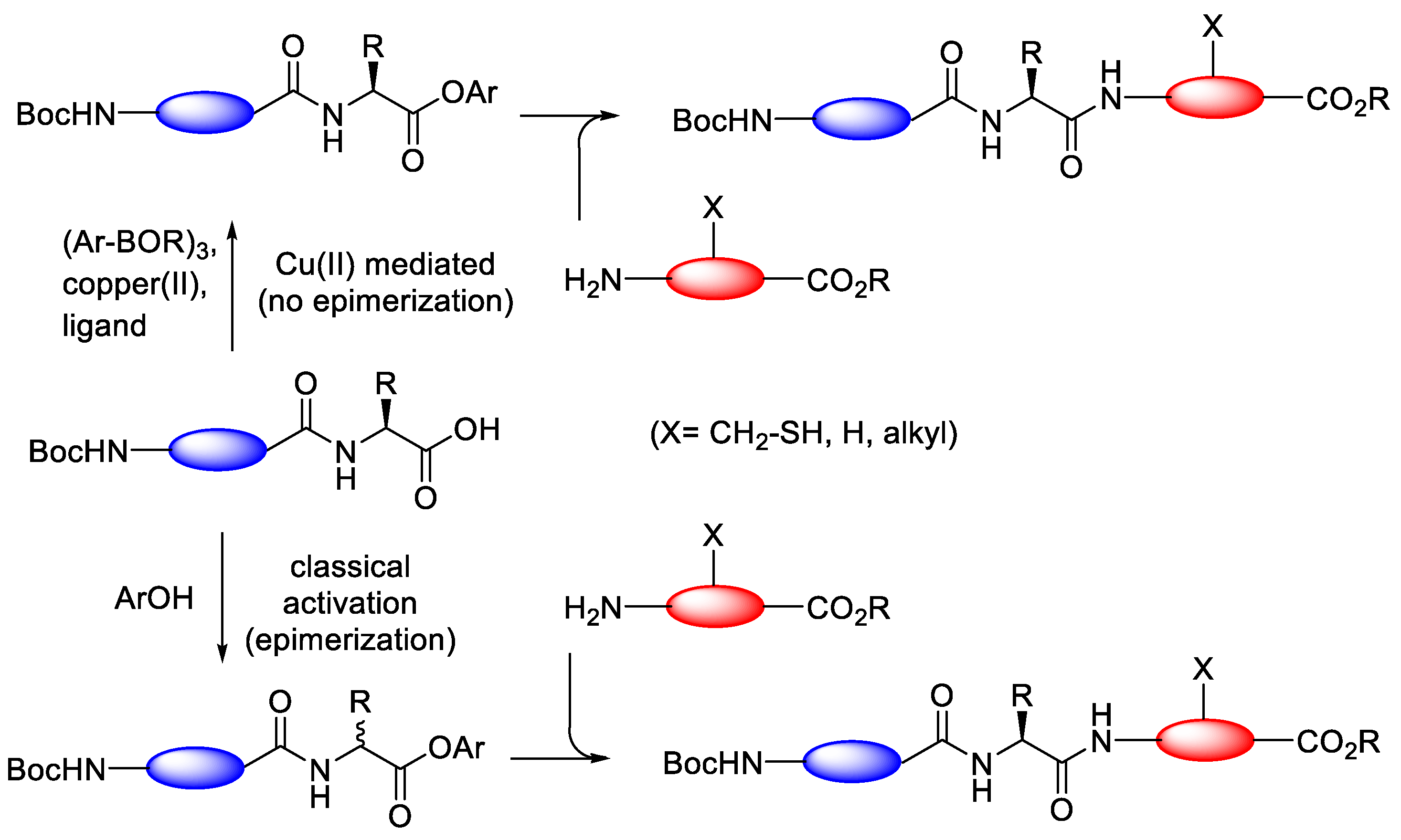

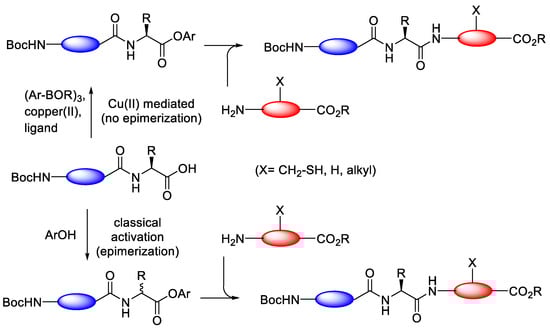

Another strategy was also developed to enhance the racemisation free C-terminal peptide activation through the copper(II)-mediated Chan–Lam-type coupling between peptides and arylboroxines and subsequent amine-coupling reactions [71]. Recently, the used of Cu(OTf)2-mediated reaction of benzoic acids with arylboronic acids was reported to provide facile access to arylester [72]. One example of this feature is in the coupling of phenylacetic acid, which can combine efficiently with phenylboronic acid to soon give an ester. From these results, it is possible to extend this chemistry towards the peptide synthesis [73]. The pathway mechanism of this reaction and the mild conditions indicate that epimerisation can be suppressed (Figure 36).

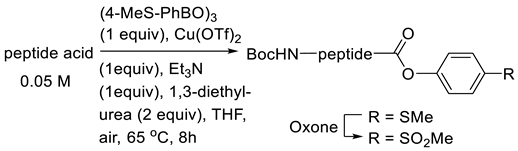

Popovic et al. (2013) reported the effectiveness of free racemisation of the Chan–Lam-type esterification of peptide by activating several amino acids using phenylboronic acid (3 equiv.), Cu(OTf)2 (0.4 equiv.), and urea (1 equiv.) at elevated temperature (65 °C) under air using EtOAc as the solvent [74].
Table 17 demonstrates that under optimal conditions, Cu(OTf)2-mediated coupling of Boc-Trp-Phe-OH with 4-(methylthio)phenyl boroxine produced the ester in an isolated yield of 57% (Table 17, entry 1). This is the study’s lower yield, which was attained. With mCPBA acting as the oxidising agent, a quantifiable yield was achieved during the partial oxidation of the thioester to the sulfoxide. However, it proved impossible to further oxidise the sulfone without also damaging the tryptophan indole moiety. Fortunately, employing oxone as the oxidising agent, the synthesis of Boc-Phe-Phe-4 (methylsulfonyl)phenyl ester was successful, with a 77% total yield (entry 2). The remaining material was then simply removed using non-basic water extraction. The other esterification resulted in a very substantial diastereomer excess (entry 2–9), demonstrating the racemisation-suppressing ability of the Cu(OTf)2-mediated coupling peptide.
Another study also indicated the role of cupper in suppressing epimerisation instead of playing a role in a Copper(II)-mediated Chan–Lam reaction [75]. Several studies have employed metal salt to find more suppressant additives for epimerisation-free peptide coupling (such as AlCl3, ZnCl2, SbCl3, and CuCl2), and other inorganic salts in the carbodiimide method prevent epimerisation [76]. The Cu2+ ion was found to have the lowest levels of epimerisation (D-epimer, 0.1%) as an epimerisation suppressant additive in several amino acid coupling methods [77].
Ryadnov et al. (1999) observed the use of any additives to suppress epimerisation and evaluated the role of Cu2+ in reducing the epimerisation product [78]. From Table 18, it can be seen that inorganic salt, such as ZnCl2, RbClO4, SnCl4, AlCl3, and BF3, can obtain couplings with minimal epimerisation (D-epimer, 1%) in an additive with the carboxy component (1:1). Unfortunately, in another study, these inorganic salts varied depending on the activation time and coupling of the extent of epimerisation [79]. The other inorganic salts showed high epimerisation products in the process of coupling. It can be seen that only CuCl2 salt can influence epimerisation and appeared to yield a standard result (D-epimer, 0.1%). This result is independent of both equivalent quantities and activation duration. Thus, from this result, it can be concluded that Cu2+ is an effective additive to achieve epimerisation-free peptide coupling.

3.3.3. Hydrosilane-Mediated Type Coupling

Racemisation via direct enolisation or formation of the corresponding oxazolone intermediates during elongation still seems to be the highest potency point in peptide synthesis [80]. To suppress these issues, additives such as HOBt and Oxyma, and their derived peptide coupling reagents, and other emerging coupling reagents, such as T3P and DEPBT, which certainly show remarkable resistance to racemisation, have been developed [81,82]. However, beyond the several allergic reactions seen with HATU, they also have explosive properties like those of HOBt. Moreover, T3P and DEPBT have a high price, thus meaning they are used in peptide synthesis and racemisation, and are still problematic in SPPS [83]. Because of increasing interest in peptide therapeutics over the past few decades, technologies that can suppress the racemisation issue as well as waste production, and alternatives to these harmful reagents, have been developed in recent years [79].

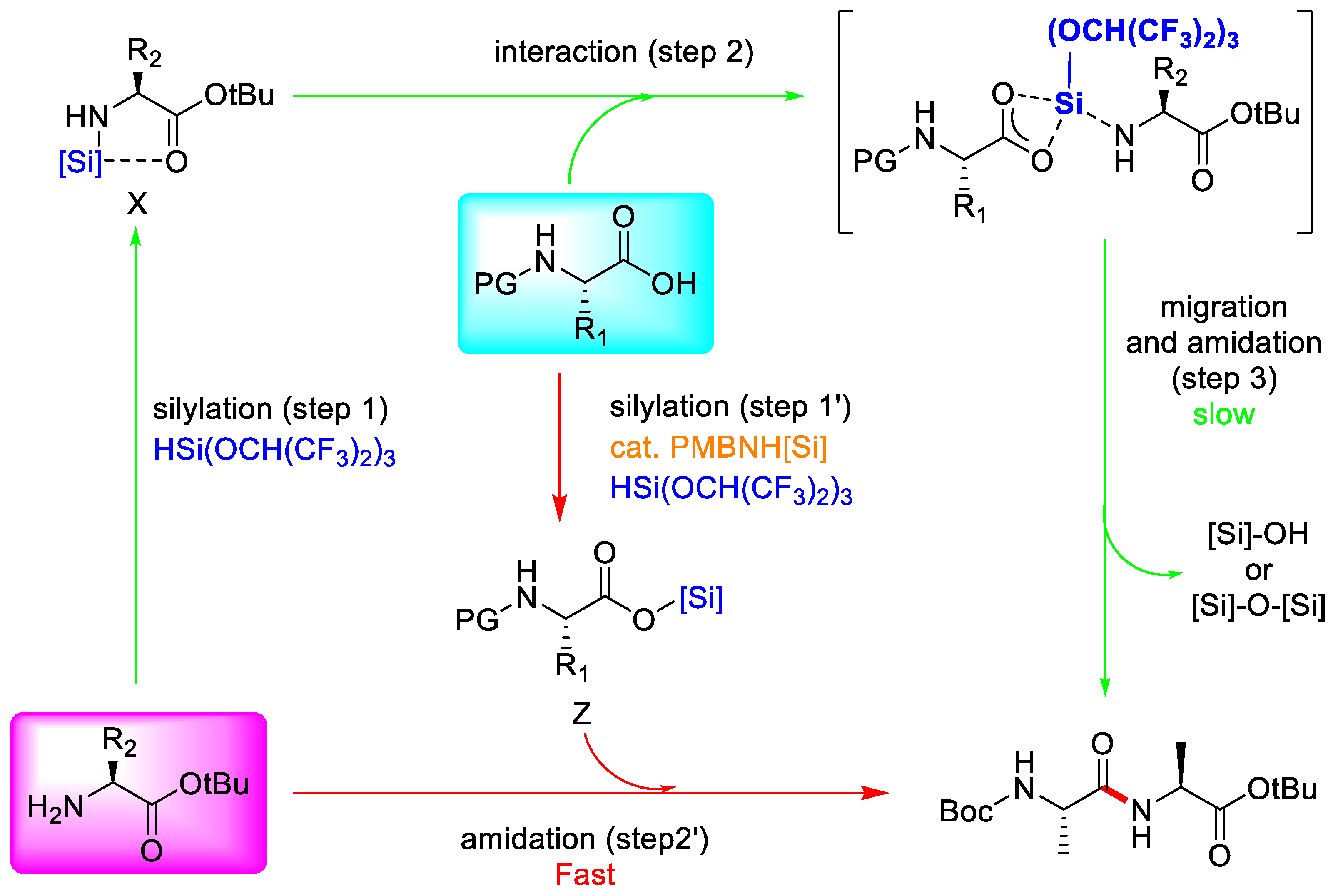

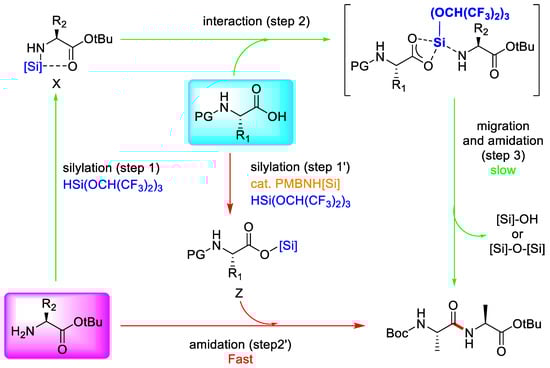

Muramatsu et al. (2020) developed a new strategy of peptide bond forming via hydrosilane-mediated amino acid silyl esters, which offer great epimerisation-free features, including high efficiency, broad scope, strong functional group tolerance, being metal-free and cost-effective, harmless by-products, and sustainable procedures [84]. The silyl agent can interact with other amino acids, which can block the way of epimerisation via an oxazolone process (Figure 37).

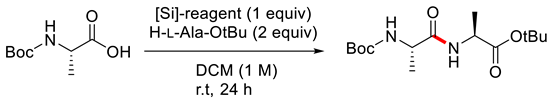

From Table 19, it can be seen that several silylating reagents were evaluated for the construction of the peptide bond between Boc-L-Ala-OH and H-L-Ala-OtBu to find the best silylating agent with high yield and diastereomer purity. In the first trial (entry 1), when Boc-L-Ala-OH was treated with 2 equivalents of H-L-Ala-OtBu in the presence of 1 equivalent of (trimethylsilyl)imidazole (TMSIM) at room temperature, the silyl ester, which is generated in situ by the silylation of Boc-L-Ala-OH with TMSIM, it did not react with H-L-Ala-OtBu to provide the desired dipeptide. The reaction occurred when the TMSIM was replaced by ClSi(OEt)3 (30% yield), but it took a long time to occur. The other silylating agent showed a high diastereomer purity, thus indicating that the interaction of silyl with amino acid can suppress the epimerisation product. In order to produce the desired dipeptide in 95% yield with no epimerisation, the amidation reaction of Boc-L-Ala-OH with 1.5 equiv of H-L-AlaOtBu in the presence of HSi(OCH(CF3)2)3 in DCM at room temperature was shown to be the optimal scenario (entry 8). It is simple to make HSi(OCH(CF3)2)3 using trichlorosilane and 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP). DCM can be replaced by a number of eco-friendly and popular industrial solvents, such as toluene. This finding leads us to the conclusion that, under mild reaction conditions, the hydrosilane-mediated reaction HSi(OCH(CF3)2)3 proceeds successfully with a broad functional group tolerance and without any degradation of stereochemical integrity.

3.3.4. Native Chemical Ligation (NCL)

Total chemical synthesis of large peptides or proteins is one method that was widely used in drug research because of the easy access to modified proteins with high stability and improved biological activity, which can be key in understanding the importance of various post-translational modifications [85]. However, amino acid racemisation in the carboxylic activation step is still problematic during the elongation process in peptide synthesis, especially in synthesis of larger peptides or proteins. A convergent strategy was applied to minimise the side reaction of synthesising protein [86]. 1,2-Native Chemical Ligation (NCL) has offered a synthetic strategy for peptide segment condensation with respect to large peptide construction. This revolutionised synthetic strategy relies on the reaction of a peptide thioester with a cysteinyl peptide, and can be applied to the synthesis of peptide thioesters using Fmoc or Boc solid-phase peptide synthesis (SPPS) approaches [86].

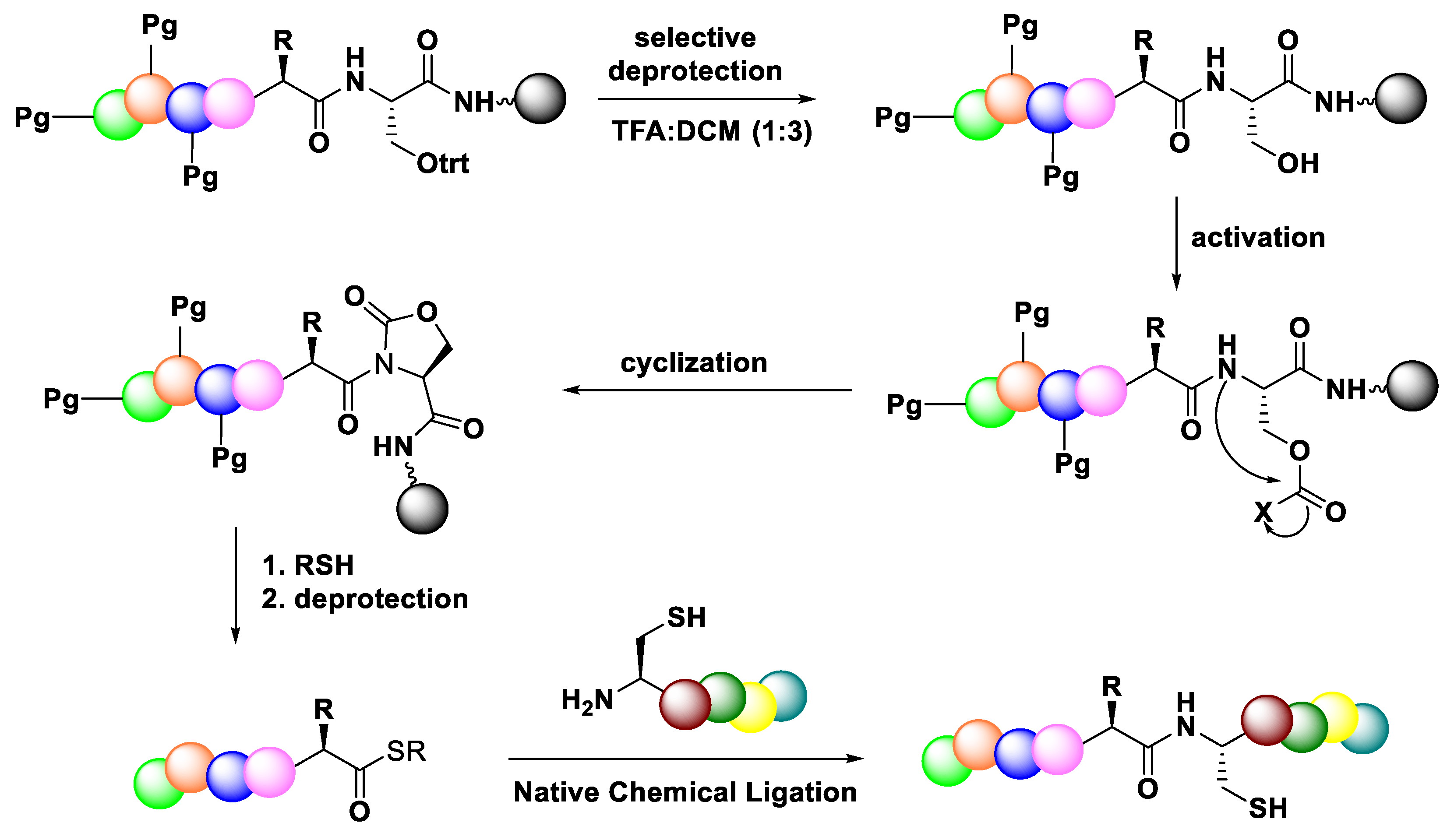

Figure 38 illustrates the typical method for producing peptide thioesters using Boc-based SPPS, which makes use of special thioester linkers. Fmoc SPPS is not applicable to thioester resins because peptide thioesters are unstable toward the piperidine treatment needed to deprotect the Fmoc group. The NCL strategy has several advantages in the synthesis of large peptides and protein. The reaction usually proceeds smoothly without major side reactions, and the reaction has proven to be highly chemical selective because the NCL reaction occurs between the side chain unprotected fragment. Moreover, this strategy does not need a carboxylic activation, which is the main cause of the epimerisation process.

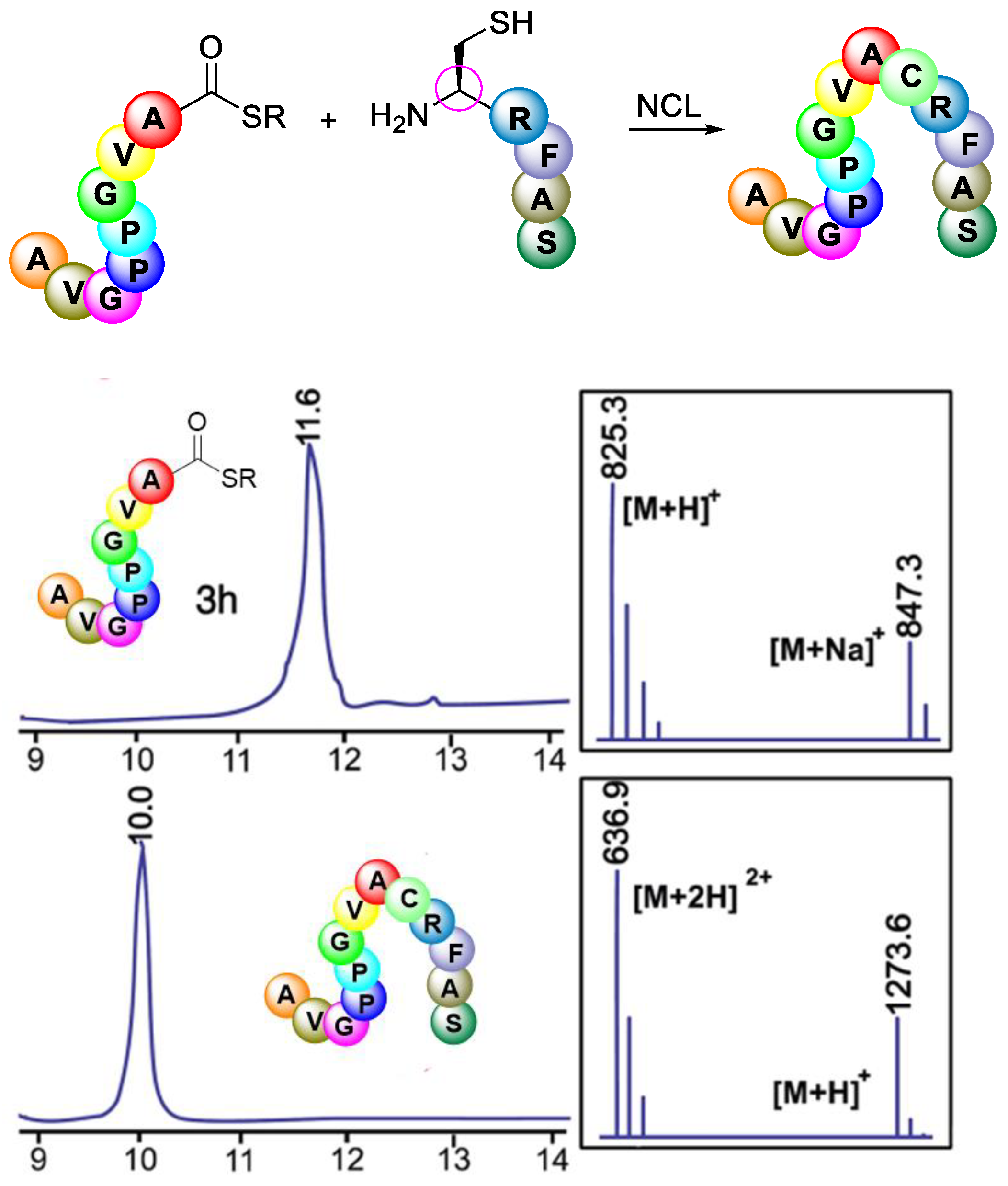

Elashal et al. (2016) examined Native Chemical Ligation by utilising peptide thioesters Ac-GPMLA-COS-(CH2)2-COOC2H5 3G and Ac-AVGPPGVA-COS-(CH2)2-COOC2H5, which were previously generated by the cyclic urethane technique in Native Chemical Ligation (NCL) with N-terminal cysteine containing peptide CRFAS-NH2 (Figure 39). From Figure 39, it can be seen that the HPLC/MS spectra showed no epimerisation product in the NCL process, thus concluding that the NCL strategy can result in epimerisation-free peptide ligation [87].

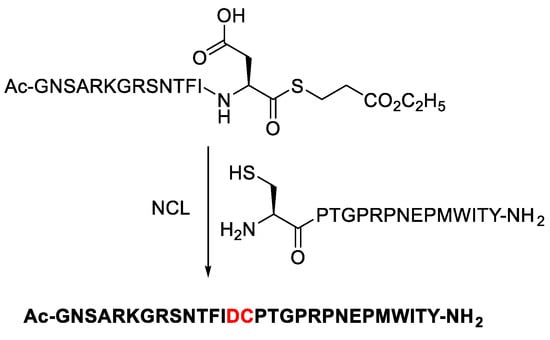

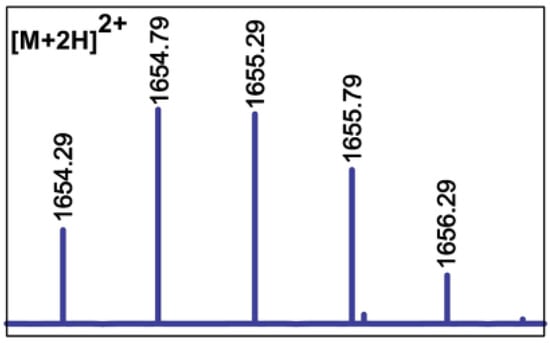

A 29 amino acid-long peptide fragment of the rabies virus glycoprotein (Rvg), which was a successful carrier for cargo delivery into cells and for crossing the blood–brain barrier, was created by Elashal to ensure the success of the NCL method (Figure 40). AcGNSARKGRSNTFID-COSR 3Q, a 14 amino acid-long peptide thioester that was generated by the cyclic urethane method with a 39% yield, was ligated with the cysteine-containing peptide CPTGPRPNEPMWITYNH2. With very low concentrations of the peptide reactants (1.2 mM) and the 4-mercaptophenylacetic acid catalyst (25 mM), the ligation was completed in 24 h at 37 °C. This outcome demonstrates the effectiveness of the cyclic urethane method for producing peptide thioesters for the production of big peptides utilising NCL.

3.4. Hydrolisis Strategy of Peptide from Resin

Peptide cleavage from the resin is the last important step to obtaining the desirable peptide from the solid-phase peptide synthesis method. In the Fmoc strategy, peptide is usually hydrolysed or cleaved using an acid reagent to produce free C-terminal peptide. In some peptide synthesis, the hydrolysis or cleavage step yielded a potential epimerisation product that lowered the yield and made the purification more difficult.

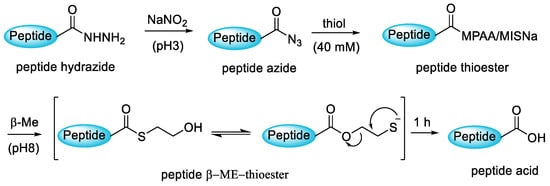

One potential type of C-terminal epimerisation is C-terminal cysteine containing peptide. The C-terminal Cys carboxylates are the most present sequences of disulfide-rich bioactive peptides, such as somatostatin, conotoxins, and neocyclosimides [65]. These C-terminal Cys peptides have served as scaffold templates in many studies and research on the structural engineering of disulfide-rich bioactive peptides, which are highly important drug candidates (Kuan Hu et al., 2016). Furthermore, the C-terminal Cys residue of these peptides can form an intramolecular disulfide bond with the other internal Cys residues. This interaction can stabilise their bioactivity-related conformations [88]. However, cysteine in C-terminal residues can undergo the epimerisation product process due to the high acidity of the Cα proton of Cys esters [89]. Epimerisation at the C-terminal Cys can occur in two ways: in the ester bond forming reaction during the anchoring of the C-terminal Cys onto a solid and the repeated deprotection step with piperidine during Fmoc SPPS [90].

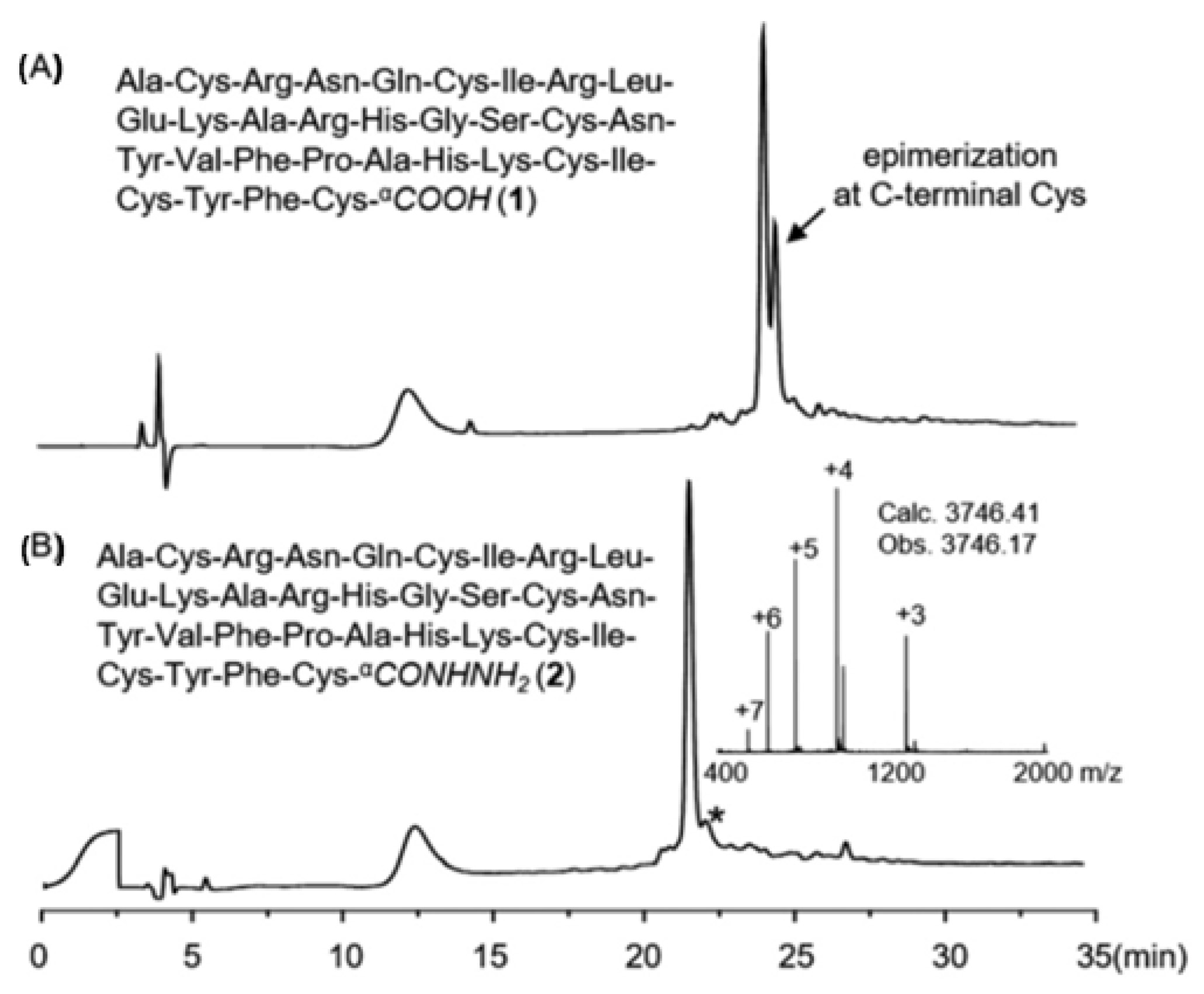

Zuo et al. (2019) developed a new way to synthesise the C-terminal cysteine containing peptide acids through a peptide hydrazide-based strategy. The strategy was carried out using unprotected Cys peptide hydrazides as precursors to synthesise C-terminal Cys peptide acids (Figure 41). The acidity of the Cα proton of the Cys hydrazide is much weaker than that of other ester groups, and thus the epimerisation and β-elimination at the C-terminal Cys can be effectively avoided [91].
Zuo et al. synthesised a C-terminal cysteine-containing peptide, namely C-AhPDF1.1b, via two different strategies. Firstly, C-AhPDF1.1b was synthetised using a 2-chlorotrityl resin through a microwave method. From Figure 42, it can be seen that the HPLC analysis of the crude C-AhPDF1.1b acid showed about 30% epimerisation at the C-terminal Cys site, making the purification step difficult. Gratifyingly, then C-AhPDF1.1b was synthetised using hydrazine-2-chlorotrityl resin. The epimerisation of C-AhPDF1.1b hydrazide was less than 3%. From this result, it can be concluded that the Fmoc SPPS of the C-Cys hydrazide peptide can suppress racemisation of the C-terminal Cys site. Additionally, the hydrazine-2-chlorotrityl resin was readily prepared via the hydrazinolysis of 2-chlorotrityl resin.

3.5. Ball Milling-Assisted

The chemical synthesis of lengthy peptides and proteins is extremely difficult in biological active peptide synthesis because coupling and deprotection reaction efficiency decline with peptide chain length, resulting in amino acid deletions and incomplete sequences. Peptide researchers have made significant efforts to overcome this difficulty, mostly by utilising convergent fragment coupling techniques, such as Native Chemical Ligation. The situation is further complicated by C-terminally activated peptide fragments, where a free N-terminal segment greatly increases the chance of epimerisation and produces very undesired diastereomers [92].

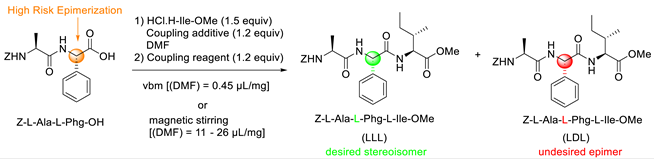

Yeboue et al. (2021) developed a new strategy to suppress the epimerisation product, by instead choosing an optimal coupling reagent and base. Yeboue et al. attempted a mechanochemical synthesis using solvent-free/solvent-less conditions. They considered analysing a ball mill’s ability to lessen or completely remove epimerisation during the C-terminal activation of peptide fragments and contrasting the outcomes with the traditional synthesis in solution [28].
Table 20 shows that Yebou et al. examined several coupling settings and identified two distinct reactions (magnetic stirring and vibration ball milling). High-performance liquid chromatography (HPLC) analysis of these data revealed that the tripeptide Z-Ala-Phg-Ile-OMe was extracted in a 93% yield, with exceptional purity and no traces of the Z-Ala-D-PhgIle-OMe epimer that could be detected (Table 1, entry 1; tR(LLL) = 5.08 min and tR(LDL) = 5.20 min). The temperature of the milled material increased somewhat during coupling and under ball milling circumstances; it reached 33 °C immediately after the milling was halted. In contrast, the synthesis of Z-Ala-Phg-Ile-OMe was carried out at the same temperature under traditional magnetic stirring conditions using the least quantity of DMF necessary to ensure adequate mixing (η = 20 μL/mg). Z-Ala-Phg-Ile-OMe was created under these experimental conditions with an 88% yield, 32% purity, and 9% LDL epimer (Table 1, entry 1). These findings unequivocally demonstrated that a C-terminal activated peptide fragment that was highly susceptible to epimerisation could be reduced through the use of liquid-assisted ball milling. Yebou et al. deduced from their findings that peptide fragment couplings can be achieved with high yields and extremely little epimerisation, if any, using a mixture of EDC-HCl, Oxyma, and modest amounts of a liquid additive (DMF or EtOAc) in a ball milling environment. Notably, excellent results were obtained with peptide segments that contained the C-terminal amino acids phenylglycine, cysteine, and valine, which are highly epimerisation-prone and/or severely hindered.

3.6. Microwave- and Flow Synthesis-Assisted

Automated flow peptide synthesis (AFPS) is a technique that greatly speeds up solid-phase chemical synthesis (SPSS) while maintaining its flexibility. In comparison to current human or automated approaches, AFPS can cut the amide bond-forming step for the fluorenylmethyloxycarbonyl (Fmoc) strategy in peptide synthesis and the full cycle for each amino acid addition to 40 s [93,94,95].

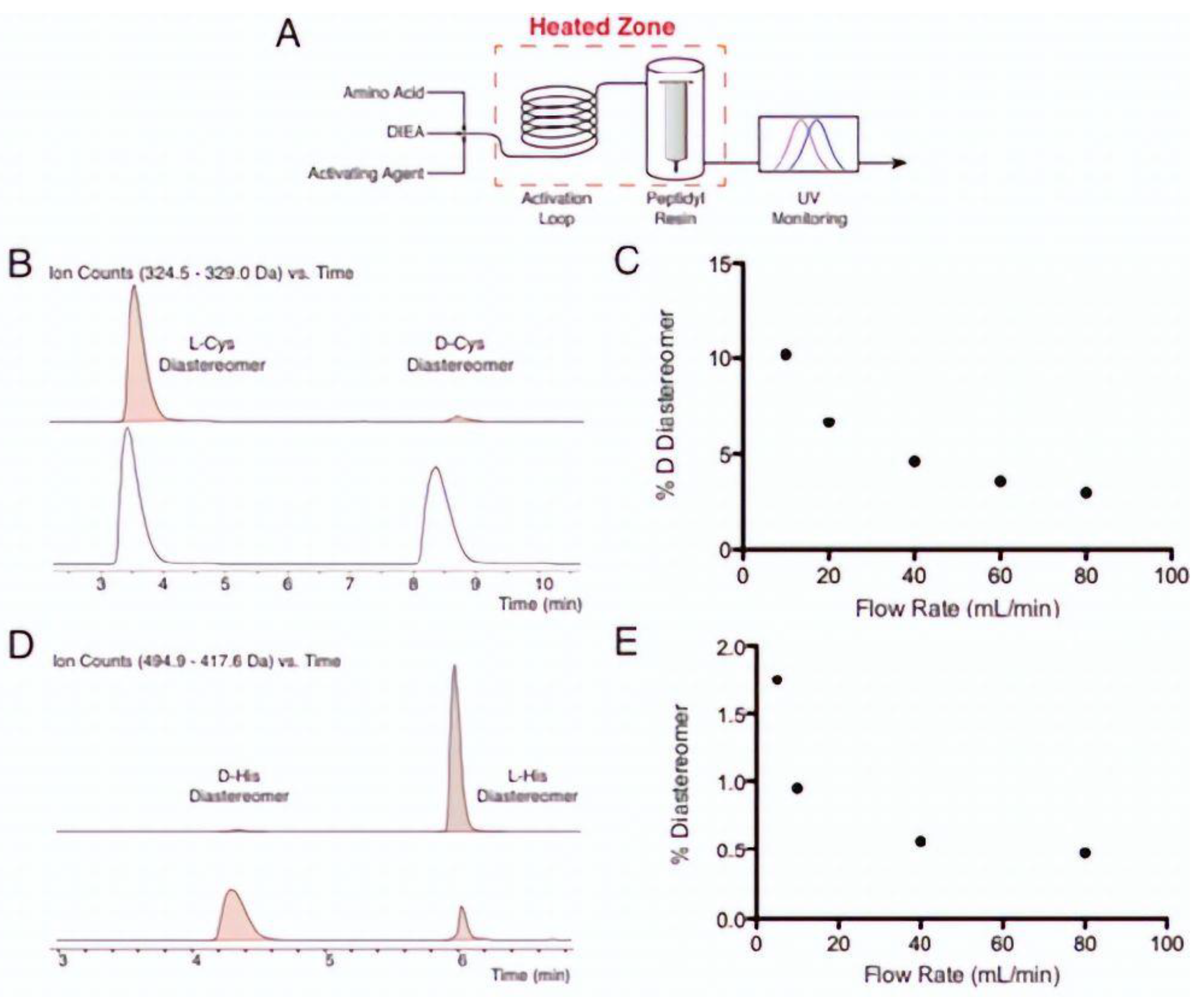

Cys and His amino acid epimerisation with high temperature flow activation was evaluated by Mijalis et al. in 2017. Cys and His can lose stereochemistry at the C position when activated, especially at high temperatures. A total of 16.7% of the undesirable D-Cys-containing product forms when Fmoc-L-Cys(Trt), HBTU, and DIEA are coupled for 1.5 min at 90 °C under microwave irradiation [96].
As shown in Figure 43, however, they discovered that the epimerisation product of His and Cys amino acid can be suppressed with AFPS by increasing the flow rate, thereby reducing the residence time at high temperature for activating His and Cys monomers GCF, whose diastereomers are separable by RP-HPLC. They also discovered that, at 80 mL/min, 0.5% D-His and 3% D-Cys were incorporated. This level of diastereomer production is in accordance with optimised batch synthesis at room temperature.
In another study, Palasek et al. (2007) also evaluated the role of microwave-assisted peptide synthesis in limiting racemisation products in solid-phase peptide synthesis. A 20 mer peptide containing each of the natural 20 amino acids (VYWTSPFMKLIHEQCNRADG-NH2) was synthetised using a selectively placed C-terminal Asp-Gly segment. The reaction condition was carried out using a HBTU coupling agent with the present basic DIPEA in DMF. The reaction was compared with the conventional SPPS method [97].
From Table 21, it can be seen that, in conventional SPPS methods, almost all amino acids lead to epimerisation products; however, in small percentages, the racemisation in cysteine and aspartate still resulted in higher epimerisation (1.19% and 1.09%) than the other amino acid residue. The crude purity product of the conventional method was achieved at 68.4% in the microwave-assisted condition. The epimerisation product was not determined in most amino acid residue, and the epimerisation product was only found in cysteine (<1.14%) and histidine (0.67%), although it was still of low value. The crude purity product also increased with an obtained yield of 84.01%. From this result, it seems microwave energy can suppress the epimerisation product and enhance the yield of the desired product.

4. Summary

Epimerisation is a side reaction that is widely found in peptide synthesis. Several factors induce the epimerisation, including the carboxylic group activation during the coupling step, the amino acid itself, the bases used, the steric factor and ring orientation present in the structure, the solvent employed, the temperature applied, and the cyclisation process applied. The selection of coupling agents and additives plays a very important role in the formation of epimerisation products in the activation of amino acids. Several amino acids, such as serine, cysteine, and methionine, have an EWG side chain that provides an induction effect upon H-alpha abstraction, causing epimerisation. The phenylglycine amino acid can cause a stabilising effect in the aryl side chain group to H-alpha and give the epimerisation a chance to occur. Several attempts can be made to suppress racemisation products, such as through selecting proper coupling reagents, selecting protecting groups, applying coupling strategies, providing assistance with physical mechanisms, and controlling reaction conditions.

Author Contributions

Conceptualisation, S.D., M.I.M. and R.M.; writing—review and editing, S.D., M.I.M., W.J.A.M., A.T.H. and R.M.; funding acquisition, A.T.H. and R.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by KEMENRISTEK DIKTI through PKDN Scheme, grant number 044/E5/PG.02.00.PL/2023; UNIVERSITAS PADJADJARAN through Review Article Grant, grant number 1549/UN6.3.1/PT.00/2023 and The APC was funded by UNIVERSITAS PADJADJARAN.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arbour, C.A.; Kondasinghe, T.D.; Saraha, H.Y.; Vorlicek, T.L.; Stockdill, J.L. Epimerization-free access to C-terminal cysteine peptide acids, carboxamides, secondary amides, and esters via complimentary strategies. Chem. Sci. 2018, 9, 350–355. [Google Scholar] [CrossRef] [PubMed]
  2. Paul Launchbury, A.; Habboubi, N. Epirubicin and doxorubicin: A comparison of their characteristics, therapeutic activity and toxicity. Cancer Treat. Rev. 1993, 19, 197–228. [Google Scholar] [CrossRef] [PubMed]
  3. Fisher, M.F.; Payne, C.D.; Rosengren, K.J.; Mylne, J.S. An Orbitide from Ratibida columnifera Seed Containing 16 Amino Acid Residues. J. Nat. Prod. 2019, 82, 2152–2158. [Google Scholar] [CrossRef] [PubMed]
  4. Heck, S.D.; Siok, C.J.; Krapcho, K.J.; Kelbaugh, P.R.; Thadeio, P.F.; Welch, M.J.; Williams, R.D.; Ganong, A.H.; Kelly, M.E.; Lanzetti, A.J.; et al. Functional consequences of posttranslational isomerization of Ser46 in a calcium channel toxin. Science 1994, 266, 1065–1068. [Google Scholar] [CrossRef] [PubMed]
  5. Jadhav, P.D.; Shen, J.; Burnett, P.G.; Yang, J.; Sammynaiken, R.; Reaney, M.J.T. Methionine epimerisation in cyclic peptides. RSC Adv. 2021, 11, 20859–20864. [Google Scholar] [CrossRef]
  6. Heck, S.D.; Faraci, W.S.; Kelbaugh, P.R.; Saccomano, N.A.; Thadeio, P.F.; Volkmann, R.A. Posttranslational amino acid epimerisation: Enzyme-catalyzed isomerization of amino acid residues in peptide chains. Proc. Natl. Acad. Sci. USA 1996, 93, 4036–4039. [Google Scholar] [CrossRef] [PubMed]
  7. Plumbridge, J.; Vimr, E. Convergent pathways for utilization of the amino sugars N-acetylglucosamine, N-acetylmannosamine, and N-acetylneuraminic acid by Escherichia coli. J. Bacteriol. 1999, 181, 47–54. [Google Scholar] [CrossRef] [PubMed]
  8. Vagstad, A.L.; Kuranaga, T.; Püntener, S.; Pattabiraman, V.R.; Bode, J.W.; Piel, J. Introduction of d-Amino Acids in Minimalistic Peptide Substrates by an S-Adenosyl-l-Methionine Radical Epimerase. Angew. Chem—Int. Ed. 2019, 58, 2246–2250. [Google Scholar] [CrossRef]
  9. Ali, I.; Gupta, V.K.; Aboul-Enein, H.Y.; Singh, P.; Sharma, B. Role of racemisation in optically active drugs development. Chirality Pharmacol. Biol. Chem. Conseq. Mol. Asymmetry 2007, 19, 453–463. [Google Scholar]
  10. D’Hondt, M.; Bracke, N.; Taevernier, L.; Gevaert, B.; Verbeke, F.; Wynendaele, E.; De Spiegeleer, B. Related impurities in peptide medicines. J. Pharm. Biomed. Anal. 2014, 101, 2–30. [Google Scholar] [CrossRef]
  11. Isidro-Llobet, A.; Kenworthy, M.N.; Mukherjee, S.; Kopach, M.E.; Wegner, K.; Gallou, F.; Smith, A.G.; Roschangar, F. Sustainability challenges in peptide synthesis and purification: From R&D to production. J. Org. Chem. 2019, 84, 4615–4628. [Google Scholar] [PubMed]
  12. Sturabotti, E.; Vetica, F.; Toscano, G.; Calcaterra, A.; Martinelli, A.; Migneco, L.M.; Leonelli, F. N-Acetyl-l-phenylalanine Racemization during TBTU Amidation: An In-Depth Study for the Synthesis of Anti-Inflammatory 2-(N-Acetyl)-l-phenylalanylamido-2-deoxy-d-glucose (NAPA). Molecules 2023, 28, 581. [Google Scholar] [CrossRef] [PubMed]
  13. El-Faham, A.; Albericio, F. Peptide coupling reagents, more than a letter soup. Chem. Rev. 2011, 111, 6557–6602. [Google Scholar] [CrossRef] [PubMed]
  14. Stathopoulos, P.; Papas, S.; Kostidis, S.; Tsikaris, V. α- and β-aspartyl peptide ester formation via aspartimide ring opening. J. Pept. Sci. Off. Publ. Eur. Pept. Soc. 2005, 11, 658–664. [Google Scholar]
  15. Jaradat, D.S.M. Thirteen decades of peptide synthesis: Key developments in solid phase peptide synthesis and amide bond formation utilized in peptide ligation. Amino Acids 2018, 50, 39–68. [Google Scholar] [CrossRef] [PubMed]
  16. Kvsrg, P.; Bharathi, K.; Haseena Banu, B. Applications of peptide coupling reagents–an update. Int. J. Pharm. Sci. Rev. Res. 2011, 8, 108–119. [Google Scholar]
  17. Bodanszky, M. Principles of Peptide Synthesis; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012; Volume 16. [Google Scholar]
  18. Lloyd-Williams, P.; Albericio, F.; Giralt, E. Chemical Approaches to the Synthesis of Peptides and Proteins; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
  19. Valeur, E.; Bradley, M. Amide bond formation: Beyond the myth of coupling reagents. Chem. Soc. Rev. 2009, 38, 606–631. [Google Scholar] [CrossRef]
  20. Tsakos, M.; Schaffert, E.S.; Clement, L.L.; Villadsen, N.L.; Poulsen, T.B. Ester coupling reactions—An enduring challenge in the chemical synthesis of bioactive natural products. Nat. Prod. Rep. 2015, 32, 605–632. [Google Scholar] [CrossRef]
  21. Dunetz, J.R.; Magano, J.; Weisenburger, G.A. Large-scale applications of amide coupling reagents for the synthesis of pharmaceuticals. Org. Process Res. Dev. 2016, 20, 140–177. [Google Scholar] [CrossRef]
  22. Carpino, L.A.; El-Faham, A. The diisopropylcarbodiimide/1-hydroxy-7-azabenzotriazole system: Segment coupling and stepwise peptide assembly. Tetrahedron 1999, 55, 6813–6830. [Google Scholar] [CrossRef]
  23. Lei, Q.P.; Lamb, D.H.; Shannon, A.G.; Cai, X.; Heller, R.K.; Huang, M.; Zablackis, E.; Ryall, R.; Cash, P. Quantification of residual EDU (N-ethyl-N′-(dimethylaminopropyl) carbodiimide (EDC) hydrolyzed urea derivative) and other residual by LC-MS/MS. J. Chromatogr. Anal. Technol. Biomed. Life Sci. 2004, 813, 103–112. [Google Scholar] [CrossRef] [PubMed]
  24. Spatola, A.F.; Crozet, Y.; DeWit, D.; Yanagisawa, M. Rediscovering an endothelin antagonist (BQ-123): A self-deconvoluting cyclic pentapeptide library. J. Med. Chem. 1996, 39, 3842–3846. [Google Scholar] [CrossRef] [PubMed]
  25. Spatola, A.F.; Darlak, K.; Romanovskis, P. An approach to cyclic peptide libraries: Reducing epimerization in medium sized rings during solid phase synthesis. Tetrahedron Lett. 1996, 37, 591–594. [Google Scholar] [CrossRef]
  26. Morinaka, B.I.; Vagstad, A.L.; Helf, M.J.; Gugger, M.; Kegler, C.; Freeman, M.F.; Bode, H.B.; Piel, J. Radical S-Adenosyl Methionine Epimerases: Regioselective Introduction of Diverse D-Amino Acid Patterns into Peptide Natural Products. Angew. Chem. Int. Ed. 2014, 53, 8503–8507. [Google Scholar] [CrossRef] [PubMed]
  27. Yeboue, Y.; Jean, M.; Subra, G.; Martinez, J.; Lamaty, F.; Métro, T.X. Epimerisation-Free C-Term Activation of Peptide Fragments by Ball Milling. Org. Lett. 2021, 23, 631–635. [Google Scholar] [CrossRef]
  28. Yang, Y. Peptide racemisation. In Side Reactions in Peptide Synthesis; Academic Press: Cambridge, MA, USA, 2016; pp. 257–292. [Google Scholar]
  29. Marcucci, E.; Tulla-Puche, J.; Albericio, F. Solid-phase synthesis of N Me-IB-01212, a highly N-methylated cyclic peptide. Org. Lett. 2012, 14, 612–615. [Google Scholar] [CrossRef] [PubMed]
  30. Nabika, R.; Suyama, T.L.; Hau, A.M.; Misu, R.; Ohno, H.; Ishmael, J.E.; McPhail, K.L.; Oishi, S.; Fujii, N. Synthesis and biological evaluation of the [d-MeAla11]-epimer of coibamide A. Bioorg. Med. Chem. Lett. 2015, 25, 302–306. [Google Scholar] [CrossRef]
  31. Liang, C.; Behnam, M.A.M.; Sundermann, T.R.; Klein, C.D. Phenylglycine racemisation in Fmoc-based solid-phase peptide synthesis: Stereochemical stability is achieved by choice of reaction conditions. Tetrahedron Lett. 2017, 58, 2325–2329. [Google Scholar] [CrossRef]
  32. Al Toma, R.S.; Brieke, C.; Cryle, M.J.; Süssmuth, R.D. Structural aspects of phenylglycines, their biosynthesis and occurrence in peptide natural products. Nat. Prod. Rep. 2015, 32, 1207–1235. [Google Scholar] [CrossRef]
  33. Buskas, T.; Ingale, S.; Boons, G.-J. Glycopeptides as versatile tools for glycobiology. Glycobiology 2006, 16, 113R–136R. [Google Scholar] [CrossRef]
  34. Batsalova, T.; Dzhambazov, B.; Klaczkowska, D.; Holmdahl, R. Mice producing less reactive oxygen species are relatively resistant to collagen glycopeptide vaccination against arthritis. J. Immunol. 2010, 185, 2701–2709. [Google Scholar] [CrossRef] [PubMed]
  35. Zhu, J.; Warren, J.D.; Danishefsky, S.J. Synthetic carbohydrate-based anticancer vaccines: The Memorial Sloan-Kettering experience. Expert Rev. Vaccines 2009, 8, 1399–1413. [Google Scholar] [CrossRef] [PubMed]
  36. Buskas, T.; Thompson, P.; Boons, G.-J. Immunotherapy for cancer: Synthetic carbohydrate-based vaccines. Chem. Commun. 2009, 36, 5335–5349. [Google Scholar] [CrossRef] [PubMed]
  37. Hoffmann-Röder, A.; Johannes, M. Synthesis of a MUC1-glycopeptide–BSA conjugate vaccine bearing the 3′-deoxy-3′-fluoro-Thomsen–Friedenreich antigen. Chem. Commun. 2011, 47, 9903–9905. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, Y.; Muthana, S.M.; Farnsworth, D.; Ludek, O.; Adams, K.; Barchi, J.J.; Gildersleeve, J.C. Enhanced epimerisation of glycosylated amino acids during solid-phase peptide synthesis. J. Am. Chem. Soc. 2012, 134, 6316–6325. [Google Scholar] [CrossRef] [PubMed]
  39. Di Fenza, A.; Tancredi, M.; Galoppini, C.; Rovero, P. Racemisation studies of Fmoc-Ser (tBu)-OH during stepwise continuous-flow solid-phase peptide synthesis. Tetrahedron Lett. 1998, 39, 8529–8532. [Google Scholar] [CrossRef]
  40. Bolchi, C.; Pallavicini, M.; Bernini, S.K.; Chiodini, G.; Corsini, A.; Ferri, N.; Fumagalli, L.; Straniero, V.; Valoti, E. Thiazole-and imidazole-containing peptidomimetic inhibitors of protein farnesyltransferase. Bioorg. Med. Chem. Lett. 2011, 21, 5408–5412. [Google Scholar] [CrossRef]
  41. Nicolaou, K.C.; Safina, B.S.; Zak, M.; Lee, S.H.; Nevalainen, M.; Bella, M.; Estrada, A.A.; Funke, C.; Zécri, F.J.; Bulat, S. Total synthesis of thiostrepton. Retrosynthetic analysis and construction of key building blocks. J. Am. Chem. Soc. 2005, 127, 11159–11175. [Google Scholar] [CrossRef]
  42. Tumminakatti, S.; Reddy, D.N.; Lakshmi, A.N.; Prabhakaran, E.N. Synthesis of 5,6-dihydro-4H-1,3-thiazine containing peptide mimics from N-(3-hydroxypropyl)thioamides and epimerisation studies. Tetrahedron Lett. 2014, 55, 4731–4735. [Google Scholar] [CrossRef]
  43. Sewald, N.; Jakubke, H.D. Peptides: Chemistry and Biology; John Wiley & Sons: Hoboken, NJ, USA, 2015. [Google Scholar]
  44. Steinauer, R.; Chen, F.M.; Leo Benoiton, N. Studies on racemization associated with the use of benzotriazol-1-yl-tris (dimethylamino) phosphonium hexafluorophosphate (BOP). Int. J. Pept. Protein Res. 1989, 34, 295–298. [Google Scholar] [CrossRef]
  45. Castro, B.; Dormoy, J.R.; Dourtoglou, B.; Geneviève, E.V.I.N.; Selve, C.; Ziegler, J.C. Peptide Coupling Reagents VI1. A Novel, Cheaper Preparation of Benzotriazolyloxytris [dimethylamino] phosphonium Hexafluorophosphate (BOP Reagent). Synthesis 1976, 1976, 751–752. [Google Scholar] [CrossRef]
  46. Li, F.; Guo, X.X.; Zeng, G.Z.; Qin, W.W.; Zhang, B.; Tan, N.H. Design and synthesis of plant cyclopeptide Astin C analogues and investigation of their immunosuppressive activity. Bioorg. Med. Chem. Lett. 2018, 28, 2523–2527. [Google Scholar] [CrossRef] [PubMed]
  47. Ralhan, K.; KrishnaKumar, V.G.; Gupta, S. Piperazine and DBU: A safer alternative for rapid and efficient Fmoc deprotection in solid phase peptide synthesis. RSC Adv. 2015, 5, 104417–104425. [Google Scholar] [CrossRef]
  48. Ruczyński, J.; Lewandowska, B.; Mucha, P.; Rekowski, P. Problem of aspartimide formation in Fmoc-based solid-phase peptide synthesis using Dmab group to protect side chain of aspartic acid. J. Pept. Sci. Off. Publ. Eur. Pept. Soc. 2008, 14, 335–341. [Google Scholar] [CrossRef] [PubMed]
  49. Danger, G.; Plasson, R.; Pascal, R. An experimental investigation of the evolution of chirality in a potential dynamic peptide system: N-terminal epimerisation and degradation into diketopiperazine. Astrobiology 2010, 10, 651–662. [Google Scholar] [CrossRef] [PubMed]
  50. Smith, G.G.; Reddy, G.V. Effect of the side chain on the racemisation of amino acids in aqueous solution. J. Org. Chem. 1989, 54, 4529–4535. [Google Scholar] [CrossRef]
  51. Shim, Y.Y.; Reaney, M.J. Kinetic interactions between cyclolinopeptides and immobilized human serum albumin by surface plasmon resonance. J. Agric. Food Chem. 2015, 63, 1099–1106. [Google Scholar] [CrossRef]
  52. Afonine, P.V.; Grosse-Kunstleve, R.W.; Echols, N.; Headd, J.J.; Moriarty, N.W.; Mustyakimov, M.; Terwilliger, T.C.; Urzhumtsev, A.; Zwart, P.H.; Adams, P.D. Towards automated crystallographic structure refinement with phenix. refine. Acta Crystallogr. Sect. D Biol. Crystallogr. 2012, 68, 352–367. [Google Scholar] [CrossRef]
  53. Manikandan, V.; Lee, N.Y. Reduced graphene oxide: Biofabrication and environmental applications. Chemosphere 2023, 311, 136934. [Google Scholar] [CrossRef]
  54. Bu, X.; Wu, X.; Xie, G.; Guo, Z. Synthesis of tyrocidine A and its analogues by spontaneous cyclization in aqueous solution. Org. Lett. 2002, 4, 2893–2895. [Google Scholar] [CrossRef]
  55. Grotenbreg, G.M.; Timmer, M.S.; Llamas-Saiz, A.L.; Verdoes, M.; van der Marel, G.A.; van Raaij, M.J.; Overkleeft, H.S.; Overhand, M. An unusual reverse turn structure adopted by a furanoid sugar amino acid incorporated in gramicidin S. J. Am. Chem. Soc. 2004, 126, 3444–3446. [Google Scholar] [CrossRef] [PubMed]
  56. Li, P.; Roller, P.P. Cyclization strategies in peptide derived drug design. Curr. Top. Med. Chem. 2002, 2, 325–341. [Google Scholar] [CrossRef] [PubMed]
  57. Sikandar, A.; Franz, L.; Adam, S.; Santos-Aberturas, J.; Horbal, L.; Luzhetskyy, A.; Truman, A.W.; Kalinina, O.V.; Koehnke, J. The bottromycin epimerase BotH defines a group of atypical α/β-hydrolase-fold enzymes. Nat. Chem. Biol. 2020, 16, 1013–1018. [Google Scholar] [CrossRef] [PubMed]
  58. Oberhauser, B.; Baumann, K.; Grohmann, B.; Sperner, H. Site-selective epimerisation of a fungal cyclodepsipeptide via a 5-aminooxazole intermediate. Synlett 1999, 1999, 893–896. [Google Scholar] [CrossRef]
  59. Muhajir, M.I.; Hardianto, A.; Al-Anshori, J.; Sumiarsa, D.; Mayanti, T.; Nurlelasari Harneti, D.; Hidayat, A.T.; Supratman, U.; Maharani, R. Total Synthesis of Nocardiotide A by Using a Combination of Solid- and Solution-Phase Methods. ChemistrySelect 2021, 6, 12941–12946. [Google Scholar] [CrossRef]
  60. Todorovic, M.; Perrin, D.M. Recent developments in catalytic amide bond formation. Pept. Sci. 2020, 112, e24210. [Google Scholar] [CrossRef]
  61. Hu, L.; Xu, S.; Zhao, Z.; Yang, Y.; Peng, Z.; Yang, M.; Wang, C.; Zhao, J. Ynamides as racemisation-free coupling reagents for amide and peptide synthesis. J. Am. Chem. Soc. 2016, 138, 13135–13138. [Google Scholar] [CrossRef]
  62. Xu, X.; Lai, R. The chemistry and biological activities of peptides from amphibian skin secretions. Chem. Rev. 2015, 115, 1760–1846. [Google Scholar] [CrossRef]
  63. Koshizuka, M.; Makino, K.; Shimada, N. Diboronic Acid Anhydride-Catalyzed Direct Peptide Bond Formation Enabled by Hydroxy-Directed Dehydrative Condensation. Org. Lett. 2020, 22, 8658–8664. [Google Scholar] [CrossRef]
  64. Shimada, N.; Hirata, M.; Koshizuka, M.; Ohse, N.; Kaito, R.; Makino, K. Diboronic acid anhydrides as effective catalysts for the hydroxy-directed dehydrative amidation of carboxylic acids. Org. Lett. 2019, 21, 4303–4308. [Google Scholar] [CrossRef]
  65. Muramatsu, W.; Hattori, T.; Yamamoto, H. Game change from reagent-to substrate-controlled peptide synthesis. Bull. Chem. Soc. Jpn. 2020, 93, 759–767. [Google Scholar] [CrossRef]
  66. Parkin, G. Synthetic analogues relevant to the structure and function of zinc enzymes. Chem. Rev. 2004, 104, 699–768. [Google Scholar] [CrossRef] [PubMed]
  67. Vera-Aviles, M.; Vantana, E.; Kardinasari, E.; Koh, N.L.; Latunde-Dada, G.O. Protective role of histidine supplementation against oxidative stress damage in the management of anemia of chronic kidney disease. Pharmaceuticals 2018, 11, 111. [Google Scholar] [CrossRef] [PubMed]
  68. Torikai, K.; Yanagimoto, R.; Watanabe, L.A. N(Ï)-2-Naphthylmethoxymethyl-Protected Histidines: Scalable, Racemisation-Free Building Blocks for Peptide Synthesis. Org. Process Res. Dev. 2020, 24, 448–453. [Google Scholar] [CrossRef]
  69. Eritja, R.; Ziehler-Martin, J.P.; Walker, P.A.; Lee, T.D.; Legesse, K.; Albericio, F.; Kaplan, B.E. On the use of st-butylsulphenyl group for protection of cysteine in solid-phase peptide synthesis using fmoc-amino acids. Tetrahedron 1987, 43, 2675–2680. [Google Scholar] [CrossRef]
  70. Tsuda, S.; Masuda, S.; Yoshiya, T. Epimerisation-Free Preparation of C-Terminal Cys Peptide Acid by Fmoc SPPS Using Pseudoproline-Type Protecting Group. J. Org. Chem. 2020, 85, 1674–1679. [Google Scholar] [CrossRef] [PubMed]
  71. Qiao, J.X.; Lam, P.Y.S. Copper-promoted carbon-heteroatom bond cross-coupling with boronic acids and derivatives. Synthesis 2011, 2011, 829–856. [Google Scholar] [CrossRef]
  72. Zhang, L.; Zhang, G.; Zhang, M.; Cheng, J. Cu (OTf) 2-mediated Chan-Lam reaction of carboxylic acids to access phenolic esters. J. Org. Chem. 2010, 75, 7472–7474. [Google Scholar] [CrossRef]
  73. King, A.E.; Huffman, L.M.; Casitas, A.; Costas, M.; Ribas, X.; Stahl, S.S. Copper-catalyzed aerobic oxidative functionalization of an arene C–H bond: Evidence for an aryl-copper (III) intermediate. J. Am. Chem. Soc. 2010, 132, 12068–12073. [Google Scholar] [CrossRef]
  74. Popovic, S.; Bieräugel, H.; Detz, R.J.; Kluwer, A.M.; Koole, J.A.A.; Streefkerk, D.E.; Hiemstra, H.; Van Maarseveen, J.H. Epimerisation-free C-terminal peptide activation. Chem.—Eur. J. 2013, 19, 16934–16937. [Google Scholar] [CrossRef]
  75. Miyazawa, T.; Donkai, T.; Yamada, T.; Kuwata, S. Racemisation suppression by copper (II) chloride in peptide synthesis by the mixed anhydride and related methods. Chem. Lett. 1989, 18, 2125–2128. [Google Scholar] [CrossRef]
  76. Chalker, J.M.; Wood, C.S.C.; Davis, B.G. A convenient catalyst for aqueous and protein Suzuki−Miyaura cross-coupling. J. Am. Chem. Soc. 2009, 131, 16346–16347. [Google Scholar] [CrossRef] [PubMed]
  77. Miyazawa, T.; Otomatsu, T.; Fukui, Y.; Yamada, T.; Kuwata, S. Racemisation-free and efficient peptide synthesis by the carbodiimide method using 1-hydroxybenzotriazole and copper (II) chloride simultaneously as additives. J. Chem. Soc. Chem. Commun. 1988, 419–420. [Google Scholar] [CrossRef]
  78. Ryadnov, M.G.; Klimenko, L.V.; Mitin, Y.V. Suppression of epimerisation by cupric (II) salts in peptide synthesis using free amino acids as amino components. J. Pept. Res. 1999, 53, 322–328. [Google Scholar] [CrossRef] [PubMed]
  79. Gibson, F.S.; Rapoport, H. Carboxy Terminus Coupling Using 1, 1′-Carbonylbis (3-methylimidazolium triflate)(CBMIT) in the Presence of Cu (II) Salts. J. Org. Chem. 1995, 60, 2615–2617. [Google Scholar] [CrossRef]
  80. Pattabiraman, V.R.; Bode, J.W. Rethinking amide bond synthesis. Nature 2011, 480, 471–479. [Google Scholar] [CrossRef] [PubMed]
  81. McKnelly, K.J.; Sokol, W.; Nowick, J.S. Anaphylaxis Induced by peptide coupling agents: Lessons learned from repeated exposure to HATU, HBTU, and HCTU. J. Org. Chem. 2019, 85, 1764–1768. [Google Scholar] [CrossRef] [PubMed]
  82. Dunetz, J.R.; Xiang, Y.; Baldwin, A.; Ringling, J. General and scalable amide bond formation with epimerisation-prone substrates using T3P and pyridine. Org. Lett. 2011, 13, 5048–5051. [Google Scholar] [CrossRef]
  83. Berger, A.; Wehrstedt, K.-D. Azodicarboxylates: Explosive properties and DSC measurements. J. Loss Prev. Process Ind. 2010, 23, 734–739. [Google Scholar] [CrossRef]
  84. Muramatsu, W.; Manthena, C.; Nakashima, E.; Yamamoto, H. Peptide Bond-Forming Reaction via Amino Acid Silyl Esters: New Catalytic Reactivity of an Aminosilane. ACS Catal. 2020, 10, 9594–9603. [Google Scholar] [CrossRef]
  85. Dawson, P.E.; Kent, S.B.H. Synthesis of native proteins by chemical ligation. Annu. Rev. Biochem. 2000, 69, 923–960. [Google Scholar] [CrossRef] [PubMed]
  86. Unverzagt, C.; Kajihara, Y. Chemical assembly of N-glycoproteins: A refined toolbox to address a ubiquitous posttranslational modification. Chem. Soc. Rev. 2013, 42, 4408–4420. [Google Scholar] [CrossRef] [PubMed]
  87. Elashal Hader, E.; Sim, Y.E.; Raj, M. Serine promoted synthesis of peptide thioester-precursor on solid support for native chemical ligation. Chem. Sci. 2016, 8, 117–123. [Google Scholar] [CrossRef] [PubMed]
  88. Hackeng, T.M.; Griffin, J.H.; Dawson, P.E. Protein synthesis by native chemical ligation: Expanded scope by using straightforward methodology. Proc. Natl. Acad. Sci. USA 1999, 96, 10068–10073. [Google Scholar] [CrossRef] [PubMed]
  89. Ni, S.; Zhang, H.; Huang, W.; Zhou, J.; Qian, H.; Chen, W. The application of an aryl hydrazine linker prevents ß-elimination side products in the SPPS of C-terminal cysteine peptides. J. Pept. Sci. Off. Publ. Eur. Pept. Soc. 2010, 16, 309–313. [Google Scholar] [CrossRef] [PubMed]
  90. Elashal Hader, E.; Cohen, R.D.; Raj, M. Fmoc solid-phase synthesis of C-terminal modified peptides by formation of a backbone cyclic urethane moiety. Chem. Commun. 2016, 52, 9699–9702. [Google Scholar] [CrossRef] [PubMed]
  91. Zuo, C.; Yan, B.J.; Zhu, H.Y.; Shi, W.W.; Xi, T.K.; Shi, J.; Fang, G.M. Robust synthesis of C-terminal cysteine-containing peptide acids through a peptide hydrazide-based strategy. Org. Biomol. Chem. 2019, 17, 5698–5702. [Google Scholar] [CrossRef]
  92. Al Shaer, D.; Al Musaimi, O.; Albericio, F.; de la Torre, B.G. 2019 FDA TIDES (peptides and oligonucleotides) harvest. Pharmaceuticals 2020, 13, 40. [Google Scholar] [CrossRef]
  93. Olivos, H.J.; Alluri, P.G.; Reddy, M.M.; Salony, D.; Kodadek, T. Microwave-assisted solid-phase synthesis of peptoids. Org. Lett. 2002, 4, 4057–4059. [Google Scholar] [CrossRef]
  94. Erdelyi, M.; Gogoll, A. Rapid microwave-assisted solid phase peptide synthesis. Synthesis 2002, 2002, 1592–1596. [Google Scholar]
  95. Singh, S.K.; Collins, J.M. New developments in Microwave–Assisted solid phase peptide synthesis. Pept. Synth. Methods Protoc. 2020, 2103, 95–109. [Google Scholar]
  96. Mijalis, A.J.; Thomas, D.A.; Simon, M.D.; Adamo, A.; Beaumont, R.; Jensen, K.F.; Pentelute, B.L. A fully automated flow-based approach for accelerated peptide synthesis. Nat. Chem. Biol. 2017, 13, 464–466. [Google Scholar] [CrossRef]
  97. Palasek Stacey, A.; Cox, Z.J.; Collins, J.M. Limiting racemisation and aspartimide formation in microwave-enhanced Fmoc solid phase peptide synthesis. J. Pept. Sci. Off. Publ. Eur. Pept. Soc. 2007, 13, 143–148. [Google Scholar]
Molecules 28 08017 g001
Figure 1. Structure of (a) doxorubicin and (b) epirubicin (Paul Launchbury and Habboubi, 1993).
Figure 1. Structure of (a) doxorubicin and (b) epirubicin (Paul Launchbury and Habboubi, 1993).
Molecules 28 08017 g001
Molecules 28 08017 g002
Figure 2. Epimerisation of N-acetylglucosamine (GlcNAc) into N-acetylmannosamine (NANA) catalysed by a renin-binding protein [5].
Figure 2. Epimerisation of N-acetylglucosamine (GlcNAc) into N-acetylmannosamine (NANA) catalysed by a renin-binding protein [5].
Molecules 28 08017 g002
Molecules 28 08017 g003
Figure 3. Proposed epimerisation of amino acid by AdoMet radical proteusin epimerases [6].
Figure 3. Proposed epimerisation of amino acid by AdoMet radical proteusin epimerases [6].
Molecules 28 08017 g003
Molecules 28 08017 g004
Figure 4. Mechanism of epimerisation/racemisation through oxazolone intermediate [13].
Figure 4. Mechanism of epimerisation/racemisation through oxazolone intermediate [13].
Molecules 28 08017 g004
Molecules 28 08017 g005
Figure 5. Various types of coupling reagents.
Figure 5. Various types of coupling reagents.
Molecules 28 08017 g005
Molecules 28 08017 g006
Figure 6. Reactive O-Acylisourea ester increases racemisation.
Figure 6. Reactive O-Acylisourea ester increases racemisation.
Molecules 28 08017 g006
Molecules 28 08017 g007
Figure 7. DIC/DMAP coupling agent mechanism.
Figure 7. DIC/DMAP coupling agent mechanism.
Molecules 28 08017 g007
Molecules 28 08017 g008
Figure 8. Structure of 1-ethyl-3-[3-(dimethylaminopropy1) carbodiimide] (EDC).
Figure 8. Structure of 1-ethyl-3-[3-(dimethylaminopropy1) carbodiimide] (EDC).
Molecules 28 08017 g008
Molecules 28 08017 g009
Figure 9. Epimerisation mechanism using carbodiimide coupling agent.
Figure 9. Epimerisation mechanism using carbodiimide coupling agent.
Molecules 28 08017 g009
Molecules 28 08017 g010

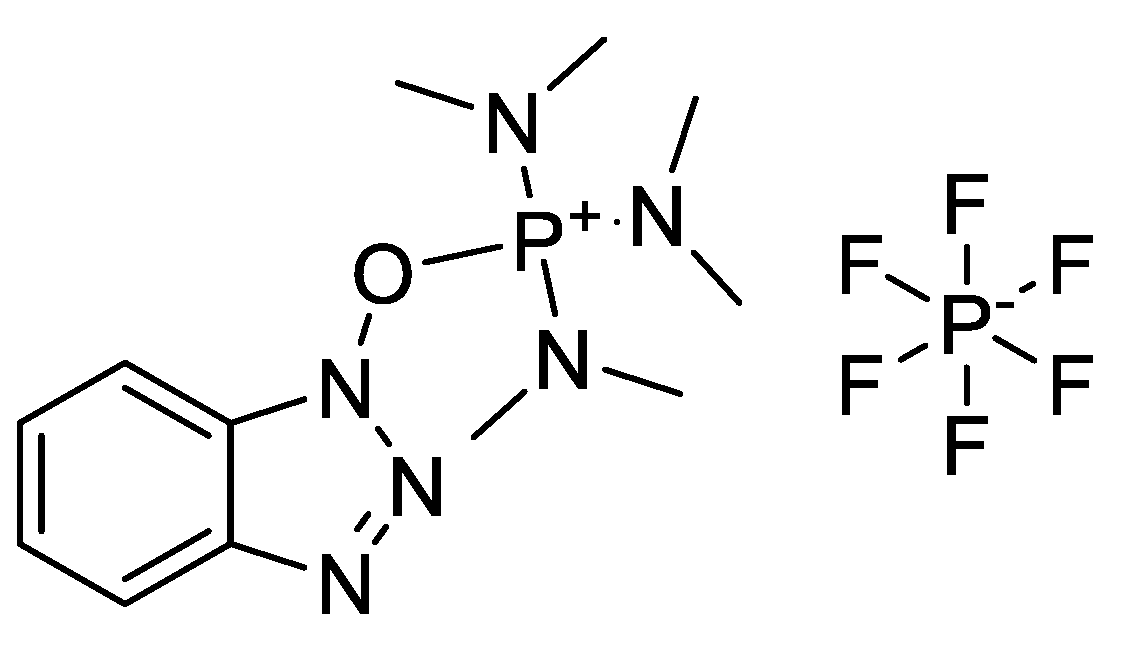

Figure 10. BOP coupling reagent.
Figure 10. BOP coupling reagent.
Molecules 28 08017 g010
Molecules 28 08017 g011
Figure 11. Structures of (a) phenylglycine and (b) methionine.
Figure 11. Structures of (a) phenylglycine and (b) methionine.
Molecules 28 08017 g011
Molecules 28 08017 g012
Figure 12. Proton abstraction of methionine by base.
Figure 12. Proton abstraction of methionine by base.
Molecules 28 08017 g012
Molecules 28 08017 g013
Figure 13. Structure of NMe-IB-01212.
Figure 13. Structure of NMe-IB-01212.
Molecules 28 08017 g013
Molecules 28 08017 g014
Figure 14. Structure of coibamide A.
Figure 14. Structure of coibamide A.
Molecules 28 08017 g014
Molecules 28 08017 g015
Figure 15. Potential racemisation pathways of Fmoc-(L)-phenylglycine during solid-phase peptide synthesis.
Figure 15. Potential racemisation pathways of Fmoc-(L)-phenylglycine during solid-phase peptide synthesis.
Molecules 28 08017 g015
Molecules 28 08017 g016
Figure 16. Epimerisation study in glycopeptide synthesis.
Figure 16. Epimerisation study in glycopeptide synthesis.
Molecules 28 08017 g016
Molecules 28 08017 g017
Figure 17. Comparison of the geometries at amide (a), 2-substituted 1,3-thiazine (b), 1,3-thiazoline (c), and 1,3-thiazole (d).
Figure 17. Comparison of the geometries at amide (a), 2-substituted 1,3-thiazine (b), 1,3-thiazoline (c), and 1,3-thiazole (d).
Molecules 28 08017 g017
Molecules 28 08017 g018
Figure 18. Possible intermolecular H-bond-assisted enamination/racemisation mechanism in non-Pro*-Thi containing analogues.
Figure 18. Possible intermolecular H-bond-assisted enamination/racemisation mechanism in non-Pro*-Thi containing analogues.
Molecules 28 08017 g018
Molecules 28 08017 g019
Figure 19. Mechanism of racemisation through alpha hydrogen attack.
Figure 19. Mechanism of racemisation through alpha hydrogen attack.
Molecules 28 08017 g019
Molecules 28 08017 g020
Figure 20. Racemisation process in BOP activation with the effect of base [45].
Figure 20. Racemisation process in BOP activation with the effect of base [45].
Molecules 28 08017 g020
Molecules 28 08017 g021
Figure 21. Base-induced cleavage of Fmoc and subsequent quenching of dibenzofulvene by a nucleophile.
Figure 21. Base-induced cleavage of Fmoc and subsequent quenching of dibenzofulvene by a nucleophile.
Molecules 28 08017 g021
Molecules 28 08017 g022
Figure 22. Epimerisation via the aspartimide mechanism in the deprotection step.
Figure 22. Epimerisation via the aspartimide mechanism in the deprotection step.
Molecules 28 08017 g022
Molecules 28 08017 g023
Figure 23. Structure of dipeptide Phg-Ala and Phg-Val.
Figure 23. Structure of dipeptide Phg-Ala and Phg-Val.
Molecules 28 08017 g023
Molecules 28 08017 g024
Figure 24. Phenylglycine-containing peptide.
Figure 24. Phenylglycine-containing peptide.
Molecules 28 08017 g024
Molecules 28 08017 g025
Figure 25. Crystal structures of LO4 butanol solvate and LO2 methanol solvate, with color-coded atoms sulphur—yellow, oxygen—red, nitrogen—blue, carbon—black, a carbon Met/MetO2—green; solvent clouds: butanol—brown, water—red, methanol—cyan [44].
Figure 25. Crystal structures of LO4 butanol solvate and LO2 methanol solvate, with color-coded atoms sulphur—yellow, oxygen—red, nitrogen—blue, carbon—black, a carbon Met/MetO2—green; solvent clouds: butanol—brown, water—red, methanol—cyan [44].
Molecules 28 08017 g025
Molecules 28 08017 g026
Figure 26. A representation of the APED model that is based on the Primary Pump Scenario and displays the antagonism between two chemical cycles that potentially induces dynamically controlled states such that D- or L-amino acids can prevail as a result of the reproduction of chirality through dipeptide epimerisation.
Figure 26. A representation of the APED model that is based on the Primary Pump Scenario and displays the antagonism between two chemical cycles that potentially induces dynamically controlled states such that D- or L-amino acids can prevail as a result of the reproduction of chirality through dipeptide epimerisation.
Molecules 28 08017 g026
Molecules 28 08017 g027
Figure 27. (a) Lawesson’s reagent, xylene, 130 °C, 30 min, 33%, (b) PhCH2Br, aq. NaOH/CH2Cl2, sonication, r.t., 30 min, 94%, (c) AgNO3, tBuOH/water 9:1, r.t., 2.5 h, 35%, (d) aq.HCl/tBuOH, 55 °C, 20 min, quant, (e) HgCl2/CaCO3, AcCN, r.t., 2 h, 45%, (f) TFA, tBuOH/water, 15 h, r.t., 35%.
Figure 27. (a) Lawesson’s reagent, xylene, 130 °C, 30 min, 33%, (b) PhCH2Br, aq. NaOH/CH2Cl2, sonication, r.t., 30 min, 94%, (c) AgNO3, tBuOH/water 9:1, r.t., 2.5 h, 35%, (d) aq.HCl/tBuOH, 55 °C, 20 min, quant, (e) HgCl2/CaCO3, AcCN, r.t., 2 h, 45%, (f) TFA, tBuOH/water, 15 h, r.t., 35%.
Molecules 28 08017 g027
Molecules 28 08017 g028
Figure 28. Changing the configuration of methionine from L to D using KOH base catalyst.
Figure 28. Changing the configuration of methionine from L to D using KOH base catalyst.
Molecules 28 08017 g028
Molecules 28 08017 g029
Figure 29. Epimerisation product in cyclisation step nocardiotide A.
Figure 29. Epimerisation product in cyclisation step nocardiotide A.
Molecules 28 08017 g029
Molecules 28 08017 g030
Figure 30. Mechanism of coupling reaction facilitated by coupling reagent HATU/HOAt.
Figure 30. Mechanism of coupling reaction facilitated by coupling reagent HATU/HOAt.
Molecules 28 08017 g030
Molecules 28 08017 g031
Figure 31. The difference in structure between OxymaPure and Oxyma-B.
Figure 31. The difference in structure between OxymaPure and Oxyma-B.
Molecules 28 08017 g031
Molecules 28 08017 g032
Figure 32. Structure of ynamides (MSMsA and MYTsA).
Figure 32. Structure of ynamides (MSMsA and MYTsA).
Molecules 28 08017 g032
Molecules 28 08017 g033
Figure 33. Epimerisation mechanism in histidine amino acid residue.
Figure 33. Epimerisation mechanism in histidine amino acid residue.
Molecules 28 08017 g033
Molecules 28 08017 g034
Figure 34. Structures of protected histidine.
Figure 34. Structures of protected histidine.
Molecules 28 08017 g034
Molecules 28 08017 g035
Figure 35. Comparison study of the epimerisation rate at C-Terminal Cys of protected peptide acid on the resin.
Figure 35. Comparison study of the epimerisation rate at C-Terminal Cys of protected peptide acid on the resin.
Molecules 28 08017 g035
Molecules 28 08017 g036
Figure 36. Copper(II)-mediated and classical peptide arylester synthesis and subsequent elongation.
Figure 36. Copper(II)-mediated and classical peptide arylester synthesis and subsequent elongation.
Molecules 28 08017 g036
Molecules 28 08017 g037
Figure 37. Epimerisation-free mechanism of 3 hydrosilane-mediated type coupling.
Figure 37. Epimerisation-free mechanism of 3 hydrosilane-mediated type coupling.
Molecules 28 08017 g037
Molecules 28 08017 g038
Figure 38. General steps for generation of peptide thioesters via Boc-based SPPS utilising special thioester linkers.
Figure 38. General steps for generation of peptide thioesters via Boc-based SPPS utilising special thioester linkers.
Molecules 28 08017 g038
Molecules 28 08017 g039
Figure 39. Native Chemical Ligation of peptide thioester Ac-AVGPPGVACOSR 3 h with N-terminal cysteine peptide CRFAS-NH2. HPLC/MS traces of peptide thioester 3 h and ligated product. SR ¼ S-(CH2)2-COOC2H5.
Figure 39. Native Chemical Ligation of peptide thioester Ac-AVGPPGVACOSR 3 h with N-terminal cysteine peptide CRFAS-NH2. HPLC/MS traces of peptide thioester 3 h and ligated product. SR ¼ S-(CH2)2-COOC2H5.
Molecules 28 08017 g039
Molecules 28 08017 g040aMolecules 28 08017 g040b
Figure 40. Ligation of peptide thioester Ac-GNSARKGRSNTFID-COSR 3Q with N-terminal cysteine peptide CPTGPRPNEPMWITY-NH2. MS of the ligated product. SR ¼ S-(CH2)2-COOC2H5.
Figure 40. Ligation of peptide thioester Ac-GNSARKGRSNTFID-COSR 3Q with N-terminal cysteine peptide CPTGPRPNEPMWITY-NH2. MS of the ligated product. SR ¼ S-(CH2)2-COOC2H5.
Molecules 28 08017 g040aMolecules 28 08017 g040b
Molecules 28 08017 g041
Figure 41. General route for the conversion of peptide hydrazide to peptide acid.
Figure 41. General route for the conversion of peptide hydrazide to peptide acid.
Molecules 28 08017 g041
Molecules 28 08017 g042
Figure 42. Analytical HPLC traces (210 nm) of (A) crude C-AhPDF 1.1b acid (1) using trityl(2-Cl) chloride resin and (B) crude C-AhPDF 1.1b hydrazide (2) using hydrazine-trityl(2-Cl) resin; * denotes the epimer of hydrazide 2.
Figure 42. Analytical HPLC traces (210 nm) of (A) crude C-AhPDF 1.1b acid (1) using trityl(2-Cl) chloride resin and (B) crude C-AhPDF 1.1b hydrazide (2) using hydrazine-trityl(2-Cl) resin; * denotes the epimer of hydrazide 2.
Molecules 28 08017 g042
Molecules 28 08017 g043
Figure 43. HPLC spectra in epimerisation study of microwave-assisted peptide synthesis. (A). Process flow diagram. Amino acid, activating agent, and DIEA are merged together using three HPLC pumps. (B). HPLC spectra of L-Cys and D-Cys residue. (C) Flow rate vs. %D dastereomer diagram of Cys residue. (D). HPLC spectra of L-His and D-His residue (E). Flow rate vs. %D dastereomer diagram of His residue.
Figure 43. HPLC spectra in epimerisation study of microwave-assisted peptide synthesis. (A). Process flow diagram. Amino acid, activating agent, and DIEA are merged together using three HPLC pumps. (B). HPLC spectra of L-Cys and D-Cys residue. (C) Flow rate vs. %D dastereomer diagram of Cys residue. (D). HPLC spectra of L-His and D-His residue (E). Flow rate vs. %D dastereomer diagram of His residue.
Molecules 28 08017 g043
Table 1. Comparison of the epimerisation percentage of several amino acids by EDC and DCC.
Table 1. Comparison of the epimerisation percentage of several amino acids by EDC and DCC.
Ala
(%)		Leu
(%)		Phe
(%)		Val
(%)		Ile
(%)
DCC/DCM10141859
EDC/DCM2525212229
DCC-HOBt/DMF0.86.0
EDC-HOBt/DMF2.09.0
Table 2. Epimerisation percentage during activation using EDC, EDC-HCl, and DIC in the presence of HOAt.
Table 2. Epimerisation percentage during activation using EDC, EDC-HCl, and DIC in the presence of HOAt.
ReagentPercentage
EDC/HOAt29.8
EDC-HCl/HOAt24.1
DIC/HOAt4.2
Table 3. Cyclic peptide mixtures, aspartic acid analogues, and their analysis by Marfey’s test.
Table 3. Cyclic peptide mixtures, aspartic acid analogues, and their analysis by Marfey’s test.
NoPeptideMixtureCoupling Agent; Cyclisation ReagentMass Spectra FABMS; LCMSD-Asp (%) Marfey’s Test (L-Asp)
1C(Xxx-D-Leu-Val-D-Pro-Asp)Xxx = Ala, Phe, Tyr, TrpBOP/HOBt; BOP/HOBt+; +30.0
2C(Xxx-D-Leu-Val-D-Pro-Asp)Xxx = Phe, Tyr, Trp, Nal Yyy = Gly, Ala, Val, LeuBOP/HOBt; BOP/HOBt+; +26.5
3C(Xxx-D-Leu-Val-D-Pro-Asp)Xxx = Ala, Phe, Tyr, TrpActive ester; HATU/HOAt+; +10.7
Table 4. Cyclisation studies.
Table 4. Cyclisation studies.
EntryCoupling ReagentBaseSolventpH convDiastereomeric
Ratio (D: L)
1
2
3
4		PyBOP/HOAt
PyBOP/HOAt
PyBOP/HOAt
DIPCDI/HOAt		-
DIEA
Collidine
DIEA		DMF-DCM
DMF-DCM
DMF
DMF-DCM		8 low
8 low
8 high
7		15:85
67:33
13:87
Table 5. Summary of yields and epimerisation rates for various peptide coupling conditions.
Table 5. Summary of yields and epimerisation rates for various peptide coupling conditions.
Coupling Condition
(Equiv)		 Fmoc-Ser(R)-OH, Where R =
TrtAc3GaINAcaAc4GaIb1-3Ac2GaINAcaAc3GlcNAcaAc3GlcNAcb
AAs: 2.5;
HATU/HOAt: 1.1/1.1;
NMM 2.2; 0/3 h in DMF		Yield %
(D/(D + L) %		75.1
0.8		69.1
5.1		83.9
4.3		100
7.7		69.0
8.1
AAs: 1.5;
HATU/HOAt: 1.2/1.2;
NMM 4.0; 0/8 h in DMF		Yield %
(D/(D + L) %		81.0
2.2		74.6
11.4		96.7
21.2		89.9
15.0		92.0
20.0
AAs: 3.3;
HATU/HOAt: 3.65/3.7;
DIPEA 7.22; 0/12 h in DMF		Yield %
(D/(D + L) %		98.9
0.2		99.4
0.8		83.0
65.6		100
72.5		1.95
2.0
AAs: 4.4;
HATU/HOAt: 4.4/0;
NMM: 8.8; 3/12 h in NMP		Yield %
(D/(D + L) %		63.4
37.6		99.4
69.8		83.0
65.6		100
72.5		1.9
52.0
AAs: 5;
HATU/HOAt: 6.25/6.25;
NMM: 12.5; 0/6 h in NMP		Yield %
(D/(D + L) %		98.4
2.9		99.4
5.2		98.8
6.5		99.5
8.1		95.2
9.7
Table 6. Epimerisation studies in Xaa*-Thi derivatives [36].
Table 6. Epimerisation studies in Xaa*-Thi derivatives [36].
ReactionTime (h)Yield (%)
Molecules 28 08017 i00112 h70
Molecules 28 08017 i00214 h51
(i) MsCl (1.1 eq.), NEt3 (2 eq.), THF (0.06 M), 0 °C–rt.
Table 7. Epimerisation ratio during activation in difference bases and solvents.
Table 7. Epimerisation ratio during activation in difference bases and solvents.
EntryBaseSolventpH Conv.Diastereomeric
Ratio (D:L)
1DIEADMF-DCM8 low15:85
2CollidineDMF-DCM8 low67:33
3DIEADMF8 high13:87
Table 8. Epimerisation ratio during activation in difference base.
Table 8. Epimerisation ratio during activation in difference base.
AmineXxx (%)
BaseEquivPheLeuVal
DIPEA12.4
DIPEA311.4
DIPEA23.72.51.7
Bu3N24.1
TEA25.3 2.4
NMP27.8
NMM29.68.72.7
NMM14.4
NMM315.0
Table 9. Level of epimerisation in the tripeptide deprotection step.
Table 9. Level of epimerisation in the tripeptide deprotection step.
Incubation SolutionLevel of Epimerisation (D-Peptide/L-Peptide) × 100
None1.39%
20% piperidine1.56%
5% piperazine + 2% DBU1.91%
5% piperazine + 1% DBU + 1% FA1.41%
Table 10. Effect of addition of DBU and/or formic acid on aspartimide and piperidide/piperazide formation in resin bound VKDGYI.
Table 10. Effect of addition of DBU and/or formic acid on aspartimide and piperidide/piperazide formation in resin bound VKDGYI.
Incubation SolutionRelative Yield %
Target PeptideD/L-AspartimidePiperidides or Piperazides
No treatment97.62.4n.d.
20% piperidine55.624.420.0
20% piperidine + 1% FA77.517.25.3
5% piperazine + 1% DBU9.213.777.1
5% piperazine + 1% FA82.87.2n.d.
5% piperazine + 1% DBU + 1% FA86.014.0n.d.
Table 11. Rate of epimerisation based on ring size.
Table 11. Rate of epimerisation based on ring size.
NoPeptide NameSequenceRing% D to L
1[1–8-NαC],[1-MetO2]-linusorb B1qMetO2-Leu-Val-Phe-Pro-Leu-Phe-Ile861.16%
2[1–9-NαC],[1-MetO2]-linusorb B2MetO2-Leu-Ile-Pro-Pro-Phe-Phe-Val-Ile920.48%
3[1–8-NαC],[1-(Rs,Ss)-MetO]-linusorb B1[(R,S)-MetO]-Leu-Val-Phe-Pro-Leu-Phe-Ile855.28%
4[1–9-NαC],[1-(Rs,Ss)-MetO]-linusorb B2[(R,S)-MetO]-Leu-Ile-ProPro-Phe-Phe-Val-Ile929.43%
Table 12. Data summary of Diastereoselective Excesses (deL) and kinetic constants for epimerisation (kr) of Phg residue at the N-terminal.
Table 12. Data summary of Diastereoselective Excesses (deL) and kinetic constants for epimerisation (kr) of Phg residue at the N-terminal.
VariablePhg-Ala-OHPhg-Val-OHPhg-Ala-Ser-NH-MePhg-Val-Ser-NH-MePhg-Ala-NH
deL (∞) (%)−13−42−1−16−15
krDL (10−5 s−1)0.540.190.50-3.9
krLL (10−5 s−1)0.700.460.51-5.3
Table 13. % D to L conversion of LOs.
Table 13. % D to L conversion of LOs.
LOArea under LOArea under% D to L Conversion
CurveCurve
2574.834831.12445.14
32314.179964.87729.43
41251.110322.22320.48
5767.89411227.04822.82
6411.13812508.1955.28
7319.42513502.88361.16
LOCodeAmino acid
sequence (NaC-)		Molecular formulaMW (Da)
1–9-NαC]-linusorb B3 (1)Ile-Leu-Val-Pro-Pro-Phe-Phe-Leu-IleC57H85N9O91040.34
[1–9-NαC]-linusorb B2 (2)Met-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O9S1058.38
[1–9-NαC],[1-(Rs,Ss)-MetO]-linusorb B2 (3)[(Rs,Ss)-MetO]-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O10S1074.38
[1–9-NαC],[1-MetO2]-linusorb B2 (4)MetO2-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O11S1090.38
[1–8-NαC]-linusorb B1 (5)Met-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O8S961.26
[1–8-NαC],[1-(Rs,Ss)-MetO]-linusorb B1 (6)[(Rs,Ss)-MetO]-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O9S977.26
[1–8-NαC],[1-MetO2]-linusorb B1 (7)MetO2-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O10S993.26
[1–9-NαC], DMet-linusorb B2 (8)DMet-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O9S1058.38
[1–9-NαC],[1-(Rs,Ss)-DMetO]-linusorb B2 (9)[(Rs,Ss)-DMetO]-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O10S1074.38
[1–9-NαC],[1-DMetO2]-linusorb B2 (10)DMetO2-Leu-Ile-Pro-Pro-Phe-Phe-Val-IleC56H83N9O11S1090.38
[1–8-NαC], DMet-linusorb B1 (11)DMet-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O8S961.26
[1–8-NαC],[1-(Rs,Ss)-DMetO]-linusorb B1 (12)[(Rs,Ss)-DMetO]-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O9S977.26
[1–8-NαC],[1-DMetO2]-linusorb B1 (13)DMetO2-Leu-Val-Phe-Pro-Leu-Phe-IleC51H76N8O10S993.26
Table 14. Racemisation studies on the solid-phase assembling of H-GlyAA-Phe-NH2 (where AA = Ser, Cys, Cys(Acm) or His).
Table 14. Racemisation studies on the solid-phase assembling of H-GlyAA-Phe-NH2 (where AA = Ser, Cys, Cys(Acm) or His).
EntryCoupling ModelCoupling ReagentDL/LL (%)
1H-Gly-Ser-Phe-NH2DIC/HOBt3.3
2DIC/HOAt0.4
3DIC/OxymaPure0.4
4DIC/Oxyma-B0.4
5H-Gly-Cys-Phe-NH2DIC/HOBt0.5
6DIC/HOAt0.4
7DIC/OxymaPure0.3
8DIC/Oxyma-B0.3
9H-Gly-Cys(Acm)-Phe-NH2DIC/HOBt0.4
10DIC/HOAt0.3
11DIC/OxymaPure0.3
12DIC/Oxyma-B0.3
13H-Gly-His-Phe-NH2DIC/HOBt1.1
14DIC/HOAt1.9
15DIC/OxymaPure3.0
16DIC/Oxyma-B1.0
Table 15. Coupling agent effect in minimising % epimerisation.
Table 15. Coupling agent effect in minimising % epimerisation.
Molecules 28 08017 i003
EntryCoupling ReagentAdditiveTimeYieldDr
1HBTUDIEA10 min90%82:18
2HATUDIEA10 min70%87:13
3PyBopDIEA10 min91%88:12
4DCC--10 min98%91:9
5DEPBTDIEA20 min61%99:1
6MYMsA--22 h99%100:0
7MYTsA--22 h94%100:0
Table 16. Epimerisation study in DBAA mediated coupling agent SPPS.
Table 16. Epimerisation study in DBAA mediated coupling agent SPPS.
Molecules 28 08017 i004
EntryPGR1R2YieldDe (%)
1BocGlyBn8899
2FmocGlyEt8199
3CbzAlatBu7999
4BocLeuMe9999
5CbzLeuMe9899
6BocIleMe9698
7FmocIleMe7498
8BocValMe9999
9CbzValMe8899
10BoctBuMe9798
11BocMe2Bn2193
12Boc(N-Me) GlyBn4796
13CbzTyr (O-tBu)Me7999
14BocTyr (O-tBu)Me8599
15FmocTyr (O-tBu)Me7999
16FmocTyrMe6898
17BocAsp (O-tBuMe9799
18FmocTrpMe7996
19BocLys (Boc)Me9996
20BocArg (Pbf)Me7299
21BocHis (Trt)Me6498
22BocMet (Me)Me8199
23BocCys (Bn)Me7599
Table 17. Epimerisation study in Copper(II)-mediated Chan–Lam-type coupling.
Table 17. Epimerisation study in Copper(II)-mediated Chan–Lam-type coupling.
Molecules 28 08017 i005
EntryPeptide AcidR = SMeR = SO2Me
Yield (%)de (%)Yield (%)de (%)
1Boc-Trp-Phe-OH57n.d. *--
2Boc-Phe-Phe-OH7799.99799.9
3Boc-Phe-D-Phe-OH7599.9quant99.9
4Boc-Phe-Phg-OH7099.9quant99.9
5Boc-Phe-D-Phg-OH7399.99599.9
6Boc-Phe-Val-OH68n.d.quantn.d.
7Boc-Trp(Boc)-Val-OH70n.d.quantn.d.
8Boc-Phe-Ala-OH83n.d.quantn.d.
9Boc-Asp-(tBu)-Phe-Phe-OH55n.d.quantn.d.
* n.d: not detected.
Table 18. Epimerisation study in an organic salt additive coupling condition.
Table 18. Epimerisation study in an organic salt additive coupling condition.
Inorganic Additive (Equiv.)Z-I-Ala-D-Phe-Gly-OBzl (%)Z-I-Ala-D-Phe-Gly-OH (%)
0.5120.512
None 3.0 2.7
LiCl2.71.25.42.01.04.8
NaI1.7<1.02.42.21.54.8
RbClO41.5<1.01.82.7<1.01.6
CsF3.32.55.23.02.75
Mg(ClO4)24.03.55.44.746.6
CaCl23.62.84.24.33.05.7
BaI23.73.05.24.34.06
BF3gt;Et2O1.6<1.01.42.0<1.01.7
ZnCl22.4<1.03.12.0<1.03.0
SnCl41.8<1.02.11.5<1.02.2
AlCl31.8<1.01.51.4<1.01.2
CdI22.32.02.73.01.63.4
CuCl2<0.1<0.1<0.1<0.1<0.1<0.1
Table 19. Screening of silylating reagents in the peptide bond-forming reaction.
Table 19. Screening of silylating reagents in the peptide bond-forming reaction.
Molecules 28 08017 i006
Entry[Si]-ReagentYield of 1 (%)dr
1ClSi(OEt)34397:3
2Si(OCH2CF3)453>99:1
3Si(OCH(CF3)2)466>99:1
4HSi(OCH2CF3)363>99:1
5HSi(OCH2CCl3)353>99:1
6HSi(OCH(CF3)2)378>99:1
7HSi(OCH2CF2CHF2)353>99:1
8HSi(OCH(CF3)2)395>99:1
Table 20. Epimerisation study of ball-milling-assisted peptide containing PhG peptide.
Table 20. Epimerisation study of ball-milling-assisted peptide containing PhG peptide.
Molecules 28 08017 i007
EntryReagentTemperature (°C)Time, t (min)Yield (%)Purity (%)LDL (%)
1EDC.HCl/Oxyma33 (33)10 (30) 93(88)>99 (32)<1 (9)
2EDC.HCl/HOBt.H2O34 (34)10 (30)90 (90)70 (48)25 (35)
3EDC.HCl/HOAt34 (34)10 (30)88 (90)95 (59)<1 (26)
4DIC/HOAt30 (31)10 (40)n.d (n.d)67 (39)17 (33)
5DIC/Oxyma31 (31)10 (40)n.d (n.d)46 (<10)<1 (n.d)
6HATU/Et3N34 (34)10 (60)85 (88)88 (58)1 (<1)
7HBTU/Et3N33 (33)10 (20)86 (82)71 (55)2 (9)
8EDC.HCl/Oxyman.d3096>99<1
Table 21. Crude product purity measured by LC-MS and racemisation of amino acids measured by GC-MS after hydrolysis of VYWTSPFMKLIHEQCNRADG-NH2 with 6 N DCl/D2O.
Table 21. Crude product purity measured by LC-MS and racemisation of amino acids measured by GC-MS after hydrolysis of VYWTSPFMKLIHEQCNRADG-NH2 with 6 N DCl/D2O.
Amino AcidSynthesis Condition
Conventional
HBTU/DIPEA
in DMF		Microwave
HBTU/HOBT
in DMF (80 °C)
D-Asp 1.19No detection
D-Ala0.21No detection
D-Arg0.18No detection
D-Cys1.09<1.14
D-Glu1.46No detection
D-His0.650.67
D-Ile<0.1No detection
L-allo Ile<0.1No detection
D-allo Ile<0.1No detection
D-Leu0.17No detection
D-Lys0.1No detection
D-Met0.48No detection
D-Phe0.28No detection
D-Pro<0.1No detection
D-Ser0.46No detection
D-Thr<0.1No detection
L-allo Thr<0.1No detection
D-allo Thr<0.1No detection
D-Trp0.19No detection
D-Tyr0.42No detection
D-Val<0.1No detection
Crude product purity68.4%84.0%
Synthesis time (h)23.310.1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Duengo, S.; Muhajir, M.I.; Hidayat, A.T.; Musa, W.J.A.; Maharani, R. Epimerisation in Peptide Synthesis. Molecules 2023, 28, 8017. https://doi.org/10.3390/molecules28248017

AMA Style

Duengo S, Muhajir MI, Hidayat AT, Musa WJA, Maharani R. Epimerisation in Peptide Synthesis. Molecules. 2023; 28(24):8017. https://doi.org/10.3390/molecules28248017

Chicago/Turabian Style

Duengo, Suleman, Muhamad Imam Muhajir, Ace Tatang Hidayat, Weny J. A. Musa, and Rani Maharani. 2023. "Epimerisation in Peptide Synthesis" Molecules 28, no. 24: 8017. https://doi.org/10.3390/molecules28248017

Article Metrics

Back to TopTop
