Article

Photocatalytic Oxygen Evolution under Visible Light Mediated by Molecular Heterostructures

by
Zhaoqi Shen
1,
Yujie Zhang
1,
Guang Zhang
2,* and
Shiyong Liu
1,*
1
School of Metallurgy and Chemical Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China
2
Department of Chemistry, Tianjin University, Tianjin 300072, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(22), 7500; https://doi.org/10.3390/molecules28227500
Submission received: 27 September 2023 / Revised: 6 November 2023 / Accepted: 6 November 2023 / Published: 9 November 2023
(This article belongs to the Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

:
Due to their structural and property tunability, semiconductive conjugated polymers (CPs) have emerged as promising candidates for photocatalytic water splitting. Compared with inorganic materials, the photocatalytic performance of mono-component polymers was limited by the fast recombination of photoexcited charge carriers, and they always needed to catch up to expectations. To this end, researchers established molecular donor–acceptor heterostructures, which could notably promote oxygen production efficiency due to their more effective charge carrier separation. In this work, easy Schiff base reactions between side-chain -CHO groups and terminal -NH2 groups were used to introduce benzene and perylene diimide (PDI) into the molecular heterostructure to serve as electron donors (D) and electron acceptors (A). In particular, for the first time, we employed the molecular heterostructures of CPs to promote photocatalytic O2 production. One prepared molecular heterostructure was demonstrated to improve oxygen generation rate (up to 0.53 mmol g−1 h−1) through visible light-driven water splitting. Interestingly, based on the photoelectric properties, a stepwise two-electron/two-electron pathway constituted the photocatalytic mechanism for oxygen production with the molecular heterostructure. These results provide insights into designing and fabricating high-performance molecular heterostructures for photocatalytic oxygen production.

Graphical Abstract

1. Introduction

The solid worldwide energy dependence on non-renewable fossil fuels has triggered severe social and environmental problems, such as the energy crisis and global warming [1,2,3,4,5,6]. Motivated by natural photosynthesis, artificial photocatalytic systems provide promising routes to resolve energy-related problems by harnessing sunlight [7,8,9,10]. In 1980, inorganic materials (TiO2 electrodes) were, for the first time, reported to mediate the photoelectrochemical-induced water splitting into hydrogen and oxygen [11]. Until now, inorganic materials have been the most widely studied photocatalysts because of their high stabilities and charge carrier mobilities [12]. Compared with inorganic materials, conjugated polymers exhibit their specific advantages as another kind of photocatalyst [13,14,15,16,17,18]. For example, polymers are mainly composed of naturally abundant lightweight elements (i.e., C, N, O, and S, etc.), and both the architectures and properties of polymers could be easily tailored by delicate structure design [19]. However, most mono-component polymers suffer from low solar-to-oxygen conversion efficiencies due to the fast recombination of photogenerated charge carriers [20,21]. Thus, exploiting the diversity of polymer structures to develop novel CPs with efficient photocatalytic properties is extremely important [10].
For inorganic materials, the heterojunction composed of two kinds of semiconductors with staggered absorption bands was demonstrated to expand the light absorption range and enhance the charge carrier mobility and separation efficiency, which, therefore, could further improve the conversion efficiency of solar energy [22,23,24,25]. As such, similarly, polymer heterojunctions [26,27,28,29,30] were constructed to optimize light absorption and enhance exciton dissociation. For example, Shen et al. [31] developed three polymer heterojunctions composed of fluorene-based polymers and g-C3N4, which achieved an AQY of 27% under 440 nm of light irradiation. Li et al. first constructed molecular heterostructures based on covalent triazine frameworks (CTFs) via a sequential polymerization strategy to produce H2. Molecular heterostructures of electron-accepting benzothiadiazole and electron-donating thiophene moieties showed much better photocatalytic properties than single-component polymers [32]. Photophysical and electrochemical characterizations indicated that, compared to mono-component polymers, the efficient charge separation with the molecular heterostructures can be more readily fabricated in principle by incorporating donor and acceptor units into different polymers’ skeletons [32].
Herein, we developed a new polymer-based molecular heterostructure and explored its structure–property relationship associated with light-induced water splitting into oxygen. As reported in [33], Zhu et al. disclosed that the crystalline perylene diamide (PDI)-functionalized polymer (Urea-PDI) mediated active oxygen production without cocatalysts, with a high oxygen evolution rate (3223.9 μmol h−1 g−1) which was over 107.5 times as high as those of PDI-based supramolecular photocatalysts under visible light. We first synthesized PDI-based mono-component conjugated polymers (BPDI) via imide condensation [34] between p-phenylenediamine and 3,4,9,10-perylenetetracarboxylic acid anhydride. BPDI exhibited subtle photoactivity for O2 production in water/DMF solution under visible light irradiation due to the deficient thermodynamic driving force. Then, 2,5-Dibromoterephthalaldehyde with 3,4-ethoxylene dioxy thiophene, benzene, and dibenzothiophene sulfone groups used to prepare the precursors was named BEDOT, BB, and BSO, respectively. Interestingly, three corresponding molecular heterostructures formed when three linear polymers (BEDOT, BB, and BSO) were covalently linked with BPDI by an aldimine condensation reaction. The enhanced photocatalytic properties of the targeted molecular heterostructures were attributed to the intrinsic merits of the molecular heterostructures, e.g., light absorption, photoluminescence (PL), transient photocurrent response, and charge carrier mobilities. Via delicate design of the precursors, the staggered band alignments of the molecular heterostructure could optimize the energy gaps of polymers to provide both broad photoresponse and enough driving force for light-induced water splitting. On the other hand, the abundant inter- and intramolecular donor-acceptor (D–A) interactions and highly conjugated backbones of the molecular heterostructures could effectively enhance charge carrier mobility and separation efficiency, which were pivotal for enhancing photocatalytic performance. The prepared heterostructure BB/BPDI exhibited remarkable oxygen production rates of 0.53 mmol h−1 g−1 under visible light irradiation. This work demonstrates that molecular heterostructure is an efficient strategy to improve the photoactivities of conjugated polymers and provides insights into the design of high-performance photocatalysts in different fields.

2. Results and Discussions

2.1. Synthesis and Characterizations

According to reported procedures, both linear conjugated polymers (BSO and BB) were synthesized via Suzuki–Miyaura coupling between 2,5-dibromoterephthalaldehyde and diboronic acid of the aromatic cores ((5,5-dioxidodibenzo[b,d]thiophene-3,7-diyl)diboronic acid and 1,4-phenylenediboronic acid). BEDOT was prepared via Pd-catalyzed direct C-H arylation polymerization (DArP) between 3,4-ethoxylene dioxy thiophene (EDOT) and 2,5-dibromoterephthalaldehyde, with an equivalent feed ratio. For synthesizing molecular heterostructures, the BPDI was incorporated into BEDOT, BB, and BSO via Schiff base reaction (Scheme 1). Here, PDI and dibenzo[b,d]thiophene-5,5-dioxide were employed as electron-withdrawing units, while EDOT and benzene were used as substantial electron donors and weak electron donors, respectively. All polymers precipitated during the reaction were insoluble in common organic solvents, e.g., MeOH, toluene, tetrahydrofuran, CH2Cl2, and CHCl3.
The Fourier transform infrared (FT-IR) spectra (Figure 1a) of the resultant CPs revealed evident signals in the spectrum. The two prominent characteristic bands observed at 1770 and 1742 cm−1 were attributed to the carbonyl group’s asymmetric and symmetric stretching, respectively. The -CHO groups of the three precursors (BB, BSO, and BEDOT) were observed at 1690 cm−1. Specifically, for BPDI, the characteristic band belonging to amic acid intermediate product was observed at around 1663 cm−1, which also could be found in the other three molecular heterostructures [35]. The FT-IR spectra (Figure S1) of monomers and polymers provides additional evidence. Meanwhile, the band around 1351 cm−1 was assigned to the -C-N-C- in the PDI units. In addition, for BSO and BSO/BPDI, the characteristic signals at around 1157 cm−1 belong to the O=S=O group, which is not found in others [36]. Interestingly, these corresponding signals were also exhibited in the structure curve of molecular heterostructures and were consistent with our expectations, confirming the proposed structures. Solid state 13C cross-polarization magic-angle-spinning nuclear magnetic resonance spectra (Figure 1b) of polymers presented a broad peak from 110 ppm to 150 ppm, which was assignable to the signals of aromatic carbons [37]. The characteristic C=O signals from PDI units in BPDI and BB/BPDI were located at 162 ppm, and the 13C signal of aldehyde groups appeared at around 192 ppm. Their co-presence in the molecular heterostructure of BB/BPDI indicated the successful introduction of both functional segments in the heterostructure skeleton. Moreover, the results of transmission electron microscopy (TEM) and scanning electron microscopy (SEM) (Figures S2 and S3) showed that the morphologies of the linear BEDOT, BB, and BSO polymers exhibited similar stacked sheets, which indicates that the three linear polymers have a similar structure arrangement at the microscale level. Furthermore, BPDI exhibited a distinct morphology that appeared as aggregated nanoparticles. Interestingly, all of these molecular heterostructures demonstrated a composite appearance, encompassing stacked sheet and aggregated nanoparticle structures. This consistent feature also indicates that the molecular heterostructure could be prepared by the method of this study.

2.2. Photophysical and Electrochemical Properties

We also characterized the optical properties and analyzed the electrochemical properties of mono-component linear polymers and the molecular heterostructures. The UV-vis diffuse reflection spectroscopy (Figure 2a) of BEDOT, BB, and BSO exhibited absorption edges at 500 nm, 540 nm, and 600 nm, respectively, whereas that of BPDI and molecular heterostructures had broader light adsorption up to ~700 nm. Compared with the pristine (BEDOT, BB, and BSO) polymers, all of the molecular heterostructures exhibited broader absorption. The optical bandgap (Eg) was calculated according to the absorption onsets of UV-vis absorption by plotting (αhν)2 against hν based on the Kubelka–Munk function. Cyclic voltammetry (CV, Figure S4a) was carried out to provide the lowest unoccupied molecular orbital (LUMO) levels, and the highest occupied molecular orbital (HOMO) levels were calculated from the difference between the Eg and the LUMO level. As shown in Figure 2b, BEDOT, BB, and BSO manifested appropriate HOMOs to offer sufficient thermodynamic driving forces to mediate a light-driven oxygen evolution half-reaction. The HOMO level of BPDI can only produce oxygen via a four-electron pathway rather than the stepwise two-electron/two-electron pathway [10]. The reduction in the bandgap of the polymer is a well-known prerequisite for achieving a broader light absorption region. However, to drive efficient photocatalytic reactions, it is crucial to have adequate thermodynamic driving forces. With the charge transfer between the donor unit (benzene) and the acceptor unit (PDI), this staggered band alignment enabled the BB/BPDI to effectively absorb visible light and offer sufficient thermodynamic driving forces from the LUMO of BB.
Steady-state photoluminescence (PL) spectroscopy (Figure 3a) was used to gain insight into the capabilities of all polymers and probe their internal electron transfer dynamics. The light emission spectra of BEDOT, BB, and BSO exhibited a strong peak at 604 nm, 531 nm, and 530 nm, respectively, due to the fast recombination of the photogenerated electron and hole. In contrast, the PL intensities of the molecular heterostructures were quenched, and those molecular heterostructures exhibited similar PL intensities. The attenuated PL intensities of molecular heterostructures compared with mono-component linear polymers reflected that the photogenerated charge recombination in the molecular heterostructures was notably charge-suppressed [38]. Compared with mono-component linear polymers with D-A effects, molecular heterostructures with intermolecular D-A effects were designed to establish enhanced charge separation performance, which was attributed to the covalent bridge limiting the recombination of excitons between the donor units and acceptor units [32].
In addition, photocurrent measurements (Figure 3b) and electrochemical impedance spectra (Figure S4b) were performed. As shown in Figure 3b, the molecular heterostructures possessed much higher photocurrent densities than the linear CPs (BEDOT, BB, and BSO). In addition, the charge carrier density of BEDOT/BPDI was estimated to be higher than that of BSO/BPDI, which was attributed to the electron push–pull effect between the donor and acceptor along the conjugate skeleton. BB/BPDI exhibited the highest current intensity at 0.84 μA cm−2. These results indicate that the molecular heterostructures with intermolecular D-A effects could effectively improve photogenerated charge carrier transfer. Electrochemical impedance spectroscopy (EIS) also evidenced that BB/BPDI had a more negligible interfacial charge transfer resistance than BSO/BPDI and BEDOT/BPDI. The above results confirm that the efficient charge carrier transfer across the covalently limited molecular heterostructure was one of the decisive keys for the tremendous photocatalytic performance.

2.3. Photocatalytic Performances

The photocatalytic O2 evolution capabilities of the as-prepared polymers were evaluated using AgNO3 as an electron scavenger and La2O3 as a pH buffer agent under visible light irradiation. Approximately 2 wt% of cobalt cocatalyst was photodeposited in situ on the surfaces of the photocatalysts via a facile blending strategy. The control experiment was without any photocatalysts and did not produce any oxygen, and the other control experiments were also shown in Table 1. The physical mixture of BB and BPDI, as depicted in Table 1, exhibited the subtly oxygen production rate under visible light. This phenomenon highlights the crucial role of molecular heterostructures with covalent bridges in promoting visible light-induced oxygen generation. In addition, by increasing or decreasing the BPDI ratio x in BB/BPDI to synthesize BB/BPDI-2 (x = 2) and BB/BPDI-0.5 (x = 0.5), both B-B/BPDI-2 and B-B/BPDI-0.5 showed prominent activity decreases under similar conditions. Unfortunately, the oxygen evolution rates of BPDI, BEDOT, BB, and BSO were not found, which could be attributed to the rapid charge recombination or insufficient thermodynamic driving force. In particular, the rare photocatalytic activity of BPDI indicated that the mechanism for photocatalytic water splitting into oxygen was a stepwise two-electron/two-electron pathway [10]. Figure 4a presents the time-dependent hydrogen evolution curves, displaying a linear increase versus time for BEDOT/BPDI, BB/BPDI, and BSO/BPDI over five hours. Additionally, the normalized efficiencies for light-induced water splitting into oxygen, calculated by normalizing the photocatalyst weights, are listed in Figure 4a (left Y axis). The molecular heterostructures BEDOT/BPDI and BSO/BPDI exhibited average photocatalytic activities of 0.31 and 0.08 mmol g−1 h−1, respectively. The correctly hybridized BB/BPDI exhibited an improved photocatalytic activity, with a maximum oxygen production value of 0.53 mmol g−1 h−1 due to the excellent charge mobility and charge separation efficiency. It agrees with our preliminary optical and electrochemical results for the molecular heterostructures.
The recycling stability of BB/BPDI was evaluated in the paper. A continuous photocatalytic reaction was conducted for 20 h, with intermittent evacuation every 5 h under visible light irradiation. To ensure the consistency of the photocatalyst system, the exact amounts of AgNO3 and La2O3 were added to the reaction mixture every cycle. As shown in Figure 4b, the photocatalytic system maintains its continuous stability for each photocatalytic cycle. Even after 20 h, only a marginal decline was observed in the oxygen evolution rate (OER) during the four consecutive cycles. One interesting observation was that after the photocatalyst reaction, the black particles appeared at the bottom of the reactor after 10 min, which could be attributed to the sacrificial agent AgNO3 being reduced to form Ag nanoparticles during oxygen production. While the phenomenon might have affected the absorption of visible light by the photocatalyst, it did not significantly impact its stability or efficiency.
Based on the previous reports [11,39,40], a photocatalytic mechanism with the stepwise two-electron/two-electron pathway is proposed for the molecular heterostructures (Figure 5). When the photon energy equals the bandgap of the polymer photocatalyst, photoinduced e−-h+ pairs are produced and separated. Then, the photogenerated electrons and holes from electron donors and electron acceptors can be promptly recombined via the charge transfer along the covalent bridge. In contrast, the remaining photogenerated holes and electrons retain separated counterparts to drive water-splitting reactions. Meanwhile, the covalent bridge of molecular heterostructures is a medium in which charge is carried along by the polymer skeleton, which also can limit the recombination of charge in the electron donor. The remaining holes and electrons further diffuse to the surface and migrate to the active sites, i.e., the photocatalyst/water interface. The photogenerated h+ is captured by adsorbed H2O to generate · OH and H+ at the active sites. The hydroxyl radicals play a crucial role in further forming the primary intermediate (H2O2) to promote the photocatalytic water splitting. The generated H2O2 dissociates into H2O and O2 via the simultaneous two-electron redox reaction. Co-species as metal co-catalysts can effectively appeal charge transfer to the sacrificial agent (AgNO3), promoting photocatalytic water splitting to generate O2 rather than H2 exclusively. Then, AgNO3 sequentially consumes the generated electrons to produce the Ag particles, limiting intramolecular and intermolecular charge recombination.

3. Materials and Methods

3.1. Chemicals and Materials

2,5-dibromoterephthalaldehyde, Benzene-1,4-diboronic acid, 3,4-ethylenedioxythiophene, p-Phenylenediamine, 3,4,9,10-Perylenetetracarboxylic Dianhydride (PDI), 3,7-Dibromodibenzothiophene-5,5-Dioxide, Bis(pinacolato)diboron, Tetrahydroxydiboron, 1,1′-Bis(diphenylphosphino)ferrocene-palladium(II)dichloride dichloromethane complex, Pd(PPh3)4, Pd2(dba)3 (98%), Zn(OAc)2 (99%), PivOH (99%), KOAc (99.9%), K2CO3 (99.9%), Cs2CO3 (99.9%), P(o-MeOPh)3 (98%), and anhydrous 1,4-Dioxane were purchased from commercial sources and used without further purification. Anhydrous toluene was obtained via distillation following treatment with calcium hydride.

3.2. Synthesis of All Polymers

Synthesis of 3,7-bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)dibenzo[b,d]thiophene 5,5-dioxide was conducted as follows: 3,7-Dibromodibenzothiophene-5,5-Dioxide (2.673 mmol, 1000 mg), Bis(pinacolato)diboron (5.868 mmol, 1490 mg), 1,1′-Bis(diphenylphosphino)ferrocene-palladium(II)dichloride dichloromethane complex (0.160 mol, 131 mg), and KOAc (1570 mg) were added into a Schlenk tube and sealed under vacuum. A total of 40 mL anhydrous 1,4-Dioxane was added to the tube and degassed three times via the freeze–pump–thaw cycle. Then, the tube was rigorously stirred at 100 °C for 32 h under an argon atmosphere. After cooling to room temperature, the undissolved crude product was purified by soxhlet extraction using CH2Cl2, methanol, and water to obtain the solid powder. Finally, the product was dried in a vacuum for 10 h at 60 °C and powders of polymer BPDI were obtained, respectively.
Synthesis of BPDI was conducted via the synthetic procedures as follows. p-Phenylenediamine (60.64 mg, 1.1 eq), 3,4,9,10-Perylenetetracarboxylic Dianhydride (200 mg, 0.5102 mmol, 1 eq), and Zn(OAc)2 (40 mg) were added into a Schlenk tube and sealed under vacuum. A total of 8 mL quinoline was added to the tube and degassed three times via the freeze–pump–thaw cycle. Then, the tube was rigorously stirred at 120 °C for 72 h under an argon atmosphere. After cooling to room temperature, the undissolved crude product was purified by soxhlet extraction using CH2Cl2, methanol, and water to obtain the solid powder. Finally, the product was dried in a vacuum for 10 h at 60 °C and powders of polymer BPDI were obtained respectively.
Synthesis of BSO and BB was conducted as follows: diboronic acid of the aromatic cores (3,7-bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)dibenzo[b,d]thiophene 5,5-dioxide, 1 eq, 0.685 mmol, 320.7 mg; Benzene-1,4-diboronic acid, 1 eq, 0.685 mmol, 113.5 mg), 2,5-dibromoterephthalaldehyde (1 eq, 200 mg), K2CO3 (3 eq, 283.6 mg), and Pd(PPh3)4 (0.05 eq, 39.6 mg) were added into a Schlenk tube and sealed under vacuum. The solvent was added to the tube (10 mL DMF and 1 mL H2O) and degassed three times via the freeze–pump–thaw cycle. Then, the tube was rigorously stirred at 120 °C for 72 h under an argon atmosphere. After cooling to room temperature, the undissolved crude product was purified by soxhlet extraction using CH2Cl2, methanol, and water to obtain the solid powder. Finally, the product was dried in a vacuum for 10 h at 60 °C and powders of polymer BSO and BB were obtained.
Synthesis of BEDOT was conducted as follows [41,42,43]: 3,4-ethylenedioxythiophene (1 eq, 0.685 mmol, 97.4 mg), 2,5-dibromoterephthalaldehyde (1 eq, 200 mg), Pd2(dba)3 (0.02 eq, 12.5 mg), Cs2CO3 (2 eq, 446.5 mg), P(o-MeOPh)3 (0.04 eq, 9.7 mg), and PivOH (0.3 eq, 21.0 mg) were added into a Schlenk tube and sealed under vacuum. A total of 10 mL anhydrous toluene was added to the tube and degassed three times via the freeze–pump–thaw cycle. Then, the tube was rigorously stirred at 110 °C for 48 h under an argon atmosphere. After cooling to room temperature, the undissolved crude product was purified by soxhlet extraction using CH2Cl2, methanol, and water to obtain the solid powder. Finally, the product was dried in a vacuum for 10 h at 60 °C and powders of polymer BEDOT were obtained.
Synthesis of BEDOT/BPDI, BSO/BPDI, and BB/BPDI was conducted via the synthetic procedures as follows. BPDI (100 mg, 1 eq) and another precursor (BEDOT, 1 eq, 60 mg; BB, 1 eq, 46.7 mg; BSO, 1 eq, 75.4 mg) were added to the tube and sealed under vacuum. A total of 5 mL 1-Butanol was added to the tube under an argon atmosphere and then rigorously stirred at 100 °C for 24 h. After cooling to room temperature, the undissolved crude product was purified by soxhlet extraction using CH2Cl2, methanol, and water to obtain the solid powder. The product was dried in a vacuum for 10 h at 60 °C and powders of polymer BEDOT/BPDI, BB/BPDI, and BSO/BPDI were obtained.

3.3. Characterization

All CPs were degassed at 60 °C for 12 h under vacuum (10–5 bar) before analysis. Unless otherwise specified, solid state 13C cross-polarization magic-angle-spinning nuclear magnetic resonance spectra were carried out on a Bruker Avance 400 model 400 MHz NMR spectrometer at a MAS rate of 10 kHz or were recorded on a Bruker AV200 spectrometer at 200 MHz and 50 MHz at room temperature. Infrared spectral measurement was carried out by making polymers with a KBr sheet on an FT-IR spectrometer (Bruker, ALPHA, Billerica, MA, USA) in transmission mode at room temperature. Morphologies of the polymers were obtained using a field emission scanning electron microscope (SEM, MLA650F, Rock Hill, SC, USA) and transmission electron microscope (TEM, Tecnai G2-20, Peabody, MA, USA).
The UV-vis diffuse reflection spectrum was obtained by means of a scanning UV-vis spectrophotometer (UV-2600, SHIMADZU, Kyoto, Japan) and BaSO4 as a reflectance sample. The photoluminescence of the polymers was measured with a fluorescence spectrometer (FL-1000, HORIBA, Shanghai, NJ, USA), with an excitation of 450 nm at room temperature. The photocurrents and cyclic voltammetry (CV) measurements were recorded using an electrochemical workstation (CHI650E/700E, CH Instruments Ins., Shanghai, China) in a conventional three-electrode cell. In this setup, a saturated calomel electrode (SCE) served as the reference electrode, while an Ag/AgCl electrode functioned as the counter electrode. The electrodes for photocurrents and CV measurements were immersed in a sodium sulfate electrolyte solution (0.1 M) and tetrabutylammonium hexafluorophosphate in acetonitrile (0.1 M), respectively. To simulate realistic photocatalytic reaction conditions, we employed a light source from Beijing Perfect Light, Beijing, China (PLS-SXE300) to induce the photocurrents of the photocatalyst. The measurement was conducted with a scan rate of 100 mV s−1 within the range of −1.6 to 1.6 V.

3.4. Measurement of Photocatalytic Activity

The hydrogen evolution experiments were performed on a LabSolar-III AG reaction cell (Beijing et al.). Typically, 6 mg of the photocatalyst was suspended in 30 mL H2O, 6 mL DMF, 25.6 mg AgNO3, and 31.5 mg La2O3, and two wt% Co(NO3)2 aqueous solution was added to this solution. The suspension was degassed to remove air and filled with N2. During the photocatalytic reaction, the polymers were irradiated by visible light (Beijing Perfect Light, Beijing, China, PLS-SXE300) from the light source (300 W Xe lamp). All of the gas was detected via online gas chromatography (GC9790, Zhejiang Fuli Analytical Instruments Corp., Wenling, China) at room temperature.

4. Conclusions

In conclusion, several molecular heterostructures composed of conjugated polymers were successfully prepared via the Schiff base reaction. The resultant BB/BPDI exhibited a much improved charge carrier separation efficiency, owing to its intermolecular D-A effects and the covalent bridge across the heterojunction. Most impressively, BB/BPDI mediated to have a remarkable oxygen production rate of 0.53 mmol g−1 h−1 under visible light irradiation, which was approximately higher than those of BEDOT/BPDI and BSO/BPDI. No oxygen was detected when the bare single-component linear conjugated polymers (BPDI, BB, BEDOT, and BSO) were applied. The molecular heterostructures with covalent bridges and intramolecular D-A interactions could improve the charge carrier transfer and separation. Based on the staggered bandgap alignment of the band segment, the stepwise two-electron/two-electron pathway was proposed to explain the photocatalytic mechanism. Our study provides insight into the materials’ rational design for efficient solar energy conversion. Additionally, the structural diversity of molecular heterostructures offers enormous potential for other photocatalytic fields, such as photocatalytic hydrogen evolution, organic transformations, or CO2 reductions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28227500/s1, Figure S1: FT-IR spectrum of monomers, BB, BPDI and BB/BPDI. Figure S2: SEM images of the BPDI (a), BB (b), and BB/BPDI (c); TEM images of the BPDI (d), BB (e), and BB/BPDI (f). Figure S3: SEM images of the BEDOT (a), BEDOT/BPDI (b), BSO (c), BSO/BPDI (d). Figure S4: (a) CV curve of BSO, BB, BEDOT, and BPDI; (b) The electrochemical impedance spectra of BSO, BB, BEDOT, BPDI, BSO/BPDI, BB/BPDI, and BEDOT/BPDI.

Author Contributions

Z.S.: writing—original draft, investigation, conceptualization, and data curation. Y.Z.: synthesis of BEDOT, BB, and BSO. G.Z.: formal analysis, and writing—review and editing. S.L.: conceptualization, supervision, formal analysis, funding acquisition and writing—review. All authors have read and agreed to the published version of the manuscript.

Funding

The National Natural Science Foundation of China (No. 22169009) and the Jiangxi Provincial Natural Science Foundation (No. 20212ACB204007) are appreciated for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fang, S.; Hu, Y.H. Recent progress in photocatalysts for overall water splitting. Int. J. Energy Res. 2019, 43, 1082. [Google Scholar] [CrossRef]
  2. Wageh, S. Light emitting devices based on CdSe nanoparticles capped with mercaptoacetic acid. IEEE J. Quant. Electron. 2014, 50, 1. [Google Scholar] [CrossRef]
  3. Chen, Z.; Yan, Y.; Lu, C.; Lin, X.; Fu, Z.; Shi, W.; Guo, F. Photocatalytic Self-Fenton System of g-C3N4-Based for Degradation of Emerging Contaminants: A Review of Advances and Prospects. Molecules 2023, 28, 5916. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, B.; Lu, S.; Qian, Y.; Zhang, X.; Tian, J. Recent progress in research and design concepts for the characterization, testing, and photocatalysts for nitrogen reduction reaction. Carbon Energy 2023, 5, 305. [Google Scholar] [CrossRef]
  5. Xue, Y.; Ma, C.; Yang, Q.; Wang, X.; An, S.; Zhang, X.; Tian, J. Construction of g-C3N4 with three coordinated nitrogen (N3C) vacancies for excellent photocatalytic activities of N2 fixation and H2O2 production. Chem. Eng. J. 2023, 457, 141146. [Google Scholar] [CrossRef]
  6. Hayat, A.; Sohail, M.; Hamdy, M.S.; Taha, T.A.; AlSalem, H.S.; Alenad, A.M.; Amin, M.A.; Shah, R.; Palamanit, A.; Khan, J.; et al. Fabrication, characteristics, and applications of boron nitride and their composite nanomaterials. Surf. Interf. 2022, 29, 101725. [Google Scholar] [CrossRef]
  7. Barber, J. Photosynthetic energy conversion: Natural and artificial. Chem. Soc. Rev. 2009, 38, 185. [Google Scholar] [CrossRef] [PubMed]
  8. McConnell, I.; Li, G.; Brudvig, G.W. Energy conversion in natural and artificial photosynthesis. Chem. Biol. 2010, 17, 434. [Google Scholar] [CrossRef]
  9. Hayat, A.; Sohail, M.; Anwar, U.; Taha, T.A.; El-Nasser, K.S.; Alenad, A.M.; Al-Sehemi, A.G.; Alghamdi, N.A.; Al-Hartomy, O.A.; Aminm, M.A.; et al. Enhanced photocatalytic overall water splitting from an assembly of donor-π-acceptor conjugated polymeric carbon nitride. J. Colloid Inter. Sci. 2022, 624, 411. [Google Scholar] [CrossRef]
  10. Wang, L.; Zhang, Y.; Chen, L.; Xu, H.; Xiong, Y. 2D Polymers as Emerging Materials for Photocatalytic Overall Water Splitting. Adv. Mater. 2018, 30, 1801955. [Google Scholar] [CrossRef]
  11. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37. [Google Scholar] [CrossRef]
  12. Chu, S.; Wang, Y.; Guo, Y.; Feng, J.; Wang, C.; Luo, W.; Fan, X.; Zou, Z. Band Structure Engineering of Carbon Nitride: In Search of a Polymer Photocatalyst with High Photooxidation Property. ACS Catal. 2013, 3, 912. [Google Scholar] [CrossRef]
  13. Xu, S.-Q.; Zhan, T.-G.; Wen, Q.; Pang, Z.-F.; Zhao, X. Diversity of Covalent Organic Frameworks (COFs): A 2D COF Containing Two Kinds of Triangular Micropores of Different Sizes. ACS Macro Lett. 2016, 5, 99. [Google Scholar] [CrossRef]
  14. Smith, B.J.; Overholts, A.C.; Hwang, N.; Dichtel, W.R. Insight into the Crystallization of Amorphous Imine-Linked Polymer Networks to 2D Covalent Organic Frameworks. Chem. Commun. 2016, 52, 3690. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, G.; Lan, Z.A.; Wang, X. Conjugated Polymers: Catalysts for Photocatalytic Hydrogen Evolution. Angew. Chem. Int. Ed. 2016, 55, 15712. [Google Scholar] [CrossRef]
  16. Dai, C.; Liu, B. Conjugated Polymers for Visible-Light-Driven Photocatalysis. Energy Environ. Sci. 2020, 13, 24. [Google Scholar] [CrossRef]
  17. Wang, Q.; Li, Y.; Huang, F.; Song, S.; Ai, G.; Xin, X.; Zhao, B.; Zheng, Y.; Zhang, Z. Recent Advances in g-C3N4-Based Materials and Their Application in Energy and Environmental Sustainability. Molecules 2023, 28, 4324. [Google Scholar] [CrossRef] [PubMed]
  18. Cote, A.P.; Benin, A.I.; Ockwig, N.W.; O’Keeffe, M.; Matzger, A.J.; Yaghi, O.M. Porous, Crystalline, Covalent Organic Frameworks. Science 2005, 310, 1166. [Google Scholar] [CrossRef]
  19. Wang, H.; Cheng, H.; Lv, H.; HXu, H.; Wu, X.; Yang, J. Molecular Design of Two-Dimensional Covalent Heptazine Frameworks for Photocatalytic Overall Water Splitting under Visible Light. J. Phys. Chem. Lett. 2022, 13, 3949. [Google Scholar] [CrossRef]
  20. Lu, C.; Cao, D.; Zhang, H.; Gao, L.; Shi, W.; Guo, F.; Zhou, Y.; Liu, J. Boosted Tetracycline and Cr(VI) Simultaneous Cleanup over Z-Scheme WO3/CoO p-n Heterojunction with 0D/3D Structure under Visible Light. Molecules 2023, 28, 4727. [Google Scholar] [CrossRef]
  21. Mikhnenko, O.V.; Blom, P.W.; Nguyen, T.-Q. Exciton diffusion in organic semiconductors. Energy Environ. Sci. 2015, 8, 1867. [Google Scholar] [CrossRef]
  22. Marschall, R. Semiconductor Composites: Strategies for Enhancing Charge Carrier Separation to Improve Photocatalytic Activity. Adv. Funct. Mater. 2014, 24, 2421. [Google Scholar] [CrossRef]
  23. Moniz, S.J.; Shevlin, S.A.; Martin, D.J.; Guo, Z.-X.; Tang, J. Visible-light driven heterojunction photocatalysts for water splitting —A critical review. Energy Environ. Sci. 2015, 8, 731. [Google Scholar] [CrossRef]
  24. Wu, J.; Huang, Y.; Ye, W.; Li, Y. CO2 Reduction: From the Electrochemical to Photochemical Approach. Adv. Sci. 2017, 4, 1700194. [Google Scholar] [CrossRef] [PubMed]
  25. Li, H.; Zhou, Y.; Tu, W.; Ye, J.; Zou, Z. State-of-the-Art Progress in Diverse Heterostructured Photocatalysts toward Promoting Photocatalytic Performance. Adv. Funct. Mater. 2015, 25, 998. [Google Scholar] [CrossRef]
  26. Sui, Y.; Liu, J.; Zhang, Y.; Tian, X.; Chen, W. Dispersed conductive polymer nanoparticles on graphitic carbon nitride for enhanced solar-driven hydrogen evolution from pure water. Nanoscale 2013, 5, 9150. [Google Scholar] [CrossRef]
  27. He, F.; Chen, G.; Yu, Y.; Hao, S.; Zhou, Y.; Zheng, Y. Facile Approach to Synthesize g-PAN/g-C3N4 Composites with Enhanced Photocatalytic H2 Evolution Activity. ACS Appl. Mater. Interfaces 2014, 6, 7171. [Google Scholar] [CrossRef]
  28. Yan, H.; Huang, Y. Polymer composites of carbon nitride and poly (3-hexylthiophene) to achieve enhanced hydrogen production from water under visible light. Chem. Commun. 2011, 47, 4168. [Google Scholar] [CrossRef]
  29. Zhang, X.; Peng, B.; Zhang, S.; Peng, T. Robust Wide Visible-Light-Responsive Photoactivity for H2 Production over a Polymer/Polymer Heterojunction Photocatalyst: The Significance of Sacrificial Reagent. ACS Sustain. Chem. Eng. 2015, 3, 1501. [Google Scholar] [CrossRef]
  30. Xing, Z.; Chen, Z.; Zong, X.; Wang, L. A new type of carbon nitride-based polymer composite for enhanced photocatalytic hydrogen production. Chem. Commun. 2014, 50, 6762. [Google Scholar] [CrossRef]
  31. Chen, J.; Dong, C.-L.; Zhao, D.; Huang, Y.-C.; Wang, X.; Samad, L.; Dang, L.; Shearer, M.; Shen, S.; Guo, L. Molecular Design of Polymer Heterojunctions for Efficient Solar–Hydrogen Conversion. Adv. Mater. 2017, 29, 1606198. [Google Scholar] [CrossRef] [PubMed]
  32. Huang, W.; He, Q.; Hu, Y.; Li, Y. Molecular Heterostructures of Covalent Triazine Frameworks for Highly Enhanced Photocatalytic Hydrogen Production. Angew. Chem. Int. Ed. 2019, 131, 8768. [Google Scholar] [CrossRef]
  33. Zhang, Z.; Chen, X.; Zhang, H.; Liu, W.; Zhu, W.; Zhu, Y. A Highly Crystalline Perylene Imide Polymer with the Robust Built-In Electric Field for Efficient Photocatalytic Water Oxidation. Adv. Mater. 2020, 32, 1907746. [Google Scholar] [CrossRef]
  34. Feng, D.; Gu, Z.-Y.; Li, J.-R.; Jiang, H.-L.; Wei, Z.; Zhou, H.-C. Zirconium-Metalloporphyrin PCN-222: Mesoporous Metal–Organic Frameworks with Ultrahigh Stability as Biomimetic Catalysts. Angew. Chem. Int. Ed. 2012, 51, 10307. [Google Scholar] [CrossRef] [PubMed]
  35. Chu, S.; Wang, Y.; Wang, C.; Yang, J.; Zou, Z. Bandgap modulation of polyimide photocatalyst for optimum H2 production activity under visible light irradiation. Int. J. Hydrogen Energy 2013, 38, 10768. [Google Scholar] [CrossRef]
  36. Lan, Z.-A.; Ren, W.; Chen, X.; Zhang, Y.; Wang, X. Conjugated donor-acceptor polymer photocatalysts with electron-output “tentacles” for efficient hydrogen evolution. Appl. Catal. B-Environ. 2019, 245, 596. [Google Scholar] [CrossRef]
  37. Huang, W.-Y.; Shen, Z.-Q.; Cheng, J.-Z.; Liu, L.-L.; Yang, K.; Chen, X.; Wen, H.-R.; Liu, S.-Y. C–H activation derived CPPs for photocatalytic hydrogen production excellently accelerated by a DMF cosolvent. J. Mater. Chem. A 2019, 7, 24222. [Google Scholar] [CrossRef]
  38. Yin, L.; Zhao, Y.; Xing, Y.; Tan, H.; Lang, Z.; Ho, W.; Wang, Y.; Li, Y. Structure-Property relationship in β-keto-enamine-based covalent organic frameworks for highly efficient photocatalytic hydrogen production. Chem. Eng. J. 2021, 419, 129984. [Google Scholar] [CrossRef]
  39. Liu, J.; Liu, Y.; Liu, N.; Han, Y.; Zhang, X.; Huang, H.; Lifshitz, Y.; Lee, S.T.; Zhong, J.; Kang, Z. Metal-free efficient photocatalyst for stable visible water splitting via a two-electron pathway. Science 2015, 347, 970. [Google Scholar] [CrossRef]
  40. Zhang, K.; Wang, L.; Sheng, X.; Ma, M.; Jung, M.S.; Kim, W.; Lee, H.; Park, J.H. Tunable Bandgap Energy and Promotion of H2O2 Oxidation for Overall Water Splitting from Carbon Nitride Nanowire Bundles. Adv. Energy Mater. 2016, 6, 1502352. [Google Scholar] [CrossRef]
  41. Tan, Z.R.; Xing, Y.Q.; Cheng, J.Z.; Zhang, G.; Shen, Z.; Zhang, Y.J.; Liao, G.; Chen, L.; Liu, S.-Y. EDOT-based conjugated polymers accessed via C–H direct arylation for efficient photocatalytic hydrogen production. Chem. Sci. 2022, 13, 1725. [Google Scholar] [CrossRef]
  42. Liu, H.; Zhang, X.; Wang, L.; Chen, L.; Wen, H.-R.; Liu, S.-Y. One-Pot Synthesis of 3- to 15-Mer π-Conjugated Discrete Oligomers with widely Tunable Optical Properties. Chin. J. Chem. 2021, 39, 577. [Google Scholar] [CrossRef]
  43. Huang, X.; Chen, N.; Ye, D.; Zhong, A.; Liu, H.; Li, Z.; Liu, S. Structurally Complementary Star-Shaped Unfused Ring Electron Acceptors with Simultaneously Enhanced Device Parameters for Ternary Organic Solar Cells. Sol. RRL 2023, 7, 2300143. [Google Scholar] [CrossRef]
Molecules 28 07500 sch001

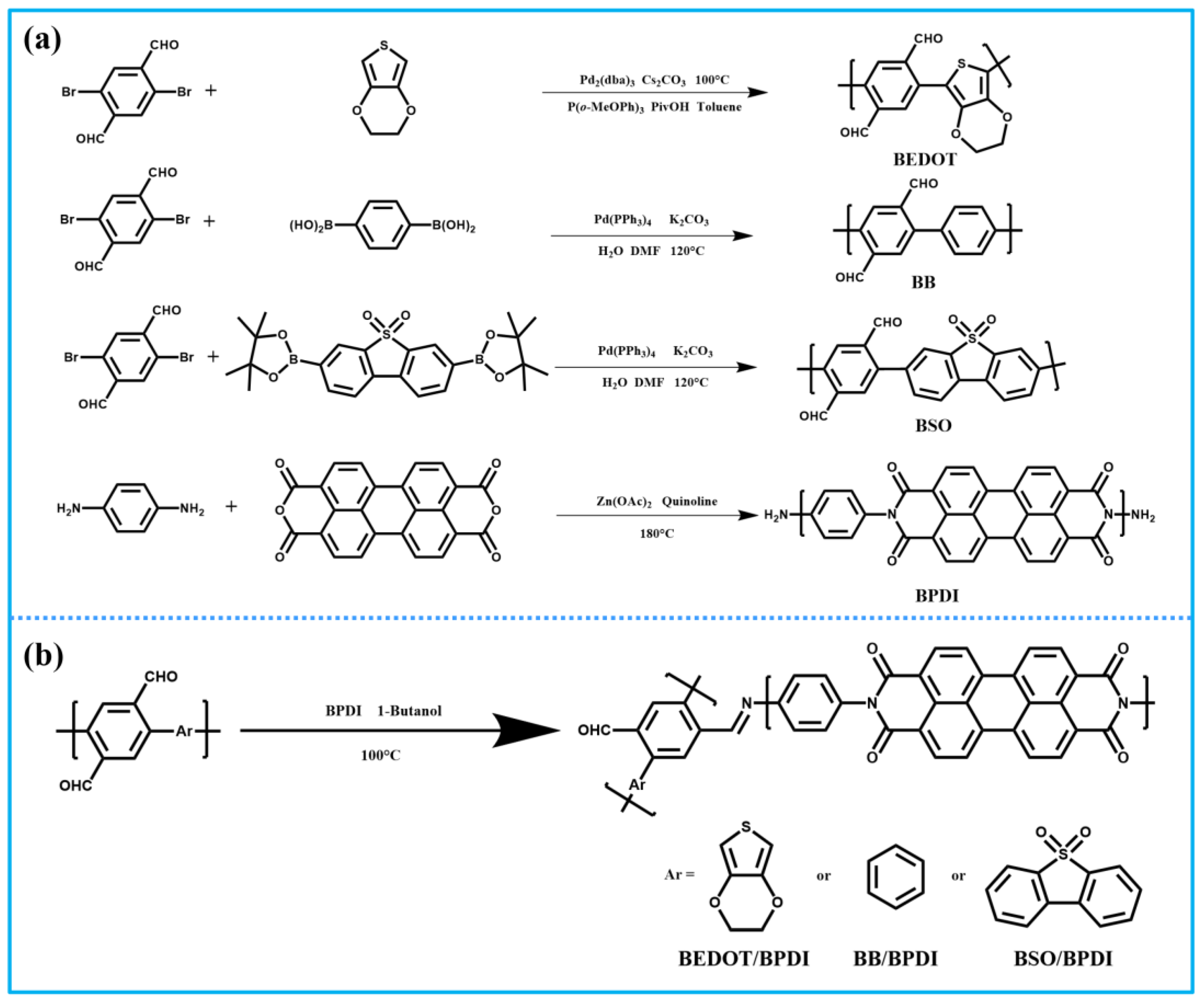

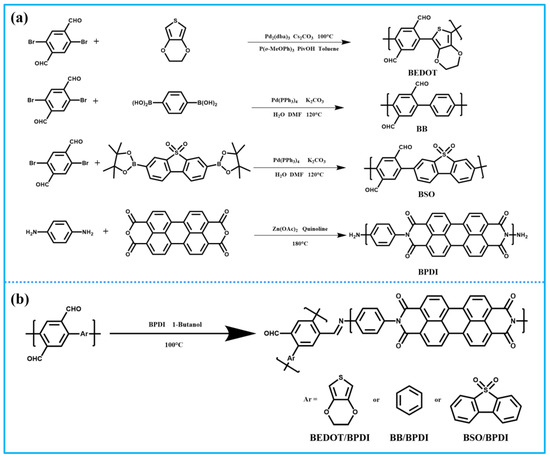

Scheme 1. Synthetic routes of (a) pristine polymers and (b) their corresponding heterostructures.
Scheme 1. Synthetic routes of (a) pristine polymers and (b) their corresponding heterostructures.
Molecules 28 07500 sch001
Molecules 28 07500 g001

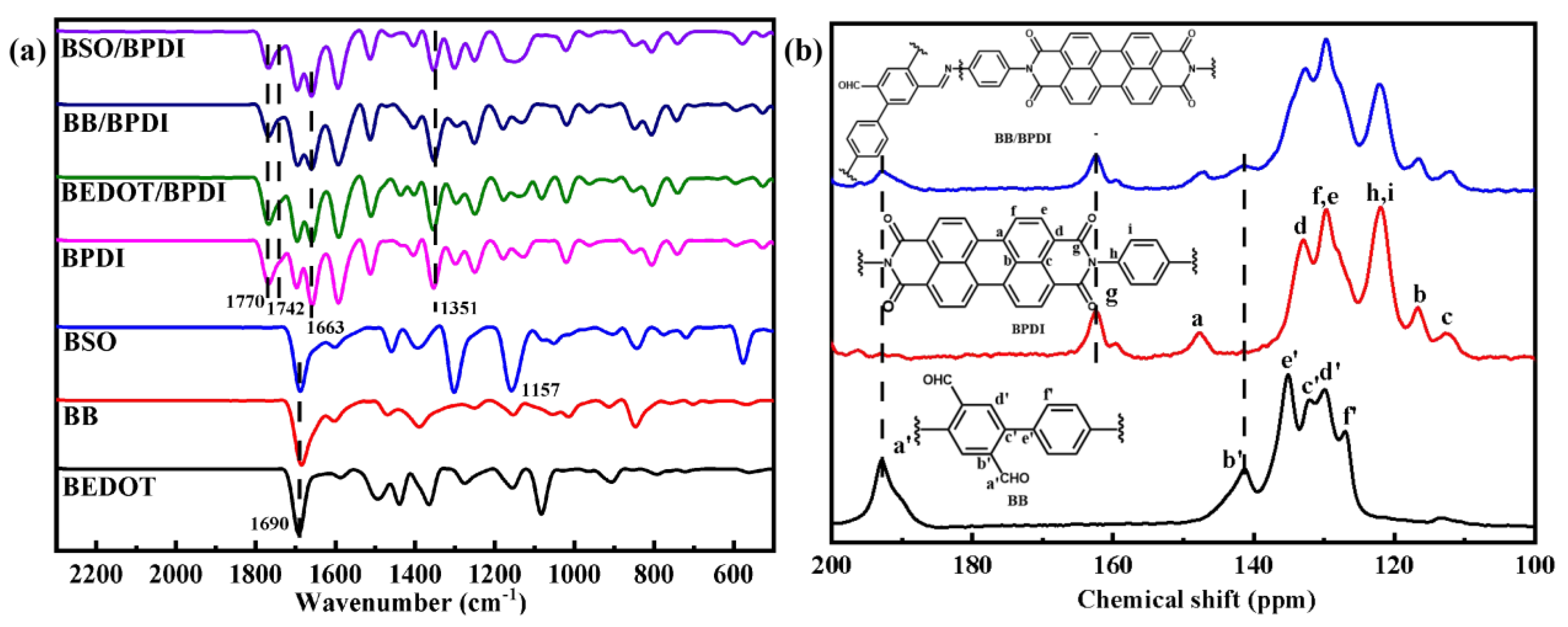

Figure 1. (a) FT-IR spectrum of all polymers; (b) solid state 13C cross-polarization magic-angle-spinning nuclear magnetic resonance spectra of BB, BPDI, and BB/BPDI.
Figure 1. (a) FT-IR spectrum of all polymers; (b) solid state 13C cross-polarization magic-angle-spinning nuclear magnetic resonance spectra of BB, BPDI, and BB/BPDI.
Molecules 28 07500 g001
Molecules 28 07500 g002

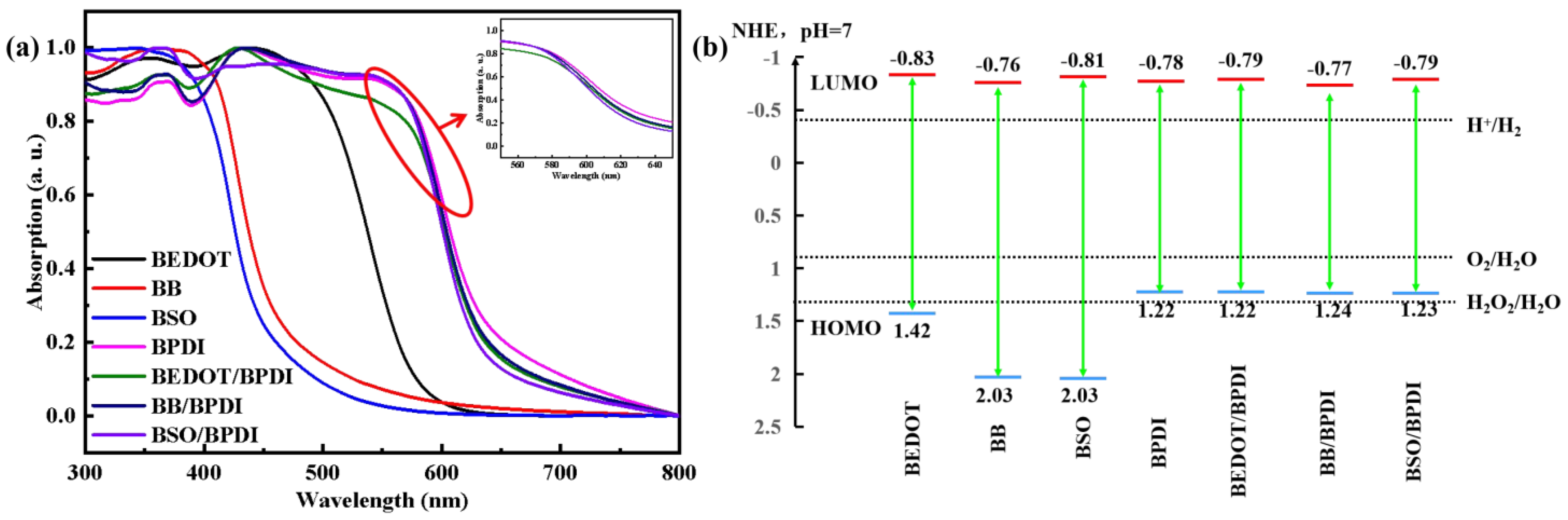

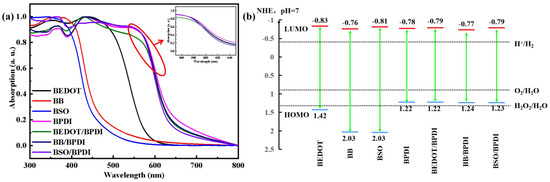

Figure 2. (a) Normalized UV-vis adsorption spectra of the prepared CPs (inset: UV-vis adsorption spectra of BPDI, BEDOT/BPDI, BB/BPDI, and BSO/BPDI from 550 to 650 nm.); (b) HOMO (HOMO = LUMO − Eg) and LUMO (LUMO determined from cyclic voltammetry) levels of the prepared CPs.
Figure 2. (a) Normalized UV-vis adsorption spectra of the prepared CPs (inset: UV-vis adsorption spectra of BPDI, BEDOT/BPDI, BB/BPDI, and BSO/BPDI from 550 to 650 nm.); (b) HOMO (HOMO = LUMO − Eg) and LUMO (LUMO determined from cyclic voltammetry) levels of the prepared CPs.
Molecules 28 07500 g002
Molecules 28 07500 g003

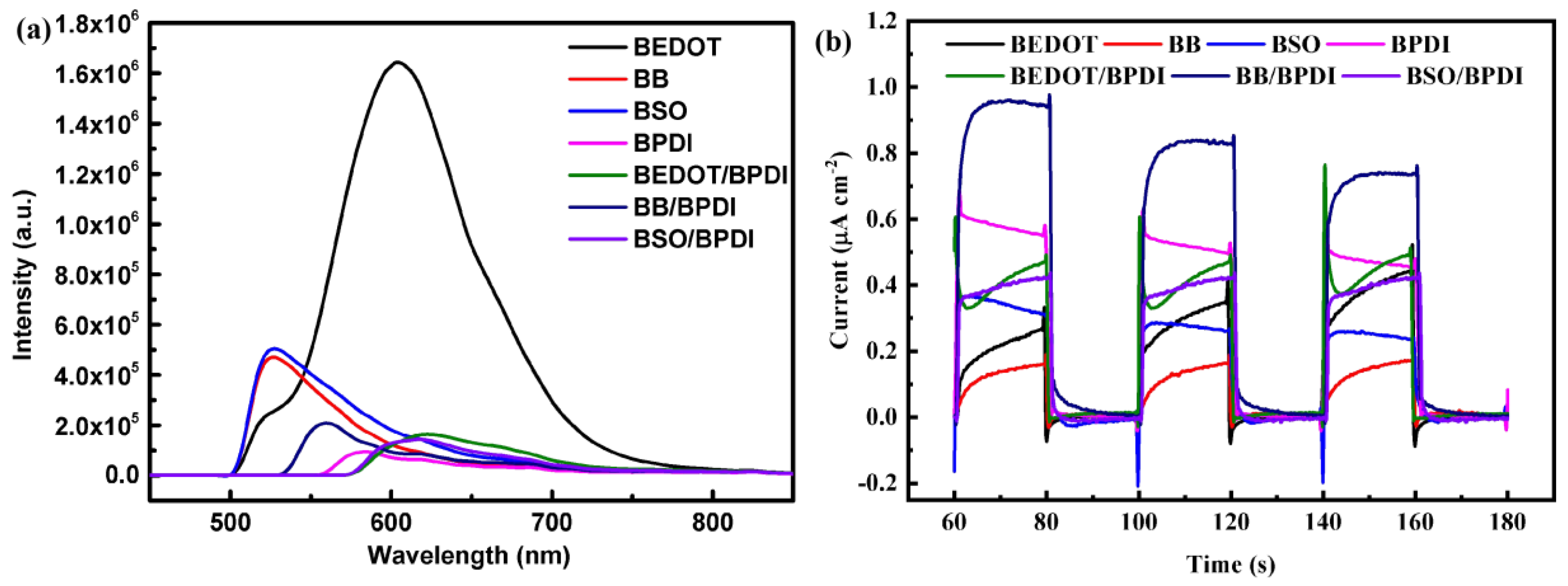

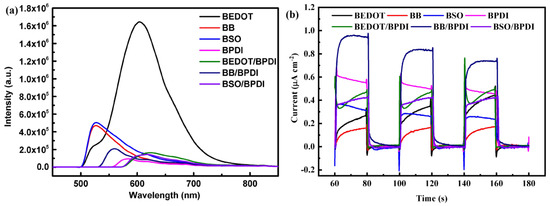

Figure 3. (a) Steady-state fluorescence spectra of the prepared CPs. (b) Transient photocurrent of the prepared CPs under full-arc light.
Figure 3. (a) Steady-state fluorescence spectra of the prepared CPs. (b) Transient photocurrent of the prepared CPs under full-arc light.
Molecules 28 07500 g003
Molecules 28 07500 g004

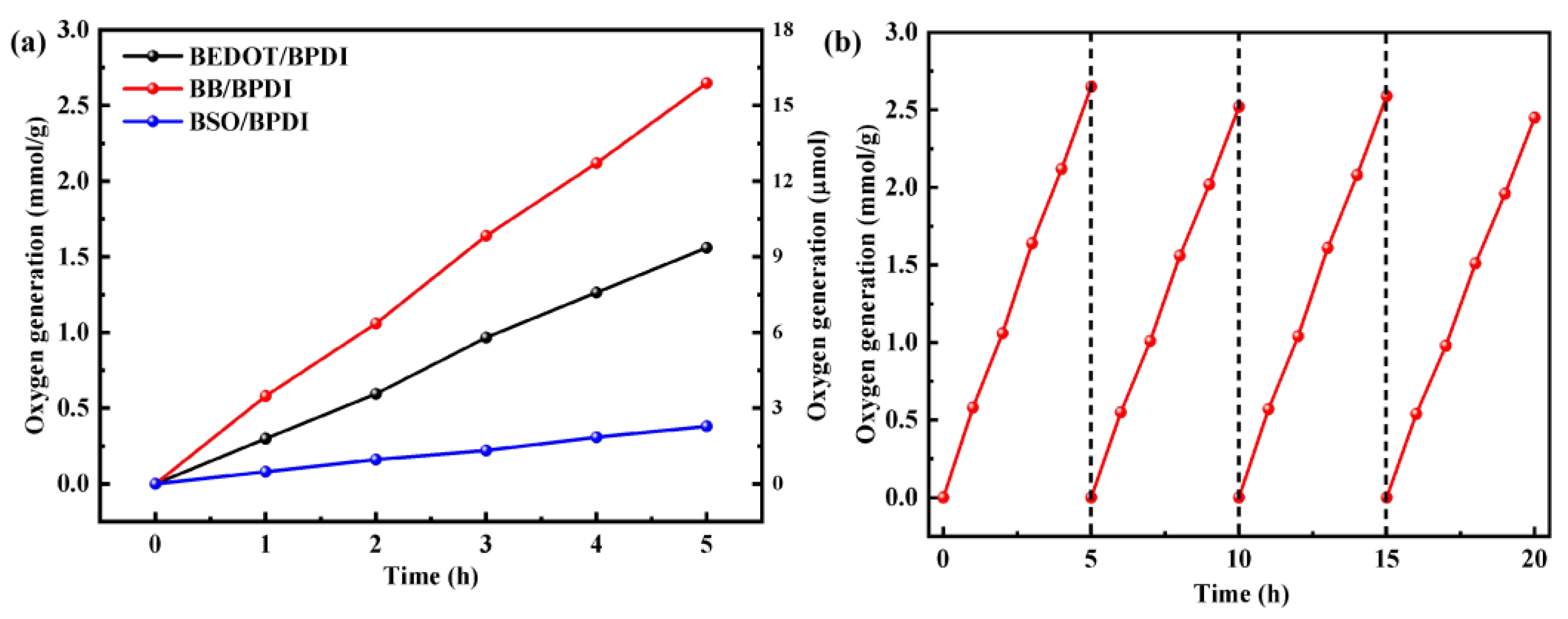

Figure 4. (a) Oxygen evolution as a factor of time mediated by molecular heterostructures. (b) Cycling tests of O2 evolution for BB/BPDI (evaluated every 5 h).
Figure 4. (a) Oxygen evolution as a factor of time mediated by molecular heterostructures. (b) Cycling tests of O2 evolution for BB/BPDI (evaluated every 5 h).
Molecules 28 07500 g004
Molecules 28 07500 g005

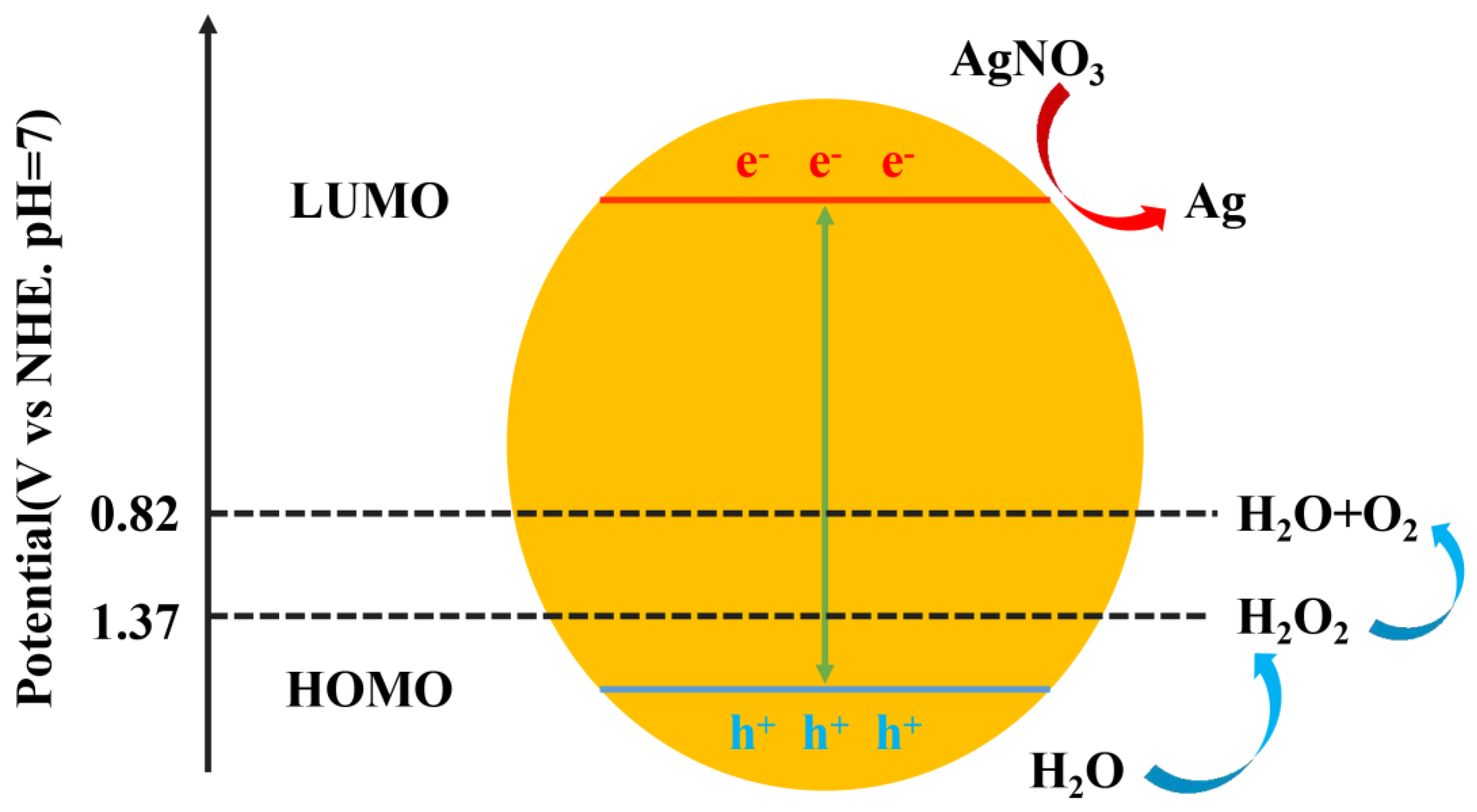

Figure 5. OER pathways on BB/BPDI.
