Article

Hydroponic Ginseng ROOT Mediated with CMC Polymer-Coated Zinc Oxide Nanoparticles for Cellular Apoptosis via Downregulation of BCL-2 Gene Expression in A549 Lung Cancer Cell Line

by
Yinping Jin
1,†,
Esrat Jahan Rupa
2,†,
Jinnatun Nahar
2,†,
Li Ling
2,
Aditi Mitra Puja
2,
Reshmi Akter
2,
Deok Chun Yang
2,
Se Chan Kang
2,* and
Hao Zhang
1,*
1
Institute of Special Wild Economic Animals and Plants, Chinese Academy of Agricultural Sciences, Changchun 130112, China
2
Department of Biotechnology, College of Life Science, Kyung Hee University, Yongin-si 17104, Gyeonggi-do, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(2), 906; https://doi.org/10.3390/molecules28020906
Submission received: 2 December 2022 / Revised: 8 January 2023 / Accepted: 13 January 2023 / Published: 16 January 2023
(This article belongs to the Special Issue Green Synthetic Nanomaterials: Preparation, Mechanism, and Application)
Browse Figures
Versions Notes

Abstract

:
The unique and tailorable physicochemical features of zinc oxide nanoparticles (ZnO-NPs) synthesized from green sources make them attractive for use in cancer treatment. Hydroponic-cultured ginseng-root-synthesized ZnO-NPs (HGRCm-ZnO NPs) were coated with O-carboxymethyl chitosan (CMC) polymer, which stabilized and enhanced the biological efficacy of the nanoparticles. Nanoparticles were characterized by X-ray diffraction (XRD), UV-Vis spectroscopy, transmission electron microscopy (TEM), Fourier-transform infrared spectroscopy (FT-IR), and energy-dispersive X-ray spectroscopy (EDS). The flower-shaped nanoparticles were crystalline in nature with a particle size of 28 nm. To evaluate if these NPs had anti-lung cancer activity, analysis was performed on a human lung carcinoma cell line (A549). HGRCm-ZnO nanoparticles showed less toxicity to normal keratinocytes (HaCaTs), at concentrations up to 20 µg/mL, than A549 cancer cells. Additionally, these NPs showed dose-dependent colony formation and cell migration inhibition ability, which makes them more promising for lung cancer treatment. Additionally, Hoechst and propidium iodide dye staining also confirmed that the NP formulation had apoptotic activity in cancer cells. Further, to evaluate the mechanism of cancer cell death via checking the gene expression, HGRCm ZnO NPs upregulated the BAX and Caspase 3 and 9 expression levels but downregulated Bcl-2 expression, indicating that the nanoformulation induced mitochondrial-mediated apoptosis. Moreover, these preliminary results suggest that HGRCm ZnO NPs can be a potential candidate for future lung cancer treatment.

1. Introduction

Cancer is an alarming global disease with a high mortality rate, with an estimated 19.3 million new cancer cases and almost 10.0 million cancer deaths in 2020 according to Global Cancer Statistics [1]. According to estimates from the World Health Organization (WHO) in 2019, cancer is the first leading cause of death before age 70. Lung cancer remains the leading cause of cancer death, with an estimated 1.8 million deaths (18%) [2]. Non-small cell lung cancer (NSCLC) is responsible for lung malignancy for about 85 % of all lung cancers with lower therapeutic activity [3]. Cancer metastasis is the main challenge in the lung cancer management system, even though clinical treatment and management systems of cancer are developing with different conventional therapies [4,5]. Several cancer treatment categories, including radiotherapy, chemotherapy, immunotherapy, surgical resection, and targeted therapy, are widely used. Initially, chemotherapy drug treatment exposes positive feedback and enhances the quality of the patient’s life. However, chemotherapeutic drugs by their very nature are toxic, with numerous side-effects, and drug resistance can evolve [6]. Although the combination of several medicines increases the survival rate of cancer patients, the overall result is still unsatisfactory for the treatment of cancer. Nanostructured materials are currently of great interest in the cancer world as potential treatment options to diagnose, treat, and prevent cancer [7]. Nano-constructed drug delivery systems have significantly improved drug delivery to the target site compared with traditional administration processes. Moreover, nano-based drug delivery systems show effective targeting, delayed release, and increased bioavailability and are less toxic than traditional delivery systems [8]. Physical and chemical methods are used to synthesize nanoparticles (NPs), and some researchers have focused on developing eco-friendly methods for synthesizing nanoscale materials [9]. Green synthesis processes are considered simple, inexpensive, and non-hazardous [10,11].
Different metal oxide nanoparticles, such as Zn, Ag, Mg, Cu, Pt, and Al NPs, have been efficiently produced from phytoextracts using green synthesis methods [12,13]. ZnO nanoparticles are of great interest in the anticancer field because of their high biocompatibility, low toxicity, and cost-effectiveness [14,15]. Zinc oxide (ZnO) is an inorganic agent that is a generally recognized as safe (GRAS) compound by the United States Food and Drug Administration (US-FDA) [16]. ZnO can be prepared at the nanoscale level using various methods such as the sol-gel method [17], co-precipitation method [18,19], laser ablation [20], or hydrothermal synthesis method [21]. However, here, we chose to use a co-precipitation synthesis method for ZnO-NP formation by coating the ZnO-NPs with a biodegradable polymer, o-carboxymethyl chitosan (CMC) [22]. Carbohydrate polymers, also known as polysaccharides, are abundant in nature. These molecules comprise covalently linked monosaccharide molecules. A well-known polysaccharide is chitosan, a linear polysaccharide produced by the deacetylation of chitin; this polymer displays remarkable mucoadhesion, biocompatibility, and chemical versatility [23]. Chitosan and chitosan-based nanocomposites have been shown to be nontoxic, biocompatible, and biodegradable, with antibacterial [24], anticancer [25,26], and immune-enhancing effects [27]. These characteristics have made chitosan a suitable choice for various biomedical applications. Additionally, zinc oxide NPs have potential efficacies in the medicinal sector, for example, anticancer [28], antioxidant [29], antimicrobial [30], antidiabetic [31], and antiviral [32] activities. A previous study reported that the green synthesis of ZnO-NPs containing Dendropanax morbifera extract [33], Ginsenoside Rh2 [34], or Echinacea purpurea callus extract [35] exhibited significant anticancer activity.
Panax ginseng Meyer has been widely used in Asian traditional medicine to treat a variety of diseases for thousands of years [36]. Ginseng saponins, also known as ginsenosides, have significant pharmacological activities. More than 289 bioactive components have been reported from 11 Panax species [37]. Mostly, 5–6-year-old ginseng is used in the commercial sector, but the Rural Development Administration of Korea developed a new, shorter-duration (~120 days) hydroponic technology for ginseng cultivation [38]. In hydroponic systems, plants are grown with their roots in nutrient-enriched water instead of soil and without any crop-protective agents [39]. When using the hydroponic method, the growth environment, including light intensity, temperature, and moisture content, can be tightly controlled. Therefore, the short-term cultivation of a hydroponic culture results in a higher content of ginsenosides in the roots and leaves [40]. Hydroponic-cultured ginseng saponins have antioxidant [39], anti-inflammatory [41], hepatoprotective [42], and immunomodulatory activities [43], but there is no scientific evidence that hydroponic cultured fresh ginseng root is pharmacologically efficacious against lung cancer.
In this study, we synthesized nano-based ZnO particles using 120-day-aged hydroponically cultured fresh ginseng root via a green synthesis method [33]. Due to the biocompatibility of these ZnO NPs with normal human cells and their high dissolution rate, the intracellular ZnO NPs showed cancer cell cytotoxicity at a slightly acidic pH [44] and were found to be safe anticancer agents. To protect and enhance the biological efficacy of fresh hydroponic ginseng root, this study focused on synthesized ZnONPs coated with a (CMC) polymer as a green-synthesized nanodrug for lung cancer treatment.

2. Results

2.1. Characterization of HGRCmZnO NPs

UV-Visible spectra of ZnO-NPs synthesized using a hydroponic ginseng root extract, those coated with CMC (HGRCm-ZnO NPs), plant extract alone, and CMC alone are shown in Figure 1. The successful formation of ZnO-NPs was indicated by the presence of a peak at 362 nm. Moreover, the plant extract showed a broader peak at 280 nm, representing the polyphenolic compound mainly responsible for nanoparticle formation and neutralizing the metal ion [44]. CMC-coated nanoparticles were characterized by peaks at 378–385 nm due to the presence of CMC strongly bonded with amine groups and metal ions [45]. Additionally, metal nanoparticles are known to combine with polyphenols, including anthocyanin, a highly reactive substance; therefore, we examined if an anthocyanin peak was present [33]. Phytochemicals (phenol, flavonoid, and rutin) present in ginseng root function as reducing agents, converting metal Zn+2 to Zn0, which also represent stable nanoparticles. The plant extract contained the polyphenolic group and other phytochemicals that showed an absorption zone at 280 nm, whereas ZnO NPs had a sharp peak at 362 nm. However, the plant extract alone had no sharp peak on the metal nanoparticle formation area. Zinc nitrate salt is converted to zinc ions and further processed to stabilized zinc metal due to reduction by phytochemicals in ginseng root. The CMC polymer containing amines bonded strongly with metal ions in the ZnO NPs and acted as a coating agent.
The morphology of HGRCm-ZnO NPs in different nanoscale ranges was examined by FE-TEM. Nanoparticles without the CMC polymer had an aggregated structure and did not appear to be stabilized at a higher magnification (40 nm) (Figure 2A,E). Interestingly, CMC-coated nanoparticles had a flower-like shape, and higher magnification images confirmed a 5-6-petal-like structure (Figure 2B,F,G). A previous study reported that flower-shaped NPs had better anticancer efficiency in the endothelial cell than normal-shaped NPs [46]. In addition, SAED patterns were used to examine the crystallinity of nanoparticles (Figure 2C). Moreover, EDX confirmed the presence of Zn and O in the ZnO nanoparticles (Figure 2D). Elemental mapping highlighted the zone of oxygen and zinc in the nanoparticles (Figure 2H,I).
FT-IR analysis: The phytochemicals present in the ZnO NPs were identified using FT-IR analysis. The characteristic peaks of HGRCm-ZnO NPs, CMC, and ginseng root alone are highlighted in the FT-IR analysis in Figure 3A. Nanoparticles exhibited a broad peak in the region of 3000–3500 cm−1. We attributed the peak at 3455 cm−1 to (-OH) and N-H amide bonds contributed by secondary amines and polyphenols present in the ginseng extract and CMC polymer. The peak at 1617 cm−1 was attributed to N-H and phenolic bonds from CMC and the ginseng extract. Previous studies reported that the peak at 1327 cm−1 is due to C-H ether bonds from the polymer [47,48].
An XRD graph showing the crystalline nature of the nanoformulation is presented in Figure 3B. The crystallite size of the nanoparticles was calculated using the full width at half-maximum (FWHM) value of the nanoformulation and was 28 nm (Table S1). The peak intensity and FWHM values were computed using the 2θ range of 20–80°. The nature of the nanoparticles was indexed according to the miller index using h, l, and k at lattice planes (100), (001), and (101), respectively. Figure 3 shows that the NPs had a hexagonal wurtzite structure that was an identical match to the standard values of ZnO nanocrystals (JCPDS NO. 36−145) [22]. Moreover, the absence of an extra peak in the nanoformulation confirmed its purity.

2.2. Cell Viability Analysis

The MTT assay was used to assess the anticancer activity of different concentrations of HGRCm-ZnO NPs (control, 2.5, 5, 10, 20, and 30 µg/mL). Commercial cisplatin was used as the positive control (Figure 4B), and non-treated cells were used as a control. HGRCm-ZnO NPs significantly inhibited the growth of cancer cells at 20 µg/mL, with a cell viability of only 45% compared with ZnO salt, extract, ZnO NPs (without CMC), or CMC alone (Figure 4B). HaCaT cells treated with HGRCm ZnO had a cell viability of 75% (Figure 4A). Accordingly, the results of IC50 values also showed that HGRCm-ZnO NPs (IC50 =15.74 μg/mL) was more potent against A459 cells than the normal cells (IC50 = 52.56 μg/mL) (Table S2).
Morphological alterations of A459 cells were observed after a 24 h treatment with HGRCm-ZnO NPs. In Figure S1, the morphological alternation of A549 cells treated with HGRCm-ZnO NPs at a concentration of 20 µg/mL versus untreated cells demonstrates that the untreated cells had a more significant phenotype in the cell morphology. In contrast, the treated cell shrinkage had reduced size and was highly detached from the colony. HGRCm-ZnO NPs showed significantly higher cytotoxic efficacy than ZnO NPs (Figure S1), and this is likely due to the combined effects of the ginseng extract and CMC polymer.
The greater cancer cell toxicity of HGRCm-ZnO NPs may be due to the high concentration of zinc bound to different proteins. In contrast, the amount of free Zn2+ ions are still very low and is tightly regulated by homeostatic mechanisms [49,50]. Further, ZnO nanoparticles have high dissolution capacity in acidic media, such as intracellular lysosomal compartments, and hydrated zinc ions combine with intact ZnO nanoparticles, which is thought to cause mitochondrial damage and disrupt cellular zinc homeostasis, ultimately resulting in cell death [51,52]. ZnO NPs have the ability to rapidly cross cell membranes to damage mitochondria and particular DNA sequences, dramatically inhibiting the development of tumors at specific sites [50]. Overall, HGRCm-ZnO NPs significantly slowed cancer cell proliferation due to the combined effects of samples.

2.3. Colony Formation

A clonogenic test, also known as a colony-forming assay, is an in vitro quantitative approach to assess a single cell’s capacity to increase into a large colony by clonal expansion. As shown in Figure 5, the cell morphology and colony development of A549 cells were assessed by microscopic examination. Control group cells (Figure 5A1) contained more A549 cell colonies than cells treated with HGR-ZnO NPs (Figure 5A2, A3) and HGRCm-ZnO NPs at 10 and 20 μg/mL, respectively (Figure 5A5, A6). Notably, at the same concentrations, HGRCm-ZnO NPs decreased the number of colonies significantly more than HGR-ZnO NPs. Additionally, 20 μg/mL HGRCm-ZnO NPs inhibited colony development significantly compared with the control group. Our findings suggest that the anticancer activity of HGRCm-ZnO NPs involves the inhibition of colony formation without significant toxic effects on normal cells (see Figure 5B).

2.4. HGRCm-ZnO NPs Inhibit Migration of Cancer Cells

Overall, 90% of cancer deaths are due to cancer metastasis; therefore, the prevention of cancer metastasis is a major goal of cancer treatment [53]. Cell migration as cancer progresses determines the ability of tumor cells to escape from primary tumors and invade nearby tissues to become metastases. A scratch migration assay was performed to determine if HGRCm-ZnO NPs affected the migration of A549 cells. A549 lung cancer cells were treated with HGRCm-ZnO NPs (20 µg/mL), and cell migration (%) was evaluated using a wound closure assay before and after the treatment of cells (Figure 6A,B). Cells treated with HGRCm-ZnO NPs showed strongly inhibited migration after 24 h. The percentage of A549 lung cancer cells that migrated toward the scratch area was 92.0 ± 0.8% for untreated control cells, 60.0 ± 0.2% for those treated with HGR-ZnO NPs (without CMC), 45.0 ± 0.4% for those treated with HGRCm-ZnO NPs, and 39.0 ± 0.6% for those treated with the positive control drug cisplatin (Figure 6B). These results indicate that HGRCm-ZnO NPs have the ability to inhibit cell migration and cancer cell metastasis. After 24 hours, practically all gaps between cell layers in the control group were covered by migrating cells. Additionally, cancer cells treated with HGRCm-ZnO NPs displayed better migratory inhibition ability than the control group and ZnO NPs (without CMC). In contrast, due to the decreased migratory capabilities of HGRCm-ZnO NP-treated cells, scraped areas were still apparent. The capacity of HGRCm-ZnO NPs to suppress growth may indicate that it is a potential anti-lung cancer agent.

2.5. Detection of HGRCm-ZnO NP-Induced Apoptosis by Hoechst-33342/PI Dye Staining

Apoptosis is a vital physiological process important for homeostasis and the maintenance of differentiated cells [54]. Therefore, the activation of apoptosis in cancer cells is one of the molecular bases for anticancer therapeutic approaches. In addition, pyknosis and cell shrinkage are observed early in the process of apoptosis. Organelle condensation and cytoplasmic density cause cell shrinkage, and chromatin condensation (pyknosis) is the most important aspect of early apoptosis [55]. In this study, we used a Hoechst/PI double-staining assay to detect apoptosis after 24 h treatment of cells with HGRCm-ZnO NPs. Live cell nuclei were stained light-blue (Hoechst dye), while apoptotic cells were stained dark-blue. Dead cells were stained with PI dye (dark-red), as indicated by the arrowheads in Figure 7. The control group cells were stained blue, with no red cells apparent. When cells were treated with 10 µg/mL HGRCm-ZnO NPs, the cell number started to decrease. At 20 µg/mL HGRCm-ZnO NPs, a large number of dead cells were found after PI staining (Figure 7B). Massive numbers of necrotic cells were found in increased concentration under high magnification, and changes in nuclei and cell morphology were observed in cells treated with HGRCm-ZnO NPs, as can be seen in Figure 7 (marge section). The HGRCm-ZnO NPs and HGR-ZnO NPs (without CMC) and commercial drug cisplatin effect were also investigated for comparison. Cells treated with 20 µg/mL HGRCm-ZnO NPs showed membrane instability and cytoskeletal disturbances with the highest number of dead cells, comparable to that observed with cisplatin. Although a number of molecular markers are available to investigate the mechanism of cell death, morphological criteria remain the standard for defining the mode of cell death [56]. The fluorescent substance propidium iodide (PI) binds primarily between DNA nucleotides. So, nuclear changes were observed using PI staining. We observed nuclei with an apoptotic morphology, as characterized by bright-red condensed nuclei (intact or fragmented). Control cells had round, intact, red nuclei, as PI dye was unable to enter the cell through the cell membrane (Figure 7B). These results indicate that the cell membrane ruptured after treatment with HGRCm-ZnO NPs, allowing the dye to enter the injured cell and stain the nucleus, thereby indicating that apoptosis was the mode of cell death.

2.6. HGRCm-ZnO NPs Induce Apoptosis by Regulating Apoptotic Gene Expression

A549 lung cancer cells were treated with different concentrations of HGRCm-ZnO NPs, and mRNA expression was quantified. There was a steady decrease in Bcl-2 transcript expression at 10 µg/mL HGRCm-ZnO NPs (0.6-fold), while a 0.4-fold decrease in expression was observed at 20 µg/mL HGRCm-ZnO NPs. BAX mRNA expression was increased relative to control levels after treatment with 10 µg/mL HGRCm-ZnO NPs (1.2 fold) and further increased with 20 µg/mL HGRCm-ZnO NPs (1.6-fold).
Figure 8 shows that the expression of Bcl-2 decreased significantly after 20 µg/mL HGRCm-ZnO NP treatment; at the same time, BAX (anti-apoptotic) expression gradually increased. ROS, produced by mitochondria, has been identified as an essential molecule in stress signaling in cells. The alteration of the redox status reaction due to increased ROS production makes cells more vulnerable to oxidative stress and apoptosis [57]. There are two major apoptotic signaling routes: the intrinsic and extrinsic pathways. The intrinsic pathway is activated by intracellular stimuli such as DNA damage or oxidative stress. The Bcl-2 protein family consists of pro and anti-apoptotic proteins that strictly regulate the intrinsic route via the mitochondria. During apoptosis induction, levels of pro-apoptotic BAX increase, resulting in the inhibition of the activity of the anti-apoptotic protein Bcl-2 and mitochondrial outer membrane premiumization (MOMP) [58]. Disruptions in mitochondrial membrane potential allow cytochrome c (Cyt c) to be released into the cytosol. Caspase 9 and caspase 3 are activated and cellular apoptosis occurs. Cyt c is a critical activator of caspases 9 and 3 (Figure 9). We found that HGRCm-ZnO NPs inhibited the expression of the anti-apoptosis gene Bcl-2 by stimulating pro-apoptotic gene expression.

3. Materials and Methods

3.1. Plant Materials

Hydroponically cultured ginseng root samples were collected from Hanbang Bio Laboratory, Kyung Hee University, South Korea.

3.2. Chemicals

Zinc nitrate hexahydrate (>98%) and NaOH (>98%) were supplied by Dae-Jung Chemicals and Metals Co., Ltd. (Pyeontaek, Korea). Absolute alcohol, Tween 80, and olive oil were purchased from Samchun Pure Chemical Co. Ltd. (Gyeonggi-do, Korea). The human keratinocyte cell line (HaCaT) and lung cancer cell line (A549) used in this study were attained from the Korean cell line bank (Seoul, Korea). Cell culture reagents such as RPMI 1640, DMEM, penicillin–streptomycin, and fetal bovine serum (FBS) were obtained from Gen DEPOT Inc. (Barker, TX, USA), Gibson-BRL (Grand Island, NY, USA), and WElGENE Inc. (Daegu, Korea). Dimethyl sulfoxide (DMSO), MTT reagents, and Hoechst-33342 dye were obtained from Sigma-Aldrich (St. Louis, MO, USA). Invitrogen (Carlsbad, CA, USA) provided propidium iodide (PI) dye. Green/ROX QRTPCR Master Mix was obtained from Thermo Scientific (Foster, CA, USA).

3.3. Preparation of HGR Extract

At first, root samples were thoroughly washed with distilled water and all debris was eliminated. Samples were dried under dust-free conditions. Dried roots were then crushed into a fine powder. Five grams of the fine powder was mixed in distilled water (100 mL) in a conical flask and placed into the autoclave machine for 40 min at 100 °C under maximum pressure to extract phytochemicals from the sample. Liquid root extracts were collected using No. 1 filter paper by filtration and then centrifuged at 4500 rpm to remove unwanted components. The supernatant was stored at 4 °C for further tests.

3.4. Synthesis of GR-ZnO NPs from the Extract

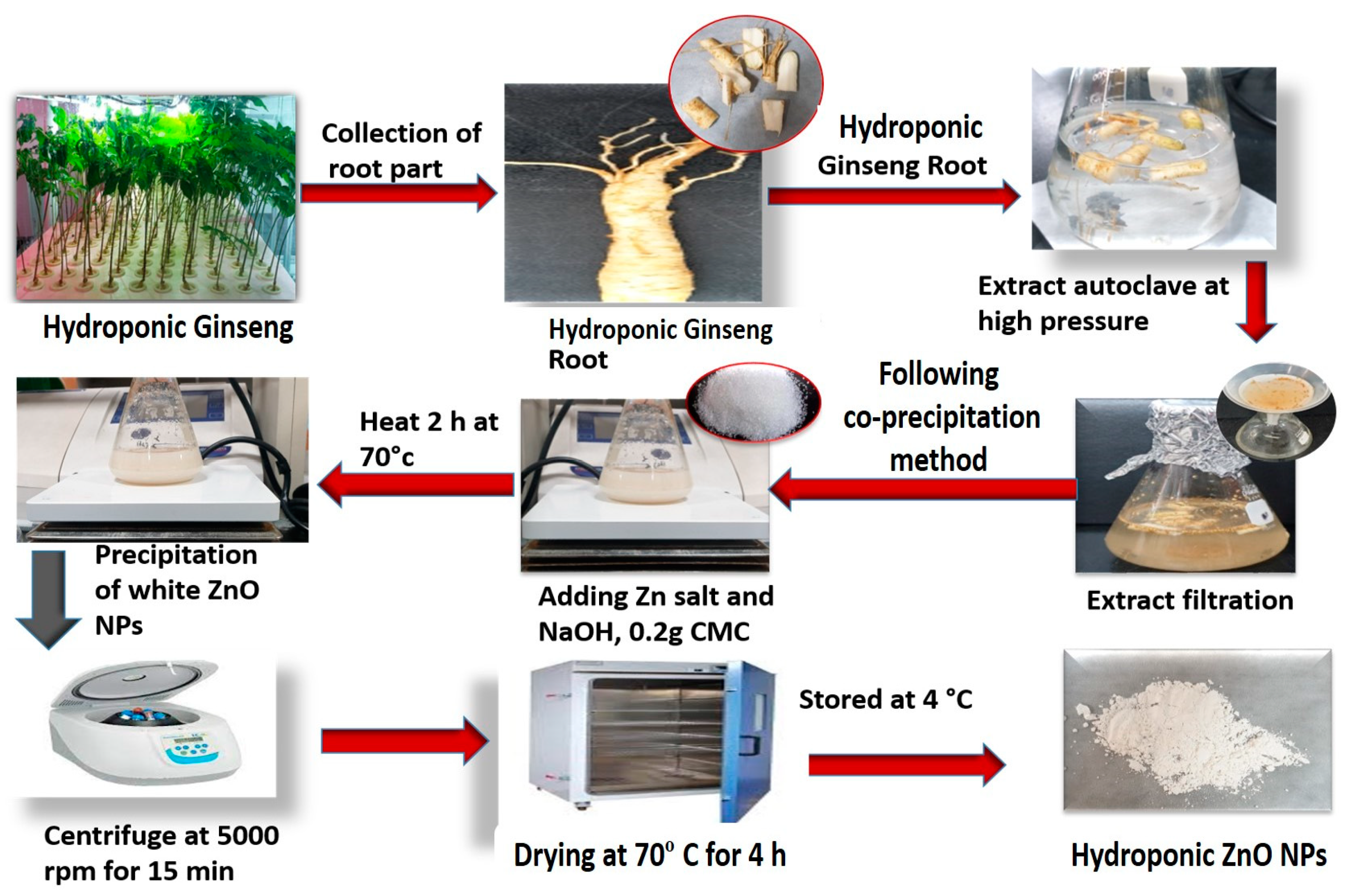

A previously described co-precipitation method was performed to prepare HGR-ZnO NPs with slight modification [59]. In the following process, zinc nitrate and sodium hydroxide were used as oxidizing salt and precipitating precursor, respectively. Metal nitrates are extremely soluble and have an oxidizing capacity and are ideal for the preparation of nanoparticles. Distilled water was used to wash away unreacted salt and phytochemicals from the nanoparticles. At first, ten percent (20 mL) hydroponically cultured ginseng root extract (w/v) was dissolved in distilled water (80 mL) under stirring, and 0.1 mM of zinc nitrate salt was then added. The solution was stirred continuously (500 rpm) on a hotplate with the temperature maintained at 65 to 70 °C. Then, 0.2 M of NaOH-prepared solution was mixed slowly dropwise into the hot solution over 2 h. The solution was permitted to become cold without stirring and then centrifuged at 8000 rpm for 15 min to eliminate unmixed impurities. After completion of the reaction, the white precipitate that formed was permitted to settle, and the supernatant was removed. The formed GR-ZnO NPs were cleaned with DW three times to remove unreacted substances and dried at 60 °C for 4 h in an oven. During this drying period, the Zn (OH)2 in the NPs converted fully into white color ZnO NP powder (Figure 10).

4. Characterization

Structural and optical properties of the synthesized ZnO nanoparticles were determined through different diagnostic machines for measuring particle morphology, specific size, and stability.

4.1. UV-Vis Spectrophotometry

The preparation of GR-ZnO NPs was examined using UV-Vis spectroscopy (Ultrospec TM-2100 Pro) operated between 200 and 700 nm.

4.2. FT-IR

An FT-IR (PerkinElmer Inc., Waltham, MA, USA) machine was used to investigate the spectra of zinc oxide nanoparticle powder at wavelengths between 4000 and 450 cm−1. Spectral properties are presented in plots of transmittance (%) versus wavenumber (cm−1).

4.3. XRD Analysis

The crystallinity and specific size of GR-ZnO nanoparticles were evaluated via X-ray diffraction (D8 Advance, Bruker, Germany) with a detector voltage of 40 kV, current of 40 mA, and Cu-Kα radiation of 1.54 Å. Properties were recorded in the 2θ range of 20–80° with rapid scanning (6°/min).

4.4. FE-TEM Analysis

The structural morphology and particle size of ZnO-NPs were determined using a TEM (200 kV) JEM-2100F (JEOL, Japan). A short-time slight film of a carbon-coated copper grid was prepared to measure the size of the NPs. Extra solution was cleaned with filter paper and then set in a grid box serially.

4.5. Cell Culture

A549 human lung cancer cells were grown in RPMI 1640 89% supplemented with 10% FBS and 1% P/S. Normal human keratinocyte (HaCaT) cells were grown in DMEM supplemented with 10% FBS and 1% P/S. Cells were incubated at 5% CO2 in a 37 °C incubator and were permitted to adhere and grow prior to treatment.

4.6. Cell Viability Assay

The cytotoxicity of hydroponic-cultured ZnO NPs against A549 and HaCaT cell lines was assessed using the MTT assay. Initially, cancer cells and normal cells were plated at a density of 1 × 104 cells/well in a 96-well plate. Cells were then treated with several concentrations of ZnO NPs. After 24 h, cells were treated with 20 µL of 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl tetrazolium bromide solution (MTT; 5 mg/mL, PBS; Life Technologies, Eugene, OR, USA) for 4 h at 37 °C. Then, 100 µL of DMSO was added to every well to dissolve insoluble formazan crystals. Last, a microplate shaker was used to dissolve the formazan crystals for 10 min in the dark. Absorbance at 570 nm was recorded using an ELISA plate reader (Bio-Tek, Instruments, Inc., Winooski, VT, USA).

4.7. Colony Formation

A549 lung cancer cells were seeded at a concentration of 1 × 103 in the wells of a 6-well plate, and after 48 h, cells were treated with different concentrations (5, 10) µg/mL of HGRCm-ZnO NPs. Control cells were treated with 0.1% DMSO. After 1 day of incubation, the old cell media were removed, and new media were added for 7 days. Colonies were fixed with glutaraldehyde and stained with crystal violet. Images were captured under a microscope, and colony number was counted and plotted. All data were analyzed using Image J software

4.8. Wound-Healing Assay

The cell migration ability of A549 cancer cells was determined using a wound healing assay. A549 lung cancer cells were seeded in 6-well plates at 2 × 104 cells per well and incubated at 37 °C for 24 h. The monolayer was scratched vertically using a 200 µL sterile pipette tip, and detached cells were removed using PBS. Cells were then treated with different concentrations, 10 or 20 µg/mL, of HGRCm-ZnO NPs, and after 72 h of treatment, images were captured using an integrated 5.0 megapixel MC 170 HD camera (Wetzlar, Germany).

4.9. Hoechst Staining

A Hoechst-33342 staining kit was used to assess if HGRCm-ZnO NPs induced apoptosis of A549 cancer cells. Cells were placed into a 6-well plate at a density of 1 × 104 cells/well in 2 mL culture media and incubated for 24 h. Then, 4% paraformaldehyde was added for 10 min after washing treated cells with 1× PBS solution (twice). After a 10 min incubation at 37 °C, 10 μg/mL Hoechst dye was added. Stained cells were washed three times in PBS solution, and cell images were captured under a fluorescence microscope (Leica DMLB, Wetzlar, Germany).

4.10. PI Staining

Seeded cells were treated with 10 or 20 μg/mL HGRCm-ZnO NPs. After a 24 h treatment period, cells were washed with 1 mL 1× PBS and stained with 500 μL propidium iodide reagent (5 μg/mL) solution at room temperature for 10 min. Cells were observed using a fluorescence microscope (Leica DMLB, Wetzlar, Germany).

4.11. Quantitative Real-Time PCR

A RNeasy mini kit was used to extract total RNA from treated and non-treated cells after 48 h of treatment. Before extraction, cells were seeded in 25 cm2 cell culture plates (NY, USA) and treated with 1, 2.5, 5, 10, 20, or 30 μg/mL of HGRCm-ZnO NPs. For real-time quantitative PCR (qRT-PCR), 500 ng of RNA was reverse-transcribed using oligo (dT) 15 primer (0.2 mM), and cDNA was synthesized using a cDNA kit (Invitrogen, CA) following the manufacturer’s instructions. qPCR was performed in 96-well plates using 1000 ng of cDNA as template per 20 μL reaction and SYBR® Green Master Mix (England). Thermal cycling comprised 10 min at 95 °C, followed by 40 cycles of 95 °C for 10 s, 58 °C for 10 s, and 72 °C for 20 s. β-actin was used as the house-keeping gene. All experiments were repeated three times. Primer sequences are listed in Table 1 [57].

5. Conclusions

We synthesized ecofriendly, inexpensive HGRCm-ZnO NPs from hydroponic-cultured ginseng root extract and coated them with an o-carboxymethyl chitosan (CMC) polymer. The biodegradable CMC polymer stabilized the nanoparticles by enhancing the solubility of bioactive ginsenosides besides prompting the biological effects. ZnO NPs were found to have a flower-shaped and crystalline nature by TEM and XRD analyses. At concentrations up to 20 g/mL, an in vitro cytotoxicity investigation showed that HGRCm-ZnO NPs were more toxic to cancerous cells than non-cancerous cells. Additionally, HGRCm-ZnO NPs altered the colony-forming and migration abilities of human lung carcinoma cells (A549). Accordingly, Hoechst and PI staining results revealed that NPs induced apoptosis in cancer cells. However, the cellular apoptosis of cancer cells through the intrinsic mitochondrial pathway was confirmed at the gene expression level by qRT-PCR. Moreover, HGRCm-ZnO NPs increased BAX expression and downregulated Bcl-2 gene expression. Together, these results indicate that HGRCm-ZnO NPs are potentially highly efficacious anti-lung cancer agents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28020906/s1, Figure S1: Morphology of A549 cells after treatment with different concentrations of HGRCm-ZnO NPs and cisplatin; Table S1: Crystalline size of HGRCm-ZnONPs using Hydroponic Ginseng; Table S2: IC50 values of (Cisplatin, CMC, ZnO, HGR-Ex, HGR-ZnO NPs, HGRCm- ZnO NPs) against two cell lines.

Author Contributions

Conceptualization, H.Z. and S.C.K.; data curation, L.L.; funding acquisition, H.Z.; investigation, J.N., A.M.P., and D.C.Y.; methodology, Y.J. and H.Z.; resources, H.Z. and S.C.K.; software, E.J.R., J.N., and R.A.; writing—original draft, E.J.R.; writing—review and editing, E.J.R. and J.N. All authors have read and agreed to the published version of the manuscript.

Funding

Scientific and Technological Innovation Project of Chinese Academy of Agricultural Sciences (No. CAAS-ASTIP-ISAPS-2021-018): (No. CAAS-ASTIP-ISAPS-2021-018).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

The human lung cancer cell was collected from cell bank Korea and was previously used for various research related to lung cancer at Kyung Hee University at Hanbang bio lab.

Data Availability Statement

The concern of corresponding author data can be provided.

Acknowledgments

Scientific and Technological Innovation Project of Chinese Academy of Agricultural Sciences (No. CAAS-ASTIP-ISAPS-2021-018).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  2. World Health Organization (WHO). Global Health Estimates 2020: Deaths by Cause, Age, Sex, by Country and by Region, 2000-2019. WHO. 2020. Available online: https://www.who.int/data/gho/data/themes/mortality-and-global-health-estimates/ghe-leading-causes-of-death (accessed on 11 December 2020).
  3. Liu, T.; Zuo, L.; Guo, D.; Chai, X.; Xu, J.; Cui, Z.; Wang, Z.; Hou, C. Ginsenoside Rg3 regulates DNA damage in non-small cell lung cancer cells by activating VRK1/P53BP1 pathway. Biomed. Pharmacother. 2019, 120, 109483. [Google Scholar] [CrossRef] [PubMed]
  4. van den Heerik, A.S.V.; Horeweg, N.; de Boer, S.M.; Bosse, T.; Creutzberg, C.L. Adjuvant therapy for endometrial cancer in the era of molecular classification: Radiotherapy, chemoradiation and novel targets for therapy. Int. J. Gynecol. Cancer 2021, 31, 594–604. [Google Scholar] [CrossRef]
  5. Kim, H.; Choi, P.; Kim, T.; Kim, Y.; Song, B.G.; Park, Y.-T.; Choi, S.J.; Yoon, C.H.; Lim, W.C.; Ko, H.; et al. Ginsenosides Rk1 and Rg5 inhibit transforming growth factor-β1-induced epithelial-mesenchymal transition and suppress migration, invasion, anoikis resistance, and development of stem-like features in lung cancer. J. Ginseng Res. 2021, 45, 134–148. [Google Scholar] [CrossRef]
  6. Nagano, T.; Tachihara, M.; Nishimura, Y. Mechanism of resistance to epidermal growth factor receptor-tyrosine kinase inhibitors and a potential treatment strategy. Cells 2018, 7, 212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Singh, L.; Kruger, H.G.; Maguire, G.E.; Govender, T.; Parboosing, R. The role of nanotechnology in the treatment of viral infections. Ther. Adv. Infect. Dis. 2017, 4, 105–131. [Google Scholar] [CrossRef]
  8. Klochkov, S.G.; Neganova, M.E.; Nikolenko, V.N.; Chen, K.; Somasundaram, S.G.; Kirkland, C.E.; Aliev, G. Implications of nanotechnology for the treatment of cancer: Recent advances. Semin. Cancer Biol. 2021, 69, 190–199. [Google Scholar] [CrossRef] [PubMed]
  9. Honary, S.; Barabadi, H.; Gharaei-Fathabad, E.; Naghibi, F. Green synthesis of copper oxide nanoparticles using Penicillium aurantiogriseum, Penicillium citrinum and Penicillium waksmanii. Dig. J. Nanomater Bios. 2012, 7, 999–1005. [Google Scholar]
  10. Umamaheswari, A.; Prabu, S.L.; John, S.A.; Puratchikody, A. Green synthesis of zinc oxide nanoparticles using leaf extracts of Raphanus sativus var. Longipinnatus and evaluation of their anticancer property in A549 cell lines. Biotechnol. Rep. 2021, 29, e00595. [Google Scholar] [CrossRef]
  11. Duan, H.; Wang, D.; Li, Y. Green chemistry for nanoparticle synthesis. Chem. Soc. Rev. 2015, 44, 5778–5792. [Google Scholar] [CrossRef]
  12. Vidhya, E.; Vijayakumar, S.; Prathipkumar, S.; Praseetha, P. Green way biosynthesis: Characterization, antimicrobial and anticancer activity of ZnO nanoparticles. Gene Rep. 2020, 20, 100688. [Google Scholar] [CrossRef]
  13. Bhuyar, P.; Rahim, M.; Sundararaju, S.; Maniam, G.; Govindan, N. Management. Antioxidant and antibacterial activity of red seaweed Kappaphycus alvarezii against pathogenic bacteria. Glob. J. Environ. Sci. Manag. 2020, 6, 47–58. [Google Scholar]
  14. Wang, A.Z.; Langer, R.; Farokhzad, O.C. Nanoparticle delivery of cancer drugs. Annu. Rev. Med. 2012, 63, 185–198. [Google Scholar] [CrossRef] [PubMed]
  15. Al-Ajmi, M.F.; Hussain, A.; Ahmed, F. Novel synthesis of ZnO nanoparticles and their enhanced anticancer activity: Role of ZnO as a drug carrier. Ceram. Int. 2016, 42, 4462–4469. [Google Scholar] [CrossRef]
  16. Prashanth, G.; Prashanth, P.; Nagabhushana, B.; Ananda, S.; Krishnaiah, G.; Nagendra, H.; Sathyananda, H.M.; Rajendra Singh, C.; Yogisha, S.; Anand, S.; et al. Comparison of anticancer activity of biocompatible ZnO nanoparticles prepared by solution combustion synthesis using aqueous leaf extracts of Abutilon indicum, Melia azedarach and Indigofera tinctoria as biofuels. Artif. Cells Nanomed. Biotechnol. 2018, 46, 968–979. [Google Scholar] [CrossRef] [Green Version]
  17. Chaudhary, P.; Singh, P.; Kumar, V. Synthesis and characterization of pure ZnO and La-doped ZnO (Zn0.98La0.02O) films via novel sol-gel screen-printing method. Optik 2018, 158, 376–381. [Google Scholar] [CrossRef]
  18. Vijayaprasath, G.; Murugan, R.; Hayakawa, Y.; Ravi, G. Optical and magnetic studies on Gd doped ZnO nanoparticles synthesized by co-precipitation method. J. Lumin 2016, 178, 375–383. [Google Scholar] [CrossRef]
  19. Kripal, R.; Gupta, A.K.; Srivastava, R.K.; Mishra, S.K. Photoconductivity and photoluminescence of ZnO nanoparticles synthesized via co-precipitation method. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2011, 79, 1605–1612. [Google Scholar] [CrossRef] [PubMed]
  20. Mostafa, A.M.; Mwafy, E.A. Technology. Synthesis of ZnO and Au@ ZnO core/shell nano-catalysts by pulsed laser ablation in different liquid media. J. Mater. Res. Technol. 2020, 9, 3241–3248. [Google Scholar] [CrossRef]
  21. Gerbreders, V.; Krasovska, M.; Sledevskis, E.; Gerbreders, A.; Mihailova, I.; Tamanis, E.; Ogurcovs, A. Hydrothermal synthesis of ZnO nanostructures with controllable morphology change. Crystengcomm 2020, 22, 1346–1358. [Google Scholar] [CrossRef]
  22. Park, J.K.; Rupa, E.J.; Arif, M.H.; Li, J.F.; Anandapadmanaban, G.; Kang, J.P.; Kim, M.; Ahn, J.C.; Akter, R.; Yang, D.C.; et al. Synthesis of zinc oxide nanoparticles from Gynostemma pentaphyllum extracts and assessment of photocatalytic properties through malachite green dye decolorization under UV illumination-A Green Approach. Optik 2021, 239, 166249. [Google Scholar] [CrossRef]
  23. Seidi, F.; Yazdi, M.K.; Jouyandeh, M.; Dominic, M.; Naeim, H.; Nezhad, M.N.; Bagheri, B.; Habibzadeh, S.; Zarrintaj, P.; Saeb, M.R.; et al. Chitosan-based blends for biomedical applications. Int. J. Biol. Macromol. 2021, 183, 1818–1850. [Google Scholar] [CrossRef] [PubMed]
  24. Ke, C.-L.; Deng, F.-S.; Chuang, C.-Y.; Lin, C.-H. Antimicrobial actions and applications of chitosan. Polymers 2021, 13, 904. [Google Scholar] [CrossRef] [PubMed]
  25. Tian, B.; Liu, Y.; Liu, J. Chitosan-based nanoscale and non-nanoscale delivery systems for anticancer drugs: A review. Eur. Polym. J. 2021, 154, 110533. [Google Scholar] [CrossRef]
  26. Jhaveri, J.; Raichura, Z.; Khan, T.; Momin, M.; Omri, A. Chitosan nanoparticles-insight into properties, functionalization and applications in drug delivery and theranostics. Molecules 2021, 26, 272. [Google Scholar] [CrossRef]
  27. Li, X.; Xing, R.; Xu, C.; Liu, S.; Qin, Y.; Li, K.; Yu, H.; Li, P. Immunostimulatory effect of chitosan and quaternary chitosan: A review of potential vaccine adjuvants. Carbohydr. Polym. 2021, 264, 118050. [Google Scholar] [CrossRef]
  28. Selim, Y.A.; Azb, M.A.; Ragab, I.; Abd El-Azim, M.H.M. Green synthesis of zinc oxide nanoparticles using aqueous extract of Deverra tortuosa and their cytotoxic activities. Sci. Rep. 2020, 10, 3445. [Google Scholar] [CrossRef] [Green Version]
  29. Rajeshkumar, S.; Kumar, S.V.; Ramaiah, A.; Agarwal, H.; Lakshmi, T.; Roopan, S.M. Biosynthesis of zinc oxide nanoparticles usingMangifera indica leaves and evaluation of their antioxidant and cytotoxic properties in lung cancer (A549) cells. Enzym. Microb. Technol. 2018, 117, 91–95. [Google Scholar] [CrossRef]
  30. Reddy, L.S.; Nisha, M.M.; Joice, M.; Shilpa, P.J. Antimicrobial activity of zinc oxide (ZnO) nanoparticle against Klebsiella pneumoniae. Pharm. Biol. 2014, 52, 1388–1397. [Google Scholar] [CrossRef]
  31. Bala, N.; Saha, S.; Chakraborty, M.; Maiti, M.; Das, S.; Basu, R.; Nandy, P. Green synthesis of zinc oxide nanoparticles using Hibiscus subdariffa leaf extract: Effect of temperature on synthesis, anti-bacterial activity and anti-diabetic activity. RSC Adv. 2015, 5, 4993–5003. [Google Scholar] [CrossRef]
  32. Lipovsky, A.; Nitzan, Y.; Gedanken, A.; Lubart, R. Antifungal activity of ZnO nanoparticles—The role of ROS mediated cell injury. Nanotechnology 2011, 22, 105101. [Google Scholar] [CrossRef] [PubMed]
  33. Rupa, E.J.; Arunkumar, L.; Han, Y.; Kang, J.P.; Ahn, J.C.; Jung, S.-K.; Kim, M.; Kim, J.; Yang, D.-C.; Lee, G. Dendropanax morbifera extract-mediated ZnO nanoparticles loaded with indole-3-carbinol for enhancement of anticancer efficacy in the A549 human lung carcinoma cell line. Materials 2020, 13, 3197. [Google Scholar] [CrossRef] [PubMed]
  34. Kim, Y.J.; Perumalsamy, H.; Castro-Aceituno, V.; Kim, D.; Markus, J.; Lee, S.; Kim, S.; Liu, Y.; Yang, D.C. Photoluminescent and self-assembled hyaluronic acid-zinc oxide-ginsenoside Rh2 nanoparticles and their potential caspase-9 apoptotic mechanism towards cancer cell lines. Int. J. Nanomed. 2019, 14, 8195. [Google Scholar] [CrossRef] [Green Version]
  35. Karimi, N.; Behbahani, M.; Dini, G.; Razmjou, A. Nanotechnology. Enhancing the secondary metabolite and anticancer activity of Echinacea purpurea callus extracts by treatment with biosynthesized ZnO nanoparticles. Adv. Nat. Sci. Nanosci. Nanotechnol. 2018, 9, 045009. [Google Scholar] [CrossRef]
  36. Baatar, D.; Siddiqi, M.Z.; Im, W.T.; Ul Khaliq, N.; Hwang, S.G. Anti-inflammatory effect of ginsenoside Rh2-mix on lipopolysaccharide-stimulated RAW 264.7 murine macrophage cells. J. Med. Food 2018, 21, 951–960. [Google Scholar] [CrossRef]
  37. Piao, X.; Zhang, H.; Kang, J.P.; Yang, D.U.; Li, Y.; Pang, S.; Jin, Y.; Yang, D.C.; Wang, Y. Advances in Saponin Diversity of Panax ginseng. Molecules 2020, 25, 3452. [Google Scholar] [CrossRef]
  38. Song, Y.N.; Hong, H.G.; Son, J.S.; Kwon, Y.O.; Lee, H.H.; Kim, H.J.; Park, J.H.; Son, M.J.; Oh, J.-G.; Yoon, M.-H. Investigation of Ginsenosides and Antioxidant Activities in the Roots, Leaves, and Stems of Hydroponic-Cultured Ginseng (Panax ginseng Meyer). Preventive nutrition and food science. Prev. Nutr. Food Sci. 2019, 24, 283–292. [Google Scholar] [CrossRef]
  39. Lee, J.Y.; Yang, H.; Lee, T.K.; Lee, C.H.; Seo, J.W.; Kim, J.-E.; Kim, S.Y.; Park, J.H.Y.; Lee, K.W. A short-term, hydroponic-culture of ginseng results in a significant increase in the anti-oxidative activity and bioactive components. Food Sci. Biotechnol. 2020, 29, 1007–1012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Choi, S.Y.; Cho, C.W.; Lee, Y.; Kim, S.S.; Lee, S.H.; Kim, K.T. Comparison of Ginsenoside and Phenolic Ingredient Contents in Hydroponically-cultivated Ginseng Leaves, Fruits, and Roots. J. Ginseng Res. 2012, 36, 425–429. [Google Scholar] [CrossRef] [Green Version]
  41. Cha, B.-J.; Park, J.-H.; Shrestha, S.; Baek, N.-I.; Lee, S.M.; Lee, T.H.; Kim, J.; Kim, G.-S.; Kim, S.-Y.; Lee, D.-Y. Glycosyl glycerides from hydroponic Panax ginseng inhibited NO production in lipopolysaccharide-stimulated RAW264.7 cells. J. Ginseng Res. 2015, 39, 162–168. [Google Scholar] [CrossRef] [Green Version]
  42. Lee, A.R.; Park, J.H. Antioxidant and hepatoprotective effects of hydroponic-cultured ginseng folium by fermentation. Korea J. Herbol. 2015, 30, 101–108. [Google Scholar] [CrossRef]
  43. Song, M.-W.; Park, J.-Y.; Lee, H.-S.; Kim, K.-T.; Paik, H.-D. Co-Fermentation by Lactobacillus brevis B7 Improves the Antioxidant and Immunomodulatory Activities of Hydroponic Ginseng-Fortified Yogurt. Antioxidants 2021, 10, 1447. [Google Scholar] [CrossRef] [PubMed]
  44. Singh, P.; Kim, Y.J.; Wang, C.; Mathiyalagan, R.; Yang, D.C. The development of a green approach for the biosynthesis of silver and gold nanoparticles by using Panax ginseng root extract, and their biological applications. Artif. Cells Nanomed. Biotechnol. 2016, 44, 1150–1157. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Mourya, V.; Inamdara, N.; Ashutosh Tiwari, N. Carboxymethyl chitosan and its applications. Adv. Mater. Lett. 2010, 1, 11–33. [Google Scholar] [CrossRef]
  46. Sultana, S.; Djaker, N.; Boca-Farcau, S.; Salerno, M.; Charnaux, N.; Astilean, S.; Hlawaty, H.; De La Chapelle, M.L. Comparative toxicity evaluation of flower-shaped and spherical gold nanoparticles on human endothelial cells. Nanotechnology 2015, 26, 055101. [Google Scholar] [CrossRef] [Green Version]
  47. Hashem, M.; Sharaf, S.; Abd El-Hady, M.; Hebeish, A. Synthesis and characterization of novel carboxymethylcellulose hydrogels and carboxymethylcellulolse-hydrogel-ZnO-nanocomposites. Carbohydr. Polym. 2013, 95, 421–427. [Google Scholar] [CrossRef] [PubMed]
  48. Upadhyaya, L.; Singh, J.; Agarwal, V.; Pandey, A.; Verma, S.P.; Das, P.; Tewari, R. Efficient water soluble nanostructured ZnO grafted O-carboxymethyl chitosan/curcumin-nanocomposite for cancer therapy. Process. Biochem. 2015, 50, 678–688. [Google Scholar] [CrossRef]
  49. Shankar, A.H.; Prasad, A.S. Zinc and immune function: The biological basis of altered resistance to infection. Am. J. Clin. Nutr. 1998, 68, 447S–463S. [Google Scholar] [CrossRef] [Green Version]
  50. Truong-Tran, A.Q.; Carter, J.; Ruffin, R.; Zalewski, P.D. New insights into the role of zinc in the respiratory epithelium. Immunol. Cell Biol. 2001, 79, 170–177. [Google Scholar] [CrossRef]
  51. Mishra, P.K.; Mishra, H.; Ekielski, A.; Talegaonkar, S.; Vaidya, B. Zinc oxide nanoparticles: A promising nanomaterial for biomedical applications. Drug Discov. Today 2017, 22, 1825–1834. [Google Scholar] [CrossRef]
  52. Pandurangan, M.; Kim, D.H. In vitro toxicity of zinc oxide nanoparticles: A review. J. Nanoparticle Res. 2015, 17, 158. [Google Scholar] [CrossRef]
  53. Ambreen, G.; Duse, L.; Tariq, I.; Ali, U.; Ali, S.; Pinnapireddy, S.R.; Bette, M.; Bakowsky, U.; Mandic, R. Sensitivity of papilloma virus-associated cell lines to photodynamic therapy with curcumin-loaded liposomes. Cancers 2020, 12, 3278. [Google Scholar] [CrossRef]
  54. Kim, S.S.; Cho, H.J.; Kang, J.Y.; Kang, H.K.; Yoo, T.K. Inhibition of androgen receptor expression with small interfering RNA enhances cancer cell apoptosis by suppressing survival factors in androgen insensitive, late stage LNCaP cells. Sci. World J. 2013, 2013, 519397. [Google Scholar] [CrossRef] [Green Version]
  55. Ovadje, P.; Chatterjee, S.; Griffin, C.; Tran, C.; Hamm, C.; Pandey, S. Selective induction of apoptosis through activation of caspase-8 in human leukemia cells (Jurkat) by dandelion root extract. J. Ethnopharmacol. 2011, 133, 86–91. [Google Scholar] [CrossRef] [PubMed]
  56. Wlodkowic, D.; Telford, W.; Skommer, J.; Darzynkiewicz, Z. Apoptosis and beyond: Cytometry in studies of programmed cell death. Methods Cell Biol. 2011, 103, 55–98. [Google Scholar] [PubMed] [Green Version]
  57. Perumalsamy, H.; Sankarapandian, K.; Kandaswamy, N.; Balusamy, S.R.; Periyathambi, D.; Raveendiran, N. Cellular effect of styrene substituted biscoumarin caused cellular apoptosis and cell cycle arrest in human breast cancer cells. Int. J. Biochem. Cell Biol. 2017, 92, 104–114. [Google Scholar] [CrossRef]
  58. Poofery, J.; Khaw-On, P.; Subhawa, S.; Sripanidkulchai, B.; Tantraworasin, A.; Saeteng, S.; Siwachat, S.; Lertprasertsuke, N.; Banjerdpongchai, R. Potential of Thai herbal extracts on lung cancer treatment by inducing apoptosis and synergizing chemotherapy. Molecules 2020, 25, 231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Rupa, E.J.; Anandapadmanaban, G.; Mathiyalagan, R.; Yang, D.-C. Synthesis of zinc oxide nanoparticles from immature fruits of Rubus coreanus and its catalytic activity for degradation of industrial dye. Optik 2018, 172, 1179–1186. [Google Scholar] [CrossRef]
Molecules 28 00906 g001 550

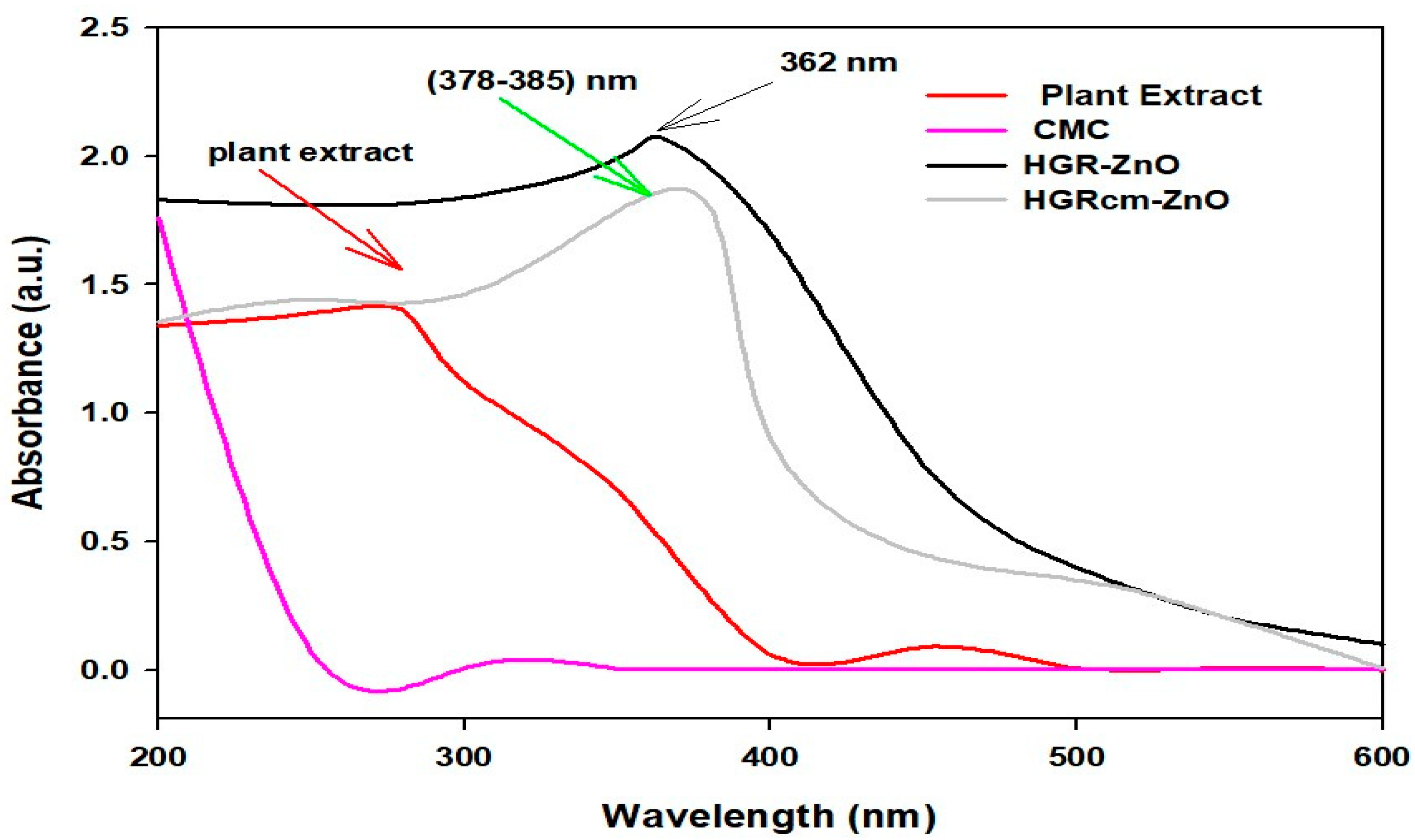

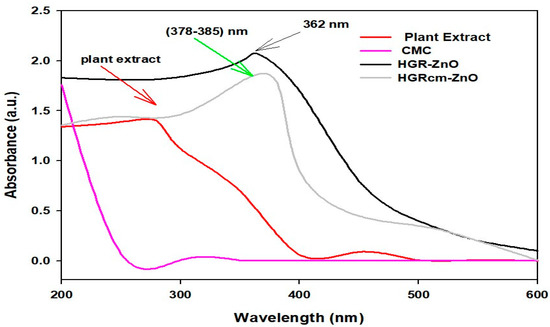

Figure 1. UV-visible spectroscopy confirmation of the formation of hydroponic ginseng root CMC-coated ZnO NPs (HGRCm-ZnO NPs).
Figure 1. UV-visible spectroscopy confirmation of the formation of hydroponic ginseng root CMC-coated ZnO NPs (HGRCm-ZnO NPs).
Molecules 28 00906 g001
Molecules 28 00906 g002 550

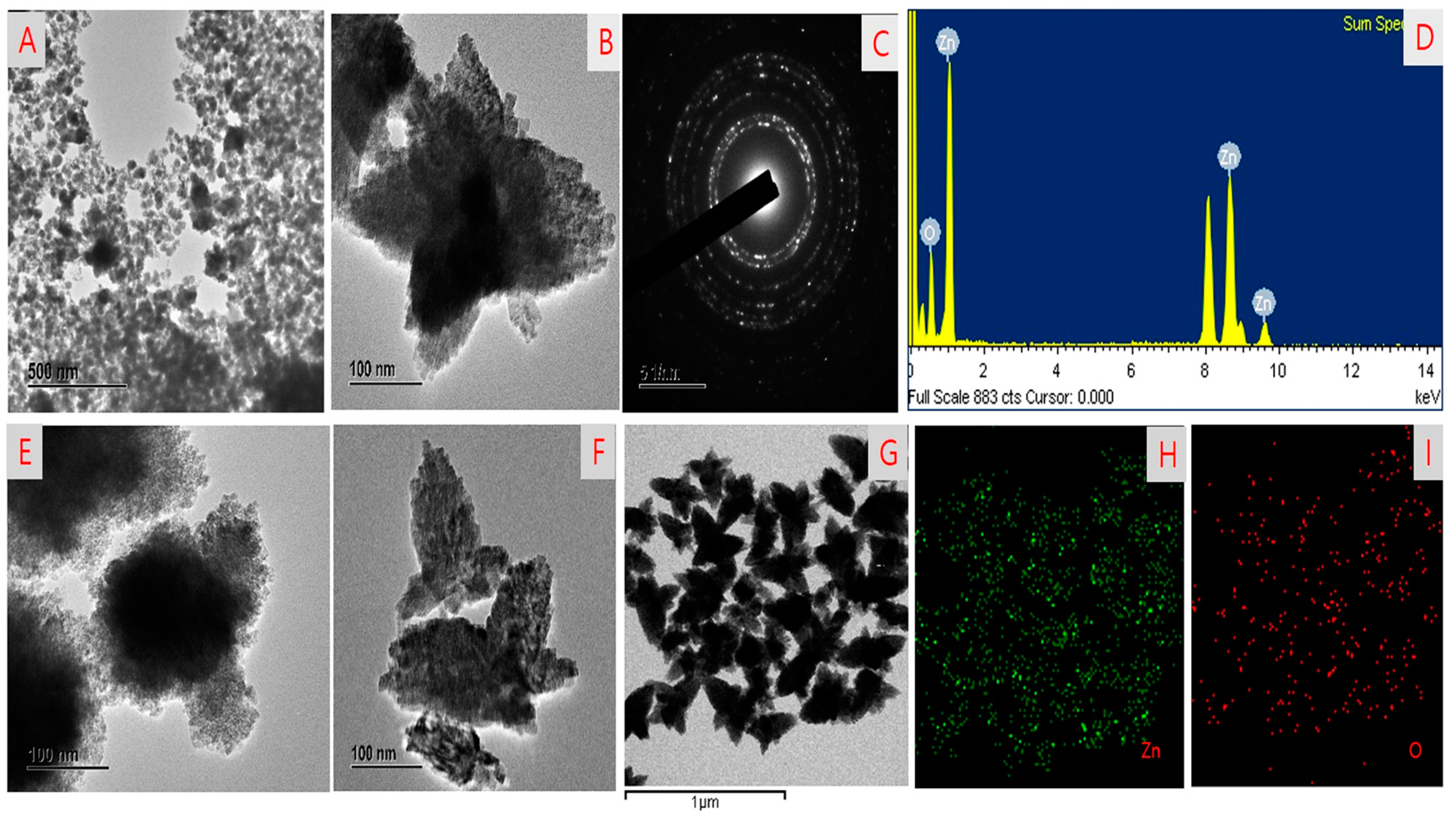

Figure 2. FE-TEM images showing the morphology of (A,E) HGR-ZnO NPs without CMC; (B,F,G) ZnO NPs with CMC; (C) SAED results; (D) EDX results; and (H,I) elemental mapping of HGRCm-ZnO NPs.
Figure 2. FE-TEM images showing the morphology of (A,E) HGR-ZnO NPs without CMC; (B,F,G) ZnO NPs with CMC; (C) SAED results; (D) EDX results; and (H,I) elemental mapping of HGRCm-ZnO NPs.
Molecules 28 00906 g002
Molecules 28 00906 g003 550

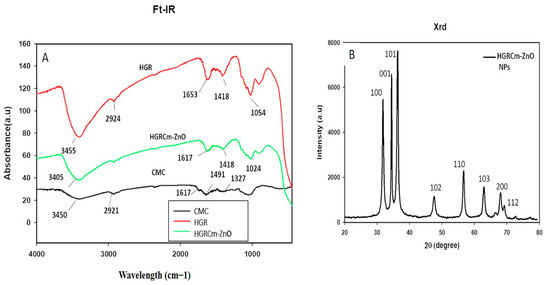

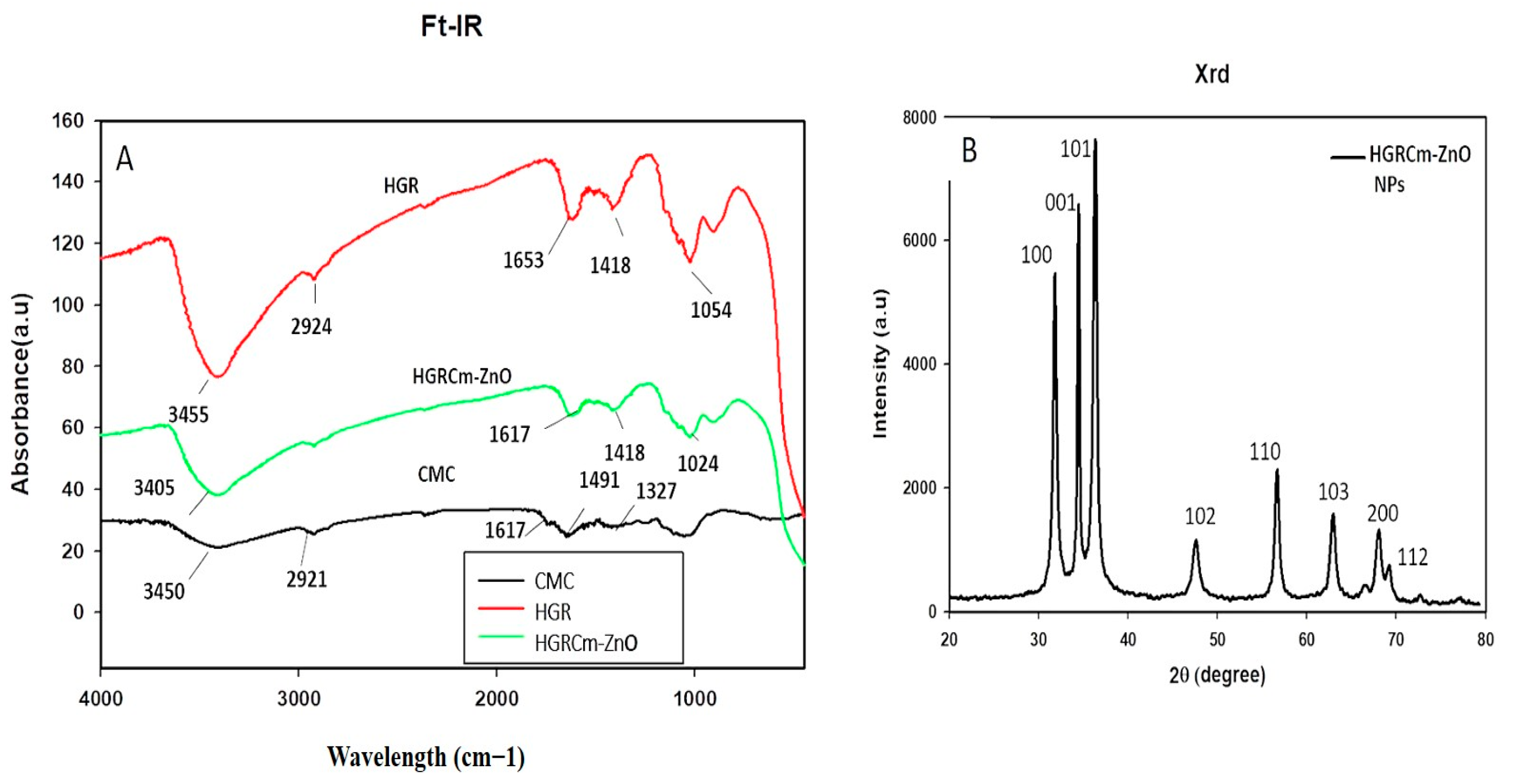

Figure 3. (A) Fourier transforms infrared analysis (FT-IR) for CMC (Black), hydroponic ginseng root (Red) and HGRCm-ZnO NPs (Green) and (B) XRD analysis of hydroponic ginseng root CMC-coated ZnO NPs (HGRCm-ZnO NPs (Black).
Figure 3. (A) Fourier transforms infrared analysis (FT-IR) for CMC (Black), hydroponic ginseng root (Red) and HGRCm-ZnO NPs (Green) and (B) XRD analysis of hydroponic ginseng root CMC-coated ZnO NPs (HGRCm-ZnO NPs (Black).
Molecules 28 00906 g003
Molecules 28 00906 g004 550

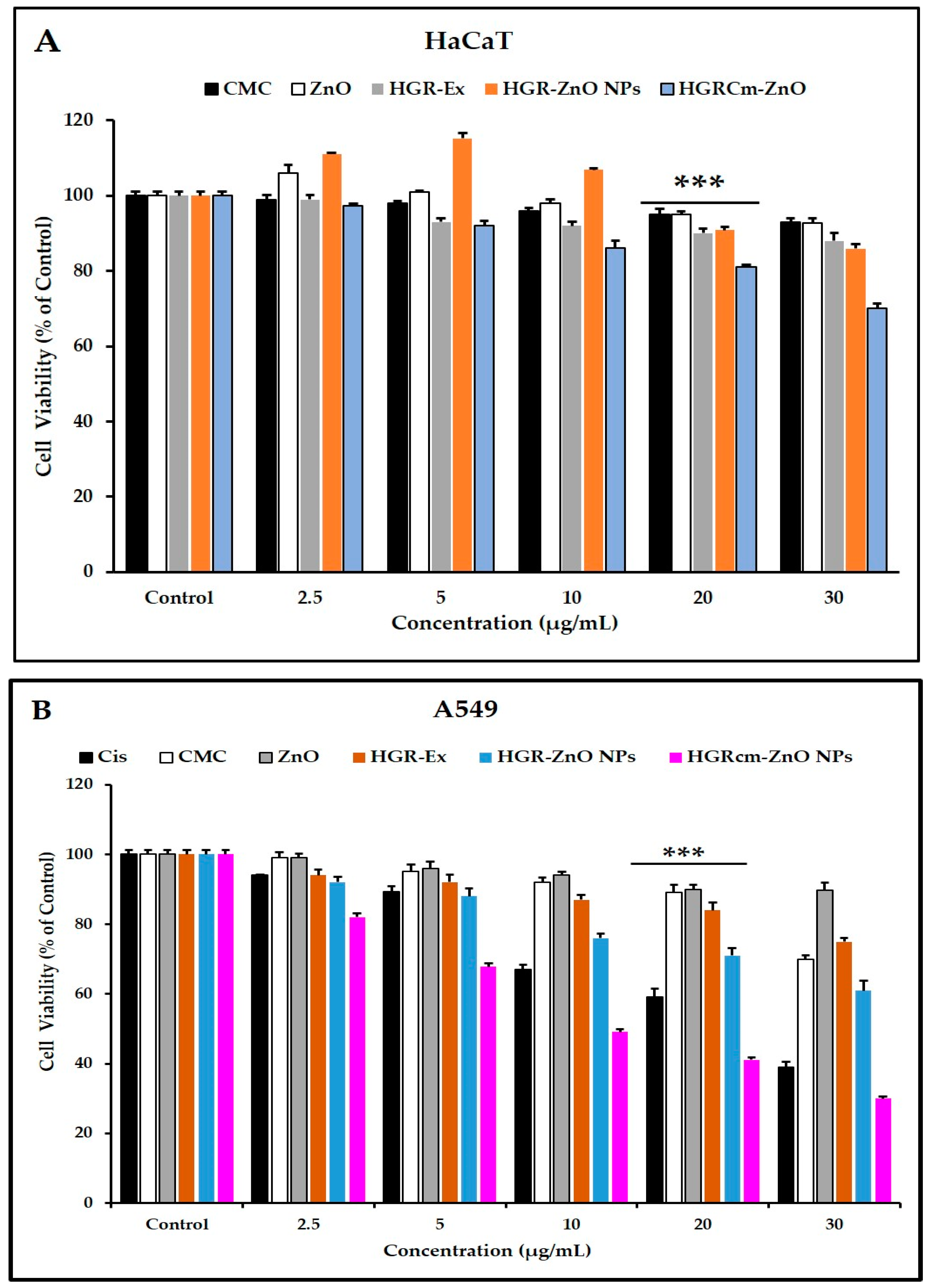

Figure 4. Cell viability of HGRCm-ZnO NPs, CMC, root extract, and cisplatin based on the MTT assay. (A) HaCaT cells; (B) A549 cells. Each bar represents the mean ± SE of duplicate samples from three independent experiments (*** p < 0.001 using Student’s t-test compared to the control.).
Figure 4. Cell viability of HGRCm-ZnO NPs, CMC, root extract, and cisplatin based on the MTT assay. (A) HaCaT cells; (B) A549 cells. Each bar represents the mean ± SE of duplicate samples from three independent experiments (*** p < 0.001 using Student’s t-test compared to the control.).
Molecules 28 00906 g004
Molecules 28 00906 g005 550

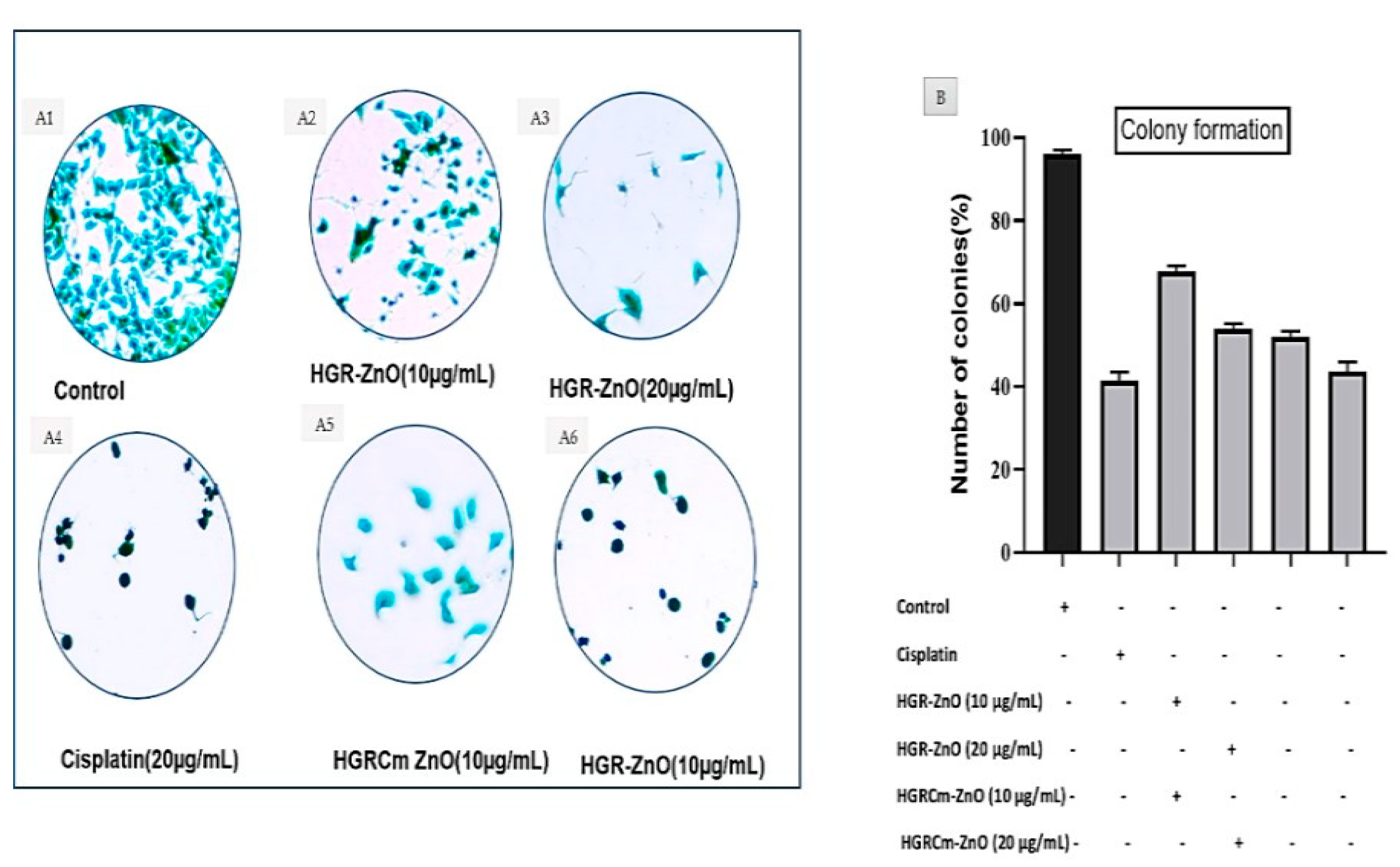

Figure 5. The colony formation assays. (A) The representative image of the colony formation after being stained with crystal violet of HGRCm-ZnO NPs at 10 and 20 µg/mL. Cisplatin was used as a positive control. (B) The number of colonies was counted using Image J analysis software, and the results are presented in graph.
Figure 5. The colony formation assays. (A) The representative image of the colony formation after being stained with crystal violet of HGRCm-ZnO NPs at 10 and 20 µg/mL. Cisplatin was used as a positive control. (B) The number of colonies was counted using Image J analysis software, and the results are presented in graph.
Molecules 28 00906 g005
Molecules 28 00906 g006 550

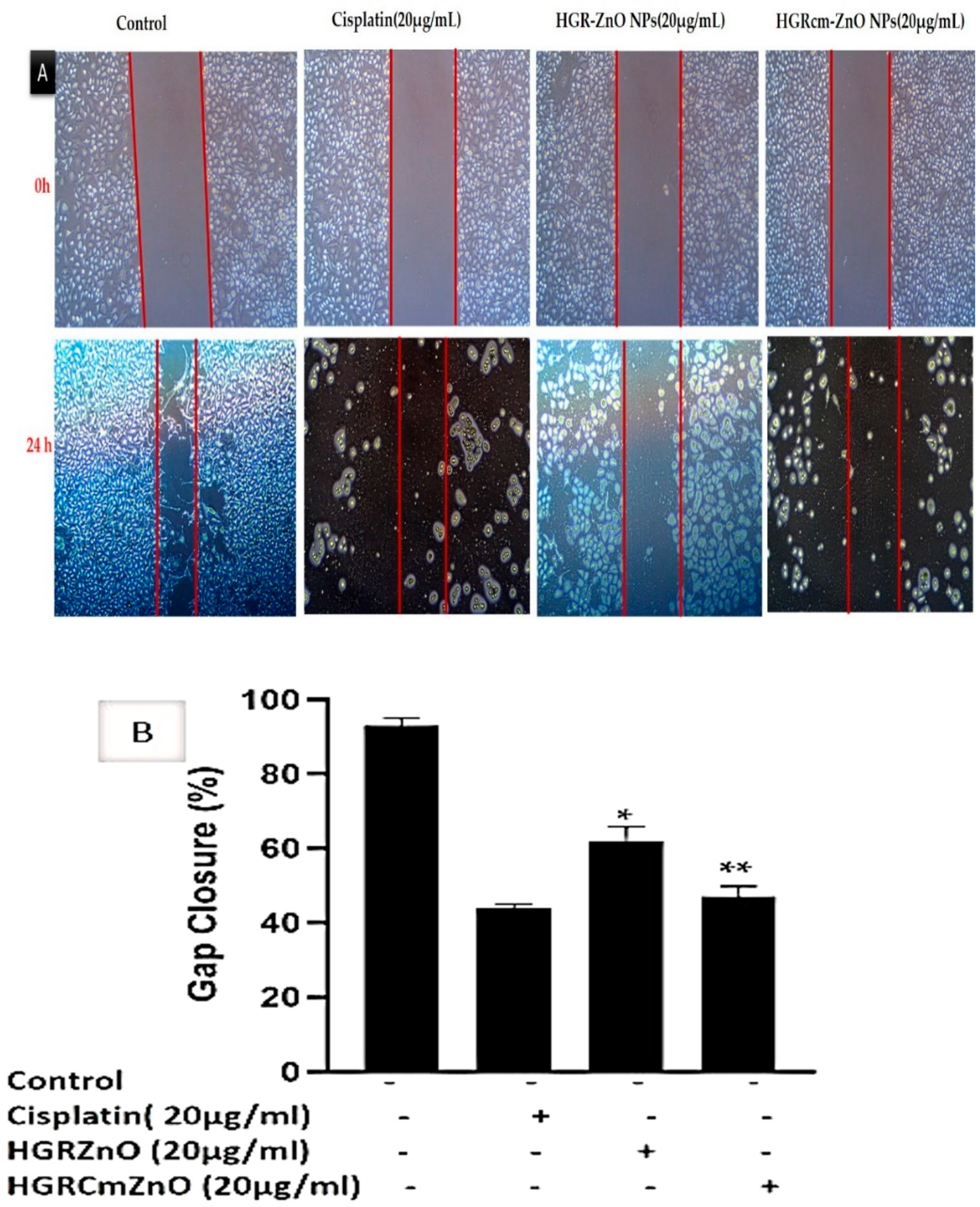

Figure 6. (A) The cell-free area of the scratched region was measured with ImageJ software. The extent of cell migration is presented as the percentage of scratch (wound) closure observed 24 h after treatment compared to control values (B). Controls indicate untreated cells. Values are expressed as mean ± standard deviation, and * p < 0.01; ** p < 0.01 indicates significant differences from control groups. The scale bar indicates 10× magnification.
Figure 6. (A) The cell-free area of the scratched region was measured with ImageJ software. The extent of cell migration is presented as the percentage of scratch (wound) closure observed 24 h after treatment compared to control values (B). Controls indicate untreated cells. Values are expressed as mean ± standard deviation, and * p < 0.01; ** p < 0.01 indicates significant differences from control groups. The scale bar indicates 10× magnification.
Molecules 28 00906 g006
Molecules 28 00906 g007 550

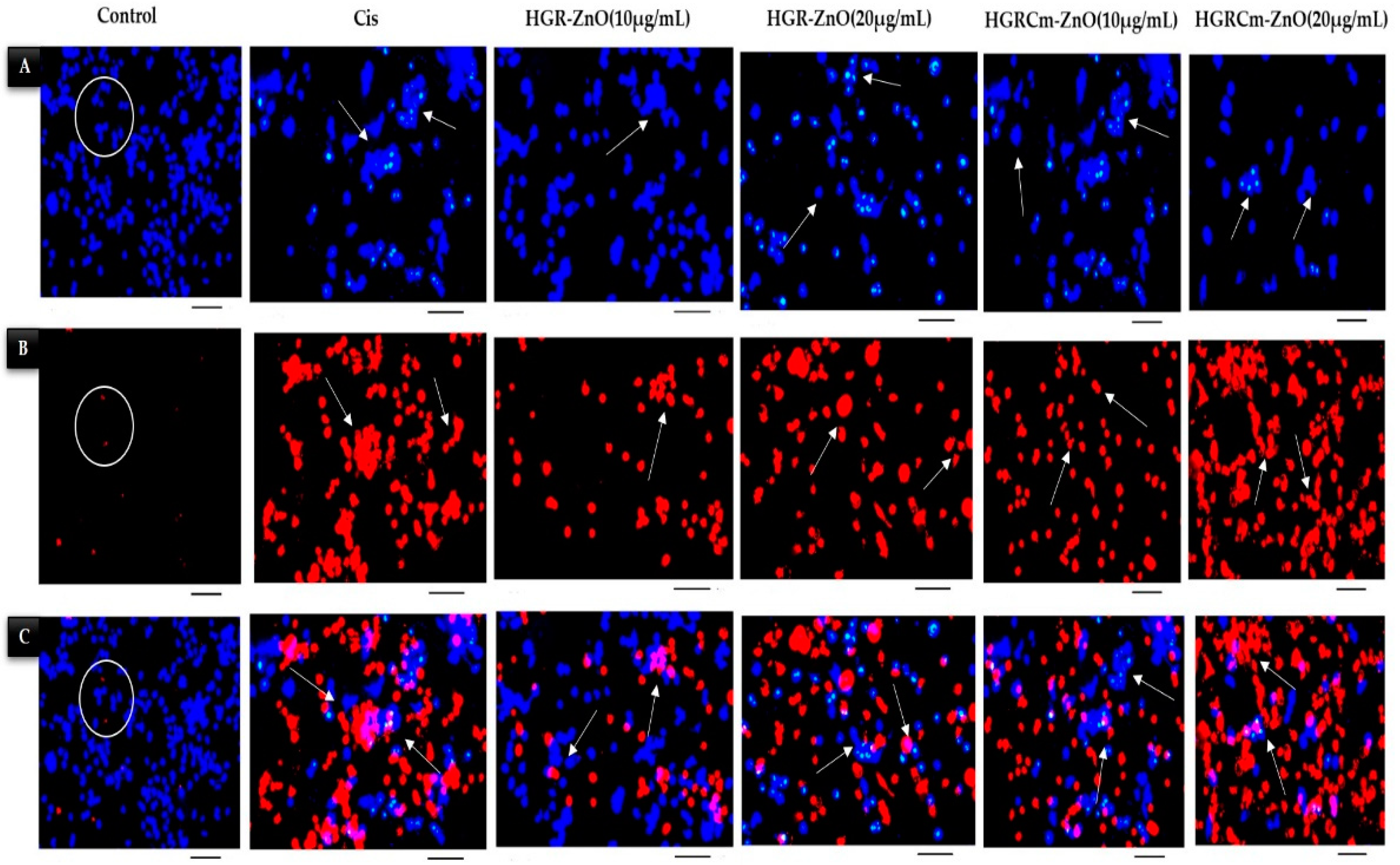

Figure 7. Hoechst and PI staining of HGRCm-ZnO NPs and detection of cellular apoptosis via cell disruption and breakage of the cell wall, as indicated with arrowheads. (A) Hoechst staining (light-blue live cells and dark-blue apoptotic cells), (B) PI staining (dark-red dead cells), and (C) merged images. Original scale bar 20×.
Figure 7. Hoechst and PI staining of HGRCm-ZnO NPs and detection of cellular apoptosis via cell disruption and breakage of the cell wall, as indicated with arrowheads. (A) Hoechst staining (light-blue live cells and dark-blue apoptotic cells), (B) PI staining (dark-red dead cells), and (C) merged images. Original scale bar 20×.
Molecules 28 00906 g007
Molecules 28 00906 g008 550

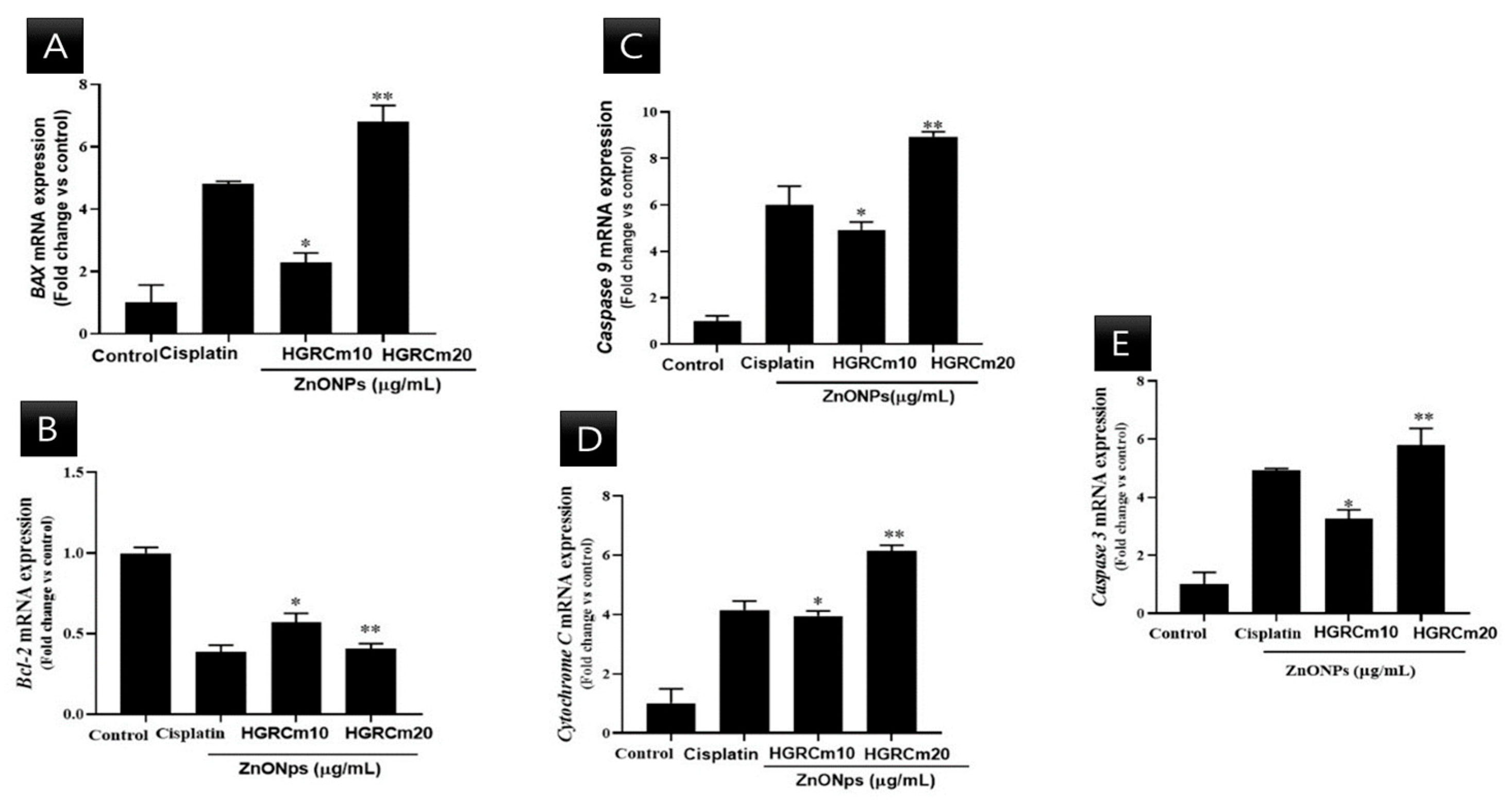

Figure 8. Effects of HGRCm-ZnO NPs on mRNA expression levels of apoptosis-related genes in A549 cells. Here, A549 cells were treated with HGRCm-ZnO NPs at 10 and 20 μg/mL for 24 h. Total RNA was then extracted, and transcript expression levels were determined by qPCR analysis using primers targeting (A) BAX, (B) Bcl-2, (C) Caspase 9, (D) Cytochrome C, and (E) Caspase 3. Each bar represents the mean ± SE of duplicate samples from three independent experiments. * p < 0.01; ** p < 0.01 using Student’s t-test compared to the non-treated control).
Figure 8. Effects of HGRCm-ZnO NPs on mRNA expression levels of apoptosis-related genes in A549 cells. Here, A549 cells were treated with HGRCm-ZnO NPs at 10 and 20 μg/mL for 24 h. Total RNA was then extracted, and transcript expression levels were determined by qPCR analysis using primers targeting (A) BAX, (B) Bcl-2, (C) Caspase 9, (D) Cytochrome C, and (E) Caspase 3. Each bar represents the mean ± SE of duplicate samples from three independent experiments. * p < 0.01; ** p < 0.01 using Student’s t-test compared to the non-treated control).
Molecules 28 00906 g008
Molecules 28 00906 g009 550

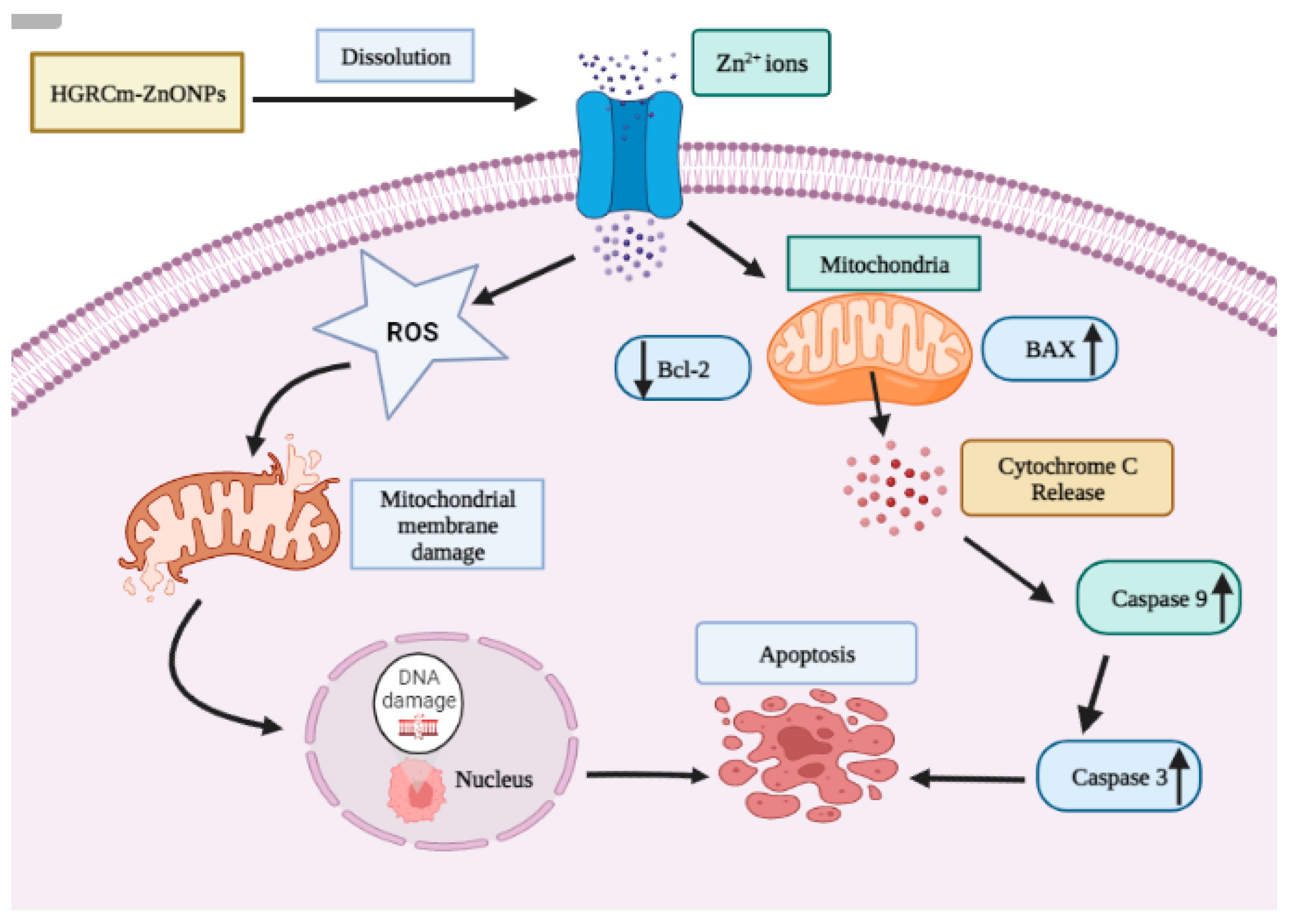

Figure 9. Cellular apoptosis via the intrinsic mitochondrial pathway. The intrinsic pathway is activated by intracellular stimuli such as DNA damage or oxidative stress. Activation of mitochondrial-mediated apoptosis, which is indicated by inhibition of Bcl-2 and an increase in BAX, permits the release of Cyt c into the cytoplasm and, ultimately, the upregulation of Caspase 9/3 genes to activate the intrinsic apoptotic signaling cell death process.
Figure 9. Cellular apoptosis via the intrinsic mitochondrial pathway. The intrinsic pathway is activated by intracellular stimuli such as DNA damage or oxidative stress. Activation of mitochondrial-mediated apoptosis, which is indicated by inhibition of Bcl-2 and an increase in BAX, permits the release of Cyt c into the cytoplasm and, ultimately, the upregulation of Caspase 9/3 genes to activate the intrinsic apoptotic signaling cell death process.
Molecules 28 00906 g009
Molecules 28 00906 g010 550
Figure 10. Synthesis of HGRCm-ZnO NPs from hydroponic ginseng root and CMC polymer.
Figure 10. Synthesis of HGRCm-ZnO NPs from hydroponic ginseng root and CMC polymer.
Molecules 28 00906 g010
Table
Table 1. Apoptotic primer sequence.
Table 1. Apoptotic primer sequence.
Primer Sequence
β-actinForward5′-CGGGAAATCGTGCGTGAC-3′
Reverse5′-AGCTCTTCTCCAGGGAGGA-3′
BAXForward5′-AGCAAACTGGTGCTCAAGGC-3′
Reverse5′-CCACAAAGATGGTCACTGTC-3′
Cytochrome cForward5′-GAGGCAAGCATAAGACTGG-3′
Reverse5′-TACTCCATCAGGGTATCCTC-3′
Bcl-2Forward5′-GTGGTGGAGGAACTCTTCAG-3′
Reverse5′-GTTCCACAAAGGCATCCCAG-3′
Caspase9Forward5′-CGCCACCATCTTCTCCCTG-3′
Reverse5′-GCCATGGTCTTTCTGCTCA-3′
Caspase3Forward5’-CCTCAGAGAGAGACATTCATG-3′
Reverse5’-GCAGTAGTCGCCTCTGAAG-3′
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jin, Y.; Rupa, E.J.; Nahar, J.; Ling, L.; Puja, A.M.; Akter, R.; Yang, D.C.; Kang, S.C.; Zhang, H. Hydroponic Ginseng ROOT Mediated with CMC Polymer-Coated Zinc Oxide Nanoparticles for Cellular Apoptosis via Downregulation of BCL-2 Gene Expression in A549 Lung Cancer Cell Line. Molecules 2023, 28, 906. https://doi.org/10.3390/molecules28020906

AMA Style

Jin Y, Rupa EJ, Nahar J, Ling L, Puja AM, Akter R, Yang DC, Kang SC, Zhang H. Hydroponic Ginseng ROOT Mediated with CMC Polymer-Coated Zinc Oxide Nanoparticles for Cellular Apoptosis via Downregulation of BCL-2 Gene Expression in A549 Lung Cancer Cell Line. Molecules. 2023; 28(2):906. https://doi.org/10.3390/molecules28020906

Chicago/Turabian Style

Jin, Yinping, Esrat Jahan Rupa, Jinnatun Nahar, Li Ling, Aditi Mitra Puja, Reshmi Akter, Deok Chun Yang, Se Chan Kang, and Hao Zhang. 2023. "Hydroponic Ginseng ROOT Mediated with CMC Polymer-Coated Zinc Oxide Nanoparticles for Cellular Apoptosis via Downregulation of BCL-2 Gene Expression in A549 Lung Cancer Cell Line" Molecules 28, no. 2: 906. https://doi.org/10.3390/molecules28020906

APA Style

Jin, Y., Rupa, E. J., Nahar, J., Ling, L., Puja, A. M., Akter, R., Yang, D. C., Kang, S. C., & Zhang, H. (2023). Hydroponic Ginseng ROOT Mediated with CMC Polymer-Coated Zinc Oxide Nanoparticles for Cellular Apoptosis via Downregulation of BCL-2 Gene Expression in A549 Lung Cancer Cell Line. Molecules, 28(2), 906. https://doi.org/10.3390/molecules28020906

Article Metrics

Back to TopTop
