Amino Phenyl Copper Phosphate-Bridged Reactive Phosphaphenanthrene to Intensify Fire Safety of Epoxy Resins

by
Huiyu Chai
1,
Weixi Li
1,
Shengbing Wan
2,
Zheng Liu
2,
Yafen Zhang
2,
Yunlong Zhang
1,
Junhao Zhang
3 and
Qinghong Kong
1,*
1
School of Emergency Management, Jiangsu University, Zhenjiang 212013, China
2
Zhejiang Jiamin New Materials Co., Ltd., Jiaxing 314027, China
3
School of Environmental and Chemical Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(2), 623; https://doi.org/10.3390/molecules28020623
Submission received: 9 December 2022 / Revised: 3 January 2023 / Accepted: 4 January 2023 / Published: 7 January 2023
(This article belongs to the Special Issue Advances in Novel Flame Retardant Technologies for Fire-Safe Polymeric Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
To improve the compatibility between flame retardant and epoxy resin (EP) matrix, amino phenyl copper phosphate-9, 10-dihydro-9-oxygen-10-phospha-phenanthrene-10-oxide (CuPPA-DOPO) is synthesized through surface grafting, which is blended with EP matrix to prepare EP/CuPPA-DOPO composites. The amorphous structure of CuPPA-DOPO is characterized by X-ray diffraction and Fourier-transform infrared spectroscopy. Scanning electron microscope (SEM) images indicate that the agglomeration of hybrids is improved, resisting the intense intermolecular attractions on account of the acting force between CuPPA and DOPO. The results of thermal analysis show that CuPPA-DOPO can promote the premature decomposition of EP and increase the residual amount of EP composites. It is worth mentioning that EP/6 wt% CuPPA-DOPO composites reach UL-94 V-1 level and limiting oxygen index (LOI) of 32.6%. Meanwhile, their peak heat release rate (PHRR), peak smoke production release (PSPR) and CO2 production (CO2P) are decreased by 52.5%, 26.1% and 41.4%, respectively, compared with those of EP. The inhibition effect of CuPPA-DOPO on the combustion of EP may be due to the release of phosphorus and ammonia free radicals, as well as the catalytic charring ability of metal oxides and phosphorus phases.

1. Introduction

Epoxy resin (EP) has been widely used in many fields because of its excellent performance [1,2]. Nevertheless, its highly flammable and asphyxiating fumes cannot meet the needs of sophisticated fields [3,4]. Therefore, improving the fire resistance of epoxy resin is an important goal in the field of intrinsic safety [5,6].
In recent years, two-dimensional layered metallic phosphates have attracted extensive attention owing to their regular layered structures and excellent flame-retardant properties [7,8]. Phenyl metal phosphonates, as a class of layered metallic phosphates, have been a research focus in the field of flame-retardant materials because of their stable chemical properties, suitable thermal stability and good compatibility with matrix [9,10]. For example, UL-94 of V-0 grade was observed with 1 wt% layered lanthanum phenyl phosphate (LaHPP) and 7 wt% decabromodiphenyl oxide (DBDPO) in a polycarbonate formulation, which was attributed to the lamellar structure and condensation phase reinforcement of lanthanum phenyl phosphate [11]. It was reported that the flue gas and toxic gas release of EP composites with the addition of copper phenyl phosphate (CuPP) was reduced [12]. However, phenyl metal phosphonates are difficult to uniformly disperse in polymer matrix due to their unique laminated structure, which has a great influence on the flame retardancy of polymer composites [13,14]. Therefore, it is necessary to improve the dispersion of phenyl metal phosphonate in polymer matrices.
Reactive flame retardants can effectively solve the problem of poor dispersion in polymer composites [15]. DOPO, as a reactive flame retardant, has good oxidation resistance and easily modifiable property [16]. The inherent P-H bond in the structure of DOPO has high reactivity, and so it can be reacted with unsaturated bonds and epoxy groups to form various derivatives, which can be cross-linked with EP matrix [17]. Furthermore, nitrogenous DOPO compounds synthesized by the addition reaction of DOPO and imine compounds are the most common solidified DOPO flame retardants [18]. The advantages of DOPO-imine flame retardants lie in their simple synthesis conditions, adjustable reaction process, high product yield and molecular structure containing both phosphorus and nitrogen flame-retardant elements [19,20]. The application of DOPO combined with inorganic nanomaterials through the amino group in flame-retardant EP has been reported. The PHRR and total heat release (THR) of EP/7 wt% zirconium hybrid polyhedron oligomeric polysiloxane derivative composites decreased by 37.1% and 16.7%, respectively, compared with those of EP [21]. A piperazinyl DOPO derivative was developed with the aim of functionalizing graphene oxide to form a hybrid, which reduced the mechanical cracking of epoxy resins and improved their biphasic compatibility [22]. Therefore, reactive DOPO-imine derivatives as flame retardants for EP are worthy of further investigation.
Given this context, it can be said that reactive DOPO-imine derivatives can effectively alleviate the compatibility disadvantage of phenyl metal phosphonate, and can further improve the flame-retardance efficiency. Hence, in this work, an amino phenyl copper phosphate (CuPPA) was successfully synthesized. Then, CuPPA was further grafted with DOPO to form complex compounds. Inorganic nanoparticles were combined with an organic high-efficiency phosphorus flame retardant through this molecular structural design. Meanwhile, reactive flame-retardant technology was introduced to promote the formation of uniform and stable EP composites due to the presence of imines. The results indicated that the uniform EP composites exhibited remarkable flame retardancy when CuPPA-DOPO was introduced into the epoxy resin combustion system.

2. Results and Discussion

2.1. Structural Analysis of CuPPA-DOPO

Figure 1a shows the XRD patterns of CuPPA and CuPPA-DOPO. The diffuse scattering peak of CuPPA occurs at about 26°, indicating that its degree of crystallinity is not high and revealing its amorphous structure [23]. The diffuse scattering peak decreased slightly and the crystallinity did not change significantly after grafting DOPO onto CuPPA. FTIR spectra (Figure 1b) reveal the structures of CuPPA and CuPPA-DOPO. The absorption peaks at 1148 cm−1 and 1054 cm−1 are the stretching vibrations of P=O and P-O bonds, and the peaks at 615 cm−1 and 533 cm−1 are the characteristic peaks of C-P bonds [12]. The absorption peak at 1092 cm−1 corresponds to the stretching vibrations of Cu-O-P bonds [24]. The absorption peaks at 1501 cm−1 and 834 cm−1 correspond to the stretching vibrations of C=C and C-N-C bonds. The absorption peaks at 3330 cm−1 and 3445 cm−1 belong to the stretching vibrations of -NH2 bonds, which are consistent with the molecular formula of CuPPA [25,26]. The vibrational band occurring at 758 cm−1 is attributable to the absorption of P-O-Ph, and the vibrational band of P-H in DOPO disappears. The double peaks of -NH2 in CuPPA shift to a single peak (3335 cm−1) of -NH in CuPPA-DOPO [27]. The above analyses prove that DOPO was successfully introduced into the molecular chain of CuPPA. The microstructures of CuPPA and CuPPA-DOPO can be directly observed in the SEM images shown in Figure 1c,d. A rod-like nanostructure with tiny nanoparticles was clearly visible after grafting DOPO onto CuPPA, which was different from the stacked lamellar structure of CuPPA. The nanorods had a diameter of about 500 nm and a length of a few microns.
The thermal decomposition behavior of CuPPA, DOPO and CuPPA-DOPO was obtained by TGA, as plotted in Figure 2. The decomposition of CuPPA-DOPO has three stages of weightlessness. The first weight loss (5.8 wt%) occurred at 30–105 °C, and was mainly the desorption of adsorbed water and a small amount of organic solvents [28]. The next weight loss was 14.2 wt% after 105–306 °C, accompanied by the decomposition of phosphaphenanthrene into small molecules [29]. The most intense weight loss was 52.0 wt% after 306 °C, attributable to the decomposition of metal compounds and the oxidation of organic molecules such as phosphonates, the phase of which coincided with the decomposition temperature of EP [30].

2.2. Thermal Properties of EP Composites

The thermal stability of EP nanocomposites is an important evaluation index of fire safety. TGA and DTG curves and relevant data of EP nanocomposites are shown in Figure 3a,b and Table 1. The initial decomposition temperature (T5%) of EP was 360 °C, while EP/CuPPA-DOPO composites displayed lower T5%. Among EP composites, T5% and Tmax (the temperature at maximum pyrolysis rate) of EP/6 wt% CuPPA-DOPO composites were decreased to 333 °C and 368 °C, respectively, demonstrating that CuPPA-DOPO promoted the earlier decomposition of EP composites [31]. However, the promoting effect of CuPPA was not obvious, with T5% and Tmax of 350 °C and 376 °C. The decrease of the maximum decomposition rate of EP/6 wt% CuPPA-DOPO composites also indicates that the presence of CuPPA-DOPO delayed the degradation of the EP at a higher temperature [32]. Moreover, the incorporation of CuPPA-DOPO improved the char-forming ability of the EP composites. The residues of EP composites were increased to 17.4%, 23.0%, 24.9% and 26.1%, respectively, when the amounts of CuPPA-DOPO were 2, 4, 6 and 8 wt%. The residue of EP/4 wt% CuPPA composites at 700 °C was 19.8%, which is higher than that (14.9%) of pure EP, but lower than that of EP/4 wt% CuPPA-DOPO. The outstanding char-forming ability of EP is attributed to the polyphosphoric substances and metallic oxide produced in the early decomposition of CuPPA-DOPO [33,34].

2.3. Flame Retardancy of EP Composites

The results of UL-94 vertical burning and LOI test of EP/CuPPA-DOPO composites are shown in Table 2. EP composites all reached a UL-94 V-1 rating, and the LOI values increased to 28.8%, 30.8%, 32.6% and 31.4% when adding 2, 4, 6 and 8 wt% CuPPA-DOPO, respectively, while EP was evaluated as no grade and the LOI value increased only to 25.9%. EP/6 wt% CuPPA-DOPO composites had the best flame-retardant effect. The flame retardancy of EP/8 wt% CuPPA-DOPO composites was slightly poor, which may have been due to the poor dispersibility caused by the excessive dosage, degrading the fluidity of EP/CuPPA-DOPO composites and greatly promoting the combustion of EP composites [35,36]. However, UL-94 reached grade V-1 with 45.2 s, and the LOI value was only 28.2% when 4 wt% CuPPA was added, indicating that the flame retardancy of CuPPA was not as good as that of CuPPA-DOPO. In addition, some of the following features can be seen from the LOI char image in Figure 4. The residue of EP/4 wt% CuPPA-DOPO composites was dense and not easily broken, and more than that of EP/4 wt% CuPPA composites, while EP had less residue. In the system of EP/CuPPA-DOPO composites, the phosphoric acid and metal oxides generated by decomposition could also promote the formation of char layer, insulate the heat transfer, limit oxygen exchange, and thus inhibit the further combustion of EP [37,38].
In order to more intuitively and accurately reflect the combustion behavior of EP composites, CCT was conducted to obtain the heat release rate (HRR), smoke production rate (SPR), total smoke release (TSR) and CO2 production (CO2P), as displayed in Figure 5a–d and Table 3. The PHRRs of EP composites declined to 739, 617, 390 and 597 kW/m2 with the addition of 2, 4, 6 and 8 wt% CuPPA-DOPO, respectively, representing decreases of 10.1%, 24.9%, 52.5% and 27.4% compared with that (822 kW/m2) of pure EP. The PHRR of EP/4 wt% CuPPA composites was 784 kW/m2, 4.6% lower than that of pure EP, which indicates that CuPPA-DOPO had a better inhibitory effect on the combustion of EP than CuPPA. The decrease of PHRR can be interpreted as being a result of H2O, CO2 and NH2 released by the decomposition of CuPPA-DOPO diluting the concentration of combustible volatile matter in the gas phase and absorbing part of the combustion heat [39,40].
Notably, the PSPR of pure EP was 0.23 m2/s, and that of EP/4 wt% CuPPA composites was 0.21 m2/s. The PSPR of EP composites reduced to 0.21, 0.20, 0.17 and 0.20 m2/s when adding 2, 4, 6 and 8 wt% CuPPA-DOPO, respectively, representing decreases of 8.7%, 13.0%, 26.1% and 13.0% compared with pure EP. Meanwhile, the TSR of EP composites decreased by 28.3%, 20.3%, 13.4% and 14.5% with the addition of 2, 4, 6 and 8 wt% CuPPA-DOPO, respectively, compared with that (2438 m2/m2) of pure EP. The TSR of EP/4 wt% CuPPA composites was 1585 m2/m2, 35% lower than pure EP and 18.4% lower than EP/4 wt% CuPPA-DOPO, which is because small phospho-oxygen molecules released after CuPPA-DOPO combustion became parts of the flue gas and entered the flame, thus increasing the TSR value and degenerating the smoke suppression performance [41,42,43].
High levels of carbon dioxide in fires are a major cause of asphyxia and poisoning. The CO2 production (CO2P) curves of EP composites show that upon adding 2, 4, 6 and 8 wt% CuPPA-DOPO, the CO2P of EP composites decreases to 0.79, 0.70, 0.51 and 0.75 g/s, respectively, representing decreases of 9.2%, 19.5%, 41.4% and 13.8% compared with that (0.87 g/s) of pure EP. However, the CO2P of EP/4 wt% CuPPA composites was 0.85 g/s, slightly lower than that of pure EP and higher than that of EP/4 wt% CuPPA-DOPO. The main reason for the reduction of CO2P is that the combustion of CuPPA-DOPO can produce CuO and phosphorous flame retardant, catalyzing the formation of a dense carbon layer to protect the surface of the composite materials. The PO• produced by CuPPA-DOPO combustion exerts flame retardancy in the gas phase and inhibits the complete combustion of the gas-phase products [44,45].

2.4. Flame-Retardance Mechanism

The microstructures of the outer (Figure 6a–c) and inner (Figure 6d–f) char layers of EP composites were characterized by SEM to obtain more detailed information on the flame-retardance mechanism. The outer surface of the char layer of pure EP was obviously lumpy, with large and dense cracks, which could not play a barrier role in combustion. In addition, there were many large pores and a large number of cracks on the inner surface of the char layer of pure EP, which were caused by intense burning, with a large amount of heat and smoke escaping. More dense and hard expanded char appeared on the outer surface of EP/4 wt% CuPPA-DOPO composites’ char layer. Its inner surface char layer was thicker and rougher, with bonded particles compared with EP/4 wt% CuPPA composites. On the one hand, phosphorous groups contributed to the formation of char. On the other hand, the cured cross-linked network structure enhanced the strength of the residual coke, which could play the role of insulation barrier, reducing the transfer of heat, mass and oxygen between internal and external of EP composites [46,47].
The flame-retardance mechanism of EP/CuPPA-DOPO composites was inferred by analyzing the above SEM results of the EP composites, as shown in Figure 7. In the condensed phase, the exposed copper-metal centers can catalyze organic reactions such as dehydrogenation and esterification [48,49]. In addition, phosphoric acid derivatives also promote the formation of skeleton-stable polycyclic aromatic hydrocarbons, thereby reducing heat and mass transfer and further inhibiting combustion [50,51,52]. In the gas phase, the HPO• and PO• radicals generated during the decomposition of CuPPA-DOPO interrupt the chain reaction [53]. Meanwhile, the non-flammable gases dilute the combustible gases on the surface of EP composites, which is conducive to retarding flame spread [54,55].

3. Materials and Methods

3.1. Materials

Para-phenylene diamine (C6H8N2), potassium iodide (KI) and 2-chloroethyl phosphate (C2H6ClO3P) were supplied by Macklin Co., Ltd. (Shanghai, China). Additionally, 9,10-dihydro-9-oxygen-10-phospha-phenanthrene-10-oxide (DOPO) (phosphorus content, ≥14% by weight), copper chloride dihydrate (CuCl2·2H2O), paraformaldehyde (HCHO), tetrahydrofuran (C4H8O), sodium hydroxide (NaOH) and diaminodiphenylmethane (DDM) (viscosity at 25 °C, 2.5–4.0 Pa∙s, amine value, 480 mg KOH g−1) were acquired from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). EP (NFEL128) (viscosity, 12–15 Pa∙s, epoxy equivalent, 184–190 g/mol) was bought from Nanya Electronic Materials (Kunshan) Co., Ltd. (Kunshan, China).

3.2. Preparation of Amino Phenyl Copper Phosphate

The schematic diagram of CuPPA synthesis is shown in Figure 8a. First, 400 mL deionized water, 7.3 g 2-chloroethyl phosphoric acid, 5.4 g p-phenylenediamine and 0.8 g KI were added into a 500 mL beaker and stirred until the mixture was completely dissolved. Next, 40 mL cold NaOH (1 mol/L) solution was dropped into a beaker and stirred for 30 min. After reacting at 18 °C for 48 h, 6.8 g CuCl2·2H2O was added into the mixture and the mixed system was continuously stirred for 4 h at 70 °C under magnetic agitation. Finally, the flask was aged for 24 h. The precipitates were filtered and washed with deionized water, then followed by vacuum drying at 80 °C for 24 h.

3.3. Preparation of DOPO-Amino Phenyl Copper Phosphate

The reaction process of CuPPA-DOPO is illustrated in Figure 8b. First, 100 mL tetrahydrofuran and 5 g CuPPA were added into a 250 mL three-necked flask and stirred for 0.5 h. Next, 2.5 g DOPO and 0.5 g paraformaldehyde were added into the mixture and stirred vigorously at 50 °C for 10 h, keeping the condensation reflux under nitrogen atmosphere. The products were washed three times and dried under vacuum at 80 °C for 24 h.

3.4. Preparation of EP/CuPPA-DOPO Composites

Firstly, CuPPA-DOPO was dispersed in acetone and sonicated for 30 min. The preheated EP matrix was added in the mixture for 30 min of ultrasonic. Next, the mixture was stirred at 90 °C for 4 h until the acetone was completely removed. Then, DDM (mass ratio of EP matrix to DDM was 4:1) was added to the dispersion and stirred until DDM was completely dissolved. Then, the mixture was quickly poured into the preheated silicone rubber mold and cured at 100 °C for 2 h. Finally, the splines were transferred to the drying oven and cured at 110 °C/2 h, 130 °C/2 h, 150 °C/2 h. The specific contents and curing reaction of EP composites are shown in Table 4 and Figure 9.

3.5. Measurements

X-ray diffraction (XRD) patterns of CuPPA-DOPO and CuPPA were measured with a MAX-Rb instrument produced by Rigaku Co., Ltd. (Matsumoto, Japan), which had a scanning range of 5° to 80°, a scanning speed of 5°/min and a step length of 0.02°. Fourier-transform infrared (FTIR) spectra were obtained with a 6700 spectrometer produced by Nicolet Instruments Co., Ltd. (Madison, WI, USA). The scanning electron microscopy (SEM) instrument was a JSM-7001F microscope produced by JEOL (Tokyo, Japan), and gold spraying was carried out before testing. Vertical burning (UL-94) tests were performed with a CZF-1 vertical combustion instrument produced by Jiang Ning Analytical Instrument Co., Ltd. (Nanjing, China). The spline size was 130 × 13 × 3.2 mm3, and the test standard was in accordance with ASTM D 3801. Limiting oxygen index (LOI) was tested by a JF-3 oxygen index instrument produced by Jiang Ning Analytical Instrument Co., Ltd. (Nanjing, China). The spline size was 130 × 6.5 × 3.2 mm3 and the test standard was in accordance with ASTM D 2863. Thermogravimetric analysis (TGA) was conducted using a thermogravimetric analyzer produced by Mettler Toledo, with a sample quantity of about 10 mg at a ramp rate of 10 °C/min in nitrogen environment. Burning data of samples were obtained using the cone calorimeter test (CCT) with sheet dimensions of 100 × 100 × 3.0 mm3 according to ISO 5660-1. The spline was wrapped in aluminum foil and placed at a horizontal heat flux of 35 kW/m2.

4. Conclusions

In summary, DOPO-amino phenyl copper phosphate was successfully synthesized, which was incorporated into EP matrix for preparing uniformly dispersed EP/CuPPA-DOPO composites. FTIR and SEM characterizations showed that CuPPA-DOPO was an amorphous rod-like nanoparticle. TGA results showed that the residue of EP/8 wt% CuPPA-DOPO composites was increased to 26.1%, about 11.2% higher than that of pure EP. Moreover, the obtained EP nanocomposites exhibited noteworthy flame-retardant properties with low additives. EP composites reached a UL-94 V-1 rating with a dosage of CuPPA-DOPO as low as 2 wt%. The PHRR, PSPR, TSR and CO2P of EP/CuPPA-DOPO were all decreased compared with those of EP. The inhibition of CuPPA-DOPO on EP combustion was attributed to a char barrier in the condensed phase, quenching by releasing some phosphorus molecular debris in the gas phase as well as the synergy of phosphorous and nitrogen to dilute combustible gases. Therefore, the multi-synergistic flame-retardance mechanism of CuPPA-DOPO is of great significance in the preparation of organic and inorganic hybrid flame retardants.

Author Contributions

Conceptualization, Q.K., S.W. and J.Z.; methodology, H.C. and Z.L.; investigation, W.L. and Y.Z. (Yafen Zhang); major experimental work and writing—original draft preparation, H.C.; writing—review and editing, Q.K., J.Z. and Y.Z. (Yunlong Zhang); resources, Q.K. and J.Z.; supervision, Y.Z. (Yulong Zhang). All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Natural Science of Foundation of China (Grant No.5220421), Innovation and Entrepreneurship Training Plan for College Students in Jiangsu Province (202210299148Y) and the Education Reform Research and Talent Training Project of Jiangsu University School of Emergency Management (KY-B-06).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data has been provided in this article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. De Farias, M.A.; Coelho, L.A.F.; Pezzin, S.H. Hybrid Nanocomposites Based on Epoxy/silsesquioxanes Matrices Reinforced with Multi-walled Carbon Nanotubes. Mater. Res. 2015, 18, 1304–1312. [Google Scholar] [CrossRef] [Green Version]
  2. Lin, C.H.; Chen, J.C.; Huang, C.M.; Jehng, J.M.; Chang, H.C.; Juang, T.Y.; Su, W.C. Side-chain phenol-functionalized poly (ether sulfone) and its contribution to high-performance and flexible epoxy thermosets. Polymer 2013, 54, 6936–6941. [Google Scholar] [CrossRef]
  3. Lv, Q.; Huang, J.-Q.; Chen, M.-J.; Zhao, J.; Tan, Y.; Chen, L.; Wang, Y.-Z. An Effective Flame Retardant and Smoke Suppression Oligomer for Epoxy Resin. Ind. Eng. Chem. Res. 2013, 52, 9397–9404. [Google Scholar] [CrossRef]
  4. Zhang, J.; Kong, Q.; Wang, D.-Y. Simultaneously improving the fire safety and mechanical properties of epoxy resin with Fe-CNTs via large-scale preparation. J. Mater. Chem. A 2018, 6, 6376–6386. [Google Scholar] [CrossRef]
  5. Zhou, S.; Tao, R.; Dai, P.; Luo, Z.Y.; He, M. Two-step fabrication of lignin-based flame retardant for enhancing the thermal and fire retardancy properties of epoxy resin composites. Polym. Compos. 2020, 41, 2025–2035. [Google Scholar] [CrossRef]
  6. Kong, Q.; Zhu, H.; Fan, J.; Zheng, G.; Zhang, C.; Wang, Y.; Zhang, J. Boosting flame retardancy of epoxy resin composites through incorporating ultrathin nickel phenylphosphate nanosheets. J. Appl. Polym. Sci. 2021, 138, 50265. [Google Scholar] [CrossRef]
  7. Mostovoy, A.S.; Nurtazina, A.S.; Kadykova, Y.A.; Bekeshev, A.Z. Highly Efficient Plasticizers-Antipirenes for Epoxy Polymers. Inorg. Mater. Appl. Res. 2019, 10, 1135–1139. [Google Scholar] [CrossRef]
  8. Bekeshev, A.; Mostovoy, A.; Kadykova, Y.; Akhmetova, M.; Tastanova, L.; Lopukhova, M. Development and Analysis of the Physicochemical and Mechanical Properties of Diorite-Reinforced Epoxy Composites. Polymers 2021, 13, 2421. [Google Scholar] [CrossRef]
  9. Bao, X.; Wu, F.; Wang, J. Thermal Degradation Behavior of Epoxy Resin Containing Modified Carbon Nanotubes. Polymers 2021, 13, 3332. [Google Scholar] [CrossRef]
  10. Chi, Z.; Guo, Z.; Xu, Z.; Zhang, M.; Li, M.; Shang, L.; Ao, Y. A DOPO-based phosphorus-nitrogen flame retardant bio-based epoxy resin from diphenolic acid: Synthesis, flame-retardant behavior and mechanism. Polym. Degrad. Stab. 2020, 176, 109151. [Google Scholar] [CrossRef]
  11. Ran, S.; Ye, R.; Cai, Y.; Shen, H.; He, Y.; Fang, Z.; Guo, Z. Synergistic Flame Retardant Mechanism of Lanthanum Phenylphosphonate and Decabromodiphenyl Oxide in Polycarbonate. Polym. Compos. 2019, 40, 986–999. [Google Scholar] [CrossRef]
  12. Kong, Q.; Wu, T.; Zhang, J.; Wang, D. Simultaneously improving flame retardancy and dynamic mechanical properties of epoxy resin nanocomposites through layered copper phenylphosphate. Compos. Sci. Technol. 2018, 154, 136–144. [Google Scholar] [CrossRef]
  13. Jiang, T.; Liu, C.; Liu, L.; Hong, J.; Dong, M.; Deng, X. Synergistic flame retardant properties of a layered double hydroxide in combination with zirconium phosphonate in polypropylene. RSC Adv. 2016, 94, 91720–91727. [Google Scholar] [CrossRef]
  14. Wang, X.; Zhang, P.; Huang, Z.; Xing, W.; Song, L.; Hu, Y. Effect of aluminum diethylphosphinate on the thermal stability and flame retardancy of flexible polyurethane foams. Fire Saf. J. 2019, 106, 72–79. [Google Scholar] [CrossRef]
  15. Zhu, H.; Chen, Y.; Huang, S.; Wang, Y.; Yang, R.; Chai, H.; Zhu, F.; Kong, Q.; Zhang, Y.; Zhang, J. Suppressing fire hazard of poly(vinyl alcohol) based on (NH4)2[VO(HPO4)]2(C2O4)·5H2O with layered structure. J. Appl. Polym. Sci. 2021, 138, 51345. [Google Scholar] [CrossRef]
  16. Hou, Y.; Xu, Z.; Chu, F.; Gui, Z.; Song, L.; Hu, Y.; Hu, W. A review on metal-organic hybrids as flame retardants for enhancing fire safety of polymer composites. Compos. Part B Eng. 2021, 221, 109014. [Google Scholar] [CrossRef]
  17. Ding, J.; Zhang, Y.; Zhang, X.; Kong, Q.; Zhang, J.; Liu, H.; Zhang, F. Improving the flame-retardant efficiency of layered double hydroxide with disodium phenylphosphate for epoxy resin. J. Therm. Anal. Calorim. 2020, 140, 149–156. [Google Scholar] [CrossRef]
  18. Ran, S.; Guo, Z.; Chen, C.; Zhao, L.; Fang, Z. Carbon nanotube bridged cerium phenylphosphonate hybrids, fabrication and their effects on the thermal stability and flame retardancy of the HDPE/BFR composite. J. Mater. Chem. A 2014, 2, 2999–3007. [Google Scholar] [CrossRef]
  19. Liu, W.; Nie, L.; Luo, L.; Yue, J.; Gan, L.; Lu, J.; Huang, J.; Liu, C. Enhanced dispersibility and uniform distribution of iron phosphonate to intensify its synergistic effect on polypropylene-based intumescent flame-retardant system. J. Appl. Polym. Sci. 2020, 137, 49552. [Google Scholar] [CrossRef]
  20. Chen, C.; Guo, Z.; Ran, S.; Fang, Z. Synthesis of cerium phenylphosphonate and its synergistic flame retardant effect with decabromodiphenyl oxide in glass-fiber reinforced poly(ethylene terephthalate). Polym. Compos. 2014, 35, 539–547. [Google Scholar] [CrossRef]
  21. Zhang, F.; Bao, Y.; Ma, S.; Liu, L.; Shi, X. Hierarchical flower-like nickel phenylphosphonate microspheres and their calcined derivatives for supercapacitor electrodes. J. Mater. Chem. A 2017, 5, 7474–7481. [Google Scholar] [CrossRef]
  22. Cui, J.; Zhang, Y.; Wang, L.; Liu, H.; Wang, N.; Yang, B.; Guo, J.; Tian, L. Phosphorus-containing Salen-Ni metal complexes enhancing the flame retardancy and smoke suppression of epoxy resin composites. J. Appl. Polym. Sci. 2020, 137, 48734. [Google Scholar] [CrossRef]
  23. Guo, X.; Duan, M.; Zhang, J.; Xi, B.; Li, M.; Yin, R.; Zheng, X.; Liu, Y.; Cao, F.; An, X.; et al. A general self-assembly induced strategy for synthesizing two-dimensional ultrathin cobalt-based compounds toward optimizing hydrogen evolution catalysis. Adv. Funct. Mater. 2022, 32, 2209397. [Google Scholar] [CrossRef]
  24. He, Z.; Honeycutt, C.W.; Zhang, T.; Bertsch, P.M. Preparation and FT-IR characterization of metal phytate compounds. J. Environ. Qual. 2006, 35, 1319–1328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Guo, W.; Yu, B.; Yuan, Y.; Song, L.; Hu, Y. In situ preparation of reduced graphene oxide/DOPO-based phosphonamidate hybrids towards high-performance epoxy nanocomposites. Compos. Part B Eng. 2017, 123, 154–164. [Google Scholar] [CrossRef]
  26. Tang, H.; Zhu, Z.; Chen, R.; Wang, J.; Zhou, H. Synthesis of DOPO-based pyrazine derivative and its effect on flame retardancy and thermal stability of epoxy resin. Polym. Adv. Technol. 2019, 30, 2331–2339. [Google Scholar] [CrossRef]
  27. Yang, S.; Wang, J.; Huo, S.; Wang, M.; Wang, J. Preparation and flame retardancy of a compounded epoxy resin system composed of phosphorus/nitrogen-containing active compounds. Polym. Degrad. Stab. 2015, 121, 398–406. [Google Scholar] [CrossRef]
  28. Chen, J.; Guo, X.; Gao, M.; Wang, J.; Sun, S.; Xue, K.; Zhang, S.; Liu, Y.; Zhang, J. Free-supporting dual-confined porous Si@c-ZIF@carbon nanofibersfor high-performance lithium-ion batteries. Chem. Commun. 2021, 57, 10580–10583. [Google Scholar] [CrossRef]
  29. Gnanasekar, P.; Feng, M.; Yan, N. Facile Synthesis of a Phosphorus-Containing Sustainable Biomolecular Platform from Vanillin for the Production of Mechanically Strong and Highly Flame-Retardant Resins. ACS Sustain. Chem. Eng. 2020, 8, 17417–17426. [Google Scholar] [CrossRef]
  30. Kong, Q.; Sun, Y.; Zhang, C.; Guan, H.; Zhang, J.; Wang, D.; Zhang, F. Ultrathin iron phenyl phosphonate nanosheets with appropriate thermal stability for improving fire safety in epoxy. Compos. Sci. Technol. 2019, 182, 107748. [Google Scholar] [CrossRef]
  31. Luo, Q.; Sun, Y.; Yu, B.; Li, C.; Song, J.; Tan, D.; Zhao, J. Synthesis of a novel reactive type flame retardant composed of phenophosphazine ring and maleimide for epoxy resin. Polym. Degrad. Stab. 2019, 165, 137–144. [Google Scholar] [CrossRef]
  32. Bifulco, A.; Varganici, C.D.; Rosu, L.; Mustata, F.; Rosu, D.; Gaan, S. Recent advances in flame retardant epoxy systems containing non-reactive DOPO based phosphorus additives. Polym. Degrad. Stab. 2022, 200, 109962. [Google Scholar] [CrossRef]
  33. Wang, P.; Cai, Z. Highly efficient flame-retardant epoxy resin with a novel DOPO-based triazole compound: Thermal stability, flame retardancy and mechanism. Polym. Degrad. Stab. 2017, 137, 138–150. [Google Scholar] [CrossRef]
  34. Wang, P.; Fu, X.; Kan, Y.; Wang, X.; Hu, Y. Two high-efficient DOPO-based phosphonamidate flame retardants for transparent epoxy resin. High Perform. Polym. 2019, 31, 249–260. [Google Scholar] [CrossRef]
  35. Jin, S.; Qian, L.; Qiu, Y.; Chen, Y.; Xin, F. High-efficiency flame retardant behavior of bi-DOPO compound with hydroxyl group on epoxy resin. Polym. Degrad. Stab. 2019, 166, 344–352. [Google Scholar] [CrossRef]
  36. Wang, J.; Ma, C.; Wang, P.; Qiu, S.; Cai, W.; Hu, Y. Ultra-low phosphorus loading to achieve the superior flame retardancy of epoxy resin. Polym. Degrad. Stab. 2018, 149, 119–128. [Google Scholar] [CrossRef]
  37. Chen, Y.; Huang, S.; Zhao, H.; Yang, R.; He, Y.; Zhao, T.; Zhang, Y.; Kong, Q.; Sun, S.; Zhang, J. Influence of beta-cyclodextrin functionalized tin phenylphosphonate on the thermal stability and flame retardancy of epoxy composites. J. Renew. Mater. 2022, 10, 3121–3130. [Google Scholar] [CrossRef]
  38. Kong, Q.; Li, L.; Zhang, M.; Chai, H.; Li, W.; Zhu, F.; Zhang, J. Improving the thermal stability and flame retardancy of epoxy resin by lamellar cobalt potassium pyrophosphate. Polymers 2022, 14, 4927. [Google Scholar] [CrossRef]
  39. Salmeia, K.A.; Gaan, S. An overview of some recent advances in DOPO-derivatives: Chemistry and flame retardant applications. Polym. Degrad. Stab. 2015, 113, 119–134. [Google Scholar] [CrossRef]
  40. Klinkowski, C.; Wagner, S.; Ciesielski, M.; Doring, M. Bridged phosphorylated diamines: Synthesis, thermal stability and flame retarding properties in epoxy resins. Polym. Degrad. Stab. 2014, 106, 122–128. [Google Scholar] [CrossRef]
  41. Zhang, Y.; Yu, B.; Wang, B.; Liew, K.M.; Song, L.; Wang, C.; Hu, Y. Highly effective P–P synergy of a novel DOPO-based flame retardant for epoxy resin. Ind. Eng. Chem. Res. 2017, 56, 1245–1255. [Google Scholar] [CrossRef]
  42. Wei, Z.; Wu, J.; Liu, Z.; Gu, Y.; Luan, G.; Sun, H.; Yu, Q.; Zhang, S.; Wang, Z. Effect of ethyl-bridged diphenylphosphine oxide on flame retardancy and thermal properties of epoxy resin. Polym. Adv. Technol. 2020, 31, 1426–1436. [Google Scholar] [CrossRef]
  43. Yang, S.; Wang, J.; Huo, S.; Wang, M.; Cheng, L. Synthesis of a phosphorus/nitrogen-containing additive with multifunctional groups and its flame retardant effect in epoxy resin. Ind. Eng. Chem. Res. 2015, 54, 7777–7786. [Google Scholar] [CrossRef]
  44. Xu, M.; Xu, G.; Leng, Y.; Li, B. Synthesis of a novel flame retardant based on cyclotriphosphazene and DOPO groups and its application in epoxy resins. Polym. Degrad. Stab. 2016, 123, 105–114. [Google Scholar] [CrossRef]
  45. Fang, F.; Song, P.; Ran, S.; Guo, Z.; Wang, H.; Fang, Z. A facile way to prepare phosphorus-nitrogen-functionalized graphene oxide for enhancing the flame retardancy of epoxy resin. Compos. Commun. 2018, 10, 97–102. [Google Scholar] [CrossRef]
  46. Kong, Q.; Zhu, H.; Huang, S.; Wu, T.; Zhu, F.; Zhang, Y.; Wang, Y.; Zhang, J. Influence of multiply modified FeCu-montmorillonite on fire safety and mechanical performances of epoxy resin nanocomposites. Thermochim. Acta 2022, 707, 179112. [Google Scholar] [CrossRef]
  47. Wang, X.; Hu, Y.; Song, L.; Xing, W.; Lu, H.; Lv, P.; Jie, G. Flame retardancy and thermal degradation mechanism of epoxy resin composites based on a DOPO substituted organophosphorus oligomer. Polymers 2010, 51, 2435–2445. [Google Scholar] [CrossRef]
  48. Guo, X.; Liu, S.; Wan, X.; Zhang, J.; Liu, Y.; Zheng, X.; Kong, Q.; Jin, Z. Controllable solid-phase fabrication of Fe2O3/Fe5C2/Fe-N-C electrocatalyst towards optimizing the oxygen reduction reaction in zinc-air batteries. Nano Lett. 2022, 22, 4879–4887. [Google Scholar] [CrossRef]
  49. Wang, H.; Li, S.; Yuan, Y.; Liu, X.; Sun, T.; Wu, Z. Study of the epoxy/amine equivalent ratio on thermal properties, cryogenic mechanical properties, and liquid oxygen compatibility of the bisphenol A epoxy resin containing phosphorus. High Perform. Polym. 2019, 32, 429–430. [Google Scholar] [CrossRef]
  50. Sai, T.; Ran, S.; Guo, Z.; Yan, H.; Zhang, Y.; Song, P.; Zhang, T.; Wang, H.; Fang, Z. Deposition growth of Zr-based MOFs on cerium phenylphosphonate lamella towards enhanced thermal stability and fire safety of polycarbonate. Compos. Part B Eng. 2020, 197, 108064. [Google Scholar] [CrossRef]
  51. Gao, M.; Xue, Y.; Zhang, Y.; Zhu, C.; Yu, H.; Guo, X.; Sun, S.; Xiong, S.; Kong, Q.; Zhang, J. Growing Co-Ni-Se nanosheets on 3D carbon frameworks as advanced dualfunctional electrodes for supercapacitors and sodium ion batteries. Inorg. Chem. Front. 2022, 9, 3933–3942. [Google Scholar] [CrossRef]
  52. Tang, G.; Liu, X.; Zhou, L.; Zhang, P.; Deng, D.; Jiang, H. Steel slag waste combined with melamine pyrophosphate as a flame retardant for rigid polyurethane foams. Adv. Powder Technol. 2020, 31, 279–286. [Google Scholar] [CrossRef]
  53. Chen, Y.; Lu, Q.; Zhong, G.; Zhang, H.; Chen, M.; Liu, C. DOPO-based curing flame retardant of epoxy composite material for char formation and intumescent flame retardance. J. Appl. Polym. Sci. 2020, 138, 49918. [Google Scholar] [CrossRef]
  54. Tang, G.; Liu, X.; Yang, Y.; Chen, D.; Zhang, H.; Zhou, L.; Zhang, P.; Jiang, H.; Deng, D. Phosphorus-containing silane modified steel slag waste to reduce fire hazards of rigid polyurethane foams. Adv. Powder Technol. 2020, 31, 1420–1430. [Google Scholar] [CrossRef]
  55. Peng, W.; Xu, Y.; Nie, S.; Yang, W. A bio-based phosphaphenanthrene-containing derivative modified epoxy thermosets with good flame retardancy, high mechanical properties and transparency. RSC Adv. 2021, 11, 30943–30954. [Google Scholar] [CrossRef]
Molecules 28 00623 g001 550

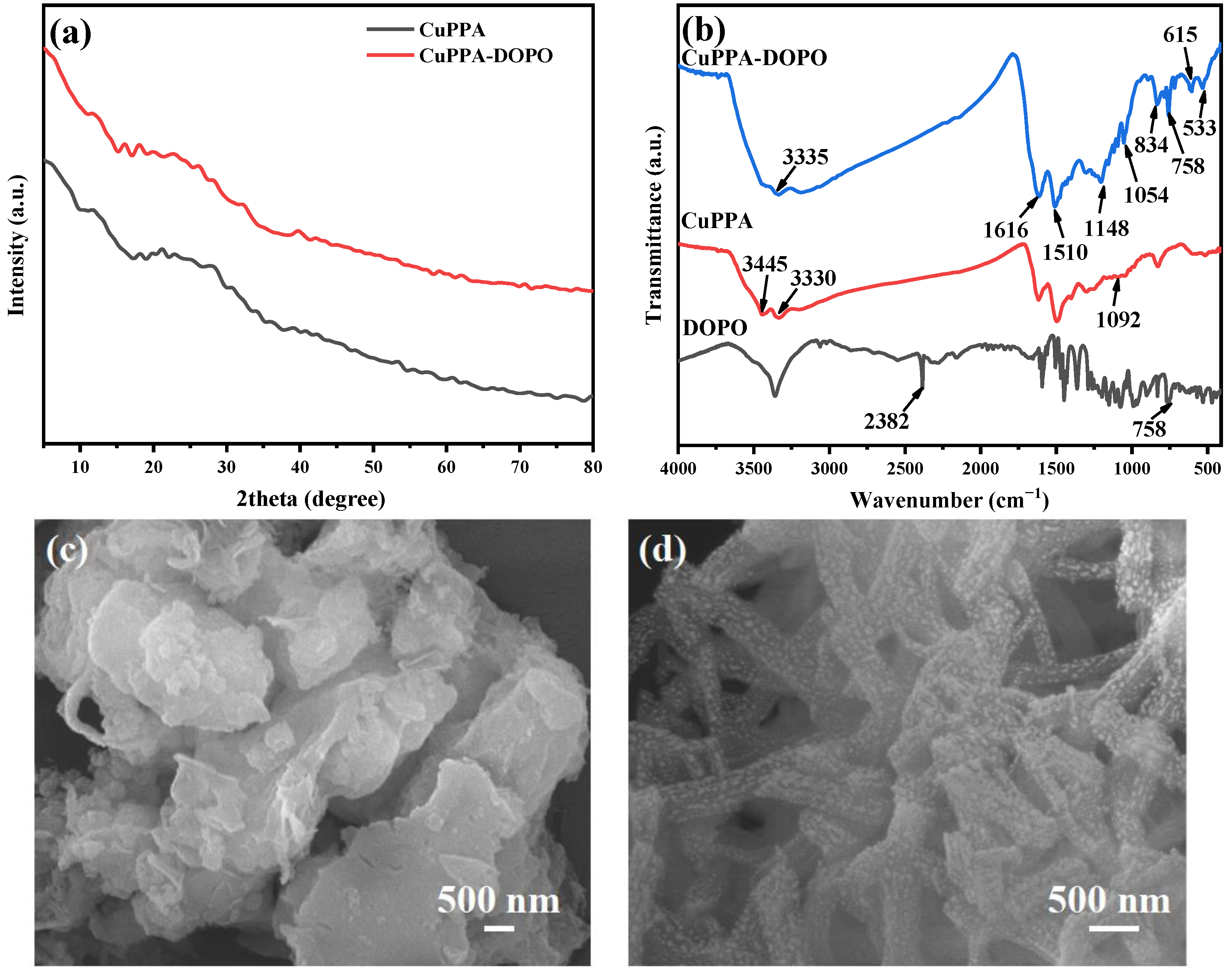

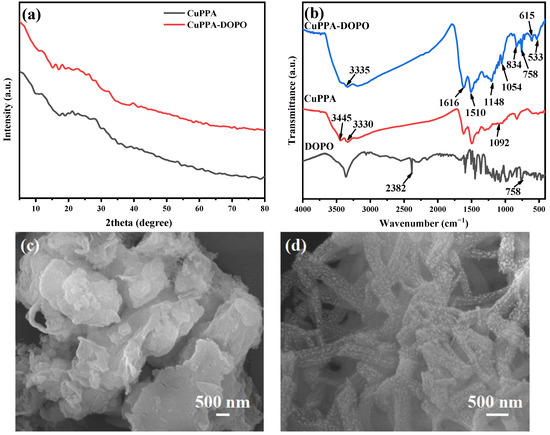

Figure 1. (a) XRD patterns of CuPPA and CuPPA-DOPO; (b) FTIR spectra of CuPPA and CuPPA-DOPO; (c) SEM image of CuPPA; (d) SEM image of CuPPA-DOPO.
Figure 1. (a) XRD patterns of CuPPA and CuPPA-DOPO; (b) FTIR spectra of CuPPA and CuPPA-DOPO; (c) SEM image of CuPPA; (d) SEM image of CuPPA-DOPO.
Molecules 28 00623 g001
Molecules 28 00623 g002 550

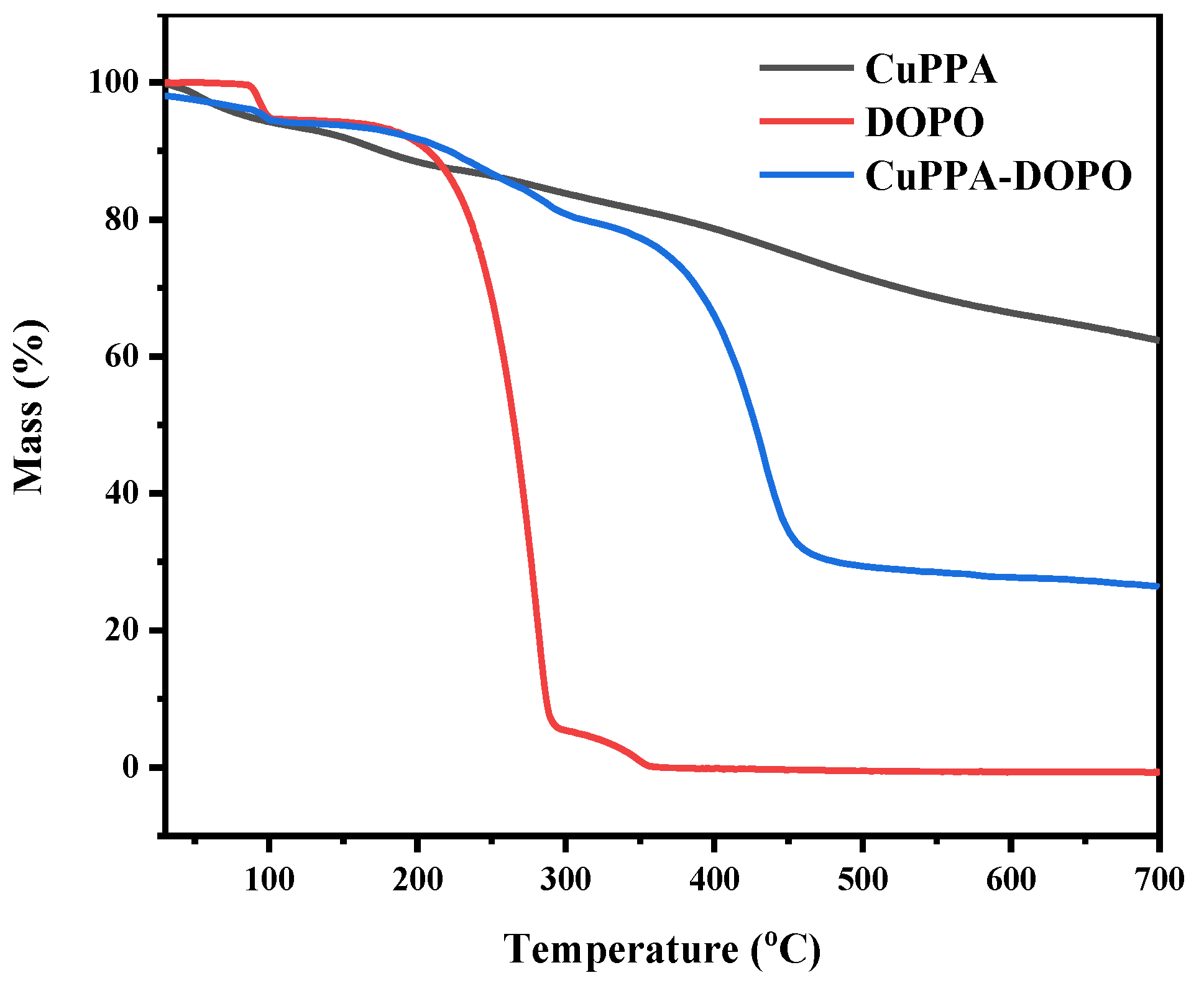

Figure 2. TGA curves of CuPPA, DOPO and CuPPA-DOPO.
Figure 2. TGA curves of CuPPA, DOPO and CuPPA-DOPO.
Molecules 28 00623 g002
Molecules 28 00623 g003 550

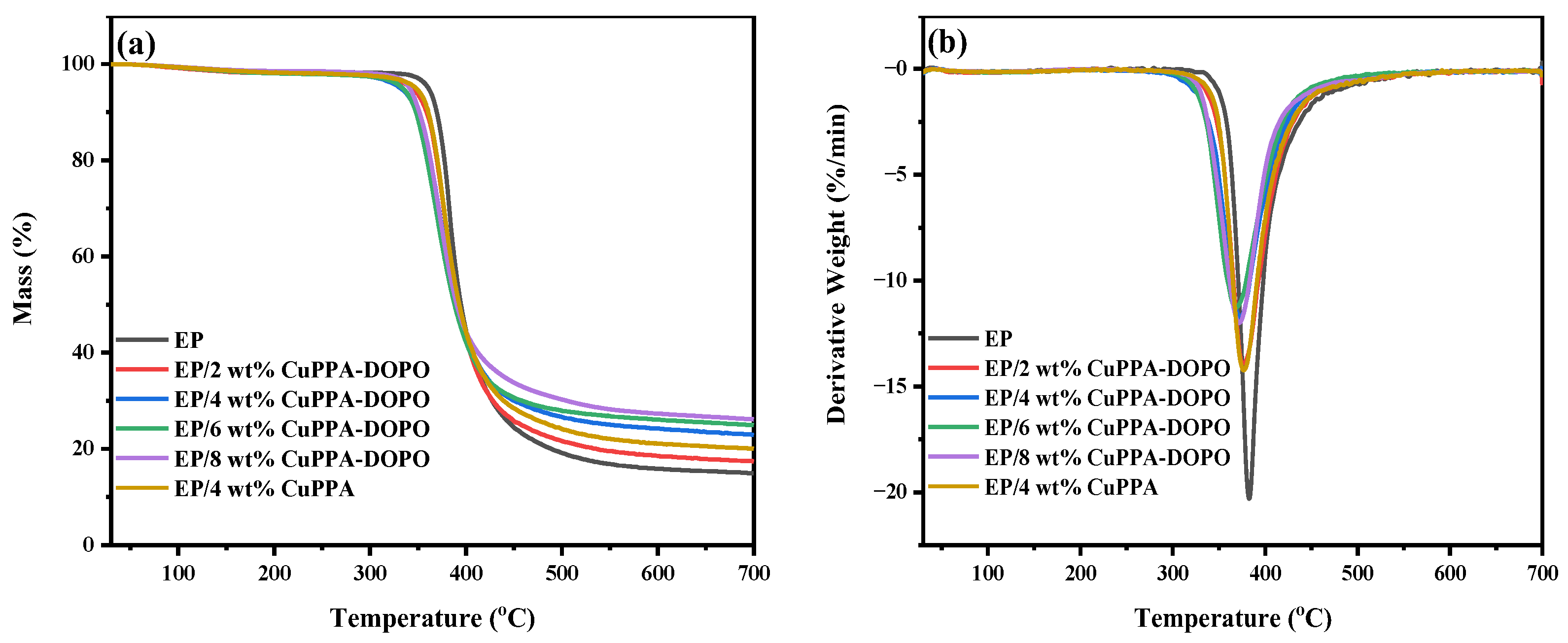

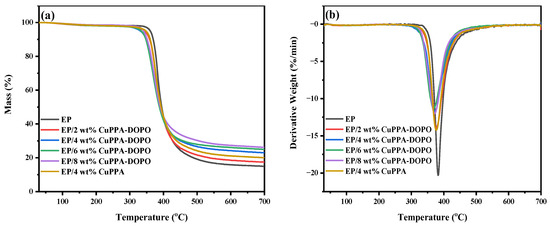

Figure 3. (a) TGA and (b) DTG curves of pure EP and EP composites.
Figure 3. (a) TGA and (b) DTG curves of pure EP and EP composites.
Molecules 28 00623 g003
Molecules 28 00623 g004 550

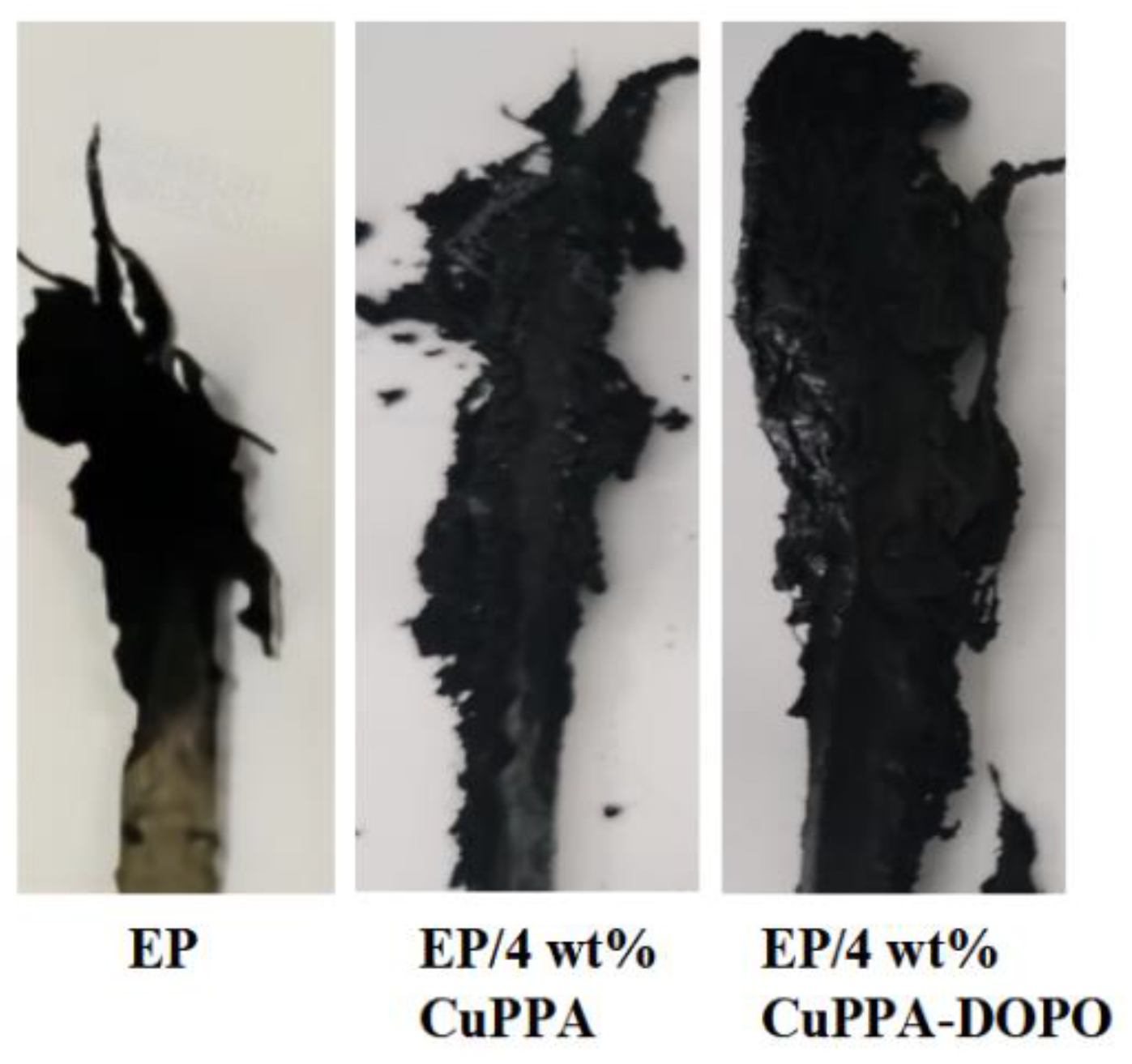

Figure 4. Photographs of pure EP and EP composites after LOI test.
Figure 4. Photographs of pure EP and EP composites after LOI test.
Molecules 28 00623 g004
Molecules 28 00623 g005 550

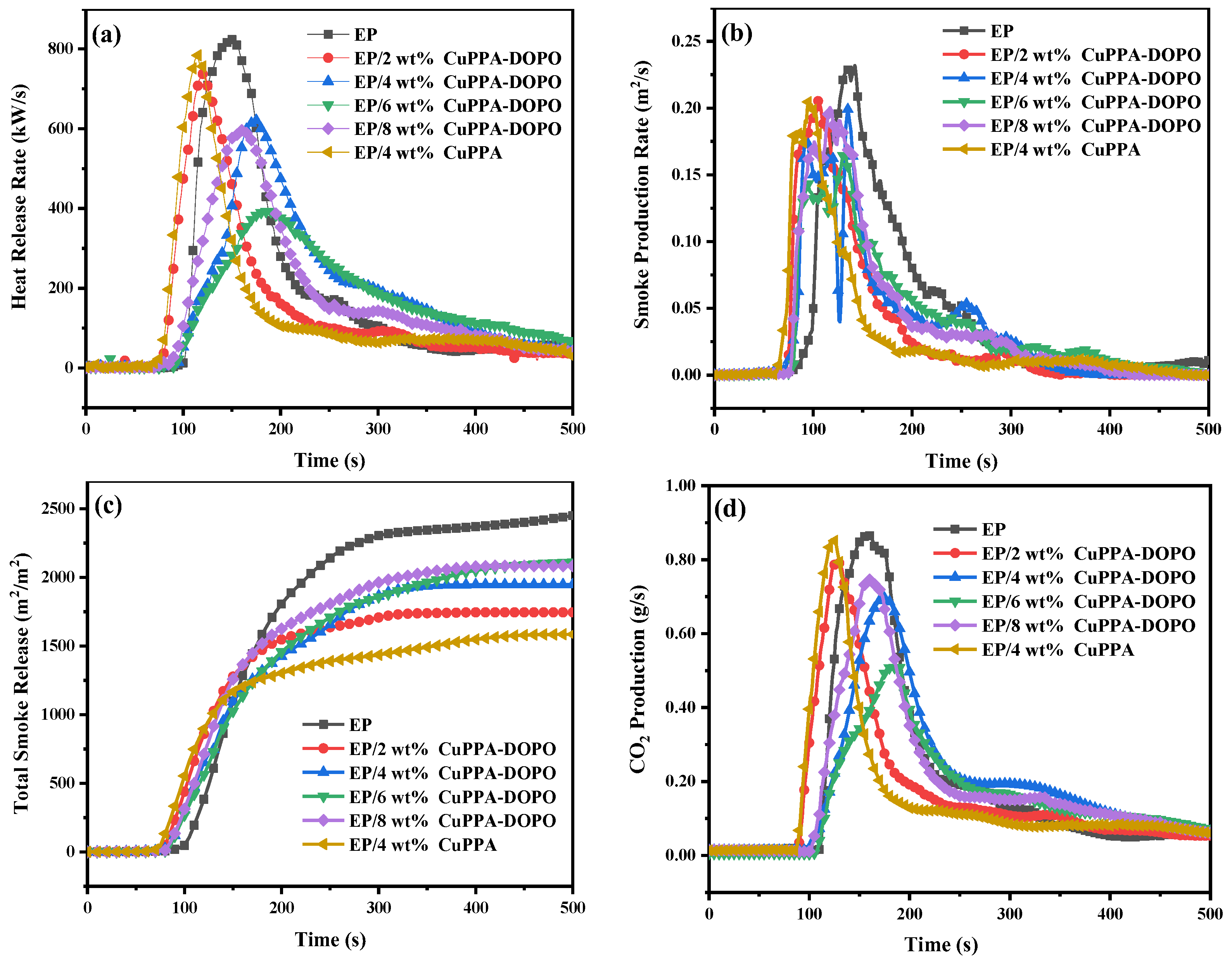

Figure 5. (a) HRR, (b) SPR, (c) TSR and (d) CO2P curves of pure EP and EP composites.
Figure 5. (a) HRR, (b) SPR, (c) TSR and (d) CO2P curves of pure EP and EP composites.
Molecules 28 00623 g005
Molecules 28 00623 g006 550

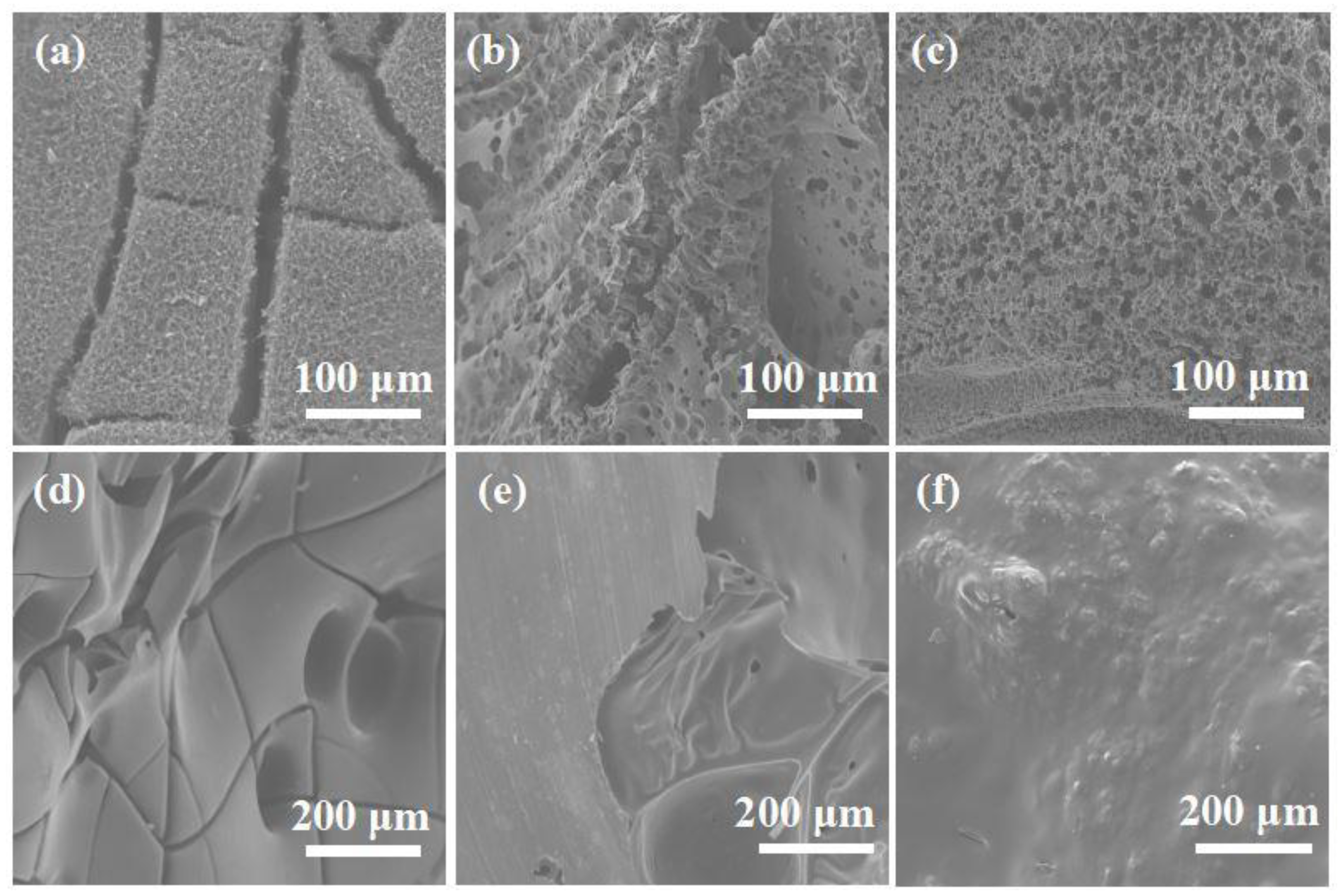

Figure 6. SEM images of external char layer: (a) EP; (b) EP/4 wt% CuPPA; (c) EP/4 wt% CuPPA-DOPO. SEM images of internal char layer: (d) EP; (e) EP/4 wt% CuPPA; (f) EP/4 wt% CuPPA-DOPO.
Figure 6. SEM images of external char layer: (a) EP; (b) EP/4 wt% CuPPA; (c) EP/4 wt% CuPPA-DOPO. SEM images of internal char layer: (d) EP; (e) EP/4 wt% CuPPA; (f) EP/4 wt% CuPPA-DOPO.
Molecules 28 00623 g006
Molecules 28 00623 g007 550

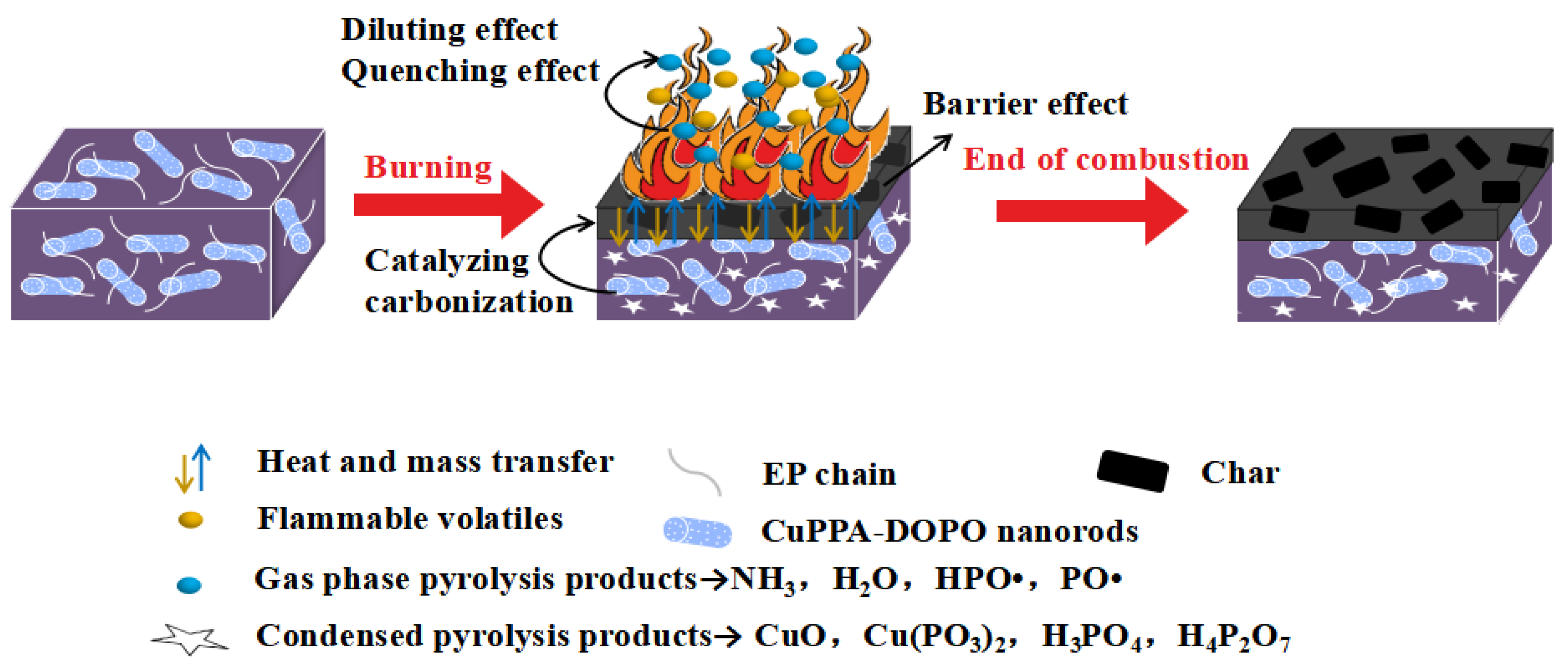

Figure 7. Flame-retardance mechanism diagram of EP/CuPPA-DOPO composites.
Figure 7. Flame-retardance mechanism diagram of EP/CuPPA-DOPO composites.
Molecules 28 00623 g007
Molecules 28 00623 g008 550

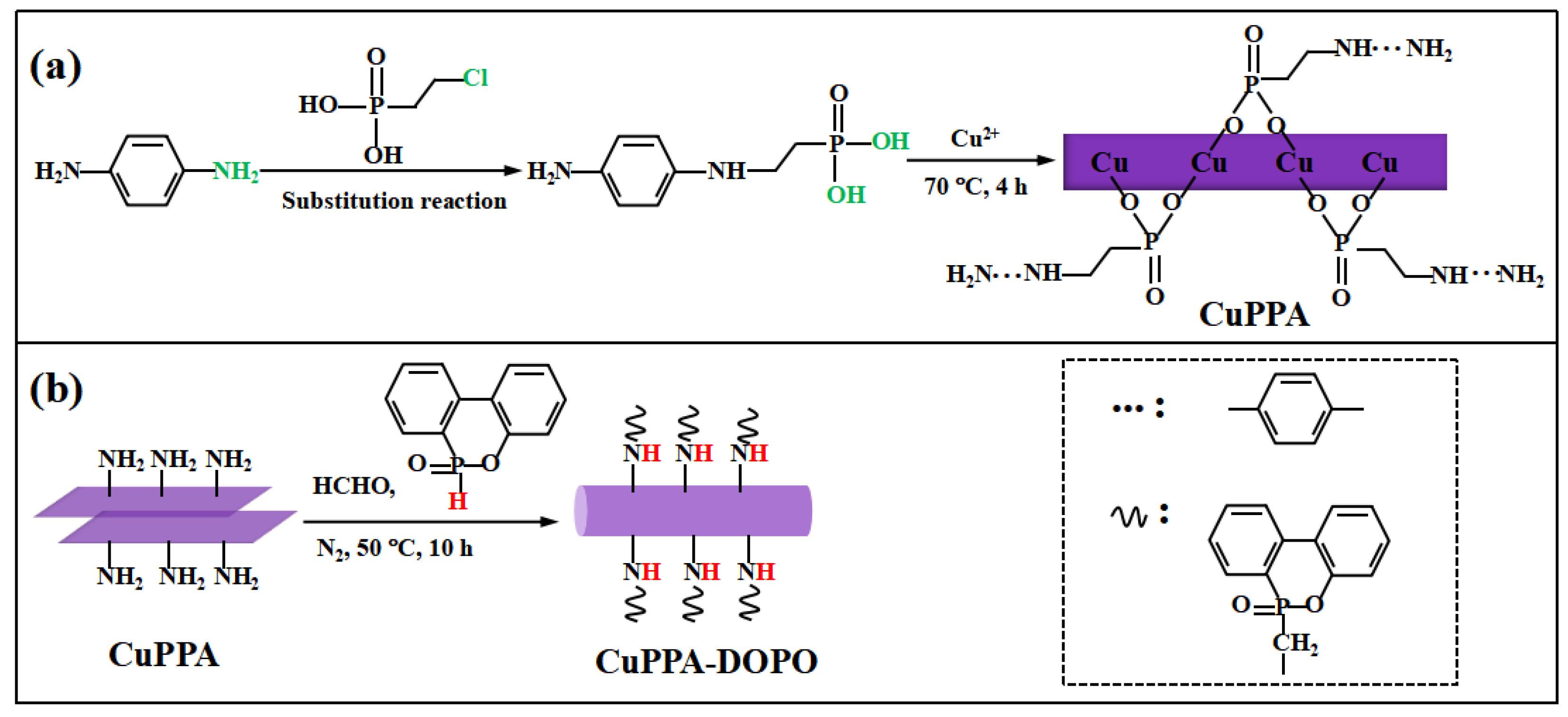

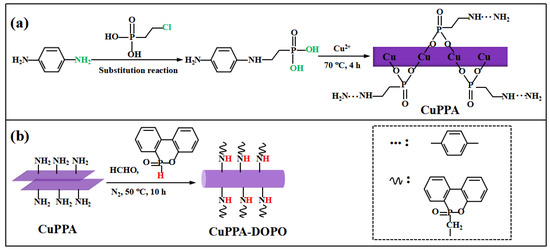

Figure 8. Synthetic route of (a) amino phenyl copper phosphate; (b) DOPO-amino phenyl copper phosphate.
Figure 8. Synthetic route of (a) amino phenyl copper phosphate; (b) DOPO-amino phenyl copper phosphate.
Molecules 28 00623 g008
Molecules 28 00623 g009 550

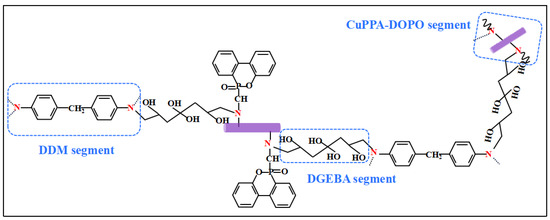

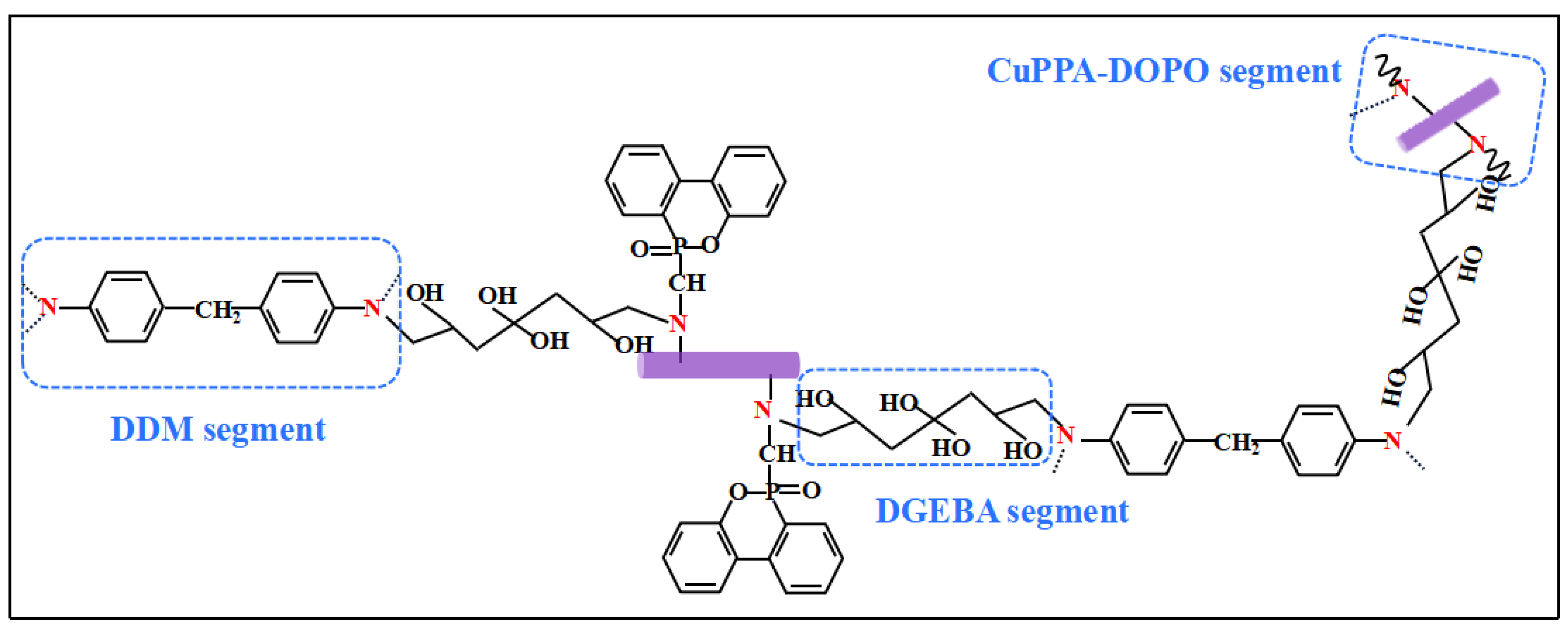

Figure 9. Schematic diagram of the curing reaction of EP composites.
Figure 9. Schematic diagram of the curing reaction of EP composites.
Molecules 28 00623 g009
Table
Table 1. TGA data of pure EP and EP composites.
Table 1. TGA data of pure EP and EP composites.
SamplesT5% (°C)Tmax (°C)Residues (wt%, 700 °C)
EP36038214.9
EP/2 wt% CuPPA-DOPO34337617.4
EP/4 wt% CuPPA-DOPO33337323.0
EP/6 wt% CuPPA-DOPO33336824.9
EP/8 wt% CuPPA-DOPO34237226.1
EP/4 wt% CuPPA35037619.8
Table
Table 2. LOI data and UL-94 results of EP composites.
Table 2. LOI data and UL-94 results of EP composites.
SamplesLOI
(vol%)		UL-94
t1 (s)t2 (s)t1 + t2 (s)Rating
EP25.9 ± 0.2-->50NR
EP/2 wt% CuPPA-DOPO28.8 ± 0.237.06.343.3V-1
EP/4 wt% CuPPA-DOPO30.8 ± 0.320.57.027.5V-1
EP/6 wt% CuPPA-DOPO32.6 ± 0.313.65.018.6V-1
EP/8 wt% CuPPA-DOPO31.4 ± 0.314.59.023.5V-1
EP/4 wt% CuPPA28.2 ± 0.236.09.345.3V-1
Table
Table 3. CCT data of pure EP and EP composites.
Table 3. CCT data of pure EP and EP composites.
SamplesPHRR
(kW/m2)		PSPR
(m2/s)		TSR
(m2/m2)		CO2P
(g/s)
EP8220.2324380.87
EP/2 wt% CuPPA-DOPO7390.2117460.79
EP/4 wt% CuPPA-DOPO6170.2019420.70
EP/6 wt% CuPPA-DOPO3900.1721120.51
EP/8 wt% CuPPA-DOPO5970.2020850.75
EP/4 wt% CuPPA7840.2115850.85
Table
Table 4. Ingredients of EP composites.
Table 4. Ingredients of EP composites.
SamplesComponents
EP (wt%)DDM (wt%)CuPPA-DOPO (wt%)CuPPA (wt%)
EP80.020.000
EP/2 wt% CuPPA-DOPO78.419.120
EP/4 wt% CuPPA-DOPO76.817.140
EP/6 wt% CuPPA-DOPO75.215.760
EP/8 wt% CuPPA-DOPO73.614.280
EP/4 wt% CuPPA76.819.204
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chai, H.; Li, W.; Wan, S.; Liu, Z.; Zhang, Y.; Zhang, Y.; Zhang, J.; Kong, Q. Amino Phenyl Copper Phosphate-Bridged Reactive Phosphaphenanthrene to Intensify Fire Safety of Epoxy Resins. Molecules 2023, 28, 623. https://doi.org/10.3390/molecules28020623

AMA Style

Chai H, Li W, Wan S, Liu Z, Zhang Y, Zhang Y, Zhang J, Kong Q. Amino Phenyl Copper Phosphate-Bridged Reactive Phosphaphenanthrene to Intensify Fire Safety of Epoxy Resins. Molecules. 2023; 28(2):623. https://doi.org/10.3390/molecules28020623

Chicago/Turabian Style

Chai, Huiyu, Weixi Li, Shengbing Wan, Zheng Liu, Yafen Zhang, Yunlong Zhang, Junhao Zhang, and Qinghong Kong. 2023. "Amino Phenyl Copper Phosphate-Bridged Reactive Phosphaphenanthrene to Intensify Fire Safety of Epoxy Resins" Molecules 28, no. 2: 623. https://doi.org/10.3390/molecules28020623

Article Metrics

Back to TopTop
