Synthesis, DFT Studies, Molecular Docking and Biological Activity Evaluation of Thiazole-Sulfonamide Derivatives as Potent Alzheimer’s Inhibitors

by
Shoaib Khan
1,
Hayat Ullah
2,*,
Muhammad Taha
3,
Fazal Rahim
1,*,
Maliha Sarfraz
4,
Rashid Iqbal
5,
Naveed Iqbal
6,
Rafaqat Hussain
1,
Syed Adnan Ali Shah
7,8,
Khurshid Ayub
9,
Marzough Aziz Albalawi
10,
Mahmoud A. Abdelaziz
11,
Fatema Suliman Alatawi
12 and
Khalid Mohammed Khan
13
1
Department of Chemistry, Hazara University, Mansehra 21120, Pakistan
2
Department of Chemistry, University of Okara, Okara 56130, Pakistan
3
Department of Clinical Pharmacy, Institute for Research and Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, P.O. Box 1982, Dammam 31441, Saudi Arabia
4
Department of Zoology, Wildlife and Fisheries, University of Agriculture Faisalabad, Sub-Campus, Toba Tek Singh 36050, Pakistan
5
Department of Agronomy, Faculty of Agriculture and Environment, The Islamia University of Bahawalpur, Bahawalpur 63100, Pakistan
6
Department of Chemistry, University of Poonch, Rawalakot 12350, Pakistan
7
Faculty of Pharmacy, Universiti Teknologi MARA Cawangan Selangor Kampus Puncak Alam, Puncak Alam 42300, Selangor, Malaysia
8
Atta-ur-Rahman Institute for Natural Product Discovery (AuRIns), Universiti Teknologi MARA Cawangan Selangor Kampus Puncak Alam, Puncak Alam 42300, Selangor, Malaysia
9
Department of Chemistry, COMSATS University, Abbottabad Campus, Abbottabad 22060, Pakistan
10
Department of Chemistry, Alwajh College, University of Tabuk, Tabuk 71491, Saudi Arabia
11
Department of Chemistry, Faculty of Science, University of Tabuk, Tabuk 71491, Saudi Arabia
12
Department of Biochemistry, Faculty of Science, University of Tabuk, Tabuk 71491, Saudi Arabia
13
H.E.J. Research Institute of Chemistry, International Center for Chemical and Biological Sciences, University of Karachi, Karachi 75270, Pakistan

add Show full affiliation list

remove Hide full affiliation list
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(2), 559; https://doi.org/10.3390/molecules28020559
Submission received: 19 October 2022 / Revised: 18 November 2022 / Accepted: 30 December 2022 / Published: 5 January 2023
(This article belongs to the Special Issue Design, Synthesis and Biological Activity of Organic Compounds)
Browse Figures
Review Reports Versions Notes

Abstract

:
Alzheimer’s disease is a major public brain condition that has resulted in many deaths, as revealed by the World Health Organization (WHO). Conventional Alzheimer’s treatments such as chemotherapy, surgery, and radiotherapy are not very effective and are usually associated with several adverse effects. Therefore, it is necessary to find a new therapeutic approach that completely treats Alzheimer’s disease without many side effects. In this research project, we report the synthesis and biological activities of some new thiazole-bearing sulfonamide analogs (1–21) as potent anti-Alzheimer’s agents. Suitable characterization techniques were employed, and the density functional theory (DFT) computational approach, as well as in-silico molecular modeling, has been employed to assess the electronic properties and anti-Alzheimer’s potency of the analogs. All analogs exhibited a varied degree of inhibitory potential, but analog 1 was found to have excellent potency (IC50 = 0.10 ± 0.05 µM for AChE) and (IC50 = 0.20 ± 0.050 µM for BuChE) as compared to the reference drug donepezil (IC50 = 2.16 ± 0.12 µM and 4.5 ± 0.11 µM). The structure-activity relationship was established, and it mainly depends upon the nature, position, number, and electron-donating/-withdrawing effects of the substituent/s on the phenyl rings.

1. Introduction

Alzheimer’s disease (AD) is mainly related to the human brain. Hydrolysis of acetylcholine into choline acetic acid is the main activity of acetylcholinesterase (AchE) and butyrylcholinesterase (BuChE) enzymes [1]. Due to the hydrolysis effects, a shortage of acetylcholine products in the hippocampus and cortex of the brain is related to huge psychological functions [2]. Moreover, it is a continuous and irreversible brain disorder in which the cholinergic system of the brain is constantly imbalanced, often causing many consequences such as disorientation, difficulty in thinking, cognitive impairment, difficulty in problem solving, and memory loss [3,4,5]. For improvement in AD, the main focus is to target both AchE and BuChE enzymes [6,7]. Moreover, acetylcholinesterase is found in cholinergic neurons, muscle, and the brain, whereas butyrylcholinesterase is mainly present in the lungs, the heart, the liver, the kidneys, and the intestine [8,9,10]. Cleavage of an ester comprising analogs is due to the action and function of the enzyme AchE, which is dominant in the brain. Subsequently, when the functions of acetylcholine decrease, BuChE gradually increases. For this consideration, a potent drug is still required to diminish enzyme potentials [11]. In addition, the FDA approved various anti-Alzheimer’s drugs including donepezil, rivastigmine, tacrine, and galanthamine [12]. Furthermore, the limited use and applicability of drugs with insufficient activity cause gastrointestinal disturbance and hepatotoxicity [13,14,15,16].

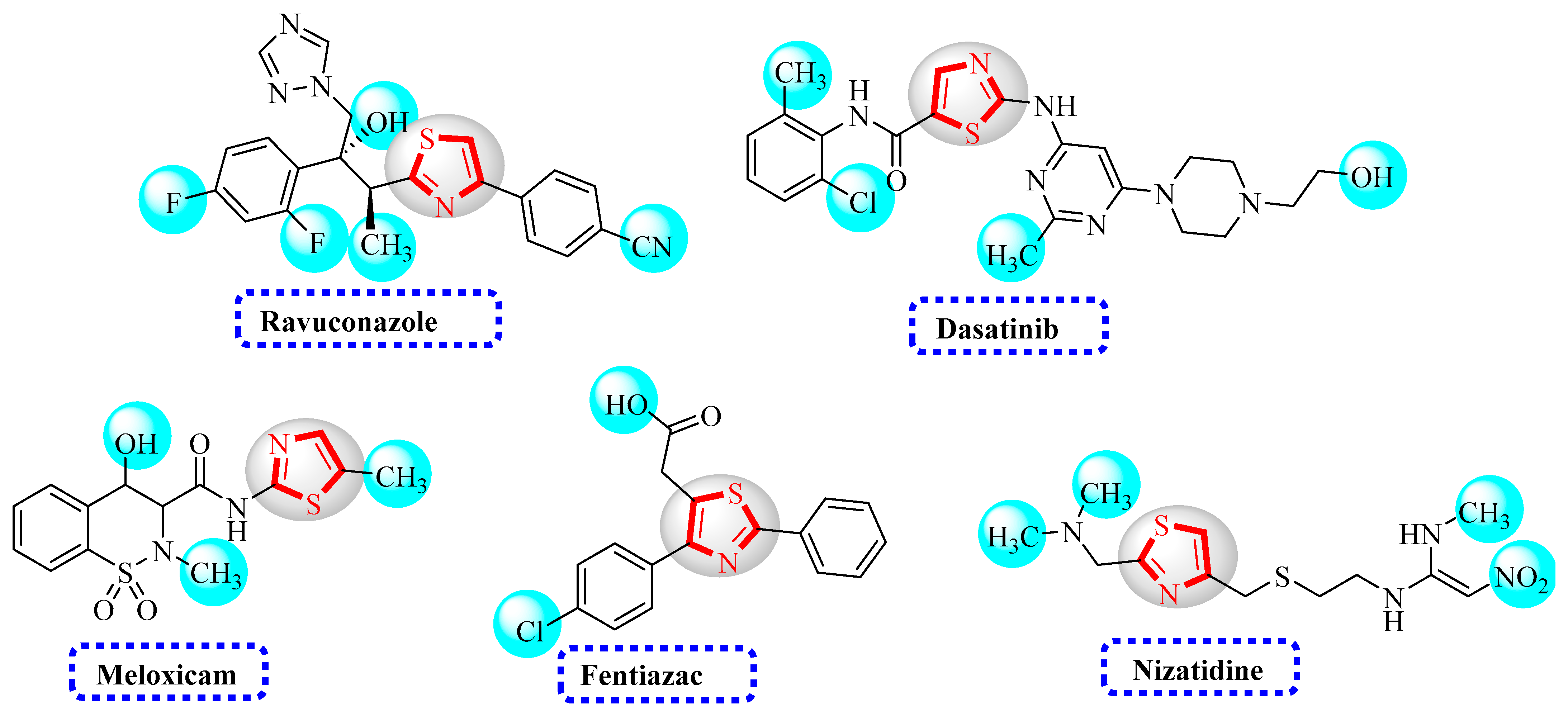

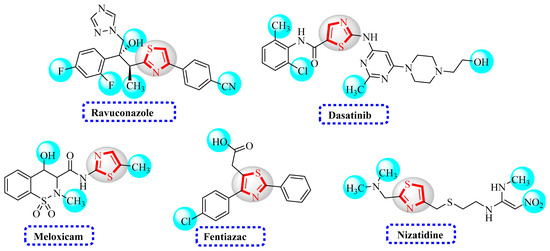

Many biologically active compounds possessing a thiazole nucleus show significant potential and are considered one of the most widely used heterocyclic moieties [17]. The most important drug, penicillin, also contains a thiazole nucleus and demonstrates this basic fact and its significance [18]. Likewise, thiazole moiety is a core component of many bioactive drugs, such as Ravuconazole as an anti-fungal agent [19]; Dasatinib as an anti-neoplastic agent [20]; meloxicam and fentiazac as anti-inflammatory agents [21]; and nizatidine as an antiulcer agent [22], as shown in Figure 1.
Sulfonamide-containing compounds have received substantial attention in the last few decades and have emerged as potent inhibitors against various diseases, including diabetes [23], psychosis [24], central nervous system (CNS) disorders [25], tumors [26], and different cancer treatments [27].

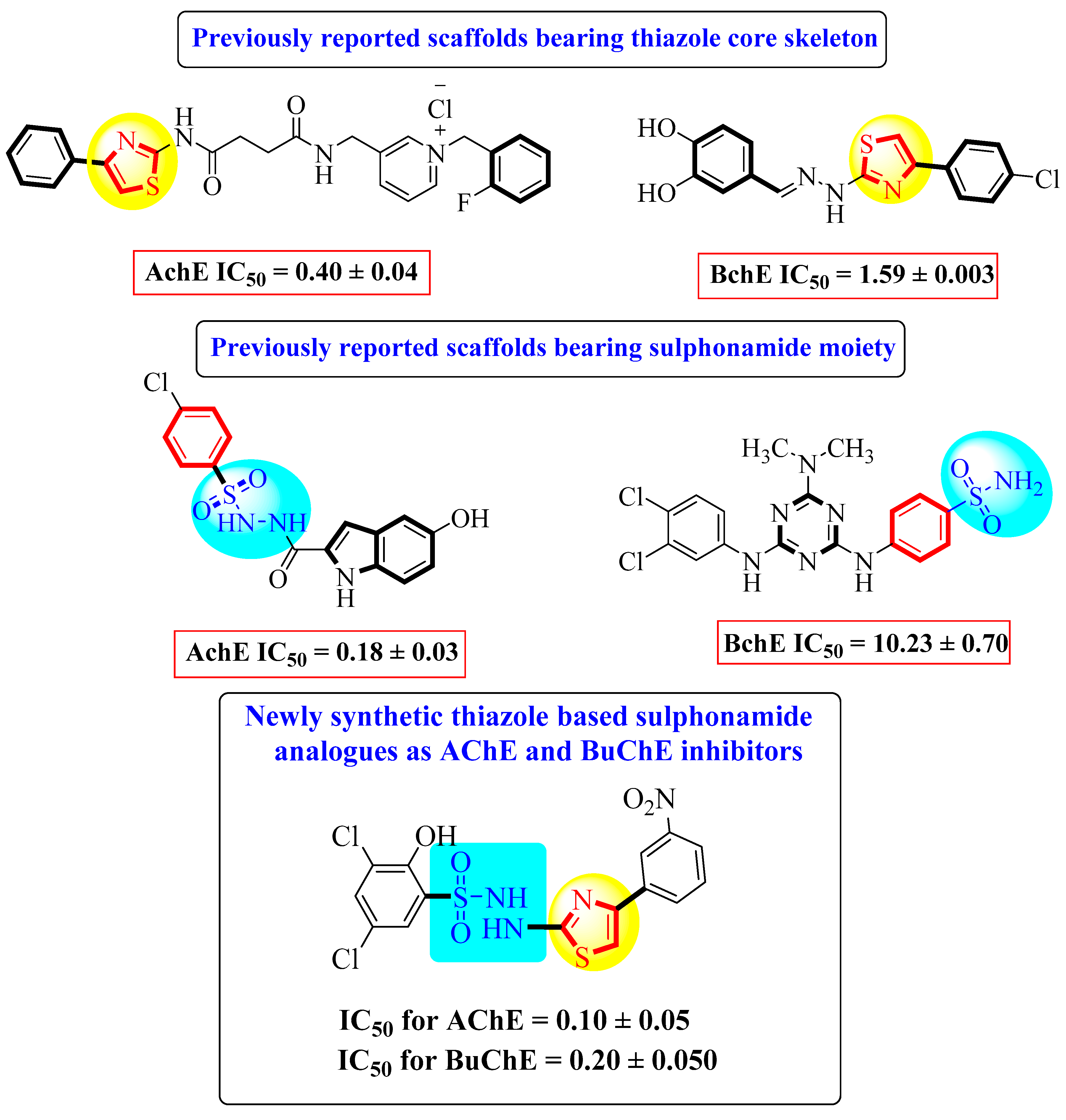

Our research group had identified several heterocyclic compounds as potent therapeutics [28,29,30,31,32,33,34,35,36,37,38,39,40,41,42] and previously published thiazole and sulfonamide derivatives with various biological potentials [43,44,45,46] (see Figure 2). Keeping in view the biological importance of thiazole and sulfonamide derivatives, we have planned to design and synthesize a new hybrid class of thiazole-based sulfonamide analogs as acetylcholinesterase and butyrylcholinesterase inhibitors in search of lead candidates.

2. Results and Discussion

2.1. Chemistry

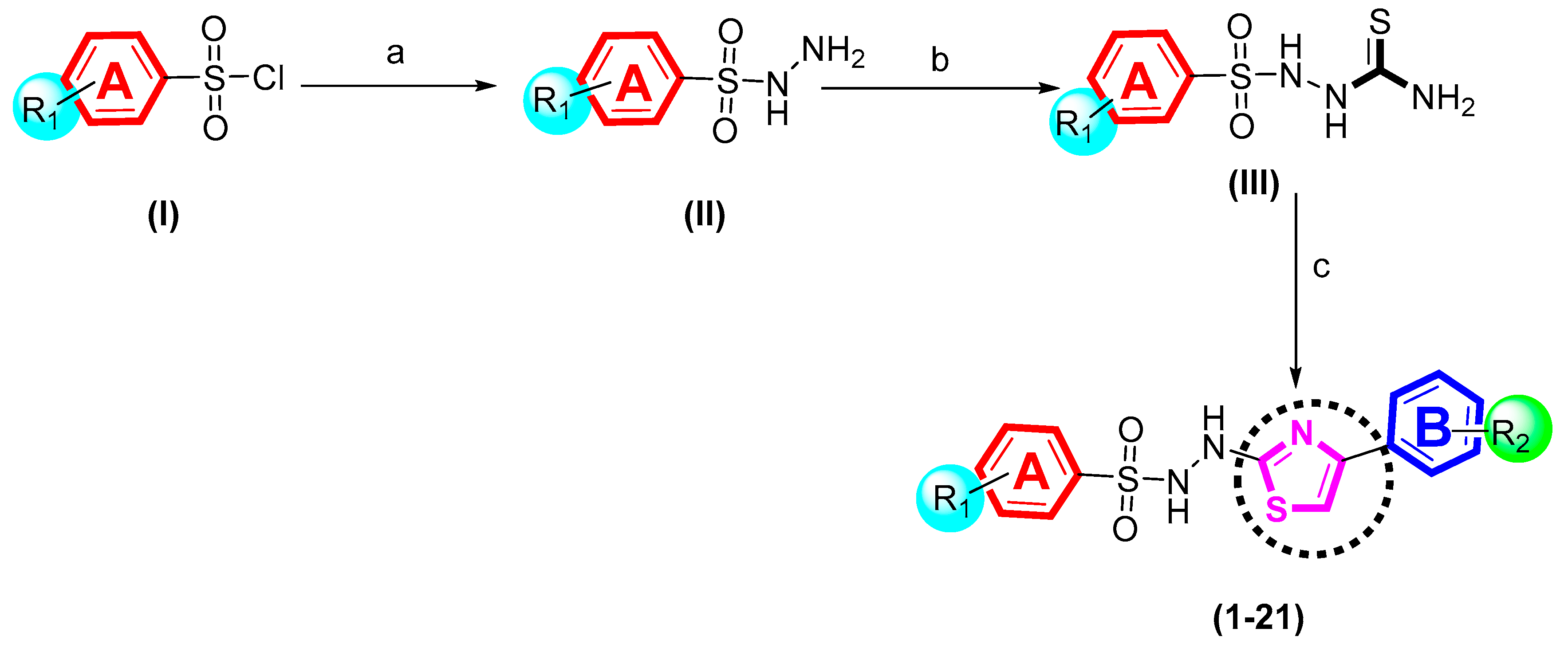

Different substituted sulfonyl chloride (I) was mixed with an excess of hydrazine hydrate in ethyl alcohol and refluxed for 5 h to give sulfonohydrazides (II) as the first intermediate product. The intermediate (II) was then treated with ammonium isothiocyanate in DMF under the refluxed condition to obtain the second intermediate product (III) [47]. The intermediate (III) was finally treated with different substituted phenacyl bromide in ethyl alcohol in the presence of triethylamine, and the mixture was refluxed for about 12 h to obtain thiazole-bearing sulfonamide analogs (1–21) (Scheme 1, Table 1). After completion, the synthesized compounds were dried and then washed with n-hexane to obtain a pure product. Primary confirmation of the product was performed with the help of TLC, and further NMR confirmed the formation of the basic skeleton of the final products.
A synthesized compound containing several heteroatoms along with carbon atoms has been described. These atoms are nitrogen, sulfur, oxygen, etc. Due to the presence of these atoms, protons (1H) and carbons (13C) were found with varied positions in ppm ranges. All the synthesized compounds (1–21) bearing different substituents on the varied position of the ring showed different peaks from one another. This might be due to the presence of electron-withdrawing and electron-donating groups. With the use of 1H NMR (500 MHz, DMSO), all the compounds having two protons directly attached with both the nitrogen atoms were found in the ranges between 11.0 and 11.80. Likewise, an aromatic singlet appeared at 11.67, and another singlet of a –OH proton appeared at 9.75. Similarly, the aromatic proton appeared at 8.29 showing doublet of doublet (dd) with coupling constant (J) = 7.4, 1.6 Hz. Furthermore, all other aromatic protons appeared with varied ranges, such as 7.60 showing dd with J = 1.2, 7.0 Hz; 7.59 showing dd with J = 1.8, 7.0 Hz; 7.22 showing singlet; 7.11 showing singlet; and 3.05 showing singlet, 1H, thiazole. Similarly, in the case of 13C NMR (125 MHz, DMSO): δ, all carbon appeared at varied ranges in descending order due to attached different substituents. The carbon appeared at 157.7, 148.4, 139.9, 132.9, 132.5, 131.4, 131.1, 130.4, 130.2, 129.2, 128.6, 128.5, 127.7, 125.2, and 122.0.

2.2. Biological Activities

All the synthesized analogs of thiazole-bearing sulfonamide (1–21) were tested to explore their acetylcholinesterase (AchE) and butyrylcholinesterase inhibitory activities (see Figure 3).

2.2.1. In Vitro Acetylcholinesterase (AchE) Inhibitory Activity

All synthesized analogs showed good AchE inhibitory potentials with IC50 values ranging between 0.10 ± 0.05 and 11.40 ± 0.20 µM, as compared to the standard drug donepezil (IC50 = 2.16 ± 0.12 µM) (Table 1). The structure–activity relationship was carried out for all the analogs, which mainly depend upon the nature, number, and position of the substituent/s on the phenyl ring.

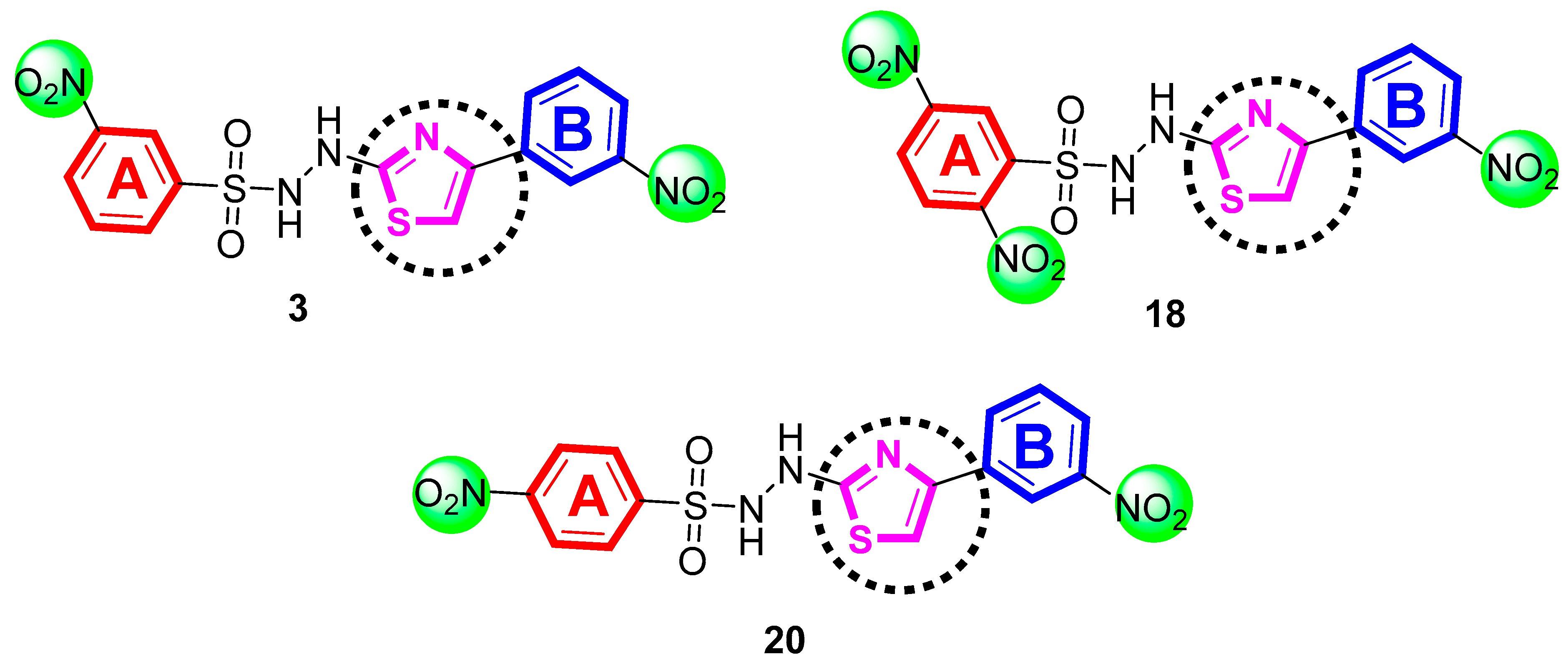

If we compare analog 3 (IC50 = 2.90 ± 0.10 µM) with analog 18 (IC50 = 0.80 ± 0.050 µM) and 20 (IC50 = 3.10 ± 0.10 µM), all analogs have the same nitro groups on phenyl rings A and B. Differences in the activities of the entire analog may be due to the different numbers and positions of the nitro group (see Figure 4).

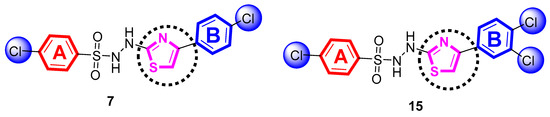

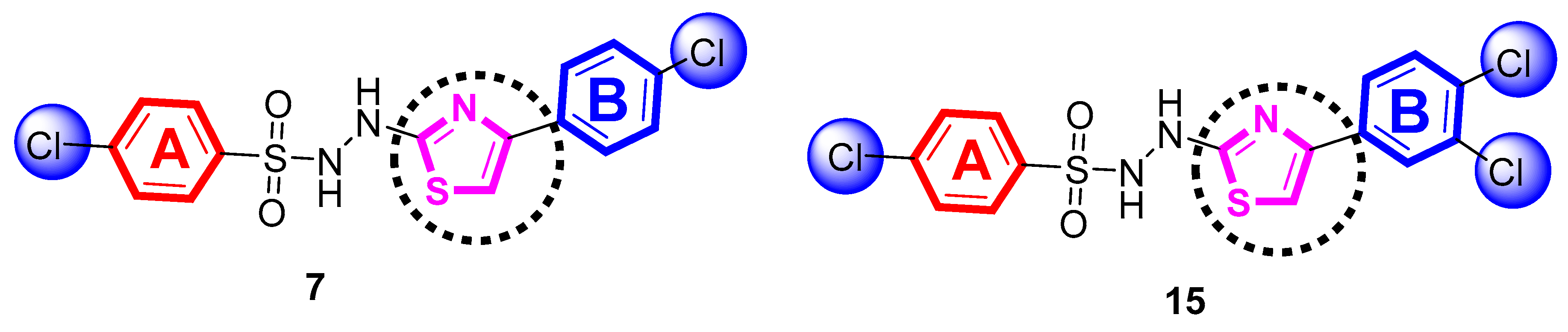

Similarly, we compare analog 7 (IC50 = 2.60 ± 0.10 µM) with analog 15 (IC50 = 0.40 ± 0.10 µM). Both analogs have chloro groups on phenyl rings A and B. The small difference in the inhibitory potentials of this analog may be due to the different number and position of the same chloro substituent on phenyl rings A and B (see Figure 5).

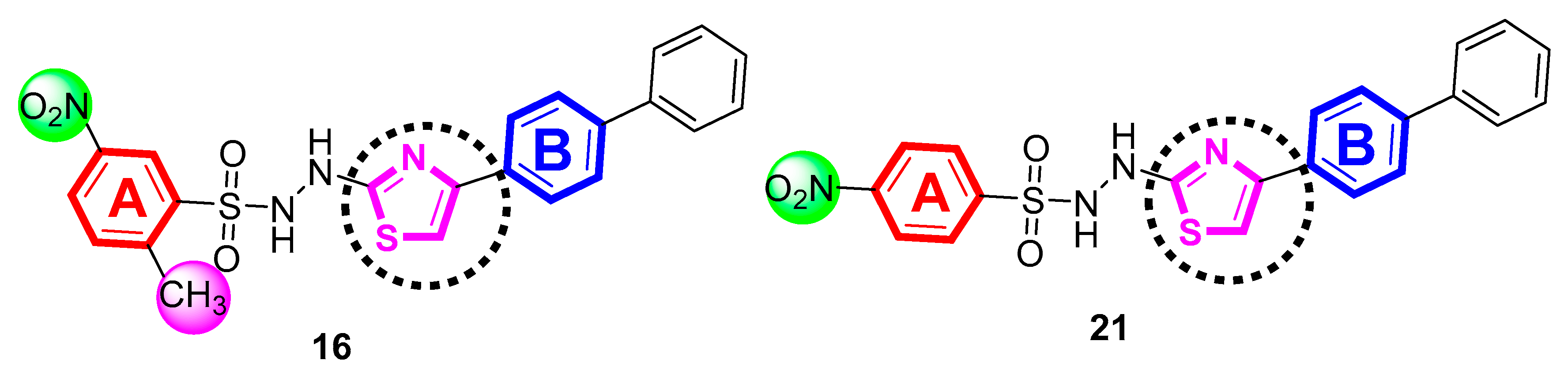

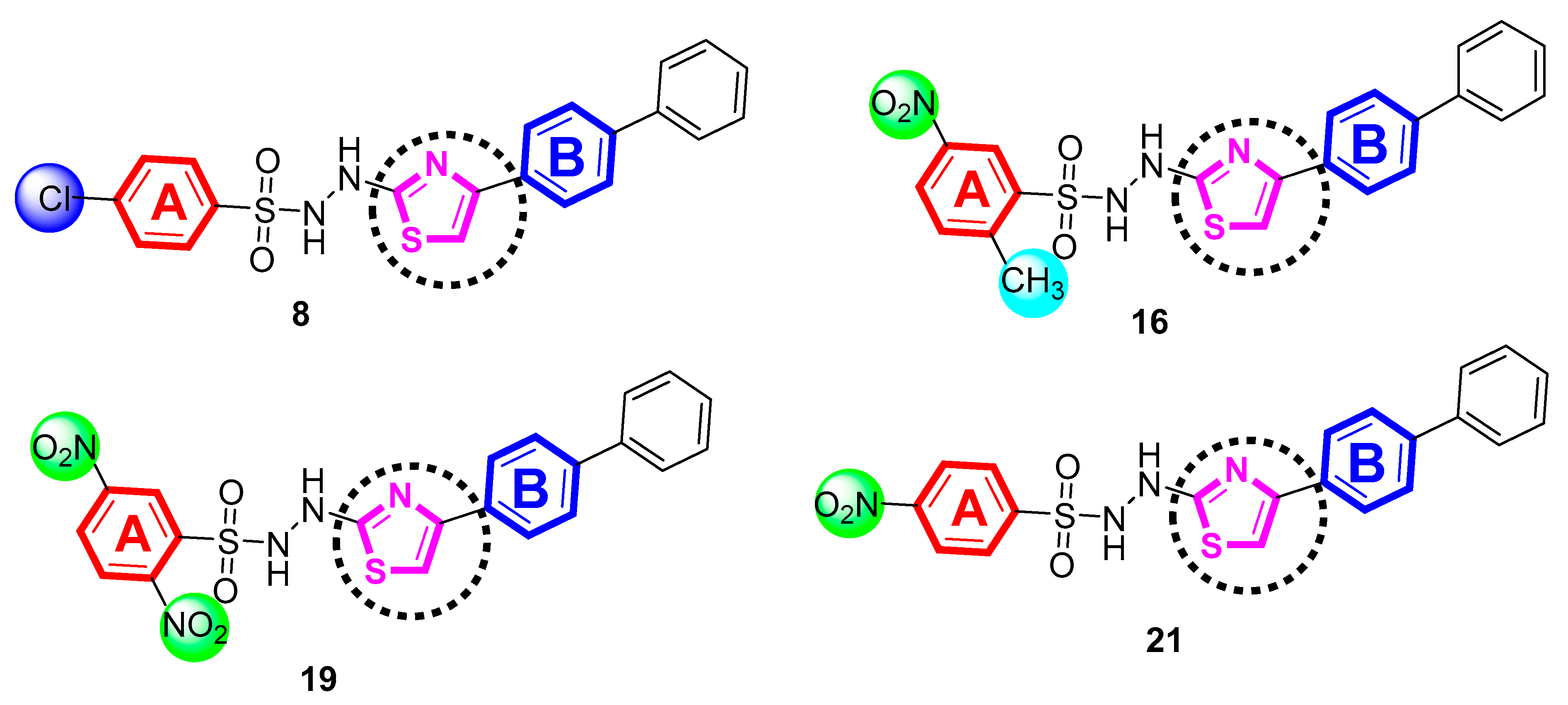

Comparing analog 8 (IC50 = 7.30 ± 0.10) with analog 16 (IC50 = 0.30 ± 0.050 µM), 19 (IC50 = 3.10 ± 0.10 µM), and 21 (IC50 = 3.20 ± 0.10 µM) reveals that all analogs comprise a phenyl ring attached to the para-position of ring B, but ring A possesses a different type of substituents at different positions, i.e., analog 8 contains a chloro group at the para-position, analog 16 contains nitro at meta and methyl at the ortho-position, analog 19 contains two nitro groups at the ortho- and meta-position, and analog 21 contains a nitro group at the para-position. The difference in the potentials of this analog may be due to the presence of different types and positions of the substituents on phenyl ring A (see Figure 6).

2.2.2. In Vitro Butyrylcholinesterase (BchE) Inhibitory Activity

All synthesized analogs showed good BuChE inhibitory potentials with IC50 values ranging between 0.20 ± 0.050 and 14.30 ± 0.30 µM as compared to the standard drug donepezil (IC50 = 4.5 ± 0.11 µM) (Table 1).
Comparing analog 16 (IC50 = 0.20 ± 0.050 µM) with analog 21 (IC50 = 3.20 ± 0.10 µM) reveals that both analogs have a phenyl ring attached to the para-position of the ring B, and ring A has nitro and methyl groups in analog 16 and only nitro groups in analog 21. The difference in the activity may be due to the different nature and position of the group attached to ring A (see Figure 7).
Similarly, if we compare analog 1 (IC50 = 0.10 ± 0.05 µM) with analog 2 (IC50 = 1.90 ± 0.10 µM) and 10 (IC50 = 0.60 ± 0.050), analogs 1 and 2 both have a nitro group on ring B but an analog 10-bearing nitro group on ring A. The difference in their biological potential might be due to the position of substituents on the rings. The potential difference of analog 10 being somewhat lower than analog 1 may be due to the attachment of methyl moiety at the ortho-position of ring A, which produces steric hindrance; therefore, the activity of the analog was found to be lower (see Figure 8).

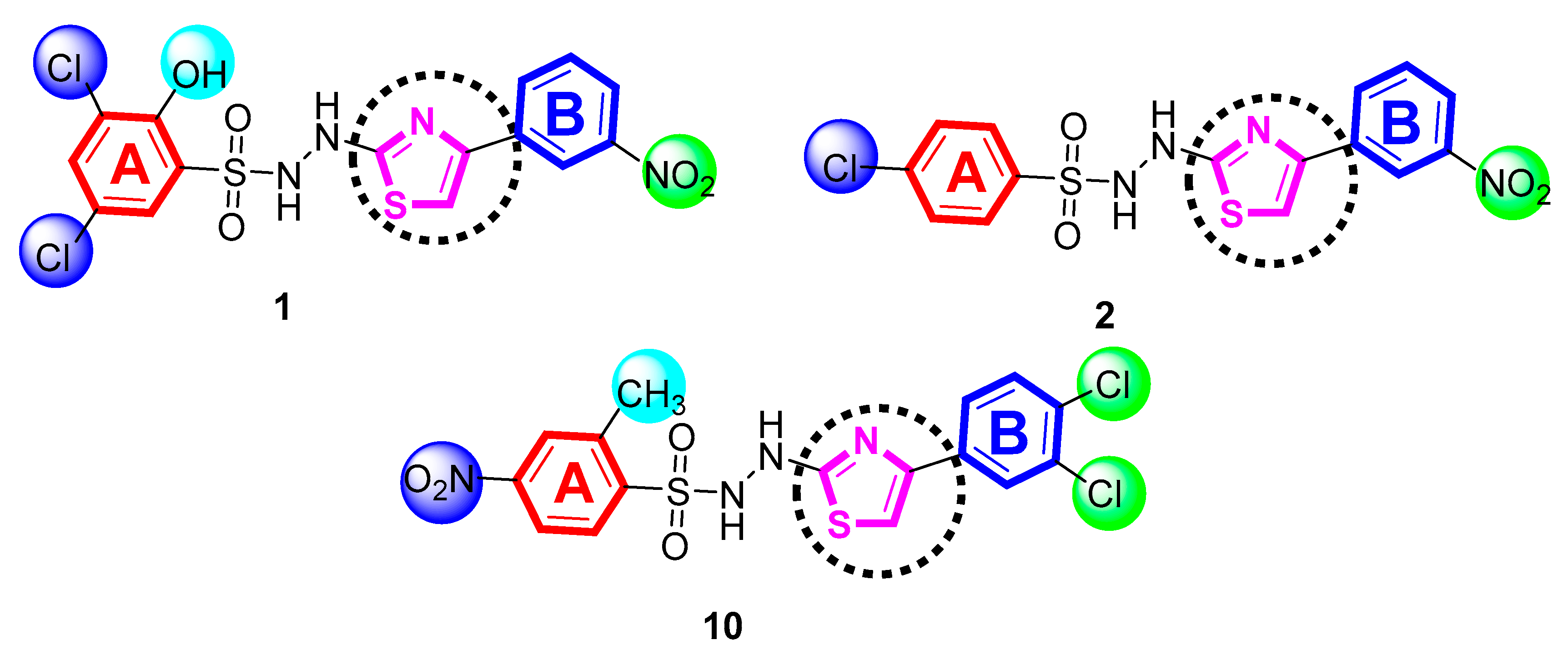

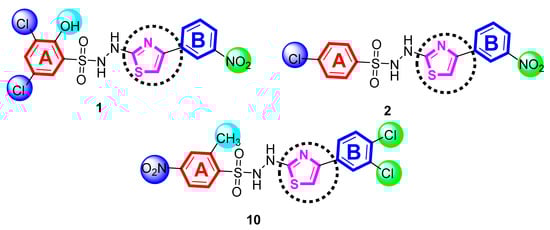

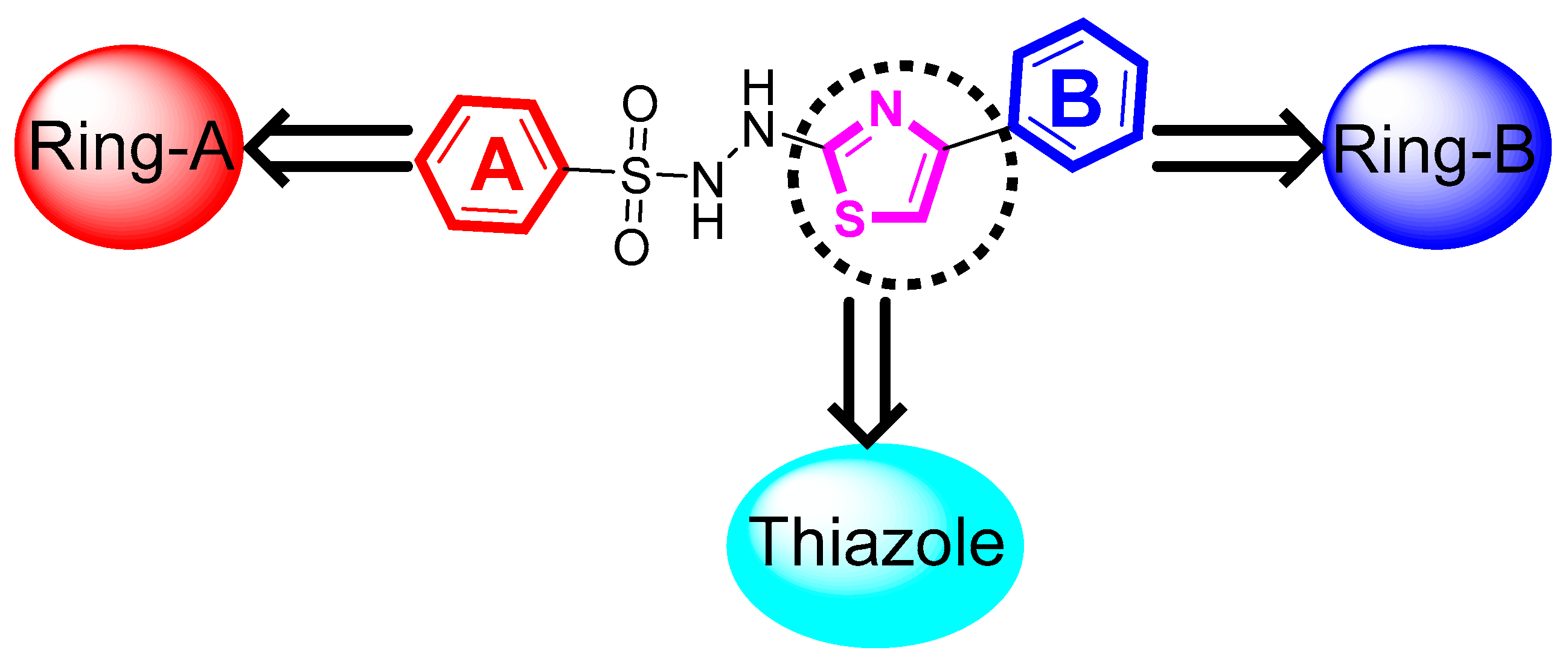

The nature of substituents, the number of substituents, and the position at which substituents are attached might increase or decrease the biological potential of the analog. The nature of attached substituents such as an electron donating group (EDG) increases the biological potential due to the transfer of an electron, which causes a negative charge in the ring as well as the formation of a hydrogen bond with enzyme active sites. However, in the case of an electron-withdrawing group (EWG), the nature of the attached substituents decreases the biological potential. In this consideration, it was concluded that the number, position, and nature of the substituents can increase or decrease the biological potentials of the analog. The binding interaction of most analogs with the active site of enzymes was determined with the help of molecular docking.

2.3. Docking Study

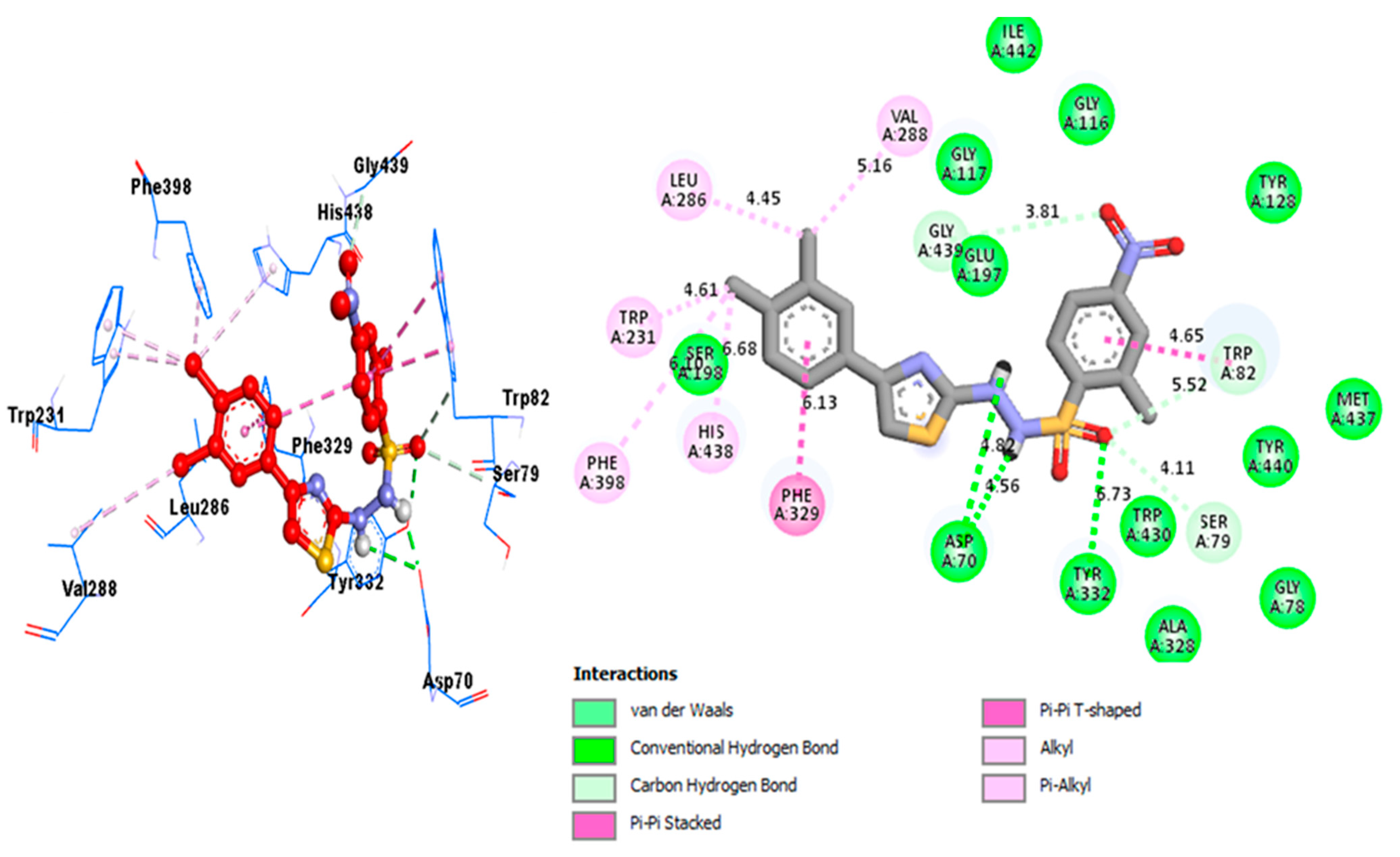

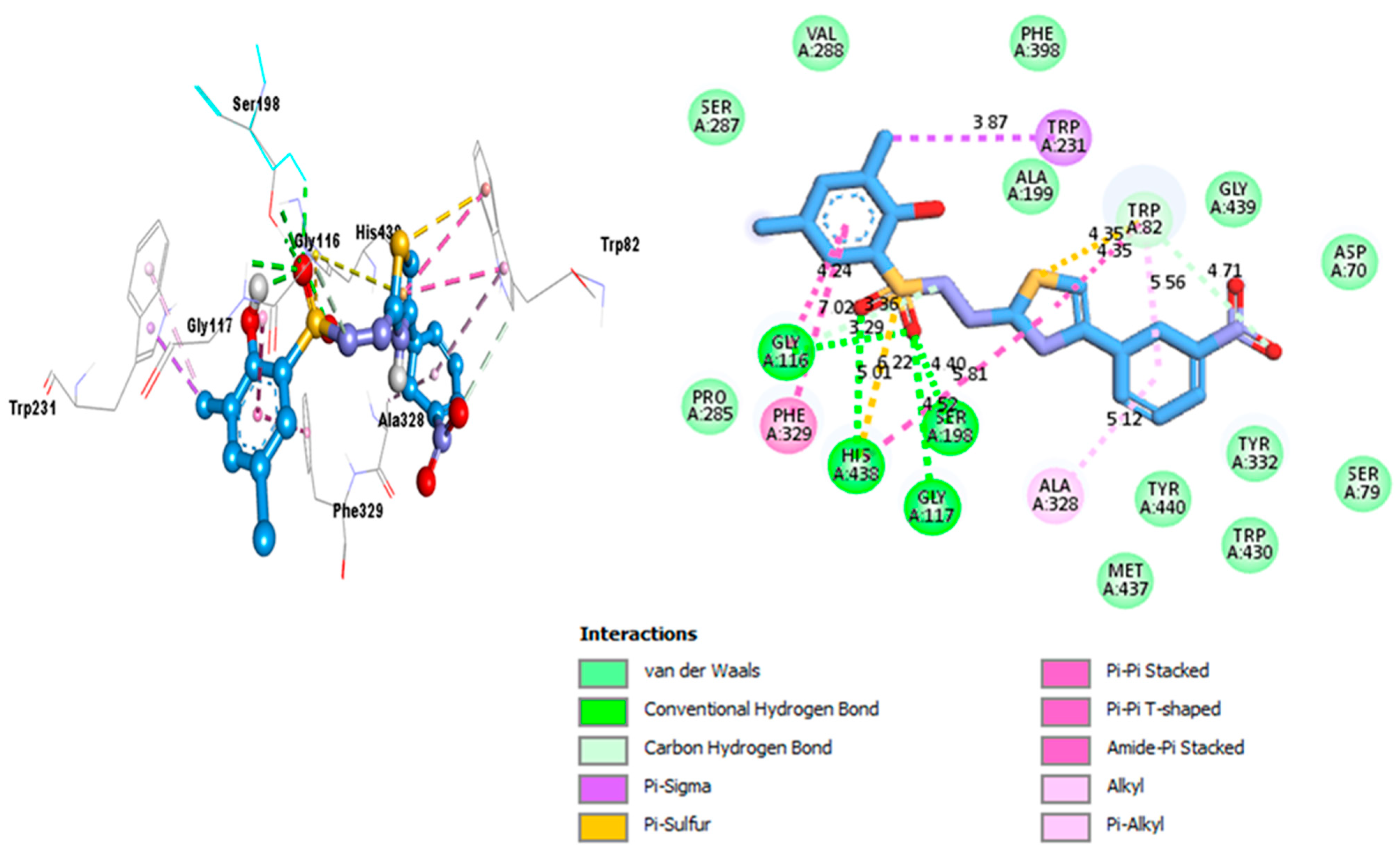

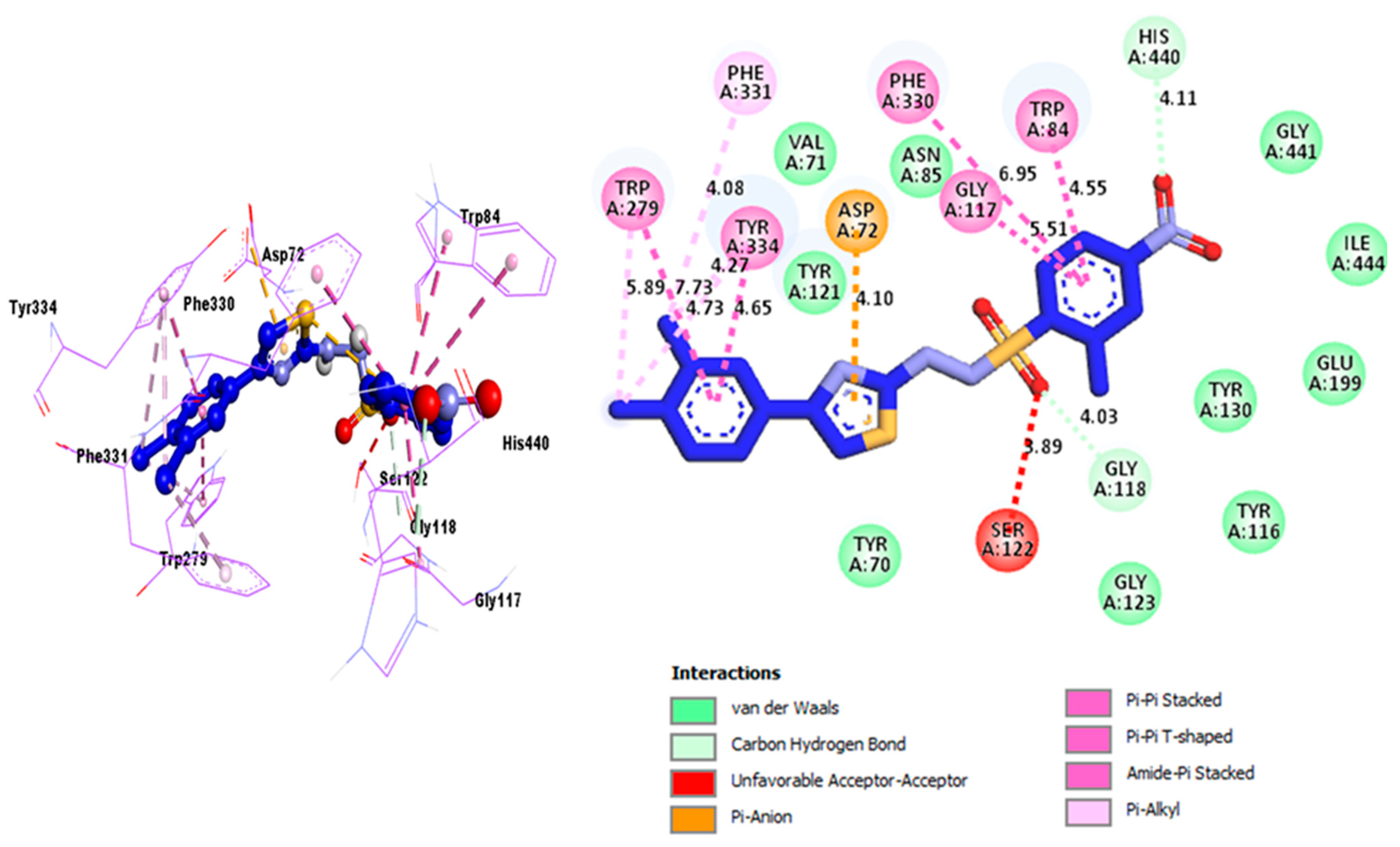

The molecular docking study was carried out to gain insight into the binding mode of synthesized compounds against both the targeted enzyme. The optimized compounds were docked into the active site of targeted enzymes based on the co-crystal of each crystallographic structure. A total of nine poses were obtained for each ligand molecule in which the top-ranked was selected to explore the binding sites using the discovery studio visualizer (DSV). The docking results revealed that all the compounds were found in a good orientation in the active site of both enzymes. Generally, we have noticed that all the compounds hold different substituting groups, i.e., electron-withdrawing (also known as deactivated) and electron-donating groups at different positions. Interestingly, the protein–ligand interaction (PLI) profile with the in vitro results revealed that analogs 1 and 10 showed the best potential against both compounds and had been ranked 1st and 2nd in the series of all compounds. Both of the compounds bear a strong magnitude of activated and deactivated groups over the rings. The detailed PLI profile of both compounds against both targets revealed numerous key interactions with catalytic residues, which might have a potential role in the enhancement of the enzymatic activity of both enzymes.

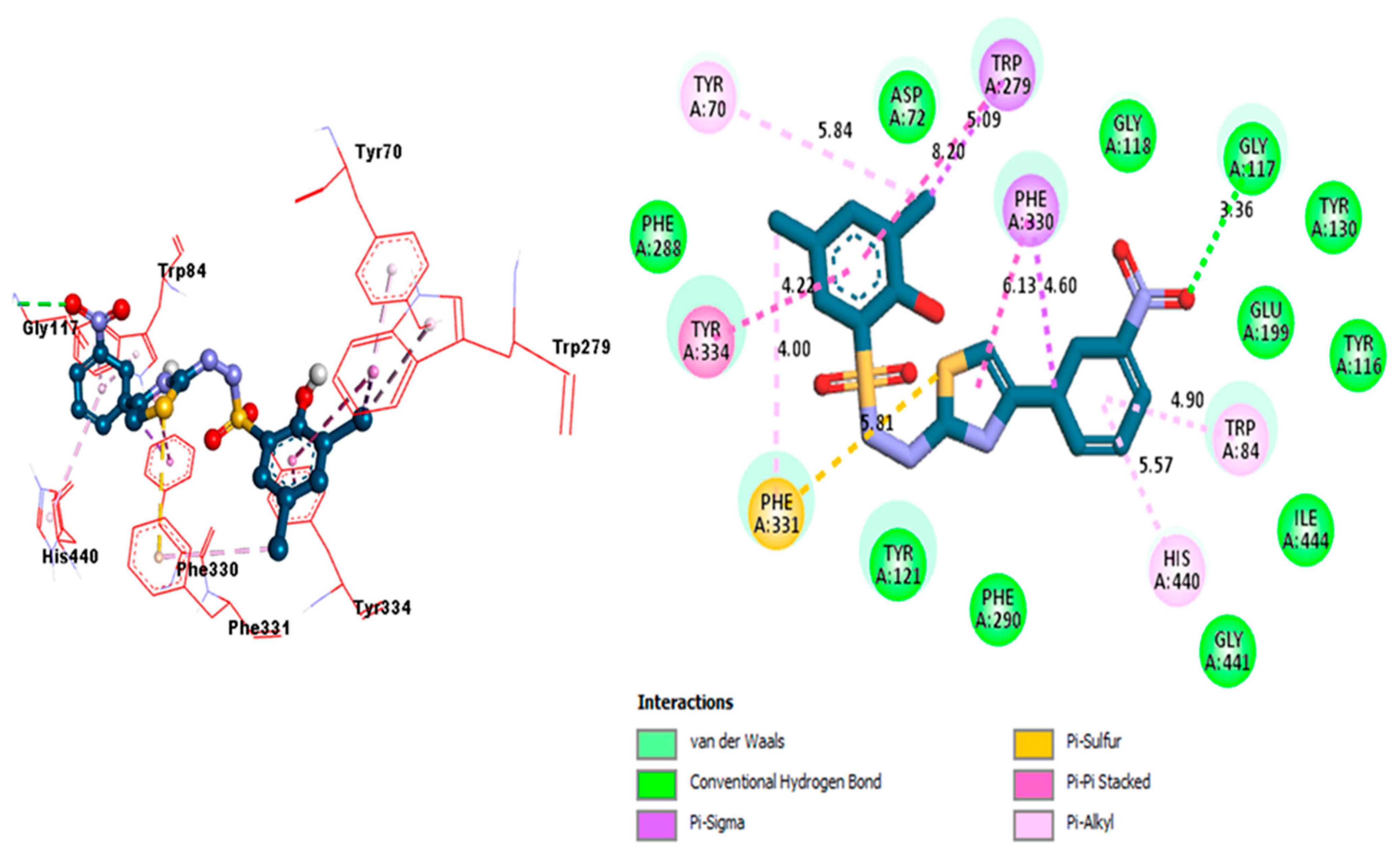

For the molecular docking study, both proteins (1Acl and 1PoP) were retrieved from the RCSD protein data bank (PDB) and performed using different software such as Auto Dock Vina (1.5.7) and DSV (2021). Initially, proteins were prepared in DSV by removing water and transferring data in the PDB format to Auto Dock Vina, where polar hydrogen and charges were added. Next, ligand molecules were added, and X, Y, and Z coordinates were saved in text format; however, both protein and ligand were also saved in PDBQT format. The location was set in the command prompt through which all the docking procedure was carried out. All the results were decoded in DSV, and the interactions were visualized in both 2D and 3D structures (see Figure 9, Figure 10, Figure 11 and Figure 12). Their protein–ligand interactions with distance are summarized in Table 2.

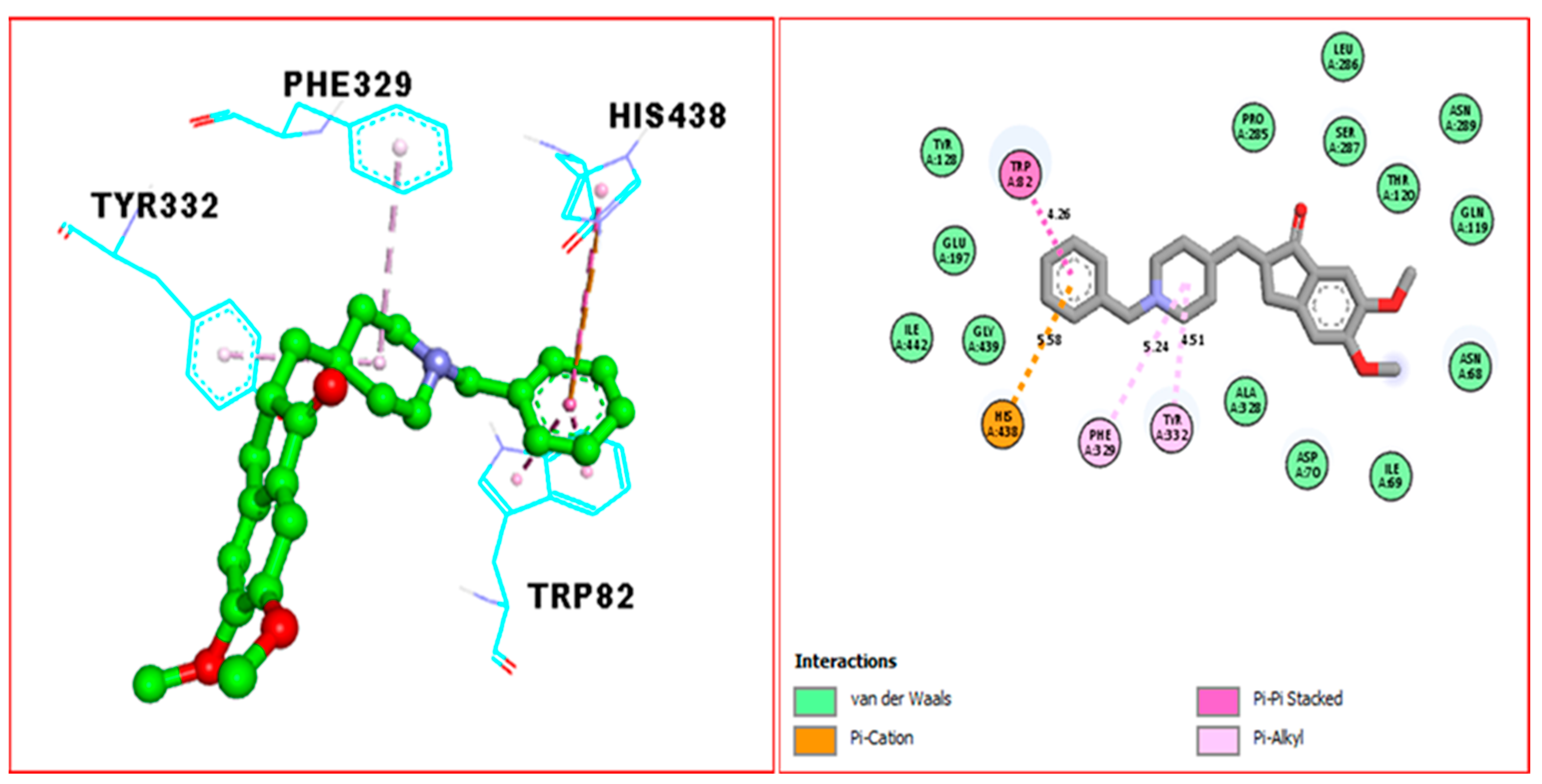

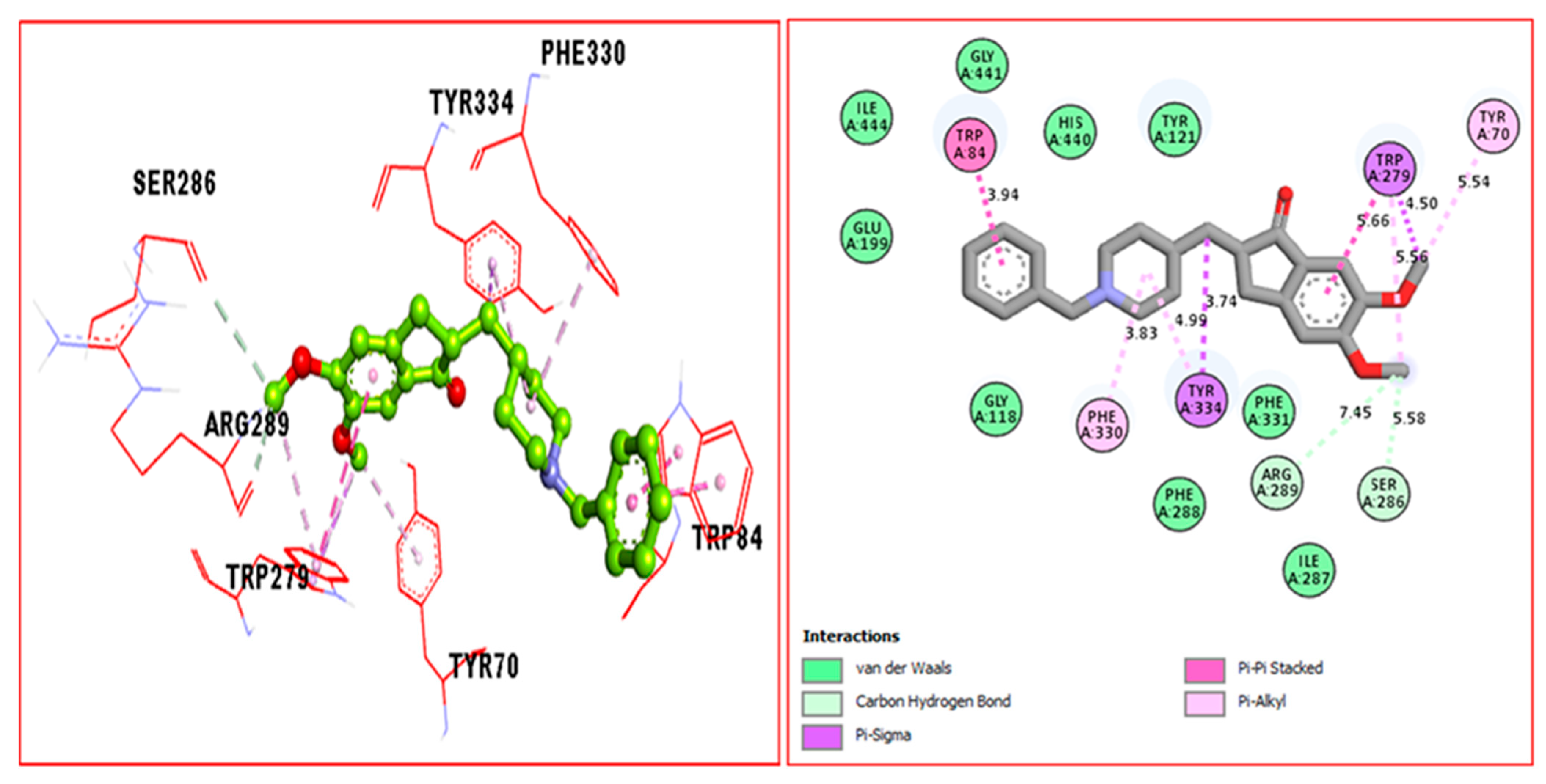

The comparison studies of donepezil (see Figure 13 and Figure 14) with synthesized compounds were obtained through molecular docking studies and their binding interaction with active sites of protein (PLI). Synthesized compounds showed much better interaction as compared to the standard drug donepezil; the interaction is summarized in Table 2.

2.4. Computational Details

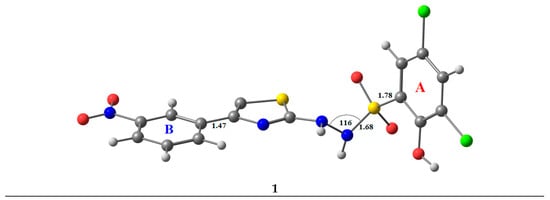

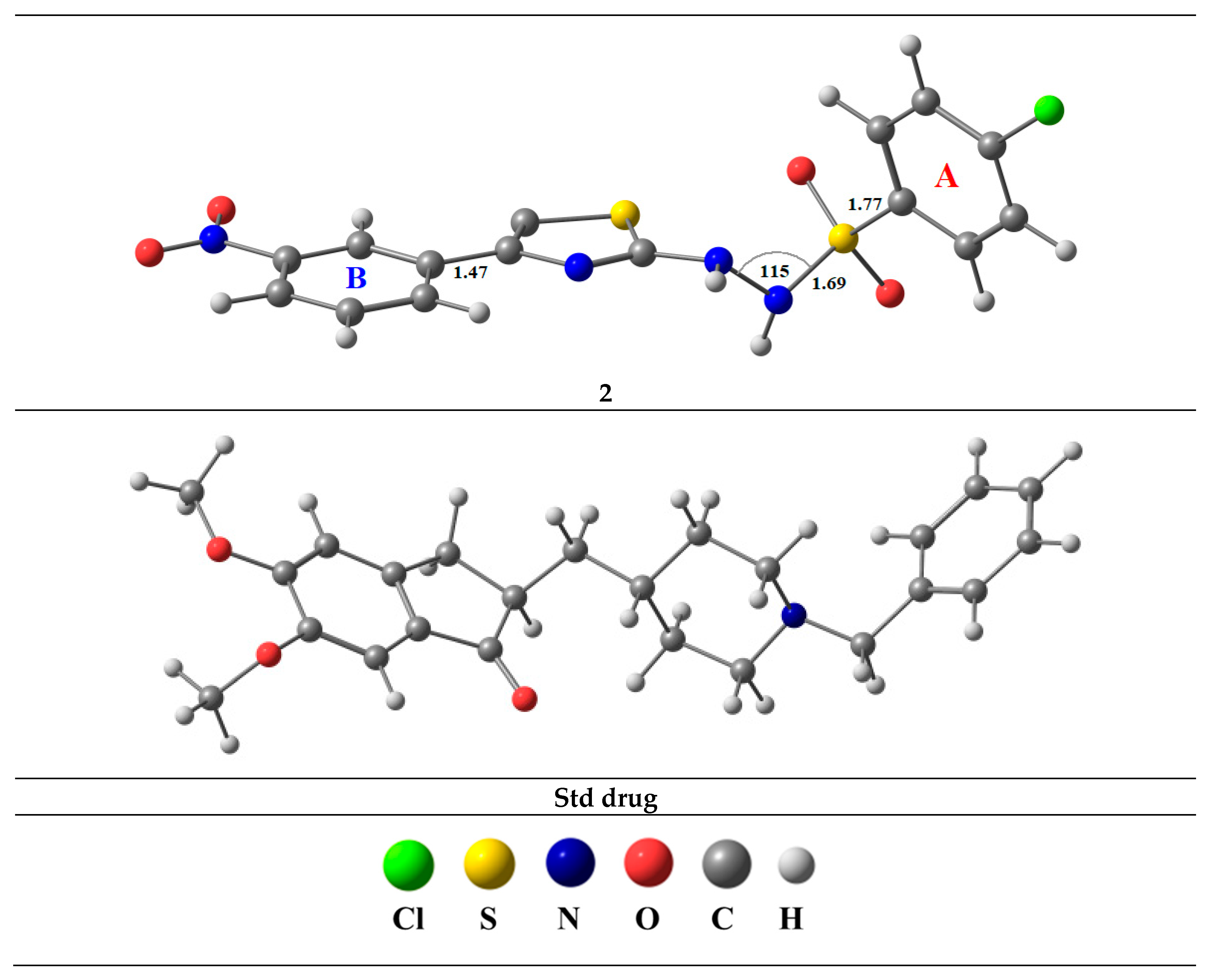

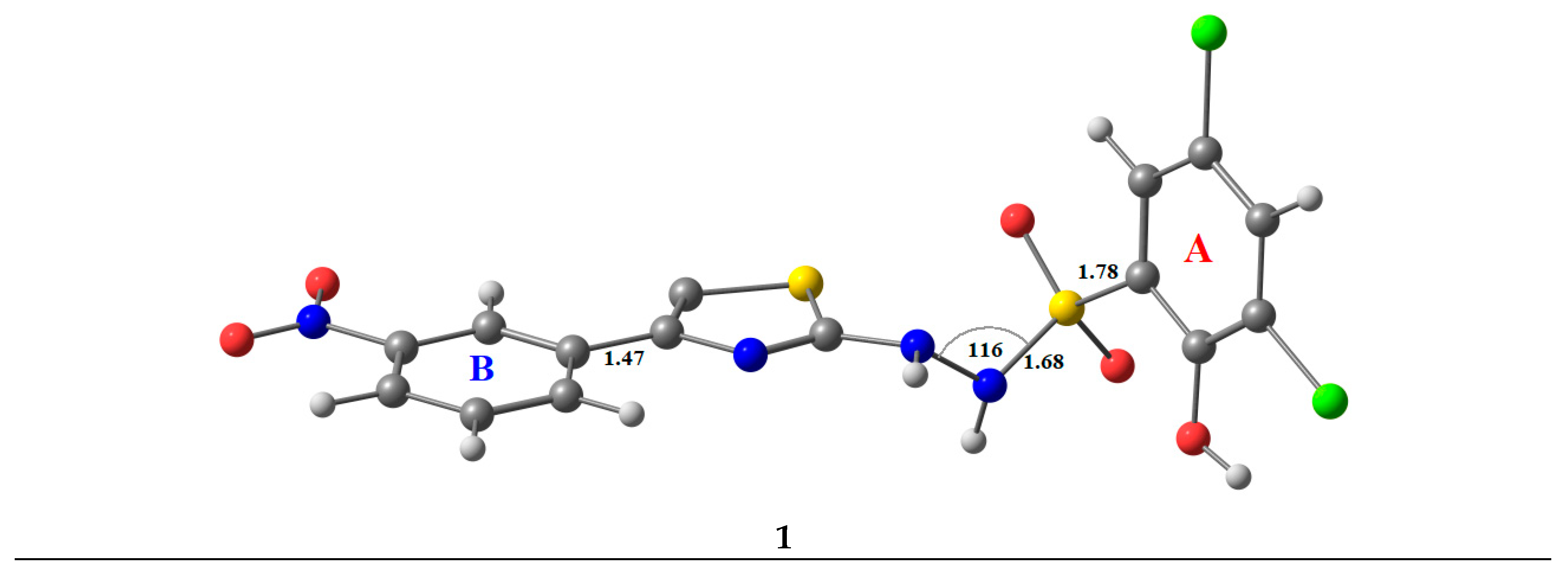

All the DFT calculations for thiazole-bearing sulfonamide analogs (1–21) are computed using the Gaussian 09 quantum chemical package [48]. The geometries of considered thiazole-bearing sulfonamide analogs (1–21) are optimized at ωB97XD/6–31 g (d,p) level of theory. ωB97XD functional is used due to the associated accuracy and validity of the results for geometric as well as electronic parameters [49,50]. Additionally, vibrational frequency analysis is also carried out to confirm the true minimum nature of the optimized geometries (1–21) on the potential energy surface (PES). Frontier molecular orbital (FMO) analysis is also performed at the same level of theory to understand the perturbations in electronic properties. Moreover, molecular electrostatic potential (MESP) is also extracted to gain insight into the interaction mode of designed analogs with the targeted enzymes. The Chemcraft package and Gauss View 5.0 are employed for the visualization of geometries and isodensity [51].
The absence of negative or imaginary frequencies in all the designed thiazole-bearing sulfonamide analogs (1–21) confirms the true minima nature of the stationary points on PES. The optimized structures of analogs 1 and 2 are shown in Figure 13, whereas the optimized geometries of analogs (3–21) are presented in Supporting Information (see Figure S1). Because all thiazole derivatives are almost similar in structure, the same geometric parameters are used to characterize their geometries. Slight differences of ±0.01Å in bond lengths (S—C and S—N) are observed for analogs 1 and 2, which are attributed to different functionalization of ring A (see Figure 15). The angle ∠N—N—S at the sulfonamide moiety is 116o in the case of analog 1, whereas in analog 2, this angle is slightly decreased to 115°. The N—S bond is 1.68Å and 1.69Å in analogs 1 and 2, respectively. Similarly, the connecting bond of sulfonamide moiety and ring A (S—C bond) also differs by 0.01Å in both analogs. However, the C—C bond between thiazole moiety and ring B is similar in both analogs due to structural similarity at this end. An almost similar geometric pattern is observed in other optimized analogs (3–21) given in Figure S1 (Supporting Information). For comparison, the optimized structure of the standard drug (donepezil) is also added in Figure 15.

2.5. Molecular Electrostatic Potential

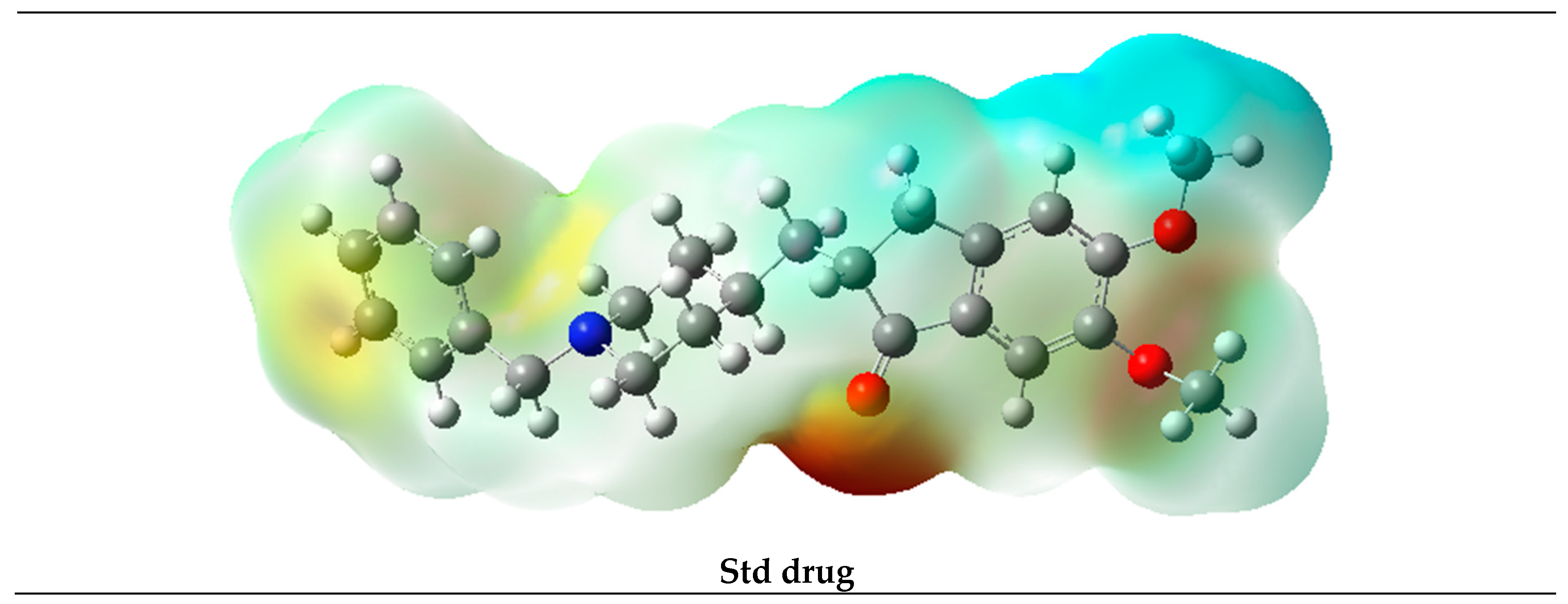

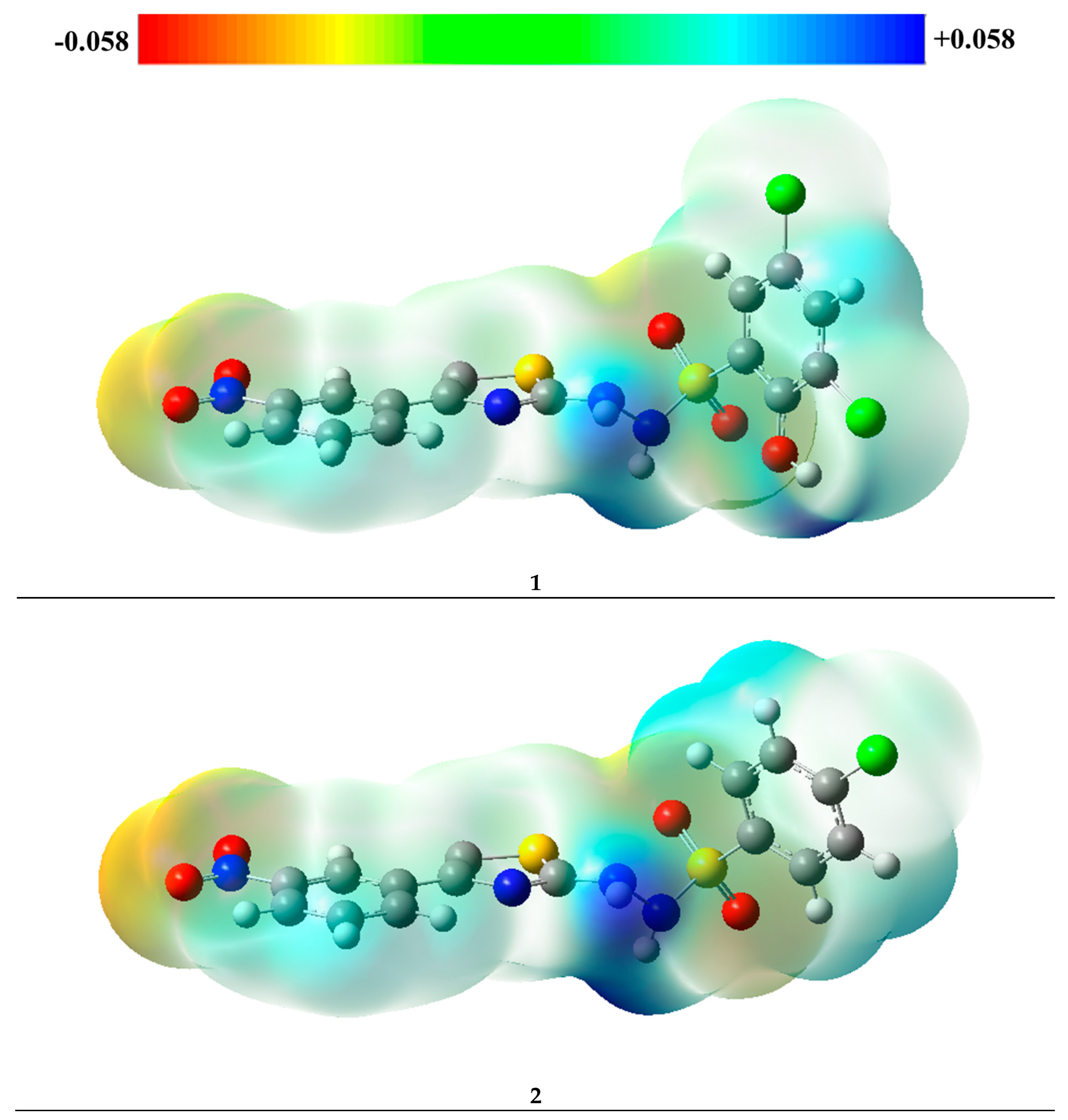

Molecular electrostatic potential (MESP) is a very useful tool that predicts the relationships of physicochemical properties of designed drug molecules [52]. MESP is also important for validating the reactivity of the drug molecules toward nucleophilic or electrophilic attacks [53]. Moreover, MESP mapping also provides a valuable reference for the interaction of drug molecules with the targeted enzyme by evaluating electrostatic interactions [54]. The MESP mapping of thiazole-bearing sulfonamide analogs 1 and 2 is shown in Figure 16, whereas for analogs (3–21), MESP maps are presented in Figure S2 (Supporting Information). In the MESP, the higher negative region (red color) is the favorite site for electrophilic attack. Therefore, electrophiles will be more likely to attack nucleophilic sites, and the opposite is true for the blue color regions (positive potential).
The MESP map of analog 1 reveals that the oxygen atoms of the NO2 group (attached to ring B) and sulfonamide have a negative potential region (orange color). On the other hand, hydrogen atoms attached to the nitrogen of sulfonamide and the OH− group of ring A exhibit the blue color corresponding to a maximum positive charge. The most positive potential hydrogen atoms ascribe the polar nature of N—H and O—H bonds. However, the MESP over chlorine atoms seems to have nearly neutral electrostatic potential due to lower negative potential over them as compared to O atoms. Similar results for the negative potential of MESP are observed for analog 2; however, positive density (blue region) is distributed only over hydrogen atoms of sulfonamide attributed to the higher polarity of the N—H bond. In the remaining studied analogs (3–21), similar positive potential regions (blue color) are observed in the MESP, and these regions correspond to hydrogen atoms attached to the nitrogen of sulfonamide. However, the negative potential regions (reddish color) vary depending on the position of NO2 groups (see Figure S2 for more details). Similarly, the MESP of the standard drug (donepezil) is also calculated for comparison with the studied analogs. In the case of the standard drug, the negative potential region (red color) is distributed over the oxygen atom of cyclopentenone. However, positive density (blue region) is mainly distributed over hydrogen atoms of the methoxy group.

2.6. Frontier Molecular Orbital Analysis

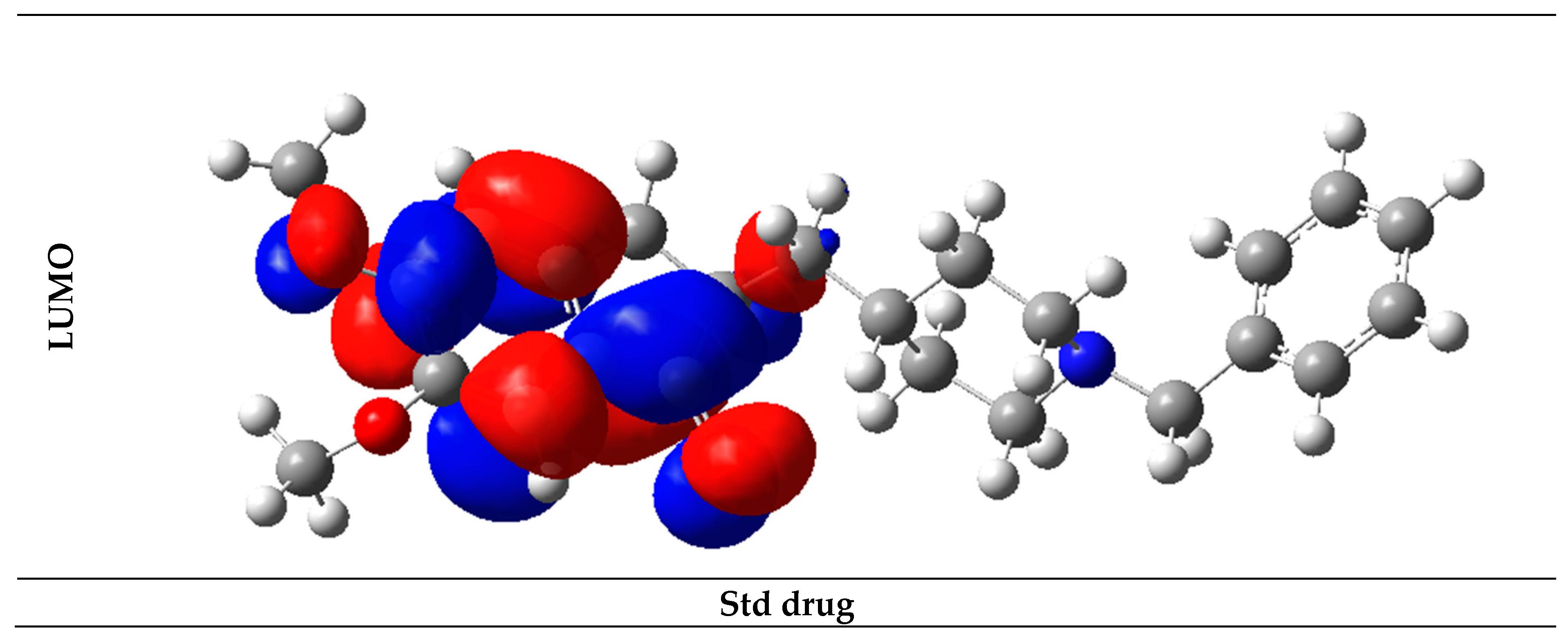

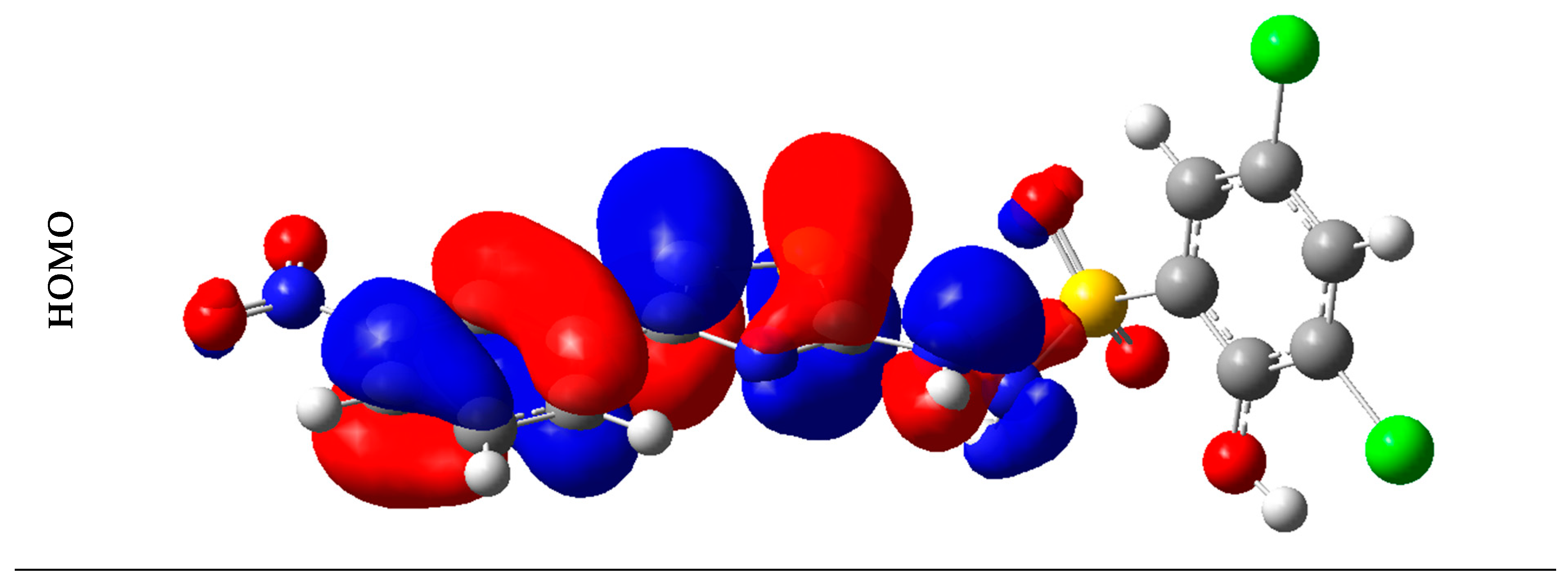

The frontier molecular orbitals, HOMO and LUMO, help determine the chemical reactivity of a molecule when it interacts with the target enzyme or protein. The HOMO–LUMO gap helps to characterize the kinetic stability and chemical reactivity of the molecule [55]. Therefore, frontier molecular orbital (FMO) analysis is performed to gain insight into the electronic properties of the designed thiazole-bearing sulfonamide analogs (1–21). HOMO–LUMO orbital densities of analogs 1 and 2 and the standard drug are presented in Figure 15, whereas the HOMO–LUMO isodensity for studied thiazole-bearing sulfonamide analogs (1–21) are shown in Figure S3 (Supporting Information). Results of HOMO–LUMO energies and their energy gaps are reported in Table 3. In the case of sulfonamide analogs 1 and 2, almost similar behavior is observed regarding HOMO–LUMO densities. In both analogs, the HOMOs are mainly distributed on ring B and the thiazole ring, with some density over N atoms of sulfonamide as well (see Figure 17). On the other hand, LUMO is distributed entirely on ring B in both analogs 1 and 2. The distribution pattern of HOMO densities of analogs (3–21) is consistent with analogs 1 and 2. However, the LUMO densities of analogs (3–21) are quite different and distributed over ring A (see Figure S3). Thus, the charge is transferred from ring B and the thiazole ring to ring A. The FMO density distribution pattern is similar in all remaining analogs (3–21), in which LUMO is mainly distributed over ring A and HOMO over ring B and the thiazole moiety (see Figure S3).
Analog 1 has an energy gap of 7.91 eV, and analog 2 has an energy gap of 7.92 eV. However, the HOMO and LUMO values of analog 1 are −8.36 eV and −0.46 eV, respectively. A higher HOMO–LUMO energy gap renders the higher electronic stability of thiazole-bearing sulfonamide analogs. Overall, the highest energy gap is calculated for analog 15 (−8.38 eV), whereas the lowest HOMO–LUMO gap is seen in analog 21 (−6.62 eV). The higher HOMO values are associated with the electron-donating ability of the designed molecules, whereas the lower LUMO energies render good electron-accepting ability [56]. The HOMO–LUMO energy values indicate that the charge transfer occurs within the thiazole-bearing sulfonamide analogs. Therefore, results in Table 3 reveal that lower LUMO energy values promote the electron-accepting ability of considered analogs (1–21) and higher HOMO values correspond to the electron-donating tendency of analogs. FMO analysis of a standard drug (donepezil) shows almost similar results. HOMO, LUMO, and the energy gap values of the standard drug are almost consistent with the studied analogs, especially with analogs 5, 7, and 15 (see Table 3). Moreover, the distribution of HOMO–LUMO isodensity also confirms that charge transfer occurs within the drug molecule, which is in good correlation with studied thiazole-bearing sulfonamide analogs.

3. Conclusions

In summary, we have synthesized twenty-one analogs of thiazole-bearing sulfonamide and evaluated them against acetylcholinesterase and butyrylcholinesterase in the presence of the standard drug donepezil (IC50 values = 2.16 ± 0.12 and 4.5 ± 0.11 µM, respectively). All analogs were found with different AchE and BuChE inhibitory activity, having IC50 values ranging between 0.10 ± 0.05 and 11.40 ± 0.20 µM and between 0.20 ± 0.050 and 14.30 ± 0.30 µM, respectively. Analog 1 was found to be the most potent one in both AchE and BuChE cases with IC50 values = 0.10 ± 0.05 µM and 0.20 ± 0.050 µM, respectively. A limited structure–activity relationship was carried out to find the effect of different substituents on phenyl rings A and B. Molecular docking studies were carried out to find the interaction of the most potent analog with the active site of enzymes. Moreover, DFT was conducted to determine the chemical reactivity of a molecule when it interacts with the target enzyme or protein.

4. Experimental

4.1. General Procedure for the Synthesis of Thiazole-Bearing Sulfonamide Analogs (1–21)

Thiazole-bearing sulfonamide derivatives (1–21) were obtained by treating different substituted sulfonyl chloride (I, 1 mmol) with hydrazine hydrate (15 mL) in ethyl alcohol (10 mL) and refluxed for 5 h to give sulfonohydrazides (II) as a first intermediate product. The intermediate (II) was then treated with equimolar ammonium isothiocyanate in DMF (10 mL) to obtain the second intermediate product (III) [40]. The intermediate (III) was finally treated with equimolar different substituted phenacyl bromide in ethyl alcohol (10 mL) in the presence of triethylamine and refluxed for about 12 h to obtain the desired product. After completion, the synthesized compound was dried and then washed with n-hexane to obtain a pure product. Primary confirmation of the product was performed with the help of TLC, and further NMR confirms the formation of the basic skeleton of the final products.

4.2. Spectral Analysis

4.2.1. 3,5-Dichlro-2-hydroxy-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (1)

Yield: 82%; m.p: 209–211 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.97 (s, 1H, NH), 11.92 (s, 1H, NH), 10.45 (s, 1H, OH), 8.88 (s, 1H, Ar-H), 8.81 (s, 1H, Ar-H), 8.57 (s, 1H, Ar-H), 7.59 (t, J = 6.7 Hz, 1H, Ar-H), 6.78 (dd, J = 7.2, 1.8 Hz, 1H, Ar-H), 6.61 (dd, J = 7.3, 2.0 Hz, 1H, Ar-H), 3.18 (s, 1H, thiazole-H). 13C NMR (125 MHz, DMSO-d6): δ 162.6, 150.2, 149.8, 149.7, 142.6, 142.4, 127.9, 127.7, 120.8, 118.9, 118.8, 118.7, 117.0, 114.1, 100.9. HR EIMS: m/z calcd for C15H10Cl2N4O5S2 [M]+ 461.2978; Found: 461.2960.

4.2.2. 4-Chloro-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (2)

Yield: 86%.; m.p: 207–210 °C. 1H NMR (500 MHz, DMSO-d6): δ 12.15 (s, 1H, NH), 11.92 (s, 1H, NH), 8.79 (d, J = 7.7 Hz, 2H, Ar-H), 8.51 (d, J = 6.7 Hz, 2H, Ar-H), 8.43 (s, 1H, Ar-H), 7.58 (d, J = 8.5, 2.4 Hz, 1H, Ar-H), 7.35 (t, J = 6.6 Hz, 1H, Ar-H), 6.61 (dd, J = 7.3, 1.4 Hz, 1H, Ar-H), 2.36 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 162.0, 161.4, 159.6, 149.6, 146.4, 142.5, 127.7, 127.6, 126.4, 121.0, 120.7, 118.7, 100.9, 99.1, 94.4. HR EIMS: m/z calcd for C15H11ClN4O4S2 [M]+ 410.8552; Found: 410.8540.

4.2.3. 3-Nitro-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (3)

Yield: 80%; m.p: 221–225 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.90 (s, 1H, NH), 11.78 (s, 1H, NH), 8.81 (s, 1H, Ar-H), 8.77 (s, 1H, Ar-H), 8.53 (s, 1H, Ar-H), 7.85 (s, 1H, Ar-H), 7.58 (d, J = 6.8 Hz, 1H, Ar-H), 7.31-7.29 (m, 1H, Ar-H), 6.61 (d, J = 7.4 Hz, 1H, Ar-H), 7.28–7.25 (m, 1H, Ar-H), 2.46 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 162.8, 149.7, 149.6, 147.5, 139.7, 131.7, 129.3, 127.6, 126.9, 121.3, 118.7, 100.9. HR EIMS: m/z calcd for C15H11N5O6S2 [M]+ 421.4032; Found: 421.4018.

4.2.4. 2-Methyl-5-nitro-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (4)

Yield: 77%; m.p: 203–205 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.40 (s, 1H, NH), 11.27 (s, 1H, NH), 8.64 (d, J = 2.1 Hz, 1H, Ar-H), 8.56 (d, J = 1.9 Hz, 1H, Ar-H), 8.43 (d, J = 1.8 Hz, 1H, Ar-H), 8.29 (dd, J = 7.7, 1.8 Hz, 1H, Ar-H), 8.19 (m, 1H, Ar-H), 7.79 (dd, J = 7.7, 1.9 Hz, 1H, Ar-H), 7.63 (d, J = 1.9 Hz, 1H, Ar-H), 2.12 (s, 1H, CH), 2.60 (s, 3H, CH3). 13C NMR (125 MHz, DMSO-d6): δ 173.0, 150.0, 148.1, 145.1, 142.3, 139.7, 133.6, 133.6, 130.5, 130.1, 126.9, 123.9, 123.0, 122.5, 105.0, 22.0. HR EIMS: m/z calcd for C16H13N5O6S2 [M]+ 435.4345; Found: 435.4330.

4.2.5. 4-Bromo-N′-(4-phenylthiazol-2-yl)benzenesulfonohydrazide (5)

Yield: 87%; m.p: 198–201 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.46 (s, 1H, NH), 11.25 (s, 1H, NH), 7.85 (d, J = 2.1 Hz, 2H, Ar-H), 8.82(d, J = 1.9 Hz, 2H, Ar-H), 7.80 (dd, J = 7.5, 1.8 Hz, 2H, Ar-H), 7.45 (m, 1H, Ar-H), 7.35 (dd, J = 7.1, 1.9 Hz, 2H, Ar-H), 2.09 (s, 1H, CH), 13C NMR (125 MHz, DMSO-d6): δ 173.1, 150.1, 137.6, 133.0, 131.8, 131.7, 129.4, 129.3, 129.1, 129.0, 128.6, 127.4, 127.3, 126.2, 105.0. HR EIMS: m/z calcd for C15H12BrN3O2S2 [M]+ 410.3080; Found: 410.3075, 412.3076.

4.2.6. 4-Nitro-N′-(4-phenylthiazol-2-yl)benzenesulfonohydrazide (6)

Yield: 85%; m.p: 211–214 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.83 (s, 1H, NH), 11.64 (s, 1H, NH), 8.35 (d, J = 7.9 Hz, 2H, Ar-H), 7.62 (d, J = 7.8 Hz, 2H, Ar-H), 7.80 (dd, J = 7.7, 1.9 Hz, 2H, Ar-H), 7.45 (m, 1H, Ar-H), 7.35 (dd, J = 7.1 Hz, 2H, Ar-H), 4.12 (s, 1H, CH), 13C NMR (125 MHz, DMSO-d6): δ 173.0, 151.0, 150.2, 142.7, 133.0, 129.1, 128.9, 128.6, 128.1, 128.0, 127.4, 127.3, 124.1, 124.0, 105.0. HR EIMS: m/z calcd for C15H12N4O4S2 [M]+ 376.4180; Found: 376.4155.

4.2.7. 4-Chloro-N′-(4-(4-chlorophenyl)thiazol-2-yl)benzenesulfonohydrazide (7)

Yield: 80%; m.p: 206–208 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.20 (s, 1H, NH), 11.14 (s, 1H, NH), 7.62 (d, J = 6.3 Hz, 2H, Ar-H), 7.59 (d, J = 8.5 Hz, 2H, Ar-H), 7.41 (d, J = 6.3 Hz, 2H, Ar-H), 7.39 (d, J = 6.2 Hz, 2H, Ar-H), 7.29 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 157.6, 154.3, 148.8, 146.6, 144.4, 136.2, 133.2, 131.1, 129.7, 129.6, 129.0, 128.8, 128.2, 127.7, 127.6. HR EIMS: m/z calcd for C15H11Cl2N3O2S2 [M]+ 400.2940; Found: 400.2925.

4.2.8. N′-(4-([1,1′-biphenyl]-4-yl)thiazol-2-yl)-4-chlorobenzenesulfonohydrazide (8)

Yield: 75%; m.p: 168–174 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.65 (s, 1H, NH), 11.41 (s, 1H, NH), 8.22 (d, J = 7.7 Hz, 2H, Ar-H), 7.81 (d, J = 7.5 Hz, 2H, Ar-H), 7.73 (dd, J = 7.5, 1.9 Hz, 2H, Ar-H), 7.69 (d, J = 7.5 Hz, 2H, Ar-H), 7.56 (d, J = 7.1 Hz, 2H, Ar-H), 7.43 (dd, J = 7.1 Hz, 2H, Ar-H), 7.35 (m, J = 7.1–7.31H, Ar-H), 3.25 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 173.1, 150.2, 140.5, 140.3, 137.1, 134.4, 131.2, 129.1, 128.7, 128.7, 128.4, 128.2, 128.1, 127.5, 127.6, 127.4, 127.3, 127.1, 127.1, 127.0, 105.1. HR EIMS: m/z calcd for C21H16ClN3O2S2 [M]+ 441.9523; Found: 441.9510.

4.2.9. 3,5-Dichloro-N′-(4-(4-chlorophenyl)thiazol-2-yl)-2-hydroxybenzenesulfonohydrazide (9)

Yield: 78%; m.p: 191–196 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.88 (s, 1H, NH), 11.67 (s, 1H, NH), 9.35 (s, 1H, OH), 8.78 (d, J = 1.8 Hz, 1H, Ar-H), 8.50 (d, J = 1.7 Hz, 1H, Ar-H), 7.57 (d, J = 6.7 Hz, 2H, Ar-H), 6.29 (d, J = 6.7 Hz, 2H, Ar-H), 3.20 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 162.6, 149.7, 146.1, 145.5, 142.6, 142.7, 127.9, 127.8, 120.6, 120.1, 120.0, 119.0, 118.7, 117.3, 101.0. HR EIMS: m/z calcd for C15H10Cl3N3O3S2 [M]+ 450.7385; Found: 450.7345.

4.2.10. N′-(4-(3,4-dichlorophenyl)thiazol-2-yl)-2-methyl-5-nitrobenzenesulfonohydrazide (10)

Yield: 72%; m.p: 187–191 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.70 (s, 1H, NH), 11.59 (s, 1H, NH), 8.50 (s, 1H, Ar-H), 8.49 (d, 1H, J = 7.8 Hz, Ar-H), 8.07 (dd, J = 8.2, 2.6 Hz, 1H, Ar-H), 7.98 (d, J = 8.5 Hz, 1H, Ar-H), 7.94 (d, J = 8.5 Hz, 1H, Ar-H), 7.70 (d, J = 6.6 Hz, 1H, Ar-H), 2.70 (s, 1H, CH), 2.63 (s, 3H, CH3). 13C NMR (125 MHz, DMSO-d6): δ 165.3, 162.8, 160.6, 158.2, 147.1, 144.8, 144.2, 132.8, 132.5, 132.2, 132.1, 132.1, 132.1, 131.8, 131.8. HR EIMS: m/z calcd for C16H12Cl2N4O4S2 [M]+ 459.3285; Found: 459.3278.

4.2.11. N′-(4-(4-chlorophenyl)thiazol-2-yl)-2-methyl-5-nitrobenzenesulfonohydrazide (11)

Yield: 84%; m.p: 213–216 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.69 (s, 1H, NH), 11.56 (s, 1H, NH), 8.01-8.10 (m, 4H, Ar-H), 7.58-7.60 (m, 7.3–7.51H, Ar-H), 7.47 (d, J = 8.2 Hz, 1H, Ar-H), 3.11 (s, 1H, CH) 2.65 (s, 3H, CH3). 13C-NMR (125 MHz, DMSO-d6): δ 173.1, 152.1, 145.1, 142.6, 139.7, 134.7, 131.7, 130.2, 129.3, 129.2, 128.5, 128.5, 127.1, 123.2, 104.9, 22.1. HR EIMS: m/z calcd for C16H13ClN4O4S2 [M]+ 424.8723; Found: 424.8707.

4.2.12. N′-(4-(4-bromophenyl)thiazol-2-yl)-2-methyl-5-nitrobenzenesulfonohydrazide (12)

Yield: 74%; m.p: 195–199 °C; 1H NMR (500 MHz, DMSO-d6): δ 11.70 (s, 1H, NH), 11.54 (s, 1H, NH), 8.51 (d, J = 2.5 Hz, 1H, Ar-H), 8.10 (dd, J = 7.4, 2.6 Hz, 1H, Ar-H), 7.95 (d, J = 8.4 Hz, 2H, Ar-H), 7.75 (d, J = 8.6 Hz, 2H, Ar-H), 7.47 (d, J = 8.2 Hz, 1H, Ar-H), 4.06 (s, 1H, CH), 2.65 (s, 3H, CH3). 13C NMR (125 MHz, DMSO-d6): δ 165.4, 158.4, 147.6, 144.8, 144.2, 132.6, 132.2, 132.1, 131.9, 131.6, 131.5, 131.4, 131.3, 131.2, 131.1, 128.5. HR EIMS: m/z calcd for C16H13BrN4O4S2 [M]+ 469.3398; Found: 469.3385, 471.3384.

4.2.13. N′-(4-(3,4-dichlorophenyl)thiazol-2-yl)-3-nitrobenzenesulfonohydrazide (13)

Yield: 77%; m.p: 186–189 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.88 (s, 1H, NH), 11.76 (s, 1H, NH), 8.34 (t, 1H, Ar-H), 8.25 (d, J = 1.9 Hz, 1H, Ar-H), 8.03 (dd, J = 7.6, 2.4 Hz, 1H, Ar-H), 8.00 (dd, J = 7.9, 3.9 Hz, 1H, Ar-H), 7.80 (d, J = 8.3 Hz, 1H, Ar-H), 7.80 (dd, J = 7.4, 1.7 Hz, 1H, Ar-H), 7.6 (t, J = 7.4 Hz, 1H, Ar-H), 4.02 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 164.2, 149.7, 147.1, 135.9, 133.6, 131.3, 131.2, 130.8, 129.7, 129.5, 129.3, 127.7, 123.4, 120.0, 89.9. HR EIMS: m/z calcd for C15H10Cl2N4O4S2 [M]+ 445.2945; Found: 445.2931.

4.2.14. N′-(4-(4-chlorophenyl)thiazol-2-yl)-3-nitrobenzenesulfonohydrazide (14)

Yield: 85; m.p: 166–172 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.90 (s, 1H, NH), 11.80 (s, 1H, NH), 8.79 (d, J = 6.7 Hz, 2H, Ar-H), 8.52 (d, J = 7.7 Hz, 2H, Ar-H), 8.45 (s, 1H, Ar-H), 7.58 (t, J = 6.7 Hz, 1H, Ar-H), 7.02 (dd, J = 7.9, 1.4 Hz, 1H, Ar-H), 6.61 (dd, J = 7.8, 1.4 Hz, 1H, Ar-H), 3.81 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 159.6, 149.6, 147.3, 142.7, 135.8, 129.8, 127.6, 126.4, 121.2, 1120.5, 19.9, 118.7, 116.0, 111.3, 100.9. HR EIMS: m/z calcd for C15H11ClN4O4S2 [M]+ 410.8556; Found: 410.8540.

4.2.15. 4-Chloro-N′-(4-(3,4-dichlorophenyl)thiazol-2-yl)benzenesulfonohydrazide (15)

Yield: 79%; m.p: 193–197 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.90 (s, 1H, NH), 11.51 (s, 1H, NH), 8.51 (s, 1H, Ar-H), 7.58 (dd, J = 7.2, 1.5 Hz, 1H, Ar-H), 7.29 (d, J = 7.0 Hz, 1H, Ar-H), 6.60 (d, J = 6.8 Hz, 2H, Ar-H), 6.38 (d, J = 6.9 Hz, 2H, Ar-H), 3.18 (s, 1H, CH), 13C NMR (125 MHz, DMSO-d6): δ 162.3, 160.6, 159.5, 149.7, 149.0, 142.5, 131.3, 127.8, 127.7, 120.8, 118.7, 110.5, 107.6, 102.7, 100.9. HR EIMS: m/z calcd for C15H10Cl3N3O2S2 [M]+ 434.7312; Found: 434.7301.

4.2.16. N′-(4-([1,1′-biphenyl]-4-yl)thiazol-2-yl)-2-methyl-5-nitrobenzenesulfonohydrazide (16)

Yield: 72%; m.p: 173–175 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.89 (s, 1H, NH), 11.87 (s, 1H, NH), 8.79 (d, J = 7.6 Hz, 1H, Ar-H), 8.52 (d, J = 6.7 Hz, 1H, Ar-H), 7.89 (s, 1H, Ar-H), 7.57 (d, J = 6.9 Hz, 2H, Ar-H), 7.11 (d, J = 7.9 Hz, 2H, Ar-H), 6.60 (dd, J = 7.3, 1.5 Hz, 2H, Ar-H), 7.42–7.39 (m, 2H, Ar-H), 7.02 (t, J = 7.2 Hz, 1H, Ar-H), 3.88 (s, 1H, CH), 1.91 (s, 3H, CH3). 13C NMR (125 MHz, DMSO-d6): δ 157.6, 154.3, 148.8, 146.6, 144.4, 136.2, 133.3, 133.2, 131.1, 129.7, 129.6, 129.0, 128.9, 128.8, 128.2, 127.7, 127.6, 127.4, 127.2, 124.1, 39.9. HR EIMS: m/z calcd for C22H18N4O4S2 [M]+ 466.5335; Found: 466.5320.

4.2.17. N′-(4-([1,1′-biphenyl]-4-yl)thiazol-2-yl)-4-chlorobenzenesulfonohydrazide (17)

Yield: 70%; m.p: 167-169 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.50 (s, 1H, NH), 11.35 (s, 1H, NH), 8.64 (d, J = 8.2 Hz, 2H, Ar-H), 8.40 (d, J = 7.2 Hz, 2H, Ar-H), 8.16 (d, J = 8.9 Hz, 2H, Ar-H), 8.10 (d, J = 8.5 Hz, 2H, Ar-H), 7.80–7.89 (m, 1H, Ar-H), 7.63 (d, J = 8.4 Hz, 2H, Ar-H), 7.26 (dd, J = 6.0, 2.3 Hz, 1H, Ar-H), 7.09 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 191.7, 171.9, 169.8, 165.4, 162.9, 148.2, 148.0, 147.8, 147.0, 146.0, 135.3, 135.2, 134.9, 134.0, 132.4, 130.7, 130.7, 130.5, 128.8, 128.5, 128.3. HR EIMS: m/z calcd for C21H16ClN3O2S2 [M]+ 441.9578; Found: 441.9561.

4.2.18. 2,5-Dinitro-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (18)

Yield: 80%; m.p: 189–193 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.41 (s, 1H, NH), 11.25 (s, 1H, NH), 8.13 (s, 1H, Ar-H), 8.06 (dd, J = 6.0, 1.7 Hz, 1H, Ar-H), 7.94 (dd, J = 8.0, 2.3 Hz, 1H, Ar-H), 7.51 (dd, J = 7.5, 3.9 Hz, 1H, Ar-H), 7.49 (t, J = 7.1 Hz, 1H, Ar-H), 7.10 (m, 1H, Ar-H), 2.46 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 192.3, 172.0, 169.8, 148.2, 146.0, 145.2, 138.7, 135.3, 135.2, 132.6, 130.7, 129.6, 129.1, 129.0, 128.5. HR EIMS: m/z calcd for C15H10N6O8S2[M]+ 466.4052; Found: 466.4038.

4.2.19. N′-(4-([1,1′-biphenyl]-4-yl)thiazol-2-yl)-2,5-dinitrobenzenesulfonohydrazide (19)

Yield: 76%; m.p: 197–200 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.38 (s, 1H, NH), 11.24 (s, 1H, NH), 8.26 (s, 1H, Ar-H), 8.03 (d, J = 8.2 Hz, 2H, Ar-H), 7.87 (dd, J = 8.2, 2.4 Hz, 1H, Ar-H), 7.67 (d, J = 8.4 Hz, 1H, Ar-H), 7.62 (d, J = 8.5 Hz, 2H, Ar-H), 7.62 (d, J = 7.2 Hz, 1H, Ar-H), 7.40–7.49 (m, 1H, Ar-H), 7.34 (dd, J = 7.0, 3.8 Hz, 1H, Ar-H), 2.11 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 161.7, 159.3, 158.8, 153.7, 148.0, 147.3, 141.5, 135.3, 134.9, 130.8, 128.9, 128.0, 126.9, 123.7, 123.3, 122.1, 66.5, 48.4, 39.8, 23.2, 20.2. HR EIMS: m/z calcd for C21H15N5O6S2 [M]+ 497.5078; Found: 497.5065.

4.2.20. 4-Nitro-N′-(4-(3-nitrophenyl)thiazol-2-yl)benzenesulfonohydrazide (20)

Yield: 83%; m.p: 219–222 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.4 (s, 1H, NH), 8.25 (s, 1H, NH), 8.23 (dd, J = 8.7, 1.9 Hz, 1H, Ar-H), 8.04 (dd, J = 6.4, 1.8 Hz, 1H, Ar-H), 7.84 (d, J = 6.4 Hz, 2H, Ar-H), 7.74 (d, J = 7.3 Hz, 2H, Ar-H), 7.41–7.44 (t, 1H, Ar-H), 3.50 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 192.3, 175.3, 169.9, 153.7, 147.3, 145.1, 138.6, 132.6, 129.0, 128.8, 128.5, 128.4, 127.0, 126.9, 123.3. HR EIMS: m/z calcd for C15H11N5O6S2 [M]+ 421.4080; Found: 421.4072.

4.2.21. N′-(4-([1,1′-biphenyl]-4-yl)thiazol-2-yl)-4-nitrobenzenesulfonohydrazide (21)

Yield: 74%; m.p: 178–181 °C. 1H NMR (500 MHz, DMSO-d6): δ 11.62 (s, 1H, NH), 11.44 (s, 1H, NH), 8.64 (d, J = 8.2 Hz, 2H, Ar-H), 8.40 (d, J = 7.2 Hz, 2H, Ar-H), 8.10 (d, J = 8.5 Hz, 2H, Ar-H), 8.01 (d, J = 8.9 Hz, 2H, Ar-H), 7.80–7.89 (m, 1H, Ar-H), 7.99 (d, J = 8.4 Hz, 2H, Ar-H), 7.26 (dd, J = 6.0, 2.3 Hz, 1H, Ar-H), 2.89 (s, 1H, CH). 13C NMR (125 MHz, DMSO-d6): δ 191.6, 171.8, 169.7, 165.3, 162.8, 148.1, 148.2, 147.7, 147.1, 146.3, 135.2, 135.4, 134.8, 134.0, 132.3, 130.6, 130.6, 130.4, 128.7, 128.4, 128.2. HR EIMS: m/z calcd for C21H16N4O4S2 [M]+ 452.5045; Found: 452.5028.

4.3. Molecular Docking Study Assay

To understand the binding mode of synthesized compounds against both the targeted enzymes, acetylcholinesterase (AChE) and butyrylcholinesterase (BuChE), a molecular docking study was conducted using the Molecular Operating Environment (MOE) software package to corroborate the in vitro and in silico results well. The PDB codes 1ACL for AChE and 1P0P for BChE were used to retrieve the crystal structures of both targets from the RCSB protein databank. The crystallographic structures and all synthesized compounds were protonated, and energy was minimized using the default MOE-Dock module parameters, resulting in optimized enzyme and compound structures. These improved enzyme and chemical structures were then used for the docking study. Our prior investigations [57,58] include detailed descriptions of the docking protocol.

4.4. Acetylcholinesterase and Butyrylcholinesterase Activity Assay Protocol

The assay for acetylcholinesterase and butyrylcholinesterase inhibitory potential was carried out according to the Ellman et al., method with slight modification [59]. The reaction mixture had a total volume of 100 µL. It comprised 60 µL of Na2HPO4 buffer with a concentration of 50 mM and a pH of 7.7. In total, 10 µL of test compound (well-1) with a concentration of 0.5 mM was added, followed by the addition of 10 µL (0.005 unit well-1) of an enzyme. The substances were mixed and pre-read at 405 nm. Then, the substances were pre-incubated at 37 °C for 10 min. The reaction was started by the addition of 10 µL of 0.5 mM well-1 substrate (acetylthiocholine iodide/butyrylthiochloine chloride), followed by the addition of 10 µL DTNB (0.5 mM well-1). Absorbance was measured at 405 nm after 15 min of incubation at 37 °C by using a 96-well plate reader Synergy HT, BioTek, USA. All experiments were performed with their respective controls in triplicate. Donepezil was used as a standard drug. The % inhibition was computed using the equation below.
Inhibition (%) = Control − Test/control × 100
Control EZ-Fit Enzyme kinetics software (Perrella Scientific Inc. Amherst, USA) was used for the calculation of IC50 values.

4.5. Statistical Analysis

All of the measurements were taken in triplicate, and Microsoft Excel 2003 was used to conduct the statistical analysis. The results are shown as standard error means (SEM).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28020559/s1, Figure S1: Optimized structures of representative thiazole bearing sulfonamide analogues (3–21) at the ωB97XD/6-31g(d, p) level of theory; Figure S2: Molecular Electrostatics Potential (MESP) of representative thiazole bearing sulfonamide analogues (3–21); Figure S3: HOMO-LUMO orbital densities of studies thiazole bearing sulfonamide analogues (3–21); Figure S4–S24: NMR of analog 1, 2, 3, 9, 14, 15, 16.

Author Contributions

Conceptualization, H.U. and F.R.; methodology, S.K.; software, R.H. and K.A.; validation, M.A.A. (Mahmoud A. Abdelaziz) and F.S.A.; formal analysis, S.A.A.S. and M.T.; investigation, M.T.; resources, M.T. and F.R.; data curation, K.M.K. and N.I.; writing—original draft preparation, H.U. and F.R.; writing—review and editing, R.I., M.A.A. (Marzough Aziz Albalawi), and M.S.; visualization, M.S.; supervision, F.R.; project administration, F.R. and H.U.; funding acquisition, M.A.A. (Mahmoud A. Abdelaziz), M.A.A. (Marzough Aziz Albalawi) and F.S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

All the authors have declared that they have no conflict of interest.

References

  1. Ahmad, S.; Iftikhar, F.; Ullah, F.; Sadiq, A.; Rashid, U. Rational design and synthesis of dihydropyrimidine based dual binding site acetylcholinesterase inhibitors. Bioorg. Chem. 2016, 69, 91–101. [Google Scholar] [CrossRef] [PubMed]
  2. Auld, D.S.; Kornecook, T.J.; Bastianetto, S.; Quirion, R. Alzheimer’s disease and the basal forebrain cholinergic system: Relations to β-amyloid peptides, cognition, and treatment strategies. Prog. Neurobiol. 2002, 68, 209–245. [Google Scholar] [CrossRef] [PubMed]
  3. Adams, R.L.; Craig, P.L.; Parsons, O.A. Neuropsychology of dementia. Neurol. Clin. 1986, 4, 387–404. [Google Scholar] [CrossRef] [PubMed]
  4. Aisen, P.S.; Davis, K.L. The search for disease-modifying treatment for Alzheimer’s disease. Neurology 1997, 48, 35–41. [Google Scholar] [CrossRef] [PubMed]
  5. Jann, M.W. Preclinical pharmacology of metrifonate. Pharmacother. J. Hum. Pharmacol. Drug Ther. 1998, 18, 55–67. [Google Scholar]
  6. Massoulié, J.; Pezzementi, L.; Bon, S.; Krejci, E.; Vallette, F. Molecular and cellular biology of cholinesterases. Prog. Neurobiol. 1993, 41, 31–91. [Google Scholar] [CrossRef]
  7. Mushtaq, G.; Greig, N.H.; Khan, J.; Kamal, M.A. Status of Acetylcholinesterase and Butyrylcholinesterase in Alzheimer’s Disease and Type 2 Diabetes Mellitus. CNS Neurol. Disord. Drug Targets 2014, 13, 1432–1439. [Google Scholar] [CrossRef]
  8. Ecobichon, D.J.; Comeau, A.M. Pseudocholinesterases of mammalian plasma: Physicochemical properties and organophosphate inhibition in eleven species. Toxicol. Appl. Pharmacol. 1973, 24, 92–100. [Google Scholar] [CrossRef] [PubMed]
  9. Rahim, F.; Javed, M.T.; Ullah, H.; Wadood, A.; Taha, M.; Ashraf, M.; Ain, Q.U.; Khan, M.A.; Khan, F.; Mirza, S.; et al. Synthesis, Molecular Docking, Acetylcholinesterase and Butyrylcholinesterase Inhibitory Potential of Thiazole Analogs as New Inhibitors for Alzheimer Disease. Bioorg. Chem. 2015, 62, 106–116. [Google Scholar] [CrossRef]
  10. Rahim, F.; Ullah, H.; Taha, M.; Wadood, A.; Javed, M.T.; Rehman, W.; Nawaz, M.; Ashraf, M.; Ali, M.; Sajid, M.; et al. Synthesis and in vitro acetylcholinesterase and butyrylcholinesterase inhibitory potential of hydrazide based Schiff bases. Bioorg. Chem. 2016, 68, 30–40. [Google Scholar] [CrossRef]
  11. Cavalli, A.; Bolognesi, M.L.; Minarini, A.; Rosini, M.; Tumiatti, V.; Recanatini, M.; Melchiorre, C. Multi-target-Directed Ligands To Combat Neurodegenerative Diseases. J. Med. Chem. 2008, 51, 347–372. [Google Scholar] [CrossRef] [PubMed]
  12. Rockwood, K.; Mintzer, J.; Truyen, L.; Wessel, T.; Wilkinson, D. Effects of a flexible galantamine dose in Alzheimer’s disease: A randomised, controlled trial. J. Neurol. Neurosurg. Psychiatry 2001, 71, 589–595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Mesulam, M.; Guillozet, A.; Shaw, P.; Quinn, B. Widely spread butyrylcholinesterase can hydrolyze acetylcholine in the normal and Alzheimer brain. Neurobiol. Dis. 2002, 9, 88–93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Greig, N.H.; Utsuki, T.; Yu, Q.S.; Zhu, X.; Holloway, H.W.; Perry, T.; Lee, B.; Ingram, D.K.; Lahiri, D.K. A new therapeutic target in Alzheimer’s disease treatment: Attention to butyrylcholinesterase. Curr. Med. Res. Opin. 2001, 17, 159–165. [Google Scholar] [CrossRef]
  15. Gabr, M.T.; Abdel-Raziq, M.S. Design and synthesis of donepezil analogues as dual AChE and BACE-1 inhibitors. Bioorg. Chem. 2018, 80, 245–252. [Google Scholar] [CrossRef] [PubMed]
  16. Melzer, D. New drug treatment for Alzheimer’s disease: Lessons for healthcare policy. Brit. Med. J. 1998, 316, 762–764. [Google Scholar] [CrossRef] [PubMed]
  17. Siddiqui, N.; Arshad, M.F.; Ahsan, W.; Alam, M.S. Thiazoles: A valuable insight into the recent advances and biological activities. Int. J. Pharm. Sci. Drug Res. 2009, 1, 136–143. [Google Scholar]
  18. Mishra, C.B.; Kumari, S.; Tiwari, M. Thiazole: A promising heterocycle for the development of potent CNS active agents. Eur. J. Med. Chem. 2015, 92, 1–34. [Google Scholar] [CrossRef]
  19. Pasqualotto, A.C.; Thiele, K.O.; Goldani, L.Z. Novel triazole antifungal drugs: Focus on isavuconazole, ravuconazole and albaconazole. Curr. Opin. Investig. Drugs 2010, 11, 165–174. [Google Scholar]
  20. Das, J.; Chen, P.; Norris, D.; Padmanabha, R.; Lin, J.; Moquin, R.V.; Behnia, K.; Schieven, G.L.; Wityak, J.; Barrish, J.C. 2-Aminothiazole as a Novel Kinase Inhibitor Template. Structure− Activity Relationship Studies toward the Discovery of N-(2-Chloro-6-methylphenyl)-2-[[6-[4-(2-hydroxyethyl)-1-piperazinyl)]-2-methyl-4-pyrimidinyl] amino)]-1, 3-thiazole-5-carboxamide (Dasatinib, BMS-354825) as a Potent pan-Src Kinase Inhibitor. J. Med. Chem. 2006, 49, 6819–6832. [Google Scholar]
  21. Siddiqui, H.L.; Zia-Ur-Rehman, M.; Ahmad, N.; Weaver, G.W.; Lucas, P.D. Synthesis and Antibacterial Activity of Bis [2-amino-4-phenyl-5-thiazolyl] Disulfides. Chem. Pharm. Bull. 2007, 55, 1014–1017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Knadler, M.P.; Bergstrom, R.F.; Callaghan, L.T.; Rubin, A.L.A.N. Nizatidine, an H2-blocker. Its metabolism and disposition in man. Drug Metab. Dispos. 1986, 14, 175–182. [Google Scholar] [PubMed]
  23. Riaz, S.; Khan, I.U.; Bajda, M.; Ashraf, M.; Shaukat, A.; Rehman, T.U.; Mutahir, S.; Hussain, S.; Mustafa, G.; Yar, M. Pyridine sul-fonamide as a small key organic molecule for the potential treatment of type-II diabetes mellitus and alzheimer’s disease in vitro studies against yeast α-glucosidase, acetylcholinesterase and butyrylcholinesterase. Bioorg. Chem. 2015, 63, 64–71. [Google Scholar] [CrossRef] [PubMed]
  24. Zajdel, P.; Partyka, A.; Marciniec, K.; Bojarski, A.J.; Pawlowski, M.; Wesolowska, A. Quinoline- and isoquinoline-sulfonamide analogs of aripiprazole: Novel antipsychotic agents? Futur. Med. Chem. 2014, 6, 57–75. [Google Scholar] [CrossRef]
  25. Mutahir, S.; Jończyk, J.; Bajda, M.; Khan, I.U.; Khan, M.A.; Ullah, N.; Ashraf, M.; Ain, Q.U.; Riaz, S.; Hussain, S.; et al. Novel biphenyl bis -sulfonamides as acetyl and butyrylcholinesterase inhibitors: Synthesis, biological evaluation and molecular modeling studies. Bioorg. Chem. 2016, 64, 13–20. [Google Scholar] [CrossRef]
  26. Morris, M.; Knudsen, G.M.; Maeda, S.; Trinidad, J.C.; Ioanoviciu, A.; Burlingame, A.L.; Mucke, L. Tau-Post-Translational Modifications in Wild-Type and Human Amyloid Precursor Protein Transgenic Mice. Nat. Neurosci. 2015, 18, 1183–1189. [Google Scholar] [CrossRef]
  27. Gul, H.I.; Yamali, C.; Sakagami, H.; Angeli, A.; Leitans, J.; Kazaks, A.; Tars, K.; Ozgun, D.O.; Supuran, C.T. New anticancer drug candidates sulfonamides as selective hCA IX or hCA XII inhibitors. Bioorg. Chem. 2018, 77, 411–419. [Google Scholar] [CrossRef]
  28. Ullah, H.; Uddin, I.; Rahim, F.; Khan, F.; Sobia; Taha, M.; Khan, M.U.; Hayat, S.; Ullah, M.; Gul, Z.; et al. In vitro α-glucosidase and α-amylase inhibitory potential and molecular docking studies of benzohydrazide based imines and thiazolidine-4-one derivatives. J. Mol. Struct. 2021, 1251, 132058. [Google Scholar] [CrossRef]
  29. Ullah, H.; Ahmad, S.; Khan, F.; Taha, M.; Rahim, F.; Sarfraz, M.; Aziz, A.; Wadood, A. Synthesis, in-vitro and in-silico studies of triazinoindole bearing bis-Schiff base as β-glucuronidase inhibitors. J. Mol. Struct. 2021, 1244, 131003. [Google Scholar] [CrossRef]
  30. Uddin, I.; Ullah, H.; Bibi, A.; Taha, M.; Khan, F.; Rahim, F.; Wadood, A.; Ahmad, N.; Khan, A.A.; Ahmad, F.; et al. Synthesis, in vitro alpha glucosidase, urease activities and molecular docking study of bis-indole bearing Schiff base analogs. Chem. Data Collect. 2020, 28, 100396. [Google Scholar] [CrossRef]
  31. Taha, M.; Imran, S.; Ismail, N.H.; Selvaraj, M.; Rahim, F.; Chigurupati, S.; Ullah, H.; Khan, F.; Salar, U.; Javid, M.T.; et al. Biology-oriented drug synthesis (BIODS) of 2-(2-methyl-5-nitro-1Himidazol-1-yl)ethyl aryl ether derivatives, in vitro α-amylase inhibitory activity and in silico studies. Bioorg. Chem. 2017, 74, 1–9. [Google Scholar] [CrossRef] [PubMed]
  32. Taha, M.; Rahim, F.; Ullah, H.; Wadood, A.; Farooq, R.K.; Shah, S.A.A.; Nawaz, M.; Zakaria, Z.A. Synthesis, in vitro urease inhibitory potential and molecular docking study of benzofuran-based-thiazoldinone analogues. Sci. Rep. 2020, 10, 10673. [Google Scholar] [CrossRef] [PubMed]
  33. Taha, M.; Ismail, N.H.; Imran, S.; Rahim, F.; Wadood, A.; Khan, H.; Ullah, H.; Salar, U.; Khan, K.M. Synthesis, β-Glucuronidase Inhibition and Molecular Docking Studies of Hybrid Bisindole-Thiosemicarbazides Analogs. Bioorg. Chem. 2016, 68, 56–63. [Google Scholar] [CrossRef] [PubMed]
  34. Taha, M.; Javid, M.T.; Imran, S.; Selvaraj, M.; Ullah, H.; Rahim, F.; Khan, F.; Mohammad, J.I.; Khan, K.M. Synthesis and study of the a-amylase inhibitory potential of thiadiazole quinoline derivatives. Bioorg. Chem. 2017, 74, 179–186. [Google Scholar] [CrossRef] [PubMed]
  35. Ullah, H.; Ullah, H.; Taha, M.; Khan, F.; Rahim, F.; Uddin, I.; Sarfraz, M.; Shah, S.A.A.; Aziz, A.; Mubeen, S. Synthesis, in vitro α-amylase activity and molecular docking study of new benzimidazole analogs. Russ. J. Org. Chem. 2021, 57, 968–975. [Google Scholar] [CrossRef]
  36. Taha, M.; Rahim, F.; Imran, S.; Ismail, N.H.; Ullah, H.; Selvaraj, M.; Javid, M.T.; Salar, U.; Ali, M.; Khan, K.M. Synthesis, α-glucosidase inhibitory activity and in silico study of tris-indole hybrid scaffold with oxadiazole ring: As potential leads for the management of type-II diabetes mellitus. Bioorg. Chem. 2017, 74, 30–40. [Google Scholar] [CrossRef]
  37. Rahim, F.; Ullah, H.; Wadood, A.; Khan, F.; Javid, M.T.; Taha, M.; Rehman, W.; Rehman, A.U.; Khan, K.M. Isatin based Schiff bases as inhibitors of α-glucosidase: Synthesis, characterization, in vitro evaluation and molecular docking studies. Bioorg. Chem. 2015, 60, 42–48. [Google Scholar] [CrossRef]
  38. Ahmat, N.; Zawawi, N.K.N.A.; Taha, M.; Wadood, A.; Rahim, F.; Ullah, H. Biscoumarin analogs: Synthesis, α-glucosidase inhibitory potential and molecular docking study. Malays. J. Chem. 2020, 22, 111–119. [Google Scholar]
  39. Taha, M.; Ullah, H.; Khan, M.N.; Rahim, F.; Ahmat, N.; Ali, M.; Perveen, S. Synthesis of bis-indolylmethanes as new potential inhibitors of β-glucuronidase and their molecular docking studies. Eur. J. Med. Chem. 2018, 143, 1757–1767. [Google Scholar] [CrossRef]
  40. Rahim, F.; Zaman, K.; Ullah, H.; Taha, M.; Ashraf, M.; Uddin, R.; Uddin, I.; Asghar, H.; Khan, A.A.; Khan, K.M. Synthesis of 4-thiazolidinone Analogs as potent in vitro Anti-Urease Agents. Bioorg. Chem. 2015, 63, 123–131. [Google Scholar] [CrossRef]
  41. Ullah, H.; Rahim, F.; Taha, M.; Hussain, R.; Wadood, A.; Nawaz, M.; Wahab, Z.; Khan, K.M. Synthesis, in vitro α-glucosidase Inhibitory Potential and Molecular Docking Studies of 2-Amino-1,3,4-Oxadiazole Derivatives. Med. Chem. 2020, 16, 724–734. [Google Scholar] [CrossRef] [PubMed]
  42. Rahim, F.; Ullah, K.; Ullah, H.; Wadood, A.; Taha, M.; Ashraf, M.; Shaukat, A.; Rehman, W.; Hussain, S.; Khan, K.M. Triazinoindole analogs as potent inhibitors of α-glucosidase: Synthesis, biological evaluation and molecular docking studies. Bioorg. Chem. 2015, 58, 81–87. [Google Scholar] [CrossRef] [PubMed]
  43. Ghotbi, G.; Mahdavi, M.; Najafi, Z.; Moghadam, F.H.; Hamzeh-Mivehroud, M.; Davaran, S.; Dastmalchi, S. Design, synthesis, biological evaluation, and docking study of novel dual-acting thiazole-pyridiniums inhibiting acetylcholinesterase and β-amyloid aggregation for Alzheimer’s disease. Bioorg. Chem. 2020, 103, 104186. [Google Scholar] [CrossRef] [PubMed]
  44. Zada, H.; Ullah, H.; Hayat, S.; Rahim, F.; Khan, F.; Wadood, A. Synthesis of triazinoindole bearing sulfonamide derivatives, in vitro α-amylase activity and their molecular docking study. Chem. Data Collect. 2022, 39, 100875. [Google Scholar] [CrossRef]
  45. Rahim, F.; Ullah, H.; Javid, M.T.; Wadood, A.; Taha, M.; Ashraf, M.; Shaukat, A.; Junaid, M.; Hussain, S.; Rehman, W.; et al. Synthesis, in vitro evaluation and molecular docking studies of thiazole derivatives as new inhibitors of α-glucosidase. Bioorg. Chem. 2015, 62, 15–21. [Google Scholar] [CrossRef] [PubMed]
  46. Oguz, M.; Kalay, E.; Akocak, S.; Nocentini, A.; Lolak, N.; Boga, M.; Yilmaz, M.; Supuran, C.T.J. Synthesis of calix [4] azacrown substituted sulphonamides with antioxidant, acetylcholinesterase, butyrylcholinesterase, tyrosinase and carbonic anhydrase inhibitory action, Enzyme inhib. Med. Chem. 2020, 35, 1215–1223. [Google Scholar]
  47. Channar, P.A.; Saeed, A.; Albericio, F.; Larik, F.A.; Abbas, Q.; Hassan, M.; Raza, H.; Seo, S.-Y. Sulfonamide-Linked Ciprofloxacin, Sulfadiazine and Amantadine Derivatives as a Novel Class of Inhibitors of Jack Bean Urease; Synthesis, Kinetic Mechanism and Molecular Docking. Molecules 2017, 22, 1352. [Google Scholar] [CrossRef] [Green Version]
  48. Frisch, M.; Clemente, F. Gaussian 09, Revision A. 01; Frisch, M.J., Trucks, G.W., Schlegel, H.B., Scuseria, G.E., Robb, M.A., Cheeseman, J.R., Scalmani, G., Barone, V., Mennucci, B., Petersson, G.A., et al., Eds.; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  49. Khan, A.U.; Muhammad, S.; Khera, R.A.; Shehzad, R.A.; Ayub, K.; Iqbal, J. DFT study of superhalogen (AlF4) doped boron nitride for tuning their nonlinear optical properties. Optik 2021, 231, 166464. [Google Scholar] [CrossRef]
  50. Esrafili, M.D.; Saeidi, N. DFT calculations on the catalytic oxidation of CO over Si-doped (6,0) boron nitride nanotubes. Struct. Chem. 2015, 27, 595–604. [Google Scholar] [CrossRef]
  51. Khan, S.; Yar, M.; Kosar, N.; Ayub, K.; Arshad, M.; Zahid, M.N.; Mahmood, T. First-principles study for exploring the adsorption behavior of G-series nerve agents on graphdyine surface. Comput. Theor. Chem. 2020, 1191, 113043. [Google Scholar] [CrossRef]
  52. Prasad, O.; Sinha, L.; Kumar, N. Theoretical Raman and IR spectra of tegafur and comparison of molecular electrostatic potential surfaces, polarizability and hyerpolarizability of tegafur with 5-fluoro-uracil by density functional theory. J. At. Mol. Sci. 2010, 1, 201–214. [Google Scholar] [CrossRef]
  53. Hagar, M.; Ahmed, H.A.; Aljohani, G.; Alhaddad, O.A. Investigation of Some Antiviral N-Heterocycles as COVID 19 Drug: Molecular Docking and DFT Calculations. Int. J. Mol. Sci. 2020, 21, 3922. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, H.-B.; Gao, W.-W.; Tangadanchu, V.K.R.; Zhou, C.-H.; Geng, R.-X. Novel aminopyrimidinyl benzimidazoles as potentially antimicrobial agents: Design, synthesis and biological evaluation. Eur. J. Med. Chem. 2018, 143, 66–84. [Google Scholar] [CrossRef] [PubMed]
  55. Marinho, E.S.; Marinho, M.M. A DFT study of synthetic drug topiroxostat: MEP, HOMO, LUMO. Int. J. Sci. Eng. Res. 2016, 7, 1264–1270. [Google Scholar]
  56. Özcan, M.; Dehri, I.; Erbil, M. Organic sulphur-containing compounds as corrosion inhibitors for mild steel in acidic media: Correlation between inhibition efficiency and chemical structure. Appl. Surf. Sci. 2004, 236, 155–164. [Google Scholar] [CrossRef]
  57. Rehman, A.U.; Zhen, G.; Zhong, B.; Ni, D.; Li, J.; Nasir, A.; Gabr, M.T.; Rafiq, H.; Wadood, A.; Lu, S.; et al. Mechanism of zinc ejection by disulfiram in nonstructural protein 5A. J. Phys. Chem. Chem. Phys. 2021, 23, 12204–12215. [Google Scholar] [CrossRef]
  58. Riaz, M.; Rehman, A.U.; Shah, S.A.; Rafiq, H.; Lu, S.; Qiu, Y.; Wadood, A. Predicting Multi-Interfacial Binding Mechanisms of NLRP3 and ASC Pyrin Domains in Inflammasome Activation. ACS Chem. Neurosci. 2021, 12, 603–612. [Google Scholar] [CrossRef]
  59. Ellman, G.L.; Courtney, K.D.; Andres, V., Jr.; Featherstone, R.M. A new and rapid colorimetric determination of acetylcholin-esterase activity. Biochem. Pharmacol. 1961, 7, 88–95. [Google Scholar] [CrossRef]
Molecules 28 00559 g001 550
Figure 1. Thiazole-containing drugs.
Figure 1. Thiazole-containing drugs.
Molecules 28 00559 g001
Molecules 28 00559 g002 550
Figure 2. The rationale of the current study.
Figure 2. The rationale of the current study.
Molecules 28 00559 g002
Molecules 28 00559 sch001 550
Scheme 1. Synthesis of thiazole-bearing sulfonamide analogs (1–21): (a) N2H4.H2O, EtOH, Reflux, 5 h; (b) NH4SCN, DMF, 8 h; and (c) different substituted phenacyl bromide, Et3N, EtOH, reflux, 12 h.
Scheme 1. Synthesis of thiazole-bearing sulfonamide analogs (1–21): (a) N2H4.H2O, EtOH, Reflux, 5 h; (b) NH4SCN, DMF, 8 h; and (c) different substituted phenacyl bromide, Et3N, EtOH, reflux, 12 h.
Molecules 28 00559 sch001
Molecules 28 00559 g003 550
Figure 3. The general structure of thiazole-bearing sulfonamide analogs (1–21).
Figure 3. The general structure of thiazole-bearing sulfonamide analogs (1–21).
Molecules 28 00559 g003
Molecules 28 00559 g004 550
Figure 4. SAR study for scaffolds 3, 18, and 20.
Figure 4. SAR study for scaffolds 3, 18, and 20.
Molecules 28 00559 g004
Molecules 28 00559 g005 550
Figure 5. SAR study for scaffolds 7 and 15.
Figure 5. SAR study for scaffolds 7 and 15.
Molecules 28 00559 g005
Molecules 28 00559 g006 550
Figure 6. SAR study for scaffolds 8, 16, 19 and 21.
Figure 6. SAR study for scaffolds 8, 16, 19 and 21.
Molecules 28 00559 g006
Molecules 28 00559 g007 550
Figure 7. SAR study for scaffolds 16 and 21.
Figure 7. SAR study for scaffolds 16 and 21.
Molecules 28 00559 g007
Molecules 28 00559 g008 550
Figure 8. SAR study for scaffolds 1, 2, and 10.
Figure 8. SAR study for scaffolds 1, 2, and 10.
Molecules 28 00559 g008
Molecules 28 00559 g009 550
Figure 9. Representation of the PLI profile for compound 1 against AChE.
Figure 9. Representation of the PLI profile for compound 1 against AChE.
Molecules 28 00559 g009
Molecules 28 00559 g010 550
Figure 10. Representation of the PLI profile for compound 1 against BChE.
Figure 10. Representation of the PLI profile for compound 1 against BChE.
Molecules 28 00559 g010
Molecules 28 00559 g011 550
Figure 11. Representation of the PLI profile for compound 10 against AChE.
Figure 11. Representation of the PLI profile for compound 10 against AChE.
Molecules 28 00559 g011
Molecules 28 00559 g012 550
Figure 12. Representation of the PLI profile for compound 10 against BChE.
Figure 12. Representation of the PLI profile for compound 10 against BChE.
Molecules 28 00559 g012
Molecules 28 00559 g013 550
Figure 13. Representation of the PLI profile for donepezil against AChE.
Figure 13. Representation of the PLI profile for donepezil against AChE.
Molecules 28 00559 g013
Molecules 28 00559 g014 550
Figure 14. Representation of the PLI profile for donepezil against BuChE.
Figure 14. Representation of the PLI profile for donepezil against BuChE.
Molecules 28 00559 g014
Molecules 28 00559 g015a 550Molecules 28 00559 g015b 550
Figure 15. Optimized structures of representative thiazole-bearing sulfonamide analogs 1 and 2 and std drug at the ωB97XD/6–31 g (d,p) level of theory.
Figure 15. Optimized structures of representative thiazole-bearing sulfonamide analogs 1 and 2 and std drug at the ωB97XD/6–31 g (d,p) level of theory.
Molecules 28 00559 g015aMolecules 28 00559 g015b
Molecules 28 00559 g016a 550Molecules 28 00559 g016b 550
Figure 16. Molecular electrostatic potential (MESP) of representative thiazole-bearing sulfonamide analogs 1 and 2 and Standard drug.
Figure 16. Molecular electrostatic potential (MESP) of representative thiazole-bearing sulfonamide analogs 1 and 2 and Standard drug.
Molecules 28 00559 g016aMolecules 28 00559 g016b
Molecules 28 00559 g017a 550Molecules 28 00559 g017b 550Molecules 28 00559 g017c 550
Figure 17. HOMO–LUMO orbital densities of representative thiazole-bearing sulfonamide analogs 1 and 2 and standard drug.
Figure 17. HOMO–LUMO orbital densities of representative thiazole-bearing sulfonamide analogs 1 and 2 and standard drug.
Molecules 28 00559 g017aMolecules 28 00559 g017bMolecules 28 00559 g017c
Table
Table 1. Different substituents, acetylcholinesterase and butyrylcholinesterase activities of thiazole-bearing sulfonamide analogs.
Table 1. Different substituents, acetylcholinesterase and butyrylcholinesterase activities of thiazole-bearing sulfonamide analogs.
S/NoR1R2AchE IC50 (µM)BuChE IC50 (µM)
1Molecules 28 00559 i001Molecules 28 00559 i0020.10 ± 0.050.20 ± 0.050
2Molecules 28 00559 i003Molecules 28 00559 i0041.90 ± 0.102.70 ± 0.10
3Molecules 28 00559 i005Molecules 28 00559 i0062.90 ± 0.103.80 ± 0.10
4Molecules 28 00559 i007Molecules 28 00559 i0083.20 ± 0.106.10 ± 0.20
5Molecules 28 00559 i009Molecules 28 00559 i010N.A.N.A.
6Molecules 28 00559 i011Molecules 28 00559 i01211.40 ± 0.2014.30 ± 0.30
7Molecules 28 00559 i013Molecules 28 00559 i0142.60 ± 0.104.20 ± 0.10
8Molecules 28 00559 i015Molecules 28 00559 i0167.30 ± 0.109.20 ± 0.10
9Molecules 28 00559 i017Molecules 28 00559 i0180.40 ± 0.0500.70 ± 0.05
10Molecules 28 00559 i019Molecules 28 00559 i0200.20 ± 0.0500.60 ± 0.050
11Molecules 28 00559 i021Molecules 28 00559 i0223.10 ± 0.104.40 ± 0.10
12Molecules 28 00559 i023Molecules 28 00559 i024N.A.N.A.
13Molecules 28 00559 i025Molecules 28 00559 i0260.30 ± 0.101.40 ± 0.10
14Molecules 28 00559 i027Molecules 28 00559 i0281.20 ± 0.102.70 ± 0.10
15Molecules 28 00559 i029Molecules 28 00559 i0300.40 ± 0.100.90 ± 0.10
16Molecules 28 00559 i031Molecules 28 00559 i0320.30 ± 0.0500.30 ± 0.050
17Molecules 28 00559 i033Molecules 28 00559 i034N.A.N.A.
18Molecules 28 00559 i035Molecules 28 00559 i0360.80 ± 0.0501.20 ± 0.050
19Molecules 28 00559 i037Molecules 28 00559 i0383.10 ± 0.104.30 ± 0.10
20Molecules 28 00559 i039Molecules 28 00559 i0403.50 ± 0.105.50 ± 0.10
21Molecules 28 00559 i041Molecules 28 00559 i0423.20 ± 0.105.40 ± 0.10
Standard drug donepezil2.16 ± 0.124.5 ± 0.11
Table
Table 2. Protein–ligand interaction profile for most potent compounds (1 and 10) and standard drug.
Table 2. Protein–ligand interaction profile for most potent compounds (1 and 10) and standard drug.
Compound ReceptorDistanceInteractionBinding Affinity
Compound
Analog 1 (A) against AchE		TYR-A-334Pi-Pi Stacked4.22A°−10.9
PHE-A-331Pi-Sulfur5.81A°
PHE-A-331Pi-Alkyl4.00A°
HIS-A-440Pi-Alkyl5.57A°
TRP-A-84Pi-Alkyl4.90A°
GLY-A-117H-B3.36A°
PHE-A-330Pi-Sigma4.60A°
PHE-A-330Pi-Pi Stacked6.13A°
TRP-A-279Pi-Sigma5.09A°
TRP-A-279Pi-Pi Stacked8.20A°
TYR-A-70Pi-Alkyl5.84A°
Analog 1 (B) against BuChEGLY-A-116Pi-Pi Stacked4.24A°−10.3
GLY-A-116H-B3.29A°
PHE-A-329 Pi-Pi T-Shaped7.02A°
HIS-A-438H-B5.01A°
HIS-A-438Pi-Sulfur3.36A°
HIS-A-438Pi-Pi Stacked5.81A°
GLY-A-117H-B4.52A°
ALA-A-328Alkyl 5.12A°
TRP-A-82C-HB 4.71A°
TRP-A-82Alkyl 5.56A°
TRP-A-82Pi-Pi T-shaped4.35A°
TRP-A-82 Pi-Sulfur4.35A°
TRP-A-231 Pi-Sigma 3.87A°
LEU-A-286 Alkyl 3.01A°
Analog 10 (C) against AchESER-A-122A-A3.89A°−11.8
GLY-A-118 C-HB 4.03A°
HIS-A-440 C-HB 4.11A°
TRP-A-84 Amide Pi-Stacked 4.55A°
PHE-A-330 Pi-Pi Stacked 6.95A°
GLY-A-117 Pi-Pi T-shaped 5.51A°
ASP-A-72 P-Anion 4.10A°
TYR-A-334 Amide Pi-Stacked4.65A°
TYR-A-334 Pi-Alkyl 4.73A°
TYR-A-334 Pi-Alkyl 4.27A°
PHE-A-331 Pi-Alkyl 4.08A°
TRP-A-279 Pi-Pi Stacked 7.73A°
TRP-A-279 Pi-Alkyl 5.89A°
Analog 10 (D) against
BuChE		TRP-A-231 Pi-Alkyl 4.61A°−10.1
PHE-A-398 Alkyl 6.19A°
HIS-A-438 Pi-Alkyl 6.68A°
PHE-A-334 Pi-Pi T-shaped 6.13A°
ASP-A-70 H-B 4.82A°
ASP-A-70 H-B 4.56A°
TYR-A-332 H-B 6.73A°
SER-A-79 C-HB 4.11A°
TRP-A-82 C-HB 5.52A°
TRP-A-82 Pi-Pi Stacked 4.65A°
GLY-A-439 C-HB3.81A°
VAL-A-288 Alkyl 5.16A°
LEU-A-286 Pi-Alkyl 4.45A°
Donepezil (E) against AchETRP-A 843.94A°Pi-Pi Stacked −9.80
TRP-A 2795.66A°Pi-Sigma
TYR-A 705.54A°Pi-alkyl
SER-A 2865.5.8A°C-H bond
ARG-A2897.45A°C-H bond
TYR-A 3343.74A°Pi-Sigma
PHE-A 3303.83A°Pi-alkyl
Donepezil (F) against BuChETRP-A 824.26A°Pi-Pi Stacked −7.30
HIS-A 4385.58A°Pi-Cation
PHE-A 3295.24A°Pi-alkyl
TYR-A 3324.51A°Pi-alkyl
Table
Table 3. HOMO, LUMO, and energy gap of studied thiazole-bearing sulfonamide analogs 1–21 and standard drug (all values are in eV).
Table 3. HOMO, LUMO, and energy gap of studied thiazole-bearing sulfonamide analogs 1–21 and standard drug (all values are in eV).
AnalogsHOMOLUMO EgapAnalogsHOMO LUMO Egap
1−8.36−0.46−7.9112−8.13−0.92−7.20
2−8.41−0.49−7.9213−8.30−1.06−7.24
3−8.53−1.10−7.4314−8.14−1.04−7.11
4−8.74−0.99−7.7515−8.200.18−8.38
5−7.940.27−8.2116−7.81−0.85−6.97
6−8.07−1.17−6.9017−7.700.28−7.98
7−8.040.22−8.2618−8.58−0.96−7.62
8−7.700.28−7.9819−7.74−1.51−6.23
9−7.830.05−7.8820−8.54−1.29−7.26
10−8.33−0.93−7.4021−7.79−1.17−6.62
11−8.18−0.91−7.27Std drug−7.770.64−8.41
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Khan, S.; Ullah, H.; Taha, M.; Rahim, F.; Sarfraz, M.; Iqbal, R.; Iqbal, N.; Hussain, R.; Ali Shah, S.A.; Ayub, K.; et al. Synthesis, DFT Studies, Molecular Docking and Biological Activity Evaluation of Thiazole-Sulfonamide Derivatives as Potent Alzheimer’s Inhibitors. Molecules 2023, 28, 559. https://doi.org/10.3390/molecules28020559

AMA Style

Khan S, Ullah H, Taha M, Rahim F, Sarfraz M, Iqbal R, Iqbal N, Hussain R, Ali Shah SA, Ayub K, et al. Synthesis, DFT Studies, Molecular Docking and Biological Activity Evaluation of Thiazole-Sulfonamide Derivatives as Potent Alzheimer’s Inhibitors. Molecules. 2023; 28(2):559. https://doi.org/10.3390/molecules28020559

Chicago/Turabian Style

Khan, Shoaib, Hayat Ullah, Muhammad Taha, Fazal Rahim, Maliha Sarfraz, Rashid Iqbal, Naveed Iqbal, Rafaqat Hussain, Syed Adnan Ali Shah, Khurshid Ayub, and et al. 2023. "Synthesis, DFT Studies, Molecular Docking and Biological Activity Evaluation of Thiazole-Sulfonamide Derivatives as Potent Alzheimer’s Inhibitors" Molecules 28, no. 2: 559. https://doi.org/10.3390/molecules28020559

Article Metrics

Back to TopTop
