Article

Syntheses, Crystal Structures, and Catalytic Properties of Three Cu(II) and Cobalt(II) Coordination Compounds Based on an Ether-Bridged Tetracarboxylic Acid

by
Xiuqi Kang
,
Hongyu Wang
,
Zhenzhong Mei
,
Xiaoxiang Fan
and
Jinzhong Gu
*
College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou 730000, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(19), 6911; https://doi.org/10.3390/molecules28196911
Submission received: 31 August 2023 / Revised: 27 September 2023 / Accepted: 28 September 2023 / Published: 2 October 2023
(This article belongs to the Section Inorganic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Three new products, [Cu2(μ3-dppa)(2,2′-bipy)2(H2O)]n·2nH2O (1), [Co4(μ4-dppa)2(phen)4(H2O)4]·2H2O (2), and [Co2(μ6-dppa)(μ-4,4′-bipy)(H2O)2]n·3nH2O (3) were synthesized using a hydrothermal method from Cu(II) and Co(II) metal(II) chlorides, 3-(3,4-dicarboxyphenoxy)phthalic acid (H4dppa), and different auxiliary ligands, namely 2,2′-bipyridine (2,2′-bipy),1,10-phenanthroline (phen), and 4,4′-bipyridine (4,4′-bipy). Products 1–3 were characterized by elemental analysis, FTIR, TGA, PXRD, SEM, and single-crystal X-ray crystallography. The structure of 1 features a 1D chain of the 2C1 topological type. Compound 2 shows a discrete tetrameric complex. Product 3 demonstrates a 3D metal–organic framework (MOF) with the new topology. Their structure and topology, thermal stability, and catalytic activity were studied. In particular, excellent catalytic activity was demonstrated for copper(II)-polymer 1 in the cyanosilylation reaction at 35 °C.

1. Introduction

In recent years, designing and assembling new transition metal coordination polymers and derived materials have become the subjects of extensive investigation owing to their intriguing structures and their various applications as potential functional materials [1,2,3,4,5,6,7,8,9,10,11,12]. The selection of transition metal ions and their compounds is primarily driven by their advantageous characteristics, including cost-effectiveness, availability, as well as their remarkable bio- and photoactive properties [13,14,15]. Moreover, transition metals exhibit a rich and intricate coordination chemistry, allowing for a wide range of ligand types to be employed [1,5,9]. Among the various types of ligands, aromatic polycarboxylic acids have emerged as the most prevalent linkers for the fabrication of coordination polymers and their derived materials [4,10,13]. The prominence of aromatic polycarboxylate ligands lies in their exceptional suitability and effectiveness in the fabrication of coordination polymers, such as thermal stability, various kinds of co-ordination modes, and adjustable level of deprotonation. Currently, research efforts are predominantly focused on the development of novel carboxylate linkers possessing multiple potential coordination sites. Subsequently, their applications in the synthesis of coordination polymers are thoroughly investigated, aiming to create innovative and functional metal–organic architectures.
In organic synthesis, cyanosilylation is classified as one of the fundamental reactions for C−C bond formation [16,17]. This reaction is employed for the synthesis of cyanohydrins, which serve as crucial precursors in the production of high-value fine chemicals and pharmaceuticals [18,19,20,21]. Notably, the catalytic role of coordination polymers in cyanosilylation reactions has attracted considerable attention in scientific investigations [22,23,24]. This prominence stems from the manifold advantages associated with coordination compound catalysts, including their superior catalytic activity, remarkable stability, cost-effectiveness, and remarkable substrate versatility [20,21,22,23,24].
Following our consistent research path, we have chosen purchasable polycarboxylic acid ligands, which are rarely used in the synthesis of functional coordination polymers [10,13,25,26]. In the current study, we selected an ether-bridged tetracarboxylic acid: 3-(3,4-dicarboxyphenoxy)phthalic acid (H4dppa, Scheme 1). This organic acid can serve as a potential semi-flexible ligand for the fabrication of coordination polymers. We chose this carboxylic acid for the synthesis of the coordination polymers for the following reasons: (1) the ligand contains two benzene rings connected by an ether oxygen group, which can undergo subtle structural changes based on the coordination characteristics of metal ions. (2) This ligand contains nine potential coordination sites coming from eight carboxyl oxygen atoms and one ether oxygen atom, leading to multiple coordination modes and promoting the formation of coordination polymers with high-dimensional structures. (3) In 2020, several Mn(II)-dppa and Cd(II)-dppa coordination polymers were reported [27,28]. Although their magnetism and luminescence were researched, their potentialcatalytic activity were neglected. Thus, the present study gave us a good opportunity to develop this field.
Therefore, we designed and synthesized three Cu(II) and Co(II) coordination compounds based on an ether-bridged tetracarboxylate ligand. In this article, we report the preparation, crystal structures, and catalytic properties of three Cu(II) and Co(II) co-ordination compounds constructed from the ether-bridged tetracarboxylate ligand.

2. Results and Discussion

2.1. Hydrothermal Synthesis of Coordination Polymers

To investigate the role of 3-(3,4-dicarboxyphenoxy) phthalic acid (H4dppa) as a ligand in the preparation of coordination polymers, we conducted some hydrothermal reactions using Cu(II) or Co(II)-chlorides, H4dppa, NaOH, and auxiliary ligands (2,2′-bipy, phen, or 4,4′-bipy) as reactants. These reactions were performed at 150 °C for 72 h, and then the complexes were formed by slowly cooling the reaction mixture and crystallization. Three experiments have achieved positive results, successfully generating three new coordination compounds and comprehensively characterizing them (see Table 1). The products were collected in the form of microcrystalline solids and characterized in detail through elemental analysis, FTIR, PXRD, TGA, SEM and single-crystal X-ray diffraction techniques. The different structural types shown in 1–3 can be ascribed the distinct coordination fashions of metal (II) centers and the presence of different auxiliary ligands. In compounds 1–3, the dppa4− ligand serves as a µ3-. µ4- or µ6-spacer (Scheme 2).

2.2. Crystal Structure of 1

Compound 1 crystallizes in the triclinic system, space group P–1. As shown in Figure 1a, there are two Cu(II) atoms (Cu1 and Cu2), one μ3-dppa4− block, two 2,2′-bipy supporting ligands, one coordinated water molecule, and two free water molecules in the asymmetric unit of compound 1. The five-coordinate Cu1 center displays a distorted trigonal bipyramidal {CuN2O3} environment filled by two carboxylate O atoms from one μ3-dppa4− block, one O atom from the coordinated water molecule, and two N donors of the 2,2′-bipy moiety. The Cu2 center is also five-coordinated and features a distorted trigonal bipyramidal {CuN2O3} geometry that is taken by three carboxylate O atoms from two different μ3-dppa4− blocks and two N atoms from the 2,2′-bipy moiety. The bond distances of Cu–O and Cu–N are 1.927(2)–2.249(2) and 1.992(3)–2.010(3) Å, respectively; these are within the normal ranges observed in related Cu(II) compounds [15,29]. In 1, the dppa4− ligand adopts the coordination mode I (Scheme 2) with four COO− groups being monodentate or bridging bidentate. The μ3-dppa4− blocks connect adjacent Cu atoms to give a 1D chain (Figure 1b). This 1D chain is described as a uninodal net, defined as a 2C1 topology (Figure 1c).

2.3. Crystal Structur of 2

The asymmetric unit of 2 consists of two Co(II) centers (Co1 and Co2), a μ4-dppa4− block, two phen-supporting ligands, two coordinated H2O, and a free H2O. As depicted in Figure 2a, Co1 center is hexa-coordinated and shows a distorted octahedral {CoN2O4} environment. It is taken by four carboxylate O atoms from two individual μ4-dppa4− blocks and a pair of Nphen atoms. Co2 center is also hexa-coordinated and features a distorted octahedral {CoN2O4} environment, which is taken by two O atoms from two differentμ4-dppa4− blocks, two O atoms from two coordinated H2O, and two Nphen donors. The bond distances of Co–O are in the 1.995(3)–2.291(3) Å range, while the Co–N bonds are 2.103(3)–2.148(4) Å, which are comparable to those reported in other Co(II) compounds [10,25]. In 2, the dppa4− block acts as a μ4-linker (mode II, Scheme 2), in which four COO− groups show monodentate, bidentate, or bridging bidentatecoordination fashions. The μ4-dppa4− blocks interconnect the neighboring Co centers to generate a Co4 molecular unit (Figure 2b).

2.4. Crystal Structure of 3

The asymmetric unit of Co(II) compound 3 bears two Co(II) atoms (Co1 and Co2), one µ6-dppa4− block, one µ-4,4′-bipy auxiliary ligand, two coordinated H2O, and three free H2O (Figure 3a). Both Co(II) centers adopt distorted octahedral {CoNO5} environments taken by four carboxylate O atoms from three independent µ6-dppa4− blocks, one O atom coming from the coordinated water molecule, and a N4,4′-bipy donor. The Co–O [1.987(4)–2.246(4) Å] and Co–N [2.114(5)–2.148(5) Å] bonds are within standard values [15,29,30]. The dppa4− block acts as a µ6-linker (mode III, Scheme 2) with four COO− groups being monodentate, bridging bidentate, or tridentate. The 4,4’-bipy auxiliary ligand shows a bridging coordination fashion. The µ6-dppa4− blocks and µ-4,4′-bipy moieties linked Co(II) centers to form a 3D metal–organic framework (Figure 3b). The 3D framework in this structure is built from the four-linked Co, six-linked µ6-dppa4− nodes, and two-linked µ-4,4′-bipy nodes (Figure 3c). It can be defined as a three-nodal net with a new topology and point symbol of (43. 82.10)2(46.66.83)(8).

2.5. TGA and PXRD Data

The thermogravimetric analysis (TGA) was performed on crystalline samples of compounds 1–3 to investigate the thermal stability of three compounds in the range of room temperature to 800 °C under nitrogen gas flow (Figure S2). For compound 1, the weight loss in the range of 49–138 °C corresponds to the departure of two lattice water molecules and one H2O ligand (observed 6.4%, calculated 6.5%), followed by decomposition above 196 °C. For 2, the weight loss corresponding to the release of two lattice water molecules and four H2O ligands is observed from 53 to 210 °C (observed, 6.1%; calculated, 6.2%). The decomposition of the anhydrous compound occurs at 260 °C. The TGA plot of compound 3 shows that the weight loss from 42 to 175 °C attributes to the loss of three free and two coordinated water molecules (observed, 12.4%; calculated, 12.7%). Then, the compound reaches a plateau with no further weight loss up to 246 °C. Upon further heating, the host framework begins to decompose. The corresponding metal oxides (Cu2O and CoO) are expected as a final product of compounds 1–3. A summary of the TGA data is provided in Table S1.
In order to confirm the phase purity of compounds 1–3, the PXRD (powder X-ray diffraction) experiments were performed on the as-prepared crystalline solids of compounds 1–3. As illustrated in Figure S3, the main peaks of experimental spectra of compounds 1–3 very well match the diffraction peaks calculated on the basis of single-crystal X-ray diffraction data. The results confirm the phase purity of compounds 1–3 obtained by the hydrothermal synthesis.

2.6. Crystal Surface Morphology Analysis

The field emission scanning electron microscope (SEM) is used to observe the surface morphology of coordination compounds 1–3. As shown in Figure S4, compound 1 has a long needle structure with non-directional distribution, the outer surface is smooth without roughness, and the length is different. Compound 2 has a block structure with non-directional distribution, the outer surface is smooth, and the sizes are different. Compound 3 has a long block structure, the surface is smooth, the sizes are the same, and they are stacked together.

2.7. Catalytic Cyanosilylation of Aldehydes with TMSCN

Based on the catalytic function of some coordination polymers in the silicocyanide reaction between aldehydes and TMSCN [20,21,22,23], we tested the catalytic activities of compounds 1–3 as heterogeneous catalysts for the silicocyanide reaction between 4-nitrobenzaldehyde and TMSCN, with the aim of screening potential excellent catalysts. The catalytic reactions were performed in dichloromethane as a solvent at 35 °C, and the final results showed that 2-(4-nitrophenyl)-2-[(trimethylsilyl)oxy]acetonitrile (Scheme 3, Table 1) was obtained. We conducted detailed experiments on the effects of reaction time, solvent type, and catalyst dosage on the yield, as well as the applicability of substrates.
The results showed that compound 1 gave the highest activity (100% conversion, Table 1). We chose it as the preferable catalyst for further optimization research. Specifically, the reaction time has a significant impact on the yield. We found that, when the reaction time increases from 1 h to 10 h, the yield of the product increases from 38% to 100% (Table 1, entries 1–6; Figure S5). At the same time, we also investigated the effect of catalyst dosage. When the catalyst dosage increased from 2 mol% to 3 mol%, the yield of the product increased from 94% to 100% (entries 6 and 7). In addition, the effect of solvents such as acetonitrile, methanol, tetrahydrofuran, and chloroform was also tested. The experimental results demonstrated they gave lower yields of the products (84% to 98%).
The experimental results show that the conversion efficiency of the silicocyanidation reaction of 4-nitrobenzaldehyde is very low (only 5% yield) without a catalyst (entry 14, Table 1). When carboxylic acid ligands or copper chloride are used, the yields are 6% and 8%, respectively (entries 15 and 16, Table 1). Although the relationship between the structure and activity of the catalyst is not very clear in this work, the higher activity of complex 1 may be related to its unsaturated coordination sites and more accessible active sites [31,32].
The substrate range of benzaldehyde with different substituents was studied using the optimized cyanosilylation reaction parameters (3.0 mol% 1, CH2Cl2, 10 h), and the corresponding product yields ranged from 28% to 100% (Table S2). Benzaldehyde with electron withdrawing groups (e.g., –NO2 or –Cl) as a substrate exhibits high yield, which is due to the increased electrophilicity of the substrate by these groups. Benzaldehyde containing electron-donating groups (e.g., –CH3 or –OCH3) as a substrate exhibits lower yields (entries 7 and 8, Table S2).
Finally, cyclic catalytic experiments were conducted on catalyst 1, and the results showed that compound 1 still maintained its activity after at least five cycles of catalytic cycling (Figure S6). Moreover, the powder diffraction pattern determined that the structure of compound 1 remained unchanged after the catalytic reaction (Figure S7), although several new peaks or widening of the original peaks were observed. These changes may be related to the decrease in crystallinity of the catalyst after cyclic catalysis and the presence of impurities.
The catalytic activity of compound 1 in the cyanosilylation reaction of 4-nitrobenzaldehyde with TMSCN is equivalent to [33,34] or slightly higher [35,36,37,38,39] than that of other coordination containing carboxylate ligands (Table S3).

3. Experimental

3.1. Materials and Measurements

Except where otherwise noted, all chemicals were commercially available and were used as received. H4dppa was acquired from Yanshen Tec. Co., Ltd. (Jilin, China). Bruker EQUINOX 55 spectrometer (Bruker Corporation, Billerica, MA, USA) was used to record the FTIR spectra (KBr discs). ElementarVario EL elemental analyzer (Elementar, Langenselbold, Germany) was utilized to obtain the C/H/N elemental analyses (EA). LINSEIS STA PT1600 thermal analyzer (LinseisMessgeräte GmbH, Selb, Germany) was used to record thermogravimetric analyses (TGA) under N2 flow with a heating rate of 10 °C/min.Rigaku-Dmax 2400 diffractometer (Cu-Kα radiation; λ = 1.54060 Å, Rigaku Corporation, Tokyo, Japan) was used to run the powder X-ray diffraction patterns (PXRD) of the obtained compounds. CDCl3 was used as the solvent for 1H NMR measurements on a JNM ECS 400M spectrometer (Bruker BioSpin AG, Fällanden, Switzerland). Scanning electron microscopy (SEM) images were taken on a field emission scanning electron microscope (S-4800, HITACHI, Tokyo, Japan).

3.2. Synthesis of [Cu2(μ3-dppa)(2,2′-bipy)2(H2O)]n·2nH2O (1)

CuCl2·2H2O (34.0 mg, 0.2 mmol), H4dppa (34.6 mg, 0.1 mmol),2,2′-bipy (31.2 mg, 0.2 mmol), and NaOH (16.0 mg, 0.4 mmol) were mixed in H2O (10 mL) and stirred for 15 min in a vial at room temperature. Then, it was sealed in a 20 mL Teflon-lined bomb and heated at 150 °C for 72 h. After the bomb was cooled down to room temperature, the bomb was opened. Some green needle-shaped crystals of compound 1 were picked out manually, washed with water, and dried (yield: 49% based on H4dppa). Calculated for C36H28Cu2N4O12: C 51.74, N 6.70, H 3.38%. Found: C 51.96, N 6.68, H 3.40%. FTIR (KBr, cm−1): 3453 m, 3113 w, 1611 s, 1580 s, 1552 s, 1473 w, 1447 w, 1388 s, 1313 w, 1272 w, 1237 w, 1161 w, 1062 w, 1032 w, 984 w, 943 w, 894 w, 864 w, 836 w, 774 w, 730 w, 663 w.

3.3. Synthesis of [Co4(μ4-dppa)2(phen)4(H2O)4]·2H2O (2)

CoCl2∙6H2O (47.4 mg, 0.2 mmol), H4dppa (34.6 mg, 0.1 mmol), phen (39.6 mg, 0.2 mmol), and NaOH (16.0 mg, 0.4 mmol) were mixed in H2O (10 mL) and stirred for 15 min in a vial at room temperature. Then, it was sealed in a 20 mL Teflon-lined bomb and heated at 150 °C for 72 h. After the bomb was cooled down to room temperature, the bomb was opened. Some orange block-shaped crystals of compound 2 were picked out manually, washed with water, and dried (yield: 52% based on H4dppa). Calculated for C40H28Co2N4O12: C 54.94, N 6.41, H 3.23%. Found: C 55.18, N 6.42, H 3.21%. FTIR (KBr, cm−1): 3616 w, 3365 m, 3060 w, 1553 s, 1516 w, 1424 w, 1398 s, 1300 w, 1254 w, 1232 w, 1215 w, 1139 w, 1103 w, 1059 w, 979 w, 850 w, 814 w, 782 w, 725 w, 694 w, 644 w.

3.4. Synthesis of [Co2(μ6-dppa)(μ-4,4΄-bipy)(H2O)2]n·3nH2O (3)

Compound 3 was synthesized following a procedure similar to 2, except using 4,4′-bipy (31.2 mg, 0.2 mmol) instead of phen. Some pink block-shaped crystals of compound 3 were collected (yield: 53% based on H4dppa). Calculated for C26H24Co2N2O14: C 44.21, N 3.97, H 3.42%. Found: C 44.47, N 3.94, H 3.44%. FTIR (KBr, cm−1): 3404 m, 1607 s, 1557 s, 1406 s, 1299 w, 1153 w, 1072 w, 996 w, 903 w, 866 w, 809 w, 770 w, 704 w, 672 w, 632 w.

3.5. Single-Crystal X-ray Diffraction and Topological Analysis

We collected the crystal data of compounds 1–3 on a Bruker APEX-II CCD diffractometer (graphite-monochromated Mo/CuKα radiation; λ = 0.71073/1.54178/Å). The structures were solved by direct methods and refined by full-matrix least-squares on F2 with SHELXS-97 and SHELXL-97 [40]. The carbon, oxygen, and nitrogen atoms were refined anisotropically using full-matrix least-squares methods on F2. By using riding models, the hydrogen atoms were placed in calculated positions. In 3, the pyridine ring (N1, C22–C26) of 4,4′-bipy ligand was split over two sites and refined with 0.60 and 0.40 occupancies. The details of crystal data and refinement parameters of compounds 1–3 are presented in Table 2. The important bond lengths and angles are listed in Tables S4 and S5 (Supplementary Materials). CCDC 2274892–2274894 contain the supplementary crystallographic data of 1–3.
For the topological analysis of metal–organic networks, the concept of the underlying (simplified) networks was adopted [41,42]. These simplified networks were obtained by removing terminal ligands and converting all the bridging ligands into the respective centroids (their connectivity was retained).

3.6. Catalytic Activity in Cyanosilylation of Benzaldehydes

A mixture of 4-nitrobenzaldehyde (0.50 mmol), trimethylsilyl cyanide (TMSCN, 1.0 mmol), and catalyst (typically 3.0 mol%) was placed into a glass tube, and then CH2Cl2 (2.5 mL) was added. The mixture was capped, stirred, and heated at 35 °C for a desired time. Then, the solid catalyst was removed through centrifugation. The remaining solution was evaporated under vacuum to give a solid crude product. The residue was dissolved in CDCl3. Quantitative analysis of the product was performed using 1H NMR spectroscopy (JNM ECS 400M spectrometer, Jeol Ltd., Tokyo, Japan) (see Figure S8 for more details). In order to conduct cyclic catalytic experiments, solid catalysts were collected by centrifugation and washed with dichloromethane, dried at room temperature, and then reused in subsequent tests. According to the above procedure, the range of other aldehyde substrates was also studied.

4. Conclusions

In summary, we have synthesized three Cu(II) and Co(II) coordination compounds based on an ether-bridged tetracarboxylate ligand. The structural types of compounds 1−3 range from 0D molecular tetramers (2) to 1D network (1) and 3D metal–organic framework (3). The catalytic activity of three products were studied. Compound 1 revealed an excellent catalytic activity in the cyanosilylation of aldehydes with TMSCN.

Supplementary Materials

The following data are available online at https://www.mdpi.com/article/10.3390/molecules28196911/s1. Figure S1: FT-IR spectra, Figure S2: TGA curves, Figure S3: PXRD patterns, Figure S4: SEM images, additional catalysis data (Figures S5–S8), Table S1: TGA data, Table S2: Substrate scope of catalytic reaction, Table S3: Comparison of catalytic activity, Tables S4 and S5: selected bonding and H-bonding parameters for 1–3.

Author Contributions

Conceptualization, J.G.; Data curation, X.K. and H.W.; Funding acquisition, J.G.; Investigation, X.K., Z.M., X.F. and J.G.; Methodology, J.G.; Supervision, J.G.; Visualization, X.F. and J.G.; Writing-original draft, X.K., H.W., Z.M. and J.G.; Writing-review & editing, J.G. Project administration, X.K. and J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by the 111 Project of MOE (111-2-17).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Chakraborty, G.; Park, I.H.; Medffishetty, R.; Vittal, J.J. Two−Dimensional Metal−Organic Framework Materials: Synthesis, Structures, Properties and Applications. Chem. Rev. 2021, 121, 3751–3891. [Google Scholar] [CrossRef]
  2. Zheng, X.D.; Lu, T.B. Constructions of helical coordination compounds. CrystEngComm 2010, 12, 324–336. [Google Scholar] [CrossRef]
  3. Gong, W.; Chen, Z.J.; Dong, J.Q.; Liu, Y.; Cui, Y. Chiral Metal-Organic Frameworks. Chem. Rev. 2022, 122, 9078–9144. [Google Scholar] [CrossRef] [PubMed]
  4. Singh, U.P.; Verma, P.; Butcher, R.J. Synthesis of tricarboxylic acid based metal organic frameworks: Structural and gas adsorption studies. J. Mol. Struct. 2021, 1224, 129161. [Google Scholar] [CrossRef]
  5. Ji, X.X.; Wu, S.Y.; Song, D.X.; Chen, S.Y.; Chen, Q.; Gao, E.J.; Xu, J.; Zhu, X.P.; Zhu, M.C. A water-stable luminescent sensor based on Cd2+ coordination polymer for detecting nitroimidazole antibiotics in water. Appl. Organomet. Chem. 2021, 35, e6359. [Google Scholar] [CrossRef]
  6. Alsharabasy, A.M.; Pandit, A.; Farras, P. Recent Advances in the Design and Sensing Applications of Hemin/Coordination Polymer−Based Nanocomposites. Adv. Mater. 2021, 33, 2003883. [Google Scholar] [CrossRef]
  7. Gu, Y.F.; Zheng, J.J.; Otake, K.I.; Shivanna, M.; Sakaki, S.; Yoshino, H.; Ohba, M.; Kawaguchi, S.; Wang, Y.; Li, F.T.; et al. Host−Guest Interaction Modulation in Porous Coordination Polymers for Inverse Selective CO2/C2H2 Separation. Angew. Chem. Int. Ed. 2021, 60, 11688–11689. [Google Scholar] [CrossRef]
  8. Zhao, X.; Wang, Y.X.; Li, D.S.; Bu, X.H.; Feng, P.Y. Metal-Organic Frameworks for Separation. Adv. Mater. 2018, 30, 1705189. [Google Scholar] [CrossRef]
  9. Wei, Y.S.; Zhang, M.; Zou, R.Q.; Xu, Q. Metal−Organic Framework−Based Catalysts with Single Metal Sites. Chem. Rev. 2020, 120, 12089–12174. [Google Scholar] [CrossRef]
  10. Ghosh, I.; Chakraborty, B.; Bera, A.; Paulb, S.; Paine, T.K. Selective oxygenation of C–H and C=C bondswith H2O2 by high-spin cobalt(II)-carboxylatecomplexes. Dalton Trans. 2022, 51, 2480–2492. [Google Scholar] [CrossRef]
  11. Shukla, V.; Ahmad, M.; LaDuca, R.L.; Siddiqui, K.A. 6−connected Zn(II)−MOF: Efficient photocatalytic dye degradation and remarkable luminescent detection of biomolecules and hazardous ions. J. Mol. Struct. 2023, 1294, 136371. [Google Scholar] [CrossRef]
  12. Somnath; Ahmad, M.; Siddiqui, K.A. Ratiometric luminescent sensing of a biomarkerfor sugar consumption in an aqueous mediumusing a Cu(II) coordination polymer. Dalton Trans. 2023, 52, 3643–3660. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, Y.J.; Wang, S.Y.; Zhang, Y.; Xia, B.; Li, Q.W.; Wang, Q.L.; Ma, Y. Two zinc coordination polymers with photochromic behaviors and photo−controlled luminescence properties. CrystEngComm 2020, 22, 5162–5169. [Google Scholar] [CrossRef]
  14. Jeong, A.R.; Shin, J.W.; Jeong, J.H.; Jeoung, S.; Moon, H.R.; Kang, S.; Min, K.S. Porous and Nonporous Coordination Polymers Induced by Pseudohalide Ions for Luminescence and Gas Sorption. Inorg. Chem. 2020, 59, 15987–15999. [Google Scholar] [CrossRef]
  15. Zhang, Q.L.; Xiong, Y.; Liu, J.Q.; Zhang, T.T.; Liu, L.; Huang, Y.W. Porous coordination/covalent hybridized polymers synthesized from pyridine−zinc coordination compound and their CO2 capture ability, fluorescence and selective response properties. Chem. Commun. 2018, 54, 12025–12028. [Google Scholar] [CrossRef]
  16. Brunel, J.M.; Holmes, I.P. Chemically catalyzed asymmetric cyanohydrin syntheses. Angew. Chem. Int. Ed. 2004, 43, 2752–2778. [Google Scholar] [CrossRef]
  17. Lacour, M.-A.; Rahier, N.J.; Taillefer, M. Mild and Efficient Trimethylsilylcyanation of Ketones Catalysed by PNP Chloride. Chem. Eur. J. 2011, 17, 12276–12279. [Google Scholar] [CrossRef]
  18. Wang, W.; Luo, M.; Yao, W.; Ma, M.; Pullarkat, S.A.; Xu, L.; Leung, P.H. Catalyst-free and Solvent-free Cyanosilylation and Knoevenagel Condensation of Aldehydes. ACS Sustain. Chem. Eng. 2019, 7, 1718–1722. [Google Scholar] [CrossRef]
  19. North, M.; Usanov, D.L.; Young, C. Lewis Acid Catalyzed Asymmetric Cyanohydrin Synthesis. Chem. Rev. 2008, 108, 5146–5226. [Google Scholar] [CrossRef]
  20. Du, J.J.; Zhang, X.; Zhou, X.P.; Li, D. Robust heterometallic MOF catalysts for the cyanosilylation of aldehydes. Inorg. Chem. Front. 2018, 5, 2772–2776. [Google Scholar] [CrossRef]
  21. Xi, Y.-M.; Ma, Z.Z.; Wang, L.-N.; Li, M.; Li, Z.J. Three-Dimensional Ni(II)-MOF Containing an Asymmetric Pyridyl-Carboxylate Ligand: Catalytic Cyanosilylation of Aldehydes and Inhibits Human Promyelocytic Leukemia Cancer Cells. J. Clust. Sci. 2019, 30, 1455–1464. [Google Scholar] [CrossRef]
  22. Maria Aguirre-Diaz, L.; Iglesias, M.; Snejko, N.; Gutierrez-Puebla, E.; Angeles Monge, M. Indium metal-organic frameworks as catalysts in solvent-free cyanosilylation reaction. CrystEngComm 2013, 15, 9562–9571. [Google Scholar] [CrossRef]
  23. Amaro-Gahete, J.; Esquivel, D.; Ruiz, J.R.; Jimenez-Sanchidrian, C.; Romero-Salguero, F.J. Zirconium coordination polymers based on tartaric and malic acids as catalysts for cyanosilylation reactions. Appl. Catal. A 2019, 585, 117190. [Google Scholar] [CrossRef]
  24. Karmakar, A.; Paul, A.; Rubio, G.M.D.M.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Zinc(II) and Copper(II) Metal-Organic Frameworks Constructed from a Terphenyl-4,4″-dicarboxylic Acid Derivative: Synthesis, Structure, and Catalytic Application in the Cyanosilylation of Aldehydes. Eur. J. Inorg. Chem. 2016, 2016, 5557–5567. [Google Scholar] [CrossRef]
  25. Pal, A.; Chand, S.; Senthilkumar, S.; Neogi, S.; Das, M.C. Structural variation of transition metal coordinationpolymers based on bent carboxylate and flexiblespacer ligand: Polymorphism, gas adsorption andSC-SC transmetallation. CrystEngComm 2016, 18, 4323. [Google Scholar] [CrossRef]
  26. Feng, S.S.; Xie, L.; Lu, L.P.; Zhu, M.L.; Su, F. The diversity of five metal–organic complexes based on an unsymmetricalbiphenyl tetracarboxylate: Synthesis, structures, magnetismand luminescence. J. Solid State Chem. 2018, 258, 335–345. [Google Scholar] [CrossRef]
  27. Li, Y.; Wu, J.; Gu, J.Z.; Qiu, W.D.; Feng, A.S. Temperature−dependent Syntheses of Two Manganese(Ⅱ) Coordination Compounds Based on an Ether−bridged Tetracarbolylic Acid. Chin. J. Struct. Chem. 2020, 39, 727–736. [Google Scholar]
  28. Li, Y.; Zhao, Z.Y.; Zou, X.Z.; Feng, A.S.; Qiu, W.D. Synthesed, Crystal Structures, and Luminescent Property of Two 1D Cadmium(II) Coordination Polymers Assembled from an Ether−Bridged Tetracarboxylic Acid. Chin. J. Inorg. Chem. 2020, 36, 1728–1734. [Google Scholar]
  29. Inomata, Y.; Ando, M.; Howell, F.S. Characterization and crystal structures of copper(II), cobalt(II), andnickel(II) complexes with two kinds of piperidine carboxylic acids. J. Mol. Struct. 2002, 616, 201–212. [Google Scholar] [CrossRef]
  30. Zhao, S.Q.; Gu, J.Z. Synthesis, structures and catalytic activity in Knoevenagel condensation reaction of two diphenyl ether tetracarboxylic acid−Co(II) coordination polymers. Chin. J. Inorg. Chem. 2022, 38, 161–170. [Google Scholar]
  31. Loukopoulos, E.; Kostakis, G.E. Review: Recent advances of one−dimensional coordination polymers as catalysts. J. Coord. Chem. 2018, 71, 371–410. [Google Scholar] [CrossRef]
  32. Xue, L.P.; Li, Z.H.; Zhang, T.; Cui, J.J.; Gao, Y.; Yao, J.X. Construction of two Zn(II)/Cd(II) multifunctional coordination polymers with mixed ligands for catalytic and sensing properties. New J. Chem. 2018, 42, 14203–14209. [Google Scholar] [CrossRef]
  33. Yadav, A.; Kumari, S.; Yadav, P.; Hazra, A.; Chakraborty, A.; Kanoo, P. Open metal site (OMS)—inspired investigation of adsorption and catalytic functions in a porous metal−organic framework (MOF). Dalton Trans. 2022, 51, 15496–15506. [Google Scholar] [CrossRef]
  34. Jiang, W.; Yang, J.; Liu, Y.Y.; Song, S.Y.; Ma, J.F. A Stable Porphyrin−Based Porous mog Metal−Organic Framework as an Efficient Solvent−Free Catalyst for C−C Bond Formation. Inorg. Chem. 2017, 56, 3036–3043. [Google Scholar] [CrossRef]
  35. Li, F.; Ma, R.; Xia, Z.; Wei, Q.; Chen, S.; Gao, S. A LADH−like Zn−MOF as an efficient bifunctional catalyst for cyanosilylation of aldehydes and photocatalytic oxidative carbon−carbon coupling reaction. J. Solid. State. Chem. 2021, 301, 122337. [Google Scholar] [CrossRef]
  36. Gu, J.M.; Kim, W.S.; Huh, S. Size−dependent catalysis by DABCO−functionalized Zn−MOF with one−dimensional channels. Dalton Trans. 2011, 40, 10826–10829. [Google Scholar] [CrossRef]
  37. Jin, F.Z.; Zhao, C.C.; Ma, H.C.; Chen, G.J.; Dong, Y.B. Homochiral BINAPDA−Zr−MOF for Heterogeneous Asymmetric Cyanosilylation of Aldehydes. Inorg. Chem. 2019, 58, 9253–9259. [Google Scholar] [CrossRef]
  38. Wu, P.; Wang, J.; Li, Y.; He, C.; Xie, Z.; Duan, C. Luminescent Sensing and Catalytic Performances of a Multifunctional Lanthanide−Organic Framework Comprising a Triphenylamine Moiety. Adv. Funct. Mater. 2011, 21, 2788–2794. [Google Scholar] [CrossRef]
  39. Cao, Y.; Zhu, Z.; Xu, J.; Wang, L.; Sun, J.; Chen, X.; Fan, Y. Sc2(pydc)2 unit based 1D, 2D and 3D metal−organic frameworks as heterogeneous Lewis acid catalysts for cyanosilylation. Dalton Trans. 2015, 44, 1942–1947. [Google Scholar] [CrossRef]
  40. Sheldrick, G.M. SHELXS-97. In Program for X-ray Crystal Structure Determination; University of Gottingen: Göttingen, Germany, 1997. [Google Scholar]
  41. Blatov, V.A. Multipurpose crystallochemical analysis with the program package TOPOS. IUCrCompComm Newsl. 2006, 7, 4–38. [Google Scholar]
  42. Blatov, V.A.; Shevchenko, A.P.; Proserpio, D.M. Applied topological analysis of crystal structures with the program package topospro. Cryst. Growth Des. 2014, 14, 3576–3586. [Google Scholar] [CrossRef]
Molecules 28 06911 sch001

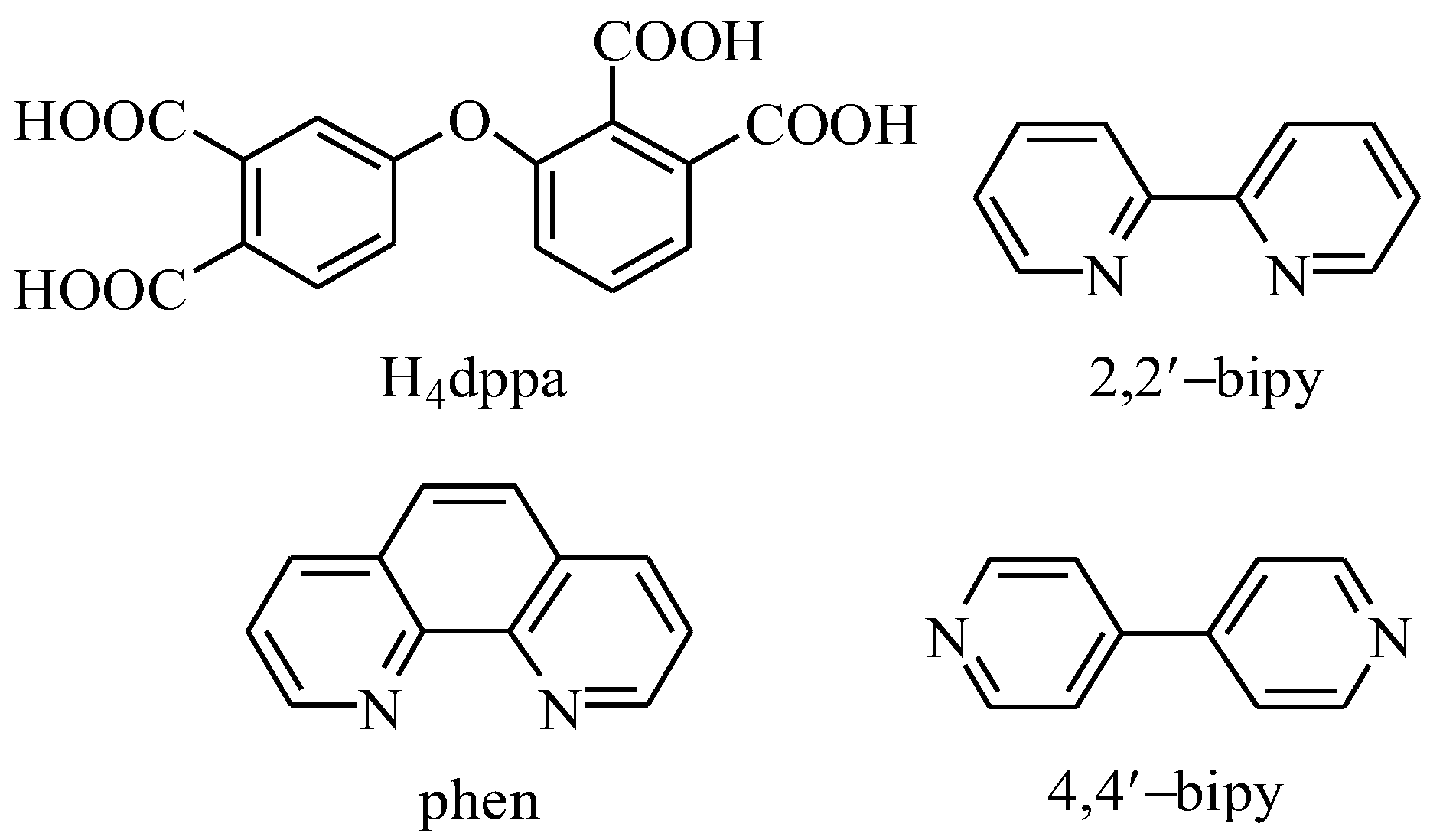

Scheme 1. Structural formulae of H4dppa and auxiliary ligands.
Scheme 1. Structural formulae of H4dppa and auxiliary ligands.
Molecules 28 06911 sch001
Molecules 28 06911 sch002

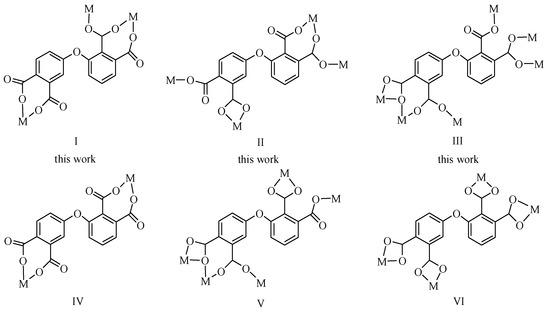

Scheme 2. The coordination fashions of dppa4− in this study and previous reported works.
Scheme 2. The coordination fashions of dppa4− in this study and previous reported works.
Molecules 28 06911 sch002
Molecules 28 06911 g001

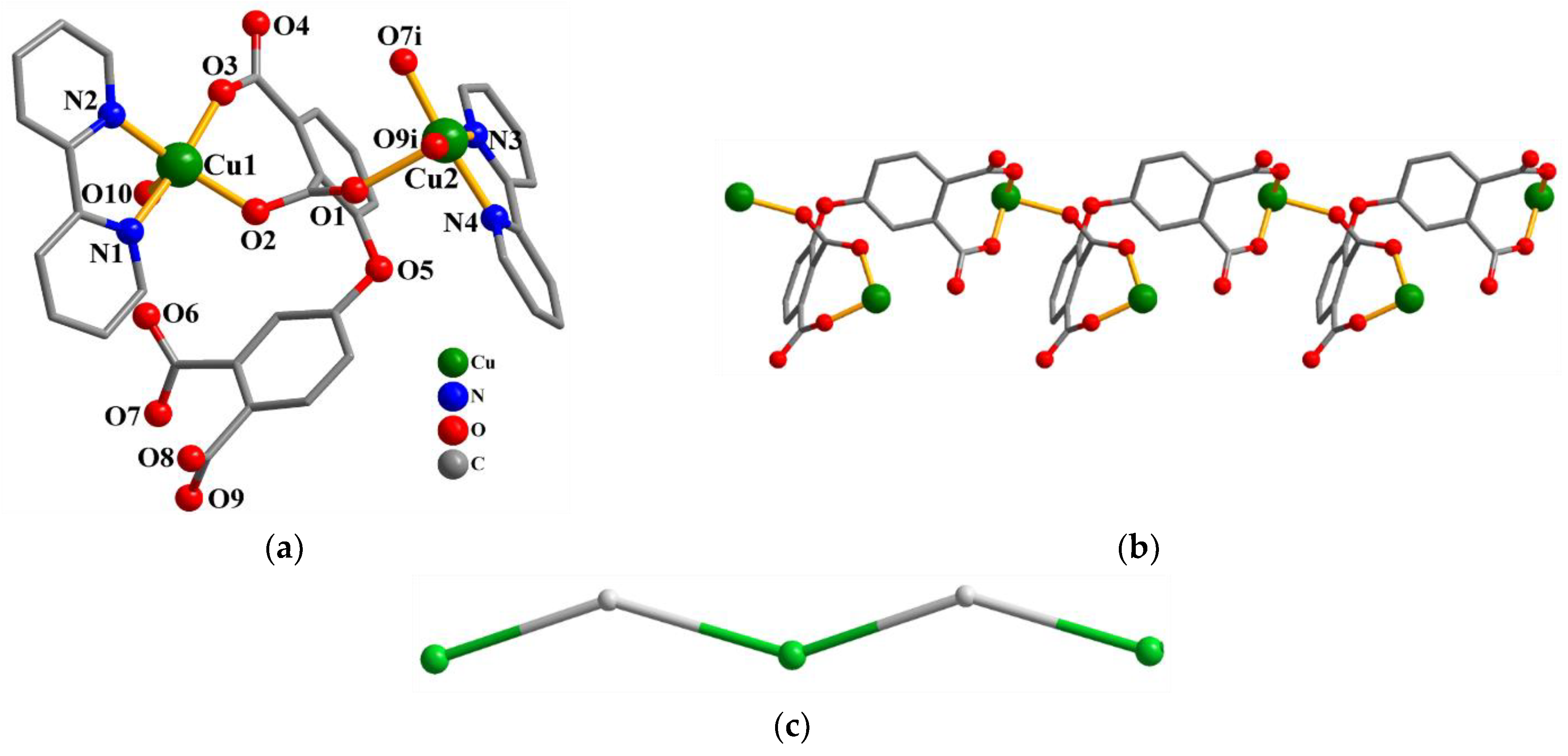

Figure 1. Structure of 1. (a) Coordination environment of Cu(II) atoms; hydrogen atoms are removed. Symmetry code: i = x−1, y, z. (b) The 1D chain (view along the b axis). (c) Topological representation of a 1D chain with a 2C1 topology; view along the b axis; 2-connected Cu1 nodes (green), centroids of 2-connected µ3-dppa4− nodes (gray).
Figure 1. Structure of 1. (a) Coordination environment of Cu(II) atoms; hydrogen atoms are removed. Symmetry code: i = x−1, y, z. (b) The 1D chain (view along the b axis). (c) Topological representation of a 1D chain with a 2C1 topology; view along the b axis; 2-connected Cu1 nodes (green), centroids of 2-connected µ3-dppa4− nodes (gray).
Molecules 28 06911 g001
Molecules 28 06911 g002

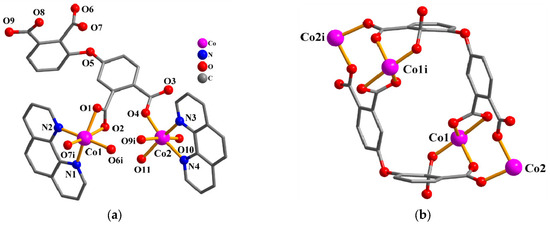

Figure 2. Structure of 2. (a) Coordination environment of Co(II) centers; hydrogen atoms are removed. Symmetry code: i = −x +2, −y +1, −z +1. (b) Co4 molecular unit; the phen moieties are removed. Symmetry code: i = −x +2, −y +1, −z +1.
Figure 2. Structure of 2. (a) Coordination environment of Co(II) centers; hydrogen atoms are removed. Symmetry code: i = −x +2, −y +1, −z +1. (b) Co4 molecular unit; the phen moieties are removed. Symmetry code: i = −x +2, −y +1, −z +1.
Molecules 28 06911 g002
Molecules 28 06911 g003

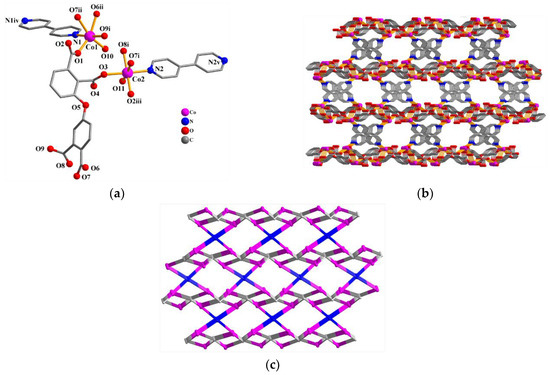

Figure 3. Structure of 3. (a) Coordination environment of Co(II) atoms; hydrogen atoms are removed. Symmetry codes: i =x−1, y, z; ii =x−1, −y +1/2, z +1/2; iii = x, −y +1/2, z−1/2; iv = −x +1, −y, −z +2; v =−x, −y, −z. (b) 3D metal–organic framework (view along the a axis). (c) Topological representation of a 3-nodal net framework displaying a new topology 4-connected Co nodes (pink), centroids of 6-connected µ6-dppa4− nodes (gray), and centroids of 2-connected µ-4,4′-bipy linkers (blue).
Figure 3. Structure of 3. (a) Coordination environment of Co(II) atoms; hydrogen atoms are removed. Symmetry codes: i =x−1, y, z; ii =x−1, −y +1/2, z +1/2; iii = x, −y +1/2, z−1/2; iv = −x +1, −y, −z +2; v =−x, −y, −z. (b) 3D metal–organic framework (view along the a axis). (c) Topological representation of a 3-nodal net framework displaying a new topology 4-connected Co nodes (pink), centroids of 6-connected µ6-dppa4− nodes (gray), and centroids of 2-connected µ-4,4′-bipy linkers (blue).
Molecules 28 06911 g003
Molecules 28 06911 sch003

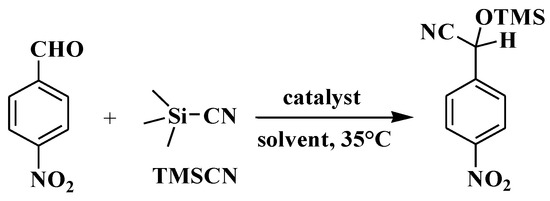

Scheme 3. Cyanosilylation of model substrate (4-nitrobenzaldehyde).
Scheme 3. Cyanosilylation of model substrate (4-nitrobenzaldehyde).
Molecules 28 06911 sch003
Table 1. Cu-catalyzed cyanosilylation of 4-nitrobenzaldehyde with TMSCN.
Table 1. Cu-catalyzed cyanosilylation of 4-nitrobenzaldehyde with TMSCN.
EntryCatalystTime, hCatalyst Loading, mol%SolventYield a, %
1113.0CH2Cl238
2123.0CH2Cl267
3143.0CH2Cl281
4163.0CH2Cl290
5183.0CH2Cl297
61103.0CH2Cl2100
71102.0CH2Cl294
81103.0CH3CN87
91103.0THF84
101103.0CH3OH98
111103.0CHCl396
122103.0CH2Cl285
133103.0CH2Cl278
14Blank10-CH2Cl25
15CuCl2·2H2O103.0CH2Cl28
16H4dppa103.0CH2Cl26
a Calculated by 1H NMR spectroscopy: mol(product)/mol(aldehyde + product) × 100.
Table 2. Summary of crystal data for compounds 1−3.
Table 2. Summary of crystal data for compounds 1−3.
Compound123
Chemical formulaC36H28Cu2N4O12C40H28Co2N4O12C26H24Co2N2O14
Molecular weight835.70874.52706.33
Crystal systemTriclinicTriclinicMonoclinic
Space groupP-1P-1P21/c
a/Å10.2566(6)12.6141(11)11.1877(7)
b/Å11.6991(8)13.0964(8)19.1989(13)
c/Å15.1791(13)13.1405(10)13.5420(7)
α/(°)84.044(7)64.646(7)90
β/(°)80.245(6)64.704(8)104.927(6)
γ/(°)74.586(6)70.835(7)90
V/Å31727.2(2)1745.3(3)2810.6(3)
Z224
F(000)8528921440
Crystal size/mm0.24 × 0.23 × 0.220.23 × 0.22 × 0.200.22 × 0.21 × 0.18
θ range for data collection3.295–25.0503.795–69.9424.089–69.951
Limiting indices−12 ≤ h ≤ 12, −13 ≤ k ≤ 13, −17 ≤ l ≤ 18−15≤ h ≤ 15, −11 ≤ k ≤ 15, −13 ≤ l ≤ 15−9 ≤ h ≤ 13, −20 ≤ k ≤ 20, −16 ≤ l ≤ 16
Reflections collected/unique (Rint)6083/4871 (0.0294)6435/4618 (0.0505)5238/3248 (0.0738)
Dc/(Mg·cm−3)1.6071.6641.669
μ/mm−11.3048.1089.928
Data/restraints/parameters6083/0/4876435/0/5235238/48/437
Goodness-of-fit on F21.0291.0251.031
Final R [(I ≥ 2σ(I))] R1, wR20.0402, 0.08650.0541, 0.12500.0634, 0.1301
R (all data) R1, wR20.0534, 0.09390.0833, 0.14460.1146, 0.1553
Largest diff. peak & hole/(e·Å−3)0.339 &−0.3860.811 &−0.4580.427&−0.505
