The N-Alkylation of Agelastatin A Modulates Its Chemical Reactivity

Abstract

Agelastatin A is a marine alkaloid with potent biological activity. To date, at least 17 different strategies have achieved its total synthesis, along with many analogues. The present study focuses on the acidity stability of some N-methyl derivatives of agelastatin A. The study made use of chemical reactions and spectroscopic acquisitions. The chemical structure of some derivatives can undergo a profound rearrangement. The results could shed light on the mechanism of action of agelastatin A and suggest the preparation of analogues with improved pharmacological efficacy.

1. Introduction

Agelastatin A 1 (Scheme 1) is a specialised metabolite isolated for the first time from the axinellid sponge Agelas dendromorpha from the Coral Sea [1,2]. Its structural formula places it among the pyrrolo-imidazol alkaloids because it exhibits four condensed cycles (C4N1-C5N1-C5-C3N2) and four contiguous stereocentres.

Seventeen research groups have achieved total synthesis of agelastatin A, some through different routes. Synthetic efforts have been reviewed [3,4,5]. The pyrrole ring A was generally obtained from commercially available pyrrol-2-carboxylic acid and rarely by condensation of a primary amine with a 1,4-dicarbonyl compound [6,7,8,9]. Most synthetic strategies have focused on early C carbocycle formation with appropriate vicinal diamine functionality and stereochemistry. Two biomimetic strategies were both based on the reactivity of the iminium ion; they involved the sequential formation of the C and B rings [10] or the formation of the C ring in the final step [7]. The last route provided 1.4 g of (−)-agelastatin A 1 in a single batch (8 steps, 22% overall yield, 96% ee). The shortest route exploited the chemistry of Stenhouse salts, which provided the carbocycle in a single step [11]. This procedure has recently been improved to provide (±)-agelastatin A in 6 steps and 26% overall yield [12]. The success of total syntheses has allowed the preparation of many derivatives and the execution of biological assays. SAR studies have highlighted that intact functional groups (N3-H, C4-H, N9-H, C15-H) are essential for cytotoxicity [2,13,14,15,16], N1-ethyl is slightly tolerated [17] while C5-OMe was effective in one case [18]. Only 13-chloro and 13-trifluoromethyl substituents revealed bioactivity greater than 1 against some tumour cell lines [17,19]. Agelastatin A targets the peptidyl transferase centre of the eukaryotic ribosome, thereby inhibiting tumour cell proliferation [20]. The contribution of computational studies is also interesting [21].

The present study adopts an arbitrary numbering to designate the many agelastatin derivatives (Figure S1). Compound 2 was easily obtained by stirring 1 in methanol under reflux in the presence of the heterogeneous acid catalyst Amberlyst^® 15 (A15) [1]. Later, compound 2 was isolated as a natural metabolite and named agelastatin E [22]. This transformation is reversible, and the hydroxyl group can be reinstated simply by changing the solvent in the water/acetone 1:2 mixture and A15 [2].

Compound 2 eliminates the methanol when heated under reflux in dry pyridine to give compound 3. This transformation is also reversible so that 1 or 2 can be recovered when 3 is stirred in water or methanol, and the resin is strongly acidic. However, the addition of water or methanol to the C4=C5 double bond in 3, can also furnish the stereoisomers with the inverted configuration at C4 and C5, i.e., the 1’ and 2’ compounds [2]. All of these interconversions occur through the common carbocation intermediate A (Scheme 1).

In conclusion, 1, 2 and 3 can be considered as the progenitor compounds of three series of agelastatin analogues, which differentiate by substituents at the nitrogen atoms and, for 1 and 2, also by stereochemistry at the C4–C5 bond.

If, for simplicity, we consider that N-substituted compounds carry an identical moiety, eight compounds can be envisaged: one without substituents, three mono-substituted, three di-substituted and one completely substituted. Furthermore, taking into account that 1 and 2 have a methyl group bonded to heteroatoms, we focus on the methyl moiety.

Agelastatin D 1a was isolated from the Indian Ocean sponge Cymbastela sp. [23] and shows three NH functional groups, so all methyls are absent. Of the seven possible combinations of methyl groups bonded to the three nitrogen atoms, three have so far been described in the literature: the N1-methylated agelastatin A 1 and the entirely methylated 1e, together with the analogues of series 2e, 2’e and 3e [2] and the di-substituted at up-down (N1,N9 nitrogens) positions 1d (Scheme 1) [14].

Starting from agelastatin A 1, we have here prepared the di-substituted at the up-medium (N1,N3 nitrogens) positions 1m (Scheme 1). Like agelastatin A 1, compounds 1m and 1d can be easily converted into the 2m/d and 3m/d series; no attempt has been made here to isolate the 1’m/d and 2’m/d series of epimers. The remaining N3 or N9 mono-methylated and the N3,N9-di-methylated agelastatins would be accessible only by total synthesis (Figure S1).

In a past experiment, the permethylated agelastatin A 2e, dissolved in chloroform and heated in the presence of A15 beads, yielded many products that could be separated by thin layer chromatography (TLC) on silica gel. Two minor products were tentatively identified as 4e and 5e, while one major product was characterised as 6e (Scheme 1). Compound 4e was supposed to be produced by loss of methanol and opening of the carbocycle; compound 5e would have to undergo further reductive debromination. In fact, 6e showed a new ring formed by the C4–C13 closure. Compounds 4e and 5e are devoid of stereogenic carbon, and, actually, 6e has measured zero rotatory power, being a racemic mixture. Movassaghi reported similar cyclisation when treating pre-agelastatin D 7a with methansulphonic acid (MsOH) in water to give 6a [7,13]. He suggested a protodebromination reaction and did not delve into the study of reaction mechanisms.

These transformations look quite interesting and are worth studying in terms of solvent, temperature, type and mole ratio of an acid catalyst. Furthermore, the present study aims to investigate how the electron-donating group methyl at the nitrogen positions N1, N3 and/or N9 affects the reactivity of agelastatin A.

2. Results and Discussion

2.1. Reaction Conditions and Products

The permethylated agelastatin A 2e (~5 mg) was stirred under reflux with 2–3 equivalents of MsOH in CHCl₃, CH₂Cl₂, CH₂ClCH₂Cl (12 h) and acetone (48 h). Chlorinated solvents exert only Van der Waals forces and give the best results. Yields of 6e seem to be affected by the boiling temperature so that it is 50% in CH₂Cl₂ and 100% in CHCl_3, while some unidentified decomposition products appear in DCE. After refluxing 2e in acetone for 48 h and neutralisation, the reaction mixture contains 1e/3e/6e~4:2:1. Reflux is not necessary, but 6e achieved approximately 90% yield after 6 days at room temperature. In addition to MsOH, pTsOH and dry HCl and HBr (obtained by in situ hydrolysis of AcCl and PrCOBr) also partially catalysed the conversion of 2e into 6e. Trifluoroacetic acid cleanly produced the 3e olefin. Without strong acid, no reaction takes place. MsOH turned out to be the preferred catalyst.

Very interesting were the results on the stoichiometric addition of MsOH. Compound 6e is formed quantitatively by the addition of at least one acid equivalent. The addition of 0.1 equivalent of MsOH gives mainly 3e, which slowly adds water and\or methanol. The addition of 0.5 equivalent of MsOH gave a mixture of 1e/3e/4e/6e/5e~40:40:10:8:2, which, after two weeks, was shown to contain only 1e and 6e to the proton spectrum.

Evidence suggested that the reaction should be run with less than one acid equivalent for a short time and then with rapid separation to capture a small amount of 4e and 5e. An experiment was carried out on 2e in larger quantities, and the solution refluxed for 15’. After neutralisation, the crude product was subjected to flash chromatography (FC) on SiO₂ eluting with a gradient of 2-propanol (iPrOH) in acetone. Final fractions contained 3e/4e/5e~3:3:1. After one week, the NMR tube showed compounds 1e/3e/4e/5e~1.5:1.5:3:1, and after one-month compounds 1e/6e~3:4. Therefore, several experiments have shown that the 3e olefin easily adds methanol (or water) to the double bond to give 1e while 4e and 5e decompose or transform into 6e.

The procedure described above was repeated: FC supplied the largely unreacted 2e, small amounts of 6e and 3e and traces of 1’e in the central fractions. The final fractions contained 3e/5e/4e~4:2.5:1 and were separated by HPLC. Three major peaks were collected at the retention time (t_R) 9’ (3e + 1’e), 15’ (4e) and 19’ (5e). Each compound weighed less than 1 mg. Compound 4e was highly reactive, probably due to the unfavourable conformation and the onset of steric strain between the C13 bromine and C6 methylene following the formation of the C7=C8 double bond [7]. In fact, 4e undergoes a protodebromination, providing the compound 5e, which easily rearranges to give 6e. For the above reasons, the accumulation of compounds 4e and 5e proved prohibitive and hampered the complete acquisition of spectroscopic data for 4e. However, an LC-MS study of four reactions and comparison of retention times, proton NMR, DAD-UV and low-resolution MS spectra (

Table 1. Comparison of four reactions according to chromatographic and spectroscopic results. Full comments are given in the Supplementary (Figure S6a).

Reaction	Conditions	Compounds by 1H-NMR	Compound, tR and Possible [M + H]+ (m/z) by LC-DAD-MS Experiments. Style by UV Bands.
-	Mix of known compounds	6e 1 1d 1m 1e 2m 2e	6e/14.5 1/15.9 1d/17.6 1m/19.1 1e/21.3 2m/25.5 2e/29.2
R6	2e + 0.1eq.MsOH, CHCl3, 70°, 24 h	4e (2%) 3e (90%) 2e (10%)	2’e/19.9	4e/24.2	3e/25.9	2e/28.6
R7	2e + 0.5eq.MsOH, CHCl3, 70°, 24 h	3e~1e 40% 4e 10% 6e 8% 5e (2%)	1’e/13.6 (369–371)  1e/20.3 (369–371)	6e/14.1 (273)  4e/23.9 (351–353)	5e/14.4 (273)  3e/25.7 (351–353)	2’e/19.5 (383–385) 2e/28.4 (383–385)
R8	2e + 1.1eq.MsOD, CDCl3, 70°, 1.5 h	6e (70%), 5e (30%)		6e/14.1 (273)	5e/14.3 (273)
R9	2e + 0.8eq.MsOH, CHCl3, 70°, 1.2 h	(First aliquot after 15’)		6e/14.1 4e/23.9	5e/14.3 3e/25.7	2e/28.3
		6e (95%), 5e (5%)		6e/14.1 (273)	5e/14.3 (273)

) strongly support the proposed structure for 4e (Figure S6m).

Despite having very close t_R, similar UVs and the same MW, it is possible to distinguish 6e from 5e with certainty from their fragmentation spectra MS² (Figure S8f,h).

2.2. Reaction Mechanism

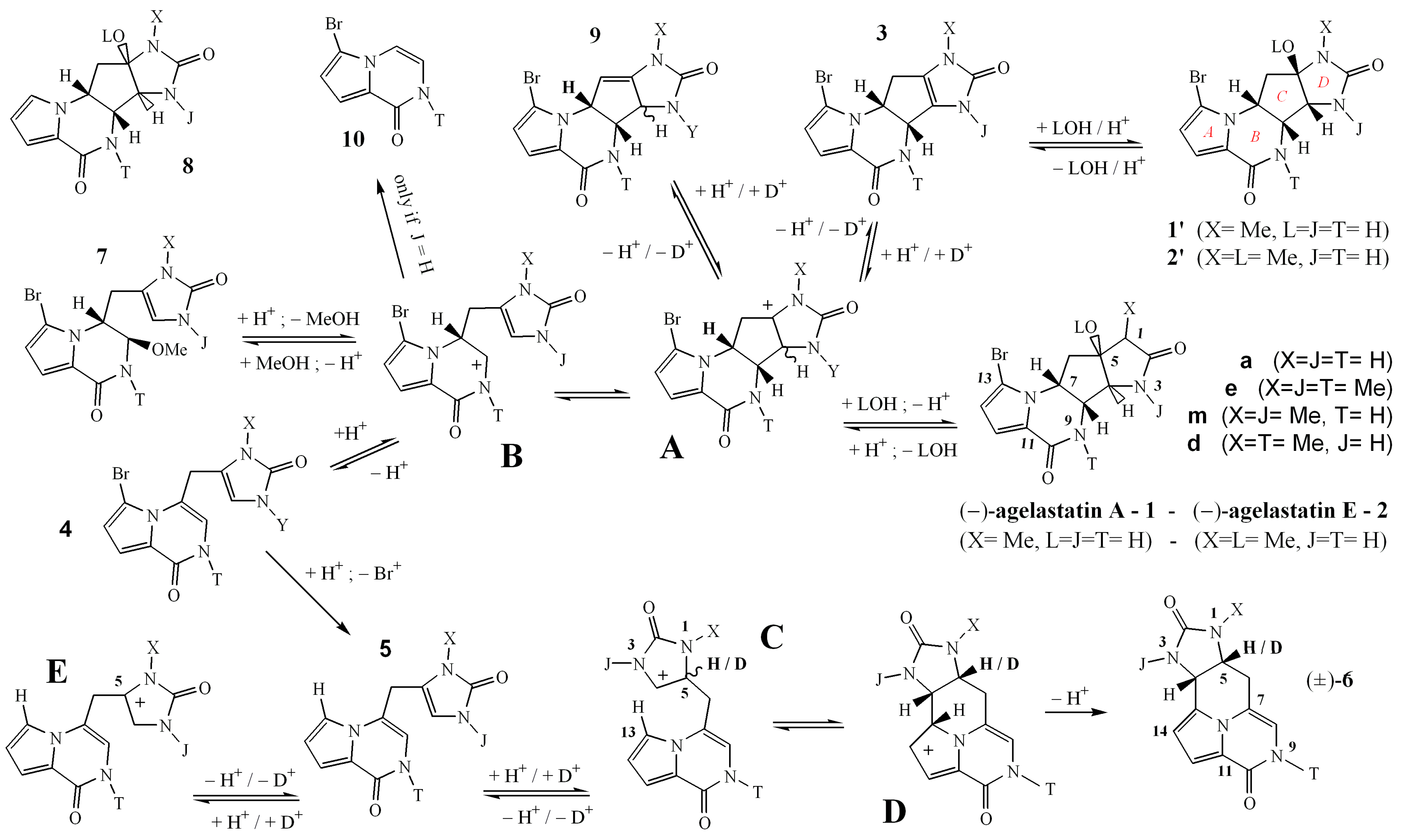

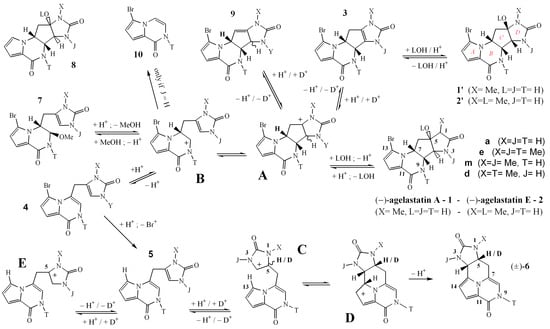

The results shown so far suggest that the isolated compounds rearrange as depicted in Scheme 1. Compounds 1, 2, 3, 1’ and 2’ interconvert with each other via the common intermediate carbocation A. This equilibrium favours the natural cis-transoid-cis ring junction. In fact, pure 2’e spontaneously gives rise to a mixture of 2’e/3e/(1e + 2e)~1.5:1.5:(4).

However, the carbocation intermediate A can also break the C4–C8 bond to give B and allow compound 4e to be obtained by the elimination of H7. The isolation of 4e and 5e suggests that the 6e formation occurs via two distinct reactions: the initial protodebromination (4e → 5e) is followed by C4–C13 cyclisation (5e → 6e). Two further experimental data (Exp 1 and 2) support that the rearrangement occurs in two distinct reactions, while two mechanistic considerations (Mec 1 and 2) invalidate the hypothesis of a single reactive event:

Exp 1. It is not necessary for the bromine to be bound to C13 because a pure sample of 5e converts to 6e with acid catalysis (Section 2.3).

Exp 2. Sodium hydride reduces 2e by nucleophilic attack at C13 and removal of the bromide, thus forming 8e. A pure sample of this derivative, dissolved in CHCl₃ and spiked with catalytic MsOH, produced 6e.

Mec 1. Since C4 is nucleophilic in compounds 4e and 5e, it could bind to the electron-poor C13 because it is delta to the C10 carbonyl. Subsequent detachment of the bromide anion from C13 would create a C5 carbocation, which requires a hydride ion to give rise to the neutral product 6e. This description of rearrangement through a single reaction event is not very convincing, given the acidic environment of the reaction.

Mec 2. Furthermore, the voluminous bromine atom can cause a steric hindrance towards both the nucleophilic or electrophilic attack of C4.

In conclusion, the most plausible mechanism of 6e formation appears to consist of two consecutive electrophilic aromatic substitution reactions. Building on Horne’s work [24], numerous experiments were performed to obtain clues about the mechanism of protodebromination and the fate of the bromonium ion. Unfortunately, no useful result was obtained. Certainly, some oxidative degradation products of 1 are formed whose structure has not been elucidated. Among the halogens, bromine appears to have unique chemical properties that make electrophilic aromatic bromination reversible [25], similar to sulfonation. Elucidating bromination conditions requires dedicated study, selection of substrates and use of the proper equipment.

2.3. Deuterium Incorporation: MS and ¹³C-NMR Studies

Since C4–C13 annulation begins with protonation at C5, it has been useful to perform the reaction with deuterated methanesulfonic acid (MsOD). Two experiments with MsOD catalysis were performed on the 2e and 5e substrates. The first reaction gave, after TLC, two bands corresponding to deuterated 5e (2e) and 6e (2e). The second reaction produced deuterated 6e (5e).

The ESI-(+)-MS spectra of the three products always showed an ion cluster whose lowest value, at m/z 273, corresponded to the [M + H]⁺ ion with a molecular formula containing only protons. The other ions in the cluster had m/z values increasing by one unit, each corresponding to the introduction of one or more deuterium atoms in the molecular formula. The molecular ions in each cluster were five for 6e (2e), four for 5e (2e) and three for 6e (5e). Subsequently, each ion in the cluster was isolated in the MS trap and subjected to fragmentation. The fragmentation pattern observed on the [M + H]⁺ of 6e (2e) is depicted in Figure 1.

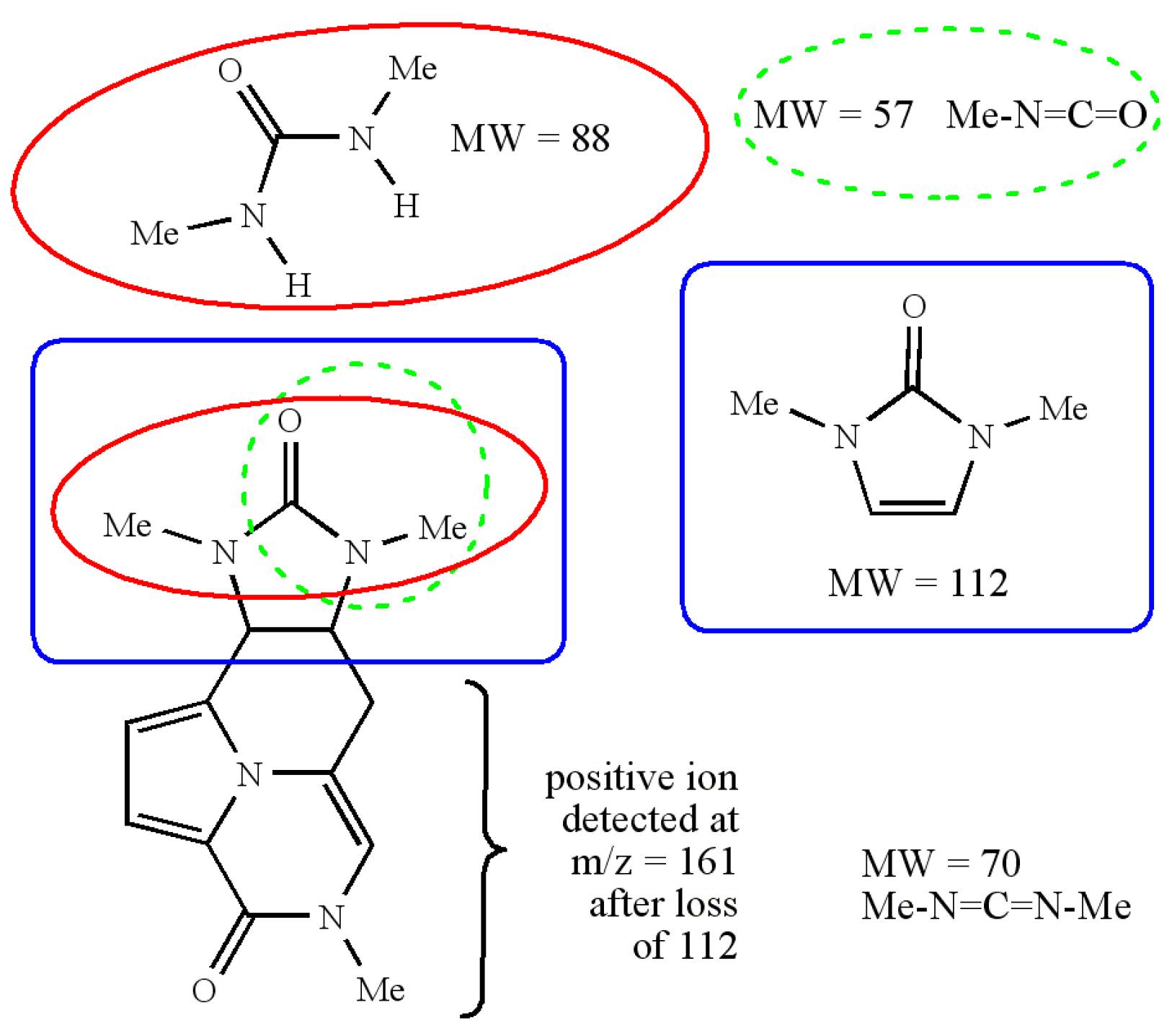

The fragment ion at m/z 161 stands out as a diagnostic ion in that it corresponds to the pyrrolopyrazinone moiety after loss of the neutral imidazolone moiety (112 Dalton). In fact, this fragmentation allows for discrimination of the deuterium incorporated at C13, C14, C15, and C6 (pyrazinone ion) from those at C4 and C5 (neutral imidazolone loss). The H/D substitution on the pyrrole ring can occur at any time and on all compounds in Scheme 1. Incorporation at C6 can be explained by assuming an equilibrium A ⇆ 9. Deuterium atoms can enter C4 due to the equilibria 3 ⇆ A ⇆ 1’ or even 5 ⇆ E. However, incorporation at C5 can only occur by the equilibrium 5 ⇆ C, which gives the final product 6. A thorough evaluation of the MS² data is explained in the Supplementary part. The complete data are reported in Figure S8i, and their in-depth evaluation is explained in Figure S8j. Consequently, the deuterated imidazolone in 6e (2e), 5e (2e) and 6e (5e) amounts to 48.3%, 15.4% and 21.5%, respectively. Partial incorporation of deuterium is likely due to residual moisture in the reaction flask. The residual moisture was greater when the MsOD-catalysed reaction was performed on the 5e substrate than on 2e. However, the 33% percentage difference (48 minus 15) is due to the addition of D to C5. This supports the proposed mechanism, consisting of two consecutive electrophilic aromatic substitution reactions.

Simultaneous examination of the DEPT-135 and ¹³C-NMR spectra of 6e (2e) showed a good signal-to-noise ratio for the three methyls and the mono-substituted olefinic carbons C8 and C15 as well as for the two carbonyls C2 and C10. A poor signal-to-noise ratio appeared for the C4 doublet and C6 triplet, while the C7, C11 and C13 singlet olefin carbons barely emerged from the baseline due to their long relaxation time (and perhaps also their quadrupolar coupling with N12). Interestingly, the C5 and C14 hydrogen-bonded carbon signals exhibited a broadening and multiplicity that can only be attributed to coupling with deuterium instead of protium. These data point out that the ²H isotope is mainly located in the C14 position of the pyrazinone ion and C5 of the imidazolone neutral loss, which confirms the above reasoning regarding the 33% difference.

2.4. N-Alkylations and Reaction Products

The carbocation B is a common intermediate obtainable from both alkylated agelastatin A and pre-agelastatin. Indeed, Movassaghi had previously reported the formation of 6a (20% yield) starting from pre-agelastatin D 7a together with 1a (26%), 2’a (9%) and 10a (20%) [7]. However, starting from pre-agelastatin A 7, he obtained only 1 (49%) and 2’ (22%). We wondered whether the electron donor property of methyl groups could selectively drive the C–C4 or C4–C13 cyclisation (after protodebromination).

Two minor products of the methylation reaction of agelastatin A were 1m, 2m, 1d and 2d. A chromatographic separation yielded 1d and 1m pure samples. However, to address the shortage of 1d and 1m, the reactions were performed in the NMR tube, and the transformation was followed spectroscopically.

A sample of 2e was used to refine the reaction conditions: it was dissolved in CDCl_3, and MsOH was added in portion until the signals of alkaloid methyls and acid methyl were integrated roughly equal. The NMR tube was warmed at 62 °C for 1 h to observe that all 2e had transformed into 6e. No clear signal emerged that could be attributed to 3e, 4e and 5e. The NMR signals showed a downfield shift when in an acidic solution but moved to the usual shift after neutralisation with basic beads of Amberlyst^® 21 (A21). The experiment was repeated twice and gave the same results.

A sample of 1m was treated similarly: after two hours of heating, most of the 1m had turned into 3m. The sample was allowed to cool at r.t., observing that it again contained 1m. Repeated heating and cooling changed the head between 3m and 1m, respectively. The experiment was repeated twice and gave the same results.

A sample of 1d was treated in a similar way: the NMR tube was heated at 65 °C for 30’ to observe that all 1d had turned into 3d. The heating was continued for 2 h, during which the signals for 3d slowly decreased. After neutralisation with beads of A21, a set of signals prevailed that is definitely attributable to 5d. Minor sets of signals could not be identified. The experiment was repeated twice with 1d and once with 2d, always giving the same results.

All products were analysed by ESI-(+)-MS spectrometry, and the acquired data confirmed the ¹H-NMR identification. An LC-MS study revealed that 6d formed in traces starting from 2d, as evidenced by their different t_R and MS² fragmentation of identical [M + H]⁺ at m/z 273.

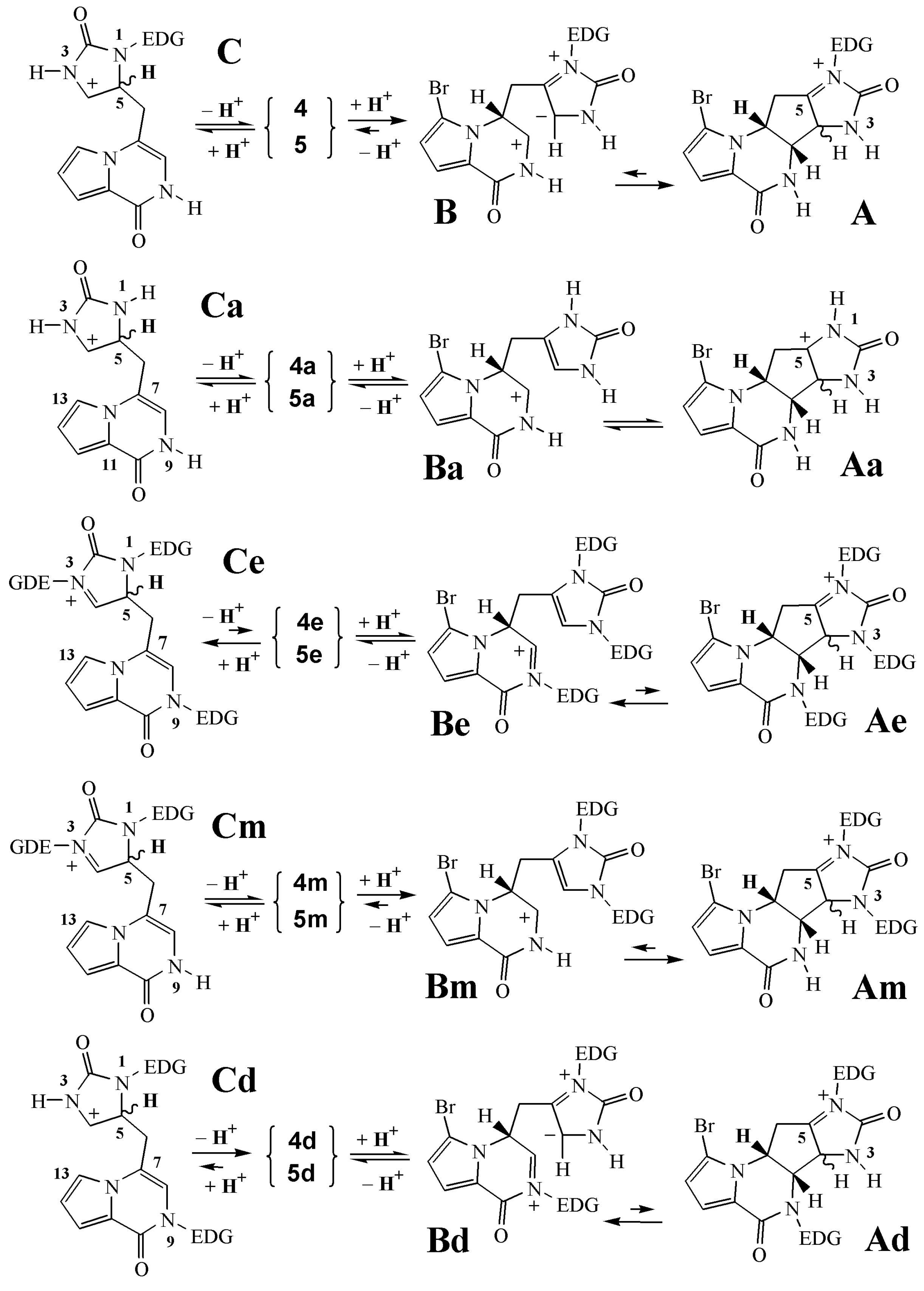

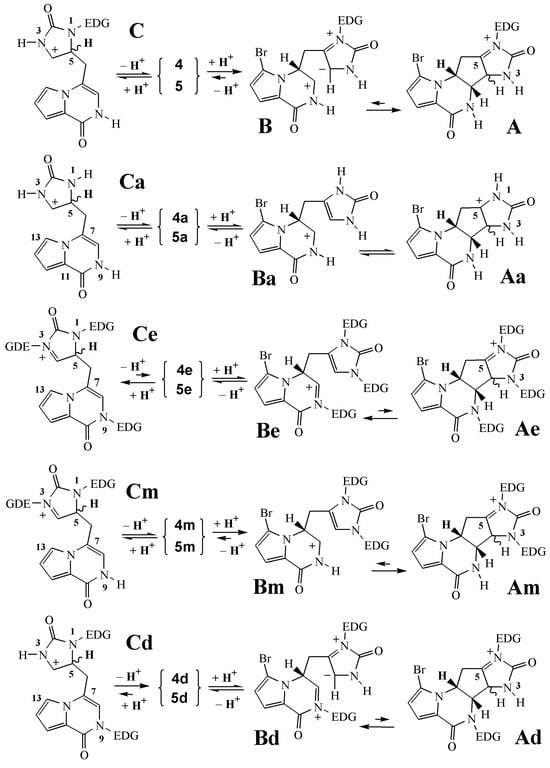

These results can be rationalised in a simple way. N-acyliminium ions (NAI) are formed by fragmentation of an ether emiaminal amid via an alcohol leaving group or by protonation of a N-acyl enamide (NAE) at the β-nitrogen olefin carbon [26]. Both methods require a strong acid medium. The first method provides NAI intermediates A (from 1/2 or 1’/2’) and B (from 7). Unusually, if B comes from A, the leaving group is an electron-rich carbon atom instead of the usual alcohol. The second method gives rise to NAI intermediates C (from 5) or A (from 3 or 9). The second method exploits the basic behaviour of an NAE that can be protonated at the β-nitrogen olefin carbon.

In general, an electron-donating group (e.g., methyl) stabilises a positive charge. Therefore, N-alkylated NAIs are more stable than hydrogenated ones. An N-alkylated NAI forms more easily, as effectively as the leaving group, and is less electrophilic than a hydrogenated one [27]. However, it must be kept in mind that NAEs also behave as nucleophiles. The above theoretical statements are applied to the known experimental examples below (Figure 2).

Pre-agelastatin A 7 gives rise to iminium ion B, which has a high internal energy and is highly electrophilic. The C4 position is the most nucleophilic, among other things, because the electron donor methyl is bonded to N1 instead of N3. Consequently, the C8–C4 cyclisation takes place rapidly, in high yields (1 + 2’ = 71%) [13] and without minor by-products. The back opening of the carbocycle is not favoured because it involves the transition from the N-alkylated NAI ion A to the hydrogenated NAI ion B.

Pre-agelastatin D 7a forms the corresponding iminium ion Ba. However, here, C4 is poorly nucleophilic, and the C8–C4 cyclisation occurs slowly so that the H7 elimination process becomes competitive. This elimination should form 4a and open the way to 6a. Furthermore, the breaking of the C7–C6 bond is competitive with the protodebromination reaction, thus producing 10a.

The permethylated agelastatin A 2e readily loses methanol to form the iminium ion Ae, which can generate equilibria leading to compounds 3e and 2’e. Alternatively, rearrangement to the iminium ion Be may also occur. In fact, its formation would be thermodynamically favoured by the release of the pentacarbon ring strain and, specifically, by the generation of a more stable, low internal energy, iminium ion Be, which is alkylated at the N9 position. The back reclosure from Be to Ae could also be slowed down by the homogeneous distribution of electrons in the C4=C5 double bond induced by alkylation at both N1 and N3 nitrogen atoms.

A similar reasoning to that of pre-agelastatin A applies to derivative 1m. In fact, the equilibrium between the intermediate ions, Bm and Am, is largely shifted toward Am because the NAI Bm lacks the electron donating methyl at N9. As a result, with 1m, the N1 alkylated NAI Am does not undergo any breakage of the C4-C8 bond.

A similar reasoning to that of 2e holds for the derivative 1d. In fact, the iminium ion Bd can be formed thanks to its stabilisation by methyl at N9. After H7 elimination and protodebromination, compound 5d is mainly obtained. In essence, the iminium ion Cd is not formed because the electron donor methyl at N3 is missing. Consequently, the reaction process stops at compound 5d, providing only traces of the 6d analogue.

3. Materials and Methods

3.1. Chemicals and Instrumentation

Analytical grade solvents were used for extraction procedures and reactions. Reactions were carried out under N₂, the glassware was heat-dried, and THF was distilled from Na/benzophenone prior to use when dry conditions were required. Commercially available chemicals were usually used without further purification. Yields are given on reacted substrates; however, no attempt at yield optimisation was made. For flash chromatography, commercial silica gel VWR Normasil 60 (40–63 μm) and Merck RP-18 LiChroprep^® (40–63 μm) were used. Precoated silica gel plates (Merck Kieselgel 60 PF254) were used for analytical TLC. Preparative HPLC: Merck Hitachi system equipped with an L7100 pump, an L7400 UV detector, a D7500 integrator and a Rheodyne manual injector. Analytical HPLC: Agilent 1100 series LC system consisting of a binary pump, a vacuum degasser, an autosampler with a standard analytical head (100 μL), a column thermostat and a 1200 series diode array detector (DAD). The column oven temperature was fixed at 25 °C; the flow rate was 1.0 mL/min, and the injection volume was 10 μL; the DAD was set at 220, 254 and 289 nm. The following HPLC columns were used: (i) Kinetex^® C18 (150 × 10 mm, 5 μm, 100 Å, Phenomenex, Torrance, CA, USA); (ii) Kinetex^® C18 (250 × 4.6 mm, 5 μm, 100 Å, Phenomenex, Torrance, CA, USA); (iii) Luna SiO₂ (150 × 3 mm, 3 μm, 100 Å, Phenomenex, Torrance, CA, USA). UV: Perkin-Elmer Lambda3 (λ_max in nm, ε in mol⁻¹ l cm⁻¹). NMR: Varian XL-300 (¹H at 299.94 MHz, ¹³C at 75.4 MHz) or Bruker Avance 400 (¹H at 400 MHz, ¹³C at 100 MHz), 5 mm probe. Chemical shifts are reported in ppm (δ) using residual solvent signals as internal standard (CDCl₃: δ_H = 7.26, δ_C = 77.0; CD₃OD: δ_H = 3.31, δ_C = 49.0). Coupling constants (J) are in Hz, multiplicities and peak assignments from DEPT, ¹H,¹H-COSY, ¹J_CH-and ⁿJ_CH-heterocorrelations, ¹J_CH (HSQC), ⁿJ_CH (HMBC) and NOESY experiments. High-resolution mass spectra: Kratos MS80 spectrometer with home-built acquisition data system; electron impact ionisation at 70 eV; LTQ-Orbitrap hybrid mass spectrometer (Thermo Fisher Scientific, Bremen, Germany) fitted with an electrospray source (ESI) operating in positive ionisation mode. LC-MS analyses: Agilent 1100 series LC system interfaced to a Bruker model Esquire multiple ion trap mass spectrometer equipped with an atmospheric pressure interface electrospray (API-ES) chamber.

3.2. Reaction Conditions and Products

3.2.1. Rel-(6aR,9aR)-4,7,9-trimethyl-4,6,6a,7,9,9a-hexahydroimidazo [4,5-g]pyrazino [2,1,6-cd]indolizine-3,8-dione (6e)

General procedure for preparing 6e: A solution of 2e (~5 mg, 13 μmol) in 5 mL of the selected solvent and 1–3 equivalents of acid catalyst was refluxed for 12–48 h. The mixture was then neutralised by the addition of A21 or Na₂CO₃, filtered, dried and the crude product dissolved in a deuterated solvent. Proton NMR spectra allowed the identification of reaction products and their relative conversion rate.

Data: 6e: ¹H NMR (300 MHz, CDCl₃) δ 7.11 (d, J = 4.0, H-15), 6.61 (dd, J = 4.0, 0.5, H-14), 6.28 (dd, J = 1.8, 0.8, H-8), 4.56 (br.d, J = 6.8, H-4), 3.80 (ddd, J = 9.5, 6.8, 4.9, H-5), 3.45 (s, CH₃-9), 3.06 (ddd, J = 15.2, 4.9, 0.8 Ha-6), 2.90 (s, CH₃-1), 2.86 (s, CH₃-3), 2.77 (dddd, J = 15.2, 9.5, 1.8, 0.6, Hb-6). ¹³C NMR (75 MHz, CDCl₃) δ 160.5 (C-2), 155.8 (C-10), 122.8 * (C-13), 121.4 * (C-11), 115.3 (C-8), 113.1 (C-14), 112.4 (C-7), 110.1 (C-15), 52.4 (C-4), 51.8 (C-5), 35.0 (CH₃-N9), 29.5 (CH₃-N3), 28.7 (CH₃-N1), 24.3 (C-6); UV (EtOH) λ_max 233 (19500ε), λ_max 280 (5500ε); HRMS (ESI): Calcd for C₁₄H₁₇N₄O₂ [M + H]⁺ 273,13460, found: 273.13449; Calcd for C₁₄H₁₇N₄O₂ [M + H]⁺ 273,13460, found: 273.13622; Calcd for C₁₄H₁₆N₄O₂Na [M + Na]⁺ 295,11655, found: 295.11798. HRMS (EI): Calcd for C₁₄H₁₆N₄O₂ [M⁺] 272.12732, found: 272.12708.

General procedure for the preparation of 3e, 4e, and 5e. In a dry flask, a solution of 2e (44 mg, 0.115 mmol) in 8 mL of CHCl₃ and 1 equivalent of MsOH was refluxed for 15 min. The mixture was then neutralised over sodium carbonate. The solvent was evaporated to dryness, and the residue was purified by FC on silica gel. The eluent Me₂CO/i-PrOH 80:20 gave the products 2e > 6e > 3e > 1’e; the eluent Me₂CO/i-PrOH 60:40 gave the products 3e > 5e > 4e. The latter fraction was separated by HPLC over the SiO₂ column, eluting with hexane/ethanol 70:30 and collecting the peaks of (3e + 1’e) at t_R = 8.9, 4e at t_R = 15.0 and 5e at t_R = 18.7.

3.2.2. (5aR,9aR)-1-Bromo-5,6,8-trimethyl-5,5a,6,8,9,9a-hexahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (3e)

Data for 3e: ¹H NMR (400 MHz, CDCl₃) δ 6.94 (d, J = 4.0, H-15), 6.32 (d, J = 4.0, H-14), 5.12 (m, H-7), 4.95 (dd, J = 6.2, 1.2, H-8), 3.37 (s, CH₃-9), 3.30 (dd, J = 14.3, 7.1 Ha-6), 3.25 (s, CH₃-1), 3.05 (s, CH₃-3), 2.72 (ddd, J = 14.3, 7.3, 1.2, Hb-6). ¹³C NMR (75 MHz, CDCl₃) δ 156.0 (C-10), 154.6 (C-2), 125.3 (C-5), 123.3 (C-11), 120.0 (C-4), 114.8 (C-15), 113.2 (C-14), 57.4 (C-8), 56.5 (C-7), 31.0 (C-6), 30.2 (CH₃-N9), 30.0 (CH₃-N1), 29.1 (CH₃-N3); See also [2].

3.2.3. 6-Bromo-4-[(2,3-dihydro-1,3-dimethyl-2-oxo-1H-imidazol-4-yl)methyl]-2-methylpyrrolo [1,2-a]pyrazin-1(2H)-one (4e)

Data for 4e: ¹H NMR (400 MHz, CDCl₃) δ 7.18 (d, J = 4.2, H-15), 6.59 (d, J = 4.2, H-14), 6.00 (br.s, H-8), 5.87 (br.s, H-4), 4.19 (br.s, 2H-6), 3.40 (s, CH₃-9), 3.25 (s, CH₃-3), 3.24 (s, CH₃-1).

3.2.4. 4-[(2,3-Dihydro-1,3-dimethyl-2-oxo-1H-imidazol-4-yl)methyl]-2-methylpyrrolo [1,2-a]pyrazin-1(2H)-one (5e)

Data for 5e: ¹H NMR (400 MHz, CDCl₃) δ 7.20 (dd, J = 4.0, 1.4, H-15), 7.10 (dd, J = 2.7, 1.4, H-13), 6.63 (dd, J = 4.0, 2.7, H-14), 6.05 (br.s, H-4 and H-8), 3.73 (br.s, 2H-6), 3.43 (s, CH₃-9), 3.26 (s, CH₃-3), 3.22 (s, CH₃-1). ¹³C NMR (100 MHz, CDCl₃) δ 155.9 (C-10), 153.9 (C-2), 124.6 (C-11), 116.7 (C-8), 116.2 (C-5), 115.5 (C-13), 115.1 (C-7), 113.0 (C-14), 110.9 (C-15), 110.0 (C-4), 34.9 (CH₃-N9), 30.4 (CH₃-N3), 27.7 (CH₃-N1), 24.3 (C-6); HRMS (ESI+): Calcd for C₁₄H₁₆N₄O₂Na [M + Na]⁺ 295,11655, found: 295.11672.

3.3. Reaction Mechanism

Isolation of 2’e: A mixture of reaction by-products was subjected to preparative HPLC over the C18 column, the eluents were CH₃CN (A) and H₂O (B), and A was applied in the gradient of 10% at t = 0, 25% at t = 30, 55% at t = 32 min, 55% at t = 35 min, 4.0 mL/min, λ = 289 nm; collecting peaks of 2’e at t_R = 8.3, 3e at t_R = 11.4 and 2e at t_R = 13.4. Full spectroscopic data of 2’e have been previously reported [2].

Preparation of 6e from 8e: A pure sample of 8e, in 0.8 mL of CDCl₃/CD₃OD 95:5 and about one equivalent of MsOH, was refluxed for 4 h. The solvent was evaporated under vacuum, and the residue was dissolved in CDCl₃ and heated under reflux for 3 h. Finally, the mixture was neutralised with A21, evaporated to dryness and dissolved in CDCl₃. Its proton spectrum showed signals consistent with 6e. A cluster of deuterated peaks was observed by the LC-MS experiment, thus confirming the NMR result (Figure S7e).

3.4. Deuterium Incorporation

Preparation of 6e (2e) and 5e (2e) with methanesulfonic acid-d₄: In a dry flask, a solution of 2e (~14 mg, 36 μmol) in 7 mL of CDCl₃ and approximately one equivalent of CD₃SO₃D, was heated at 60 °C for 90 min. The mixture was then neutralised over Na₂CO₃ and purified by TLC (CH₂Cl₂/iPrOH 9:1) to yield 6e (t_R = 0.47, 2.7 mg, 27.8%) and 5e (t_R = 0.23, 1.3 mg, 13.3%). A cluster of deuterated peaks was observed by MS experiments (Figure S8m,n). HR-MS data are in Figure S8e–h.

Preparation of 6e (5e) with methanesulfonic acid-d₄: A solution of 5e, in 0.8 mL of CDCl₃ and roughly one equivalent of CD₃SO₃D, was warmed at 60 °C for 90 min. The mixture was neutralised with A21: its proton spectrum showed signals consistent with 6e. A cluster of deuterated peaks was observed by MS experiments (Figure S8k,l).

3.5. N-Alkylations and Reaction Products

Preparation of 1d and 1m: A sample containing semi-pure agelastatin A 1 (~100 mg, ~0.3 mmol) was dissolved in dry THF (20 mL), and NaHMDA (330 mg, 1.8 mmol) was added under N₂ atmosphere. The mixture was stirred for 30 min, and MeI (188 μL) was added. The reaction mixture was further stirred at r.t. for 1 h, and the solvent was evaporated. The residue was purified by FC over RP18, starting from MeOH/H₂O 10:90 and applying a gradient of MeOH. Fractions eluted with (MeOH/H₂O 40:60) gave 2e, while those eluted with (MeOH/H₂O 80:20) afforded a mixture of methylated derivatives. The crude products were dissolved in Me₂CO/H₂O 50:50 and stirred at r.t. for 48 h in the presence of A15. The residue was purified by HPLC over the C18 column to obtain 1 (t_R = 24.8, 2.5 mg), 1d (t_R = 25.7, 3.5 mg), 1m (t_R = 27.6, 18.5 mg) and 1e (t_R = 28.7, 2.3 mg). The eluents were CH₃OH (A) and H₂O/CH₃OH 95:5 (B), and A was applied in the gradient of 0% at t = 0, 40% at t = 40, 100% at t = 41 min, 100% at t = 45 min, 4.0 mL/min, λ = 254 nm.

3.5.1. (5aS,5bS,8aS,9aR)-1-Bromo-8a-hydroxy-5,8-dimethyl-5,5a,5b,6,8,8a,9,9a-octahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (1d)

Data for 1d: ¹H NMR (400 MHz, CDCl₃) δ 6.95 (d, J = 4.0, H-15), 6.29 (d, J = 4.0, H-14), 4.65 (m, H-7), 4.24 (br.s, H-4), 3.93 (d, J = 6.0, H-8), 3.15 (s, CH₃-9), 2.83 (s, CH₃-1), 2.60 (dd, J = 13.5, 6.4, Ha-6), 2.27 (dd, J = 13.5, 11.9, Hb-6); ¹H NMR (400 MHz, CD₃OD) δ 6.88 (d, J = 4.0, H-15), 6.32 (d, J = 4.0, H-14), 4.70 (m, H-7), 4.16 (br.s, H-4), 4.01 (d, J = 6.1, H-8), 3.13 (s, CH₃-9), 2.80 (s, CH₃-1), 2.66 (dd, J = 13.1, 6.5, Ha-6), 2.09 (dd, J = 13.2, 12.0, Hb-6); ¹³C NMR (75 MHz, CDCl₃) δ 160.1 (C-10), 158.4 (C-2), 123.5 (C-11), 115.4 (C-15), 113.5 (C-14), 105.0 (C-13), 94.0 (C-5), 67.8 (C-8), 65.4 (C-4), 53.3 (C-7), 40.0 (C-6), 31.5 (CH₃-N9), 24.2 (CH₃-N1); HRMS (ESI+): Calcd for C₁₃H₁₅BrN₄O₃Na [M + Na]⁺ 377.02197, found: 377.02225.

3.5.2. (5aS,5bS,8aS,9aR)-1-Bromo-8a-hydroxy-6,8-dimethyl-5,5a,5b,6,8,8a,9,9a-octahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (1m)

Data for 1m: ¹H NMR (400 MHz, CD₃OD) δ 6.91 (d, J = 4.1, H-15), 6.32 (d, J = 4.1, H-14), 4.55 (m, H-7), 4.28 (d, J = 5.7, H-8), 3.79 (s, H-4), 2.91 (s, CH₃-3), 2.82 (s, CH₃-1), 2.66 (dd, J = 13.0, 6.4, Ha-6), 2.11 (dd, J = 13.0, 12.2, Hb-6); ¹³C NMR (100 MHz, CD₃OD) δ 159.7 (C-10), 158.8 (C-2), 122.7 (C-11), 114.7 (C-15), 112.4 (C-14), 106.0 (C-13), 91.8 (C-5), 71.9 (C-4), 57.2 (C-8), 52.9 (C-7), 38.8 (C-6) 28.6 (CH₃-N3), 23.4 (CH₃-N1); HRMS (ESI+): Calcd for C₁₃H₁₅BrN₄O₃Na [M + Na]⁺ 377,02197, found: 377.02252.

3.5.3. (5aS,5bS,8aS,9aR)-1-Bromo-8a-methoxy-5,8-dimethyl-5,5a,5b,6,8,8a,9,9a-octahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (2d)

Preparation of 2d. A small sample of 1d was dissolved in MeOH and stirred at r.t. for 48 h in the presence of A15 to give the corresponding 2d.

Data for 2d: ¹H NMR (300 MHz, CDCl₃) δ 6.95 (d, J = 4.1, H-15), 6.28 (d, J = 4.1, H-14), 4.64 (m, H-7), 4.24 (br.s, H-4), 3.93 (br.d, J = 5.5, H-8), 3.18 (CH₃O-5), 3.14 (s, CH₃-9), 2.82 (s, CH₃-1), 2.60 (dd, J = 13.0, 6.5, Ha-6), 2.25 (dd, J = 13.0, 12.0, Hb-6); (75 MHz, CDCl₃) δ 159.5 (C-10), 158.1 (C-2), 123.2 (C-11), 115.3 (C-15), 113.2 (C-14), 104.6 (C-13), 97.7 (C-5), 67.5 (C-8), 58.5 (C-4), 52.2 (C-7), 50.4 (CH₃O-5), 39.1 (C-6), 31.2 (CH₃-N9), 24.4 (CH₃-N1).

3.5.4. (5aS,5bS,8aS,9aR)-1-Bromo-8a-methoxy-6,8-dimethyl-5,5a,5b,6,8,8a,9,9a-octahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (2m)

Preparation of 2m: A small sample of 1m was dissolved in MeOH and stirred at r.t. for 48 h in the presence of A15 to give the corresponding 2m.

Data for 2m: ¹H NMR (400 MHz, CD₃OD) δ 6.92 (d, J = 4.1, H-15), 6.33 (d, J = 4.1, H-14), 4.59 (m, H-7), 4.31 (d, J = 5.6, H-8), 3.94 (s, H-4), 3.12 (CH₃O-5), 2.91 (s, CH₃-3), 2.80 (s, CH₃-1), 2.68 (dd, J = 13.2, 6.5, Ha-6), 2.16 (dd, J = 13.2, 12.1, Hb-6).

The general procedure applied to reactions followed by NMR spectroscopy and identification of 3m, 3d, and 5d: A sample (~2–4 mg) of the appropriate substrate (2e, 1m or 1d) was poured into an NMR tube, dried and dissolved in CDCl₃. Then, MsOH was added in portion until the signals of alkaloid methyls and acid methyl integrated roughly equal. The solution was warmed at 60–65 °C for several hours, and proton spectra were acquired every hour. Finally, the mixture was neutralised by adding a few beads of A21. NMR signals showed a downfield shift when in an acidic solution but moved to the usual shift after neutralisation. Each experiment was repeated 2–3 times to confirm the observed results.

3.5.5. (5aR,9aR)-1-Bromo-6,8-dimethyl-5,5a,6,8,9,9a-hexahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (3m)

Data for 3m: ¹H NMR (400 MHz, CDCl₃) δ 7.18 (d, J = 4.3, H-15), 6.51 (d, J = 4.3, H-14), 5.37 (m, H-7), 5.29 (br.d, J = 6.9, H-8), 3.51 (dd, J = 14.3, 7.2 Ha-6), 3.50 (s, CH₃-9), 3.34 (s, CH₃-1), 2.74 (ddd, J = 14.3, 6.9, 1.5, Hb-6). (NB! Proton resonances may show a low field shift caused by MsOH).

3.5.6. (5aR,9aR)-1-Bromo-5,8-dimethyl-5,5a,6,8,9,9a-hexahydroimidazo [4’,5’:4,5]cyclopenta [1,2-e]pyrrolo [1,2-a]pyrazine-4,7-dione (3d)

Data for 3d: ¹H NMR (400 MHz, CDCl₃) δ 6.99 (d, J = 4.0, H-15), 6.36 (d, J = 4.0, H-14), 5.34 (m, H-7), 5.07 (dd, J = 7.0, 1.4, H-8), 3.49 (dd, J = 14.7, 7.4 Ha-6), 3.44 (s, CH₃-9), 3.08 (s, CH₃-1), 2.77 (ddd, J = 14.7, 6.9, 1.4, Hb-6). (NB! Proton resonances may show a low field shift caused by MsOH).

3.5.7. 4-[(2,3-Dihydro-3-methyl-2-oxo-1H-imidazol-4-yl)methyl]-2-methylpyrrolo [1,2-a]pyrazin-1(2H)-one (5d)

Data for 5d: ¹H NMR (400 MHz, CDCl₃) δ 7.20 (dd, J = 4.0, 1.5, H-15), 7.11 (dd, J = 2.7, 1.5, H-13), 6.63 (dd, J = 4.0, 2.7, H-14), 6.13 (dt, J = 2.3, 1.1, H-4), 6.09 (t, J = 1.1, H-8), 3.74 (dd, J = 1.1, 1.1, 2H-6), 3.43 (s, CH₃-9), 3.22 (s, CH₃-1). HRMS (ESI+): Calcd for C₁₃H₁₄N₄O₂Na [M + Na]⁺ 281.10090, found: 281.10108.

4. Conclusions

The present results suggest that a locally acidic environment at the site of agelastatin A accommodation can induce two processes: (1) the release of an oxidant bromonium ion and (2) the structural modification of 1 through C4–C8 bond cleavage. Notably, the second hypothesis does not conflict with previous SAR studies [2,13,14,15,16,17,18,19]. In agelastatin D, the C8 (B) and the C5 (A) carbocations are equally stable; in 1, the ion A is better stabilised than the B ion. The C4–C8 bond breaks more easily if the C8 carbocation (B) is more stable than the C5 carbocation (A). For the C4–C8 bond to break, some electron donor to N9 must be present at the agelastatin A accommodation site. A methyl bonded to the N9 nitrogen makes it possible to break the bond before 1 reaches the binding pocket; thus, the alkylation of N9 leads to a complete loss of activity. The positive charge on C8 can also be stabilised by weakening the resonance structure of the N9–C10 amide bond. That is, the C10 carbonyl is predominantly conjugated to pyrrole. In that case, the C10–N9 amide bond would assume the stereochemistry of a twisted amide, and the N9 lone pair would be fully available to compensate for the positive charge on C8: it will actually be an iminium ion instead of acyliminium. Computational calculations could refute or confirm this resonance effect, particularly when an electron-withdrawing substituent is positioned at C13. The structural modification of 1 could be responsible for the irreversible conformational changes of the host enzyme [20]. To date, several synthetic routes have been established to obtain the total synthesis of agelastatin A and its derivatives; none chose C2 as a suitable modification site to prepare analogues with enhanced biological activity.

The chemical structure of agelastatin A is revealed as a precarious scaffolding that stands on the delicate balance of electronic distribution. Let us imagine that agelastatin A behaves like a mine. Its molecular attachment to the host protein binding site could trigger a cascade of reactions that will ultimately prove fatal to the cell. Its mode of action closely resembles that of calicheamicin γ₁^I [28].

In the author’s experience, sarcodictyins [29] and parthenolide [30,31] also behave like agelastatin A: (i) on hydrolysis of urocanate moiety, sarcodictyin C breaks down and releases 2-Penten-4-olide; (ii) on the opening of the epoxide ring, parthenolide undergoes an intramolecular electrophilic cyclisation. This indicates that molecular recognition is only the first process that the medicine induces to exert its pharmacological action. More attention should probably be paid to the intrinsic reactivity of biologically active compounds. Several papers review medicines according to their function; as far as I know, it is difficult to find a classification based on chemical properties [32,33].
