Merging of Azulene and Perylene Diimide for Optical pH Sensors

by
Ping Zhou
1,
Ulrich Aschauer
2,
Silvio Decurtins
1,
Thomas Feurer
3,
Robert Häner
1 and
Shi-Xia Liu
1,*
1
Department of Chemistry, Biochemistry and Pharmaceutical Sciences, University of Bern, Freiestrasse 3, CH-3012 Bern, Switzerland
2
Department of Chemistry and Physics of Materials, University of Salzburg, Jakob-Haringer-Str. 2A, A-5020 Salzburg, Austria
3
Institute of Applied Physics, University of Bern, Sidlerstrasse 5, CH-3012 Bern, Switzerland
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(18), 6694; https://doi.org/10.3390/molecules28186694
Submission received: 23 August 2023 / Revised: 14 September 2023 / Accepted: 15 September 2023 / Published: 19 September 2023
Browse Figures
Versions Notes

Abstract

:
Polycyclic aromatic hydrocarbons (PAHs) have emerged as promising materials for organic electronics, including organic photovoltaics (OPVs), organic field-effect transistors (OFETs), and organic light-emitting diodes (OLEDs). Particularly, non-hexagonal ring-fused PAHs are highly desirable due to their unique optoelectronic properties. Herein, a new redox-active azulene-perylene diimide triad 1 and its ring-fused counterpart, diazulenocoronene diimide 2, were synthesized and fully characterized by a combination of NMR, cyclic voltammetry, and UV-visible absorption spectroscopy. Direct comparison of their electronic properties leads us to the conclusion that a significant change in the localization of HOMO and LUMO occurs upon the fusion of azulene and perylene diimide in 2, leading to the lack of intramolecular charge-transfer character for transitions in the visible spectral region. Density functional theory (DFT) and time-dependent DFT (TD-DFT) calculations were performed to gain further insight into various electronic transitions. Moreover, we found that the adaptive response to acids and bases manifests itself in a reversible two-color change that can be attributed to changes in the chemical structures. Our findings pave the way for manipulating the relative HOMO and LUMO energy levels of organic chromophores by fusing non-alternant azulenes to an otherwise flat PAH, which could possibly lead to applications in organic electronics and optical sensors.

1. Introduction

The specific extension of polycyclic aromatic hydrocarbons (PAHs) by embedding non-hexagonal rings to obtain curved π-conjugated structures is an emerging research area but remains a major challenge [1,2,3,4]. Such contorted molecules exhibit enhanced stabilities and intrinsic optoelectronic properties and, thus, are particularly efficient at intermolecular charge transport [5]. Significant effort has been dedicated to the preparation of twisted PAHs in order to figure out the relationship between structure and optoelectronic properties. Our keen interest in the development of organic functional materials in the field of molecular (opto)electronics has led us to take up this challenge. We describe herein a facile synthetic approach that allows the fusion of two azulene rings in a perylene diimide (PDI) chromophore.
Azulene is a non-alternant aromatic π-system consisting of an electron-rich five-membered ring and an electron-deficient seven-membered ring. In stark contrast to its benzenoid isomer naphthalene, azulene shows a large dipole moment, blue color and anti-Kasha fluorescence [6]. It has been widely used for the decoration of rigid π-conjugated skeletons, either linked directly or through a triple bond, to form high-performance semiconducting materials [7,8,9,10,11]. Obviously, the structural extension at the 2- and/or 6-positions of azulene has a significant impact on the stimuli-responsive behavior [12,13,14,15,16] and the optoelectronic performance of the resulting π-functional materials [17]. In general, organic molecules act as hole- and electron-transporting materials when capped with five- and seven-membered rings of azulene, respectively. Despite all these aesthetic achievements, much less is known about azulene-fused PAHs and heteroaromatics prepared from the corresponding azulene precursors [18,19,20,21,22,23,24,25,26,27].
Among PAHs, PDI has intriguing electronic properties and remarkable thermal, chemical, and photophysical stabilities, leading to a broad range of applications in the field of organic electronics [28,29]. It is also well known as an electron-deficient and light-harvesting component in donor−acceptor ensembles that undergo photo-induced efficient energy and electron transfer reactions [30,31,32,33,34,35,36,37,38,39,40]. The π-expanded PDI with non-alternant aromatic skeletons remains underexplored [17,23,41,42]. As such, in this actual study, we report the rational design and preparation of an azulene end-capped PDI triad 1 and its fused counterpart, diazulenocoronene diimide 2 (Scheme 1). They combine the merits of both PDI and azulene, including intense absorption in the visible spectral region and reversible redox behavior, as evidenced by steady-state absorption measurements and cyclic voltammetry, respectively. The electronic transitions were verified by TD-DFT calculations. Additionally, we demonstrate that they exhibit a reversible colorimetric pH response manifested by an instant color switching between acidic and neutral environments.

2. Results and Discussion

2.1. Synthesis

As illustrated in Scheme 1, azulene-PDI triad 1 was prepared in 21% yield by the Suzuki–Miyaura coupling reaction of 1,7-dibromo-N,N′-bis-(1-ethylpropyl)-perylene-3,4,9,10-tetracarboxylic diimide (2Br-PDI) [43] with 2-(azulen-2-yl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane [24] in the presence of Pd(PPh3)4 as a catalyst and Cs2CO3 as a base under reflux for 24 h in a toluene–water mixture. The subsequent oxidation of 1 with 2,3-dicyano-5,6-dichloro-1,4-benzoquinone (DDQ) at r.t. in CH2Cl2 was accomplished to obtain diazulenocoronene diimide 2 in a yield of 40%. Both of them were fully characterized by 1H NMR, cyclic voltammetry, UV-Vis-NIR spectroscopy, and high-resolution mass spectrometry. All these analytical data unambiguously correspond to their chemical structures.

2.2. Optical Properties

As depicted in Figure 1, both 1 (blue curve) and 2 (pink curve) strongly absorb in the UV-Visible spectral region. In comparison with azulene (black curve) and the reference 2Br-PDI (red curve), intense absorption bands in the whole UV region are assigned to transitions localized on the azulene and PDI components. In contrast to 2Br-PDI, the triad 1 and the fused counterpart 2 exhibit a series of structureless absorption bands in the spectral range of 400–700 nm with remarkable bathochromic shifts due to electronic interactions between azulene and PDI units enhanced by π-extended conjugation. They are most likely ascribed to a mixture of an intramolecular charge transfer (ICT) from azulene to PDI units and the π–π* transitions localized on the PDI core for 1, and π-π* transitions delocalized on the diazulenocoronene core for 2, respectively. Upon fusion, the lowest-energy absorption band centered at 535 nm is hypsochromically shifted by 42 nm. It can be inferred that the resulting diazulenocoronene π-system is distinct from the PDI itself, as rationalized by the theoretical part below. Moreover, the replacement of azulene by its isomeric naphthalene leads to a series of well-structured absorption bands in the visible spectral region [44], particularly a significant hypsochromic shift of the onset of the lowest-energy absorption band. This finding indicates that 2 has a much lower HOMO-LUMO band gap (1.53 eV vs. 2.18 eV) compared to its isomeric analogue dinaphthocoronene diimide, as explained by the following electrochemical properties (Table 1).
As reported previously [9,16,24,45,46], azulene derivatives can undergo reversible protonation-deprotonation processes in the presence of trifluoroacetic acid (TFA) and triethylamine (TEA), respectively. To sort out the structural and electronic effects on stimuli-responsive and switching properties, the evolution of the UV-Vis absorption spectra of 1 (Figure 2) and 2 (Figure 3) in CH2Cl2 with increasing amounts of TFA was investigated. As depicted in Figure 2, the successive addition of TFA leads to a gradual reduction of the absorbances of electronic transitions peaked at 280 nm, 380 nm, and 577 nm with a concomitant bathochromic shift of the latter two absorption maxima towards 390 nm and 600 nm, respectively. This result is clearly evidenced by a fast and distinct color change from violet to light-green, pointing to newly formed azulenium species (Scheme 2) by protonation of two azulene rings of the triad 1 [9,16,46,47]. The formation of these two interconverting, optically different species is corroborated by the observed isosbestic points at 400 nm and 525 nm. No further noticeable spectral variation is observed upon protonation of 1 with a trace amount of TFA (1.9%, v/v). More strikingly, neutralization of the acidic solution of 1 with 1.9% TEA leads to a complete recovery of its original UV-Vis spectrum. Consequently, 1 displays a distinct reversible colorimetric pH response.
A similar spectral evolution is observed upon protonation of compound 2 but with much less pronounced changes than 1 (Figure 3). As the protonation process occurs in the five-membered ring of the azulene unit (Scheme 2), the annulation of azulene units to the PDI core via two five-membered rings undoubtedly affects proton responsiveness. The same holds true for the 1,3-substituted azulene-based polymers [9,48]. All these results suggest that non-substitution at the 1,3-positions of azulene is essential for an efficient protonation-deprotonation process. Nevertheless, the colorimetric reversibility is independent of the connectivity between azulene and PDI.

2.3. Electrochemical Properties

The electrochemical properties of 1 and 2 and their reference compounds were investigated by cyclic voltammetry at r.t. in CH2Cl2 (Table 1). Azulene itself shows an anodic peak at 1.19 V, while 2Br-PDI undergoes two distinct reversible reductions at −0.47 V and −0.67 V, respectively (Figure 4). As expected, triad 1 displays one anodic peak (1.19 V) for the oxidation of the azulene core and two reversible processes at −0.55 V and −0.72 V due to the successive reductions of the PDI moiety. Apparently, the insertion of two azulene rings leads to no change in the oxidation potential but to negative shifts of the reduction potentials by 80 mV and 50 mV, respectively. The former is attributed to the negligible electronic interactions between the azulene rings and the PDI core due to the non-planar geometry (Figure S1). The latter can be accounted for by the electron-donating effect of azulene. In stark contrast, the fused counterpart 2 experiences one oxidation at 1.32 V and two reversible reductions at −0.46 V and −0.71 V, respectively. Compared to azulene (1.19 V) and PDI (−0.60 V and −0.79 V) [49], the annulation of these redox units in 2 gives rise to anodic shifts of both oxidation (by 130 mV) and reduction potentials (by 140 mV and 80 mV, respectively), indicating that both HOMO and LUMO are substantially stabilized by the extended π-conjugation between the resulting coronene core (the red part in Scheme 1) and two azulene rings. These results are further verified by TD-DFT calculations below. Remarkably, diazulenocoronene diimide 2 has a much lower HOMO-LUMO band gap (1.53 eV vs. 2.18 eV) and a lower-lying LUMO (−3.90 eV vs. −3.72 eV) with respect to its isomeric analogue dinaphthocoronene diimide [44]. As a result, 2 has a much higher-lying HOMO (−5.43 eV vs. −5.90 eV), indicating that the HOMO is substantially destabilized by 0.47 eV because of the electron-donating ability of azulene moieties. The reported non-fused azulene-based conjugates, however, show a HOMO destabilization of 0.16–0.2 eV [50] compared to their naphthalene counterparts. It can be deduced that in fused π-systems, the distinct electronic properties of azulene and naphthalene are expected to bring about a more effective influence on their optical properties and performance in organic electronics.

2.4. Computational Study

In order to characterize and verify the various electronic transitions and shed more light on the pH-response process and the intramolecular electronic interactions between the azulene and PDI units, DFT calculations were performed using the Gaussian 16 package at the B3LYP/6-31G(d,p) level of theory [51]. After geometry optimization, TD-DFT calculations were performed, solving 40 states. Absorption spectra were extracted using Gausssum 3.0 [52].
The optimised molecular structure of 1 shows the non-planarity between two azulenes and the PDI core, whereas the newly formed diazulenocoronene core in the fused counterpart 2 is almost planar (Figure S1). The computed vertical absorption spectra of 1 and 2 (Figure 5) for the neutral and protonated states are in good agreement with the experimental results. The predicted energies and oscillator strengths (Tables S1–S4) at wavelength below 450 nm correspond to a manifold of π–π* transitions localized on PDI and azulene units, which compare well with their absorption spectra (Figure 1).
In the low energy region, a transition with low oscillator strength is found around 700 nm, which is attributed to the S0→S1 excitation dominated by one-electron transfer from HOMO→LUMO (76% for 1 and 93% for 2, Tables S1 and S3). The next largest oscillator strength belongs to the transition at 600 nm for 1 and 500 nm for 2, respectively. It is dominated by a one-electron HOMO-2→LUMO promotion (75% for 1 and 59% for 2, Tables S1 and S3). As illustrated in Figure 6, for the HOMO and HOMO-2 of 1, the electron density coefficients are largely localized on the azulene units with some extension to the adjacent PDI core; however, the LUMO is centered mostly on the PDI core. As a result, 1 exhibits a pronounced intramolecular charge-transfer (ICT) character as electron density is moved from the azulene units to the PDI core. In contrast, the MO coefficients for 2 are distributed over the whole diazulenocoronene backbone; therefore, the low-energy transitions have no directional ICT character. It is worth noting that the measured broad lowest-energy absorption band peaked at 577 nm for 1 and 535 nm for 2, respectively, and is characterized by a combination of HOMO/HOMO-2→LUMO excitations. The calculated HOMO-LUMO gap amounts to 2.19 eV for 1 and 2.12 eV for 2 (Figure 6), which agrees well with the measured values (Table 1) based on their absorption spectra.
Upon protonation, the calculated vertical absorption spectra of 1 and 2 clearly display pronounced redshifts of the absorption bands (Table S3) due to the formation of azulenium cations. For the azulenium cation of 1, the lowest-energy transition peaked at 776 nm is attributed to one-electron excitation (97%, Table S2) from the HOMO localized on the PDI core to the LUMO which is strongly extended to the azulene units, indicative of an ICT character leading to a HOMO-LUMO gap of 1.88 eV. On the contrary, for the azulenium cation of 2, the longest wavelength absorption peaked at 611 nm shows only weak oscillator strength, whereas the strong 548 nm absorption is dominated by the one-electron excitation (92%, Table S4) from HOMO-1 delocalized on the dication diazulenocoronene core to the LUMO with a larger contribution of two cationic azulene units.

3. Materials and Methods

Air- and/or water-sensitive reactions were conducted under nitrogen and using dry, freshly distilled solvents. Chemicals used for the synthesis of the compounds were purchased from commercial suppliers (Sigma-Aldrich, Buchs, Switzerland, TCI, or Alfa Aesar). 1,7-Dibromo-N,N′-bis-(1-ethylpropyl)-perylene-3,4,9,10-tetracarboxylic diimide (2Br-PDI) [43] and 2-(azulen-2-yl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane [24] were prepared as described in the literature.
UV-Vis-NIR absorption spectra were recorded on a Perkin Elmer Lambda 900 UV/Vis/NIR spectrometer (Perkin Elmer, Schwerzenbach, Switzerland), and UV-vis absorption spectra were recorded on Varian Cary-100 Bio-UV/VIS (Agilent Technologies, Basel, Switzerland). 1H NMR spectra were recorded on a Bruker Avance 300 (300 MHz) spectrometer (Bruker, Fällanden, Switzerland). Chemical shifts are reported in parts per million (ppm) and are referenced to the residual solvent peak (CD2Cl2, δ 1H = 5.32 ppm). The following abbreviations were used: s (singlet), d (doublet), t (triplet), and m (multiplet). High-resolution mass spectra (HR-MS) were obtained on a Thermo Fisher LTQ Orbitrap XL using Nano Electrospray Ionization (Thermo Fisher Scientific, Basel, Switzerland).
Cyclic voltammetry (CV) was performed in a three-electrode cell equipped with a Pt working electrode, a glassy carbon counter-electrode, and an Ag/AgCl reference electrode. The electrochemical experiments were carried out under an oxygen-free atmosphere in dichloromethane with TBAPF6 (0.1 M) as a supporting electrolyte.
Synthesis of 1: 2Br-PDI (103 mg, 0.15 mmol), 2-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)azulene (114 mg, 0.45 mmol), Cs2CO3 (293 mg, 0.9 mmol), and Pd(PPh3)4 (69 mg, 0.06 mmol) were added to a three-necked flask (100 mL) and flushed with N2. The toluene/H2O (20 mL/10 mL) was added into the flask and refluxed under N2 for 24 h. The reaction was quenched with aqueous 2M HCl (0.6 mL), extracted with toluene, washed with water and brine, and dried over Na2SO4. The obtained crude product was purified by column chromatography on silica gel eluting initially with CH2Cl2 to remove the unreacted azulene precursor and some by-products, and then with a mixture of heptane and ethyl acetate (gradient from 9:1 to 5:1(v/v)) to give the desired product with tiny impurities. An analytically pure product was obtained by the subsequent column chromatography on silica gel eluting with a mixture of CH2Cl2 and ethyl acetate (gradient from 1:0 to 9:1(v/v)) (25 mg, 21%). 1H NMR (300 MHz, CD2Cl2) δ 8.78 (s, 2H), 8.34 (d, J = 9.4 Hz, 4H), 7.97 (s, 4H), 7.64 (t, J = 10.1 Hz, 2H), 7.59 (s, 4H), 7.24 (t, J = 9.8 Hz, 4H), 5.06–4.95 (m, 2H), 2.31–2.14 (m, 4H), 1.96–1.81 (m, 4H), 0.89 (t, J = 7.4 Hz, 12H). HR–MS (ESI, positive): m/z calcd for [M + H]+ 783.3217, found 783.3207.
Synthesis of 2: 2,3-dicyano-5,6-dichloro-1,4-benzoquinone (36 mg, 0.16 mmol) was added into a solution of 1 (31 mg, 0.04 mmol) in CH2Cl2 (20 mL) at r.t. and stirred for 3 h. The mixture was directly purified by column chromatography on neutral alumina using CH2Cl2 as eluant to afford an analytically pure product (12 mg, 40%). 1H NMR (300 MHz, CD2Cl2) δ 8.76 (s, 1H), 8.68 (s, 1H), 8.57 (s, 1H), 8.54 (s, 1H), 8.42 (t, J = 9.9 Hz, 2H), 8.13 (m, 2H), 7.95 (s, 1H), 7.89 (s, 1H), 7.77 (t, J = 9.3 Hz, 2H), 7.36 (t, J = 9.8 Hz, 2H), 7.31–7.21 (m, 2H), 5.04–4.93 (m, 2H), 2.27–2.11 (m, 4H), 1.91–1.78 (m, 4H), 0.86 (t, J = 7.4 Hz, 12H). HR-MS (ESI, positive): m/z calcd for [M + H]+ 779.2904, found 779.2888.

4. Conclusions

In summary, two azulene moieties were incorporated into a PDI core either through single bonds or by fusion, leading to the formation of 1 and 2. The electronic structures of these target compounds were fully investigated by cyclic voltammetry and UV-Vis spectra and also verified by TD-DFT calculations. Both HOMO and LUMO energy levels can be tuned by the extent of conjugation between these redox-active units, giving rise to an electrochemical narrow HOMO-LUMO gap of ca. 1.5 eV. Additionally, they exhibit reversible colorimetric pH response, as corroborated by instant color switching between acidic and neutral environments. All these properties render them promising in the fields of organic electronics and sensing applications. Moreover, our findings present a new concept for manipulating the relative HOMO and LUMO energy positions of organic chromophores by fusing non-alternant PAHs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28186694/s1, Figure S1: The optimized structures of 1 (left) and 2 (right); Table S1: Energy, wavelength, oscillator strength (>0.01), and major molecular orbital contributions to transitions of 1 according to DFT calculations; Table S2: Energy, wavelength, oscillator strength (>0.01), and major molecular orbital contributions to transitions of the azulenium cation of 1 according to DFT calculations; Table S3: Energy, wavelength, oscillator strength (>0.01), and major molecular orbital contributions to transitions of 2 according to DFT calculations; Table S4: Energy, wavelength, oscillator strength (>0.01), and major molecular orbital contributions to transitions of the azulenium cation of 2 according to DFT calculations; Figure S2. The molecular orbitals involved in the main transitions of 1, 2 and their azulenium dications; 1H NMR spectra of 1 and 2 in CD2Cl2.

Author Contributions

Conceptualization, S.D., R.H., T.F. and S.-X.L.; validation, P.Z. and U.A.; investigation, P.Z. and U.A.; writing—original draft preparation, P.Z.; writing—review and editing, U.A., S.D., R.H., T.F. and S.-X.L.; supervision, R.H., T.F. and S.-X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Swiss NSF (SNSF), grant numbers 200020_188468 and 200021_204053, the SNSF Professorships PP00P2_157615 and PP00P2_187185, as well as by the SNSF through the NCCR MUST “Molecular Ultrafast Science and Technology”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Computations were performed on Ubelix, the HPC cluster at the University of Bern.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Sample Availability

Not applicable.

References

  1. Hiroto, S. Heteroatoms in Bowl-shaped Polycyclic Aromatic Hydrocarbons: Synthesis and Structures. Chem. Lett. 2021, 50, 1146–1155. [Google Scholar] [CrossRef]
  2. Luo, J.; Xu, X.; Mao, R.; Miao, Q. Curved Polycyclic Aromatic Molecules That Are π-Isoelectronic to Hexabenzocoronene. J. Am. Chem. Soc. 2012, 134, 13796–13803. [Google Scholar] [CrossRef]
  3. Pascal, R.A. Twisted Acenes. Chem. Rev. 2006, 106, 4809–4819. [Google Scholar] [CrossRef]
  4. Zhang, X.-S.; Huang, Y.-Y.; Zhang, J.; Meng, W.; Peng, Q.; Kong, R.; Xiao, Z.; Liu, J.; Huang, M.; Yi, Y.; et al. Dicyclohepta [ijkl,uvwx] rubicene with Two Pentagons and Two Heptagons as a Stable and Planar Non-benzenoid Nanographene. Angew. Chem. Int. Ed. 2020, 59, 3529–3533. [Google Scholar] [CrossRef]
  5. Ball, M.; Zhong, Y.; Wu, Y.; Schenck, C.; Ng, F.; Steigerwald, M.; Xiao, S.; Nuckolls, C. Contorted Polycyclic Aromatics. Acc. Chem. Res. 2015, 48, 267–276. [Google Scholar] [CrossRef] [PubMed]
  6. Xin, H.; Hou, B.; Gao, X. Azulene-Based π-Functional Materials: Design, Synthesis, and Applications. Acc. Chem. Res. 2021, 54, 1737–1753. [Google Scholar] [CrossRef] [PubMed]
  7. Zeng, H.N.; Png, Z.M.; Xu, J. Azulene in Polymers and Their Properties. Chem. Asian J. 2020, 15, 1904–1915. [Google Scholar] [CrossRef]
  8. Huang, J.; Huang, S.; Zhao, Y.; Feng, B.; Jiang, K.; Sun, S.; Ke, C.; Kymakis, E.; Zhuang, X. Azulene-Based Molecules, Polymers, and Frameworks for Optoelectronic and Energy Applications. Small Methods 2020, 4, 2000628. [Google Scholar] [CrossRef]
  9. Gao, H.; Ge, C.; Hou, B.; Xin, H.; Gao, X. Incorporation of 1,3-Free-2,6-Connected Azulene Units into the Backbone of Conjugated Polymers: Improving Proton Responsiveness and Electrical Conductivity. ACS Macro Lett. 2019, 8, 1360–1364. [Google Scholar] [CrossRef]
  10. Xin, H.; Gao, X. Application of Azulene in Constructing Organic Optoelectronic Materials: New Tricks for an Old Dog. ChemPlusChem 2017, 82, 945–956. [Google Scholar] [CrossRef]
  11. Koch, M.; Blacque, O.; Venkatesan, K. Impact of 2,6-connectivity in azulene: Optical properties and stimuli responsive behavior. J. Mater. Chem. C 2013, 1, 7400–7408. [Google Scholar] [CrossRef]
  12. Ran, H.; Li, F.; Zheng, R.; Zhang, H.; Xie, F.; Jin, P.; Lei, Z.; Wang, X.-T.; Hu, J.-Y. Polarity change of OFETs based on Dithienocoronene Diimide (DTCDI)-Derived isomeric triads end-capped with Azulene. Dyes Pigm. 2022, 203, 110311. [Google Scholar] [CrossRef]
  13. Yamaguchi, Y.; Takubo, M.; Ogawa, K.; Nakayama, K.-I.; Koganezawa, T.; Katagiri, H. Terazulene Isomers: Polarity Change of OFETs through Molecular Orbital Distribution Contrast. J. Am. Chem. Soc. 2016, 138, 11335–11343. [Google Scholar] [CrossRef]
  14. Yao, J.; Cai, Z.; Liu, Z.; Yu, C.; Luo, H.; Yang, Y.; Yang, S.; Zhang, G.; Zhang, D. Tuning the Semiconducting Behaviors of New Alternating Dithienyldiketopyrrolopyrrole-Azulene Conjugated Polymers by Varying the Linking Positions of Azulene. Macromolecules 2015, 48, 2039–2047. [Google Scholar] [CrossRef]
  15. Yamaguchi, Y.; Ogawa, K.; Nakayama, K.-i.; Ohba, Y.; Katagiri, H. Terazulene: A High-Performance n-Type Organic Field-Effect Transistor Based on Molecular Orbital Distribution Control. J. Am. Chem. Soc. 2013, 135, 19095–19098. [Google Scholar] [CrossRef]
  16. Wang, X.; Ng, J.K.-P.; Jia, P.; Lin, T.; Cho, C.M.; Xu, J.; Lu, X.; He, C. Synthesis, Electronic, and Emission Spectroscopy, and Electrochromic Characterization of Azulene-Fluorene Conjugated Oligomers and Polymers. Macromolecules 2009, 42, 5534–5544. [Google Scholar] [CrossRef]
  17. Chen, L.; Wu, B.; Qin, L.; Huang, Y.-Y.; Meng, W.; Kong, R.; Yu, X.; ChenChai, K.; Li, C.; Zhang, G.; et al. A perylene five-membered ring diimide for organic semiconductors and π-expanded conjugated molecules. Chem. Commun. 2022, 58, 5100–5103. [Google Scholar] [CrossRef]
  18. Xin, H.; Li, J.; Lu, R.-Q.; Gao, X.; Swager, T.M. Azulene-Pyridine-Fused Heteroaromatics. J. Am. Chem. Soc. 2020, 142, 13598–13605. [Google Scholar] [CrossRef]
  19. Sasaki, Y.; Takase, M.; Okujima, T.; Mori, S.; Uno, H. Synthesis and Redox Properties of Pyrrole- and Azulene-Fused Azacoronene. Org. Lett. 2019, 21, 1900–1903. [Google Scholar] [CrossRef]
  20. Jiang, Q.; Tao, T.; Phan, H.; Han, Y.; Gopalakrishna, T.Y.; Herng, T.S.; Li, G.; Yuan, L.; Ding, J.; Chi, C. Diazuleno-s-indacene Diradicaloids: Syntheses, Properties, and Local (anti)Aromaticity Shift from Neutral to Dicationic State. Angew. Chem. Int. Ed. 2018, 57, 16737–16741. [Google Scholar] [CrossRef] [PubMed]
  21. Hieulle, J.; Carbonell-Sanroma, E.; Vilas-Varela, M.; Garcia-Lekue, A.; Guitian, E.; Pena, D.; Pascual, J.I. On-Surface Route for Producing Planar Nanographenes with Azulene Moieties. Nano Lett. 2018, 18, 418–423. [Google Scholar] [CrossRef] [PubMed]
  22. Koide, T.; Takesue, M.; Murafuji, T.; Satomi, K.; Suzuki, Y.; Kawamata, J.; Terai, K.; Suzuki, M.; Yamada, H.; Shiota, Y.; et al. An Azulene-Fused Tetracene Diimide with a Small HOMO-LUMO Gap. ChemPlusChem 2017, 82, 1010–1014. [Google Scholar]
  23. Pigulski, B.; Shoyama, K.; Würthner, F. NIR-Absorbing π-Extended Azulene: Non-Alternant Isomer of Terrylene Bisimide. Angew. Chem. Int. Ed. 2020, 59, 15908–15912. [Google Scholar] [CrossRef]
  24. Murai, M.; Iba, S.; Ota, H.; Takai, K. Azulene-Fused Linear Polycyclic Aromatic Hydrocarbons with Small Bandgap, High Stability, and Reversible Stimuli Responsiveness. Org. Lett. 2017, 19, 5585–5588. [Google Scholar] [CrossRef]
  25. Liang, Y.; Wang, S.; Tang, M.; Wu, L.; Bian, L.; Jiang, L.; Tang, Z.-B.; Liu, J.; Guan, A.; Liu, Z. Cascade Synthesis of Benzotriazulene with Three Embedded Azulene Units and Large Stokes Shifts. Angew. Chem. Int. Ed. 2023, 62, e202218839. [Google Scholar] [CrossRef]
  26. Xin, H.; Li, J.; Yang, X.; Gao, X. Azulene-Based BN-Heteroaromatics. J. Org. Chem. 2020, 85, 70–78. [Google Scholar] [CrossRef] [PubMed]
  27. Kurotobi, K.; Kim, K.S.; Noh, S.B.; Kim, D.; Osuka, A. A quadruply azulene-fused porphyrin with intense near-IR absorption and a large two-photon absorption cross section. Angew. Chem. Int. Ed. 2006, 45, 3944–3947. [Google Scholar] [CrossRef]
  28. Huang, C.; Barlow, S.; Marder, S.R. Perylene-3,4,9,10-tetracarboxylic Acid Diimides: Synthesis, Physical Properties, and Use in Organic Electronics. J. Org. Chem. 2011, 76, 2386–2407. [Google Scholar] [CrossRef]
  29. Würthner, F.; Saha-Möller, C.R.; Fimmel, B.; Ogi, S.; Leowanawat, P.; Schmidt, D. Perylene Bisimide Dye Assemblies as Archetype Functional Supramolecular Materials. Chem. Rev. 2016, 116, 962–1052. [Google Scholar] [CrossRef]
  30. Barendt, T.A.; Myers, W.K.; Cornes, S.P.; Lebedeva, M.A.; Porfyrakis, K.; Marques, I.; Félix, V.; Beer, P.D. The Green Box: An Electronically Versatile Perylene Diimide Macrocyclic Host for Fullerenes. J. Am. Chem. Soc. 2020, 142, 349–364. [Google Scholar] [CrossRef] [PubMed]
  31. Nagarajan, K.; Mallia, A.R.; Muraleedharan, K.; Hariharan, M. Enhanced intersystem crossing in core-twisted aromatics. Chem. Sci. 2017, 8, 1776–1782. [Google Scholar] [CrossRef]
  32. Lee, K.J.; Woo, J.H.; Kim, E.; Xiao, Y.; Su, X.; Mazur, L.M.; Attias, A.J.; Fages, F.; Cregut, O.; Barsella, A.; et al. Electronic energy and electron transfer processes in photoexcited donor–acceptor dyad and triad molecular systems based on triphenylene and perylene diimide units. Phys. Chem. Chem. Phys. 2016, 18, 7875–7887. [Google Scholar] [CrossRef] [PubMed]
  33. Mahmood, Z.; Xu, K.; Kucukoz, B.; Cui, X.; Zhao, J.; Wang, Z.; Karatay, A.; Yaglioglu, H.G.; Hayvali, M.; Elmali, A. DiiodoBodipy-Perylenebisimide Dyad/Triad: Preparation and Study of the Intramolecular and Intermolecular Electron/Energy Transfer. J. Org. Chem. 2015, 80, 3036–3049. [Google Scholar] [CrossRef] [PubMed]
  34. Jimenez, A.J.; Spaenig, F.; Rodriguez-Morgade, M.S.; Ohkubo, K.; Fukuzumi, S.; Guldi, D.M.; Torres, T. A Tightly Coupled Bis(zinc(II) phthalocyanine)-Perylenediimide Ensemble To Yield Long-Lived Radical Ion Pair States. Org. Lett. 2007, 9, 2481–2484. [Google Scholar] [CrossRef] [PubMed]
  35. Wescott, L.D.; Mattern, D.L. Donor-σ-Acceptor Molecules Incorporating a Nonadecyl-Swallowtailed Perylenediimide Acceptor. J. Org. Chem. 2003, 68, 10058–10066. [Google Scholar] [CrossRef]
  36. Volland, M.; Zhou, P.; Wibmer, L.; Häner, R.; Decurtins, S.; Liu, S.X.; Guldi, D.M. Nanographene favors electronic interactions with an electron acceptor rather than an electron donor in a planar fused push-pull conjugate. Nanoscale 2019, 11, 1437–1441. [Google Scholar] [CrossRef]
  37. Pfattner, R.; Pavlica, E.; Jaggi, M.; Liu, S.-X.; Decurtins, S.; Bratina, G.; Veciana, J.; Mas-Torrent, M.; Rovira, C. Photo-induced intramolecular charge transfer in an ambipolar field-effect transistor based on a pi-conjugated donor-acceptor dyad. J. Mater. Chem. C 2013, 1, 3985–3988. [Google Scholar] [CrossRef]
  38. El-Khouly, M.E.; Jaggi, M.; Schmid, B.; Blum, C.; Liu, S.-X.; Decurtins, S.; Ohkubo, K.; Fukuzumi, S. Annulation of Tetrathiafulvalene to the Bay Region of Perylenediimide: Fast Electron-Transfer Processes in Polar and Nonpolar Solvents. J. Phys. Chem. C 2011, 115, 8325–8334. [Google Scholar] [CrossRef]
  39. Jaggi, M.; Blum, C.; Marti, B.S.; Liu, S.-X.; Leutwyler, S.; Decurtins, S. Annulation of Tetrathiafulvalene to the Bay Region of Perylenediimide. Org. Lett. 2010, 12, 1344–1347. [Google Scholar] [CrossRef]
  40. Jaggi, M.; Blum, C.; Dupont, N.; Grilj, J.; Liu, S.-X.; Hauser, J.; Hauser, A.; Decurtins, S. A Compactly Fused pi-Conjugated Tetrathiafulvalene-Perylenediimide Donor-Acceptor Dyad. Org. Lett. 2009, 11, 3096–3099. [Google Scholar] [CrossRef]
  41. Zhang, A.; Jiang, W.; Wang, Z. Fulvalene-Embedded Perylene Diimide and Its Stable Radical Anion. Angew. Chem. Int. Ed. 2020, 59, 752–757. [Google Scholar] [CrossRef]
  42. Feng, J.; Wu, Y.; Yu, Q.; Liu, Y.; Jiang, W.; Wang, D.; Wang, Z. Fuller-Rylenes: Cross-Dimensional Molecular Carbons. CCS Chem. 2020, 2, 271–279. [Google Scholar] [CrossRef]
  43. Hendsbee, A.D.; McAfee, S.M.; Sun, J.-P.; McCormick, T.M.; Hill, I.G.; Welch, G.C. Phthalimide-based π-conjugated small molecules with tailored electronic energy levels for use as acceptors in organic solar cells. J. Mater. Chem. C 2015, 3, 8904–8915. [Google Scholar] [CrossRef]
  44. Vollbrecht , J.; Bock, H.; Wiebeler, C.; Schumacher, S.; Kitzerow, H. Polycyclic Aromatic Hydrocarbons Obtained by Lateral Core Extension of Mesogenic Perylenes: Absorption and Optoelectronic Properties. Chem. Eur. J. 2014, 20, 12026–12031. [Google Scholar] [CrossRef] [PubMed]
  45. Amir, E.; Amir, R.J.; Campos, L.M.; Hawker, C.J. Stimuli-Responsive Azulene-Based Conjugated Oligomers with Polyaniline-like Properties. J. Am. Chem. Soc. 2011, 133, 10046–10049. [Google Scholar] [CrossRef] [PubMed]
  46. Murai, M.; Amir, E.; Amir, R.J.; Hawker, C.J. Azulene-based conjugated polymers: Unique seven-membered ring connectivity leading to stimuli-responsiveness. Chem. Sci. 2012, 3, 2721–2725. [Google Scholar] [CrossRef]
  47. Wang, F.; Lai, Y.-H.; Han, M.-Y. Stimuli-Responsive Conjugated Copolymers Having Electro-Active Azulene and Bithiophene Units in the Polymer Skeleton: Effect of Protonation and p-Doping on Conducting Properties. Macromolecules 2004, 37, 3222–3230. [Google Scholar] [CrossRef]
  48. Murai, M.; Ku, S.-Y.; Treat, N.D.; Robb, M.J.; Chabinyc, M.L.; Hawker, C.J. Modulating structure and properties in organic chromophores: Influence of azulene as a building block. Chem. Sci. 2014, 5, 3753–3760. [Google Scholar] [CrossRef]
  49. Mahmood, Z.; Sukhanov, A.A.; Rehmat, N.; Hu, M.; Elmali, A.; Xiao, Y.; Zhao, J.; Karatay, A.; Dick, B.; Voronkova, V.K. Intersystem Crossing and Triplet-State Property of Anthryl- and Carbazole-[1,12]fused Perylenebisimide Derivatives with a Twisted π-Conjugation Framework. J. Phys. Chem. B 2021, 125, 9317–9332. [Google Scholar] [CrossRef]
  50. Yang, L.; Zhu, Y.; Liu, J.; Chen, Y.; Wu, J.; Pang, Z.; Lu, Z.; Zhao, S.; Huang, Y. Marked effects of azulenyl vs. naphthyl groups on donor-π-acceptor-π-donor small molecules for organic photovoltaic cells. Dyes Pigm. 2021, 187, 109079. [Google Scholar] [CrossRef]
  51. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16 Rev. C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  52. O’Boyle, N.M.; Tenderholt, A.L.; Langner, K.M. cclib: A library for package-independent computational chemistry algorithms. J. Comput. Chem. 2008, 29, 839–845. [Google Scholar] [CrossRef] [PubMed]
Molecules 28 06694 sch001

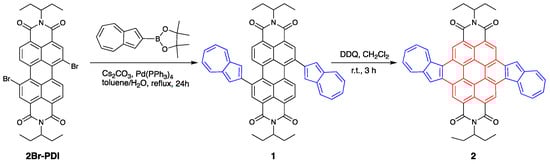

Scheme 1. Synthetic routes towards azulene-PDI triad 1 and diazulenocoronene diimide 2 (azulene units are marked in blue and coronene in red).
Scheme 1. Synthetic routes towards azulene-PDI triad 1 and diazulenocoronene diimide 2 (azulene units are marked in blue and coronene in red).
Molecules 28 06694 sch001
Molecules 28 06694 g004
Figure 4. Cyclic voltammograms of 1 (blue), 2 (pink), azulene (black), and 2Br-PDI (red) were measured in dichloromethane solution containing 0.1 M TBAPF6 as the supporting electrolyte at r.t., Pt working electrode and Ag/AgCl reference electrode at the scan rate of 100 mV s−1.
Figure 4. Cyclic voltammograms of 1 (blue), 2 (pink), azulene (black), and 2Br-PDI (red) were measured in dichloromethane solution containing 0.1 M TBAPF6 as the supporting electrolyte at r.t., Pt working electrode and Ag/AgCl reference electrode at the scan rate of 100 mV s−1.
Molecules 28 06694 g004
Molecules 28 06694 g005

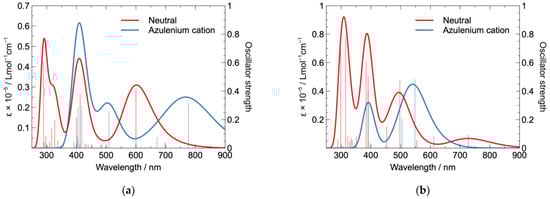

Figure 5. Computed absorption spectra and oscillator strengths of 1 (a) and 2 (b) before and after protonation.
Figure 5. Computed absorption spectra and oscillator strengths of 1 (a) and 2 (b) before and after protonation.
Molecules 28 06694 g005
Molecules 28 06694 g006

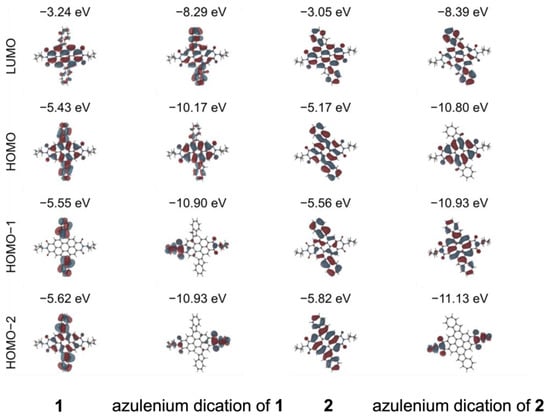

Figure 6. Frontier molecular orbitals of 1 (left) and 2 (right) and their azulenium dications are involved in the low-energy transition.
Figure 6. Frontier molecular orbitals of 1 (left) and 2 (right) and their azulenium dications are involved in the low-energy transition.
Molecules 28 06694 g006
Molecules 28 06694 g001

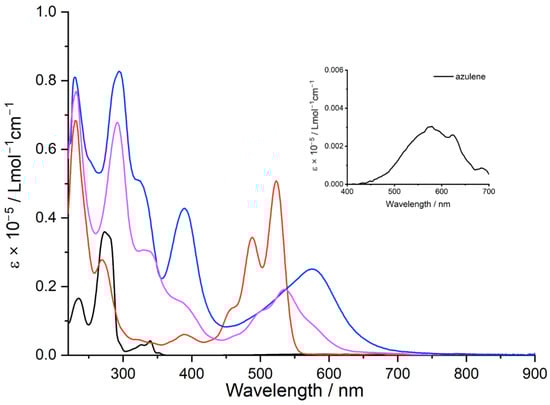

Figure 1. UV-Vis absorption spectra of 1 (blue), 2 (pink), azulene (black), and 2Br-PDI (red) (c = 1 × 10−5 M) in CH2Cl2 at r.t.
Figure 1. UV-Vis absorption spectra of 1 (blue), 2 (pink), azulene (black), and 2Br-PDI (red) (c = 1 × 10−5 M) in CH2Cl2 at r.t.
Molecules 28 06694 g001
Molecules 28 06694 g002

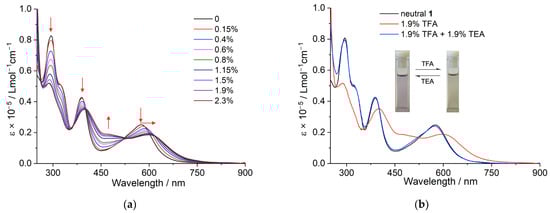

Figure 2. Variation of UV-Vis absorption spectra of 1 (1 × 10−5 M) in CH2Cl2 upon successive addition of TFA (a) at r. t. and reversible proton responsiveness (b).
Figure 2. Variation of UV-Vis absorption spectra of 1 (1 × 10−5 M) in CH2Cl2 upon successive addition of TFA (a) at r. t. and reversible proton responsiveness (b).
Molecules 28 06694 g002
Molecules 28 06694 sch002

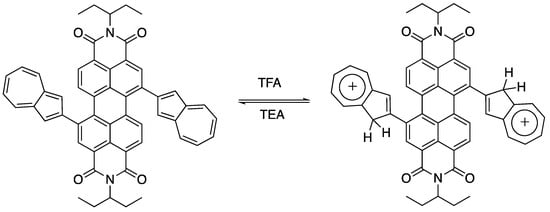

Scheme 2. Formation of an azulenium dication of triad 1 upon TFA protonation.
Scheme 2. Formation of an azulenium dication of triad 1 upon TFA protonation.
Molecules 28 06694 sch002
Molecules 28 06694 g003
Figure 3. Variation of UV-Vis absorption spectra of 2 (1 × 10−5 M) in CH2Cl2 upon successive addition of TFA (a) at r. t. and reversible proton responsiveness (b).
Figure 3. Variation of UV-Vis absorption spectra of 2 (1 × 10−5 M) in CH2Cl2 upon successive addition of TFA (a) at r. t. and reversible proton responsiveness (b).
Molecules 28 06694 g003
Table 1. Electrochemical data of the target compounds 1 and 2 together with reference compounds. Redox potentials (V) vs. Ag/AgCl in CH2Cl2.
Table 1. Electrochemical data of the target compounds 1 and 2 together with reference compounds. Redox potentials (V) vs. Ag/AgCl in CH2Cl2.
CompoundsEox (V)E1/2red1 (V) E1/2red2 (V) HOMO a (eV)LUMO a (eV)EgCV (eV)Egopt (eV)
azulene1.19 −5.31 1.74 c
2Br-PDI −0.47−0.67 −3.90 2.27 c
11.19−0.55−0.72−5.36−3.811.55 b1.90 c
21.32−0.46−0.71−5.43−3.901.53 b2.00 c
a EHOMO = −e (Eox + 4.27), ELUMO = −e (Ered + 4.27), Eox = the onset oxidation potential, Ered = the onset reduction potential, Fc/Fc+ is 0.53 V relative to Ag/AgCl in CH2Cl2. b EgCV = ELUMO − EHOMO. c Optical band gap Egopt is determined from the onset of the lowest energy electronic absorption in the corresponding UV-vis spectrum in solution.
