From K₆[Re_6−xMo_xS₈(CN)₅] Solid Solution to Individual Cluster Complexes: Separation and Investigation of [Re₄Mo₂S₈(CN)₆]ⁿ⁻ and [Re₃Mo₃S₈(CN)₆]ⁿ⁻ Heterometallic Clusters

Abstract

A series of new cluster compounds with {Re₄Mo₂S₈} and {Re₃Mo₃S₈} cores has been obtained and investigated. The clusters with different Re/Mo ratios were isolated as individual compounds, which made it possible to study their spectroscopic and electrochemical properties. The geometry of the new clusters was studied using a combination of X-ray diffraction analysis, XAS and quantum chemical DFT calculations. It was shown that the properties of the new clusters, such as the number and position of electrochemical transitions, electronic structure and change in geometry with a change in charge, are similar to the properties of clusters based on the {Re₄Mo₂Se₈} and {Re₃Mo₃Se₈} cores described earlier.

1. Introduction

Chemical and physical properties, as well as the application potential of octahedral cluster complexes based on {M₆(µ₃-Q)₈} cores (M = Re, Q = S, Se, or Te; M = Mo or W, Q = Cl, Br, or I), attract great interest and have been intensively studied over the past few decades [1,2,3,4]. Within the {M₆Q₈} core, the octahedral M₆ metal cluster is surrounded by eight inner ligands Q, which are bound to the faces of the octahedron. Each metal atom is coordinated by one apical ligand L, forming a [{M₆Q₈}L₆]ⁿ cluster unit. The chemical composition of the {M₆Q₈} cluster core and, in particular, the nature of metal atoms largely determine the physical properties of the cluster-based compounds, such as their redox properties, phosphorescence, or solar light-harvesting performances [5,6,7,8,9]. The synthesis of heterometallic clusters based on M_6−xM′_x clusters with a controlled M/M′ ratio may lead to a smooth and predictable change in the properties of clusters. This is a promising approach for the design of cluster-based materials with predefined functionality. However, this approach may be quite difficult to realize since the octahedral cluster cores are usually formed during high-temperature synthesis and are chemically inert to the substitution of metal atoms at lower temperatures.

Solid-state Chevrel phases with the composition Mo₂Re₄Q₈ (Q = S, Se) were the first published examples of compounds based on heterometallic octahedral clusters. They were obtained by the high-temperature reaction between stoichiometric quantities of simple substances [10]. Similar experimental protocols were used to prepare other {Mo_6−xM′_xQ₈} heterometallic polymeric cluster-based phases (M′ = Re, Q = Te, x = 2; M′ = Ru, Q = Te, 1.5 ≤ x ≤ 2, Q = Se, x = 2; M′ = Rh, Q = Te, x = 0.5, 1.33) [11,12,13,14,15,16], as well as Cs₃Re₅OsS₁₁ [17]. Note that, for Mo-M′-Q systems, well-defined compositions with integer x values (Mo₄Ru₂Te₈; Mo₄Ru₂Se₈; Mo₅Ru₁Te₈) could be prepared, as well as compositions with non-integer x values (Mo_4.5Ru_1.5Te₈; Mo_1.5Re_4.5Se₈; Mo_4.66Rh_1.33Te₈). This indicates the coexistence of at least two cluster cores with different Mo/M′ ratios in the form of a solid solution. The separation of the different cluster cores {Mo_6−xM′_xQ₈} for each integer value of x from the solid-state precursor requires a combination of solid-state and solution chemistry techniques in order to form [Mo_6−xM′_xQ₈L₆] soluble cluster units.

Soluble heterometallic octahedral clusters were obtained for the following metal combinations: rhenium/osmium [18,19,20], molybdenum/niobium [21] and rhenium/molybdenum [22,23]. All the compounds were obtained by high-temperature reactions between simple substances and binary precursors. Clusters with {Re_6−xOs_xSe₈} (x = 1–3) and {Mo₅NbI₈} cores can be isolated as individual species directly from the reaction mixtures. Meanwhile, clusters with {Re_6−xMo_xQ₈} (Q = S, Se; x = 1–3) cores were formed as apparent single-phase solid solutions but contained simultaneously several cluster cores with the same charges and different values of x. The separation of the different cluster cores proved to be a non-trivial task since they have similar geometric parameters and charges and do not separate chromatographically. Very recently, the separation and detailed investigation of [Re_6−xMo_xSe₈(CN)₆]ⁿ⁻ cluster units (x = 1–3) were reported [24,25]. It was shown that the variation in the Re/Mo ratio led to drastic changes in the redox and spectroscopic properties of the clusters, which may allow for the obtaining of sensor and electrochromic materials based on these functionalized species. The aforementioned complicated nature of solid-state phases based on {Re_6−xMo_xSe₈} units led us to re-investigate the “sulfide” solid-state phases formed as a result of the reactions between ReS₂, MoS₂ and KCN and reported initially as constant composition phase K₆[Re₃Mo₃S₈(CN)₅] [23]. Recently, it was found that the synthesis of that chemical composition at different temperatures led to the formation of K₆[Re_6−xMo_xS₈(CN)₅] solid solutions with 2.75 < x < 3.63 [26]. Here we report on the separation procedures that allowed us to obtain salts of [Re₄Mo₂S₈(CN)₆]ⁿ⁻ and [Re₃Mo₃S₈(CN)₆]ⁿ⁻ clusters as individual species. Moreover, we report on the spectroscopic properties and crystal structure investigations and compare them with the properties of the corresponding {Re₄Mo₂Se₈} and {Re₃Mo₃Se₈} cluster cores.

2. Results and Discussion

2.1. Synthesis

The reaction of ReS₂ and MoS₂ with KCN at 700 °C for 7 days led to the formation of the polymeric compound K₆[Re_3.16Mo_2.84S₈(CN)₅] (1) [26]. The crystal structure of this compound was described earlier [15]. It is based on cluster units polymerized by means of bridging cyanide groups in trans-position to form chains. It should be noted that the ReS₂ and MoS₂ precursors used in the synthesis of 1 were obtained at 1000 °C. The preparation of metal sulfides at lower temperatures may lead to the formation of polymer K₆[Re_6-xMo_xS₈(CN)₅] with different Re/Mo ratio.

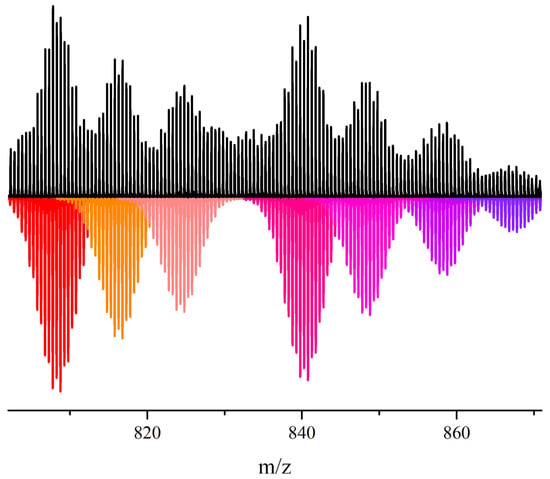

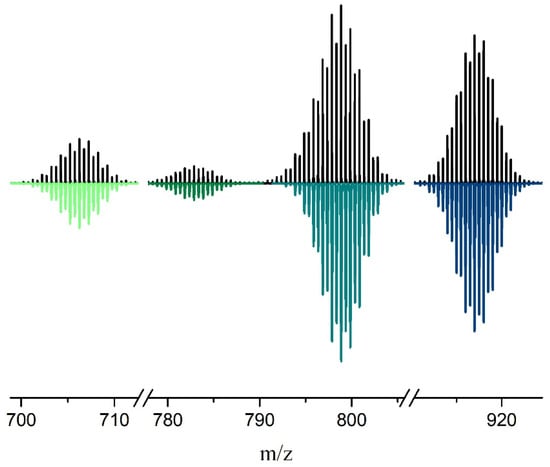

Compound 1 is insoluble in deaerated water. The treatment of the reaction products with boiling Ar-saturated H₂O led to the dissolution of the KCN excess. The interaction of 1 with O₂ in an aerated KCN solution resulted in depolymerization accompanied by two-electron oxidation of the cluster core and the formation of the discrete cluster anion [Re_3.2Mo_2.8S₈(CN)₆]⁵⁻, which was isolated and crystallized as potassium salt 2. Note that the Re/Mo ratio in compound 2 was the same as in compound 1, confirming the co-crystallization of several clusters with different cores in the reaction mixture. To determine the composition of the mixture of clusters, compound 2 was converted to (Ph₄P)⁺ salt by mixing the aqueous solutions of 2 and Ph₄PCl. The precipitate formed had the composition (Ph₄P)₄[Re_3.2Mo_2.8S₈(CN)₆] (3) (Scheme 1). The decoloration of the solution indicates the quantitative precipitation of the cluster products. Based on the results of the mass spectrometric analysis of a solution of this salt in CH₃CN, it was demonstrated that compound 3 contains cluster units based on three different cluster cores, namely, [Re₄Mo₂S₈(CN)₆]ⁿ⁻, [Re₃Mo₃S₈(CN)₆]ⁿ⁻ and [Re₂Mo₄S₈(CN)₆]ⁿ⁻ (Figure 1).

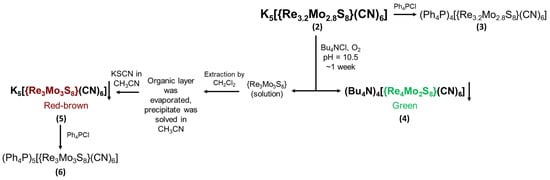

To separate clusters with different Re/Mo ratios, an excess of Bu₄NCl was added to the solution of compound 2 in H₂O (Scheme 1). It was found that this reaction is pH-dependent. In the case of {Re₄Mo₂S₈}, the addition of KOH can promote oxidation. Using a KOH solution, the pH value of the reaction mixture was adjusted to 10.5. The reaction mixture was left in a glass with air access for one week. As a result, a green crystalline precipitate of compound (Bu₄N)₄[Re₄Mo₂S₈(CN)₆] (4) was formed.

One can see that during the reaction, one-electron oxidation of the [Re₄Mo₂S₈(CN)₆]⁵⁻ cluster (23 cluster skeletal electrons—CSEs,

Table 1. Correlation between CSE number and charge (n) of the [Re₄Mo₂Se₈(CN)₆]ⁿ and [Re₃Mo₃S₈(CN)₆]ⁿ cluster anions.

Anion/Charge	7−	6−	5−	4−
[Re4Mo2Se8(CN)6]n	25	24	23	22
[Re3Mo3S8(CN)6]n	24	23	22	21

) to [Re₄Mo₂S₈(CN)₆]⁴⁻ (22 CSEs) occurred, causing the precipitation of salt 4, which is insoluble in H₂O. Further holding of the filtrate solution in air did not lead to the precipitation of other products; therefore, we can assume that quantitative separation of the cluster with {Re₄Mo₂S₈} core took place. This was confirmed by the investigation of the solution of compound 4 by mass spectrometry. In the mass spectrum (Figure 2), all intense signals correspond to adducts of the [Re₄Mo₂S₈(CN)₆]ⁿ⁻ cluster. After the isolation of compound 4, the aqueous reaction mixture remained colored, indicating the presence of other cluster compounds. This colored species was successfully extracted with CH₂Cl₂, then the organic layer was separated, evaporated to dryness in air and dissolved in CH₃CN. A solution of KSCN in CH₃CN was added, causing the quick precipitation of brown powder of K₅[Re₃Mo₃S₈(CN)₆] (5) (Scheme 1). The aqueous solution of compound 5 was mixed with the aqueous solution of Ph₄PCl, causing the immediate precipitation of compound 6. As in the case of compound 3, compound 6 is soluble in CH₃CN, allowing it to be examined by ESI-MS. The main isotopic distribution peak sets found match well the {Re₃Mo₃S₈}-based cluster adducts (Figure 3). Therefore, the separation and selective isolation of clusters with the {Re₄Mo₂S₈} and {Re₃Mo₃S₈} cores were carried out.

2.2. Crystal Structures

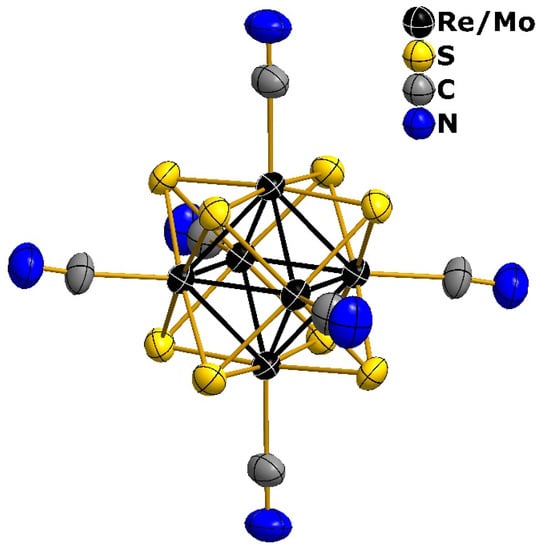

Compounds (Bu₄N)₄[Re₄Mo₂S₈(CN)₆]·2H₂O (4) and K₅[Re₃Mo₃S₈(CN)₆]·8H₂O (5) were investigated by single-crystal X-ray diffraction. The crystal structures of these compounds are based on cluster anions [Re₄Mo₂S₈(CN)₆]⁴⁻ and [Re₃Mo₃S₈(CN)₆]⁵⁻, respectively, both having 22 CSEs. The anions exhibit the typical geometry of octahedral cluster complexes of the [M₆Q₈L₆] type (Figure 4). The rhenium and molybdenum atoms in both structures are disordered over all positions of the metal atoms. The refinement of the site occupancies leads to chemical compositions Re_3.87(3)Mo_2.13(3) and Re_2.94(12)Mo_3.06(12), which are close to the integer values {Re₄Mo₂} and {Re₃Mo₃}. As XRD analysis provides only an average structure, it was impossible to establish the isomeric composition of the obtained clusters as well as the local Re–Re, Mo–Mo and Re–Mo interatomic distances. Nevertheless, an increase in the average interatomic M–M (2.615(1) Å and 2.623(2) Å) and M–Q (2.427(2) Å and 2.430(4) Å) distances correlated with a decrease in the Re/Mo ratio in the cluster core (compounds 4 and 5, respectively,

Table 2. Mean bond lengths from single-crystal XRD data for Re/Mo cyanide octahedral cluster complexes.

	M–M	M–Q	M–C	Ref.
[Re4Mo2S8(CN)6]4− (296 K)	2.615(1)	2.427(2)	2.15(1)	This work
[Re4Mo2Se8(CN)6]4− (150 K)	2.646(14)	2.540(9)	2.16(1)	[24]
[Re3Mo3S8(CN)6]5− (296 K)	2.623(2)	2.430(4)	2.15(3)	This work
[Re3Mo3Se8(CN)6]5− (150 K)	2.6494(9)	2.5464(9)	2.14(2)	[24]

). This correlation was found earlier for selenide heterometallic clusters [24]. M–Q and M–M are shorter for sulfide heterometallic clusters than for selenide ones, in accordance with the difference in the atomic radii of sulfur and selenium.

2.3. Electrochemical Properties

The separation of the octahedral heterometallic clusters using the differences in their redox properties and solubility was first described for the clusters with {Re₄Mo₂Se₈} and {Re₃Mo₃Se₈} cores [24]. In that case, the process of precipitation of the (Bu₄N)₄[Re₄Mo₂Se₈(CN)₆] salt took only about one hour to be completed, as opposed to the one week needed to obtain compound 4. Attempts to speed up the precipitation of compound 4 by heating the solution and adding excess Bu₄N⁺ or other alkylammonium cations have not been successful. In the CH₃CN solution, the [Re₄Mo₂S₈(CN)₆]⁴⁻ cluster shows two quasi-reversible transitions with E_1/2 = −0.303 V and −1.186 V vs. Ag/AgCl (Figure 5a). These transitions correspond to the reduction of [Re₄Mo₂S₈(CN)₆]⁴⁻ (22 CSEs) in [Re₄Mo₂S₈(CN)₆]⁵⁻ (23 CSEs) and then in [Re₄Mo₂S₈(CN)₆]⁶⁻ (24 CSEs, Table 1), respectively. In comparison with the [Re₄Mo₂S₈(CN)₆]ⁿ⁻ clusters, the potentials of the corresponding transitions are shifted by 0.173 and 0.108 V to the anodic region (

Table 3. Redox potentials (E_1/2) for {M₆Q₈}-type cyanide clusters (M = Re, Mo; Q = S, Se; potentials are normalized vs. Ag/AgCl/3.5M KCl electrode).

Anion/CSE Number	21/22	22/23	23/24
[Re6S8(CN)6](n−1)−/n− (CH3CN) [27]	-	-	+0.60
[Re4Mo2S8(CN)6](n−1)−/n− (CH3CN)	-	−0.303	−1.186
[Re4Mo2Se8(CN)6](n−1)−/n− (CH3CN) [24]	-	−0.476	−1.294
[Re3Mo3S8(CN)6](n−1)−/n− (Acetone)	−0.018	−0.904	−1.332
[Re3Mo3Se8(CN)6](n−1)−/n− (CH3CN) [24]	−0.202	−0.870	−1.270

). This shift correlates well with the known electrochemical data for homometallic octahedral clusters of rhenium [Re₆Q₈(CN)₆]^4−/3−, where a successive cathodic shift of the oxidation potentials occurs upon changing the nature of the inner ligands from S to Se and Te [27,28]. Salt 4 can be transformed to the water-soluble salt K₅[Re₄Mo₂S₈(CN)₆] by adding a solution of KSCN in CH₃CN to the solution of 4 in CH₃CN. The cyclic voltammetry curve for the K₅[Re₄Mo₂S₈(CN)₆] salt in aqueous solution is characterized by one reversible redox transition with E_1/2 at 0.073 V vs. Ag/AgCl (Figure S7). This transition corresponds to the oxidation of [Re₄Mo₂S₈(CN)₆]⁵⁻ to obtain [Re₄Mo₂S₈(CN)₆]⁴⁻ (22 to 23 CSEs).

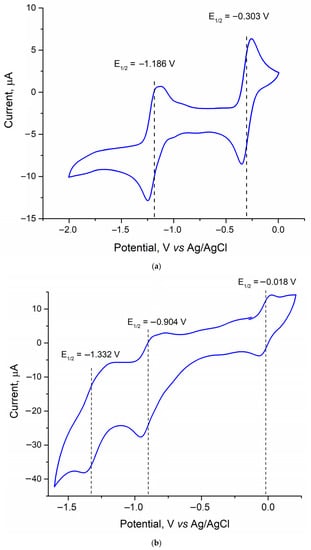

The cyclic voltammogram of the [Re₃Mo₃S₈(CN)₆]⁵⁻ anion (22 CSEs, compound 5) in acetone contains three quasi-reversible redox waves (Figure 5b). One of them corresponds to the oxidation process, while the two remaining waves correspond to reduction processes. Therefore, four charge states for [Re₃Mo₃S₈(CN)₆]ⁿ⁻ anions are electrochemically evidenced, namely, [Re₃Mo₃S₈(CN)₆]^{4−/5−/6−/7−}, containing 21 to 24 CSEs, respectively. The half-wave potentials of these processes are −0.018, −0.904 and −1.332 V, respectively, vs. Ag/AgCl. These values are close to the previously reported ones for [Re₃Mo₃Se₈(CN)₆]^{4−/5−/6−/7−} anions [24], with the exception of the 21/22 CSE transition for [Re₃Mo₃Q₈(CN)₆]^4−/5− anions (Table 3). One can notice that the nature of the inner chalcogenide ligand has much less impact on the electrochemical behavior of clusters with a higher content of molybdenum forming the cluster.

One may see that embedding molybdenum atoms instead of rhenium ones within the {Re₆} metal core increases the number of electrochemically accessible redox transitions of the resulting compounds and shifts them to the negative potential region (Table 3. The [Re₆S₈(CN)₆]⁴⁻ complex is characterized by one redox transition corresponding to a change in the number of CSEs from 24 to 23 at +0.60 V vs. Ag/AgCl [27]. In the same conditions, the [Re₄Mo₂S₈(CN)₆]^6−/5− redox transition (24 to 23 CSEs) displayed a potential of −1.186 V. The substitution of one more rhenium atom for molybdenum led to the shift of the 24-to-23-CSE transition ([Re₃Mo₃S₈(CN)₆]^7−/6− redox pair) to −1.332 V. Moreover, {Re₃Mo₃} heterometallic cluster complexes are accessible as stable compounds in highly oxidized forms up to 21 CSEs. Thus, the substitution of metals in the metal cores significantly affects the redox properties of cluster complexes, making it possible to vary the optical and electronic properties of cluster-based materials by applying voltage.

2.4. Electronic Structure

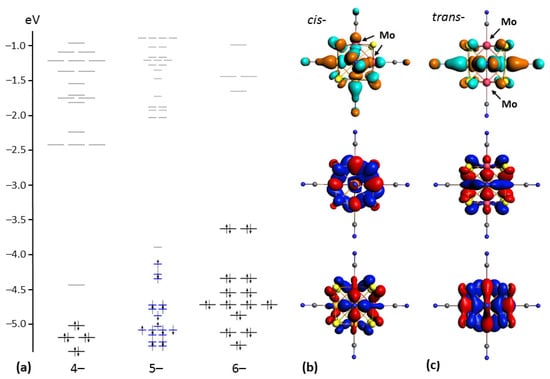

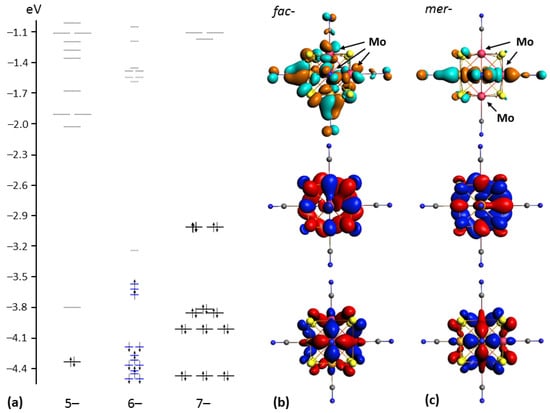

In order to analyze the geometry and electronic structure of novel heterometallic cores {Re₄Mo₂S₈} and {Re₃Mo₃S₈}, DFT calculations were performed for the cis- and trans-isomers of [Re₄Mo₂S₈(CN)₆]ⁿ⁻ anions (n = 4–6, Figure 6), as well as for the fac- and mer-isomers of [Re₃Mo₃S₈(CN)₆]ⁿ⁻ anions (n = 5–7, Figure 7). The CSE count for these anions varied from 22 to 24. The formation energies of all 24-electron anions were similar and equal to −226.518, −226.639, −228.969 and −228.855 eV for cis-[Re₄Mo₂S₈(CN)₆]⁶⁻, trans-[Re₄Mo₂S₈(CN)₆]⁶⁻, fac-[Re₃Mo₃S₈(CN)₆]⁷⁻ and mer-[Re₃Mo₃S₈(CN)₆]⁷⁻, respectively. The structure of the molecular orbitals for electron-saturated heterometallic clusters shows that the two upper occupied orbitals (HOMO and HOMO-1) are separated from the lower orbitals by a relatively large energy gap. This was also mentioned for the clusters with {Re₃Mo₃Se₈} and {Re₄Mo₂Se₈} cores. The value of this energy gap is in the range of 0.67–0.80 eV. Frontier orbitals of clusters with 24 CSEs have bonding nature relative to metal–metal interactions below the Fermi energy level and anti-bonding characteristics above the Fermi energy level (LUMO, LUMO+1, etc.). HOMO and HOMO-1 are composed mostly of rhenium and molybdenum atomic orbitals, with some contribution of sulfur atomic orbitals (about 20%), while LUMO also has a notable contribution of C and N atomic orbitals. The HOMO–LUMO gaps are equal to about 2.2 eV for clusters with {Re₃Mo₃S₈} cores and 2.0 eV for clusters with {Re₄Mo₂S₈} cores.

The removal of electrons from HOMO causes a shift of HOMO–1 down in energy. The energy gap between SOMO and LUMO remains almost the same as the HOMO–LUMO gap for 24-electron anions. Further oxidation of the clusters causes a lowering of HOMO in energy. As a result, 22-electron clusters do not show a large gap between HOMO and the lower orbitals. On the contrary, the energy gap between HOMO and LUMO in 22-electron clusters (HOMO and HOMO–1 in 24-electron clusters) increases and reaches 0.5 eV. The gap between LUMO and LUMO+1 (HOMO–LUMO gap in 24-electron clusters) remains almost unchanged.

2.5. Geometry Optimization

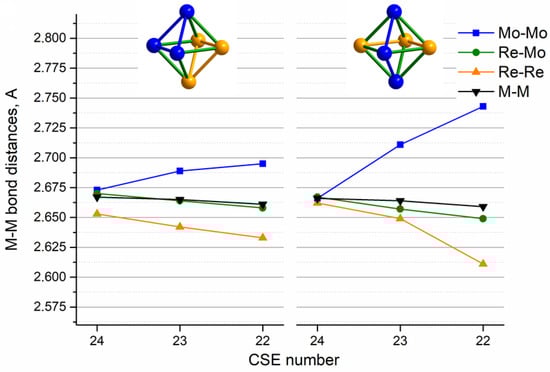

According to the calculation data, the 24-electron metal core {Re₃Mo₃} is close to octahedron shape, especially for the mer-isomer and, to a lesser extent, for the fac-isomer, with little difference in M-M bond distances (Figure 8, 24 CSEs). The two-electron removal leads to a significant shortening of the Re-Re distances and an elongation of the Mo-Mo distances in the metal core in the case of both isomers (Figure 8, 22 CSEs). The distortion of the octahedron leads to C_2v and C_s metal cores for mer- and fac-isomers, respectively. The difference between the longest and shortest metal–metal distances for the 22-electron mer-isomer is 0.133 Å (for the fac-isomer, 0.182 Å).

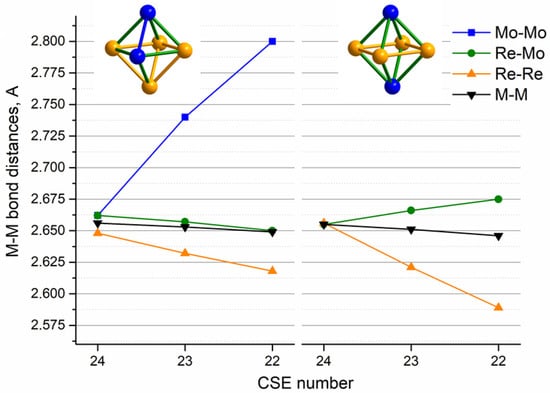

A similar distortion character is observed for the {Re₄Mo₂} cluster, where two-electron removal also leads to the shortening of the Re–Re distances and the elongation of the Mo–Mo distances, giving C_2v and D_4h metal cores for cis- and trans-isomers, respectively (Figure 9).

The local coordination environment of rhenium and molybdenum atoms in the 22-electron {Re₃Mo₃} and {Re₄Mo₂} clusters was experimentally investigated by using the EXAFS method. It can be seen that, in both cases, the Re–Re distances are shorter than the average M–M distances, and the Mo–Mo distances are noticeably longer (

Table 4. M-M distances (Å) in [Re₃Mo₃Se₈(CN)₆]⁵⁻ by EXAFS, DFT and SC XRD.

	fac-[Re3Mo3S8(CN)6]5−		mer-[Re3Mo3S8(CN)6]5−		SC XRD
	EXAFS	DFT	EXAFS	DFT
RMo-Mo	2.75(2)	<2.695>	2.741(3)	<2.743>
RMo-Re	2.630(6)	<2.658>	2.642(5)	<2.649>
RRe-Re	2.608(4)	<2.633>	2.612(6)	<2.611>
RM-M	<2.655>	<2.661>	<2.659>	<2.659>	2.623(2)

and

Table 5. M-M distances (Å) in [Re₄Mo₂Se₈(CN)₆]⁴⁻ by EXAFS, DFT and SC XRD.

	cis-[Re4Mo2S8(CN)6]4−		trans-[Re4Mo2S8(CN)6]4−		SC XRD
	EXAFS	DFT	EXAFS	DFT
RMo-Mo	2.80(3)	<2.800>	–	–
RMo-Re	2.644(3)	<2.650>	2.644(3)	<2.675>
RRe-Re	2.593(4)	<2.618>	2.592(4)	<2.589>
RM-M	<2.635>	<2.649>	<2.627>	<2.646>	2.597(1)–2.623(1) <2.615>

, EXAFS column). It was shown that the interatomic M–M distances in the [Re₃Mo₃S₈(CN)₆]⁵⁻ and [Re₄Mo₂S₈(CN)₆]⁴⁻ cluster-based anionic units, determined theoretically by the method of quantum-chemical DFT calculations and experimentally from the EXAFS spectra, agree well with each other. Both approaches show that the {Re₃Mo₃} and {Re₄Mo₂} clusters in the cluster-based anionic units are strongly distorted in comparison with the experimental structural data obtained by X-ray diffraction. The resulting distortion cannot be determined from the structural data obtained by X-ray diffraction analysis since the symmetry of the cluster does not coincide with the symmetry of the structures, and the diffraction data contain the average positions of the metal atoms and, hence, the average interatomic distances. However, it was not possible to unambiguously determine by EXAFS the type of core isomerism from the obtained data due to the close values of the r-factor from fitting modeled data with different isomers (Tables S1–S4 in Supplementary Materials, r-factor values).

3. Experimental Section

3.1. Materials and Methods

All reagents and solvents were used as purchased. Elemental analysis was made on a EuroVector EA3000 analyzer (EuroVector, Pavia, Italy). Energy dispersive spectroscopy (EDS) was performed on a Hitachi TM3000 TableTop SEM (Hitachi, Ltd., Chiyoda City, Tokyo, Japan) with Bruker QUANTAX 70 EDS equipment (Bruker Corporation, Billerica, MA, USA). FT-IR spectra in KBr pellets were recorded on a Bruker Scimitar FTS 2000 spectrometer in the range 4000–375 cm⁻¹. UV-Vis absorption measurements were performed in the wavelength range of 400–800 nm on an Agilent Cary 60 spectrophotometer (Agilent Technologies, Inc., Santa Clara, CA, USA). Electrospray ionization mass spectrometry was performed on a Bruker maXis 4G high-resolution ESI-q-TOF spectrometer. The mass spectra were recorded under the following conditions: registration of negative ions from m/z = 600 Da to 4000 Da, voltage +2500 V, pressure on the nebulizer of 0.8 bar, drying gas flow of 4 L/min and drying gas temperature of 180 °C. Cyclic voltammetry was carried out on an Electrochemical Instruments Elins P-20 × 8 voltammetry analyzer (Electrochemical Instruments, Chernogolovka, Russia) using a three-electrode scheme with glassy carbon working, Pt auxiliary and Ag/AgCl/3.5M KCl reference electrodes. Investigations were carried out for 2.5·10⁻³ M solution of cluster salts 3 and 6 in a 0.1 M solution of Bu₄NClO₄ in CH₃CN or (CH₃)₂O, respectively, under an Ar atmosphere. The registered value of E_1/2 for the Fc^0/+ couple was 0.440 V in the same conditions. Powder X-ray diffraction (PXRD) data were collected using a Philips PW 1820/1710 diffractometer (Cu, Kα radiation, graphite monochromator, Si as external reference).

3.2. Synthesis of Compounds

ReS₂ and MoS₂ were synthesized by the reaction between stoichiometric amounts of corresponding metal and sulfur in evacuated silica ampoules at 1000 °C for 48 h. Phase purity of binary precursors was confirmed by PXRD.

• Preparation of K₆[Re_3.2Mo_2.8S₈(CN)₅] (1). Compound 1 was prepared using a technique derived from that previously described [15]. ReS₂ (1.02 g, 4 mmol), MoS₂ (0.65 g, 4 mmol) and KCN (1.68 g, 25 mmol) were mixed in a silica ampoule. The ampoule was evacuated and sealed. The reaction was carried out at 700 °C for 8 days, and then the ampoule was cooled down to room temperature in 12 h. The reaction mixture was stirred in Ar-saturated H₂O (250 mL) under Ar gas flow at room temperature for 1 h to remove unreacted KCN and was filtered off. The resulting solid residue was washed on a glass filter with an EtOH/H₂O mixture (7/1 vol., 2 portions of 20 mL) and EtOH (30 mL). The mixture containing octahedral black crystals of 1 with an admixture of unreacted metal sulfides was separated by sonication in EtOH with subsequent decantation, and then product 1 was dried in air. Yield: 1.30 g (66% based on total amount of metals). EDS: K:Re:Mo:S = 5.7:3.2:2.8:8.3. FT-IR (KBr, cm⁻¹): 2088 (C≡N). Phase purity of the product was confirmed by PXRD. PXRD also revealed that compound 1 is isostructural to the K₆[Re₃Mo₃S₈(CN)₅] phase reported previously [15].

• Preparation of K₅[Re_3.2Mo_2.8S₈(CN)₆] (2). Compound 1 (0.50 g, 0.33 mmol) and KCN (0.05 g, 0.77 mmol) were dissolved in 20 mL of H₂O. The solution was evaporated on heating in a glass to a volume of about 5 mL and then 10 mL of EtOH was added, causing immediate precipitation of compound 2. The precipitate was separated by centrifugation, washed with an EtOH/H₂O mixture (7/1 vol., 20 mL) and EtOH (20 mL) and dried in air. Yield: 0.34 g (70%). EDS: K:Re:Mo:S = 4.8:3.1:2.9:8.0. FT-IR (KBr, cm⁻¹): v = 2103 (C≡N); v = 3572, 1620 (O-H). UV-vis (H₂O; λ_max, nm (ε, M⁻¹cm⁻¹)): 454 (973), 482 (1056), 804 (255). Elemental analysis: Anal. Calcd. for C₆N₆Re_3.2Mo_2.8S₈ (%): C, 4.89; N, 5.71; H, 0; S, 17.42. Found: C, 4.96; N, 5.82; H, 0.14; S, 17.28. PXRD pattern shows that compound 2 is isostructural to the CaK₄[Re₃Mo₃S₈(CN)₆]·8H₂O phase reported previously [23] and does not present additional diffraction peaks.

• Preparation of (Ph₄P)₄[Re_3.2Mo_2.8S₈(CN)₆] (3). Compound 2 (0.10 g, 0.03 mmol) was dissolved in 10 mL of H₂O. Ph₄PCl (0.10 g, 0.26 mmol) was dissolved in H₂O (10 mL) and added to the solution of compound 2, leading to the precipitation of compound 3. The precipitate was separated by centrifugation, washed with H₂O and dried in air. Single crystals for X-ray diffraction studies were obtained by slow diffusion of H₂O layered under the solution of compound 3 in CH₃CN (15 mg mL⁻¹) in a thin glass tube. EDS: Re:Mo:S = 3.2:2.8:7.6. FT-IR (KBr, cm⁻¹): v = 2096 (C≡N); 1436, 1107, 995, 756, 721, 686, 522 (Ph₄P⁺). UV-vis absorption (CH₃CN; λ_max, nm (ε, M⁻¹cm⁻¹)): 475 (1238), 483 (1266), 813 (406). Elemental analysis: Anal. Calcd. for C₁₀₂N₆H₈₀Re_3.2Mo_2.8S₈ (%): C, 46.50; N, 3.19; H, 3.06; S, 9.74. Found: C, 46.43; N, 3.32; H, 3.35; S, 9.53.

• Preparation of (Bu₄N)₄[Re₄Mo₂S₈(CN)₆]·2H₂O (4). Compound 2 (1.00 g, 0.68 mmol) was stirred in 20 mL of H₂O for 2 h, resulting in a dark-brown solution. The solution was filtered and added to the solution of n-Bu₄NCl (1.00 g, 3.6 mmol) in 20 mL of H₂O (the pH of the resulting solution was 9.6). KOH was added to the reaction mixture until it reached a pH of 11.0. The reaction mixture stayed at room temperature in the open glass and slowly evaporated. During the evaporation, a green precipitate of compound 4 was formed. The end of precipitation occurred in about 7 days. The precipitate was filtered, washed with H₂O and dried in air. Yield: 0.52 g (33% based on initial amount of compound 2). EDS: Re:Mo:S = 4.0:2.0:7.6. FT-IR (KBr, cm⁻¹): 2115 (C≡N). UV–vis absorption (H₂O; λ_max, nm (ε, M⁻¹cm⁻¹)): 495 (425), 452 (375), 807 (140). Elemental analysis: Anal. Calcd. for C₇₀N₁₀H₁₄₈O₂Re₄Mo₂S₈ (%): C, 35.7; N, 5.9; H, 6.3; S, 10.9. Found: C, 34.3; N, 5.6; H, 6.1; S, 10.9. ESI-MS in CH₃CN, negative ion mode, m/z (Figure 2): H₄[{Re₄Mo₂S₈}(CN)₆](H₂O)(CH₃CN)²⁻ (obs. 706.24, calcd. 706.24), (Bu₄N)[{Re₄Mo₂S₈}(CN)₅]²⁻ (obs. 782.85, calcd. 782.85), (Bu₄N)[{Re₄Mo₂S₈}(CN)₄(OH)](CH₃CN)²⁻ (obs. 798.84, calcd. 798.86) and (Bu₄N)₂[{Re₄Mo₂S₈}(CN)₆]²⁻ (obs. 916.99, calcd. 916.99). PXRD pattern of polycrystalline phase matched the calculated pattern from single-crystal X-ray diffraction data. Single crystals for X-ray diffraction studies were obtained by recrystallization of 4 from CH₃CN.

• Preparation of K₅[Re₃Mo₃S₈(CN)₆]·8H₂O (5). The aqueous solution formed after separation of solid compound 4 was extracted with 40 mL of CH₂Cl₂. The organic layer was separated and evaporated in air to dryness, and the solid residue was dissolved in 15 mL of CH₃CN. This solution was mixed with a solution of 0.30 g (3.1 mmol) of KSCN in 15 mL of CH₃CN. A brown precipitate quickly formed after mixing the two solutions. The precipitate was dissolved in H₂O, and KCN was added to the solution (0.01 g, 0.15 mmol). The solution was evaporated to 5 mL, which led to the precipitation of red-brown crystals. Yield: 0.17 g (25% based on initial amount of compound 2). Elemental analysis: Anal. Calcd. for C₆N₆H₁₆O₈K₅Re₃Mo₃S₈ (%): C, 4.48; N, 5.23; H, 1.00; S, 15.93. Found: C, 4.71; N, 5.53; H, 0.89; S, 16.14. FT-IR (KBr, cm⁻¹): 2102 (C≡N). UV–vis absorption (H₂O; λ_max, nm (ε, M⁻¹cm⁻¹)): 480 (1736), 739 (565).

• Preparation of (Ph₄P)₅[Re₃Mo₃S₈(CN)₆] (6). A total of 300 mg (0.2 mmol) of compound 5 was dissolved in 20 mL of water. Aqueous solution of Ph₄PCl (0.30 g, 0.8 mmol) was added, causing the formation of a brown-red precipitate. The precipitate was separated by centrifugation, washed with H₂O and dried in air. EDS: Re:Mo:S = 2.9:3.1:8.2. FT-IR (KBr, cm⁻¹): v = 2052 (C≡N); 1435, 1107, 995, 750, 721, 686, 522 (Ph₄P⁺). Elemental analysis: Anal. Calcd. for C₁₂₆N₆H₁₀₀P₅Re₃Mo₃S₈ (%): C, 51.04; N, 2.83; H, 3.40; S, 8.63. Found: C, 51.23; N, 2.78; H, 3.56; S, 8.49. ESI-MS in CH₃CN, negative ion mode, m/z (Figure 3): (Ph₄P)H₃[{Re₃Mo₃S₈}(CN)₅]·(CH₃CN)²⁻ (obs. 808.31, calcd. 808.27), (Ph₄P)H₄[{Re₃Mo₃S₈}(CN)₄]·(CH₃CN)₂²⁻ (obs. 816.31, calcd. 816.29), (Ph₄P)H₂[{Re₃Mo₃S₈}(CN)₄]·(CH₃CN)₂(H₂O)²⁻ (obs. 824.30, calcd. 824.29), (Ph₄P)[{Re₃Mo₃S₈}(CN)₆]·(CH₃CN)₂²⁻ (obs. 840.29, calcd. 840.28), (Ph₄P)H[{Re₃Mo₃S₈}(CN)₅]·(CH₃CN)₃²⁻ (obs. 848.29, calcd. 848.29), (Ph₄P)[{Re₃Mo₃S₈(CN)₆]·(CH₃CN)₂(H₂O)₂²⁻ (obs. 858.29, calcd. 858.29) and (Ph₄P)[Re₃Mo₃S₈(CN)₆]·(CH₃CN)₂(H₂O)₃²⁻ (obs. 867.29, calcd. 867.29).

3.3. Single-Crystal Diffraction Studies

Single-crystal X-ray diffraction data were collected at room temperature on an APEX II Bruker AXS diffractometer using a Mo-Kα X-ray wavelength (λ = 0.71073 Å) and processed with the APEX 2 program suite [29]. Frame integration and data reduction were carried out with the program SAINT [30]. The program SADABS [31] was employed for multi-scan absorption corrections. The structures of compounds 4 and 5 were solved by direct methods using the SHELXT program [32] and refined with full-matrix least-squares methods based on F² (SHELXL) [33] with the aid of the WinGX platform [34]. All non-hydrogen atoms were refined with anisotropic atomic displacement parameters. The statistical distribution of rhenium and molybdenum atoms on their respective crystallographic sites was considered by constraining equivalent atomic coordinates and anisotropic atomic displacement parameters. From preliminary refinements, a Re/Mo ratio close to 4/2 was refined for 4 and close to 3/3 for 5. Considering that these ratios are in agreement with elemental compositions determined from experimental chemical analyses, final refinements were conducted by using the SUMP command, restraining a Re/Mo ratio of 4/2 for 4 and of 3/3 for 5. This restriction has no influence on the reliability factors or the largest difference in peak and hole values. Hydrogen atoms were included in the structural model considering their calculated positions, and their equivalent isotropic displacement parameters were constrained to be equal to 1.5 times that of the linked atom for methyl hydrogens and 1.2 times for others. Hydrogen atoms in the water molecules were not localized. Publishing data were computed using CRYSCALC program [35]. Selected crystal, collection and refinement data for 4 and 5 are gathered in

Table 6. Summary of single-crystal data collections and structure refinement conditions of (Bu₄N)₄[Re₄Mo₂S₈(CN)₆]·2H₂O and K₅[Re₃Mo₃S₈(CN)₆]·8H₂O.

	4	5
Empirical formula	C70H148Mo2.13N10O2Re3.87S8	C6H16K5Mo3.06N6O8Re2.94S8
Formula weight	2343.31	1593.39
Temperature (K)	296(2)	296(2)
Crystal size (mm3)	0.17 × 0.12 × 0.07	0.06 × 0.05 × 0.03
Crystal system	Monoclinic	Cubic
Space group	P21/c	Fm͞3m
Z	2	4
Unit-cell dimensions
a (Å)	13.784(2)	15.296(3)
b (Å)	17.069(3)	15.296(3)
c (Å)	20.812(4)	15.296(3)
α (°)	90	90
β (°)	102.107(5)	90
γ (°)	90	90
Volume (Å3)	4787.7(14)	3579(2)
Dcalcd. (g∙cm−3)	1.625	2.957
μ (mm−1)	5.358	12.036
θ range (°)	1.925–27.547	3.768–27.386
Indices ranges	−17 ≤ h ≤ 17 0 ≤ k ≤ 22 0 ≤ l ≤ 26	−19 ≤ h ≤ 8 −19 ≤ k ≤ 8 −12 ≤ l ≤ 16
Reflections collected	10,988	2000
Unique reflections	10,988 (Rint = 0.082)	249 (Rint = 0.0630)
Observed reflections	6548 [I > 2σ(I)]	209 [I > 2σ(I)]
Parameters refined/restraints	436/96	24/0
R[F2 > 2σ(F2)]	R1 = 0.0429 wR2 = 0.1039	R1 = 0.0336 wR2 = 0.0953
R(F2) (all data)	R1 = 0.1051 wR2 = 0.1302	R1 = 0.0399 wR2 = 0.0992
Goodness-of-fit on F2	0.999	1.194
Δρmax, Δρmin (e∙Å−3)	1.139, −1.635	1.167, −2.842

. Selected bond distances are listed in Table 2. Crystallographic data for the structures of the title compounds have been deposited at the Cambridge Crystallographic Data Center under reference numbers CCDC 2267663 and 2267664. Copies of this information may be obtained free of charge from the CCDC, 12 Union Road, Cambridge CB2 1 EZ, UK (Fax: +44-1223-336033; http://www.ccdc.cam.ac.uk/conts/retrieving.html; accessed on 6 June 2023).

3.4. Computational Details

Density functional theory (DFT) calculations for cis- and trans-[Re₄Mo₂Se₈(CN)₆]ⁿ⁻ cluster anions (n = 4–6) and gran- and mer-[Re₃Mo₃Se₈(CN)₆]ⁿ⁻ cluster anions (n = 5–7) were carried out in the ADF2021 program package [36,37]. Geometric parameters were optimized with the PW92+revPBE density functional [38,39] and all-electron TZ2P basis set [40]. The zero-order regular approximation (ZORA) [41] for the scalar relativistic effects and the Conductor-like Screening Model (COSMO) [42] for water environment were used in all calculations. Spin-unrestricted calculations were used for cis- and trans-[Re₄Mo₂Se₈(CN)₆]⁵⁻ and gran- and mer-[Re₃Mo₃Se₈(CN)₆]⁶⁻ cluster anions containing 23 CSEs (one unpaired electron). Calculations were performed using C₁ symmetry. In order to facilitate comparisons with similar works in the literature, MO units are a.u. instead of e^1/2·Å^−3/2, which is common practice in coordination chemistry [43,44].

3.5. EXAFS

X-ray absorption spectroscopy (XAS) measurements were carried out at room temperature in transmission mode at the K edge of Mo and L₃-absorption edge of Re at the beamline SAMBA [45] in the Soleil Synchrotron, France (proposal 20210623). Radiation coming from a bending magnet source was monochromatized by a Si(220) fixed-exit sagittally focusing double-crystal monochromator. Harmonic rejection was performed using a couple of mirrors that also focused the monochromatic beam vertically (spot area around 300 × 300 μm²). The samples were examined as self-supporting pellets (matrix cellulose), for which the amount of sample was optimized in order to have a proper XAS signal. The extended X-ray absorption fine structure (EXAFS) signal treatment was performed according to standard procedures: subtraction of the pre-edge and post-edge backgrounds, edge normalization and extraction of EXAFS signal χ(k) and its Fourier transformation, which provides a map in the real space of the distribution of the distances R around the absorber atom. The Demeter software package was used to perform data treatment and fitting [46] using the phase and amplitude calculated using the FEFF-10lite code [47]. Structure models for the {Re₃Mo₃S₈} and {Re₄Mo₂S₈} cores were obtained from crystallographic data. The occupancies of the metal positions were changed so that the rhenium and molybdenum atoms were in different positions, corresponding to the isomerism of the core (Figures S1 and S4 in Supplementary Materials). EXAFS measurements and Fourier transform magnitudes for samples 4 and 5 are given in Figures S2, S3, S5 and S6 in the Supplementary Materials, respectively. The final refinement parameters are given in Tables S1–S4 in the Supplementary Materials.

4. Conclusions

We have demonstrated the possibility of separating anionic complexes based on {Re₄Mo₂S₈} and {Re₃Mo₃S₈} heterometallic clusters and their isolation as individual compounds. These clusters are obtained from the K₆[{Re_3.2Mo_2.8S₈}(CN)₅] polymer synthesized at high temperature. The electrochemical behavior of the [Re₃Mo₃S₈(CN)₆]⁵⁻ and [Re₄Mo₂S₈(CN)₆]⁴⁻ cluster-based anionic units is different, which makes possible the selective oxidation of the {Re₄Mo₂S₈} cluster with atmospheric oxygen in an aqueous solution and the isolation of its insoluble form (Bu₄N)₄[{Re₄Mo₂S₈}(CN)₆]. A comparison of the properties of anionic complexes based on the {Re₄Mo₂S₈}, {Re₃Mo₃S₈}, {Re₄Mo₂Se₈} and {Re₃Mo₃Se₈} clusters shows that the charge states and spectroscopic properties of heterometallic clusters are determined by the ratio of rhenium and molybdenum atoms in the core to a much greater extent than by the type of internal chalcogenide ligands. Such anionic complexes could be further used as building blocks for the design of photoelectrodes for solar cells. Homometallic clusters have already been shown to be promising solar cell components. For example, FTO film coated by the Cs₂[{Mo₆I₈}I₆] complex displayed extremely rare ambipolar semiconducting properties, i.e., the ability to generate both holes and electrons as main charge carriers [8]. According to the published data, molybdenum cluster complexes have an energy gap of 1.9 eV, which is close to the values for heterometallic clusters—2.2 eV for {Re₃Mo₃S₈} and 2.0 eV for {Re₄Mo₂S₈}. Materials based on (Bu₄N)₃[{Re₆Q₈}Cl₆] (Q = S, Se) cluster complexes also exhibit ambipolar properties [9]. The energy gaps for these clusters are 2.1 and 1.9 eV for Q = S and Se, respectively. The deposition of the clusters on the FTO surface has little effect on the energy gaps. According to the published data, we assume that heterometallic cluster complexes have similar semiconductor properties but may have different optical properties in comparison with homometallic clusters.
