Review

Deep Eutectic Solvents: Properties and Applications in CO2 Separation

by
Iwona Cichowska-Kopczyńska
1,*,
Bartosz Nowosielski
2 and
Dorota Warmińska
2
1
Department of Process Engineering and Chemical Technology, Faculty of Chemistry, Gdańsk University of Technology, 80-233 Gdańsk, Poland
2
Department of Physical Chemistry, Faculty of Chemistry, Gdańsk University of Technology, 80-233 Gdańsk, Poland
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(14), 5293; https://doi.org/10.3390/molecules28145293
Submission received: 25 May 2023 / Revised: 21 June 2023 / Accepted: 3 July 2023 / Published: 8 July 2023
(This article belongs to the Special Issue Deep Eutectic Solvents: Properties and Applications as Green Solvents)
Browse Figures
Versions Notes

Abstract

:
Nowadays, many researchers are focused on finding a solution to the problem of global warming. Carbon dioxide is considered to be responsible for the “greenhouse” effect. The largest global emission of industrial CO2 comes from fossil fuel combustion, which makes power plants the perfect point source targets for immediate CO2 emission reductions. A state-of-the-art method for capturing carbon dioxide is chemical absorption using an aqueous solution of alkanolamines, most frequently a 30% wt. solution of monoethanolamine (MEA). Unfortunately, the usage of alkanolamines has a number of drawbacks, such as the corrosive nature of the reaction environment, the loss of the solvent due to its volatility, and a high energy demand at the regeneration step. These problems have driven the search for alternatives to that method, and deep eutectic solvents (DESs) might be a very good substitute. Many types of DESs have thus far been investigated for efficient CO2 capture, and various hydrogen bond donors and acceptors have been used. Deep eutectic solvents that are capable of absorbing carbon dioxide physically and chemically have been reported. Strategies for further CO2 absorption improvement, such as the addition of water, other co-solvents, or metal salts, have been proposed. Within this review, the physical properties of DESs are presented, and their effects on CO2 absorption capacity are discussed in conjunction with the types of HBAs and HBDs and their molar ratios. The practical issues of using DESs for CO2 separation are also described.

1. Introduction

One of the main objectives of current global research is to develop materials and methods aimed at reducing emissions of acid and toxic gases, especially carbon dioxide. One of the most common technologies used to remove CO2 is its absorption with aqueous amine solutions, mainly a 30% aqueous solution of monoethanolamine (MEA). However, other amine absorbents can be considered, particularly those including hydroxyamines such as aminomethylpropanol (AMP) or 2-piperidineethanol (2-PPE) which, compared to aqueous MEA solutions, require less heat at the regeneration stage, resulting in a reduction in the process cost. However, new alternative solvents will be indispensable to make the process more efficient, still less expensive, and more environmentally friendly.
Over the last few years, a lot of attention has been paid to ionic liquids (ILs). These solvents are characterized by a low melting point, low vapor pressure, and relatively high solubility of CO2. However, research has shown that a vast majority of ILs absorb carbon dioxide physically, which ensures relatively low costs for solvent regeneration, but at the same time limits capacity and requires high operating pressures for the removal of carbon dioxide. Serious disadvantages of ionic liquids used on a technical scale are their high price, relatively high viscosity, toxicity, and corrosivity.
An alternative to ILs is using deep eutectic solvents (DESs), which were originally introduced as systems formed from a mixture of two or more Lewis acids and bases or Brønsted–Lowry acids and bases, and which have a lower freezing point compared to the starting constituents. In recent years, the definition of a DES was made more precise and it has been established that the term “deep eutectic solvent” can only be assigned to a eutectic mixture for which the eutectic point temperature is lower than that calculated from the Schröder–Van Laar equation valid for an ideal liquid eutectic mixture [1]. However, in practice, most researchers use the term “deep eutectic solvent” simply for the eutectic mixture. DESs are usually obtained by mixing several reagents to form a homogenous liquid. There is always a small amount of water in these solvents, which is involved in the formation of a network of hydrogen bonds. Deep eutectic solvents have similar physical properties to ionic liquids, and they are practically non-volatile and non-flammable, but additionally they are definitely cheaper and usually easier to synthesize, and they are less toxic and often biodegradable. However, compared to ILs, DESs have lower thermal stability and a lower electrochemical window [2]. The vapor pressure of eutectic liquids is higher than that of ionic liquids, but still relatively low. For an N,N-diethylethanolammonium chloride 1: 2 mixture with glycerol at temperatures from 343 to 393 K, the vapor pressure is from 2 to 60 Pa, and for mixtures with urea it is from 0.14 to 6.8 Pa [3]. Similar to ionic liquids, eutectic liquids’ physical properties can be controlled by changing the composition and ratio of their components in order to obtain properties favorable for a specific application. These properties are affected by the chemical structure of the DESs and the resulting interactions between their components, mainly the hydrogen bonds that are responsible for the physical state of deep eutectic solvents. Examples of commonly used ingredients of DESs, i.e., hydrogen bond acceptors (HBAs) and hydrogen bond donors (HBDs), are presented in Figure 1.
Taking into account the available research reports, it can be concluded that there are no highly accurate models able to predict the properties of DESs. Most of the currently available knowledge is focused on choline chloride-based DESs. Although this is the most widely used hydrogen bond acceptor, there is a whole range of DESs based on other compounds that have not been described in detail. DESs have found their place in several separation applications [4,5,6]. Hence, they are considered to be green and have been examined for the absorption and separation of carbon dioxide and other gaseous pollutants. Depending on their structure, deep eutectic mixtures can absorb carbon dioxide through physical or chemical absorption.
This present article reviews the properties that make these solvents appropriate for CO2 separation applications, as well as their CO2 absorption capacity.

2. Properties of Deep Eutectic Solvents

Growing interest in DESs as a new generation of solvents for various practical applications has resulted in the need for accurate and reliable knowledge about their main physical, chemical, and thermodynamic properties. Therefore, numerous scientific articles devoted to the development and characterization of DES properties have recently been added to the literature. This section describes and discusses the main physicochemical and thermodynamic properties of DESs, including those that affect their suitability for gas separation.

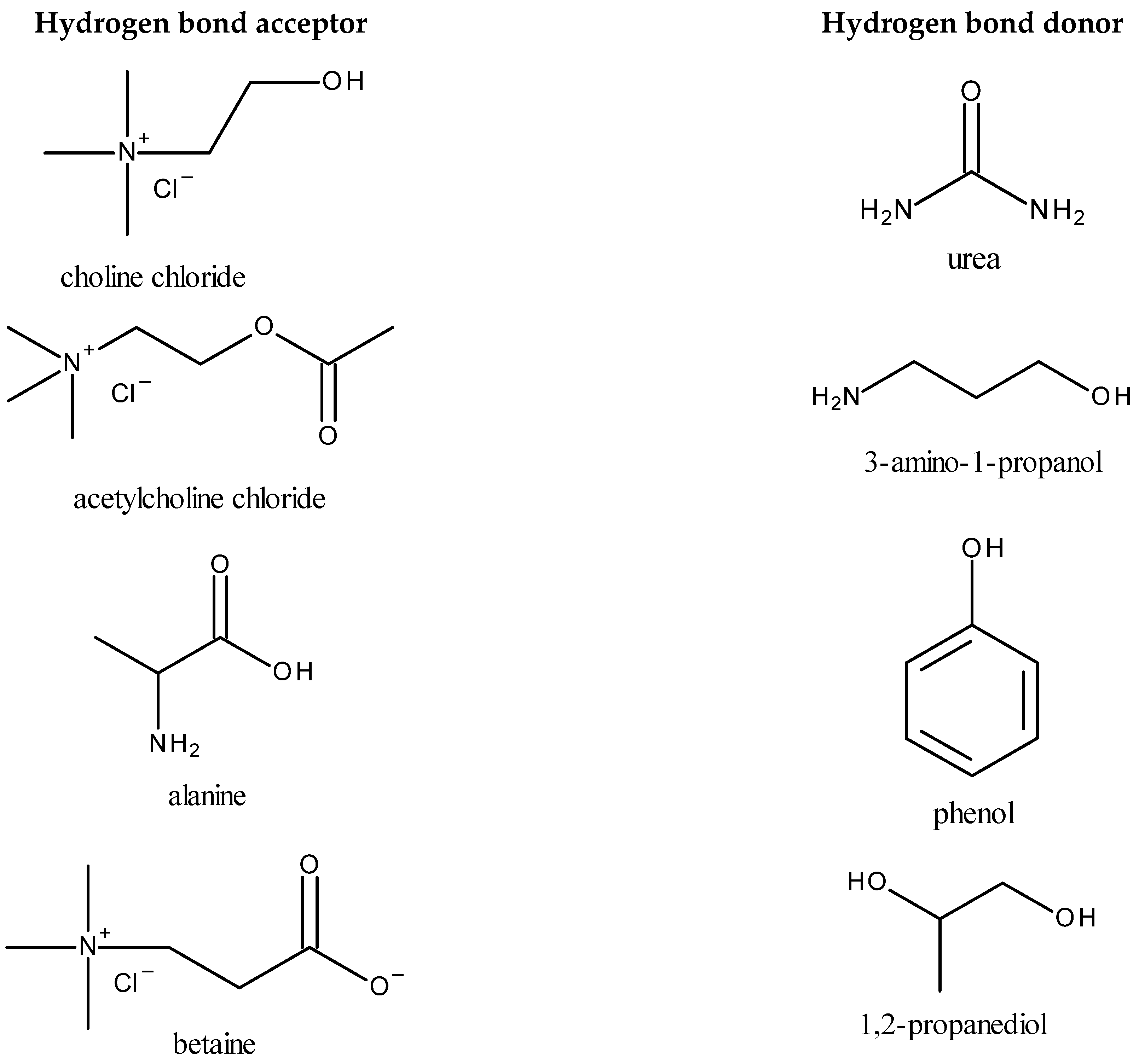

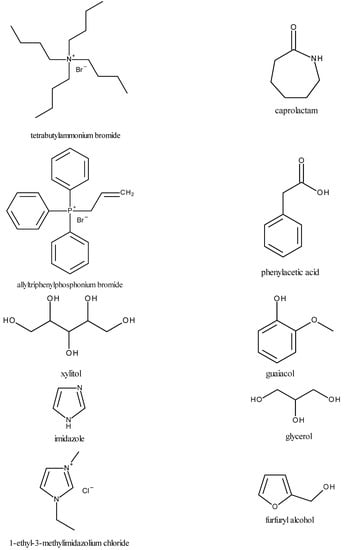

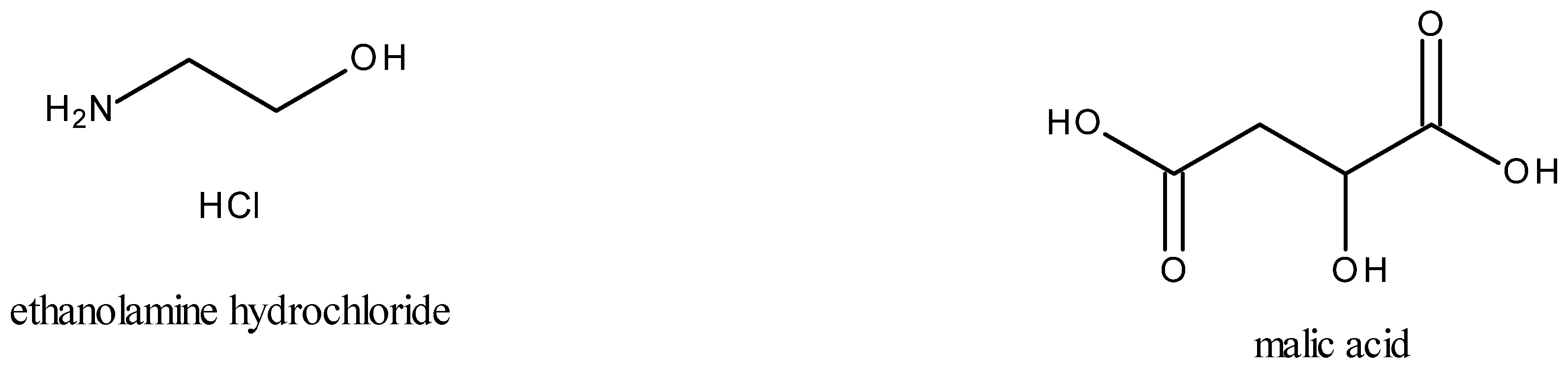

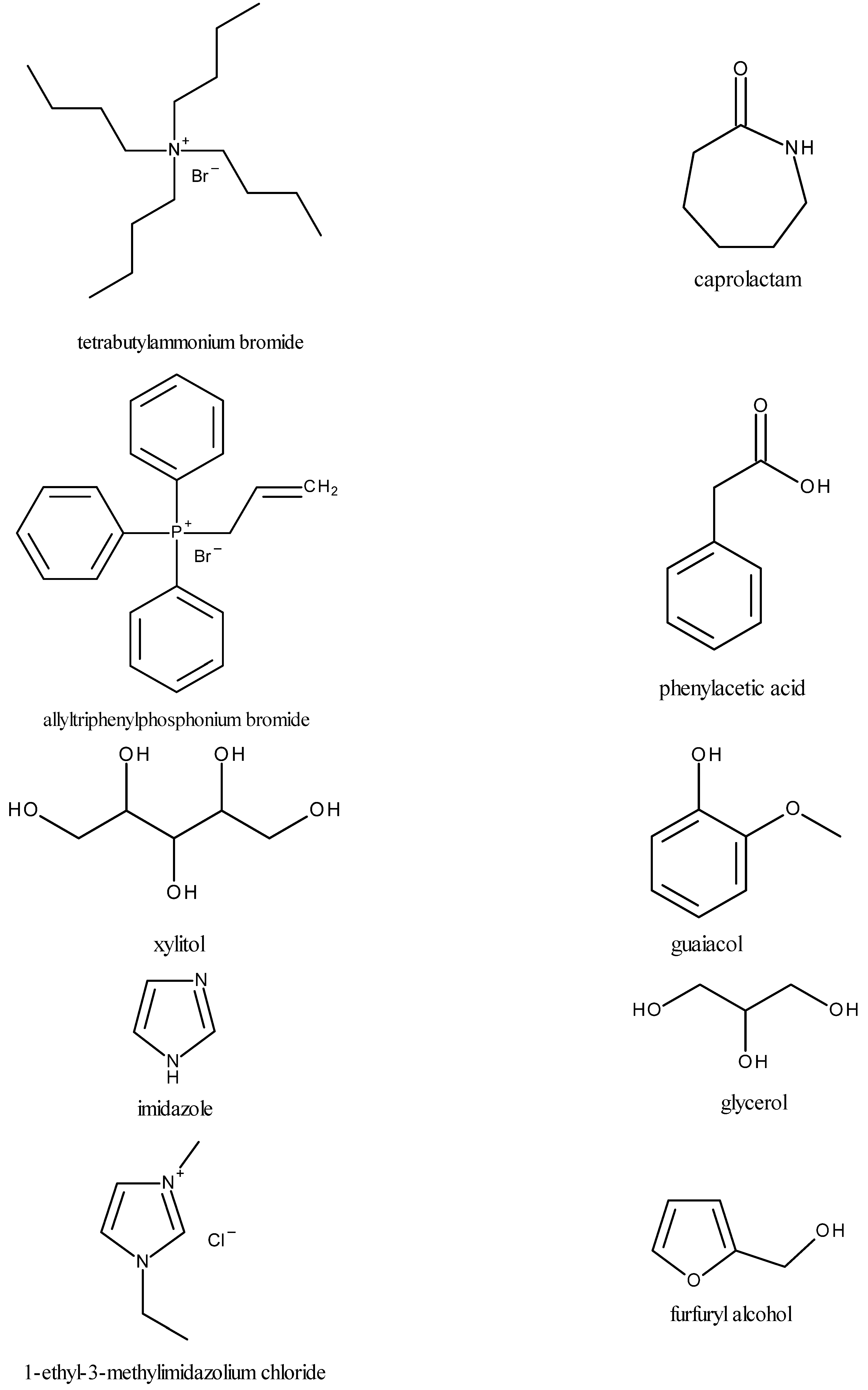

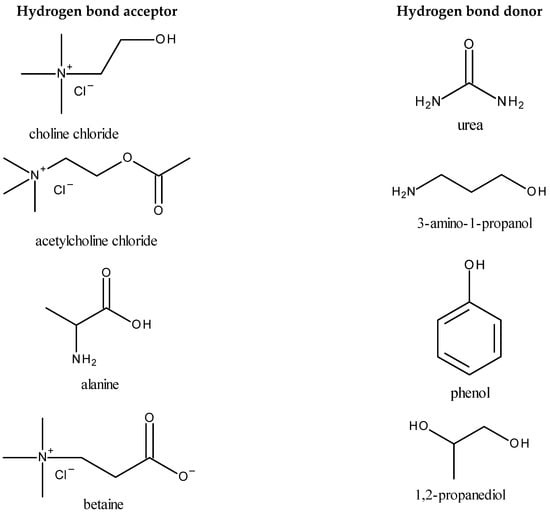

There are seven types of DESs that can be distinguished. The general formulas and examples of the specific types are presented in Table 1. Since most of the research carried out so far has been related to the properties and applications of mixtures of quaternary ammonium salts and HBD, this review is focused mainly on DESs of type III.

2.1. Freezing Point

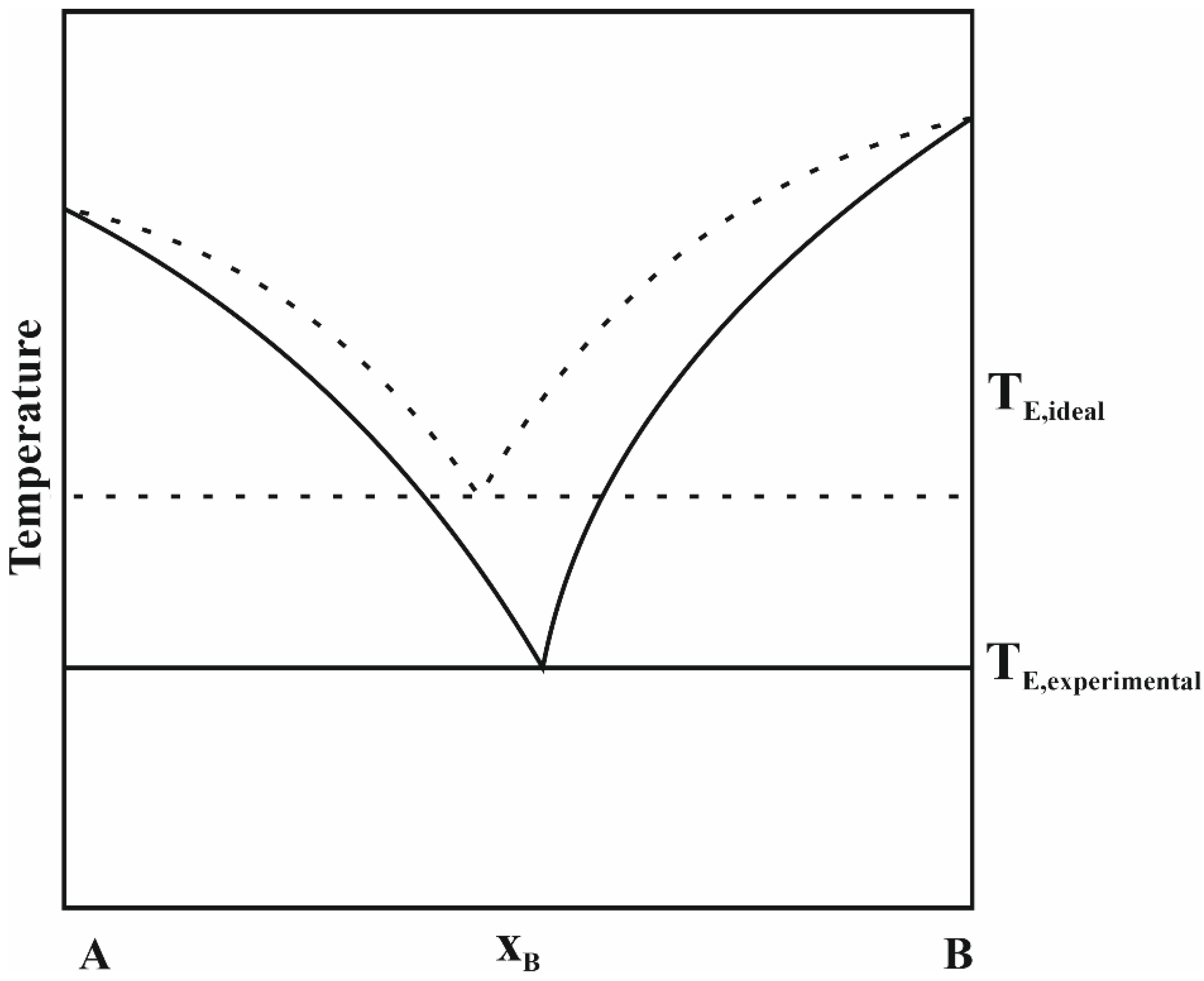

As mentioned above, a DES is formed by mixing two or three components capable of forming a new liquid phase with a lower freezing point than that for the ideal eutectic mixture (Figure 2) [1]. A significant depression of the freezing point is observed mainly due to the hydrogen bond interactions between the hydrogen bond acceptor and the hydrogen bond donor. Although the number of DESs reported in the literature is huge, the number of DESs with the freezing point lower than room temperature is still limited. In general, the freezing point of a DES is influenced by the nature of its constituents and their molar ratio. However, no clear correlation between the melting points of individual components and the freezing points of the corresponding DESs has been found. Among all the choline chloride-based DESs studied, lower melting points were obtained for DESs consisting of polyols such as glycerol or ethylene glycol [7,8]. However, Shahbaz et al. recorded a very low melting point for 2,2,2-trifluoroacetamide, which confirms a very large contribution of the HBD to lowering the melting point by forming a hydrogen bond [8]. It has been established that the nature of the HBA anion also affects the DES freezing point. For example, Abbott et al. studied DESs based on urea and they concluded that DESs consisting of urea and a choline salt have freezing points decreasing in the order F − > NO 3 − > Cl − > BF 4 − [9]. Moreover, in their article, the HBA effect on the freezing point of the DESs was investigated. The researchers found that mixing urea with different salts in the same ratio (1:2) results in liquids that exhibit very different freezing points from −38 to 113 °C.
The influence of the molar ratio of HBAs and HBDs on the freezing point of a DES has been studied by many researchers and it has been demonstrated that, depending on the mixture, it can be significant. For example, when methyl triphenyl phosphonium bromide was mixed with glycerol in a molar ratio of 1:3 or 1:4, the resulting DESs exhibited freezing points of −5.5 and 15.6 °C, respectively [10].
Abbott et al. suggested that the depression of the melting point is due to the lattice energy of the DES, and the entropy changes are caused by the formation of a liquid phase and the interaction between HBAs and HBDs [11]. Based on the analysis of 13 choline chloride DESs, researchers have tried to show a correlation between the freezing point depression and the experimentally measured enthalpy of hydrogen bond formation. However, the discovered correlation was not satisfactory [12]. Marcus tried to compare the standard entropies of DES formation with the freezing point depression but did not identify any general correlation [13].
Pontes et al. used the perturbed-chain statistical associating fluid theory (PC-SAFT) for modelling the phase behavior of DES systems [14]. They observed a compatibility with the experimental data, but this method requires a number of molecules and mixing parameters fitted from experimental data. Thus, this model has a limited predictive capability for novel systems. Garcia et al. proposed a quantitative structure–activity relationship (QSAR) predictive model for choline chloride-based DESs and obtained high predictive ability as shown by the cross-validated R2 values of 0.93 [15]. Recently, a conductor-like screening model for realistic solvation (COSMO- RS) applying experimentally independent molecular descriptors has been proposed by Song et al. [16]. Using 35 choline chloride-based DESs, they found a reliable multilinear relationship between the freezing point depression of DESs and the molecular volume descriptor and their molecular descriptors associated with hydrogen bond interactions.

2.2. Vapor Pressure

Despite a very limited amount of data on the vapor pressure of DESs, there is general agreement that the vapor pressures of pure deep eutectic solvents at ambient temperatures are low or even negligible, but higher than those of ionic liquids. Recently, Ravula et al. studied the vapor pressure of fluids presenting low-volatility and found that they vary in the following order: short-chain PEGs > long-chain PEGs > DESs > protic ILs > polymeric ILs > aprotic ILs > dicationic ILs [17].
Experimental measurements of the vapor pressures of deep eutectic solvents have so far been taken only at 40–120 °C, considerably above ambient temperatures. Boisset et al. determined the vapor pressure at 40 °C for a DES consisting of N-methylacetamide and lithium bis(trifluoromethylsulfonyl)-imide to be 20 Pa [18]. Shahbaz et al. found that at 100 °C the vapor pressures of reline, glyceline, diethylethanolammonium chloride:urea, N,N-diethylethanolammonium chloride:glycerol, and methyltriphenylphosphonium bromide:glycerol are equal to 1.33, 11.6, 1.8, 16.9, and 9.9 Pa, respectively [2]. Recently, Dietz et al. measured the vapor pressures of hydrophobic DESs at 100 °C and obtained values in a range from 55.5 Pa for decanoic acid:lidocaine to 540.9 Pa for decanoic acid:menthol [19].

2.3. Density

Most DESs have a density between 1.0 and 1.35 g·cm−3 at 25 °C [20]. However, DESs containing metal salts, such as ZnCl2, have slightly higher densities, in the range of 1.3 to 1.6 g·cm−3, whereas hydrophobic DESs exhibit a density lower than that of water [21,22]. It is certain, however, that DES densities are higher than those of their individual starting components. According to the principle of the hole theory, mixing DES components reduces the average hole’s radius and thus increases DES density relative to that of the individual constituents.
In general, the influence of the amount of HBDs on the density of a DES depends on the molecular characteristics of the HBD used. For most DESs, their density decreases as the amount of HBDs increases [23,24,25,26,27]. However, in the case of DESs, where there is a strong association between HBD molecules, an increase in DES density with the increasing amount of HBDs was observed. Abbott et al. reported the densities of DESs with different molar ratios of choline chloride to glycerol and concluded that as the ratio of HBDs decreased, DES density increased [28].
The increasing number of hydroxyl groups in HBDs, resulting in the formation of additional H-bonds and possibly reducing the available free volume, leads to the higher density of DESs. The results obtained by Basaiahgari et al. showed that ethylene glycol-based DESs have lower densities compared to glycerol-based DESs for both benzyltrimethylammonium and benzyltributylammonium chloride as HBA [29]. The same effect was observed by Mjalli et al. for similar choline chloride-based DESs [30].
According to the literature, the increase in DES density is also caused by the presence of additional carboxylic groups as well as additional ether bonds in the HBDs. For example, in the case of DESs based on choline chloride, the density of a DES consisting of oxalic acid was higher than that of a DES consisting of glycolic acid [31]. Basaiahgari et al. reported the densities of DESs consisting of ethylene, diethylene, and triethylene glycol as HBDs and benzyltrimethylammonium chloride as the HBA to be equal to 1.101, 1.110, and 1.117 g·cm−3 at 25 °C, respectively [29].
It has been established that the density of DESs decreases with the increasing chain length of the HBDs or HBAs. The results obtained by Florindo et al. show that DESs composed of glutaric acid or levulinic acid have lower density values compared to those observed for DESs based on oxalic or glycolic acids [31]. Wang et al. reported that the density of ethylene glycol-based DESs consisting of tetraethylammonium bromide, tetrapropylammonium bromide, and tetrabutylammonium bromide were 1.1596, 1.1121, and 1.0762, respectively [32].
Another factor affecting DES density is the type of salt they consist of. Shahbaz et al. observed that ammonium-based DESs have lower densities than phosphonium-based DESs [24]. Moreover, bromide salts form denser DESs than chloride ones [23].
In general, an increase in temperature causes a linear decrease in density [33]. However, Yadav et al. found that the decrease in density with increasing temperature of a DES composed of choline chloride and glycerol in a 1:2 mole ratio follows a quadratic expression [34]. Temperature-dependent density measurements for DESs can be used to estimate their isobaric thermal expansion coefficients, which can quantify DESs’ free volume [29].
Several attempts at predicting deep eutectic solvents’ densities have been reported in the literature so far. Shahbaz et al. applied artificial intelligence and group contribution methods in order to predict the densities of DESs consisting of ethylene glycol and glycerol as HBDs and choline chloride, diethylethanolammonium chloride, and methyltriphenylphosphonium bromide as HBAs [24]. Mjalii introduced mass connectivity index (MCI)-based density prediction for a set of 20 deep eutectic solvent systems comprising various salts and hydrogen bond donors [35]. Nowosielski et al. used the Rackett equation modified by Spencer and Danner and the MCI-based density model to predict the density of DESs based on 3-amino-1-propanol [23]. Finally, recently, Haghbakhsh et al. presented group contribution and atomic contribution models for predicting the density of various types of DESs by simply decomposing the molecular structure into a number of predefined groups or atoms [36].

2.4. Viscosity

The viscosity of deep eutectic solvents varies significantly at room temperature. The lowest viscosity values were observed for DESs based on ethylene glycol, ethanolamine, or acetic acid [37,38]. According to Mjalii and Naser, a mixture of choline chloride and ethylene glycol in a molar ratio of 1:2 has a viscosity of 40 mPa·s at 25 °C [39]. The highest viscosities are those of DESs containing derived sugars or amino acids [40,41]. A DES consisting of sorbitol and choline chloride in a molar ratio of 1:12 has a viscosity of 19,470 mPa·s at 25 °C [42]. However, most DESs show relatively high viscosities at room temperature (>100 mPa·s) [20].
Since viscosity is related to the free volume and the probability of finding holes of suitable dimensions for solvent molecules or ions to enter, this property depends on the size of the DES constituents. The high viscosity of DESs also results from the presence of hydrogen bonds as well as electrostatic and van der Waals interactions between the individual components of the DESs. Thus, the viscosity depends on the chemical nature of the components, their molar ratio, water content, and temperature.
In general, increasing the amount of HBDs reduces the viscosity of a DES [25]. However, in the case of DESs based on hydrogen bond donors with a strong cohesive energy, due to the presence of the intermolecular hydrogen bond network, the opposite effect is observed. At 25 °C, the viscosities of choline chloride and glycerol mixtures with molar ratios of 1:4, 1:3, and 1:2 were 350, 320, and 259 mPa·s, respectively [28].
The viscosity of DESs decreases considerably with increasing temperature. For example, for choline chloride:urea (1:2) and choline chloride:glucose (2:1), the viscosity decreases from 750 to 95 mPa·s and from 7992 to 262 mPa·s, respectively, at 25 and 55 °C [43]. The dependence of DESs’ viscosity on temperature is described in the literature by Arrhenius or Vogel–Fulcher–Tamman (VFT) equations [20]. Mjalli and Naser proposed a model for the viscosity of choline chloride-based DESs taking into account not only the temperature, but also the composition of the mixture. According to their results, the model based on the Arrhenius equation is more accurate for less viscous liquids, while the VFT-based viscosity model fits experimental viscosities also for more viscous DESs in a wide temperature range [39].
It has been established that DESs’ viscosity drastically decreases with the water content. This property seems to be the main reason for the differences in the literature values of viscosity for any given deep eutectic solvent, in some cases even within a factor of two. According to Florindo et al., a highly viscous DES such as choline chloride:oxalic acid (1:1) is capable of capturing water from the atmosphere up to 19.40 wt%, which reduces its viscosity from 5363 to 44.49 mPa·s [31].
In 2018, Haghbakhsh et al. modelled the viscosity of deep eutectic solvents following the free volume theory coupled with equations of state [44]. The results showed that the free volume theory with both the CPA and PC-SAFT EoSs (total AARD% of 2.7% and 2.7%, respectively) gives reliable and highly accurate results with respect to the corresponding experimental viscosity values of 27 DESs. Both models also showed good compliance with the temperature trends of viscosity for the investigated DESs. Furthermore, the effect of changing HBD ratios for a fixed HBA was correctly estimated.
More recently, Benguerba et al. proposed a new mathematical model for predicting amine-based DESs’ viscosities using the quantitative structure–property relationship (QSPR) approach. To develop this model, a combination of the multilinear regression (MLR) and the artificial neural networks (ANN) methods was applied. The results show that the proposed models are able to predict DESs’ viscosities with very high accuracy, i.e., with an R2 value of 0.9975 in training and 0.9863 for validation using the ANN model, and an R2 value of 0.9305 for the MLR model [45].

2.5. Surface Tension

The surface tension values of DESs are higher than those of most molecular solvents and exhibit a wide range of changes from 23.9 mN·m−1 for tetrabutylammonium bromide:1-nonanol (1:4) to 75.2 mN·m−1 for choline chloride: D-glucose (2.5:1) at 20 °C [22,46].
Significant roles in the surface tension values of DESs are played by the nature and length of the alkyl chain of HBAs, the molar ratio of HBA:HBD, and temperature. A cation containing a hydroxyl group leads to the formation of a DES with high surface tension. For instance, according to Omar and Sagedhi, the surface tension of choline chloride:pyrogallol (1:1) is equal to 68.0 mN·m−1, while for DESs based on the same HBD but with tetrabutylammonium bromide as the HDA, the surface tension is 41.0 mN·m−1 at 20 °C [47]. The results obtained by the same authors further demonstrated that in the case of tetraalkylammonium-based DESs, an increase in the chain length leads to an increase in the surface tension in the following order: tetraethylammonium bromide:pyrogallol < tetrapropylammonium bromide:pyrogallol < tetrabutylammonium bromide:pyrogallol.
According to the literature, surface tension increases with a decrease in the molar fraction of the salt due to the strengthening of HBD hydrogen bonding. Thus, the surface tension of DESs consisting of choline chloride and lactic acid decreases with increasing salt concentration, due to the disturbance of the hydrogen bond network of lactic acid [48]. Hayyan et al. analyzed the effect of increasing the molar amount of choline chloride in DESs containing D-glucose. At 20 °C, with a 1:1 molar ratio of choline chloride to D-glucose, the surface tension (70.4 mN·m−1) was lower compared to that for a 2.5:1 molar ratio (75.0 mN·m−1) [46]. For all the studied DESs, the surface tensions showed an inversely proportional linear correlation with the temperature [39,46,47,48,49].
There are reports of successful prediction of the surface tension of DESs using the group contribution and atomic contribution models and the Guggenheim empirical equation [30,34].

2.6. Electrical Conductivity

Due to their relatively high viscosity, most DESs exhibit ionic conductivities lower than 1 mS·cm−1 at room temperature. The exception is a DES composed of ethylene glycol and choline chloride, the conductivity of which is equal to 7.61 mS·cm−1 at 20 °C [37].
The conductivity of DESs generally increases significantly as the temperature increases, and the Arrhenius-like equation or the Vogel–Fulcher–Tammann (VFT) expression can be used to predict the conductivity behavior of DESs [20].
The conductivities of DESs are dependent on both the HBD and the nature of the salt. Basaiahgari et al. showed that DESs based on benzyltrimethylammonium chloride and benzyltributylammonium chloride have conductivities relatively lower than those of their choline chloride analogues, which can be attributed to their high viscosity values [29].
Generally, an increase in the amount of salt in a DES causes an increase in its conductivity. Such a phenomenon was observed by Abbott et al. for a DES consisting of choline chloride and glycerol [28]. However, this behavior is not true for all the DESs for which the conductivity–salt concentration trend evolves through a maximum (e.g., choline chloride + ethylene glycol) or is decreasing (e.g., tetrabutylammonium chloride + ethylene glycol) [15].
The relationship between viscosity and conductivity is commonly analyzed in the literature using Walden plots, in which the molar conductivity (Λ, calculated from conductivity and density) and the fluidity (the inverse of viscosity) are plotted on log−log scales and compared with an ideal line obtained for a 0.01 M KCl aqueous solution. According to the literature data, Walden plots indicate that almost all DESs lie below the “ideal” Walden line [15]. However, Mjalii et al. observed a positive deviation for aliphatic-based DESs such as tetrabutylammonium chloride:L-isoleucine, tetrabutylammonium chloride:proline, and tetrabutylammonium chloride:L-valine, which indicates a high ionic pairing between tetrabutylammonium chloride and amino acids in these DESs [49].
Overall, the literature results show that DESs display larger deviations from the ideal reference line than most ILs, which can be explained by considering the fact that the migrating species are ions for ILs and ions + HBD complexes for DESs. Therefore, it can be concluded that the conductivity of DESs is determined not only by their viscosity, but also by the size of the ions.
The development of predictive methods for DES conductivity is very limited in the literature. Bagh et al. used the artificial neural network (ANN) approach to study the electrical conductivity of ammonium- and phosphonium-based DESs and they obtained an absolute relative deviation of 4.4%, which may be considered satisfactory [50]. The hole theory was also applied by Abbott et al. to predict DESs’ conductivity, and although good results were obtained in some cases (e.g., choline chloride:ethylene glycol), poor predictions were reported for others (e.g., choline chloride:glycerol) [37].

2.7. Solvatochromic Parameters

Solvent polarity is commonly assessed using the polarity scale of Dimroth and Reichardt, ET(30), which is important for understanding the solubilizing power. Other parameters are the Kamlet–Taft π*, which measures the combined polarity and polarizability of solvents, α, which measures their hydrogen bond donation ability, and β, which measures their hydrogen bond acceptance ability.
The values that have so far been reported in the literature for these solvatochromic parameters for deep eutectic solvents are generally between those of methanol and water among the common solvents and commensurate with those of ionic liquids [20]. This means that deep eutectic solvents are highly polar and polarizable, and that they have good hydrogen bond donation and acceptance abilities toward solutes.
In general, the number of publications related to DES solvatochromic parameters is limited. Abbott et al. determined the polarities of choline chloride:glycerol DESs of different molar ratios based on several parameters, revealing a linear polarity increase with increasing choline chloride concentration [28]. Pandey et al. employed solvatochromic probes to examine the polarities of four DESs based on combinations of choline chloride with glycerol, urea, malic acid, and ethylene glycol in 1:2 molar ratios [51]. They concluded that the high polarity of these DESs was significantly influenced by the HBD nature. Among the above four combinations, choline chloride:glycerol exhibited the highest ET(30) value. Moreover, Pandey et al. investigated the effect of temperature and the addition of water on the DESs’ solvatochromic parameters. These researchers demonstrated that an increase in temperature results in a reduced H-bond donor acidity for the DESs, while no temperature effect was observed for dipolarity/polarizability and H-bond accepting basicity. It was also shown that the addition of water to the DESs caused an increase in their dipolarity/polarizability and a decrease in their H-bond accepting basicity. Teles et al. determined the solvatochromic properties of DESs formed by ammonium-based salts and carboxylic acids and concluded that the studied DESs presented a greater ability to donate and accept protons compared to most ionic liquids or organic molecular solvents [52]. Moreover, according to these authors, the high acidity of the studied DESs was mainly due to the organic acid present in the mixtures, and an increase in the alkyl side chain of both the HBA and the HBD species leads to a lower ability of the solvent to donate protons. Florindo et al. determined solvatochromic properties for two different types of DESs: those based on salts, such as choline chloride and tetrabutylammonium chloride, and those based on the neutral compound DL-menthol [53]. They found high values of hydrogen-bonding acidity for all the DESs, probably due to the organic acids present in all the systems. On the other hand, hydrogen-bonding basicity of these DESs did not vary much within the same HBA, but differed slightly in the case of DESs based on choline chloride, tetrabutylammonium chloride, or DL-menthol.

2.8. Other Relevant Properties

Thermal stability. Scarce information is available in the literature on the thermal stability of DESs. Generally, the thermal stability of these solvents is determined by the nature of the hydrogen bond donor and increases with the alkyl chain length on HBDs [54]. Zhao et al. analyzed the thermal stability of DESs consisting of a choline salt (chloride or acetate form) and glycerol [55]. They showed that the studied DESs exhibit relatively high thermal resistance while being stable up to nearly 200 °C. Florindo et al. measured the decomposition temperature of choline chloride-based DESs with several carboxylic acids (levulinic, glutaric, malonic, oxalic, and glycolic) [31]. The lowest value was observed for the DES containing malonic acid (124.68 °C) and the highest was for the DES containing glutaric acid (239.05 °C). Ghaedi et al. studied DESs based on allyltriphenyl phosphoniumbromide and where the HBDs were glycerol, ethylene glycol, diethylene glycol, and triethylene glycol. They found that, among the HBDs, glycerol had the highest thermal stability, while ethylene glycol had the lowest. The DESs followed a similar trend to that of the thermal stability of the HBDs: GL > TEG > DEG > EG [54]. The studies of Delgado et al. concluded that the thermal stability of choline chloride-based DESs, which were formed using levulinic acid, malonic acid, glycerol, ethylene glycol, phenylacetic acid, phenylpropionic acid, urea, and glucose as hydrogen bond donors, increase in the following order: ChCl:EG < ChCl:MalA < ChCl:LevA < ChCl:PhenylacA < ChCl:PhenylpropA < ChCl:GL < ChCl:Urea < ChCl:Gluc [56].
Heat capacity. There are only a few studies available which present experimentally measured heat capacities for some DESs. The majority of the data was provided by Naser et al., who studied deep eutectic solvents of three salts (choline chloride, tetrabutylammonium chloride, and methyltriphenylphosphonium bromide) and several HBDs [57]. Siongco et al. determined the molar heat capacities of DESs based on N,N-diethylethanolammonium chloride and ethylene glycol or glycerol, while Zhang et al. measured the Cp of DESs consisting of ethylene glycol and betaine or L-carnitine [58,59]. They found that the molar heat capacity values of these DESs increase with temperature and they used different degrees of polynomials for the expression of the temperature dependence. Moreover, all the authors observed the linear relationship between the molar heat capacity and the molar mass of the DESs, which is similar to that of ILs.
In general, three models, based only on knowledge of the molecular structure of the DESs, are available to predict their heat capacities. Taherzadeh et al. developed a correlation to estimate the heat capacity of DESs as a function of temperature, molecular weight, critical pressure, and acentric factor with the resulting AARD% equal to 5.5% [60]. Haghbakhsh et al. presented group contribution (GC) and atomic contribution (AC) models which can be applied to the molar heat capacities of DESs. The AARD% for the GCM and the ACM was 3.26% and 9.93%, respectively [36]. Bunquin et al. proposed a generalized model using an artificial neural network (ANN) for predicting the heat capacity of ammonium- and phosphonium-based two-component DESs [61]. The overall average absolute relative deviation of the proposed model from the data was 0.57%.
Refractive index. Despite the possibility of using the refractive index as an additional tool to demonstrate hydrogen bonding in DESs, this property has not often been studied [62]. However, the research carried out thus far has shown that the nD values of deep eutectic solvents are higher than those of ethanol or acetone, but similar to common ILs [63]. Moreover, for all the studied DESs, a linear decrease in the refractive index with increasing temperature was observed. Murshid et al. investigated DESs based on diethanolamine as HBDs and found that the refractive index of all the systems studied decreases with the increase in the molar ratio of HBAs to HBDs from (1:4 to 1:6) [64]. This observation was in line with the results reported by other researchers, for example by Sanchez et al. for a DES composed of betaine and lactic acid, and by Mjalli et al. for a DES composed of tetrabutylammonium bromide and monethanolamine [25,65]. Basaiahgari et al. investigated several DESs based on benzyltrimethylammonium chloride and benzyltributylammonium chloride as HBAs, with three ethylene glycols and glycerol as HBDs, and found that the refractive index decreases in the order GLY > EG > DEG > TEG, irrespective of the HBAs [29]. A report by Su et al. investigated several DESs based on tetrabutylammonium chloride (TBAC) and varying HBDs, such as propionic acid (PA), ethylene glycol (EG), polyethylene glycol (PEG), and phenyl acetic acid (PAA) [62]. Among the tested HBDs, a DES composed of TBAC and PAA had the highest refractive index. Mjalli et al. also investigated DESs based on choline chloride as the HBA, but as HBDs they used glutamic acid, aspartic acid, and arginine, and they found that for acidic amino acids-based DESs, the refractive index values were lower than that for the corresponding basic one (arginine) [40]. Troter et al. investigated DESs based on choline chloride as HBA and obtained the following order of the refractive index: ChCl:thiourea > ChCl:urea > ChCl:ethylene glycol > ChCl:glycerol > ChCl:1,3-dimethylurea > ChCl:propylene glycol.
Speed of sound. There are only a few reports that describe the speed of sound for DESs, and the information available is mainly limited to deep eutectic solvents based on choline chloride. According to these reports, the speed of sound for DESs decreases with an increase in temperature, and in most cases linear dependence is observed [22,23]. However, in the case of DESs composed of glycerol and benzyltrimethylammonium chloride or benzyltributylammonium chloride, the temperature dependence of the speed of sound was found to be nonlinear, especially in the lower temperature region [29]. This type of behavior was also observed by Sanchez et al. for L-proline-based DESs [65].

3. Solubility of CO2 in Deep Eutectic Solvents

3.1. Experimental Methods for Measuring the Solubility of Carbon Dioxide in DESs

Over the years, many experimental methods have been developed to measure CO2 solubility in DESs. The most common ones are the isochoric saturation method and the gravimetric method. Additionally, the pressure drop method and the magnetic suspension balance method are used, but not as frequently. These methods enable taking measurements in a very wide range of temperatures and pressures. The majority of these methods are based on the assumption that the vapor pressure of DESs is negligible.
Isochoric saturation is the most common method used to measure the absorption of gases. In this method, a degassed DES is placed in a thermostated, well-sealed equilibrium cell at constant temperature, and then the equilibrium cell is evacuated, the gas from the thermostated reservoir is delivered to the cell, and the initial pressure is recorded. Next, the equilibrium is reached when the pressure in the system is constant [66,67,68,69,70,71,72,73].
The solubility is most often described by mole fraction and is derived by:
x g = n g n g + n D E S
The solubility is determined from the difference between the initial gas pressure and the equilibrium gas pressure, and it is expressed as:
n g = n 0 − n 1
where
n ( 0 , 1 ) = p ( o , 1 ) V Z 2 R T
where V is the volume of the gas phase in the cell, p0 is the initial gas pressure, p1 is the equilibrium gas pressure, R is the universal gas constant, T is the temperature, and Z2 is the gas compressibility factor.
The apparatus used in the isochoric saturation method is relatively simple to design and can be used in a wide range of pressures. Unfortunately, during the absorption, the liquid volume may change. In order to overcome this obstacle, three approaches have been introduced: (a) the change in volume is assumed to be negligible, which was proven to be accurate for low gas pressures [66,74], (b) the volume expansion is measured using a cathetometer as a function of pressure [75], and (c) the percent volume expansion is correlated with the mole fraction of gas [74].
The gravimetric method is based on changes in the weight of the sample upon carbon dioxide absorption. In brief, the DES is placed in a thermostated absorption vial and then the gas is bubbled through the liquid at a known flow rate. The weight of the sample is recorded at regular time intervals. The equilibrium is obtained when the mass of the sample is constant [76,77,78,79,80]. This method is usually used for measurements at atmospheric pressure.
Isotherms are also measured with the magnetic suspension balance method [81,82]. This method is based on magnetic suspension coupling, which is responsible for the transmission of force from the measuring cell to the microbalance, and it allows for measurements in wide ranges of pressure and temperature.
Other methods, which are modification of those mentioned above, are also used [83].

3.1.1. Impact of the Hydrogen Bond Acceptor on CO2 Capacity

In Table 2, the solubility of carbon dioxide in deep eutectic solvents is presented. One of the most important structural properties of a DES is the size of the cation in its salt which acts as the HBA. Deng et al. [69] examined the solubility of CO2 in levulinic acid-based DESs. They found that the solubilities in TEAC- and TEAB-based DESs were much lower than those observed for TBAC- and TBAB-based ones, which indicates that salts with a larger cation possess higher carbon dioxide absorption capacity than those with a smaller cation. Such behavior is the effect of the higher free volume of the sorbent at longer chain lengths [84]. Additionally, the effect of the anion is modest, as exchanging the chloride anion with the bromide anion results in a slight increase in carbon dioxide solubility. These conclusions are in compliance with the results obtained for DESs based on other HBAs, such as TBAB:AC (1:2) ≈ TBAC:AC (1:2) > TEAC:AC (1:2) [38]; TOAB:DecA (1:2) ≈ TOAC:DecA (1:2) > TBAC:DecA (1:2) [85]; and TBAC:LA (1:2) > TEAC:LA (1:2) > TMAC:LA (1:2) [82]. Furthermore, the effect of the free volume can be seen in tetrabutylammonium bromide- and in choline chloride-based DESs. TBAB-based DESs have more free volume, and thus the absorption capacity is higher than that of ChCl-based DESs [86].
Another important factor is the symmetry of the salt. Sarmad et al. [38] concluded that exchanging one ethyl group in TEAC:AC (1:2) for one benzyl group in BTEA:AC (1:2) results in lower carbon dioxide absorption capacity. Furthermore, introducing methyltrioctylammonium bromide/chloride instead of tetraoctylammonium bromide/chloride in decanoic acid-based DESs leads to lower solubility of carbon dioxide [85].
The last important factor is the chemical nature of the hydrogen bond acceptor. Introducing HBAs with groups that can interact with CO2 may improve its solubility. Liu et al. [87] proved that acetylcholine chloride-based DESs have higher carbon dioxide absorption capacity than choline chloride-based DESs, because of the ester group in ACC which has better affinity towards CO2 than the hydroxyl group in ChCl. The results obtained by Altamash et al. [88] showed that CO2 solubility in betaine-based DESs is higher than it is in alanine-based DESs due to the stronger interaction with the COO− group than with the COOH.
Table
Table 2. Solubility of carbon dioxide in deep eutectic solvents.
Table 2. Solubility of carbon dioxide in deep eutectic solvents.
Lp.HBAHBDMolar RatioT/KP/bargCO2/gDESRef.
1[bmim][MeSO3]Urea1:1303.152.8–7.00.0071–0.0186[89] 1
2[HDBU][Im]Ethylene glycol7:3313.151.00.141[90] 4
3[HDBU][Im]Ethylene glycol6:4313.151.00.118[90] 4
4[HDBU][Im]Ethylene glycol5:5313.151.00.109[90] 4
5[HDBU][Im]Ethylene glycol4:6313.151.00.082[90] 4
6[HDBU][Im]Ethylene glycol3:7313.151.00.063[90] 4
7[HDBU][Ind]Ethylene glycol7:3313.151.00.117[90] 4
8[HDBU][Triz]Ethylene glycol7:3313.151.00.108[90] 4
9[N2222][Im]Ethylene glycol1:2298.151 atm0.114[91] 4
10[N2222][Triz]Ethylene glycol1:2298.151 atm0.111[91] 4
11[P2222][Im]Ethylene glycol1:2298.151 atm0.106[91] 4
12[P2222][Triz]Ethylene glycol1:2298.151 atm0.106[91] 4
131-Methylimidazolium hydrochloride3-Amino-1-propanol1:1r.t.1 atm0.020[92] 4
141-Methylimidazolium hydrochloride3-Amino-1-propanol1:2r.t.1 atm0.095[92] 4
151-Methylimidazolium hydrochloride3-Amino-1-propanol1:3r.t.1 atm0.139[92] 4
161-Methylimidazolium hydrochloride3-Amino-1-propanol1:4r.t.1 atm0.194[92] 4
171-Methylimidazolium hydrochlorideDiethylenetriamine1:4r.t.1 atm0.228[92] 4
181-Methylimidazolium hydrochlorideEthylenediamine1:1r.t.1 atm0.090[92] 4
191-Methylimidazolium hydrochlorideEthylenediamine1:2r.t.1 atm0.250[92] 4
201-Methylimidazolium hydrochlorideEthylenediamine1:3r.t.1 atm0.267[92] 4
211-Methylimidazolium hydrochlorideEthylenediamine1:4r.t.1 atm0.308[92] 4
221-Methylimidazolium hydrochloridePentaethylenehexamine1:4r.t.1 atm0.084[92] 4
231-Methylimidazolium hydrochlorideTetraethylenepentamine1:4r.t.1 atm0.099[92] 4
24Acetylcholine chloride1,2,4-Triazole1:1303.156.4–58.80.0012–0.0096[93] 1
25Acetylcholine chlorideGuaiacol1:3303.155.4–53.10.0007–0.0069[87] 1
26Acetylcholine chlorideGuaiacol1:4303.155.5–55.90.0007–0.0076[87] 1
27Acetylcholine chlorideGuaiacol1:5303.155.2–52.80.0008–0.0076[87] 1
28Acetylcholine chlorideImidazole2:3303.153.0–57.30.0003–0.0100[93] 1
29Acetylcholine chlorideImidazole1:2303.152.7–57.80.0008–0.0115[93] 1
30Acetylcholine chlorideImidazole1:3303.155.3–56.80.0012–0.0129[93] 1
31Acetylcholine chlorideLevulinic acid1:3303.150.6–5.40.0019–0.0132[69] 1
32AlanineLactic acid1:1298.150.06–49.90.0013–0.1891[88] 2
33AlanineMalic acid1:1298.150.06–49.90.0035–0.1823[88] 2
34Allyltriphenylphosphonium bromideDiethylene glycol1:4303.151.6–19.40.0100–0.3207[94] 3
35Allyltriphenylphosphonium bromideDiethylene glycol1:10303.151.6–19.50.0098–0.2547[94] 3
36Allyltriphenylphosphonium bromideDiethylene glycol1:16303.151.7–19.60.0085–0.1404[94] 3
37Allyltriphenylphosphonium bromidePhenol1:4313.152.2–13.30.0090–0.0786[95] 3
38Allyltriphenylphosphonium bromidePhenol1:6313.151.8–13.20.0082–0.0787[95] 3
39Allyltriphenylphosphonium bromideTriethylene glycol1:4303.151.4–19.50.0084–0.2826[94] 3
40Allyltriphenylphosphonium bromideTriethylene glycol1:10303.151.5–19.50.0078–0.2101[94] 3
41Allyltriphenylphosphonium bromideTriethylene glycol1:16303.151.4–19.60.0063–0.1887[94] 3
42Benzyltriethylammonium chloride2-Ethylaminoethanol1:4303.1510.20.090[96] 1
43Benzyltriethylammonium chloride2-Methylaminoethanol1:4303.1510.10.100[96] 1
44Benzyltriethylammonium chlorideAcetic acid1:2298.153.2–20.50.0056–0.0429[38] 1
45Benzyltrimethylammonium chlorideAcetic acid1:2298.152.2–20.40.0034–0.0640[38] 1
46Benzyltrimethylammonium chlorideGlycerol1:2298.153.9–20.30.0016–0.0114[38] 1
47Benzyltrimethylammonium chlorideGlycerol–H2O1:2:0.05298.152.1–20.20.0019–0.0125[38] 1
48Benzyltrimethylammonium chlorideGlycerol–H2O1:2:0.11298.152.6–20.30.0007–0.0143[38] 1
49Benzyltriphenylphosphonium chlorideGlycerol1:12298.1510.00.0206[97] 1
50BetaineLactic acid1:1298.150.06–49.90.0022–0.1875[88] 2
51BetaineMalic acid1:1318.150.05–49.90.0009–0.1536[88] 2
52BHDEaAcetic acid1:2298.152.1–20.30.0028–0.0371[38] 1
53BHDEaGlycerol–H2O1:3:0.11298.152.3–20.20.0016–0.0091[38] 1
54BHDEaLactic acid1:2298.152.8–20.90.0007–0.0219[38] 1
55Choline chloride1,2-Propanediol1:3298.151.1–5.10.0001–0.0007[68] 1
56Choline chloride1,2-Propanediol1:4298.151.0–5.00.0001–0.0007[68] 1
57Choline chloride1,4-Butanediol1:3298.151.1–5.10.0001–0.0007[68] 1
58Choline chloride1,4-Butanediol1:4298.151.1–5.10.0001–0.0007[68] 1
59Choline chloride2,3-Butanediol1:3298.151.1–5.10.0001–0.0067[68] 1
60Choline chloride2,3-Butanediol1:4298.151.1–5.10.0002–0.0008[68] 1
61Choline chlorideCardanol1:3293.151.00.0037[98] 4
62Choline chlorideCardanol1:4293.151.00.0038[98] 4
63Choline chlorideCardanol1:5293.151.00.0039[98] 4
64Choline chlorideDiethanol amine1:6303.155.2–9.70.0133–0.0396[86] 1
65Choline chlorideDiethanolamine1:6298.1510.00.0408[97] 1
66Choline chlorideDiethanolamine1:12r.t.1 atm0.196[99] 4
67Choline chlorideDiethylene glycol1:3303.155.6–11.10.0071–0.0140[86] 1
68Choline chlorideDiethylene glycol1:4303.155.2–11.20.0067–0.0146[86] 1
69Choline chlorideDiethylene glycol1:3298.1511.3–51.30.0014–0.0074[66] 1
70Choline chlorideDiethylene glycol1:4298.1511.0–50.90.0015–0.0082[66] 1
71Choline chlorideEthanolamine1:6298.1510.00.0749[97] 1
72Choline chlorideEthanolamine1:7298.151.8–20.20.0359–0.2441[100] 1
73Choline chlorideEthanolamine1:7298.151.8–20.40.0345–0.1577[38] 1
74Choline chlorideEthanolamine1:6r.t.1 atm0.292[99] 4
75Choline chlorideEthanolamine/aminoethylpiperazine1:7:1298.151.4–20.10.0256–0.2093[100] 1
76Choline chlorideEthanolamine/diethanolamine1:7:1298.151.1–20.10.0188–0.1708[100] 1
77Choline chlorideEthanolamine/methyldiethanolamine1:7:1298.151.8–20.10.0317–0.2020[100] 1
78Choline chlorideEthanolamine/methyldiethanolamine1:7:5298.151.4–20.10.0205–0.1629[100] 1
79Choline chlorideEthanolamine/piperazine1:7:1298.151.6–22.40.0409–0.3291[100] 1
80Choline chlorideEthylene glycol1:4298.1510.00.0133[97] 1
81Choline chlorideEthylene glycol1:8298.1510.00.0168[97] 1
82Choline chlorideEthylene glycol1:2303.156.4–12.50.0135–0.0274[86] 1
83Choline chlorideFurfuryl alcohol1:3303.158.1–58.30.0012–0.0082[27] 1
84Choline chlorideFurfuryl alcohol1:4303.158.2–58.20.0013–0.0097[27] 1
85Choline chlorideFurfuryl alcohol1:5303.157.0–57.70.0013–0.0100[27] 1
86Choline chlorideGlycerol1:3298.1510.00.0201[97] 1
87Choline chlorideGlycerol1:8298.1510.00.0143[97] 1
88Choline chlorideGlycerol/acetic acid1:1:1298.152.6–20.10.0023–0.0191[38] 1
89Choline chlorideGlycerol/DBN1:2:6r.t.1 atm0.103[101] 4
90Choline chlorideGlycerol/DBN1:2:3r.t.1 atm0.096[101] 4
91Choline chlorideGlycerol/DBN1:2:7r.t.1 atm0.105[101] 4
92Choline chlorideGlycerol/DBN1:2:8r.t.1 atm0.103[101] 4
93Choline chlorideGlycerol/DBN1:3:10r.t.1 atm0.104[101] 4
94Choline chlorideGlycerol/DBU1:2:6r.t.1 atm0.036[101] 4
95Choline chlorideGlycerol/MTBD1:2:6r.t.1 atm0.100[101] 4
96Choline chlorideGuaiacol1:3303.155.5–55.30.0007–0.0062[87] 1
97Choline chlorideGuaiacol1:4303.1510.0–54.90.0012–0.0068[87] 1
98Choline chlorideGuaiacol1:5303.154.7–53.90.0006–0.0071[87] 1
99Choline chlorideGuaiacol1:3293.151.00.0014[98] 4
100Choline chlorideGuaiacol1:4293.151.00.0015[98] 4
101Choline chlorideGuaiacol1:5293.151.00.0015[98] 4
102Choline chlorideLevulinic acid1:3303.157.9–57.00.0015–0.0112[27] 1
103Choline chlorideLevulinic acid1:4303.157.2–57.50.0014–0.0119[27] 1
104Choline chlorideLevulinic acid1:5303.157.1–56.70.0015–0.0126[27] 1
105Choline chlorideMethyldiethanol amine1:6303.154.4–11.00.0428–0.0665[86] 1
106Choline chlorideMethyldiethanol amine1:7303.155.9–10.30.0488–0.0896[86] 1
107Choline chloridePhenol1:2298.159.9–49.90.0015–0.0086[66] 1
108Choline chloridePhenol1:3298.1510.4–50.80.0018–0.0090[66] 1
109Choline chloridePhenol1:4298.1510.8–50.90.0018–0.0093[66] 1
110Choline chlorideTriethanolamine1:3r.t.1 atm0.080[99] 4
111Choline chlorideTriethylene glycol1:4298.1510.00.0130[97] 1
112Choline chlorideTriethylene glycol1:3298.1510.9–50.40.0016–0.0084[66] 1
113Choline chlorideTriethylene glycol1:4298.1511.9–51.40.0018–0.0085[66] 1
114Choline chlorideUrea1:4298.1510.00.0142[97] 1
115Choline chlorideUrea1:2.5298.1510.00.0114[97] 1
116Choline chlorideUrea1:1.5313.150.1–2.00.0003–0.0048[70] 1
117Choline chlorideUrea1:2313.150.1–2.00.0005–0.0080[70] 1
118Choline chlorideUrea1:2.5313.150.1–2.00.0003–0.0049[70] 1
119DBNDMLU1:2318.151.00.0427[102] 4
120DBNDMU1:2318.151.00.1734[102] 4
121DBNEU1:2318.151.00.2302[102] 4
122DBNEU1:3318.151.00.1931[102] 4
123Diethylamine hydrochlorideGuaiacol1:3303.155.4–51.40.0009–0.0081[87] 1
124Diethylamine hydrochlorideGuaiacol1:4303.156.2–52.50.0010–0.0086[87] 1
125Diethylamine hydrochlorideGuaiacol1:5303.155.7–52.00.0010–0.0088[87] 1
126Diethylenetriamine hydrochloride3-Amino-1-propanol1:4r.t.1 atm0.183[99] 4
127Diethylenetriamine hydrochlorideEthylenediamine1:4r.t.1 atm0.322[99] 4
128Diethylenetriamine hydrochlorideTetraethylenepentamine1:4r.t.1 atm0.099[99] 4
129Ethanolamine hydrochloride3-Amino-1-propanol1:1r.t.1 atm0.158[92] 4
130Ethanolamine hydrochloride3-Amino-1-propanol1:2r.t.1 atm0.210[92] 4
131Ethanolamine hydrochloride3-Amino-1-propanol1:3r.t.1 atm0.243[92] 4
132Ethanolamine hydrochloride3-Amino-1-propanol1:4r.t.1 atm0.263[92] 4
133Ethanolamine hydrochlorideDiethylenetriamine1:1313.158.00.1132[103] 3
134Ethanolamine hydrochlorideDiethylenetriamine1:3313.158.00.1756[103] 3
135Ethanolamine hydrochlorideDiethylenetriamine1:6313.158.00.2412[103] 3
136Ethanolamine hydrochlorideDiethylenetriamine1:9313.158.00.2835[103] 3
137Ethanolamine hydrochlorideDiethylenetriamine1:4r.t.1 atm0.255[92] 4
138Ethanolamine hydrochlorideEthylenediamine1:1313.158.00.1123[103] 3
139Ethanolamine hydrochlorideEthylenediamine1:3313.158.00.1833[103] 3
140Ethanolamine hydrochlorideEthylenediamine1:6313.158.00.3299[103] 3
141Ethanolamine hydrochlorideEthylenediamine1:9313.158.00.3458[103] 3
142Ethanolamine hydrochlorideEthylenediamine1:1r.t.1 atm0.235[92] 4
143Ethanolamine hydrochlorideEthylenediamine1:2r.t.1 atm0.309[92] 4
144Ethanolamine hydrochlorideEthylenediamine1:3r.t.1 atm0.365[92] 4
145Ethanolamine hydrochlorideEthylenediamine1:4r.t.1 atm0.390[92] 4
146Ethanolamine hydrochlorideMonoethanolamine1:1313.158.00.0910[103] 3
147Ethanolamine hydrochlorideMonoethanolamine1:3313.158.00.1085[103] 3
148Ethanolamine hydrochlorideMonoethanolamine1:6313.158.00.1487[103] 3
149Ethanolamine hydrochlorideMonoethanolamine1:9313.158.00.1863[103] 3
150Ethanolamine hydrochloridePentaethylenehexamine1:4r.t.1 atm0.127[92] 4
151Ethanolamine hydrochlorideTetraethylenepentamine1:1313.158.00.0835[103] 3
152Ethanolamine hydrochlorideTetraethylenepentamine1:3313.158.00.1011[103] 3
153Ethanolamine hydrochlorideTetraethylenepentamine1:6313.158.00.1484[103] 3
154Ethanolamine hydrochlorideTetraethylenepentamine1:9313.158.00.1715[103] 3
155Ethanolamine hydrochlorideTetraethylenepentamine1:4r.t.1 atm0.166[92] 4
156Ethanolamine hydrochlorideTriethylenetetramine1:1313.158.00.0982[103] 3
157Ethanolamine hydrochlorideTriethylenetetramine1:3313.158.00.1655[103] 3
158Ethanolamine hydrochlorideTriethylenetetramine1:6313.158.00.1765[103] 3
159Ethanolamine hydrochlorideTriethylenetetramine1:9313.158.00.2045[103] 3
160Guanidinium hydrochlorideEthanolamine1:2298.152.3–20.20.0135–0.0732[38] 1
161L-arginineGlycerol1:5353.151 atm0.1677[104] 4
162L-arginineGlycerol1:6353.151 atm0.1937[104] 4
163L-arginineGlycerol1:7353.151 atm0.1939[104] 4
164Methyltrioctylammonium bromideDecanoic acid1:2298.150.9–19.90.0033–0.0783[85] 2
165Methyltrioctylammonium chlorideDecanoic acid1:2298.150.9–19.90.0024–0.0595[85] 2
166Methyltriphenylphosphonium bromide1,2-Propanediol1:4298.152.2–20.30.0010–0.0242[38] 1
167Methyltriphenylphosphonium bromideAcetic acid1:4298.151.7–20.10.0032–0.1330[38] 1
168Methyltriphenylphosphonium bromideEthanolamine1:6298.1510.00.0716[97] 1
169Methyltriphenylphosphonium bromideEthanolamine1:7298.1510.00.0643[97] 1
170Methyltriphenylphosphonium bromideEthanolamine1:8298.1510.00.0632[97] 1
171Methyltriphenylphosphonium bromideEthylene glycol1:2298.151.9–20.20.0020–0.0155[38] 1
172Methyltriphenylphosphonium bromideGlycerol1:4298.151.6–20.30.0004–0.0127[38] 1
173Methyltriphenylphosphonium bromideLevulinic acid1:3298.153.0–2.10.0011–0.0303[38] 1
174Methyltriphenylphosphonium bromideLevulinic acid/acetic acid1:3:0.03298.152.9–20.60.0077–0.0579[38] 1
175Monoethanolamine hydrochlorideEthylenediamine1:1r.t.1 atm0.205[105] 4
176Monoethanolamine hydrochlorideEthylenediamine1:2r.t.1 atm0.244[105] 4
177Monoethanolamine hydrochlorideEthylenediamine1:3r.t.1 atm0.315[105] 4
178Monoethanolamine hydrochlorideEthylenediamine1:4r.t.1 atm0.308[105] 4
179n-Butyltriphenylphosphonium bromideEthylene glycol1:12298.1510.00.0201[97] 1
180Tetrabutylammonium bromide2-Ethylaminoethanol1:4303.1510.00.071[96] 1
181Tetrabutylammonium bromide2-Methylaminoethanol1:4303.1510.50.106[96] 1
182Tetrabutylammonium bromide3-Amino-1-propanol1:2r.t.1 atm0.111[92] 4
183Tetrabutylammonium bromide3-Amino-1-propanol1:3r.t.1 atm0.156[92] 4
184Tetrabutylammonium bromide3-Amino-1-propanol1:4r.t.1 atm0.181[92] 4
185Tetrabutylammonium bromideAcetic acid1:2298.153.9–20.10.0060–0.0497[38] 1
186Tetrabutylammonium bromideAminomethylpropanol1:3r.t.1 atm0.105[92] 4
187Tetrabutylammonium bromideAminomethylpropanol1:4r.t.1 atm0.122[92] 4
188Tetrabutylammonium bromideDiethanol amine1:6303.156.1–10.10.0157–0.0367[86] 1
189Tetrabutylammonium bromideDiethanolamine1:6298.1510.00.0373[97] 1
190Tetrabutylammonium bromideDiethanolamine1:2r.t.1 atm0.096[99] 4
191Tetrabutylammonium bromideDiethylene glycol1:2303.157.2–13.90.0086–0.0272[86] 1
192Tetrabutylammonium bromideDiethylene glycol1:3303.156.9–12.00.0113–0.0271[86] 1
193Tetrabutylammonium bromideDiethylene glycol1:4303.155.9–10.50.0146–0.0290[86] 1
194Tetrabutylammonium bromideEthanolamine1:6298.1510.00.0591[97] 1
195Tetrabutylammonium bromideEthanolamine1:6298.153.5–20.20.0193–0.1223[38] 1
196Tetrabutylammonium bromideEthanolamine1:7298.153.8–20.40.0235–0.1324[38] 1
197Tetrabutylammonium bromideEthanolamine1:5r.t.1 atm0.197[99] 4
198Tetrabutylammonium bromideEthylene glycol1:2303.154.1–12.80.0045–0.0168[86] 1
199Tetrabutylammonium bromideEthylene glycol1:3303.155.0–12.50.0059–0.0189[86] 1
200Tetrabutylammonium bromideEthylene glycol1:4303.155.4–13.70.0074–0.0201[86] 1
201Tetrabutylammonium bromideLevulinic acid1:3303.150.7–5.70.0015–0.0119[69] 1
202Tetrabutylammonium bromideMethyldiethanol amine1:3303.154.2–10.00.0244–0.0663[86] 1
203Tetrabutylammonium bromideMethyldiethanol amine1:4303.155.0–10.20.0340–0.0800[86] 1
204Tetrabutylammonium bromideTriethanolamine1:3298.1510.00.2070[97] 1
205Tetrabutylammonium bromideTriethanolamine1:2r.t.1 atm0.025[99] 4
206Tetrabutylammonium chlorideAcetic acid1:2298.153.5–20.00.0081–0.0621[38] 1
207Tetrabutylammonium chlorideDecanoic acid1:2298.150.9–19.90.0027–0.0668[85] 2
208Tetrabutylammonium chlorideLactic acid1:2308.150.9–19.90.0016–0.0420[82] 2
209Tetrabutylammonium chlorideLevulinic acid1:3303.150.6–5.60.0015–0.0133[69] 1
210Tetrabutylphosphonium bromideDiethylene glycol1:4313.151.9–14.00.0070–0.0776[95] 3
211Tetrabutylphosphonium bromidePhenol1:4313.152.3–15.80.0092–0.0792[95] 3
212Tetraethylammonium bromideLevulinic acid1:3303.150.7–5.60.0013–0.0106[69] 1
213Tetraethylammonium chlorideAcetic acid1:2298.152.8–20.20.0063–0.0518[38] 1
214Tetraethylammonium chlorideAcetic acid1:3298.154.0–20.20.0193–0.1223[38] 1
215Tetraethylammonium chlorideLactic acid1:2308.151.0–19.90.0012–0.0298[82] 2
216Tetraethylammonium chlorideLevulinic acid1:3303.150.7–5.60.0015–0.0121[69] 1
217Tetraethylammonium chlorideOctanoic acid1:3298.153.5–20.20.0069–0.0612[38] 1
218Tetramethylammonium chlorideAcetic acid1:4298.152.9–21.00.0053–0.0687[38] 1
219Tetramethylammonium chlorideLactic acid1:2308.151.0–19.90.0011–0.0282[82] 2
220Tetraoctylammonium bromideDecanoic acid1:2298.150.9–19.90.0023–0.0586[85] 2
221Tetraoctylammonium chlorideDecanoic acid1:2298.150.9–19.90.0023–0.0574[85] 2
222Tetraoctylammonium chlorideDecanoic acid1:1.5298.150.9–19.90.0027–0.0667[85] 2
223Tetrapropylammonium chlorideAcetic acid1:6298.153.5–20.30.0110–0.0757[38] 1
224Tetrapropylammonium chlorideEthanolamine1:4298.154.8–20.10.0149–0.0628[38] 1
225Tetrapropylammonium chlorideEthanolamine1:7298.153.6–20.20.0754–0.1551[38] 1
226Thioacetamide hydrochlorideEthylenediamine1:3r.t.1 atm0.101[105] 4
227Triethanolamine hydrochlorideEthylenediamine1:3r.t.1 atm0.175[105] 4
228Triethylmethylammonium chlorideAcetic acid1:2298.152.0–18.40.0036–0.0518[38] 1
229Triethylmethylammonium chlorideEthylene glycol1:2298.151.4–1.30.0027–0.0276[38] 1
230Triethylmethylammonium chlorideGlycerol1:2298.151.5–16.50.0007–0.0191[38] 1
231Triethylmethylammonium chlorideGlycerol–H2O1:2:0.05298.152.3–19.80.0004–0.0289[38] 1
232Triethylmethylammonium chlorideGlycerol–H2O1:2:0.11298.151.4–17.40.0011–0.0292[38] 1
233Triethylmethylammonium chlorideLactic acid1:2298.151.4–18.60.0021–0.0234[38] 1
234Triethylmethylammonium chlorideLevulinic acid1:2298.151.4–16.20.0025–0.0270[38] 1
235TrimethylglycineGlycolic1:2298.1510.00.00764[106] 4
236TrimethylglycineOxalic acid dihydrate1:2298.1510.00.00048[106] 4
237TrimethylglycinePhenylacetic acid1:2298.1510.00.00992[106] 4
238Urea hydrochlorideEthylenediamine1:3r.t.1 atm0.117[105] 4
1 Isochoric saturation method; 2 magnetic suspension balance; 3 pressure drop method; 4 gravimetric method.

3.1.2. Effect of Hydrogen Bond Donor

The hydrogen bond donor determines the nature of interactions between the DES and carbon dioxide, either chemical or physical. The use of amines and alkanolamines as HBDs results in a chemical reaction between the DES and CO2, i.e., chemical absorption occurs (as presented in Figure 3), while other HBDs such as amides, glycols, sugars, and acids are responsible for physical absorption.
The early work of Chen et al. [68] helped to elucidate the effect of the position of hydroxyl groups on the physical absorption in choline chloride-based DESs. The results showed that higher absorption is observed for dihydric alcohols with hydroxyl groups located closer to each other in carbon scutter (2,3-butanediol) than for dihydric alcohols with hydroxyl groups placed further apart (1,4-butanediol). Ghaedi et al. [94] examined the impact of the ether groups and alkyl chain length of the HBD on DESs based on allyltriphenylphosphonium bromide (ATPPB) and diethylene glycol or triethylene glycol (TEG). At 303.15 K and 1.95 MPa, the solubility of CO2 was higher for ATPPB:TEG DESs (1:4) (xCO2 = 0.5583) than for ATPPB:DEG DESs (1:4) (xCO2 = 0.5407). The additional ethylene group and higher free volume contributes to higher CO2 solubility for TEG DESs [107]; hence, the additional ether group in TEG also improves the absorption capacity [108]. Similar behavior was observed for deep eutectic solvents based on TBAB and glycol or ethylene glycol [86]. The mole fraction of CO2 for TBAB:EG (1:2) at 303.15 K and 1 MPa was 0.0429, while for TBAB:DEG (1:2) in the same conditions it was 0.0593. Lu et al. [27] conducted a study on the solubility of carbon dioxide in the eutectic mixture of levulinic acid or furfuryl alcohol and choline chloride. They concluded that solubility is higher for the levulinic acid-based DESs than for the furfuryl alcohol-based DESs, which they attributed to the higher affinity of the –COOH group towards CO2 than that of the -OH group. These authors reported that the strength of the interactions between functional groups in the HBDs and carbon dioxide rises in the following order: amide > carbonyl group > ether bond > hydroxyl group. The only exceptions are glycerol-based DESs, for which CO2 solubility is higher than for DESs based on HBD with a carbonyl group. Additionally, intramolecular interactions may play a key role in carbon dioxide absorption capacity. For triethylmethylammonium chloride-based DESs, the solubility follows the sequence TEMA:LA < TEMA:LV < TEMA:AC [38]. The poorest solubility, in lactic acid-based DESs, may result from the proximity of the carboxyl group and the hydroxyl group, which gives stronger intermolecular bonding than in levulinic acid or acetic acid. Consequently, the bonding is more difficult to break.

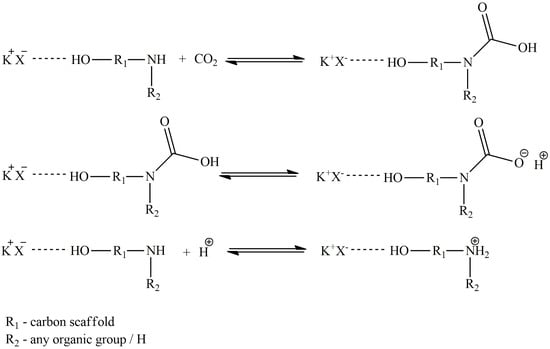

Alkanolamines and amines may be suitable components of DESs for carbon dioxide absorption. They absorb the gas chemically, which leads to higher carbon dioxide solubility than for other DESs. The solubility can be even higher than in the commonly used 30% wt. solution of monoethanolamine [97]. In general, the structural properties of alkanolamines and amines show a similar impact on their carbon dioxide absorption capacity as in other HBDs. For example, Pishro et al. [103] examined the solubility of CO2 in triethylenetetramine (TETA), diethylenetriamine (DETA), and tetraethylenepentamine (TEPA). Taking into account the same components’ molar ratios, the solubility was found to be the highest for EAHC:TETA (1:6), and slightly lower for EAHC:DETA (1:6), whereas the lowest solubility was observed for EAHC:TEPA (1:6). This led to the conclusion that carbon dioxide solubility is higher for DESs based on HBDs with a longer alkyl chain and with more amine groups in their structure. The influence of the alkyl chain length on carbon dioxide capacity might be different for DESs based on alkanolamines with only secondary amine groups. Haider et al. [96] conducted research on CO2 solubility for 2-methylaminoethanol- and 2-ethylaminoethanol-based DESs. The absorption capacity of CO2 for TBAB-MAE (1:4) was 0.30 molCO2/molDES, while for TBAB-EAE (1:4) it was 0.22 molCO2/molDES in the same conditions. This phenomenon was attributed to a lower steric hindrance caused by a shorter alkyl chain in the MAE-based DESs. The other important factor is the substitution of amines. Trisubstituted amines do not form carbamic acid with CO2, and hence the absorption is simply physical, and the solubility of carbon dioxide is lower [86,109].

3.1.3. Effect of HBA/HBD Molar Ratio

The molar ratio of the hydrogen bond acceptor to the hydrogen bond donor has various effects on carbon dioxide solubility in deep eutectic solvents. For DESs based on dihydric alcohols, the effect of the HBA/HBD molar ratio depends on the structure of HBD. For ChCl:2,3-butanediol, the solubility increases from 0.0308 mol·kg−1 for 1:3 molar ratio to 0.0382 mol·kg−1 for 1:4 molar ratio at 110 kPa and 293.15 K, respectively, while for ChCl:1,4-butanediol and ChCl:1,2-propanediol it decreases from 0.0330 mol·kg−1 to 0.0306 mol·kg−1 and from 0.0365 mol·kg−1 to 0.0355 mol·kg−1, respectively [68]. For ATPPB:DEG and ATPPB:TEG DESs, the solubility decreases with an increase in the amount of the HBDs from 1:4 to 1:16 in the DES, due to the decrease in the molar volume and the free volume [94]. Surprisingly, for ChCl:DEG and TBAB:DEG DESs, the increase in the HBA/HBD molar ratio from 1:3 to 1:4 enhances the solubility of carbon dioxide, which may be attributed to the weaker hydrogen bonds at higher molar ratios [66,86].
Considering phenol and its derivatives, the effect of the HBA/HBD molar ratio is also complex. For ChCl:phenol DESs, the solubility increases when the ratio changes from 1:2 to 1:4 [66]. The same behavior can be observed for ChCl:GC, DH:GC, and ACC:GC DESs [87]. Additionally, Pishro et al. [103] attributed the increase in carbon dioxide absorption capacity with an increasing HBA/HBD molar ratio for DESs based on a variety of different amines and alkanolamines acting as HBD to a drop in the DESs’ viscosity. Lower viscosity results in lower diffusion resistance and thus in increasing the solvent fluidity and, consequently, in improving the mass transfer. For ChCl:MEA DESs, the absorption of CO2 increases gradually when the molar ratio changes from 1:2 to 1:4, but a further increase in the molar ratio to 1:6 has no effect on carbon dioxide uptake [109]. Once more, this phenomenon might be explained with the hydrogen bonds’ net. At higher molar ratios, the absorption of CO2 changes and, as a result, ChCl and MEA cannot be sufficiently mixed to form hydrogen bonds. In their work, Ali et al. [97] revealed that changing the molar ratio of HBA/HBD in MTPB:MAE from 1:6 to 1:8 results in a decrease in solubility, which made these authors conclude that the formed DES possesses various properties that cannot be predicted by simply considering the contribution effect of its components.

3.1.4. Synergistic Effect

Shukla and Mikkola [92] tried to combine solvatochromic polarity parameters, which probe intermolecular interactions, with carbon dioxide absorption capacity. These parameters include:
  • Electronic transition energy (ET(30)) which stands for the hydrogen bond donor–acceptor forces, π–π interactions, and dipole–dipole interactions present in a solvent;
  • Dipolarity/polarizability (π*) which is a measure of the electrolytic strength of the medium;
  • Hydrogen bond donor acidity (α) which denotes the donating ability of the hydrogen bond donor;
  • Hydrogen bond acceptor basicity (β) which denotes the strength of the solvent’s hydrogen bond acceptor.
Solvatochromic polarity parameters are determined via the UV-VIS spectra of solvents by using the appropriate dyes: Reichardt’s dye 30 is used for ET(30), and N,N-diethyl-4-nitroaniline for π*. The hydrogen bond acceptor basicity is defined by the spectroscopic shift of 4-nitroaniline with respect to N,N-diethyl-4-nitroaniline, while the hydrogen bond donor acidity can be calculated based on ET(30) and π*.
Shukla and Mikkola [92] investigated the influence of the HBA/HBD molar ratio on solvatochromic polarity parameters and CO2 absorption capacity. They did not find a clear relationship between ET(30) and π* for the various DESs. For deep eutectic solvents based on protic HBAs, the reverse relationship between the value of ET(30) and carbon dioxide absorption capacity was observed, which suggests the involvement of non-polar interactions in CO2 capture. Additionally, these researchers stated that the high carbon dioxide solubility can be attributed not to basicity but rather to the equilibrium between α and β. This so-called synergistic effect occurs when the |α − β| is equal or close to 0. Additionally, the standard enthalpy change and the standard entropy change should be positive and ET(30) should be low. In this case, there is no energy difference between the HBAs and HBDs in a DES, which means that both components make stable sites that interact with CO2 [110].
In their other work, Shukla and Mikkola [99] observed much lower solubilities of carbon dioxide in TBAB-based DESs than in ChCl-based DESs despite the similar HBD components. On comparison of α and β, it was noticed that the synergistic effect was higher for ChCl-based DESs, which was the reason for the higher solubility of this class of DESs. The experiment on TBAB:3-amino-1-propanol showed that the reverse relationship between the molar ratio of HBA/HBD and carbon dioxide capacity can be explained via the synergistic effect. Unfortunately, there was no clear relationship between the synergistic effect and the carbon dioxide absorption capacity in AP-based DESs with different HBAs. It was suggested that other factors, such as the free volume or the strength of hydrogen interactions between the components, should be taken into consideration [111].

4. Practical Issues of Carbon Dioxide Separation

Taking into account the valuable properties of DESs, their safety and environmental friendliness in comparison to other solvents, and the ease of their synthesis, these solvents could replace other media used for gas separation. Their carbon dioxide capture capacity has ensured that a number of very promising approaches are being considered. However, considerable and constant effort needs to be made in order to use these innovative solvents on a large scale.
From the technological point of view, DESs’ most valuable property is their low volatility, ensuring low solvent loss. In addition, the possibility of tuning DESs’ physicochemical properties by changing the mixtures’ composition and the structure of their components is a key issue in efficient process design. An important aspect of controlling the physicochemical properties of deep eutectic liquids is the addition of classical solvents. From the point of view of CO2 separation, water is of particular importance and can be used to modulate the physicochemical properties of the solvent, especially its mass transfer properties such as viscosity. The formation of a DES aqueous mixture not only changes the physical properties of the deep eutectic solvent but also has a very large influence on its interactions with carbon dioxide, mostly due to the formation of new bonds between H2O and the DES.
Research on DESs and water mixtures is primarily focused on the thermodynamic properties of the mixtures, and it mainly concerns DESs based on choline chloride as HBA. The effect of water content on the solubility of carbon dioxide in a DES has been investigated only in a few studies. The results for DESs based on ChCl showed that an increase in the water content results in a decrease in CO2 solubility [112,113]. However, the results obtained for amine-based DESs show the opposite behavior. Trivedi et al. reported that a small addition of water (up to 10%) to MEACl:EDA with a 1:3 molar ratio can improve carbon dioxide solubility, but further H2O addition leads to a reduction in CO2 solubility [105]. Li et al. reported similar results for TMAC:MEA and TEAC:MEA deep eutectic solvents, and they observed only a slight effect of water content on a ChCl:MEA DES [109].
Some possible mechanisms of water influence on carbon dioxide capacity can be found in the literature. Su et al. reported that a decrease in the solubility of carbon dioxide with increasing water content might occur due to a decrease in the concentration of effective reactants [112]. Shukla et al. hypothesized that water competes with CO2 for the active sites of DESs, which affects CO2 uptake [92]. The increased solubility of carbon dioxide might be a result of weakening intermolecular hydrogen bond interactions within the DES structure by the forming of new interactions between water and the DES that increase the free volume and, in consequence, decrease the solvent viscosity [105,109].
Nevertheless, the addition of water to DESs alters many physical properties of the solvents, but the most important from the point of view of gas separation technologies is a drop in DES viscosity. In the study performed by Ma et al. [114], the viscosity of BTMA-:GLY (1:2) DES dropped from 716 to 20 mPa·s at 0.11 mole fraction of water, while the solubility increased by 25%.
For a better understanding of how H2O interacts with DESs, a few theoretical studies based on molecular dynamics (MD) were conducted. MD simulations performed by Shah et al. allowed for exploration of interactions in ChCl:Urea (1:2) aqueous solutions [115]. It was shown that Cl− becomes preferentially hydrated by water compared with urea or choline chloride. Additionally, the effect of water was divided into three ranges based on the mass fraction of H2O. In the first range (wH2O < 5% wt.), the number of hydrogen bonds increases, reaching the maximum at wH2O ≈ 2%. In the next range (from 5% to 25% wt.), choline chloride and urea molecules are hydrated by H2O, resulting in low diffusivity. In the last range (water mass fraction above 25%), the anions and urea show high diffusivity. Additionally, this simulation indicated that chloride anions interact more strongly with water molecules than with urea molecules.
ChCl:urea (1:2), ChCl:Gly (1:2), and ChCl:EG (1:2) water systems were also studied by Zhekenov et al. [116]. Molecular dynamics simulations they carried out showed similar behavior for different DESs. Below 5% wt., H2O molecules form H-bonds with ions and hydrogen bond donors, which leads to the absorption of water into the DES structure. Water content above 5% leads to drastic changes of DES properties by dampening the intramolecular interactions in the DES. First-principal MD simulations performed for a ChCl:urea (1:2) equimolar mixture with water showed that the addition of H2O breaks the strong H-bonds between the H atoms of urea and the chloride anion. This is due to preferentially hydrating Cl− by water and forming urea–water H-bonds [117]. Studies of pure ChCl:urea (1:2) at high dilution showed that, even for high molar fractions of water (xH2O = 0.9), the ions are only partially hydrated. Additionally, as the water content decreases, the ion-pairing of cation and anion becomes dominant over the hydration of ions, which leads to the conclusion that the non-ideal behavior is the result of competition between these two interactions [118].
Molecular dynamics is also a powerful tool to assess the technological feasibility of DES use in separation processes. It can reveal structural information that may be hard or impossible to obtain with other techniques. The first works in this field focused on explaining the mechanism behind the formation of DESs and the freezing point depression. It was proven that, in the case of choline chloride-based DESs, a strong hydrogen bond formed between the chloride anion and the hydroxyl group of the HBD is responsible for the unique behavior of DESs [119,120]. Similar behavior was reported for HBAs with a bromide anion [121]. Migliorati et al. proved that other groups in HBAs which are capable of forming hydrogen bonds have a very large impact on the hydrogen bond network in DESs [122]. They compared the structures of choline chloride- and benzyltrimethylammonium chloride-based DESs and revealed that the -OH group in ChCl forms additional hydrogen bonds with HBD molecules, which leads to the formation of a three-dimensional arrangement of all the species. This structure is very different from those formed in a benzyltrimethylammonium chloride-based DES. The researchers additionally found that the introduction of even a small functional group leads to a change in the balance among all the different forces. Ferreira et al. examined the structure of a ChCl:propylene glycol (PG) 1:2 DES [123]. From the radial distribution function (RDF), they found that the HBD molecule is placed between CH+ and Cl−. Additionally, PG is surrounded with anion molecules rather than with other PG or cation molecules. Furthermore, they observed that CL−–HBD interactions are the most common in this system, while HBD–HBD are the least common, which is the opposite of the case in the ChCl:EG (1:2) system [124]. In their study on 1,8-cinole (CN)-based DESs, Rozas et al. proved that not all HBDs interact with HBAs in the same way [125]. In the case of the CN:malic acid (MA) system, there is a negligible difference between the hydrogen bonds developed through the central and the terminal hydroxyl groups of the HBD. However, in the case of lactic acid (LA)-based DESs, the interactions of the COOH group were stronger than those of the OH group. The study on DESs containing methyltriphenylphosphonium bromide and monoethanolamine showed almost five times stronger interactions between Br− and the hydroxyl group than with the amine group [126]. Pour et al. examined the influence of the HBA/HBD molar ratio on the strength of hydrogen bonds in ChCl:glucose deep eutectic solvents [127]. They observed a gradual decrease in the hydrogen bonds between the two species with an increase in glucose concentration. Alizadeh et al. conducted a study in which they estimated microheterogenity in choline chloride and some of its derivatives coupled with ethylene glycol in 1:2 molar ratio [128]. They investigated the influence of the alcohol-substituted side chain, the symmetry and length of the alkyl chains, and the number of hydroxyl groups. The researchers proved microheterogenity, in some cases even strong microheterogenity, in all the systems studied. They also observed that the polar groups always tended to form one domain, while the non-polar chains were highly dislocated for the compounds, with the side chain length lower than eight carbon units. However, when carbon units were eight or more, the non-polar groups also formed connected domains, indicating strong microheterogenity.
MD can be successfully used for predicting the dynamic, physicochemical, and structural properties of deep eutectic solvents [129,130,131]. With the use of MD, Kumar et al. examined the solubility of CO2, H2S, CH4, and N2 in DESs based on ethaline, reline, glycine, and oxaline, and they observed the highest solubility for H2S and the lowest for N2 [132]. Methyl diethanoloamine and choline chloride were investigated in the separation of H2S, CO2, and CH4. This study confirmed that H2S solubility was higher than that of CH4 [133]. However, MD needs further improvement, due to the poor estimation of transport properties, mostly via improvement of force fields, indicating that further work should be conducted [33].
To enhance CO2 absorption capacity, a co-solvent that absorbs this gas chemically can be used. Muthu et al. [134] conducted a study in which they determined carbon dioxide absorption capacity in a ChCl:U (1:2) DES mixed with various alkanolamines. It was concluded that CO2 uptake was higher in alkanolamine-DES systems than that observed for pure DES or aqueous solutions of alkanolamines. This conclusion is compatible with the results obtained by Sarmad et al. [100] for amine-functionalized ChCl:MAE (1:7) DES.
Additionally, in the study conducted by Li et al. [109], it was proven that the addition of inorganic salts to a DES can change its ability to absorb CO2. DESs containing NiCl2, FeCl3, CoCl2, or CuCl2 possess the same carbon dioxide absorption capacity as pure DESs, while the addition of ZnCl2, LiCl, or NH4Cl to DESs results in higher CO2 absorption. Ni2+, Fe3+, Co2+, and Cu2+ possess unpaired electrons on their electron shells, which facilitates their easy bonding with carbonyl oxygen.
For separation purposes, DESs have been used in several configurations. One of the approaches proposed by Lian et al. incorporated an amino acid-based DES (L-arginine:ethylene glycol in 1:5 molar ratio) into the PEBAX membrane at 5–20% g/g. With an increase in DES loading, CO2 permeability decreased, but the CO2/N2 selectivity increased up to 15% loading. For 15% DES loading, the selectivity increase reached 21% and the permeability loss was only 5% [135]. N2 permeability remained almost constant, however. Considering the temperature effect, it was found that CO2 and N2 permeability both increase with increasing temperature, while the selectivity decreases.
Saeed et al. examined a supported liquid membrane based on PVDF and a DES composed of betaine and urea, glycerol, or ethylene glycol in 1:3 molar ratio. They obtained a permeability of 31.23 for the glycerol-based DES and 35.67 barrers for the DES based on urea, having the separation factor CO2/CH4 of 43.32 and 57.53, respectively [136]. Potassium carbonate with glycerol or ethylene glycol was also investigated in a supported liquid membrane system, resulting in CO2 permeability of 34 and 20 barrers and CO2 selectivity over CH4 of 59 and 34, respectively [137].
Wu et al. calculated ideal selectivity for the H2S/CO2 system using a 1-ethyl-3-methylimidazolium chloride plus imidazole DES and obtaining the values of 30.9, 23.7, and 17.2, respectively, for 2:1; 1:1, and 1:2 ratios at 298.2 K [138]. An important technological parameter that is crucial for the economics of the process is the regenerability of the sorption media. The efficiency of the process and the operational parameters needed for the regeneration result from the strength of interactions between the DES and the gas, so the DES structure plays a crucial role, and it has been confirmed that the ratio of DES components affects the desorption process [139,140]. When physical interactions are observed, the regeneration is energy and time efficient.
In ten cycles of absorption and desorption, the capacity remained unchanged, thus showing the potential for a long-term use [138]. Cui et al. studied the reusability of [P2222][Triz]:EG (1:2) DESs. These authors claim that no discernible decrease in capacity was obtained, but from analyzing the data one can see the capacity decrease in five cycles of absorption and desorption [91].

5. Conclusions and Perspectives

Large amounts of air pollution with acid gases have driven the search for new sorption media and, to be in line with sustainable development goals, media that are environmentally friendly. This article summarizes the properties of DESs and their suitability for carbon dioxide separation. Deep eutectic solvents have attracted much attention due to their unique properties and low production cost. Their nature, especially their negligible vapor pressure and non-flammability, makes them useful and safe in gas separation processes. The impact of the hydrogen bond donor, hydrogen bond acceptor, and molar ratio need to be thoroughly analyzed to ensure high CO2 absorption capacity and, at the same time, high selectivity in regard to other components of the purified streams. Therefore, careful selection should be performed, and the development of molecular dynamics methods would make that easier, less time consuming, and economically advantageous. Considering their tunability, DESs have high potential in separation processes, as they can be designed to obtain desirable properties and capacity for a specific application. Still, the major challenge is their relatively high viscosity. It results from the presence of hydrogen bonds and electrostatic and van der Waals interactions between the individual components of the DESs. However, even a small addition of water can significantly decrease viscosity and thus improve diffusion. The effect of water content on the solubility of carbon dioxide in a DES has been investigated only in a few studies. Computational methods for the investigation of the phase dynamics and mechanisms occurring in the systems are highly needed, as well as research on their behavior and properties in real applications. DESs are known to be solvents with satisfying CO2 capacity and the potential for implementation in industrial processes in the near future. It is highly desirable to focus on DESs for greener applications and to conduct further analyses on the technical and economic aspects of DES utilization. Although several DESs have been broadly studied, many more studies are still needed, especially regarding functional DESs. Future research should focus on (1) designing new, cheap, and environmentally friendly DESs with high CO2 capacity and low viscosity to make them attractive in gas separation; (2) technoeconomic research on the use of DESs in CO2 separation; (3) the regeneration of DESs used for CO2 capture; (4) the prediction of their properties and CO2 absorption capacity; and (5) the impact of water content on the DES properties, CO2 absorption capacity, and separation parameters.

Author Contributions

Conceptualization, I.C.-K.; writing—original draft preparation, B.N. and D.W.; writing—review and editing, I.C.-K. and D.W.; supervision, I.C.-K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Martins, M.A.R.; Pinho, S.P.; Coutinho, J.A.P. Insights into the Nature of Eutectic and Deep Eutectic Mixtures. J. Solution Chem. 2019, 48, 962–982. [Google Scholar] [CrossRef] [Green Version]
  2. Vieira Sanches, M.; Freitas, M.R.; Oliva, M.; Mero, A.; De Marchi, L.; Cuccaro, A.; Fumagalli, G.; Mezzetta, A.; Colombo Dugoni, G.; Ferro, M.; et al. Are natural deep eutectic solvents always a sustainable option? A bioassay-based study. Environ. Sci. Pollut. Res. 2023, 30, 17268–17279. [Google Scholar] [CrossRef]
  3. Shahbaz, K.; Mjalli, F.S.; Vakili-Nezhaad, G.; AlNashef, I.M.; Asadov, A.; Farid, M.M. Thermogravimetric Measurement of Deep Eutectic Solvents Vapor Pressure. J. Mol. Liq. 2016, 222, 61–66. [Google Scholar] [CrossRef]
  4. Hou, Y.C.; Yao, C.F.; Wu, W.Z. Deep Eutectic Solvents: Green Solvents for Separation Applications. Wuli Huaxue Xuebao/ Acta Phys.—Chim. Sin. 2018, 34, 873–885. [Google Scholar] [CrossRef]
  5. Maniam, K.K.; Paul, S. Ionic Liquids and Deep Eutectic Solvents for CO2 Conversion Technologies—A Review. Materials 2021, 14, 4519. [Google Scholar] [CrossRef]
  6. Cotroneo-Figueroa, V.P.; Gajardo-Parra, N.F.; López-Porfiri, P.; Leiva, Á.; Gonzalez-Miquel, M.; Garrido, J.M.; Canales, R.I. Hydrogen Bond Donor and Alcohol Chain Length Effect on the Physicochemical Properties of Choline Chloride Based Deep Eutectic Solvents Mixed with Alcohols. J. Mol. Liq. 2022, 345, 116986. [Google Scholar] [CrossRef]
  7. López-Porfiri, P.; Brennecke, J.F.; Gonzalez-Miquel, M. Excess Molar Enthalpies of Deep Eutectic Solvents (DESs) Composed of Quaternary Ammonium Salts and Glycerol or Ethylene Glycol. J. Chem. Eng. Data 2016, 61, 4245–4251. [Google Scholar] [CrossRef]
  8. Shahbaz, K.; Mjalli, F.S.; Hashim, M.A.; Alnashef, I.M. Eutectic Solvents for the Removal of Residual Palm Oil-Based Biodiesel Catalyst. Sep. Purif. Technol. 2011, 81, 216–222. [Google Scholar] [CrossRef]
  9. Abbott, A.P.; Capper, G.; Davies, D.L.; Rasheed, R.K.; Tambyrajah, V. Novel Solvent Properties of Choline Chloride/Urea Mixtures. Chem. Commun. 2003, 9, 70–71. [Google Scholar] [CrossRef] [Green Version]
  10. Shahbaz, K.; Mjalli, F.S.; Hashim, M.A.; AlNashef, I.M. Using Deep Eutectic Solvents Based on Methyl Triphenyl Phosphunium Bromide for the Removal of Glycerol from Palm-Oil-Based Biodiesel. Energy Fuels 2011, 25, 2671–2678. [Google Scholar] [CrossRef]
  11. Abbott, A.P.; Boothby, D.; Capper, G.; Davies, D.L.; Rasheed, R.K. Deep Eutectic Solvents Formed between Choline Chloride and Carboxylic Acids: Versatile Alternatives to Ionic Liquids. J. Am. Chem. Soc. 2004, 126, 9142–9147. [Google Scholar] [CrossRef] [PubMed]
  12. Abbott, A.P.; Ahmed, E.I.; Prasad, K.; Qader, I.B.; Ryder, K.S. Liquid Pharmaceuticals Formulation by Eutectic Formation. Fluid Phase Equilib. 2017, 448, 2–8. [Google Scholar] [CrossRef] [Green Version]
  13. Marcus, Y. The Entropy of Deep Eutectic Solvent Formation. Entropy 2018, 20, 524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pontes, P.V.A.; Crespo, E.A.; Martins, M.A.R.; Silva, L.P.; Neves, C.M.S.S.; Maximo, G.J.; Hubinger, M.D.; Batista, E.A.C.; Pinho, S.P.; Coutinho, J.A.P.; et al. Measurement and PC-SAFT Modeling of Solid-Liquid Equilibrium of Deep Eutectic Solvents of Quaternary Ammonium Chlorides and Carboxylic Acids. Fluid Phase Equilib. 2017, 448, 69–80. [Google Scholar] [CrossRef] [Green Version]
  15. García, G.; Aparicio, S.; Ullah, R.; Atilhan, M. Deep Eutectic Solvents: Physicochemical Properties and Gas Separation Applications. Energy Fuels 2015, 29, 2616–2644. [Google Scholar] [CrossRef]
  16. Song, Z.; Hu, X.; Wu, H.; Mei, M.; Linke, S.; Zhou, T.; Qi, Z.; Sundmacher, K. Systematic Screening of Deep Eutectic Solvents as Sustainable Separation Media Exemplified by the CO2 Capture Process. ACS Sustain. Chem. Eng. 2020, 8, 8741–8751. [Google Scholar] [CrossRef]
  17. Ravula, S.; Larm, N.E.; Mottaleb, M.A.; Heitz, M.P.; Baker, G.A. Vapor Pressure Mapping of Ionic Liquids and Low-Volatility Fluids Using Graded Isothermal Thermogravimetric Analysis. ChemEngineering 2019, 3, 42. [Google Scholar] [CrossRef] [Green Version]
  18. Boisset, A.; Jacquemin, J.; Anouti, M. Physical Properties of a New Deep Eutectic Solvent Based on Lithium Bis[(Trifluoromethyl)Sulfonyl]Imide and N-Methylacetamide as Superionic Suitable Electrolyte for Lithium Ion Batteries and Electric Double Layer Capacitors. Electrochim. Acta 2013, 102, 120–126. [Google Scholar] [CrossRef]
  19. Dietz, C.H.J.T.; Creemers, J.T.; Meuleman, M.A.; Held, C.; Sadowski, G.; Van Sint Annaland, M.; Gallucci, F.; Kroon, M.C. Determination of the Total Vapor Pressure of Hydrophobic Deep Eutectic Solvents: Experiments and Perturbed-Chain Statistical Associating Fluid Theory Modeling. ACS Sustain. Chem. Eng. 2019, 7, 4047–4057. [Google Scholar] [CrossRef]
  20. Marcus, Y. Deep Eutectic Solvents; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar]
  21. Zhang, Q.; De Oliveira Vigier, K.; Royer, S.; Jérôme, F. Deep Eutectic Solvents: Syntheses, Properties and Applications. Chem. Soc. Rev. 2012, 41, 7108–7146. [Google Scholar] [CrossRef]
  22. Omar, K.A.; Sadeghi, R. Novel Nonanol-Based Deep Eutectic Solvents: Thermophysical Properties and Their Applications in Liquid-Liquid Extraction and Amino Acid Detection. J. Mol. Liq. 2021, 336, 116359. [Google Scholar] [CrossRef]
  23. Nowosielski, B.; Jamrógiewicz, M.; Łuczak, J.; Śmiechowski, M.; Warmińska, D. Experimental and Predicted Physicochemical Properties of Monopropanolamine-Based Deep Eutectic Solvents. J. Mol. Liq. 2020, 309, 113110. [Google Scholar] [CrossRef]
  24. Shahbaz, K.; Baroutian, S.; Mjalli, F.S.; Hashim, M.A.; Alnashef, I.M. Densities of Ammonium and Phosphonium Based Deep Eutectic Solvents: Prediction Using Artificial Intelligence and Group Contribution Techniques. Thermochim. Acta 2012, 527, 59–66. [Google Scholar] [CrossRef]
  25. Mjalli, F.S.; Murshid, G.; Al-Zakwani, S.; Hayyan, A. Monoethanolamine-Based Deep Eutectic Solvents, Their Synthesis and Characterization. Fluid Phase Equilib. 2017, 448, 30–40. [Google Scholar] [CrossRef]
  26. Ghaedi, H.; Ayoub, M.; Sufian, S.; Lal, B.; Shariff, A.M. Measurement and Correlation of Physicochemical Properties of Phosphonium-Based Deep Eutectic Solvents at Several Temperatures (293.15 K–343.15 K) for CO2 Capture. J. Chem. Thermodyn. 2017, 113, 41–51. [Google Scholar] [CrossRef]
  27. Lu, M.; Han, G.; Jiang, Y.; Zhang, X.; Deng, D.; Ai, N. Solubilities of Carbon Dioxide in the Eutectic Mixture of Levulinic Acid (or Furfuryl Alcohol) and Choline Chloride. J. Chem. Thermodyn. 2015, 88, 72–77. [Google Scholar] [CrossRef]
  28. Abbott, A.P.; Harris, R.C.; Ryder, K.S.; D’Agostino, C.; Gladden, L.F.; Mantle, M.D. Glycerol Eutectics as Sustainable Solvent Systems. Green Chem. 2011, 13, 82–90. [Google Scholar] [CrossRef]
  29. Basaiahgari, A.; Panda, S.; Gardas, R.L. Effect of Ethylene, Diethylene, and Triethylene Glycols and Glycerol on the Physicochemical Properties and Phase Behavior of Benzyltrimethyl and Benzyltributylammonium Chloride Based Deep Eutectic Solvents at 283.15-343.15 K. J. Chem. Eng. Data 2018, 63, 2613–2627. [Google Scholar] [CrossRef]
  30. Mjalli, F.S.; Vakili-Nezhaad, G.; Shahbaz, K.; Alnashef, I.M. Application of the Eötvos and Guggenheim Empirical Rules for Predicting the Density and Surface Tension of Ionic Liquids Analogues. Thermochim. Acta 2014, 575, 40–44. [Google Scholar] [CrossRef]
  31. Florindo, C.; Oliveira, F.S.; Rebelo, L.P.N.N.; Fernandes, A.M.; Marrucho, I.M. Insights into the Synthesis and Properties of Deep Eutectic Solvents Based on Cholinium Chloride and Carboxylic Acids. ACS Sustain. Chem. Eng. 2014, 2, 2416–2425. [Google Scholar] [CrossRef]
  32. Wang, Y.; Hou, Y.; Wu, W.; Liu, D.; Ji, Y.; Ren, S. Roles of a Hydrogen Bond Donor and a Hydrogen Bond Acceptor in the Extraction of Toluene from: N -Heptane Using Deep Eutectic Solvents. Green Chem. 2016, 18, 3089–3097. [Google Scholar] [CrossRef]
  33. Hansen, B.B.; Spittle, S.; Chen, B.; Poe, D.; Zhang, Y.; Klein, J.M.; Horton, A.; Adhikari, L.; Zelovich, T.; Doherty, B.W.; et al. Deep Eutectic Solvents: A Review of Fundamentals and Applications. Chem. Rev. 2021, 121, 1232–1285. [Google Scholar] [CrossRef] [PubMed]
  34. Yadav, A.; Trivedi, S.; Rai, R.; Pandey, S. Densities and Dynamic Viscosities of (Choline Chloride + glycerol) Deep Eutectic Solvent and Its Aqueous Mixtures in the Temperature Range (283.15-363.15)K. Fluid Phase Equilib. 2014, 367, 135–142. [Google Scholar] [CrossRef]
  35. Mjalli, F.S. Mass Connectivity Index-Based Density Prediction of Deep Eutectic Solvents. Fluid Phase Equilib. 2016, 409, 312–317. [Google Scholar] [CrossRef]
  36. Haghbakhsh, R.; Raeissi, S.; Duarte, A.R.C. Group Contribution and Atomic Contribution Models for the Prediction of Various Physical Properties of Deep Eutectic Solvents. Sci. Rep. 2021, 11, 6684. [Google Scholar] [CrossRef] [PubMed]
  37. Abbott, A.P.; Harris, R.C.; Ryder, K.S. Application of Hole Theory to Define Ionic Liquids by Their Transport Properties. J. Phys. Chem. B 2007, 111, 4910–4913. [Google Scholar] [CrossRef] [PubMed]
  38. Sarmad, S.; Xie, Y.; Mikkola, J.P.; Ji, X. Screening of Deep Eutectic Solvents (DESs) as Green CO2 Sorbents: From Solubility to Viscosity. New, J. Chem. 2016, 41, 290–301. [Google Scholar] [CrossRef]
  39. Mjalli, F.S.; Naser, J. Viscosity Model for Choline Chloride-Based Deep Eutectic Solvents. Asia-Pac. J. Chem. Eng. 2015, 10, 273–281. [Google Scholar] [CrossRef]
  40. Mjalli, F.S.; Al-Hajri, R.; Al-Muhtaseb, A.; Ahmed, O.; Nagaraju, M. Novel Amino Acid-Based Ionic Liquid Analogues: Neutral Hydroxylic and Sulfur-Containing Amino Acids. Asia-Pac. J. Chem. Eng. 2016, 11, 683–694. [Google Scholar] [CrossRef]
  41. Florindo, C.; Oliveira, M.M.; Branco, L.C.; Marrucho, I.M. Carbohydrates-Based Deep Eutectic Solvents: Thermophysical Properties and Rice Straw Dissolution. J. Mol. Liq. 2017, 247, 441–447. [Google Scholar] [CrossRef]
  42. Maugeri, Z.; Domínguez De María, P. Novel Choline-Chloride-Based Deep-Eutectic-Solvents with Renewable Hydrogen Bond Donors: Levulinic Acid and Sugar-Based Polyols. RSC Adv. 2012, 2, 421–425. [Google Scholar] [CrossRef]
  43. D’Agostino, C.; Harris, R.C.; Abbott, A.P.; Gladden, L.F.; Mantle, M.D. Molecular Motion and Ion Diffusion in Choline Chloride Based Deep Eutectic Solvents Studied by 1H Pulsed Field Gradient NMR Spectroscopy. Phys. Chem. Chem. Phys. 2011, 13, 21383–21391. [Google Scholar] [CrossRef] [PubMed]
  44. Haghbakhsh, R.; Parvaneh, K.; Raeissi, S.; Shariati, A. A General Viscosity Model for Deep Eutectic Solvents: The Free Volume Theory Coupled with Association Equations of State. Fluid Phase Equilib. 2018, 470, 193–202. [Google Scholar] [CrossRef]
  45. Benguerba, Y.; Alnashef, I.M.; Erto, A.; Balsamo, M.; Ernst, B. A Quantitative Prediction of the Viscosity of Amine Based DESs Using Sσ-Profile Molecular Descriptors. J. Mol. Struct. 2019, 1184, 357–363. [Google Scholar] [CrossRef]
  46. Hayyan, A.; Mjalli, F.S.; Alnashef, I.M.; Al-Wahaibi, Y.M.; Al-Wahaibi, T.; Hashim, M.A. Glucose-Based Deep Eutectic Solvents: Physical Properties. J. Mol. Liq. 2013, 178, 137–141. [Google Scholar] [CrossRef]
  47. Omar, K.A.; Sadeghi, R. Novel Deep Eutectic Solvents Based on Pyrogallol: Synthesis and Characterizations. J. Chem. Eng. Data 2021, 66, 2088–2095. [Google Scholar] [CrossRef]
  48. Chen, Y.; Chen, W.; Fu, L.; Yang, Y.; Wang, Y.; Hu, X.; Wang, F.; Mu, T. Surface Tension of 50 Deep Eutectic Solvents: Effect of Hydrogen-Bonding Donors, Hydrogen-Bonding Acceptors, Other Solvents, and Temperature. Ind. Eng. Chem. Res. 2019, 58, 12741–12750. [Google Scholar] [CrossRef]
  49. Mjalli, F.S.; Al-Azzawi, M. Aliphatic Amino Acids as Possible Hydrogen Bond Donors for Preparing Eutectic Solvents. J. Mol. Liq. 2021, 330, 115637. [Google Scholar] [CrossRef]
  50. Bagh, F.S.G.; Shahbaz, K.; Mjalli, F.S.; AlNashef, I.M.; Hashim, M.A. Electrical Conductivity of Ammonium and Phosphonium Based Deep Eutectic Solvents: Measurements and Artificial Intelligence-Based Prediction. Fluid Phase Equilib. 2013, 356, 30–37. [Google Scholar] [CrossRef]
  51. Pandey, A.; Pandey, S. Solvatochromic Probe Behavior within Choline Chloride-Based Deep Eutectic Solvents: Effect of Temperature and Water. J. Phys. Chem. B 2014, 118, 14652–14661. [Google Scholar] [CrossRef]
  52. Teles, A.R.R.; Capela, E.V.; Carmo, R.S.; Coutinho, J.A.P.; Silvestre, A.J.D.; Freire, M.G. Solvatochromic Parameters of Deep Eutectic Solvents Formed by Ammonium-Based Salts and Carboxylic Acids. Fluid Phase Equilib. 2017, 448, 15–21. [Google Scholar] [CrossRef] [PubMed]
  53. Florindo, C.; McIntosh, A.J.S.; Welton, T.; Branco, L.C.; Marrucho, I.M. A Closer Look into Deep Eutectic Solvents: Exploring Intermolecular Interactions Using Solvatochromic Probes. Phys. Chem. Chem. Phys. 2017, 20, 206–213. [Google Scholar] [CrossRef] [PubMed]
  54. Ghaedi, H.; Ayoub, M.; Sufian, S.; Lal, B.; Uemura, Y. Thermal Stability and FT-IR Analysis of Phosphonium-Based Deep Eutectic Solvents with Different Hydrogen Bond Donors. J. Mol. Liq. 2017, 242, 395–403. [Google Scholar] [CrossRef]
  55. Zhao, H.; Baker, G.A.; Holmes, S. Protease Activation in Glycerol-Based Deep Eutectic Solvents. J. Mol. Catal. B Enzym. 2011, 72, 163–167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Delgado-Mellado, N.; Larriba, M.; Navarro, P.; Rigual, V.; Ayuso, M.; García, J.; Rodríguez, F. Thermal Stability of Choline Chloride Deep Eutectic Solvents by TGA/FTIR-ATR Analysis. J. Mol. Liq. 2018, 260, 37–43. [Google Scholar] [CrossRef]
  57. Naser, J.; Mjalli, F.S.; Gano, Z.S. Molar Heat Capacity of Selected Type III Deep Eutectic Solvents. J. Chem. Eng. Data 2016, 61, 1608–1615. [Google Scholar] [CrossRef]
  58. Siongco, K.R.; Leron, R.B.; Caparanga, A.R.; Li, M.H. Molar Heat Capacities and Electrical Conductivities of Two Ammonium-Based Deep Eutectic Solvents and Their Aqueous Solutions. Thermochim. Acta 2013, 566, 50–56. [Google Scholar] [CrossRef]
  59. Zhang, K.; Li, H.; Ren, S.; Wu, W.; Bao, Y. Specific Heat Capacities of Two Functional Ionic Liquids and Two Functional Deep Eutectic Solvents for the Absorption of SO2. J. Chem. Eng. Data 2017, 62, 2708–2712. [Google Scholar] [CrossRef]
  60. Taherzadeh, M.; Haghbakhsh, R.; Duarte, A.R.C.; Raeissi, S. Estimation of the Heat Capacities of Deep Eutectic Solvents. J. Mol. Liq. 2020, 307, 112940. [Google Scholar] [CrossRef]
  61. Bunquin, R.M.A.; Caparanga, A.R. Predicting the Heat Capacities of Ammonium- And Phosphonium-Based Deep Eutectic Solvents Using Artificial Neural Network. J. Phys. Conf. Ser. 2021, 1893, 012001. [Google Scholar] [CrossRef]
  62. Su, H.Z.; Yin, J.M.; Liu, Q.S.; Li, C.P. Properties of Four Deep Eutectic Solvents: Density, Electrical Conductivity, Dynamic Viscosity and Refractive Index. Wuli Huaxue Xuebao Acta Phys.—Chim. Sin. 2015, 31, 1468–1473. [Google Scholar] [CrossRef]
  63. Seki, S.; Tsuzuki, S.; Hayamizu, K.; Umebayashi, Y.; Serizawa, N.; Takei, K.; Miyashiro, H. Comprehensive Refractive Index Property for Room-Temperature Ionic Liquids. J. Chem. Eng. Data 2012, 57, 2211–2216. [Google Scholar] [CrossRef]
  64. Murshid, G.; Mjalli, F.S.; Naser, J.; Al-Zakwani, S.; Hayyan, A. Novel Diethanolamine Based Deep Eutectic Mixtures for Carbon Dioxide (CO2) Capture: Synthesis and Characterisation. Phys. Chem. Liq. 2019, 57, 473–490. [Google Scholar] [CrossRef]
  65. Sánchez, P.B.; González, B.; Salgado, J.; José Parajó, J.; Domínguez, Á. Physical Properties of Seven Deep Eutectic Solvents Based on L-Proline or Betaine. J. Chem. Thermodyn. 2019, 131, 517–523. [Google Scholar] [CrossRef]
  66. Li, G.; Deng, D.; Chen, Y.; Shan, H.; Ai, N. Solubilities and Thermodynamic Properties of CO2 in Choline-Chloride Based Deep Eutectic Solvents. J. Chem. Thermodyn. 2014, 75, 58–62. [Google Scholar] [CrossRef]
  67. Husson-Borg, P.; Majer, V.; Costa Gomes, M.F. Solubilities of Oxygen and Carbon Dioxide in Butyl Methyl Imidazolium Tetrafluoroborate as a Function of Temperature and at Pressures Close to Atmospheric Pressure. J. Chem. Eng. Data 2003, 48, 480–485. [Google Scholar] [CrossRef]
  68. Chen, Y.; Ai, N.; Li, G.; Shan, H.; Cui, Y.; Deng, D. Solubilities of Carbon Dioxide in Eutectic Mixtures of Choline Chloride and Dihydric Alcohols. J. Chem. Eng. Data 2014, 59, 1247–1253. [Google Scholar] [CrossRef]
  69. Deng, D.; Jiang, Y.; Liu, X.; Zhang, Z.; Ai, N. Investigation of Solubilities of Carbon Dioxide in Five Levulinic Acid-Based Deep Eutectic Solvents and Their Thermodynamic Properties. J. Chem. Thermodyn. 2016, 103, 212–217. [Google Scholar] [CrossRef]
  70. Liu, F.; Chen, W.; Mi, J.; Zhang, J.Y.; Kan, X.; Zhong, F.Y.; Huang, K.; Zheng, A.M.; Jiang, L. Thermodynamic and Molecular Insights into the Absorption of H2S, CO2, and CH4 in Choline Chloride plus Urea Mixtures. AIChE J. 2019, 65, e16574. [Google Scholar] [CrossRef]
  71. Wu, H.; Shen, M.; Chen, X.; Yu, G.; Abdeltawab, A.A.; Yakout, S.M. New Absorbents for Hydrogen Sulfide: Deep Eutectic Solvents of Tetrabutylammonium Bromide/Carboxylic Acids and Choline Chloride/Carboxylic Acids. Sep. Purif. Technol. 2019, 224, 281–289. [Google Scholar] [CrossRef]
  72. Jiang, W.J.; Zhong, F.Y.; Liu, Y.; Huang, K. Effective and Reversible Capture of NH3 by Ethylamine Hydrochloride Plus Glycerol Deep Eutectic Solvents. ACS Sustain. Chem. Eng. 2019, 7, 10552–10560. [Google Scholar] [CrossRef]
  73. Jiang, W.J.; Zhang, J.B.; Zou, Y.T.; Peng, H.L.; Huang, K. Manufacturing Acidities of Hydrogen-Bond Donors in Deep Eutectic Solvents for Effective and Reversible NH3Capture. ACS Sustain. Chem. Eng. 2020, 8, 13408–13417. [Google Scholar] [CrossRef]
  74. Kim, J.E.; Lim, J.S.; Kang, J.W. Measurement and Correlation of Solubility of Carbon Dioxide in 1-Alkyl-3-Methylimidazolium Hexafluorophosphate Ionic Liquids. Fluid Phase Equilib. 2011, 306, 251–255. [Google Scholar] [CrossRef]
  75. Blanchard, L.A.; Gu, Z.; Brennecke, J.F. High-Pressure Phase Behavior of Ionic Liquid/CO2 Systems. J. Phys. Chem. B 2001, 105, 2437–2444. [Google Scholar] [CrossRef] [Green Version]
  76. Bi, Y.; Hu, Z.; Lin, X.; Ahmad, N.; Xu, J.; Xu, X. Efficient CO2 Capture by a Novel Deep Eutectic Solvent through Facile, One-Pot Synthesis with Low Energy Consumption and Feasible Regeneration. Sci. Total Environ. 2020, 705, 135798. [Google Scholar] [CrossRef] [PubMed]
  77. Jiang, B.; Zhang, H.; Zhang, L.; Zhang, N.; Huang, Z.; Chen, Y.; Sun, Y.; Tantai, X. Novel Deep Eutectic Solvents for Highly Efficient and Reversible Absorption of SO2 by Preorganization Strategy. ACS Sustain. Chem. Eng. 2019, 7, 8347–8357. [Google Scholar] [CrossRef]
  78. Wang, C.; Guo, Y.; Zhu, X.; Cui, G.; Li, H.; Dai, S. Highly Efficient CO2 Capture by Tunable Alkanolamine-Based Ionic Liquids with Multidentate Cation Coordination. Chem. Commun. 2012, 48, 6526. [Google Scholar] [CrossRef] [Green Version]
  79. Cui, G.; Liu, J.; Lyu, S.; Wang, H.; Li, Z.; Wang, J. Efficient and Reversible SO2 Absorption by Environmentally Friendly Task-Specific Deep Eutectic Solvents of PPZBr + Gly. ACS Sustain. Chem. Eng. 2019, 7, 14236–14246. [Google Scholar] [CrossRef]
  80. Sheng, K.; Kang, Y.; Li, J.; Xu, H.; Li, D. High-Efficiency Absorption of SO2 by a New Type of Deep Eutectic Solvents. Energy Fuels 2020, 34, 3440–3448. [Google Scholar]
  81. Zubeir, L.F.; Romanos, G.E.; Weggemans, W.M.A.; Iliev, B.; Schubert, T.J.S.; Kroon, M.C. Solubility and Diffusivity of CO2 in the Ionic Liquid 1-Butyl-3-Methylimidazolium Tricyanomethanide within a Large Pressure Range (0.01 MPa to 10 MPa). J. Chem. Eng. Data 2015, 60, 1544–1562. [Google Scholar] [CrossRef]
  82. Zubeir, L.F.; Lacroix, M.H.M.; Kroon, M.C. Low Transition Temperature Mixtures as Innovative and Sustainable CO2 Capture Solvents. J. Phys. Chem. B 2014, 118, 14429–14441. [Google Scholar] [CrossRef]
  83. Lei, Z.; Dai, C.; Chen, B. Gas Solubility in Ionic Liquids. Chem. Rev. 2014, 114, 1289–1326. [Google Scholar] [CrossRef] [PubMed]
  84. Aki, S.N.V.K.; Mellein, B.R.; Saurer, E.M.; Brennecke, J.F. High-Pressure Phase Behavior of Carbon Dioxide with Imidazolium-Based Ionic Liquids. J. Phys. Chem. B 2004, 108, 20355–20365. [Google Scholar] [CrossRef]
  85. Zubeir, L.F.; Van Osch, D.J.G.P.; Rocha, M.A.A.; Banat, F.; Kroon, M.C. Carbon Dioxide Solubilities in Decanoic Acid-Based Hydrophobic Deep Eutectic Solvents. J. Chem. Eng. Data 2018, 63, 913–919. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Haider, M.B.; Jha, D.; Marriyappan Sivagnanam, B.; Kumar, R. Thermodynamic and Kinetic Studies of CO2 Capture by Glycol and Amine-Based Deep Eutectic Solvents. J. Chem. Eng. Data 2018, 63, 2671–2680. [Google Scholar] [CrossRef]
  87. Liu, X.; Gao, B.; Jiang, Y.; Ai, N.; Deng, D. Solubilities and Thermodynamic Properties of Carbon Dioxide in Guaiacol-Based Deep Eutectic Solvents. J. Chem. Eng. Data 2017, 62, 1448–1455. [Google Scholar] [CrossRef]
  88. Altamash, T.; Nasser, M.S.; Elhamarnah, Y.; Magzoub, M.; Ullah, R.; Qiblawey, H.; Aparicio, S.; Atilhan, M. Gas Solubility and Rheological Behavior Study of Betaine and Alanine Based Natural Deep Eutectic Solvents (NADES). J. Mol. Liq. 2018, 256, 286–295. [Google Scholar] [CrossRef] [Green Version]
  89. Akhmetshina, A.I.; Petukhov, A.N.; Mechergui, A.; Vorotyntsev, A.V.; Nyuchev, A.V.; Moskvichev, A.A.; Vorotyntsev, I.V. Evaluation of Methanesulfonate-Based Deep Eutectic Solvent for Ammonia Sorption. J. Chem. Eng. Data 2018, 63, 1896–1904. [Google Scholar] [CrossRef]
  90. Yan, H.; Zhao, L.; Bai, Y.; Li, F.; Dong, H.; Wang, H.; Zhang, X.; Zeng, S. Superbase Ionic Liquid-Based Deep Eutectic Solvents for Improving CO2 Absorption. ACS Sustain. Chem. Eng. 2020, 8, 2523–2530. [Google Scholar] [CrossRef]
  91. Cui, G.; Lv, M.; Yang, D. Efficient CO2 Absorption by Azolide-Based Deep Eutectic Solvents. Chem. Commun. 2019, 55, 1426–1429. [Google Scholar] [CrossRef]
  92. Shukla, S.K.; Mikkola, J.P. Intermolecular Interactions upon Carbon Dioxide Capture in Deep-Eutectic Solvents. Phys. Chem. Chem. Phys. 2018, 20, 24591–24601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Li, X.; Liu, X.; Deng, D. Solubilities and Thermodynamic Properties of CO2 in Four Azole-Based Deep Eutectic Solvents. J. Chem. Eng. Data 2018, 63, 2091–2096. [Google Scholar] [CrossRef]
  94. Ghaedi, H.; Ayoub, M.; Sufian, S.; Shariff, A.M.; Hailegiorgis, S.M.; Khan, S.N. CO2 Capture with the Help of Phosphonium-Based Deep Eutectic Solvents. J. Mol. Liq. 2017, 243, 564–571. [Google Scholar] [CrossRef]
  95. Wang, J.; Cheng, H.; Song, Z.; Chen, L.; Deng, L.; Qi, Z. Carbon Dioxide Solubility in Phosphonium-Based Deep Eutectic Solvents: An Experimental and Molecular Dynamics Study. Ind. Eng. Chem. Res. 2019, 58, 17514–17523. [Google Scholar] [CrossRef]
  96. Haider, M.B.; Kumar, R. Solubility of CO2 and CH4 in Sterically Hindered Amine-Based Deep Eutectic Solvents. Sep. Purif. Technol. 2020, 248, 117055. [Google Scholar] [CrossRef]
  97. Ali, E.; Hadj-Kali, M.K.; Mulyono, S.; Alnashef, I.; Fakeeha, A.; Mjalli, F.; Hayyan, A. Solubility of CO2 in Deep Eutectic Solvents: Experiments and Modelling Using the Peng-Robinson Equation of State. Chem. Eng. Res. Des. 2014, 92, 1898–1906. [Google Scholar] [CrossRef]
  98. Liu, X.; Gao, B.; Deng, D. SO2 Absorption/Desorption Performance of Renewable Phenol-Based Deep Eutectic Solvents. Sep. Sci. Technol. 2018, 53, 2150–2158. [Google Scholar] [CrossRef]
  99. Shukla, S.K.; Nikjoo, D.; Mikkola, J.P. Is Basicity the Sole Criterion for Attaining High Carbon Dioxide Capture in Deep-Eutectic Solvents? Phys. Chem. Chem. Phys. 2020, 22, 966–970. [Google Scholar] [CrossRef] [Green Version]
  100. Sarmad, S.; Nikjoo, D.; Mikkola, J.P. Amine Functionalized Deep Eutectic Solvent for CO2 Capture: Measurements and Modeling. J. Mol. Liq. 2020, 309, 113159. [Google Scholar] [CrossRef]
  101. Sze, L.L.; Pandey, S.; Ravula, S.; Pandey, S.; Zhao, H.; Baker, G.A.; Baker, S.N. Ternary Deep Eutectic Solvents Tasked for Carbon Dioxide Capture. ACS Sustain. Chem. Eng. 2014, 2, 2117–2123. [Google Scholar] [CrossRef]
  102. Jiang, B.; Ma, J.; Yang, N.; Huang, Z.; Zhang, N.; Tantai, X.; Sun, Y.; Zhang, L. Superbase/Acylamido-Based Deep Eutectic Solvents for Multiple-Site Efficient CO2 Absorption. Energy and Fuels 2019, 33, 7569–7577. [Google Scholar] [CrossRef]
  103. Pishro, K.A.; Murshid, G.; Mjalli, F.S.; Naser, J. Investigation of CO2 Solubility in Monoethanolamine Hydrochloride Based Deep Eutectic Solvents and Physical Properties Measurements. Chin. J. Chem. Eng. 2020, 28, 2848–2856. [Google Scholar] [CrossRef]
  104. Ren, H.; Lian, S.; Wang, X.; Zhang, Y.; Duan, E. Exploiting the Hydrophilic Role of Natural Deep Eutectic Solvents for Greening CO2 Capture. J. Clean. Prod. 2018, 193, 802–810. [Google Scholar] [CrossRef]
  105. Trivedi, T.J.; Lee, J.H.; Lee, H.J.; Jeong, Y.K.; Choi, J.W. Deep Eutectic Solvents as Attractive Media for CO2 Capture. Green Chem. 2016, 18, 2834–2842. [Google Scholar] [CrossRef]
  106. Siani, G.; Tiecco, M.; Di Profio, P.; Guernelli, S.; Fontana, A.; Ciulla, M.; Canale, V. Physical Absorption of CO2 in Betaine/Carboxylic Acid-Based Natural Deep Eutectic Solvents. J. Mol. Liq. 2020, 315, 113708. [Google Scholar] [CrossRef]
  107. Ramdin, M.; de Loos, T.W.; Vlugt, T.J.H. State-of-the-Art of CO2 Capture with Ionic Liquids. Ind. Eng. Chem. Res. 2012, 51, 8149–8177. [Google Scholar] [CrossRef]
  108. Kanakubo, M.; Makino, T.; Taniguchi, T.; Nokami, T.; Itoh, T. CO2 Solubility in Ether Functionalized Ionic Liquids on Mole Fraction and Molarity Scales. ACS Sustain. Chem. Eng. 2016, 4, 525–535. [Google Scholar] [CrossRef]
  109. Li, Z.; Wang, L.; Li, C.; Cui, Y.; Li, S.; Yang, G.; Shen, Y. Absorption of Carbon Dioxide Using Ethanolamine-Based Deep Eutectic Solvents. ACS Sustain. Chem. Eng. 2019, 7, 10403–10414. [Google Scholar] [CrossRef]
  110. Shukla, S.K.; Mikkola, J.P. Unusual Temperature-Promoted Carbon Dioxide Capture in Deep-Eutectic Solvents: The Synergistic Interactions. Chem. Commun. 2019, 55, 3939–3942. [Google Scholar] [CrossRef]
  111. Cichowska-Kopczyńska, I.; Warmińska, D.; Nowosielski, B. Solubility of Carbon Dioxide in Deep Eutectic Solvents Based on 3-Amino-1-Propanol and Tetraalkylammonium Salts at Low Pressure. Materials 2021, 14, 594. [Google Scholar] [CrossRef]
  112. Su, W.C.; Wong, D.S.H.; Li, M.H. Effect of Water on Solubility of Carbon Dioxide in (Aminomethanamide + 2-Hydroxy-N,N,N-Trimethylethanaminium Chloride). J. Chem. Eng. Data 2009, 54, 1951–1955. [Google Scholar] [CrossRef]
  113. Xie, Y.; Dong, H.; Zhang, S.; Lu, X.; Ji, X. Effect of Water on the Density, Viscosity, and CO2 Solubility in Choline Chloride/Urea. J. Chem. Eng. Data 2014, 59, 3344–3352. [Google Scholar] [CrossRef]
  114. Ma, C.; Sarmad, S.; Mikkola, J.P.; Ji, X. Development of Low-Cost Deep Eutectic Solvents for CO2 Capture. Energy Procedia 2017, 142, 3320–3325. [Google Scholar] [CrossRef]
  115. Shah, D.; Mjalli, F.S. Effect of Water on the Thermo-Physical Properties of Reline: An Experimental and Molecular Simulation Based Approach. Phys. Chem. Chem. Phys. 2014, 16, 23900–23907. [Google Scholar] [CrossRef] [PubMed]
  116. Zhekenov, T.; Toksanbayev, N.; Kazakbayeva, Z.; Shah, D.; Mjalli, F.S. Formation of Type III Deep Eutectic Solvents and Effect of Water on Their Intermolecular Interactions. Fluid Phase Equilib. 2017, 441, 43–48. [Google Scholar] [CrossRef]
  117. Fetisov, E.O.; Harwood, D.B.; Kuo, I.F.W.; Warrag, S.E.E.; Kroon, M.C.; Peters, C.J.; Siepmann, J.I. First-Principles Molecular Dynamics Study of a Deep Eutectic Solvent: Choline Chloride/Urea and Its Mixture with Water. J. Phys. Chem. B 2018, 122, 1245–1254. [Google Scholar] [CrossRef] [Green Version]
  118. Gao, Q.; Zhu, Y.; Ji, X.; Zhu, W.; Lu, L.; Lu, X. Effect of Water Concentration on the Microstructures of Choline Chloride/Urea (1:2)/Water Mixture. Fluid Phase Equilib. 2018, 470, 134–139. [Google Scholar] [CrossRef]
  119. Sun, H.; Li, Y.; Wu, X.; Li, G. Theoretical Study on the Structures and Properties of Mixtures of Urea and Choline Chloride. J. Mol. Model. 2013, 19, 2433–2441. [Google Scholar] [CrossRef]
  120. Perkins, S.L.; Painter, P.; Colina, C.M. Experimental and Computational Studies of Choline Chloride-Based Deep Eutectic Solvents. J. Chem. Eng. Data 2014, 59, 3652–3662. [Google Scholar] [CrossRef]
  121. Naik, P.K.; Paul, S.; Banerjee, T. Physiochemical Properties and Molecular Dynamics Simulations of Phosphonium and Ammonium Based Deep Eutectic Solvents. J. Solution Chem. 2019, 48, 1046–1065. [Google Scholar] [CrossRef]
  122. Migliorati, V.; Sessa, F.; D’Angelo, P. Deep Eutectic Solvents: A Structural Point of View on the Role of the Cation. Chem. Phys. Lett. X 2019, 737, 100001. [Google Scholar] [CrossRef]
  123. Ferreira, E.S.C.; Voroshylova, I.V.; Figueiredo, N.M.; Pereira, C.M.; Cordeiro, M.N.D.S. Computational and Experimental Study of Propeline: A Choline Chloride Based Deep Eutectic Solvent. J. Mol. Liq. 2020, 298, 111978. [Google Scholar] [CrossRef]
  124. Ferreira, E.S.C.; Voroshylova, I.V.; Pereira, C.M.; Cordeiro, M.N.D.S. Improved Force Field Model for the Deep Eutectic Solvent Ethaline: Reliable Physicochemical Properties. J. Phys. Chem. B 2016, 120, 10124–10137. [Google Scholar] [CrossRef] [PubMed]
  125. Rozas, S.; Alomari, N.; Atilhan, M.; Aparicio, S. Theoretical Insights into the Cineole-Based Deep Eutectic Solvents. J. Chem. Phys. 2021, 154, 184504. [Google Scholar] [CrossRef] [PubMed]
  126. Kussainova, D.; Shah, D. Structure of Monoethanolamine Based Type III DESs: Insights from Molecular Dynamics Simulations. Fluid Phase Equilib. 2019, 482, 112–117. [Google Scholar] [CrossRef]
  127. Barani Pour, S.; Jahanbin Sardroodi, J.; Rastkar Ebrahimzadeh, A. The Study of Structure and Interactions of Glucose-Based Natural Deep Eutectic Solvents by Molecular Dynamics Simulation. J. Mol. Liq. 2021, 334, 115956. [Google Scholar] [CrossRef]
  128. Alizadeh, V.; Geller, D.; Malberg, F.; Sánchez, P.B.; Padua, A.; Kirchner, B. Strong Microheterogeneity in Novel Deep Eutectic Solvents. ChemPhysChem 2019, 20, 1786–1792. [Google Scholar] [CrossRef]
  129. Doherty, B.; Acevedo, O. OPLS Force Field for Choline Chloride-Based Deep Eutectic Solvents. J. Phys. Chem. B 2018, 122, 9982–9993. [Google Scholar] [CrossRef]
  130. Altamash, T.; Atilhan, M.; Aliyan, A.; Ullah, R.; García, G.; Aparicio, S. Insights into Choline Chloride-Phenylacetic Acid Deep Eutectic Solvent for CO2 Absorption. RSC Adv. 2016, 6, 109201–109210. [Google Scholar] [CrossRef]
  131. Ullah, R.; Atilhan, M.; Anaya, B.; Khraisheh, M.; García, G.; Elkhattat, A.; Tariq, M.; Aparicio, S. A Detailed Study of Cholinium Chloride and Levulinic Acid Deep Eutectic Solvent System for CO2 capture via Experimental and Molecular Simulation Approaches. Phys. Chem. Chem. Phys. 2015, 17, 20941–20960. [Google Scholar] [CrossRef] [Green Version]
  132. Kumar, K.; Keshri, S.; Bharti, A.; Kumar, S.; Mogurampelly, S. Solubility of Gases in Choline Chloride-Based Deep Eutectic Solvents from Molecular Dynamics Simulation. Ind. Eng. Chem. Res. 2022, 61, 4659–4671. [Google Scholar] [CrossRef]
  133. Jahanbakhsh-Bonab, P.; Jahanbin Sardroodi, J.; Sadegh Avestan, M. The Pressure Effects on the Amine-Based DES Performance in NG Sweetening: Insights from Molecular Dynamics Simulation. Fuel 2022, 323, 124249. [Google Scholar] [CrossRef]
  134. Muthu, A.; Maheswari, U.; Palanivelu, K. Absorption of Carbon Dioxide in Alkanolamines in Deep Eutectic Solvent Medium for CO2 Gas Separation. J. Chem. Pharm. Sci. 2014, 974, 2115. [Google Scholar]
  135. Lian, S.; Li, R.; Zhang, Z.; Liu, Q.; Song, C.; Lu, S. Improved CO2 Separation Performance and Interfacial Affinity of Composite Membranes by Incorporating Amino Acid-Based Deep Eutectic Solvents. Sep. Purif. Technol. 2021, 272, 118953. [Google Scholar] [CrossRef]
  136. Saeed, U.; Khan, A.L.; Gilani, M.A.; Bilad, M.R.; Khan, A.U. Supported Deep Eutectic Liquid Membranes with Highly Selective Interaction Sites for Efficient CO2 Separation. J. Mol. Liq. 2021, 342, 117509. [Google Scholar] [CrossRef]
  137. Saeed, U.; Khan, A.U.; Khan, A.L.; Gilani, M.A.; Bilad, M.R. Separation of Carbon Dioxide by Potassium Carbonate Based Supported Deep Eutectic Liquid Membranes: Influence of Hydrogen Bond Donor. J. Membr. Sci. Res. 2022, 8. [Google Scholar] [CrossRef]
  138. Wu, X.; Cheng, N.N.; Jiang, H.; Zheng, W.T.; Chen, Y.; Huang, K.; Liu, F. 1-Ethyl-3-Methylimidazolium Chloride plus Imidazole Deep Eutectic Solvents as Physical Solvents for Remarkable Separation of H2S from CO2. Sep. Purif. Technol. 2021, 276, 119313. [Google Scholar] [CrossRef]
  139. Wang, Y.; Ren, S.; Hou, Y.; Wu, W. Capture of Acidic Gases from Flue Gas by Deep Eutectic Solvents. Processes 2021, 9, 1268. [Google Scholar] [CrossRef]
  140. Yang, D.; Zhang, S.; De-en, J.; Dai, S. SO2 Absorption in EmimCl–TEG Deep Eutectic Solvents. Phys. Chem. Chem. Phys. 2018, 20, 15168–15173. [Google Scholar]
Molecules 28 05293 g001a 550Molecules 28 05293 g001b 550Molecules 28 05293 g001c 550
Figure 1. Examples of commonly used HBAs and HBDs.
Figure 1. Examples of commonly used HBAs and HBDs.
Molecules 28 05293 g001aMolecules 28 05293 g001bMolecules 28 05293 g001c
Molecules 28 05293 g002 550
Figure 2. Phase diagram of deep eutectic solvent.
Figure 2. Phase diagram of deep eutectic solvent.
Molecules 28 05293 g002
Molecules 28 05293 g003 550
Figure 3. Mechanism of CO2 absorption in DESs based on primary and secondary amines.
Figure 3. Mechanism of CO2 absorption in DESs based on primary and secondary amines.
Molecules 28 05293 g003
Table
Table 1. Types of deep eutectic solvents.
Table 1. Types of deep eutectic solvents.
TypeGeneral FormulasExamples
ICat+X−:metal halides1:2 ChCl: FeCl3
IICat+X−:metal halides hydrate1:2 ChCl:CrCl3·6H2O
IIICat+X−:HBD1:2 ChCl:H2NCONH2
IVMetal chloride:HBD1:3 ZnCl2:CH3CONH2
VNonsalt HBA:HBD1:1 Citric acid:sucrose
VIAPI as HBA or HBD (THEDES)1:1 ChCl:phenylacetic acid
VIIAmino acid as HBA or HBD (AADES)1:1 Betaine:L-histidine
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cichowska-Kopczyńska, I.; Nowosielski, B.; Warmińska, D. Deep Eutectic Solvents: Properties and Applications in CO2 Separation. Molecules 2023, 28, 5293. https://doi.org/10.3390/molecules28145293

AMA Style

Cichowska-Kopczyńska I, Nowosielski B, Warmińska D. Deep Eutectic Solvents: Properties and Applications in CO2 Separation. Molecules. 2023; 28(14):5293. https://doi.org/10.3390/molecules28145293

Chicago/Turabian Style

Cichowska-Kopczyńska, Iwona, Bartosz Nowosielski, and Dorota Warmińska. 2023. "Deep Eutectic Solvents: Properties and Applications in CO2 Separation" Molecules 28, no. 14: 5293. https://doi.org/10.3390/molecules28145293

APA Style

Cichowska-Kopczyńska, I., Nowosielski, B., & Warmińska, D. (2023). Deep Eutectic Solvents: Properties and Applications in CO2 Separation. Molecules, 28(14), 5293. https://doi.org/10.3390/molecules28145293

Article Metrics

Back to TopTop
