Article

Optimization of Supercritical Fluid CO2 Extraction from Yellow Horn Seed and Its Anti-Fatigue and Antioxidant Activity

by
Siyan Lyu
†,
Haoran Wang
† and
Tingjun Ma
*
College of Food Science and Engineering, Beijing University of Agriculture, Beijing 102206, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(12), 4853; https://doi.org/10.3390/molecules28124853
Submission received: 1 June 2023 / Revised: 15 June 2023 / Accepted: 16 June 2023 / Published: 19 June 2023
Browse Figures
Versions Notes

Abstract

:
A supercritical fluid carbon dioxide (SF-CO2) extraction method was used to obtain the optimum process for extracting yellow horn seed oil. The anti-fatigue and antioxidant properties of the extracted oil were investigated through animal experiments. The optimum process conditions for SF-CO2 extraction of the yellow horn oil were 40 MPa, 50 °C and 120 min, with an extraction yield of 31.61%. The high-dose group of yellow horn oil could significantly increase the weight-bearing swimming time, the hepatic glycogen (HG) content and decrease the lactic acid (LA) content and blood urea nitrogen (BUN) content (p < 0.05) in mice. Moreover, it improved the antioxidant ability by reducing the malondialdehyde (MDA) content (p < 0.01) and raising the glutathione reductase (GR) content and superoxide dismutase (SOD) content (p < 0.05) in mice. Yellow horn oil has the effects of being an anti-fatigue and antioxidant substance, which provides a basis for its further utilization and development.

1. Introduction

Yellow horn (Xanthoceras sorbifolia), a woody deciduous shrub or small tree in the Sapindaceae family, is an important bioenergy feedstock in China as an alternative to petroleum energy [1]. It is native to China and has now also been introduced worldwide for the development of biomass energy sources. Yellow horn mainly grows in the north of China, such as Inner Mongolia Autonomous Region, Shanxi and Gansu Province, and it is also cultivated in Ningxia, Shandong, Hebei and Liaoning Province [2]. It is resistant to cold, drought and barren conditions [3]. Yellow horn seed contains 55–70% oil [4], which is a good edible semi-dry oil with yellow color, an aromatic and tasty smell, low acidity, a high iodine value suitable for long-term storage and is highly transparent, so it enjoys a high reputation in the international market. Yellow horn oil consists of 93% unsaturated fatty acids, including about 40% linoleic acid, 30% oleic acid and 3% nervonic acid [5,6]. Unsaturated fatty acids could regulate blood lipids, lower blood pressure, prevent atherosclerosis, improve lung function, treat respiratory diseases, modulate the immune system, improve arthritis symptoms and reduce pain [7]. Nervonic acid can repair damaged brain nerves, thus preventing brain nerve aging and keeping them active [8]. It also contains a variety of active substances such as flavonoids and polyphenols [9]. Therefore, yellow horn oil plays a role in preventing disease.
Currently, methods for extracting oil from plant seeds include solvent extraction [10], aqueous enzymatic extraction [11] and mechanical pressing. However, from the perspectives of extraction efficiency, product purity and solvent residue problems, SF-CO2 extraction technology has the advantages of easy operation, low energy consumption, high extraction efficiency and high product purity [12,13], and has been applied in the fields of biopharmaceuticals and food, especially for oil extraction. Although a study on yellow horn oil by SF-CO2 extraction has been reported [4], the optimization of SF-CO2 extraction conditions is limited.
Overexertion is a state of sub-health due to excessive working hours, labor intensity and psychological stress leading to exhaustion [14]. Its greatest risk is to cause rapid deterioration of latent diseases [15]. For example, it leads to acute circulatory organ disorders such as cerebrovascular disease or cardiovascular disease, and even causes fatal symptoms. Sudden death is also known as “death from overwork”. So, it is very beneficial to improve the situation of an overworked body through our daily diet. The current research focuses on the antioxidant properties of yellow horn oil. A similar study in the literature has examined the antioxidant activity of yellow horn seed oil, which was assessed by a 2,2-diphenyl-1-trinitrophenylhydrazine (DPPH) radical scavenging assay and a β-carotene bleaching assay [3]. Moreover, Li et al. [16] found triterpene saponins extracted from the residue of yellow horn oil extraction which had significant free radical scavenging activity. However, there have been no reported studies on the anti-fatigue effect of yellow horn oil.
In this experiment, yellow horn oil was obtained by SF-CO2 extraction, and the optimized process conditions from the aspects of extraction time, extraction temperature and extraction pressure were analyzed. We determined the fatty acids of the yellow horn oil extracted under the optimal conditions. Then, the mice were fed the oil under optimal conditions, and its anti-fatigue and antioxidant activities were investigated by a weight-bearing swimming test and a physiochemical analysis of the mice, respectively. Through the research, it is hoped that yellow horn oil can be used in pharmaceutical, cosmetic and functional food applications to increase its value.

2. Results

2.1. Influence of SF-CO2 Extraction Conditions on the Yield of Yellow Horn Oil

The extraction pressure was set at 20, 25, 30, 35 and 40 MPa, the extraction time was 90 min and the extraction temperature was 40 °C for the test, and the results are shown in Figure 1a. The extraction temperature was set to 20, 30, 40, 50 and 60 °C, the extraction pressure was chosen to be 35 MPa and the extraction time was 90 min for the test, and the results are shown in Figure 1b. The extraction time was set to 60, 90, 120, 150 and 180 min, the extraction temperature was 40 °C and the extraction pressure was 35 MPa for the test, and the results are shown in Figure 1c.
As can be seen from Figure 1a, the extraction yield tended to increase when the extraction pressure was between 20 and 35 MPa. When the pressure exceeded 35 MPa, the extraction yield changed slowly. This is consistent with the findings of Jokić’s study [17]. Therefore, considering the cost and other factors, the most suitable extraction pressure was chosen as 35 MPa, and the extraction pressure of 30 MPa was selected as the upper level and 40 MPa as the lower level for the orthogonal design test.
From Figure 1b, it can be seen that the extraction yield gradually increased from 20 to 40 °C until it reached a peak of 21.31% at 40 °C and gradually decreased above 40 °C. This trend is similar to the results in the literature [18]. Therefore, 40 °C was selected as the most suitable extraction temperature, and the upper level of 30 °C and the lower level of 50 °C were selected as the extraction temperatures for the orthogonal design test.
From Figure 1c, it can be seen that the extraction yield increased during the extraction time of 60–150 min. In the interval of 150–180 min, the extraction yield of the yellow horn oil gradually increased slowly and tended to level off. It is in agreement with the work of Liu et al. [19]. Considering the energy consumption and other factors, 150 min was chosen as the optimum extraction time, and 120 min was chosen as the upper level and 180 min as the lower level for the orthogonal factorial design test.

2.2. Optimization of Conditions for SF-CO2 Extraction of Yellow Horn Oil

According to the extreme difference (R) in Table 1a, it can be seen that A > C > D > B, indicating extraction pressure > extraction time > extraction temperature. From the visual analysis, it can be seen that the best process condition was A3B3C2, representing a pressure of 40 MPa, temperature of 50 °C and time of 120 min, with an extraction yield of 31.61%. From the results of the ANOVA (Table 1b), it can be seen that A (extraction pressure) and C (extraction time) had a significant effect on the experiment, and B (extraction temperature) was not significant and had the least relative effect among the factors examined. A similar conclusion was obtained in SF-CO2 extraction on hemp cake [20]. The fatty acid composition and content of yellow horn oil were determined under optimal extraction conditions. As seen in Table 2, yellow horn oil contained mainly oleic and linoleic acids with 33.40% and 44.81%, respectively. In addition, it also contained 4.06% of nervonic acid, which was consistent with the study by Huang [9] et al. This indicated that the SF-CO2 extraction did not change the fatty acid composition of the yellow horn oil.

2.3. Anti-Fatigue Test with Extracted Yellow Horn Oil

The endurance of the mice, meaning the ability to resist fatigue, could be measured by the weight-bearing swimming time of the mice. As can be seen from Figure 2a, Yho-L, Yho-M and Yho-H all significantly prolonged the weight-bearing swimming time in mice compared to the blank control group (p < 0.05). The positive control group was the most effective in prolonging the weight-bearing swimming time in mice (p < 0.01). Although the yellow horn oil was not as good as the LPT in improving fatigue tolerance in mice, it showed a significant effect on prolonging the weight-bearing swimming time.
As shown in Figure 2b, Yho-M and Yho-H significantly increased the content of HG in the liver tissue of mice compared to the blank control (p < 0.05). LPT increased the HG content more significantly (p < 0.01); LPT, Yho-M and Yho-H all significantly (p < 0.05) reduced serum LA levels in mice. LPT, Yho-L, Yho-M and Yho-H all reduced the serum BUN content in mice to different degrees, with Yho-H significantly reducing the BUN content (p < 0.05), and the effect was better than LPT.

2.4. Antioxidant Activity Test with Extracted Yellow Horn Oil

It can be seen from Figure 2c that LPT, Yho-L, Yho-M and Yho-H all increased the GR content in mice serum compared with the blank control group, in which LPT and Yho-H could significantly increase the GR content (p < 0.05). LPT and Yho-H both increased SOD activity in liver tissues of mice, and the high dose of the yellow horn oil significantly increased SOD activity (p < 0.05). LPT, Yho-L, Yho-M and Yho-H all reduced MDA activity in liver tissues of mice, with LPT and Yho-M significantly reducing MDA activity (p < 0.05) and Yho-H highly significantly reducing MDA activity (p < 0.01). Yho-H reduced MDA activity more significantly (p < 0.01), and it is worth noting that Yho-H increased SOD activity and reduced MDA activity better than LPT.

3. Discussion

The extraction yield of yellow horn oil increased with the growth of the extraction pressure. However, when it exceeded a certain range, the extraction yield increased slowly until it did not change. The reason was that when the pressure increased within a certain range, the density of CO2 also increased, resulting in an increase in the solubility of the yellow horn oil in the CO2 fluid. However, when the pressure was higher than a certain range, the CO2 was severely compressed, which in turn strengthened the rejection between the oil and the CO2 fluid [21]. So, the yield rose slowly. As the extraction temperature rose, the extraction yield of yellow horn oil tended to increase. When a certain threshold was exceeded, the extraction yield fell. This was due to the fact that when the temperature gradually increased, it would intensify the intermolecular movement, which increased the mass transfer rate and promoted the diffusion of the yellow horn oil in the CO2 fluid. However, when the temperature kept increasing, the density of CO2 reduced and the solubility of the yellow horn oil decreased, thus reducing the oil yield [22]. In addition, at higher extraction temperatures, the contact of CO2 with the seeds was further reduced with the decrease in CO2 density [23]. With the increase in the extraction time, the extraction yield of yellow horn oil increased. However, when the CO2 was in full contact with the oil, the extraction yield could not increase more. This was because at the beginning of the experiment, the extraction yields increased with time as the oil was in contact with the CO2 fluid. When the solvent and solute reached equilibrium, the extraction yields leveled off. After the optimization of the orthogonal test, the extraction yield was 31.61% under the extraction conditions of 40 MPa, 50 °C and 120 min. The extraction rate of yellow horn oil in this study was lower than that of Gu et al. [4]. This may be due to the fact that yellow horn is produced from different regions resulting in different oil contents, thus also indicating that the variety of raw material is a very important factor. It has been shown in the literature that the final yield of yellow horn seed oil was 48.6% using a microwave-assisted method with water extraction under acidic conditions. Although the yield was high, the acidic condition was regulated by HCl, so the safety of yellow horn oil could not be guaranteed. Moreover, the SF-CO2 method is a green and high-performance extraction technology that is environmentally sustainable [24]. Yellow horn oil was obtained under optimal extraction conditions and its fatty acid content was determined. The test revealed that the oil contained 44.81% linoleic acid and 33.40% oleic acid. Studies have shown that linoleic acid and oleic acid have a certain antioxidant capacity [25,26], but further studies are needed to prove the specific pathways and causes of the effect.
In our anti-fatigue studies, Yho-L, Yho-M and Yho-H significantly prolonged the weight-bearing swimming time in mice (p < 0.05), playing a role in anti-fatigue. HG was an important substance to provide sufficient energy for muscle contraction [27], and the test revealed that Yho-M and Yho-H significantly improved the content of HG in the liver tissue of mice after the exercise (p < 0.05), indicating that it improved the endurance of the organism. LA was a product of the body’s anaerobic enzyme function, formed after excessive exercise due to incomplete aerobic metabolism, and its accumulation not only increased fatigue but also caused damage on the cardiac system to some degree [28]. Our preparation of Yho-M and Yho-H significantly lowered the level of LA in mice (p < 0.05), suggesting that yellow horn may improve aerobic oxidative energy supply. BUN was a metabolite that broke down proteins and amino acids when the body stopped breaking down sugars and fats due to excessive exercise [29]. The experimental results showed that Yho-H significantly reduced the content of BUN (p < 0.05), and the effect was better than LPT, which was due to the yellow horn oil not needing to break down more protein and amino acids for energy replenishment. Therefore, the higher HG levels and the lower LA and BUN levels indicated that the body was more resistant to fatigue. In conclusion, the yellow horn oil had the effect of increasing endurance and acting as an anti-fatigue agent in mice.
The results of the antioxidant assay showed that Yho-H significantly increased GR content in mouse liver tissue (p < 0.05). GR was hydrogen-donated by the coenzyme NADPH, which catalyzed the oxidation of glutathione and the formation of reduced glutathione. Reduced glutathione could keep the sulfhydryl-containing enzyme in a reduced and active state [30]. Thus, Yho-H was beneficial in maintaining the integrity of the red blood cell membrane and preventing the oxidation of hemoglobin. It was notable that Yho-H was more effective than LPT in increasing SOD activity and decreasing MDA activity. MDA was the main by-product of lipid peroxidation and an important indicator of oxidative damage in cells [31]. SOD played an essential role in eliminating free radicals and protecting cells from damage [32]. In summary, higher GR levels were associated with stronger SOD activity, while weaker MDA activity indicated an increase in the body’s antioxidant capacity; it was shown that the yellow horn oil could play a role in scavenging free radicals. Therefore, it can inhibit the formation of lipid peroxidation products in the body, reduce the accumulation of oxygen free radicals and improve the anti-oxidant activity of animals.

4. Materials and Methods

4.1. Materials and Reagents

Yellow horn seeds were provided by Beijing Jintongfu Green Energy Technology Co., Ltd. (Beijing, China). CO2 (edible grade 99.999%) was obtained from Beiwen Gas Manufacturing Plant Co., Ltd. (Beijing, China). The 37 fatty acid methyl ester standards were purchased from ANPEL-TRACE Standard Technical Services Co., Ltd. (Shanghai, China).
Salad oil was obtained from Aceties Monterreal S.A. Rat maintenance pellet feed, conforming to GB 14924.3-2010, was purchased from Beijing Keao Xieli Feed Co., Ltd. (Beijing, China). Its Production License No. is SCXK (Beijing) 2018-0012, and it was freely ingested after autoclaving. Lentinan polysaccharide tablets (LPTs) were from Zhejiang Puloukangyu Natural Medicines Co., Ltd. (Jinhua, China). Their NMPA (National Medical Products Administration) approval number is Z20126215, and their shelf life is 24 months. Before being used, the tablet was ground into powder with a mortar, prepared with distilled water and mixed well with a stirrer. It was sealed and stored at 4 °C in the refrigerator until use. Physiological saline was provided by Shandong Kangning Pharmaceutical Co., Ltd. (Liaochen, China). The Lot No. is E10110809. It was stored in a sealed container at room temperature until it was directly used as a solvent for the solution required for the preparation of the kit.
The malondialdehyde (MDA) kit, superoxide dismutase (SOD) kit, lactic acid (LA) kit, glutathione reductase (GR) kit and hepatic glycogen (HG) kit were purchased from Nanjing Jiancheng Bioengineering Institute (Nanjing, China). The blood urea nitrogen (BUN) kit was purchased from Shanghai Rongsheng Biological Pharmaceutical Co., Ltd. (Shanghai, China). The above reagents were stored in a refrigerator at 4 °C and used for the determination of serum and liver samples.

4.2. Supercritical Fluid Carbon Dioxide (SF-CO2) Extraction of Yellow Horn Oil

The yellow horn oil was extracted from yellow horn seeds according to Zhang et al. [3]. Briefly, the yellow horn seeds were dried in a drying oven at 105 °C for 2 h and cooled at room temperature. Then, they were ground by a high-speed universal pulverizer (High-speed Universal Pulverizer Model FW100, Tianjin Teste Instruments Co., Ltd., Tianjin, China) passing through a 0.2 mm sieve. The sieved yellow horn seed powder was dried to constant weight, where the seed moisture content was 12.3%. An amount of 10 g of the powder was poured into the extraction kettle. The extraction was carried out using an SF-CO2 extractor (Supercritical Carbon Dioxide Extractor, Applied Separations, 930 Hamilton Street Allentown, Allentown, NJ, USA) for 30 min. The CO2 flow rate was maintained at 3.0 L/min. The extraction yield was calculated by the collection from the discharge port. Each group was extracted three times and the collections of the same group were combined. Extraction yield (%) was calculated and expressed on a wet-weight basis.

4.2.1. Experimental Design

Single-factor tests analyzed the effects of extraction time, extraction temperature and extraction pressure on the extraction yield of the oil. When a factor was investigated, the other factors were set to fixed values, with the extraction pressure p = 35 MPa, extraction temperature T = 40 °C and extraction time t = 90 min. The factors and levels are shown in Table 3.
The following experiment was conducted after taking different factors into consideration and analyzing the results of the single-factor test. The extraction pressure (A), temperature (B) and time (C) were selected as the investigating factors, and three levels were taken for each factor. The extraction yield of the yellow horn oil was the investigating index, and the L9 (34) orthogonal table was selected for the orthogonal design (Table 4). Because there are only 3 factors in this experiment, we made the last column of the L9(34) orthogonal table an empty column.

4.2.2. Fatty Acid Identification

We added 20 mL of n-heptane to 100 mg of yellow horn oil and then 8 mL of 2% methanolic sodium hydroxide solution to produce fatty acid methyl esters by saponification and esterification reactions. Fatty acids were analyzed using a Nexis GC-2030 gas chromatograph (GC) (SHIMADZU, Kyoto, Japan). The chromatograph was equipped with a CD-2560 (0.2 μm, 100 m × 0.25 mm) capillary column and a flame ionization detector (FID). Fatty acids were identified by comparing retention times to standards of 37 fatty acid methyl esters. Their contents are reported as relative percentages of individual fatty acids.

4.3. Studies on the Anti-Fatigue and Antioxidant Properties of Yellow Horn Oil

4.3.1. Animals and Experimental Design

SPF-grade ICR strain mice: 60 males (starting mass 17.9 ± 1.0 g, 6 weeks old; mass at administration 22.9 ± 1.2 g, 6–7 weeks old), purchased from Beijing Vital River Laboratory Animal Technology Co., Ltd., Beijing, China. They were housed at 25 ± 1 °C, 50–60% humidity and maintained on a 12 h/12 h light/dark cycle, where they had free access to food and water during the adaptive rearing period. The animal procedures were performed in accordance with the Guidelines for Care and Use of Laboratory Animals of the Beijing University of Agriculture and the animal protocols used were approved by the Animal Ethics Committee of the Beijing University of Agriculture.

4.3.2. Mice Administered by Batch Gavage

After 1 week of adaptive feeding, the above qualified ICR mice weighing 18–22 g were randomly divided into 5 groups of 12 mice each according to their weight, namely blank control group, positive control group (lentinan polysaccharide tablet 300 mg/kg), and extracted high-, medium- and low-dose groups (2.5, 5.0 and 10.0 mL/kg.bw/d in terms of crude oil content). Each dosing group was given the corresponding drug by gavage. The control group was given an equal amount of salad oil 10.0 mL/kg.bw/d by gavage once a day. In this case, the high dose of the extracted yellow horn oil was applied directly to the crude oil, while the medium- and low-dose groups were prepared by being diluted with salad oil, sealed and stored at 4 °C in the refrigerator until use.

4.3.3. Weight-Bearing Swimming Test in Mice

The test mice were first grouped and labeled by the picric acid staining method. The animals were numbered in the order “group number + cage number + individual number”. The different groups were distinguished by different colored cage cards. The specific group number, number of animals, cage number and individual number are shown in Table 5.
The numbered mice were given the drug for 28 consecutive days, and the weight-bearing swimming test was performed 1 h after the last dose and this test was conducted after 9:00 am each day. The procedure used in this experiment was similar to that described by Huang et al. [33]. The mice used in the test were trained to swim for 30 min three times a week before the formal test and had adapted to the swimming environment at the time of the formal test. The mice were put into a swimming tank at a water temperature of 27 ± 0.5 °C and a water depth of 40 cm with a 5% lead skin weight on their tails. Physical exhaustion is defined as the inability to swim out of the water with the head submerged (for 10 s), and the time from their plunging into the water to their physical exhaustion is recorded as swimming time.

4.3.4. Sample Collection and Parameter Determination

The mice were removed after swimming, all mice were killed by 95% CO2 asphyxiation and then blood and liver were collected immediately. All the experimental and care procedures used for animal euthanasia were performed in accordance with the relevant guidelines and regulations and were approved by the Committee on the Ethics of Animal Experiments of the Beijing University of Agriculture.
After their blood was collected from their eyes, the blood was centrifuged at 2000 rpm/min for 15 min after clotting. The serum was taken and frozen, and the livers were taken in triplicate, weighed (according to the different requirements of the three kits for HG, MDA and SOD) and placed in pre-prepared tubes for freezing. The serum and liver were stored at −80 °C.
The serum was used to measure the LA, BUN and GR; the liver was used to measure the HG, MDA and SOD. The serum BUN was measured by a fully automated biochemical analyzer (Hitachi 7060, Hitachi, Japan), and the other indicators were measured by kits. After the absorbance OD value was measured according to the instructions, the indicators were calculated according to the instructions.

4.4. Statistical Data Processing Methods

All results were expressed as mean ± the standard deviation (SD) plotted using Origin 2019b. Statistical data of three independent replicates were analyzed using SPSS statistical package 24.0 (SPSS Inc., Chicago, IL, USA). Data were subjected to two-way analysis of variance. Mean comparison was performed using the Duncan test at a significance level of 0.05 (p < 0.05).

5. Conclusions

The aim of this experiment was to extract the oil of the yellow horn seeds using the supercritical fluid CO2. The results of the single-factor and orthogonal tests showed that the optimum process conditions were 40 MPa extraction pressure, 50 °C extraction temperature and 120 min extraction time, in which the extraction yield was 31.61%.
The yellow horn oil obtained by SF-CO2 can prolong the time of weight-bearing swimming in mice, increase the content of HG and decrease the content of LA and BUN in mice. It was shown that the oil could promote exercise endurance in mice. Additionally, the yellow horn oil obtained by SF-CO2 could also decrease the content of MDA and increase the content of GR and SOD in the mice. It suggested that the oil effectively reduced the damage caused by the damage factors produced in the body at the same time. Therefore, yellow horn oil has certain anti-fatigue and antioxidant effects. This study laid the foundation for yellow horn and broadened its use. Further research should investigate the specific bioactive substances responsible for anti-fatigue and antioxidant effects.

Author Contributions

S.L.: Conceptualization (equal); Formal analysis (equal); Methodology (equal); Data curation (lead); Investigation (equal); Writing—original draft (equal); Visualization (equal). H.W.: Conceptualization (equal); Methodology (equal); Data curation (equal); Investigation (equal); Writing—review and editing (equal). T.M.: Conceptualization (equal); Methodology (equal); Investigation (equal); Funding acquisition (lead); Project administration (lead); Resources (lead); Supervision (lead). All authors contributed to the article and approved the submitted version. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the Key Laboratory of Agricultural Product Processing and Quality Control (Co-construction by Ministry and Province), Ministry of Agriculture and Rural Affairs Science Foundation of China [grant number 202202].

Institutional Review Board Statement

Our procedures for animal experiments were performed in accordance with the Guidelines for Care and Use of Laboratory Animals of the Beijing University of Agriculture and the animal protocols used were approved by the Animal Ethics Committee of the Beijing University of Agriculture (No. BUA2023071).

Informed Consent Statement

The study was conducted according to the Declaration of Helsinki and approved by the Animal Research Committee of Beijing University of Agriculture.

Data Availability Statement

The original contributions presented in the study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

We sincerely thank the Key Laboratory of Agricultural Product Processing and Quality Control (Co-construction by Ministry and Province) for supporting this research, and give thanks to Beijing Jintongfu Green Energy Technology Co., Ltd. for providing us with yellow horn seeds.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Wang, J.; Guo, J.; Zhang, Y.; Yan, X. Integrated transcriptomic and metabolomic analyses of yellow horn (Xanthoceras sorbifolia) in response to cold stress. PLoS ONE 2020, 15, e0236588. [Google Scholar] [CrossRef] [PubMed]
  2. Lang, Y.; Sun, Y.; Feng, Y.; Qi, Z.; Yu, M.; Song, K. Recent Progress in the Molecular Investigations of Yellow Horn (Xanthoceras sorbifolia Bunge). Bot. Rev. 2020, 86, 136–148. [Google Scholar] [CrossRef]
  3. Zhang, S.; Zu, Y.-G.; Fu, Y.-J.; Luo, M.; Liu, W.; Li, J.; Efferth, T. Supercritical carbon dioxide extraction of seed oil from yellow horn (Xanthoceras sorbifolia Bunge.) and its anti-oxidant activity. Bioresour. Technol. 2010, 101, 2537–2544. [Google Scholar] [CrossRef] [PubMed]
  4. Gu, L.-B.; Zhang, G.-J.; Du, L.; Du, J.; Qi, K.; Zhu, X.-L.; Zhang, X.-Y.; Jiang, Z.-H. Comparative study on the extraction of Xanthoceras sorbifolia Bunge (yellow horn) seed oil using subcritical n-butane, supercritical CO2, and the Soxhlet method. LWT 2019, 111, 548–554. [Google Scholar] [CrossRef]
  5. Chen, X.; Lei, Z.; Cao, J.; Zhang, W.; Wu, R.; Cao, F.; Guo, Q.; Wang, J. Traditional uses, phytochemistry, pharmacology and current uses of underutilized Xanthoceras sorbifolium bunge: A review. J. Ethnopharmacol. 2022, 283, 114747. [Google Scholar] [CrossRef] [PubMed]
  6. Li, J.; Zu, Y.-G.; Luo, M.; Gu, C.-B.; Zhao, C.-J.; Efferth, T.; Fu, Y.-J. Aqueous enzymatic process assisted by microwave extraction of oil from yellow horn (Xanthoceras sorbifolia Bunge.) seed kernels and its quality evaluation. Food Chem. 2013, 138, 2152–2158. [Google Scholar] [CrossRef] [PubMed]
  7. Wang, C.; Enssle, J.; Pietzner, A.; Schmöcker, C.; Weiland, L.; Ritter, O.; Jaensch, M.; Elbelt, U.; Pagonas, N.; Weylandt, K.H. Essential Polyunsaturated Fatty Acids in Blood from Patients with and without Catheter-Proven Coronary Artery Disease. Int. J. Mol. Sci. 2022, 23, 766. [Google Scholar] [CrossRef]
  8. Umemoto, H.; Yasugi, S.; Tsuda, S.; Yoda, M.; Ishiguro, T.; Kaba, N.; Itoh, T. Protective Effect of Nervonic Acid Against 6-Hydroxydopamine-Induced Oxidative Stress in PC-12 Cells. J. Oleo Sci. 2021, 70, 95–102. [Google Scholar] [CrossRef]
  9. Huang, Y.; Yin, Z.; Guo, J.; Wang, F.; Zhang, J. Oil Extraction and Evaluation from Yellow Horn Using a Microwave-Assisted Aqueous Saline Process. Molecules 2019, 24, 2598. [Google Scholar] [CrossRef] [Green Version]
  10. Al Juhaimi, F.; Uslu, N.; Babiker, E.; Ghafoor, K.; Ahmed, I.A.M.; Özcan, M.M. The Effect of Different Solvent Types and Extraction Methods on Oil Yields and Fatty Acid Composition of Safflower Seed. J. Oleo Sci. 2019, 68, 1099–1104. [Google Scholar] [CrossRef] [Green Version]
  11. Prommaban, A.; Kuanchoom, R.; Seepuan, N.; Chaiyana, W. Evaluation of fatty acid compositions, antioxidant, and pharma-cological activities of pumpkin (Cucurbita moschata) seed oil from aqueous enzymatic extraction. Plants 2021, 10, 1582. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, X.; Li, Z.; Smith, S.; Chen, M.; Liu, H.; Zhang, J.; Tang, L.; Li, J.; Liu, Q.; Wu, X. Optimization of supercritical CO2 ex-traction of Moringa oleifera seed oil using response surface methodological approach and its antioxidant activity. Front. Nutr. 2022, 8, 829146. [Google Scholar] [CrossRef] [PubMed]
  13. De Aguiar, A.C.; Viganó, J.; Da-Silva-Anthero, A.; Dias, A.L.B.; Hubinger, M.D.; Martínez, J. Supercritical fluids and fluid mixtures to obtain high-value compounds from Capsicum peppers. Food Chem. X 2022, 13, 100228. [Google Scholar] [CrossRef]
  14. Olson, K.; Zimka, O.; Stein, E. The Nature of Fatigue in Chronic Fatigue Syndrome. Qual. Health Res. 2015, 25, 1410–1422. [Google Scholar] [CrossRef]
  15. Ewart, C.K.; Stewart, K.J.; Gillilan, R.E.; Kelemen, M.H.; Valenti, S.A.; Manley, J.D.; Kelemen, M.D. Usefulness of self-efficacy in predicting overexertion during programmed exercise in coronary artery disease. Am. J. Cardiol. 1986, 57, 557–561. [Google Scholar] [CrossRef]
  16. Li, J.; Zu, Y.-G.; Fu, Y.-J.; Yang, Y.-C.; Li, S.-M.; Li, Z.-N.; Wink, M. Optimization of microwave-assisted extraction of triterpene saponins from defatted residue of yellow horn (Xanthoceras sorbifolia Bunge.) kernel and evaluation of its antioxidant activity. Innov. Food Sci. Emerg. Technol. 2010, 11, 637–643. [Google Scholar] [CrossRef]
  17. Jokić, S.; Bijuk, M.; Aladić, K.; Bilić, M.; Molnar, M. Optimisation of supercritical CO2 extraction of grape seed oil using response surface methodology. Int. J. Food Sci. Technol. 2016, 51, 403–410. [Google Scholar] [CrossRef]
  18. Yu, J.; Wang, J.; Liu, C.; Liu, Z.; Wang, Q. Application of response surface methodology to optimise supercritical carbon dioxide extraction of oil from rapeseed (Brassica napus L.). Int. J. Food Sci. Technol. 2012, 47, 1115–1121. [Google Scholar] [CrossRef]
  19. Liu, Z.; Liu, B.; Kang, H.; Yue, H.; Chen, C.; Jiang, L.; Shao, Y. Subcritical fluid extraction of Lycium ruthenicum seeds oil and its antioxidant activity. Int. J. Food Sci. Technol. 2019, 54, 161–169. [Google Scholar] [CrossRef] [Green Version]
  20. Aladić, K.; Vidović, S.; Vladić, J.; Balić, D.; Jukić, H.; Jokić, S. Effect of supercritical CO2 extraction process parameters on oil yield and pigment content from by-product hemp cake. Int. J. Food Sci. Technol. 2016, 51, 885–893. [Google Scholar] [CrossRef]
  21. Chen, Z.; Mei, X.; Jin, Y.; Kim, E.-H.; Yang, Z.; Tu, Y. Optimisation of supercritical carbon dioxide extraction of essential oil of flowers of tea (Camellia sinensis L.) plants and its antioxidative activity. J. Sci. Food Agric. 2014, 94, 316–321. [Google Scholar] [CrossRef]
  22. Zhang, Z.-S.; Liu, Y.-L.; Che, L.-M. Optimization of Supercritical Carbon Dioxide Extraction of Eucommia ulmoides Seed Oil and Quality Evaluation of the Oil. J. Oleo Sci. 2018, 67, 255–263. [Google Scholar] [CrossRef] [Green Version]
  23. Ishak, I.; Hussain, N.; Coorey, R.; Ghani, M.A. Optimization and characterization of chia seed (Salvia hispanica L.) oil extraction using supercritical carbon dioxide. J. CO2 Util. 2021, 45, 101430. [Google Scholar] [CrossRef]
  24. Qu, X.-J.; Fu, Y.-J.; Luo, M.; Zhao, C.-J.; Zu, Y.-G.; Li, C.-Y.; Wang, W.; Li, J.; Wei, Z.-F. Acidic pH based microwave-assisted aqueous extraction of seed oil from yellow horn (Xanthoceras sorbifolia Bunge.). Ind. Crops Prod. 2013, 43, 420–426. [Google Scholar] [CrossRef]
  25. Xu, Q.; Ma, X.; Dong, X.; Tao, Z.; Lu, L.; Zou, X. Effects of parental dietary linoleic acid on growth performance, antioxidant capacity, and lipid metabolism in domestic pigeons (Columba livia). Poult. Sci. 2020, 99, 1471–1482. [Google Scholar] [CrossRef] [PubMed]
  26. Bettadahalli, S.; Acharya, P.; Ramaiyan, B.; Talahalli, R.R. Evidence on oleic acid and EPA + DHA role in retinal antioxidant defense, leukocyte adhesion, and vascular permeability: Insight from hyperlipidemic rat model. J. Funct. Foods 2020, 67, 103864. [Google Scholar] [CrossRef]
  27. López-Soldado, I.; Guinovart, J.J.; Duran, J. Increased liver glycogen levels enhance exercise capacity in mice. J. Biol. Chem. 2021, 297, 100976. [Google Scholar] [CrossRef]
  28. Hou, Y.; Tang, Y.; Wang, X.; Ai, X.; Wang, H.; Li, X.; Chen, X.; Zhang, Y.; Hu, Y.; Meng, X.; et al. Rhodiola Crenulata ameliorates exhaustive exercise-induced fatigue in mice by suppressing mitophagy in skeletal muscle. Exp. Ther. Med. 2020, 20, 3161–3173. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, X.; Liang, D.; Huang, Z.; Jia, G.; Zhao, H.; Liu, G. Anti-fatigue effect of quercetin on enhancing muscle function and antioxidant capacity. J. Food Biochem. 2021, 45, e13968. [Google Scholar] [CrossRef] [PubMed]
  30. Charrin, E.; Faes, C.; Sotiaux, A.; Skinner, S.; Pialoux, V.; Joly, P.; Connes, P.; Martin, C. Receptor for Advanced Glycation End Products Antagonism Blunts Kidney Damage in Transgenic Townes Sickle Mice. Front. Physiol. 2019, 10, 880. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Park, M.; Cha, H.; Kim, J.; Kim, J.; Yang, H.; Yoon, S.; Boonpraman, N.; Yi, S.; Yoo, I.; Moon, J. NOX4 promotes ferroptosis of astrocytes by oxidative stress-induced lipid peroxidation via the impairment of mitochondrial metabolism in Alzheimer’s diseases. Redox Biol. 2021, 41, 101947. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, T.; Tao, Y.; Lai, C.; Huang, C.; Ling, Z.; Yong, Q. Influence of extraction methods on navel orange peel pectin: Structural characteristics, antioxidant activity and cytoprotective capacity. Int. J. Food Sci. Technol. 2023, 58, 1382–1393. [Google Scholar] [CrossRef]
  33. Huang, W.-C.; Chiu, W.-C.; Chuang, H.-L.; Tang, D.-W.; Lee, Z.-M.; Deh-Wei, T.; Chen, F.-A. Effect of Curcumin Supplementation on Physiological Fatigue and Physical Performance in Mice. Nutrients 2015, 7, 905–921. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 28 04853 g001 550

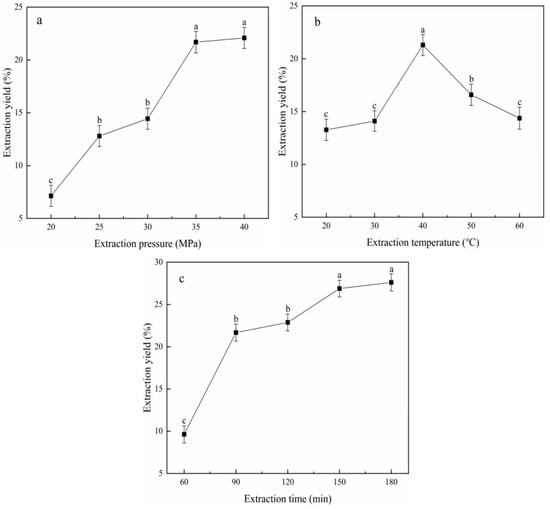

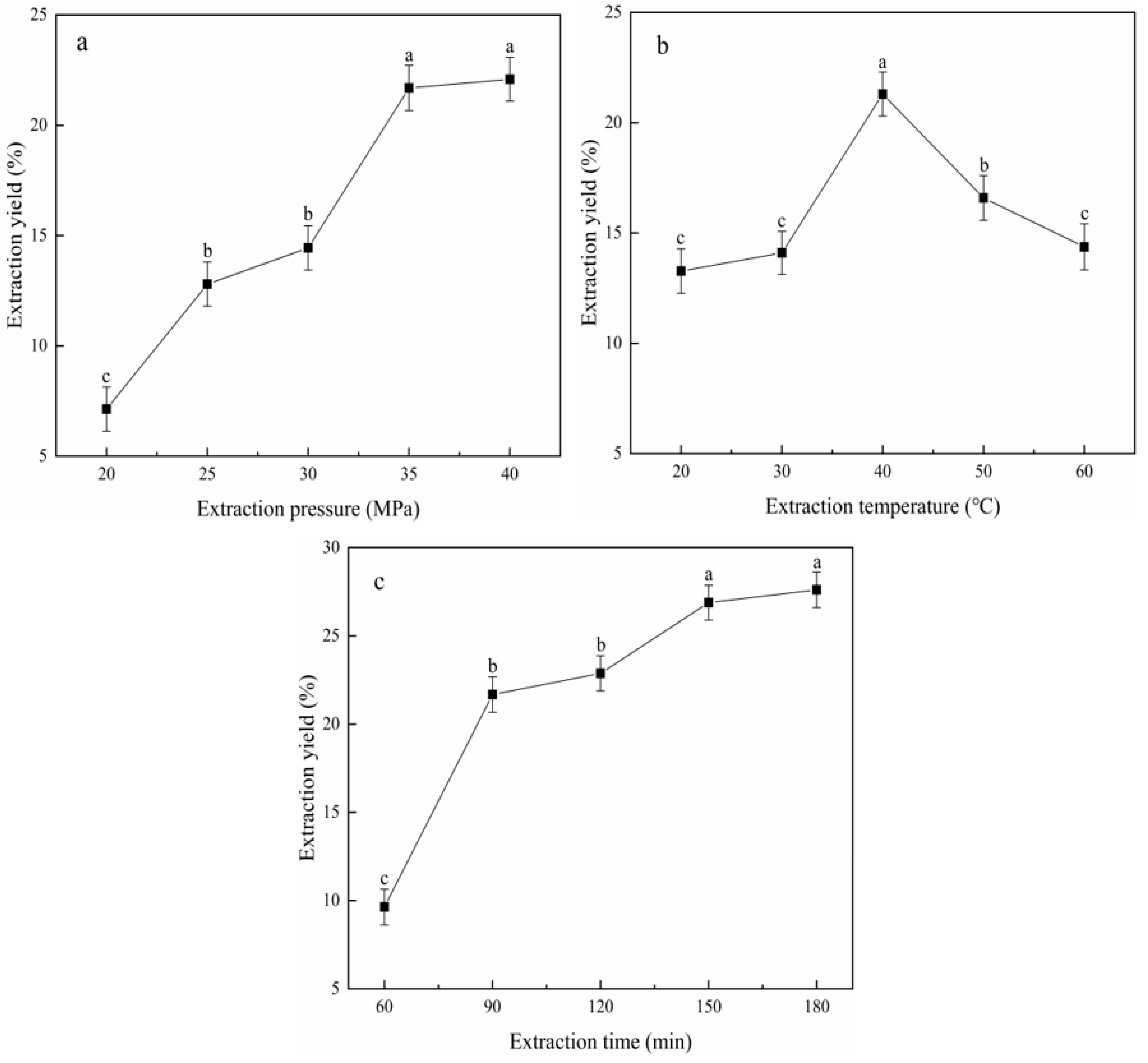

Figure 1. Effect of extraction pressure (a), extraction temperature (b) and extraction time (c) on extraction yield. Note: different lowercase letters in the same column indicate significant differences (p < 0.05).
Figure 1. Effect of extraction pressure (a), extraction temperature (b) and extraction time (c) on extraction yield. Note: different lowercase letters in the same column indicate significant differences (p < 0.05).
Molecules 28 04853 g001
Molecules 28 04853 g002 550

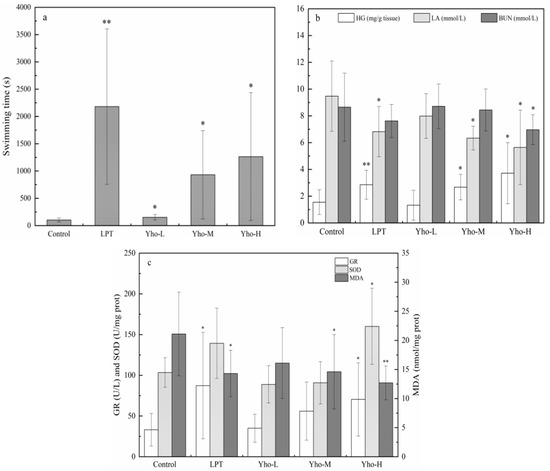

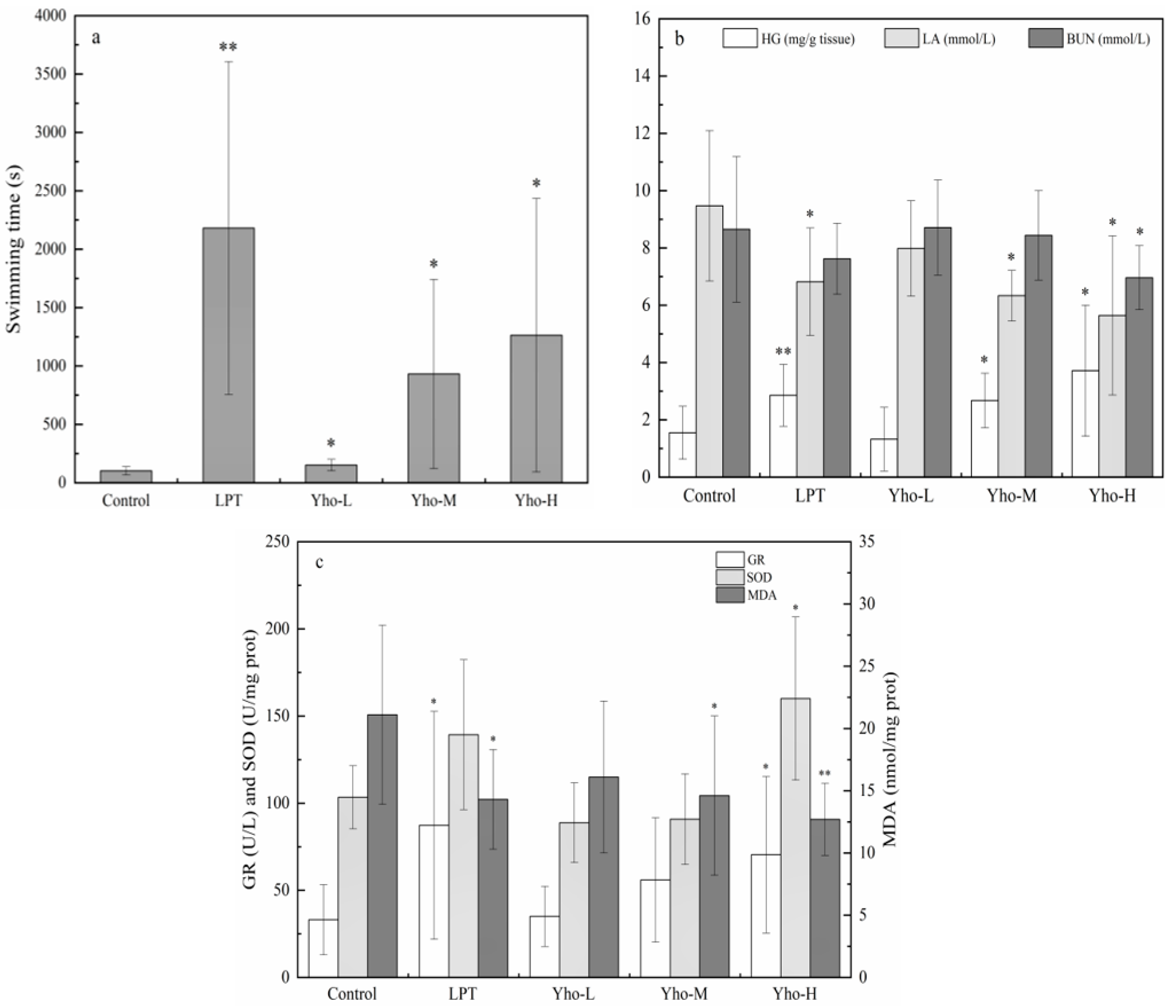

Figure 2. Effect of yellow horn oil on weight-bearing swimming time in mice (a). Effect of yellow horn oil on the content of HG (hepatic glycogen), LA (lactic acid) and BUN (blood urea nitrogen) in liver tissue of mice (b). Effect of yellow horn oil on serum GR (glutathione reductase) levels and SOD (superoxide dismutase), MDA (malondialdehyde) activities in mice (c). Note: Compared with the control group, * p < 0.05, ** p < 0.01. Blank control group (Control), lentinan polysaccharide tablet (LPT), yellow horn oil low-dose group (Yho-L), yellow horn oil medium-dose group (Yho-M), yellow horn oil high-dose group (Yho-H).
Figure 2. Effect of yellow horn oil on weight-bearing swimming time in mice (a). Effect of yellow horn oil on the content of HG (hepatic glycogen), LA (lactic acid) and BUN (blood urea nitrogen) in liver tissue of mice (b). Effect of yellow horn oil on serum GR (glutathione reductase) levels and SOD (superoxide dismutase), MDA (malondialdehyde) activities in mice (c). Note: Compared with the control group, * p < 0.05, ** p < 0.01. Blank control group (Control), lentinan polysaccharide tablet (LPT), yellow horn oil low-dose group (Yho-L), yellow horn oil medium-dose group (Yho-M), yellow horn oil high-dose group (Yho-H).
Molecules 28 04853 g002
Table
Table 1. (a). Results of the L9 (34) orthogonal experiment. (b). Analysis of variance table.
Table 1. (a). Results of the L9 (34) orthogonal experiment. (b). Analysis of variance table.
(a)
Test NumberFactorsExtraction Yield/%
ABCD
1111122.65
2122225.72
3133324.02
4212324.58
5223126.87
6231225.42
7313225.90
8321324.41
9332131.61
K124.1324.3824.1627.04
K225.6225.6727.3125.68
K327.3127.0225.6024.34
R3.182.643.152.71
(b)
Source of VarianceSum of Squared DeviationsFreedomF-ValueSignificance
A124.27226.65 *p < 0.05
B75.45216.23
C134.89223.32 *p < 0.05
Error17.992
F0.05 (2, 2)19 F0.01 (2, 2)99
Note: extraction pressure (A), extraction temperature (B), extraction time (C), empty column (D). Note: “*” indicates significant factor influence.
Table
Table 2. Fatty acid content of yellow horn oil.
Table 2. Fatty acid content of yellow horn oil.
Serial NumberFatty AcidsMolecule FormulaRelative Content (%)
1Butyric acidC4H8O20.03
2Palmitic acidC16H32O24.82
3Linolenic acidC18H30O24.49
4Linoleic acidC18H32O244.81
5Oleic acidC18H34O233.40
6Stearic acidC18H36O21.30
7Eicosapentaenoic acidC20H30O20.70
8Arachidonic acidC20H32O20.10
9Paullinic acidC20H38O20.08
10Arachidic acidC20H40O20.08
11Docosahexaenoic acidC22H32O24.63
12Erucic acidC22H42O21.50
13Nervonic acidC24H46O24.06
Table
Table 3. Table of Factor Levels for Single-Factor Tests.
Table 3. Table of Factor Levels for Single-Factor Tests.
LevelsFactors
Extraction Pressure (MPa)Extraction Temperature (°C)Extraction Time (min)
1202060
2253090
33040120
43550150
54060180
Table
Table 4. Table of Factor Levels for Orthogonal Tests.
Table 4. Table of Factor Levels for Orthogonal Tests.
LevelsFactors
A
Pressure (MPa)		B
Temperature (°C)		C
Time (min)		D
Empty Column
13030901
235401202
340501503
Note: The empty column levels 1, 2 and 3 only indicate a virtual level and have no real meaning.
Table
Table 5. Group markers for weight-bearing swimming test in mice.
Table 5. Group markers for weight-bearing swimming test in mice.
Dose GroupGroup NumberAnimal CountCage NumberIndividual NumberCage Card Color
Control16011M0101~05White
6021M0201~05
LPT26012M0101~05Red
6022M0201~05
Yho-L36013M0101~05Light green
6023M0201~05
Yho-M46014M0101~05Dark green
6024M0201~05
Yho-H56015M0101~05Blue
6025M0201~05
Note: Blank control group (Control), lentinan polysaccharide tablet (LPT), yellow horn oil low-dose group (Yho-L), yellow horn oil medium-dose group (Yho-M), yellow horn oil high-dose group (Yho-H).
