Mapping the DNA Damaging Effects of Polypyridyl Copper Complexes with DNA Electrochemical Biosensors

Applied Electrochemistry Group, FOCAS Institute, Technological University Dublin, Camden Row, Dublin 8, D08 CKP1 Dublin, Ireland
Department of Chemistry, University of Oxford, Oxford OX1 3TA, UK
School of Chemical Sciences and National Institute for Cellular Biotechnology, Dublin City University, Glasnevin, Dublin 9, D09 NR58 Dublin, Ireland
Synthesis and Solid-State Pharmaceutical Centre, School of Chemical Sciences, Dublin City University, Glasnevin, Dublin 9, D09 NR58 Dublin, Ireland
Central Quad Grangegorman, School of Chemical and Pharmaceutical Sciences, Technological University Dublin, Dublin 7, D07 H6K8 Dublin, Ireland
Authors to whom correspondence should be addressed.
Molecules 2022, 27(3), 645;
Received: 28 November 2021 / Revised: 18 December 2021 / Accepted: 1 January 2022 / Published: 19 January 2022
(This article belongs to the Special Issue Biomimetic Radical Chemistry and Applications 2021)


Several classes of copper complexes are known to induce oxidative DNA damage that mediates cell death. These compounds are potentially useful anticancer agents and detailed investigation can reveal the mode of DNA interaction, binding strength, and type of oxidative lesion formed. We recently reported the development of a DNA electrochemical biosensor employed to quantify the DNA cleavage activity of the well-studied [Cu(phen)2]2+ chemical nuclease. However, to validate the broader compatibility of this sensor for use with more diverse—and biologically compatible—copper complexes, and to probe its use from a drug discovery perspective, analysis involving new compound libraries is required. Here, we report on the DNA binding and quantitative cleavage activity of the [Cu(TPMA)(N,N)]2+ class (where TPMA = tris-2-pyridylmethylamine) using a DNA electrochemical biosensor. TPMA is a tripodal copper caging ligand, while N,N represents a bidentate planar phenanthrene ligand capable of enhancing DNA interactions through intercalation. All complexes exhibited electroactivity and interact with DNA through partial (or semi-) intercalation but predominantly through electrostatic attraction. Although TPMA provides excellent solution stability, the bulky ligand enforces a non-planar geometry on the complex, which sterically impedes full interaction. [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ cleaved 39% and 48% of the DNA strands from the biosensor surface, respectively, while complexes [Cu(TPMA)(bipy)]2+ and [Cu(TPMA)(PD)]2+ exhibit comparatively moderate nuclease efficacy (ca. 26%). Comparing the nuclease activities of [Cu(TPMA)(phen)] 2+ and [Cu(phen)2]2+ (ca. 23%) confirms the presence of TPMA significantly enhances chemical nuclease activity. Therefore, the use of this DNA electrochemical biosensor is compatible with copper(II) polypyridyl complexes and reveals TPMA complexes as a promising class of DNA damaging agent with tuneable activity due to coordinated ancillary phenanthrene ligands.

1. Introduction

Life expectancy has risen significantly during the last few decades due to better accessibility to health care, education, clean water, and sufficient food. During an average lifetime people therefore experience greater exposure to mutagenic substances and suffer age-related losses to cellular function, increasing the chances of permanent DNA damage [1]. It is not surprising then that the number of people diagnosed with cancer is incrementing year-on-year [2]. This trend has emphasised the need for developing effective new anticancer drugs with high specificity, tailored to the individual [3].
Many bioinorganic compounds containing transition metals such as Pt, Ru, Ag, Cu, and Mn exhibit anticancer properties [4,5,6,7,8] with a number undergoing clinical trial [9,10,11]. Among these, copper complexes have proved interesting as their biological activity is closely linked to redox cycling through several oxidation states—Cu(I) and Cu(II) [4]. Their biological and physicochemical properties are also highly dependent on the chelating ligands used in their construction [12,13]. The type and shape of the Cu-coordinated organic scaffold defines the DNA-interaction of the metal complex, which can bind through intercalation, groove binding, or electrostatic interactions [12]. Upon DNA-binding, the metal complex mediates DNA cleavage by hydrolysis of the DNA backbone or by oxidation of DNA sugars or bases [14]. Many copper complexes, in the presence of reductant (ascorbate, glutathione, or NADH) and an oxidant (H2O2 or O2), generate reactive oxygen species (ROS) through Fenton-like [15,16] or other radical-generating mechanisms [17]. These ROS induce damage to DNA, such as the oxidation of bases (e.g., 8-oxoguanine) or to the sugar unit through C–H activation, that result in single- or double-strand DNA breaks [18]. Since the type of DNA damage induced here differs from classical platinum(II) therapy, copper complexes might therefore circumvent existing clinical treatment limitations—especially for recalcitrant cancers of the breast, brain, and pancreas [19,20].
The first reported copper-based complex to exhibit oxidative chemical nuclease activity was [Cu(phen)2]2+ [21]. In recent years, many related copper complexes have been prepared and their chemical nuclease activity explored both biologically and chemically not only in the context of anticancer drug discovery [5,14,22,23], but also for applications in gene-directed cleavage [24,25,26,27] and protein engineering [28]. Chemical nuclease activity is usually examined using gel electrophoresis techniques [29,30,31], further advanced through lab-on-a-chip technology [32]. These methodologies yield valuable insight into the ligand-directed DNA nuclease mechanisms of copper complexes [33]. Attempts to create electrochemical methods to detect DNA cleavage events induced by bioinorganic complexes, have also been reported [34,35,36]. However, these techniques do not provide quantitative data regarding nuclease efficacy and site-specific cleavage. In the current work, the chemical nuclease activities of a new class of copper complex was examined using a quantitative electrochemical method described recently by us [37]. Here, the DNA surface coverage of the biosensor is measured before and after its exposure to the copper nuclease in the presence of reductant and oxidant. Upon DNA cleavage, nucleic acid fragments are released from the immobilised DNA on the electrode surface. This decrease in the DNA surface coverage can be determined electrochemically and presented as the percentage in nuclease efficacy of the complex.
The copper complex class explored herein contain a tris-2-pyridylmethylamine (TPMA) caging ligand and one bidentate ligand selected from: 1,10-phenanthroline (phen); 2,2′-bipyridine (bipy); dipyridoquinoxaline (DPQ); or 1,10-phenanthroline-5,6-dione (PD). TPMA is a tripodal ligand that alone, and as part of a complex with copper, exhibits cytotoxicity against several cancer cell lines [38]. Planar bidentate phenanthrene ligands, on the other hand, are known to interact with nucleic acids by intercalation or semi-intercalation and coordinate a copper ion via N,N ligation. Importantly, the generation of radical species at the DNA interface by this class leads to strand excision [32,39]. Although the DNA binding and damaging properties of copper, cobalt, and ruthenium complexes of TPMA have been reported [40,41,42,43], these interactions have not, as yet, been characterised using DNA electrochemical biosensors.
In this work, the electrochemical and chemical nuclease properties of copper TPMA complexes were characterised using DNA electrochemical biosensor, recently employed in the analysis of [Cu(phen)2]2+—an agent which semi-intercalates and cleaves DNA from the minor groove [37]. Herein, the DNA binding and quantitative cleavage activity of the [Cu(TPMA)(N,N)]2+ class is reported using a DNA electrochemical biosensor. These results not only validate the broader compatibility of our DNA sensor for use with polypyridyl complexes, but they also provide valuable drug discovery information related to target identification and selection.

2. Results and Discussion

2.1. Electrochemical Characterisation of Copper Complexes at Gold Electrodes

Four copper complexes were examined in this work [44]: [Cu(TPMA)(phen)](ClO4)2; [Cu(TPMA)(bipy)](ClO4)2; [Cu(TPMA)(DPQ)](ClO4)2; and [Cu(TPMA)(PD)](ClO4)2 (Scheme 1). All complexes were previously characterised using single crystal X-ray analysis and their solution stabilities identified using cw-EPR, HYSCORE, and ENDOR spectroscopies. As shown, the copper centre is bound to four nitrogen atoms of the TPMA ligand and two nitrogen atoms of the bidentate ligand, creating a six-coordinated complex of distorted octahedral geometry [17].
All copper complexes are electroactive and exhibit an ill-defined electrochemical response at bare gold electrodes in O2-free solutions (argon degassed) aqueous solution. The electrochemical profiles obtained for [Cu(TPMA)(phen)]2+, [Cu(TPMA)(bipy)]2+, and [Cu(TPMA)(DPQ)]2+ are very similar (Figure 1a) in that two reduction peaks (C1 and C2) and one oxidation peak (A1) were observed. The electrochemical behaviour of [Cu(TPMA)(PD)]2+ is more complicated and several additional oxidation and reduction peaks appear at the bare gold electrode (Figure 1b).
Complications due to the electrochemistry of gold oxide monolayer formation were prevented by removing dissolved oxygen from the solutions. To determine how the individual peaks are correlated with one another, additional measurements in narrower potential windows were performed for [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(PD)]2+ (S-3, Figures S2–S9, SM).
In measurements performed for [Cu(TPMA)(phen)]2+, it was determined that the C1/A1 peaks are coupled. The C2 redox process occurs only when it is preceded by an A2 oxidation event and, thus, the C2/A2 are also coupled. The C2 peak was not observed in our studies of [Cu(phen)2]2+ [37], hence, its appearance is linked to the presence of the TPMA ligand in [Cu(TPMA)(phen)]2+. This was verified by electrochemical characterisation of [Cu(TPMA)]2+ under the same conditions which returned redox potential comparable to those reported in polyelectrolyte [45] (S-3, Figure S4, SM). A plausible justification is that after reduction from [Cu(TPMA)(phen)]2+ to [Cu(TPMA)(phen)]+, C1, the complex undergoes structural reorganisation, and subsequent electron transfer, described by the reduction event, C2. Elucidation of the mechanism involved here requires further study but may be indicative of dissociation of one of the TPMA chelating N atoms to generate a five-coordinated species [17] (structurally—and possibly chemically—distinct from the initial complex). A similar interpretation can be applied to the C1/A1 and C2/A2 redox processes of [Cu(TPMA)(bipy)]2+ and [Cu(TPMA)(DPQ)]2+. The proposed electrochemical behaviour in aqueous solution justifies the two observed redox couples, referred to hereafter as ‘Cu(TPMA)’ and ‘Cu(N,N′)’ character, and DNA nuclease properties observed at the DNA modified electrodes, for these complexes.
In measurements performed on [Cu(TPMA)(PD)]2+, it was determined that the C1/A1 redox coupled is ascribed to the ‘Cu(PD) character’ of the complex and C3/A3 can be associated with the reversible oxidation of the 1,10-phen-5,6-dione (PD) ligand. Transition metal PD complexes can undergo a two-step 2 electron reduction [46,47,48], while the reduction of the free PD ligand in aqueous solution, from quinone to semiquinone and further to hydroquinone, has also been reported [49,50] (S-3, Figure S7, SM). Moreover, the C2 peak, also common to the other complexes at −0.4 V, is linked to the A2 oxidation processes and describes the electroactivity of the reorganised complex (‘Cu(TPMA) character’).
In general, at both bare and DNA modified gold electrodes, one redox event (C1/A1), Cu(N,N′) character’, was recorded at similar potentials for all copper complexes and is comparable to the C1/A1 data obtained for [Cu(phen)2]2+ (Table 1), while the C2/A2 couples describe the ‘Cu(TPMA) character’ redox behaviour of the complexes:
[ Cu ( TPMA ) ( N , N ) ] 2 +         [ Cu ( TPMA ) ( N , N ) ] +   + e
With the exception of [Cu(TPMA)(PD)]2+, where reversible redox behaviour is observed in the C1/A1 couple (∆Ep, C1/A1 = 30 mV), large peak separation values indicate that both C1/A1 and C2/A2 redox couples were electrochemically irreversible (∆Ep, C1/A1 > 440 mV and ∆Ep, C2/A2 > 590 mV) at the bare gold electrode. The C2 reduction peaks for all copper complexes were registered at similar potentials, whereas the oxidation peaks were observed at positive potential values (>0.23 V). When compared to that of [Cu(phen)2]2+, it is apparent that the C1/A1 couple potentials are dictated by the presence of the TPMA ligand. The sluggish A2 oxidation processes may indicate that, in terms of complex stability, the reduced state, Cu(I), is favoured, i.e., once reduced, re-oxidation of the complexes is kinetically difficult. These potential values show that differences in the structures of the complexes have a significant bearing on the respective redox properties.

2.2. Electrochemical Characterisation of [Cu(phen)2]2+, [Cu(TPMA)]2+ and the TPMA Ligand at the DNA Biosensor

To interpret the data obtained for [Cu(TPMA)(N,N′)]2+, electrochemical analysis of [Cu(phen)2]2+, [Cu(TPMA)]2+ and the TPMA ligand at the DNA biosensor was carried out (Figure 2). The redox peaks for [Cu(phen)2]2+ were clearly visible at −0.12 V (C1) and −0.07 V (A1) vs. SCE (Figure 2a). This redox process can be associated with the reduction and oxidation of the complex, [Cu(phen)2]2+/[Cu(phen)2]+, mediated by the immobilised DNA layer via long-range electron transfer. A peak potential separation, ∆Ep, of 50 mV, and the ratio between the oxidation and reduction peak currents, Ip,a/Ip,c > 2, indicate that the redox reaction is quasi-reversible. The electrochemistry of this compound is discussed in detail elsewhere. An ill-defined C1/A1 redox couple was evident for [Cu (TPMA)]2+ (Figure 2b). The small reduction C1 peak appears at a potential similar to that for [Cu(phen)2]2+ but the oxidation A1 peak is shifted to a much more positive potential value. The differences in the redox potentials between the complexes are directed by the variations in complex structure and ligand type. The planar aromatic ligand of [Cu(phen)2]2+ facilitates the partial intercalation of the complex within DNA bases [51] and the complex redox reaction is then mediated via long-range electron transfer.
The bulky non-planar TPMA ligand impedes intercalation between DNA bases, precluding close contact between the complex and DNA; hence, the electrochemical response of this complex is less well-defined than that observed for [Cu(phen)2]2+. An additional reduction peak C2, at −0.42 V vs. SCE, (not observed in [Cu(phen)2]2+) can be linked to the presence of TPMA ligand in the complex, confirmed by the single small reduction peak (C2) at −0.40 V vs. SCE for the TPMA ligand alone (Figure 2c). The presence of this peak indicates that the TPMA ligand can be reduced via DNA-mediated electron transfer.
The TPMA ligand consists of three pyridine rings that can, in theory, be reduced when free in solution [52]. The pyridine ring (pKa 5.2 [53]) after protonation in PB, pH 7.0, can undergo a one electron reduction to the pyridinyl radical (S-4, Figure S10, SM). Finally, the C2 peak current was ca. 15 times larger for [Cu(TPMA)]2+ than for the uncharged TPMA ligand alone, for the same concentration of compounds—evidence of a synergistic effect between the redox active copper and TPMA ligand, coupled to electrostatically-facilitated complex interaction with the immobilised DNA strands.

2.3. Electrochemical Characterisation of [Cu(TPMA)(N,N′)]2+ Complexes at the DNA Biosensor

Two prominent redox couples (C1/A1 and C2/A2) were observed for [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ at the DNA biosensor (Figure 3). Analysis of the peak potentials (S-5, Table S1, SM) indicate that the C1/A1 redox processes are quasi- reversible, while the C2/A2 processes tend toward irreversibility [54]. The C1/A1 redox waves, observed for [Cu(TPMA)(phen)]2+ and [Cu(phen)2]2+, occur at similar potentials indicating that both are related to the same redox event, i.e., representing the ‘[Cu(phen)2]2+ electronic character’ of the [Cu(TPMA)(phen)]2+ complex. The C2/A2 wave was observed for all copper complexes except for [Cu(phen)2]2+, which suggests that the redox wave observed at these potentials is directed by the presence of the TPMA ligand. In support of this assignment, the C2 reduction peak appears at very similar potentials for [Cu(TPMA)]2+ and [Cu(TPMA)(N,N′)]2+ at the DNA biosensors. Thus, the C2/A2 redox wave is associated with the ‘[Cu(TPMA)]2+ electronic character’ of the complex. Copper complexes containing TPMA have shown solvent-dependent coordination spheres—five-coordinate in H2O (no salts present) and mixed five and six-coordinate in organic solvent [17]. Data generated at the DNA modified electrodes seem to indicate that the complexes are six-coordinate in phosphate buffer and the dissociation of one Cu–N dative bond in aqueous solution generates a single unoccupied catalytic site within the complexes. This structural reorganisation would seem to justify the distinct mixed redox behaviour observed in these complexes at DNA modified electrodes.
The interactions between DNA and the complexes were next evaluated through the changes in the E0′ values for the C1/A1 and C2/A2 redox couples at the bare and DNA modified electrodes (S-5, Table S2, SM). Similar analysis using the C2/A2 redox couple could not be conducted since the A2 peak was not evident at bare gold electrodes and a formal potential could not be estimated. The negative shift in the C1/A1 formal potential, observed in both [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+, indicate that these complexes interact with DNA predominantly through electrostatic interactions in these conditions [55]. However, the presence of the C1/A1 redox couple observed at similar potentials for [Cu(TPMA)(phen)]2+ and [Cu(phen)2]2+ indicates that, despite steric hindrance impeding intercalation, [Cu(TPMA)(phen)]2+ is positioned in close enough proximity to the DNA strands to undergo DNA mediated redox reactions.
The [Cu(TPMA)(DPQ)]2+ C1/A1 redox couple is shifted to less negative potentials compared to those observed with [Cu(TPMA)(phen)]2+, and [Cu(TPMA)(PD)]2+, inferring a more facile redox reaction than for [Cu(TPMA)(phen)]2+. The planar aromatic ligand, DPQ, is of higher aromatic surface area than phenanthroline, phendione, and bipyridine; hence, despite the bulky TPMA ligand, the complex can intercalate between DNA bases to a greater extent than the phenanthroline, phendione, and bipyridine analogues, placing the copper centre in closer proximity to the DNA strands. This effect corroborates earlier topoisomerase unwinding experiments where the DPQ complex unwound superhelical plasmid DNA in manner similar to the classical DNA intercalator ethidium bromide while the phenanthroline complex was not effective [17].
The disappearance of [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ redox waves, after washing the DNA layer for one hour in 0.1 M PB (0.5% ACN), pH 7.0, confirms that the interactions between the complexes and DNA are non-covalent in character (Figure 3; green dotted traces). The 2,2′-bipyridine ligand (bipy) is known to interact with DNA through minor groove binding [56,57]; however, if more than one bipy ligand is present in the complex, the complex tends to interact with DNA through electrostatic attraction, presumably due to steric hindrance caused by the size of the complex [55,58]. The electrochemical profile for [Cu(TPMA)(bipy)]2+ was expected to be then of a slightly different character than complexes presented above. The electrochemical response registered at the DNA biosensor for [Cu(TPMA)(bipy)]2+ reveals the presence of C1/A1 and C2/A2 redox couples and an additional oxidation peak A3 (Figure 4). The C1 peak is ill-defined compared to that observed for [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ indicating a less facile reduction reaction occurs in [Cu(TPMA)(bipy)]2+. Moreover, the C1/A1 redox process appeared to be irreversible in contrast to the results obtained for [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ (Table S2).
Therefore, it appears that the 2,2’-bipyridine ligand cannot position the copper metal centre in close proximity to DNA, while 1,10-phenanthroline and DPQ—even if only through partial intercalation—can position the metal centre close enough to facilitate redox reactions. The additional A3 oxidation peak appeared at +0.30 V vs. SCE, at a similar potential to the A1 peak of [Cu(TPMA)]2+ at the DNA biosensor (S-5, Table S1, SM). This result suggests that the A3 redox peak is of ‘[Cu(TPMA)]2+ character’. Moreover, the A2 peak, although still irreversible, was much more prominent in [Cu(TPMA)(bipy)]2+ than in [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+, indicating again that the ‘[Cu(TPMA)]2+ character’ presents the dominant redox process in [Cu(TPMA)(bipy)]2+. The negative shift in the E0′ in the presence of DNA compared to the E0′ obtained in the absence of DNA (S-5, Table S2, SM) suggests that [Cu(TPMA)(bipy)]2+ interacts with DNA predominantly through electrostatic attraction. Additionally, the lack of any faradaic processes at the DNA biosensor after washing indicates that the complex interacts with DNA in a non-covalent manner.
Analysis of the electrochemical profile of [Cu(TPMA)(PD)]2+ revealed time-dependent changes. The redox couples C1/A1 and C2/A2 observed for [Cu(TPMA)(PD)]2+ at the DNA biosensor were initially much smaller in magnitude than redox peaks observed with the other complexes (Figure 5a). The C1/A1 redox wave was recorded at similar potentials to those at the bare gold electrode (C1 at −0.08 V and A1 at −0.04 V vs. SCE) and can be associated with the electrochemical reduction of the complex [48], directed by PD electronic characteristics.
The C2/A2 redox couple, the ‘[Cu(TPMA)]2+ character’ of the complex, was evident −0.42/−0.33 V vs. SCE. After 60 min, at the same DNA sensor, the peaks expanded and shifted over time (Figure 5b). Moreover, an additional peak (A3) at +0.14 V became evident. The changes in the electrochemical behaviour of the complex could be due to disruption of the DNA layer and further insertion of the complex within the DNA strands.
The [Cu(TPMA)(PD)]2+, in contrast to the other studied complexes, was not easily removed by washing from the DNA layer. Some [Cu(TPMA)(PD)]2+ redox activity was recorded at the DNA biosensor in pure PB up to two days after exposure of the biosensor to the [Cu(TPMA)(PD)]2+ solution (S-6, Figure S11, SM). Despite washing, the presence of the complex in the layer for an extended period of time suggests that the complex interacts with DNA in a covalent manner. According to the literature, some quinones can covalently bind to DNA bases, creating DNA adducts [59,60].
While fresh DNA sensors were prepared for the characterisation of each complex, scan rate experiments were performed at single DNA sensors and presented results are representative of typical analyses. These data were repeatable between freshly made DNA sensors. The relationship between the oxidation and reduction peak currents and the square root of scan rate, for each copper complex at the DNA biosensor, was linear while the relationship between peak current and scan rate was not (S-7, Figures S12–S15, SM). The redox reactions of the presented copper complexes were then deemed to be under diffusion control. In contrast, the redox reaction of [Cu(phen)2]2+, measured under the same conditions at the DNA biosensors, is under adsorption control [37]. This indicates that the presence of the bulky cage ligand, TPMA, directs a diffusion-controlled process and confirms that intercalation within the immobilised DNA strands is effectively prevented. The shift in estimated formal potentials are all negative for the complexes at the DNA biosensors, indicative of electrostatic interaction regimes (S-5, Table S2, SM). The negative shift in the C2/A2 formal potentials follow the trend Cu(TPMA)(DPQ)]2+ < [Cu(TPMA)(phen)]2+ < [Cu(TPMA)(PD)]2+ < [Cu(TPMA)(bipy)]2+ which would seem to reflect expected DNA intercalative properties of the ancillary N,N′ ligands.
The electrochemical profiles for the copper complexes were also registered using square wave voltammetry. These data were used to check the stability of copper complex interaction with DNA. Prolonged exposure of the complexes [Cu(TPMA)(phen)]2+, [Cu(TPMA)(DPQ)]2+ and [Cu(TPMA)(bipy)]2+, to the DNA biosensors revealed that the redox peaks were stable indefinitely, while a marked changed was observed for [Cu(TPMA)(PD)]2+ after one hour (S-8, Figures S16–S19, SM).

2.4. DNA Nuclease Efficacy of Copper Complexes

Double-strand DNA breaks (DSBs) mediated by the copper complexes in the presence of an exogenous oxidant and reductant were monitored electrochemically using the DNA biosensors. The biosensors do not distinguish independent DSBs from proximate single strand breaks (SSBs) leading to double strand cleavage and in this assay, detection of the latter is likely given our earlier nicking observations by [Cu(TPMA)(N,N)]2+ complexes with supercoiled pUC19 DNA [17]. The DNA surface coverages of the DNA biosensors were measured, prior to exposure to the copper complex nuclease assays, in 10 mM Tris-HCl, pH 7.4, using RuHex as a redox probe [37,61]. The DNA biosensors were then exposed to a nuclease assay containing 10, 20, and 50 µM of the complex, 1 mM ascorbic acid (AA) as the reductant and 1 mM H2O2 as the oxidant in 0.1 M PB, pH 7.0, at 37 °C for two hours. The DNA surface coverage was measured again after cooling and washing the DNA biosensor. The DNA layer washing is essential to ensure that the components of the nuclease assay are removed from the DNA layer and do not affect the subsequent interactions between DNA and RuHex. The changes in the DNA surface coverage values are then the consequence of DNA cleavage from the electrode surface. The cleavage efficacy (C.E.) can be then calculated as shown in Equation (1):
C . E . = 100   % ( Γ D N A   a f t e r   n u c l e a s e   a s s a y Γ D N A   b e f o r e   n u c l e a s e   a s s a y × 100 % )
Since the Oligo DNA was 30 base pairs long, the number of cleaved base pairs was calculated as follows, Equation (2):
B P   C l e a v e d = 30   bp ( Γ D N A   a f t e r   n u c l e a s e   a s s a y Γ D N A   b e f o r e   n u c l e a s e   a s s a y × 30   bp )
The nuclease activities of all copper complexes at concentrations of 10, 20, and 50 µM are presented in Figure 6. Individual data sets for the nuclease and control experiments, with %RSD values, are available in the supporting information (S-9, Tables S3–S6, SM). All measurements were performed in triplicate using DNA biosensors freshly prepared for each measurement. The control measurements for this method, namely, the oxidant alone, the reductant alone and a mixture of the reductant and oxidant have no effect on the DNA surface coverage and are published elsewhere [37]. It was determined that the presence of a small amount of ACN (up to 1% v/v checked, S-2, Figure S1, SM) in the solution did not affect the DNA surface coverage values. Moreover, the complexes alone, in the absence of an exogenous reductant and oxidant, did not cause DNA cleavage.
[Cu(TPMA)]2+ was found to cause insignificant DNA cleavage, 5.36% (%RSD 7.50%)—estimated as one base pair, in the presence of an exogenous reductant and oxidant. The non-planar geometry of TPMA dictates the proximity of the copper centre of the complex to the DNA strands. A relatively large distance between the copper centre and the DNA strands limits the ability to cleave DNA as the potency and frequency of radical species generated by the complex are greatly diminished. This result is in good agreement with results already published for this complex. Humphreys et al. first examined the nuclease activity of [Cu(TPMA)]2+ using plasmid DNA and radiolabelled sequences [40,41]. In that work, the complex did not cause double-strand breaks in any of the tested DNA types; however, [Cu(TPMA)]2+ did cause single-strand breaks in the plasmid. The same effect was observed by us on plasmid DNA [17] and in the current study it is likely proximate single strand breaks by [Cu(TPMA)]2+ gives rise to the observed base pair cleaved. In contrast to this finding, the [Cu(TPMA)(N,N)]2+ complexes exhibited high cleavage activity under the same conditions. Planar aromatic ligands in complexes enhance the binding activity between DNA and complex [17] and the redox properties of the complex (different E0′ values for different complexes), having a marked effect on the observed nuclease efficacies. Previous studies have shown that superoxide radical and hydrogen peroxide generation play main roles in the DNA damage induced by the [Cu(TPMA)(N,N)]2+ family. Moreover, some evidence of DNA damage associated with deamination of adenine (via the creation of deoxyinosine) was evident [17].
In this work, [Cu(TPMA)(phen)]2+ exhibited high nuclease activity, even in small concentrations (S-9, Table S3, SM). Comparatively, 10 µM [Cu(TPMA)(phen)]2+ cleaved as much DNA from the electrodes as 50 µM of [Cu(phen)2]2+ (23%) under the same experimental conditions [37]. The higher nuclease activity of [Cu(TPMA)(phen)]2+ is likely due to the presence of the TPMA ligand enhancing the complex solution stability. The ligand also dictates the oxidation potential of the complex through stabilisation of the Cu(I) oxidation state (Section 3.1), serving to promote the generation of ROS and, ultimately, enhanced nuclease efficacy in comparison to [Cu(phen)2]2+. This effect was evident for the family of [Cu(TPMA)(N,N′)]2+ analogues presented here.
[Cu(TPMA)(DPQ)]2+ in the presence of the reductant and oxidant exhibited the highest nuclease efficacy of all complexes (S-9, Table S4, SM). A concentration of 50 µM [Cu(TPMA)(DPQ)]2+ cleaves almost half of the DNA strands present on the electrode surface. The nuclease activity of a copper complex containing a DPQ ligand, [Cu(DPQ)2(H2O)]2+, was also reported by Santra et al. [62], with the cleavage of plasmid DNA observed on an agarose gel. The DNA degradation was more extensive for [Cu(DPQ)2(H2O)]2+ than for the same concentration of [Cu(phen)2(H2O)]2+ (non-quantitative data). Following the logic attributed to [Cu(TPMA)(phen)]2+, the extended phenanthrene DPQ ligand should penetrate further into the DNA base pairs placing the complex in closer proximity to the DNA strands, facilitating more efficient DNA mediated charge transfer. Enhanced redox cycling leading to efficient in situ generation of ROS results in a complex with potent DNA cleavage properties.
The [Cu(TPMA)(bipy)]2+ complex did not exhibit significant DNA cleavage at concentrations of 10 μM and 20 μM (S-9, Table S5, SM). Moderate cleavage was observed only when a 50 μM concentration was used. These results suggest that an excess of the complex is necessary to cause double-strand breaks (again resulting from proximate SSBs). According to the literature, copper complexes with 2,2′-bipyridine do not possess significant DNA nuclease properties [15,63]. The presence of the TPMA ligand appears to enhance complex cleavage efficacy to some degree, likely due enhanced solution stability leading to the creation of a favourable redox environment, promoting radical formation.
[Cu(TPMA)(PD)]2+ did not exhibit nuclease activity in the absence of exogenous oxidant and reductant (S-9, Table S6, SM). However, the electrochemical profile of [Cu(TPMA)(PD)]2+ registered at the DNA biosensors (in the absence of exogenous oxidant and reductant) reveals that the complex disrupts the DNA duplex significantly over time (Figure 5). The observed changes in the oxidation and reduction peaks then are not associated with DNA ablation from the electrode surface but are likely representative of a covalent DNA binding process. Conversely, in the presence of the exogenous reductant and oxidant, [Cu(TPMA)(PD)]2+ exhibits moderate and concentration dependent DNA cleavage.

3. Materials and Methods

3.1. Materials

[Cu(phen)2](NO3)2 and the copper complexes of the general formula: [Cu(TPMA)(N,N′)]2+ were synthesised as reported [17,44]. The [Cu(TPMA)(N,N′)]2+ complexes were dissolved in acetonitrile (ACN) prior to further dilution in phosphate buffer (PB). The final concentration of ACN in the PB solutions of the complexes did not exceed 0.2% (v/v). Ruthenium(III) hexaamine trichloride 98% and 4-mercaptotoluene 98% were purchased from Fisher. All other chemicals were of analytical grade and were purchased from Sigma–Aldrich. DNA oligomers containing 30 nucleotides were also purchased from Sigma–Aldrich and had the following sequences:
DNA strands were hybridised prior to use according to the procedure provided by Sigma–Aldrich, Arklow, Ireland. Argon gas of technical grade was purchased from Air Products. Nuclease-free water was used for the preparation of the oligo DNA solutions, while Milli-Q® water was used to prepare all other solutions.

3.2. Equipment

The electrochemical measurements were performed with a CH Instruments, Inc. (IJ Cambria Scientific Ltd., Llanelli, UK) potentiostat, model 620A. DNA-modified gold electrodes (2 mm diameter, from CH Instruments, Inc.), a saturated calomel electrode (SCE, from BAS Inc., West Lafayette, IN, USA) and a platinum wire (from Surepure Chemetals, Florham Park, NJ, USA) were used as the working, reference, and counter electrodes, respectively. The preparation of the DNA-modified gold electrodes (DNA biosensors) is described in S-1, Supplementary Materials (SM). All glassware in contact with DNA was silanised to offset adsorption of DNA from solutions [64]. Prior to DNA immobilisation, bare gold electrodes were cleaned by manual polishing with a 0.05 μm Al2O3 slurry on Buehler microcloth for 5 min, followed by electrochemical cycling in 0.5 M deaerated H2SO4, over the potential range −0.2 V to +1.5 V vs. SCE at a scan rate of 100 mV s−1, until steady-state current was attained. The thiol-modified gold electrodes were cleaned by electrochemical desorption of thiols through cycling in 0.5 M KOH, over the potential range +0.1 V to −1.4 V vs. SCE at a scan rate of 50 mV s−1, followed by manual polishing on microcloth with 0.05 μm Al2O3 for 5 min. The supporting electrolyte was deoxygenated with argon before measurements and a blanket of argon was maintained above the solutions during measurements. The electrochemical measurements were performed at room temperature, while the chemical nuclease assays were carried out at 37 °C.

3.3. Interactions between Immobilised DNA and Bioinorganic Compounds

The interactions between the complexes and DNA were deciphered through analysis of the electrochemical profile of the compound in the absence and presence of DNA [55]. If the E0’ value, estimated as the mean peak potential for the redox couple of the complex, shifts to more positive potentials in the presence of DNA, the complex was interpreted to interact with DNA predominantly through intercalation. If the E0’ value shifts to more negative potentials, the interactions between DNA and the compound was interpreted as predominantly electrostatic.

3.4. Determination of DNA Surface Coverage

The DNA surface coverage was measured electrochemically using ruthenium(III) hexaamine (RuHex) as a redox probe [37,61,65]. In low ionic strength electrolyte (10 mM Tris-HCl), the positively charged RuHex interacts with DNA electrostatically, as an external binder, replacing the existing phosphate backbone counterions (Na+ or K+). The amount of RuHex molecules adsorbed in the DNA strands can be determined electrochemically using chronocoulometry. Upon DNA layer saturation, the number of adsorbed RuHex molecules is proportional to the number of phosphate groups in the DNA strands. Hence, knowing the number of phosphate groups present in the custom DNA strands (one nucleotide contains one phosphate group), the amount of adsorbed RuHex can be related to the number of DNA molecules immobilised at the electrode surface. After each aliquot addition of RuHex, and prior to data acquisition, the solution was allowed to equilibrate with the DNA sensor for two minutes.

3.5. Electrochemical Measurements and Nuclease Assay Conditions

Each measurement was performed independently on freshly prepared electrodes in 0.1 M phosphate buffer (PB), pH 7.0, containing 20 µM of the complex. Cyclic voltammetry was carried out over the potential range +0.5 V to −0.6 V vs. SCE, at a scan rate of 0.1 V s−1. The [Cu(TPMA)(N,N′)]2+ solutions were allowed to equilibrate with the DNA sensors for 20 min prior to characterisation using cyclic voltammetry. To promote solubility in PB, the complexes were first dissolved in ACN, and aliquots were then added to PB (amount of ACN in PB was 0.2% v/v). The addition of ACN to PB does not affect the integrity of the DNA layer (S-2, Figure S1, SM). Chronocoulometry was then performed over the potential range +0.1 V to −0.6 V vs. SCE with a pulse width of 0.5 s. The DNA biosensor was exposed to the DNA nuclease assay, comprising of 10 µM, 20 µM, or 50 µM of the chosen complex, 1 mM of sodium-L-ascorbate (AA) and 1 mM of H2O2 for two hours at 37 °C.

4. Conclusions

The copper complexes investigated in this work were all found to be electroactive and interact with DNA predominantly through electrostatic attraction. The intercalation of planar aromatic bidentate ligands, such as 1,10-phenanthroline and DPQ, was hindered due to the bulky TPMA scaffold. The electrochemical response of [Cu(TPMA)(bipy)]2+ was dominated by the ‘[Cu(TPMA)]2+ character’ of the complex. It was also found that [Cu(TPMA)(PD)]2+ caused strong disruption of the DNA layer over time and remains within the DNA layer for an extended period of time even after washing. Dissociation was not observed in any of studied complexes under our experimental conditions, which corroborates earlier EPR results. Detailed investigations into the nuclease activity toward immobilised DNA strands provided an interesting array of results. Firstly, in the presence of an exogenous reductant and oxidant, [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ displayed relatively high nuclease activity by cleaving 39% and 48% of the DNA strands at 50 μM drug-loading, respectively. Under the same conditions, [Cu(TPMA)(bipy)]2+ and [Cu(TPMA)(PD)]2+ exhibit moderate nuclease efficacy with ca. 26% cleavage activity detected for both agents. Although the [Cu(TPMA)]2+ complex alone displays poor chemical nuclease activity, coordination of phen or DPQ promotes excellent cleavage ability. The type of ancillary ligand present also significantly affects both the DNA binding activity and oxidative DNA damage induced. Although electrostatic forces dominate DNA-[Cu(TPMA)(N,N)]2+ interactions, the intercalative properties of phen and DPQ facilitate greater accessibility to DNA bases. Consequently, greater electronic communication to the DNA base pairs grant [Cu(TPMA)(phen)]2+ and [Cu(TPMA)(DPQ)]2+ enhanced DNA cleavage abilities, through more efficient DNA mediated redox cycling, and concomitant in situ generation of reactive oxygen species. This assertion may seem to contradict data gleaned for [Cu(TPMA)(PD)]2+, but based on electrochemical behaviour observed at the DNA biosensors in the absence of exogenous reagents, we postulate that PD-initiated DNA coupling reactions occur that compete with the DNA oxidative damage pathway, limiting the nuclease efficacy observed for this complex. Overall, DNA electrochemical biosensors appear highly suitable for analysing copper polypyridyl complexes and can provide valuable structure-activity-relationship (SAR) data from both DNA damage and drug discovery perspectives. It appears TPMA provides strong solution stability that stabilises the Cu(I) oxidation state of this complex series thereby facilitating the generation of reactive oxygen species. Despite the predominant electrostatic interaction of [Cu(TPMA)(phen)]2+ with DNA, its nuclease activity was higher than the known DNA semi-intercalator, [Cu(phen)2]2+. The results obtained here clearly show how the ligand scaffold and ancillary N,N ligands potentiate both the redox and chemical nuclease properties of bioinorganic copper complexes.

Supplementary Materials

The following are available online. Figure S1: The effect of acetonitrile on the DNA layer of the DNA biosensor; Figures S2–S6, S8, S9: Electrochemical response of [Cu(TPMA)(phen)]2+, [Cu(TPMA)]2+, and [Cu(TPMA)(PD)]2+ at the gold electrode; Figure S7: Scheme of quinone electrochemical reduction; Figure S10: Reduction of the pyridine ring; Tables S1 and S2: Electrochemical parameters for the copper complexes obtained at the DNA biosensors; Figure S11: Washing of the DNA layer after interaction with [Cu(TPMA)(PD)]2+; Figures S12–S15: The relationship between the oxidation and reduction wave peak currents versus the scan rate, and the square root of the scan rate, at the DNA biosensor; Figures S16–S19: The stability of the complexes at the DNA biosensor; Tables S3–S6: DNA nuclease efficacy of copper complexes. References [17,37,45,46,47,48,49,50,52,61,64,65] have been cited in the Supplementary Materials.

Author Contributions

Conceptualization, J.C.; methodology, A.B and J.C.; validation, A.B. and J.C.; formal analysis, A.B., N.Z.F., A.K. and J.C.; investigation, A.B.; resources, A.K and J.C..; data curation, A.B., N.Z.F., A.K. and J.C.; writing—original draft preparation, A.B.; writing—review and editing, A.B., N.Z.F., A.K. and J.C.; visualization, A.B. and N.Z.F.; supervision, A.K. and J.C.; project administration, A.K. and J.C.; funding acquisition, A.K. and J.C. All authors have read and agreed to the published version of the manuscript.


A.B. and J.C. acknowledge PhD scholarship funding from TU Dublin (Fiosraigh Award, Grant code: PB03979). A.K. and N.Z.F. acknowledge funding from the Marie Skłodowska-Curie Innovative Training Network (ITN) ClickGene (H2020-MSCA-ITN-2014--642023). This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No. 861381 (NATURE-ETN). A.K. also acknowledges funding from Science Foundation Ireland Career Development Award (SFI-CDA;15/CDA/3648) and the Synthesis and Solid-State Pharmaceutical Centre (12/RC/2275_P2).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in this article and supplementary material.


This research was performed in Applied Electrochemistry Group Lab, FOCAS Institute, Camden Row, TU Dublin, Dublin 8, Ireland.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available upon request.


  1. Brown, G.C. Living too long: The current focus of medical research on increasing the quantity, rather than the quality, of life is damaging our health and harming the economy. EMBO Rep. 2015, 16, 137–141. [Google Scholar] [CrossRef][Green Version]
  2. WHO. Latest global cancer data: Cancer burden rises to 18.1 million new cases and 9.6 million cancer deaths in 2018. WHO: Geneva, Switzerland; pp. 1–3. Available online: (accessed on 10 June 2018).
  3. Hennessy, J.; McGorman, B.; Molphy, Z.; Farrell, N.P.; Singleton, D.; Brown, T.; Kellett, A. A Click Chemistry Approach to Targeted DNA Crosslinking with cis-Platinum(II)-Modified Triplex-Forming Oligonucleotides. Angew. Chem. Int. Ed. 2021, 61, e202110455. [Google Scholar] [CrossRef]
  4. Kellett, A.; O’Connor, M.; McCann, M.; Howe, O.; Casey, A.; McCarron, P.; Kavanagh, K.; McNamara, M.; Kennedy, S.; May, D.D.; et al. Water-soluble bis(1,10-phenanthroline) octanedioate Cu2+ and Mn2+ complexes with unprecedented nano and picomolar in vitro cytotoxicity: Promising leads for chemotherapeutic drug development. MedChemComm 2011, 2, 579–584. [Google Scholar] [CrossRef][Green Version]
  5. McGivern, T.; Afsharpour, S.; Marmion, C. Copper complexes as artificial DNA metallonucleases: From Sigman’s reagent to next generation anti-cancer agent? Inorganica Chim. Acta 2018, 472, 12–39. [Google Scholar] [CrossRef]
  6. Muhammad, N.; Guo, Z. Metal-based anticancer chemotherapeutic agents. Curr. Opin. Chem. Biol. 2014, 19, 144–153. [Google Scholar] [CrossRef]
  7. Thornton, L.; Dixit, V.; Assad, L.O.; Ribeiro, T.P.; Queiroz, D.; Kellett, A.; Casey, A.; Colleran, J.; Pereira, M.D.; Rochford, G.; et al. Water-soluble and photo-stable silver(I) dicarboxylate complexes containing 1,10-phenanthroline ligands: Antimicrobial and anticancer chemotherapeutic potential, DNA interactions and antioxidant activity. J. Inorg. Biochem. 2016, 159, 120–132. [Google Scholar] [CrossRef] [PubMed]
  8. Fantoni, N.Z.; Brown, T.; Kellett, A. DNA-Targeted Metallodrugs: An Untapped Source of Artificial Gene Editing Technology. ChemBioChem 2021, 22, 2184–2205. [Google Scholar] [CrossRef] [PubMed]
  9. Burris, H.A.; Bakewell, S.; Bendell, J.C.; Infante, J.; Jones, S.F.; Spigel, D.R.; Weiss, G.J.; Ramanathan, R.K.; Ogden, A.; Von Hoff, D. Safety and activity of IT-139, a ruthenium-based compound, in patients with advanced solid tumours: A first-in-human, open-label, dose-escalation phase I study with expansion cohort. ESMO Open 2016, 1, e000154. [Google Scholar] [CrossRef][Green Version]
  10. Galindo-Murillo, R.; Garcia-Ramos, J.C.; Ruiz-Azuara, L.; Cheatham, T.E.; Cortes-Guzman, F. Intercalation processes of copper complexes in DNA. Nucleic Acids Res. 2015, 43, 5364–5376. [Google Scholar] [CrossRef][Green Version]
  11. Leijen, S.; Burgers, S.A.; Baas, P.; Pluim, D.; Tibben, M.; van Werkhoven, E.; Alessio, E.; Sava, G.; Beijnen, J.H.; Schellens, J.H.M. Phase I/II study with ruthenium compound NAMI-A and gemcitabine in patients with non-small cell lung cancer after first line therapy. Investig. New Drugs 2014, 33, 201–214. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Marzano, C.; Pellei, M.; Tisato, F.; Santini, C. Copper Complexes as Anticancer Agents. Anti-Cancer Agents Med. Chem. 2009, 9, 185–211. [Google Scholar] [CrossRef]
  13. McStay, N.; Slator, C.; Singh, V.; Gibney, A.; Westerlund, F.; Kellett, A. Click and Cut: A click chemistry approach to developing oxidative DNA damaging agents. Nucleic Acids Res. 2021, 49, 10289–10308. [Google Scholar] [CrossRef]
  14. Sangeetha Gowda, K.R.; Mathew, B.B.; Sudhamani, C.N.; Naik, H.S.B. Mechanism of DNA Binding and Cleavage. Biomed.Biotechnol. 2014, 2, 1–9. [Google Scholar] [CrossRef]
  15. Que, B.G.; Downey, K.M.; So, A.G. Degradation of deoxyribonucleic acid by a 1,10-phenanthroline-copper complex: The role of hydroxyl radicals. Biochemistry 1980, 19, 5987–5991. [Google Scholar] [CrossRef] [PubMed]
  16. Reich, K.A.; Marshall, L.E.; Graham, D.R.; Sigman, D.S. Cleavage of DNA by the 1,10-phenanthroline-copper ion complex. Superoxide mediates the reaction dependent on NADH and hydrogen peroxide. J. Am. Chem. Soc. 1981, 103, 3582–3584. [Google Scholar] [CrossRef]
  17. Fantoni, N.Z.; Molphy, Z.; Slator, C.; Menounou, G.; Toniolo, G.; Mitrikas, G.; McKee, V.; Chatgilialoglu, C.; Kellett, A. Polypyridyl-Based Copper Phenanthrene Complexes: A New Type of Stabilized Artificial Chemical Nuclease. Chem.–A Eur. J. 2018, 25, 221–237. [Google Scholar] [CrossRef]
  18. Abreu, F.; Goulart, M.; Brett, A.O. Detection of the damage caused to DNA by niclosamide using an electrochemical DNA-biosensor. Biosens. Bioelectron. 2002, 17, 913–919. [Google Scholar] [CrossRef][Green Version]
  19. Kellett, A.; Molphy, Z.; McKee, V.; Slator, C. CHAPTER 4. Recent Advances in Anticancer Copper Compounds. Met. Based Anticancer Agents 2019, 14, 91–119. [Google Scholar] [CrossRef]
  20. Toniolo, G.; Louka, M.; Menounou, G.; Fantoni, N.Z.; Mitrikas, G.; Efthimiadou, E.K.; Masi, A.; Bortolotti, M.; Polito, L.; Bolognesi, A.; et al. [Cu(TPMA)(Phen)](ClO4)2: Metallodrug Nanocontainer Delivery and Membrane Lipidomics of a Neuroblastoma Cell Line Coupled with a Liposome Biomimetic Model Focusing on Fatty Acid Reactivity. ACS Omega 2018, 3, 15952–15965. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Sigman, D.S.; Graham, D.R.; D’Aurora, V.; Stern, A.M. Oxygen-dependent cleavage of DNA by the 1,10-phenanthroline. cuprous complex. Inhibition of Escherichia coli DNA polymerase I. J. Biol. Chem. 1979, 254, 12269–12272. [Google Scholar] [CrossRef]
  22. Santini, C.; Pellei, M.; Gandin, V.; Porchia, M.; Tisato, F.; Marzano, C. Advances in Copper Complexes as Anticancer Agents. Chem. Rev. 2013, 114, 815–862. [Google Scholar] [CrossRef]
  23. Fantoni, N.Z.; McGorman, B.; Molphy, Z.; Singleton, D.; Walsh, S.; El-Sagheer, A.H.; McKee, V.; Brown, T.; Kellett, A. Development of Gene-Targeted Polypyridyl Triplex-Forming Oligonucleotide Hybrids. ChemBioChem 2020, 21, 3563–3574. [Google Scholar] [CrossRef] [PubMed]
  24. Fantoni, N.Z.; Molphy, Z.; O’Carroll, S.; Menounou, G.; Mitrikas, G.; Krokidis, M.G.; Chatgilialoglu, C.; Colleran, J.; Banasiak, A.; Clynes, M.; et al. Polypyridyl-Based Copper Phenanthrene Complexes: Combining Stability with Enhanced DNA Recognition. Chem.-A Eur. J. 2020, 27, 971–983. [Google Scholar] [CrossRef]
  25. Lauria, T.; Slator, C.; McKee, V.; Müller, M.; Stazzoni, S.; Crisp, A.L.; Carell, T.; Kellett, A. A Click Chemistry Approach to Developing Molecularly Targeted DNA Scissors. Chem.–A Eur. J. 2020, 26, 16782–16792. [Google Scholar] [CrossRef]
  26. Panattoni, A.; El-Sagheer, A.H.; Brown, T.; Kellett, A.; Hocek, M. Oxidative DNA Cleavage with Clip-Phenanthroline Triplex-Forming Oligonucleotide Hybrids. ChemBioChem 2019, 21, 991–1000. [Google Scholar] [CrossRef] [PubMed]
  27. Fantoni, N.Z.; El-Sagheer, A.H.; Brown, T. A Hitchhiker’s Guide to Click-Chemistry with Nucleic Acids. Chem. Rev. 2021, 121, 7122–7154. [Google Scholar] [CrossRef] [PubMed]
  28. Larragy, R.; Fitzgerald, J.; Prisecaru, A.; McKee, V.; Leonard, P.; Kellett, A. Protein engineering with artificial chemical nucleases. Chem. Commun. 2015, 51, 12908–12911. [Google Scholar] [CrossRef] [PubMed]
  29. Fojta, M.; Kubičárová, T.; Paleček, E. Cleavage of Supercoiled DNA by Deoxyribonuclease I in Solution and at the Electrode Surface. Electroanalysis 1999, 11, 1005–1012. [Google Scholar] [CrossRef]
  30. Ghosh, K.; Kumar, P.; Tyagi, N.; Singh, U.P.; Goel, N. Synthesis, structural characterization and DNA interaction studies on a mononuclear copper complex: Nuclease activity via self-activation. Inorg. Chem. Commun. 2011, 14, 489–492. [Google Scholar] [CrossRef]
  31. Hirohama, T.; Kuranuki, Y.; Ebina, E.; Sugizaki, T.; Arii, H.; Chikira, M.; Selvi, P.T.; Palaniandavar, M. Copper(II) complexes of 1,10-phenanthroline-derived ligands: Studies on DNA binding properties and nuclease activity. J. Inorg. Biochem. 2005, 99, 1205–1219. [Google Scholar] [CrossRef]
  32. Molphy, Z.; Prisecaru, A.; Slator, C.; Barron, N.; McCann, M.; Colleran, J.; Chandran, D.; Gathergood, N.; Kellett, A. Copper Phenanthrene Oxidative Chemical Nucleases. Inorg. Chem. 2014, 53, 5392–5404. [Google Scholar] [CrossRef]
  33. Kellett, A.; Molphy, Z.; Slator, C.; McKee, V.; Farrell, N.P. Molecular methods for assessment of non-covalent metallodrug–DNA interactions. Chem. Soc. Rev. 2019, 48, 971–988. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Fojta, M.; Kubičárová, T.; Paleček, E. Electrode potential-modulated cleavage of surface-confined DNA by hydroxyl radicals detected by an electrochemical biosensor. Biosens. Bioelectron. 2000, 15, 107–115. [Google Scholar] [CrossRef]
  35. Labuda, J.; Bučková, M.; Vaníčková, M.; Mattusch, J.; Wennrich, R. Voltammetric Detection of the DNA Interaction with Copper Complex Compounds and Damage to DNA. Electroanalysis 1999, 11, 101–107. [Google Scholar] [CrossRef]
  36. Paleček, E.; Fojta, M.; Tomschik, M.; Wang, J. Electrochemical biosensors for DNA hybridization and DNA damage. Biosens. Bioelectron. 1998, 13, 621–628. [Google Scholar] [CrossRef]
  37. Banasiak, A.; Cassidy, J.; Colleran, J. A novel quantitative electrochemical method to monitor DNA double-strand breaks caused by a DNA cleavage agent at a DNA sensor. Biosens. Bioelectron. 2018, 117, 217–223. [Google Scholar] [CrossRef] [PubMed]
  38. Jopp, M.; Becker, J.; Becker, S.; Miska, A.; Gandin, V.; Marzano, C.; Schindler, S. Anticancer activity of a series of copper(II) complexes with tripodal ligands. Eur. J. Med. Chem. 2017, 132, 274–281. [Google Scholar] [CrossRef] [PubMed]
  39. Molphy, Z.; Slator, C.; Chatgilialoglu, C.; Kellett, A. DNA oxidation profiles of copper phenanthrene chemical nucleases. Front. Chem. 2015, 3. [Google Scholar] [CrossRef] [PubMed][Green Version]
  40. Humphreys, K.J.; Johnson, A.E.; Karlin, K.D.; Rokita, S.E. Oxidative strand scission of nucleic acids by a multinuclear copper(II) complex. JBIC J. Biol. Inorg. Chem. 2002, 7, 835–842. [Google Scholar] [CrossRef]
  41. Humphreys, K.J.; Karlin, K.D.; Rokita, S.E. Efficient and Specific Strand Scission of DNA by a Dinuclear Copper Complex: Comparative Reactivity of Complexes with Linked Tris(2-pyridylmethyl)amine Moieties. J. Am. Chem. Soc. 2002, 124, 6009–6019. [Google Scholar] [CrossRef]
  42. Kraft, S.S.N.; Bischof, C.; Loos, A.; Braun, S.; Jafarova, N.; Schatzschneider, U. A [4+2] mixed ligand approach to ruthenium DNA metallointercalators [Ru(tpa)(N–N)](PF6)2 using a tris(2-pyridylmethyl)amine (tpa) capping ligand. J. Inorg. Biochem. 2009, 103, 1126–1134. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, W.; Louka, F.R.; Doulain, P.E.; Landry, C.A.; Mautner, F.A.; Massoud, S.S. Hydrolytic cleavage of DNA promoted by cobalt(III)–tetraamine complexes: Synthesis and characterization of carbonatobis[2-(2-pyridylethyl)]-(2-pyridylmethyl)aminecobalt(III) perchlorate. Polyhedron 2009, 28, 1221–1228. [Google Scholar] [CrossRef]
  44. Prisecaru, A.; McKee, V.; Howe, O.; Rochford, G.; McCann, M.; Colleran, J.; Pour, M.; Barron, N.; Gathergood, N.; Kellett, A. Regulating Bioactivity of Cu2+ Bis-1,10-phenanthroline Artificial Metallonucleases with Sterically Functionalized Pendant Carboxylates. J. Med. Chem. 2013, 56, 8599–8615. [Google Scholar] [CrossRef] [PubMed]
  45. Ren, H.; Wu, J.; Xi, C.; Lehnert, N.; Major, T.; Bartlett, H.R.; Meyerhoff, M.E. Electrochemically Modulated Nitric Oxide (NO) Releasing Biomedical Devices via Copper(II)-Tri(2-pyridylmethyl)amine Mediated Reduction of Nitrite. ACS Appl. Mater. Interfaces 2014, 6, 3779–3783. [Google Scholar] [CrossRef]
  46. Goss, C.A.; Abruna, H.D. Spectral, electrochemical and electrocatalytic properties of 1,10-phenanthroline-5,6-dione complexes of transition metals. Inorg. Chem. 1985, 24, 4263–4267. [Google Scholar] [CrossRef]
  47. Evans, D.H.; Griffith, D.A. Effect of metal ions on the electrochemical reduction of some heterocyclic quinones. J. Electroanal. Chem. Interfacial Electrochem. 1982, 136, 149–157. [Google Scholar] [CrossRef]
  48. Kou, Y.-Y.; Xu, G.-J.; Gu, W.; Tian, J.-L.; Yan, S.-P. Synthesis and pH-sensitive redox properties of 1,10-phenanthroline-5,6-dione complexes. J. Co-ord. Chem. 2008, 61, 3147–3157. [Google Scholar] [CrossRef]
  49. Cory, R.M.; McKnight, D.M. Fluorescence spectroscopy reveals ubiquitous presence of oxidized and reduced quinones in dissolved organic matter. Environ. Sci. Technol. 2005, 39, 8142–8149. [Google Scholar] [CrossRef] [PubMed]
  50. Alcalde, J.M.; Molero, L.; Cañete, A.; Del Rio, R.; Del Valle, A.M.; Mallavia, R.; Armijo, F. Electrochemical and spectroscopic properties of indolizino[1,2-B] quinole derivates. J. Chil. Chem. Soc. 2013, 58, 1976–1979. [Google Scholar] [CrossRef][Green Version]
  51. Mahadevan, S.; Palaniandavar, M. Spectroscopic and Voltammetric Studies on Copper Complexes of 2,9-Dimethyl-1,10-phenanthrolines Bound to Calf Thymus DNA. Inorg. Chem. 1998, 37, 693–700. [Google Scholar] [CrossRef]
  52. Lucio, A.J.; Shaw, S.K. Pyridine and Pyridinium Electrochemistry on Polycrystalline Gold Electrodes and Implications for CO2 Reduction. J. Phys. Chem. C 2015, 119, 12523–12530. [Google Scholar] [CrossRef]
  53. Haynes, W.M. CRC Handbook of Chemistry and Physics, 95th ed.; Haynes, W.M., Lide, D.R., Bruno, T.J., Eds.; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  54. Bard, A.J.; Faulkner, L.R. Electrochemical Methods. Fundamentals and Applications, 2nd ed.; John Wiley & Sons: New York, NY, USA, 2000. [Google Scholar]
  55. Carter, M.T.; Rodriguez, M.; Bard, A.J. Voltammetric studies of the interaction of metal chelates with DNA. 2. Tris-chelated complexes of cobalt(III) and iron(II) with 1,10-phenanthroline and 2,2′-bipyridine. J. Am. Chem. Soc. 1989, 111, 8901–8911. [Google Scholar] [CrossRef]
  56. Chikira, M.; Ng, C.H.; Palaniandavar, M. Interaction of DNA with Simple and Mixed Ligand Copper(II) Complexes of 1,10-Phenanthrolines as Studied by DNA-Fiber EPR Spectroscopy. Int. J. Mol. Sci. 2015, 16, 22754–22780. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Draksharapu, A.; Boersma, A.J.; Leising, M.; Meetsma, A.; Browne, W.R.; Roelfes, G. Binding of copper(II) polypyridyl complexes to DNA and consequences for DNA-based asymmetric catalysis. Dalton Trans. 2014, 44, 3647–3655. [Google Scholar] [CrossRef] [PubMed]
  58. Pang, D.-W.; Abruña, H.D. Micromethod for the Investigation of the Interactions between DNA and Redox-Active Molecules. Anal. Chem. 1998, 70, 3162–3169. [Google Scholar] [CrossRef]
  59. Bolton, J.L.; Dunlap, T. Formation and Biological Targets of Quinones: Cytotoxic versus Cytoprotective Effects. Chem. Res. Toxicol. 2016, 30, 13–37. [Google Scholar] [CrossRef]
  60. Pinto, A.V.; De Castro, S.L. The Trypanocidal Activity of Naphthoquinones: A Review. Molecules 2009, 14, 4570–4590. [Google Scholar] [CrossRef] [PubMed]
  61. Steel, A.B.; Herne, T.M.; Tarlov, M.J. Electrochemical Quantitation of DNA Immobilized on Gold. Anal. Chem. 1998, 70, 4670–4677. [Google Scholar] [CrossRef] [PubMed]
  62. Santra, B.K.; Reddy, P.A.; Neelakanta, G.; Mahadevan, S.; Nethaji, M.; Chakravarty, A.R. Oxidative cleavage of DNA by a dipyridoquinoxaline copper(II) complex in the presence of ascorbic acid. J. Inorg. Biochem. 2002, 89, 191–196. [Google Scholar] [CrossRef]
  63. Marshall, L.E.; Graham, D.R.; Reich, K.A.; Sigman, D.S. Cleavage of deoxyribonucleic acid by the 1,10-phenanthroline-cuprous complex. Hydrogen peroxide requirement and primary and secondary structure specificity. Biochemistry 1981, 20, 244–250. [Google Scholar] [CrossRef]
  64. Ausubel, F.M. Current Protocols in Molecular Biology; Ausubel, F.M., Brent, R., Kingston, R.E., Moore, D.D., Smith, J.A., Seidman, J.G., Struhl, K., Eds.; John Wiley & Sons: New York, NY, USA, 1989. [Google Scholar]
  65. Pividori, M.I.; Merkoçi, A.; Alegret, S. Electrochemical genosensor design: Immobilisation of oligonucleotides onto transducer surfaces and detection methods. Biosens. Bioelectron. 2000, 15, 291–303. [Google Scholar] [CrossRef]

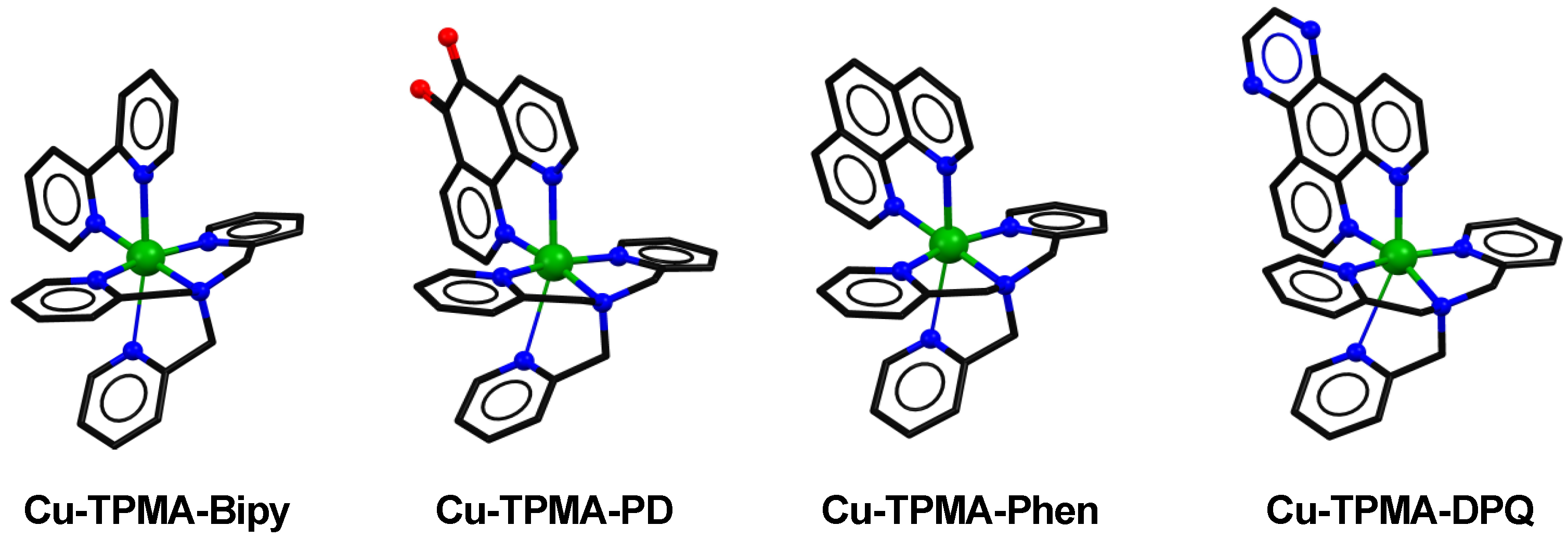

Scheme 1. The structures of [Cu(TPMA)(bipy)](ClO4)2, [Cu(TPMA)(PD)](ClO4)2, [Cu(TPMA)(phen)](ClO4)2 and [Cu(TPMA)(DPQ)](ClO4)2.
Scheme 1. The structures of [Cu(TPMA)(bipy)](ClO4)2, [Cu(TPMA)(PD)](ClO4)2, [Cu(TPMA)(phen)](ClO4)2 and [Cu(TPMA)(DPQ)](ClO4)2.
Molecules 27 00645 sch001

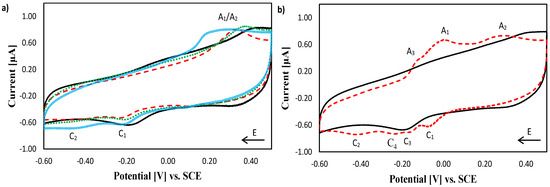

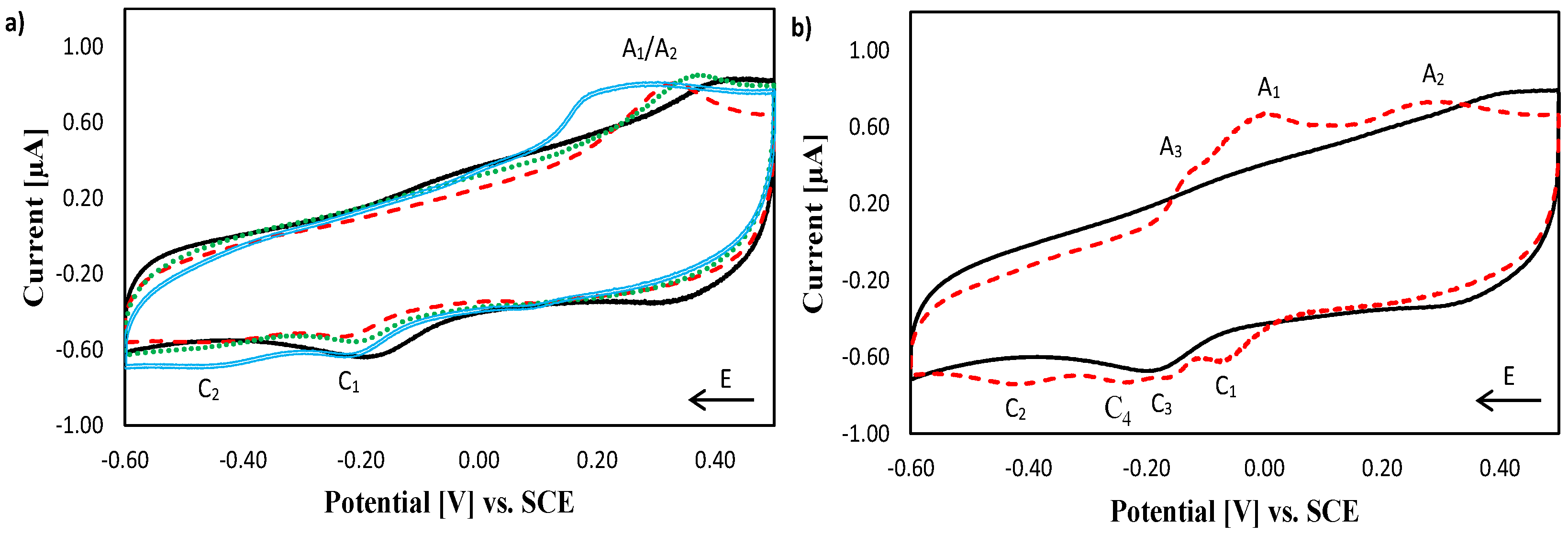

Figure 1. Typical cyclic voltammograms registered in O2-free solutions at the bare gold electrode, scan rate 100 mV s−1, in 0.1 M PB, pH 7.0 (black solid trace): (a) 20 μM of [Cu(TPMA)(phen)]2+ (red dashed trace), [Cu(TPMA)(bipy)]2+ (blue double trace) and [Cu(TPMA)(DPQ)]2+ (green dotted trace), (b) 20 μM of [Cu(TPMA)(PD)]2+ (red dashed trace).
Figure 1. Typical cyclic voltammograms registered in O2-free solutions at the bare gold electrode, scan rate 100 mV s−1, in 0.1 M PB, pH 7.0 (black solid trace): (a) 20 μM of [Cu(TPMA)(phen)]2+ (red dashed trace), [Cu(TPMA)(bipy)]2+ (blue double trace) and [Cu(TPMA)(DPQ)]2+ (green dotted trace), (b) 20 μM of [Cu(TPMA)(PD)]2+ (red dashed trace).
Molecules 27 00645 g001

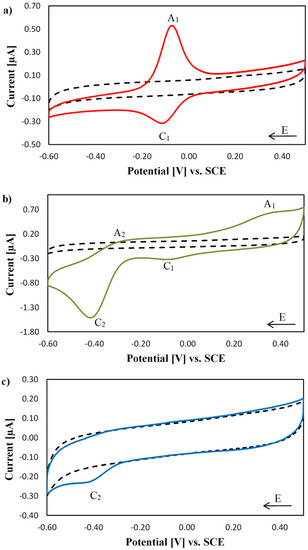

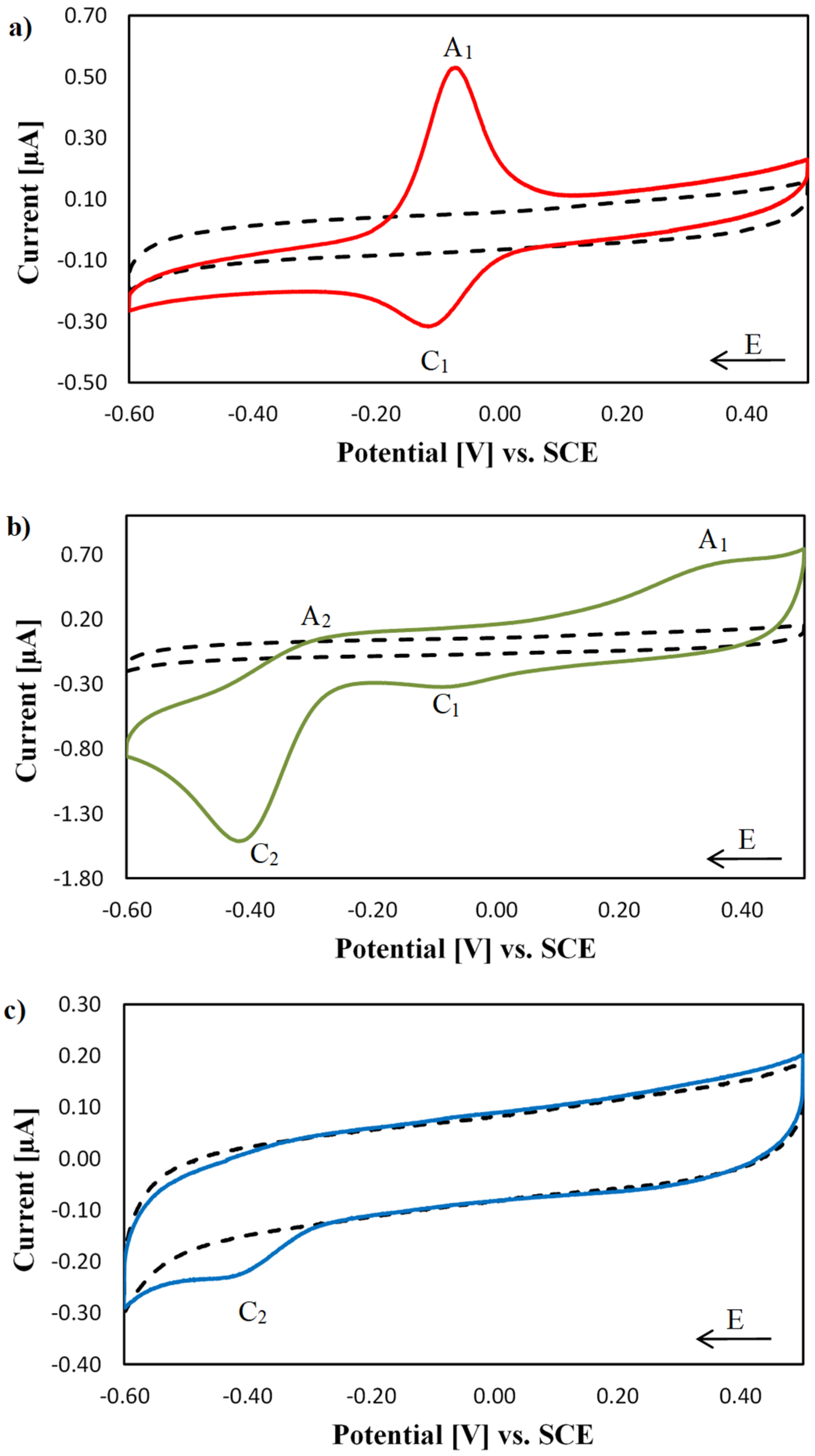

Figure 2. Typical cyclic voltammograms, scan rate 100 mV s−1, registered at the DNA biosensor in 0.1 M PB, pH 7.0 (black dashed trace), and in 20 µM solutions of (a) [Cu(phen)2]2+ (red solid trace), (b) [Cu(TPMA)]2+ (green solid trace) and (c) TPMA ligand (blue solid trace). Scan rates, 100 mV s−1.
Figure 2. Typical cyclic voltammograms, scan rate 100 mV s−1, registered at the DNA biosensor in 0.1 M PB, pH 7.0 (black dashed trace), and in 20 µM solutions of (a) [Cu(phen)2]2+ (red solid trace), (b) [Cu(TPMA)]2+ (green solid trace) and (c) TPMA ligand (blue solid trace). Scan rates, 100 mV s−1.
Molecules 27 00645 g002

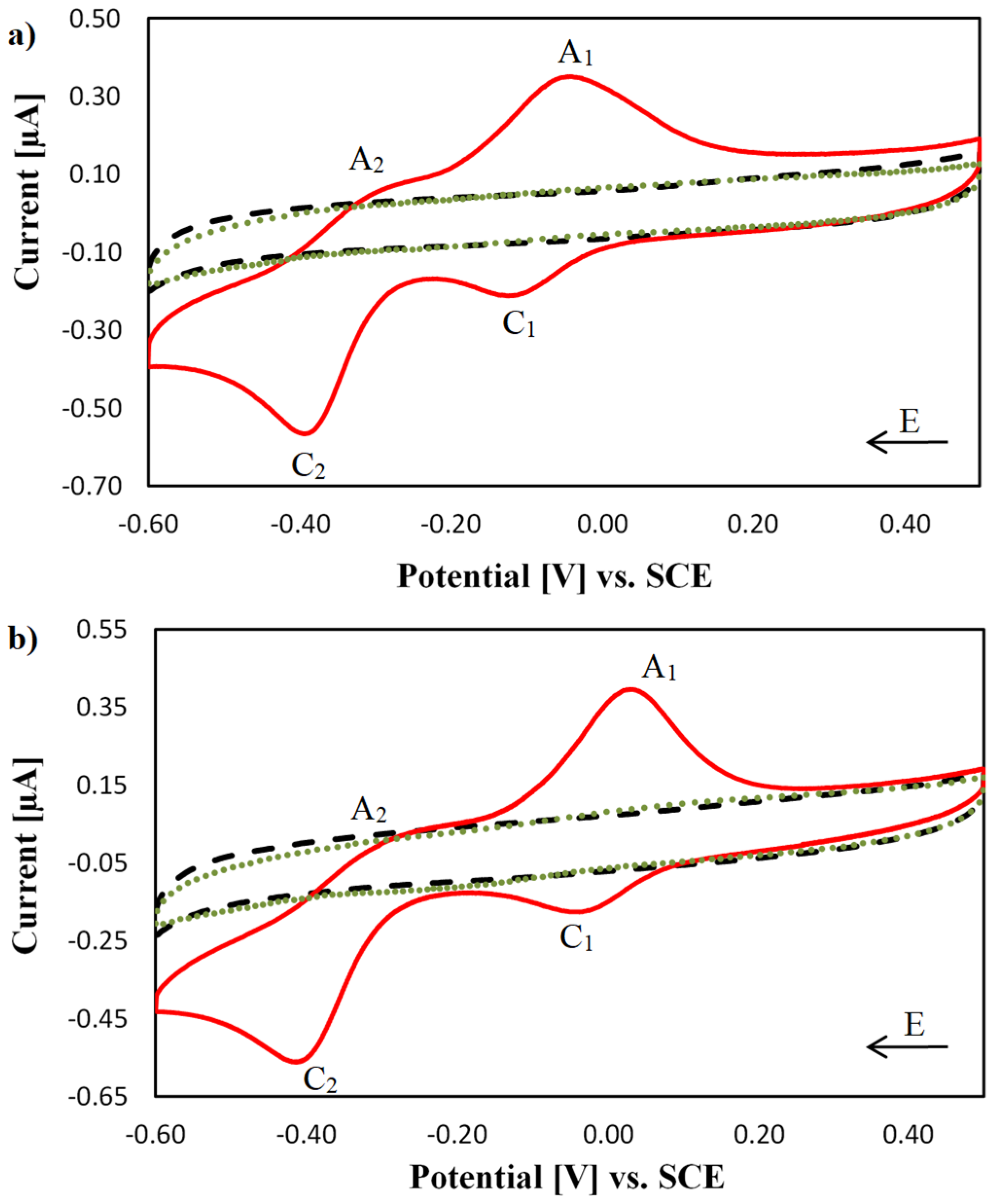

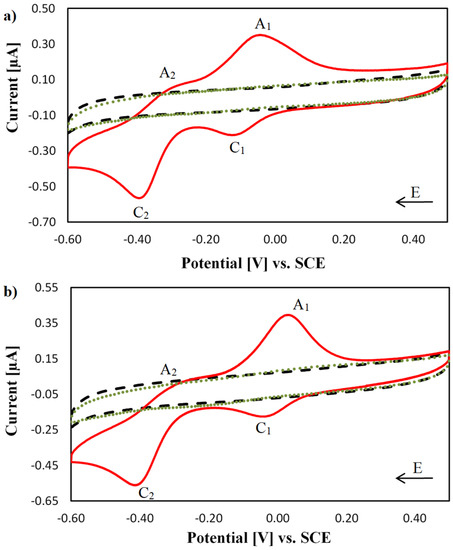

Figure 3. Typical cyclic voltammograms registered at the DNA biosensors, in 0.1 M PB, pH 7.0, scan rate 100 mV s−1 (black dashed trace), in 20 µM of (a) [Cu(TPMA)(phen)]2+ (b) [Cu(TPMA)(DPQ)]2+ (red solid trace) and after washing the complex from the DNA layer for 1 h (green dotted trace).
Figure 3. Typical cyclic voltammograms registered at the DNA biosensors, in 0.1 M PB, pH 7.0, scan rate 100 mV s−1 (black dashed trace), in 20 µM of (a) [Cu(TPMA)(phen)]2+ (b) [Cu(TPMA)(DPQ)]2+ (red solid trace) and after washing the complex from the DNA layer for 1 h (green dotted trace).
Molecules 27 00645 g003

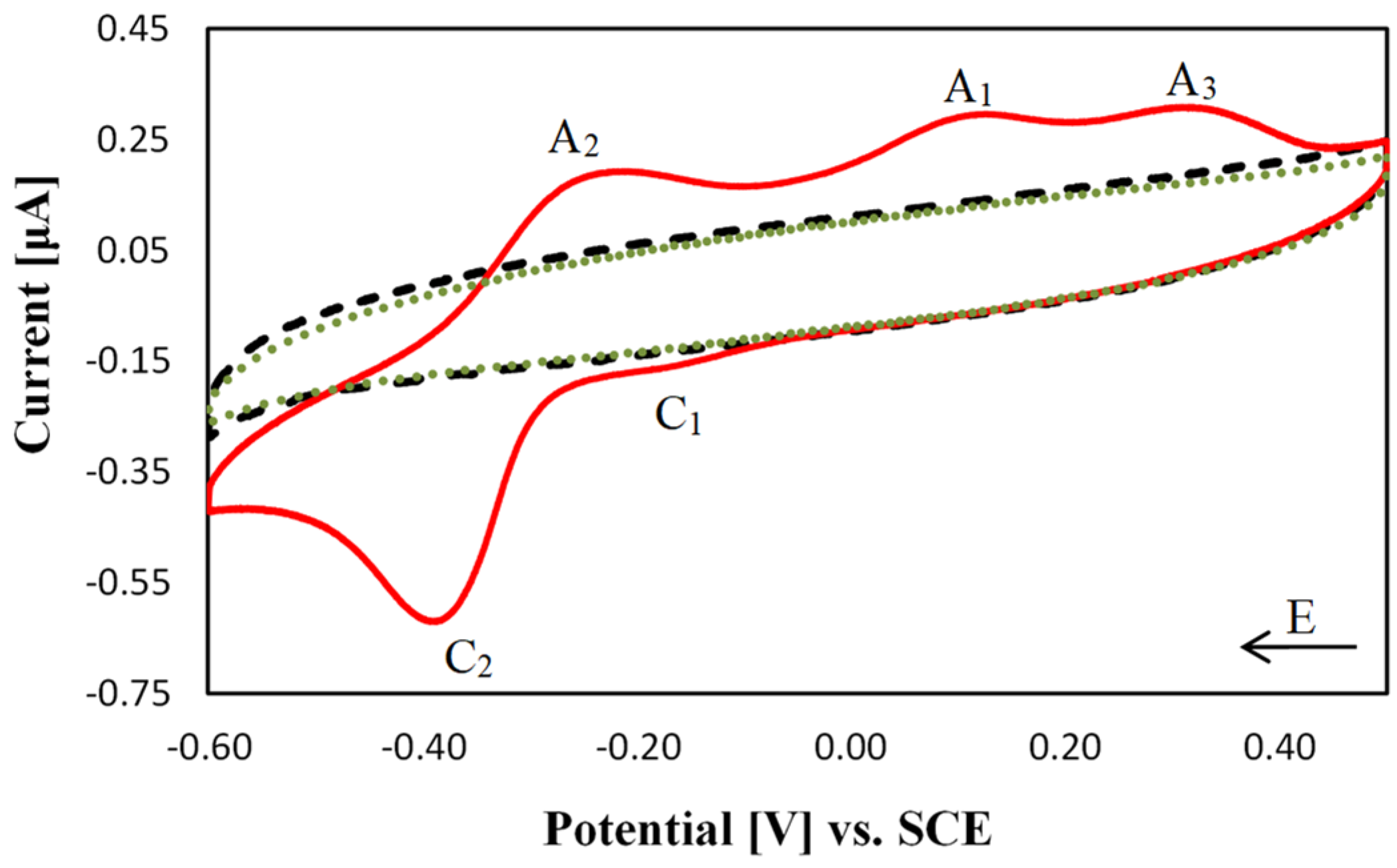

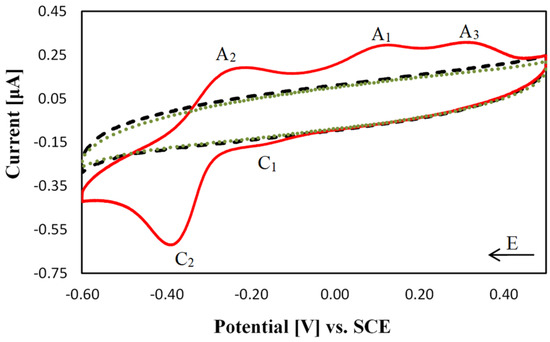

Figure 4. Typical cyclic voltammograms registered at the DNA biosensor in 0.1 M PB, pH 7.0 (black dashed trace), in 20 µM of [Cu(TPMA)(bipy)]2+ (red solid trace) and after washing [Cu(TPMA)(bipy)]2+ from the DNA layer for 1 h (green dotted trace). Scan rates, 100 mV s−1.
Figure 4. Typical cyclic voltammograms registered at the DNA biosensor in 0.1 M PB, pH 7.0 (black dashed trace), in 20 µM of [Cu(TPMA)(bipy)]2+ (red solid trace) and after washing [Cu(TPMA)(bipy)]2+ from the DNA layer for 1 h (green dotted trace). Scan rates, 100 mV s−1.
Molecules 27 00645 g004

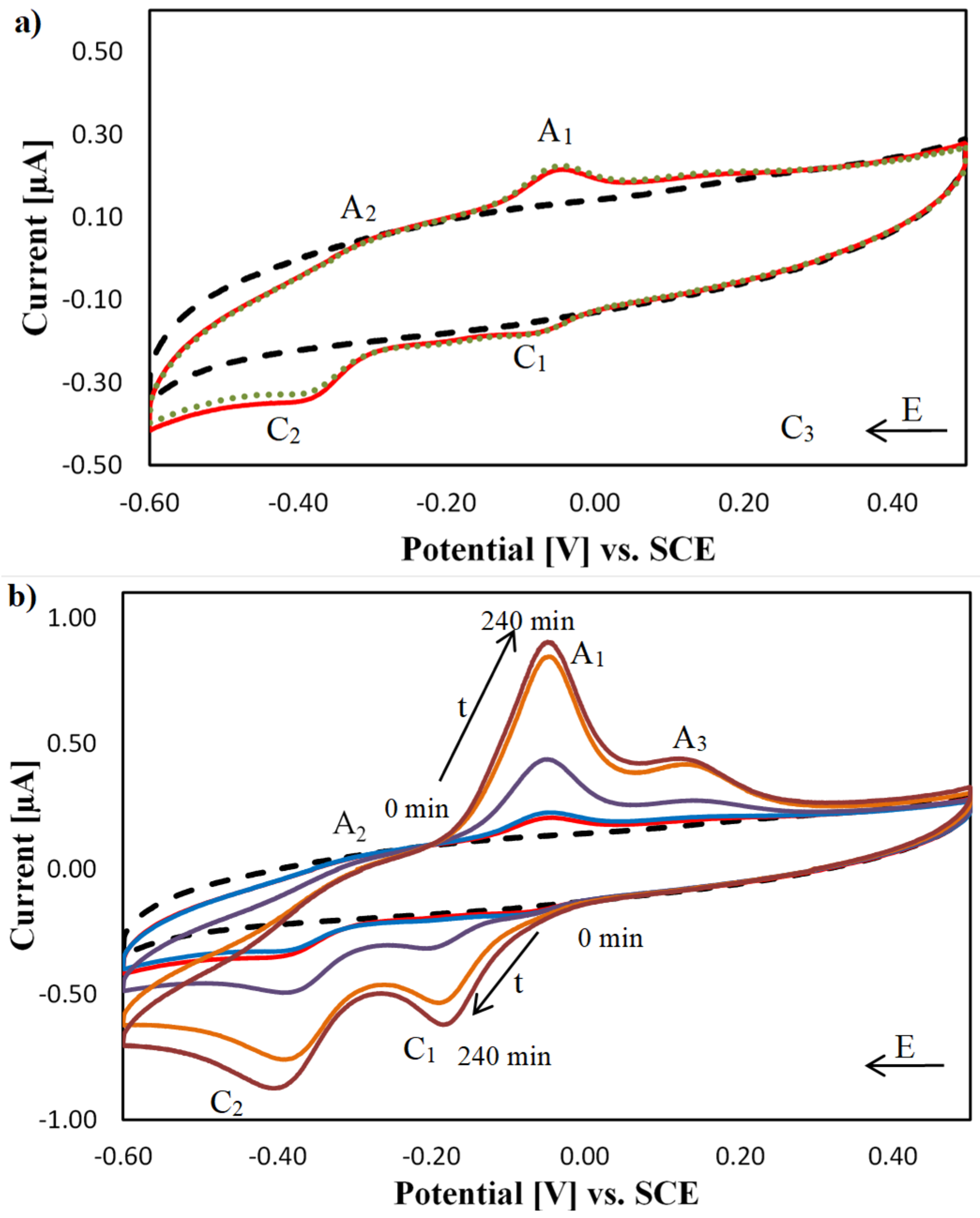

Figure 5. Typical cyclic voltammograms, obtained at 100 mV s−1 scan rates, registered at the DNA biosensors in 0.1 M PB, pH 7.0 (black dashed trace), and in 20 µM of [Cu(TPMA)(PD)]2+ (a) just after addition (red solid trace) and after 60 min (green dotted trace); (b) over time using a single DNA sensor: 0 min (red trace); 60 min (blue trace); 120 min (violet trace); 180 min (orange trace); and 240 min (brown trace).
Figure 5. Typical cyclic voltammograms, obtained at 100 mV s−1 scan rates, registered at the DNA biosensors in 0.1 M PB, pH 7.0 (black dashed trace), and in 20 µM of [Cu(TPMA)(PD)]2+ (a) just after addition (red solid trace) and after 60 min (green dotted trace); (b) over time using a single DNA sensor: 0 min (red trace); 60 min (blue trace); 120 min (violet trace); 180 min (orange trace); and 240 min (brown trace).
Molecules 27 00645 g005

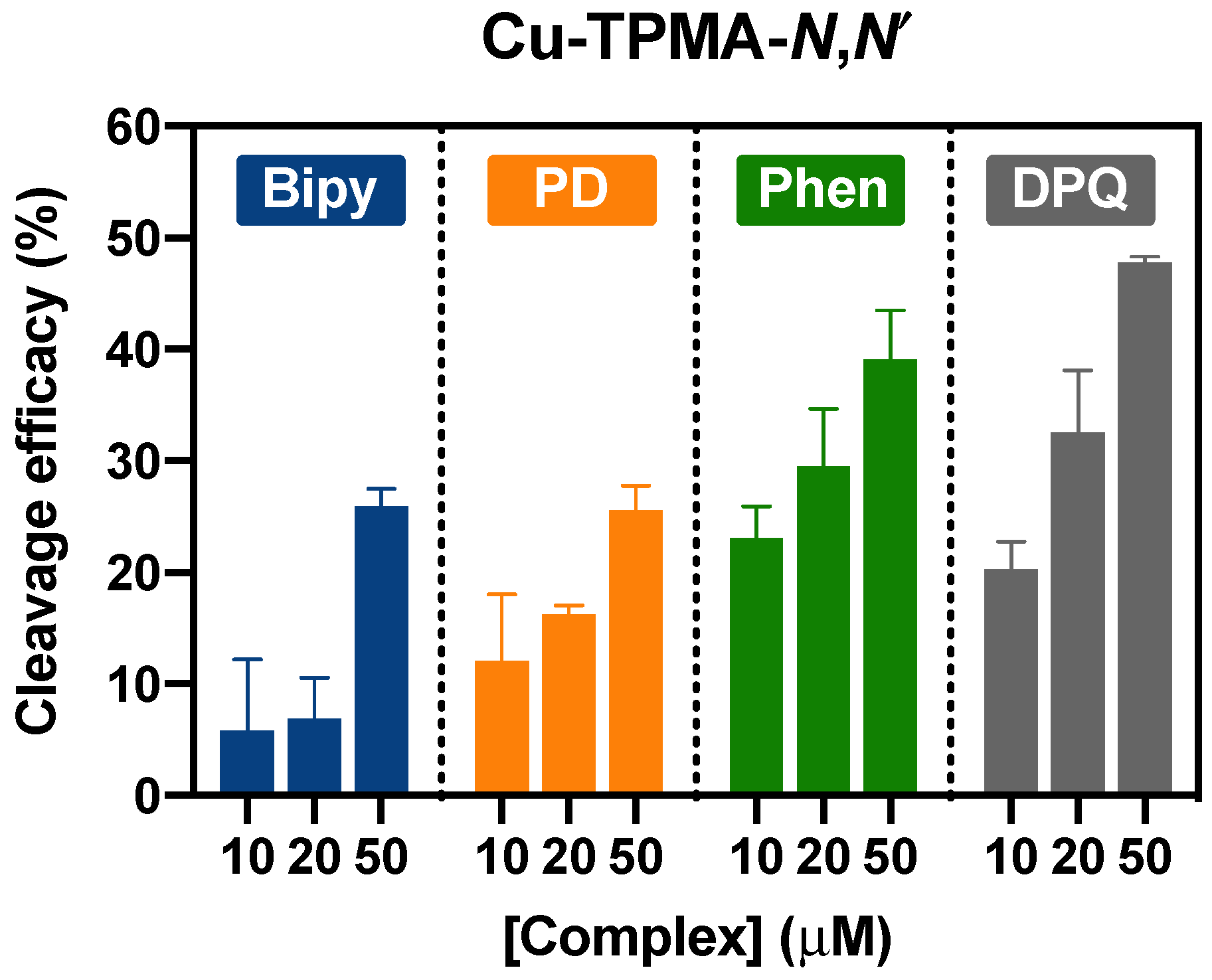

Figure 6. Average DNA nuclease efficacies determined at DNA modified electrodes for the copper complexes in 10, 20, and 50 µM concentrations; [Cu(TPMA)(bipy)]2+ (blue bars), [Cu(TPMA)(PD)]2+ (orange bars), [Cu(TPMA)(phen)]2+ (green bars), and [Cu(TPMA)(DPQ)]2+ (grey bars).
Figure 6. Average DNA nuclease efficacies determined at DNA modified electrodes for the copper complexes in 10, 20, and 50 µM concentrations; [Cu(TPMA)(bipy)]2+ (blue bars), [Cu(TPMA)(PD)]2+ (orange bars), [Cu(TPMA)(phen)]2+ (green bars), and [Cu(TPMA)(DPQ)]2+ (grey bars).
Molecules 27 00645 g006
Table 1. The values of C1/A1 and C2/A2 redox couple anodic and cathodic peak potentials at bare gold electrodes.
Table 1. The values of C1/A1 and C2/A2 redox couple anodic and cathodic peak potentials at bare gold electrodes.
ComplexEp,C1/Ep,A1 [V]ΔEp,C1/A1 [mV]Ep,C2/Ep,A2 [V]ΔEp,C2/A2 [mV]
Scan rate 100 mV s−1, in 0.1 M PB, and the separation between these potentials, ∆Ep. From reference [37].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Banasiak, A.; Zuin Fantoni, N.; Kellett, A.; Colleran, J. Mapping the DNA Damaging Effects of Polypyridyl Copper Complexes with DNA Electrochemical Biosensors. Molecules 2022, 27, 645.

AMA Style

Banasiak A, Zuin Fantoni N, Kellett A, Colleran J. Mapping the DNA Damaging Effects of Polypyridyl Copper Complexes with DNA Electrochemical Biosensors. Molecules. 2022; 27(3):645.

Chicago/Turabian Style

Banasiak, Anna, Nicolò Zuin Fantoni, Andrew Kellett, and John Colleran. 2022. "Mapping the DNA Damaging Effects of Polypyridyl Copper Complexes with DNA Electrochemical Biosensors" Molecules 27, no. 3: 645.

Article Metrics

Back to TopTop
