Review

A Review for In Vitro and In Vivo Detection and Imaging of Gaseous Signal Molecule Carbon Monoxide by Fluorescent Probes

by
Can Xie
1,
Kun Luo
1,
Libin Tan
1,
Qiaomei Yang
1,
Xiongjie Zhao
2 and
Liyi Zhou
1,*
1
College of Food Science and Engineering, Central South University of Forestry and Technology, Changsha 410004, China
2
College of Chemistry and Bioengineering, Hunan University of Science and Engineering, Yongzhou 425199, China
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(24), 8842; https://doi.org/10.3390/molecules27248842
Submission received: 15 November 2022 / Revised: 5 December 2022 / Accepted: 9 December 2022 / Published: 13 December 2022
(This article belongs to the Special Issue Design and Preparation of Organic Fluorescent Materials for Detection and Bio-Imaging)
Browse Figures
Versions Notes

Abstract

:
Carbon monoxide (CO) is a vital endogenous gaseous transmitter molecule involved in the regulation of various physiological and pathological processes in living biosystems. In order to investigate the biological function of CO, many technologies have been developed to monitor the level of endogenous CO in biosystems. Among them, the fluorescence detection technology based on the fluorescent probe has the advantages of high sensitivity, excellent selectivity, simple operation, especially non-invasive damage to biological samples, and the possibility of real-time in situ detection, etc., which is considered to be one of the most effective and applicable detection techniques. Therefore, in the last few years, a lot of work has been carried out on the design, synthesis and in vivo fluorescence imaging studies of CO fluorescent probes. Furthermore, using fluorescent probes to detect the changes in CO concentrations in living cells and tissues as well as in organisms has been one of the hot research topics in recent years. However, it is still a challenge to rationally design CO fluorescent probe with excellent optical performance, structural stability, low background interference, good biocompatibility, and excellent water solubility. Therefore, this review focuses on the research progress of CO fluorescent probes in the detection mechanism and biological applications in recent years. However, this popular and leading topic has rarely been summarized comprehensively to date. Thus, the research progress of CO fluorescent probes in recent years is reviewed in terms of their design concept, detection mechanism, and their biological applications. In addition, the relationship between the structure and performance of the probes was also discussed. More significantly, we hope that more excellent optical properties fluorescent probes for gaseous transmitter molecule CO detection and imaging will overcome the current problems of high biotoxicity and limited water solubility in future.

1. Introduction

Carbon monoxide (CO) is a colorless, odorless, tasteless, and water-insoluble gaseous molecule, which binds to hemoglobin about 200 times more strongly than oxygen. When the concentration of CO in the environment is too high, it can decrease the oxygen concentration by competitively binding to hemoglobin, causing fainting and even death of living organisms [1,2]. Therefore, CO is known as the “invisible killer” of human beings. Related studies have revealed that CO is an important endogenous gaseous signal molecule in the human body, mainly produced by heme oxygenase (HO) catalyzing the breakdown of ferrous heme, and plays an important role in maintaining the normal functioning of living organisms. Specifically, it is able to activate guanylate cyclase activity, participate in respiratory rhythm regulation, regulate insulin release, and lower blood pressure [3]. However, pathological states of oxidative stress can lead to an increase in CO levels, and mounting evidence suggests that abnormal endogenous CO concentrations are strongly associated with the occurrence and development of a variety of diseases [4], such as inflammation [5], liver diseases [6], diabetes [7], and even cancer [8]. To summarize, it is of profound implications to develop a simple, efficient, and sensitive detecting method for CO detection, which can better study its biological function and provide the possibility for early diagnosis and treatment of the disease.
In comparison to previously developed assays, such as chromogenic [9], electrochemical [10], and gas chromatographic methods [11], the fluorescent probe detection method exhibits remarkable selectivity and sensitivity, non-invasiveness, and experimental convenience [12,13,14]. Furthermore, it is suitable for real-time dynamic observation of CO in living organisms. Therefore, various small molecule fluorescent probes for the detection of CO have been developed [15]. However, compared with fluorescent probes for the detection of other endogenous active molecules, the study of CO fluorescent probes is still immature and has great promise for development [16,17]. Furthermore, to date, only a few reviews have explored the progress in the development of CO fluorescent probes, which will provide new insights for the design of next-generation CO fluorescent probes.
Based on the above considerations, we systematically classified and discussed the fluorescent probes used for detecting CO over the past decade based on chemical reaction type, response mechanism, fluorophore, and biological applications (Scheme 1). At the same time, the relationship between the structure and performance of the probes was also discussed, hoping to provide directions for future development of CO fluorescent probes. This review will provide additional insight and meaningful guidance for constructing de novo fluorescent probes for CO detection.

2. Designing the Main Types of Chemical Reactions for CO Fluorescent Probes

2.1. Tsuji-Trost Reaction

CO is known to be highly reductive and capable of reducing Pd2+ to Pd0, inducing the Tsuji-Trost reaction, and releasing the fluorophore. Briefly, by modulating the electron-donating ability of the hydroxyl/amine groups on the fluorophore, intramolecular charge transfer (ICT) occurs within the probe molecule, resulting in a blue/red shift in the maximum emission wavelength of the fluorescence (Figure 1).

2.2. Palladium Metal-Mediated Carbonylation or Protonation Reaction

Palladium (Pd) is a transition metal with the ability to quench the fluorescence of fluorophores through a heavy atom effect. Therefore, fluorescent probes for cyclopalladium metal complexes can be prepared by using metallic Pd coordinated to fluorophores with suitable coordination structural units (Figure 2). When Pd2+ is reduced to Pd0 by CO, it leads to carbonylation or protonation by hydrolysis. Simultaneously, the ligand bond was broken, and the heavy atom effect was lost, accompanied by the fluorophore fluorescence being restored. Thus, these probes’ design principle was usually employed to design turn-on fluorescent probes.

2.3. Reduction of Aromatic Nitro to Amine Reaction

The typical ICT fluorescent probes are some fluorophores conjugated with a strong electron-giving group and an electron-absorbing group to form a robust push-pull electron system. In this reaction type, CO reduces the electron-absorbing group nitro to the electron-donating group amino, which can affect the electron density layout of the probe molecule. Thus, inducing the release of fluorophore in the system (Figure 3).

3. CO Fluorescent Probes Based on Tsuji-Trost Reaction

The CO fluorescent probes based on this reaction are the most rapidly developed in recent years, which mainly include allyl ether, allyl carbonate, and allyl carbamate, with the advantages of flexible construction, good selectivity, high sensitivity, and fast response time. In the design of these probes, CO was mainly reduced Pd2+ to Pd0, which further mediates the Tsuji-Trost reaction and induces changes in the fluorescence intensity. Based on the type of fluorophore, they can be divided into coumarins, naphthalimides, xanthene, near-infrared dyes, and so on.

3.1. Coumarin as Fluorophore

Coumarin is one of the most common fluorescent dyes because of its ease of synthesis, high fluorescence quantum yield, and good photostability, so it is often designed and synthesized with some fluorescent probes. In 2015, Dhara et al. constructed the first CO fluorescent probe 1 based on Tsuji-Trost reaction (Figure 4) for A549 cells imaging [18]. The ability of the hydroxyl group to give electrons was reduced by the carbamate formed at the 7-position hydroxyl group of coumarin, thereby inhibiting the ICT ability of coumarin and quenching its fluorescence.
In 2017, Feng’s group reported an allyl carbonate CO fluorescence probe 2 (Figure 4) [19]. The probe used 3-benzothiazole-7-hydroxycoumarin as the fluorophore and emitted at a wavelength red-shifted to 495 nm, which was fast, highly selective, and sensitive to CO. The color of the solution changed from colorless to yellow-green when the probe reacted with CO, and a clear color change could be observed with the naked eye. Moreover, owing to the advantages of low background fluorescence, high penetration, and easy in vivo imaging of NIR fluorescent probes, a new coumarin-dicyanoisophorone fluorophore-based NIR fluorescent probe 3 was developed in 2019 for tracing CO in organisms (Figure 4) [20]. It was worth noting that the probe had a significant stokes shift (222 nm) and a clear NIR fluorescence turn-on signal change at 710 nm.
The same year, Wang’s team constructed a CO fluorescent probe 4 with allyl ether instead of allyl ester as the reaction moiety, which could avoid the effect of fetal bovine serum (FBS) during cell culture and applied for living cells imaging (Figure 4) [21]. Recently (in 2021), Li’s research group developed a ratiometric NIR fluorescent probe 5 based on coumarin-benzopyran fluorophores (Figure 5a) [22]. The probe not only ratiometrically detected exogenous and endogenous CO levels in HepG2 cells, but also had good penetration ability for in vivo fluorescence imaging of zebrafish under two-photon (TP) excitation (Figure 5b,c). Most importantly, 5 could visualize the up-regulation of CO under LPS-induced oxidative stress in a zebrafish model.

3.2. Naphthalimide as Fluorophore

Naphthoylimides are a classical class of fluorescent dyes with a strong push-pull electron system, high fluorescence quantum yields and large stokes shifts, as well as being easy to synthesize. They are often used to design ratiometric fluorescent probes.

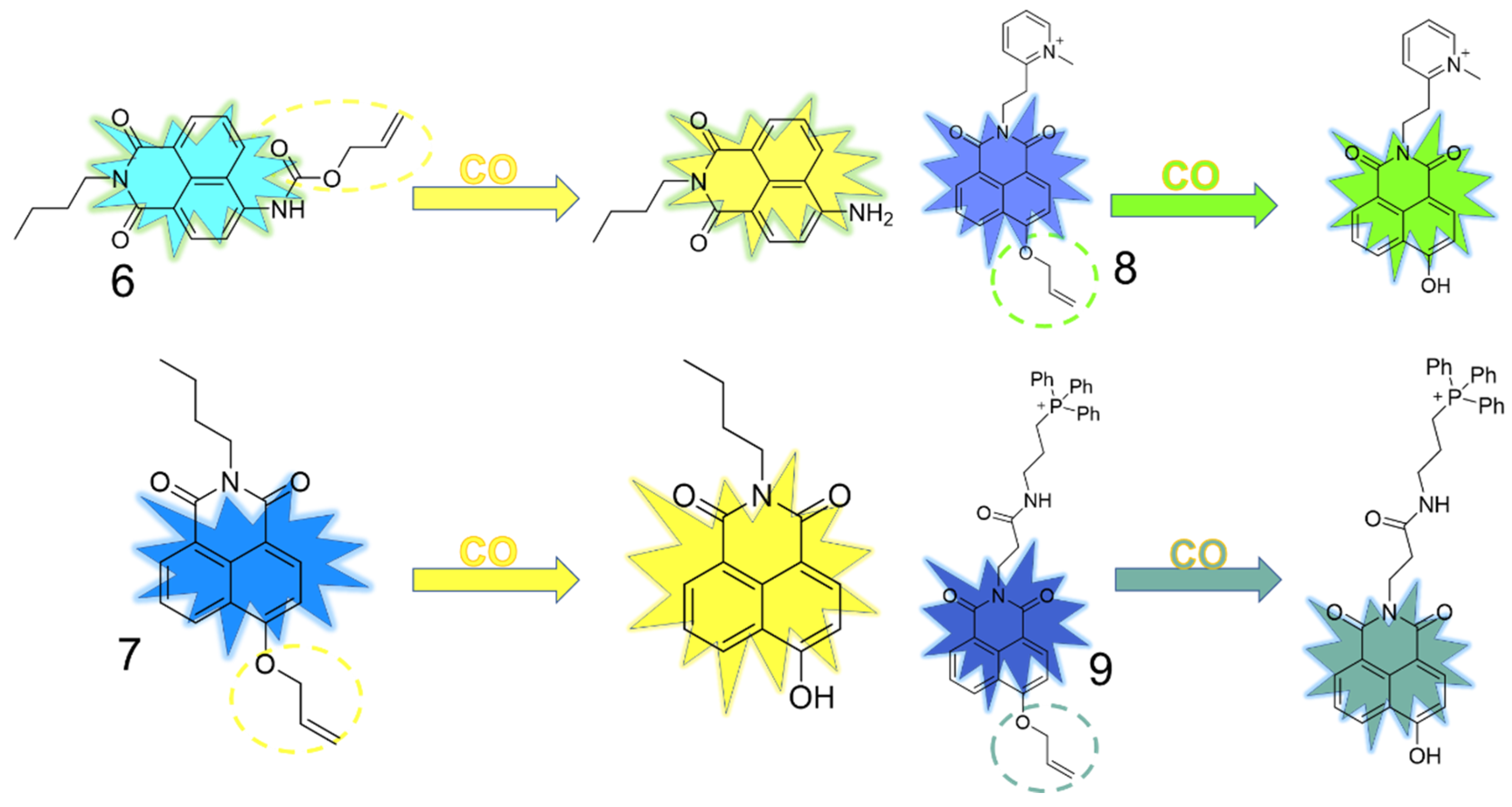

In 2017, Feng’s group reported the first ratiometric CO fluorescent probe 6 based on 4-aminonaphthalimide as the fluorophore and allyl carbamate as the recognition group (Figure 6) [23]. In the presence of CO, Pd2+ is reduced to Pd0, inducing the Tsuji-Trost reaction, which removed the allyl carbamate and increased the ICT capacity of the released amine group, resulting in the yellow-green fluorescence of 6. Furthermore, another ratiometric CO fluorescent probe 7 based on allyl ether as the recognition group and 4-hydroxynaphthalimide as the fluorophore was developed by Zhu’s group in 2018 (Figure 6) [24]. Impressively, living cell imaging was performed for both probes.
In 2020, Zhang’s group developed a mitochondria-targeted ratiometric fluorescent probe 8 based on the methylpyridine cation (Figure 6) [25]. When cell mitochondria were subjected to oxidative stress, it was able to detect the production of endogenous CO. Similarly, another mitochondria-targeted ratiometric fluorescent probe 9 based on triphenylphosphine fraction was prepared by Du’s group, which could quantitative detection of exogenous and endogenous CO (Figure 6) [26]. The same year, Zhang et al. designed and synthesized a novel fluorescent probe 10 for the specific detection of hepatocyte CO in vitro and in vivo [27]. The probe used 3-nitrophthalimide as a fluorescent reaction site and N-acetylgalactosamine (GalNAc) as a hepatocyte-specific fraction (Figure 7a). Bioassay imaging results demonstrated that it could be specifically transported into HepG2 cells over expressing the asialoglycoprotein receptor and image in situ the release of endogenous CO from HepG2 cells and zebrafish liver in acute liver injury (Figure 7b,c).

3.3. Xanthene as Fluorophore

Xanthene is a kind of dye molecules with excellent optical properties, including fluorescein, rhodamine, and their analogs, which generally have large molar extinction coefficients and high fluorescence quantum yields. They are widely applied in the fields of molecular identification, biochemistry, and medical research. Current CO fluorescent probes developed employing xanthene dyes are mainly based on the protection and deprotection strategies of the hydroxyl groups. Fluorescein protected by both hydroxyl groups (-OH) forms a colorless, non-fluorescent closed-loop lactone structure with a non-conjugated structure. When the analyte facilitates the deprotection of the hydroxyl group, the fluorophores are released.

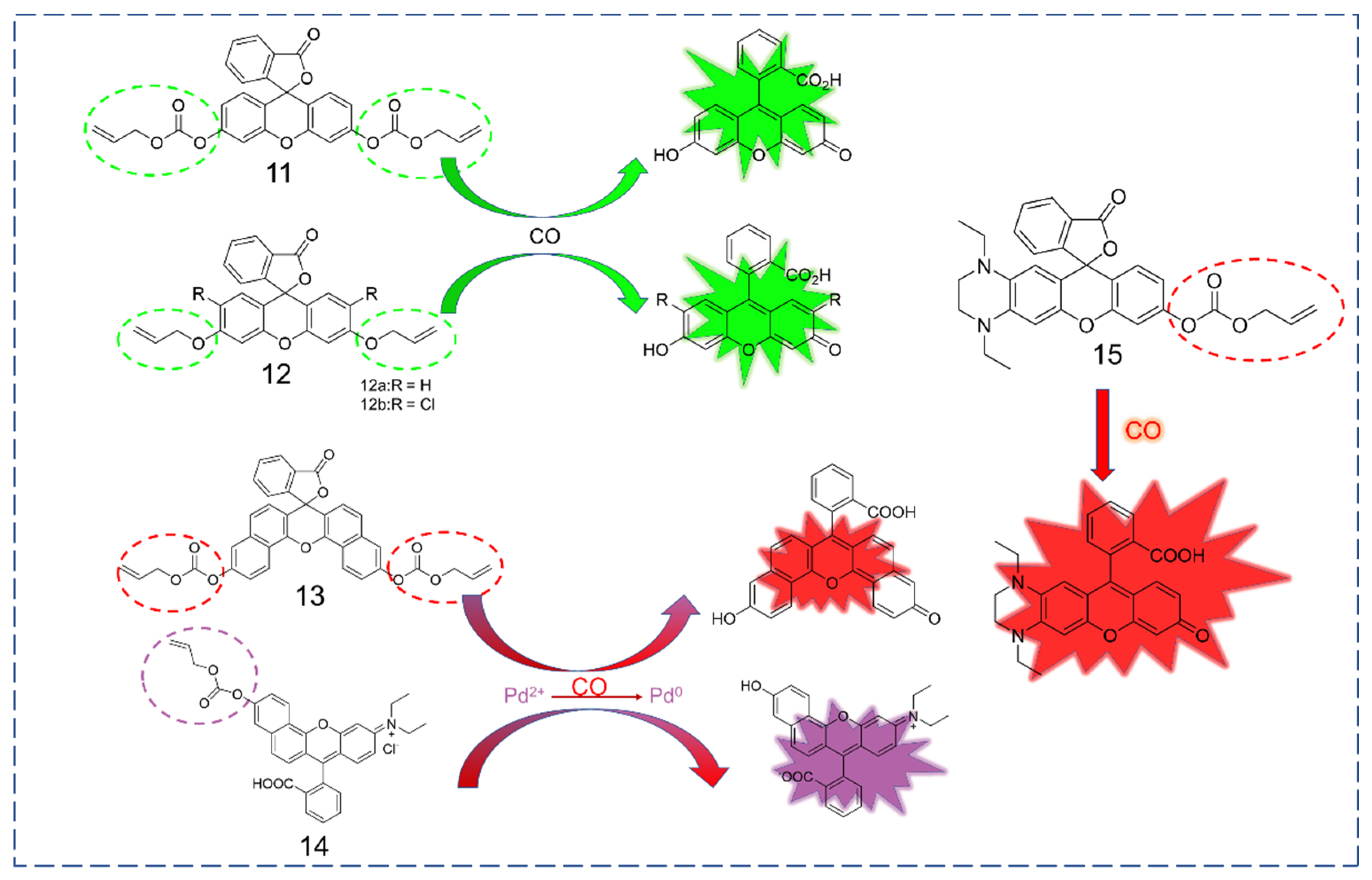

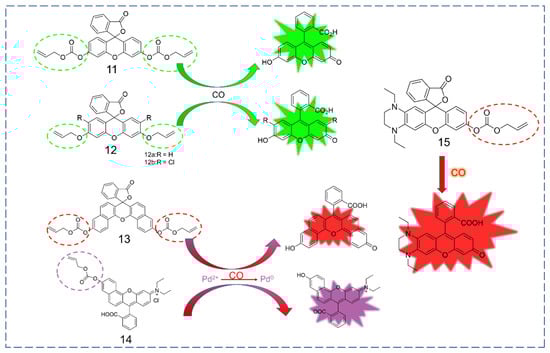

In 2016, Zhang’s team reported for the first time a di-allyl carbonate NIR fluorescent CO probe 13, which using naphthalene fluorescein as the fluorophore and allyl carbonate as the response group, enabling the colorimetric fluorescence detection of CO in dual channels [28] (Figure 8). The same year, based on the same recognition site, a di-allyl carbonate CO fluorescent probe 11 to detect hemoglobin-induced endogenous CO production in A549 cells was developed by Feng’s group (Figure 8) [29]. This probe employed fluorescein as the fluorophore and released fluorescence from it by reacting with CO to destroy the spironolactone structure (Figure 8). Subsequently, this group also reported a diallyl ether CO fluorescent probe 12 in 2017, which using a more stable allyl ether instead of allyl carbonate as the reaction site (Figure 8) [30]. Finally, this group constructed a NIR fluorescent probe 15 with good water solubility and large stokes shift after improvement in 2020, which could be applied to fluorescence imaging of CO in living cells, zebrafish and mice models (Figure 8 and Figure 9) [31].
In addition, in 2019, Zhu’s group employed a seminaphthorhodafluor as fluorophore and allyl carbonate as a reactive group, developing a mitochondrial localizable, colorimetric and far-red fluorescence probe 14 for CO visual detection in aqueous solutions and imaging in living HeLa cells (Figure 8) [32].

3.4. Near-Infrared Dyes as Fluorophore

The excitation and emission wavelengths of NIR fluorescent probes are generally in the range of 650–900 nm, which provides a high signal-to-noise ratio with low interference of the biological background and low photon radiation energy in this wavelength region. In addition, the high tissue penetration capability of NIR light allows for superior fluorescence imaging in vivo. Due to the advantages of large molar extinction coefficients, ease of synthesis, and purification, some NIR fluorophores were used for the construction of CO fluorescent probes, such as cyanine dyes, HPQ derivatives, and others.

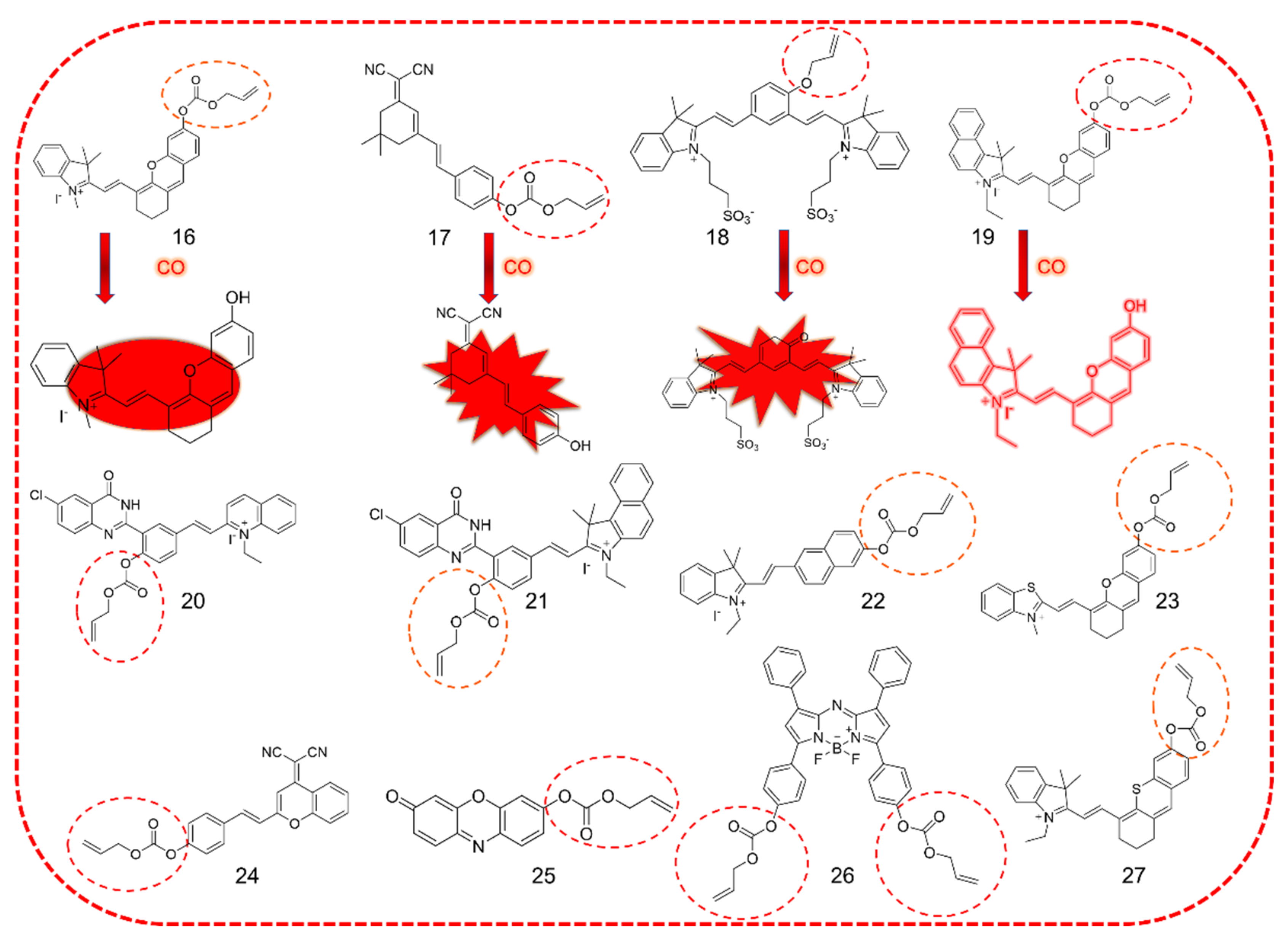

In 2018, Feng’s group developed a fluorescent turn-on NIR probe 16 based on ICT (Figure 10) [33], which was easy to synthesize, had a long emission wavelength (714 nm), a unique colorimetric and the ability to be utilized for CO imaging in living cells and animal models. Unfortunately, this probe had a short stokes shift, leading to easy quenching of fluorescence and structural instability, thus causing false signal interference. Therefore, on this basis, this group explored a new NIR fluorescent probe 17 with a large stokes shift (238 nm) using dicyanoisophorone as the fluorophore in 2019 (Figure 10) [34]. More importantly, 17 was the first NIR fluorescent probe to detect CO in vitro and in vivo. The same year, a NIR fluorescent probe 18 based on a unique cyano-fluorophore with a distinctive conjugated π-electron system resonating with its phenoxide anion form was prepared (Figure 10) [35]. Notably, 18 had good water solubility, a large stokes shift (123 nm), and a fast response time.
In 2018, based on hemicyanine as a fluorophore, Li’s group synthesized the first NIR CO fluorescent probe 19 that allowed for localization to cellular mitochondria and fluorescent imaging of mice (Figure 10) [36]. Subsequently, in 2021, this group developed another novel CO fluorescent probe 20 based on the HPQ dye, a fluorophore with an excited state intra-molecular proton transfer (ESIPT) process and a high fluorescence quantum yield (Figure 10) [37]. Meanwhile, by introducing a benzoindole group, the probe had the merits of a long emission wavelength and extended its wavelength by introducing a benzoindole group. Recently (in 2022), based on the above, a water-soluble fluorescent probe 21 for CO by introducing a 1-ethyl-2-methylquinoline moiety into HPQ was designed and synthesized (Figure 10) [6]. Moreover, during drug-induced liver injury (DILI), the up-regulation of CO in HepG2 cells and zebrafish could be monitored by this probe.

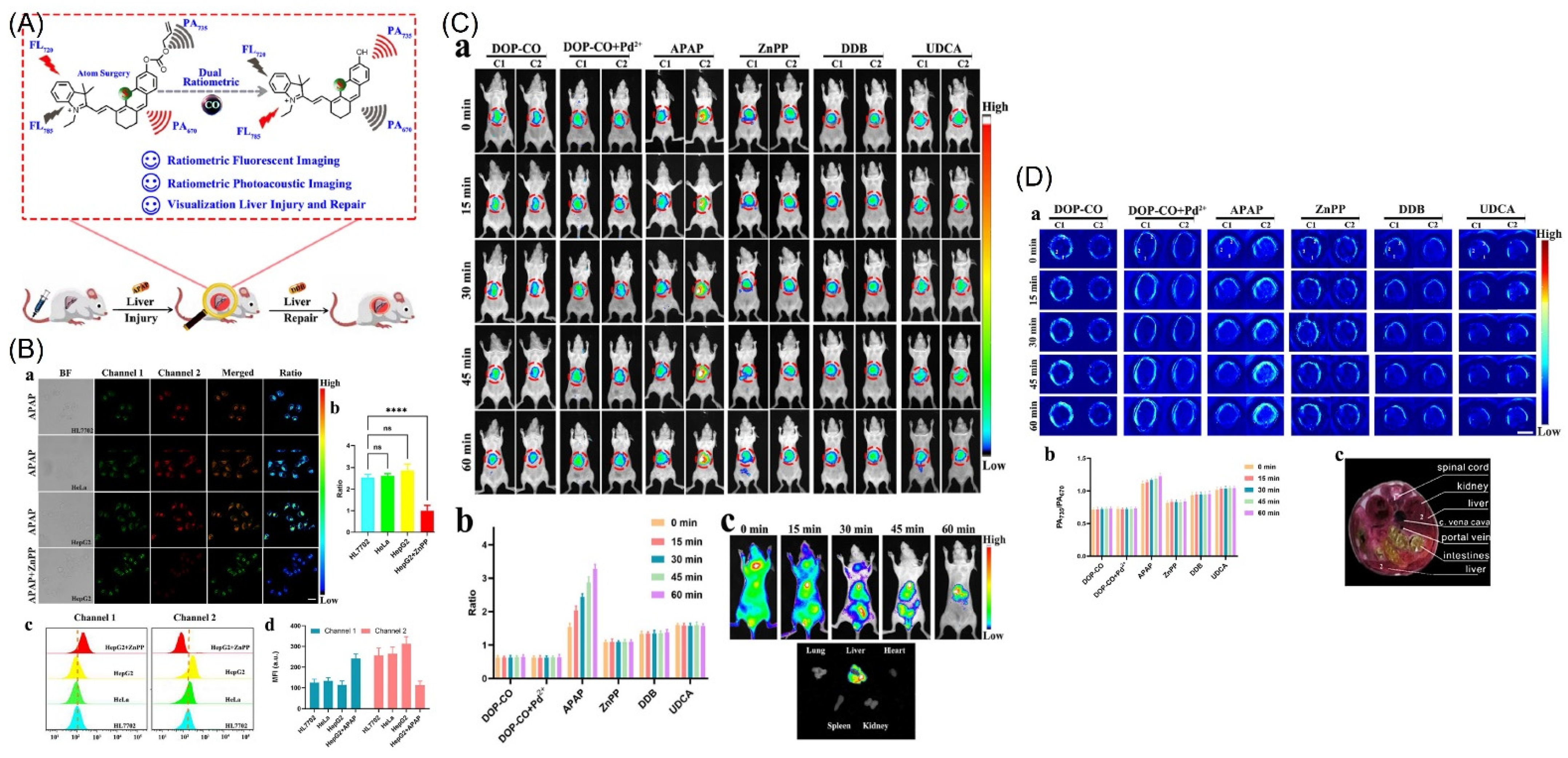

In 2020, Lin’s team reported a long-emission ratiometric CO fluorescence probe 22 based on a hemi-anthocyanine scaffold dye, which exhibited distinctive optical properties including high photostability and extension of emission wavelengths (Figure 10) [38]. Thus, it could be employed as a valuable molecular tool to image CO in vitro and in vivo. However, 22 had not been applied to the detection of disease models. Therefore, inspired by this view, the first fluorescence turn-on CO-activatable photoacoustic probe 23 based on a cyanine-like dye was developed in 2021 (Figure 10) [5]. In this case, 23 was capable of monitoring CO levels by photoacoustic imaging in a mouse model of acute inflammation. In addition to the above, Qi’s team constructed a NIR colorimetric fluorescent probe 24 in 2018 for CO based on the formation of the phenoxy anion (DPCO-) as the signal unit with good photostability (Figure 10) [39]. Next, an orange-emitting CO nanomolecular probe 25 based on resorcinol fluorophores in 2019 was developed by Ghosh’s group, which showed excellent optical properties, water solubility and biotolerance (Figure 10) [40]. Next, Chen et al. designed and synthesized a NIR fluorescent probe for the detection of CO in various cells in 2021 by using a biphasic BODIPY dye (Figure 9) [41]. Recently (in 2022), the first ratiometric photoacoustic/fluorescent (PA/FL) dual-mode probe 27, developed by Chen’s group, could be used to detect and image exogenous and endogenous CO in living cells (Figure 10 and Figure 11A,B) Remarkably, the first quantitative detection of endogenous CO during APAP-induced liver injury and repair was successfully finished by FL/PA ratiometric imaging (Figure 11C,D) [42].

3.5. Others

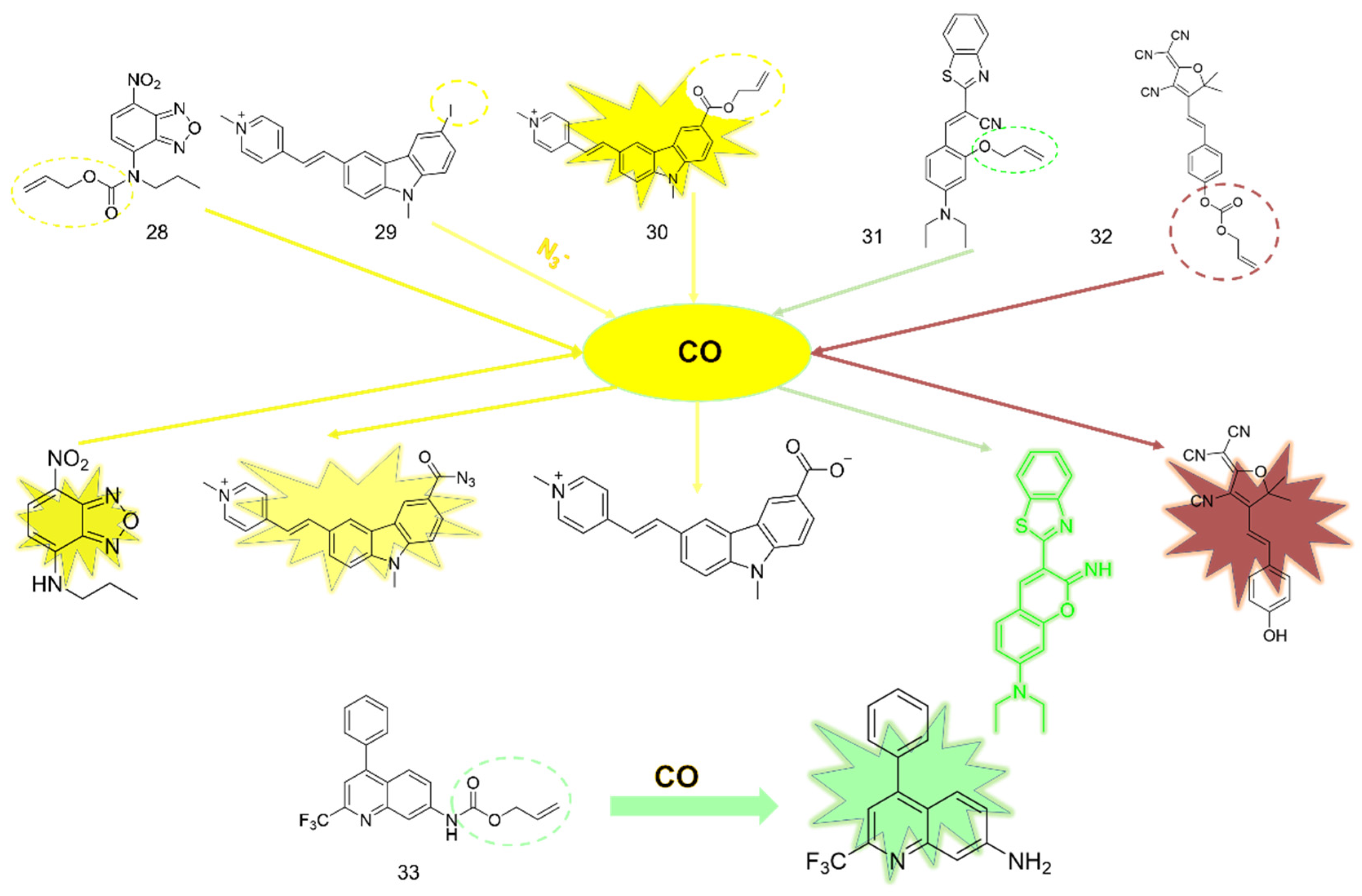

In 2016, Zhang’s group reported a dual-channel colorimetric CO fluorescence probe 28 based on the ICT mechanism to test the presence of CO in the air. In particular, nitrobenzofuran (NBD) and allyl carbamate were the fluorophore and reactive group of this probe, respectively (Figure 12) [43]. Afterward, Kim’s team based on carbazole designed and synthesized TP activated turn-on and turn-off fluorescent probes (29 and 30) to detect CO in 2018 (Figure 12) [44]. Both probes were effective in detecting carboxyhemoglobin of animal blood exposed to low doses of CO for 12 min.
In 2019, the ratiometric fluorescent probe 31 based on aggregation-induced emission (AIE) properties for the detection and imaging of CO was firstly developed by Tang et al. (Figure 12) [45], which was easy to synthesize, had a high yield and good stability. The same year, Zhu’s team developed a simple ultra-sensitive and long-wavelength colorimetric fluorescent probe 32 based on three strong electron-withdrawing cyano groups for monitoring CO in RAW264.7 cells (Figure 12) [46]. Lastly, a fluorescent probe 33 based on an aminoquinoline derivative as the golgi-targeted fluorophore, developed by Feng’s group in 2021, could show superior ratiometric fluorescence imaging capability for CO in living cells and zebrafish (Figure 12) [47].

4. CO Fluorescence Probes Based on Pd-Mediated Carbonylation or Protonation Hydrolysis Reactions

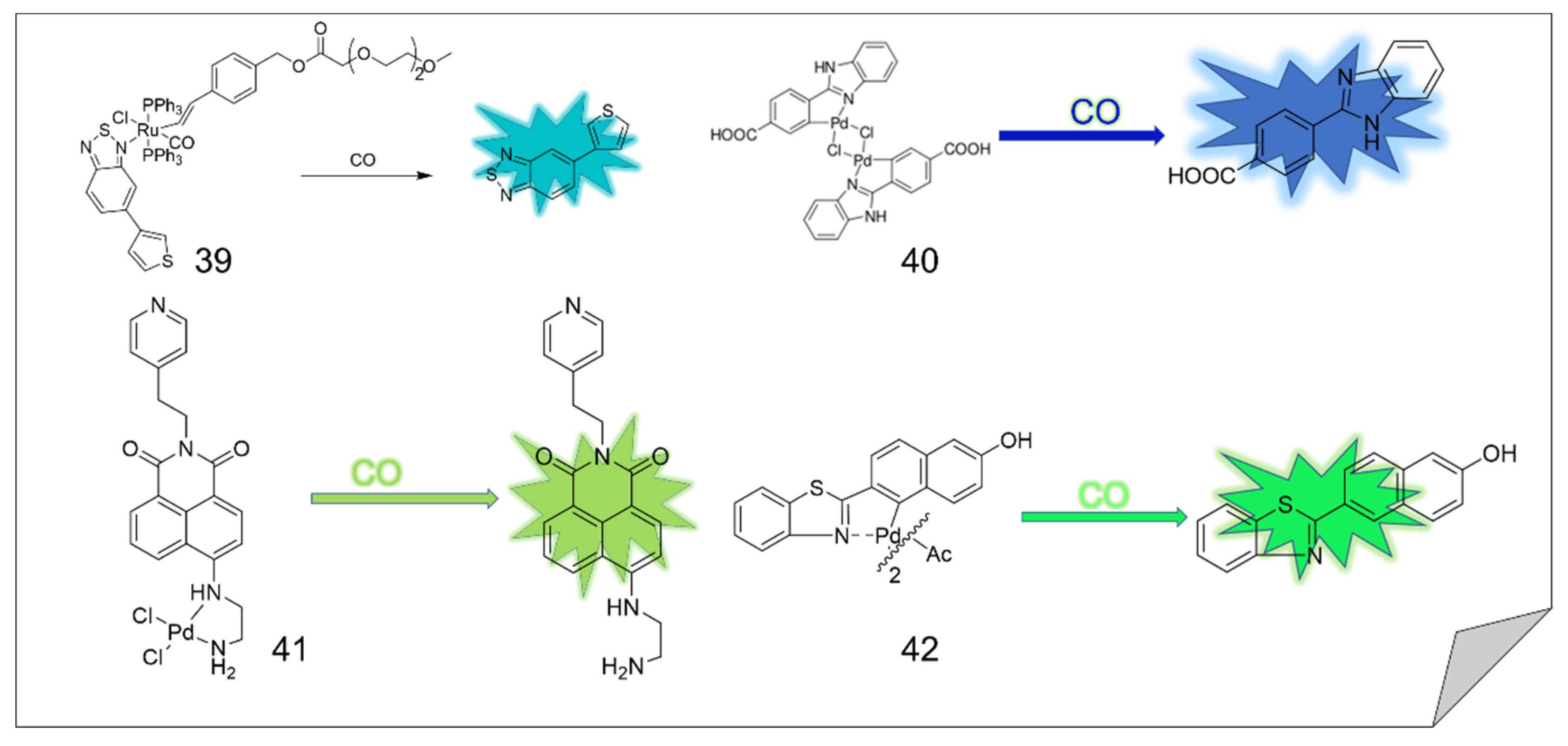

Cyclic Pd metal complexes were one of the first fluorescent probes to detect CO, which mainly used the heavy atomic effect of palladium metal to quench the fluorescence of the probe.

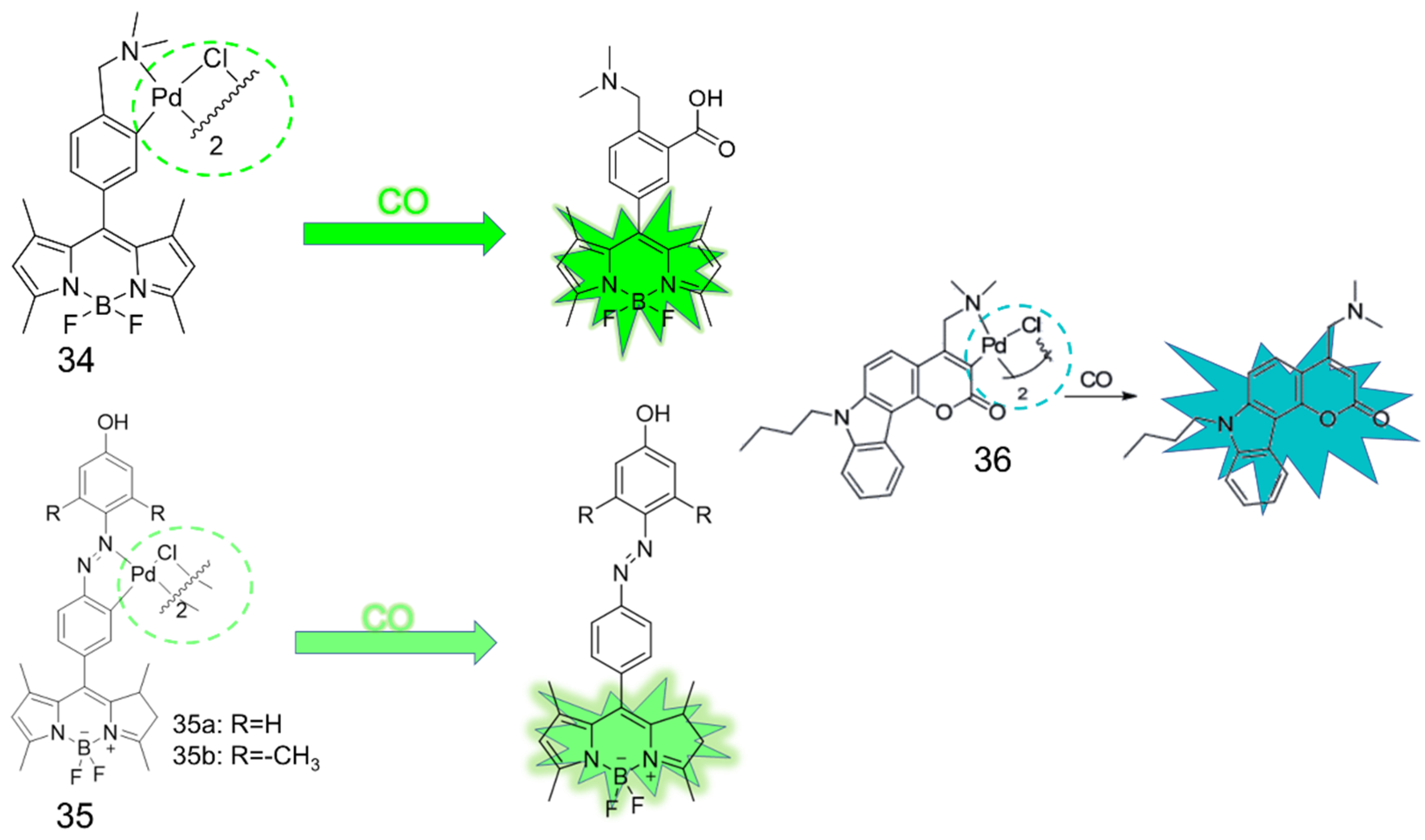

In 2012, Chang et al. reported the first CO cyclic Pd metal complex turn-on fluorescent probe 34, which invoked BODIPY as the fluorophore and N, N-dimethylbenzylamine as the Pd ligand (Figure 13) [48]. Due to the heavy atom quenching effect of Pd, the fluorescence of the probe was weak, whereas after carbonylation with CO, Pd0 was released, resulting in the disappearance of the heavy atom quenching and the recovery of the probe fluorescence intensity. On the same principle, in 2016, two cyclic Pd metal complexes for CO fluorescent probes 35 for selective imaging of endogenous CO under hypoxic conditions were designed and synthesized by Tang’s team, using BODIPY as the fluorophore and azobenzene as the Pd ligand group (Figure 13) [49]. It was important to note that the azobenzene-cyclopalladium part acted as the recognition site, both as a switch for the CO response and as a fluorescence quencher.

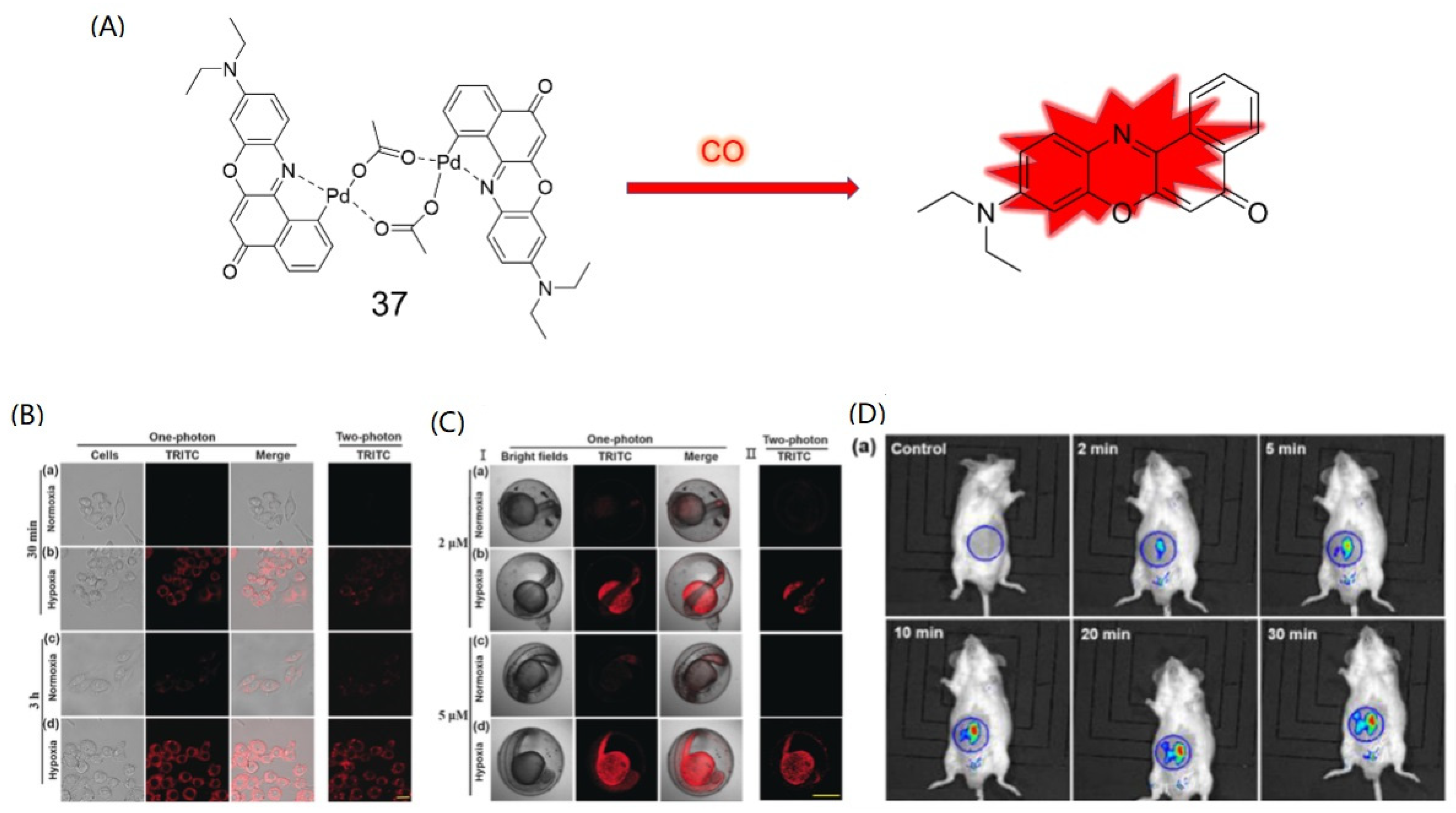

In 2014, the first TP CO-cyclopalladium metal complex fluorescent probe 36 was reported by Lin’s group (Figure 13) [50]. Using a carbazole-coumarin TP dye platform, this probe could monitor changes in CO levels not only in living cells but also in living tissues with deep penetration ability. Different from previous probes, this probe underwent a protonated hydrolysis after responding with CO. Traditionally, TP fluorescent probes had long-wave excitation and short-wave emission, while NIR fluorescent probes had short-wave excitation and long-wave emission. These properties contribute to the susceptibility of the probe to interference by autofluorescence and limited tissue penetration. Therefore, they combined the advantages of both in order to develop the first TP excitation NIR emission CO fluorescent probe 37 in 2017 [51]. Using Nile Red with a large rigid π structure as the fluorophore, this probe exhibited the characteristics of low background fluorescence, excellent stability, and deep tissue penetration, which was the best-reported cyclic Pd metal complex CO probe in terms of selectivity and sensitivity (Figure 14A). Furthermore, this probe not only detected endogenous CO in living cells (Figure 14B), but also conferred for the first time the ability to track endogenous CO in zebrafish embryos and mice tissues (Figure 14C,D).

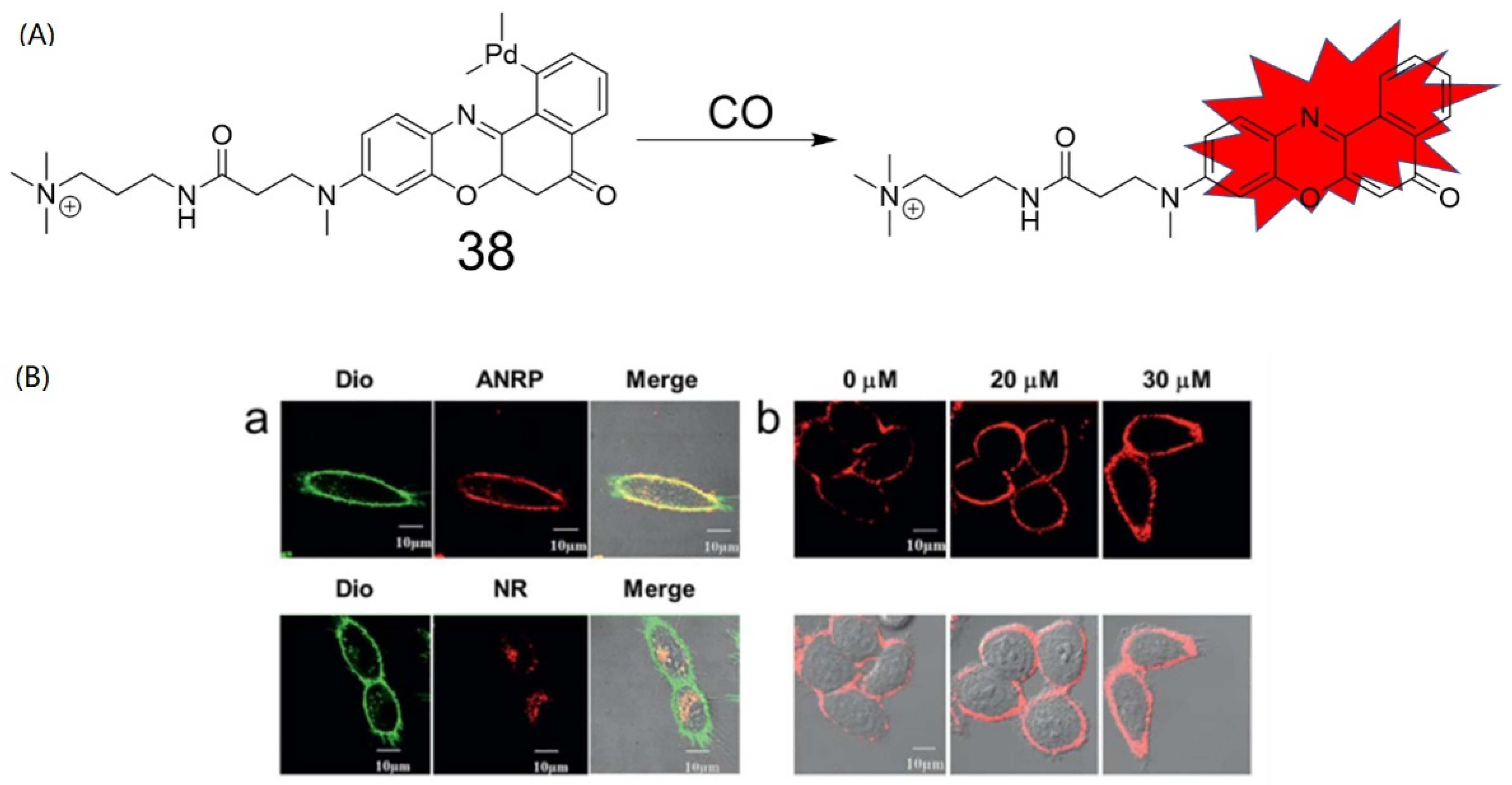

In 2018, Zhang’s group reported the first NIR cyclic Pd metal complex for CO fluorescent probe 38 targeting the cell membrane (Figure 15A) [52]. The novelty of this probe was employed Nile Red as the fluorophore and long hydrophobic alkyl chains as the membrane localization group, allowing the probe to anchor the cell membrane rapidly (<1 min) and remain for a long time (>60 min) (Figure 15B). In addition, the probe was further applied to study the self-protection of cells under oxidative stress by monitoring the release of CO during drug-induced hepatotoxicity.
In contrast with the probes mentioned above, Wilton-Ely et al. based on a Ru(II) vinyl complex reported a TP fluorescent probe 39 in 2017 (Figure 16) [53]. This probe used a new fluorophore TBTD as the signal unit, which was directly coordinated with the metal center. Furthermore, the probe was successfully applied to detect CO in living cells collected from exudates in a mouse model of gasbag inflammation. In the latter year, a turn-on fluorescent probe 40 based on a new cyclic compound to detect CO in 2018 was designed and synthesized by Wang’s group (Figure 16) [54]. It reacted with CO to release a highly fluorescent benzimidazole fraction (the fluorescence intensity was greatly enhanced due to the protonation of the benzimidazole ring). In addition, this fluorescent probe had a high cell uptake rate and could be successfully employed for CO imaging in living cells. Next, Kim and his colleagues also reported a Pd-mediated carbonylated CO turn-on probe 41 consisting of naphthalimide and ethylenediamine in 2021, which could detect CO in aqueous solutions and live cells in a highly stable and selective way (Figure 16) [55]. Recently (in 2022), according to the same sensing mechanism, Kong’s team constructed a probe 42 based on a distinctive TP-excited fluorescent chromophore (2-hydroxyl-6-(benzothiazole-2-yl) naphthalene) to detect CO in live zebrafish (Figure 16) [56].

5. CO Fluorescent Probes Based on the Reduction in Nitro to Amine Reactions

CO is reductive and can reduce some aromatic nitro compounds in certain conditions. Hence, suitable structures of aromatic nitro compounds can be used to selectively detect CO. Compared with the methods mentioned above for detecting CO, the main strength of this strategy is that the addition of Pd2+ or a third substance is not required, since high concentrations of the heavy metal Pd2+ could have potential adverse effects on biological systems, such as toxicity and sensitization. For this strategy, several fluorescent probes for the detection of CO in organisms have been reported.

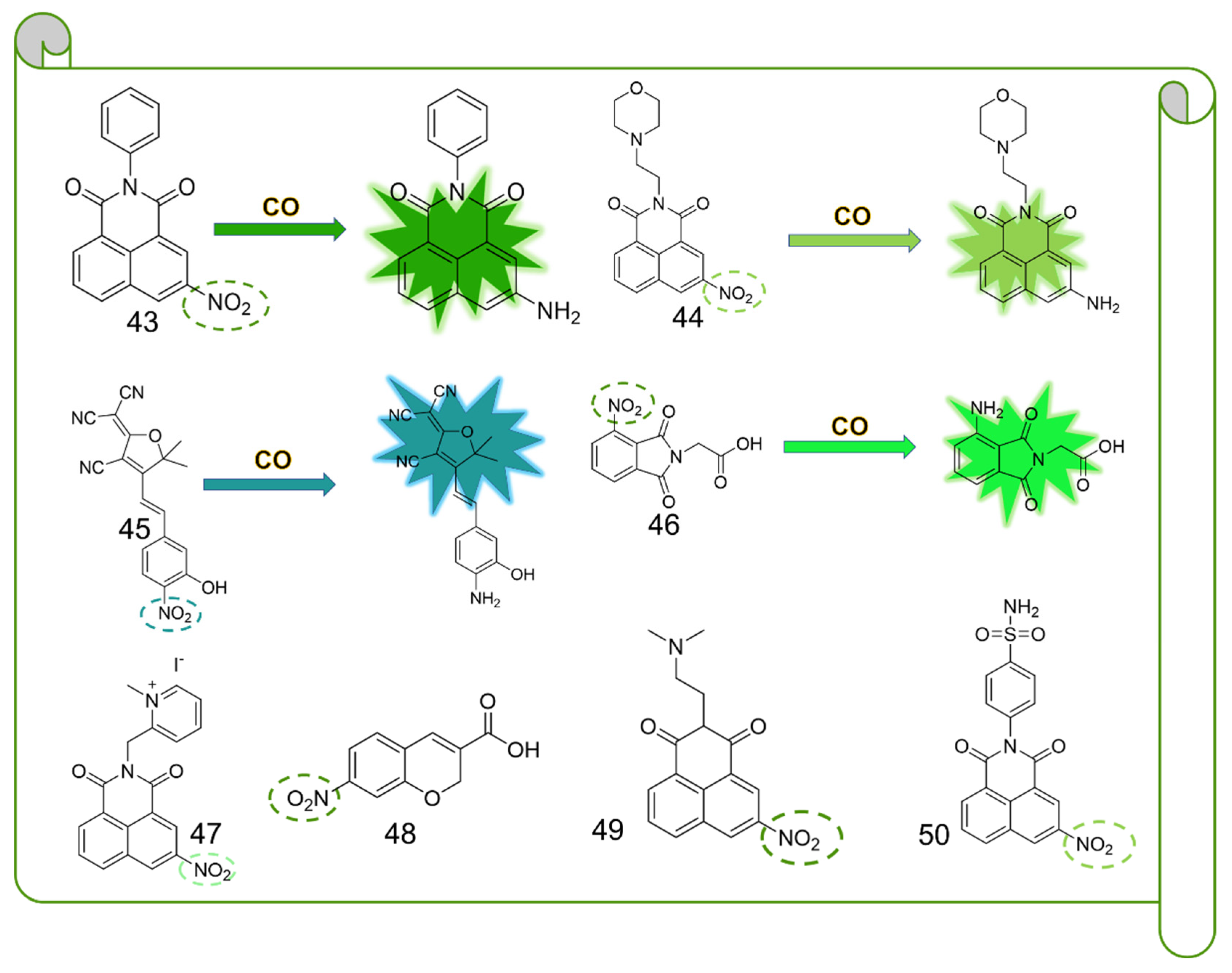

In 2018, Dhara et al. reported two examples of CO fluorescent probes (43 and 44) based on CO reduction reactions (Figure 17) [57,58]. In both probe structures, the reduction in the nitro group to an amine group at the 3-position of the naphthalimide can restore the fluorescence of the fluorophore. They were highly selective and sensitive toward CO, as well as the detection limits down to the nanomolar level. Probe 44 could also be targeted to MCF-7 cell lysosomes and be used for fluorescence imaging of intra-lysosomal CO. Later in 2020, the first naphthylamine-based fluorescent probe 47 for nuclear localization was constructed by them with a lower detection limit as low as 0.18 μM (Figure 17) [59].

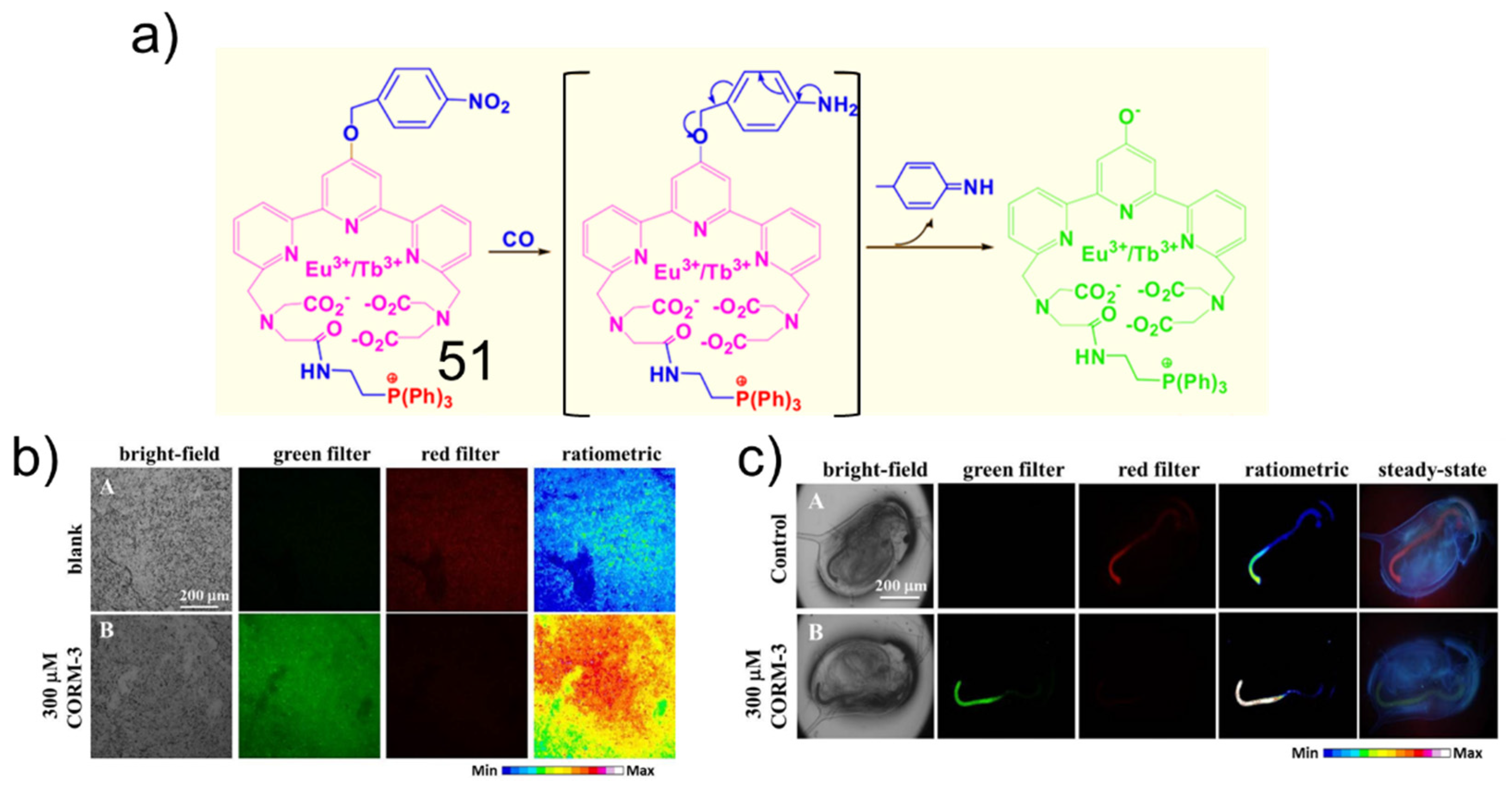

In 2019, the different structures of probes were developed for CO detection by four groups. Initially, Song’s group developed a unique ratiometric time-gated CO luminescence probe 51 based on a lanthanide complex, which was capable of specifically targeting mitochondria (Figure 18) [60]. This probe was first constructed by incorporating a mitochondrial targeting group (triphenylphosphine) into a bipyridyl polyacid derivative (activatable CO), and then ligated with Eu3+ and Tb3+ ions. Moreover, the probe also had the ability to visualize and quantify endogenous CO in living cells, mice liver tissue sections, Daphnia Magna, and mice (Figure 16b,c). Subsequently, the first CO-reduction-based NIR CO fluorescent probe 45 was designed and synthesized by Zhu’s group, which could be used to rapidly and specifically trace intracellular CO (Figure 17) [61]. In addition, it was first demonstrated that transient glucose deprivation (TGD) in RAW 264.7 macrophages caused up-regulation of heme oxygenase-1 (HO-1) and down-regulation of HO-1 in zebrafish by high glucose inhibition. Next, they developed a novel fluorescent probe 52 based on the coumarin-pyridine derivative dye (CPD) as the fluorophore and 4-nitrobenzyl as the recognition site (Figure 19) [62]. Finally, Feng’s group synthesized a CO fluorescent probe 46 based on the ESIPT mechanism, which employing 2-nitrophthalimide as the fluorophore to induce ESIPT and emit green fluorescence after the reduction in nitro to the amine group by CO (Figure 17) [63]. In particular, it was used for the rapid, highly selective, and sensitive detection of CORM-3 in aqueous solutions, live cells, and animals, providing a useful tool for studying the application of CORM-3 in biological systems. At last, in 2021, another NIR fluorescent probe 53 based on QCy7 as a fluorophore was developed by them that could effectively detect CORM-3 in living cells and in vivo (Figure 19) [64]. Significantly, it had good water solubility and could ratiometrically detect CORM-3.

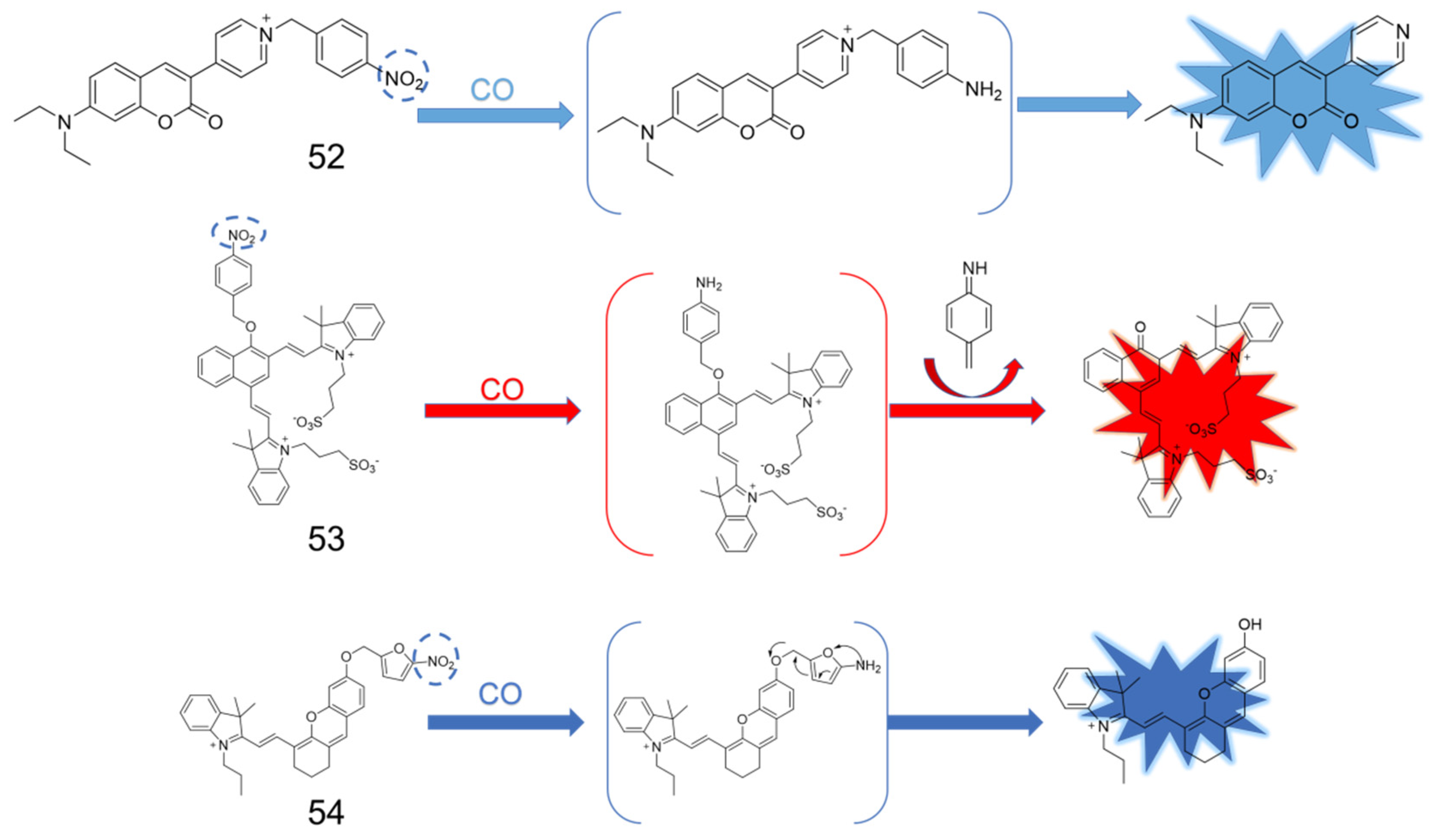

As mentioned above, Yan’s team developed a metal-free turn-on fluorescent probe 48 in 2020 based on coumarin fluorophores to monitor CO in aqueous solutions and living cells (Figure 17) [65]. Nevertheless, previously developed probes were only used for disease diagnosis but not for therapeutic effects. Therefore, Lin’s group developed the first CO fluorescent probe 49 based on naphthalimide fluorescent dyes for the integrated diagnosis and treatment of cancer (Figure 17) [8]. The probe was used to produce amonafide (ANF) by CO reduction, which had a remarkable therapeutic effect on tumors. Recently (in 2022), Zhang et al. reported a novel metal-free NIR fluorescent probe 54 based on nitrofuran for the selective detection of CO-releasing molecule-2 (CORM-2) (Figure 19) [66]. Remarkably, this was an initial use of paper sheets as a carrier for detecting CORM-2 by fluorescent signals. In the same year, an easily accessible Golgi-targeted fluorescent probe 50, developed by He’s group, could monitor CORM-3 in HeLa cells, HepG2 cells, and zebrafish (Figure 17) [67]. In this probe, the phenyl sulfonamide group was used as the Golgi targeting unit, the naphthalimide dye acted as the fluorophore and the nitro moiety was selected as the CORM-3 response unit.

6. Conclusions and Outlook

CO has been demonstrated to be an essential biomarker in a variety of disease models such as inflammation, liver injury, diabetes, and cancer. Thus, the sensitive and specific monitoring of CO by fluorescence probes has irreplaceable importance for the early prediction, diagnosis and treatment of diseases. This paper reviewed the fluorescent probes for detecting CO over the last decade and outlined their chemical structures, optical properties, and bioimaging applications according to different reaction types (recognition sites). Specifically, the recognition groups of CO fluorescent probes mainly include allyl carbonate, allyl carbamate, allyl ether, nitro, etc. Furthermore, details of their emission wavelengths, detection limits, targeting capabilities and cellular tissue imaging are mentioned in the paper. All of these fluorescent probes mentioned above have a potential for the detection of CO in vivo and in vitro. More importantly, these probes have made significant advances in optical properties (NIR, TP, sensitivity, and selectivity) and real-time monitoring CO produced in vivo.
Based on the above discussion, the development of NIR, TP and ratiometric probes will be very important due to their advantages of low background interference and high tissue penetration with minimal damage. In addition, the sensing properties of organelle-targeted fluorescent probes remains to be enhanced, including the sensitivity and selectivity, which are critical for analyzing endogenous CO in vivo and providing insight into the physiological and pathological processes related to human diseases. The above-mentioned photoacoustic CO probes also exhibit great potential, because they can produce thermoelastic expansion with amazing tissue penetrating ability and are non-invasive during imaging, thus avoiding complex invasive surgical operations. Furthermore, fiber optic probes have significant advantages such as small size, insulation, fast response time, immunity to electromagnetic interference, high measurement accuracy, and good bioaffinity, which make them have important applications in biomedicine [68,69,70]. In future work, we can combine fiber optic materials with small molecule fluorescent probes to develop more sensitive sensors that integrates CO analysis and disease diagnosis and treatment.
However, the design of CO fluorescent probes needs to take into account their biocompatibility, water solubility, resistance to other reactive oxygen species (ROS) interferences and poor stability drawbacks. Thus, in future CO probe designs, these problems can be effectively addressed by grafting natural materials to construct nanosensors or copolymerizing them into polymer probes. These methods are believed to enhance their stability and biosafety, at the same time, they will help to solve many defects of small molecular fluorescent probes.
We have always thought that the exploration of fluorescent probes for detecting CO, particularly in biosystems, will be one of the significant research directions to further elucidate the vital function of ROS in various biological processes. We hope that this review will draw deeper attention to CO and provide empirical references for the design and synthesis of subsequent CO fluorescent probes.

Author Contributions

C.X.: Literature collection, drawings & writing; K.L.: Literature collection; Q.Y.: Literature collection; L.T.: Literature collection; X.Z.: Editing; L.Z.: Editing, supervision & writing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Natural Science Foundation of China (NSFC, Grants 21605046), Hunan Provincial Natural Science Foundation of China (No. 2017JJ3060).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by Natural Science Foundation of China (NSFC, Grants 21605046), Hunan Provincial Natural Science Foundation of China (No. 2017JJ3060).

Conflicts of Interest

The authors report no declarations of interest.

References

  1. Weaver, L.K. Clinical practice. Carbon monoxide poisoning. N. Engl. J. Med. 2009, 360, 1217–1225. [Google Scholar] [CrossRef] [Green Version]
  2. Murakawa, Y.; Nagai, M.; Mizutani, Y. Differences between Protein Dynamics of Hemoglobin upon Dissociation of Oxygen and Carbon Monoxide. J. Am. Chem. Soc. 2012, 134, 1434–1437. [Google Scholar] [CrossRef] [PubMed]
  3. Strianese, M.; Pellecchia, C. Metal complexes as fluorescent probes for sensing biologically relevant gas molecules. Coord. Chem. Rev. 2016, 318, 16–28. [Google Scholar] [CrossRef]
  4. Verma, A.; Hirsch, D.J.; Glatt, C.E.; Ronnett, G.V.; Snyder, S.H. Carbon monoxide: A putative neural messenger. Science 1993, 259, 381–384. [Google Scholar] [CrossRef] [PubMed]
  5. Li, W.; Li, R.; Chen, R.; Liang, X.; Song, W.; Lin, W. Activatable Photoacoustic Probe for In Situ Imaging of Endogenous Carbon Monoxide in the Murine Inflammation Model. Anal. Chem. 2021, 93, 8978–8985. [Google Scholar] [CrossRef] [PubMed]
  6. Fu, G.-Q.; Xia, Y.-S.; Jiang, W.-L.; Wang, W.-X.; Tan, Z.-K.; Guo, K.-Y.; Mao, G.-J.; Li, C.-Y. A novel precipitating-fluorochrome-based fluorescent probe for monitoring carbon monoxide during drug-induced liver injury. Talanta 2022, 243, 123398. [Google Scholar] [CrossRef]
  7. Zhang, C.; Peng, S.-Y.; Hong, S.; Chen, Q.-W.; Zeng, X.; Rong, L.; Zhong, Z.-L.; Zhang, X.-Z. Biomimetic carbon monoxide nanogenerator ameliorates streptozotocin induced type 1 diabetes in mice. Biomaterials 2020, 245, 119986. [Google Scholar] [CrossRef]
  8. Yue, L.; Tang, Y.; Huang, H.; Song, W.; Lin, W. A fluorogenic probe for detecting CO with the potential integration of diagnosis and therapy (IDT) for cancer. Sens. Actuators B Chem. 2021, 344, 130245. [Google Scholar] [CrossRef]
  9. Heylen, S.; Martens, J.A. Progress in the chromogenic detection of carbon monoxide. Angew. Chem. Int. Ed. 2010, 49, 7629–7630. [Google Scholar] [CrossRef]
  10. Lee, Y.; Kim, J. Simultaneous electrochemical detection of nitric oxide and carbon monoxide generated from mouse kidney organ tissues. Anal. Chem. 2007, 79, 7669–7675. [Google Scholar] [CrossRef]
  11. Marks, G.S.; Vreman, H.J.; McLaughlin, B.E.; Brien, J.F.; Nakatsu, K. Measurement of endogenous carbon monoxide formation in biological systems. Antioxid. Redox Signal. 2002, 4, 271–277. [Google Scholar] [CrossRef] [PubMed]
  12. Tang, Y.; Ma, Y.; Yin, J.; Lin, W. Strategies for designing organic fluorescent probes for biological imaging of reactive carbonyl species. Chem. Soc. Rev. 2019, 48, 4036–4048. [Google Scholar] [CrossRef] [PubMed]
  13. Dou, W.-T.; Han, H.-H.; Sedgwick, A.C.; Zhu, G.-B.; Zang, Y.; Yang, X.-R.; Yoon, J.; James, T.D.; Li, J.; He, X.-P. Fluorescent probes for the detection of disease-associated biomarkers. Sci. Bull. 2022, 67, 853–878. [Google Scholar] [CrossRef]
  14. Sun, Y.; Zhou, X.; Sun, L.; Zhao, X.; He, Y.; Gao, G.; Han, W.; Zhou, J. Lysosome-targeting red fluorescent probe for broad carboxylesterases detection in breast cancer cells. Sens. Actuators B Chem. 2022, 33, 4229–4232. [Google Scholar] [CrossRef]
  15. Zhang, C.; Xie, H.; Zhan, T.; Zhang, J.; Chen, B.; Qian, Z.; Zhang, G.; Zhang, W.; Zhou, J. A new mitochondrion targetable fluorescent probe for carbon monoxide-specific detection and live cell imaging. Chem. Commun. 2019, 55, 9444–9447. [Google Scholar] [CrossRef]
  16. Zhang, P.; Tian, Y.; Liu, H.; Ren, J.; Wang, H.; Zeng, R.; Long, Y.; Chen, J. In vivo imaging of hepatocellular nitric oxide using a hepatocyte-targeting fluorescent sensor. Chem. Commun. 2018, 54, 7231–7234. [Google Scholar] [CrossRef]
  17. Hong, Y.; Zhang, P.; Wang, H.; Yu, M.; Gao, Y.; Chen, J. Photoswitchable AIE nanoprobe for lysosomal hydrogen sulfide detection and reversible dual-color imaging. Sens. Actuators B Chem. 2018, 272, 340–347. [Google Scholar] [CrossRef]
  18. Pal, S.; Mukherjee, M.; Sen, B.; Mandal, S.K.; Lohar, S.; Chattopadhyay, P.; Dhara, K. A new fluorogenic probe for the selective detection of carbon monoxide in aqueous medium based on Pd(0) mediated reaction. Chem. Commun. 2015, 51, 4410–4413. [Google Scholar] [CrossRef]
  19. Feng, W.; Liu, D.; Zhai, Q.; Feng, G. Lighting up carbon monoxide in living cells by a readily available and highly sensitive colorimetric and fluorescent probe. Sens. Actuators B Chem. 2017, 240, 625–630. [Google Scholar] [CrossRef]
  20. Deng, Y.; Hong, J.; Zhou, E.; Feng, G. Near-infrared fluorescent probe with a super large stokes shift for tracking CO in living systems based on a novel coumarin-dicyanoisophorone hybrid. Dyes Pigments 2019, 170, 107634. [Google Scholar] [CrossRef]
  21. Fang, W.-L.; Tang, Y.-J.; Guo, X.-F.; Wang, H. A fluorescent probe for carbon monoxide based on allyl ether rather than allyl ester: A practical strategy to avoid the interference of esterase in cell imaging. Talanta 2019, 205, 120070. [Google Scholar] [CrossRef] [PubMed]
  22. Jiang, W.-L.; Wang, W.-X.; Mao, G.-J.; Yan, L.; Du, Y.; Li, Y.; Li, C.-Y. Construction of NIR and Ratiometric Fluorescent Probe for Monitoring Carbon Monoxide under Oxidative Stress in Zebrafish. Anal. Chem. 2021, 93, 2510–2518. [Google Scholar] [CrossRef] [PubMed]
  23. Feng, W.; Hong, J.; Feng, G. Colorimetric and ratiometric fluorescent detection of carbon monoxide in air, aqueous solution, and living cells by a naphthalimide-based probe. Sens. Actuators B Chem. 2017, 251, 389–395. [Google Scholar] [CrossRef]
  24. Wang, Z.; Geng, Z.; Zhao, Z.; Sheng, W.; Liu, C.; Lv, X.; He, Q.; Zhu, B. A highly specific and sensitive ratiometric fluorescent probe for carbon monoxide and its bioimaging applications. New J. Chem. 2018, 42, 14417–14423. [Google Scholar] [CrossRef]
  25. Zang, S.; Shu, W.; Shen, T.; Gao, C.; Tian, Y.; Jing, J.; Zhang, X. Palladium-triggered ratiometric probe reveals CO's cytoprotective effects in mitochondria. Dyes Pigments 2020, 173, 107861. [Google Scholar] [CrossRef]
  26. Du, F.; Qu, Y.; Li, M.; Tan, X. Mitochondria-targetable ratiometric fluorescence probe for carbon monoxide based on naphthalimide derivatives. Anal. Bioanal. Chem. 2021, 413, 1395–1403. [Google Scholar] [CrossRef] [PubMed]
  27. Li, Z.; Jia, X.; Zhang, P.; Guo, Z.; Zhao, H.; Li, X.; Wei, C. A hepatocyte-specific fluorescent probe for imaging endogenous carbon monoxide release in vitro and in vivo. Sens. Actuators B Chem. 2021, 344, 130177. [Google Scholar] [CrossRef]
  28. Yan, J.-W.; Zhu, J.-Y.; Tan, Q.-F.; Zhou, L.-F.; Yao, P.-F.; Lu, Y.-T.; Tan, J.-H.; Zhang, L. Development of a colorimetric and NIR fluorescent dual probe for carbon monoxide. RSC Adv. 2016, 6, 65373–65376. [Google Scholar] [CrossRef]
  29. Feng, W.; Liu, D.; Feng, S.; Feng, G. A Readily Available Fluorescent Probe forCarbon Monoxide Imaging in Living Cells. Anal. Chem. 2016, 88, 10648–10653. [Google Scholar] [CrossRef]
  30. Feng, S.; Liu, D.; Feng, W.; Feng, G. Allyl Fluorescein Ethers as Promising Fluorescent Probes for Carbon Monoxide Imaging in Living Cells. Anal. Chem. 2017, 89, 3754–3760. [Google Scholar] [CrossRef]
  31. Hong, J.; Xia, Q.; Zhou, E.; Feng, G. NIR fluorescent probe based on a modified rhodol-dye with good water solubility and large Stokes shift for monitoring CO in living systems. Talanta 2020, 215, 120914. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, Z.; Zhao, Z.; Wang, R.; Yuan, R.; Liu, C.; Duan, Q.; Zhu, W.; Li, X.; Zhu, B. A mitochondria-targetable colorimetric and far-red fluorescent probe for the sensitive detection of carbon monoxide in living cells. Anal. Methods 2019, 11, 288–295. [Google Scholar] [CrossRef]
  33. Feng, W.; Feng, G. A readily available colorimetric and near-infrared fluorescent turn-on probe for detection of carbon monoxide in living cells and animals. Sens. Actuators B Chem. 2018, 255, 2314–2320. [Google Scholar] [CrossRef]
  34. Gong, S.; Hong, J.; Zhou, E.; Feng, G. A near-infrared fluorescent probe for imaging endogenous carbon monoxide in living systems with a large Stokes shift. Talanta 2019, 201, 40–45. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, E.; Gong, S.; Feng, G. Rapid detection of CO in vitro and in vivo with a ratiometric probe showing near-infrared turn-on fluorescence, large Stokes shift, and high signal-tonoise ratio. Sens. Actuators B Chem. 2019, 301, 127075. [Google Scholar] [CrossRef]
  36. Li, S.-J.; Zhou, D.-Y.; Li, Y.-F.; Yang, B.; Ou-Yang, J.; Jie, J.; Liu, J.; Li, C.-Y. Mitochondria-targeted near-infrared fluorescent probe for the detection of carbon monoxide in vivo. Talanta 2018, 188, 691–700. [Google Scholar] [CrossRef]
  37. Xia, Y.-S.; Yan, L.; Mao, G.-J.; Jiang, W.-L.; Wang, W.-X.; Li, Y.; Jiang, Y.-Q.; Li, C.-Y. A novel HPQ-based fluorescent probe for the visualization of carbon monoxide in zebrafish. Sens. Actuators B Chem. 2021, 340, 129920. [Google Scholar] [CrossRef]
  38. Zhang, Y.; Kong, X.; Tang, Y.; Li, M.; Yin, Y.; Lin, W. The development of a hemicyanine-based ratiometric CO fluorescent probe with long emission and its applications for imaging CO in vitro and in vivo. New J. Chem. 2020, 44, 12107–12112. [Google Scholar] [CrossRef]
  39. Yan, L.; Nan, D.; Lin, C.; Wan, Y.; Pan, Q.; Qi, Z. A near-infrared fluorescent probe for rapid detection of carbon monoxide in living cells. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2018, 202, 284–289. [Google Scholar] [CrossRef]
  40. Biswas, B.; Venkateswarulu, M.; Sinha, S.; Girdhar, K.; Ghosh, S.; Chatterjee, S.; Mondal, P.; Ghosh, S. Long Range Emissive Water-Soluble Fluorogenic Molecular Platform for Imaging Carbon Monoxide in Live Cells. ACS Appl. Bio Mater. 2019, 2, 5427–5433. [Google Scholar] [CrossRef]
  41. Xu, Z.; Song, A.; Chen, F.W.H. Sensitive and effective imaging of carbon monoxide in living systems with a near-infrared fluorescent probe. RSC Adv. 2021, 11, 32203. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, L.; Xu, J.; Zhang, S.; Chen, H.; Wang, L.; Shen, X.-C.; Chen, H. Rational design of dual ratiometric photoacoustic and fluorescent probe for reliable imaging and quantitative detection of endogenous CO during drug-induced liver injury and repair. Sens. Actuators B Chem. 2022, 367, 132171. [Google Scholar] [CrossRef]
  43. Xu, Z.; Yan, J.; Li, J.; Yao, P.; Tan, J.; Zhang, L. A colorimetric and fluorescent turn-on probe for carbon monoxide and imaging in living cells. Tetrahedron Lett. 2016, 57, 2927–2930. [Google Scholar] [CrossRef] [Green Version]
  44. Shi, G.; Yoon, T.; Cha, S.; Kim, S.; Yousuf, M.; Ahmed, N.; Kim, D.; Kang, H.-W.; Kim, K.S. Turn-on and Turn-off Fluorescent Probes for Carbon Monoxide Detection and Blood Carboxyhemoglobin Determination. ACS Sens. 2018, 3, 1102–1108. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Wang, J.; Li, C.; Chen, Q.; Li, H.; Zhou, L.; Jiang, X.; Shi, M.; Zhang, P.; Jiang, G.; Tang, B.Z. An Easily Available Ratiometric Reaction-based AIE Probe for Carbon Monoxide Light-up Imaging. Anal. Chem. 2019, 91, 9388–9392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Wang, Z.; Zhao, Z.; Liu, C.; Geng, Z.; Duan, Q.; Jia, P.; Li, Z.; Zhu, H.; Zhu, B.; Sheng, W. A long-wavelength ultrasensitive colorimetric fluorescent probe for carbon monoxide detection in living cells. Photochem. Photobiol. Sci. 2019, 18, 1851–1857. [Google Scholar] [CrossRef] [PubMed]
  47. Zheng, Z.; Feng, S.; Gong, S.; Feng, G. Golgi-targetable fluorescent probe for ratiometric imaging of CO in cells and zebrafish. Sens. Actuators B Chem. 2021, 347, 130631. [Google Scholar] [CrossRef]
  48. Michel, B.W.; Lippert, A.R.; Chang, C.J. Reaction-Based Fluorescent Probe for Selective Imaging of Carbon Monoxide in Living Cells Using a Palladium-Mediated Carbonylation. J. Am. Chem. Soc. 2012, 134, 15668–156671. [Google Scholar] [CrossRef]
  49. Li, Y.; Wang, X.; Yang, J.; Xie, X.; Li, M.; Niu, J.; Tong, L.; Tang, B. A New Fluorescent Probe Based on Azobenzene-Cyclopalladium for the Selective Imaging of Endogenous Carbon Monoxide under Hypoxia Conditions. Anal. Chem. 2016, 88, 11154–11159. [Google Scholar] [CrossRef]
  50. Zheng, K.; Lin, W.; Tan, L.; Chen, H.; Cui, H. A unique carbazole–coumarin fused two-photon platform: Development of a robust two-photon fluorescent probe for imaging carbon monoxide in living tissues. Chem. Sci. 2014, 5, 3439–3448. [Google Scholar] [CrossRef]
  51. Liu, K.; Kong, X.; Ma, Y.; Lin, W. Rational design of a robust fluorescent probe for detecting endogenous carbon monoxide in living zebrafish embryos and mouse tissues. Angew. Chem. Int. Ed. Engl. 2017, 56, 13489–13492. [Google Scholar] [CrossRef] [PubMed]
  52. Xu, S.; Liu, H.-W.; Yin, X.; Yuan, L.; Zhang, S.-Y.H.X.-B. A cell membrane-anchored fluorescent probe for monitoring carbon monoxide release from living cells. Chem. Sci. 2018, 10, 320–325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Torre, C.; Toscani, A.; Marín-Hernández, C.; Robson, J.A.; Terencio, M.C.; White, A.J.P.; Alcaraz, M.J.; Wilton-Ely, J.D.E.T.; Martínez-Máñez, R.; Sancenón, F. Ex Vivo Tracking of Endogenous CO with a Ruthenium(II) Complex. J. Am. Chem. Soc. 2017, 139, 18484–18487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Sun, M.; Yu, H.; Zhang, K.; Wang, S.; Hayat, T.; Alsaedi, A.; Huang, D. A Palladacycle based Fluorescence Turn-On Probe for Sensitive Detection of Carbon Monoxide. ACS Sens. 2018, 3, 285–289. [Google Scholar] [CrossRef] [PubMed]
  55. Tikum, A.F.; Lim, W.; Fortibui, M.M.; Lee, S.; Park, S.; Kim, J. Palladium Probe Consisting of Naphthalimide and Ethylenediamine for Selective Turn-On Sensing of CO and Cell Imaging. Inorg Chem. 2021, 60, 7108–7114. [Google Scholar] [CrossRef] [PubMed]
  56. Zong, P.; Chen, Y.; Liu, K.; Bi, J.; Ren, M.; Wang, S.; Kong, F. Construction of a unique two-photon fluorescent probe and the application for endogenous CO detection in live organisms. Talanta 2022, 240, 123194. [Google Scholar] [CrossRef] [PubMed]
  57. Das, B.; Lohar, S.; Patra, A.; Ahmmed, E.; Mondal, S.; Bhakta, J.N.; Dhara, K.; Chattopadhyay, P. Naphthalimide-based fluorescence “turn-on” chemosensor for highly selective detection of carbon monoxide: Imaging applications in live cell. New J. Chem. 2018, 42, 13497–13502. [Google Scholar] [CrossRef]
  58. Dhara, K.; Lohar, S.; Patra, A.; Roy, P.; Saha, S.K.; Sadhukhan, G.C.; Chattopadhyay, P. A New Lysosome Targetable Turn-On Fluorogenic Probe for Carbon Monoxide Imaging in Living Cells. Anal. Chem. 2018, 90, 2933–2938. [Google Scholar] [CrossRef]
  59. Sarkar, A.; Fouzder, C.; Chakraborty, S.; Ahmmed, E.; Kundu, R.; Dam, S.; Chattopadhyay, P.; Dhara, K. A Nuclear-Localized Naphthalimide Based Fluorescent Light-Up Probe for Selective Detection of Carbon Monoxide in Living Cells. Chem. Res. Toxicol. 2020, 33, 651–656. [Google Scholar] [CrossRef]
  60. Tang, Z.; Song, B.; Ma, H.; Luo, T.; Guo, L.; Yuan, J. A Mitochondria-Targetable Ratiometric Time-Gated Luminescence Probe for Carbon Monoxide Based on Lanthanide Complexes. Anal. Chem. 2019, 91, 2939–2946. [Google Scholar] [CrossRef]
  61. Wang, Z.; Liu, C.; Wang, X.; Duan, Q.; Jia, P.; Zhu, H.; Li, Z.; Zhang, X.; Ren, X.; Zhu, B.; et al. A metal-free near-infrared fluorescent probe for tracking the glucoseinduced fluctuations of carbon monoxide in living cells and zebrafish. Sens. Actuators B Chem. 2019, 291, 329–336. [Google Scholar] [CrossRef]
  62. Li, Z.; Yu, C.; Chen, Y.; Zhuang, Z.; Tian, B.; Liu, C.; Jia, P.; Zhu, H.; Yu, Y.; Zhang, X.; et al. A novel Pd2+-free highly selective and ultrasensitive fluorescent probe for detecting CO-releasing molecule-2 in live cells and zebrafish. Dyes Pigments 2020, 174, 108040. [Google Scholar] [CrossRef]
  63. Feng, W.; Feng, S.; Feng, G. A fluorescent ESIPT probe for imaging CO releasing melecule-3 (CORM-3) in living systems. Anal. Chem. 2019, 91, 8602–8606. [Google Scholar] [CrossRef] [PubMed]
  64. Zhou, E.; Gong, S.; Xia, Q.; Feng, G. In Vivo Imaging and Tracking Carbon Monoxide-Releasing Molecule-3 with an NIR Fluorescent Probe. ACS Sens. 2021, 6, 1312–1320. [Google Scholar] [CrossRef]
  65. Zhang, S.; Mu, X.; Zhu, J.; Yan, L. A metal-free coumarin-based fluorescent probe for the turn-on monitoring of carbon monoxide in an aqueous solution and living cells. Analyst 2021, 146, 1289–1294. [Google Scholar] [CrossRef] [PubMed]
  66. Tang, X.; Li, Z.; Li, Y.; Zhang, Y.; Wang, Q.; Zhang, C. A new metal-free near-infrared fluorescent probe based on nitrofuran for the detection and bioimaging of carbon monoxide releasing molecule-2 in vivo. Analyst 2022, 147, 268–273. [Google Scholar] [CrossRef] [PubMed]
  67. Li, S.; Yang, K.; Zeng, J.; Ding, Y.; Cheng, D.; He, L. Golgi-Targeting Fluorescent Probe for Monitoring CO-Releasing Molecule-3 In Vitro and In Vivo. ACS Omega 2022, 7, 9929–9935. [Google Scholar] [CrossRef] [PubMed]
  68. Alhalaby, H.; Principe, M.; Zaraket, H.; Vaiano, P.; Aliberti, A.; Quero, G.; Crescitelli, A.; Meo, V.D.; Esposito, E.; Consales, M.; et al. Design and Optimization of All-Dielectric Fluorescence Enhancing Metasurfaces: Towards Advanced Metasurface-Assisted Optrodes. Biosensors 2022, 12, 264. [Google Scholar] [CrossRef]
  69. Qu, J.-H.; Peeters, B.; Delport, F.; Vanhoorelbeke, K.; Lammertyn, J.; Spasic, D. Gold nanoparticle enhanced multiplexed biosensing on a fiber optic surface plasmon resonance probe. Biosens. Bioelectron. 2021, 192, 113549. [Google Scholar] [CrossRef]
  70. Liu, Y.; Guang, J.; Liu, C.; Bi, S.; Liu, Q.; Li, P.; Zhang, N.; Chen, S.; Yuan, H.; Zhou, D.; et al. Simple and Low-Cost Plasmonic Fiber-Optic Probe as SERS and Biosensing Platform. Adv. Opt. Mater. 2019, 7, 1900337. [Google Scholar] [CrossRef]
Molecules 27 08842 sch001 550

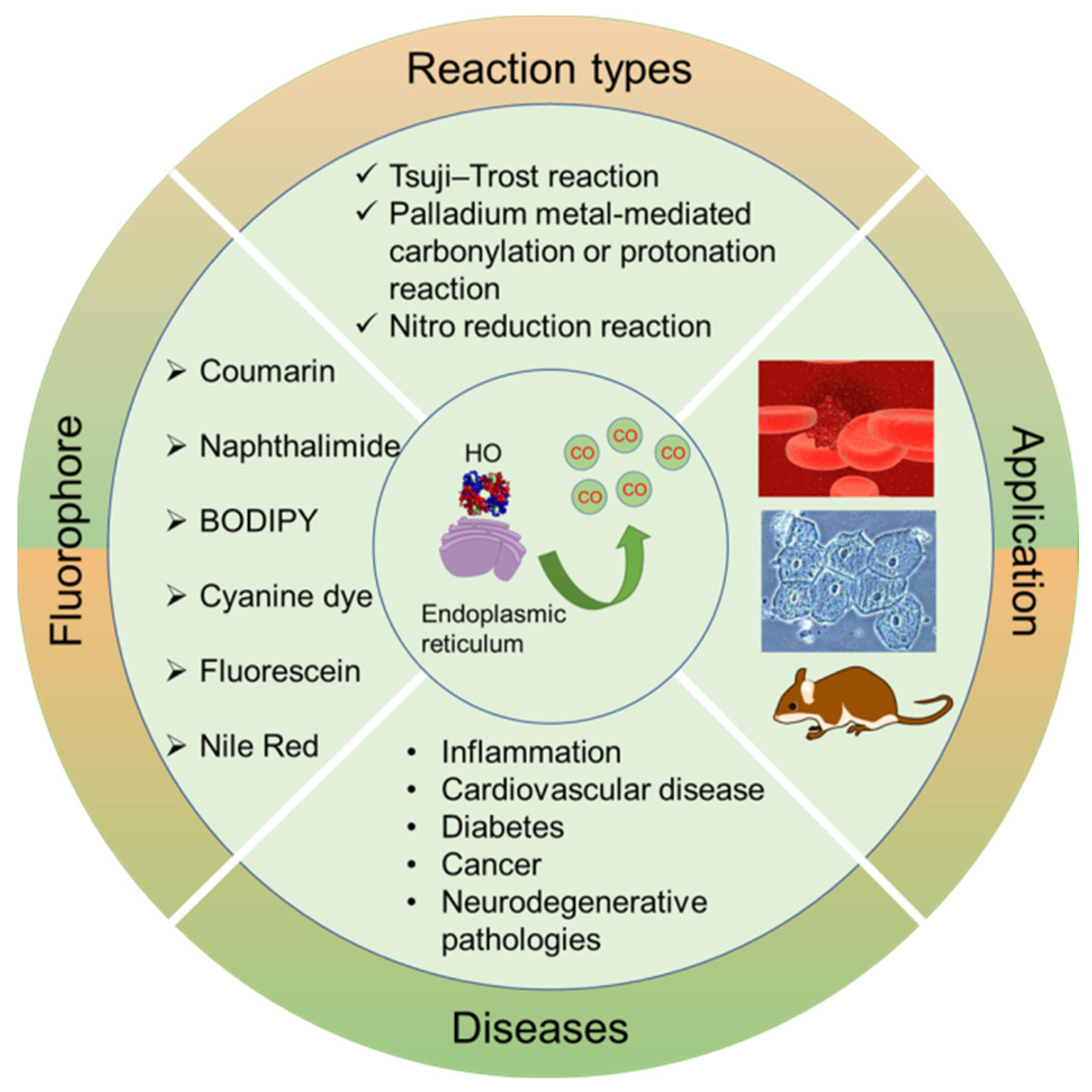

Scheme 1. The schematic representation of the association of CO with the occurrence and development of certain diseases, and the construction, response mechanisms, and applications of its fluorescent probes.
Scheme 1. The schematic representation of the association of CO with the occurrence and development of certain diseases, and the construction, response mechanisms, and applications of its fluorescent probes.
Molecules 27 08842 sch001
Molecules 27 08842 g001 550

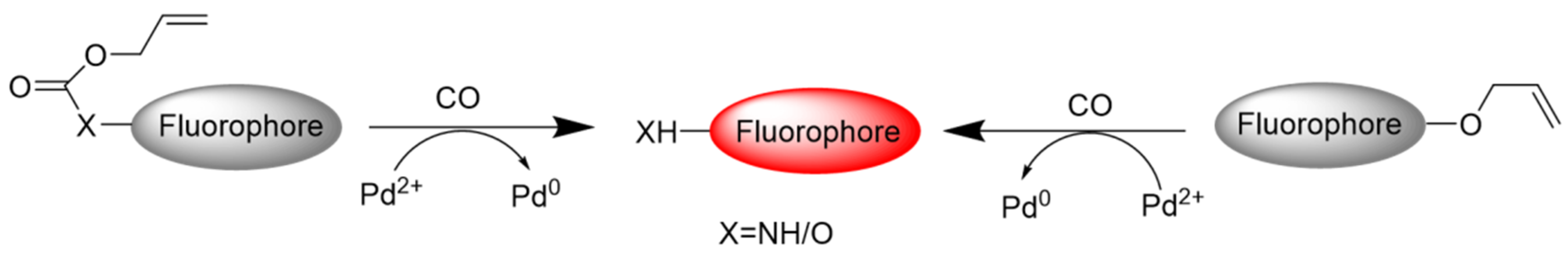

Figure 1. The mechanism diagram of Pd0-mediated Tsuji-Trost reaction.
Figure 1. The mechanism diagram of Pd0-mediated Tsuji-Trost reaction.
Molecules 27 08842 g001
Molecules 27 08842 g002 550

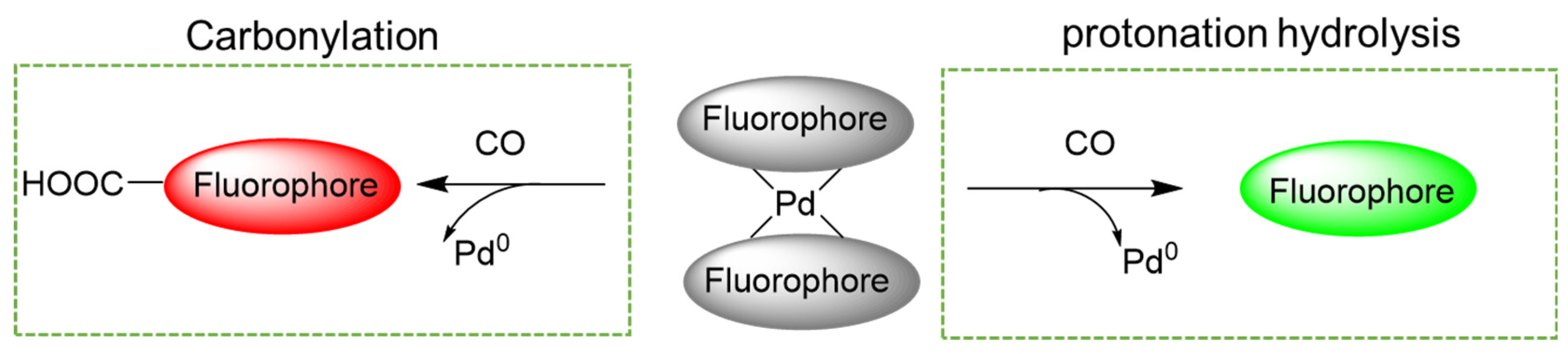

Figure 2. The mechanism diagram of carbonylation or protonation hydrolysis of cyclic palladium metal complexes.
Figure 2. The mechanism diagram of carbonylation or protonation hydrolysis of cyclic palladium metal complexes.
Molecules 27 08842 g002
Molecules 27 08842 g003 550

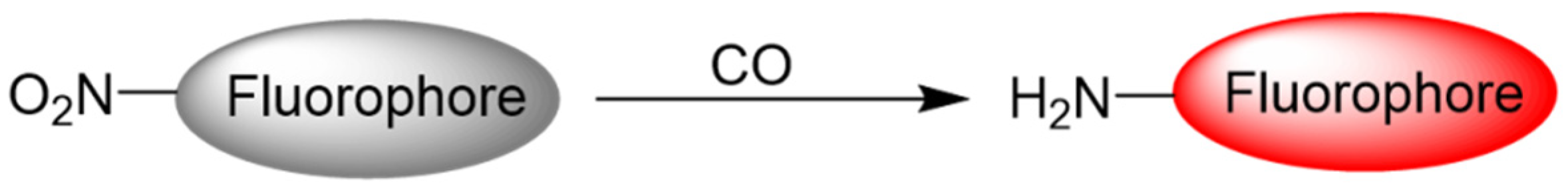

Figure 3. The mechanism diagram of reduction in aromatic nitro to amine reaction.
Figure 3. The mechanism diagram of reduction in aromatic nitro to amine reaction.
Molecules 27 08842 g003
Molecules 27 08842 g004 550

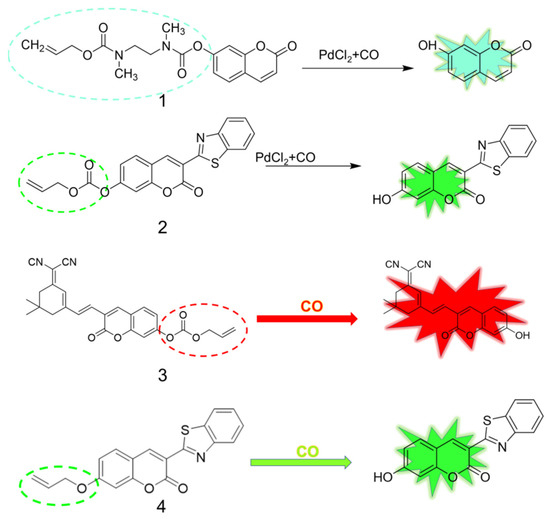

Figure 4. Some CO fluorescent probes constructed on the basis of coumarin fluorophores and their reaction detection mechanisms.
Figure 4. Some CO fluorescent probes constructed on the basis of coumarin fluorophores and their reaction detection mechanisms.
Molecules 27 08842 g004
Molecules 27 08842 g005 550

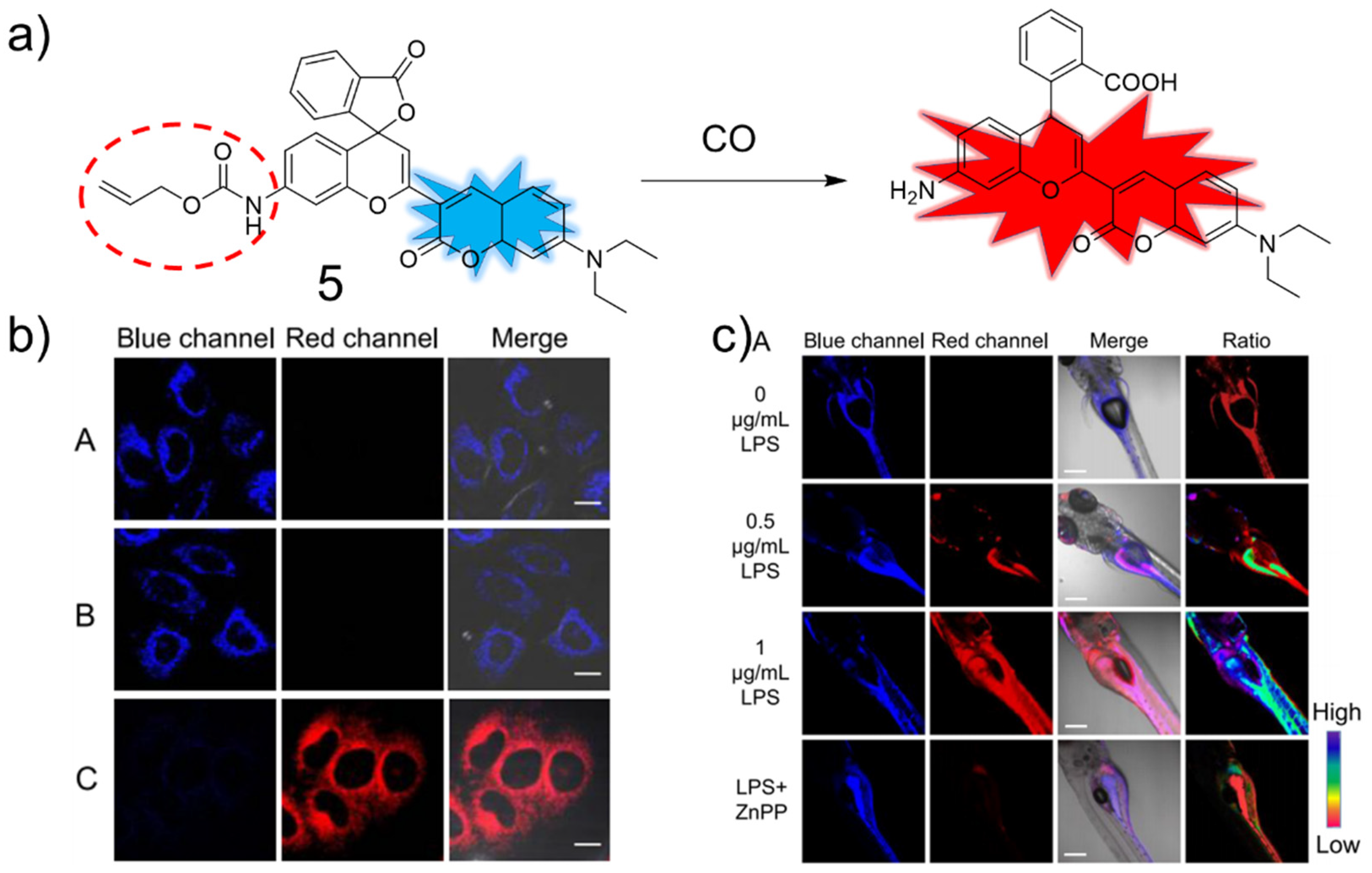

Figure 5. (a). The chemical structure of probe 5 and the response mechanism toward CO. (b,c) The fluorescent images of 5 for detecting endogenous CO in HepG2 cells and zebrafish. Copyright (2021) Elsevier Ltd. [22].
Figure 5. (a). The chemical structure of probe 5 and the response mechanism toward CO. (b,c) The fluorescent images of 5 for detecting endogenous CO in HepG2 cells and zebrafish. Copyright (2021) Elsevier Ltd. [22].
Molecules 27 08842 g005
Molecules 27 08842 g006 550
Figure 6. Some CO fluorescent probes constructed on the basis of naphthalimide fluorophores and their reaction detection mechanisms.
Figure 6. Some CO fluorescent probes constructed on the basis of naphthalimide fluorophores and their reaction detection mechanisms.
Molecules 27 08842 g006
Molecules 27 08842 g007 550
Figure 7. (a). The chemical structure of probe 10 and the response mechanism towards CO. (b,c). The fluorescence imaging of 10 to detect exogenous CO in different cells and zebrafish. Copyright (2021) Elsevier Ltd. [27].
Figure 7. (a). The chemical structure of probe 10 and the response mechanism towards CO. (b,c). The fluorescence imaging of 10 to detect exogenous CO in different cells and zebrafish. Copyright (2021) Elsevier Ltd. [27].
Molecules 27 08842 g007
Molecules 27 08842 g008 550
Figure 8. The chemical structures of some CO fluorescent probes constructed on the basis of xanthene fluorophore and the response mechanism toward CO.
Figure 8. The chemical structures of some CO fluorescent probes constructed on the basis of xanthene fluorophore and the response mechanism toward CO.
Molecules 27 08842 g008
Molecules 27 08842 g009 550

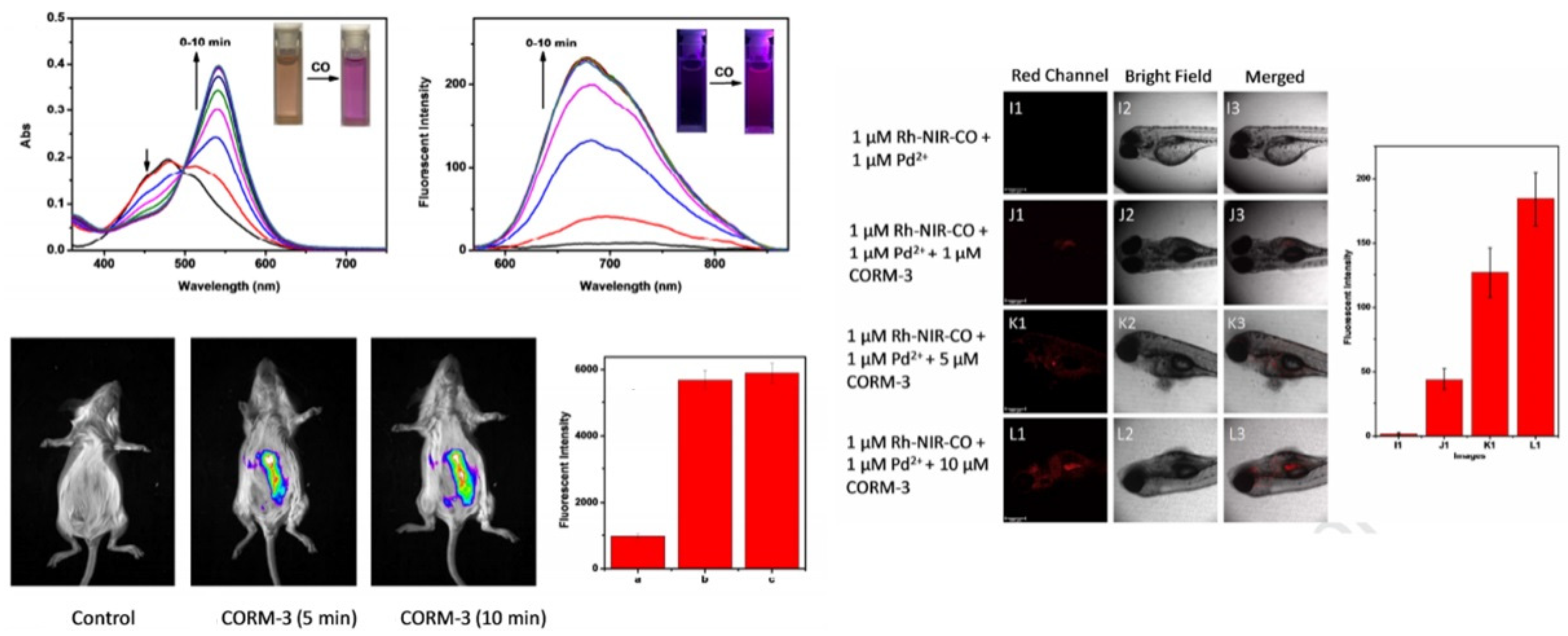

Figure 9. The spectra of probe 15 and its fluorescence imaging of CO in mice and zebrafish, respectively. Copyright (2020) Elsevier Ltd. [31].
Figure 9. The spectra of probe 15 and its fluorescence imaging of CO in mice and zebrafish, respectively. Copyright (2020) Elsevier Ltd. [31].
Molecules 27 08842 g009
Molecules 27 08842 g010 550
Figure 10. The chemical structures of some NIR CO fluorescent probes constructed with carbonyl propylene ester as the response group.
Figure 10. The chemical structures of some NIR CO fluorescent probes constructed with carbonyl propylene ester as the response group.
Molecules 27 08842 g010
Molecules 27 08842 g011 550
Figure 11. (A) A scheme of the FL/PA dual-mode probe 27. (B,C) APAP-induced endogenous CO fluorescence imaging in different cells and living mice. (D) PA images of living mice. Copyright (2022) Elsevier Ltd. [42]. **** p < 0.0001.
Figure 11. (A) A scheme of the FL/PA dual-mode probe 27. (B,C) APAP-induced endogenous CO fluorescence imaging in different cells and living mice. (D) PA images of living mice. Copyright (2022) Elsevier Ltd. [42]. **** p < 0.0001.
Molecules 27 08842 g011
Molecules 27 08842 g012 550
Figure 12. The chemical structures of other CO fluorescent probes.
Figure 12. The chemical structures of other CO fluorescent probes.
Molecules 27 08842 g012
Molecules 27 08842 g013 550
Figure 13. The chemical structures of some CO fluorescent probes constructed based on palladium metal-mediated carbonylation or protonation hydrolysis reactions.
Figure 13. The chemical structures of some CO fluorescent probes constructed based on palladium metal-mediated carbonylation or protonation hydrolysis reactions.
Molecules 27 08842 g013
Molecules 27 08842 g014 550
Figure 14. (A). The principle of probe 36 for the detection of CO. (B–D). Fluorescence imaging of probes to detect exogenous CO in cells, zebrafish and mice. Copyright (2017) Angewandte Chemie [47].
Figure 14. (A). The principle of probe 36 for the detection of CO. (B–D). Fluorescence imaging of probes to detect exogenous CO in cells, zebrafish and mice. Copyright (2017) Angewandte Chemie [47].
Molecules 27 08842 g014
Molecules 27 08842 g015 550
Figure 15. (A). The structure of probe 38 and its principle of detecting CO. (B) Co-localization experiments on cell membranes. Copyright (2018) Royal Society of Chemistry [48].
Figure 15. (A). The structure of probe 38 and its principle of detecting CO. (B) Co-localization experiments on cell membranes. Copyright (2018) Royal Society of Chemistry [48].
Molecules 27 08842 g015
Molecules 27 08842 g016 550
Figure 16. Other fluorescent probes for the detection of CO and their sensing mechanisms based on palladium metal-mediated carbonylation or protonation hydrolysis reactions.
Figure 16. Other fluorescent probes for the detection of CO and their sensing mechanisms based on palladium metal-mediated carbonylation or protonation hydrolysis reactions.
Molecules 27 08842 g016
Molecules 27 08842 g017 550
Figure 17. A number of fluorescent probes for the detection of CO and nitro as a recognition group.
Figure 17. A number of fluorescent probes for the detection of CO and nitro as a recognition group.
Molecules 27 08842 g017
Molecules 27 08842 g018 550
Figure 18. (a). The structure of probe 51 and its reaction mechanism of detecting CO. (b). Fluorescent images of probe for imaging CO in mouse liver tissue. (c) Fluorescence imaging of the probe in Daphnia magna. Copyright (2019) American Chemical Society [56].
Figure 18. (a). The structure of probe 51 and its reaction mechanism of detecting CO. (b). Fluorescent images of probe for imaging CO in mouse liver tissue. (c) Fluorescence imaging of the probe in Daphnia magna. Copyright (2019) American Chemical Society [56].
Molecules 27 08842 g018
Molecules 27 08842 g019 550
Figure 19. Some other fluorescent probes for the detection of CO and their sensing mechanisms based on nitro.
Figure 19. Some other fluorescent probes for the detection of CO and their sensing mechanisms based on nitro.
Molecules 27 08842 g019
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Xie, C.; Luo, K.; Tan, L.; Yang, Q.; Zhao, X.; Zhou, L. A Review for In Vitro and In Vivo Detection and Imaging of Gaseous Signal Molecule Carbon Monoxide by Fluorescent Probes. Molecules 2022, 27, 8842. https://doi.org/10.3390/molecules27248842

AMA Style

Xie C, Luo K, Tan L, Yang Q, Zhao X, Zhou L. A Review for In Vitro and In Vivo Detection and Imaging of Gaseous Signal Molecule Carbon Monoxide by Fluorescent Probes. Molecules. 2022; 27(24):8842. https://doi.org/10.3390/molecules27248842

Chicago/Turabian Style

Xie, Can, Kun Luo, Libin Tan, Qiaomei Yang, Xiongjie Zhao, and Liyi Zhou. 2022. "A Review for In Vitro and In Vivo Detection and Imaging of Gaseous Signal Molecule Carbon Monoxide by Fluorescent Probes" Molecules 27, no. 24: 8842. https://doi.org/10.3390/molecules27248842

Article Metrics

Back to TopTop
