Article

Low-Cost and Environmental-Friendly Route for Synthesizing Nano-Rod Aluminosilicate MAZ Zeolite

by
Fen Zhang
1,
Wei Chen
1,
Lingling Wang
1,
Weiguo Song
2 and
Yin Hu
1,*
1
Institute of Applied Chemistry, Jiangxi Academy of Sciences, Nanchang 330096, China
2
Institute of Chemistry, Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7930; https://doi.org/10.3390/molecules27227930
Submission received: 17 October 2022 / Revised: 10 November 2022 / Accepted: 14 November 2022 / Published: 16 November 2022
(This article belongs to the Special Issue Advances in Nanocomposites: Preparation, Characterization, Properties and Applications)
Browse Figures
Versions Notes

Abstract

:
Preparation of nano-rod aluminosilicate Mazzit (MAZ) zeolite under low-cost and environmental-friendly route is attractive, but still challenging. Herein, we report a green route for synthesizing nano-rod MAZ zeolite (MAZ-N) using low-cost and environmental-friendly choline chloride as template. Various characterizations including powder X-ray diffraction (XRD), scanning electron microscope (SEM), N2 sorption, and thermogravimetry-differential thermal analysis (TG-DTA) show that MAZ-N samples have good crystallinity and uniform porous structures. Furthermore, the crystallization process and impact of synthesis conditions of MAZ-N samples have been investigated in detail. These results suggest the potential applications of MAZ-N zeolites as supporting catalyst compounds in industrial processes.

1. Introduction

As one of the most important microporous materials, zeolites have been widely applied in industrial processes for the production of chemicals and fuels due to their large internal surface area, high hydrothermal stability, unique channel structure, and superior solid acidity [1,2,3,4,5,6,7,8,9,10,11,12]. The chemical composition and pore structure of zeolites are significant, but also the control of their morphology has great effect on their performance in catalytic applications [13,14,15,16,17,18,19,20]. Additionally, the improved mass diffusion ability of nano-rod zeolites would provide plenty of potential opportunities for the further application in catalysis, adsorption and environmental protection.
MAZ zeolite consists of gmelinite cages that are linked in columns parallel to the c-axis to build main pores with 12-membered rings [21]. Due to this unique structure, MAZ zeolites show excellent catalytic performance in the methane to methanol [22,23], alkylation of aromatics [24,25], oil cracking [26], hydrocracking [27], and in the isomerization of paraffin and aromatics [28]. There are several MAZ samples that have been successfully synthesized with costly organic template. In the conventional synthesis of zeolite omega, the tetramethylammonium cation (TMA+) is used as the organic structure direct agent (OSDA). Both Martins group and Figueras group fabricated MAZ samples using tetramethylammonium hydroxide, which is a classical organic template of MAZ synthesis [29,30]. TMA+ may be occluded in the gmelinite cages during omega crystal growth process, which is supposed to be powerful OSDA during the zeolite synthesis [21]. Zones group prepared MAZ zeolites in the presence of dioxane as an organic template [31]. Furthermore, Dong group obtained MAZ zeolites using piperazine at 150 °C for 4 d [32]. However, the above organic templates are expensive, toxic and environmentally unfriendly, which would hinder the further application of MAZ zeolites in petrochemical processes. Thus, the development of a low-cost and environmental-friendly route for synthesizing a nano-rod aluminosilicate MAZ zeolite is still imperative and challenging.
Here, we focus on choline, a low-cost, nontoxic and biodegradable template. Choline is a water-soluble vitamin-like essential nutrient which refers to quaternary ammonium salt containing N,N,N-trimethylethanolammonium cation [33]. Moreover, choline has been successfully applied in synthesizing several zeolite crystals as a structure-directing agent [34,35]. In this study, we reported a green route for synthesizing nano-rod MAZ zeolite using low-cost and environmental-friendly choline chloride as template. The zeolite product obtained had good crystallinity and uniform nano-rod morphology. Moreover, we systematically investigated the crystallization of MAZ zeolite on various synthesis conditions and enhanced the comprehension of crystallization process of the nano-rod such as MAZ zeolite. The combination of low cost and high mass transfer ability presents good opportunities for industrial applications of MAZ zeolite in the future.

2. Results and Discussion

Figure 1A shows the XRD pattern of the as-synthesized MAZ-N zeolite, which provides a series of characteristic peaks associated with that of the MAZ-C zeolite (Figure S1). These peaks basically remain after calcination, showing good thermal stability of the MAZ-N zeolite. Figure 1B displays the SEM image of the as-synthesized MAZ-N zeolite, showing the uniform assembled nano-rod morphology, which is very different from that of the MAZ-C zeolite (Figure S2). These nanorods are uniform with widths of ca. 200 nm and lengths in the range of ca. 3–5 μm. This result suggests the high quality of MAZ-N zeolite with nano-rod morphology could be successfully obtained, in good agreement with the result from XRD pattern in Figure 1A.
Figure 2 shows the N2 sorption isotherms of H-MAZ-N zeolite, indicating steep increases in the adsorbed volumes at a relative pressure (10−6 < P/P0 < 0.01), which is due to the filling of micropores. In addition, the hysteresis loop appeared to be at the relative pressure range of 0.5–0.95. The BET surface area and micropore volume of the MAZ-N zeolite are measured at about 173 m2/g and 0.05 cm3/g, which are similar to those of the conventional MAZ zeolite reported in the bibliography [36].
Figure 3 displays the TG-DTA curves of the as-synthesized MAZ-N zeolite in the temperature range from 25 to 800 °C. The weight loss associated with the adsorbed water appears to be below 250 °C, while the weight loss assigned to the combustion of organic template shows that the temperature ranged from 400 to 630 °C. After 700 °C, no obvious weight loss was observed. The DTA curve exhibits a main exothermic peak within the temperature range of 400–630 °C accompanied by the weight loss at approximately 3.55% assigned to the combustion of organic template in the micropores of MAZ-N zeolite. A brief summary of these characterizations confirms that MAZ-N has a good crystallinity and nano-rod morphology. The low-cost and environmental-friendly template could be promising for large batch production of the high-effective MAZ zeolite in industrial processes.
As shown in Table 1 and Figure 4, Figure 5 and Figure 6, we systematically investigated the crystallization of MAZ zeolite at 150 °C in the presence of low-cost and environmental-friendly choline chloride on various synthesis conditions. When the Na2O/SiO2 molar ratio in the starting gel is adjusted from 0.187 to 0.250, products with amorphous phases, pure MAZ, a mixture of MAZ with the analcine (ANA) structure are elicited (Run 1–5, Table 1, Figure 4). The Na2O/SiO2 molar ratio for synthesizing a pure MAZ structure ranges from 0.203 to 0.219 (Run 2–3, Table 1).
Furthermore, when the SiO2/Al2O3 molar ratio in the starting gel is distributed in the range of 10–18, all of the products are pure MAZ zeolites (Run 6–8, Table 1, Figure 5). When the SiO2/Al2O3 molar ratio in the starting gel is higher than 18, the products contain MAZ zeolite and ANA structure.
In addition, the template/SiO2 molar ratio in the starting gel is vital and carefully studied. We found that the relatively low template/SiO2 molar ratios (below 0.382) in the starting gel would result in a mixture of MAZ with the amorphous phase (Run 9, Table 1, Figure 6). When the template/SiO2 molar ratio comes up to 0.446, a pure MAZ zeolite with good crystallinity is obtained (Run 9, Table 1, Figure 6). The relatively high template/SiO2 molar ratio has no effect in the crystallization of MAZ zeolite (Run 10–12, Table 1, Figure 6).
After the systematic synthesis, aluminosilicate gel for crystallization of nano-rod MAZ zeolites at 150 °C for 1 day with molar ratio of 3.06 Na2O/Al2O3/14 SiO2/6.25 Choline Chloride/164 H2O is appropriate.
Figure 7 displays the crystallization process of the MAZ-N zeolite detected by XRD and SEM techniques. Before crystallization, the XRD pattern shows amorphous phase in the starting aluminosilicate gel (Figure 7a), which is associated with the basically amorphous morphology in the SEM image (Figure 8a). Prolonging the crystallization time from 12 to 15 h causes the peak intensities assigned to MAZ zeolite crystals to become higher (Figure 7b–d). At the same time, several zeolite crystals could be found in the corresponding SEM images (Figure 8b). Further prolonging the crystallization time from 16.5 to 22.5 h causes the peak intensities to continue improving (Figure 7e–g). Correspondingly, much more MAZ zeolite crystals with nano-rod morphology could be observed in the SEM images (Figure 8c–f). When the crystallization time was longer than 24 h, there was no obvious change on peak intensities tested by XRD techniques. In addition, the SEM image (Figure 1B) presents the perfect MAZ zeolite crystals with nano-rod morphology after crystallized for 24 h, suggesting the complete crystallization of the MAZ zeolite. Figure 9 shows the dependence of the MAZ zeolite crystallinity on crystallization time, which is consistent with the S-shaped curve of crystal growth.

3. Materials and Methods

3.1. Materials

The following chemicals were utilized: sodium hydroxide (NaOH, AR, 96%, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), sodium aluminate (NaAlO2, 36.6% Na2O, and 43.3% Al2O3, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), silica sol (LUDOX HS-40, 40% SiO2 in water, Sigma-Aldrich, Shanghai, China), choline chloride (C5H14ClNO, AR, 98%, Aladdin, Shanghai, China), tetramethylammonium hydroxide (TMAOH, 25% in water, Aladdin, Shanghai, China), and ammonium nitrate (NH4NO3, AR, 99%, Beijing Chemical Reagent Co., Ltd., Beijing, China) were employed without further purification.

3.1.1. Synthesis of MAZ Zeolite

MAZ zeolite with nano-rod morphology was hydrothermally synthesized at the temperature of 150 °C for 1 day with 3.06 Na2O/Al2O3/14 SiO2/6.25 Choline Chloride/164 H2O molar ratios of initial synthesis gels in the presence of choline chloride. As a typical run, 0.53 g sodium hydroxide was added to 6.8 g deionized H2O, followed by introducing 0.94 g sodium aluminate. After stirring for 1 h, 6.0 g silica sol was added to the mixture dropwise, followed by the last addition of 3.5 g choline chloride when the mixture turned into clear solution. After being stirred at room temperature for 2 h, the final mixture was transformed into an autoclave to crystallize at 150 °C for 1 d. After filtration, wash with deionized H2O, air drying, and calcined to remove the organic template, the MAZ zeolite product was collected. The H-form of MAZ sample was prepared by triple ion-exchange with a solution of 1 mol/L NH4NO3 at room temperature for 2 h and calcination at 500 °C for 4 h, designed as H-MAZ-N zeolite.

3.1.2. Synthesis of Conventional MAZ Zeolite

Conventional MAZ zeolite was hydrothermally synthesized at the temperature of 100 °C for 7 days with 2.4 Na2O/Al2O3/10 SiO2/0.24 TMAOH/1100 H2O molar ratios of initial synthesis gels according to the previously reported procedure. The product was collected after filtration, washed with deionized H2O, air drying and calcined to remove the organic template. The H-form of the sample was prepared by triple ion-exchange with a solution of 1 mol/L NH4NO3 at room temperature for 2 h and calcination at 500 °C for 4 h, designed as H-MAZ-C zeolite.

3.2. Characterization

Powder X-ray diffraction (XRD) (Rigaku, Tokyo, Japan) data were measured at room temperature with a Rigaku Ultimate VI X-ray diffractometer (40 kV, 40 mA) using CuKα1 radiation (λ = 1.5406 Å). Scanning electron microscopy (SEM) (Hitachi, Tokyo, Japan) experiments were acquired with Hitachi SU-1510 and SU-8010 electron microscope. Nitrogen sorption experiments were performed on a Micromeritics ASAP 2460 M (Micromeritics Instrument Corporation, Atlanta, GA, USA) and Tristar system apparatus at −196 °C. The micropore volume and specific surface area were calculated using the t-plot and BET methods, respectively.

4. Conclusions

In summary, we developed a low-cost and environmental-friendly route for preparing nano-rod aluminosilicate MAZ zeolite. The obtained MAZ zeolites have advantages of high crystallinity, uniform morphology of a nano-rod, high BET surface area, and good mass transfer ability. Moreover, the crystallization process of MAZ-N zeolites has been investigated in detail, which is consistent with the rule of crystal growth. We hold the opinion that this sustainable green route might offer good opportunities for practical applications of MAZ zeolites as high-efficient catalysts in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27227930/s1, Figure S1: XRD pattern of the as-synthesized MAZ-C zeolite; Figure S2: SEM image of the as-synthesized MAZ-C zeolite.

Author Contributions

Conceptualization, F.Z. and Y.H.; investigation, F.Z., W.C. and L.W.; writing—original draft preparation, F.Z.; writing—review and editing, W.S. and Y.H.; supervision, Y.H.; funding acquisition, F.Z., W.S. and Y.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22202092, 21862008), the Jiangxi Provincial Natural Science Foundation (20202ACB203003, 20204BCJ23008), the Science and Technology Program of Jiangxi Academy of Sciences (2021YSBG22027).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on the request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Davis, M.E. Ordered porous materials for emerging applications. Nature 2002, 417, 813–821. [Google Scholar] [CrossRef] [PubMed]
  2. Ma, S.Q.; Sun, D.F.; Wang, X.S.; Zhou, H.C. A mesh-adjustable molecular sieve for general use in gas separation. Angew. Chem. Int. Ed. 2007, 46, 2458–2462. [Google Scholar] [CrossRef] [PubMed]
  3. Gies, H.; Marler, B. The structure-controlling role of organic templates for the synthesis of porosils in the system SiO2/template/H2O. Zeolite 1992, 12, 42–49. [Google Scholar] [CrossRef]
  4. Dusselier, M.; Davis, M.E. Small-Pore Zeolites: Synthesis and Catalysis. Chem. Rev. 2018, 118, 5265–5329. [Google Scholar] [CrossRef] [PubMed]
  5. Shin, J.; Camblor, M.A.; Woo, H.C.; Miller, S.R.; Wright, P.A.; Hong, S.B. PST-1: A synthetic small-pore zeolite that selectively adsorbs H2. Angew. Chem. Int. Ed. 2009, 48, 6647–6650. [Google Scholar] [CrossRef] [Green Version]
  6. Davis, M.E.; Lobo, R.F. Zeolite and Molecular Sieve Synthesis. Chem. Mater. 1992, 4, 756–768. [Google Scholar] [CrossRef]
  7. Cundy, C.S.; Cox, P.A. The hydrothermal synthesis of zeolites: History and development from the earliest days to the present time. Chem. Rev. 2003, 103, 663–702. [Google Scholar] [CrossRef]
  8. Zhang, X.Y.; Liu, D.X.; Xu, D.D.; Asahina, S.; Cychosz, K.A.; Agrawal, K.V.; Al Wahedi, Y.; Bhan, A.; Al Hashimi, S.; Terasaki, O.; et al. Synthesis of self-pillared zeolite nanosheets by repetitive branching. Science 2012, 336, 1684–1687. [Google Scholar] [CrossRef] [Green Version]
  9. Lee, J.H.; Park, M.B.; Lee, J.K.; Min, H.K.; Song, M.K.; Hong, S.B. Synthesis and characterization of ERI-type UZM-12 zeolites and their methanol-to-olefin performance. J. Am. Chem. Soc. 2010, 132, 12971–12982. [Google Scholar] [CrossRef]
  10. Xiao, F.-S.; Meng, X. Green chemistry and sustainable technology. In Zeolites in Sustainable Chemistry: Synthesis, Characterization and Catalytic Applications; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
  11. Zou, X.; Conradsson, T.; Klingstedt, M.; Dadachov, M.S.; O’Keeffe, M. A mesoporous germanium oxide with crystalline pore walls and its chiral derivative. Nature 2005, 437, 716–719. [Google Scholar] [CrossRef]
  12. Song, W.; Justice, R.E.; Jones, C.A.; Grassian, V.H.; Larsen, S.C. Size-dependent properties of nanocrystalline silicalite synthesized with systematically varied crystal sizes. Langmuir 2004, 20, 4696–4702. [Google Scholar] [CrossRef] [PubMed]
  13. Larsen, S.C. Nanocrystalline zeolites and zeolite structures: Synthesis, characterization, and applications. J. Phys. Chem. C 2007, 111, 18464–18474. [Google Scholar] [CrossRef]
  14. Chen, W.; Fan, Z.L.; Pan, X.L.; Bao, X.H. Effect of confinement in carbon nanotubes on the activity of Fischer-Tropsch iron catalyst. J. Am. Chem. Soc. 2008, 130, 9414–9419. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, F.; Liu, Y.; Sun, Q.; Meng, X.J.; Zou, X.D.; Zheng, A.M.; Wang, L.; Xiao, F.-S. Design and preparation of efficient hydroisomerization catalysts by the formation of stable SAPO-11 molecular sieve nanosheets with 10–20 nm thickness and partially blocked acidic sites. Chem. Commun. 2017, 53, 4942–4945. [Google Scholar] [CrossRef] [PubMed]
  16. Ma, Y.; Tang, X.M.; Hu, J.Y.; Ma, Y.H.; Chen, W.; Liu, Z.Q.; Han, S.C.; Xu, C.; Wu, Q.M.; Zheng, A.M.; et al. Design of a Small Organic Template for the Synthesis of Self-Pillared Pentasil Zeolite Nanosheets. J. Am. Chem. Soc. 2022, 144, 6270–6277. [Google Scholar] [CrossRef]
  17. Guo, X.K.; Xu, M.X.; She, M.Y.; Zhu, Y.; Shi, T.T.; Chen, Z.X.; Peng, L.M.; Guo, X.F.; Lin, M.; Ding, W.P. Morphology-Reserved Synthesis of Discrete Nanosheets of CuO@SAPO-34 and Pore Mouth Catalysis for One-Pot Oxidation of Cyclohexane. Angew. Chem. In. Ed. 2020, 132, 2628–2633. [Google Scholar] [CrossRef]
  18. Li, S.; Li, J.; Dong, M.; Fan, S.; Zhao, T.; Wang, J.; Fan, W. Strategies to control zeolite particle morphology. Chem. Soc. Rev. 2019, 48, 885–907. [Google Scholar] [CrossRef]
  19. Lu, K.; Huang, J.; Ren, L.; Li, C.; Guan, Y.J.; Hu, B.W.; Xu, H.; Ma, Y.H.; Wu, P. High Ethylene Selectivity in Methanol-to-Olefin (MTO) Reaction over MOR-Zeolite Nanosheets. Angew. Chem. In. Ed. 2020, 59, 6258–6262. [Google Scholar] [CrossRef]
  20. Wang, X.Y.; Ma, Y.; Wu, Q.M.; Wen, Y.Q.; Xiao, F.-S. Zeolite nanosheets for catalysis. Chem. Soc. Rev. 2022, 51, 2431–2443. [Google Scholar] [CrossRef]
  21. Martucci, A.; Alberti, A.; Guzman-Castillo, M.L.; Di Renzo, F.; Fajula, F. Crystal structure of zeolite omega, the synthetic counterpart of the natural zeolite mazzite. Microporous Mesoporous Mater. 2003, 63, 33–42. [Google Scholar] [CrossRef]
  22. Wang, L.Z.; Li, Z.; Wang, Z.X.; Chen, X.Y.; Song., W.Y.; Zhao, Z.; Wei, Y.C.; Zhang, X. Hetero-Metallic Active Sites in Omega (MAZ) Zeolite-Catalyzed Methane Partial Oxidation: A DFT Study. Ind. Eng. Chem. Res. 2021, 60, 2400–2409. [Google Scholar] [CrossRef]
  23. Knorpp, A.; Pinar, A.; Baerlocher, C.; McCusker, L.; Casati, N.; Newton, M.; Checchia, S.; Meyet, J.; Palagin, D.; Bokhoven, J. Paired Copper Monomers in Zeolite Omega: The Active Site for Methane-to-Methanol Conversion. Angew. Chem. Int. Ed. 2021, 60, 5854–5858. [Google Scholar] [CrossRef]
  24. Erhart, W.A.; Rohrer, C.E. Toluene Disproportionation Employing Modified Omega Zeolite Catalyst. US Patent 3578728, 7 January 1971. [Google Scholar]
  25. Flanigen, E.; Kellberg, E.R. Synthetic Crystalline Zeolite and Process for Preparing Same. US Patent 4241036, 24 July 1980. [Google Scholar]
  26. Perrotta, A.J.; Kibby, C.; Mitchell, B.R.; Tucci, E.R. The synthesis, characterization, and catalytic activity of omega and ZSM-4 zeolites. J. Catal. 1978, 55, 240–249. [Google Scholar] [CrossRef]
  27. Coq, B.; Figueras, F.; Rajaofanova, V. Preparation and properties of platinum/Ω-zeolite bifunctional catalysts. J. Catal. 1988, 114, 321–331. [Google Scholar] [CrossRef]
  28. Solinas, V.; Monaci, R.; Marongiu, B.; Forni, L. Isomerisation of 1-methylnaphthalene over Ω-zeolite. Appl. Catal. 1983, 5, 171–177. [Google Scholar] [CrossRef]
  29. Coossens, A.M.; Fejien, E.J.P.; Verhoeven, G.; Wouters, B.H.; Grobet, P.J.; Jacobs, P.A.; Martens, J.A. Crystallization of MAZ-type zeolites using tetramethylammonium, sodium and n-hexane derivatives as structure-and composition-directing agents. Microporous Mesoporous Mater. 2000, 35, 555–572. [Google Scholar] [CrossRef]
  30. Martucci, A.; Alberti, A.; Fajula, F.; Verapacheco, M.; Figueras, F. Synthesis of zeolite omega. Influence of the temperature and the reagents on the crystallization kinetics. Zeolites 1987, 7, 203–208. [Google Scholar]
  31. Zones, S.I.; Occelli, M.L.; Kessler, H. Synthesis of Porous Materials: Zeolites, Clays, and Nanostructures; Marcel Dekker Inc.: New City, NY, USA, 1997; pp. 93–94. [Google Scholar]
  32. Xu, H.; Dong, P.; Liu, L.; Wang, J.G.; Deng, F.; Dong, J.-X. Synthesis and characterization of zeolite mazzite analogue in Na2O–Al2O3–SiO2–Piperazine-H2O. J. Porous Mater. 2007, 14, 97–101. [Google Scholar] [CrossRef]
  33. He, D.W.; Yuan, D.H.; Song, Z.J.; Xu, Y.P.; Liu, Z.M. Eco-friendly synthesis of high silica zeolite Y with choline as green and innocent structure-directing agent. Chin. J. Catal. 2019, 40, 52–59. [Google Scholar] [CrossRef]
  34. Chen, B.H.; Xu, R.N.; Zhang, R.D.; Liu, N. Economical Way to Synthesize SSZ-13 with Abundant Ion-exchanged Cu+ for an Extraordinary Performance in Selective Catalytic Reduction (SCR) of NOx by Ammonia. Environ. Sci. Technol. 2014, 48, 13909–13916. [Google Scholar] [CrossRef]
  35. Zhao, X.H.; Wang, H.; Kang, C.X.; Sun, Z.P.; Li, G.X.; Wang, X.L. Ionothermal synthesis of mesoporous SAPO-5 molecular sieves by microwave heating and using eutectic solvent as structure-directing agent. Microporous Mesoporous Mater. 2012, 151, 501–505. [Google Scholar] [CrossRef]
  36. Zhang, F.; Zhang, L.; Yang, Z.C.; Han, S.C.; Zhu, Q.Y.; Wang, L.; Liu, C.G.; Meng, X.J.; Xiao, F.-S. Design of fast crystallization of nanosized zeolite omega crystals at higher temperatures. Chin. J. Catal. 2019, 40, 1093–1099. [Google Scholar] [CrossRef]
Molecules 27 07930 g001 550

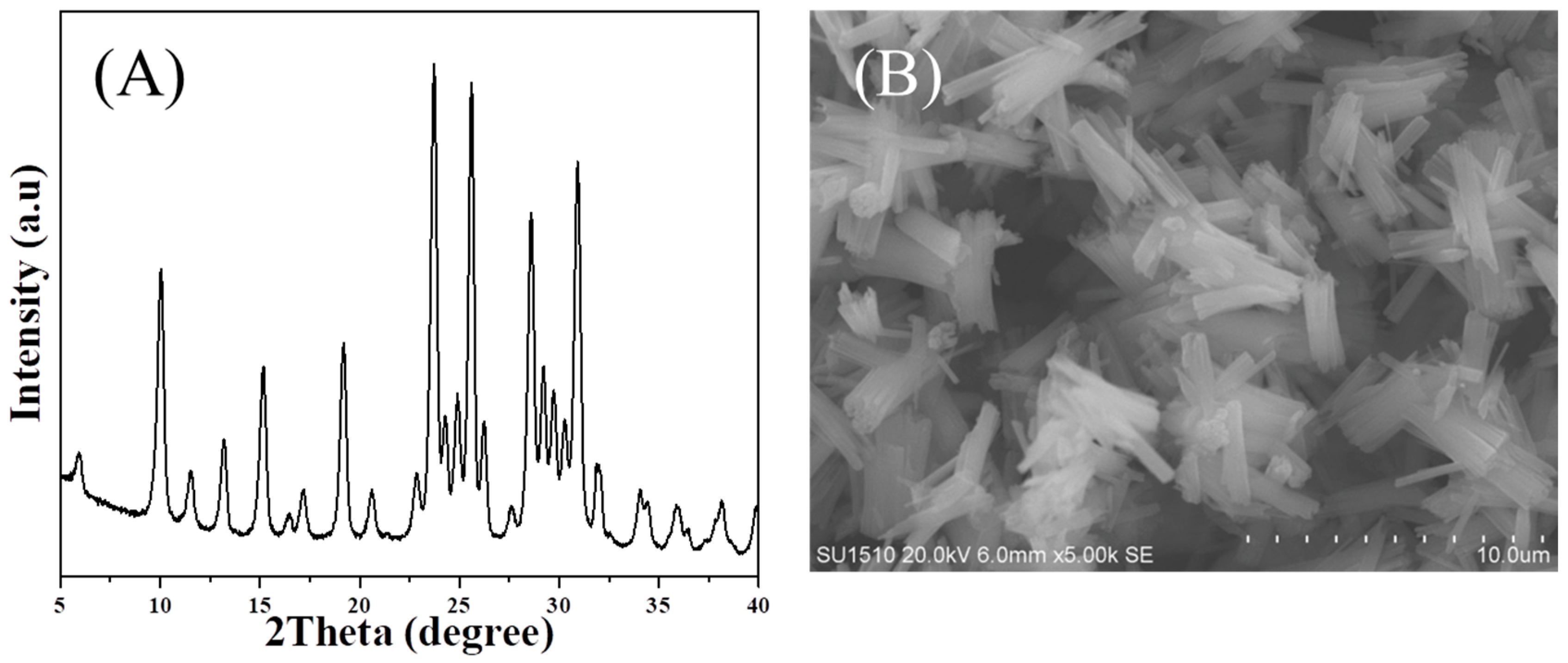

Figure 1. (A) XRD pattern and (B) SEM image of the as-synthesized MAZ-N sample, respectively.
Figure 1. (A) XRD pattern and (B) SEM image of the as-synthesized MAZ-N sample, respectively.
Molecules 27 07930 g001
Molecules 27 07930 g002 550

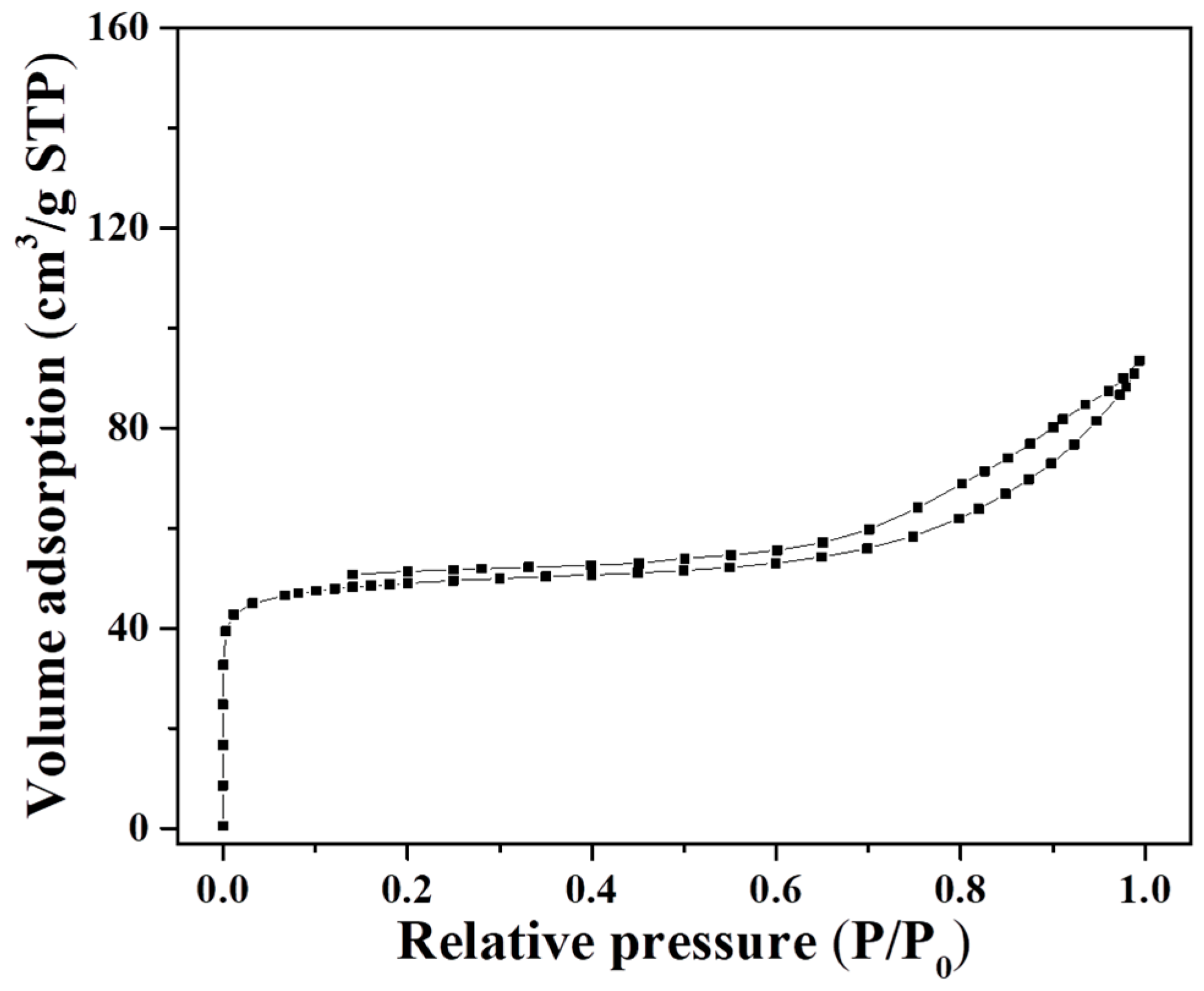

Figure 2. N2 sorption isotherm of the H-MAZ-N sample.
Figure 2. N2 sorption isotherm of the H-MAZ-N sample.
Molecules 27 07930 g002
Molecules 27 07930 g003 550

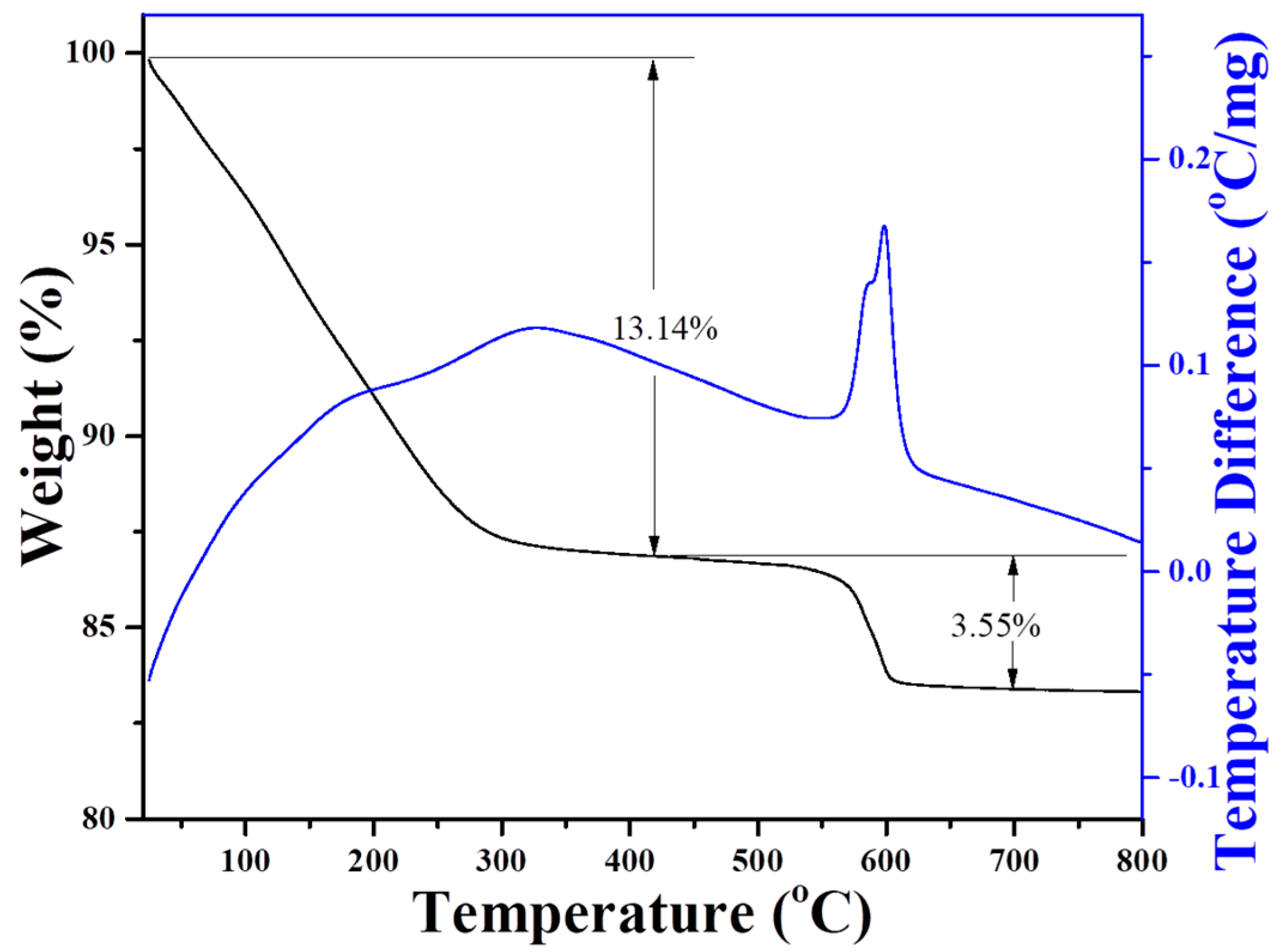

Figure 3. Thermogravimetry–differential thermal analysis (TG-DTA) curves of the as-synthesized MAZ-N sample.
Figure 3. Thermogravimetry–differential thermal analysis (TG-DTA) curves of the as-synthesized MAZ-N sample.
Molecules 27 07930 g003
Molecules 27 07930 g004 550

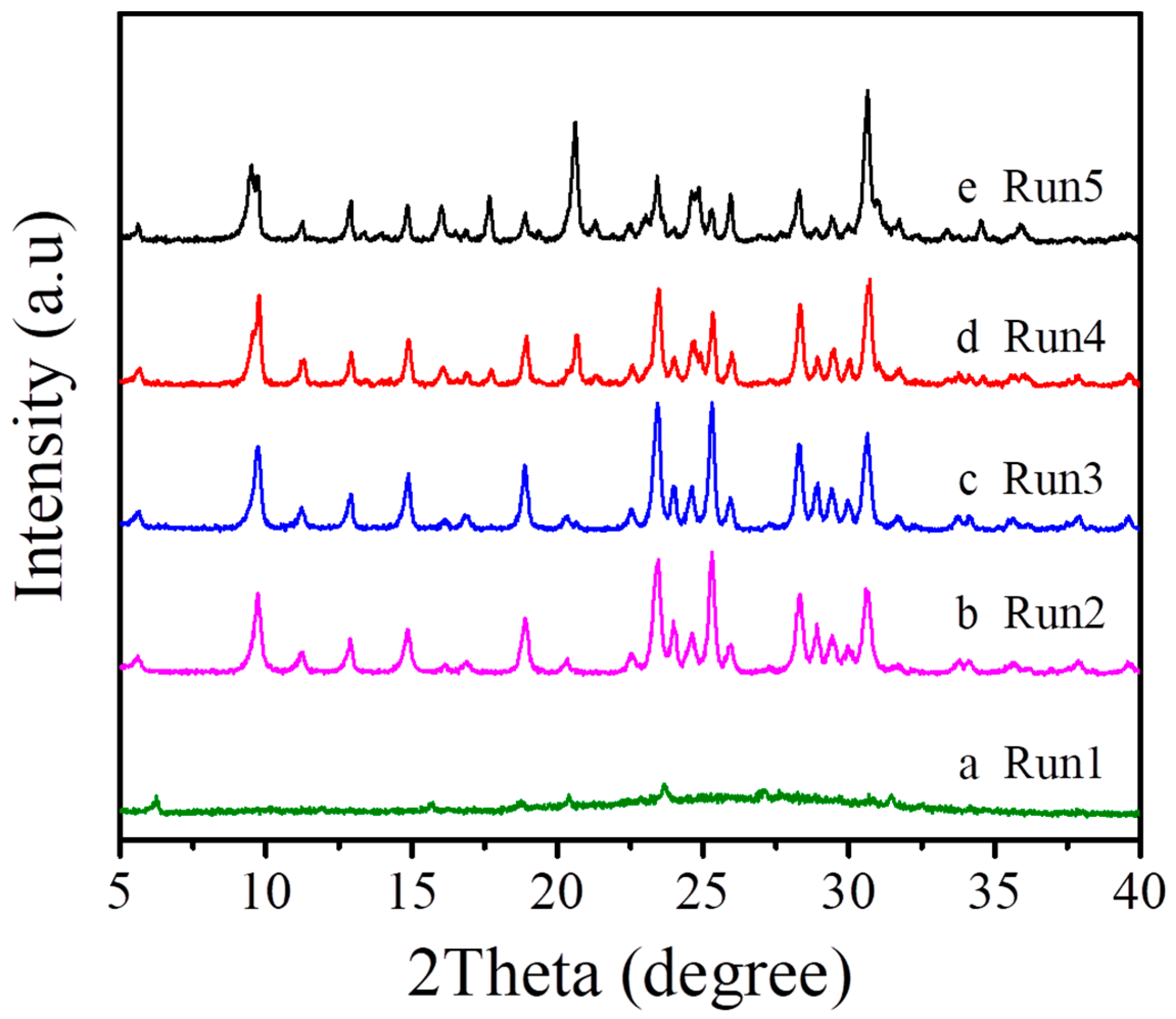

Figure 4. XRD patterns of the samples synthesized with different Na2O/SiO2 molar ratios ((a) Na2O/SiO2 = 0.187, (b) Na2O/SiO2 = 0.203, (c) Na2O/SiO2 = 0.219, (d) Na2O/SiO2 = 0.234, and (e) Na2O/SiO2 = 0.250).
Figure 4. XRD patterns of the samples synthesized with different Na2O/SiO2 molar ratios ((a) Na2O/SiO2 = 0.187, (b) Na2O/SiO2 = 0.203, (c) Na2O/SiO2 = 0.219, (d) Na2O/SiO2 = 0.234, and (e) Na2O/SiO2 = 0.250).
Molecules 27 07930 g004
Molecules 27 07930 g005 550

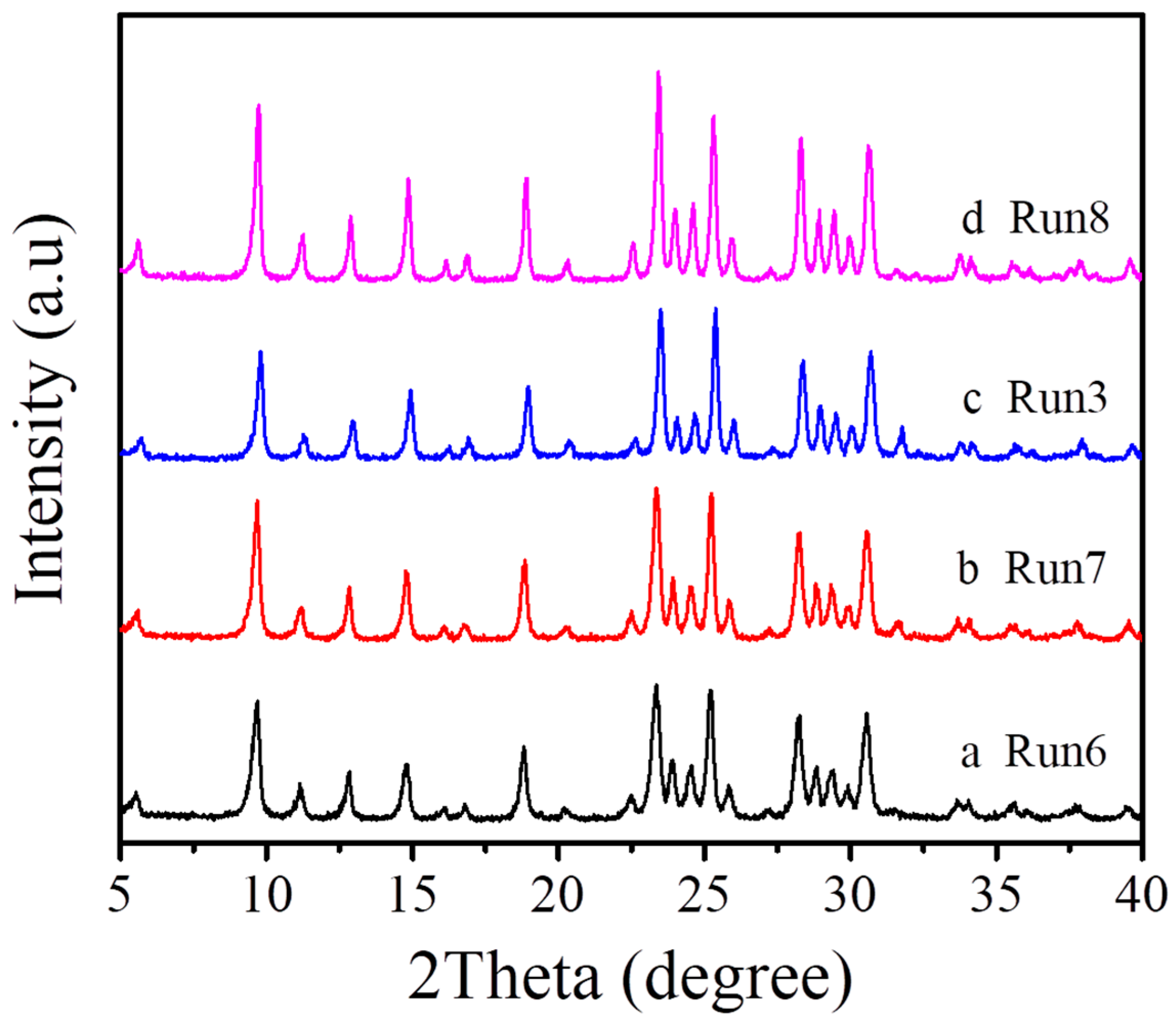

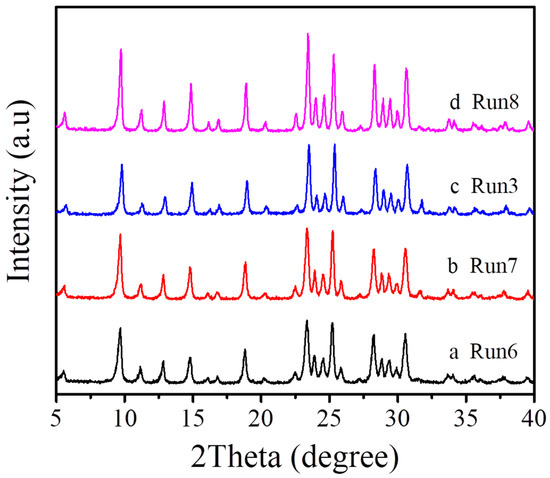

Figure 5. XRD patterns of the samples synthesized with different SiO2/Al2O3 molar ratios ((a) SiO2/Al2O3 = 10, (b) SiO2/Al2O3 = 12, (c) SiO2/Al2O3 = 14, and (d) SiO2/Al2O3 = 18).
Figure 5. XRD patterns of the samples synthesized with different SiO2/Al2O3 molar ratios ((a) SiO2/Al2O3 = 10, (b) SiO2/Al2O3 = 12, (c) SiO2/Al2O3 = 14, and (d) SiO2/Al2O3 = 18).
Molecules 27 07930 g005
Molecules 27 07930 g006 550

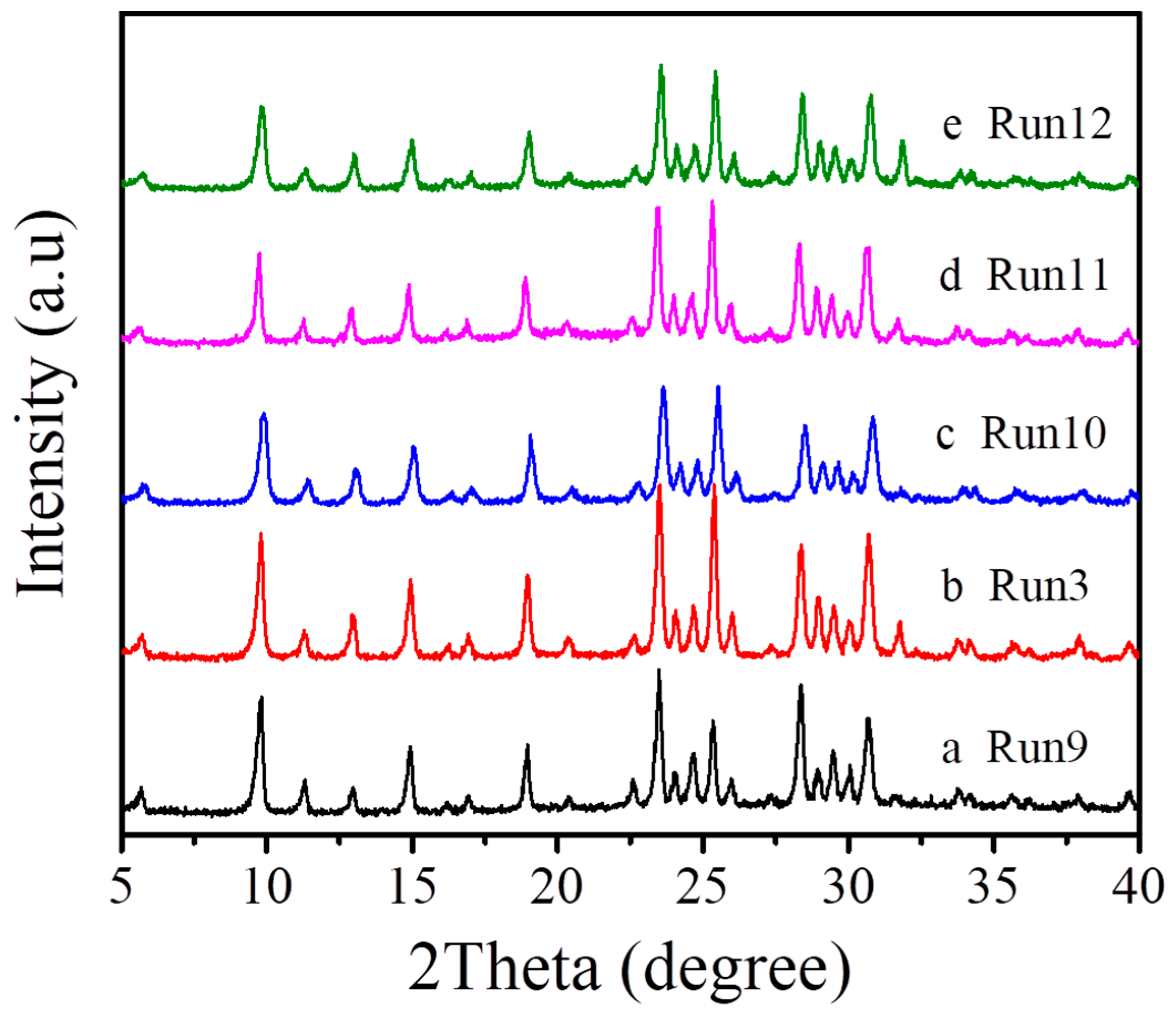

Figure 6. XRD patterns of the samples synthesized with different R/SiO2 molar ratios ((a) R/SiO2 = 0.382, (b) R/SiO2 = 0.446, (c) R/SiO2 = 0.511, (d) R/SiO2 = 0.575, and (e) R/SiO2 = 0.639).
Figure 6. XRD patterns of the samples synthesized with different R/SiO2 molar ratios ((a) R/SiO2 = 0.382, (b) R/SiO2 = 0.446, (c) R/SiO2 = 0.511, (d) R/SiO2 = 0.575, and (e) R/SiO2 = 0.639).
Molecules 27 07930 g006
Molecules 27 07930 g007 550

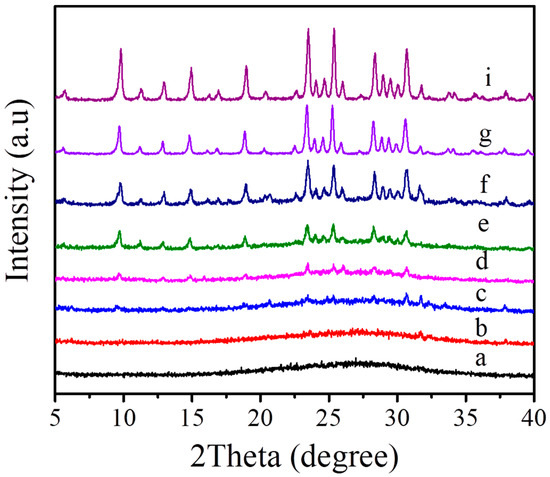

Figure 7. XRD patterns of the as-synthesized MAZ-N samples crystallized at (a) 0, (b) 12, (c) 13.5, (d) 15, (e) 16.5, (f) 18, (g) 22.5 and (i) 24 h, respectively.
Figure 7. XRD patterns of the as-synthesized MAZ-N samples crystallized at (a) 0, (b) 12, (c) 13.5, (d) 15, (e) 16.5, (f) 18, (g) 22.5 and (i) 24 h, respectively.
Molecules 27 07930 g007
Molecules 27 07930 g008 550

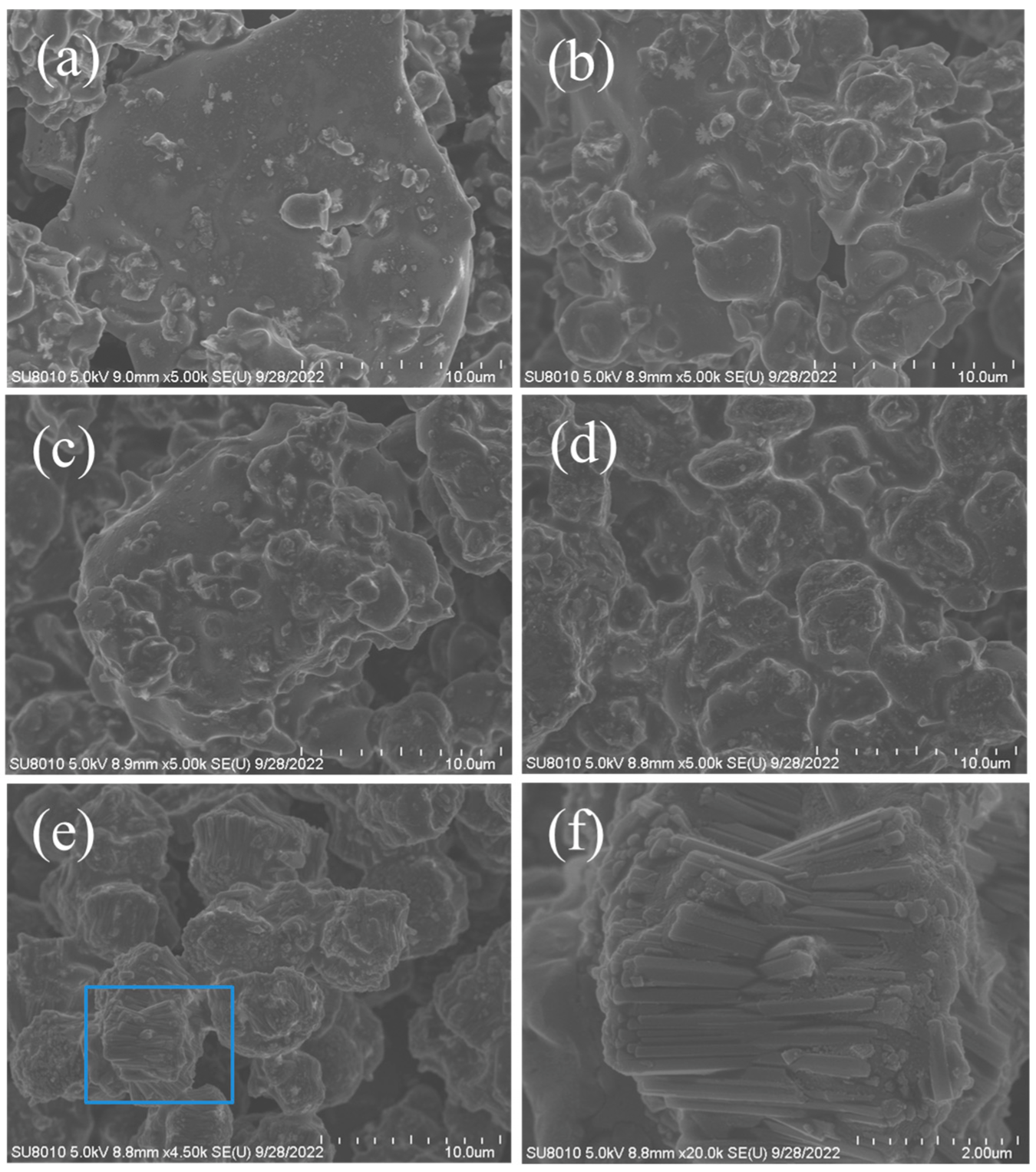

Figure 8. SEM images of the as-synthesized MAZ-N samples crystallized at (a) 0, (b) 15, (c) 16.5, (d) 18, (e,f) 22.5 h, respectively.
Figure 8. SEM images of the as-synthesized MAZ-N samples crystallized at (a) 0, (b) 15, (c) 16.5, (d) 18, (e,f) 22.5 h, respectively.
Molecules 27 07930 g008
Molecules 27 07930 g009 550

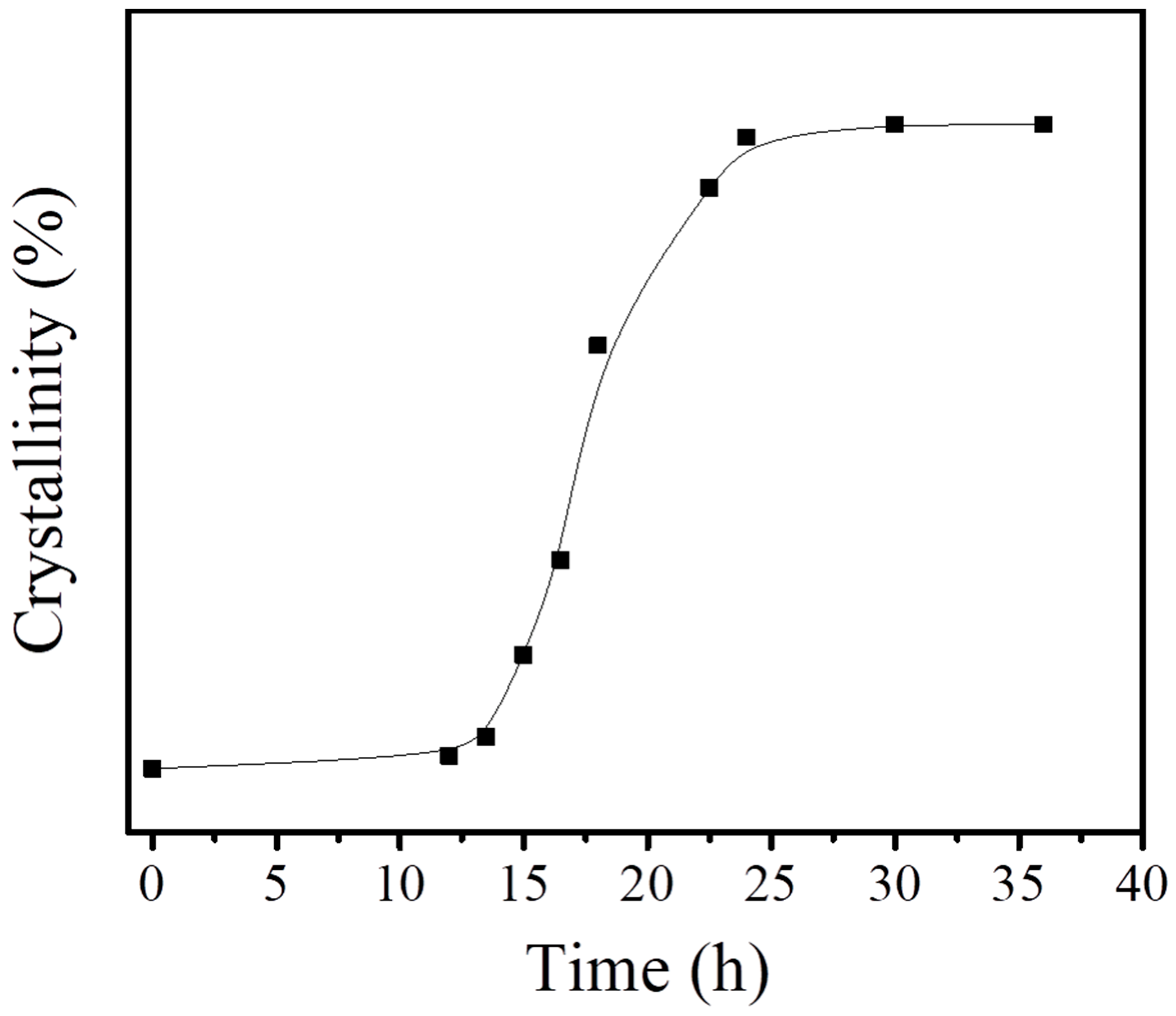

Figure 9. The dependence of the MAZ-N zeolite crystallinity on crystallization time.
Figure 9. The dependence of the MAZ-N zeolite crystallinity on crystallization time.
Molecules 27 07930 g009
Table
Table 1. Impact of synthesis conditions on the crystallization of aluminosilicate MAZ-N zeolites (H2O/SiO2 = 11.7, at 150 °C for 1 d).
Table 1. Impact of synthesis conditions on the crystallization of aluminosilicate MAZ-N zeolites (H2O/SiO2 = 11.7, at 150 °C for 1 d).
RunNa2O/SiO2SiO2/Al2O3R/SiO2 aProducts bCrystallinity c (%)
10.187140.446Amor./
20.203140.446MAZ90
30.219140.446MAZ100
40.234140.446MAZ + ANA/
50.250140.446MAZ + ANA/
60.219100.446MAZ90
70.219120.446MAZ100
80.219180.446MAZ125
90.219140.382MAZ + Amor./
100.219140.511MAZ85
110.219140.575MAZ80
120.219140.639MAZ76
a R stands for choline chloride as template. b The phase appearing first is dominant. c Run 3 was designated as 100% crystallinity.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
