Deuterium Distribution in Fe/V Multi-Layered Films

by
Ryota Gemma
1,2,3,*,
Talaat Al-Kassab
3 and
Astrid Pundt
3,4
1
Department of Applied Chemistry, Tokai University, Hiratsuka 259-1292, Japan
2
Micro/Nano Technology Center, Tokai University, Hiratsuka 259-1292, Japan
3
Institute of Materials Physics, University of Göttingen, 37077 Göttingen, Germany
4
Institute for Applied Materials–Materials Science and Engineering (IAM-WK), Karlsruhe Institute of Technology, 76131 Karlsruhe, Germany
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7848; https://doi.org/10.3390/molecules27227848
Submission received: 15 September 2022 / Revised: 21 October 2022 / Accepted: 25 October 2022 / Published: 14 November 2022
(This article belongs to the Special Issue Advances in Hydrogen Storage Materials for Energy Utilization 2.0)
Browse Figures
Versions Notes

Abstract

:
The recent progress of Atom Probe Tomography (APT) has opened up atomic-scale elemental analysis including hydrogen species. For APT measurements, the use of deuterium is highly recommended, due to its low mobility compared to the fast and quantum mechanically tunneling isotope hydrogen. In addition, deuterium can be distinguished from hydrogen originating from the APT analysis chamber. To date, however, APT studies on materials with high D concentrations are scarce. In this study, the D concentration profile in a Fe/V multi-layered film sample was investigated, and spanned a wide concentration range. The mean hydrogen isotope concentration was alternatively quantified by electromotive force (EMF) measurements on a similar Fe/V film, thus verifying the APT results. The reduction found in the D concentration at the Fe/V interface results from local alloying at the Fe/V interfaces which accompanies a change in the available volume in the V lattice. Even at the same Fe concentration, the shape of the observed D depth profile was asymmetric at high D2 pressures. This indicates a stress impact caused by the deposition sequence.

1. Introduction

Atom Probe Tomography (APT) has been well recognized as a strong materials analysis tool to investigate three-dimensional elemental distribution at a spatial resolution at the sub-nm scale [1,2,3,4,5,6,7,8]. The beauty of APT lies in the ability of detecting all elements with equal sensitivity at once, as it is based on the time-of-flight principle. Fine-scale 3D mapping of hydrogen in real space [9,10] is highly motivated by, e.g., studies of hydrogen embrittlement in metallic materials [11,12,13] and the impact of hydrogen in semiconductors [14,15,16]. APT is also used for developing hydrogen storage materials and their potential applications in catalytic reactions such as CO2 methanation [17]. Detection of hydrogen and its mapping, however, has been a challenging task for a few decades since the invention of APT. The difficulties stem from (1) the high mobility of hydrogen, (2) hydrogen loss from the specimen by air exposure, and (3) the necessity to distinguish loaded ions from residual hydrogen ions present in the APT analysis chamber.
Recent studies and developments of APT analysis have made significant progress to tackle the above-mentioned issues, e.g., by using deuterium (D) instead of hydrogen (H), and by establishing a loading/transfer method, which is free from air exposure of the specimen. Successful adaption of these protocols enabled quantification of D in, e.g., V [18], which easily absorbs hydrogen isotopes (the Gibbs free energy change, ΔG, of the hydrogen solid solution reaction at room temperature is negative). However, in a material such as iron or steel that hardly dissolves hydrogen isotopes (ΔG at room temperature is largely positive), the driving force for hydrogen desorption is large even when placed in an ultra-high vacuum. D easily escapes during sample transfer under vacuum in this case.
In order to suppress the diffusion and desorption of D, it is therefore necessary to keep the sample at a cryogenic temperature after D charging until the analysis is carried out. In this regard, the first attempt was reported by Takahashi et al. [19] for investigating D trapping around precipitates. Chen et al. [20,21] have applied a cold-chain approach on electrochemically deuterated steel samples. Stephenson et al. [22] have used a similar method and, thus, opened up the APT technique for a quantitative analysis of D distribution in steel samples. Quite recently, Felfer et al. [23] have proposed using an APT chamber made of Ti in order to suppress H-related signals and to ultimately detect H in the specimen.
We have previously reported our first quantitative APT analysis results of different D contents solved in samples. This was achieved using Fe/V multi-layered (ML) films [24,25] and V films [18]. According to the knowledge of the solubility difference factor, k, the solubility of D in V is 1010 higher than that in Fe at room temperature [26]. Therefore, almost all of the D atoms are expected to be present in the V layer. This was indeed experimentally observed by the APT analysis in agreement with the expected mean D concentration in V layers measured by the electromotive force (EMF). Thereby, it was demonstrated that the mean D concentration by APT could be successfully quantified as long as the D concentration is low, i.e., within the solid solution regime. However, similar results of APT studies with a high D concentration in Fe/V ML have not been reported yet.
In addition, the local D distribution might not be homogeneous in Fe/V films at high D concentrations. In bulk V, available sites for H change from the tetrahedral site (T site) to the octahedral site (O site) by increasing H concentration and also by changing initial lattice strain [27]. H in thin films is typically subject to this strain impact, as they are often adhered to rigid substrates. Pálsson et al. [28] experimentally observed a strain-related change in the site occupancy, from the Txy site to the Oz site in the out-of-plane direction, for Fe/V (001) superlattices. This strain-sensitive effect was further supported by DFT calculations of Johansson et al. [29]. Such site occupancies can not be addressed by APT measurements, but local concentrations can be targeted. In this contribution, we present APT analysis results of D distributions in Fe/V ML samples loaded at different D2 pressures that relate to high D contents, with paying attention not only to the mean D concentration in the V layers, but also to the D concentration profile at Fe/V interfaces.

2. Results and Discussion

2.1. Characterization of Fe/V ML Interfaces

2.1.1. Layer Interdiffusion at a High Deposition Temperature

The local chemistry at the Fe/V interface is one of our interests in this study, particularly regarding its relationship to the D concentration profile. For epitaxial growth of hetero-structures, deposition at high temperature is often conducted to obtain smooth interfaces [30]. In this study, sputter deposition of Fe/V multi-layer was carried out also at a high temperature, 603 K, as a trial. An APT reconstruction result of a thickness-variated Fe/V multi-layered stack deposited at 603 K is shown in Figure 1, together with the depth concentration profile taken from a 5 nm ϕ cylinder volume.
Clearly resolved parallel Fe (011) planes prove a result of successful APT reconstruction and a growth with (110) texture through the Fe/V ML. The Fe content (cFe) found in the V layers was higher than 10 at%. This value is higher than that expected from our experimental condition, which is in the range of 2~8 at%. Therefore, other processes, such as interdiffusion due to high temperature deposition or intermixing by sputtering are responsible to increase the Fe content. It should also be noted that the alloying of V with Fe becomes significant towards the surface and also high Fe content is detected in the Pd surface layer.
Alternatively, when the Fe/V multi-layered film is deposited at room temperature, both the Fe concentration in V and vice versa are rather low, as shown in the APT analysis result of Figure 2. The Fe concentration in V layer is, in this case, 5(2) at% and the V concentration in Fe is nearly zero. The Fe concentration is high (10 at%) at the top surface of Pd, which is found also for the film deposited at 603 K. The slope of the Fe/V interfaces is sharper than in the case of 603 K.
The Fe and V concentrations in the layers can be discussed with respect to the Fe-V phase diagram. The low temperature part of the Fe-V binary phase diagram [31] is shown in Figure 3. The solubility of Fe in V and V in Fe at 603 K is 17 at% and 26 at%, respectively. At 297 K, they reduce to 12 at% and to 25 at%, respectively. Further excess causes the precipitation of σ phase. The detected Fe and V concentrations were after all below the solubility limits and, therefore, only the α solid solution phase is considered. Consequently, the observed high Fe content in the V layers could be caused by thermal interdiffusion at 603 K, while it is suppressed at 297 K.
However, there are following points left to be clarified and discussed in the next section.
  • Origin of asymmetric Fe/V interface profile at an elevated deposition temperature, and
  • Increasing alloying degree towards the surface.

2.1.2. Interface Intermixing by Sputtering Process

In Figure 4 and Figure 5, the magnified V/Fe/V region is shown for the films deposited at 603 K and at 297 K, respectively. According to these profiles, depending on the sequence, the intermixing depth can be estimated as wide as 2 nm when deposited at 603 K (Figure 4). This value is almost twice as the mixing regime at 297 K, which is only 1.0~1.1 nm (Figure 5).
In Figure 4, some changes in the concentration slope can be seen between the 2nd and the 6th Fe/V interface. However, there is no systematic change in the slope in the course of deposition even at the high temperature of 603 K. Therefore, interdiffusion processes solely cannot be convincingly attributed for the explanation. We should note that the field evaporation sequence in atom probing can also be affected by local chemistry via modification of the field evaporation strength EF. The change in EF sometimes induces a significant deviation from the original position of atoms. In this case, special care must be taken by examining the interface of two different layers [32,33,34]. Indeed, the EF of Fe2+ (30 V/nm) is slightly lower than that of V2+ (33 V/nm) [3], which leads to preferential evaporation of Fe while retarding the evaporation of V at a given field. This possibly causes reduced Fe concentration in an evaporation sequence of Fe layer → V layer at its transition. This might explain the slight asymmetry of the concentration slope for both at 603 K and 297 K; the intermixing at the V/Fe sequence is less pronounced than that at the Fe/V sequence. However, the slope of cFe at Fe/V interface is considerably steeper in 297 K compared to 603 K (compare Figure 4 and Figure 5). This clearly indicates the impact of the deposition temperature, apart from the sole impact of the EF difference. In addition, as the films were prepared by sputter deposition, the origin of this asymmetry may be associated with sputter induced implantation and recoil phenomena as discussed below.
In order to investigate the collision details of the sputtering process, simulations were carried out with SRIM 2008 developed by Ziegler [35]. At first, simulations of the Ar ion (880 eV) bombardment into V and Fe were carried out to set the kinetic energy of the sputtered V and Fe ions as EV = 33.01 eV and EFe = 24.81 eV, respectively. For each collision calculation, a reasonable displacement energy (Wigner energy) value for metals of 24 eV for target materials was assumed [36]. These parameters were then applied in the simulation.
Figure 6 shows simulated ion implantation depth profiles and target atom recoil profiles for Fe ions impinging an V/Fe double layer and for V ions impinging an Fe/V double layer, respectively. According to these results, the following main insights can be extracted.
(1)
The maximum implantation depth of Fe is slightly deeper than that of V.
(2)
The intensive recoil events of Fe indicate (first 0.1 nm in Figure 6a) floating Fe at the deposition front.
(3)
The recoil of V is much less pronounced than that of Fe (recoiled V ion count is one order of magnitude smaller).
(1) explains the slightly wider reaching interface of Fe/V compared to that of V/Fe, regardless of the temperature. (2) and (3) suggest continuous motion of Fe or V atoms towards the deposition front which may increase the intermixing layer thickness stronger than the values simulated here. This process might change also the layer composition if the temperature is high and solubility is ensured to a certain extent.
Moreover, especially in the sequence of V on Fe, Fe atoms propagate always towards the deposition front due to the recoil and substantial alloying with V if the deposition temperature is high enough. The same process is possible also for the deposition of Fe onto V, but very suppressed due to small kinetic energy of Fe ion to recoil V. A continuous propagation of the floating Fe atoms finally stops at the Pd surface, which, then, terminates with a considerable amount of Fe in Pd (see Figure 1 and Figure 2).
Consequently, the layer composition of the sample deposited at 603 K is also affected by the sputtering process. In Figure 7, the in-layer compositions are plotted for the film deposited at 603 K, together with the solid solubility limit (SS limit) at the same temperature. Slightly gradual slopes of in-layer Fe concentration (cFe) and V concentration (cV) along the deposition direction suggest the trace of recoiled atoms and high degree of alloying at 603 K.

2.1.3. Combined Effect of Sputtering and Thermal Interdiffusion

From the results obtained, a schema of Fe/V multi-layer deposition can be drawn as follows. The primary knocked-on Fe or V atoms are deposited not only onto the surface, but also in a sample depth. A series of this process, i.e., sputter deposition, creates new intermixed surface. Consequently, the actual intermixing width becomes slightly wider than the values calculated on a single process as shown in Figure 6.
As a conclusion, the interdiffusion process was incorporated with floating phenomenon of atoms at a high deposition temperature and resulted in higher extent of alloying than at room temperature. Hetero-epitaxy of multi-layered films with high crystal quality is established often at certain high deposition temperatures at a given deposition rate and atmosphere. For Fe/V superlattice growth by magnetron sputtering, which has 10 times higher deposition rate than here, hetero-epitaxy is reported, e.g., at 453 K [37]. However, this was not the case for Fe/V prepared in this study. Therefore, the preparation of Fe/V multi-layered film samples for D2 loading shown in the following section was not carried out at elevated temperatures.

2.2. D in FeV ML—The Impact of D2 Loading Pressure

2.2.1. D2 0.05 Pa

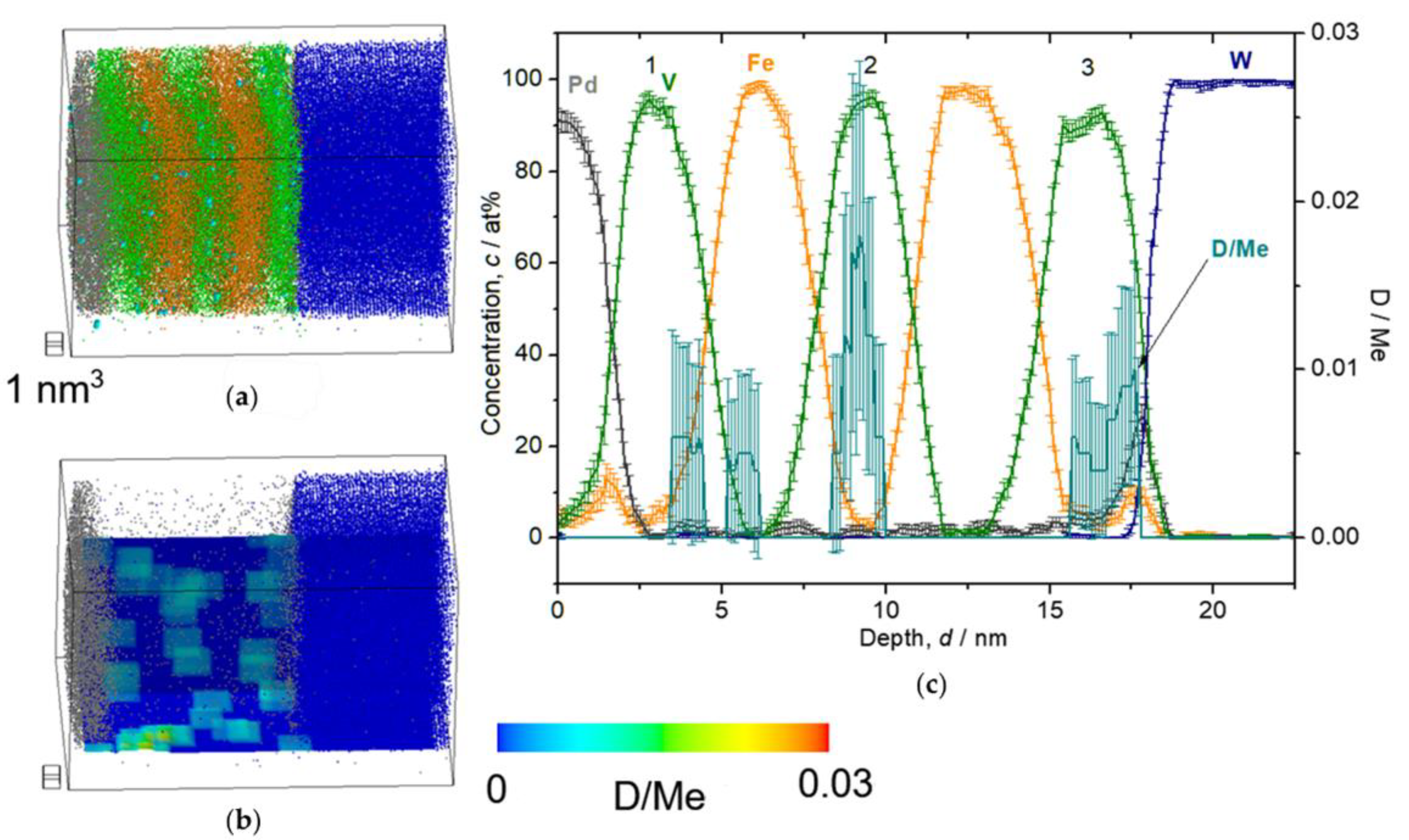

D2 loading was carried out at various D2 pressures at 294 K utilizing a home-made D2 loading system suitable for APT analysis (see Materials and Methods).
Following the solubility difference factor k, D atoms were detected mainly in V layers, but not in Pd or W (cH in Pd/cH in V = 10−4, cH in W/cH in V = 10−24 [26]). The detected deuterium concentration (cD) was alternatively verified by an EMF curve of similarly grown Fe/V ML films. It should be noted that the EMF is taken for H, and slight differences for the two isotopes H and D, are neglected, here. At low D2 pressure of 0.05 Pa, we expect the sample to be in the α-phase (deuterium solid solution phase) with cD = 0.035 D/Me, according to the EMF curve (cf. [24] or Figure 13). The result of the 3D reconstruction, the iso-concentration map and the depth profile of this sample are shown in Figure 8. The dots shown in Figure 8a,b are individual ions. The color map shown in (b) overlaid on the ion map indicate the cD as molar ratio of D/Metal (D/Me) within a defined cube of 2 nm side lengths. The average cD of 0.013(4) D/Me was found in the 2nd V layer. This value is only 1/3 of the value expected from the EMF-curve. This can be explained by D trapping at defects which is included in the EMF curve [38,39]. The related EMF curve (later shown in Figure 13) deviates non-linearly from the Sieverts’ relationship (a slope of RT/F), at low concentrations. This leads to higher mean contents of deuterium in the sample. However, if no dislocation exists in the targeted volume of the APT measurement and thus no considerable trapping is expected, the cD at 0.05 Pa should almost follow the Sieverts’ law. Then, the expected concentration would be approximately cD = 0.02 D/Me, at 0.05 Pa. This value roughly meets the APT value.

2.2.2. D2 0.5–1000 Pa

When the loading pressure increases from 0.5 to 1000 Pa, cD in the V layer increases, as shown in the Figure 9, Figure 10, Figure 11 and Figure 12. In Figure 9, the film structure itself was not well deposited and the 2nd V layer is forming sloped interface with respect to the 1st Fe layer. Nevertheless, it clearly reveals laterally homogeneous D distribution in the V layers, while showing sloped D profile towards the W substrate. The mean cD in the 2nd V layer is 0.12(5) D/Me.

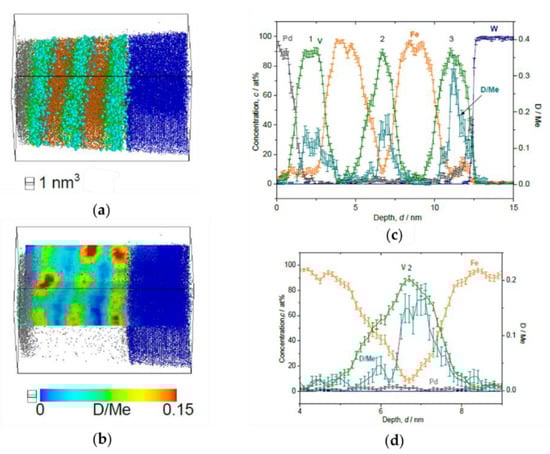

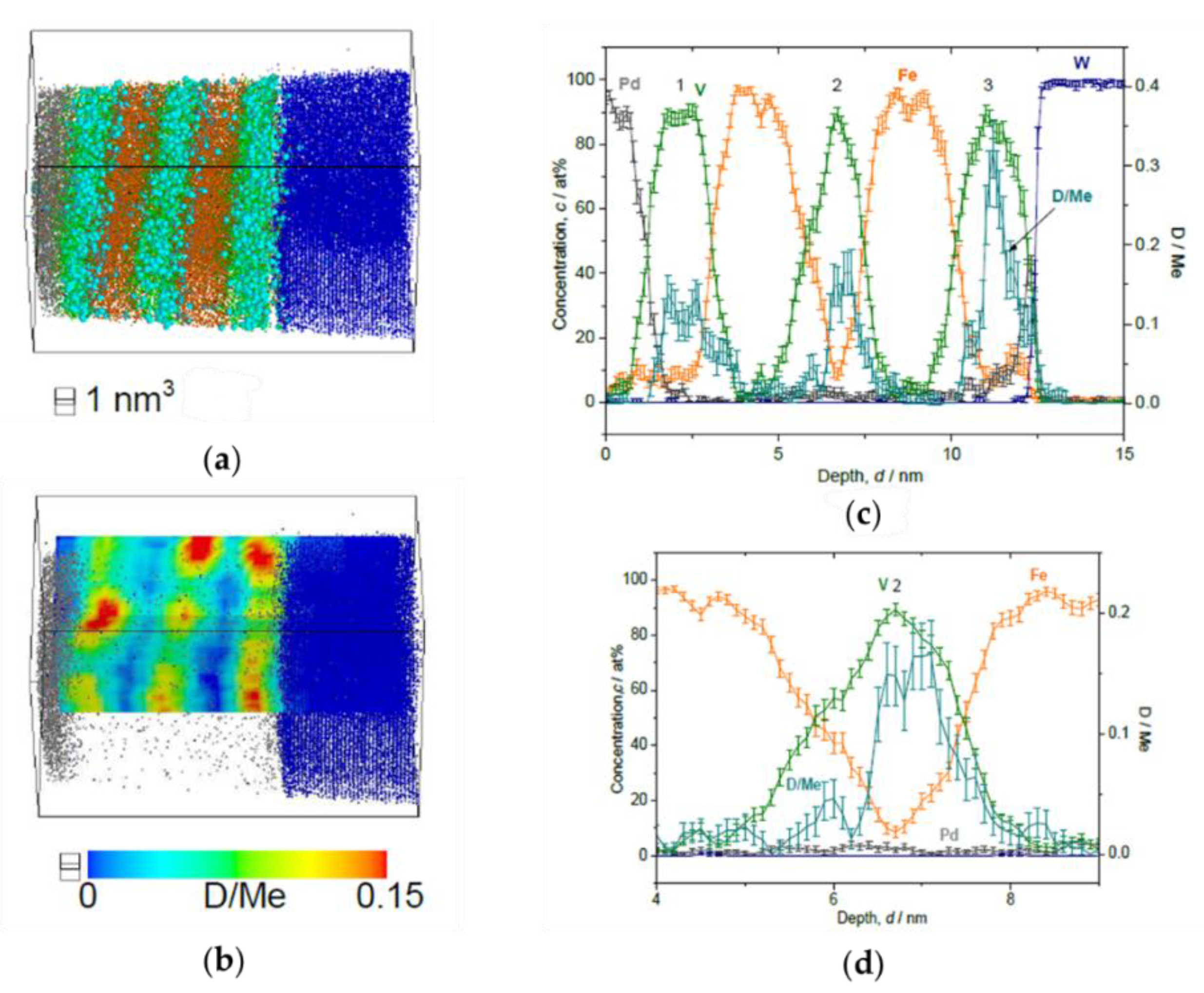

At the D2 pressure of 2 Pa (Figure 10), the sample is supposed to be in the β-phase (hydride phase: V2H) region for bulk V and the observed cD = 0.13(5) D/Me reaches the expected average concentration cD = 0.15 D/Me of the EMF measurement, within the error bar. Here, one should note that distinctively high cD is found in the 3rd V layer just close to W, which is almost twice as large as cD in the other two V layers. Such enrichment of D was observed also in case of V/Fe single layered film [12]. Moreover, the cD profile in the 2nd V layer is asymmetric, and the concentration maximum of cD does not agree with the concentration minimum of cFe. As a general trend, the peak position of cD is slightly shifted towards the W substrate.

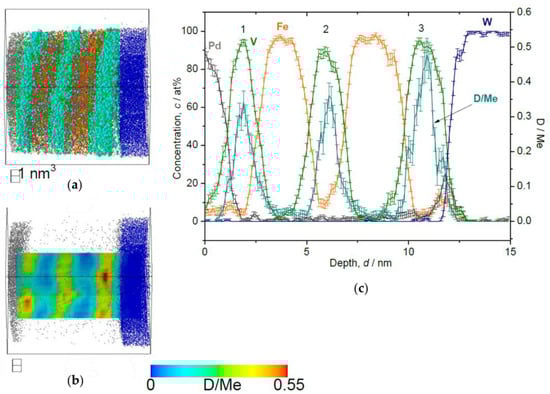

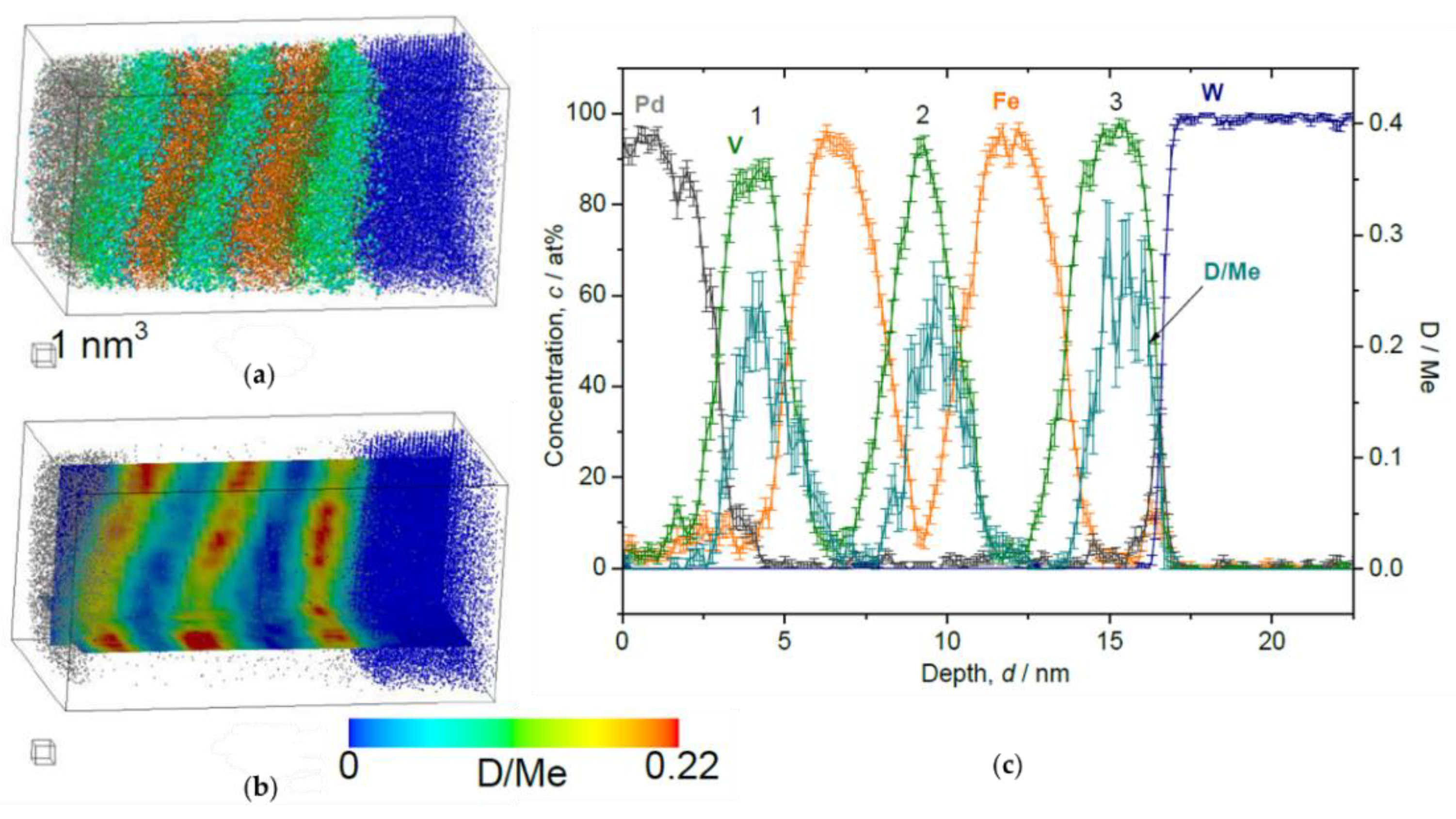

This trend is commonly observed in the results of loading both at 10 Pa (Figure 11) and 1000 Pa (Figure 12). Alloying of V with Fe occurring at the Fe/V interface reduces D-solubility. In addition, the stacking order of Fe/V seems to have a remarkable impact on the D distribution concerning the high cD region. At 1000 Pa, the special cD distribution is even more pronounced than in the results of the 10 Pa sample, indicating that these curious observations of (i) depth shift of cD and (ii) high cD in the 3rd V layer might be universally related with the deuteride (hydride) formation behavior, since this is observed at high D2 pressures.

2.2.3. Comparison with the EMF Curve (Pressure-Composition Isotherm)

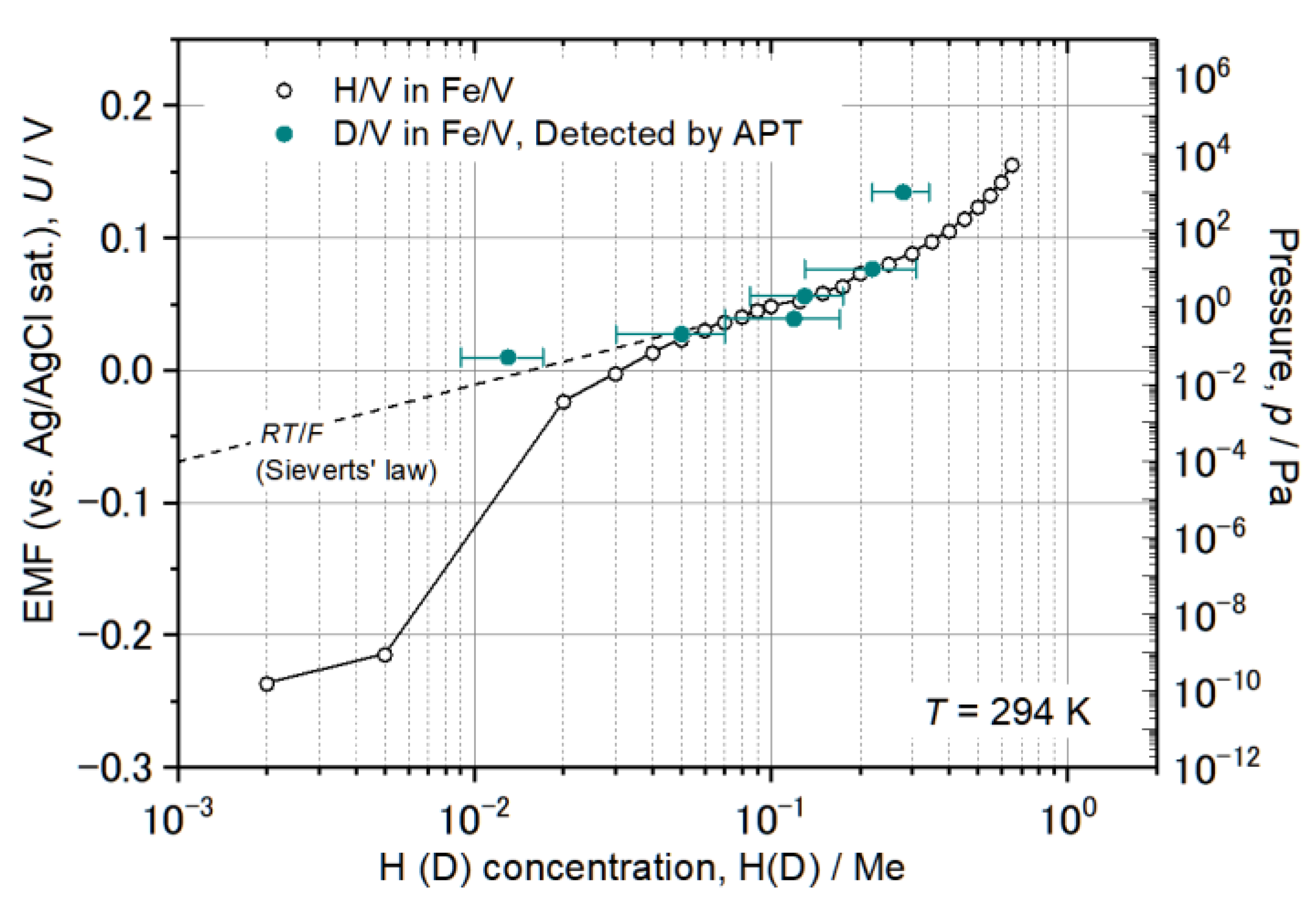

We now summarize the results of those deuterium concentrations cD at different D2 pressures obtained by APT, comparing the corresponding EMF curves. Both results are summarized in Table 1 and plotted in Figure 13. All APT data points were recorded at the analysis temperature of 30 K and the mean D concentration cD in the 2nd V layer from individual results are listed.
Altogether, the agreement is quite well within the error bar. In the results at 0.05 Pa D2, however, the detected D2 concentration was cD = 0.013 D/Me, which is only 1/3 of the expected value. The expected concentration cD is 0.035 D/Me if significant H-trapping effect is taken into account. If no dislocation exists for instance in this small analyzed-volume and thus no considerable D-trapping effect at dislocations is expected, the cD at 0.05 Pa should almost follow the linear line indicated as RT/F in Figure 13. This would give cD = 0.02 D/Me. Plotting the observed concentration of cD = 0.013(4) D/Me in Figure 4 agrees with this consideration if the slight difference is ignored.
Another large gap between the data points was found in case of 1000 Pa. The deviation of the APT data from the corresponding EMF curve is rather large. cD was detected to be only 0.28 D/Me by APT which is nearly half of the concentration expected from the EMF curve. The isotope effect alone cannot explain such a huge difference between cD and cH as the phase boundaries of the both are nearly the same in the considered concentration range here [40,41]. A depletion effect [42] cannot explain such a huge gap, especially as this effect is considered to be less pronounced at high hydrogen concentrations [43].
Since a loss of D atoms can be disregarded at this analysis temperature, other factors such as the difference of the V layer thickness from that of the sample taken for the EMF or different lattice strain state and the resulting stress contribution may be ascribed to the narrowed miscibility gap. Due to increased brittleness at low analysis temperatures, the thickness of V layers had to be reduced from 5 nm to, e.g., 2 nm for successful APT analysis. Such a reduction in the thickness often reduces the terminal hydrogen concentration [44]. Thus, the comparison was made between films with layer thicknesses of approximately 2 and 5 nm. The observed gap for the high D concentration regime suggests that even a small difference in the layer thickness might remarkably influence the resultant terminal solubility, especially for high D concentrations. At low concentrations, other aspects might be involved; if defects as D-trapping centers are not included in the analysis volume by chance, the resultant D concentration might be less than that of the defect-containing counterparts, where trapping effects are significant.
Conclusively, the APT analysis of deuterium in Fe/V can be carried out with enough reliability in a wide concentration range of cD = 0.01 − 0.2 D/Me at 30 K.

2.2.4. Asymmetric D Profiles at Fe/V and V/Fe Interfaces

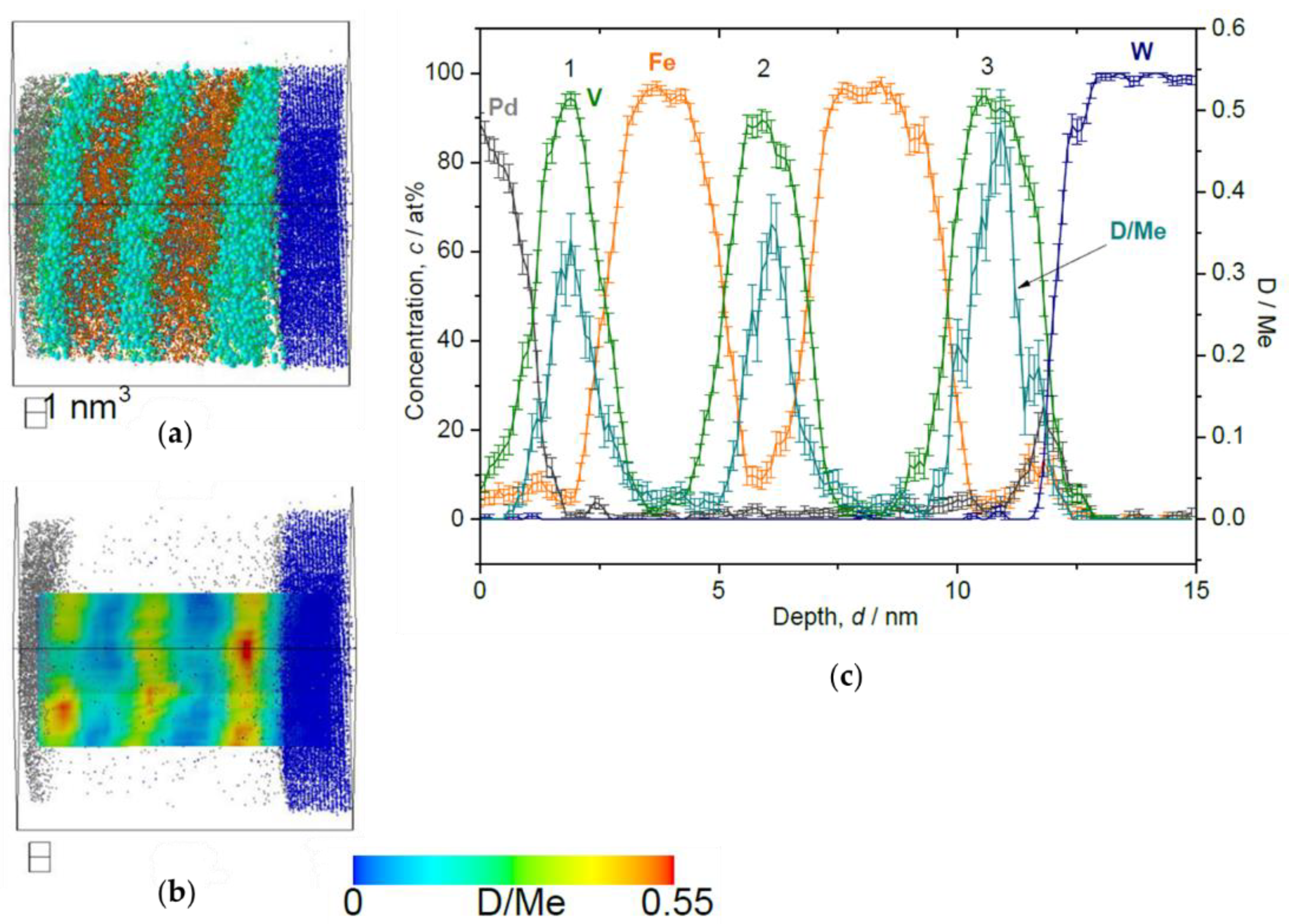

The asymmetric D profiles have been already presented in Figure 10, Figure 11 and Figure 12. By taking the cD at the 2nd Fe/V interface and plotting it against the Fe concentration from the sequence of V/Fe and Fe/V for comparison, the difference of the D profiles at the two interfaces becomes clearly visible.

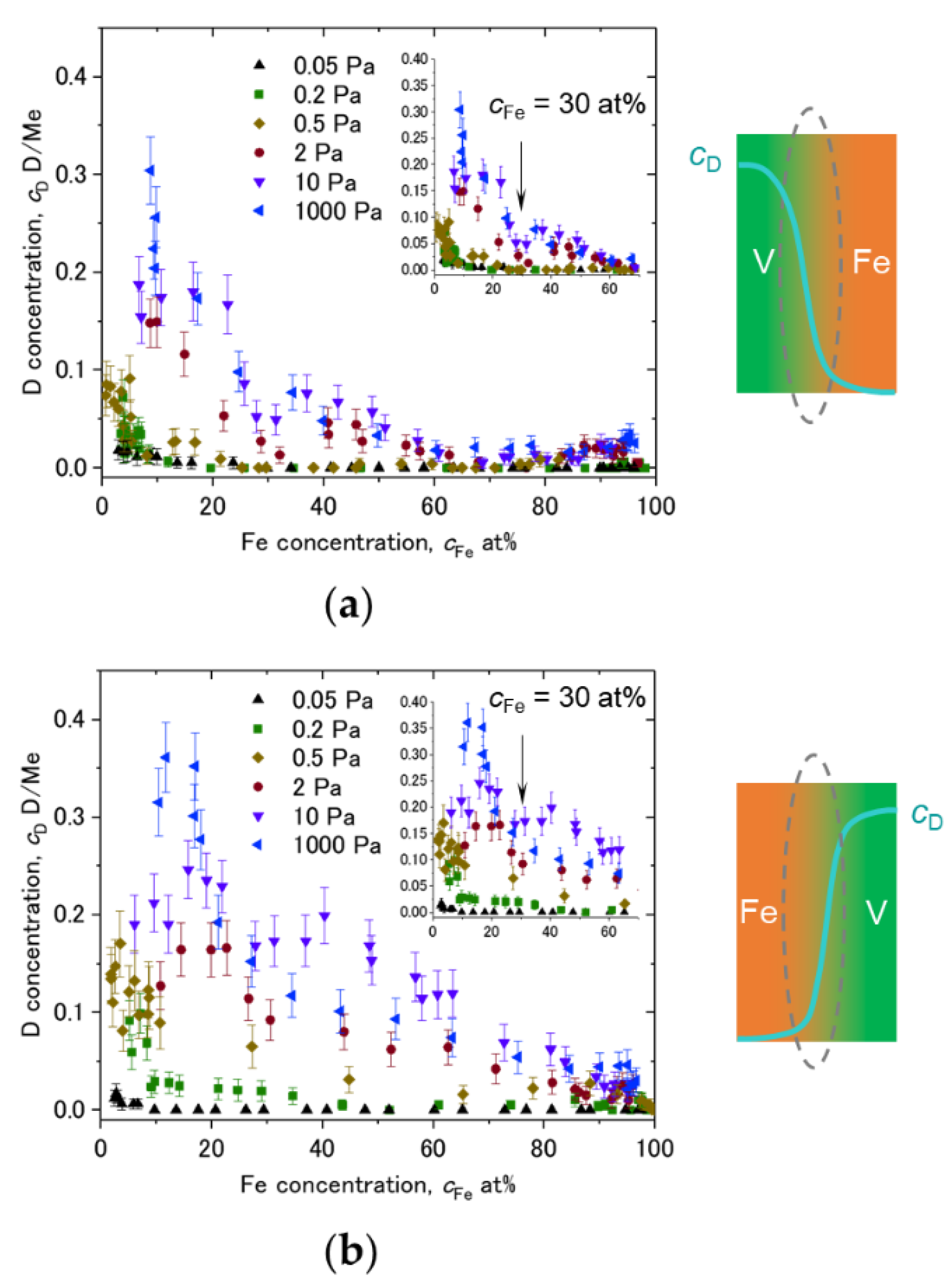

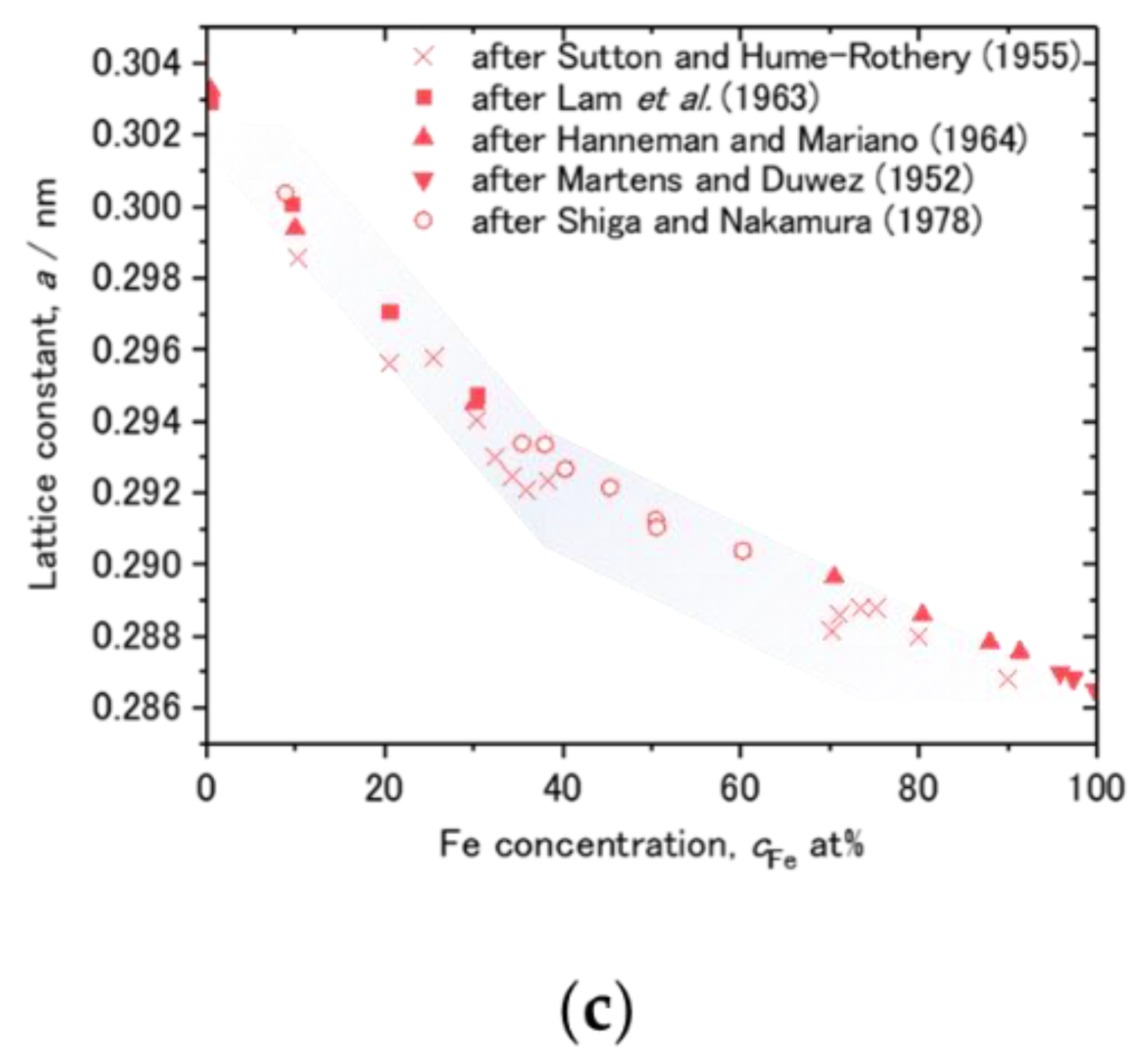

Plots of cD against cFe taken from cD at the Fe/V and V/Fe interfaces are shown in Figure 14a,b, respectively. The corresponding interface is schematically illustrated as well. The cFe range around 15 at% and 65 at% is magnified in the inset. In both of (a) and (b), it is commonly observed that the cD decreases as cFe increases. This could be due to an impact of alloying with Fe. Figure 14c presents the lattice parameter of the FeV alloy as function of the Fe-concentration cFe. It decreases with increasing cFe. Such a change in the lattice parameter is considered to change the available volume for the H atom. Lebon et al. [45] demonstrated by Density Functional Theory (DFT) calculation that alloying of V with Fe, Mn and Cr decreases the volume for H. The result is consistent with the experiments, and also with our experimentally observed general reduction in the D-solubility with increasing the Fe content. As highlighted by black arrows in the insets of Figure 14a,b, there seems to be a discontinuity in the change in cD against cFe at around cFe = 30~35 at%. Interestingly, this Fe concentration corresponds to the region where σ-phase is formed in Fe-V phase diagram [31]. Above this concentration range, the slope changes in Figure 14c. This discontinuity detected in the APT profiles visible in the related volumes supports the strong impact of the available volume on the local hydrogen isotope content.
Despite of the same cFe, the cD dependence on cFe in Figure 14a,b are not identical especially at high D2 pressures. The local mean D concentration is higher at the V/Fe interface than at the Fe/V interface. The alloying effect discussed above cannot explain this unidentical profiles in (a) and (b). Additionally, this cannot be related to an increased number of defects such as misfit dislocations, since this is expected to be effective at the Fe/V interface, but not at the V/Fe interface (lattice constant: aFe = 0.286 nm < aV = 0.303 nm). Considering the sign of expected misfit edge dislocation, this should result in opposite cD profile to the observation. We suggest that different lattice strain is responsible for this difference. However, electronic and stress effects should also be considered. For example, the SRIM simulation results (Figure 6) suggest that the implantation impact of Fe into V and V into Fe is not identical. This might cause a difference in the initial stress state between the Fe/V and V/Fe interfaces. Hydrogen isotopes prefer the less compressive region. It is inferred that the in-plane stress at V/Fe interfaces could be more compressive than at Fe/V interfaces due to the difference in the lattice parameters between Fe and V. This also suggests an expanded V lattice in the out-of-plane direction near the V/Fe interface. Such anisotropic lattice expansion in vicinity of the V/Fe interface, even when alloyed, might change the site occupation of D here, giving rise to different D concentrations even at the same cFe at the alloyed Fe/V interfaces.

3. Materials and Methods

3.1. Sample Preparation

Fe/V multi-layered films were deposited on needle-shaped substrates suitable for the APT analysis. In this study, we employed W wires with 0.1 mm diameter as substrates since the lattice mismatch between W and V is approximately 4.6%, which is in the same order of magnitude as between Fe and V with 5.3%. Still, this large lattice misfit might induce misfit dislocations implemented at the film/substrate interface.
First, the W tip substrates were sharpened by electropolishing in a 2N NaOH water solution at 3.5 V a.c., by using Pt as counter electrode. Then, the sharpened W tips were finally developed by Field Ion Microscopy (FIM) imaging using He as an imaging gas, typically at 30 K and with approximately 11 kV to obtain smooth and atomically clean surfaces in an UHV chamber. The developed tips have (110) orientation along the tip axis, reflecting the textured bcc structure of the W wire. Fe/V multi-layers with an individual layer thickness of 2~5 nm were deposited on the top of W tips by ion beam sputter deposition in a separate UHV chamber having a base pressure of 1–2 × 10−8 Pa. After surface cleaning of W tip by Ar ion for several to 10 s, sputtering was carried out under Ar atmosphere at the pressure of 1 × 10−2 Pa, with deposition rates of 0.63 nm/min for V, and 0.75 nm/min for Fe, respectively. The substrate temperature during deposition was kept at 297 K or 603 K. Finally, the films prepared were terminated by an approximately 20 nm thick Pd layer, which facilitates D2 dissociation at the surface and protects the film from oxidation.

3.2. Deuterium Loading at Different Pressures

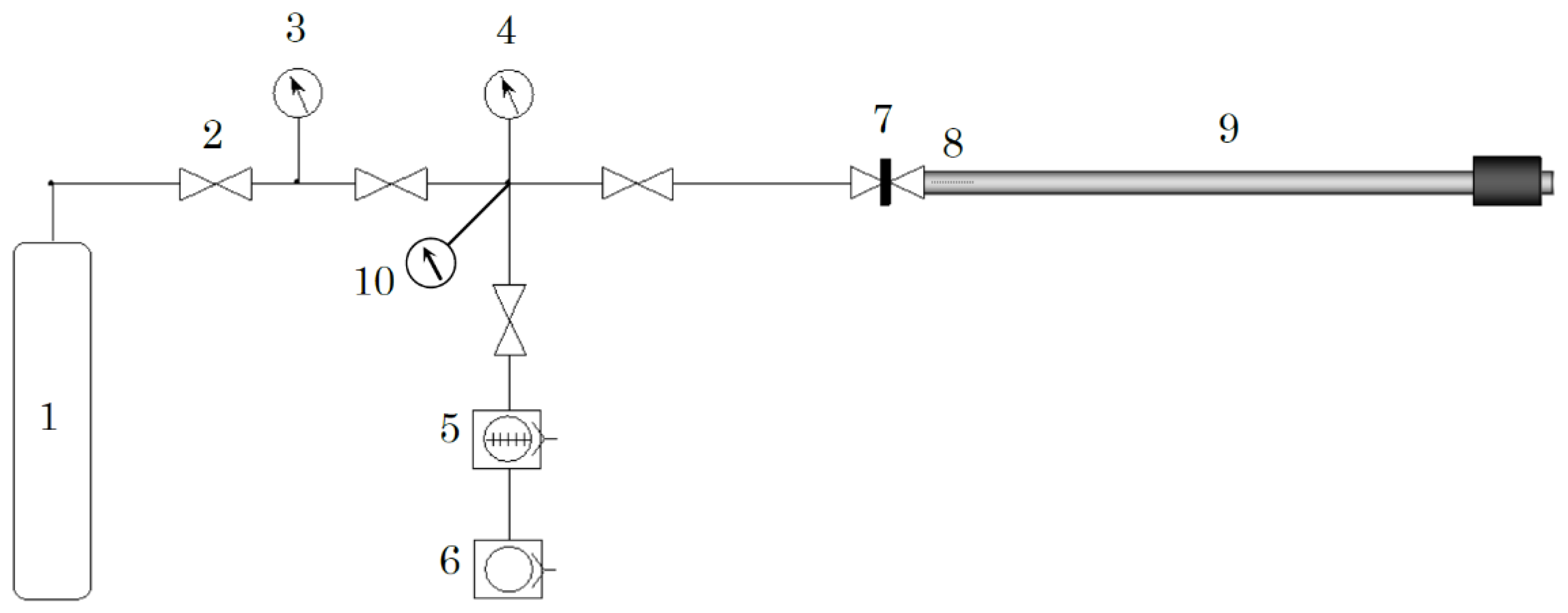

Deuterium loading was carried out by using a specially constructed gas loading set up, as shown in Figure 15. This system is equipped with a magnetic sample transfer rod, coupled with a gate valve so that the D2-loaded sample can be transferred from the loading chamber to APT chamber without breaking D2 atmosphere.
The actual D2 loading procedure typically starts as follows. First, the whole system was evacuated until the pressure reaches better than 1 × 10−5 Pa. Thereafter, bake-out of the transfer rod was carried out at 383 K for 12 h with utilizing ribbon heater elements. Subsequently, the pressure typically showed 10−6 Pa at room temperature. Thereafter, deuterium gas (purity: 99.98%) was leaked into the system. The pressure of the D2 gas can be measured by capacitance manometer (company: Baratron, MKS) and is kept at a desired pressure just by adjusting the leak valve’s opening. As soon as the D2 gas was introduced at a desired pressure, the gate valve for the transfer rod was closed and the sample was loaded with deuterium for 24~48 h.
After loading was completed, the transfer rod was detached from the loading set up together with the gate valve and then connected to a pre-evacuation chamber on the APT. Before introducing the sample into the main chamber, the pre-evacuation chamber was evacuated down to a pressure lower than 6 × 10−6 Pa. Then, the gate valve was opened to evacuate also the remaining D2 gas from the transfer rod. After breaking D2 atmosphere the introduction of sample into the main chamber was completed within 10 min. Upon mounting the sample on cooling stage, the sample was rapidly cooled down to 130 K and, thereafter, to the desired temperature for analysis.

3.3. APT Analysis

APT analysis was carried out with a system of tomographic atom probe detector type [4] at 30 K with a voltage pulse fraction of 20% and a voltage pulse frequency of 2 kHz. In particular for analyzing D, low analysis temperatures are mandatory to suppress the D-diffusion [24]. The standing voltage of the sample changed typically from 3.5 to 15 kV to complete an analysis.
After data acquisition, reconstruction of the collected ions to three-dimensional volumes was carried out. Upon reconstruction, the requirement of consideration on the sample geometry is especially strict for multi-layered sample. Jeske and Schmitz [51] have developed a reconstruction algorithm to solve this geometry problem by introducing the factors on the specimen’s initial radius and shaft angle. In this study, their algorithm was employed, and successful reconstruction was achieved.

3.4. Verification of cD via EMF Measurement

The average deuterium concentration cD detected in the Fe/V multi-layers (on the W tip) and analyzed by APT was compared with the average hydrogen concentration cH in Fe/V (110) multi-layered film grown on an Al2O3 (0001) substrate. Here, cH was measured by electrochemical H loading [38]. The related electromotive force (EMF) was detected, giving an EMF curve against cH. This curve relates to a pressure-composition isotherm (p-c-T curve) via the Nernst equation. Slight differences induced by the different loading techniques are thereby neglected. This experimental technique is advantageous since a well-defined concentration of hydrogen can be loaded stepwise [38] and the p-c-T property around room temperature can be correctly measured even in nano-sized samples. On top of this, gas phase loading is generally difficult for materials such as V, unless an activation process is properly carried out. The positions of the α and α + β phase boundaries are essentially the same in the bulk V–H and V–D systems at 300 K, at cH, α = 0.03 H(D)/V and cH, α + β = 0.47 H(D)/V. Similar phase boundary values were found both for bulk [40] and for a thin film with a thickness of 500 nm [41]. This enables direct comparison of cH and cD as conducted in this study. Electrochemical loading was carried out by using a mixed solution of phosphoric acid 85% and glycerin 85% (1:2 in volume) as an electrolyte, a Ag/AgCl(sat.) and a Pt wire as the reference and the counter electrode, respectively. The cH was calculated by using Faraday’s law.

4. Summary

In this paper, we investigated concentration profiles of Fe/V interfaces in Fe/V multi-layered films and the D distributions therein by Atom Probe Tomography (APT) analysis. A combined effect was suggested including local alloying at the Fe/V interfaces at high deposition temperatures and an impact of particle recoil during the deposition. The resulting Fe/V interfaces appear asymmetric along the film growth direction; a steeper interface was observed at the Fe/V side compared to the V/Fe side even at a low deposition temperature. This was interpreted by a pronounced implantation of Fe atoms in a deposition sequence of Fe on the V layer.
The mean D concentration in Fe/V ML was determined in a wide D concentration range and compared with a representative electromotive force (EMF) curve. The agreement was satisfactory as long as the impacts of D-trapping at defects and thickness differences are taken into account. With regard to the local alloying at Fe/V interfaces, the dependence of the D concentration on the Fe concentration demonstrated a correlation, reflecting the change in lattice constant, i.e., the change in available volume for D. However, the D distribution was found to follow the asymmetric Fe/V interface compositions especially at high D2 pressures. This was considered to originate from different stress states at Fe/V interfaces depending on the stacking sequence because of different implantation impacts. To conclude, in Fe/V multi-layers, the local D content is influenced both by local chemistry and strain, which sensitively reflects the preparation history and the geometry of the samples, as demonstrated by this APT study.

Author Contributions

Conceptualization, A.P. and T.A.-K.; data curation, R.G. and A.P.; formal analysis, R.G.; methodology, R.G., T.A.-K. and A.P.; resources, A.P. and T.A.-K.; supervision, A.P. and T.A.-K.; writing—original draft, R.G.; writing—review and editing, R.G., T.A.-K. and A.P. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support of Deutsche Forschungsgemeinschaft (DFG)—Project number 5485028, SFB 602 via A9 is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

R.G. thanks to Tobias Schulz for designing the deuterium loading set up and Deutscher Akademischer Austauschdienst (DAAD) for their continuous support. The authors gratefully acknowledge reviewers for their valuable comments and suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cerezo, A.; Godfrey, T.J.; Smith, G.D.W. Application of a Position-sensitive Detector to Atom Probe Microanalysis. Rev. Sci. Instrum. 1998, 59, 862. [Google Scholar] [CrossRef]
  2. Blavette, D.; Cadel, E.; Fraczkiewicz, A.; Menand, A. Three-Dimensional Atomic-Scale Imaging of Impurity Segregation to Line Defects. Science 1999, 286, 2317–2319. [Google Scholar] [CrossRef] [PubMed]
  3. Miller, M.K. Atom Probe Tomography; Springer: Berlin/Heidelberg, Germany, 2000. [Google Scholar] [CrossRef]
  4. Al-Kassab, T.; Wollenberger, H.; Schmitz, G.; Kirchheim, R. Tomography by Atom Probe Field Ion Microscopy. High-Resolut. Imaging Spectrom. Mater. 2003, 50, 271–320. [Google Scholar] [CrossRef]
  5. Kelly, T.F.; Miller, M.K. Atom Probe Tomography. Rev. Sci. Instrum. 2007, 78, 031101. [Google Scholar] [CrossRef]
  6. Gault, B.; Moody, M.P.; Cairney, J.M.; Ringer, S.P. Atom Probe Microscopy; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012; Volume 160. [Google Scholar] [CrossRef]
  7. Larson, D.J.; Prosa, T.J.; Ulfig, R.M.; Geiser, B.P.; Kelly, T.F. Local Electrode Atom Probe Tomography; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar] [CrossRef]
  8. Miller, M.K.; Forbes, R.G. Atom-Probe Tomography: The Local Electrode Atom Probe; Springer: Berlin/Heidelberg, Germany, 2014; pp. 1–423. [Google Scholar] [CrossRef]
  9. Sundell, G.; Thuvander, M.; Yatim, A.K.; Nordin, H.; Andrén, H.O. Direct Observation of Hydrogen and Deuterium in Oxide Grain Boundaries in Corroded Zirconium Alloys. Corros. Sci. 2015, 90, 1–4. [Google Scholar] [CrossRef] [Green Version]
  10. Meier, M.S.; Jones, M.E.; Felfer, P.J.; Moody, M.P.; Haley, D. Extending Estimating Hydrogen Content in Atom Probe Tomography Experiments Where H2Molecule Formation Occurs. Microsc. Microanal. 2021, 28, 1–14. [Google Scholar] [CrossRef]
  11. Jones, M.E.; London, A.J.; Breen, A.J.; Styman, P.D.; Sikotra, S.; Moody, M.P.; Haley, D. Improving the Quantification of Deuterium in Zirconium Alloy Atom Probe Tomography Data Using Existing Analysis Methods. Microsc. Microanal. 2022, 28, 1245–1254. [Google Scholar] [CrossRef]
  12. Breen, A.J.; Stephenson, L.T.; Sun, B.; Li, Y.; Kasian, O.; Raabe, D.; Herbig, M.; Gault, B. Solute Hydrogen and Deuterium Observed at the near Atomic Scale in High-Strength Steel. Acta Mater. 2020, 188, 108–120. [Google Scholar] [CrossRef]
  13. Takahashi, J.; Kawakami, K.; Kobayashi, Y. Origin of Hydrogen Trapping Site in Vanadium Carbide Precipitation Strengthening Steel. Acta Mater. 2018, 153, 193–204. [Google Scholar] [CrossRef]
  14. Takamizawa, H.; Hoshi, K.; Shimizu, Y.; Yano, F.; Inoue, K.; Nagata, S.; Shikama, T.; Nagai, Y. Three-Dimensional Characterization of Deuterium Implanted in Silicon Using Atom Probe Tomography. Appl. Phys. Express 2013, 6, 066602. [Google Scholar] [CrossRef]
  15. Shimizu, Y.; Han, B.; Ebisawa, N.; Ichihashi, Y.; Hashiguchi, T.; Katayama, H.; Matsumoto, M.; Terakawa, A.; Inoue, K.; Nagai, Y. 3D Impurity Profiles of Doped/Intrinsic Amorphous-Silicon Layers Composing Textured Silicon Heterojunction Solar Cells Detected by Atom Probe Tomography. Appl. Phys. Express 2020, 13, 126503. [Google Scholar] [CrossRef]
  16. Shimizu, Y.; Sai, H.; Matsui, T.; Taki, K.; Hashiguchi, T.; Katayama, H.; Matsumoto, M.; Terakawa, A.; Inoue, K.; Nagai, Y. Crystallite Distribution Analysis Based on Hydrogen Content in Thin-Film Nanocrystalline Silicon Solar Cells by Atom Probe Tomography. Appl. Phys. Express 2020, 14, 016501. [Google Scholar] [CrossRef]
  17. Yatagai, K.; Shishido, Y.; Gemma, R.; Boll, T.; Uchida, H.H.; Oguri, K. Mechanochemical CO2 Methanation over LaNi-Based Alloys. Int. J. Hydrogen Energy 2020, 45, 5264–5275. [Google Scholar] [CrossRef]
  18. Gemma, R.; Al-Kassab, T.; Kirchheim, R.; Pundt, A. Analysis of Deuterium in V-Fe5at.% Film by Atom Probe Tomography (APT). J. Alloys Compd. 2011, 509, S872–S876. [Google Scholar] [CrossRef]
  19. Takahashi, J.; Kawakami, K.; Kobayashi, Y.; Tarui, T. The First Direct Observation of Hydrogen Trapping Sites in TiC Precipitation-Hardening Steel through Atom Probe Tomography. Scr. Mater. 2010, 63, 261–264. [Google Scholar] [CrossRef]
  20. Chen, Y.S.; Haley, D.; Gerstl, S.S.A.; London, A.J.; Sweeney, F.; Wepf, R.A.; Rainforth, W.M.; Bagot, P.A.J.; Moody, M.P. Direct Observation of Individual Hydrogen Atoms at Trapping Sites in a Ferritic Steel. Science 2017, 355, 1196–1199. [Google Scholar] [CrossRef]
  21. Chen, Y.S.; Bagot, P.A.J.; Moody, M.P.; Haley, D. Observing Hydrogen in Steel Using Cryogenic Atom Probe Tomography: A Simplified Approach. Int. J. Hydrogen Energy 2019, 44, 32280–32291. [Google Scholar] [CrossRef]
  22. Stephenson, L.T.; Szczepaniak, A.; Mouton, I.; Rusitzka, K.A.K.; Breen, A.J.; Tezins, U.; Sturm, A.; Vogel, D.; Chang, Y.; Kontis, P.; et al. The Laplace Project: An Integrated Suite for Preparing and Transferring Atom Probe Samples under Cryogenic and UHV Conditions. PLoS ONE 2018, 13, e0209211. [Google Scholar] [CrossRef]
  23. Felfer, P.; Ott, B.; Monajem, M.; Dalbauer, V.; Heller, M.; Josten, J.; Macaulay, C. An Atom Probe with Ultra-Low Hydrogen Background. Microsc. Microanal. 2022, 28, 1255–1263. [Google Scholar] [CrossRef]
  24. Gemma, R.; Al-Kassab, T.; Kirchheim, R.; Pundt, A. APT Analyses of Deuterium-Loaded Fe/V Multi-Layered Films. Ultramicroscopy 2009, 109, 631–636. [Google Scholar] [CrossRef]
  25. Gemma, R. Hydrogen in V-Fe Thin Films and Fe/V-Fe Multi-Layered Thin Films; Cuvillier Verlag Goettingen: Göttingen, Germany, 2011; ISBN 978-3-86955-976-6. [Google Scholar]
  26. Fromm, E.; Gebhardt, E. Gase Und Kohlenstoff in Metallen; Springer: Berlin/Heidelberg, Germany, 1976; ISBN 9783642809446. [Google Scholar]
  27. Yagi, E.; Kobayashi, T.; Nakamura, S.; Kano, F.; Watanabe, K.; Fukai, Y.; Koike, S. Direct Evidence of Stress-Induced Site Change of H in V Observed by the Channeling Method. Phys. Rev. B 1986, 33, 5121. [Google Scholar] [CrossRef] [PubMed]
  28. Pálsson, G.K.; Wälde, M.; Amft, M.; Wu, Y.; Ahlberg, M.; Wolff, M.; Pundt, A.; Hjörvarsson, B. Hydrogen Site Occupancy and Strength of Forces in Nanosized Metal Hydrides. Phys. Rev. B Condens. Matter Mater. Phys. 2012, 85, 195407. [Google Scholar] [CrossRef] [Green Version]
  29. Johansson, R.; Ahuja, R.; Eriksson, O.; Hjörvarsson, B.; Scheicher, R.H. Effect of Uniaxial Strain on the Site Occupancy of Hydrogen in Vanadium from Density-Functional Calculations. Sci. Rep. 2015, 5, 1–7. [Google Scholar] [CrossRef]
  30. Birch, J.; Yamamoto, Y.; Hultman, L.; Radnoczi, G.; Sundgren, J.E.; Wallenberg, L.R. Growth and Structural Characterization of Single-Crystal (001) Oriented Mo/V Superlattices. Vacuum 1990, 41, 1231–1233. [Google Scholar] [CrossRef]
  31. Ivanchenko, V. Fe-V (Iron-Vanadium) Phase Diagram Crystal Structure. Landolt Börnstein 2008, Group IV/5. [Google Scholar] [CrossRef]
  32. Marquis, E.A.; Vurpillot, F. Chromatic Aberrations in the Field Evaporation Behavior of Small Precipitates. Microsc. Microanal. 2008, 14, 561–570. [Google Scholar] [CrossRef]
  33. Torres, K.L.; Geiser, B.; Moody, M.P.; Ringer, S.P.; Thompson, G.B. Field Evaporation Behavior in [0 0 1] FePt Thin Films. Ultramicroscopy 2011, 111, 512–517. [Google Scholar] [CrossRef] [PubMed]
  34. Brons, J.G.; Herzing, A.A.; Henry, K.T.; Anderson, I.M.; Thompson, G.B. Comparison of Atom Probe Compositional Fidelity across Thin Film Interfaces. Thin Solid Film. 2014, 551, 61–67. [Google Scholar] [CrossRef]
  35. Ziegler, J.F. The Stopping and Range of Ions in Solids/J.F. Ziegler, J.P. Biersack, U. Littmark; Stopping ranges ions matter; v. 1; Pergamon: New York, NY, USA, 1985. [Google Scholar]
  36. Haasen, P.; Mordike, B.L. Physical Metallurgy; Elsevier: Amsterdam, The Netherlands, 1996. [Google Scholar] [CrossRef]
  37. Isberg, P.; Granberg, P.; Svedberg, E.B.; Hjörvarsson, B.; Wäppling, R.; Nordblad, P. Structure and Magnetic Properties of Fe/V (110) Superlattices. Phys. Rev. B 1998, 57, 3531. [Google Scholar] [CrossRef]
  38. Kirchheim, R. Hydrogen Solubility and Diffusivity in Defective and Amorphous Metals. Prog. Mater. Sci. 1988, 32, 261–325. [Google Scholar] [CrossRef]
  39. Pundt, A.; Kirchheim, R. Hydrogen in Metals: Microstructural Aspects. Annu. Rev. Mater. Res. 2006, 36, 555–608. [Google Scholar] [CrossRef]
  40. Schober, T.; Wenzl, H. Systems NbH(D), TaH(D), VH(D): Structures, Phase Diagrams, Morphologies, Methods of Preparation. Hydrog. Met 2 1978, 29, 11–71. [Google Scholar] [CrossRef]
  41. Papathanassopoulos, K.; Wenzl, H. Pressure-Composition Isotherms of Hydrogen and Deuterium in Vanadium Films Measured with a Vibrating Quartz Microbalance. J. Phys. F Met. Phys. 1982, 12, 1369. [Google Scholar] [CrossRef]
  42. Gemma, R.; Al-Kassab, T.; Kirchheim, R.; Pundt, A. Visualization of Deuterium Dead Layer by Atom Probe Tomography. Scr. Mater. 2012, 67, 903–906. [Google Scholar] [CrossRef]
  43. Olafsson, S.; Hjörvarsson, B.; Stillesjö, F.; Karlsson, E.; Birch, J.; Sundgren, J.E. Charge Transfer at Interfaces in MoxV1−x/V Superlattices. Phys. Rev. B 1995, 52, 10792. [Google Scholar] [CrossRef]
  44. Wagner, S.; Pundt, A. Quasi-Thermodynamic Model on Hydride Formation in Palladium–Hydrogen Thin Films: Impact of Elastic and Microstructural Constraints. Int. J. Hydrogen Energy 2016, 41, 2727–2738. [Google Scholar] [CrossRef]
  45. Lebon, A.; Vega, A.; Mokrani, A. Ab Initio Study of Hydrogen Insertion in Ultrathin Transition Metal Doped v Films: Structural and Electronic Properties. Phys. Rev. B Condens. Matter Mater. Phys. 2010, 81, 094110. [Google Scholar] [CrossRef]
  46. Shiga, M.; Nakamura, Y. Effect of Local Environment on Formation of Local Moments in BCC Fe-V Alloys: Mossbauer Study. J. Phys. F Met. Phys. 1978, 8, 177. [Google Scholar] [CrossRef]
  47. Sutton, A.L.; Hume-Rothery, W. CXLI. The Lattice Spacings of Solid Solutions of Titanium, Vanadium, Chromium, Manganese, Cobalt and Nickel in α-Iron. Lond. Edinb. Dublin Philos. Mag. J. Sci. 2010, 46, 1295–1309. [Google Scholar] [CrossRef]
  48. Lam, D.J.; Van Ostenburg, D.O.; Nevitt, M.V.; Trapp, H.D.; Pracht, D.W. Magnetic Susceptibilities and Nuclear Magnetic Resonance Measurements in V-Fe Alloys. Phys. Rev. 1963, 131, 1428. [Google Scholar] [CrossRef]
  49. Hanneman, R.E.; Mariano, A.N. Lattice-Parameter and Volumetric Data of Iron-Vanadium System. Trans. Met. Soc. AIME 1964, 230, 937–939. [Google Scholar]
  50. Martens, H.; Duwez, P. Phase Relationships in the Iron-Chromium-Vanadium System. Trans. ASM 1952, 44, 484–494. [Google Scholar]
  51. Jeske, T.; Schmitz, G. Influence of the Microstructure on the Interreaction of Al/Ni Investigated by Tomographic Atom Probe. Mater. Sci. Eng. A 2002, 327, 101–108. [Google Scholar] [CrossRef]
Molecules 27 07848 g001 550

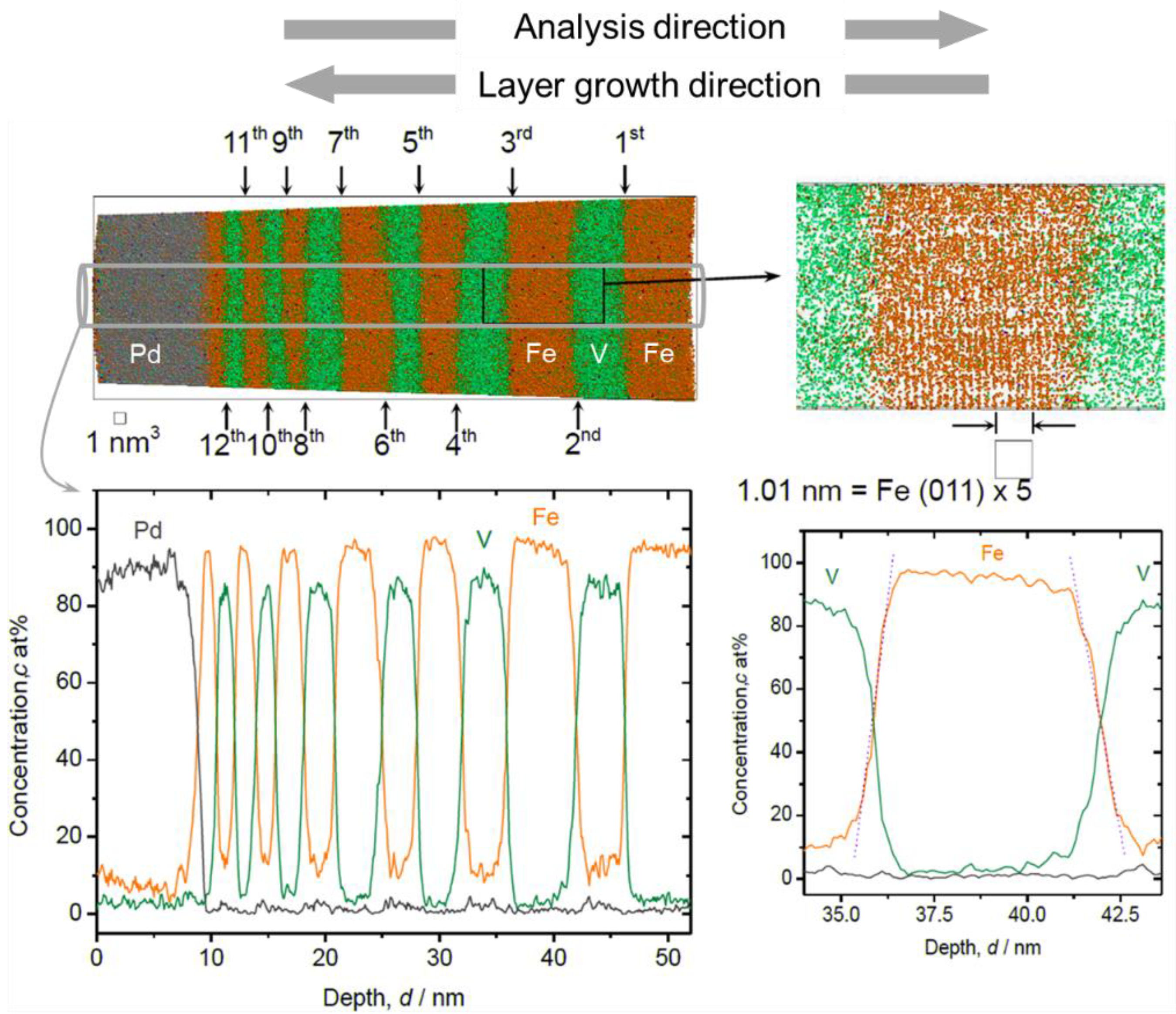

Figure 1. 3D reconstruction volume (18 nm × 18 nm × 53 nm) and 1D concentration profile of Fe/V multi-layered film on W deposited at 603 K (grey: Pd, green: V, orange: Fe), with a magnified V/Fe/V interface (right hand side). The number of Fe/V interface (12 in total) is indicated as the order number. Depth concentration profiles were taken from a 5 nm ϕ cylinder volume (colored in grey).
Figure 1. 3D reconstruction volume (18 nm × 18 nm × 53 nm) and 1D concentration profile of Fe/V multi-layered film on W deposited at 603 K (grey: Pd, green: V, orange: Fe), with a magnified V/Fe/V interface (right hand side). The number of Fe/V interface (12 in total) is indicated as the order number. Depth concentration profiles were taken from a 5 nm ϕ cylinder volume (colored in grey).
Molecules 27 07848 g001
Molecules 27 07848 g002 550

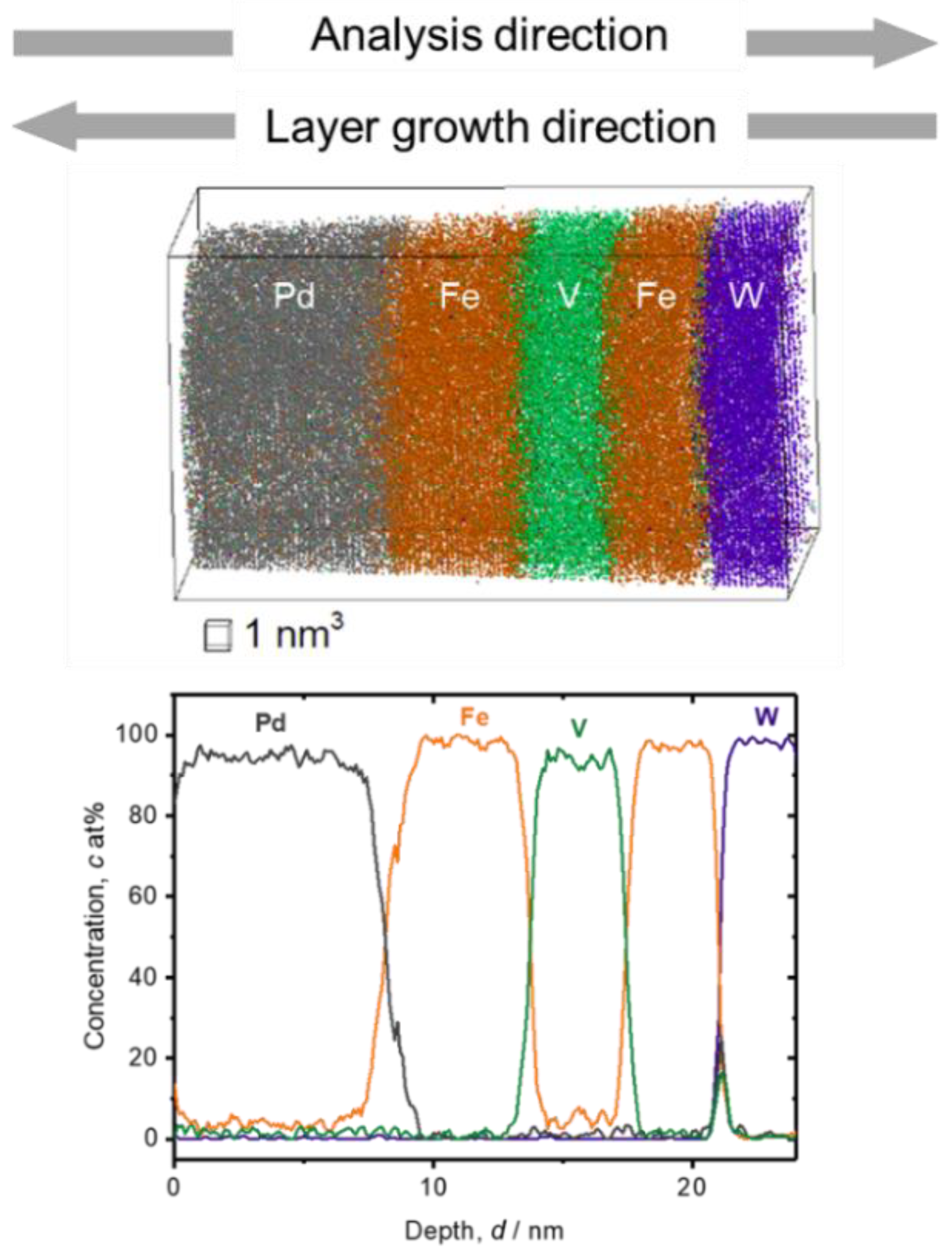

Figure 2. 3D reconstruction volume (13 nm × 13 nm × 26 nm) and 1D concentration profile of Fe/V multi-layered film deposited on W deposited at 297 K (grey: Pd, green: V, orange: Fe, blue: W). Depth concentration profile was taken from a 5 nm ϕ cylinder volume. The slope for deposition sequence of V on Fe is slightly steeper than that of Fe on V.
Figure 2. 3D reconstruction volume (13 nm × 13 nm × 26 nm) and 1D concentration profile of Fe/V multi-layered film deposited on W deposited at 297 K (grey: Pd, green: V, orange: Fe, blue: W). Depth concentration profile was taken from a 5 nm ϕ cylinder volume. The slope for deposition sequence of V on Fe is slightly steeper than that of Fe on V.
Molecules 27 07848 g002
Molecules 27 07848 g003 550

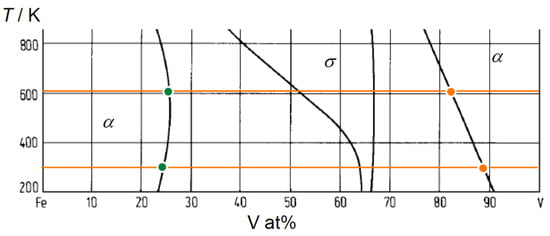

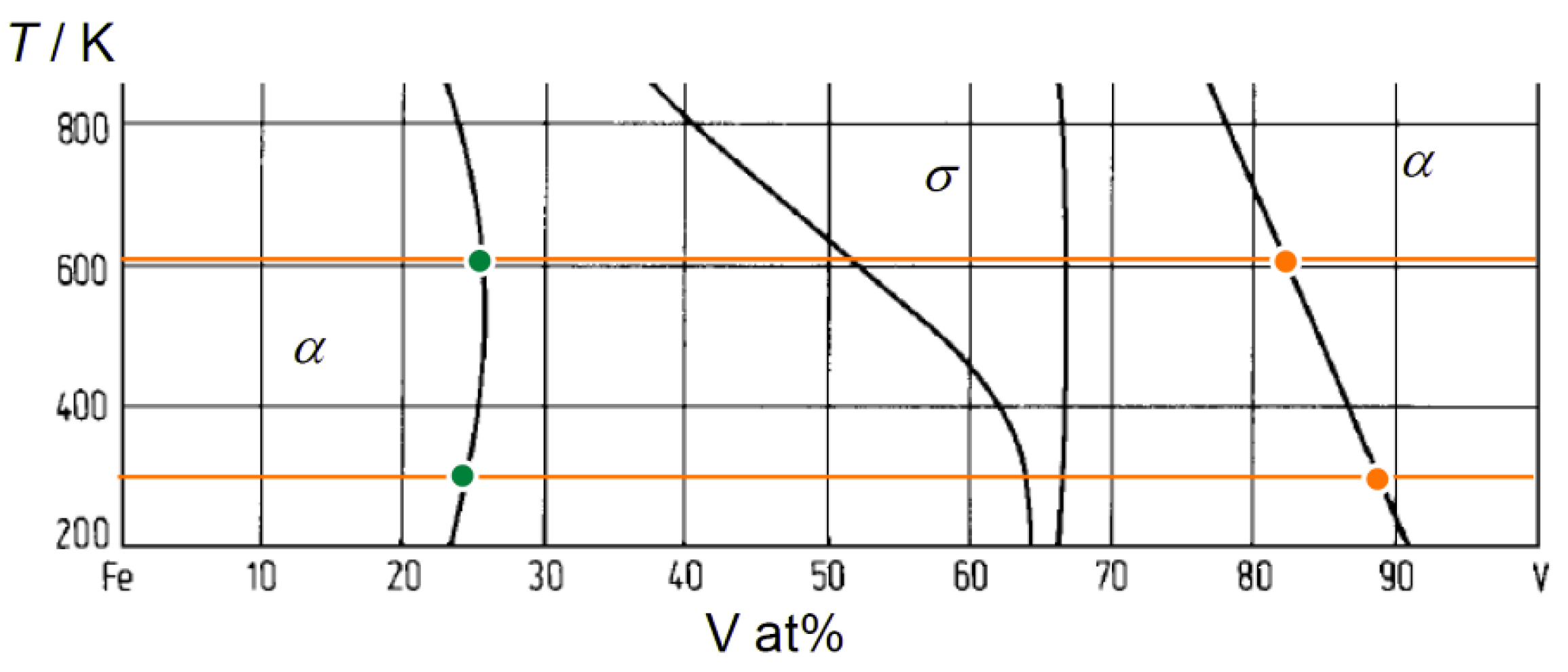

Figure 3. Low temperature part of Fe-V binary phase diagram [31]. 603 K and 297 K are indicated by horizontal orange lines. Fe solubility limit (orange) and V solubility limit (green) at each temperature are marked by individual filled circles.
Figure 3. Low temperature part of Fe-V binary phase diagram [31]. 603 K and 297 K are indicated by horizontal orange lines. Fe solubility limit (orange) and V solubility limit (green) at each temperature are marked by individual filled circles.
Molecules 27 07848 g003
Molecules 27 07848 g004 550

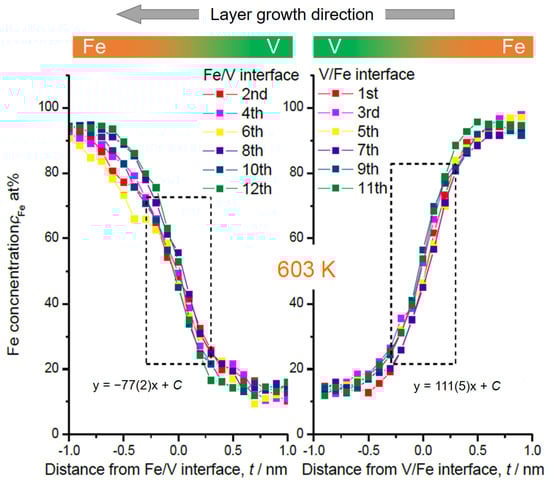

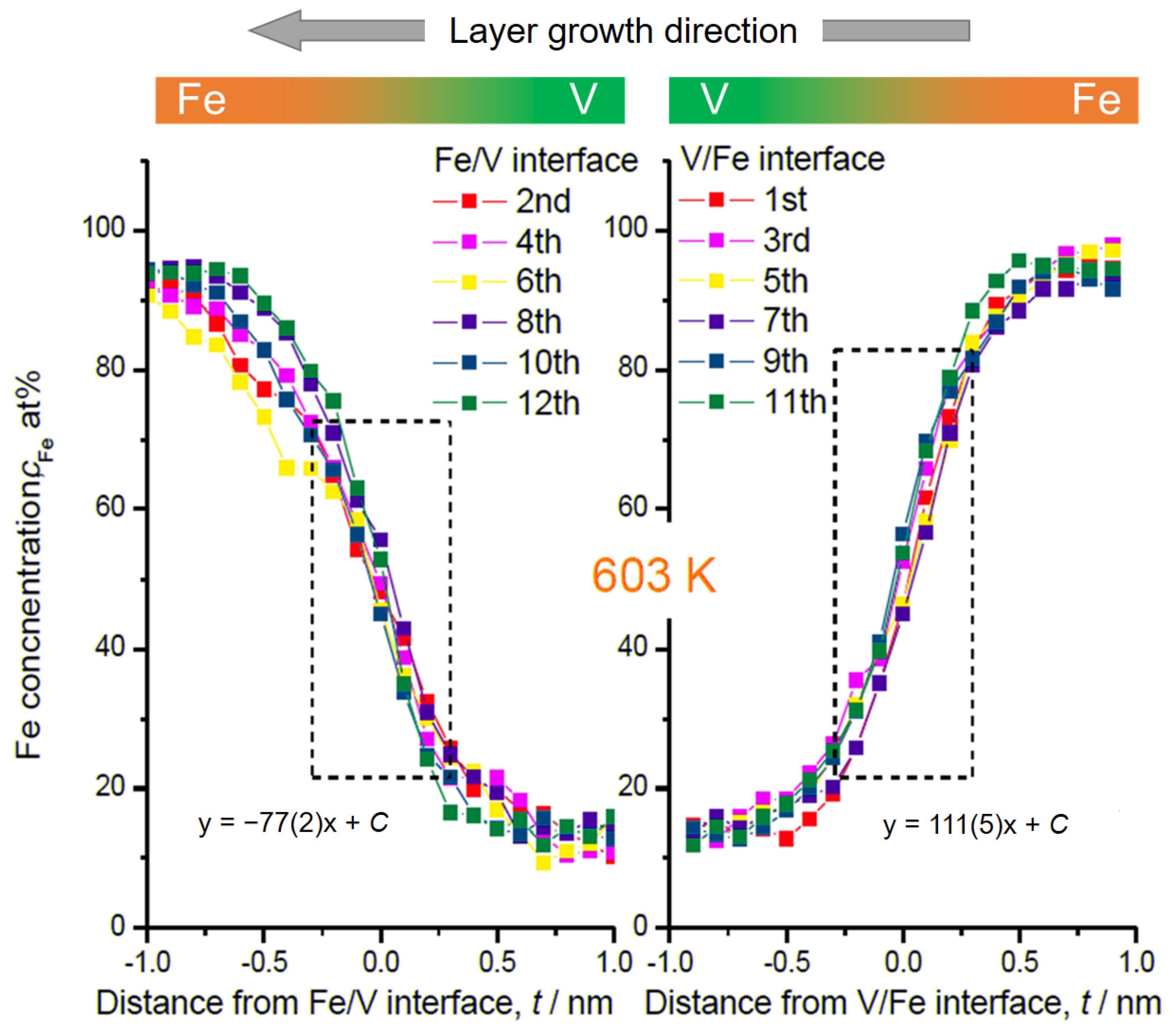

Figure 4. Fe concentration profiles at Fe/V and V/Fe interfaces in Figure 1. The numbers are assigned as for the interfaces indicated in Figure 1. The dotted rectangular region indicates where the interface sharpness was estimated as a slope. The concentration slope at each in the same series is almost identical. But the average slope for deposition sequence of V on Fe (111(5)) is steeper than that of Fe on V (−77(2)).
Figure 4. Fe concentration profiles at Fe/V and V/Fe interfaces in Figure 1. The numbers are assigned as for the interfaces indicated in Figure 1. The dotted rectangular region indicates where the interface sharpness was estimated as a slope. The concentration slope at each in the same series is almost identical. But the average slope for deposition sequence of V on Fe (111(5)) is steeper than that of Fe on V (−77(2)).
Molecules 27 07848 g004
Molecules 27 07848 g005 550

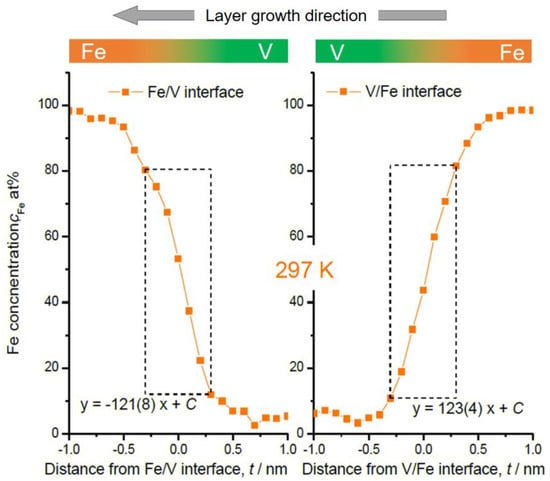

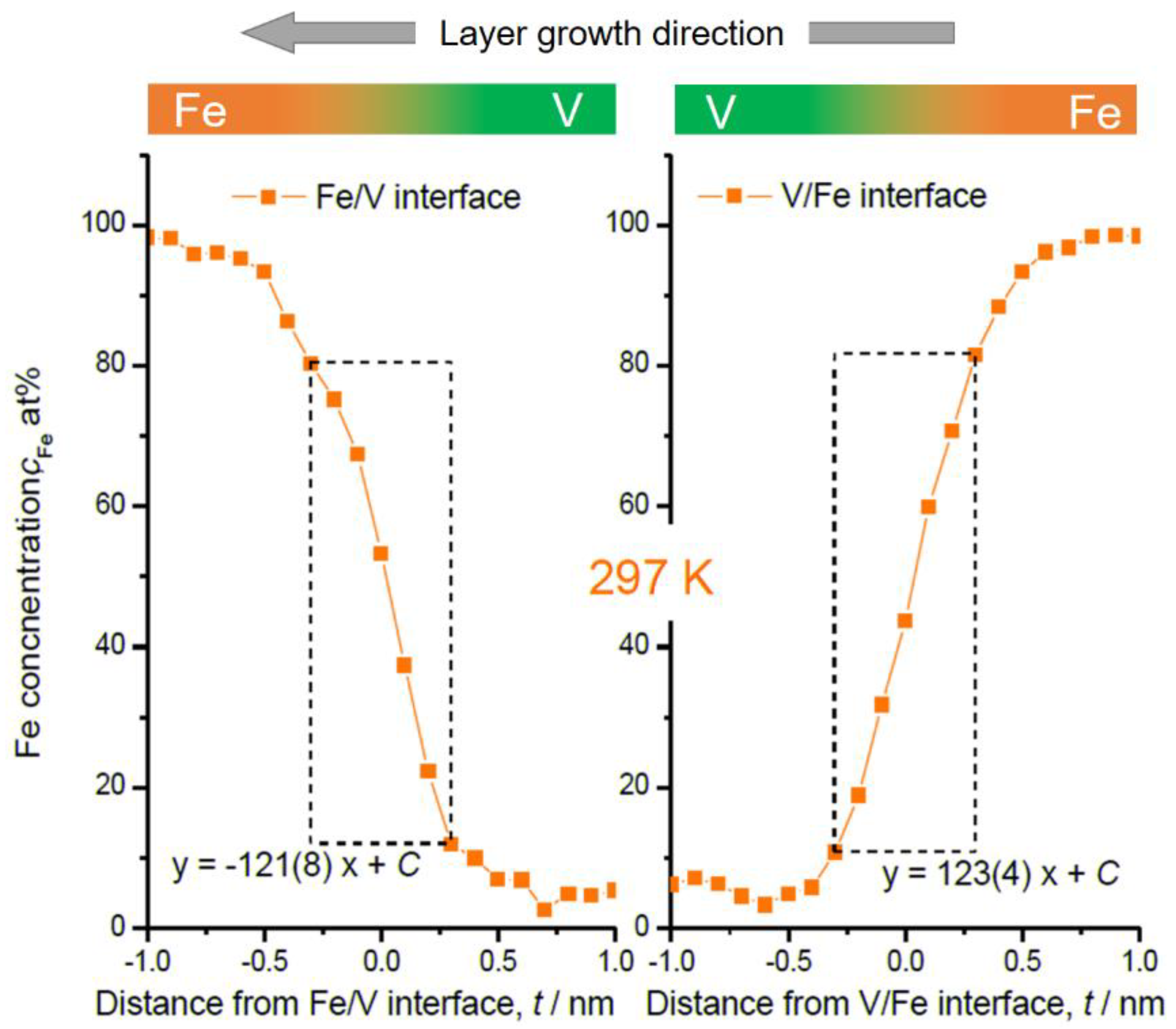

Figure 5. Fe concentration profiles at Fe/V and V/Fe interfaces in Figure 2. Dotted rectangular region indicates where the interface sharpness was estimated as a slope. The concentration slopes estimated within the dotted squares are almost the same.
Figure 5. Fe concentration profiles at Fe/V and V/Fe interfaces in Figure 2. Dotted rectangular region indicates where the interface sharpness was estimated as a slope. The concentration slopes estimated within the dotted squares are almost the same.
Molecules 27 07848 g005
Molecules 27 07848 g006 550

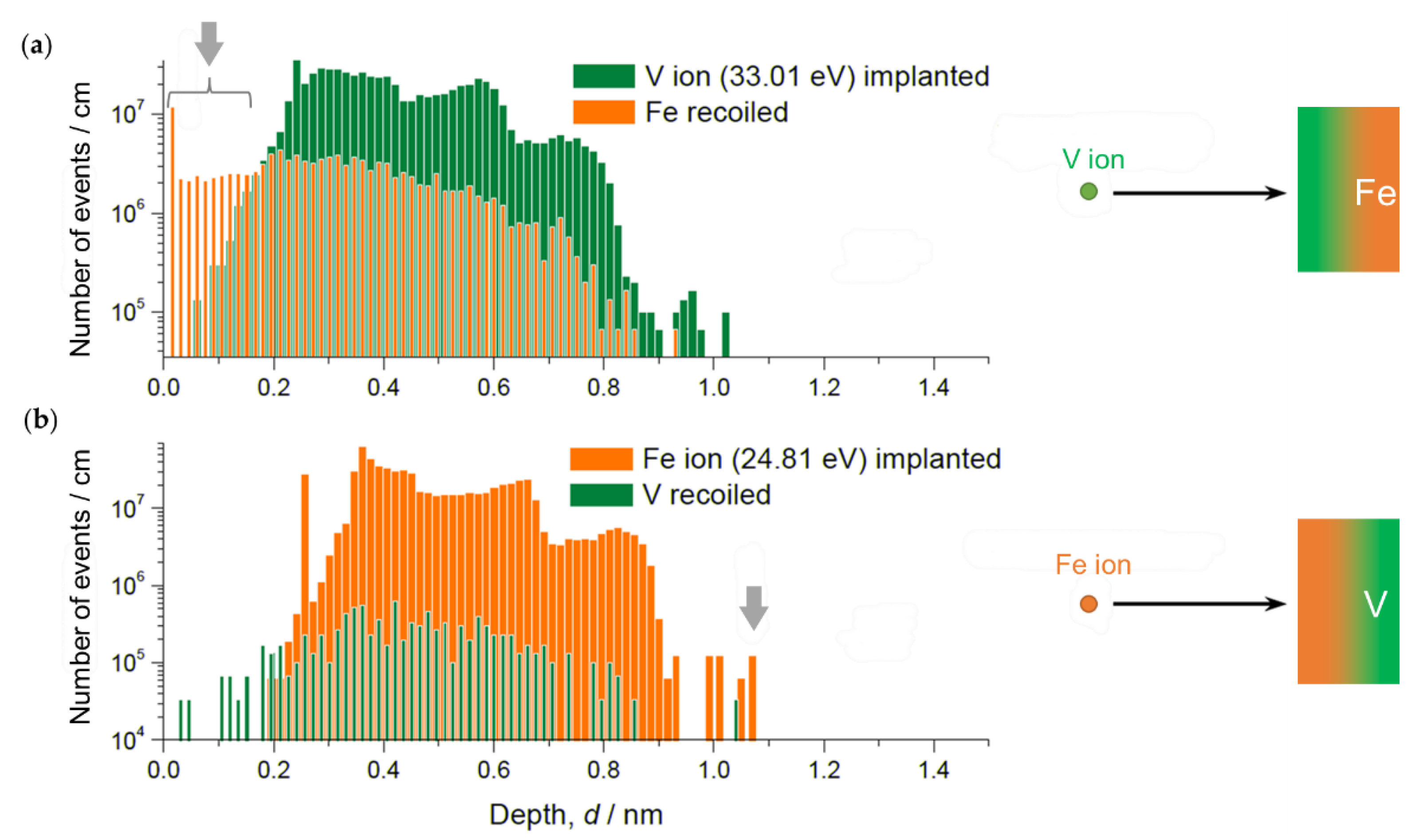

Figure 6. SRIM simulation results of implantation depths and recoil distributions, for V in Fe (a) and Fe in V (b). Note significant recoil of Fe and deeper penetration depth of Fe than that of V (indicated by grey arrows).
Figure 6. SRIM simulation results of implantation depths and recoil distributions, for V in Fe (a) and Fe in V (b). Note significant recoil of Fe and deeper penetration depth of Fe than that of V (indicated by grey arrows).
Molecules 27 07848 g006
Molecules 27 07848 g007 550

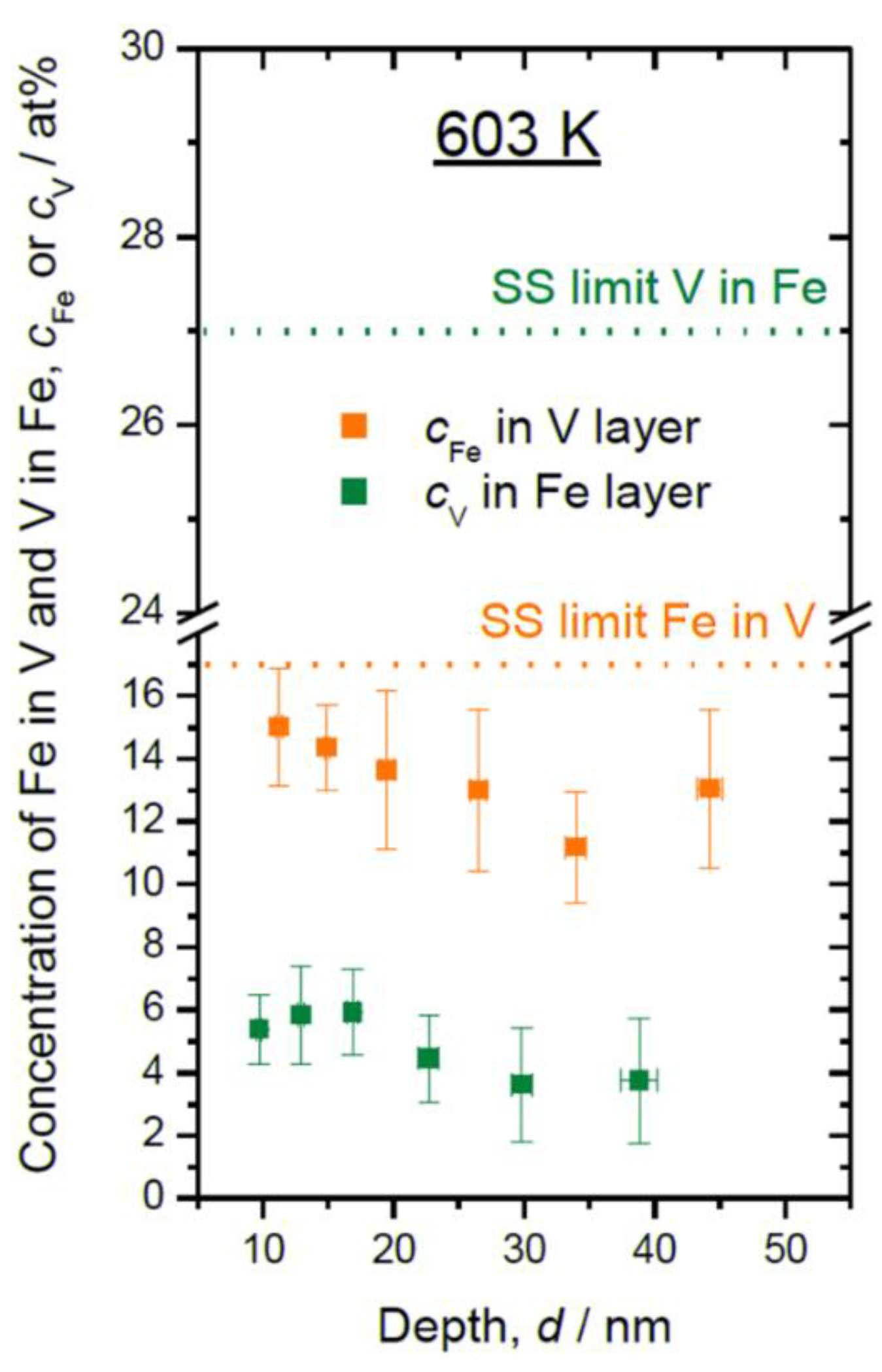

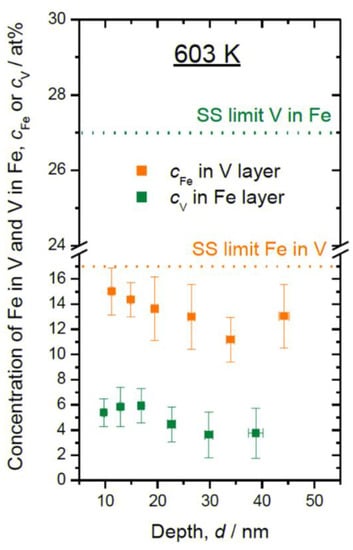

Figure 7. In-layer composition of Fe in V layers (cFe) and V in Fe layers (cV) plotted against the sample depth, as detected at 603 K. Solid solubility limits (SS limit) at 603 K for bulk system [31] are marked with dotted lines.
Figure 7. In-layer composition of Fe in V layers (cFe) and V in Fe layers (cV) plotted against the sample depth, as detected at 603 K. Solid solubility limits (SS limit) at 603 K for bulk system [31] are marked with dotted lines.
Molecules 27 07848 g007
Molecules 27 07848 g008 550
Figure 8. Reconstructed volume of Fe/V multi-layer (14 nm × 14 nm × 27 nm), loaded with D2 0.05 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.03 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Figure 8. Reconstructed volume of Fe/V multi-layer (14 nm × 14 nm × 27 nm), loaded with D2 0.05 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.03 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Molecules 27 07848 g008
Molecules 27 07848 g009 550

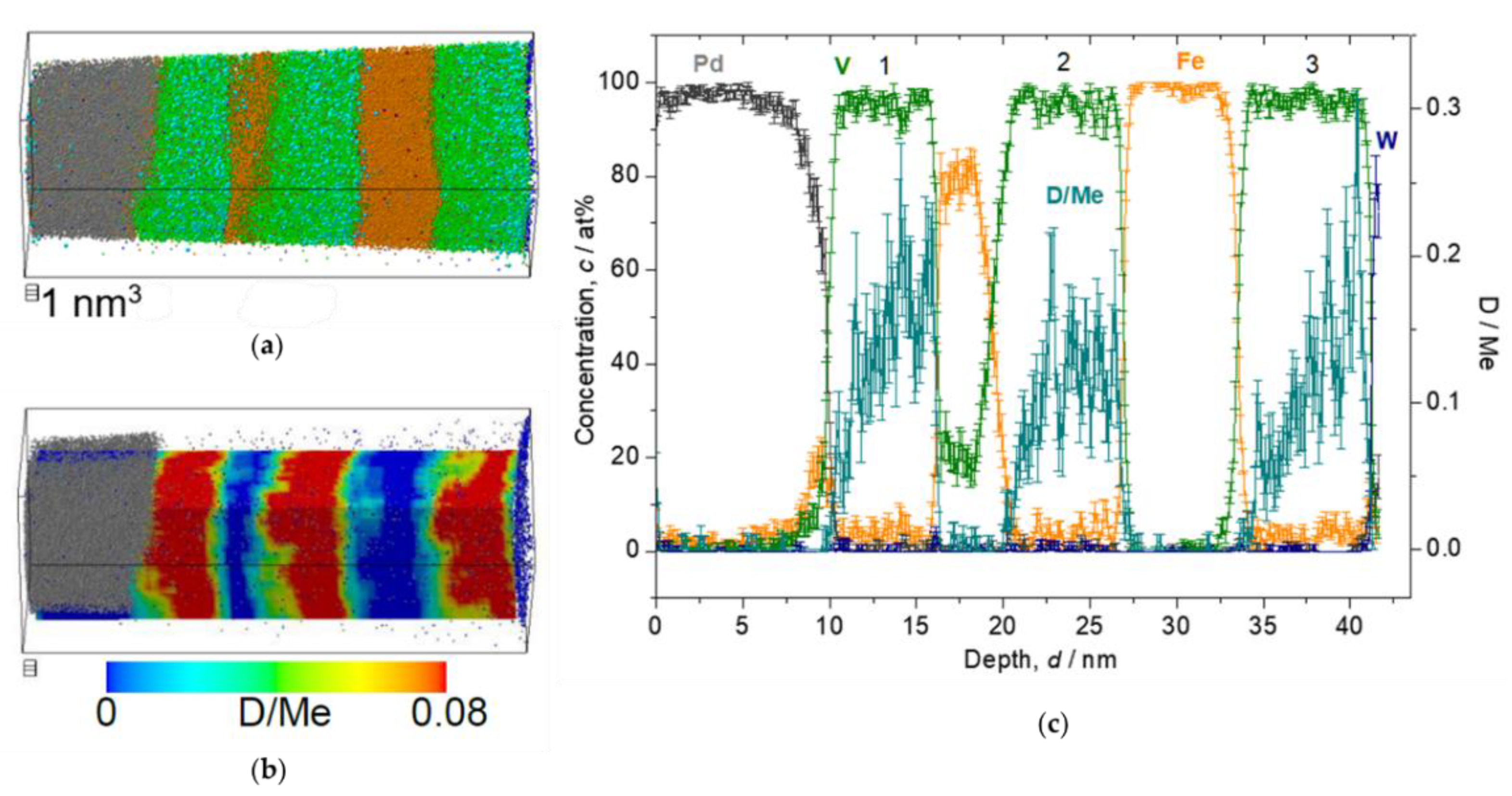

Figure 9. Reconstructed volume of Fe/V multi-layer (15 nm × 15 nm × 42 nm), loaded with D2 0.5 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.08 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Figure 9. Reconstructed volume of Fe/V multi-layer (15 nm × 15 nm × 42 nm), loaded with D2 0.5 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.08 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Molecules 27 07848 g009
Molecules 27 07848 g010 550
Figure 10. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 20 nm), loaded with D2 2 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.15 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume. Notably high cD in the 3rd V layer is observed. (d) Magnified plot of the 2nd V layer. The cD shows an asymmetric profile.
Figure 10. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 20 nm), loaded with D2 2 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.15 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume. Notably high cD in the 3rd V layer is observed. (d) Magnified plot of the 2nd V layer. The cD shows an asymmetric profile.
Molecules 27 07848 g010
Molecules 27 07848 g011 550
Figure 11. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 23 nm), loaded with D2 10 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.22 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume. The cD in the 3rd V is higher than in the other 2 V layers.
Figure 11. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 23 nm), loaded with D2 10 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.22 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume. The cD in the 3rd V is higher than in the other 2 V layers.
Molecules 27 07848 g011
Molecules 27 07848 g012 550
Figure 12. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 16 nm), loaded with D2 1000 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.55 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Figure 12. Reconstructed volume of Fe/V multi-layer (12 nm × 12 nm × 16 nm), loaded with D2 1000 Pa, analyzed at 30 K. (a) The whole volume of reconstruction (grey: Pd, green: V, orange: Fe, blue: W, light blue: D). (b) Iso-concentration map of D concentration (cD = 0.55 D/Me) from the same reconstruction in (a). (c) Depth concentration profile from 5 nm ϕ cylinder volume.
Molecules 27 07848 g012
Molecules 27 07848 g013 550
Figure 13. EMF curve of Pd 20 nm/[(Fe 5 nm/V 5 nm) × 8] deposited on Al2O3 (0001) substrate at room temperature and individual cD determined by APT on the [Fe 2–5 nm/V 2–5 nm/Fe 2–5 nm] stack loaded at different D2 pressure. The black dotted line RT/F shows the ideal solubility known as Sieverts’ law.
Figure 13. EMF curve of Pd 20 nm/[(Fe 5 nm/V 5 nm) × 8] deposited on Al2O3 (0001) substrate at room temperature and individual cD determined by APT on the [Fe 2–5 nm/V 2–5 nm/Fe 2–5 nm] stack loaded at different D2 pressure. The black dotted line RT/F shows the ideal solubility known as Sieverts’ law.
Molecules 27 07848 g013
Molecules 27 07848 g014a 550Molecules 27 07848 g014b 550
Figure 14. Dependence of cD on cFe at various D2 loading pressures, plotted for (a) V/Fe interface and (b) Fe/V interface at the 2nd V layer of Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12. Schematic drawings of cD change with cFe at the intermixed regions are depicted next to the profiles. cFe = 30 at% is marked by black arrows in the insets. (c) Change of lattice constant of FeV alloy against Fe concentration, reported by Shiga and Nakamura [46]. Individual data points were taken from Sutton and Hume-Rothery [47], Lam et al. [48], Hanneman and Mariano [49], Martens and Duwez [50], and Shiga and Nakamura [46]. Note the Vegard’s law slope changes at around cFe = 30~35 at%.
Figure 14. Dependence of cD on cFe at various D2 loading pressures, plotted for (a) V/Fe interface and (b) Fe/V interface at the 2nd V layer of Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12. Schematic drawings of cD change with cFe at the intermixed regions are depicted next to the profiles. cFe = 30 at% is marked by black arrows in the insets. (c) Change of lattice constant of FeV alloy against Fe concentration, reported by Shiga and Nakamura [46]. Individual data points were taken from Sutton and Hume-Rothery [47], Lam et al. [48], Hanneman and Mariano [49], Martens and Duwez [50], and Shiga and Nakamura [46]. Note the Vegard’s law slope changes at around cFe = 30~35 at%.
Molecules 27 07848 g014aMolecules 27 07848 g014b
Molecules 27 07848 g015 550
Figure 15. Schematic illustration of the home-made deuterium gas loading set up. 1: D2 gas bottle (99.98%), 2: variable leak valve, 3: capacitance manometer 105 Pa max., 4: capacitance manometer 100 Pa max., 5: turbo molecular pump, 6: oil rotary pump, 7: gate valve, 8: sample mounted on transfer rod, 9: magnetic transfer rod with sample, and 10: vacuum gauge.
Figure 15. Schematic illustration of the home-made deuterium gas loading set up. 1: D2 gas bottle (99.98%), 2: variable leak valve, 3: capacitance manometer 105 Pa max., 4: capacitance manometer 100 Pa max., 5: turbo molecular pump, 6: oil rotary pump, 7: gate valve, 8: sample mounted on transfer rod, 9: magnetic transfer rod with sample, and 10: vacuum gauge.
Molecules 27 07848 g015
Table
Table 1. Comparison of mean D concentration cD [D/Me] obtained by the EMF curve and APT.
Table 1. Comparison of mean D concentration cD [D/Me] obtained by the EMF curve and APT.
D2 Pressure [Pa]Mean D Concentration, cD [D/Me]
Expected by EMF 1Detected by APT 2
0.050.0350.013(4)
0.20.0530.05(2) 3
0.50.080.12(5)
20.150.13(5)
100.220.22(9)
10000.550.28(6)
1cH determined by the EMF curve of Fe/V ML ≈ cD (Isotope effect is negligible in the cD range here.). 2 Mean cD in the 2nd V layer (Fe/V/Fe). 3 Adapted from our previous report ([24]).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gemma, R.; Al-Kassab, T.; Pundt, A. Deuterium Distribution in Fe/V Multi-Layered Films. Molecules 2022, 27, 7848. https://doi.org/10.3390/molecules27227848

AMA Style

Gemma R, Al-Kassab T, Pundt A. Deuterium Distribution in Fe/V Multi-Layered Films. Molecules. 2022; 27(22):7848. https://doi.org/10.3390/molecules27227848

Chicago/Turabian Style

Gemma, Ryota, Talaat Al-Kassab, and Astrid Pundt. 2022. "Deuterium Distribution in Fe/V Multi-Layered Films" Molecules 27, no. 22: 7848. https://doi.org/10.3390/molecules27227848

APA Style

Gemma, R., Al-Kassab, T., & Pundt, A. (2022). Deuterium Distribution in Fe/V Multi-Layered Films. Molecules, 27(22), 7848. https://doi.org/10.3390/molecules27227848

Article Metrics

Back to TopTop
