Article

Heterocyclization of Bis(2-chloroprop-2-en-1-yl)sulfide in Hydrazine Hydrate–KOH: Synthesis of Thiophene and Pyrrole Derivatives

by
Igor B. Rozentsveig
1,2,*,
Valentina S. Nikonova
1,
Victor V. Manuilov
1,
Igor A. Ushakov
1,
Tatyana N. Borodina
1,
Vladimir I. Smirnov
1 and
Nikolay A. Korchevin
1
1
A. E. Favorsky Irkutsk Institute of Chemistry, Siberian Branch of the Russian Academy of Sciences, 1 Favorsky St., 664033 Irkutsk, Russia
2
Chemistry Department, Irkutsk State University, Karl Marx Str., 1, 664003 Irkutsk, Russia
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(20), 6785; https://doi.org/10.3390/molecules27206785
Submission received: 13 September 2022 / Revised: 3 October 2022 / Accepted: 5 October 2022 / Published: 11 October 2022
(This article belongs to the Special Issue Feature Papers in Organic Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The article is devoted to heterocyclization of bis(2-chloroprop-2-en-1-yl)sulfide which proceeds in hydrazine hydrate–alkali medium and leads to formation of thiophene and pyrrole derivatives: previously described 4,5,9,10-tetrahydrocycloocta[1,2-c;5,8-c’]dithiophene, as well as unknown hydrazone of 5-methylidene-3-methyldihydrothiophen-2-one and 1-amino-2-(propynylsulfanylpropenylsulfanyl)-3,5-dimethylpyrrole. Tentative mechanisms for the formation of the heterocyclic products are discussed. Obtained hydrazone of 5-methylidene-3-methyldihydrothiophen-2-one was used for the synthesis of a range of azine derivatives and in oxidation process with SeO2. The found reactions open up expedient approaches to the formation of various hardly accessible thiophene and pyrrole compounds from 2,3-dichloropropene and elemental sulfur as starting reagents.

1. Introduction

The thiiranium structural motif is an important cationic intermediate that is responsible for chemical transformations in the synthesis of various organosulfur compounds [1,2]. Thiiranium ions are highly reactive electrophiles, which can interact with diverse nucleophiles in a selective fashion that opens new horizons in the preparation of different sulfur-containing linear or heterocyclic derivatives [3,4,5,6,7,8,9,10,11,12,13,14,15]. The well-known anchimeric assistance of chalcogens in case of β-haloalkyl sulfides or –selenides [16] is due to the formation of chalcogeniranium intermediates. Due to anchimeric assistance, the nucleophilic substitution can be increased by thousand folds, and these properties cause specific biological activity (similar to that of “mustard gas-like” systems) [17,18]. Thiiranium intermediates play a crucial role in the mechanism of irreversible inhibition of active sites of coronavirus enzymes inducing severe acute respiratory syndrome (SARS-CoV) [19] that can be employed in design of antiviral drugs.
In addition, chalcogen-containing bridged systems are important objects for theoretical studies using physical-chemical methods and quantum-chemical calculations [20,21,22,23,24].
In the chemistry of organic chalcogenides, the reactions involving 1,2-migration of sulfur via thiiranium and thiirenium systems is of fundamental and applied importance and hold a special place. Such processes are exploited in the synthesis of sulfur-containing carbonyl compounds [15], heterocyclic derivatives or carbocycles, furans and pyrroles [1,4,25,26,27], as well as thiophenes [28] or indenes [29]. Such 1,2-migration of sulfur was discussed in detail by V. Gevorgyan et al. [4,20,21,22,23,24,25]. Summarizing the data given in [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29] allows the following conclusions to be drawn:
(1)
Migration of sulfur occurs along either the alkyl fragment (for beta-halo- or beta-hydroxyalkylsulfides), or the cumulene moiety (for sulfanyl-substituted acetylenic or allenic ketones and their imines upon heating in the presence of CuI);
(2)
In all previous works, the substituent at the sulfur atom is “passively” transferred and not transformed chemically.
Earlier, we [30,31,32,33] developed effective methods for the synthesis of chloropropenyl chalcogenides, precursors of allenes or acetylenic chalcogenides, which are promising building blocks for the preparation of various organochalcogen compounds.
It should be emphasized that 2,3-dichloropropene, the key reagent in the synthesis of organochalcogen compounds by our methodology [30,31,32,33,34,35,36], is a large tonnage waste of organochlorine production, which requires utilization. Another technology-related feedstock is elemental sulfur. Nowadays, the demand for sulfur in market is inferior to the supply. Therefore, the development of new chemistry of 2,3-dichloropropene and elemental sulfur represent an urgent challenge.
In our previous work, we synthesized bis(2-chloroprop-2-en-1-yl)sulfide 1, which was further cyclized to 4,5,9,10-tetrahydrocycloocta[1,2-c;5,8-c’]dithiophene 2, as well as other β,β’-substituted thiophene derivatives 3 and 4 [32,33] (Scheme 1).
Bis(chloropropenyl)sulfide 1 was obtained from 2,3-dichloropropene and elemental sulfur in the basic-reductive system hydrazine hydrate–KOH, which is successfully employed in the synthesis of organochalcogen compounds [34,35,36]. At the same time, the cyclization of compound 1 to thiophene derivatives effectively proceeded in acetonitrile [32,33].
In continuation of these studies, in the present work, we synthesized new sulfur-containing heterocyclic derivatives from bis(chloropropenyl)sulfide 1 using hydrazine hydrate-KOH as a reaction medium (Scheme 1).

2. Results

We have found that three heterocyclic compounds are formed from bis(chloropropenyl)sulfide 1 in hydrazine hydrate–KOH medium. Along with the expected dithiophenocyclooctane 2 (in up to 14% yield), hydrazone of 5-methylidene-3-methyl-dihydrothiophen-2-one 5 (in up to 68% yield) and another cyclic product, 1-amino-2-(propynylsulfanylpropenylsulfanyl)-3,5-dimethylpyrrole 6 (in up to 10% yield) are isolated from the reaction mixture (Scheme 1).
The yields of products 2, 5, and 6 change insignificantly at the reaction temperature (30–60 °C) and KOH: 1 ratio of 3–10. Minimum time at full conversion of the reagent 1 (4 h) was reached at 50 °C. Compounds 2, 5, and 6 were isolated by column chromatography and characterized by various physical-chemical methods.
Dithiophenocyclooctane 2 was described in early works [37,38,39,40,41]. In contrast to our previous works [32,33] and results presented herein with bis(chloropropenyl)sulfide 1, in [37,38,39,40,41], bis(propargyl)sulfide was employed as the key reagent, which was further isomerized to bis(allenyl)sulfide A, the latter being isolated individually before involvement in the final reaction. As the authors [37,38,39,40,41] suggested, bis(allenyl)sulfide A further undergoes cycloaromatization through the generation of 3,4-dimethylthienyl diradical B, which, in turn, dimerizes to afford dithiophenocyclooctane 2 (Scheme 2). For bis(chloropropenyl)sulfide 1 as starting reagent ([32,33] and herein), bis(allenyl)sulfide A is a possible intermediate produced after dehydrochlorination of 1 (Scheme 2).
A tentative mechanism for the formation of dihydrothiophen-2-one hydrazone 5 is shown in Scheme 3. Taking into account the structure of the obtained products, it can be suggested that one of the chloropropenyl fragments in bis(chloropropenyl)sulfide 1 is dehydrochlorinated to afford allenic or methylacetylenic intermediates, while the second chloropropenyl moiety participates in the formation of a thiiranium intermediate C.
Further, intramolecular cyclization occurs via the interaction of electrophilic thiiranium fragment with relatively nucleophilic unsaturated counterpart. It cannot be ruled out that under the reaction conditions nucleophilic assistance of a hydrazine molecule takes place. The latter can probably attack the acetylene group, thus promoting further cyclization (intermediates D, E, F) into corresponding hydrazone 5.
1,2-Migration of sulfur atom in this reaction (Scheme 3) differs from that of migration of sulfur described in the literature. The fundamental difference lies in the fact that in case of the known literature data (see for example, [25]), the substituent at the sulfur atom is “passive”, i.e., it migrates together with the sulfur atom but is not directly involved in the chemical transformation.
In contradistinction to the literature data [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29], cyclic product 5 (Scheme 3) is formed due to the process when the substituent at the sulfur atom is not simply transferred with the chalcogen, but undergoes a series of cascade transformations.
Additionally, to our knowledge, the literature lacks the data on the 1,2-migration of sulfur “along” unsaturated group with the participation of the Cl-Csp2 fragment. The classical variant is a formation of thiiranium intermediate via intramolecular nucleophilic substitution of a halogen at tetragonal carbon atom with sulfur. Apart from the sulfur-containing acetylenic ketones and aldehydes (or their imines), which are transformed in situ into allenic derivatives followed by migration of sulfur in the presence of copper catalysts upon heating [25]. In the process presented herein (Scheme 3), the formation of heterocyclic product 5 occurs as a result of 1,2-migration of sulfur “along” the chloropropenyl fragment with the participation of the Csp2 carbon atom under relatively mild conditions and without a metal-containing catalyst, which has not been previously noted in the literature.
The formation of pyrrole 6 can be tentatively rationalized as follows. Hydrazone 5 undergoes recyclization with ring-opening of compound 5 at the C–S bond to deliver a thiohydrazide fragment and an allene intermediate G, followed by another cyclization with participation of a nitrogen atom and further aromatization. Eventually, one of the key intermediates of this process, pyrrolothiol H, acting as an S-nucleophile, attacks bis(ethynyl)sulfide I (or possible tautomer), which, apparently, is formed under the reaction conditions from bis(chloropropenyl)sulfide 1. In this case, the addition of S-nucleophile H to the sulfur-containing acetylene I proceeds according to the trans-addition rule to give the adduct 6 as Z-izomer (Scheme 4).
The structure of compounds 5 and 6 has been proven by physical-chemical methods, including NMR spectroscopy and gas chromatography-mass spectrometry. The composition is confirmed by elemental analysis and molecular ion values.
So, the 1H NMR spectra of compound 5 contain multiplets of protons of the methyl, methylene, and methine groups of the heterocyclic ring in a higher field (1.18–2.95 ppm). The doubled broadened singlet of the NH2 group is observed at 4.8 ppm, in a lower field at 5.09 and 5.21 ppm, and separate signals of the protons of the terminal vinyl group are detected. In the 13C NMR spectra of compound 5, signals of the methyl, methine, and methylene group, carbons appear at 17.6, 41.5, and 43.0 ppm, respectively. Signals of the vinyl group carbon and hydrazone fragment are observed in a weaker field. Absence of cross-peaks in the NOESY spectra between protons of the amino group and the methyl group allows to conclude that compound 5 in solutions exists as the Z-isomer relative to the C=N bond.
The 1H NMR spectra of heteroatom-containing polyunsaturated compound 6 show four signals of the methyl group protons, two signals of the methine protons, and a broadened singlet of the NH2 protons. In the 13C NMR spectra, signals of the methyl, propynyl, propenyl, and pyrrole carbons are detected. The presence of a cross-peak between the protons of the methyl and methine groups of the propenyl fragment in the NOESY spectra confirms the cis-position of sulfur atoms, i.e., the Z-configuration of the substituted vinyl group in compound 6.
To additionally prove the unexpected thiophane structure of compound 5, a series of new azine derivatives 7a–g were synthesized (Scheme 5).
According to the data of NMR spectroscopy, azines 7 in solutions exist as one isomer. Judging from XRD analysis of compound 7d, azines 7 are apparently formed as isomers in which S-C=N-N fragment has Z-configuration and N-N=C-R2 fragment has E-configuration. X-Ray diffraction analysis of a crystal of azine 7d (Figure 1) unambiguously confirms the thiophane structure of compounds 5 and 7.
The azine fragment C2-N8-N9-C10 is planar and is characterized by the following parameters: bond lengths are C2=N8 1.274 (3) Å, C10=N9 1.258 (3) Å and N8-N9 1.414 (3) Å, torsion angle C2-N8-N9-C10 174.2 (2)°. The chlorophenyl substituent and the thiophane cycle lie in the plane of the azine fragment C2-N8-N9-C10; however, the S1 and C4 atoms of the thiophane cycle are out-of-plane by 0.105 Å and 0.600 Å, respectively. The thiophane cycle takes the envelope conformation. The nitrogen atoms of the azine fragment C2-N8-N9-C10 form two intramolecular hydrogen bonds C16-H16⋯N9 and C7-H7⋯N9 with the proton H16 of the aromatic ring and with one of the protons (H7) of the methyl group, respectively (Figure 1). It is important to note that in azine 7d, due to such intramolecular hydrogen bonds, the configuration of the 1E,2Z isomers is stabilized.

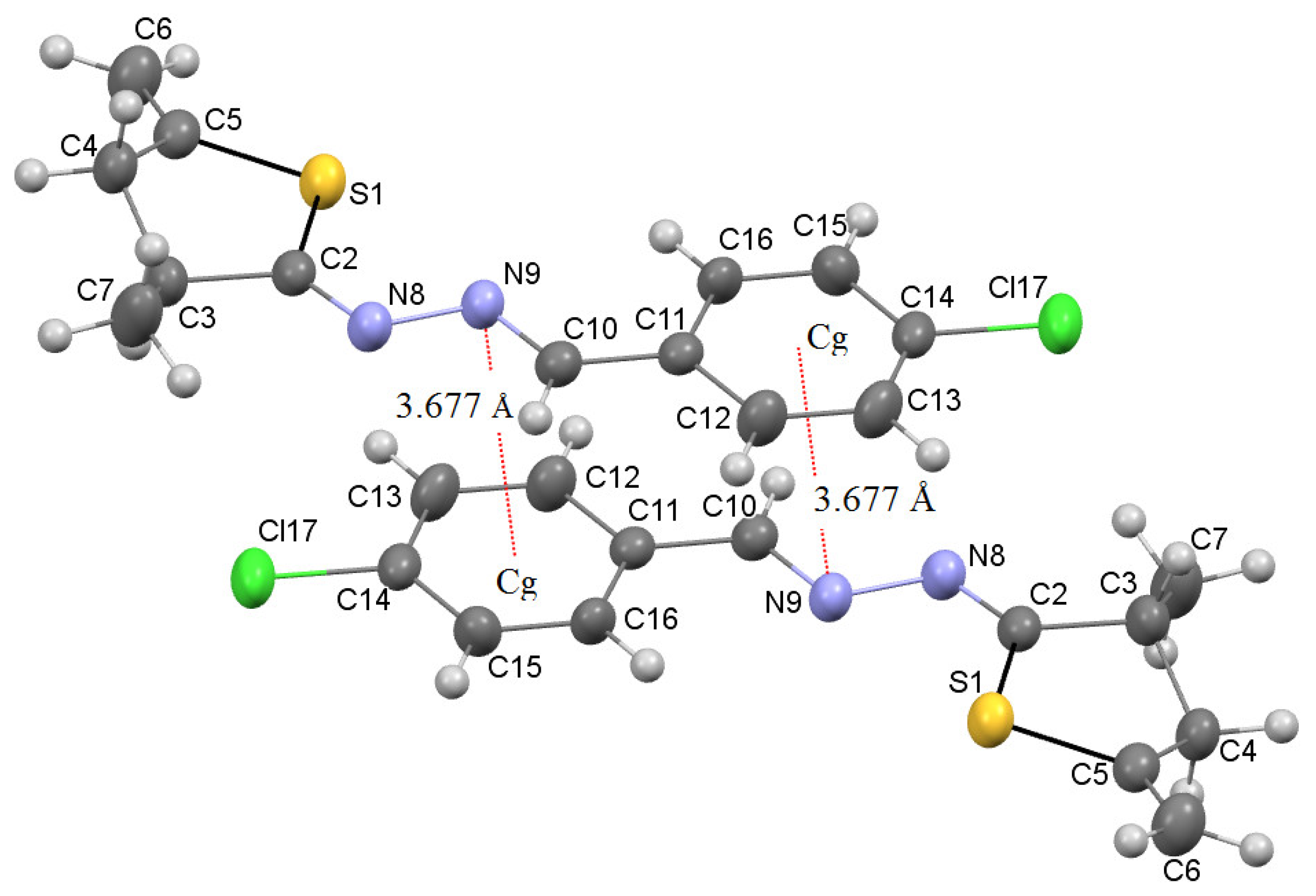

It should also be noted that an interesting point of the studied azine 7d is the formation of dimeric structures under the condition of the implementation of intermolecular pnictogen binding of two adjacent 7d molecules in the solid state (Figure 2). This type of interaction is possible due to the presence of short contacts N9 ⋯ Cg (3.677 Å) between the nitrogen atom of the azine fragment of one 7d molecule and the phenyl substituent of the other.
It should be noted that azines find wide application as biologically active substances and reagents for organic synthesis [42,43,44,45]. Therefore, new compounds 7a–g essentially expands the scope of the azine derivatives.

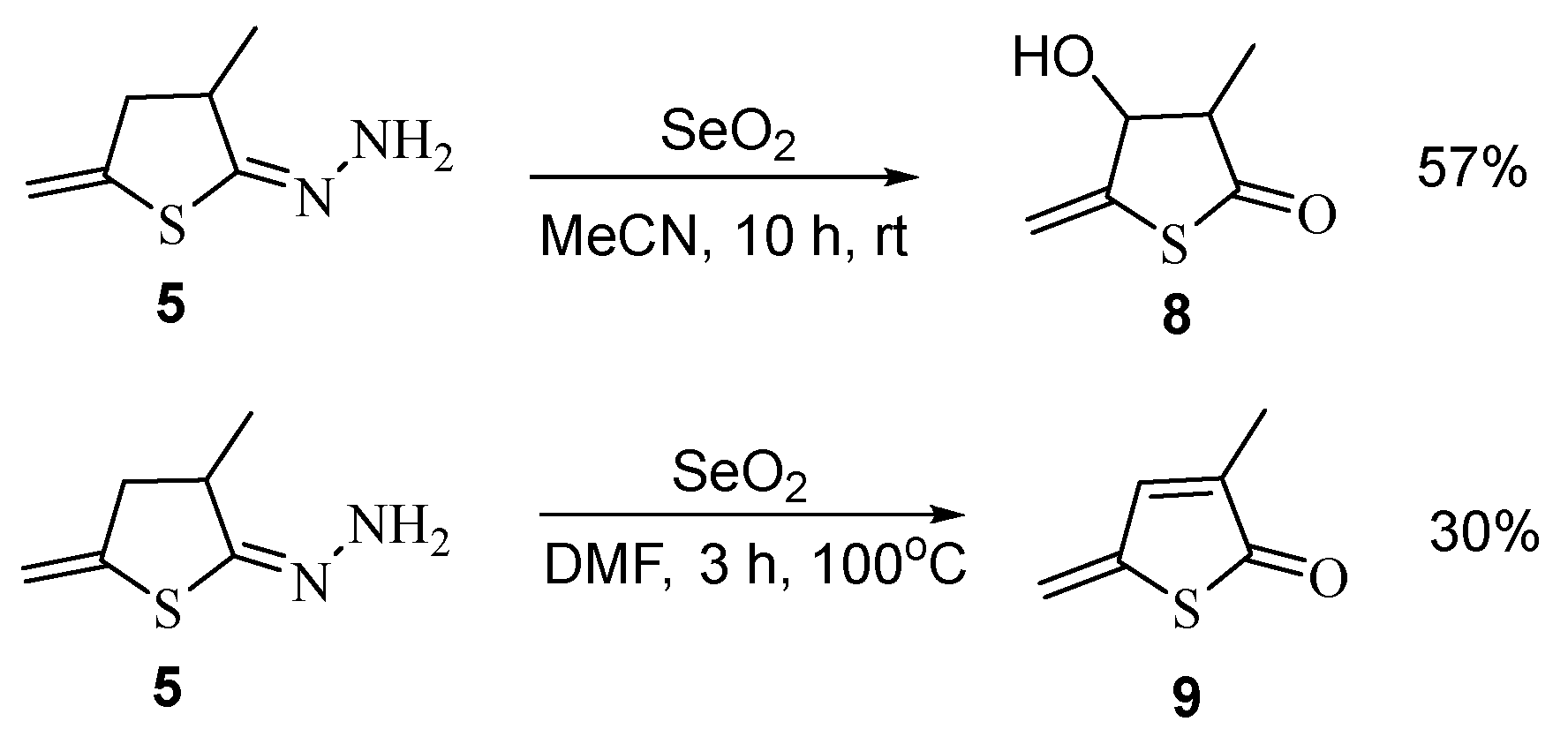

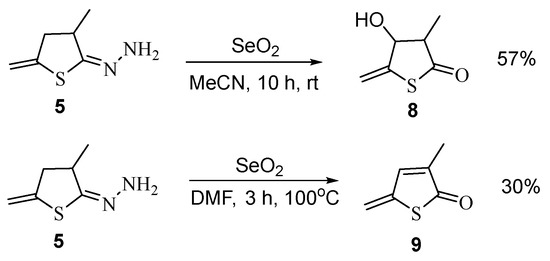

To synthesize new derivatives of the thiophene series, we have tried to remove the hydrazone fragment from compound 5 under the action of selenium dioxide. In this case, hydrazine is actually eliminated, but the heterocyclic fragment is further oxidized that ultimately furnishes 4-hydroxy-3-methyl-5-methylidenedihydrothiophen-2-one 8 (in acetonitrile) or 3-methyl-5- methylidenthiophen-2-one 9 (in dimethylformamide) (Scheme 6).
Compounds 8 and 9, which appear to be products of the Riley reaction, have been isolated in moderate yields.
Product 8, due to the presence of two asymmetric carbon atoms, exists as diastereomers with cis- and trans-position of the hydroxyl and methyl groups that is confirmed by two groups of signals in the 1H and 13C NMR spectra in a 1:1 ratio. Taking into account the correlation between constant of proton spin-spin coupling and dihedral angle (Karplus equation), one can expect than the value of 3JH3-H4 for the cis-isomers of 8 would be higher than for the trans-isomers. This allows signals of the isomers in the NMR spectra to be assigned.

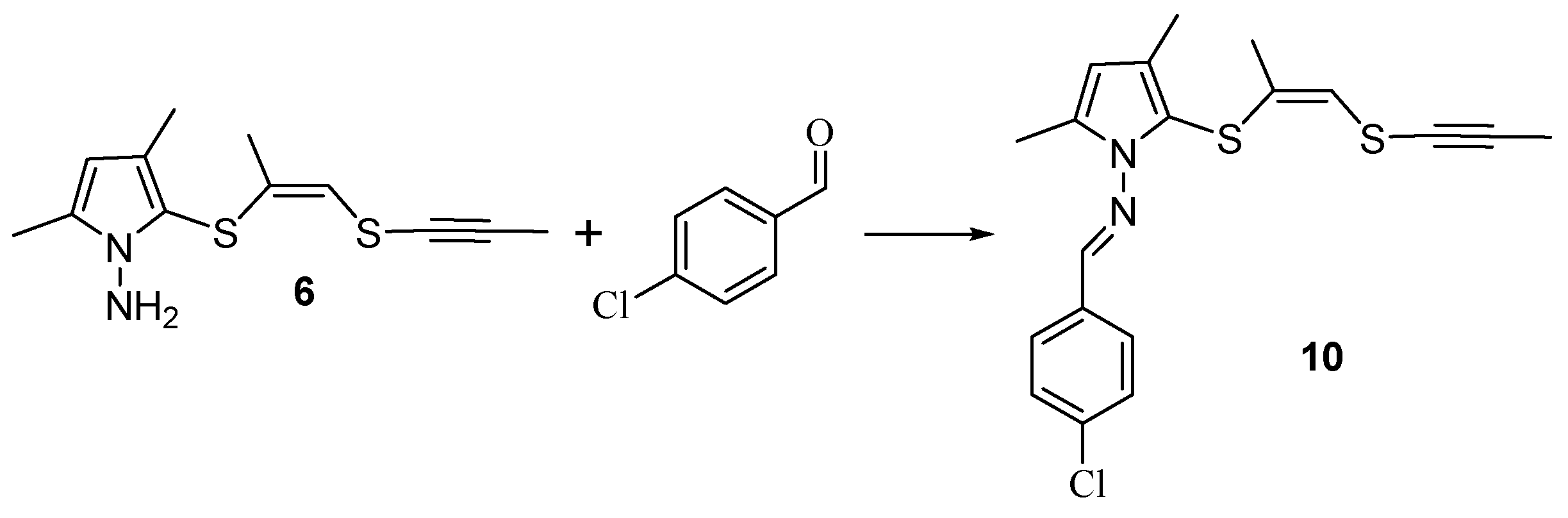

To further confirm the structure of 1-aminopyrrole 6, we have implemented its reaction with 4-chlorobenzaldehyde, which affords the condensation product, the corresponding methylideneaminopyrrole 10 (Scheme 7).
The structure of compound 10 was unambiguously proved by 1H and 13C NMR technique.

3. Materials and Methods

3.1. General Information

All solvents, hydrazine hydrate, KOH were purchased from commercial sources. Hydrazine hydrate 64% (monohydrate) technical grade was used. Bis(2-chloroprop-2-en-1-yl)sulfide was obtained according to the procedure [30,31]. The 1H, 13C, and 15N NMR spectra were recorded in CDCl3 solutions at room temperature on Bruker DPX-400 and AV-400 spectrometers (400.13, 100.61 and 40.56 MHz, respectively). 1H, 13C, and 15N chemical shifts (δ in ppm) were measured with accuracy of 0.01, 0.02, and 0.1 ppm, respectively. The residual solvent peak, δH = 7.27 and δC = 77.16 for CDCl3, δH = 2.50 and δC = 39.52 for DMSO-d6, and signal of nitromethane (15N) were used as references. Coupling constants (J) are reported in Hertz (Hz). The multiplicity abbreviations used are: s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet; br, broad signal. Chromato-mass spectrometry analysis was performed on a Shimadzu GCMS-QP5050A mass spectrometer (EI ionization, 70 eV). The IR spectra of the compounds were recorded on a Varian 3100 FT-IR spectrometer with the sample in thin film or in KBr. Elemental analysis was performed on a Thermo Finnigan Flash series 1112 Elemental analyzer. Column chromatography was carried out on silica gel 60 (70–200 mesh; Merk).

3.2. Procedures for the Synthesis and Characterization Data for 4,5,9,10-Tetrahydrothieno [3’,4;5,6]cycloocta [1,2-c]thiophene (2), (Z)-1-(3-Methyl-5-Methylenedihydrothiophene-2(3H)-ylidene)hydrazine (5), and (Z)-3,5-Dimethyl-2-(1-(prop-1-ynylthio)prop-1-ene-2-ylthio)-1H-pyrrole-1-amine (6)

Bis(2-chloroprop-2-en-1-yl)sulfide (1) (4.60 g, 25 mmol) was added dropwise to a solution of KOH (5.63 g, 100 mmol) in hydrazine hydrate (15 mL) upon heating (40 °C) in 100 mL conical flask equipped with a reflux condenser with heated on magnetic stirrer. The reaction mixture was stirred at 50 °C for 3 h. Then water (50 mL) was added and the products were extracted with CHCl3 (3 × 30 mL). The extract was dried over MgSO4 and then evaporated. The products 2, 5, 6 were separated from the residue by column chromatography (eluent CHCl3).
4,5,9,10-Tetrahydrothieno [3’,4;5,6]cycloocta [1,2-c]thiophene (2). Yield 0.39 g (14%), mp 138–140 °C (mp 138–140 °C [32]). IR spectrum (KBr), ν, cм−1: 1439, 2863, 2923. 1H NMR, δ, ppm (CDCl3): 2.99 s (8H, 4CH2), 6.86 s (4H, Hthiophene). 13C NMR, δ, ppm (CDCl3): 29.92 (CH2), 121.94 (Cthiophene -1,3,6,8), 142.15 (Cthiophene -3a,5a,8a,10a). MS, m/z: 220 [M]+. Found, %: C 65.83; H 5.40; S 28.75. C12H12S2. Calculated, %: C 65.41; H 5.49; S 29.10.
(1E)-(3-Methyl-5-methylidenedihydrothiophen-2(3H)-ylidene)hydrazine (5). Yield 2.41 g (68%), yellow oil. IR (film), ν, cm−1: 1617 (C=C, C=N), 3354 (NH2). 1H NMR, δ, ppm (CDCl3): 1.18 d (3H, J 6.6 Hz, CH3), 2.34 m and 2.83 m (2H, CH2), 2.91 m (1H, CH), 4.80 bs (2H, NH2), 5.09 s and 5.21 s (2H, =CH2). 13C NMR, δ, ppm (CDCl3): 17.61 (CH3), 41.49 (CH), 43.00 (CH2), 107.52 (=CH2), 144.01 (C=CH2), 157.03 (C=N). MS, m/z: 142 [M]+. Found, %: C 50.70; H 6.98; N 19.90; S 22.41. C6H10N2S. Calcd., %: C 50.67; H 7.09; N 19.70; S 22.55.
3,5-Dimethyl-2-{[(Z)-1-methyl-2-(prop-1-yn-1-ylsulfanyl)ethenyl]sulfanyl}-1H-pyrrol-1-amine (6). Yield 0.32 g (10%), yellow oil. IR (film), ν, cm−1: 1635 (C=C), 1696 (NH2), 2375 (C≡C), 3334 (NH). 1H NMR, δ, ppm (CDCl3): 1.73 d (3H, 4J 1.2 Hz, CH3CS), 2.00 s (3H, CH3C≡), 2.13 s (3H, 3-CH3), 2.27 s (3H, 5-CH3), 4.43 bs (2H, NH2), 5.73 s (1H, CH), 6.05 q (1H, 4J 1.2 Hz, SCH=). 13C NMR, δ, ppm (CDCl3): 5.01 (CH3C≡), 12.08 (CH3C-5), 12.42 (CH3C-3), 22.51 (CH3C=), 65.92 (CH3C≡C), 90.62 (CH3C≡), 105.40 (CH-4), 112.03 (CH3C-3), 119.49 (CH=), 125.76 (SC-2), 133.27 (CH3C-5), 134.39 (CH3C=). 15N NMR, δ, ppm (CDCl3): 208.3 (N-NH2), 317.3 (NH2). MS, m/z: 252 [M]+. Found, %: C 57.23; H 6.48; N 10.92; S 25.35. C12H16N2S2. Calcd., %: C 57.10; H 6.39; N 11.10; S 25.41.

3.3. General Procedure for the Synthesis and Characterization Data for Azines 7

A carbonyl compound (3.2 mmol) was added to compound 5 (0.45 g, 3.2 mmol) dissolved in MeOH (10 mL) in 100 mL conical flask equipped with a reflux condenser with heated on magnetic stirrer. The reaction mixture was boiled for 6 h. Then the solvent was evaporated. The products 7 were isolated by column chromatography (eluent CHCl3).
(2Z)-1-(1-Methylethylidene)-2-(3-methyl-5-methylidenedihydrothiophen-2(3H)-ylidene)hydrazine (7a). From 0.19 g (3.2 mmol) of acetone. Yield 0.52 g (90%), colorless liquid. IR (film), ν, cm−1: 1599, 1621, 1643 (C=C, C=N). 1H NMR, δ, ppm (CDCl3): 1.30 d (3H, 3J 6.8 Hz, CH3CH), 1.99 s (3H, CH3), 2.04 s (3H, CH3), 2.43 m and 2.93 m (2H, CH2), 3.06 m (1H, CH), 5.08 s and 5.19 s (2H, =CH2). 13C NMR, δ, ppm (CDCl3): 18.13 (Z-CH3), 18.54 (CH3CH), 24.94 (E-CH3), 41.30 (CH), 42.69 (CH2), 106.74 (CH2=), 145.16 (C=CH2), 164.99 (C=N-1), 172.72 (C=N-2). MS, m/z: 182 [M]+. Found, %: C 59.43; H 7.91; N 15.50; S 17.15. C9H14N2S. Calcd., %: C 59.30; H 7.74; N 15.37; S 17.59.
(1Z,2E)-1-(3-Methyl-5-methylidenedihydrothiophen-2(3H)-ylidene)-2-(1-phenylethylidene)hydrazine (7b). From 0.38 g (3.2 mmol) of acetophenone. Yield 0.60 g (77%), white crystals, mp 49–50 °C. IR (film), ν, cm−1: 1610 (C=C, C=N). 1H NMR, δ, ppm (CDCl3): 1.40 d (3H, 3J 6.8 Hz, CH3CH), 2.44 s (3H, CH3), 2.51 m and 3.01 m (2H, CH2), 3.17 m (1H, CH), 5.12 s and 5.24 s (2H, =CH2), 7.41 m and 7.91 m (5H, Ph). 13C NMR, δ, ppm (CDCl3): 14.90 (CH3), 18.04 (CH3CH), 41.36 (CH), 42.67 (CH2), 106.73 (CH2=), 126.71 (Co), 128.15 (Cm), 129.84 (Cp), 137.81 (Ci), 145.10 (C=CH2), 161.92 (C=N-2), 174.98 (C=N-1). MS, m/z: 244 [M]+. Found, %: C 68.53; H 6.68; N 11.52; S 13.25. C14H16N2S. Calcd., %: C 68.81; H 6.60; N 11.46; S 13.12.
(1Z,2E)-1-(3-Methyl-5-methylenedihydrothiophen-2(3H)-ylidene)-2-(2-methylpropylidene)hydrazine (7c). From 0.23 g (3.2 mmol) of 2-methylpropanal. Yield 0.44 g (70%), colorless liquid. IR (film), ν, cm−1: 1593, 1629 (C=C, C=N), 2874–2965 (C-HAlk). 1H NMR, δ, ppm (CDCl3): 1.14 d (6H, 3J 6.9 Hz, 2CH3), 1.31 d (3H, 3J 6.7 Hz, CH3), 2.46 m (1H, CH2), 2.61 m [1H, CH(CH3)2], 2.95 m (1H, CH2), 3.07 m (1H, CHCH3), 5.10 s and 5.21 s (2H, =CH2), 7.67 d (1H, 3J 5.4 Hz, CH=N). 13C NMR, δ, ppm (CDCl3): 18.03 (CH3), 19.58 (CH3), 31.83 (CH), 41.35 (CH), 42.76 (CH2), 106.98 (=CH2), 145.02 (C=CH2), 167.99 (N=CH), 177.10 (C=N). MS, m/z: 196 [M]+. Found, %: C 61.31; H 7.98; N 14.22; S 16.46. C10H16N2S. Calcd., %: C 61.18; H 8.21; N 14.27; S 16.33.
(1E,2Z)-1-(4-Chlorobenzylidene)-2-(3-methyl-5-methylenedihydrothiophen-2(3H)-ylidene)-hydrazine (7d). From 0.45 g (3.2 mmol) of 4-chlorobenzaldehyde. Yield 0.69 g (81%), yellow powder, mp 57–59 °C. IR (KBr), ν, cm−1: 1584, 1617 (C=C, C=N). 1H NMR, δ, ppm (CDCl3): 1.34 d (3H, 3J 6.7 Hz, CH3), 2.50 m and 2.98 m (2H, CH2), 3.14 m (1H, CHCH3), 5.12 s and 5.24 s (2H, =CH2), 7.37, 7.71 m (4H, C6H4), 8.35 s (1H, N=CH). 13C NMR, δ, ppm (CDCl3): 18.10 (CH3), 41.53 (CHCH3), 42.71 (CH2), 107.26 (=CH2), 129.00 (Co), 129.54 (Cm), 132.56 (CCl), 137.01 (Ci), 144.77 (C=CH2), 157.69 (N=CH), 179.98 (C=N). MS, m/z: 266 [M]+. Found, %: C 59.05; H 4.82; Cl 13.54; N 10.52; S 12.03. C13H13ClN2S. Calcd., %: C 58.97; H 4.95; Cl 13.39; N 10.58; S 12.11.
(1E,2Z)-1-(4-Nitrobenzylidene)-2-(3-methyl-5-methylenedihydrothiophen-2(3H)-ylidene)hydrazine (7e). From 0.48 g (3.2 mmol) of 4-nitrobenzaldehyde. Yield 0.70 g (80%), yellow powder, mp 134–136 °C. IR (KBr), ν, cm−1: 1340, 1513 (NO2), 1552, 1599 (C=C, C=N). 1H NMR, δ, ppm (DMSO-d6): 1.28 d (3H, 3J 6.6 Hz, CH3), 2.53 m and 3.04 m (2H, CH2), 3.20 m (1H, CHCH3), 5.19 s and 5.35 s (2H, =CH2), 8.05 and 8.33 m (4H, C6H4), 8.64 s (1H, N=CH). 13C NMR, δ, ppm (DMSO-d6): 17.59 (CH3), 41.09 (CHCH3), 41.94 (CH2), 107.80 (=CH2), 124.06 (Cm), 129.12 (Co), 139.63 (Ci), 144.23 (C=CH2), 148.72 (CNO2), 157.26 (N=CH), 180.58 (C=N). MS, m/z: 275 [M]+. Found, %: C 56.85; H 4.65; N 15.32; S 11.53. C13H13N3O2S. Calcd., %: C 56.71; H 4.76; N 15.26; S 11.65.
(1E,2Z)-1-(2-Nitrobenzylidene)-2-(3-methyl-5-methylenedihydrothiophen-2(3H)-ylidene)hydrazine (7f). From 0.48 g (3.2 mmol) of 2-nitrobenzaldehyde. Yield 0.63 g (72%), yellow powder, mp 66–68 °C. IR (KBr), ν, cm−1: 1343, 1518 (NO2), 1574, 1609 (C=C, C=N). 1H NMR, δ, ppm (CDCl3): 1.35 d (3H, 3J 6.7 Hz, Me), 2.51 m and 3.00 m (2H, CH2), 3.16 m (1H, CHCH3), 5.11 s and 5.25 s (2H, =CH2), 7.55, 7.65, 7.99, and 8.17 m (4H, C6H4), 8.86 s (1H, N=CH). 13C NMR, δ, ppm (CDCl3): 18.12 (CH3), 41.81 (CHCH3), 42.73 (CH2), 107.55 (=CH2), 124.66 (Cm), 128.97 (Ci), 129.60 (Co), 131.09 (Cp), 133.37 (Cm), 144.67 (C=CH2), 148.93 (CNO2), 154.61 (N=CH), 181.50 (C=N). MS, m/z: 275 [M]+. Found, %: C 56.91; H 4.70; N 15.30; S 11.47. C13H13N3O2S. Calcd., %: C 56.71; H 4.76; N 15.26; S 11.65.
(1E,2Z)-1-(2,4-Dimethoxybenzylidene)-2-(3-methyl-5-methylenedihydrothiophen-2(3H)-ylidene)hydrazine (7g). From 0.53 g (3.2 mmol) of 2,4-dimethoxybenzaldehyde. Yield 0.81 g (87%), yellow oil. IR (film), ν, cm−1: 1609, 1676 (C=C, C=N). 1H NMR, δ, ppm (CDCl3): 1.36 d (3H, 3J 6.9 Hz, CH3), 2.48 m and 2.98 m (2H, CH2), 3.14 m (1H, CHCH3), 3.82 s (3H, CH3O), 3.83 s (3H, CH3O), 5.12 s and 5.23 s (2H, =CH2), 6.42, 6.53, 8.01 m (3H, C6H3), 8.77 s (1H, N=CH). 13C NMR, δ, ppm (CDCl3): 18.09 (CH3), 41.19 (CH2), 42.72 (CHCH3), 55.35 (OCH3), 55.49 (OCH3), 97.92 (Cm), 105.68 (Cm’), 106.67 (=CH2), 115.66 (Ci), 128.58 (CHo), 145.19 (C=CH2), 154.72 (N=CH), 160.33 (Co’), 163.46 (Cp), 177.02 (C=N). MS, m/z: 290 [M]+. Found, %: C 61.97; H 6.37; N 9.50; S 11.20. C15H18N2O2S. Calcd., %: C 62.04; H 6.25; N 9.65; S 11.04.

3.4. Procedure for the Synthesis and Characterization Data for 4-Hydroxy-3-methyl-5-methylenedihydrothiophen-2(3H)-one (8)

Compound 5 (0.50 g, 3.4 mmol) was dissolved in MeCN (20 mL), then SeO2 (0.38 g, 3.4 mmol) was added. The reaction mixture was stirred for 10 h. Then, the solvent was evaporated. The product 8 was isolated by column chromatography (eluent Et2O: hexane = 2:1) as two diastereomers.
Yield 0.30 g (57%), yellow liquid. IR (film), ν, cm−1: 1628 (C=C), 1717 (C=O), 3413 br (OH). 1H NMR, δ, ppm (CDCl3): 1.26 d (3H, 3J 6.0 Hz, CH3), 1.27 d (3H, 3J 6.0 Hz, CH3), 2.68 m (1H, CHCH3), 2.81 m (1H, CHCH3), 4.43 d (1H, 3J 7.6 Hz, CHOH), 4.77 d (1H, 3J 6.4 Hz, CHOH), 5.34 s and 5.36 s (2H, CH2=), 5.66 s and 5.67 s (2H, CH2=). 13C NMR, δ, ppm (CDCl3): 9.07, 13.43 (Me), 53.11, 54.59 (CHCH3), 75.74, 78.96 (CHOH), 109.80, 111.67 (CH2=), 144.96, 145.69 (C=CH2), 203.40, 205.34 (C=O). MS, m/z: 144 [M]+. Found, %: C 50.07; H 5.77; S 22.10. C6H8O2S. Calcd., %: C 49.98; H 5.59; S 22.24.

3.5. Procedure for the Synthesis and Characterization Data for 3-Methyl-5-methylenethiophen-2(5H)-one (9)

To compound 5 (0.90 g, 6.3 mmol), dissolved in DMF (30 mL), SeO2 (0.7 g, 63 mmol) was added. The reaction mixture was stirred for 3 h at 100 °C. Then, the reaction mixture was cooled, and the precipitate was separated by filtration. The filtrate was mixed with water (50 mL). The raw product was extracted with CHCl3 (3 × 20 mL). The extract was evaporated. The product 9 was isolated by column chromatography (eluent Et2O: hexane = 1:4).
Yield 0.24 g (30%), yellow oil. IR (film), ν, cm−1: 1623 (C=C), 1681 (C=O). 1H NMR, δ, ppm (CDCl3): 1.97 s (3H, CH3), 5.59 s and 5.77 s (2H, =CH2), 7.23 s (1H, CH=). 13C NMR, δ, ppm (CDCl3): 11.89 (CH3), 116.59 (CH2=), 142.26 (C=CH2), 142.37 (CCH3), 144.09 (CH), 196.38 (C=O). MS, m/z: 126 [M]+. Found, %: C 57.03; H 4.77; S 25.20. C6H6OS. Calcd., %: C 57.11; H 4.79; S 25.41.

3.6. Procedure for the Synthesis and Characterization Data for N-[(4-Chlorophenyl)methylidene]-3,5-dimethyl-2-{[(Z)-1-methyl-2-(prop-1-yn-1-ylsulfanyl)ethenyl]sulfanyl}-1H-pyrrol-1-amine (10)

To compound 6 (1.10 g, 4.4 mmol), dissolved in MeOH (10 mL), 4-chlorobenzaldehyde (0.62 g, 4.4 mmol) was added. The reaction mixture was refluxed for 8 h. Then, the solvent was evaporated under reduced pressure. The residue was purified by column chromatography (eluent CHCl3).
Yield 0.24 g (67%), yellow oil. 1H NMR, δ, ppm (CDCl3): 1.69 s (3H, CH3C≡), 1.97 d (3H, 4J 1.8 Hz, CH3CS), 2.19 s (3H, CH3-3), 2.34 s (3H, CH3-5), 5.90 s (1H, CH-4), 6.01 d (1H, 4J 1.8 Hz, =CH), 7.42, 7.82 m (4H, C6H4), 8.74 s (1H, CH=N). 13C NMR, δ, ppm (CDCl3): 5.01 (CH3C≡), 12.82 (CH3-5), 12.88 (CH3-3), 22.34 (CH3C=), 65.90 (CH3C≡C), 90.49 (CH3C≡), 107.59 (CH-4), 108.11 (CH3C-3), 118.07 (CH=), 128.99 (Cm), 129.36 (Co), 130.09 (SC-2), 132.84 (CCl), 133.87 (Ci), 135.79 (CH3C-5), 136.72 (CH3C=), 154.62 (C=N). Found, %: C 61.02; H 4.77; Cl 10.02; N 5.01; S 16.53. C19H19ClN2S2. Calcd., %: C 60.86; H 5.11; Cl 9.46; N 5.47; S 17.10.

3.7. X-ray Crystallography

X-ray data were collected on a BRUKER D8 VENTURE PHOTON 100 CMOS diffractometer with MoKα radiation (λ = 0.71073 Å) using the φ and ω scans technique. Using Olex2 [46], the structure was solved with the ShelXS [47] structure solution program using Direct Methods and refined with the XL [47] refinement package using least squares minimization. Data were corrected for absorption effects using the multi-scan method (SADABS) [48]. All non-hydrogen atoms were refined anisotropically using SHELX [47]. The coordinates of the hydrogen atoms were calculated from geometrical positions. Crystallographic experimental details, bond lengths, bond angles and torsion angles for compound 7d are given in Tables S1 and S2 in Electronic Supplementary Information. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk access date 25 October 2021 (CCDC number 2117593).

4. Conclusions

In conclusion, a new heterocyclization of bis(2-chloroprop-1-en-3-yl)sulfide in hydrazine hydrate–alkali has been discovered. The reaction probably involves the unexpected 1,2-migration of the sulfur atom along the chloroalkenyl fragment followed by heterocyclization and other processes leading to thiophen-2-one and 1-aminopyrrole derivatives. These reactions open up expedient approaches to the synthesis of various hardly accessible thiophene and pyrrole compounds from 2,3-dichloropropene and elemental sulfur as starting reagents.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules27206785/s1. Experimental (General Information); Figures S1–S28: NMR, IR, MS spectra for compounds 2, 5–10; Tables S1 and S2: crystallographic data for compound 7d.

Author Contributions

Conceptualization, I.B.R. and N.A.K.; investigation, V.S.N. and V.V.M.; visualization, V.I.S.; formal analysis, T.N.B. and I.A.U. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been funded by the Ministry of Science and Higher Education of the Russian Federation (State Registration no. 121021600264-5).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the Supplementary Material.

Acknowledgments

Experimental work was carried out using the equipment of the Baikal Analytical Centre for Collective Use of the Siberian Branch of the Russian Academy of Sciences (A.E. Favorskyay Irkutsk Institute of Chemistry SB RAS).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 2, 5–10 are available from the authors.

References

  1. Modena, G.; Pasquato, L.; Lucchini, V. Thiiranium and thiirenium ions chemistry and stereochemistry. Phosphorus Sulfur Silicon Relat. Elem. 1994, 95, 265–268. [Google Scholar] [CrossRef]
  2. Plażuk, D.; Łomzik, M.; Chrabąszcz, K.; Wieczorek-Błauż, A. Thiiranes and Thiirenes: Monocyclic. Compr. Heterocycl. Chem. III 2008, 1, 299–390. [Google Scholar] [CrossRef]
  3. Maji, B. Stereoselective haliranium, thiiranium and seleniranium ion-triggered Friedel–Crafts-type alkylations for polyene cyclizations. Adv. Synth. Catal. 2019, 361, 3453–3489. [Google Scholar] [CrossRef]
  4. Dudnik, A.S.; Chernyak, N.; Gevorgyan, V. Copper-, silver-, and gold-catalyzed Migratory cycloisomerizations leading to heterocyclic five-membered rings. Aldrichimica Acta. 2010, 43, 37–46. [Google Scholar] [CrossRef] [PubMed]
  5. Fox, D.J.; House, D.; Warren, S. Mechanisms of sulfanyl (RS) migrations: Synthesis of heterocycles. Angew. Chem. Int. Ed. 2002, 41, 2462–2482. [Google Scholar] [CrossRef]
  6. Denmark, S.E.; Rossi, S.; Webster, M.P.; Wang, H. Catalytic, enantioselective sulfenylation of ketone-derived enoxysilanes. J. Am. Chem. Soc. 2014, 136, 13016–13028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Roth, A.; Denmark, S.E. Enantioselective, Lewis base-catalyzed, intermolecular sulfenoamination of alkenes. J. Am. Chem. Soc. 2019, 141, 13767–13771. [Google Scholar] [CrossRef]
  8. Kim, D.G.; Sudolova, N.M.; Slepuhin, P.A. Investigation of the halocyclization of S- and N-allyl derivatives of 2-benzothiazolethione. Chem. Heterocycl. Compd. 2011, 5, 631–635. [Google Scholar] [CrossRef]
  9. Mueller, W.H. Thiiranium ions as reaction intermediates. Angew. Chem. Int. Ed. 1969, 8, 482–492. [Google Scholar] [CrossRef]
  10. Robb, K.A.; Athavale, S.V.; Denmark, S.E. Unusual kinetic profiles for Lewis base-catalyzed sulfenocyclization of ortho-geranylphenols in hexafluoroisopropyl alcohol. Synlett 2019, 30, 1656–1661. [Google Scholar] [CrossRef]
  11. Il’inykh, E.S.; Kim, D.G. Study on reaction of 2-allylthiobenzimidazole with bromine. Bull. South Ural. State Univ. Ser. Chem. 2015, 7, 19–24. [Google Scholar]
  12. Liu, T.; Tian, J.; Gao, W.C.; Chang, H.H.; Liu, Q.; Li, X.; Wei, W.L. Intermolecular sulfenoamination of alkenes with sulfonamides and N-sulfanylsuccinimides to access β-sulfonylamino sulfides and dihydrobenzothiazines. Org. Biomol. Chem. 2017, 15, 5983–5992. [Google Scholar] [CrossRef] [PubMed]
  13. Denmark, S.E.; Vogler, T. Synthesis and reactivity of enantiomerically enriched thiiranium ions. Chem.–Eur. J. 2009, 15, 11737–11745. [Google Scholar] [CrossRef] [PubMed]
  14. Lin, S.; Jacobsen, E.N. Thiourea-catalysed ring opening of episulfonium ions with indole derivatives by means of stabilizing non-covalent interactions. Nat. Chem. 2012, 4, 817–824. [Google Scholar] [CrossRef] [PubMed]
  15. Xu, F.; Shi, W.; Wang, J. 1,2-Thio group migration in Rh(II) carbene reactions. J. Org. Chem. 2005, 70, 4191–4194. [Google Scholar] [CrossRef]
  16. Amosova, S.V.; Filippov, A.A.; Makhaeva, N.A.; Albanov, A.I.; Potapov, V.A. Regio- and stereoselective synthesis of new ensembles of diversely functionalized 1,3-thiaselenol-2-ylmethyl selenides by a double rearrangement reaction. Beilstein J. Org. Chem. 2020, 16, 515–523. [Google Scholar] [CrossRef]
  17. Yang, Y.C.; Szafraniec, L.L.; Beaudry, W.T.; Ward, J.R. Kinetics and mechanism of the hydrolysis of 2-chloroethyl sulfides. J. Org. Chem. 1988, 53, 3293–3297. [Google Scholar] [CrossRef]
  18. Hissink, A.M.; Wormhoud, L.W.; Sherratt, P.J.; Hayes, J.D.; Commandeur, J.N.; Vermeulen, N.P.; van Bladeren, P.J. A physiologically-based pharmacokinetic (PB-PK) model for ethylene dibromide: Relevance of extrahepatic metabolism. Food Chem. Toxicol. 2000, 38, 707–716. [Google Scholar] [CrossRef]
  19. Yin, J.; Niu, C.; Cherney, M.M.; Zhang, J.; Huitema, C.; Eltis, L.D.; Vederas, J.C.; James, M.N.G. A Mechanistic view of enzyme inhibition and peptide hydrolysis in the active site of the SARS-CoV 3C-like peptidase. J. Mol. Biol. 2007, 371, 1060–1074. [Google Scholar] [CrossRef]
  20. Destro, R.; Lucchini, V.; Modena, G.; Pasquato, L. X-ray structures and anionotropic rearrangements of di-tert-butyl-substituted thiiranium and thiirenium ions. A Structure-reactivity relationship. J. Org. Chem. 2000, 65, 3367–3370. [Google Scholar] [CrossRef]
  21. Brydon, S.C.; Lim, S.F.; Khairallah, G.N.; Maître, P.; Loire, E.; da Silva, G.; O’Hair, R.A.J.; White, J.M. Reactions of thiiranium and sulfonium ions with alkenes in the gas phase. J. Org. Chem. 2019, 84, 10076–10087. [Google Scholar] [CrossRef] [PubMed]
  22. Denmark, S.E.; Collins, W.R.; Cullen, M.D. Observation of direct sulfenium and selenenium group transfer from thiiranium and seleniranium ions to alkenes. J. Am. Chem. Soc. 2009, 131, 3490–3492. [Google Scholar] [CrossRef] [PubMed]
  23. Fachini, M.; Lucchini, V.; Modena, G.; Pasi, M.; Pasquato, L. Nucleophilic reactions at the sulfur of thiiranium and thiirenium ions. New insight in the electrophilic additions to alkenes and alkynes. Evidence for an episulfurane intermediate. J. Am. Chem. Soc. 1999, 121, 3944–3950. [Google Scholar] [CrossRef]
  24. Vektariene, A.; Vektaris, G. Quantum chemical study of the thiiranium ion intermediates and regioselectivity features of the halogenide addition. ARKIVOC 2006, xvi, 23–34. [Google Scholar] [CrossRef] [Green Version]
  25. Sromek, A.W.; Gevorgyan, V. 1,2-Sulfur Migrations. Top. Curr. Chem. 2007, 274, 77–124. [Google Scholar] [CrossRef]
  26. Kim, J.T.; Kel’in, A.V.; Gevorgyan, V. 1,2-Migration of the thio group in allenyl sulfides: Efficient synthesis of 3-thio-substituted furans and pyrroles. Angew. Chem. Int. Ed. 2003, 42, 98–101. [Google Scholar] [CrossRef] [Green Version]
  27. Zhou, H.; Yao, J.; Liu, G. Electrophilic cyclization of 4-thio-but-2-yn-1-ols via 1,2-migration of the thio group: Efficient synthesis of 2,4-dihalo-3-thio-substituted furans. Tetrahedron Lett. 2008, 49, 226–228. [Google Scholar] [CrossRef]
  28. Siry, S.A.; Timoshenko, V.M.; Schermolovich, Y.G. Sulfur-assisted ring contraction of polyfluoroalkylthiopyran derivatives as a route to functionalized fluorine-containing thiophenes. J. Fluor. Chem. 2016, 181, 17–21. [Google Scholar] [CrossRef]
  29. Peng, L.; Zhang, X.; Zhang, S.; Wang, J. Au-catalyzed reaction of propargylic sulfides and dithioacetals. J. Org. Chem. 2007, 72, 1192–1197. [Google Scholar] [CrossRef]
  30. Levanova, E.P.; Grabel’nykh, V.A.; Russavskaya, N.V.; Klyba, L.V.; Zhanchipova, E.R.; Albanov, A.I.; Tarasova, O.A.; Korchevin, N.A. Reactions of 2,3-dichloro-1-propene with sulfur and tellurium in the system hydrazine hydrate-KOH. Russ. J. Gen. Chem. 2009, 79, 1097–1102. [Google Scholar] [CrossRef]
  31. Levanova, E.P.; Vakhrina, V.S.; Grabel’nykh, V.A.; Rozentsveig, I.B.; Russavskaya, N.V.; Albanov, A.I.; Sanzheeva, E.R.; Korchevin, N.A. Features of the synthesis of unsaturated sulfides proceeding from (2-chloroprop-2-en-1-yl)isothiouronium chloride. Russ. J. Org. Chem. 2015, 51, 161–166. [Google Scholar] [CrossRef]
  32. Nikonova, V.S.; Korchevin, N.A.; Borodina, T.N.; Smirnov, V.I.; Albanov, A.I.; Rozentsveig, I.B. Effective synthesis of hard-to-reach 3,4-disubstituted thiophene derivatives based on bis(2-chloropropenyl) sulfide. Chem. Heterocycl. Compd. 2020, 56, 1292–1296. [Google Scholar] [CrossRef]
  33. Smirnov, V.I.; Sinegovskaya, L.M.; Shagun, V.A.; Nikonova, V.S.; Korchevin, N.A.; Rozentsveig, I.B. 4,5,9,10-Tetrahydrocycloocta[1,2-c; 5,8-c′]dithiophene from bis(2-chloropropen-3-yl)sulfide: Spectral and theoretical monitoring of the formation. J. Sulfur Chem. 2021, 42, 241–250. [Google Scholar] [CrossRef]
  34. Rozentsveig, I.B.; Nikonova, V.S.; Korchevin, N.A. Chalcogenisation of unsaturated organohalogen compounds by elemental chalcogens and their metal derivaties. Proc. Univ. Appl. Chem. Biotechnol. 2019, 9, 576–589. [Google Scholar] [CrossRef]
  35. Nikonova, V.S.; Grabel’nykh, V.A.; Russavskaya, N.V.; Albanov, A.I.; Rozentsveig, I.B.; Korchevin, N.A. Synthesis of highly unsaturated organic sulfur compounds from 1,4-dichlorobut-2-yne and propane-1,3-dithiolate. Russ. J. Org. Chem. 2019, 55, 1800–1801. [Google Scholar] [CrossRef]
  36. Nikonova, V.S.; Grabelnykh, V.A.; Bogdanova, I.N.; Sosnovskaya, N.G.; Istomina, N.V.; Russavskaya, N.B.; Rozentsveig, I.B.; Korchevin, N.A. 1,4-Dichalcogenins: Synthesis from dichloroethenes and elemental chalcogens in a hydrazine hydrate–potassium hydroxide system. Russ. J. Gen. Chem. 2021, 91, 814–819. [Google Scholar] [CrossRef]
  37. Cheng, Y.S.P.; Domingues, E.; Garratt, P.J.; Neoh, S.B. Reactions of bispropadienyl sulfides. The 3,4-dimethylenethiophene diradical. Tetrahedron Lett. 1978, 19, 691–694. [Google Scholar] [CrossRef]
  38. Braverman, S.; Duar, Y.; Segev, D. Cycloaromatization and cyclodimerization of bridged diallenes. Tetrahedron Lett. 1976, 17, 3181–3184. [Google Scholar] [CrossRef]
  39. Garratt, P.J.; Neoh, S.B. Base catalyzed rearrangement of bispropargyl sulfides, ethers and amines. The synthesis of novel heterocyclic systems. J. Am. Chem. Soc. 1975, 97, 3255–3257. [Google Scholar] [CrossRef]
  40. Garratt, P.J.; Neoh, S.B. Strained heterocycles. Properties of five-membered heterocycles fused to four-, six- and eight-membered rings prepared by base-catalyzed rearrangement of 4-heterohepta-1,6-diynes. J. Org. Chem. 1979, 44, 2667–2674. [Google Scholar] [CrossRef]
  41. Stone, K.J.; Greenberg, M.M.; Blackstock, S.C.; Berson, J.A. Heterocyclic aromatic non-Kekule molecules. Synthesis and solution-phase chemistry of the singlet biradicals of 3,4-dimethylenefurans and 3,4-dimethylenethiophene. J. Am. Chem. Soc. 1989, 111, 3659–3671. [Google Scholar] [CrossRef]
  42. Chourasiya, S.S.; Kathuria, D.; Wani, A.A.; Bharatam, P.V. Azines: Synthesis, structure, electronic structure and their applications. Org. Biomol. Chem. 2019, 17, 8486–8521. [Google Scholar] [CrossRef] [PubMed]
  43. Safari, J.; Gandomi-Ravandi, S. Structure, synthesis and application of azines: A historical perspective. RSC Adv. 2014, 4, 46224–46249. [Google Scholar] [CrossRef]
  44. Korotchenko, V.N.; Nenajdenko, V.G.; Balenkova, E.S.; Shastin, A.V. Olefination of carbonyl compounds: Modern and classical methods. Rus. Chem. Rev. 2004, 73, 957–989. [Google Scholar] [CrossRef]
  45. Nenajdenko, V.G.; Shastin, A.V.; Gorbachev, V.M.; Shorunov, S.V.; Muzalevskiy, V.M.; Lukianova, A.I.; Dorovatovskii, P.V.; Khrustalev, V.N. Copper-Catalyzed Transformation of Hydrazones into Halogenated Azabutadienes, Versatile Building Blocks for Organic Synthesis. ACS Catal. 2017, 7, 205–209. [Google Scholar] [CrossRef]
  46. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  47. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  48. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. SADABS Version 2016/2. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef]
Molecules 27 06785 sch001 550

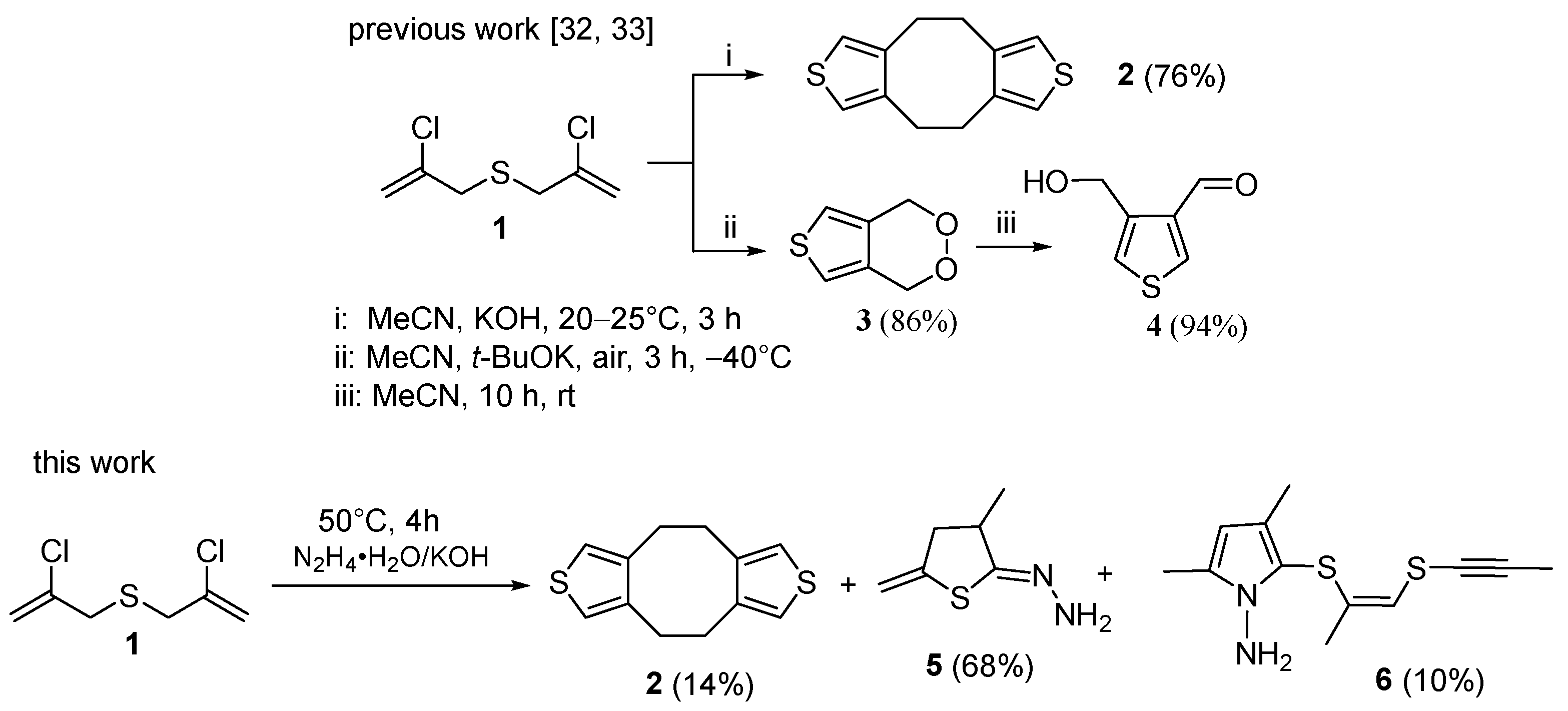

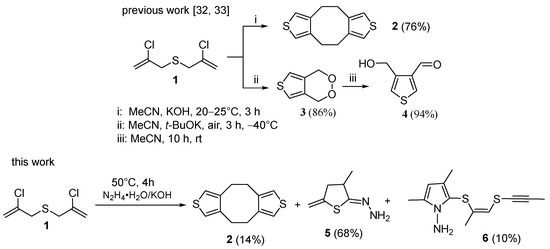

Scheme 1. Synthesis of thiophene derivatives from bis(2-chloroprop-2-en-1-yl)sulfide 1: previous works and the work presented herein.
Scheme 1. Synthesis of thiophene derivatives from bis(2-chloroprop-2-en-1-yl)sulfide 1: previous works and the work presented herein.
Molecules 27 06785 sch001
Molecules 27 06785 sch002 550

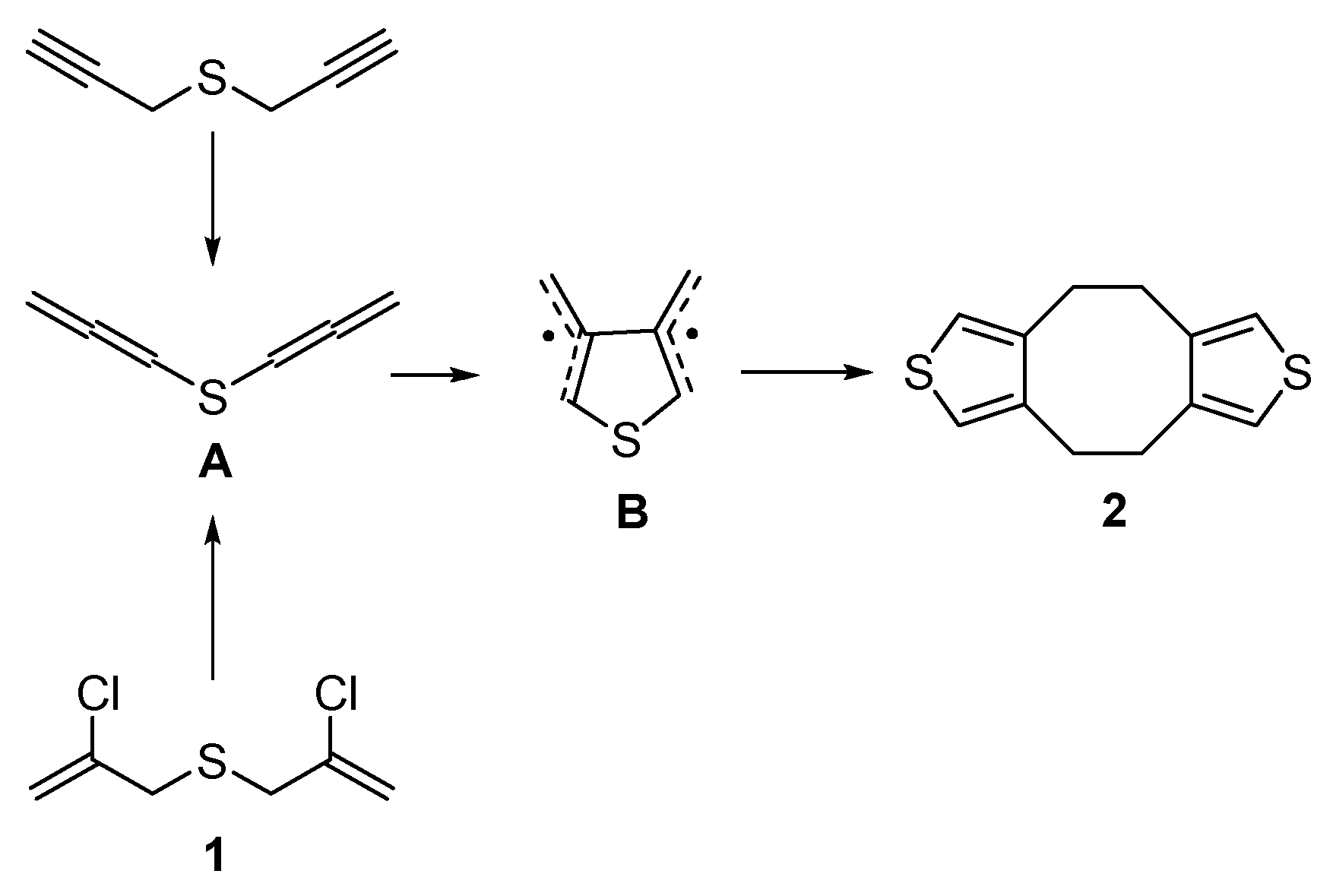

Scheme 2. A possible way for the formation of dithiophenocyclooctane 2 from bis(propargyl)sulfide [Cheng Y.S.P. et al., Braverman S. et al., Garratt P.J. et al., Stone K.J. et al.] and from bis(chloropropenyl)sulfide 1 in the present work.
Scheme 2. A possible way for the formation of dithiophenocyclooctane 2 from bis(propargyl)sulfide [Cheng Y.S.P. et al., Braverman S. et al., Garratt P.J. et al., Stone K.J. et al.] and from bis(chloropropenyl)sulfide 1 in the present work.
Molecules 27 06785 sch002
Molecules 27 06785 sch003 550

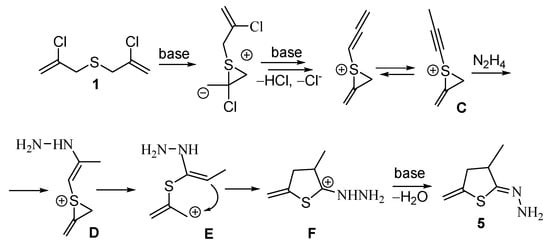

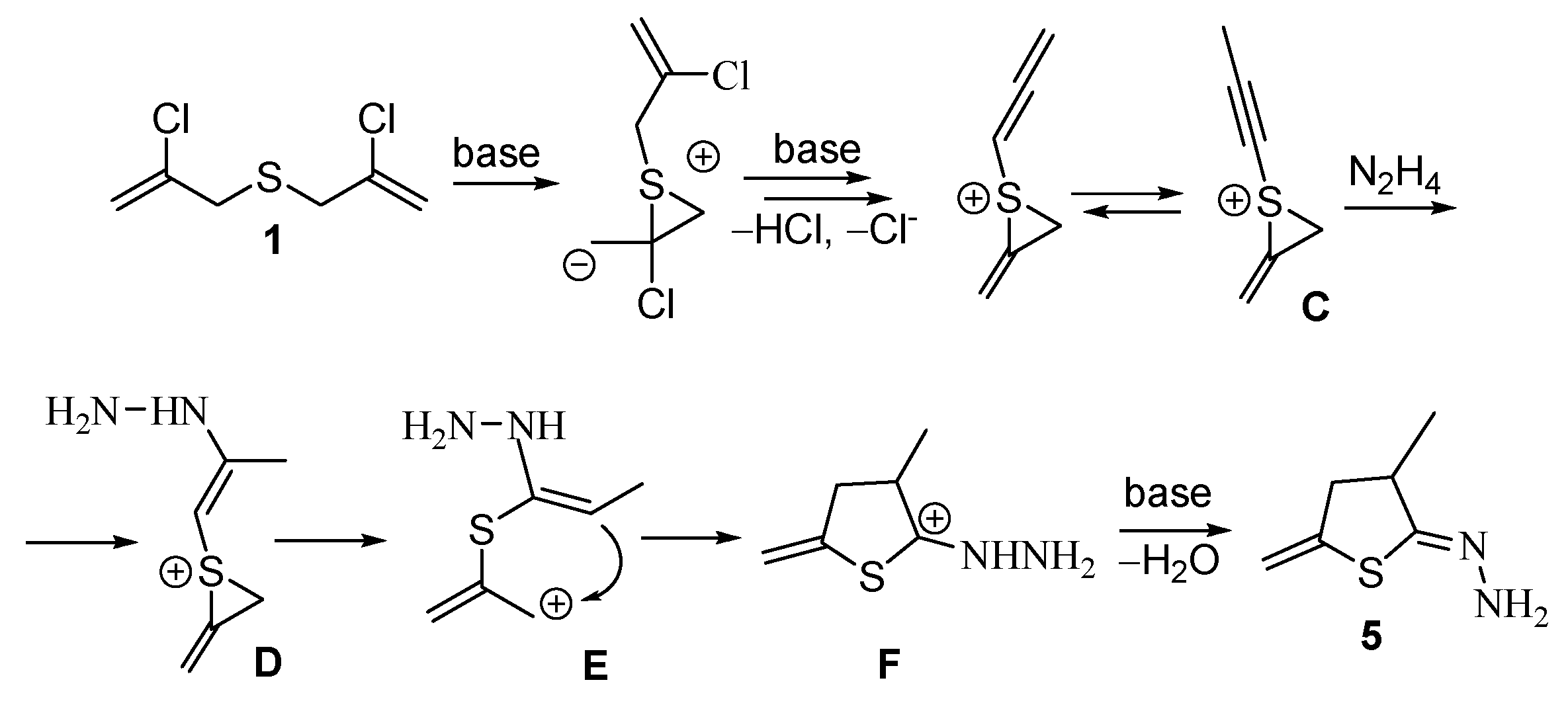

Scheme 3. A tentative way for the formation of hydrazone 5.
Scheme 3. A tentative way for the formation of hydrazone 5.
Molecules 27 06785 sch003
Molecules 27 06785 sch004 550

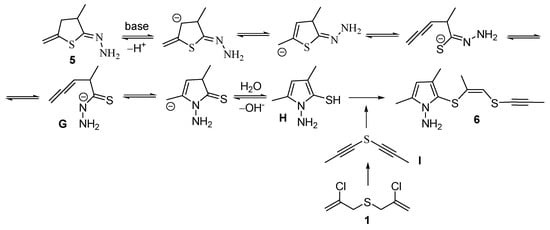

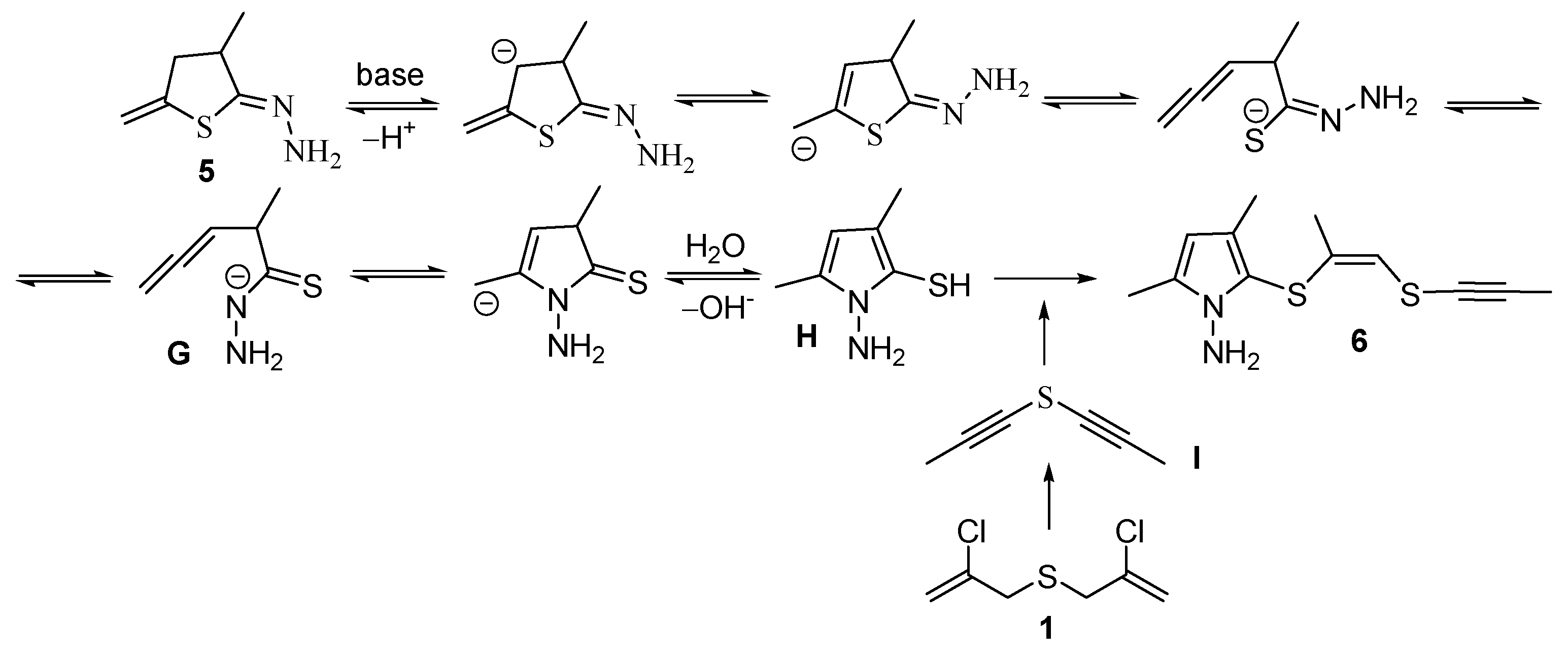

Scheme 4. A possible way for formation of 1-aminopyrrole derivative 6.
Scheme 4. A possible way for formation of 1-aminopyrrole derivative 6.
Molecules 27 06785 sch004
Molecules 27 06785 sch005 550

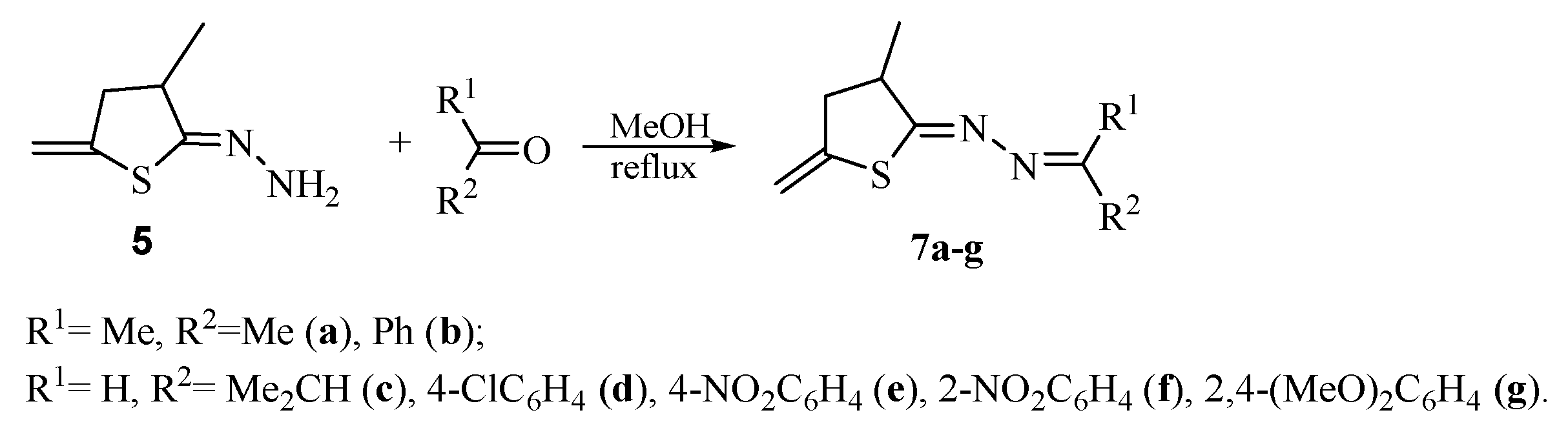

Scheme 5. Synthesis of hydrazones 7a–g.
Scheme 5. Synthesis of hydrazones 7a–g.
Molecules 27 06785 sch005
Molecules 27 06785 g001 550

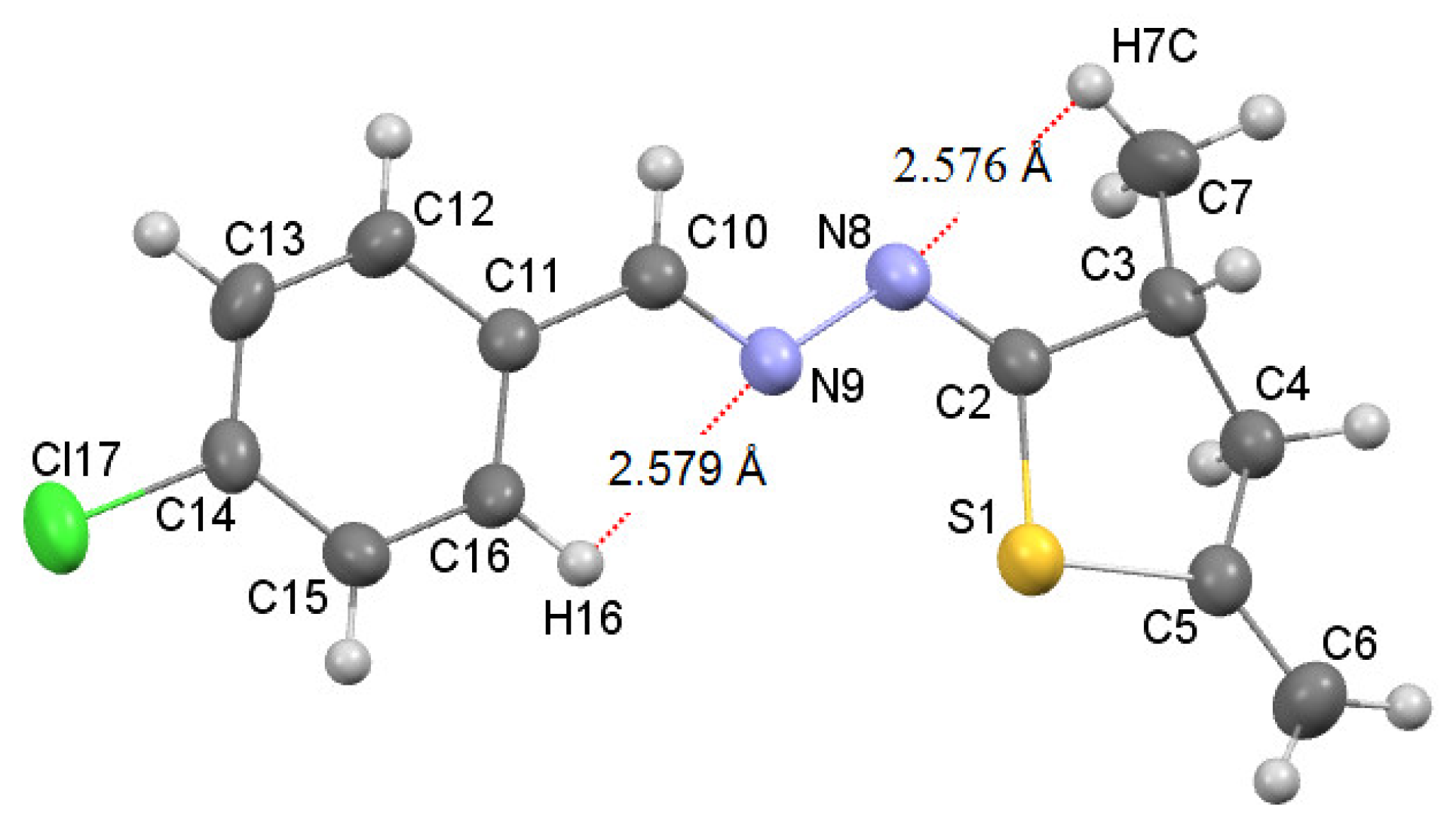

Figure 1. Molecular structure of azine 7d with the thermal ellipsoids plotted at 50% probability. The dotted line shows intramolecular hydrogen bonds: C7-H7⋯N8 2.576 Å, C16-H16⋯N9 2.579 Å.
Figure 1. Molecular structure of azine 7d with the thermal ellipsoids plotted at 50% probability. The dotted line shows intramolecular hydrogen bonds: C7-H7⋯N8 2.576 Å, C16-H16⋯N9 2.579 Å.
Molecules 27 06785 g001
Molecules 27 06785 g002 550
Figure 2. Intermolecular pnictogen interaction between the lone electron pair of nitrogen N9 and the π-system of the phenyl fragment of parallel oriented neighboring azines 7d (Cg-centroid C11C13C14C16).
Figure 2. Intermolecular pnictogen interaction between the lone electron pair of nitrogen N9 and the π-system of the phenyl fragment of parallel oriented neighboring azines 7d (Cg-centroid C11C13C14C16).
Molecules 27 06785 g002
Molecules 27 06785 sch006 550
Scheme 6. Synthesis of thiophene derivatives 8 and 9.
Scheme 6. Synthesis of thiophene derivatives 8 and 9.
Molecules 27 06785 sch006
Molecules 27 06785 sch007 550
Scheme 7. Synthesis methylideneaminopyrrole 10.
Scheme 7. Synthesis methylideneaminopyrrole 10.
Molecules 27 06785 sch007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rozentsveig, I.B.; Nikonova, V.S.; Manuilov, V.V.; Ushakov, I.A.; Borodina, T.N.; Smirnov, V.I.; Korchevin, N.A. Heterocyclization of Bis(2-chloroprop-2-en-1-yl)sulfide in Hydrazine Hydrate–KOH: Synthesis of Thiophene and Pyrrole Derivatives. Molecules 2022, 27, 6785. https://doi.org/10.3390/molecules27206785

AMA Style

Rozentsveig IB, Nikonova VS, Manuilov VV, Ushakov IA, Borodina TN, Smirnov VI, Korchevin NA. Heterocyclization of Bis(2-chloroprop-2-en-1-yl)sulfide in Hydrazine Hydrate–KOH: Synthesis of Thiophene and Pyrrole Derivatives. Molecules. 2022; 27(20):6785. https://doi.org/10.3390/molecules27206785

Chicago/Turabian Style

Rozentsveig, Igor B., Valentina S. Nikonova, Victor V. Manuilov, Igor A. Ushakov, Tatyana N. Borodina, Vladimir I. Smirnov, and Nikolay A. Korchevin. 2022. "Heterocyclization of Bis(2-chloroprop-2-en-1-yl)sulfide in Hydrazine Hydrate–KOH: Synthesis of Thiophene and Pyrrole Derivatives" Molecules 27, no. 20: 6785. https://doi.org/10.3390/molecules27206785

Article Metrics

Back to TopTop
