Article

An Exploration of the Effect of the Kleier Model and Carrier-Mediated Theory to Design Phloem-Mobile Pesticides Based on Researching the N-Alkylated Derivatives of Phenazine-1-Carboxylic Acid-Glycine

by
Jinlong Cai
1,†,
Yongtong Xiong
1,†,
Xiang Zhu
1,
Jinyu Hu
1,
Yunping Wang
1,
Junkai Li
1,2,
Jianfeng Wu
3 and
Qinglai Wu
1,2,*
1
School of Agriculture, Yangtze University, Jingmi Road 88, Jingzhou 434025, China
2
Institute of Pesticides, Department of Plant Protection, School of Agriculture, Yangtze University, Jingmi Road 88, Jingzhou 434025, China
3
State Key Laboratory of Toxicology and Medical Countermeasures and Laboratory of Toxicant Analysis, Institute of Pharmacology and Toxicology, Academy of Military Medical Sciences, 27 Taiping Road, Haidian District, Beijing 100850, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(15), 4999; https://doi.org/10.3390/molecules27154999
Submission received: 25 June 2022 / Revised: 29 July 2022 / Accepted: 1 August 2022 / Published: 6 August 2022
(This article belongs to the Section Natural Products Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The Kleier model and Carrier-mediated theory are effective for molecularly designing pesticides with phloem mobility. However, the single Kleier model or Carrier-mediated theory cannot achieve a reliable explanation of the phloem mobility of all exogenous substances. A detailed investigation of the two models and the scope of their applications can provide a more accurate and highly efficient basis for the guidance of the design and development of phloem-mobile pesticides. In the present paper, a strategy using active ingredient-amino acid conjugates as mode compounds is developed based on Carrier-mediated theory. An N-alkylated amino acid is used to improve the pesticide’s physicochemical properties following the Kleier model, thus allowing the conjugates to fall on the predicted and more accessible transportation region of phloem. Moreover, the influence of this movement on phloem is inspected by the Kleier model and Carrier-mediated theory. To verify this strategy, a series of N-alkylated phenazine-1-carboxylic acid-glycine compounds (PCA-Gly) were designed and synthesized. The results related to the castor bean seeds (R. communis L.) indicated that all the target compounds (4a–4f) had phloem mobility. The capacity for phloem mobility shows that N-alkylated glycine containing small substituents can significantly improve PCA phloem mobility, such as 4c(i-C3H7-N) > 4a(CH3-N) ≈ 4b(C2H5-N) > 4d (t-C4H9-N) > PCA-Gly > 4e(C6H5-N) > 4f(CH2COOH-N), with an oil–water partition coefficient between 1.2~2.5. In particular, compounds 4a(CH3-N), 4b(C2H5-N), and 4c(i-C3H7-N) present better phloem mobility, with the average concentrations in phloem sap of 14.62 μΜ, 13.98 μΜ, and 17.63 μΜ in the first 5 h, which are 8 to 10 times higher than PCA-Gly (1.71 μΜ). The results reveal that the Kleier model and Carrier-mediated theory play a guiding role in the design of phloem-mobile pesticides. However, the single Kleier model or Carrier-mediated theory are not entirely accurate. Still, there is a synergism between Carrier-mediated theory and the Kleier model for promoting the phloem transport of exogenous compounds. Therefore, we suggest the introduction of endogenous plant compounds as a promoiety to improve the phloem mobility of pesticides through Carrier-mediated theory. It is necessary to consider the improvement of physicochemical properties according to the Kleier model, which can contribute to a scientific theory for developing phloem-mobile pesticides.

Graphical Abstract

1. Introduction

In recent years, pesticides with phloem mobility [1,2] have received considerable attention due to their effective control of vascular pathogens [3] and improved targeting and utilization efficiency, reducing their usage and associated environmental pollution [4]. Since most pesticides do not have phloem mobility, it is necessary to develop strategies to guide the molecular design of pesticides and improve phloem mobility.
A mathematical model to associate phloem mobility with xenobiotic-physicochemical properties (acid dissociation constant and octanol-water partition coefficients, Log Kow and pKa) was established by Kleier et al. [5]. Xenobiotics with a pKa between −0.5~4 and a Log Kow between 3~6 may have phloem mobility. In previous reports, the Kleier model (Figure 1) was verified as a potential method for predicting whether a compound obtained phloem mobility or not [6,7,8,9,10]. For instance, using the Kleier model, N-carboxymethyl-3-cyano-4-(2,3-dichlorophenyl)pyrrole exhibits good phloem mobility [10]. Furthermore, some compounds are absorbed by endogenous carriers in plants, such as glyphosate and paraquat [11,12] (Figure 2). L-type amino acid transporters (LAT1/LAT2) play significant roles in the uptake of glyphosate [11]. Paraquat uptake is involved in polyamine transporter RMV1 and AtPDR11 [12]. Therefore, another approach to converting nonmobile pesticides into phloem-mobile types consists of introducing endogenous plant substances, such as glucose and amino acid peptides, to modify pesticide molecules by click chemistry [13,14,15,16,17,18], which involves a carrier-mediated process. For example, coupling a non-phloem-mobile insecticide with glycine could improve phloem mobility with fipronil-glycine conjugates [15] (Figure 3). Amino acid carriers were found more efficient in translocating phenyl pyrrole conjugates than sugar carriers [16]. Four amino acid transporters, RcLHT6, RcANT15, RcProT2, and RcCAT, may be involved in the glycine–fipronil coupling phloem transport [17]. Thus, the phloem mobility of exogenous substances correlates with their own physicochemical properties and plants’ endogenous carriers.
Phenazine-l-carboxylic acid (PCA) is an antibiotic secreted by Pseudomonas sp. M18. [19,20] PCA is a dual-function fungicide capable of the broad-spectrum inhibition of plant pathogens and promoting plant growth [21,22]. It has the characteristics of a broad-spectrum and a high-efficiency. Currently, PCA is registered as a new microbially sourced fungicide for rice in China and has been widely promoted. However, PCA does not have phloem mobility [23,24]. In our previous reports, we have developed a vectorization strategy coupling the PCA to amino acids based on Carrier-mediated theory, which successfully confers phloem mobility to PCA [23,24,25,26,27,28,29]. The PCA was absorbed by the plants in the form of conjugates and then hydrolyzed by amide hydrolase to PCA [29]. (Figure 4). However, the phloem mobility of these couplings should be further improved [23,29]. Meanwhile, some interesting phenomena have been discovered. For example, based on the Kleier prediction model, the conjugates PCA-L-Tryptophan and PCA-L-Tyrosine (Figure 5) should have an excellent diffusion through the membrane, and phloem mobility should be observed. Nevertheless, the experimental results of the phloem sap analysis violate the Kleier model. PCA-L-Tryptophan and PCA-L-Tyrosine were found to have no phloem mobility, but this may be due to the lack of relevant amino acid carriers [24]. Amino acid carriers should more easily recognize PCA-Gly to improve phloem mobility, but their phloem mobility was not as satisfactory as expected because they are more hydrophilic with a low diffusion through the membrane [24]. Thus, the single Kleier model or Carrier-mediated theory cannot achieve a reliable explanation of the phloem mobility of all exogenous substances. In the present paper, a novel strategy of combining Carrier-mediated theory and the Kleier model is proposed for the first time to improve compounds’ phloem mobility. On the one hand, based on Carrier-mediated theory, the active ingredient-amino acid conjugate operates as the molecular model; on the other hand, the N-alkylated amino acid conjugate improves the physicochemical properties by following the Kleier model to promote phloem mobility. Then, the capacity of the Kleier model and Carrier-mediated theory to design phloem-mobile pesticides is inspected, which may provide a more accurate and highly efficient basis for guiding the design and development of phloem-mobile pesticides.
To verify this strategy, PCA-glycine conjugate [24] (a compound with phloem mobility synthesized by our research group) was chosen as the molecule model due to the glycine-rich nature of the model plant. Furthermore, a series of the N-alkylated derivatives of PCA-Gly were designed and synthesized (Scheme 1). Hydrogen linked with a nitrogen atom is substituted by methyl, ethyl, isopropyl, tert-butyl, and phenyl (4a–4f). Among them, the Glycine fragments guarantee that they can be carried by carriers, and the N-alkylated derivatives will enhance the hydrophilicity via a higher diffusion through the membrane. The phloem mobility of all the coupling compounds was evaluated by ultra-performance liquid chromatography-mass spectrometry (UHPLC-MS) using castor bean seeds (R. communis L.) and a castor bean plant model. The relationship between the movement of phloem with the structure of exogenous compounds was discussed by the Kleier model and Carrier-mediated theory.

2. Results and Discussion

2.1. Synthesis

According to Scheme 1, the target compounds were synthesized with four-step reactions. Due to the water sensitivity of intermediate two, the solvents in this study needed to be pretreated to an anhydrous state. Since intermediate two is unstable, it is prepared to react with intermediate one immediately. Compounds 3a–3l were designed to study the structure-activity relationship by performing a series of alkylation steps at the R1 position on N and linking the methyl and ethyl groups at the R2 position. Compounds 4a–4f were designed to study the phloem mobility by altering the physicochemical properties of the compounds. The structures of the title compounds 3a–3l and 4a–4f were characterized by 1H-NMR and a high-resolution mass spectrum (HR-MS) (See Supplementary).

2.2. Phloem Mobility in R. communis Seedlings

The phloem mobility of 3a, 3g, 4a–4f, PCA, and PCA-Gly was evaluated using the R. communis seedlings system, which is an ideal biological model that is widely employed to study the phloem mobility of xenobiotics [25,26]. The cotyledons were incubated with each compound of 200 μM for 2 h. The phloem sap was then collected and analyzed using UHPLC-MS.
The detection results for the phloem sap are shown in Table 1. For the cotyledons incubated in the presence of PCA, the fungicide was not detected in the phloem sap even after 5 h. Compounds 3a and 3g were not detected, validating our previous experimental conclusions that PCA-amino acid ester conjugates do not have phloem mobility [27]. In contrast, when the cotyledons were incubated with compounds PCA-Gly and 4a–4f, these compounds were clearly found in the phloem sap. The test of the PCA-Gly shows good reproducibility and indicates the applicability of Carrier-mediated theory.
Notably, compared with PCA-Gly, compounds 4a–4f increasingly deviated from the recognizable structure of an amino acid carrier, but four of the compounds (4a, 4b, 4c, and 4d) exhibited better phloem mobility. The phloem transport ability was 4c > 4a ≈ 4b > 4d > PCA-Gly > 4e > 4f in the castor bean system. Compounds 4a (CH3-N), 4b(C2H5-N), and 4c (i-C3H7-N) had better phloem mobility, with the average concentrations in phloem sap of 14.62 μΜ, 13.98 μΜ, and 17.63 μΜ in the first 5h, which were 8 to 10 times higher than PCA-Gly (1.71 μΜ). Compared with our previous studies [23,24,25,26,27,28,29,30,31], compounds 4a–4c’s phloem transportation ability comprised the best class of compounds. The results imperfectly correspond to Carrier-mediated theory, as based on Carrier-mediated theory, PCA-Gly should have the best phloem mobility. These findings suggest that the single Carrier-mediated theory cannot achieve a reliable explanation of the phloem mobility of all exogenous substances.

2.3. Prediction of Phloem Mobility Using the Kleier Model

The Kleier model is widely used to predict whether xenobiotics have phloem mobility based on their physicochemical properties (log Kow and pKa) [6,7,8,9,10]. The experimental data fit well with the theoretical predictions for most of the tested xenobiotics. Thus, the physicochemical properties of the compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA are listed in Table 2. Based on their physicochemical properties, we marked the compounds on the predicted phloem mobility in Figure 6.
As shown in Figure 6, compounds 3a, 3g, 4a, 4f, PCA-Gly, and PCA were predicted to possibly have certain mobility. Compounds 4b, 4c, 4d, and 4e were in the moderately mobile compounds’ areas, indicating that these compounds have moderate phloem mobility. This met the design requirements stating that the N-alkylated amino acid conjugate improves the compounds’ physicochemical properties by following the Kleier model, which can lead it to fall on the transportation region that was predicted to be more accessible in phloem. Systemic tests with the Ricinus communis seedlings also showed that all the target compounds (4a–4f) had phloem mobility.
The LogKow is first considered when determining the permeability of exogenous compounds and the capacity for phloem mobility [6,7,8,9,10]. PCA-Gly and compounds 4a–4e with the same pKa values (3.28–3.31) and LogKow enhanced gradually (1.23–2.61). Simple alkylation did not affect the pKa, but significantly improved LogKow. Additionally, the Kleier model (Figure 6) also predicted that the phloem transport ability by compound was 4d > 4e > 4c > 4b > 4a > 4f > PCA-Gly. In fact, the phloem transport ability was in the sequence of 4c > 4a ≈ 4b > 4d > PCA-Gly > 4e > 4f, which contradicts the predictions of the Kleier model. Compared with PCA-Gly, phloem sap’s concentration does not increase linearly but in a particular range. The Kleier model does not reasonably explain this phenomenon, but when we consider Carrier-mediated theory, the results fit our hypothesis. The phloem mobility of compounds 4a–4c are consistent with the Kleier model’s theoretical predictions. They have a specific deviation from the identifiable structure of amino acid carriers but can still be effectively combined. The LogKow enhanced gradually (1.23–2.09), enhancing the phloem mobility. Although compounds 4d and 4e are more lipophilic than 4a–4c, too much of a deviation in their structures will lead to their reduced recognition or their being unrecognized by amino acid carriers. Therefore, the phloem mobility’s affect is lower than the Kleier model predicted. The synergistic effect began to weaken from compound 4d. It can be quantified to enable a LogKow between 1.2 and 2.5. Compound 4f has two free carboxyl groups but fewer detected in the phloem, due to its high hydrophilicity. It was also confirmed that the effect of the octanol–water partition coefficients on exogenous phloem transport is more significant than the acid dissociation constant. Our study verifies the strategy wherein the introduction of plant endogenous compounds as carriers improves the phloem mobility of pesticides by Carrier-mediated theory; simultaneously, it proves the necessity of considering the improvement of the physicochemical properties according to the Kleier model.

2.4. Phloem Mobility in Adult Castor Bean Plants

To explore whether compounds 4a–4f could pass through the wax layer, the R. communis plant model was used to measure their ability of phloem mobility. Compound 4c, with the best phloem mobility towards the castor seedlings, was selected as the test compound to screen the experimental conditions. As shown in Table 3, the target compound could move in the phloem without being degraded in detectable amounts during a 24 h test period. This suggests that compound 4c can pass through the wax layer and accumulate in specific parts of plants. Based on these results, the relationship between the measured values of phloem exudates and the time after applying different concentrations of chemicals is shown in Figure 7. At the concentration of 5 M, the compound 4c in roots reached the maximum after a 12-h treatment.
According to the phloem mobility of compound 4c in the castor plants under different conditions, the dosage was 5 M with 12-h treatments to study the phloem mobility of compounds 4a, 4b, 4d, 4e, 4f, PCA-Gly, and PCA under the same conditions (Table 4). All the tested compounds can pass through the wax layer and move in the phloem, except compound 4d and PCA. Among them, the content of compound 4a reached the maximum in the root more than ten times PCA-Gly. Compared with the results of the phloem mobility test of the R. communis seedlings, the two results were not wholly consistent. However, the phloem mobility of compounds 4a, 4b, and 4c were still 1–2 orders of magnitude higher than that of 4e and 4f. Moreover, the phloem mobility of compound 4e was also far lower than that of PCA-Gly, but it is more lipophilic than glycine. Thus, the structures that deviate too much from the amino acid are not recognized by the carriers, which results in the weakening of the phloem mobility. Compound 4f and PCA-Gly are more hydrophilic and exhibit a small amount of migration in the plants due to the wax barrier.

3. Materials and Methods

3.1. Chemicals

All reagents and solvents were purchased from commercial suppliers. The melting point was determined by a WRR-Y melting point apparatus (Shanghai Yidian Physical Optical Instrument Co., Ltd., Shanghai, China). Thin-layer chromatography (TLC) was conducted on silica gel plates (GF254) (Qingdao Haiyang Chemical Co., Ltd., Qingdao, China), and spots were visualized on a ZF-I ultraviolet analyzer (Shanghai Gucun Electro-optical Instrument Factory, Shanghai, China). Column chromatography purification was carried out on silica gel (200–300 mesh) (Qingdao Haiyang Chemical Co., Ltd., Qingdao, China). Nuclear magnetic resonance (NMR) spectra were obtained using an AVANCE III HD 400 NMR spectrometer (Bruker Corporation, Basel, Switzerland). Mass spectrographic analysis was conducted on a Thermo Scientific Q Exactive TM (Thermo Fisher Scientific, Waltham, MA, USA).

3.2. Plant Materials

Castor bean seeds (Ricinus communis L.) were provided by the Zibo Agricultural Science Research Institute. The castor seedlings were planted as previously reported (Yu et al., 2018). Then, 6-d-old seedlings were selected for the next experiments.
The adult castor bean plants were obtained according to methods described in a previous study [32]. Castor seedlings were grown in nutrient soil in a greenhouse (25–30 °C, natural light) for 3–4 weeks until 3–4 leaves appeared, and cotyledons and primary leaves were removed.

3.3. General Synthesis Procedure for Title Compounds 3a–3l and 4a–4f

The synthetic route is described in Scheme 1.

3.3.1. General Procedure for Glycine Ester Derivatives 1

As shown in Scheme 1, A mixture of R1NH2 (1 mmol), BrCH2COOR2 (2 mmol), and K2CO3 (3 mmol) in DMF (15 mL) was stirred at room temperature for 12 h. Subsequently, 100 mL of water was added to the reaction mixture, and the mixture was extracted three times with 30 mL of ethyl acetate. The organic phase was dried with anhydrous sodium sulfate, filtered, and concentrated in vacuum [33,34].

3.3.2. Synthesis of Phenazine-1-Carbonyl Chloride 2

Phenazine-1-carboxylic acid (2 mmol) was dissolved in 20 mL of anhydrous CH2Cl2; then, oxalyl chloride (3 mmol) was slowly added. The reaction was stirred at reflux temperature for 8 h. The reaction solution was evaporated under vacuum, and the residue was dissolved in 15 mL anhydrous CH2Cl2, which was immediately used for the following reaction [28].

3.3.3. General Procedure for PCA-Glycine Ester Derivatives 3a–3l

The glycine ester derivative 1 (2 mmol) was dissolved in CH2Cl2 at 0 °C, triethylamine (10 mmol) was added, and the reaction was stirred for 15 min. Then, phenazine-1-carbonyl chloride 2 (2 mmol) completely dissolved in 15 mL of anhydrous CH2Cl2 was added dropwise with respect to the above reaction system. The mixture was stirred at 0 °C for about 6 h until the reaction was complete (monitored by TLC). The reaction solution was washed with a 5% sodium hydrogen carbonate solution and extracted with CH2Cl2. Then, the organic phase was dried over anhydrous sodium sulfate, filtered, and concentrated in vacuum. Finally, pure target compounds 3a–3l were obtained by column chromatography (PE/EtOAc, v/v = 4:1) [25].

3.3.4. General Procedure for PCA-Glycine Derivatives 4a–4f

Lithium hydroxide (10 mmol) was added dropwise to a solution of compound 3a (2 mmol) in water (10 mL) and 1,4-dioxane (10 mL), and the reaction mixture was stirred at room temperature for 5 h until the reaction was complete (monitored by TLC). The 1,4-dioxane and water were removed under vacuum, and the remaining solid was dissolved with a small amount of water. The pH of the aqueous solution was adjusted to 2 with 1 mol/L of HCl. The solid precipitate was then filtered and dried to obtain the pure target compound 4a. Compounds 4b–4f were also synthesized by this method [24].

3.4. Sap Collection from R. communis L. Seedlings

The method of phloem sap collection was the same as that recently described [2,24]. The cotyledons were immersed in a buffered solution containing 200 μmol/L test compounds, and roots were immersed in 500 μmol/L CaCl2 solution. After 2 h of incubation, the hypocotyls were cut for phloem exudation. Phloem sap was collected at a 1 h intervals for 5 h. A series of standard solutions (1, 2, 5, 10, and 20 μmol/L) of the test compounds were prepared in methanol for calibration curves. The linear equations of test compounds are shown in Table 5.

3.5. Phloem Mobility in Adult Castor Bean Plants

The methodology used for this phase is as follows. Prepare 1 M, 2 M, and 5 M liquid containing the compounds, wrap the upper two true leaves, stem, and matrix soil surface of the castor plant with cling film to avoid contamination of the liquid, and slowly smear the liquid on the lower two true leaves of the castor plant several times with a brush. The amount of liquid medicine used was 1 g, and the castor plants were exposed to natural light in the greenhouse. Repeat the above steps 3 times. Castor root was collected at 3 h, 6 h, 12 h, 18 h, and 24 h and stored at −20 °C for testing.
The pretreatment method of castor samples is as follows. Wash, dry, and section the castor roots. Add 50 mL of methanol with masher crush, add 30 mL of methanol wash segment, transfer to the triangle in the bottle, and seal it in plastic wrap. Conduct an ultrasonic extraction for 30 min, vacuum suction filter, filter residue with an appropriate amount of methanol and ultrasonicate for 10 min, vacuum suction filter again, combine the filtrate, and place the concentration in a rotary dryer until it is near dry to facilitate the following purification.
The purification procedure is as follows. The concentrated extract was transferred to a 250 mL separating funnel with a small amount of dichloromethane; then, 50 mL 10% sodium chloride solution and 5 mL NaOH solution were added. After mixing, 50 mL, 40 mL, and 30 mL dichloromethane was added separately, the extraction was shaken three times, and the lower layer (dichloromethane) was discarded. The pH of the alkaline aqueous phase was adjusted to 3 with 1.6 mL of glacial acetic acid (purity ≥ 99.5%); then, the dichloromethane phase was extracted with 50 mL, 40 mL, and 30 mL dichloromethane three times by shaking, and the dichloromethane phase was collected. After being dehydrated by anhydrous sodium sulfate, the dichloromethane phase was dried by rotation, and the volume was fixed with 5 mL of chromatographic methanol and filtered through a 0.45 μm membrane. A series of standard solutions (0.5, 1, 2, 5, 10, and 20 μmol/L) of test compounds were prepared in methanol for calibration curves. The linear equations of test compounds are shown in Table 6.

3.6. Analytical Methods

The phloem sap was diluted with pure water (phloem sap/pure water, v/v = 1:9), and analyzed by ultra-high performance liquid chromatography mass spectrometer (UHPLC-MS) (Thermo UltiMate 3000 TSQ-Quantis, Waltham, MA, USA). A C18 reversed-phase column (3 um, 100 × 2.1 mm, Thermo Fisher Scientific Co., Ltd., MA, USA) was used for separations at 30 °C. The mobile phase was composed of methanol and water containing 0.1% formic acid with an isocratic elution (methanol/water containing 0.1% formic acid, v/v = 70:30) at a flow rate of 0.4 mL/min. And the injection volume was 10 μL. The optimized parameters of electrospray ionization in the positive mode were as follows: pos ion spray voltage, 3500 V; sheath gas, 30 Arb; aux gas, 5 Arb; ion transfer tube temp, 350 °C; and vaporizer temp, 400 °C.

4. Conclusions

All of the hydrolyzed compounds (4a–4f) with exposed carboxyl groups exhibited excellent phloem mobility in R. communis L. compared to the non-phloem-mobile PCA and PCA-amino acid ester conjugates. The phloem mobility of 4a–4c was significantly enhanced—8 to 10 times higher than PCA-Gly. Therefore, the N-alkylation of PCA-Gly promotes phloem mobility. Our previous studies have demonstrated that the carboxyl group is an amino acid-carrier binding site [23,24,25,26,27,28,29]. Based on Carrier-mediated theory, N-alkylated amino acid conjugates will increase molecular width and the steric hindrance, resulting in the decrease in the carrier-binding conjugates. Compounds 4a–4c are still within the binding range; thus, their phloem mobility increases with an increasing lipophilicity and exhibit the synergism of Carrier-mediated theory and the Kleier Model. The synergistic effect began to weaken starting with compound 4d. The R. communis L. results indicate that small substituents can significantly improve PCA’s phloem mobility, and this can be quantified to enable a LogKow between 1.2 and 2.5. Compound 4e is difficult to combine with amino acid carriers due to the considerable steric hindrance of phenyl. Even if the lipophilicity was improved, the movement of the phloem is lower than PCA-Gly. Compound 4f and PCA-Gly are more hydrophilic and exhibit a small degree of migration in plants. The experiment involving the phloem mobility in adult castor bean plants showed that most of the tested compounds can pass through the wax layer and move in the phloem. This synergism is similar to that of Ricinus communis L. Therefore, we suggest introducing plant endogenous compounds as a promoiety to improve the phloem mobility of pesticides via Carrier-mediated theory. It is necessary to consider the improvement of the physicochemical properties according to the Kleier model. This study verifies that the carrier-mediated theory and Kleier model can play a synergistic role in promoting the phloem transport of exogenous compounds. As far as we know, this theory is the first to combine the Kleier model with the Carrier-mediated theory in the design of phloem-mobile pesticides. We provide an active ingredient-amino acid conjugate structural model, which can also extend to other plant endogenous nutrients, such as glucose, peptides, etc. However, more data are still needed for supplements, which will be further studied. This research and its further iterations will contribute to a scientific theory for developing phloem-mobile pesticides.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27154999/s1, Trace chromatograms of phloem sap samples, 1H-NMR Spectrum of compounds and HRMS Spectrum of compounds.

Author Contributions

Conceptualization, Q.W. and J.L.; Methodology, J.C. and Y.X.; Software, Y.X., X.Z. and J.C.; Formal Analysis, Y.X. and J.C.; Investigation, Y.X., J.C., J.H. and Y.W.; Writing-Original Draft Preparation, J.C., Y.X., Q.W. and J.W.; Writing-Review & Editing, J.C. and Q.W.; Supervision, Q.W.; Project Administration, Q.W. and J.L.; Funding Acquisition, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program of China (2018YFD0200500) and National Natural Science Foundation of China (NO. 31672069).

Institutional Review Board Statement

The study does not involve animal experiments.

Informed Consent Statement

Written informed consent was obtained from all the participants prior for the publication of this study

Data Availability Statement

The datasets generated or analyzed during this study are available from the corresponding author on reasonable request.

Acknowledgments

This study was financially supported by the National Key R&D Program of China (2018YFD0200500) and National Natural Science Foundation of China (NO. 31672069).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Sample of the compounds are available from authors.

References

  1. Xu, H.H.; Zhang, Z.X.; Zha, Y.G. The prospect of botanical pesticides in China. Pesticides 2003, 42, 1–10. [Google Scholar]
  2. Delétage-Grandon, C.; Chollet, J.F.; Faucher, M.; Rocher, F.; Komor, E.; Bonnemain, J.-L. Carrier-Mediated Uptake and Phloem Systemy of a 350-Dalton Chlorinated Xenobiotic with an α-Amino Acid Function. Plant Physiol. 2001, 125, 1620–1632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Nauen, R.; Reckmann, U.; Thomzik, J.; Thielert, W. Biological profile of spirotetramat (Movento®)—A new two-way systemic (ambimobile) insecticide against sucking pest species. Bayer Crop Sci. J. 2008, 2, 245–278. [Google Scholar]
  4. Smith, K.; Evans, D.A.; El-Hiti, G.A. Role of modern chemistry in sustainable arable crop protection. Philos. Trans. R. Soc. B 2008, 1491, 623–637. [Google Scholar] [CrossRef] [Green Version]
  5. Kleier, D.A. Phloem mobility of xenobiotics. I. Mathematicalmodel unifying the weak acid and intermediate permeabilitytheories. Plant Physiol. 1988, 86, 803–810. [Google Scholar] [CrossRef] [Green Version]
  6. Hsu, F.C.; Sun, K.; Kleier, D.A.; Fielding, M.J. Phloem mobility of xenobiotics VI. A phloem-mobile pro-nematicide based on oxamyl exhibiting root-specific activation in transgenic tobacco. Pestic. Sci. 1995, 44, 9–19. [Google Scholar] [CrossRef]
  7. Kleier, D.A.; Hsu, F.C. Phloem mobility of xenobiotics. VII. The design of phloem systemic pesticides. Weed Sci. 1996, 44, 749–756. [Google Scholar] [CrossRef]
  8. Hsu, F.C.; Kleier, D.A. Phloem mobility of xenobiotics VIII. A short review. Exp. Bot. 1996, 47, 1265–1271. [Google Scholar] [CrossRef]
  9. Grimm, E.; Grube, A.; Jahnke, S.; Neumann, S. Retention of xenobiotics along the phloem path. Planta 1995, 197, 11–18. [Google Scholar] [CrossRef]
  10. Chollet, J.F.; Rocher, F.; Jousse, C.; Delétage-Grandon, C.; Bashiardes, G.; Bonnemain, J.L. Synthesis and phloem mobility of acidic derivatives of the fungicide fenpiclonil. Pest Manag. Sci. 2004, 60, 1063–1072. [Google Scholar] [CrossRef]
  11. Leconte, F.; Bonnemain, J.L.; Decormis, L.; Barchietto, T. Metabolic fate, compartmentation and forms of transport (xylem and phloem mobility) of fosethyl-Al in Lycopersicon-esculentum Mill. CR Acad. Sci. Ser. III Sci. Vie/Life Sci. 1988, 307, 221–227. [Google Scholar]
  12. Fujita, M.; Fujita, Y.; Iuchi, S.; Yamada, K.; Kobayashi, Y.; Urano, K.; Iuchi, S.; Kobayashi, M.; Yamagucho-Shinozaki, K.; Shinozaki, K. Natural variation in a polyamine transporter determines paraquat tolerance in Arabidopsis. Proc. Natl. Acad. Sci. USA 2012, 109, 6343–6347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Turgeon, R. Phloem loading: How leaves gain their independence. Bioscience 2006, 56, 15–24. [Google Scholar] [CrossRef] [Green Version]
  14. Fischer, W.N.; Loo, D.D.; Koch, W.; Ludewig, U.; Boorer, K.J.; Tegeder, M.; Frommer, W.B. Low and high affinity amino acid H+-cotransporters for cellular import of neutral and charged amino acids. Plant 2002, 29, 717–731. [Google Scholar] [CrossRef] [PubMed]
  15. Jiang, D.X.; Lu, X.L.; Hu, S.; Zhang, X.-B.; Xu, H.-H. A new derivative of fipronil: Effect of adding a glycinyl group to the 5-amine of pyrazole on phloem mobility and insecticidal activity. Pestic. Biochem. Physiol. 2009, 95, 126–130. [Google Scholar] [CrossRef]
  16. Wu, H.X.; Marhadour, S.; Lei, Z.W.; Yang, W.; Marivingt-Mounir, C.; Bonnemain, J.-L.; Chollet, J.-F. Vectorization of agrochemicals: Amino acid carriers are more efficient than sugar carriers to translocate phenylpyrrole conjugates in the Ricinus system. Environ. Sci. Pollut. Res. 2018, 25, 14336–14349. [Google Scholar] [CrossRef]
  17. Xie, Y.; Zhao, J.L.; Wang, C.W.; Yu, A.-X.; Liu, N.; Chen, L.; Lin, F.; Xu, H.-H. Glycinergic-fipronil uptake is mediated by an amino acid carrier system and induces the expression of amino acid transporter genes in Ricinus communis seedlings. Agric. Food Chem. 2016, 64, 3810–3818. [Google Scholar] [CrossRef]
  18. Wu, H.; Xu, H.; Marivingt-Mounir, C.; Bonneiman, J.-L.; Chollet, J.-F. Vectorizing agrochemicals: Enhancing bioavailability via carrier ediated transport. Pest Manag. Sci. 2018, 75, 1507–1516. [Google Scholar] [CrossRef]
  19. Ge, Y.; Huang, X.; Wang, S.; Zhang, X.; Xu, Y. Phenazine-1-carboxylic acid is negatively regulated and pyoluteorin positively regulated by gacA in Pseudomonas sp. M18. FEMS Microbiol. Lett. 2004, 237, 41–47. [Google Scholar] [CrossRef] [PubMed]
  20. Shao, J.; Fan, L.Y.; Zhang, W.; Guo, C.G.; Li, S.; Xu, Y.Q.; Cao, C.X. Purification of low-concentration phenazine-1-carboxylic acid from fermentation broth of Pseudomonas sp. M18 via free flow electrophoresis with gratis gravity. Electrophoresis 2010, 31, 3499–3507. [Google Scholar] [CrossRef] [PubMed]
  21. Thomashow, L.S.; Weller, D.M. Role of a phenazine antibiotic from Pseudomonas fluorescens in biological control of Gaeumannomyces graminis var. tritici. Bacteriology 1988, 170, 3499–3508. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Lee, J.Y.; Moon, S.S.; Hwang, B.K. Isolation and in vitro and in vivo activity against Phytophthora capsici and Colletotrichum orbiculare of phenazine-1-carboxylic acid from Pseudomonas aeruginosa strain GC-B26. Pest Manag. Sci. 2003, 59, 872–882. [Google Scholar] [CrossRef] [PubMed]
  23. Niu, J.; Nie, D.; Yu, D.; Wu, Q.; Yu, L.; Yao, Z.; Li, J. Synthesis, fungicidal activity and phloem mobility of phenazine-1-carboxylic acid-alanine conjugates. Pest. Biochem. Physiol. 2017, 143, 8–13. [Google Scholar] [CrossRef] [PubMed]
  24. Yu, L.; Huang, D.; Zhu, X.; Zhang, M.; Yao, Z.; Wu, Q.; Li, J. Design, Synthesis, Phloem Mobility, and Bioactivities of a Series of Phenazine-1-Carboxylic Acid-Amino Acid Conjugates. Molecules 2018, 23, 2139. [Google Scholar] [CrossRef]
  25. Zhong, W.; Hartung, W.; Komor, E.; Schobert, C. Phloem transport of abscisic acid in Ricinus communis L. seedlings. Plant Cell Environ. 1996, 19, 471–477. [Google Scholar] [CrossRef]
  26. Kleier, D.A.; Grayson, B.T.; Hsu, F.C. The phloem mobility of pesticides. Pestic. Outlook 1998, 9, 26–30. [Google Scholar]
  27. Niu, J.; Chen, J.; Xu, Z.; Zhu, X.; Wu, Q.; Li, J. Synthesis and bioactivities of amino acid ester conjugates of phenazine-1-carboxylic acid. Bioorg. Med. Chem. Lett. 2016, 26, 5384–5386. [Google Scholar] [CrossRef]
  28. Zhu, X.; Zhang, M.; Yu, L.; Xu, Z.; Yang, D.; Du, X.; Li, J. Synthesis and bioactivities of diamide derivatives containing a phenazine-1-carboxamide scaffold. Nat. Prod. Res. 2018, 33, 2453–2460. [Google Scholar] [CrossRef]
  29. Zhu, X.; Yu, L.; Hsiang, T.; Huang, D.; Xu, Z.; Wu, Q.; Du, X.; Li, J. The influence of steric configuration of phenazine-1-carboxylic acid-amino acid conjugates on fungicidal activity and systemicity. Pest Manag. Sci. 2019, 75, 3323–3330. [Google Scholar] [CrossRef]
  30. Xiong, Y.T.; Zhu, X.; Hu, J.Y.; Wang, Y.; Du, X.; Li, J.; Wu, Q. Effect of introducing amino acids into phenazine-1-carboxylic acid on phloem mobility. Nat. Prod. Res. 2020, 35, 4373–4379. [Google Scholar] [CrossRef] [PubMed]
  31. Zhu, X.; Zhang, M.; Xiao, Y.; Hsiang, T.; Hu, C.; Li, J. Systemic fungicidal activity of phenazine-1-carboxylic acid-valine conjugate against tobacco sore shin and its translocation and accumulation in tobacco (Nicotiana tabacum L.). Pest Manag. Sci. 2022, 78, 1117–1127. [Google Scholar] [CrossRef] [PubMed]
  32. Yang, W.; Wu, H.-X.; Xu, H.-H.; Hu, A.-L.; Lu, M.-L. Synthesis of glucose-fipronil conjugate and its phloem mobility. Agric. Food Chem. 2011, 59, 12534–12542. [Google Scholar] [CrossRef] [PubMed]
  33. Aurelio, L.; Brownlee, R.T.; Hughes, A.B. Synthetic preparation of N-methyl-α-amino acids. Chem. Rev. 2004, 104, 5823–5846. [Google Scholar] [CrossRef] [PubMed]
  34. Parmar, N.J.; Pansuriya, B.R.; Labana, B.M.; Kant, R.; Gupta, V.K. A convenient 1,3-dipolar cycloaddition–reduction synthetic sequence from 2-allyloxy-5-nitro-salicylaldehyde to aminobenzopyran-annulated heterocycles. RSC Adv. 2013, 3, 17527–17539. [Google Scholar] [CrossRef]
Molecules 27 04999 g001 550
Figure 1. Prediction of phloem mobility of Kleier model.
Figure 1. Prediction of phloem mobility of Kleier model.
Molecules 27 04999 g001
Molecules 27 04999 g002 550

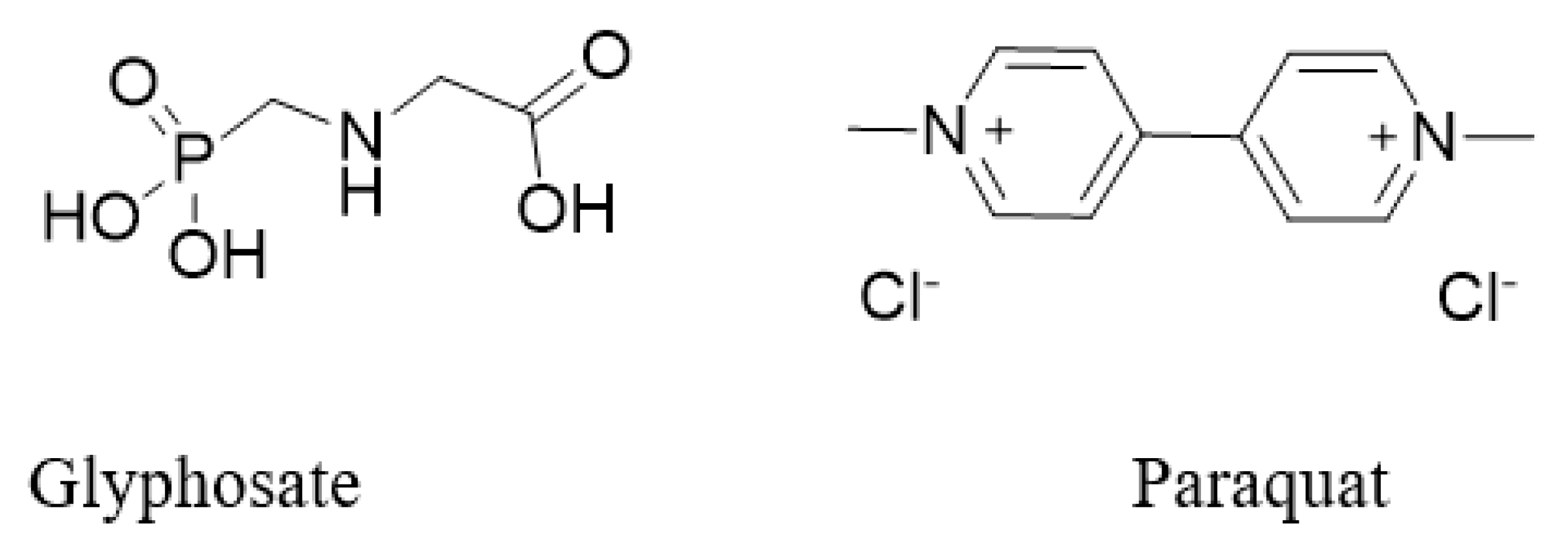

Figure 2. Structures of glyphosate and paraquat.
Figure 2. Structures of glyphosate and paraquat.
Molecules 27 04999 g002
Molecules 27 04999 g003 550

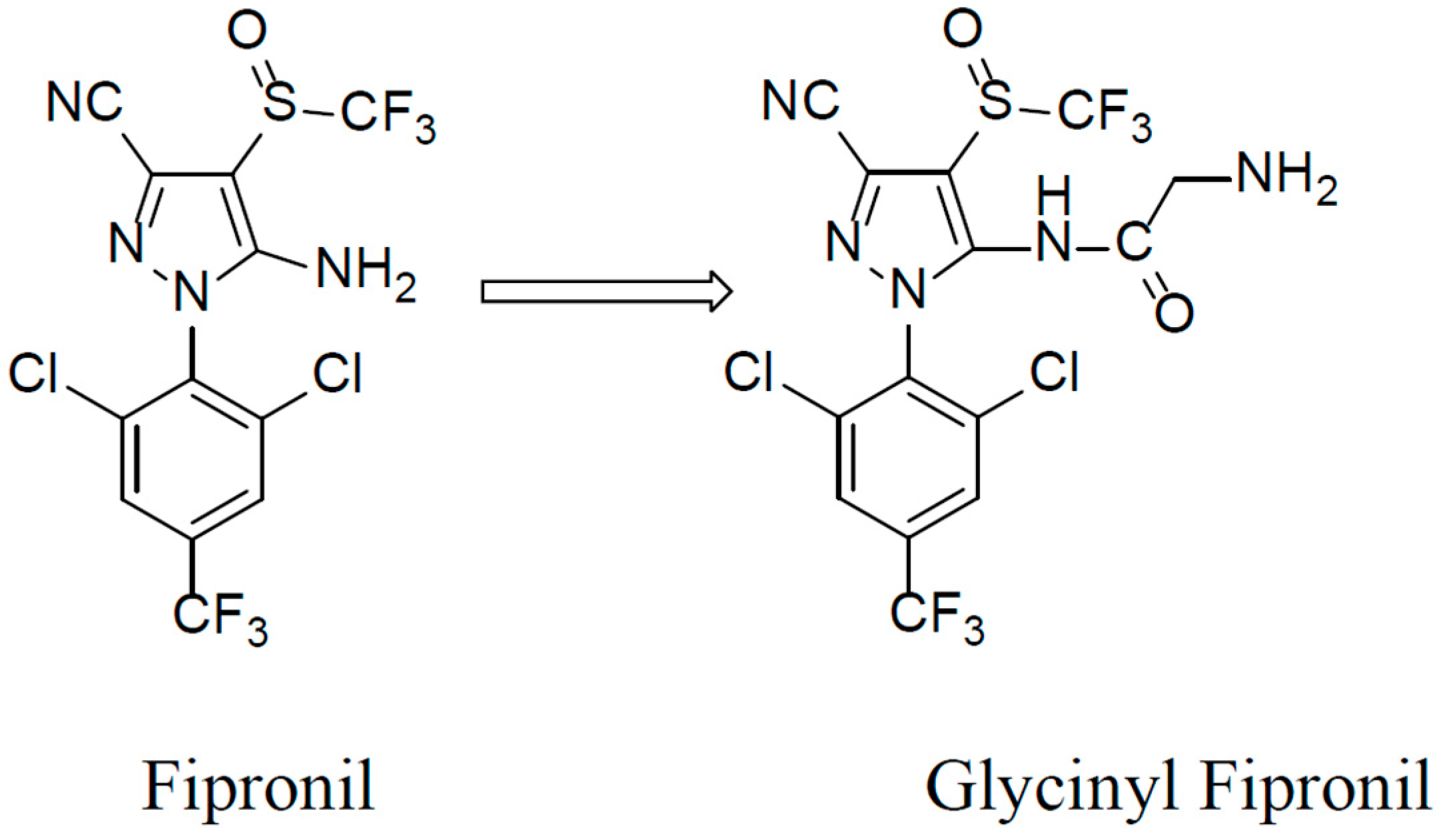

Figure 3. Xu et al.’s Introduction of a glycinyl group to the 5-amine moiety of fipronil, which improves the phloem’s systematicity.
Figure 3. Xu et al.’s Introduction of a glycinyl group to the 5-amine moiety of fipronil, which improves the phloem’s systematicity.
Molecules 27 04999 g003
Molecules 27 04999 g004 550

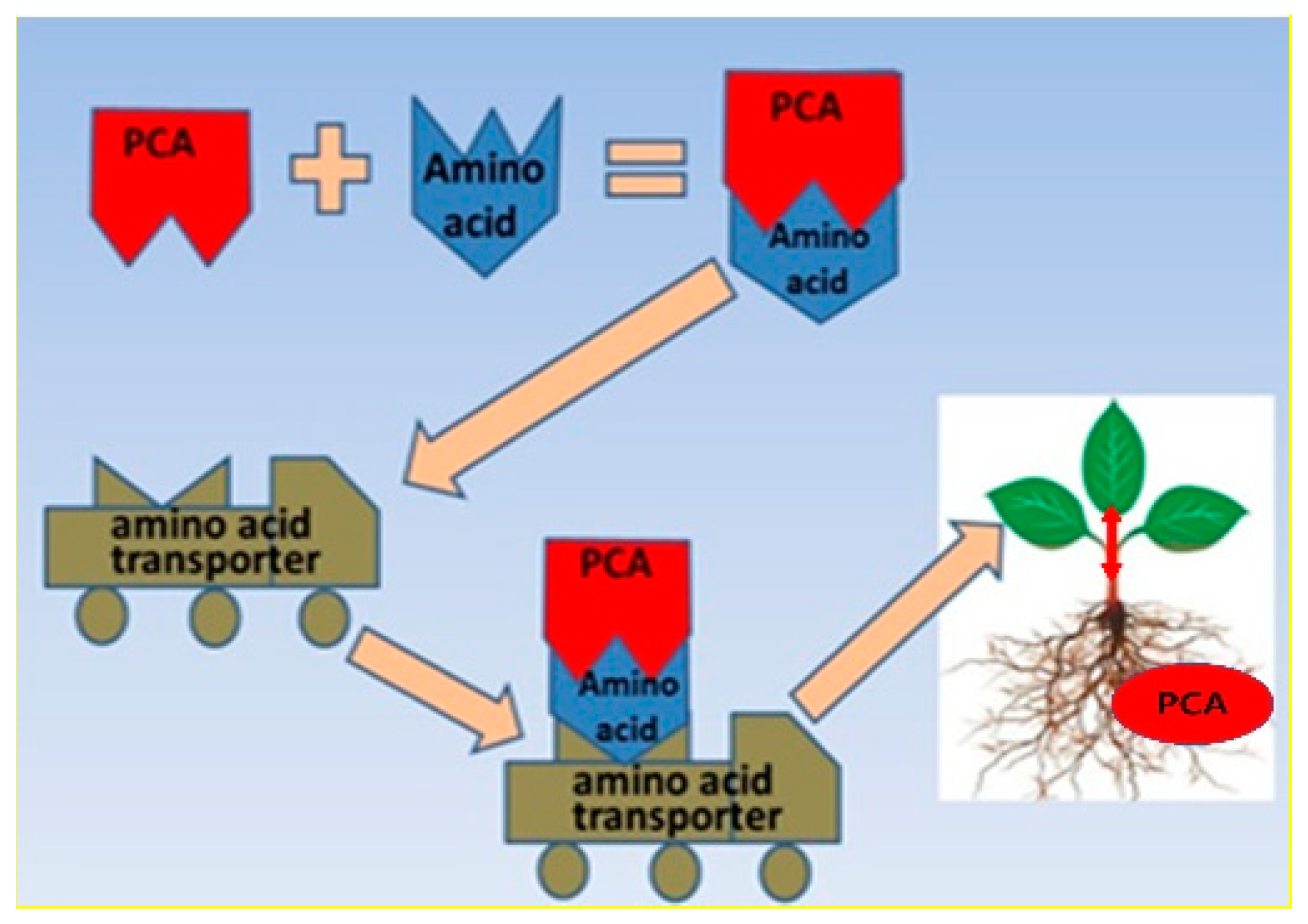

Figure 4. Translocation mechanisms of PCA-amino acid conjugates involved in an amino acid transporter (Reference from [23]).
Figure 4. Translocation mechanisms of PCA-amino acid conjugates involved in an amino acid transporter (Reference from [23]).
Molecules 27 04999 g004
Molecules 27 04999 g005 550

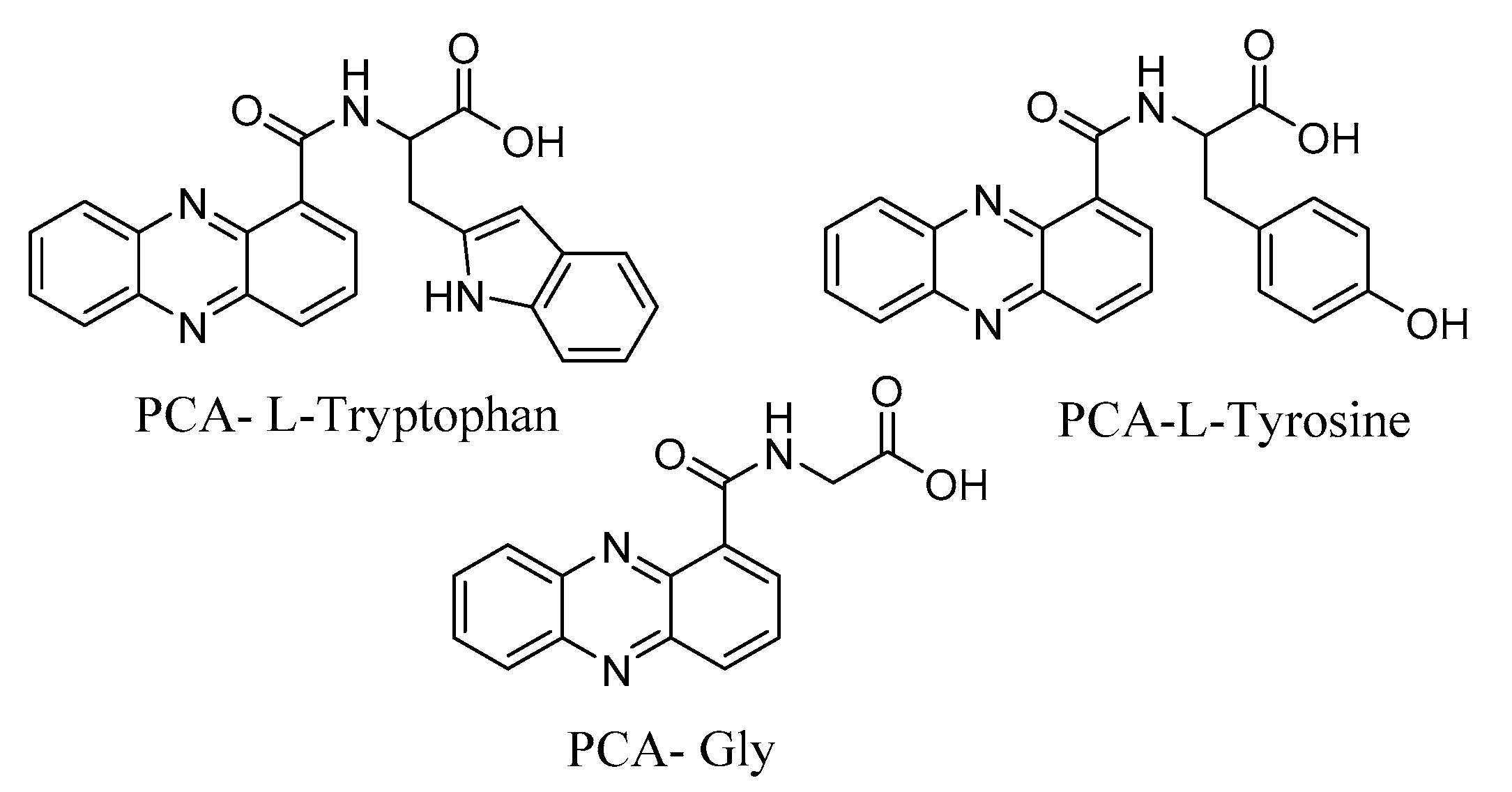

Figure 5. Structures of PCA-L-Tryptophan, PCA-L-Tyrosine, and PCA-Gly.
Figure 5. Structures of PCA-L-Tryptophan, PCA-L-Tyrosine, and PCA-Gly.
Molecules 27 04999 g005
Molecules 27 04999 sch001 550

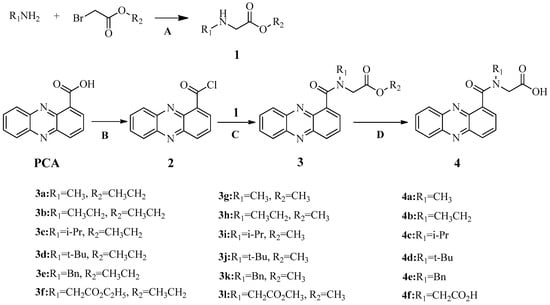

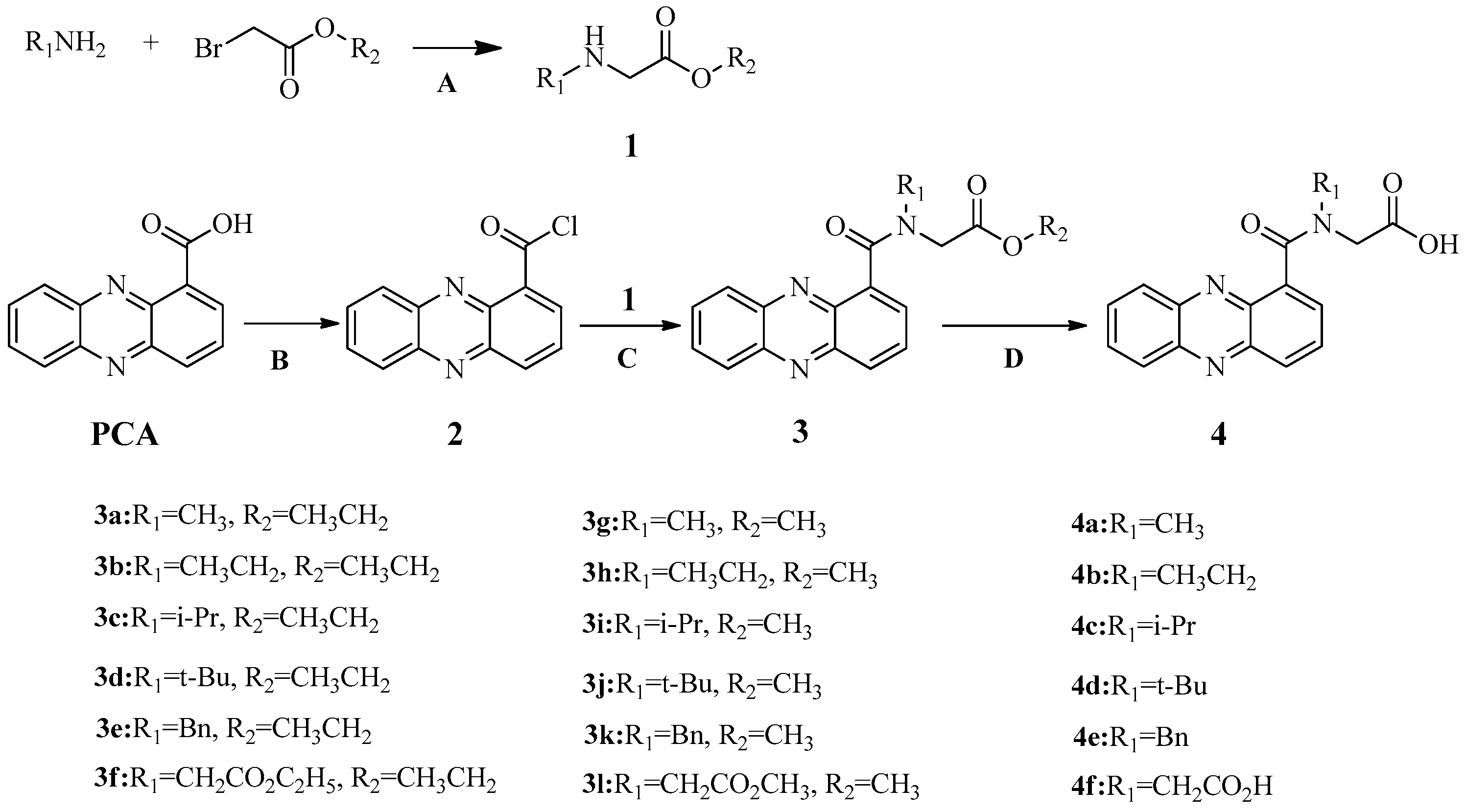

Scheme 1. Synthetic route of the title compounds 3a–3l and 4a–4f. Reagents and conditions: (A) K2CO3, room temperature, 12 h; (B) oxalyl chloride (1.5 equiv), CH2Cl2, reflux, 8 h; (C) triethylamine (5 equiv), CH2Cl2, 0 °C, 6 h; (D) lithium hydroxide, 1,4-dioxane/H2O (v/v = 1:1), room temperature, 5 h.
Scheme 1. Synthetic route of the title compounds 3a–3l and 4a–4f. Reagents and conditions: (A) K2CO3, room temperature, 12 h; (B) oxalyl chloride (1.5 equiv), CH2Cl2, reflux, 8 h; (C) triethylamine (5 equiv), CH2Cl2, 0 °C, 6 h; (D) lithium hydroxide, 1,4-dioxane/H2O (v/v = 1:1), room temperature, 5 h.
Molecules 27 04999 sch001
Molecules 27 04999 g006 550

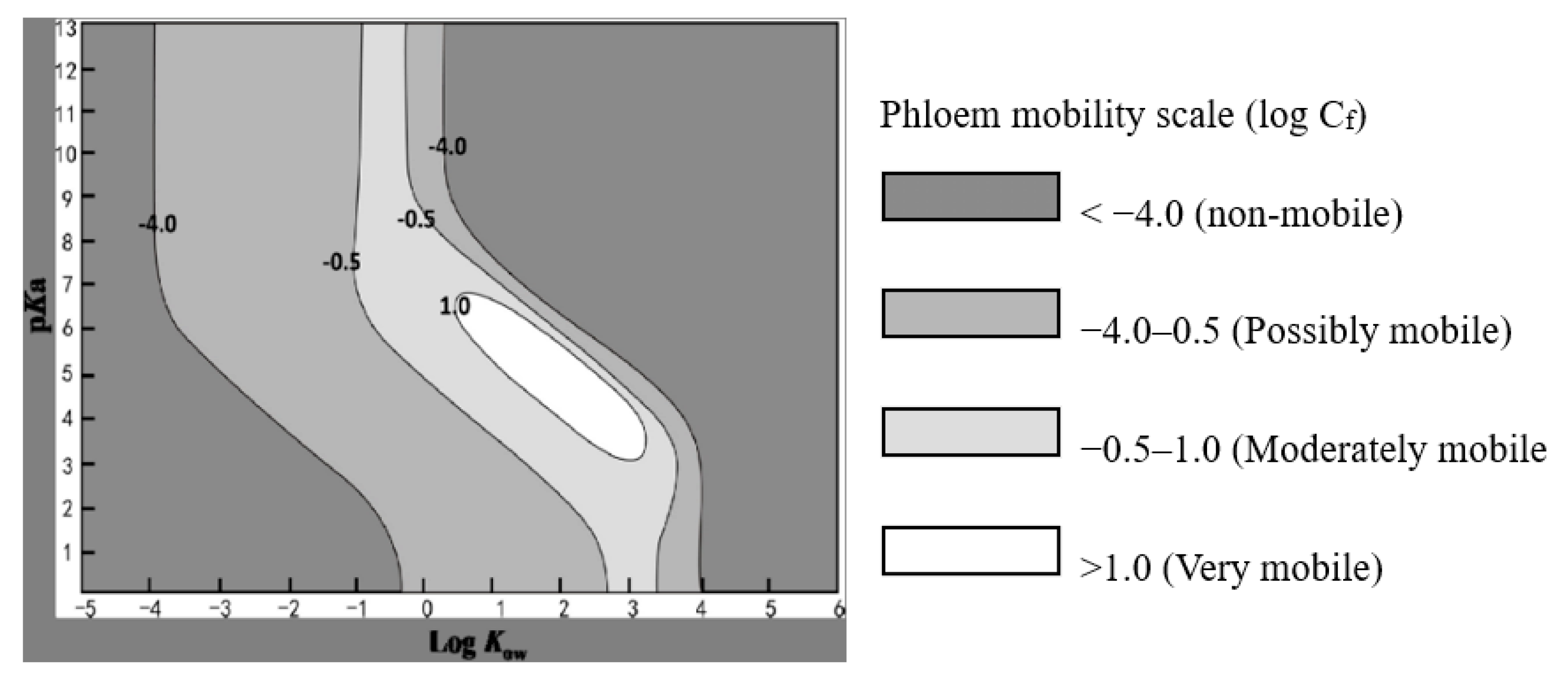

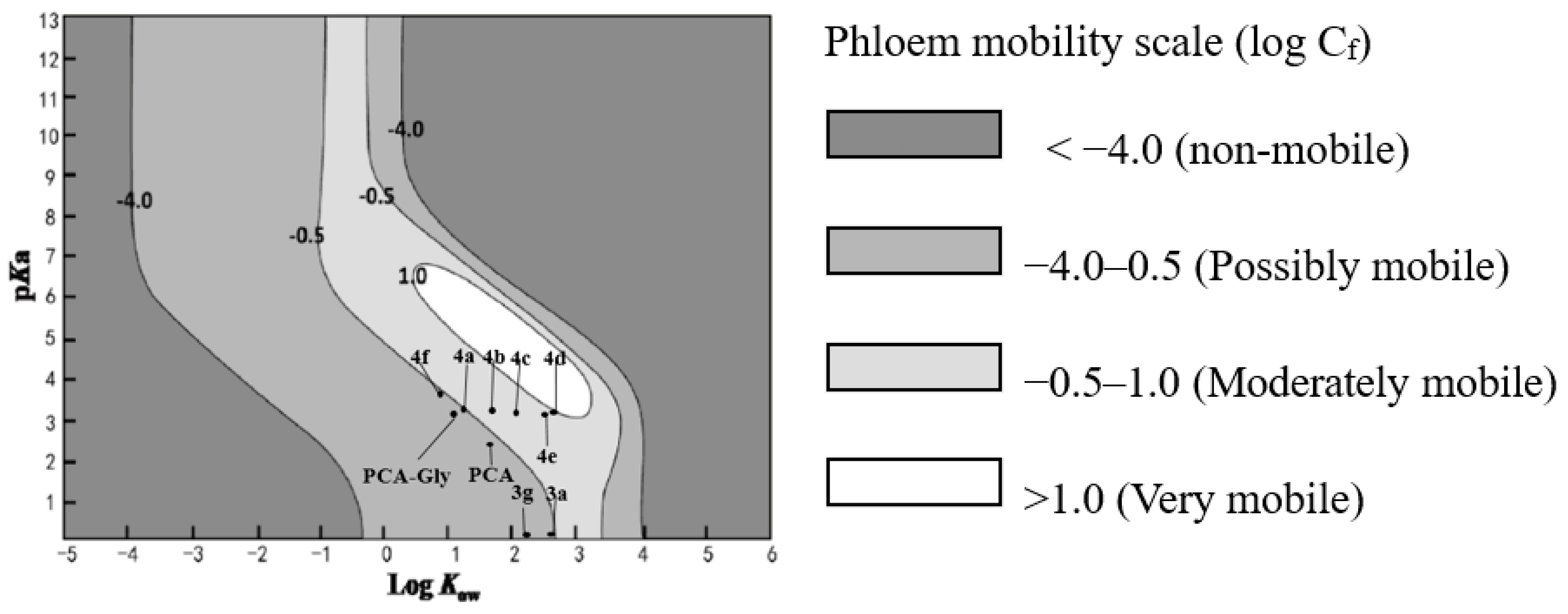

Figure 6. Prediction of phloem mobility of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA using the Kleier map (log Cf as a function of pKa and log Kow).
Figure 6. Prediction of phloem mobility of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA using the Kleier map (log Cf as a function of pKa and log Kow).
Molecules 27 04999 g006
Molecules 27 04999 g007 550

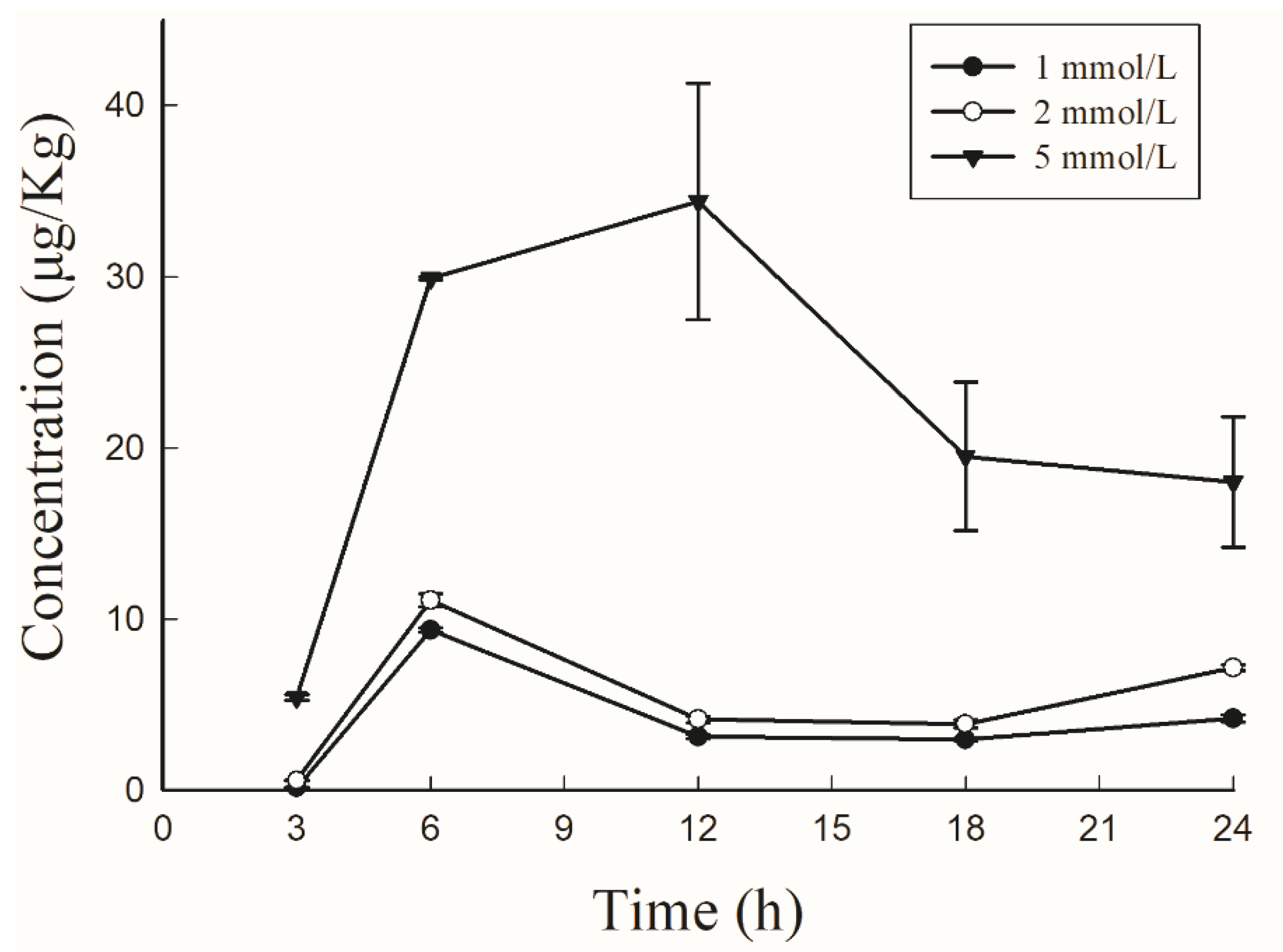

Figure 7. Concentration of tested compounds in castor roots was collected at 1 h intervals for 24 h. Each point was the mean of three sets of 12 plants ± SE.
Figure 7. Concentration of tested compounds in castor roots was collected at 1 h intervals for 24 h. Each point was the mean of three sets of 12 plants ± SE.
Molecules 27 04999 g007
Table
Table 1. Concentrations of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA in phloem sap of castor bean seedlings at 1~5 h.
Table 1. Concentrations of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA in phloem sap of castor bean seedlings at 1~5 h.
Compd.Concentration in Phloem Sap a (uM)
1 h2 h3 h4 h5 hAverage Concentration
3aNDbNDNDNDND0
3gNDNDNDNDND0
4aND14.06 ± 1.04 b16.69 ± 0.79 b19.41 ± 1.33 b22.96 ± 2.01 c14.62
4bNDND17.44 ± 0.55 ab22.56 ± 0.21 ab29.90 ± 0.49 a13.98
4cND21.52 ± 1.77 a18.58 ± 1.27 a22.79 ± 0.96 a25.26 ± 0.39 b17.63
4dND5.29 ± 0.25 c4.65 ± 0.67 cdNDND1.99
4e0.74 ± 0.23 a2.30 ± 0.32 d0.96 ± 0.11 e0.95 ± 0.19 c1.09 ± 0.07 d1.21
4f0.54 ± 0.18 a0.56 ± 0.21 d0.83 ± 0.18 e1.18 ± 0.22 c1.56 ± 0.13 d0.93
PCA-GlyND2.10 ± 0.12 d2.51 ± 0.22 d2.08 ± 0.16 c1.88 ± 0.27 d1.714
PCANDNDNDNDND0
Notes: a Phloem sap was collected at a 1 h intervals for 5 h. Each data point is the mean of 12 seedlings ± SE (n = 3). b “ND” means not detected. Duncan’s multiple range tests at a 5% probability level were used to determine statistical differences between treatments simultaneously. The data in the table are the mean ± SE, and those followed by different letters in the same column are significantly different at the 5% level.
Table
Table 2. Physicochemical properties of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA.
Table 2. Physicochemical properties of compounds 3a, 3g, 4a–4f, PCA-Gly, and PCA.
CompoundMolecular FormulaMolecular Weight (g/mol)pKaLog Kow
3aC18H17N3O3323.35 0.05 2.62
3gC17H15N3O3309.32 0.04 2.22
4aC16H13N3O3295.29 3.31 1.23
4bC17H15N3O3309.32 3.31 1.73
4cC18H17N3O3323.35 3.28 2.09
4dC19H19N3O3337.37 3.31 2.61
4eC22H17N3O3371.39 3.30 2.58
4fC17H13N3O5339.30 3.56 0.98
PCA-GlyC15H11N3O3281.27 3.29 1.06
PCAC13H8N2O2224.21 2.34 1.59
Notes: The “Log Kow” was calculated by the ALOGPS 2.1 program; the “pKa” was calculated by the ACD Log D v 6.00 software.
Table
Table 3. Contents of compound 4c in the root of castor plant by different treatment.
Table 3. Contents of compound 4c in the root of castor plant by different treatment.
Concentration (mmol/L)Content (μg/Kg)
3 h6 h12 h18 h24 h
root10.14 ± 0.02 d9.36 ± 0.11 a3.13 ± 0.14 c2.96 ± 0.09 cd4.18 ± 0.21 b
20.58 ± 0.04 d11.05 ± 0.38 a4.15 ± 0.19 c3.87 ± 0.22 c7.16 ± 0.18 b
55.44 ± 0.17 b29.92 ± 0.77 a34.38 ± 6.91 a19.54 ± 4.35 ab17.98 ± 3.82 ad
Note: The treatment was repeated three times in each group (mean ± SE). Duncan’s multiple range tests at a 5% probability level were used to determine statistical differences between treatments simultaneously. The data in the table are the mean ± SE, and those followed by different letters in the same column are significantly different at the 5% level.
Table
Table 4. Contents of compound 4a–4f, PCA-Gly, and PCA in castor root at 12 h (μg/Kg).
Table 4. Contents of compound 4a–4f, PCA-Gly, and PCA in castor root at 12 h (μg/Kg).
4a4b4c4d
95.35 ± 3.27 a10.32 ± 0.74 c34.38 ± 1.96 bND
4e4fPCA-GlyPCA
0.72 ± 0.11 d0.03 ± 0.01 d7.01 ± 0.72 dND
Note: “ND” means not detected; The treatment was repeated three times in each group (mean ± SE). Duncan’s multiple range tests at a 5% probability level were used to determine statistical differences among treatments. The data in the table are the mean ± SE, and those followed by different letters in the same column are significantly different at the 5% level.
Table
Table 5. The linear equations of the test compounds (Ricinus communis L.).
Table 5. The linear equations of the test compounds (Ricinus communis L.).
CompoundLinear EquationsR2LOQ (mg/L)
4ay = 4.6 × 10−7x + 0.32130.99960.1
4by = 1.7 × 10−7x + 0.25960.99930.1
4cy = 9.1 × 10−8x + 0.03890.99980.3
4dy = 1.8 × 10−7x − 0.07820.99990.1
4ey = 1.1 × 10−10x − 0.00070.99830.2
4fy = 8.4 × 10−7x − 0.31280.99880.1
PCA-Glyy = 6.7 × 10−7x + 0.10350.99930.4
Table
Table 6. The linear equations of the test compounds (Adult castor bean plants at 3–4 leaf stage).
Table 6. The linear equations of the test compounds (Adult castor bean plants at 3–4 leaf stage).
CompoundLinear EquationsR2
4ay = 3.4 × 10−7x + 0.30540.9995
4by = 1.1 × 10−7x − 0.08640.9998
4cy = 7.1 × 10−8x − 0.23300.9993
4dy = 9.9 × 10−6x − 0.22820.9993
4ey = 1.0 × 10−7x − 0.25990.9993
4fy = 4.7 × 10−7x − 0.18630.9994
PCA-Glyy = 6.6 × 10−7x − 0.07230.9993
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cai, J.; Xiong, Y.; Zhu, X.; Hu, J.; Wang, Y.; Li, J.; Wu, J.; Wu, Q. An Exploration of the Effect of the Kleier Model and Carrier-Mediated Theory to Design Phloem-Mobile Pesticides Based on Researching the N-Alkylated Derivatives of Phenazine-1-Carboxylic Acid-Glycine. Molecules 2022, 27, 4999. https://doi.org/10.3390/molecules27154999

AMA Style

Cai J, Xiong Y, Zhu X, Hu J, Wang Y, Li J, Wu J, Wu Q. An Exploration of the Effect of the Kleier Model and Carrier-Mediated Theory to Design Phloem-Mobile Pesticides Based on Researching the N-Alkylated Derivatives of Phenazine-1-Carboxylic Acid-Glycine. Molecules. 2022; 27(15):4999. https://doi.org/10.3390/molecules27154999

Chicago/Turabian Style

Cai, Jinlong, Yongtong Xiong, Xiang Zhu, Jinyu Hu, Yunping Wang, Junkai Li, Jianfeng Wu, and Qinglai Wu. 2022. "An Exploration of the Effect of the Kleier Model and Carrier-Mediated Theory to Design Phloem-Mobile Pesticides Based on Researching the N-Alkylated Derivatives of Phenazine-1-Carboxylic Acid-Glycine" Molecules 27, no. 15: 4999. https://doi.org/10.3390/molecules27154999

Article Metrics

Back to TopTop
