Tropaeolin OO as a Chemical Sensor for a Trace Amount of Pd(II) Ions Determination

by
Adrianna Pach
1,
Agnieszka Podborska
2,
Edit Csapo
3,4 and
Magdalena Luty-Błocho
1,*
1
Faculty of Non-Ferrous Metals, AGH University of Science and Technology, A. Mickiewicza Av. 30, 30-059 Krakow, Poland
2
Academic Centre for Materials and Nanotechnology, AGH University of Science and Technology, A. Mickiewicza Av. 30, 30-059 Krakow, Poland
3
MTA-SZTE Lendület “Momentum” Noble Metal Nanostructures Research Group, University of Szeged, H-6720 Rerrich B. Sqr. 1, 6720 Szeged, Hungary
4
Interdisciplinary Excellence Center, Department of Physical Chemistry and Materials Science, University of Szeged, H-6720 Rerrich B. Sqr. 1, 6720 Szeged, Hungary
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(14), 4511; https://doi.org/10.3390/molecules27144511
Submission received: 14 May 2022 / Revised: 27 June 2022 / Accepted: 29 June 2022 / Published: 14 July 2022
(This article belongs to the Special Issue Materials Chemistry: Good Beginnings for a Cross-Disciplinary Platform in Molecules)
Browse Figures
Review Reports Versions Notes

Abstract

:
The selective determination of metals in waste solutions is a very important aspect of the industry and environmental protection. Knowledge of the contents and composition of the waste can contribute to design an efficient process separation and recovery of valuable metals. The problematic issue is primarily the correct determination of metals with similar properties such as palladium and platinum. Thus this paper focuses on the development of a selective method that enables Pd(II) determination in the presence of Pt(IV) ions using the azo-dye tropaeolin OO (TR). For this purpose, the process of the metalorganic complex formation and Pd(II) ions determination were studied by using UV–Vis spectrophotometry under different conditions: solvents (water and B-R buffer), pH (2.09–6.09), temperature (20–60 °C), anions and cations concentrations. The formed metalorganic complex between Pd and tropaeolin OO allows for distinguishing Pd(II) ions from both platinum complexes, i.e. Pt(II), Pt(IV). Moreover, the proposed method can be applied to solutions containing both chloride and chlorate ions. The obtained characteristic spectrum with two maxima allows the determination of palladium even in the presence of other cations (Na, K, Mg, Zn, Co, Ni, Al) and changed concentrations of Pt(IV) ions. Furthermore, the developed spectrophotometric method for the Pd(II) ions determination using tropaeolin OO is characterized by high selectivity towards palladium ions.

1. Introduction

In recent years, much attention has been given to platinum-group metals (PGM), due to their unique physical and chemical properties. For these reasons, they are used in many areas of science and industrial processes [1]. Palladium is one of the most recognizable and widely used metals among the PGM. The progressive development of many technological fields caused the increasing use of palladium and its compounds in various areas, including automotive catalysts (55%), electronics (17%), dentistry (9%), and jewellery (11%) [2]. The growing demand for palladium and its compounds may cause release significant amounts of pollution for the environment. Currently, the environmental pollution with palladium in comparison with other toxic heavy metals is minimal. However, growth consumption and, as a consequence, production of more waste can significantly contaminate water and the ecosystem (palladium is not biodegradable), and also may harm human health [3,4]. Therefore, the development of precision methods of recovery and determination of even low amounts of palladium in waste materials and solutions. Currently, the techniques used to determine palladium amounts include methods such as ICP-MS (inductively coupled plasma mass spectroscopy) [5,6,7,8], ICP-AES (inductively coupled plasma atomic emission spectroscopy) [9,10,11], FAAS (atomic absorption spectroscopy) [12,13] and XRF (X-ray fluorescence) [14,15]. Unfortunately, the mentioned methods of determination of palladium have some limitations. These techniques require expensive apparatus, not portable equipment, laboratory facilities, and well-trained personnel. Moreover, the small quantities of Pd and high concentrations of interfering matrix components in samples prevent the direct determination of this metal [16]. The submitted issues cause necessary using various techniques of preconcentration analyzed materials, such as sorption, flotation, and solvent extraction [17].
Currently, more attention is being paid to the spectrophotometric determination of palladium using various organic compounds. The UV–Vis spectrophotometers are commonly available and easy-to-use devices and relatively cheap compared to ICP-MS, ICP-AES, and FAAS techniques. The growing popularity of spectrophotometry is related to the possibility of precise, accurate, and fast analysis materials in comparison to other analysis instruments [18,19]. In the spectrophotometric methods of determination elements, the analyzed compound is carried out in the form of a colored complex, introducing into the system substances that easily form complexes with the determining element (ex. organic substances). The basis for the determination of elements by spectrophotometric methods is the relationship between absorbance and the concentration of the complex formed. The most commonly used complexing reagents are azo compounds. However, they are used for the process of metalorganic complex formation rather than in process of metal determination. The azo-dyes are very interesting organic compounds that have an azobenzene group, which under thermal or photo exposition might lead to cis-trans transformation. Compounds such as methyl orange, 2-[-2-(6-nitro benzothiazolyl)azo]- imidazole (NBTAI), HL1 [2-Hydroxy-3-((5-mercapto-1,3,4-thiadiazol-2-yl)diazenyl)-1-naphth aldehyde], HL2 [3-((1,5-Dimethyl-3-oxo-2-phenyl-2,3-dihydro-1Hpyrazol-4-yl)diazenyl)-2-hydroxy-1-naphthaldehyde], 5-(quinoly-8-azo)pyrimidine-2,4,6-trione (L1) and 5-(quinoly-8-azo)-1,3-dimethylpyrimidine-2,4,6-trione (L2), 2-[2−(1-Hydroxy-4-Chloro phenyl) azo]- imidazole (HClPAI) create coloured complexes with many metal ions Co(II), Ni(II), Zn(II), Cd(II), Hg(II), Cr (III), Mn (II), Fe (III), Ru (II) and Pd(II) [20,21,22,23,24,25,26,27].
The main purpose of this study is the development of the spectrophotometric method for the qualitative and quantitative determination of palladium using an azo-dye: tropaeolin OO (TR). Tropaeolin OO (Sodium 4-[(E)-(4-anilinophenyl)diazenyl]benzene-1-sulfonate)) is one of the derivatives of methyl orange with an additional phenyl group connected with nitrogen atoms (Figure 1). Tropaeolin OO is not very common in chemistry, but it could be used as pH indicator. In this paper, we present a new application for this compound.
During experiments carried out under different conditions’ colored complexes Pd-TR with a characteristic UV–Vis spectra were formed. Moreover, the efficiency of palladium determination in the presence of metal cations associated with palladium in waste solutions (Na, K, Mg, Zn, Co, Ni, Al) was examined. The Pd determination was possible even in the presence of other precious metal ions: Pt(IV), Pt(II), or popular chloride and chlorate anions.

2. Results and Discussion

2.1. Experimental Conditions

The process of selective determination of Pd(II) ions was carried out under different conditions (concentration of reagents, pH, temperature, solvents, in the presence of Cl−, ClO4−, Na+, K+, Al3+, Mg2+, Co2+, Ni2+, Zn2+, Pt2+, Pt4+, which have been gathered in Table S1 (Supplementary Materials).

2.2. Spectra of Reagents

Before the process of metalorganic complex formation between Pd(II) and tropaeolin OO, all reagents were analyzed using UV–Vis spectrophotometry. Obtained spectra were helpful to fix “a measurement window”, i.e., the wavelength range where the process can be followed without the risk that the spectra coming from substrates, intermediates, and products will overlap.
Registered spectra and graphically determining values of molar coefficient at the characteristic wavelength (λ1, λ2) for tropaeolin OO were shown in Supplementary Materials Figures S1–S6 and summarized in Table 1.
Depending on the pH of the solution and the type of the solvent (H2O, B-R buffer) different spectra were obtained. Generally, for the solution of tropaeolin OO obtained in a buffer solution in the pH range 2.09–6.09 spectra with two strong maxima located at 270 nm and 445 nm, were registered. In the case of lower pH, i.e., 2.09, these maxima were obtained at 207 nm and 460 nm, whereas in aqueous solution these maxima were located at 272 nm and 445 nm (Table 1).
The characteristic spectra and graphically determining values of molar coefficient for Pd(II) in H2O solution were shown in Supplementary Materials (Figure S7). The obtained spectra have one strong maximum located at wavelength 209 nm. The value of the molar coefficient equals:
λ209nm (ε) = 26547 ± 449 dm3·mol−1·cm−1

2.3. Metalorganic Complex Formation between Pd(II) and TR (at Different pH)

The process of complex formation between Pd(II) ions and tropaeolin OO was carried out under different conditions, detailed described in Experimental Conditions ((Supplementary Materials, Table S1). After the reagent mixture in different volume ratios (the same initial reagent concentration) the dynamic change in color was observed.
In an aqueous solution, the orange color coming from tropaeolin OO turn into dark orange, red, pink, and purple within one hour. Finally, after aging (7 days), a green deposit (sample A, Figure 2b), light to dark blue (sample B–D, Figure 2b), dark purple (sample E, Figure 2b), dark red (sample F, Figure 2b) and dark orange (sample G, Figure 2b) were obtained. For samples obtained after 1 h and after aging the UV–Vis spectra were registered and shown in Figure 2a,b. A similar spectra evolution was registered also for different pH (see Table S1) established using B-R buffer (range of pH 2.09–6.09). The obtained UV–Vis spectra after 7 days and changing samples color from 2 min. to 7 days are shown in Figure 2c–g.
The final color of the samples depends on the applied pH conditions. At the lowest pH = 2.09 samples had red color after reagents mixing (Figure 2c). As the pH increased, the initial color of the solutions changed from orange, pH = 2.87, (Figure 2d) to yellow, pH = 4.1, 5.02, 6.09 (Figure 2e–g). Finally, after 7 days the color of the sample turns light blue, purple, pink, and depending on pH, red (pH 2.09) or yellow (pH > 2.09). Slight color differences can be seen for sample C, which for pH 2.09 is blue, and in higher pH is light purple. Generally, the intensity of the final colors of the samples depends on the pH.
It is worth noting, that at pH = 6.09 the color of the samples obtained at the beginning has stayed almost the same (Figure 2g). In this pH, only samples A–C changed color to light pink after 7 days.
The UV–Vis spectra for the obtained solutions in other pH were registered after reagents mixing, then after 1 h, 24 h which is shown in Supplementary Materials, Figures S8–S12. The final spectra obtained after 7 days are shown in Figure 2c–g. The appearance of obtained spectra is different depending on pH solutions. The UV–Vis spectra obtained after mixing reagents have two characteristics maximum localized at 207 nm, 460 nm for pH 2.09 and 270 nm, 445 nm for another pH, which was related to the original spectrum coming from tropaeolin OO. After 7 days, we noticed the red shift and maxima at 460 nm and 445 nm decreased and new maxima appeared at wavelengths 520–590 nm (depending on the analyzed sample). The most visible changes occur for A–C samples, whereas for D–G samples, the change occurs slowly or not at all (samples G). It also appears the characteristic peak localized at wavelength 703 nm for samples A–C. However, the intensity of these peaks is different, the most visible are for pH 4.10 and 5.02 (Figure 2e,f). The spectrum obtained at the pH = 6.09 changed and also red shift of the maximum was observed (472 nm). The characteristic peak at wavelength 703 nm is not present for pH 6.09 (Figure 2g).
Obtained spectra, registered at a different volumetric proportion of Pd(II) ions to TR and different pH conditions, solvent (see, Supplementary Materials, Table S1), were used for stoichiometry determination. For this purpose, Job’s plots were created (Supplementary Materials, Figures S13–S24). These plots were determined for the selected wavelength at which the complex has a maximum. There are 540 and 703 nm for pH 2.09 and 2.87 (Supplementary Materials, Figures S13–S18). At higher pH (4.10) Job’s plots were determined at 559 and 703 nm (Supplementary Materials, Figures S19–S21). It is worth noting, that the final peak at pH = 5.02 after 7 days was moved to 718 nm (Supplementary Materials, Figure S24). The constructed Job’s plots suggest that the stoichiometry of the final product (peak localized at 703 nm) is between volumetric ratio Pd(II): TR = 3:1 and 2.5:1.5. The difficulty in unequivocally establishing the molar ratio results from the closeness of the spectra from intermediate and final products. This causes that the individual spectra overlap and do not allow for an unambiguous reading of the values from the Job’s plot. The volumetric ratio 3:1 for the final product and 2:2 for intermediates were suggested in our previous work [20], in which Pd(II) ions form metalorganic complexes with methyl orange at similar experimental conditions.
The obtained results, i.e., analysis of the colors of the samples at different pH (Figure 2), the UV–Vis spectra, suggested that pH = 4.10 and the volumetric ratio 2.5 Pd(II):1.5 TR were suitable for further study due to intensity of the color needed for metal detection. To illustrate how the process of metalorganic changes during the time, evolution spectra at 20 °C were registered and shown in Figure 3a.
It was observed, that after mixing of Pd(II) ions and TR in a volumetric ratio of 2.5:1.5, the change characteristic spectrum for tropaeolin OO with time takes place as was shown in Figure 3a. Decreasing absorbance values at 270 and 445 nm suggests that between Pd(II) and tropaeolin OO reaction proceed. The formation of new spectra with other peaks located at 297, 544, and 703 nm (Figure 3a) suggests that the metalorganic complex appears. This spectrum is similar to that obtained in our previous work [20] and confirms metalorganic complex formation.
To determine the chemical structures of molecules and follow the structural changes in molecules, besides the spectroscopic techniques, the Density Functional Theory (DFT) was used. DFT calculations are extensively used and very helpful to predict the experimental results, especially for organic molecules. DFT calculations were performed to better visualize and explain the changes taking place in the solutions of TR and Pd(II). We assume that in this range of pH the tropaeolin OO is present in anion form and its trans conformer is the most stable. However, we should remember that the cis form of TR is also present in the solution. According to our previous results for palladium complexes, we predicted the possible structures of TR-Pd complex and optimized their geometry with B3LYP/LanL2DZ method. The optimized structures for tropaeolin OO and its complex with Pd(II) are present in Figure 4.
After structure optimization, the electronic transitions spectra were calculated by using time-dependent TD-DFT with the B3LYP functional and the LanL2DZ basis set. In addition, the electronic spectra were calculated in water solution using the CPCM method. All calculated results were compared with the experimental data and they are in good agreement. (Figure 3b). The calculated spectrum for tropaeolin OO has three peaks: 272, 330, and 480 nm. The last one is connected with the HOMO-LUMO transition (see Figure S25). The theoretical spectrum for structure contains one palladium ion with acetate ligand and is connected with one tropaeolin OO molecule (TR-Pd 1) 324, 347, 485, 546, and 620 nm. This result is very similar to the experimental spectrum obtained after 24 h describe above. In this complex, the HOMO is localized mainly on palladium and acetate ligand, and LUMO is located on tropaeolin OO molecule (see Figure S26). The peak of about 620 nm is connected with HOMO-LUMO transitions. It suggests that after the reaction the metal to ligand charge transfer is observed. After 24 h, the change in the spectrum of the TR-Pd complex was observed. It is caused by the aging of the sample and more complicated structures appear. The third structure TR-Pd 2 presented in Figure 4 is one example of the aging of our complex in which the acetate bridge is forming between two palladium ions connected with the tropaeolin OO molecule. It cannot be said with certainty that our system is not further modified, and the structure consists of more Pd-TR fragments. Experimental spectra measured in a different molar ratio of Pd:TR differ slightly from each other; therefore, it can be concluded with a high probability that other structures are also possible in the tested system. This also explains the slight differences in the experimental and calculated spectrum. The theoretical spectrum was simulated only for a single isolated molecule, whereas the measured spectrum is averaged for all structures present in the solution. Nevertheless, it is clearly visible that as the molecules increase in the structure of the complex, new bands appear. In the case of the TR-Pd 2 structure, two peaks 597 and 728 nm are visible. Both these peaks are related to the HOMO-LUMO transition. HOMO is located mainly on palladium atoms and the acetate bridge, whereas in the case of LUMO, the electron density is transferred to tropaeolin OO molecules (Figure 5).

2.4. The Process of Pd(II) Ions Determination

2.4.1. The Influence of Temperature

The important issue in the determination of metal ions is to determine the influence of temperature on to rate of formation of the complex. This paragraph investigated the effect of temperature on the rate of TR-Pd complex formation. The optimal conditions were considered volumetric ratio tropaeolin OO to Pd as 1.5:2.5, the pH value was 4.10. The study was carried out in a UV–Vis spectrophotometer with a thermostatic heated at a different range of temperature 20–60 °C. The UV–Vis spectra obtained after 17.5 h are shown in Figure 6.
The characteristic spectra shift toward higher values for all analyzed temperatures during the process (Supplementary Materials, Table S2). In the case of all analyzed samples were observed to change solution color from yellow to violet. Regardless of the temperature value, each of the characteristic spectra has four maximum peaks with different absorbance intensities localized in similar wavelengths (Supplementary Materials, Table S2). The formation of the spectra with the characteristic peak in the wavelength range of 544–573 nm (Supplementary Materials, Table S2) is responsible for the formation of Pd-N and Pd-C in phenyl ring bond. Finally, the structure TR-Pd 1 (see, Figure 4) is formed. Subsequently, aging of this complex leads to the formation of TR-Pd 2 formation (see, Figure 4) and it is assigned to additional peak position at 703 nm.
As the temperature increases, the maximum intensity of three peaks located at a wavelength: λ1, λ2, and λ3 decreases, simultaneously maximum absorbance value for the peak at λ3 increases. As it was expected, the TR-Pd complex formation proceeded faster at increased temperatures.

2.4.2. The Influence of Chloride Ions on the Process of Pd(II) Ions Determination

A very important aspect during the process of Pd(II) ions determination is the presence of chloride ions, which are common ingredients of waste solutions coming from industry. Thus, the process of metalorganic formation between Pd(II) ions and tropaeolin OO was carried out with different addition of chloride ions (see, Supplementary Materials, Table S1). The obtained spectra and colors of the solutions were shown in Figure 7a,b.
As it was shown, in. Figure 7a, after reagents mixing, i.e., Pd(II) ions and TR in volumetric ratio 2.5:1.5, after one hour only samples contained chloride ions in the range from 0.005 to 0.001 mol/dm3 (samples D,E, Figure 7a) reached purple color and spectrum intensity at 703 nm at the same level of absorbance. It suggests that process of metalorganic formation for samples with higher chloride concentration (above 0.01 mol/dm3, samples A–C, Figure 7a) takes much more time as was shown in Figure 7b. However, it can be also observed that the primary obtained color of the solution (purple) changes within 24 h into blue (samples D,E, Figure 7b). This, in turn, suggests that the equilibrium between “intermediates” and products changes. It is confirmed by the registered UV–Vis spectrum and its decreasing intensity at 536 nm and increasing intensity at 703 nm. The UV–Vis spectra obtained after 5 min. were shown in Supplementary Materials, Figure S27.

2.4.3. The Influence of Chlorate Ions on the Process of Pd(II) Ions Determination

Taking into account, that waste solutions also may contain chlorate ions, thus the process of metalorganic complex formation between Pd(II) and tropaeolin OO was tested at different amounts of this anion (see, Supplementary Materials, Table S1). During the process of complex formation, the UV–Vis spectra and colors of solutions were registered. Spectra were obtained after 5 min, 1 h, 24 h since reagents, i.e.: Pd(II) and tropaeolin OO were mixed, as shown in Supplementary Materials, Figure S28.
After one hour, the purple colors of the solutions and similar spectra (except sample F) with characteristic peaks in visible wavelengths located at 538 and 703 nm were registered. Sample F contains a smaller amount of chlorate ions; thus, the process of metalorganic complex formation runs faster. Moreover, the intensity of the peak of this sample at 703 nm is more intensive compared to samples with higher amounts of chlorate anions. Furthermore, the intensity of this peak is the same as that obtained for sample F containing chloride ions, see Figure 7a. It is worth noting, that with time, the colors of samples containing chlorate ions change into blue (except, sample F, see, Supplementary Materials Figure S28c). Finally, after 24 h spectra with intense peaks at 567 nm and 703 nm were obtained. It is worth noting, that the intensity of the peak localized at 703 nm increases, and it is four times more intensive compared to that obtained after one hour (see, Supplementary Materials, Figure S28c).

2.4.4. The Influence of the Presence of Other Cations on the Process of Pd(II) Ions Determination

During the process of Pd(II) determination very important aspect is the sensitivity of the proposed method on the metallic impurities. For these reasons, the process of metalorganic formation between Pd(II) ions and tropaeolin OO was carried out in the present of such cations as Zn(II), Co(II), Ni(II), Al(III), Mg(II) and K(I) obtained from dissociation of chlorate salts. After reagents mixing, i.e., Pd(II)/cations with TR the process of metalorganic complex formation takes place. Obtained colors of the solutions and registered spectra were shown in Figure 8 and in Supplementary Materials (Paragraph 8 including spectra registered for all cations after 5 min., 1 h, 24 h at temperatures 20 and 50 °C, Supplementary Materials, Figure S29 and colors change with time shown in Figure S31).
The obtained color of the samples and registered spectra suggest that cations such as Na+ (see, Supplementary Materials Figure S28b, Sample A), K+, Al3+, Mg2+ (Figure 8a) can be present in the analysed sample, and they do not disturb in process of Pd(II) determination at 536 and 703 nm. In the case of zinc ions, it is also possible. The registered spectrum shown in Figure 8a for Zn(II) ions has characteristic peaks at 542 nm and 703 nm. However, the intensity of these peaks is lower, and it should be taken into account in process of palladium determination. Nickel ions are interesting, because they have green color in the aqueous solutions. These ions have characteristic spectrum with 3 strong peaks located at 394 nm, 543 nm and 718 nm (Figure 8a). After mixing Pd(II)/Ni(II) ions with TR solution, within one hour, the purple color of the solutions was obtained (Figure 8a, Supplementary Materials, Figure S31). The most interesting peak is located at 536 nm and it is responsible for the formation of organometallic compound between Pd(II) and TR. Thus, the process of Pd(II) determination can be also carried out in the presence of Ni ions, but only at one wavelength. The intense pink color of an aqueous solution of cobalt ions also makes the process of qualitative Pd(II) determination problematic. The characteristic maxima of the spectra coming from Co(II) ions and metalorganic complex are in similar region (Supplementary Materials, Figure S30), whereas still the process of quantitative Pd(II) determination is possible through subtracting spectrum coming from metalorganic compound containing Co(II) and spectrum coming from cobalt itself as it was shown in Supplementary Materials, Figure S30).
The process of Pd(II) determination was also carried out in the presence of other PGM cations such as Pt(II) and Pt(IV). Obtained colours of the samples changed with time and spectra evolution were shown in Figure 8b for Pt(II) ions and in Supplementary Materials (Figure S32) for Pt(IV). After reagents mixing, i.e., Pd(II)/Pt(II) or Pd(II)/Pt(IV) with TR, the yellow colour coming from azo-dye changes into purple and finally blue with time (Figure 8b, Supplementary Materials, Figure S32b). Respectively, the change in spectra were also registered, confirming the process of metalorganic compound between Pd(II) and TR formation. It is worth to note, that Pt(II) and Pt(IV) ions have spectra with maximum at 262 nm. During the process of metalorganic formation only small decrease in intensity of these peaks were observed and it was associated with the process of Pt ions hydrolysis [28].

2.4.5. Applying the Proposed Method in the Practice for Spectrophotometric Determination of Pd(II) Ions

The spectrophotometric determination of Pd(II) ions was realized in the presence of tropaeolin OO and Pt(IV) ions. The process was carried out in a volumetric ratio of reagents was 2.5 mL Pd(II) ions to 1.5 mL TR, pH 4.10 and elevated temperature: 60 °C. Due to the high sensitivity method to initial concentrations of components, the determination was carried out at a wide range of palladium ions and tropaeolin OO concentrations from 5 × 10−6 mol/dm3 to 2 × 10−4 mol/dm3. The contents of platinum ions were constant: 5 × 10−5 mol/dm3.
Before starting the determination process characterized behaviour of the individual reactants: TR and Pd(II) with Pt(IV) in the analyzed concentration range. The intensity of the obtained UV–Vis spectra increases with increasing reagent concentration. The maximum peak for TR has localized in wavelength 445 nm, whereas for a mixture of Pt(II) and Pt(IV) ions the maximum intensity registered at 260 nm (Supplementary Material, Figure S33a,b).
The UV–Vis spectra after 1h with samples of different colors obtained are shown in Figure 9a. The color of samples varied for different concentrations of reactants. At low concentrations (5 × 10−6 mol/dm3, 5 × 10−5 mol/dm3) the solutions were almost colorless, slightly pink for sample B. The solutions with higher concentrations of reagents (1 × 10−5 mol/dm3, 1 × 10−4 mol/dm3, 2 × 10−4 mol/dm3), had a color ranging from light purple-sample C, purple-sample (D) to dark blue for sample F. The obtained color of samples after 5 min, 1 h, and 24 h are shown in Supplementary Materials, Figure S35.
The UV–Vis spectra obtained in the process of Pd(II) ions determination after 5 min and 24 h were shown in Supplementary Materials, Figure S33c,d. However, the registered spectra after 1 h are shown in Figure 9a. The spectra obtained for different concentrations have three maxima located at 260, 560 and 703 nm. The maxima at 560 and 703 nm suggest the formation of metalorganic complex.
The intensity of the spectra increases with higher reagents concentrations and it is consistent with Lambert-Beer’s Law. Based on the spectra (Figure 9a), a graph representing the absorbance versus initial metal ion concentration was constructed and shown in Figure 9b. Designated experimental points provide the opportunity to term molar coefficient for two maximum peaks intensities at wavelength 560 nm and 703 nm. The obtained molar coefficient allows to term exact concentration of the Pd(II) ions in the solution. The absorbance value for the obtained curve fits is represented by two equations:
A560nm = 5371 × C0,Pd(II)
A703nm = 2866 × C0,Pd(II)
The precise determination of the amount of Pd(II) ions in obtained solutions after 1h is possible for the wavelength of 560 nm. Unfortunately, the determination of Pd(II) ions for higher intensity peak 703 nm is difficult, due to low reagents concentrations (5 × 10−6 mol/dm3, 5 × 10−5 mol/dm3). Determination of Pd (II) ion at two wavelengths is possible after 24 h, Supplementary Materials, Figure S34a. The values of the molar coefficients obtained from the spectral diagrams after 24 h (Supplementary Materials, Figure S34b) equal:
λ578nm (ε) = 4327 ± 34 mol−1·dm3·cm−1
λ703nm (ε) = 3389 ± 42 mol−1·dm3·cm−1
Generally, can successfully determine the amount of Pd(II) ions using the different concentrations and the appearance of Pt(IV) ions after 1 h. In order to determine of Pd(II) ions at two wavelengths (578 nm and 703 nm), it is suggested to wait for 24 h.

3. Materials and Methods

3.1. Chemicals

Tropaeolin (TR). The base solution was prepared by dissolving of 0.106 g of TR in 100 mL of deionized water. Next, proper volume of the base solution was diluted in water or in buffers (pH in the range 2.09–7.00), see Table 1.
Pd(II) chloride complex ions. The proper volume of base solution of Pd(II) with base concentration 0.093 mol/dm3 was diluted in H2O or buffers (pH in the range 2.09–7.00), see Table 1.
Pt(IV) chloride complex ions. The proper volume of base solution of Pt(IV) with a concentration 0.076 was added to the solution containing of Pd(II) ions.
Solvents. In order to keep constant value of pH, the buffer of Britton-Robinson (B-R) was used. For this purpose, 100 mL of acids mixture (0.04 mol/dm3 solutions of H3PO4, H3BO3 and CH3COOH, all reagents were pure analytic, Avantor Performance, Poland) and proper volume of 0.2 mol/dm3 solution of NaOH (in the volume range for 7.5 mL for pH 2.09, 17.5 mL for pH 2.87, 25.0 mL for pH 4.10, 35.0 mL for pH 5.02 and 42.5 mL for pH 6.09) was used.
Anions. In experiments sodium chloride and chlorate were studied. For this purpose a proper mass of salts were dissolved in B-R solution containing Pd(II) ions (see detail in Table 1).
Cations. The source of cations was proper chlorate salts of such metals as Na, K, Co, Ni, Zn, Al, Mg, Pt or chloride salt. All salts were analytical pure and delivered from Avantor Performance, Poland. In experiments 0.1 mol/dm3 solution of salts were used. For this purpose, a proper mass of salt was added to the flask (volume of 10 mL) containing Pd(II) in B-R buffer.

3.2. Methods of Analysis

Spectrophotometry UV–Vis. The spectra of reagents were registered using spectrophotometer UV–Vis (Shimadzu, Kyoto, Japan), working in the wavelength range 190–900 nm. Device was equipped in reference and thermostatic cell. In all experiments, quartz cuvettes (Hellma, Müllheim, Germany) with optical path 1cm were applied. In standard procedure, a sample was collected immediately after mixture two reacting solutions. Otherwise, the sample was collected and analyzed after 1 h and 7 days. As a reference an aqueous solution of proper solvent was used. All UV–Vis spectra were analyzed using Origin 2021 software.

3.3. Density Functional Theory (DFT) Calculation

The structures of palladium complexes were optimized using DFT with the B3LYP hybrid functional, by using a basis set of LanL2DZ, which is very common in palladium complexes calculations. Computations have been performed using the Gaussian 16 program package [29,30,31,32,33].
The electronic transitions were calculated by using time-dependent DFT(TD-DFT) with the B3LYP functional and the LanL2DZ basis set. In addition, the electronic spectra were calculated assuming water as a solvent using the CPCM method [31]. The orbitals and electronic spectra were visualized with GausView5.0. UV–Vis spectra were analyzed using Origin 8.5 software.

4. Conclusions

In this work, we show, that process of Pd(II) determination can be carried out at different pH (2.1–6.1), temperature conditions (20–60 °C), in the presence such cations such as Na(I), K(I), Mg(II), Co(II), Ni(II), Zn(II), Al(III) as well as Pt(II, IV) ions and chloride, chlorate anions. For this purpose, the azo compound solution was mixed with palladium ions in order to metalorganic complex formation. It was achieved thanks to the ability of Pd(II) ions to form strong bind to N and C element in phenyl ring of TR, which works as ligand in process of complex synthesis [20]. During these processes, the color changes from orange coming from TR through pink, purple and blue (depending on the experimental conditions and aging time) were observed, giving characteristic UV–Vis spectra being optical response on the complex forms.
It was found that the optimal conditions for carrying out the determination of Pd(II) ions are pH 4.10, temperature 50 or 60 °C and volumetric ratio of Pd(II) ions and tropaeolin OO equals 2.5:1.5. Applied conditions allows for fast response (within one hour) and confirmation of the presence of palladium in the analyte. Moreover, the possible is quantitative (spectrophotometric method, high value of molar coefficient) and qualitative (answer in the form of color) determination of Pd(II) ions in the presence of chloride/chlorate salts containing Zn, Ni, Co, Mg, Al. A very important issue is also the possible determination of the small amount of Pd(II) ions in the appearance of Pt (IV) and Pt (II) ions, which can be realized using the proposed cheap, easily available spectrophotometric method.

Supplementary Materials

The following supplementary information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27144511/s1, Table S1: The conditions of experiments. The values of initial reagent concentration, i.e., Pd(II) ions and tropaeolin OO before mixing. Total volume of reagents V = 4 mL. Figure S1: The spectra UV–Vis of tropaeolin OO aqueous solutions (H2O as solvent) with different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 272 nm and 443 nm, (b). Conditions: T = 20 °C, path length 1 cm.; Figure S2: The spectra UV–Vis of tropaeolin OO aqueous solutions (B-R buffer as solvent) at different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 270 nm and 460 nm, (b). Conditions: T = 20 °C, path length 1 cm, pH = 2.09. Figure S3: The spectra UV–Vis of tropaeolin OO aqueous solutions (B-R buffer as solvent) at different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 270 nm and 460 nm, (b). Conditions: T = 20 °C, path length 1 cm, pH = 2.87. Figure S4: The spectra UV–Vis of tropaeolin OO aqueous solutions (B-R buffer as solvent) at different initial concentrations A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 270 nm and 460 nm, (b). Conditions: T = 20 °C, path length 1 cm, pH = 4.10. Figure S5: The spectra UV–Vis of tropaeolin OO aqueous solutions (B-R buffer as solvent) at different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 270 nm and 460 nm, (b). Conditions:, T = 20 °C, path length 1 cm, pH = 5.02 Figure S6: The spectra UV–Vis of tropaeolin OO aqueous solutions (B-R buffer as solvent) at different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of tropaeolin OO in the range 6.25 × 10−6 mol/dm3 to 5 × 10−5 mol/dm3, wavelength: 270 nm and 460 nm, (b). Conditions: T = 20 °C, path length 1 cm, pH = 6.09. Figure S7: The spectra UV–Vis of Pd(II) aqueous solutions (H2O as solvent) with different initial concentrations: A—6.25 × 10−6 mol/dm3; B—1.25 × 10−5 mol/dm3; C—1.87 × 10−5 mol/dm3; D—2.5 × 10−5 mol/dm3; E—3.125 × 10−5 mol/dm3; F—5 × 10−5 mol/dm3 (a), dependency of absorbance vs. initial concentrations of Pd(II) in the range 1.875 × 10−5 mol/dm3 to 5 × 10−5 mol/dm3 (b). Conditions: T = 20 °C, path length 1 cm. Figure S8: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR): 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G) after: 5 min (a), 24 h (b), 7days (c). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 2.09. Figure S9: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G) after: 5 min (a), 24 h (b), 7days (c). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 2,87. Figure S10: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G) after: 5 min (a), 24 h (b), 7days (c). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 4.10. Figure S11: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G) after: 5 min (a), 24 h (b), 7 days (c). Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 5.02. Figure S12: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR ) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G) after: 5 min (a), 24 h (b), 7days (c). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 6.09. Figure S13: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G), past 24 h (a) and 7 days (b). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing),T = 20 °C, pH = 2.09. Figure S14: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 540 nm (a); and at 703 nm (b) past 24 h. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 2.09. Figure S15: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 540 nm (a); and at 703 nm (b) past 7 days. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 2.09. Figure S16: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G), past 24 h (a) and 7 days (b). Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 2.87. Figure S17: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 540 nm (b); and at 703 nm (c) past 24 h. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 2.87. Figure S18: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 540 nm (a); and at 703 nm (b) past 7 days. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 2.87. Figure S19: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G), past 24 h (a) and 7 days (b). Conditions: C0,TR = C0,Pd(II) = 5 × 10−5 mol/dm3 (before reagent mixing) T = 20 °C, pH = 4.10. Figure S20: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 559 nm (b); and at 703 nm (c) past 24 h. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 4.10. Figure S21: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 559 nm (b); and at 703 nm (c) past 7 days. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 4.10. Figure S22: The UV–Vis spectra of solutions obtained after mixing of Pd(II) ions with tropaeolin at different volumetric ratio (VPd(II):VTR) 3.5:0.5 (A); 3.0:1.0 (B); 2.5:1.5 (C); 2.0:2.0 (D), 1.5:2.5 (E); 1.0:3.0 (F), 0.5:3.5 (G), past 24 h (a) and 7 days (b). Conditions: C0, Pd(II) = C0, TR = 5x10−5 mol/dm3 (before reagent mixing), T = 20 °C, pH = 5.02. Figure S23: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 551 nm (b); and at 703 nm (c) past 24 h. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 5.02. Figure S24: The dependency of absorbance vs. ratio of tropaeolin to Pd(II) volumes, registered at 551 nm (b); and at 703 nm (c) past 7 days. Conditions: C0, Pd(II) = C0, TR = 5 × 10−5 mol/dm3, total volume of reagent = 4.0 mL, T = 20 °C, pH = 5.02. Figure S25: The HOMO and LUMO for tropaeolin OO. Figure S26: The HOMO and LUMO for complex TR-Pd 1. Table S2. The change of wavelength at which the maximum on UV–Vis spectrum was observed. Conditions: the value of concentration of Pd(II) ions after mixing with tropaeolin: C0,MO = 1.875 × 10−5 mol/dm3, C0,Pd(II) = 3.125 × 10−5 mol/dm3, T = 20–60 °C, pH = 4.1. Figure S27: The UV–Vis spectra coming from solution contains the mixture of tropaeolin with Pd(II) and different concentrations of Cl¯ (0.1 M—0.0005 M), after 5 min. Conditions: volumetric ratio: 2.5 mL Pd(II): 1.5 mL TR, the value of concentration of reagents after mixing: TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10, temperature 50 °C. Figure S28: The UV–Vis spectra coming from solution contains the mixture of tropaeolin with Pd(II) and different concentrations of ClO4− A: 0.1 mol/dm3, B: 0.05 mol/dm3, C: 0.01 mol/dm3, D: 0.005 mol/dm3, E: 0.001 mol/dm3, F: 0.0005 mol/dm3 after (a) 5 min, 1 h, (b) 24 h. Conditions: volumetric ratio: 2.5 mL Pd(II): 1.5 mL TR, the value of concentration of Pd(II) ions after mixing with tropaeolin TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10, temperature 50 °C. Figure S29: The evolution of UV—Vis spectra solutions containing Pd(II) and other metal cations (a), mixing Pd(II), tropaeolin and other metal cations: Zn2+ (b), Ni2+ (c), Mg2+ (d), K+ (e), Co2+ (f), Al3+ (g), after 5 min, 1 h and 24 h in temperature 20 and 50 °C. Conditions: C0, TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3,125 × 10−5 mol/dm3, C0,anions = 0.0625M, volumetric ratio mixing Pd(II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10. Figure S30: The evolution of UV—Vis spectra solutions containing TR, Pd(II), Pt(IV) and Co(II), single Co(II) ion and subtracting both spectra, after 1 h in temperature 50 °C. Conditions: TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3,Co = 0.0625 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10. Figure S31: The colour change of mixture solutions containing Pd(II), tropaeolin and other metal cations: Zn2+, Ni2+, Mg2+, K+, Co2+, Al3+, after 5 min, 1 h and 24 h in temperature 20 and 50 °C. Conditions: TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, C0,anions = 0.0625 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10. Figure S32: The UV–Vis spectra coming from solution contains single Pt(II), Pt(IV), mixing Pd(II) + Pt(II) and Pd(II) + Pt(IV) (a). Mixture of tropaeolin with Pt(IV) + Pd(II) after 5 min, 1 h and 24 h (b). Conditions: C0, TR= 1875 × 10−5 mol/dm3, Pd(II)/ Pt(IV)= 3125 × 10−5 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10, T = 50 °C. Figure S33: The UV–Vis spectra coming from solution contains tropaeolin in concentration range from 5 × 10–6 M to 2 × 10–4 M (a), mixture of Pd(II) Pt(IV) in concentration range from 5 × 10−6 M to 2 × 10−4 (b), mixing of Pd(II), Pt(IV), TR after 5 min; (c) 24 h (d). Conditions: C0 TR/C0Pd(II) = 5 × 10−6 mol/dm3, 5 × 10−5 mol/dm3, 1 × 10−5 mol/dm3, 1 × 10−4 M, 2 × 10−4 mol/dm3, C0Pt(IV) = 5 × 10−5 mol/dm3, volumetric ratio mixing Pd (II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10, T = 60 °C. Figure S34: The UV–Vis spectra coming from solution contains mixing of Pd(II), Pt(IV), TR after 24 h (a), dependency of absorbance vs. different concentrations of Pd (II) ions after 24 h, in wavelength: 578 nm and 708 nm (b). Conditions: C0 TR/C0Pd(II) = 5 × 10−6 mol/dm3, 5 × 10−5 mol/dm3, 1 × 10−5 mol/dm3, 1 × 10–4 M, 2 × 10−4 mol/dm3, C0Pt(IV) = 5 × 10−5 mol/dm3, volumetric ratio mixing Pd (II) ions and tropaeolin 2.5 mL: 1.5 mL, pH = 4.10, T= 60 °C. Figure S35: he colour change of mixture solutions containing TR, Pd(II), Pt(IV) ions, after (a) 5 min; (b) 1 h; (c) 24 h, with different concentrations of Pd(II) and TR: A—5 × 10−6 mol/dm3; B—5 × 10−5 mol/dm3; C—1 × 10−5 mol/dm3; D—1 × 10−4 mol/dm3; E—2 × 10−4 mol/dm3. Conditions: C0 TR/C0Pd(II) = 5 × 10−6 mol/dm3, 5 × 10−5 mol/dm3, 1 × 10−5 mol/dm3, 1 × 10−4 M, 2 × 10−4 mol/dm3, C0Pt(IV) = 5 × 10−5 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin OO 2.5 mL: 1.5 mL, pH = 4.10, T = 60 °C.

Author Contributions

Conceptualization, M.L.-B. and A.P. (Agnieszka Podborska); methodology, M.L.-B.; validation, A.P. (Adrianna Pach), A.P. (Agnieszka Podborska) and M.L.-B.; formal analysis, A.P. (Adrianna Pach), A.P. (Agnieszka Podborska) and M.L.-B.; investigation, A.P. (Adrianna Pach) and M.L.-B.; writing—original draft preparation, A.P. (Adrianna Pach), A.P. (Agnieszka Podborska) and M.L.-B.; writing—review and editing, A.P. (Adrianna Pach), A.P. (Agnieszka Podborska), E.C. and M.L.-B.; DFT calculation, A.P. (Agnieszka Podborska). All authors have read and agreed to the published version of the manuscript.

Funding

Financial support from National Science Centre of Poland under the MINIATURA 1 grant no 2017/01/X/ST4/01765 is gratefully acknowledged. This research was supported in part by PLGrid Infrastructure. DFT calculations were performed at the Academic Computer Centre CYFRONET AGH within computational grant LIIPS2.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, H.; Fan, J.; Peng, X. Colourimetric and fluorescent probes for the optical detection of palladium ions. Chem. Soc. Rev. 2013, 42, 7943–7962. [Google Scholar] [CrossRef] [PubMed]
  2. Bojdi, M.K.; Behbahani, M.; Sahragard, A.; Amin, B.G.; Fakhari, A.; Bagheri, A. A palladium imprinted polymer for highly selective and sensitive electrochemical determination of ultra-trace of palladium ions. Electrochim. Acta 2014, 149, 108–116. [Google Scholar] [CrossRef]
  3. Shaheen, H.A.; Marwani, H.M.; Soliman, E.M. Soliman Selective solid phase extraction and determination of trace Pd(II) using multi-walled carbon nanotubes modified with 8-aminoquinoline. J. Mol. Liq. 2017, 232, 139–146. [Google Scholar] [CrossRef]
  4. Afzali, D.; Jamshidi, R.; Ghaseminezhad, S.; Afzali, Z. Preconcentration procedure trace amounts of palla-dium using modified multiwalled carbon nanotubes sorbent prior to flame atomic absorption spectrometry: 1st Nano Update. Arab. J. Chem. 2021, 5, 461–466. [Google Scholar] [CrossRef]
  5. Shaw, M.J.; Haddad, P.R. The determination of trace metal pollutants in environmental matrices using ion chromatography. Environ. Int. 2004, 30, 403–431. [Google Scholar] [CrossRef]
  6. Lewen, N.; Schenkenberger, M.; Larkin, T.; Conder, S.; Brittain, H.G. The determination of palladium in fosinopril sodium (monopril) by ICP-MS. J. Pharm. Biomed. Anal. 1995, 13, 879–883. [Google Scholar] [CrossRef]
  7. Motelica-Heino, M.; Rauch, S.; Morrison, G.; Donard, O. Determination of palladium, platinum and rhodium concentrations in urban road sediments by laser ablation-ICP-MS. Anal. Chim. Acta 2001, 436, 233–244. [Google Scholar] [CrossRef]
  8. He, M.; Huang, L.; Zhao, B.; Chen, B.; Hu, B. Advanced functional materials in solid phase extraction for ICP-MS determination of trace elements and their species—A review. Anal. Chim. Acta 2017, 973, 1–24. [Google Scholar] [CrossRef]
  9. Su, Z.-X.; Pu, Q.-S.; Luo, X.-Y.; Chang, X.-J.; Zhan, G.-Y.; Ren, F.-Z. Application of a macroporous resin containing imidazoline groups to preconcentration and separation of gold, platinum and palladium prior to ICP-AES determination. Talanta 1995, 42, 1127–1133. [Google Scholar] [CrossRef]
  10. Gong, B.; Wang, Y. ICP-AES determination of traces of noble metal ions pre-concentrated and separated on a new polyacry-lacylaminothiourea chelating fiber. Anal. Bioanal. Chem. 2002, 372, 597–600. [Google Scholar] [CrossRef]
  11. Torgov, V.G.; Korda, T.M.; Demidova, M.G.; Gus’kova, E.A.; Bukhbinder, G.L. ICP AES determi-nation of platinum group elements and gold in collective extract and strip product solution in analysis of geological samples. J. Anal. At. Spectrom. 2009, 24, 1551–1557. [Google Scholar] [CrossRef]
  12. Chakrapani, G.; Mahanta, P.L.; Murty, D.S.R.; Gomathy, B. Preconcentration of traces of gold, silver and palladium on activated carbon and its determination in geological samples by flame AAS after wet ashing. Talanta 2001, 53, 1139–1147. [Google Scholar] [CrossRef]
  13. Zimmermann, S.; Messerschmidt, J.; von Bohlen, A.; Sures, B. Determination of Pt, Pd and Rh in biological samples by electrothermal atomic absorption spectrometry as compared with adsorptive cathodic stripping voltammetry and total-reflection X-ray fluorescence analysis. Anal. Chim. Acta 2003, 498, 93–104. [Google Scholar] [CrossRef]
  14. Van Meel, K.; Smekens, A.; Behets, M.; Kazandjian, P.; Van Grieken, R. Determination of Platinum, Palladium, and Rhodium in Automotive Catalysts Using High-Energy Secondary Target X-ray Fluorescence Spectrometry. Anal. Chem. 2007, 79, 6383–6389. [Google Scholar] [CrossRef] [PubMed]
  15. Marguí, E.; Van Meel, K.; Van Grieken, R.; Buendía, A.; Fontàs, C.; Hidalgo, M.; Queralt, I. Method for the Determination of Pd-Catalyst Residues in Active Pharmaceutical Ingredients by Means of High-Energy Polarized-Beam Energy Dispersive X-Ray Fluorescence. Anal. Chem. 2009, 81, 1404–1410. [Google Scholar] [CrossRef]
  16. Nakajima, J.; Ohno, M.; Chikama, K.; Seki, T.; Oguma, K. Determination of traces of palladium in stream sediment and auto catalyst by FI-ICP-OES using on-line separation and preconcentration with QuadraSil TA. Talanta 2009, 79, 1050–1054. [Google Scholar] [CrossRef]
  17. Sivrikaya, S.; Altundag, H.; Zengin, M.; Imamoglu, M. Separation, Preconcentration, and Recovery of Pd(II) Ions using Newly Modified Silica Gel with Bis(3-Aminopropyl)Amine. Sep. Sci. Technol. 2011, 46, 2032–2040. [Google Scholar] [CrossRef]
  18. Gholivand, M.B.; Nozari, N. Extraction and spectrophotometric determination of trace amount of Pd(II) with 2,2′-dithiodianiline. Talanta 2000, 52, 1055–1060. [Google Scholar] [CrossRef]
  19. Parmar, A.; Sharma, S. Derivative UV-vis absorption spectra as an invigorated spectrophotometric method for spectral resolution and quantitative analysis: Theoretical aspects and analytical applications: A review. TrAC Trends Anal. Chem. 2015, 77, 44–53. [Google Scholar] [CrossRef]
  20. Luty-Błocho, M.; Podborska, A.; Musielak, B.; Hessel, V. The specialized twin-solution method for selective Pd(II) ions determination and methyl orange removal. J. Mol. Liq. 2021, 340, 116884. [Google Scholar] [CrossRef]
  21. Al-Adilee, K.J.; Abedalrazaq, K.A.; Al-Hamdiny, Z.M. Synthesis and Spectroscopic Properties of Some Transition Metal Complexes with New Azo-Dyes Derived from Thiazole and Imidazole. Asian J. Chem. 2013, 25, 10475–10481. [Google Scholar] [CrossRef]
  22. Al-Hamdani, A.; Hasan, Z. Spectroscopic Studies and Thermal Analysis of New Azo Dyes Ligands and their Complexes with some Transition of Metal Ions. Baghdad Sci. J. 2016, 13, 511–523. [Google Scholar] [CrossRef]
  23. Gup, R.; Giziroglu, E.; Kırkan, B. Synthesis and spectroscopic properties of new azo-dyes and azo-metal complexes derived from barbituric acid and aminoquinoline. Dye. Pigment. 2007, 73, 40–46. [Google Scholar] [CrossRef]
  24. Al-Adilee, K.; Kyhoiesh, H.A. Preparation and identification of some metal complexes with new heterocyclic azo dye ligand 2-[2−-(1-Hydroxy-4-Chloro phenyl) azo]- imidazole and their spectral and thermal studies. J. Mol. Struct. 2017, 1137, 160–178. [Google Scholar] [CrossRef]
  25. Turan, N.; Buldurun, K.; Adiguzel, R.; Aras, A.; Turkan, F.; Bursal, E. Investigation of spectroscopic, thermal, and biological properties of FeII, CoII, ZnII, and RuII complexes derived from azo dye ligand. J. Mol. Struct. 2021, 1244, 130989. [Google Scholar] [CrossRef]
  26. Marczenko, Z. Spektrofotometryczne Oznaczanie Pierwiastków, 3rd ed.; Państwowe Wydawnictwo Naukowe: Warszawa, Poland, 1979; pp. 19–20; 65–68. [Google Scholar]
  27. Vasic, V.; Savic, J.; Vukelic, N. Sorption-spectrophotometric method for the determination of Pd(II) in aqueous solutions. J. Serb. Chem. Soc. 2004, 69, 309–317. [Google Scholar] [CrossRef]
  28. Murray, P.; Koch, K.R.; van Eldik, R. Mechanism of tetrachloroplatinate(ii) oxidation by hydrogen peroxide in hydrochloric acid solution. Dalton Trans. 2013, 43, 6308–6314. [Google Scholar] [CrossRef] [Green Version]
  29. Morzyk-Ociepa, B.; Szmigiel, K.; Turowska-Tyrk, I.; Malik-Gajewska, M.; Banach, J.; Wietrzyk, J. New mono- and dinuclear complexes of 7-azaindole-3-carboxaldehyde with palladium(II): Crystal structure, IR and Raman spectra, DFT calculations and in vitro antiproliferative activity. Polyhedron 2018, 153, 88–98. [Google Scholar] [CrossRef]
  30. Kaya, Y.; Icsel, C.; Yilmaz, V.T.; Buyukgungor, O. Palladium(II) and platinum(II) complexes of a new imineoxime ligand—Structural, spectroscopic and DFT/time-dependent (TD) DFT studies. J. Org. Chem. 2014, 752, 83–90. [Google Scholar] [CrossRef]
  31. el-Krim Sandeli, A.; Khiri-Meribout, N.; Benzerka, S.; Boulebd, H.; Gürbüz, N.; Özdemir, N.; Özdemir, İ. Synthesis, structures, DFT calculations, and catalytic application in the direct arylation of five-membered heteroarenes with aryl bromides of novel palladium-N-heterocyclic carbene PEPPSI-type complexes. New J. Chem. 2021, 45, 17878–17892. [Google Scholar] [CrossRef]
  32. Frisch, M.E.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.P.G.A.; Petersson, G.A.; Nakatsuji, H.J.R.A.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, UK, 2019. [Google Scholar]
  33. Dunning, T.H.; Hay, P.J. Gaussian Basis Sets for Molecular Calculations. In Methods of Electronic Structure Theory; Schaefer, H.F., Ed.; Springer: Boston, MA, USA, 1977; pp. 1–27. [Google Scholar]
Molecules 27 04511 g001 550

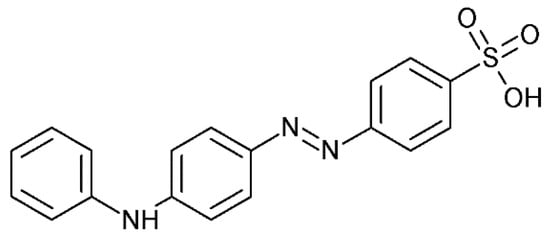

Figure 1. Structure of tropaeoline OO.
Figure 1. Structure of tropaeoline OO.
Molecules 27 04511 g001
Molecules 27 04511 g002a 550Molecules 27 04511 g002b 550

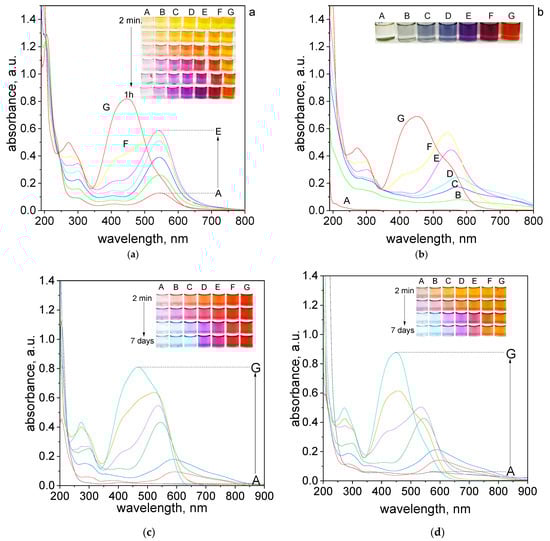

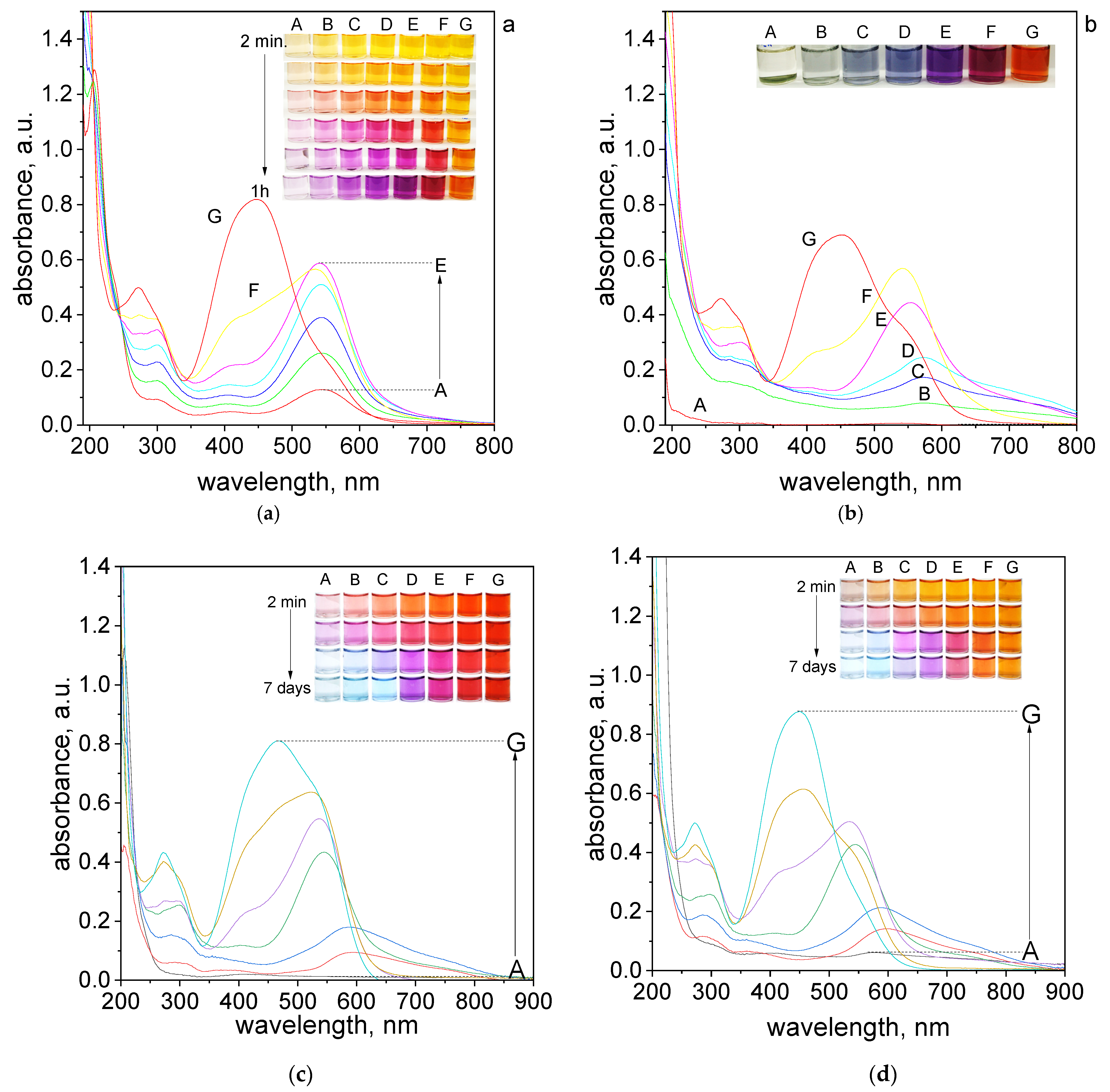

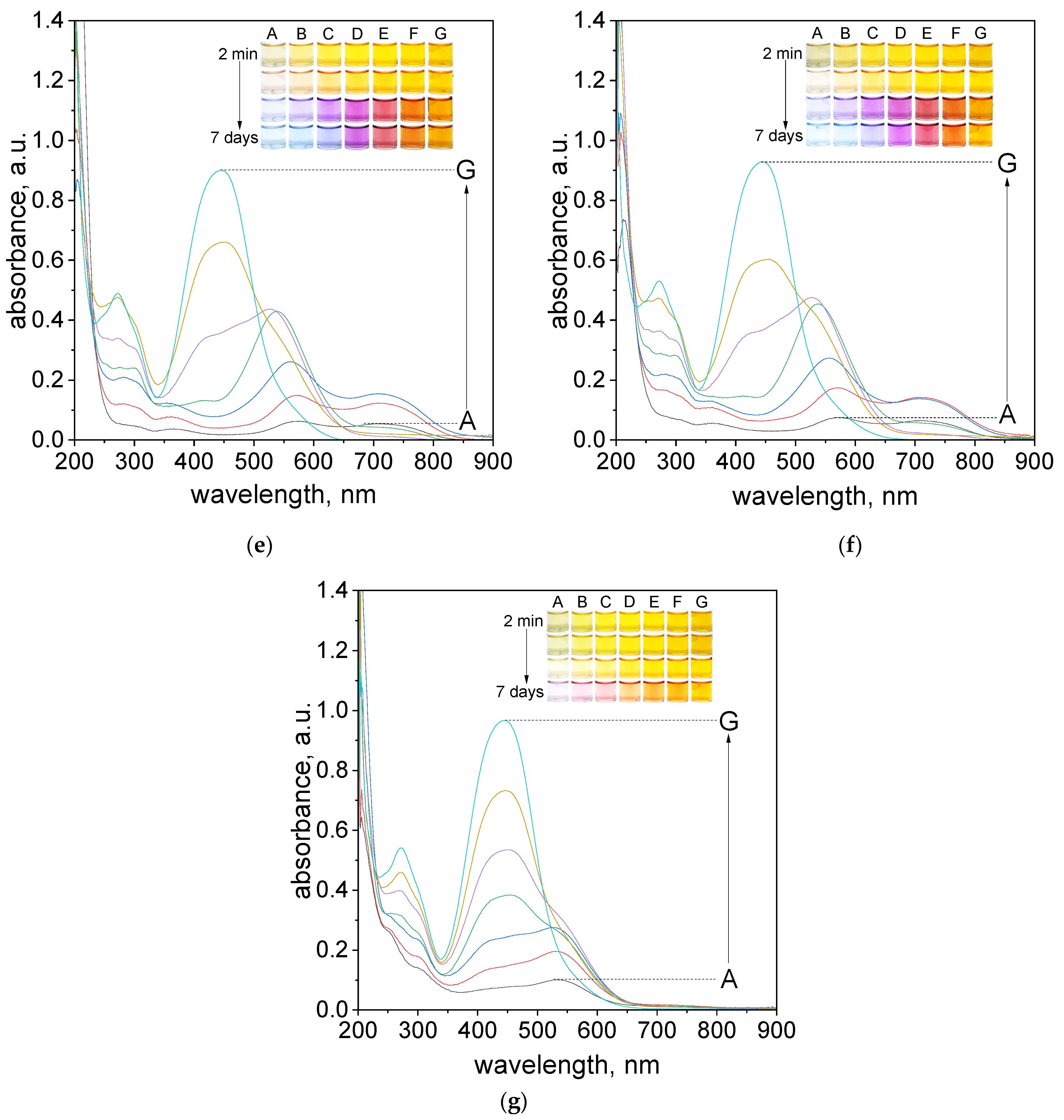

Figure 2. The UV–Vis spectra of solution containing the mixture of tropaeolin OO and Pd(II) at different volume ratio (mL/mL) of Pd(II) to TR (A—0.5:3.5; B—1.0:3.0; C—1.5:2.5; D—2.0:2.0; E—2.5:1.5; F–3.0:1.0; G–3.5:0.5) in H2O registered after one hour (a) and after 7 days (b) and registered after 7 days in B-R buffer, pH: 2.09 (c), 2.87 (d), 4.10 (e), 5.02 (f), 6.09 (g). Conditions: C0,TR = 5 × 10−5 mol/dm3, C0,Pd(II) = 5 × 10−5 mol/dm3 (the value of concentration before reagents mixing), T = 20 °C, path length 1 cm.
Figure 2. The UV–Vis spectra of solution containing the mixture of tropaeolin OO and Pd(II) at different volume ratio (mL/mL) of Pd(II) to TR (A—0.5:3.5; B—1.0:3.0; C—1.5:2.5; D—2.0:2.0; E—2.5:1.5; F–3.0:1.0; G–3.5:0.5) in H2O registered after one hour (a) and after 7 days (b) and registered after 7 days in B-R buffer, pH: 2.09 (c), 2.87 (d), 4.10 (e), 5.02 (f), 6.09 (g). Conditions: C0,TR = 5 × 10−5 mol/dm3, C0,Pd(II) = 5 × 10−5 mol/dm3 (the value of concentration before reagents mixing), T = 20 °C, path length 1 cm.
Molecules 27 04511 g002aMolecules 27 04511 g002b
Molecules 27 04511 g003 550

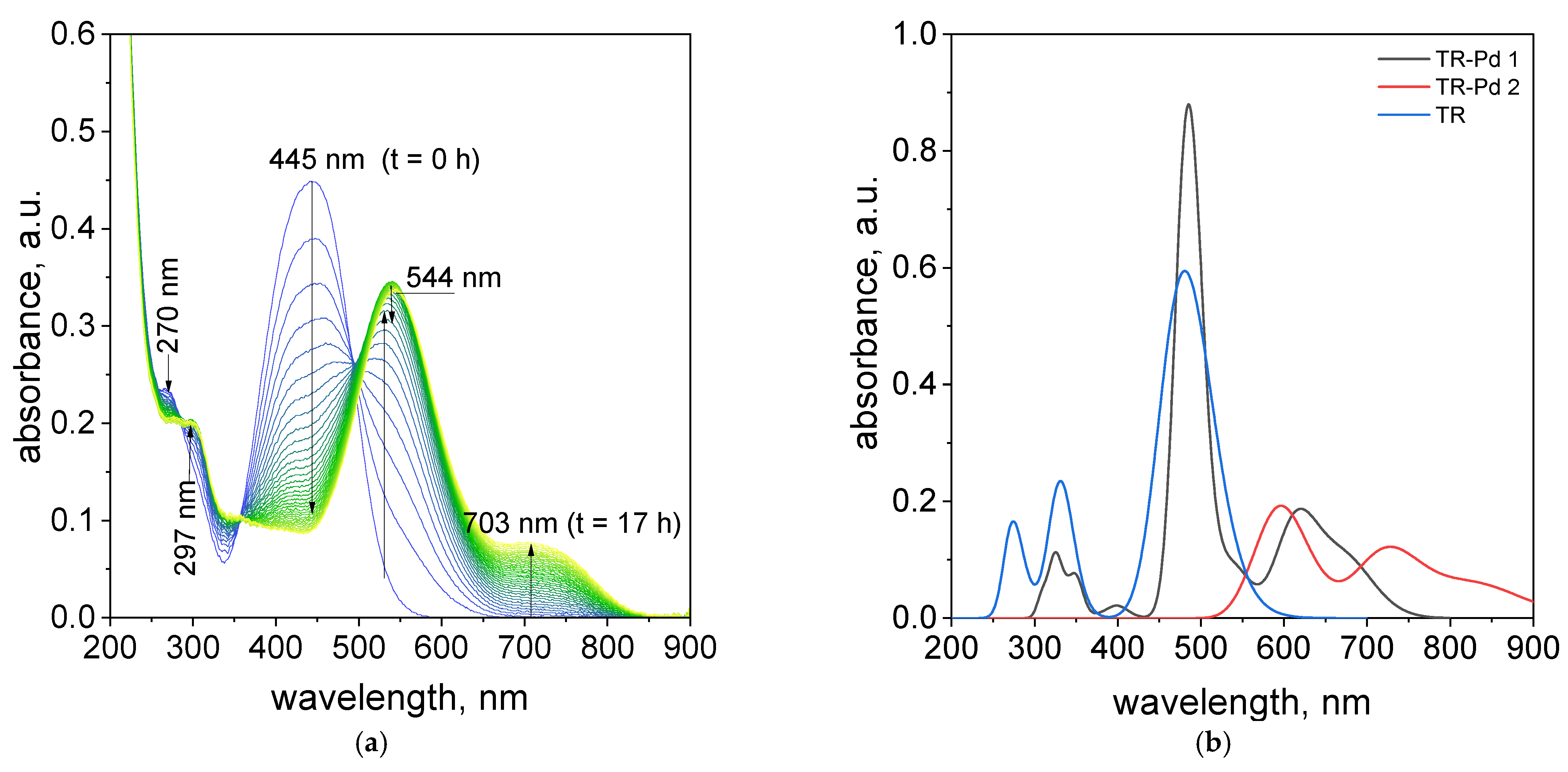

Figure 3. The UV–Vis spectra evolution (24 h) of the solution containing the mixture of tropaeolin OO and Pd(II) at 20 °C. Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR the value of concentration of Pd(II) ions after mixing with tropaeolin OO: TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10 (a), calculated spectra (b).
Figure 3. The UV–Vis spectra evolution (24 h) of the solution containing the mixture of tropaeolin OO and Pd(II) at 20 °C. Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR the value of concentration of Pd(II) ions after mixing with tropaeolin OO: TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10 (a), calculated spectra (b).
Molecules 27 04511 g003
Molecules 27 04511 g004 550

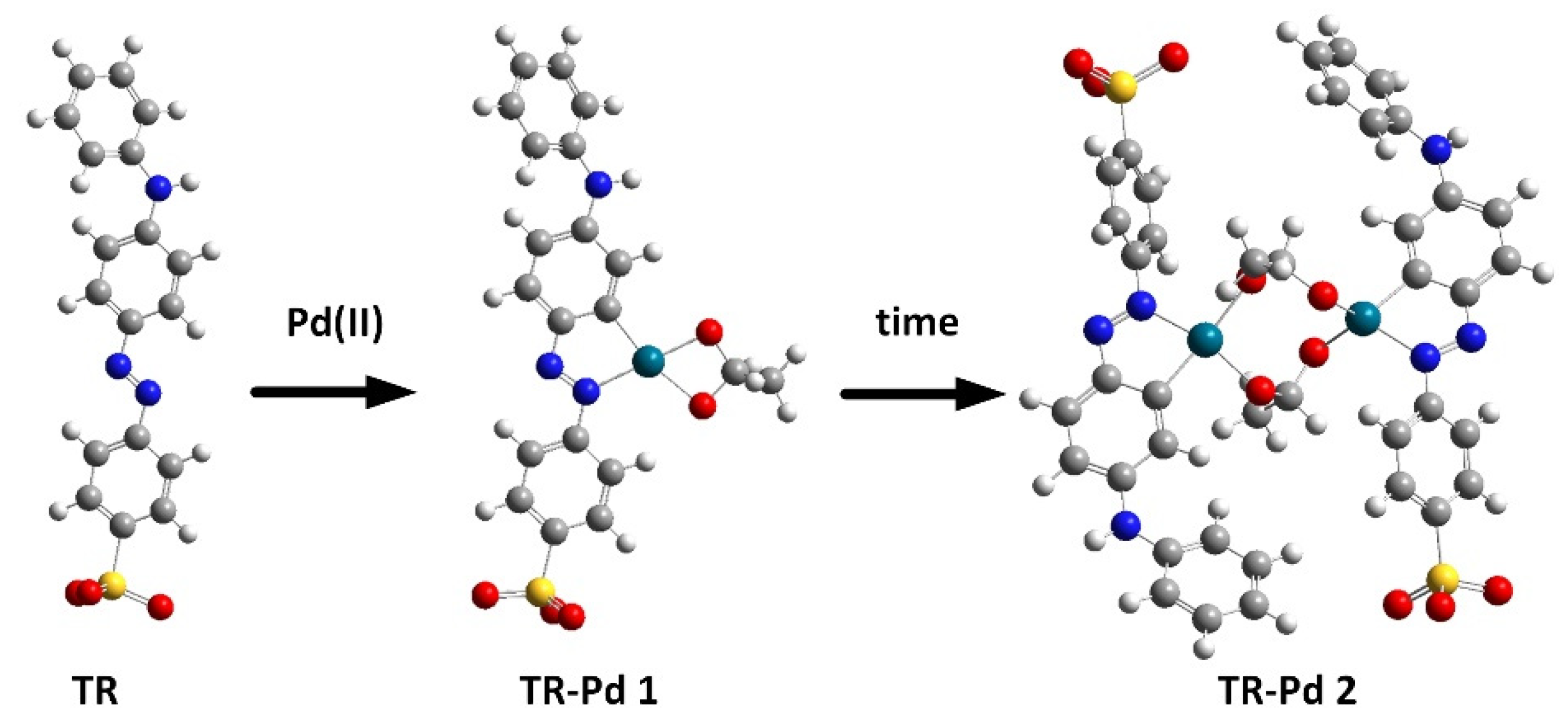

Figure 4. Optimized structure during process of metalorganic complex formation between Pd and tropaeolin OO. Red—oxygen; yellow—sulfur; dark green—palladium; grey—carbon; white—hydrogen, blue—nitrogen.
Figure 4. Optimized structure during process of metalorganic complex formation between Pd and tropaeolin OO. Red—oxygen; yellow—sulfur; dark green—palladium; grey—carbon; white—hydrogen, blue—nitrogen.
Molecules 27 04511 g004
Molecules 27 04511 g005 550
Figure 5. The HOMO and LUMO after DFT calculation for TR-Pd 2 structure.
Figure 5. The HOMO and LUMO after DFT calculation for TR-Pd 2 structure.
Molecules 27 04511 g005
Molecules 27 04511 g006 550

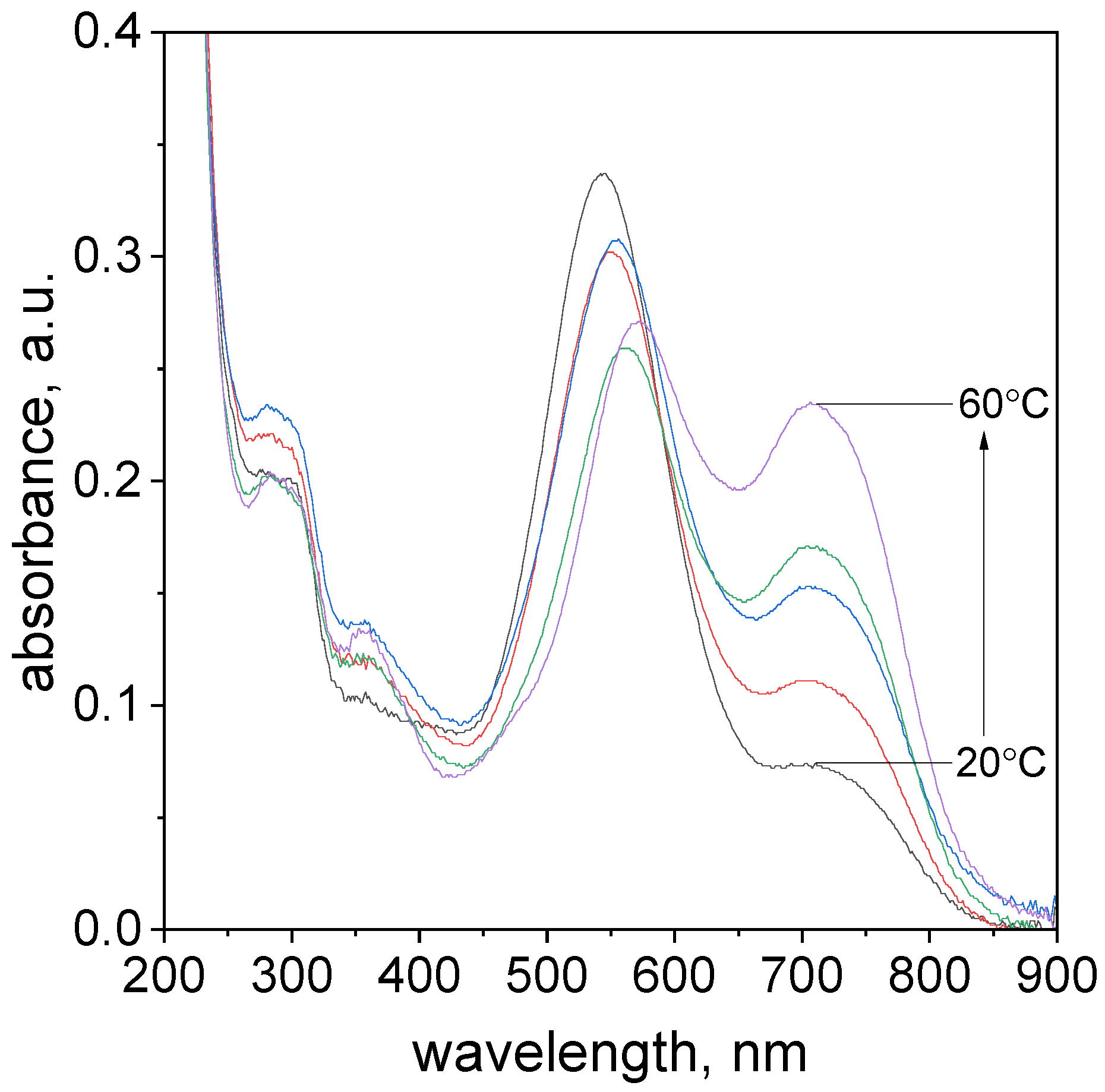

Figure 6. The UV–Vis spectra evolution of the solution containing the mixture of tropaeolin OO and Pd(II) at different temperatures 20–60 °C, absorbance change for all temperatures after 17.5 h. Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR the value of concentration of Pd(II) ions after mixing with tropaeolin OO:C0,MO = 1.875 × 10−5 mol/dm3, C0,Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.1.
Figure 6. The UV–Vis spectra evolution of the solution containing the mixture of tropaeolin OO and Pd(II) at different temperatures 20–60 °C, absorbance change for all temperatures after 17.5 h. Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR the value of concentration of Pd(II) ions after mixing with tropaeolin OO:C0,MO = 1.875 × 10−5 mol/dm3, C0,Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.1.
Molecules 27 04511 g006
Molecules 27 04511 g007 550

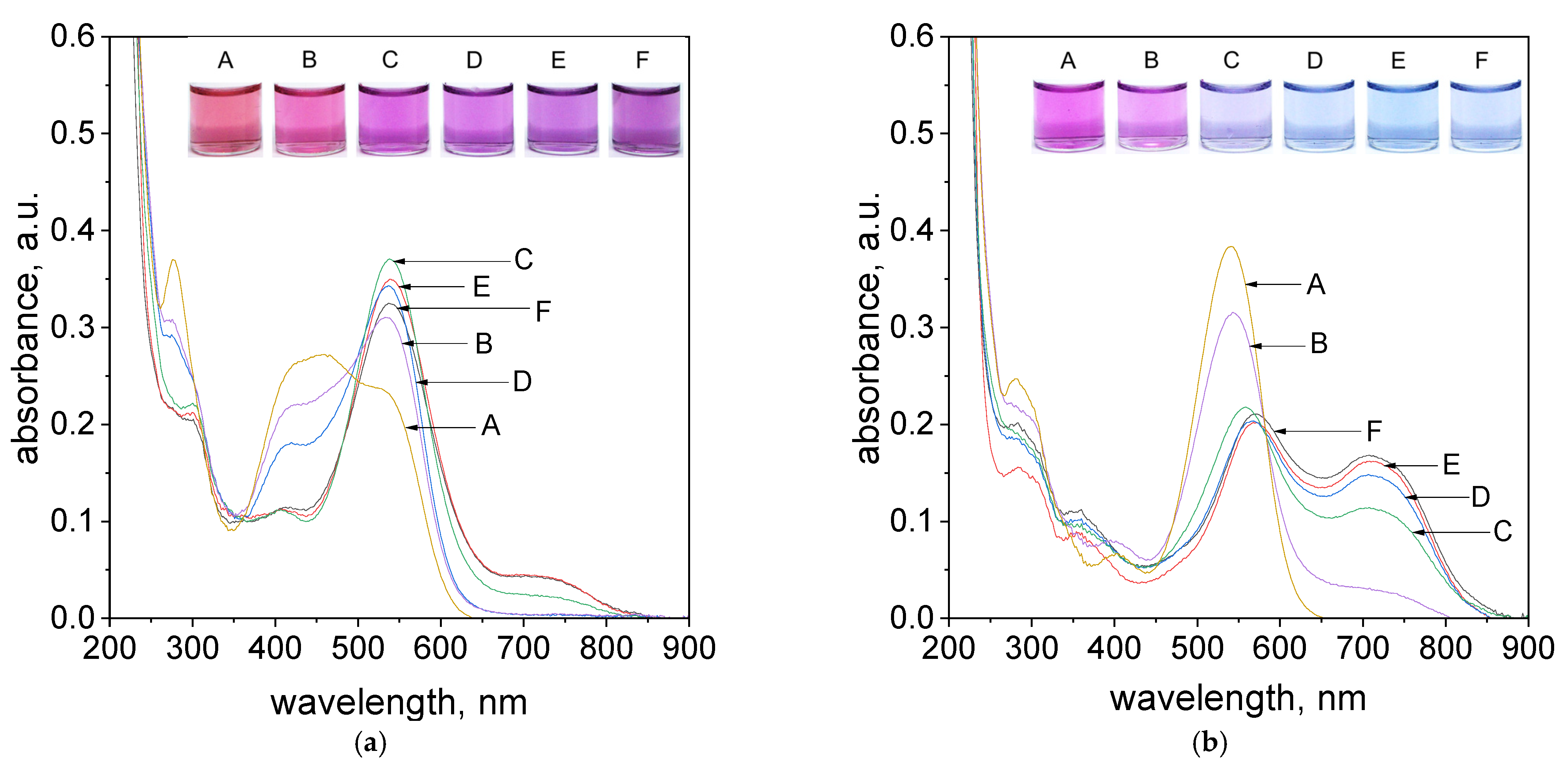

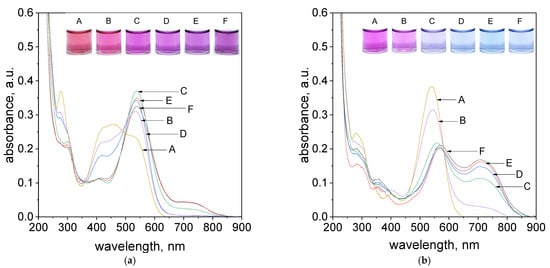

Figure 7. The UV–Vis spectra coming from solution contains the mixture of tropaeolin OO with Pd(II) and different concentrations of Cl−, A: 0.1 mol/dm3, B: 0.05 mol/dm3, C: 0.01 mol/dm3, D: 0.005 mol/dm3, E: 0.001 mol/dm3, F: 0.0005 mol/dm3 after 1 h (a), 24 h (b). Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR, the value of concentration of Pd(II) ions after mixing with tropaeolin TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10, temperature 50 °C.
Figure 7. The UV–Vis spectra coming from solution contains the mixture of tropaeolin OO with Pd(II) and different concentrations of Cl−, A: 0.1 mol/dm3, B: 0.05 mol/dm3, C: 0.01 mol/dm3, D: 0.005 mol/dm3, E: 0.001 mol/dm3, F: 0.0005 mol/dm3 after 1 h (a), 24 h (b). Conditions: volumetric ratio: 2.5 mL Pd(II):1.5 mL TR, the value of concentration of Pd(II) ions after mixing with tropaeolin TR = 1.875 × 10−5 mol/dm3, Pd(II) = 3.125 × 10−5 mol/dm3, pH = 4.10, temperature 50 °C.
Molecules 27 04511 g007
Molecules 27 04511 g008 550

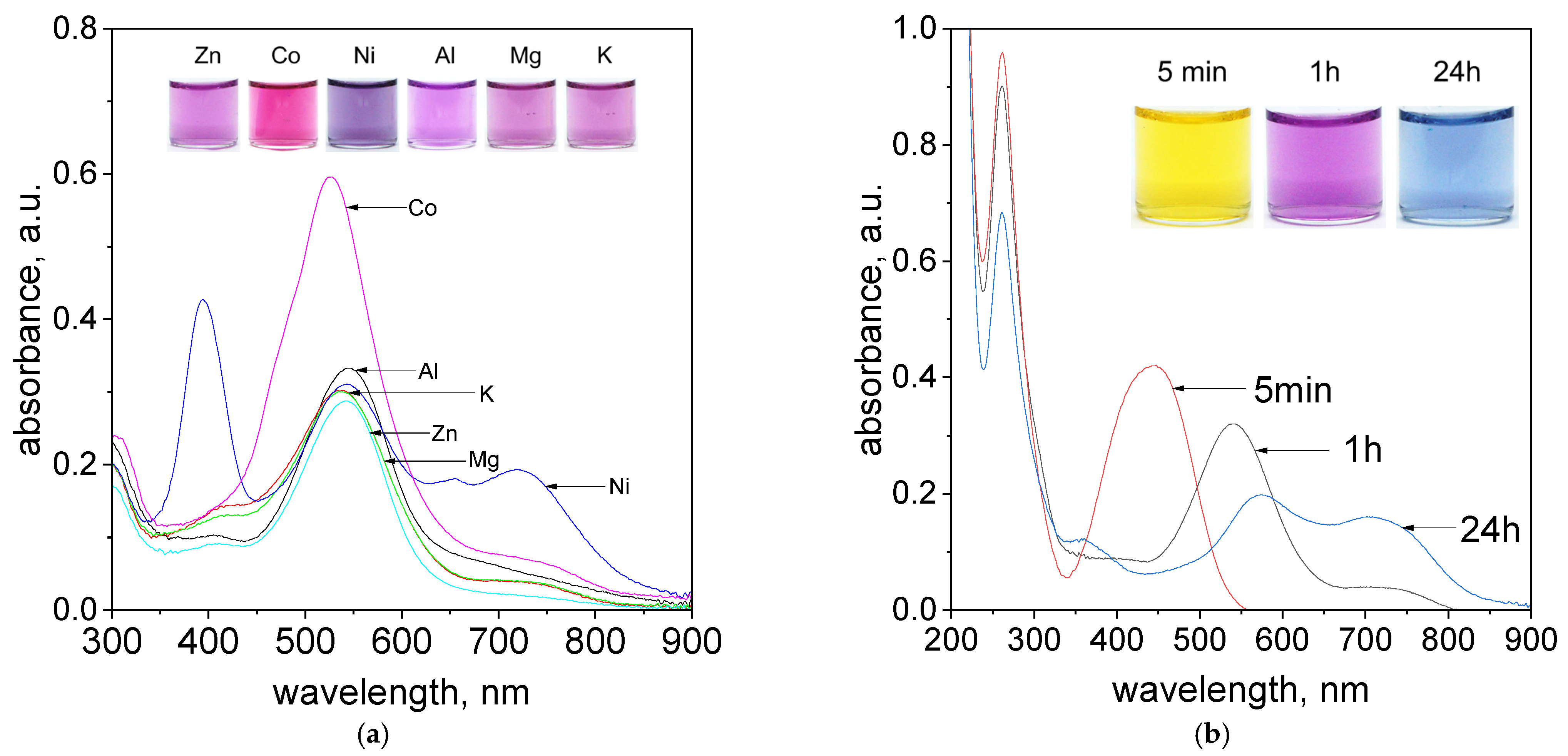

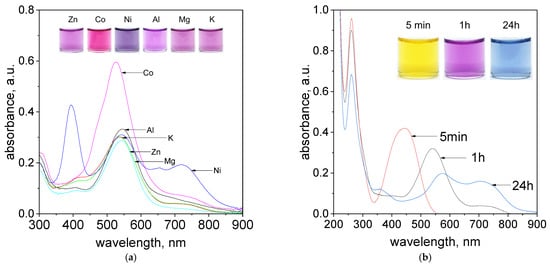

Figure 8. The evolution of UV–Vis spectra solutions containing (a) Pd(II) ions, tropaeolin OO and other metal cations: Zn2+, Ni2+, Mg2+, K+, Co2+, Al3+, after 1h at temperature 50 °C, (b) Pd(II)/Pt(II) ions and tropaeolin OO, after 5 min, 1 h, 24 h, at temperature 50 °C. Conditions: C0TR = 1.875 × 10−5 mol/dm3, C0Pd(II)/Pt(IV)= 3.125 × 10−5 mol/dm3 C0,anions = 0.0625 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin OO 2.5 mL: 1.5 mL, pH = 4.10.
Figure 8. The evolution of UV–Vis spectra solutions containing (a) Pd(II) ions, tropaeolin OO and other metal cations: Zn2+, Ni2+, Mg2+, K+, Co2+, Al3+, after 1h at temperature 50 °C, (b) Pd(II)/Pt(II) ions and tropaeolin OO, after 5 min, 1 h, 24 h, at temperature 50 °C. Conditions: C0TR = 1.875 × 10−5 mol/dm3, C0Pd(II)/Pt(IV)= 3.125 × 10−5 mol/dm3 C0,anions = 0.0625 mol/dm3, volumetric ratio mixing Pd(II) ions and tropaeolin OO 2.5 mL: 1.5 mL, pH = 4.10.
Molecules 27 04511 g008
Molecules 27 04511 g009 550

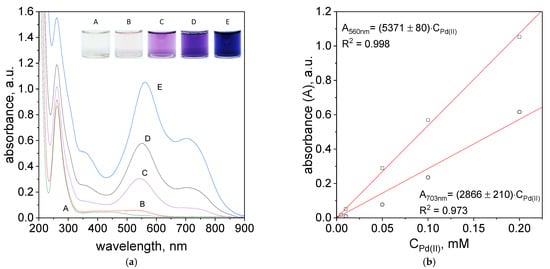

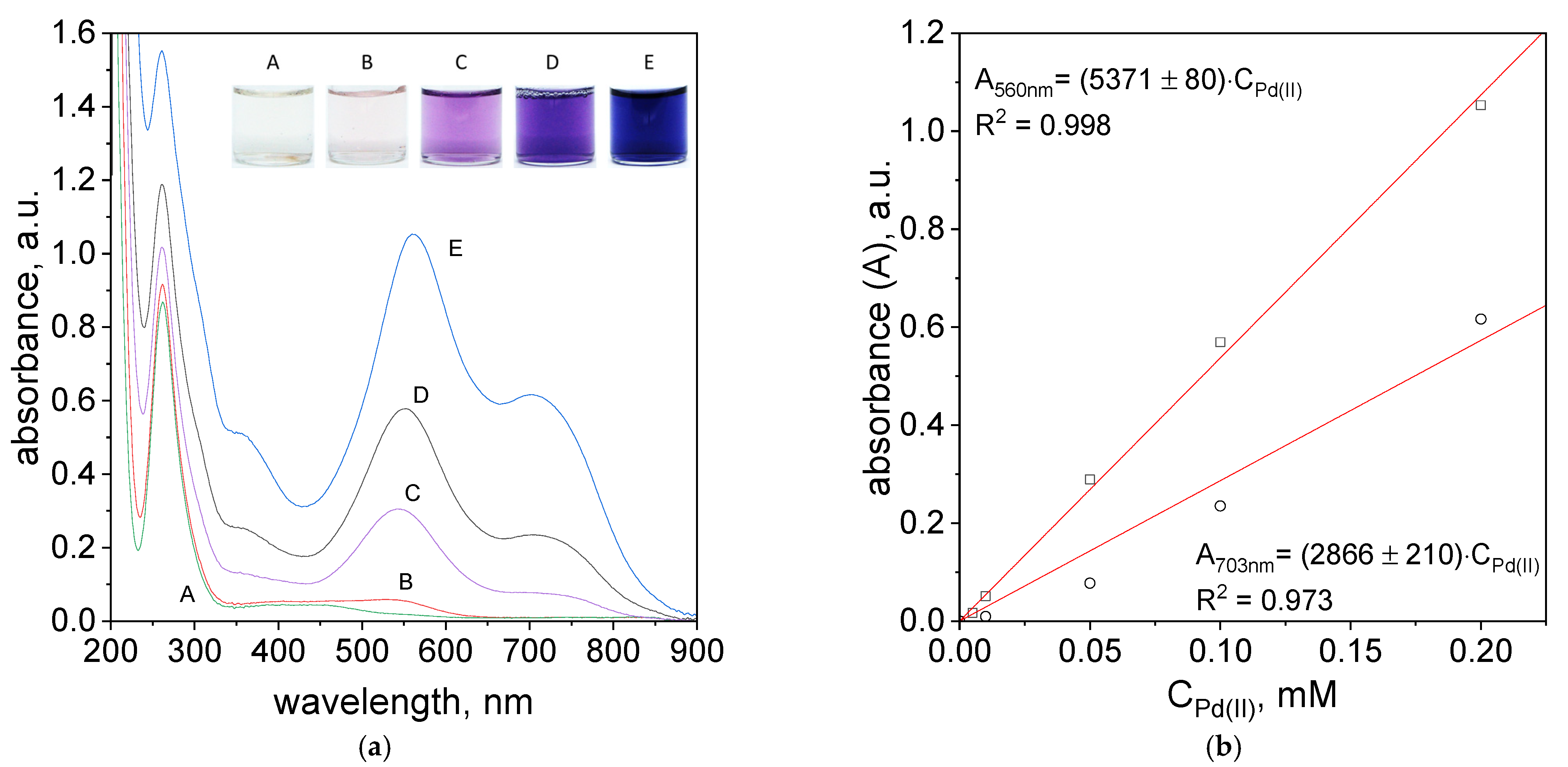

Figure 9. Spectra of solutions containing mixture of TR, Pd(II) and Pt(IV) ions, after 1 h (a); dependency of absorbance vs. initial Pd (II) ions, after 1 h, wavelength: 560 nm and 703 nm (b). Conditions: C0TR/C0Pd(II): A: 5 × 10−6 mol/dm3, B: 5 × 10−5 mol/dm3, C: 1 × 10−5 mol/dm3, D: 1 × 10−4 mol/dm3, E: 2 × 10−4 mol/dm3, C0Pt(IV) = 5 × 10−5 mol/dm3, volumetric ratio mixing Pd (II) ions and TR 2.5 mL:1.5 mL, pH = 4.10, T = 60 °C.
Figure 9. Spectra of solutions containing mixture of TR, Pd(II) and Pt(IV) ions, after 1 h (a); dependency of absorbance vs. initial Pd (II) ions, after 1 h, wavelength: 560 nm and 703 nm (b). Conditions: C0TR/C0Pd(II): A: 5 × 10−6 mol/dm3, B: 5 × 10−5 mol/dm3, C: 1 × 10−5 mol/dm3, D: 1 × 10−4 mol/dm3, E: 2 × 10−4 mol/dm3, C0Pt(IV) = 5 × 10−5 mol/dm3, volumetric ratio mixing Pd (II) ions and TR 2.5 mL:1.5 mL, pH = 4.10, T = 60 °C.
Molecules 27 04511 g009
Table
Table 1. The values of wavelength and molar coefficient (ε) at different pH of the tropaeolin OO solution, T = 20 °C.
Table 1. The values of wavelength and molar coefficient (ε) at different pH of the tropaeolin OO solution, T = 20 °C.
pH (Solvent)ε1 (λ1)ε2 (λ2)
M−1·cm−1M−1·cm−1
4–5 (H2O)11,458 ± 130 (272 nm)22,350 ± 59 (445 nm)
2.09 (B-R)6506 ± 54 (207 nm)12,616 ± 53 (460 nm)
2.87 (B-R)7491 ± 200 (270 nm)14,793 ± 129 (445 nm)
4.10 (B-R)7652 ± 184 (270 nm)15,272 ± 123 (445 nm)
5.02 (B-R)7369 ± 181 (270 nm)15,341 ± 114 (445 nm)
6.09 (B-R)7981 ± 36 (270 nm)15,850 ± 72 (445 nm)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pach, A.; Podborska, A.; Csapo, E.; Luty-Błocho, M. Tropaeolin OO as a Chemical Sensor for a Trace Amount of Pd(II) Ions Determination. Molecules 2022, 27, 4511. https://doi.org/10.3390/molecules27144511

AMA Style

Pach A, Podborska A, Csapo E, Luty-Błocho M. Tropaeolin OO as a Chemical Sensor for a Trace Amount of Pd(II) Ions Determination. Molecules. 2022; 27(14):4511. https://doi.org/10.3390/molecules27144511

Chicago/Turabian Style

Pach, Adrianna, Agnieszka Podborska, Edit Csapo, and Magdalena Luty-Błocho. 2022. "Tropaeolin OO as a Chemical Sensor for a Trace Amount of Pd(II) Ions Determination" Molecules 27, no. 14: 4511. https://doi.org/10.3390/molecules27144511

Article Metrics

Back to TopTop
