Abstract

Treatment of the imines a–c with palladium(II) acetate in acetic acid yielded the μ-acetate dinuclear complexes 1a–c, which readily reacted with sodium chloride or bromide to provide μ-halide analogues. The reaction of the latter with nitrogen, phosphorus and oxygen donor nucleophiles yielded new imine palladacycles following the cleavage of the Pd2X2 unit. The complexes were fully characterized by microanalysis, 1H, 13C and 31P NMR spectroscopies, as appropriate. The compounds were applied as catalysts in the Suzuki–Miyaura coupling reaction in aqueous and semi-aqueous media.
Keywords: palladacycles; imines; catalysis; Suzuki; cross coupling palladacycles; imines; catalysis; Suzuki; cross coupling

1. Introduction

Since the first cyclometallated compound was reported by Cope and Siekman [1], the chemistry of metallacycles dealing in the activation of aromatic C–H bonds by transition metals has attracted much attention. Their development has been extended to a rather large variety of metals, especially palladium [2], and organic ligands, among which Schiff bases, [3] thiosemicarbazones [4] and pincer ligands [5] stand out. The high level of interest in these complexes mainly stems from the high number of applications they provide, such as in metallomesogens [6], as antineoplastic substances [7,8] and in synthetic chemistry, where they have been used to functionalize aromatic carbons through the insertion reactions of molecules such as CO [9], alkenes [10] or alkynes [11]. In the field of catalysis, after the breakthrough with phosphine palladacycles by Hermann et al. [12,13,14], a myriad of palladacycles have been used as pre-catalysts in cross-coupling reactions, such as in the work of Suzuki–Miyaura [15,16,17,18,19], Mizoroki–Heck [20], Negishi [21] and Sonogashira [22]. Although there are commercially available reagents such as [Pd(OAc)2] and [Pd(PPh3)4] that are more than acceptable catalysts, taking into account that many palladium-mediated coupling reactions involve palladacycle intermediates, palladacycles have emerged as a paramount group of catalysts owing, in part, to their stability in air and moisture.
Schiff bases, also known as imines, first prepared by H. Schiff [23] are an extensively used group of ligands, mostly due to the variety of available amines and aldehydes as well as to their ease of preparation, as they are more often than not synthesized by a condensation reaction between organic carbonyl substrate and primary amine; ketones may form imines as well, but the reaction is not so straightforward. They are able to stabilize numerous metals in different oxidation states, controlling the performance of the metals in catalytic processes. They are very suitable for the preparation of imine palladacycles, where they show a rather versatile behavior in terms of the type of metallated carbon atom, whether it be C(sp2) or C(sp3) ([24]), the choice of the metallation position influenced by the ring substituents [25] or unusual reactivity in the case of bidentate imine ligands [26], providing an extensive group of organometallics. Imine palladacycles are pre-catalysts that yield the appropriate palladium themselves, or, alternatively, appear as intermediates and are one of the choice complexes for Suzuki–Miyaura cross-coupling. One of the most efficient palladating agents for imines is [Pd(OAc)2], which renders the μ-acetate dinuclear complex and the μ-chloro analogue after a metathesis reaction. The bridging ligands may be totally or in part substituted to give mono- and dinuclear palladacycles [27,28], which are active as catalysts for Suzuki cross-coupling. For non-cyclometallated compounds, the catalytic activity of Schiff base transition metal complexes and the applications of polymer-supported Schiff base complexes has been reviewed in detail [29,30,31].
The high catalytic activity of dimeric Pd(II) species similar to the μ-acetate complexes described herein for the Heck reaction have demonstrated the efficiency of phosphine-free systems and the often slow activation of the precatalyst. The proposed catalytic mechanisms and kinetic studies highlight the role of water in accelerating the initial preparation of the active catalyst species. Herein, we report a comparative study of the catalytic activity of imine palladacycles derived from the reaction of μ-chloro complexes with a variety of nitrogen, phosphorus and oxygen donor nucleophiles. Nevertheless, the activity of the dinuclear μ-chloro complexes themselves using aqueous mixtures of solvents yields higher results than that of the parent μ-acetato species [32,33]. Also, structures for two and μ-chloro complexes are discussed.

2. Results and Discussion

For the convenience of the reader, the compounds and reactions are shown in Scheme 1. The compounds described in this paper were characterized by elemental analysis (C, H, N), by IR (data in Section 4) and by 1H, 13C and 31P-{1H}NMR spectroscopy. (See Experimental Section). The ligands a, b and c were synthesized by mixing the corresponding aldehyde and amine in water following the method by Tanaka and Shiraishi [34]. The treatment of the ligands with palladium(II) acetate in acetic acid at 65 °C for 8 h yielded the μ-acetate dinuclear complexes 1a-c. The coordination of the nitrogen atom to palladium was supported by the shift of the υ(C=N) stretching vibration to a lower frequency in the IR spectra [35] compared to the free ligand spectra and an upfield shift of the HC=N resonance in the 1H NMR spectra. [36] The υas(COO) and υs(COO) values were consistent with bridging acetato groups; [37] a singlet resonance in the 1H NMR spectra was assigned to the two equivalent acetate groups, set in a trans arrangement. The absence of the H6 resonance and strong downfield shift of the C(6) resonance in the 1H and 13C NMR spectra, respectively, was consistent with the metalation of the phenyl ring at this ring site.
The treatment of complexes 1ac with aqueous sodium chloride or bromide after a metathesis reaction readily provided the μ-halide complexes 2acX (X = Cl, Br), which were fully characterized (see Experimental Section). The spectroscopic data were in agreement with the absence of the μ-acetate ligands.

2.1. Crystal Structure of 1c

Suitable crystals of 1c were grown by recrystallization from a dichloromethane-hexane solution. The structure of 1c is shown in Figure 1, and the Experimental Section and SI contain the crystallographic data. The crystal consists of discrete dinuclear moieties separated by normal van der Waals distances, with a C2 symmetry via a twofold axis at 90° to the Pd–Pd vector. The palladium atoms are coordinated to an ortho carbon atom from the phenyl ring, a nitrogen atom from the C=N group and two oxygen atoms from the acetate ligands in distorted square-planar geometry. The imine units are in a trans arrangement, recently coined as the “butterfly” geometry, [38] with the metallated imines held together by the bridging acetate ligands. The bond distances and angles are within the reported values, with allowance for the palladium–oxygen distance trans to carbon [cf. Pd(1)-O(7) 2.140 vs. Pd(1)-O(9) 2.045] due to the trans-lengthening influence of the σ-bonded carbon and with a somewhat reduced value for the C(6)-Pd(1)-N(1) and C(22)-Pd(2)-N(2) bond angles, 81.17° and 81.56°, respectively, consequent upon chelation. As for the eight-membered ring formed by the palladium atoms and the acetate ligands in an open-book structure, the [O(8)-C(3)-O(7)] and [O(9)-C(35)-O(10) planes are at an angle of 87.59°, with the palladium coordination planes at 29.19°. The palladium–palladium bond of 2.911 Å may be regarded as non-bonding.

2.2. Crystal Structure of 2cCl

Single crystals of complex 2cCl suitable for X-ray analysis were grown by slowly evaporating an n-hexane–chloroform solution at room temperature. The molecular structure is shown in Figure 2, and crystal data are in the Section 4 and Supplemetnary Materials.
The asymmetric unit comprises half of the molecule with a crystallographic inversion center located at the center of the Pd2(μ-Cl)2 moiety. The coordination sphere around each palladium atom consists of two halogen atoms, a C=N nitrogen atom and the C(6) carbon atom. The coordination environment at the metal center is distorted square planar, with the most noticeable deviation corresponding to the C-Pd-N bite angle of 81.29(13).
The [(C-N)Pd(μ-Cl)2Pd(C-N)] fragment adopts a planar configuration, with an angle between the palladium coordination plane and the Pd2Cl2 ring of 6.49°. This situation is the most common configuration observed in related species [39]. All bond distances are within the expected values, with allowance for the lengthening of the Pd–X bond trans to carbon, due to the differing trans influence of the carbon and nitrogen atoms, resulting in an asymmetric Pd(μ-X)2Pd moiety.
The treatment of the halide-bridged complexes with the nitrogen, phosphorus or oxygen donor ligands 1,1′-bipyridine, 1,10-phenantroline, triphenylphosphine, 1,1-bis(diphenylphosphine)ethene, 1,1′-bis(diphenylphosphine)ferrocene and acetylacetonate in the appropriate molar ratio yielded the corresponding mono- and dinuclear air-stable solids, which were fully characterized (See Scheme 1 and the Experimental Section). For 4a–c the 1H NMR spectra show singlet resonances ca. 5.3, and 2.0 and 1.9 ppm, respectively, assigned to the CH and to the two non-equivalent methyl protons, also respectively. The 1H NMR for the phosphine derivatives showed an upfield shift in the 4-MeO group ca. 0.8 ppm promoted by the shielding of the phosphine phenyl rings; this agrees with a N-Pd-P trans geometry in 3a–b and with the parallel arrangement of the metalated moieties in 7a–b, as shown in Scheme 1, again with a phosphorus trans to nitrogen geometry. The 31P NMR spectra showed a singlet resonance for the two equivalent 31P nuclei in 7a–b and two doublets for 8a–b, 9b; the lower frequency doublet was assigned to the phosphorus nucleus trans to the phenyl carbon, C(6), and the higher frequency doublet to the phosphorus nucleus trans to the imine nitrogen, based on the assumption that a ligand of greater trans influence shifts the 31P resonance in trans to lower frequency [40].

2.3. Catalytic Activity

To test the catalytic activity of the new imine palladacycles depicted herein, they were probed as potential catalysts in Suzuki–Miyaura coupling (SMC) to render the corresponding biaryl species. In order to attain a clear picture of the catalytic potential of the mentioned compounds, all were tested for a standard coupling reaction in order to stablish the most efficient catalysts. Thus, the treatment of 4-bromoacetophenone with phenylboronic acid in THF:water (2:1) at room temperature (rt) or at 80 °C for a maximum of 24 h in the presence of 2 mol% catalyst and base, K2CO3, gave the biphenyl-coupled product 4-phenylacetophenone at >80% in the majority of cases (Table 1). The use of a solvent different from the one stated above gave poorer results.
With regard to the results of this study, it can be concluded that the compounds with bpy and phen ligands, entries 22–30, in general show a much lower level of activity than the compounds tested. This may be due to the strong chelating nature of the nitrogen donor, i.e., the complex formed with the palladacycles unit is highly stable, which hinders its interaction with the substrates; this is reflected in a lower catalytic activity. In most cases the reactions at room temperature give a lower conversion than those performed at 80 °C. This is not the case for compounds with bridging chlorine and bromine ligands, entries 3–9, in which high activity is observed both at 80 °C and at room temperature, which led us to choose this type of compound as the best performers. Compounds with triphenylphosphine, entries 10 and 12, also appeared to show good results at both temperatures. As for compounds with bridging or chelating diphosphine, high conversions could be obtained at room temperature, but the reaction time had to be extended to 24 h (entries 32 and 34). Heating to 80 °C brings down the reaction time to only 5 h (entries 31, 33, 35, 36). Some compounds with acetylacetonate ligands (entries 17–19) follow a similar pattern, but the others (entries 20, 21) gave low yields ca. 50%. We propose that the halide-bridge species, which show yields of 80–100% (entries 3–9), should be singled out as the most efficient compounds as catalysts; given their straightforward synthesis and stability, they are the group of choice to carry out a more detailed study of catalytic activity, and among them we selected 2bCl, for which case the conditions for its catalytic activity could be narrowed to provide a yield of 100% at room temperature in two of the conditions tested; the results are shown in Table 2.
For the experiments carried out at 80 °C (entries 1–4), the better results were obtained using THF:H2O or EtOH:H2O mixtures; even water itself gave a reasonably acceptable output (entry 3). At room temperature (entries 5–8), the solvent of choice appeared to be the EtOH:H2O mixture; no significant differences in conversion were observed when bases such as K2CO3 or K3PO4 were used. In view of the results, EtOH:H2O as medium and K2CO3 as base were selected for further experiments, as they were the most environmentally conscious and less expensive options, respectively.
Hence, under the conditions in entry 7 (Table 2), the cross couplings for the different aryl and benzyl halides with phenylboronic acid were carried out, catalyzed by compound 2bCl, as shown in Table 3. The results were satisfactory for the majority of cases. The reaction comes to completion with the different aryl bromides, having both activating (entries 6, 7 and 8) and deactivating (entry 5) groups, even at room temperature and in short reaction times. Where a chlorine atom is also present (entry 14), the coupling is selective on the bromine atom and the carbon–chlorine bond remains unchanged under the conditions indicated. The reaction was also efficient with bromide not directly bonded to the aromatic carbon (entry 9), giving rise to the coupling reaction of benzyl bromides. In the case of entries 10–13, the selectivity between aromatic bromide and benzyl bromide was studied. Treatment with an equivalent of the boronic acid to obtain the compound coupled to the aromatic carbon gave a mixture in which the desired compound was the major one, but the product coupled through the benzyl bromide was also produced in a lower proportion (entries 10 and 11). Reaction with two equivalents of the boronic acid, in the hope of preparing a doubly coupled compound, gave a mixture of products as well, i.e., 10 and 12 (entries 12 and 13). As for the coupling of aryl chlorides, in the case of starting compounds with activating groups, the reaction takes place almost quantitatively at a high temperature (entry 1), while at room temperature the product is obtained with moderate yields (entries 2–3). In the case of using deactivated chlorides such as 4-chloroanisole, the reaction hardly takes place at all (entry 4).
In order to try to optimize the reaction with 4-chloroanisole, different additional ligands were added to the reaction, such as dppf and triphenylphosphine. With the first ligand, no positive result was obtained and the inhibition of the performance of the catalyst was observed. Meanwhile, with the addition of triphenylphosphine 5% molar, the conversion of the coupling reaction increased slightly from 13% (entry 4) to 30%, but a by-product was also formed which could not be identified.
The coupling reaction with chloride derivatives and 2bCl as catalyst was compared with palladium acetate, under the same conditions. The results obtained are shown in Table 4.
It can be seen that the 2bCl catalyst provides better conversions than palladium acetate per palladium atom used. Furthermore, ligand b appears to play an important role in the catalytic activity of the catalyst; if added to palladium acetate, the yield of the reaction improves, which could be because it slows the formation of Pd(0) aggregates.

3. Conclusions

We have shown that imine palladacycles may be prepared in good yield from palladium(II) acetate and the appropriate Schiff base ligand to provide μ-acetate complexes, which undergo metathesis reactions to yield μ-halide analogues. The latter readily undergo bridge splitting reactions to provide the corresponding mononuclear species, with the exception of μ-diphosphine ligands, in which case dinuclear compounds may also be formed. The resulting palladacycles were tested for Suzuki–Miyaura coupling by varying the reaction conditions such as the base, time and temperature, to conclude that the μ-halide complexes appeared to show the best yields. We suggest this could be due to the ease with which the Pd2X2 moiety may be cleaved and the halide ligand either substituted or removed from the palladium coordination environment, facilitating the potential of palladacycle as a pre-catalyst. Among these, the compound labelled 2bCl was then applied to the SMC of aryl halides and phenylboronic acid in different aqueous mixtures, providing good conversions; 2bCl also showed a catalytic activity greater than the standard palladium(II) acetate under the same conditions, suggesting a promising future for μ-halide imine palladacycles as catalysts for the SMC. Also, in the light of these results, further studies shall be conducted to determine if it is possible that other palladacycles included in Table 1 can be applied to the substrates in Table 3, especially with these being more sterically demanding as well as bearing different +M/−M/+I/−I substituents, especially if the precatalyst activation is the rate limiting step.

4. Experimental Section

X-ray structure determination. Crystallographic data of the structures described in this work were collected on a Bruker Kappa APEX II diffractometer (Mo Kα radiation, λ = 0.71073 Å) equipped with a graphite monochromator by the method of the ω and φ scans at 293 K, integrated and corrected for absorption and solved and refined using routine techniques. All non-hydrogen atoms were refined anisotropically; hydrogen atoms were included in calculated positions and refined in riding mode.
General Procedures. Solvents were used without previous purification. Chemicals were reagent grade. The diphosphine Ph2PC(=CH2)PPh2 (vdpp) was purchased from Sigma-Aldrich. Elemental analyses were carried out on a THERMO FINNIGAN, model FLASH 1112. IR spectra were recorded with a JASCO FT/IR–4600 spectrometer equipped with an ATR, model ATR–PRO ONE. 1H NMR spectra in solution were recorded in CDCl3 or Acetone-d6 at room temperature on a Varian Inova 400 spectrometer operating at 300.14 MHz. 31P-{1H} NMR spectra were recorded at 202.46 MHz on a Bruker AMX 500 spectrometer. All chemical Shifts are reported downfield from standards, TMS using the solvent signal (CDCl3, δ1H = 7.26 ppm and Acetone-d6 δ1H = 2.09) as reference and for 31P relative to external H3PO4 (85%). All the NMR experiments were performed using 5 mm o.d. tubes.

4.1. Preparation of the Ligands and Complexes

Preparation of a–c. 2,3,4-trimetoxybenzaldehyde (0.5 g, 2.55 mmol1 eq.) and the corresponding amine (2.55 mmol, 1 eq.) were added in water and stirred for 4 h at room temperature. The precipitate was washed with water and dried under vacuum, to give a white solid. a: Yield 85%. IR (KBr) υC=N 1633 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.55 (1H, s, HC=N), 7.67 (1H, d, 3J(H6H5) = 8.94 Hz, H6), 6.7 (1H, d, J(H5H6) = 8.92 Hz, H5), 3.92 (3H, s, OMe), 3.89 (3H, s, 3H, OMe), 3.87 (3H, s, OMe), 3.18 (1H, m, N-CHCy), 1.84–1.21 (10H, m, Cy). Anal. found: C: 69.3; H: 8.4; N: 5.08%, C16H23NO3 requires: C: 69.3; H: 8.4; N: 5.05%. b: Yield 82%. IR (KBr): υC=N: 1618 cm−1. 1H NMR (CDCl3, 300 MHz) δ 6.77 (1H, d, 3J(H5H6) = 8.8 Hz, H5), 3.96 (3H, s, OMe), 3.92 (3H, s, OMe), 3.90 (3H, s, OMe), 2.37 (3H, s, Me). Anal. found: C: 70.3; H: 6.8; N: 4.9%, C17H19NO3 requires: C: 71.5; H: 6.7; N: 4.9%. c: Yield 93%. IR (KBr): υC=N 1614 cm−1. 1H NMR (300 MHz, CDCl3) δ 8.69 (1H, s, HC=N), 7.87 (1H, d, 3J(H6H5)=8.9 Hz, H6), 7.49 (2H, d, N = 8.6 Hz, Hb), 7.08 (2H, d, N = 8.6 Hz, Ha), 6.77 (1H, d, J(H5H6) = 8.9 Hz, H5), 3.97 (3H, s, OMe), 3.93 (3H, s, OMe), 3.89 (3H, s, OMe). 13C (CDCl3, 300 MHz) δ 156.69 (C, C-4), 156.27 (CH, HC=N), 154.62 (C, C-2),151.60 (C, C-3), 141.66 (C, C-4′), 131.97 (CH, C-3′, C-5′), 124,1 (C, C-1′), 122.60 (CH, C-2′,C-6′), 118.73 (CH, C-6), 116.55 (C, C-1), 107.71 (CH, C-5), 61.91 (CH, OCH3), 60.83 (CH, OCH3), 56.00 (CH, OCH3). Anal. found: C: 54.7; H: 4.5; N: 3.9%, C16H16BrNO3 requires: C: 54.9; H: 4.6; N: 4.0%.
Preparation of 1a–c. Ligand ac (0.72 mmol, 1.1 eq.) and palladium acetate (0.65 mmol, 1 eq.) were introduced in a Schlenk flask and vacuum-nitrogen cycles were performed, upon which 25 cm3 of deoxygenated acetic acid was injected with a syringe. The resulting solution was stirred at 65 °C for 8 h. Palladium (0) was removed from the mixture by centrifugation and the solution was extracted with dichloromethane and water. The organic layers were collected and dried with sodium sulphate and the solvent was removed under vacuum, resulting in a yellow solid. 1b: Yield 73%. IR (KBr) υC=N 1593 cm−1. 1H NMR (CDCl3, 300 MHz) δ 7.78 (2H, s, HC=N), 6.96 (4H, d, N = 8.0 Hz, C6H4), 6.70 (4H, d, N = 8.0 Hz, C6H4), 5.73 (2H, s, H5), 3.93 (6H, s, OMe), 3.87 (6H, s, OMe), 3.49 (6H, s, OMe), 2.31 (s, 6H, Me), 1.86 (6H, s, Me[Ac]). IR (KBr): υC=N: 1593 cm−1, υasCOO: 1570 cm−1, υsCOO: 1411 cm−1 Anal. found: C: 52.6; H: 5.1; N: 2.9%. C38H42N2O10Pd2 requires: C: 50.7; H: 4.7; N: 3.1%. 1c: Yield 92%. IR (KBr) υC=N 1579 cm−1, υasCOO: 1570 cm−1, υsCOO: 1412 cm−1. 1H NMR (CDCl3, 300 MHz) δ 7.83 (2H, s, HC=N), 7.28 (4H, d, N = 8.8 Hz, Hb), 6.67 (4H, d, N = 8.8 Hz, Ha), 5.72 (2H, s, H5), 3.97 (6H, s, OMe), 3.88 (6H, s, OMe), 3.57 (6H, s, OMe), 1.91 (6H, s, OAc). 13C NMR (CDCl3, 300 MHz) δ 180.34 (CO, MeCOO), 169.15 (CH, HC=N), 156.08 (C, C-4), 152.31 (C, C-2), 147.13 (C, C-3), 137.81 (C, C-4′), 131.00 (C, C-3′, C-5′), 130.77 (CH, C-6), 124.86 (CH, C-2′, C-6′), 122.94 (C, C-1′), 120.45 (C, C-1), 110.46 (CH, C-5), 62.20 (CH, OCH3), 61.20(CH, OCH3), 55.71 (CH, OCH3), 24.42 (CH, MeCOO). Found: C: 44.1; H: 3.6; N: 2.7%. C36H36Br2N2O10Pd2 requires: C: 42.0; H: 3.5; N: 2.7%.
Preparation of 2bCl-Br. The halide-bridged compounds were synthesized by adding 15 cm3 of a 0.05 M aqueous solution of the corresponding sodium salt to an acetone solution of 1a–c (0.5 eq.), upon which a precipitate was observed immediately. The solid was filtered off and dried under vacuum. 2aCl: Yield 67%. IR (KBr) υC=N 1597 cm−1, υPd-Cl 333.9/278.4 cm−1. 1H NMR (CDCl3, 300 MHz) δ 7.94 (2H, s, HC=N), 6.71 (2H, s, H5), 3.93 (6H, s, OMe), 3.87 (6H, s, OMe), 3.76 (6H, s, OMe), 3.55 (2H, m, NCHCy), 2.2–1.22 (20H, m, Cy). Anal. found: C, 45.9; H, 4.8; N, 3.1%. C32H44Cl2N2O6Pd2 requires: C, 45.9; H, 5.2; N, 3.3%. 2aBr: Yield 69%. IR (KBr) υC=N: 1598 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 7.99 (2H, s, HC=N), 6.81 (2H, s, H5), 3.93 (6H, s, OMe), 3.88 (6H, s, OMe), 3.76 (6H, s, OMe), 3.55 (2H, m, NCHCy), 2.3–1.04 (20H, m, Cy). Anal. found: C, 41.3; H, 4.5; N, 2.9%. C32H44Br2N2O6Pd2 requires: C, 41.5; H, 4.8; N, 3.0%. 2bCl: Yellow solid, yield 74%. IR (KBr) υC=N 1578 cm−1, υPd-Cl 321.0/275.6 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.04 (2H, s, HC=N), 7.25 (4H, d, N = 8.1 Hz, C6H4), 7.14 (4H, d, N = 8.2 Hz, C6H4), 6.59 (2H, s, H5), 3.94 (6H, s, OMe), 3.84 (6H, s, OMe), 3.77 (6H, s, OMe), 2.35 (6H, s, Me). Anal. found: C: 47.4; H: 4.4; N: 3.1. C34H36Cl2N2O6Pd2 requires: C: 47.9; H: 4.2; N: 3.3%. 2bBr: Yellow solid, yield 70%. IR (KBr) υC=N 1577 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.04 (2H, s, HC=N), 7.15 (8H, m, C6H4), 6.49 (2H, s, H5), 3.94 (6H, s, OMe), 3.84 (6H, s, OMe), 3.77 (6H, s, OMe), 2.32 (6H, s, Me). Anal. found: C, 44.5; H, 4.5; N, 2.7%. C34H36Br2N2O6Pd2 requires: C, 43.4; H, 3.8; N, 2.9%. 2cCl: Yellow solid, yield 88%. IR (KBr) υC=N 1578 cm−1, υPd-Cl: 358.2/281.0 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 7.88 (2H, s, HC=N), 7.30 (4H, d, N = 7.7 Hz, Hb), 7.05 (4H, d, N = 7.7 Hz, Ha), 6.37 (2H, s, H5), 3.79 (6H, s, OMe), 3.69 (6H, s, OMe), 3.60 (6H, s, OMe). Anal. found: C, 40.0; H, 3.1; N, 2.7%. C32H30Br2Cl2N2O6Pd2 requires: C, 39.1; H, 3.1; N, 2.8%. 2cBr: Yellow solid, yield 90%. IR (KBr) υC=N 1577 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.07 (2H, s, HC=N), 7.48 (4H, d, N = 8.3 Hz, Hb), 7.20 (4H, d, N = 8.3 Hz, Ha), 6.75 (2H, s, H5), 3.95 (6H, s, OMe), 3.87 (6H, s, OMe), 3.77 (6H, s, OMe). Anal. found: C, 37.1; H, 2.9; N, 2.5%. C32H30Br4N2O6Pd2 requires: C, 35.9; H, 2.8; N, 2.6%.
Preparation of 3a-bCl-Br. In a round bottom flask, 2a–bCl or 2a–bBr (0.060 mmol, 1 eq.) was added in 10 cm3 acetone. Triphenylphosphine was added (0.120 mmol, 2 eq.) and the mixture was stirred for 4 h at room temperature. The solvent of the resulting solution was removed under vacuum and the solid was recrystallized from dichloromethane-hexane. 3aCl: Orange solid, yield 82%. IR (KBr) υC=N 1569 cm−1, υPd-Cl 298 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.33 (1H, d, 4J(HiP) = 9.0 Hz, HC=N), 7.87–7.19 (15H, m, PPh3), 5.71 (1H, d, 4J(H5P) = 6.3 Hz, H5), 4,38 (1H, bs, N-CHCy), 3.90 (3H, s, -OMe), 3.66 (3H, s, -OMe), 2.77 (3H, s, -OMe), 2.40–1.01 (10H, m, Cy). 31P NMR (CDCl3, 202 MHz) δ 40.90. Anal. found: C, 60.3; H, 6.0; N: 2.1%. C34H37ClNO3PPd requires: C, 60.0; H, 5.5; N, 2.1%. 3aBr: Yellow solid, yield 68%. IR (KBr) υC=N 1577 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.37 (1H, d, 4J(HiP) = 9.1 Hz, HC=N), 7.89–7.32 (15H, m, PPh3), 5.71 (1H, d, 4J(H5P) = 6.9 Hz, H5), 4.64 (1H, bs, N-CHCy), 3.93 (3H, s, OMe), 3.69 (3H, s, OMe), 2.80 (3H, s, OMe), 2.40–1.01 (10H, m, Cy). 31P NMR (CDCl3, 202 MHz) δ 40.80s. Anal. found: C, 56.6; H, 5.3; N: 1.8%. C34H37BrNO3PPd requires: C, 56.3; H, 5.1; N, 1.9%. 3bCl: Yellow solid, yield 72%. IR (KBr) υC=N 1571 cm−1, υPd-Cl 288 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.44 (1H, s, HC=N), 7.86–7.30 (15H, m, PPh3), 7.24–7.13 (4H, m, C6H4), 5.82 (1H, s, H5), 3.92 (3H, s, OMe), 3.71 (3H, s, OMe), 2.87 (3H, s, OMe), 2. 32 (s, 3H, Me). 31P NMR (CDCl3, 202 MHz) δ(ppm): 40.75s. Anal. found: C: 60.3; H: 4.5; N, 1.7%, C35H33ClNO3PPd requires C, 61.0); H, 4.8; N, 2.0%. 3bBr: Orange solid, yield 77%. IR (KBr) υC=N 1577 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.43 (1H, d, 4J(Hi-P) = 7.3 Hz, HC=N), 7.89–6.97 (15H, m, PPh3), 7.16 (4H, m, C6H4), 5.75 (1H, d, 4J(H5P) = 6.8 Hz, H5), 3.90 (3H, s, OMe), 3.68 (3H, s, OMe), 2.83 (3H, s, OMe), 2.30 (3H, s, Me). 31P NMR (CDCl3, 202 MHz) δ 41.69s. Anal. found: C, 57.0; H, 4.3; N: 1.6%. C35H33BrNO3PPd requires: C, 57.3; H, 4.5; N, 1.9%.
Preparation of 4a–c. Thalium acetylacetonate (0.12 mmol, 2 eq.) was added to a solution of 2a–cCl in chloroform (0.06 mmol, 1 eq.). The mixture was stirred for 24 h, after which the precipitate was eliminated by centrifugation and the remaining solution was dried. The residue was purified by chromatography with chloroform as an eluent. This yielded a yellow solid. 4a: Brown solid, yield 81%. IR (KBr) υC=N 1581 cm−1, υ(CO) 1563/1398 cm−1, υC=C 1520 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.01 (1H, s, HC=N), 6.80 (1H, s, H5), 5.32 (1H, s, Hacac), 3.92 (3H, s, OMe), 3.90 (3H, s, Ome), 3.75 (3H, s, Ome), 3.56–3.41 (1H, m, N-CHCy), 2.29–0.97 (10H, m, Cy). Anal. found: C, 52.3; H, 6.1; N, 3.0%. C21H29NO5Pd requires: C, 52.0; H, 6.3; N, 2.9%. 4b: Yellow solid, yield 62%. IR (KBr) υC=N: 1586 cm−1, υ(CO) 1575/1399 cm−1, υC=C 1515 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.22 (1H, s, HC=N), 7.30 (2H, d, N = 8.4 Hz, C6H4), 7.17 (2H, d, N = 8.1 Hz, C6H4), 6.91 (1H, d, H5), 5.34 (1H, s, Hacac), 3.98 (3H, s, Ome), 3.96 (3H, s, Ome), 3.80 (3H, s, Ome), 2.37 (3H, s, Me), 2.07 (3H, s, Me[acac]), 1.88 (3H, s, Me[acac]). Anal. found: C, 53.9; H, 5.1 N, 2.9%. C22H25NO5Pd requires: C, 53.6; H, 5.5; N, 2.8%. 4c Orange solid, yield 79%. IR (KBr) υC=N 1582 cm−1, υ(CO) 1582/1395 cm−1, υC=C 1511 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.23 (s, 1H, HC=N), 7.50 (2H, d, N = 8.9 Hz, Hb), 7.30 (2H, d, N = 8.9 Hz, Ha), 6.90 (1H, s, H5), 5.36 (1H, s, Hacac), 4.01 (3H, s, OMe), 3.98 (3H, s, OMe), 3.81 (3H, s, OMe), 2.08 (s, 3H, Me[acac]), 1.89 (s, 3H, Me[acac]). Anal. found: C, 48.7; H, 5.0 N, 2.2%. C21H22BrNO5Pd requires: C, 45.5; H, 4.2; N, 2.5%.
Preparation of 56a–c. Compounds 5a–c and 6a–c were prepared by the reaction of 2a-cCl (0.060 mmol, 1 eq.) with the corresponding ligand (0.060 mmol, 1 eq.) in dry methanol under nitrogen. The reagents were stirred together for 30 min and then NH4PF6 was added, triggering the formation of a yellow solid that was filtered off and washed with cold methanol and dried under vacuum. 5a: Yellow solid, yield 85%. IR (KBr): υC=N 1569 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.81–8.20 (9H, m, bpy, HC=N), 6.29 (1H, s, H5), 4.02 (3H, s, OMe), 3.88 (3H, s, OMe), 3.82 (3H, s, OMe), 3.64(1H, m, N-CHCy), 2.32–1.24 (10H, m, Cy). 31P NMR (CDCl3, 202 MHz) δ-143.23 (q, 1JP-F = 710.74Hz). Anal. found; C, 45.5; H, 4.4; N, 6.0%, C26H30F6N3O3PPd requires: C, 45.7; H, 4.4; N, 6.1%. 5b: Yellow solid, yield 80%. IR (KBr) υC=N 1574 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.7–7.7 (8H, m, bpy), 8.49 (1H, s, HC=N), 7.58 (2H, d, N = 8.4 Hz, C6H4), 7.40 (2H, d, N = 8.4 Hz, C6H4), 6.71 (1H, s, H5), 4.06 (3H, s, OMe), 4.01 (3H, s, OMe), 3.83 (3H, s, OMe), 2.44 (3H, s, Me). 31P NMR (CDCl3, 202 MHz) δ-149.67 (q, 1JP-F = 708.44 Hz). C27H26F6N3O3PPd requires: C, 46.8; H, 3.8; N, 6.0%. 5c: Yellow solid 89%. IR (KBr) υC=N 1587 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 9.01–6.40 (9H, m, bpy, HC=N) 7.72 (4H, m, Ha, Hb), 6.81 (1H, s, H5), 4.08–4.07 (6H, s, OMe), 3.85 (3H, s, OMe). 31P NMR (CDCl3, 202 MHz) δ-145.83 (q, 1JP-F = 715.20 Hz). Anal. found; C, 43.7; H, 3.5; N, 4.9%, C26H23BrF6N3O3PPd requires: C, 41.3; H, 3.1; N, 5.5%. 6a: Yellow solid, yield 83%. IR (KBr) υC=N 1568 cm−1. 1H NMR (Acetone-d6, 300 MHz) δ 9.34–8.27 (9H, m, phen, HC=N), 6.42 (1H, s, H5), 4.03 (3H, s, OMe), 3.92 (3H, s, OMe), 3.82 (3H, s, OMe), 2.87 (1H, m, NCHCy), 2.32–1.25 (10H, m, Cy). 31P NMR (acetone-d6, 202 MHz) δ-145.81 (q, 1JP-F = 769.70 Hz). Anal. found; C, 46.4; H, 4.2; N, 5.8%, C28H30F6N3O3PPd requires: C, 47.5; H, 4.3; N, 6.0%. 6b: Yellow solid, yield 85%. IR (KBr) υC=N 1573 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm) = δ 9.0–7.0 (8H, m, phen), 8.51 (1H, s, HC=N), 7.55 (2H, d, N = 8.8 Hz, Hb), 7.40 (2H, d, N = 8.8 Hz, Ha), 6.79 (1H, s, H5), 4.07 (3H, s, OMe), 4.06 (3H, s, OMe), 3.84 (3H, s, OMe), 2.45 (3H, s, Me). 31P NMR (CDCl3, 202 MHz) δ-143.11 (q, 1JP-F = 759.33 Hz). Anal. found; C, 48.2; H, 3.7; N, 5.8%, C29H26F6N3O3PPd requires: C, 48.6; H, 3.6; N, 5.8%. 6c: Yellow solid, yield 92%. IR (KBr) υC=N 1568 cm−1. 1H NMR (Acetone-d6, 300 MHz) δ(ppm): 9.00–8.10 (9H, m, phen, HC=N) 7.73 (2H, d, N = 8.9 Hz, Hb), 7.38 (2H, d, N = 8.9 Hz, Ha), 6.43 (1H, s, H5), 4.06 (3H, s, OMe), 3.97 (3H, s, OMe), 3.84 (3H, s, OMe). 31P NMR (acetone-d6, 202 MHz) δ-155.76 (q, 1JP-F = 754.93 Hz). Anal. found; C, 42.6; H, 3.0; N, 5.2%, C28H23BrF6N3O3PPd requires: C, 43.1; H, 3.0; N, 5.4%.
Preparation of 7a–b. 1,1-Bis(diphenylphosphino)ethene (0.07 mmol, 2 eq.) was added to a suspension of 2bCl (0.035 mmol, 1eq.). The solution was stirred for 5 h at room temperature, and the solvent was removed under reduced pressure. The resulting yellow solid was dried under vacuum. 7a: Brown solid, yield 60%. IR (KBr) υC=N 1580 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm): 8.38 (1H, d, 4J(HiP) = 7.9 Hz, HC=N), 7.83–7.30 (20H, m, PPh2), 6.25 (2H, m, P(C=CH2)P), 6.01 (1H, dd, 4J (H5P) = 9.8, 7.4 Hz, H5), 3.97 (3H, s, OMe), 3.74 (3H, s, OMe), 3.20 (1H, m, N-CHCy), 3.08 (3H, s, OMe), 2.38–0.34 (10H, m, Cy). 31P NMR (CDCl3, 202 MHz) δ 11,57 (d, 2JP-P = 15.6 Hz), -5.94 (d, 2JP-P = 15.7 Hz). Anal. found: C, 62.9; H, 5.2; N: 1.6%, C42H44ClNO3P2Pd requires: C, 61.9; H, 5.4; N, 1.7%. 7b: Yield 77%. IR (KBr) υC=N 1581 cm−1. 1H NMR (CDCl3, 300 MHz) δ(ppm) = 8.38 (1H, d, 4J(HP) = 7.2 Hz, HC=N), 8.02–7.16 (20H, m; PPh2), 6.95 (2H, d, N = 8.1 Hz C6H4), 6.77 (2H, d, N = 8.1 Hz C6H4), 6.47–6.24 (2H, m, P(C=CH2)P), 6.05 (1H, dd, 4J(H5P)= 9.9, 7.3 Hz H5), 4.00 (3H, s, OMe), 3.77 (3H, s, OMe), 3.15 (3H, s, OMe), 2.20 (3H, s, Me). 31P NMR (CDCl3, 202 MHz) δ 7.49 (d, 2JP-P = 12.8 Hz), −9.86 (d, 2JP-P = 12.8 Hz). Anal. found: C, 62.1; H, 5.1; N: 1.5%, C43H40ClNO3P2Pd requires: C, 62.8; H, 4.9; N, 1.7%.
Preparation of 8a–b. vdpp (0.046 g, 0.117 mmol, 2 eq.) and NH4PF6 (0.037 g, 0.023 mmol, 4 eq.) were added a suspension of 2a–bCl (0.060 mmol, 1 eq.) in acetone. The initial solution led to a yellow precipitate that was filtered off and dried under vacuum. 8a: Yellow solid, yield 61%. IR (KBr) υC=N 1589 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.27 (2H, m, HC=N), 8.16–7.13 (20H, m, PPh2), 6.16 (2H, m, H5), 5.25–5.12 (2H, m, P(C=CH2)P), 4.32 (2H, s, N-CHCy), 3.88 (3H, s, OMe), 3.64 (6H, s, OMe), 2.59 (6H, s, OMe), 2.47–0.99 (20H, m, Cy). 31P NMR (CDCl3, 202 MHz) δ 44.62 (bs). Anal. found: C, 55.1; H, 5.1; N, 2.0%, C58H66Cl2N2O6P2Pd2 requires, C, 56.5; H, 5.4; N, 2.3%. 8b: Yield 43%. IR (KBr) υC=N 1575 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.34(2H, m, HC=N), 8.20–7.19 (28H, m, PPh2, C6H4), 6.20–5.98 (2H, m, P(C=CH2)P), 5.29, (2H, m, H5), 3.93 (6H, s, OMe), 3.66 (6H, s, OMe), 2.67 (6H, s, OMe), 2.38 (6H, s, Me). 31P NMR (CDCl3, 202 MHz) δ 43.37 (bs). Anal. found: C, 57.2; H, 5.2; N, 2.2%, C60H58Cl2N2O6P2Pd2 requires, C, 57.7; H, 4.7; N, 2.2%.
Preparation of 9b. 1,1′-Bis(diphenylphosphino)ferrocene (0.029 g, 0.07 mmol, 2 eq.) was added to a suspension of 2bCl (0.03 g, 0.035 mmol). The solution was stirred for 4 h at room temperature, and the solvent was removed under reduced pressure. The solvent was removed, and the residue was recrystallized with dichloromethane/hexane to provide an orange solid. Yield 76%. IR (KBr) υC=N 1578 cm−1. 1H NMR (CDCl3, 300 MHz) δ 8.28 (1H, d, 4J(HP) = 9.3 Hz, HC=N), 7.68–7.18 (24H, m, PPh2, C6H4), 5.72 (1H, d, 4J(H5P) = 6.3 Hz, H5), 5.22–4.21 (8H, m, Cp), 3.91 (3H, s, OMe), 3.83 (3H, s, OMe), 2.94 (3H, s, OMe), 2.59 (3H, s, Me). 31P NMR (CDCl3, 202 MHz) δ 29.40 (d, J = 31.0 Hz), 27.64 (d, J = 30.9 Hz), −145.82 (q, 710.3 Hz). Anal. found: C, 62.9; H, 4.9; N, 1.1%, C51H46ClFeNO3P2Pd requires: C, 62.5; H, 4.7; N, 1.4%.

4.2. Crystal Structure Analysis and Details on Data Collection and Refinement

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27103146/s1. CCDC 2162245 for compound 2cCl. CCDC 2162246 for compound 1c.

Author Contributions

Formal analysis, F.R. and J.M.O.; Methodology, B.B.-P., L.A.A. and F.L.-M.; Writing original draft, J.M.V.; writing—review and editing, J.M.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Xunta de Galicia. GRC2019/14.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was made possible thanks to the financial support received from the Xunta de Galica (Galicia, Spain) under the Grupos de Referencia Competitiva Programme (Project GRC2019/14). F.L.-M. and F.R. thank the Spanish Ministry of Education (grants FPU13/05014 and FPU15/07145).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cope, A.C.; Siekman, R.W. Formation of Covalent Bonds from Platinum or Palladium to Carbon by Direct Substitution. J. Am. Chem. Soc. 1965, 87, 3272. [Google Scholar] [CrossRef]
  2. Dupont, J.P. Palladacycles; Wiley-VCH: Weinheim, Germany, 2018. [Google Scholar]
  3. Sarma, K.; Devi, N.; Sutradhar, D.; Sarma, B.; Chandra, A.K.; Barman, P. Synthesis of a novel six membered CNS palladacycle; TD-DFT study and catalytic activity towards microwave-assisted selective oxidation of terminal olefin to aldehyde. J. Organomet. Chem. 2016, 822, 20. [Google Scholar] [CrossRef]
  4. Adams, M.; de Kock, C.; Smith, P.J.; Chibale, K.; Smith, G.S. Synthesis, characterization and antiplasmodial evaluation of cyclopalladated thiosemicarbazone complexes. J. Organomet. Chem. 2013, 736, 19. [Google Scholar] [CrossRef]
  5. Kozlov, V.A.; Aleksanyan, D.V.; Nelyubina, Y.V.; Lyssenko, K.A.; Vasilev, A.A.; Petrovskii, P.V.; Odinets, I.L. Cyclopalladation of meta-(Diphenylthiophosphoryloxy)benzaldimines: NCS and Unexpected NCO 5,6-Membered Pincer Palladium Complexes. Organometallics 2010, 29, 2054. [Google Scholar] [CrossRef]
  6. Lowry, M.S.; Bernhard, S. Synthetically Tailored Excited States: Phosphorescent, Cyclometalated Iridium(III) Complexes and Their Applications. Chem. A Eur. J. 2006, 12, 7970. [Google Scholar] [CrossRef]
  7. Navarro-Ranninger, C.; López-Solera, I.; González, V.M.; Pérez, J.M.; Álvarez-Vales, A.; Martín, A.; Raithby, P.; Masaguer, J.R.; Alonso, C. Cyclometalated Complexes of Platinum and Palladium with N-(4-Chlorophenyl)-α-benzoylbenzylideneamine. In Vitro Cytostatic Activity, DNA Modification, and Interstrand Cross-Link Studies. Inorg. Chem. 1996, 35, 5181. [Google Scholar] [CrossRef]
  8. Cutillas, N.; Yellol, G.S.; de Haro, C.; Vicente, C.; Rodríguez, V.; Ruiz, J. Anticancer cyclometalated complexes of platinum group metals and gold. Chem. Rev. 2013, 257, 2784. [Google Scholar] [CrossRef]
  9. Takahashi, H.; Tsuji, J. Organic syntheses by means of noble metal compounds: XXXIII. Carbonylation of azobenzene-palladium chloride complexes. J. Organomet. Chem. 1967, 10, 511. [Google Scholar] [CrossRef]
  10. Hiraky, K.; Fuchita, Y.; Takakura, S. Syntheses and characterization of cyclopalladated complexes of 2-phenylthiazole. J. Organomet. Chem. 1981, 210, 273. [Google Scholar] [CrossRef]
  11. Vicente, J.; Saura-Llamas, I.; Turpín, J.; Bautista, D.; Ramirez de Arellano, C.; Jones, P.G. Insertion of One, Two, and Three Molecules of Alkyne into the Pd− C Bond of Ortho-palladated Primary and Secondary Arylalkylamines. Organometallics 2009, 28, 4175. [Google Scholar] [CrossRef]
  12. Beller, M.; Fischer, H.; Herrmann, W.A.; Öfele, K.; Brossmer, C. Palladacycles as efficient catalysts for Aryl Coupling Reactions. Angew. Chemie Int. Ed. Engl. 1995, 34, 1848. [Google Scholar] [CrossRef]
  13. Herrmann, W.A.; Brossmer, C.; Öfele, K.; Reisinger, C.-P.; Priermeier, T.; Beller, M.; Fischer, H. Palladacycles as Structurally Defined Catalysts for the Heck Olefination of Chloro- and Bromoarenes. Angew. Chemie Int. Ed. Engl. 1995, 34, 1844. [Google Scholar] [CrossRef]
  14. Herrmann, W.A.; Böhm, P.W.; Reisinger, C.-P. Application of palladacycles in Heck type reactions. J. Organomet. Chem. 1999, 576, 23. [Google Scholar] [CrossRef]
  15. Miyaura, N.; Suzuki, A. Stereoselective synthesis of arylated (E)-alkenes by the reaction of alk-1-enylboranes with aryl halides in the presence of palladium catalyst. Chem. Commun. 1979, 866–867. [Google Scholar] [CrossRef]
  16. Suzuki, A. Carbon–carbon bonding made easy. Chem. Commun. 2005, 4759–4763. [Google Scholar] [CrossRef]
  17. Cívicos, J.F.; Alonso, D.A.; Nájera, C. Oxime–Palladacycle-Catalyzed Suzuki–Miyaura Arylation and Alkenylation of Aryl Imidazolesulfonates under Aqueous and Phosphane-Free Conditions. Eur. J. Org. Chem. 2012, 2012, 3670–3676. [Google Scholar] [CrossRef]
  18. Lucio-Martínez, F.; Adrio, L.A.; Polo-Ces, P.; Ortigueira, J.M.; Fernández, J.J.; Adams, H.; Pereira, M.T.; Vila, J.M. Palladacycle catalysis: An innovation to the Suzuki–Miyaura cross-coupling reaction. Dalt. Trans. 2016, 45, 17598. [Google Scholar] [CrossRef]
  19. Firinci, R.; Günay, M.E.; Gökçe, A.G. Synthesis, characterization and catalytic activity in Suzuki-Miyaura coupling of palladacycle complexes with n -butyl-substituted N-heterocyclic carbene ligands. Appl. Organomet. Chem. 2018, 32, e4109. [Google Scholar] [CrossRef]
  20. Alonso, D.A.; Nájera, C.; Pacheco, M.C. Oxime-Derived Palladium Complexes as Very Efficient Catalysts for the Heck–Mizoroki Reaction. Adv. Synth. Catal. 2002, 344, 172. [Google Scholar] [CrossRef]
  21. Yang, Y.; Oldenhuis, N.J.; Buchwald, S.L. Mild and general conditions for negishi cross-coupling enabled by the use of palladacycle precatalysts. Angew. Chemie Int. Ed. Engl. 2013, 52, 615. [Google Scholar] [CrossRef]
  22. Yang, F.; Cui, X.; Li, Y.-N.; Zhang, J.; Ren, G.-R.; Wu, Y. Cyclopalladated ferrocenylimines: Efficient catalysts for homocoupling and Sonogashira reaction of terminal alkynes. Tetrahedron 2007, 63, 1963. [Google Scholar] [CrossRef]
  23. Schiff, H. Mittheilungen aus dem Universitätslaboratorium in Pisa: Eine neue Reihe organischer Basen. Ann. Chem. Pharm. 1864, 131, 118. [Google Scholar] [CrossRef]
  24. Vázquez-García, D.; Fernández, A.; López-Torres, M.; Rodríguez, A.; Gómez-Blanco, N.; Viader, C.; Vila, J.M.; Fernández, J.J. Versatile Behavior of the Schiff Base Ligand 2,5-Me2C6H3C(H)═N(2,4,6-Me3C6H2) toward Cyclometalation Reactions: C(sp2,phenyl)−H vs C(sp3,methyl)−H Activation. Organometallics 2010, 29, 3303. [Google Scholar] [CrossRef]
  25. Teijido, B.; Fernández, A.; López-Torresa, M.; Castro-Juiz, S.; Suárez, A.; Ortigueira, J.M.; Vila, J.M.; Fernández, J.J. Influence of phenyl ring substituents in the cyclometallation of Schiff base ligands: Crystal and molecular structures of [Pd-{3,4-(OCH2O)C6H2C(H) N(Cy)-C2,N}(μ-O2CMe)]2 and [Pd-{3,4-(OCH2CH2O)C6H2C(H) N(Cy)-C6,N}(μ-O2CMe)]2. J. Organomet. Chem. 2000, 598, 71. [Google Scholar] [CrossRef]
  26. Vila, J.M.; Gayoso, M.; Pereira, M.T.; López, M.; Alonso, G.; Fernández, J.J. Cyclometallated complexes of PdII and MnI with N,N-terephthalylidenebis(cyclohexylamine). J. Organomet. Chem. 1993, 445, 287. [Google Scholar] [CrossRef]
  27. Wang, H.; Yang, J. Synthesis and characterizations of arsine– and stibine–ligated Schiff base palladacycles and their applications in Suzuki–Miyaura cross-coupling reactions. Appl. Organomet. Chem. 2016, 30, 262. [Google Scholar] [CrossRef]
  28. Serrano, J.L.; García, L.; Pérez, J.; Pérez, E.; García, J.; Sánchez, G.; Sehnal, P.; De Ornellas, S.; Williams, T.J.; Fairlamb, I.J.S. Synthesis and Characterization of Imine-Palladacycles Containing Imidate “Pseudohalide” Ligands: Efficient Suzuki–Miyaura Cross-Coupling Precatalysts and Their Activation To Give Pd0Ln Species (L = Phosphine). Organometallics 2011, 30, 5095–5109. [Google Scholar] [CrossRef]
  29. Cozzi, P.G. Metal–Salen Schiff base complexes in catalysis: Practical aspects. Chem. Soc. Rev. 2004, 33, 410. [Google Scholar] [CrossRef]
  30. Gupta, K.C.; Sutar, A.K. Catalytic activities of Schiff base transition metal complexes. Coord. Chem. Rev. 2008, 252, 1420. [Google Scholar] [CrossRef]
  31. Gupta, K.C.; Sutar, A.K.; Lin, C.-C. Polymer-supported Schiff base complexes in oxidation reactions. Coord. Chem. Rev. 2009, 253, 1926. [Google Scholar] [CrossRef]
  32. Rosner, T.; Pfaltz, A.; Blackmond, D.G. Observation of Unusual Kinetics in Heck Reactions of Aryl Halides:  The Role of Non-Steady-State Catalyst Concentration. J. Am. Chem. Soc. 2001, 123, 4621. [Google Scholar] [CrossRef] [PubMed]
  33. Rosner, T.; Le Bars, J.; Pfaltz, A.; Blackmond, D.G. Kinetic Studies of Heck Coupling Reactions Using Palladacycle Catalysts: Experimental and Kinetic Modeling of the Role of Dimer Species. J. Am. Chem. Soc. 2001, 123, 1848. [Google Scholar] [CrossRef] [PubMed]
  34. Tanaka, K.; Shiraishi, R. Clean and efficient condensation reactions of aldehydes and amines in a water suspension medium. Green Chem. 2000, 2, 272. [Google Scholar] [CrossRef]
  35. Onoue, H.; Moritani, I. ortho-Metalation reactions of N-phenylbenzaldimine and its related compounds by palladium(II) acetate. J. Organomet. Chem. 1972, 43, 431. [Google Scholar] [CrossRef]
  36. Ustinyuk, Y.A.; Chertov, V.A.; Barinov, I.V. The interaction of nickelocene with benzal anilines. J. Organomet. Chem. 1971, 29, C53. [Google Scholar] [CrossRef]
  37. Nakamoto, K. Infrared Raman Spectra Inorg. Coord. Compd., 6th ed.; Wiley: New York, NY, USA, 2009. [Google Scholar]
  38. Yap, J.S.L.; Li, B.B.; Wong, J.; Li, Y.; Pullarkat, S.A.; Leung, P.-H. Development of a novel chiral palladacycle and its application in asymmetric hydrophosphination reaction. Dalt. Trans. 2014, 43, 5777. [Google Scholar] [CrossRef] [PubMed]
  39. Fernández, A.; Pereira, E.; Fernández, J.J.; López-Torres, M.; Suárez, A.A.; Mosteiro, R.; Pereira, M.T.; Vila, J.J. Sterically controlled reactivity of palladium(ii) tetranuclear cyclometallated complexes. Crystal and molecular structure of the novel tetranuclear compound [Pd2{1,3-[C(H)=NCH2C4H7O]2C6H2}(μ-Cl)(Cl)(PPh3)]2. New J. Chem. 2002, 26, 895. [Google Scholar] [CrossRef]
  40. Pregosin, P.S.; Kunz, R.W. 31P 13C NMR of Transition Met. Phosphine Complexes, NMR 16; Diehl, P., Fluck, E., Kosfeld, R., Eds.; Springer: Berlin, Germany, 1979. [Google Scholar]
Scheme 1. Reactivity sequence for the synthesized compounds.
Scheme 1. Reactivity sequence for the synthesized compounds.
Molecules 27 03146 sch001

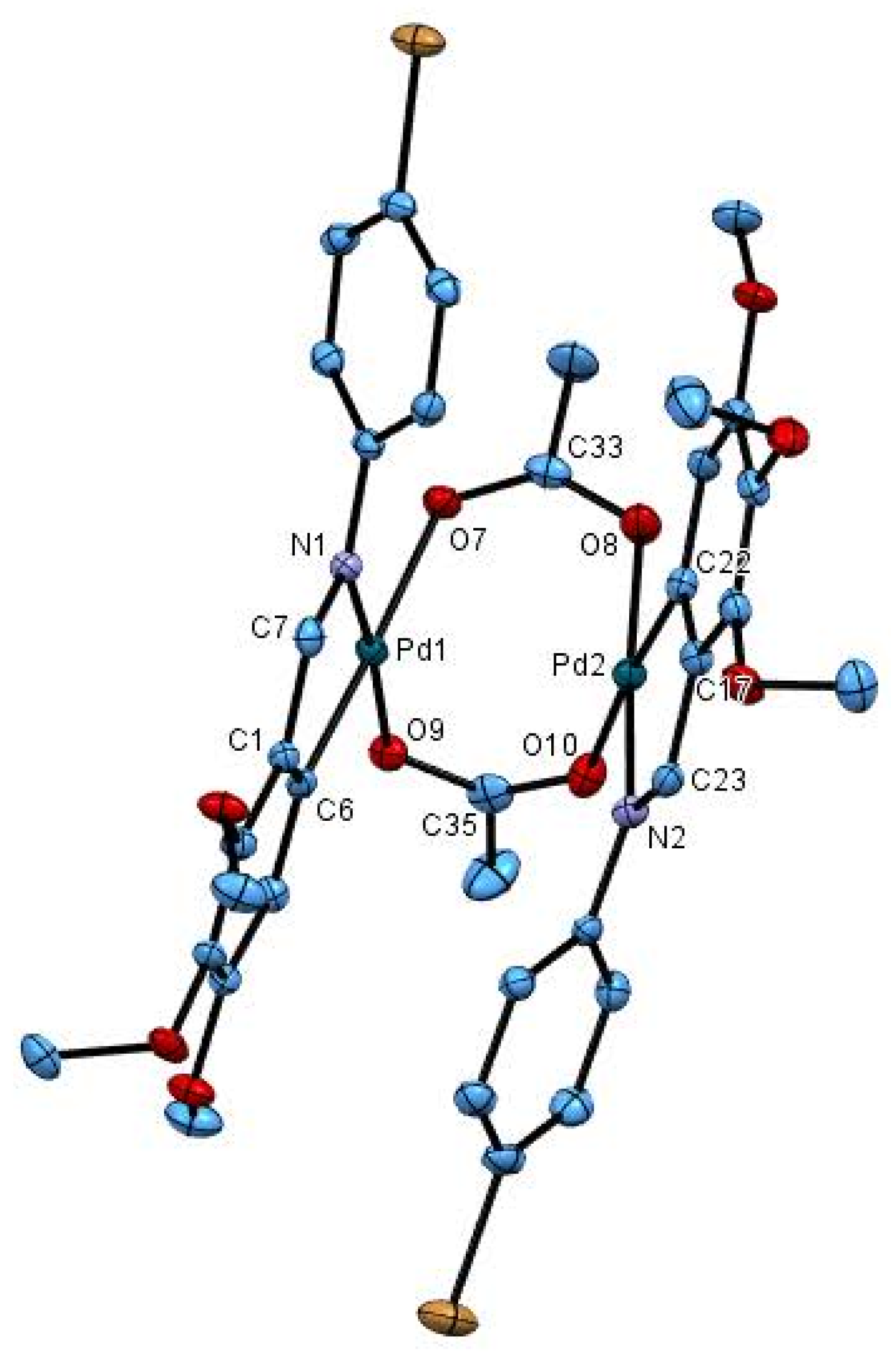

Figure 1. Thermal ellipsoid plot of 1c shown at the 30% probability level. Hydrogen atoms and angles and minor disorder components have been omitted for clarity. Selected bond lengths (Å) and angles (°): Pd(1)-O(7) 2.140(2); Pd(1)-O(9) 2.045(2); Pd(1)-N(1) 2.027(3); Pd(1)-C(6) 1.962(3); Pd(2)-O(8) 2.041(2); Pd(2)-O(10) 2.141(2); Pd(2)-N(2) 2.045(3); Pd(2)-C(22) 1.962(3); O(7)-Pd(1)-O(9) 89.04(8); N(1)-Pd(1)-O(7) 98.09(9); C(6)-Pd(1)-O(9) 91.70(11); C(6)-Pd(1)-N(1) 81.16(12); O(10)-Pd(2)-O(8) 89.43(9); O(10)-Pd(2)-N(2) 98.08(9); C(22)-Pd(2)-N(2) 81.56(12); C(22) Pd(2) O(8) 90.78(11).
Figure 1. Thermal ellipsoid plot of 1c shown at the 30% probability level. Hydrogen atoms and angles and minor disorder components have been omitted for clarity. Selected bond lengths (Å) and angles (°): Pd(1)-O(7) 2.140(2); Pd(1)-O(9) 2.045(2); Pd(1)-N(1) 2.027(3); Pd(1)-C(6) 1.962(3); Pd(2)-O(8) 2.041(2); Pd(2)-O(10) 2.141(2); Pd(2)-N(2) 2.045(3); Pd(2)-C(22) 1.962(3); O(7)-Pd(1)-O(9) 89.04(8); N(1)-Pd(1)-O(7) 98.09(9); C(6)-Pd(1)-O(9) 91.70(11); C(6)-Pd(1)-N(1) 81.16(12); O(10)-Pd(2)-O(8) 89.43(9); O(10)-Pd(2)-N(2) 98.08(9); C(22)-Pd(2)-N(2) 81.56(12); C(22) Pd(2) O(8) 90.78(11).
Molecules 27 03146 g001

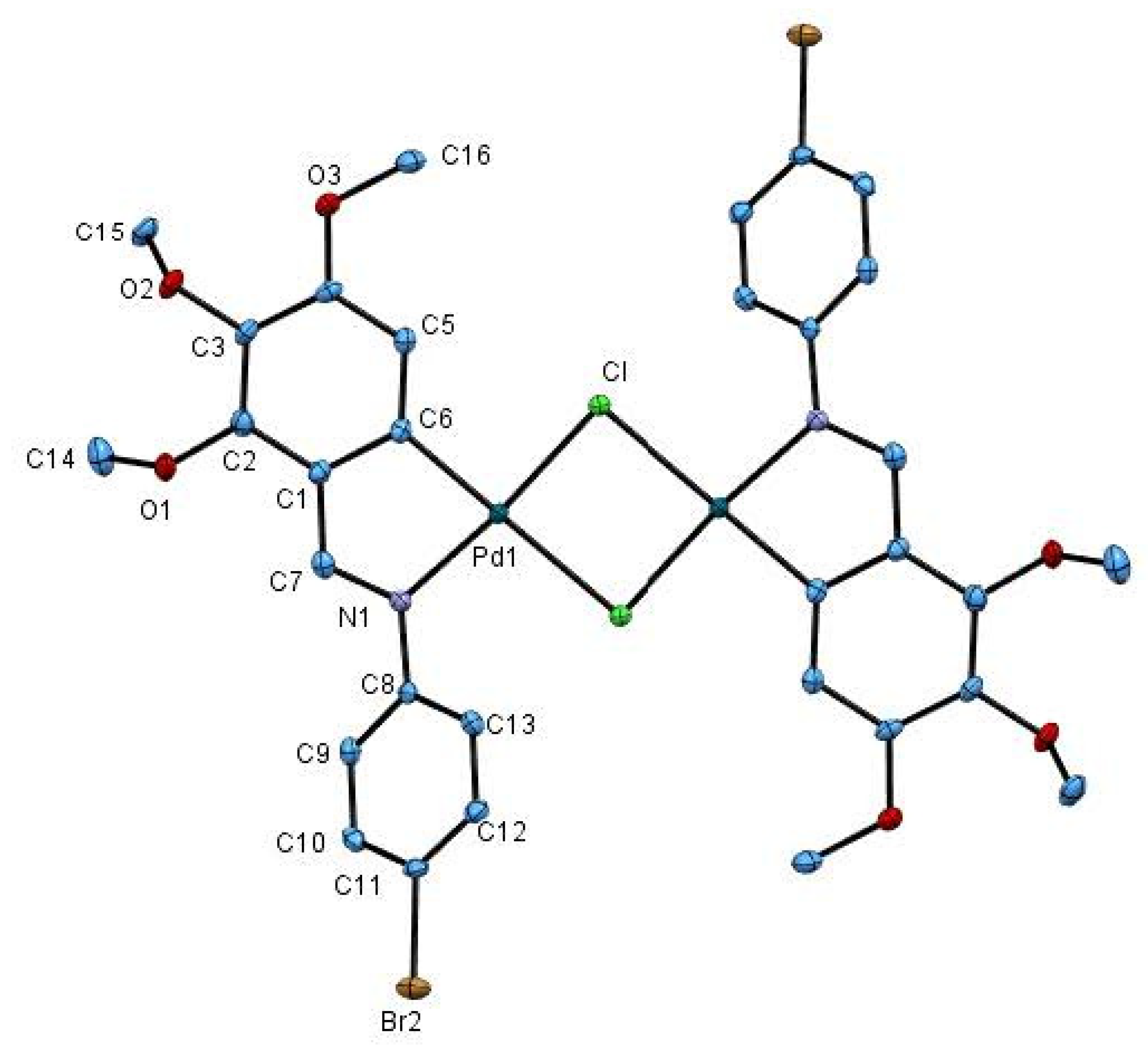

Figure 2. Thermal ellipsoid plot of 2cCl shown at the 30% probability level. Hydrogen atoms and minor disorder components have been omitted for clarity. Selected bond lengths (Å) and angles (°): Pd(1)-Cl(1) 2.4485(8); Pd(1)-Cl(1) 2.3338(8); Pd(1)-N(1) 2.048(3); Pd(1)-C(6) 1.966(3); N(1)-Pd(1)-Cl(1) 173.79(7); N(1)-Pd(1)-Cl(1) 99.35(7); C(6)-Pd(1)-Cl(1) 93.83(9); C(6)-Pd(1)-Cl(1) 178.38(9); C(6)-Pd(1)-N(1) 81.20(11); Cl(1)-Pd-(1)Cl(1) 85.52.
Figure 2. Thermal ellipsoid plot of 2cCl shown at the 30% probability level. Hydrogen atoms and minor disorder components have been omitted for clarity. Selected bond lengths (Å) and angles (°): Pd(1)-Cl(1) 2.4485(8); Pd(1)-Cl(1) 2.3338(8); Pd(1)-N(1) 2.048(3); Pd(1)-C(6) 1.966(3); N(1)-Pd(1)-Cl(1) 173.79(7); N(1)-Pd(1)-Cl(1) 99.35(7); C(6)-Pd(1)-Cl(1) 93.83(9); C(6)-Pd(1)-Cl(1) 178.38(9); C(6)-Pd(1)-N(1) 81.20(11); Cl(1)-Pd-(1)Cl(1) 85.52.
Molecules 27 03146 g002
Table 1. Reaction conditions a for the SMC.
Table 1. Reaction conditions a for the SMC.
Molecules 27 03146 i001
Entry[cat.]T (h)T (°C)Yield cEntry[cat.]T (h)T (°C)Yield c
11b580100204b5rt47
21c58098214c5rt52
32aCl580100225a244018
42aBr0.580100235a2480100
52aBr2rt100245a24rt0
62bCl580100255b248066
72bCl1rt80265b24rt0
82bBr1rt83276a248033
92cCl2rt88286a24rt0
103a180100296b248020
113a1rt35306b24rt0
123a3rt100317a580100
133b1rt37327a24rt99
143b3rt90337b580100
153b1rt37347b24rt95
163b3rt94358a58095
174a28083368b58090
184a24rt100378b24rt3
194b58090389b248015
a Reaction conditions: 0.1 mmol 4-bromoacetophenone, 1.2 eq. phenylboronic acid, 2 eq. base K2CO3, 2% mol catalyst; 3 cm3 THF:H2O (2:1), 2 mol% cat.; c determined by NMR.
Table 2. Catalytic activity of compound 2bCl under different reaction conditions a.
Table 2. Catalytic activity of compound 2bCl under different reaction conditions a.
EntryBaseSolvent bT (°C)Yield c
1K2CO3Toluene8065
2K2CO3THF:H2O d80100
3K2CO3H2O8091
4K2CO3EtOH:H2O e80100
5K2CO3THF:H2O crt41
6K3PO4THF:H2O crt41
7K2CO3EtOH:H2O drt100
8K3PO4EtOH:H2O drt100
a Reaction conditions: 1 mmol 4-bromoacetophenone, 1.2 eq. phenylboronic acid, 2 eq. base K2CO3, 2% mol 2bCl; b 2 cm3; c determined by NMR; d THF:H2O (2:1); e EtOH:H2O (1:1).
Table 3. Catalytic activity of compound 2bCl a.
Table 3. Catalytic activity of compound 2bCl a.
Molecules 27 03146 i002
EntryAryl HalideProductNo.T (h)T (°C)Yield b
1 Molecules 27 03146 i003 Molecules 27 03146 i00412410098
2 Molecules 27 03146 i005 Molecules 27 03146 i006124rt57
3 Molecules 27 03146 i007 Molecules 27 03146 i008148rt64
4 Molecules 27 03146 i009 Molecules 27 03146 i01022410013
5 Molecules 27 03146 i011 Molecules 27 03146 i012224rt100
6 Molecules 27 03146 i013 Molecules 27 03146 i01431100100
7 Molecules 27 03146 i015 Molecules 27 03146 i01641100100
8 Molecules 27 03146 i017 Molecules 27 03146 i01851100100
9 Molecules 27 03146 i019 Molecules 27 03146 i0206410098
10 c Molecules 27 03146 i021 Molecules 27 03146 i0227410060/33
(7/8)
11 c Molecules 27 03146 i023 Molecules 27 03146 i02472410060/33
(7/8)
12 d Molecules 27 03146 i025 Molecules 27 03146 i0268410033/62
(8/7)
13 d Molecules 27 03146 i027 Molecules 27 03146 i02882410053/38
(8/7)
14 d Molecules 27 03146 i029 Molecules 27 03146 i0309210088
a Reaction conditions: 1 mmol aryl halide, 1.2 eq. phenylboronic acid, 2 eq. base K2CO3, 2% mol 2bCl; 2 cm3 EtOH:H2O (2:1), 2 mol% cat.; b determined by NMR; c 1 mmol phenylboronic acid; d 2.4 mmol phenylboronic acid.
Table 4. Catalyst comparison a for the SMC.
Table 4. Catalyst comparison a for the SMC.
Molecules 27 03146 i031
Entry[cat.][cat.] mol%T (h)T (°C)Yield c
12bCl2%2410098
22bCl2%48rt64
3Pd(OAc)24%2410064
4 bPd(OAc)2 + b4%2410080
a Reaction conditions: 1 mmol 4-chloroacetophenone, 1.2 eq. phenylboronic acid, 2 cm3 EtOH:H2O (1:1); b Pd(OAc)2 4% molar + ligand b 4% molar. c determined by NMR.
