Graphene Assisted in the Analysis of Coumarins in Angelicae Pubescentis Radix by Dispersive Liquid–Liquid Microextraction Combined with 1H-qNMR
Abstract
:1. Introduction

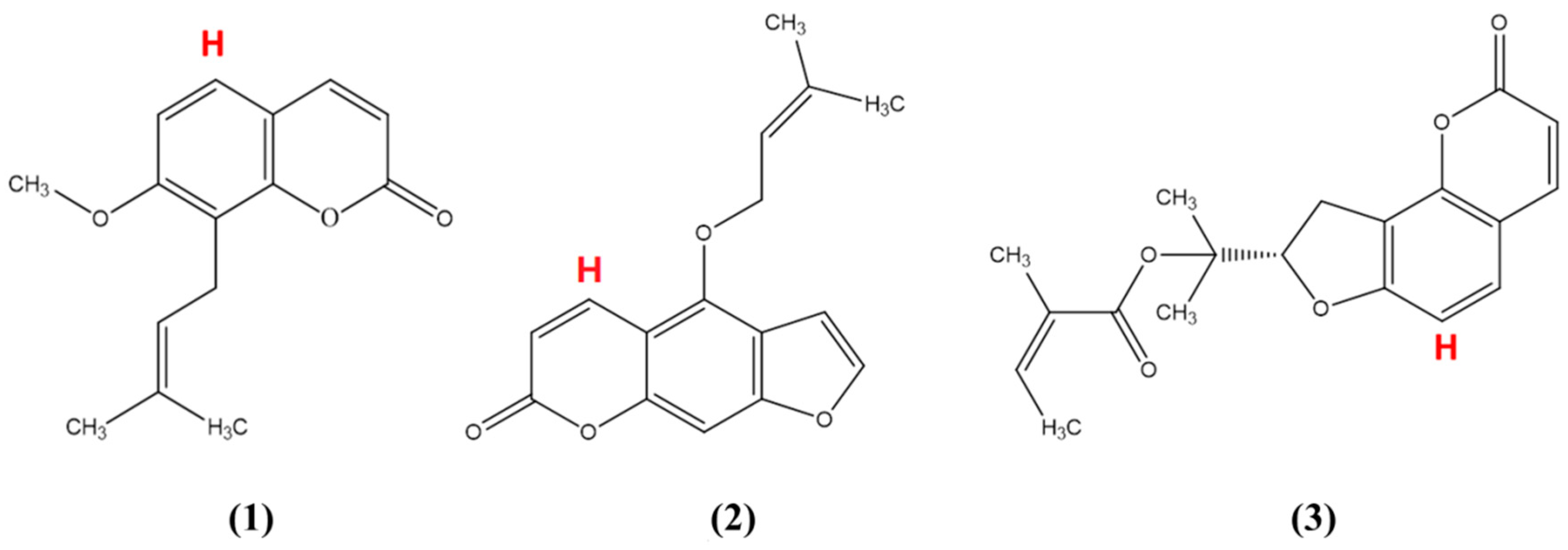

2. Results and Discussion
2.1. Optimization of NMR Parameters
2.1.1. Choice of D1
2.1.2. Choice of NS
2.2. Optimization of DLLME-SFO Conditions
2.2.1. Choice of Extractant and Dispersant
2.2.2. Selection of Volume Ratio of Distilled Water to Test Sample Solution

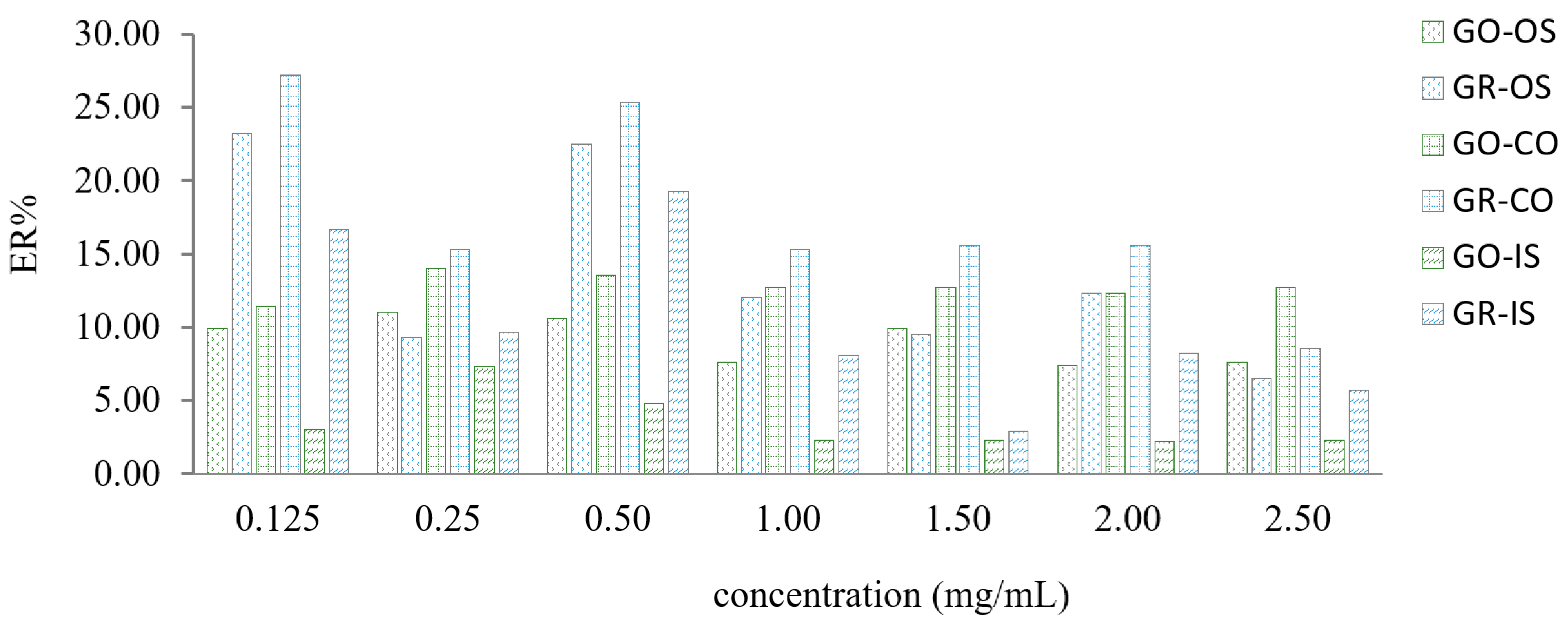

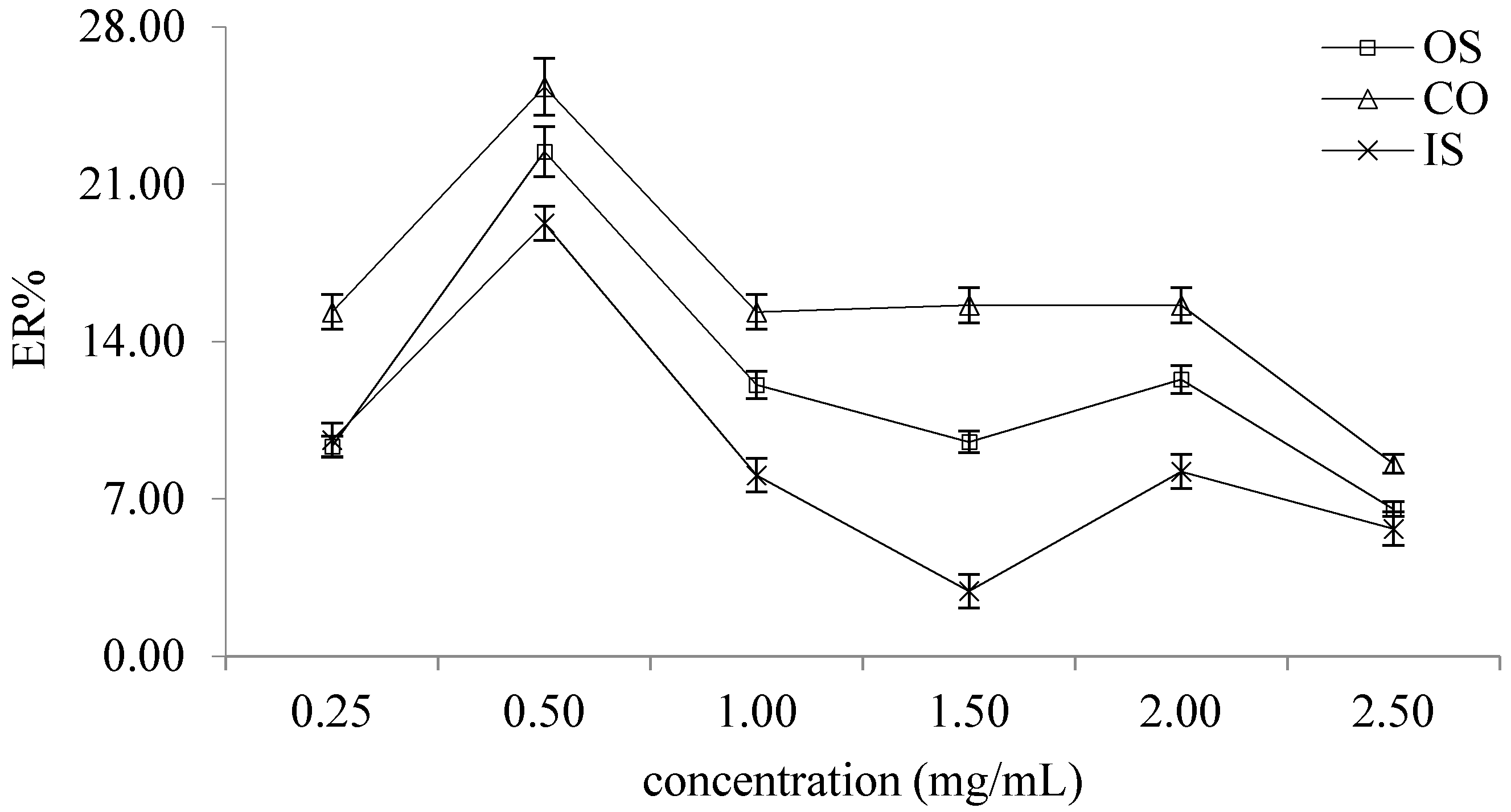

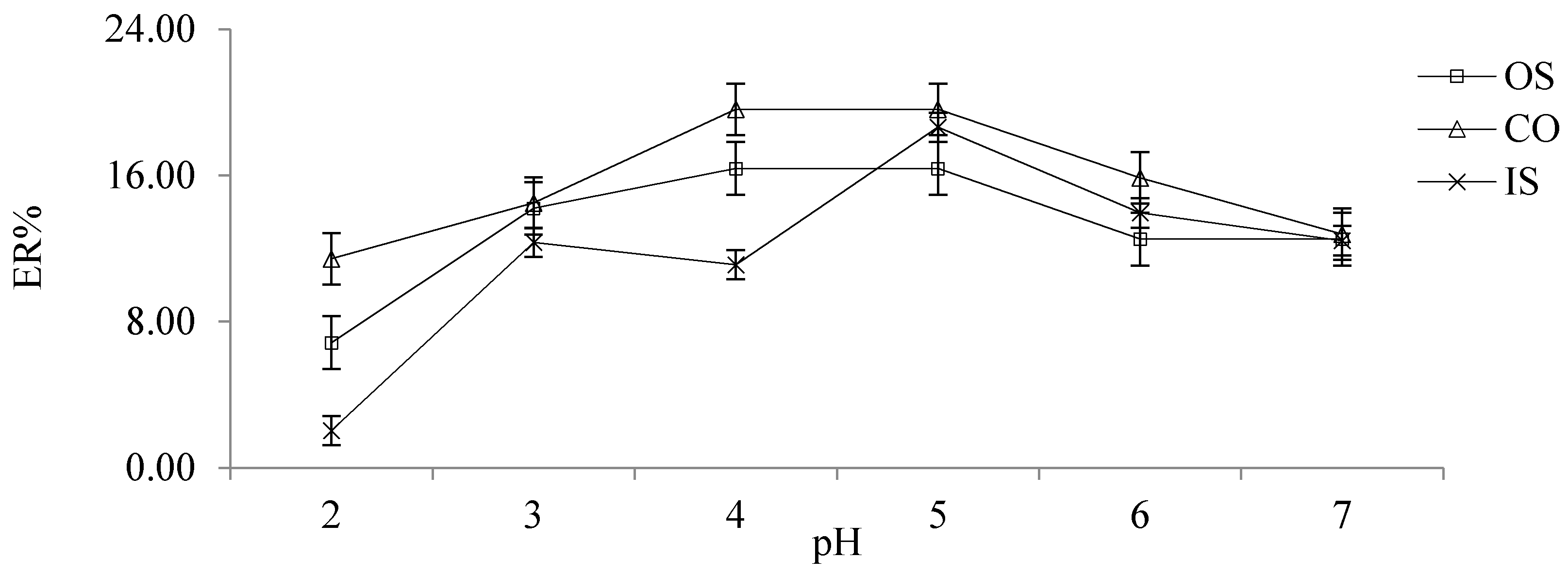

2.2.3. Selection of Graphene Concentration in 1-Dodecyl Alcohol

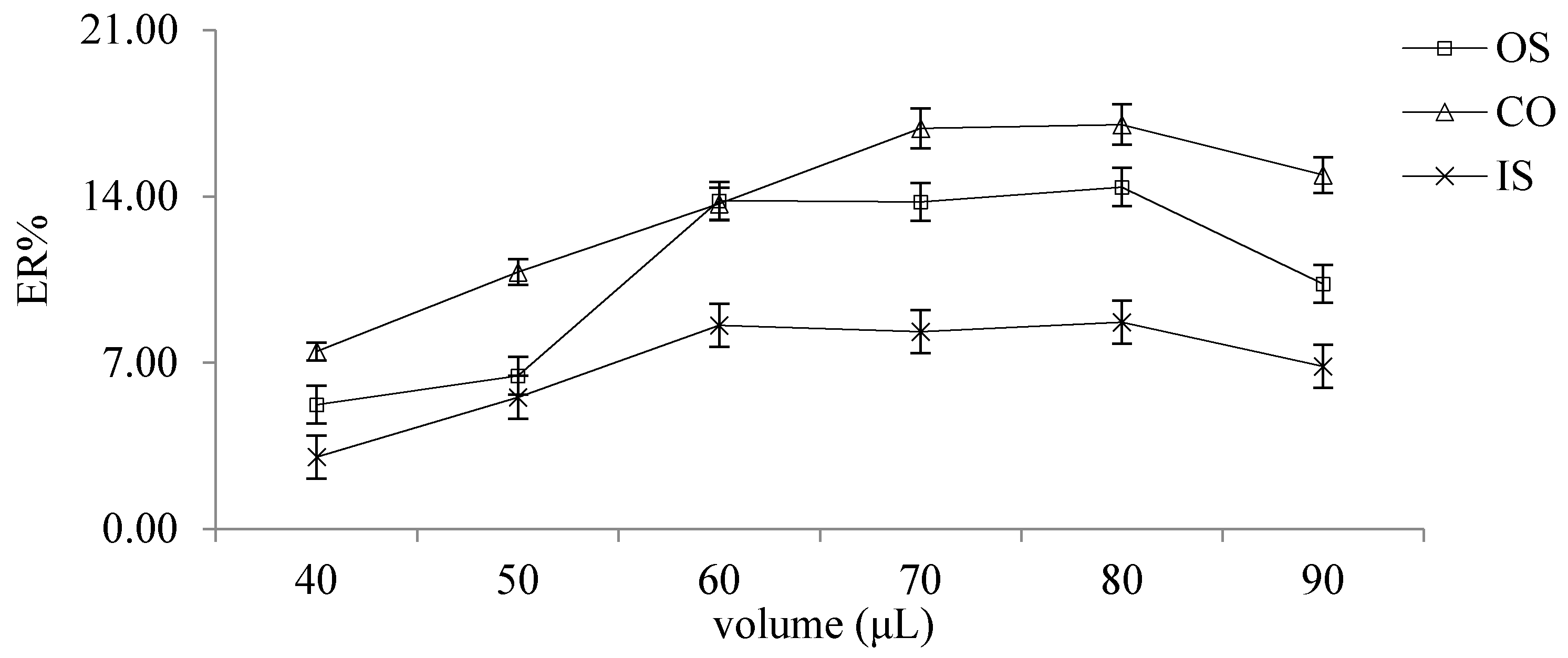

2.2.4. Selection of Extractant Volume
2.2.5. Selection of Extractant Volume

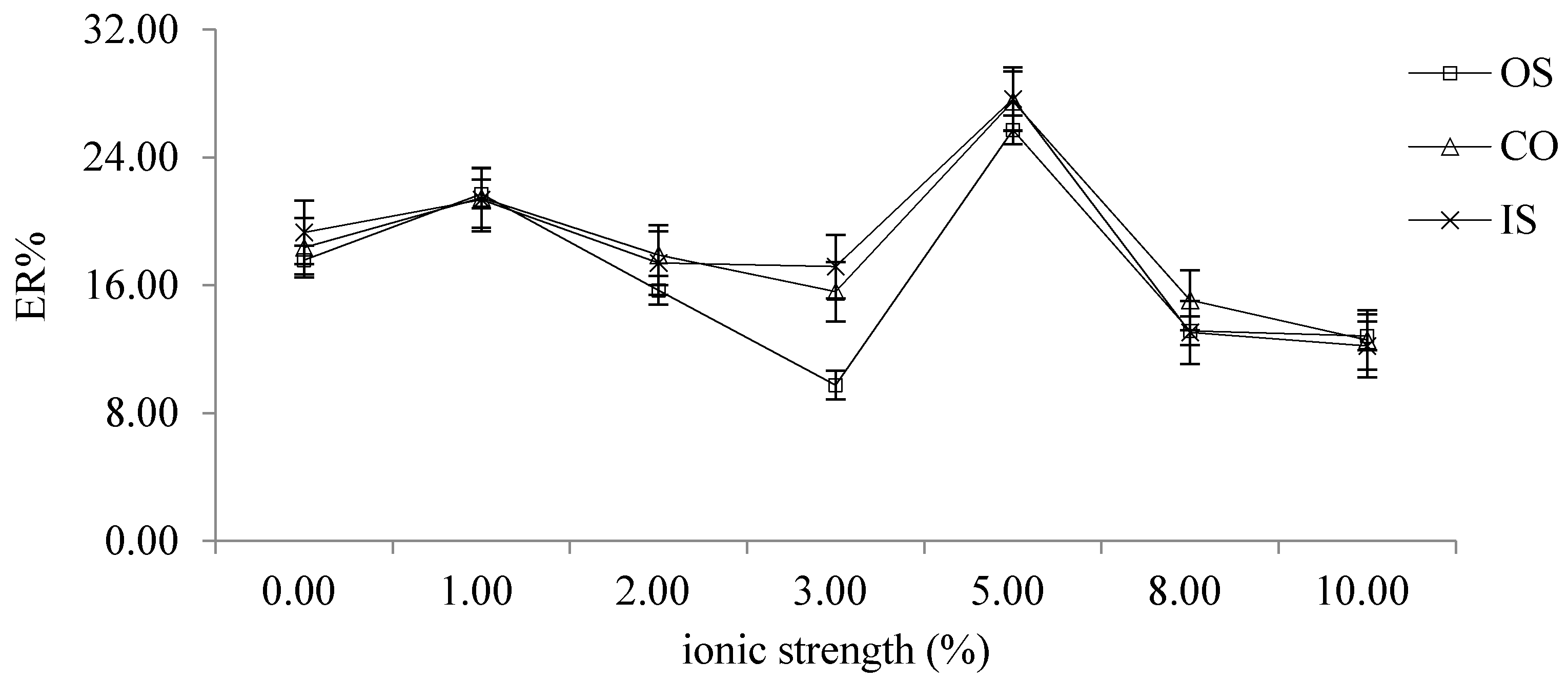

2.2.6. Choice of Ionic Strength

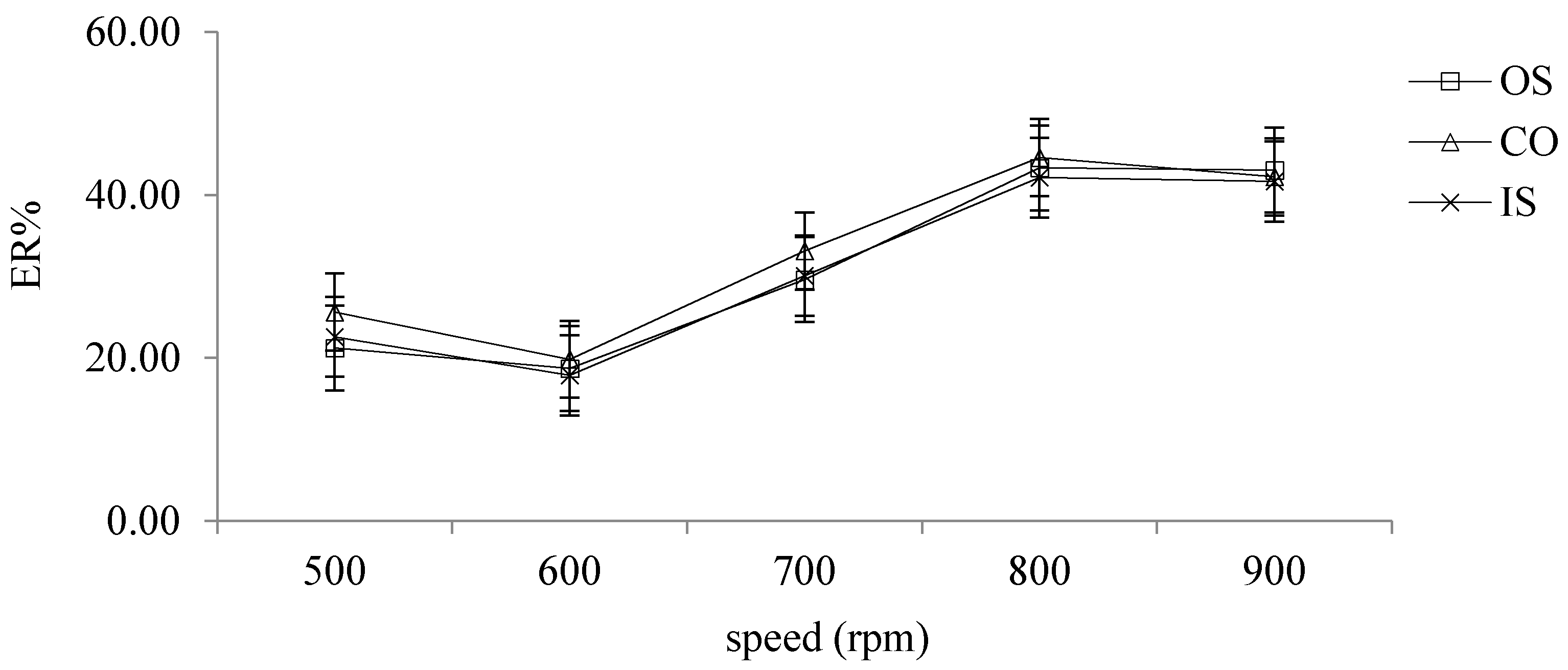

2.2.7. Selection of Different Speed

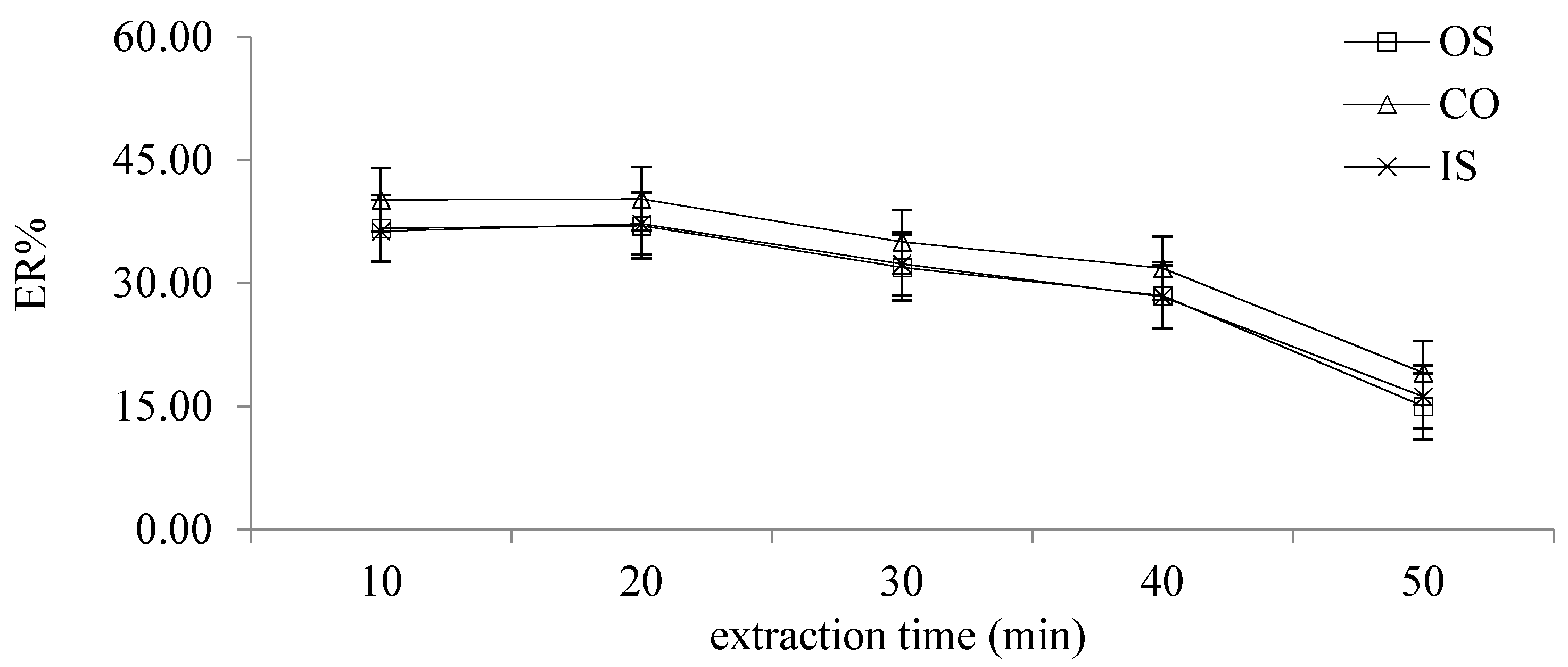

2.2.8. Different Extraction Times
2.3. Methodology Validation
2.3.1. Linearity
2.3.2. Limit of Detection and Limit of Quantification
2.3.3. Precision
2.3.4. Stability and Repeatability
2.3.5. Recovery
2.4. Determination of the Samples
3. Materials and Methods
3.1. Reagent
3.2. Chemical
3.3. Method
3.3.1. Preparation of Sample Solution

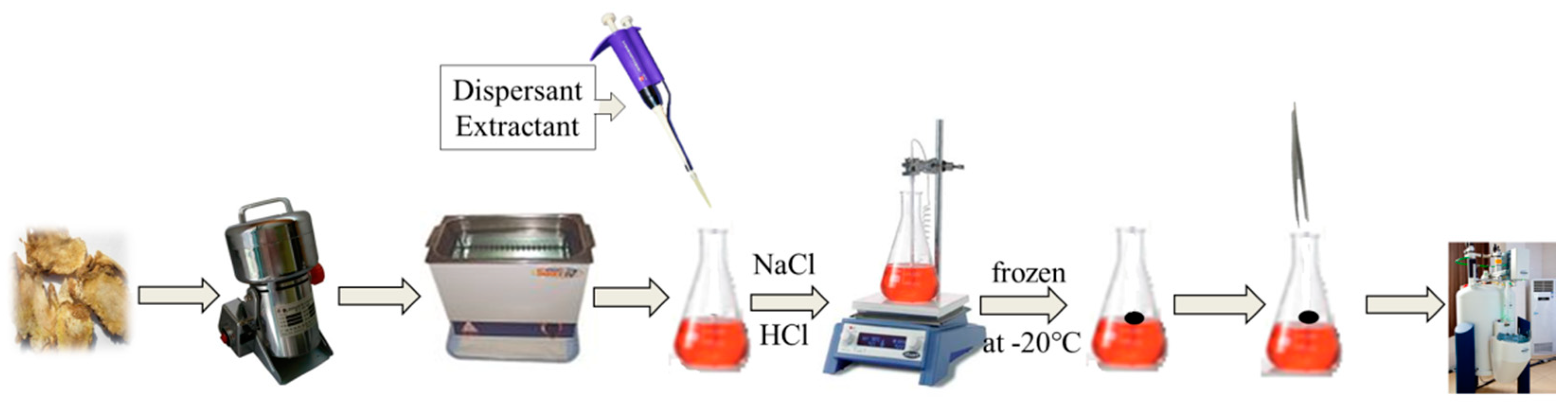

3.3.2. Extraction Process of DLLME-SFO

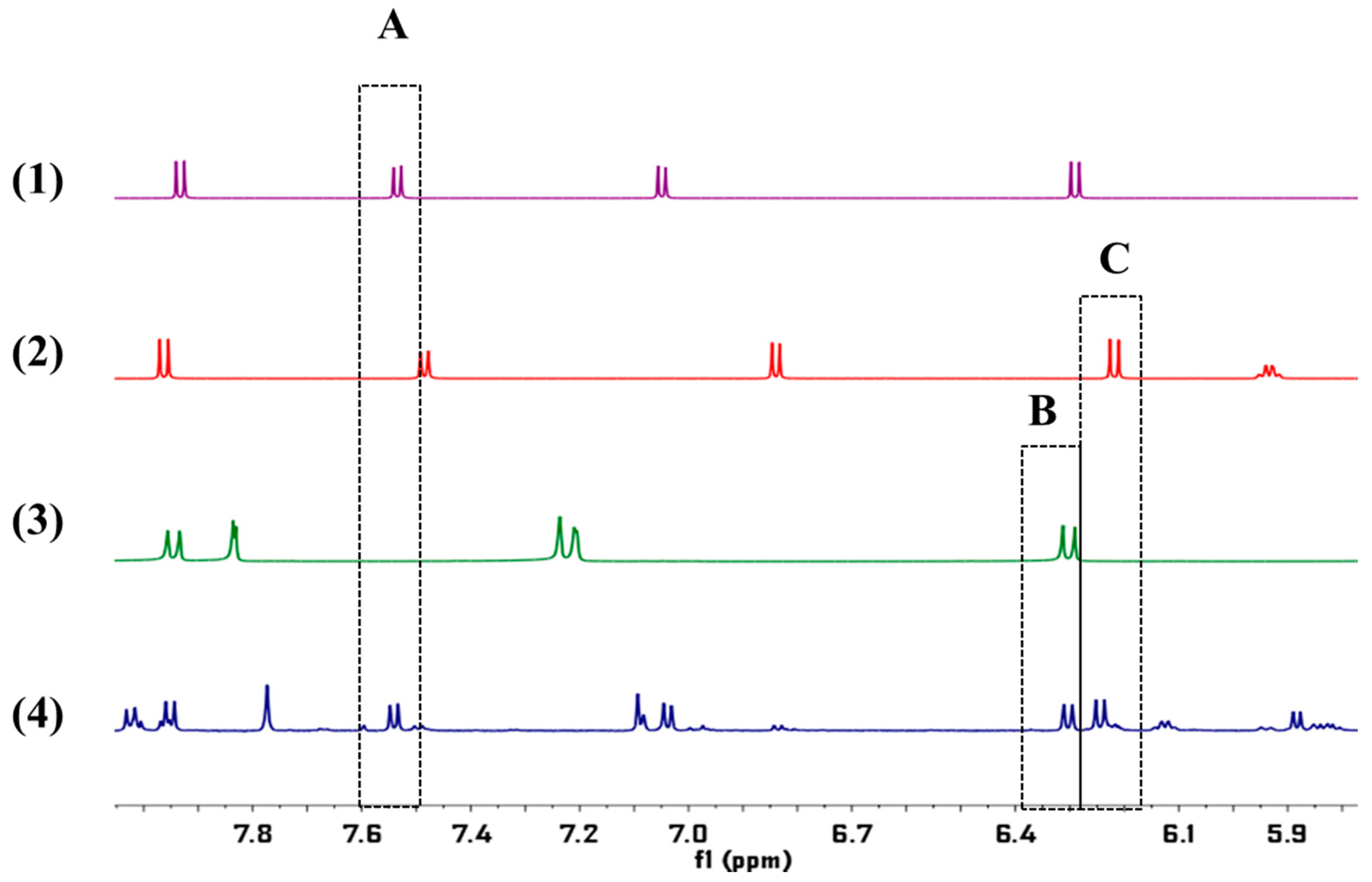

3.3.3. NMR Acquisition and Processing Parameters
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Sample Availability
References
