Towards Reversible High-Voltage Multi-Electron Reactions in Alkali-Ion Batteries Using Vanadium Phosphate Positive Electrode Materials

Abstract

Vanadium phosphate positive electrode materials attract great interest in the field of Alkali-ion (Li, Na and K-ion) batteries due to their ability to store several electrons per transition metal. These multi-electron reactions (from V²⁺ to V⁵⁺) combined with the high voltage of corresponding redox couples (e.g., 4.0 V vs. for V³⁺/V⁴⁺ in Na₃V₂(PO₄)₂F₃) could allow the achievement the 1 kWh/kg milestone at the positive electrode level in Alkali-ion batteries. However, a massive divergence in the voltage reported for the V³⁺/V⁴⁺ and V⁴⁺/V⁵⁺ redox couples as a function of crystal structure is noticed. Moreover, vanadium phosphates that operate at high V³⁺/V⁴⁺ voltages are usually unable to reversibly exchange several electrons in a narrow enough voltage range. Here, through the review of redox mechanisms and structural evolutions upon electrochemical operation of selected widely studied materials, we identify the crystallographic origin of this trend: the distribution of PO₄ groups around vanadium octahedra, that allows or prevents the formation of the vanadyl distortion (O^…V⁴⁺=O or O^…V⁵⁺=O). While the vanadyl entity massively lowers the voltage of the V³⁺/V⁴⁺ and V⁴⁺/V⁵⁺ couples, it considerably improves the reversibility of these redox reactions. Therefore, anionic substitutions, mainly O²⁻ by F⁻, have been identified as a strategy allowing for combining the beneficial effect of the vanadyl distortion on the reversibility with the high voltage of vanadium redox couples in fluorine rich environments.

1. Introduction

In the 2000s, the research on polyanion compounds as positive electrode materials was mainly motivated by the interesting properties of the low cost triphylite LiFePO₄ [1,2,3,4,5] (olivine-type structure) providing long-term structural stability, essential for extensive electrochemical cycling and safety issues. In this material, the high voltage for the Fe²⁺/Fe³⁺ redox couple delivered in LiFePO₄ (i.e., 3.45 V vs. Li⁺/Li vs. ca. 2.2 V in oxides) is due to the inductive effect of the phosphate group. Further exploitation of the inductive effect with fluorine and/or sulfate has led to materials such as LiFeSO₄F (Tavorite or Triplite structure) delivering an even higher voltage than LiFePO₄ (i.e., 3.6 V and 3.9 V vs. Li⁺/Li for Tavorite and Triplite structures, respectively) [6,7]. However, these materials suffer from a deficit of capacity compared to the current best commercially available Li-ion positive electrode materials. Li₂FeSiO₄ has been proposed to overcome this issue by triggering both Fe²⁺/Fe³⁺ and Fe³⁺/Fe⁴⁺ redox couples but the strong structural changes involved seem to be detrimental to long-term performances [8]. To the best of our knowledge, this material is the only one providing a multi-electron reaction (i.e., exchange of more than one electron per transition metal) in iron-based polyanion systems while vanadium phosphate materials offer numerous such examples. Indeed, the ability of vanadium to be stabilized in the large range of oxidation states, from V²⁺ to V⁵⁺ (e.g., from V³⁺ in Li₂VPO₄O to V⁵⁺ in VPO₄O) [9,10,11,12,13] combined with the rather high voltage of the corresponding redox couples (e.g., 4.25 V vs. Li⁺/Li for V³⁺/V⁴⁺ in LiVPO₄F) [14] could allow the achievement of high energy density thanks to reversible high-voltage multi-electron redox in Alkali-ion batteries (Figure 1).

However, depending on the geometry of the VO_n polyhedra, the positions of the V³⁺/V⁴⁺ and V⁴⁺/V⁵⁺ redox couples massively change. For instance, Tavorite LiVPO₄F operates at 4.25 V vs. Li⁺/Li while in the homeotype LiVPO₄O, the apparent same V³⁺/V⁴⁺ redox couple is activated at 2.3 V vs. Li⁺/Li. This large difference cannot be attributed only to the inductive effect, Li site energy or even cation-cation repulsion (i.e., main mechanisms reported to govern the voltage of a given redox couple): it is actually due to the vanadyl distortion observed in LiVPO₄O and not in LiVPO₄F. The first order Jahn Teller (FOJT) distortion is known to be weak in d¹ (V⁴⁺) and d² (V³⁺) and even inexistent for d³ (V²⁺) and d⁰ (V⁵⁺) cations (Figure 2). Therefore, the second order Jahn Teller (SOJT) effect drives the distortion of the V⁴⁺ and V⁵⁺ polyhedra while this distortion can be prevented for V⁴⁺ in a mixed O²⁻/F⁻ environment. This wide range of oxidation states for vanadium cations (V²⁺, V³⁺, V⁴⁺ and V⁵⁺) and the extended panel of environments that they can adopt (regular octahedra, distorted octahedra, square pyramids and tetrahedra) with very different electronic configurations depending on the ligand distribution (JT active or JT inactive) confer to the vanadium phosphate a very rich crystal chemistry.

Beyond their fascinating electrochemical properties, vanadium phosphate materials possess very interesting catalytic and magnetic properties. The relation between structures and these properties was already reviewed by Raveau’s group 20 years ago [15] and despite the existence of several reviews on polyanionic structures in Li and Na-ion batteries [16,17,18,19], or even specific to vanadyl phosphates (i.e., A_x(VO)PO₄) [20,21], none of them focused on the relation between electrochemical properties and crystallographic structure in vanadium phosphates. Therefore, this article aims at clarifying this relation in order to unveil the structural features that dictate the redox voltage in such compounds. Through the fine description of the redox mechanism and the structural evolution observed during cycling of some widely studied materials (NASICON Na₃V₂(PO₄)₃, anti-NASICON Li₃V₂(PO₄)₃, Na₃V₂(PO₄)₂F_3xO_x, and Tavorite-like LiVPO₄F_1−xO_x) we propose to sort all the vanadium phosphates reported as positive electrode materials for Li and Na-ion batteries according to the distribution of phosphate groups around the vanadium polyhedra. This classification gives a holistic picture of such systems and allows for identifying the strategies available to tend towards reversible high-voltage multi-electron reactions in Alkali-ion batteries.

2. Irreversible Multi-Electron Reactions in NASICON and Anti-NASICON A_xV₂(PO₄)₃ (A = Li, Na) Structures

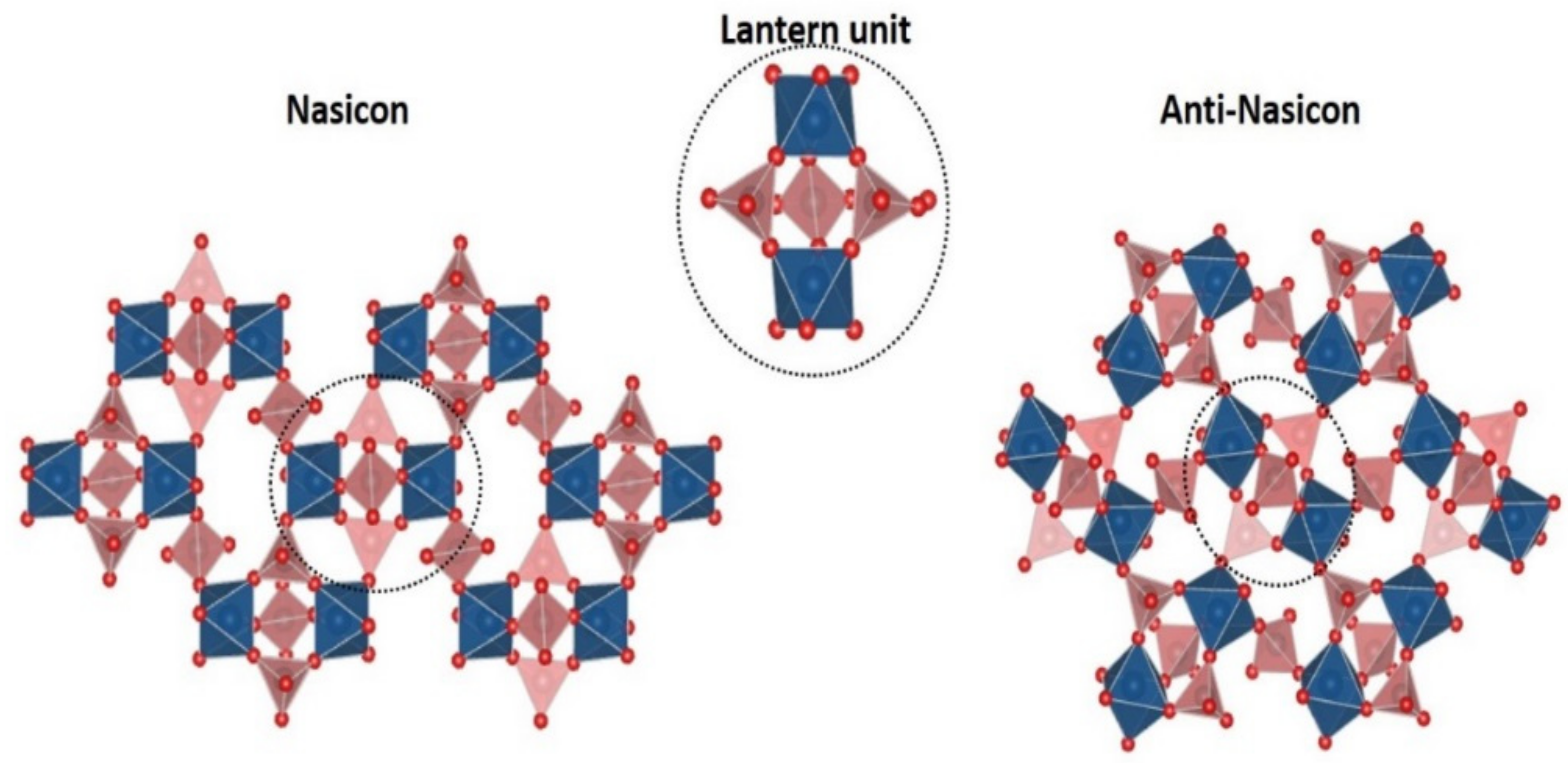

The NASICON (Na-super ionic conductor) and anti-NASICON structures have the general formula A_xM₂(XO₄)₃ (with M = Fe, Ti, Sc, Hf, V, Ti, Zr, etc. or mixtures of them and X = W, P, S, Si, Mo or mixtures of them) [22,23]. These versatile structures have provided a great playground for solid state chemists. Manthiram and Goodenough demonstrated experimentally the inductive effect which modulates the voltage of the Fe³⁺/Fe²⁺ redox couple in NASICON [24] which is at the origin of all advances on polyanion materials as positive electrode materials for Alkali-ion batteries. The crystallographic arrangements of NASICON and anti-NASICON are closely related. Indeed, they are built on a three-dimensional framework of VO₆ octahedra sharing all their corners with PO₄ tetrahedra and conversely forming basic V₂(PO₄)₃ repeating units commonly named “lantern units” (Figure 3). The connectivity of the lantern units generates different ion conduction paths, vanadium environments and hence different electrochemical properties.

In the structure of the anti-NASICON polymorph of Li₃V₂(PO₄)₃, the lithium ions fully occupy three crystallographic sites (one tetrahedral Li(1)O₄ and two pseudo tetrahedral Li(2)O₄O and Li(3)O₄O sites) [25,26,27]. The electrochemical extraction of lithium from Li₃V₂(PO₄)₃ occurs according to several biphasic reactions involving the V³⁺/V⁴⁺ redox couple at 3.6, 3.7 and 4.1 V vs. Li⁺/Li and then the V⁴⁺/V⁵⁺ one at 4.5 V vs. Li⁺/Li (Figure 4).

Nazar and coworkers [27] studied the complex phase diagram involved during lithium extraction from Li₃V₂(PO₄)₃ through X-ray and neutron diffraction (XRD and ND) and solid state nuclear magnetic resonance spectroscopy (NMR), as summarized in Figure 5. The first delithiation step leads to the formation of Li₂.₅V₂(PO₄)₃ with partial depopulation of the pseudo tetrahedral (Li(3)O₄O) site and to a complex short range ordering of V³⁺/V⁴⁺ cations [28]. The following delithiation stage affects only the remaining Li(3) ions to yield to Li₂V₂(PO₄)₃ characterized by lithium/vacancies and V³⁺/V⁴⁺ orderings as suggested by diffraction. The further oxidation of vanadium allows reaching the V⁴⁺-rich LiV₂(PO₄)₃ phase in which only one Li site remains (Li(2)) as fully occupied. In this phase, there are two very similar crystallographic sites for vanadium ((V(1)-O = V(2)-O = 1.91 Å in average).

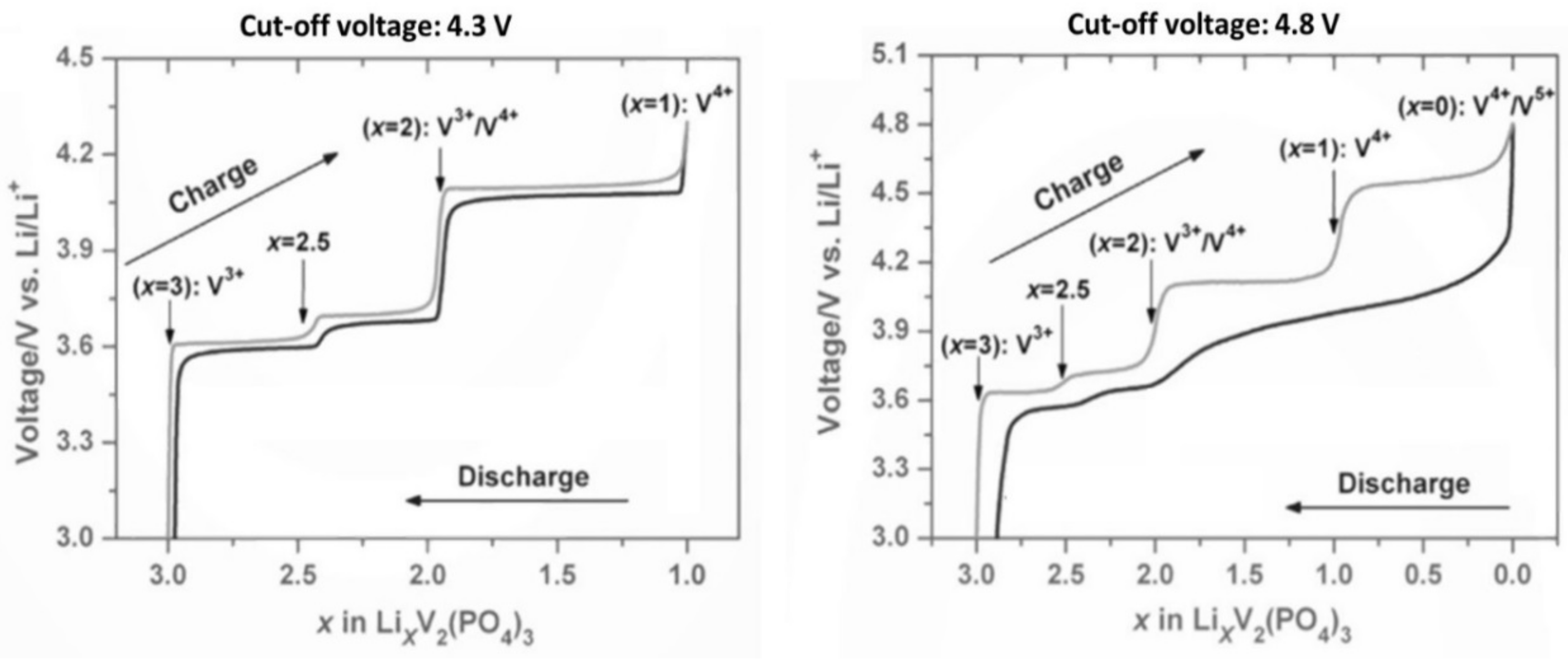

Figure 4. Electrochemical signature of Li₃V₂(PO₄)₃ cycled between (left) 3.0 and 4.3 V vs. Li⁺/Li or between (right) 3.0 and 4.8 V vs. Li⁺/Li adapted from ref. [29]. Reproduced with permission from Rui et al., Journal of Power Sources; published by Elsevier, 2014.

Figure 4. Electrochemical signature of Li₃V₂(PO₄)₃ cycled between (left) 3.0 and 4.3 V vs. Li⁺/Li or between (right) 3.0 and 4.8 V vs. Li⁺/Li adapted from ref. [29]. Reproduced with permission from Rui et al., Journal of Power Sources; published by Elsevier, 2014.

The last process leading to the V₂(PO₄)₃ composition is kinetically more limited with a large over-potential (around 500 mV) [27]. At this state of charge, the environments of vanadium (with a mixed valence V⁴⁺/V⁵⁺) become more distorted, although without significant modification compared to the average V-O distances observed in the V^IV-rich LiV₂(PO₄)₃ phase. This extraction/insertion process is asymmetrical as the lithium ordering observed for LiV₂(PO₄)₃ during charge is not observed during discharge. A disordered Lithium re-intercalation is observed until the Li₂V₂(PO₄)₃ composition is reached [30]. This asymmetrical mechanism is not observed for a lower cut-off voltage (i.e., 4.3 V when the V⁴⁺/V⁵⁺ redox couple is not activated, see Figure 4). Under this electrochemical cycling conditions the charge and discharge superimposes [31]. That was tentatively explained, in ref. [27], by the occurrence of Lithium/vacancies ordering observed in LiV₂(PO₄)₃ which involves an ordered depopulation of Lithium, whereas from the disordered fully delithiated phase the lithium is free to be inserted randomly until the Li₂V₂(PO₄)₃ composition is recovered. More recently, operando XAS at V K-edge investigation of this irreversible mechanism suggested the formation of anti-site Li/V defects at high voltage (Figure 5) providing V⁵⁺ with a much more stable tetrahedral environment than its initial distorted octahedral one [32].

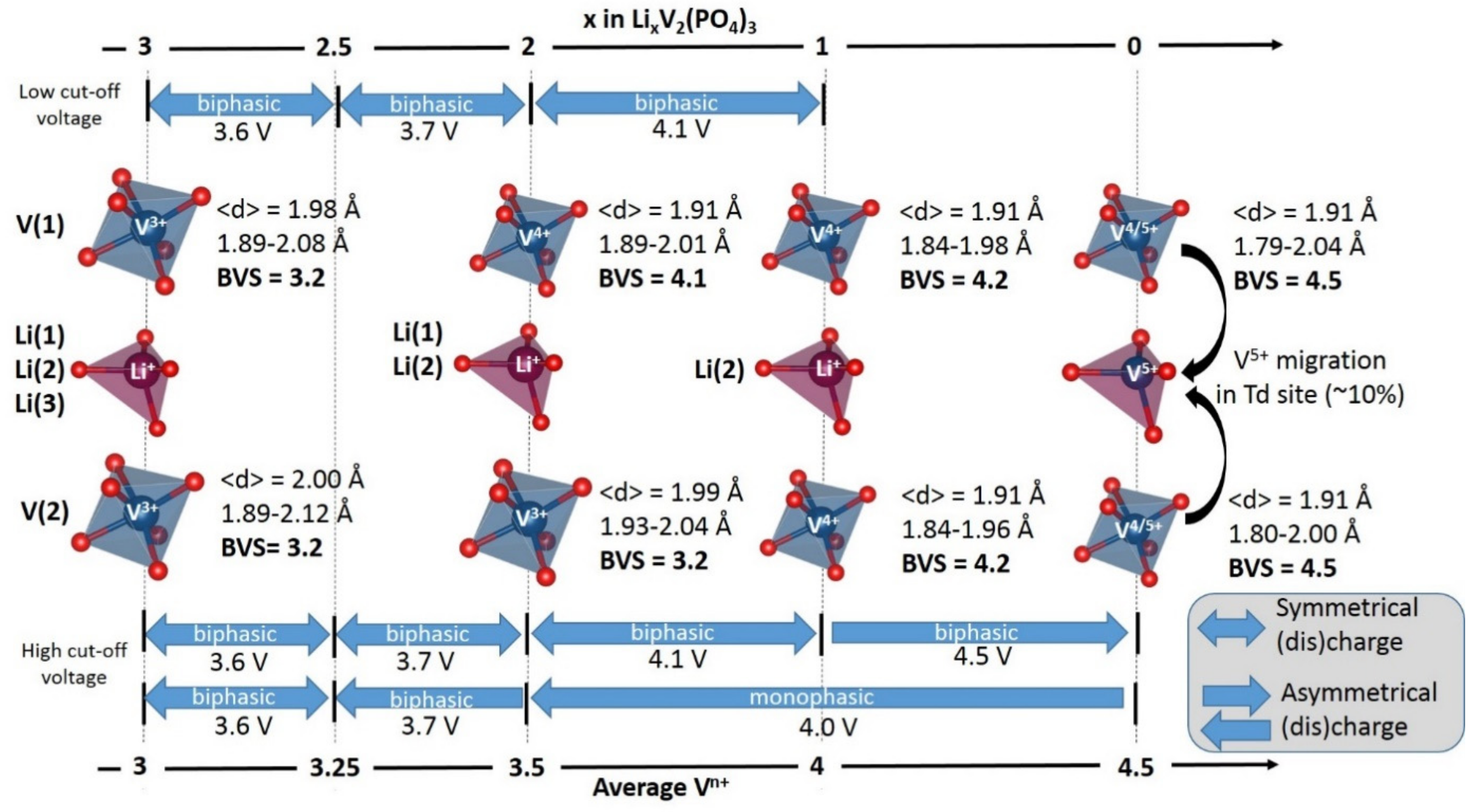

Figure 5. Structural evolution during Lithium extraction/insertion from/into Li₃V₂(PO₄)₃ [27,32].

Figure 5. Structural evolution during Lithium extraction/insertion from/into Li₃V₂(PO₄)₃ [27,32].

In Li₃V₂(PO₄)₃, the electronically insulating phosphate groups isolate the valence electrons of transition metals within the lattices resulting in low intrinsic electronic conductivities—a trend common to all polyanion compounds. Therefore, the use of carbon coating or/and doping elements are required to improve the electrochemical performances: all the works applying these strategies are reviewed in ref [29]. The majority of these studies reports good performances only in the small voltage range (i.e., 3.0–4.3 V vs. Li⁺/Li, in which only the V³⁺/V⁴⁺ is activated). Indeed, due to the strong distortion of vanadium environments and the Li/V anti-site defects generated, the kinetic limitations of the V⁴⁺/V⁵⁺ process is difficult to overcome.

The lithium insertion into Li₃V₂(PO₄)₃ reveals a complex series of reactions as well, to reach Li₅V₂(PO₄)₃ by activating the V²⁺/V³⁺ redox couple [33]. The whole lithium insertion process into Li_3+xV₂(PO₄)₃ involves four consecutive two-phase regions to reach Li₅V₂(PO₄)₃. Approximately 0.5 Li⁺ is inserted at every potential plateau around 1.95, 1.86, 1.74 and 1.66 V vs. Li⁺/Li [26]. To the best of our knowledge, the crystallographic details of this complex mechanism have never been fully studied yet.

The anti-NASICON polymorph of Li₃V₂(PO₄)₃ is most thermodynamically stable but Gaubicher et al. [34] obtained the NASICON form by Na⁺/Li⁺ ionic exchange from Na₃V₂(PO₄)₃. This material reveals a similar electrochemical signature compared to the one of Na₃V₂(PO₄)₃ with a single plateau until the LiV₂(PO₄)₃ composition at 3.7 V vs. Li⁺/Li. The crystal structure of Na₃V₂(PO₄)₃ was originally reported by Delmas et al. [35] 40 years ago using the standard rhombohedral unit cell, S.G. R-3c. Since then, Na₃V₂(PO₄)₃ has almost always been reported to adopt the rhombohedral symmetry with a partial occupancy of both Na(1) (6b Wyckoff position) and Na(2) (18e Wyckoff position) sodium sites. However, a recent article reveals that a C2/c space group is more appropriate to describe this structure at room temperature and below due to Sodium-vacancies ordering [36] within five sites (one 4a and four others 8f) fully occupied. Several transitions between 10 and 230 °C involving four distinct phases (α ordered, β and β′ with incommensurate modulations and γ disordered) were also reported. The transition between the α and β forms occurring close to the ambient temperature (i.e., 27 °C) may impact the sodium diffusion and a fortiori the electrochemical performances while the vanadium environment is hardly impacted by this phase transition. In both cases the VO₆ entities are slightly distorted with distances ranging between 1.97 and 2.03 Å for the rhombohedral description (2.00 Å in average on a single vanadium site) or 1.94 and 2.06 Å for the monoclinic one (2.00 Å in average on the three vanadium sites).

The electrochemical sodium extraction from Na₃V₂(PO₄)₃ occurs at a 3.4 V vs. Na⁺/Na according to a biphasic reaction until the NaV₂(PO₄)₃ composition is reached (Figure 6). The structure of this V⁴⁺ phase, reported by Jian et al. [37], keeps a NASICON framework (Rhombohedral, R$\overline{3}$c) with only one fully occupied sodium site (6b Wyckoff site). During the sodium extraction, the V-O distances in VO₆ octahedra undergo an inequivalent shortening leading to distorted VO₆ octahedra (with 3 V-O distances at 1.86 Å and three others at 1.95 Å). The electrochemical extraction of the third sodium has never been reported despite the apparent successful chemical extraction realized by Gopalakrishnan et al. [38]. However, they did not report the detailed structure of this mixed-valence V₂(PO₄)₃.

Even though the third Na⁺ of Na₃V₂(PO₄)₃ doesn’t seem electrochemically removable, the V⁴⁺/V⁵⁺ redox couple in the NASICON was reported to lie at around 4 V vs. Na⁺/Na thanks to the partial substitution of a part of Vanadium by Aluminum [39], Iron [40] or Chromium [41]. The Aluminum substituted material presents two advantages as it allows an increase in the capacity due to the lower weight of aluminum compared to vanadium (and also iron and chromium) as well as to reach the mixed valence V⁴⁺/V⁵⁺ state at rather high voltage (i.e., 4.0 V vs. Na⁺/Na, see Figure 6). However, in the Al³⁺ substituted compound, the V⁴⁺/V⁵⁺ capacity is limited contrarily to that observed in Na₃VCr(PO₄)₃ where nearly 1.5 electrons/vanadium are exchanged [42]. At room temperature, this redox process induces a rapid degradation of the performance due to the migration of vanadium into the vacant Na site, while at lower temperature (i.e., −15 °C), vanadium is pinned in its original position leading to a rather reversible process is observed [43]. The V⁴⁺/V⁵⁺ redox couple has also been reported in Na-rich NASICON such as Na₄MnV(PO₄)₃ [44,45,46,47]. From this compound, ca. 3 Na⁺ are exchanged based on the V³⁺/V⁴⁺, Mn²⁺/Mn³⁺ and then V⁴⁺/V⁵⁺ redox achieving a capacity of 155 mAh/g. However, this latter appears to be poorly reversible inducing a higher irreversible capacity upon discharge during which the highly polarized S-shape voltage profile contrasts with staircase charge curve [45,46,47].

The replacement of a (PO₄)³⁻ group in Na₃V₂(PO₄)₃ by 3 F⁻ leads to the Na₃V₂(PO₄)₂F₃ composition, often named as a “NASICON composition” but its crystal structure is fundamentally different.

3. Irreversible Multi-Electron Reactions in Na₃V₂(PO₄)₂F₃

The first physico-chemical investigation of the Na₃M₂(PO₄)₂F₃ system was conducted 20 years ago by Le Meins et al. [48]. They demonstrated a great compositional tunability of this framework which can accommodate many trivalent cations in octahedral sites (M = Al, V, Cr, Fe and Ga) and proposed the description of the structure of the vanadium phase in the P4₂/mnm space group. Later, a combined synchrotron X-ray and neutron diffraction investigation revealed a tiny orthorhombic distortion at room temperature [49].

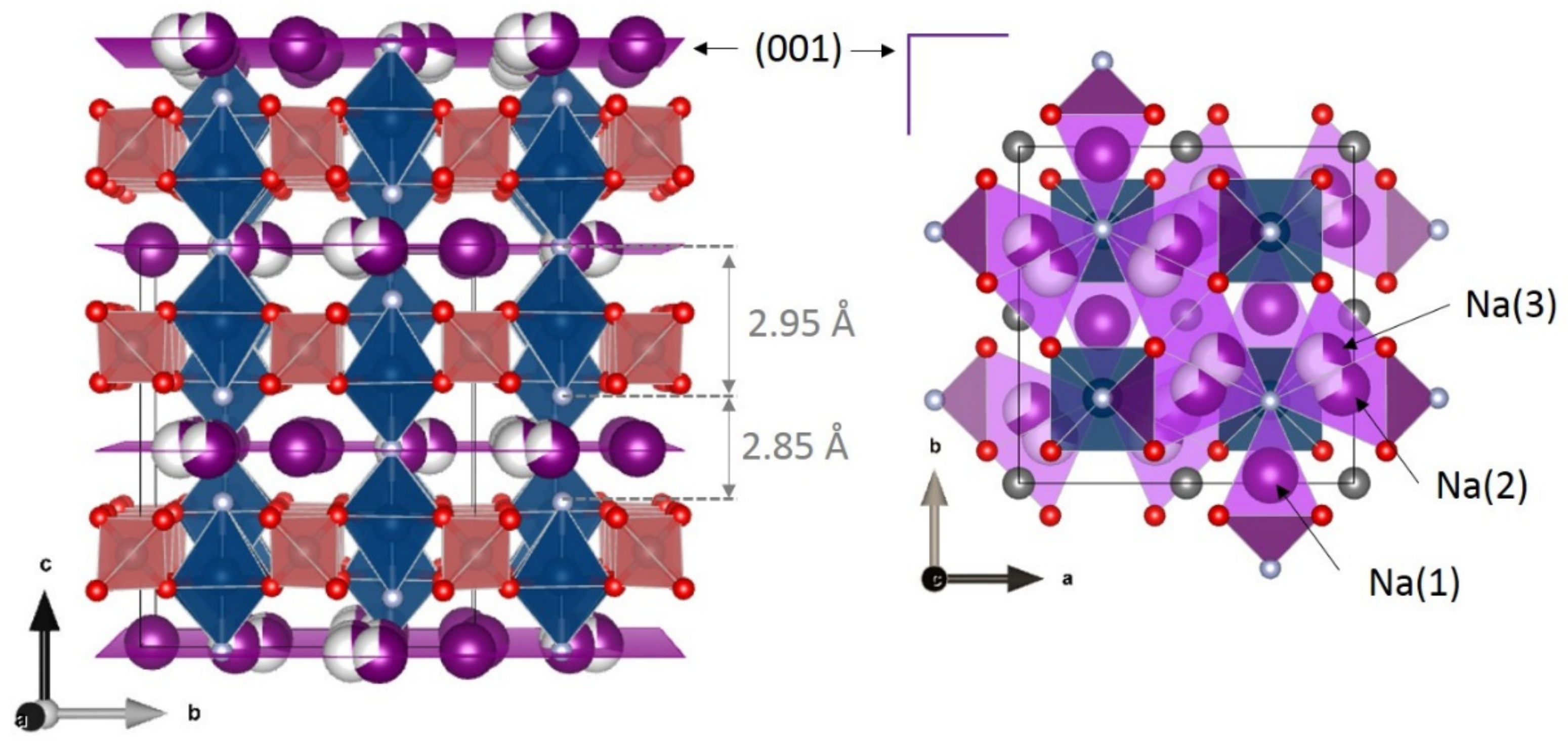

The Amam space group (i.e., S.G. #63, Cmcm) used leads to a different sodium distribution in the cell with three Na sites, one 4c fully occupied and two 8f partially occupied (approximatively distributed as 1/3:2/3) (Figure 7). The host structure is composed of V₂O₈F₃ bi-octahedra sharing a fluorine aligned along the [001] direction and connected to each other through PO₄ tetrahedra aligned in parallel with the (001) plane (Figure 7). The VO₄F₂ octahedra in this structure are non-centrosymmetric and hence vanadium does not occupy the inversion center. Indeed, a displacement along the c direction leads to two slightly different V-F bonds (V-F(1) = 1.968(6) Å and V-F(2) = 1.981(2) Å).

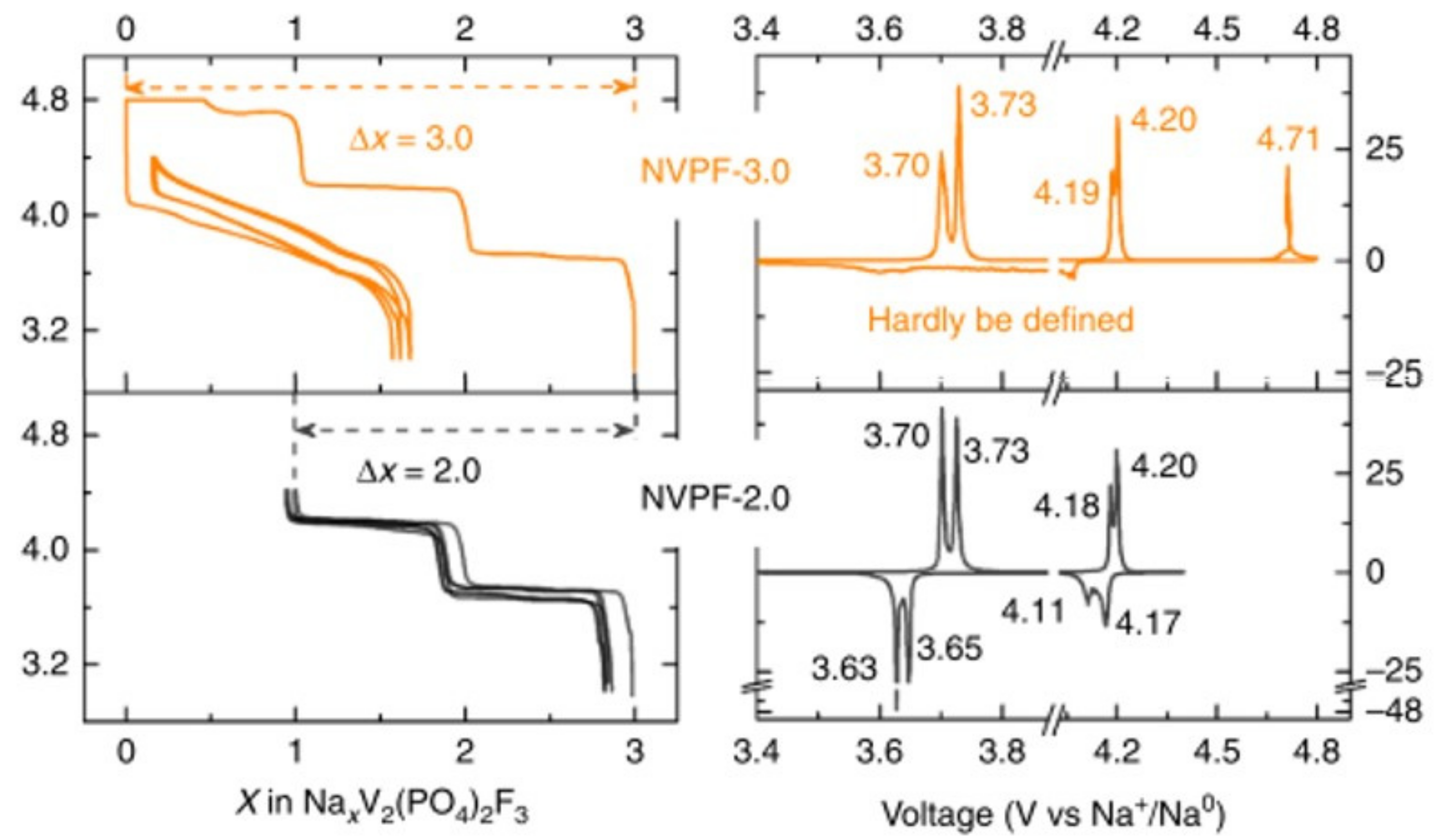

Slow electrochemical galvanostatic cycling shows the presence of four distinct reversible voltage-composition features at 3.70, 3.73, 4.18 and 4.20 V vs. Na⁺/Na (Figure 8) suggesting a complex phase diagram upon sodium extraction/reinsertion [50].

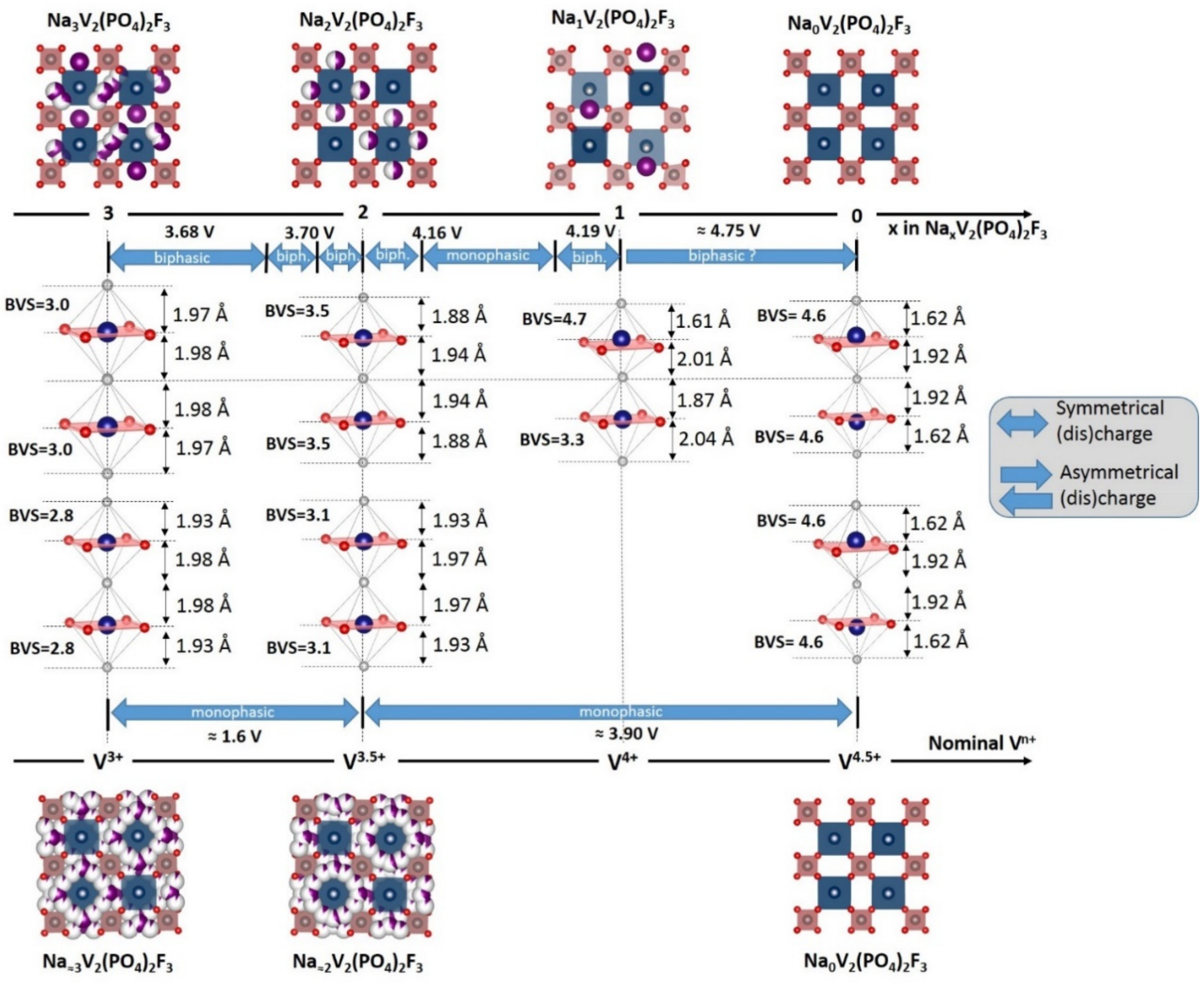

The operando synchrotron XRD investigation conducted by Bianchini et al. [52] is summarized in Figure 9. The phase diagram involves several intermediate phases of compositions Na_xV₂(PO₄)₂F₃ with x = 2.4, 2.2, 2, 1.8 and 1.3 before the NaV₂(PO₄)₂F₃ is reached. During extraction of the first sodium, an alternation between ordered and disordered phases (Na⁺/vacancy and/or V³⁺/V⁴⁺ ordering and disordering) is observed. The superstructure peaks observed for the Na_2.4V₂(PO₄)₂F₃ disappear for Na_2.2V₂(PO₄)₂F₃ and the diffraction pattern of Na₂V₂(PO₄)₂F₃ reveals the reappearance of a series of additional contributions non-indexed in the tetragonal cell. In the V³⁺-rich phase, the two symmetrically inequivalent V-F bonds are very similar and as the oxidation of vanadium is increased, two kinds of bonds gradually appear as a short one at 1.88 Å and a longer one at 1.94 Å, whereas the equatorial V-O bonds decrease uniformly (from 1.99 to 1.95 Å). The extraction of the second sodium also involves intermediate phases at x = 1.8 and x = 1.3 accompanied by the disappearance of the superstructure peaks and finally leads to the formation of NaV₂(PO₄)₂F₃. This phase contains a single Na site and two vanadium sites conferring to vanadium cations two very different environments despite an average oxidation state of V⁴⁺. Indeed, the BVS calculation suggests the formation of a V³⁺-V⁵⁺ pair in bi-octahedra at this composition (Figure 9). The investigation of the redox mechanism involved during sodium extraction was conducted by Broux et al. [53] through operando XANES at V K-edge. They evidenced that V⁴⁺ starts to disproportionate from Na₂V₂(PO₄)₂F₃ and hence the formation of V³⁺-V⁵⁺ pairs are confirmed for Na₁V₂(PO₄)₂F₃.

Kang and coworkers predicted that the extraction of the third Na⁺ towards the mixed valence V⁴⁺/V⁵⁺ V₂(PO₄)₂F₃ composition would occur only at very high voltage (ca. 4.9 V vs. Na⁺/Na) [55]. This was confirmed experimentally by Tarascon’s group, under sever oxidative conditions (i.e., potentiostatic step at 4.8 V vs. Na⁺/Na see Figure 8) in an optimized electrolyte [51]. In this structure, vanadium is displaced from the inversion center of the VO₄F₂ octahedra in such a way as to generate a short 1.62 Å and a longer 1.92 Å V-F bond lengths within the bi-octahedra. However, these extreme cycling conditions imply an irreversible reaction and only 2 Na⁺ could be reinserted upon discharge down to 3.0 V, according to a solid solution mechanism, the third Na⁺ being reinserted at much lower voltage (i.e., 1.6 V vs. 3.7 V for the same composition range upon charge). The subsequent charge/discharge allows for the reversible extraction/insertion of 3 Na⁺ in a wide voltage range (1.0–4.4 V vs. Na⁺/Na). This new β-Na₃V₂(PO₄)₂F₃ polymorph exhibits a different symmetry, different V-X bond lengths and a disordered Na distribution (see Figure 9) which bears strong resemblance with the one of the high temperature phase (T > 400 K) [49,54]. Due to the low voltage associated to the reinsertion of third Na⁺, only 2 Na⁺ can be exchanged in a real battery system where the third one acts as an alkali reservoir to compensate for the solid electrolyte interface (SEI) formation at negative electrode [51], which allows offering up to 460 Wh/kg in full cell vs. hard carbon (+18% compared with a conventional α-Na₃V₂(PO₄)₂F₃), corresponding to the highest energy density reported so far in Na-ion battery [56].

Most of the Na₃V₂(PO₄)₂F₃ materials reported as stoichiometric in the literature actually present various amounts of vanadyl-type defects (i.e., partial substitution of F⁻ by O²⁻ with a charge compensation by partial oxidation of V³⁺-F into vanadyl V⁴⁺=O) impacting on the electrochemical performance. Several authors studied in detail the crystallographic changes generated by this substitution in Na₃V₂(PO₄)₂F_3−xO_x (with 0 ≤ x ≤ 0.5 [54], 0 ≤ x ≤ 2 [55] and x = 1.6 [57,58]). This oxidation has strong effects on the local environments of vanadium and on the sodium distribution and appears to be beneficial for enhancing the charge rates of the battery. Kang’s group [57] was the first to investigate the performance of Na₃V₂(PO₄)₂F_1.4O_1.6 (i.e., V^3.8+) as a positive electrode material and reported high charge and discharge rate capabilities, assigned to a low activation energy for Na⁺ diffusion (~350 meV) inside the framework, despite the poor electronic conductivity (~2.4 × 10⁻¹² S.cm⁻¹) and its great cycling stability was assigned to the small volume change during sodium extraction/insertion (~3%). The same group later published a promising result about the computed voltage for the extraction of the third sodium around 4.7 V for Na₃V₂(PO₄)₂F_1.5O_1.5 [55] (lower than the one computed up to 4.9 V in Na₃V₂(PO₄)₂F₃) and experimentally realized the reversible exchange of more than one electron per vanadium at high voltage (ca. 3.8V vs. Na⁺/Na in average) with a symmetrical charge/discharge profile and an improved capacity retention.

4. Low Voltage Multi-Electron Reactions in Tavorites Li_xVPO₄Y (Y = O, F and/or OH)

Tavorite-type compositions of general formula A_xMXO₄Y are a third class of very interesting polyanion structures in which A is an alkali cation (i.e., Li, Na and 0 ≤ x ≤ 2) and M a metal (i.e., Mg, Al, Ti, V, Fe, Mn, Zn or mixture of them). The polyanionic group, XO₄, is either PO₄ or SO₄ and the bridging anion, Y, is a halide, hydroxide, oxygen, H₂O group or a mixture of them [18]. The multiple redox center combined with this double inductive effect bring a strong interest at both practical and fundamental levels as it allows scanning a wide range of working voltages, from 1.5 V for Ti³⁺/Ti⁴⁺ in LiTiPO₄O [59] to 4.26 V for the V³⁺/V⁴⁺ redox couple in LiVPO₄F [60]. The high voltages provided by the V³⁺/V⁴⁺ and V⁴⁺/V⁵⁺ redox couples confer high theoretical energy densities to the vanadium-based Tavorite compositions.

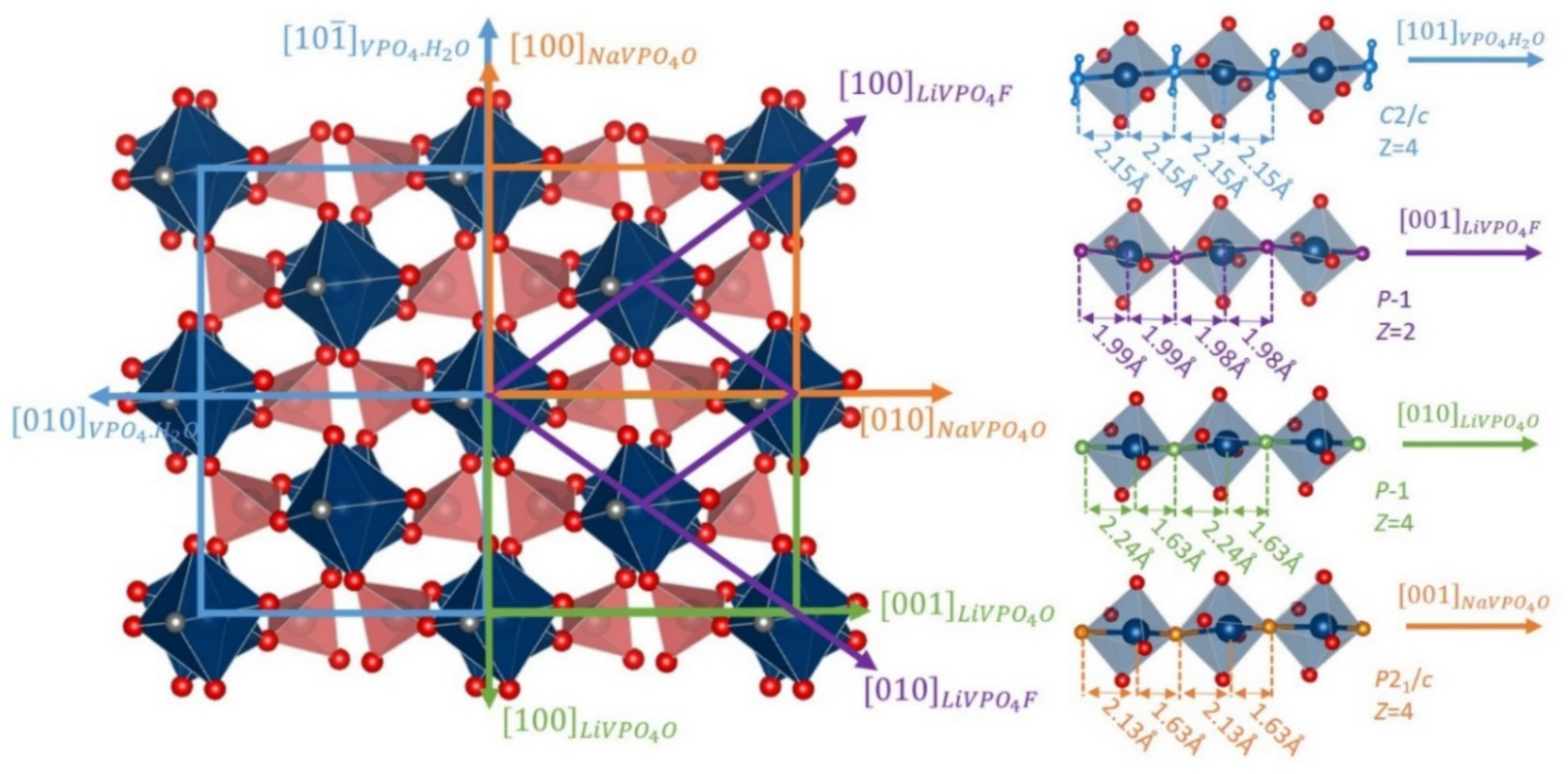

The crystal structure of Tavorite-like materials can be described in either triclinic (P-1, with Z = 2 or Z = 4) or monoclinic (C2/c or P2₁/c) systems [14,61,62]. Tavorite-like therefore gathers Tavorite (P-1, Z = 2, LiVPO₄F and LiVPO₄OH), Montebrasite (P-1, Z = 4, LiVPO₄O), Maxwellite (C2/c, NaVPO₄F and HVPO₄.OH) and even Talisite (P2₁/c, NaVPO₄O) structures. Their crystallographic arrangements present common features which can be broadly described as vanadium octahedra (VO₄Y₂) sharing a bridging anion Y in order to form infinite chains $\left[-\mathrm{Y}-{\mathrm{VO}}_4-\mathrm{Y}-\right]{ }_{\infty }$. These chains are connected to each other through PO₄ tetrahedra sharing their four oxygen atoms with four vanadium octahedra belonging to three different chains. This 3D framework accommodates Li⁺ or Na⁺ in hexagonal channels. The symmetry of vanadium octahedra is dictated by the nature of the Vⁿ⁺-Y bond. Indeed, in V³⁺-rich LiVPO₄F, NaVPO₄F and VPO₄·H₂O, the vanadium is located on an inversion center of the VO₄Y₂ octahedra, whereas in V⁴⁺-rich NaVPO₄O and LiVPO₄O a loss of the centrosymmetry of the vanadium environment is observed. Indeed, in the Tavorite-like structure, for an oxidation state of vanadium superior to +3, vanadium likely forms the vanadyl bond resulting from the Jahn Teller activity of V⁴⁺ (d¹ t2g¹eg⁰). This strongly covalent V=O bond can be formed only with oxygen atoms which are not already involved in a covalent PO₄ group. Only the bridging oxygen, Y, fulfils these requirements and, therefore, in the V⁴⁺ compounds, an ordering between short and long bonds takes place along the chains (Figure 10). This ordering generates a change of space group (from C2/c for NaVPO₄F to P2₁/c for NaVPO₄O) or a doubling of the cell size (Z = 2 for LiVPO₄F to Z = 4 for LiVPO₄O).

The lithium content in Li_xVPO₄O can vary from 0 to 2, leading to a capacity of 300 mAh/g at an average voltage of ca. 3.1 V allowing the achievement a stable energy density > 900 Wh/kg using surface engineering and nanosizing strategies [9,10,11,12,13]. However, the large difference between the voltage for oxidation of V⁴⁺ into V⁵⁺ (i.e., 3.95 V vs. Li⁺/Li) and that for the reduction in V⁴⁺ to V³⁺ (around 2.3 V vs. Li⁺/Li) makes this multi-electron reaction unsuitable for a real battery system (Figure 11).

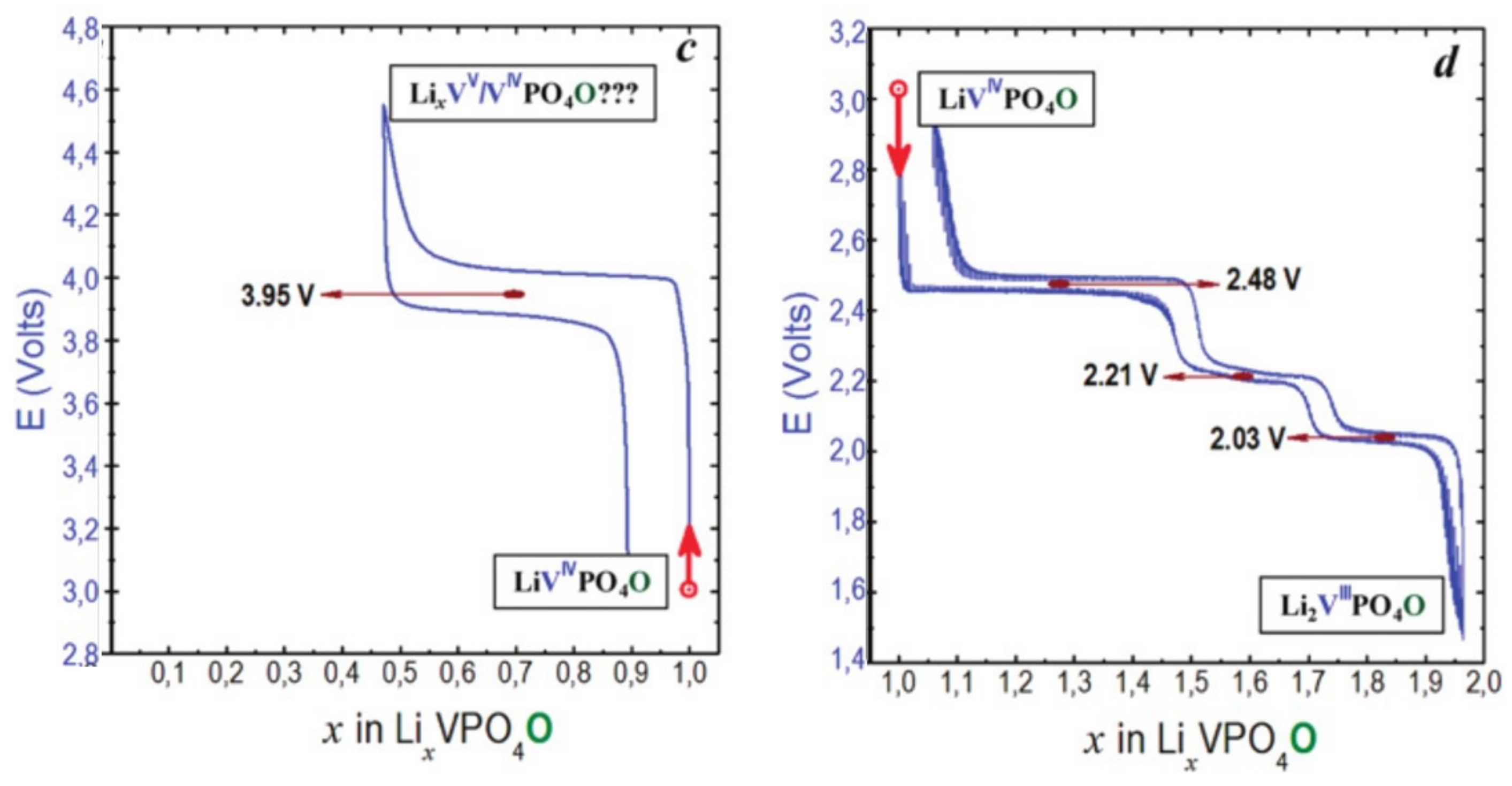

In the high voltage region (i.e., 3.0–4.6 V vs. Li⁺/Li involving the V⁴⁺/V⁵⁺ redox couple), the oxidation process occurs via a biphasic mechanism between LiVPO₄O and VPO₄O [14]. The crystal structure of this V⁵⁺ phase (ε-VPO₄O) is described in a Cc space group allowing the formation of vanadyl bonds appearing as shorter than the ones observed in LiVPO₄O (i.e., 1.59 vs. 1.67 Å, Figure 10). Conversely, the antagonist V^5+…O bond along the chains elongates from 2.2 Å in LiVPO₄O to 2.5 Å in VPO₄O leading to an unconventional increase in the cell volume during lithium extraction (ΔV/V = 4.1%) [63]. This VPO₄O polymorph can also be obtained while deintercalating the homeotype LiVPO₄OH (and also VPO₄·H₂O), according to an original mechanism [64,65]. Indeed, VPO₄OH appears instable vs. LiVPO₄OH and VPO₄O as this V⁴⁺-rich phase is not formed upon Li⁺ deintercalation from LiVPO₄OH. On the contrary, VPO₄O is formed showing that the V³⁺-O/V⁵⁺=O redox couple is activated at a constant equilibrium voltage of 3.95 V vs. Li⁺/Li [65]. Indeed, in the VPO₄OH hypothetical phase the competition between the two highly covalent bonds, V⁴⁺=O on one side and O-H bond on the other side, would destabilize the V^IV-O-H sequence, leading to the concomitant extraction of Li⁺ and H⁺ and to the atypical two-electron V³⁺/V⁵⁺=O redox reaction at a constant voltage. Unfortunately, on the contrary to the two-electron reaction observed in Li_xVPO₄O over 3.2 V, which is reversible but not practical, this one observed at a constant high voltage leads to an irreversible phase transformation.

The Li⁺ insertion within LiVPO₄O involves two intermediate phases, Li_1.5VPO₄O and Li_1.75VPO₄O, before reaching the Li₂VPO₄O [66]. Although this V³⁺-rich composition is described in a triclinic (P-1, Z = 4) system allowing the formation of a vanadyl-type distortion along the chains, the refined V-O distances do not reveal significant differences between them [63], in agreement with the weak Jahn Teller activity of V³⁺ (d² t2g²eg⁰). Lin et al. [67] studied in detail the structural evolutions at the local scale during the lithium insertion in Li_1+xVPO₄O, and V K-edge EXAFS shows the disappearance of vanadyl bond for Li_1.5VPO₄O and the persistence of the longer antagonist until Li_1.75VPO₄O in good agreement with the phase transitions observed (Figure 11).

The investigation of LiVPO₄F started in 2003 with a series of studies conducted by Barker and co-workers [60,68,69] who highlighted the promising performance of this material. Indeed, the high voltage delivered for the Lithium extraction (4.25 V vs. Li⁺/Li for the V³⁺/V⁴⁺ redox voltage, Figure 12) and a capacity very close to the theoretical one even at high C-rate confer to this material a higher practical energy density compared to the ones of commercially available LiFePO₄ and LiCoO₂ (655 vs. 585 and 525 Wh/kg respectively).

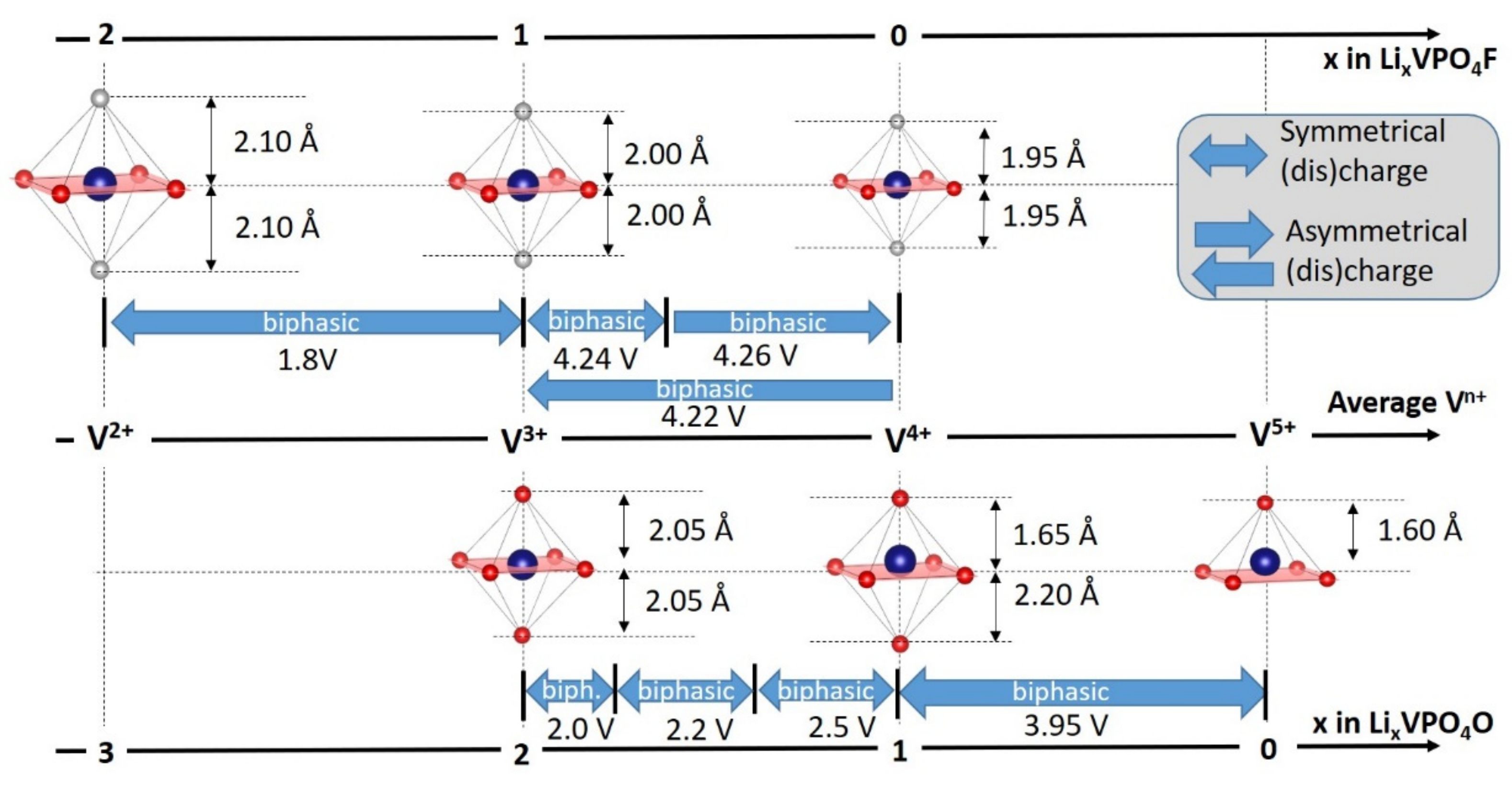

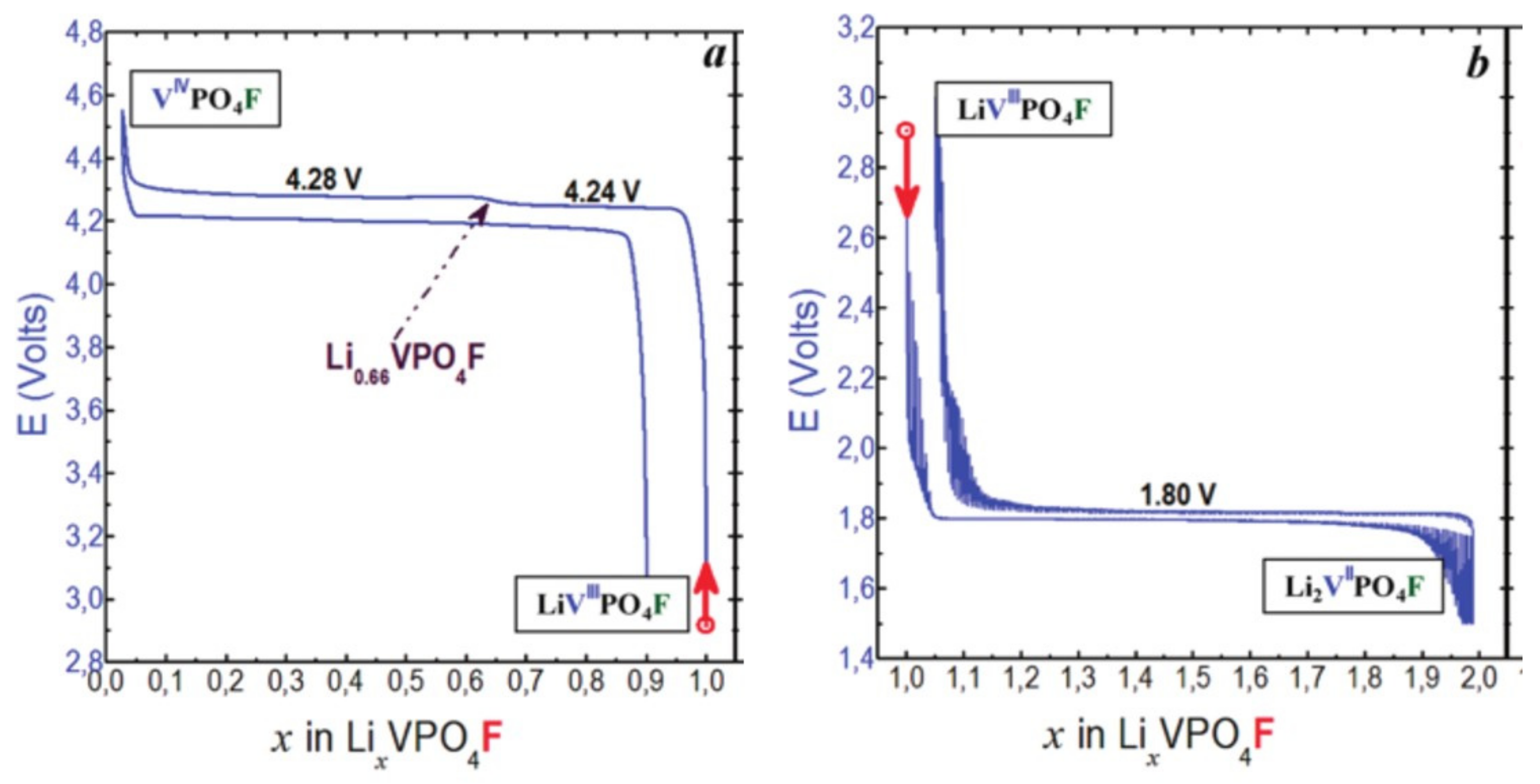

The Lithium extraction from LiVPO₄F involves an intermediate phase, Li_2/3VPO₄F, and then VPO₄F through two biphasic reactions. The crystal structure of VPO₄F was reported by Ellis et al. [70], its C2/c space group involving centrosymmetric vanadium octahedra with V-F distances of 1.95 Å (Figure 13) whereas the actual nature of the Li_2/3VPO₄F phase is still unclear, although superstructure peaks have been identified and indexed by doubling the b parameter [71]. This intermediate phase is not formed during discharge where a biphasic reaction between the end-member compositions VPO₄F and LiVPO₄F takes place [72]. This asymmetric charge/discharge mechanism is not understood at the moment even though it was first attributed by Ellis et al. to the presence of two lithium sites partially occupied (0.8/0.2) in the starting LiVPO₄F. Nevertheless, this hypothesis was ruled out later by Ateba Mba et al. [67] who localized Lithium in a single fully occupied site. Piao et al. [73] conducted operando V-K edge XANES in order to probe the redox mechanism during delithiation of LiVPO₄F. By a principal component analysis, three components were required to fit the series of spectra recorded upon charge. This might suggest at least a V³⁺/V⁴⁺ ordering for Li_2/3VPO₄F. The lithium insertion into LiVPO₄F occurs at low voltage, typical for the V³⁺/V²⁺ redox couple (i.e., 1.8 V vs. Li⁺/Li) through a biphasic reaction leading to the formation of Li₂VPO₄F (Figure 12). The structure of Li₂VPO₄F is described in a C2/c space group with V²⁺ sitting in a centrosymmetric VO₄F₂ octahedra with V-F distances at 2.10 Å and equatorial V-O ones at 2.13 Å in average [70] (Figure 13) while Li⁺ ions are distributed between two 8f Wyckoff sites half occupied in LiO₃F₂ environments.

Various chemical routes to obtain polycrystalline powders of Tavorite LiVPO₄F were reported: sol-gel-assisted carbo thermal reduction (CTR) [74], ionothermal [75]. The majority of these reports highlight the difficulty to obtain pure powders (i.e., without anti-NASICON Li₃V₂(PO₄)₃ impurity) or vanadyl-free compounds. Indeed, a series of recent papers demonstrated, by ⁷Li NMR (and its 2D analogue) and DFT calculations, the presence of various amounts of vanadyl-type defects in crystallographically pure “LiVPO₄F” [76,77]. Recently, B. Kang and co-workers [78] reported on an ingenious strategy to avoid the fluorine loss during synthesis, using PTFE as an additional fluorine source. The material thus obtained reveals high electrochemical performance with a stable discharge capacity of 120 mAh/g at 10C over 500 cycles. The same group also published for the first time the electrochemical properties of the mixed valence V³⁺/V⁴⁺ LiVPO₄F_0.25O_0.75 [79]. This strategy aimed at decreasing the difference in voltage between Li insertion and extraction reactions, conferring to the material a high energy density (i.e., 820 Wh/kg) in a reduced voltage range (i.e., 2.0–4.5 V vs. Li⁺/Li) with the activation of the V³⁺/V⁴⁺ and V⁴⁺/V⁵⁺ redox couples, respectively. Further investigation of the LiVPO₄F-LiVPO₄O tie-line has allowed several compositions to stabilize in which the competition between ionicity of the V³⁺-F bond and covalency of the V⁴⁺=O bond distorts the structure, freezes the framework upon Li extraction and hence allows for improved rate capabilities compared with the end-member phases [80,81]. Interestingly, upon Li deintercalation from these materials, the V⁴⁺=O/V⁵⁺=O redox couple is triggered first before the V³⁺/V⁴⁺ is activated in fluorine rich environments leading to the formation of a mixed valence V³⁺-V⁵⁺ phase at half charge [81]. Although surprising, this redox mechanism is in full agreement with the operating voltage of the end-member phases, the V⁴⁺/V⁵⁺ redox couple being activated at 3.95 V in LiVPO₄O and the V³⁺/V⁴⁺ redox couple at 4.25 V in LiVPO₄F due to the absence of vanadyl distortion in LiVPO₄F and VPO₄F.

Most of the vanadium phosphates discussed above operate at a rather high V³⁺/V⁴⁺ redox voltage, suggesting a massive improvement of the energy density delivered while triggering the V⁴⁺/V⁵⁺ redox couple. However, materials that operate at such a high V³⁺/V⁴⁺ voltage are usually unable to reversibly exchange several electrons in a narrow enough voltage range. In the following section we will clarify the crystallographic origin of this trend and identify the strategies able to overcome this issue.

5. Towards Reversible High-Voltage Multi-Electron Reactions

Many other vanadium phosphates (as well as pyrophosphates and phosphites, see

Table 1. List of the vanadium phosphate, pyro-phosphate and phosphite materials with their redox voltage and corresponding practical capacity based on vanadium redox. More details about the classification of these materials (Type I, II or III) are provided in the text and at the Figure 14.

As Synthetized Compositions	Initial Vn+	M/P Ratio	V2+/V3+		V3+/V4+		V4+/V5+		Ref.
			E (V vs. Li+/Li)	Capacity (mAh/g)	E (V vs. Li+/Li)	Capacity (mAh/g)	E (V vs. Li+/Li)	Capacity (mAh/g)
Type I Materials
Na3V2(PO4)3	V3+	0.67	1.9 *	59	3.7 *	118	/	/	[39]
Na3V1.5Al0.5(PO4)3	V3+	0.67	1.9 *	60	3.7 *	85	4.3 *	28	[39]
Na3VCr(PO4)3	V3+	0.67	/	/	3.7 *	60	4.4 *	50	[42]
Na4VMn(PO4)3	V3+	0.67	/	/	3.7 *	60	4.2 *	50	[47]
r-Li3V2(PO4)3	V3+	0.67	/	/	3.7	131	/	/	[34]
m-Li3V2(PO4)3	V3+	0.67	1.8	131	3.9	131	4.5	33	[27]
LiVP2O7	V3+	0.5	2	116	4.3	95	/	/	[82,83]
Na7V4(P2O7)3(PO4)2	V3+	0.5	/	/	4.2 *	90	/	/	[84]
Na7V3Al1(P2O7)3(PO4)2	V3+	0.5	/	/	4.2 *	77	4.5	46	[85]
Na3V(PO4)2	V3+	0.5	/	/	3.8 *	90	4.4 *	20	[86,87]
LiV(HPO3)2	V3+	0.5	/	/	4.1	75	/	/	[88]
Li9V3(P2O7)3(PO4)2	V3+	0.375	/	/	3.7	55	4.5	55	[89]
Na7V3(P2O7)4	V3+	0.375	/	/	4.3 *	80	/	/	[90]
Na3V(PO3)3N	V3+	0.33	/	/	4.3 *	74	/	/	[91]
Type II Materials
LiVPO4F	V3+	1	1.8	156	4.2	156	/	/	[14]
NaVPO4F	V3+	1	/	/	≈4.2 *	20	/	/	[92]
LiVPO4OH	V3+	1	1.4	155	/	/	/	/	[65]
(Li,K)VPO4F	V3+	1	/	/	4.0	110	/	/	[93]
Na3V2(PO4)2F3	V3+	0.67	1.5 *	64	4.0 *	64	≈ 4.8 *	64	[51,53,94]
Li5V(PO4)2F2	V3+	0.5	/	/	4.15	85	4.7	85	[95]
t-Na5V(PO4)2F2	V3+	0.5	/	/	3.7 *	62	/	/	[96]
o-Na5V(PO4)2F2	V3+	0.5	/	/	3.9 *	65	/	/	[96]
Type III Materials
α-LiVPO4O	V4+	1	/	/	2.4	155	3.95	150	[14]
β-LiVPO4O	V4+	1	/	/	2.2	155	4	130	[97]
β-NaVPO4O	V4+	1	/	/	/	/	3.6 *	58	[98]
γ-LiVPO4O	V4+	1	/	/	2	80	4	150	[99]
Li4VO(PO4)2	V4+	0.5	/	/	2	94	4.1	94	[100]
Na4VO(PO4)2	V4+	0.5	/	/	/	/	3.8 *	77	[101]
Li2VOP2O7	V4+	0.5	/	/	/	/	4.1	64	[102]

The voltage values are reported vs. Li⁺/Li even for those obtained in Na-cell (according to E(Na⁺/Na) = 0.3 V vs. Li⁺/Li), in that case the voltage is marked by *

) have been stabilized and studied as positive electrode materials for Li(Na)-ion batteries. This article does not aim at providing an exhaustive review of all of them, however careful descriptions of selected systems, provided above, now allow us to generalize and predict part of their properties (especially working voltages, redox mechanisms and structural evolutions) from the only consideration of their crystal structures in their pristine state.

Table 1 highlights the significant divergence in the V³⁺/V⁴⁺ redox voltages which cannot be attributed to the inductive effect, the cation-cation repulsions or even Li site energy, which are the main reported features impacting the voltage in polyanions [103,104]. Indeed, the voltage for the V³⁺/V⁴⁺ redox couple in the Tavorite system Li_xVPO₄Y (with Y = O or F) varies from 2.4 V for Li_1+xVPO₄O (0 ≤ x ≤ 1) to 4.26 V in Li_1-xVPO₄F (0 ≤ x ≤ 1). This is attributed to the effect of the highly covalent vanadyl bond which is observed for oxidation states of vanadium strictly superior to 3 in Li_1-xVPO₄O, Na₄VO(PO₄)₂ … These structures present a common crystallographic feature: at least one oxygen around vanadium is not involved in a covalent P-O bond and hence could be engaged in a vanadyl bond. In the compounds where the VO₆ octahedra share all their oxygen atoms with PO₄ (or P₂O₇) groups, the structure of the de-alkalinated V⁴⁺ phases are vanadyl free with VO₆ octahedra slightly distorted. The corresponding vanadyl free V³⁺/V⁴⁺ redox couple is located at 3.9 V in monoclinic Li_3-xV₂(PO₄)₃ and 4.2 V in Li_1-xVP₂O₇, a much higher voltage than the V³⁺/V⁴⁺ couple involved in Li_1+xVPO₄O polymorphs (around 2.3 V vs. Li⁺/Li).

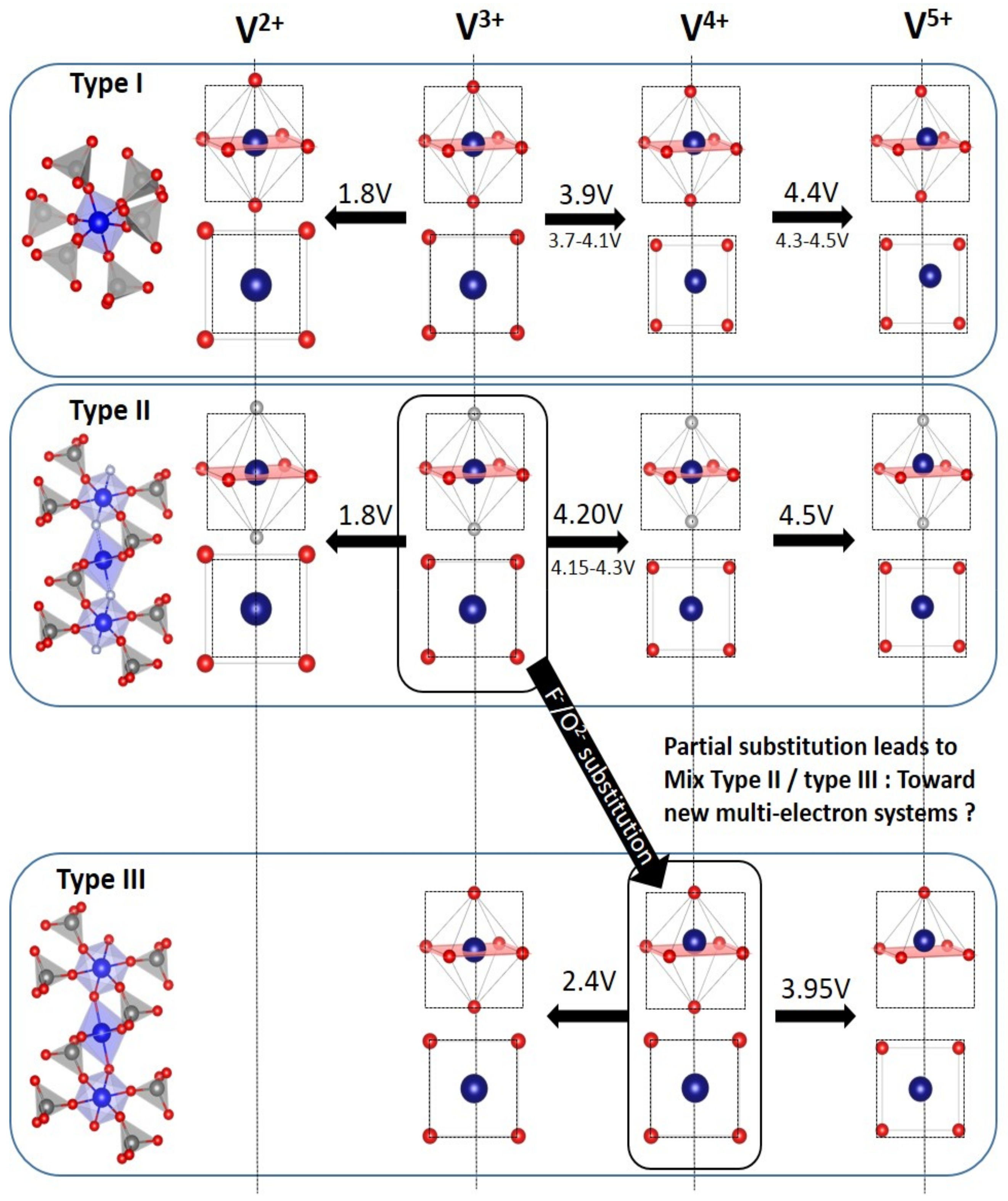

Boudin et al. [15] proposed a classification of the vanadium phosphates into three groups according to size of the “clusters” of vanadium polyhedra ([VO_x]_n with 1 < n < ∞). Although this classification is pertinent to the discussion of the catalytic or magnetic properties of vanadium phosphates, it does not really make sense for a discussion of electrochemical properties. Therefore, we chose to sort these materials considering vanadyl-forbidden (type I and type II) and vanadyl-allowed (type III) structures (summarized in Table 1 and Figure 14):

• For type I materials (e.g., Li₃V₂(PO₄)₃), in which the vanadyl bond cannot appear due to the involvement of each oxygen atom of VO₆ octahedra in a PO₄-type entity, the typical evolution of the vanadium environment upon oxidation (from V²⁺ to V⁵⁺) follows a quasi-homogeneous shortening of V-O bonds from V²⁺ to V⁴⁺ and a strong increase in VO₆ distortion to reach the V⁵⁺ state with corresponding voltages of 1.8 V vs. Li⁺/Li for V²⁺/V³⁺, 3.9 V vs. Li⁺/Li for V³⁺/V⁴⁺ and 4.4 V vs. Li⁺/Li for V⁴⁺/V⁵⁺ redox couples (on average for all the type I materials reported in Table 1).
• In type II materials (e.g., LiVPO₄F), at least one of the ligands around vanadium is unshared with a phosphate group and hence would be available to form the vanadyl bond. However, in that case, the nature of this ligand (F⁻ instead of O²⁻) inhibits its formation. From V²⁺ to V⁴⁺, the evolution of the vanadium environment follows a similar trend with slightly higher voltages than for type I due to the higher ionicity of V-F versus V-O. For V⁵⁺, for instance in deintercalated Na₃V₂(PO₄)₂F₃, a “vanadyl-like” distortion appears with V-F bond length of 1.6 Å and 1.9 Å. Such an F^…V-F sequence has never been reported elsewhere and the precise nature of the V-F bonds formed is still to be clarified.
• Type III group (e.g., LiVPO₄O) gathers the structures having at least one oxygen belonging to VO₆ octahedra available to form the covalent vanadyl bond for vanadium oxidation states higher than 3. In this class of materials, the V³⁺ environments are quasi undistorted. As the oxidation state of vanadium is increased, vanadium leaves the inversion center of the VO₆ octahedra in order to form the vanadyl bond. The formation of a distorted V^IVO₆ octahedra (with typical distances ranging between 1.6 and 2.4 Å along dz² and quasi equivalent equatorial distances around 2 Å) and V^VO₅ pyramids (in which the short V=O bond is about 1.6 Å and a shortening of the equatorial distances is observed around 1.8–1.9 Å) are observed. The corresponding voltages appear completely different to those of type I and type II materials: 2.4 V vs. Li⁺/Li for the V³⁺-O/V⁴⁺=O and 3.95 V vs. Li⁺/Li for the V⁴⁺=O/V⁵⁺=O redox couples.

Note that type II materials are crystallographically pseudo type III ones in which the oxygen involved in the vanadyl bond is replaced by Fluorine. Therefore, partial substitution of this fluorine by oxygen leads to mixed type II/III materials—which is actually the case for most of the type III materials, difficult to obtain as vanadyl-free. Extended oxy-fluorine solid solutions were investigated for Na₃V₂(PO₄)₂F_3−yO_y [54,55,57,58] and for LiVPO₄F_1-yO_y [79,80,81,105,106]. The particularity of these compounds resides in the redox paradox of vanadium where the V⁴⁺=O/V⁵⁺=O is activated at lower voltage than the V³⁺-F/V⁴⁺-F [55,81,107]. Depending on the distribution of ligands around V, it behaves as type II (V³⁺O₄F₂), type III (V⁴⁺O₄O₂) or mixed type II/III (V^3/4+O₄OF) [81]. For this latter environment, the V⁵⁺=O vanadyl-like distortion is allowed upon cycling, promoting the reversibility of the process, but is observed at higher voltage than type III materials thanks to the antagonist fluorine. This highlights the importance of the heteroleptic units formed in statistically distributed or in peculiar O/F ordered compounds which are somewhat difficult to obtain due to the different nature of the V⁴⁺=O and V³⁺-F bonds promoting their clusterization [108].

This classification makes further sense regarding the ability of each type of vanadium phosphates to reversibly exchange several electrons per transition metal at high voltage and in a narrow enough voltage range. In type III materials multi-electron redox through V³⁺-O/V⁴⁺=O and V⁴⁺=O/V⁵⁺=O couples have often been reported [9,10,11,12]. The oxygen atoms unshared with PO₄ facilitate the formation of the vanadyl bond allowing for two rather reversible electron processes and thus allow the achievement of cycling stability with energy density higher than 900 Wh/kg [9]. However, this multi-electron reaction cannot be used in a real battery system due to the large voltage difference between the V³⁺-O/V⁴⁺=O and V⁴⁺=O/V⁵⁺=O (ca. 2.5 V) redox couples. Substituting oxygen by fluorine in such a way to obtain LiVPO₄F_0.75O_0.25 allows raising the voltage of the V³⁺/V⁴⁺ redox and hence reversibly intercalating 1.6 electrons per vanadium in a reduced voltage range [79]. However, this material suffers from rapid capacity fading under such conditions. Since then, the possibility to stabilize multiple compositions along the LiVPO₄F-LiVPO₄O tie-line has been demonstrated and a systemic investigation of substitution ratio (i.e., y) vs. the voltage range could allow fixing this issue by controlling the Δx in Li_1±xVPO₄F_1−yO_y.

In type I and type II materials, while the low voltage V²⁺/V³⁺ (≈1.8 V vs. Li⁺/Li) and high voltage V³⁺/V⁴⁺ (3.9–4.2 V vs. Li⁺/Li) redox are easily triggered, the V⁴⁺/V⁵⁺ redox is rarely reported (see Table 1). Moreover, this latter is often kinetically limited and/or irreversible, most probably due to the structural rearrangements required to provide to V⁵⁺ cations a satisfying environment. Indeed, the V⁵⁺ cations are stable either in a pyramidal ([1+4] coordination) or in a tetrahedral ([2+2] coordination) or even in a very distorted octahedral ([2+2+2] coordination) [15] environments. In each case, at least one covalent vanadyl bond must be formed, but this formation is not privileged by the crystallographic arrangements adopted by type I and II materials. In order to provide to the V⁵⁺ cations with a more stable environment than this distorted octahedral one, migration of V⁵⁺ in tetrahedral site has been proposed [32]. Therefore, kinetic limitations and/or an irreversible capacity, which can be compensated only at very low voltage (as seen in Na₃V₂(PO₄)₂F₃, Li₃V₂(PO₄)₃, Li₅V(PO₄)₂F₂ and Li₉V₃(P₂O₇)₃(PO₄)₂), appear. Although V⁵⁺ migration in tetrahedral sites has been reported only in Li₃V₂(PO₄)₃ so far, analyzing the electrochemical response upon subsequent discharge for other compounds gives insight about the nature of the irreversible reaction taking place. For instance, in Na₃V₂(PO₄)₂F₃, the Na re-insertion into V₂(PO₄)F₃ (i.e., V^4.5+) occurs at 3.9 V vs. Na⁺/Na in average, until the composition Na₂V₂(PO₄)₂F₃ (V^4.5+ to V^3.5+): this voltage range is associated to the Na₃(V³⁺)-Na₁(V⁴⁺) composition range during the previous charge. The further Na insertion occurs at 1.6 V vs. Na⁺/Na until the composition Na₃V₂(PO₄)₂F₃ is recovered. Moreover, the length of this low voltage plateau is proportional to the amount of vanadium oxidized above V⁴⁺ during the previous charge. Therefore, this low voltage feature is more likely to correspond to the reduction in V³⁺ (i.e., ≈1.5 V vs. Na⁺/Na for V³⁺/V²⁺ redox in type I and type II materials) rather than to the reduction in the V⁴⁺ into V³⁺ (i.e., 3.6–3.9 V vs. Na⁺/Na). This behavior could agree with the presence of V⁵⁺ in Td sites. Indeed, as seen in transition metal vanadates used as anode in alkali-ion batteries [109], V⁵⁺_Td is not reduced above 1.5 V vs. Li⁺/Li without migrating back in an octahedral site. Therefore, the V³⁺ reduction would occur at a higher voltage than the V⁵⁺_Td reduction. The presence of oxygen in the fluorine site would help in accommodating V⁵⁺ cation in distorted octahedral site in the charged state. Indeed, it has been shown by theoretical calculations that the partial substitution of fluorine by oxygen in such a way to obtain Na₃V₂(PO₄)₂F_3−xO_x composition tends to decrease the voltage of extraction of the third Na⁺ cations (from 4.9 V to 4.7 V vs. Na⁺/Na from pure fluoride to oxy-fluoride) leading to the reversible exchange of more than one electron per vanadium with an excellent rate capability [55].

Finally, this review reveals that the versatility of the vanadium chemistry with a large number of stable oxidation states stabilized in very different environments opens the road towards the formation of new materials whose strains imposed by the crystal field give attractive electrochemical properties. While, in the battery field, the search for new polyanion positive electrode materials slows down for few years, maintaining the efforts towards the stabilization of new phases is crucial. LiVPO₄F_1–xO_x and Na₃V₂(PO₄)₂F_3–xO_x are the only vanadium phosphate oxy-fluorides studied as positive electrode materials and have shown very promising properties. Further playing with anionic substitution, not only with vanadium phosphate oxy-fluorides but also oxy-nitrides (as recently reported with Na₃V₂(PO₃)₃N [91]) and even oxy-sulfides, would offer new degrees of flexibility for such versatile polyanion systems and could allow the achievement of high energy density (ca. 1 kWh/kg of active positive electrode material corresponding to ca. 400 Wh/kg at the cell level) through reversible high-voltage multi-electron redox.

6. Conclusions

This review has identified the vanadyl distortion as the main feature governing the operating voltage in vanadium phosphates and their ability to reversibly store several electrons per transition metal. The classification of such materials in three groups, according to the nature of the ligands in the vanadium octahedra and to the distribution of PO₄ around them, has allowed to unveil the strategies to increase their energy density. Indeed, anionic substitutions have led to vanadium phosphate oxy-fluorides which allow to combine the beneficial effect of the vanadyl distortion on the reversibility with the high voltage of vanadium redox couples in fluorine rich environments. Further investigation of these anionic substitutions could allow to tend towards reversible high-voltage multi-electron reactions in Alkali-ion batteries.
