Article

Synthesis and Structural Characterization of a Silver(I) Pyrazolato Coordination Polymer †

by
Kiyoshi Fujisawa
1,*,
Takuya Nemoto
1,
Yui Morishima
1 and
Daniel B. Leznoff
2,*
1
Department of Chemistry, Ibaraki University, Mito, Ibaraki 310-8512, Japan
2
Department of Chemistry, Simon Fraser University, 8888 University Drive, Burnaby, BC V5A1S6, Canada
*
Authors to whom correspondence should be addressed.
†
Dedication: Dedicated to Professor Edward R.T. Tiekink on the occasion of his 60th birthday.
Molecules 2021, 26(4), 1015; https://doi.org/10.3390/molecules26041015
Submission received: 11 January 2021 / Revised: 4 February 2021 / Accepted: 12 February 2021 / Published: 15 February 2021
(This article belongs to the Special Issue Recent Advances in the Synthesis, Functionalization and Applications of Pyrazole-Type Compounds I)
Browse Figures
Review Reports Versions Notes

Abstract

:
Coinage metal(I)···metal(I) interactions are widely of interest in fields such as supramolecular assembly and unique luminescent properties, etc. Only two types of polynuclear silver(I) pyrazolato complexes have been reported, however, and no detailed spectroscopic characterizations have been reported. An unexpected synthetic method yielded a polynuclear silver(I) complex [Ag(μ-L1Clpz)]n (L1Clpz− = 4-chloride-3,5-diisopropyl-1-pyrazolate anion) by the reaction of {[Ag(μ-L1Clpz)]3}2 with (nBu4N)[Ag(CN)2]. The obtained structure was compared with the known hexanuclear silver(I) complex {[Ag(μ-L1Clpz)]3}2. The Ag···Ag distances in [Ag(μ-L1Clpz)]n are slightly shorter than twice Bondi’s van der Waals radius, indicating some Ag···Ag argentophilic interactions. Two Ag–N distances in [Ag(μ-L1Clpz)]n were found: 2.0760(13) and 2.0716(13) Å, and their N–Ag–N bond angles of 180.00(7)° and 179.83(5)° indicate that each silver(I) ion is coordinated by two pyrazolyl nitrogen atoms with an almost linear coordination. Every five pyrazoles point in the same direction to form a 1-D zig-zag structure. Some spectroscopic properties of [Ag(μ-L1Clpz)]n in the solid-state are different from those of {[Ag(μ-L1Clpz)]3}2 (especially in the absorption and emission spectra), presumably attributable to this zig-zag structure having longer but differently arranged intramolecular Ag···Ag interactions of 3.39171(17) Å. This result clearly demonstrates the different physicochemical properties in the solid-state between 1-D coordination polymer and metalacyclic trinuclear (hexanuclear) or tetranuclear silver(I) pyrazolate complexes.

Graphical Abstract

1. Introduction

Cyclic trinuclear complexes with monovalent coinage metal ions have been of interest to coordination chemists for three decades [1,2,3]. One of the ligands known to form these cyclic trinuclear complexes is pyrazolate [4,5,6], which is known to act as an A-frame-like bridging ligand with some metal ions, with an Npz–M–Npz linear coordination mode (pz = pyrazolate anion, C3H3N2−) [1,2,3,4,6,7,8,9]. Early studies in 1970 suggested that silver(I) pyrazolato complexes existed as a polymeric 1-D chain [Ag(pz)]n (Figure 1, left) [10]. The structure of [Ag(pz)]n was discussed in that the deprotonated pyrazolato complexes are “at least trimeric but polymeric forms cannot be excluded”, based on far-IR spectroscopy data [11]. The first structural characterization of pyrazolato complexes coordinated by coinage metal(I) ions was determined by Fackler and co-workers in 1988: their reported silver(I) pyrazolato complex had three intramolecular Ag···Ag distances of 3.306(2), 3.362(2), and 3.496(2) Å, forming a trinuclear complex [Ag(3,5-Ph2pz)3] (3,5-Ph2pz = 3,5-diphenyl-1-pyrazolate anion) [12]. After this report, the hexanuclear complex {[Ag(3,5-Ph2pz)3]}2 was also reported, having one intermolecular Ag···Ag interaction of 2.9712(14) Å without any crystalline solvents [13]. This dimerization to build the hexanuclear structure can be caused by an additional stabilization of the silver(I) ions provided by argentophilic interactions (Ag···Ag interactions) [14]. Subsequent ab initio powder X-ray diffraction (XRD) evidence also indicated two possibilities: silver(I) pyrazolato complexes could exist as either a coordination polymer [Ag(pz)]n with an intramolecular Ag···Ag distance of 3.40 Å or as a dimeric trinuclear {[Ag(pz)]3}2 structure with an intermolecular Ag···Ag distance of 3.431(2) Å, depending on the method of synthesis [15]. After that, the single-crystal characterization of the product made by the same synthetic method with aqueous NH3 was reported as [Ag(pz)]n with an intramolecular Ag···Ag (argentophilic) interaction of 3.3718(7) Å, an intermolecular Ag···Ag interaction of 3.2547(6) Å, and an N–Ag–N angle of 169.98° (14) (Figures S1 and S2) [16]. However, its physicochemical properties such as solid-state photoluminescence have not been reported [15,16].
We have previously reported silver(I) pyrazolato complexes synthesized by alkyl- and aryl-substituted pyrazoles to form trinuclear and tetranuclear structures, depending on the method of synthesis and the nature of the substituents on the pyrazolate ring (Figure 1, center and right) [17,18,19,20,21,22]. Some Au···Ag (metallophilic) interactions in cyclic trinuclear coinage metal(I) complexes were found [1,2]. Au-Im complexes can be easily interacted with silver(I) ions to form Au···Ag interactions, since the order of π-acidity is Au < Cu < Ag for a given ligand, and Im− (imidazolate) < Pyridine < Cb− (carbeniate) < Pz− for a given metal [1,2,3]. As an example, the mixed metal(I) complex [(Ag{([Au(C2,N3-bzim)]3)2}](BF4) with Au···Ag interactions was reported (bzim− = 1-benzylimidazole anion) [23].
With this electronic preference in mind, to construct Ag···Ag interactions by silver(I) pyrazolato complexes, it should be valuable to explore the different strategy of using electro-withdrawing substituents on the pyrazole ligand and [Ag(CN)2]− as a silver(I) ion source. The dicyanoargentate(I) anion is very useful to build coordination polymers [24,25,26,27,28] and performs well as a building block in general [29]. In this article, we report the detailed structure and characterizations as well as the unexpected synthetic procedure that leads to the new polynuclear silver(I) pyrazolato complex [Ag(μ-L1Clpz)]n (L1Clpz− = 4-chloride-3,5-diisopropyl-1-pyrazolate anion) (Figure 2).

2. Results and Discussion

2.1. Synthesis

The reaction of {[Ag(μ-L1Clpz)]3}2 with 1.5 equivalents of (nBu4N)[Ag(CN)2] in ethyl acetate was carried out at room temperature as shown in Scheme 1. After one week of reaction time, a white powder was gradually generated. Its IR spectroscopic measurement revealed that the ν(C≡N) stretching peak of the starting material (nBu4N)[Ag(CN)2] at 2141 cm−1 disappeared and a new complex that did not contain any cyanide was generated. From a slow liquid-liquid diffusion method, we obtained a few single-crystals to reveal the structure (see Section 2.2). The above white powders prepared in the bulk synthetic method were the same as that obtained in single-crystal form and structurally characterized (below), as confirmed by the comparison of the powder X-ray diffractogram of the powder and the powder pattern generated from the single-crystal structure, as shown in Figure S3. As mentioned in the Introduction, although a [Ag(μ-L1Clpz)]3/[Ag(CN)2]− based polynuclear structure with intermolecular Ag···Ag interactions was initially targeted, only the polynuclear silver(I) complex [Ag(μ-L1Clpz)]n, identified as a coordination polymer was obtained (Scheme 1); the detailed mechanism leading to this product was not explored. This coordination polymer assembly was only successfully performed by {[Ag(μ-L1Clpz)]3}2 but was not observed either by the non-halogenated derivative {[Ag(μ-L1pz)]3}2 or the other halogenated derivatives {[Ag(μ-L1Brpz)]3}2 and {[Ag(μ-L1Ipz)]3}2 (Figure 2). The reactions of these other hexanuclear complexes with (nBu4N)[Ag(CN)2] did not produce any powder precipitate. Indeed, after all of the solvent had slowly evaporated from the reaction mixture, powder XRD measurements were carried out on the resulting residues, which indicated that no new complexes were generated: only a physical mixture of the initial starting materials, i.e., the hexanuclear complexes {[Ag(L1Xpz)]3}2 (X = H, Br, and I) and (nBu4N)[Ag(CN)2] were observed. We also tried to make polynuclear [Ag(μ-L1Xpz)]n (X = H, Cl, Br, and I) by the literature method by using aqueous NH3 [15,16], but only the same hexanuclear complexes {[Ag(L1Xpz)]3}2 (X = H, Cl, Br, and I) were obtained.

2.2. Structure

Single-crystal X-ray structural analysis was performed on the polynuclear silver(I) material [Ag(μ-L1Clpz)]n, the perspective drawing of which is shown in Figure 3. The relevant bond lengths (Å) and angles (°) are noted in the caption. The 1-D coordination polymer [Ag(μ-L1Clpz)]n and packing diagram are drawn in Figure 4 and Figure S4, respectively.
[Ag(μ-L1Clpz)]n exists as a coordination polymer with an intramolecular argentophilic distance of Ag1···Ag2, 3.39171(17) Å, which is slightly shorter than twice Bondi’s van der Waals radius (3.44 Å = 1.72 Å × 2) [30], indicating the presence of Ag···Ag argentophilic interactions [14]. Two Ag–N distances were found: Ag1–N1, 2.0760(13) Å and Ag2–N2, 2.0716(13) Å. The N–Ag–N bond angles of 180.00(7)° (N1–Ag1–N1′) and 179.83(5)° (N2′–Ag2′–N2”) indicate that each silver(I) ion has two pyrazolyl nitrogen atoms coordinated in an almost linear fashion. Two of the pyrazolate aromatic rings are completely co-planar with a dihedral angle of 0° (between pyrazole ring 1 and 2), and another pair is twisted relative to each other, with a dihedral angle of 79.24(7)° (between pyrazole ring 2 and 3) as shown in Figure 3. Every five pyrazole units point in the same direction, thereby forming a 1-D zig-zag structure. Each 1-D zig-zag structure is isolated and there are no significant interactions with the neighboring zig-zag chain. Within each 1-D zig-zag structure, two additional Ag···Ag distances are noteworthy: Ag1···Ag1#, 4.73335(10) Å and Ag2···Ag2′, 6.7834(3) Å. Moreover, this zig-zag structure has two Ag-based different angles with Ag2···Ag1···Ag2′, 180.000(4)° and Ag1···Ag2′···Ag1#, 88.499(6)° (Figure 3).
This [Ag(μ-L1Clpz)]n structure is completely different from the reported one for [Ag(pz)]n which exhibits an intramolecular Ag···Ag distance of 3.3718(7) Å. The zig-zag chain in [Ag(pz)]n also interacts with neighboring zig-zag chains via inter-chain Ag···Ag distances of 3.2547(6) Å (Figures S1 and S2). The zig-zag structure in [Ag(μ-L1Clpz)]n is also different from the original hexanuclear silver(I) complex {[Ag(μ-L1Clpz)]3}2, which features a dimeric trinuclear structure with three intermolecular argentophilic interactions of 3.1003(17), 3.1298(15), and 3.1051 Å to form an overall hexanuclear structure (Figures S5 and S6) [20]. These distances are significantly shorter than twice Bondi’s van der Waals radius (3.44 Å) [30], indicating a strong Ag···Ag argentophilic interaction [14] (Figure S4). The layered structure of {[Ag(μ-L1Clpz)]3}2 did not interact with the neighboring layered one (Figure S6). The layered structure was formed with longer Ag···Ag distances between two {[Ag(μ-L1Clpz)]3}2 complexes of 7.3531(18), 7.3881(17), and 7.5258(18) Å.

2.3. Solution-State Properties

The 1H-NMR spectrum of the obtained white powder [Ag(μ-L1Clpz)]n in CDCl3 was measured (Figure S7) and the observed chemical shifts are identical to those of {[Ag(μ-L1Clpz)]3}2 (Table S1) [20], indicating that the supramolecular solid-state 1-D zig-zag structure of [Ag(μ-L1Clpz)]n is not stable upon dissolution, converting to form the known hexanuclear silver(I) complex {[Ag(μ-L1Clpz)]3}2. This observation is also supported by its solution-state UV-Vis spectrum in cyclohexane (Figure S8) and photoluminescence spectrum in cyclohexane (Figure S9). The maximum peak position in UV-Vis spectrum is 226 nm which is the same position as that of {[Ag(μ-L1Clpz)]3}2 (226 nm) [20]. Moreover, the emissive maximum is 307 nm (280 nm excitation), which is also the same position as that of {[Ag(μ-L1Clpz)]3}2. Therefore, detailed comparisons between [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2 were carried out by solid-state spectroscopies.

2.4. Solid-State Properties

IR and Raman spectra of the [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2 complexes are reproduced in Figures S10 and S11, respectively. The C=N stretching vibrations of 1506 cm−1 (IR) and of 1507 and 1495 cm−1 (Raman) in [Ag(μ-L1Clpz)]n are almost the same as the C=N stretching vibrations of 1505 cm−1 (IR) and 1495 cm−1 (Raman) in {[Ag(μ-L1Clpz)]3}2. The C–Cl stretching vibrations could be observed in the far-IR region of 587 cm−1 (IR) and 575 cm−1 (Raman) in [Ag(μ-L1Clpz)]n, which are slightly shifted from 579 cm−1 (IR) and 573 cm−1 (Raman) in {[Ag(μ-L1Clpz)]3}2 [20], respectively. The Ag–N stretching vibration should be observed at around 510 cm−1 [20,21,31] and was observed at 511 cm−1 (Raman) in [Ag(μ-L1Clpz)]n, which was the same energy at 511 cm−1 (Raman) in {[Ag(μ-L1Clpz)]3}2 [20]. These vibrational spectroscopy comparisons indicate that each stretching vibration energy is almost the same as the other, although there is a clearly measurable difference in the C-Cl stretches, consistent with the presence of intercluster Cl···Cl interactions in the hexanuclear system (3.852 Å) that are absent in the 1-D zig-zag chain structure.
The solid-state UV-Vis absorption spectrum of [Ag(μ-L1Clpz)]n acquired as a Nujol suspension is shown in Figure 5, along with that of {[Ag(μ-L1Clpz)]3}2 [20] for comparison. The characteristic absorption band at 225 nm in {[Ag(μ-L1Clpz)]3}2 [20] was obviously shifted to lower energy at 248 nm with a shoulder peak around 280 nm for the 1-D zig-zag structure. This is clearly different from the behavior of solution-state UV-Vis absorption spectra as shown in Figure S8. This shift in [Ag(μ-L1Clpz)]n may be caused by polynuclear formation with intramolecular argentophilic interactions of Ag1···Ag2, 3.39171(17) Å as shown in Figure 3. For this detailed assignment, density functional theory calculations are required but are beyond the scope of this article. Nevertheless, the absorption band can be assigned to a silver(I) to pyrazolate change transfer (MLCT) based on the other reported hexanuclear coinage metal(I) complexes [18,19,20,32].
The emission spectrum of [Ag(μ-L1Clpz)]n in the solid-state was also somewhat different from that of the hexanuclear silver(I) analogue {[Ag(μ-L1Clpz)]3}2 [20] as shown in Figure 6 at room temperature, recorded using a 280 nm excitation wavelength. In {[Ag(μ-L1Clpz)]3}2, the main emissive band at 374 nm and an additional small one at 312 nm were observed. However, the emission of the coordination polymer [Ag(μ-L1Clpz)]n was clearly shifted to higher energy around 314 nm, and a new broad peak around 490 nm was observed.
The temperature-dependent photoluminescence spectra in [Ag(μ-L1Clpz)]n were recorded (Figure 7). The corresponding variable temperature emission spectra for {[Ag(μ-L1Clpz)]3}2 are also shown in Figure S12 [20]. The more intense 473 nm emission band of [Ag(μ-L1Clpz)]n at 83 K exhibited an additional vibrational fine structure around 346 nm, which was observed only at 83 K. From this vibrational behavior, this higher energy emission may be from ligand-based phosphorescence. On the other hand, the lower energy emission band was attributed to metal-based phosphorescence arising from closed shell d10–d10 intramolecular Ag···Ag interactions [18,19,20,21,32,33,34]. For the original hexanuclear complex {[Ag(μ-L1Clpz)]3}2, the intensity of both bands at 374 and 312 nm gradually increased as the measurement temperature decreased. No bands around 470 nm were observed, even at low temperature. From these observations, the lower energy strong emission band at 473 nm in [Ag(μ-L1Clpz)]n is very unique due to its polynuclear supramolecular structure. We are now in the process of probing the origin of this stimulating behavior by theoretical and more detailed physicochemical researches.

3. Materials and Methods

3.1. Material and General Techniques

The preparation and handling of all complexes was performed under an argon atmosphere using standard Schlenk tube techniques. Ultra-dry ethyl acetate was purchased from Wako Pure Chemical Ind. Ltd. and deoxygenated by purging with argon gas. Deuteriochloroform was obtained from Cambridge Isotope Laboratories, Inc. Other reagents were commercially available and were used without further purification. The 3,5-diisopropyl-1-pyrazole (L1pz-H) [35] and its halogenated pyrazoles (L1Clpz-H, L1Brpz-H, and L1Ipz-H) [20] were prepared by published methods. (nBu4N)[Ag(CN)2] was obtained by the reaction of KAg(CN)2 (1.016 g, 5.10 mmol) and nBu4NBr (1.7029 g, 5.28 mmol) in 20 mL of H2O at room temperature for 2 hours to form a white powder of (nBu4N)[Ag(CN)2] (1.801 g, 4.48 mmol, 88% yield). Hexanuclear silver(I) complexes ({[Ag(μ-L1Clpz)]3}2, {[Ag(μ-L1Brpz)]3}2, and {[Ag(μ-L1Ipz)]3}2) were obtained by the published methods [20].

3.2. Instrumentation

IR spectra (4000–400 cm−1) and far-IR spectra (680–150 cm−1) were recorded as KBr pellets using a JASCO FT/IR-6300 spectrophotometer and as CsI pellets using a JASCO FT/IR 6700 spectrophotometer (JASCO, Tokyo, Japan), respectively. Raman spectra (4000–200 cm−1) were measured as powders on a JASCO RFT600 spectrophotometer with a YAG laser 600 mW (JASCO, Tokyo, Japan). Abbreviations used in the description of vibration data are as follows: s, strong; m, medium; w, weak. 1H-NMR (500 MHz) spectra were obtained on a Bruker AVANCE III-500 NMR spectrometer at room temperature (298 K) in CDCl3 (Bruker, Yokohama, Japan). 1H chemical shifts were reported as δ values relative to residual solvent peaks. UV-Vis spectra (solution and solid, 800–200 nm) were recorded on a JASCO V-570 spectrophotometer (JASCO, Tokyo, Japan). The values of ε were calculated per metal(I) ion. Solid samples (mulls) for spectroscopy were prepared by finely grinding microcrystalline material into powders with a mortar and pestle and then adding mulling agents (Nujol, poly(dimethylsiloxane), viscosity 10,000 (Aldrich)) before uniformly spreading it between quartz plates. Powder X-ray diffraction (XRD) measurements were conducted on a Rigaku SmartLab-SP/IUA X-ray diffractometer (Rigaku, Tokyo, Japan) with a Cu Kα radiation (λ = 1.54 Å) source (40 kV, 30 mA) and a high-speed one-dimensional detector D/teX Ultra 250. The 2θ was measured in the range of 5–90° with a scan step of 0.02° and scan speed of 10° min−1. Solid samples for XRD were prepared by finely grinding microcrystalline materials into powders with a mortar and pestle and then placing them on an aluminum dish (0.2 mm thickness). Luminescence spectra were recorded on a JASCO FP-6500 (solid, 700–300 nm) spectrofluorometer (JASCO, Tokyo, Japan). Low-temperature electronic absorption and luminescence spectra were recorded using solid samples cooled with a liquid nitrogen cryostat (CoolSpeK USP-203) from Unisoku Scientific Instruments (Osaka, Japan). The elemental analyses (C, H, and N) were performed by the Chemical Analysis Center of Ibaraki University.

3.3. Preparation of Complexes

[Ag(μ-L1Clpz)]n

{[Ag(μ-L1Clpz)]3}2 (54.5 mg, 0.0309 mmol) and (nBu4N)[Ag(CN)2] (19.1 mg, 0.0475 mmol) were dissolved in ethyl acetate (6 cm3) and the solution was stirred at room temperature for one week. A white solid was precipitated during this time. After this, the white solid was filtered and washed with a small amount of ethyl acetate. The obtained white powder as [Ag(μ-L1Clpz)]n was dried by vacuum pump.
Yield: 22.7 mg, 0.077 mmol, 42%.
Calcd for C9H14AgClN2·1/4(H2O): C, 36.27; H, 4.90; N, 9.40. Found: C, 36.21; H, 4.57; N, 9.20. IR (KBr, cm−1): 2971s(C-H), 2925s(C-H), 2862s(C-H), 1506m(C≡N), 1461m, 1400m, 1367m, 1361m, 1283m, 1145s, 1118s, 1092s, 1051s, 1035s, 804w. Far-IR(CsI, cm−1): 685w, 587m(C-Cl), 561w, 540w, 501,476w, 437w, 411w, 389w, 371w, 349w, 276w, 237br. Raman (solid, cm−1): 2974s(C-H), 2913s(C-H), 2865s(C-H), 1507m(C≡N), 1495m(C≡N), 1461m, 1448m, 1430m, 1382m, 1369s, 1300m, 1283m, 1176w, 1145w, 1107m, 957w, 880m, 706w, 657m, 575m(C-Cl), 511m(Ag-N), 438w, 385w, 341w, 268m. 1H-NMR (CDCl3, 500 MHz): δ 1.41 (d, J = 7 Hz, 36H, CHMe2), δ 3.13 (sept, J = 7 Hz, 6H, CHMe2). UV-Vis (solution, cyclohexane, λmax/nm(ε/cm−1 mol−1 dm3)) 226 (39200). UV-Vis (solid, Nujol, nm): 248, 280 (sh). Emission at 280 nm excitation wavelength (solution, cyclohexane, λmax/nm): 307. Emission at 280 nm excitation wavelength (solid, λmax/nm): 299 K, 315, 490; 173 K, 314, 474, 614sh; 83 K, 317, 331, 346, 362, 379, 456sh, 473.
Liquid-liquid diffusion was applied to obtain crystals at room temperature. The {[Ag(μ-L1Clpz)]3}2 (0.05 mmol) in 10mL of ethyl acetate was transferred to a 30 mL Erlenmeyer flask. On this solution, the solution containing (nBu4N)[Ag(CN)2] (0.1 mmol) dissolved in 10 mL of ethyl acetate was carefully layered and then the top was covered by parafilm. After a few weeks, some crystals were formed, which were suitable for single-crystal X-ray analysis.

3.4. X-ray Crystal Structure Determination

Crystal data and refinement parameters for the silver(I) pyrazolato coordination polymer [Ag(μ-L1Clpz)]n are given in Table 1. All crystallographic data have been deposited at the Cambridge crystallographic data center (CCDC), 12 Union Road, Cambridge CB2 1EZ, UK and copies can be obtained on request, free of charge, by quoting the publication citation and the deposition number. CCDC number: 2053891.
The diffraction data were measured on a Rigaku/MSC Mercury CCD system (Rigaku, Tokyo, Japan) with graphite monochromated Mo Kα (λ = 0.71070 Å) radiation at −80 °C. The unit cell parameters of each crystal were determined using CrystalClear [36] from 6 images. The crystal to detector distance was 44.74 mm. Data were collected using 0.5° intervals in φ and ω to a maximum 2θ value of 55.0°. A total of 744 oscillation images were collected. The highly redundant data sets were reduced using CrysAlisPro [37]. An empirical absorption correction was applied for each complex. Structures were solved by direct methods (SIR2008) [38]. The position of the silver ions and their first coordination sphere were located from a direct method E-map; other non-hydrogen atoms were found in alternating difference Fourier syntheses and least squares refinement cycles. During the final refinement cycles the temperature factors were refined anisotropically. Refinement was carried out by a full matrix least-squares method on F2. All calculations were performed with the CrystalStructure [39] crystallographic software package except for refinement, which was performed using SHELXL 2013 [40]. Hydrogen atoms were placed in calculated positions. Crystallographic data and structure refinement parameters including the final discrepancies (R and Rw) are listed in Table 1.

4. Conclusions

By using an unexpected synthetic method, we obtained a silver(I) pyrazolato complex [Ag(μ-L1Clpz)]n as a coordination polymer by the reaction of {[Ag(μ-L1Clpz)]3}2 with (nBu4N)[Ag(CN)2]. This polynuclear silver(I) structure was compared with the known hexanuclear silver(I) structure {[Ag(μ-L1Clpz)]3}2. Two N–Ag–N bond angles of 180.00(7)° and 179.83(5)° in the silver(I) coordination polymer [Ag(μ-L1Clpz)]n indicate that each silver(I) ion is coordinated by two pyrazolyl nitrogen atoms with an almost linear coordination. Every five pyrazoles point in the same direction to form a 1-D zig-zag structure. This zig-zag structure is not stable in solution, but it converts to the original hexanuclear silver(I) complex {[Ag(μ-L1Clpz)]3}2. In the solid-state photoluminescence spectrum, a lower energy strong emission band at 473 nm at lower temperature is very unique and attributable to the differences in polynuclear structure between the two systems. Silver(I) complexes are not generally so emissive, even at lower temperature and thus this 1-D zig-zag polynuclear structure is particularly noteworthy in coinage metal(I) pyrazolate research. This [Ag(μ-L1Clpz)]n broadens a family of silver(I) coordination polymers [24,25,41,42,43]. Moreover, some high antibacterial activity research using silver(I) coordination polymers are also reported [41,42,43,44]. Further efforts to probe how the structure of coinage metal(I) pyrazolates is affected by ligand and coordination environment are in progress.

Supplementary Materials

The following are available online, CIF and checkCIF reportr. Figure S1: 1-D polynuclear structure of [Ag(μ-pz)]n, Figure S2: Packing diagram of [Ag(μ-pz)]n, Figure S3: Powder X-ray diffraction spectra of [Ag(μ-L1Clpz)]n and calcd. pattern, Figure S4: Packing diagram of [Ag(μ-L1Clpz)]n, Figure S5: Crystal structure of {[Ag(μ-L1Clpz)]3}2, Figure S6: Packing diagram of {[Ag(μ-L1Clpz)]3}2, Figure S7: 1H-NMR spectrum of [Ag(μ-L1Clpz)]n, Table S1: Comparisons of the 1H-NMR chemical shifts, Figure S8: UV-Vis spectra of [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2 in cyclohexane, Figure S9: Luminescence spectra of [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2 in cyclohexane, Figure S10: IR spectra of [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2, Figure S11: Raman spectra of [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2, Figure S12: Temperature-dependent photoluminescence spectra in {[Ag(μ-L1Clpz)]3}2.

Author Contributions

K.F. and D.B.L. conceived and designed the project. T.N. and Y.M. performed the experiments. T.N. and K.F. analyzed the data. K.F. and D.B.L. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no directed/sponsored external funding.

Data Availability Statement

Data is contained within the article and supplementary material.

Acknowledgments

K.F. is grateful for the support from an Ibaraki University Priority Research Grant and the joint usage/research program “Artificial Photosynthesis” based at Osaka City University. DBL is grateful to NSERC of Canada for ongoing research support via the Discovery Grant program.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds [Ag(μ-L1Clpz)]n and {[Ag(μ-L1Clpz)]3}2 are available from the authors.

References

  1. Zheng, J.; Lu, Z.; Wu, K.; Ning, G.-H.; Li, D. Coinage-metal-based cyclic trinuclear complexes with metal−metal interactions: Theories to experiments and structures to functions. Chem. Rev. 2020, 120, 9675–9742. [Google Scholar] [CrossRef] [PubMed]
  2. Zheng, J.; Yang, H.; Xie, M.; Li, D. The π-acidity/basicity of cyclic trinuclear units (CTUs): From a theoretical perspective to potential applications. Chem. Commun. 2019, 55, 7134–7146. [Google Scholar] [CrossRef] [PubMed]
  3. Galassi, R.; Rawashdeh-Omary, M.A.; Dias, H.V.R.; Omary, M.A. Homoleptic cyclic trinuclear d10 complexes: From self-association via metallophilic and excimeric bonding to the breakage thereof via oxidative addition, dative bonding, quadrupolar, and heterometal bonding interactions. Comments Inorg. Chem. 2019, 39, 287–348. [Google Scholar] [CrossRef] [Green Version]
  4. Elguero, J.; Alkorta, I. A computational study of metallacycles formed by pyrazolate ligands and the coinage metals M = Cu(I), Ag(I) and Au(I): (pzM)n for n = 2, 3, 4, 5 and 6. comparison with structures reported in the Cambridge crystallographic data center (CCDC). Molecules 2020, 25, 5108. [Google Scholar] [CrossRef] [PubMed]
  5. Omary, M.A.; Mohamed, A.A.; Rawashdeh-Omary, M.A.; Fackler, J.P., Jr. Photophysics of supramolecular binary stacks consisting of electron-rich trinuclear Au(I) complexes and organicelectrophiles. Coord. Chem. Rev. 2005, 249, 1372–1381. [Google Scholar] [CrossRef]
  6. Zhang, J.-P.; Zhang, Y.-B.; Lin, J.-B.; Chen, X.-M. Metal azolate frameworks: From crystal engineering to functional materials. Chem. Rev. 2012, 112, 1001–1033. [Google Scholar] [CrossRef]
  7. Halcrow, M.A. Pyrazoles and pyrazolides—Flexible synthons in self-assembly. Dalton Trans. 2009, 2059–2073. [Google Scholar] [CrossRef]
  8. Trofimenko, S. The coordination chemistry of pyrazole-derived ligands. Chem. Rev. 1972, 72, 497–509. [Google Scholar] [CrossRef]
  9. Trofimenko, S. Recent advances in poly(pyrazolyl)borate (scorpionate) chemistry. Chem. Rev. 1993, 93, 943–982. [Google Scholar] [CrossRef]
  10. Reimlinger, H.; Noels, A.; Jabot, J.; van Overstraeten, A. Synthesis with silver or sodium pyrazoles, I preparation of mono- and polypyrazoles. Chem. Ber. 1970, 103, 1942–1948. [Google Scholar] [CrossRef]
  11. Okkersen, H.; Groeneveld, W.L.; Reedijk, J. Pyrazoles and imidazoles as ligands. Part XVIII: Neutral and anionic pyrazole coordinated to Cu(I) and Ag(I). Recl. Trav. Chim. Pays-Bas 1973, 92, 945–953. [Google Scholar] [CrossRef]
  12. Murray, H.H.; Raptis, R.G.; Fackler, J.P., Jr. Syntheses and X-ray structures of group 11 pyrazole and pyrazolate complexes. X-ray crystal structures of bis(3,5-diphenylpyrazole)copper(II) dibromide, tris(μ-3,5-diphenylpyrazolato-N,N’)trisilver(I)-2-tetrahydrofuran, tris(μ-3,5-diphenylpyrazolato-N,N’)trigold(I), and hexakis(μ-3,5-diphenylpyrazolato- N,N’)hexagold(I). Inorg. Chem. 1988, 27, 26–33. [Google Scholar]
  13. Mohamed, A.A.; Pérez, L.M.; Fackler, J.P. Jr. Unsupported intermolecular argentophilic interaction in the dimer of trinuclear silver(I) 3,5-diphenylpyrazolates. Inorg. Chim. Acta 2005, 358, 1657–1662. [Google Scholar] [CrossRef]
  14. Schmidbaur, H.; Schier, A. Argentophilic interactions. Angew. Chem. Int. Ed. 2015, 54, 746–784. [Google Scholar] [CrossRef] [PubMed]
  15. Masciocchi, N.; Moret, M.; Cairati, P.; Sironi, A.; Ardizzoia, G.A.; Monica, G.L. The multiphase nature of the Cu(pz) and Ag(pz) (Hpz = pyrazole) systems: Selective syntheses and ab-initio X-ray powder diffraction structural characterization of copper(I) and silver(I) pyrazolates. J. Am. Chem. Soc. 1994, 116, 7668–7676. [Google Scholar] [CrossRef]
  16. Zhang, C.-Y.; Feng, J.-B.; Gao, Q.; Xie, Y.-B. catena-Poly[silver(I)-μ-pyrazolato-κ2N:N’]. Acta Cryst. 2008, 64, m352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Fujisawa, K.; Okano, M.; Martín-Pastor, M.; López-Sánchez, R.; Elguero, J.; Alkorta, I. Multinuclear magnetic resonance studies of five silver(I) trinuclear pyrazolate complexes. Struct. Chem. 2021, 32, 215–224. [Google Scholar] [CrossRef]
  18. Fujisawa, K.; Saotome, M.; Takeda, S.; Young, D.J. Structures and photoluminescence of coinage metal(I) phenylpyrazolato trinuclear complexes [M(3,5-Et2-4-Ph-pz)]3 and arene sandwich complexes {[Ag(3,5-Et2-4-Ph-pz)]3}2(Ar) (Ar = mesitylene and toluene). Chem. Lett. 2020, 49, 670–673. [Google Scholar] [CrossRef]
  19. Saotome, M.; Shimizu, D.; Itagaki, A.; Young, D.J.; Fujisawa, K. Structures and photoluminescence of silver(I) and gold(I) cyclic trinuclear complexes with aryl substituted pyrazolates. Chem. Lett. 2019, 48, 533–536. [Google Scholar] [CrossRef] [Green Version]
  20. Morishima, Y.; Young, D.J.; Fujisawa, K. Structure and photoluminescence of silver(I) trinuclear halopyrazolato complexes. Dalton Trans. 2014, 43, 15915–15928. [Google Scholar] [PubMed]
  21. Fujisawa, K.; Ishikawa, Y.; Miyashita, Y.; Okamoto, K. Pyrazolate-bridged group 11 metal(I) complexes: Substituent effects on the supramolecular structures and physicochemical properties. Inorg. Chim. Acta 2010, 363, 2977–2989. [Google Scholar] [CrossRef]
  22. Fujisawa, K.; Ishikawa, Y.; Miyashita, Y.; Okamoto, K. Crystal structure of pyrazolato-bridged copper(I) polynuclear complexes. Chem. Lett. 2004, 33, 66–67. [Google Scholar] [CrossRef]
  23. Burini, A.; Bravi, R.; Fackler, J.P., Jr.; Galassi, R.; Grant, T.A.; Omary, M.A.; Pietroni, B.R.; Staples, R.J. Luminescent chains formed from neutral, triangular gold complexes sandwiching TlI and AgI. structures of {Ag([Au(μ-C2,N3-bzim)]3)2}BF4·CH2Cl2, {Tl([Au(μ-C2,N3-bzim)]3)2}PF6·0.5THF (bzim = 1-Benzylimidazolate), and {Tl([Au(μ-C(OEt)=NC6H4CH3)]3)2}PF6·THF, with MAu6 (M = Ag+, Tl+) cluster cores. Inorg. Chem. 2000, 39, 3158–3165. [Google Scholar]
  24. Baril-Robert, F.; Li, X.; Katz, M.J.; Geisheimer, A.R.; Leznoff, D.B.; Patterson, H. Changes in electronic properties of polymeric one-dimensional {[M(CN) 2]−}n (M = Au, Ag) chains due to neighboring closed-shell Zn(II) or open-shell Cu(II) ions. Inorg. Chem. 2011, 50, 231–237. [Google Scholar] [CrossRef] [PubMed]
  25. Shorrock, C.J.; Xue, B.-Y.; Kim, P.B.; Batchelor, R.J.; Patrick, B.O.; Leznoff, D.B. Heterobimetallic coordination polymers incorporating [M(CN)2]− (M = Cu, Ag) and [Ag2(CN)3]− units: Increasing structural dimensionality via M–M’ and M···NC interactions. Inorg. Chem. 2002, 41, 6743–6753. [Google Scholar] [CrossRef]
  26. Rawashdeh-Omary, M.A.; Omary, M.A.; Patterson, H.H.; Fackler, J.P., Jr. Excited-state interactions for [Au(CN)2−]n and [Ag(CN)2−]n oligomers in solution. Formation of luminescent gold–gold bonded excimers and exciplexes. J. Am. Chem. Soc. 2001, 123, 11237–11247. [Google Scholar] [CrossRef]
  27. Omary, M.A.; Webb, T.R.; Assefa, Z.; Shankle, G.E.; Patterson, H.H. Crystal structure, electronic structure, and temperature-dependent Raman spectra of Tl[Ag(CN)2]: Evidence for ligand-unsupported argentophilic interactions. Inorg. Chem. 1998, 37, 1380–1386. [Google Scholar] [CrossRef]
  28. Omary, M.A.; Patterson, H.H. Temperature-dependent photoluminescence properties of Tl[Ag(CN)2]: Formation of luminescent metal-metal-bonded inorganic exciplexes in the solid state. Inorg. Chem. 1998, 37, 1060–1066. [Google Scholar] [CrossRef]
  29. Dragulescu-Andrasi, A.; Hietsoi, O.; Üngör, Ö.; Dunk, P.W.; Stubbs, V.; Arroyave, A.; Kovnir, K.; Shatruk, M. Dicyanometalates as building blocks for multinuclear iron(II) spin-crossover complexes. Inorg. Chem. 2019, 58, 11920–11926. [Google Scholar] [CrossRef]
  30. Bondi, A. van der Waals volume and radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  31. Nakamoto, K. Infrared and Raman spectra of inorganic and coordination compounds, 6th ed.; John Wiley and Sons, Inc.: New York, NY, USA, 2009. [Google Scholar]
  32. Omary, M.A.; Rawashdeh-Omary, M.A.; Gonser, M.W.A.; Elbjeirami, O.; Grimes, T.; Cundari, T.R.; Diyabalanage, H.V.K.; Gamage, C.S.P.; Dias, H.V.R. Metal Effect on the supramolecular structure, photophysics, and acid-base character of trinuclear pyrazolato coinage metal complexes. Inorg. Chem. 2005, 44, 8200–8210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Grimes, T.; Omary, M.A.; Dias, H.V.R.; Cundari, T.R. Intertrimer and intratrimer metallophilic and excimeric bonding in the ground and phosphorescent states of trinuclear coinage metal pyrazolates: A computational study. J. Phys. Chem. A 2006, 110, 5823–5830. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Hettiarachchi, C.V.; Rawashdeh-Omary, M.A.; Korir, D.; Kohistani, J.; Yousufuddin, M.; Dias, H.V.R. Trinuclear copper(I) and silver(I) adducts of 4-chloro-3,5-bis(trifluoromethyl)pyrazolate and 4-bromo-3,5-bis(trifluoromethyl)pyrazolate. Inorg. Chem. 2013, 52, 13576–13583. [Google Scholar] [CrossRef]
  35. Kitajima, N.; Fujisawa, K.; Fujimoto, C.; Moro-oka, Y.; Hashimoto, S.; Kitagawa, T.; Toriumi, T.; Tatsumi, K.; Nakamura, A. A new model for dioxygen binding in hemocyanin. Synthesis, characterization, and molecular structure of the μ-η2:η2 peroxo dinuclear copper(II) complexes, [Cu(HB(3,5-R2pz)3)]2(O2) (R = i-Pr and Ph). J. Am. Chem. Soc. 1992, 114, 1277–1291. [Google Scholar] [CrossRef]
  36. CrystalClear: Data Collection and Processing Software; Rigaku Corporation: Tokyo, Akishima, Japan, 1999.
  37. CrysAlisPro: Data Collection and Processing Software; Rigaku Corporation: Tokyo, Akishima, Japan, 2015.
  38. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Siliqi, D.; Spagna, R. IL MILIONE: A suite of computer programs for crystal structure solution of proteins. J. Appl. Cryst. 2007, 40, 609–613. [Google Scholar] [CrossRef]
  39. Crystal Structure 4.3: Crystal Structure Analysis Package; Rigaku Corporation: Tokyo, Akishima, Japan, 2019.
  40. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  41. Jaros, S.W.; da Silva, M.F.C.G.; Florek, M.; Smoleński, P.; Pombeiro, A.J.L.; Kirillov, A.M. Silver(I) 1,3,5-triaza-7-phosphaadamantane coordination polymers driven by substituted glutarate and malonate building blocks: Self-assembly synthesis, structural features, and antimicrobial properties. Inorg. Chem. 2016, 55, 5886–5894. [Google Scholar] [CrossRef]
  42. Lu, X.; Ye, J.; Zhang, D.; Xie, R.; Bogale, R.F.; Sun, Y.; Zhao, L.; Zhao, Q.; Ning, G. Silver carboxylate metal–organic frameworks with highly antibacterial activity and biocompatibility. J. Inorg. Biochem. 2014, 138, 114–121. [Google Scholar] [CrossRef] [PubMed]
  43. Jaros, S.W.; Smoleński, P.; da Silva, M.F.C.G.; Florek, M.; Król, J.; Staroniewicz, Z.; Pombeiro, A.J.L.; Kirillov, A.M. New silver BioMOFs driven by 1,3,5-triaza-7-phosphaadamantane-7-sulfide (PTA=S): Synthesis, topological analysis and antimicrobial activity. CrystEngComm 2013, 15, 8060–8064. [Google Scholar] [CrossRef]
  44. Domb, A.J.; Kunduru, K.R.; Farah, S. Antimicrobial Materials for Biomedical Applications; The Royal Society of Chemistry: Croydon, UK, 2019. [Google Scholar]
Molecules 26 01015 g001 550
Figure 1. Schematic drawing of silver(I) pyrazolato complexes; left: polynuclear, center: trinuclear, right: tetranuclear. Dotted lines show intramolecular Ag···Ag interactions.
Figure 1. Schematic drawing of silver(I) pyrazolato complexes; left: polynuclear, center: trinuclear, right: tetranuclear. Dotted lines show intramolecular Ag···Ag interactions.
Molecules 26 01015 g001
Molecules 26 01015 g002 550
Figure 2. Pyrazoles used in this research.
Figure 2. Pyrazoles used in this research.
Molecules 26 01015 g002
Molecules 26 01015 sch001 550

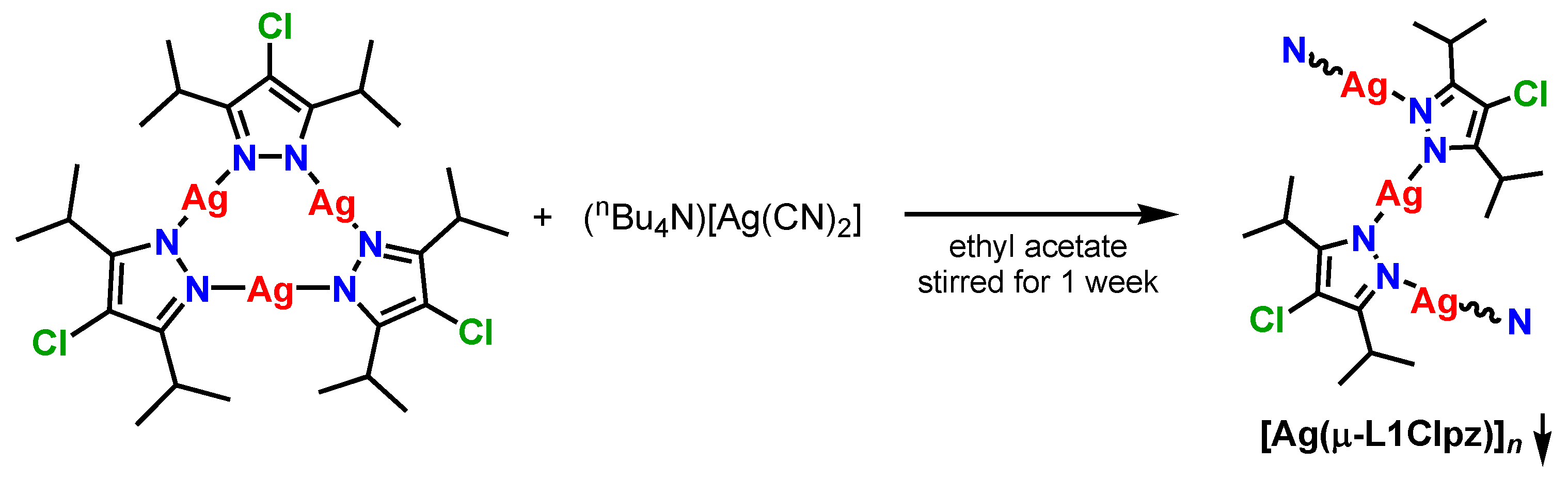

Scheme 1. Synthetic scheme of silver(I) coordination polymer [Ag(μ-L1Clpz)]n.
Scheme 1. Synthetic scheme of silver(I) coordination polymer [Ag(μ-L1Clpz)]n.
Molecules 26 01015 sch001
Molecules 26 01015 g003 550
Figure 3. Crystal structure of [Ag(μ-L1Clpz)]n showing 50% displacement ellipsoids and the atom labeling scheme. Hydrogen atoms were omitted for clarity. Relevant bond lengths (Å) and angles (°): Ag1–N1, 2.0760(13); Ag2–N2, 2.0716(13); Ag1–N1′, 2.0760(13); Ag2′–N2′, 2.0716(13); Ag2′–N2”, 2.0716(13); Ag1#–N1”, 2.0760(13); N1–N2, 1.3827(18); N1–Ag1–N1′, 180.00(7); N2′–Ag2′–N2”, 179.83(5); Ag1···Ag2, 3.39171(17), Ag1···Ag2′, 3.39171(17), Ag1#···Ag2′, 3.39171(17); Ag1···Ag1#, 4.73335(10); Ag2···Ag2′, 6.7834(3); Ag2···Ag1···Ag2′, 180.000(4); Ag1···Ag2′···Ag1#, 88.499(6). Symmetry codes: ‘, –x+2, –y+1, –z+2; “, x+1, –y+1, z; #, –x+1/2+2, y, –z+2.
Figure 3. Crystal structure of [Ag(μ-L1Clpz)]n showing 50% displacement ellipsoids and the atom labeling scheme. Hydrogen atoms were omitted for clarity. Relevant bond lengths (Å) and angles (°): Ag1–N1, 2.0760(13); Ag2–N2, 2.0716(13); Ag1–N1′, 2.0760(13); Ag2′–N2′, 2.0716(13); Ag2′–N2”, 2.0716(13); Ag1#–N1”, 2.0760(13); N1–N2, 1.3827(18); N1–Ag1–N1′, 180.00(7); N2′–Ag2′–N2”, 179.83(5); Ag1···Ag2, 3.39171(17), Ag1···Ag2′, 3.39171(17), Ag1#···Ag2′, 3.39171(17); Ag1···Ag1#, 4.73335(10); Ag2···Ag2′, 6.7834(3); Ag2···Ag1···Ag2′, 180.000(4); Ag1···Ag2′···Ag1#, 88.499(6). Symmetry codes: ‘, –x+2, –y+1, –z+2; “, x+1, –y+1, z; #, –x+1/2+2, y, –z+2.
Molecules 26 01015 g003
Molecules 26 01015 g004 550

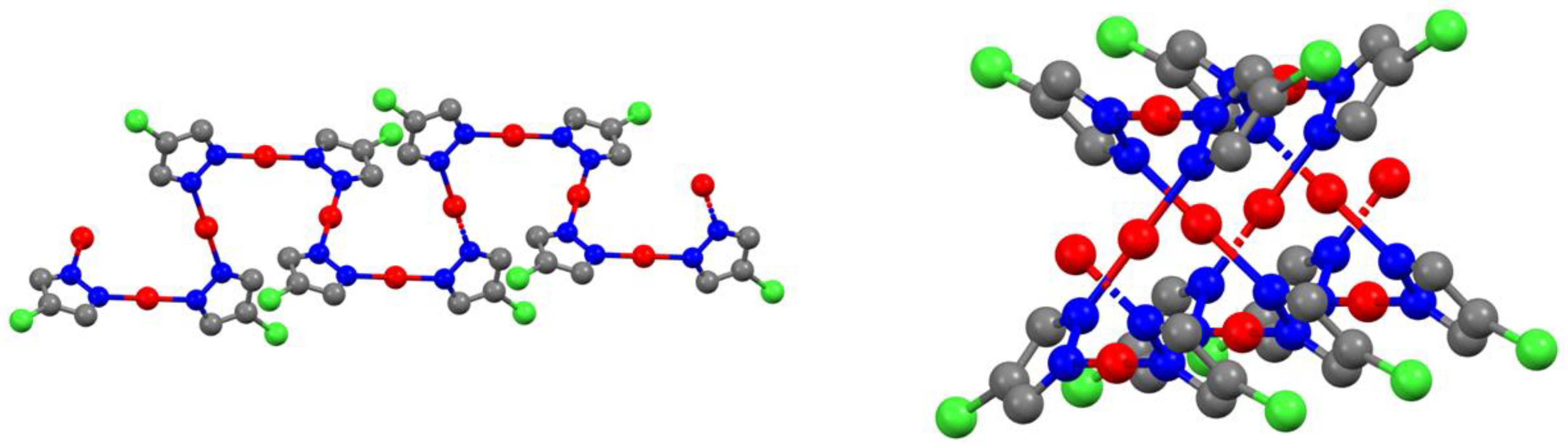

Figure 4. 1-D polynuclear structure of [Ag(μ-L1Clpz)]n (left) top view and (right) side view. Carbon atoms of isopropyl group and hydrogen atoms were omitted for clarity. Color: red, silver; blue, nitrogen; green, chlorine; grey, carbon.
Figure 4. 1-D polynuclear structure of [Ag(μ-L1Clpz)]n (left) top view and (right) side view. Carbon atoms of isopropyl group and hydrogen atoms were omitted for clarity. Color: red, silver; blue, nitrogen; green, chlorine; grey, carbon.
Molecules 26 01015 g004
Molecules 26 01015 g005 550
Figure 5. Solid-state UV-Vis absorption spectra of [Ag(μ-L1Clpz)]n (red line) and {[Ag(μ-L1Clpz)]3}2 (blue line) [20] recorded in a Nujol mull.
Figure 5. Solid-state UV-Vis absorption spectra of [Ag(μ-L1Clpz)]n (red line) and {[Ag(μ-L1Clpz)]3}2 (blue line) [20] recorded in a Nujol mull.
Molecules 26 01015 g005
Molecules 26 01015 g006 550
Figure 6. Solid-state photoluminescence spectra of [Ag(μ-L1Clpz)]n (red line) and {[Ag(μ-L1Clpz)]3}2 (blue line) [20] at room temperature recorded at 280 nm excitation wavelength.
Figure 6. Solid-state photoluminescence spectra of [Ag(μ-L1Clpz)]n (red line) and {[Ag(μ-L1Clpz)]3}2 (blue line) [20] at room temperature recorded at 280 nm excitation wavelength.
Molecules 26 01015 g006
Molecules 26 01015 g007 550
Figure 7. Solid-state temperature-dependent photoluminescence spectra at 83 K (violet line), 173 K (green line), and 299 K (red line) in [Ag(μ-L1Clpz)]n at 280 nm excitation.
Figure 7. Solid-state temperature-dependent photoluminescence spectra at 83 K (violet line), 173 K (green line), and 299 K (red line) in [Ag(μ-L1Clpz)]n at 280 nm excitation.
Molecules 26 01015 g007
Table
Table 1. Crystal data and structure refinement of [Ag(μ-L1Clpz)]n.
Table 1. Crystal data and structure refinement of [Ag(μ-L1Clpz)]n.
Complex[Ag(μ-L1Clpz)]n
CCDC number2053891
Empirical FormulaC9H14AgClN2
Formula Weight293.54
Crystal SystemMonoclinic
Space GroupI2/a (#15)
a/Å9.4667(11)
b/Å11.0962(3)
c/Å21.5508(7)
β/°94.859(2)
V/Å32255.66(11)
Z8
Dcalc/g cm−31.729
μ(MoKα)/cm−119.771
Temperature/°C−80
2θ range, °6–55
Reflections collected8801
Unique reflections2589
Rint0.0111
Number of Variables120
Refls./Para ratio21.57
Residuals: R1 (I > 2 σ (I))0.0155
Residuals: R (All reflections)0.0167
Residuals: wR2 (All reflections)0.0406
Goodness of fit indicator1.046
Max/min peak,/e Å−30.43/−0.40
R1 = Σ||Fo| − |Fc||/Σ|Fo|, wR2 = [Σ (w (Fo2 − Fc2)2 )/Σw(Fo2)2]1/2.
