Ultrasonication Improves Solid Phase Synthesis of Peptides Specific for Fibroblast Growth Factor Receptor and for the Protein-Protein Interface RANK-TRAF6

Abstract

Considering our interest in the use of peptides as potential target-specific drugs or as delivery vectors of metallodrugs for various biomedical applications, it is crucial to explore improved synthetic methodologies to accomplish the highest peptide crude purity in the shortest time possible. Therefore, we compared “classical” fluorenylmethoxycarbonyl (Fmoc)-solid phase peptide synthesis (SPPS) with ultrasound(US)-assisted SPPS based on the preparation of three peptides, namely the fibroblast growth factor receptor 3(FGFR3)-specific peptide Pep1 (VSPPLTLGQLLS-NH₂) and the novel peptides Pep2 (RQMATADEA-NH₂) and Pep3 (AAVALLPAVLLALLAPRQMATADEA-NH₂), which are being developed aimed at interfering with the intracellular protein-protein interaction(PPI) RANK-TRAF6. Our results demonstrated that US-assisted SPPS led to a 14-fold (Pep1) and 4-fold time reduction (Pep2) in peptide assembly compared to the “classical” method. Interestingly, US-assisted SPPS yielded Pep1 in higher purity (82%) than the “classical” SPPS (73%). The significant time reduction combined with high crude peptide purity attained prompted use to apply US-assisted SPPS to the large peptide Pep3, which displays a high number of hydrophobic amino acids and homooligo-sequences. Remarkably, the synthesis of this 25-mer peptide was attained during a “working day” (347 min) in moderate purity (approx. 49%). In conclusion, we have reinforced the importance of using US-SPPS towards facilitating the production of peptides in shorter time with increased efficacy in moderate to high crude purity. This is of special importance for long peptides such as the case of Pep3.

1. Introduction

Owing to our interest in the study of target-specific molecules that can interfere with relevant protein-protein interactions (PPI) or that can act as delivery vectors of metallodrugs for biomedical applications, namely cancer theranostics, we have been actively involved in the design and biological evaluation of relevant targeting peptides [1,2,3,4,5,6]. The latter comprise blood brain barrier-penetrating peptide shuttles, melanocortin-1 receptor (MC1R)-targeting peptides, integrin receptor α_vβ₃-specific cyclic pentapeptides or fibroblast growth factor receptor (FGFR)-specific peptides. The FGFR, which comprises four identified subtypes (FGFR1-FGFR4), is a transmembrane tyrosine kinase that plays an important role in various signaling pathways, such as those controlling organogenesis as well as those related to tissue reparation and metabolic function [7]. Alterations of FGFR structure, function or expression are often associated with the development and/or progression of many metabolic disorders and cancer [7,8]. Therefore, targeting FGFR has been considered a promising approach for the therapy of various cancers, with many drug candidates reaching clinical trials, namely highly specific molecules such as peptides [8]. Amongst the latter, the peptide VSPPLTLGQLLS-NH₂ (Pep1) binds with high affinity and specificity to the extracellular domain of FGFR3, and was explored for the treatment of human thanatophoric dysplasia and for regulation of lymphangiogenesis [9,10,11].

More recently, some of us explored the possibility of using Pep1 for the selective delivery of a cytotoxic ruthenium complex, [RuCp(PPh₃)(2,2′-bipy)][CF₃SO₃] (Cp = η⁵-cyclopentadienyl, TM34) [12,13,14,15], to highly metastatic breast cancer cells that overexpress the FGFR [2,16]. The ruthenium peptide conjugate TM34-Pep1 obtained after conjugation was more active against the FGFR-overexpressing breast cancer cells (SKBR3, FGFR+) than against those that did not overexpress that receptor (MDAMB231, FGFR–). These findings highlighted the importance of using FGFR-targeting peptides for selective drug delivery and prompted us to develop further improved cytotoxic conjugates with higher selectivity.

A brief analysis of the amino acid sequence of Pep1 permits to identify the presence of the hydrophobic amino acids Gly, Leu and Val and of the homooligo-sequence LeuLeu, which may promote aggregation, and empirically include it into the category of the so-called “difficult peptides” [17].

The pioneering work of Takahashi and Shimonishi in the use of ultrasonic waves in Solid Phase Peptide Synthesis (SPPS) and the unprecedented systematic study recently undertaken by Merlino et al. have demonstrated that Ultrasound (US)-assisted SPPS can be placed among the current highly efficient peptide synthetic methodologies [18,19]. Indeed, the authors demonstrated that 9-fluorenylmethyloxycarbonyl (Fmoc)-deprotection yields higher than 95% were achievable with reaction times as low as 2 min by US-assisted SPPS [19]. This resulted in a 92% time reduction as compared to the “classical” method of Fmoc-removal that typically requires at least 25 min. Additionally, the same authors reported considerable time reduction in amide bond formation. Similar relevant results on the application of ultrasonication in peptide synthesis have been reported by other authors [20,21]. Remarkably, sonication does not cause the racemization of sensible residues as clearly demonstrated by Merlino et al. and Wołczański et al. and can be applied to assemble peptides bearing amino acid residues prone to racemization [19,20].

Inspired by these achievements, we decided to prepare Pep1 using this approach and compare it with the “classical” standard synthetic methodology in the absence of ultrasound irradiation. The success of US-assisted SPPS of Pep1 was extended to Pep2 (RQMATADEA-NH₂) and Pep3 (AAVALLPAVLLALLAPRQMATADEA-NH₂), which are being developed aimed at interfering with the intracellular PPI RANK-TRAF6. The latter is recognized as a potential therapeutic target for bone-related diseases, including bone cancer metastasis [22,23,24].

2. Results and Discussion

Considering the relevance of Pep1 as a FGFR inhibitor potentially useful for the treatment of metabolic diseases such as thanatophoric dysplasia or targeted delivery of cytotoxic agents, it is important to further deepen the understanding of these applications and expand to other areas. Therefore, the development of more efficient, clean, and fast synthetic procedures is of outmost importance. In our first attempt to synthesize Pep1, we adopted a Fmoc-based SPPS method using a Rink Amide MBHA resin and standard reagents (O-(Benzotriazol-1-yl)-N,N,N′,N′-tetramethyluronium hexafluorophosphate, HBTU and N,N-Diisopropylethylamine, DIPEA) in a microwave (MW)–assisted automated peptide synthesizer. However, this approach revealed unsuccessful, as we could not find the optimal conditions, even after several attempts using the same coupling agent, in which different reagents stoichiometry, coupling times, number of coupling steps and/or temperatures were assayed. Nevertheless, the use of other coupling agents (e.g., HOBT/DIC) might have given a different result.

To overcome this limitation, we then proceeded to the “classical” manual synthetic approach (0.1 mmol scale) in the absence of MW irradiation at room temperature. Unlike the automated synthesis tried above, in the case of the “classical” method adopted, it has been possible to monitor the coupling of each amino acid by performing a step-by-step colorimetric Kaiser test at each deprotection and conjugation reaction [25]. Pep1 was assembled on the resin using standard optimized Fmoc-deprotection cycles (20% piperidine in DMF, 20 min) and amino acid conjugation cycles with times ranging from 90 min to 960 min at room temperature (Figure 1).

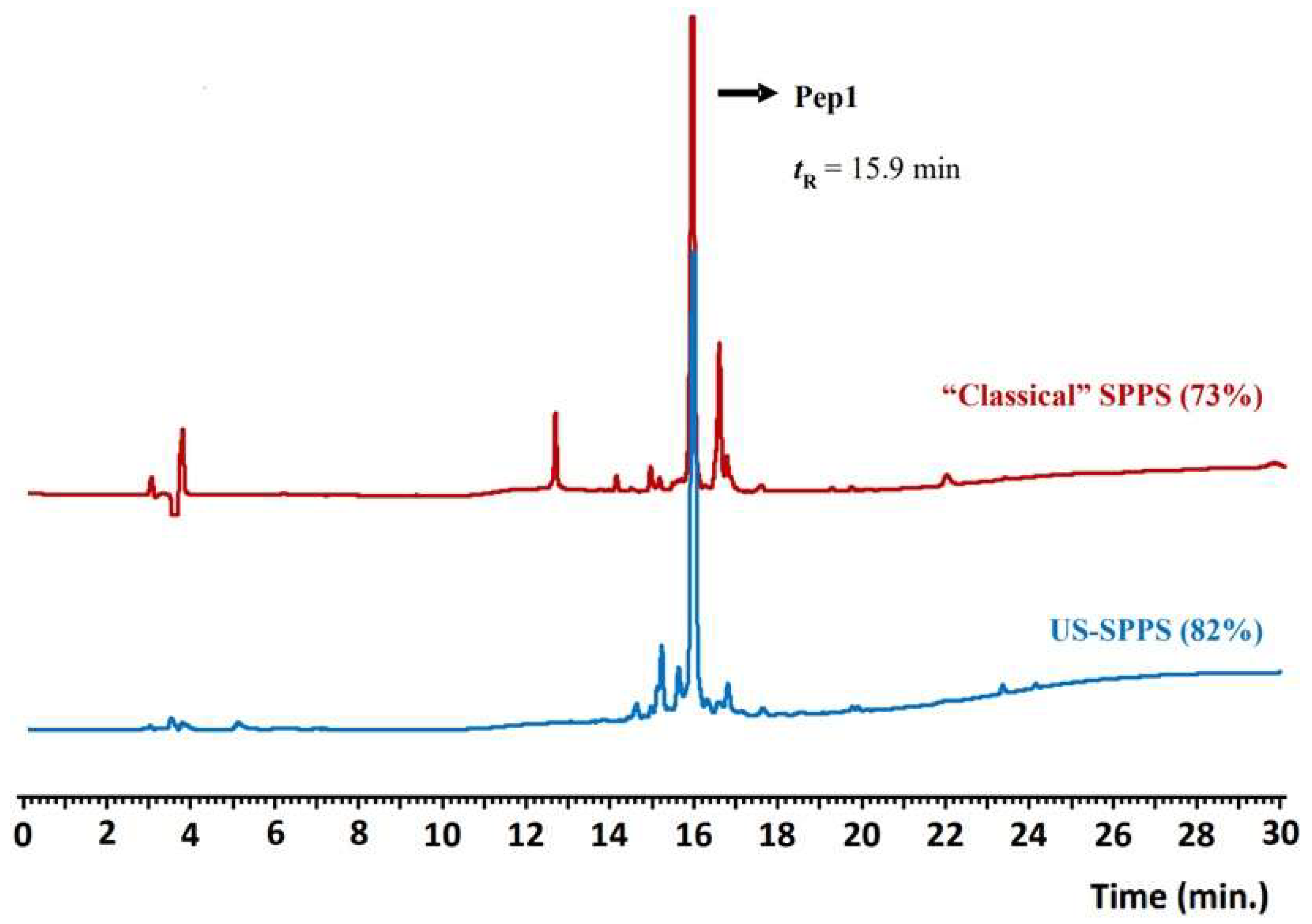

Cleavage of Pep1 from the resin, full deprotection, and isolation were achieved with a standard cleavage cocktail (95% TFA/2.5% TIS/2.5% H₂O) and treatment with ice-cold diethyl ether. The peptide precipitate was recovered by centrifugation, dried under N₂ stream and dissolved in water. Pep1 was controlled by analytical reversed-phase (RP) HPLC and characterized by ESI-MS spectrometry, revealing a crude purity of ca. 73% (

Table 1. Analytical characterization and complete synthesis times for Pep1, Pep2 and Pep3.

Peptide/Sequence	Calc. Exact Mass (Da)	Found [ion]	tR (Min)/Purity	Total Synthesis (Min)
Pep1 VSPPLTLGQLLS-NH2	C56H98N14O16 1222.7	1223.8 [M+H]+ 612.5 [M+2H]2+	15.9 a Cl. 73% US 82%	Cl. 3515 US 250
Pep2 RQMATADEA-NH2	C38H64N14O15S 991.09	991.6 [M+H]+ 496.3 [M+2H]2+	13.9 b Cl. 84% US 72%	Cl. 365 US 85
Pep3 AAVALLPAVLLALLAPRQMATADEA-NH2	C112H192N30O31S 2489.02	1245.5 [M+2H]2+ 830.9 [M+3H]3+	19.5 c US 50%	US 347

^a Gradient A; ^b Gradient B; ^c Gradient C (see experimental section for gradients). Cl. = Classical SPPS; US = US-assisted SPPS.

, Figure 2). The final yield for the crude peptide was ca. 42% (

Table 2. Final yield (%) for crude Pep1–Pep3 obtained by “classical” vs. US-SPPS.

Peptide	Classical SPPS	US-SPPS
Pep1	42	54
Pep2	32	49
Pep3	-	19

).

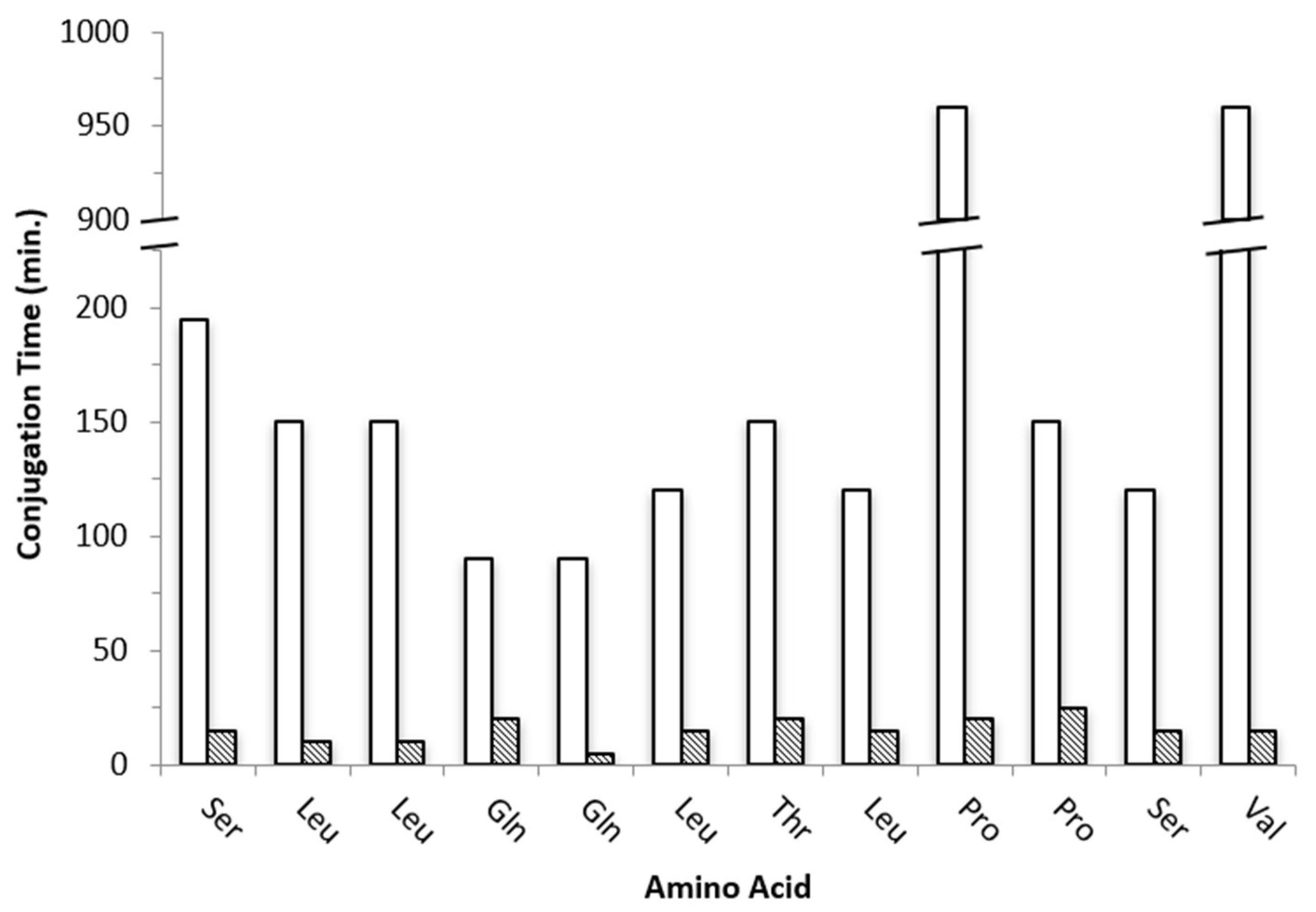

Although “classical” SPPS gave Pep1 in moderate crude purity, this approach revealed to be highly demanding and time-consuming as more than 58 h were needed for total peptide assembly on the resin. Aimed at finding a faster route and speed up both the Fmoc-deprotection and amino acid conjugation steps, we explored the combination of SPPS with ultrasonication using a common laboratory ultrasonic water bath. The same experimental conditions described above for the “classical” SPPS method were followed but with controlled temperature (30 ± 5 °C) to avoid overheating due to ultrasound irradiation. With this methodology, the Fmoc-deprotection step could be reduced from 20 to 5 min each (4-fold decrease), and the amino acids conjugation step was attained in only 5 to 25 min per step (Figure 1). Remarkably, Pep1 was assembled successfully on the resin in approximately 4 h, which means that it can be prepared 14-fold faster than by “classical” SPPS. Moreover, the US-SPPS approach allowed a more efficient and clean synthesis, as the crude product purity increased from 73% to 82%, with less formation of side-products as determined by analytical RP-HPLC and ESI-MS (Figure 2, Table 1). This improvement is highly relevant as it reduces the production costs and facilitates the purification of final peptide Pep1. Moreover, the final yield for the crude peptide obtained by US-SPPS (54%) is significantly higher than that observed in “classical” SPPS (42%) (Table 2).

This successful accomplishment prompted us to apply the same methodology to the synthesis of the 9-mer peptide RQMATADEA-NH₂ (Pep2), a potential inhibitor of the intracellular PPI RANK-TRAF6 and compare the US-assisted method to the “classical” SPPS under optimized reaction conditions. In the latter strategy, the Fmoc-deprotection step took 25 min per amino acid and conjugation times varied between 5 to 35 min, depending on the amino acid and relative position within the chain (Figure 3). Therefore, the total time for peptide assembly was 365 min.

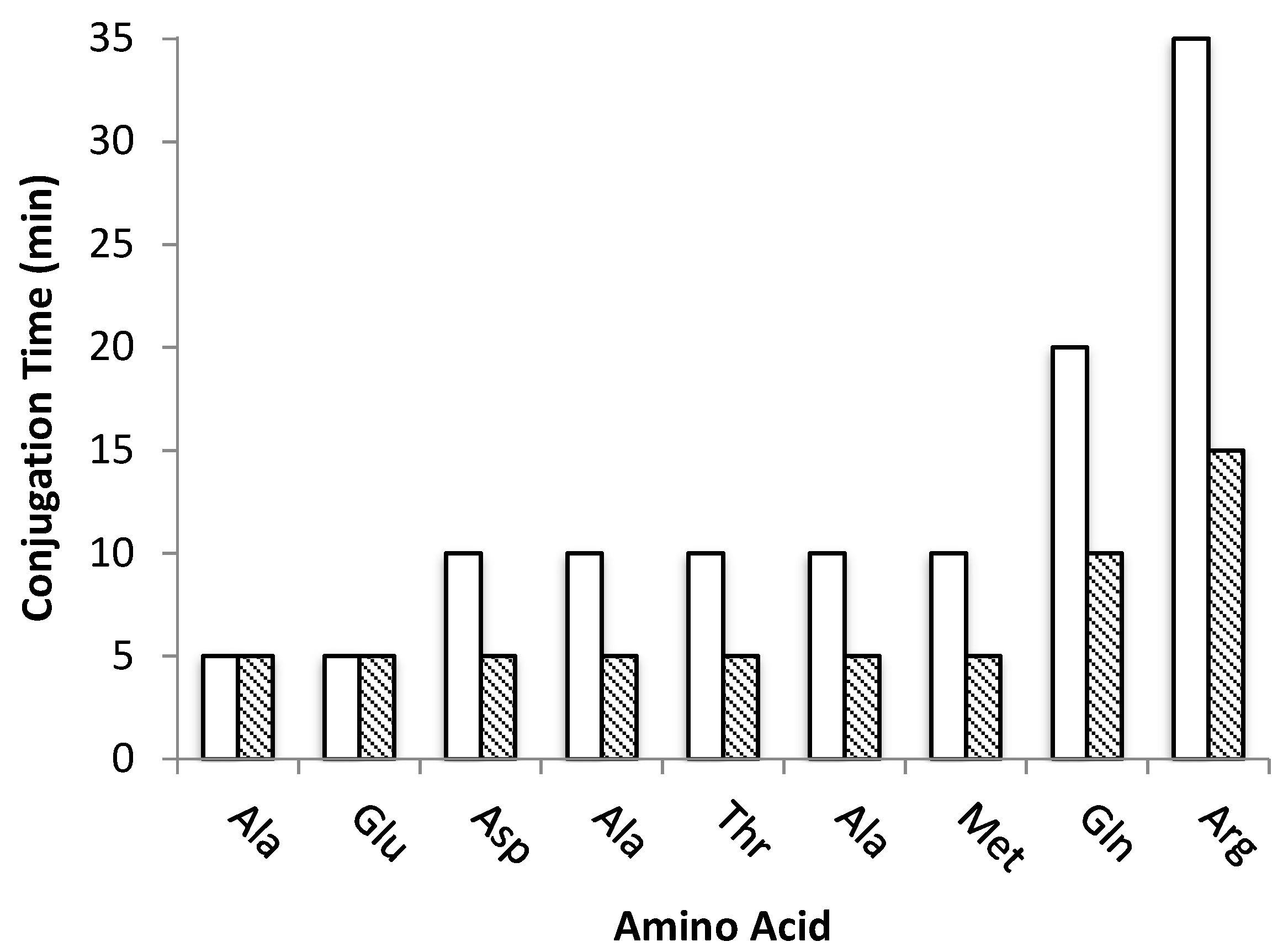

Interestingly, in the case of US-assisted peptide synthesis under the same conditions, the Fmoc-deprotection step was reduced to 2 min whereas the conjugation step required between 5 to 15 min, which accounts for a total time of 85 min to complete the sequence of Pep2 (Figure 3). As the peptide chain grows, in the “classical” synthesis an increase on time required to a complete conjugation is observed, while US-assisted required a steady 5 min time per amino acid until the 7th residue (Met).

Similar to Pep1, both the Fmoc-deprotection and the conjugation steps in Pep2 were monitored by the Kaiser test colorimetric assay. Brought together the results showed that there was a 4-fold time reduction to assemble Pep2 on the resin when the “classical” SPPS method (365 min) was replaced by the US-SPPS (85 min).

The resin-bound peptides, from both the “classical” and US-assisted SPPS synthesis, were cleaved from the resin and isolated as described above and analyzed by RP-HPLC and ESI-MS (Table 1).

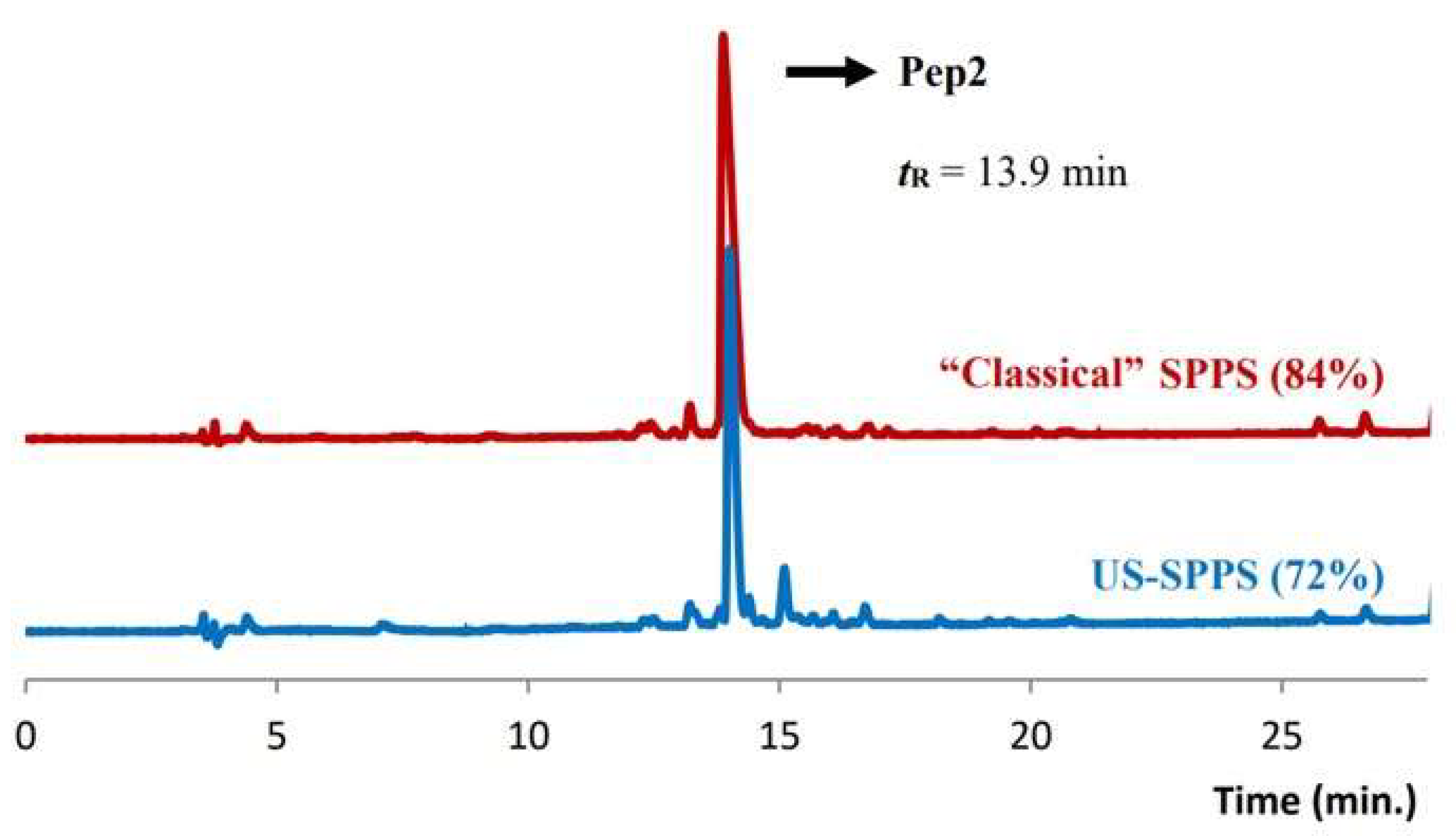

Analysis of the chromatographic profiles revealed 84% and 72% purity for the crude peptides obtained by “classical” and US-SPPS, respectively (Figure 4). The lower purity of the peptide obtained by US-SPPS can be tentatively assigned to local overheating phenomena associated to ultrasound irradiation. Similar to what was observed in the synthesis of Pep1, the final yield for crude Pep2 prepared by US-SPPS (49%) was higher than that obtained for the same peptide prepared by “classical” SPPS (32%) (Table 2).

Encouraged by the significant time reduction provided by US-assisted SPPS of Pep1 and Pep2, the same synthetic methodology was applied to the long peptide Pep3 (A¹AVALLPAVLLALLAP¹⁶RQMATADEA-NH₂), which is a Pep2 derivative. Pep3 contains the RANK-TRAF6 potential interfering sequence, Pep2, and a long sequence (from Ala¹ to Pro¹⁶) with an high number of hydrophobic amino acids (Ala, and Leu) and homooligo-sequences LeuLeu and AlaAla [17]. This latter sequence has been described as a potent cell penetrating peptide by Ye el al. [22]

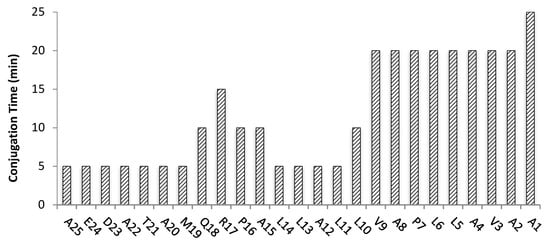

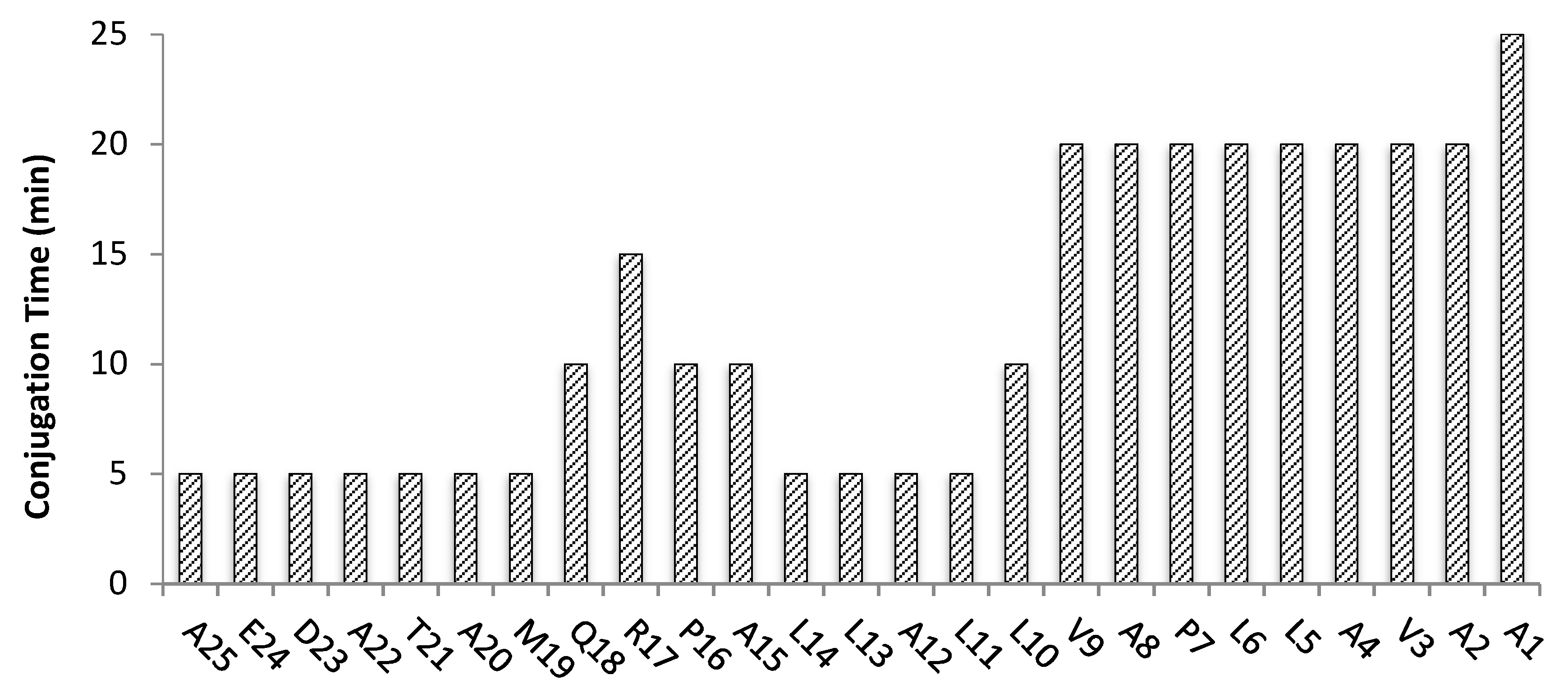

Following the optimized reaction conditions used for Pep2, the monitored Fmoc-deprotection step took the same time (2 min), whereas the average conjugation time for the first 16 amino acids (from A²⁵ to L¹⁰) and for the last nine amino acid residues (from Val⁹ to Ala¹) was approximately 7 min and 21 min, respectively (Figure 5). Complete Pep3 assembly by US-assisted SPPS took 347 min.

Although we did not try the synthesis of the long peptide Pep3 by “classical” SPPS, it is predictable that it would take much longer based on our experience with the shorter peptides Pep1 and Pep2, where up to 14-fold time reduction required to assemble the complete peptide was observed when ultrasonication was applied.

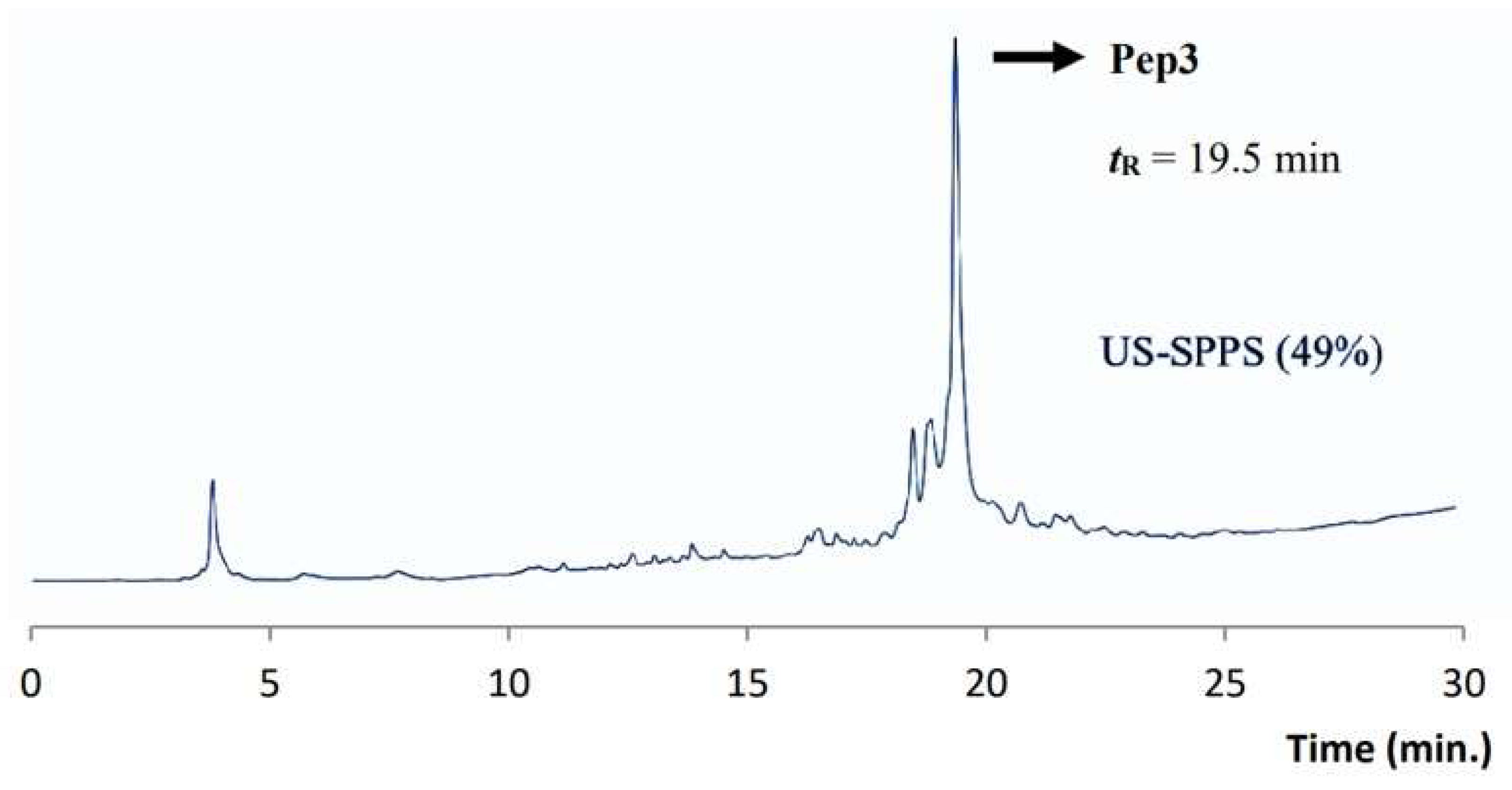

After cleavage and precipitation of crude peptide by standard methods, Pep3 was characterized by analytical RP-HPLC and ESI-MS (Table 1). Pep3 was obtained in approx. 49% crude purity as shown by the RP-HPLC trace (Figure 6). The final yield for crude peptide was ca. 19% (Table 2).

3. Conclusions

We have compared “classical” SPPS with US-assisted SPPS in the preparation of Pep1 (VSPPLTLGQLLS-NH₂) and Pep2 (RQMATADEA-NH₂). Remarkably, US-assisted SPPS led to a 14-fold (Pep1) and 4-fold time reduction (Pep2) in peptide assembly. Interestingly, in the case of Pep 1, US-assisted SPPS yielded a crude peptide with higher purity (82%) than that obtained by “classical” SPPS (73%). On the contrary, the purity of Pep2 prepared by US-SPPS was lower (72%) when compared to “classical” SPPS (84%). This has been tentatively assigned to aspartimide formation during Asp conjugation, which can be most likely circumvented by lowering reaction temperature or using a bulkier side-chain-protecting group for Asp (e.g., 5-N-butyl-5-nonyl, OBno). The significant time reduction combined with high peptide purities (>70%) prompted us to apply US-assisted SPPS to a large peptide (Pep3, AAVALLPAVLLALLAPRQMATADEA-NH₂) with high numbers of hydrophobic amino acids and homooligo-sequences. The synthesis of this 25-mer peptide was accomplished within a “working day” (347 min) in moderate purity (approx. 49%).

In conclusion, we have reinforced the importance of using US-SPPS towards facilitating the production of peptides in shorter time with increased efficacy and moderate to high crude purity. This is of special importance for long peptides containing potential “difficult sequences” such as the case of Pep3.

4. Materials and Methods

4.1. Materials

Dichloromethane (DCM) and N,N-Dimethylformamide (DMF) were purchased from Honeywell Riedel-de Haen™ and were used without further purification. Trifluoroacetic acid (TFA), triisopropylsilane (TIS), 1,2-ethanedithiol (EDT), piperidine and N,N-diisopropylethylamine (DIPEA) were purchased from Merck^®. All Fmoc-L-AA-OH (with the respective side chain protecting group orthogonal to Fmoc-based SPPS) and 2-(1H-Benzotriazol-1-yl)-1,1,3,3-tetramethyluronium hexafluorophosphate (HBTU) were acquired from Novabiochem™ and Iris Biotech GmbH, respectively.

4.2. Reactor Vessels for “Classical” and US-Assisted SPPS

“Classical” SPPS (Pep1 and Pep2) was performed in a glass reactor with a porous fritted glass while Ultrasound assisted SPPS (Pep1–Pep3) was performed using a polymeric reactor (syringe) with an incorporated frit (PP—Reactors 5 mL with PE frit, Multisyntech GmbH) and removable cap to avoid contamination with water from the ultrasound bath. Stirring of the solutions was achieved by N₂ flow in the case of classical synthesis and ultrasonic irradiation for the US-assisted synthesis. Sonication for SPPS was performed in a Fisherbrand™ S-Series FB15051, (240 × 137 × 150 mm bath dimension and 2.75 L max. volume) ultrasonic water bath by Fisher Scientific. Ultrasonic frequency was 37 kHz. During all procedures the operation water volume was kept at approximately 1.5 L and the temperature kept at 30 ± 5 °C. The ultrasonic output was 200 W, with the peak at 320 W. To identify the zone where cavitation phenomenon was stronger, aluminum foil test was performed. We observed that cavitation was stronger closer to the center of the bath. Therefore, all reactions were performed with the reactor in the middle of the bath and at the same depth [19]. Electrospray ionization mass spectrometry (ESI–MS) was performed on a QITMS instrument (Bruker HCT, Bruker, Billerica, MA, USA) in positive and negative ionization modes, using acetonitrile/water mixture as solvent.

4.3. Synthesis of the Peptides

The peptides were obtained by standard Fmoc-based SPPS strategy with Fmoc-protecting group on the α-N of the amino acids and orthogonal side chain protecting groups. The following groups were used: tert-butyl (tBu) for aspartic acid, serine and tyrosine; tert-butyloxycarbonyl (OtBu) for glutamic acid; pentamethyl-2,3-dihydrobenzofuran-5-sulfonyl (Pbf) for arginine; and trityl (Trt) for glutamine. Peptides were prepared as C-terminal amides on a Rink Amide MBHA resin (100–200 mesh). Before conjugation of the first amino acid, the resin was swollen by suspension in excess DMF and gently stirred (ca. 30 min) using an N₂ flow in the case of classical synthesis or an orbital shaker in the case of US-assisted synthesis.

The syntheses were carried out at 0.1 mmol scale on Rink Amide MBHA resins (100–200 mesh), resin loading: Pep1 0.78 mmol/g, Pep2 and Pep3 0.38 mmol/g at room temperature (“classical” SPPS) or at 30 ± 5 °C (US-SPPS).

Fmoc-deprotection was completed after treatment of the resin with a 20% (v/v) Piperidine/DMF solution (“classical” SPPS: Pep1 20 min, Pep 2 25 min; US-Assisted SPPS: Pep1 5 min; Pep2 and Pep3 2 min). In both synthetic approaches, peptide assembly was accomplished by stepwise addition of Fmoc-L-AA-OH (Pep1 5.0 eq, Pep2 and Pep 3 3.5 eq) and HBTU (Pep1 5.0 eq, Pep2 and Pep 3 3.5 eq) in DMF solutions in the presence of DIPEA (10 eq) to the resin, during variable periods as presented in Figure 1, Figure 3 and Figure 5. The efficiency of each coupling and deprotection steps were monitored by the Kaiser test [25]. After peptide assembly and final Fmoc-deprotection, cleavage from resin and removal of side chain protecting groups was attained using a standard cleavage cocktail (Pep1 TFA 95%/TIS 2.5%/water 2.5%, v/v; Pep2 and Pep3 TFA 92.5%/TIS 2.5%/EDT 2.5%/water 2.5%, v/v). The peptides were precipitated by cold diethyl ether and isolated by centrifugation. The crude peptides (Pep1–3) were obtained as white residues, dried under a gentle stream of N₂ and stored at −20 °C. The crude peptides were characterized by reversed phase high performance liquid chromatography (RP-HPLC) and electrospray ionization mass spectrometry (ESI-MS) (see Supplementary Material).

4.4. Kaiser Test Colorimetric Assay Procedure

Kaiser test is a colorimetric assay which identifies the presence of free primary amines in a mixture [25]. In SPPS procedures, this assay is used to qualitatively access the Fmoc-removal/amino acid coupling reaction yields. In brief, a small fraction of the resin beads (5 to 10) is separated from the bulk. To this fraction, 5 μL of 1 mM KCN in H₂O: pyridine (1:49), 5 μL of 0.3 M ninhydrin in ethanol and 5 μL of 42.5 M phenol in ethanol are added. The mixture is heated at 110 °C for 5 min and the color of the solution/beads is observed. Change in the color of the solution/beads to blue indicates the presence of free primary amines.

4.5. RP-HPLC Analysis

Control analytical RP-HPLC analyses were performed on a PerkinElmer LC pump 200 coupled to a PerkinElmer Series 200 UV/Vis Detector. Analytical control of the synthetized peptide samples was achieved on a Supelco Discovery^® Bio Wide Pore C18-5 column (250 mm × 4.6 mm, 5 μm) with a flow rate of 1.0 mL min⁻¹ and UV detection at λ = 220 nm.

4.6. Applied Binary HPLC Gradients

Eluents: mobile phase A—0.1% TFA aq.; mobile phase B—0.1%TFA in MeCN.

Gradient A (Pep1): 0→3 min, 10% B; 3→18 min, 10–100% B; 18→21 min, 100%B; 21→24 min, 100–10% B; 24→25 min, 10% B.

Gradient B (Pep2): 0→5 min, 10% B; 5→25 min, 10–25% B; 25→27 min, 25–100% B; 27→28 min, 100% B.

Gradient C (Pep3): 0→5 min, 10% B; 5→25 min, 10–100% B; 25→28 min, 100% B; 28→30 min, 100–10% B.
