Discovery of Three New Monoterpenoid Indole Alkaloids from the Leaves of Gardneria multiflora and Their Vasorelaxant and AChE Inhibitory Activities

Abstract

Three novel monoterpenoid indole alkaloids gardflorine A (1), gardflorine B (2), and gardflorine C (3) were isolated from the leaves of Gardneria multiflora. Their structures, including absolute configurations, were established on the basis of spectroscopic methods (MS, UV, IR, 1D and 2D NMR) and circular dichroism experiments. All the compounds were evaluated for their vasorelaxant and acetylcholinesterase (AChE) inhibitory activities. Compound 1 exhibited potent vasorelaxant activity, with an EC₅₀ value of 8.7 μM, and compounds 2 and 3 showed moderate acetylcholinesterase (AChE) inhibitory activities, with IC₅₀ values of 26.8 and 29.2 μM, respectively.

1. Introduction

Monoterpenoid indole alkaloids (MIAs) are important secondary metabolites widely distributed in the members of plant families Apocynaceae, Loganiaceae, and Rubiaceae [1]. These compounds have attracted considerable interest in drug research for their complex structures and diverse biological activities, such as ganglion blocking [2], anticancer [3,4,5], anti-inflammatory [6], antibacterial [7], vasorelaxant [8], and neuroprotective activities [9]. The plant Gardneria multiflora (Loganiaceae family) is widely distributed in the south of the Qinling Mountains-Huaihe River Line and north of the Nanling Mountains in China [10]. The roots and leaves of G. multiflora are widely used as medicine for the treatment of arthrophlogosis and sciatica owing to their effects of expelling wind and activating blood flow [10]. Previous phytochemical investigations of plants from this genus led to the isolation of more than 50 compounds [11,12], most of them were identified as MIAs [13,14,15,16,17].

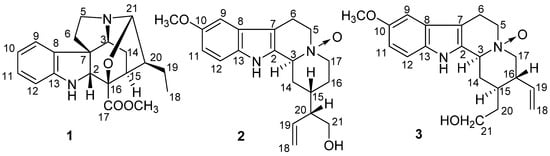

In search of novel and bioactive alkaloids, we carried out a phytochemical investigation on the constituents of the leaves of G. multiflora. In our present study, three new alkaloids (Figure 1), named gardflorine A (1), gardflorine B (2), and gardflorine C (3), were isolated from the leaves of G. multiflora. Their structures were elucidated by using spectroscopic methods and electronic circular dichroism (ECD) calculation. Additionally, compound 1 exhibited potent vasorelaxant activity, with an EC₅₀ value of 8.7 μM, while, compounds 2 and 3 showed moderate AChE inhibitory activities, with IC₅₀ values of 26.8 and 29.2 μM, respectively. Herein, we describe the isolation, structural elucidation, and biological activities of 1–3.

2. Results and Discussion

Compound 1 was obtained as white oil, and its molecular formula was established as C₂₀H₂₄N₂O₃ by HR-ESI-MS at m/z 341.1859 [M + H]⁺ (calcd for C₂₀H₂₅N₂O₃, 341.1860). The IR spectrum of 1 indicated the presence of amino group (3355 cm⁻¹), carbonyl group (1736 cm⁻¹), and aromatic ring (1609 and 1464 cm⁻¹). The ¹H NMR spectrum of 1 (

Table 1. NMR data of 1–3 (CD₃OD, δ in ppm, J in Hz).

Position		1 a			2 a			3 b
		δH	δC, Type		δH	δC, Type		δH	δC, Type
2		4.03, s	73.9, CH		-	131.4, C		-	131.4, C
3		2.89, d (4.7)	67.5, CH		4.61, s	71.7, CH		4.60, brs	71.6, CH
5	α β	3.30, m 3.17, m	53.2, CH2	a/b	3.72, dd (9.2, 4.0)	69.2, CH2	a/b	3.69, m	69.2, CH2
6	α β	2.50, m 2.29, m	44.6, CH2	a/b	3.06, m	20.6, CH2	α β	3.07, m 2.98, m	20.6, CH2
7		-	58.0, C		-	106.3, C		-	106.2, C
8		-	133.4, C		-	128.0, C		-	128.0, C
9		7.08, dd (7.5, 1.3)	123.6, CH		6.93, d (2.4)	101.0, CH		6.91, d (2.0)	101.0, CH
10		6.72, td (7.5, 1.3)	120.1, CH		-	155.6, C		-	155.6, C
11		7.02, td (7.5, 1.3)	129.4, CH		6.78, dd (8.8,2.4)	113.3, CH		6.79, dd (8.2,2.0)	113.3, CH
12		6.59, dd (7.5, 1.3)	111.0, CH		7.24, d (8.8)	113.2, CH		7.20, d (8.2)	113.2, CH
13		-	152.7, C		-	133.9, C		-	133.9, C
14	α β	2.12, m 1.78, m	25.8, CH2	α β	2.58, td (13.6,4.9) 2.25, d (13.6)	28.6, CH2	α β	2.53, m 2.23, m	28.4, CH2
15		2.93, d (4.7)	39.7, CH		1.54, overlap	30.7, CH		1.49, overlap	30.6, CH
16		-	85.8, C	β α	2.07, dd (13.4,3.7)1.54, overlap	23.6, CH2		2.13, m	52.3, CH
17		-	174.4, C	α β	3.57, m 3.05, m	59.2, CH2	α β	3.51, overlap3.01, m	59.1, CH2
18		0.96, t (7.4)	11.8, CH3		5.15, m	118.4, CH2		5.11, m	118.5, CH2
19	a b	1.30, m 1.22, m	24.5, CH2		5.69, d (16.9)	138.3, CH		5.65, m	138.3, CH
20		1.83, t (7.6)	55.0, CH		2.17, m	52.3, CH	a b	2.03, m 1.49, overlap	23.6, CH2
21		4.59, s	97.5, CH		3.59, m	63.9, CH2	a b	3.58, m 3.51, overlap	63.8, CH2
OCH3		3.82, s	53.2, CH3		3.80, s	56.2, CH3		3.78, s	56.2, CH3

^a1H NMR spectra of 1 and 2 were recorded at 600 MHz and ¹³C NMR was recorded at 150MHz. ^{b 1}H NMR spectrum of 3 was recorded at 400 MHz and ¹³C NMR was recorded at 100 MHz.

) showed signals for an ortho-disubstituted benzene ring [δ_H 7.08 (1H, dd, J = 7.5, 1.3 Hz), 7.02 (1H, td, J = 7.5, 1.3 Hz), 6.72 (1H, td, J = 7.5, 1.3 Hz), and 6.59 (1H, dd, J = 7.5, 1.3 Hz)], a methyl [δ_H 0.96 (3H, t, J = 7.4 Hz)], and a methoxy [δ_H 3.82 (3H, s)]. The ¹³C NMR and DEPT-135 spectra showed twenty carbon signals, including one carbonyl (δ_C 174.4), six olefinic carbons (δ_C 152.7, 133.4, 129.4, 123.6, 120.1, 111.0), two quaternary carbons (δ_C 85.5, 58.0), five methines (δ_C 97.5, 73.9, 67.5, 55.0, 39.7), four methylenes (δ_C 53.2, 44.6, 25.8, 24.5), one methoxy (δ_C 53.2), and one methyl (δ_C 11.8). With the aid of 2D NMR spectra, the ¹H and ¹³C NMR signals of 1 were assigned as shown in Table 1.

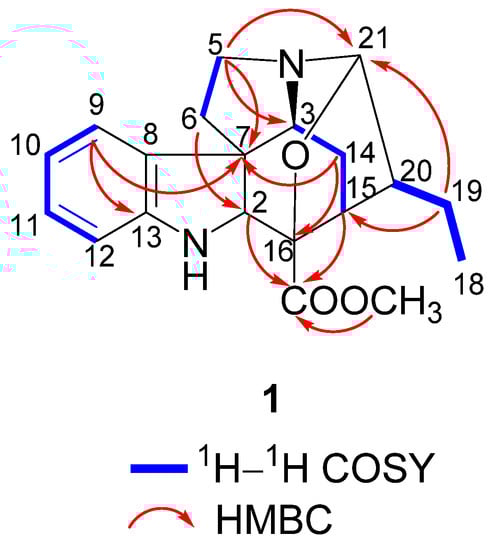

The ¹H–¹H COSY spectrum revealed the presence of four spin-coupling systems (H-9 to H-12, H₂-5 to H₂-6, H-3 to H-15, H₃-18 to H-20) as shown in Figure 2. The HMBC correlations between H-9 (δ_H 7.08) and C-7 (δ_C 58.0)/C-13 (δ_C 152.7), between H-5β (δ_H 3.17) and C-3 (δ_C 67.5)/C-7 (δ_C 58.0)/C-21 (δ_C 97.5), between H₂-6 (δ_H 2.50, 2.29) and C-2 (δ_C 73.9), between H₂-19 (δ_H 1.30, 1.22) and C-15 (δ_C 39.7)/C-21 (δ_C 97.5), between H-14β (δ_H 1.78) and C-7 (δ_C 58.0)/C-16 (δ_C 85.8), and between H-2 (δ_H 4.03)/H-15 (δ_H 2.93) and C-17 (δ_C 174.4) indicated the presence of the skeleton of akuammicine alkaloid [18]. Subsequently, the HMBC correlation between OCH₃ (δ_H 3.82) and C-17 (δ_C 174.4) suggested that the methoxy connected to C-17. Furthermore, HMBC correlation between H-21 (δ_H 4.59) and C-16 (δ_C 85.8), combined with obvious downfield NMR shifts of C-16 (δ_C 85.8) and C-21 (δ_C 97.5) and the molecular formula of 1, suggested C-16 and C-21 were connected via an oxygen atom. Therefore, the planar structure of 1 was established as shown in Figure 2.

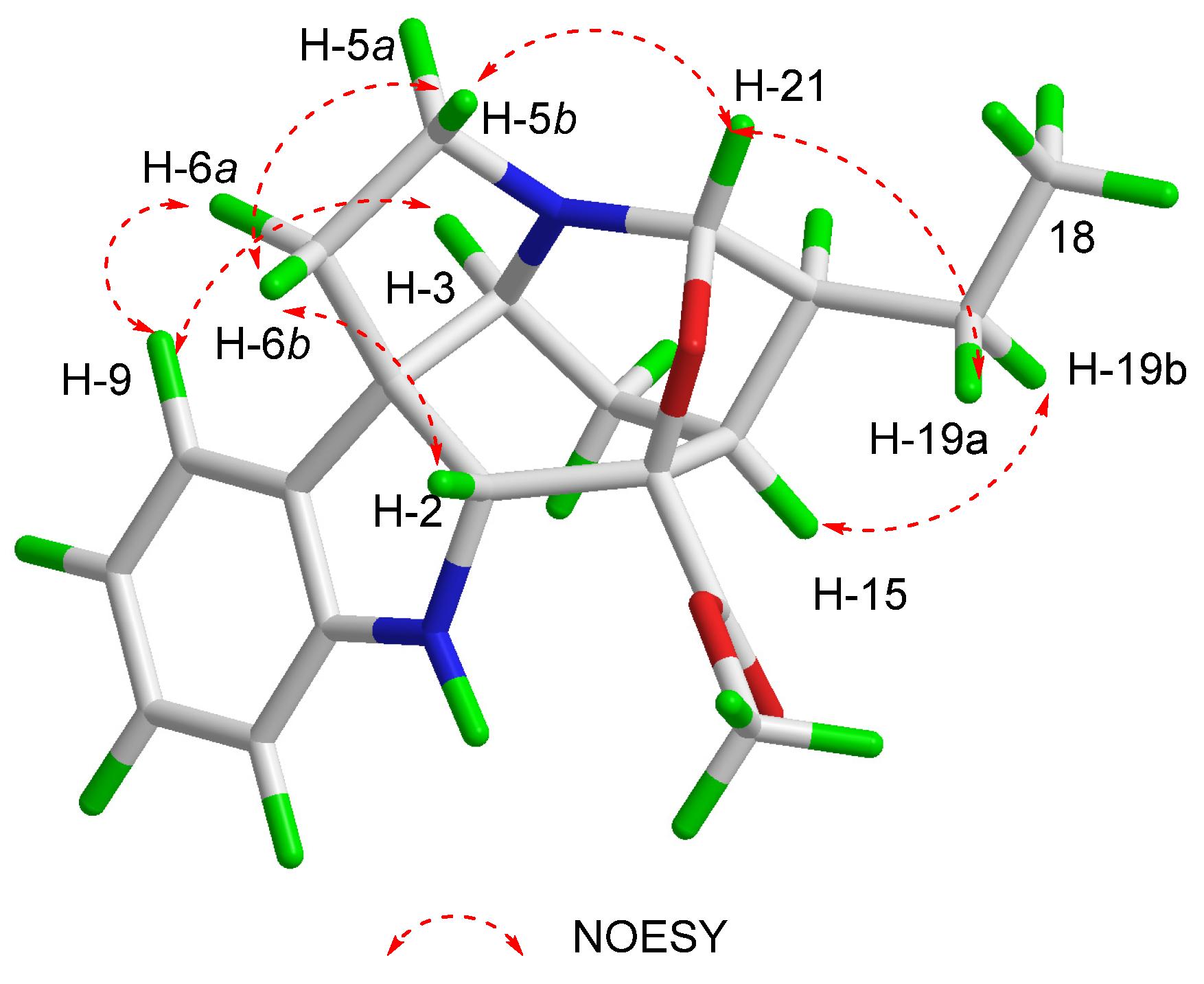

The 2D structure of compound 1 determined by the NOESY cross-peaks (Figure 3) between H-9 and H-3/H-6α, between H-14α and H-3/H-15, and between H-20 and H-15/H-21 indicated the same orientation of these protons. The NOESY cross-peaks between H-6β and H-2 indicated that H-2 was β-oriented. The absolute configuration of 1 was identified by CD experiment (Figure 4), and the negative Cotton effect at λ_max 275 (−2.8) nm and the positive Cotton effects at λ_max 245 (+11.7) nm and 210 (+11.2) nm in CD spectrum were consistent with the calculated configuration of (2R, 3S, 7S, 15S, 16R, 20S, 21S)-1. Consequently, compound 1 was identified and named as gardflorine A.

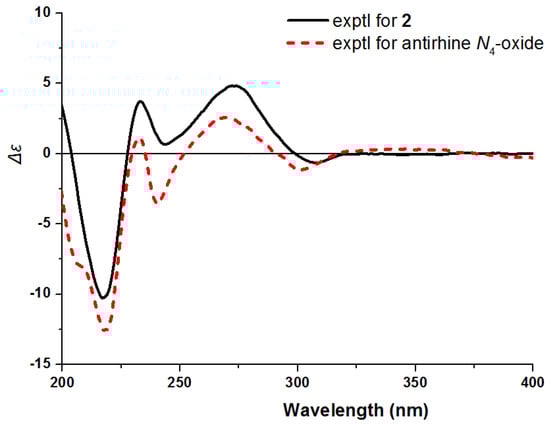

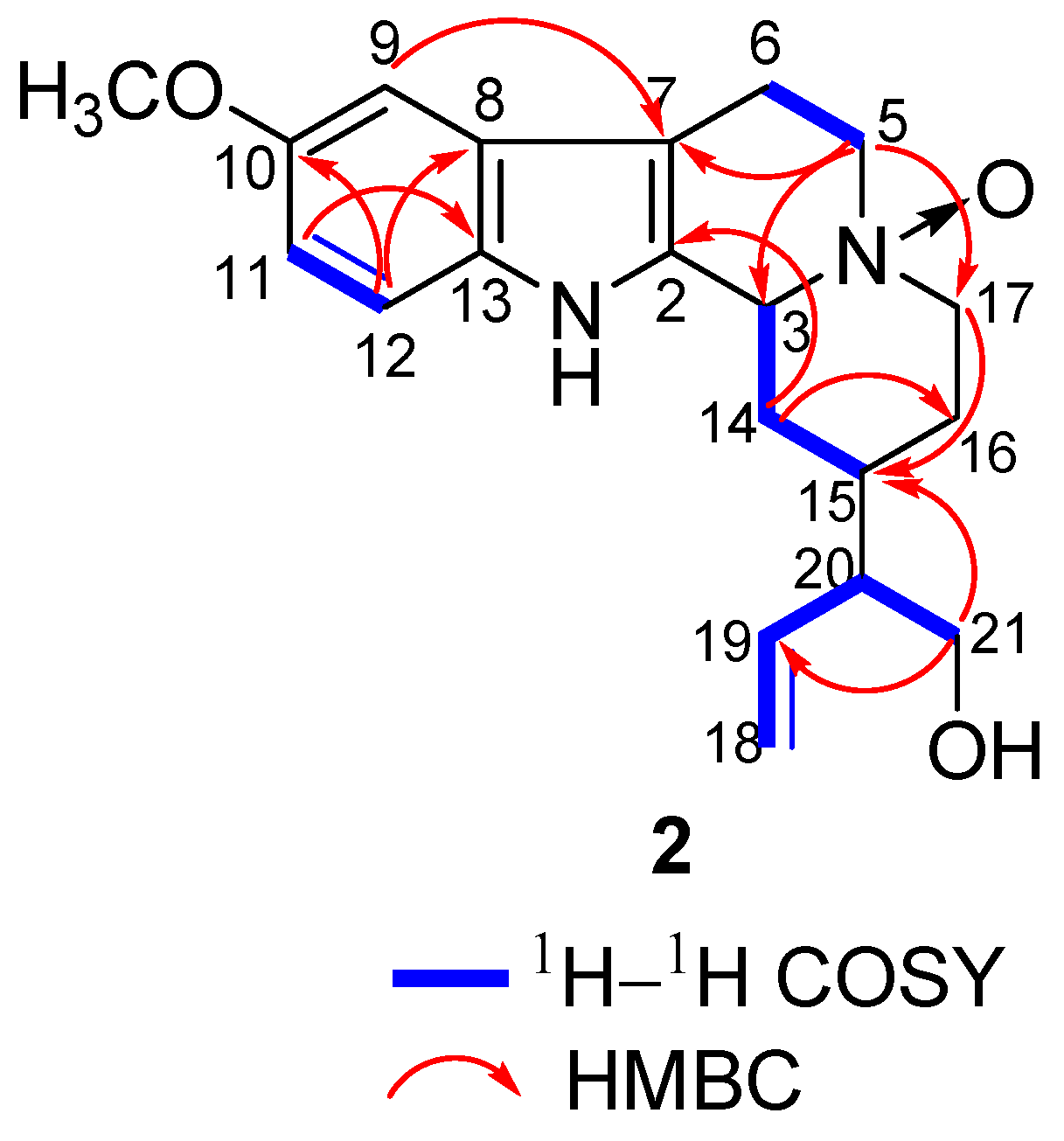

Compound 2 was isolated as yellow powder, and its molecular formula was established as C₂₀H₂₆N₂O₃ according to HR-ESI-MS at m/z 343.2020 [M + H]⁺ (calcd for C₂₀H₂₇N₂O₃, 343.2016). The IR spectrum of 2 revealed the presence of amino group (3404 cm⁻¹), hydroxy group (3215 cm⁻¹) and aromatic ring (1444 cm⁻¹). The ¹H NMR spectrum of 2 (Table 1) showed three aromatic protons [δ_H 7.24 (1H, d, J = 8.8 Hz), 6.93 (1H, d, J = 2.4 Hz), and 6.79 (1H, dd, J = 8.8, 2.4 Hz)], three olefinic protons [δ_H 5.69 (1H, d, J = 16.9 Hz) and 5.15 (2H, m)], and one methoxy proton [δ_H 3.80 (3H, s)]. The ¹³C NMR and DEPT-135 spectra showed twenty carbon signals due to ten olefinic carbons (δ_C 155.6, 138.3, 133.9, 131.4, 128.0, 118.4, 113.3, 113.2, 106.3, 101.0), three methines (δ_C 71.7, 52.3, 30.7), six methylenes (δ_C 69.2, 63.9, 59.2, 28.6, 23.6, 20.6), and one methoxy (δ_C 56.2). Comparison of the NMR data of 2 with those of the known compound antirhine N₄-oxide [19] showed that they were very similar except for the presence of an additional methoxy group in 2. The chemical shifts of C-10, C-9, C-11, and C-13 shifted from δ_C 120.6, 119.0, 123.2, and 138.8 in antirhine N₄-oxide to δ_C 155.6, 101.0, 113.3, and 128.0 in 2, suggesting that the methoxy group might be connected to C-10. This was confirmed by HMBC correlations from δ_H 3.80 (OCH₃) to δ_C 155.6 (C-10) (Figure 5). The absolute configuration of 2 was determined by comparing the ECD spectrum of 2 with that of antirhine N₄-oxide (Figure 6). Therefore, compound 2 was identified as 10-methoxyantirhine N₄-oxide and named as gardflorine B.

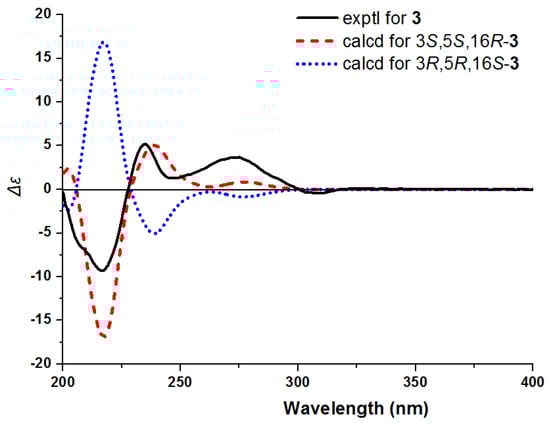

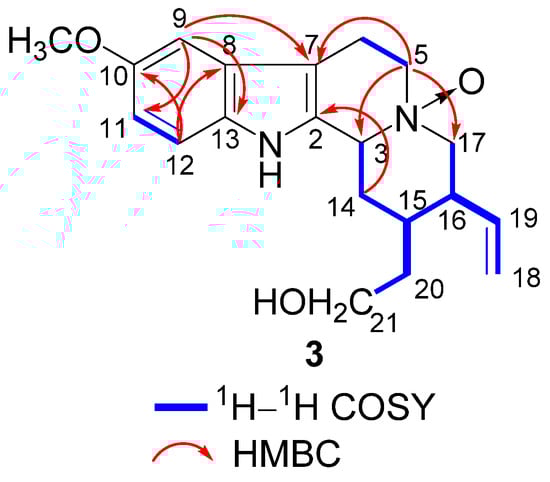

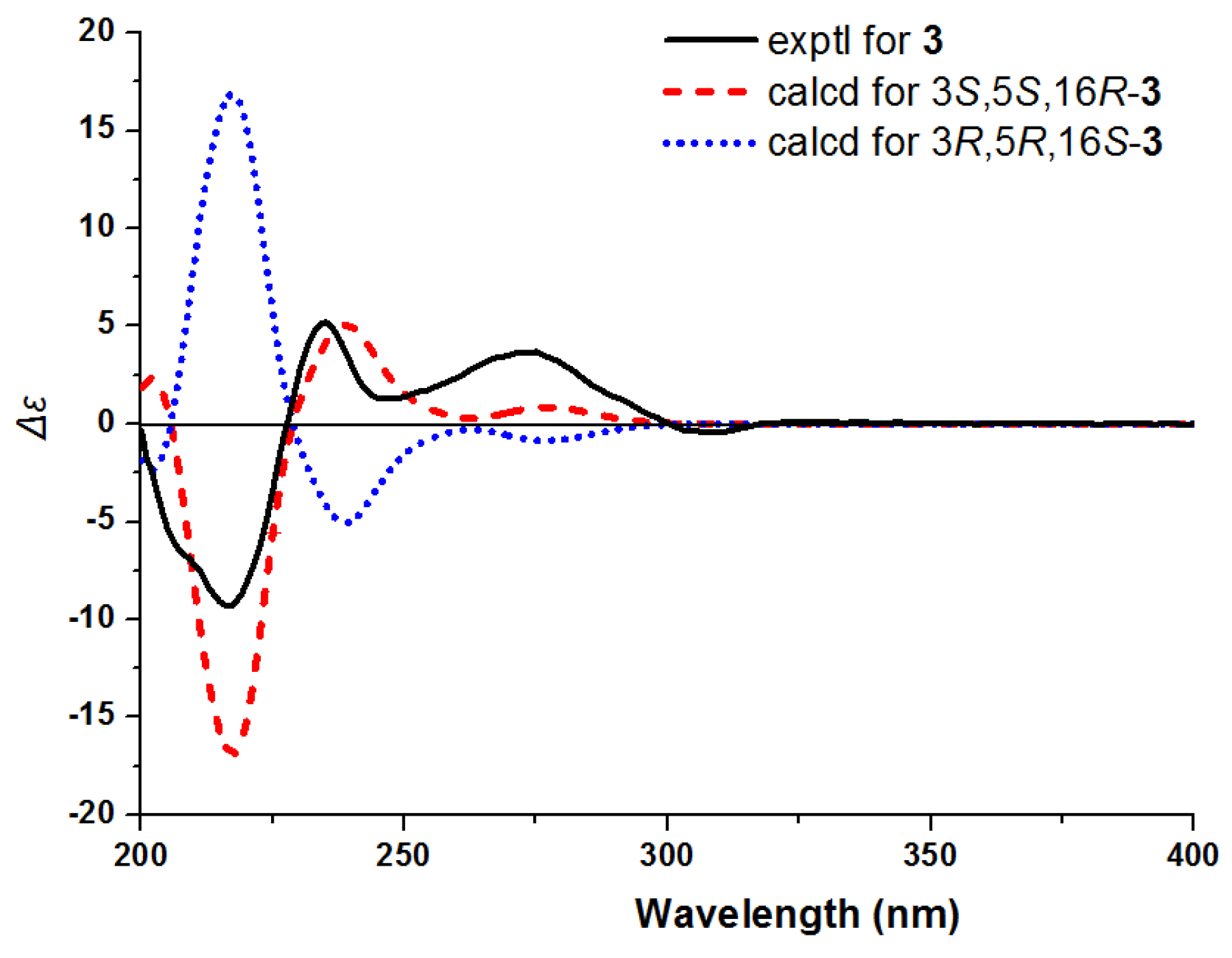

The molecular formula of 3 was established as C₂₀H₂₆N₂O₃ according to an [M + H]⁺ ion peak at m/z 343.2012 [M + H]⁺ (calcd for C₂₀H₂₇N₂O₃, 343.2016) in the HR-ESI-MS spectrum. Its IR spectrum suggested the presence of amino group (3396 cm⁻¹), hydroxy group (3230 cm⁻¹), and aromatic ring (1461 cm⁻¹). The ¹H and ¹³C NMR spectrum of 3 (Table 1) showed the presence of a 1,2,4-trisubstituted benzene ring [δ_H 7.20 (1H, d, J = 8.2 Hz), 6.91 (1H, d, J = 2.0 Hz), 6.79 (1H, dd, J = 8.2, 2.0 Hz); δ_C 155.6, 133.9, 128.0, 113.3, 113.2, 101.0], a terminal double bond [δ_H 5.65 (1H, m), 5.11 (2H, m); δ_C 138.3, 118.5], and one methoxy signal [δ_H 3.78 (3H, s); δ_C 56.2]. The 1D NMR data of 3 (Table 1) closely resembled to those of 2; however, their 2D NMR data showed many differences. The ¹H–¹H COSY correlations of H-3 (δ_H 4.60)/H₂-14 (δ_H 2.53, 2.23)/H-15 (δ_H 1.49)/H-16 (δ_H 2.13)/H₂-17 (δ_H 3.51, 3.01), H-15/H₂-20 (δ_H 2.03, 1.49)/H₂-21 (δ_H 3.58, 3.51), and H-16/H-19 (δ_H 5.65)/H₂-18 (δ_H 5.11), together with the HMBC correlations between H₂-5 (δ_H 3.69) and C-17 (δ_C 59.1), between H₂-17 and C-19 (δ_C 138.3), between H₂-18 and C-16 (δ_C 52.3), and between H₂-21 and C-15 (δ_C 30.6) revealed that the terminal double bond was linked to C-16 (Figure 7). The NOESY correlations between H-15 and H-3/H-19 established the relative configuration of 3. Subsequently, the absolute configuration of 3 was identified by CD experiment (Figure 8). The positive Cotton effect at λ_max 272 (+3.7) nm and 235 (+5.2) nm and the negative Cotton effect at λ_max 217 (−9.3) nm displayed good agreement with the calculated ECD curve for (3S, 15S, 16R)-3. Consequently, compound 3 was identified as 10-methoxycorynantheol N₄-oxide and named as gardflorine C.

In order to explore the scientific connotation of the traditional use of G. multiflora, the vasorelaxant and AChE inhibitory activities in vitro of compounds 1–3 were evaluated. Among them, compound 1 exhibited potent vasorelaxant activity, with an EC₅₀ value of 8.7 μM (EC₅₀ = 0.1 μM for positive control phentolamine mesylate). Moreover, compounds 2 and 3 exhibited moderate AChE inhibitory activities, with IC₅₀ values of 26.8 and 29.2 μM, respectively (Supplementary Materials).

3. Materials and Methods

3.1. General Experimental Procedures

UV and IR spectra were obtained on a JASCO V-550 spectrophotometer and a JASCO FI/IR-480 Plus Fourier transform infrared spectrometer, respectively. CD spectra were recorded on a Chirascan spectropolarimeter. Optical rotations were determined with a JASCO P-1020 Automatic Polarimeter. HR-ESI-MS data were obtained using an Agilent 6210 ESI/TOF mass spectrometer. NMR experiments were performed on Bruker AV-600 and AV-400 spectrometers. HPLC was carried out on an Agilent 1260 chromatograph and a semi-preparative chromatograph with a DAD detector.

Column chromatography (CC) was performed on silica gel (60–80 mesh, 200–300 mesh, Qingdao Marine Chemical Inc., Qingdao, China), Sephadex LH-20 (Pharmacia Biotech AB), and YMC-Pack ODS (Merck). TLC was carried out on glass precoated silica gel GF₂₅₄ plates. Waters X-bridge C₁₈ column (250 × 4.6 mm, 5 μm; 250 × 10 mm, 5 μm) was used to analyze and isolate the compounds.

3.2. Plant Materials

The leaves of Gardneria multiflora were collected in Yangchang Town, Longli County, Guizhou province, in June 2018 and identified by Dr. Ying Zhang of Jinan University. A voucher specimen has been deposited at the Medical College of Jiaying University (No. MCJU-021).

3.3. Extraction and Isolation

The dried, powdered leaves of G. multiflora (20 kg) were percolated with 95% ethanol (100 L×3). After evaporation of solvent in vacuum, the residue (1.5 kg) was suspended in water, and the pH was adjusted to 2–3 by 5% HCl and then partitioned with chloroform; thus, the chloroform layer and acid water layer were obtained. The acid water layer was then adjusted to pH 9–10 by ammonia water, chloroform extraction was carried out, and the crude total alkaloid (chloroform part) was obtained. The chloroform extract (31.3 g) was subjected to a silica gel column eluting with chloroform/methanol (100:0 to 0:100, v/v) to afford 8 fractions (A1–A8). Then, fraction A4 was further separated by a silica gel, ODS, Sephadex LH-20 columns, and preparative HPLC to afford 1 (2.7 mg). Fraction A6 was successively separated on Sephadex LH-20 (MeOH) a20nd purified by preparative HPLC with MeOH–H₂O–Et₂NH (60:40:0.0002) to afford 2 (6.6 mg) and 3 (5.9 mg).

3.4. Spectral Data

3.4.1. Gardflorine A (1)

White oil, [α${]}_D^{25}$ +36.1 (c 0.92, MeOH); UV(MeOH) λ_max (log ε) 209 (4.31), 245 (3.22), 299 (4.05); IR (KBr) ν_max 3355, 2957, 2877, 1736, 1674, 1609, 1485, 1464, 1383, 1308, 750 cm⁻¹; HR-ESI-MS m/z 341.1859 [M + H]⁺ (calcd for C₂₀H₂₅N₂O₃, 341.1860); ¹H and ¹³C NMR data, see Table 1.

3.4.2. Gardflorine B (2)

Yellow powder, [α${]}_D^{25}$ +49.0 (c 1.01, MeOH); UV(MeOH) λ_max (log ε) 211 (4.33), 275 (3.81); IR (KBr) ν_max 3404, 3215, 2929, 1622, 1444, 1327, 1227, 1115, 742, 630 cm⁻¹; HR-ESI-MS m/z 343.2020 [M + H]⁺ (calcd for C₂₀H₂₇N₂O₃, 343.2016); ¹H and ¹³C NMR data, see Table 1.

3.4.3. Gardflorine C (3)

Yellow powder, [α${]}_D^{25}$ −17.4 (c 0.70, MeOH); UV(MeOH) λ_max (log ε) 206 (5.02), 274 (4.45); IR (KBr) ν_max 3396, 3230, 3056, 2925, 1638, 1461, 1330, 1234, 1156, 1079, 742, 512 cm⁻¹; HR-ESI-MS m/z 343.2012 [M + H]⁺ (calcd for C₂₀H₂₇N₂O₃, 343.2016); ¹H and ¹³C NMR data, see Table 1.

3.5. Vasorelaxant Assay

The vasorelaxant activity of these isolates against KCl-induced contractions of rat renal artery rings was measured as described previously [20,21,22]. Renal arteries were removed rapidly out from SD rats, immediately placed into 4 °C oxygenated K-H solution, cleaned of its surrounding fat and connective tissues, and then cut into portions of about 2 mm in length. Each segment was mounted in a Multi Myograph System (Danish Myo Technology A/S, Denmark) and then bathed in K-H solution [composition (in mM): NaCl, 120; KCl, 4.6; KH₂PO₄, 1.2; MgSO₄, 1.2; NaHCO₃, 25; glucose, 10; CaCl₂, 2.5], bubbled with 95% O₂–5% CO₂, and maintained at 37 °C. The isometric tension of renal artery rings was collected by four-channel physiological force transducers. All the rings were set to an optimal tension of 2 g and stabilized in normal K-H solution for 90 min. The rings were then contracted by 0.5 μM phenylephrine and challenged with 3 μM acetylcholine to confirm the integrity of the endothelium. Endothelium-intact rings contraction was evoked by a depolarizing KCl (60 mM) solution. The EC₅₀ values of the test compounds and the positive control (phentolamine mesylate) were calculated from cumulative concentration–tension curves by linear regression.

3.6. AChE Inhibitory Activity Assay

The AChE inhibitory activities of the isolated compounds were assayed by a modified Ellman’s method [6,23]. Compounds and positive control were dissolved in 1% DMSO. The phosphate buffer (pH 8.0), tacrine, test compounds, and acetylcholinesterase (0.02 μM) were added, in sequence to 96-well plates and incubated for 20 min (30 °C). The reaction was initiated by the addition of 20 μL of 5,5′-dithiobis-(2-nitrobenzoic acid) (DTNB) (0.625 mM) and 20 μL of acetylthiocholine iodide (0.625 mM) for the AChE inhibitory activity assay, respectively. The optical density was measured at 405 nm by an ELISA microplate reader. Tacrine (IC₅₀ 0.33 μM) was used as positive control. All the reactions were performed in triplicate. The percentage inhibition (I%) was calculated as follows: I% = (1 − S)/E × 100 (S is the absorbance of the test compound-containing reaction, and E is the absorbance of the control reaction).

4. Conclusions

In summary, three new monoterpenoid indole alkaloids (1–3) were isolated and identified from the leaves of G. multiflora. The new compounds were elucidated by spectroscopic analyses and computational calculation. Moreover, the vasorelaxant and AChE inhibitory activities of all isolates were tested. Compound 1 exhibited potent vasorelaxant activity, with an EC₅₀ value of 8.7 μM, while compounds 2 and 3 exhibited AChE inhibitory activities, with IC₅₀ values of 26.8 and 29.2 μM, respectively. The discovery of the new alkaloids expands the family of MIAs and provides reference for further structure–activity discussions in future research.
