Novel Fluorinated 7-Hydroxycoumarin Derivatives Containing an Oxime Ether Moiety: Design, Synthesis, Crystal Structure and Biological Evaluation

by
Qing-Qing Wang
,
Shu-Guang Zhang
,
Jian Jiao
,
Peng Dai
and
Wei-Hua Zhang
*
Jiangsu Key Laboratory of Pesticide Science, College of Sciences, Nanjing Agricultural University, Nanjing 210095, China
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(2), 372; https://doi.org/10.3390/molecules26020372
Submission received: 8 December 2020 / Revised: 27 December 2020 / Accepted: 28 December 2020 / Published: 12 January 2021
(This article belongs to the Section Natural Products Chemistry)
Browse Figures
Versions Notes

Abstract

:
A series of fluorinated 7-hydroxycoumarin derivatives containing an oxime ether moiety have been designed, synthesized and evaluated for their antifungal activity. All the target compounds were determined by 1H-NMR, 13C-NMR, FTIR and HR-MS spectra. The single-crystal structures of compounds 4e, 4h, 5h and 6c were further confirmed using X-ray diffraction. The antifungal activities against Botrytis cinerea (B. cinerea), Alternaria solani (A. solani), Gibberella zeae (G. zeae), Rhizoctorzia solani (R. solani), Colletotrichum orbiculare (C. orbiculare) and Alternaria alternata (A. alternata) were evaluated in vitro. The preliminary bioassays showed that some of the designed compounds displayed the promising antifungal activities against the above tested fungi. Strikingly, the target compounds 5f and 6h exhibited outstanding antifungal activity against B. cinerea at 100 μg/mL, with the corresponding inhibition rates reached 90.1 and 85.0%, which were better than the positive control Osthole (83.6%) and Azoxystrobin (46.5%). The compound 5f was identified as the promising fungicide candidate against B. cinerea with the EC50 values of 5.75 μg/mL, which was obviously better than Osthole (33.20 μg/mL) and Azoxystrobin (64.95 μg/mL). Meanwhile, the compound 5f showed remarkable antifungal activities against R. solani with the EC50 values of 28.96 μg/mL, which was better than Osthole (67.18 μg/mL) and equivalent to Azoxystrobin (21.34 μg/mL). The results provide a significant foundation for the search of novel fluorinated 7-hydroxycoumarin derivatives with good antifungal activity.

1. Introduction

The rapid growth of the world population will be a great challenge to obtain the enough food produced by limited arable lands [1]. In addition, the phytopathogenic fungi have emerged as the destructive parasites that results inevitably in large reductions in the yields and quality of agricultural products [2], thus seriously hindering the sustainable development of agriculture [3,4]. Under these circumstances, the rational application of agricultural fungicides has been identified as a most effective way to protect crops and to elevate agriculture yields [5]. However, fungicide-resistance problems have appeared in recent years due to the unreasonable utilization of existing antifungal agents for a long time, which leads to a series of side-effects including environmental pollution and food safety threats [6,7]. Therefore, it is of great significance to develop novel high-efficiency and broad-spectrum fungicides.
Coumarin derivatives, the typical natural products containing benzopyrone structures, have widely served as secondary metabolites in plants [8,9]. Interestingly, the natural coumarins exhibit the noticeable bioactivities including antitumor, anticoagulant, anti-inflammatory, antioxidant, antifungal and antiviral effects [10,11,12]. In view of this, coumarin derivatives have been widely applied to agricultural and medicinal chemistries. The corresponding synthesis methods and pharmacological activities were also well reported, such as Osthole, Coumoxystrobin and Warfarin (Figure 1). Employing Osthole as a lead structure, our group synthesized a series of coumarin derivatives against the phytopathogenic fungi effectively (Figure 2), including coumarin [8,7-e][1,3]oxazine [13], furo[3,2-c]coumarin [14], pyrano[3,2-c]chromene-2,5-dione [14], coumarin-3-carboxamide derivatives [15], coumarin ring-opening derivatives [16] and pyrrole/pyrazole-substituted coumarin derivatives [17]. Due to the pharmacological diversity of coumarin derivatives, it has been described as one of “privileged scaffolds” [18,19]. Obviously, the diversified derivatization of the coumarin parent ring is an important strategy for the development of highly effective compounds, making coumarin a candidate for the development of more efficient compounds.
As an active group, oxime ether has been extensively utilized in the modification of agrochemical-related compounds [20,21,22,23], which displays a ground-breaking prospect, such as Cymoxanil, Orysastrobin and Fenpyroximate (Figure 1). Specifically, Cymoxanil marketed in the mid-1970s is a successful oxime ether fungicide [24]. It is reported that fluorine atom can effectively enhance the stability and biological activity of compounds in many ways owing to its small atomic radius and strong electronegativity, which thereby improves the hydrophobicity and liposolubility of compounds [25,26,27,28]. In this regard, fluorinated coumarin derivatives have been considered as a promising strategy in the application of medicinal and agricultural chemistry [29]. To the best of our knowledge, there were few researches regarding the investigation of the antifungal activity of fluorinated coumarin oxime ether derivatives.

2. Results and Discussion

2.1. Construction for Target Compounds

Three kinds of fluorinated 7-hydroxycoumarins 1a, 1b and 1c were synthesized as the parent compounds via Pechmann condensation reaction, as depicted in Scheme 1. Based on the parent structure 7-hydroxycoumarins, formyl group (-CHO) was then introduced at 8-position via Duff reaction using formylating agent hexamethylenetetramine [30,31]. The Duff reaction was the key step in the reaction route. In the literature procedure, the molar ratio of 7-hydroxycoumarin and hexamethylenetetramine was 1:2, and the reaction proceeded at reflux for 1.5 h. Then aqueous hydrochloric acid was added to the mentioned-above reaction solution to perform acid hydrolysis. Subsequently, the mixture was cooled to 70 °C and stirred for additional 45 min.
To synthesize a series of fluorinated 7-hydroxycoumarin oxime ether derivatives, seven O-substituted hydroxylamines 3d–3j were synthesized according to the reported methods with the use of cheap raw materials (Scheme 1) [32]. Compounds 3a (hydroxylamine), 3b (N-methylhydroxyamine) and 3c (N-ethylhydroxylamine) in the form of the hydrochloride salt were commercially available.
Finally, the thirty target compounds 4a–4j, 5a–5j and 6a–6j were easily synthesized by the reaction between compounds 2a–2c and 3a–3j under a mild condition for 1 h, as shown in Scheme 1. The reaction progress was monitored using TLC (Vethyl acetate/Vpetroleum ether = 1:2). The desired target compounds were obtained by column chromatography from a mixed solution of ethyl acetate/petroleum ether (Vpetroleum ether:Vethyl acetate = 1:20), with yields of 17% to 83%. To the best of our knowledge, there have been no report on the production of oxime ether derivatives of 7-hydroxycoumarin at 8-position [33,34]. The structures of all the synthetic coumarin derivatives were confirmed by 1H-NMR, 13C-NMR, FTIR and HRMS spectral data. The data of target compound 5h was analyzed as a representative example. The 1H-NMR spectrum of compound 5h showed two singlets at 11.53 and 8.88 ppm, which meant the molecular structure of compound 5h had a -OH group and -CH=N- group. The doublet at 4.82 ppm and the triplet at 2.59 ppm were attributed to the presence of propynyl. In the 13C-NMR spectrum, a signal peak at 157.46 ppm indicated that target compound 5h had a carbonyl group. The quadruple peaks at 141.04 and 113.18 ppm were assigned to -CF3 group. Meanwhile, three singles at 77.65, 76.40 and 62.81 ppm confirmed the existence of propynyl group in the structure of compound 5h. In the FTIR spectrum of compound 5h, the absorption peak of alkynyl group appears at 2131.6 cm−1 and the strong peak at 1736.3 cm−1 indicated the presence of carbonyl group. In the HRMS spectrum of compounds 5h, the value of [M + H]+ ion absorption signal was 346.0088, which was consistent with the calculated value (346.0086) for C14H7ClF3NO4 [M + H]+.

2.2. Single Crystal Structures of Compounds 4e, 4h, 5h and 6c

To further understand the actual structure of synthesized compounds, the structures of compound 4e, 4h, 5h and 6c were determined as representative examples by X-ray diffraction analysis. The tested single crystals were crystallized from the methanol containing the title compounds under room temperature until the size of the crystals was enough to test. The corresponding crystal structure diagram and crystal packing diagram were presented in Figure 3.
As shown in Figure 3D, C9-O4···N1 was an important hydrogen bond that combined with 7-hydroxy-2H-chromen-2-one and oxime ether fragment which construct the main scaffold of 6c. From this figure we could also see that these four compounds had trans structure, which might be owing to the low energy and stability of the trans structure.
As shown in Figure 3H, the intermolecular π-π conjugation force and hydrogen bonds between neighboring molecules were primary force for establishing the three-dimensional structure of compound 6c. The crystallographic data of compound 6c was deposited at the Cambridge Crystallographic Data Centre with an assigned number of CCDC 2043279, the crystallographic data were listed in Table 1. The CCDC numbers of 4e, 4h and 5h were 2043278, 2043275 and 2043276, respectively. The corresponding crystallographic data were listed in Tables S1–S3 (Supplementary Materials).

2.3. In Vitro Antifungal Activity of Target Compounds

The in vitro antifungal activity was evaluated by a mycelium growth rate method and the corresponding results were listed in Table 2. Osthole and Azoxystrobin were used as the positive control fungicides throughout the experiment. Noteworthy, the antifungal activities of target compounds against B. cinerea and R. solani were generally better than that of A. solani, G. zeae, C. orbiculare and A. alternata. Especially, the target compounds 5f and 6h exhibited outstanding antifungal activity against B. cinerea at 100 μg/mL with the corresponding inhibition rates of 90.1 and 85.0%, which were superior to the positive control fungicides Osthole (83.6%) and Azoxystrobin (46.5%). Meanwhile, the intermediate compounds 2a, 2b and target compounds 4f, 5a, 5f and 6f showed remarkable antifungal activities against R. solani at 100 μg/mL with the corresponding inhibition rates of 86.2, 64.6, 71.7, 64.6, 72.6 and 70.1%, which were equivalent to the positive control fungicides Osthole (82.7%) and Azoxystrobin (72.3%). Unfortunately, the partial target compounds were not sensitive to A. solani and G. zeae.
To better investigate the inhibitory performance of target compounds against phytopathogenic fungi, the compounds that exhibited the inhibition rates exceeding 60% at 100 μg/mL were further tested for their EC50 values. Osthole and Azoxystrobin were served as the positive control. As exhibited in Table 3, the EC50 values of target compounds 5f and 6h were notably as low as 5.75 μg/mL and 13.75 μg/mL, proving that they were much more effective than Osthole (33.20 μg/mL) and Azoxystrobin (64.95 μg/mL) against B. cinerea. Meanwhile, as listed in Table 4, the EC50 values of all the detected compounds were lower than Osthole (67.18 μg/mL) against R. solani. Specifically, the EC50 values of the target compounds 2b, 4f, 5a, 5f and 6f were 17.72, 7.48, 33.10, 28.96 and 28.70 μg/mL, respectively. The corresponding in vitro antifungal performances of compound 5f, Osthole and Azoxystrobin against B. cinerea were presented in Figure 4, which visually exhibited the corresponding in vitro inhibition of B. cinerea.

2.4. Structure-Activity Relationships

The bioassay results in Table 2, Table 3 and Table 4 indicated that the antifungal activities of most synthesized 7-hydroxycoumarin oxime derivatives were certain poor, which made it difficult to extract a clear structure-activity relationship analysis. Nevertheless, some broad conclusions could still be drawn. First, the most target compounds were noticeably more efficient against B. cinerea and R. solani than A. solani, G. zeae, C. orbiculare and A. alternata. Second, compounds 4a, 5a, 5f, 6a and 6h displayed the preferable activity than the positive control Osthole against C. orbiculare. Meanwhile, compound 6a also possessed more effective activity against A. alternata than Osthole. Third, the antifungal activities generally could be improved if R3 was Cl and R4 was H atom, allyl or propargyl, highlighted by 4f, 5a, 5f, 6a, 6f and 6h, all of which displayed a broad spectrum of antifungal activity against B. cinerea and R. solani. Forth, we still could find that the intermediate compounds 2a and 2b showed a broad antifungal spectrum, which could be served as the active candidates for structure optimization.

3. Experimental Section

3.1. Chemicals and Instruments

Resorcin, 4-chlororesorcinol, ethyl 4,4,4-trifluoroacetoacetate and ethyl 2-fluoroacetoacetate were obtained from Sinopharm Chemical Reagent Co. Ltd., Shanghai, China. Hydroxylamine hydrochloride, hexamethylenetetramine and trifluoroacetic acid were purchased from Aladdin Reagent Co. Ltd., Shanghai, China. All other chemicals were commercially available and used without further purification. The progress of reactions and the purity of products were monitored by TLC using silica gel GF/UV 254. The melting points of coumarin compounds were measured on an X-4 apparatus (uncorrected). Fourier transform infrared (FTIR) spectra were recorded on a Bruker Tensor 27 spectrometer (Billerica, MA, USA), and all samples were prepared as KBr plates. 1H-NMR and 13C-NMR spectra were detected on a Bruker Avance 400 MHz spectrometer with TMS as an internal standard. HR-MS (ESI) spectra were operated using a Thermo Exactive spectrometer (Waltham, MA, USA). X-rays were measured at 296 K on a Bruker SMART APEX2 CCD area detector diffractometer.

3.2. Chemistry

3.2.1. General Procedure for the Synthesis of the Intermediates 2

Fluorinated 7-hydroxycoumarins were synthesized through reported procedures [25]. Trifluoroacetic acid (38 mL) containing 7-hydroxycoumarin (8.7 mmol) and hexamethylenetetramine (43.5 mmol) was stirred at reflux for 1.5 h. Then, aqueous hydrochloric acid (30%, 75 mL) was added into the mentioned-above reaction solution. After stirring 45 min under 70 °C, the resulting mixture was quenched with ice water and extracted with ethyl acetate. The obtained organic layer was neutralized by sodium bicarbonate solution, washed with water, dried by anhydrous sodium sulfate and filtered. After concentrating under vacuum, the residue containing an intermediate 2 was purified by the column chromatography using ethyl acetate/petroleum ether (Vethyl acetate/Vpetroleum ether = 1:2) as eluent.
7-hydroxy-4-(trifluoromethyl)-2H-chromen-2-one (1a): pink solid; mp 186.8–187.8 °C; yield 54%; 1H-NMR (400 MHz, DMSO-d6) δ 10.97 (s, 1H), 7.53 (s, 1H), 6.95–6.86 (m, 1H), 6.81 (d, J = 2.3 Hz, 1H), 6.78–6.68 (m, 1H); IR (KBr) ν (cm−1) 3419, 3096, 1703, 1600, 1409, 1280, 1127, 866, 842.
6-chloro-7-hydroxy-4-(trifluoromethyl)-2H-chromen-2-one (1b): pink solid; mp 184.9–185.0 °C; yield 34%; 1H-NMR (400 MHz, DMSO-d6) δ 11.85 (s, 1H), 7.57 (s, 1H), 7.02 (s, 1H), 6.88 (s, 1H); IR (KBr) ν (cm−1) 3595, 3414, 3096, 1694, 1598, 1400, 1280, 1247, 1145, 866, 836.
6-chloro-3-fluoro-7-hydroxy-4-methyl-2H-chromen-2-one (1c): pink solid; mp 235.6–236.1 °C; yield 41%; 1H-NMR (400 MHz, Acetone-d6) δ 9.73 (s, 1H), 7.69 (s, 1H), 6.92 (s, 1H), 2.41 (s, 3H); IR (KBr) ν (cm−1) 3071, 1695, 1603, 1384, 1302, 1137, 858, 750.
7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde (2a): white solid; mp 129.0–129.7 °C; yield 44%; 1H-NMR (400 MHz, DMSO-d6) δ 12.05 (s, 1H), 10.39 (s, 1H), 7.76 (d, J = 8.9 Hz, 1H), 7.01 (d, J = 9.1 Hz, 1H), 6.89 (s, 1H); 13C-NMR (101 MHz, DMSO-d6) δ 190.31, 164.78, 158.01, 156.43, 139.83 (q, J = 32.5 Hz), 132.15, 121.93 (d, J = 275.6 Hz), 115.29, 113.66 (q, J = 4.0Hz), 110.31, 105.64; IR (KBr) ν (cm−1) 3097, 2920, 1745, 1405, 1280; HR-MS (ESI): m/z calcd. for C11H5F3O4 ([M + H]+) 259.0140, found 259.0774.
6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde (2b): yellow solid; mp 164.9–165.7 °C; yield 75%; 1H-NMR (400 MHz, DMSO-d6) δ 11.79 (s, 1H), 10.41 (s, 1H), 7.83 (s, 1H), 7.07 (s, 1H); 13C-NMR (101 MHz, DMSO-d6) δ 192.26, 159.99, 157.41, 155.59, 138.86 (q, J = 32.5 Hz), 130.75, 121.71 (d, J = 275.3 Hz), 118.83, 115.20 (q, J = 4.7 Hz), 110.64, 106.21; IR (KBr) ν (cm−1) 3094, 2920, 1740, 1427, 1394, 1296; HR-MS (ESI): m/z calcd. for C11H4ClF3O4 ([M + H]+) 292.9750, found 293.0403.
6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde (2c): yellow solid; mp 145.5–146.4 °C; yield 48%; 1H-NMR (400 MHz, DMSO-d6) δ 12.32 (s, 1H), 10.42 (s, 1H), 8.20 (s, 1H), 2.39 (s, 3H); 13C-NMR (101 MHz, DMSO) δ 192.57 (s), 158.46 (s), 153.56 (d, J = 30.8 Hz), 150.88 (d, J = 2.3 Hz), 142.59 (d, J = 245.2 Hz), 132.79 (d, J = 5.7 Hz), 132.00 (d, J = 13.9 Hz), 118.69 (s), 112.39 (s), 109.95 (s), 10.62 (d, J = 3.2 Hz). IR (KBr) ν (cm−1) 3095, 3031, 2952, 1723, 1613, 1302; HR-MS (ESI): m/z calcd. for C11H6ClFO4 ([M + Na]+) 278.9939, found 279.0235.

3.2.2. General Procedure for Synthesis of O-substituted hydroxylamines 3d–3j

The water (5 mL) mixing hydroxylamine hydrochloride (0.10 mol), ethyl acetate (0.18 mol) and 28% sodium hydroxide aqueous solution (25 mL) were stirred at 0 °C. The resultant mixture was then stirred at room temperature for 1 h. After that, halogenated hydrocarbon (0.11 mol) was dropwise added and the reaction was stirred at 60 °C for further 6 h. Subsequently, the reaction mixture was extracted with petroleum ether and ethyl acetate. The organic layer was combined and dried by anhydrous sodium sulfate, then the solvent was removed under reduced pressure and oily product was obtained. The obtained oily product was dissolved in ethyl alcohol, and 36% aqueous hydrochloric acid was added to the solution. The mixture was stirred at 50 °C for 4 h. Finally, the reaction was neutralized to pH 7.0 by saturated sodium bicarbonate aqueous solution, and then extracted with dichloromethane. The extracts were dried over anhydrous sodium sulfate, and concentrated under vacuum to obtain the title compounds 3d–3j.

3.2.3. General Procedure for Synthesis of Compounds 4a–6j

A mixture of intermediate compound 2 (3.8 mmol) and O-substituted hydroxylamines intermediate compound 3 (4.56 mmol) in ethyl alcohol (10 mL) was stirred at reflux for 1 h. After the reaction was completed, the solvent was removed under reduced pressure, and purified by the column chromatography (Vpetroleum ether:Vethyl acetate = 1:20) to produce title compounds 4a–6j.
(E)-7-Hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde oxime (4a): white solid; mp 236.2–237.2 °C; yield 60%; 1H-NMR (400 MHz, DMSO-d6) δ 12.05 (s, 1H), 11.46 (s, 1H), 8.55 (t, J = 25.2 Hz, 1H), 7.60 (d, J = 6.8 Hz, 1H), 7.06 (d, J = 9.0 Hz, 1H), 6.89 (d, J = 5.7 Hz, 1H); 13C-NMR (101 MHz, DMSO-d6) δ 161.03, 158.39, 153.25, 143.68, 140.10 (q, J = 32.0 Hz), 126.70, 122.10 (d, J = 275.6 Hz), 114.43, 113.18 (q, J = 6.3 Hz), 106.51, 105.92; IR (KBr) ν (cm−1) 3494, 3105, 3009, 2915, 1730, 1280; HR-MS (ESI): m/z calcd. for C11H6NF3O4 ([M + H]+) 274.0249, found 274.0490.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehydeO-methyloxime (4b): white solid; mp 201.4–202.3 °C, yield 34%; 1H-NMR (400 MHz, DMSO-d6) δ 11.14 (s, 1H), 8.50 (s, 1H), 8.00–7.35 (m, 1H), 7.07 (d, J = 9.0 Hz, 1H), 6.90 (s, 1H), 3.99 (s, 3H); 13C-NMR (101 MHz, CDCl3) δ 157.58, 157.23, 151.75, 144.79, 141.04 (q, J = 33.7 Hz), 126.87, 122.59, 119.68 (d, J = 32.2 Hz), 113.09 (q, J = 7.1 Hz), 106.22 (d, J = 9.4 Hz), 63.33, 29.72; IR (KBr) ν (cm−1) 3494, 3105, 3009, 2956, 1738, 1284; HR-MS (ESI): m/z calcd. for C12H8NF3O4 ([M + H]+) 288.0405, found 288.0654.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-ethyl oxime (4c): yellow solid; mp 199.8–199.9 °C, yield 30%; 1H-NMR (400 MHz, CDCl3) δ 11.15 (s, 1H), 8.65 (s, 1H), 7.62 (d, J = 9.0 Hz, 1H), 7.01 (d, J = 9.1 Hz, 1H), 6.64 (s, 1H), 1.82 (dd, J = 14.2, 7.0 Hz, 2H), 1.02 (t, J = 7.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 159.38, 157.79, 153.55, 144.87 (q, J = 22.2 Hz), 142.07, 123.89, 118.40, 112.67 (q, J =5.9 Hz), 105.91 (d, J = 49.6 Hz), 71.09 (d, J = 12.3 Hz), 70.23, 14.57, 14.23; IR (KBr) ν (cm−1) 3494, 3100, 2891, 1744, 1407, 1288; HR-MS (ESI): m/z calcd. for C13H10NF3O4 ([M + H]+) 302.0562, found 302.0535.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-propyl oxime (4d): white solid; mp 169.9–170.0 °C, yield 34%; 1H-NMR (400 MHz, CDCl3) δ 11.15 (s, 1H), 8.85 (s, 1H), 7.62 (d, J = 9.0 Hz, 1H), 6.99 (d, J = 9.1 Hz, 1H), 6.64 (s, 1H), 4.20 (t, J = 6.6 Hz, 2H), 1.79 (dd, J = 14.2, 7.0 Hz, 2H), 1.02 (t, J = 7.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 161.81, 158.32, 153.48, 144.91, 141.85 (q, J = 33.0 Hz), 127.23, 122.85, 120.11, 114.75, 111.79 (q, J = 5.5 Hz), 105.94, 105.48, 22.11, 10.25. IR (KBr) ν (cm−1) 3092, 2983, 2941, 2884, 1741, 1286; HR-MS (ESI): m/z calcd. for C14H12NF3O4 ([M + H]+) 316.0718, found 316.0689.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-butyl oxime (4e): white solid; mp 149.0–149.1 °C; yield 51%; 1H-NMR (400 MHz, DMSO-d6) δ 11.10 (s, 1H), 8.49 (s, 1H), 7.61 (d, J = 7.8 Hz, 1H), 7.04 (d, J = 9.0 Hz, 1H), 6.87 (s, 1H), 4.21 (t, J = 6.6 Hz, 2H), 1.79–1.59 (m, 2H), 1.54–1.29 (m, 2H), 0.93 (t, J = 7.4 Hz,3H); 13C-NMR (101 MHz, DMSO-d6) δ 159.98, 159.12, 153.26, 140.16 (q, J = 31.8 Hz), 133.41, 123.60, 123.50, 120.86, 118.08, 114.11, 113.46 (q, J = 5.2 Hz), 109.84, 107.02, 69.45, 8.49; IR (KBr) ν (cm−1) 3103, 2941, 2873, 1743, 1397, 1277; HR-MS (ESI): m/z calcd. for C15H14NF3O4 ([M + H]+) 330.0875, found 330.1160.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-allyl oxime (4f): white solid; mp 159.9–160.5 °C; yield 76%; 1H-NMR (500 MHz, CDCl3) δ 11.03 (s), 11.03 (s), 8.86 (s), 7.70–7.68 (m), 7.60 (dd, J = 9.1, 1.5 Hz), 7.60 (dd, J = 9.1, 1.5 Hz), 6.96 (d, J = 9.1 Hz), 6.62 (s), 6.06–5.97 (m), 5.42–5.36 (m), 5.34–5.30 (m), 4.69 (dd, J = 6.0, 0.8 Hz). 13C-NMR (101 MHz, CDCl3) δ 161.82 (s), 158.24 (s), 153.59 (s), 145.40 (s), 141.84 (q, J = 32.6 Hz), 132.83 (s), 129.85 (d, J = 208.9 Hz), 127.42 (d, J = 2.4 Hz), 119.50 (s), 114.80 (s), 111.84 (q, J = 5.8 Hz), 105.95 (s), 105.36 (s), 76.09 (s). FTIR (KBr) ν (cm−1) 3450.6, 3092.1, 1736.2, 12292.2; HR-MS (ESI): m/z calcd. for C14H10F3NO4 ([M + H]+) 314.0635, found 314.0633.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-(3-methylbut-2-en-1-yl) oxime (4g): white solid; mp 165.9–166.4 °C; yield 61%; 1H-NMR (600 MHz, CDCl3) δ 11.16 (s, 1H), 8.82 (s, 1H), 7.60 (dd, J = 9.1, 1.8 Hz, 1H), 6.97 (d, J = 9.1 Hz, 1H), 6.62 (s, 1H), 5.50–5.44 (m, 1H), 4.71 (d, J = 7.3 Hz, 2H), 1.82 (s, 3H), 1.79 (d, J = 0.7 Hz, 3H). 13C-NMR (151 MHz, CDCl3) δ 161.87 (s), 158.28 (s), 153.54 (s), 145.02 (s), 141.84 (q, J = 32.8 Hz), 140.23 (s), 127.23 (d, J = 2.3 Hz), 121.52 (d, J = 275.7 Hz), 118.81 (s), 114.75 (s), 111.81 (q, J = 5.8 Hz), 105.93 (s), 105.58 (s), 71.65 (s), 25.86 (s), 18.16 (s). FTIR (KBr) ν (cm−1) 3476.1, 3104.2, 1753.1, 1294, 1278.7; HR-MS (ESI): m/z calcd. for C16H14F3NO4 ([M + H]+) 342.0948, found 342.0945.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-prop-2-yn-1-yl oxime (4h): white solid; mp 189.9–190.2 °C; yield 56%; 1H-NMR (600 MHz, CDCl3) δ 10.86 (s, 1H), 8.90 (s, 1H), 7.65 (dd, J = 9.1, 1.8 Hz, 1H), 7.01 (d, J = 9.1 Hz, 1H), 6.64 (s, 1H), 4.81 (d, J = 2.4 Hz, 2H), 2.57 (t, J = 2.4 Hz, 1H). 13C-NMR (151 MHz, CDCl3) δ 161.85 (s), 158.15 (s), 153.80 (s), 146.57 (s), 141.84 (q, J = 32.8 Hz), 127.85 (d, J = 2.4 Hz), 121.47 (q, J = 275.6 Hz), 114.91 (s), 111.95 (q, J = 5.8 Hz), 106.03 (s), 105.09 (s), 78.00 (s), 76.01 (s), 62.57 (s). FTIR (KBr) ν (cm−1) 3476.6, 3110.8, 2962.9, 1737.4, 1401.5; HR-MS (ESI): m/z calcd. for C14H8F3NO4 ([M + H]+) 312.0478, found 312.0473.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-benzyl oxime (4i): white solid; mp 169.5–170.4 °C; yield 75%; 1H-NMR (600 MHz, CDCl3) δ 10.93 (s, 1H), 8.89 (s, 1H), 7.60 (dd, J = 9.1, 1.7 Hz, 1H), 7.41 (s, 1H), 7.40 (d, J = 2.2 Hz, 2H), 7.38–7.34 (m, 1H), 6.95 (d, J = 9.1 Hz, 1H), 6.62 (s, 1H), 5.23 (s, 2H). 13C-NMR (151 MHz, CDCl3) δ 161.79 (s), 158.20 (s), 153.60 (s), 145.76 (s), 141.82 (q, J = 32.9 Hz), 136.14 (s), 128.73 (s), 128.59 (s), 128.57 (s), 127.45 (d, J = 2.3 Hz), 121.48 (q, J = 275.5 Hz), 114.77 (s), 111.85 (q, J = 5.7 Hz), 105.95 (s), 105.35 (s), 77.30 (s). FTIR (KBr) ν (cm−1) 3494, 3105, 3009, 2915, 1730, 1280; HR-MS (ESI): m/z calcd. for C18H12F3NO4 ([M + H]+) 364.0791, found 364.0795.
(E)-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-(4-fluorobenzyl) oxime (4j): white solid; mp 175.7–176.2 °C; yield 74%; 1H-NMR (600 MHz, CDCl3) δ 10.88 (s, 1H), 8.88 (s, 1H), 7.61 (dd, J = 9.1, 1.8 Hz, 1H), 7.40–7.38 (m, 2H), 7.09 (d, J = 8.7 Hz, 2H), 6.96 (d, J = 9.0 Hz, 1H), 6.62 (s, 1H), 5.19 (s, 2H). 13C-NMR (151 MHz, CDCl3) δ 162.88 (d, J = 247.3 Hz), 161.77 (s), 158.18 (s), 153.63 (s), 145.98 (s), 141.83 (q, J = 32.8 Hz), 131.98 (d, J = 3.3 Hz), 130.46 (d, J = 8.3 Hz), 127.57 (d, J = 2.3 Hz), 121.47 (q, J = 275.6 Hz), 115.71 (d, J = 21.6 Hz), 114.78 (s), 111.89 (q, J = 5.7 Hz), 106.00 (s), 105.27 (s), 76.49 (s). FTIR (KBr) ν (cm−1) 3476.9, 3105.7, 1752.2, 1293.5, 1277.7; HR-MS (ESI): m/z calcd. for C18H11F4NO4 ([M + H]+) 382.0697, found 382.0694.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde oxime (5a): yellow solid; mp 121.5–122.0 °C; yield 70%; 1H-NMR (400 MHz, DMSO-d6) δ 12.47 (s, 1H), 12.21 (s, 1H), 8.60 (s, 1H), 7.65 (s, 1H), 7.04 (s, 1H); 13C-NMR (101 MHz, DMSO-d6) δ 157.67, 156.31, 151.54, 143.97, 139.03 (q, J = 32.9 Hz), 125.35, 121.80 (d, J = 275.8 Hz), 117.96, 114.92 (q, J = 5.7 Hz), 107.18, 106.40; IR (KBr) ν (cm−1) 3435, 3086, 3006, 2879, 1725, 1279; HR-MS (ESI): m/z calcd. for C11H4ClF3O4 ([M + H]+) 307.9859, found 307.9824.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-methyl oxime (5b): white solid; mp 203.8–204.5 °C; yield 55%; 1H-NMR (400 MHz, DMSO-d6) δ 11.47 (s, 1H), 8.62 (s, 1H), 7.70 (s, 1H), 7.05 (s, 1H), 4.06 (s, 3H); 13C-NMR (101 MHz, CDCl3) δ 157.58, 157.23, 151.75, 144.79, 141.04 (q, J = 33.7 Hz), 126.87, 122.59, 119.68 (d, J = 32.2 Hz), 113.09 (q, J = 6.0 Hz), 106.22 (d, J = 9.4 Hz), 63.33, 29.72; IR (KBr) ν (cm−1) 3434, 3085, 2918, 1725, 1399, 1279; HR-MS (ESI): m/z calcd. for C12H7ClF3NO4 ([M + Na]+) 322.0016, found 321.9968.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-ethyl oxime (5c): white solid; mp 194.7–194.8 °C; yield 46%; 1H-NMR (400 MHz, DMSO-d6) δ 11.53 (s, 1H), 8.62 (s, 1H), 7.68 (s, 1H), 7.05 (s, 1H), 4.34 (dd, J = 14.0, 7.0 Hz, 2H), 1.31 (t, J = 7.0 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 157.57, 157.22, 151.71, 144.57, 141.19, 140.86 (q, J = 32.0 Hz), 126.71, 119.46, 113.07 (q, J = 5.7 Hz), 106.39, 106.23, 71.40, 14.20; IR (KBr) ν (cm−1) 3209, 3086, 2901, 1731, 1400, 1278; HR-MS (ESI): m/z calcd. for C13H9ClF3NO4 ([M + H]+) 336.0172, found 336.0123.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-propyl oxime (5d): white solid; mp 179.9–180.9 °C; yield 40%; 1H-NMR (400 MHz, DMSO-d6) δ 11.54 (s, 1H), 8.63 (s, 1H), 7.68 (s, 1H), 7.05 (s, 1H), 4.25 (t, J = 6.6 Hz, 2H), 1.71 (dt, J = 14.1, 7.0 Hz, 2H), 0.96 (t, J = 7.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 157.59, 157.21, 151.69, 144.48, 141.63 (q, J = 32.0 Hz), 126.66, 122.60, 119.86, 119.46, 113.05 (q, J = 5.6 Hz), 106.41, 106.23, 22.08, 10.20; IR (KBr) ν (cm−1) 3208, 3083, 2963, 1730, 1399, 1290; HR-MS (ESI): m/z calcd. for C14H11ClF3NO4 ([M + H]+) 350.0329, found 350.0637.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-butyl oxime (5e): white solid; mp 164.9–165.6 °C; yield 42%; 1H-NMR (400 MHz, DMSO-d6) δ 11.54 (s, 1H), 8.62 (s, 1H), 7.67 (s, 1H), 7.05 (s, 1H), 4.29 (t, J = 6.6 Hz, 2H), 1.75-1.64 (m, 2H), 1.41 (dq, J = 14.7, 7.4 Hz, 2H), 0.94 (t, J = 7.4 Hz, 3H); 13C-NMR (151 MHz, CDCl3) δ 157.60 (s), 157.26 (s), 151.73 (s), 144.48 (s), 141.08 (q, J = 33.2 Hz), 126.69 (d, J = 2.4 Hz), 121.25 (q, J = 275.8 Hz), 119.49 (s), 113.06 (q, J = 5.7 Hz), 106.45 (s), 106.25 (s), 75.67 (s), 30.78 (s), 18.99 (s), 13.80 (s). IR (KBr) ν (cm−1) 3082, 2966, 2936, 1744, 1290; HR-MS (ESI): m/z calcd. for C15H13ClF3NO4 ([M + H]+) 364.0485, found 364.0815.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-allyl oxime (5f): white solid; mp 169.5–169.9 °C; yield 83%; 1H-NMR (400 MHz, CDCl3) δ 11.73 (s, 1H), 8.85 (s, 1H), 7.72 (d, J = 1.5 Hz, 1H), 6.69 (s, 1H), 6.04 (m, J = 16.5, 10.4, 6.1 Hz, 1H), 5.44 (dd, J = 17.2, 1.4 Hz, 1H), 5.38 (dd, J = 10.4, 1.1 Hz, 1H), 4.74 (d, J = 6.0 Hz, 2H). 13C-NMR (101 MHz, CDCl3) δ 157.55 (s), 157.21 (s), 151.77 (s), 144.95 (s), 142.39–139.57 (m), 132.50 (s), 126.83 (d, J = 2.6 Hz), 122.58 (s), 120.00 (s), 119.50 (s), 113.08 (q, J = 5.6 Hz), 106.28 (s), 106.23 (s), 76.38 (s). FTIR (KBr) ν (cm−1) 3570.1, 1744.7, 1640.7, 1402.0; HR-MS (ESI): m/z calcd. for C14H9ClF3NO4 ([M + H]+) 348.0245, found 348.0247.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-(3-methylbut-2-en-1-yl) oxime (5g): white solid; mp 163.4–164.2 °C; yield 72%; 1H-NMR (600 MHz, CDCl3) δ 11.84 (s, 1H), 8.80 (s, 1H), 7.70 (s, 1H), 6.67 (s, 1H), 5.47 (t, J = 7.8 Hz, 1H), 4.73 (d, J = 7.3 Hz, 2H), 1.82 (s, 3H), 1.79 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 157.61 (s), 157.31 (s), 151.74 (s), 144.62 (s), 141.06 (q, J = 33.1 Hz), 140.63 (s), 126.67 (d, J = 2.3 Hz), 121.26 (d, J = 275.6 Hz), 119.48 (s), 118.53 (s), 113.04 (q, J = 5.7 Hz), 106.51 (s), 106.21 (s), 71.97 (s), 25.87 (s), 18.21 (s). FTIR (KBr) ν (cm−1) 3476.6, 3476.6, 3414.2, 1744.5, 1288.6; HR-MS (ESI): m/z calcd. for C16H13ClF3NO4 ([M + H]+) 376.0558, found 376.0556.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-prop-2-yn-1-yl oxime (5h): white solid; mp 179.9–180.4 °C; yield 54%; 1H-NMR (600 MHz, CDCl3) δ 11.53 (s, 1H), 8.88 (s, 1H), 7.75 (d, J = 1.4 Hz, 1H), 6.69 (s, 1H), 4.82 (d, J = 2.4 Hz, 2H), 2.59 (t, J = 2.4 Hz, 1H). 13C-NMR (151 MHz, CDCl3) δ 157.46 (s), 157.28 (s), 151.99 (s), 146.13 (s), 141.04 (q, J = 33.2 Hz), 127.29 (d, J = 2.4 Hz), 121.21 (d, J = 275.6 Hz), 119.68 (s), 113.18 (q, J = 5.7 Hz), 106.33 (s), 106.04 (s), 77.65 (s), 76.40 (s), 62.81 (s). FTIR (KBr) ν (cm−1) 3552.7, 3464.2, 3091.2, 2131.6, 1736.3, 1286.8; HR-MS (ESI): m/z calcd. for C14H7ClF3NO4 ([M + H]+) 346.0088, found 346.0086.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-benzyl oxime (5i): white solid; mp 185.4–185.9 °C; yield 56%; 1H-NMR (600 MHz, CDCl3) δ 11.60 (s, 1H), 8.87 (s, 1H), 7.70 (d, J = 1.3 Hz, 1H), 7.41 (s, 2H), 7.41 (s, 2H), 7.38 (dd, J = 8.2, 4.3 Hz, 1H), 6.67 (s, 1H), 5.24 (s, 2H). 13C-NMR (151 MHz, CDCl3) δ 157.52 (s), 157.23 (s), 151.80 (s), 145.39 (s), 141.02 (q, J = 33.3 Hz), 135.80 (s), 128.81 (s), 128.73 (s), 128.59 (s), 126.90 (d, J = 2.4 Hz), 121.21 (q, J = 275.8 Hz), 119.50 (s), 113.08 (q, J = 5.7 Hz), 106.29 (s), 106.24 (s), 77.61 (s). FTIR (KBr) ν (cm−1) 3452.2, 3085.8, 1753.1, 1401.7, 1287.7; HR-MS (ESI): m/z calcd. for C18H11ClF3NO4 ([M + H]+) 398.0401, found 398.0397.
(E)-6-chloro-7-hydroxy-2-oxo-4-(trifluoromethyl)-2H-chromene-8-carbaldehyde O-(4-fluorobenzyl) oxime (5j): white solid; mp 200.7-201.2 °C; yield 71%; 1H-NMR (600 MHz, CDCl3) δ 11.54 (s, 1H), 8.86 (s, 1H), 7.70 (d, J = 1.4 Hz, 1H), 7.40-7.38 (m, 2H), 7.10 (t, J = 8.7 Hz, 2H), 6.67 (s, 1H), 5.20 (s, 2H). 13C-NMR (151 MHz, CDCl3) δ 162.88 (d, J = 247.3 Hz), 161.77 (s), 158.18 (s), 153.63 (s), 145.98 (s), 141.83 (q, J = 32.8 Hz), 131.98 (d, J = 3.3 Hz), 130.46 (d, J = 8.3 Hz), 127.57 (d, J = 2.3 Hz), 121.47 (q, J = 275.6 Hz), 115.71 (d, J = 21.6 Hz), 114.78 (s), 111.89 (q, J = 5.7 Hz), 106.00 (s), 105.27 (s), 76.49 (s). FTIR (KBr) ν (cm−1) 3476.7, 3414.7, 3085.4, 1752.9, 1401.5, 1212.2; HR-MS (ESI): m/z calcd. for C18H10ClF4NO4 ([M + H]+) 416.0307, found 416.0304.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde oxime (6a): white solid; mp 240.1–241.6 °C; yield 24%; 1H-NMR (400 MHz, DMSO-d6) δ 12.35 (s, 1H), 11.82 (s, 1H), 8.58 (s, 1H), 7.91 (s, 1H), 2.37 (d, J = 2.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 155.15 (d, J = 2.4 Hz), 153.76 (d, J = 30.5 Hz), 147.23, 144.96, 143.87, 141.38, 130.73 (d, J = 13.6 Hz), 126.29 (d, J = 6.0 Hz), 119.15, 112.16, 105.73, 63.24, 10.34 (d, J = 3.5 Hz); IR (KBr) ν (cm−1) 3381.78, 3077.75, 2921.54, 2850.53, 1703.49, 1320.36; HR-MS (ESI): m/z calcd. for C11H7ClFNO4 ([M + Na]+) 294.0048, found 294.0133.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-methyl oxime (6b): white solid; mp 184.9–186.2 °C; yield 33%; 1H-NMR (400 MHz, CDCl3) δ 11.47 (s, 1H), 8.82 (s, 1H), 7.64–7.54 (m, 1H), 4.08 (s, 3H), 2.40 (d, J = 2.7 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 155.15 (d, J = 2.4 Hz), 153.76 (d, J = 30.5 Hz), 147.23, 144.96, 142.62 (d, J = 250.0 Hz), 130.73 (d, J = 13.6 Hz), 126.29 (d, J = 6.0 Hz), 119.15, 112.16, 105.73, 63.24, 10.34 (d, J = 3.5 Hz); IR (KBr) ν (cm−1) 3489.32, 2955.37, 2923.50, 1738.95, 1306.48; HR-MS (ESI): m/z calcd. for C12H9ClFNO4 ([M + Na]+) 308.0204, found 308.0311.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-ethyl oxime (6c): white solid; mp 163.9–164.1 °C; yield 36%; 1H-NMR (400 MHz, CDCl3) δ 11.60 (s, 1H), 8.84 (s, 1H), 7.58 (s, 1H), 4.32 (q, J = 7.1 Hz, 2H), 2.40 (d, J = 2.8 Hz, 3H), 1.40 (t, J = 7.1 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 155.13(d, J = 2.4 Hz), 154.62 (d, J = 30.1 Hz), 147.21, 144.76, 141.75 (d, J = 250.0 Hz), 130.64 (d, J = 13.5 Hz), 126.14 (d, J = 6.0 Hz), 119.10, 112.14, 105.97, 71.25, 14.19, 10.32 (d, J = 3.5 Hz); IR (KBr) ν (cm−1) 3489.52, 2981.09, 2956.24, 2923.25, 1748.64, 1288.04; HR-MS (ESI): m/z calcd. for C13H11ClFNO4 ([M + Na]+) 322.0361, found 322.0466.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-propyl oxime (6d): yellow solid; mp 136.8–139.2 °C; yield 27%; 1H-NMR (400 MHz, CDCl3) δ 11.59 (s, 1H), 8.84 (s, 1H), 7.57 (s, 1H), 4.22 (t, J = 6.6 Hz, 2H), 2.40 (d, J = 2.7 Hz, 3H), 1.79 (dt, J = 14.1, 7.0 Hz, 2H), 1.02 (t, J = 7.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 155.19 (d, J = 2.3 Hz), 153.96 (d, J = 4.4 Hz), 153.68, 147.24 (d, J = 2.5 Hz), 144.74, 143.87, 130.79, 126.13 (d, J = 6.0 Hz), 119.13, 112.17, 106.04, 22.09, 10.35 (d, J = 3.4 Hz), 10.21; IR (KBr) ν (cm−1) 3460.10, 3069.21, 2969.96, 1731.93, 1285.02; HR-MS (ESI): m/z calcd. for C14H13ClFNO4 ([M + Na]+) 336.0517, found 336.0629.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-butyl oxime (6e): yellow solid; mp 117.2–118.7 °C; yield 21%; 1H-NMR (400 MHz, CDCl3) δ 11.61 (s, 1H), 8.84 (s, 1H), 7.58 (s, 1H), 4.26 (t, J = 6.6 Hz, 2H), 2.40 (d, J = 2.6 Hz, 3H), 1.80–1.71 (m, 2H), 1.46 (dd, J = 15.0, 7.4 Hz, 2H), 0.99 (t, J = 7.4 Hz, 3H); 13C-NMR (101 MHz, CDCl3) δ 155.14 (d, J = 2.2 Hz), 153.79 (d, J = 30.4 Hz), 147.20 (d, J = 2.4 Hz), 144.65, 141.37, 130.72 (d, J = 13.8 Hz), 126.10 (d, J = 6.0 Hz), 119.09, 112.15, 105.99, 75.52, 30.76, 18.98, 13.81, 10.34 (d, J = 3.6 Hz); IR (KBr) ν (cm−1) 3496.26, 2955.49, 2937.11, 1748.95, 1288.56; HR-MS (ESI): m/z calcd. for C15H15ClFNO4 ([M + Na]+) 350.0674, found 350.0816.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-allyl oxime (6f): white solid; mp 120.2–120.7 °C; yield 76%; 1H-NMR (400 MHz, CDCl3) δ 11.40 (s, 1H), 8.81 (s, 1H), 7.55 (s, 1H), 6.03 (m, J = 16.5, 10.4, 6.0 Hz, 1H), 5.43 (dd, J = 17.2, 1.4 Hz, 1H), 5.37 (dd, J = 10.4, 1.1 Hz, 1H), 4.72 (d, J = 6.0 Hz, 2H), 2.39 (d, J = 2.9 Hz, 3H). 13C-NMR (126 MHz, ) δ 155.22 (d, J = 2.8 Hz), 153.86 (d, J = 30.6 Hz), 147.33 (d, J = 2.6 Hz), 145.21 (s), 142.68 (d, J = 249.9 Hz), 132.71 (s), 130.83 (d, J = 13.8 Hz), 126.37 (d, J = 6.2 Hz), 119.93 (s), 119.22 (s), 112.22 (d, J = 2.8 Hz), 105.93 (d, J = 1.5 Hz), 76.36 (s), 10.43 (d, J = 3.7 Hz). FTIR (KBr) ν (cm−1) 3470.7, 3415.1, 1753.4, 1377.7, 1267.7; HR-MS (ESI): m/z calcd. for C14H11ClFNO4 ([M + H]+) 312.0433, found 312.0433.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-(3-methylbut-2-en-1-yl) oxime (6g): white solid; mp 135.7–136.6 °C; yield 55%; 1H-NMR (600 MHz, CDCl3) δ 11.52 (s, 1H), 8.79 (s, 1H), 7.54 (s, 1H), 5.48–5.45 (m, 1H), 4.71 (d, J = 7.3 Hz, 2H), 2.37 (d, J = 2.9 Hz, 3H), 1.81 (s, 3H), 1.78 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 155.24 (d, J = 2.3 Hz), 153.80 (d, J = 30.5 Hz), 147.27 (d, J = 2.3 Hz), 144.84 (s), 142.00 (d, J = 56.4 Hz), 140.38 (s), 130.68 (d, J = 13.7 Hz), 126.12 (d, J = 6.0 Hz), 119.12 (s), 118.66 (s), 112.11 (d, J = 2.6 Hz), 106.11 (s), 71.86 (s), 25.86 (s), 18.20 (s), 10.33 (d, J = 3.4 Hz). FTIR (KBr) ν (cm−1) 3494, 3092.8, 2982.8, 1764.6, 1265.2, 1123.6; HR-MS (ESI): m/z calcd. for C16H15ClFNO4 ([M + H]+) 340.0746, found 340.0749.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-prop-2-yn-1-yl oxime (6h): white solid; mp 157.2–158.0 °C; yield 67%; 1H-NMR (600 MHz, CDCl3) δ 11.15 (s, 1H), 8.79 (s, 1H), 7.51 (s, 1H), 4.74 (d, J = 2.4 Hz, 2H), 2.51 (t, J = 2.4 Hz, 1H), 2.31 (d, J = 2.9 Hz, 3H). 13C-NMR (151 MHz, CDCl3) δ 154.21 (d, J = 2.3 Hz), 152.70 (d, J = 30.7 Hz), 146.48 (d, J = 2.3 Hz), 145.35 (s), 141.65 (d, J = 250.3 Hz), 129.67 (d, J = 13.7 Hz), 125.73 (d, J = 6.0 Hz), 118.30 (s), 111.22 (d, J = 2.5 Hz), 104.61 (s), 76.76 (s), 75.22 (s), 61.69 (s), 9.34 (d, J = 3.4 Hz). FTIR (KBr) ν (cm−1) 3476.0, 2923.2, 1734.8, 1261.9; HR-MS (ESI): m/z calcd. for C14H9ClFNO4 ([M + H]+) 310.0277, found 310.0279.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-benzyl oxime (6i): white solid; mp 176.8–177.5 °C; yield 70%; 1H-NMR (600 MHz, CDCl3) δ 11.29 (s, 1H), 8.86 (s, 1H), 7.53 (s, 1H), 7.41 (s, 2H), 7.40 (s, 2H), 7.37–7.35 (m, 1H), 5.23 (s, 2H), 2.36 (d, J = 2.9 Hz, 3H). 13C-NMR (151 MHz, CDCl3) δ 155.21 (d, J = 2.3 Hz), 153.78 (d, J = 30.6 Hz), 147.35 (d, J = 2.2 Hz), 145.67 (s), 142.64 (d, J = 250.2 Hz), 135.97 (s), 130.68 (d, J = 13.7 Hz), 128.77 (s), 128.65 (s), 128.55 (s), 126.36 (d, J = 5.9 Hz), 119.17 (s), 112.16 (d, J = 2.5 Hz), 105.92 (s), 77.48 (s), 10.33 (d, J = 3.4 Hz). FTIR (KBr) ν (cm−1) 3446.2, 1751.0, 1123.0, 1120.3; HR-MS (ESI): m/z calcd. for C18H13ClFNO4 ([M + H]+) 362.0590, found 362.0590.
(E)-6-chloro-3-fluoro-7-hydroxy-4-methyl-2-oxo-2H-chromene-8-carbaldehyde O-(4-fluorobenzyl) oxime (6j): white solid; mp 197.1–197.7 °C; yield 75%; 1H-NMR (400 MHz, CDCl3) δ 11.26 (s, 1H), 8.87 (s, 1H), 7.57 (s, 1H), 7.43–7.39 (m, 2H), 7.11 (t, J = 8.7 Hz, 2H), 5.21 (s, 2H), 2.39 (d, J = 2.9 Hz, 3H). 13C-NMR (151 MHz, CDCl3) δ 161.58 (d, J = 31.9 Hz), 155.18 (d, J = 2.3 Hz), 153.77 (d, J = 30.6 Hz), 147.37 (d, J = 2.2 Hz), 145.87 (s), 142.65 (d, J = 250.1 Hz), 133.35 (d, J = 39.3 Hz), 131.82 (d, J = 3.2 Hz), 130.48 (d, J = 8.3 Hz), 130.32 (d, J = 8.1 Hz), 126.48 (d, J = 6.0 Hz), 119.19 (s), 112.21 (d, J = 2.5 Hz), 105.84 (s), 75.61 (s), 10.34 (d, J = 3.4 Hz). FTIR (KBr) ν (cm−1) 3548.1, 3414.9, 1736.7, 1614.7, 1266.7; HR-MS (ESI): m/z calcd. for C18H12ClF2NO4 ([M + H]+) 380.0496, found 380.0495.

3.3. Single Crystal X-Ray Diffraction Analysis

Fluorinated 7-hydroxycoumarin oxime ether derivatives (0.1 mmol) were dissolved in methanol (10 mL), then the solution was kept undisturbed at room temperature in the test tubes. Single-crystals suitable for X-ray diffraction were formed within three weeks [35,36]. X-ray measurement on the selected crystal was performed on a quartz fiber with protection oil. Cell dimensions and intensities were measured at 296 K on a Bruker SMART APEX2 CCD area detector diffractometer with graphite monochromated Mo Kα radiation (λ = 0.71073 Å). The molecular structures were solved via full-matrix least-squares procedure on all the F2 data, and the SHELXS-97 and SHELXL-97 programs were employed for structure deal and refinement, respectively. The crystallographic data for the compounds 4e, 4h, 5h and 6c can be obtained free of charge via http://www.ccdc.cam.ac.uk (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; E-mail: [email protected]).

3.4. Antifungal Bioassay

The test strains Botrytis cinerea (B. cinerea), Alternaria solani (A. solani), Gibberella zeae (G. zeae), Rhizoctorzia solani (R. solani), Colletotrichum orbiculare (C. orbiculare) and Alternaria alternata (A. alternata) were provided by the State & Local Joint Engineering Research Center of Green Pesticide Invention and Application at Nanjing Agricultural University. The antifungal activities of target compounds were implemented at an equivalent concentration of 100 μg/mL using mycelia growth inhibitory rate methods according to our published literature [16,37]. Every title compound (30.0 mg) was dissolved in 0.6mL dimethyl sulfoxide and evenly mixed with 299.4 mL of PSA (potato sucrose agar) medium. An equal volume of methanol in 299.4 mL medium was used as the blank control. Meanwhile, the Osthole and Azoxystrobin were tested as the positive control fungicides at the same concentration. It carried out on a 100 mm × 15 mm Petri plate under a sterile condition with 3 replicates. The fungi were inoculated to the center of the medium and cultured at 25 °C for 2–8 days in a dark environment. When the mycelia colony of the control grew to 6.5 cm (2.5 d for B. cinerea, 7.0 d for A. solani, 3.5 d for G. zeae, 1.5 d for R. solani, 5.0 d for C. orbiculare and 8.0 d for A. alternate), the diameters of the mycelium colonies were measured, and the inhibitory percentages were then calculated. The antifungal results of all the compounds were listed in Table 2. The title compounds with inhibition rates exceeding 60% at 100 μg/mL were further tested for their antifungal effects at five double-declining concentrations (50.00, 25.00, 12.50, 6.25 and 3.125 μg/mL) for calculating the EC50 values. Similarly, Osthole and Azoxystrobin were employed as positive control fungicides, which were exhibited in Table 3 and Table 4.

4. Conclusions

We designed and synthesized three series of fluorinated 7-hydroxycoumarin oxime ether derivatives for the first time. All the target compounds were identified by 1H-NMR, 13C-NMR, FTIR and HR-MS. Specifically, the compounds 4e, 4h, 5h and 6c were obtained by single-crystal X-ray analysis. The antifungal bioassays in vitro showed that some fluorinated 7-hydroxycoumarin derivatives exhibited a potential biological activity. In particular, the compounds 4a, 4f, 5a, 5f, 6a and 6h were evaluated as the most active ones. The EC50 values of compounds 2a, 2b, 4f, 5a and 5f together with Osthole and Azoxystrobin were further tested. The compound 5f was identified as the promising fungicide candidate against B. cinerea with the EC50 values of 5.75 μg/mL, which was obviously better than Osthole (33.20 μg/mL) and Azoxystrobin (64.95 μg/mL). Additionally, the compound 5f possessed outstanding antifungal activities against R. solani with the EC50 values of 28.96 μg/mL, which was superior to Osthole (67.18 μg/mL) and equivalent to Azoxystrobin (21.34 μg/mL). The present work provides a practical foundation for further structural optimization of fluorinated coumarin oxime ether derivatives with the aim to improve the antifungal activity.

Supplementary Materials

The Supplementary Materials containing 1H-NMR, 13C-NMR, FTIR and HR-MS spectra of the title compounds and the crystal structure data of compounds 4e, 4h, 5h and 6c can be accessed online.

Author Contributions

W.-H.Z. conceived and designed the experiments; Q.-Q.W. and J.J. carried out the synthesis, characterization and antifungal activity assay of all the compounds; P.D. performed the X-ray analysis; Q.-Q.W. and S.-G.Z. prepared the manuscript for publication; All authors discussed the contents of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key R&D Program of China, grant number 2017YFD0200506 and the Fundamental Research Funds for the Central Universities, grant number KYTZ201604.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The author declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Li, D.; Zhang, S.; Song, Z.; Wang, G.; Li, S. Bioactivity-guided mixed synthesis accelerate the serendipity in lead optimization: Discovery of fungicidal homodrimanyl amides. Eur. J. Med. Chem. 2017, 136, 114–121. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, X.; Fu, X.; Yan, J.; Wang, A.; Song, Y. Design and synthesis of novel 2-(6-thioxo-1,3,5-thiadiazinan-3-yl)-N′-phenylacethydrazide derivatives as potential fungicides. Mol. Divers. 2019, 23, 573–583. [Google Scholar] [CrossRef]
  3. Chen, M.; Zhang, L.; Lu, A.; Wang, X.; Yang, C. Novel carboxylated pyrroline-2-one derivatives bearing a phenylhydrazine moiety: Design, synthesis, antifungal evaluation and 3D-QSAR analysis. Bioorg. Med. Chem. Lett. 2020, 30, 127519. [Google Scholar] [CrossRef] [PubMed]
  4. Ray, M.; Ray, A.; Dash, S.; Mishra, A.; Singh, S. Fungal disease detection in plants: Traditional assays, novel diagnostic techniques and biosensors. Biosens. Bioelectron. 2017, 87, 708–723. [Google Scholar] [CrossRef]
  5. Sparks, T.C.; Lorsbach, B.A. Perspectives on the agrochemical industry and agrochemical discovery. Pest Manag. Sci. 2017, 73, 672–677. [Google Scholar] [CrossRef]
  6. Gobeil-Richard, M.; Tremblay, D.M.; Beaulieu, C.; Van der Heyden, H.; Carisse, O. A pyrosequencing-based method to quantify genetic substitutions associated with resistance to succinate dehydrogenase inhibitor fungicides in Botrytis spp. populations. Pest Manag. Sci. 2016, 72, 566–573. [Google Scholar] [CrossRef] [PubMed]
  7. Hidalgo, W.; Cano, M.; Arbelaez, M.; Zarrazola, E.; Gil, J.; Schneider, B.; Otálvaro, F. 4-Phenylphenalenones as a template for new photodynamic compounds against Mycosphaerella fijiensis. Pest Manag. Sci. 2016, 72, 796–800. [Google Scholar] [CrossRef] [PubMed]
  8. Bizzarri, B.M.; Botta, L.; Capecchi, E.; Celestino, I.; Checconi, P.; Palamara, A.T.; Nencioni, L.; Saladino, R. Regioselective IBX-mediated synthesis of coumarin derivatives with antioxidant and anti-influenza activities. J. Nat. Prod. 2017, 80, 3247–3254. [Google Scholar] [CrossRef]
  9. Bistrović, A.; Stipaničev, N.; Opačak-Bernardi, T.; Jukić, M.; Martinez, S.; Glavaš-Obrovac, L.; Raić-Malić, S. Synthesis of 4-aryl-1,2,3-triazolyl appended natural coumarin-related compounds with antiproliferative and radical scavenging activities and intracellular ROS production modification. New J. Chem. 2017, 41, 7531–7543. [Google Scholar] [CrossRef]
  10. Kalaiarasi, G.; Rajkumar, S.R.J.; Dharani, S.; Fronczek, F.R.; Muthukumar Nadar, M.S.A.; Prabhakaran, R. Cyclometallated ruthenium(II) complexes with 3-acetyl-2[H]-chromene-2-one derived CNS chelating ligand systems: Synthesis, X-ray characterization and biological evaluation. New J. Chem. 2018, 42, 336–354. [Google Scholar] [CrossRef]
  11. Hassan, M.Z.; Osman, H.; Ali, M.A.; Ahsan, M.J. Therapeutic potential of coumarins as antiviral agents. Eur. J. Med. Chem. 2016, 123, 236–255. [Google Scholar] [CrossRef]
  12. Zhang, M.Z.; Zhang, R.R.; Wang, J.Q.; Yu, X.; Zhang, Y.L.; Wang, Q.Q.; Zhang, W.H. Microwave-assisted synthesis and antifungal activity of novel fused Osthole derivatives. Eur. J. Med. Chem. 2016, 124, 10–16. [Google Scholar] [CrossRef]
  13. Zhang, M.Z.; Zhang, R.R.; Yin, W.Z.; Yu, X.; Zhang, Y.L.; Liu, P.; Gu, Y.C.; Zhang, W.H. Microwave-assisted synthesis and antifungal activity of coumarin[8,7-e][1,3]oxazine derivatives. Mol. Divers. 2016, 20, 611–618. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, R.; Xu, Z.; Yin, W.; Liu, P.; Zhang, W. Microwave-assisted synthesis and antifungal activities of polysubstituted furo[3,2-c]chromen-4-ones and 7,8,9,10-tetrahydro-6H-benzofuro[3,2-c]chromen-6-ones. Synth. Commun. 2014, 44, 3257–3263. [Google Scholar] [CrossRef]
  15. Yu, X.; Teng, P.; Zhang, Y.L.; Xu, Z.J.; Zhang, M.Z.; Zhang, W.H. Design, synthesis and antifungal activity evaluation of coumarin-3-carboxamide derivatives. Fitoterapia 2018, 127, 387–395. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, M.Z.; Zhang, Y.; Wang, J.Q.; Zhang, W.H. Design, Synthesis and antifungal activity of coumarin ring-opening derivatives. Molecules 2016, 21, 1387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Zhang, S.G.; Liang, C.G.; Sun, Y.Q.; Teng, P.; Wang, J.Q.; Zhang, W.H. Design, synthesis and antifungal activities of novel pyrrole- and pyrazole-substituted coumarin derivatives. Mol. Divers. 2019, 23, 915–925. [Google Scholar] [CrossRef]
  18. Zhang, R.R.; Liu, J.; Zhang, Y.; Hou, M.Q.; Zhang, W.H. Microwave-assisted synthesis and antifungal activity of novel coumarin derivatives: Pyrano[3,2-c]chromene-2,5-diones. Eur. J. Med. Chem. 2016, 116, 76–83. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, L.Z.; Sun, W.W.; Bo, L.; Wang, J.Q.; Xiu, C.; Tang, W.J.; Shi, J.B.; Zhou, H.P.; Liu, X.H. New arylpyrazoline-coumarins: Synthesis and anti-inflammatory activity. Eur. J. Med. Chem. 2017, 138, 170–181. [Google Scholar] [CrossRef]
  20. Lv, K.; Liu, Y.; Li, Y.; Xu, G.; Pan, X.; Li, F.; Chen, K.; Huang, B.; Yang, Y. Synthesis, fungicidal activity, structure-activity relationship and density functional theory studies of novel oxime ether derivatives containing 1-aryl-3-oxypyrazoles. J. Chem. Res. 2015, 39, 594–600. [Google Scholar] [CrossRef]
  21. Bhargavi, M.V.; Shashikala, P.; Sumakanth, M.; Gunda, S.K. Design, synthesis, molecular docking and biological evaluation of novel coumarin-oxime ether derivatives as COX-2 inhibitors. Asian J. Chem. 2017, 29, 2559–2564. [Google Scholar] [CrossRef]
  22. Joanna, K.; Bartlomiej, P.; Barbara, Z.; Miroslaw, A. Synthesis and biological activity of novel O-alkyl derivatives of naringenin and their oximes. Molecules 2017, 22, 1485. [Google Scholar] [CrossRef] [Green Version]
  23. Li, J.; Hu, Y.; Zhang, D.; Liu, Q.; Dong, Y.; Liu, H. Transition metal-catalyzed reactions involving oximes. Adv. Synth. Catal. 2017, 359, 710–771. [Google Scholar] [CrossRef]
  24. Xiao, Y.S.; Yan, X.J.; Xu, Y.J.; Huang, J.X.; Yuan, H.Z.; Liang, X.M.; Zhang, J.J.; Wang, D.Q. Design, synthesis and fungicidal activity of 11-alkoxyimino-5,6-dihydro-dibenzo[b,e] azepine-6-one derivatives. Pest Manag. Sci. 2013, 69, 814–826. [Google Scholar] [CrossRef]
  25. Chen, A.P.; Chen, Y.H.; Liu, H.P.; Li, Y.C.; Chen, C.T.; Liang, P.H. Synthesis and application of a fluorescent substrate analogue to study ligand interactions for undecaprenyl pyrophosphate synthase. J. Am. Chem. Soc. 2002, 124, 15217–15224. [Google Scholar] [CrossRef] [PubMed]
  26. Ferreira, M.L.; Pastoriza-Gallego, M.J.; Araújo, J.M.M.; Canongia Lopes, J.N.; Rebelo, L.P.N.; Piñeiro, M.M.; Shimizu, K.; Pereiro, A.B. The Influence of Nanosegregation on the Phase Behavior of Fluorinated Ionic Liquids. J. Phys. Chem. C 2017, 121, 5415–5427. [Google Scholar] [CrossRef]
  27. Bielenica, A.; Stepien, K.; Sawczenko, A.; Lis, T.; Koziol, A.E.; Madeddu, S.; Collu, D.; Iuliano, F.; Kosmider, A.; Struga, M. Synthesis, structural studies and biological evaluation of halogen derivatives of 1,3-disubstituted thiourea. Lett. Drug Des. Discov. 2017, 14, 1. [Google Scholar] [CrossRef]
  28. Zhang, M.; Yan, X.; Ma, W.; He, Y.; Cai, Z.; Lin, Z. Facile synthesis of tubular magnetic fluorinated covalent organic frameworks for efficient enrichment of ultratrace polybrominated diphenyl ethers from environmental samples. Talanta 2021, 221, 121651. [Google Scholar] [CrossRef]
  29. Chen, Y.; Zhang, Q.; Ma, Y.; Han, Q. Surface-oriented fluorinated pyridinium silicone with enhanced antibacterial activity on cotton via supercritical impregnation. Cellulose 2018, 25, 1499–1511. [Google Scholar] [CrossRef]
  30. Kulkarni, A.; Patil, S.A.; Badami, P.S. Synthesis, characterization, DNA cleavage and in vitro antimicrobial studies of La(III), Th(IV) and VO(IV) complexes with Schiff bases of coumarin derivatives. Eur. J. Med. Chem. 2009, 44, 2904–2912. [Google Scholar] [CrossRef]
  31. Yan, L.; Zhou, Y.; Du, W.; Kong, Z.; Qi, Z. A new turn on coumarin-based fluorescence probe for Ga3+ detection in aqueous solution. Spectroc. Acta Pt. A Mol. Biomolec. Spectr. 2016, 155, 116–124. [Google Scholar] [CrossRef]
  32. Shatzmiller, S.; Bercovici, S. Synthesis and reactions of α-Bromo-N-alkoxyimidates. Eur. J. Org. Chem. 1992, 1992, 997–1004. [Google Scholar] [CrossRef]
  33. Wu, J.; Zhang, J.Y.; Gao, P.; Xu, S.L.; Guo, L.N. Copper-catalyzed redox-neutral cyanoalkylarylation of activated alkenes with cyclobutanone oxime esters. J. Org. Chem. 2018, 83, 1046–1055. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, X.Y.; Che, J.R.; Wang, P.Z.; Yang, M.N.; Liang, D.; Xia, W.J. A visible-light-driven iminyl radical-mediated C−C single bond cleavage/radical addition cascade of oxime esters. Angew. Chem. Int. Edit. 2018, 57, 738–743. [Google Scholar] [CrossRef] [PubMed]
  35. Herchel, R.; Travnicek, Z.; Zboril, R. Tuning of the Critical Temperature in Iron (II) Spin-Crossover Materials Based on Bridging Polycyanidometallates: Pentacyanidonitrosylferrate(II) and Hexacyanidoplatinate(IV). Inorg. Chem. 2011, 50, 12390–12392. [Google Scholar] [CrossRef]
  36. Luo, Y.-H.; Wang, J.-W.; Li, Y.-J.; Chen, C.; An, P.-J.; Wang, S.-L.; You, C.-Q.; Sun, B.-W. Selective separation of aqueous sulphate anions via crystallization of sulphate-water clusters. CrystEngComm 2017, 19, 3362–3369. [Google Scholar] [CrossRef]
  37. Liu, Y.; Chen, Z.; Ng, T.B.; Zhang, J.; Zhou, M.; Song, F.; Lu, F.; Liu, Y. Bacisubin, an antifungal protein with ribonuclease and hemagglutinating activities from Bacillus subtilis strain B-916. Peptides 2007, 28, 553–559. [Google Scholar] [CrossRef]
Molecules 26 00372 g001 550

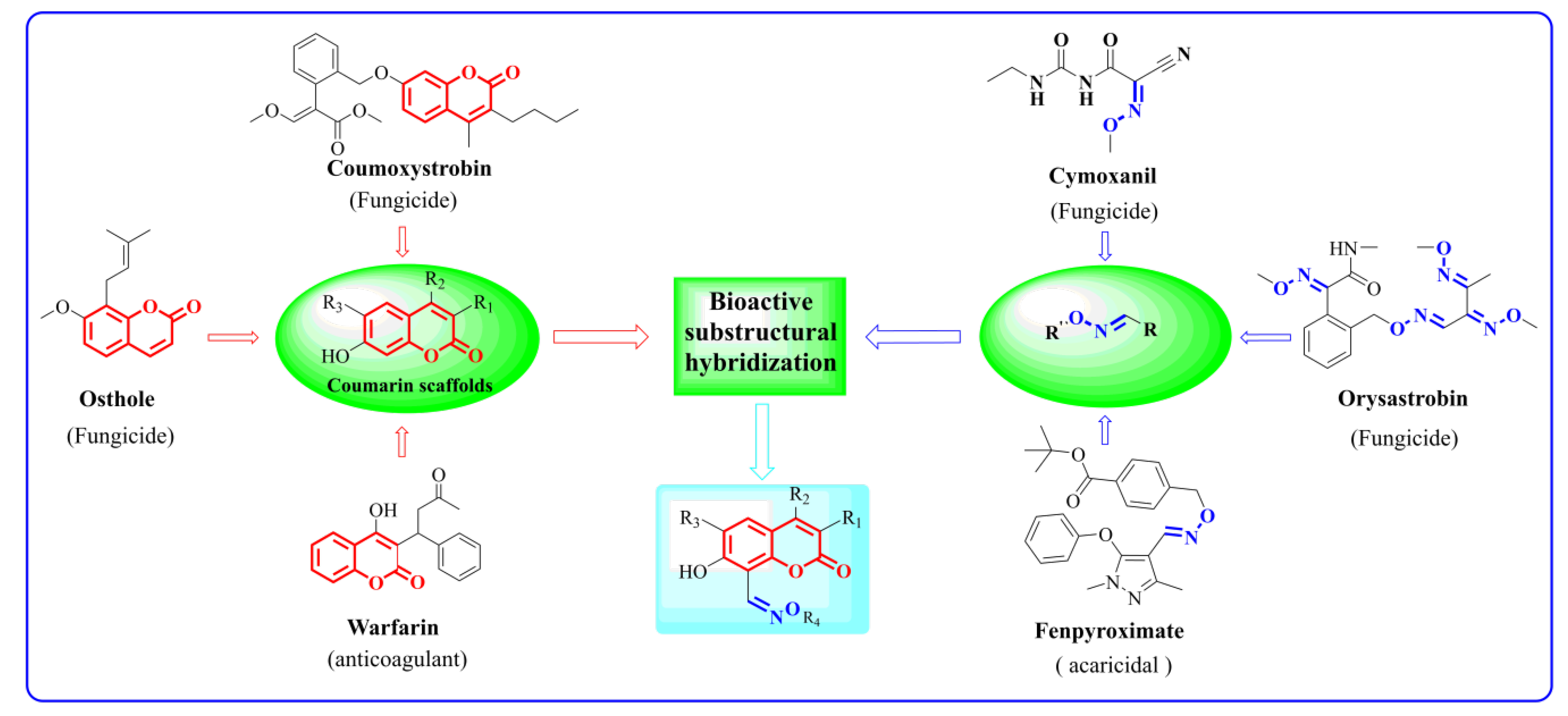

Figure 1. Design strategy of target 7-hydroxycoumarin oxime ether structures.
Figure 1. Design strategy of target 7-hydroxycoumarin oxime ether structures.
Molecules 26 00372 g001
Molecules 26 00372 g002 550

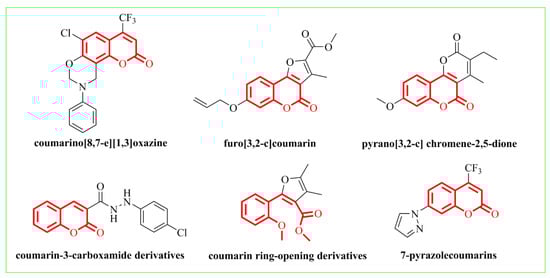

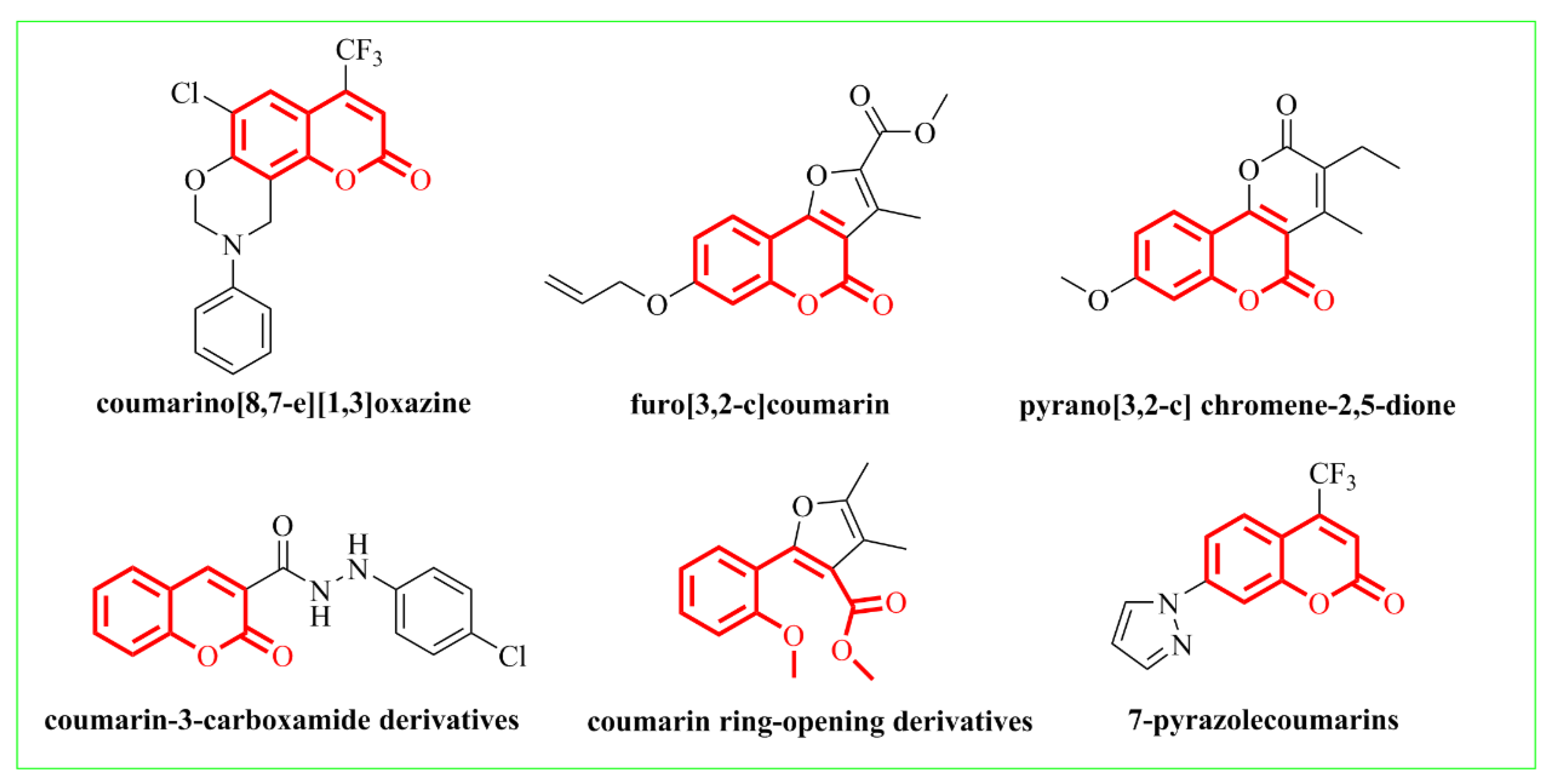

Figure 2. Our group’s previous work on coumarin derivatives.
Figure 2. Our group’s previous work on coumarin derivatives.
Molecules 26 00372 g002
Molecules 26 00372 sch001 550

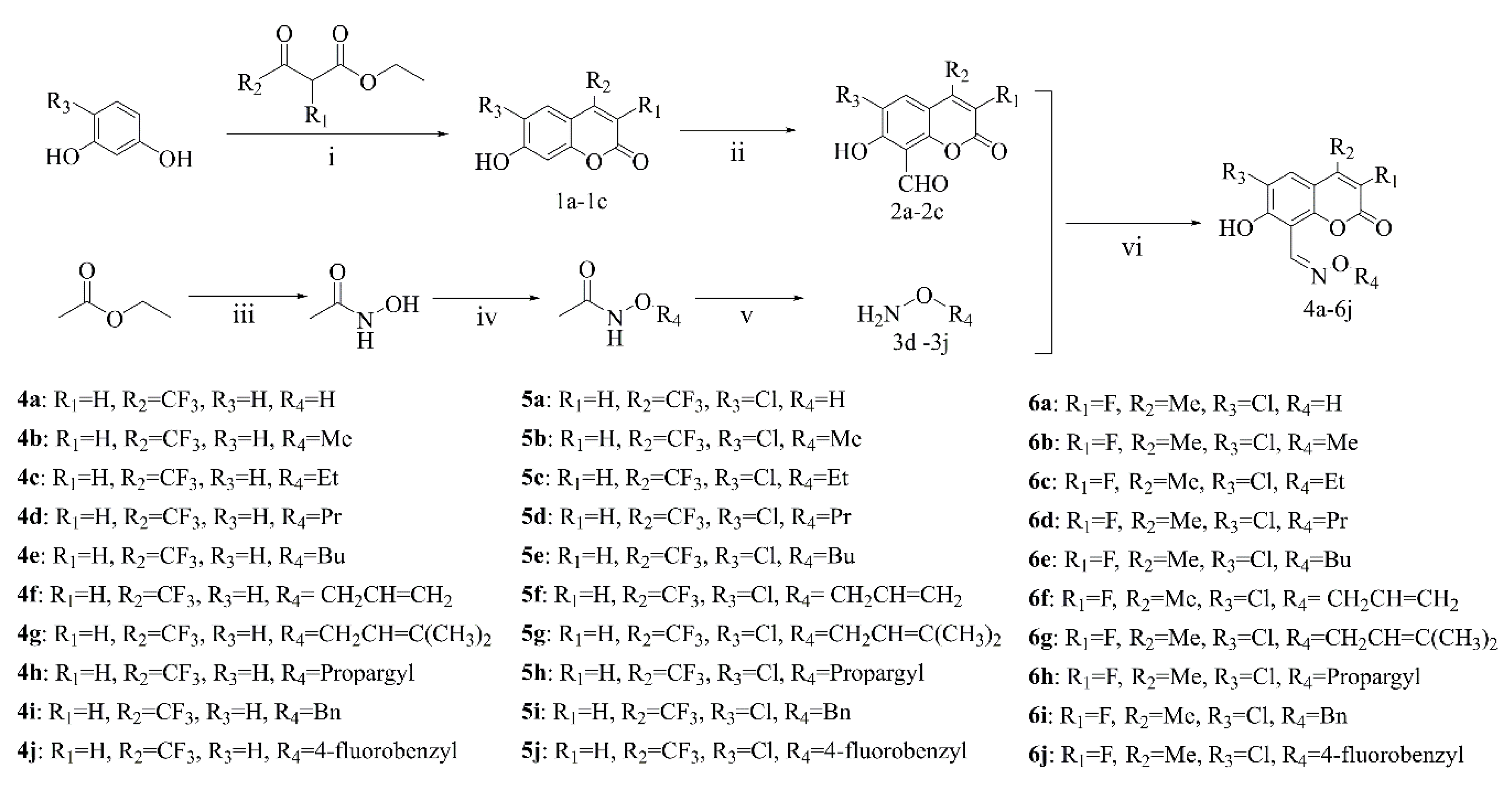

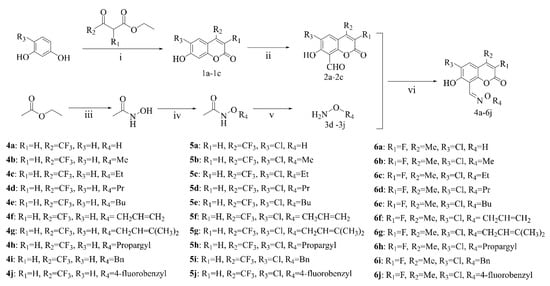

Scheme 1. Synthetic route for the target compounds. Reagents and conditions. (i): Sulfuric acid, 0 °C, 4 h; (ii): Trifluoroacetic acid, Hexamethylenetetramine, reflux, 1.5 h; 30% Hydrochloric acid, 70 °C, 45 min; (iii): NH2OH-HCl, 28% Sodium hydroxide, 0 °C, 30 min; 20 °C, 1 h; (iv): R4Br, 60 °C, 6 h; (v): 36% Hydrochloric acid, Ethyl alcohol, 50 °C, 5 h; (vi): Ethyl alcohol, reflux, 1 h.
Scheme 1. Synthetic route for the target compounds. Reagents and conditions. (i): Sulfuric acid, 0 °C, 4 h; (ii): Trifluoroacetic acid, Hexamethylenetetramine, reflux, 1.5 h; 30% Hydrochloric acid, 70 °C, 45 min; (iii): NH2OH-HCl, 28% Sodium hydroxide, 0 °C, 30 min; 20 °C, 1 h; (iv): R4Br, 60 °C, 6 h; (v): 36% Hydrochloric acid, Ethyl alcohol, 50 °C, 5 h; (vi): Ethyl alcohol, reflux, 1 h.
Molecules 26 00372 sch001
Molecules 26 00372 g003 550

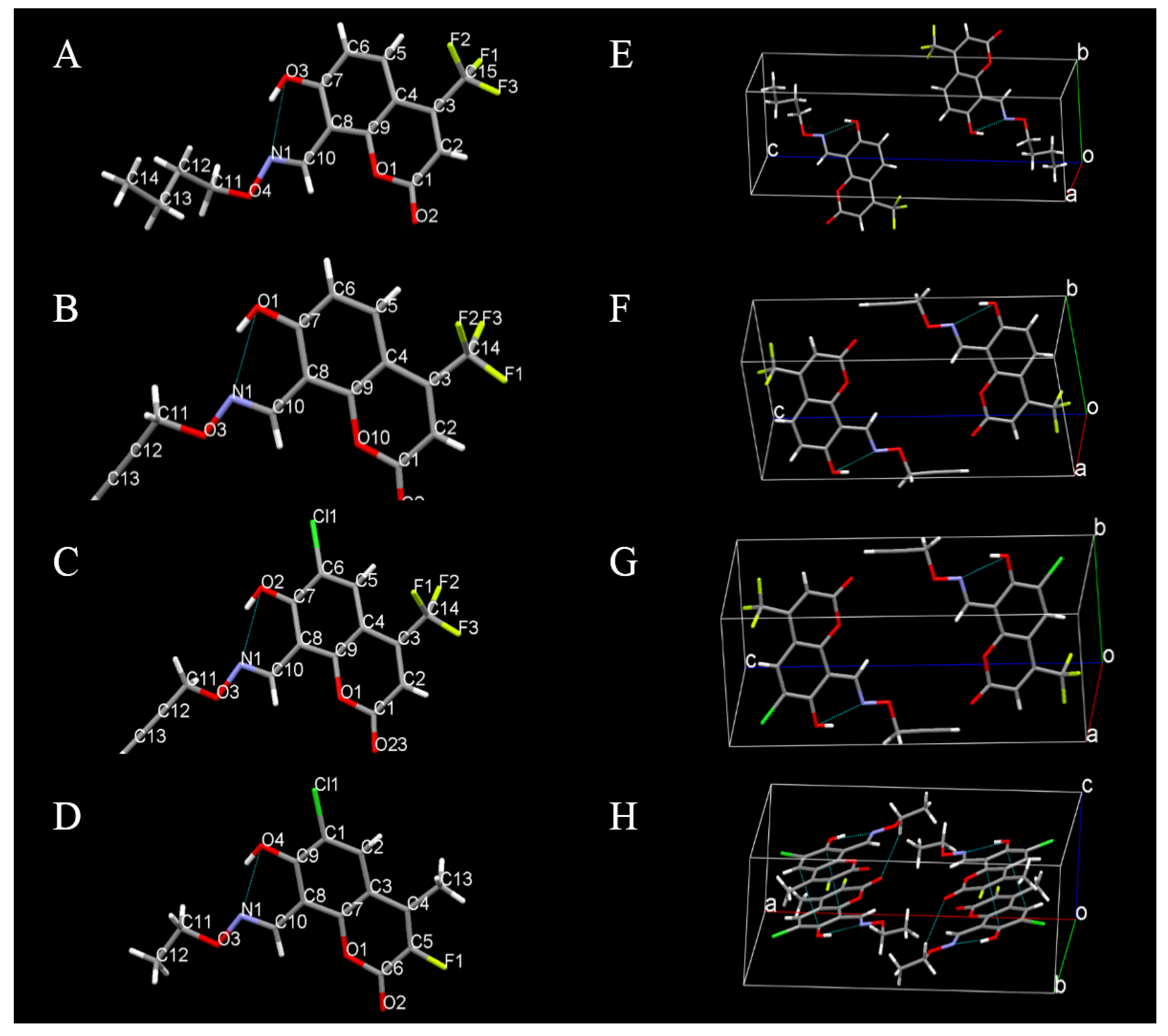

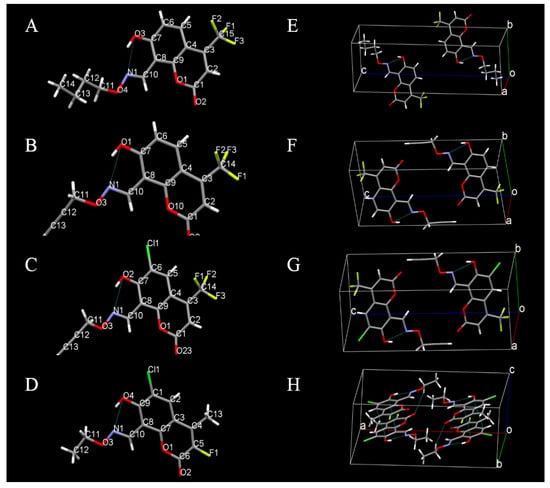

Figure 3. (A–D) The crystal structural diagram of 4e, 4h, 5h and 6c. (E–H) The corresponding crystal packing diagram of 4e, 4h, 5h and 6c.
Figure 3. (A–D) The crystal structural diagram of 4e, 4h, 5h and 6c. (E–H) The corresponding crystal packing diagram of 4e, 4h, 5h and 6c.
Molecules 26 00372 g003
Molecules 26 00372 g004 550

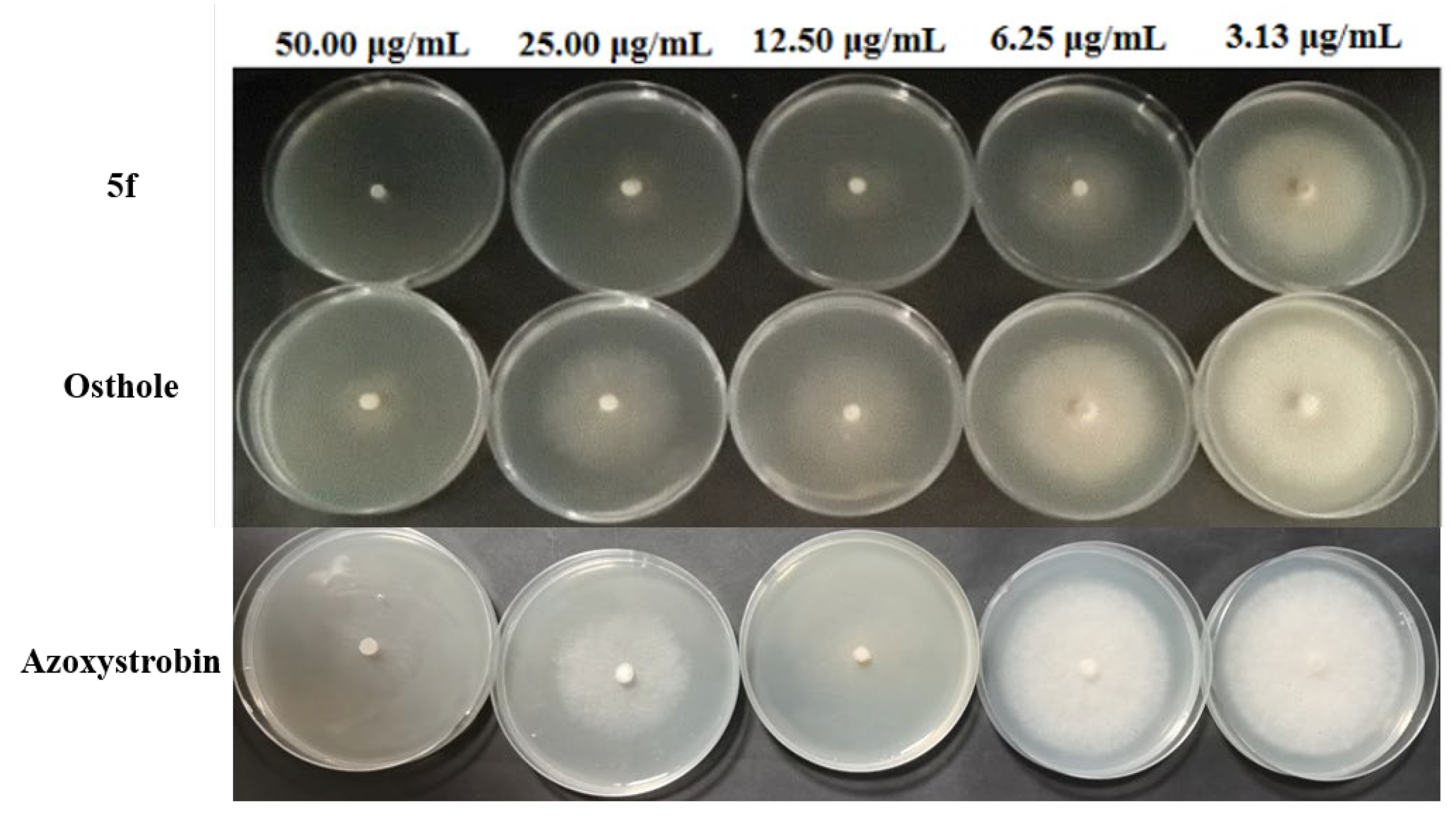

Figure 4. In vitro inhibition of mycelial growth of B. cinerea by compound 5f, Osthole and Azoxystrobin.
Figure 4. In vitro inhibition of mycelial growth of B. cinerea by compound 5f, Osthole and Azoxystrobin.
Molecules 26 00372 g004
Table
Table 1. Crystal data of title compound 6c.
Table 1. Crystal data of title compound 6c.
Crystal Data
CCDC Number2043279
C13H11ClFNO4α = 90°
FW = 299.68β = 94.286 (10)°
Triclinic, P21γ = 90°
a = 18.195 (2) ÅV = 1320.7(2) Å3
b = 10.5938(7) ÅZ = 4
c = 6.8711(9) Åμ = 0.314 mm−1
F (000) = 616Crystal size (mm3): 0.21 × 0.12 × 0.08
Data Collection
3400 observed reflections with I > 2σ(I)Radiation (Å): MoKα(λ = 0.71073)
7579 measured reflectionsRint = 0.062
2329 independent reflectionsθmin = 2.3°, θmax = 25.03°
Refinement
184 parametersS = 0.919
2327 reflectionsR[F2 > 2σ(F2)] = 0.0486
Table
Table 2. Antifungal effects of target compounds at 100 μg/mL.
Table 2. Antifungal effects of target compounds at 100 μg/mL.
CompoundInhibition (%)
B. cinereaA. solaniG. zeaeR. solaniC. orbiculareA. alternata
2a50.0 a60.850.086.245.339.7
2b77.551.757.864.656.364.1
2c10.0 b10.010.035.110.018.3
4a37.515.033.338.553.127.0
4b12.510.010.010.010.010.0
4c18.810.010.012.314.110.0
4d13.510.010.010.012.510.0
4e18.810.010.010.010.010.0
4f10.010.010.071.729.710.0
4g10.010.011.410.023.010.0
4h15.410.010.010.010.010.0
4i10.010.010.047.214.110.0
4j10.010.010.010.010.010.0
5a62.523.337.564.655.646.5
5b21.310.010.016.917.210.0
5c12.510.010.016.914.110.0
5d18.810.010.024.610.010.0
5e10.010.010.010.014.110.0
5f90.133.058.772.646.910.8
5g10.810.010.023.812.310.0
5h10.010.010.010.010.010.0
5i10.010.010.028.310.010.0
5j27.710.010.011.210.010.0
6a58.929.826.049.151.151.5
6b29.810.017.636.419.617.6
6c29.810.010.210.016.010.0
6d38.610.010.010.010.710.0
6e29.810.010.027.319.614.7
6f10.020.513.370.132.810.0
6g13.810.017.110.013.710.0
6h85.020.632.953.858.510.9
6i20.610.010.041.720.310.0
6j39.210.036.228.310.010.0
Osthole83.640.056.782.716.722.4
Azoxystrobin76.530.571.772.394.561.1
a Average value of three replications; b 10.0 indicated the data below 10% inhibitory ratio.
Table
Table 3. EC50 values determination of some target compounds against B. cinerea.
Table 3. EC50 values determination of some target compounds against B. cinerea.
CompoundToxic RegressionREC50 (μg/mL)EC50 (μM)
2by = 2.02x + 1.590.9947.73163.12
5ay = 1.30x + 3.270.9913.2543.07
5fy = 0.35x + 4.740.985.7516.54
6hy = 0.93x + 3.930.9813.7544.40
Ostholey = 1.31x + 3.000.9933.20148.02
Azoxystrobiny = 1.06x + 3.100.9964.95161.01
The EC50 value was the average value of three replications.
Table
Table 4. EC50 values determination of some target compounds against R. solani.
Table 4. EC50 values determination of some target compounds against R. solani.
CompoundToxic RegressionREC50 (μg/mL)EC50 (μM)
2by = 1.50x + 3.120.9917.7260.56
4fy = 0.53x+4.530.917.4823.88
5ay = 1.26x + 3.070.9933.10107.60
5fy = 0.45x + 4.340.9628.9683.30
6fy = 1.19x + 3.260.9928.7092.08
Ostholey = 0.95x + 3.250.9967.18299.52
Azoxystrobiny = 0.86x + 3.800.9921.3452.90
The EC50 value was the average value of three replications.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Q.-Q.; Zhang, S.-G.; Jiao, J.; Dai, P.; Zhang, W.-H. Novel Fluorinated 7-Hydroxycoumarin Derivatives Containing an Oxime Ether Moiety: Design, Synthesis, Crystal Structure and Biological Evaluation. Molecules 2021, 26, 372. https://doi.org/10.3390/molecules26020372

AMA Style

Wang Q-Q, Zhang S-G, Jiao J, Dai P, Zhang W-H. Novel Fluorinated 7-Hydroxycoumarin Derivatives Containing an Oxime Ether Moiety: Design, Synthesis, Crystal Structure and Biological Evaluation. Molecules. 2021; 26(2):372. https://doi.org/10.3390/molecules26020372

Chicago/Turabian Style

Wang, Qing-Qing, Shu-Guang Zhang, Jian Jiao, Peng Dai, and Wei-Hua Zhang. 2021. "Novel Fluorinated 7-Hydroxycoumarin Derivatives Containing an Oxime Ether Moiety: Design, Synthesis, Crystal Structure and Biological Evaluation" Molecules 26, no. 2: 372. https://doi.org/10.3390/molecules26020372

Article Metrics

Back to TopTop
