Article

Facile N9-Alkylation of Xanthine Derivatives and Their Use as Precursors for N-Heterocyclic Carbene Complexes

1
Faculty of Mathematics and Natural Sciences, Inorganic Chemistry, Bergische University Wuppertal, 42119 Wuppertal, Germany
2
Chemical Crystallography and Electron Microscopy Centre, Max Planck Institute for Coal Research, 45470 Mülheim an der Ruhr, Germany
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(12), 3705; https://doi.org/10.3390/molecules26123705
Received: 28 May 2021 / Revised: 15 June 2021 / Accepted: 15 June 2021 / Published: 17 June 2021

Abstract

:
The xanthine-derivatives 1,3,7-trimethylxanthine, 1,3-dimethyl-7-benzylxanthine and 1,3-dimethyl-7-(4-chlorobenzyl)xanthine are readily ethylated at N9 using the cheap alkylating agents ethyl tosylate or diethyl sulfate. The resulting xanthinium tosylate or ethyl sulfate salts can be converted into the corresponding PF6 and chloride salts. The reaction of these xanthinium salts with silver(I) oxide results in the formation of different silver(I) carbene-complexes. In the presence of ammonia, ammine complexes [Ag(NHC)(NH3)]PF6 are formed, whilst with Et2NH, the bis(carbene) salts [Ag(NHC)2]PF6 were isolated. Using the xanthinium chloride salts neutral silver(I) carbenes [Ag(NHC)Cl] were prepared. These silver complexes were used in a variety of transmetallation reactions to give the corresponding gold(I), ruthenium(II) as well as rhodium(I) and rhodium(III) complexes. The compounds were characterized by various spectroscopic methods as well as X-ray diffraction.

Graphical Abstract

1. Introduction

Metal complexes containing N-heterocyclic carbenes (NHCs) are today considered a common class of ligands in organometallic chemistry. Their seemingly endless structural variety combined with a very stable metal-carbon-bond makes carbene complexes so important in homogeneous catalysis and also for biomedical applications [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. Typically, most N-heterocyclic carbenes are derived from substituted imidazolium, benzimidazolium or triazolium salts. Related to this class of compounds are the xanthinium salts, which may also be used as precursors for N-heterocyclic carbenes. Especially xanthinium salts derived from caffeine or theophylline have been studied to some extent. The first reported xanthine-derived NHC complex was the mercury(II) bis(NHC) salt [Hg(NHC)2]ClO4 (NHC = 1,3,7,9-tetramethylxanthin-8-ylidene), prepared by Beck in 1976 [15]. After lying dormant for more than a quarter of a century, the groups of Youngs and Herrmann independently began to reinvestigate NHC-complexes derived from caffeine and its derivatives with rhodium(I), iridium(I) and silver(I) [16,17,18]. Especially the silver(I) complexes developed and patented by Youngs were found to be highly active against various pathogens [19,20,21,22,23,24]. Other groups have examined xanthine-derived carbene complexes with metals including Pt(II) [25,26,27], Pd(II) [28,29,30,31,32], Au(I) [33], Ir(I) [34] and Ag(I) [35,36]. Focus of these studies was their activity against cancer cells (Pt, Pd, Au, Ir and Ag) or homogeneous catalysis (Pd, Rh). There is also a publication on copper complexes containing a caffeine-derived NHC, but the results must be considered doubtful [37]. The compounds are referred to as being blue copper(II) species, but an alleged X-ray structure (data neither shown in the publication nor deposited with the CCDC) and NMR spectroscopic data are clearly consistent with the presence of copper(I). A short review from 2018 summarizes the so far known chemistry of xanthine-based N-heterocyclic carbenes [38]. Given our interest in NHC-complexes of various metals and their biological activity and reactivity [39,40,41,42,43,44], we wished to develop more efficient methods to access a greater variety of xanthinium salts as well as their corresponding metal carbene-complexes.

2. Results and Discussion

Quaternization at the 9-position of xanthines including caffeine and its derivatives typically requires forcing conditions (high temperature and pressure), long reaction times and a large excess of alkyl halide. In the case of N9-methylation of xanthines, typically, 20 equivalents of methyl iodide are used and reactions are carried out in refluxing DMF or in a closed vessel for up to 20 h [19,28,35,45]. Trimethyloxonium tetrafluoroborate has also be used by some groups for N-methylation of xanthines [17,33]. Although reaction conditions are mild and no large excess is required, [Me3O]BF4 is considerably more expensive than MeI and requires anhydrous conditions. As an alternative to these reagents, methyl tosylate or dimethyl sulfate have been successfully used for N9-methylation in xanthines, affording the respective xanthinium tosylate or methyl sulfate salts in high yields and short reaction times (90 min at 170 °C without additional solvent) [16,46,47,48]. Based on this procedure, we examined the feasibility of also introducing ethyl groups in position 9 of different xanthine derivatives with ethyl tosylate or diethyl sulfate.
Gratifyingly, heating 1,3-dimethyl-7-benzylxanthine in neat ethyl tosylate at 150 °C cleanly affords the corresponding 1,3-dimethyl-7-benzyl-9-ethylxanthinium tosylate in two hours with an isolated yield of 87% (Scheme 1).
Work-up merely involves washing the product with diethyl ether and drying. This result encouraged us to try the even cheaper diethyl sulfate. Indeed, reacting 1,3-dimethyl-7-benzylxanthine in neat diethyl sulfate at 130 °C for two hours afforded the desired product as the ethyl sulfate salt in 87% yield (Scheme 1). Using the same procedure, the corresponding 4-chlorobenzyl- and caffeine-derivatives were also isolated as colorless solids in high yields (Scheme 1). In the case of caffeine, the ethyl sulfate anion evidently hydrolyzes during the reaction, forming the hydrogen sulfate salt instead. These xanthinium salts were characterized by NMR spectroscopy and electrospray mass spectrometry, the latter (in positive ion mode) shows only one signal corresponding to the respective xanthinium cations and, in negative ion mode, only the signals for the anions (EtSO4, TsO or PF6). The positive-ion mass spectra of the caffeine derivatives also feature one signal, which can be assigned to the fragment [M-Me+H]+, formed by loss of one methyl group.
The tosylate, ethyl sulfate or hydrogen sulfate anions in these salts could readily be exchanged in water to give the corresponding PF6 salts 1PF6, 2PF6 and 3PF6 (Scheme 1). Since halide salts are however the most convenient precursors for N-heterocyclic carbene metal complexes, we investigated the possibility of converting the PF6 salts into the corresponding chlorides. The group of Visentin reported that a xanthinium tetrafluoroborate could be converted into the chloride salt by anion exchange with [Ph4As]Cl [31]. Given the toxicity and high cost of [Ph4As]Cl, we sought alternative reagents to accomplish this anion exchange. Gratifyingly, we found that mixing THF solutions of the xanthinium PF6 salts with [nBu4N]Cl results in precipitation of the chloride salts 1Cl, 2Cl and 3Cl, which could be isolated almost quantitatively (Scheme 1). Based on mass spectrometry, the samples are free of PF6 anions and the presence of a chloride anion was confirmed by a sharp singlet in their 35Cl-NMR spectra. Unfortunately, it was not possible to access the chloride salts directly from the ethyl sulfate of hydrogen sulfate salts.
With these xanthinium salts in hand, we examined their use as precursors for N-heterocyclic carbene complexes of silver. The reaction of the respective PF6 salts with Ag2O in a mixture of ethanol and aqueous ammonia afforded the corresponding cationic silver(I) carbene complexes [Ag(NHC)(NH3)]PF6, (NHC = 1,3-dimethyl-7-benzyl-9-ethylxanthine-8-ylidene (4), 1,3-dimethyl-7-(4-chlorobenzyl)-9-ethylxanthine-8-ylidene (5) and 1,3,7-trimethyl-9-ethylxanthine-8-ylidene (6)) containing ammonia as co-ligand (Scheme 2) [49].
When using Et2NH instead of ammonia, we isolated the bis(carbene) silver(I) salts [Ag(NHC)2]PF6 (NHC = 1,3-dimethyl-7-benzyl-9-ethylxanthine-8-ylidene (7) and 1,3-dimethyl-7-(4-chlorobenzyl)-9-ethylxanthine-8-ylidene (8)) (Scheme 2). The silver carbene compounds were characterized by NMR spectroscopy, mass spectrometry and single crystal X-ray diffraction. The proton spectra of the compounds lack the signal for the proton at position 8, consistent with carbene formation. This is further confirmed by a significant shift of the resonance of the carbon atom at position 8. In the xanthinium salts, these are observed between 138 and 139 ppm, whilst in the silver carbene complexes they fall in the range of 185 to 187 ppm. The chemical shifts of metal-bound carbene-carbon resonances can often vary, depending on the other ligands bound to the metal. In this series of silver compounds, the nature of the second ligand (NH3, carbene or Cl) does not appear to have a significant effect on the chemical shift of the carbene-carbon resonance. In the case of the bis(carbene) complexes 7 and 8, coupling between the 13C and the 107/109Ag isotopes with coupling constants of 192 and 217 Hz could be observed. These values are typical for silver(I) NHC-complexes, which have been observed in several other bis(carbene) complexes [50]. In the case of the ammonia complexes 46, broad signals due to the ammine can be observed in their proton NMR spectra at about 3 ppm. Furthermore, bands between 3300 and 3400 cm−1 due to the NH3 stretching frequency are seen in their IR spectra. The molecular structures of compounds 5 and 7 are shown in Figure 1 and Figure 2.

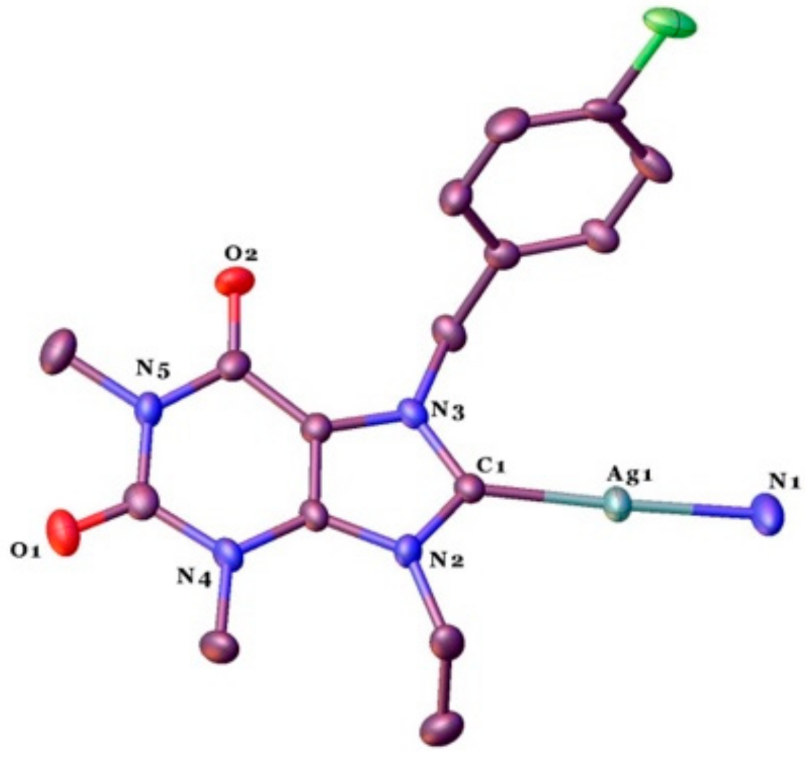

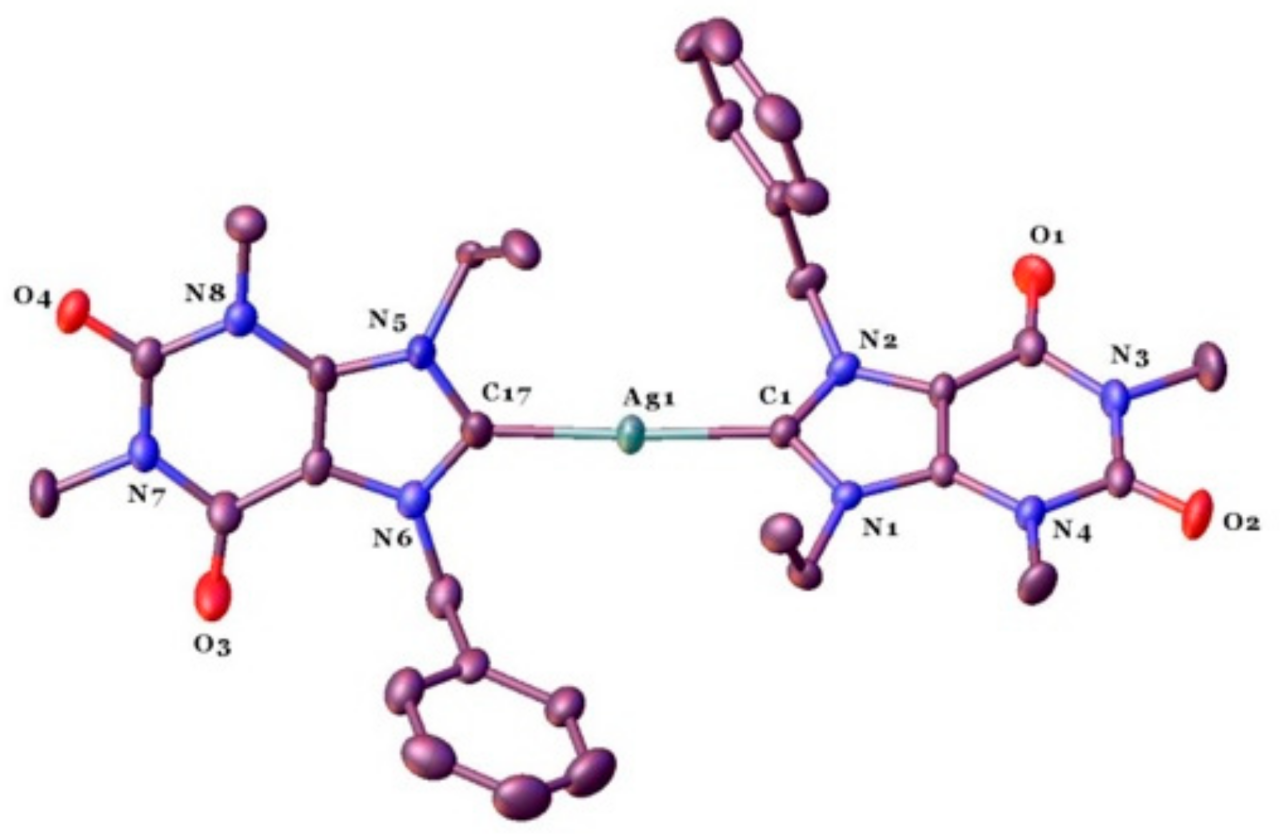

In each case, the coordination about the silver is, as expected, linear with angles of 176.28° and 177.29°, respectively. The carbon-silver bond lengths (ca. 2.06 Å) are typical for silver(I)-NHC complexes. Although Ag-carbene complexes with coordinated ammonia were postulated as intermediates and one example was isolated and characterized spectroscopically [49], complex 5 is the only structurally authenticated example of a silver(I) carbene with ammonia co-ligands to date.

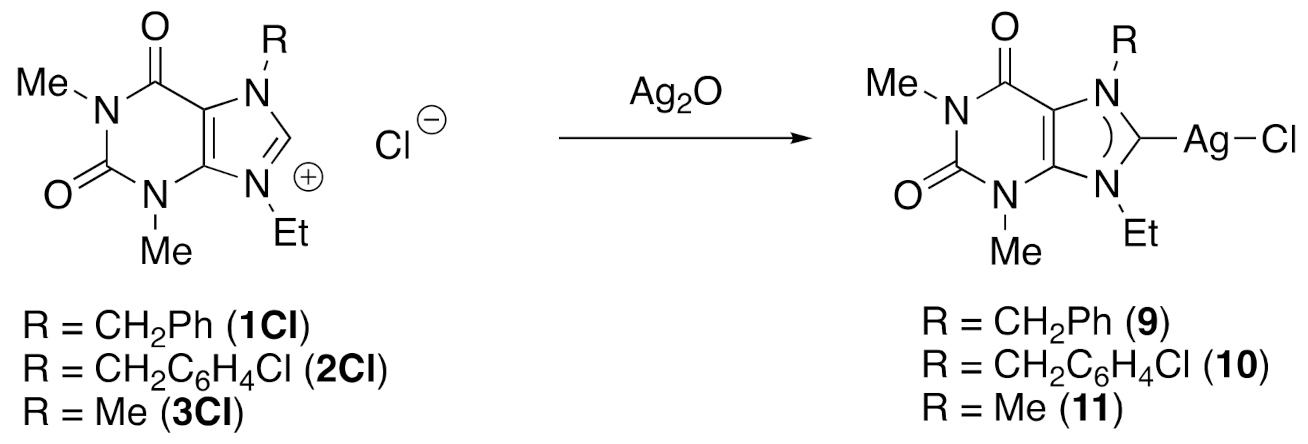

The chloride salts 1Cl, 2Cl and 3Cl readily react with Ag2O in CH2Cl2 to form the silver chloride complexes [Ag(NHC)Cl] (NHC = 1,3-dimethyl-7-benzyl-9-ethylxanthine-8-ylidene (9), 1,3-dimethyl-7-(4-chlorobenzyl)-9-ethylxanthine-8-ylidene (10) and 1,3,7-trimethyl-9-ethylxanthine-8-ylidene (11)) as colorless solids in reasonable yields (Scheme 3).
The formation of the carbene complex is again evident from the NMR spectroscopic data. In compounds 9 and 10, the resonance for the carbene-carbon atom is observed at about 187 ppm in their 13C NMR spectra. In the solid-state, the molecules exist as either a chloro-bridged dimer with tri-coordinated silver atoms (9) or a unique trimer (10) as depicted in Figure 3.

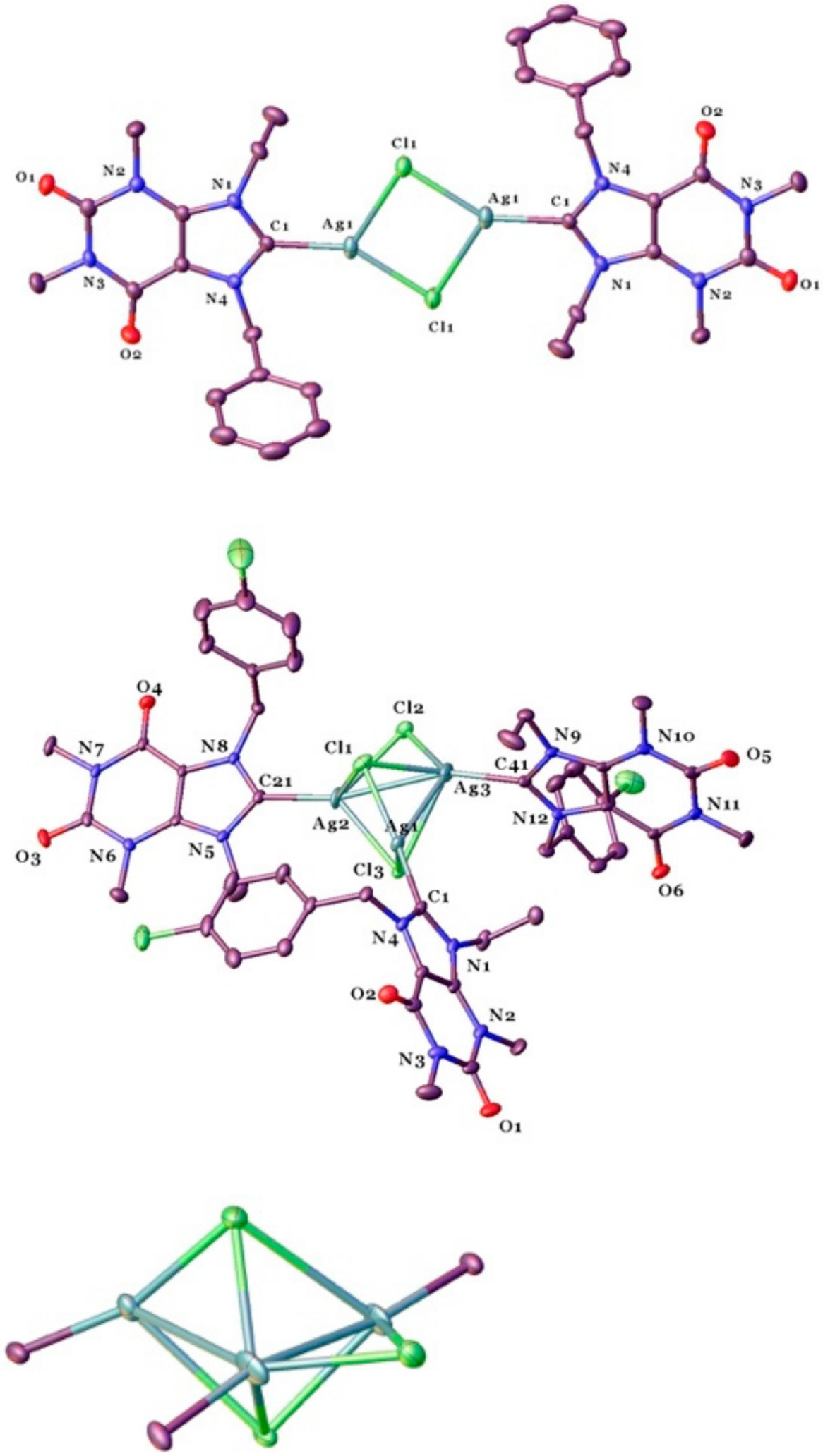

For compound 9 the two Ag-Cl bond lengths of 2.44 Å and 2.72 Å are unequal, resulting in an Ag2Cl2 parallelogram. This structural motif is observed in several other silver NHC complexes [51,52]. Crystals of complex 10 were very small and thin, therefore diffraction data was collected at beamline P11 at the PETRA III synchrotron located at DESY in Hamburg, Germany. The trimeric structure of 10 is unique and, so far, has no precedence in the literature. The molecule consists of a planar Ag3-triangle with two shorter (3.11 and 3.21 Å) one much longer (3.89 Å) Ag-Ag distances. Above and below this Ag3-plane there is a μ3-bridging chloride ligand. The third chloride acts as μ2-ligand between two silver atoms in the plane of the triangle. Each silver atom is also C-bound to the carbene ligand (Figure 3 bottom). As can be seen, the C-Ag-Cl angles are not linear, resulting in a distorted tetrahedral coordination environment about each silver atom.

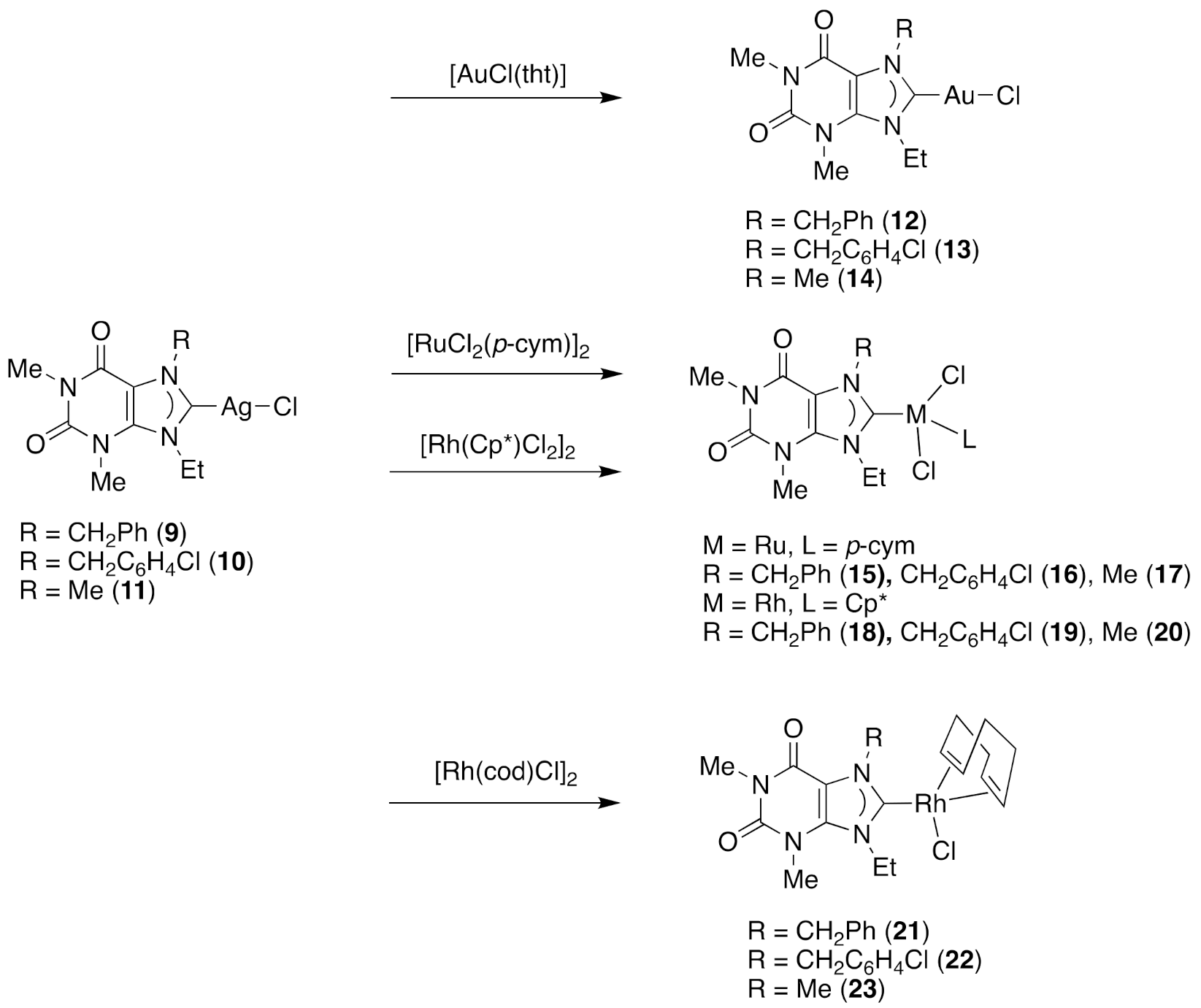

Silver NHC complexes are commonly used in transmetallation reactions to transfer the NHC ligand to a different metal. We therefore examined the reaction of the silver chloride complexes 911 with various other metal salts including [AuCl(tht)] (tht = tetrahydrothiophene), [Ru(p-cym)Cl2]2, [Rh(Cp*)Cl2]2 and [Rh(cod)Cl]2. In each case the corresponding metal xanthine-8-ylidene-derivatives were formed in good yields as air- and moisture-stable solids (Scheme 4).
Complexes 1223 were characterized by various spectroscopic methods and, in several cases, by X-ray diffraction. In all these compounds, the chemical shifts of the carbene-carbon resonances in the 13C-NMR spectra are most diagnostic. Compared to the silver-precursors, the resonances are shifted either slightly upfield or downfield, depending on the metal. In case of the Rh-complexes, coupling between the 13C and 103Rh nuclei can be observed. Several complexes were characterized by X-ray diffraction, the molecular structures of which are shown in Figure 4, Figure 5, Figure 6 and Figure 7.

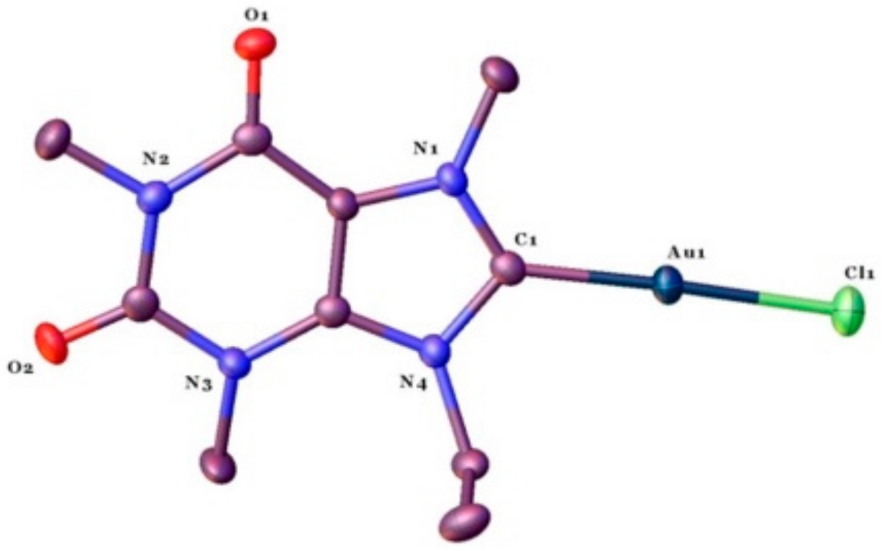

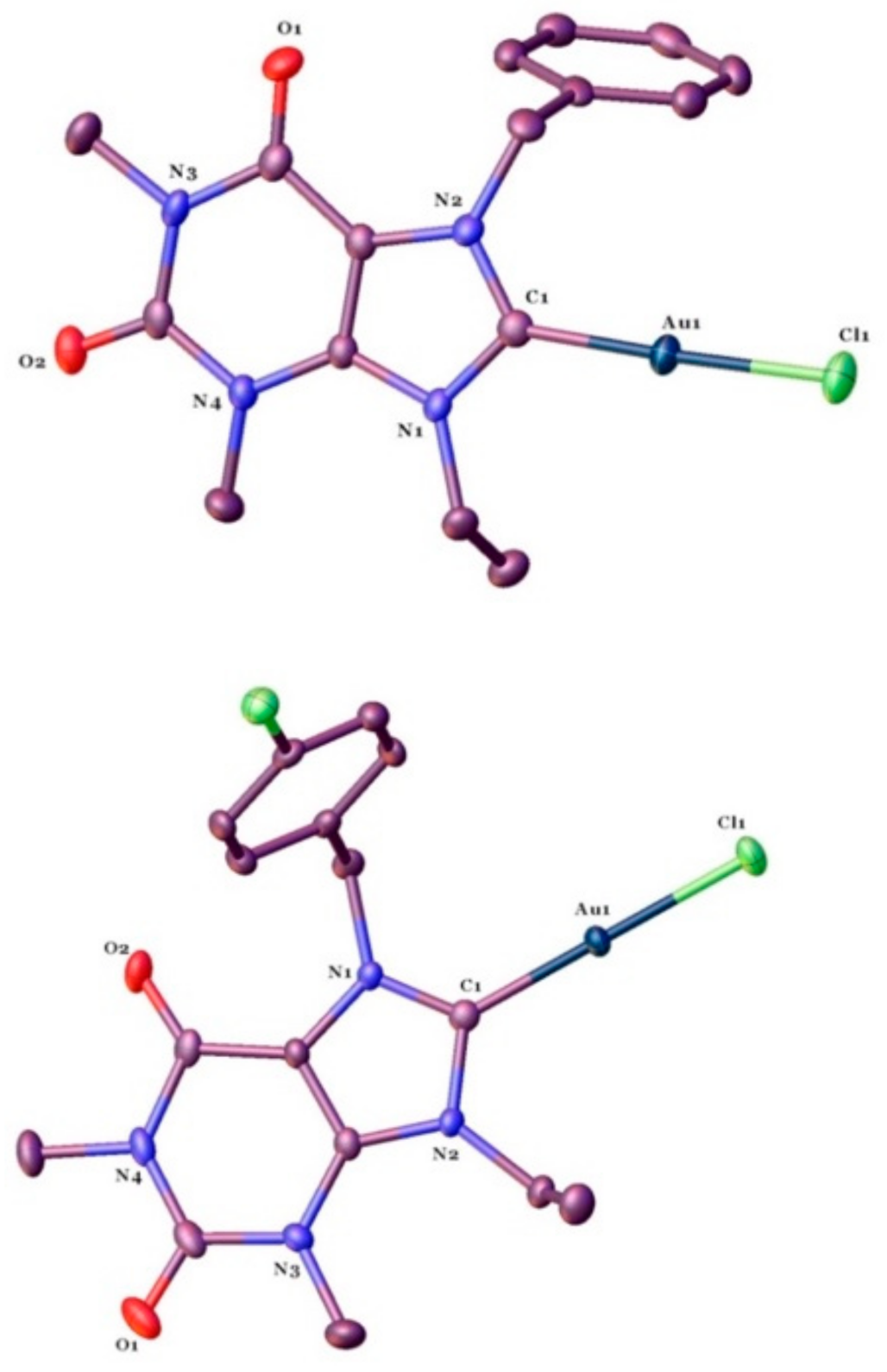

The gold(I) complexes (Figure 4) feature linear coordination (C-Au-Cl angles of 177–179°) at the gold, as would be expected. There is only one other reported X-ray structure of a xanthine-derived NHC Au(I) halide complex, namely that of the iodo-complex [Au(NHC)I] (NHC = 1,3,7,9-tetramethylxanthine-8-ylidene) [33]. The Au-C bond lengths in 1213 are with around 1.9 Å, similar to those observed in the 1,3,7,9-tetramethylxanthine-8-ylidene derivative.

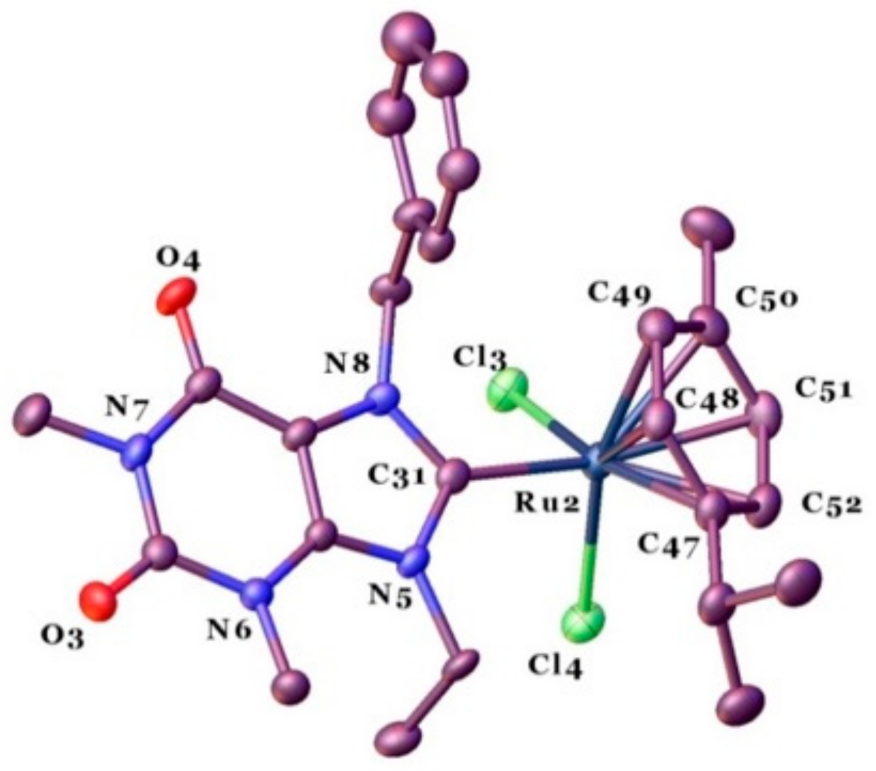

The structure of the ruthenium(II) complex 15 (Figure 5) features one C-bound carbene and two chloride ligands at the arene-Ru center. This piano-stool type arrangement is typical for this class of compounds. While the preparation and biological properties of the 1,3,7,9-tetramethylxanthine-8-ylidene-analogue of 15 have been published [53], this is the first X-ray structure of an arene ruthenium complex containing a xanthine-derived carbene ligand.

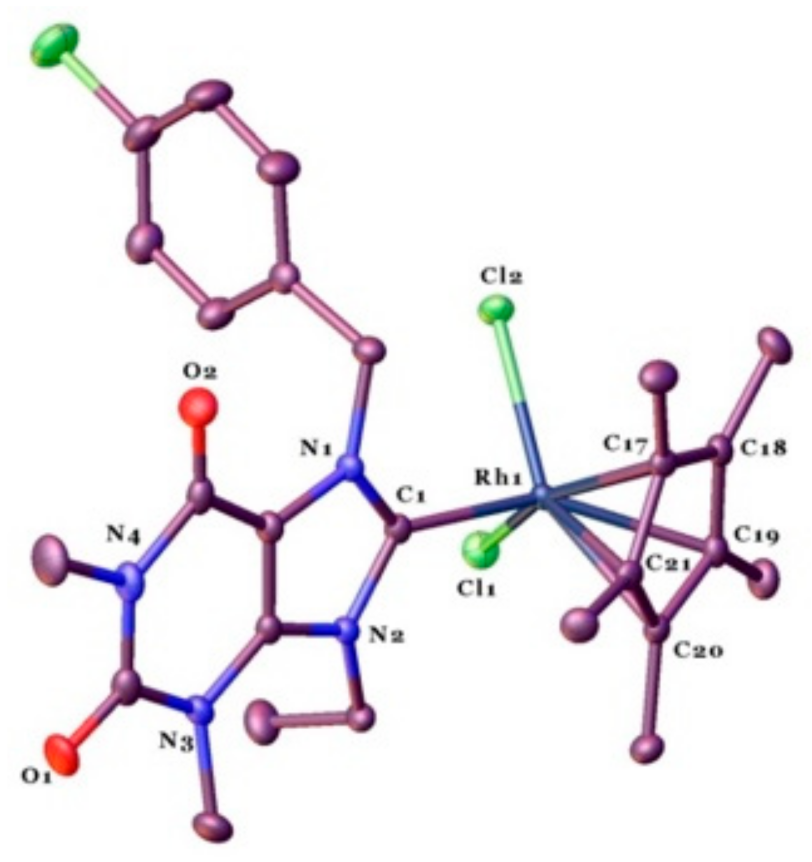

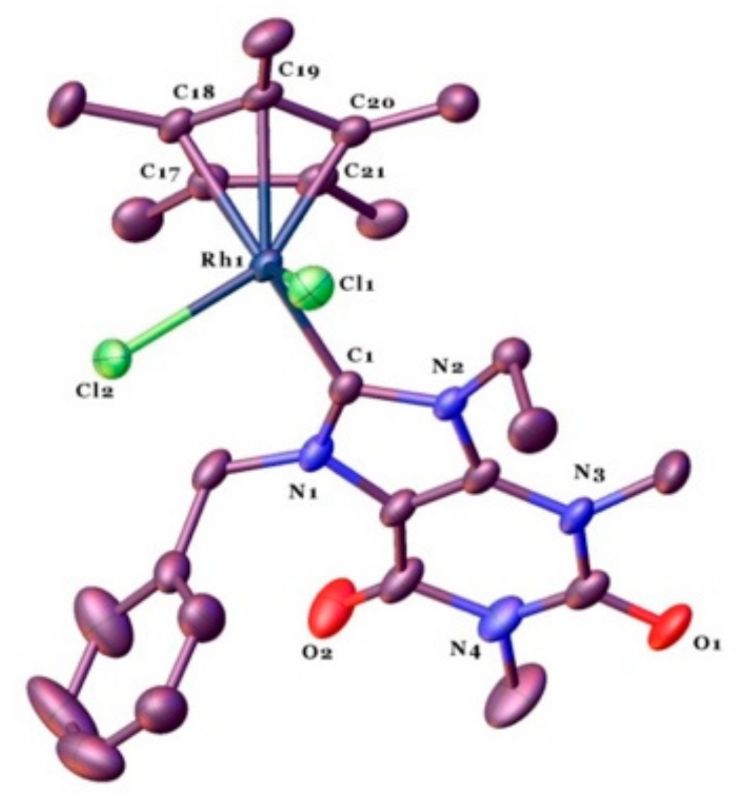

The Rh(III) complexes 18 and 19 (Figure 6) feature a similar piano-stool geometry, with the xanthine-derivative C8-bound to the metal. The only other structurally characterized examples of Cp*Rh(III) complexes with xanthine-derived carbene ligands are those reported by Hahn containing 7-picolyl- or 7-imidazoly-substituted theobromine-derivatives [54].

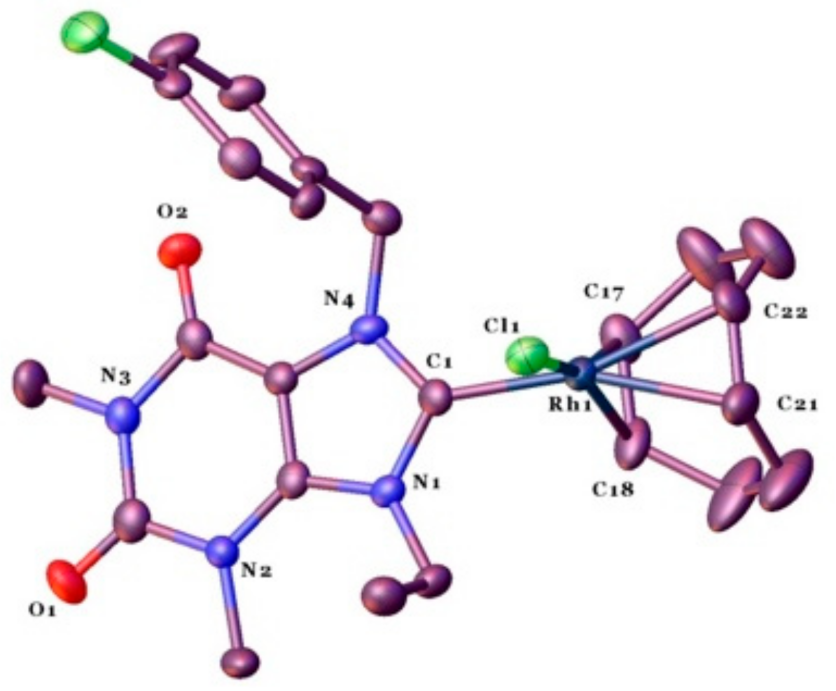

The structure of complex 22 (Figure 7) contains a cis-configured, square planar rhodium(I) center with a C8-bound xanthine-derivative. The overall geometry is similar to that reported for the 1,3,7,9-tetramethylxanthine-8-ylidene-analogue [RhI(cod)(NHC)] [18].

3. Materials and Methods

Reactions were routinely carried out under ambient conditions without protection from air or moisture. Solvents were HPLC-grade and all other chemicals were procured from commercial suppliers (Merck, Darmstadt, Germany, Alfa Aesar, Kandel, Germany, TCI Chemicals, Eschborn, Germany or Acros Organics, Geel, Belgium) and were used as received. 1,3-Dimethyl-7-benzylxanthine was prepared from theophylline and benzyl bromide as described previously [55,56]. The 4-chlorobenzyl-derivative was prepared similarly. [AuCl(tht)], [RuCl2(p-cym)]2, [Rh(Cp*)Cl2]2 and [Rh(cod)Cl]2 were prepared by kwon methods [57,58,59,60]. NMR spectra were recorded on Bruker Avance 400 or Bruker Avance III 600 instruments (Bruker, Berlin, Germany). Spectra were referenced externally to Me4Si (1H, 13C), 1 M aq. NaCl (35Cl) or 85% H3PO4 (31P). High-resolution electrospray mass spectra were measured on a Bruker Daltonics micrOTOF instrument (Bruker, Bremen, Germany). IR spectra were recorded on a Nicolet iS5 spectrometer (Thermo Fisher Scientific, Erlangen, Germany) fitted with a diamond iD7 ATR unit.
1,3-Dimethyl-7-benzyl-9-ethylxanthinium tosylate (1OTs)
A mixture of 1,3-dimethyl-7-benzylxanthine (1) (0.100 g, 0.370 mmol) and ethyl tosylate (0.267 g, 1.35 mmol) was heated in an open vial to 150 °C for 2 h. After cooling, excess diethyl ether was added and the resulting solid was isolated by filtration, washed with Et2O and subsequently dried in air. As a result, 0.151 g (87%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 9.63 (s, 1 H, C8H), 7.34–7.49 (m, 7 H, OTs, Ph), 7.10 (d, J = 8.4 Hz, 2 H, OTs), 5.71 (s, 2 H, N7CH2), 4.59 (q, J = 7.2 Hz, 2 H, N9CH2), 3.71 (s, 3 H, N3Me), 3.26 (s, 3 H, N1Me), 2.29 (s, 3 H, Me OTs), 1.54 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.06 (C6=O), 150.27 (C2=O), 145.68 (OTs), 139.51 (C4), 138.51 (C8), 137.55 (OTs), 134.14 (Ph), 128.78, (Ph), 128.67 (Ph), 128.04 (Ph), 127.98 (OTs), 125.40 (OTs), 107.09 (C5), 51.21 (N7CH2), 45.32 (N9CH2), 31.66 (N3Me), 28.39 (N1Me), 20.72 (Me OTs), 15.03 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 299.1508; found 299.1511.
1,3-Dimethyl-7-(4-chlorobenzyl)-9-ethylxanthinium tosylate (2OTs)
This was prepared as described above using 1,3-dimethyl-7-(4-chlorobenzyl)xanthine (2) (0.100 g, 0.330 mmol) and ethyl tosylate (0.238 g, 1.19 mmol). As a result, 0.139 g (84%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 9.60 (s, 1 H, C8H), 7.44–7.49 (m, 6 H, OTs, Bn), 7.09–7.12 (m, 2 H, OTs), 5.68 (s, 2 H, N7CH2), 4.58 (q, J = 7.2 Hz, 2 H, N9CH2), 3.71 (s, 3 H, N3Me), 3.25 (s, 3 H, N1Me), 2.29 (s, 3 H, Me OTs), 1.53 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.02 (C6=O), 150.25 (C2=O), 145.68 (OTs), 139.51 (C4), 138.61 (C8), 137.54 (OTs), 133.43 (Bn), 133.05 (Bn), 130.09 (Bn), 128.72 (Bn), 127.97 (OTs), 125.39 (OTs), 107.06 (C5), 50.57 (N7CH2), 45.34 (N9CH2), 31.66 (N3Me), 28.39 (N1Me), 20.71 (Me OTs), 14.96 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 333.1118; found 333.1118.
1,3-Dimethyl-7-benzyl-9-ethylxanthinium ethyl sulfate (1EtSO4)
This was prepared as described above by heating a mixture of 1,3-dimethyl-7-benzylxanthine (1) (0.20 g, 0.74 mmol) and diethyl sulfate (194 μL, 1.48 mmol) to 130 °C for 2 h. As a result, 0.273 g (87%) of a colorless solid was obtained. 1H NMR (600 MHz, CDCl3) δ = 9.99 (s, 1 H, C8H), 7.34–7.66 (m, 5 H, Ph), 5.80 (s, 2 H, N7CH2), 4.76 (q, J = 7.2 Hz, 2 H, N9CH2), 3.06 (q, J = 7.1 Hz, 2 H, OCH2), 3.85 (s, 3 H, N3Me), 3.43 (s, 3 H, N1Me), 1.68 (t, J = 7.2 Hz, 3 H, Me), 1.27 (t, J = 7.1 Hz, 3 H, OCH2Me). 13C{1H} NMR (150 MHz, DMSO-d6) δ = 153.08 (C6=O), 150.29 (C2=O), 139.55 (C4), 138.54 (C8), 134.15 (Ph), 128.77 (Ph), 128.66 (Ph), 128.03 (Ph), 107.11 (C5), 61.07 (OCH2), 51.20 (N7CH2), 45.31 (N9CH2), 31.67 (N3Me), 28.39 (N1Me), 15.06 (Me, OCH2Me). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 299.1508; found 299.1503.
1,3-Dimethyl-7-(4-chlorobenzyl)-9-ethylxanthinium ethyl sulfate (2EtSO4)
This was prepared as described above using 1,3-dimethyl-7-(4-chlorobenzyl)xanthine (2) (0.200 g, 0.650 mmol) and ethyl tosylate (172 μL, 1.31 mmol). As a result, 0.264 g (88%) of a colorless solid was obtained. 1H NMR (600 MHz, CDCl3) δ = 10.06 (s, 1 H, C8H), 7.33–7.62 (m, 4 H, Bn), 5.78 (s, 2 H, N7CH2), 4.74 (q, J = 7.3 Hz, 2 H, N9CH2), 4.03 (q, J = 7.1 Hz, 2 H, OCH2), 3.85 (s, 3 H, N3Me), 3.43 (s, 3 H, N1Me), 1.68 (t, J = 7.3 Hz, 3 H, Me), 1.27 (t, J = 7.1 Hz, 3 H, OCH2Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.06 (C6=O), 150.29 (C2=O), 139.56 (C4), 138.61 (C8), 133.44 (Bn), 133.05 (Bn), 130.09 (Bn), 128.73 (Bn), 107.10 (C5), 61.09 (OCH2), 50.58 (N7CH2), 45.34 (N9CH2), 31.68 (N3Me), 28.40 (N1Me), 15.07 (Me), 14.99 (OCH2Me). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 333.1118; found 333.1122.
1,3,7-Trimethyl-9-ethylxanthinium hydrogen sulfate (3HSO4)
A mixture of caffeine (3) (0.287 g, 1.480 mmol) and diethyl sulfate (388 μL, 2.96 mmol) was heated in an open vial to 130 °C for 2 h. After cooling to room temperature, a 3:7 mixture of acetone and toluene (ca. 10 mL) was added. Upon standing over night, a colorless solid deposited, which was isolated by filtration and was washed with a small amount of acetone. After drying in vacuum, 0.435 g (91%) of the product was obtained. 1H NMR (600 MHz, DMSO-d6) δ = 9.42 (s, 1 H, C8H), 4.58 (q, J = 7.2 Hz, 2 H, N9CH2), 4.07 (s, 3 H, N7Me), 3.73 (s, 3 H, N3Me), 3.28 (s, 3 H, N1Me), 1.53 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.31 (C6=O), 150.34 (C2=O), 138.87 (C4), 138.76 (C8), 107.87 (C5), 44.97 (N9CH2), 35.61 (N7Me), 31.58 (N3Me), 28.31 (N1Me), 15.06 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Me+H]+ 209.1039; found 209.1035.
1,3-Dimethyl-7-benzyl-9-ethylxanthinium hexafluorophosphate (1PF6)
A solution of 1EtSO4 (0.100 g, 0.236 mmol) in water (10 mL) was treated with a solution of [NH4]PF6 (0.0403 g, 0.247 mmol) in water (10 mL). After 20 min at room temperature the resulting precipitate was isolated by filtration, washed with water and Et2O and was dried in air. A colorless solid was obtained in 74% yield (0.077 g). The compound can also be prepared by the same method from 1OTs in similar yield. 1H NMR (400 MHz, DMSO-d6) δ = 9.60 (s, 1 H, C8H), 7.32–7.49 (m, 5 H, Ph), 5.71 (s, 2 H, N7CH2), 4.59 (q, J = 7.2 Hz, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.27 (s, 3 H, N1Me), 1.54 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.07 (C6=O), 150.28 (C2=O), 139.51 (C4), 138.48 (C8), 134.11 (Ph), 128.78 (Ph), 128.68 (Ph), 128.00 (Ph), 107.11 (C5), 51.22 (N7CH2), 45.30 (N9CH2), 31.66 (N3Me), 28.39 (N1Me), 15.07 (Me). 31P NMR (DMSO-d6) δ = −144.19 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 299.1508; found 299.1511.
1,3-Dimethyl-7-(4-chlorobenzyl)-9-ethylxanthinium hexafluorophosphate (2PF6)
This was prepared as described above using 2EtSO4 (0.100 g, 0.218 mmol) and [NH4]PF6 (0.0373 g, 0.229 mmol). As a result, 0.077 g (74%) of a colorless solid was obtained. The compound can also be prepared by the same method from 2OTs in similar yield. 1H NMR (400 MHz, DMSO-d6) δ = 9.57 (s, 1 H, C8H), 7.44–7.54 (m, 4 H, Bn), 5.70 (s, 2 H, N7CH2), 4.59 (q, J = 7.2 Hz, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.26 (s, 3 H, N1Me), 1.54 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.04 (C6=O), 150.27 (C2=O), 139.52 (C4), 138.58 (C8), 133.46 (Bn), 133.01 (Bn), 130.07 (Bn), 128.74 (Bn), 107.09 (C5), 50.59 (N7CH2), 45.32 (N9CH2), 31.67 (N3Me), 28.40 (N1Me), 15.00 (Me). 31P NMR (DMSO-d6) δ = −144.19 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 333.1118; found 333.1118.
1,3,7-Trimethyl-9-ethylxanthinium hexafluorophosphate (3PF6)
This was prepared as described above using 3HSO4 (0.433 g, 1.412 mmol) and [NH4]PF6 (0.440 g, 2.70 mmol). As a result, 0.382 g (77%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 9.34 (s, 1 H, C8H), 4.56 (q, J = 7.2 Hz, 2 H, N9CH2), 4.05 (d, J = 0.6 Hz, 3 H, N7Me), 3.71 (s, 3 H, N3Me), 3.27 (s, 3 H, N1Me), 1.50 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.31 (C6=O), 150.33 (C2=O), 138.85 (C4), 138.69 (C8), 107.88 (C5), 44.98 (N9CH2), 35.63 (N7Me), 31.56 (N3Me), 28.32 (N1Me), 15.09 (Me). 31P NMR (DMSO-d6) δ = -144.21 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M-Me+H]+ 209.1039; found 209.1035.
1,3-Dimethyl-7-benzyl-9-ethylxanthinium chloride (1Cl)
A solution of 1PF6 (0.2416 g, 0.544 mmol) in THF (3 mL) was treated with a solution of [nBu4N]Cl (0.304 g, 1.094 mmol) in THF (2.5 mL). After 2 h at room temperature the resulting precipitate was isolated by filtration, washed with Et2O and dried. A colorless solid was obtained in 85% yield (0.1548 g). 1H NMR (400 MHz, DMSO-d6) δ = 10.01 (s, 1 H, C8H), 7.32–7.54 (m, 5 H, Ph), 5.74 (s, 2 H, N7CH2), 4.62 (q, J = 7.2 Hz, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.26 (s, 3 H, N1Me), 1.55 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.08 (C6=O), 150.29 (C2=O), 139.53 (C4), 138.71 (C8), 134.22 (Ph), 128.74 (Ph), 128.64 (Ph), 128.09 (Ph), 107.03 (C5), 51.10 (N7CH2), 45.30 (N9CH2), 31.69 (N3Me), 28.39 (N1Me), 15.09 (Me). 35Cl NMR (54 MHz, DMSO-d6) δ = 69.4 (s, Cl). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 299.1508; found 299.1503.
1,3-Dimethyl-7-(4-chlorobenzyl)-9-ethylxanthinium chloride (2Cl)
This was prepared as described above using 2PF6 (0.2604 g, 0.544 mmol) and [nBu4N]Cl (0.304 g, 1.094 mmol). As a result, 0.152 g (75%) colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 10.01 (s, 1 H, C8H), 7.47–7.55 (m, 4 H, Bn), 5.73 (s, 2 H, N7CH2), 4.61 (q, J = 7.2 Hz, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.26 (s, 3 H, N1Me), 1.55 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 153.05 (C6=O), 150.27 (C2=O), 139.53 (C4), 138.81 (C8), 133.42 (Bn), 133.14 (Bn), 130.17 (Bn), 128.69 (Bn), 107.00 (C5), 50.44 (N7CH2), 45.33 (N9CH2), 31.70 (N3Me), 28.39 (N1Me), 15.01(Me). 35Cl NMR (54 MHz, DMSO-d6) δ = 69.4 (s, Cl). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 333.1118; found 333.1122.
1,3,7-Trimethyl-9-ethylxanthinium chloride (3Cl)
This was prepared as described above using 3PF6 (0.200 g, 0.543 mmol) and [nBu4N]Cl (0.304 g, 1.094 mmol). As a result, 0.136 g (97%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 9.58 (s, 1 H, C8H), 4.58 (q, J = 7.2 Hz, 2 H, N9CH2), 4.07 (d, J = 0.6 Hz, 3 H, N7Me), 3.72 (s, 3 H, N3Me), 3.28 (s, 3 H, N1Me), 1.51 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, DMSO-d6) δ = 153.32 (C6=O), 150.34 (C2=O), 138.92 (C4), 138.85 (C8), 107.82 (C5), 44.97 (N9CH2), 35.59 (N7Me), 31.61 (N3Me), 28.31 (N1Me), 15.12 (Me). 35Cl NMR (39 MHz, DMSO-d6) δ = 38.50 (s, Cl). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 223.1195; found 223.1191.
[(NHC)Ag(NH3)]PF6 (4)
A suspension of 1PF6 (0.111 g, 0.250 mmol) in EtOH (3 mL) was treated with Ag2O (0.029 g, 0.125 mmol) and concentrated ammonia solution (170 μL, 2.6 mmol). After stirring at room temperature for 30 min, the colorless solid was isolated by filtration and was washed with cold EtOH and Et2O. A colorless solid was obtained in 78% yield (0.110 g). 1H NMR (400 MHz, DMSO-d6) δ = 7.25–7.40 (m, 5 H, Ph), 5.72 (s, 2 H, N7CH2), 4.59 (m, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.50 (s, 3 H, NH3), 3.24 (s, 3 H, N1Me), 1.42 (m, 3 H, Me). 13C{1H} NMR (150 MHz, DMSO-d6) δ = 185.27 (C-Ag), 152.93 (C6=O), 150.57 (C2=O), 140.26 (C4), 136.56 (Ph), 128.58 (Ph), 127.88 (Ph), 127.27 (Ph), 108.28 (C5), 52.86 (N7CH2), 46.32 (N9CH2), 31.35 (N3Me), 28.15 (N1Me), 17.21 (Me). 31P NMR (DMSO-d6) δ = −144.19 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M+H+Na]+ 446.0722; found 446.0686. IR (ATR): 3300–3400 cm−1 ν(NH3), 833 cm−1 ν(PF6).
[(NHC)Ag(NH3)]PF6 (5)
This was prepared as described above using 2PF6 (0.119 g, 0.250 mmol), Ag2O (0.029 g, 0.125 mmol) and concentrated ammonia solution (170 μL, 2.6 mmol). As a result, 0.116 g (77%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 7.28–7.45 (m, 4 H, Bn), 5.71 (s, 2 H, N7CH2), 4.60 (m, 2 H, N9CH2), 3.72 (s, 3 H, N3Me), 3.23 (s, 3 H, N1Me), 3.03 (s, 3 H, NH3), 1.43 (m, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 197.15 (C-Ag), 152.92 (C6=O), 150.60 (C2=O), 140.34 (C4), 135.63 (Bn), 132.60 (Bn), 129.10 (Bn), 128.56 (Bn), 108.22 (C5), 52.02 (N7CH2), 46.35 (N9CH2), 31.39 (N3Me), 28.20 (N1Me), 17.26 (Me). 31P NMR (DMSO-d6) δ = −144.19 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M+H+Na]+ 480.0332; found 480.0328. IR (ATR): 3300–3400 cm−1 ν(NH3), 833 cm−1 ν(PF6). X-ray quality crystals were obtained by slow diffusion of CHCl3 into an acetone solution of the compound.
[(NHC)Ag(NH3)]PF6 (6)
This was prepared as described above using 3PF6 (0.092 g, 0.250 mmol), Ag2O (0.029 g, 0.125 mmol) and concentrated ammonia solution (163 μL, 2.7 mmol). As a result, 0.084 g (68%) of a colorless solid was obtained. H NMR (600 MHz, DMSO-d6) δ = 4.60 (q, J = 7.0 Hz, 2 H, N9CH2), 4.08 (s, 3 H, N7Me), 3.72 (s, 3 H, N3Me), 3.26 (s, 3 H, N1Me), 3.06 (br. s, 3 H, NH3), 1.46 (t, J = 7.0 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, DMSO-d6) δ = 153.21 (C6=O), 150.68 (C2=O), 139.83 (C4), 108.88 (C5), 46.04 (N9CH2), 38.03 (N7Me), 31.34 (N3Me), 28.17 (N1Me), 17.38 (Me). The carbene-carbon signal could not be detected. 31P NMR (DMSO-d6) δ = −144.19 (hept., J = 711 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 347.0511; found 347.0505. IR (ATR): 3300–3400 cm−1 ν(NH3), 833 cm−1 ν(PF6).
[Ag(NHC)2]PF6 (7)
A suspension of 1PF6 (0.0555 g, 0.125 mmol) in absolute EtOH (2 mL) was treated with Ag2O (0.0145 g, 0.0626 mmol) and Et2NH (65 μL, 0.627 mmol). After stirring at room temperature for 4 h, the colorless solid was isolated by filtration and was washed with cold EtOH and Et2O. A colorless solid was obtained in 80% yield (0.0425 g). 1H NMR (600 MHz, DMSO-d6) δ = 7.25–7.33 (m, 10 H, Ph), 5.74 (s, 4 H, N7CH2), 4.56 (q, J = 7.2 Hz, 4 H, N9CH2), 3.73 (s, 6 H, N3Me), 3.25 (s, 6 H, N1Me), 1.39 (t, J = 7.2 Hz, 6 H, Me). 13C{1H} NMR (150 MHz, DMSO-d6) δ = 186.24 (d, J = 217 Hz, C109Ag), 186.22 (d, J = 192 Hz, C107Ag), 152.98 (C6=O), 150.61 (C2=O), 140.23 (C8), 136.59 (Ph), 128.61 (Ph), 127.88 (Ph), 127.00 (Ph), 108.34 (C5), 52.69 (N7CH2), 46.35 (N9CH2), 31.38 (N3Me), 28.19 (N1Me), 17.26 (Me). 31P NMR (acetone-d6) δ = −144.27 (hept., J = 707 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 703.1910; found 703.1906. X-ray quality crystals were obtained by slow diffusion of Et2O into an acetone solution of the compound.
[Ag(NHC)2]PF6 (8)
This was prepared as described above using 2PF6 (0.0598 g, 0.125 mmol), Ag2O (0.0145 g, 0.0626 mmol) and Et2NH (65 μL, 0.627 mmol). As a result, 0.040 g (72%) of a colorless solid was obtained. 1H NMR (400 MHz, Acetone-d6) δ = 7.30–7.43 (m, 8 H, Bn), 5.83 (s, 4 H, N7CH2), 4.79 (q, J = 7.3 Hz, 4 H, N9CH2), 3.88 (s, 6 H, N3Me), 3.30 (s, 6 H, N1Me), 1.60 (t, J = 7.3 Hz, 6 H, Me). 13C{1H} NMR (100 MHz, Acetone-d6) δ = 187.42 (unres. d, C-Ag), 154.96 (C6=O), 152.47 (C2=O), 142.06 (C4), 137.19 (Bn), 135.15 (Bn), 130.77 (Bn), 130.41 (Bn), 110.44 (C5), 54.25 (N7CH2), 48.63 (N9CH2), 32.77 (N3Me), 29.36 (N1Me), 18.76 (Me). 31P NMR (acetone-d6) δ = −144.27 (hept., J = 707 Hz, PF6). High-resolution positive-ion ESMS (m/z): calculated for [M]+ 771.1131; found 771.1130.
[Ag(NHC)Cl] (9)
A solution of 1Cl (0.05 g, 0.149 mmol) in CH2Cl2 (7.5 mL) was treated with Ag2O (0.0174 g, 0.0751 mmol). After 4 h at room temperature most of the silver oxide had dissolved. The mixture was passed through Celite, and the filtrate was concentrated in vacuum. Addition of Et2O precipitated a colorless solid, which was isolated by filtration and was washed with Et2O. A colorless solid was obtained in 67% yield (0.0445 g). 1H NMR (400 MHz, DMSO-d6) δ = 7.26–7.39 (m, 5 H, Ph), 5.70 (s, 2 H, N7CH2), 4.58 (q, J = 7.2 Hz, 2 H, N9CH2), 3.71 (s, 3 H, N3Me), 3.23 (s, 3 H, N1Me), 1.44 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 186.77 (C-Ag), 152.97 (C6=O), 150.59 (C2=O), 140.24 (C4), 136.56 (Ph), 128.60 (Ph), 127.93 (Ph), 127.38 (Ph), 108.15 (C5), 52.88 (N7CH2), 46.41 (N9CH2), 31.38 (N3Me), 28.20 (N1Me), 17.24 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 463.0067; found 463.077. X-ray quality crystals were obtained by slow diffusion of Et2O into a CH2Cl2 solution of the compound.
[Ag(NHC)Cl] (10)
This was prepared as described above using 2Cl (0.0554 g, 0.140 mmol) and Ag2O (0.0174 g, 0.0751 mmol). As a result, 0.0475 g (66%) of a colorless solid was obtained. 1H NMR (400 MHz, Acetone-d6) δ = 7.34–7.58 (m, 4 H, Bn), 5.81 (s, 2 H, N7CH2), 4.78 (q, J = 7.2 Hz, 2 H, N9CH2), 3.89 (s, 3 H, N3Me), 3.31 (s, 3 H, N1Me), 1.59 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, Acetone-d6) δ = 187.60 (C-Ag), 154.87 (C6=O), 152.35 (C2=O), 142.24 (C4), 137.22 (Bn), 135.10 (Bn), 131.48 (Bn), 130.23 (Bn), 110.12 (C5), 54.39 (N7CH2), 48.48 (N9CH2), 32.78 (N3Me), 29.36 (N1Me), 18.61 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 496.9677; found 496.9671. X-ray quality crystals were obtained by slow diffusion of Et2O into a CH2Cl2 solution of the compound.
[Ag(NHC)Cl] (11)
This was prepared as described above using 3Cl (0.0387 g, 0.150 mmol) and Ag2O (0.0174 g, 0.0751 mmol). As a result, 0.0285 g (52%) of a colorless solid was obtained. 1H NMR (400 MHz, DMSO-d6) δ = 4.56 (q, J = 7.2 Hz, 2 H, N9CH2), 4.04 (s, 3 H, N7Me), 3.70 (s, 3 H, N3Me), 3.24 (s, 3 H, N1Me), 1.44 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, DMSO-d6) δ = 185.25 (C-Ag), 153.18 (C6=O), 150.66 (C2=O), 139.80 (C4), 108.79 (C5), 46.09 (N9CH2), 37.99 (N7Me), 31.33 (N3Me), 28.14 (N1Me), 17.30 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-AgCl]+ 223.1195; found 223.1218.
[Au(NHC)Cl] (12)
A solution of complex 9 (0.0442 g, 0.100 mmol) and [AuCl(tht)] (0.0320 g, 0.0998 mmol) in CH2Cl2 (5 mL) was left to stir at room temperature for ca. 4 h. The mixture was passed through Celite, and the solvent was removed under reduced pressure. The resulting material was washed with Et2O and dried in air. A colorless product was obtained in 64% yield (0.034 g). 1H NMR (600 MHz, CDCl3) δ = 7.62 (d, J = 6.7 Hz, 2 H, o-Ph), 7.27–7.36 (m, 3 H, m-Ph, p-Ph), 5.78 (s, 2 H, N7CH2), 4.70 (q, J = 7.2 Hz, 2 H, N9CH2), 3.79 (s, 3 H, N3Me), 3.38 (s, 3 H, N1Me), 1.58 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 176.79 (C-Au), 152.93 (C6=O), 150.63 (C2=O), 139.33 (C4), 134.87 (ipso-Ph), 128.84, 128.73, 128.59 (Ph), 108.16 (C5), 53.68 (N7CH2), 46.71 (N9CH2), 31.68 (N3Me), 28.84 (N1Me), 17.33 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 553.0682; found 553.0792.
[Au(NHC)Cl] (13)
This was prepared as described above using 10 (0.0476 g, 0.100 mmol) and [AuCl(tht)] (0.0320 g, 0.0998 mmol). As a result, 0.0420 g (74%) colorless solid was obtained. 1H NMR (600 MHz, CDCl3) δ = 7.58 (d, J = 8.4 Hz, 2 H, o-C6H4), 7.28–7.31 (m, 2 H, m-C6H4), 5.74 (s, 2 H, N7CH2), 4.69 (q, J = 7.2 Hz, 2 H, N9CH2), 3.79 (s, 3 H, N3Me), 3.38 (s, 3 H, N1Me), 1.58 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 176.79 (C-Au), 152.96 (C6=O), 150.57 (C2=O), 139.40 (C4), 134.87 (ipso-Bn), 133.29 (Bn), 130.10 (Bn), 129.04 (Bn), 108.04 (C5), 52.96 (N7CH2), 46.77 (N9CH2), 31.70 (N3Me), 28.86 (N1Me), 17.33 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 587.0292; found 587.0291.
[Au(NHC)Cl] (14)
This was prepared as described above using 11 (0.0365 g, 0.988 mmol) and [AuCl(tht)] (0.0320 g, 0.0998 mmol). As a result, 0.0295 g (55%) colorless solid was obtained. 1H NMR (400 MHz, CDCl3) δ = 4.71 (q, J = 7.2 Hz, 2 H, N9CH2), 4.17 (s, 3 H, N7Me), 3.83 (s, 3 H, N3Me), 3.43 (s, 3 H, N1Me), 1.60 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, CDCl3) δ = 177.33 (C-Au), 153.28 (C6=O), 150.71 (C2=O), 138.10 (C4), 113.18 (C5), 46.47 (N9CH2), 37.98 (N7Me), 31.65 (N3Me), 28.76 (N1Me), 17.36 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 477.0369; found 477.0366. X-ray quality crystals were obtained by slow diffusion of Et2O into a CH2Cl2 solution of the compound.
[RuCl2(NHC)(p-cym)] (15)
This was prepared as described above using complex 9 (0.0438 g, 0.099 mmol) and [RuCl2(p-cym)]2 (0.0294 g, 0.048 mmol). A brown product was obtained in 72% yield (0.0431 g). 1H NMR (400 MHz, CDCl3, 223 K) δ = 7.30–7.48 (m, 3 H, Ph), 6.89 (m, 2 H, Ph), 6.31 (d, 1 H, J = 17.0 Hz, N7CH2), 5.96 (d, 1H, J = 17.0 Hz, N7CH2), 5.44–5.53 (m, 1 H, p-cym), 5.33–5.44 (m, 1 H, N9CH2), 5.19–5.29 (m, 2 H, p-cym), 5.17–5.18 (m, 1 H, p-cym), 4.34–4.49 (m, 1 H, N9CH2), 3.78 (s, 3 H, N3Me), 3.29 (s, 3 H, N1Me), 2.65–2.78 (m, 1 H, p-cym), 2.04 (s, 3 H, p-cym), 1.52 (s, 3 H, Me), 1.30 (d, J = 6.3 Hz, 3 H, p-cym), 1.19 (d, J = 6.3 Hz, 3 H, p-cym). 13C{1H} NMR (100 MHz, CDCl3, 223 K) δ = 189.37 (C-Ru), 151.52 (C6=O), 150.87 (C2=O), 140.88 (C4), 138.58 (ipso-Ph), 129.19 (Ph), 127.38 (Ph), 123.50 (Ph), 111.12 (C5), 107.77 (p-cym), 94.64 (p-cym), 86.37 (p-cym), 86.12 (p-cym), 83.42 (p-cym), 82.78 (p-cym), 53.69 (N7CH2), 47.18 (N9CH2), 32.57 (N3Me), 30.48 (p-cym), 28.67 (N1Me), 22.57 (p-cym), 22.32 (p-cym), 18.01 (p-cym), 17.70 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 569.1257; found 569.1257. X-ray quality crystals were obtained by slow diffusion of hexane into a CH2Cl2 solution of the compound.
[RuCl2(NHC)(p-cym)] (16)
This was prepared as described above using complex 10 (0.0471 g, 0.107 mmol) and [RuCl2(p-cym)]2 (0.0294 g, 0.048 mmol). A brown product was obtained. As a result, 0.0495 g (76%). 1H NMR (400 MHz, CDCl3, 223 K) δ = 7.35–7.44 (d, J = 7.5 Hz, 2 H, Bn), 6.86 (m, 2 H, Bn), 6.30 (d, 1 H, J = 17.2 Hz, N7CH2), 5.87 (d, J = 17.2 Hz, N7CH2), 5.49–5.52 (m, 1 H, p-cym), 5.40–5.42 (m, 1 H, N9CH2), 5.29–5.31 (m, 1 H, p-cym), 5.23–5.25 (m, 2 H, p-cym), 4.37–4.50 (m, 1 H, N9CH2), 3.78 (s, 3 H, N3Me), 3.29 (s, 3 H, N1Me), 2.65–2.78 (m, 1 H, p-cym), 2.05 (s, 3 H, p-cym), 1.52 (s, 3 H, Me), 1.30 (d, J = 4.3 Hz, 3 H, p-cym), 1.22 (d, J = 5.7 Hz, 3 H, p-cym). 13C{1H} NMR (100 MHz, CDCl3, 223 K) δ = 189.52 (C-Ru), 151.48 (C6=O), 150.78 (C2=O), 140.97 (C4), 137.18 (ipso-Bn), 132.82 (Bn), 129.38 (Bn), 125.03 (Bn), 110.90 (C5), 108.04 (p-cym), 94.68 (p-cym), 86.37 (p-cym), 86.06 (p-cym), 83.26 (p-cym), 83.04 (p-cym), 53.41 (N7CH2), 47.23 (N9CH2), 32.55 (N3Me), 30.58 (p-cym), 28.69 (N1Me), 22.46 (p-cym), 18.09 (p-cym), 17.76 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 603.0868; found 603.0874.
[RuCl2(NHC)(p-cym)] (17)
This was prepared as described above using complex 11 (0.0362 g, 0.099 mmol) and [RuCl2(p-cym)]2 (0.0294 g, 0.048 mmol). A brown product was obtained. As a result, 0.0420 g (80%). 1H NMR (600 MHz, CDCl3) δ = 5.47–5.66 (m, 2 H, p-cym), 6.26 (d, J = 6.1 Hz, 2 H, p-cym), 4.50–4.67 (m, 2 H, N9CH2), 4.36 (s, 3 H, N7Me), 3.77 (s, 3 H, N3Me), 3.42 (s, 3 H, N1Me), 3.02 (unres. pent, 1 H, p-cym), 2.18 (s, 3 H, p-cym), 1.41 (t, J = 7.3 Hz, 3 H, Me), 1.35 (d, J = 6.9 Hz, 3 H, p-cym). 13C{1H} NMR (150 MHz, CDCl3) δ = 186.12 (C-Ru), 152.80 (C6=O), 151.17 C2=O), 140.76 (C4), 111.85 (C5), 109.36 (p-cym), 99.08 (p-cym), 86.22 (p-cym), 83.03 (p-cym), 81.27 (p-cym), 80.52 (p-cym), 46.70 (N9CH2), 39.66 (N7Me), 32.51 (N3Me), 30.89 (p-cym), 28.58 (N1Me), 23.23 (p-cym), 22.11 (p-cym), 18.93 (p-cym), 17.36 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 493.0944; found 493.0947.
[RhCl2(NHC)(Cp*)] (18)
This was prepared as described above using complex 9 (0.0177 g, 0.040 mmol) and [Rh(Cp*)Cl2]2 (0.0124 g, 0.020 mmol). A red-brown product was obtained in 53% yield (0.013 g). 1H NMR (400 MHz, CDCl3) δ = 7.26–7.32 (m, 2 H, m-Ph), 7.23 (t, J = 7.3 Hz, 1 H, p-Ph), 6.89 (d, J = 7.3 Hz, 2 H, o-Ph), 6.39 (d, J = 16.5 Hz, 1 H, N7CH2), 5.98 (d, J = 16.5 Hz, 1 H, N7CH2), 5.18–5.29 (m, 2 H, N9CH2), 4.66–4.79 (m, 2 H, N9CH2), 3.79 (s, 3 H, N3Me), 3.24 (s, 3 H, N1Me), 1.54 (s, 15 H, Cp*), 1.49 (t, J = 7.3 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 183.71 (d, J = 54.5 Hz, C-Rh), 151.73 (C6=O), 151.27 (C2=O), 141.13 (C4), 138.58 (ipso-Ph), 128.56 (Ph), 127.12 (Ph), 124.67 (Ph), 111.72 (C5), 97.21 (d, J = 7.2 Hz, Cp*), 54.78 (N7CH2), 47.10 (N9CH2), 32.50 (N3Me), 28.60 (N1Me), 17.66 (Me), 9.49 (Cp*). High-resolution positive-ion ESMS (m/z): calculated for [M+Na]+ 629.0933; found 629.0930. X-ray quality crystals were obtained by slow diffusion of Et2O into a CH2Cl2 solution of the compound.
[RhCl2(NHC)(Cp*)] (19)
This was prepared as described above using complex 10 (0.0190 g, 0.040 mmol) and [Rh(Cp*)Cl2]2 (0.0124 g, 0.020 mmol). As a result, 0.0140 g, (55%) of a red-brown solid was obtained. 1H NMR (400 MHz, CDCl3) δ = 7.24–7.28 (m, 2 H, B), 6.92 (d, J = 7.8 Hz, 2 H, Bn), 6.14–6.29 (s, 1 H, N7CH2), 5.95–6.10 (s, 1 H, N7CH2), 5.10–5.25 (s, 1 H, N9CH2), 4.70–4.90 (s, 1 H, N9CH2), 3.79 (s, 3 H, N3Me), 3.25 (s, 3 H, N1Me), 1.56 (s, 15 H, Cp*), 1.49 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 183.60 (d, J = 53.3 Hz, C-Rh), 151.76 (C6=O), 151.20 (C2=O), 141.34 (C4), 136.90 (ipso-Bn), 132.93 (Bn), 128.65 (Bn), 126.64 (Bn), 111.52 (C5), 97.24 (d, J = 7.1 Hz, Cp*), 54.35 (N7CH2), 47.00 (N9CH2), 32.51 (N3Me), 28.64 (N1Me), 17.77 (Me), 9.52 (Cp*). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 605.0957; found 605.0957. X-ray quality crystals were obtained by slow diffusion of Et2O into a CH2Cl2 solution of the compound.
[RhCl2(NHC)(Cp*)] (20)
This was prepared as described above using complex 11 (0.0322 g, 0.0881 mmol) and [Rh(Cp*)Cl2]2 (0.0248 g, 0.0400 mmol). As a result, 0.0355 g, (76%) of a red-brown solid was obtained. 1H NMR (400 MHz, CDCl3) δ = 4.73–5.09 (m, 2 H, N9CH2), 4.33 (s, 3 H, N7Me), 3.75 (s, 3 H, N3Me), 3.39 (s, 3 H, N1Me), 1.66 (s, 15 H, Cp*), 1.39 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 152.94 (C6=O), 151.20 (C2=O), 140.92 (C4), 112.06 (C5), 96.98 (d, J = 7.0 Hz, Cp*), 46.41 (N9CH2), 39.14 (N7Me), 32.54 (N3Me), 28.61 (N1Me), 17.55 (Me), 9.59 (Cp*). The carbene-carbon signal could not be detected. High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 495.1034; found 495.1030.
[RhCl(NHC)(cod)] (21)
This was prepared as described above using complex 9 (0.0352 g, 0.0797 mmol) and [Rh(cod)Cl]2 (0.0196 g, 0.0397 mmol). A yellow product was obtained in 48% yield (0.021 g). 1H NMR (400 MHz, CDCl3) δ = 7.44 (d, J = 7.3 Hz, 2 H, o-Ph), 7.33 (t, J = 7.3 Hz, 2 H, m-Ph), 7.23–7.29 (m, 1 H, p-Ph), 6.25 (d, J = 14.8 Hz, 1 H, N7CH2), 6.10 (d, J = 14.8 Hz, 1 H, N7CH2), 5.42–5.53 (m, 1 H, N9CH2), 5.16–5.23 (m, 1 H, cod), 5.07–5.15 (m, 1 H, cod), 4.99–5.07 (m, 1 H, N9CH2), 3.78 (s, 3 H, N3Me), 3.30 (s, 3 H, N1Me), 3.26–3.32 (m, 3 H, cod), 2.99–3.06 (m, 1 H, cod), 2.25–2.52 (m, 3 H, cod), 1.83–2.10 (m, 4 H, cod), 1.71–1.76 (m, 1 H, cod), 1.69 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, CDCl3) δ = 193.49 (C-Rh), 152.14 (C6=O), 150.81 (C2=O), 140.08 (C4), 136.92 (ipso-Ph), 128.50 (m-Ph), 127.66 (p-Ph), 127.32 (o-Ph), 109.00 (C5), 100.89 (d, J = 6.8 Hz, cod), 100.12 (d, J = 6.8 Hz, cod), 69.84 (d, J = 14.3 Hz, cod), 69.67 (d, J = 14.3 Hz, cod), 53.71 (N7CH2), 46.33 (N9CH2), 33.53 (cod), 31.89 (cod), 31.59 (N3Me), 28.55 (cod), 28.11 (N1Me), 29.25 (cod), 17.67 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 509.1424; found 509.1429.
[RhCl(NHC)(cod)] (22)
This was prepared as described above using complex 10 (0.0635 g, 0.1334 mmol) and [Rh(cod)Cl]2 (0.0329 g, 0.0604 mmol). As a result, 0.0520 g (72%) of a yellow solid was obtained. 1H NMR (400 MHz, CDCl3) δ = 7.47 (d, J = 8.4 Hz, 2 H, Bn), 7.29 (m, 2 H, Bn), 6.26 (d, J = 14.7 Hz, 1 H, N7CH2), 5.99 (d, J = 14.7 Hz, 1 H, N7CH2), 5.40–5.50 (m, 1 H, N9CH2), 5.10–5.23 (m, 2 H, cod), 4.99–5.10 (m, 1 H, N9CH2), 3.78 (s, 3 H, N3Me), 3.30 (s, 3 H, N1Me), 3.00–3.10 (m, 1 H, cod), 2.28–2.52 (m, 3 H, cod), 2.10–2.20 (m, 1 H, cod), 1.75–2.08 (m, 4 H, cod), 1.69 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (100 MHz, CDCl3) δ = 193.28 (C-Rh), 152.12 (C6=O), 150.74 (C2=O), 140.23 (C4), 135.15 (ipso-Bn), 133.66 (Bn), 129.13 (Bn), 128.65 (Bn), 109.94 (C5), 101.08 (d, J = 6.7 Hz, cod), 100.54 (d, J = 6.7 Hz, cod), 69.98 (d, J = 13.8 Hz, cod), 69.66 (d, J = 13.8 Hz, cod), 53.19 (N7CH2), 46.35 (N9CH2), 33.41 (cod), 33.06 (cod), 31.58 (N3Me), 29.22 (cod), 28.55 (N1Me), 28.19 (cod), 16.89 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 543.1034; found 543.1037. X-ray quality crystals were obtained by slow diffusion of hexane into a CH2Cl2 solution of the compound.
[RhCl(NHC)(cod)] (23)
This was prepared as described above using complex 11 (0.0291 g, 0.0796 mmol) and [Rh(cod)Cl]2 (0.0196 g, 0.0360 mmol). As a result, 0.0370 g (99%) of a yellow solid was obtained. 1H NMR (400 MHz, CDCl3) δ = 5.40–5.31 (m, 1 H, N9CH2), 5.09 (dd, J = 21.0, 5.3 Hz, 2 H, cod), 4.90 (m, 1 H, N9CH2), 4.39 (s, 3 H, N7Me), 3.76 (s, 3 H, N3Me), 3.48–3.39 (m, 2 H, cod), 3.35 (s, 3 H, N1Me), 2.53–2.37 (m, 4 H, cod), 2.01 (d, J = 9.5 Hz, 4 H, cod), 1.61 (t, J = 7.2 Hz, 3 H, Me). 13C{1H} NMR (150 MHz, CDCl3) δ = 191.11 (br. m, C-Rh), 152.81 (C6=O), 150.79 (C2=O), 139.61 (C4), 110.51 (C5), 100.59 (d, J = 6.2 Hz, cod), 100.30 (d, J = 6.2 Hz, cod), 69.62 (cod), 68.88 (cod), 46.04 (N9CH2), 37.42 (N7CH2), 32.79 (d, J = 5.6 Hz, cod), 31.48 (N3Me), 28.81 (N1Me), 28.72 (cod), 28.45 (cod), 28.00 (cod), 16.93 (Me). High-resolution positive-ion ESMS (m/z): calculated for [M-Cl]+ 433.1111; found 433.1114.
X-ray crystallography
Diffraction data for complex 15 was collected at 100 K using a Bruker-AXS Kappa Mach3 APEX-II system located in front of a Iμs microfocus source equipped with Incoatec Helios mirrors for Mo radiation. For data integration the APEX3 package was employed. For data scaling and absorption correction SADABS was used [61]. Diffraction data for complexes 5, 7, 9, 1214 and 1822 was collected at 150 K using a Rigaku Oxford Diffraction Gemini E Ultra diffractometer, equipped with an EOS CCD area detector and a four-circle kappa goniometer. Data integration, scaling and empirical absorption correction was carried out using the CrysAlis Pro program package [62]. Data for complex 10 was collected at beamline P11, PETRA III DESY Hamburg. For data integration XDS [63] (version 31 January 2020) and for scaling as well as absorption correction SADABS were used. All structures were solved by direct methods or intrinsic phasing (SHELXT [64]) and refined using SHELXL [65] as implemented in the Olex2 graphical user interface [66]. Crystallographic and refinement details are collected in Table S1 in Supplementary Materials.

4. Conclusions

We present, herein, a simple method to ethylate various xanthine derivatives at position N9 using ethyl tosylate or diethyl sulfate. High yields of the pure xanthinium salts were obtained in short times with minimal work-up. The anions could be exchanged to give the corresponding PF6 and Cl salts. The xanthinium PF6 salts reacted with Ag2O in the presence of NH3 or Et2NH to furnish either silver carbene complexes with ammonia co-ligands or bis(carbene) silver compounds, respectively. The xanthinium chloride salts gave the corresponding neutral Ag-carbene complexes. These silver compounds were used successfully to transfer the carbene ligands to a variety of other metals including Au(I), Ru(II), Rh(I) and Rh(III). Work is ongoing to incorporate other groups into the xanthine-backbone by this approach and to examine possible applications of these metal-carbenes.

Supplementary Materials

The following are available online, Table S1: Crystallographic and refinement details for all X-ray structures reported herein. Figures S1–S70: NMR spectra of the compounds.

Author Contributions

Conceptualization, F.M. and M.M.; formal analysis, C.W.L. and J.R.; investigation, M.M.; writing—original draft preparation, F.M.; writing—review and editing, F.M. and M.M. and C.W.L.; visualization, M.M.; supervision, F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable.

Acknowledgments

M. Mokfi gratefully acknowledges the award of a Ph.D. scholarship from the University of Wuppertal. We thank the beamline scientists of P11 (DESY Hamburg) for their support and E. Dreher, R. Goddard, N. Nöthling and M. Patzer for data collection at P11.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Díez-González, S. (Ed.) N-Heterocylic Carbenes. From Laboratory Curiosities to Efficient Synthetic Tools; RSC Publishing: Cambridge, UK, 2011. [Google Scholar]
  2. Kühl, O. Functionalised N-heterocyclic Carbene Complexes; Wiley: New York, NY, USA, 2010. [Google Scholar]
  3. Hindi, K.M.; Panzner, M.J.; Tessier, C.A.; Cannon, C.L.; Youngs, W.J. The Medicinal Applications of Imidazolium Carbene-Metal Complexes. Coord. Chem. Rev. 2009, 109, 3859–3884. [Google Scholar] [CrossRef][Green Version]
  4. Diez-Gonzalez, S.; Marion, N.; Nolan, S.P. N-heterocyclic carbenes in late transition metal catalysis. Chem. Rev. 2009, 109, 3612–3676. [Google Scholar] [CrossRef]
  5. de Frémont, P.; Marion, N.; Nolan, S.P. Carbenes: Synthesis, properties, and organometallic chemistry. Coord. Chem. Rev. 2009, 253, 862–892. [Google Scholar] [CrossRef]
  6. Hahn, F.E.; Jahnke, M.C. Heterocyclic carbenes: Synthesis and coordination chemistry. Angew. Chem. Int. Edn. Engl. 2008, 47, 3122–3172. [Google Scholar] [CrossRef] [PubMed]
  7. Nolan, S.P. (Ed.) N-Heterocyclic Carbenes in Synthesis; Wiley-VCH: Weinheim, Germany, 2006. [Google Scholar]
  8. Crudden, C.M.; Allen, D.P. Stability and reactivity of N-heterocyclic carbene complexes. Coord. Chem. Rev. 2004, 248, 2247–2273. [Google Scholar] [CrossRef]
  9. Dröge, T.; Glorius, F. The Measure of All Rings. N-Heterocyclic Carbenes. Angew. Chem. Int. Ed. 2010, 49, 6940–6952. [Google Scholar] [CrossRef]
  10. Liu, W.; Gust, R. Metal N-heterocyclic carbene complexes as potential antitumor metallodrugs. Chem. Soc. Rev. 2013, 42, 755–773. [Google Scholar] [CrossRef]
  11. Liu, W.; Gust, R. Update on metal N-heterocyclic carbene complexes as potential anti-tumor metallodrugs. Coord. Chem. Rev. 2016, 329, 191–213. [Google Scholar] [CrossRef]
  12. Nelson, D.J. Accessible syntheses of late transition metal (pre)catalysts bearing N-heterocyclic carbene ligands. Eur. J. Inorg. Chem. 2015, 2015, 2012–2027. [Google Scholar] [CrossRef]
  13. Cisnetti, F.; Gautier, A. Metal N-heterocyclic carbene complexes: Opportunities for the development of anticancer metallodrugs. Angew. Chem. Int. Ed. 2013, 52, 11976–11978. [Google Scholar] [CrossRef]
  14. Teyssot, M.L.; Jarrousse, A.S.; Manin, M.; Chevry, A.; Roche, S.; Norre, F.; Beaudoin, C.; Morel, L.; Boyer, D.; Mahiou, R.; et al. Metal-NHC complexes: A survery of anti-cancer properties. Dalton Trans. 2009, 35, 6849–6902. [Google Scholar] [CrossRef] [PubMed]
  15. Beck, W.; Kottmair, N. Neue Übergangsmetallkomplexe mit Nuclein-Basen und Nucleosiden. Chem. Ber. 1976, 109, 970–993. [Google Scholar] [CrossRef]
  16. Kascatan-Nebioglu, A.; Panzner, M.J.; Garrison, J.C.; Tessier, C.A.; Youngs, W.J. Synthesis and Structural Characterization of N-Heterocyclic Carbene Complexes of Silver(I) and Rhodium(I) from Caffeine. Organometallics 2004, 23, 1928–1931. [Google Scholar] [CrossRef]
  17. Schütz, J.; Herrmann, W.A. Purine-based carbenes at rhodium and iridium. J. Organomet. Chem. 2004, 689, 2995–2999. [Google Scholar] [CrossRef]
  18. Herrmann, W.A.; Schütz, J.; Frey, G.D.; Herdtweck, E. N-Heterocyclic carbenes: Synthesis, structures, and electronic properties. Organometallics 2006, 25, 2437–2448. [Google Scholar] [CrossRef]
  19. Kascatan-Nebioglu, A.; Melaiye, A.; Hindi, K.; Durmus, S.; Panzner, M.J.; Hogue, L.A.; Mallett, R.J.; Hovis, C.E.; Coughenour, M.; Crosby, S.D.; et al. Synthesis from Caffeine of a Mixed N-Heterocyclic Carbene–Silver Acetate Complex Active against Resistant Respiratory Pathogens. J. Med. Chem. 2006, 49, 6811–6818. [Google Scholar] [CrossRef] [PubMed]
  20. Hindi, K.M.; Siciliano, T.J.; Durmus, S.; Panzner, M.J.; Medvetz, D.A.; Reddy, D.V.; Hogue, L.A.; Hovis, C.E.; Hilliard, J.K.; Mallet, R.J.; et al. Synthesis, Stability, and Antimicrobial Studies of Electronically Tuned Silver Acetate N-Heterocyclic Carbenes. J. Med. Chem. 2008, 51, 1577–1583. [Google Scholar] [CrossRef]
  21. Panzner, M.J.; Deeraksa, A.; Smith, A.; Wright, B.D.; Hindi, K.M.; Kascatan-Nebioglu, A.; Torres, A.G.; Judy, B.M.; Hovis, C.E.; Hilliard, J.K.; et al. Synthesis and in vitro efficacy studies of silver carbene complexes on biosafetly level 3 bacteria. Eur. J. Inorg. Chem. 2009, 1739–1745. [Google Scholar] [CrossRef][Green Version]
  22. Knapp, A.R.; Panzner, M.J.; Medvetz, D.A.; Wright, B.D.; Tessier, C.A.; Youngs, W.J. Synthesis and antimicrobial studies of silver N-heterocyclic carbene complexes bearing a methyl benzoate substituent. Inorg. Chim. Acta 2010, 364, 125–131. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Youngs, W.J.; Panzner, M.J.; Cannon, C.L. Metal Complexes of N-Heterocyclic Carbenes. U.S. Patent 8,648,205, 11 February 2014. [Google Scholar]
  24. Panzner, M.J.; Hindi, K.M.; Wright, B.D.; Taylor, J.B.; Han, D.S.; Youngs, W.J.; Cannon, C.L. A theobromine derived silver N-heterocyclic carbene: Synthesis, characterization, and antimicrobial efficacy studies on cystic fibrosis relevant pathogens. Dalton Trans. 2009, 35, 7308–7313. [Google Scholar] [CrossRef][Green Version]
  25. Hu, J.J.; Bai, S.Q.; Yeh, H.H.; Young, D.J.; Chi, Y.; Hor, T.S.A. N-heterocyclic carbene Pt(II) complexes from caffeine: Synthesis, structures and photoluminescent properties. Dalton Trans. 2011, 40, 4402–4406. [Google Scholar] [CrossRef]
  26. Zhang, J.J.; Che, C.M.; Ott, I. Caffeine derived platinum(II) N-heterocyclic carbene complexes with multiple anti-cancer activities. J. Organomet. Chem. 2015, 782, 37–41. [Google Scholar] [CrossRef]
  27. Skander, M.; Retailleau, P.; Bourrié, B.; Schio, L.; Mailliet, P.; Marinetti, A. N-Heterocyclic carbene-amine Pt(II) complexes a new chemical space for the develpment of platinum based anticancer drugs. J. Med. Chem. 2010, 53, 2146–2154. [Google Scholar] [CrossRef] [PubMed]
  28. Luo, F.T.; Lo, H.K. Short synthesis of bis-NHC-Pd catalyst derived from caffeine and its applications to Suzuki, Heck, and Sonogashira reactions in aqueous solution. J. Organomet. Chem. 2011, 696, 1262–1265. [Google Scholar] [CrossRef]
  29. Lo, H.K.; Luo, F.T. Synthesis of PS-supported NHC-Pd catalyst derived from theobromine and its applications in Suzuki-Miyaura reaction. J. Chin. Chem. Soc. 2012, 59, 394–398. [Google Scholar] [CrossRef]
  30. Landaeta, V.R.; Rodríguez-Lugo, R.E.; Rodríguez-Arias, E.N.; Coll-Gómez, D.S.; González, T. Studies on the coordination chemistry of methylated xanthines and their imidazolium salts. Part 1: Benzyl derivatives. Transit. Met. Chem. 2010, 35, 165–175. [Google Scholar] [CrossRef]
  31. Scattolin, T.; Giust, S.; Bergamini, P.; Caligiuri, I.; Canovese, L.; Demitri, N.; Gambari, R.; Lampronti, I.; Rizzolio, F.; Visentin, F. Palladacyclopentadienyl complexes bearing purine-based N-heterocyclic carbenes: A new class of promising antiproliferative agents against human ovarian cancer. Appl. Organomet. Chem. 2019, 33, e4902. [Google Scholar] [CrossRef]
  32. Scattolin, T.; Caligiuri, I.; Canovese, L.; Demitri, N.; Gambari, R.; Lampronti, I.; Rizzolio, F.; Santo, C.; Visentin, F. Synthesis of new allyl palladium complexes bearing purine-based NHC ligands with antiproliferative and proapoptotic activities on human ovarian cancer cell lines. Dalton Trans. 2018, 47, 13616–13630. [Google Scholar] [CrossRef] [PubMed]
  33. Bertrand, B.; Stefan, L.; Pirrotta, M.; Monchaud, D.; Bodio, E.; Richard, P.; Le Gendre, P.; Warmerdam, E.; de Jager, M.H.; Groothuis, G.M.M.; et al. Caffeine-Based Gold(I) N-Heterocyclic Carbenes as Possible Anticancer Agents: Synthesis and Biological Properties. Inorg. Chem. 2015, 53, 2296–2303. [Google Scholar] [CrossRef] [PubMed]
  34. Eslava-Gonzalez, I.; Valdés, H.; Ramírez-Apan, M.T.; Hernandez-Ortega, S.; Zermeño-Ortega, M.R.; Avila-Sorrosa, A.; Morales-Morales, D. Synthesis of theophylline-based iridium(I) N-heterocyclic carbene complexes including fluorinated-thiophenolate ligands. Preliminary evaluation of their in vitro anticancer activity. Inorg. Chim. Acta 2020, 507, 119588. [Google Scholar] [CrossRef]
  35. Mohamed, H.A.; Lake, B.R.M.; Laing, T.; Phillips, R.M.; Willans, C.E. Synthesis and anticancer activity of silver(I) N-heterocyclic carbene complexes derived from the natural xanthine products caffeine, theophylline and theobromine. Dalton Trans. 2015, 44, 7563–7569. [Google Scholar] [CrossRef]
  36. Holmes, J.; Kearsey, R.J.; Paske, K.A.; Singer, F.N.; Atallah, S.; Pask, C.M.; Phillips, R.M.; Willans, C.E. Tethered N-Heterocyclic Carbene-Carboranyl Silver Complexes for Cancer Therapy. Organometallics 2019, 38, 2530–2538. [Google Scholar] [CrossRef]
  37. Sitalu, K.; Babu, B.H.; Naveena Lavanya Latha, J.; Rao, A.L. Synthesis, characterization and antimicrobial activities of copper derivatives of NHC complexes. Pak. J. Biol. Sci. 2017, 20, 82–91. [Google Scholar] [CrossRef] [PubMed]
  38. Valdés, H.; Canseco-González, D.; Germán-Acacio, J.M.; Morales-Morales, D. Xanthine based N-heterocyclic carbene (NHC) complexes. J. Organomet. Chem. 2018, 867, 51–54. [Google Scholar] [CrossRef]
  39. Pelz, S.; Mohr, F. “Oxide Route” for the Preparation of Mercury(II) N-Heterocyclic Carbene Complexes. Organometallics 2011, 30, 383–385. [Google Scholar] [CrossRef]
  40. Rubbiani, R.; Schuh, E.; Meyer, A.; Lemke, J.; Wimberg, J.; Metzler-Nolte, N.; Meyer, F.; Mohr, F.; Ott, I. TrxR inhibition and antiproliferative activities of structurally diverse gold N-heterocyclic carbene complexes. Medchemcomm 2013, 4, 942–948. [Google Scholar] [CrossRef]
  41. Citta, A.; Schuh, E.; Mohr, F.; Folda, A.; Massimino, M.L.; Bindoli, A.; Casini, A.; Rigobello, M.P. Fluorescent silver(I) and gold(I) N-heterocyclic carbene complexes with cytotoxic properties: Mechanistic insights. Metallomics 2013, 5, 1006–1015. [Google Scholar] [CrossRef]
  42. Schuh, E.; Pflüger, C.; Citta, A.; Folda, A.; Rigobello, M.P.; Bindoli, A.; Casini, A.; Mohr, F. Gold(I) carbene complexes causing Thioredoxin 1 and Thioredoxin 2 oxidation as potential anticancer agents. J. Med. Chem. 2012, 55, 5518–5528. [Google Scholar] [CrossRef]
  43. Schuh, E.; Valiahdi, S.M.; Jakupec, M.A.; Keppler, B.K.; Chiba, P.; Mohr, F. Synthesis and biological studies of some gold(I) complexes containing functionalised alkynes. Dalton Trans. 2009, 48, 10841–10845. [Google Scholar] [CrossRef]
  44. Mell, B.; Rust, J.; Lehmann, C.W.; Berger, R.J.F.; Otte, D.; Ertl, M.; Monkowius, U.; Mohr, F. Arylamidoethyl-functionalized imidazolium salts: Precursors for dianionic [C,N,C]2– carbene ligands at a platinum center. Organometallics 2021, 40, 890–898. [Google Scholar] [CrossRef]
  45. Ivanov, E.I.; Kalayanov, G.D.; Yaroshchenko, I.M.; Stepanov, D.E. New synthesis of caffeine methiodide and its homolog. Chem. Heterocycl. Compd. 1989, 25, 1318. [Google Scholar] [CrossRef]
  46. Bredereck, H.; Christmann, O.; Koser, W.; Schellenberg, P.; Nast, R. Synthesen in der Purinreihe, XV. Synthesen von Xanthinium-und Guaninium-betainen. Chem. Ber. 1962, 95, 1812–1819. [Google Scholar] [CrossRef]
  47. Hori, M.; Kataoka, T.; Shimizu, H.; Imai, E.; Matsumoto, Y.; Kawachi, M.; Kuratani, K.; Yokomoto, M. Generation and Properties of N7-Xanthinium Ylides: Reactions of N7-Xanthinium Ylides with Diphenylcyclopropenone and Acetylenic Compounds. Chem. Pharm. Bull. 1986, 34, 1328–1332. [Google Scholar] [CrossRef][Green Version]
  48. Hori, M.; Kataoka, T.; Shimizu, H.; Imai, E.; Matsumoto, Y. Reactions of 8, 9-Dihydroxanthines with Acetylenic Compounds. Formation of Heteropropellanes. Chem. Pharm. Bull. 1985, 33, 3681–3688. [Google Scholar] [CrossRef][Green Version]
  49. Gibard, C.; Fauché, K.; Guillot, R.; Jouffret, L.; Traïkia, M.; Gautier, A.; Cisnetti, F. Access to silver-NHC complexes from soluble silver species in aqueous or ethanolic ammonia. J. Organomet. Chem. 2017, 840, 70–74. [Google Scholar] [CrossRef]
  50. Su, H.L.; Pérez, L.M.; Lee, S.J.; Reibenspies, J.H.; Bazzi, H.S.; Bergbreiter, D.E. Studies of ligand exchange in N-heterocyclic carbene silver(I) complexes. Organometallics 2012, 31, 4063–4071. [Google Scholar] [CrossRef]
  51. Newman, C.P.; Clarkson, G.J.; Rourke, J.P. Silver(I) N-heterocyclic carbene halide complexes: A new bonding motif. J. Organomet. Chem. 2007, 692, 4962–4968. [Google Scholar] [CrossRef]
  52. Tulloch, A.A.D.; Danopoulos, A.A.; Winston, S.; Kleinhenz, S.; Eastham, G. N-Functionalised heterocyclic carbene complexes of silver. J. Chem. Soc. Dalton Trans. 2000, 4499–4506. [Google Scholar] [CrossRef]
  53. Zhang, J.J.; Muenzner, J.K.; Abu el Maaty, M.A.; Karge, B.; Schobert, R.; Wölfl, S.; Ott, I. A multi-target caffeine derived rhodium(I) N-heterocyclic carbene complex: Evaluation of the mechanism of action. Dalton Trans. 2016, 45, 13161–13168. [Google Scholar] [CrossRef][Green Version]
  54. Tan, T.T.Y.; Hahn, F.E. Synthesis of Iridium(III) and Rhodium(III) Complexes Bearing C8-Metalated Theophylline Ligands by Directed C–H Activation. Organometallics 2019, 38, 2250–2258. [Google Scholar] [CrossRef]
  55. Bhushan, K.; Lister, J.H. Purine studies. XVIII. The C- and N-alkylation of theophylline and derivatives. Aust. J. Chem. 1976, 29, 891–897. [Google Scholar] [CrossRef]
  56. Daly, J.W.; Padgett, W.L.; Shamim, T. Analogues of Caffeine and Theophylline: Effect of Structural Alterations on Affinity at Adenosine Receptors. J. Med. Chem. 1986, 29, 1305–1308. [Google Scholar] [CrossRef]
  57. Usón, R.; Laguna, A.; Laguna, M. Tetrahydrothiophenegold(I) or gold(III) complexes. Inorg. Synth. 1989, 26, 85–91. [Google Scholar]
  58. Bennett, M.A.; Smith, A.K. Arene ruthenium(II) complexes formed by dehydrogenation of cyclohexadienes with ruthenium(III) trichloride. J. Chem. Soc. Dalton Trans. 1974, 2, 233–241. [Google Scholar] [CrossRef]
  59. El Amouri, H.; Gruselle, M.; Jaouén, G. Bis[dichloro(η5-pentamethylcyclopentadienyl)rhodium(III). Synth. React. Inorg. Met. Org. Chem. 1994, 24, 395–400. [Google Scholar] [CrossRef]
  60. Giordano, G.; Crabtree, R.H. Di-μ-chloro-bis(η4-1,5-cyclooctadiene)dirhodium(I). Inorg. Synth. 1990, 28, 88–90. [Google Scholar]
  61. Sheldrick, G.M. SADABS 2.03; Universiät Göttingen: Göttingen, Germany, 2002. [Google Scholar]
  62. CrysAlisPro 40.53, 40.53; Rigaku Oxford Diffraction Ltd.: Oxford, UK, 2019.
  63. Kabsch, W. XDS. Acta Cryst. 2010, D66, 125–132. [Google Scholar] [CrossRef][Green Version]
  64. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Cryst. 2015, 71, 3–8. [Google Scholar] [CrossRef][Green Version]
  65. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, 71, 3–8. [Google Scholar]
  66. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]

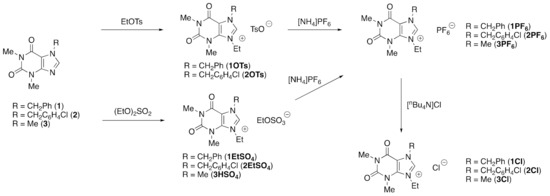

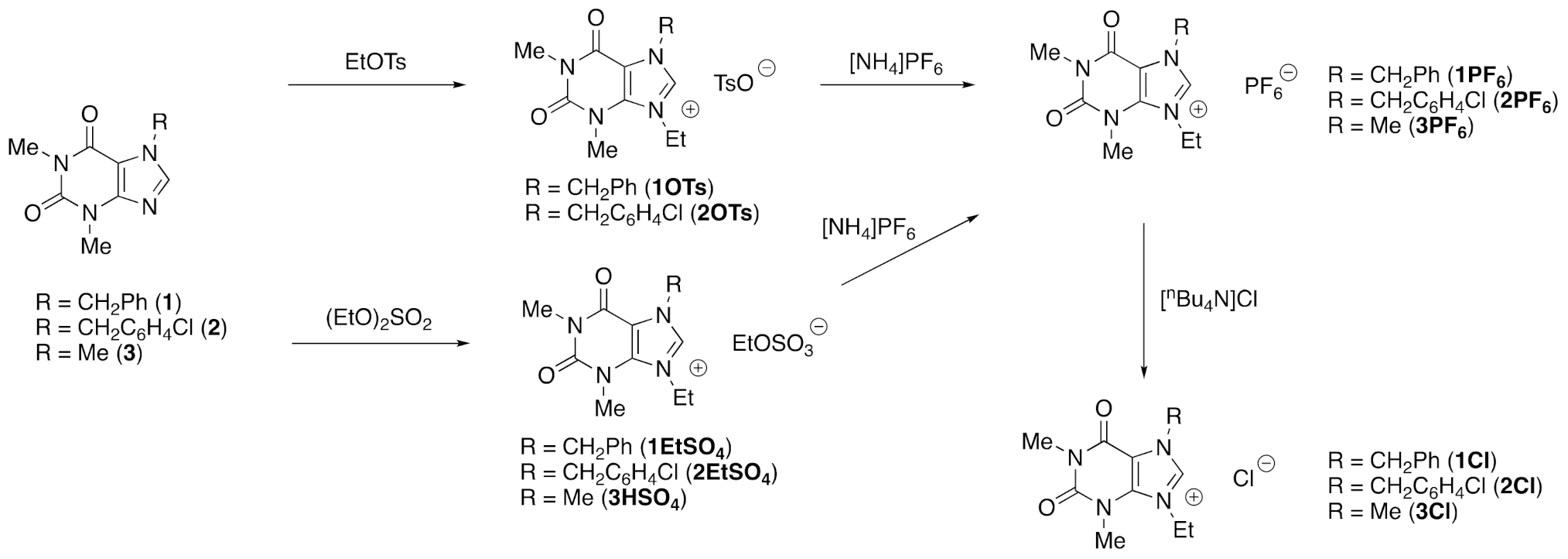

Scheme 1. Synthesis of xanthinium salts.
Scheme 1. Synthesis of xanthinium salts.
Molecules 26 03705 sch001

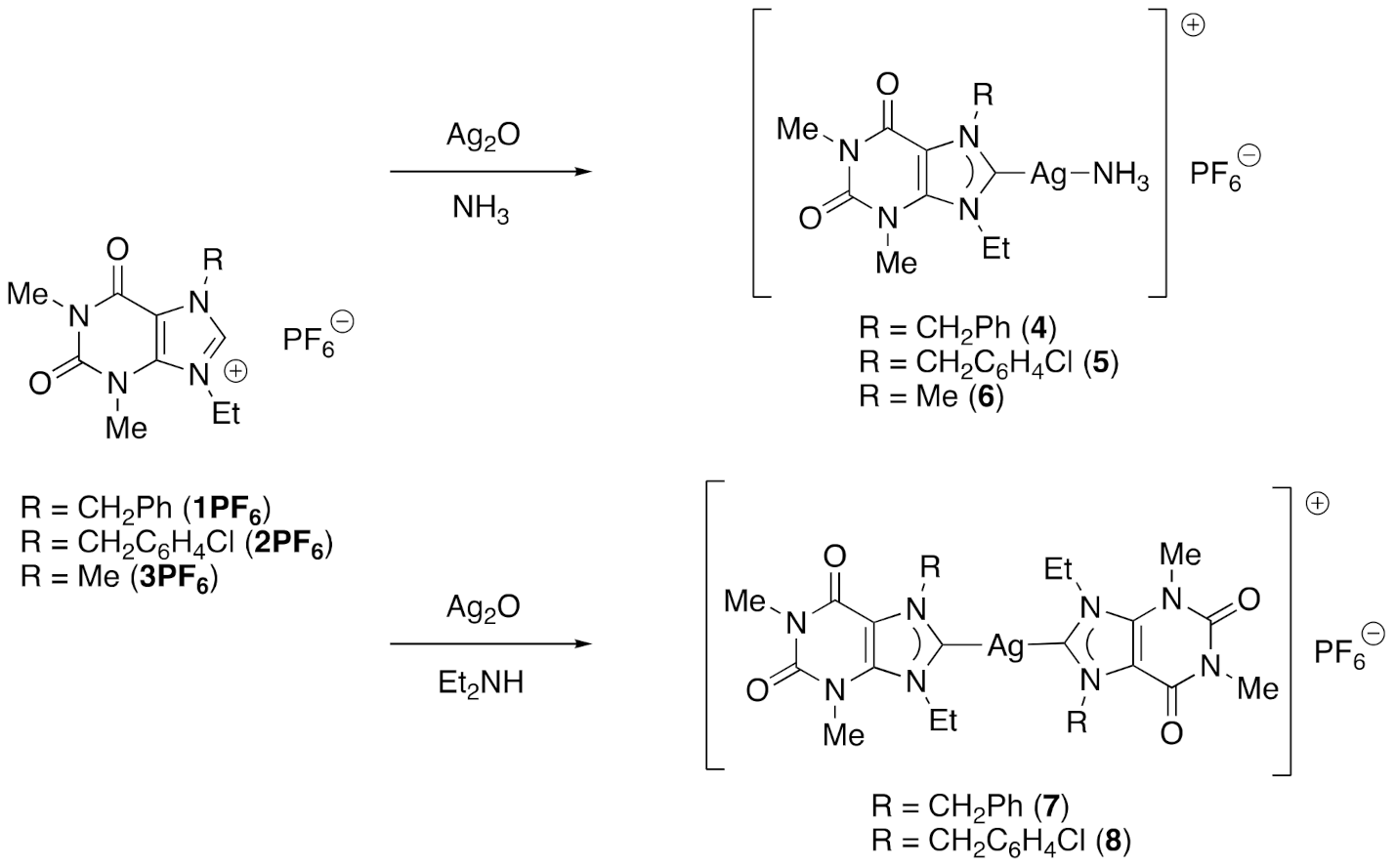

Scheme 2. Synthesis of silver-NHC complexes.
Scheme 2. Synthesis of silver-NHC complexes.
Molecules 26 03705 sch002
Figure 1. Molecular structure of compound 5. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms and the PF6 anion have been omitted for clarity.
Figure 1. Molecular structure of compound 5. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms and the PF6 anion have been omitted for clarity.
Molecules 26 03705 g001
Figure 2. Molecular structure of compound 7. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms and the PF6 anion have been omitted for clarity.
Figure 2. Molecular structure of compound 7. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms and the PF6 anion have been omitted for clarity.
Molecules 26 03705 g002
Scheme 3. Synthesis of silver-chloride complexes.
Scheme 3. Synthesis of silver-chloride complexes.
Molecules 26 03705 sch003
Figure 3. Molecular structures of compounds 9 (top) and 10 (center and bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity. Atoms labeled with an asterisk are generated by symmetry. The bottom image shows only the atoms directly attached to Ag in complex 10.
Figure 3. Molecular structures of compounds 9 (top) and 10 (center and bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity. Atoms labeled with an asterisk are generated by symmetry. The bottom image shows only the atoms directly attached to Ag in complex 10.
Molecules 26 03705 g003
Scheme 4. Transmetallation reactions.
Scheme 4. Transmetallation reactions.
Molecules 26 03705 sch004
Figure 4. Molecular structures of compounds 12 (top), 13 (middle) and 14 (bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Figure 4. Molecular structures of compounds 12 (top), 13 (middle) and 14 (bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Molecules 26 03705 g004aMolecules 26 03705 g004b
Figure 5. Molecular structure of compound 15. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Figure 5. Molecular structure of compound 15. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Molecules 26 03705 g005
Figure 6. Molecular structures of compounds 18 (top) and 19 (bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Figure 6. Molecular structures of compounds 18 (top) and 19 (bottom). Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Molecules 26 03705 g006aMolecules 26 03705 g006b
Figure 7. Molecular structure of compound 22. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Figure 7. Molecular structure of compound 22. Thermal ellipsoids are drawn at the 50% level. Hydrogen atoms have been omitted for clarity.
Molecules 26 03705 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mokfi, M.; Rust, J.; Lehmann, C.W.; Mohr, F. Facile N9-Alkylation of Xanthine Derivatives and Their Use as Precursors for N-Heterocyclic Carbene Complexes. Molecules 2021, 26, 3705. https://doi.org/10.3390/molecules26123705

AMA Style

Mokfi M, Rust J, Lehmann CW, Mohr F. Facile N9-Alkylation of Xanthine Derivatives and Their Use as Precursors for N-Heterocyclic Carbene Complexes. Molecules. 2021; 26(12):3705. https://doi.org/10.3390/molecules26123705

Chicago/Turabian Style

Mokfi, Moloud, Jörg Rust, Christian W. Lehmann, and Fabian Mohr. 2021. "Facile N9-Alkylation of Xanthine Derivatives and Their Use as Precursors for N-Heterocyclic Carbene Complexes" Molecules 26, no. 12: 3705. https://doi.org/10.3390/molecules26123705

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
