Novel Amphiphilic Block Copolymers for the Formation of Stimuli-Responsive Non-Lamellar Lipid Nanoparticles

by
Jiali Zhai
1,*,
Bo Fan
2,
San H. Thang
2 and
Calum J. Drummond
1,*
1
School of Science, STEM College, RMIT University, Melbourne, VIC 3000, Australia
2
School of Chemistry, Monash University, Clayton, VIC 3800, Australia
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(12), 3648; https://doi.org/10.3390/molecules26123648
Submission received: 26 May 2021 / Revised: 10 June 2021 / Accepted: 10 June 2021 / Published: 15 June 2021
(This article belongs to the Special Issue Synthesis of Amphiphilic Compounds and Applications)
Browse Figures
Versions Notes

Abstract

:
Non-lamellar lyotropic liquid crystalline (LLC) lipid nanoparticles contain internal multidimensional nanostructures such as the inverse bicontinuous cubic and the inverse hexagonal mesophases, which can respond to external stimuli and have the potential of controlling drug release. To date, the internal LLC mesophase responsiveness of these lipid nanoparticles is largely achieved by adding ionizable small molecules to the parent lipid such as monoolein (MO), the mixture of which is then dispersed into nanoparticle suspensions by commercially available poly(ethylene oxide)–poly(propylene oxide) block copolymers. In this study, the Reversible Addition-Fragmentation chain Transfer (RAFT) technique was used to synthesize a series of novel amphiphilic block copolymers (ABCs) containing a hydrophilic poly(ethylene glycol) (PEG) block, a hydrophobic block and one or two responsive blocks, i.e., poly(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzyl acrylate) (PTBA) and/or poly(2-(dimethylamino)ethyl methacrylate) (PDMAEMA). High throughput small angle X-ray scattering studies demonstrated that the synthesized ABCs could simultaneously stabilize a range of LLC MO nanoparticles (vesicles, cubosomes, hexosomes, inverse micelles) and provide internal particle nanostructure responsiveness to changes of hydrogen peroxide (H2O2) concentrations, pH and temperature. It was found that the novel functional ABCs can substitute for the commercial polymer stabilizer and the ionizable additive in the formation of next generation non-lamellar lipid nanoparticles. These novel formulations have the potential to control drug release in the tumor microenvironment with endogenous H2O2 and acidic pH conditions.

1. Introduction

Lipid-based cubosomes and hexosomes are a class of lipid nanoparticles containing the intriguing non-lamellar lyotropic liquid crystalline (LLC) mesophases, i.e., the inverse bicontinuous cubic (QII) phase and the inverse hexagonal (HII) phase, respectively, which are formed by amphiphilic lipid self-assembly in aqueous conditions (Figure 1) [1,2,3,4,5,6]. Over the past three decades, the unique multidimensional and porous structural characteristics [7,8,9] of the non-lamellar LLC mesophases within cubosomes and hexosomes have driven a considerable amount of interest in a range of biomedical applications, including drug delivery [10,11,12,13,14,15,16,17] theranostic application [18] and imaging [19,20,21,22]. The QII phase inside cubosomes can be described as a continuous, tortuous lipid bilayer draped over an infinite periodic minimal surface and composed of two interpenetrating water channels, possessing a large interfacial area [23]. The HII phase inside hexosomes is characterized by elongated water tubes lined by lipid layers and packed in a hexagonal array [24]. A large body of literature has demonstrated the advantages of non-lamellar LLC lipid nanoparticles as drug delivery systems, including the versatility of encapsulating hydrophilic and hydrophobic drugs with high encapsulation efficiency [25], ability to protect and deliver large biomolecules (proteins, peptides, DNAs) [15,26,27,28,29] and tunability and responsiveness to external stimuli for controlling drug release [30,31,32,33]. Furthermore, improved efficacy of the encapsulated drugs within cubosomes and hexosomes has been frequently demonstrated in in vivo preclinical models [34,35,36,37].
Responsiveness to external stimuli is often a desirable attribute of nanoparticle drug delivery systems as the goal is to deliver the drug at specific target sites at a controlled rate. In this regard, the tunability of non-lamellar LLC mesophases, i.e., the phase transition between the lamellar (Lα), QII, HII and the inverse micellar (L2) phase within the nanoparticles, in response to environmental factors such as temperature and pH, has become an active research area [22,30,31,33,38,39,40,41]. Different internal mesophases within nanoparticles can influence drug encapsulation efficiency and release rate [6,25,42], cytotoxicity profile [43] and in vivo biodistribution and efficacy [19]. For example, the responsiveness of the internal mesophase to pH has been achieved by the addition of pH-sensitive amphiphilic molecule such as a long-chain fatty acid or an ionizable lipid to the parent lipid system [30,44,45,46,47]. The mechanism of the pH-induced phase transition can be rationalized by the critical packing parameter (CPP) concept (CPP = v/a0lc), where v is the volume of the hydrocarbon chain, a 0 is the effective headgroup area and l c is the maximum length of the hydrocarbon chain (Figure 1) [48]. Our recent study demonstrated pH responsiveness of the internal mesophase of MO nanoparticles enriched by synthetic ionizable aminolipids with the amino headgroup possessing a pKa around pH 7 [47]. The ionization state of the aminolipid population can be manipulated by varying the pH level above or below the apparent pKa of the ionizable moiety at the lipid-water interface. Under acidic pH conditions, the aminolipid headgroup becomes positively charged and electrostatic repulsion between the headgroups can significantly enlarge the effective headgroup area, reducing the CPP value and causing a phase transition to a mesophase with lower negative interfacial curvature. Specifically, MO nanoparticles enriched by the aminolipids underwent a phase transition from the HII to the QII mesophase as the pH was reduced [47].
Most of the current cubosome formulations utilize commercially available poly(ethylene oxide)–poly(propylene oxide) block copolymer (e.g., Pluronic F127 or F108), which do not have intrinsic responsiveness to physiologically relevant stimuli such as pH and temperature. As discussed above, responsiveness can be achieved by adding additional amphiphilic molecules; however, such formulations still require the presence of steric stabilizers to produce stable nanoparticulate dispersions. There have been a number of studies on alternative polymers to substitute for Pluronic polymers for preparing LLC lipid nanoparticles, and a range of synthetic and commercially available polymers [49], including amphiphilic brush copolymers [50,51], poly(ethylene glycol) (PEG)-conjugated lipids [51,52,53] and amphiphilic proteins [54], have been explored. Numerous studies have shown that the choice of steric stabilizer not only can influence the particle size, size distribution and the internal mesophase of the formed lipid nanoparticles [49,55], but can have benefits of reducing cytotoxicity profile [56,57] and manipulating complement response [52].
However, there has been very limited studies using responsive polymers to make non-lamellar lipid nanoparticles which exhibit phase transitions in response to environmental conditions. Recently, Chountoulesi et al. synthesized a stimuli-responsive polycationic block copolymer, poly(2-(dimethylamino)ethyl methacrylate)-b-poly(lauryl methacrylate) (PDMAEMA-b-PLMA), to stabilize for MO nanoparticles and indicated that the nanoparticles responded to pH and temperature changes [58]. However, the study did not directly identify the internal LLC mesophase but used the fractal dimension parameter as an indicator to suggest mesophase or morphological change. Another recent study by Jenni et al. conjugated the diketopyrrolopyrrole-porphyrin based photosensitizer to Pluronic F108 and used the conjugate to stabilize cubosomes [16]. Docetaxel as a model drug was loaded into the cubosomes stabilized by the photosensitizer-polymer conjugate and the drug release and efficacy was demonstrated to be enhanced following irradiation.
Herein, we report the Reversible Addition-Fragmentation chain Transfer (RAFT) synthesis of a class of novel amphiphilic block copolymers (ABCs) which are dually functional. These ABCs not only act as a stabilizing agent for non-lamellar lipid nanoparticulate dispersions but also possess responsive chemical groups to impart an ability for LLC mesophase transition to occur with changes to physiologically and pathologically relevant pH, temperature and hydrogen peroxide (H2O2) conditions, such as in the gastrointestinal tract or in a tumor microenvironment (TME). The synthetic ABCs were designed with a hydrophobic segment to promote partitioning into the MO lipid layer, an extended hydrophilic PEG segment for steric stabilization, and responsive functional moieties (chemical structures given in Figure 2). The functional moiety of pinacol boronic ester in poly(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzyl acrylate) (PTBA) is responsive to H2O2 [59], while the PDMAEMA is a dually responsive polymer in response to a change of pH and temperature [60]. MO was chosen because it is the most studied and well-characterized lipid in the formulation of non-lamellar lipid nanoparticles [6,61]. We utilized high-throughput formulation methodology to prepare MO nanoparticles stabilized by the synthetic ABCs at six different concentrations [62]. Direct identification of the LLC mesophase within the nanoparticles was undertaken by utilizing synchrotron small angle X-ray scattering (SAXS), and the effect of the ABC structure, concentration and three environmental factors (pH, temperature and H2O2) on the internal LLC mesophase of the formed particles was systematically investigated. This study reports the synthesis of novel, dually functional ABCs which can successfully stabilize MO nanoparticles and provide mesophase responsiveness to environmental factors; thereby further advancing the field of stimuli-responsive non-lamellar LLC lipid nanoparticles as prospective drug carriers.

2. Results

2.1. Synthesis of Stimuli-Responsive ABCs

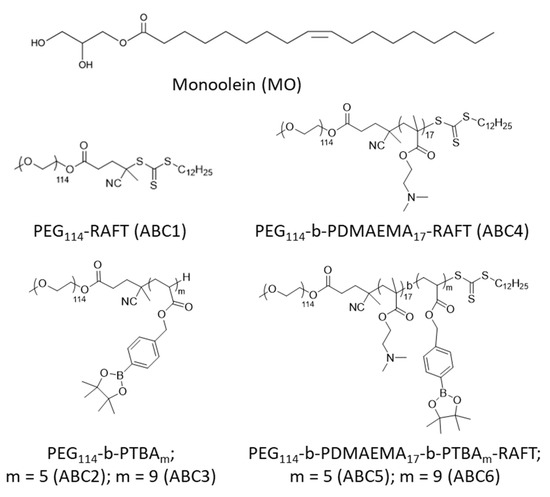

To synthesize the stimuli-responsive ABCs, PEG methyl ether (PEG114, average Mn = 5000 g/mol) was firstly coupled with RAFT agent 4-cyano-4 (((dodecylthio) carbonothioyl)thio) pentanoic acid (CDPA) through Steglich esterification. CDPA is a commercially available RAFT agent that was widely used to control the polymerization of different types of monomers, including styrene, (meth)acrylate and (meth)acrylamide [63,64,65,66]. The long alkyl chain of CDPA allows it to work as the hydrophobic tail in ABC1. Next, ABC1 was chain extended with monomers (TBA and DMAEMA) at different ratios to afford ABC2-ABC6. Notably, the RAFT end-groups in ABC2 and ABC3 were removed via radical-induced reduction to compare the effect of different hydrophobic blocks on the formation of LLC mesophases. These polymers are well-controlled and exhibit low dispersities (Ð = 1.08–1.17). The detailed synthesis procedures are provided in the experimental section. The 1H nuclear magnetic resonance (NMR) spectra and gel permeation chromatography (GPC) curves are listed in Supplementary Information Figures S1–S12.

2.2. Formulation and Characterization of MO Nanoparticles Stabilized by the Synthetic ABCs

To assess the ability of the synthetic ABCs to make LLC mesophase-containing MO nanoparticles, the polymers were added at a concentration range of 0.5–3.0 mol% to a fixed amount of MO (20 mg/mL), followed by high power sonication. Initial visual examination showed that almost all six ABCs could disperse the lipid into milky nanoparticle solutions without visible lipid aggregates, but the samples became more translucent as the polymer concentration increased (Supplementary Information Table S1). The PEG114-b-PTBA5 polymer (ABC2) could not disperse the lipid at the lowest concentration (0.5 mol%) into a homogenous solution with a population of small lipid aggregates observed in the sample. The particle size and the size distribution of the formed nanoparticles were examined within 24 h of formulation, and results are given in Supplementary Information Table S2. The results were consistent with the morphological observation. The sample stabilized by 0.5 mol% ABC2 had the largest average particle size (301 nm) and was the most polydisperse (polydispersity index (PDI) = 0.38). The particle size of the majority of the MO nanoparticles was in the range of 140–300 nm and the PDI was in the range of 0.1–0.3, both within the expected range compared to previous studies of a wide range of LLC lipid nanoparticles [47,67].

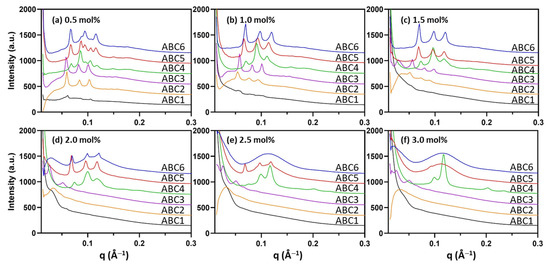

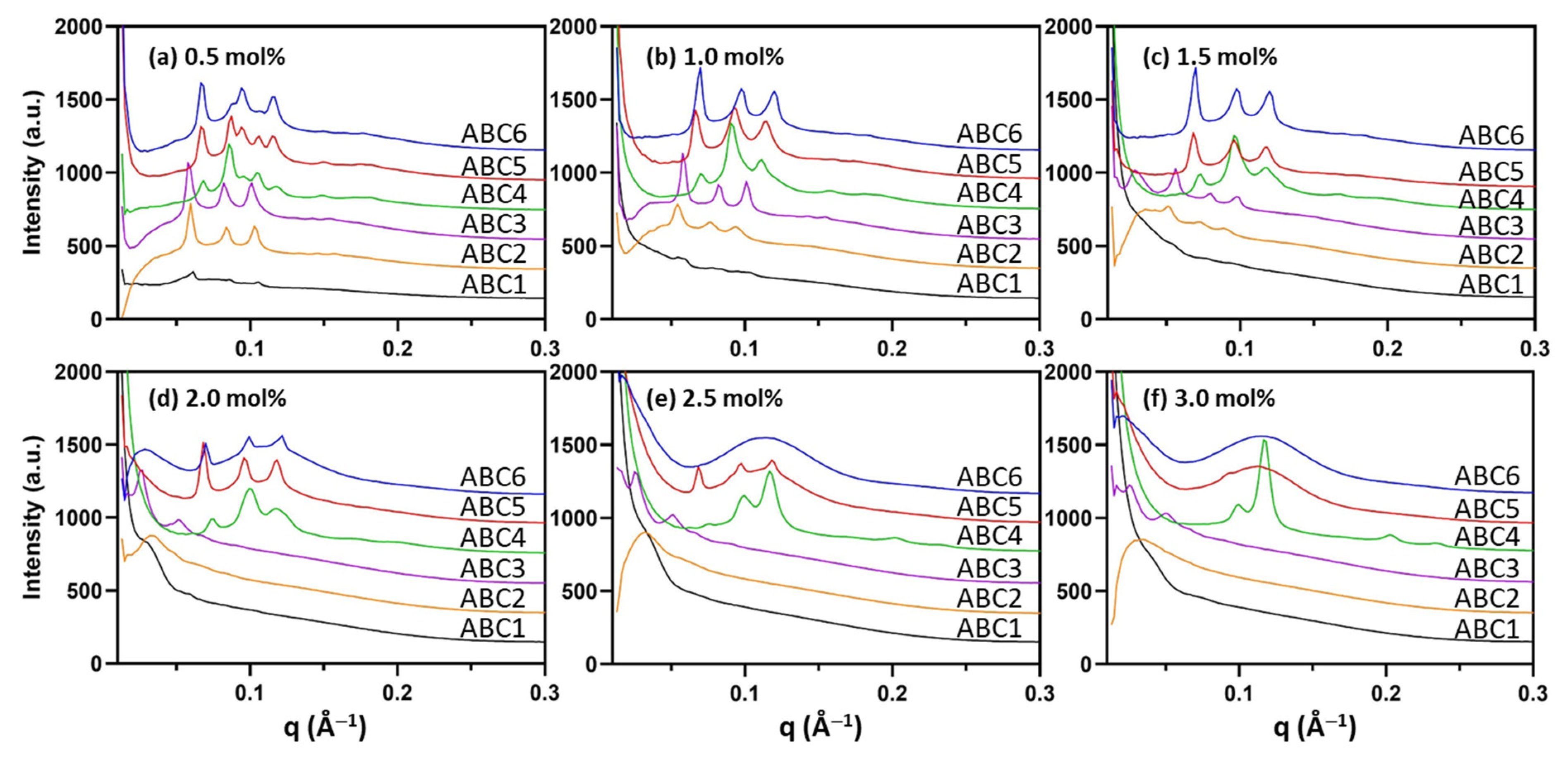

The internal LLC mesophase of the formed nanoparticles was examined by high-throughput synchrotron SAXS and the one-dimensional SAXS profile of each formulation is given in Figure 3. The assigned LLC mesophase and the calculated lattice parameter (a) for each formulation is summarized in Table 1. Note that mesophase assignment of representative samples using the characteristic peak spacing ratio for each mesophase is given in Supplementary Figure S13. The results show that the internal mesophase of the formed nanoparticle depends on the polymer structure as well as the added polymer concentration. MO nanoparticles stabilized by 0.5 mol% PEG114-RAFT (ABC1) with a hydrophobic C12 end and a hydrophilic PEG114 block lost the internal QII phase to a large extent, which was then lost completely at higher polymer concentrations, indicating strong partitioning of the ABC1 polymer into the lipid layer and disruption of the parent MO cubic membrane packing.
Polymers ABC2 and ABC3 do not possess the C12 RAFT end-group and instead have 5 and 9 repeating units of TBA groups, respectively. ABC2-stabilized MO nanoparticles contained the primitive QII (QIIP) phase with symmetry group Im3m up to 1.5 mol% and in comparison, nanoparticles stabilized by ABC3 retained the QIIP phase even at the highest concentration (3 mol%). Examination of the lattice parameters (a) revealed an interesting trend that increasing the concentration of polymer ABC2 and ABC3 had a swelling effect on the QIIP phase with the a of 3.0 mol% ABC3-stabilized cubosome having the largest value of 178 Å. The increase in a indicates swelling of the internal water channels within the mesophase. However, it should be noted that the diffraction signals of the highly swollen QIIP phase were relatively weak. Overall, the results indicate that polymers ABC1, ABC2 and ABC3 can be incorporated into the MO lipid membrane and reduce the negative membrane curvature to various degrees; such effect is in the order of ABC1 > ABC2 > ABC3 and increases with the concentration of the polymer within the system.
Interestingly, the PDMAEMA-containing polymers (ABC4, ABC5, ABC6) had the opposite effect of increasing the negative membrane curvature. In the case of the PEG114-b-PDMAEMA17-RAFT polymer (ABC4), the MO nanoparticle stabilized by 0.5 mol% ABC4 contained mixed mesophases of the QIIP phase and the double diamond QII (QIID) phase with a of 127 Å and 101 Å, respectively. As the polymer concentration increased, the a values for each phase gradually decreased and at the highest concentrations (2.5 mol% and 3 mol%), the internal mesophase transformed to co-existing QIID and HII phases, further confirming the increase in the negative membrane curvature. The sub-set of PEG114-b-PDMAEMA17-b-PTBAm-RAFT polymers (ABC5 and ABC6) both acted similarly with a mesophase transition from the QIIP phase to the L2 phase as the polymer concentration increased. At the lowest concentration (0.5 mol%), both ABC5- and ABC6-stabilized MO nanoparticles exhibited mixed QIIP (a = 131 Å) and QIID (a = 103 Å) phases. The mesophase transition concentration, however, differed for the two ABCs with ABC6 causing a complete transition to the L2 phase at 2.5 mol% and ABC5 at 3.0 mol%. These results also indicate that the negative curvature promoting effect is in the order of ABC6 > ABC5 >ABC4 and increases with the concentration of the polymer.

2.3. H2O2-Responsiveness of the Formulated Nanoparticles

The hydrophobicity of the PTBA-containing polymers is expected to decrease in a H2O2 environment due to H2O2-induced degradation of the pinacol boronic ester group followed by the loss of the aromatic ring [59]. Therefore, MO nanoparticles stabilized by PTBA-containing polymers may undergo LLC mesophase changes in the presence of H2O2, as the polymer side-group structure changes. To assess the mesophase responsiveness of the formulated nanoparticles stabilized by PTBA block-containing polymers, 50 mM H2O2 was added to the nanoparticulate dispersions stabilized by ABC3, ABC5 and ABC6 and the SAXS results are given in Figure 4 and Table 2. Polymer ABC4 with no PTBA block served as a control and results confirm no LLC mesophase changes in 50 mM H2O2 (Supplementary Information Figure S14).

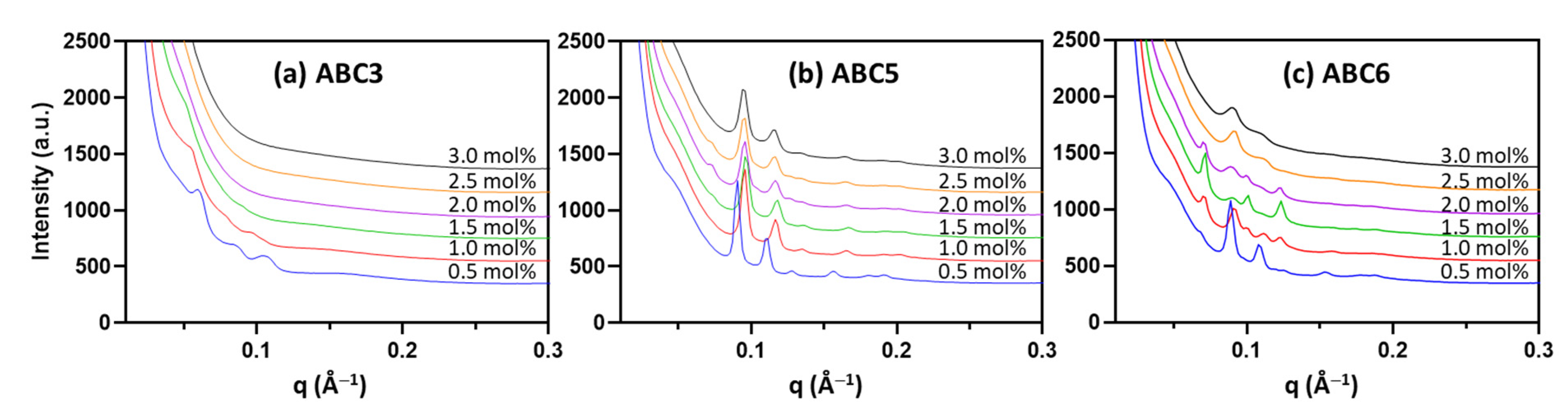

Figure 4a and Table 2 show that after incubating the ABC3-stabilized MO nanoparticles with 50 mM H2O2 for one hour, only those stabilized by low polymer concentrations (0.5–1.0 mol%) still retained the QIIP phase. However, nanoparticles stabilized by ABC3 at 1.5 mol% or higher concentrations lost the highly swollen QIIP phase observed in the absence of H2O2 (Table 1), indicating that the PTBA block started degrading. However, after H2O2 incubation, ABC5-stabilized MO nanoparticles favored the formation of the QIID phase (Figure 4b; Table 2) instead of the QIIP phase found under normal conditions (Figure 3; Table 1). In the case of the ABC6 samples, the QIID phase also appeared in the polymer concentration range of 2.5–3.0 mol% (Figure 4c).
The H2O2-induced mesophase changes of the MO nanoparticles stabilized by ABC5 and ABC6 were most distinct at high polymer concentrations. Under normal buffer conditions, ABC5 (3.0 mol%) and ABC6 (2.5–3.0 mol%) could stabilize MO nanoparticles containing the L2 phase (Figure 3; Table 1). As shown by Figure 4b,c, H2O2 incubation led to the transition from the L2 phase to the QIID phase. This mesophase transition clearly indicates a decrease of the negative membrane curvature, which can be attributed to the degradation of the hydrophobic PTBA group and less polymer insertion into the lipid matrix.

2.4. pH-Responsiveness of the Formulated Nanoparticles

PDMAEMA is a well-known dually-responsive functional block that changes water solubility in response to pH and temperature and therefore has been explored in many polymer-based drug delivery systems [60,68]. In the present study, the pH responsiveness of the LLC mesophase of the MO nanoparticles stabilized by ABC4, ABC5 and ABC6 (all containing the PDMAEMA block) was assessed at pH levels between 2 and 10. As a control, MO nanoparticles stabilized by ABC3 with no PDMAEMA block showed no mesophase changes with all formulations exhibiting the QIIP phase in the pH range of 2–10 (Supplementary Information Figure S15).

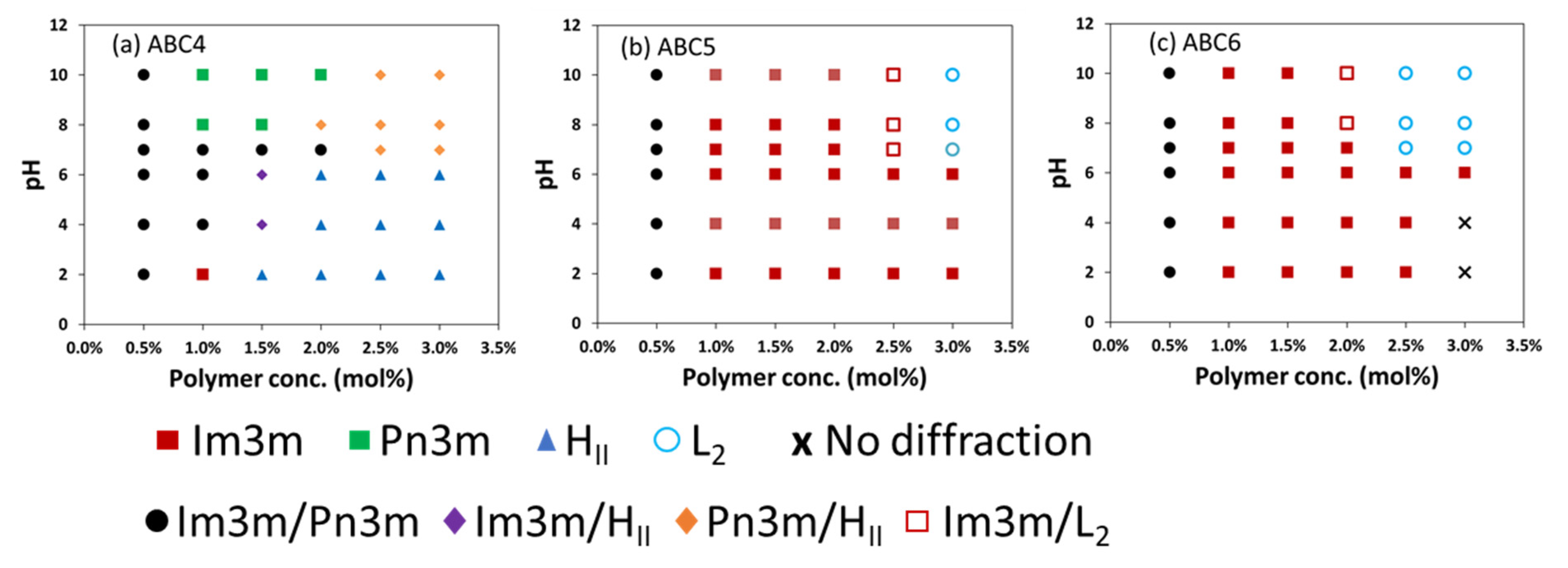

The pH-responsiveness of the MO nanoparticles stabilized by PDMAEMA-containing polymers depends on the polymer structure and concentration (Figure 5). For example, Figure 5a shows that 1.0 mol% ABC4 caused the internal LLC mesophase of the MO nanoparticles to transform from QIIP (pH 2) to mixed QIIP/QIID (pH 4–7) to QIID (pH 8–10). At higher concentrations, the concentration effect of increasing the negative membrane curvature seemed to be the dominant effect as a large compositional space (2.0–3.0 mol%, pH 2–6) exhibited the HII phase. It can also be observed that at 2.5–3 mol% ABC4, increasing pH caused a transition from HII to mixed HII/QIID at neutral pH, which seemed to be in the opposite direction in terms of changing the membrane curvature compared to the 1.0 mol% sample. This could be due to the complexity of the apparent pKa of the DMAEMA group which can depend on the polymer structure, the concentration in the system, the insertion into the membrane and the ionic strength of the buffer (further discussed in Section 3).
Due to the presence of the extra hydrophobic block (PTBA), ABC5 (Figure 5b) and ABC6 (Figure 5c) could stabilize MO nanoparticles that resisted pH-induced changes up to 2 mol% and 1.5 mol%, respectively. At higher concentrations, increasing the pH caused the QIIP to L2 mesophase transformation at around neutral pH. A specific example is the sample stabilized by 2.5 mol% ABC6, which had the QIIP phase at pH 2–6 and transited to the L2 phase at pH 7–10. Overall, these results indicate that pH-induced mesophase transitions in MO nanoparticles stabilized by the PDMAEMA-containing polymers occurs around neutral pH and increasing the pH leads to the formation of mesophases with higher negative membrane curvature.

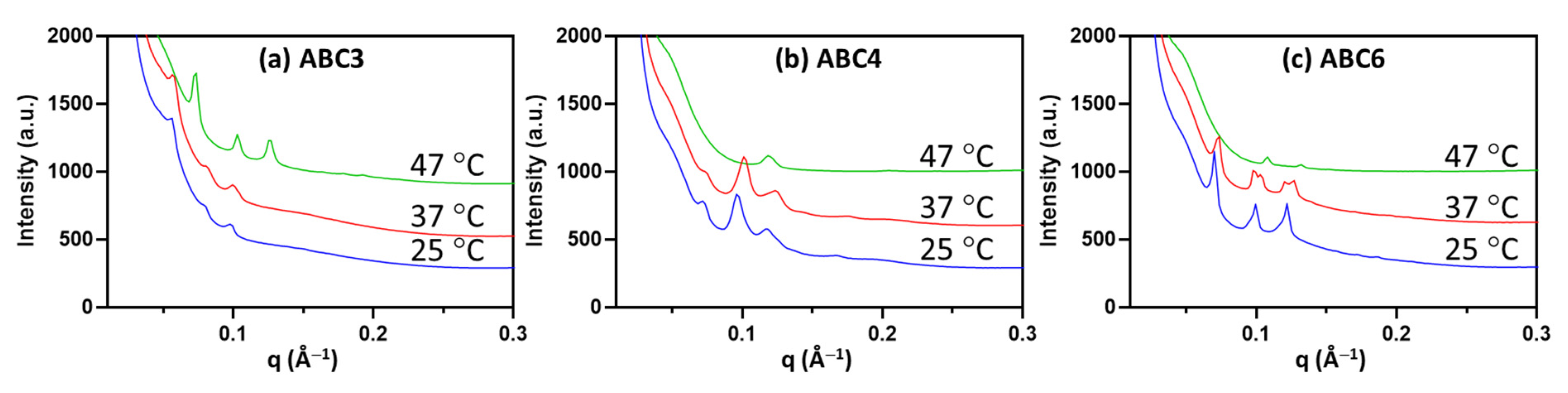

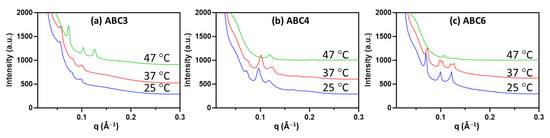

2.5. Temperature-Responsiveness of the Formulated Nanoparticles

All previously described formulations (six polymers, six concentrations and seven buffer conditions) were screened by SAXS at three different temperatures, namely 25 °C, 37 °C and 47 °C (the highest sample environment temperature achievable at the synchrotron beamline), representing a total of 252 unique sample conditions. Due to the large number of data points, representative results are provided in Figure 6 to illustrate the effect of temperature on the mesophase behavior. In general, the mesophase behavior of the formulated nanoparticles with increasing temperature is as expected. Lipid self-assembly has intrinsic responsiveness to temperature as increasing temperature enhances hydrocarbon chain mobility and either reduces the lattice parameter of the unchanged mesophase or promotes a transition to a mesophase with higher interfacial negative curvature. As can be seen in the phase diagram of monoolein (MO) [69], a wedge-shaped molecule, increasing the temperature promotes the transition of MO-water systems from the QII phase to the HII phase. Numerous studies have also shown such temperature effect in nanoparticulate form [45,54].
In this study, the temperature effect of increasing the negative membrane curvature is demonstrated by examples of MO nanoparticles stabilized by three polymers at 1.5 mol% under neutral pH condition (Figure 6). Specifically in the case of the ABC3-stabilized MO nanoparticles, the lattice parameter of the QIIP phase reduced significantly from 157 Å at 25 °C and 37 °C to 121 Å at 47 °C, as can be seen from the diffraction peaks shifting to higher q values (Figure 6a). On the other hand, at 47 °C, ABC4-stabilized MO nanoparticles exhibited a cubic (mixed QIIP/QIID) to HII transition (Figure 6b), while ABC6-stabilized nanoparticles exhibited a QIIP (a = 126 Å) to QIID (a = 83 Å) phase transition.

3. Discussion

The concept of CPP has been frequently used to describe the shape of an amphiphilic molecule and predict the effect of amphiphilic additives on the LLC mesophase of lipid-water systems formed under specific conditions [55,70]. While the CPP of small molecule additives can be calculated using some standard equations, CPP estimation for large polymers such as ABCs can be more complex. Multiple steps of calculation and experimental measurement are required to derive CPP estimates for polymers. For example, the polymer chain “pervade” volume is derived from the radius of gyration or root-mean-square end-to-end distance of the polymer chain. This is highly dependent on the solvent conditions. Experiments such as static light scattering and small-angle X-ray/neutron scattering are required to measure the radius of gyration. The polymer chain length can be estimated from the monomer units. However, it also depends on the folding/coiling of the chain. The effective area of the hydrophilic headgroup can also be measured experimentally or estimated theoretically. In general, the determination of CPP values for block copolymers is non-trivial. Nonetheless, the results reported herein, (Figure 1) show that the CPP is in the order of ABC6 > ABC5 > ABC4 > ABC3 > ABC2 > ABC1 under neutral PBS conditions. This trend is as expected because all six ABCs have the same hydrophilic block (PEG114 block), which presumably occupy the same headgroup area. ABC1 has the smallest CPP due to its small hydrophobic block (C12H25) and substitution of C12H25 to the PTBA5-9 block (ABC2 and ABC3) leads to increased CPP, attributable to the brush-like structures occupying larger volumes in the hydrophobic region. It is interesting to observe that adding a PDMAEMA17 group can dramatically increase the CPP and promote higher membrane curvature (for example, ABC4 versus ABC1). Even though PDMAEMA is largely considered as hydrophilic, our results indicate that it at least partially interacted with the MO lipid bilayer and led to a mesophase transformation to the HII phase (ABC4) under neutral PBS conditions. This could be due to the increased backbone length. When both PTBA and PDMAEMA groups are present (ABC5 and ABC6), there is a transformation to the L2 phase which possesses the highest negative membrane curvature, further confirming strong incorporation of the backbone into the membrane layer. The exact mechanism of the polymer-lipid interaction is unknown and needs further investigation.
As a proof of concept, the responsiveness of the ABC-stabilized MO nanoparticles was examined by changing environmental factors such as H2O2, pH and temperature. The PTBA block is degradable in response to H2O2 and given the hydrophobic nature of the PTBA block, H2O2-induced degradation is expected to lead to LLC mesophase changes as the polymer becomes more hydrophilic and the inserted PTBA region is eliminated [59]. Indeed, when the MO nanoparticles stabilized by PTBA-containing polymers were incubated in 50 mM H2O2, a reduction of the membrane curvature indicated by the mesophase transformation from HII or L2 phase to QII phase was observed (Table 1 vs. Table 2). High concentrations of H2O2 is one of the hallmarks of the TME and has been exploited to design smart H2O2-responsive materials to enhance targeted drug delivery and tumor treatment efficiency [71]. Therefore, the current study illustrates the prospect of designing responsive LLC nanoparticle drug delivery systems. Transformation of the HII or L2 phase with slow drug release to the QII phase with high drug release rate [6] is desirable for systemic delivery where a burst release of drugs is only wanted at the tumour site.
The PDMAEMA moiety is pH-sensitive and has a reported pKa around 7.3–7.5 in water [72]. The apparent pKa at the lipid-water interface will be different [73]. At low pH, the moiety is protonated and the electrostatic repulsion between the surface charge groups should increase the occupied volume; at high pH, the moiety is deprotonated and becomes more aggregated [72]. The change of the LLC mesophase will then largely depend on the location of the dimethylamino group in the MO lipid bilayer. In the case of ABC5 and ABC6 (2–3 mol%), increasing the pH led to a QII (pH 2–6) to L2 transformation at around pH 7, indicating that deprotonation of the dimethylamino group at higher pH reduces effective headgroup area and increases the membrane curvature. Such transformation behavior can offer advantages in enhancing drug release from the QII phase in the slightly acidic TME [74] or enhancing the escape of the drug from the acidic endosomes/lysosomes [75]. While the current study needs optimization and further investigation of the lipid-polymer interaction, the value of the work lies in the successful demonstration of dually functional synthetic ABCs that can substitute for the commercial Pluronic polymer to stabilize non-lamellar LLC lipid nanoparticles, and impart responsiveness to physiologically and pathologically relevant H2O2, pH and temperature for controlled drug release.

4. Materials and Methods

4.1. Materials

MO was obtained from Nu-chek-Prep, Inc (Elysian, MN, USA) with purity >99% according to the manufacturer’s certificate. Phosphate buffer saline, ethanol and H2O2 solution (30% w/w in H2O) were purchased from Sigma-Aldrich (Bayswater, Australia). Milli-Q water (18.2 MΩ.cm) obtained from a Milli-Q Direct water purification system (Merck, Bayswater, Australia) was used for all sample preparations.
RAFT agent 4-cyano-4 (((dodecylthio)carbonothioyl)thio) pentanoic acid (CDPA; 97%) was purchased from Boron Molecular (Noble Park, Australia). Poly(ethylene glycol) methyl ether (PEG114, average Mn = 5000 g/mol), 2-(dimethylamino)ethyl methacrylate (DMAEMA) and 1-methyl-1,4-cyclohexadiene were purchased from Sigma-Aldrich (Bayswater, Australia). 2,2′-Azobis(isobutyronitrile) (AIBN) and benzoyl peroxide were purchased from Wako Pure Chemical Industries, Ltd. The monomer 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzyl acrylate (TBA) was synthesized according to a procedure reported previously [59]. All other solvents were obtained from commercial sources and were used as received unless noted otherwise.
1H Nuclear magnetic resonance spectra (NMR) were recorded on a Bruker Avance 400 NMR spectrometer at frequencies of 400 MHz. NMR chemical shifts (δ) are reported in ppm and were calibrated against residual solvent signal of CDCl3 (δ 7.26). Samples were dissolved in CDCl3 at 5–10 mg mL−1. The data are reported as chemical shift (δ).
Gel permeation chromatography (GPC) was performed on a system comprising a Shimadzu LC-20AT pump, Shimadzu RID-20A refractive index detector, and SPD-20A UV−Visible detector. The GPC is equipped with a guard column (WAT054415) and 3×Waters GPC columns (WAT044238, WAT044226, WAT044235, 300 mm × 7.8 mm). The eluent is DMF with 10 mM LiBr and eluted at 1 mL/min for 45 min in total. The columns were kept at 40 °C. The samples were dissolved in DMF with 10 mM LiBr, filtered through 0.20 μm syringe filters. A calibration curve was obtained from poly(methyl methacrylate) (PMMA) standards (Agilent, Mulgrave, Australia) ranging from 960 to 1,568,000 g mol−1.

4.2. Synthesis and Characterization of ABC1 (PEG114-RAFT)

The ABC1 (PEG114-RAFT) was synthesized via a procedure reported previously [63]. The sample was analyzed by 1H NMR and GPC. 1H NMR spectrum (400 MHz, CDCl3): δ 4.25 (t, 2H), 3.45–3.81 (m, 412H), 3.36 (s, 3H), 3.31 (t, 2H), 2.37–2.65 (m, 4H), 1.86 (s, 3H), 1.69 (m, 2H), 1.25–1.38 (b, 18H), 0.86 (t, 3H). GPC (DMF, PMMA standards): Mn = 12,300 g/mol, Ð = 1.08.

4.3. Synthesis and Characterization of ABC2 (PEG114-PTBA5)

PEG114-RAFT (300.0 mg, 55.6 μmol, 1.0 equiv.), TBA (96.1 mg, 333.6 μmol, 6.0 equiv.) and AIBN (1.8 mg, 11.1 μmol, 0.2 equiv.) were dissolved in 1.2 mL 1,4-dioxane and transferred to a Schlenk flask. The oxygen inside the flask was removed by 3 cycles of freeze-pump-thaw and refilled with argon in the third cycle. The reaction was stopped by cooling to room temperature after being immersed in a 65 °C oil bath for 20 h. The synthesized PEG114-PTBA5-RAFT was purified by precipitation in hexane and dried under reduced pressure. To remove the RAFT end-group, the PEG114-PTBA5-RAFT, benzoyl peroxide (35.4 mg, 146.0 μmol) and 1-methyl-1,4-cyclohexadiene (68.6 mg, 730.0 μmol) were dissolved in 1.0 mL N,N-dimethylformamide and transferred to a Schlenk flask. The oxygen inside the flask was removed by 3 cycles of freeze-pump-thaw and refilled with argon in the third cycle. The reaction was stopped by cooling to room temperature after being immersed in a 100 °C oil bath for 4 h. The polymer PEG114-PTBA5 was purified by precipitation in hexane and dried under reduced pressure. 1H NMR spectrum (400 MHz, CDCl3): δ 7.77 (b, 9H), 7.32 (b, 9H), 5.06 (b, 10H), 3.53–3.77 (b, 457H), 3.38 (s, 3H), 1.60–2.53 (b, 40H), 1.33 (b, 50H). GPC (DMF, PMMA standards): Mn = 13,500 g/mol, Ð = 1.12.

4.4. Synthesis and Characterization of ABC3 (PEG114-PTBA9)

ABC3 was synthesized in a similar procedure as ABC2. 1H NMR spectrum (400 MHz, CDCl3): δ 7.76 (b, 16H), 7.32 (b, 18H), 4.99 (b, 19H), 3.53–3.77 (b, 455H), 3.38 (s, 3H), 1.60–2.53 (b, 27H), 1.31 (b, 86H). GPC (DMF, PMMA standards): Mn = 13,900 g/mol, Ð = 1.14.

4.5. Synthesis and Characterization of ABC4 (PEG114-PDMAEMA17-RAFT)

PEG114-RAFT (1.0 g, 185.0 μmol, 1.0 equiv.), DMAEMA (0.58 g, 3.7 mmol, 20.0 equiv.) and AIBN (6.1 mg, 37.0 μmol, 0.2 equiv.) were dissolved in 3.0 mL 1,4-dioxane and transferred to a Schlenk flask. The oxygen inside the flask was removed by 3 cycles of freeze-pump-thaw and refilled with argon in the third cycle. The reaction was stopped by cooling to room temperature after being immersed in a 60 °C oil bath for 24 h. The synthesized PEG114-PDMAEMA17-RAFT was purified by precipitation in hexane and dried under reduced pressure. 1H NMR (400 MHz, CDCl3): δ 3.99–4.16 (b, 34H), 3.55–3.75 (b, 456H), 3.37 (s, 3H), 2.52–2.71 (b, 39H), 2.18–2.44 (b, 112H), 1.57–2.04 (b, 39H), 1.18–1.37 (b, 24H), 0.82–1.15 (b, 51H). GPC (DMF, PMMA standards): Mn = 12,700 g/mol, Đ = 1.17.

4.6. Synthesis and Characterization of ABC5 (PEG114-PDMAEMA17-PTBA5-RAFT)

PEG114-PDMAEMA17-RAFT (300.0 mg, 36.0 μmol, 1.0 equiv.), TBA (63.0 mg, 216.0 μmol, 6.0 equiv.) and AIBN (2.4 mg, 14.4 μmol, 0.4 equiv.) were dissolved in 1.0 mL 1,4-dioxane and transferred to a Schlenk flask. The oxygen inside the flask was removed by 3 cycles of freeze-pump-thaw and refilled with argon in the third cycle. The reaction was stopped by cooling to room temperature after being immersed in a 65 °C oil bath for 24 h. The synthesized PEG114-PDMAEMA17-PTBA5-RAFT was purified by precipitation in hexane and dried under reduced pressure. 1H NMR (400 MHz, CDCl3): δ 7.69–7.82 (b, 8H), 7.26–7.36 (b, 11H), 4.81–5.16 (b, 9H), 3.99–4.27 (b, 34H), 3.55–3.75 (b, 401H), 3.37 (s, 3H), 2.55–2.75 (b, 30H), 2.16–2.52 (b, 100H), 1.65–2.04 (b, 35H), 1.18–1.39 (b, 59H), 0.82–1.15 (b, 47H). GPC (DMF, PMMA standards): Mn = 14,500 g/mol, Đ = 1.13.

4.7. Synthesis and Characterization of ABC6 (PEG114-PDMAEMA17-PTBA9-RAFT)

ABC6 was synthesized in a similar procedure as ABC5. 1H NMR (400 MHz, CDCl3): δ 7.69–7.83 (b, 16H), 7.26–7.36 (b, 13H), 4.81–5.16 (b, 19H), 3.99–4.27 (b, 38H), 3.55–3.75 (b, 456H), 3.37 (s, 3H), 2.23–3.16 (b, 189H), 1.65–2.04 (b, 38H), 1.18–1.39 (b, 99H), 0.82–1.15 (b, 56H). GPC (DMF, PMMA standards): Mn = 15,300 g/mol, Đ = 1.14.

4.8. Formulation of ABC-Stabilized Nanoparticles

ABC-stabilized MO-based nanoparticles were prepared by adding ABC aqueous solutions to MO dry film, followed by sonication. Each formulation contained 20 mg of MO, which was first dissolved in ethanol and then evaporated overnight using a vacuum oven at 40 °C to obtain the dry lipid film. ABCs were solubilized in PBS buffer and equilibrated at room temperature for at least 48 h. ABC solutions were added to MO at 0.5%, 1.0%, 1.5%, 2.0%, 2.5% and 3.0% (mol/mol) to MO. The final sample volume was kept at 0.5 mL. Samples were then sonicated using a probe sonicator (Qsonica, Newtown, CT, USA) at a frequency of 30 kHz, with a 5 s on, 5 s off mode for a total sonication time of 2 min. Freshly prepared samples were examined visually and their dispersibility and appearance were recorded (Table S1).
To examine the H2O2 and pH responsiveness of the internal LLC mesophase of the formed nanoparticles, pre-made nanoparticles were diluted (1:1 ratio) with either 50 mM H2O2 solution, or PBS buffer with adjusted pH levels between 2 to 10 using hydrogen chloride or sodium hydroxide solution. The samples were incubated for one hour before SAXS examination.
To examine the temperature responsiveness, nanoparticle samples were mounted to the custom-designed plate holder at the SAXS/WAXS beamline at the Australian Synchrotron, and temperature was controlled in situ by a circulating water bath for scanning at 25 °C, 37 °C and 47 °C.

4.9. High Throughput Synchrotron SAXS Characterization

The SAXS experiment was performed at the SAXS/WAXS beamline at the Australian Synchrotron, part of ANSTO. The beamline used X-ray of wavelength λ = 1.033 Å (12.0 keV) with a typical flux of approximately 1013 photons/s. The sample to detector distance was chosen as 1.6 m which provided a q-range of 0.01–0.5 Å−1 (scattering vector q = 4π sin(θ)/λ where θ is the scattering angle and λ is the wavelength). Two-dimensional X-ray diffraction images were recorded on a Decris-Pilatus 1-M detector using an in-house IDL-based ScatterBrain software. The scattering images were integrated into one dimensional plots of intensity versus q for phase identification. A silver behenate standard (d = 58.38 Å) was used for calibration. The exposure time for each sample was 1 s. Prepared nanoparticles (100 µL) were loaded in UV-clear half-area 96-well microplate (Greiner Bio-One) and mounted to the high throughput sample-holder at the beamline.

4.10. SAXS Data Analysis

The one-dimensional SAXS data were analyzed using an IDL-based AXcess software package [76]. This program identifies LLC mesophases and calculates the lattice parameter. Phase identification was based on the relative distance of the Bragg peaks in the scattering profile, which corresponds to diffraction planes defined by their (hkl) Miller indices. Lattice parameter (a) was calculated using the equation a = d(h2+k2+l2)1/2 for cubic phase or a = d(h2+k2+hk)1/2 for hexagonal phase where d is the spacing between the diffraction planes, defined by Bragg’s law d = 2π/q.

5. Conclusions

In this study, a series of dual-functional ABCs was designed containing a hydrophobic part to partition into lipid layers, a hydrophilic part to exert steric stabilization for nanoparticle dispersions and a PTBA and/or PDMAEMA group that could respond to environmental factors. Using high throughput formulation and synchrotron SAXS techniques, we have successfully demonstrated that the synthetic ABCs could stabilize MO nanoparticles containing a range of LLC mesophases, which can respond to H2O2, pH and temperature. Notably, a mesophase transformation from the slow drug release HII/L2 phase to the high drug release QII phase can be induced in PTBA- or PDMAEMA-containing polymer-based nanoparticles under elevated H2O2 or acidic pH conditions, which are hallmarks of disease sites such as tumors. Future studies are planned to investigate model drug loading and release using these stimuli-responsive non-lamellar lipid nanoparticles, as well as cytotoxicity, cellular uptake and endosomal escape. The findings in this study may pave a new path to develop stimuli-responsive lipid nanoparticles that can promote drug release at specific target sites and enhance therapeutic efficacy.

Supplementary Materials

The following are available online. Table S1: Visual examination of the nanoparticles stabilized by the synthetic polymers, Table S2: Particle size and size distribution of the nanoparticles measured by DLS, Figures S1–S12: 1H NMR and GPC data of the synthesized polymers, Figure S13: Representative mesophase identification, Figure S14: SAXS diffraction patterns of ABC4-stabilized nanoparticles under H2O2 condition, Figure S15: pH-composition partial phase diagram of ABC3-stabilized nanoparticles.

Author Contributions

Conceptualization, J.Z., B.F.; data acquisition and curation, J.Z., B.F.; writing—original draft preparation, J.Z.; writing—review and editing, B.F., S.H.T., C.J.D., funding acquisition, S.H.T., C.J.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding. J.Z. is the recipient of an RMIT Research Fellowship.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This research was undertaken on the SAXS/WAXS beamline at the Australian Synchrotron, part of ANSTO. We also thank all the beamline scientists, especially Nigel Kirby and Stephen Mudie, for their help at the facility.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds, monoolein and the polymers are available from the authors.

References

  1. Barauskas, J.; Johnsson, M.; Joabsson, F.; Tiberg, F. Cubic phase nanoparticles (cubosome): Principles for controlling size, structure, and stability. Langmuir 2005, 21, 2569–2577. [Google Scholar] [CrossRef] [PubMed]
  2. Dong, Y.-D.; Larson, I.; Hanley, T.; Boyd, B.J. Bulk and Dispersed Aqueous Phase Behavior of Phytantriol: Effect of Vitamin E Acetate and F127 Polymer on Liquid Crystal Nanostructure. Langmuir 2006, 22, 9512–9518. [Google Scholar] [CrossRef] [PubMed]
  3. Tilley, A.J.; Drummond, C.J.; Boyd, B.J. Disposition and association of the steric stabilizer Pluronic® F127 in lyotropic liquid crystalline nanostructured particle dispersions. J. Colloid Interface Sci. 2013, 392, 288–296. [Google Scholar] [CrossRef] [PubMed]
  4. Mulet, X.; Boyd, B.J.; Drummond, C.J. Advances in drug delivery and medical imaging using colloidal lyotropic liquid crystalline dispersions. J. Colloid Interface Sci. 2013, 393, 1–20. [Google Scholar] [CrossRef] [PubMed]
  5. Barriga, H.M.G.; Holme, M.N.; Stevens, M.M. Cubosomes: The Next Generation of Smart Lipid Nanoparticles? Angew. Chem. Int. Ed. 2019, 58, 2958–2978. [Google Scholar] [CrossRef] [Green Version]
  6. Zhai, J.; Fong, C.; Tran, N.; Drummond, C.J. Non-Lamellar Lyotropic Liquid Crystalline Lipid Nanoparticles for the Next Generation of Nanomedicine. ACS Nano 2019, 13, 6178–6206. [Google Scholar] [CrossRef]
  7. Sagalowicz, L.; Michel, M.; Adrian, M.; Frossard, P.; Rouvet, M.; Watzke, H.J.; Yaghmur, A.; De Campo, L.; Glatter, O.; Leser, M.E. Crystallography of dispersed liquid crystalline phases studied by cryo-transmission electron microscopy. J. Microsc. 2006, 221, 110–121. [Google Scholar] [CrossRef]
  8. Seddon, J.M. Structure of the inverted hexagonal (HII) phase, and non-lamellar phase transitions of lipids. Biochim. Biophys. Acta Rev. Biomembr. 1990, 1031, 1–69. [Google Scholar] [CrossRef]
  9. Demurtas, D.; Guichard, P.; Martiel, I.; Mezzenga, R.; Hebert, C.; Sagalowicz, L. Direct visualization of dispersed lipid bicontinuous cubic phases by cryo-electron tomography. Nat. Commun. 2015, 6, 8915. [Google Scholar] [CrossRef] [PubMed]
  10. Fong, W.-K.; Sanchez-Ferrer, A.; Ortelli, F.G.; Sun, W.; Boyd, B.J.; Mezzenga, R. Dynamic formation of nanostructured particles from vesicles via invertase hydrolysis for on-demand delivery. RSC Adv. 2017, 7, 4368–4377. [Google Scholar] [CrossRef] [Green Version]
  11. Zhai, J.; Luwor, R.B.; Ahmed, N.; Escalona, R.; Tan, F.H.; Fong, C.; Ratcliffe, J.; Scoble, J.A.; Drummond, C.J.; Tran, N. Paclitaxel-Loaded Self-Assembled Lipid Nanoparticles as Targeted Drug Delivery Systems for the Treatment of Aggressive Ovarian Cancer. ACS Appl. Mater. Interfaces 2018, 10, 25174–25185. [Google Scholar] [CrossRef] [PubMed]
  12. Jain, V.; Swarnakar, N.K.; Mishra, P.R.; Verma, A.; Kaul, A.; Mishra, A.K.; Jain, N.K. Paclitaxel loaded PEGylated gleceryl monooleate based nanoparticulate carriers in chemotherapy. Biomaterials 2012, 33, 7206–7220. [Google Scholar] [CrossRef] [PubMed]
  13. Yaghmur, A.; Mu, H. Recent advances in drug delivery applications of cubosomes, hexosomes, and solid lipid nanoparticles. Acta Pharm. Sin. B 2021, 11, 871–885. [Google Scholar] [CrossRef] [PubMed]
  14. Lopes, L.B.; Ferreira, D.A.; de Paula, D.; Garcia, M.T.J.; Thomazini, J.A.; Fantini, M.C.; Bentley, M.V.L. Reverse hexagonal phase nanodispersion of monoolein and oleic acid for topical delivery of peptides: In vitro and in vivo skin penetration of cyclosporin A. Pharm. Res. 2006, 23, 1332–1342. [Google Scholar] [CrossRef] [PubMed]
  15. Kim, H.; Leal, C. Cuboplexes: Topologically Active siRNA Delivery. ACS Nano 2015, 9, 10214–10226. [Google Scholar] [CrossRef]
  16. Jenni, S.; Picci, G.; Fornasier, M.; Mamusa, M.; Schmidt, J.; Talmon, Y.; Sour, A.; Heitz, V.; Murgia, S.; Caltagirone, C. Multifunctional cubic liquid crystalline nanoparticles for chemo- and photodynamic synergistic cancer therapy. Photochem. Photobiol. Sci. 2020, 19, 674–680. [Google Scholar] [CrossRef] [PubMed]
  17. Wu, H.; Cui, Z.; Huo, Y.; Sun, Y.; Zhang, X.; Guan, J.; Mao, S. Influence of drug-carrier compatibility and preparation method on the properties of paclitaxel-loaded lipid liquid crystalline nanoparticles. J. Pharm. Sci. 2021. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, L.; Li, J.; Tian, D.; Sun, L.; Wang, X.; Tian, M. Theranostic combinatorial drug-loaded coated cubosomes for enhanced targeting and efficacy against cancer cells. Cell Death Dis. 2020, 11, 1. [Google Scholar] [CrossRef] [Green Version]
  19. Tran, N.; Bye, N.; Moffat, B.A.; Wright, D.K.; Cuddihy, A.; Hinton, T.M.; Hawley, A.M.; Reynolds, N.P.; Waddington, L.J.; Mulet, X.; et al. Dual-modality NIRF-MRI cubosomes and hexosomes: High throughput formulation and in vivo biodistribution. Mater. Sci. Eng. C 2017, 71, 584–593. [Google Scholar] [CrossRef]
  20. Bye, N.; Hutt, O.E.; Hinton, T.M.; Acharya, D.P.; Waddington, L.J.; Moffat, B.A.; Wright, D.K.; Wang, H.X.; Mulet, X.; Muir, B.W. Nitroxide-Loaded Hexosomes Provide MRI Contrast in Vivo. Langmuir 2014, 30, 8898–8906. [Google Scholar] [CrossRef]
  21. Muir, B.W.; Acharya, D.P.; Kennedy, D.F.; Mulet, X.; Evans, R.A.; Pereira, S.M.; Wark, K.L.; Boyd, B.J.; Nguyen, T.-H.; Hinton, T.M.; et al. Metal-free and MRI visible theranostic lyotropic liquid crystal nitroxide-based nanoparticles. Biomaterials 2012, 33, 2723–2733. [Google Scholar] [CrossRef]
  22. Fong, W.-K.; Negrini, R.; Vallooran, J.J.; Mezzenga, R.; Boyd, B.J. Responsive self-assembled nanostructured lipid systems for drug delivery and diagnostics. J. Colloid Interface Sci. 2016, 484, 320–339. [Google Scholar] [CrossRef] [PubMed]
  23. Yaghmur, A.; Glatter, O. Characterization and potential applications of nanostructured aqueous dispersions. Adv. Colloid Interface Sci. 2009, 147–148, 333–342. [Google Scholar] [CrossRef] [PubMed]
  24. Boyd, B.J.; Rizwan, S.B.; Dong, Y.-D.; Hook, S.; Rades, T. Self-assembled geometric liquid-crystalline nanoparticles imaged in three dimensions: Hexosomes are not necessarily flat hexagonal prisms. Langmuir 2007, 23, 12461–12464. [Google Scholar] [CrossRef]
  25. Mulet, X.; Kennedy, D.F.; Conn, C.E.; Hawley, A.; Drummond, C.J. High throughput preparation and characterisation of amphiphilic nanostructured nanoparticulate drug delivery vehicles. Int. J. Pharm. 2010, 395, 290–297. [Google Scholar] [CrossRef]
  26. Sarkar, S.; Tran, N.; Soni, S.K.; Nasa, Z.; Drummond, C.J.; Conn, C.E. Cuboplex-Mediated Nonviral Delivery of Functional siRNA to Chinese Hamster Ovary (CHO) Cells. ACS Appl. Mater. Interfaces 2021, 13, 2336–2345. [Google Scholar] [CrossRef]
  27. Boge, L.; Bysell, H.; Ringstad, L.; Wennman, D.; Umerska, A.; Cassisa, V.; Eriksson, J.; Joly-Guillou, M.-L.; Edwards, K.; Andersson, M. Lipid-Based Liquid Crystals As Carriers for Antimicrobial Peptides: Phase Behavior and Antimicrobial Effect. Langmuir 2016, 32, 4217–4228. [Google Scholar] [CrossRef] [Green Version]
  28. Angelova, A.; Angelov, B.; Mutafchieva, R.; Lesieur, S.; Couvreur, P. Self-Assembled Multicompartment Liquid Crystalline Lipid Carriers for Protein, Peptide, and Nucleic Acid Drug Delivery. Acc. Chem. Res. 2010, 44, 147–156. [Google Scholar] [CrossRef] [Green Version]
  29. Géral, C.; Angelova, A.; Lesieur, S. From Molecular to Nanotechnology Strategies for Delivery of Neurotrophins: Emphasis on Brain-Derived Neurotrophic Factor (BDNF). Pharmaceutics 2013, 5, 127–167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Negrini, R.; Fong, W.-K.; Boyd, B.J.; Mezzenga, R. pH-responsive lyotropic liquid crystals and their potential therapeutic role in cancer treatment. Chem. Commun. 2015, 51, 6671–6674. [Google Scholar] [CrossRef] [PubMed]
  31. Vallooran, J.J.; Handschin, S.; Bolisetty, S.; Mezzenga, R. Twofold Light and Magnetic Responsive Behavior in Nanoparticle–Lyotropic Liquid Crystal Systems. Langmuir 2012, 28, 5589–5595. [Google Scholar] [CrossRef] [PubMed]
  32. Szlezak, M.; Nieciecka, D.; Joniec, A.; Pękała, M.; Gorecka, E.; Emo, M.; Stébé, M.J.; Krysiński, P.; Bilewicz, R. Monoolein Cubic Phase Gels and Cubosomes Doped with Magnetic Nanoparticles–Hybrid Materials for Controlled Drug Release. ACS Appl. Mater. Interfaces 2017, 9, 2796–2805. [Google Scholar] [CrossRef] [PubMed]
  33. Li, Y.; Angelova, A.; Hu, F.; Garamus, V.M.; Peng, C.; Li, N.; Liu, J.; Liu, D.; Zou, A. pH Responsiveness of Hexosomes and Cubosomes for Combined Delivery of Brucea javanica Oil and Doxorubicin. Langmuir 2019, 35, 14532–14542. [Google Scholar] [CrossRef]
  34. Zhai, J.; Tan, F.H.; Luwor, R.B.; Srinivasa Reddy, T.; Ahmed, N.; Drummond, C.J.; Tran, N. In Vitro and In Vivo Toxicity and Biodistribution of Paclitaxel-Loaded Cubosomes as a Drug Delivery Nanocarrier: A Case Study Using an A431 Skin Cancer Xenograft Model. ACS Appl. Bio Mater. 2020, 3, 4198–4207. [Google Scholar] [CrossRef]
  35. Abdelrahman, F.E.; Elsayed, I.; Gad, M.K.; Badr, A.; Mohamed, M.I. Investigating the cubosomal ability for transnasal brain targeting: In vitro optimization, ex vivo permeation and in vivo biodistribution. Int. J. Pharm. 2015, 490, 281–291. [Google Scholar] [CrossRef]
  36. Nasr, M.; Ghorab, M.K.; Abdelazem, A. In vitro and in vivo evaluation of cubosomes containing 5-fluorouracil for liver targeting. Acta Pharm. Sin. B 2015, 5, 79–88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Stefania, B.; Laura, A.; Claudia, C.; Chiara, G.; Angela, M.F.; Vito, L.; Andrea, L.; Paolo, M.; Valeria, M.; Maura, M.; et al. Cubosomes for in vivo fluorescence lifetime imaging. Nanotechnology 2017, 28, 055102. [Google Scholar]
  38. Fong, W.K.; Hanley, T.; Boyd, B.J. Stimuli responsive liquid crystals provide ‘on-demand’ drug delivery in vitro and in vivo. J. Control Release 2009, 135, 218–226. [Google Scholar] [CrossRef] [PubMed]
  39. Negrini, R.; Mezzenga, R. pH-Responsive Lyotropic Liquid Crystals for Controlled Drug Delivery. Langmuir 2011, 27, 5296–5303. [Google Scholar] [CrossRef]
  40. Rahanyan-Kagi, N.; Aleandri, S.; Speziale, C.; Mezzenga, R.; Landau, E.M. Stimuli-responsive lipidic cubic phase: Triggered release and sequestration of guest molecules. Chemistry 2015, 21, 1873–1877. [Google Scholar] [CrossRef]
  41. Rarokar, N.R.; Saoji, S.D.; Raut, N.A.; Taksande, J.B.; Khedekar, P.B.; Dave, V.S. Nanostructured Cubosomes in a Thermoresponsive Depot System: An Alternative Approach for the Controlled Delivery of Docetaxel. AAPS PharmSciTech 2016, 17, 436–445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Lee, K.W.Y.; Nguyen, T.-H.; Hanley, T.; Boyd, B.J. Nanostructure of liquid crystalline matrix determines in vitro sustained release and in vivo oral absorption kinetics for hydrophilic model drugs. Int. J. Pharm. 2009, 365, 190–199. [Google Scholar] [CrossRef] [PubMed]
  43. Tran, N.; Mulet, X.; Hawley, A.M.; Hinton, T.M.; Mudie, S.T.; Muir, B.W.; Giakoumatos, E.C.; Waddington, L.J.; Kirby, N.M.; Drummond, C.J. Nanostructure and cytotoxicity of self-assembled monoolein-capric acid lyotropic liquid crystalline nanoparticles. RSC Adv. 2015, 5, 26785–26795. [Google Scholar] [CrossRef]
  44. Mertins, O.; Mathews, P.D.; Angelova, A. Advances in the Design of pH-Sensitive Cubosome Liquid Crystalline Nanocarriers for Drug Delivery Applications. Nanomaterials 2020, 10, 963. [Google Scholar] [CrossRef] [PubMed]
  45. Tran, N.; Hawley, A.M.; Zhai, J.; Muir, B.W.; Fong, C.; Drummond, C.J.; Mulet, X. High-throughput screening of saturated fatty acid influence on nanostructure of lyotropic liquid crystalline lipid nanoparticles. Langmuir 2016, 32, 4509–4520. [Google Scholar] [CrossRef]
  46. Fong, C.; Zhai, J.; Drummond, C.J.; Tran, N. Micellar Fd3m cubosomes from monoolein—long chain unsaturated fatty acid mixtures: Stability on temperature and pH response. J. Colloid Interface Sci. 2020, 566, 98–106. [Google Scholar] [CrossRef]
  47. Rajesh, S.; Zhai, J.; Drummond, C.J.; Tran, N. Synthetic ionizable aminolipids induce a pH dependent inverse hexagonal to bicontinuous cubic lyotropic liquid crystalline phase transition in monoolein nanoparticles. J. Colloid Interface Sci. 2021, 589, 85–95. [Google Scholar] [CrossRef] [PubMed]
  48. Israelachvili, J.N.; Mitchell, D.J.; Ninham, B.W. Theory of self-assembly of hydrocarbon amphiphiles into micelles and bilayers. J. Chem. Soc. Faraday Trans. 2 Mol. Chem. Phys. 1976, 72, 1525–1568. [Google Scholar] [CrossRef]
  49. Chong, J.Y.T.; Mulet, X.; Boyd, B.J.; Drummond, C.J. Chapter Five—Steric Stabilizers for Cubic Phase Lyotropic Liquid Crystal Nanodispersions (Cubosomes). In Advances in Planar Lipid Bilayers and Liposomes; Iglič, A., Kulkarni, C.V., Rappolt, M., Eds.; Academic Press: Waltham, MA, USA, 2015; pp. 131–187. [Google Scholar]
  50. Zhai, J.; Suryadinata, R.; Luan, B.; Tran, N.; Hinton, T.M.; Ratcliffe, J.; Hao, X.; Drummond, C.J. Amphiphilic brush polymers produced using the RAFT polymerisation method stabilise and reduce the cell cytotoxicity of lipid lyotropic liquid crystalline nanoparticles. Faraday Discuss. 2016, 191, 545–563. [Google Scholar] [CrossRef]
  51. Chong, J.Y.T.; Mulet, X.; Keddie, D.J.; Waddington, L.; Mudie, S.T.; Boyd, B.J.; Drummond, C.J. Novel Steric Stabilizers for Lyotropic Liquid Crystalline Nanoparticles: PEGylated-Phytanyl Copolymers. Langmuir 2015, 31, 2615–2629. [Google Scholar] [CrossRef]
  52. Yu Helvig, S.; Woythe, L.; Pham, S.; Bor, G.; Andersen, H.; Moein Moghimi, S.; Yaghmur, A. A structurally diverse library of glycerol monooleate/oleic acid non-lamellar liquid crystalline nanodispersions stabilized with nonionic methoxypoly(ethylene glycol) (mPEG)-lipids showing variable complement activation properties. J. Colloid Interface Sci. 2021, 582, 906–917. [Google Scholar] [CrossRef]
  53. Angelov, B.; Angelova, A.; Drechsler, M.; Garamus, V.M.; Mutafchieva, R.; Lesieur, S. Identification of large channels in cationic PEGylated cubosome nanoparticles by synchrotron radiation SAXS and Cryo-TEM imaging. Soft Matter 2015, 11, 3686–3692. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Zhai, J.; Waddington, L.; Wooster, T.J.; Aguilar, M.I.; Boyd, B.J. Revisiting β-casein as a stabilizer for lipid liquid crystalline nanostructured particles. Langmuir 2011, 27, 14757–14766. [Google Scholar] [CrossRef] [PubMed]
  55. Zhai, J.; Hinton, T.M.; Waddington, L.J.; Fong, C.; Tran, N.; Mulet, X.; Drummond, C.J.; Muir, B.W. Lipid–PEG Conjugates Sterically Stabilize and Reduce the Toxicity of Phytantriol-Based Lyotropic Liquid Crystalline Nanoparticles. Langmuir 2015, 31, 10871–10880. [Google Scholar] [CrossRef] [PubMed]
  56. Lee, Y.; Sugihara, K.; Gillilland, M.G.; Jon, S.; Kamada, N.; Moon, J.J. Hyaluronic acid–bilirubin nanomedicine for targeted modulation of dysregulated intestinal barrier, microbiome and immune responses in colitis. Nat. Mater. 2020, 19, 118–126. [Google Scholar] [CrossRef] [PubMed]
  57. Fornasier, M.; Biffi, S.; Bortot, B.; Macor, P.; Manhart, A.; Wurm, F.R.; Murgia, S. Cubosomes stabilized by a polyphosphoester-analog of Pluronic F127 with reduced cytotoxicity. J. Colloid Interface Sci. 2020, 580, 286–297. [Google Scholar] [CrossRef]
  58. Chountoulesi, M.; Perinelli, D.R.; Pippa, N.; Chrysostomou, V.; Forys, A.; Otulakowski, L.; Bonacucina, G.; Trzebicka, B.; Pispas, S.; Demetzos, C. Physicochemical, morphological and thermal evaluation of lyotropic lipidic liquid crystalline nanoparticles: The effect of stimuli-responsive polymeric stabilizer. Colloids Surf. A 2020, 595, 124678. [Google Scholar] [CrossRef]
  59. Fan, B.; Wan, J.; Zhai, J.; Chen, X.; Thang, S.H. Triggered Degradable Colloidal Particles with Ordered Inverse Bicontinuous Cubic and Hexagonal Mesophases. ACS Nano 2021, 15, 4688–4698. [Google Scholar] [CrossRef]
  60. Stubbs, E.; Laskowski, E.; Conor, P.; Heinze, D.A.; Karis, D.; Glogowski, E.M. Control of pH- and temperature-responsive behavior of mPEG-b-PDMAEMA copolymers through polymer composition. J. Macromol. Sci. Part A 2017, 54, 228–235. [Google Scholar] [CrossRef]
  61. Mezzenga, R.; Seddon, J.M.; Drummond, C.J.; Boyd, B.J.; Schröder-Turk, G.E.; Sagalowicz, L. Nature-Inspired Design and Application of Lipidic Lyotropic Liquid Crystals. Adv. Mater. 2019, 31, 1900818. [Google Scholar] [CrossRef]
  62. Mulet, X.; Conn, C.E.; Fong, C.; Kennedy, D.F.; Moghaddam, M.J.; Drummond, C.J. High-throughput development of amphiphile self-assembly materials: Fast-tracking synthesis, characterization, formulation, application, and understanding. Acc. Chem. Res. 2013, 46, 1497–1505. [Google Scholar] [CrossRef]
  63. Wan, J.; Fan, B.; Liu, Y.; Hsia, T.; Qin, K.; Junkers, T.; Teo, B.M.; Thang, S.H. Room temperature synthesis of block copolymer nano-objects with different morphologies via ultrasound initiated RAFT polymerization-induced self-assembly (sono-RAFT-PISA). Polym. Chem. 2020, 11, 3564–3572. [Google Scholar] [CrossRef]
  64. Fan, B.; Wan, J.; McKay, A.; Qu, Z.; Thang, S.H. Facile synthesis of well-controlled poly(1-vinyl imidazole) by the RAFT process. Polym. Chem. 2020, 11, 5649–5658. [Google Scholar] [CrossRef]
  65. Fan, B.; Wan, J.; Liu, Y.; Tian, W.W.; Thang, S.H. Functionalization of liquid metal nanoparticles via the RAFT process. Polym. Chem. 2021, 12, 3015–3025. [Google Scholar] [CrossRef]
  66. Fan, B.; Liu, Y.; Wan, J.; Crawford, S.; Thang, S.H. Polymerization-Induced Self-Assembly (PISA) and “Host–Guest” Complexation-Directed Polymer/Gold Nanocomposites. ACS Mater. Lett. 2020, 2, 492–498. [Google Scholar] [CrossRef]
  67. Tran, N.; Mulet, X.; Hawley, A.M.; Fong, C.; Zhai, J.; Le, T.C.; Ratcliffe, J.; Drummond, C.J. Manipulating the Ordered Nanostructure of Self-Assembled Monoolein and Phytantriol Nanoparticles with Unsaturated Fatty Acids. Langmuir 2018, 34, 2764–2773. [Google Scholar] [CrossRef] [PubMed]
  68. Chrysostomou, V.; Pispas, S. Stimuli-responsive amphiphilic PDMAEMA-b-PLMA copolymers and their cationic and zwitterionic analogs. J. Polym. Sci. Part A Polym. Chem. 2018, 56, 598–610. [Google Scholar] [CrossRef]
  69. Clogston, J.; Rathman, J.; Tomasko, D.; Walker, H.; Caffrey, M. Phase behavior of a monoacylglycerol: (Myverol 18-99K)/water system. Chem. Phys. Lipids 2000, 107, 191–220. [Google Scholar] [CrossRef]
  70. Van’t Hag, L.; Gras, S.L.; Conn, C.E.; Drummond, C.J. Lyotropic liquid crystal engineering moving beyond binary compositional space—ordered nanostructured amphiphile self-assembly materials by design. Chem. Soc. Rev. 2017, 46, 2705–2731. [Google Scholar] [CrossRef] [PubMed]
  71. Yang, N.; Xiao, W.; Song, X.; Wang, W.; Dong, X. Recent Advances in Tumor Microenvironment Hydrogen Peroxide-Responsive Materials for Cancer Photodynamic Therapy. Nano-Micro Lett. 2020, 12, 15. [Google Scholar] [CrossRef] [Green Version]
  72. Loh, X.J.; Ong, S.J.; Tung, Y.T.; Choo, H.T. Dual responsive micelles based on poly[(R)-3-hydroxybutyrate] and poly(2-(di-methylamino)ethyl methacrylate) for effective doxorubicin delivery. Polym. Chem. 2013, 4, 2564–2574. [Google Scholar] [CrossRef]
  73. Drummond, C.J.; Grieser, F.; Healy, T.W. Acid-base equilibria in aqueous micellar solutions. Part 1.—‘Simple’ weak acids and bases. J. Chem. Soc. Faraday Trans. I 1989, 85, 521–535. [Google Scholar] [CrossRef]
  74. Tannock, I.F.; Rotin, D. Acid pH in tumors and its potential for therapeutic exploitation. Cancer Res. 1989, 49, 4373–4384. [Google Scholar] [PubMed]
  75. El-Kenawi, A.; Gatenbee, C.; Robertson-Tessi, M.; Bravo, R.; Dhillon, J.; Balagurunathan, Y.; Berglund, A.; Vishvakarma, N.; Ibrahim-Hashim, A.; Choi, J.; et al. Acidity promotes tumour progression by altering macrophage phenotype in prostate cancer. Br. J. Cancer 2019, 121, 556–566. [Google Scholar] [CrossRef] [Green Version]
  76. Seddon, J.M.; Squires, A.M.; Conn, C.E.; Ces, O.; Heron, A.J.; Mulet, X.; Shearman, G.C.; Templer, R.H. Pressure-jump X-ray studies of liquid crystal transitions in lipids. Philos. Trans. Ser. A Math. Phys. Eng. Sci. 2006, 364, 2635–2655. [Google Scholar] [CrossRef]
Molecules 26 03648 g001 550

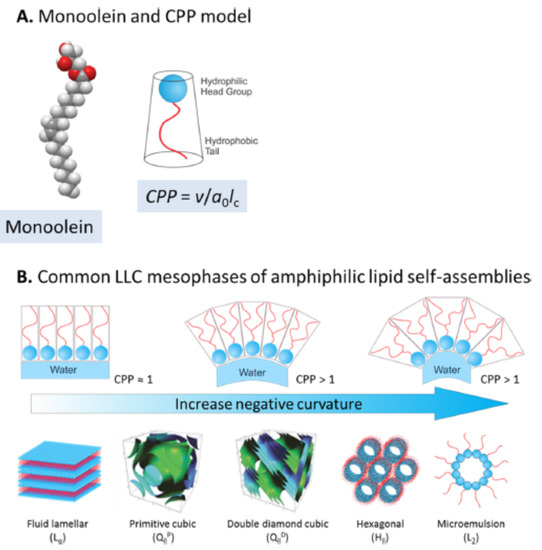

Figure 1. (A) Monoolein (MO) molecular model and critical packing parameter (CPP) representation, where v is the hydrophobic chain volume, a0 is the effective headgroup area and lc is the effective hydrophobic chain length. (B) Structures of commonly observed self-assembled lyotropic liquid crystalline (LLC) mesophases of amphiphilic lipids such as MO, presented in the order of increasing negative lipid membrane curvature. Reproduced from Zhai et al. [6]. Copyright 2019, American Chemical Society.
Figure 1. (A) Monoolein (MO) molecular model and critical packing parameter (CPP) representation, where v is the hydrophobic chain volume, a0 is the effective headgroup area and lc is the effective hydrophobic chain length. (B) Structures of commonly observed self-assembled lyotropic liquid crystalline (LLC) mesophases of amphiphilic lipids such as MO, presented in the order of increasing negative lipid membrane curvature. Reproduced from Zhai et al. [6]. Copyright 2019, American Chemical Society.
Molecules 26 03648 g001
Molecules 26 03648 g002 550
Figure 2. Chemical structures of MO and the synthetic ABCs used in the study.
Figure 2. Chemical structures of MO and the synthetic ABCs used in the study.
Molecules 26 03648 g002
Molecules 26 03648 g003 550
Figure 3. SAXS diffraction patterns of MO nanoparticles stabilized by the synthetic ABCs at (a) 0.5 mol%; (b) 1.0 mol%; (c) 1.5 mol%; (d) 2.0 mol%; (e) 2.5 mol%; (f) 3.0 mol% to the amount of MO. All measurements were performed at 25 °C.
Figure 3. SAXS diffraction patterns of MO nanoparticles stabilized by the synthetic ABCs at (a) 0.5 mol%; (b) 1.0 mol%; (c) 1.5 mol%; (d) 2.0 mol%; (e) 2.5 mol%; (f) 3.0 mol% to the amount of MO. All measurements were performed at 25 °C.
Molecules 26 03648 g003
Molecules 26 03648 g004 550
Figure 4. SAXS diffraction patterns of MO nanoparticles stabilized by PTBA-containing polymers, viz. ABC3 (a), ABC5 (b) and ABC6 (c) at various concentrations after incubation with 50 mM H2O2 solution. All measurements were performed at 25 °C.
Figure 4. SAXS diffraction patterns of MO nanoparticles stabilized by PTBA-containing polymers, viz. ABC3 (a), ABC5 (b) and ABC6 (c) at various concentrations after incubation with 50 mM H2O2 solution. All measurements were performed at 25 °C.
Molecules 26 03648 g004
Molecules 26 03648 g005 550
Figure 5. Mesophases of MO nanoparticles stabilized by PDMAEMA-containing polymers, viz. ABC4 (a), ABC5 (b) and ABC6 (c) at various concentrations in pH 2 to 10. All measurements were performed at 25 °C.
Figure 5. Mesophases of MO nanoparticles stabilized by PDMAEMA-containing polymers, viz. ABC4 (a), ABC5 (b) and ABC6 (c) at various concentrations in pH 2 to 10. All measurements were performed at 25 °C.
Molecules 26 03648 g005
Molecules 26 03648 g006 550
Figure 6. SAXS diffraction patterns of MO nanoparticles stabilized by 1.5 mol% ABC3 (a), 1.5 mol% ABC4 (b) and 1.5 mol% ABC6 (c) at neutral pH measured at three temperatures.
Figure 6. SAXS diffraction patterns of MO nanoparticles stabilized by 1.5 mol% ABC3 (a), 1.5 mol% ABC4 (b) and 1.5 mol% ABC6 (c) at neutral pH measured at three temperatures.
Molecules 26 03648 g006
Table
Table 1. Mesophase identification and calculated lattice parameters (Å) of the MO nanoparticles stabilized by the synthetic ABCs.
Table 1. Mesophase identification and calculated lattice parameters (Å) of the MO nanoparticles stabilized by the synthetic ABCs.
mol%ABC1ABC2ABC3ABC4ABC5ABC6
0.5Weak Im3m signalIm3m (145)Im3m (153)Pn3m (101);
Im3m (127)		Im3m (131); Pn3m (103)Im3m (130)
Pn3m (103)
1.0Weak Im3m signalIm3m (162)Im3m (153)Pn3m (98);
Im3m (115)		Im3m (132)Im3m (126)
1.5NDIm3m (174)Im3m (157)Pn3m (92);
Im3m (112)		Im3m (130)Im3m (126)
2.0NDNDIm3m (176)Pn3m (89);
Im3m (112)		Im3m (129)Im3m (125)
2.5NDNDIm3m (176)Pn3m (90);
H2 (61)		Im3m (130)
L2		L2
3.0NDNDIm3m (178)Pn3m (90);
H2 (62)		L2L2
Note: Im3m refers to the primitive QII (QIIP) phase with the symmetry group Im3m; Pn3m refers to the double-diamond QII (QIID) phase with the symmetry group Pn3m; HII refers to the inverse hexagonal phase: L2 refers to the inverse micellar phase; ND refers to no distinctive diffraction pattern identified.
Table
Table 2. Mesophase identification and calculated lattice parameters (Å) of the MO nanoparticles stabilized by the synthetic ABCs in the presence of 50 mM H2O2.
Table 2. Mesophase identification and calculated lattice parameters (Å) of the MO nanoparticles stabilized by the synthetic ABCs in the presence of 50 mM H2O2.
mol%ABC3ABC5ABC6
0.5Im3m (148)Pn3m (98)Pn3m (100)
1.0Im3m (161)Pn3m (92)Im3m (122)
Pn3m (97)
1.5NDPn3m (91)Im3m (125)
Pn3m (100)
2.0NDPn3m (93)
Im3m (weak)		Im3m (120)
Pn3m (100)
2.5NDPn3m (94)
(Im3m weak)		Pn3m (100)
3.0NDPn3m (94)Pn3m (101)
Note: Im3m refers to the primitive QII (QIIP) phase with symmetry group Im3m; Pn3m refers to the double-diamond QII (QIID) phase with symmetry group Pn3m; ND refers to no distinctive diffraction pattern identified.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhai, J.; Fan, B.; Thang, S.H.; Drummond, C.J. Novel Amphiphilic Block Copolymers for the Formation of Stimuli-Responsive Non-Lamellar Lipid Nanoparticles. Molecules 2021, 26, 3648. https://doi.org/10.3390/molecules26123648

AMA Style

Zhai J, Fan B, Thang SH, Drummond CJ. Novel Amphiphilic Block Copolymers for the Formation of Stimuli-Responsive Non-Lamellar Lipid Nanoparticles. Molecules. 2021; 26(12):3648. https://doi.org/10.3390/molecules26123648

Chicago/Turabian Style

Zhai, Jiali, Bo Fan, San H. Thang, and Calum J. Drummond. 2021. "Novel Amphiphilic Block Copolymers for the Formation of Stimuli-Responsive Non-Lamellar Lipid Nanoparticles" Molecules 26, no. 12: 3648. https://doi.org/10.3390/molecules26123648

Article Metrics

Back to TopTop
