Weak Intermolecular Interactions in a Series of Bioactive Oxazoles
Faculty of Chemistry, Adam Mickiewicz University, Uniwersytetu Poznanskiego 8, 61-614 Poznań, Poland
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(10), 3024; https://doi.org/10.3390/molecules26103024
Submission received: 15 April 2021
/
Revised: 11 May 2021
/
Accepted: 14 May 2021
/
Published: 19 May 2021
(This article belongs to the Special Issue Crystallography and Crystal Chemistry)
Abstract
The intermolecular interactions in a series of nine similar 4,5-phenyl-oxazoles were studied on the basis of crystal structures determined by X-ray diffraction. The crystal architectures were analyzed for the importance and hierarchies of different, weak intermolecular interactions using three approaches: the geometrical characteristics, topological analysis (for the model based on the transfer of multipolar parameters), and energetics of the molecule–molecule interactions. The geometries of the molecules were quite similar and close to the typical values. The results of the analysis of the interactions suggest that the number of nonspecific interactions is more important than the apparent strength of the specific interactions. The interactions involving covalently bound bromine and divalent sulfur atoms were classified as secondary, they certainly did not define the crystal packing, and they played a minor role in the overall crystal cohesion energies. Incidentally, another method for confirming the degree of isostructurality, according to the topologies of the interactions, is described.
1. Introduction
Intermolecular interactions (specific, such as hydrogen bonds, or nonspecific, such as van der Waals interactions) constitute principal factors in molecular recognition and, as a consequence, biological activity. Therefore, knowledge about the presence, hierarchy, relative energies, and importance of different interactions is crucial in explaining the biological action of given compounds and in designing new and more active or more specific molecules. The situation seems to be especially profitable if there is a series of similar compounds available, when small differences in the molecular structure may be related to significant changes in crystal architectures, i.e., supramolecules par excellence (citing Dunitz’s famous definition [1,2]).
In the course of such research, a plethora of more or less important kinds of specific interactions have been proposed, analyzed, described, and tentatively explained. From the classical hydrogen bonds of, for instance, the O–H···O=C type, through weaker interactions involving hydrogen atoms (hydrogen bridges, using the formula of Desiraju [3]), halogen, chalcogen, pnicogen, and tetrel interactions, or π···π, cation···π, and anion···π interactions, to quite exotic ones, such as hydrogen···hydrogen, there are several scholars dealing with these phenomena in the literature (e.g., [4,5,6,7,8]).
Meanwhile, Dunitz and Gavezzotti [9] started a relevant discussion on the role and importance of intermolecular specific interactions of the types listed above (with the notable exception of the classical, strong hydrogen bonds) for crystal architecture with respect to the more diffuse, delocalized interactions between the molecular electron density distributions. They posited that “one cannot deny that these weak intermolecular atom–atom bonds can be neatly categorized on the basis of geometrical, spectroscopic, and even energetic criteria (…). The question is not whether weak hydrogen bonds ‘exist’, but rather to what extent are they relevant in distinguishing one possible crystal structure from another?” This discussion has been continued (see, for instance, the exchange in IUCrJ in 2015 [10,11,12]). Another important advance in the understanding of the role of interactions or energies, from different points of view, can be related to the works of Wozniak et al., who identified the continua of atom–atom interactions, from covalent to very weak, almost van der Waals type [13,14], and to the work of Spackman, who showed that the dependence of both kinetic and potential energies on the H···O distance for “weak” hydrogen bonds, determined by Espinosa, Molins, and Lecomte [15] on the basis of multipolar model and high-resolution diffraction data, can be, in principle, obtained from a simple, independent atom model (promolecule) [16]. Further studies, e.g., by Gatti et al. [17], have shown that there are instances when the pro-molecular model yields different topologies, compared to the corresponding multipole or theoretical densities.
Therefore, we decided to compare different viewpoints on intermolecular interactions on the basis of the abovementioned discussion. We use three kinds of descriptions: (1) the geometry of interactions (weak hydrogen bonds, π···π interactions, H···H contacts, and other van der Waals contacts, i.e., generally, contacts with a name); (2) the topological (atoms-in-molecules type [18]) descriptors of these contacts; and (3) the interaction energies between the pairs of molecules, which lead to the packing energies of the crystals. For this last part, two methods with relatively quick calculations are used, in principle, to study the tendencies, rather than individual values: the PIXEL method, included in the Mercury software [19,20,21], and HF-3-21G, included in the CrystalExplorer software [22]. In all three methods, the molecular model obtained by means of standard-resolution X-ray diffraction data were used, with X–H bonds elongated to the typical neutron diffraction values.
Here, we present the results of this in-depth analysis (geometrical, energetical, and topological) of weak intermolecular interactions in a series of 4,5-diaromatic-substituted oxazoles: 1: 5-[3-methoxy-4-(methylsulfanyl)phenyl]-4-(3,4,5-trimethoxyphenyl)-1,3-oxazole; 2: 5-[3-bromo-5-methoxy-4-(methylsulfanyl)phenyl]-4-(3,4,5-trimethoxyphenyl)-1,3-oxazole; 3: 2-methoxy-5-[4-(3,4,5-trimethoxyphenyl)-1,3-oxazol-5-yl]benzenethiol; 4: 5-{4-[3,5-dimethoxy-4-(methylsulfanyl)phenyl]-1,3-oxazol-5-yl}-2-methoxyphenol; 5: 4-[3,5-dimethoxy-4-(methylsulfanyl)phenyl]-5-(3-fluoro-4-methoxyphenyl)-1,3-oxazole; 6: 4-[3,5-dimethoxy-4-(methylsulfanyl)phenyl]-5-(4-ethoxyphenyl)-1,3-oxazole; 7: 4-(3-bromo-4,5-dimethoxyphenyl)-5-[4-methoxy-3-(methylsulfanyl)phenyl]-1,3-oxazole; 8: 4-[3-bromo-5-methoxy-4-(methylsulfanyl)phenyl]-5-[3-methoxy-4-(methylsulfanyl)phenyl]-1,3-oxazole; and 9: 5-{4-[3-bromo-5-methoxy-4-(methylsulfanyl)phenyl]-1,3-oxazol-5-yl}-2-methoxyphenol (cf. Scheme 1).
These compounds were synthesized as cis-restricted analogues of combretastin A-4 (CA-4), a strong inhibitor of tubulin polymerization, with the potentially profitable methylthio substituent in one of the phenyl rings [23]. For instance, compounds 4 and 7 efficiently inhibited tubulin polymerization, with IC50 values below 1 μM; moreover, it was shown that this activity was 5-fold higher than that for OMe analogues. The effects on cell cycle distribution and proapoptotic activities of these compounds were comparable to those observed for CA-4 [23].
Besides, all these compounds provide a number of different possibilities relating to intermolecular interactions, while maintaining the main skeleton of the molecules.
2. Results
Scheme 1 shows the general structure of compounds 1–9, together with the ring naming. Depending on the substitution pattern in ring A, all molecules were divided into three groups (see Scheme 1): 3,4,5-trimethoxy derivatives (1–3), 3,5-dimethoxy-4-thiomethoxy derivatives (4–6), and 3-bromo-4,5-dimethoxy or 3-bromo-4-methoxythio-5-methoxy derivatives (7–9).
The perspective views of the representative examples from each group are shown in Figure 1, Figure 2 and Figure 3 (the remaining are submitted as Figures S1–S6, Supplementary Materials), and a comparison of some relevant geometrical characteristics for all compounds is given in Table 1. As shown by the values in this table, there were no significant differences in the overall conformations of the molecules, as additionally shown in Figure 2, which presents the result of the overlap of all molecules on the planes of the oxazole ring. Furthermore, the conformation of OMe or SMe substituents was typical (see Table 1), exhibiting a roughly coplanar disposition with respect to the aromatic ring for groups without two neighboring non-hydrogen substituents and an almost perpendicular disposition for the groups with such substituents in both neighboring positions.
The geometry of the oxazole ring was also quite typical, with the characteristic pattern of shorter and longer bonds, generally in agreement with the chemical formula (double C1=C2 and C4=N5 bonds; see Table 1). Very similar values can be found in other structures of molecules containing the neutral oxazole ring. The last column in Table 1 presents the results found in the Cambridge Structural Database ([24]; version 5.42 from November 2020; non-disordered structures only); the upper row presents 1,2-diaromatic-substituted compounds (38 fragments found in the CDB); and the lower row presents all compounds without rings fused to the oxazole one (363 hits).
The similarities of the structures, together with the relatively wide palette of point-like differences, allowed for systematic studies of the subtle pattern of different intermolecular interactions determining the crystal architectures. The apparent lack of “classical” hydrogen-bond donors and acceptors in the majority of compounds makes these series useful for classifying weaker interactions.
According to the theory of atoms in molecules [18], the calculation of the electron density gradient allowed us to locate the critical points (CP), where ∇ρ(r) = 0. The nature of the critical point was determined by analyzing the principal axes (eigenvectors) and curvatures (eigenvalues) of the Hessian matrix {∂2ρ/∂xi∂xj}. Each CP was characterized by a (ω, σ) pair, where ω is the number of nonzero eigenvalues, and σ is the sum of their signs (signature). For example, a (3, −1) bond critical point has three nonzero eigenvalues, two of them being negative, and one being positive. Generally, a covalent bond has a (3, −1) CP associated with a large electron density ρ(r) and a negative Laplacian ∇2ρ(r). On the other hand, ionic and hydrogen bonds or van der Waals interactions have a (3, −1) CP associated with a lower ρ(r) and a positive Laplacian.
A full analysis of all pairs of molecules, for which the critical points were found, is presented in Tables S1–S8 (Supplementary Materials). Each table contains a list of contacts with geometrical characteristics, topological parameters (electron density and Laplacian values at the critical points), and energies of interactions for the certain pair calculated using the PIXEL and HF methods.
Here, we only analyze some of the most important (with the highest interaction energies) and most interesting interactions between the pairs of molecules.
In the case of 1 (Table 2 lists the relevant data), the two motifs with the highest interaction energies, summing to more than half of the total interaction energy of the structure, together with the positions of the critical points, are shown in Figure 3.
In the first motif, i.e., an infinite chain of molecules along the x-direction (related to the unit cell with vector 5.1299 (4) Å), as many as nine (3, −1) critical points between the subsequent molecules were found. The second motif was a centrosymmetric (1 − x, 1 − y, 1 − z) dimer with five pairs of CPs. While the characteristics of all these CPs (density and Laplacian values) were not particularly prominent (in fact, some of them are clearly dubious), altogether, these contacts produced quite an important share of the total interaction energies (−202.3 kJ/mol for PIXEL; −205.0 kJ/mol for HF). In fact, for these pairs, there were hardly any contacts that could be clearly related to a well-defined “interaction”, in the sense of atom···atom pairwise interactions. On the contrary, they seemed to be good examples of more delocalized, overall contacts, contributing an important part of the cohesion energy of the crystals.
The next two pairs were also quite typical and interesting. In these cases, there were better defined “interactions” of the C–H···O (2.34 Å) and C–H···N (2.48 Å) type. These contacts were connected to the best defined critical points, with relatively high electron density values, and, probably more importantly, outstanding Laplacian values. This may be related to the much smaller share of dispersion energy component Edis values for the HF method. These interactions had a much smaller importance for the PIXEL method, which could be related to the relatively small “contact” areas. In this case, we also checked, for the sake of comparison, the tendencies using the DFT method (B3LYP/6-31G(d,p)), and the results were similar: The tendencies were the same, and the values did not differ much (Table 3).
In a few cases, there were classical, medium-strength hydrogen bonds, but the abovementioned features were also preserved in these cases. For instance, in 4 (Table 4), the highest interaction energy was calculated for a pair with as many as 11 critical bond points, with a low or even very low density and Laplacian values. On the other hand, for a pair connected by an O–H···N hydrogen bond, accompanied by a relatively short and linear C–H···O bridge, the energy was lower (comparable for HF; much lower for PIXEL), and the same observation regarding dispersion energy was observed here. The exact same situation was observed in 9 (isostructural pair).
These features were generally observed in all cases. Such a wide comparison of, in principle, similar compounds might be regarded as an important addition to the deeper insight into the nature of intermolecular interactions, as well as their specificity, compared to covalent or generally intramolecular bonds, and the delicate hierarchies of the factors responsible for creating the internal architecture of molecular crystals.
A bromine atom was only occasionally involved in important interactions. The best example was structure 7 (Table 5 and Figure 4), where one can find (using atom–atom interaction language) Br···Br interactions, fitting quite well into the halogen-bond description (Br···Br 3.564Å, C-Br···Br 165.3° and 120.1°), accompanied by the secondary C–Br···O interaction, with a much more exotic geometry. These interactions took part in the construction of the pair of molecules with the highest interaction energies. Over 10 critical points were found for this pair of molecules. In the other cases, Br was only involved in weak secondary or tertiary C–H···Br contacts, for which the interaction paths were determined, together with the appropriate critical points, but they were highly unspecific.
It is worth noting, in the context of discussing the role of covalently bound Br atoms, that compounds 4 and 9 were highly isostructural (cf. Figure S7, Supplementary Information). The conventional isostructurality indices presented very high values: unit cell similarities [25] 0.006 (ideal value 0), elongation [26] 0.003 (0), and isostructurality index [25] 0.985 (1) (methyl (c131) omitted). Furthermore, a comparison of the interaction data (Supplementary Materials) showed that the energetically most important pairs of molecules were almost exactly the same in both cases. Thus, exchanging the Br with a methyl group did not change the overall picture of the interaction energies, and the interactions with Br were of secondary (at best) importance for the determination of the crystal architecture.
On the other hand, some relatively close similarity could be observed between structures 3 and 5 (similarity 0.013, elongation 0.001, and isostructurality index 0.91). In these cases, however, the details of the interactions (Supplementary Materials) showed only a vague similarity in the pattern of interaction energies; therefore, such an analysis of intermolecular interactions may be regarded as an additional (and, in fact, crucial) method for checking the relevance of crystal structure similarities.
Sulfur atoms, although present in almost all molecules, are rarely involved in contacts outside of the geometrically enforced C–H···S or C···S contacts. In the case of 5, however, there was a centrosymmetric pair of molecules (Figure 5 and Table 6), in all contacts of which sulfur atoms were involved, having critical points (and interaction paths) that added quite a reasonable interaction energy (confirmed by all methods).
3. Materials and Methods
The general protocol underlying the synthesis and spectroscopic data for some of the compounds was previously described [23]. Diffraction data were collected using the ω-scan technique for 6 and 8 at 130(1) on a Rigaku SuperNova four-circle diffractometer with an Atlas CCD using detector mirror-monochromated CuKα radiation (λ = 1.54178 Å) and, for all other cases, on a Rigaku XCalibur four-circle diffractometer with an EOS CCD detector and graphite-monochromated MoKα radiation (λ = 0.71073 Å; 1, 3, 5, and 9 at 100(1) K; 2, 4, and 7 at room temperature). The data were corrected for Lorentz polarization, as well as for absorption effects [27]. Precise unit-cell parameters were determined by a least-squares fit of the reflections with the highest intensity, chosen from the whole experiment. The structures were solved with SHELXT [28] and refined with the full-matrix least-squares procedure on F2 by SHELXL [29]. All non-hydrogen atoms were refined anisotropically. SH (3) and OH (4) hydrogen atoms were found in the different Fourier maps and freely refined, whereas all the other hydrogen atoms were placed in idealized positions and refined as the ‘riding model’, with isotropic displacement parameters set to 1.2 (1.5 for CH3) times the Ueq of appropriate carrier atoms. The crystals of 6 turned out to be twinned, and this was considered during both data reduction and structure refinement. The BASF parameter, indicating the mutual content of two components, was refined at 0.199(5). In structures 2 and 8, weak restraints for the displacement ellipsoids were applied.
Table 7 lists relevant crystallographic data, together with details of the refinement procedure.
Energy calculations. The calculations of the interaction energies between pairs of molecules and packing energies were performed using two methods:
(a) Wavefunctions at the HF/6-31G(d,p) level (hereinafter: HF). The energy of the interaction was calculated as follows using the CrystalExplorer software [22] in terms of four key components: electrostatic, polarization, dispersion, and exchange–repulsion:
Etot = keleEele + kpolEpol + kdisEdis + krepErep;
In both cases, the hydrogen atoms were moved to the average geometry, as determined by neutron diffraction.
AIM topological analysis. The topology (atoms-in-molecules [18]) of the electron density distribution was calculated using the MoPro software [30]. In our previous studies [31], we checked different models of electron density, and the superiority of the model with multipolar parameters transferred from the ELMAM2 database (experimental databank of transferable multipolar atom models) [31] was shown [32].
As not all atom types were available, we used some approximations in proceeding with the transfer. For instance, in the oxazole ring, multipolar parameters for atoms C2, C4, and H4 were transferred from analogous structures, replacing the oxygen atom with a nitrogen one. A similar approximation was used for C131, C141, C151, C231, and the corresponding atoms.
4. Conclusions
The crystal structures of nine closely related, biologically active oxazole derivatives were determined by means of X-ray diffraction, and an in-depth analysis of weak intermolecular interactions was performed. For this, the geometry, topology of the electron density distribution, and the interaction energies were determined, and the relationships among these aspects were analyzed. It is suggested that, even in the presence of medium-strength hydrogen bonds, the more diffused, less specific interactions are generally more important for the cohesion energies. The interactions involving Br or S atoms were generally found to be secondary, and a modification of the analysis of the phenomenon of isostructurality was proposed.
Supplementary Materials
The following are available online: Figures S1–S6: perspective views of molecules 2, 3, 4, 6, 7, and 8; Figure S7: a comparison of the crystal packings of isostructural pairs 4–9; Tables S1–S8: interaction data for compounds 1–7 and 9.
Author Contributions
Conceptualization, M.K.; methodology, A.M.G., T.S. and M.K.; software, A.M.G. and M.K.; validation, A.M.G. and M.K.; formal analysis, M.K.; investigation, A.M.G., T.S. and M.K.; resources, M.K.; data curation, A.M.G. and M.K.; writing—original draft preparation, A.M.G. and M.K.; writing—review and editing, M.K.; visualization, A.M.G. and M.K.; supervision, A.M.G. and M.K.; project administration, M.K.; funding acquisition, M.K. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the National Science Center (Poland), grant number 2015/17/B/ST4/03701.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Crystallographic data for the structural analysis has been deposited with the Cambridge Crystallographic Data Centre. Copies of this information may be obtained free of charge from: The Director, CCDC, 12 Union Road, Cambridge, CB2 1EZ. UK; e-mail: deposit@ccdc.cam.ac.uk or www: www.ccdc.cam.ac.uk (accessed on 1 May 2021).
Conflicts of Interest
The authors declare no conflict of interest.
Sample Availability
Samples of the compounds 1–9 are available from the authors.
References
- Dunitz, J.D. Phase transitions in molecular crystals from a chemical viewpoint. Pure Appl. Chem. 1991, 63, 177–185. [Google Scholar] [CrossRef]
- Desiraju, G.R. The Crystal as a Supramolecular Entity. In Perspectives in Supramolecular Chemistry 2; Desiraju, G.R., Ed.; Wiley and Sons: Chichester, UK, 1996. [Google Scholar]
- Desiraju, G.R. Hydrogen bridges in crystal engineering: Interactions without borders. Acc. Chem. Res. 2002, 35, 565–573. [Google Scholar] [CrossRef] [PubMed]
- Metrangolo, P.; Neukirch, H.; Pilati, T.; Resnati, G. Halogen bonding based recognition processes: A world parallel to hydrogen bonding. Acc. Chem. Res. 2005, 38, 386–395. [Google Scholar] [CrossRef] [PubMed]
- Biot, N.; Bonifazi, D. Chalcogen-bond driven molecular recognition at work. Coord. Chem. Rev. 2020, 413, 213243. [Google Scholar] [CrossRef]
- Politzer, P.; Murray, J.S.; Clark, T. σ-Hole bonding: A physical interpretation. Top. Curr. Chem. 2015, 358, 19–42. [Google Scholar] [PubMed]
- Hunter, C.A.; Lawson, K.R.; Perkins, J.; Urch, C.J. Aromatic interactions. J. Chem. Soc. Perkin Trans. 2001, 2, 651–669. [Google Scholar] [CrossRef]
- Matta, C.F.; Hernandez-Trujillo, J.; Tang, T.-H.; Bader, R.F.W. Hydrogen-hydrogen bonding: A stabilizing interaction in molecules and crystals. Chem. Eur. J. 2003, 9, 1940–1951. [Google Scholar] [CrossRef]
- Dunitz, J.D.; Gavezzotti, A. Molecular recognition in organic crystals: Directed intermolecular bonds or nonlocalized bonding? Angew. Chem. Int. Ed. Engl. 2005, 44, 1766–1787. [Google Scholar] [CrossRef]
- Dunitz, J.D. Intermolecular atom-atom bonds in crystals? IUCrJ 2015, 2, 157–158. [Google Scholar] [CrossRef]
- Thakur, T.S.; Dubey, R.; Desiraju, G.R. Intemolecular atom-atom bonds in crystals—A chemical perspective. IUCrJ 2015, 2, 159–160. [Google Scholar] [CrossRef]
- Lecomte, C.; Espinosa, E.; Matta, C.F. On atom-atom ‘short contact’ bonding interactions in crystals. IUCrJ 2015, 2, 161–163. [Google Scholar] [CrossRef]
- Dominiak, P.M.; Makal, A.; Mallinson, P.R.; Trzcińska, K.; Eilmes, J.; Grech, E.; Chruszcz, M.; Minor, W.; Woźniak, K. Continua of interactions between pairs of atoms in molecular crystals. Chem. Eur. J. 2006, 12, 1941–1949. [Google Scholar] [CrossRef]
- Mallinson, P.R.; Smith, G.T.; Wilson, C.C.; Grech, E.; Woźniak, K. From weak interactions to covalent bonds: A continuum in the complexes of 1,8-bis(dimethylamino)naphthalene. J. Am. Chem. Soc. 2003, 125, 4259–4270. [Google Scholar] [CrossRef]
- Espinosa, E.; Lecomte, C.; Molins, E. Experimental electron density overlapping in hydrogen bonds: Topology vs. energetics. Chem. Phys. Lett. 1999, 300, 745–748. [Google Scholar] [CrossRef]
- Spackman, M.A. Hydrogen bond energetics from topological analysis of experimental electron densities: Recognising the importance of the promolecule. Chem. Phys. Lett. 1999, 301, 425–429. [Google Scholar] [CrossRef]
- Gatti, C.; May, E.; Destro, R.; Cargnoni, F. Fundamental properties and nature of CH··O interactions in crystals on the basis of experimental and theoretical charge densities. The case of 3,4-bis(dimethylamino)-3-cyclobutene-1,2-dione (DMACB) crystal. J. Phys. Chem. A 2002, 106, 2707–2720. [Google Scholar] [CrossRef]
- Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Clarendon Press: Oxford, UK, 1990. [Google Scholar]
- Gavezzotti, A. Are crystal structures predictable? Acc. Chem. Res. 1994, 27, 309–314. [Google Scholar] [CrossRef]
- Gavezzotti, A.; Fillippini, G. Geometry of the intermolecular X-H···Y (X, Y = N, O) hydrogen bond and the calibration of empirical hydrogen-bond potentials. J. Phys. Chem. 1994, 98, 4831–4837. [Google Scholar] [CrossRef]
- Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Crystallogr. 2020, 53, 226–235. [Google Scholar] [CrossRef]
- Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Spackman, P.R.; Jayatilaka, D.; Spackman, M.A.; CrystalExplorer17. University of Western Australia. 2017. Available online: http://crystalexplorer.scb.uwa.edu.au/ (accessed on 29 January 2021).
- Stefański, T.; Mikstacka, R.; Kurczab, R.; Dutkiewicz, Z.; Kucińska, M.; Murias, M.; Zielińska-Przyjemska, M.; Cichocki, M.; Teubert, A.; Kaczmarek, M.; et al. Design, synthesis, and biological evaluation of novel combretastatin A-4 thio derivatives as microtubule targeting agents. Eur. J. Med. Chem. 2018, 144, 797–816. [Google Scholar] [CrossRef]
- Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. Part B 2016, 72, 171–179. [Google Scholar] [CrossRef] [PubMed]
- Kalman, A.; Parkanyi, L.; Argay, G. Classification of the isostructurality of organic molecules in the crystalline state. Acta Crystallogr. Part B 1993, 49, 1039–1049. [Google Scholar] [CrossRef]
- Rutherford, J.S. On comparing lattice parameters among isostructural molecular crystals. Acta Chim. Hung. 1997, 134, 395–405. [Google Scholar]
- Rigaku. CrysAlisPro; Rigaku Oxford Diffraction Ltd.: Oxford, UK, 2013. [Google Scholar]
- Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Part A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
- Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Part C 2015, 71, 3–8. [Google Scholar] [CrossRef]
- Guillot, B.; Viry, L.; Guillot, R.; Lecomte, C.; Jelsch, C. Refinement of proteins at subatomic resolution with MOPRO. J. Appl. Crystallogr. 2001, 34, 214–223. [Google Scholar] [CrossRef]
- Domagala, S.; Fournier, B.; Liebschner, D.; Guillot, B.; Jelsch, C. An improved experimental databank of transferable multipolar atom models—ELMAM2. Construction details and applications. Acta Crystallogr. Part A 2012, 68, 337–351. [Google Scholar] [CrossRef]
- Przybył, A.K.; Grześkiewicz, A.M.; Kubicki, M. Weak interactions in the structures of newly synthesized (-)-cytisine amino acid derivatives. Crystals 2021, 11, 146. [Google Scholar] [CrossRef]

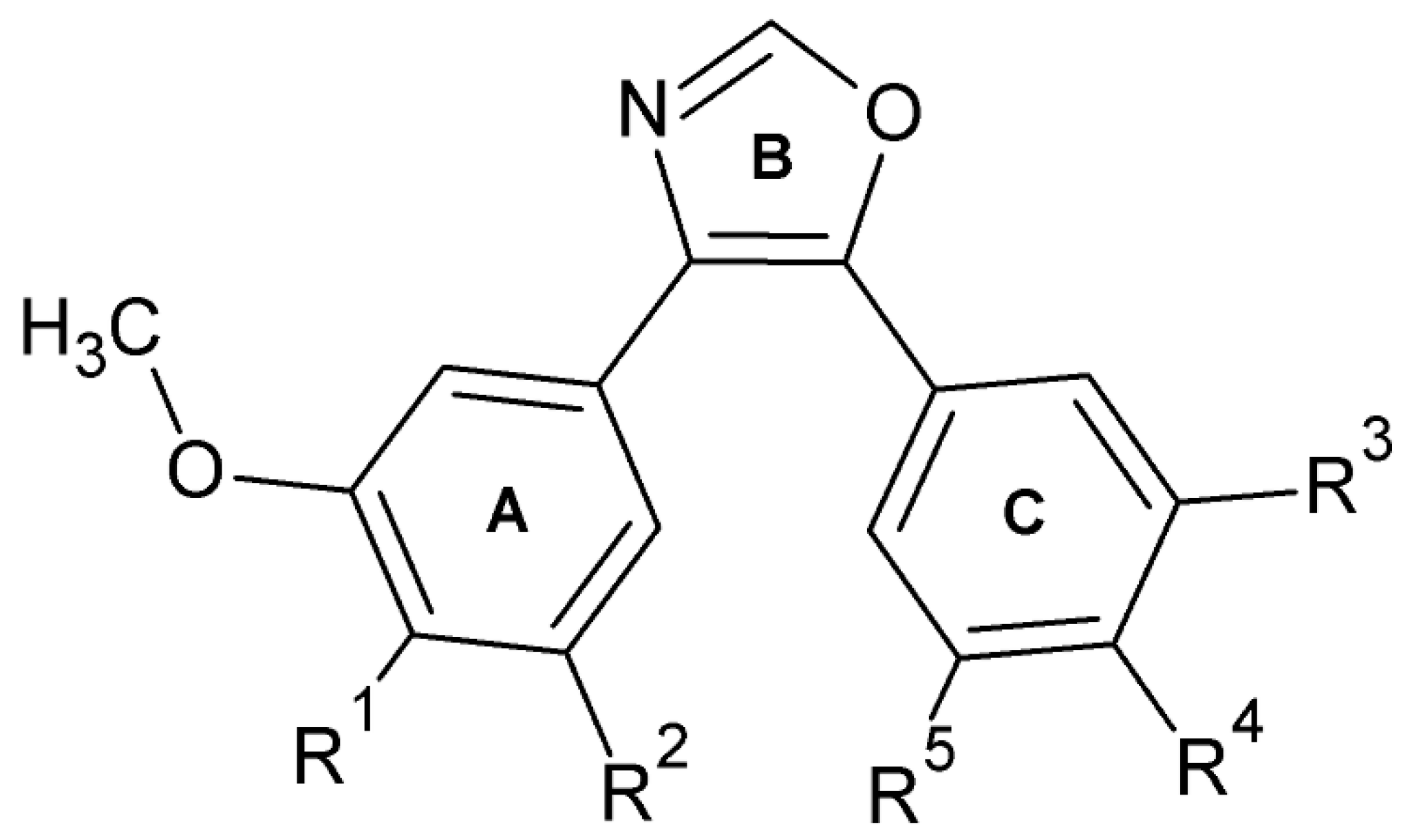

Scheme 1.
The molecular skeleton together with the ring naming. 1: R1=R2=R3=OCH3, R4=SCH3, R5=H; 2: R1=R2=R3=OCH3, R4=SCH3, R5=Br; 3: R1=R2= R3=OCH3, R4=H, R5=SH; 4: R1=SCH3, R2=R4=OCH3, R3=OH, R5=H; 5: R1=SCH3, R2=R4=OCH3, R3=F, R5=H; 6: R1=SCH3, R2=OCH3, R3=R5=H, R4=OC2H5; 7: R1=R4=OCH3, R2=Br, R3=SCH3, R5=H; 8: R1=R3=OCH3, R2=Br, R4=SCH3, R5=H; 9: R1= SCH3, R2=Br, R3=OH, R4=OCH3, R5=H.
Scheme 1.
The molecular skeleton together with the ring naming. 1: R1=R2=R3=OCH3, R4=SCH3, R5=H; 2: R1=R2=R3=OCH3, R4=SCH3, R5=Br; 3: R1=R2= R3=OCH3, R4=H, R5=SH; 4: R1=SCH3, R2=R4=OCH3, R3=OH, R5=H; 5: R1=SCH3, R2=R4=OCH3, R3=F, R5=H; 6: R1=SCH3, R2=OCH3, R3=R5=H, R4=OC2H5; 7: R1=R4=OCH3, R2=Br, R3=SCH3, R5=H; 8: R1=R3=OCH3, R2=Br, R4=SCH3, R5=H; 9: R1= SCH3, R2=Br, R3=OH, R4=OCH3, R5=H.

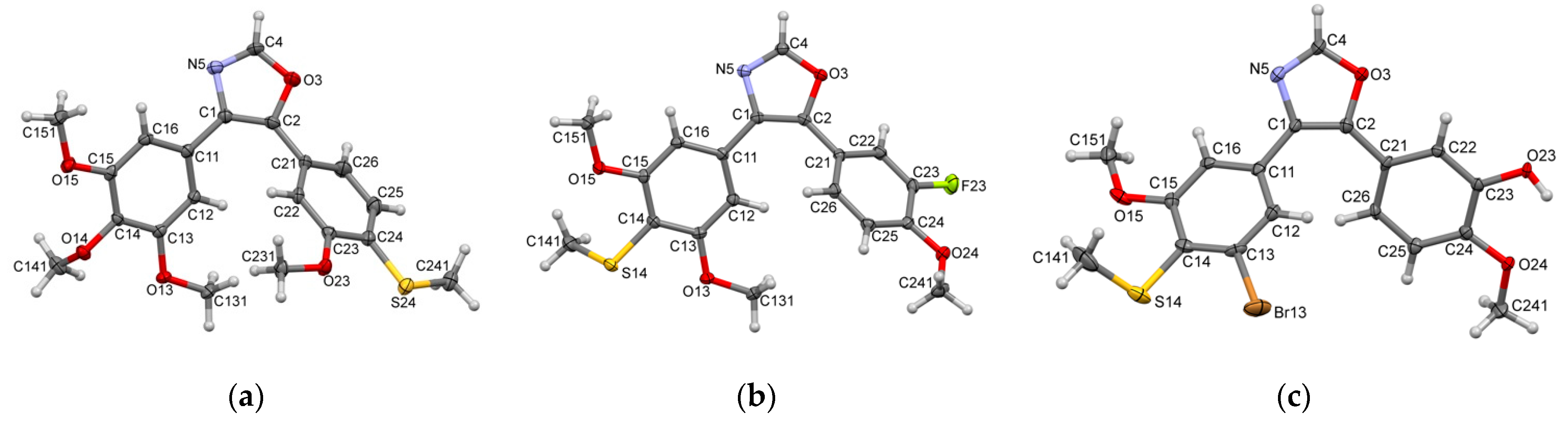

Figure 1.
Perspective views for the chosen molecules from each group: (a) 1, (b) 5, (c) 9. Ellipsoids are drawn at the 50% probability level, and hydrogen atoms are shown as spheres of arbitrary radii.
Figure 1.
Perspective views for the chosen molecules from each group: (a) 1, (b) 5, (c) 9. Ellipsoids are drawn at the 50% probability level, and hydrogen atoms are shown as spheres of arbitrary radii.

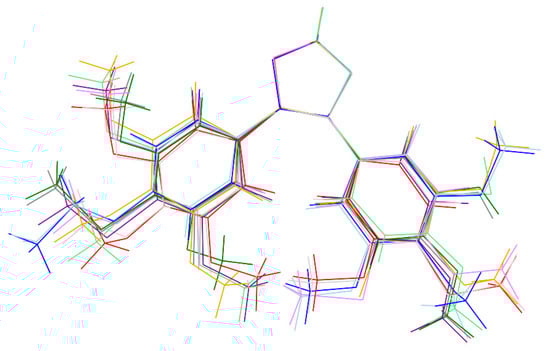

Figure 2.
A comparison of all molecules. The oxazole rings were fitted onto one another.

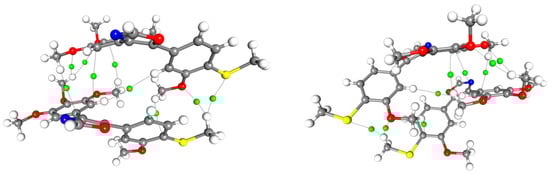

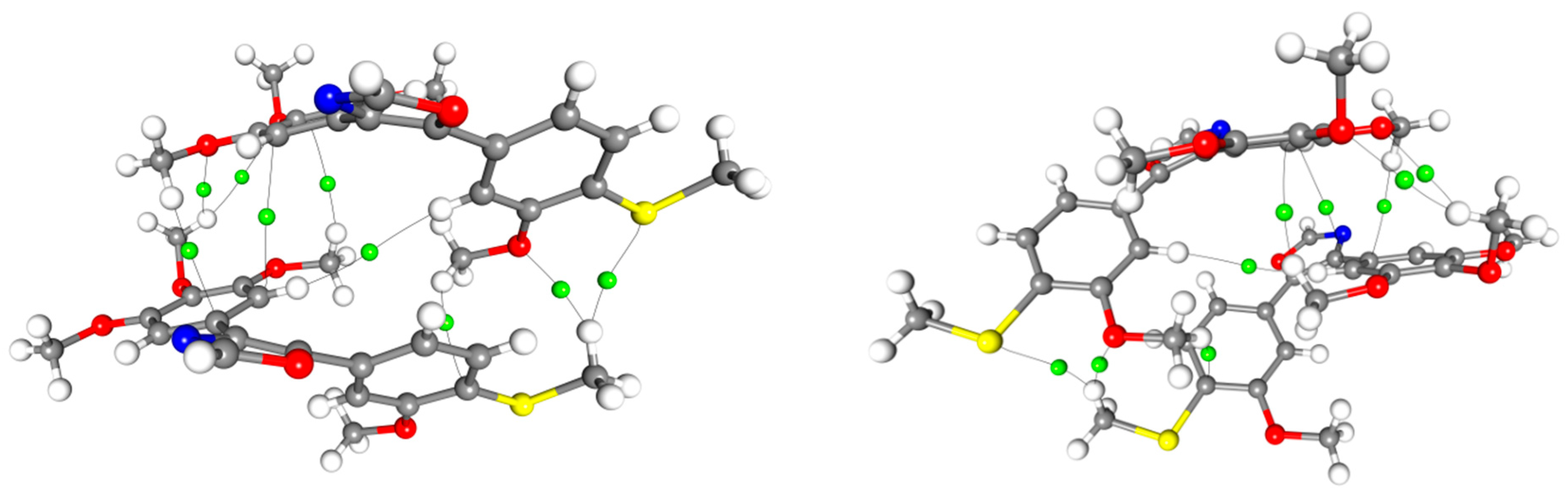

Figure 3.
Two of the most important (with the highest interaction energies) motifs in the crystal structure 1 (cf. text). Green circles show the positions of the (3, −1) critical points.
Figure 3.
Two of the most important (with the highest interaction energies) motifs in the crystal structure 1 (cf. text). Green circles show the positions of the (3, −1) critical points.
Figure 4.
Br···Br motifs in structure 7, cf. text. Green dots show the positions of critical points.
Figure 4.
Br···Br motifs in structure 7, cf. text. Green dots show the positions of critical points.

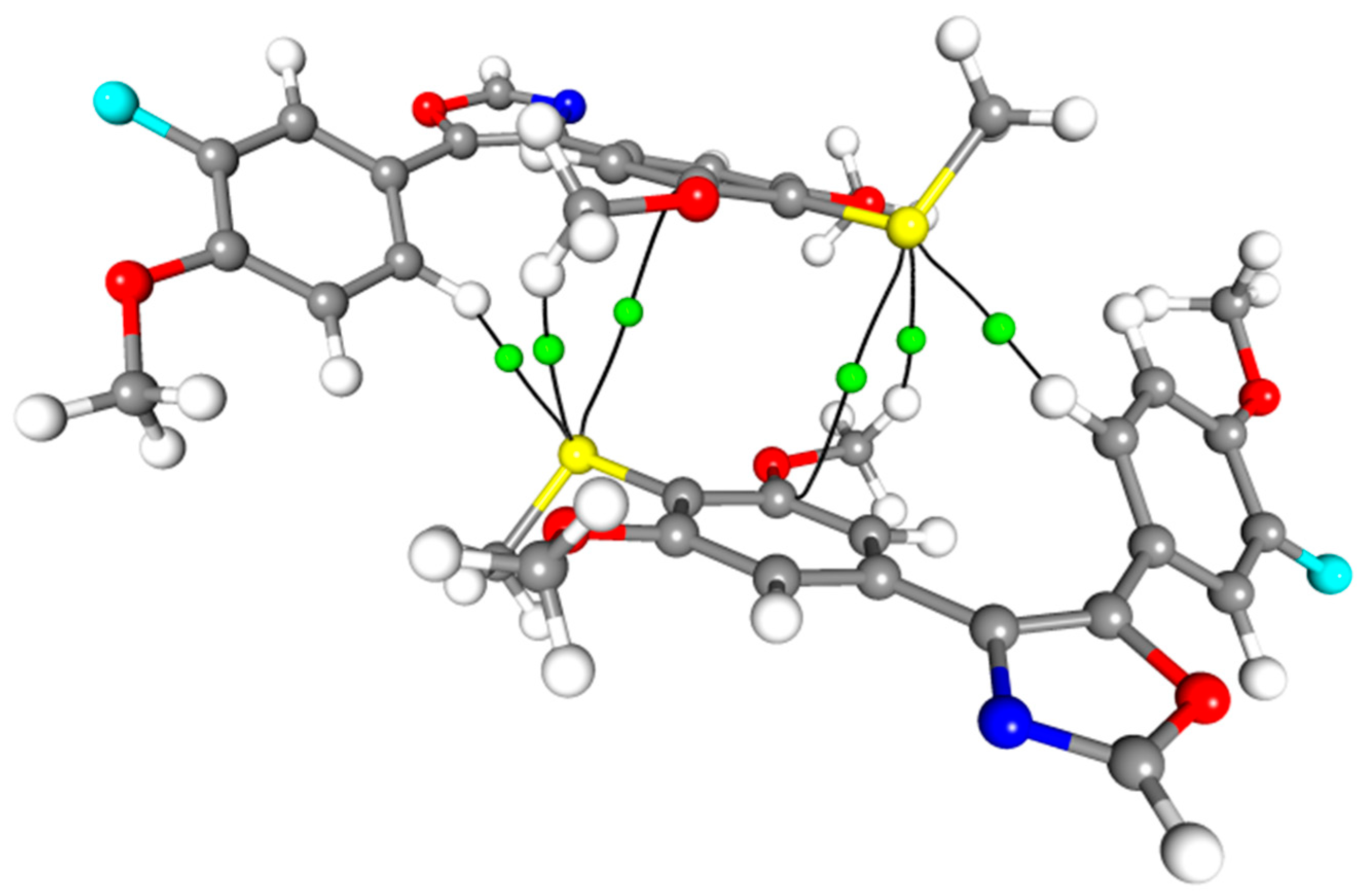

Figure 5.

The contacts involving sulphur atoms in structure 5 (cf. Text ). Green circles denote the critical bond points.
Figure 5.
The contacts involving sulphur atoms in structure 5 (cf. Text ). Green circles denote the critical bond points.
Table 1.
Relevant geometrical parameters of the studied compounds (Å, °), with the s.u.’s in parentheses. The second line in column 8, if it exists, refers to the less-occupied alternative. A, B, C denote the planes of the rings, according to Scheme 1, O(S)Mex, etc.—the methoxy or thiometoxy group at position x; A/B, etc., are dihedral angles between appropriate least-squares planes. In the structure of 6, there are two symmetry-independent molecules, denoted here as 6A and 6B.
Table 1.
Relevant geometrical parameters of the studied compounds (Å, °), with the s.u.’s in parentheses. The second line in column 8, if it exists, refers to the less-occupied alternative. A, B, C denote the planes of the rings, according to Scheme 1, O(S)Mex, etc.—the methoxy or thiometoxy group at position x; A/B, etc., are dihedral angles between appropriate least-squares planes. In the structure of 6, there are two symmetry-independent molecules, denoted here as 6A and 6B.
| 1 | 2 | 3 | 4 | 5 | 6A | 6B | 7 | 8 | 9 | CSDB | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C1-C2 | 1.355(4) | 1.350(6) | 1.367(2) | 1.363(5) | 1.3595(19) | 1.362(4) | 1.363(4) | 1.354(11) | 1.361(3) | 1.354(5) | 1.357(14) 1.348(15) |
| C1-N5 | 1.403(3) | 1.387(6) | 1.408(2) | 1.409(4) | 1.4099(17) | 1.401(4) | 1.401(4) | 1.423(10) | 1.397(3) | 1.404(5) | 1.398(10) 1.393(12) |
| C2-O3 | 1.385(3) | 1.381(5) | 1.3906(18) | 1.395(4) | 1.3899(16) | 1.391(3) | 1.391(3) | 1.376(9) | 1.378(3) | 1.387(5) | 1.296(15) 1.294(15) |
| O3-C4 | 1.352(3) | 1.346(5) | 1.3504(19) | 1.346(4) | 1.3550(16) | 1.347(4) | 1.353(4) | 1.350(10) | 1.356(4) | 1.345(4) | 1.350(16) 1.359(18) |
| C4-N5 | 1.287(4) | 1.256(6) | 1.292(2) | 1.287(5) | 1.2874(18) | 1.276(4) | 1.275(4) | 1.286(11) | 1.276(4) | 1.288(5) | 1.387(11) 1.379(13) |
| C2-C1-N5 | 108.8(3) | 109.0(4) | 108.62(13) | 108.5(3) | 108.51(12) | 108.9(3) | 109.0(2) | 109.5(8) | 109.1(2) | 108.8(4) | 108.6(6) 109.5(11) |
| C1-C2-O3 | 107.8(2) | 107.1(5) | 107.25(13) | 107.0(3) | 107.57(12) | 106.8(3) | 106.8(3) | 107.2(8) | 107.2(2) | 107.1(3) | 107.4(6) 107.4(11) |
| C2-O3-C4 | 103.9(2) | 103.3(4) | 104.54(12) | 104.9(3) | 104.36(10) | 104.4(2) | 104.2(2) | 104.5(7) | 104.0(2) | 104.9(3) | 104.9(8) 104.7(9) |
| O3-C4-N5 | 115.3(3) | 116.2(5) | 115.06(14) | 114.8(3) | 114.85(12) | 115.3(3) | 115.4(3) | 116.1(9) | 115.5(3) | 114.5(4) | 114.0(11) 113.9(10) |
| C1-N5-C4 | 104.3(2) | 104.3(4) | 104.50(13) | 104.9(3) | 104.68(11) | 104.6(3) | 104.5(3) | 102.6(8) | 104.1(2) | 104.7(3) | 105.1(8) 104.6(9) |
| C12-C13-C14 | 120.5(3) | 119.3(5) | 120.42(14) | 121.3(3) | 120.62(13) | 121.5(3) | 121.3(3) | 121.8(8) | 121.7(4) | 122.9(4) | |
| C13-C14-C15 | 119.7(3) | 119.2(5) | 119.60(14) | 118.4(3) | 118.46(12) | 117.9(2) | 118.4(2) | 119.9(9) | 118.8(2) | 116.8(4) | |
| C14-C15-C16 | 120.1(3) | 120.6(5) | 120.28(14) | 120.8(3) | 121.24(12) | 120.8(3) | 120.3(3) | 116.7(10) | 119.4(3) | 121.0(4) | |
| C22-C23-C24 | 121.1(3) | 122.6(5) | 119.76(14) | 120.2(3) | 123.31(13) | 119.7(3) | 120.0(3) | 117.3(9) | 120.7(2) | 119.6(4) | |
| C23-C24-C25 | 118.2(3) | 116.2(4) | 119.60(14) | 119.3(3) | 117.34(13) | 119.7(3) | 119.9(3) | 121.5(9) | 118.4(2) | 120.6(4) | |
| C2-C1-C11-C12 | −26.2(5) | −16.8(9) | −13.0(3) | −40.5(6) | −18.1(3) | −7.1(6) | −20.8(6) | −30.5(15) | −28.6(10) 144.9(13) | −39.6(7) | |
| C2-C1-C11-C16 | 154.4(3) | 162.5(5) | 168.67(16) | 142.1(4) | 163.19(14) | 173.6(4) | 161.2(4) | 152.9(10) | 146.6(6) −54(2) | 144.2(5) | |
| N5-C1-C11-C12 | 149.3(3) | 163.3(5) | 163.65(14) | 140.2(4) | 158.95(13) | 171.5(3) | 157.7(3) | 148.1(8) | 143.7(7) −22(2) | 141.0(4) | |
| N5-C1-C11-C16 | −30.1(4) | −17.4(7) | −14.6(2) | −37.3(5) | −19.78(19) | −7.8(5) | −20.4(5) | −28.5(13) | −41.1(9) 139.7(13) | −35.2(6) | |
| C1-C2-C21-C22 | −36.1(6) | −28.4(9) | 147.51(19) | 154.5(4) | 143.26(17) | 139.7(5) | 145.3(4) | −22.2(18) | −30.5(5) | 153.8(5) | |
| C1-C2-C21-C26 | 142.4(4) | 155.0(6) | −38.3(3) | −26.5(7) | −38.2(3) | −40.5(7) | −34.9(6) | 162.0(12) | 151.6(4) | −28.3(8) | |
| O3-C2-C21-C22 | 139.8(3) | 149.4(5) | −35.70(19) | −28.2(5) | −39.97(18) | −37.5(5) | −31.5(4) | 157.1(8) | 145.1(3) | −28.9(6) | |
| O3-C2-C21-C26 | −41.7(4) | −27.2(7) | 138.51(14) | 150.8(3) | 138.57(13) | 142.3(3) | 148.3(3) | −18.7(13) | −32.9(4) | 149.0(4) | |
| A/B | 28.36(14) | 17.04(18) | 14.51(6) | 39.20(10) | 19.42(7) | 7.3(3) | 20.56(19) | 30.8(3) | 35.4(2) | 37.53(11) | |
| B/C | 39.72(14) | 27.75(11) | 38.28(5) | 28.08(16) | 39.63(4) | 38.46(14) | 32.64(18) | 20.2(4) | 32.79(17) | 29.31(18) | |
| A/C | 51.51(11) | 32.47(12) | 47.42(4) | 51.84(11) | 47.83(4) | 38.69(1) | 39.00(14) | 42.5(3) | 49.6(2) | 51.54(13) | |
| A/OMe3 | 6.5(2) | 4.7(3) | 3.15(14) | 8.3(2) | 13.09(15) | 2.0(7) | 5.6(5) | ||||
| A/O(S)Me4 | 73.27(13) | 81.2(3) | 80.09(13) | 50.39(13) | 60.10(5) | 86.7(2) | 69.44(15) | 79.4(5) | 79.6(3) | 50.25(16) | |
| A/OMe5 | 0.9(2) | 6.6(3) | 4.09(15) | 9.0(3) | 4.84(17) | 8.7(5) | 3.5(5) | 2.5(7) | 5.6(7) | 7.3(3) | |
| B/OMe3 | 12.3(3) | 3.24(18) | 1.3(5) | 6.19(18) | |||||||
| B/SMe4 | 1.2(2) | 85.6(2) | 1.2(2) | ||||||||
| B/OMe4 | 0.80(16) | 1.3(5) | 4.42(17) | 3.10(17) | 1.4(5) | 2.3(11) | 2.3(5) |
Table 2.
Details of the interactions for the chosen pairs of molecules in 1 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i −1 + x,y,z; ii 1 − x,1 − y,1 − z; iii −x,1 − y,1 − z; iv 1 − x,2 − y,2 − z.
Table 2.
Details of the interactions for the chosen pairs of molecules in 1 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i −1 + x,y,z; ii 1 − x,1 − y,1 − z; iii −x,1 − y,1 − z; iv 1 − x,2 − y,2 − z.
| Atom1 | Atom2 | Gcp | Vcp | DEN | LAP | X···Y | H···Y | X-H···Y | Pix | HF B3LYP |
|---|---|---|---|---|---|---|---|---|---|---|
| C16 | C12 i | 4.35 | −2.77 | 0.01834 | 0.218 | 3.742 | −78.9 | −69.1 −67.4 | ||
| C14 | H13C i | 8.55 | −6.18 | 0.03675 | 0.401 | 3.717 | 2.90 | 131 | ||
| O15 | H14B i | 10.27 | −6.41 | 0.02888 | 0.519 | 3.447 | 2.78 | 119 | ||
| O14 | H14B i | 3.86 | −2.43 | 0.01651 | 0.194 | 4.173 | 3.14 | 158 | ||
| H15C | C11 i | 8.86 | −7.02 | 0.0442 | 0.393 | 3.980 | 2.90 | 170 | ||
| H22 | H12 i | 0.98 | −0.58 | 0.00581 | 0.051 | 3.39 | ||||
| O23 | H24A i | 14.83 | −10.65 | 0.05047 | 0.698 | 3.452 | 2.53 | 142 | ||
| H23C | C24 i | 12.94 | −10.26 | 0.05547 | 0.574 | 3.550 | 2.69 | 136 | ||
| S24 | H24A i | 9.07 | −6.53 | 0.03773 | 0.427 | 3.894 | 2.96 | 144 | ||
| H13A | O13 ii | 12.71 | −8.13 | 0.03529 | 0.634 | 3.259 | 2.74 | 109 | −40.9 | −53.7 −46.1 |
| O13 | H23B ii | 2.3 | −1.28 | 0.00743 | 0.122 | 4.084 | 3.37 | 124 | ||
| H13A | O14 ii | 7.86 | −4.98 | 0.02567 | 0.394 | 3.613 | 2.84 | 128 | ||
| H14A | O23 ii | 12.93 | −8.69 | 0.04038 | 0.63 | 3.429 | 2.63 | 130 | ||
| H14A | S24 ii | 6.97 | −5.34 | 0.03615 | 0.316 | 4.137 | 3.07 | 167 | ||
| H23A | O14 iii | 22.51 | −17.79 | 0.077 | 0.999 | 3.308 | 2.34 | 147 | −11.2 | −30.6 −24.2 |
| H14B | O14 iii | 3.86 | −2.43 | 0.01651 | 0.194 | |||||
| H4 | N5 iv | 19.54 | −13.48 | 0.05478 | 0.94 | 3.413 | 2.48 | 143 | −5.9 | −27.1 −22.7 |
Table 3.
The details of the interaction energies (in kJ/mol) for the four pairs from Table 2. Upper row: HF-3-21G; lower row, italics: B3LYP/6-31G(d,p). R is the distance between the centroids of the interacting molecules.
Table 3.
The details of the interaction energies (in kJ/mol) for the four pairs from Table 2. Upper row: HF-3-21G; lower row, italics: B3LYP/6-31G(d,p). R is the distance between the centroids of the interacting molecules.
| R | E_ele | E_pol | E_dis | E_rep | E_tot |
|---|---|---|---|---|---|
| 5.13 | −18.7 −19.2 | −10.0 −5.9 | −90.3 −90.3 | 46.7 58.2 | −69.1 −67.4 |
| 7.84 | −25.4 −21.0 | −9.4 −5.7 | −46.4 −46.4 | 24.7 33.5 | −53.7 −46.1 |
| 8.78 | −20.3 −16.6 | −7.3 −4.2 | −18.0 −18.0 | 13.6 19.5 | −30.6 −24.2 |
| 11.39 | −21.9 −18.8 | −4.0 −3.1 | −12.2 −12.2 | 10.9 16.3 | −27.1 −22.7 |
Table 4.
Details of the interactions for the chosen pairs of molecules in 4 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i ½ + x,½ − y,−z; ii ½ − x,1 − y,½ − z.
Table 4.
Details of the interactions for the chosen pairs of molecules in 4 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i ½ + x,½ − y,−z; ii ½ − x,1 − y,½ − z.
| Atom1 | Atom2 | Gcp | Vcp | DEN | LAP | X···Y | H···Y | X-H···Y | pixel | HF |
|---|---|---|---|---|---|---|---|---|---|---|
| C2 | C15 i | 4.51 | −2.93 | 0.01966 | 0.224 | 4.382 | −89.8 | −66.4 | ||
| C11 | H26 i | 9.44 | −6.67 | 0.03728 | 0.448 | 3.733 | 2.85 | 139 | ||
| O3 | S14 i | 7.59 | −5 | 0.02788 | 0.374 | 3.538 | ||||
| H12 | C16 i | 6.21 | −3.89 | 0.02169 | 0.313 | 3.766 | 3.05 | 124 | ||
| H12 | H15C i | 2.9 | −1.98 | 0.01708 | 0.14 | 2.73 | ||||
| H13C | H16 i | 11.03 | −7.61 | 0.03883 | 0.531 | 2.28 | ||||
| H13C | N5 i | 12.59 | −10.2 | 0.05647 | 0.55 | 3.651 | 2.66 | 151 | ||
| H14B | C23 i | 7.24 | −5.36 | 0.03481 | 0.335 | 3.953 | 2.98 | 150 | ||
| H15B | H24C i | 7.2 | −4.85 | 0.02851 | 0.351 | 2.46 | ||||
| C22 | O15 i | 14.28 | −10.14 | 0.04821 | 0.677 | 3.096 | ||||
| H22 | S14 i | 6.18 | −4.27 | 0.02755 | 0.297 | 4.095 | 3.17 | 143 | ||
| H23 | N5 ii | 56.52 | −82.77 | 0.27482 | 1.112 | 2.763 | 1.83 | 156 | −39.6 | −60.0 |
| O23 | H15B ii | 12.04 | −8.8 | 0.0461 | 0.561 | 3.620 | 2.60 | 155 | ||
| O23 | H16 ii | 21.77 | −15.63 | 0.06353 | 1.025 | 3.216 | 2.38 | 132 | ||
| O24 | H4 ii | 15.58 | −10.72 | 0.04758 | 0.75 | 3.211 | 2.63 | 113 |
Table 5.
Details of the interactions for the chosen pairs of molecules in 7 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i x,−1 + y,z; ii −x,−½ + y,−z.
Table 5.
Details of the interactions for the chosen pairs of molecules in 7 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5)]; Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i x,−1 + y,z; ii −x,−½ + y,−z.
| Atom1 | Atom2 | Gcp | Vcp | DEN | LAP | X···Y | H···Y | X-H···Y | pixel | HF |
|---|---|---|---|---|---|---|---|---|---|---|
| C13 | C15 i | 7.73 | −5.48 | 0.03329 | 0.366 | 3.490 | −105.0 | −67.8 | ||
| C4 | N5 i | 2.08 | −1.22 | 0.0089 | 0.108 | 4.083 | ||||
| C16 | H15B i | 11.62 | −9.11 | 0.05108 | 0.519 | 3.673 | 2.69 | 150 | ||
| H12 | H23B i | 7.18 | −5.23 | 0.0336 | 0.335 | 2.29 | ||||
| Br13 | C231 i | 8.05 | −5.3 | 0.02884 | 0.397 | 3.636 | ||||
| Br13 | O14 i | 9.33 | −6.44 | 0.03524 | 0.449 | 3.505 | ||||
| H14C | O14 i | 14.14 | −11.04 | 0.05703 | 0.633 | 3.593 | 2.52 | 171 | ||
| H14C | O15 i | 9.03 | −5.54 | 0.02533 | 0.459 | 3.463 | 2.87 | 115 | ||
| C22 | H23B i | 8.91 | −6.4 | 0.03717 | 0.419 | 3.900 | 2.89 | 155 | ||
| C24 | S23 i | 7.59 | −5.42 | 0.03341 | 0.358 | 3.674 | ||||
| C25 | C23 i | 6.72 | −4.71 | 0.02986 | 0.321 | 3.600 | ||||
| H24B | O24 i | 7.52 | −5.33 | 0.03276 | 0.356 | 3.815 | 2.80 | 155 | ||
| Br13 | Br13 ii | 12.28 | −9.6 | 0.0526 | 0.549 | 3.564 | −14.2 | −14.4 | ||
| Br13 | H23A ii | 8.14 | −5.2 | 0.02691 | 0.407 | 3.838 | 3.19 | 118 | ||
| O14 | H23A ii | 4.73 | −3.05 | 0.01997 | 0.235 | 4.057 | 3.00 | 165 | ||
| H14A | S23 ii | 3.24 | −1.99 | 0.01374 | 0.165 | 4.232 | 3.51 | 125 |
Table 6.
Details of the interactions for the chosen pairs of molecules in 5 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5); Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i −x,2 − y,1 − z; ii 1 − x,1 − y,1 − z.
Table 6.
Details of the interactions for the chosen pairs of molecules in 5 (cf. Text). Gcp: kinetic energy density (kJ/mol/Bohr3); Vcp: potential energy density (kJ/mol/Bohr3); Lap: laplacian at the BCP (e·Å−5); Den: electron density at the BCP (e·Å−3), distances in Å, angles in °, and energies in kJ/mol. Symmetry codes: i −x,2 − y,1 − z; ii 1 − x,1 − y,1 − z.
| Atom1 | Atom2 | Gcp | Vcp | DEN | LAP | X···Y | H···Y | X-H···Y | pixel | HF |
|---|---|---|---|---|---|---|---|---|---|---|
| H14C | O3 i | 2.97 | −1.78 | 0.01199 | 0.153 | 4.188 | 3.22 | 148 | −76.0 | −72.9 |
| C15 | H22 i | 6.48 | −4.37 | 0.02686 | 0.315 | 3.803 | 2.99 | 131 | ||
| N5 | C12 i | 6.97 | −4.66 | 0.02749 | 0.341 | 3.568 | ||||
| H14C | H22 i | 10.3 | −7.12 | 0.03753 | 0.495 | 2.25 | ||||
| C4 | H13A i | 13.33 | −9.18 | 0.04339 | 0.642 | 3.467 | 2.76 | 122 | ||
| C13 | S14 ii | 4.69 | −3.13 | 0.02168 | 0.229 | 3.886 | −54.5 | −54.0 | ||
| H13C | S14 ii | 11.01 | −8.54 | 0.04862 | 0.495 | 3.886 | 2.89 | 142 | ||
| H26 | S14 ii | 11.53 | −8.35 | 0.04412 | 0.54 | 3.693 | 2.86 | 133 |
Table 7.
Crystal data, data collection, and structure refinement.
| Compound | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Formula | C20H21NO5S | C20H20BrNO5S | C19H19NO5S | C19H19NO5S | C19H18FNO4S |
| Formula weight | 387.44 | 466.34 | 373.41 | 373.41 | 375.40 |
| Crystal system | triclinic | monoclinic | triclinic | orthorhombic | triclinic |
| Space group | P-1 | P21/c | P-1 | P212121 | P-1 |
| a(Å) | 5.1299(4) | 12.3841(4) | 7.7068(3) | 8.3865(4) | 7.8698(8) |
| b(Å) | 11.4060(10) | 7.7755(4) | 10.2384(3) | 11.1560(6) | 10.4011(8) |
| c(Å) | 16.0097(13) | 21.2517(7) | 11.9461(4) | 19.1503(9) | 12.0236(7) |
| α(°) | 97.245(7) | 90 | 108.544(3) | 90 | 72.165(6) |
| β(°) | 94.098(7) | 101.623(3) | 94.602(3) | 90 | 88.285(6) |
| γ(°) | 99.063(7) | 90 | 100.912(3) | 90 | 68.924(8) |
| V(Å3) | 913.68(13) | 2004.42(14) | 867.47(5) | 1791.70(15) | 870.64(13) |
| Z | 2 | 4 | 2 | 4 | 2 |
| Dx(g cm−3) | 1.408 | 1.545 | 1.430 | 1.384 | 1.432 |
| F(000) | 408 | 952 | 392 | 784 | 392 |
| μ(mm−1) | 0.210 | 2.186 | 0.218 | 0.211 | 0.221 |
| Reflections: | |||||
| collected | 17518 | 19235 | 16633 | 6970 | 11038 |
| unique (Rint) | 4187 (0.0778) | 3463 (0.0708) | 3837 (0.0227) | 3324 (0.0439) | 3493 (0.0246) |
| with I > 2σ(I) | 2504 | 1493 | 3234 | 2876 | 3168 |
| R(F) [I > 2σ(I)] | 0.0620 | 0.0535 | 0.0369 | 0.0436 | 0.0325 |
| wR(F2) [I > 2σ(I)] | 0.1073 | 0.1045 | 0.0917 | 0.0986 | 0.0806 |
| R(F) [all data] | 0.1234 | 0.1402 | 0.0467 | 0.0594 | 0.0362 |
| wR(F2) [all data] | 0.1303 | 0.1117 | 0.0956 | 0.1052 | 0.0831 |
| Goodness of fit | 1.022 | 0.991 | 1.037 | 1.050 | 1.032 |
| Flack parameter | −0.07(6) | ||||
| max/min Δ (e·Å−3) | 0.45/−0.38 | 0.41/−0.53 | 0.48/−0.31 | 0.23/−0.26 | 0.27/−0.27 |
| CCDC number | 2040699 | 2040698 | 2040700 | 2040701 | 2040702 |
| Compound | 6 | 7 | 8 | 9 | |
| Formula | C20H21NO4S | C19H18BrNO4S | C19H18BrNO4S | C18H16BrNO4S | |
| Formula weight | 371.44 | 436.31 | 436.31 | 422.29 | |
| Crystal system | triclinic | monoclinic | monoclinic | orthorhombic | |
| Space group | P-1 | P21/c | P21/c | P212121 | |
| a(Å) | 8.97622(14) | 12.4359(9) | 19.8673(3) | 8.2803(3) | |
| b(Å) | 9.83530(14) | 4.1836(3) | 4.79320(10) | 11.3223(2) | |
| c(Å) | 21.8875(3) | 17.9998(12) | 20.3846(4) | 19.3117(4) | |
| α(°) | 101.0102(13) | 90 | 90 | 90 | |
| β(°) | 94.2346(13) | 103.988(7) | 105.164(2) | 90 | |
| γ(°) | 90.0267(12) | 90 | 90 | 90 | |
| V(Å3) | 1891.36(5) | 908.70(11) | 1873.59(6) | 1810.51(8) | |
| Z | 4 | 2 | 4 | 4 | |
| Dx(g cm−3) | 1.304 | 1.595 | 1.547 | 1.549 | |
| F(000) | 784 | 444 | 888 | 856 | |
| μ(mm−1) | 1.728 | 2.402 | 4.244 | 2.408 | |
| Reflections: | |||||
| collected | 36875 | 9380 | 16185 | 10218 | |
| unique (Rint) | 36875 (0.0160) | 3151 (0.0907) | 3535 (0.0291) | 3269 (0.0307) | |
| with I > 2σ(I) | 32098 | 1829 | 3067 | 2882 | |
| R(F) [I > 2σ(I)] | 0.0656 | 0.0593 | 0.0392 | 0.0336 | |
| wR(F2) [I > 2σ(I)] | 0.1879 | 0.0605 | 0.1147 | 0.0755 | |
| R(F) [all data] | 0.0722 | 0.1341 | 0.0479 | 0.0415 | |
| wR(F2) [all data] | 0.1879 | 0.0703 | 0.1206 | 0.0782 | |
| Goodness of fit | 1.024 | 0.965 | 1.045 | 1.045 | |
| Flack parameter | −0.002(4) | ||||
| max/min Δ (e·Å−3) | 0.57/−0.32 | 0.40/−0.32 | 0.89/−0.82 | 0.66/−0.37 | |
| CCDC number | 2040703 | 2040704 | 2040705 | 2040706 | |
