Asymmetric Synthesis of Tetrahydroisoquinoline Derivatives through 1,3-Dipolar Cycloaddition of C,N-Cyclic Azomethine Imines with Allyl Alkyl Ketones

by
Guipeng Feng
1,2,
Guoyang Ma
2,
Wenyan Chen
2,
Shaohong Xu
2,
Kaikai Wang
2,* and
Shaoyan Wang
1,*
1
School of Chemical Engineering, University of Science and Technology Liaoning, Anshan 114051, China
2
School of Pharmacy, Xinxiang University, Xinxiang 453000, China
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(10), 2969; https://doi.org/10.3390/molecules26102969
Submission received: 12 April 2021 / Revised: 11 May 2021 / Accepted: 12 May 2021 / Published: 17 May 2021
(This article belongs to the Special Issue Cycloaddition Reactions and Their Stereochemistry)
Browse Figures
Versions Notes

Abstract

:
A [3 + 2] 1,3-Dipolar cycloaddition of C,N-cyclic azomethine imines with allyl alkyl ketones has been achieved. The reaction proceeds under mild conditions and tolerates a wide range of functional groups. An array of tetrahydroisoquinoline derivatives is generally constructed with good diastereoselectivities and enantioselectivities (up to >25:1 dr, >95% ee). Moreover, the absolute configuration of the product was previously determined by using the quantum electronic circular dichroism calculation and ECD spectrum method.

1. Introduction

A variety of isoquinoline alkaloids [1,2,3] exist in many natural products and drugs, and have a broad range of clinical applications, exhibiting a broad range of biological activities such as antitumor, anti-HIV, antibiotic, antifungal, antivirus, anti-inflammatory, anticoagulation, and bronchodilation, and can also act on the central nervous system [4,5,6,7,8]. In particular, it is tremendously noteworthy that all the above-illustrated bioactive tetrahydroisoquinolines have a chiral stereocenter at the C1-position [9,10,11,12]. Such representative examples include (S)-salsolidine [13], (S)-carnegine [14], (S)-xylopinine [15] (in Figure 1), and so on. Novel C,N-cyclic azomethine imines as efficient 1,3-dipoles [16,17], are readily accessible, stable compounds that have been employed recently in various metal-catalyzed and organocatalytic 1,3-dipolar cycloadditions (1,3-DCs) [18,19,20,21]. These dipoles can be easily prepared and give access to pharmaceutically attractive chiral substituted tetrahydroisoquinoline skeletons.
In 2010, the Maruoka group uncovered a promising example of using C,N-cyclic azomethine imines as prochiral electrophiles to react with α,β-unsaturated aldehydes to construct a tetrahydroisoquinoline scaffold catalyzed by a titanium–BINOLate complex [22]. Shortly after, the Maruoka group disclosed the first example of using of vinyl ethers and C,N-cyclic azomethine imines catalyzed by chiral Brønsted acids to synthesize tetrahydroisoquinolines through the enantioselective organocatalytic inverse-electron-demand 1,3-DCs [23]. In 2014, the Wang group developed C,N-cyclic azomethine imines with α,β-unsaturated aldehydes through dienamine-mediated enantioselective [3 + 2] 1,3-dipolar cycloaddition catalyzed by a chiral prolinol silyl ether catalyst [24,25]. In addition, the C,N-cyclic azomethine imine substrates were recently used in 1,3-DCs with N-arylmaleimides, allenoates, azlactones, bromo-substituted Morita−Baylis−Hillman adducts of isatins, α,β-unsaturated nitriles, 3-nitroindoles, ortho-quinone methides through [3 + 2] or [4 + 3] annulation reactions [26,27,28,29,30] and catalyst free [5 + 1] cycloaddition with isocyanides [31], and with Morita−Baylis−Hillman carbonates by phosphine catalysts or with N-benzyl azomethine ylide or with azaoxyallyl cations through [3 + 3] cycloaddition [32,33,34], and [3 + 1] cycloaddition with isocyanides (in Scheme 1a) [35]. However, to the best of our knowledge, no example of a catalytic asymmetric 1,3-dipolar cycloaddition reaction using allyl alkyl ketones with C,N-cyclic azomethine imines has been reported. Previous success by the Chen group, using chiral primary amine catalytic asymmetric γ-regioselective vinylogous Michael addition of allyl alkyl ketones with maleimides through dienamine catalysis, has been developed (in Scheme 1b) [36]. Herein, we report the first chiral primary amine-catalyzed enantioselective [3 + 2] 1,3-dipolar cycloaddition of allyl alkyl ketones with C,N-cyclic azomethine imines to give a novel class of dinitrogen-fused heterocycles combining the biologically important tetrahydroisoquinoline core and pyrazolidine core (in Scheme 1c).

2. Results

In our initial attempt, we first examined the reaction of N,N-cyclic azomethine imine 1 with deconjugated 3-enone 5a in the presence of DPEN catalyst C1 (Table 1) in CHCl3, but no desired product was observed even at a higher temperature. We then turned our attention to C,N-cyclic azomethine imines 2, 3 and 4a. Unfortunately, no matter what the temperature of the reaction raised from rt to reflux, no desired cycloaddition adduct was observed when we employed the 2 and 3 dipoles. To our delight, the reaction between C,N-cyclic azomethine imine 4a and deconjugated 3-enone 5a proceeded smoothly to give the desired product in high yield (85% yield, 62% ee and dr 3:2, entry 1, Table 1) and the reaction could not afford the desired product if no acid or no catalyst were added to the reaction [18] (entries 2 and 3). The results indicated that catalysts with acids are critical for the cycloaddition reaction. In addition, the β,γ-C=C bond could act as an inducing group for the formation of more stable extended dienamine species from deconjugated 3-enone substrates 5a and activating the γ-site and furnishing the following vinylogous 1,3-DCs process.
We then turned our attention towards the use of chiral primary amine catalyst to improve the reaction enantioselectivity and diastereoselectivity. The reaction was tested in the presence of a number of primary amine catalysts (entries 4–10). The corresponding product 6aa was then isolated in high yield (89%), good enantioselectivity (80% ee), and with good diastereoselectivity (dr 12.5:1) through C2 catalyst in CHCl3 at room temperature (entry 4). In contrast, the reaction afforded poor to moderate enantioselectivity (11–76%) when used with other catalysts (entries 5–11). The chiral prolinol silyl ethers as the catalyst could not produce the product (entry 12). A screening of the solvents showed that performing the reaction to improve the ee and the dr (entry 13–19) with C2 as the catalyst. The reaction proceeded with higher yield (91%) and good enantioselectivity (80%) and excellent diastereoselectivity (dr 25:1) in DCE at room temperature (entry 14). However, only poor or moderate diastereoselectivities were observed in other solvents (entry 13, 15–19). Furthermore, the effect of acid additives was also studied. The presence of 20 mol% o-fluorobenzoic acid (OFBA) enhanced the ee value to 84% and the yield also increased to 92% (entry 20). A screening of the temperature showed that performing the reaction at 0 °C reduced the ee value and the yield (entry 20). The yield and stereoselectivity could not be further improved when the reaction used the other acid additives (entries 21–23). On the basis of the above-mentioned results, the reaction conditions were established to 1.0 equivalent of 4, 2.0 equivalents of 5, 10 mol% of C2 and 20 mol% of OFBA in DCE at room temperature for 12 h.

3. Discussion

With the optimized conditions in hand, the generality of the reaction was evaluated. A range of substrates was shown to be compatible with the developed protocol for the [3 + 2] cycloaddition of C,N-cyclic azomethine imines to allyl alkyl ketone by using C2 as catalyst. As summarized in Figure 2 (Figures S2 and S3 Supplementary Material, respectively), not only aromatic alkyl allyl ketones but also long aliphatic chain allyl ketones could all be employed successfully to afford the products 6aa–ah in high yields (88–96%), moderate to high enantioselectivities (50–96%), and high diastereoselectivities (dr 10:1 to >25:1) From these results, we found that the conditions were applicable to a wide variety of allyl alkyl ketones. With this promising result in hand, we then investigated the generality of the C,N-cyclic azomethine imines. The influence of the substituent of the benzoyl group on the nitrogen was examined. The benzoyl group bearing electron-withdrawing or -donating groups at the para position and meta position afforded the corresponding products in high yields and steroselectivities (6ba to 6ga). We found that some electron-withdrawing groups (−NO2, −Cl, −Br) on the aromatic moiety were more effective than some donating groups (−CH3, −OCH3, 3,5-Me2) to afford the products in yields and steroselectivities, respectively (6aa to 6ga). From these results, it was determined that the electron density of the N’-acyl moiety played an important role in trapping the β-position of the carbon−carbon double bond intermediate for the 1,3-DCs. This study prompted us to examine the influence of structurally different N’-acyl moiety azomethine imines. The furoyl and naphthoyl groups on the nitrogen were also tolerated, giving the desired products in high yields, moderate enantioselectivities, and high diastereoselectivities, respectively (6ha 95% yield, 60% ee, dr > 25:1 and 6ia 93% yield, 71% ee, dr > 25:1). An increase in the steric bulk of the N’-acyl moiety was also tolerated to afford the product 6ja in high yields (90%) with 72% ee value and dr 10:1.
As we failed to obtain single crystals suitable for X-ray crystallographic analysis to determine the absolute configuration of the products, the electronic circular dichroism (ECD) spectrum of chiral product 6ba was recorded in methanol and compared with the theoretically calculated results [37,38,39]. As depicted in Figure 3, the experimental ECD spectrum matched quite well to the calculated one of (R,S)-6ba. Therefore, the stereogenic center of product 6ba is probably in the (R,S) configuration.
As shown in Scheme 2, we proposed a plausible catalytic cycle to explain the reaction mechanism. The condensation of a chiral primary amine catalyst with allyl phenylethyl ketone 5a would lead to the formation of the iminium-ion, which could form the dienamine intermediate A [40,41,42]. The dienamine intermediate A reacts with the C,N-cyclic azomethine 4a by a 1,3-dipolar cycloaddition to generate the polycyclic intermediate B. Subsequently, an acid-catalyzed elimination step converts intermediate B to the final product 6aa.

4. Materials and Methods

NMR data were obtained for 1H at 400 MHz or 600 MHz, and for 13C at 100 MHz or 150 MHz. The data are presented as follows: chemical shift was reported in ppm from tetramethylsilane with the solvent resonance as the internal standard in CDCl3 solution, integration, multiplicity (br = broad, s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet) and coupling constant in Hertz (Hz). ESI HRMS was recorded on a Waters SYNAPT G2. In each case, enantiomeric excesses (ee) were determined by chiral high-performance liquid chromatography (chiral HPLC) that were Daicel Chiralpak AD-H Column (250 × 4.6 mm), Chiralpak IA Column (250 × 4.6 mm), or Chiralpak IC Column (250 × 4.6 mm). UV detection was monitored at 220 nm or 254 nm. Optical rotation was measured in CHCl3 solution at 20 °C. Column chromatography was performed on silica gel (200–300 mesh) eluting with ethyl acetate and petroleum ether. TLC was performed on glass-backed silica plates. UV light, I2, and solution of potassium permanganate were used to visualize products. All chemicals were used without purification as commercially available unless otherwise noted. Petroleum ether (PE) and ethyl acetate (EtOAc) were distilled. THF was freshly distilled from sodium/benzophenone before use. Experiments involving moisture and/or air sensitive components were performed under a positive pressure of argon in oven-dried glassware equipped with a rubber septum inlet. Dried solvents and liquid reagents were transferred by oven-dried syringes.
The 1,3-dipoles of 1 [43], 2 [44], 3 [45] and 4 [46,47,48,49,50,51] were synthesized according to the literature methods. The substrates 5a−h were prepared according to the literature procedures [36,52,53,54,55,56,57]. Catalyst C1 was commercially available. Catalysts C2–C8 were synthesized according to the literature procedures [58,59]. The C,N-cyclic azomethine imines 4 (0.1 mmol), catalyst C2 (2.8 mg, 0.01 mmol), o-fluorobenzoic acid (2.8 mg, 0.02 mmol) were dissolved in DCE (1.0 mL) and allyl ketone 5 (0.2 mmol) was added. Then, the mixture was stirred at rt for 12 h. After completion, the mixture was evaporated and the resulting crude residue was purified by column chromatography on silica gel eluting with petroleum ether/ethyl acetate (10:1 to 5:1) to afford the chiral product 6.

5. Conclusions

In conclusion, we have developed the first chiral primary amine-catalyzed enantioselective [3 + 2] 1,3-dipolar cycloaddition of allyl alkyl ketones with C,N-cyclic azomethine imines via induced dienamine catalysts to give a novel class of dinitrogen-fused heterocycles combining the biologically important tetrahydroisoquinoline core and pyrazolidine core. The reaction affords a tetrahydroisoquinoline derivative in high yield with moderate to high enantioselectivities (up to 96%) and high diastereoselectivities. In addition, this reaction provides an efficient method for constructing diverse and complex chiral tetrahydroisoquinolines compounds. Research into further applications of this enantioselective 1,3-dipolar cycloaddition with C,N-cyclic azomethine imines is in progress.

Supplementary Materials

The following are available online. Figure S1: General procedure for the preparation of the C,N-cyclic azomethines imines and its analogs, Figure S2: General procedure for catalytic asymmetric 1,3-DCs, Figure S3: Copies of NMR spectra and HPLC spectra.

Author Contributions

G.F., G.M., W.C. and S.X. participated in the synthesis, purification and characterization of the new compound. K.W. and S.W. participated in the interpretation of spectroscopy of the new compounds and the review of the manuscript. K.W. and S.W. participated in the interpretation of the results, writing, revision and correspondence to the Journal of Molecules until the manuscript was accepted. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC (21801214) and Funding of College Students Innovation and Entrepreneurship Training Program of Henan province (S202011071009).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary materials.

Acknowledgments

We are grateful for the financial support from Funding of College Students Innovation and Entrepreneurship Training Program of Henan province (S202011071009).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Kouznetsov, V.V.; Ortiz-Villamizar, M.C.; Mendez-Vargas, L.Y.; Puerto Galvis, C.E. A Review on Metal-Free Oxidative α-Cyanation and Alkynylation of N-Substituted Tetrahydroisoquinolines as a Rapid Route for the Synthesis of Isoquinoline Alkaloids. Curr. Org. Chem. 2020, 24, 809–816. [Google Scholar] [CrossRef]
  2. Chrzanowska, M.; Grajewska, A.; Rozwadowska, M.D. Asymmetric Synthesis of Isoquinoline Alkaloids: 2004–2015. Chem. Rev. 2016, 116, 12369–12465. [Google Scholar] [CrossRef] [PubMed]
  3. Bhadra, K.; Kumar, G.S. Therapeutic Potential of Nucleic Acid-Binding Isoquinoline Alkaloids: Binding Aspects and Implications for Drug Design. Med. Res. Rev. 2011, 31, 821–862. [Google Scholar] [CrossRef] [PubMed]
  4. Shang, X.-F.; Yang, C.-J.; MorrisNatschke, S.L.; Li, J.-C.; Yin, X.-D.; Liu, Y.-Q.; Guo, X.; Peng, J.-W.; Goto, M.; Zhang, J.-Y.; et al. Biologically active isoquinoline alkaloids covering 2014–2018. Med. Res. Rev. 2020, 40, 2212–2289. [Google Scholar] [CrossRef] [PubMed]
  5. Li, D.-D.; Yu, P.; Xiao, W.; Wang, Z.-Z.; Zhao, L.-G. Berberine: A Promising Natural Isoquinoline Alkaloid for the Development of Hypolipidemic Drugs. Curr. Top. Med. Chem. 2020, 20, 2634–2647. [Google Scholar] [CrossRef]
  6. Qing, Z.-X.; Yang, P.; Tang, Q.; Cheng, P.; Liu, X.-B.; Zheng, Y.-J.; Liu, Y.-S.; Zeng, J.-G. Isoquinoline Alkaloids and Their Antiviral, Antibacterial, and Antifungal Activities and Structure-activity Relationship. Curr. Org. Chem. 2017, 21, 1920–1934. [Google Scholar] [CrossRef]
  7. Iranshahy, M.; Quinn, R.J.; Iranshahi, M. Biologically active isoquinoline alkaloids with drug-like properties from the genus Corydalis. RSC Adv. 2014, 4, 15900–15913. [Google Scholar] [CrossRef]
  8. Maiti, M.; Kumar, G.S. Polymorphic nucleic Acid binding of bioactive isoquinoline alkaloids and their role in cancer. J. Nucleic Acids 2010, 2010, 593408. [Google Scholar] [CrossRef] [Green Version]
  9. Lu, S.M.; Wang, Y.Q.; Han, X.W.; Zhou, Y.G. Asymmetric hydrogenation of quinolines and isoquinolines activated by chloroformates. Angew. Chem. Int. Ed. 2006, 45, 2260–2263. [Google Scholar] [CrossRef]
  10. Scott, J.D.; Williams, R.M. Chemistry and biology of the tetrahydroisoquinoline antitumor antibiotics. Chem. Rev. 2002, 102, 1669–1730. [Google Scholar] [CrossRef]
  11. Li, B.; Liu, R.X.; Yang, J.; Luo, J.Y.; Yao, L.; Li, M.Q.; Zheng, X.H.; Jiang, R.; Nie, H.F.; Zhang, S.Y. Iridium-Catalyzed Asymmetric Hydrogenation of Sterically Hindered Cyclic Imines for Enantioselective Synthesis of Tetrahydroisoquinolines. Org. Lett. 2021, 23, 140–144. [Google Scholar] [CrossRef] [PubMed]
  12. Li, D.; Chen, X.C.; Gao, W. Asymmetric Synthesis of C-1-Chiral THIQs with Imines in Isoquinoline Rings. Synthesis 2020, 52, 3337–3355. [Google Scholar] [CrossRef]
  13. Noyori, R.; Ohta, M.; Hsiao, Y.; Kitamura, M.; Ohta, T.; Takaya, H. Asymmetric synthesis of isoquinoline alkaloids by homogeneous catalysis. J. Am. Chem. Soc. 1986, 108, 7117–7119. [Google Scholar] [CrossRef]
  14. Pyne, S.G.; Bloem, P.; Chapman, S.L.; Dixon, C.E.; Griffith, R. Chiral sulfur compounds. 9. Stereochemistry of the intermolecular and intramolecular conjugate additions of amines and anions to chiral (E)- and (Z)-vinyl sulfoxides. Total syntheses of (R)-(+)-carnegine and (+)- and (−)-sedamine. J. Org. Chem. 1990, 55, 1086–1093. [Google Scholar] [CrossRef]
  15. Mastranzo, V.M.; Yuste, F.; Ortiz, B.; Sanchez-Obregon, R.; Toscano, R.A.; Garcia Ruano, J.L. Asymmetric Synthesis of (S)-(-)-Xylopinine. Use of the Sulfinyl Group as an Ipso Director in Aromatic S-E. J. Org. Chem. 2011, 76, 5036–5041. [Google Scholar] [CrossRef]
  16. De, N.; Yoo, E.J. Recent Advances in the Catalytic Cycloaddition of 1,n-Dipoles. ACS Catal. 2018, 8, 48–58. [Google Scholar] [CrossRef]
  17. Bao, G.; Wang, P.; Li, G.; Yu, C.; Li, Y.; Liu, Y.; He, Z.; Zhao, T.; Rao, J.; Xie, J.; et al. 1,3-Dipolar Cycloaddition between Dehydroalanines and C,N-Cyclic Azomethine Imines: Application to Late-Stage Peptide Modification. Angew. Chem. Int. Ed. 2021, 60, 5331–5338. [Google Scholar] [CrossRef]
  18. Hua, T.; Yang, Q.; Xiao, W. Recent Developments of Reactions with C,N-Cyclic Azomethine Imines. Chin. J. Org. Chem. 2020, 40, 3559–3595. [Google Scholar] [CrossRef]
  19. Qiu, G.; Kuang, Y.; Wu, J. N-Imide Ylide-Based Reactions: C-H Functionalization, Nucleophilic Addition and Cycloaddition. Adv. Synth. Catal. 2014, 356, 3483–3504. [Google Scholar] [CrossRef]
  20. Yue, G.; Liu, B. Research Progress on 3 + n (n ≥ 3) cycloaddition of 1,3-Diploes. Chin. J. Org. Chem. 2020, 40, 3132–3153. [Google Scholar] [CrossRef]
  21. Hashimoto, T.; Maruoka, K. Recent Advances of Catalytic Asymmetric 1,3-Dipolar Cycloadditions. Chem. Rev. 2015, 115, 5366–5412. [Google Scholar] [CrossRef] [PubMed]
  22. Hashimoto, T.; Maeda, Y.; Omote, M.; Nakatsu, H.; Maruoka, K. Catalytic Enantioselective 1,3-Dipolar Cycloaddition of C,N-Cyclic Azomethine Imines with alpha, beta-Unsaturated Aldehydes. J. Am. Chem. Soc. 2010, 132, 4076–4077. [Google Scholar] [CrossRef]
  23. Hashimoto, T.; Omote, M.; Maruoka, K. Asymmetric Inverse-Electron-Demand 1,3-Dipolar Cycloaddition of C,N-Cyclic Azomethine Imines: An Umpolung Strategy. Angew. Chem. Int. Ed. 2011, 50, 3489–3492. [Google Scholar] [CrossRef]
  24. Li, W.; Wei, J.; Jia, Q.; Du, Z.; Zhang, K.; Wang, J. Asymmetric Synthesis of Tetrahydroquinolines through a 3 + 2 Cycloaddition Controlled by Dienamine Catalysis. Chem. Eur. J. 2014, 20, 6592–6596. [Google Scholar] [CrossRef] [PubMed]
  25. Li, W.; Jia, Q.; Du, Z.; Zhang, K.; Wang, J. Amine-Catalyzed Enantioselective 1,3-Dipolar Cycloadditions of Aldehydes to C,N-Cyclic Azomethine Imines. Chem. Eur. J. 2014, 20, 4559–4562. [Google Scholar] [CrossRef]
  26. Chen, L.; Yang, G.M.; Wang, J.; Jia, Q.F.; Wei, J.; Du, Z.Y. An efficient 4+3 cycloaddition reaction of aza-o-quinodimethanes with C,N-cyclic azomethine imines: Stereoselective synthesis of 1,2,4-triazepines. RSC Adv. 2015, 5, 76696–76699. [Google Scholar] [CrossRef]
  27. Zhan, G.; Shi, M.-L.; He, Q.; Du, W.; Chen, Y.-C. 4 + 3 Cycloadditions with Bromo-Substituted Morita-Baylis-Hillman Adducts of Isatins and N-(ortho-Chloromethyl)aryl Amides. Org. Lett. 2015, 17, 4750–4753. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, X.; Wang, Y.; Yang, D.; Zhang, J.; Liu, D.; Su, W. Catalytic Asymmetric Inverse-Electron-Demand 1,3-Dipolar Cycloaddition of C,N-Cyclic Azomethine Imines with Azlactones: Access to Chiral Tricyclic Tetrahydroisoquinolines. Angew. Chem. Int. Ed. 2016, 55, 8100–8103. [Google Scholar] [CrossRef]
  29. Liu, X.; Yang, D.; Wang, K.; Zhang, J.; Wang, R. A catalyst-free 1,3-dipolar cycloaddition of C,N-cyclic azomethine imines and 3-nitroindoles: An easy access to five-ring-fused tetrahydroisoquinolines. Green Chem. 2017, 19, 82–87. [Google Scholar] [CrossRef]
  30. Xu, J.; Yuan, S.; Peng, J.; Miao, M.; Chen, Z.; Ren, H. Base-mediated diastereoselective 4+3 annulation of in situ generated ortho-quinone methides with C,N-cyclic azomethine imines. Org. Biomol. Chem. 2017, 15, 7513–7517. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Soeta, T.; Tamura, K.; Ukaji, Y. 5 + 1 Cycloaddition of C,N-Cyclic N‘-Acyl Azomethine Imines with Isocyanides. Org. Lett. 2012, 14, 1226–1229. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, L.; Liu, H.; Qiao, G.; Hou, Z.; Liu, Y.; Xiao, Y.; Guo, H. Phosphine-Catalyzed Highly Enantioselective 3 + 3 Cycloaddition of Morita-Baylis-Hillman Carbonates with C,N-Cyclic Azomethine Imines. J. Am. Chem. Soc. 2015, 137, 4316–4319. [Google Scholar] [CrossRef]
  33. Wang, K.-K.; Li, Y.-L.; Wang, Z.-Y.; Hu, M.-W.; Qiu, T.-T.; Zhu, B.-K. Cross 1,3-dipolar cycloadditions of C,N-cyclic azomethine imines with an N-benzyl azomethine ylide: Facile access to fused tricyclic 1,2,4-hexahydrotriazines. Org. Biomol. Chem. 2019, 17, 244–247. [Google Scholar] [CrossRef] [PubMed]
  34. Cheng, X.; Cao, X.; Xuan, J.; Xiao, W.-J. Silver(I)- and Base-Mediated 3 + 3 -Cycloaddition of C,N-Cyclic Azomethine Imines with Aza-oxyallyl Cations. Org. Lett. 2018, 20, 52–55. [Google Scholar] [CrossRef] [PubMed]
  35. Cao, W.-B.; Jiang, S.; Li, H.-Y.; Xu, X.-P.; Ji, S.-J. Synthesis of strained 1,2-diazetidines via 3 + 1 cycloaddition of C,N-cyclic azomethine imines with isocyanides and synthetic derivation dagger. Org. Chem. Front. 2021. [Google Scholar] [CrossRef]
  36. Zhan, G.; He, Q.; Yuan, X.; Chen, Y.-C. Asymmetric Direct Vinylogous Michael Additions of Allyl Alkyl Ketones to Maleimides through Dienamine Catalysis. Org. Lett. 2014, 16, 6000–6003. [Google Scholar] [CrossRef]
  37. Freedman, T.B.; Cao, X.; Dukor, R.K.; Nafie, L.A. Absolute configuration determination of chiral molecules in the solution state using vibrational circular dichroism. Chirality 2003, 15, 743–758. [Google Scholar] [CrossRef]
  38. Stephens, P.J.; Harada, N. ECD cotton effect approximated by the Gaussian curve and other methods. Chirality 2010, 22, 229–233. [Google Scholar] [CrossRef] [PubMed]
  39. Kong, F.-D.; Ma, Q.-Y.; Huang, S.-Z.; Wang, P.; Wang, J.-F.; Zhou, L.-M.; Yuan, J.-Z.; Dai, H.-F.; Zhao, Y.-X. Chrodrimanins K–N and Related Meroterpenoids from the Fungus Penicillium sp. SCS-KFD09 Isolated from a Marine Worm, Sipunculus nudus. J. Nat. Prod. 2017, 80, 1039–1047. [Google Scholar] [CrossRef] [PubMed]
  40. Bencivenni, G.; Galzerano, P.; Mazzanti, A.; Bartoli, G.; Melchiorre, P. Direct asymmetric vinylogous Michael addition of cyclic enones to nitroalkenes via dienamine catalysis. Proc. Natl. Acad. Sci. USA 2010, 107, 20642–20647. [Google Scholar] [CrossRef] [Green Version]
  41. Ramachary, D.B.; Reddy, Y.V. Dienamine Catalysis: An Emerging Technology in Organic Synthesis. Eur. J. Org. Chem. 2012, 2012, 865–887. [Google Scholar] [CrossRef]
  42. Jurberg, I.D.; Chatterjee, I.; Tannert, R.; Melchiorre, P. When asymmetric aminocatalysis meets the vinylogy principle. Chem. Commun. 2013, 49, 4869–4883. [Google Scholar] [CrossRef] [PubMed]
  43. Na, R.; Jing, C.; Xu, Q.; Jiang, H.; Wu, X.; Shi, J.; Zhong, J.; Wang, M.; Benitez, D.; Tkatchouk, E.; et al. Phosphine-Catalyzed Annulations of Azomethine Imines: Allene-Dependent [3 + 2], [3 + 3], [4 + 3], and [3 + 2 + 3] Pathways. J. Am. Chem. Soc. 2011, 133, 13337–13348. [Google Scholar] [CrossRef]
  44. Chatzopoulou, E.; Davies, P.W. Highly regioselective synthesis of 2,4,5-(hetero)aryl substituted oxazoles by intermolecular [3 + 2]-cycloaddition of unsymmetrical internal alkynes. Chem. Commun. 2013, 49, 8617–8619. [Google Scholar] [CrossRef] [PubMed]
  45. Zhao, J.; Wu, C.; Li, P.; Ai, W.; Chen, H.; Wang, C.; Larock, R.C.; Shi, F. Synthesis of Pyrido[1,2-b]indazoles via Aryne [3 + 2] Cycloaddition with N-Tosylpyridinium Imides. J. Org. Chem. 2011, 76, 6837–6843. [Google Scholar] [CrossRef] [PubMed]
  46. Zhou, M.-Y.; Kong, S.-S.; Zhang, L.-Q.; Zhao, M.; Duan, J.-A.; Ou-yang, Z.; Wang, M. CuBr2 catalyzed bromination/oxidation of isochromans to benzaldehyde derivatives. Tetrahedron Lett. 2013, 54, 3962–3964. [Google Scholar] [CrossRef]
  47. Wang, K.-K.; Li, Y.-L.; Wang, X.-Y.; Zhu, B.-K. Catalyst-Free Synthesis of 2,3-Benzodiazepines via Tetrahydrodiazirino[3,1-a]isoquinoline Reacts with Sulfonyl Chlorides. Chem. Sel. 2019, 4, 3340–3343. [Google Scholar] [CrossRef]
  48. Hickin, J.A.; Ahmed, A.; Fucke, K.; Ashcroft, M.; Jones, K. The synthesis and structure revision of NSC-134754. Chem. Commun. 2014, 50, 1238–1240. [Google Scholar] [CrossRef]
  49. Ortega, H.; Ahmed, S.; Alper, H. Facile Regioselective Synthesis of Pyrazolo[5,1-a]isoquinolines via Ring-Opening Cyclization/Oxidation Reactions of Stable Aroyldiaziridines of 3,4-Tetrahydroisoquinoline with Alkynes. Synthesis 2007, 2007, 3683–3691. [Google Scholar] [CrossRef]
  50. Koptelov, Y.B.; Saik, S.P.; Molchanov, A.P. Stable azomethine imines having a 3,4-dihydroisoquinoline fragment and their cycloaddition to N-arylmaleimides. Russ. J. Org. Chem. 2011, 47, 537–546. [Google Scholar] [CrossRef]
  51. Allen, J.M.; Lambert, T.H. Synthesis and characterization of a diaziridinium ion. Conversion of 3,4-dihydroisoquinolines to 4,5-dihydro-3H-benzo[2,3]diazepines via a formal N-insertion process. Tetrahedron 2014, 70, 4111–4117. [Google Scholar] [CrossRef]
  52. Nahm, S.; Weinreb, S.M. N-methoxy-n-methylamides as effective acylating agents. Tetrahedron Lett. 1981, 22, 3815–3818. [Google Scholar] [CrossRef]
  53. Larock, R.C.; Lu, Y.-d. Synthesis of allylic ketones via acylation of allylic mercurials. Tetrahedron Lett. 1988, 29, 6761–6764. [Google Scholar] [CrossRef]
  54. Shionhara, T.; Suzuki, K. Facile one-pot procedure for Et3Al-Promoted asymmetric pinacol-type rearrangement. Synthesis 2003, 1, 141–146. [Google Scholar] [CrossRef]
  55. Lee, A.S.-Y.; Wang, S.-H.; Chang, Y.-T.; Chu, S.-F. Synthesis of β-Amino and β-Methoxy Ketones by Lewis Acids Promoted β-Substitution Reactions of β,γ-Unsaturated Ketones. Synlett 2003, 2003, 2359–2363. [Google Scholar] [CrossRef]
  56. Meninno, S.; Croce, G.; Lattanzi, A. Asymmetric Synthesis of Trisubstituted Tetrahydrothiophenes Bearing a Quaternary Stereocenter via Double Michael Reaction Involving Dynamic Kinetic Resolution. Org. Lett. 2013, 15, 3436–3439. [Google Scholar] [CrossRef] [PubMed]
  57. Zhu, B.; Zhang, W.; Lee, R.; Han, Z.; Yang, W.; Tan, D.; Huang, K.-W.; Jiang, Z. Direct Asymmetric Vinylogous Aldol Reaction of Allyl Ketones with Isatins: Divergent Synthesis of 3-Hydroxy-2-Oxindole Derivatives. Angew. Chem. Int. Ed. 2013, 52, 6666–6670. [Google Scholar] [CrossRef]
  58. Zhuo, L.-G.; Yao, Z.-K.; Yu, Z.-X. Synthesis of Z-Alkenes from Rh(I)-Catalyzed Olefin Isomerization of β,γ-Unsaturated Ketones. Org. Lett. 2013, 15, 4634–4637. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, M.; Lin, L.; Shi, J.; Liu, X.; Kuang, Y.; Feng, X. Asymmetric Crossed-Conjugate Addition of Nitroalkenes to Enones by a Chiral Bifunctional Diamine Organocatalyst. Chem. Eur. J. 2011, 17, 2365–2368. [Google Scholar] [CrossRef]
Molecules 26 02969 g001 550

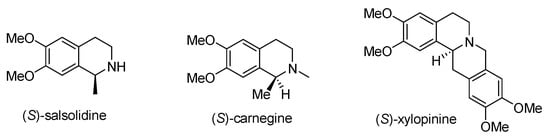

Figure 1. Examples of bioactive natural products containing chiral C1-substituted tetrahydroisoquinolines.
Figure 1. Examples of bioactive natural products containing chiral C1-substituted tetrahydroisoquinolines.
Molecules 26 02969 g001
Molecules 26 02969 sch001 550

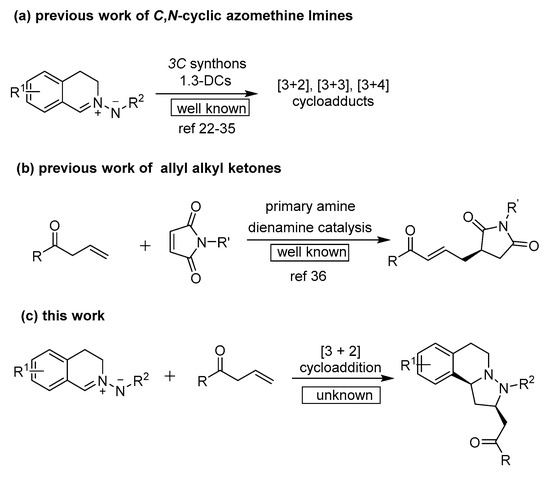

Scheme 1. Previous reports and our protocol.
Scheme 1. Previous reports and our protocol.
Molecules 26 02969 sch001
Molecules 26 02969 g002 550

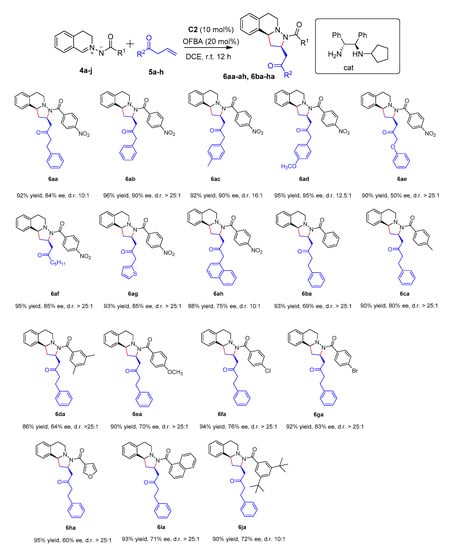

Figure 2. Substrate scope of the double 1,3-dipolar cycloaddition a. a Unless noted otherwise, reactions were performed with 4 (0.1 mmol), 5 (0.2 mmol), amine C2 (10 mol%), and OFBA (20 mol%) in DCE (1 mL) at rt.
Figure 2. Substrate scope of the double 1,3-dipolar cycloaddition a. a Unless noted otherwise, reactions were performed with 4 (0.1 mmol), 5 (0.2 mmol), amine C2 (10 mol%), and OFBA (20 mol%) in DCE (1 mL) at rt.
Molecules 26 02969 g002
Molecules 26 02969 g003 550

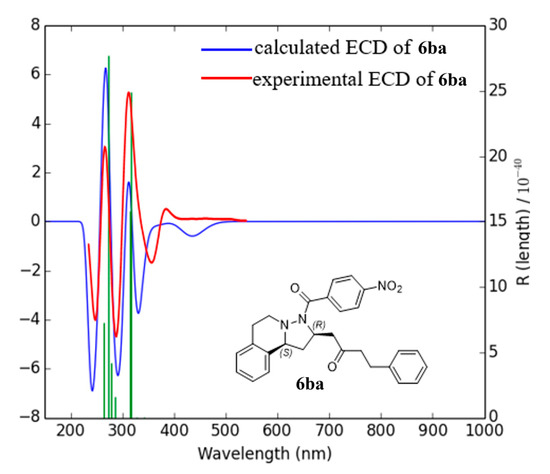

Figure 3. Comparison of the experimental ECD spectrum of chiral 6ba (the red line) with the calculated one of (R,S)-6ba (the blue line). The green line is the position of the peak in horizontal axis.
Figure 3. Comparison of the experimental ECD spectrum of chiral 6ba (the red line) with the calculated one of (R,S)-6ba (the blue line). The green line is the position of the peak in horizontal axis.
Molecules 26 02969 g003
Molecules 26 02969 sch002 550

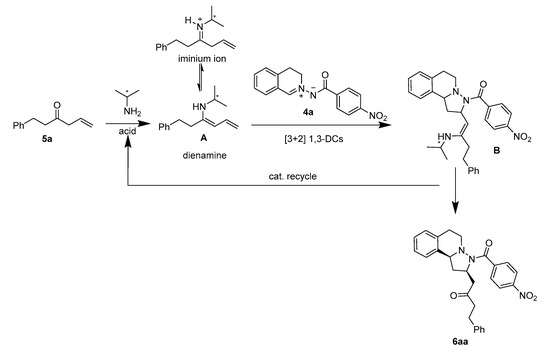

Scheme 2. Plausible mechanism.
Scheme 2. Plausible mechanism.
Molecules 26 02969 sch002
Table

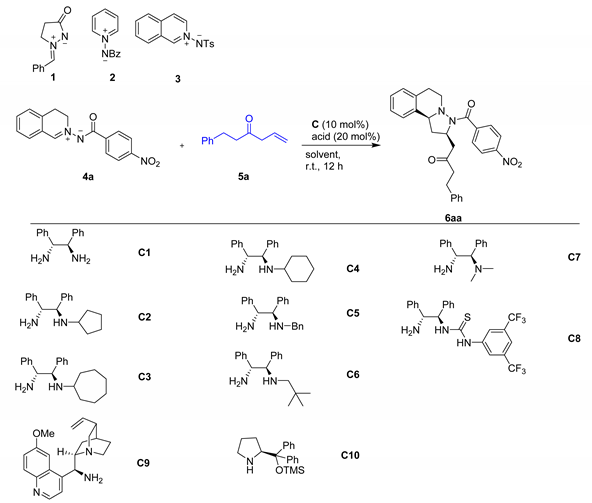

Table 1. Optimization of reaction conditions a.
Table 1. Optimization of reaction conditions a.
Molecules 26 02969 i001
EntrySolventCatalystAcidYield (%) bee (%) cdr d
1CHCl3C1benzoic acid85623:2
2CHCl3C1nonen.r.--
3CHCl3nonebenzoic acidn.r.--
4CHCl3C2benzoic acid898012.5:1
5CHCl3C3benzoic acid9176>25:1
6CHCl3C4benzoic acid9072>25:1
7CHCl3C5benzoic acid8638>25:1
8CHCl3C6benzoic acid8559>25:1
9CHCl3C7benzoic acid8744>25:1
10CHCl3C8benzoic acid88115:1
11CHCl3C9benzoic acid5620>25:1
12CHCl3C10benzoic acidn.r.--
13TolueneC2benzoic acid90851:1
14DCEC2benzoic acid918025:1
15CH3CNC2benzoic acid72282:1
16THFC2benzoic acid65506:1
17DioxaneC2benzoic acid87771:1
18Et2OC2benzoic acidtrace--
19EAC2benzoic acid74701:1
20DCEC2o-fluorobenzoic acid92 (85) e84 (64) e10:1
21DCEC2salicylic acid90654:1
22DCEC2p-nitrobenzoic acid826815.7:1
23DCEC2p-methoxybenzoic acid75826:1
a Unless noted otherwise, reactions were performed with 4a (0.1 mmol), 5a (0.2 mmol), amine C (10 mol%), and acid (20 mol%) in solvent (1 mL) at rt. b Isolated yield. c Determined by chiral HPLC analysis. d Determined by crude NMR analysis. e The reaction was conducted at 0 °C for 24 h.
