Review

Antibacterial Natural Halimanes: Potential Source of Novel Antibiofilm Agents

by
Ignacio E. Tobal
†,
Alejandro M. Roncero
†,
Rosalina F. Moro
,
David Díez
and
Isidro S. Marcos
*
Departamento de Química Orgánica, Facultad de Ciencias Químicas, University of Salamanca, Plaza de los Caídos 1-5, 37008 Salamanca, Spain
*
Author to whom correspondence should be addressed.
†
These authors have contributed equally to this work.
Molecules 2020, 25(7), 1707; https://doi.org/10.3390/molecules25071707
Submission received: 25 February 2020 / Revised: 2 April 2020 / Accepted: 3 April 2020 / Published: 8 April 2020
(This article belongs to the Special Issue Application of Organic Synthesis to Bioactive Compounds II)
Browse Figures
Versions Notes

Abstract

:
The development of new agents against bacteria is an urgent necessity for human beings. The structured colony of bacterial cells, called the biofilm, is used to defend themselves from biocide attacks. For this reason, it is necessary to know their structures, develop new agents to eliminate them and to develop new procedures that allow an early diagnosis, by using biomarkers. Among natural products, some derivatives of diterpenes with halimane skeleton show antibacterial activity. Some halimanes have been isolated from marine organisms, structurally related with halimanes isolated from Mycobacterium tuberculosis. These halimanes are being evaluated as virulence factors and as tuberculosis biomarkers, this disease being one of the major causes of mortality and morbidity. In this work, the antibacterial halimanes will be reviewed, with their structural characteristics, activities, sources and the synthesis known until now.

Graphical Abstract

1. Introduction

A bacterial biofilm is a structured colony of bacterial cells that appears when the planktonic cells are encrusted in a polymeric matrix composed by exopolysacharides, proteins and nucleic acids made by themselves, and adhered to a live or inert surface [1]. In order to form part of a biofilm, the bacteria make important changes in their structures and metabolism. Recent studies have allowed researchers to identify the genetic expression of the biofilms, which it is quite different to planktonic cells. The bacterial biofilm facilitates the survival of the pathogenic bacteria in their biological ambient, protecting the bacteria from the immunity response of the host and of biocides such as antibiotics or disinfectants. The impact of biofilms on health is out for discussion, as biofilm formation increases bacterial resistance against antibiotics. The modern concept of biofilms was introduced by Costerton and co-workers [1]. Later on, some articles come out referring to the mycobacterial biofilm environment, but it was not until 1990s when the current concept appeared for biofilm [2]. New biofilm definitions have successively appeared, such as microbial-derived sessile community, characteristics of certain microorganisms that adhered to the surfaces forming complex microbial communities that live, interact and work in different ecosystems [3].
A biofilm can comprise approximately 15% of cells and 85% of the extracellular matrix. The latter is formed by exopolysacharides that form channels where water, enzymes, nutrients and residues circulate [3,4]. There, cells establish relationships and dependences, living cooperatively and communicating amongst themselves through chemical signals (quorum perception), regulating the gene expression in a different manner depending on the location inside the community, such as a tissue in a multicellular organism. As more than 60% of bacterial infections are caused by biofilms and are considered a clinical threat because of their growth in catheters or surgery instruments, these bacterial structures have raised great interest in study.
As biofilms can act as reservoirs of infectious agents, it is necessary to develop more protocols for disinfection, not only in clinical settings but also in animal farms and in food processing [2,5].
Tuberculosis, mainly caused by Mycobacterium tuberculosis (M. tuberculosis), is an important source of morbidity and mortality worldwide, with almost two million deaths annually [6]. Due to an increasing level of multidrug and drug resistance, new drugs against tuberculosis are necessary.
M. tuberculosis biofilms that were recently discovered open up a new area of research. The treatment of these infections is more effective when antibiotics are used in the first steps of the biofilm development [2]. It has been demonstrated that biofilm is involved in M. tuberculosis resistance to antituberculosis drugs, although it is not clear how these findings can be applied to tuberculosis treatment. It has been demonstrated that the bacteria death ratio increases when a combination of antibiotics and antibiofilm agents are employed [2].
The M. tuberculosis biofilm plays a central role in the process of caseous necrosis and cavity formation in lung tissue and can be found in clinical biomaterials. A major part of antimicrobial resistance is due to the presence of a bacterial biofilm, as it affords protection against antibiotics that are normally active against the same bacteria in the planktonic state [2]. Some treatment failure of biofilm-forming microorganisms is due to antibiotic, disinfectant, and germicide resistance. Clinical experience demonstrates that these biofilms should be eradicated prior to controlling the infection. Resistance could be explained by different mechanisms, permeability, metabolic states, activation of resistance genes or persisting cells [7,8,9].
For this reason, it is fundamental to develop new procedures that allow an early detection of the illness introducing new biomarkers. New therapies targeting the virulence factor (VF) formation are of maximum interest. VFs are involved in processes such as invasion, persistence, lysis and evasion of innate immune system responses, although VFs are not essential for bacterial growth outside the host cell. Two diterpenes tuberculosinol, 1, and isotuberculosinol, 2, can be considered VF in M. tuberculosis [6,10] (Figure 1).
In the biosynthesis of tuberculosinol, 1, and isotuberculosinol, 2, are involved two genes (Rv3377c and Rv3378c) found only in virulent species of genus Mycobacterium (such as M. tuberculosis and M. bovis). These genes could not be found in avirulent species of genus Mycobacterium (such as M. smegmatis and M. avium) [11,12], so they may be involved in the infection processes of these bacteria. The lower virulence of M. bovis in comparison with M. tuberculosis could be explained as these genes only seem to be functional in M. tuberculosis and not in M. bovis [13,14].
Tuberculosinol, 1, and isotuberculosinol, 2, roduced in vivo by M. tuberculosis [15,16] (in a 1:1 ratio), inhibit phagolysosome maturation as well as macrophage phagocytosis, plus a synergistic effect increased by the coexistence of both compounds. The pathogenicity of M. tuberculosis decreases the phagocytic capacity [11]. Thus, both tuberculosinol, 1, and isotuberculosinol, 2, biosynthetic proteins (Rv3377c and Rv3378c) are essential for the bacteria’s survival inside the macrophage [11,17,18]. Both enzymes are new potential targets for the development of novel drugs.
Two new natural tuberculosinol derivatives, with an adenosine unit at C15 of the diterpene, have been isolated from M. tuberculosis [19,20], 1-TbAd, 3, and N6-TbAd, 4, (Figure 1). It has been observed, in a comparative lipidomic assay between M. tuberculosis and M. bovis that these two diterpenes occur in higher amounts in M. tuberculosis and comprise >1% of all M. tuberculosis lipids, so they could serve as an abundant chemical marker of M. tuberculosis [19,21]. In addition, in this study it has been proved that the Rv3378c enzyme is responsible for 1-TbAd, 3, formation; this protein appears to be a tuberculosinyl transferase (prenyl transferase).
In this manner, Rv3377c and Rv3378c are new targets for anti-infective therapies against tuberculosis that block virulence factor (tuberculosinols) formation [6]. Consequently, tuberculosis could be related to these halimane diterpenoids.
Tuberculosinol, 1, isotuberculosinol, 2, and analogues:1-tuberculosinyl adenosine (1-TbAd), 3, and N6-tuberculosinyl adenosine (N6-TbAd), 4, are halimanes that could be considered VF of M. tuberculosis and tuberculosis illness [18,19,20,22,23,24,25,26,27,28,29]. Nowadays, these compounds are being tested as biomakers for tuberculosis.

2. Halimanes of Marine and Bacterial Origin

Halimanes are members of the diterpene family that proceed from geranylgeranyl pyrophosphate and can be considered between labdane and clerodane diterpenes from a biogenetic point of view [22,30]. (Figure 2) Unlike labdane and clerodane diterpenes, more than a milliard compounds of each group are known, but barely 250 halimanes are known.

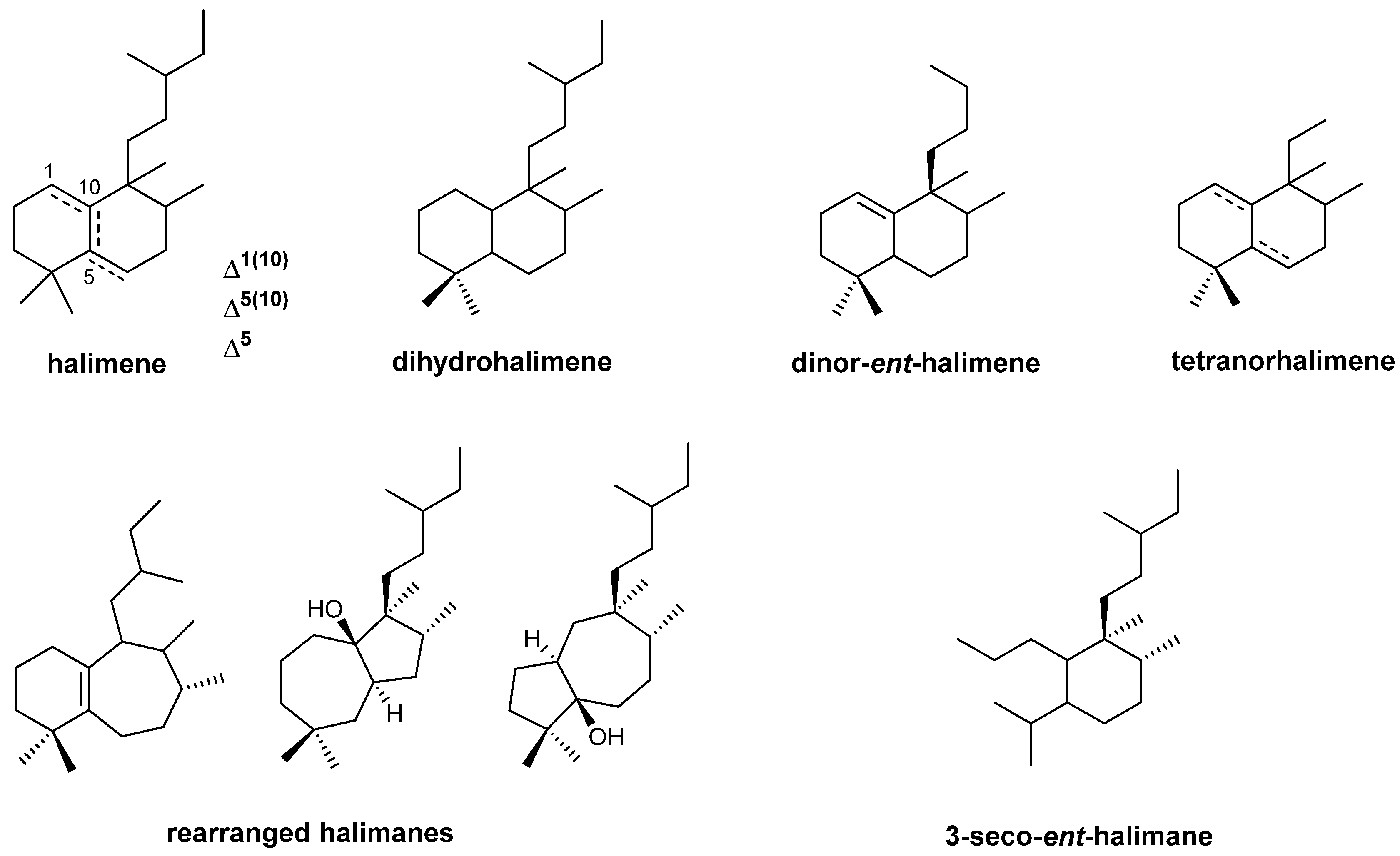

Halimane diterpenes can be divided into different groups according to the annular double bond position. In this manner, halim-1(10)-ene, halim-5(10)-ene and halim-5-ene can be found (Figure 2). Among halimanes, other groups can also be found: dihydrohalimenes, rearranged halimanes, nor-halimanes and seco-halimanes. In Figure 3 appear some skeletons corresponding to these halimanes.

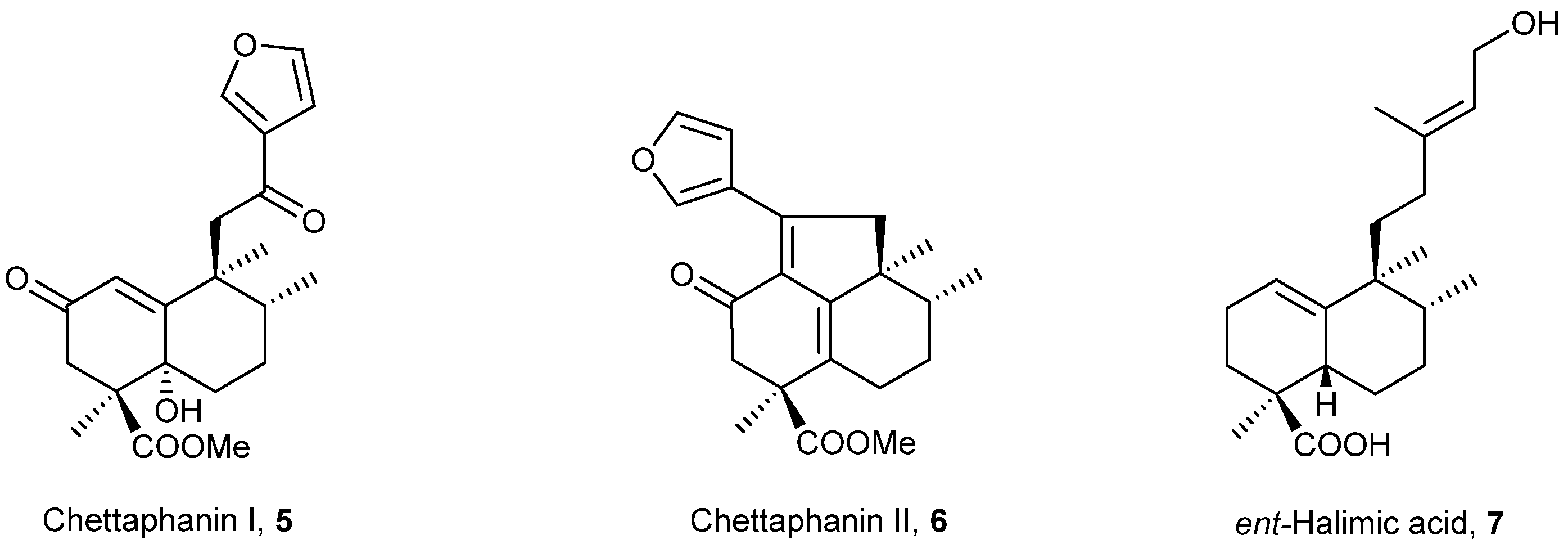

In Figure 4, some of the most significative natural halimanes appear. Chettaphanin I, 5, and chettaphanin II, 6, [23,24] isolated from Adenochlaena siamensis are the first two halimanes known. Their structures were spectroscopically and X-ray determined in 1970, but their absolute configuration was not possible to be determined at that moment. ent-Halimic acid, 7, and its acetylderivative [25,30], are the main components of Halimium viscosum (Villarino de los Aires), a plant of the Cistaceae family from which the majority of halimanes have been isolated. Due to this, this diterpene group is named after the gender of Halimium viscosum [22]. ent-Halimic acid, 7, and its acetylderivative, were used as starting materials for the synthesis of chettaphanin I, 5, and chettaphanin II, 6, establishing in 2003 the absolute configuration for the mentioned natural products [31]. In addition to the halimanes described in this manuscript, there are a large number of very interesting halimanes because of other bioactivities as antitumoral, anti-inflammatory, antimicrobial, antifungal, germination inhibitors, etc [30].

3. Classification

In marine organisms and bacteria, halimanes are not very abundant, but they are very interesting due to their biological properties. These compounds have been isolated from mollusks have been isolated from mollusks (Austrodoris, Spurilla), sponges (Agelas, Raspailia, Dysidea), tunicates (Cystodytes), cnidaria (Echinomuriceae, medusa, anemonae, polyps or corals). Halimanes isolated from marine organisms have been divided into three groups, according to their structural characteristics: simple halimanes, halimane-glycerol and halimane-purines derivatives. In other groups, the halimanes with antibacterial activity that proceeds from bacteria and plants will be studied.
In this review, we have included not only halimanes found in marine organisms, but also halimanes isolated from bacteria and plants, because these halimane-purines are close structurally. These halimane-purines, as halimane derivatives of mixed biogenesis, follow similar biosynthetic routes to the ones that act as the enzyme Rv3378c.

3.1. Marine Simple Halimanes, 8–14

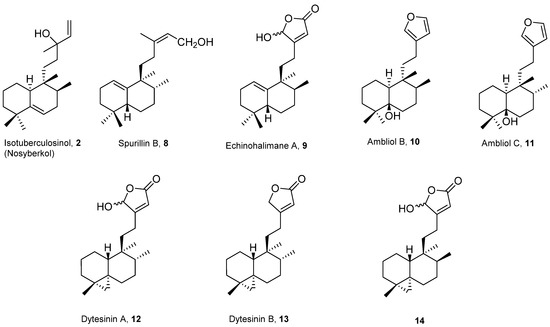

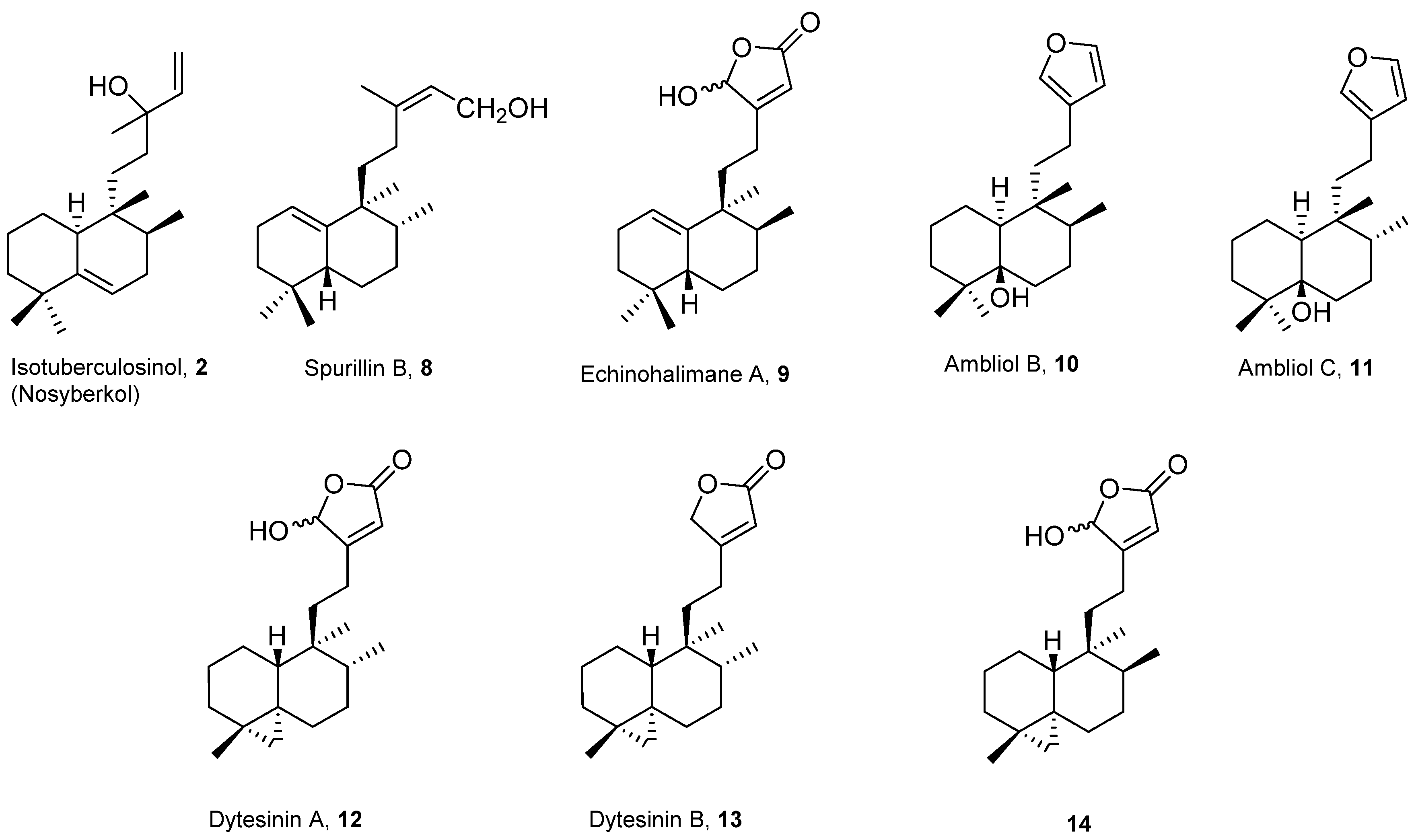

Among diterpene found in marine organisms (Figure 5) (Table 1), proper halimanes of different groups are found: halimanes 2; ent-halimane, 8; 8-epi-ent-halimane, 9; two dihydrohalimenes, 10 and 11; and three cyclopropylhalimanes 12–14. Four of them present a butenolide or γ-hydroxibutenolide in the side chain, two are furanyl derivatives and spurillin B, 8, that presents an unsaturated side chain with a cis double bond, which is unusual among the natural halimanes. Nosyberkol was isolated as a single stereoisomer in 2004 from the Nosy Be Islands (Madagascar) sponge Raspailia sp [32]. The C-13 configuration was not determined, and the absolute configuration remains undetermined. Some years later, nosyberkol was identified as isotuberculosinol, 2, one of the metabolites isolated from M. tuberculosis that appears with tuberculosinol. The structures of the last compounds were corroborated by synthesis, establishing in this manner their absolute configuration as halimanes [29,33].

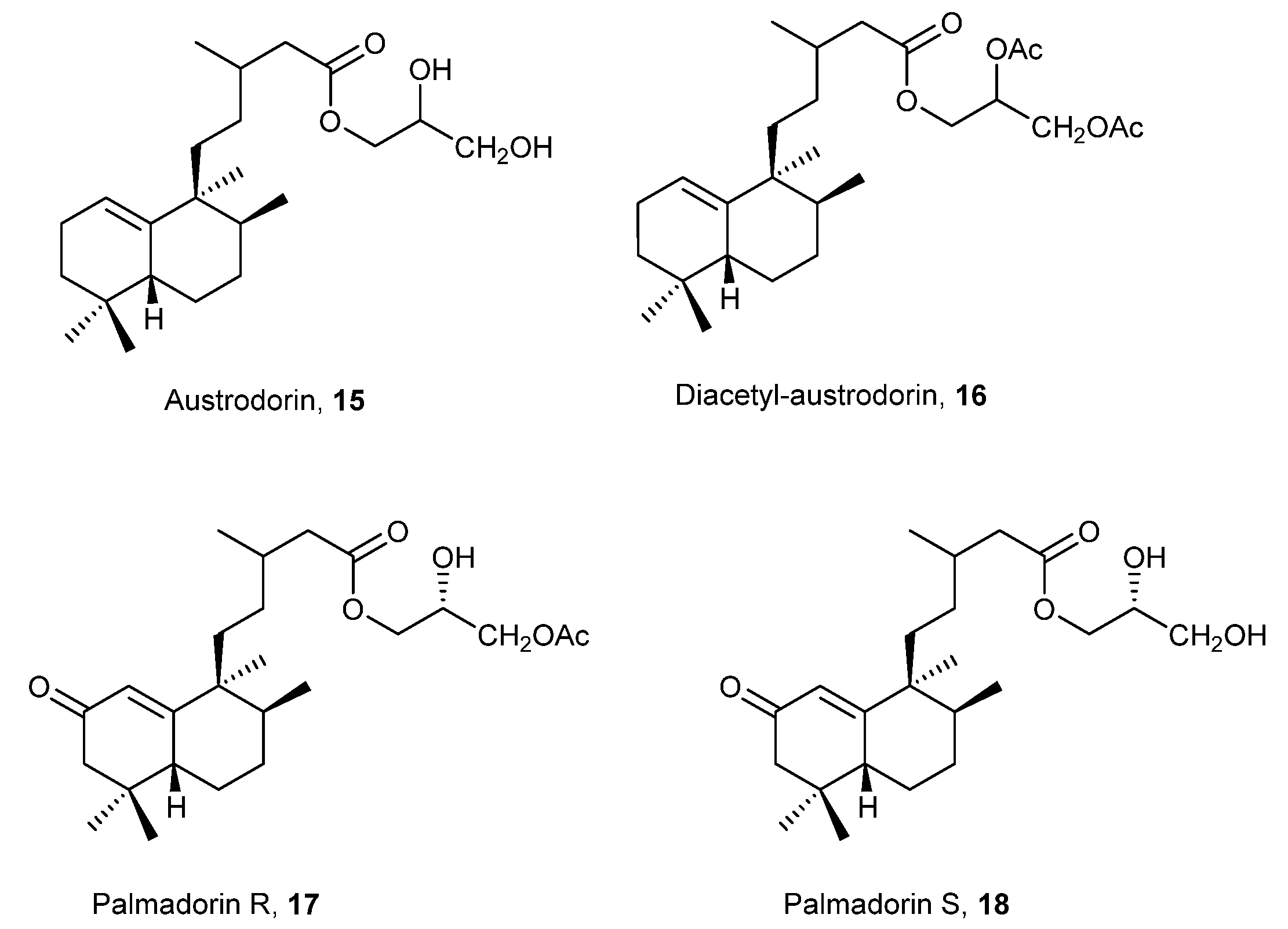

3.2. Halimane-Glycerol Derivatives Isolated from Marine Organisms: 15–18

A series of allomones was isolated from the Antarctic nudibranch, including diterpene glycerides, involved in the defense of those nudibranchs. All of them, 15-18, are 8-epi-ent-halim-1(10)-ene glycerol esters, with the glycerol fragment free or esterified as acetates [40,41,42] (Figure 6) (Table 2).

3.3. Halimane-Purines Derivatives: 19–29

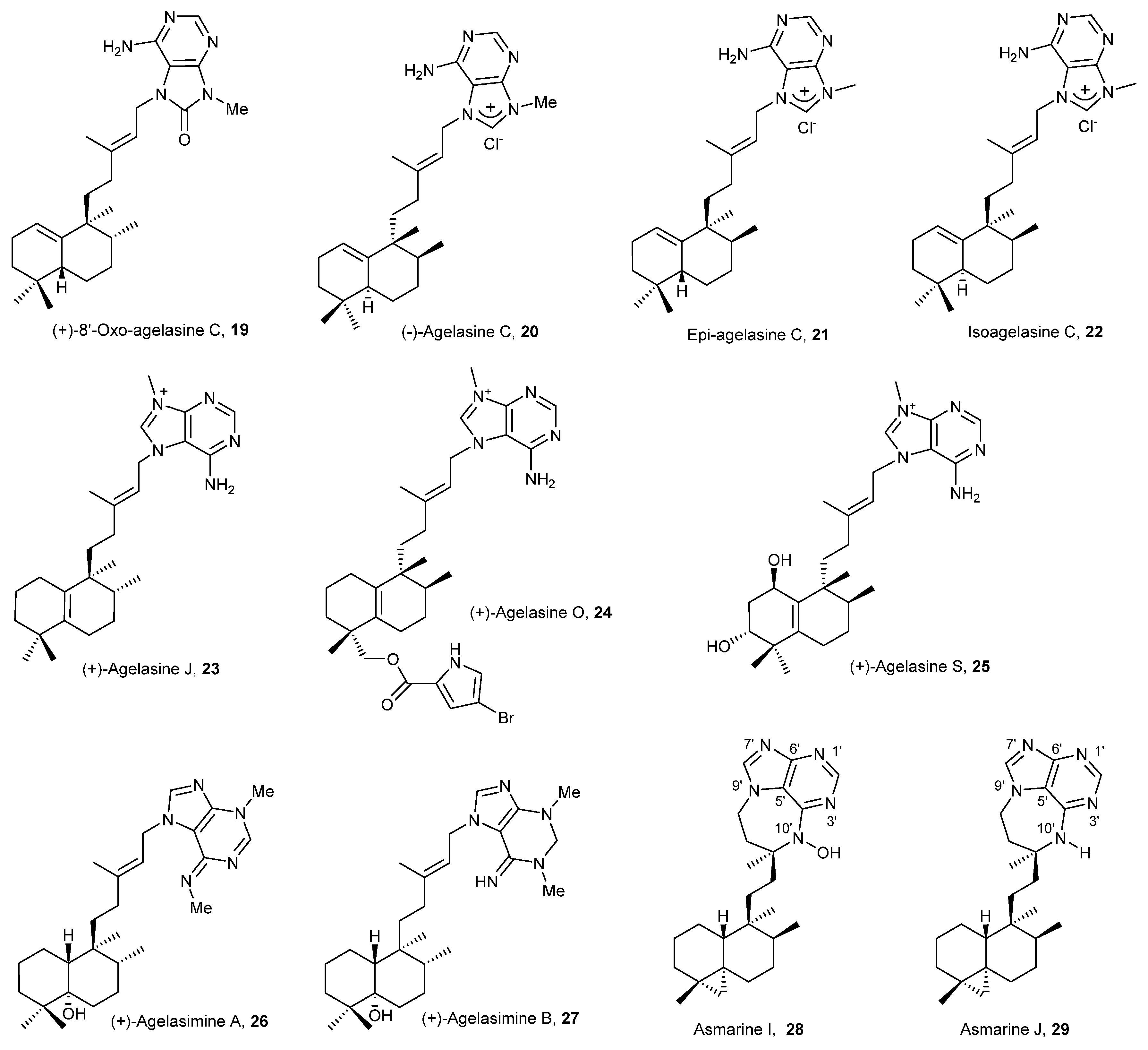

Eleven halimane purines, mainly isolated from marine sponges, have been characterized. (Figure 7) (Table 3). Among them, the following halimane families can be found: ent-halim-1(10)-enes 19, halim-1(10)-enes 20, 8-epi-ent-halim-1(10)-enes 21, 22, ent-halim-5(10)-ene 23, halim-5(10)-enes 24, 25, dihydro-ent-halimanes 26, 27 and cyclopropyl-8-epi-ent-halimanes 28, 29. (Figure 7) All of them were isolated from sponges of the genus Agellas, except for asmarine I, 28, and asmarine J, 29, which were isolated from Raspailia sp [43]. These compounds show antibacterial, antifungal, antimalarial, and cytotoxic activities, inhibition of adenosine transfer into rabbit erythrocytes and Ca2+ channel antagonistic action and α1 adrenergic blockade, among others. Some of these compounds possess antifouling activity against macroalgae, and so can be useful in the fishing industry as an alternative to metals in anti-adherent mixtures. Antifouling substances with no or reduced toxicity should be discovered or developed [44]. Halimane-purines constitute very interesting natural products for further biological and chemical research owing to their biological activities [20]. Several of these compounds show antibacterial activity, and are structurally similar to the diterpene purines isolated from M. tuberculosis (1-TbAd, 3, and N6-TbAd, 4), although in these ones the purine appears glycosylated in a different union with the diterpene [44].

3.4. Halimanes Isolated from Bacteria

Compounds of this group (Figure 1 and Figure 8), (Table 4) have been isolated from bacteria, but nosyberkol (isotuberculosinol), 2, has also been found in marine sponges of the genus Raspailia sp. All of them are halim-5-enes and characterized by their antibacterial activities.
Compounds tuberculosinol, 1, and isotuberculosinol, 2, are produced by M. tuberculosis [15,16]. Until now, the presence of 1 or 2 in the cultured cells of 12 nonpathogenic Mycobacterium species has not been detected [16]. It has been observed that tuberculosinol, 1, and isotuberculosinol, 2, (in a 1:1 ratio, with 2 being a mixture of the diastereomers 13R-isotuberculosinol (2R) and 13S-isotuberculosinol (2S) in a 1:3 ratio) inhibit phagolysosome maturation and macrophage phagocytosis in human-like cells [11].
A bacterial class II diterpene cyclase, DTC, (cyclase B type) that produces halima-5,13-dienyl diphosphate has been identified [27,55]. M. tuberculosis Rv3377c gene has been effectively identified, and the encoded DTC has been proved to be responsible for the production of the halimane skeleton.
Recently the structure of the diterpene tuberculosinol/isotuberculosinol synthase (Rv3378c) from M. tuberculosis has been reported [56]. The biosynthesis of tuberculosinols is catalyzed by two enzymes: Rv3377c, tuberculosinyl (halima-5,13-dien-15-yl) diphosphate synthase, and Rv3378c, tuberculosinol/(R/S)-isotuberculosinol synthase. Rv3377c is a DTC classified as class II that transforms GGPP into tuberculosinyl diphosphate (TPP) with a halimane core [23,57], while Rv3378c is a diterpene synthase that converts TPP into tuberculosinol, 1, or (R/S)-isotuberculosinols, 2, acting as a phosphatase/isomerase [11,17].
It is probable that the biosynthesis of the diterpene purines isolated from marine organisms follows a similar path to 1-TbAd, 3, and N6-TbAd, 4, in which enzyme homologs to Rv3378c could be involved, probably expressed in the genome of the surrounding microbiome around the macro organism.

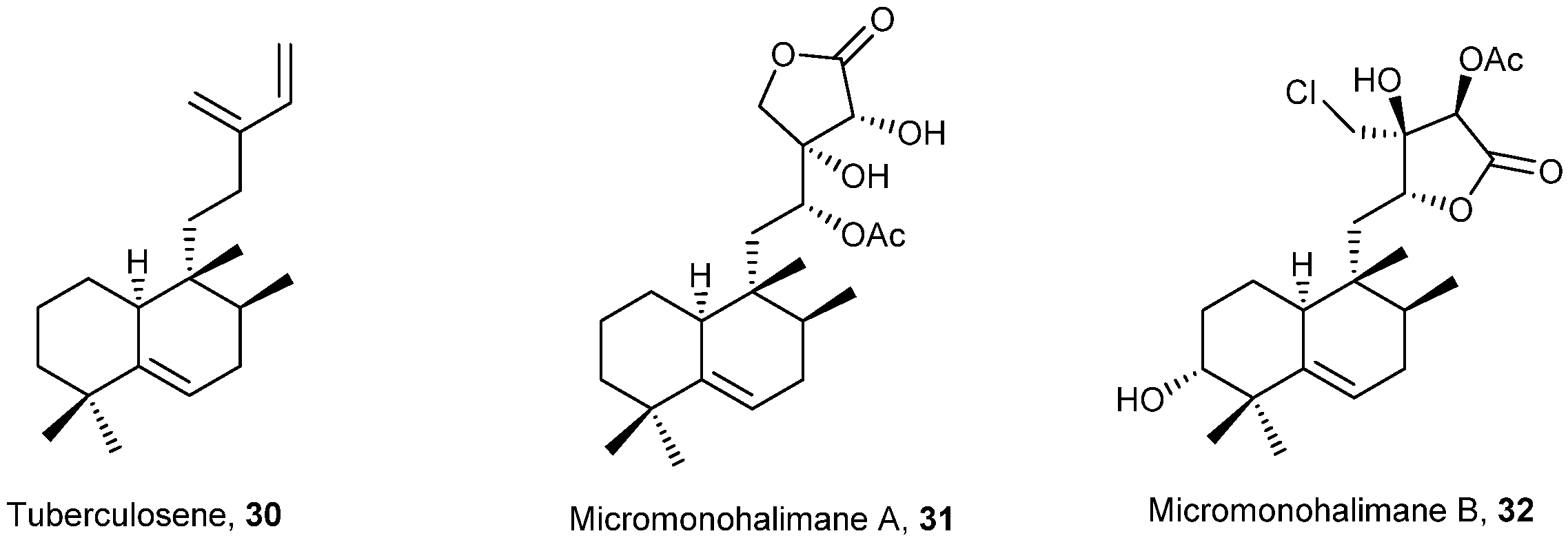

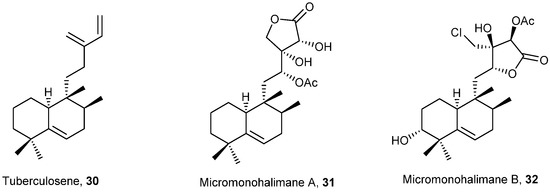

Tuberculosene, 30, (Figure 8) has been obtained by enzymatic reaction from a mixture of GGPP with tuberculosinyl diphosphate synthase and CYC2 enzyme from the bacteria Kitasatospora griseola [28,58]. Micromonohalimanes A and B (31 and 32, from Micromonospora sp. [59]), which present antibacterial activity, have been characterized. Micromonohalimane B 32 is the only halimane which includes a chlorine atom in its structure.
Recently, new knowledge was reported about the evolution of the bacteria that causes tuberculosis in animals and human beings. To know how it can be differentiated, the different bacteria lines will increase the comprehension of bacteria origins that cause the illness and the genetic mechanisms involved.

3.5. Antibacterial Halimanes Isolated from Plants

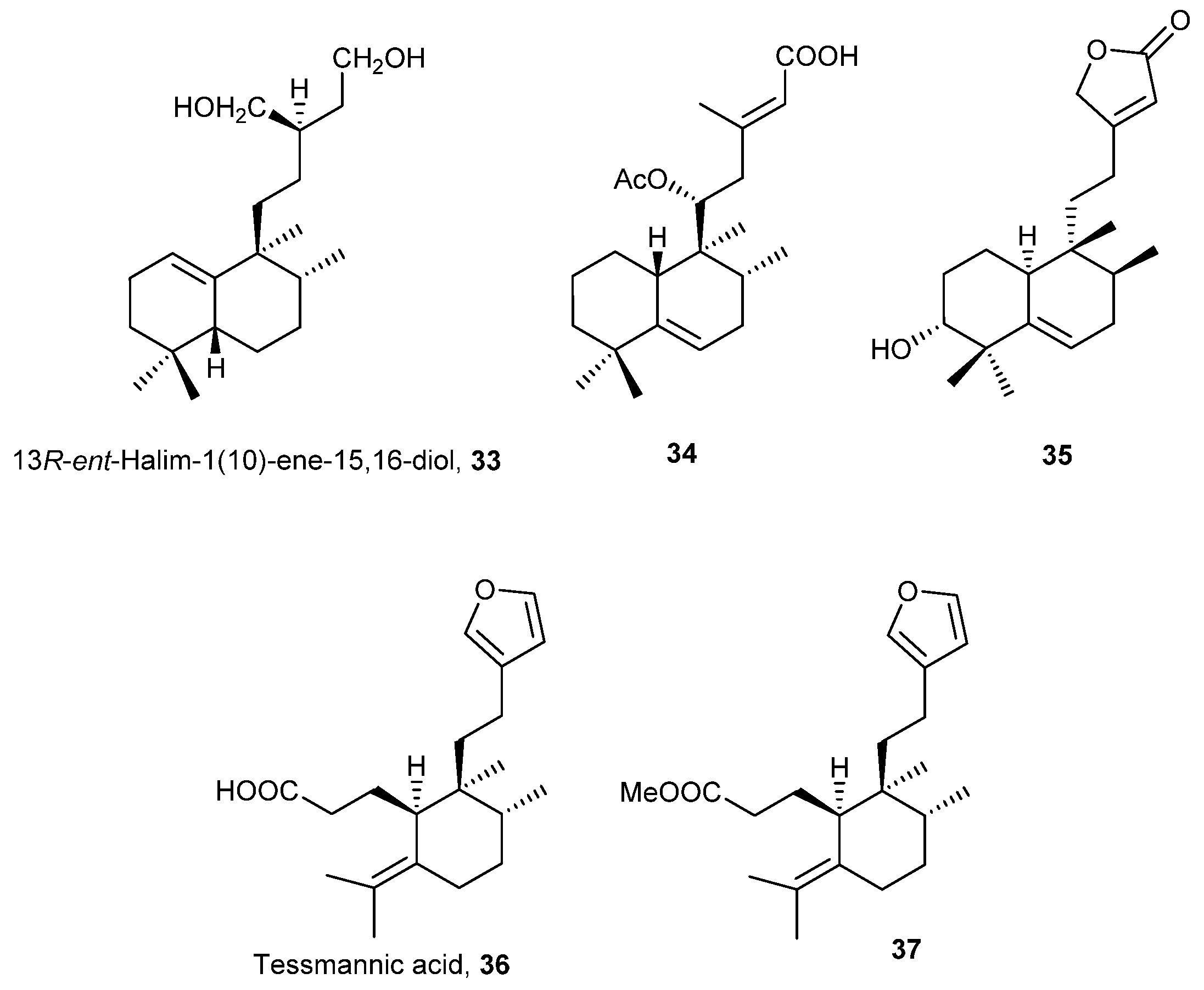

Antibacterial halimanes isolated from plants are shown in Figure 9 and Table 5. All of them are ent-halimanes, except for 35, which is a halimane.

4. Halimane Synthesis

The following will describe the synthesis known until now of different halimanes isolated from marine organisms and bacteria.

4.1. Halimane-Purine Synthesis. (+)-Agelasine C

ent-Halimic acid methyl ester, 38, has been used as a starting material for the synthesis of several terpene-alkaloids, such as (+)-agelasine C, 39, (Scheme 1) [45,68,69,70,71,72]. With this synthesis, the authors were able to establish the structure and absolute configuration of the natural product (−)-agelasine C, 40, correcting the structure originally proposed for epi-agelasine C, for this one was proposed the structure of 41 [45]. (Figure 10)
Epi-agelasine C presents antifouling activity and in order to establish its absolute configuration it was designed with a synthesis using ent-halimic acid as starting material [45] (Scheme 1).

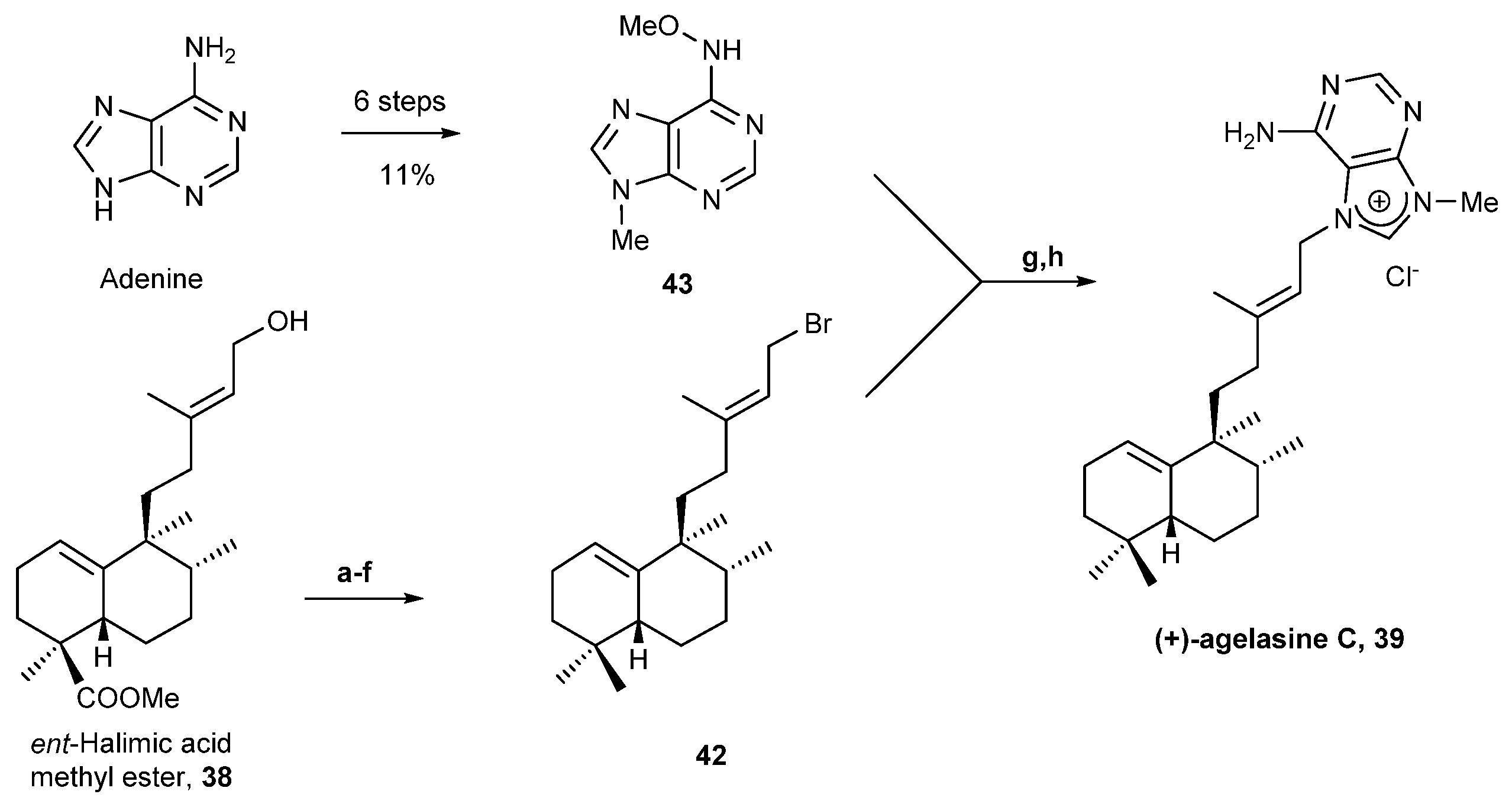

The synthesis of 42 (Scheme 1) was achieved in six steps from ent-halimic acid methyl ester, 38. The sequence started with the reduction of the methoxycarbonyl group of C-18 to methyl, that has been carried out in other synthesis of biologically active compounds [73,74] and finally to install the bromoderivative of C-15. Coupling of 42 with adenine fragment 43 led in two steps to 39 [45].

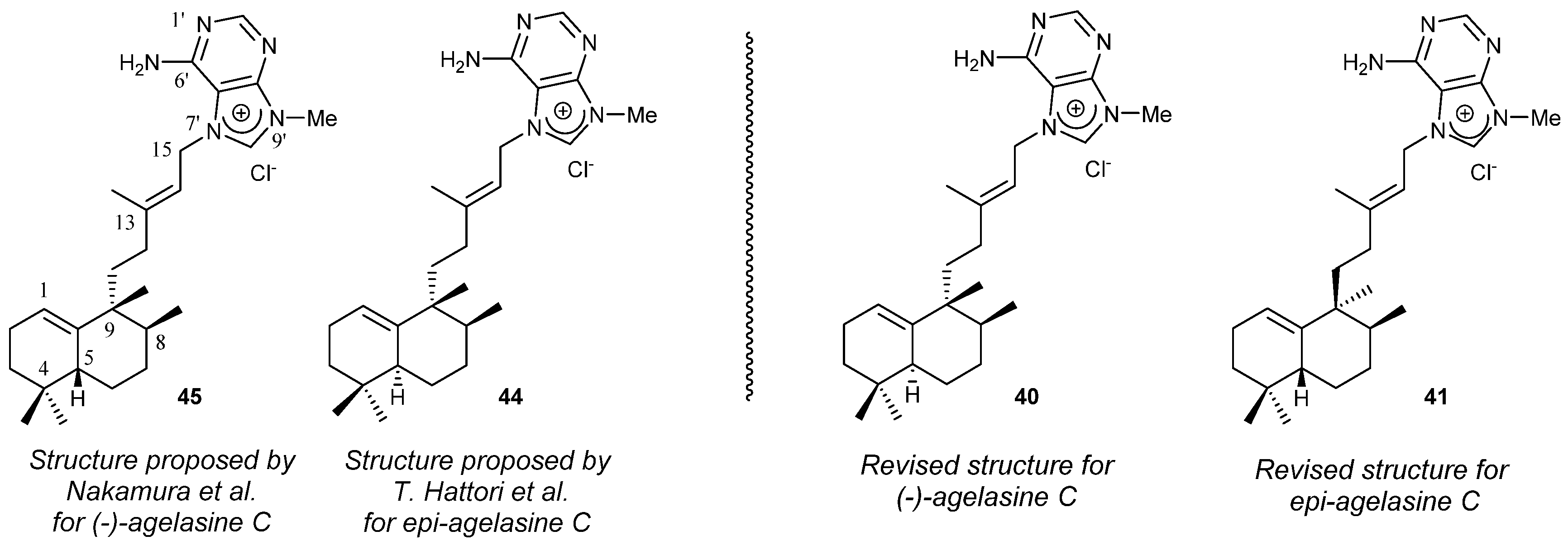

The physical properties of 39 are very different to those of the natural product epi-agelasine C for which the structure 44 was proposed, which should be revised. However, 1H and 13C NMR of 39 are identical to those of (−)-agelasine C, for which the structure of 45 was originally proposed. In addition, the rotation of 39 and one of the natural products, (−)-agelasine C, are similar in absolute value but with the opposite sign. Accordingly, the natural product (−)-agelasine C has structure 40 (Figure 10) that it is the enantiomer of the synthesis product 39 (+)-agelaine C. By comparison of the spectra and rotations of 39 and those of the natural product epi-agelasine C, the structure of 41 for the natural product epi-agelasine C was proposed. (Figure 10)

4.2. Synthesis of (+)-agelasimine A, 26, and (+)-agelasimine B, 27

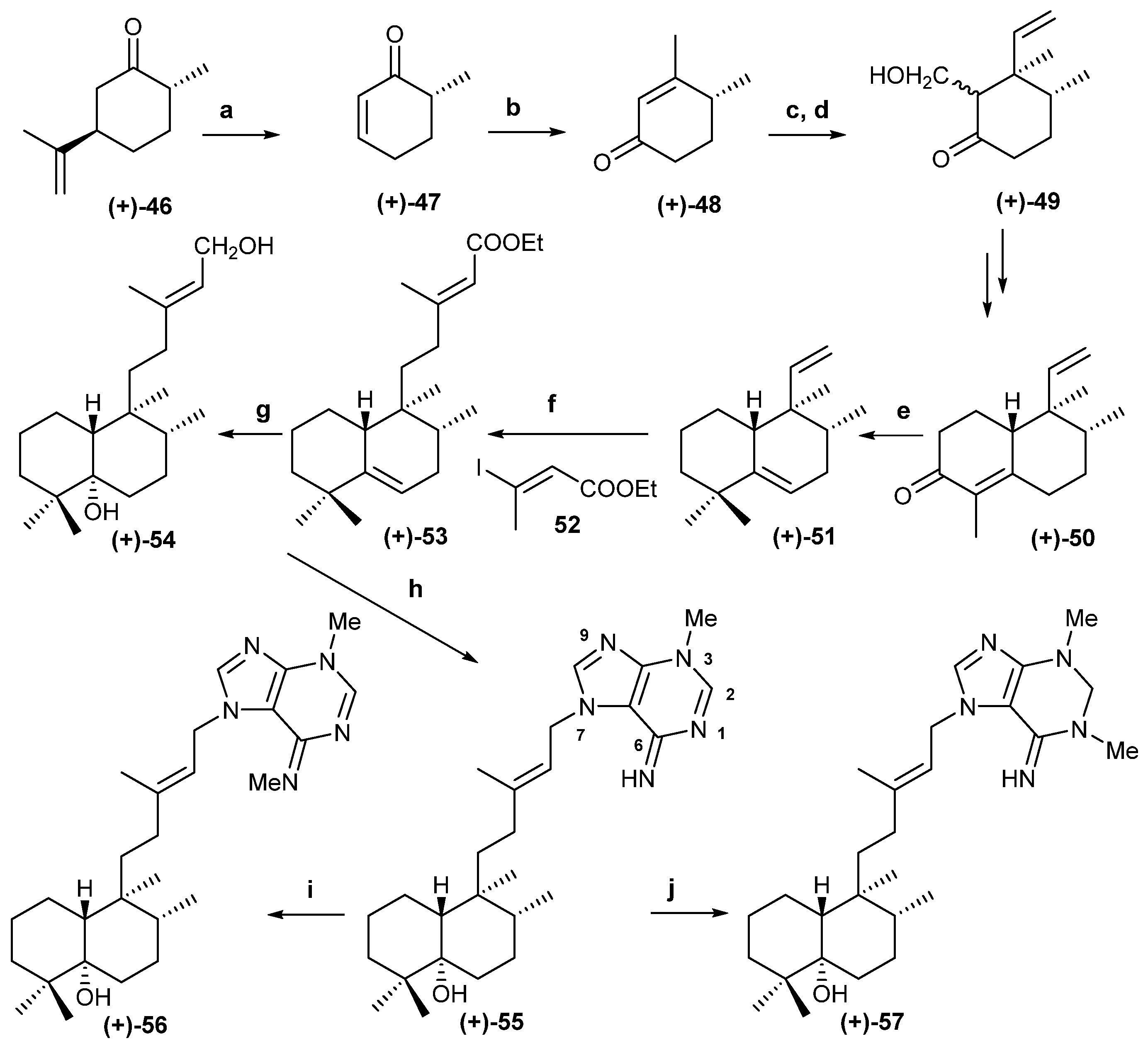

(+)-Agelasimine A, 26, and (+)-Agelasimine B, 27, are two diterpene-adenine derivatives isolated from the orange sponge Agelas mauritiana (Figure 7). The synthesis of 26 and 27 was carried out by Ohba and co-workers [53], starting with (+)-trans-dihydrocarvone, 46, allowing them to establish the absolute configuration of both natural products. The authors previously developed a reaction sequence similar to that done for the racemic (±)-agelasimine A and (±)-agelasimine B [75,76]. The asymmetric synthesis of (+)-agelasimine A, 26, and (+)-agelasimine B, 27, was done from (+)-trans-dihydrocarvone, 46, (Scheme 2) through enones 47 and 48 to access the key intermediate 49, which was transformed into the bicyclic enone 50 by a procedure previously described. Transformation of 50 into the required diterpenic diol (+)-54 was carried out by a seven-step sequence, among which Suzuki cross-coupling was necessary to complete the side chain. The synthesis of (+)-55 was done starting from 54 in three steps: bromation, alkylation, with 3-methyladenine and neutralization of the hydrobromide salt. Methylation of 55 leads to compound (+)-56 that was identical to the natural product (+)-agelasimine A. Reduction of 55 followed by methylation and neutralization leads to (+)-57, which is identical to the natural product (+)-agelasimine B. In this manner, the structures were corroborated and finally the absolute configuration of the natural products (+)-agelasimine A and (+)-agelasimine B was established.

4.3. Synthesis of Tuberculosinol, 1, and Isotuberculosinol, 2

The development of effective new drugs against bacteria and biofilms of M. tuberculosis is absolutely necessary and urgent. In this line, the development of new therapies for the inhibition of the virulence factor (VC) formation such as tuberculosinol, 1, and isotuberculosinol, 2, (13R and 13S) is of special interest, where these two halimanes show the main interest and projection. The structures of 1 and 2 have been confirmed by synthesis [29,33,77], enabling researchers to achieve a structural revision of the diterpenes isolated from M. tuberculosis, assigning to isotuberculosinol the same structure of nosyberkol, 2, (isolated from Raspailia sp).

4.4. Snider’s Synthesis of Tuberculosinol, 1, and Isotuberculosinol, 2

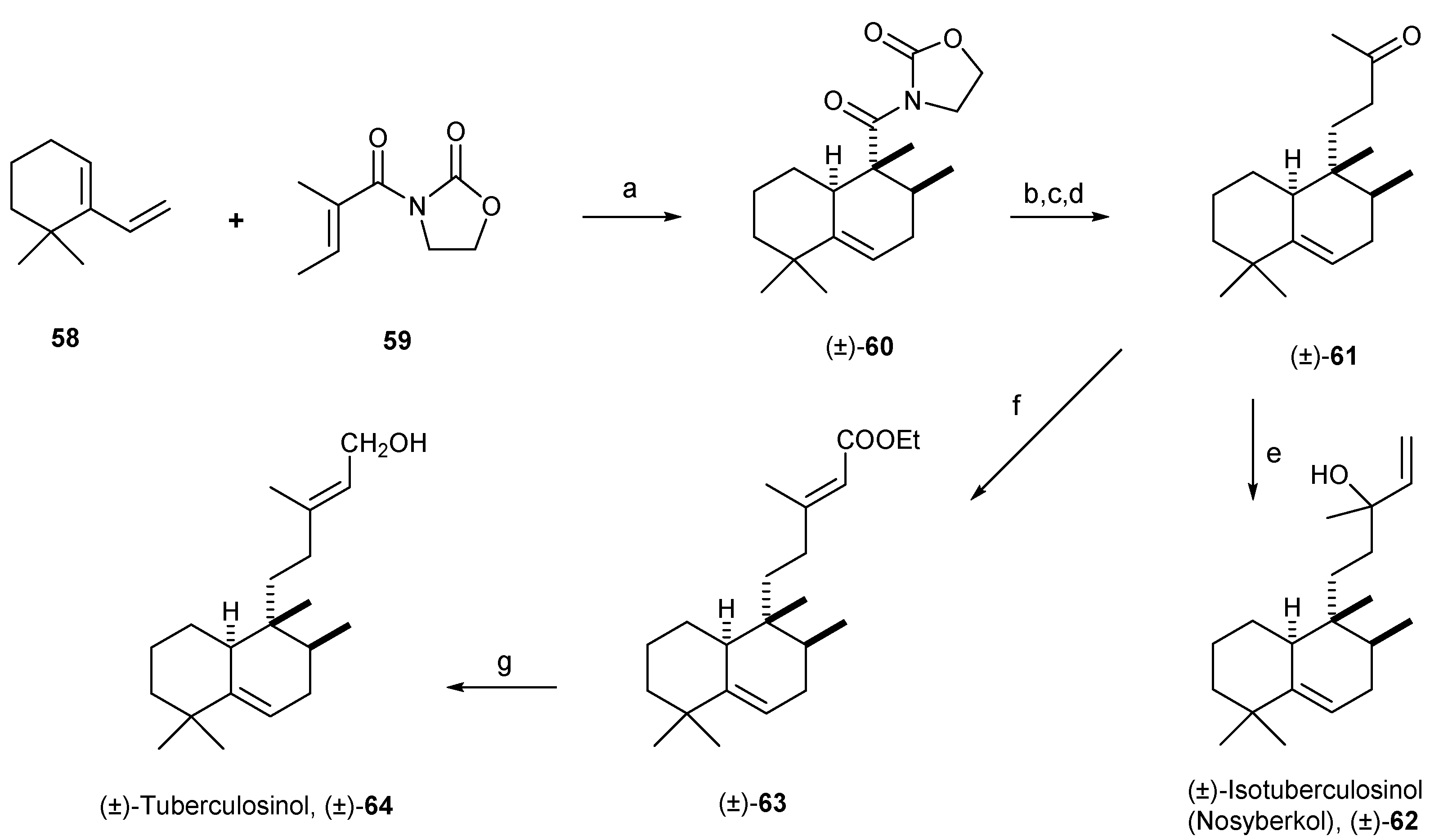

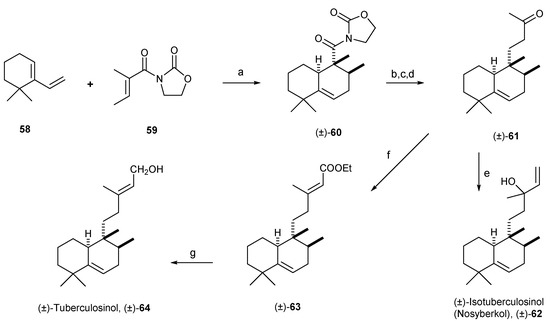

For tuberculosinol, 1, and isotuberculosinol, 2, racemic synthesis, Snider and co-workers [33] used as a key step exo-cycloaddition (Scheme 3). Cycloaddition of 58 with N-tigloylisoxazolidinone, 59, and Me2AlCl provides a mixture of the desired exo-Diels-Alder adduct 60 and the endo adduct (54%, 10:1 exo/endo). Reduction of (±)-60, Dess-Martin periodinane oxidation, followed by condensation of the aldehyde with acetone in the presence of NaOMe leads to an enone that by reduction with Li in NH3 gives the key intermediate (±)-61. The addition of vinylmagnesium bromide to methylketone (±)-61 gives a diastereoisomer mixture (±)-62 which has spectroscopic properties identical to the natural products nosyberkol and isotuberculosinol. The reaction of (±)-61 with triethylphosphonoacetate leads to (±)-63, the reduction of which gives (±)-64, an identical product to the natural tuberculosinol [27].

4.5. Sorensen’s Synthesis of Tuberculosinol, 1, and Isotuberculosinol, 2

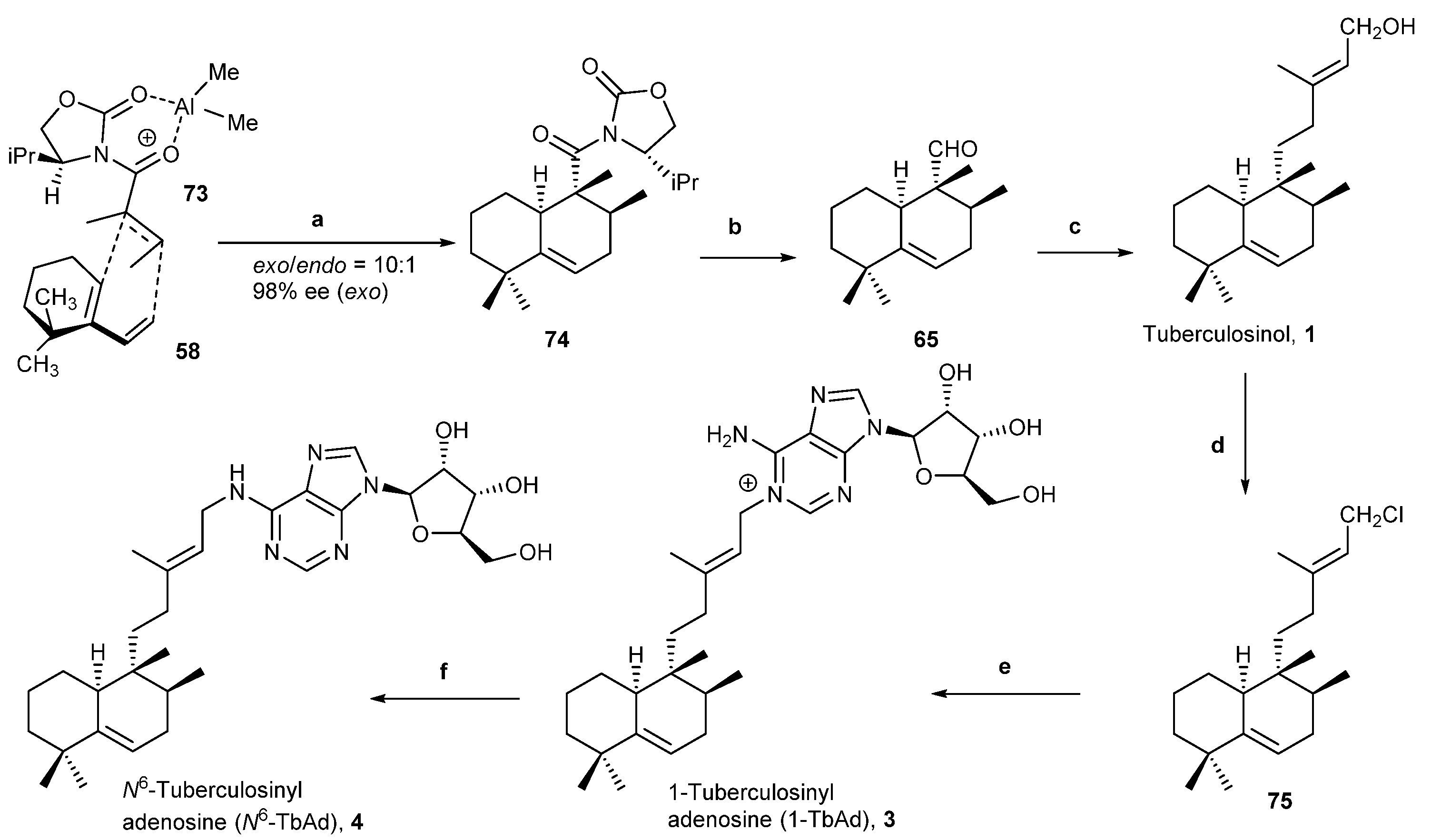

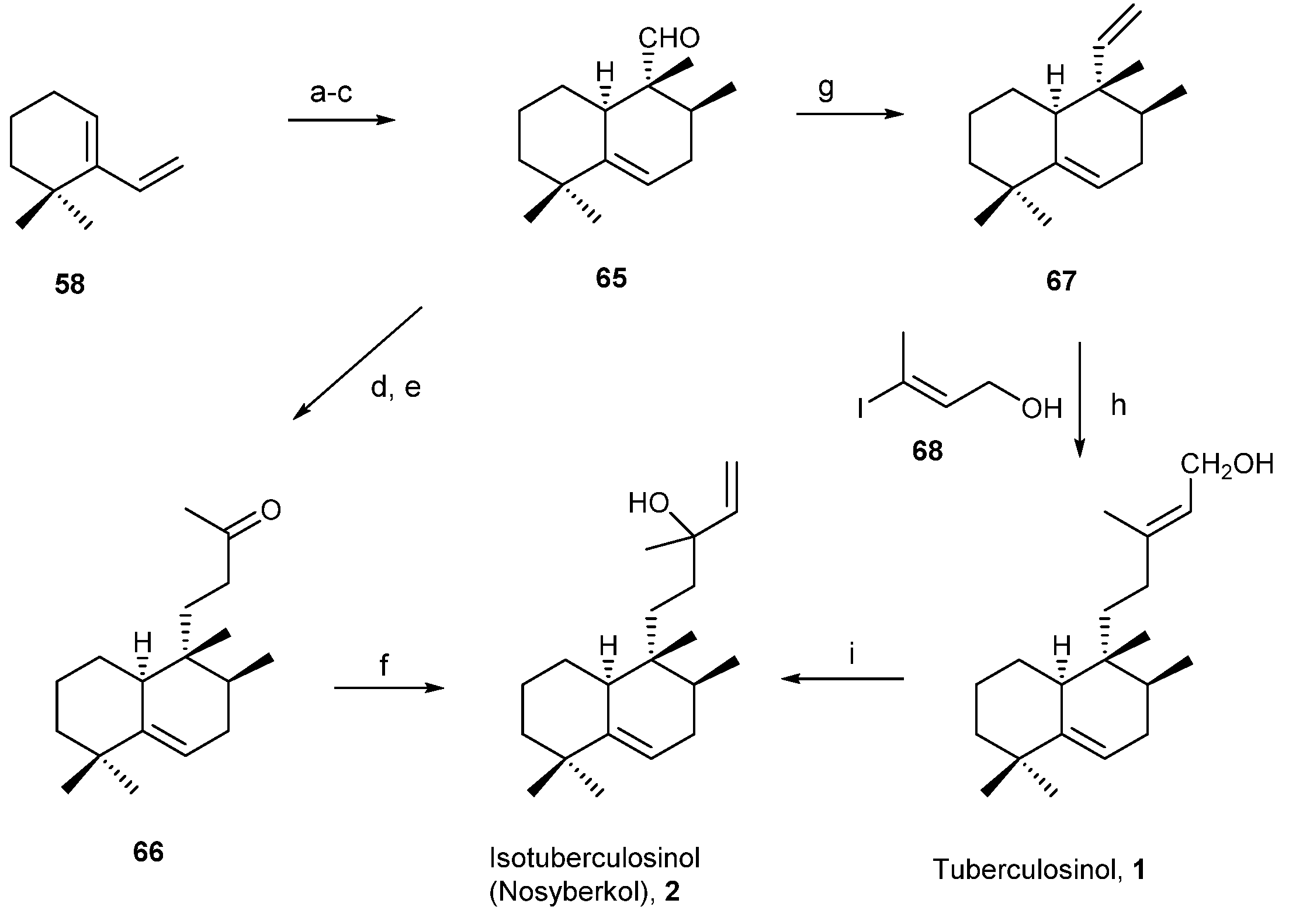

The synthesis of tuberculosinol, 1, and isotuberculosinol, 2, carried out by Sorensen and co-workers [29], was used as key reaction in an exo-selective Diels-Alder reaction (Scheme 4). Cycloaddition of diene, 58, with ethyl tiglate and ulterior reduction followed by chromatographic separation in supercritical conditions gave an enantioenriched material, that by oxidation gave 65. Condensation of the last compound with acetone and reduction in the presence of Wilkinson´s catalyst gave methylketone, 66. Vinylmagnesium bromide addition to ketone 66 gave the epimers mixture 2, the spectroscopy of which was coincident with the natural products nosyberkol and isotuberculosinol.
Methylenation of 65 gave diene, 67, that by hydroboration palladium-mediated cross-coupling with (E)-3-iodobut-2-en-1-ol 68 provides tuberculosinol, 1. The reaction of 1 with catalytic copper(II) chloride led to isotuberculosinol (nosyberkol), 2.

4.6. Barrero´s Synthesis of Isotuberculosinol, 2

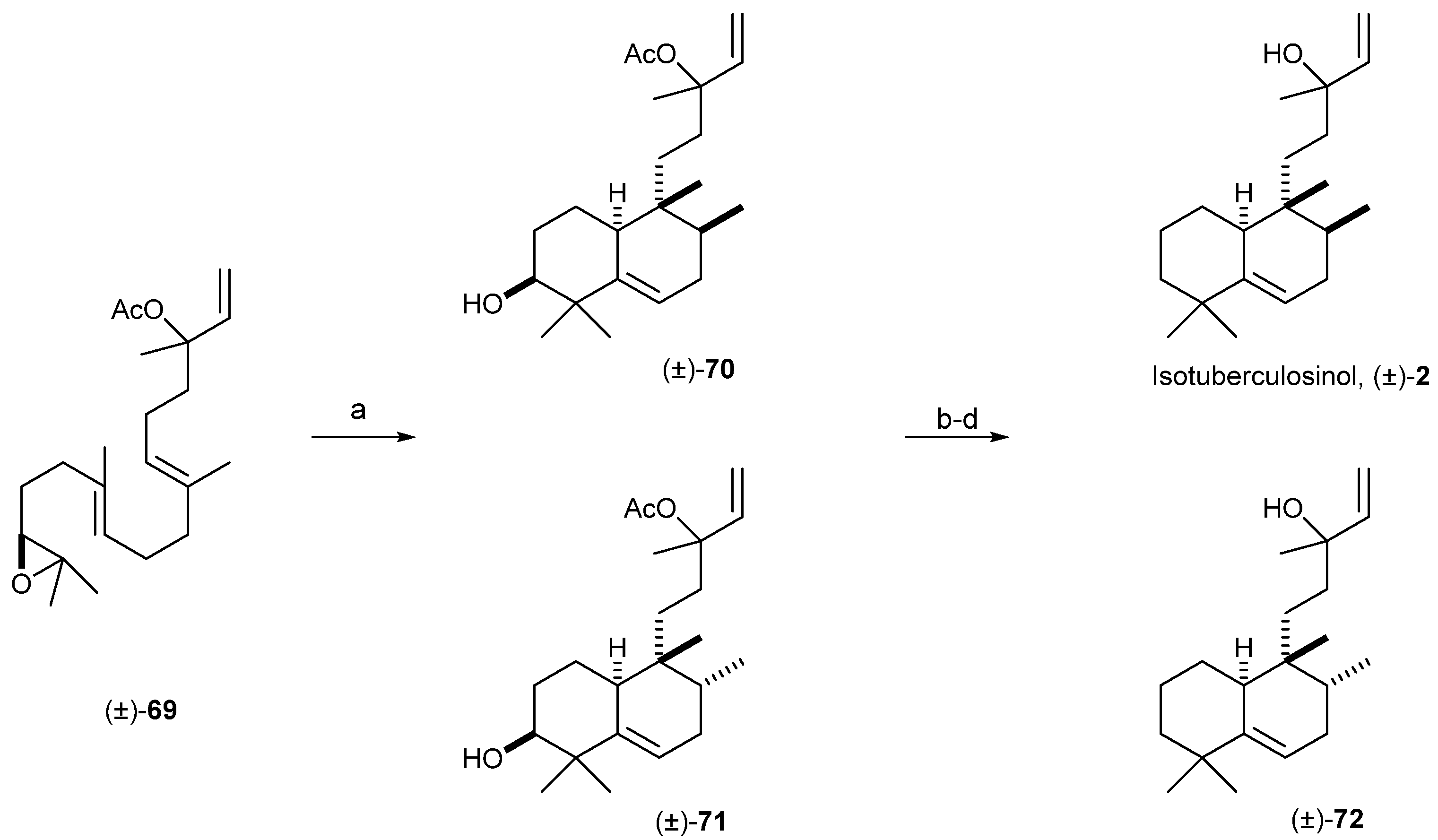

Recently, a racemic, elegant and fast biomimetic synthesis of isotuberculosinol, (±)-2, based in the cascade cyclization and Lewis acid catalyzed rearrangement of epoxypolyprenes was described [77] (Scheme 5). Treatment of chiral geranyllinalool epoxide, (±)-69, with Et2ClAl in DCM at −78 °C gives a diasteroisomeric mixture (±)-70-(±)-71 (53%, 1:2.5). Deoxygenation of each using the Barton–McCombie methodology and final reduction with LAH leads to isotuberculosinol, (±)-2, and 8-epi-isotuberculosinol, (±)-72, in global yields of 10% and 25%, respectively, from epoxy derivative, (±)-69.

4.7. Tuberculosinyl Adenosine (1-TbAd), 3, and N6-Tuberculosinyl Adenosine (N6-TbAd), 4, Syntheses

Nowadays tuberculosinol derivatives 1-tuberculosinyl adenosine (1-TbAd), 3, and N6-tuberculosinyl adenosine (N6-TbAd), 4, recently isolated [19,21] and characterized, are being assayed as specific biomarkers for M. tuberculosis. Biosynthetically N6-TbAd, 4, could come from 1-TbAd, 3, in vivo in M. tuberculosis, by a Dimroth rearrangement [19]. The synthesis of 1-TbAd, 3, and N6-TbAd, 4, has been carried out by 10- and 11-step sequences, respectively, using as a key step a chiral auxiliary-aided Diels-Alder reaction 73 [20] (Scheme 6) that gives 74 (98% ee, 59%, 10:1 exo/endo). From 74 is obtained tuberculosinol, 1, in seven steps. 1-TbAd, 3, was obtained in two steps from 1 through the chloride derivative 75 and N6-TbAd, 4, was achieved later from 3 by a Dimroth rearrangement.

5. Conclusions

The early attack against biofilm formation is fundamental for health in bacterial infections. For this reason, as tuberculosis constitutes one of the major mortality and morbidity causes, the introduction of new agents as biomarkers in this disease can be an important hallmark in the treatment of tuberculosis, especially the multiresistant varieties.
Most of the reviewed halimanes in this work show antibacterial activity and tuberculosinol, isotuberculosinol and their derivatives 1-TbAd, 3, and N6-TbAd, 4 are considered as virulence factor (VF) in M. tuberculosis. Due to this, the proteins that participate in their biosynthesis (Rv3377c and Rv3378c) are new targets for anti-infective therapies against tuberculosis that block the virulence factor (tuberculosinols) formation. Thus, halimanes are very interesting tools for fighting against bacteria and biofilm communities. The introduction of new agents as tuberculosis biomakers can facilitate the treatment of this illness.

Author Contributions

I.S.M. designed the manuscript; I.E.T., A.M.R., R.F.M., and D.D. contributed to the manuscript writing. All authors contributed to the paper and approved the manuscript.

Funding

European Regional Development Fund (FEDER), the Ministerio de Economía y Competitividad of Spain (MINECO) (SAF 2017-89672, CTQ 2015-68175-R; AGL 2016-79813-C2-2-R), Junta de Castilla y León (UIC 21), and the Universidad de Salamanca (Programa Propio I, 2019) are acknowledged for their support. IET thanks FSE (European Social Fund) and Junta de Castilla y León and AMR thanks the Ministerio de Educación of Spain for their grants.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Costerton, J.W.; Stewart, P.S.; Greenberg, E.P. Bacterial Biofilms: A common cause of persistent infections. Science 1999, 284, 1318–1322. [Google Scholar] [CrossRef] [Green Version]
  2. Esteban, J.; García-Coca, M. Mycobacterium Biofilms. Front. Microbiol. 2018, 8, 2651. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Donlan, R.M.; Costerton, J.W. Biofilms: survival mechanisms of clinically relevant microorganisms. Clin. Microbiol. Rev. 2002, 15, 167–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Davies, D.G. Understanding biofilm resistance to antibacterial agents. Nat. Rev. Drug Discov. 2003, 2, 114–122. [Google Scholar] [CrossRef] [PubMed]
  5. Verderosa, A.D.; Totsika, M.; Fairfull-Smith, K.E. Bacterial biofilm eradication agents: a current review. Front. Chem. 2019, 7, 824. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lienhardt, C.; Glaziou, P.; Uplekar, M.; Lönnroth, K.; Getahun, H.; Raviglione, M. Global tuberculosis control: lessons learnt and future prospects. Nat. Rev. Microbiol. 2012, 10, 407–416. [Google Scholar] [CrossRef]
  7. Anderson, G.G.; O’Toole, G.A. Bacterial Biofilms; Romeo, T., Ed.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 85–105. ISBN 978-3-642-09469-9. [Google Scholar]
  8. Lewis, K. Bacterial Biofilms; Romeo, T., Ed.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 107–131. ISBN 978-3-642-09469-9. [Google Scholar]
  9. Kester, J.C.; Fortune, S.M. Persisters and beyond: Mechanisms of phenotypic drug resistance and drug tolerance in bacteria. Crit. Rev. Biochem. Mol. Boil. 2013, 49, 91–101. [Google Scholar] [CrossRef]
  10. Liu, C.-I.; Liu, G.Y.; Song, Y.; Yin, F.; Hensler, M.E.; Jeng, W.-Y.; Nizet, V.; Wang, A.H.-J.; Oldfield, E. A cholesterol biosynthesis inhibitor blocks Staphylococcus aureus virulence. Science 2008, 319, 1391–1394. [Google Scholar] [CrossRef] [Green Version]
  11. Hoshino, T.; Nakano, C.; Ootsuka, T.; Shinohara, Y.; Hara, T. Substrate specificity of Rv3378c, an enzyme from Mycobacterium tuberculosis, and the inhibitory activity of the bicyclic diterpenoids against macrophage phagocytosis. Org. Biomol. Chem. 2011, 9, 2156–2165. [Google Scholar] [CrossRef]
  12. Sato, T.; Kigawa, A.; Takagi, R.; Adachi, T.; Hoshino, T. Biosynthesis of a novel cyclic C35-terpene via the cyclisation of a Z-type C35-polyprenyl diphosphate obtained from a nonpathogenic Mycobacterium species. Org. Biomol. Chem. 2008, 6, 3788–3794. [Google Scholar] [CrossRef]
  13. Nakano, C.; Oshima, M.; Kurashima, N.; Hoshino, T. Identification of a new diterpene biosynthetic gene cluster that produces O-methylkolavelool in Herpetosiphon aurantiacus. ChemBioChem 2015, 16, 772–781. [Google Scholar] [CrossRef] [PubMed]
  14. Mann, F.M.; Prisic, S.; Hu, H.; Xu, M.; Coates, R.M.; Peters, R.J. Characterization and inhibition of a class II diterpene cyclase from Mycobacterium tuberculosis: implications for tuberculosis. J. Boil. Chem. 2009, 284, 23574–23579. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Mann, F.M.; VanderVen, B.; Peters, R.J. Magnesium depletion triggers production of an immune modulating diterpenoid in Mycobacterium tuberculosis. Mol. Microbiol. 2011, 79, 1594–1601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Prach, L.; Kirby, J.; Keasling, J.D.; Alber, T. Diterpene production in Mycobacterium tuberculosis. FEBS J. 2010, 277, 3588–3595. [Google Scholar] [CrossRef] [PubMed]
  17. Nakano, C.; Ootsuka, T.; Takayama, K.; Mitsui, T.; Sato, T.; Hoshino, T. Characterization of the Rv3378c gene product, a new diterpene synthase for producing tuberculosinol and (13 R,S)-isotuberculosinol (nosyberkol), from the Mycobacterium tuberculosis H37Rv genome. Biosci. Biotechnol. Biochem. 2011, 75, 75–81. [Google Scholar] [CrossRef]
  18. Mann, F.M.; Xu, M.; Chen, X.; Fulton, D.B.; Russell, D.G.; Peters, R.J. Edaxadiene: A new bioactive diterpene from Mycobacterium tuberculosis. J. Am. Chem. Soc. 2009, 131, 17526–17527. [Google Scholar] [CrossRef] [Green Version]
  19. Young, D.C.; Layre, E.; Pan, S.-J.; Tapley, A.; Adamson, J.; Seshadri, C.; Wu, Z.; Buter, J.; Minnaard, A.J.; Coscolla, M.; et al. In vivo biosynthesis of terpene nucleosides provides unique chemical markers of Mycobacterium tuberculosis infection. Chem. Boil. 2015, 22, 516–526. [Google Scholar] [CrossRef] [Green Version]
  20. Buter, J.; Heijnen, D.; Wan, I.C.; Bickelhaupt, F.M.; Young, D.C.; Otten, E.; Moody, D.B.; Minnaard, A.J. Stereoselective synthesis of 1-tuberculosinyl adenosine; a virulence factor of Mycobacterium tuberculosis. J. Org. Chem. 2016, 81, 6686–6696. [Google Scholar] [CrossRef]
  21. Layre, E.; Lee, H.J.; Young, D.C.; Martinot, A.J.; Buter, J.; Minnaard, A.J.; Annand, J.W.; Fortune, S.M.; Snider, B.B.; Matsunaga, I.; et al. Molecular profiling of Mycobacterium tuberculosis identifies tuberculosinyl nucleoside products of the virulence-associated enzyme Rv3378c. Proc. Natl. Acad. Sci. USA 2014, 111, 2978–2983. [Google Scholar] [CrossRef] [Green Version]
  22. Roncero, A.M.; Tobal, I.E.; Moro, R.F.; Díez, D.; Marcos, I.S. Halimane diterpenoids: sources, structures, nomenclature and biological activities. Nat. Prod. Rep. 2018, 35, 955–991. [Google Scholar] [CrossRef] [Green Version]
  23. Sato, A.; Kurabayashi, M.; Nagahori, H.; Ogiso, A.; Mishima, H. Chettaphanin-I, a novel furanoditerpenoid. Tetrahedron Lett. 1970, 11, 1095–1098. [Google Scholar] [CrossRef]
  24. Sato, A.; Kurabayashi, M.; Ogiso, A.; Mishima, H. Chettaphanin-II, a novel furanoditerpenoid. Tetrahedron Lett. 1971, 12, 839–842. [Google Scholar] [CrossRef]
  25. Urones, J.G.; Marcos, I.S.; Basabe, P.; Sexmero, M.J.; Carrillo, H.; Melchor, M.J. Minor diterpenoids from Halimium viscosum. Phytochemistry 1994, 37, 1359–1361. [Google Scholar] [CrossRef]
  26. Mann, F.M.; Peters, R.J. Isotuberculosinol: the unusual case of an immunomodulatory diterpenoid from Mycobacterium tuberculosis. MedChemComm 2012, 3, 899–904. [Google Scholar] [CrossRef] [Green Version]
  27. Nakano, C.; Okamura, T.; Sato, T.; Dairi, T.; Hoshino, T. Mycobacterium tuberculosis H37Rv3377c encodes the diterpene cyclase for producing the halimane skeleton. Chem. Commun. 2005, 1016–1018. [Google Scholar] [CrossRef]
  28. Nakano, C.; Hoshino, T.; Sato, T.; Toyomasu, T.; Dairi, T.; Sassa, T. Substrate specificity of the CYC2 enzyme from Kitasatospora griseola: production of sclarene, biformene, and novel bicyclic diterpenes by the enzymatic reactions of labdane- and halimane-type diterpene diphosphates. Tetrahedron Lett. 2010, 51, 125–128. [Google Scholar] [CrossRef]
  29. Spangler, J.E.; Carson, C.A.; Sorensen, E.J. Synthesis enables a structural revision of the Mycobacterium tuberculosis-produced diterpene, edaxadiene. Chem. Sci. 2010, 1, 202–205. [Google Scholar] [CrossRef] [Green Version]
  30. Urones, J.G.; Teresa, J.D.P.; Marcos, I.S.; Martín, D.D.; Garrido, N.M.; Guerra, R. Diterpenoids from halimium viscosum. Phytochemistry 1987, 26, 1077–1079. [Google Scholar] [CrossRef]
  31. Marcos, I.S.; Hernández, F.; Sexmero, M.; Díez, D.; Basabe, P.; Pedrero, A.; García, N.; Urones, J.G. Synthesis and absolute configuration of (−)-chettaphanin I and (−)-chettaphanin II. Tetrahedron 2003, 59, 685–694. [Google Scholar] [CrossRef]
  32. Rudi, A.; Aknin, M.; Gaydou, E.; Kashman, Y. Asmarines I, J, and K and nosyberkol: four new compounds from the marine sponge Raspailia sp. J. Nat. Prod. 2004, 67, 1932–1935. [Google Scholar] [CrossRef]
  33. Maugel, N.; Mann, F.M.; Hillwig, M.; Peters, R.J.; Snider, B.B. Synthesis of (±)-nosyberkol (isotuberculosinol, revised structure of edaxadiene) and (±)-tuberculosinol. Org. Lett. 2010, 12, 2626–2629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ciavatta, M.L.; García-Matucheski, S.; Carbone, M.; Villani, G.; Nicotera, M.R.; Muniain, C.; Gavagnin, M. Chemistry of two distinct Aeolid Spurilla species: ecological implications. Chem. Biodivers. 2017, 14, e1700125. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, M.; Geng, H.-C.; Zhang, H.-B.; Dong, K.; Wang, W.-G.; Du, X.; Li, X.-N.; He, F.; Qin, H.-B.; Li, Y.; et al. Scopariusins, A new class of ent-halimane diterpenoids isolated from Isodon scoparius, and biomimetic synthesis of scopariusin A and isoscoparin N. Org. Lett. 2012, 15, 314–317. [Google Scholar] [CrossRef] [PubMed]
  36. Lei, H. Diterpenoids of Gorgonian Corals: Chemistry and Bioactivity. Chem. Biodivers. 2016, 13, 345–365. [Google Scholar] [CrossRef]
  37. Walker, R.P.; Faulkner, D.J. Diterpenes from the sponge Dysidea amblia. J. Org. Chem. 1981, 46, 1098–1102. [Google Scholar] [CrossRef]
  38. Walker, R.P.; Rosser, R.M.; Faulkner, D.J.; Bass, L.S.; He, C.H.; Clardy, J. Two new metabolites of the sponge Dysidea amblia and revision of the structure of ambliol B. J. Org. Chem. 1984, 49, 5160–5163. [Google Scholar] [CrossRef]
  39. Shimbo, K.; Tsuda, M.; Fukushi, E.; Kawabata, J.; Kobayashi, J. Dytesinins A and B, new clerodane-type diterpenes with a cyclopropane ring from the tunicate Cystodytes sp. Tetrahedron 2000, 56, 7923–7926. [Google Scholar] [CrossRef]
  40. Gavagnin, M.; Trivellone, E.; Castelluccio, F.; Cimino, G.; Cattaneo-Vietti, R. Glyceryl ester of a new halimane diterpenoic acid from the skin of the antarctic nudibranch Austrodoris kerguelenensis. Tetrahedron Lett. 1995, 36, 7319–7322. [Google Scholar] [CrossRef]
  41. Maschek, J.A.; Mevers, E.; Diyabalanage, T.; Chen, L.; Ren, Y.; McClintock, J.B.; Amsler, C.D.; Wu, J.; Baker, B.J. Palmadorin chemodiversity from the antarctic nudibranch Austrodoris kerguelenensis and inhibition of Jak2/STAT5-dependent HEL leukemia cells. Tetrahedron 2012, 68, 9095–9104. [Google Scholar] [CrossRef]
  42. Soldatou, S.; Baker, B.J. Cold-water marine natural products, 2006 to 2016. Nat. Prod. Rep. 2017, 34, 585–626. [Google Scholar] [CrossRef]
  43. Zhang, H.; Dong, M.; Chen, J.; Wang, H.; Tenney, K.; Crews, P. Bioactive secondary metabolites from the marine sponge genus Agelas. Mar. Drugs 2017, 15, 351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Potter, K.; Criswell, J.; Zi, J.; Stubbs, A.; Peters, R.J. Novel product chemistry from mechanistic analysis of ent -copalyl diphosphate synthases from plant hormone biosynthesis. Angew. Chem. Int. Ed. 2014, 53, 7198–7202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Marcos, I.; Garcia, N.; Sexmero, M.; Basabe, P.; Díez, D.; Urones, J. Synthesis of (+)-agelasine C. A structural revision. Tetrahedron 2005, 61, 11672–11678. [Google Scholar] [CrossRef]
  46. Stout, E.P.; Yu, L.C.; Molinski, T.F. Antifungal diterpene alkaloids from the caribbean sponge Agelas citrina: unified configurational assignments of Agelasidines and Agelasines. Eur. J. Org. Chem. 2012, 2012, 5131–5135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Nakamura, H.; Wu, H.; Ohizumi, Y.; Hirata, Y. Agelasine-A, -B, -C and -D, novel bicyclic diterpenoids with a 9-methyladeninium unit possessing inhibitory effects on Na,K-ATPase from the Okinawa sea sponge sp.1). Tetrahedron Lett. 1984, 25, 2989–2992. [Google Scholar] [CrossRef]
  48. Mancini, I.; Defant, A.; Guella, G. Recent synthesis of marine natural products with antibacterial activities. Anti-Infective Agents Med. Chem. 2007, 6, 17–48. [Google Scholar] [CrossRef]
  49. Hattori, T.; Adachi, K.; Shizuri, Y. New Agelasine compound from the marine sponge Agelas mauritiana as an antifouling substance against macroalgae. J. Nat. Prod. 1997, 60, 411–413. [Google Scholar] [CrossRef]
  50. Chu, M.-J.; Tang, X.-L.; Qin, G.-F.; Sun, Y.-T.; Li, L.; De Voogd, N.J.; Li, P.-L.; Li, G.-Q. Pyrrole derivatives and diterpene alkaloids from the south china sea sponge Agelas nakamurai. Chem. Biodivers. 2017, 14, e1600446. [Google Scholar] [CrossRef]
  51. Appenzeller, J.; Mihci, G.; Martin, M.-T.; Gallard, J.-F.; Menou, J.-L.; Boury-Esnault, N.; Hooper, J.; Petek, S.; Chevalley, S.; Valentin, A.; et al. Agelasines J, K, and L from the Solomon Islands marine sponge Agelas cf. mauritiana. J. Nat. Prod. 2008, 71, 1451–1454. [Google Scholar] [CrossRef]
  52. Kubota, T.; Iwai, T.; Takahashi-Nakaguchi, A.; Fromont, J.; Gonoi, T.; Kobayashi, J. Agelasines O–U, new diterpene alkaloids with a 9-N-methyladenine unit from a marine sponge Agelas sp. Tetrahedron 2012, 68, 9738–9744. [Google Scholar] [CrossRef]
  53. Ohba, M.; Iizuka, K.; Ishibashi, H.; Fujii, T. Syntheses and absolute configurations of the marine sponge purines (+)-agelasimine-A and (+)-agelasimine-B. Tetrahedron 1997, 53, 16977–16986. [Google Scholar] [CrossRef]
  54. Fathi-Afshar, R.; Allen, T.M. Biologically active metabolites from Agelas mauritiana. Can. J. Chem. 1988, 66, 45–50. [Google Scholar] [CrossRef]
  55. Peters, R.J. Two rings in them all: the labdane-related diterpenoids. Nat. Prod. Rep. 2010, 27, 1521–1530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Chan, H.-C.; Feng, X.; Ko, T.-P.; Huang, C.-H.; Hu, Y.; Zheng, Y.; Bogue, S.; Nakano, C.; Hoshino, T.; Zhang, L.; et al. Structure and inhibition of tuberculosinol synthase and decaprenyl diphosphate synthase from Mycobacterium tuberculosis. J. Am. Chem. Soc. 2014, 136, 2892–2896. [Google Scholar] [CrossRef] [PubMed]
  57. Nakano, C.; Hoshino, T. Characterization of the Rv3377c gene product, a type-B diterpene cyclase, from the Mycobacterium tuberculosis H37 Genome. ChemBioChem 2009, 10, 2060–2071. [Google Scholar] [CrossRef]
  58. Jia, M.; Potter, K.; Peters, R.J. Extreme promiscuity of a bacterial and a plant diterpene synthase enables combinatorial biosynthesis. Metab. Eng. 2016, 37, 24–34. [Google Scholar] [CrossRef] [Green Version]
  59. Zhang, Y.; Adnani, N.; Braun, U.R.; Ellis, G.A.; Barns, K.J.; Parker-Nance, S.; Guzei, I.A.; Bugni, T.S. Micromonohalimanes A and B: Antibacterial halimane-type diterpenoids from a marine Micromonospora species. J. Nat. Prod. 2016, 79, 2968–2972. [Google Scholar] [CrossRef] [Green Version]
  60. Oldfield, E. Tuberculosis terpene targets. Chem. Boil. 2015, 22, 437–438. [Google Scholar] [CrossRef] [Green Version]
  61. Gao, J.; Ko, T.-P.; Chen, L.; Malwal, S.; Zhang, J.; Hu, X.; Qu, F.; Liu, W.; Huang, J.-W.; Cheng, Y.-S.; et al. “Head-to-middle” and “head-to-tail” cis-prenyl transferases: structure of isosesquilavandulyl diphosphate synthase. Angew. Chem. Int. Ed. 2018, 57, 683–687. [Google Scholar] [CrossRef]
  62. Silva, C.G.; Júnior, H.M.S.; Barbosa, J.P.; Costa, G.L.; Rodrigues, F.; De Oliveira, D.F.; Costa-Lotufo, L.V.; Alves, R.; Eleutherio, E.C.A.; De Rezende, C.M. Structure elucidation, antimicrobial and cytotoxic activities of a halimane isolated from Vellozia kolbekii ALVES (Velloziaceae). Chem. Biodivers. 2015, 12, 1891–1901. [Google Scholar] [CrossRef]
  63. Rijo, P.; Gaspar-Marques, C.; Simões, M.F.; Jimeno, M.L.; Rodríguez, B. Further diterpenoids from Plectranthus ornatus and P. grandidentatus. Biochem. Syst. Ecol. 2007, 35, 215–221. [Google Scholar] [CrossRef]
  64. Rijo, P.; Rodríguez, B.; Duarte, A.; Simões, M.F. Antimicrobial properties of Plectranthus ornatus extracts, 11-acetoxyhalima-5, 13-dien-15-oic acid metabolite and its derivatives. Nat. Prod. J. 2011, 1, 57–64. [Google Scholar]
  65. Burmistrova, O.; Simões, M.F.; Rijo, P.; Quintana, J.; Bermejo, J.; Estévez, F. Antiproliferative Activity of Abietane Diterpenoids against Human Tumor Cells. J. Nat. Prod. 2013, 76, 1413–1423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Du, K.; De Mieri, M.; Neuburger, M.; Zietsman, P.C.; Marston, A.; Van Vuuren, S.F.; Ferreira, D.; Hamburger, M.; Van Der Westhuizen, J.H. Labdane and clerodane diterpenoids from Colophospermum mopane. J. Nat. Prod. 2015, 78, 2494–2504. [Google Scholar] [CrossRef]
  67. Kihampa, C.; Nkunya, M.H.; Joseph, C.C.; Magesa, S.M.; Hassanali, A.; Heydenreich, M.; Kleinpeter, E. Anti-mosquito and antimicrobial nor-halimanoids, isocoumarins and an anilinoid from Tessmannia densiflora. Phytochemistry 2009, 70, 1233–1238. [Google Scholar] [CrossRef] [Green Version]
  68. Marcos, I.S.; Moro, R.F.; Costales, I.; Basabe, P.; Díez, D.; Mollinedo, F.; Urones, J.G. Synthesis of 12-epi-ent-polyalthenol an antitumour indole sesquiterpene alkaloid. Tetrahedron 2012, 68, 7932–7940. [Google Scholar] [CrossRef]
  69. Marcos, I.S.; Moro, R.F.; Costales, I.; Basabe, P.; Díez, D.; Mollinedo, F.; Urones, J.G. Biomimetic synthesis of an antitumour indole sesquiterpene alkaloid, 12-epi-ent-pentacyclindole. Tetrahedron 2013, 69, 7285–7289. [Google Scholar] [CrossRef]
  70. Marcos, I.S.; Moro, R.F.; Costales, I.; Escola, M.A.; Basabe, P.; Díez, D.; Urones, J.G. Synthesis of hexahydrocarbazoles by cyclisation of 3-(but-3-enyl) indole derivatives. Tetrahedron 2009, 65, 10235–10242. [Google Scholar] [CrossRef]
  71. Marcos, I.S.; Moro, R.F.; Costales, I.; Basabe, P.; Díez, D.; Gil, A.; Mollinedo, F.; La Rosa, F.P.-D.; Pérez-Roth, E.; Padrón, J.M. Synthesis and biological activity of polyalthenol and pentacyclindole analogues. Eur. J. Med. Chem. 2014, 73, 265–279. [Google Scholar] [CrossRef]
  72. García, P.A.; Valles, E.; Díez, D.; Castro, M.-Á. Marine alkylpurines: a promising group of bioactive marine natural products. Marine Drugs 2018, 16, 6. [Google Scholar] [CrossRef] [Green Version]
  73. Marcos, I.S.; Conde, A.; Moro, R.F.; Basabe, P.; Díez, D.; Urones, J.G. Synthesis of quinone/hydroquinone sesquiterpenes. Tetrahedron 2010, 66, 8280–8290. [Google Scholar] [CrossRef]
  74. Marcos, I.S.; Gonzalez, J.L.; Sexmero, M.J.; Díez, D.; Basabe, P.; Williams, D.J.; Simmonds, M.S.J.; Urones, J.G. Diterpenic α- and β-hydroxybutanolides with antifeedant activity: semisynthesis and absolute configuration. Tetrahedron Lett. 2000, 41, 2553–2557. [Google Scholar] [CrossRef]
  75. Ohba, M.; Kawase, N.; Fujii, T. Total syntheses of (±)-agelasimine-A, (±)-agelasimine-B, and (±)-purino-diterpene and the structure of diacetylagelasimine-A. J. Am. Chem. Soc. 1996, 118, 8250–8257. [Google Scholar] [CrossRef]
  76. Ohba, M.; Kawase, N.; Fujii, T.; Aoe, K.; Okamura, K.; Fathi-Afshar, R.; Allen, T.M. Racemic syntheses of agelasimine-A and agelasimine-B, bicyclic diterpenoids from the marine sponge Agelas mauritiana. Tetrahedron Lett. 1995, 36, 6101–6104. [Google Scholar] [CrossRef]
  77. Quilez del Moral, J.F.; Domingo, V.; Pérez, Á.; Martínez Andrade, K.A.; Enríquez, L.; Jaraiz, M.; López-Pérez, J.L.; Barrero, A.F. Mimicking halimane synthases: monitoring a cascade of cyclizations and rearrangements from epoxypolyprenes. J. Org. Chem. 2019, 84, 13764–13779. [Google Scholar] [CrossRef]
Molecules 25 01707 g001 550

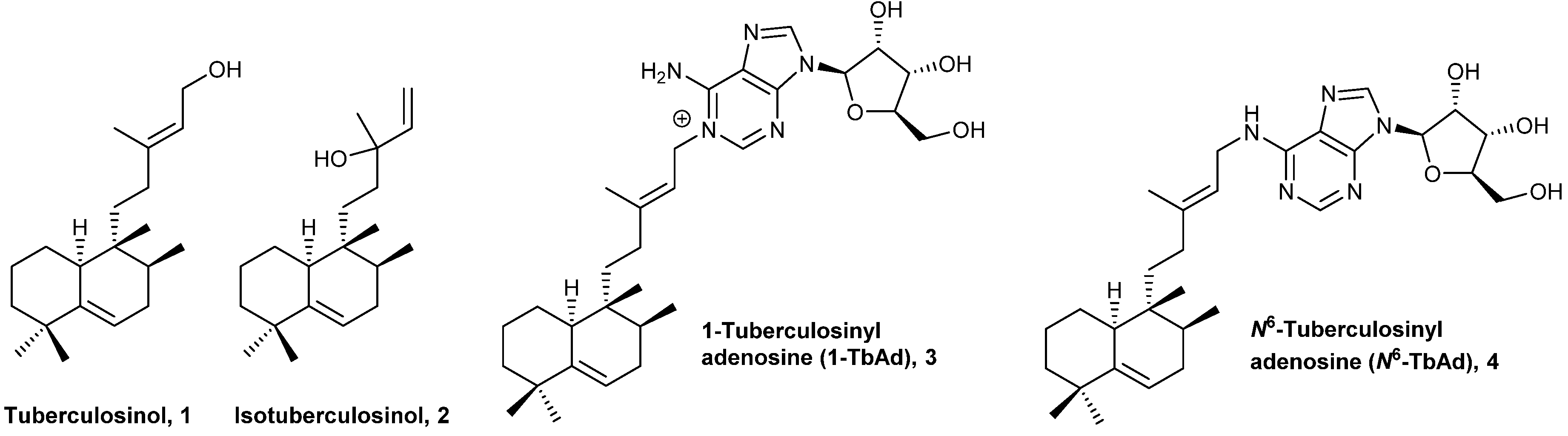

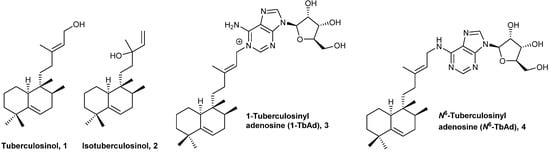

Figure 1. Tuberculosinols and derivatives.
Figure 1. Tuberculosinols and derivatives.
Molecules 25 01707 g001
Molecules 25 01707 g002 550

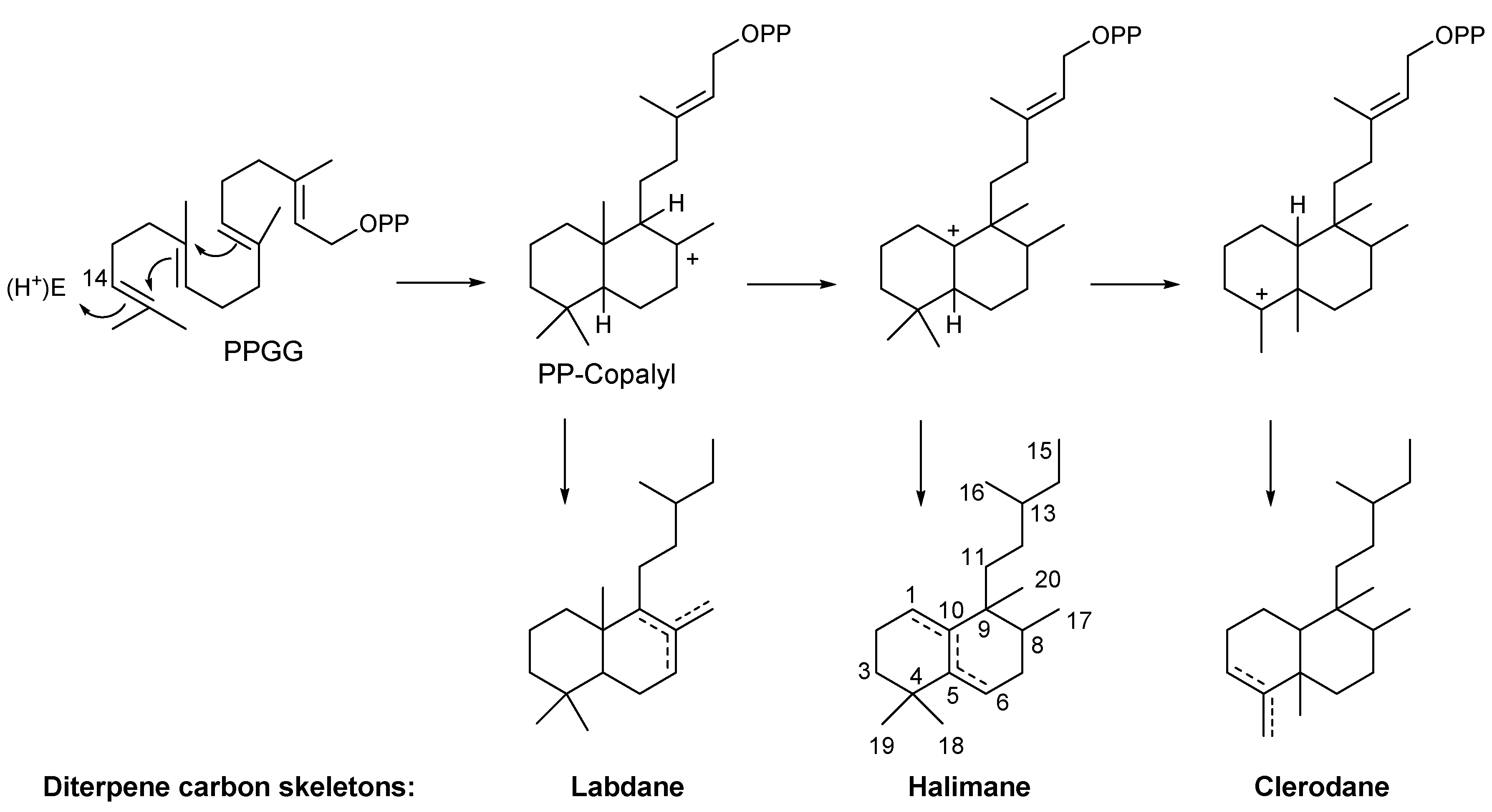

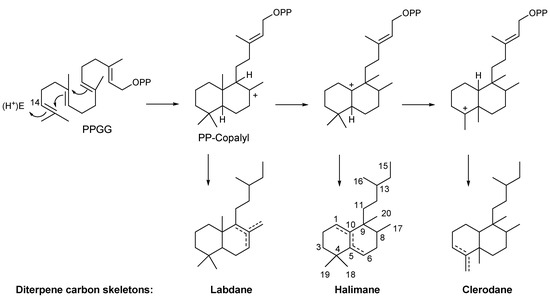

Figure 2. Biosynthesis of some bicyclic diterpenes.
Figure 2. Biosynthesis of some bicyclic diterpenes.
Molecules 25 01707 g002
Molecules 25 01707 g003 550
Figure 3. Some halimane skeletons.
Figure 3. Some halimane skeletons.
Molecules 25 01707 g003
Molecules 25 01707 g004 550
Figure 4. Some important halimanes.
Figure 4. Some important halimanes.
Molecules 25 01707 g004
Molecules 25 01707 g005 550
Figure 5. Halimanes of marine origin.
Figure 5. Halimanes of marine origin.
Molecules 25 01707 g005
Molecules 25 01707 g006 550
Figure 6. Halimane-glycerol derivatives.
Figure 6. Halimane-glycerol derivatives.
Molecules 25 01707 g006
Molecules 25 01707 g007 550
Figure 7. Halimane-purines.
Figure 7. Halimane-purines.
Molecules 25 01707 g007
Molecules 25 01707 g008 550
Figure 8. Some halimanes from bacteria
Figure 8. Some halimanes from bacteria
Molecules 25 01707 g008
Molecules 25 01707 g009 550
Figure 9. Antibacterial halimanes from plants
Figure 9. Antibacterial halimanes from plants
Molecules 25 01707 g009
Molecules 25 01707 sch001 550
Scheme 1. (a) DHP, p-TsOH, C6H6 (98%); (b) LAH, Et2O, 0 °C and then rt (99%); (c) TPAP, NMO (94%); (d) diethylene glycol, NH2NH2·H2O, KOH, 175–230 °C (81%); (e) p-TsOH, MeOH (81%); (f) CBr4, PPh3, DCM (76%); (g) DMA, 50 °C; (h) Zn, MeOH, H2O, AcOH (13% two steps).
Scheme 1. (a) DHP, p-TsOH, C6H6 (98%); (b) LAH, Et2O, 0 °C and then rt (99%); (c) TPAP, NMO (94%); (d) diethylene glycol, NH2NH2·H2O, KOH, 175–230 °C (81%); (e) p-TsOH, MeOH (81%); (f) CBr4, PPh3, DCM (76%); (g) DMA, 50 °C; (h) Zn, MeOH, H2O, AcOH (13% two steps).
Molecules 25 01707 sch001
Molecules 25 01707 g010 550
Figure 10. Structure proposed and revised for (−)-agelasine C and epi-agelasine C.
Figure 10. Structure proposed and revised for (−)-agelasine C and epi-agelasine C.
Molecules 25 01707 g010
Molecules 25 01707 sch002 550
Scheme 2. (a) 1) O3, MeOH, 2) FeSO4, Cu(OAc)2 (44%); (b) 1) MeLi, 2) PCC (94%); (c) 1) CH2=CHMgBr, CuBr·Me2S, Me3SiCl; (d) aq. HCHO, Yb(OTf)3 (75%); (e) 1) MeI, t-BuOK, t-BuOH, 2) NH2NH2.H2O, KOH, diethylene glycol 130 °C 1 h, 190 °C 3h (72%); (f) 1) 9-BBN, 2) 52, PdCl2(dppf), CsCO3, Ph3As (67%); (g) 1) m-CPBA; 2) DIBAL, −78 °C; 3) LAH, THF reflux (51%); (h) 1) PBr3, 2) 3-methyladenine, AcNMe2; 3) aq. NaOH (60%); (i) 1) MeI, AcNMe2; 2) aq. NaOH(61%); (j) 1) NaBH4, 2) MeI, AcNMe2; 3) aq. NaOH (41%).
Scheme 2. (a) 1) O3, MeOH, 2) FeSO4, Cu(OAc)2 (44%); (b) 1) MeLi, 2) PCC (94%); (c) 1) CH2=CHMgBr, CuBr·Me2S, Me3SiCl; (d) aq. HCHO, Yb(OTf)3 (75%); (e) 1) MeI, t-BuOK, t-BuOH, 2) NH2NH2.H2O, KOH, diethylene glycol 130 °C 1 h, 190 °C 3h (72%); (f) 1) 9-BBN, 2) 52, PdCl2(dppf), CsCO3, Ph3As (67%); (g) 1) m-CPBA; 2) DIBAL, −78 °C; 3) LAH, THF reflux (51%); (h) 1) PBr3, 2) 3-methyladenine, AcNMe2; 3) aq. NaOH (60%); (i) 1) MeI, AcNMe2; 2) aq. NaOH(61%); (j) 1) NaBH4, 2) MeI, AcNMe2; 3) aq. NaOH (41%).
Molecules 25 01707 sch002
Molecules 25 01707 sch003 550
Scheme 3. (a) Me2AlCl, CH2Cl2 (54%, 10:1 exo/endo); (b) 1) LiBH4, THF/H2O; 2) Dess-Martin periodinane, CH2Cl2 (77%); (c) acetone/MeOH, NaOMe (60%); (d) 1) Li, NH3, EtOH; 2) Jones oxidation (90%); (e) CH2=CHMgBr, THF (88%); (f) (EtO)2POCH2COOEt, NaH, THF (84%); (g) DIBAL, CH2Cl2 (92%).
Scheme 3. (a) Me2AlCl, CH2Cl2 (54%, 10:1 exo/endo); (b) 1) LiBH4, THF/H2O; 2) Dess-Martin periodinane, CH2Cl2 (77%); (c) acetone/MeOH, NaOMe (60%); (d) 1) Li, NH3, EtOH; 2) Jones oxidation (90%); (e) CH2=CHMgBr, THF (88%); (f) (EtO)2POCH2COOEt, NaH, THF (84%); (g) DIBAL, CH2Cl2 (92%).
Molecules 25 01707 sch003
Molecules 25 01707 sch004 550
Scheme 4. (a) Ethyl tiglate, neat, 160 °C, (71%) (2:1 exo/endo); (b) LAH, THF, (56%); (c) SO3·pyridine, NEt3, CH2Cl2-DMSO (86%); (d) acetone, NaHMDS, THF (87%); (e) 10 mol% Rh(PPh3)3Cl, HSiEt3, CH2Cl2 (83%); (f) vinylmagnesium bromide, THF (93%); (g) Ph3PCH3Br, KHMDS, THF (91%); (h) 9-BBN, THF; then 10 mol% PdCl2(dppf), Ph3As, CsCO3, 68, DMF (73%); (i) 20 mol% CuCl2, acetone (20%).
Scheme 4. (a) Ethyl tiglate, neat, 160 °C, (71%) (2:1 exo/endo); (b) LAH, THF, (56%); (c) SO3·pyridine, NEt3, CH2Cl2-DMSO (86%); (d) acetone, NaHMDS, THF (87%); (e) 10 mol% Rh(PPh3)3Cl, HSiEt3, CH2Cl2 (83%); (f) vinylmagnesium bromide, THF (93%); (g) Ph3PCH3Br, KHMDS, THF (91%); (h) 9-BBN, THF; then 10 mol% PdCl2(dppf), Ph3As, CsCO3, 68, DMF (73%); (i) 20 mol% CuCl2, acetone (20%).
Molecules 25 01707 sch004
Molecules 25 01707 sch005 550
Scheme 5. (a) Et2AlCl, (53%); (b) C6F5OCSCl; (c) Bu3SnH, AIBN; (d) LAH (65%, three steps).
Scheme 5. (a) Et2AlCl, (53%); (b) C6F5OCSCl; (c) Bu3SnH, AIBN; (d) LAH (65%, three steps).
Molecules 25 01707 sch005
Molecules 25 01707 sch006 550
Scheme 6. (a) Me2AlCl, CH2Cl2 (59%, 10:1 exo/endo); (b) 1) n-BuLi, EtSH, THF; 2) LAH, THF; 3) TPAP, NMO, CH2Cl2 (87%); (c) 1) NaHMDS, acetone, THF; 2) RhCl(PPh3)3, Et3SiH, CH2Cl2; 3) (EtO)2POCH2COOEt, NaH, THF; 4) DIBAL, CH2Cl2 (55%); (d) NCS, Me2S, CH2Cl2 (quantitative); (e) Adenosine, NaI, DMF, rt (76%); (f) Me2NH, H2O, rt (quantitative).
Scheme 6. (a) Me2AlCl, CH2Cl2 (59%, 10:1 exo/endo); (b) 1) n-BuLi, EtSH, THF; 2) LAH, THF; 3) TPAP, NMO, CH2Cl2 (87%); (c) 1) NaHMDS, acetone, THF; 2) RhCl(PPh3)3, Et3SiH, CH2Cl2; 3) (EtO)2POCH2COOEt, NaH, THF; 4) DIBAL, CH2Cl2 (55%); (d) NCS, Me2S, CH2Cl2 (quantitative); (e) Adenosine, NaI, DMF, rt (76%); (f) Me2NH, H2O, rt (quantitative).
Molecules 25 01707 sch006
Table
Table 1. Natural sources and activities of marine origin halimanes.
Table 1. Natural sources and activities of marine origin halimanes.
Marine Halimanes Natural SourcesActivityReferences
Nosyberkol, isotuberculosinol, 2Raspailia sp.
M. tuberculosis		 [29,32,33]
Spurillin B, 8Spurilla sp. [34]
Echinohalimane A, 9Echinomuricea spCytotoxic,
neutrophil elastase inhibitor		[35,36]
Ambliol B, 10Dysidea amblia [37,38]
Ambliol C, 11D. amblia [38]
Dytesinin A, 12Cystodytes sp. [39]
Dytesinin B, 13Cystodytes sp. [39]
14Echinomuricea sp.Cytotoxic, anti-inflammatory[39]
Table
Table 2. Natural sources and activities of marine halimane-glycerols.
Table 2. Natural sources and activities of marine halimane-glycerols.
Marine Halimane-Glycerol DerivativesNatural SourcesActivityReferences
Austrodorin, 15Austrodoris kerguelenensis (Syn. of Doris kerguelenensis)Self-defense[40]
Diacetyl austrodorin, 16A. kerguelenensisSelf-defense[40]
Palmadorin R, 17A. kerguelenensis [41,42]
Palmadorin S, 18A. kerguelenensis [41,42]
Table
Table 3. Natural sources and activities of halimane-purines.
Table 3. Natural sources and activities of halimane-purines.
Halimane-PurinesNatural SourcesActivityReferences
(+)-8’-Oxo-agelasine C, 19Agelas mauritiana [43]
(−)-Agelasine C, 20Agelas sp.
A. citrina		Inhibitory effects on Na,K-ATPase, antifungal, antimycobacterial[45,46,47,48]
Epi-agelasine C, 21Agelas sp.Antifouling, antimycobacterial[45,48,49]
Isoagelasine C, 22A. nakamuraiAntifungal, antibacterial[50]
(+)-Agelasine J, 23A. mauritianaAntimalaria, antimicrobial, cytotoxic[50,51]
(+)-Agelasine O, 24Agelas sp.Antibacterial, antifungal[52]
(+)-Agelasine S, 25Agelas sp.Antibacterial, antifungal[52]
(+)-Agelasimine A, 26A. mauritianaCytotoxic
Adenosine transfer into rabbit erythrocytes inhibition.
Ca2+-channel antagonistic action.
α1 Adrenergic blockade		[53,54]
(+)-Agelasimine B, 27A. mauritianaCytotoxic
Adenosine transfer into rabbit erythrocytes inhibition.
Ca2+-channel antagonistic action.
α1 Adrenergic blockade		[53,54]
Asmarine I, 28Raspailia sp.Cytotoxic[32]
Asmarine J, 29Raspailia sp.Cytotoxic[32]
Table
Table 4. Natural sources, activities of halimanes from bacteria.
Table 4. Natural sources, activities of halimanes from bacteria.
Bacterial HalimanesNatural SourcesActivityReferences
Tuberculosinol, 1M. tuberculosis [12,14,17,18,26,27,28,29,33]
Nosyberkol, Isotuberculosinol, 2Raspailia sp.
M. tuberculosis		 [17,26,27,28,29,32,33]
Tuberculosene, 30Kitasatospora griseola [28,58]
Micromonohalimane A, 31Micromonospora sp.Antibacterial[59]
Micromonohalimane B, 32Micromonospora sp.Antibacterial[59]
1-Tuberculosinyl
adenosine (1-TbAd), 3		M. tuberculosisM. tuberculosis biomarker[19,20,60,61]
N6-Tuberculosinyl
adenosine (N6-TbAd), 4		M. tuberculosisM. tuberculosis biomarker[19,20,60]
Table
Table 5. Natural sources, activities of antibacterial halimanes from plants
Table 5. Natural sources, activities of antibacterial halimanes from plants
Antibacterial Plant HalimanesNatural SourcesActivityReferences
13R-ent-halim-1(10)-en-15,16-diol, 33Vellozia kolbekiiAntitumour, antimicrobial[62]
11R-Acetoxy-ent-halima-5,13E-dien-15-oic acid, 34Plectranthus ornatusAntimicrobial[63,64,65]
35Colophospermum mopaneAntimicrobial[66]
Tessmannic acid, 36Tessmannia
densiflora		Antibacterial, antifungal, mosquito repellent, weak mosquitocidal[67]
Tessmannic acid methyl ester, 37T. densifloraAntibacterial, antifungal, mosquito repellent, weak mosquitocidal[67]

Share and Cite

MDPI and ACS Style

Tobal, I.E.; Roncero, A.M.; Moro, R.F.; Díez, D.; Marcos, I.S. Antibacterial Natural Halimanes: Potential Source of Novel Antibiofilm Agents. Molecules 2020, 25, 1707. https://doi.org/10.3390/molecules25071707

AMA Style

Tobal IE, Roncero AM, Moro RF, Díez D, Marcos IS. Antibacterial Natural Halimanes: Potential Source of Novel Antibiofilm Agents. Molecules. 2020; 25(7):1707. https://doi.org/10.3390/molecules25071707

Chicago/Turabian Style

Tobal, Ignacio E., Alejandro M. Roncero, Rosalina F. Moro, David Díez, and Isidro S. Marcos. 2020. "Antibacterial Natural Halimanes: Potential Source of Novel Antibiofilm Agents" Molecules 25, no. 7: 1707. https://doi.org/10.3390/molecules25071707

Article Metrics

Back to TopTop
