The Oxygen Consumption Kinetics of Commercial Oenological Tannins in Model Wine Solution and Chianti Red Wine

by
Jelena Jeremic
1,2,
Isara Vongluanngam
2,3,
Arianna Ricci
1,*,
Giuseppina Paola Parpinello
1 and
Andrea Versari
1
1
Department of Agricultural and Food Sciences, University of Bologna, Piazza Goidanich 60, 47521 Cesena (FC), Italy
2
RUFFINO S.r.l.—a Constellation Brands Company—Winemaker, P.le Ruffino 1, 50065 Pontassieve (FI), Italy
3
Ecole Supérieure d’Agriculture, 55 Rue Rabelais, 49000 Angers, France
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(5), 1215; https://doi.org/10.3390/molecules25051215
Submission received: 4 February 2020 / Revised: 4 March 2020 / Accepted: 6 March 2020 / Published: 8 March 2020
(This article belongs to the Section Applied Chemistry)
Browse Figures
Versions Notes

Abstract

:
One property of oenological tannins, oxygen reactivity, is commonly exploited in winemaking. The reactivity is mediated by the presence of catalysts (i.e., transition metals and sulfur dioxide) and protects wine against oxidation. This work compares the oxygen consumption rate (OCR) of four commercial oenological tannins (two procyanidins from grape skin and seed, an ellagitannin from oak wood and a gallotannin from gallnut) in a model wine solution and Chianti red wine. All samples were subjected to consecutive cycles of air saturation at 20 °C to increase the total level of oxygen provided. After each cycle, the oxygen level was measured by means of a non-invasive luminescent sensor glued to a transparent surface (sensor dots) until there was no further change in substrate reactivity. The OCR followed first-order kinetics, regardless of the tannin. As expected, the ellagitannin showed the fastest OCR, followed by the two from grape seeds and skins and finally the gallotannin. The total O2 consumption in the red wine was almost double that of the model solution, due to the oxidation of wine substrates. The measurement of OCR is helpful for setting up an advanced winemaking protocol that makes use of tannins to reduce the use of sulfur dioxide.

Graphical Abstract

1. Introduction

Managing oxygen concentration is a big challenge in winemaking because the oxygen level affects wine development in terms of sensory and chemical characteristics. Moderate, controlled exposure to oxygen by means of winemaking practices like micro-oxygenation [1,2] seems to enhance wine quality during aging, while uncontrolled oxygen exposure—too much or too little—can lead to the creation of reductive off-flavors or oxidative spoilage of wine, respectively [3,4,5,6].
Currently, sulfur dioxide is the main antioxidant used to protect wine against the detrimental influence of oxygen. However, concerns about its allergenic side effects have created a search for effective alternatives [7,8], such as oenological tannins. Tannins have various health benefits, including antioxidant, antitumor, cardioprotective, anti-inflammatory and antimicrobial activity [9]. Grape tannins in particular seem to be effective dietary supplements [10].
Chemically, tannins (i.e., proanthocyanidins) are high molecular weight (Mw > 500), naturally occurring phenolic compounds which precipitate protein. Their use is authorized in winemaking by the International Organization de la Vigne et du Vin (OIV 2017) as ‘processing aids’ to prevent protein instability and iron haze in musts and wines [11]. Although the OIV does not mention tannins’ antioxidant properties, it continues to update its resolutions to consider the multiple technological opportunities offered by tannins in winemaking. Going forward, tannins must be properly evaluated to maximize their positive effects—without producing undesired side effects. Recent studies have reported the following advantages of oenological tannins: (i) protection against chemical and enzymatic oxidation [1], (ii) improved stability of wine color through co-pigmentation [12] and the formation of polymeric pigments [13] and (iii) improved mouthfeel due to a modulation of the perceptions of astringency and bitterness in wine [14,15].
When astringency intensity was compared for model solutions of various tannin extracts at 0.5 g/L, the quebracho tannin was the most astringent, followed (in descending order) by gall, chestnut, oak, grape skin, grape seed and tara [16]. In terms of redox reactions, gallotannins have superior radical scavenging capacity, the ellagic ones are able to chelate iron(II) strongly and the condensed tannins have a significant ability to scavenge peroxyl radicals [17].
The current understanding of wine oxidation involves the preliminary reaction between oxygen with ferrous iron to form hydrogen peroxide and ferric iron; the latter reacts with phenolic compounds to regenerate the iron(II) and produce a quinone. Several radical species can then be formed, depending on the reaction conditions [18,19]. Thus, the role of phenolic compounds in wine oxidation seems primarily linked to hydrogen peroxide and a radical-quenching reaction—and eventually to metal chelation. Notably, the quinone is able to regenerate the original polyphenol, which then has the capacity to absorb another equivalent of oxidation, therefore affecting the rate of oxygen consumption [2]. The oxidation of condensed tannins, gallo- and ellagitannins was previously investigated by means of electrochemical oxidation to establish that only procyanidin–quinone oxidation products recycle back to procyanidin [20].
Further complicating attempts to understand oxidation in wine is the fact that acidity is also an important factor. Total oxygen uptake is greater in acidic conditions than in alkaline conditions, probably because in acidic conditions, oxidizable phenols are converted to quinones more slowly, so that the generated quinones have more time to create polymers with the remaining phenols [21].
However, the relationship between the degree of polymerization and the antioxidant activity of proanthocyanidins is largely unknown. The flavonoids with the most hydroxyl groups are most easily oxidized; for simple flavonoid oligomers, the degree of polymerization seems correlated with the ability to scavenge free radicals [22]. This relationship seems to reach a plateau for condensed tannin at about 9–10 units, which is considered the level at which the activity of proanthocyanidins becomes significant [23,24].
The oxygen consumption rate (OCR) of tannins depends on their chemical structure [5] and on the number of oxygen saturation cycles performed on the wine; the initial saturations seem to have the fastest oxygen consumption rate [4]. In 1977, Perscheid and Zurn reported that a Muller–Thurgau juice did not demonstrate decreased oxidative capacity until it had been saturated up to 40 times [25]. In contrast, Amano et al. (1979) reported reduced oxidation after the first saturation: by adding fresh phenolic substrates and noting a renewed increase in oxygen consumption they proved that the drop was due to the depletion of substrate [26].
Sangiovese’ is the most widespread Vitis vinifera red grape cultivar in Italy, producing the famous Chianti and Brunello di Montalcino wines in Tuscany [27] and previous studies on the effects of oenotannins focused on stabilizing wine color [13] and evaluating sensory [15]. However, if tannins are to replace (or reduce the use of) sulfur dioxide in wine, there is a need for further information on the effect of oenological tannins on oxygen consumption.
This study tests the antioxidant ability of two condensed and two hydrolysable oenological tannins, comparing their oxygen consumption rates in a model solution and commercial Chianti red wine.

2. Results and Discussion

The modulation of oxygen exposure during winemaking and fining is a complex landmark, affected by the extent of oxygen exposure, aeration conditions and wine composition. Due to the complexity of factors involved it is difficult to set the best level of oxygen exposure; at the current state of art, the application of consecutive cycles of oxygen enrichment/consumption is considered a suitable approach to simulate winery conditions and forced oxidation levels [28,29,30].
The enological tannins used in this experiment were from commercial sources and effectively used at winemaking level. Their composition was assessed with reliable analytical protocols (see Materials and Methods section) and the little amount of tannins (i.e., polymers with ≥3 units) compared to total polyphenolics (Table 1) highlighted the large presence of low molecular weight phenolics (up to dimers), which is confirmed by literature, together with the low amount of tannins in the wood [31,32,33]. According to Harbertson et al. (2012), gallotannins and quercus hydrolysable tannins contain 12% and 27% of tannins, respectively [14]. Similarly, Vignault et al. (2018) found that tannins range from 16.1 ± 1.7% to 98.7 ± 4.6%, which indicates the existence of a wide variability among oenological tannins [34].
The O2 measurements were carried out through up to four saturation cycles for about 90 days (36 trials, including model solution and red wine). The duration of the monitoring is compatible with the production of young red wines [35] and the dosage of tannin added to model wine solution is consistent with the literature [36,37]. Figure 1 shows the oxygen consumption over time in the model solution for three consecutive saturations, demonstrating the dose-response effect of oenological tannins. During the first 30 days the Total Packaging Oxygen (TPO) consumed by model solutions with tannins at 1 g/L fully consumed the first oxygen saturation (>6.96 mg O2/L), except gallotannins (3.10 mg O2/L). Noteworthy, the model wine with gallotannin showed in the third saturation an increase of approx. 20% in the level of oxygen saturation. This unexpected value might be due to lack of HSO removal during the third saturation (see material and method for details) although the reflection of an odd variation in the composition of the model wine by evaporation during air blowing cannot be excluded according to literature [38].
Further saturations of the model solutions did not consume oxygen as quickly; therefore, those trials were only monitored for up to 90 days. The tannins’ performance in the red wine was similar to that in the model solution. The tannins consumed total oxygen in the following decreasing order: ellagitannin > grape seed > grape skin > gallotannin. This order is consistent with that reported in the literature—ellagitannins showed the fastest oxygen consumption, followed by the flavanol-based tannins of quebracho (fisetinidin), grape skin and seed, and, finally, gallotannins [39].
In Chianti red wine, which already contains natural polyphenolic compounds, tannins were added at a dosage low enough to avoid the risk of tannin loss by insolubilization/precipitation (100 mg/L), which seems to occur at high dosages [35] and is high enough to be above their sensory threshold [40]. In fact, the astringency of Sangiovese red wine is significantly modified by the addition of 100 mg/L of exotic tannin [15].
Figure 2 exemplifies the O2 consumption over time for the Chianti red wine and grape skin tannin: graphs for the other tannins are similar.
The oxygen consumption slowed down after four saturations. In particular, the duration of the TPO consumption ranged from 7 to 14 days for the 1st saturation, 16 to 26 days for the 2nd and 27 to 30 days for the 3rd saturation (Table 1).
Moreover, the total O2 consumed by red wine over three saturations was about twice that of the model solution for the grape seed and skin and oak tannins. On average, a TPO of 20.16 mg/L for red wine and 9.21 mg/L for model solution was found, compared to 19.76 mg/L for the control, that is, red wine without added tannins (Table 1). The rate of O2 consumption in the red wine always decreased with the addition of tannins—each subsequent saturation cycle took longer to deplete the same amount of O2. However, the addition of tannins always reduced the final O2 content in red wine to less than that in the control, thus confirming that the extent of oxygen consumption is strongly wine-dependent. Even in the model solutions, the extent to which oxygen was consumed varied greatly, depending on the tannin— which seems to evolve into new compounds with different abilities to take part in redox reactions. In contrast, all red wine samples were able to consume almost all the oxygen over three saturation cycles. As very long time is needed to fully consume oxygen over consecutive wine saturations, the monitoring sometimes focuses on approaching steady state [41,42].
The kinetics of oxygen consumption by oenological tannins was modeled based on TPO values over time to find the order of reactions. A first-order kinetic model (Figure 3), with R2 > 0.90, fitted the following integral Equation:
Ln[O2]t = ‒kt + ln[O2]0,
where [O2]0 was the initial TPO concentration after each saturation, [O2]t was the TPO concentration at time t and k was the constant rate of oxygen consumption (representing the slope of the kinetic curve). Table 2 shows the kinetic values for the 32 trials; two of them—the red wine control and the red wine with gallotannin—can be improved at R2 > 0.90 by fitting with a second-order reaction (1/[O2] = A/t + B).
Boulton demonstrated that the time course of oxygen consumption follows either pseudo-first-order or first-order kinetics but only if some of the ferrous ion is quickly returned to the reduced state so that its concentration is essentially constant, rather than declining due to consumption [43]. However, note that the oxygen consumption rate can also follow more complex second-order kinetics, depending on tannin and oxygen concentrations [38]. Previous studies have modeled the oxidative degradation of procyanidins in a model wine system by means of second-order kinetics [44]. Indeed, more complex kinetics were observed when considering the degradation of pentagalloylglucose and ellagic acid-based tannins (hydrolysable) under the same oxidative conditions [45]. In particular, the latter pulse-radiolytic studies revealed that both potential dimerization and disproportionation of the semiquinones are second-order processes. Complexity is related to the extensive formation of oxidative by-products, which may further evolve in secondary reactions, that is, formation of new polymers [46]. In this view, the kinetics of further reactions are most likely affected by the ratio of polymers to monomeric species.
The reaction rate constant k was highest for the 1st saturation in both model solutions and Chianti red wines, confirming that the O2 consumption was fastest during the 1st cycle (Table 2). The drop in the OCR of the red wines after each saturation cycle indicates a slowing of the redox reaction in which metals and phenolic substrates take part. On the other hand, the condensed tannins (i.e., from grape seed and skin extracts) in the model wine solution affected the TPO more after the 3rd saturation than after the 2nd saturation; in contrast, the model solutions with the hydrolyzed tannins (i.e., ellagitannins and gallotannins) had similar OCRs after the 2nd and 3rd saturations. This difference is probably due to the chemical structure of the condensed tannins; according to the literature, when oxidation is triggered in a solution containing grape proanthocyanidins, a mixture of new intermolecular and intramolecular bonds can be created. These bonds create different intermediate reaction products, resulting in reduced reactivity of tannin structures. Poncet–Legrand et al. (2010) reported that condensed tannins added in solution at high concentration levels (up to 5 g/L) in an oxidative environment produce further polymerization reactions and a higher ratio extension unit/terminal unit [46]. As a result, during the 3rd saturation the condensed tannins are still involved in the oxygen consumption reaction.
A study of tannins added to a Lambrusco red wine at different concentration levels revealed that all tannins, regardless of their botanical origin, were involved in the production of acetaldehyde, whose concentration was consistently higher in the red wine than in the control wine without added tannins, under the same oxidative conditions. While the acetaldehyde was consumed in 30 days, the color intensity and pigment polymer concentration were higher in the wines with added condensed tannins and ellagitannins than in the controls [47]. This finding is additional confirmation that tannin oxidation following the first saturation cycle can trigger various reaction pathways in red wine, with a progressive reduction in the number of reaction sites available for the consumption of oxygen in subsequent cycles.
In both model solutions and red wines, the fastest OCR was obtained by the addition of oak ellagitannin, probably due to the high number of vicinal ortho –OH groups which can be easily oxidized [48]. While the red wine samples with ellagitannin showed the fastest OCR after the first saturation, in every following saturation the OCR was slower than in the red wine samples with the other tannins. As noted, the oxidation process producing quinones from flavanol-based compounds can be reversed under oenological conditions, regenerating the original substrate and allowing it to be further involved in the redox reaction. Although ellagic acid and its lactones form stable adducts through the involvement of the oxidation products, the model wine solution with ellagitannin consumed oxygen faster than the other model wines in every saturation cycle—not just the first. This continued oxygen consumption could be due to the lack of nucleophilic wine compounds such as flavanols, ethanol, anthocyanins and thiols that decrease tannin reactivity [49].
Gallotannin slowed down the oxygen consumption rate after the first saturation in both the red wine and the model solution; these findings are consistent with the previous report by Pascual et al. [39]. As can be seen in Table 2, the reaction constant rate k of the red wine with gallotannins was higher after the 2nd and 4th saturations than after the 1st and 3rd saturations. This contrasts with the other oenological tannin reaction rates, which decreased after each wine saturation. The phenomenon of quinone–phenol dimerization via coupled oxidation can explain these findings, since the resulting dimers have lower redox potentials than the initial phenols with two important implications in the oxygen consumption mechanisms in wine: dimers are more readily oxidized (more reactive to oxygen than the original phenol) and if the original phenol is oxidized to its quinone, the dimer hydroquinone can reduce it restoring the original compound [21]. Furthermore, flavonoids, semiquinones and quinones also seem able to coordinate metals (Fe, Cu), albeit usually with low affinity at wine pH. In particular, over the pH range 2.0 to 4.5, the green iron(II) semiquinone complex is dominant, while the coordinated iron(II) prevents the semiquinone from undergoing disproportionation to catechol and benzoquinone [50]. However, having the ability to chelate metals is not equivalent to having a significant antioxidant action. In fact, flavonoid–metal ligand could favor the removal of the metal from the reaction media depriving the reaction from a catalyst but could also remain in the reaction milieu. In the latter case, to operate as an antioxidant the flavonoid–metal complex has to be less efficient compared with the ‘‘free” metal as catalyst of free radical formation.
Note, though, that the ability to coordinate metals has an antioxidant effect only under certain conditions: for example, if a flavonoid binds with a metal to create a compound that is less oxidizing than the metal itself, the metal’s catalytic effect is reduced/eliminated and fewer free radicals are formed [51].
The reduction potential of the Fe(III)/Fe(II) redox couple is about ∼350 mV under wine conditions [52], so the chelates with iron(II), by stabilizing Fe(II) relative to Fe(III), are expected to increase the reduction potential of the Fe(III)/Fe(II) couple, thereby making the oxidation of Fe(II) more thermodynamically unfavorable.
In both the model solution and the red wine, the grape seed tannin increased the oxygen consumption faster than skin tannin in the first two saturations (Table 2). This kinetic trend is possibly due to the different chemical structures and different mean degrees of polymerization (mDP) of these two condensed tannins. It is well known that seed tannins are predominantly composed of procyanidins with a lower mDP—around 10—compared to skin tannins, as well as containing high levels of monomeric flavan-3-ols and oligomers, which are readily oxidizable, as the main terminal units. In contrast, skin tannins have a higher mDP—around 30—and consist of procyanidins, prodelphinidins and increasing gallated/galloylated terminal units, which are less oxidizable [53,54].
However, in subsequent saturation cycles, the skin tannin boosted the consumption of oxygen more than the seed tannin, in both the model and red wines. Previous studies suggested that depolymerization of long chain condensed tannins in wines (mainly derived from grape skin) might occur in wines as a consequence of oxygen consumption cycles and that OCR observed in the subsequent cycles are strongly affected by the nature of the depolymerization products; in particular the depolymerization pattern involving the release of epicatechin 3-O-gallate and the increase in catechin as terminal units accelerates the rate of the oxygen consumption reaction [4].

3. Materials and Methods

3.1. Oenological Tannins

Four commercial oenological tannins were studied: (i) tannin from red grape seeds, (ii) tannin from grape skins, (iii) ellagitannin (from American oak) and (iv) gallotannin (from nutgalls); oenological tannins used are new formulations and the commercial brand is restricted by the Companies. Essential compositional information is provided to support the scientific findings (Table 3). Each tannin was added to the model wine solution and the red wine—levels reported in Table 3. The type of tannin and the dosage were selected in accordance with common winemaking practices. In particular, gallotannins and quercus hydrolysable tannins contains 12% and 27% of tannins, respectively [14].
Samples were analyzed for total (iron reactive) polyphenols and tannins using the method of Harbertson et al. [55] which is based (i) on the ability of protein (i.e., bovine serum albumin, BSA) to precipitate tannins and (ii) on the reactivity of ferric chloride with phenolic compounds that possess ortho-dihydroxyl groups, as previously described [56]. Briefly, the wine tannin are precipitated with bovine serum albumin (BSA), then the pellet is dissolved in buffer and the tannin are determined by reaction with ferric chloride, yielding a colored product quantified at 510 nm (UV–Vis spectrophotometer Cary 60, Agilent Technologies, Santa Clara, CA) and using (+)-catechin as calibration standard (mg/L CE) (Sigma, Milano, Italy).

3.2. Model Solution and Red Wine

The model wine solution was prepared with ethanol (12% v/v) and tartaric acid (2.5 g/L) purchased from Enartis (Florence, Italy). Approximately 5 mg/L of iron(II) and 0.5 mg/L copper(II) were added to reproduce the typical catalytic conditions expected in wine. The pH was adjusted to 3.6 with sodium hydroxide (1 M) and hydrochloric acid (1 M) supplied by Sigma Aldrich Laborchemikalien GmbH (Seelze, Germany). The Chianti red wine, vintage 2017, was a Designation of Origin Product (from Ruffino, Tuscany, Italy) with the following composition: pH 3.55, total polyphenolic compounds 2458 mg/L as catechin equivalent, free sulfur dioxide 27 mg/L (total sulfur dioxide 107 mg/L), iron 3 mg/L and copper 0.1 mg/L.

3.3. Oxygen Measurements

The oxygen level in each sample was measured with the NomaSense P300 oxygen analyzer (Nomacorc, Thimister Clermont, Belgium), based on non-invasive oxy-luminescence technology. Both headspace (HSO) and dissolved oxygen were analyzed using 5-mm diameter oxy-luminescence dots PSt3 (Nomacorc, Thimister Clermont, Belgium) placed inside standard 0.375 L transparent glass bottles (Zignago Vetro, Portogruaro, Italy). Total package oxygen (TPO) was the sum of dissolved oxygen (DO) in the wine plus oxygen in the headspace (HSO) after bottling [57]. The synthetic cork “Select Green 100” (Nomacorc, Thimister Clermont, Belgium) was chosen for capping due to its consistently low oxygen transmission rate (OTR), ensuring a negligible contribution to oxygen levels during the trials with 0.4 mg of O2 after 3 months.

3.4. O2 Saturation Method

Up to four cycles of O2 saturation and consumption were performed. All the samples (model solution and red wine) were saturated by racking under air exposure until the dissolved oxygen concentration reached a stable plateau. The samples were then poured into 0.375-L transparent glass bottles containing oxy-luminescent dots. In order to minimize HSO, nitrogen was blown into the headspace for one minute before capping. The oxygen consumption was monitored using an optical fiber until approaching a steady state, then the bottles were uncorked and further oxygen saturations were applied by inserting a long narrow glass tube into the bottle and gently blowing air, before recorking as previously described. Care was taken to ensure no liquid was lost and that the HSO was kept constant for the whole duration of the trial.
The two saturation procedures herein used provided similar results in terms of time required and final DO level. The empirical criteria were followed to consider a saturation process to be complete based on the stable level of DO in wine. A similar approach was applied at industrial scale already [28]. Although some unexpected variability on O2 saturation level occurred in successive saturation processes, the global impact on the current findings is limited at winemaking level. Singleton reported approximate values of solubility of oxygen from air into wine saturated at room temperature, indicating roughly 6 mL/L or 8 mg/L at the atmospheric pressure [58]. In further studies after Boulton et al. it was confirmed that the oxygen solubility in wine should rise to 40 mg/L if a pure oxygen headspace is used [21] and the O2 measurement is affected by alcohol, sugars and phenolics content as well [38].

3.5. Data Storage and Processing

XLStat-premium 2018.3 for Excel (Addinsoft, Paris, France) was used to store the oxygen measurement data and elaborate the kinetic curves to gain insight into the possible mechanism of reaction pathways.
The drop in the concentration of O2 over time (t) can be written as:
‒d[O2]/dt = k [O2].
Rearrangement yields the following:
d[O2]/[O2] = ‒k dt.
Integration yields:
ln [O2] = ‒kt + C.
When t = 0, [O2] = [O2]0. [O2]0 is the original starting concentration of O2.
Substituting into the equation, we obtain:
ln [O2]0 = ‒k (0) + C; therefore, C = ln [O2]0.
The integrated form for first-order kinetics can now be written as follows:
ln [O2]t = ‒kt + ln [O2]0.
The integrated first-order equation is the equation of a straight line in which the y-value is ln [O2], the slope equals negative k, the x-value is t and the y-intercept is ln [O2]0.

4. Conclusions

The addition of ellagitannin to red wine increased the rate of O2 consumption, providing an effective tool in winemaking operations characterized by high levels of O2 uptake—when it is important to have instant protection against oxidation. Although the ellagitannin may have great potential as an antioxidant in wine, its effect on O2 consumption tends to drop rapidly with time; therefore, it has only a limited application. In contrast, although the skin tannins showed more consistent reactivity and lower OCR in each saturation when added to red wine, the fact that grape seed tannins are typically higher in reactive flavonoids makes them more suitable than ellagitannin for guaranteeing fast oxygen consumption. The kinetics of oxygen consumption after the addition of gallotannin demonstrated low performance in terms of protection against oxygen exposure; nevertheless, this tannin might be considered to clarify wines and musts, to chelate and remove catalytic metals and to protect grapes and musts from enzymatic oxidation. The relevance of such findings to winemaking is likely to be considerable.

Author Contributions

Formal analysis and original draft preparation: authors J.J. and I.V.; Investigation, resources, writing-review and editing author A.R.; Methodology, software and validation: author G.P.P.; Conceptualization, supervision and review: author A.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We acknowledge Kristina Mayberry for language revision.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Versari, A.; Du Toit, W.; Parpinello, G.P. Oenological tannins: A review. Aust. J. Grape Wine Res. 2013, 19, 1–10. [Google Scholar] [CrossRef]
  2. Waterhouse, A.L.; Laurie, V.F. Oxidation of wine phenolics: A critical evaluation and hypotheses. Am. J. Enol. Viticult. 2006, 57, 306–313. [Google Scholar]
  3. Caillé, S.; Samson, A.; Wirth, J.; Diéval, J.B.; Vidal, S.; Cheynier, V. Sensory characteristics changes of red Grenache wines submitted to different oxygen exposures pre and post bottling. Anal. Chim. Acta 2010, 660, 35–42. [Google Scholar] [CrossRef]
  4. Carrascón, V.; Vallverdú-Queralt, A.; Meudec, E.; Sommerer, N.; Fernandez-Zurbano, P.; Ferreira, V. The kinetics of oxygen and SO2 consumption by red wines. What do they tell about oxidation mechanisms and about changes in wine composition? Food Chem. 2018, 241, 206–214. [Google Scholar] [CrossRef] [Green Version]
  5. Ferreira, V.; Carrascon, V.; Bueno, M.; Ugliano, M.; Fernandez-Zurbano, P. Oxygen consumption by red wines. Part I: Consumption rates, relationship with chemical composition and role of SO2. J. Agr. Food Chem. 2015, 63, 10928–10937. [Google Scholar] [CrossRef]
  6. Oliveira, C.M.; Silva, F.A.C.; De Freitas, V.; Silva, A.M.S. Oxidation mechanisms occurring in wines. Food Res. Int. 2011, 44, 1115–1126. [Google Scholar] [CrossRef]
  7. Stockley, C.S. Wine and health: Sulfur dioxide and the wine consumer. Aust. N.Z. Grapegrow. Winemak. 2005, 501, 73–76. [Google Scholar]
  8. Santos, M.C.; Nunes, C.; Saraiva, J.A.; Coimbra, M.A. Chemical and physical methodologies for the replacement/reduction of sulfur dioxide use during winemaking: Review of their potentialities and limitations. Eur. Food Res. Technol. 2012, 234, 1–12. [Google Scholar] [CrossRef]
  9. Macáková, K.; Kolečkář, V.; Cahlíková, L.; Chlebek, J.; Hošťálková, A.; Kuča, K.; Jun, D.; Opletal, L. Tannins and their influence on health. In Recent Advances in Medicinal Chemistry; Atta-ur-Rahman, George, P., Eds.; Bentham Science Publisher: Sharjah, United Arab Emirates, 2014; Volume 1, pp. 159–208. [Google Scholar]
  10. Georgiev, V.; Ananga, A.; Tsolova, V. Dietary supplements/nutraceuticals made from grapes and wines. In Wine Safety, Consumer Preference and Human Health; Moreno-Arribas, M.V., Bartolomé Suáldea, B., Eds.; Springer Int. Publ.: Cham, Switzerland, 2016; pp. 201–227. [Google Scholar]
  11. Resolution OIV-OENO 567C-2018: Distinction between additives and processing aids—Oenological tannins. Available online: http://www.oiv.int/public/medias/6434/oiv-oeno-567c-2018-en (accessed on 8 March 2020).
  12. Boulton, R. The copigmentation of anthocyanins and its role in the color of red wine: A critical review. Am. J. Enol. Viticult. 2001, 52, 67–87. [Google Scholar]
  13. Canuti, V.; Puccioni, S.; Giovani, G.; Salmi, M.; Rosi, I.; Bertuccioli, M. Effect of oenotannin addition on the composition of Sangiovese wines from grapes with different characteristics. Am. J. Enol. Viticult. 2012, 63, 220–231. [Google Scholar] [CrossRef]
  14. Harbertson, J.F.; Parpinello, G.P.; Heymann, H.; Downey, M.O. Impact of exogenous tannin additions on wine chemistry and wine sensory character. Food Chem. 2012, 131, 999–1008. [Google Scholar] [CrossRef]
  15. Rinaldi, A.; Moio, L. Effect of enological tannin addition on astringency subqualities and phenolic content of red wines. J. Sens. Stud. 2018, 33, 1–11. [Google Scholar] [CrossRef]
  16. Puech, J.-L.; Prida, A.; Isz, S. Quality assessment of oenological tannins utilising global selectivity chemical sensors array (“electronic tongue”). S. Afr. J. Enol. Vitic. 2007, 28, 101–106. [Google Scholar] [CrossRef] [Green Version]
  17. Magalhães, L.M.; Ramos, I.I.; Reis, S.; Segundo, M.A. Antioxidant profile of commercial oenological tannins determined by multiple chemical assays. Aust. J. Grape Wine Res. 2014, 20, 72–79. [Google Scholar] [CrossRef]
  18. Danilewicz, J.C. Review of reaction mechanisms of oxygen and proposed intermediate reduction products in wine: Central role of iron and copper. Am. J. Enol. Viticult. 2003, 54, 73–85. [Google Scholar]
  19. Danilewicz, J.C. Interaction of sulfur dioxide, polyphenols and oxygen in a wine-model system: Central role of iron and copper. Am. J. Enol. Viticult. 2007, 58, 53–60. [Google Scholar]
  20. Ricci, A.; Olejar, K.O.; Parpinello, G.P.; Mattioli, A.U.; Teslić, N.; Kilmartin, P.A.; Versari, A. Activity of commercial food grade tannins exemplified in a wine model. Food Addit. Contam. A. 2016, 33, 1761–1774. [Google Scholar] [CrossRef]
  21. Boulton, R.B.; Singleton, V.L.; Bisson, L.F.; Kunkee, R.E. Principles and Practices of Winemaking; Bloom, R., Ed.; Aspen Publisher: Maryland, MD, USA, 1998; pp. 413–414. [Google Scholar]
  22. Hagerman, A.E.; Riedl, K.M.; Jones, G.A.; Sovik, K.N.; Ritchard, N.T.; Hartzfeld, P.W.; Riechel, T.L. High molecular weight plant polyphenolics (tannins) as biological antioxidants. J. Agr. Food Chem. 1998, 46, 1887–1892. [Google Scholar] [CrossRef]
  23. Zhou, H.C.; Lin, Y.M.; Wei, S.D.; Tam, N.F.Y. Structural diversity and antioxidant activity of condensed tannins fractionated from mangosteen pericarp. Food Chem. 2011, 129, 1710–1720. [Google Scholar] [CrossRef]
  24. Zhou, H.C.; Tam, N.F.Y.; Lin, Y.M.; Ding, Z.H.; Chai, W.M.; Wei, S.D. Relationships between degree of polymerization and antioxidant activities: A study on proanthocyanidins from the leaves of a medicinal mangrove plant Ceriops tagal. PLoS ONE 2014, 9, 1–10. [Google Scholar] [CrossRef]
  25. Perscheid, M.; Zurn, F. Der einfluss von Oxydationsvorgangen auf die Weinqualiriit. Weinwirt 1977, 113, 10–12. [Google Scholar]
  26. Amano, Y.; Kubota, M.; Kagami, M. Oxygen uptake of Koshu grape must and its control. Hokkokogaku Kaishi J. Ferment. Technol. 1979, 57, 92–101. [Google Scholar]
  27. Vouillamoz, J.F.; Monaco, A.; Costantini, L.; Stefanini, M.; Scienza, A.; Grando, M.S. The parentage of ‘Sangiovese’, the most important Italian wine grape. Vitis 2007, 46, 19–22. [Google Scholar]
  28. Laurie, V.F.; Salazar, S.; Campos, I.; Cáceres-Mella, A.; Peña-Neira, Á. Periodic aeration of red wine compared to microoxygenation at production scale. Am. J. Enol. Vitic. 2014, 65, 254–260. [Google Scholar] [CrossRef] [Green Version]
  29. Petrozziello, M.; Torchio, F.; Piano, F.; Giacosa, S.; Ugliano, M.; Bosso, A.; Rolle, L. Impact of increasing levels of oxygen consumption on the evolution of color, phenolic and volatile compounds of Nebbiolo wines. Front. Chem. 2018, 6, 1–15. [Google Scholar] [CrossRef]
  30. Gambuti, A.; Picariello, L.; Rinaldi, A.; Moio, L. Evolution of Sangiovese wines with varied tannin and anthocyanin ratios during oxidative aging. Front. Chem. 2018, 6, 1–11. [Google Scholar] [CrossRef] [Green Version]
  31. Masson, G.; Moutounet, M.; Puech, J.L. Ellagitannin content of oak wood as a function of species and of sampling position in the tree. Am. J. Enol. Viticult. 1995, 46, 262–268. [Google Scholar]
  32. Nonier, M.F.; Vivas, N.; De Gaulejac, N.V.; Absalon, C.; Vitry, C.; Fouquet, E. Global fractionation of oak heartwood extractable polymers (lignins, polysaccharides and ellagitannins) by selective precipitations. J. Sci. Food Agr. 2005, 85, 343–353. [Google Scholar] [CrossRef]
  33. Jordao, A.M.; Ricardo-da-Silva, J.M.; Laureano, O. Ellagitannins from Portuguese oak wood (Quercus pyrenaica Willd.) used in cooperage: Influence of geographical origin, coarseness of the grain and toasting level. Holzforschung 2007, 61, 155–160. [Google Scholar] [CrossRef]
  34. Vignault, A.; González-Centeno, M.R.; Pascual, O.; Gombau, J.; Jourdes, M.; Moine, V.; Iturmendi, N.; Canals, J.M.; Zamora, F.; Teissedre, P.-L. Chemical characterization, antioxidant properties and oxygen consumption rate of 36 commercial oenological tannins in a model wine solution. Food Chem. 2018, 268, 210–219. [Google Scholar] [CrossRef]
  35. Vazallo-Valleumbrocio, G.; Medel-Marabolí, M.; Peña-Neira, A.; López-Solís, R.; Obreque-Slier, E. Commercial enological tannins: Characterization and their relative impact on the phenolic and sensory composition of Carménère wine during bottle aging. LWT Food Sci. Technol. 2017, 83, 172–183. [Google Scholar] [CrossRef]
  36. Laguna, L.; Sarkar, A.; Bryant, M.G.; Beadling, A.R.; Bartoloméa, B.; Moreno-Arribas, M.V. Exploring mouthfeel in model wines: Sensory-to-instrumental approaches. Food Res. Int. 2017, 102, 478–486. [Google Scholar] [CrossRef] [PubMed]
  37. Medel-Marabolí, M.; Romero, J.L.; Obreque-Slier, E.; Contreras, A.; Peña-Neira, A. Effect of a commercial tannin on the sensorial temporality of astringency. Food Res. Int. 2017, 102, 341–347. [Google Scholar] [CrossRef] [PubMed]
  38. del Alamo-Sanza, M.; Pando, V.; Nevares, I. Investigation and correction of the interference of ethanol, sugar and phenols on dissolved oxygen measurement in wine. Anal. Chim. Acta 2014, 809, 162–173. [Google Scholar] [CrossRef]
  39. Pascual, O.; Vignault, A.; Gombau, J.; Navarro, M.; Gómez-Alonso, S.; García-Romero, E.; Canals, M.J.; Hermosín-Gutíerrez, I.; Teissedre, P.-L.; Zamora, F. Oxygen consumption rates by different oenological tannins in a model wine solution. Food Chem. 2017, 234, 26–32. [Google Scholar] [CrossRef]
  40. Glabasnia, A.; Hofmann, T. Sensory-directed identification of taste-active ellagitannins in American (Quercus alba L.) and European oak wood (Quercus robur L.) and quantitative analysis in bourbon whiskey and oak-matured red wines. J. Agr. Food Chem. 2006, 54, 3380–3390. [Google Scholar] [CrossRef]
  41. Danilewicz, J.C.; Standing, M.J. Reaction mechanisms of oxygen and sulfite in red wine. Am. J. Enol. Vitic. 2018, 69, 189–195. [Google Scholar] [CrossRef]
  42. Carrascon, V.; Fernandez-Zurbano, F.; Bueno, M.; Ferreira, V. Oxygen consumption by red wines. Part II: Differential effects on color and chemical composition caused by oxygen taken in different sulfur dioxide-related oxidation contexts. J. Agric. Food Chem. 2015, 63, 10938–10947, [Supporting information]. [Google Scholar] [CrossRef] [Green Version]
  43. Www.acenologia.com. Available online: http://www.acenologia.com/enfoques/roger_boulton_enf0612_eng.htm (accessed on 20 February 2020).
  44. Lee, J. Degradation kinetics of grape skin and seed proanthocyanidins in a model wine system. Food Chem. 2010, 123, 51–56. [Google Scholar] [CrossRef]
  45. Bors, W.; Michel, C. Antioxidant capacity of flavanols and gallate esters: Pulse radiolysis studies. Free Radic. Biol. Med. 1999, 27, 1413–1426. [Google Scholar] [CrossRef]
  46. Poncet-Legrand, C.; Cabane, B.; Bautista-Ortín, A.B.; Carrillo, S.; Fulcrand, H.; Pérez, J.; Vernhet, A. Tannin oxidation: Intra- versus intermolecular reactions. Biomacromolecules 2010, 11, 2376–2386. [Google Scholar] [CrossRef] [PubMed]
  47. Picariello, L.; Gambuti, A.; Petracca, F.; Rinaldi, A.; Moio, L. Enological tannins affect acetaldehyde evolution, colour stability and tannin reactivity during forced oxidation of red wine. Int. J. Food Sci. Tech. 2018, 53, 228–236. [Google Scholar] [CrossRef]
  48. García-Estévez, I.; Escribano-Bailón, M.T.; Alcalde-Eon, C. Effect of the presence of different oak ellagitannins in their own disappearance under oxidative or inert atmosphere. Food Chem. 2019, 286, 43–50. [Google Scholar] [CrossRef] [PubMed]
  49. Quideau, S.; Feldman, K.; Appel, H.M. Chemistry of galloyl-derivedo-quinones: Reactivity towards nucleofiles. J. Org. Chem. 1995, 60, 4982–4983. [Google Scholar] [CrossRef]
  50. Hider, R.C.; Liu, Z.D.; Hhodr, H.H. Metal chelation of polyphenols. Methods Enzymol. 2001, 335, 190–203. [Google Scholar] [PubMed]
  51. Galleano, M.; Verstraeten, S.V.; Oteiza, P.I.; Fraga, C.G. Antioxidant actions of flavonoids: Thermodynamic and kinetic analysis. Arch. Biochem. Biophys. 2010, 501, 23–30. [Google Scholar] [CrossRef]
  52. Danilewicz, J.C.; Tunbridge, P.; Kilmartin, P.A. Wine reduction potentials: Are these measured values really reduction potentials? J. Agr. Food Chem. 2019, 67, 4145–4153. [Google Scholar] [CrossRef]
  53. Ribéreau-Gayon, P.; Glories, Y.; Maujean, A.; Dubourdieu, D. Phenolic compounds. In Handbook of Oenology Vol. 2—The Chemistry of Wine Stabilization and Treatments, 2nd ed.; John Wiley & Sons: Chichester, UK, 2006; pp. 141–203. [Google Scholar]
  54. Sun, B.S.; Pinto, T.; Leandro, M.C.; Ricardo-da-Silva, J.M.; Spranger, M.I. Transfer of catechins and proanthocyanidins from solid parts of the grape cluster into wine. Am. J. Enol. Viticult. 1999, 50, 179–184. [Google Scholar]
  55. Harbertson, J.F.; Picciotto, E.A.; Adams, D.O. Measurement of polymeric pigments in grape berry extracts and wines using a protein precipitation assay combined with bisulfite bleaching. Am. J. Enol. Vitic. 2003, 54, 301–306. [Google Scholar]
  56. Versari, A.; Parpinello, G.P.; Mattioli, A.U. Characterization of polymeric pigments and color components of commercial red wines by using selected UV-Vis spectrophotometric methods. South Afr. J. Enol. Vitic. 2007, 28, 6–10. [Google Scholar]
  57. Nygaard, M. Oxygen management from grape to glass. Wine Vit. J. 2010, 25, 24–28. [Google Scholar]
  58. Singleton, V.L. Oxygen with phenols and related reactions in musts, wines and model systems: Observations and practical implications. Am. J. Enol. Vitic. 1987, 38, 69–77. [Google Scholar]
Molecules 25 01215 g001 550

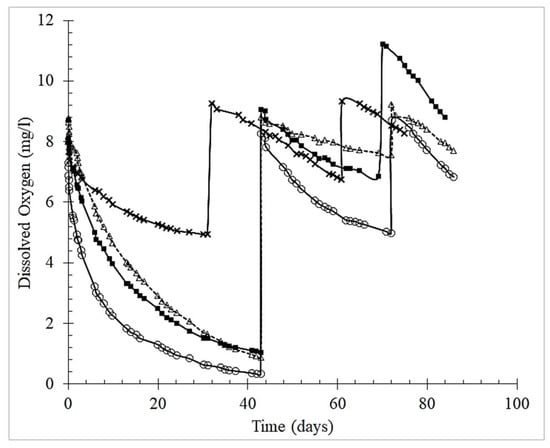

Figure 1. Oxygen consumption over time in the model solution containing tannins, for three consecutive saturations. Legend: (Δ) grape seed tannin; (■) grape skins tannin; (○) ellagitannin; (x) gallotannin.
Figure 1. Oxygen consumption over time in the model solution containing tannins, for three consecutive saturations. Legend: (Δ) grape seed tannin; (■) grape skins tannin; (○) ellagitannin; (x) gallotannin.
Molecules 25 01215 g001
Molecules 25 01215 g002 550

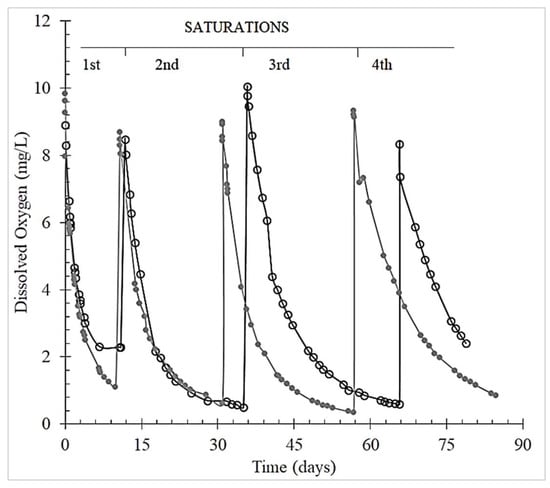

Figure 2. Total Package Oxygen (TPO) consumption by Chianti red wine control (○) and added with grape skin tannin (●) over four subsequent saturations.
Figure 2. Total Package Oxygen (TPO) consumption by Chianti red wine control (○) and added with grape skin tannin (●) over four subsequent saturations.
Molecules 25 01215 g002
Molecules 25 01215 g003 550

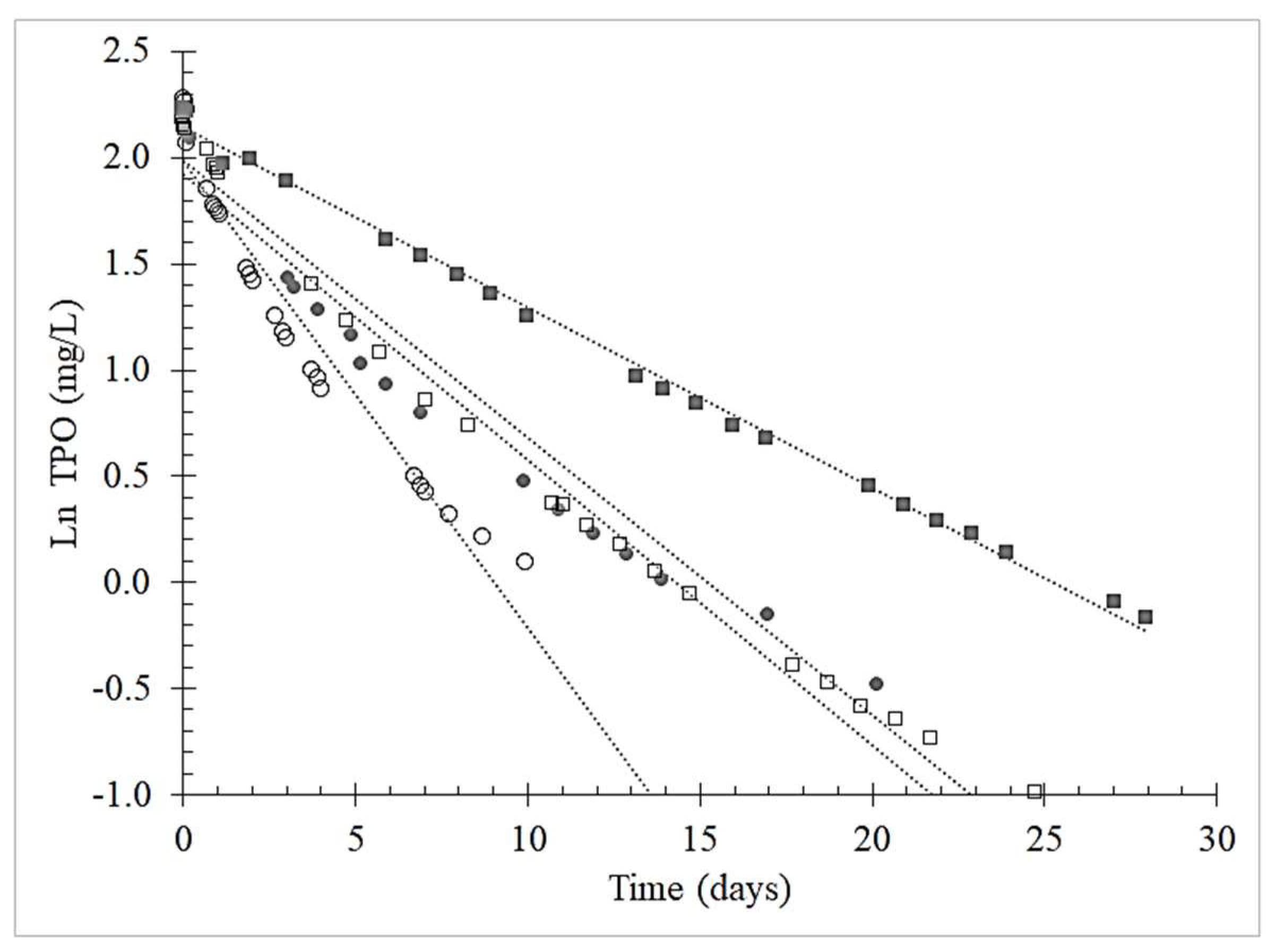

Figure 3. Example of first order kinetic model of Total Package Oxygen (TPO) consumption over four saturation added with oenological grape skins tannins. Legend: (○) first saturation; (●) grape skins tannin; (□) ellagitannin; (■) gallotannin.
Figure 3. Example of first order kinetic model of Total Package Oxygen (TPO) consumption over four saturation added with oenological grape skins tannins. Legend: (○) first saturation; (●) grape skins tannin; (□) ellagitannin; (■) gallotannin.
Molecules 25 01215 g003
Table
Table 1. Oxygen consumption parameters in model wines and Chianti red wines with tannins added. Codification of wines/tannins are detailed in Table 3.
Table 1. Oxygen consumption parameters in model wines and Chianti red wines with tannins added. Codification of wines/tannins are detailed in Table 3.
Sample CodeDuration of O2 Consumption (days)TPO Consumed (mg/L)Final O2 Level (mg/L)Total O2 Consumed (mg/L)
1st sat.2nd sat.3rd sat.1st sat.2nd sat.3rd sat.1st sat.2nd sat.3rd sat.
MWse4329147.911.241.510.877.557.7110.08
MWsk4326147.652.202.401.056.868.818.42
MWet4329146.963.291.880.334.976.8311.86
MWgt3029143.102.511.064.944.168.276.68
Control716276.5713.39.372.310.700.6719.76
CHse1018278.578.038.640.890.670.5820.32
CHsk1020268.728.068.651.100.160.3420.37
CHet1026287.929.119.130.430.460.5620.33
CHgt1422306.707.717.841.800.450.7419.61
sat. = saturation.
Table
Table 2. First-order kinetic equations for the consumption of oxygen on model solutions and wines.
Table 2. First-order kinetic equations for the consumption of oxygen on model solutions and wines.
Experiment1st Saturation2nd Saturation3rd Saturation4th Saturation
MWsey = −0.053x + 2.107 (R2 = 0.99)y = −0.005x + 2.159 (R2 = 0.97)y = −0.012x + 2.218 (R2 = 0.97)
MWsky = −0.049x + 1.947 (R2 = 0.98)y = −0.011x + 2.177 (R2 = 0.95)y = −0.020x + 2.343 (R2 = 0.99)
MWety = −0.071x + 1.715 (R2 = 0.98)y = −0.017x + 2.046 (R2= 0.94)y = −0.019x + 2.194 (R2 = 0.98)
MWgty = −0.016x + 1.984 (R2 = 0.93)y = −0.011x + 2.242 (R2 = 0.99)y = −0.010x + 2.255 (R2 = 0.96)
Control winey = −0.133x + 1.857 (R2 = 0.77)y = −0.119x + 1.792 (R2 = 0.92)Y = −0.096x + 2.087 (R2 = 0.96)y = −0.091x + 2.047 (R2 = 0.99)
CHsey = −0.242x + 1.911 (R2 = 0.94)y = −0.148x + 1.954 (R2 = 0.97)y = −0.102x + 1.902 (R2 = 0.96)y = −0.077x + 2.030 (R2 = 0.96)
CHsky = −0.218x +1.982(R2 = 0.95)y = −0.134x + 1.916 (R2 = 0.96)y = −0.131x + 1.987 (R2 = 0.98)y = −0.078x + 2.090 (R2 = 0.98)
CHety = −0.307x + 1.896 (R2 = 0.98)y = −0.121x + 1.912(R2= 0.94)y = −0.102x + 2.131 (R2 = 0.99)y = −0.071x + 2.085 (R2 = 0.99)
CHgty = −0.105x+ 1.724 (R2 = 0.77)y = −0.133x + 1.854 (R2 = 0.97)y = −0.081x + 1.903 (R2 = 0.96)y = −0.087x + 2.207 (R2 = 0.99)
Table
Table 3. Tannins and dosages used in the experiment.
Table 3. Tannins and dosages used in the experiment.
Sample CodeSample CompositionTannin Composition
MVseModel wine solution + seed tannin 1 g/LSeed tannin: 733 mg TPC/L of which 188 mg tannins/L (as CE)
MVskModel wine solution + skin tannin 1 g/LSkin tannin: 856 mg TPC/L of which 172 mg tannins/L (as CE)
MVetModel wine solution + ellagitannin 1 g/LEllagitannin: 478 mg TPC/L of which 53 mg tannins/L (as CE)
MVgtModel wine solution + gallotannin 1 g/LGallotannin: 877 mg TPC/L of which 404 mg tannins/L (as CE)
CHChianti red wine (control)total polyphenolic compounds (TPC) 2458 mg/L as catechin equivalent (as CE)
CHseChianti red wine + seed tannin 0.1 g/LTannin as above
CHskChianti red wine + skin tannin 0.1 g/LTannin as above
CHetChianti red wine + ellagitannin 0.1 g/LTannin as above
CHgtChianti red wine + gallotannin 0.1 g/LTannin as above

Share and Cite

MDPI and ACS Style

Jeremic, J.; Vongluanngam, I.; Ricci, A.; Parpinello, G.P.; Versari, A. The Oxygen Consumption Kinetics of Commercial Oenological Tannins in Model Wine Solution and Chianti Red Wine. Molecules 2020, 25, 1215. https://doi.org/10.3390/molecules25051215

AMA Style

Jeremic J, Vongluanngam I, Ricci A, Parpinello GP, Versari A. The Oxygen Consumption Kinetics of Commercial Oenological Tannins in Model Wine Solution and Chianti Red Wine. Molecules. 2020; 25(5):1215. https://doi.org/10.3390/molecules25051215

Chicago/Turabian Style

Jeremic, Jelena, Isara Vongluanngam, Arianna Ricci, Giuseppina Paola Parpinello, and Andrea Versari. 2020. "The Oxygen Consumption Kinetics of Commercial Oenological Tannins in Model Wine Solution and Chianti Red Wine" Molecules 25, no. 5: 1215. https://doi.org/10.3390/molecules25051215

Article Metrics

Back to TopTop
