Playing with Structural Parameters: Synthesis and Characterization of Two New Maltol-Based Ligands with Binding and Antineoplastic Properties

Abstract

Two maltol-based ligands, N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-1,4-piperazine (L1) and N,N′,N′-tris((3-hydroxy-4-pyron-2-yl)methyl)-N-methylethylendiamine (L2), were synthesized and characterized. L1 and L2, containing, respectively, two and three maltol units spaced by a diamine fragment, were designed to evaluate how biological and binding features are affected by structural modifications of the parent compound malten. The acid-base behavior and the binding properties towards transition, alkaline-earth (AE) and rare-earth (RE) cations in aqueous solution, studied by potentiometric, UV-Vis and NMR analysis, are reported along with biological studies on DNA and leukemia cells. Both ligands form stable complexes with Cu(II), Zn(II) and Co(II) that were studied as metallo-receptors for AE and RE at neutral pH. L1 complexes are more affected than L2 ones by hard cations, the L1-Cu(II) system being deeply affected by RE. The structural modifications altered the mechanism of action: L1 partially maintains the ability to induce structural alterations of DNA, while L2 provokes single strand (nicks) and to a lesser extent double strand breaks of DNA.

1. Introduction

Cancer has long been known and still is one of the most common diseases, despite the great technological and social development we have experienced in the last few decades. The rise in incidence is alarming: a 61.7% worldwide increase of cases by 2040 is predicted [1].

Overall, the number of cancer survivors has grown, but even if this trend shows that progress is being made against the disease, much work remains [2].

Often, the survival of patients is limited by the lack of specific therapies; the cytotoxicity of the drugs, and the resulting occurrence of severe side effects; and, not least, the resistance to currently used chemotherapics. In that light, finding new antineoplastic drugs with reduced toxicity and relevant clinical activity is currently a major therapeutic challenge.

In the search for new molecules providing high and selective therapeutic anticancer efficacy, while being well tolerated by the human body, one important strategy is to look at natural sources.

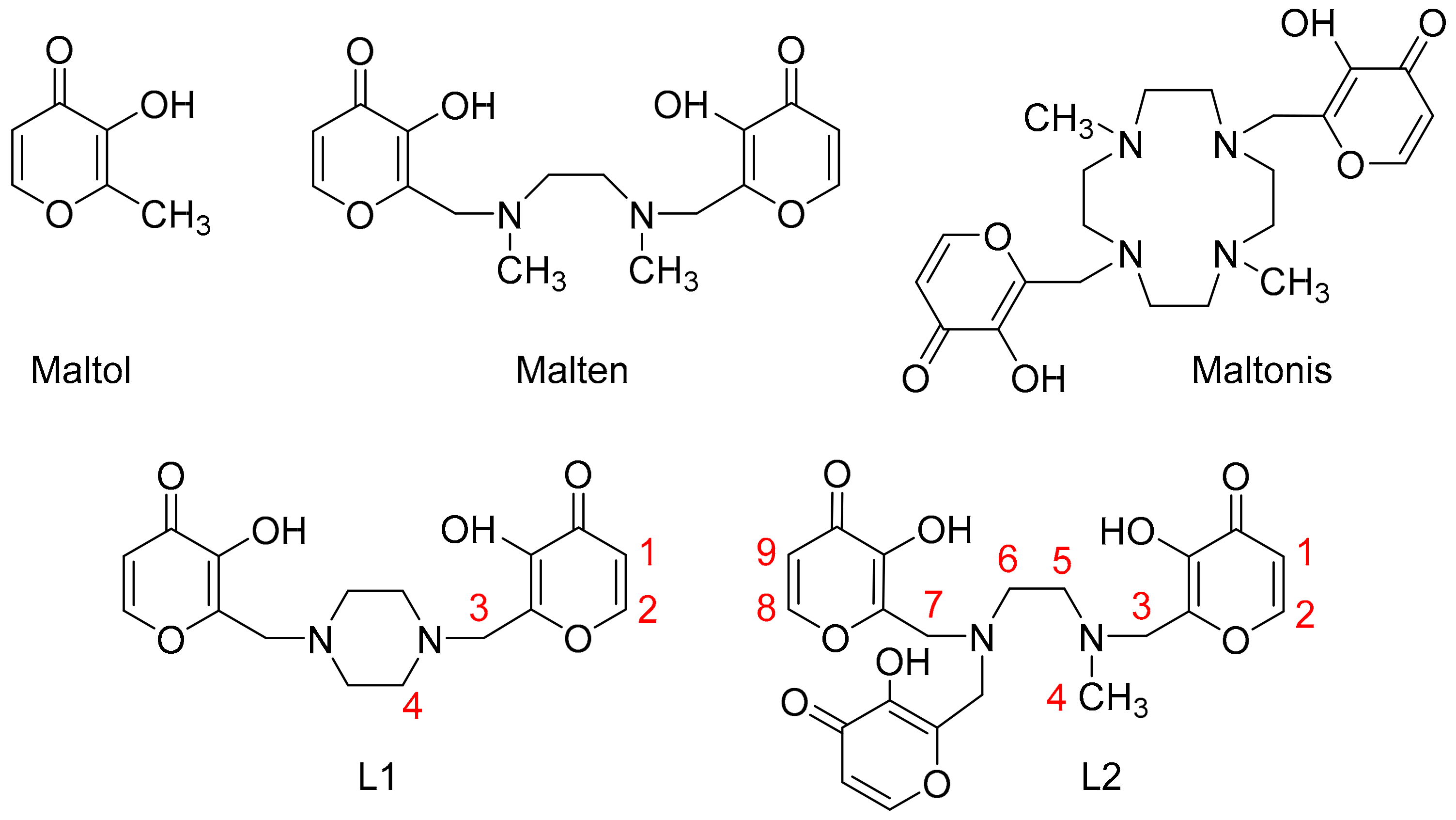

Maltol (3-hydroxy-2-methyl-4-pyrone, Figure 1) is a naturally occurring substance, having been long and widely used as a safe and reliable flavoring agent, food preservative and natural antioxidant.

Besides its common application as a flavor potentiator [3], maltol has been used in catalysis, and for cosmetic and pharmaceutical formulations [4,5,6,7].

It is known that a ROS scavenger can be used in the treatment of diseases such as anemia, tumor, nerve cell oxidative stress and diabetes-induced irreversible kidney damage [8,9,10,11]. As a growth inhibitor, maltol can be combined effectively with free radicals of body [12]; moreover, the ROS scavenging and antioxidant properties of maltol provide the molecule with antineoplastic [13,14,15,16], neuroprotective [17,18] and anti-apoptotic activities [19], and make it able to attenuate acute alcohol-induced liver injury and prevent oxidative damage in mice [20,21,22].

In addition, maltol possesses coordination properties towards metal ions: maltol-derived organometallic complexes have potential antitumor activity [9,23] and ligands containing maltol have been developed and exploited as new metal-based antitumor drugs [24,25,26,27]. In addition, oxovanadium(IV) complexes of maltol-based ligands were developed as insulin enhancing agents [28,29].

Due to its acid-base properties and biocompatibility [28,29], maltol is a good choice in the development of biologically active compounds.

Linear and macrocyclic polyamines, generally with symmetrical topology, are also known antitumor agents [30,31,32]. Furthermore, they show well-known coordination properties towards metal ions and/or anions [33,34,35]. Due to their protonable sites, polyamines allow one to obtain water-soluble compounds; that is a crucial point for both biological activity and guest coordination in aqueous solutions.

Thus, aimed both at discovering new drugs for treating cancer and at synthesizing ligands provided with marked binding properties towards metal ions, we recently developed a new class of maltol-based ligands by symmetrically coupling polyamines and maltol units, which exhibited antineoplastic activity in vitro [36,37,38,39] and in vivo [40]. The compounds show two (3-hydroxy-4-pyron-2-yl)methyl units separated by an aliphatic amine spacer, which could be either linear, as in the case of N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-N,N′-dimethylethylendiamine (malten, Figure 1), or cyclic, as in the case of 4,10-bis[(3-hydroxy-4-pyron-2-yl)methyl]-1,7-dimethyl-1,4,7,10-tetraazacyclododecane (maltonis, Figure 1).

Malten, by cell-free assay, was monitored to increase the complexity of the genomic DNA structure through the possible induction of DNA intermolecular crosslinking [38]. The treatment with malten causes a dose-dependent reduction in cell survival in all the neoplastic models studied, associated with the activation of cell cycle arrest, and finally, the programmed cell death (apoptosis). Moreover, malten exposure modulates the expression of genes having key roles in cell cycle progression and apoptosis [36,37,38,39].

Maltonis is more effective than malten, and noteworthily, is effective on sarcoma (in vivo) and multidrug- and cisplatin-resistant cells (in vitro) while being ineffective on normal human mesenchymal stem cells. Its mechanism of action seems to involve the inhibition of cell proliferation and the involvement of a DNA damage response till induction of cell death [40].

Finally, both ligands possess the ability to induce covalent binding between DNA and proteins, suggesting a molecular mechanism of action that may involve the interference with the chromatin structure [39,40]. Interestingly, the simultaneous presence of two amino-spaced maltol units seems to be the key of the biological activity of these molecules.

The two polyaza ligands show acid-base properties, their protonation degree and thus the biologically active species depending on the pH value. In particular, the main species present in solution at pH 7.4 are the zwitterionic form L and the HL⁺ cation for malten and maltonis, respectively [36,37,38,39].

Besides the biological activity, both ligands show marked coordination properties toward metal cations. Indeed, they are able to bind first row transition metal ions such as Cu(II) and Co(II), forming preorganized 1:1 complex species which are in turn able to bind hard metal cations of the alkaline, alkaline-earth and rare-earth series in a 2:1 ratio [41,42,43]. In particular, the copper(II) complex of malten, thanks to the preorganization of the receptor, exhibits the interesting ability both to distinguish between Ca²⁺ and Mg²⁺ and to bind cations of the rare earth series, targets that are generally difficult to achieve in aqueous solution [41,42].

Following these results, in this contribution we expanded our research to other maltol-derived ligands, playing with factors such as the stiffness of the polyamine scaffold and the number of maltol units. The objective of the present work is indeed the design of new ligands for the purpose of modifying the parent compound malten to evaluate how the peculiar binding properties in an aqueous solution and the biological activity are affected by specific structural modifications. The flexibility of malten was claimed to be a crucial property for the interaction with DNA [39]; therefore, both a more stiff structure and an increased steric hindrance, which may restrict the conformational freedom of the molecule, affect the binding properties of the molecule, on one hand, and possibly prevent the DNA structural alterations observed for malten, on the other hand.

Likewise, malten, the new ligand N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-1,4-piperazine (L1, Figure 1), possesses two maltol units similarly spaced but a more rigid structure which could account for a higher stability in physiological environment, and as a consequence, a slower degradation time. This may eventually lead to a better antineoplastic activity. The ligand N,N′,N′-tris((3-hydroxy-4-pyron-2-yl)methyl)-N-methylethylendiamine (L2, Figure 1), instead, possesses an additional maltol unit with respect to the previous ligands malten and maltonis, and is therefore a more encumbered and asymmetric molecule.

The two ligands were synthesized and characterized, and both acid-base and stability studies were performed by potentiometric, UV-VIS and NMR measurements. The coordination properties of both ligands in an aqueous solution towards some first row transition, alkaline-earth (AE) and rare-earth (RE) metal ions were also studied by potentiometric and UV-VIS measurements. Finally, herein we report the preliminary in vitro biological studies of both ligands.

2. Results and Discussion

2.1. Synthesis

The two compounds N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-1,4-piperazine (L1) and N,N′,N′-tris((3-hydroxy-4-pyron-2-yl)methyl)-N-methylethylendiamine (L2) were synthesized following procedures analogous to those adopted for malten and maltonis [39], which are reported in Scheme 1. Compound 3 was synthesized starting from the commercially available 2-methyl-3-hydroxy-4-pyrone (maltol, 1 in Scheme 1) [44,45]. The commercial compounds 4 and 5 were used without any further purification.

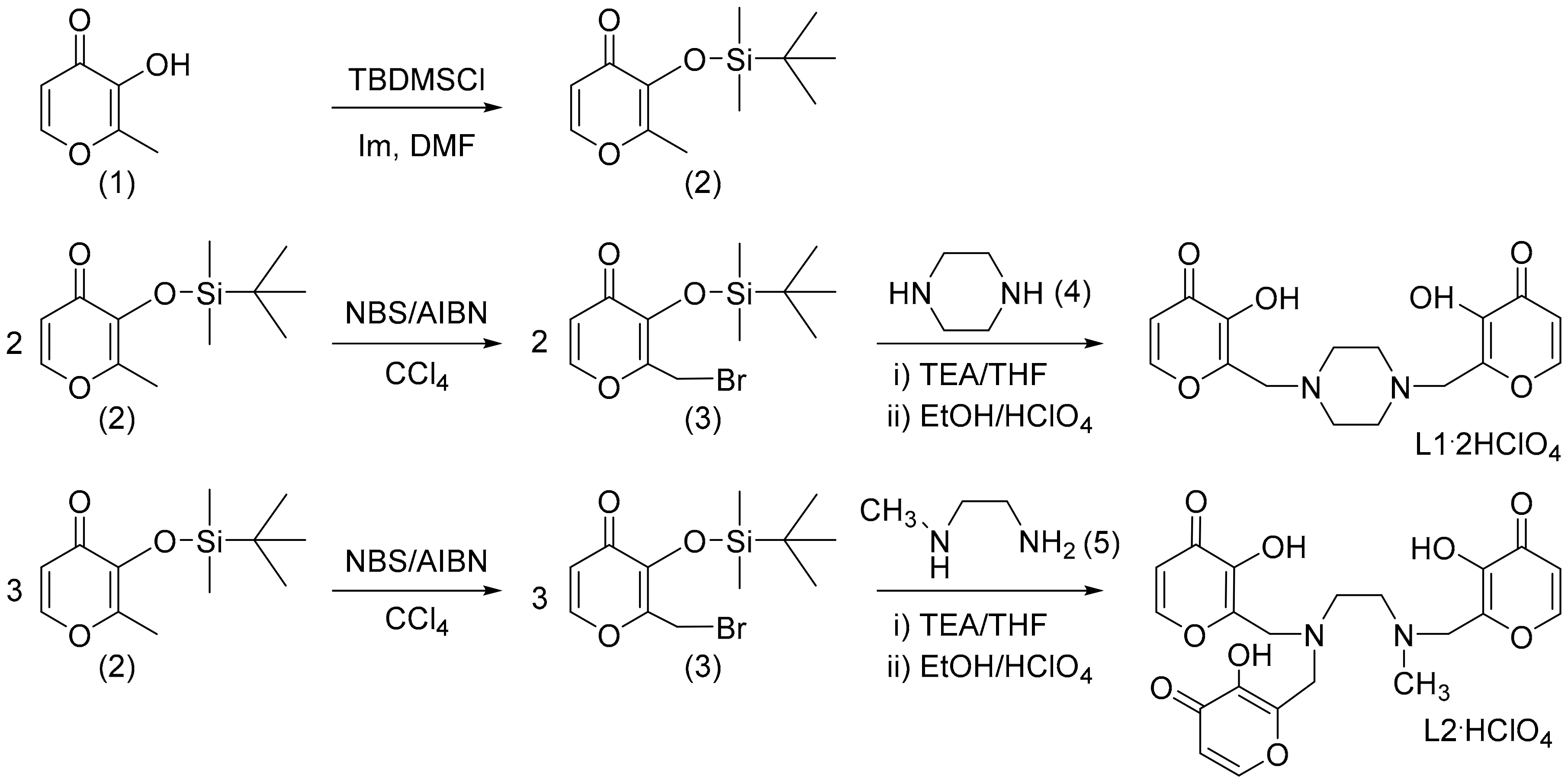

In the synthetic scheme of both ligands (Scheme 1), maltol (1) was reacted sequentially with tert-butyldimethylsilyl chloride (TBDMSCl) and N-bromosuccinimide to first protect the OH group (2), and then activate the methyl group as bromide (3). Without any further purification, two or three equivalents of 3 freshly prepared were then coupled with 4 and 5, respectively, to obtain the crude products L1 and L2. The crude products were then added dropwise of a 10% perchloric acid ethanolic solution to precipitate the desired compounds as hydroperchlorate salts. The acid treatment is aimed both at removing the protective tert-butyldimethylsilyl groups and cleansing the compounds, thereby avoiding time-consuming and expensive chromatographic purifications. Finally, the two products were easily obtained as white solids by recrystallization from a saturated sodium perchlorate aqueous solution (L1) or by washing with warm acetonitrile (L2).

2.2. Acid-base Behavior

The protonation constants of L1 and L2 were potentiometrically determined in 0.15 mol dm⁻³ NaCl, for L1, and NMe₄Cl, for L2, aqueous solutions at 298.1 K and are summarized in

Table 1. Protonation constants (log K) of L1 and L2 potentiometrically determined in 0.15 mol dm⁻³ NaCl and NMe₄Cl, respectively, aqueous solution at 298.1 K.

Reaction	log K
	L = L1	L = L2
H−3L3− + H+ = H−2L2−	-	9.46(1)1
H−2L2− + H+ = H−1L−	8.67(9)	8.33(1)
H−1L− + H+ = L	7.77(7)	7.37(1)
L + H+ = HL+	5.88(8)	5.85(1)
HL+ + H+ = H2L2+	2.28(8)	1.86(2)

¹ Values in parentheses are the standard deviations to the last significant figure.

.

Under the investigated experimental conditions, L1 behaves as a diprotic acid, whereas L2 behaves as a triprotic acid, because of the additional maltol unit; both are diprotic bases.

The ligands exist in alkaline aqueous solution (pH ≥ 10) in the fully deprotonated form (H₋₂L²⁻ and H₋₃L³⁻ for L = L1 and L2, respectively) which is able to add up to four or five protons (for L1 and L2, respectively) to convert into the fully protonated H₂L²⁺ species at acidic pH (pH < 2).

The protonation constants of L1 and L2 for the same protonation degree are very similar to each other; L2 possesses an additional maltol with respect to L1; indeed, it shows a supplementary constant featuring the highest value. In comparison to the protonation constants of malten (log K₁₋₄: 9.03, 7.86, 6.24, 3.17), L1 and L2 show very similar but lower values for the same protonation degree, revealing similar basicity.

Besides such analogies with malten, L1 and L2 show similar acid-base properties. The protonation values in both cases exhibit a linear decrease in the basicity up to the addition of the penultimate proton, and then a sharp decrease in the last step is observable.

Such a trend accounts for an easy accessibility of the protonation sites up to the HL⁺ species, and on the contrary, a quite unfavorable last protonation step, due to the electrostatic repulsion. It can be supposed, thus, that the acidic protons in the HL⁺ species are most likely located as far as possible from each other; namely, on the maltolate moieties and on an amine function. The value for the first proton addition (log K₁ = 8.67 and 9.46 for L1 and L2, respectively) is similar to the first protonation constant of the free 1,4-dimethylpiperazine (log K = 8.38) [46] and N,N′-dimethylethylendiamine (log K = 10.16) [47], suggesting that it occurs on an amine function.

The following protonation steps probably involve the maltolate moieties (log K₂₋₃ = 7.77, 5.88 for L1 and K₂₋₄ = 8.33, 7.37, 5.85 for L2) being similar to the basicity of the free deprotonated maltol (log K = 8.44) [48], as previously observed for malten.

The last protonation involving the remaining amine group drops the constant value due to electrostatic repulsion between the two close ammonium groups (log K₄ = 2.28 and log K₅ = 1.86 for L1 and L2, respectively).

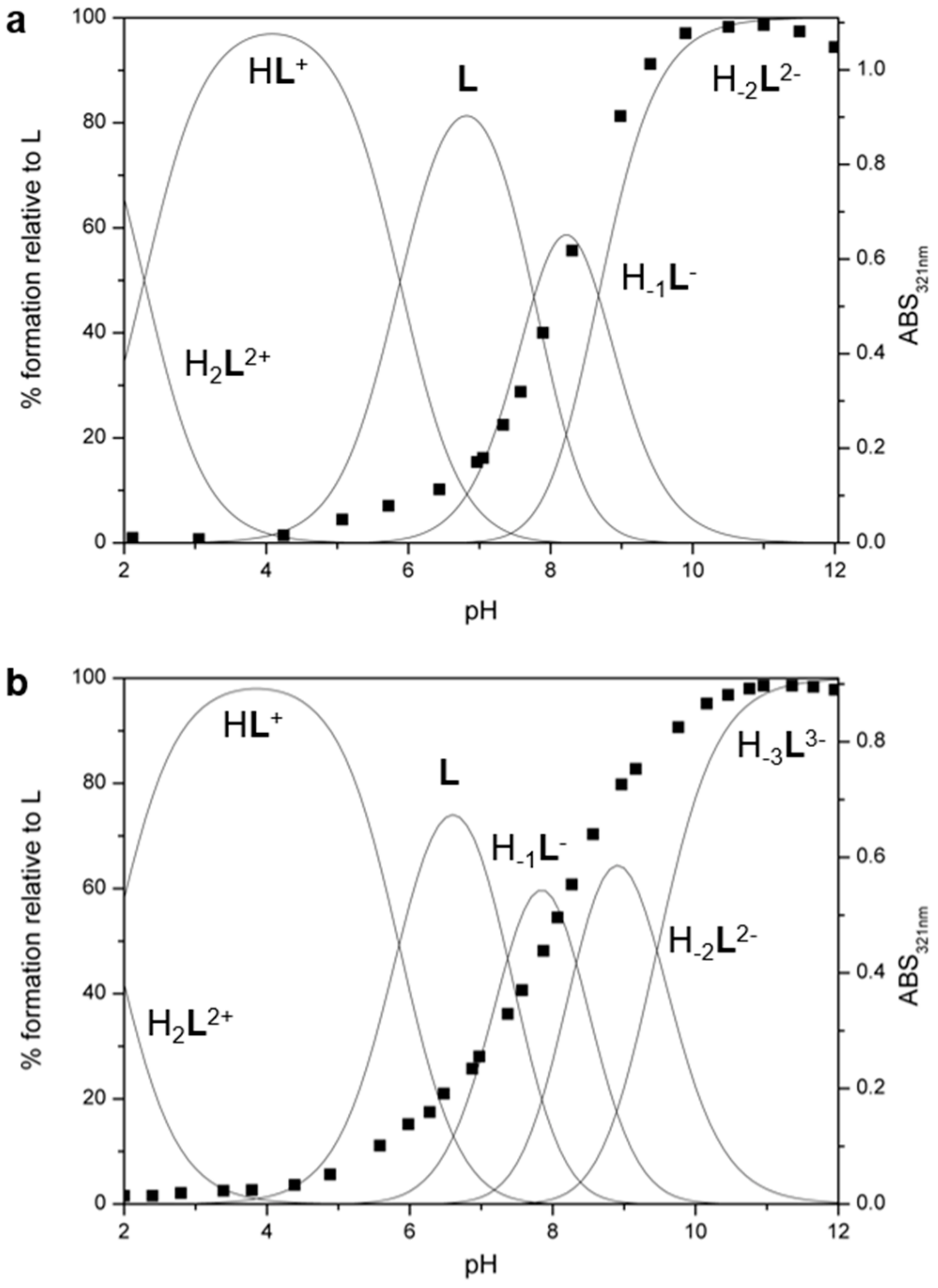

Figure 2 shows the distribution diagrams of the protonated species of L1 and L2 together with the trend of the absorbance at 321 nm in aqueous solutions as a function of pH (vide infra).

UV-VIS and ¹H–NMR Studies

UV-VIS absorption electronic measurements and ¹H–NMR analysis as a function of pH were performed on both ligands to investigate the distributions of protons in the species present in solution at different pH values.

UV-VIS analysis shows, for both ligands, a similar behavior. At pH 2, where the fully protonated H₂L²⁺ species is present in solution, they exhibit a band at λ_max= 275 nm (ε = 30500 and 25400 cm⁻¹ mol⁻¹ dm³ for L1 and L2, respectively). Upon increasing the pH, the band at 275 nm declines until disappearance, whereas a new band at λ_max = 321 nm (ε = 24900 and 20400 cm⁻¹ mol⁻¹ dm³ for L1 and L2, respectively) appears and reaches its maximum at pH = 10 and 11 for L1 and L2, respectively. The two bands can be ascribed to the neutral (275 nm) or deprotonated (321 nm) form of the maltol group.

The absorbance of the deprotonated maltolate species is visible in the spectra from pH > 4, where the neutral L species start to be present in solution, and keeps increasing up to pH = 10 for L1 and pH = 11 for L2, where the H₋₁L1⁻ and H₋₂L2²⁻ species are fully formed (Figure 2).

This behavior, in agreement with the potentiometric studies, suggests that the first and last protonation steps occur on amine functions, whereas the remaining steps occur on the maltolate groups.

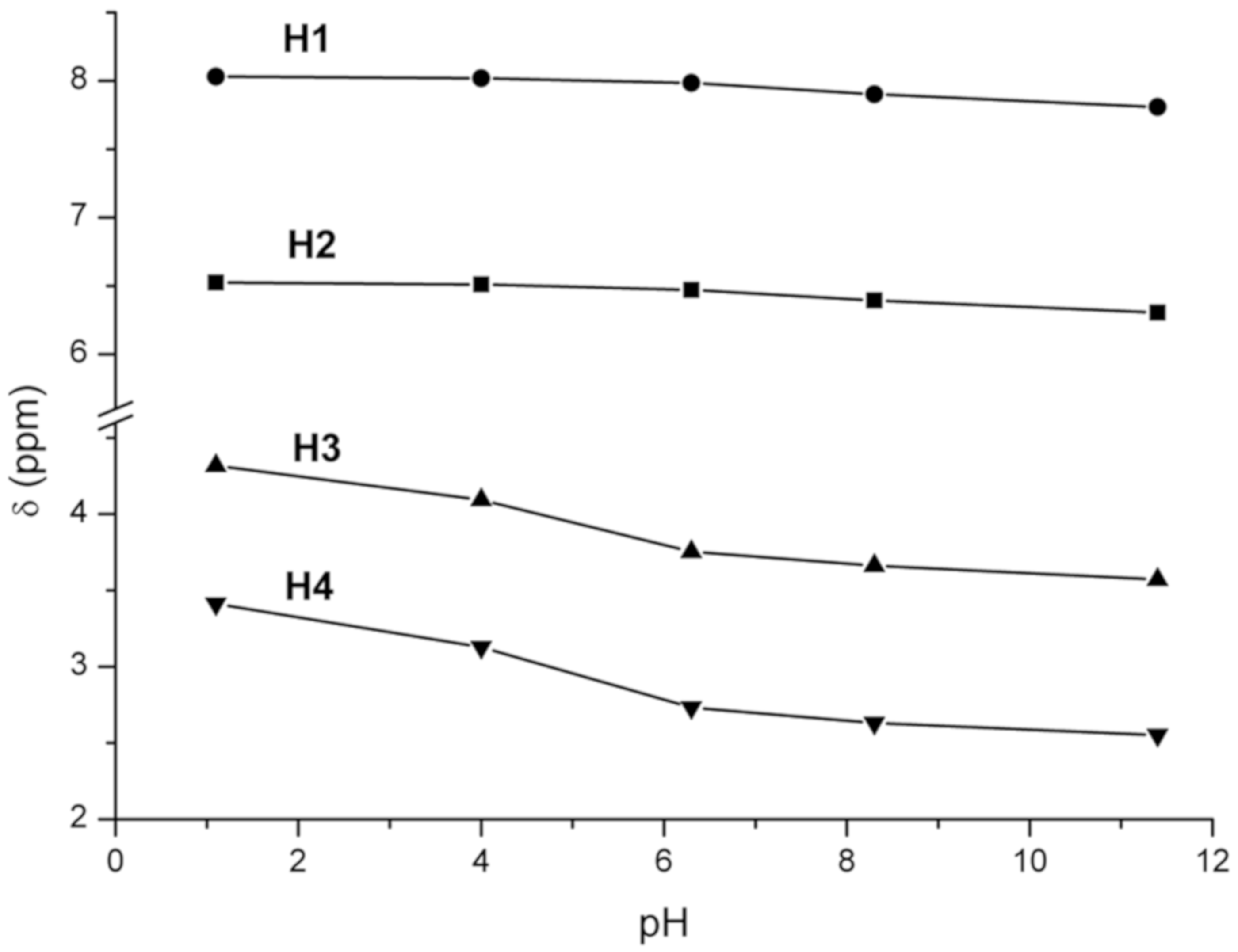

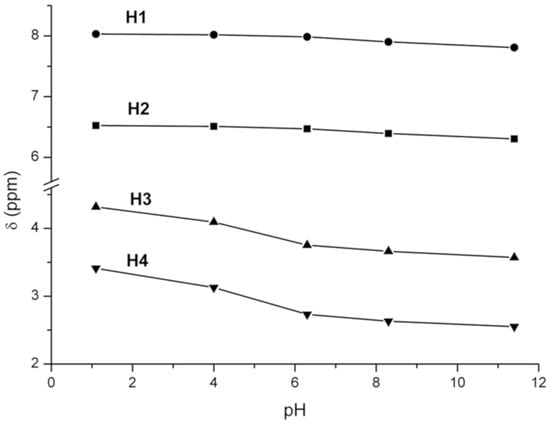

In Figure 3 the trend for the chemical shifts of the ¹H–NMR resonances of L1 as a function of pH is reported, while that for L2 is reported in Figure S1 (see Figure 1 for atom labelling used in NMR assignments).

Analyzing L1 (Figure 3), starting from alkaline pH and considering the pH range 11.5–8.5, where the H₋₂L1²⁻ and H₋₁L1⁻ species are present in solution, the aliphatic signals (H3, H4) show a little downfield shift coupled with a slight downfield shift of the aromatic protons (H1, H2); this trend suggests that the first protonation step mainly involves an amine function, giving rise to the formation of a hydrogen bond involving the closest maltolate group to stabilize the acidic proton.

In the pH range 8.5–6.5, where the L1 species forms, the resonances of the aromatic protons undergo the largest shift, meaning that the maltolate not involved in H-bonding is being protonated.

In the pH ranges 6.5–4 and 4–1, where the HL1⁺ and H₂L1²⁺ species, respectively, are prevalent in solution, mainly the aliphatic signals are involved, undergoing a marked downfield shift. In the former pH range, results suggest that also the second maltolate is being protonated, disrupting the H-bond and increasing the electron density on the nitrogen atom, thereby perturbing the resonances of the neighboring protons. Finally, in the latter pH range the last protonation step involves the remaining amine site.

¹H–NMR resonances of L2 exhibit similar behavior, leading to a comparable discussion (see Supporting Information and Figure S1).

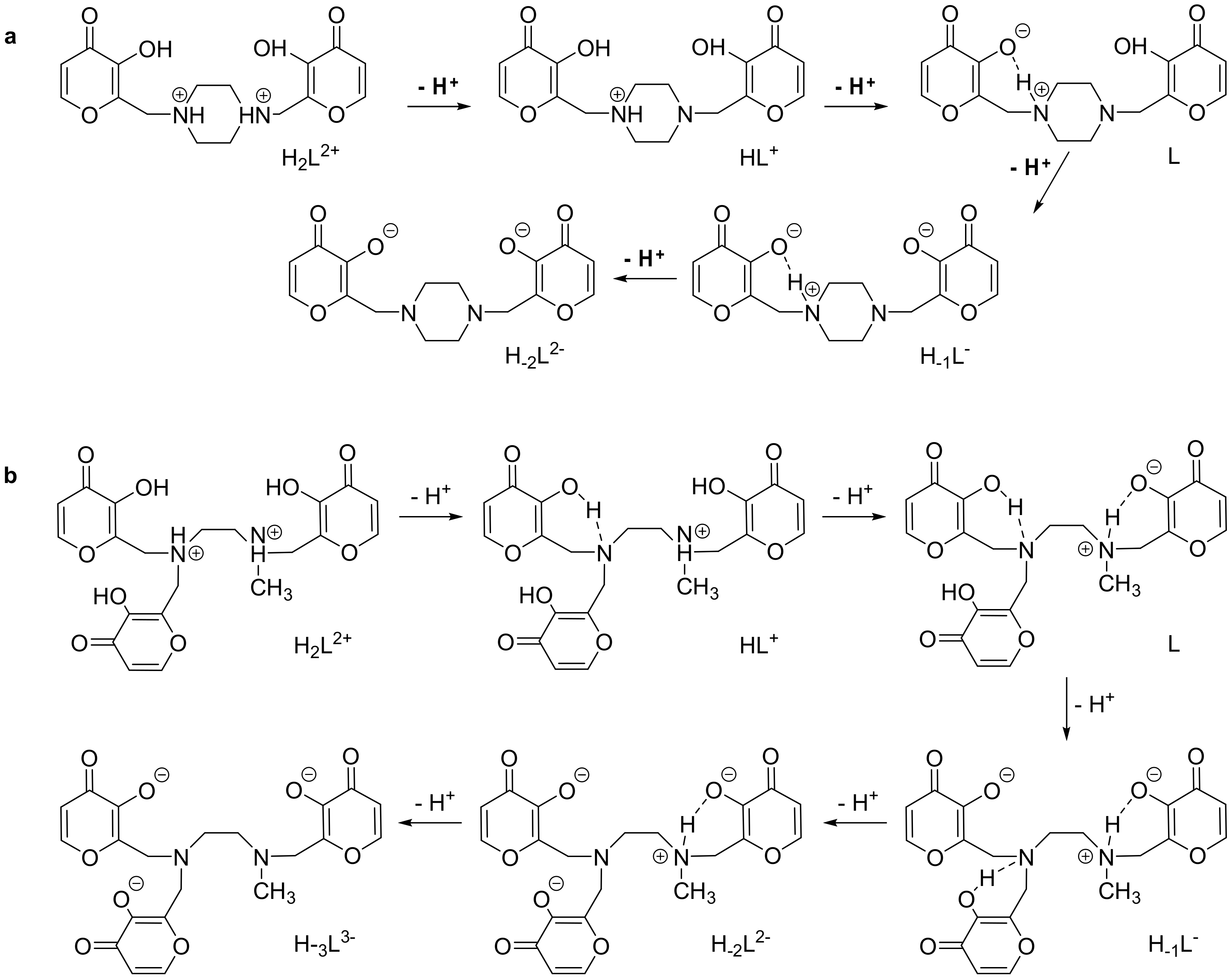

Merging the analysis of potentiometric, UV-VIS and ¹H–NMR data, it is possible to suggest protonation schemes for L1 and L2 highlighting the probable location of the acid protons in the several protonated species (Figure 4).

In both cases, two species are present at the physiological pH 7.4—the zwitterionic form L and the anionic form H₋₁L⁻, which can be considered as the species present in the biological medium at such a pH.

2.3. Stability

The stabilities of L1 and L2 in an aqueous solution at the physiological pH 7.4 were studied by means of UV-VIS and ¹H–NMR spectroscopies, to eventually understand the mode and timing of the degradation processes of the ligands.

To this purpose, buffered solutions of the two ligands were prepared at pH 7.4 (4-(2-hydroxyethyl)-1-piperazine-ethanesulphonic acid—HEPES, pKa = 7.55), to make sure that pH stays unchanged with temperature and time.

UV-VIS measurements performed over a period of five days (120 h) suggest a far higher decomposition for L2 than for L1 at pH 7.4 (more details in the Supporting Information, Figure S2).

Nevertheless, UV-VIS measurements gave only qualitative data regarding the stability of the two ligands. To find out more conclusive data about stability and determine the time required for 50% degradation of L1 and L2 at the physiological pH 7.4, ¹H–NMR experiments were performed (Figures S3 and S4). In this case, the phosphoric buffer was used instead of HEPES, to not have the superimposition of HEPES signals with those of the examined ligand.

The integration of peak areas allowed us to calculate the degradation times for L1 and L2. The latter is in line with that previously reported for malten, the time required for 50% degradation being 10 h for both ligands, whereas L1 shows a much longer timing of 48 h.

The overall data suggest for L2, higher and faster degradation than for L1 at pH 7.4.

2.4. Coordination of Metal Ions

The binding properties of L1 and L2 towards Cu(II), Zn(II) and Co(II) transition metal ions were investigated by potentiometric measurements in 0.15 mol dm⁻³ NaCl and NMe₄Cl for L1 and L2, respectively, in aqueous solution at 298.1 K.

The stability constants for the complexation reactions of L1 and L2 with such cations are reported in

Table 2. Equilibrium constants (log K) for the metal complex equilibria of L1 and malten potentiometrically determined respectively in 0.15 mol dm⁻³ NaCl and NMe₄Cl, aqueous solution at 298.1 K.

Reaction	log K
	Co(II)		Cu(II)		Zn(II)
	L = L1	L = Malten	L = L1	L = Malten [41]	L = L1	L = Malten
M2+ + H−2L2− = [M(H−2L)]	7.46(9)1	10.35(1)	13.22(9)	17.53(1)	9.22(8)	10.29(1)
[M(H−2L)] + H+ = [M(H−1L)]+	-	5.95(2)	5.1(1)	3.84(1)	-	6.27(2)
[M(H-1L)]+ + H+ = [ML]2+	-	-	-	2.89(2)	-	-
[M(H−2L)] + OH− = [M(H−2L)OH]−	-	2.92(4)	-	2.95(1)	-	2.95(4)

¹Values in parentheses are the standard deviations to the last significant figure.

and

Table 3. Equilibrium constants (log K) for the metal complex equilibria of L2 potentiometrically determined in 0.15 mol dm⁻³ NMe₄Cl aqueous solution at 298.1 K.

Reaction	log K
	Co(II)	Cu(II)	Zn(II)
M2+ + H−3L3− = [M(H−3L)]−	12.88(1)1	18.25(2)	10.74(1)
[M(H−3L)]− + H+ = [M(H−2L)]	5.71(1)	6.21(1)	8.58(2)
[M(H−2L)] + H+ = [M(H−1L)]+	5.57(2)	3.43(2)	5.57(2)
[M(H−1L)]+ + H+ = [ML]2+	-	3.41(2)	-
[M(H−3L)]− + OH− = [M(H−3L)OH]2−	-	3.79(3)	5.07(3)
[M(H−3L)OH]2− + OH− = [M(H−3L)(OH)2]3−	-	-	4.18(2)
M2+ + [M(H−3L)]− = [M2(H−3L)]+	5.24(4)	7.63(3)	8.62(3)
[M2(H−3L)]+ + OH− = [M2(H3L)OH]	3.57(3)	-	-
[M2(H−3L)OH] + OH− = [M2(H−3L)(OH)2]−	2.47(4)	-	-
[M(H−3L)]− + [M2(H−3L)]+ = [M3(H−3L)2]	-	5.02(5)	6.53(4)
[M3(H−3L)2] + OH− = [M3(H−3L)2OH]−	-	4.59(6)	-
[M3(H−3L)2OH]− + OH− = [M3(H−3L)2(OH)2]2−	-	3.39(4)	-
[M3(H−3L)2(OH)2]2− + OH− = [M3(H−3L)2(OH)3]3−	-	3.22(5)	-

¹ Values in parentheses are the standard deviations to the last significant figure.

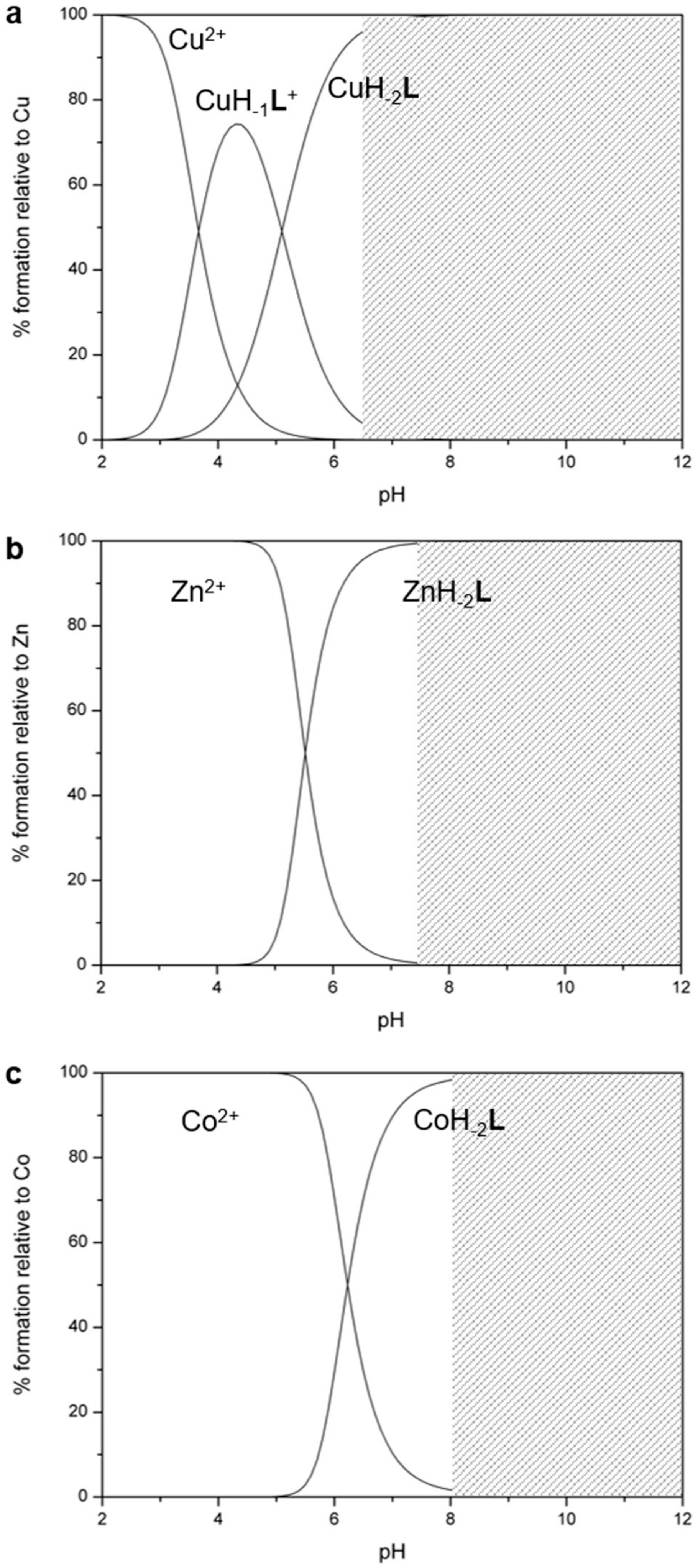

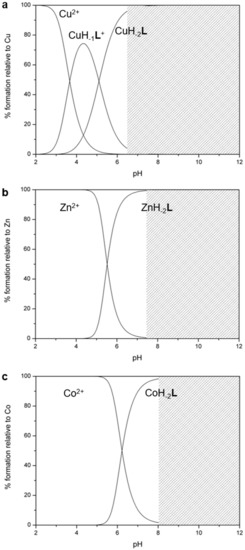

. The same measurements were performed for the system malten-M(II) (M(II) = Zn(II) and Co(II)) and are reported for comparison (Table 2). The malten-Cu(II) system was previously reported [41]. Figure 5 and Figure 6 report the distribution diagrams of the species for the L-M(II) systems (L = L1, L2; M(II) = Cu(II), Zn(II), Co(II)) as a function of pH (see Figure S5 for diagrams relative to malten-M(II) (M(II) = Zn(II), Co(II); for the malten-Cu(II) system, see reference [41]).

2.4.1. Mononuclear Complexes

L1, L2 and malten are able to form mononuclear complexes with all the metal ions investigated, whose stabilities are consistent with the Irving-Williams series, the constant values being higher for Cu(II) than for Co(II) and Zn(II) in all cases (Table 2 and Table 3).

Contrarily to L2, L1 and malten can only form mononuclear complexes; indeed, species with different stoichiometry were not detected in these experimental conditions (Figure 5 and Figure S5; for the malten-Cu(II) system, see reference [41]). In the case of L1, the species was prevalent in solution at pH > 6 with all metal ions as [M(H₋₂L)]. The corresponding malten species was present in solution at pH > 6, in the case of Zn(II) and Co(II), while [Cu(H_-2L)] prevails in a wider range of pH (4–11).

L1 forms mononuclear [M(H₋₂L)] species of lower stability than malten with all the metal ions investigated (log K = 13.22, 9.22, 7.46 vs. log K = 17.53 [41], 10.29, 10.35 for Cu(II), Zn(II) and Co(II), respectively). This can be attributed to the stiffening of the L1 molecular framework ascribable to the 1,4-piperazine compared to the 1,2-dimethylendiamine fragment in malten. The hexacyclic scaffold not only is more rigid but disfavors the involvement of both maltol functions in the metal ion coordination, which indeed requires the conformational change of the ring from chair to boat with subsequent loss of energy; this justifies the lower stability constants for L1 compared to malten. In any case, an analogous coordination environment around the M(II) ion of both ligands could be hypothesized. Based on the crystal structures of malten [41,42], two oxygen atoms of the deprotonated maltol functions of L1 along with two nitrogen atoms of the polyamine are probably involved in the coordination of the M(II) ion in a N₂O₂ environment.

Only the [Cu(H₋₂L1)] species is able to add one proton, whereas the mononuclear [M(H₋₂L)] species of malten are able to add up to two protons in the case of Cu(II), and one proton for the Zn(II) and Co(II) species. In all cases, the addition constant values agree with the involvement of sites already engaged in the coordination of the metal ion. In particular, the [Cu(H₋₂L)] species of malten ends to be the less prone to be protonated.

Finally, contrarily to the mononuclear complexes of L1, those of malten are all able to form the monohydroxylated [M(H₋₂L)OH]⁻ species with very similar constant values (Table 2).

Unfortunately, the scarce solubility of the neutral complex species of L1 with all the tested metal ions precluded the investigation beyond pH 6.3, 7.3 and 8.0 for Cu(II), Zn(II) and Co(II), respectively, under these experimental conditions.

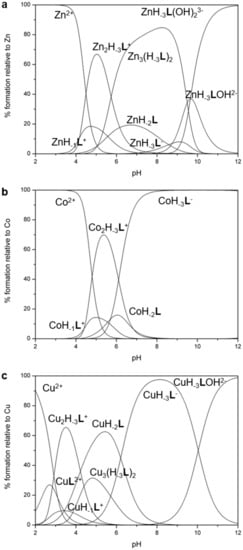

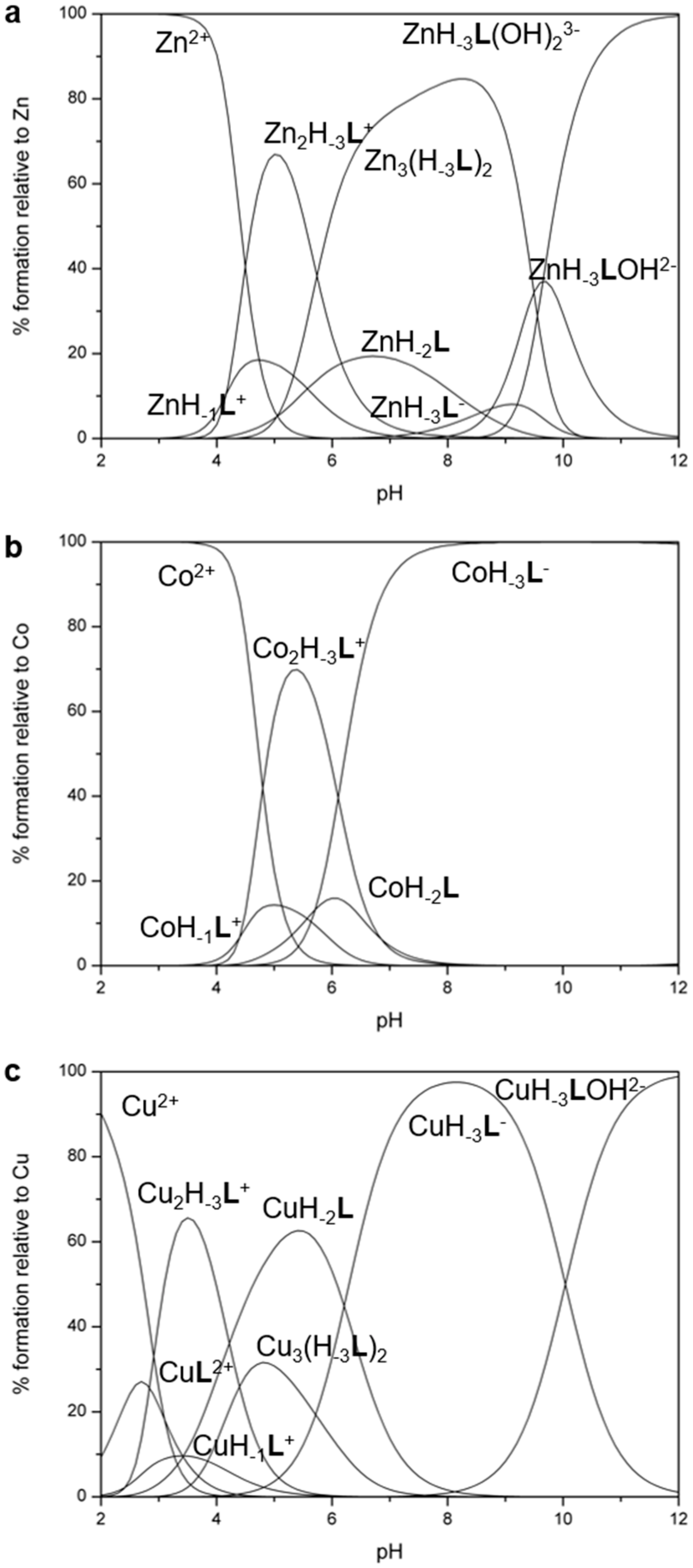

The mononuclear species of L2 prevail in solution for a metal to ligand ratio of 1:1, except in the case of Zn(II) (Figure 6).

The comparison between the formation constants of the corresponding mononuclear species of L2 and malten (log K = 18.25, 10.74, 12.88 vs. log K = 17.53 [41], 10.29, 10.35 for Cu(II), Zn(II) and Co(II), respectively) suggests for Cu(II) and Zn(II), an analogous coordination environment around the metal cations in the two ligands. In particular, based on the corresponding values for malten and on the crystal structure of the malten-Cu(II) complex [42], the involvement of two maltolate functions of L2 can be hypothesized in the coordination of Cu(II) and Zn(II), while all three maltolate functions seem to be involved in the coordination of Co(II), due to the higher constant value with respect to the malten cobalt complex. Thus, it can be reasonably hypothesized that the cation is coordinated by two nitrogen atoms of the polyamine and by two or three oxygen atoms of the deprotonated maltol functions in a N₂O₂ (for Cu(II) and Zn(II)) or N₂O₃ (for Co(II)) environment.

As in the case of malten, L2 does not offer an effective stabilization of the L-Zn(II) and L-Co(II) systems, as maltonis instead does (log K = 18.78 for Co(II)) [43], most likely due to the lower number of donor atoms in L2 and the different coordination geometries offered by the ligands.

The mononuclear complexes of L2 can add up to two protons in the case of Zn(II) and Co(II) complexes, or three protons in the case of the Cu(II) complex; the addition constant values confirm the previous statement and suggest that in the case of Co(II), both protonation steps involve sites already engaged in the coordination of the metal ion. In other words, all three maltolate functions seem to be involved in the coordination of Co(II).

As for Cu(II) and Zn(II) complexes, the values for the addition of the first proton suggest the involvement of a free site, the values being similar to that for free maltol [48], confirming the hypothesis that only two of the three maltolate functions are involved in the coordination. The following lower protonation values support the involvement of sites already engaged in the coordination of the metal ion.

Finally, the mononuclear complexes of L2 with Cu(II) and Zn(II) are able to form hydroxylated species. The [Zn(H_-3L)]⁻ species is able to form both a mono- and a dihydroxylated species with similar formation constants, whose values are higher than that for the monohydroxylated [Cu(H₋₃L)OH]²⁻ species (Table 3). The L-Co(II) system does not form any hydroxylated species, once again supporting that all maltolate functions are involved in the coordination of Co(II), satisfying the coordination sphere of Co(II) which is unable to accept external ligands.

2.4.2. Polynuclear Complexes

Among this series of ligands, L2 is the only one able to form binuclear complexes with all tested metal ions. Such species are prevalent in solution for a metal to ligand ratio of 2:1 (Figures S6a, S7a, S8).

The values for the addition of the second metal cation are quite high, suggesting the formation of stable binuclear complexes with all M(II) cations. The values are, however, different depending on the metal ion; thus, a different coordination environment could be hypothesized for the three cations. In all cases, the [M₂(H₋₃L)]⁺ species is prevalent in solution in a wide range of pH.

Contrarily to the mononuclear species, the binuclear complexes with Cu(II) and Zn(II) do not form hydroxylated species, whereas the [Co₂(H₋₃L)]⁺ cation can add up to two hydroxide ions. The corresponding addition constants are similar and quite low (log K = 3.57, 2.47), suggesting that the hydroxide anions are not coordinated in a bridge disposition between the two metal centers.

L2 is also able to form complexes with a 3:2 stoichiometry involving two units of the fully deprotonated H₋₃L³⁻ species and three Cu(II) or Zn(II) ions. The neutral species with [M₃(H₋₃L)₂] (M = Cu(II), Zn(II)) stoichiometry are predominant in solution (Figures S6b, S7b).

The formation constants are quite high in both cases, with the copper complex being more stable than the zinc complex. Finally, the [Cu₃(H₋₃L)₂] species forms three hydroxylated species, with addition constants very similar to each other (Table 3).

2.4.3. Interaction with Alkaline-Earth (AE) and Rare Earth (RE) Ions

As previously reported, the parent compound malten is able to form a preorganized 1:1 complex with Cu(II), where the maltolate functions are forced to converge generating an electron-rich pocket that can accommodate a hard cation [41,42]. Following such binding properties, the interaction of L-M(II) (L = L1 and L2, M(II) = Cu(II), Zn(II) and Co(II)) systems with cations of the alkaline-earth (AE) and rare earth (RE) series was investigated by UV-Vis absorption measurements in aqueous HEPES buffer solution at pH 7.4 (pH 8 in the case of L1-Co(II)). In a typical experiment, 0.5 eq. of AE or RE at a time was added to a buffer solution of L-M(II) system in a 1:1 molar ratio.

Under these experimental conditions, the [M(H_-2L1)] (M(II) = Cu(II), Zn(II), Co(II)) species is the only one existing in solution; thus, the addition of AE and RE can be interpreted as an addition to such a species. This is also applicable to [M(H₋₃L2)]⁻ when M(II) = Cu(II) and Co(II), while in the case of the L2-Zn(II) system both [Zn(H₋₃L2)]^- and [Zn₃(H₋₃L2)₂] species are present in an approximately 1:4 molar ratio. Nevertheless, L2-Zn(II) was tested along with all other systems, revealing that all L-Zn(II) complexes, like the L-Co(II) ones (L = L1 and L2), are not significantly perturbed by the addition of AE cations.

On the contrary, interaction occurs between L-Cu(II) systems (L = L1 and L2) and Ca(II), Sr(II) and Ba(II), similarly to what was observed for the malten-Cu(II) system [42]. Conversely, Mg(II) does not perturb any of the systems. The interaction with AE ions is more modest for L2 than for L1. In particular, the addition of Ca(II), Sr(II) and Ba(II) to the [Cu(H₋₂L1)] complex causes both blueshifts of 6, 5 and 3 nm, respectively, and a decrease of the absorbance of the band at 313 nm, relative to the [Cu(H₋₂L1)] complex (Figure S9a). The addition of Ca(II) and Sr(II) to [Cu(H₋₃L2)]⁻ causes instead a small 2 nm blueshift and an increase of the absorbance of the band at 303 nm, relative to the [Cu(H₋₃L2)]^- complex (Figure S9b).

In any case, the selectivity towards Ca(II) vs. Mg(II) of these systems can be underlined, as previously reported for the malten-Cu(II) metallo-receptor [42].

All the L-M(II) (L = L1 and L2, M(II) = Cu(II), Zn(II), Co(II)) systems are instead affected by the presence of RE ions in solution, L1 systems being much more perturbed than L2 systems.

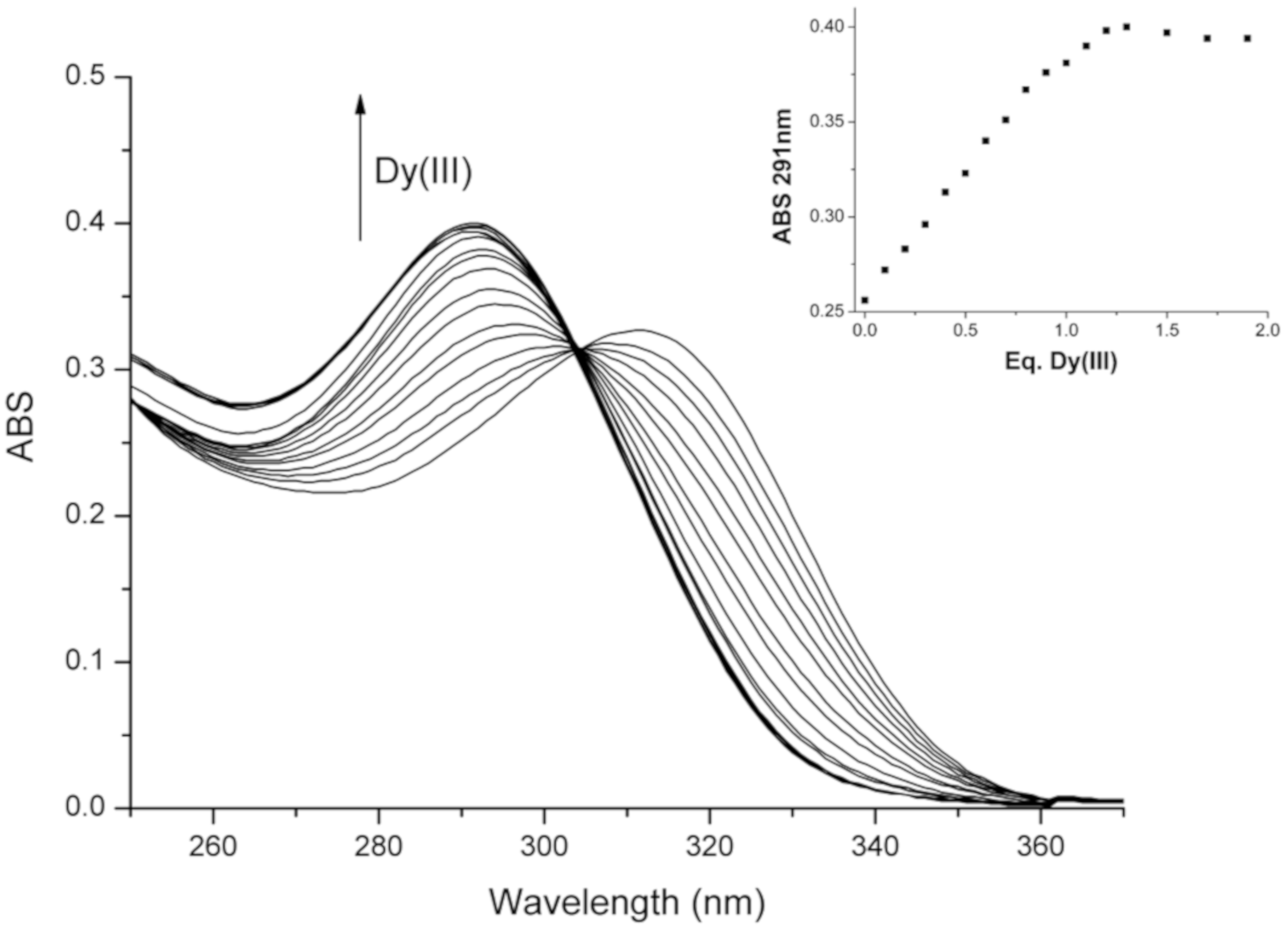

The addition of Eu(III), Dy(III) and Gd(III) to L1-M(II) when M(II) = Zn(II) and Co(II), induces a small blueshift or only a slight increase of the absorbance of the band at 313 nm. On the contrary, the addition of RE ions to L1-Cu(II) deeply changes the spectrum of the complex, suggesting the strong involvement of the maltolate groups in the RE ion stabilization. The interaction of [Cu(H_-2L1)] with RE was thus investigated more in depth by adding 0.1 eq. of cation at a time. The titration of the copper complex with Dy(III), for example, seems to cause the formation of complexes with different stoichiometries (L1-Cu(II):Dy(III) 2:1 and 1:1). The band at 313 nm shifts indeed to 296 nm, and slightly decreases until to the addition of 0.5 eq. of Dy(III); then, the band moves to 291 nm, and the absorbance increases up to the addition of 1 eq. of Dy(III) (Figure 7). The addition of Gd(III) ion to the copper complex of malten produced similar results.

Unfortunately, it was not possible to study the L1-Cu(II):RE systems in the visible range to examine the d-d electronic transition band of the copper complex, due to the scarce solubility of the copper complex in the needed concentration.

Moreover, the high stability of the species formed did not allow the safe spectrophotometric determination of the relative stability constants, as occurred similarly for the malten-Cu(II) system. The addition of Eu(III), Dy(III) and Gd(III) to L2-M(II) (M(II) = Cu(II), Zn(II) and Co(II)) causes a modest blueshift of the band of the L2-M(II) complex and either a small decrease of the absorbance, as was the case of Cu(II) (Figure S10) and Co(II), or an increase of the absorbance, as in the case of Zn(II). Therefore, only a slight interaction between L2-M(II) and RE ions can be hypothesized.

2.5. Biological Data

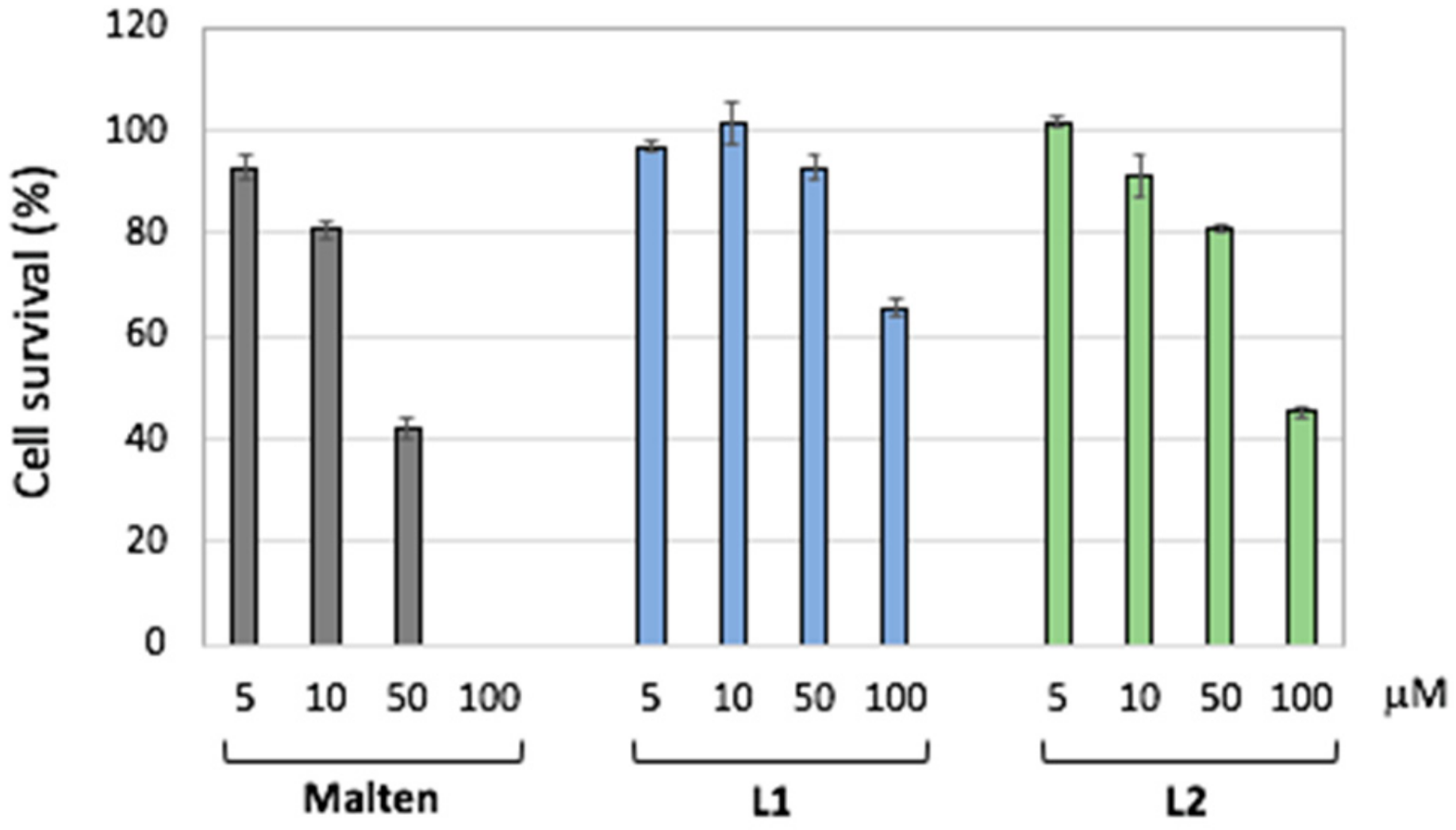

The biological activities of L1 and L2 were then investigated by using the promonocytic leukemia (U937) cell line, the same cellular model previously used to test the biological properties of malten [38]. Treatments with ligands L1 and L2—with malten as the reference ligand—at different doses (from 5 µM to 100 µM), were performed in order to evaluate potential biological activity (Figure 8).

Malten was able to reduce the cell survival, as expected, inducing a complete decreased cell survival at the highest dose tested (100 µM), while both L1 and L2 showed a lower biological effect at all doses (when compared to malten).

Despite the lower activity monitored, L2 demonstrated a higher propensity than L1 to decrease the cell survival of the leukemic cells (Figure 8). The higher effect shown by L2 with respect to L1 is also supported by the induction of cell death (26% ± 3.7% Trypan blue positive cells) at 100 µM, while for L1 no cytotoxicity was monitored. Malten, instead, induced a cytotoxic effect starting at the dose of 50 µM (23% ± 4.6%) reaching the maximum toxicity at 100 µM (82.7% ± 3.3%).

Trying to explain the different biological properties of L1 and L2 compared to malten, we molecularly investigated the ability to modify the DNA structure by comparing L1 and L2 with the known activity of malten to induce complex structural alterations of a plasmid DNA [38].

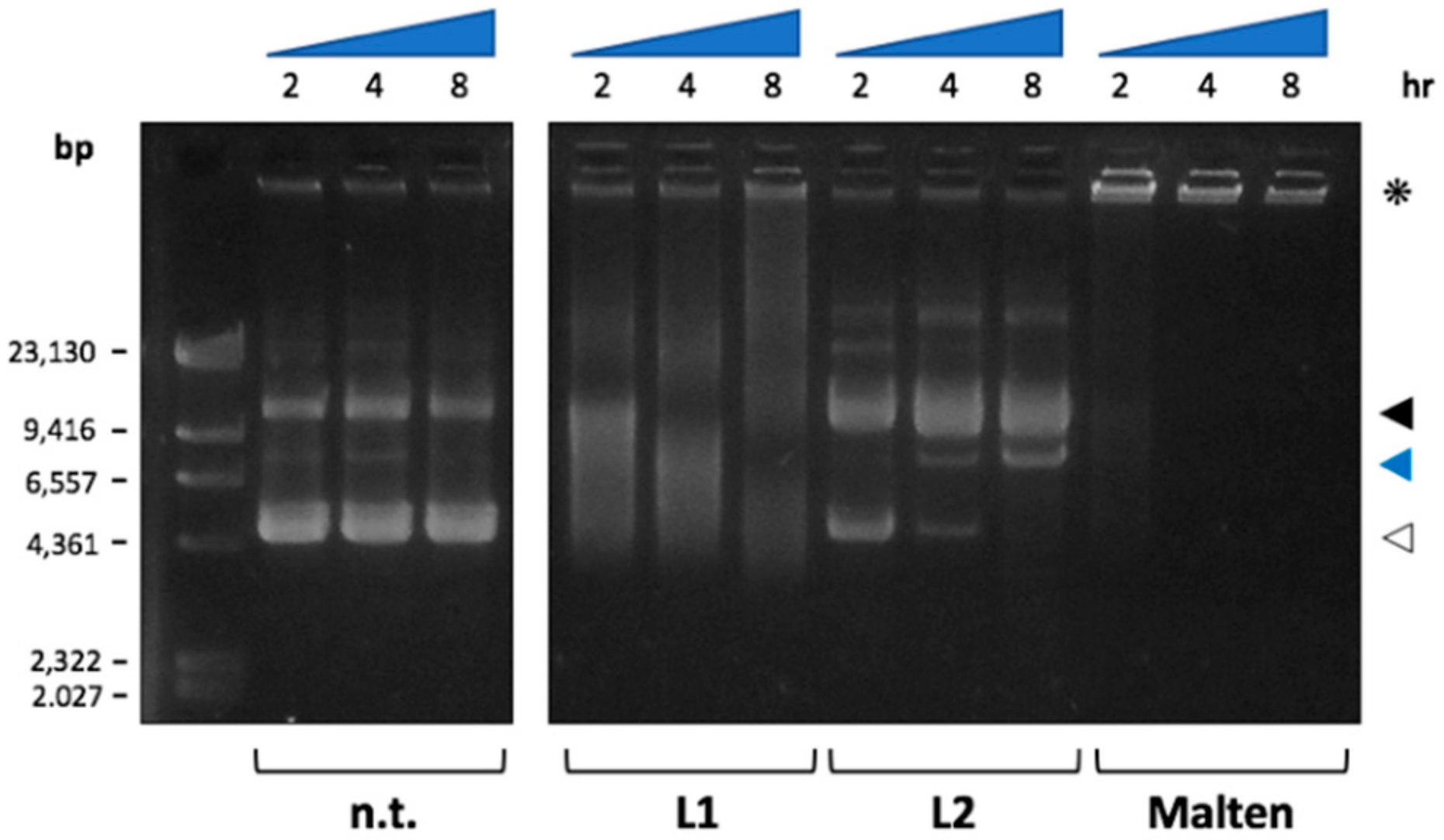

Thus, a plasmid DNA (pLL3.7) was first incubated with malten, L1 and L2 at different times (2, 4 and 8 h) and then subjected to electrophoretic separation. As reported in Figure 9, L1 maintains, at least in part, a behavior similar to malten. L1 is indeed able to induce complex structural alterations of DNA, while being, however, less efficient than the parent compound, as is observable by the amount of non-migrating DNA accumulated in the wells (Figure 9, asterisk). In addition, L1 is able to induce a smear of DNA that is ascribable to a concomitant DNA degradation.

Interestingly, L2 has a completely different activity with respect to L1; in fact, as shown in Figure 9, L2 is able to induce a nick of plasmid DNA (single strand break), as demonstrated by the decreased amount of supercoiled form (white arrow) and the concomitant accumulation of the open circular form of the plasmid (black arrow). Furthermore, at late time points (4 and 8 h), the appearance of a linearized form of the plasmid (blue arrow) suggests that L2 can also induce DNA double strand breaks, without any activity of induction of complex DNA structures similar to those induced by malten, and partially, by L1.

3. Experimental

3.1. UV-Vis and NMR Experiments

UV-Vis absorption spectra were recorded at 298 K on a Varian Cary-100 spectrophotometer (Varian Medical Systems, Crawley, UK) equipped with a temperature control unit.

UV-Vis measurements to evaluate the stability of both L1 and L2 were performed in buffer solutions at pH 4, 7.4 and 10, by using, respectively, acetate (pKa = 4.76), HEPES (4-(2-hydroxyethyl)-1-piperazine-ethanesulphonic acid, pKa = 7.55) and CAPS (N-cyclohexyl-3-aminopropanesulphonic acid, pKa = 10.4) buffers. Three solutions for each ligand with different pH values were directly prepared in cuvettes ([buffer] = 0.05 mol dm⁻³, [L] = 4.4 × 10⁻⁵ mol dm⁻³), the cuvette then being sealed and stored in the dark at a controlled temperature. The absorbances of the solutions were measured at different interval times over a period of 120 h.

UV-Vis titrations of L1 and L2 with M(II) (M(II) = Cu(II), Zn(II), Co(II)) and of L-M(II) systems with alkaline earth (AE) and rare earth (RE) ions were performed in aqueous buffer solution (HEPES pH 7.4 in all cases except for the L1-Co(II) system, which was studied in HEPES at pH 8) by adding to L solutions with increasing amounts of M(II) ions up to 3.0 eq. and by addition to L-M(II) (1:1 molar ratio) solutions 0.5 eq. at a time of AE (Mg(II), Ca(II), Sr(II), Ba(II)) and RE (Eu(III), Dy(III), Gd(III)) ions up to 2.0 eq. In the case of L1-Cu(II), titrations with RE ions by adding 0.1 eq. at a time up to 2 eq. were performed.

¹H and ¹³C-NMR spectra were acquired on a Bruker AVANCE 400 spectrometer (Billerica, MA, USA), operating at 400.13 and 100.61 MHz for ¹H and ¹³C, respectively. For the spectra recorded in D₂O, the peak positions are reported with respect to HOD (water-d1, δ = 4.75 ppm) for ¹H–NMR spectra, while dioxane was used as reference standard in ¹³C NMR spectra (δ = 67.4 ppm). When necessary, pH was calculated as pH = pD − 0.40 [49]. ¹H-¹H and ¹H-¹³C correlation experiments were performed to assign the signals. Chemical shifts (δ scale) are reported in parts per million (ppm values) relative to the characteristic peak of the solvent; coupling constants (J values) are given in hertz (Hz).

¹H–NMR measurements to evaluate the stability of both L1 and L2 were performed at pH 4, 7.4 and 10. The analysis at pH 7.4 was carried out in H₂PO₄⁻/ HPO₄²⁻ buffer.

3.2. EMF Measurements

Equilibrium constants for protonation and complexation reactions of the two ligands were determined by pH-metric measurements in degassed 0.15 mol dm^-3 NaCl (for L1) or NMe₄Cl (for L2) at 298 ± 0.1 K, using the fully automatic equipment that has already been described for L1 [50,51,52,53] and L2 [54], respectively.

EMF data were acquired with the PASAT computer program. The combined glass electrode was calibrated as a hydrogen concentration probe by titrating known amounts of HCl with CO₂-free NaOH (for L1) or NMe₄OH (for L2) solutions and determining the equivalent point by Gran’s method [55], which gives the standard potential E and the ionic product of water (pK_w = 13.73 ± 0.01 at 298.1 K in 0.1 mol dm⁻³ NaCl, for L1; pK_w = 13.83(1) at 298.1 K in 0.15 mol dm⁻³ NMe₄Cl, for L2. K_w = [H⁺][OH⁻]).

At least three measurements (consisting of 100 data points for each) were performed for each system in the pH range 2–12, and all titrations were treated either as single sets or as separate entities, for each system; no significant variations were found in the values of the determined constants. In all experiments, ligand concentration ([L]) was 1 × 10⁻³ mol dm⁻³, while in complexation experiments a metal ion concentration of 0.8[L] was employed. The HYPERQUAD computer program [56] was used to process the potentiometric data. Distribution diagrams were obtained by using the Hyss program [57].

3.3. Synthesis

Compounds L1 and L2 were obtained following synthetic procedures analogous to those already described for malten and maltonis [39], and they are reported in Scheme 1. All chemicals were purchased in the highest quality commercially available; solvents were RP grade.

N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-1,4-piperazine Dihydroperchlorate (L1·2HClO₄): α,α′-Azoisobutyronitrile (AIBN, 0.33 g, 0.002 mol) was added under an inert atmosphere to a refluxing and stirred solution of 2 [39] (2.3 g, 0.01 mol) and N-bromosuccinimide (NBS, 2.0 g, 0.011 mol) in CCl₄ (50 mL). The resulting mixture was stirred and refluxed for 1 h (R_f = 0.85, hexane/ethyl acetate 1:1); the mixture was subsequently cooled at room temperature, and then filtered. The resulting yellow solution containing compound 3 was used without further purification, and added dropwise, in an inert atmosphere, to a stirred mixture of 1,4-piperazine (4, 0.43 g, 0.005 mol) and triethylamine (TEA, 1.41 mL, 0.011 mol) in THF (70 mL) at 0 °C. The reaction mixture was stirred at 0 °C for 48 h, and then filtered, resulting in a red-orange solution which was co-evaporated under vacuum several times with ethanol (3 × 100 mL). The resulting red oil residue was dissolved in ethanol (50 mL), and a 10% perchloric acid ethanolic solution was added dropwise under stirring until complete precipitation was achieved. The yellowish solid was filtered and recrystallized from a saturated sodium perchlorate aqueous solution to obtain L1·2HClO₄ as a white solid (1.03 g, 36%): ¹H–NMR (400 MHz, D₂O pH = 12, 25 °C): δ = 7.80 (H1, d, J = 5.2 Hz, 2H), 6.30 (H2, d, J = 5.2 Hz, 2H), 3.57 (H3, s, 4H), 2.55 (H4, bs, 8H); ¹³C NMR (100 MHz, D₂O pH = 12, 25 °C): δ = 181.5, 153.7, 153.4, 149.8, 112.4, 53.4, 51.5. MS (m/z) 335.3 (M + H). Elemental analysis calcd (%) for C₁₆H₂₄Cl₂N₂O₁₆: C, 33.64; H, 4.23; N, 4.90; found: C, 34.6; H, 5.5; N, 4.9.

N,N′,N′-tris((3-hydroxy-4-pyron-2-yl)methyl)-N-methylethylendiamine Hydroperchlorate (L2·HClO₄): α,α’-Azoisobutyronitrile (AIBN, 0.33 g, 0.002 mol) was added under an inert atmosphere to a refluxing and stirred solution of 2 [39] (4.5 g, 0.019 mol) and N-bromosuccinimide (NBS, 3.85 g, 0.021 mol) in CCl₄ (90 mL). The resulting mixture was stirred and refluxed for 1 h (R_f = 0.85, hexane/ethyl acetate 1:1); the mixture was subsequently cooled at room temperature, and then filtered. The resulting yellow solution containing compound 3 was used without further purification, and added dropwise, in an inert atmosphere, to a stirred mixture of N-methylethylendiamine (5, 0.34 g, 0.0046 mol) and triethylamine (TEA, 2.7 mL, 0.02 mol) in THF (90 mL) at 0 °C. The reaction mixture was stirred at 0 °C for 48 h, and then filtered, resulting in a red-orange solution which was coevaporated under vacuum several times with ethanol (3 × 100 mL). The resulting red oil residue was dissolved in ethanol (50 mL), and a 10% perchloric acid ethanolic solution was added dropwise under stirring until complete precipitation was achieved. The yellowish solid was filtered and washed with warm CH₃CN to obtain L2·HClO₄ as a white solid (1.18 g, 45%): ¹H–NMR (400 MHz, D₂O pH = 12, 25 °C): δ = 7.72 (H9, d, J = 5.2 Hz, 2H), 7.69 (H1, d, J = 5.2 Hz, 1H), 6.22 (H8, d, J = 5.2 Hz, 2H), 6.24 (H2, d, J = 5.2 Hz, 1H), 3.68 (H7, s, 4H), 3.47 (H3, s, 2H), 2.60 (H6, m, 2H), 2.37 (H5, m, 2H), 2.06 (H4, s, 3H); ¹³C NMR (100 MHz, D₂O pH = 12, 25 °C): δ = 181.5, 181.4, 153.6, 153.5, 153.3, 153.1, 150.8, 150.5, 112.6, 112.5, 54.1, 53.0, 51.5, 51.2, 41.7. MS (m/z) 447.4 (M + H). Elemental analysis calcd (%) for C₂₁H₂₅ClN₂O₁₄: C, 44.65; H, 4.46; N, 4.96; found: C, 44.4; H, 4.4; N, 5.2.

3.4. Biological Studies

The immortalized promonocytic leukemia (U937) cell line was obtained from American Type Culture Collection (ATCC). Cells were grown in RPMI 1640 (Lonza) supplemented with 10% fetal bovine serum (FBS), 1% penicillin-streptomycin and 1% glutamine in a humidified atmosphere at 37 °C, as previously described [35]. L1 and L2 were dissolved at 10 mM in distilled water as stock solutions, stored at −80 °C and subsequently diluted 1:10 as working solutions immediately before use. Treatments were carried out at the concentrations reported in the figures and cellular viability was evaluated after 48 h of treatment, by Trypan blue dye exclusion assay (using TC10 automatic cell counter—Bio-Rad) as previously described [58]. The data are reported as means (±SD) resulting from three independent experiments. The cytotoxic effect, on the other hand, was assessed considering the Trypan blue positive cells.

The DNA electrophoretic mobility assay was conducted incubating 1 μg of circular pLL3.7 plasmid DNA with the tested compound (at the final concentration of 4 mM each) in 20 μL of 10 mM Tris-HCl (pH 7.4) buffer. After incubation at the reported timing, DNA was separated by 0.8% AGE and then stained by GelRed^® (Biotium, Fremont, CA, USA) following the manufacturing instructions.

4. Conclusions

Two new maltol-based ligands, namely, N,N′-bis((3-hydroxy-4-pyron-2-yl)methyl)-1,4-piperazine (L1) and N,N′,N′-tris((3-hydroxy-4-pyron-2-yl)methyl)-N-methylethylendiamine (L2), were synthesized and characterized. Subsequent to the study of a similar compound (malten) showing intriguing biological activity and coordinating properties, ligands L1 and L2 were strategically designed to explore the effects of specific structural modifications on both biological and binding features.

The acid-base properties of both ligands have been studied; at physiological pH 7.4 two species are present in solution for both ligands, the zwitterionic L and the anionic H_-1L^- forms. At this pH value, L1 shows higher stability to degradation (50% degradation time = 48 h) than L2 (50% degradation time = 10 h).

Both ligands form stable complexes with first row transition metal ions M(II) (M(II) = Cu(II), Zn(II), Co(II)). While L1 forms only stable mononuclear L1-M(II) species, among which the neutral [M(H₋₂L1)] is the prevalent one in a wide range of pH, including the neutral one, L2 is also able to form metal complexes with more complex stoichiometries; namely, the binuclear and 3:2 (ligand to metal) species.

Analogously to malten, a N₂O₂ coordination environment around each M(II) ion can be suggested for L1, with two nitrogen atoms from the ethylendiamine and two oxygen atoms from two different maltol functions. The stabilities of L1 complexes are lower than those of malten; this can be attributed to the insertion of the 1,4-piperazine, which makes more unfavorable the involvement of all N₂O₂ donor atoms in the stabilization of the M(II) ion with respect to the 1,2-dimethylendiamine of malten.

In L2 mononuclear species, in addition to the diamine, the involvement of all the three maltol functions can be suggested in the coordination of Co(II), whereas only two maltol groups seem to be involved in the case of Cu(II) and Zn(II).

In the light of the previous studies on malten, the ability of the mononuclear species to behave as metallo-receptors towards AE and RE cations was investigated. In general, L1-M(II) systems are more affected than L2-M(II) systems by hard cations, suggesting that the insertion of the additional maltol moiety hampers the binding ability of the ligand. Moreover, RE ions perturb the UV-VIS absorption of the metal-coordinated ligands much more than AE ions do, due to the greater covalent character of the interaction with RE than AE.

In particular, only L-Cu(II) systems are perturbed by all AE cations, but for Mg(II) the interaction is small. All L-M(II) systems are instead perturbed by RE ions, L1-Cu(II) being the most deeply affected system. These data confirm the behavior already shown by malten, suggesting that notwithstanding the structural modifications introduced, L1 and L2 systems substantially maintain the peculiar binding properties towards hard cations.

The biological data support the hypothesis that L1 and L2 execute their biological activity via at least two distinct mechanisms. L1, notwithstanding its more rigid conformation, acts by a similar mechanism to malten, inducing complex structural alterations of DNA, not being, however, as effective as malten (even at the biological level). L2, which possesses an additional maltol group compared to malten, shows different behavior. It is indeed able to induce mainly single strand breaks (nicks) of DNA, and at longer time of exposure and to a lesser extent, double strand breaks also. For both L1 and L2 it can be excluded, based on previous studies, the hypothesis of an activity against DNA attributable to portions of the molecules tested [38]. Therefore, it came to light that the structural modifications brought on malten alter the mechanism of action and negatively impact the biological activity.
