Electrochemical Properties and Structure of Multi-Ferrocenyl Phosphorus Thioesters

1
Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences, 8 Arbuzov St., 420088 Kazan, Russia
2
A.M. Butlerov Chemistry Institute of the Kazan Federal University, Kremlevskaya str. 18, 420008 Kazan, Russia
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(4), 939; https://doi.org/10.3390/molecules25040939
Submission received: 22 January 2020 / Revised: 14 February 2020 / Accepted: 17 February 2020 / Published: 19 February 2020
(This article belongs to the Special Issue Ferrocenes: Synthesis, Characterisation and Application)

Abstract

:
The reaction of triferrocenylthiophosphite with elemental sulfur leads to triferrocenyltetrathiophosphate. The molecule of tetrathiophosphate adopts propeller-like all synclinal-conformation of the ferrocenyl fragments respective to the P=S bond. All ferrocenyl groups have nearly ideal eclipsed conformation of the cyclopentadienyl fragments. The Fc3S3P (1), Fc3S3P=O, (2) and Fc3S3P=S (3) demonstrate three reversible and well-separated ferrocenyl-based redox events. The electronic structures of 13 have been studied quantum-chemically; the energies and composition of frontier orbitals have been calculated.

1. Introduction

Currently, a number of new practical applications of multi-ferrocenyl compounds are being actively developed. [1,2,3,4,5,6,7,8,9,10,11] The multi-ferrocenes are widely used as model systems for understanding intramolecular charge transfer processes. Consequently, more and more multi-ferrocenes are synthesized to study their charge transfer processes and to match intramolecular charge transfer interactions numbers. [3,4,5,6,7,8,9,10,11,12,13] Typically, the multi-ferrocenyl compounds contain the π-conjugated spacers binding two or more ferrocene moieties (see for example [12,13]). The approach based on the construction of multi-ferrocenyl compounds using spacers capable of transmitting exchange interactions was successfully implemented to obtain new practically significant materials. At the same time, the disadvantage of this approach is the complexity of creating multi-ferrocene molecules, since the syntheses proceeds in several stages and, as a rule, with low yields.
An alternative way to multi-ferrocenyl compound is using phosphorus acids derivatives, containing ferrocene fragments. These ferrocene derivatives can be easily accessed via low cost syntheses with good yields [14,15]. It was demonstrated that ferrocene containing phosphate molecules can be successfully used for the construction of multi-step multi-electron redox systems [16,17,18,19]. For example, M. Korb [18,19] and co-workers showed that triferrocenyl phosphate and other P, O-substituted multi-ferrocenyl compounds exhibit one reversible one-electron redox peak for each ferrocene fragment.
However, the electrochemical properties of sulfur-containing analogues have not yet been investigated, albeit such studies are of special importance in relevance to electronic structure and dual reactivity of phosphorus-sulfur ambident system. The reason is that the incomplete thioesters of acids of trivalent phosphorus, in this case, have an additional binding center with a metal ion, which provides a rigid, unstable fixation.
In this respect, cyclic voltammetry (CV) is a very useful technique to evaluate the multi-step multi-electron transfer processes of molecules with multiple redox-active sites. Moreover, the CV measurements of multi-ferrocene derivatives provide important information on the degree of electronic communication between the ferrocene and ferrocenium cation.
Herewith, we report the synthesis and structural properties of new triferrocenyltetratiophosphate in comparison with trivalent phosphorus derivative and triferrocenyltrithiophosphate: Fc3S3P (1), Fc3S3P=O (2), and Fc3S3P=S (3).

2. Results and Discussion

The initial triferrocenyltrithiophosphite 1 and its trithiophosphate derivative 2 were synthesized using the procedures elaborated in our group. [20] Tetrathiophosphate 3 was previously unknown in the literature, as far as we know. In the present study it was obtained via the reaction of triferrocenyltrithiophosphite with elemental sulfur S8 in benzene to with good yield. (Scheme 1). The crystallization of the product by slow evaporation from a mixture of a benzene-hexane mixture gave single crystals suitable for X-ray diffraction.
The X-ray single crystal diffraction study showed, that the molecule of triferrocenyltetrathiophosphate adopts a propeller-like conformation with synclinal orientation of the ferrocenyl fragments respective to the P=S bond (Figure 1). CCDC 1957135, for compound 3 contain the Supplementary crystallographic data of this paper. All ferrocenyl groups have nearly ideal eclipsed conformation of the cyclopentadienyl fragments, as in triclinic [21] and orthorhombic [22] polymorphic forms of ferrocene itself, while the staggered orientation of the cyclopentadienyl rings being observed in monoclinic [23,24] ferrocene. In a plethora of structures, containing monosubstituted ferrocene fragments, reported in the Crystal Structural Database [25], both eclipsed and staggered orientations are observed with nearly equal occupancy.
Interestingly, one can see that bond lengths and valence angles at phosphorus change in concert with the orientation of ferrocenyl groups, i.e., the smaller is the torsion angle, the larger is the bond length and smaller is the valence angle. As expected, the bond lengths change in shorter limits ranging from 2.0904(14) to 2.1118(14) Å. The valence angles at phosphorus atom range from 116.65(6) to 118.19(7)°, while the valence angles at all sulphur atoms are the same within experimental errors, the average value is equal to 100.4°.
Similar propeller-like structure was observed in crystalline 2 [20] with the corresponding torsion angles ranging from 32° to 44°. One should note that the P-S bonds in 3 (data for 150 K) are longer than in 2 (P-S 2.079–2.090(2) Å at 290K), the difference would be even more significant for the structures collected at the same temperature. The difference between the P-S bonds in the corresponding phenyl containing trithiophosphate (SIXXUV entry in Cambridge Structural Database) [25] and tetrathiophosphate [23], both studied at room temperature, is 0.022 Å. Notably, the P-S bond lengths in triphenyltrithiophosphate (2.075–2.087 Å) are similar as in tripherrocenyltrithiophosphate 2, the same applies to tetraphosphate derivatives: the P-S bonds in triphenyltetrathiophosphate range from 2.099 to 2.103 Å.
This geometry difference is most probably determined by the electronic structure of the P=O and P=S derivatives. The electronic structure, especially the energy levels of frontier molecular orbitals, is essential for the redox properties of the studied molecules. Thus, quantum chemical calculations were performed for a series of multi-ferrocenyl compounds 13. The optimized structures show the same trend: P-S is 2.12 Å for 2 compared to 2.14 Å for 3. It should be mentioned, that for 1 quantum chemical computations predict even longer P-S bonds 2.15 Å.
The formation of P=S or P=O bond leads according to computations to decreasing the energies of both the highest occupied and the lowest unoccupied molecular orbitals (HOMO and LUMO, Table 1). Computations for compound 2 predict slightly lower energies of HOMO and LUMO, with more pronounced effect for the latter, leading to decrease of HOMO-LUMO gap for 3 compared to 2. HOMOs of compounds 13 are localized mostly on Fc moieties; however, with participation of phosphorus atomic orbitals for P in 1 and P=S in 3. LUMOs are mostly contributed by PS3 fragments and oxygen, and sulfur atomic orbitals for 2 and 3, respectively (Table 1).
The cyclic voltammograms of 13 in a CH3CN solution containing 0.1 M [NBu4][BF4] as the supporting electrolyte showed three well-separated redox events (Figure 2).
It should be noted that 1 and 2 have three classical stepwise reversible transitions of Fe(II) to Fe(III). Cyclic voltammogram of 3 substantially differs in shape from 2 analog. In the case of compound 3, Ep2 and Ep3 peak are quasi-reversible. It is interesting to note that the literary compound triferrocenylphosphate (Fc3O3P=O) is closer in its electrochemical properties to triferrocenyltrithiophosphate (2), then 3 differs significantly from both (Table 2).
Compounds 1–3 were also studied in the cathodic part. It was found that 1 with a low reduction potential is characterized by an almost synchronous two quasi-reversible one-electron processes. Probably, phosphorus-centered electron transfer occurs with the formation of an anion Fc3S3P that is unstable during reverse scanning (Figure 3). The electron transfer between the ferrocenyl substituents in mixed valent oxidation states does not occur, as shown recently [19].
The differences in the electronic structures of compounds 1–3 may cause the changes in their spectral properties. UV spectra of the compounds 1–3, registered in dichloromethane, demonstrate bands at 436–442 nm, 320–327 nm, shoulders at 270 nm and strong bands below 200 nm (Figure 4). The low energy band is most probably related with ferrocene [26]. Interestingly that formation of P=S bond leads to slight bathochromic shift of this band (442 nm) whereas in P=O compound this band is hypsochromically shifted to 436 nm, compared to 438 nm in 1.

3. Materials and Methods

3.1. Reagents and Research Subjects

All the work related to the preparation of the initial reagents, the synthesis, and the release of products was carried out in an inert atmosphere using standard Schlenk apparatus. All solvents and purchased reagents Alfa Aesar (Heysham, Lancashire, UK), Merck (Darmstadt, Germany), Sigma-Aldrich (St. Louis, MO, USA) were absolute by the appropriate methods, mainly by distillation in an inert atmosphere. The triferrocenyltrithiophosphite (1) and triferrocenyltrithiophosphate (2) were obtained according [20].

3.2. Synthesis of Triferrocenyltetrathiophosphate (3)

A solution of triferrocenyltrithiophosphite (1) (2.05 g, 3 mmol) in benzene (20 mL) was boiled with elemental sulfur (0.2 g, excess) during three hours. The solvent was evaporated and the residue was recrystallized from a mixture of benzene/hexane (2:1) to give dark-orange crystals of 3 (1.94 g, 2.7 mmol, 90%), m.p. 237–239 °C. 1H NMR (CDCl3): δ = 4.39 (m, 2Hα), 4.50 (m, 2 Hβ), 4.25 (s, 5H); 31P{1H} (CDCl3): δ = 89.7—C30H27Fe3PS4 (714.28): C 50.44, H 3.81, P 4.34, S 17.96; found C 50.65, H 3.83, P 4.30, S 17.85

3.3. X-ray Crystallography

Data set for single crystal 3 (CCDC 1957135) was collected on a Bruker AXS Kappa Apex II diffractometer (Bruker AXS GmbH, Karlsruhe, Germany) with graphite-monochromated Mo Kα radiation (λ = 0.71073 Å). The structure of 3 was solved by direct methods using APEX3 [27] for data collection, SAINT [28] for data reduction, SHELXS [29] for structure solution, SHELXL [29] for structure refinement by full-matrix least-squares against F2, and SADABS [30] for multi-scan absorption correction. Hydrogen atoms at carbon atoms were placed into calculated positions and refined as riding atoms. The data collection and refinement parameters are given.
Crystal 3: empirical formula C30H27Fe3S4P, M = 714.28 g/mol, crystal size (mm) 0.207 × 0.126 × 0.027, temperature 150(2) K, monoclinic, space group P21/c (No. 14), a = 19.8510(10) Å, b = 11.8071(7) Å, c = 12.8277(7) Å, β = 100.699(4)°, V = 2954.3(3) Å3, Z = 4, ρcalc = 1.606 g·cm−3, μ = 1.810 mm−1, θ range: from 1.04° to 26.00°, 63501 reflection collected (−22 ≤ h ≤ 23, −14 ≤ k ≤ 14, −15 ≤ l ≤ 15), 5721 independent reflections (Rint = 0.1322), 3172 observed reflections with I ≥ 2σ(I), 334 refined parameters, R = 0.0384, wR2 = 0.0539, max. Residual electron density 0.406 (−0.401) eÅ−3.

3.4. NMR Experiments

The NMR spectra were registered on the equipment of Assigned Spectral-Analytical Center of FRC Kazan Scientific Center of RAS, namely on multi-nuclear spectrometer Bruker AVANCE-400 (BRUKER BioSpin GMBH am Silberstreifen, D-76287, Rheinstetten, Germany) (400.1 MHz {1H} and 162.0 MHz {31P}).

3.5. UV/Vis Experiments

Electronic absorption (UV-Vis) spectra were recorded at room temperature on a Perkin-Elmer Lambda 35 spectrometer (PerkinElmer, Inc, Waltham, MA (Massachusetts), USA) using 10 mm quartz cells. Absorption spectra were registered with a scan speed of 480 nm/min, using a spectral width of 1 nm. All samples were prepared as solutions in dichloromethane with the concentrations ~10−5 mol L−1.

3.6. Calculations

All calculations were performed with the Gaussian 16 suite of programs [31]. The hybrid PBE0 functional [32] and the Ahlrichs’ triple-ζ def-TZVP AO basis set [32] were used for optimization of all structures. In all geometry optimizations, the D3 approach [33] to describe the London dispersion interactions together with the Becke–Johnson (BJ) damping function [34,35,36,37] were employed as implemented in the Gaussian 16 program.

3.7. Electrochemistry

Cyclic voltammograms were recorded with a BASi Epsilon E2P (USA) potentiostat. The device comprises a measuring unit, PC DellOptiplex 320 (Bioanalytical Systems, Inc., West Lafayette, IN, USA) with the Epsilon-EC-USB-V200 software. Tetrabutylammonium tetrafluoroborate [NBu4][BF4] was used as background electrolyte. The working electrode was a stationary disc glassy-carbon electrode (the surface area of 6 mm2). Ag/AgCl (0.01 M KCl) was used as a reference electrode. Ferrocene was added as an internal standard for Ag/AgCl conversion (E1/2 = 0.45V). The reference electrode was connected with the cell solution by a modified Luggin capillary filled with the supporting electrolyte solution (0.1 M Bu4NBF4 in CH3CN). Thus, the reference electrode assembly had two compartments, each terminated with an ultra-fine glass frit to separate the AgCl from the analyte. A platinum wire was used as an auxiliary electrode. The scan rate was 100 mV∙s−1. The measurements were performed in a temperature-controlled electrochemical cell (volume from 1 mL to 5 mL) in an inert gas atmosphere (N2). Between measurements or prior to a registration of a voltammetry wave, the solution was actively stirred with a magnetic stirrer in the atmosphere of constant inflow of an inert gas that was run through a dehydrating system, and then through a nickel-based purification system BI-GAS cleaner (manufactured by OOO Modern Laboratory Equipment, Novosibirsk, Russia) to remove trace quantities of oxygen.

4. Conclusions

A new multi ferrocenyl-substituted compound, triferrocenyltetrathiophosphate, was synthesized and was shown to adopt propeller-like conformation in crystalline form. Its electrochemical properties, as well as of the parent compound triferrocenyltrithiophosphite (1) and oxygen containing derivative triferrocenyltrithiophosphate (2) were studied and exhibit a number of interesting features.
Three reversible one-electron peaks corresponding to the stepwise oxidation of three ferrocene fragments are observed in the cyclic voltammograms of oxidation of 1, and the first oxidation potential is almost identical to free ferrocene. A similar behavior is also demonstrated by triferrocenyltrithiophosphate (2), in which, however, the peaks are slightly shifted by 140 mV in comparison with the initial triferrocenyltrithiophosphite (1). At the same time, the oxidation process of triferrocenyltetratiophosphate (3) proceeds differently—in the first stage, reversible one-electron oxidation occurs, while the second and third peaks are quasi-reversible. When triferrocenyltrithiophosphite (1) is reduced, a quasi-reversible two-electron transfer is observed related to the formation of a phosphorus anion, which is absent in the case of 2 and 3.
Structures 13 were optimized quantum-chemically and the composition and energies of the frontier orbitals were calculated. It was shown that for the studied trithiophosphites, the three upper occupied orbitals have close energies. The HOMOs are localized mainly on ferrocene fragments, while the PS3 fragment makes the main contribution to the lower free orbitals. The results of the present work can be used for design of electrooxidized forms of a mixed type of ligands and their complexes with transition metals, possessing interesting magnetic properties.

Supplementary Materials

The following are available online. Supplementary Material 1: checkcif.pdf, Supplementary Material 2: CCDC 1957135.cif.

Author Contributions

R.S., A.L., and I.B. developed the synthetic procedure of the compounds; T.G. performed quantum-chemical studies, conducted discussion of the results; A.K. and M.K. developed the electrochemical part, Z.Y., K.I., and O.K. performed the structure experimental studies; Y.B., O.S., V.M., O.K., and M.K. summarized and discussed the results of individual studies, preparation, and writing of the article. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the grant of President of the Russian Federation (MK-3375.2019.3)

Acknowledgments

R.Shekurov, A. Lakomkina, A. Kononov are grateful to the Russian President grant for young candidates (MK-3375.2019.3). Kamil Ivshin is thankful to the Russian Government Program of Competitive Growth of Kazan Federal University. The authors are grateful to the Spectral-Analytical Center of FRC Kazan Scientific Center of RAS for technical assistance in research. DPV experiments performed financial support from the government assignment for FRC Kazan Scientific Center of RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Djeda, R.; Rapakousiou, A.; Liang, L.; Guidolin, N.; Ruiz, J.; Astruc, D. Click Syntheses of 1,2,3-Triazolylbiferrocenyl Dendrimers and the Selective Roles of the Inner and Outer Ferrocenyl Groups in the Redox Recognition of ATP2− and Pd2+. Angew. Chem. Int. Ed. 2010, 49, 8152–8156. [Google Scholar] [CrossRef]
  2. Pfaff, U.; Filipczyk, G.; Hildebrandt, A.; Korb, M.; Lang, H. 1, 3, 5-Triferrocenyl-2, 4, 6-tris (ethynylferrocenyl)-benzene–a new member of the family of multiferrocenyl-functionalized cyclic systems. Dalton Trans. 2014, 43, 16310–16321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Lohan, M.; Justaud, F.; Lang, H.; Lapinte, C. Synthesis, Spectroelectrochemical, and EPR Spectroscopic Studies of Mixed Bis (alkynyl) biferrocenes of the Type (L n MC ≡C)(L n M′ C ≡C) bfc. Organometallics 2012, 31, 3565–3574. [Google Scholar] [CrossRef]
  4. Diallo, A.K.; Absalon, C.; Ruiz, J.; Astruc, D. Ferrocenyl-terminated redox stars: Synthesis and electrostatic effects in mixed-valence stabilization. J. Am. Chem. Soc. 2010, 133, 629–641. [Google Scholar] [CrossRef] [PubMed]
  5. Yu, Y.; Bond, A.D.; Leonard, P.W.; Lorenz, U.J.; Timofeeva, T.V.; Vollhardt, K.P.C.; Yakovenko, A.A. Hexaferrocenylbenzene. Chem. Comm. 2006, 24, 2572–2574. [Google Scholar] [CrossRef] [Green Version]
  6. Nlate, S.; Ruiz, J.; Blais, J.C.; Astruc, D. Ferrocenylsilylation of dendrons: A fast convergent route to redox-stable ferrocene dendrimers. Chem. Comm. 2000, 5, 417–418. [Google Scholar] [CrossRef]
  7. Sakamoto, R.; Murata, M.; Nishihara, H. Visible-Light Photochromism of Bis (ferrocenylethynyl) ethenes Switches Electronic Communication between Ferrocene Sites. Angew. Chem. Int. Ed. 2006, 45, 4793–4795. [Google Scholar] [CrossRef]
  8. Kishore, P.V.; Liao, J.H.; Hou, H.N.; Lin, Y.R.; Liu, C.W. Ferrocene-functionalized Cu (I)/Ag (I) dithiocarbamate clusters. Inorg. Chem. 2016, 55, 3663–3673. [Google Scholar] [CrossRef]
  9. Shah, H.H.; Changez, M.; Singh, V.; Luqman, M.; Ismail, Y.; Raithby, P.R.; Marken, F. Estimation of energy levels of self-assembled ferrocenyls and investigation of charge-driven electro-crystallization of ferricenyl materials. Energy Procedia 2016, 100, 149–154. [Google Scholar] [CrossRef]
  10. Wang, L.; Chen, L.J.; Ma, J.Q.; Wang, C.H.; Tan, H.; Huang, J.; Xu, L. Construction of multiferrocenes end-capped metallodendrimers via coordination-driven self-assembly and their electrochemical behavior. J. Organomet. Chem. 2016, 823, 1–7. [Google Scholar] [CrossRef]
  11. Zhao, G.Z.; Li, Q.J.; Chen, L.J.; Tan, H.; Wang, C.H.; Lehman, D.A.; Yang, H.B. Facile self-assembly of supramolecular hexakisferrocenyl triangles via coordination-driven self-assembly and their electrochemical behavior. Organometallics 2011, 30, 3637–3642. [Google Scholar] [CrossRef]
  12. Muraoka, H.; Ozawa, K.; Ogawa, S. Electrochemical studies of the multi-step multi-electron redox process of tetraferrocenyloligothiophenes with electron donor and acceptor abilities. Heteroat. Chem. 2018, 29, e21455. [Google Scholar] [CrossRef] [Green Version]
  13. Miesel, D.; Hildebrandt, A.; Lang, H. Molecular electrochemistry of multi-redox functionalized 5-membered heterocycles. Curr. Opin. Electrochem. 2018, 8, 39–44. [Google Scholar] [CrossRef]
  14. Gao, R.X.; Gao, Y.Y.; Xie, R.J.; Han, L.M. How many ferrocene units of multi-ferrocenyl complexes can react with the electrode? Chem. Pap. 2020, 74, 895–901. [Google Scholar] [CrossRef]
  15. Ajayi, T.J.; Ollengo, M.; le Roux, L.; Pillay, M.N.; Staples, R.J.; Biros, S.M.; Wenderich, K.; Mei, B.; van Zyl, W.E. Heterodimetallic Ferrocenyl Dithiophosphonate Complexes of Nickel (II), Zinc (II) and Cadmium (II) as Sensitizers for TiO2-Based Dye-Sensitized Solar Cells. ChemistrySelect 2019, 4, 7416–7424. [Google Scholar] [CrossRef]
  16. Herberhold, M.; Hofmann, A.; Milius, W.; de Biani, F.F.; Zanello, P. Oligonuclear ferrocenolato and 1,1′-ferrocenediolato derivatives of phosphorus: Synthesis, structure and electrochemical behaviour. Inorg. Chim. Acta 1998, 273, 24–30. [Google Scholar] [CrossRef]
  17. Herberhold, M.; Hofmann, A.; Milius, W. Phosphor (III)-und Phosphor (V)-Verbindungen mit Ferrocenolato-und 1,1′-Ferrocendiolato-Substituenten. J. Organomet. Chem. 1998, 555, 187–200. [Google Scholar] [CrossRef]
  18. Korb, M.; Schaarschmidt, D.; Lang, H. Anionic phospho-Fries rearrangement at ferrocene: One-pot approach to P, O-substituted ferrocenes. Organometallics 2014, 33, 2099–2108. [Google Scholar] [CrossRef]
  19. Korb, M.; Lehrich, S.W.; Lang, H. Reactivity of Ferrocenyl Phosphates Bearing (Hetero-) Aromatics and [3] Ferrocenophanes toward Anionic Phospho-Fries Rearrangements. J. Org. Chem. 2017, 82, 3102–3124. [Google Scholar] [CrossRef]
  20. Milyukov, V.A.; Zverev, A.V.; Podlesnov, S.M.; Krivolapov, D.B.; Litvinov, I.A.; Gubaidullin, A.T.; Kataeva, O.N.; Ginzburg, A.; Sinyashin, O.G. Novel Organometallic Derivatives of Thioesters of the Trivalent Phosphorus Acids: Synthesis and Structure. Eur. J. Inorg. Chem. 2000, 2000, 225–228. [Google Scholar] [CrossRef]
  21. Seiler, P.T.; Dunitz, J.D. The structure of triclinic ferrocene at 101, 123 and 148 K. Acta Crystallogr. Sect. B 1979, 35, 2020–2032. [Google Scholar] [CrossRef] [Green Version]
  22. Seiler, P.; Dunitz, J.D. Low-temperature crystallization of orthorhombic ferrocene: Structure analysis at 98 K. Acta Crystallogr. Sect. B 1982, 38, 1741–1745. [Google Scholar] [CrossRef]
  23. Brock, C.P.; Fu, Y. Rigid-body disorder models for the high-temperature phase of ferrocene. Acta Crystallogr. Sect. B 1997, 53, 928–938. [Google Scholar] [CrossRef]
  24. Takusagawa, F.; Koetzle, T.F. A neutron diffraction study of the crystal structure of ferrocene. Acta Crystallogr. Sect. B 1979, 35, 1074–1081. [Google Scholar] [CrossRef] [Green Version]
  25. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. Cambridge structural Database. Acta Crystallogr. Sect. B 2016, 72, 171–179. [Google Scholar] [CrossRef]
  26. Gerasimova, T.; Shekurov, R.; Gilmanova, L.; Laskin, A.; Katsyuba, S.; Kovalenko, V.; Khrizanforov, M.; Milyukov, V.; Sinyashin, O. IR and UV study of reversible water-induced structural transformations of poly (manganese 1, 1′-ferrocenediyl-bis (H-phosphinate)) and poly (cobalt 1,1′-ferrocenediyl-bis (H-phosphinate)). J. Mol. Struc. 2018, 1166, 237–242. [Google Scholar] [CrossRef]
  27. Bruker. APEX3 Crystallography Software Suite; Bruker AXS Inc.: Madison, WI, USA, 2016. [Google Scholar]
  28. Bruker. SAINT. Crystallography Software Suite; Bruker AXS Inc.: Madison, WI, USA, 2016. [Google Scholar]
  29. Sheldrick, G.M. A Short History of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  30. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D.J. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef] [Green Version]
  31. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09 Revision A.02; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  32. Adamo, C.; Barone, V. Toward Reliable Density Functional Methods without Adjustable Parameters: The PBE0 Model. J. Chem. Phys. 1999, 110, 6158–6170. [Google Scholar] [CrossRef]
  33. Weigend, F.; Ahlrichs, R. Balanced Basis Sets of Split Valence, Triple Zeta Valence and Quadruple Zeta Valence Quality for H to Rn: Design and Assessment of Accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  34. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A Consistent and Accurate Ab Initio Parametrization of Density Functional Dispersion Correction (DFT-D) for the 94 Elements H-Pu. J. Chem. Phys. 2010, 132, 154104–154119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Becke, A.D.; Johnson, E.R. A Density-Functional Model of the Dispersion Interaction. J. Chem. Phys. 2005, 123, 154101–154109. [Google Scholar] [CrossRef] [PubMed]
  36. Johnson, E.R.; Becke, A.D. A Post-Hartree-Fock Model of Intermolecular Interactions: Inclusion of Higher-Order Corrections. J. Chem. Phys. 2006, 124, 174104–174109. [Google Scholar] [CrossRef] [PubMed]
  37. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the Damping Function in Dispersion Corrected Density Functional Theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

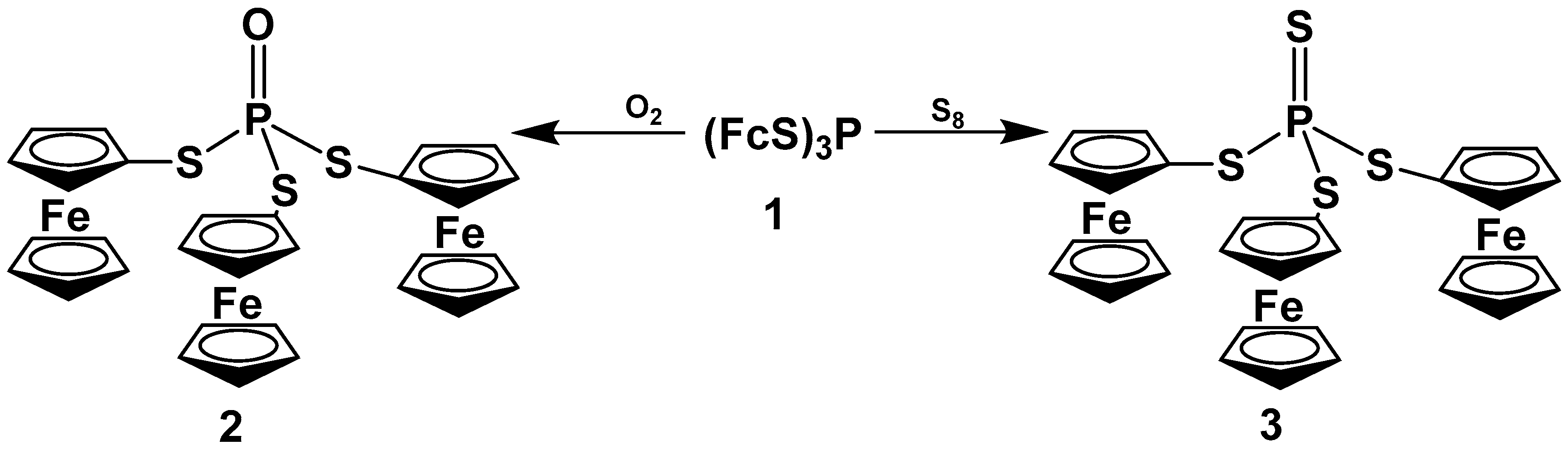

Scheme 1. Synthesis of 2 and 3.
Scheme 1. Synthesis of 2 and 3.
Molecules 25 00939 sch001

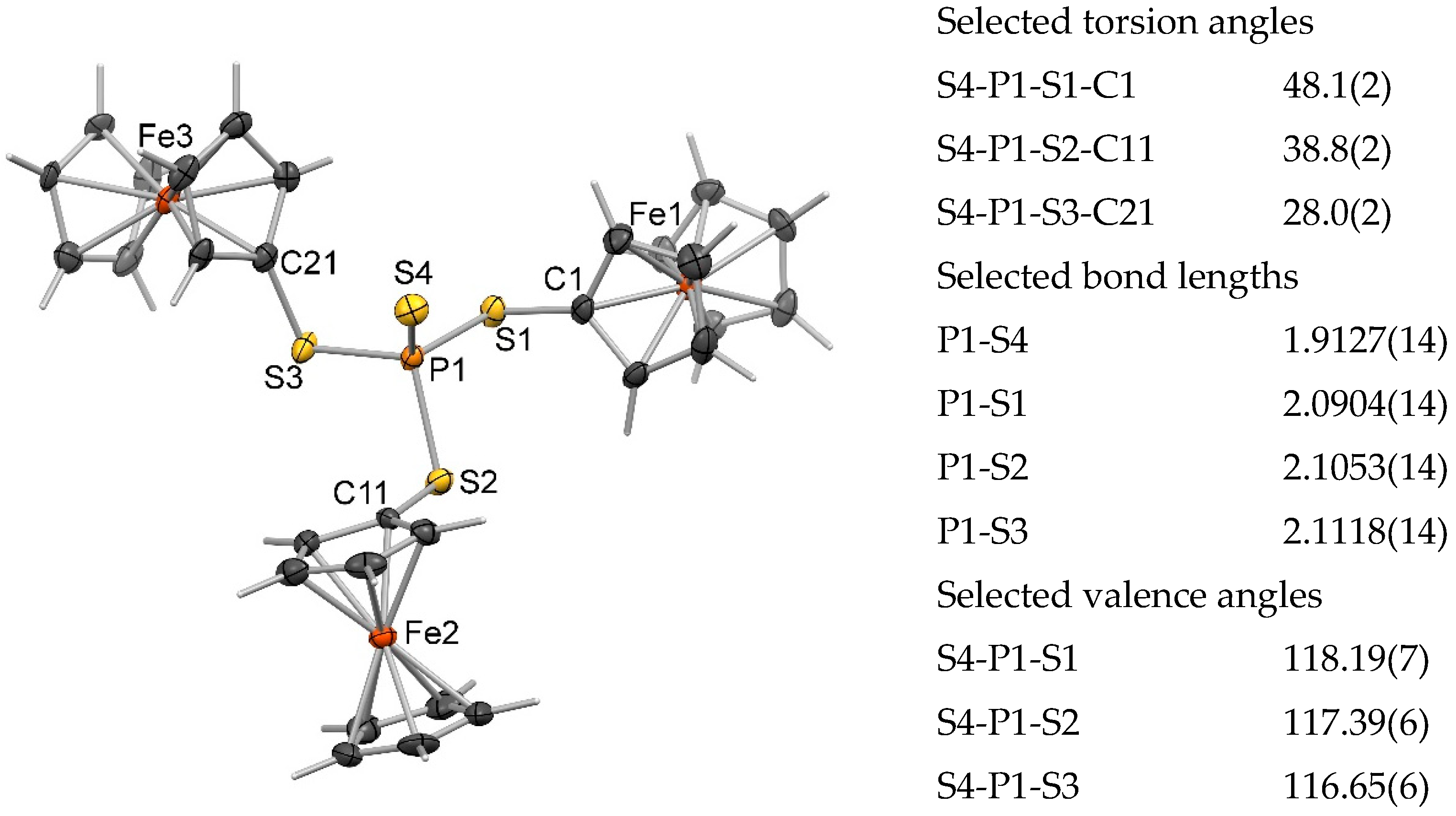

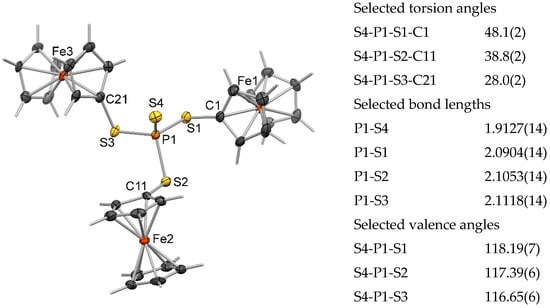

Figure 1. ORTEP drawing of 3 at the 50% probability level and selected geometrical parameters.
Figure 1. ORTEP drawing of 3 at the 50% probability level and selected geometrical parameters.
Molecules 25 00939 g001

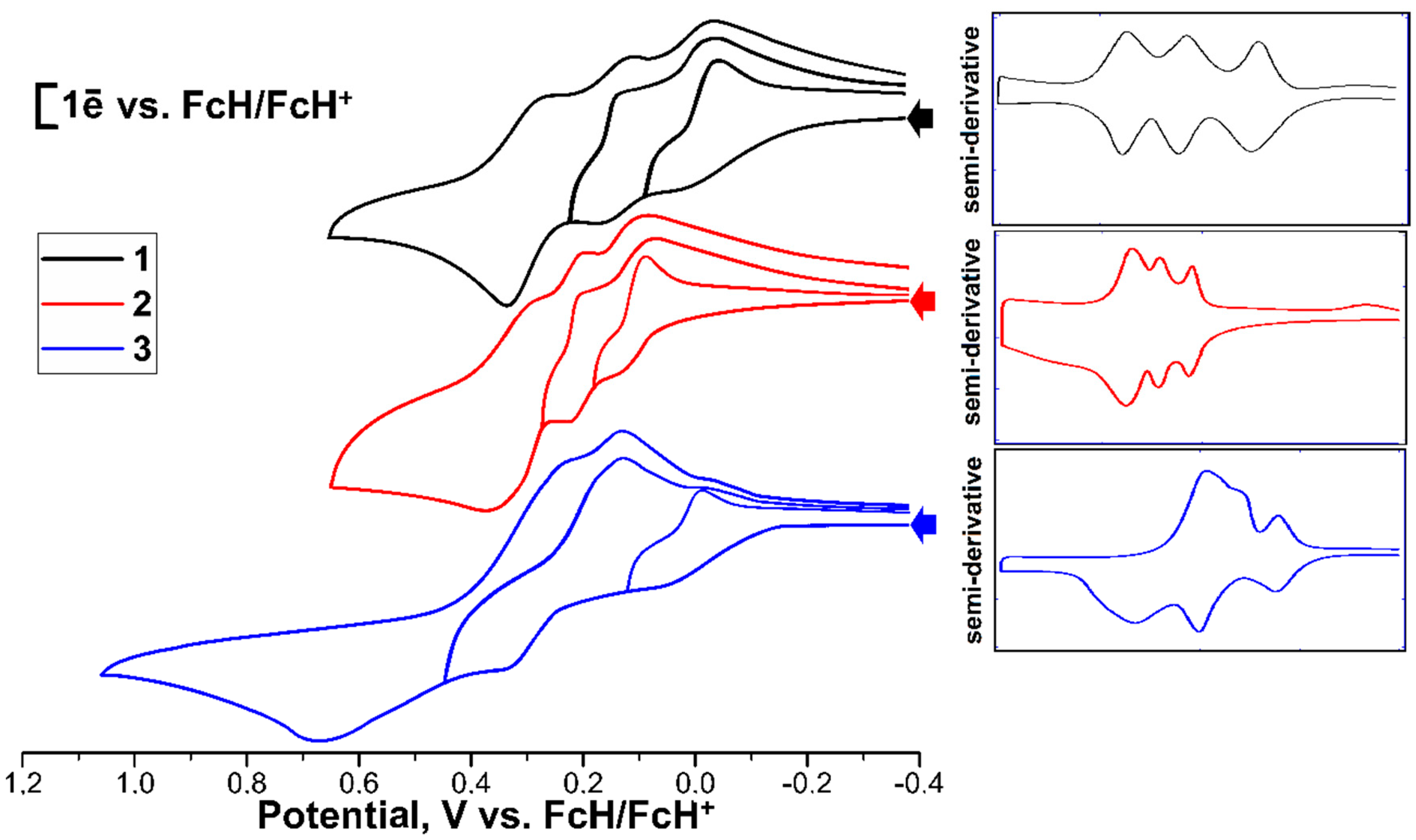

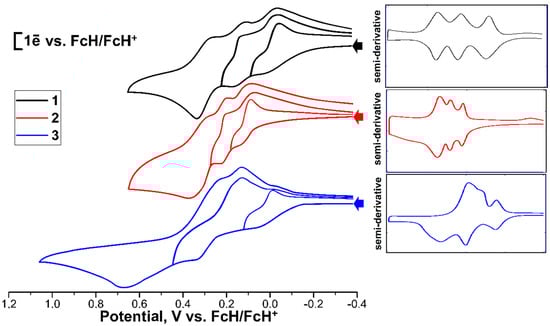

Figure 2. Cyclic voltammograms for oxidation of 1–3. Conditions: 0.5 mM solutions of 1–3 in CH3CN, 0.1 M [NBu4][BF4]; working electrode: glassy carbon; 10 mVs−1, peak potential in V ref. Ag/AgCl recalculated to FcH/FcH+.
Figure 2. Cyclic voltammograms for oxidation of 1–3. Conditions: 0.5 mM solutions of 1–3 in CH3CN, 0.1 M [NBu4][BF4]; working electrode: glassy carbon; 10 mVs−1, peak potential in V ref. Ag/AgCl recalculated to FcH/FcH+.
Molecules 25 00939 g002

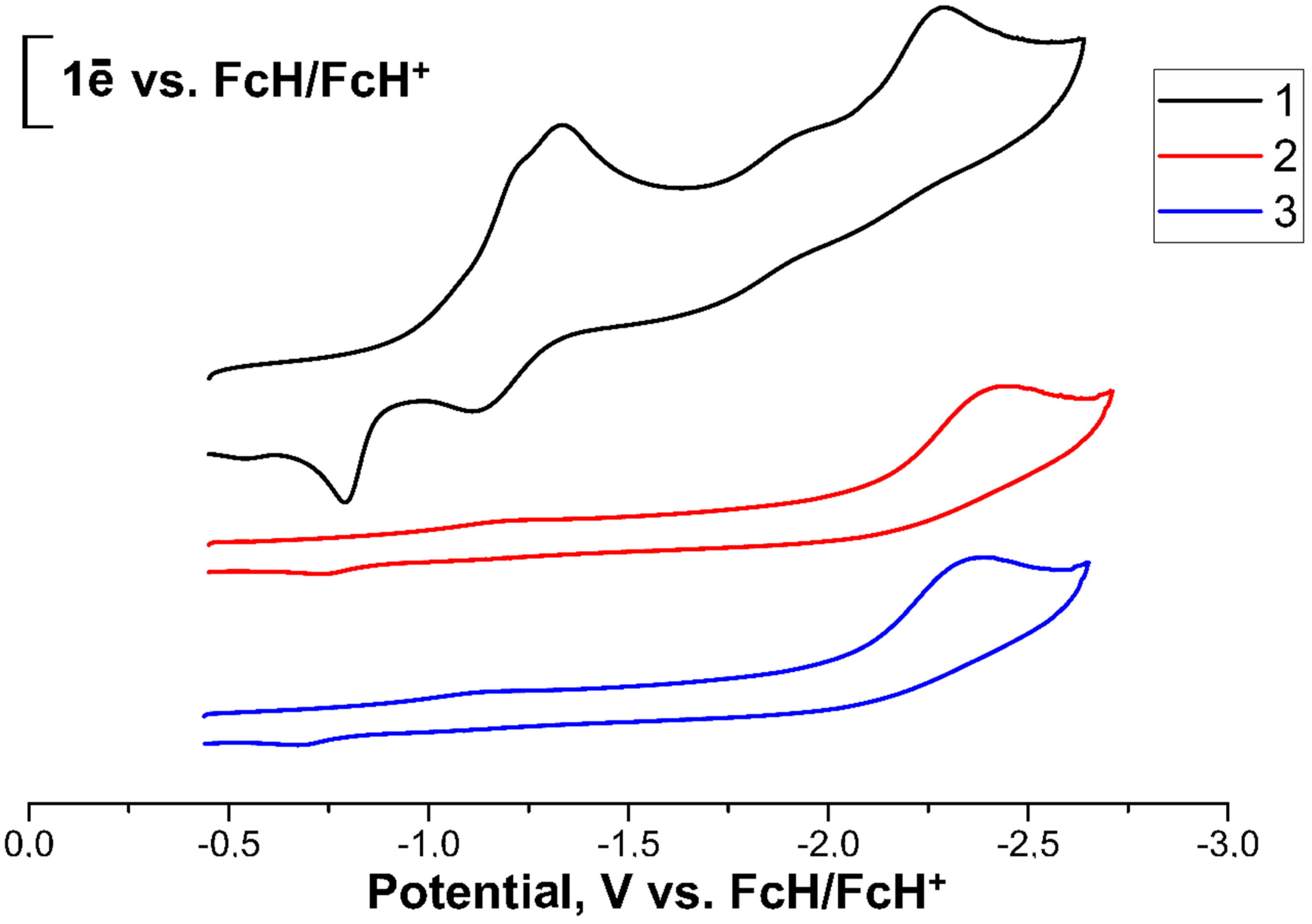

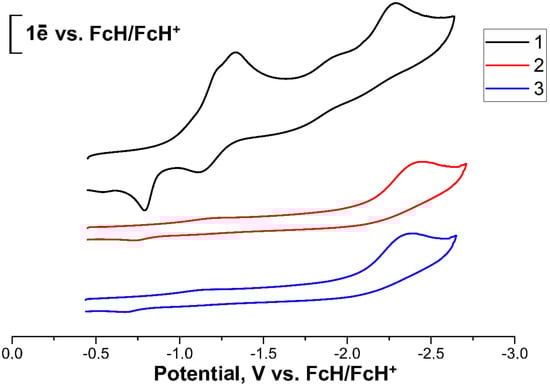

Figure 3. Cyclic voltammograms for reduction of 1–3. Conditions: 0.5 mM solutions of 1–3 in CH3CN, 0.1 M [NBu4][BF4]; working electrode: glassy carbon, 10 mVs−1, peak potential in V ref. Ag/AgCl recalculated to FcH/FcH+.
Figure 3. Cyclic voltammograms for reduction of 1–3. Conditions: 0.5 mM solutions of 1–3 in CH3CN, 0.1 M [NBu4][BF4]; working electrode: glassy carbon, 10 mVs−1, peak potential in V ref. Ag/AgCl recalculated to FcH/FcH+.
Molecules 25 00939 g003

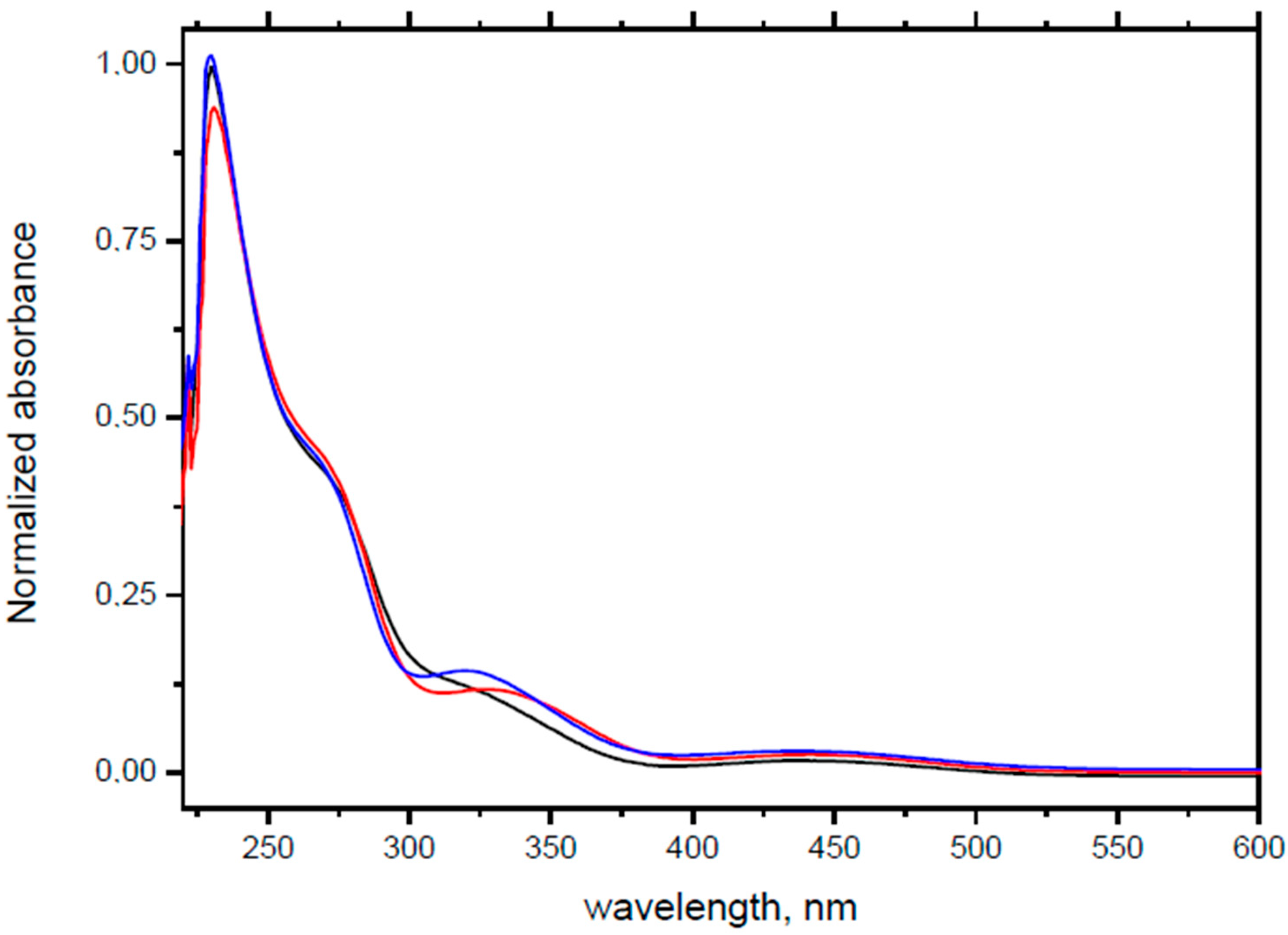

Figure 4. UV/Vis spectra of 1 (black), 2 (blue) and 3 (red) in dichloromethane, c = 10−5 mol/L.
