Article

1H NMR Metabolic Profile of Scyphomedusa Rhizostoma pulmo (Scyphozoa, Cnidaria) in Female Gonads and Somatic Tissues: Preliminary Results

1
Department of Biological and Environmental Sciences and Technologies (Di.S.Te.B.A.), University of Salento, via Monteroni, 73100 Lecce, Italy
2
CoNISMa, Piazzale Flaminio, 9, 00196 Roma, Italy
3
Integrative Marine Ecology, Stazione Zoologica Anton Dohrn, Villa Comunale, 80121 Napoli, Italy
4
Water Research Institute of the National Research Council, (IRSA-CNR), Via Roma 3, 74123 Taranto, Italy
5
CIRCMSB, Piazza Umberto I, 1, 70121 Bari, Italy
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(4), 806; https://doi.org/10.3390/molecules25040806
Received: 7 January 2020 / Revised: 4 February 2020 / Accepted: 10 February 2020 / Published: 13 February 2020
(This article belongs to the Special Issue Marine Bioinorganic and Bioorganic Chemistry)

Abstract

:
The Mediterranean basin is one of the regions heavily affected by jellyfish bloom phenomena, mainly due to the presence of scyphozoans, such as Rhizostoma pulmo. The jellyfish have few natural predators, and their bodies represent an organic-rich substrate that can support rapid bacterial growth with great impact on the structure of marine food webs. In Asiatic countries, jellyfish are widely studied for their health benefits, but their nutritional and nutraceutical values still remain poorly characterized. In this study, the differences in the 1H NMR spectroscopy metabolic profiles of R. pulmo female gonads and body fractions (including umbrella and oral arms), in different sampling periods, were studied. For each body compartment both lipid and aqueous extracts were characterized and their 1H NMR metabolic profiles subjected to multivariate analysis. From a statistical analysis of the extracts, a higher contents of ω-3 polyunsaturated fatty acids (PUFAs), amino acid and osmolytes (homarine, betaine, taurine) with important roles in marine invertebrates were observed in female gonads, whereas umbrella and oral arms showed similar metabolic profiles. These results support a sustainable exploitation of the jellyfish for the extraction of bioactive compounds useful in nutraceutical, nutricosmetics, and functional food fields.

1. Introduction

Jellyfish represent one of the most widespread components of marine ecosystems and their presence as a natural phenomenon is strictly related to seasonality. In recent years, numerous outbreaks (or blooms) of jellyfish have been recorded in many marine areas worldwide [1]. Jellyfish blooms have caused many negative consequences for the economy, fish population, and community, such as a decrease of coastal tourism, the reduction of fish abundance through competition or predation, increased mortalities of farmed fish, and obstruction of cooling intakes [2,3]. Among marine ecosystems, the Mediterranean Sea is one of the most heavily affected by jellyfish blooms, mainly due to the presence of scyphozoans, in particular of Rhizostoma pulmo (Macri, 1778), known as “white barrel” or “sea lung” [4]. This species has been the most abundant along the Mediterranean coasts in recent years, showing inter-annual fluctuations in population density [5,6]. During blooming years in the Mediterranean Sea, R. pulmo occurred in large numbers in several places, for example, the Northern and Southern Adriatic Sea, the Ionian Sea, in the Eastern and Western Mediterranean, as well as in the Black Sea [5]. While the impact jellyfish blooms have on marine ecosystems is generally considered negatively, jellyfish species are very important, on the other hand, as foodstuff and for their therapeutic properties, especially in Asiatic countries [3]. In the first decade of the 21st century, over 2000 active compounds have been isolated from cnidarians and mainly used as drugs in therapy of human diseases [7,8]. In jellyfish, these properties seem to be attributable essentially to collagen, the main protein component of jellyfish connective tissue [3,9]. Furthermore, genomic, molecular, and ultra-structural studies have shown that the collagen of these invertebrates, in particular R. pulmo, is similar to that of mammalian type I collagen and could replace bovine or human collagens in the biomedical field [10]. In addition, other studies have successfully demonstrated that the collagen of gelatinous zooplankton could represent a new source of advantageous products for human consumption, such as collagen peptides and hydrolysate, used in medicine and food industries [3,9,11,12,13,14,15,16,17]. Finally, other studies have shown that jellyfish used as feed have a great value without toxic effects on chickens and pigs, as well as some commercial fishes [14,18]. Despite jellyfish representing a multimillion dollar seafood business in Asiatic countries and their pro-health value for metabolites composition and properties in low calorie diet [3,19,20], edible jellyfish metabolomic profiles are poorly characterized. Recently [4], the metabolic profiles of specific body fractions (ovaries) of R. pulmo have been investigated for the first time by 1H NMR spectroscopy, together with their biochemical composition and antimicrobial properties. Previous results showed that R. pulmo ovaries and oocytes could represent a promising source of bioactive compounds for different applications mainly in the pharmaceutical field or as specialty feed [4]. With the aim of defining a sustainable exploitation pilot system of distinct jellyfish body fractions for different purposes (e.g., food, feed), this work focuses on the metabolic profile analysis for three different body compartments of R. pulmo in three different periods of the year. In particular, the differences in amino acids, other organic molecules (with important biochemical roles), and lipid (especially in ω-3 PUFAs content) composition were evaluated in female gonads, and umbrella and oral arms in different sampling periods (March, May, July) by a 1H NMR-based metabolomic approach.

2. Results

2.1. NMR Spectroscopy

Representative 1D 1H NMR spectra of lipid and aqueous extracts of female gonads and somatic tissues (umbrella and oral arms) of R. pulmo are shown in Figure 1 and Figure 2, respectively. All the 1H NMR spectra of lipid extracts of body fractions showed the characteristic signals of saturated (SFAs), mono- (MUFAs), di- (DUFAs) and polyunsaturated (PUFAs) fatty acids, triglycerides (TG), and minor components, such as sterols (cholesterol, CHO), phosphatidycholine (PC) and phosphatidylethanolamine (PE) (Table 1, Figure 1), according to the literature data [21,22,23,24] and previously reported by Stabili et al. [4]. Interestingly, homarine was clearly identified only in the female gonad lipid extracts, together with a more intense concentration of the fatty acid content with respect to somatic tissues, as already reported in the literature for other scyphozoan jellyfish species [25,26]. Analogously, for the 1H NMR aqueous spectra, the metabolites were assigned on the basis of analysis of 2D NMR spectra (2D 1H J-RES, 1H COSY, 1H 13C HSQC, and HMBC) and by comparison with published data [21,22,23,24,27,28]. The NMR aqueous spectra of R. pulmo body compartments were characterized by essential amino acids, such as branched-chain isoleucine, leucine and valine, threonine, and no-essential amino acids (alanine, proline, glutamate, β-alanine, glycine, tyrosine). Moreover, organic acids (such as lactate, acetate, formate, succinate) and other molecules with important biochemical functions, for instance, betaine, taurine (2-aminosulphonic acid), and homarine (N-methylpicolinic acid), already known in marine invertebrates [28] and essentially acting as osmolytes [29] were also identified (Table 2, Figure 2). Homarine signals were observed in both lipid and aqueous extracts. Furthermore, few metabolites were observed in the aqueous body extract portions. These are essentially carboxylic acid derivatives, including lactate, acetate, formate, and osmolytes, such as betaine, taurine, hypotaurine, and homarine.

2.2. Statistical Analysis

Multivariate statistical analysis (MVA) was applied to the whole NMR datasets (bucket tables obtained both for lipid and aqueous extracts), focusing on the possible differences in metabolite content of different body compartments of R. pulmo (paying specific attention on female gonads) collected in different sampling periods. The unsupervised analyses (principal component analysis, PCA), performed on the whole data for both the lipid and aqueous extracts, revealed a clear differentiation between the female gonads and the somatic tissues (Figure S1 in the SI). In particular, the potential effect of the sampling periods gave an interesting hint for the sample distribution of female gonads in the PCA score scatterplot. In order to deeply analyze this aspect, a further investigation was performed considering separately the female gonads, umbrella, and oral arms, using both unsupervised (PCA) and supervised multivariate analytical (orthogonal partial least squares discriminant analyses, OPLS-DA) methods. The robustness of the statistical models was tested by cross-validation default method (seven-fold) and further evaluated with a permutation test (400 permutations). The quality of the statistical models (in particular the total variations in the data and the internal cross-validation) was described by R2 (cross validation) and Q2 (predictive ability) parameters, as described in Section 4.4 (Statistical Analysis).

2.2.1. The Potential Effect of Sampling Period on R. pulmo Metabolomic Profile

Lipid Extracts

A MVA was performed with the aim to differentiate, according to the sampling periods, the lipid extracts of female gonads, and other body portions.
Lipid extracts obtained from female gonads were studied considering three sampling periods (March, May, and July). In particular, the PCA model was obtained considering five principal components, with more than 90% of the explained variance, and R2X = 0.96 and Q2 = 0.91. In the PCA score plot, samples collected in March (I) and July (III) were clearly separated from samples collected in May (II) (data not shown). In order to improve the separation among the different sampling periods, and clearly define the metabolites responsible for the differentiation, the OPLS-DA was also performed. In the OPLS-DA score plot (2+3+0, R2X = 0.95, R2Y = 0.93, Q2 = 0.874), all three groups were clearly distinct. In particular, samples of March (I) and July (III) resulted in positive values of the predictive t[1] component (between 0 and 0.20), while samples collected in May (II) were found a negative values (between −0.1 and −0.3) of the same t[1] predictive component. Moreover, samples from the first sampling period was clearly differentiated from samples obtained in the third sampling (July), along the second component t[2] (Figure 3a). From analysis of loading plot for the model (Figure 3b), samples collected in March (I) and July (III) were characterized by a higher content of homarine and sphingolipids respectively, whereas high levels of PUFAs, including PUFA ω-3 (principally docosahexaenoic acid, DHA), were characteristic of samples collected in May (II).
Moreover, MVA was then applied in lipid extracts obtained from the umbrellas of R. pulmo jellyfish. Additionally, in this case, three sampling periods were considered. A PCA model was obtained using three components (77%, 10%, 5% for t[1], t[2], t[3], respectively), with 92% of the total variance explained. The t[1]/t[2] score plot showed a good separation between three considered sampling periods (data not shown). This trend was confirmed by the corresponding supervised analysis. In particular, in the OPLS-DA score plot (2+3+0 R2X = 0.95, R2Y = 0.804, Q2 = 0.634), samples were well separated along the predictive component t[1], depending from the sampling periods. The samples collected in March and May were found at positive values of predictive t[1] component, while samples collected in July were at negative values of the same component (Figure 4a). Examining the corresponding loading plot for the model emerged that the samples collected in July were characterized by high levels of FA (considering all FA, including PUFA ω-3 and sphingolipids) with respect to other sampling periods (Figure 4b).
Only two sampling periods (March and May) for both lipid and aqueous oral arm extracts were considered. In the PCA model obtained from oral arm lipid fractions, the t[1]/t[2] PCA score plot showed a good separation of samples (data not shown), with four principal components enough to describe the 90% of total variance of the entire dataset, and R2X = 0.98 and Q2 = 0.97. As already observed in the preliminary PCA, also in this OPLS-DA score plot (1+3+0, R2X = 0.98, R2Y = 0.94, Q2 = 0.90), samples appeared clearly differentiated along the first t[1] predictive component (Figure 5a). In details, the model showed that samples obtained from oral arms collected in March (I) were found at negative values of the first predictive component t[1] (between −0.4 and −0.6), while samples collected in May (II) were positioned at positive values of same component (between 0 and 0.4). By the analysis of the loading plot for this model, it was possible define the original variables responsible of the observed separation (Figure 5b). Specifically, samples collected in the first sampling period (I, March) were characterized by a high relative content of homarine, and unsaturated fatty acids, whereas high levels of CHO, and all FAs, except DHA and eicosapentaenoic acid (EPA), were found in samples collected in May (II).
Interestingly, the existing differences between March and May sampling periods were highly marked for oral arms, especially when compared to differences related to the other two body compartments of the same sampling periods. These observations could suggest that the oral arms compartment was subjected to striking metabolic fluctuations, which could be probably due to physiological conditions of this jellyfish compartment. Obviously these preliminary results require a deeper level of investigation for a better knowledge of the observed pattern of R. pulmo oral arms which is beyond the aim of this work.
Moreover, the variation in discriminating metabolites content for each body compartments, among the different sampling was calculated by the integration of selected distinctive unbiased NMR signals. In particular, signals corresponding to homarine (δ 1H 8.1), unsaturated fatty acids (δ 1H 5.3), all FA acids (δ 1H 1.26 and δ 1H 2.18), CHO (δ 1H 1.01), PUFA (δ 1H 2.86), sphingolipids (δ 1H 3.22), PUFA ω-3 (δ 1H 0.98), and DHA (δ 1H 2.38) were selected and integrated (Figure 6).

Aqueous Extracts

Despite the large biomasses, the dry weight of most Rhizostomeae jellyfish (Cnidaria, Scyphozoa) ranges from 2–5%, and is mainly composed of proteins, having carbohydrates and lipids as minor components [11]. For this reason, we also analyzed R. pulmo aqueous extracts. Multivariate statistical analysis was also performed on aqueous extracts of each body compartment of R. pulmo (female gonads, umbrella, oral arms).
A first attempt, unsupervised analysis was performed in aqueous extracts of female gonads, obtaining a good model with R2X = 0.82 and Q2 = 0.70 and only three principal components described the 80% of total variance (t[1], t[2] and t[3] principal components explained 52.6%, 21%, and 8%, respectively). A certain degree of separation based on the sampling periods was observed in the t[1]/t[2] PCA scores plot, along the first principal component t[1], with samples from the second sampling (May, II) isolated from the other two sampling periods of March and July (data not shown). In order to refine the separation among the three groups, a supervised analysis was also performed. In the OPLS-DA score plot (2+4+0, R2X = 0.92, R2Y = 0.98, Q2 = 0.95, Figure 7a), samples collected in March (I) and in July (III) were again clearly separated from samples collected in May (II), especially along the first predictive component t[1]. By examining the loadings plot, a marked content of osmolytes was detected, as homarine was observed in the March (I) sampling and betaine was found in the March (I) and July (III) samplings, while a high relative content of succinate and amino acids, such as alanine, leucinem and threonine, characterized female gonads from the May (II) sampling (Figure 7b).
Successively, the aqueous extracts of umbrella were deeply analysed. The t[1]/t[2] PCA score plot (R2X = 0.78, Q2 = 0.484) performed for umbrella aqueous extracts showed a good separation of samples along the t[1] principal component, with samples collected in May and July separated by samples collected in March (data not shown). In order to improve the observed separation and clearly define the metabolites responsible for the differentiation, a supervised OPLS-DA analysis was then applied providing a good model (2+2+0, R2X = 0.723, R2Y = 0.927, Q2 = 0.87) (Figure 8a). Umbrella aqueous samples collected in May (II) and in July (III) appeared at negative values of the predictive component t[1], whereas samples collected in March (I) were observed at positive values of the same component t[1] and quite scattered along orthogonal component t[1]. From the loading for this model (Figure 8b), molecular components responsible for the separation between the two groups could be observed. In the first sampling (I, March), a high relative content of amino acids, in particular proline and threonine was observed, while samples collected in the second sampling period (II, May) were characterized by relative higher levels of betaine and amino acid, such as isoleucine and alanine. The third sampling period was characterized by high relative content of taurine, when compared with the other two periods.
Similarly to oral arms lipid extracts, for aqueous extracts only March and May sampling periods were considered. The unsupervised analysis gave a good model R2X = 0.89 and Q2 = 0.42 and only three components described more than 74% of the total variance (36%, 30%, and 8.8% for t[1], t[2], and t[3], respectively). In the corresponding t[1]/t[2] PCA score plot, the samples collected in March and May (I and II) were well separated, along the t[2] principal component (data not shown). The equivalent OPLS-DA model (1+1+0, R2X = 0.54, R2Y = 0.95, Q2 = 0.91) improved the separation among samples along the predictive component t[1], from negative (between −0.2 and −0.6) to positive values (between 0.2 and 0.4) for samples collected in March (I) and May (II), respectively (Figure 9a). From the analysis of the loading-plot for the model (Figure 9b), a high relative content of proline, homarine, and formate was found in oral arms of March period, whereas a higher relative content of taurine, hypotaurine, threonine, and glycine was observed in samples collected in May.
As in lipid extracts, for aqueous extracts the variation in discriminating metabolite content for each compartment among the different sampling was calculated by the integration of selected distinctive unbiased NMR signals. In particular, signals corresponding to formate (δ 1H 8.46), homarine (δ 1H 4.37 and 7.98), threonine (δ 1H 3.66), glycine (δ 1H 3.57), taurine (δ 1H 3.27, and 3.41), proline (δ 1H 3.34), hypotaurine (δ 1H 2.62), isoleucine (δ 1H 1.98), alanine (δ 1H 1.50), betaine (δ 1H 3.90), succinate (δ 1H 2.41), and leucine (δ 1H 0.98) were selected and integrated (Figure 10).

3. Discussion

Recently, scientific interest has focused on bioactive compound research from marine organisms, which represent a possible source of healthy food and molecules with potential antibacterial activity [3,4]. In a previous work, the prospect to exploit R. pulmo ovaries as source of bioactive compounds for different applications in pharmaceutical and nutrition fields was discussed [4]. On the basis of these results, the metabolic profiles of R. pulmo body fractions (female gonads, umbrella, and oral arms) were analysed in different sampling periods by 1H NMR spectroscopy. The present study has the aim of laying the groundwork for sustainable exploitation of R. pulmo body compartments for different purposes useful for human activity and health.
In both extracts, lipid and aqueous, a higher content of metabolites was identified in female gonads with respect to other two compartments. The lipid extract analysis showed a high content of ω-3 PUFAs, as also observed by other authors in different species of scyphozoan jellyfish, such as Aurelia sp. [3,4,8,30]. The high content of PUFAs (essentially ω-3 and ω-6 PUFA) in these organisms could represent an important source as essential dietary nutrients for marine invertebrates and fish, since these cannot synthesize PUFA de novo from saturated and monounsaturated fatty acids [31]. Moreover, as reported in the literature, ω-3 PUFAs, especially DHA and EPA, are abundant in the gonads of marine invertebrates [32], including also scyphomedusae, as these molecules are required in the gonad maturation [33], larval growth of fish [34], reproduction processes, and for egg quality [4,35], regulation of cellular movement, gonadal metabolism of lipids, and fusion capacity [36]. Indeed, the lipid content strongly influenced the composition of fish eggs [37]. Moreover, it has also been reported that, in different species, such as Octopus vulgaris, the lipid gonad metabolism was regulated by the PUFA content [36]. In other organisms, such as crustaceans and molluscs, PUFAs are also involved in prostaglandin and hormone production and ionic flux regulation [4]. In some jellyfish species, such as Aurelia sp. and R. pulmo ovaries, EPA and DHA fatty acids (FAs) were detected, where palmitic and stearic fatty acids (16:0 and 18:0, respectively), EPA, AA, and DHA (eicosapentaenoic, arachidonic, and docosahexaenoic acids, respectively) constituted around 66% of the total FAs [38,39]. Since antioxidant and anti-inflammatory properties of ω-3 PUFAs, DHA, and EPA are suitable for treatments of neuro-inflammation-induced memory deficits and mental health [40,41], the exploitation of ω-3 PUFAs found in DHA and EPA of the R. pulmo gonads as sources of these compounds could be promising in pharmaceutical and nutraceutical fields. The observed differences in lipid content might be due to a variation in the size and age of individuals and/or the temperature of the living biota and habitat, as already observed in Aurelia aurita [38]. In particular, Lucas et al. [42] summarized the most common life history patterns in temperate waters explaining that juvenile medusa (ephyrae) are liberated in late winter and develop into medusae in the spring. As the temperature increases, the medusae reach the maximum size of 20–30 cm bell diameter [42]. During summer, the medusae start to shrink as they release eggs. Their life span is mostly 4–8 months. Accordingly, the life cycle of R. pulmo begins with a fertilized egg that develops into a planula and, hence, into a sessile and asexually-reproducing scyphistoma, which strobilates and releases swimming ephyrae that develop into medusae. Previous studies on the seasonal distribution of R. pulmo along the Catalan coast and the coastal lagoon on Mar Menor (NW Mediterranean) [43] evidenced that the adult medusae normally disappeared during January and March and that the juvenile R. pulmo (about 5–10 cm umbrella diameter) was observed at the beginning of May. On the basis of these observations, it is plausible that the observed differences in lipid concentration could be related to the maturity of the eggs in the collected jellyfish. In particular, in March the juveniles have not yet reached the sexual maturity and eggs have a different composition compared to those of April/May, when jellyfish are ready to mate. In this context, it is also intriguing to consider that in jellyfish, an increase in the amount of sunlight at dawn causes males and females to release sperm and eggs, respectively, into the water at the same time, therefore improving the chances of fertilization. In female jellyfish, the rise in the amount of sunlight falling on the cells surrounding the oocyte—the future egg—also stimulates the final steps in the process of egg production [44,45,46]. It should be noted that at our latitude (Ionian Sea, 40°25.7′ N, 16°53.1′ E; Italy) this situation could be reached just starting from May. After the spawning period the female gonads have low contents of unfertilized eggs and this could be reflected in the observed 1H NMR profiles. Interestingly, the results obtained in the present study are also in accordance with several studies on the biochemical composition of eggs in marine invertebrates, showing that mature eggs often are characterized by a high lipid and protein content.
In aqueous extracts, essential (leucine, isoleucine, threonine, valine) and non-essential amino acids (alanine, glycine, proline, and glutamate) were found as the most important, and dominant also in the gonads of other edible jellyfish, such as Rhopilema esculentum [30]. In particular, as already reported in the literature, amino acids are responsible for food flavor. Glycine, alanine, and proline are characteristics of a sweetish flavor [30], while glutamate was known to be responsible for a palatable flavor [30]. Other amino acids of particular interest in medicine, such as leucine, glycine, and tyrosine were found in female gonads of R. pulmo [30]. The aqueous extracts of female gonads were characterized by the presence of osmolytes, which could be involved in supporting the larval state until the metamorphosis, as found in Hydrozoa [4]. The higher presence of osmolytes in the gonads in March and July compared to May, when the ovaries are richer in amino acids, could also be related to the different stage of the egg maturation as already explained in the case of lipids.

4. Materials and Methods

4.1. Chemicals

All chemical reagents for analysis were of analytical grade: D2O, CDCl3, CD3OD (99.8% atom%D), TSP, 3-(trimethysilyl)-propionic-2,2,3,3,d4 acid, and tetramethylsilane, TMS (0.03 v/v%) and were purchased from Armar Chemicals (Döttingen, Switzerland).

4.2. Sampling

R. pulmo jellyfish were sampled in Ginosa Marina (Ionian Sea, 40°25.7′ N, 16°53.1′ E; Italy) as already reported in Stabili et al. [4]. Samplings were performed in three periods: March (I), May (II), and July (III) in 2017, respectively. Briefly, the specimens of R. pulmo adult medusae were sampled and immediately washed into the laboratory with filtered-sterilized seawater (0.2 μm, Millipore), to remove the mucus layer produced during transport. The different body fractions (female gonads, umbrella) were separated, frozen a −80 °C and lyophilized. Ovaries appeared from pink to orange, with easily distinguishable eggs. When gender determination was uncertain visually, a small piece of gonad tissue was removed and examined under a stereomicroscope. The ovaries were carefully dissected with microscissors at the stereomicroscope to avoid loss of gonadic tissue or accidental inclusion of subumbrellar or exumbrellar tissues. Each gonad was then divided in aliquots. Aliquots were lyophilized and frozen at −80 °C in liquid nitrogen until NMR analysis. In particular, for each sampling period, four specimens were considered for a total of 12 samples, and for every analyzed body compartment three technical replicates were assessed.
On March and May the oral arms of the jellyfish were also analyzed. This compartment was not taken into consideration in July considering that in this period jellyfish are involved in reproduction and this compartment is rich in eggs. In some jellyfish species, indeed eggs are attached to “brood pouches” on the upper part of the female’s arms, surrounding the mouth. In other species, the female harbors the eggs inside her mouth, and the male’s sperm swim into her stomach; the fertilized eggs later leave the stomach and attach themselves to the female’s arms.
The lipid and aqueous extracts samples of R. pulmo were prepared according to a modified Bligh and Dyer extraction method [4,47,48]. For each body compartment sample, lyophilized material (~100 mg) was added of 400 μL chloroform, 400 μL methanol, and 400 μL deionized filtered water. The solution was mixed and placed on an ice bath for 10 min before centrifugation at 10,000 rpm for 20 min at 4 °C. The two phases obtained, polar and lipophilic, were separated and dried by a SpeedVac concentrator (SC 100, Savant, Ramsey, MN, USA). The lipid extracts were dissolved in 700 μL of CD3OD/CDCl3 (1:2 mix) containing 0.03% v/v tetramethylsilane (TMS, δ = 0.00) as the internal standard. The polar extracts were dissolved in 160 μL 0.2 M Na2HPO4/NaH2PO4 buffer (pH 7.4) and 540 μL D2O containing 3-(trimethylsilyl)-propionic-2,2,3,3-d4 acid (TSP δ = 0.00) as the internal standard. Lipid and aqueous extracts were then transferred into 5 mm NMR tubes for NMR analysis.

4.3. NMR Measurements

All measurements were performed on a Bruker Avance III 600 Ascend NMR spectrometer (Bruker, Ettlingen, Germany), operating at 600.13 MHz for 1H observation, equipped with a z axis gradient coil and automatic tuning-matching (ATM). Experiments were acquired at 300 K in automation mode after loading individual samples on a Bruker Automatic Sample Changer, interfaced with the software IconNMR (Bruker). For each aqueous extracts a 1D sequence with pre-saturation and composite pulse for selection (zgcppr Bruker standard pulse sequence) was acquired, with 64 transients, 16 dummy scans, 5 s relaxation delay, size of FID (Free Induction Decay) of 64,000 data points, a spectral width of 12,019.230 Hz (20.0276 ppm) and an acquisition time of 2.73 s, using TSP, 3-(trimethysilyl)-propionic-2,2,3,3,d4 acid (δ = 0.00) as the internal standard. The lipid extracts were dissolved in 600 μL of CD3OD/CDCl3 (1:2 mix) and transferred to a 5-mm NMR tube, using tetramethylsilane (TMS, δ = 0.00) as the internal standard. The following parameters were used for 1H NMR spectrum: 64,000 data points, spectral width of 20.0276 Hz, 64 scans with a 5 s repetition delay, 90° power pulse (p1) 7.3 µs, power level 8.05 dB. The resulting FIDs were multiplied by an exponential weighting function corresponding to a line broadening of 0.3 Hz before Fourier transformation, automated phasing, and baseline correction. The metabolites were assigned on the basis of 2D NMR spectra analysis (2D 1H Jres, 1H COSY, 1H-13C HSQC, and HMBC) and by comparison with published data [21,22,23,27,28].

4.4. Statistical Analysis

The 1H NMR spectra were processed using Topspin 3.5 and Amix 3.9.13 (Analysis of Mixture, Bruker, Biospin, Italy), both for simultaneous visual inspection and the successive bucketing process. The NMR spectra performed for both lipid and aqueous extracts were segmented in rectangular fixed (0.04 ppm width) buckets and integrated by Amix software. The bucketing procedure was performed in the spectral range between 10.00 and 0.5 ppm, excluding the residual signals of non-deuterated solvents. In particular, the regions 7.75–7.05 ppm for chloroform and its carbon satellites, 4.75–3.65 ppm for water, and 3.41–3.33 ppm methanol were excluded in the case of NMR spectra of lipid extracts, while the region 5.00–4.60 ppm, corresponding to the residual water signal was excluded in the case of NMR spectra of aqueous extracts. The total sum normalization was applied to reduce small differences due to sample concentration and/or experimental conditions among samples. The two bucket tables (for lipid and aqueous extracts), obtained by alignment and successive buckets row reduced spectra, were submitted to multivariate data analysis (MVA). Each bucket row represents the entire NMR spectrum, with all the molecules in the sample. Moreover, each bucket in a buckets row reduced spectrum is labelled with the value of the central chemical shift for its specific 0.04 ppm width. The variables used as descriptors for each sample in chemometric analyses are the buckets. The description of statistical analyses refers to Pareto-scaled data obtained by dividing the mean-centered bucket values by the square root of the standard deviation [49]. Multivariate statistical analysis (MVA) was performed by using Simca-P version 14 (Sartorius Stedim Biotech, Umeå, Sweden). In particular, PCA (principal component analysis), PLS-DA, and OPLS-DA (Partial least squares and orthogonal partial least squares discriminant analyses, respectively) were applied to the data [49,50,51] to examine the intrinsic data variation. PCA is at the basis of the multivariate analysis [50] and usually performed to extract and display the systematic variation in a data matrix X formed by rows (the considered observations), in our case the samples and columns (the variables describing each sample) of the buckets from each NMR spectrum. A PCA model provides a summary, or overview, of all observations or samples in the data table. In addition, groupings, trends, and outliers can also be found. To further maximize the separation between sample classes (already observed by PCA), partial least-squares discriminant analysis (PLS-DA) was then applied. The PLS-DA is the regression extension of PCA, which gives the maximum covariance between the measured data (X variable, matrix of buckets related to metabolites in NMR spectra) and the response variable (Y variable, matrix of data related to the class membership). In this work, the PLS-DA method was also performed in order to justify the number of components used in the OPLS-DA model [50,51,52,53]. The OPLS-DA analysis is a modification of the usual PLS-DA method which filters out variation that is not directly related to the response and produces models of clearer interpretation, focusing the predictive information in one component, as shown in several recent studies of metabolomics [21,54]. The further improvements made by the OPLS-DA in MVA resides in the ability to separate the portion of the variance useful for predictive purposes from the not predictive variance (which is made orthogonal) [55]. OPLS-DA models are useful tools in application of prediction and classification. In order to evaluate the robustness and predictive ability of the statistical models, a seven-fold cross-validation procedure was performed [50,56,57]. The PCA and OPLS-DA models were validated using the internal cross-validation default method (seven-fold) and further evaluated with a permutation test (400 permutations), all available in the SIMCA-P software [58]. The quality of the models was described by R2 and Q2 parameters [58]. The first (R2) is a cross-validation parameter defined as the portion of data variance explained by the models and indicates the goodness of fit. The second (Q2) represents the portion of variance in the data predictable by the model. In our MVA 3–5 components usually gave optimal R2(cum) and Q2(cum) values. The minimal number of components required can be easily defined since R2(cum) and Q2(cum) parameters display a completely diverging behavior as the model complexity increases [58,59]. The results were shown by the optimal bi-dimensional scores plots and relative loadings plots, which were used to identify the molecular components responsible of separation among groups [21,60,61].
Furthermore, for both aqueous and lipid extracts, variation in discriminating metabolites content for each compartment, among the several samplings (March, May, and July) was determined by analyzing selected distinctive unbiased NMR signals after spectra normalization. The significant differences of the mean values were analyzed by analysis of variance (one-way ANOVA), with Tukey’s honestly significant difference (HSD) post hoc test, using the R statistical environment, Version 3.2.4, on a 64 bit Windows machine [62]. The levels of statistical significance were at p-values < 0.05 with a 95% confidence level.

5. Conclusions

In recent years, research has focused on the study of bioactive compounds from living organisms, in particular marine organisms. Among Cnidaria phylum, jellyfish represent a potentially new source of advantageous products for human health. R. pulmo represents one of the most abundant species of the Mediterranean coasts, with marked inter-annual fluctuations in population density. In this study, the metabolic profiles of the different body compartments (female gonads, umbrella, and oral arms) of R. pulmo from different sampling periods, were evaluated. The NMR analysis of the metabolic profiles of body fractions revealed that female gonads had a higher content in metabolites, while a similar biochemical composition was found in umbrella and oral arms. The analysis performed on both lipid and aqueous extracts showed that female gonads had the richest fraction, essentially due to the presence of ω-3 PUFAs (EPA and DHA), free amino acids (essential and not), and osmolytes (homarine and betaine). The results also indicated that the different relative content of these compounds might be due to variations in size and egg maturation of individuals and/or the temperature of the living biota and habitat, as already observed in other species. The presence of essential metabolites (not only for marine organisms but also for human health) in the gonads of R. pulmo suggests their potential use as a source for these compounds. Although further studies are required in this specific field, the obtained preliminary data on biochemical composition on R. pulmo, suggest several applications of these invertebrates in the fields of nutraceuticals, nutricosmetics, and functional food.

Supplementary Materials

The following are available online, Figure S1: (a) t[1]/t[2] PCA scores plot for lipid extracts (R2X = 0.95, Q2 = 0.92) of three body compartments of R. pulmo. (b) t[1]/t[2] PCA scores plot for aqueous extracts (R2X = 0.73, Q2 = 0.53) of three body compartments of R. pulmo. Red circle, female gonads; blue square, oral arms; green triangle, umbrella.

Author Contributions

Conceptualization: F.P.F., L.S., and S.P.; methodology: L.R., L.B., F.A., L.D.C., and C.R.G.; software: F.A., L.D.C., and C.R.G.; formal analysis: F.A., L.D.C., and C.R.G.; investigation: L.S., L.B., L.R., F.A., L.D.C., and C.R.G.; data curation: F.A., L.D.C., and C.R.G.; writing—original draft preparation: F.A., L.D.C., and C.R.G.; writing—review and editing: F.P.F., L.S., and S.P.; supervision: F.P.F., L.S., and S.P. All authors have read and agreed to the published version of the manuscript.

Funding

S.P. and L.B. were supported by the project “PULMO” funded from the European Commission Horizon 2020 Programmes: Marie Sklodowska-Curie individual Fellowships H2020-MSCA-IF-2015 under grant agreement no. 708698, and by the project “CERES—Climate Change and European Aquatic Resources”, grant agreement ID: 678193.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

FAfatty acid
SFAsaturated fatty acid
MUFAmono unsaturated fatty acid
DUFAdi-unsaturated fatty acid
PUFApolyunsaturated fatty acid
TGtriglycerides
CHOcholesterol
PCphosphatidycholine
PEphosphatidylethanolamine
EPAeicosapentaenoic acid
DHAdocosahexaenoic acid
1,2 DAG1,2 diacylglycerols
TMAOtrimethylamine-N-oxide
PCAprincipal component analysis
OPLS-DAorthogonal partial least squares discriminant analysis

References

  1. Boero, F. Review of jellyfish blooms in the Mediterranean and Black Sea. Rome. FAO Fish. Rep. 2013, 92, 64. [Google Scholar]
  2. Richardson, A.J.; Bakun, A.; Hays, G.C.; Gibbons, M.J. The jellyfish joyride: Causes, consequences and management responses to a more gelatinous future. Trends Ecol. Evol. 2009, 24, 312–322. [Google Scholar] [CrossRef]
  3. Leone, A.; Lecci, R.M.; Durante, M.; Meli, F.; Piraino, S. The Bright Side of Gelatinous Blooms: Nutraceutical Value and Antioxidant Properties of Three Mediterranean Jellyfish (Scyphozoa). Mar. Drugs 2015, 13, 4654–4681. [Google Scholar] [CrossRef][Green Version]
  4. Stabili, L.; Rizzo, L.; Fanizzi, F.P.; Angilè, F.; Del Coco, L.; Girelli, C.R.; Lomartire, S.; Piraino, S.; Basso, L. The Jellyfish Rhizostoma pulmo (Cnidaria): Biochemical Composition of Ovaries and Antibacterial Lysozyme-like Activity of the Oocyte Lysate. Mar. Drugs 2019, 17, 17. [Google Scholar] [CrossRef][Green Version]
  5. Mariottini, G.L.; Pane, L. Mediterranean Jellyfish Venoms: A Review on Scyphomedusae. Mar. Drugs 2010, 8, 1122–1152. [Google Scholar] [CrossRef][Green Version]
  6. Purcell, J.; Mianzan, H.; Frost, J.R. Temperature effects on asexual reproduction rates of scyphozoan species from the northwest Mediterranean Sea. In Jellyfish Blooms IV; Springer: Dordrecht, The Netherlands, 2012; pp. 169–180. [Google Scholar] [CrossRef]
  7. Mariottini, G.L.; Grice, I.D. Antimicrobials from Cnidarians. A New Perspective for Anti-Infective Therapy? Mar. Drugs 2016, 14, 48. [Google Scholar] [CrossRef][Green Version]
  8. Rocha, J.; Peixe, L.; Gomes, N.C.M.; Calado, R. Cnidarians as a Source of New Marine Bioactive Compounds—An Overview of the Last Decade and Future Steps for Bioprospecting. Mar. Drugs 2011, 9, 1860–1886. [Google Scholar] [CrossRef]
  9. Hsieh, Y.-H.P. Use of Jellyfish Collagen (Type II) in the Treatment of Rheumatoid Arthritis. U.S. Application US10/007,716, 17 May 2005. [Google Scholar]
  10. Addad, S.; Exposito, J.-Y.; Faye, C.; Ricard-Blum, S.; Lethias, C. Isolation, Characterization and Biological Evaluation of Jellyfish Collagen for Use in Biomedical Applications. Mar. Drugs 2011, 9, 967–983. [Google Scholar] [CrossRef] [PubMed][Green Version]
  11. Zhuang, Y.; Sun, L.; Zhao, X.; Wang, J.; Hou, H.; Li, B. Antioxidant and melanogenesis-inhibitory activities of collagen peptide from jellyfish (Rhopilema esculentum). J. Sci. Food Agric. 2009, 89, 1722–1727. [Google Scholar] [CrossRef]
  12. Effects of Collagen and Collagen Hydrolysate from Jellyfish (Rhopilema esculentum) on Mice Skin Photoaging Induced by UV Irradiation. J. Food Sci. 2009, 74, H183–H188. [CrossRef] [PubMed]
  13. Zhuang, Y.; Sun, L.; Zhang, Y.; Liu, G. Antihypertensive effect of long-term oral administration of jellyfish (Rhopilema esculentum) collagen peptides on renovascular hypertension. Mar. Drugs 2012, 10, 417–426. [Google Scholar] [CrossRef] [PubMed]
  14. Hsieh, Y.P.; Rudloe, J. Potential of utilizing jellyfish as food in Western countries. Trends Food Sci. Technol. 1994, 5, 225–229. [Google Scholar] [CrossRef]
  15. Liu, X.; Zhang, M.; Zhang, C.; Liu, C. Angiotensin converting enzyme (ACE) inhibitory, antihypertensive and antihyperlipidaemic activities of protein hydrolysates from Rhopilema esculentum. Food Chem. 2012, 134, 2134–2140. [Google Scholar] [CrossRef] [PubMed]
  16. Hoyer, B.; Bernhardt, A.; Lode, A.; Heinemann, S.; Sewing, J.; Klinger, M.; Notbohm, H.; Gelinsky, M. Jellyfish collagen scaffolds for cartilage tissue engineering. Acta Biomater. 2014, 10, 883–892. [Google Scholar] [CrossRef]
  17. De Domenico, S.; De Rinaldis, G.; Paulmery, M.; Piraino, S.; Leone, A. Barrel jellyfish (Rhizostoma pulmo) as source of antioxidant peptides. Mar. Drugs 2019, 17, 134. [Google Scholar] [CrossRef][Green Version]
  18. Miyajima, Y.; Masuda, R.; Kurihara, A.; Kamata, R.; Yamashita, Y.; Takeuchi, T. Juveniles of threadsail filefish, Stephanolepis cirrhifer, can survive and grow by feeding on moon jellyfish Aurelia aurita. Fish. Sci. 2011, 77, 41–48. [Google Scholar] [CrossRef]
  19. Armani, A.; Giusti, A.; Castigliego, L.; Rossi, A.; Tinacci, L.; Gianfaldoni, D.; Guidi, A. Pentaplex PCR as screening assay for jellyfish species identification in food products. J. Agric. Food Chem. 2014, 62, 12134–12143. [Google Scholar] [CrossRef]
  20. Khong, N.M.; Yusoff, F.M.; Jamilah, B.; Basri, M.; Maznah, I.; Chan, K.W.; Nishikawa, J. Nutritional composition and total collagen content of three commercially important edible jellyfish. Food Chem. 2016, 196, 953–960. [Google Scholar] [CrossRef]
  21. Del Coco, L.; Felline, S.; Girelli, C.R.; Angilè, F.; Magliozzi, L.; Almada, F.; D’Aniello, B.; Mollo, E.; Terlizzi AFanizzi, F.P. 1H NMR Spectroscopy and MVA to evaluate the effects of caulerpin-based diet on Diplodus sargus lipid profiles. Mar. Drugs 2018, 16, 390. [Google Scholar] [CrossRef][Green Version]
  22. Fan, T.W.-M. Metabolite profiling by one-and two-dimensional NMR analysis of complex mixtures. Prog. Nucl. Magn. Reson. Spectrosc. 1996, 28, 161–219. [Google Scholar] [CrossRef]
  23. Mannina, L.; Sobolev, A.P.; Capitani, D.; Iaffaldano, N.; Rosato, M.P.; Ragni, P.; Reale, A.; Sorrentino, E.; D’Amico, I.; Coppola, R. NMR metabolic profiling of organic and aqueous sea bass extracts: Implications in the discrimination of wild and cultured sea bass. Talanta 2008, 77, 433–444. [Google Scholar] [CrossRef]
  24. Shumilina, E.; Ciampa, A.; Capozzi, F.; Rustad, T.; Dikiy, A. NMR approach for monitoring post-mortem changes in Atlantic salmon fillets stored at 0 and 4 C. Food Chem. 2015, 184, 12–22. [Google Scholar] [CrossRef][Green Version]
  25. Milisenda, G.; Rossi, S.; Vizzini, S.; Fuentes, V.L.; Purcell, J.E.; Tilves, U.; Piraino, S. Seasonal variability of diet and trophic level of the gelatinous predator Pelagia noctiluca (Scyphozoa). Sci. Rep. 2018, 8, 12140. [Google Scholar] [CrossRef]
  26. Jellyfish as Prey: Frequency of Predation and Selective Foraging of Boops boops (Vertebrata, Actinopterygii) on the Mauve Stinger Pelagia noctiluca (Cnidaria, Scyphozoa). PLoS ONE 2014, 11, e94600. [CrossRef][Green Version]
  27. Tikunov, A.P.; Johnson, C.B.; Lee, H.; Stoskopf, M.K.; Macdonald, J.M. Metabolomic investigations of American oysters using 1H-NMR spectroscopy. Mar. Drugs 2010, 8, 2578–2596. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Zotti, M.; De Pascali, S.A.; Del Coco, L.; Migoni, D.; Carrozzo, L.; Mancinelli, G.; Fanizzi, F.P. 1H NMR metabolomic profiling of the blue crab (Callinectes sapidus) from the Adriatic Sea (SE Italy): A comparison with warty crab (Eriphia verrucosa), and edible crab (Cancer pagurus). Food Chem. 2016, 196, 601–609. [Google Scholar] [CrossRef] [PubMed]
  29. Burg, M.B.; Ferraris, J.D. Intracellular organic osmolytes: Function and regulation. J. Biol. Chem. 2008, 283, 7309–7313. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Yu, H.; Li, R.; Liu, S.; Xing, R.; Chen, X.; Li, P. Amino acid composition and nutritional quality of gonad from jellyfish Rhopilema esculentum. Biomed. Prev. Nutr. 2014, 4, 399–402. [Google Scholar] [CrossRef]
  31. Monroig, Ó.; Tocher, D.R.; Navarro, J.C. Biosynthesis of Polyunsaturated Fatty Acids in Marine Invertebrates: Recent Advances in Molecular Mechanisms. Mar. Drugs 2013, 11, 3998–4018. [Google Scholar] [CrossRef][Green Version]
  32. Besnard, J.-Y. Etude Des Constituants Lipidiques Dans la Gonade Femelle et Les Larves de Pecten Maximus L: (Mollusque lamellibranche). Ph.D. Thesis, Université de Caen, Caen, France, 1988. [Google Scholar]
  33. Izquierdo, M.S.; Fernández-Palacios, H.; Tacon, A.G.J. Effect of broodstock nutrition on reproductive performance of fish. Aquaculture 2001, 197, 25–42. [Google Scholar] [CrossRef]
  34. Tulli, F.; Tibaldi, E. Changes in amino acids and essential fatty acids during early larval rearing of dentex. Aquac. Int. 1997, 5, 229–236. [Google Scholar] [CrossRef]
  35. Pernet, V.; Gavino, V.; Gavino, G.; Anctil, M. Variations of lipid and fatty acid contents during the reproductive cycle of the anthozoan Renilla koellikeri. J. Comp. Physiol. B 2002, 172, 455–465. [Google Scholar]
  36. Miliou, H.; Fintikaki, M.; Tzitzinakis, M.; Kountouris, T.; Verriopoulos, G. Fatty acid composition of the common octopus, Octopus vulgaris, in relation to rearing temperature and body weight. Aquaculture 2006, 256, 311–322. [Google Scholar] [CrossRef]
  37. Milisenda, G.; Martínez-Quintana, A.; Fuentes, V.; Bosch-Belmar, M.; Aglieri, G.; Boero, F.; Piraino, S. Reproductive and bloom patterns of Pelagia noctiluca in the Strait of Messina, Italy. Estuar. Coast. Shelf Sci. 2018, 201, 29–39. [Google Scholar] [CrossRef]
  38. Abdullah, A.; Nurjanah, N.; Hidayat, T.; Aji, D.U. Fatty acid profile of jellyfish (Aurelia aurita) as a source raw material of aquatic result rich beneft. Int. J. Chem. Biol. Sci. 2015, 1, 12–16. [Google Scholar]
  39. Nichols, P.D.; Danaher, K.T.; Koslow, J.A. Occurrence of high levels of tetracosahexaenoic acid in the jellyfish Aurelia sp. Lipids 2003, 38, 1207–1210. [Google Scholar] [CrossRef]
  40. Song, C.; Zhao, S. Omega-3 fatty acid eicosapentaenoic acid. A new treatment for psychiatric and neurodegenerative diseases: A review of clinical investigations. Expert Opin. Investig. Drugs 2007, 16, 1627–1638. [Google Scholar] [CrossRef]
  41. Song, C.; Phillips, A.G.; Leonard, B. Interleukin 1 beta enhances conditioned fear memory in rats: Possible involvement of glucocorticoids. Eur. J. Neurosci. 2003, 18, 1739–1743. [Google Scholar] [CrossRef]
  42. Lucas, C.H. Reproduction and life history strategies of the common jellyfish, Aurelia aurita, in relation to its ambient environment. In Jellyfish Blooms: Ecological and Societal Importance; Springer: Dordrecht, The Netherlands, 2001; pp. 229–246. [Google Scholar] [CrossRef]
  43. Fuentes, V.; Straehler-Pohl, I.; Atienza, D.; Franco, I.; Tilves, U.; Gentile, M.; Acevedo, M.; Olariaga, A.; Gili, J. Life cycle of the jellyfish Rhizostoma pulmo (Scyphozoa: Rhizostomeae) and its distribution, seasonality and inter-annual variability along the Catalan coast and the Mar Menor (Spain, NW Mediterranean). Mar. Biol. 2011, 158, 2247–2266. [Google Scholar] [CrossRef]
  44. Ikegami, S. Light-controlled production of spawning-inducing substance in jellyfish ovary. Nature 1978, 272, 611–612. [Google Scholar] [CrossRef]
  45. Freeman, G. The role of oocyte maturation in the ontogeny of the fertilization site in the hydrozoan Hydractinia echinata. Rouxs Arch. Dev. Biol. 1987, 196, 83–92. [Google Scholar] [CrossRef] [PubMed]
  46. Artigas, G.Q.; Deguchi, R. A gonad-expressed opsin mediates light- induced spawning in the jellyfish Clytia. eLife 2018, 7, e29555. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Bligh, E.G.; Dyer, W.J. A rapid method of total lipid extraction and purification. Can. J. Biochem. Physiol. 1959, 37, 911–917. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Wu, H.; Southam, A.D.; Hines, A.; Viant, M.R. High-throughput tissue extraction protocol for NMR-and MS-based metabolomics. Anal. Biochem. 2008, 372, 204–212. [Google Scholar] [CrossRef]
  49. Van den Berg, R.A.; Hoefsloot, H.C.; Westerhuis, J.A.; Smilde, A.K.; van der Werf, M.J. Centering, scaling, and transformations: Improving the biological information content of metabolomics data. BMC Genom. 2006, 7, 142. [Google Scholar] [CrossRef][Green Version]
  50. Trygg, J.; Wold, S. Orthogonal projections to latent structures (O-PLS). J. Chemom. J. Chemom. Soc. 2002, 16, 119–128. [Google Scholar] [CrossRef]
  51. Jackson, J.E. A User’s Guide to Principal Components; John Wiley & Sons: Hoboken, NJ, USA, 2005; Volume 587. [Google Scholar]
  52. Lindon, J.C.; Nicholson, J.K.; Holmes, E. The Handbook of Metabonomics and Metabolomics; Elsevier: Amsterdam, The Netherlands, 2011. [Google Scholar]
  53. De Pascali, S.A.; Gambacorta, L.; Oswald, I.P.; Del Coco, L.; Solfrizzo, M.; Fanizzi, F.P. 1H NMR and MVA metabolomic profiles of urines from piglets fed with boluses contaminated with a mixture of five mycotoxins. Biochem. Biophys. Rep. 2017, 11, 9–18. [Google Scholar]
  54. Consonni, R.; Cagliani, L.R.; Benevelli, F.; Spraul, M.; Humpfer, E.; Stocchero, M. NMR and chemometric methods: A powerful combination for characterization of balsamic and traditional balsamic vinegar of Modena. Anal. Chim. Acta 2008, 611, 31–40. [Google Scholar] [CrossRef]
  55. Boccard, J.; Rutledge, D.N. A consensus orthogonal partial least squares discriminant analysis (OPLS-DA) strategy for multiblock Omics data fusion. Anal. Chim. Acta 2013, 769, 30–39. [Google Scholar] [CrossRef]
  56. Holmes, E.; Loo, R.L.; Stamler, J.; Bictash, M.; Yap, I.K.S.; Chan, Q.; Ebbels, T.; De Iorio, M.; Brown, I.J.; Veselkov, K.A.; et al. Human metabolic phenotype diversity and its association with diet and blood pressure. Nature 2008, 453, 396–400. [Google Scholar] [CrossRef]
  57. Triba, M.N.; le Moyec, L.; Amathieu, R.; Goossens, C.; Bouchemal, N.; Nahon, P.; Rutledge, D.N.; Savarin, P. PLS/OPLS models in metabolomics: The impact of permutation of dataset rows on the K-fold cross-validation quality parameters. Mol. Biosyst. 2015, 11, 13–19. [Google Scholar] [CrossRef] [PubMed]
  58. Eriksson, L.; Byrne, T.; Johansson, E.; Trygg, J.; Vikström, C. Multi-and Megavariate Data Analysis Basic Principles and Applications; Umetrics Academy: Malmö, Sweden, 2013; Volume 1. [Google Scholar]
  59. Eastment, H.T.; Krzanowski, W.J. Cross-validatory choice of the number of components from a principal component analysis. Technometrics 1982, 24, 73–77. [Google Scholar] [CrossRef]
  60. Girelli, C.R.; Del Coco, L.; Fanizzi, F.P. 1H NMR spectroscopy and multivariate analysis as possible tool to assess cultivars, from specific geographical areas, in EVOOs. Eur. J. Lipid Sci. Technol. 2016, 118, 1380–1388. [Google Scholar] [CrossRef]
  61. Girelli, C.R.; Accogli, R.; del Coco, L.; Angilè, F.; de Bellis, L.; Fanizzi, F.P. 1H-NMR-based metabolomic profiles of different sweet melon (Cucumis melo L.) Salento varieties: Analysis and comparison. Food Res. Int. 2018, 114, 81–89. [Google Scholar] [CrossRef] [PubMed]
  62. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013; Available online: https://www.gbif.org/tool/81287/r-a-language-and-environment-forstatistical-computing (accessed on 19 November 2019).
Sample Availability: Samples of the compounds are not available from the authors.

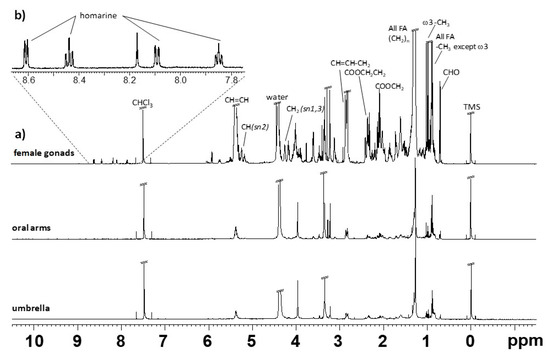

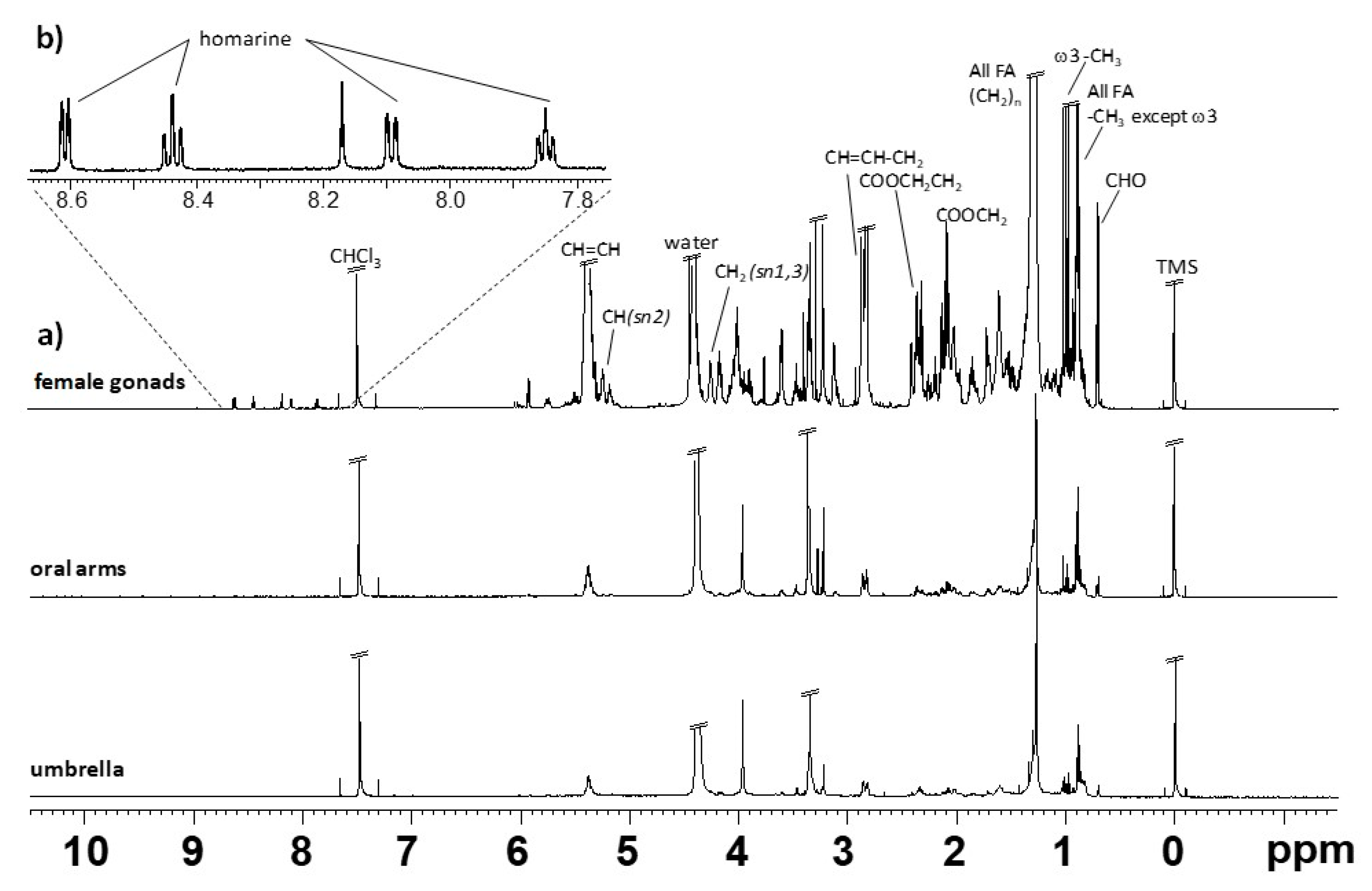

Figure 1. Typical 1H NMR spectrum obtained at 600 MHz of CD3OD/CDCl3 lipid extract of R. pulmo. (a) Full spectrum of three body compartments, and (b) expansion spectrum at high frequency regions obtained only for the female gonads extracts.
Figure 1. Typical 1H NMR spectrum obtained at 600 MHz of CD3OD/CDCl3 lipid extract of R. pulmo. (a) Full spectrum of three body compartments, and (b) expansion spectrum at high frequency regions obtained only for the female gonads extracts.
Molecules 25 00806 g001

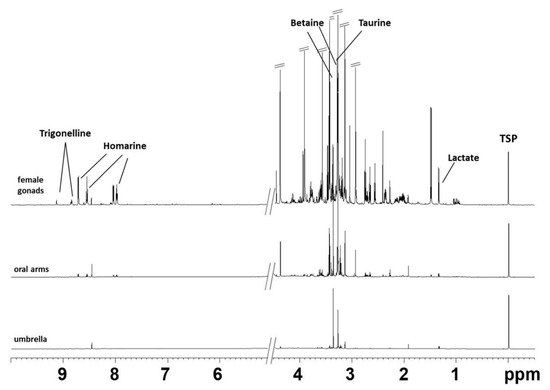

Figure 2. Typical 1H NMR spectrum obtained at 600 MHz of D2O aqueous extract of different body compartments of R. pulmo (female gonads, oral arms, umbrella).
Figure 2. Typical 1H NMR spectrum obtained at 600 MHz of D2O aqueous extract of different body compartments of R. pulmo (female gonads, oral arms, umbrella).
Molecules 25 00806 g002

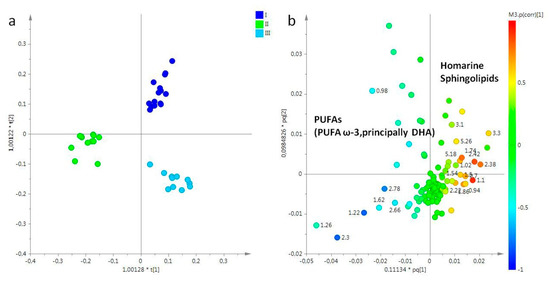

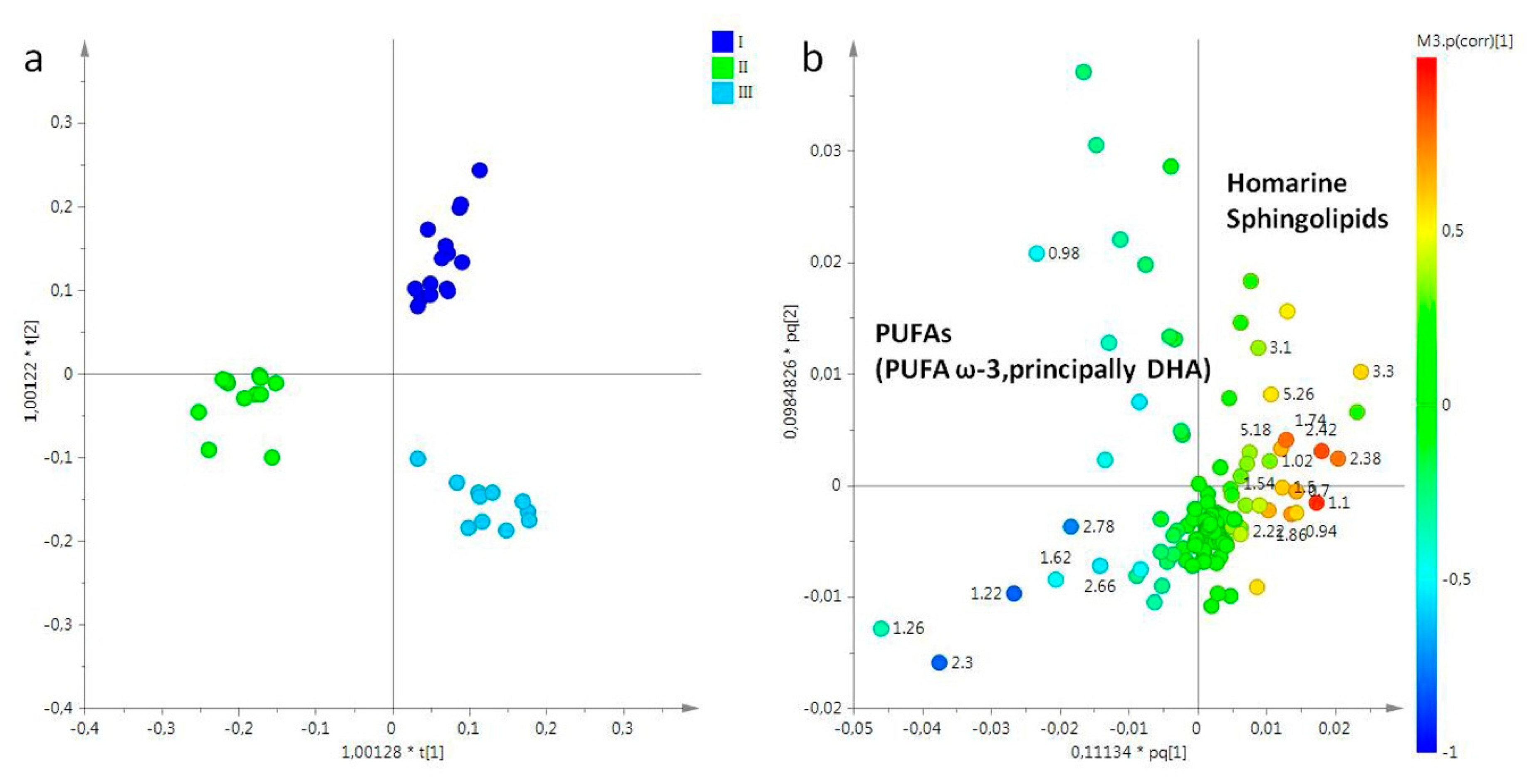

Figure 3. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of female gonads of R. pulmo collected in different sampling periods: blue circle, March sampling (I); green circle, May sampling (II); sky blue circle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 3. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of female gonads of R. pulmo collected in different sampling periods: blue circle, March sampling (I); green circle, May sampling (II); sky blue circle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g003

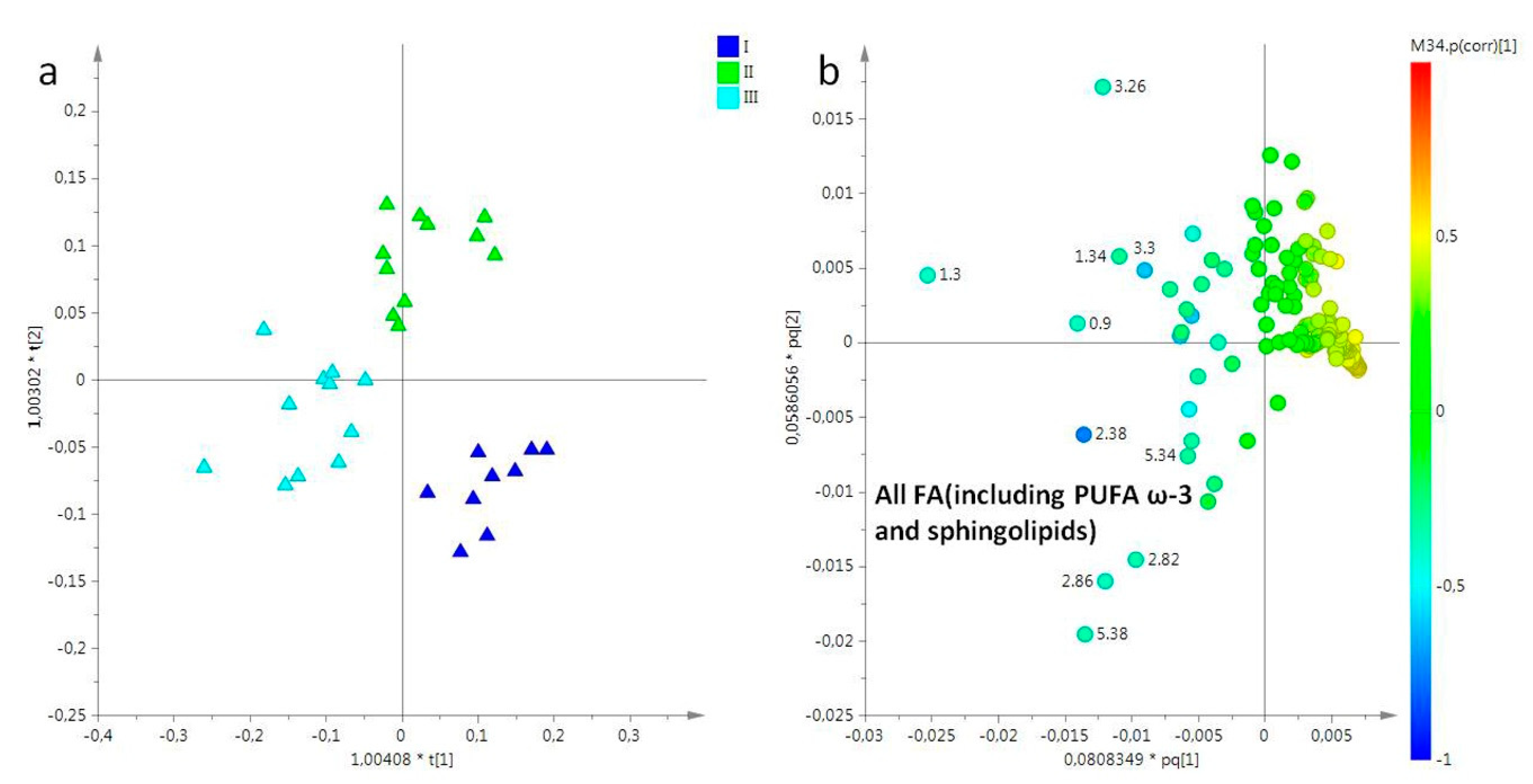

Figure 4. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of umbrella of R. pulmo collected in different sampling periods: blue triangle, March sampling (I); green triangle, May sampling (II); sky blue triangle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 4. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of umbrella of R. pulmo collected in different sampling periods: blue triangle, March sampling (I); green triangle, May sampling (II); sky blue triangle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g004

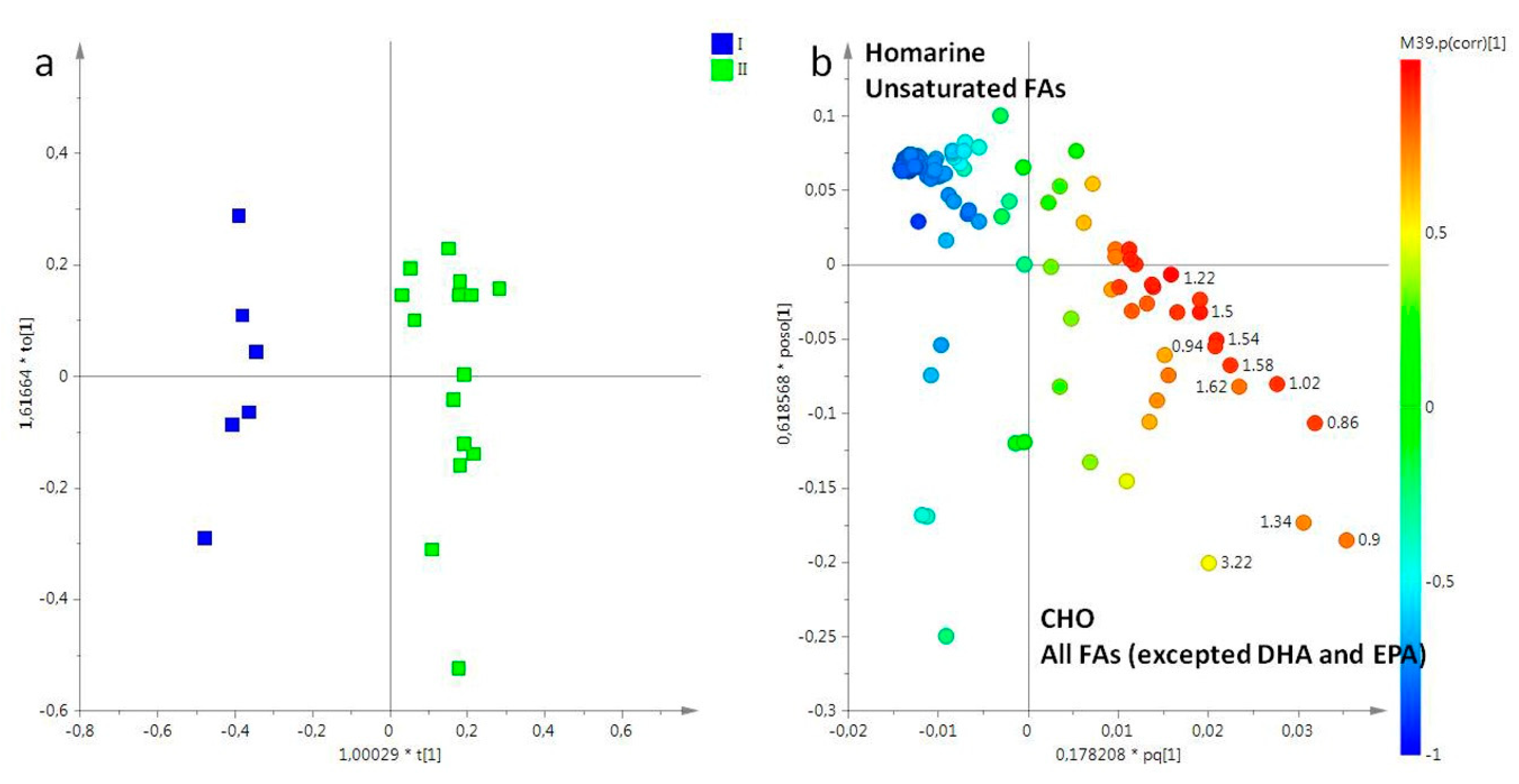

Figure 5. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of tentacles of R. pulmo collected in different sampling periods: blue box, March sampling (I); green box, May sampling (II). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 5. (a) OPLS-DA t[1]/t[2] scores plot of for lipid extracts of tentacles of R. pulmo collected in different sampling periods: blue box, March sampling (I); green box, May sampling (II). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g005

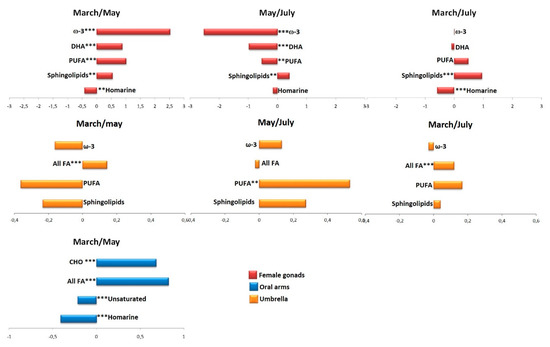

Figure 6. Variation in discriminating metabolites content for each compartments, among the different sampling (March, May, and July). Signif. codes: ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ns’ 1.
Figure 6. Variation in discriminating metabolites content for each compartments, among the different sampling (March, May, and July). Signif. codes: ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ns’ 1.
Molecules 25 00806 g006

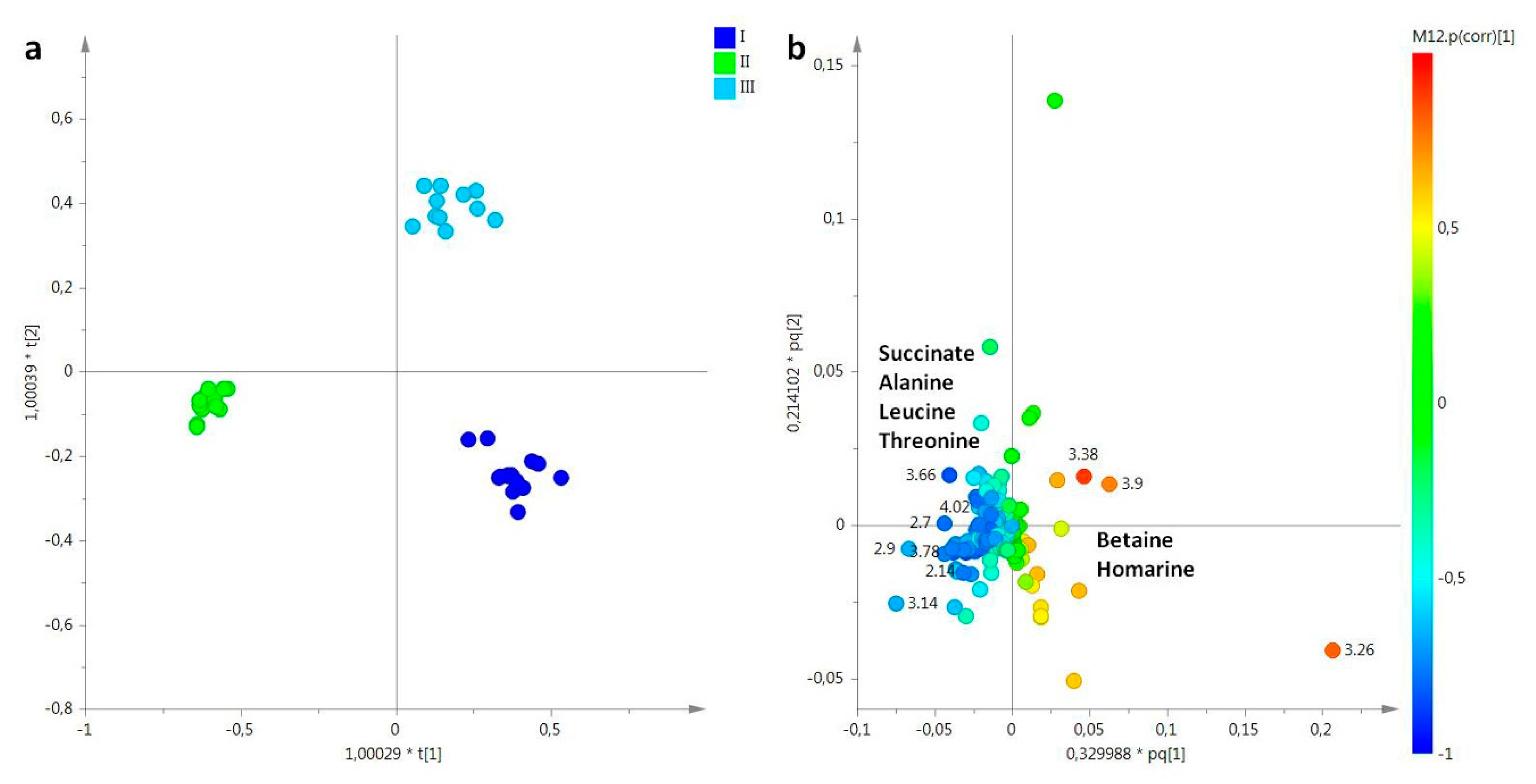

Figure 7. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of female gonads of R. pulmo collected in different sampling periods: blue circle, March sampling (I); green circle, May sampling (II); sky blue circle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 7. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of female gonads of R. pulmo collected in different sampling periods: blue circle, March sampling (I); green circle, May sampling (II); sky blue circle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g007

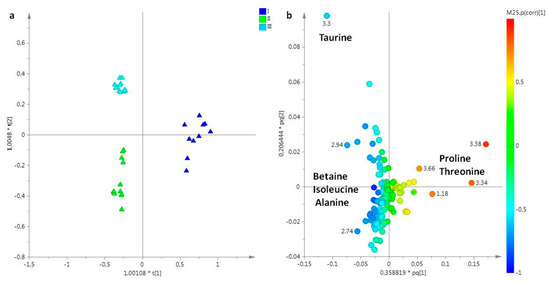

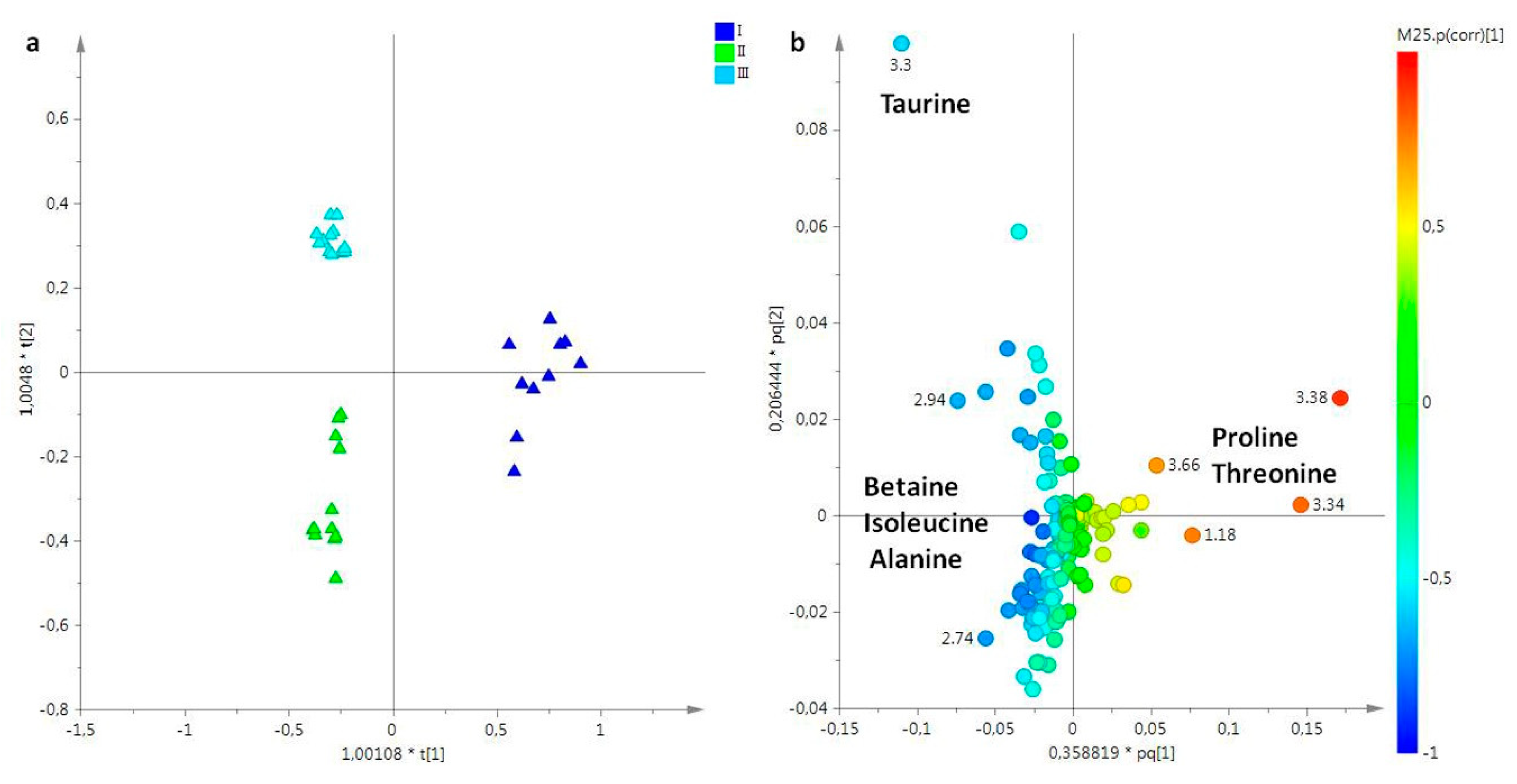

Figure 8. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of umbrella of R. pulmo collected in different sampling periods: blue triangle, March sampling (I); green triangle, May sampling (II); sky blue triangle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 8. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of umbrella of R. pulmo collected in different sampling periods: blue triangle, March sampling (I); green triangle, May sampling (II); sky blue triangle, July sampling (III). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g008

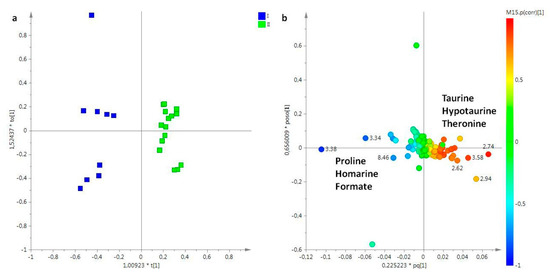

Figure 9. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of oral arms of R. pulmo collected in different sampling periods: blue box, March sampling (I); green box May sampling (II). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Figure 9. (a) OPLS-DA t[1]/t[2] scores plot of for aqueous extracts of oral arms of R. pulmo collected in different sampling periods: blue box, March sampling (I); green box May sampling (II). (b) Loading plot for the model; the variables indicated ppm in the 1H NMR spectrum.
Molecules 25 00806 g009

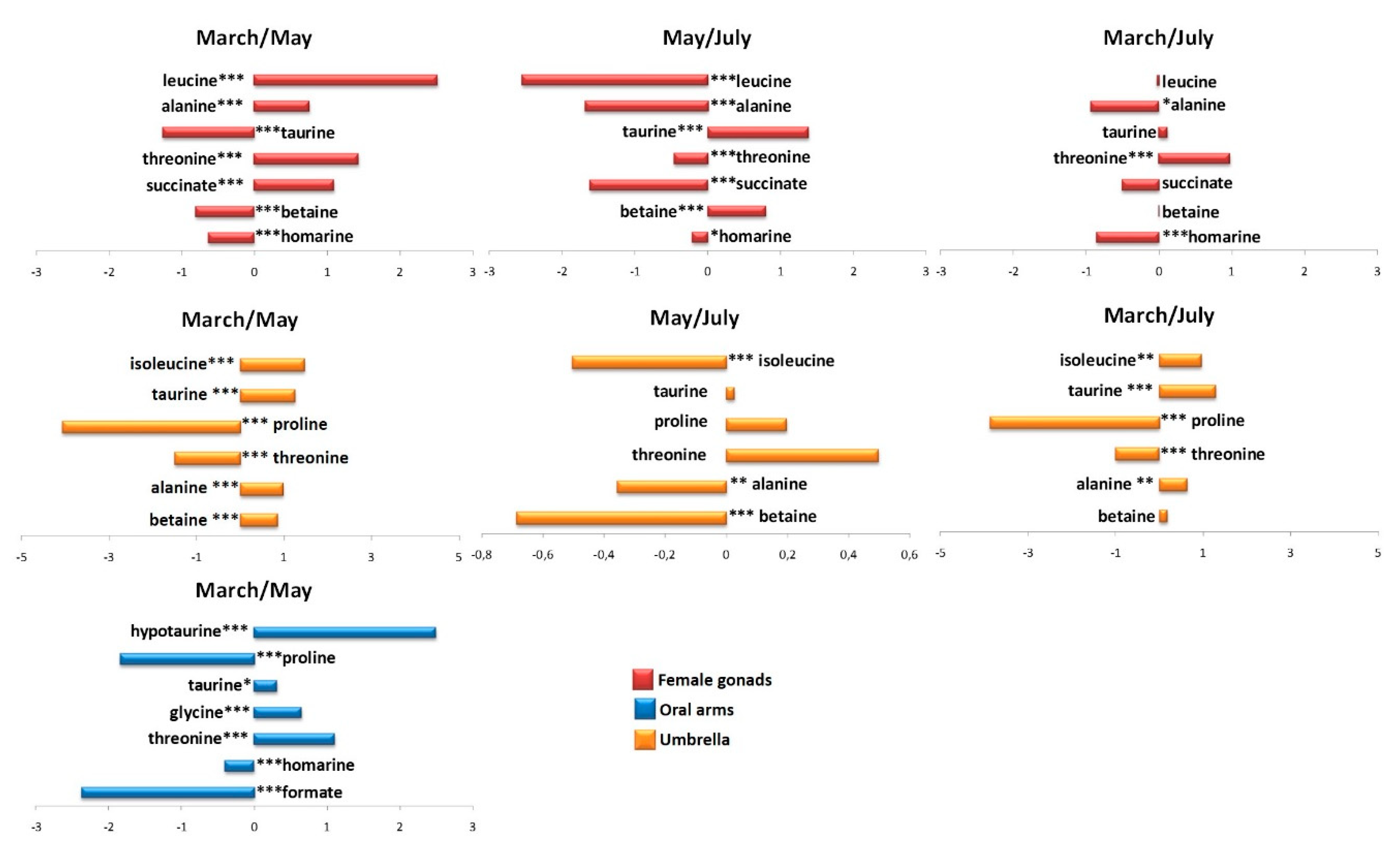

Figure 10. Variation in discriminating metabolites content for each compartments, among the different sampling (March, May, and July). Signif. codes: ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ns ‘ 1.
Figure 10. Variation in discriminating metabolites content for each compartments, among the different sampling (March, May, and July). Signif. codes: ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ns ‘ 1.
Molecules 25 00806 g010
Table 1. Chemical shift and assignments of main peaks in the 1H NMR spectra of CD3OD/CDCl3 extracts of the three different body compartments of R. pulmo (d: doublet; dd: double of doublets; t: triplet; m: multiplet; s: singlet).
Table 1. Chemical shift and assignments of main peaks in the 1H NMR spectra of CD3OD/CDCl3 extracts of the three different body compartments of R. pulmo (d: doublet; dd: double of doublets; t: triplet; m: multiplet; s: singlet).
CompoundAssignment1H (ppm, Multiplicity)
Cholesterol (CHO)-CH3-180.68–0.69 (s)
-CH3-210.92 (d)
-CH3-191.01 (s)
All fatty acids (STA, MUFA, DUFA) except ω-3 FA-CH30.80–0.91 (t)
ω-3 PUFAs-CH30.98 (t)
All fatty acids-(CH2)n-1.22–1.34 (m)
All fatty chains except DHA and EPACOOCH2CH2-1.57–1.66 (m)
EPACOOCH2CH2-1.67–1.74 (m)
All fatty acids except DHA-CH=CH-CH2-1.99–2.17 (m)
All fatty acids except DHACOOCH2-2.27–2.32 (t)
DHACOOCH2CH2-2.38 (dd)
DUFA/PUFA-CH=CH-CH2--CH=CH-2.77 (t)
PUFA (DHA, EPA)-CH=CH-CH2--CH=CH-2.80–2.85 (t)
PE-CH2-N3.03 (s)
PC and Sphingolipids-(CH3)3-N3.22 (overlapped s)
TG-CH2- (sn-1,3)4.11–4.14 (dd)
-CH- (sn-2)5.24 (m)
All MUFAs, DUFAs, PUFAs-CH=CH-5.28–5.43 (m)
1,2-DAGs-CH-5.26–5.13 (m)
-CH2-4.28–4.12 (m)
Homarine-C3H-8.61 (d)
-C5H-8.44 (dd)
-C6H-8.09 (d)
C4H-7.85 (dd)
Table 2. Chemical shifts and assignments of main peaks in the 1H NMR spectra of D2O extracts of the three different body compartments of R. pulmo (d: doublet; dd: double of doublets; t: triplet; m: multiplet; s: singlet). a Essential amino acid; TMAO: trimethylamine-N-oxide.
Table 2. Chemical shifts and assignments of main peaks in the 1H NMR spectra of D2O extracts of the three different body compartments of R. pulmo (d: doublet; dd: double of doublets; t: triplet; m: multiplet; s: singlet). a Essential amino acid; TMAO: trimethylamine-N-oxide.
CompoundAssignment1H (ppm, Multiplicity)
Leucine a-CH30.96 (d)
-CH-1.70 (m)
Isoleucine a-CH31.01 (d)
-CH-1.97 (m)
Valine a-CH31.05 (d)
-CH-2.29 (m)
Lactate-CH31.33 (d)
-CH-4.16 (q)
Threonine a-CH31.33 (d)
-CH-3.68 (m)
-CH-4.29 (m)
Alanine-CH31.48 (d)
-CH-3.79 (m)
AcetateCH31.92 (s)
Proline-CH2-2.1–2 (m)
-CH2-2.32–2.36 (m)
-CH2-3.3–3.4 (m)
-CH-4.10–4.14 (m)
Glutamate-CH2-2.07 (m)
-CH2-2.36 (m)
Succinate-CH2-2.41 (s)
β-Alanine-CH2-2.56 (t)
-CH2-3.20 (t)
Hypotaurine-CH2NH3.27 (s)
-CH2SO33.90 (s)
Unknown 2.73
3.45
Unknown 2.92
4.7
Betaine-N(CH3)33.27 (s)
-CH2-3.90 (s)
TMAON(CH3)3.27 (s)
Taurine-CH2NH3.27 (t)
-CH2SO33.41 (t)
Glycine-CH3.57 (s)
Homarine-N(CH3)34.37 (s)
-C4H-7.97 (dd)
-C6H-8.04 (d)
-C5H-8.55 (dd)
-C3H-8.71 (d)
Tyrosine-C3,5H- ring6.90 (d)
-C2,6H- ring7.19 (d)
Trigonelline-C4H-8.08 (dd)
-C3H- and -C5H-8.84 (dd)
-C2H-9.13 (s)
Formate-CH8.46 (s)

Share and Cite

MDPI and ACS Style

Angilè, F.; Del Coco, L.; Girelli, C.R.; Basso, L.; Rizzo, L.; Piraino, S.; Stabili, L.; Fanizzi, F.P. 1H NMR Metabolic Profile of Scyphomedusa Rhizostoma pulmo (Scyphozoa, Cnidaria) in Female Gonads and Somatic Tissues: Preliminary Results. Molecules 2020, 25, 806. https://doi.org/10.3390/molecules25040806

AMA Style

Angilè F, Del Coco L, Girelli CR, Basso L, Rizzo L, Piraino S, Stabili L, Fanizzi FP. 1H NMR Metabolic Profile of Scyphomedusa Rhizostoma pulmo (Scyphozoa, Cnidaria) in Female Gonads and Somatic Tissues: Preliminary Results. Molecules. 2020; 25(4):806. https://doi.org/10.3390/molecules25040806

Chicago/Turabian Style

Angilè, Federica, Laura Del Coco, Chiara Roberta Girelli, Lorena Basso, Lucia Rizzo, Stefano Piraino, Loredana Stabili, and Francesco Paolo Fanizzi. 2020. "1H NMR Metabolic Profile of Scyphomedusa Rhizostoma pulmo (Scyphozoa, Cnidaria) in Female Gonads and Somatic Tissues: Preliminary Results" Molecules 25, no. 4: 806. https://doi.org/10.3390/molecules25040806

Article Metrics

Back to TopTop
