CO₂ Absorption Mechanism by the Nonaqueous Solvent Consisting of Hindered Amine 2-[(1,1-dimethylethyl)amino]ethanol and Ethylene Glycol

Abstract

In this work, we studied the CO₂ absorption mechanism by nonaqueous solvent comprising hindered amine 2-[(1,1-dimethylethyl)amino]ethanol (TBAE) and ethylene glycol (EG). The NMR and FTIR results indicated that CO₂ reacted with an -OH group of EG rather than the -OH of TBAE by producing hydroxyethyl carbonate species. A possible reaction pathway was suggested, which involves two steps. In the first step, the acid–base reaction between TBAE and EG generated the anion HO-CH₂-CH₂-O-; in the second step, the O⁻ of HO-CH₂-CH₂-O⁻ attacked the C atom of CO₂, forming carbonate species.

1. Introduction

In recent decades, the amount of carbon dioxide (CO₂), the main heat-trapping gas, accumulated in the air, has reached an unbelievable level, which is viewed as the main contributor to global warming causing severe environmental problems such as the rising atmospheric temperature, intense heat waves and drought. The vast majority of atmospheric CO₂ is mainly emitted from industrial activities by burning fossil fuels such as coal and oil to produce electricity [1]. An urgent demand to curb the atmospheric CO₂ concentration to avoid a climate disaster has driven industry and the scientific community to explore efficient CO₂ capture technologies. A current popularly used method for CO₂ capture in industry is the amine-based scrubbing process, which mainly utilizes the aqueous solution of alkanolamine to chemically absorb CO₂ [2]. However, amine-based sorption systems have several drawbacks, such as high solvent volatility and equipment corrosion as well as high energy penalty of absorbent regeneration [3,4]. To develop new and efficient sorption systems capable of addressing the above-mentioned drawbacks is one of the main challenges in the field of carbon capture and storage.

In recent years, nonaqueous solvent blends formed by amine and a conventional organic solvent have been developed as promising alternatives to the aqueous amine absorbents, because they can provide the advantage of reducing the energy cost during the regeneration steps while retaining high CO₂ capacity [5]. At present, many nonaqueous systems were studied to capture CO₂, such as the mixture of alcohol and amidines [6], alkanolamine solutions such as monoethanolamine (MEA) and 2-amino-2-methyl-1-propanol (AMP) in ethanol or ethylene glycol (EG) [7,8,9,10,11,12,13,14], and the amine-based deep eutectic solvents [15,16,17].

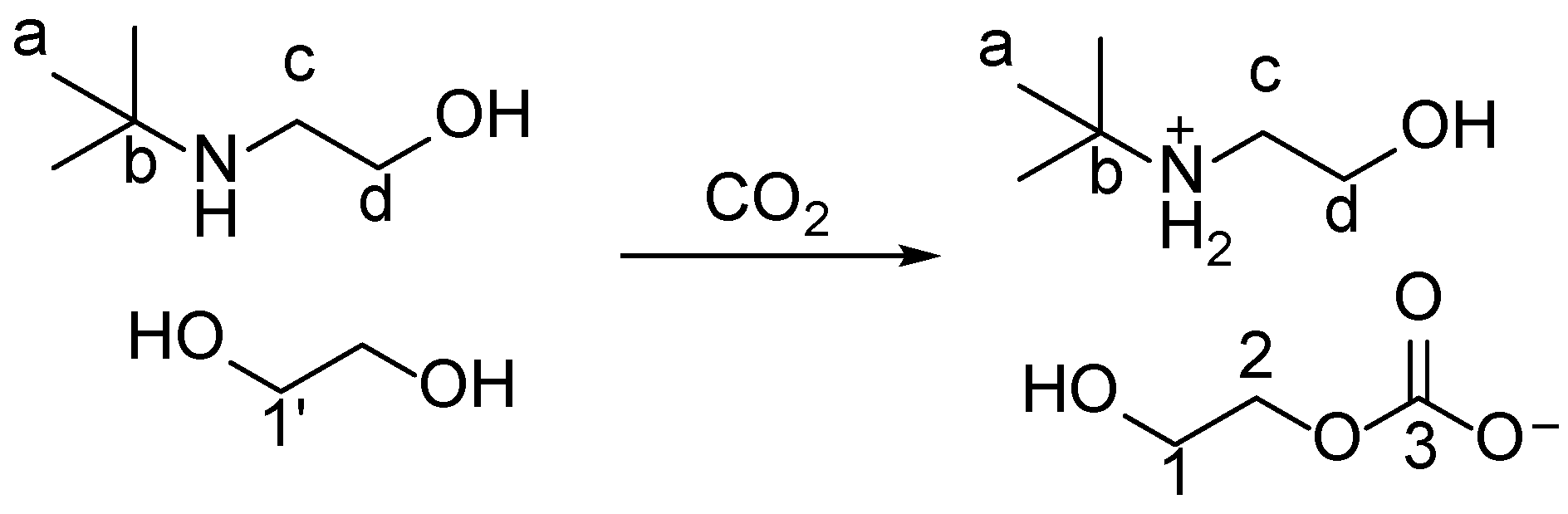

Im and co-authors reported that the sterically hindered amine 2-[(1,1-dimethylethyl)amino]ethanol (TBAE) in EG solution could capture CO₂ by forming zwitterionic carbonate species, and they believe that CO₂ reacted with the -OH group of TBAE rather than reacted with the -OH group of EG [18]. However, Xie and co-authors reported that CO₂ reacted with EG by forming hydroxyethyl carbonate species and the zwitterionic carbonate species produced from the reaction between CO₂ and TBAE was not the main product when CO₂ was captured by the solution of TBAE in EG, which is supported by quantum chemical calculations and mass spectrometry [19]. In other words, the results reported by these two groups contradicted each other. Therefore, in this work, in order to clarify the reaction between CO₂ and TBAE-EG absorbent, we studied the CO₂ absorption mechanism again using Nuclear Magnetic Resonance (NMR) and Fourier Transform Infrared Spectrometer (FTIR) spectroscopies. Our results suggested that CO₂ reacted with the -OH group of EG with the formation of a carbonate species (Scheme 1), not with the -OH group of TBAE, which was consistent with the results reported by Xie [19]. The details of our investigation can be found in the following section.

2. Results and Discussions

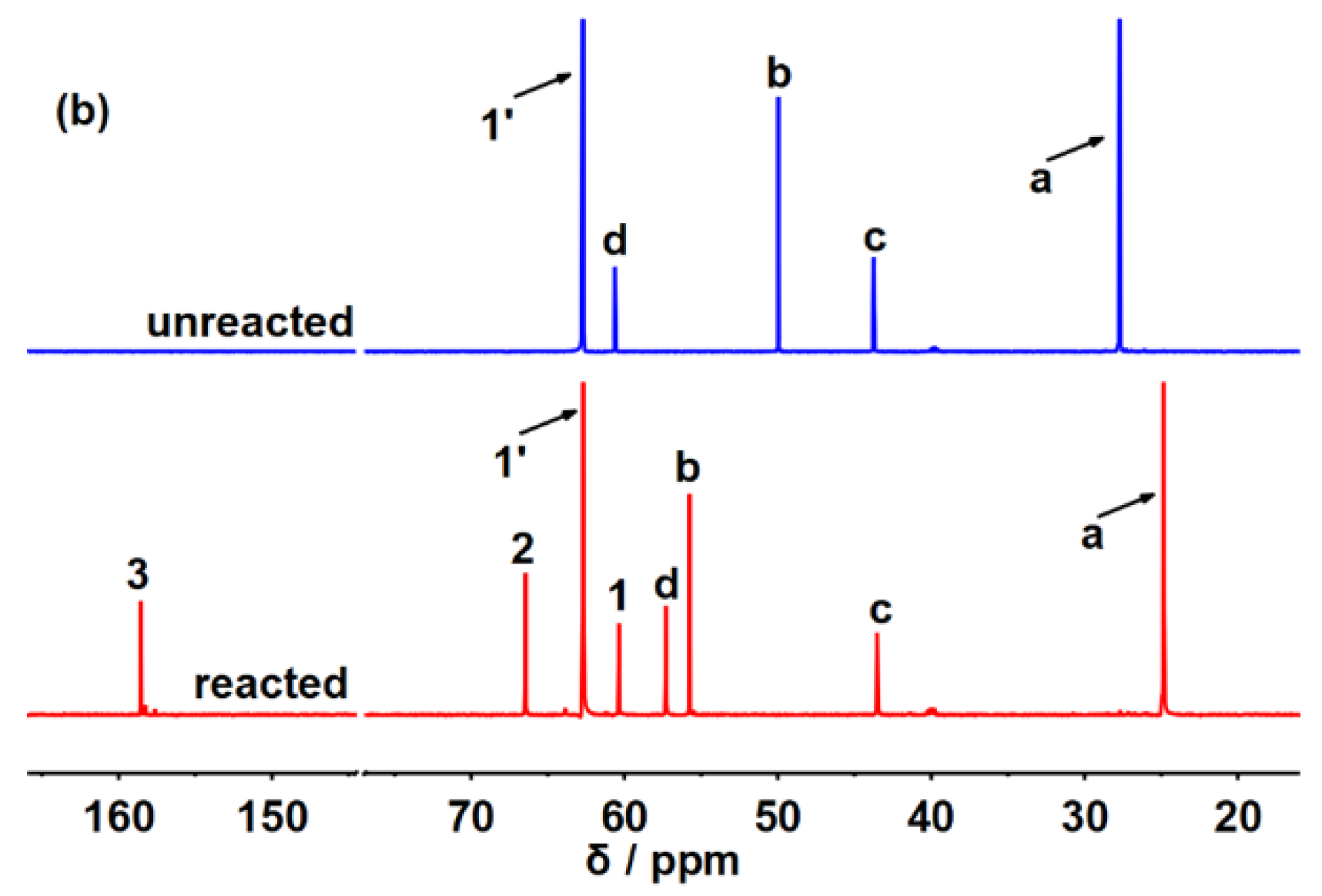

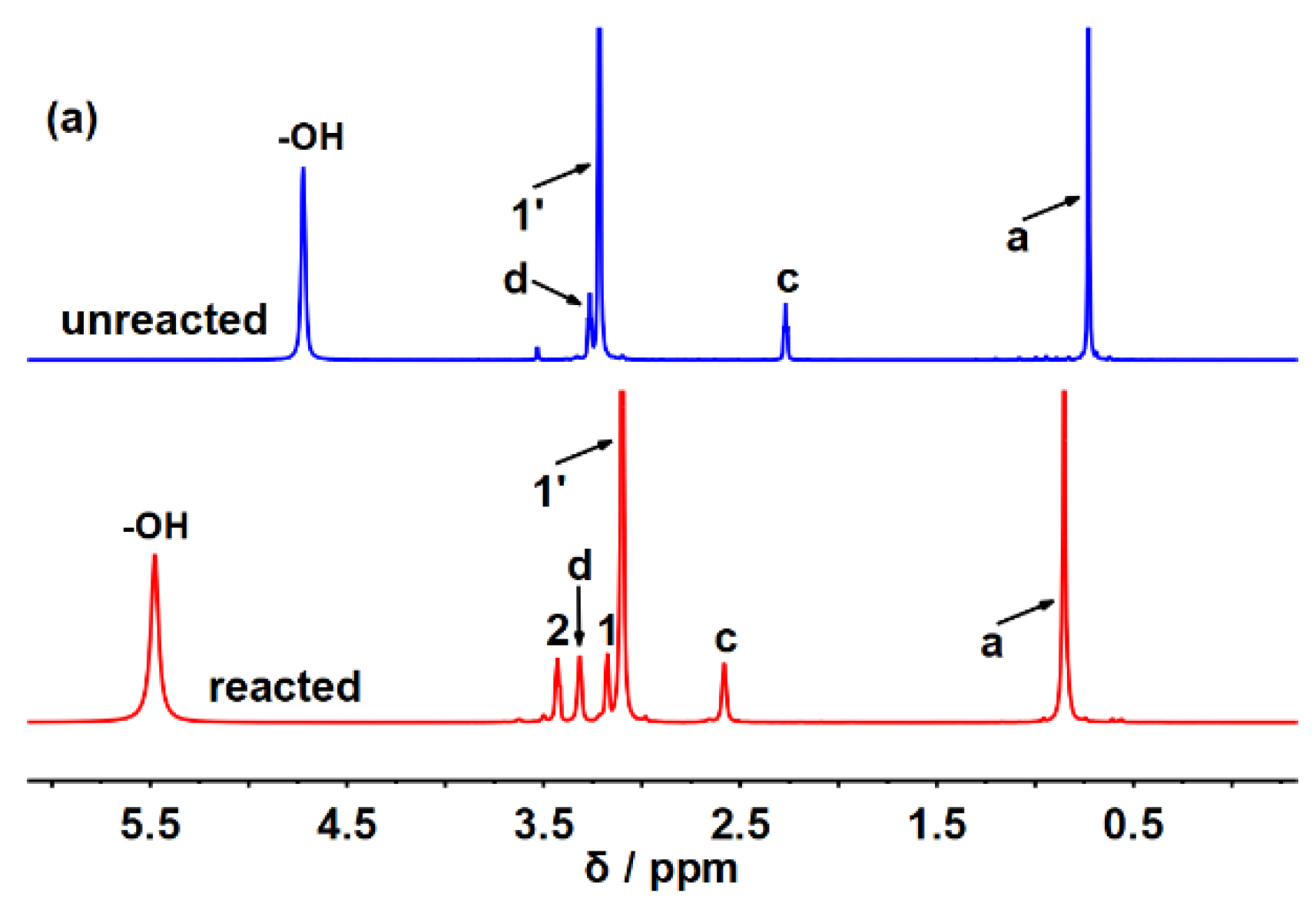

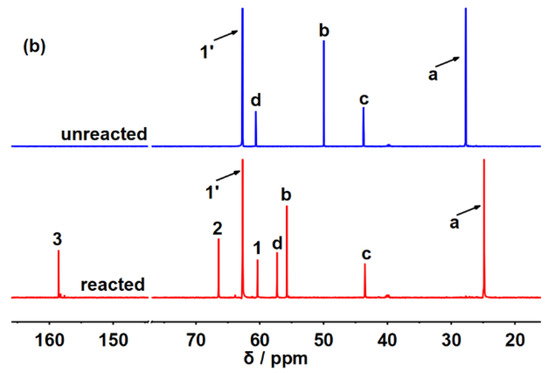

The interaction between CO₂ and the TBAE-EG system are characterized using NMR and FTIR spectra. The ¹H and ¹³C NMR spectra of TBAE-EG system before and after CO₂ absorption can be seen in Figure 1. As shown in Figure 1a, two new peaks at 3.17 (H-1) and 3.43 (H-2) ppm can be found in the ¹H NMR spectrum of TBAE-EG after absorption, and three new peaks appeared at 60.4 (C-1), 66.5 (C-2) and 158.6 (C-3) ppm in the ¹³C NMR spectrum after absorption (Figure 1b). The new peaks in the NMR spectra cannot be explained if CO₂ reacted with the -OH group of TBAE to form zwitterionic carbonate species.

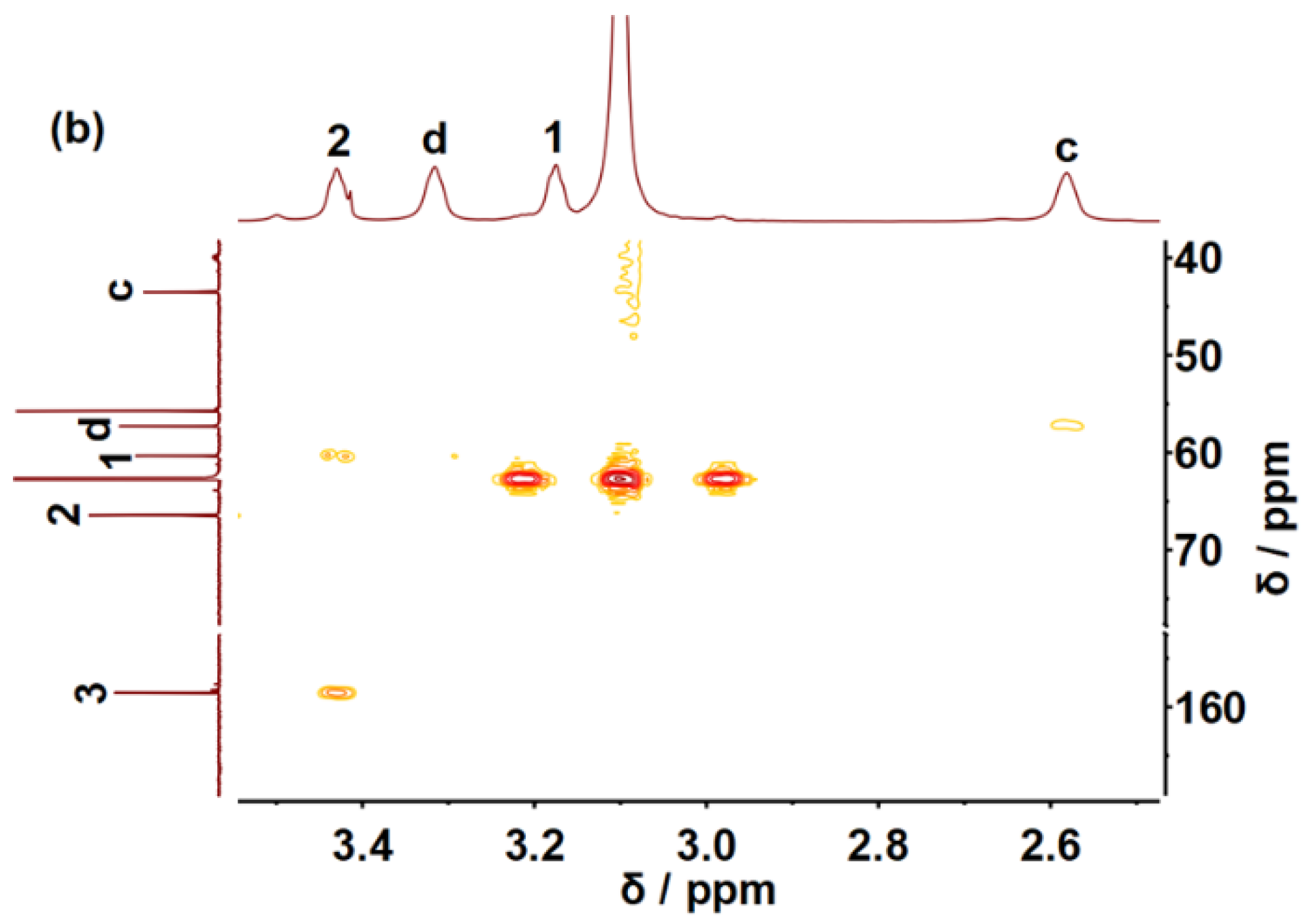

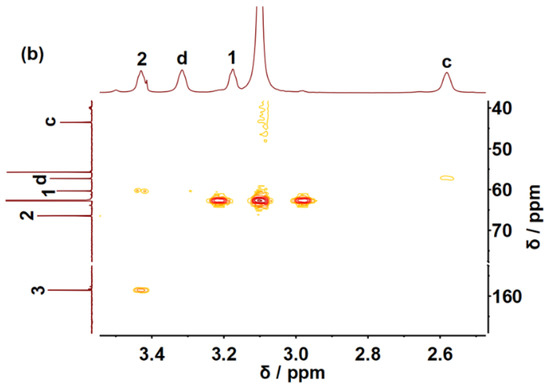

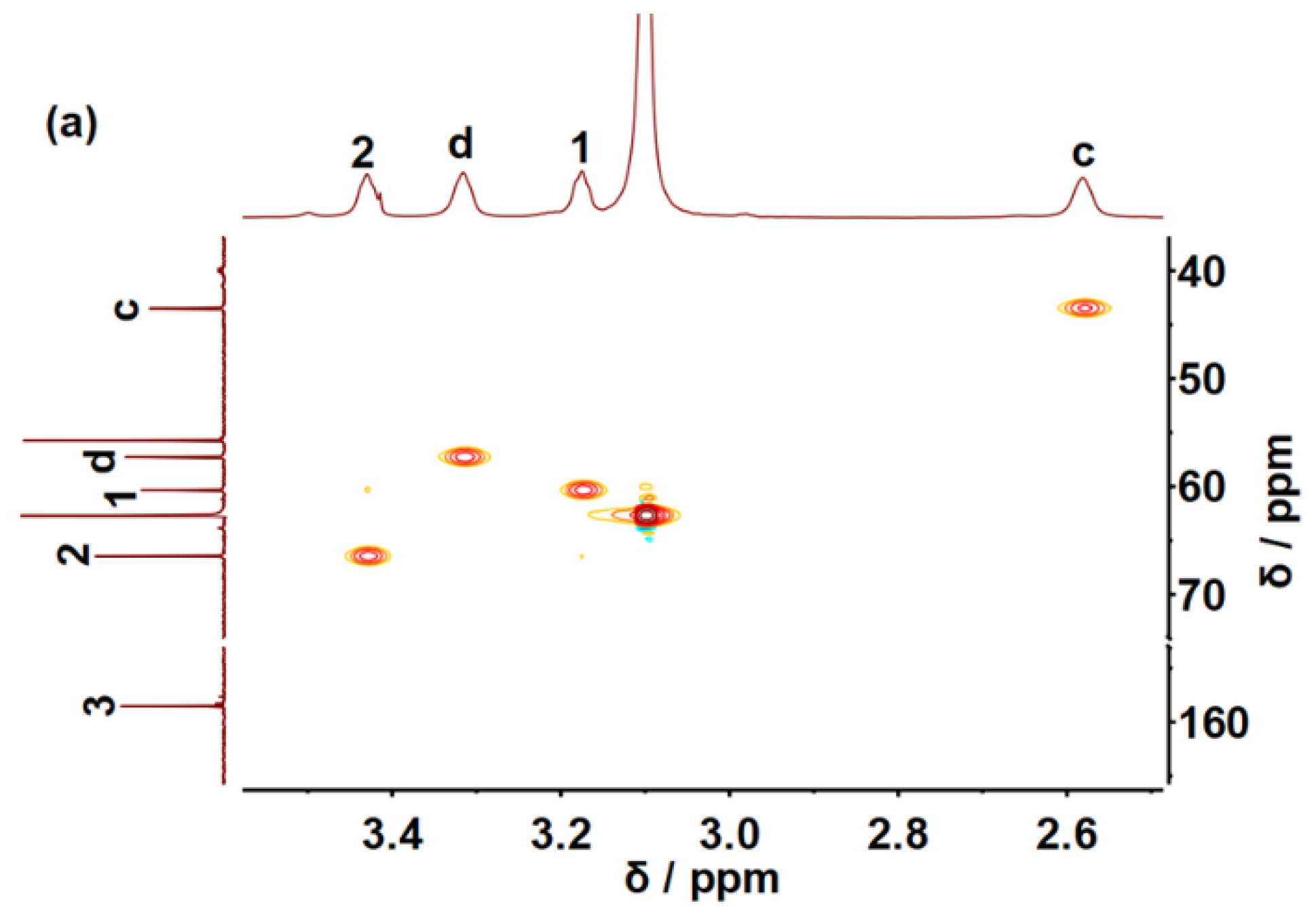

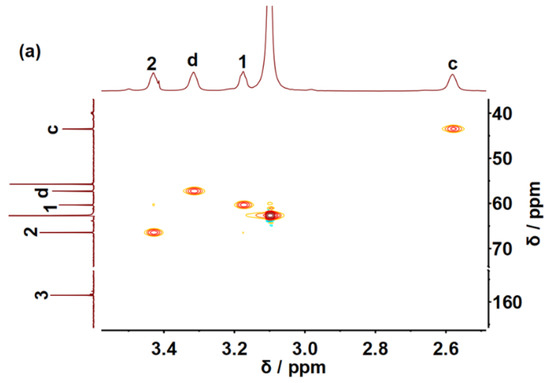

In order to explain the new peaks in the NMR spectra, the 2D NMR spectra of ¹H-¹³C Heteronuclear Single Quantum Coherence (HSQC) and ¹H-¹³C Heteronuclear Multiple Bond Correlation (HMBC) of the TBAE-EG system after CO₂ uptake were studied. As shown in ¹H-¹³C HSQC spectroscopy (Figure 2a), H-1 and H-2 correlated with C-1 and C-2, respectively. In the ¹H-¹³C HMBC spectroscopy (Figure 2b), the C-3 carbon did not correlate with the H-d hydrogen of TBAE, indicating that CO₂ did not react with the -OH group of TBAE, and there was also no correlation between the C-3 carbon and the H-c hydrogen of TBAE, indicating CO₂ was not attached the amine group of TBAE. The HMBC results revealed that CO₂ did not directly react with TBAE. Therefore, CO₂ should react with EG, the other species in the TEAE-EG system, which was supported by the HMBC results. As presented in Figure 2b, the C-3 carbon correlated with the H-2 hydrogen and the C-1 carbon also correlated with the H-2 hydrogen, suggesting that CO₂ directly reacted with the -OH group of EG by forming a carbonate species. The peaks of C-1 and C-2 can be ascribed to the carbon atoms of the carbonate species derived from EG, which were similar to those found in the AMP-EG-based nonaqueous solution after carbon capture [9]. The C-3 carbon was the carbonyl carbon in the EG-derived carbonate species [20]. Moreover, the peak of C-b carbon attached to the N atom of TBAE shifted downfield from 50.0 to 55.8 ppm after CO₂ absorption, which indicates that the amine group of TBAE also plays a role in CO₂ capture. On the basis of the above results, it can be concluded that CO₂ reacted with the -OH of EG by producing carbonate species and the amine group of TBAE obtains a proton after CO₂ uptake.

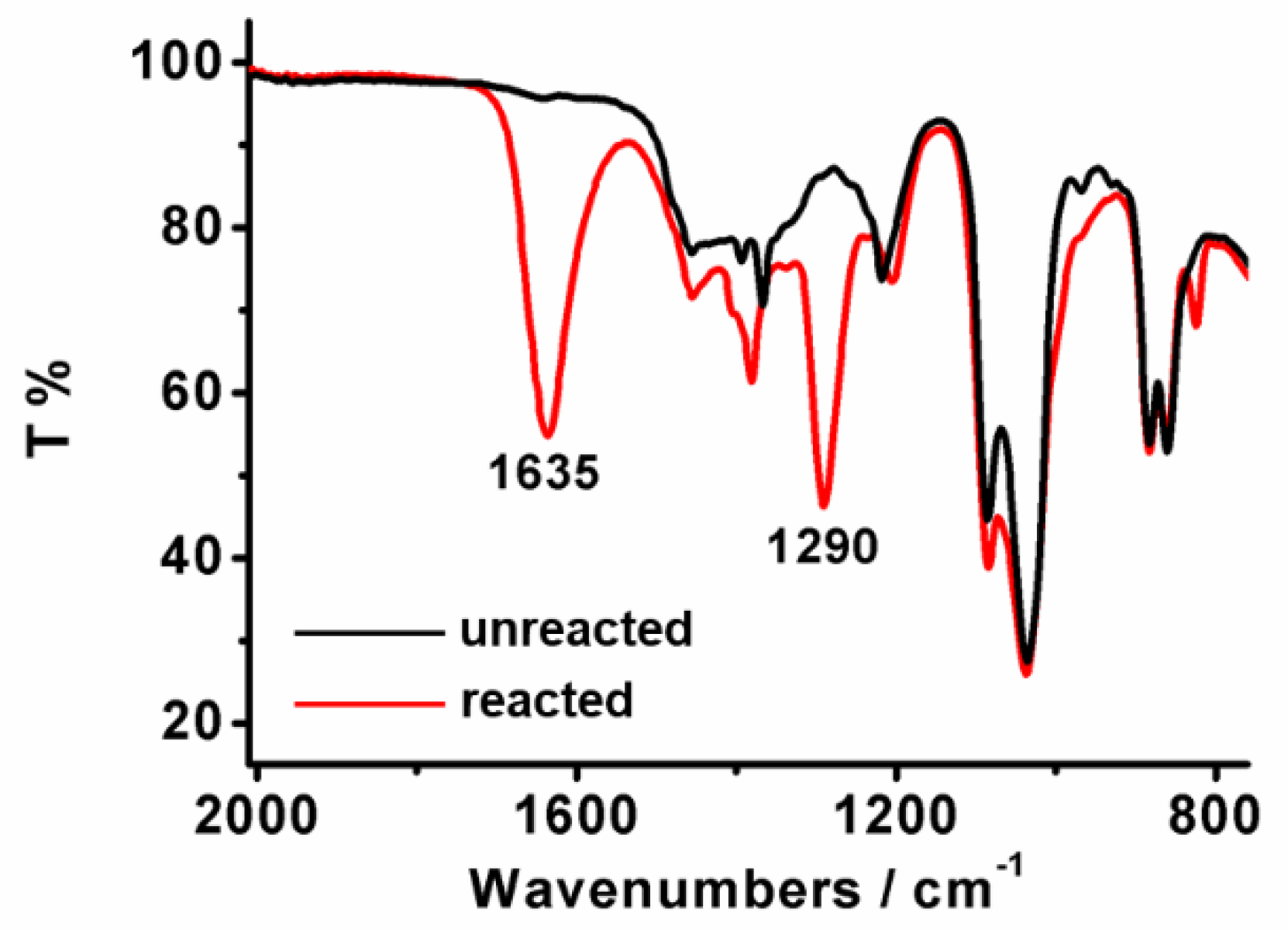

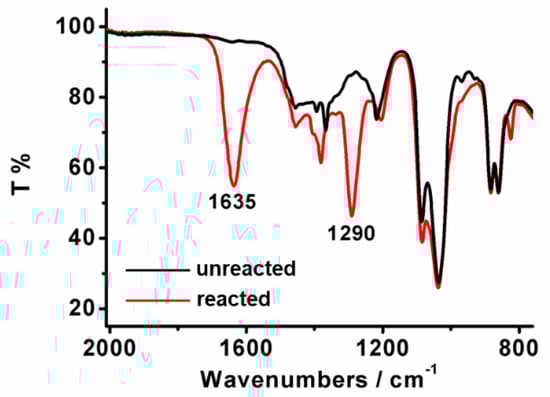

The FTIR spectra of the TBAE-EG system with and without CO₂ were also studied. Two new peaks can be observed at 1635 and 1290 cm⁻¹ (Figure 3), which can be ascribed to the asymmetric and symmetric carbonyl stretching frequency of C=O in R-O-COO⁻ species [6]. However, the two peaks were different from those of TBAE-CO₂ adduct (1641 and 1295 cm⁻¹) reported by Im and co-authors [18], suggesting that CO₂ was bonded to the O atom of EG, not the O atom of TBAE. Therefore, the FTIR results confirmed again the reaction between CO₂ and -OH of EG.

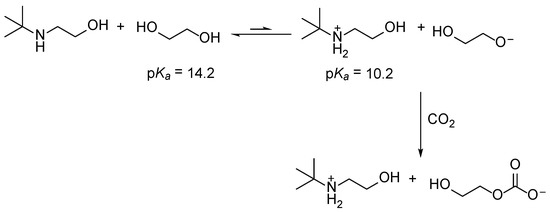

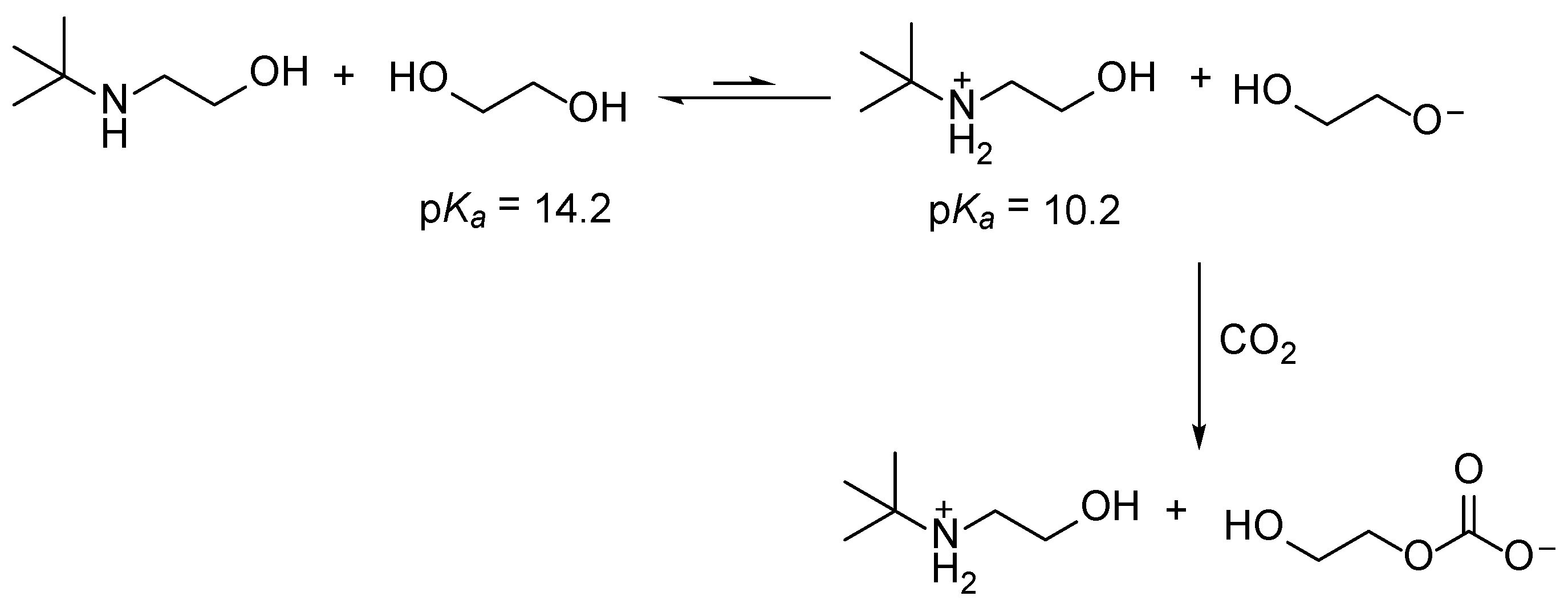

On the basis of the above discussion, we think that the reaction pathway involves two steps (Scheme 2). At first, there was an acid–base reaction between TBAE and EG, forming the anion HO-CH₂-CH₂-O⁻, the conjugate base of EG. The equilibrium constant (K_eq) of the acid-base reaction can be obtained using the following equations: (see [18,21]).

pK_eq = pK_a (EG) − pK_a ([TBAEH]⁺) = 4.0.

(1)

K_eq = 1.0 × 10⁻⁴

(2)

In the second step, the anion HO-CH₂-CH₂-O⁻ reacted with CO₂ to form the carbonate species.

It is reasonable to anticipate that the proton of the OH group of TBAE can transfer to the amino group by forming zwitterionic species (CH₃)₃-C-N⁺(H₂)-CH₂-CH₂-O⁻ in TBAE-EG absorbent, which may react with CO₂ to form zwitterionic carbonates. However, NMR results did not show any signals of zwitterionic carbonates, suggesting that the reaction pathway forming zwitterionic carbonates was not preferable in the TBAE-EG system. In order to further confirm the reaction between CO₂ and EG, we studied the reaction between CO₂ and a nonaqueous solvent consisting of superbase 1,5-diazabicyclo [5.4.0]-5-undecene (DBU) and EG. As reported in the literature, CO₂ reacted with the -OH group of alcohol when CO₂ was absorbed by the DBU–alcohol mixtures [22]. The ¹H and ¹³C NMR spectra of DBU solution (30 wt%) in EG before and after CO₂ absorption were shown in Figure S1. There were two new peaks at 3.15 and 3.39 ppm in the ¹H NMR spectra of DBU-EG after absorption (Figure S1a). Three new peaks appeared at 60.0 (C-1), 65.8 (C-2) and 157.9 (C-3) ppm in the ¹³C NMR after absorption (Figure S1b). These new peaks in the DBU-EG-CO₂ system were consistent with those in the TBAE-EG-CO₂ system, suggesting that CO₂ reacted with EG. These results again suggested that the CO₂ absorption mechanism of TBAE-EG presented in this work was understandable.

The desorption of CO₂ was also investigated. CO₂ captured by TBAE-EG can be desorbed at 80 °C and the results were characterized by NMR and FTIR. As shown in the ¹H and ¹³C NMR spectra of TBAE-EG after CO₂ desorption (Figure S2), the peaks of carbonate anions cannot be observed, suggesting CO₂ was released after heating. The asymmetric and symmetric carbonyl stretching frequencies clearly disappeared in the FTIR spectra (Figure S3) after CO₂ desorption, indicating again the reaction between CO₂ and TBAE-EG was reversible. The results reported by Im and co-authors [18] also showed the good reversibility of TBAE-EG solvent for CO₂ capture.

3. Conclusions

The results indicated that CO₂ reacted with -OH group of EG in nonaqueous solvent consisting of TBAE and EG rather than reacting with -OH group of TBAE when CO₂ was captured by the mixture consisting of TBAE and EG. We believe the confirmation of the absorption mechanism is very important to the design of new nonaqueous absorption systems in the future.

4. Experimental Sections

4.1. Materials and Characterization

TBAE (98%) and EG (99.5%) were purchased from J&K Scientific Ltd (Beijing, China). CO₂ (≥99.99%) and N₂ (≥99.99%) was supplied by Beijing ZG Special Gases Sci. and Tech. Co. Ltd (Beijing, China). DBU (98%) was obtained from Alfa Aesar (Shanghai, China).

The FTIR spectra were recorded on a PerkinElmer Frontier spectrometer (PerkinElmer Corp., Waltham, MA, USA). ¹H NMR (600 MHz) and ¹³C NMR (151 MHz) data were obtained from a Bruker spectrometer (Bruker Biospin, Karlsruhe, Germany) and DMSO-d₆ was used as the external reference. The NMR spectrometer was equipped with a 5 mm PABBO probe. The experiment temperature was 25 °C. For the ¹H NMR experiment, the relaxation delay was 1.0 s, and the acquisition time was 2.75 s. In the ¹³C NMR experiment, the relaxation delay was 2.0 s, and the acquisition time was 0.92 s. For the HMBC experiment, the relaxation delay was 1.5 s, and the acquisition time was 0.18 s. For the HSQC experiment, the relaxation delay was 1.5 s, and the acquisition time was 0.18 s.

4.2. Absorption of CO₂

The method of CO₂ absorption was similar to that reported by Im and co-authors. TBAE solution (30 wt%) in EG (~2 g) was added into a glass tube with a diameter of 10 mm equipped with a rubber lid. At first, the tube was partially placed into an oil bath at 100 °C and N₂ (50 mL/min) was bubbled into the solution through a needle for 10 min to remove any volatile compounds. Then, CO₂ (50 mL/min) was bubbled into the solution in the tube at 40 °C for 60 min, and the weight of the tube during absorption was recorded using a balance (±0.1 mg).
