Plasma and Urinary (Poly)phenolic Profiles after 4-Week Red Raspberry (Rubus idaeus L.) Intake with or without Fructo-Oligosaccharide Supplementation

by
Xuhuiqun Zhang
,
Amandeep Sandhu
*,
Indika Edirisinghe
and
Britt M. Burton-Freeman
Department of Food Science and Nutrition and Center for Nutrition Research, Institute for Food Safety and Health, Illinois Institute of Technology, Chicago, IL 60616, USA
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(20), 4777; https://doi.org/10.3390/molecules25204777
Submission received: 16 September 2020 / Revised: 5 October 2020 / Accepted: 16 October 2020 / Published: 17 October 2020
(This article belongs to the Special Issue 25th Anniversary of Molecules—Advances in Food Chemistry, Nutraceuticals, Functional Foods, and Dietary Bioactives: Celebrating the Lifetime Achievements of Professor Fereidoon Shahidi)
Browse Figures
Versions Notes

Abstract

:
Red raspberries (RRB) are high in anthocyanin- and ellagitannin- type (poly)phenols. This study aimed to investigate the effect of 4-week RRB supplementation on (poly)phenolic metabolism in adults with prediabetes and insulin-resistance (PreDM-IR); and whether adding fructo-oligosaccharides (FOS), prebiotics, would augment the microbial metabolites of RRB (poly)phenols. In a randomized crossover clinical trial, subjects (n = 35: PreDM-IR, n = 25; healthy Reference group, n = 10) consumed 1 cup RRB (fresh weight equivalence) per day and RRB with 8 g FOS per day each for 4 weeks in random order separated by 4-week washout. Plasma and urinary (poly)phenolic metabolites were characterized after (0–24 h) consuming a RRB-based test drink (2 cups RRB) at baseline/week 0 and again after 4-week supplementations. A total of 123 (poly)phenolic metabolites were quantified. After 4-week RRB supplementation, several metabolite groups were significantly increased (p < 0.05), including urolithins, phenyl-γ-valerolactones, and phenolic acids. Supplementing FOS with RRB for 4 weeks enhanced benzoic acid derivatives compared to the baseline (p < 0.05). Specific effects of supplementation by metabolic status indicated 4-week RRB supplementation significantly increased microbial metabolites that were lower in PreDM-IR group. Our results suggest alterations in the capacity of PreDM-IR group to metabolize and render bioavailable raspberry-derived (poly)phenols when consumed regularly.

1. Introduction

Red raspberries (Rubus idaeus L.) contain appreciable amounts of bioactive (poly)phenol compounds, particularly anthocyanins, ellagitannins and flavan-3-ols [1,2]. Whole red raspberries (RRB) and their (poly)phenol components have been associated with metabolic health, including glucose control, increasing insulin sensitivity, and improving lipid profiles in humans, and reducing fat mass in animal studies [3,4]. Some of these (poly)phenols could be absorbed intact, while majority of them are degraded to products of gut microbial metabolism [5,6,7]. For example, the majority of ellagitannins and oligo- and poly-meric flavan-3-ols escape proximal gastrointestinal (GI) tract absorption and are catabolized in the colon to urolithins and phenyl-γ-valerolactones, respectively, by gut microbiota [7,8]. Inter-individual differences and putative metabotypes of these microbial metabolites have been observed, but their association with metabolic health is not fully understood [8,9].
Fructo-oligosaccharides (FOS) are soluble dietary fibers, and as prebiotics, they are selectively fermented by specific gut microbiota [10]. FOS are naturally present in select fruits and vegetables or produced from beet sugar, frequently used to replace sugars in the formulation of low-sugar food [11]. Animal studies indicate FOS augments (poly)phenolic metabolites generation: adding FOS to a 4-week intake of (poly)phenol concentrate from apple pomace enhanced the hydrolysis of quercetin 3-O-glucoside in rats [12]; and adding FOS to a 4-week strawberry feeding study enhanced urolithins production in rats [13].
Prediabetes (PreDM) is an intermediate stage in the development of type 2 diabetes mellitus (T2DM) that usually co-occurs with a cluster of metabolic risk factors, e.g., insulin resistance, dyslipidemia, hypertension, visceral obesity, and elevated inflammatory markers, leading to substantially increased risk of T2DM and cardiovascular diseases [14]. The Global Burden of Disease study identified low intake of fruit among the top three dietary risks for cardiovascular disease and T2DM [15]. The mechanisms underlying this finding are unknown. Recent studies have observed aberrant gut microbiome structure in PreDM individuals [16,17]. One possible explanation is individuals with PreDM have diminished microbial capacity to metabolize fruit bioactive compounds, such as (poly)phenols, to their respective bioavailable metabolites. It is unclear if regular exposure to fruit (poly)phenols or a combinatorial regimen of fermentable fibers with a (poly)phenol rich fruit would enhance or alter the metabolite milieu.
Therefore, the present study aimed to investigate the effect of supplementing RRB with or without FOS on (poly)phenol metabolism for 4 weeks in at risk group of individuals with prediabetes and insulin resistance (PreDM-IR). Metabolically healthy individuals served as a Reference control group. Our working hypothesis is that the PreDM-IR group will have a distinct (poly)phenolic metabolites profile and supplementing their diets with RRB for 4 weeks will increase microbial-derived (poly)phenolic metabolites and adding FOS will augment the effect. This study was a randomized, single-blinded, two-arm, 4-week, within subject crossover design incorporating a modified pharmacokinetic (PK) multi-sampling protocol with a RRB-based test drink (RRBtest) to assess RRB (poly)phenolic metabolism before and after supplementing the diet for 4 weeks with RRB and RRB+FOS (Figures 1 and 2).

2. Results

2.1. Subject Demographics and Characteristics

A total of 102 subjects were screened, out of which 41 passed the initial screening and returned for randomization (Figure 1). Ten participants withdrew from the study, six during period 1 and four during period 2, because of inability to comply with study procedures, such as schedule conflict and lack of follow-up. One subject was excluded from the plasma analysis due to failure in blood collection. The analyzed plasma data set included 34 men and women, PreDM-IR (n = 24) and Reference (n = 10). The evaluable urine data set included 35 men and women, PreDM-IR (n = 25) and Reference (n = 10). The PreDM-IR and Reference groups underwent the same study procedures (Figure 2). No adverse events related to supplementations were reported. Demographic characteristics are shown in Table 1.

2.2. (Poly)phenol Content of RRB Interventions

A total of 44 (poly)phenols were quantified in the different RRB drinks, including 6 anthocyanins, 17 ellagitannins, 10 flavan-3-ols, 6 flavonols and 5 phenolic acids (Table 2). The RRBtest drink contained 388.4 ± 3.3 mg (poly)phenols, including 61% anthocyanins, 32% ellagitannins, 5% flavan-3-ols, 1% flavonols and 1% phenolic acids. The daily RRB drink (1 cup fresh equivalence) contained 129.7 ± 1.9 mg (poly)phenols, including 60% anthocyanins, 33% ellagitannins, 4% flavan-3-ols, 1% flavonols and 2% phenolic acids. The daily RRB+FOS drink contained 129.8 ± 0.5 mg (poly)phenols, including 60% anthocyanins, 33% ellagitannins, 5 % flavan-3-ols, 1% flavonols and 2% phenolic acids.

2.3. Plasma and Urine (poly)phenolic Metabolites: Effect of Chronic Exposure to RRB or RRB+FOS

A total of 123 (poly)phenolic metabolites were quantified in plasma and urine samples, classified as anthocyanin, urolithin, phenyl-γ-valerolactone and phenolic acid derivatives. Phenolic acid derivatives were further classified into benzaldehyde, cinnamic acid, phenylpropionic acid, phenylacetic acid, benzoic acid and hippuric acid derivatives (Table S1).
Figure 3 illustrates the pharmacokinetic (PK) profile of metabolites in response to RRB test drink at the baseline (week 0) when subjects were following their usual diets (low in fruit and vegetables and devoid of berries) as well as after 4-week RRB and RRB+FOS supplementations in diets.
Compared to baseline, consuming RRB daily resulted in significantly reduced concentrations of total anthocyanin derivatives, and increased total urolithins, phenyl-γ-valerolactones and select phenolic acid derivatives, i.e., cinnamic acid, phenylpropionic acid and hippuric acid derivatives, in plasma compared to baseline/week 0 (n = 34, p < 0.05, Figure 3). Adding FOS to 4-week RRB regimen had limited influence on metabolite concentrations. Only the benzoic acid derivatives were significantly increased from baseline when FOS was added to RRB (p = 0.0388, Figure 3).
In urine, 4-week RRB supplementation resulted in significantly increased total urolithin and phenyl-γ-valerolactone derivatives (p < 0.05), while adding FOS to 4-week RRB did not affect the metabolite excretion concentrations (Figure 4). Supplementations did not affect body composition or vital signs (data not shown).

2.4. Metabolic Status and Plasma and Urine (Poly)phenolic Metabolites

At the baseline, PreDM-IR group had significantly higher plasma concentrations of conjugated anthocyanin derivatives and methoxyphenylpropionic acid derivatives and lower concentration of urolithin A derivatives and benzoic acid derivatives compared to the Reference group (p < 0.05) (Figure 5). Metabolic status was a factor in metabolite responses to the 4-week supplementations. Compared to the baseline, 4-week RRB supplementation resulted in significantly decreased conjugated anthocyanin concentrations and increased urolithin A and methoxyphenylpropionic acid derivatives in the PreDM-IR group (p < 0.05) (Figure 5). Adding FOS to the RRB attenuated the effect of RRB in reducing conjugated anthocyanin concentrations, and significantly increased benzoic acid derivatives in the PreDM-IR group. In the Reference group, adding FOS to RRB further increased urolithin A production compared to RRB supplementation alone (p = 0.0074) (Figure 5b).

3. Discussion

This is the first study to report the profile of (poly)phenolic metabolites, i.e., parent, phase II, and gut microbial metabolites of RRB (poly)phenols, on a berry/red raspberry devoid background diet and compared to a diet supplemented with RRB or RRB+FOS for 4-weeks in at risk group of individuals with PreDM-IR. The main findings of the research are summarized: (1) 4-week RRB supplementation increased microbial-derived metabolites of RRB (poly)phenols, e.g., urolithins, phenyl-γ-valerolactones and select phenolic acids, and addition of FOS to the RRB regimen had limited influence except for enhancing benzoic acids derivatives compared to the baseline/week 0 (p < 0.05); (2) 4-week RRB supplementation significantly reduced conjugated anthocyanin derivatives, which were significantly higher in the PreDM-IR group, and increased urolithin A and benzoic acid derivatives, which were significantly lower in the PreDM-IR group compared to the Reference group (p < 0.05).
Anthocyanins accounted for approximately 61% of total RRB (poly)phenols (Table 2). After RRB intake, some parent anthocyanins can be absorbed intact in their glycosylated form, while others may be hydrolyzed to their aglycones, and both forms could be subjected to phase I and II metabolism in the small intestine, liver, and/or kidney, forming methyl, glucuronide, or sulfate conjugated metabolites [5,18]. In this study, all five parent RRB anthocyanins were detected in plasma and urine samples post-consumption of RRBtest drink. Methyl and glucuronide conjugated parent and aglycone anthocyanins were also found in plasma and urine samples. The concentration of anthocyanin derivatives in plasma were comparable with those observed by de Ferrars et al. after ingestion of 500 mg [13C5]cyanidin-3-O-glucoside, serum AUC0–24h of total anthocyanin around 279 ± 170 nmol/L h [19]. However, another RRB clinical trial (300 g frozen RRB) reported only 0.007% anthocyanin in plasma (much lower than the present study), which may be caused by the exclusion of cyanidin 3-O-sophoroside in quantification, the most abundant anthocyanin in both RRB and biological samples after RRB intake [1]. It was noticeable that the PreDM-IR group had significantly high concentrations of total conjugated anthocyanins (~45%) compared to the Reference group at the baseline, and the 4-week RRB supplementation substantially decreased the concentration of conjugated anthocyanins (~27%) (Figure 5a). The mechanism underlying the variations observed in metabolite concentrations in PreDM-IR and Reference groups is not clear. However, the reduction of conjugated anthocyanins could be associated with the metabolic health status of individuals that needs further research.
Ellagic acid and ellagitannins constituted around 32% of total RRB (poly)phenols (Table 2). After RRB intake, some ellagitannins are hydrolyzed to ellagic acid during gastric transit, but their parent forms are poorly absorbed by the proximal GI tract. In the colon, gut microbiota, e.g., Gordonibacter urolithinfaciens and Ellagibacter isourolithinifaciens, participate in the transformation from unabsorbed ellagitannins to various urolithins, including three final forms, i.e., urolithin A, urolithin B and isourolithin A, which are further subjected to phase II metabolism and suggested to exert biologically active effects [9,20,21]. In this study, urolithin A, urolithin B, isourolithin A and their conjugated metabolites were identified in plasma and urine, however, not all the subjects were able to produce urolithins and inter-individual variations were observed (Figure 4 and Figure 5). Human intervention studies with ellagitannin-rich foods, e.g., pomegranate, strawberries and walnuts, have illustrated the inter-individual variability in ellagitannin metabolism. Based on the data, individuals were classified as three different urolithin metabotypes (UMs): urolithin metabotype A (UM-A) is distinguished by the production of urolithin A; in urolithin metabotype B (UM-B) individuals produce isourolithin A and urolithin B besides urolithin A, and those with metabotype 0 (UM-0) do not produce these final urolithins [9,22]. At the baseline, 10 individuals of the PreDM-IR group (n = 25) qualified as UM-A, 10 qualified as UM-B and 5 as UM-0. In the Reference group (n = 10), 5 qualified as UM-A, 4 as UM-B and 1 as UM-0 subjects. After the 4-week RRB supplementation, one UM-0 in PreDM-IR group became UM-A. As is shown in the current study (Figure 3b), the 4-week RRB or RRB+FOS supplementation resulted in increased fasting (0 h) urolithin concentrations (~8 fold) compared to the fasting concentrations at baseline week 0, but no further increase was observed 24 h after the RRBtest drink as was observed at baseline 24 h. The increased excretion of urolithins was observed in 0-4 h urine samples while their excretion remained unchanged at 24 h. These data suggest that supplementation with RRB with or without FOS may contribute to the accumulation of urolithins but may not change the maximum concentration of urolithins.
Flavan-3-ols accounted for 5% of RRB (poly)phenols, mainly proanthocyanidin B dimers (Table 2). A majority of the ingested polymeric favan-3-ols are not absorbed in the upper part of the GI tract, but reach the colon, where the gut microbiota catabolize proanthocyanidins to phenyl-γ-valerolactones by A-ring fission; and subsequently, to phenylpropionic acids, phenylacetic acids and benzoic acids as the final microbial metabolites [7,23]. At the baseline, post consumption of the RRBtest drink, conjugated mono-, di- and tri- hydroxyphenyl-γ-valerolactones were quantified in plasma and urine, with AUC0–24h 2.2 ± 0.5 μmol/L h and 0.8 ± 0.2 μmol h/μmol creatinine, respectively. Plasma Cmax of total phenyl-γ-valerolactone derivatives (180 ± 44 nmol/L) was reached at 4 h after RRBtest intake. These findings are in accordance with a previous study on cranberries that reported plasma phenyl-γ-valerolactone derivatives Cmax around 300 nmol/L at 4 h post-consumption of cranberry juice containing 787 mg (poly)phenols [24]. The plasma Cmax of phenyl-γ-valerolactone derivatives are usually achieved at 4 to 6 h after consuming proanthocyanidin-rich foods, such as cranberry, tea and cocoa, and remain constant for several hours [8,25,26]. Bioactivity of phenyl-γ-valerolactones have been investigated both in vitro and in vivo, suggesting their role in regulation of inflammation, inhibition of cancer cell proliferation, reduction of systolic blood pressures, reduction of fat accumulation and prevention of urinary tract infections [7,27,28,29,30]. Thus, the significantly increased plasma and urinary concentration of phenyl-γ-valerolactones after a 4-week RRB and RRB+FOS intervention may result in associated health benefits.
Unabsorbed anthocyanins and phenyl-γ-valerolactones may be metabolized to various phenolic acids [5,6,7]. The microbial catabolism of anthocyanin is performed by cleavage of the heterocyclic flavylium ring (C ring fission), followed by microbial dehydroxylation or decarboxylation [5,6]. The different Tmax of various subgroups of phenolic acids indicated a potential pathway for the catabolism of anthocyanins (Figure 3), such as: anthocyanins (2 h) → benzaldehydes (1 h) → cinnamic acids (2 h) → phenylpropionic acids (no peak time) → phenylacetic acids (2–3 h) → benzoic acids (3–4 h) → hippuric acids (4–24 h). Since the peak time of phenylpropionic acids wasn’t observed, their role in anthocyanin catabolism could be due to hydrogenation of cinnamic acids [1]. After the 4-week RRB or RRB+FOS supplementation, the plasma concentration of total cinnamic, phenylpropionic, and hippuric acids derivatives were enhanced (Figure 3), indicating the beneficial effect of RRB on the activity and/or abundance of gut microbiota responsible for (poly)phenol catabolism. Similarly, regular blueberry intake for 30 days increased benzoic and hippuric acid derivatives in human subjects [24]. Adding FOS to RRB alone augmented the effect on benzoic acids derivatives (Figure 3), possibly due to prebiotic fermentation by gut microbiota [10]. Besides conjugated anthocyanins and urolithins, metabolic health status of study participants also affected the phenolic acid profile. The PreDM-IR group had significantly lower benzoic acids derivatives (~21%) in plasma compared to the Reference group (Figure 5d), which was increased after the 4-week RRB+FOS supplementation (~11%). This may be attributed to the feeding effect of RRB (poly)phenols and/or prebiotics to gut microbiota that improved the capacity of gut microbiota in producing more phenolic acids.
This study is innovative in its focus on a group of people at risk for T2DM. The study design included a metabolically healthy Reference group to assess relevance of changes in the PreDM-IR group, which few other human studies include, however sample size of the Reference group was a limitation. It is noticeable that subjects within each group had different capacity to catabolize (poly)phenols and render metabolites, especially urolithins and phenyl-γ-valerolactones. Considering the sample size, inter-individual variations may limit the generalizability of conclusions. The RRBtest drink contained a bolus amount of RRB (2 cups of single-cultivar of RRB), while the 4-week supplementations contained 1 cup of multi-cultivar RRB. A limitation was the variance in RRB used in the test drink and those used for the 4-week supplementation. However, this is also valuable because the bolus amount of RRB (poly)phenols and single-cultivar RRB in the RRBtest drink enables the comparison with our previous acute study [31], and the RRB in the 4-week supplementation is consistent with typical intake of multiple RRB varieties in marketplace. Additionally, the amount (1 cup/d) was practical for participants to consume daily. Negative and positive treatment controls were not included in the study design due to subject burden limitations of a crossover clinical trial design. A crossover design was chosen for this discovery research to enhance power with a smaller number of subjects, as each serves as their own control. Plasma and urine samples were collected at 0–4 h and 24 h after the RRBtest drink to focus on anthocyanins and urolithins. However, collection of plasma and urine samples between 4–10 h may provide more PK information on other metabolites, which will be considered in future studies. Most phase II metabolites were quantified using their available parental compounds due to limited availability of metabolite standards (Table S1).

4. Materials and Methods

4.1. Study Design

This study was approved by the Institutional Review Board of Illinois Institute of Technology (IIT), Chicago, Illinois and registered with ClinicalTrials.gov (NCT03049631). All subjects provided written informed consent before initiation of any study procedures. The clinical part of study was conducted from May 2017 to February 2018 in the clinical unit of the Center for Nutrition Research (CNRC) at the IIT, Chicago, Illinois.
This study was a randomized, single-blinded, two-arm, 4-week, within subject crossover design incorporating the multi-sampling RRB-based test drink (RRBtest) protocol to assess RRB (poly)phenolic metabolism before and after supplementing the diet for 4 weeks with RRB and RRB+FOS (Figure 1 and Figure 2). Subjects were randomly assigned a supplementation order (RRB → RRB+FOS or RRB+FOS → RRB) separated by a 4-week washout period. Subjects were involved actively in the study for ~14 weeks from screening to completion. During each supplementation period, subjects came to the CNRC weekly to pick up standardized pre-made frozen drinks for daily consumption. At the end of each 4-week period, subjects participated in a “Pharmacokinetic Day (PKD)” visit following an identical protocol as baseline (week 0). Briefly, at each PKD, subjects consumed a RRBtest drink to access the PK profile of RRB (poly)phenols and their metabolites over 24 h. PK profiles after 4-week RRB or RRB+FOS supplementation were compared to baseline data. Each PKD lasted approximately 4.5 h with blood samples collected at 0, 1, 2, 3 and 4 h, urine sample collected at 0, 1, 2, 3 and 4 h, and then a final blood and urine sample the next morning (24 ± 1 h) calculated from the time of the RRBtest drink the day prior.

4.2. Study Participants

Men and women 20 to 60 years old were recruited from the greater Chicago land area and screened for participation at the CNRC/IIT. Subjects were required to meet general eligibility criteria and specific criteria for PreDM-IR. Specific PreDM-IR criteria included impaired fasting glucose (≥5.6 mmol/L and <7.0 mmol/L), elevated fasting insulin (>50th percentile cutoff) [32], and insulin resistance measured by homeostatic model assessment of insulin resistance, HOMA-IR ≥ 2 [31]. The Reference/Control group had fasting glucose values ≤ 5.6 mmol/L and a HOMA-IR value ≤ 1 [31]. General eligibility criteria for individuals to participate in the study were: non-smoker and not taking any medications that would interfere with outcomes of the study (i.e., lipid-lowering, anti-inflammatory, or glucose-interfering medications or dietary supplements), no known allergy or intolerance to berries, did not consume ≥3 servings of berries per week, and had no documented atherosclerotic disease, inflammatory disease, –GI or kidney disease, diabetes mellitus, or other systemic diseases. Women who were pregnant or lactating were not eligible to participate.

4.3. Study Foods and RRB Supplements

PKD visit: Foods consumed during a PKD visit included the RRBtest drink and fixed lunch and dinner meals. The RRBtest drink contained 250 g (~2 cups fresh weight equivalence) Individually Quick Frozen (IQF) RRB (Rubus idaeus L. var. Wakefield, Enfield Farms, Lynden, WA, USA) and 65 g dextrose (Table 1 and Supplementary Table S1). The 250 g RRBtest drink was chosen based on our prior research [31] and aims to deliver a bolus amount of red raspberry (poly)phenols to characterize (poly)phenolic metabolites over a 24 h period in plasma and urine. Subjects were asked to consume fixed meals provided by the CNRC the night before and on each PKD. One of the following three meals were offered, recorded, and maintained the same throughout the study: homemade meal, Jimmy John’s or Subway, or a meal prepared at CNRC (based on subject’s energy requirements).
4-week supplementation periods: The daily RRB drink for 4-week supplementation contained 50 g IQF RRB and 8 g freeze-dried RRB powder (multiple varieties, Van Drunen Farms, Momence, IL, USA). The daily RRB+FOS supplementary drink contained 50 g IQF RRB, 8 g freeze-dried RRB powder and 8 g short-chain FOS (Ingredion, Westchester, IL, USA). The 4-week RRB and RRB+FOS drink were designed based on practical dietary recommendation, incorporating 1 cup of berries per day, to understand the effect of regular fruit intake. The nutrient compositions of daily RRB and RRB+FOS supplementary drinks are listed in Table S2.

4.4. Study Procedures

Upon enrollment into the study, subjects had a diet stabilization period before starting the research protocol, which started with a low-(poly)phenol diet 3 days before the each PKD visit. In between PKD visits, subjects were counseled to keep low-berry diet (<3 servings of berries per week, except the experimental drinks), and maintained their usual dietary and physical activity patterns. Dietary intake data (24 h recalls) were collected and analyzed using the Automated Self-Administered 24 h (ASA24) Dietary Assessment Tool, version (2017), developed by the National Cancer Institute (Bethesda, MD, USA) [33]. Compliance to the diet and lifestyle restrictions was determined via ASA24 and via interview once per week. A fixed dinner meal was provided on the day before each PKD visit and the night of PKD visits to maintain consistency for the 24 h follow-up visit.
Subjects arrived at the CNRC in a fasting state (10–12 h, confirmed by finger stick) and well hydrated on the morning of each scheduled PKD visit. After assessing PKD readiness based on protocol compliance (i.e., dietary restrictions and fasting), anthropometrics, body composition and vital signs were measured. An intravenous catheter was placed in subjects’ non-dominant arm by a licensed health care professional. Fasting blood and urine samples were collected (0 h), and subjects were provided with the RRBtest drink. Subsequently blood samples were collected at 0.5, 1, 2, 3, 4, and 24 h and urine samples were collected at 1, 2, 3, 4, and 24 h. After the 4-h blood collection, the catheter was removed and subjects were evaluated for safety before leaving the CNRC. Subjects consumed the fixed lunch and dinner meals at home and returned the next morning (fasted, well hydrated) for the 24 h blood and urine collection to complete the PKD visit. Females of reproductive age were studied avoiding menstruation phase of their menstrual cycle.

4.5. Dietary Assessment

During the supplementation periods, ASA24 was completed by subjects once per week to record all food and drink consumed in the past 24 h. The total calorie, fat, protein, carbohydrate, sugar, fiber, vegetable amount, and fruit amount were calculated based on the ASA24 reports and analyzed with SAS 9.4 (SAS Institute, Inc., Cary, NC, USA). Background diets did not change significantly during the study periods (Table S3).

4.6. Chemical and Reagents

Standards of cyanidin 3-O-glucoside, cyanidin 3-O-rutinoside, pelargonidin 3-O-glucoside, pelargonidin 3-O-rutinoside, peonidin 3-O-glucoside, malvidin 3-O-glucoside, quercetin 3-O-galactoside, quercetin 3-O-rutinoside, quercetin 3-O-glucuronide, quercetin and gallic acid were purchased from Extrasynthese (Genay, France). Urolithin A 3-O-glucuronide and urolithin B 3-O-glucuronide were purchased from Toronto Research Chemicals (Toronto, ON, Canada). Epicatechin, ellagic acid, 2-hydroxybenzoic acid, 3-hydroxybenzoic acid, 4-hydroxybenzoic acid, 2,3-dihydroxy-benzoic acid, 2,5-dihydroxybenzoic acid, 3,4-dihydroxybenzoic acid, syringic acid, 4-hydroxy-benzaldehyde, 3,4-dihydroxybenzaldehyde, phloroglucinaldehyde, vanillin, p-coumaric acid, m-coumaric acid, o-coumaric acid, caffeic acid, sinapic acid, hippuric acid, 2-methylhippuric acid, 4-methylhippuric acid, 2-phenylacetic acid, 2-hydroxyphenylacetic acid, 3-hydroxyphenylacetic acid, 4-hydroxyphenylacetic acid, 4-methoxyphenylacetic acid, 3,4-dihydroxyphenylacetic acid, homovanillic acid, 3-(3-hydroxyphenyl)propionic acid, 3-(4-hydroxyphenyl)propionic acid, hydrocaffeic acid, hydroferulic acid and taxifolin were purchased from Sigma-Aldrich (St. Louis, MO, USA). Ferulic acid and vanillic acid were purchased from Honeywell (Charlotte, NC, USA). Methanol, acetone and acetonitrile were purchased from Thermo Fisher (Waltham, MA, USA). Formic acid and acetic acid were from Sigma-Aldrich. Ultrapure water was prepared with Millipore Direct-Q 3 Water Purification System (Burlington, MA, USA) and used throughout this study. All chemicals and reagents were of HPLC/MS grade.

4.7. Plasma and Urine Samples Processing and Analysis by UHPLC-QQQ

Blood samples were collected in vacutainers containing ethylenediaminetetraacetic acid (EDTA) and immediately placed on ice until centrifuged (within 30 min). After centrifugation at 453× g for 15 min at 4 °C, plasma was aliquoted into individual cryovials and stored at −80 °C until analysis. Spot urine samples were collected in urine collection cups, immediately placed on ice, and then aliquoted into individual cryovials and stored at −80 °C until analysis.
The plasma and urinary analysis of (poly)phenolic metabolites was performed using an UHPLC system couple with a triple quadrupole tandem mass spectrometer model 6460 (UHPLC-QQQ, Agilent Technologies, Santa Clara, CA, USA), operating in dynamic multiple reaction monitoring (dMRM) and negative/positive electrospray ionization (ESI) modes [2]. Plasma samples were extracted using solid phase extraction (SPE) C18 cartridges (3 mL et al., 200 mg; Agilent Technologies) and concentrated (8 times). Urine samples were filtered with a 0.2 μm polypropylene syringe filter (Whatman, Maidston, UK) and diluted (10 times) with staring mobile phase (5% acetonitrile containing 1% formic acid). Two internal standards (malvidin 3-O-glucoside and taxifolin) were added to each sample before SPE, with final concentrations 8 ppb and 64 ppb, respectively. Sample extracts (5 μL) were injected to a reversed-phase Poroshell 120 SB-C18 Stable Bond column (2.1 × 150 mm, 2.7 μm) equipped with a guard column (2.1 × 5 mm, 2.7 μm) for the separation of red raspberry (poly)phenols and their metabolites (except for phenolic acids) and a Pursuit 3 PFP column (2.0 × 150 mm, 3 μm) equipped with a guard column (2.0 × 2 mm, 3 μm) for the separation of phenolic acids and their derivatives. The columns and guard columns were purchased from Agilent Technologies. For the C18 column, the UHPLC mobile phase was 1% formic acid in water (A) and acetonitrile (B). The flow rate was 0.3 mL/min and a gradient consisted of 5% B at 0 min, 15% B at 10 min, 20% B at 12 min, 50% B at 20 min, 90% B at 23 min followed by 7 min post-run time for column re-equilibration. For the PFP column, the UHPLC mobile phase was 0.1% formic acid in water (A) and 0.1% formic acid in acetonitrile (B). The flow rate was 0.4 mL/min and a gradient consisted of 5% B at 0 min, 10% B at 3 min, 15% B at 7–9 min, 20% B at 10–11 min, 25% B at 12 min, 30% B at 13–14 min and 95% B at 15 min followed by 5-min post-run time for column re-equilibration. Metabolite identification was performed by multiple reaction monitoring (MRM) optimized with pure standards wherever possible and parent/daughter ion fragments obtained from an UHPLC coupled with quadruple time-of-flight (UHPLC-QTOF). Metabolites were confirmed on the basis of retention time (using authentic standards where possible) and three or more ion transitions. The UHPLC-QQQ method was validated for linearity, sensitivity, precision, recovery, and matrix effect (Table S4). Plasma (poly)phenol concentrations at 0, 1, 2, 3, 4 and 24 h were analyzed and expressed as nmol/L. Spot urine samples were pooled at time window 0 h, 1–4 h and 24 h for analysis. Urinary creatinine was measured using a RX Daytona automated clinical analyzer (Randox Laboratories, Crumlin, UK) with appropriate standards and quality controls. Urinary (poly)phenol concentrations were adjusted for creatinine concentration and expressed as nmol/μmol creatinine.

4.8. Data Analysis

The areas under the 24 h curve of (poly)phenolic metabolites (AUC0–24h) after each RRBtest drink was determined using the trapezoidal rule using Microsoft excel [19]. The time (Tmax) to achieve maximum plasma concentration (Cmax) were also evaluated. Randomization schedules, sample size estimates, and data analyses were performed using SAS 9.4 (SAS Institute, Inc., Cary, NC, USA).
Normal distribution of data was examined via the Shapiro-Wilk test. Non-normal distributed data were log10 transformed for analysis to normalize distributions. Data obtained at Baseline/Week 0 were used for subject characteristics. Repeated measures analysis of variance using mixed procedure was used for all endpoints assessing main effects of metabolic health status (PreDM-IR vs. Reference), Supplementation (baseline vs. RRB vs. RRB+FOS), Time (0, 1, 2, 3, 4, 24 h), and their 2-way interactions. Covariates (age, BMI, gender and race) were tested in all models and significant covariates were included in final analyses. These terms were removed from the model if not significant. When significant main effects and/or interactions were observed, post-hoc mean-separation testing was conducted using the Tukey-Kramer correction to adjust for multiple comparisons. Results are presented as means ± standard errors of the mean (SEM). Two-tailed p < 0.05 was considered significant.

5. Conclusions

The results from this study indicate the importance of gut microbiota in (poly)phenol metabolism, with microbial metabolites accounting for over 99% (poly)phenol metabolites in plasma and urine. Nutritional strategies incorporating RRB and FOS regularly in the diet increased microbial metabolites of (poly)phenols in the blood that were mostly lower in the PreDM-IR group compared to Reference group. These data suggest alterations in the capacity of the gut microbiome of individuals with PreDM-IR to metabolize and render bioavailable raspberry-derived (poly)phenols, but can be enhanced when consumed regularly for 4 weeks. The clinical importance of these findings is the subject for future work.

Supplementary Materials

The following are available online, Table S1: Effect of 4-week RRB and RRB+FOS supplementations on plasma and urinary (poly)phenolic metabolites profiling tested by AUC0–24h post the RRBtest drink, Table S2: Nutrient composition of RRB-based test drink (RRBtest) and 4-week supplementary drinks, Table S3: Dietary assessment during 4-week RRB and RRB+FOS supplementations, Table S4: Method validation for linearity, limit of detection (LOD) and limit of quantification (LOQ), precision (within-run and between-run), recovery and matrix effect using standards dissolved in starting mobile phase and in biological samples (plasma and urine).

Author Contributions

Conceptualization, methodology, investigation, writing—original draft preparation, writing—review and editing, funding acquisition, X.Z., A.S., I.E. and B.M.B.-F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Processed Raspberry Council.

Acknowledgments

The clinical trial and sample analysis were conducted at CNR and Department of Food Science and Nutrition, IIT. Special thanks to the volunteers participating in the study and all the staff and students helping on this project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ludwig, I.A.; Mena, P.; Calani, L.; Borges, G.; Pereira-Caro, G.; Bresciani, L.; Del Rio, D.; Lean, M.E.J.; Crozier, A. New insights into the bioavailability of red raspberry anthocyanins and ellagitannins. Free Radic. Biol. Med. 2015, 89, 758–769. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, X.; Sandhu, A.; Edirisinghe, I.; Burton-Freeman, B. An exploratory study of red raspberry (Rubus idaeus L.) (poly)phenols/metabolites in human biological samples. Food Funct. 2018, 9, 806–818. [Google Scholar] [CrossRef] [PubMed]
  3. Burton-Freeman, B.M.; Sandhu, A.K.; Edirisinghe, I. Red Raspberries and Their Bioactive Polyphenols: Cardiometabolic and Neuronal Health Links. Adv. Nutr. 2016, 7, 44–65. [Google Scholar] [CrossRef] [Green Version]
  4. Zou, T.; Wang, B.; Yang, Q.; de Avila, J.M.; Zhu, M.-J.; You, J.; Chen, D.; Du, M. Raspberry promotes brown and beige adipocyte development in mice fed high-fat diet through activation of AMP-activated protein kinase (AMPK) α1. J. Nutr. Biochem. 2018, 55, 157–164. [Google Scholar] [CrossRef] [PubMed]
  5. Lila, M.A.; Burton-Freeman, B.; Grace, M.; Kalt, W. Unraveling Anthocyanin Bioavailability for Human Health. Annu. Rev. Food Sci. Technol. 2016, 7, 375–393. [Google Scholar] [CrossRef]
  6. Chandra, P.; Rathore, A.S.; Kay, K.L.; Everhart, J.L.; Curtis, P.; Burton-Freeman, B.; Cassidy, A.; Kay, C.D. Contribution of Berry Polyphenols to the Human Metabolome. Molecules 2019, 24, 4220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Mena, P.; Bresciani, L.; Brindani, N.; Ludwig, I.A.; Pereira-Caro, G.; Angelino, D.; Llorach, R.; Calani, L.; Brighenti, F.; Clifford, M.N.; et al. Phenyl-γ-valerolactones and phenylvaleric acids, the main colonic metabolites of flavan-3-ols: Synthesis, analysis, bioavailability, and bioactivity. Nat. Prod. Rep. 2019, 36, 714–752. [Google Scholar] [CrossRef]
  8. Mena, P.; Ludwig, I.A.; Tomatis, V.B.; Acharjee, A.; Calani, L.; Rosi, A.; Brighenti, F.; Ray, S.; Griffin, J.L.; Bluck, L.J.; et al. Inter-individual variability in the production of flavan-3-ol colonic metabolites: Preliminary elucidation of urinary metabotypes. Eur. J. Nutr. 2019, 58, 1529–1543. [Google Scholar] [CrossRef] [Green Version]
  9. Tomás-Barberán, F.A.; García-Villalba, R.; González-Sarrías, A.; Selma, M.V.; Espín, J.C. Ellagic Acid Metabolism by Human Gut Microbiota: Consistent Observation of Three Urolithin Phenotypes in Intervention Trials, Independent of Food Source, Age, and Health Status. J. Agric. Food Chem. 2014, 62, 6535–6538. [Google Scholar] [CrossRef]
  10. Slavin, J. Fiber and prebiotics: Mechanisms and health benefits. Nutrients 2013, 5, 1417–1435. [Google Scholar] [CrossRef] [Green Version]
  11. Le Bourgot, C.; Apper, E.; Blat, S.; Respondek, F. Fructo-oligosaccharides and glucose homeostasis: A systematic review and meta-analysis in animal models. Nutr. Metab. (Lond.) 2018, 15, 9. [Google Scholar] [CrossRef] [Green Version]
  12. Juśkiewicz, J.; Milala, J.; Jurgoński, A.; Król, B.; Zduńczyk, Z. Consumption of polyphenol concentrate with dietary fructo-oligosaccharides enhances cecal metabolism of quercetin glycosides in rats. Nutrition 2011, 27, 351–357. [Google Scholar] [CrossRef]
  13. Jurgoński, A.; Juśkiewicz, J.; Fotschki, B.; Kołodziejczyk, K.; Milala, J.; Kosmala, M.; Grzelak-Błaszczyk, K.; Markiewicz, L. Metabolism of strawberry mono- and dimeric ellagitannins in rats fed a diet containing fructo-oligosaccharides. Eur. J. Nutr. 2017, 56, 853–864. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Abdul-Ghani, M.A.; Matsuda, M.; Balas, B.; DeFronzo, R.A. Muscle and Liver Insulin Resistance Indexes Derived from the Oral Glucose Tolerance Test. Diabetes Care 2007, 30, 89–94. [Google Scholar] [CrossRef] [Green Version]
  15. Afshin, A.; Sur, P.J.; Fay, K.A.; Cornaby, L.; Ferrara, G.; Salama, J.S.; Mullany, E.C.; Abate, K.H.; Abbafati, C.; Abebe, Z.; et al. Health effects of dietary risks in 195 countries, 1990–2017: A systematic analysis for the Global Burden of Disease Study 2017. Lancet 2019, 393, 1958–1972. [Google Scholar] [CrossRef] [Green Version]
  16. Allin, K.H.; Tremaroli, V.; Caesar, R.; Jensen, B.A.H.; Damgaard, M.T.F.; Bahl, M.I.; Licht, T.R.; Hansen, T.H.; Nielsen, T.; Dantoft, T.M.; et al. Aberrant intestinal microbiota in individuals with prediabetes. Diabetologia 2018, 61, 810–820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Zhong, H.; Ren, H.; Lu, Y.; Fang, C.; Hou, G.; Yang, Z.; Chen, B.; Yang, F.; Zhao, Y.; Shi, Z.; et al. Distinct gut metagenomics and metaproteomics signatures in prediabetics and treatment-naïve type 2 diabetics. EBioMedicine 2019, 47, 373–383. [Google Scholar] [CrossRef]
  18. Stevens, J.F.; Maier, C.S. The chemistry of gut microbial metabolism of polyphenols. Phytochem. Rev. 2016, 15, 425–444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. de Ferrars, R.M.; Czank, C.; Zhang, Q.; Botting, N.P.; Kroon, P.A.; Cassidy, A.; Kay, C.D. The pharmacokinetics of anthocyanins and their metabolites in humans. Br. J. Pharmacol. 2014, 171, 3268–3282. [Google Scholar] [CrossRef] [Green Version]
  20. Selma, M.V.; Tomás-Barberán, F.A.; Beltrán, D.; García-Villalba, R.; Espín, J.C. Gordonibacter urolithinfaciens sp. nov., a urolithin-producing bacterium isolated from the human gut. Int. J. Syst. Evol. Microbiol. 2014, 64, 2346–2352. [Google Scholar] [CrossRef]
  21. Beltrán, D.; Romo-Vaquero, M.; Espín, J.C.; Tomás-Barberán, F.A.; Selma, M.V. Ellagibacter isourolithinifaciens gen. nov., sp. nov., a new member of the family Eggerthellaceae, isolated from human gut. Int. J. Syst. Evol. Microbiol. 2018, 68, 1707–1712. [Google Scholar] [CrossRef] [PubMed]
  22. Romo-Vaquero, M.; Cortés-Martín, A.; Loria-Kohen, V.; Ramírez-de-Molina, A.; García-Mantrana, I.; Collado, M.C.; Espín, J.C.; Selma, M.V. Deciphering the Human Gut Microbiome of Urolithin Metabotypes: Association with Enterotypes and Potential Cardiometabolic Health Implications. Mol. Nutr. Food Res. 2019, 63, e1800958. [Google Scholar] [CrossRef] [PubMed]
  23. Márquez Campos, E.; Stehle, P.; Simon, M.C. Microbial Metabolites of Flavan-3-Ols and Their Biological Activity. Nutrients 2019, 11, 2260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Feliciano, R.P.; Boeres, A.; Massacessi, L.; Istas, G.; Ventura, M.R.; Nunes dos Santos, C.; Heiss, C.; Rodriguez-Mateos, A. Identification and quantification of novel cranberry-derived plasma and urinary (poly)phenols. Arch. Biochem. Biophys. 2016, 599, 31–41. [Google Scholar] [CrossRef] [PubMed]
  25. Rodriguez-Mateos, A.; Feliciano, R.P.; Boeres, A.; Weber, T.; dos Santos, C.N.; Ventura, M.R.; Heiss, C. Cranberry (poly)phenol metabolites correlate with improvements in vascular function: A double-blind, randomized, controlled, dose-response, crossover study. Mol. Nutr. Food Res. 2016, 60, 2130–2140. [Google Scholar] [CrossRef] [Green Version]
  26. Gómez-Juaristi, M.; Sarria, B.; Martínez-López, S.; Bravo Clemente, L.; Mateos, R. Flavanol Bioavailability in Two Cocoa Products with Different Phenolic Content. A Comparative Study in Humans. Nutrients 2019, 11, 1441. [Google Scholar] [CrossRef] [Green Version]
  27. Sun, Y.N.; Li, W.; Song, S.B.; Yan, X.T.; Zhao, Y.; Jo, A.R.; Kang, J.S.; Young Ho, K. A new phenolic derivative with soluble epoxide hydrolase and nuclear factor-kappaB inhibitory activity from the aqueous extract of Acacia catechu. Nat. Prod. Res. 2016, 30, 2085–2092. [Google Scholar] [CrossRef]
  28. Lambert, J.D.; Rice, J.E.; Hong, J.; Hou, Z.; Yang, C.S. Synthesis and biological activity of the tea catechin metabolites, M4 and M6 and their methoxy-derivatives. Bioorg. Med. Chem. Lett. 2005, 15, 873–876. [Google Scholar] [CrossRef]
  29. Takagaki, A.; Nanjo, F. Effects of Metabolites Produced from (−)-Epigallocatechin Gallate by Rat Intestinal Bacteria on Angiotensin I-Converting Enzyme Activity and Blood Pressure in Spontaneously Hypertensive Rats. J. Agric. Food Chem. 2015, 63, 8262–8266. [Google Scholar] [CrossRef]
  30. Mele, L.; Carobbio, S.; Brindani, N.; Curti, C.; Rodriguez-Cuenca, S.; Bidault, G.; Mena, P.; Zanotti, I.; Vacca, M.; Vidal-Puig, A.; et al. Phenyl-γ-valerolactones, flavan-3-ol colonic metabolites, protect brown adipocytes from oxidative stress without affecting their differentiation or function. Mol. Nutr. Food Res. 2017, 61, 1700074. [Google Scholar] [CrossRef]
  31. Xiao, D.; Zhu, L.; Edirisinghe, I.; Fareed, J.; Brailovsky, Y.; Burton-Freeman, B. Attenuation of Postmeal Metabolic Indices with Red Raspberries in Individuals at Risk for Diabetes: A Randomized Controlled Trial. Obesity 2019, 27, 542–550. [Google Scholar] [CrossRef] [PubMed]
  32. Li, C.; Ford, E.S.; McGuire, L.C.; Mokdad, A.H.; Little, R.R.; Reaven, G.M. Trends in Hyperinsulinemia among Nondiabetic Adults in the U.S. Diabetes Care 2006, 29, 2396–2402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Subar, A.F.; Thompson, F.E.; Potischman, N.; Forsyth, B.H.; Buday, R.; Richards, D.; McNutt, S.; Hull, S.G.; Guenther, P.M.; Schatzkin, A.; et al. Formative Research of a Quick List for an Automated Self-Administered 24 Hour Dietary Recall. J. Am. Diet. Assoc. 2007, 107, 1002–1007. [Google Scholar] [CrossRef] [PubMed]
Molecules 25 04777 g001 550

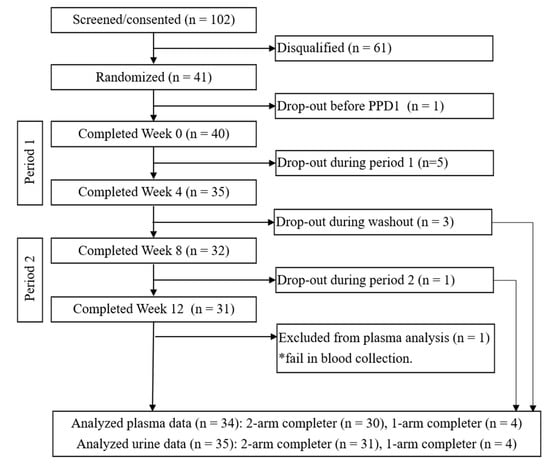

Figure 1. Consolidated Standards of Reporting Trials (CONSORT) flow diagram of the study.
Figure 1. Consolidated Standards of Reporting Trials (CONSORT) flow diagram of the study.
Molecules 25 04777 g001
Molecules 25 04777 g002 550

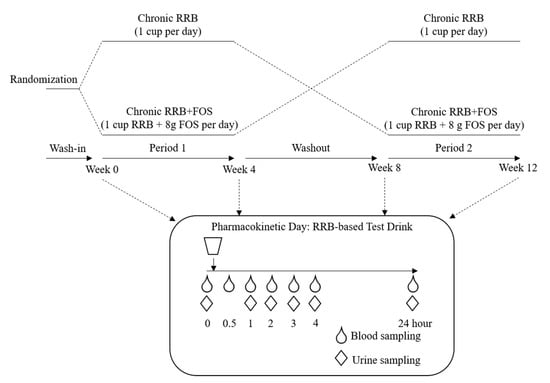

Figure 2. Study design and pharmacokinetic day schema.
Figure 2. Study design and pharmacokinetic day schema.
Molecules 25 04777 g002
Molecules 25 04777 g003 550
Figure 3. (Poly)phenolic metabolites concentrations in human plasma (0–24 h) post-consumption of RRBtest drink at the baseline/week 0, after 4-week RRB and 4-week RRB+FOS supplementations: (a) total anthocyanin derivatives; (b) total urolithin derivatives; (c) total phenyl-γ-valerolactone derivatives; (d) total phenolic acid derivatives; (e) total benzaldehyde derivatives; (f) total cinnamic acid derivatives; (g) total phenylpropionic acid derivatives; (h) total phenylacetic acid derivatives; (i) total benzoic acid derivatives; and (j) total hippuric acid derivatives.
Figure 3. (Poly)phenolic metabolites concentrations in human plasma (0–24 h) post-consumption of RRBtest drink at the baseline/week 0, after 4-week RRB and 4-week RRB+FOS supplementations: (a) total anthocyanin derivatives; (b) total urolithin derivatives; (c) total phenyl-γ-valerolactone derivatives; (d) total phenolic acid derivatives; (e) total benzaldehyde derivatives; (f) total cinnamic acid derivatives; (g) total phenylpropionic acid derivatives; (h) total phenylacetic acid derivatives; (i) total benzoic acid derivatives; and (j) total hippuric acid derivatives.
Molecules 25 04777 g003
Molecules 25 04777 g004 550

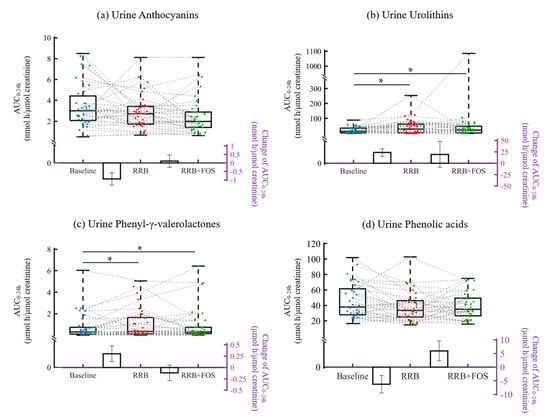

Figure 4. Urinary (poly)phenolic metabolites AUC0–24h (areas under the 24-h curve) post-consumption of RRBtest drink at the baseline/week 0, after 4-week RRB and 4-week RRB+FOS supplementations: (a) total anthocyanin derivatives; (b) total urolithin derivatives; (c) total phenyl-γ-valerolactone derivatives; (d) total phenolic acid derivatives. * Significant supplementation effect, p < 0.05. The box and whisker plots illustrate the distribution of values for each study visit. The line in the middle of the box is plotted at the median, the inferior and superior limit of the box correspond to the 25th and the 75th percentiles, respectively. Bars represent mean change of AUC0–24h at baseline vs. 4-week RRB and 4-week RRB vs. 4-week RRB+FOS, with their standard errors.
Figure 4. Urinary (poly)phenolic metabolites AUC0–24h (areas under the 24-h curve) post-consumption of RRBtest drink at the baseline/week 0, after 4-week RRB and 4-week RRB+FOS supplementations: (a) total anthocyanin derivatives; (b) total urolithin derivatives; (c) total phenyl-γ-valerolactone derivatives; (d) total phenolic acid derivatives. * Significant supplementation effect, p < 0.05. The box and whisker plots illustrate the distribution of values for each study visit. The line in the middle of the box is plotted at the median, the inferior and superior limit of the box correspond to the 25th and the 75th percentiles, respectively. Bars represent mean change of AUC0–24h at baseline vs. 4-week RRB and 4-week RRB vs. 4-week RRB+FOS, with their standard errors.
Molecules 25 04777 g004
Molecules 25 04777 g005 550

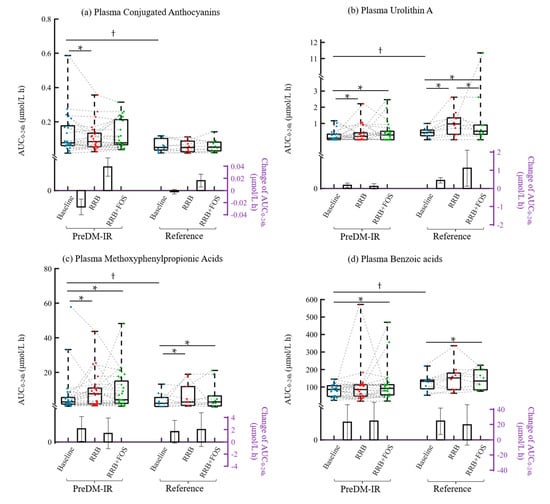

Figure 5. Effect of 4-week RRB and RRB+FOS supplementations on the (poly)phenolic metabolites between PreDM-IR and Reference groups: (a) plasma conjugated anthocyanins; (b) plasma urolithin A derivatives; (c) plasma methoxyphenylpropionic acid derivatives; and (d) plasma benzoic acid derivatives. † Significant Group difference at the baseline, p < 0.05; * Significant supplementation effect within a group, p <0.05. The box and whisker plots illustrate the distribution of values within each group for each study visit. The line in the middle of the box is plotted at the median, the inferior and superior limit of the box correspond to the 25th and the 75th percentiles, respectively. Bars represent mean change of AUC0–24h at baseline vs. 4-week RRB and 4-week RRB vs. 4-week RRB+FOS per group, with their standard errors.
Figure 5. Effect of 4-week RRB and RRB+FOS supplementations on the (poly)phenolic metabolites between PreDM-IR and Reference groups: (a) plasma conjugated anthocyanins; (b) plasma urolithin A derivatives; (c) plasma methoxyphenylpropionic acid derivatives; and (d) plasma benzoic acid derivatives. † Significant Group difference at the baseline, p < 0.05; * Significant supplementation effect within a group, p <0.05. The box and whisker plots illustrate the distribution of values within each group for each study visit. The line in the middle of the box is plotted at the median, the inferior and superior limit of the box correspond to the 25th and the 75th percentiles, respectively. Bars represent mean change of AUC0–24h at baseline vs. 4-week RRB and 4-week RRB vs. 4-week RRB+FOS per group, with their standard errors.
Molecules 25 04777 g005
Table
Table 1. Subject demographic characteristics at baseline 1.
Table 1. Subject demographic characteristics at baseline 1.
Variable 2PreDM-IR (n = 25)Reference (n = 10)p Value
Age (years)35 ± 231 ± 3NS
Female: Male11:147: 3NS
CAU:AA:AS:HIS8:6:8:33:2:3:2NS
Fasting Glucose (mmol/L)5.7 ± 0.15.1 ± 0.2<0.0001
Fasting Insulin (pmol/L)84 ± 934 ± 40.002
HOMA-IR3.3 ± 0.41.0 ± 0.10.0005
BMI (kg/m2)28 ± 122 ± 10.006
Weight (kg)84 ± 464 ± 50.02
1 Mean ± standard error of the mean (SEM) for continuous variables. NS, non-significant. 2 CAU, Caucasian; AA, African American; AS, Asian; HIS, Hispanics and Latino; HOMA-IR, homeostasis model assessment of insulin resistance; BMI, body mass index.
Table
Table 2. Red raspberry (poly)phenol contents in RRB-based test drink (RRBtest) and 4-week supplementations (mg/serving) 1.
Table 2. Red raspberry (poly)phenol contents in RRB-based test drink (RRBtest) and 4-week supplementations (mg/serving) 1.
RT CompoundsMRM TransitionRRBtest Drink4-Week Supplementations
Daily RRB DrinkDaily RRB+FOS Drink
6.5Cyanidin 3,5-O-diglucoside611+/2870.8 ± 0.10.6 ± 0.00.5 ± 0.0
8.2Cyanidin 3-O-sophoroside611+/287192.2 ± 2.261.0 ± 0.460.2 ± 1.1
9.1Cyanidin 3-O-sambubioside581+/28710.1 ± 0.12.9 ± 0.02.4 ± 0.1
9.2Cyanidin 3-O-glucoside449+/28727.4 ± 0.18.9 ± 0.09.9 ± 0.3
9.4Pelargonidin 3-O-sophoroside595+/2716.3 ± 0.13.6 ± 0.13.4 ± 0.1
10.5Pelargonidin 3-O-glucoside433+/2710.5 ± 0.00.3 ± 0.00.3 ± 0.0
Total anthocyanins 236.8 ± 1.977.3 ± 0.376.7 ± 1.3
3.5Pedunculagin isomer 1783−/3010.5 ± 0.01.2 ± 0.00.9 ± 0.0
5.2Pedunculagin isomer 2783−/3010.3 ± 0.00.6 ± 0.00.4 ± 0.0
6.8Sanguiin H-10 isomer 17832−/3011.7 ± 0.10.7 ± 0.00.7 ± 0.0
6.8Sanguiin H-6 minus gallic moiety isomer 18582−/3011.0 ± 0.00.5 ± 0.00.5 ± 0.0
7.4Corilagin 633−/3010.3 ± 0.00.1 ± 0.00.1 ± 0.0
10.0Sanguiin H-10 isomer 27832−/3013.6 ± 0.11.6 ± 0.01.5 ± 0.1
11.1Sanguiin H-6 minus gallic moiety isomer 28582−/3010.3 ± 0.00.3 ± 0.00.2 ± 0.0
11.3Sanguiin H-10 isomer 37832−/3011.1 ± 0.10.2 ± 0.10.2 ± 0.0
11.9Lambertianin C14012−/30122.7 ± 0.68.0 ± 0.78.3 ± 0.3
12.3Sanguiin H69342−/30181.4 ± 1.725.2 ± 1.325.5 ± 0.5
13.1Ellagic acid pentoside isomer 1433−/3011.7 ± 0.00.8 ± 0.00.7 ± 0.0
13.3Ellagic acid pentoside isomer 2433−/3012.2 ± 0.10.7 ± 0.00.7 ± 0.0
13.6Ellagic acid301−/3015.9 ± 0.12.0 ± 0.12.3 ± 0.2
14.9Methyl ellagic acid pentoside 1447−/3010.6 ± 0.00.2 ± 0.00.2 ± 0.0
15.2Methyl ellagic acid pentoside 2447−/3010.3 ± 0.00.1 ± 0.00.1 ± 0.0
15.2Ellagic acid acetyl pentoside isomer 1475−/3010.3 ± 0.00.2 ± 0.00.2 ± 0.0
15.5Ellagic acid acetyl pentoside isomer 2475−/3010.6 ± 0.00.2 ± 0.00.2 ± 0.0
Total ellagic acid and ETs 124.5 ± 2.442.6 ± 1.742.7 ± 0.5
6.1Procyanidin B EC/EC 2 dimer 1577−/2890.7 ± 0.10.2 ± 0.00.2 ± 0.0
6.7Catechin289−/1250.6 ± 0.10.1 ± 0.00.2 ± 0.0
7.8Procyanidin B EC/EC 2 dimer 2577−/2897.9 ± 0.61.8 ± 0.02.3 ± 0.1
8.3Procyanidin B EC/EC 2 dimer 3577−/2890.4 ± 0.00.1 ± 0.00.2 ± 0.0
8.4Proanthocyanidin EF/EC 2 dimer 1 561−/2890.4 ± 0.00.1 ± 0.00.2 ± 0.0
9.4Epicatechin289−/1259.0 ± 0.42.8 ± 0.12.6 ± 0.2
9.6Proanthocyanidin EF/EC/EC 2 trimer 849−/2890.6 ± 0.00.1 ± 0.00.2 ± 0.0
9.7Proanthocyanidin EF/EC 2 dimer 2 561−/2890.2 ± 0.00.1 ± 0.00.1 ± 0.0
10.4Proanthocyanidin EF/EF/EC 2 trimer 1833−/2890.2 ± 0.00.1 ± 0.00.1 ± 0.0
12.1Proanthocyanidin EF/EF/EC 2 trimer 2833−/2891.1 ± 0.10.3 ± 0.00.4 ± 0.0
Total flavan-3-ols 21.1 ± 1.05.7 ± 0.26.5 ± 0.2
11.5Quercetin 3-O-galactosylglucoside625−/3011.4 ± 0.10.3 ± 0.00.3 ± 0.0
11.8Quercetin 3-O-sophoroside625−/3010.6 ± 0.00.3 ± 0.00.3 ± 0.0
12.9Quercetin 3-O-galactosylrhamnoside609−/3010.1 ± 0.00.1 ± 0.00.1 ± 0.0
13.9Quercetin 3-O-galactoside463−/3010.4 ± 0.00.1 ± 0.00.1 ± 0.0
14.1Quercetin 3-O-glucosde463−/3010.3 ± 0.00.2 ± 0.00.2 ± 0.0
14.2Quercetin 3-O-glucuronide477−/3010.4 ± 0.00.5 ± 0.00.5 ± 0.0
Total flavonols 3.1 ± 0.11.5 ± 0.01.5 ± 0.0
2.4Gallic acid169−/1250.7 ± 0.10.1 ± 0.00.2 + 0.0
4.13,4-Dihydroxybenzoic acid153−/1090.1 ± 0.00.0 ± 0.00.1 ± 0.0
5.3Caffeoyl hexoside isomer 1341−/1791.3 ± 0.01.9 ± 0.01.7 ± 0.0
6.7Caffeoyl hexoside isomer 2341−/1790.4 ± 0.00.3 ± 0.00.3 ± 0.0
7.2p-Coumaryl hexoside 325−/1450.4 ± 0.00.3 ± 0.00.2 ± 0.0
Total phenolic acids 2.9 ± 0.12.6 ± 0.02.4 ± 0.0
Total (poly)phenols 388.4 ± 3.3129.7 ± 1.9129.8 ± 0.5
1 Analysis was conducted in triplicate, data are presented as mean ± standard deviation (SD); 2 EC, epicatechin/catechin; EF, epifisetinidol/fisetinidol.
Sample Availability: Samples of the compounds are not available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, X.; Sandhu, A.; Edirisinghe, I.; Burton-Freeman, B.M. Plasma and Urinary (Poly)phenolic Profiles after 4-Week Red Raspberry (Rubus idaeus L.) Intake with or without Fructo-Oligosaccharide Supplementation. Molecules 2020, 25, 4777. https://doi.org/10.3390/molecules25204777

AMA Style

Zhang X, Sandhu A, Edirisinghe I, Burton-Freeman BM. Plasma and Urinary (Poly)phenolic Profiles after 4-Week Red Raspberry (Rubus idaeus L.) Intake with or without Fructo-Oligosaccharide Supplementation. Molecules. 2020; 25(20):4777. https://doi.org/10.3390/molecules25204777

Chicago/Turabian Style

Zhang, Xuhuiqun, Amandeep Sandhu, Indika Edirisinghe, and Britt M. Burton-Freeman. 2020. "Plasma and Urinary (Poly)phenolic Profiles after 4-Week Red Raspberry (Rubus idaeus L.) Intake with or without Fructo-Oligosaccharide Supplementation" Molecules 25, no. 20: 4777. https://doi.org/10.3390/molecules25204777

Article Metrics

Back to TopTop
