GaPO₄ Single Crystals: Growth Condition by Hydrothermal Refluxing Method

Abstract

Bulk GaPO₄ is an advanced piezoelectric material operating under high temperatures according to the α-β phase transition at 970 °C. This work presents the technological development of a hydrothermal refluxing method first applied for GaPO₄ single crystal growth. Crystals of 10–20 g were grown in mixtures of aqueous solutions of low- and high-vapor-pressure acids (H₃PO₄/HCl) at 180–240 °C (10–20 bars). The principal feature of the refluxing method is a spatial separation of crystal growth and nutrient dissolution zones. This leads to a constant mass transportation of the dissolved nutrient, even for materials with retrograde solubility. Mass transport is carried out by dissolution of GaPO₄ nutrient in a dropping flow of condensed low-vapor-pressure solvent. This method allows an exact saturation at temperature of equilibrium and avoids spontaneous crystallization as well loss of seeds. Grown crystals have a moderate OH⁻ content and reasonable structural uniformity. Moreover, the hydrothermal refluxing method allows a fine defining of GaPO₄ concentration in aqueous solutions of H₃PO₄, H₂SO₄, HCl and their mixtures at set T–P parameters (T < 250 °C, p = 10–30 bars). The proposed method is relatively simple to use, highly reproducible for crystal growth of GaPO₄ and probably could applied to other compounds with retrograde solubility.

1. Introduction

The development of modern radio communication devices and different kinds of electronic measurement technologies puts increasing demands on the requirements of piezoelectric inventory materials. Generally, this means the values of the electromechanical constants and its temperature dependencies. The most widely used quartz crystals have an α–β phase transformation at 573 °C [1]. Thus, application of quartz piezoelectric devices is limited to approximately 300–350 °C [2]. There have been many studies investigating new alpha-quartz-like structure piezoelectric materials with homogeneous compositions, low dielectric losses even at high temperatures and significant piezoelectric properties in a wide temperature range exceeding 350 °C [3].

The best piezoelectric coefficients of α-quartz-like structure materials have been found for α-GeO₂. This compound is stable in the α-quartz structural phase in a temperature range of 1033 to 1080 °C. It has a metastable α-quartz structure state at temperatures up to 180 °C for crystals grown by hydrothermal method [4,5] and much higher for flux-grown crystals [3,6]. Currently, the use of the flux method (top-seeded solution growth (TSSG)) allows crystallization on a seed up to 100 g, but the crystals contain many defects [7].

Another known high-temperature α-quartz-like structure material is GaPO₄. The temperature of α-quartz structural stability is nearly 930 °C [8,9]. Its piezoelectric coefficients are slightly lower than for α-GeO_2, but the quality and volume of crystals crystallized by the proposed refluxing hydrothermal method look both more suitable and reproducible than GaPO₄ single crystals [10,11].

The existing methods of GaPO₄ crystal growth [12,13,14,15,16,17,18,19,20,21] are hydrothermal methods, retrograde temperature gradient “slow temperature rise” up to 250 °C methods, direct temperature gradient (above 320 °C) methods based on retrograde (at T < 250 °C) methods and direct (at T > 320 °C) fields of GaPO₄ solubility in aqueous solutions, accordingly. A possibility of GaPO₄ crystallization under high-temperature conditions in molybdates fluxes has also been confirmed [22]. All these methods allow growing GaPO₄ crystals, but with a series of restrictions. The crystals grown at temperatures up to 250 °C in aqueous H₃PO₄ or H₃PO₄/H₂SO₄ solutions have a considerable OH⁻ content. Crystals grown in aqueous H₂SO₄ solution have a low OH⁻ content, but growth rates of {0001} faces equal to zero that leads to formation of plate-like crystals. Additionally, the use of hydrothermal methods up to 250 °C is associated with a number of technique-engineering complexities such as a preliminary saturation of crystal growth solutions and inconstant temperature of equilibrium. Crystal growth by the direct temperature gradient hydrothermal method at 320 °C or higher needs very complex equipment (Pt lined high-pressure autoclaves with an inert gas-injection system) [12,13,17]. The GaPO₄ crystals grown from fluxes are very small (millimeters size) and contains impurities coming from the flux [22,23,24,25,26,27,28].

Using the retrograde temperature gradient hydrothermal method at temperatures up to 250 °C, it is impossible or very difficult to maintain a given supersaturation of the solution all times of the run and as a result, reproducibility of such experiments has a low level. The slow temperature rise hydrothermal method is limited by GaPO₄ solubility [8,29]. The constant value of GaPO₄ solubility in aqueous acid solutions (H₃PO₄, H₂SO₄, HCl and their mixtures) in the temperature range from 200 to 260 °C (Figure 1) completely excludes using of this method at temperatures higher than 180 °C [30].

A detail study of GaPO₄ crystal growth conditions has revealed some optimal parameters for obtaining crystals with a low OH- content and reasonable structural homogeneity (low crack density and gas–liquid impurities). The papers [10,18,29,31] describe that low OH⁻ content in GaPO₄ crystals was fixed with the following parameters: temperature higher than 220 °C, solvent of aqueous H₃PO₄, H₂SO₄ or a mixture of these solutions. Unfortunately, growing bulk GaPO₄ crystals by known methods at such temperatures is difficult or impossible. The principal problem facing GaPO₄ crystal growth at temperatures up to 230 °C is the low convection of the solution, which obstructs mass transportation. The practically constant solubility of GaPO₄ in acids at temperatures of 200–260 °C (see Figure 1) [30] is the reason of unsuccessful crystal growth. Nevertheless, it looks more promising to use a hydrothermal method combining, if possible, relatively high growth rates, low density of defects, low OH⁻ content and reproducible volumetric crystallization.

Analyzing existing hydrothermal methods of the crystal growth, we have found a hydrothermal refluxing method. In particular, this method was applied to α-GeO₂ single-crystal growth [11,32]. It is characterized by high and stable convection of the solvent during crystal growth cycle and a controlled solubility of nutrients in a quantity necessary for the continuous crystal growth.

2. Results

2.1. Study of GaPO₄ Concentration in the Solutions

The exact values of GaPO₄ solubility are not very important for the refluxing method in terms of reproducing of crystal growth at different temperatures. In practice, the procedure of the crystal growth run described before leads to reproducible restart conditions without any undesirable spontaneous crystallization or seed loss. However, scientific interest have moved us to measure GaPO₄ concentration in the solutions. The low filling of autoclave by solution (f < 60%) in the refluxing method allowed us to use a technique of autoclave reversing to stop the dissolution at a set temperature. This enabled us to keep the nutrient into the initial solution during the run and to stop dissolution cycle at a set temperature by reversing the autoclave. Two values of GaPO₄ concentration were found in the mixing 9 M H₃PO₄/6 M HCl (vol. proportion 95/5%) at temperatures 160–240 °C: with and without crystallization at the same T–P conditions (Figure 2) as well the kinetics of saturation (Figure 3). Likely, this indicates a quite large zone of metastability of GaPO₄ crystallization. The measured kinetics of saturation is relatively slow: more than 100 h before it becomes constant. This could be explained by a low convection or stationary conditions in the solution.

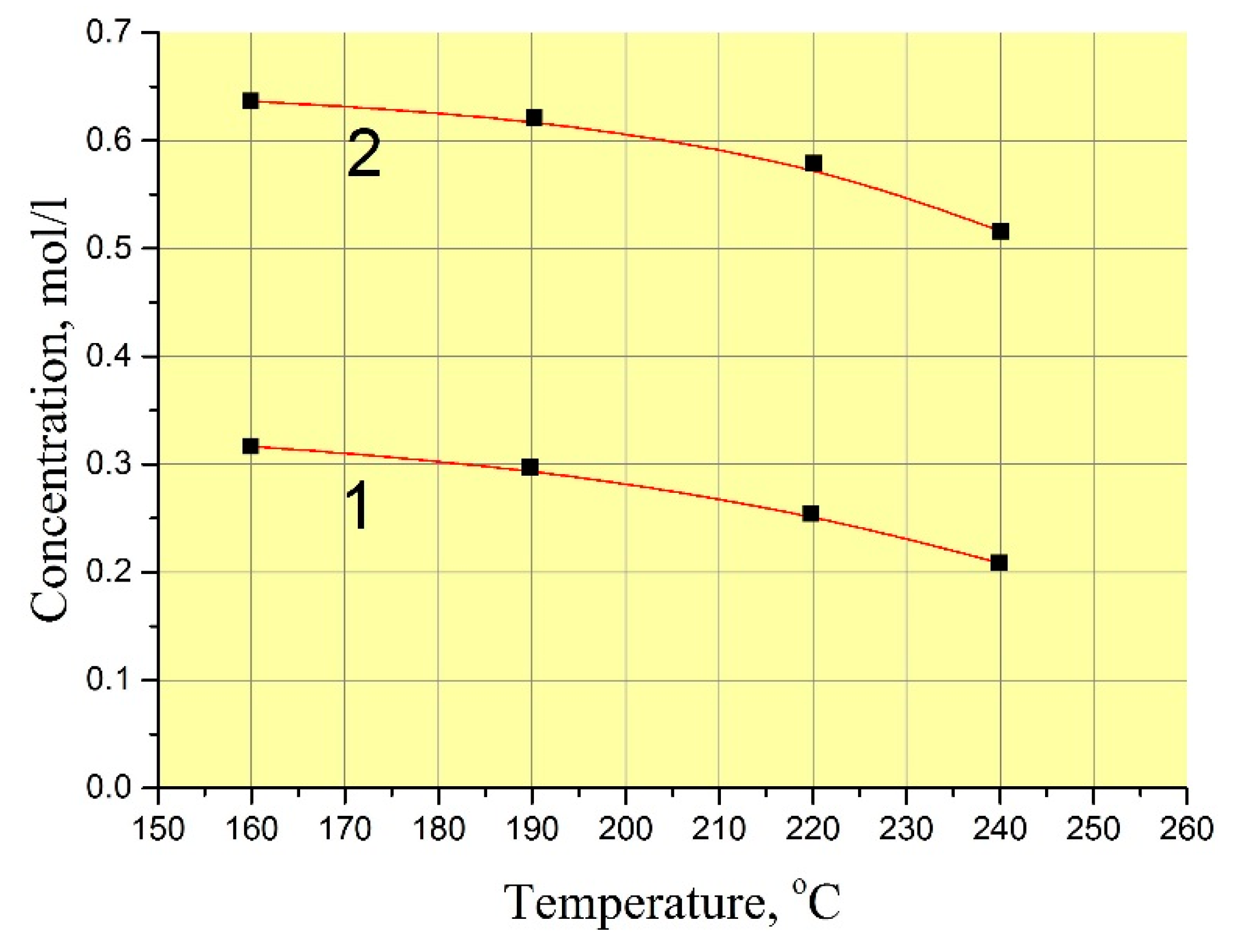

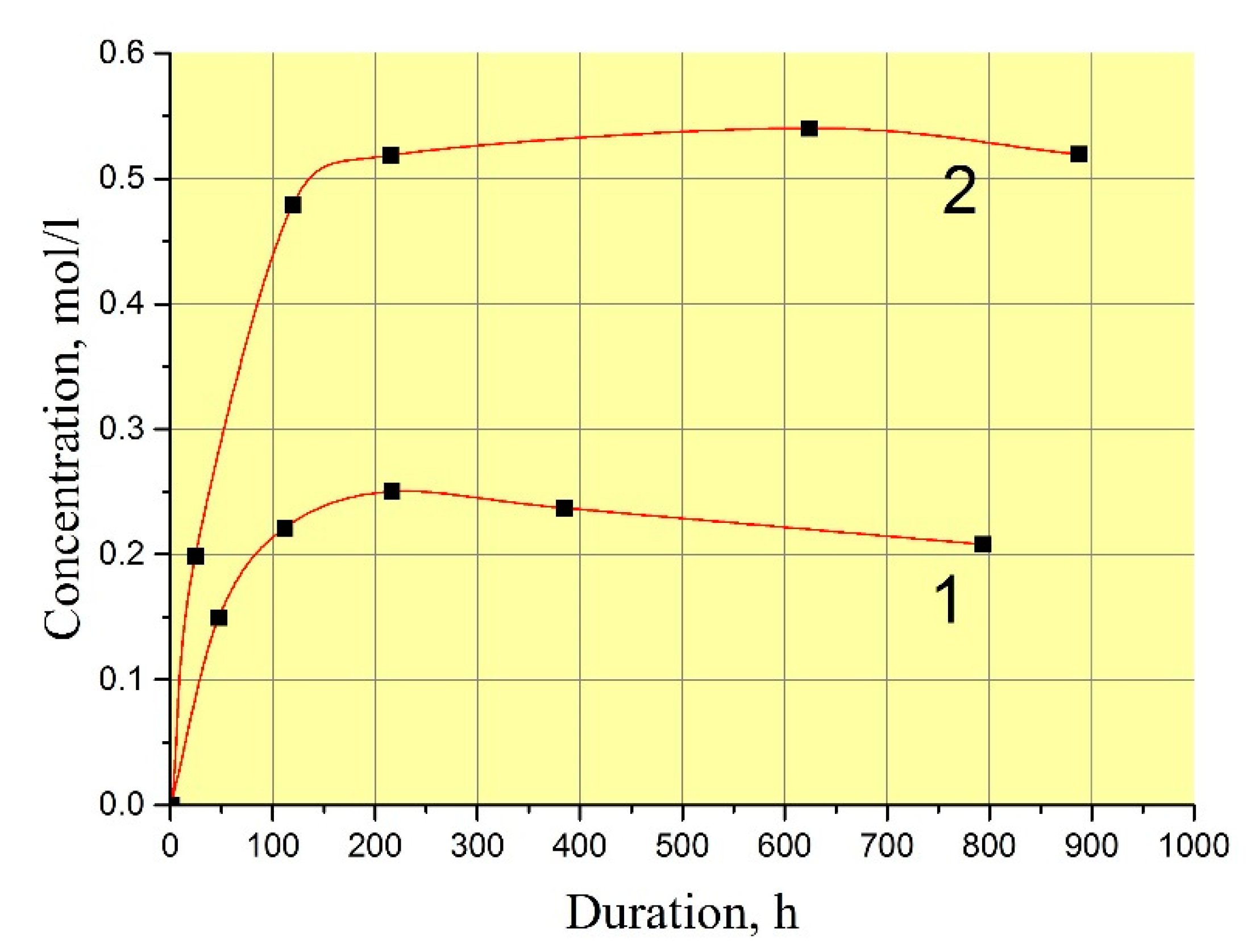

The concentration of GaPO₄ in 9 M H₃PO₄/12 M HCl solution (vol. proportion– 95/5%) showed a large difference between the values without and with crystallization (see Figure 1). This suggests that the starting conditions of GaPO₄ crystal growth are very “soft”. Formation of different kinds of defects on the surface of seeds in a very beginning of crystallization are low or not desirable under such conditions.

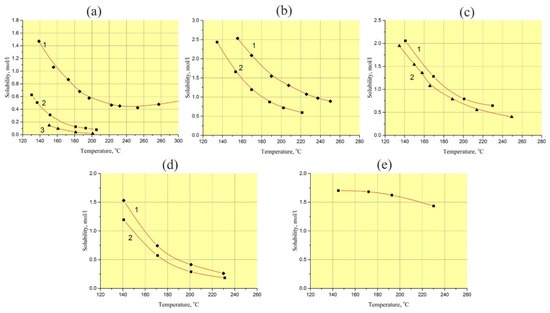

The influence of the low-vapor-pressure solvent additive, presented by HCl, changed the character of GaPO₄ solubility compared to pure aqueous H₃PO₄, H₂SO₄ or their mixtures. The concentration of GaPO₄ in solutions used for the refluxing method is a constant at temperatures of 150–250 °C and pressures up to 10–20 bar.

2.2. Main Results of the Crystal Growth

More than 20 runs with durations up to 35 days of GaPO₄ crystal growth were completed. Crystals were grown with weights up to 20 g. After each run, the growth rates of crystals and concentration of GaPO₄ were measured. The crystal habit and OH⁻ content of crystals (by IR spectroscopy) were determined. The main results of the runs are presented in

Table 1. Main results of GaPO₄ crystal growth runs by the hydrothermal refluxing method.

N	Solution Composition, Vol. Proportion	Crystallization Temperature, °C	Gradient dT, °C	Crystal Growth Rates, mm/day		IR, α	Size of Grown Crystals, Y–X–Z mm
				Vx	Vz
1	9 M H3PO4/12 M HCl, 90/10	180	20	0.44	>0.61 *	5	26.8–16.5–4.2
2	9 M H3PO4/12 M HCl, 95/5	220	20	0.28	>>0.37 *	0.8	47.5–11.3–5.7
3	9 M H3PO4/12 M HCl, 95/5	226	20	0.23	>0.44 *	0.5	33.8–18.0–7.9
4	9 M H3PO4/12 M HCl, 95/5	236	16	0.21	>>0.12 *	0.4	49.7–19.7–11.3
5	9 M H3PO4/12 M HCl, 95/5	240	25	0.18	>>0.18 *	0.4	47.9–19.3–7.6
6	5 M H3PO4/12 M HCl, 97.5/2.5	220	10	0.03	>0.04	–	30.0–18.5–1.34
7	5 M H3PO4/12 M HCl, 95/5	220	20	1.05	>0.86 *	10	16.6–11.2–8.3
8	5 M H3PO4/12 M HCl, 95/5	230	15	0.09	0.13	0.4	14.5–10.2–4.4
9	6 M H2SO4/12 M HCl, 95/5	220	20	0.001	0.001	–	–
10	9 M H3PO4	220	20	0	0	–	–
11	6 M H2SO4	225	20	0	0	–	–

*—solution—the top part of the autoclave—and the nutrient basket, in other words, the temperature gradient.

.

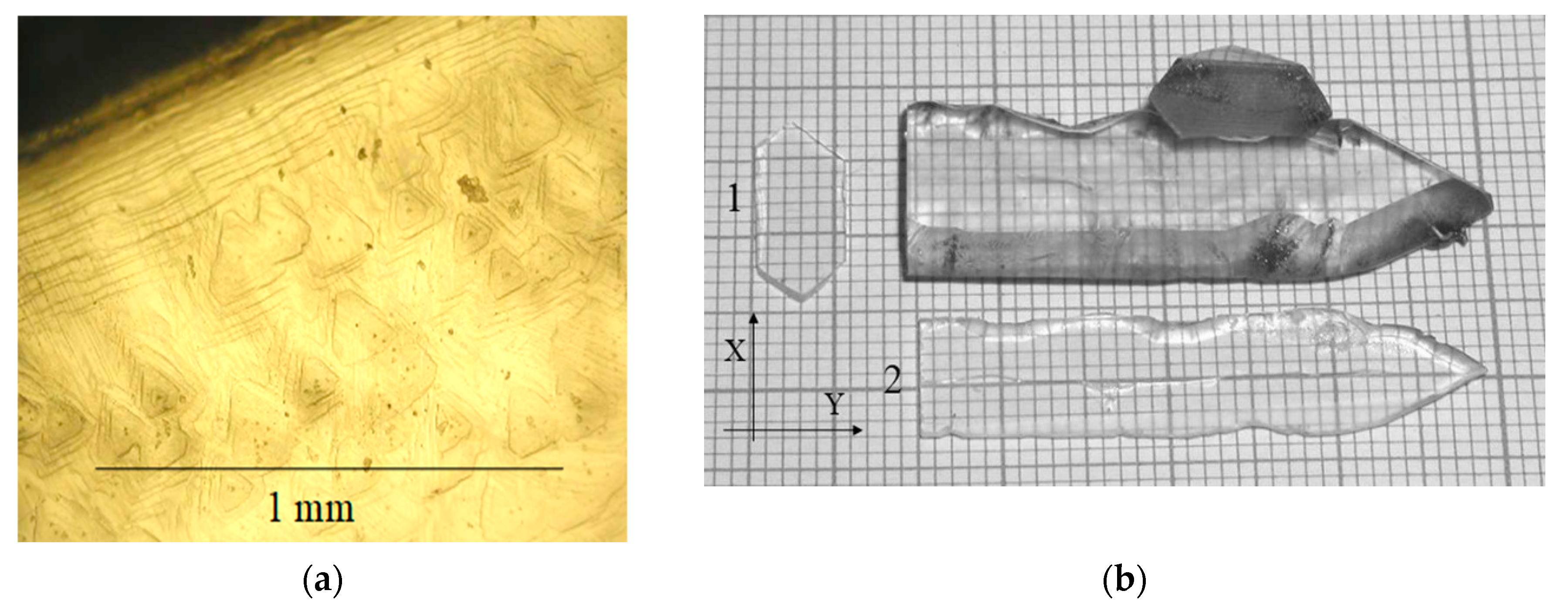

The face of basal pinacoid c{0001} is flat at temperature gradients up to 15 °C, it is represented by layer (Figure 4a). At gradients above 15–20 °C, the basal face is a poly-head constructed by trigonal pyramids π’{$01\overline{1}2$} or z{$01\overline{1}1$} (Figure 5a). Growth rates of basal pinacoids were different for the mentioned cases: at low gradients, it was up to 0.2 mm/day for two opposite faces; at high gradients—more than 0.4 mm/day for two opposite faces.

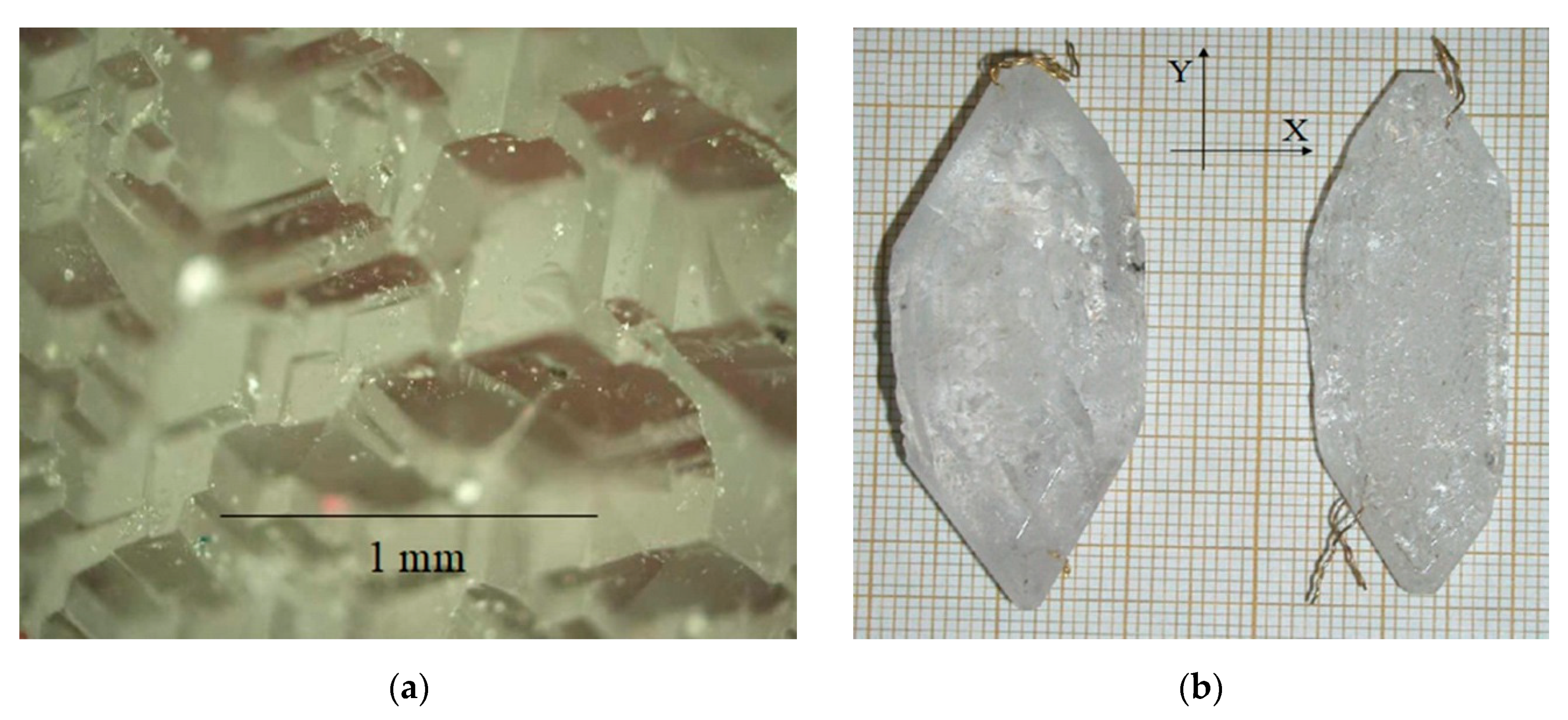

The internal structure of basal pinacoid growth sectors was more homogenous in the first case under conditions of low temperature gradients (Figure 4b). At growth rates of 0.4 mm/day and more, the gas–liquid inclusions and multiple dislocations were formed (Figure 5b).

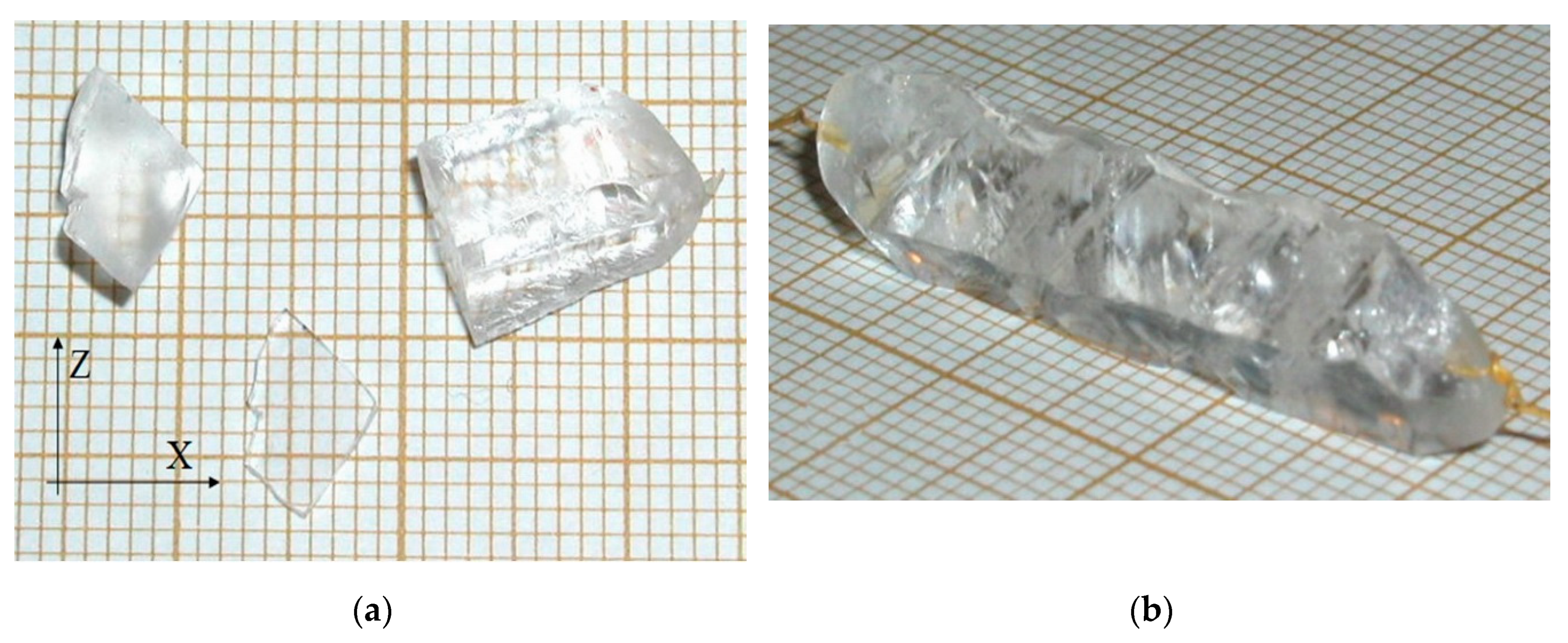

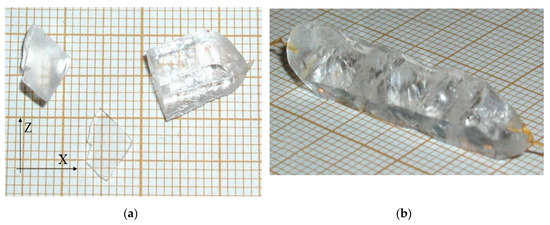

Crystal growth on trigonal prism faces was characterized by high velocities, more than 1 mm/day. However, the crystals grown on x{$12\overline{1}0$} seeds were small because of trigonal pyramid faces appearance interrupting formation of negative and positive trigonal prism faces (Figure 6a,b).

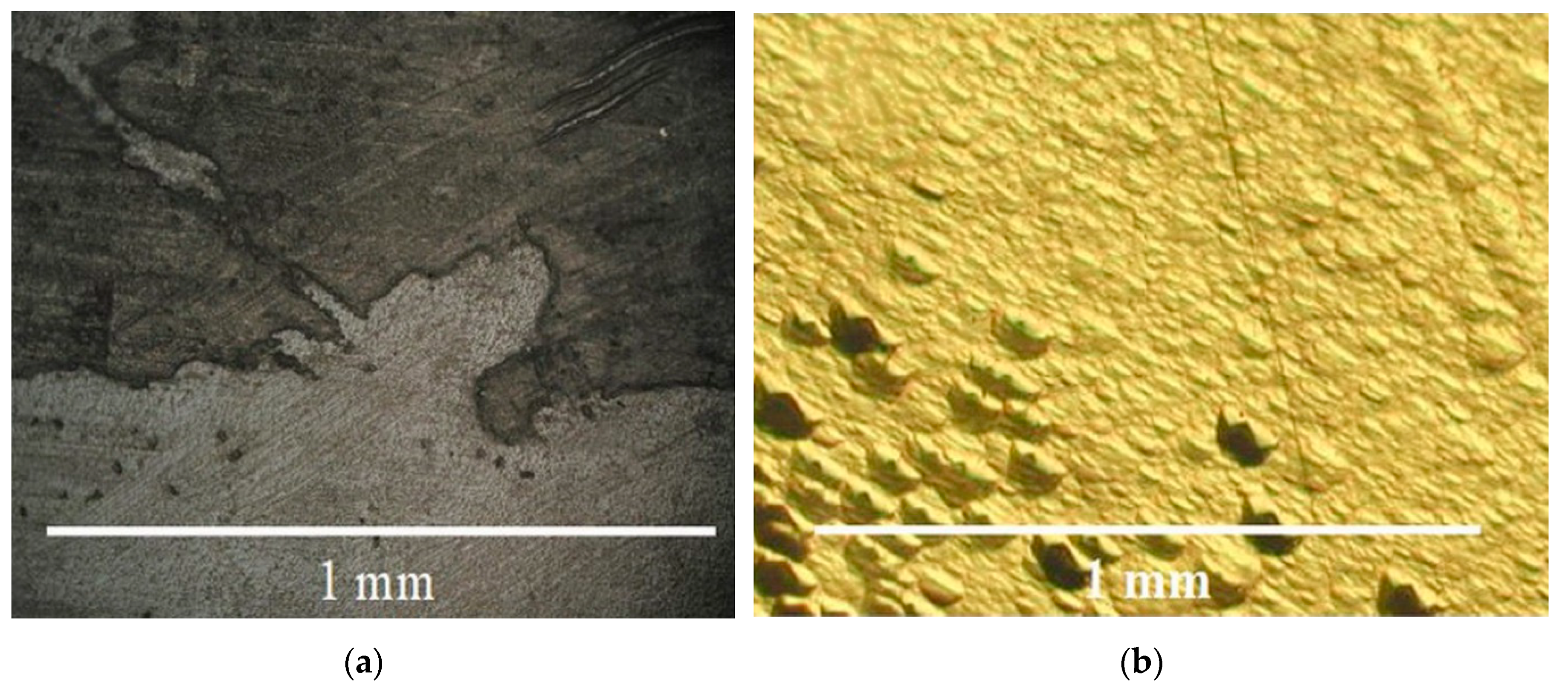

Crystal growth of all trigonal rhombohedron and trigonal dipyramid faces was presented by layer or dislocation mechanism. Stairs (Figure 7a) and low hillocks (Figure 7b) were present on the rhombohedron faces. Propagation of Brazil twins from seed was observed in sectors of the rhombohedron faces (Figure 8a–d). Any gas–liquid inclusions, dislocations and cracks (see Figure 8b–d) were not typical for sectors of the rhombohedron face growth of GaPO₄ crystals.

2.3. Growth Kinetics

Growing of GaPO₄ crystals by the refluxing method in aqueous solution of H₃PO₄–HCl at temperatures of 200–240 °C and pressures up to 30 bar showed a strong influence of temperature gradient to the crystal habit. However, the growth rates sequence of different faces of the crystals was constant. The following sequence of growth rates took place for GaPO₄ crystals obtained by the refluxing method:

x{$12\overline{1}0$} > s{$11\overline{2} 0$} > r{$10\overline{1}1$} > c{0001} > π{$10\overline{1}2$} > z{$01\overline{1}1$} > π’{$01\overline{1}2$}

This growth rate sequence was in a good correlation with similar ones of GaPO₄ crystals grown from aqueous solutions of H₂SO₄ by the temperature gradient method at temperatures of 170–240 °C and pressures of 10–30 bar.

2.4. IR Spectroscopy

The influence of OH⁻ content on electromechanical properties of piezoelectric crystals is well known [3,33]. It is more suitable to call it a hydrogen impurity which is frequently occurs forming a bound to an oxygen and as a result forms the hydroxyl (OH⁻). This could be in different forms: independent OH⁻ bonds—in unstructural impurities and OH⁻ bonds in substitution to cations—as interstitial defects. Regardless, the resulting OH⁻ bond is highly polar and as a consequence this dipole absorbs the infrared radiation.

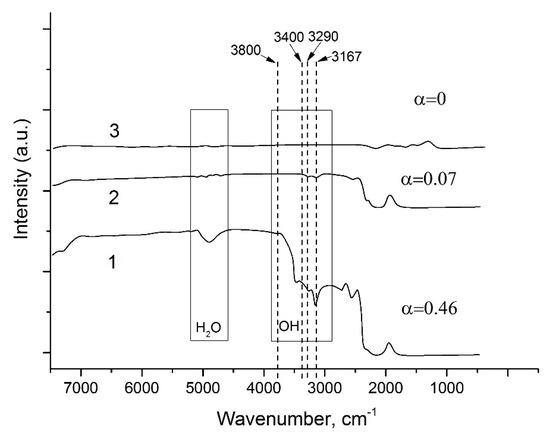

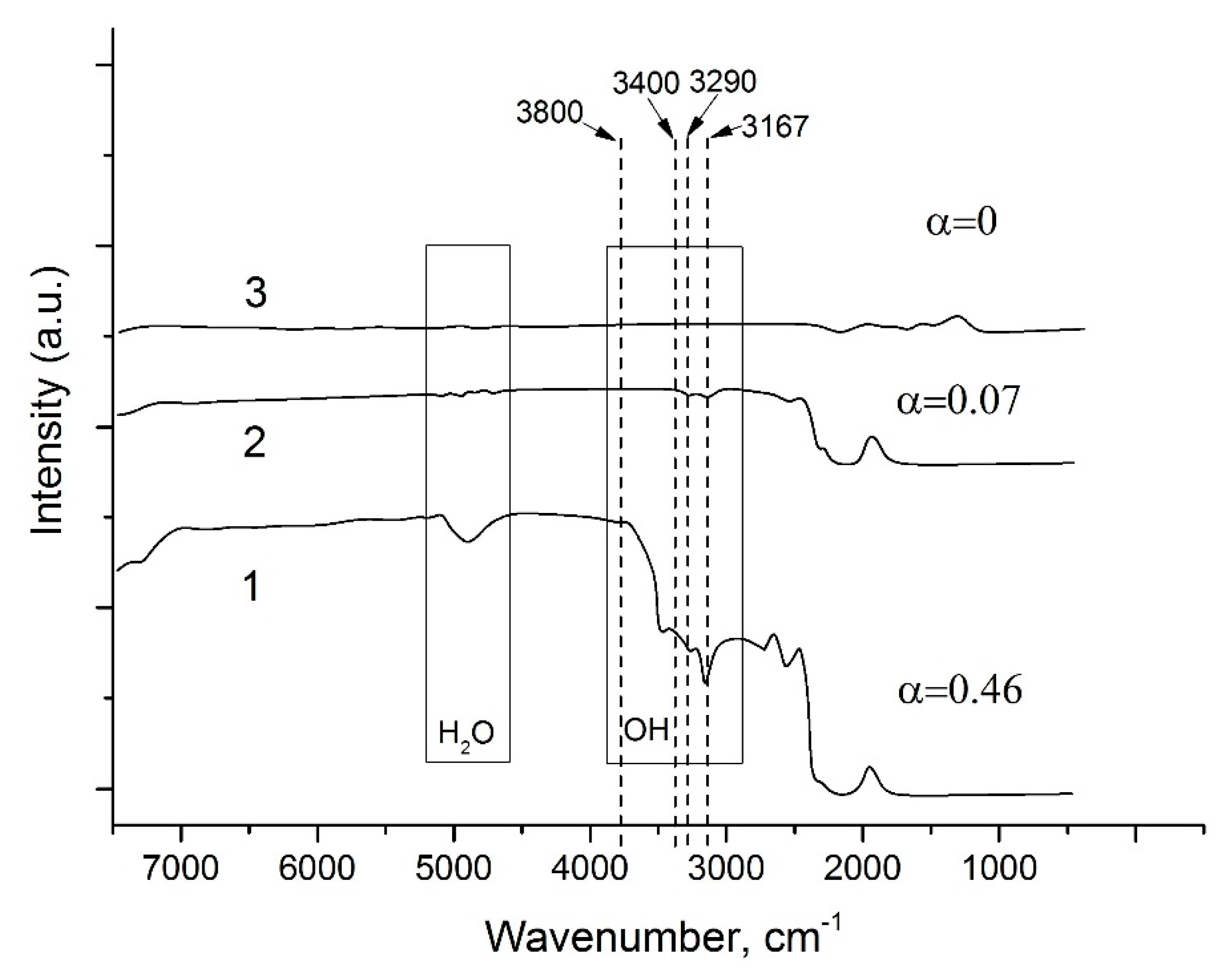

It was found that the wave numbers near to 3400, 3290 and 3167 cm⁻¹ of such absorption are the vibrations of OH⁻ bonds of GaPO₄ crystals [34,35,36]. For comparing the observed data to other works [18,22,31,34,35,36] we used only the wave number at 3400 cm⁻¹.

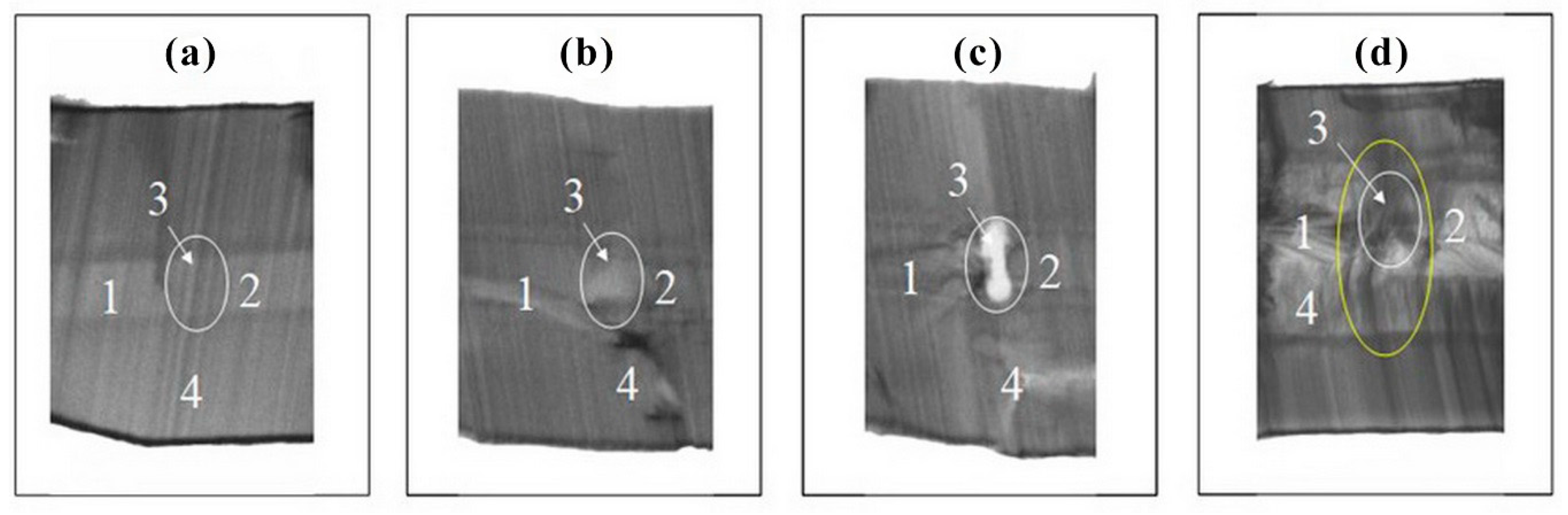

The first condition for precise determination of OH⁻ content is a high structural homogeneity of crystals, absence of cracks and gas–liquid inclusions (mother solution impurity-free). As grown by the refluxing method, GaPO₄ crystals satisfied this condition. The refluxing method applied to the growth of GaPO₄ crystals showed that the solvents and T–P conditions similar to hydrothermal slow temperature gradient method allowed obtaining GaPO₄ single crystals characterized by relatively low OH⁻ content (Figure 9) (at 220–240 °C and pressure up to 20 bar). Alpha (α) value (parameter for characterization of OH⁻ content [34,35] of the grown GaPO₄ single crystals by the refluxing method does not exceed 0.5. The α values of GaPO₄ crystals grown by different methods are presented in

Table 2. Comparative alpha values of GaPO₄ crystals grown by temperature gradient, slow temperature rise, refluxing hydrothermal methods and by flux method.

Method	Crystal Growth Temperature, °C	Solution	Crystal Growth Rates, mm/day		IR, α	Reproducibility (In Situ)
			Vx	Vz
Slow temperature rise	150–185	9 M H3PO4	0.5–0.8	0.1–0.2	1.0–1.5	+
Temperature gradient	176	9 M H3PO4/6 M H2SO4, 20/80	0.5–0.8	0.05–0.1	0.5–1.0	+/−
Temperature gradient	230	6 M H2SO4	0.8–1.5	0.01–0.05	0.04–0.1	+/−
Refluxing	230	9 M H3PO4/12 M HCl, 95/5	0.1–1.2	0.1–1.0	<0.5	+
Flux	900–750	Lithium molybdate	0.25	0.05	0	+/−

and Figure 9.

3. Materials and Methods

3.1. Main Features of the Hydrothermal Refluxing Method

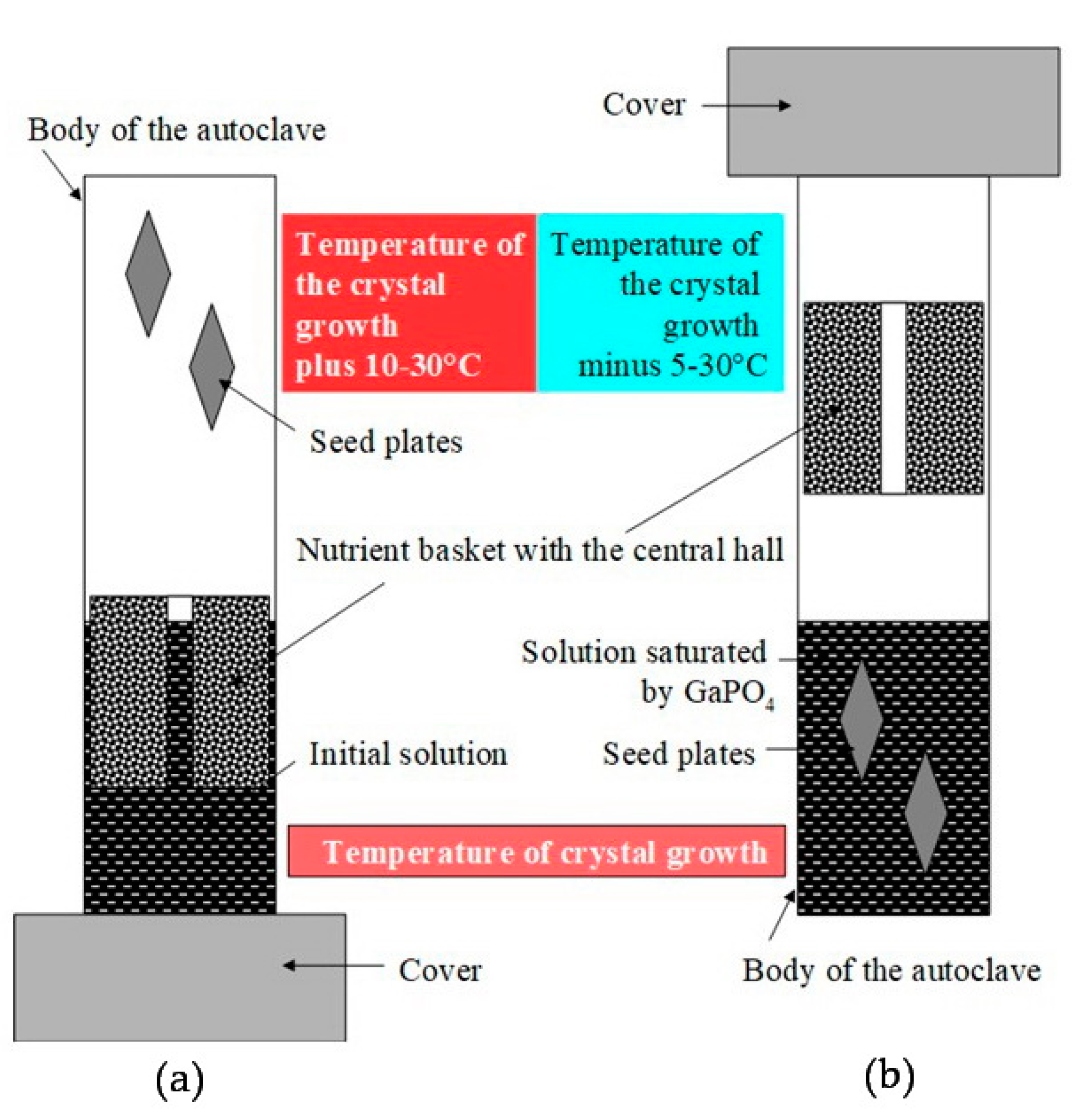

The main features of the hydrothermal refluxing method consists of the following: a low filling of the autoclave with an initial solution (up to 50–60%); seeds and a nutrient material are placed in two principally different zones of the autoclave; seeds are found in a solution (in the bottom of the autoclave), but a nutrient is above the solution. Mass transport is carried out by evaporation of the solvent, condensation in the “cold” upper part of the autoclave (refrigerator) followed by diffusion into the nutrient basket, dissolution of the nutrient material and then, dropping down into the solution in the bottom part of the autoclave. As a result of the multiple recirculation (refluxing) of the solvent, the initial solution is gradually saturated and maintains this supersaturation for the full crystal growth cycle.

The practical application of the refluxing method for α-GeO₂ crystal growth and the base of previous studies on GaPO₄ crystal growth have driven us to experimentally test the refluxing method to grow GaPO₄ crystals.

3.2. Experimental Procedure

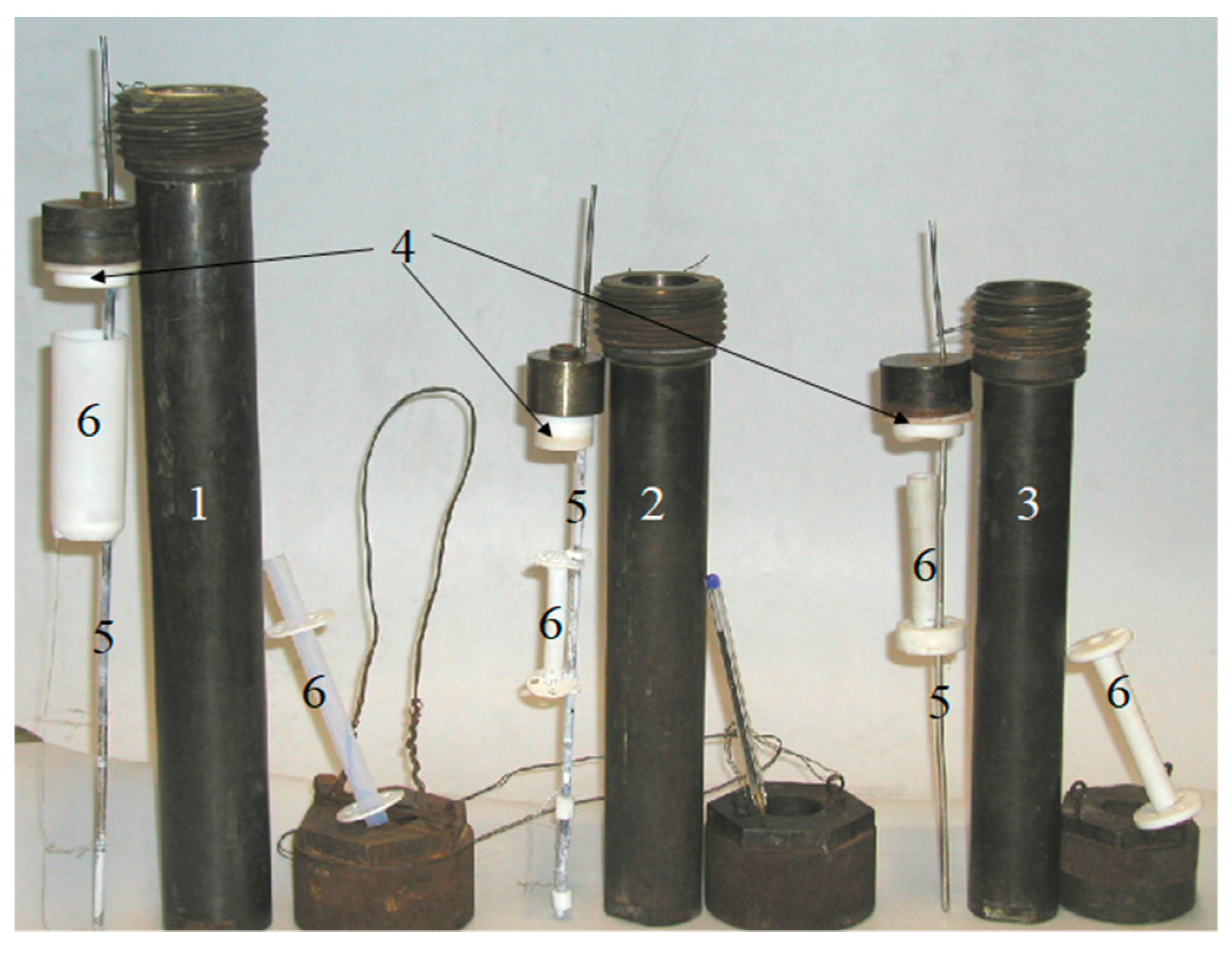

For the first time, crystal growth vessels (autoclaves) were designed and approved for growing of GaPO₄ by the refluxing method. A wide range of temperatures and solvents considered for the experiments led us to use platinum (Pt), tantalum (Ta) and polytetrafluoroethylene (PTFE) liners for the high pressure and temperature steel autoclaves. Precise temperature control was realized with the help of an internally inserted temperature control probe (thermocouple Type K). All autoclaves included a PTFE nutrient basket (Figure 10). Using the PTFE equipment prevented carrying out the experiments at temperatures above 250 °C. The estimated limiting factor for the hydrothermal refluxing method should be a critical temperature of a substance (the temperature at and above which vapor of the substance cannot be liquefied, no matter how much pressure). In our case, the limiting substances were aqueous solutions with well known critical temperature for water near 370 °C.

According to the known conditions of GaPO₄ crystallization, in order to obtain the lowest OH⁻ content in the crystals, the most suitable solvents are aqueous H₃PO₄, H₂SO₄ and HCl solutions or their mixtures and temperatures exceeding 200 °C. These temperatures correspond to retrograde or constant solubility of GaPO₄ (see Figure 1).

This is why we cannot use a unsaturated solution for starting crystal growth of GaPO₄ crystals, as it risks dissolving seeds. In other words, the initial (starting) solution must be already saturated with GaPO₄ at the precise concentration of GaPO₄ corresponding to the equilibrium temperature to avoid spontaneous crystallization or dissolution of the seed.

Improvements of the refluxing method used for α-GeO₂ crystal growth concerning conditions of GaPO₄ crystal growth has allowed carrying out the saturation of initial solution and further growth of GaPO₄ crystals in the same run cycle. This does not interrupt the course of the run, and as a consequence, neither spontaneous crystals nor losing of seed were observed. Technically, the following steps are in the first part of run: the autoclave is charged by solvent, nutrient and seeds are installed with the seeds on the top and nutrient below. The temperature is 10–30 °C higher in the top of autoclave (Figure 11a) than the bottom (to prevent evaporated solution convection). In the bottom, a working temperature of the future crystal growth is set. After completing the saturation of the solution by GaPO₄, the autoclave is turned over. Thus, seeds take hold in the saturated solution (Figure 11b) at equilibrium temperature, and the nutrient remains above them. The difference in temperatures between the mother solution (bottom) and the refrigerator (top part of the autoclave) initiates the evaporation of the solvent and its condensation on the surface of the refrigerator. The process continues, as described before, as the condensate flows to the nutrient basket where the dissolution of GaPO₄ nutrient occurs, followed by the dropping down of the saturated solution from the nutrient basket to the bottom part of the autoclave. The recirculation of the solvent in the given cycle results in a gradual super saturation of the initial solution. It maintains the saturation of the mother solution necessary for GaPO₄ crystals growth at all times of the run. The principal schema of the refluxing system in an autoclave is shown in Figure 12.

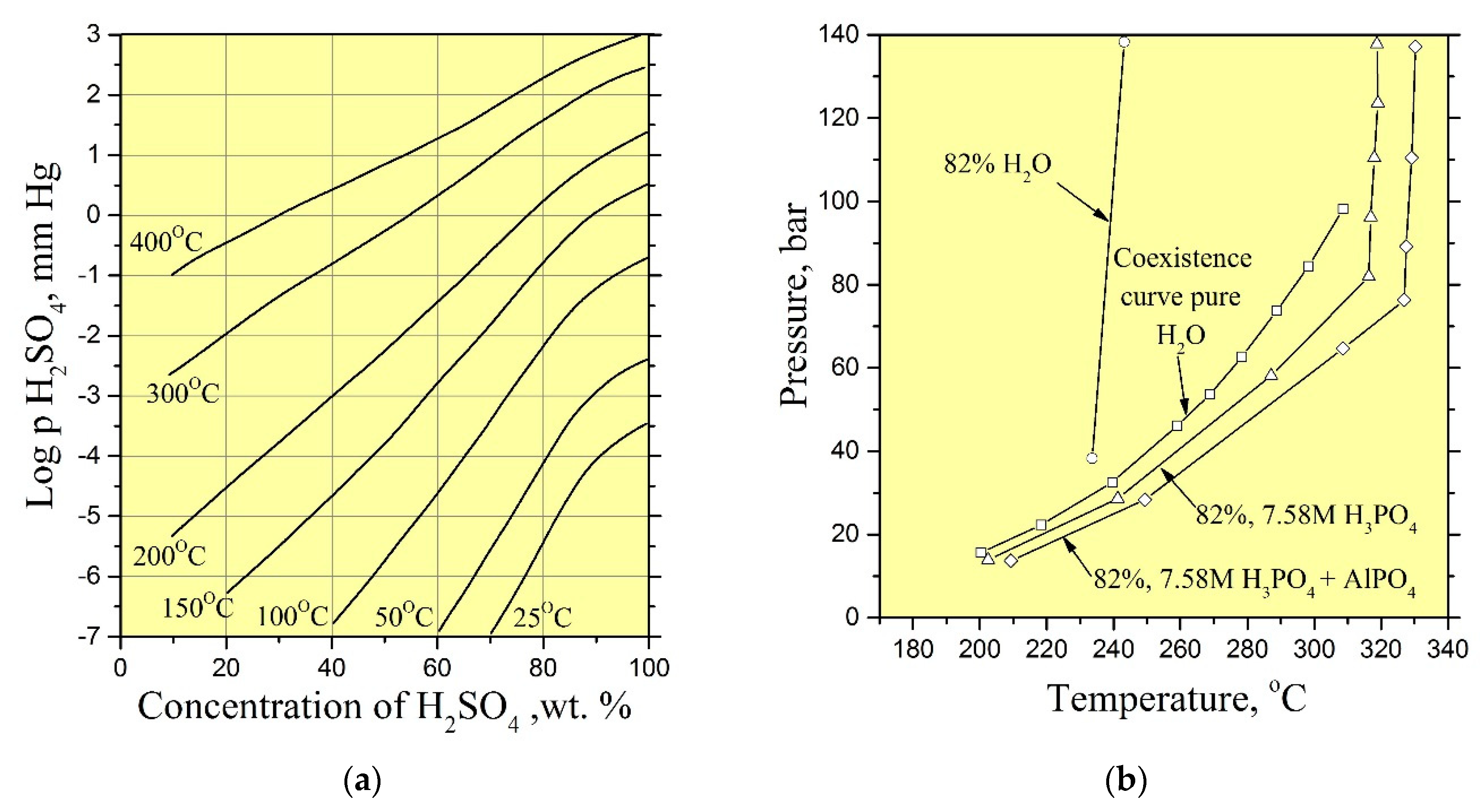

As reported by [10,18,29,31], good quality crystals of GaPO₄ have been grown in aqueous solutions of (H₃PO₄ and H₂SO₄) acids at temperatures of 170–260 °C and pressures up to 50 bar. We used the same solutions as mineralizers in our experiments. However, the vapor pressure of such acids that excludes a formation of condensate in sufficient quantities at temperatures up to 250 °C is low (Figure 13a,b). Consequently, solutions of H₃PO₄ and H₂SO₄ could not be a solvent for the nutrient. The addition of low-vapor-pressure solvents, for example, hydrochloric acid (HCl) to the initial solution allowed increasing nutrient dissolution under vapor/condensate recirculation conditions.

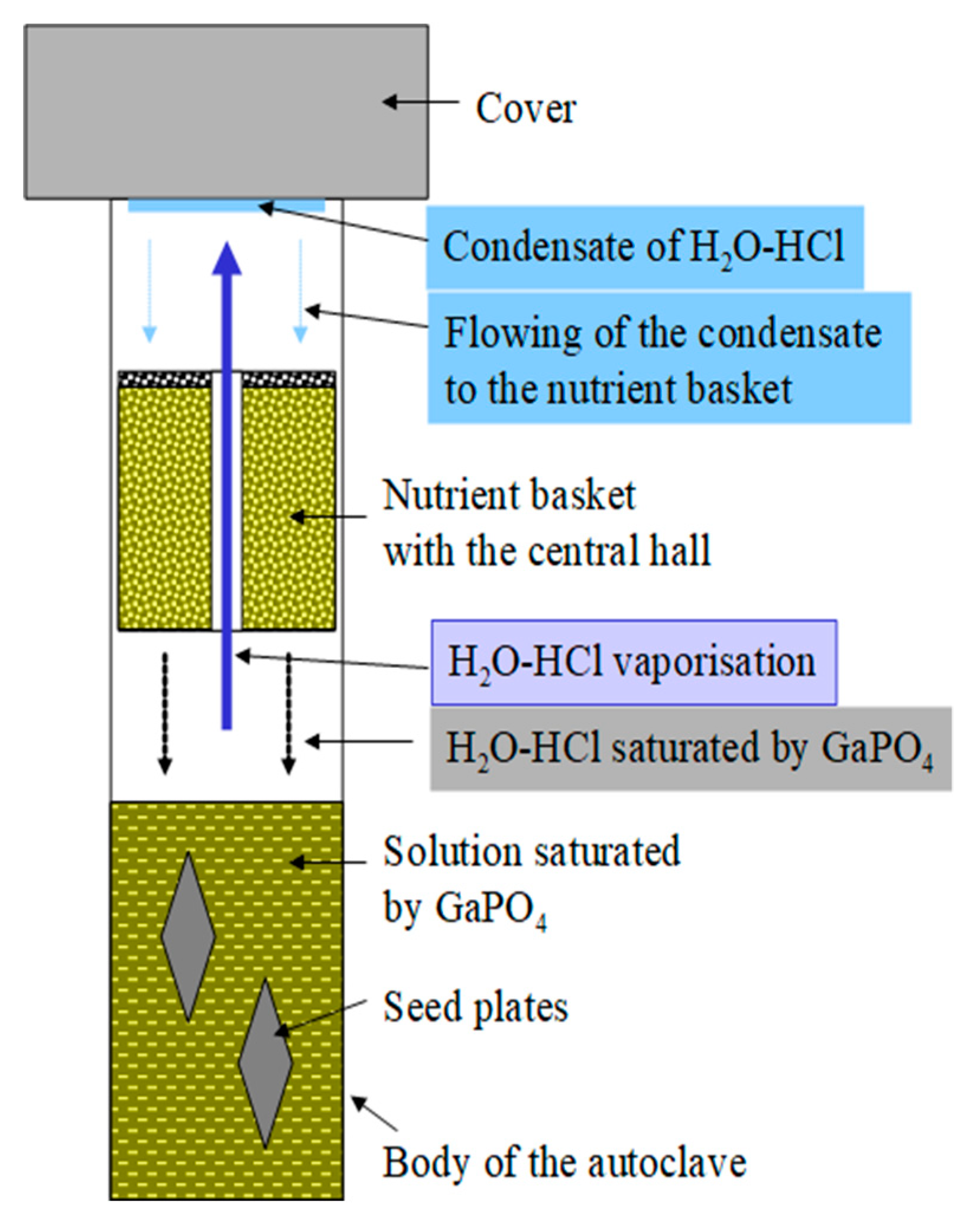

In summary, the real process of mass transport could be represented as: a mother solution in the bottom part of the autoclave, represented by “heavy” (relatively low vapor-pressure) acids as the mineralizer and a low-vapor-pressure acid as the conveyor of dissolved GaPO₄ from the nutrient to the mother solution (see Figure 12).

Plates (with sizes up to 45 × 15 × 1 mm) cut from GaPO₄ crystals grown by slow temperature rise method in aqueous solution of 9 M H₃PO₄ at temperatures of 150–165 °C and pressure up to 5 bar were used as seeds. Different crystallographic orientations c{0001}, s{$11\overline{2} 0$}, r{$10\overline{1}1$}, z{$01\overline{1}1$}, π{$10\overline{1 }2$}, π’{$01\overline{1}2$} and x{$12\overline{1}0$} were cut.

The morphology and internal structure of the obtained GaPO₄ crystals were studied on the surface and in polished cuts by optical microscopyMBS-9 (Russia), ADF STD16 (China), Nikon Eclipse LV100Pol (Japan). The IR spectroscopy of the crystals or polished plates was performed on PerkinElmer 820 spectrometer (USA). The OH⁻ content in crystals were estimate by α value, which was calculated using the formula α = (1/l)*(Log(T3800/T3400))-0,078, where: l—thickness of sample in cm, T3800 and T3400—intensity of absorption at wave numbers of 3800 and 3400 cm⁻¹, 0.078—absorption of the intrinsic lattice vibrations of GaPO₄ at 3400 cm⁻¹ [34,35]. The presence of defects in the crystal plates was identify by X-ray topography at IMPMC UMR CNRS 7590 (Montpellier, France) by a homemade device using a Cu Kα tube.

4. Conclusions

The GaPO₄ crystals grown by the hydrothermal refluxing method at temperatures close to 240 °C and pressures up to 10–20 bar in aqueous solutions of the H₃PO₄–HCl mixtures have a relatively low OH⁻ content and considerably high structural uniformity in comparison to crystals grown by other low temperature (< 250 °C) hydrothermal methods.

Hydrothermal refluxing method of GaPO₄ crystals growth has shown a very high reproducibility of the results.

Improvement of the hydrothermal refluxing method concerning application to GaPO₄ crystal growth gave a new technique of measurement of GaPO₄ concentration in solution at set parameters. The presented technique allows increasing the accuracy of GaPO₄ concentration definition in aqueous solutions of H₃PO₄, H₂SO₄, HCl and their mixtures at least up to 250 °C and pressures of 10–30 bar.
