Solvent Free Three-Component Synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol-type Compounds from L-tryptophan: DFT-B3LYP Calculations for the Reaction Mechanism and 3H-pyrrol-3-one↔1H-pyrrol-3-ol Tautomeric Equilibrium

by
Diego Quiroga
*,
Lili Dahiana Becerra
and
Ericsson Coy-Barrera
Bioorganic Chemistry Laboratory, Facultad de Ciencias Básicas y Aplicadas, Universidad Militar Nueva Granada, Campus Nueva Granada, Cajicá 250247, Colombia
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(19), 4402; https://doi.org/10.3390/molecules25194402
Submission received: 2 September 2020 / Revised: 19 September 2020 / Accepted: 24 September 2020 / Published: 25 September 2020
(This article belongs to the Section Organic Chemistry)

Abstract

:
In this paper, we describe the solvent-free three-component synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds from L-tryptophan. The first step of the synthetic methodology involved the esterification of L-tryptophan in excellent yields (93–98%). Equimolar mixtures of alkyl 2-aminoesters, 1,3-dicarbonyl compounds, and potassium hydroxide (0.1 eq.) were heated under solvent-free conditions. The title compounds were obtained in moderate to good yields (45%–81%). Density functional theory using “Becke, 3-parameter, Lee–Yang–Parr” correlational functional (DFT-B3LYP) calculations were performed to understand the molecular stability of the synthesized compounds and the tautomeric equilibrium from 3H-pyrrol-3-one type intermediates to 1H-pyrrol-3-ol type aromatized rings.

Graphical Abstract

1. Introduction

The five-membered heterocyclic systems occur in a large number of natural secondary (currently called specialized) metabolites. These compounds usually exhibit a wide variety of biological and biomedical properties [1]. Within this type of compounds, 1H-pyrrole is representative since it is well-known as a fundamental structural subunit in many of the naturally-occurring biological agents [2]. From this fact, many synthetic pyrrole derivatives have been obtained on the basis of biomimetic exercises, and have shown promissory behavior as antipsychotics, adrenergic antagonists, anxiolytics, anticancer, antibacterial and antifungal agents [3,4,5]. For example, synthetic 1,5-diphenylpyrrole-type compounds have shown high activity against a panel of Enterococcus faecium, Staphylococcus aureus, Klebsiella pneumoniae, Acinetobacter baumannii, Pseudomonas aeruginosa y Enterobacter cloacae (ESKAPE) bacteria, similar to or even better than levofloxacin, a widely known antibiotic [6]. In addition, the antimicrobial activity of 1H-pyrrole-2-carboxylic acid and derivatives have been reported. Such a compound was identified as a secondary metabolite of Streptomyces griseus, considered the main bioactive compound against the oomycete Phytophthora capsici [7]. On the other hand, a series of 2-alkyl-4-bromo-5-(trifluoromethyl)pyrrole-3-carbonitriles was obtained having excellent fungicidal activities against Alternaria solani and Fusarium oxysporum [8]. Substituted 3,4-dimethyl-1H-pyrrole-2-carboxamides and carbohydrazide analogues could be considered potential antifungal and antimicrobial agents, especially against the pathogen Aspergillus niger [9].
Several studies employing hybrid heterocyclic systems have led to a synergistic effect, expanding the scope on their biological activities [10,11,12,13]. Novel derivatives of pyrano[2,3-b]pyridine and pyrrolo[2,3-b]pyrano[2,3-d]pyridine proved to be active against Candida sp., Aspergillus multi, Aspergillus niger, Escherichia coli and Staphylococcus aureus. Ethyl 4-methyl-1,7,8,9-tetrahydropyrano[2,3-b]pyrrolo[2,3-d]pyridine-3-carboxylate was found as the most active compound against all the mentioned microorganisms [14]. Other hybrid heterocyclic systems, such as pyrazole-furan carboxamide and pyrazole-pyrrole carboxamide-type compounds, have shown activities against three destructive fungi, including Sclerotinia sclerotiorum, Rhizoctonia solani, and Pyricularia grisea [15]. These studies suggested that this kind of heterocyclic systems can be considered phytoalexin-like analogues with promising bioactivity.
According to this background, the Bioorganic Laboratory at Universidad Militar Nueva Granada (UMNG) has deepened the synthesis and antifungal activity against the phytopathogenic fungus Fusarium oxysporum of novel 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds 1. To establish a high yielding and novel methodology, a comprehensive literature survey was then performed. Such a review ruled that the pyrrole nucleus can be obtained employing cycloaddition, cyclocondensation and carbon-carbon coupling reactions by metalorganic-catalyzed reactions [16]. All the described synthetic methods are diverse in terms of the employed reactants as well as the variation in the reaction conditions, comprising several representatives, such as Knorr, Hantzsch and Feist methodologies [16,17,18]. Some advantages have been achieved, primarily establishing more efficient and greener synthetic protocols [19,20,21]. Thus, the preparation of 3-substituted-4-(3-chloro-4-fluorophenyl)-1H-pyrrole derivatives based on the Van Leusen pyrrole synthesis was performed through a metal-free synthetic method, involving a C-N bond cleavage under mild reaction conditions [22]. The synthesis of 1,3,4-trisubstituted pyrroles via three-component domino reactions between (E)-3-(dimethylamino)-1-arylprop-2-en-1-ones, anilines and 2-nitrostyrenes was also reported. These reactions proceeded via addition–elimination/Michael addition/intramolecular annulation/elimination domino sequential reactions, with one C-C and two C-N bonds formation in a single synthetic operation [23]. Phenylpyrrole-substituted tetramic acid derivatives bearing carbonates were designed and synthesized from 4-(2,4-dioxopyrrolidin3-ylidene)-4-(phenylamino)butanoic acids [24]. An efficient, one-pot synthetic procedure for [4-(tert-butyl)-1H-pyrrol-3-yl](phenyl)methanone was proposed using acetophenone and trimethylacetaldehyde in the presence of toluenesulfonylmethyl isocyanide (TosMIC) and mild base [25]. On the other hand, an efficient, environmentally benign and molecular iodine-promoted protocol was recently described for the cascade synthesis of dihydro-1H-pyrrol derivatives. This methodology employed a four-component reaction between diethyl acetylenedicarboxylate (DEAD), aromatic amines and phenylglyoxal monohydrate catalyzed by 10 mol% iodine in ethanol at room temperature. The proposed reaction mechanism involved transformations through an imine intermediate followed by iodine-induced Mannich reaction and subsequent intramolecular cyclization sequences. Moreover, this protocol involved the formation of C-N, C-C and O-H bonds [26]. Trying to explore this methodology varying the starting reagents but taking into advantage the one-pot protocol benefits, the study of the three-component reaction of alkyl 2-aminoesters derived from L-tryptophan (2) and 1,3-dicarbonyl compounds (3) under solvent-free conditions towards the synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds (1) is presented herein.

2. Results and Discussion

Esterification reactions of L-tryptophan were carried out employing Li and Sha methodology [27] with some modifications [28]. Mixtures of L-tryptophan (1 eq.), chlorotrimethylsilane (8 eq.) and aliphatic alcohols in excess (R1 = Me, Et, i-Pr, n-Bu) were heated under reflux conditions during 4 h. Alkyl 2-aminoesteres 2ad were obtained in the hydrochloride form as white crystals in high yields. Then, neutralization with sodium bicarbonate solution and subsequent extractions using isopropyl acetate were performed to obtain compounds 2ad as the free-base form in a quantitative yield. Several experiments based on 2ad and 1,3-dicarbonyl compounds 3ad mixtures were carried out to establish the optimal conditions to afford compounds 1ad. Thus, several inorganic bases in equimolar ratio regarding compounds 2ad were initially essayed employing different solvent conditions. Thus, experiments using sodium carbonate in polar solvents under reflux conditions during 24 h afforded polymeric resins, whose chemical characterization attempts were unsuccessful. Similar results were obtained employing potassium hydroxide. However, compounds 1ad and L-tryptophan were detected in low yields (>5%) in all cases. These results suggested that long reaction times, high temperatures and strong basic media favor polymeric and hydrolysis reactions. In this regard, catalytic amount of a strong base could enhance the yield of compound series 1.
Solvent-free reactions are widely known in literature for their advantages, such as the absence of a reaction medium to collect, purify and recycle high-purity products, the reduction of additional and extensive purification steps, higher yields, low supply of energy, reduction of protection-deprotection steps of functional groups and especially, rapid reaching of substantial reaction completion in few minutes as compared to organic solvent-mediated protocols, among other advantageous features [16]. According to these facts, a solvent-free synthesis under conventional heating conditions was then employed to synthesize the desired products 1ad, using several essays to explore the performance of the present synthetic protocol. Results are showed in Table 1.
Compound 1a was obtained from acetylacetone 3a, which has the highest electrophilic character in comparison with the remaining 1,3-dicarbonyl compounds 3bd, affording the highest yield (i.e., 81%) when reacted with methyl L-tryptophanate 2a as starting reagent. Aliphatic chain extension of the alkoxy moiety at ester group conduced to a yield reduction, especially using n-butyl L-tryptophanate 2d. These results can be explained considering a long-distance inductive effect, which tends to reduce the nucleophilic character of the amine group, affecting the required condition to carry out the first step within the mechanistic pathway. Moreover, these results led us to conclude that the steric implications of the ester fragment are not relevant for the reaction completion, so the low yields were more related to the stability of longer-chain bearing alkoxy moiety, since they degraded more easily and faster (within 5–20 min) and do not lead to the desired cyclization. Similar results were obtained for compounds 1b and 1d, i.e., involving low yields, but an identical alkoxy moiety-related trend was also evidenced. Compound 1c was obtained from malonic acid 3c used as 1,3-dicarboxylic compound. This reaction series showed yields between 15–45%. To ensure the completion of such reaction series, basic conditions were not employed within the first 5 min and reaction mixtures were submitted to a higher temperature. Therefore, this reaction was performed in two stages: the first one corresponds to the formation of the intermediate amide from malonic acid 3c and alkyl 2-aminoesters during the first 5 min, and a second stage where a catalytic amount of KOH was added to promote the cyclization reaction towards compound 1c.
According to these results, a reaction mechanism for the formation 1ad was proposed (Scheme 2). The first step corresponds to the nucleophilic attack by the amine group in 2 to one of the carbonyl or carboxylic groups in 3 towards the formation of (Z)-enamine-type intermediate 4 through a nucleophilic addition-elimination mechanism. Presumably, this first step is the slowest in the mechanistic pathway. Then, hydroxyl ion removes an acidic hydrogen of the intermediate 4 increasing its electronic density to facilitate a 5-exo-trig intramolecular cyclization, affording 2,4-dihydro-3H-pyrrol-3-ones 5. Such formation is assisted by the alkoxide release, which abstracts one proton from the formed water molecule in order to restitute the catalytic hydroxyl ion. Finally, intermediate 5 suffers a tautomeric conversion towards 1, which could be favored by the intramolecular hydrogen bonding formation between hydroxyl group at C3 and the carbonyl group of the substituent at C4 of the pyrrole ring (Figure 1).
Computational calculations were carried out using the DFT-B3LYP method at the 6-31G(d,p) level of theory. Solvation model comprised the isodensity polarizable continuum model (IPCM), which uses a static isodensity surface for the solute cavity [29]. Several authors in the literature have used the Highest Occupied Molecular Orbital (HOMO) Lowest Occupied Molecular Orbital (LUMO) energy gap as a computational descriptor to understand kinetic stability. In general, a large energy gap corresponds to a high energy required for electron excitation [30] and it could be correlated with the nucleophile and electrophile character of reactants in organic reactions. To perform a comparison between the molecular stability of compounds 1 and 5, computational calculations of HOMO-LUMO were performed. In addition, we presented a description of the hybridization of the HOMO and LUMO orbitals using Natural Bond Orbital (NBO) analysis [31], understanding that a high contribution of p orbitals within the molecular orbitals, as a linear combination of atomic orbitals (LCAO), involves a greater planar character and, therefore, a higher tendency to aromaticity of the five-membered heterocyclic ring can be deduced. Frontier molecular orbitals HOMO and LUMO of intermediates 5ad and compounds 1ad are presented in Figure 2. HOMO of intermediate 5a showed an occupancy of 1.88226, and a predominant p character (s(0.03%), p 99.99(99.78%), d 6.18(0.19%)), being only localized in two carbon atoms of the benzenoid ring in the indole fragment. Similar results are presented for compound 1a whose HOMO showed occupancy of 1.89607, but a higher p character (s (0.23%), p 99.99(99.68%), d 0.40(0.09%) was observed due to the extended highly-conjugated π system localized on the aromatic indole system. Relatedly, LUMOs for 5a and 1a showed appreciable differences: LUMO of intermediate 1a showed high p character (p 99.99(97.56%)), being especially located in the C=O π* bond, whereas LUMO of compound 5a had a lesser p character but higher conjugation at pyrrole ring (p 9.47(83.13%)). The calculated gap HOMO-LUMO for intermediate 5a was 0.19893 Hartree; however, compound 1a afforded 0.14731 Hartree. This difference evidenced a decrease in the LUMO energy once the tautomeric conversion occurred, whose driving force could be based on the aromatic stabilization of the five-membered heterocyclic system.
In order to evaluate the incidence of ester fragment on pyrrole ring stability, HOMO and LUMO analysis was also performed for 1b and 5b structures. Intermediate 5b showed a HOMO with occupancy of 1.93004 and a prevailing p character (s (10.30%), p 8.70 (89.64%), d 0.01 (0.06%)). In contrast, HOMO for compound 1b exhibited an occupancy of 1.84916 and a higher p character (s (1.13%), p 87.69 (98.81%), d 0.06 (0.06%), whose HOMO representation showed the conjugated π system to be also extended towards the pyrrole ring. The LUMO of 5b showed a higher p character (p 99.99(97.40%)), and it was located on both C=O ketone and C=O ester π* bonds, whereas LUMO of 1b was similar to that of 1a (p 10.52 (84.28%)). The calculated HOMO-LUMO gaps of 5b and 1b were 0.10324 and 0.16090 Hartree, respectively. In this case, there was no LUMO stabilization for 1b due to the presence of the ester group. Additionally, the incidence of the hydroxyl group as R3 substituent was also examined through a HOMO-LUMO gap analysis. Such an analysis provided gap values for 5c and 1c of 0.07948 and 0.12878 Hartree, respectively. The above-mentioned differences between 5b–1b and 5c–1c could be explained due a strong inductive and mesomeric effect generated by the presence of polar groups at C2 and C3 of the pyrrole ring. Finally, intermediate 1d and compound 5d showed similar DFT-derived results in comparison to the observed outcome for 1a and 5a structures.
In order to explain the reaction mechanism, some thermodynamic features were also calculated using DFT-B3LYP methodology. Calculated ΔG° for the conversion of 51 is presented in Table 2. The conversion of 5 towards 1 is thermodynamically favored in all the studied cases, being a series of exergonic processes (ΔG°calculated < 0). The formation of compound 1b is presumably a more spontaneous process, while formation of 1a, 1c and 1d are lesser spontaneous. These results supported the discussed hypothesis regarding the formation of intramolecular hydrogen bonding in compounds 1 (Figure 1), whose strength resulted higher when the substituent of the pyrrole ring at C4 is an aliphatic ketone. The inductive effect caused on C=O by the OR group in the alkoxy carbonyl substituent reduces the electronic density of this hydrogen bond acceptor, leading to a decrease of the interaction strength and, consequently, the stability of the aromatic form. In addition, the steric effect of the cyclohexane-type ring fused to the pyrrole system presumably reduces the strength of the hydrogen bonding interaction, affecting the reaction spontaneity.

3. Materials and Methods

3.1. General Information

All chemicals were purchased from Sigma-Aldrich (Saint Louis, MO, USA) and Merck KGaA (Darmstadt, Germany) and used without further purification. Dry solvents were purchased in sufficient purity. Thin layer chromatography (TLC) was done on TLC silica gel 60 F254 (Merck KGaA), and compounds were detected at 254 nm. Column chromatography was conducted manually on silica gel 60 (0.040–0.063 mm) from Merck KGaA. Nuclear magnetic resonance (NMR) spectra were recorded on a Bruker Avance AV-400 MHz spectrometer (Billerica, MA, USA). All shifts are given below in δ (ppm) using the signal of tetramethylsilane (TMS) as a reference. All coupling constants (J) are given in Hz. Splitting patterns are typically described as follows: s: singlet, d: doublet, t: triplet, q: quartet and m: multiplet. Liquid chromatography-mass spectrometry (LC/MS) experiments were performed on a LCMS 2020 spectrometer (Shimadzu, Columbia, MD, USA), comprising a Prominence® high-performance liquid chromatography (HPLC) system coupled to a quadrupole single analyzer with an electrospray ionization (ESI). A Synergi® column (150 × 4.6 mm, 4.0 µm) was used for analysis at 0.6 mL/min using mixtures of acetonitrile (A) and 1% formic acid (B) in gradient elution. ESI was operated simultaneously in positive and negative ion modes (scan 100–2000 m/z), desolvation line temperature at 250 °C, nitrogen as nebulizer gas at 1.5 L/min, drying gas at 8 L/min, and detector voltage at 1.4 kV. Accurate mass data were recorded by high-resolution MS (HRMS) on a micrOTOF-Q II mass spectrometer (Bruker, Billerica, MA, USA). ESI was also operated in positive and negative ion modes (scan 100–2000 m/z), desolvation line temperature at 250 °C, nitrogen as nebulizer gas at 1.5 L/min, drying gas at 8 L/min, quadrupole energy at 7.0 eV, and collision energy 14 eV.

3.2. General Experimental Procedure for the Synthesis of 2,4,5-trisubs-tituted-1H-pyrrol-3-ol Type Compounds (1a,b,d)

Alkyl 2-aminoesters 2 (1 mmol), 1,3-dicarbonyl compounds 3 (1 mmol), and potassium hydroxide (0.1 mmol) mixtures were heated in open vessels employing an oil bath with shaking following the reaction conditions in Table 1. TLC monitored the progress of each reaction. Upon completing the reaction, 5 mL of saturated ammonium chloride solution was added to each resulting reaction mixture. Discontinuous liquid-liquid extractions were performed using chloroform (5 × 10 mL). Reduced pressure was used for concentrating the reaction mixtures. Conventional column chromatography using silica gel as sorbent and a hexane: ethyl acetate mixtures as mobile phase was employed for purifying the afforded products 1ad. The structure of each compound was confirmed by analytical as well as conventional spectral studies (Supplementary Materials).

Representative Compounds

1-(5-((1H-indol-3-yl)methyl)-4-hydroxy-2-methyl-1H-pyrrol-3-yl)ethan-1-one (1a): Yellow oil; yield: 15–81%. 1H NMR (400 MHz, CDCl3): δ = 9.33 (s, 1H), 7.58 (m, 1H), 7.32 (m, 1H), 7.11 (m, 1H), 7.10 (m, 2H), 3.32 (s, 2H), 2.03 (s, 3H), 1,68 (s, 3H) ppm. 13C NMR (100 MHz, CDCl3): δ = 195.6, 162.15, 136.33, 127.02, 124.21, 121.68, 121.39, 119.11, 118.14, 117.99, 111.56, 111.08, 108.91, 96.48, 69.36, 29.45, 26.55 ppm. ESI-MS in the positive mode m/z: [M + H]+, 269.16; [M + CH3CN + H]+, 310.19. ESI-HRMS m/z: [M + H]+, 269.1677 (calcd. 269.1690).
Ethyl 5-((1H-indol-3-yl)methyl)-4-hydroxy-2-methyl-1H-pyrrole-3-carboxylate (1b): Yellow oil; yield: 19–54%. 1H NMR (400 MHz, CDCl3): δ = 8.45 (s, 1H), 7.57 (m, 1H), 7.31 (m, 1H), 7.16 (m, 2H), 7.09 (s, 1H), 4.10 (m, 2H), 4.08 (s, 3H), 3.31 (s, 2H), 1.68 (s, 3H), 0.88 (t, J = 6.0 Hz, 3H) ppm. 13C NMR (100 MHz, CDCl3): δ = 172.26, 160.38, 136.23, 127.12, 123.72, 122.23, 122.03, 119.66, 119.46, 118.32, 111.45, 109.76, 109.58, 109.50, 65.40, 19.31, 14.64, 13.71 ppm. ESI-MS m/z in the positive mode: [M + H]+, 299.12; [M + CH3CN + H]+, 339.23. ESI-HRMS m/z: [M − H], 297.1266 (calcd. 279.1239).
2-((1H-indol-3-yl)methyl)-3-hydroxy-1,5,6,7-tetrahydro-4H-indol-4-one (1d): Yellow oil; yield: 17–59%. 1H NMR (400 MHz, CDCl3): δ = 9.34 (s, 1H), 7.46 (m, 1H), 7.33 (m, 1H), 7.11 (m, 1H), 7.05 (m, 1H), 6.93 (s, 1H), 3.33 (s, 2H), 2.29 (m, 2H), 2.20 (m, 2H), 1.88 (m, 2H) ppm. 13C NMR (100 MHz, CDCl3): δ = 171.01, 163.68, 136.23, 127.72, 123.26, 121.91, 121.91, 119.31, 119.31, 118.23, 111.56, 108.85, 97.44, 60.45, 36.33, 21.69, 14.17 ppm. ESI-MS in the positive mode m/z: [M + H]+, 281.16. ESI-HRMS m/z: [M + H]+, 279.1134 (calcd. 279.1135).

3.3. General Experimental Procedure for the Synthesis of 5-((1H-indol-3-yl)methyl)-2,4-dihydroxy-1H-pyrrole-3-carboxylic Acid (1c)

Alkyl 2-aminoesters 2 (1 mmol) and malonic acid 3c (1 mmol) were heated in open vessels employing an oil bath at 170 °C for 5 min. Potassium hydroxide (0.1 mmol) was added to the reaction mixture, and the heating was kept at 170 °C for 25 min. Then, 5 mL of saturated ammonium chloride solution was added to each resulting reaction mixture. Discontinuous liquid-liquid extractions were performed using chloroform (5 × 10 mL). Reduced pressure was used for concentrating the reaction mixtures. Conventional column chromatography using silica gel as sorbent and hexane: ethyl acetate mixtures as mobile phase was employed for purifying the afforded product 1c: Yellow oil; yield: 15–45%. 1H NMR (400 MHz, CDCl3): δ = 8.24 (s, 1H), 7.52 (m, 1H), 7.35 (m, 1H), 7.13 (m, 2H), 6.97 (s, 1H), 3.70 (s, 2H) ppm. 13C NMR (100 MHz, CDCl3): δ = 172.59, 169.94, 169.94, 136.24, 136.24, 127.89, 119.86, 119.86, 118.66, 111.44, 111.44, 110.21, 110.21, 23.36 ppm. ESI-MS in the positive mode m/z: [M + H]+, 273.15; [M + CH3CN + H]+, 313.11.

4. Conclusions

In conclusion, we developed a conveniently efficient and environmentally benign alternative protocol for easy access to a series of diverse 2,4,5-trisubstituted-1H-pyrrol-3-ol type compounds from the one-pot three-component reaction between alkyl 2-aminoesters derived from L-tryptophan, potassium hydroxide and 1,3-dicarbonyl compounds in solvent-free conditions. The compounds 1ad were obtained in moderate to good yields in short reaction times, operational simplicity, and an easy workup. DFT-B3LYP calculations demonstrated the preference of the performed protocol towards 1H-pyrrol-3-ol aromatized rings, which are formed through the tautomeric equilibrium from 3H-pyrrol-3-ones.

Supplementary Materials

The following are available online. Figure S1: 1H NMR spectrum of 1a in CDCl3, Figure S2: 13C NMR spectrum of 1a in CDCl3, Figure S3. HR-MS spectrum of compound 1a, Figure S4: 1H NMR spectrum of 1b in CDCl3, Figure S5: 13C NMR spectrum of 1b in CDCl3, Figure S6. HR-MS spectrum of compound 1b, Figure S7: 1H NMR spectrum of 1c in CDCl3, Figure S8: 13C NMR spectrum of 1c in CDCl3, Figure S9: 1H NMR spectrum of 1d in CDCl3, Figure S10: 13C NMR spectrum of 1d in CDCl3, Figure S11: HR-MS spectrum of compound 1d.

Author Contributions

D.Q. and E.C.-B. designed research and revised the manuscript; L.D.B. performed the synthesis and characterization of the products. D.Q. performed DTF/B3LYP calculations. All authors analyzed the data and read and approved the final manuscript.

Funding

This research received no external funding.

Acknowledgments

The present work is a product derived from the project IMP-CIAS-2294 funded by Vicerrectoría de Investigaciones at UMNG—Validity 2017.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wood, J.M.; Furkert, D.P.; Brimble, M.A. 2-Formylpyrrole natural products: Origin, structural diversity, bioactivity, and synthesis. Nat. Prod. Rep. 2019, 36, 289–306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Manjal, S.K.; Pathania, S.; Bhatia, R.; Kaur, R.; Kumar, K.; Rawal, R.K. Diversified Synthetic Strategies for Pyrroloindoles: An Overview. J. Heterocycl. Chem. 2019, 56, 2318–2332. [Google Scholar] [CrossRef]
  3. Bellina, F.; Rossi, R. Synthesis and biological activity of pyrrole, pyrroline and pyrrolidine derivatives with two aryl groups on adjacent positions. Tetrahedron 2006, 62, 7213–7256. [Google Scholar] [CrossRef]
  4. Zhan, X.; Lan, L.; Zhang, Y.; Chen, J.; Zhao, K.; Wang, S.; Xin, Y.; Mao, Z. Synthesis and Cytotoxicity Evaluation of New 3-substituted 4-(4-methyloxy phenyl)-1H-Pyrrole Derivatives. Bull. Korean Chem. Soc. 2016, 37, 200–206. [Google Scholar] [CrossRef]
  5. Mane, Y.D.; Surwase, S.M.; Biradar, D.O.; Sarnikar, Y.P.; Jawle, B.H.; Shinde, V.S.; Khade, B.C. Design and Synthesis of Diverse Pyrrole-2-carboxamide Derivatives as a Potent Antibacterial Agents. J. Heterocycl. Chem. 2017, 54, 2627–2634. [Google Scholar] [CrossRef]
  6. Masci, D.; Hind, C.; Islam, M.K.; Toscani, A.; Clifford, M.; Coluccia, A.; Conforti, I.; Touitou, M.; Memdouh, S.; Wei, X.; et al. Switching on the activity of 1,5-diaryl-pyrrole derivatives against drug-resistant ESKAPE bacteria: Structure-activity relationships and mode of action studies. Eur. J. Med. Chem. 2019, 178, 500–514. [Google Scholar] [CrossRef]
  7. Gálvez-Iriqui, A.C.; Cortez-Rocha, M.O.; Burgos-Hernández, A. Synthesis of chitosan biocomposites loaded with pyrrole-2-carboxylic acid and assessment of their antifungal activity against Aspergillus niger. Appl. Microbiol. Biotechnol. 2019, 103, 2985. [Google Scholar] [CrossRef]
  8. Li, Y.; Wang, Z.; Zhang, P.; Liu, Y.; Xiong, L.; Wang, Q. Design, Synthesis, and Biological Activities of Novel 2-Alkylpyrrole Derivatives. J. Heterocycl. Chem. 2014, 51, 1410–1414. [Google Scholar] [CrossRef]
  9. Bhosale, J.D.; Dabur, R.; Jadhav, G.P.; Bendre, R.S. Facile Syntheses and Molecular-Docking of Novel Substituted 3,4-Dimethyl-1H-pyrrole-2-carboxamide/carbohydrazide Analogues with Antimicrobial and Antifungal Properties. Molecules 2018, 23, 875. [Google Scholar] [CrossRef] [Green Version]
  10. Brites, N.P.; Dilelio, M.C.; Martins, G.M.; Carmo, G.D.; Morel, A.F.; Kaufman, T.S.; Silveira, C.C. Synthesis and Antifungal Activity of 4- and 6-(1H-Pyrrol-1-yl) Coumarins, and their Thiocyanato Derivatives. ChemistrySelect 2019, 4, 5398–5406. [Google Scholar] [CrossRef]
  11. Tóth, L.; Kiss-Szikszai, A.; Vasvári, G.; Fenyvesi, F.; Vecsernyés, M.; Mátyus, P.; Antus, S.; Mándi, A.; Kurtán, T.   1,2-Dihydrochromeno[2,3-c]pyrrol-3-one Derivatives: Synthesis and HPLC-ECD Analysis. Synlett 2019, 30, 799–802. [Google Scholar] [CrossRef]
  12. Becker, C.; Roshchupkina, G.I.; Rybalova, T.V.; Gatilov, Y.V.; Romanenko, G.V.; Reznikov, V.A. Unexpected formation of polycyclic oxygen-containing spiro-heterocycles in the reactions of 2,4-dihydro-3H-pyrrol-3-one 1-oxides with benzaldehyde. Mendeleev Commun. 2008, 18, 297–299. [Google Scholar] [CrossRef]
  13. Becker, C.; Roshchupkina, G.; Rybalova, T.; Gatilov, Y.; Reznikov, V. Transformations of 2,2-dimethyl-2,4-dihydro-3H-pyrrol-3-on-1-oxide derivatives in the Vilsmeier–Haack reaction conditions. Tetrahedron 2008, 64, 9191–9196. [Google Scholar] [CrossRef]
  14. Elkanzi, N.A.A.; Bakr, R.B.; Ghoneim, A.A. Design, Synthesis, Molecular Modeling Study, and Antimicrobial Activity of Some Novel Pyrano[2,3-b]pyridine and Pyrrolo[2,3-b]pyrano[2.3-d]pyridine Derivatives. J. Heterocycl. Chem. 2019, 56, 406–416. [Google Scholar] [CrossRef]
  15. Yao, T.T.; Xiao, D.X.; Li, Z.S.; Cheng, J.L.; Fang, S.W.; Du, Y.J.; Zhao, J.H.; Dong, X.W.; Zhu, G.N. Design, Synthesis, and Fungicidal Evaluation of Novel Pyrazole-furan and Pyrazole-pyrrole Carboxamide as Succinate Dehydrogenase Inhibitors. J. Agric. Food Chem. 2017, 65, 5397–5403. [Google Scholar] [CrossRef] [PubMed]
  16. Martins, M.A.P.; Frizzo, C.P.; Moreira, D.N.; Buriol, L.; Machado, P. Solvent-Free Heterocyclic Synthesis. Chem. Rev. 2009, 109, 4140–4182. [Google Scholar] [CrossRef]
  17. Nural, Y.; Gemili, M.; Yabalak, E.; De Coen, L.; Ulger, M. Green synthesis of highly functionalized octahydropyrrolo[3,4-c]pyrrole derivatives using subcritical water, and their anti(myco)bacterial and antifungal activity. Arkivoc 2018, 5, 51–64. [Google Scholar] [CrossRef]
  18. Yuan, F.C.; Duan, W.; Li, Z.; Luo, X.; Zhang, M.; Deng, H.; Song, L. One-Pot synthesis of trifluoromethylated pyrazol-4-yl-pyrrole-2,5-dione derivatives. Synthesis 2019, 51, 3345–3355. [Google Scholar] [CrossRef]
  19. Teimouri, A.; Chermahini, A.N. One-pot Green Synthesis of Pyrrole Derivatives Catalyzed by Nano Sulfated Zirconia as a Solid Acid Catalyst. Chin. J. Chem. 2012, 30, 372–376. [Google Scholar] [CrossRef]
  20. Portilla-Zuniga, O.M.; Sathicq, A.G.; Martinez-Zambrano, J.J.; Romanelli, G.P. Green Synthesis of Pyrrole Derivatives. Curr. Org. Synth. 2017, 14, 865–882. [Google Scholar] [CrossRef]
  21. Marvi, O.; Nahzomi, H.T. Grinding solvent-free Paal-Knorr pyrrole synthesis on smectites as recyclable and green catalysts. Bull. Chem. Soc. Ethiop. 2018, 32, 139–147. [Google Scholar] [CrossRef] [Green Version]
  22. Lan, L.; Zhan, X.; Qin, W.; Liu, Z.; Mao, Z. Simple Synthesis of New 3-Substituted 4-(3-Chloro-4-fluorophenyl)-1H-pyrrole Derivatives and Their Anticancer Activity in Vitro. Heterocycles 2014, 89, 375–397. [Google Scholar]
  23. Kumar, S.V.; Muthusaravanan, S.; Muthusubramanian, S.; Perumal, S. An efficient one pot three-component domino reaction for the synthesis of 1,3,4-trisubstituted pyrroles. ChemistrySelect 2016, 1, 675–679. [Google Scholar] [CrossRef]
  24. Xu, W.-Q.; Chen, M.; Wang, K.-Y.; Ren, Z.-J.; Lu, A.-M.; Yang, C.-L. Synthesis, Characterization, and Antifungal Activity of Phenylpyrrole-Substituted Tetramic Acids Bearing Carbonates. Molecules 2016, 21, 355. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kaur, R.; Kumar, K. One-pot synthesis of [4-(tert-butyl)-1H-pyrrol-3-yl](phenyl)methanone from tosylmethyl isocyanide and carbonyl compound. Chem. Heterocycl. Comp. 2018, 54, 700. [Google Scholar] [CrossRef]
  26. Khan, M.M.; Khan, S.; Singh, A. Facile one-pot synthesis of novel highly functionalized dihydro-1H-pyrrole derivatives catalyzed by molecular iodine. Tetrahedron Lett. 2019, 60, 150996. [Google Scholar] [CrossRef]
  27. Li, J.; Sha, Y. A Convenient Synthesis of Amino Acid Methyl Esters. Molecules 2008, 13, 1111–1119. [Google Scholar] [CrossRef] [Green Version]
  28. Quiroga, D.; Becerra, L.D.; Sadat-Bernal, J.; Vargas, N.; Coy-Barrera, E. Synthesis and Antifungal Activity against Fusarium oxysporum of Some Brassinin Analogs Derived from l-tryptophan: A DFT/B3LYP Study on the Reaction Mechanism. Molecules 2016, 21, 1349. [Google Scholar] [CrossRef]
  29. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision, A.02; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  30. Ding, L.P.; Zhang, F.H.; Zhu, Y.S.; Lu, C.; Kuang, X.Y.; Lv, J.; Shao, P. Understanding the structural transformation, stability of medium-sized neutral and charged silicon clusters. Sci. Rep. 2015, 5, 15951. [Google Scholar] [CrossRef] [Green Version]
  31. Weinhold, F.; Landis, C.R.; Glendening, E.D. What is NBO analysis and how is it useful? Int. Rev. Phys. Chem. 2016, 35, 399–440. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

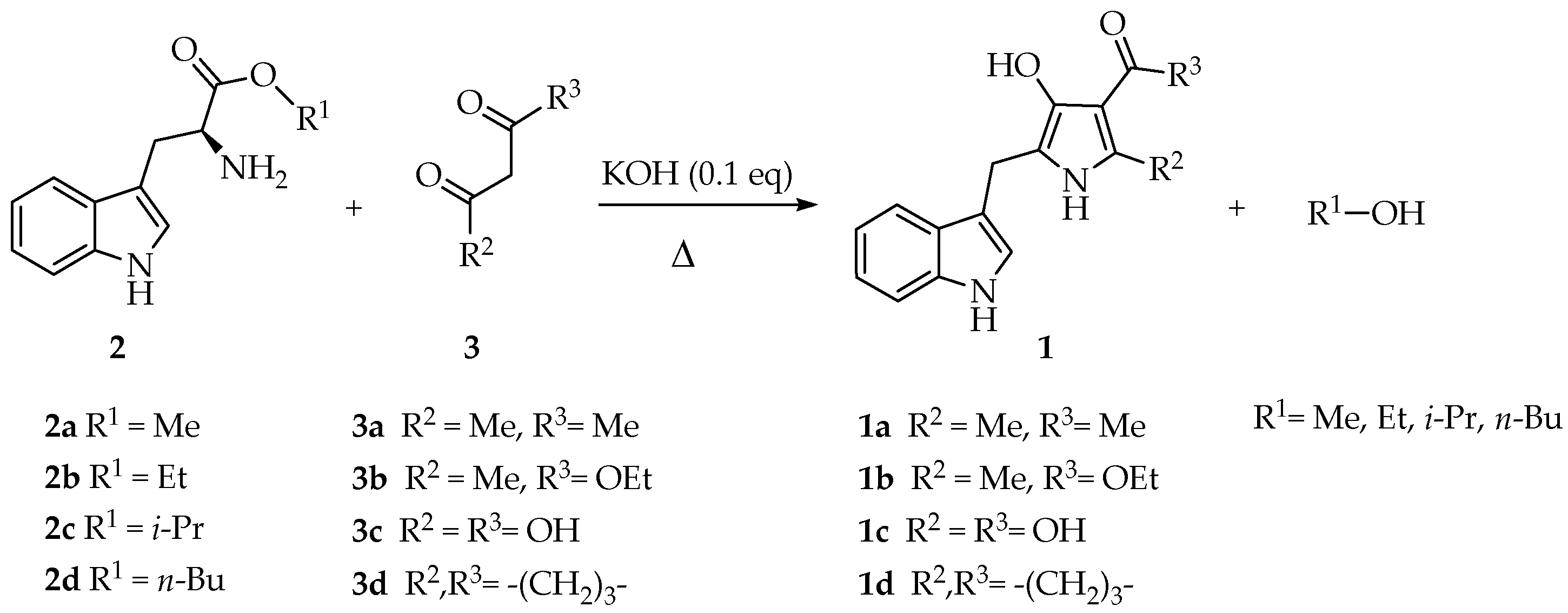

Scheme 1. Solvent-free synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds.
Scheme 1. Solvent-free synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds.
Molecules 25 04402 sch001

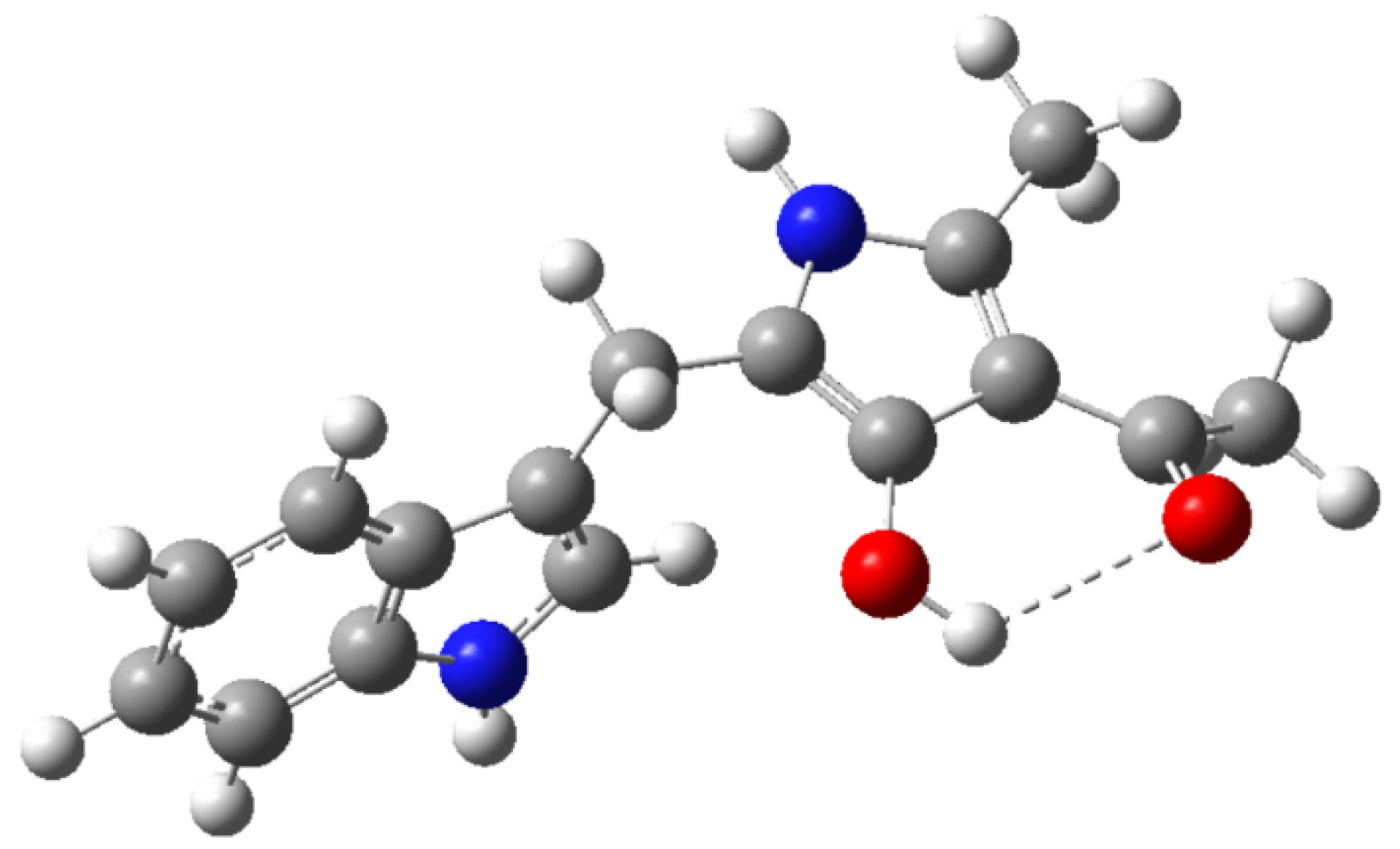

Figure 1. Optimized molecular structure of compound 1a using DFT-B3LYP calculations at the 6-31G(d,p) level.
Figure 1. Optimized molecular structure of compound 1a using DFT-B3LYP calculations at the 6-31G(d,p) level.
Molecules 25 04402 g001

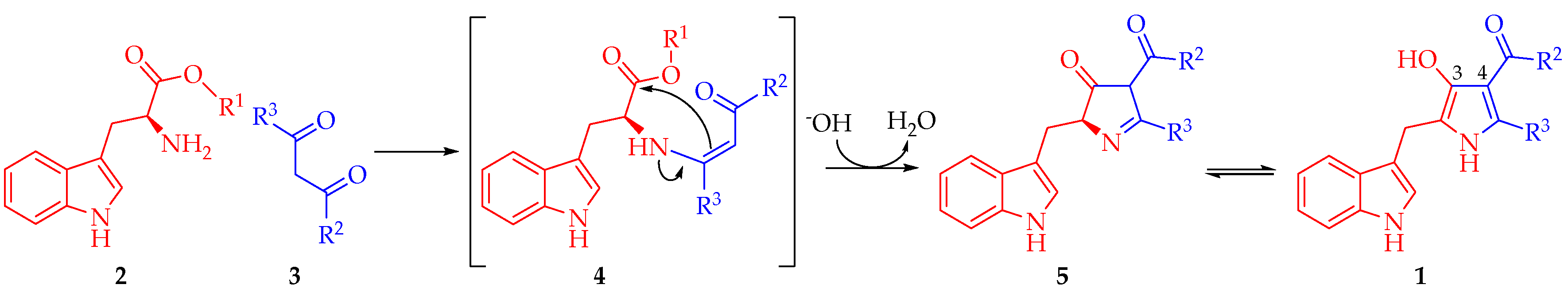

Scheme 2. A plausible mechanism for the synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol type compounds 1.
Scheme 2. A plausible mechanism for the synthesis of 2,4,5-trisubstituted-1H-pyrrol-3-ol type compounds 1.
Molecules 25 04402 sch002

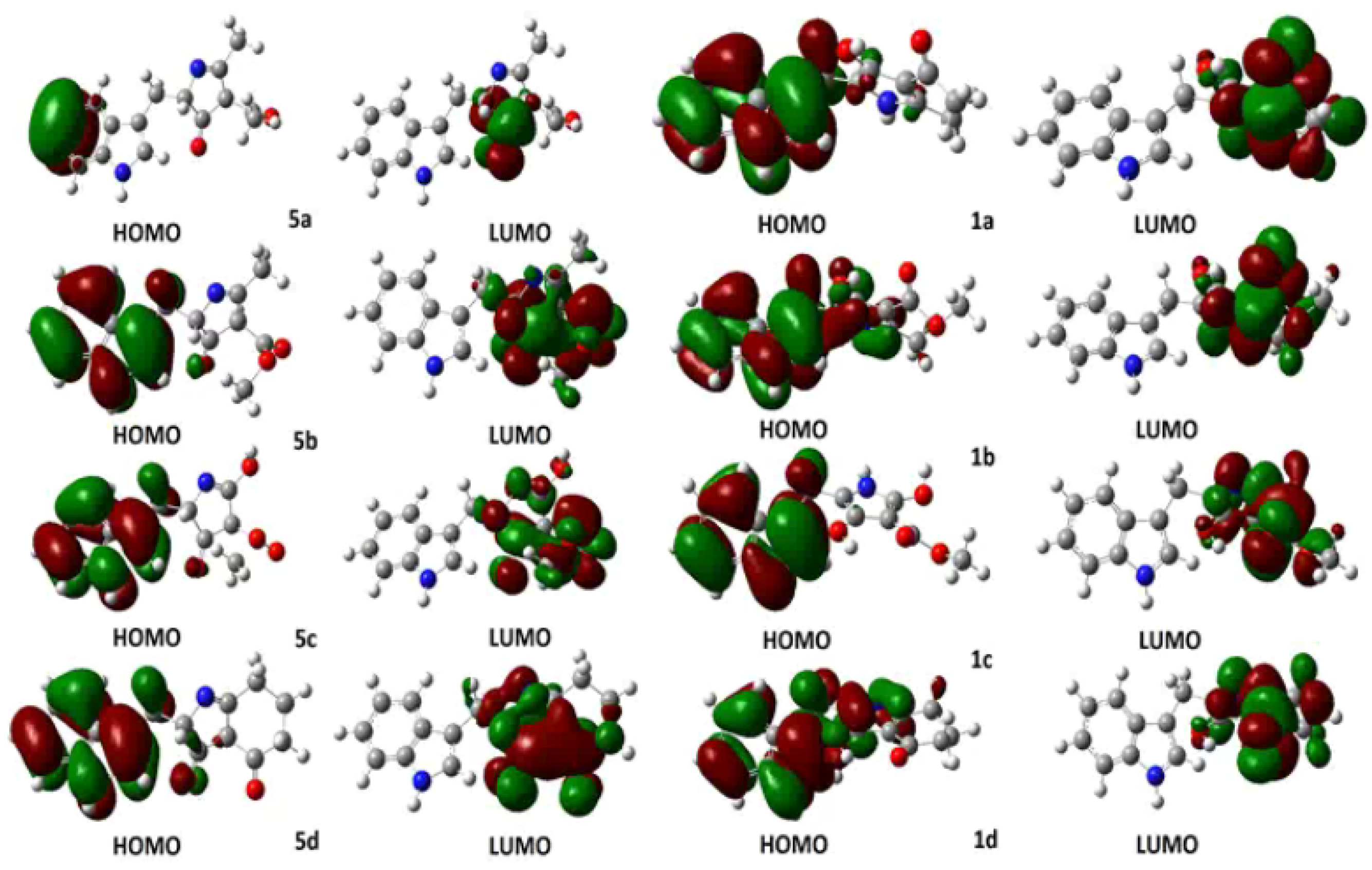

Figure 2. Frontier HOMO and LUMO representations for 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds 1ad and 2,4-dihydro-3H-pyrrol-3-ones 5ad.
Figure 2. Frontier HOMO and LUMO representations for 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds 1ad and 2,4-dihydro-3H-pyrrol-3-ones 5ad.
Molecules 25 04402 g002
Table 1. Yields for obtained product (1) afforded via Scheme 1, employing solvent-free optimized conditions (time and temperature reaction) under conventional heating, considering different reaction mixtures stated as each entry.
Table 1. Yields for obtained product (1) afforded via Scheme 1, employing solvent-free optimized conditions (time and temperature reaction) under conventional heating, considering different reaction mixtures stated as each entry.
EntryAAE aR1DC bR2R3Time (min)RT c,d (°C)Product eYield (%)
12aMe3aMeMe301001a81
22bEtMeMe3010024
32ci-PrMeMe3010022
42dn-BuMeMe3010015
52aMe3bMeOEt301201b54
62bEtMeOEt3012027
72ci-PrMeOEt3012025
82dn-BuMeOEt3012019
92aMe3cOHOH301701c45
102bEtOHOH3017024
112ci-PrOHOH3017017
122dn-BuOHOH3017015
132aMe3d-(CH2)3-301001d59
142bEt-(CH2)3-3010027
152ci-Pr-(CH2)3-3010019
162dn-Bu-(CH2)3-3010017
a AAE = alkyl 2-aminoester (2); b DC = 1,3-dicarbonyl compound (3); c RT = reaction temperature; d RT was established by HPLC-MS in preliminary experiments for each reaction mixture on exploring heating at 100, 120 and 170 °C during 5 min, in order to evidence product formation and reactant consumption; e respective 2,4,5-trisubstituted-1H-pyrrol-3-ol-type compounds (1) (Scheme 1) as product for each reaction mixture.
Table 2. Calculated ΔG° for tautomeric conversion 5→1.
Table 2. Calculated ΔG° for tautomeric conversion 5→1.
ConversionCalculated ΔG°/kcal/mol
5a→1a−2.53
5b→1b−13.50
5c→1c−2.36
5d→1d−2.64
