Conformational Restriction of Histamine with a Rigid Bicyclo[3.1.0]hexane Scaffold Provided Selective H₃ Receptor Ligands

Abstract

We designed and synthesized conformationally rigid histamine analogues with a bicyclo[3.1.0]hexane scaffold. All the compounds were selectively bound to the H₃ receptor subtype over the H₄ receptor subtype. Notably, compound 7 showed potent binding affinity and over 100-fold selectivity for the H₃ receptors (K_i = 5.6 nM for H₃ and 602 nM for H₄). These results suggest that the conformationally rigid bicyclo[3.1.0]hexane structure can be a useful scaffold for developing potent ligands selective for the target biomolecules.

1. Introduction

Histamine (1, Figure 1), a monoamine chemical mediator, acts on four different receptor subtypes, H₁, H₂, H₃, and H₄ receptors, which are members of the G protein-coupled receptor superfamily. In early the 1980s, the histamine H₃ receptor (H₃R) was identified as a presynaptic autoreceptor in rats [1], and the human H₃R was cloned in 1999 [2]. The H₃R, which is mainly expressed in the central nervous system (CNS), not only acts as an autoreceptor to regulate the central levels of histamine but also acts as a heteroreceptor to regulate the synthesis and release of other neurotransmitters, such as noradrenaline, acetylcholine, dopamine, and serotonin, and it is involved in various physiological processes, including memory function, cognition, anxiety, pain, food intake, and body temperature regulation. Thus, H₃R activity inhibition could be a potential treatment for various CNS-related disorders, such as attention-deficit hyperactivity disorder, Alzheimer’s disease, narcolepsy, Parkinson’s disease, schizophrenia, and obesity. Much effort has been devoted to developing potent and selective H₃R inhibitors (antagonists/inverse agonists) [3,4,5], and pitolisant (2, Figure 1) was recently authorized in Europe as a medicine for treating narcolepsy with or without cataplexy [6]. Further research is needed to better understand the functions of the histaminergic system in CNS-related disorders and to advance useful H₃ antagonists into clinical trials and the market [7].

The development of efficient H₃-selective antagonists is often complicated by the high affinity of H₃ antagonists for the H₄ receptor (H₄R) because the structures of the two receptor subtypes are presumed to be analogous due to their highly homologous gene sequences (58% identity in the transmembrane regions) [8,9]. However, precise three-dimensional structural information of H₃R and H₄R is unavailable, because their X-ray crystal structures have not been reported. To efficiently develop bioactive ligands, even if the structural information of the target proteins is unknown, we developed a three-dimensional structural diversity-oriented strategy based on the characteristic structural properties of chiral cyclopropane, which is the rigid and smallest carbocyclic structure [10]. Introducing cyclopropane into the conformationally flexible acyclic backbone of a parent compound can restrict the conformation of the molecule in either its trans- or cis-form. That is, four stereoisomer derivatives, including the enantiomers, can be produced from one parent ligand, in which the functional groups essential for the binding to a target protein can be restricted in different spatial arrangements. Therefore, one restricted structure of these isomers may be analogous to the bioactive form of the parent ligand, resulting in the discovery of a lead compound that is superior to the prototype ligand in its target selectivity and/or binding potency [11,12,13,14,15]. Based on this strategy, we previously designed and synthesized a series of cyclopropane-based conformationally restricted histamine analogues having an imidazolylcyclopropane scaffold and identified 3 and its enantiomer ent-3 as potent H₃ antagonists (K_i: 3.6 nM and 8.4 nM for the H₃R, respectively, shown in Figure 1) [16]. These antagonists have high binding affinities for the H₃R; however, the selectivity between H₃R and H₄R is insufficient with selectivity ratios for H₄/H₃ of 10.3 (3) and 0.9 (ent-3). Thus, in this study, to obtain more highly selective ligands for H₃R, we adopted bicyclo[3.1.0]hexane as a more rigid scaffold for newly designed conformationally restricted histamine analogues [17].

2. Results

2.1. Design

We assumed that the reason for the low H₄/H₃ selectivity of 3 and ent-3 was the flexibility of the aminoalkyl side chain in the compounds. Although the backbone conformation is restricted to the trans-configuration, there are two conformers, anti- and syn-form, whose aminoalkyl chains orient to the side opposite and same to the cyclopropane ring, respectively, due to the C2–C3 bond rotation (Figure 2a). This bond rotation is limited by the “cyclopropylic strain” that causes a sizable steric repulsion similar to the 1,3-allylic strain between the two adjacent cis-configured substituents, which are fixed in an eclipse orientation on the cyclopropane ring. The stable conformation is where the smallest group on the C3 position orients inward to the cyclopropane ring. Conformational analysis using MacroModel 8.6 showed that the anti- and syn-forms of 3 are the two most stable conformations (ΔE = 0.3 kcal/mol), whereas the A-form of 3 is extremely unstable due to the cyclopropylic strain (ΔE > 3 kcal/mol, relative potential energy from the global minimum; Figure 2a).

We designed and synthesized the C3-ethyl-substituted derivatives 4 and 5, as side-chain conformation-restricted analogues of 3 (Figure 2b) [18]. Introducing an ethyl group into the C3 position of 3 prevents the rotation of the side aminoalkyl-chain moiety to effectively restrict the conformation due to the cyclopropylic strain [10]. Accordingly, depending on the configuration at the C3 position, the conformation of the compounds can be restricted to the anti-form in 4 and the syn-form in 5. The biological evaluation for H₃R demonstrated that the anti-restricted 4 exhibited high binding affinity for H₃R (K_i = 6.7 nM) comparable to 3; on the other hand, the binding affinity of syn-restricted 5 for H₃R (K_i = 63.0 nM) was more than 15-fold lower than that of 3. These results showed that the conformational restriction of the side chain to the anti- or syn-form affects the binding affinity to the target protein. Unfortunately, however, further biological assay showed that 4 and 5 not only bound to H₃R but also to H₄R and were non-selective for the two receptor subtypes (selectivity ratios for H₄/H₃ of 1.2–1.3,

Table 1. Binding affinities of the compounds for the human H₃ and H₄ receptor subtypes.^a

Compound	Form	H3, Ki (nM)	H4, Ki (nM)	Selectivity Ratio (H4/H3)
6	anti	31.6 ± 8.2	501 ± 201	16
7	syn	5.6 ± 1.6	602 ± 343	108
ent-6	anti	21.9 ± 6.0	416 ± 155	19
ent-7	syn	14.8 ± 3.8	69.2 ± 21	4.7
3 b	–	3.6 ± 0.4	37.2 ± 2.7	10
ent-3 b	–	8.4 ± 1.5	7.6 ± 0.4	0.9
4	anti	6.7 ± 0.4 c	9.0 ± 1.0	1.3
5	syn	63.0 ± 6.1 c	76.5 ± 14	1.2
Thioperamide b	–	51 ± 3.8	124 ± 14	2.4

^a Data are expressed as means ± SEM (n = 3–5). ^b,c Data were taken from [16] (b) and [18] (c).

).

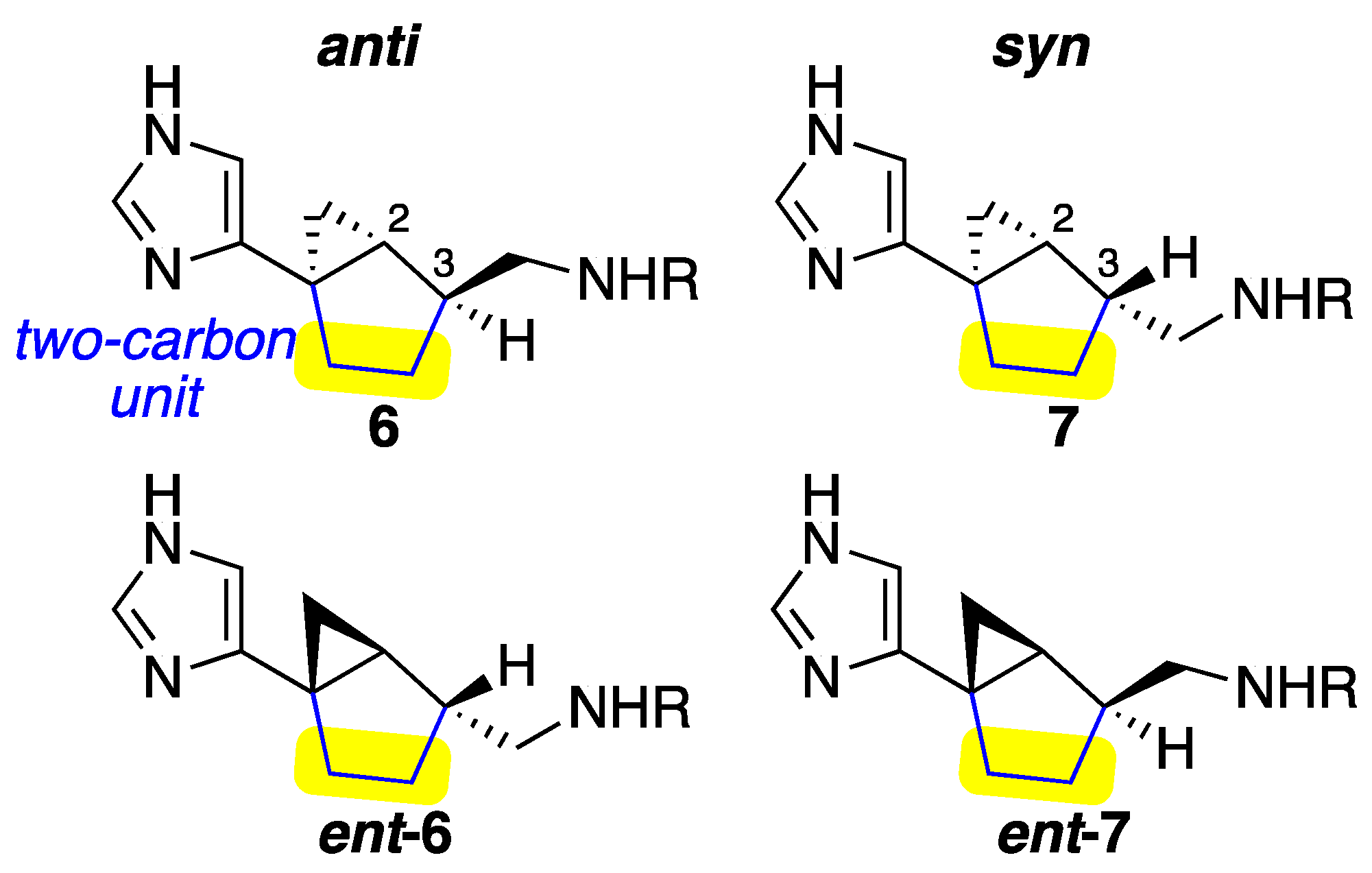

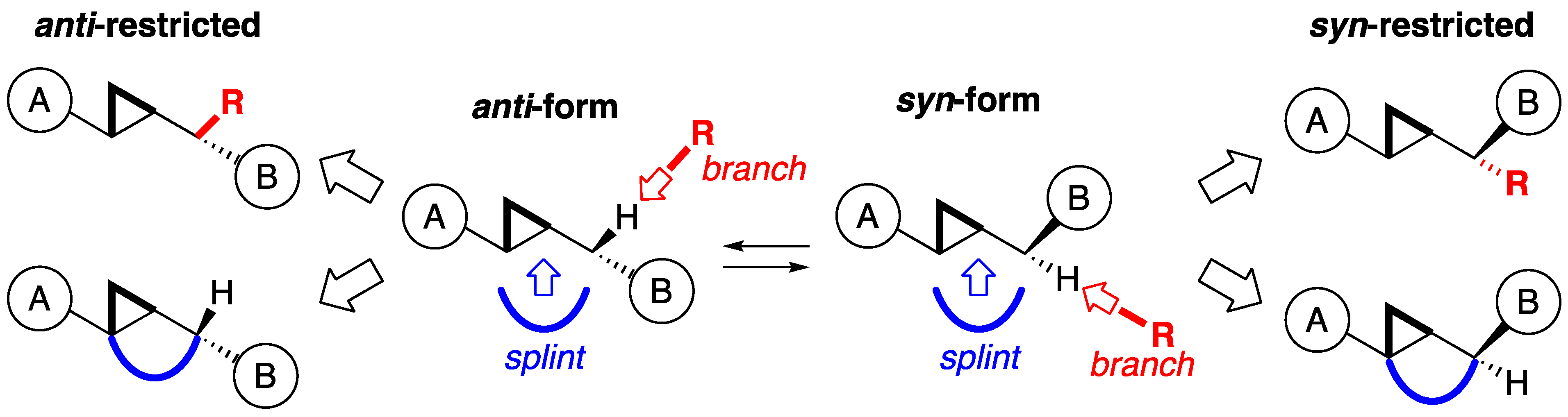

Taking these results into account, we planned to obtain highly selective ligands for H₃R by adopting an alternative strategy that utilizes a rigid fused-ring structure as a scaffold (Figure 3). Cyclopropane-based conformationally restricted ligands have two side-chain orientations, anti and syn, as described above. The introduction of a "branch" substituent on the cyclopropane adjacent carbon in the side-chain allows the orientation to be restricted to anti or syn due to the cyclopropylic strain, depending on the configuration at the cyclopropane adjacent carbon. On the other hand, instead of utilizing the cyclopropylic strain, the side-chain orientation can be restricted to anti or syn by introducing a “splint” structure between the cyclopropane and the side chain to form a rigid bicyclo structure. Both of these different conformational restriction strategies can generate the anti- and syn-restricted cyclopropane derivatives. However, even if they are the same anti- or syn-restricted analogues, the difference in the branch and splint units introduced to regulate the conformation may cause different biological profiles. Therefore, in this study, we newly designed conformationally restricted histamine analogues 6, 7, and their enantiomers ent-6, ent-7 with a bicyclo[3.1.0]hexane scaffold that can restrict the spatial arrangement of the imidazole and the aminoalkyl chain (Figure 4). The aminoalkyl chains of 6 and 7 were restricted to anti or syn, respectively, because the splint “two-carbon unit” forming the bicyclo backbone can lock the C2–C3 bond rotation. We previously used the bicyclo[3.1.0]hexane structure as a backbone for conformationally restricted analogues of γ-aminobutyric acid (GABA) and reported the first potent and selective inhibitor of BGT-1, which is a GABA transporter subtype [19]. Thus, we expected that the conformationally restricted histamine analogues with the bicyclo[3.1.0]hexane scaffold would show selectivity for H₃R, in contrast to the previous cyclopropylic strain-based conformationally restricted analogues.

2.2. Chemistry

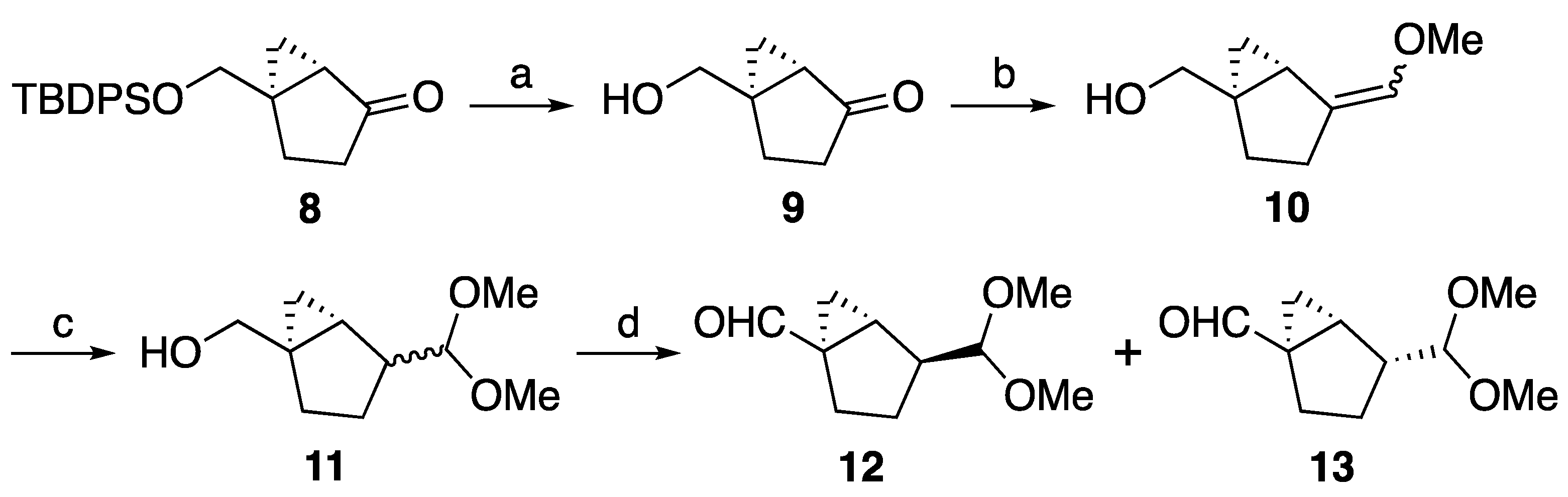

The diastereomerically pure bicyclo[3.1.0]hexane 12 and 13 with all of the asymmetric centers in target compounds 6 and 7, respectively, were synthesized from ketone 8 [19], which was prepared from (S)-epichlorohydrin, as shown in Scheme 1. After removing the O-silyl protecting group of 8, one-carbon addition to 9 was conducted by Wittig reaction to give olefin 10 as an E/Z mixture. The treatment of 10 with p-toluenesulfonic acid in MeOH under reflux conditions afforded dimethyl acetal 11 as a diastereomeric mixture. Oxidation of the hydroxyl group of 11 and final separation by silica gel column chromatography gave the aldehyde isomers 12 and 13, respectively.

The conformationally restricted histamine analogue 6 was synthesized from 12 (Scheme 2). The imidazole ring was constructed by treating 12 with tosylmethyl isocyanide, followed by saturated ethanolic ammonia [20]. The resulting unpurified imidazole product was further treated with trityl chloride to afford N-tritylimidazolylcyclopropane 14 in 69% overall yield. Removal of the dimethyl acetal group under acidic conditions followed by reductive amination with 4-chlorobenzyl amine gave the desired secondary amine, which was protected by a Boc group for easy purification. Finally, acidic treatment of the protected amine simultaneously removed the N-Boc and N-Tr groups to provide the desired compound 6. The diastereomer 7 was similarly prepared from 13 (Scheme S1). Configurations of the C3 position in 6 and 7 were determined based on the nuclear Overhauser effect (NOE) difference spectra (Figure S1). In addition, enantiomers ent-6 and ent-7 were synthesized by the same procedure from ent-8, which was prepared from (R)-epichlorohydrin (Scheme S2).

2.3. Biological Evaluation

The binding affinities of 6, 7, ent-6, and ent-7 for the human H₃R subtype with [³H]N^α-methylhistamine and the human H₄R subtype with [³H]histamine were evaluated using cell membranes expressing human H₃R or H₄R according to the previously reported method, and the results are summarized in Table 1. These conformationally locked compounds, 6, 7, ent-6, and ent-7 had potent binding affinities for H₃R, although their K_i values were slightly larger than those of their parent compounds 3 or ent-3 [K_i: 6 (31.6 nM), 7 (5.6 nM) versus 3 (3.6 nM) and ent-6 (21.9 nM), ent-7 (14.8 nM) versus ent-3 (8.4 nM)]. On the other hand, their K_i values for H₄R were much larger than those of the parents [K_i: 6 (501 nM), 7 (602 nM) versus 3 (37.2 nM) and ent-6 (416 nM), ent-7 (69.2 nM) versus ent-3 (7.6 nM)]. Thus, compared to the parents, the bicyclo compounds exhibited clearly improved selectivity for H₃R. Notably, 7 showed highly potent binding affinity and more than 100-fold selectivity for H₃R over the H₄R.

3. Discussion

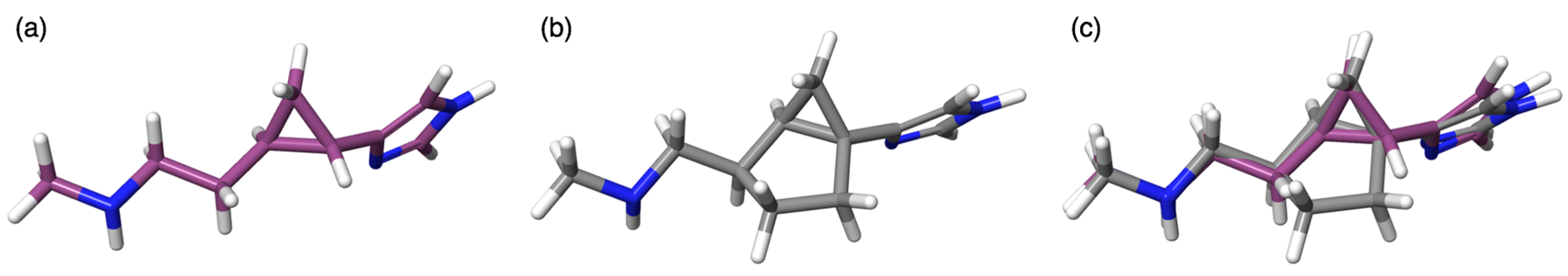

Comparison of the most stable conformations of 7 and the syn-form in 3 that were obtained by the MacroModel calculations revealed that the imidazole and amino moieties, which are essential for binding to the receptors, are superimposable; however, the splint “two-carbon unit” introduced for forming the bicyclo backbone of 7 is rather bulky and protrudes from the backbone of 3 (Figure 5). Therefore, the higher H₃R selectivity of the bicyclo compounds than that of the parents (Table 1) suggest that the splint unit in 6 and 7 caused a steric repulsion in the binding mode for H₄R, resulting in their low affinity for H₄R. In other words, there seems to be a difference in the three-dimensional structures between H₃R and H₄R around the imidazole binding area in their orthosteric sites.

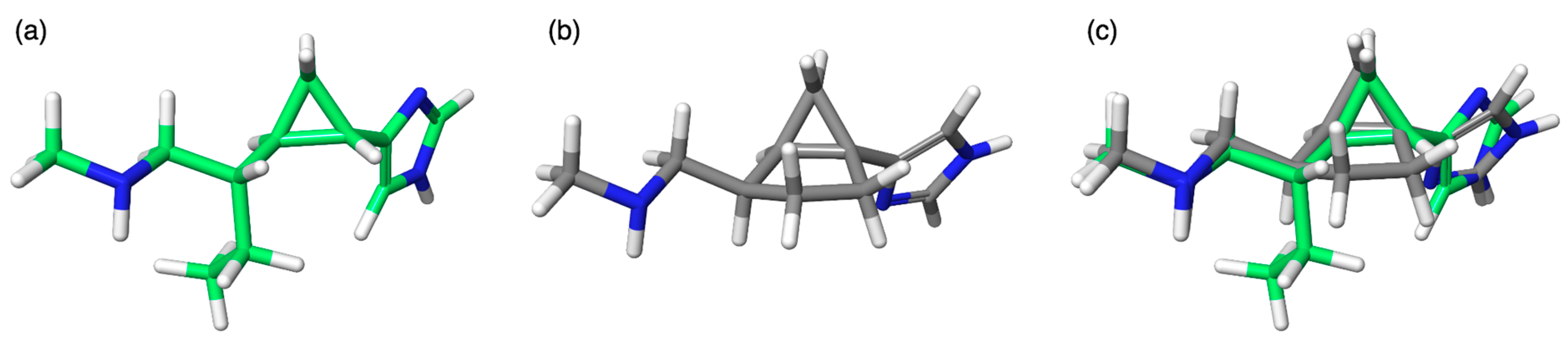

The syn-restricted 7 with the bicyclo scaffold displayed high selectivity for H₃R, although the similarly syn-restricted 5 with a branched ethyl group for the cyclopropylic strain was non-selective for H₃R and H₄R (Table 1). Compared with their three-dimensional structures, the most stable conformations of 5 and 7 calculated by MacroModel are superimposable at the essential imidazole and amino functions (Figure 6). However, the “branch” and “splint” substituents, i.e., the ethyl group introduced to restrict the conformation by the cyclopropylic strain in 5 and the “two-carbon unit” moiety to form the bicyclo scaffold in 7, are positioned differently in space. In addition, in the most stable conformations of anti-restricted 4 and 6, the imidazole and amino functions are superimposable, but the branch and splint moieties are differently positioned (Figure S3). These results indicate that even when restricted to the same anti- or syn-form, the “branch” or “splint” moieties that were introduced to restrict the conformation may interact with the target receptor or undergo steric repulsion due to the difference in the spatial arrangement of the moieties, potentially causing the different subtype selectivity. For example, among these four compounds, 4–7, only 4 had a high binding affinity for H₄R (K_i = 9.0 nM, Table 1).

The rigid bicyclo[3.1.0]hexane scaffold was effectively used for the conformational restriction of cyclopropane side chains to improve the H₃R/H₄R-selectivity, similar to the previous results in the development of a selective inhibitor for the GABA transporter BGT-1 subtype [19]. On the other hand, the cyclopropylic strain-based conformational restriction strategy has successfully provided a variety of compounds of biological interest, such as NMDA receptor antagonists [21], proteasome inhibitors [22], melanocortin receptor antagonists [23], and membrane-permeable cyclic peptides [24]. Thus, the two conformational restriction methods using cyclopropane as the key structure effectively complement each other in medicinal chemistry studies for developing potent and selective ligands for various target proteins.

4. Materials and Methods

4.1. Synthesis

All ¹H-NMR and ¹³C-NMR spectra were recorded on a JEOL JNM-AL-400, JEOL JMM-ECX-400P, or JEOL JMM-ECA-500 spectrometer. ¹H-NMR chemical shifts are reported as d values in ppm relative to tetramethylsilane (0.00 ppm) when CDCl₃ was used as the solvent, or a solvent residual peak (CD₂H-OD: 3.31 ppm) when CD₃OD was used as the solvent. Coupling constants (J) are reported in Hz, and multiplicity is indicated as follows: s (singlet), d (doublet), dd (double doublet), t (triplet), q (quartet), brs (broad singlet). ¹³C-NMR chemical shifts are reported as d values in ppm relative to deuterated solvent (CDCl₃: 77.0 ppm or CD₃OD: 49.0 ppm). All mass spectra were obtained on a JEOL JMS-T100LC spectrometer. Elemental analysis was performed with a Yanaco CHN Corder MT-6 or J-Science MICRO CODER JM10 analyzer. Optical rotations were measured with a JASCO P-1030 digital polarimeter. All non-aqueous reactions were carried out under argon atmosphere in anhydrous grade solvents. Silica gel column chromatography was performed using Merck Silica Gel 60, Kanto Silica Gel 60N, or Chromatorex^® NH-DM1020 (Fuji Silysia Cheical Ltd.). TLC was performed using glass-backed silica gel 60F254.

(1S,5S)-1-Hydroxymethyl-bicyclo[3.1.0]hexan-4-one (9). The mixture of 8 (983 mg, 2.70 mmol) and 3HF•Et₃N (2.2 mL, 6.99 mmol) in THF (25 mL) was stirred at room temperature (rt) for 3 days. The solvent was evaporated, and the residue was purified by flash silica gel column chromatography (hexane/AcOEt, 1/1–0/1) to give 9 (307 mg, 2.43 mmol, 90%) as a colorless liquid. [α]_D²² = +4.1° (c 0.90, CHCl₃); ¹H-NMR (400 MHz, CDCl₃) δ 3.82 (1 H, d, J = 11.6 Hz, –CHaHbOH), 3.66 (1 H, d, J = 11.6 Hz, –CHaHbOH), 2.22–2.09 (4 H, m, H-2, H-3), 1.78 (1 H, dd, J = 9.1, 3.2 Hz, H-5), 1.33 (1 H, dd, J = 9.1, 5.0 Hz, H-6a), 1.19 (1 H, dd, J = 5.0, 3.2 Hz, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 214.98, 64.67, 35.92, 33.00, 31.99, 23.83, 17.55; HRMS (ESI) calcd for C₇H₁₀NaO₂ 149.0573, found 149.0573 [(M + Na)⁺].

(1S,5S)-1-Hydroxymethyl-4-methoxymethylenebicyclo[3.1.0]hexane (10, E/Z-mixture). To a suspension of methoxymethyltriphenylphosphonium chloride (2.96 g, 8.52 mmol) in THF (20 mL) was added tBuOK (ca. 1.0 M solution in THF, 8.0 mL, 8.0 mmol) at 0 °C, and the mixture was stirred at the same temperature for 1 h. To the reaction mixture was added a solution of 9 (307 mg, 2.43 mmol) in THF (4 mL) at 0 °C, and the resulting mixture was stirred at the same temperature for 4 h. After the addition of sat. aq. NH₄Cl, the reaction mixture was concentrated in reduced pressure, and the residue was partitioned between AcOEt and sat. aq. NH₄Cl. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was purified by silica gel column chromatography (hexane/AcOEt, 50/1) to give 10 (338 mg, 2.19 mmol, 90%, E/Z-mixture, 1/0.8) as a pale yellow oil. [α]_D²¹ = +49.6° (c 1.00, CHCl₃); HRMS (ESI) calcd for C₉H₁₄NaO₂ 177.0886, found 177.0887 [(M + Na)⁺]; Major isomer, ¹H-NMR (400 MHz, CDCl₃) δ 5.85 (1 H, s, MeOCH=C–), 3.62 (2 H, s, –CH₂OH), 3.55 (3 H, s, CH₃O–), 3.02 (1 H, brs, OH), 2.12 (1 H, m, H-3a), 1.97 (1 H, dd, J = 8.1, 3.6 Hz, H-5), 1.93–1.78 (3 H, m, H-2, H-3b), 0.81 (1 H, dd, J = 8.1, 4.5 Hz, H-6a), 0.74 (1 H, m, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 137.57, 121.41, 67.07, 59.14, 33.11, 28.16, 24.60, 22.69, 14.27; Minor isomer, ¹H-NMR (400 MHz, CDCl₃) δ 5.92 (1 H, s, MeOCH=C-), 3.62 (2 H, s, –CH₂OH), 3.53 (3 H, s, CH₃O–), 3.02 (1 H, brs, OH), 2.55 (1 H, m, H-3a), 1.93–1.77 (3 H, m, H-2, H-3b), 1.61 (1 H, dd, J = 8.1, 3.6 Hz, H-5), 0.73 (1 H, m, H-6a), 0.61 (1 H, m, H-6b).

(1S,5R)-4-Dimethoxymethyl-1-hydroxymethylbicyclo[3.1.0]hexane (11, diastereomixture). The mixture of 10 (20 mg, 0.13 mmol) and p-toluenesulfonic acid monohydrate (5.0 mg, 0.026 mmol) in MeOH (2 mL) was stirred under reflux conditions for 3 h. After the addition of sat. aq. NaHCO₃ at 0 °C, the resulting mixture was concentrated in reduced pressure. The residue was partitioned between AcOEt and sat. aq. NaHCO₃. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was purified by flash silica gel column chromatography (hexane/AcOEt, 4/1–0/1) to give 11 (20 mg, 0.11 mmol, 85%, diastereomixture, 1/0.8) as a pale yellow liquid. [α]_D²¹ = +54.1° (c 1.18, CHCl₃); HRMS (ESI) calcd for C₁₀H₁₈NaO₃ 209.1148, found 209.1149 [(M + Na)⁺]; Major diastereomer, ¹H-NMR (400 MHz, CDCl₃) δ 4.10 (1 H, d, J = 9.0 Hz, –CHCH(OMe)₂), 3.74 (1 H, d, J = 11.4 Hz, –CHaHbOH), 3.43 (1 H, d, J = 11.4 Hz, –CHaHbOH), 3.39 (3 H, s, –OCH₃), 3.37 (3 H, s, –OCH₃), 2.24 (1 H, m, H-4), 1.93 (1 H, m, H-3a), 1.82 (1 H, m, H-2a), 1.77 (1 H, m, H-2b), 1.36 (1 H, m, H-3b), 1.18 (1 H, m, H-5), 0.58 (1 H, m, H-6a), 0.45 (1 H, m, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 107.66, 67.42, 52.99, 52.70, 42.27, 30.72, 28.70, 23.70, 22.74, 8.77; Minor diastereomer, ¹H-NMR (400 MHz, CDCl₃) δ 4.12 (1 H, d, J = 6.7 Hz, –CHCH(OMe)₂), 3.64–3.57 (2 H, s, –CH₂OH), 3.39 (3 H, s, –OCH₃), 3.31 (3 H, s, CH₃O–), 2.50 (1 H, m, H-4), 1.82 (1 H, m, H-3a), 1.71–1.62 (2 H, m, H-2a), 1.18 (1 H, m, H-5), 1.02 (1 H, m, H-3b), 0.58 (1H, m, H-6a), 0.41 (1 H, m, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 107.15, 67.19, 54.19, 53.15, 42.71, 31.13, 27.19, 23.49, 22.54, 11.85.

(1S,4S,5R)-4-Dimethoxymethyl-1-formylbicyclo[3.1.0]hexane (12, anti) and (1S,4R,5R)-4-Dimethoxymethyl-1-formylbicyclo[3.1.0]hexane (13, syn). To a solution of 11 (152 mg, 0.816 mmol) in DMSO (9.0 mL) were added Et₃N (0.349 mL, 2.46 mmol) and pyridine–SO₃ complex (262 mg, 1.64 mmol), and the mixture was stirred at rt for 3 h. After the addition of sat. aq. NH₄Cl, the mixture was partitioned between AcOEt and sat. aq. NH₄Cl. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was purified by flash silica gel column chromatography (hexane/AcOEt, 8/1) to give 12 (43 mg, 0.23 mmol, 29%, anti, less polar) as a colorless oil and 13 (78 mg, 0.43 mmol, 52%, syn, more polar) as a colorless oil. 12: [α]_D²¹ = –2.6° (c 0.99, CHCl₃); ¹H-NMR (400 MHz, CDCl₃) δ 8.90 (1 H, s, CHO), 3.98 (1 H, d, J = 8.2 Hz, –CHCH(OMe)₂), 3.28 (3 H, s, –OCH₃), 3.26 (3 H, s, –OCH₃), 2.26 (1 H, dd, J = 8.2, 7.7 Hz, H-4), 2.16 (1 H, m, H-3a), 1.96 (1 H, dd, J = 9.1, 5.4 Hz, H-5), 1.73 (1 H, dd, J = 14.0, 8.6 Hz, H-2a), 1.64 (1 H, dd, J = 13.1, 8.6 Hz, H-5b), 1.40–1.29 (2 H, m, H-3b, H-6a), 1.02 (1 H, dd, J = 5.4, 5.4 Hz, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 200.19, 105.39, 53.41, 53.34, 42.03, 41.73, 29.44, 23.06, 22.81, 15.68; HRMS (ESI) calcd for C₁₀H₁₆NaO₃ 207.0992, found 207.0992 [(M + Na)⁺]; 13: [α]_D²¹ = +71.5° (c 0.99, CHCl₃); ¹H-NMR (400 MHz, CDCl₃) δ 8.87 (1 H, s, CHO), 4.10 (1 H, d, J = 7.7 Hz, –CHCH(OMe)₂), 3.32 (3 H, s, –OCH₃), 3.26 (3 H, s, –OCH₃), 2.48 (1 H, m, H-4), 2.23 (1 H, m, H-3a), 1.90 (1 H, m, H-5), 1.76–1.66 (2 H, m, H-2), 1.26 (1 H, dd, J = 8.6, 5.9 Hz, H-6a), 1.16 (1 H, dd, J = 5.9, 5.4 Hz, H-6a), 1.05 (1 H, m, H-3b); ¹³C NMR (100 MHz, CDCl₃) δ 200.12, 106.86, 53.32, 52.81, 41.57, 41.26, 28.71, 23.97, 22.99, 13.24; HRMS (ESI) calcd for C₁₀H₁₆NaO₃ 207.0992, found 207.0993 [(M + Na)⁺].

(1S,4S,5R)-4-Dimethoxymethyl-1-(1-triphenylmethyl-1H-imidazol-4-yl)bicyclo[3.1.0]hexane (14). To a suspension of 12 (43 mg, 0.23 mmol) and tosylmethylisocyanide (50 mg, 0.26 mmol) in EtOH (2.3 mL) was added NaOEt (ca. 20% solution in EtOH, 23 µL, 0.053 mmol) at 0 °C, and the mixture was stirred at the same temperature for 3 h. To the reaction mixture was added a saturated NH₃ solution in EtOH (6 mL) at 0 °C, and the resulting mixture was heated at 125 °C for 20 h in a sealed tube. After being cooled to rt, the reaction mixture was concentrated in reduced pressure. The residue was dissolved in CH₂Cl₂ (3.2 mL), and to the solution were added Et₃N (96 µL, 0.69 mmol) and TrCl (128 mg, 0.46 mmol). The resulting mixture was stirred at rt for 5 h. After the addition of MeOH, the mixture was partitioned between AcOEt and sat. aq. NaHCO₃. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was purified by flash silica gel column chromatography (hexane/AcOEt, 10/1–3/1–1/1) to give 14 (75 mg, 0.12 mmol, 69% in 3 steps) as a pale yellow oil. ¹H-NMR (400 MHz, CDCl₃) δ 7.32–7.31 (10 H, m, aromatic), 7.15–7.13 (6 H, m, aromatic), 6.54 (1 H, s, imidazole-5), 4.15 (1 H, d, J = 8.1 Hz, –CHCH(OMe)₂), 3.32 (3 H, s, –OCH₃), 3.30 (3 H, s, –OCH₃), 2.30 (1 H, dd, J = 8.1, 7.6 Hz, H-4), 2.02 (1 H, m, H-3a), 1.85 (1 H, dd, J = 12.1, 8.3 Hz, H-2a), 1.72 (1 H, dd, J = 13.9, 8.3 Hz, H-2b), 1.63 (1 H, m, H-5), 1.39 (1 H, m, H-3b), 1.15 (1 H, dd, J = 8.1, 4.5 Hz, H-6a), 0.72 (1 H, dd, J = 4.5, 4.5 Hz, H-6b); ¹³C NMR (100 MHz, CDCl₃) δ 144.6, 142.4, 138.2, 130.0, 129.7, 127.9, 116.3, 106.1, 75.0, 53.5, 52.8, 43.7, 29.0, 27.9, 27.0, 22.9, 14.6; HRMS (ESI) calcd for C₃₁H₃₂N₂NaO₂ 487.2356, found 487.2368 [(M + Na)⁺].

(1S,4S,5R)-4-[N-(4-Chlorobenzyl)aminomethyl]-1-(1H-imidazol-4-yl)bicyclo[3.1.0]hexane dihydrochloride (6•2HCl). To a suspension of 14 (49 mg, 0.105 mmol) in hexane (0.20 mL) was added formic acid (0.80 mL), and the mixture was stirred at rt for 3 h. After the addition of sat. aq. NaHCO₃ at 0 °C, the mixture was partitioned between AcOEt and sat. aq. NaHCO₃. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was dissolved in CH₂Cl₂ (3.5 mL), and to the solution was added 4-chlorobenzylamine (0.038 mL, 0.32 mmol), molecular sieves 4Å (powder, 40 mg), and sodium NaBH(OAc)₃ (27 mg, 0.13 mmol), and the mixture was stirred at rt for 15 h. After the addition of sat. aq. NaHCO₃, the mixture was partitioned between AcOEt and sat. aq. NaHCO₃. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was passed through silica gel column chromatography (CHCl₃/MeOH, 1/0–50/1–9/1) to give a corresponding secondary amine. To a solution of the amine in MeOH (1.1 mL) were added Et₃N (0.088 mL, 0.63 mmol), N,N-dimethyl-4-aminopyridine (DMAP, 3 mg, 0.025 mmol), and Boc₂O (0.113 mL, 0.54 mmol), and the mixture was stirred at rt for 5 h. The reaction mixture was concentrated in reduced pressure, and the residue was purified by flash silica gel column chromatography (hexane/AcOEt, 15/1–2/1) to give a corresponding N-Boc-amine (33 mg, 0.051 mmol) as a pale yellow oil. To a solution of N-Boc-amine (33 mg) in EtOH (1.1 mL) was added aq. HCl (12 M, 0.4 mL), and the mixture was stirred under reflux conditions for 3 h. After being cooled to rt, the reaction mixture was concentrated in reduced pressure. The residue was partitioned between aq. HCl (2 M) and CH₂Cl₂. The aqueous layer was neutralized by aq. NaOH (2 M) and partitioned between aq. NaOH (2 M) and CH₂Cl₂. The organic layer was washed with brine, dried (Na₂SO₄), and evaporated. The residue was purified by NH silica gel column chromatography (CHCl₃/MeOH, 1/0–50/1) to give 6 as a free amine. 6 was dissolved in a solution of HCl in MeOH (2 M), and the mixture was concentrated in reduced pressure. The residue was triturated with Et₂O to give 6•2HCl (19 mg, 0.051 mmol, 49% in 4 steps) as a hygroscopic white solid. [α]_D²⁹ = +16.0° (c 0.66, CH₃OH); ¹H-NMR (400 MHz, CD₃OD) δ 8.81 (1 H, s, imidazole-2), 7.62–7.61 (2 H, d, J = 8.0 Hz, aromatic), 7.47–7.43 (3 H, m, aromatic and imidazole-5), 4.28 (2 H, s, benzyl), 3.19 (1 H, m, –CHCHaHbN–), 3.11 (1 H, m, –CHCHaHbN–), 2.54 (1 H, m, H-4), 2.23–2.08 (2 H, m, H-2a, and H-3a), 1.86 (1 H, m, H-5), 1.78 (1 H, m, H-2b), 1.66 (1 H, m, H-3b), 1.13 (2 H, m, H-6); ¹³C NMR (100 MHz, CD₃OD) δ 138.04, 136.66, 134.60. 133.13, 131.22, 130.25, 116.54, 52.43, 52.11, 39.05, 30.29, 29.85, 25.57, 24.42, 15.19; HRMS (ESI) calcd for C₁₇H₂₁N₃Cl 302.1419, found 302.1420 [(M + H)⁺]; Anal. Calcd for C₁₇H₂₀N₃Cl•2.1HCl: C, 53.96; H, 5.89; N, 11.11. Found: C, 53.90; H, 5.85; N, 11.07.

4.2. Biological Assay

The protocol of the biological assay was according to the previous report [16]. The membrane preparations of Chinese hamster ovary (CHO) cells, which expressed recombinant human histamine H₃ or H₄ receptors, were purchased from Euroscreen (Brussels, Belgium). The binding assay of the H₃ and H₄ receptors was performed using [³H]N^α-methylhistamine (Perkin-Elmer, Boston, MA) and [³H]histamine (Perkin-Elmer), respectively. Briefly, the membrane preparations (7.5–15 µg protein) were incubated with different concentrations of [³H]N^α-methylhistamine (0.1–3 nM) and of [³H]histamine(1–30 nM) for 30 min at 25 °C in 50 mM Tris/5 mM MgCl₂ buffer (pH 7.4). The reaction was terminated by rapid filtration (Cell Harvester, Brandel Co., Gaithersburg, MD) through Whatman GF/B glass fiber filters presoaked for 2 h in 0.5% polyethyleneimine, and the filters were rinsed three times with an ice-cold buffer (2 mL). Membrane-bound radioactivity was extracted from filters overnight in scintillation fluid (toluene, 2 L; Triton X-100, 1 L; 2,5-diphenyloxazole, 15 g; 1,4-bis[2-(5-phenyloxazolyl)]benzene, 0.3 g) and determined in a liquid scintillation counter. The specific binding of each radioligand was determined experimentally from the difference between counts in the presence of 10 µM thioperamide. The apparent dissociation constants (K_d) for each radioligand was determined by nonlinear regression analysis of the curve generated by plotting specific binding concentration versus concentration of the radioligand with GraphPad Prism (GraphPad Software, San Diego, CA) using a one-site binding curve equation. The ability of each compound to inhibit the specific binding of [³H]N^α-methylhistamine (1.5 nM) and [³H]histamine (25 nM) was estimated by IC₅₀ values, which are the molar concentrations of unlabeled drugs necessary for displacing 50% of specific binding (estimated by log probit analysis). The inhibition constant, K_i, was calculated from the equation, K_i = IC₅₀/(1 + L/K_d), where L equals the concentration of each radioligand. The data were presented as mean ± SE (n = 3–5).

5. Conclusions

The imidazolyl bicyclo[3.1.0]hexane derivatives as conformationally restricted histamine analogues designed and synthesized in this study showed binding affinity selective for H₃R over H₄R, while the parent imidazolylcyclopropane derivatives showed no selectivity. Notably, compound 7 exhibited over 100-fold H₃R selectivity. The findings of the present study suggest that the imidazolyl bicyclo[3.1.0]hexane structure is a more useful scaffold than the imidazolylcyclopropane structure for the development of selective H₃ receptor ligands. Using both conformationally restricted structures, bicyclo[3.1.0]hexane and cyclopropane with cyclopropylic strain, could allow us to produce more bioactive compounds for structurally unknown proteins, e.g., histamine H₃ and H₄ receptors, effectively.
