Galantamine-Curcumin Hybrids as Dual-Site Binding Acetylcholinesterase Inhibitors

by
Georgi Stavrakov
1,2,*,
Irena Philipova
2,
Atanas Lukarski
1,
Mariyana Atanasova
1,
Dimitrina Zheleva
1,
Zvetanka D. Zhivkova
1,
Stefan Ivanov
1,3,
Teodora Atanasova
1,
Spiro Konstantinov
1 and
Irini Doytchinova
1,*
1
Faculty of Pharmacy, Medical University of Sofia, 1000 Sofia, Bulgaria
2
Institute of Organic Chemistry with Centre of Phytochemistry, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria
3
Institute for Bioscience and Biotechnology Research, University of Maryland, Rockville, MD 20850, USA
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(15), 3341; https://doi.org/10.3390/molecules25153341
Submission received: 21 June 2020 / Revised: 16 July 2020 / Accepted: 21 July 2020 / Published: 23 July 2020
(This article belongs to the Special Issue Amaryllidaceae Alkaloids)
Browse Figures
Versions Notes

Abstract

:
Galantamine (GAL) and curcumin (CU) are alkaloids used to improve symptomatically neurodegenerative conditions like Alzheimer’s disease (AD). GAL acts mainly as an inhibitor of the enzyme acetylcholinesterase (AChE). CU binds to amyloid-beta (Aβ) oligomers and inhibits the formation of Aβ plaques. Here, we combine GAL core with CU fragments and design a combinatorial library of GAL-CU hybrids as dual-site binding AChE inhibitors. The designed hybrids are screened for optimal ADME properties and BBB permeability and docked on AChE. The 14 best performing compounds are synthesized and tested in vitro for neurotoxicity and anti-AChE activity. Five of them are less toxic than GAL and CU and show activities between 41 and 186 times higher than GAL.

Graphical Abstract

1. Introduction

Most of the neurodegenerative diseases are associated with altered levels of the transmitter acetylcholine (ACh) in selected areas of the brain [1]. The enzyme acetylcholinesterase (AChE) catalyzes the hydrolysis of ACh in the cholinergic synapses. By inhibiting the AChE, the levels of ACh increase and the neurodegeneration improves symptomatically. Moreover, AChE interacts with the amyloid-β (Aβ) peptide throughout the peripheral anionic site (PAS) and forms highly neurotoxic AChE-Aβ complexes that promote the assembly of Aβ into amyloid fibrils [2]. The amyloid fibrils grow progressively and irreversibly to amyloid plaques—one of the main characteristics of Alzheimer’s disease (AD) [3]. Hypothetically, compounds binding simultaneously to the catalytic active site (CAS) and the PAS of AChE, are able both to prevent the ACh hydrolysis and the onset of amyloidogenesis. This hypothesis prompted the search for dual-site binding AChE inhibitors as multitarget agents for AD treatment [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. Unfortunately, since 2003, no new drugs have been approved for the treatment of AD [19].
Galantamine (GAL) (Figure 1) is an alkaloid isolated from the bulbs and flowers of Leucojum aestivum L. and Galanthus sp. It is an inhibitor of AChE [20] and is among the few drugs approved for the treatment of AD. In addition, GAL has been identified as an allosteric nicotinic acetylcholine receptor (nAChR) modulator [21]. The stimulation of nAChRs increases the intracellular Ca2+ levels and facilitates the release of noradrenaline. Both effects improve the cognitive function of the brain [21]. GAL treatment of rat microglia significantly increases the phagocytosis of amyloid β (Aβ) peptide and facilitates the clearance of Aβ in the brain of rodents with AD [22]. This multitarget action of GAL makes it a valuable drug for AD treatment and stimulates the search for new GAL derivatives with higher affinity to AChE [23,24,25,26,27,28,29,30,31].
Curcumin (CU) (Figure 1) is a natural polyphenolic compound isolated from the rhizomes of Curcuma longa L. It has a symmetrical molecular structure and its IUPAC name is (1E,6E)-1,7-Bis(4-hydroxy-3-methoxyphenyl)hepta-1,6-diene-3,5-dione. There are two more curcuminoids—demethoxycurcumin and bisdemethoxycurcumin. All three compounds are biologically active. The main features of the curcuminoid family are the following structural motifs: a benzene ring conjugated with α-β unsaturated carbonyl moiety, hydroxyl groups on the fourth position in the benzene ring, and methoxy group present in two of the three members at third position. Usually, CU exists as two tautomeric forms as one of the carbonyl groups transforms into an enolic group. CU binds to Aβ oligomers and fibrils and inhibits the β-sheet formation [32]. It was found that the aromatic methoxy and/or hydroxy groups interact with the V12 and 16KLVFFA21 residues of the Aβ [33,34], while the aryl rings make π-π stacking with the aromatic residues [32]. The enone group and the unsaturated carbon spacer are also essential for the anti-Aβ aggregation activity [33,34,35].
In the present study, we designed a set of GAL-CU hybrids as dual-site binding AChE inhibitors with potentially anti-amyloid aggregation activity. The hybrids underwent two-step virtual screening. First, they were screened for optimal ADME properties and blood-brain barrier (BBB) permeability and then, a docking-based virtual screening on human AChE was performed. The highest scored hybrids were synthesized and tested for cytotoxicity and AChE activity. Five of them were more active and less toxic than GAL and CU themselves.

2. Results

2.1. Design of GAL-CU Hybrids

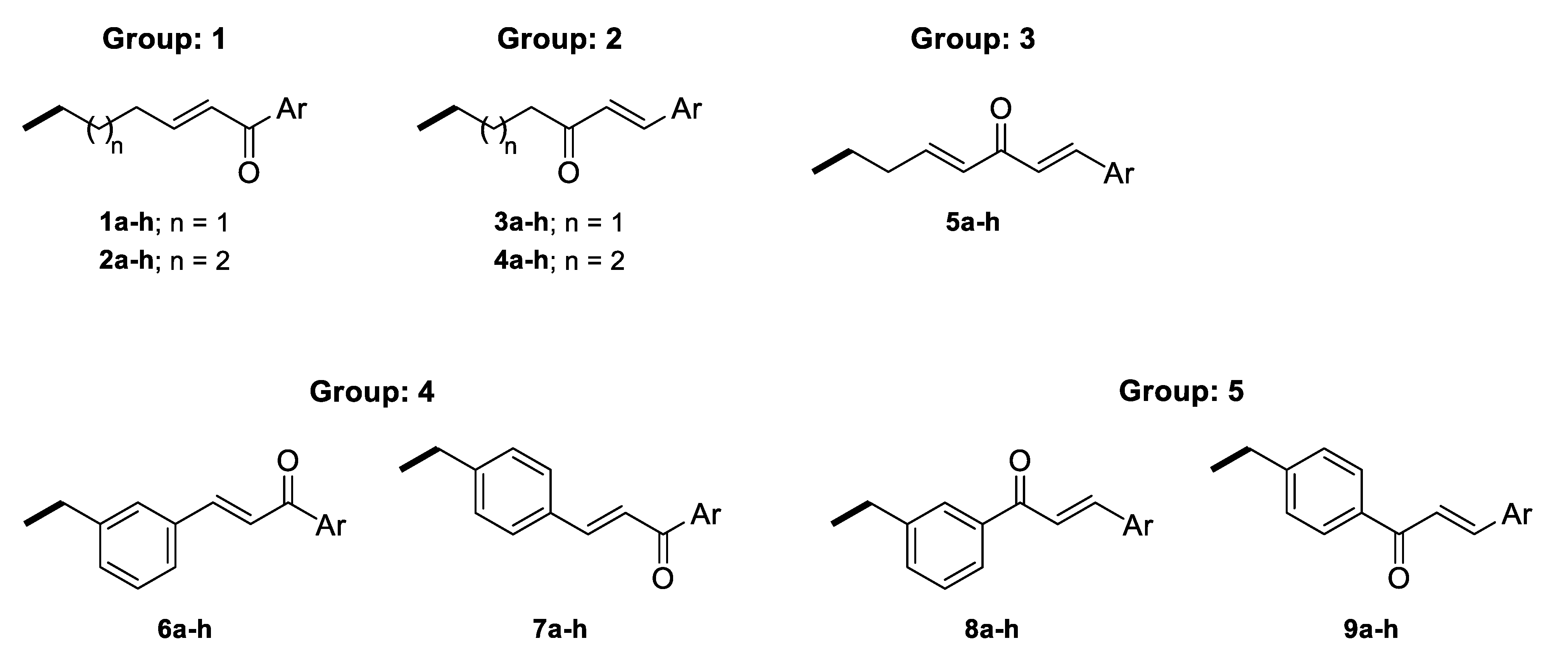

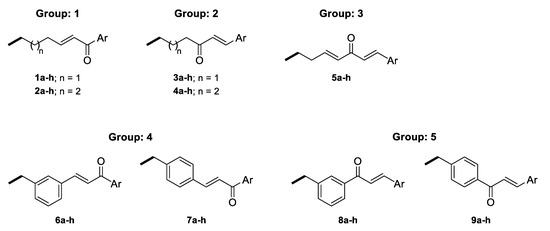

The GAL-CU hybrid structures were composed of a core, a linker, and an aromatic group. The GAL molecule was used as a core. The linkers started from GAL amine’s methyl group and ended with aromatic moieties mimicking the CU structure (Figure 1). Eight aromatic substituents (assigned by the letters a–h) were designed to mimic the CU phenyl rings (Figure 2). The first substituent a consisted of a single phenyl ring. The substituents b–d contained a phenyl ring with methoxy groups at m- or p-position, or both. The substituent e was similar to d, but the two methoxy groups were replaced by a more constrained 1,3-dioxole ring. The remaining substituents f–h contained phenyl rings with bioisosteric methyl groups at m- or p-position, or both.
The linkers were designed to resemble the CU α-β unsaturated fragment. In our previous studies on GAL derivatives [36,37,38], it was found that a linker containing five to seven carbon atoms is optimal for dual-site binding to AChE. Seven types of linkers were suggested for the present GAL-CU hybrids and the designed compounds were divided into five groups according to the linker type (Figure 3). In the first two groups of linkers, the place of a double bond according to a carbonyl group was varied, as well as the linkers’ lengths. The third linker resembles the tautomeric form of CU, with one double bond on each side of the carbonyl group. The last two groups of linkers incorporate a benzene ring in the middle because of the possible π-π interaction with Tyr341 and Tyr337 in hAChE [20]. Both m- and p-isomers were considered. In total, 72 GAL-CU hybrids were designed in the present study.

2.2. ADME Filters

The 72 newly designed GAL-CU hybrids were tested for BBB permeability, gastrointestinal (GI) absorption and non-specific interactions with numerous biological targets (PAINS filter), as described in Section 4. Only 44 compounds passed all criteria: 12 from group 1, 15 from group 2, 8 from group 3, 3 from group 4, and 6 from group 5.

2.3. Virtual Screening by Molecular Docking

The 44 molecules that passed the ADME filters were docked to human rAChE, as described in the Materials and methods section. Only docking poses with root mean square difference (RMSD) < 1.5 Å of the referent GAL structure were considered. The GoldScores of the newly designed compounds ranged from 114.54 to 88.28, and all were higher than the GoldScore of GAL (78.25) (Table 1). Among the top 33% of the best-scored compounds (GoldScore range 114.54–104.00) were compounds with aromatic substituents a, b, c, f, g and h and linkers from group 4 (series 6) and group 5 (series 8).

2.4. GAL-CU Hybrids Selected for Synthesis

The GAL-CU hybrids selected for synthesis are given in bold in Table 1. Among the top 33% of the best-scored compounds were selected from series 6 and 8. Compounds 6a, 6b, 8b, 8c, 8f, 8g, and 8h from the top range were selected for synthesis. In our previous studies, good correlations between the GoldScores and the experimental IC50 values to AChE of GAL derivatives were observed [36,37,38,39]. Here, in order to examine this relationship, several compounds from the middle (103.99–94.00) and low GoldScore range (93.99–84.00) were selected for synthesis as well. Compounds 4b, 4e, 4f and 4h were selected from the middle range, while compounds 4a, 4c and 4g were selected from the low range of GoldScore. In total, 14 GAL-CU hybrids were selected for synthesis.

2.5. Synthesis of Selected GAL-CU Hybrids

2.5.1. Synthesis of Hybrids 4a–c,e–h

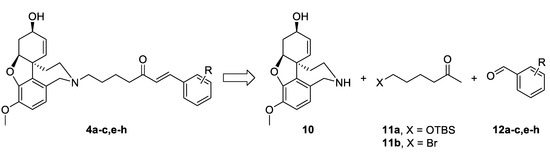

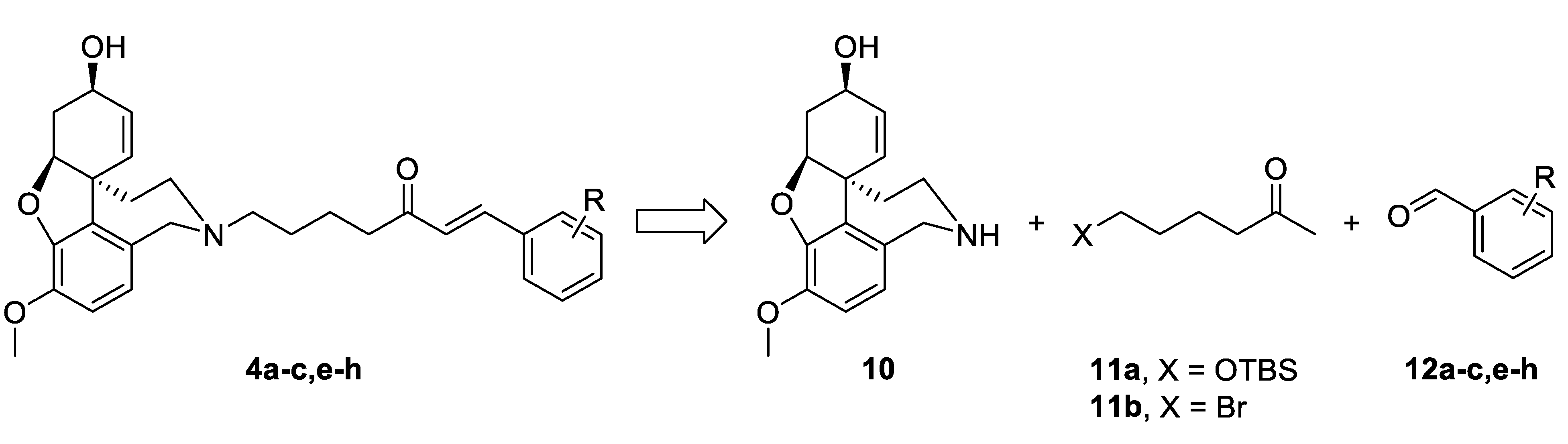

The synthetic strategy used in the present study relied on the construction of linkers binding different aromatic moieties to Norgalantamine (NOR) 10 (Figure 4). Ketones of the type 11 were foreseen as key intermediates, due to possible Aldol condensation with chosen benzaldehydes 12a–c,e–h. Further on, we envisaged the introduction of a leaving group on the aliphatic end of the linker, because of the final nucleophilic substitution with NOR 10 towards the desired target compounds 4a–c,e–h (Figure 4).

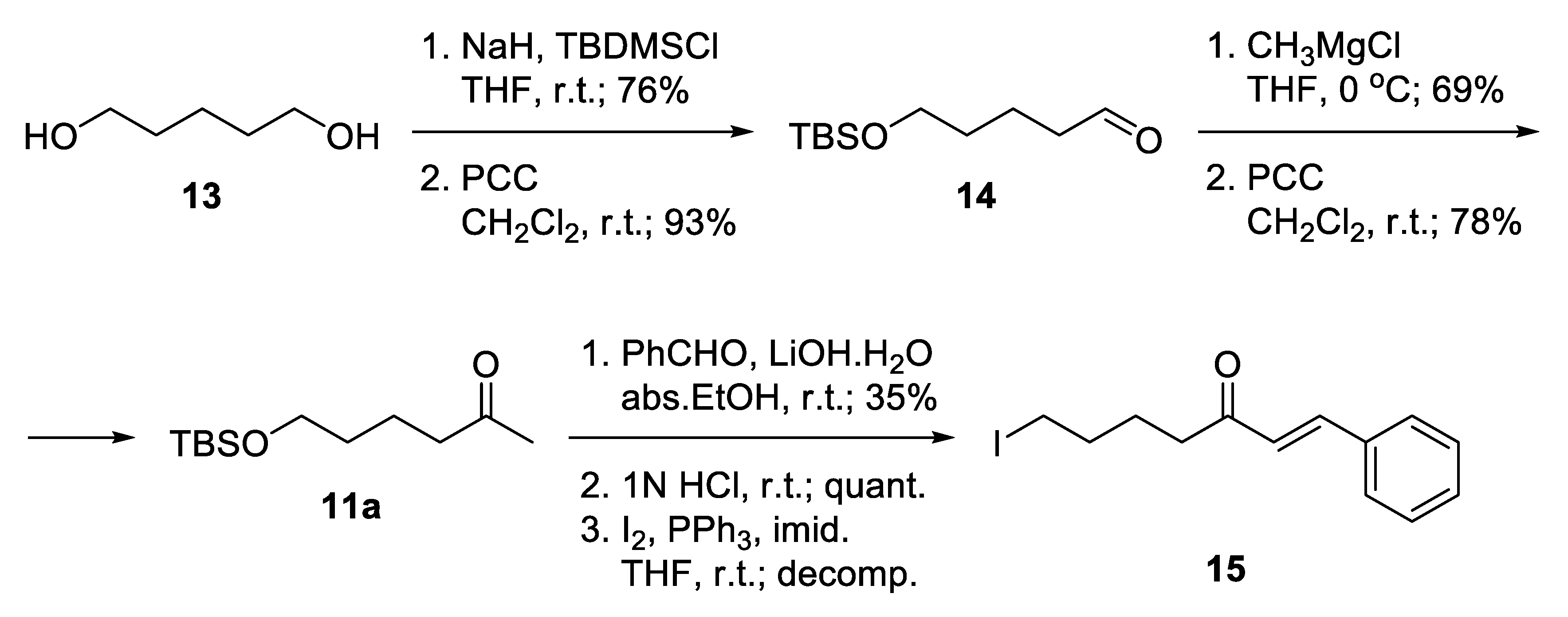

Notably, 1,5-Pentandiol 13 was considered as an available and inexpensive starting material (Scheme 1). It allows independent functionalization of its two hydroxyl groups. Monoprotection as tert-butyldimethylsilyl ether and subsequent mild oxidation proceeded with good yields to give the unstable aldehyde 14 [40]. The latter was immediately subjected to Grignard attack to give a racemic secondary alcohol, which was oxidized to ketone 11a [41]. Aldol condensation of the ketone with benzaldehyde was accomplished using catalytic amounts of lithium hydroxide monohydrate as a base in absolute ethanol. The product was isolated in low yield. Thus, the hydrocarbon skeleton of the desired linker was generated. The deprotection of the silyl ether proceeded smoothly in slightly acidic media, and the free alcohol was transformed into iodide 15, which unfortunately decomposed during the reaction. Obviously, the iodide was not the proper choice for a leaving group because of its high reactivity.

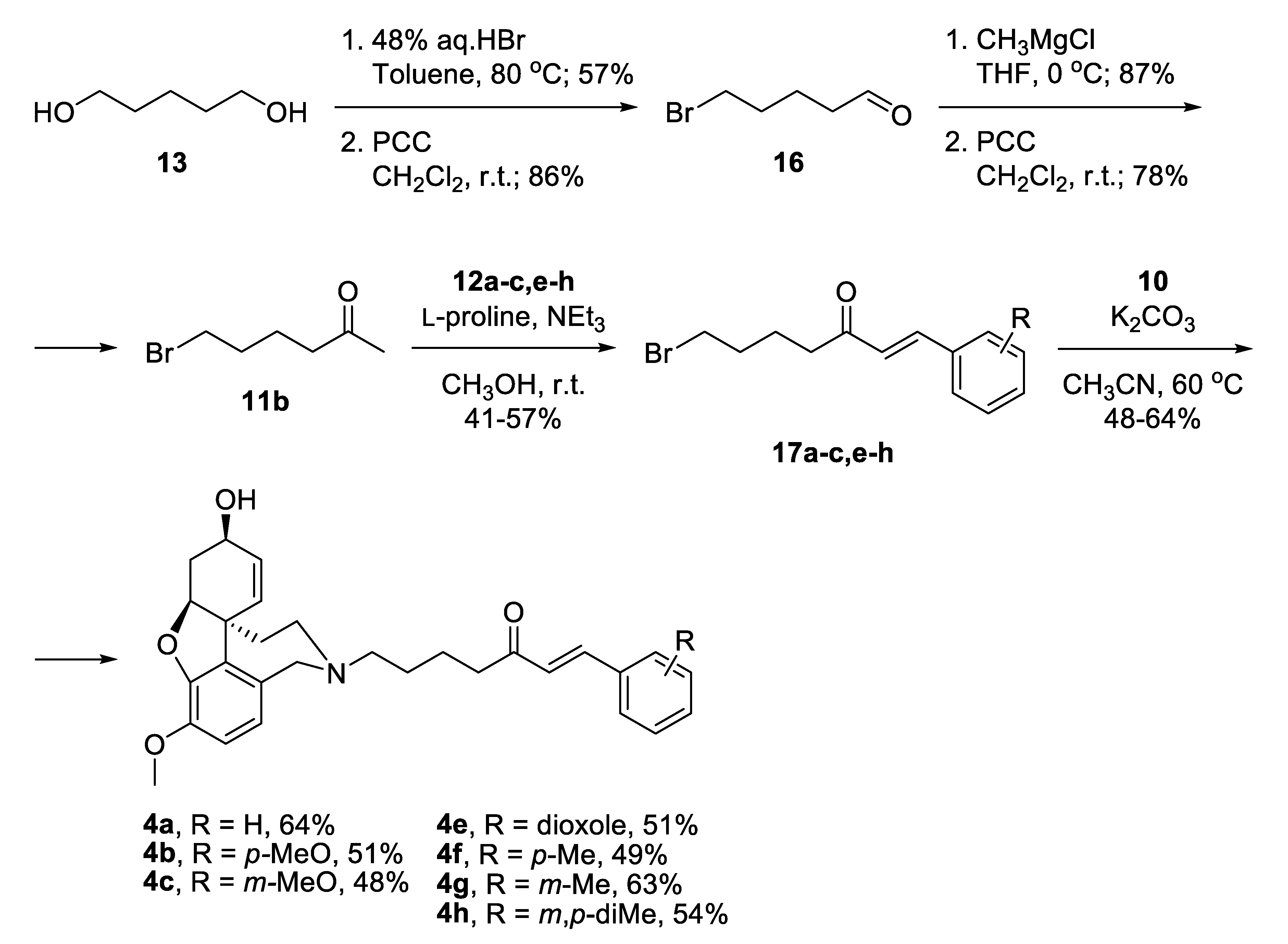

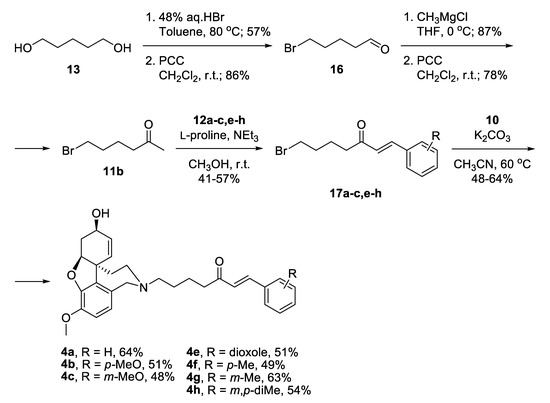

Alternatively, a monobromination of 1,5-pentandiol 13 proceeded with excellent selectivity because the product is water-insoluble and leaves the aqueous phase where the reaction takes place (Scheme 2) [42]. Mild oxidation afforded 5-bromopentanal 16 [43], which was attacked by CH3MgCl and subsequently oxidized to give 6-bromohexan-2-one 11b. A key feature for the success of this shorter route was the application of Aldol condensation under mild reaction conditions. The desired bromo-linkers 17a–c,e–h were synthesized after days stirring of the bromo-ketone 11b with chosen benzaldehyde 12a–c,e–h and catalytic amounts of L-proline, and triethylamine in methanol media [44]. The products of condensation were isolated in moderate yields. Nucleophilic substitution of the bromo-linkers with NOR 10 in the presence of K2CO3 as a base afforded the desired target compounds 4a–c,e–h in 48% to 64% yield (Scheme 2).

2.5.2. Synthesis of Hybrids 6a and 6b

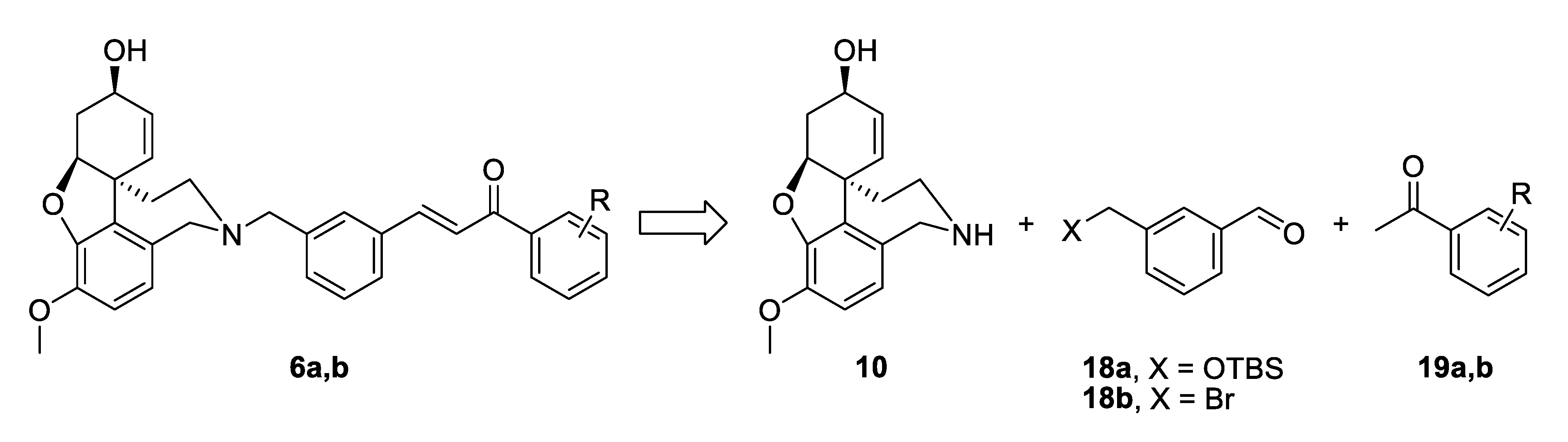

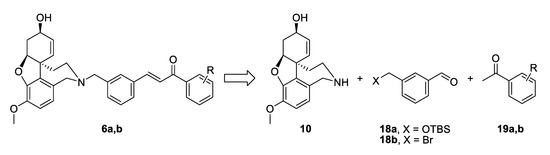

The synthetic strategy towards compounds 6a and 6b again included two key steps: Aldol condensation for the linker construction and nucleophilic substitution with NOR 10 at a later stage (Figure 5). The difference compared to compounds type 4 was the change of places of aldehyde and ketone, due to the change of positions of carbonyl group and double bond in the conjugated enone system. Thus, we planned the synthesis of benzaldehydes of type 18, subsequent condensation with chosen acetophenones 19a,b and a final attachment to the alkaloid core (Figure 5).

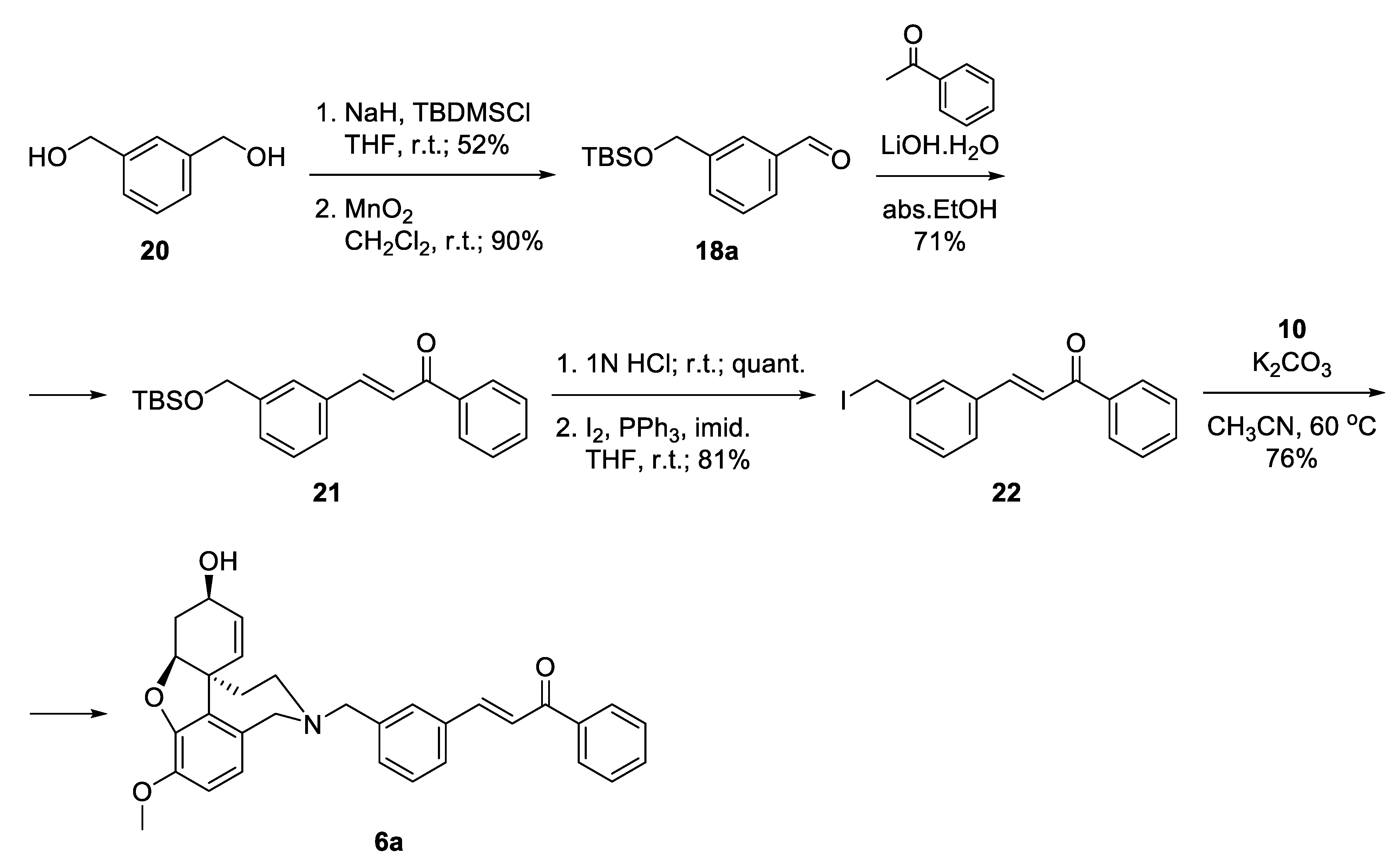

The synthesis of 6a started with the monoprotection of 1,3-phenylenedimethanol as tert-butyldimethylsilyl ether and its oxidation with manganese(IV) oxide to give benzaldehyde 18a [45]. Aldol condensation of the latter with acetophenone in the presence of 20 mol% LiOH. H2O in ethanol afforded ketone 21 [46], which was deprotected quantitatively and the resulting alcohol was converted into iodide 22 applying Appel reaction. The iodo-linker was attached to NOR 10 to give the desired product 6a in 76% yield, after 6 steps and 20% overall yield (Scheme 3).

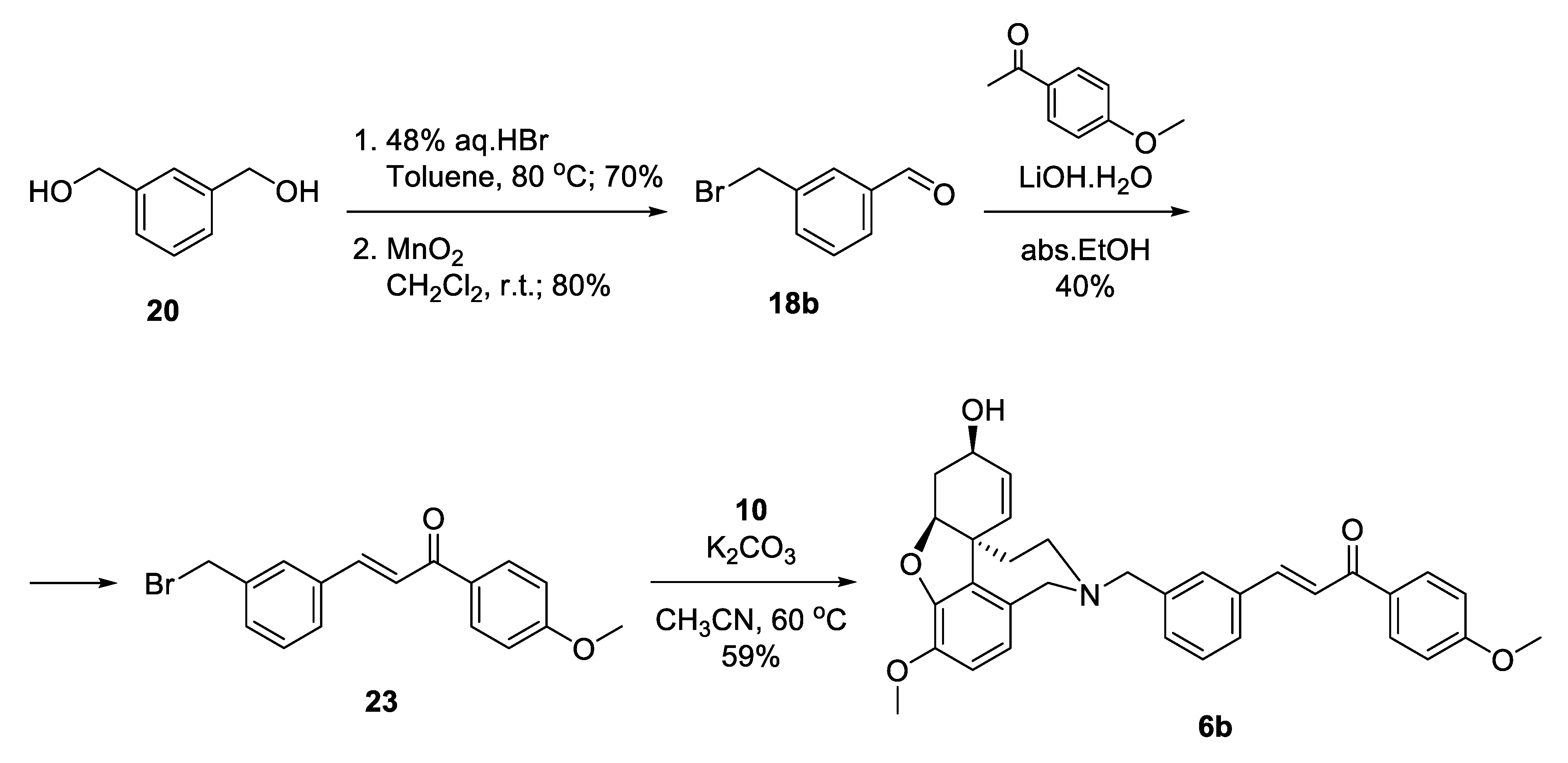

Aiming for optimization of the synthesis of 6b, we decided to skip the silyl protection by introducing the leaving group into the very first step (Scheme 4). Monobromination of 1,3-phenylenedimethanol 20 proceeded selectively with good yield, and the product was oxidized to give benzaldehyde 18b. Aldol condensation of the latter with acetanisole proceeded with catalytic ammounts of LiOH.H2O in ethanol to give 23 in moderate yield. Substitution of the bromo-linker with NOR resulted in the desired product 6b in 59% yield, after 4 steps and 13% overall yield (Scheme 4). Although the synthetic pathway to 6b was 2 steps shorter in comparison with 6a, the overall yield was lower. When applying Aldol condensations in the presence of benzyl bromides, a concurrent nucleophilic substitution poisons the base.

2.5.3. Synthesis of Hybrids 8b,c,f,g,h

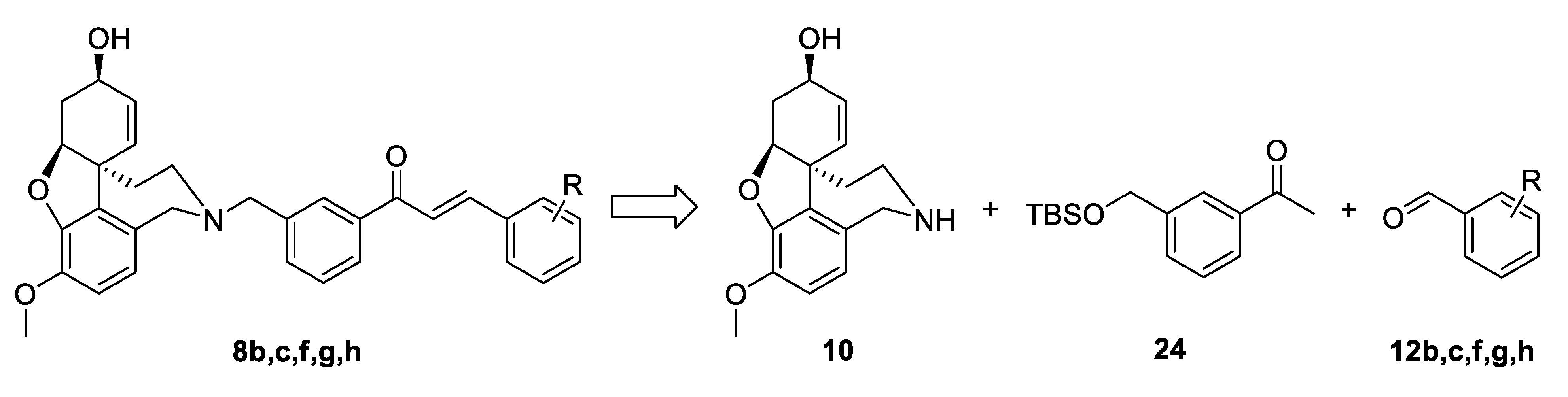

For the synthesis of the target structures 8b,c,f,g,h, we implemented the strategy developed for compounds of the type 4. We planned the synthesis of acetophenone 24, its condensation with chosen benzaldehydes 12b,c,f,g,h, and finally the attachment of the constructed linkers to the galantamine core (Figure 6).

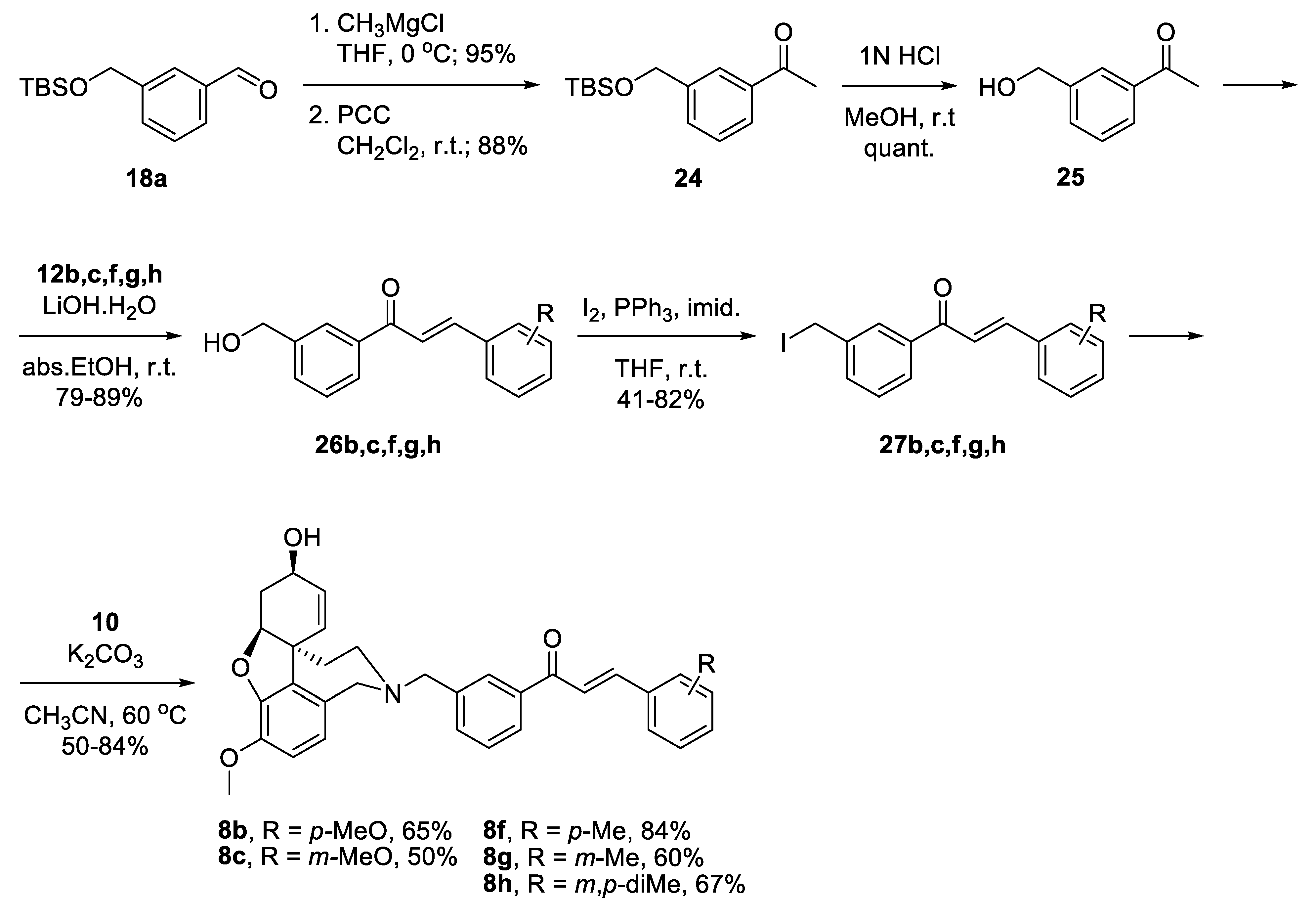

Benzaldehyde 18a was converted into 3-(hydroxymethyl)acetophenone 25 via reaction with CH3MgCl, oxidation of the resulting alcohol to 24 and deprotection. Aldol condensation proceeded in good yields with the chosen benzaldehydes 12b,c,f,g,h [47]. The resulting alcohols 26b,c,f,g,h were converted into the corresponding iodides 27b,c,f,g,h. Reactions of the latter with NOR 10 gave the desired target compounds 8b,c,f,g,h (Scheme 5).
The detailed synthetic procedures, analytical data and copies of 1H and 13C NMR spectra for the target compounds are given in a Supplementary File.

2.6. Neurotoxicity of the GAL-CU Hybrids

The neurotoxicity of the GAL-CU hybrids was tested on Neuro-2A cells, as described in Materials and methods. The IC50 values were in the range from 7.91 to 52.53 µM (Table 1). The IC50s for GAL and CU were >50 and 26.30 µM, respectively. Only five of the hybrids were less toxic than CU. One of them, compound 8b, is among the best-scored compounds; two of them, compounds 4e and 4f, are from the middle GoldScore range; and two of them, compounds 4a and 4b, belong to the low GoldScore range.

2.7. Anti-AChE Activity

The anti-AChE activity of the GAL-CU hybrids, less toxic than GAL and CU, was measured in vitro by Ellman’s method, as described in Materials and Methods. As the docking studies were performed on rhAChE, while for the in vitro measurements was used AChE from electric eel (eeAChE), it was reasonably to question their relevance. The UniProt alignment of rhAChE (UniProt: P22303) and eeAChE (UniProt: O42275) have shown that all 17 residues forming the binding gorges are identical [36]. Additionally, our previous experience has shown that the docking scores predicted for rhAChE correlate well with the experimental binding affinity measured on eeAChE [36,37,38].
The IC50 values of the tested compounds are given in Table 1. For comparison, the IC50 values of GAL and CU as single molecules are given. GAL is a medium AChE inhibitor with IC50 = 3.52 µM, while CU is less active with IC50 = 68 µM. However, GAL-CU hybrids are more active than both of them. Compound 4b is the most active with IC50 = 0.02 µM, being 186 times more active than GAL. The compounds 4a, 4e and 4f have IC50 values in the range of 0.033 to 0.046 µM and are between 110 and 75 times more active. Unexpectedly, the best-scored compound 8b is the least active among the 5 tested compounds, having IC50 of 0.086 µM and only 41 times higher activity than GAL.
The correlation coefficient r between GoldScores and pIC50 (–logIC50) values of the novel hybrids, GAL and CU was 0.803. Omitting the outlier 8b yielded r = 0.938.

2.8. Physicochemical Properties and PK Parameters

The molecular weights (Mw) of the tested compounds were in the range from 459.58 to 523.62 g/mol (Table 2). The pKa values varied in a short range from 6.58 to 7.78 and were close to the pKa of GAL 7.92. The GAL-CU hybrids were more lipophilic than GAL—their logP values were between 4.48 and 4.99, logD7.4s – between 3.92 and 4.83, while the corresponding values of GAL were 1.75 and 1.12. According to fB, compounds 4a, 4b, 4e and 4f were moderate bases, 70% ionized at physiological pH like GAL, but 8b was a very weak base—only 13% is ionized. Although the hybrids were more lipophilic than GAL, they had polar surface areas (PSA) wider than that of GAL, but lower if normalized to unit mass. There was only one hydrogen-bond donors (HBD) in the molecules (H from ammonium cation), while the number of hydrogen-bond acceptors (HBA) depended on the number of O-atoms, but for all active hybrids, was up to 10.
The predicted steady state volume of distribution (VDss) values of the hybrids 4a, 4b, 4e and 4f were almost three times bigger than the VDss of 8b. All compounds had comparable lipophilicity, but different ionized fractions at pH 7.4. The fraction ionized as a base affects positively VDss [49,50,51]. VDss reflects the drug ability to cross membranes and to bind in tissues [52]. The moderate bases 4a, 4b, 4e and 4f have VDss between 4.71 L/kg and 5.88 L/kg which are close to the mean value of VDss 5.90 L/kg for bases in Obach’s database [53,54]. The very weak base 8b has VDss of 1.85 L/kg, which is close to the mean VDss of 1.94 L/kg for neutral molecules [54,55].
The tested compounds bind extensively to plasma proteins (PP). The predicted free fraction of drug in plasma (fu) were between 0.029 and 0.094, i.e., the extent of PP binding is in the range 91–97%. Lipophilicity has been identified as a major determinant for the PP binding of basic drugs [56]. GAL has lower logP and logD7.4, which results in a lower PP binding and fu = 0.83 (Table 2).
The predicted total clearance (CL) values were in the range between 0.305 and 0.466 L/h/kg. Apparently, the GAL-CU hybrids are low-clearance compounds with CLs below 37% of hepatic blood flow (QH = 1.26 L/h/kg) [57]. The half-lives (t1/2) were calculated from the corresponding VDss and CL values. For the compounds 4a, 4b, 4e and 4f, they varied between 7.01 h and 10.51 h, while the half-life of 8b was shorter, close to that of GAL. The moderate half-lives allow convenient multiple-dose regimens.

2.9. Molecular Dynamics Simulation of the Complex 4b-AChE

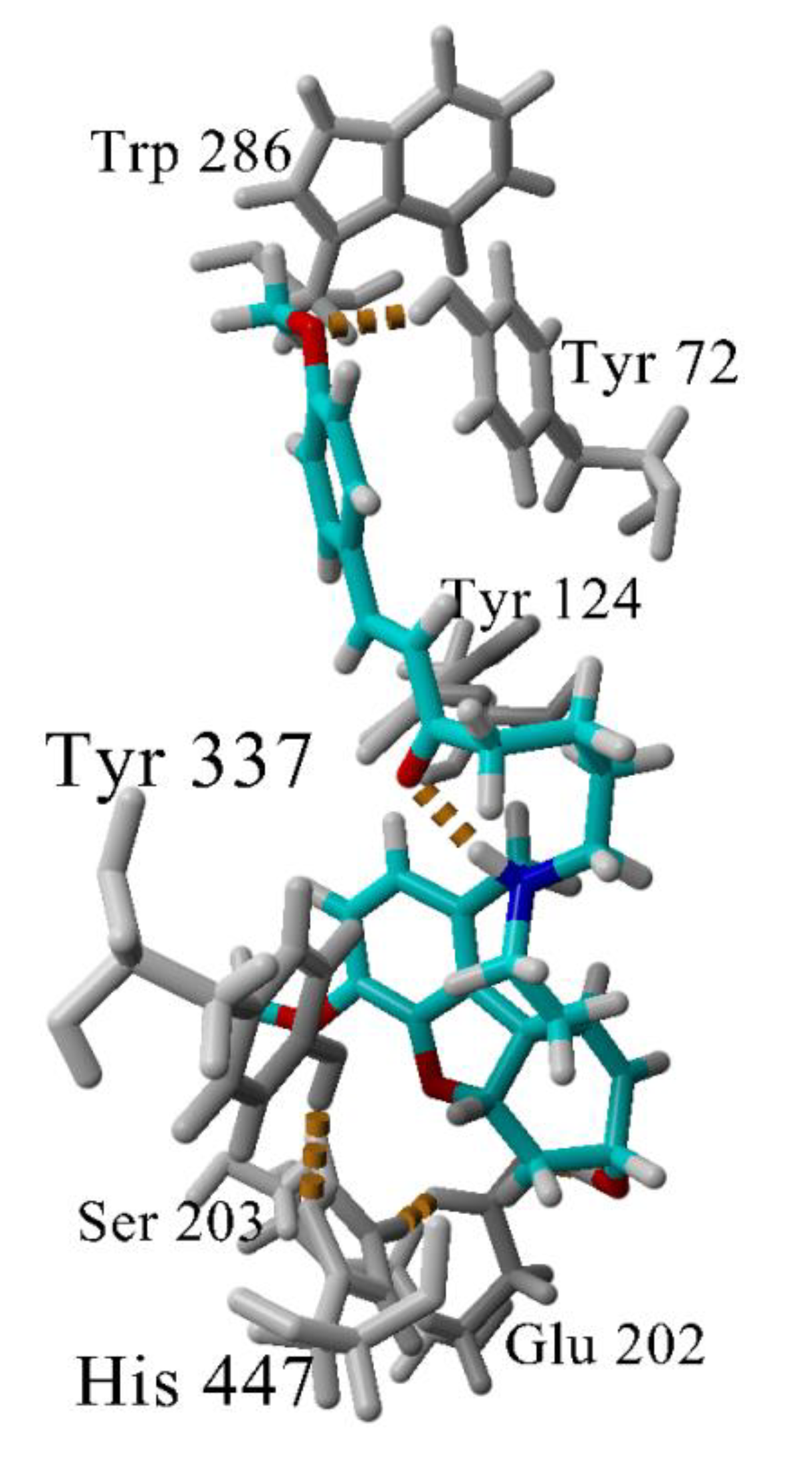

The interactions between the most active GAL-CU hybrid 4b with the enzyme AChE were investigated further by molecular dynamics (MD), simulating the complex 4b-AChE for 100 ns in explicit water molecules as a solvent. The compound remained inserted within the binding site and the complex was stable during the simulation. The analysis of the MD trajectory in the vicinity of the phenyl –OCH3 revealed that the O-atom makes an additional hydrogen bond with Tyr72 (Figure 7) which is absent in the complex 4a-AChE. This additional hydrogen bond might be crucial for the better binding to the enzyme.

3. Discussion

A combinatorial library of 72 GAL-CU hybrid compounds was designed in the present study as dual-site binding AChE inhibitors. They were constructed from GAL binding core, eight aromatic substituents mimicking the CU molecule and nine linkers, gathered in five groups. Initially, the compounds were screened for GI absorption, BBB permeability and target specificity. Forty-four compounds passed these tests and moved to molecular docking on AChE. The GoldScores of the tested compounds showed that all of them were potential good binders, better than GAL and CU themselves. The compounds were checked for synthetic feasibility and 14 of them were selected for further synthesis. The synthesized hybrids were tested initially for neurotoxicity on Neuro-2A cells, and those of them that were less toxic than CU underwent a test for affinity to AChE. The anti-AChE tests showed that all five hybrids were between 41 and 186 times more active than GAL.

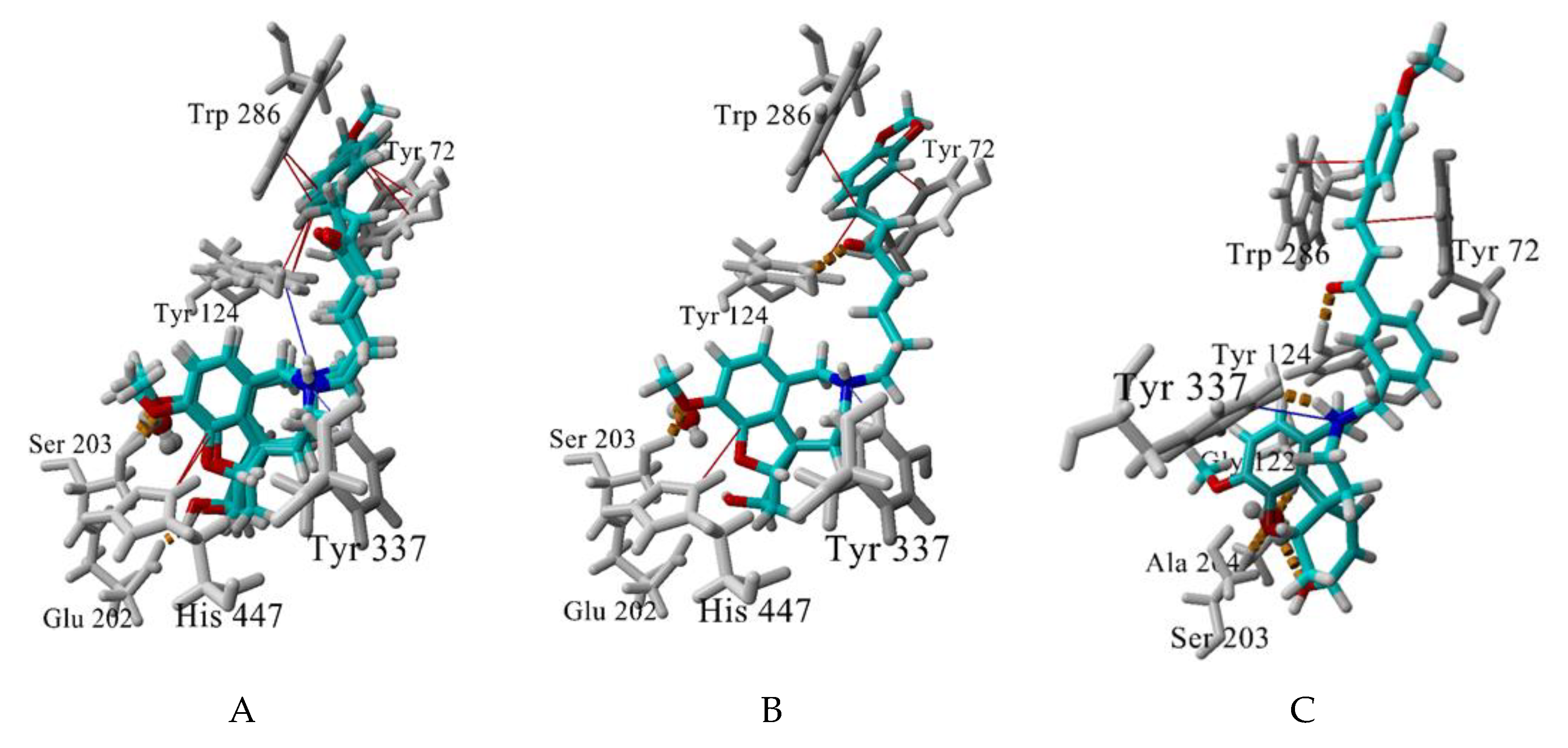

The best-scored docking poses of the tested for AChE affinity compounds 4a, 4b, 4e, 4f and 8b and their interactions with the enzyme are visualised at Figure 8. The GAL binding core is well embedded in the bottom of AChE gorge, forming a dense network of hydrogen bonds: between GAL’s ammonium group and Tyr337, between OCH3 and Ser203, and between OH and Glu202. The structural water molecule here is involved in the network as well. A cation-π interaction is formed between the positively charged ammonium atom and Tyr337 and π-π contacts between the aromatic ring and His447 (Figure 8A,B). An extra T-shaped π-π contact is formed between the aromatic rings of 4a, 4b and 4f and Tyr124 (Figure 8A).
The linker also takes part in the interaction with the enzyme. The sp2 C atoms make p-π contacts with Tyr72 and/or Trp286. Additionally, the oxygen atom of the carbonyl group forms a hydrogen bond with Tyr124 (4e and 8b, Figure 8B,C). Surprisingly, no π-π stacking was observed between the linker’s benzene and any of the aromatic residues in the binding site. The terminal aromatic moieties fit well into the PAS. There are two different orientations, but all of them make π-π stacking with Trp286 and/or Tyr72.
The newly synthesized GAL-CU hybrids are weak bases, highly lipophilic, moderate or weakly ionized at physiological pH. They bind to plasma proteins in >90%, distribute extensively, cross the BBB, and are cleared slowly with half-lives up to 12 h.
A special attention deserves compound 4b as the most active and the least toxic compound in the set. It is very close to 4a and 4f, having only one additional methoxy group bound in the terminal phenyl ring. The molecular docking did not detect any significant difference between 4a, 4b and 4f in their interactions with the enzyme AChE. However, the two-and-a-half-fold difference in the activities compared to 4a made us look at the complex 4b-AChE by MD. The MD simulation showed that the phenyl -OCH3 group of 4b forms an additional hydrogen bond with Tyr72 (Figure 7). At some of the initial frames, His287 also is coming quite close to -OCH3 but not enough to form a long-lasting hydrogen bond. The additional hydrogen bond with Tyr72 which is absent in the complex 4a-AChE explains the better binding of 4b to AChE.
In summary, the designed, synthesized and tested in the present study hybrid molecules between GAL and CU, showed higher affinities to AChE and less neurotoxicities than both galantamine and curcumin themselves. The novel structures have optimal ADME properties and are able to cross the BBB. They could be considered as perspective multi-target drug candidates. The most active compound 4b will be directed to more detailed in vitro and in vivo studies.

4. Materials and Methods

4.1. Compounds

Galantamine hydrobromide was purchased from Galen-N Ltd., Sofia, Bulgaria. 1,5-Pentandiol, 98%; 1,3-benzenedimethanol, 98%; acetophenone, 98%; benzaldehyde, 98%; 4-methoxybenzaldehyde, 98%; piperonyl alcohol, 98%; 4-methylbenzaldehyde, 97%; 3-methylbenzaldehyde, 97%; 3,4-dimethylbenzaldehyde; iodine, resublimiert p.a.; triphenylphosphine, 99%; L-(-)-proline, 99+%; tert-butyldimethylchlorsilan, 98%; manganese(IV) oxide, 88%, electrolytically precipitated, active; sodium hydride, 60% dispersion in mineral oil; pyridinium chlorochromate, 98%; lithium hydroxide monohydrate, 98+%; hydrobromic acid, pure, ca. 48 wt% solution in water were purchased from Acros Organics, Alfa Aeser or Merck, Sofia, Bulgaria.

4.2. ADME Prediction

Two free online servers were used to predict blood brain barrier (BBB) permeability of the studied compounds—SwissADME (http://www.swissadme.ch) [58] and BBB Predictor (https://www.cbligand.org/BBB/predictor.php) [59]. SwissADME server predicts permeability based on BOILED-Egg (brain or intestinal estimated permeation) method, based on the lipophilicity and polarity of small molecules [60]. The BBB predictor uses support vector machine (SVM) and LiCABEDS (ligand classifier of adaptively boosting ensemble decision stumps) algorithms on four types of fingerprints for 1593 compounds with known BBB permeability [61]. Additionally, GI absorption and PAINS (pan assay interference structures) alerts of the compounds were checked by SwissADME online platform. The GI absorption prediction is based on the BOILED-Egg method [60]. PAINS alerts help identification of frequent hitters or promiscuous compounds in many biochemical high-throughput screens based on substructural features [62].

4.3. Virtual Screening by Molecular Docking

The hybrid molecules were constructed with Avogadro software and minimized with MMFF94s force field, then structures were docked into the X-ray structure of human recombinant acetylcholinesterase (rhAChE, pdb ID: 4EY6, R = 2.40 Å) [20]. The docking simulations were performed by GOLD v.5.2.2 (CCDC Ltd., Cambridge, UK) using a protocol previously optimized in terms of scoring function, rigid/flexible ligand and binding site, radius of the binding site, presence/absence of a water molecule (HOH846) within the binding site, number of genetic algorithm (GA) runs [41,42,43,44]. The docking simulations in the present study were performed at the following settings: scoring function GoldScore, flexible ligand, flexible binding site, radius of the binding site 10 Å, a structural water molecule within the binding sire (HOH 846), 100 GA runs. The following amino acid residues were set as flexible during docking calculations: Tyr72, Asp74, Trp86, Tyr124, Ser125, Trp286, Phe297, Tyr337, Phe338, Tyr341. GAL from X-ray structure was used as a referent molecule. The best-scored compounds were analyzed for synthetic feasibility and protein-ligand interactions.

4.4. Neurotoxicity Test

Murine neuroblastoma Neuro-2A cells (German collection DSMZ, Braunschweig, Germany) were cultivated under standard conditions: complete medium (90% DMEM, 10% heat-inactivated FBS, and non-essential amino acids); 37 °C and 5% CO2 in fully humidified atmosphere. The cell line was kept in the logarithmic growth phase by splitting 1:4 once a week using trypsin/EDTA. About 30% of the cells grew like neuronal cells. For the experimental evaluation of the cytotoxicity Neuro-2A, cells were plated in 96-well flat-bottomed cell culture plates at the recommended density of 1 × 106 cells/25cm2. After 24 h, the cells were treated with various concentrations of the investigational compounds, and after 72-h incubation, an MTT-dye reduction assay was performed [63]. Briefly, at the end of incubation, an MTT stock solution (10mg/mL in PBS) was added (0.01 mL/well). Plates were further incubated at 37 °C for 4 h. Next, the formazan crystals were dissolved by the addition of 0.110 mL/well 5% formic acid in 2-propanol (v/v). Absorption was measured at 580nm wavelength on an automated ELISA reader Labexim LMR1. At least six wells per concentration were used, and data were processed using the GraphPad Prism 5.0 software 2.0 (San Diego, CA, USA).

4.5. Assessment of AChE Inhibitory Activity

AChE activity was assayed as described by Ellman et al. [64], with some modifications [65]. Fifteen μL of Electrophorus electricus AChE (Sigma-Aldrich, Darmstadt, Germany) in buffer phosphate (pH 7.6) and 15 μL of the tested compounds (1.4–4350 μM in methanol) were dissolved in 200 μL in the same buffer, and plated in 96-well plates. The mixtures were incubated for 30 min at room temperature before the addition of 30 μL of the substrate solution (15 μL 0.5 M DTNB, 15 μL 0.6 mM ATCI in buffer, pH 7.6). The absorbance was read on a Microplate Reader Biochrom EZ 800 at 403 nm, after three minutes. Enzyme activity was calculated as a percentage compared to an assay using a buffer without any inhibitor, according to the following equation:
AChE inhibition (%) = ((Abscontrol − Abssample)/Abscontrol) × 100
where Abscontrol is the absorbance of the control, containing 15 μL enzyme in buffer, 200 μL buffer and 15 μL solvent (methanol/water for GAL); Abssample is the absorbance of the sample, containing 15 μL enzyme in buffer, 200 μL buffer and 15 μL solution of the tested compound (in methanol/water for GAL).

4.6. Calculation of Physicochemical Properties and Prediction of Pharmacokinetic (PK) Parameters

The main physicochemical properties pKa, logP, logD7.4, PSA, number of HBD and HBA in the molecules of the tested compounds were calculated using ACD/logD v. 9.08 (ACD Inc., Toronto, Canada). As the novel hybrids are weak bases, at physiological pH they exist as cations as well as neutral molecules. The ionized fraction at pH = 7.4 (fBH+) was calculated according to the equation:
f B H + = 1 1 + 10 ( 7.4 − p K a ) .
The key PK parameters were predicted by quantitative structure-activity relationships (QSPRs) models derived previously [53,54,55,56,57]. Three PK parameters were modelled: the steady state volume of distribution (VDss), free fraction of drug in plasma (fu) and unbound clearance (CLu). The CL and half-life (t1/2) were calculated following the equations:
C L u = C L f u
t 1 / 2 = l n 2 × V D s s C L
The AChEI galantamine (GAL) is given as a reference compound.

4.7. Molecular Dynamics Protocol

The best-scored pose of the most active hybrid in complex with AChE was used as a starting structure for the MD simulation by Amber 18 [66]. The small molecule was parametrized using GAFF2.11 force field and AM1-BCC charges, and the complex was solvated in truncated octahedral box with TIP3P water and 0.15 M NaCl. The system was subjected to energy minimization, heating to 310 K, density equilibration, preproduction equilibration and production dynamics for 100 ns. Frames were saved every 0.1 ns.

Supplementary Materials

The supplementary material contains: synthesis and analytical data of compounds 4a–c,e–h; synthesis and analytical data of compounds 6a,b; synthesis and analytical data of compounds 8b,c,f,g,h; copies of 1H and 13C NMR spectra for the target compounds.

Author Contributions

Conceptualization: I.D.; Design of combinatorial library: I.D., G.S., I.P., A.L.; ADME and BBB screening: A.L., M.A.; Docking: A.L., M.A.; Synthesis: G.S., I.P.; Neurotoxicity test: T.A., A.L., S.K.; AChE Activity: D.Z.; PK Predictions: Z.D.Z.; MD simulations: M.A, S.I. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Bulgarian National Science Fund (Grant DN03/9/2016) and Grant No BG05M2OP001-1.001-0003, financed by the Science and Education for Smart Growth Operational Program (2014–2020) and co-financed by the European Union through the European Structural and Investment funds.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tata, A.M.; Velluto, L.; D’Angelo, C.; Reale, M. Cholinergic system dysfunction and neurodegenerative diseases: Cause or effect? CNS Neurol. Disord. Drug Targets 2014, 13, 1294–1303. [Google Scholar] [CrossRef] [PubMed]
  2. Inestrosa, N.C.; Dinamarca, M.C.; Alvarez, A. Amyloid-cholinesterase interactions. Implications for Alzheimer’s disease. FEBS J. 2008, 275, 625–632. [Google Scholar] [CrossRef]
  3. Rambaran, R.N.; Serpell, L.C. Amyloid fibrils. Abnormal protein assembly. Prion 2008, 2, 112–117. [Google Scholar] [CrossRef] [PubMed]
  4. Bartolucci, C.; Haller, L.A.; Jordis, U.; Fels, G.; Lamba, D. ProbingTorpedo californicaAcetylcholinesterase Catalytic Gorge with Two Novel Bis-functional Galanthamine Derivatives. J. Med. Chem. 2010, 53, 745–751. [Google Scholar] [CrossRef] [PubMed]
  5. Kozurkova, M.; Hamulakova, S.; Gazova, Z.; Paulíková, H.; Kristian, P. Neuroactive Multifunctional Tacrine Congeners with Cholinesterase, Anti-Amyloid Aggregation and Neuroprotective Properties. Pharmaceuticals 2011, 4, 382–418. [Google Scholar] [CrossRef] [Green Version]
  6. Scherzer-Attali, R.; Pellarin, R.; Convertino, M.; Frydman-Marom, A.; Egoz-Matia, N.; Peled, S.; Levy-Sakin, M.; Shalev, D.E.; Caflisch, A.; Gazit, E.; et al. Complete Phenotypic Recovery of an Alzheimer’s Disease Model by a Quinone-Tryptophan Hybrid Aggregation Inhibitor. PLoS ONE 2010, 5, e11101. [Google Scholar] [CrossRef] [PubMed]
  7. Bolea, I.; Juárez-Jiménez, J.; Ríos, C.D.L.; Chioua, M.; Pouplana, R.; Estarellas, C.; Unzeta, M.; Marco-Contelles, J.; Samadi, A. Synthesis, Biological Evaluation, and Molecular Modeling of Donepezil andN-[(5-(Benzyloxy)-1-methyl-1H-indol-2-yl)methyl]-N-methylprop-2-yn-1-amine Hybrids as New Multipotent Cholinesterase/Monoamine Oxidase Inhibitors for the Treatment of Alzheimer’s Disease. J. Med. Chem. 2011, 54, 8251–8270. [Google Scholar] [CrossRef]
  8. Simoni, E.; Daniele, S.; Bottegoni, G.; Pizzirani, D.; Trincavelli, M.L.; Goldoni, L.; Tarozzo, G.; Reggiani, A.; Martini, C.; Piomelli, D.; et al. Combining Galantamine and Memantine in Multitargeted, New Chemical Entities Potentially Useful in Alzheimer’s Disease. J. Med. Chem. 2012, 55, 9708–9721. [Google Scholar] [CrossRef] [Green Version]
  9. Marco-Contelles, J.; Bautista-Aguilera, Ó.M.; Esteban, G.; Chioua, M.; Nikolic, K.; Agbaba, D.; Moraleda, I.; Iriepa, I.; Soriano, E.; Samadi, A. Multipotent cholinesterase/monoamine oxidase inhibitors for the treatment of Alzheimer’s disease: Design, synthesis, biochemical evaluation, ADMET, molecular modeling, and QSAR analysis of novel donepezil-pyridyl hybrids. Drug Des. Dev. Ther. 2014, 8, 1893–1910. [Google Scholar] [CrossRef] [Green Version]
  10. Wang, L.; Esteban, G.; Ojima, M.; Bautista-Aguilera, O.M.; Inokuchi, T.; Moraleda, I.; Iriepa, I.; Samadi, A.; Youdim, M.B.; Romero, A.; et al. Donepezil + propargylamine + 8-hydroxy- quinoline hybrids as new multifunctional metal-chelators, ChE and MAO inhibitors for the potential treatment of Alzheimer’s disease. Eur. J. Med. Chem. 2014, 80, 543–561. [Google Scholar] [CrossRef] [Green Version]
  11. Nepovimova, E.; Uliassi, E.; Korabecny, J.; Altamira, L.E.P.; Samez, S.; Pesaresi, A.; Garcia, G.E.; Bartolini, M.; Andrisano, V.; Bergamini, C.; et al. Multitarget Drug Design Strategy: Quinone–Tacrine Hybrids Designed To Block Amyloid-β Aggregation and To Exert Anticholinesterase and Antioxidant Effects. J. Med. Chem. 2014, 57, 8576–8589. [Google Scholar] [CrossRef] [PubMed]
  12. Korabecny, J.; Andrs, M.; Nepovimova, E.; Doležal, R.; Babkova, K.; Horova, A.; Maliňák, D.; Mezeiová, E.; Gorecki, L.; Hepnarova, V.; et al. 7-Methoxytacrine-p-Anisidine Hybrids as Novel Dual Binding Site Acetylcholinesterase Inhibitors for Alzheimer’s Disease Treatment. Molecules 2015, 20, 22084–22101. [Google Scholar] [CrossRef] [PubMed]
  13. Singh, M.; Kaur, M.; Chadha, N.; Silakari, O. Hybrids: A new paradigm to treat Alzheimer’s disease. Mol. Divers. 2015, 20, 271–297. [Google Scholar] [CrossRef] [PubMed]
  14. Piazzi, L.; Rampa, A.; Bisi, A.; Gobbi, S.; Belluti, F.; Cavalli, A.; Bartolini, M.; Andrisano, V.; Valenti, P.; Recanatini, M. 3-(4-{[Benzyl(methyl)amino]methyl}phenyl)-6,7-dimethoxy-2H-2-chromenone (AP2238) Inhibits Both Acetylcholinesterase and Acetylcholinesterase-Induced β-Amyloid Aggregation: A Dual Function Lead for Alzheimer’s Disease Therapy. J. Med. Chem. 2003, 46, 2279–2282. [Google Scholar] [CrossRef] [PubMed]
  15. Hernández-Rodríguez, M.; Correa-Basurto, J.; Martínez-Ramos, F.; Padilla-Martínez, I.I.; Benítez-Cardoza, C.G.; Mera-Jiménez, E.; Rosales-Hernández, M.C. Design of Multi-Target Compounds as AChE, BACE1, and Amyloid-β1-42 Oligomerization Inhibitors: In Silico and In Vitro Studies. J. Alzheimer’s Dis. 2014, 41, 1073–1085. [Google Scholar] [CrossRef]
  16. Meena, P.; Nemaysh, V.; Khatri, M.; Manral, A.; Luthra, P.M.; Tiwari, M. Synthesis, biological evaluation and molecular docking study of novel piperidine and piperazine derivatives as multi-targeted agents to treat Alzheimer’s disease. Bioorganic Med. Chem. 2015, 23, 1135–1148. [Google Scholar] [CrossRef]
  17. Guzior, N.; Bajda, M.; Skrok, M.; Kurpiewska, K.; Lewiński, K.; Brus, B.; Pišlar, A.; Kos, J.; Gobec, S.; Malawska, B. Development of multifunctional, heterodimeric isoindoline-1,3-dione derivatives as cholinesterase and β-amyloid aggregation inhibitors with neuroprotective properties. Eur. J. Med. Chem. 2015, 92, 738–749. [Google Scholar] [CrossRef]
  18. Basile, L. Virtual Screening in the Search of New and Potent Anti-Alzheimer Agents; Humana Press: New York, NY, USA, 2017; Volume 132, pp. 107–137. [Google Scholar]
  19. Hung, S.-Y.; Fu, W.-M. Drug candidates in clinical trials for Alzheimer’s disease. J. Biomed. Sci. 2017, 24, 47. [Google Scholar] [CrossRef]
  20. Cheung, J.; Rudolph, M.J.; Burshteyn, F.; Cassidy, M.S.; Gary, E.N.; Love, J.; Franklin, M.C.; Height, J.J. Structures of Human Acetylcholinesterase in Complex with Pharmacologically Important Ligands. J. Med. Chem. 2012, 55, 10282–10286. [Google Scholar] [CrossRef]
  21. Dajas-Bailador, F.; Heimala, K.; Wonnacott, S. The Allosteric Potentiation of Nicotinic Acetylcholine Receptors by Galantamine Is Transduced into Cellular Responses in Neurons: Ca2+ Signals and Neurotransmitter Release. Mol. Pharmacol. 2003, 64, 1217–1226. [Google Scholar] [CrossRef] [Green Version]
  22. Takata, K.; Kitamura, Y.; Saeki, M.; Terada, M.; Kagitani, S.; Kitamura, R.; Fujikawa, Y.; Maelicke, A.; Tomimoto, H.; Taniguchi, T.; et al. Galantamine-induced Amyloid-β Clearance Mediated via Stimulation of Microglial Nicotinic Acetylcholine Receptors. J. Boil. Chem. 2010, 285, 40180–40191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Han, S.; Sweeney, J.; Bachman, E.; Schweiger, E.; Forloni, G.; Coyle, J.; Davis, B.; Joullie, M. Chemical and pharmacological characterization of galanthamine, an acetylcholinesterase inhibitor, and its derivatives. A potential application in Alzheimer’s disease? Eur. J. Med. Chem. 1992, 27, 673–687. [Google Scholar] [CrossRef]
  24. Poschalko, A.; Welzig, S.; Treu, M.; Nerdinger, S.; Mereiter, K.; Jordis, U. Synthesis of (±)-6Hbenzofuro [3a,3,2,ef][3] benzazepine, an unnatural analog of (-)-galanthamine. Tetrahedron 2002, 58, 1513–1518. [Google Scholar] [CrossRef]
  25. Jordis, U.; Treu, M.; Mereiter, K. 12H-[2]-Benzothiepino[6,5a,5-bc]benzofuran: Synthesis of a Sulfur-Analog of Galanthamine. HETEROCYCLES 2001, 55, 1727. [Google Scholar] [CrossRef]
  26. Bores, G.M.; Kosley, R.W. Galanthamine derivatives for the treatment of Alzheimer’s disease. Drugs Future 1996, 21, 621–635. [Google Scholar]
  27. Mary, A.; Renko, D.Z.; Guillou, C.; Thal, C. Potent acetylcholinesterase inhibitors—design, synthesis, and structure-activity relationship of bisinteracting ligands in the galanthamine series. Bioorg. Med. Chem. 1998, 6, 1835–1850. [Google Scholar] [CrossRef]
  28. Guillou, C.; Mary, A.; Renko, D.Z.; Gras, E.; Thal, C. Potent acetylcholinesterase inhibitors: Design, synthesis and structure-activity relationships of alkylene linked bis-galanthamine and galanthamine-galanthaminium salts. Bioorganic Med. Chem. Lett. 2000, 10, 637–639. [Google Scholar] [CrossRef]
  29. Herlem, D.; Martin, M.T.; Thal, C.; Guillou, C. Synthesis and structure-activity relationships of open D-Ring galanthamine analogues. Bioorganic Med. Chem. Lett. 2003, 13, 2389–2391. [Google Scholar] [CrossRef]
  30. Czollner, L.; Frohlich, J.; Jordis, U.; Kalz, B.; Frantsits, W.J.; Welzig, S. Novel Derivatives of 4a,5,9,10,11,12-hexahydrobenzofuro[3a,3,2][2]-benzazepine, Method for the Production Thereof and use Thereof in the Production of Medicaments. Int. Patent WO 2005/030333, 7 April 2005. [Google Scholar]
  31. Jia, P.; Sheng, R.; Zhang, J.; Fang, L.; He, Q.; Yang, B.; Hu, Y. Design, synthesis and evaluation of galanthamine derivatives as acetylcholinesterase inhibitors. Eur. J. Med. Chem. 2009, 44, 772–784. [Google Scholar] [CrossRef]
  32. Zhao, L.N.; Chiu, S.W.; Benoit, J.; Chew, L.Y.; Mu, Y. The effect of curcumin on the stability of Aβ dimers. J. Phys. Chem. B 2012, 116, 7428–7435. [Google Scholar] [CrossRef]
  33. Masuda, Y.; Fukuchi, M.; Yatagawa, T.; Tada, M.; Takeda, K.; Irie, K.; Akagi, K.; Monobe, Y.; Imazawa, T.; Takegoshi, K. Solid-state NMR analysis of interaction sites of curcumin and 42-residue amyloid beta-protein fibrils. Bioorg. Med. Chem. 2011, 19, 5967–5974. [Google Scholar] [CrossRef]
  34. Orlando, R.; Gonzales, A.M.; Royer, R.E.; Deck, L.M.; Jagt, D.L.V. A Chemical Analog of Curcumin as an Improved Inhibitor of Amyloid Abeta Oligomerization. PLoS ONE 2012, 7, e31869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Balasubramanian†, K. Molecular Orbital Basis for Yellow Curry Spice Curcumin’s Prevention of Alzheimer’s Disease. J. Agric. Food Chem. 2006, 54, 3512–3520. [Google Scholar] [CrossRef] [PubMed]
  36. Atanasova, M.; Stavrakov, G.; Philipova, I.; Zheleva-Dimitrova, D.; Yordanov, N.; Doytchinova, I. Galantamine derivatives with indole moiety: Docking, design, synthesis and acetylcholinesterase inhibitory activity. Bioorganic Med. Chem. 2015, 23, 5382–5389. [Google Scholar] [CrossRef] [PubMed]
  37. Stavrakov, G.; Philipova, I.; Zheleva-Dimitrova, D.; Atanasova, M.; Konstantinov, S.; Doytchinova, I. Docking-based Design of Galantamine Derivatives with Dual-site Binding to Acetylcholinesterase. Mol. Informatics 2016, 35, 278–285. [Google Scholar] [CrossRef] [PubMed]
  38. Stavrakov, G.; Philipova, I.; Zheleva-Dimitrova, D.; Valkova, I.; Salamanova, E.; Konstantinov, S.; Doytchinova, I. Docking-based design and synthesis of galantamine-NDASH-camphane hybrids as inhibitors of acetylcholinesterase. Chem. Boil. Drug Des. 2017, 90, 709–718. [Google Scholar] [CrossRef] [PubMed]
  39. Atanasova, M.; Yordanov, N.; Dimitrov, I.; Berkov, S.; Doytchinova, I. Molecular Docking Study on Galantamine Derivatives as Cholinesterase Inhibitors. Mol. Informatics 2015, 34, 394–403. [Google Scholar] [CrossRef]
  40. McDougal, P.G.; Rico, J.G.; Oh, Y.I.; Condon, B.D. A convenient procedure for the monosilylation of symmetric 1,n-diols. J. Org. Chem. 1986, 51, 3388–3390. [Google Scholar] [CrossRef]
  41. Diez, D.; Nunez, M.G.; Beneitez, A.; Moro, R.F.; Marcos, I.S.; Basabe, P.; Broughton, H.B.; Urones, J.G. Organocatalytic cynthesis of an alkyltetrahydropyran. Synlett 2009, 3, 390–394. [Google Scholar] [CrossRef] [Green Version]
  42. Chong, J.M.; Heuft, M.A.; Rabbat, P. Solvent effects on the monobromination of alpha,omega-diols: A convenient preparation of omega-bromoalkanols. J. Org. Chem. 2000, 65, 5837–5838. [Google Scholar] [CrossRef]
  43. Kelkar, S.V.; Joshi, G.S.; Reddy, G.B.; Kulkarni, G.H. A Novel Approach to the Synthesis of 7(Z), 11(Z)-Nonacosadiene, Pheromone of Drosophila Melano Gaster and 9(Z)-Tricosene, Pheromone of Musca Domestica. Synth. Commun. 1989, 19, 1369–1379. [Google Scholar] [CrossRef]
  44. Wang, J.-F.; Lei, M.; Li, Q.; Ge, Z.-M.; Wang, X.; Li, R. A novel and efficient direct aldol condensation from ketones and aromatic aldehydes catalyzed by proline–TEA through a new pathway. Tetrahedron 2009, 65, 4826–4833. [Google Scholar] [CrossRef]
  45. Chen, L.; Tilley, J.; Trilles, R.V.; Yun, W.; Fry, D.; Cook, C.; Rowan, K.; Schwinge, V.; Campbell, R. N-acyl-L-phenylalanine derivatives as potent VLA-4 antagonists that mimic a cyclic peptide conformation. Bioorg. Med. Chem. Lett. 2002, 12, 137–140. [Google Scholar] [CrossRef]
  46. Roman, B.; De Ryck, T.; Verhasselt, S.; Bracke, M.; Stevens, C.V. Further studies on anti-invasive chemotypes: An excursion from chalcones to curcuminoids. Bioorganic Med. Chem. Lett. 2015, 25, 1021–1025. [Google Scholar] [CrossRef]
  47. Kumar, S.; Thorat, K.G.; Ravikanth, M. Synthesis and Properties of Covalently Linked AzaBODIPY–BODIPY Dyads and AzaBODIPY-(BODIPY)2 Triads. J. Org. Chem. 2017, 82, 6568–6577. [Google Scholar] [CrossRef]
  48. Ahmed, T.; Gilani, A.H. Inhibitory effect of curcuminoids on acetylcholinesterase activity and attenuation of scopolamine-induced amnesia may explain medicinal use of turmeric in Alzheimer’s disease. Pharmacol. Biochem. Behav. 2009, 91, 554–559. [Google Scholar] [CrossRef]
  49. Ghafourian, T.; Barzegar-Jalali, M.; Hakimiha, N.; Cronin, M.T.D.; Barzegar-Jalali, M. Quantitative structure-pharmacokinetic relationship modelling: Apparent volume of distribution. J. Pharm. Pharmacol. 2004, 56, 339–350. [Google Scholar] [CrossRef] [Green Version]
  50. Ghafourian, T.; Barzegar-Jalali, M.; Dastmalchi, S.; Khavarikhorasani, T.; Hakimiha, N.; Nokhodchi, A. QSPR models for the prediction of apparent volume of distribution. Int. J. Pharm. 2006, 319, 82–97. [Google Scholar] [CrossRef]
  51. Lombardo, F.; Obach, R.S.; DiCapua, F.M.; Bakken, G.A.; Lu, J.; Potter, D.M.; Gao, F.; Miller, M.D.; Zhang, Y. Hibrid mixture discriminant analysis—random forest computational model for the prediction of volume of distribution of drugs in human. J. Med. Chem. 2006, 49, 2262–2267. [Google Scholar] [CrossRef]
  52. Smith, D.A.; Allerton, C.; Kalgutkar, A.; van der Waterbeemd, H.; Walker, D.K. Pharmacokinetics and Metabolism in Drug Design, 3rd ed.; Wiley-VCH: Weinheim, Germany, 2012; p. 70. [Google Scholar]
  53. Zhivkova, Z.; Mandova, T.; Doytchinova, I. Quantitative Structure—Pharmacokinetics Relationships Analysis of Basic Drugs: Volume of Distribution. J. Pharm. Pharm. Sci. 2015, 18, 515–527. [Google Scholar] [CrossRef] [Green Version]
  54. Obach, R.S.; Lombardo, F.; Waters, N. Trend Analysis of a Database of Intravenous Pharmacokinetic Parameters in Humans for 670 Drug Compounds. Drug Metab. Dispos. 2008, 36, 1385–1405. [Google Scholar] [CrossRef] [Green Version]
  55. Zhivkova, Z. Quantitative structure—Pharmacokinetics relationship for the steady state volume of distribution of basic and neutral drugs. J. Pharm. Pharm. Sci. 2018, 7, 94–105. [Google Scholar]
  56. Zhivkova, Z. Quantitative structure—Pharmacokinetics relationships for plasma protein binding of basic drugs. J. Pharm. Pharm. Sci. 2017, 20, 349–359. [Google Scholar] [CrossRef] [PubMed]
  57. Zhivkova, Z. Quantitative structure—Pharmacokinetics relationships for clearance of basic drugs with consideration of the major elimination pathay. J. Pharm. Pharm. Sci. 2017, 20, 135–137. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Daina, A.; Michielin, O.; Zoete, V. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci. Rep. 2017, 7, 42717. [Google Scholar] [CrossRef] [Green Version]
  59. Liu, H.; Wang, L.; Lv, M.; Pei, R.; Li, P.; Pei, Z.; Wang, Y.; Su, W.; Xie, X.-Q. AlzPlatform: An Alzheimer’s Disease Domain-Specific Chemogenomics Knowledgebase for Polypharmacology and Target Identification Research. J. Chem. Inf. Model. 2014, 54, 1050–1060. [Google Scholar] [CrossRef]
  60. Daina, A.; Zoete, V. A BOILED-Egg To Predict Gastrointestinal Absorption and Brain Penetration of Small Molecules. ChemMedChem 2016, 11, 1117–1121. [Google Scholar] [CrossRef] [Green Version]
  61. Ma, C.; Wang, L.; Xie, X.-Q. Ligand Classifier of Adaptively Boosting Ensemble Decision Stumps (LiCABEDS) and Its Application on Modeling Ligand Functionality for 5HT-Subtype GPCR Families. J. Chem. Inf. Model. 2011, 51, 521–531. [Google Scholar] [CrossRef] [Green Version]
  62. Whitty, A. Growing PAINS in academic drug discovery. Futur. Med. Chem. 2011, 3, 797–801. [Google Scholar] [CrossRef] [Green Version]
  63. Momekov, G.; Ferdinandov, D.; Bakalova, A.; Zaharieva, M.; Konstantinov, S.; Karaivanova, M. In vitro toxicological evaluation of a dinuclear platinum(II) complex with acetate ligands. Arch. Toxicol. 2006, 80, 555–560. [Google Scholar] [CrossRef] [PubMed]
  64. Ellman, G.L.; Courtney, K.; Andres, V.; Featherstone, R.M. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95. [Google Scholar] [CrossRef]
  65. Ortiz, J.E.; Berkov, S.; Pigni, N.B.; Theoduloz, C.; Roitman, G.; Tapia, A.; Bastida, J.; Feresin, G.E. Wild Argentinian Amaryllidaceae, a New Renewable Source of the Acetylcholinesterase Inhibitor Galanthamine and Other Alkaloids. Molecules 2012, 17, 13473–13482. [Google Scholar] [CrossRef] [Green Version]
  66. Case, D.A.; Ben-Shalom, I.Y.; Brozell, S.R.; Cerutti, D.S.; Cheatham, T.E., III; Cruzeiro, V.W.D.; Darden, T.A.; Duke, R.E.; Ghoreishi, D.; Gilson, M.K.; et al. AMBER 2018; University of California: San Francisco, CA, USA, 2018. [Google Scholar]
Sample Availability: Samples of the compounds 4a–c,e–h, 6a,b, 8b,c,f,g,h are available from the authors.
Molecules 25 03341 g001 550

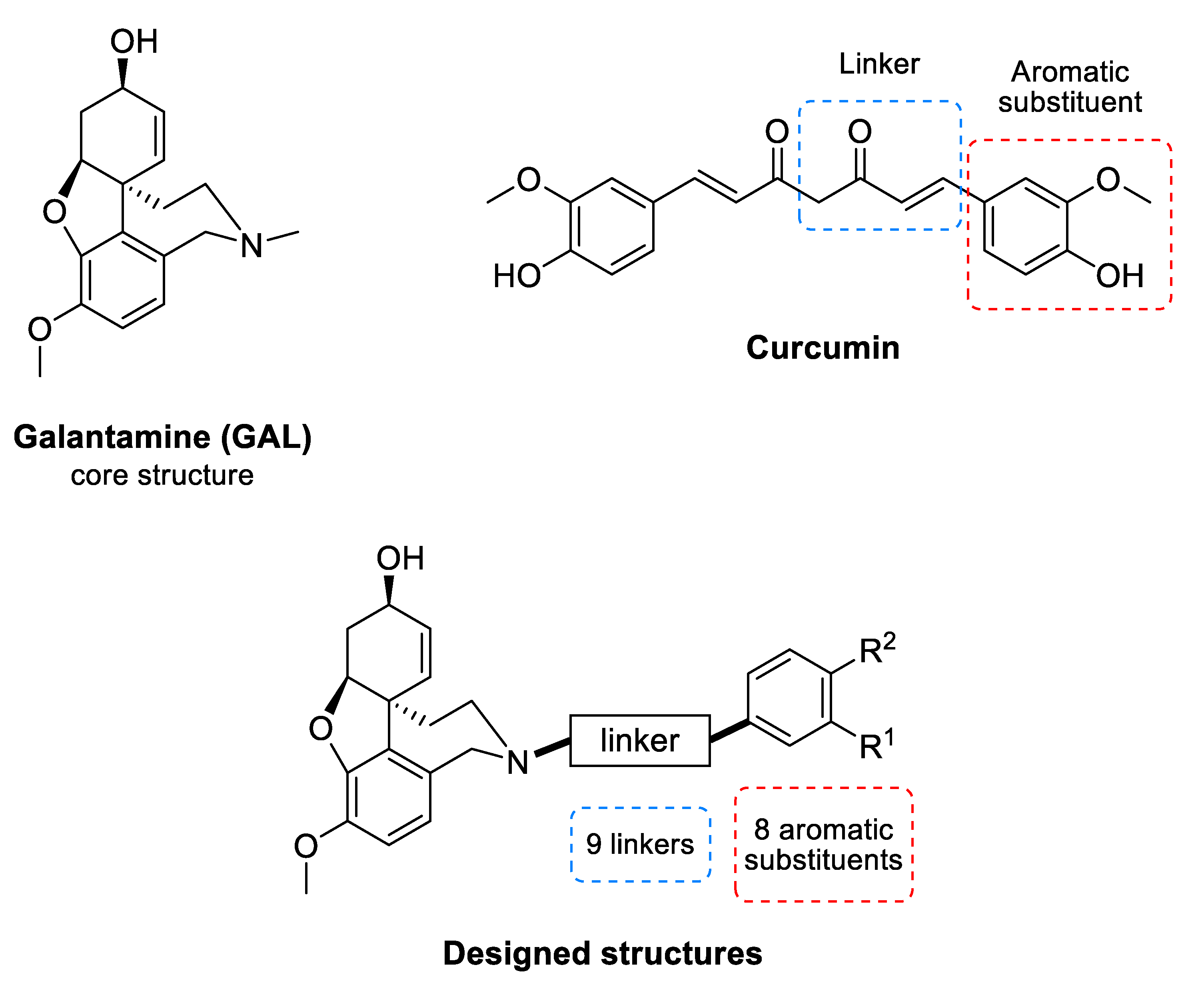

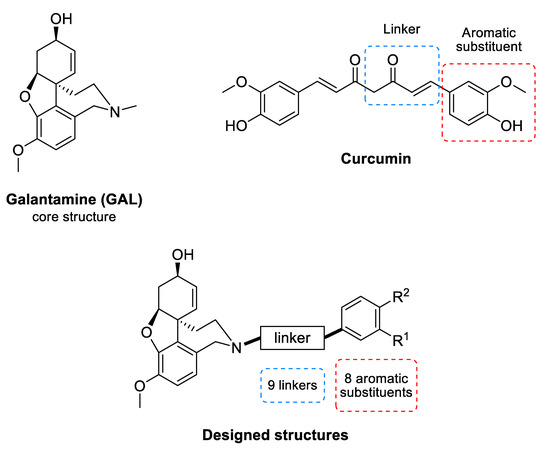

Figure 1. Common structure of the designed GAL-CU hybrid molecules.
Figure 1. Common structure of the designed GAL-CU hybrid molecules.
Molecules 25 03341 g001
Molecules 25 03341 g002 550

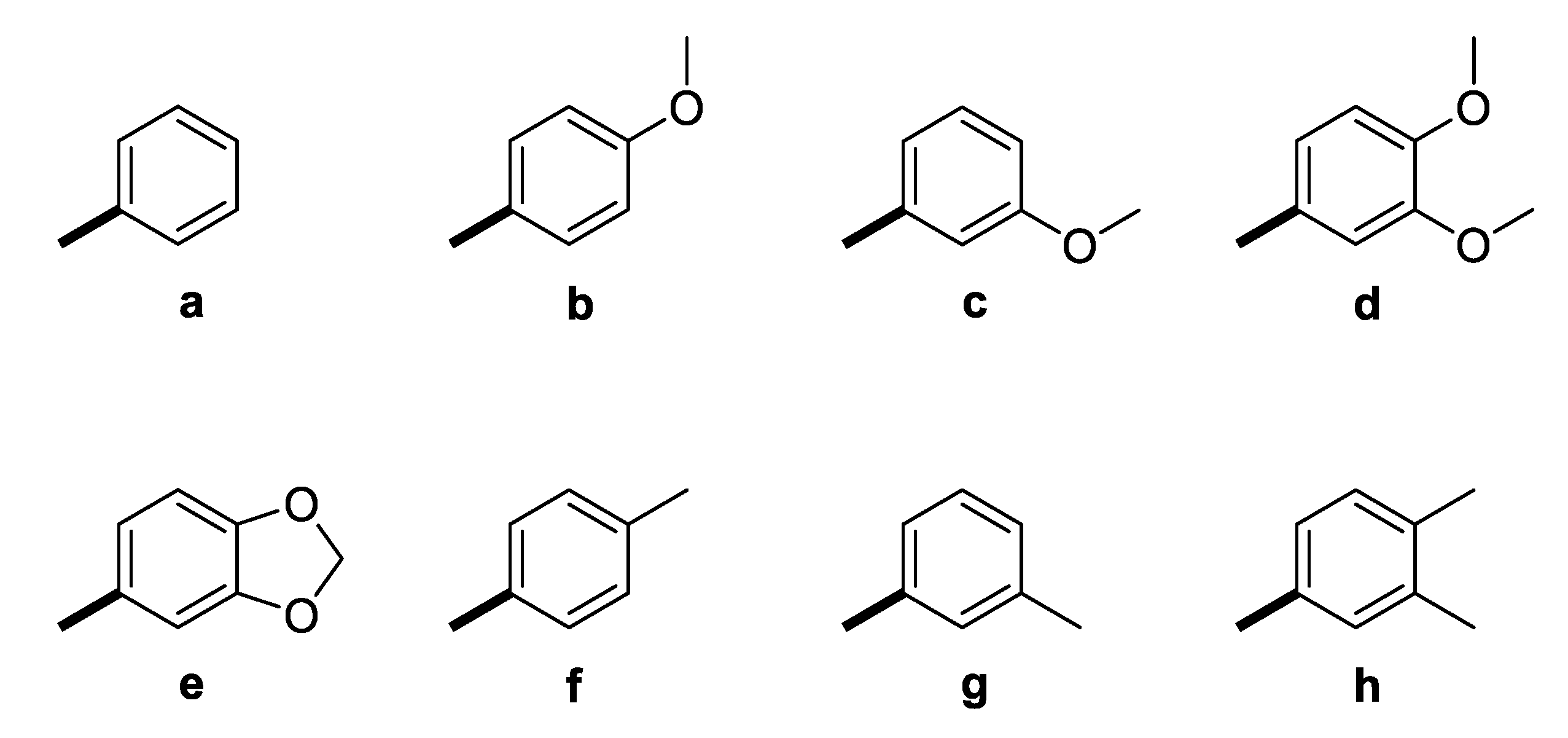

Figure 2. Aromatic substituents (Ar) used in the designed GAL-CU hybrid molecules.
Figure 2. Aromatic substituents (Ar) used in the designed GAL-CU hybrid molecules.
Molecules 25 03341 g002
Molecules 25 03341 g003 550
Figure 3. Linkers used in the designed GAL-CU hybrid molecules.
Figure 3. Linkers used in the designed GAL-CU hybrid molecules.
Molecules 25 03341 g003
Molecules 25 03341 g004 550
Figure 4. Retrosynthetic analysis of compounds 4a–c,e–h.
Figure 4. Retrosynthetic analysis of compounds 4a–c,e–h.
Molecules 25 03341 g004
Molecules 25 03341 sch001 550
Scheme 1. Attempted synthesis of iodo-linkers.
Scheme 1. Attempted synthesis of iodo-linkers.
Molecules 25 03341 sch001
Molecules 25 03341 sch002 550
Scheme 2. Synthesis of compounds 4a–c,e–h via bromo-linkers.
Scheme 2. Synthesis of compounds 4a–c,e–h via bromo-linkers.
Molecules 25 03341 sch002
Molecules 25 03341 g005 550
Figure 5. Retrosynthetic analysis of compounds 6a,b.
Figure 5. Retrosynthetic analysis of compounds 6a,b.
Molecules 25 03341 g005
Molecules 25 03341 sch003 550
Scheme 3. Synthesis of 6a via an iodo-linker.
Scheme 3. Synthesis of 6a via an iodo-linker.
Molecules 25 03341 sch003
Molecules 25 03341 sch004 550
Scheme 4. Synthesis of 6b via a bromo-linker.
Scheme 4. Synthesis of 6b via a bromo-linker.
Molecules 25 03341 sch004
Molecules 25 03341 g006 550
Figure 6. Retrosynthetic analysis of compounds 8b,c,f,g,h.
Figure 6. Retrosynthetic analysis of compounds 8b,c,f,g,h.
Molecules 25 03341 g006
Molecules 25 03341 sch005 550
Scheme 5. Synthesis of 8b,c,f,g,h.
Scheme 5. Synthesis of 8b,c,f,g,h.
Molecules 25 03341 sch005
Molecules 25 03341 g007 550
Figure 7. Hydrogen bonds (in yellow dashes) in the complex 4b-AChE. Most of the time, the GAL’s ammonium group makes a hydrogen bond with Tyr337. At the given snapshot (45 ns), the N-atom makes an intramolecular hydrogen bond with the linker carbonyl oxygen. A second hydrogen bond is formed between the methoxyphenyl O-atom and Tyr72. The latter bond determines the higher affinity of 4b to AChE.
Figure 7. Hydrogen bonds (in yellow dashes) in the complex 4b-AChE. Most of the time, the GAL’s ammonium group makes a hydrogen bond with Tyr337. At the given snapshot (45 ns), the N-atom makes an intramolecular hydrogen bond with the linker carbonyl oxygen. A second hydrogen bond is formed between the methoxyphenyl O-atom and Tyr72. The latter bond determines the higher affinity of 4b to AChE.
Molecules 25 03341 g007
Molecules 25 03341 g008 550
Figure 8. Best-scored docking poses between the compounds 4a,b,f (A), 4e (B), and 8f (C) and AChE. Hydrogen bonds are shown in yellow dashes, cation-π interactions are shown in blue lines and π-π (including p-π) interactions, are given in red lines. The structural water molecule within the binding site is presented in ball-and-stick. Interactions are visualized by YASARA (http://www.yasara.org).
Figure 8. Best-scored docking poses between the compounds 4a,b,f (A), 4e (B), and 8f (C) and AChE. Hydrogen bonds are shown in yellow dashes, cation-π interactions are shown in blue lines and π-π (including p-π) interactions, are given in red lines. The structural water molecule within the binding site is presented in ball-and-stick. Interactions are visualized by YASARA (http://www.yasara.org).
Molecules 25 03341 g008
Table
Table 1. GoldScore, neurotoxicity and affinity to AChE of the GAL-CU hybrids. The IC50 values of the hybrids, less toxic than CU, are given in bold. The binding affinity to AChE was measured only for the less toxic compounds.
Table 1. GoldScore, neurotoxicity and affinity to AChE of the GAL-CU hybrids. The IC50 values of the hybrids, less toxic than CU, are given in bold. The binding affinity to AChE was measured only for the less toxic compounds.
IDGoldScoreIC50 µM Neuro-2AIC50 µM eeAChETimes More Active Than GAL
8c114.5425.55--
6a114.5012.14--
8g111.9217.80--
6b111.157.91--
8f109.2224.32--
8h108.9525.00--
8b104.0128.870.08641
4h96.9821.93--
4e96.0742.910.03698
4f95.0534.350.033110
4b94.3152.530.020186
4a93.7430.650.04675
4g90.7123.68--
4c88.2824.11--
GAL74.56 a>50 a3.5201
CU88.9326.3067.69 b
a [37]; b [48].
Table
Table 2. Physicochemical properties and PK parameters of the active GAL-CU hybrids.
Table 2. Physicochemical properties and PK parameters of the active GAL-CU hybrids.
Parameter4a4b4e4f8bGAL
Mw459.58489.60503.59473.60523.62287.35
pKa7.787.777.777.776.587.92
logP4.53 ± 0.84.48 ± 0.814.64 ± 0.854.99 ± 0.804.9 ± 0.851.75
logD7.43.973.924.094.434.831.12
PSA59.0068.2377.4659.0068.2341.93
HBD111111
HBA567564
fBH+0.710.700.700.700.130.77
VDssL/kg4.714.955.885.311.852.30 a
fu0.0820.0850.0940.0780.0290.83 a
CL, L/h/kg0.4660.4120.3880.4450.3050.336 a
t1/2, h7.018.3210.518.284.194.74
a [54].

Share and Cite

MDPI and ACS Style

Stavrakov, G.; Philipova, I.; Lukarski, A.; Atanasova, M.; Zheleva, D.; Zhivkova, Z.D.; Ivanov, S.; Atanasova, T.; Konstantinov, S.; Doytchinova, I. Galantamine-Curcumin Hybrids as Dual-Site Binding Acetylcholinesterase Inhibitors. Molecules 2020, 25, 3341. https://doi.org/10.3390/molecules25153341

AMA Style

Stavrakov G, Philipova I, Lukarski A, Atanasova M, Zheleva D, Zhivkova ZD, Ivanov S, Atanasova T, Konstantinov S, Doytchinova I. Galantamine-Curcumin Hybrids as Dual-Site Binding Acetylcholinesterase Inhibitors. Molecules. 2020; 25(15):3341. https://doi.org/10.3390/molecules25153341

Chicago/Turabian Style

Stavrakov, Georgi, Irena Philipova, Atanas Lukarski, Mariyana Atanasova, Dimitrina Zheleva, Zvetanka D. Zhivkova, Stefan Ivanov, Teodora Atanasova, Spiro Konstantinov, and Irini Doytchinova. 2020. "Galantamine-Curcumin Hybrids as Dual-Site Binding Acetylcholinesterase Inhibitors" Molecules 25, no. 15: 3341. https://doi.org/10.3390/molecules25153341

Article Metrics

Back to TopTop
